User Manual
Quick Installation Guide
Wireless N300 Mini Router
DIR-513A Mini Router
+Portable
+D-link One-Touch App Support
+Three modes support (Router/AP/Repeater)
+USB Power Supply

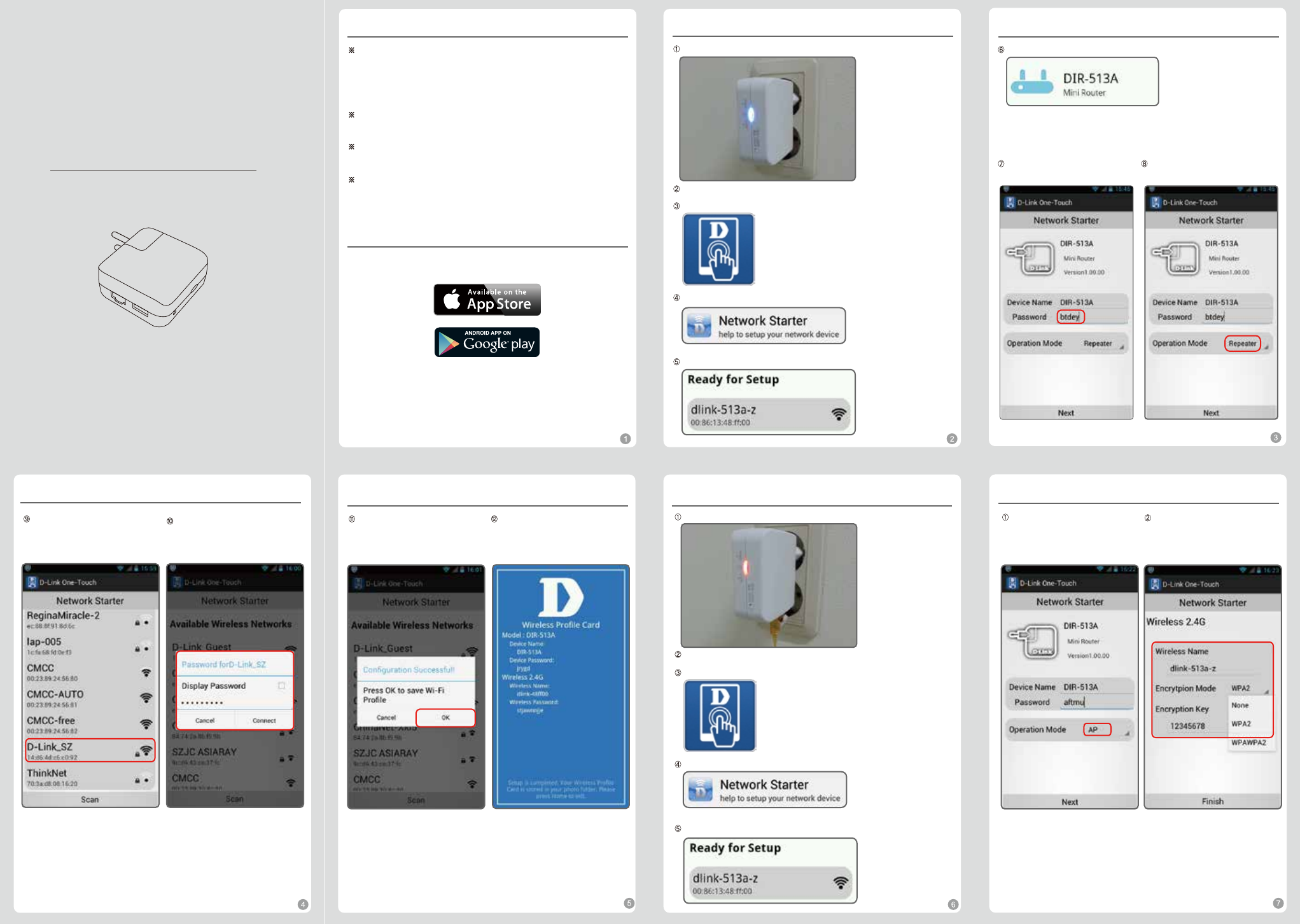

Repeater mode setting
Search for the SSID which you
want to extend and click to select.
Enter the wireless password.
Repeater mode setting
Finish the setting and confirm the
network configuration.
D-link One Touch App available
DIR-513A support D-link One-Touch App for setting easily.You should
search the key of "D-link One-Touch" from Google Play Market and App
Store to download the software.
DIR-513A mode
LED Indicators:
Blue:Repeater mode
Red:Router mode
Green:AP mode
Repeater mode:
DIR-513A would relay your wireless signal to extend your wireless.
Router mode:
DIR-513A would make a local network to share your Internet access.
AP mode:
DIR-513A would change your Ethernet signal to be wireless signal for
your mobile devices.
Repeater mode Setting
Insert the DIR-513A into the power socket.
Wait for about 10 seconds.
Click this ico from your mobile devices and open the D-link One-Touch App
Click to Set.
Find and click the SSID of the "dlink-513a-z"
AP/Router mode Setting
Insert the DIR-513A into the power socket.
Wait for about 10 seconds.
Click this ico from your mobile devices and open the D-link One-Touch App
Click to Set.
Find and click the SSID of the "dlink-513a-z"
Repeater Setting
Find and set the D-link DIR-513A.
Set the device password which is
used to control DIR-513A.
Change the mode to the Repeater
mode.
AP mode Setting
Set the device password which is
used to control DIR-513A .
Change the mode to the AP mode.
Enter the wireless name and
Encryption Key.
Select the Encryption mode which
you want to.
Please keep the picture of setting
profile for future using.
AP mode setting
Finish the setting and confirm the
network configuration.
Please keep the picture of setting
profile for future using.
Software upgrade mode
Click the software upgrade. Find and set D-link DIR-513A.
Software upgrade mode TECHNICAL SUPPORTTECHNICAL SUPPORT
Show the rate of upgrade
progress.
Finish the software upgrade.
Enter in the user name and
password.
Start download.
Router mode setting
Set the device password which is
used to control DIR-513A .
Change the mode to the Router
mode.
Select the connection type such
as DHCP,PPPoE or Static.
Router mode setting
Enter the wireless name and
Encryption Key.
Select the Encryption mode which
you want to.
Router mode setting
Please keep the picture of setting
profile for future using.
Finish the setting and confirm the
network configuration.
