D Link IR601B1 Wireless N 150 Home Router User Manual

D Link Corporation Wireless N 150 Home Router

User Manual

iD-Link DIR-601 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization
of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright © 2010 by D-Link Systems, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Systems, Inc.
Revision Date Description
1.0 October 8, 2009 • Revision A1 with rmware version 1.0
1.1 March 24, 2010 • Update to New Version 1.1
2.0 March 3, 2011 • Update Hardware
Preface
iiD-Link DIR-601 User Manual
Table of Contents
Preface ..........................................................................................i
Manual Revisions ........................................................................... i
Trademarks ...................................................................................... i
Product Overview ......................................................................1
Package Contents ......................................................................... 1
System Requirements ................................................................. 2
Features ............................................................................................ 3
Hardware Overview ..................................................................... 4
Connections ...........................................................................4
LEDs ...........................................................................................5
Installation ..................................................................................6
Before you Begin ........................................................................... 6
Wireless Installation Considerations ...................................... 7
Network Diagram ......................................................................... 8
Desktop Computer ....................................................................8
DIR-601 Router ...........................................................................8
Connect to Cable/DSL/Satellite Modem .............................. 9
Connect to Another Router ....................................................10
Getting Started ............................................................................12
Conguration .......................................................................... 13

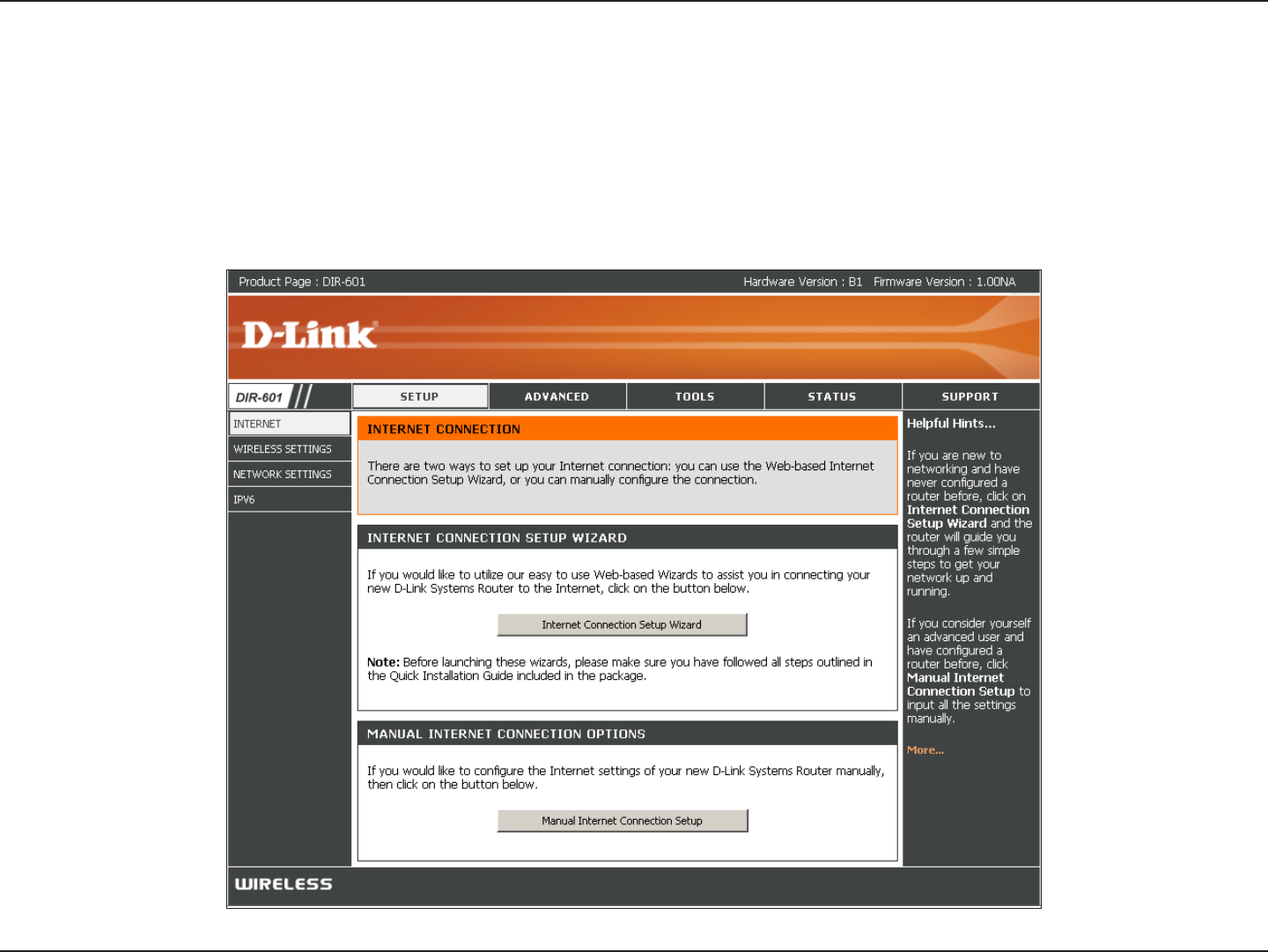

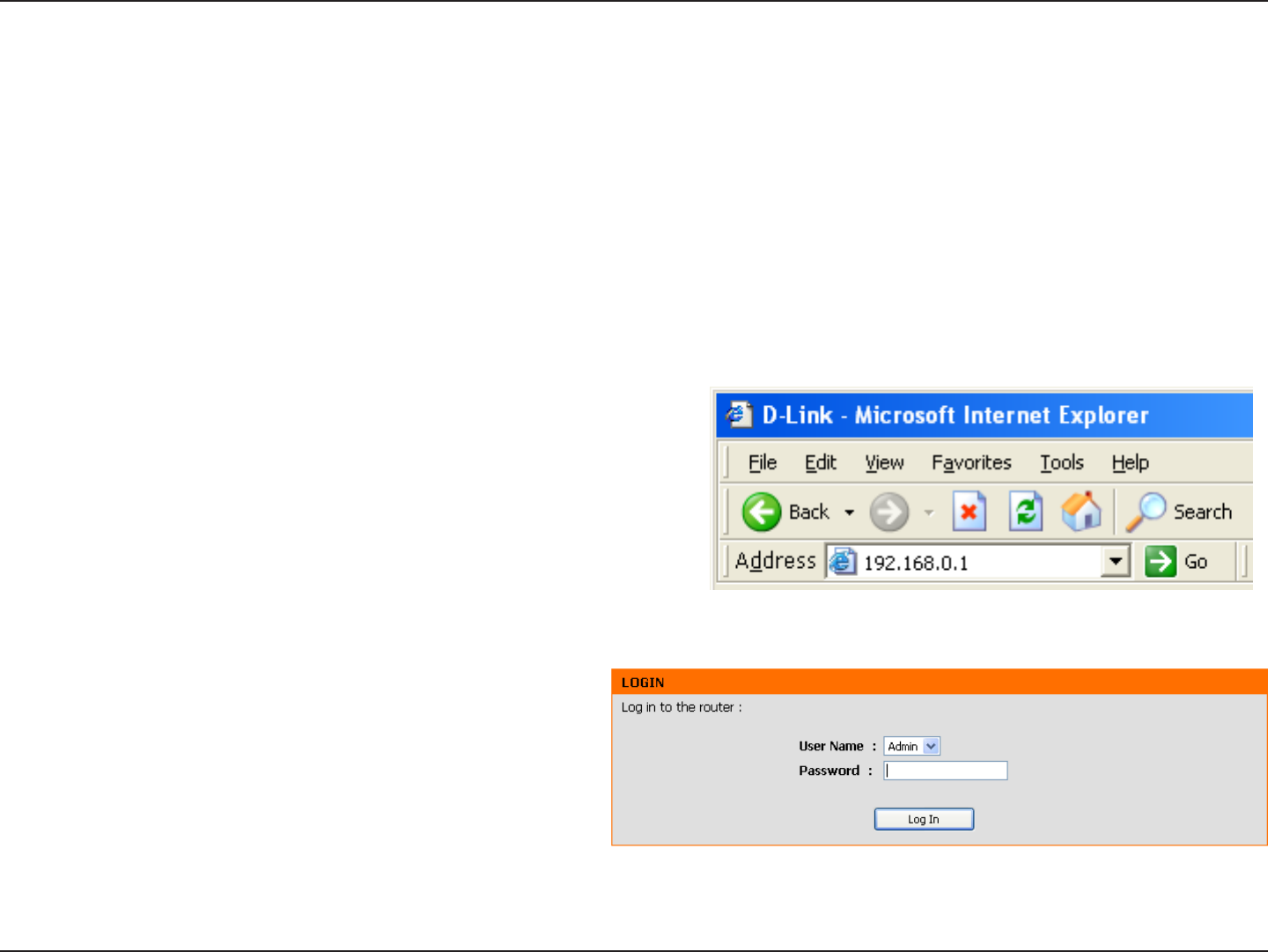

Web-based Conguration Utility ..........................................13

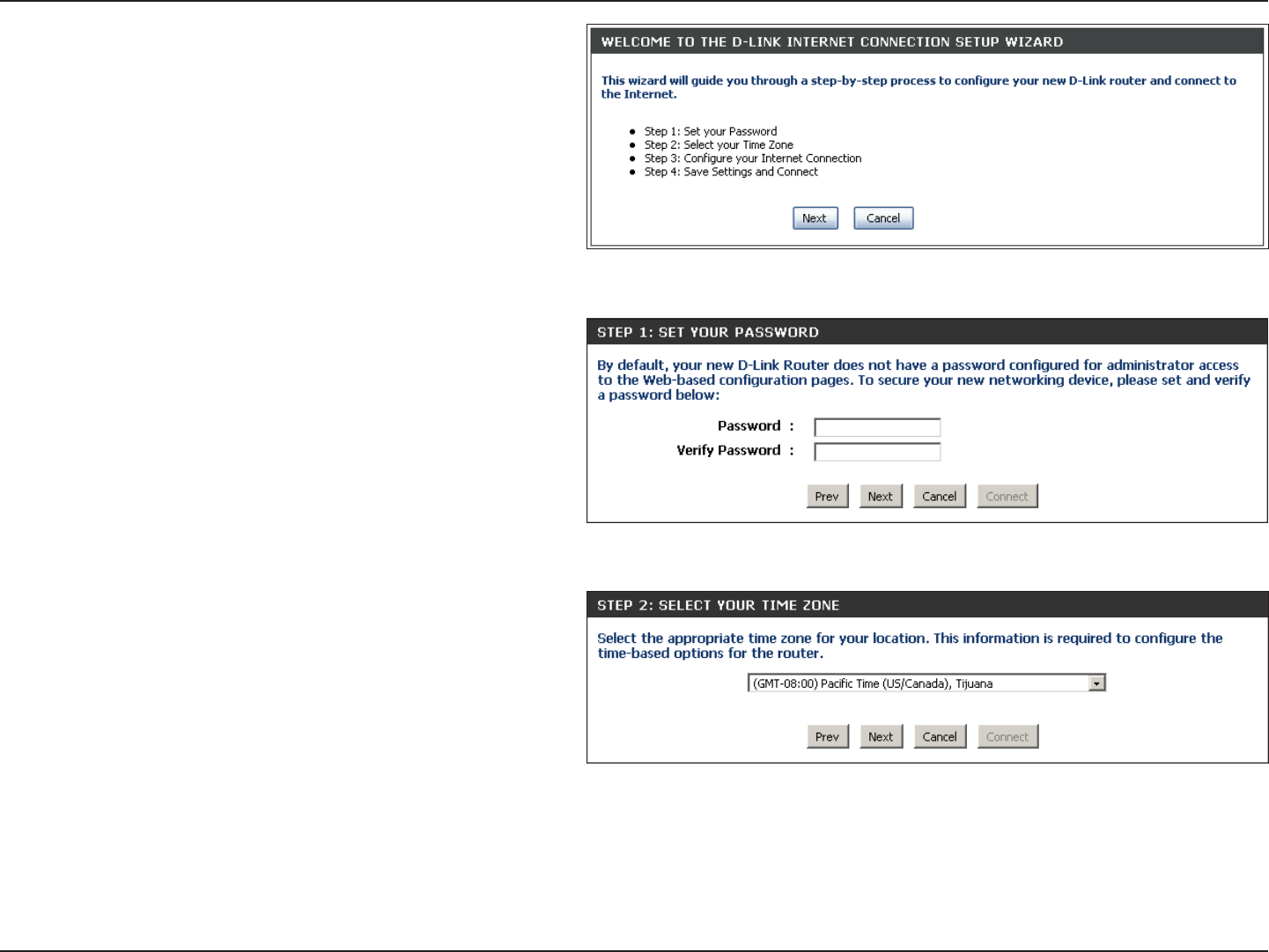

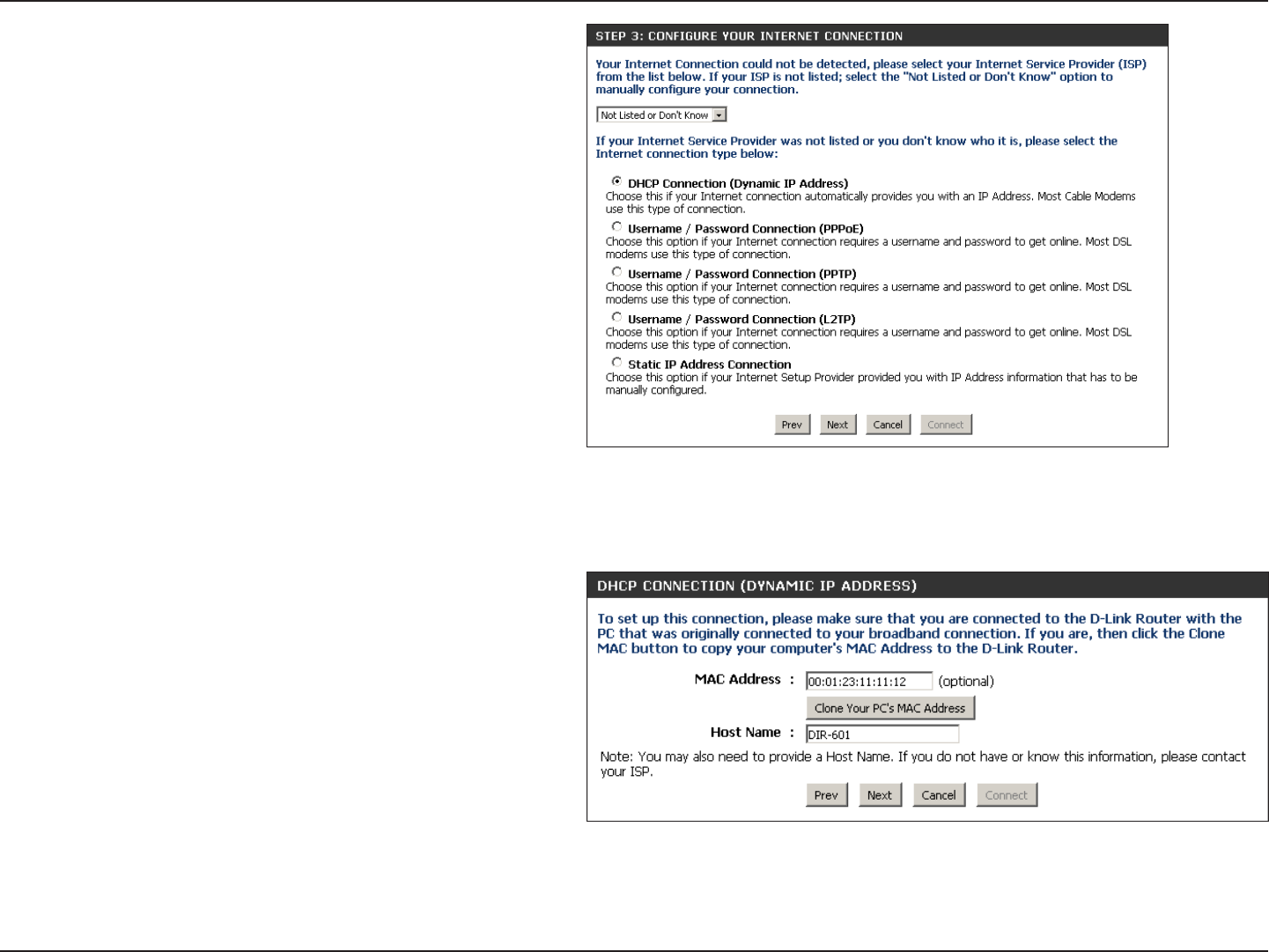

Internet Connection Setup Wizard ...............................14
Manual Conguration .......................................................19
Dynamic (Cable) .............................................................19

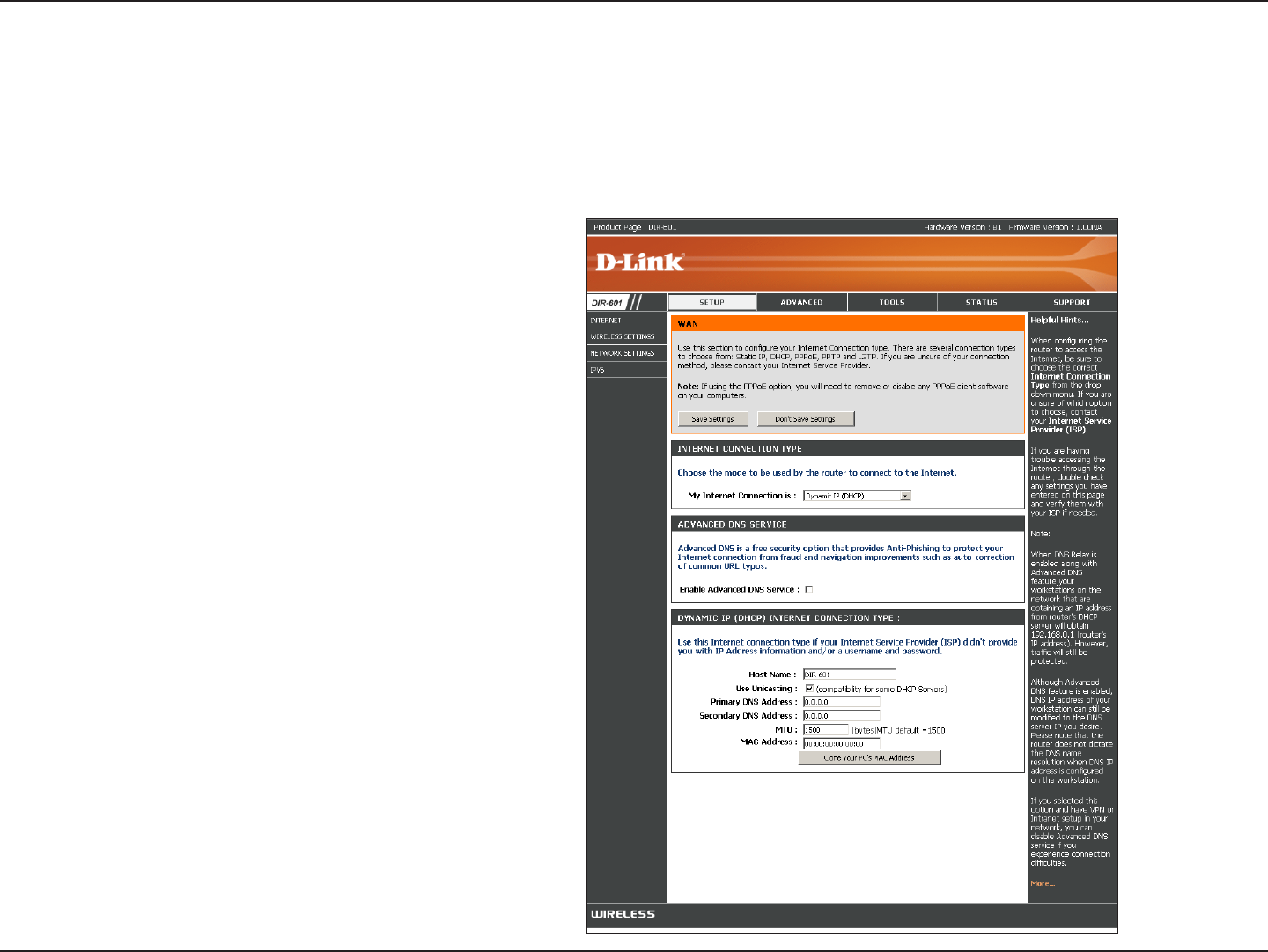

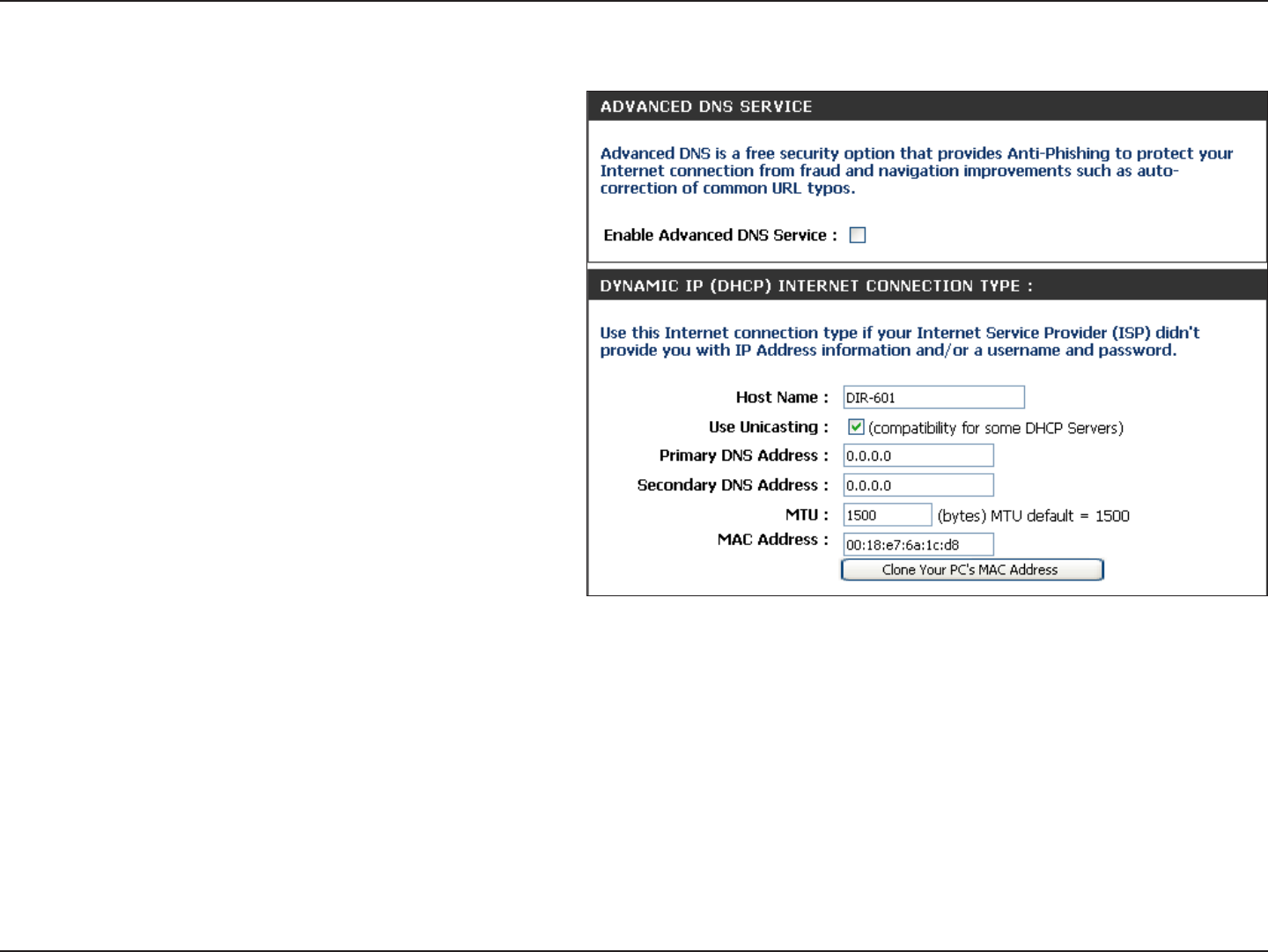

Dynamic IP Address (DHCP) .......................................20

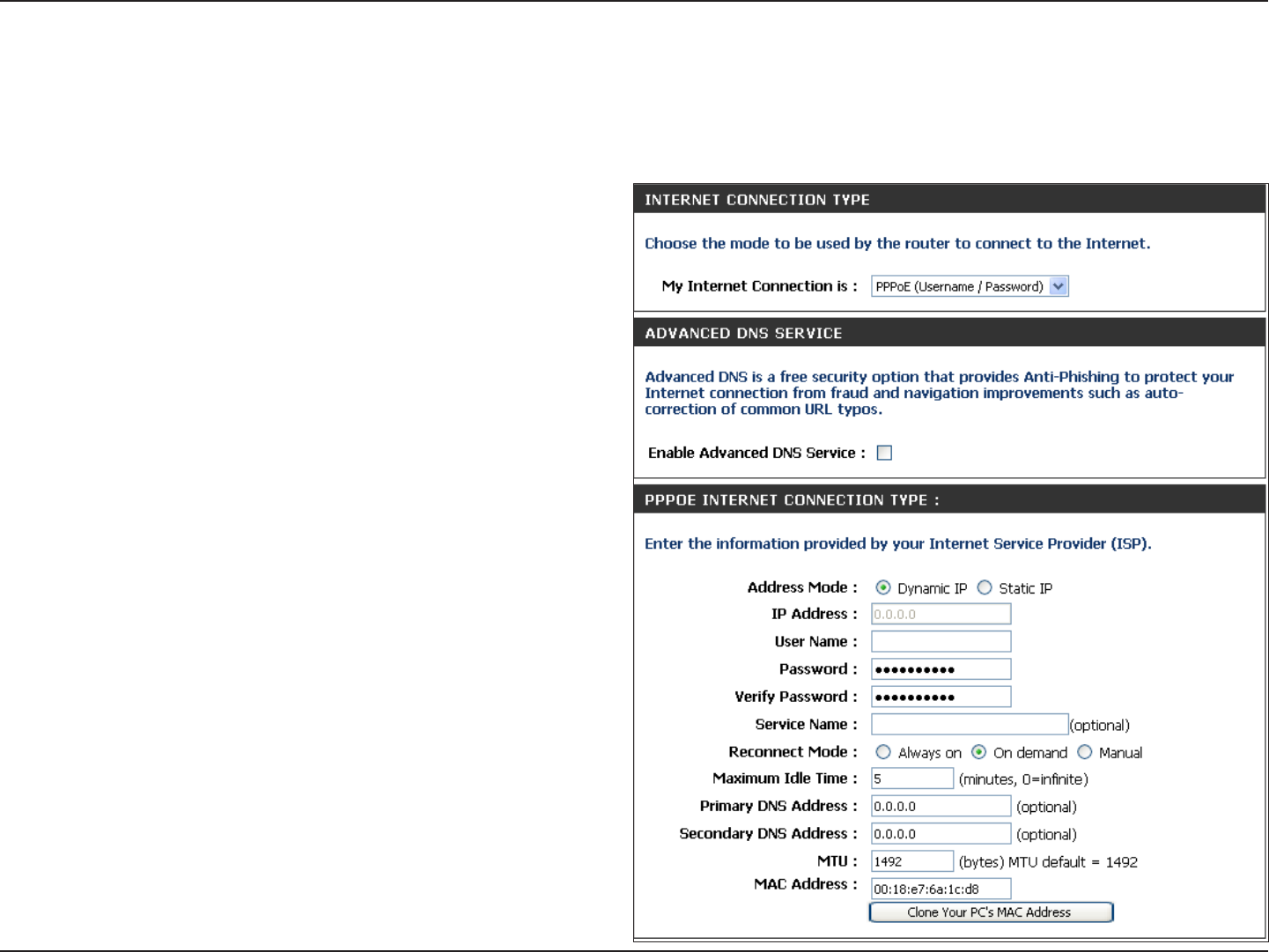

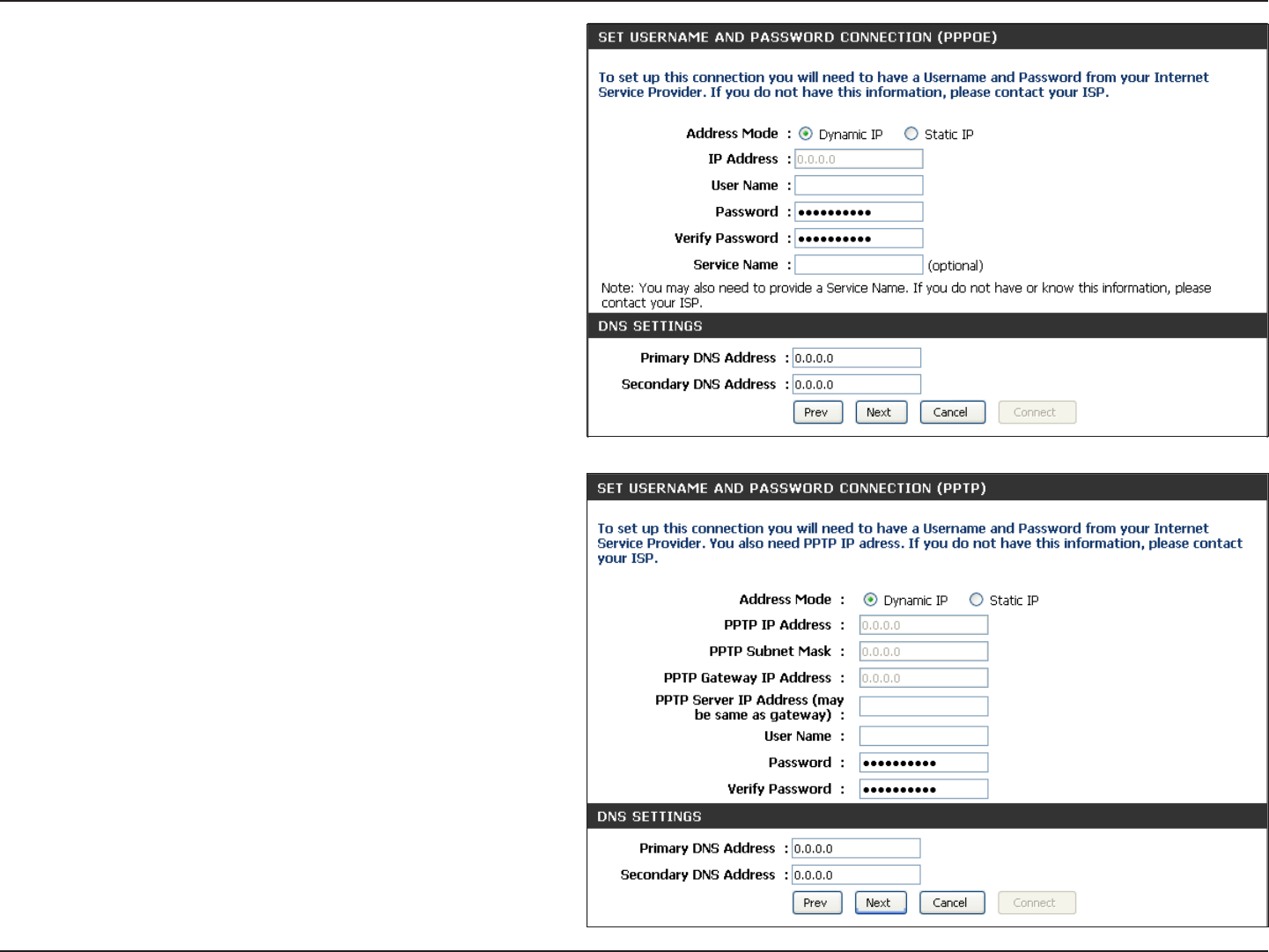

PPPoE (DSL) ......................................................................21

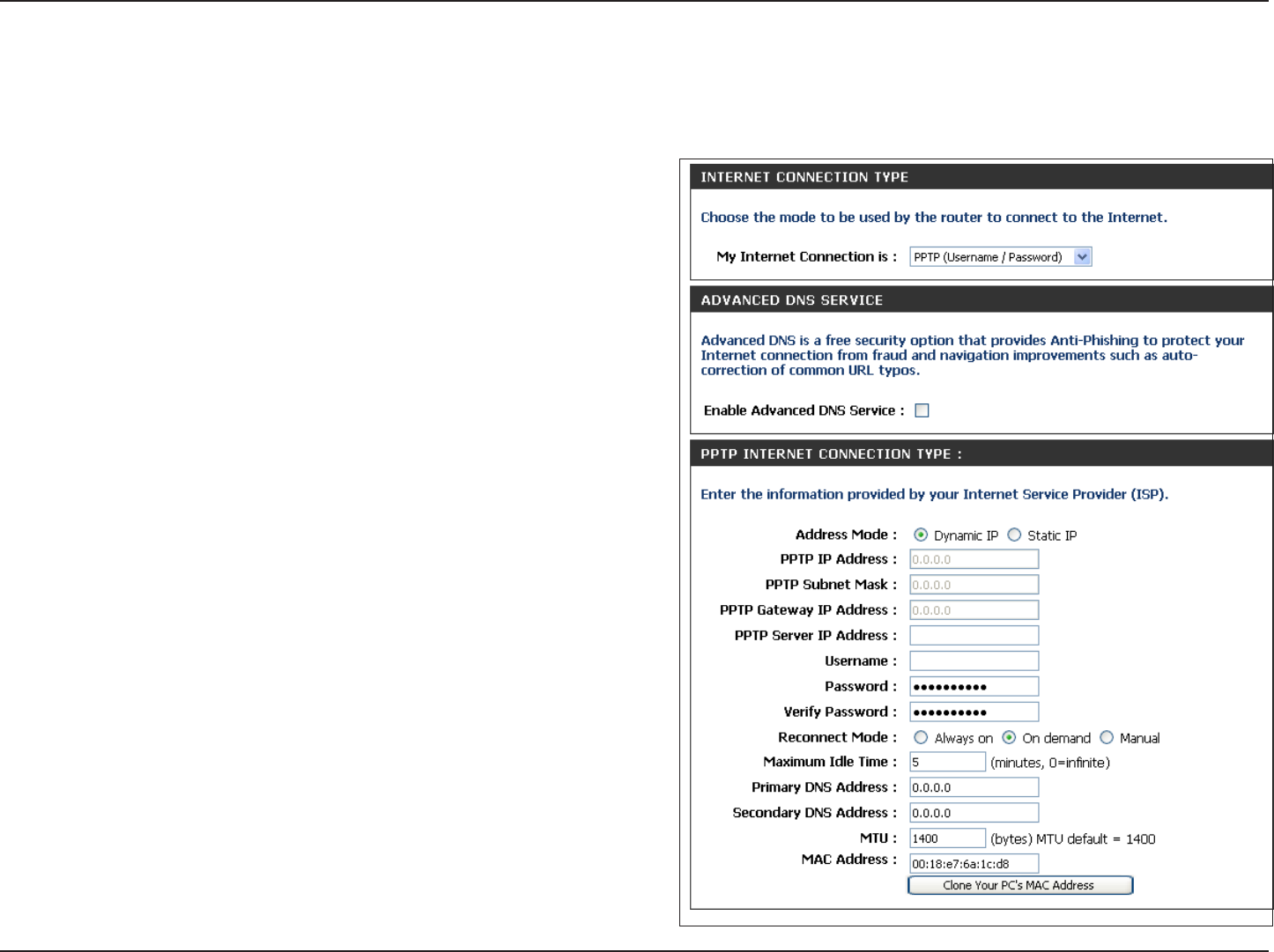

PPTP ....................................................................................23

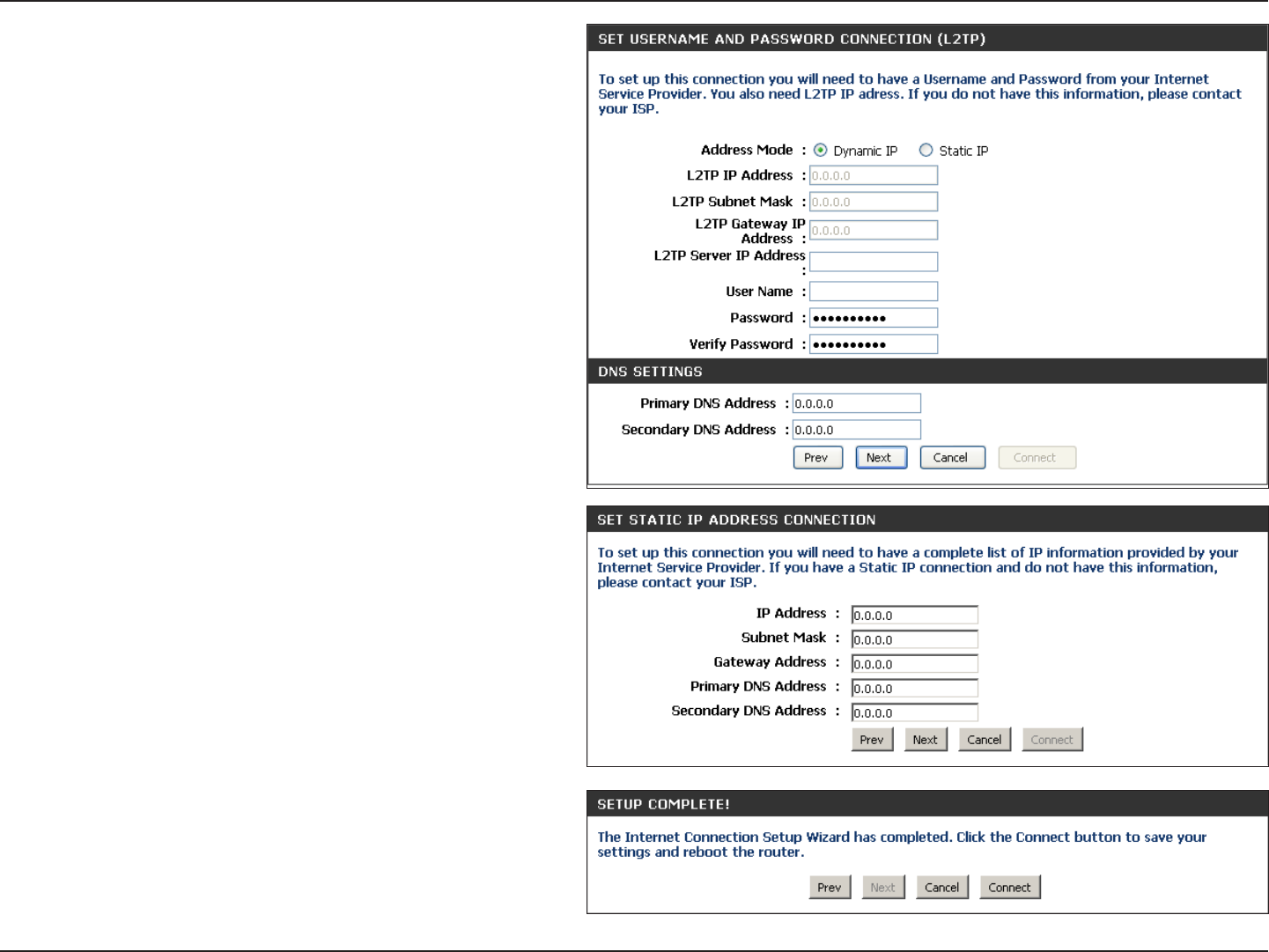

L2TP ....................................................................................25

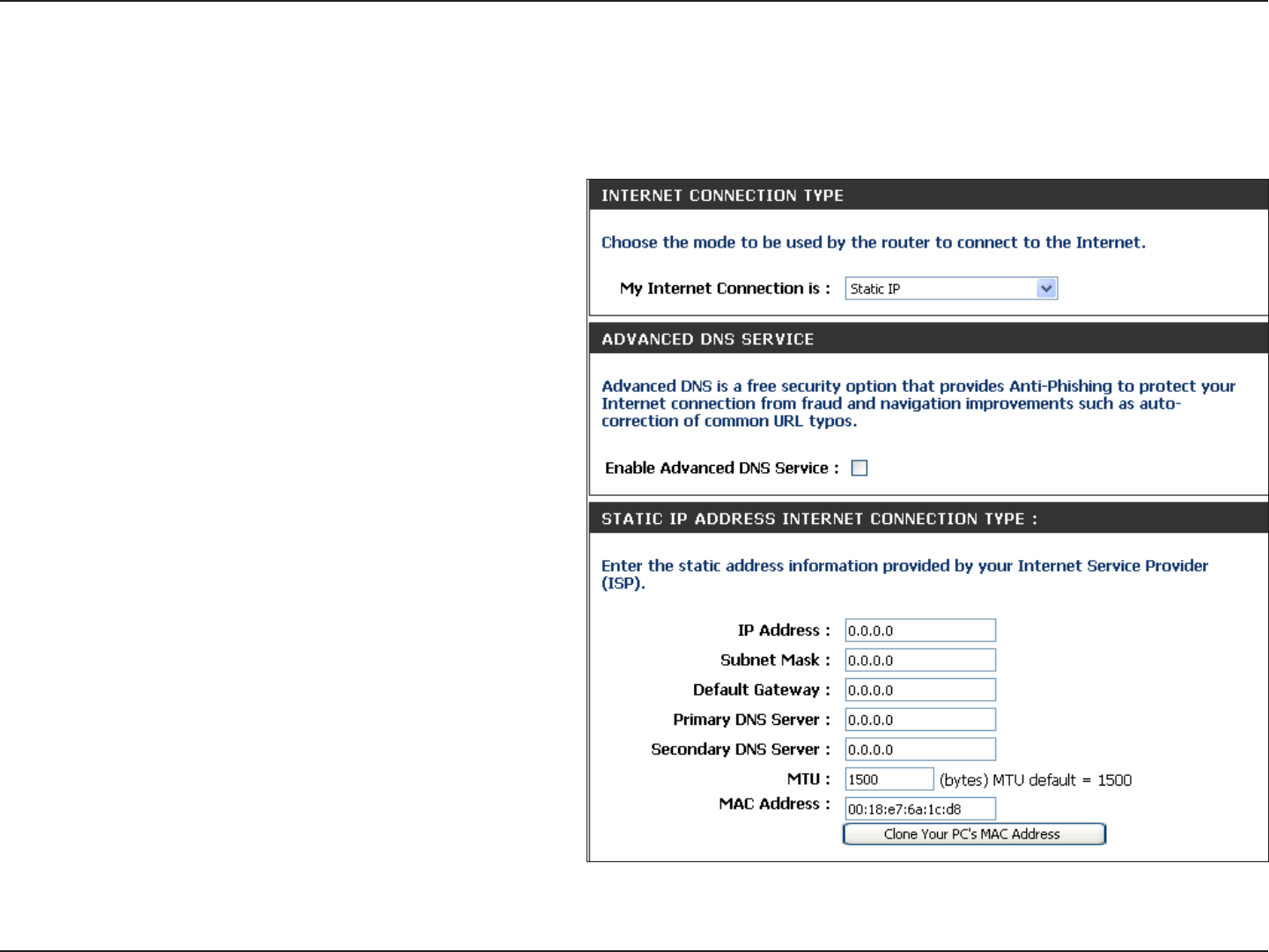

Static IP Address .............................................................27

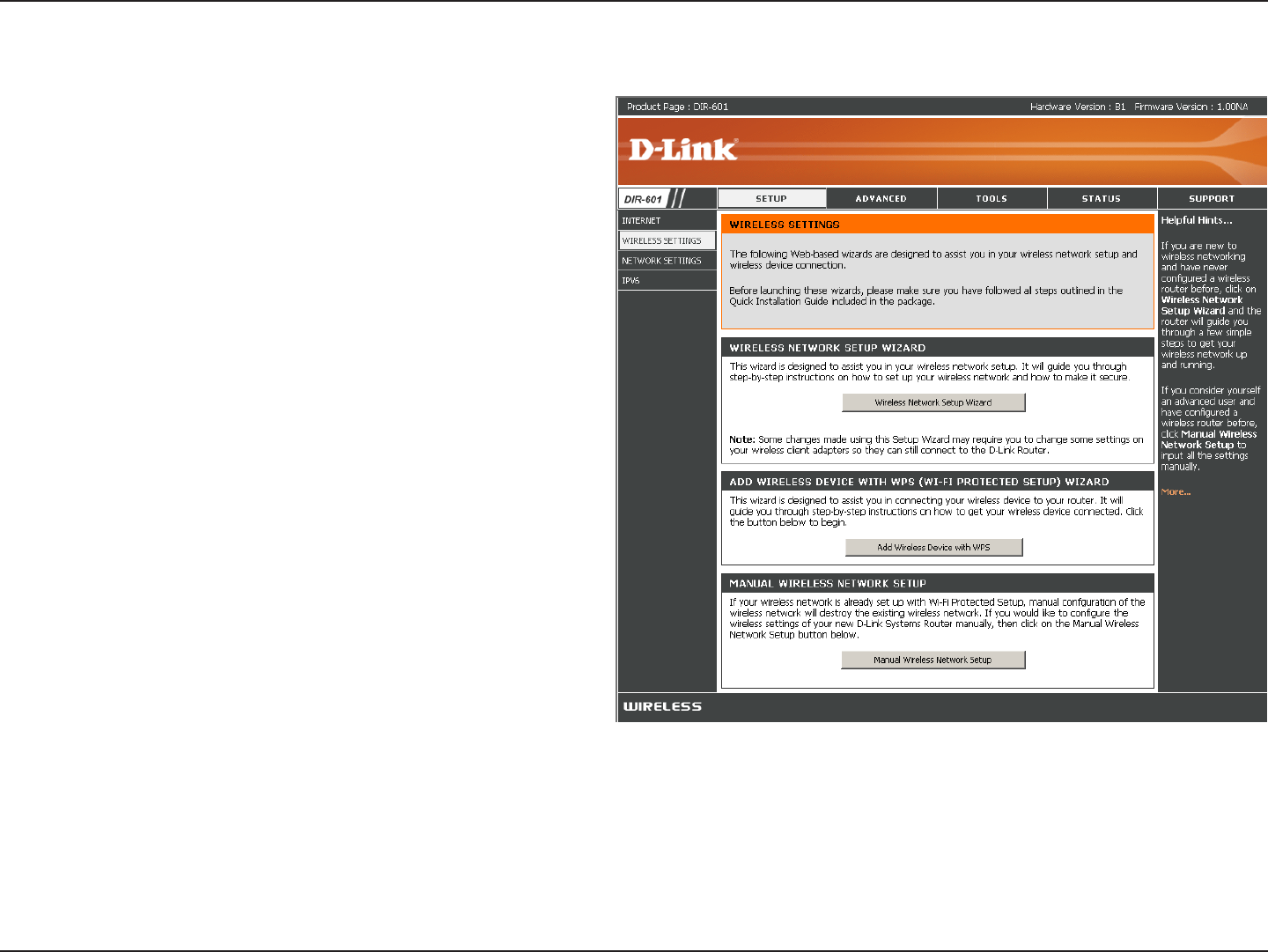

Wireless Settings .................................................................29

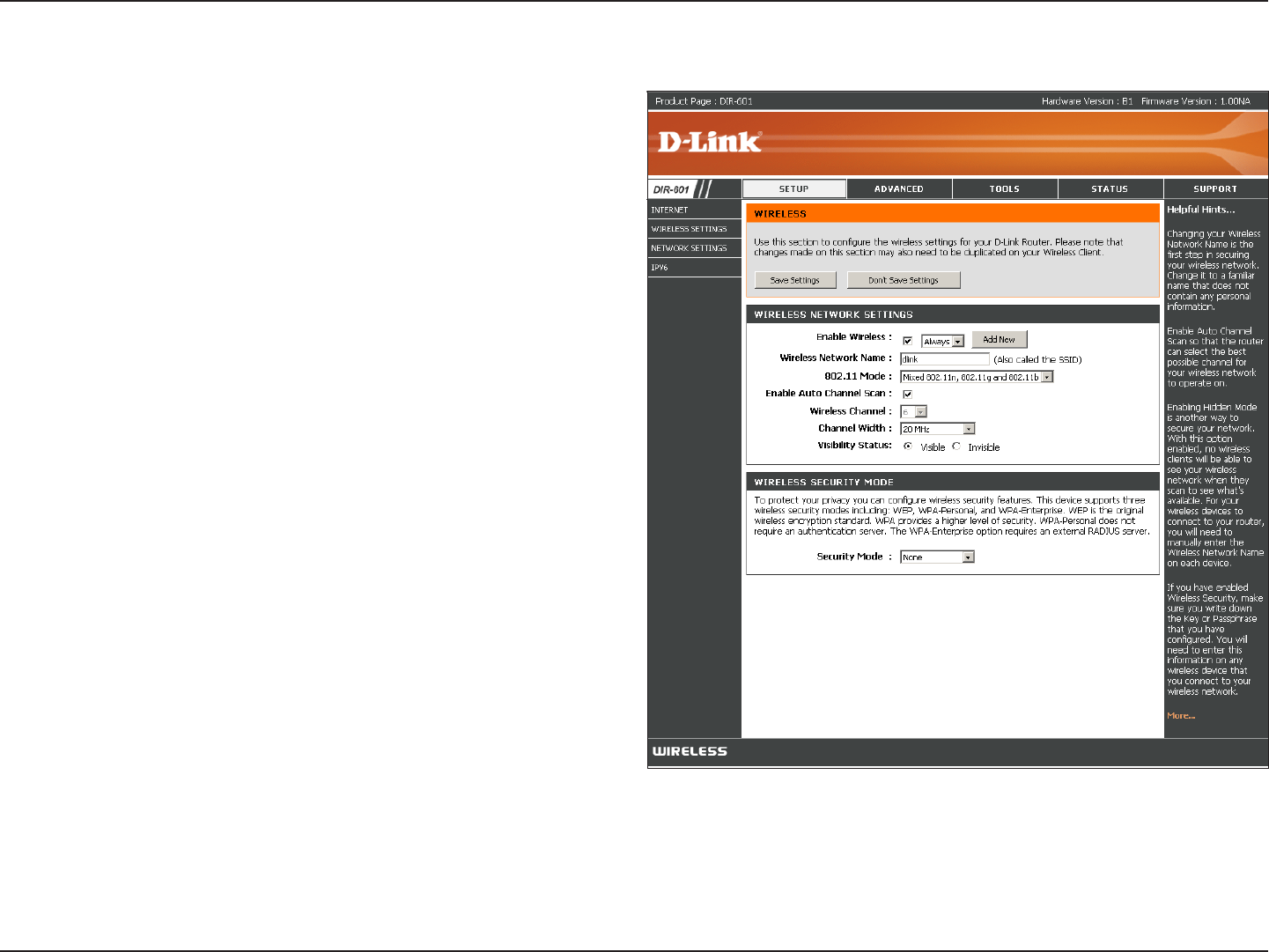

Manual Wireless Network Setup ..............................30

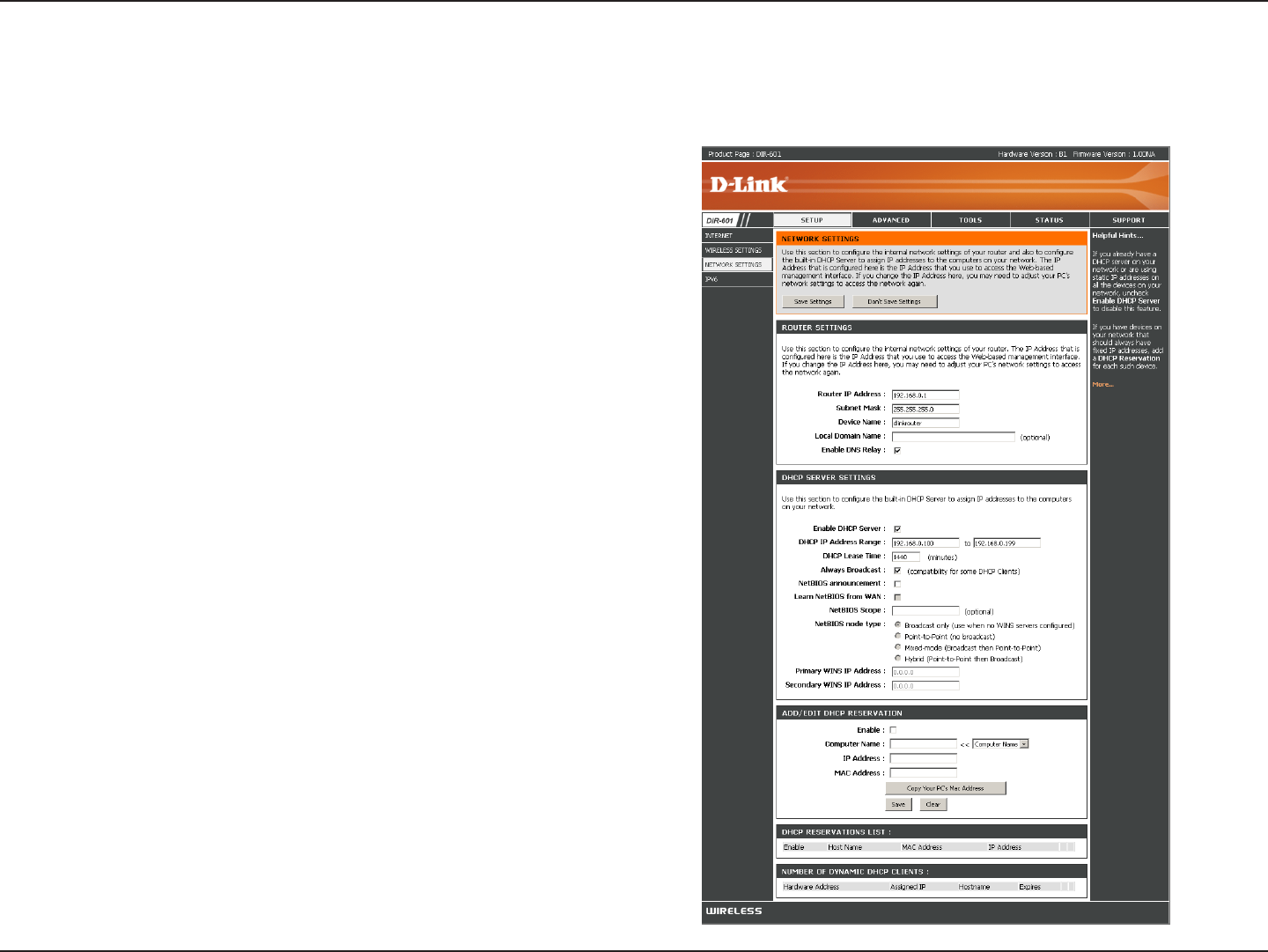

Network Settings ................................................................32

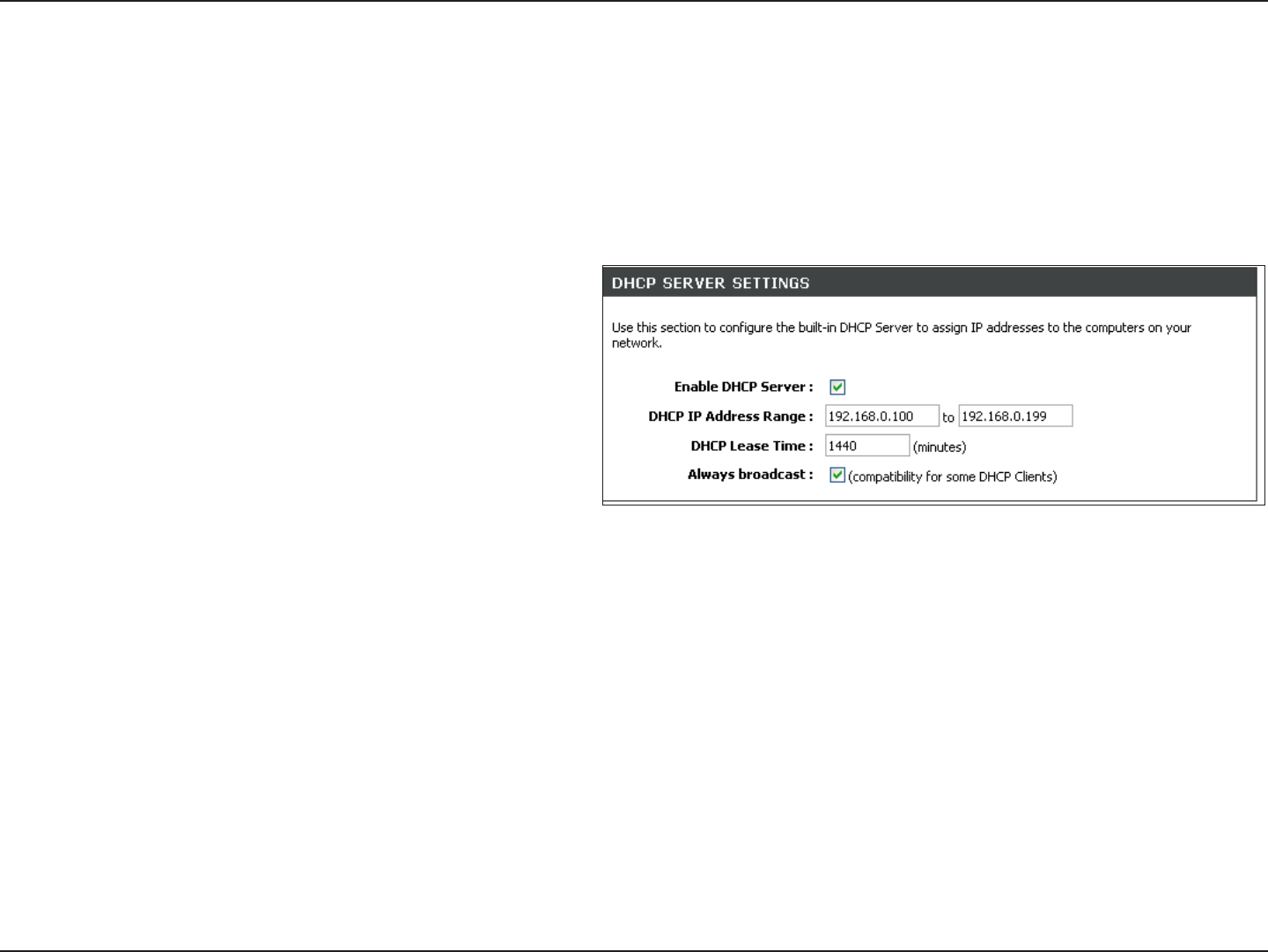

DHCP Server Settings ...................................................33

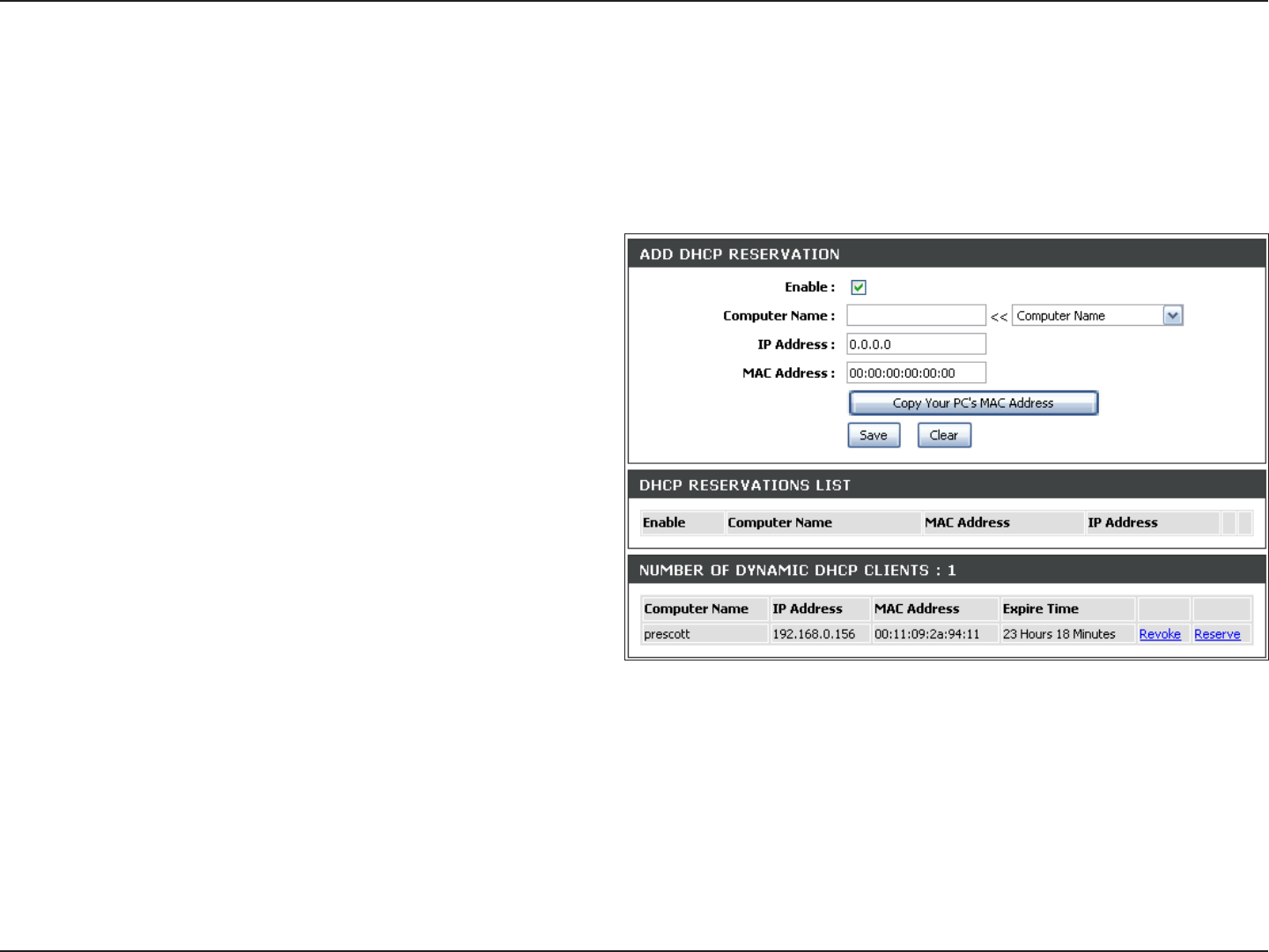

DHCP Reservation .........................................................34

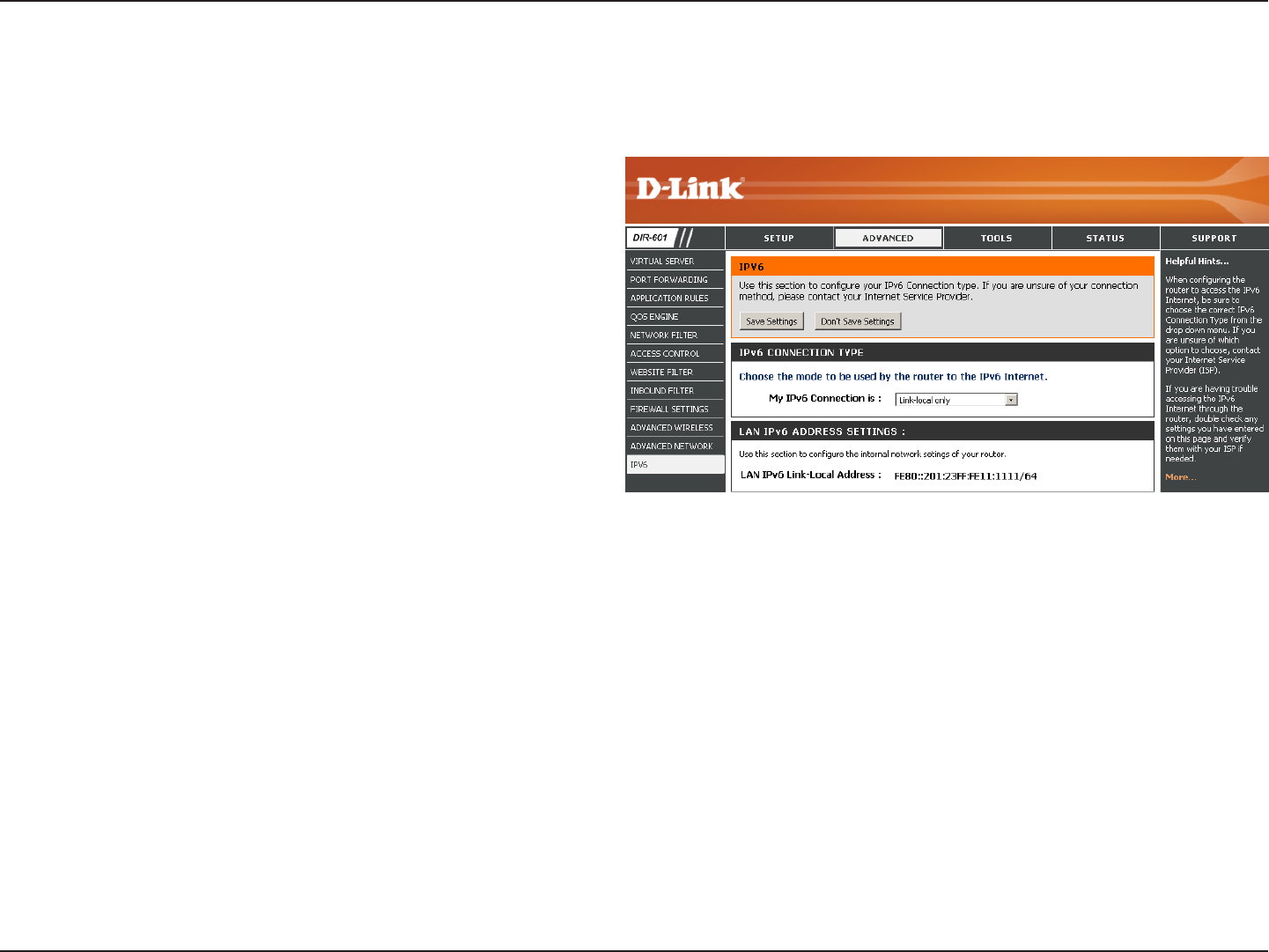

IPv6 ..........................................................................................35
Link-Local Connectivity ...............................................35

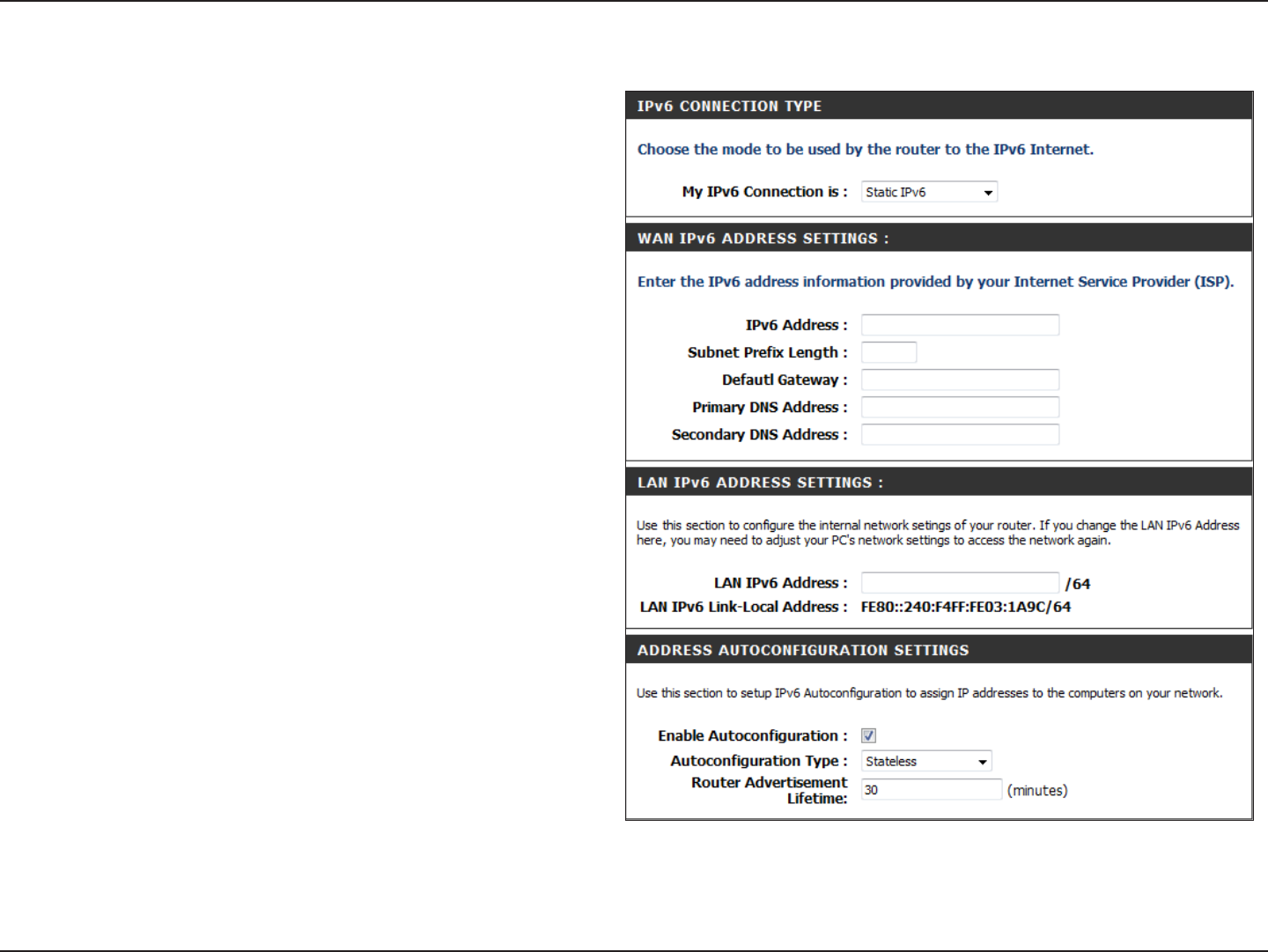

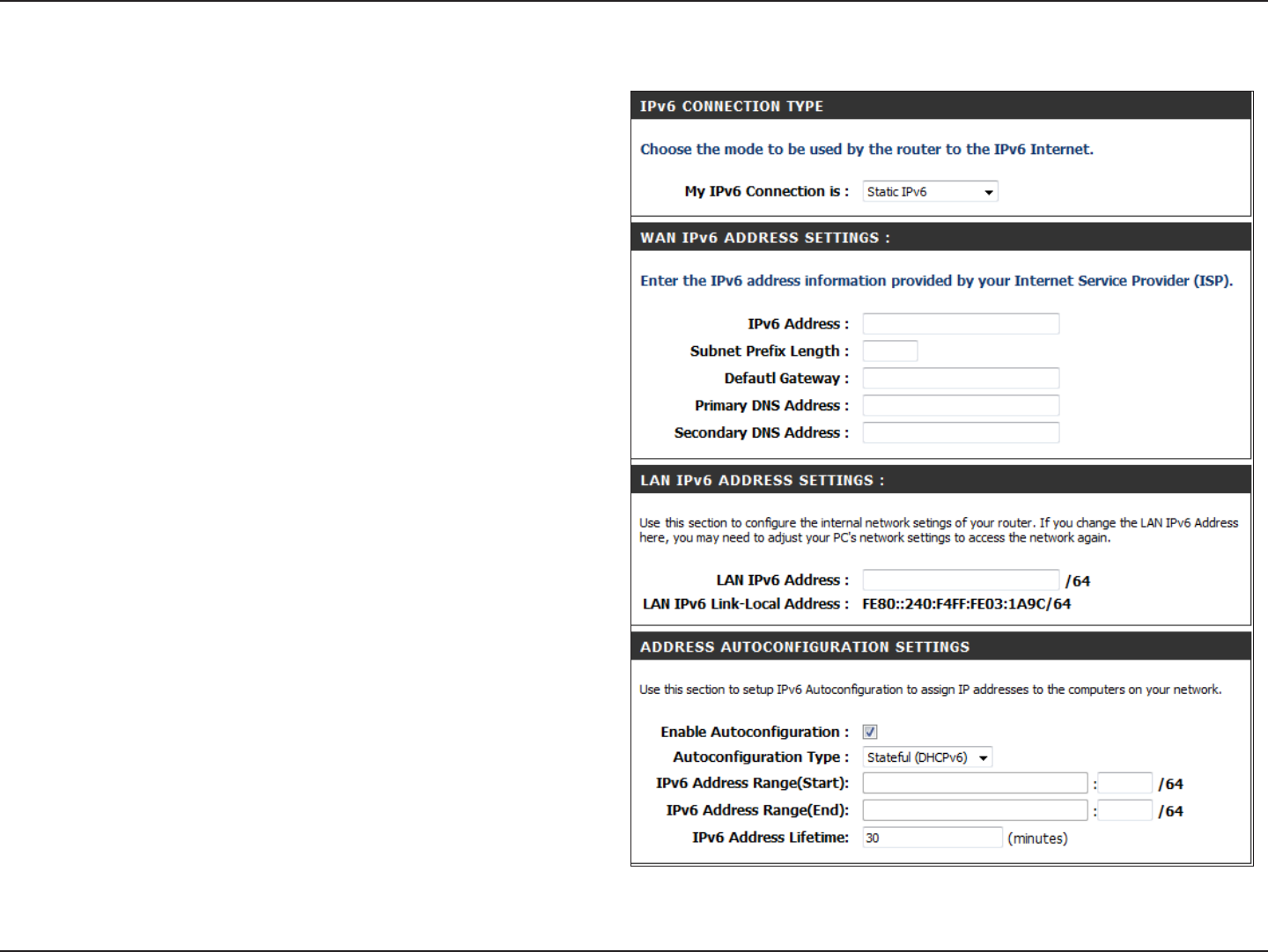

Static IPv6 (Stateful) ......................................................36
Static IPv6 (Stateless) ....................................................37

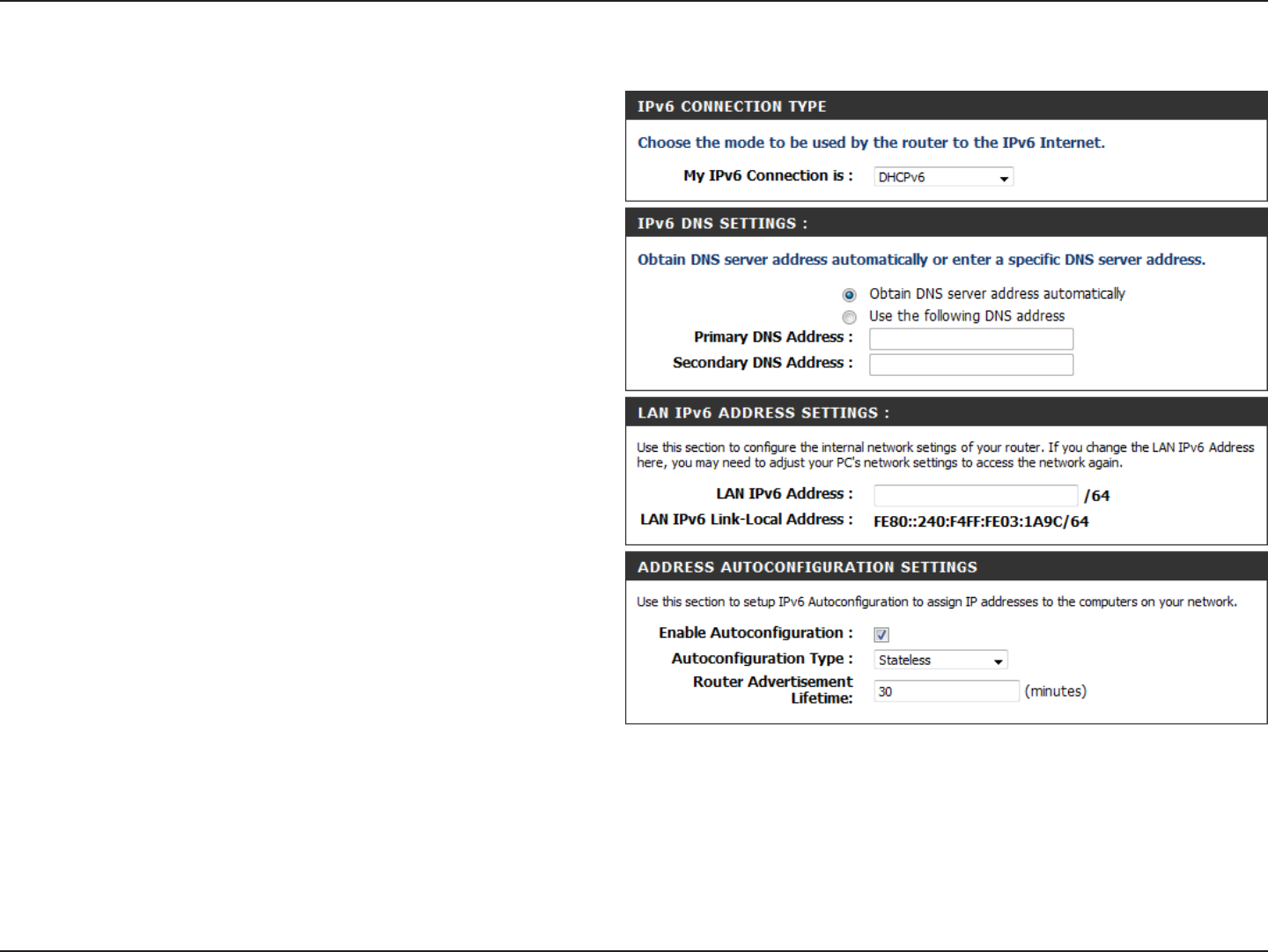

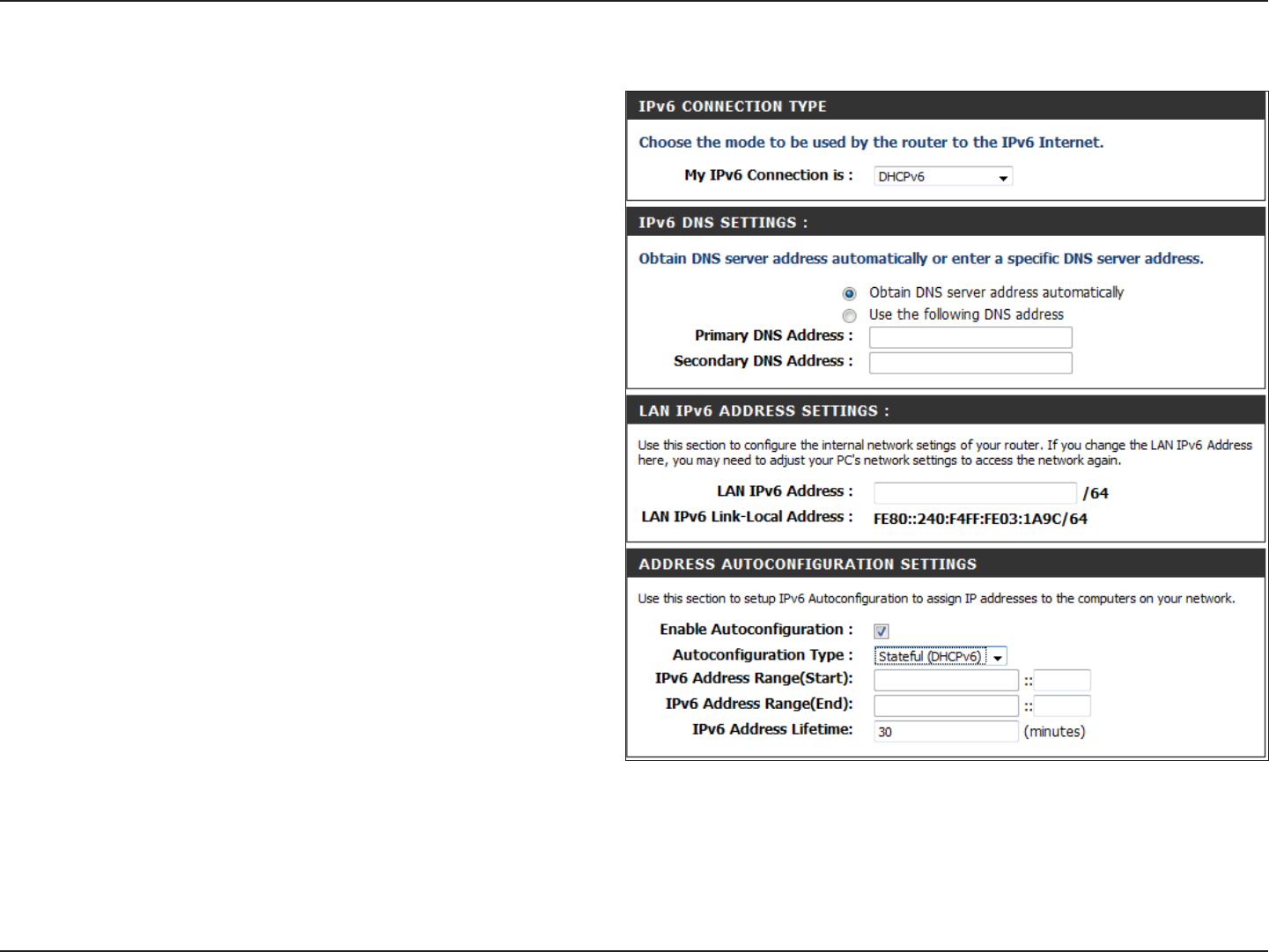

DHCPv6 (Stateful) ..........................................................38
DHCPv6 (Stateless) ........................................................39

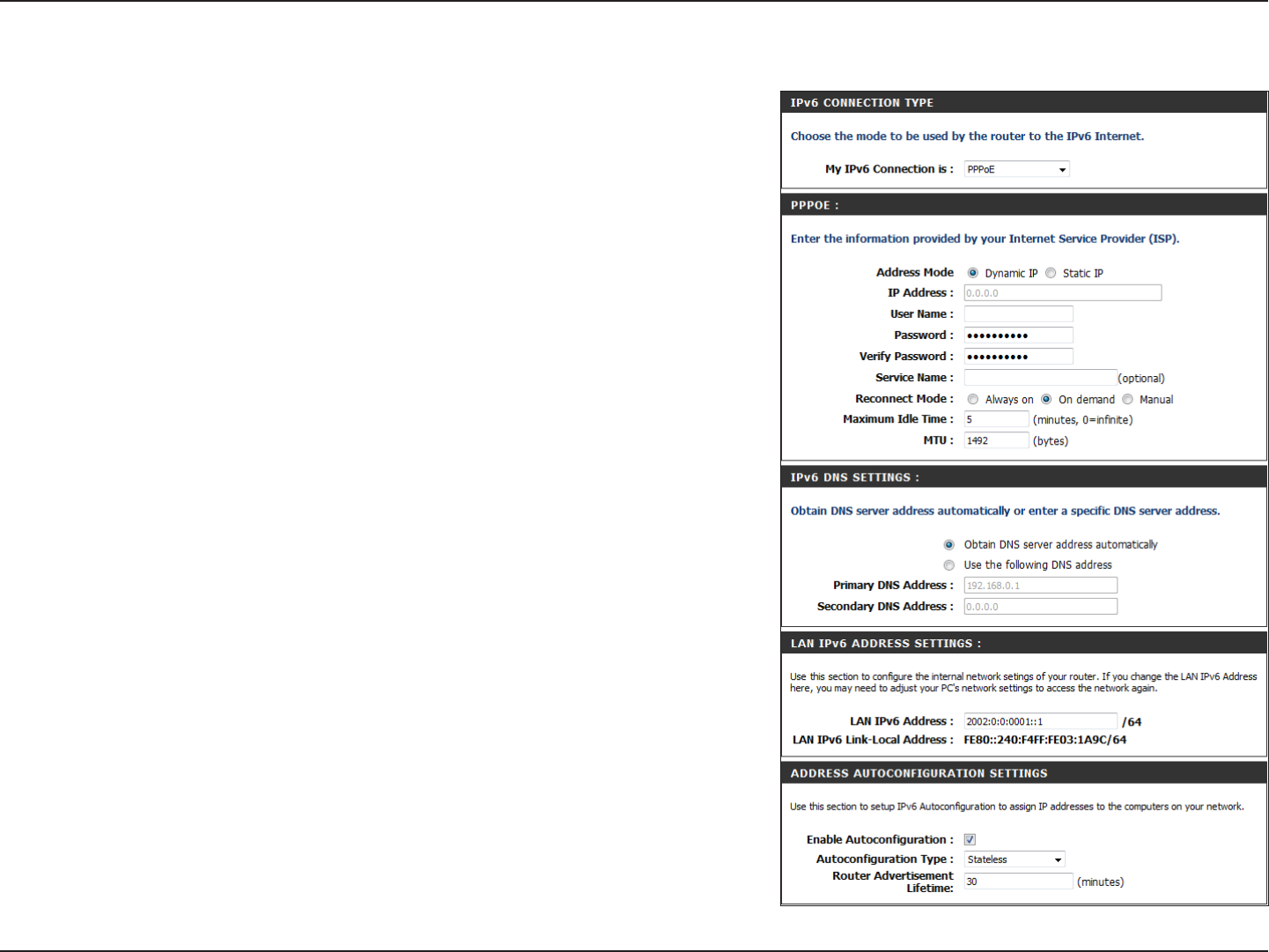

IPv6 over PPPoE (Stateful) ...........................................40
IPv6 over PPPoE (Stateless) ........................................42

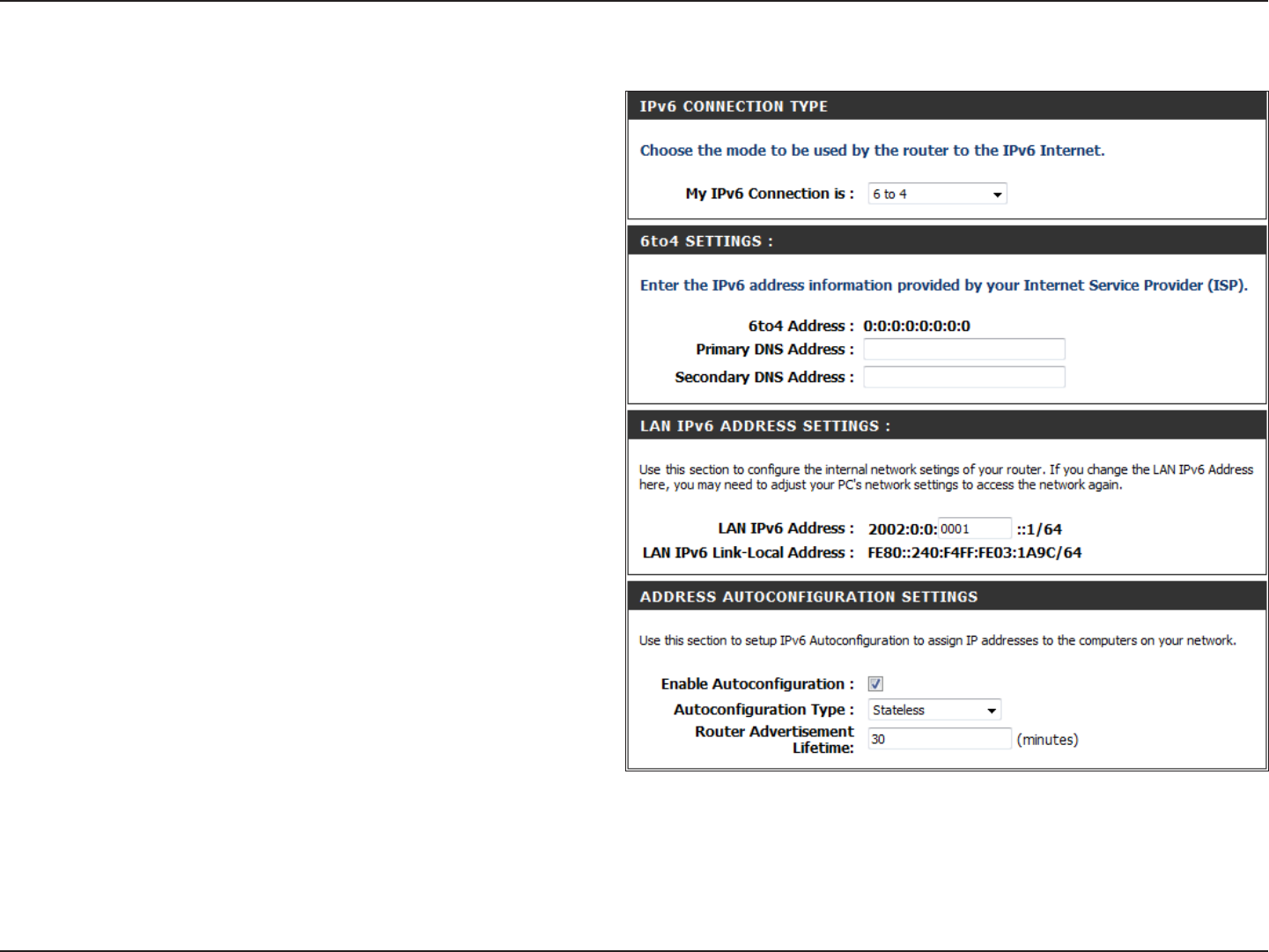

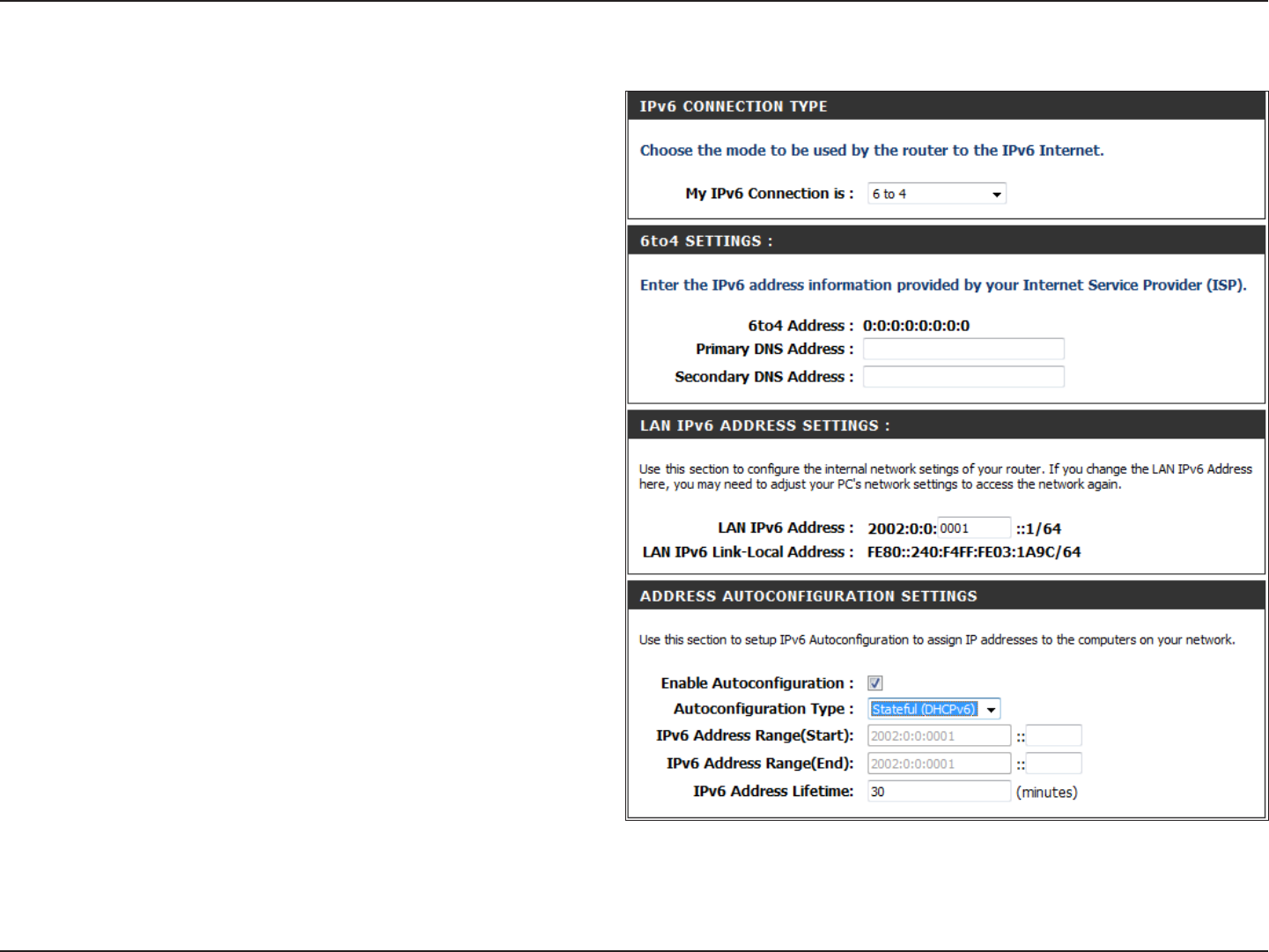

6 to 4 Tunneling (Stateful) ..........................................44
6 to 4 Tunneling (Stateless) ........................................45

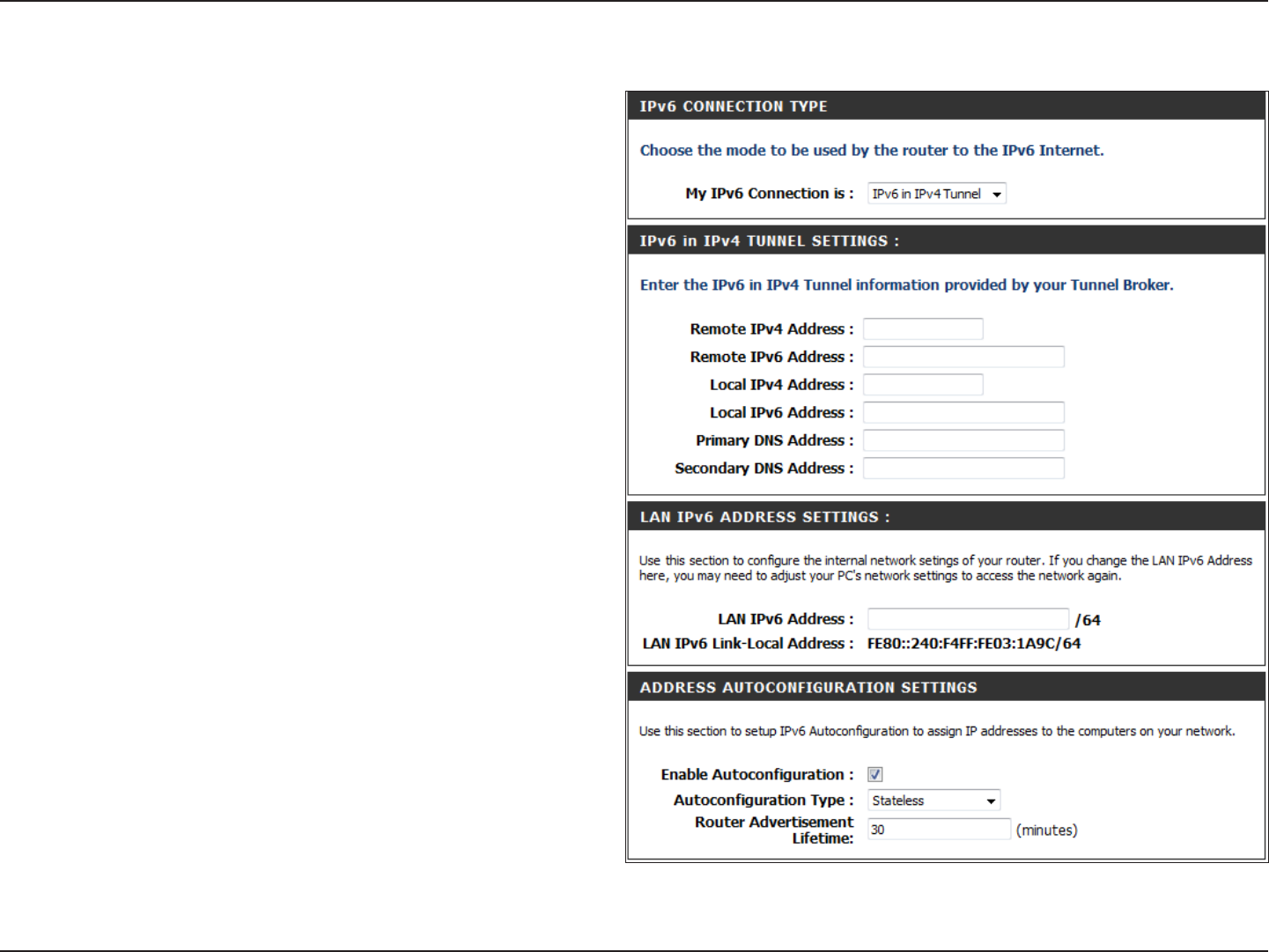

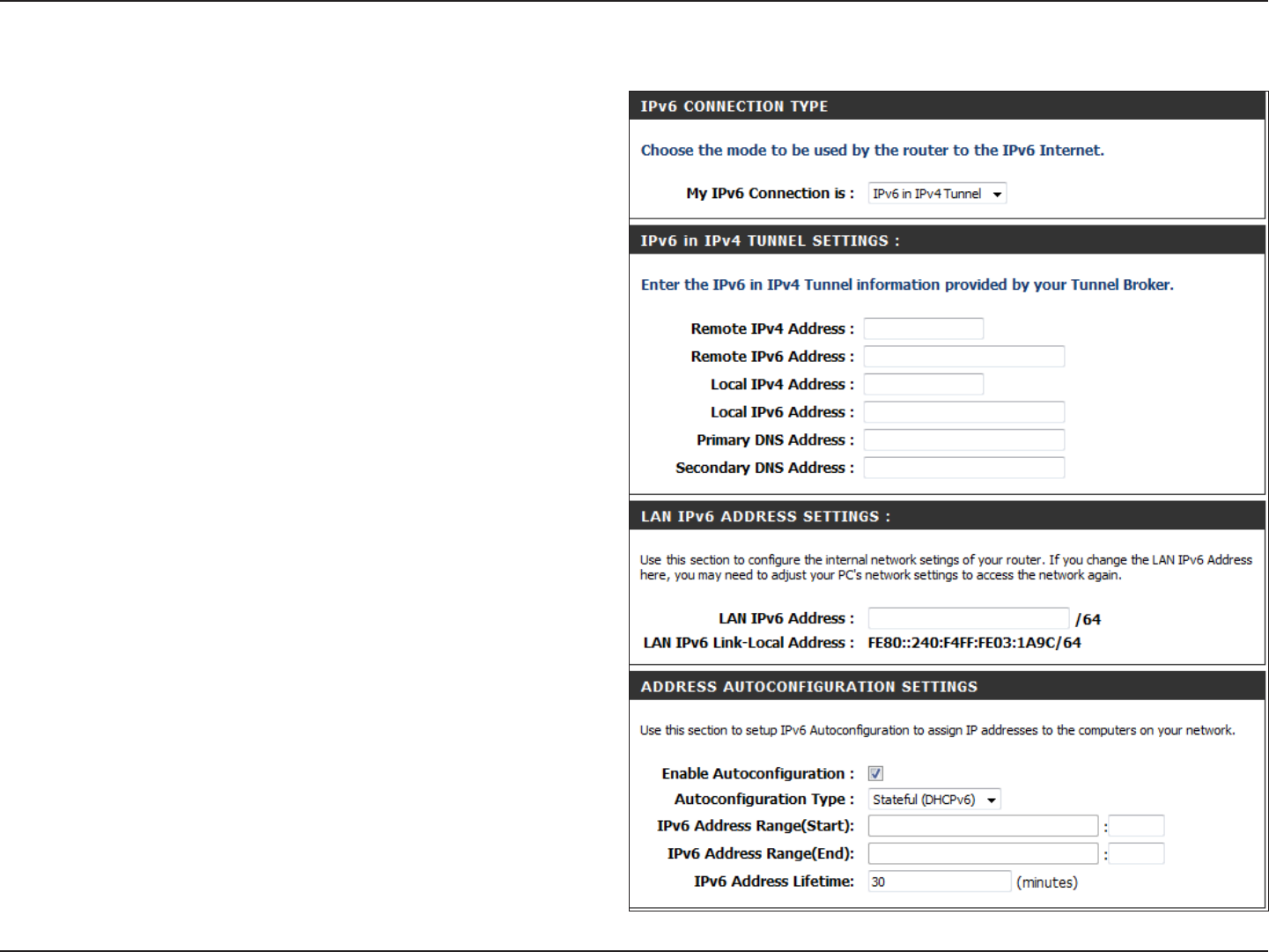

IPv6 in IPv4 Tunneling (Stateful) ...............................46
IPv6 in IPv4 Tunneling (Stateless).............................47

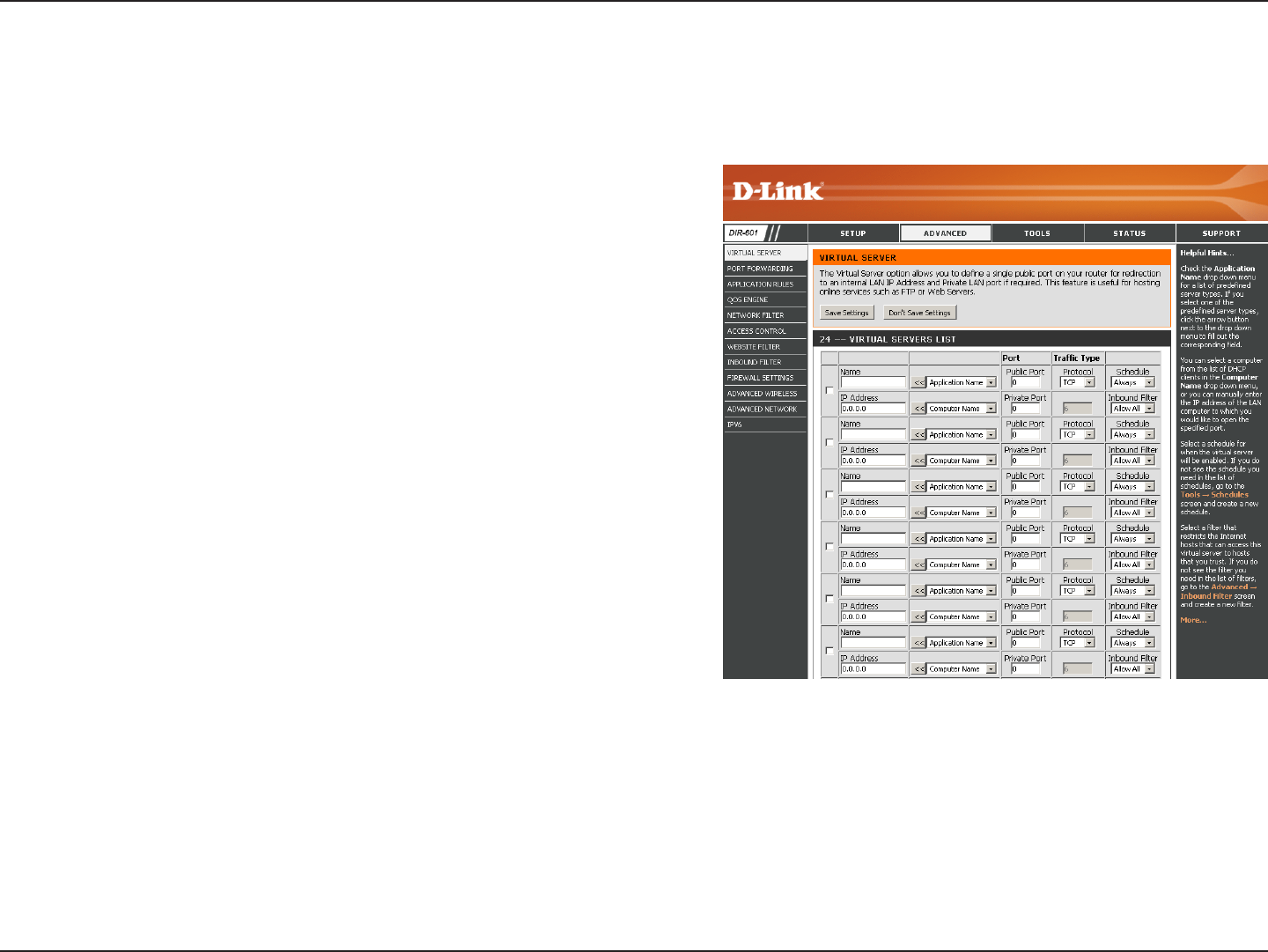

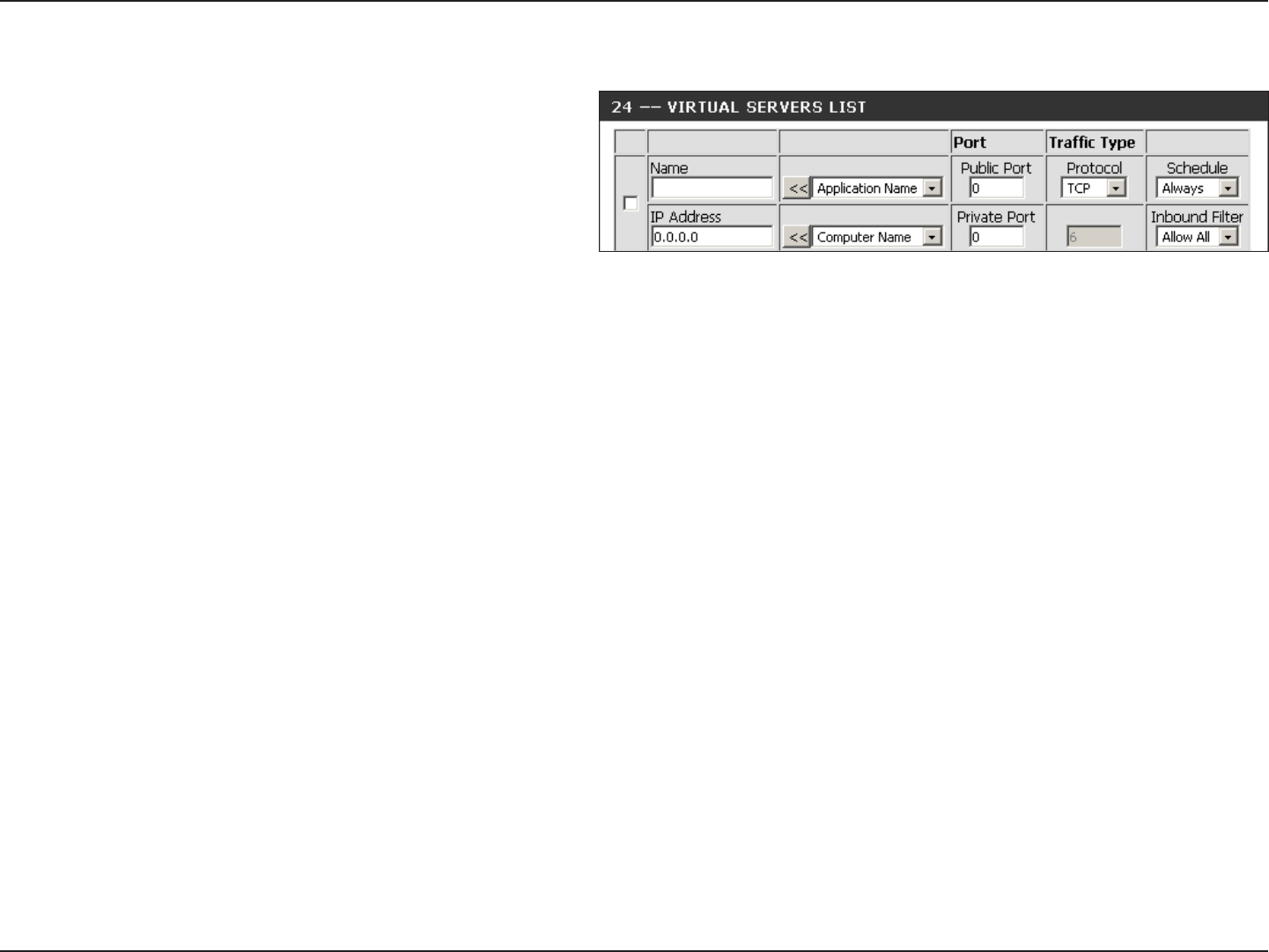

Virtual Server ........................................................................48

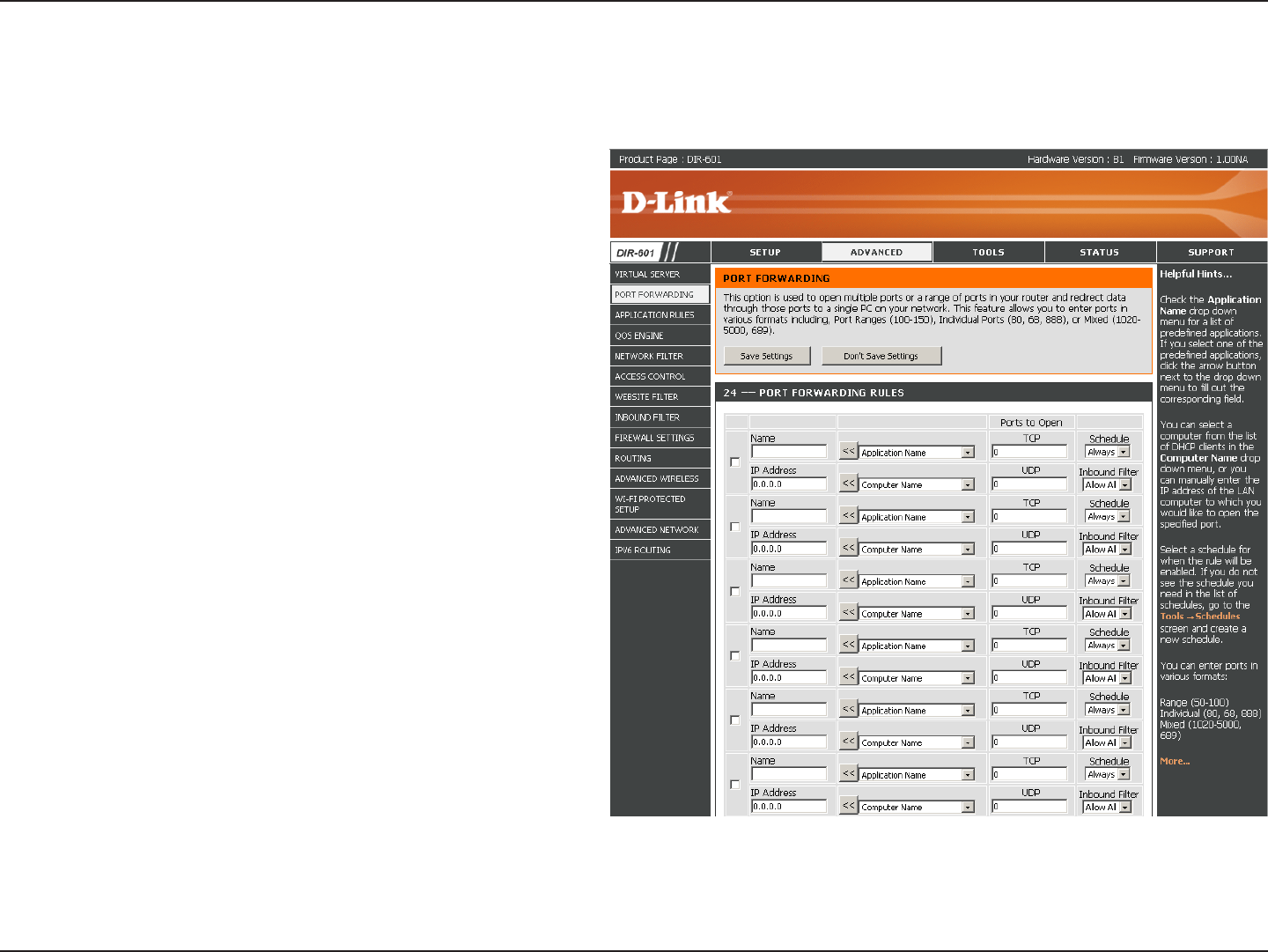

Port Forwarding ..................................................................50

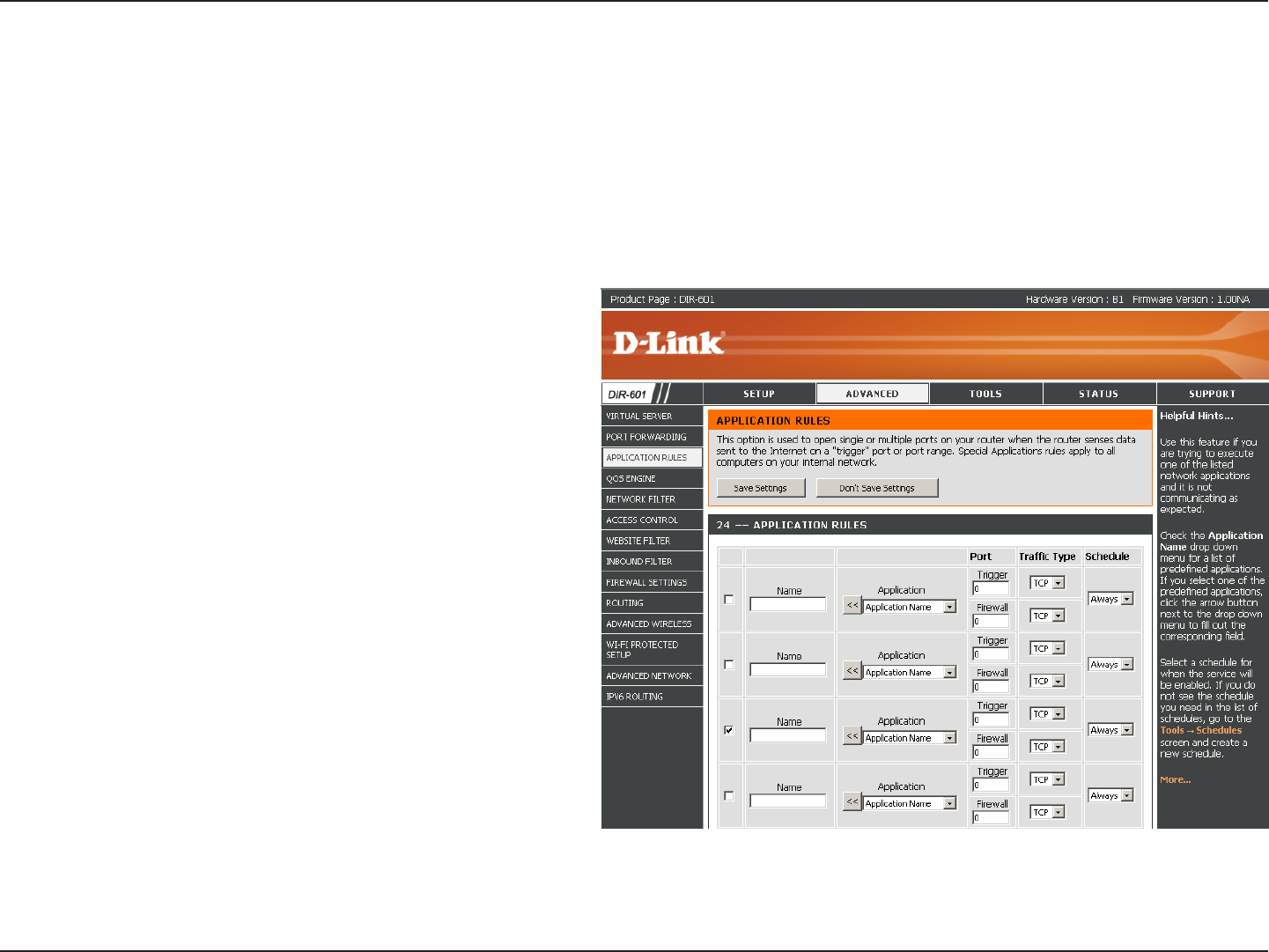

Application Rules ................................................................51

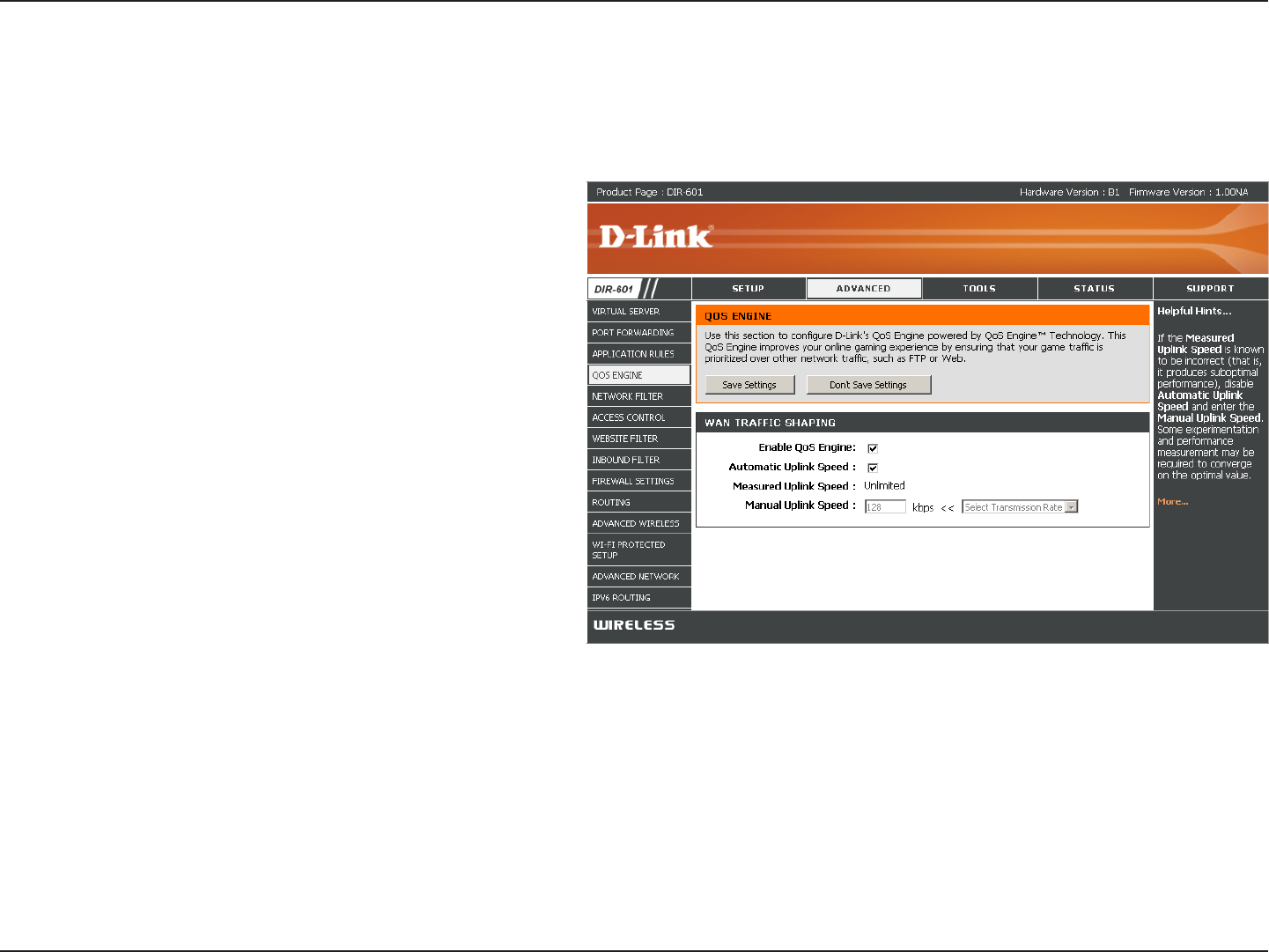

QoS Engine............................................................................52
Network Filters .....................................................................53
Table of Contents
iiiD-Link DIR-601 User Manual
Table of Contents
Access Control .....................................................................54

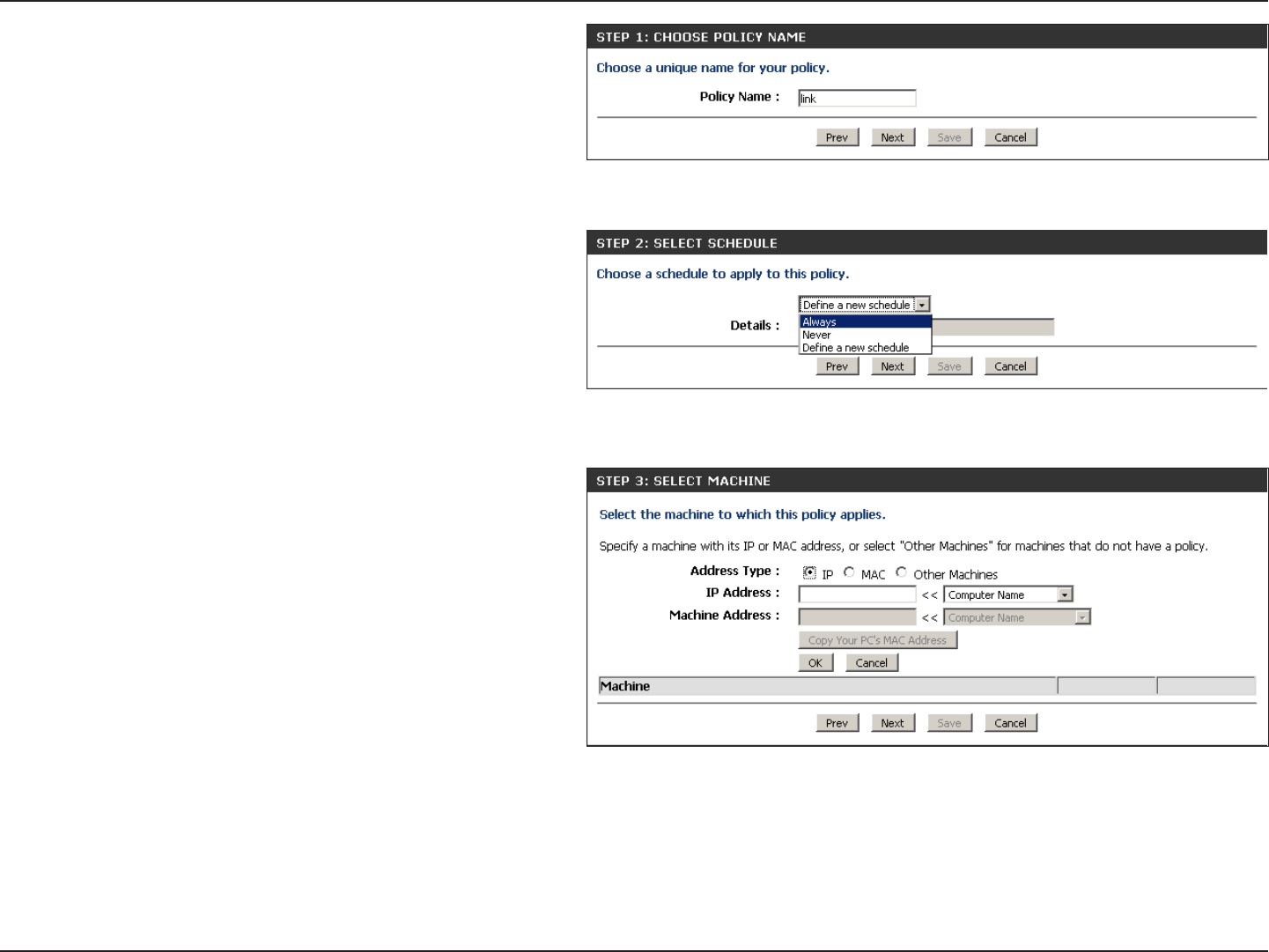

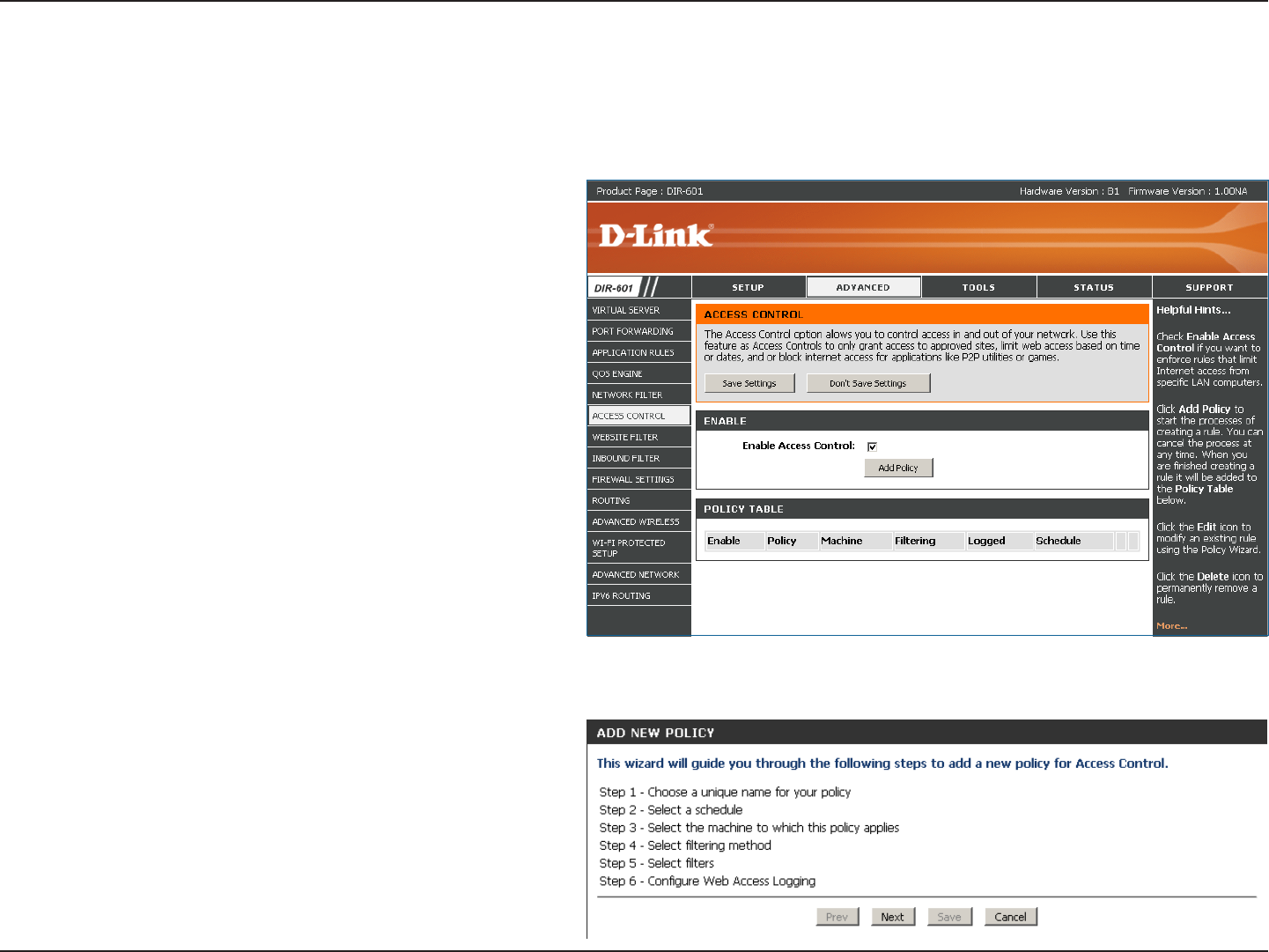

Access Control Wizard ..................................................54

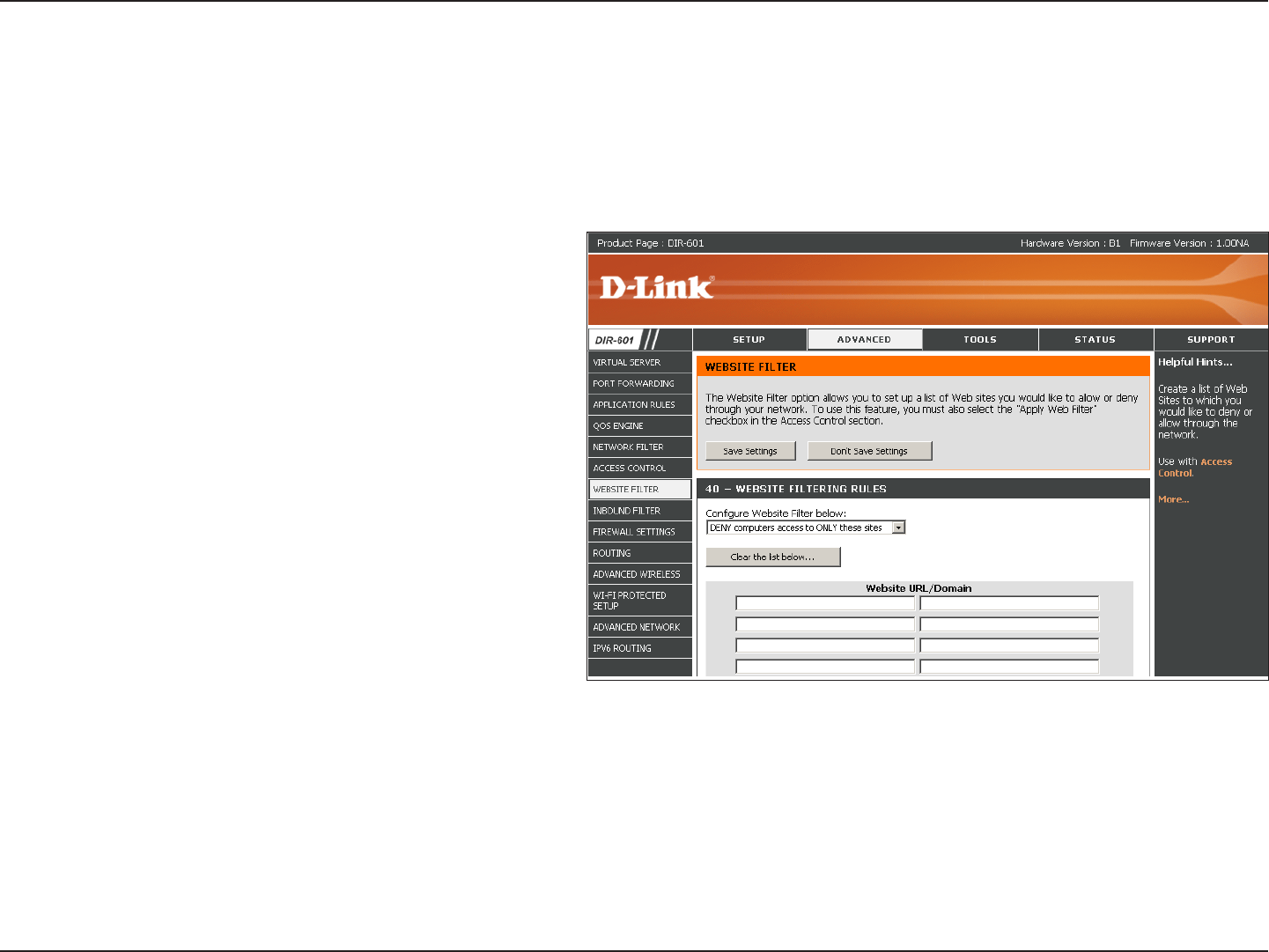

Website Filters ......................................................................57

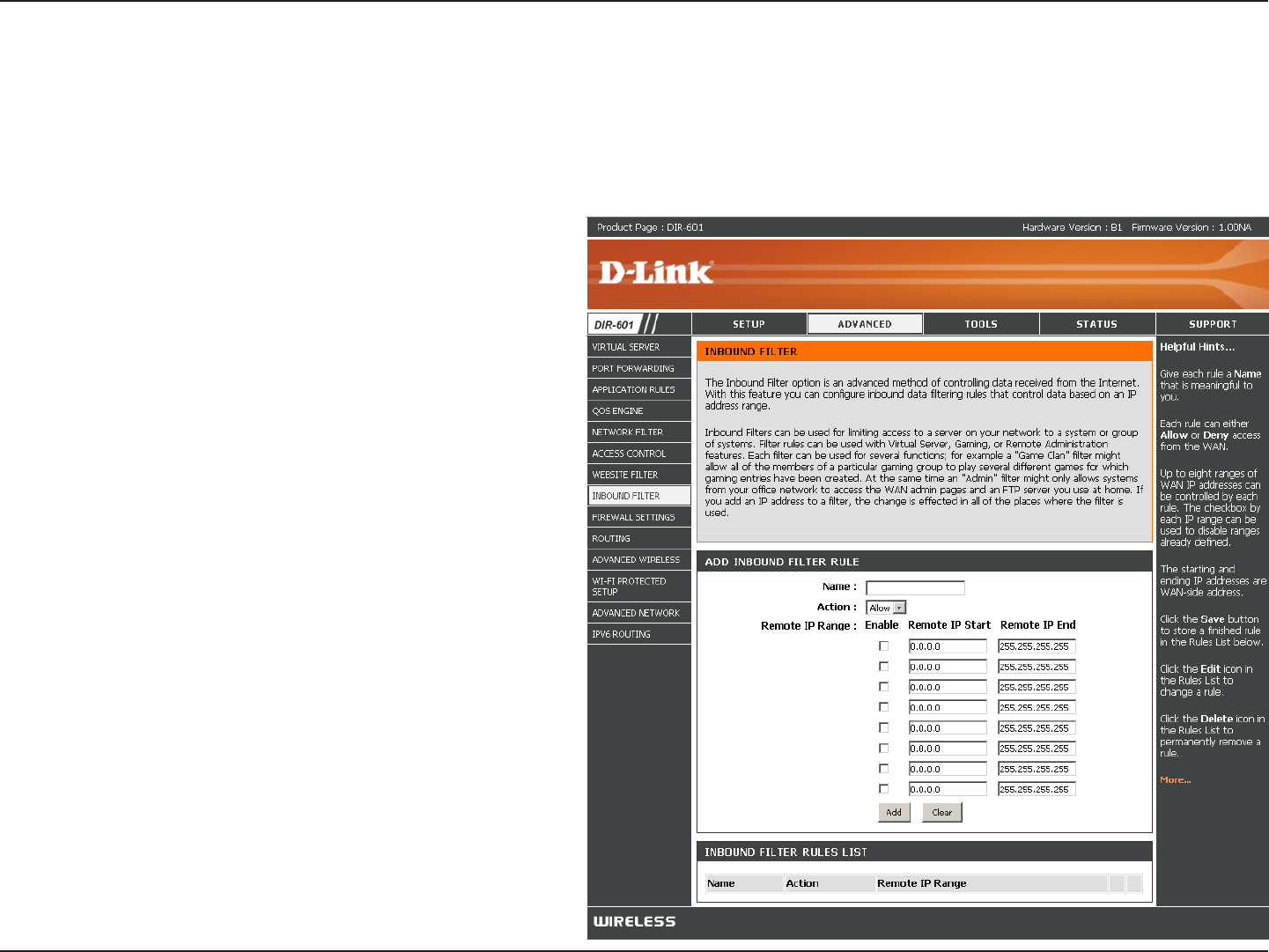

Inbound Filters.....................................................................58

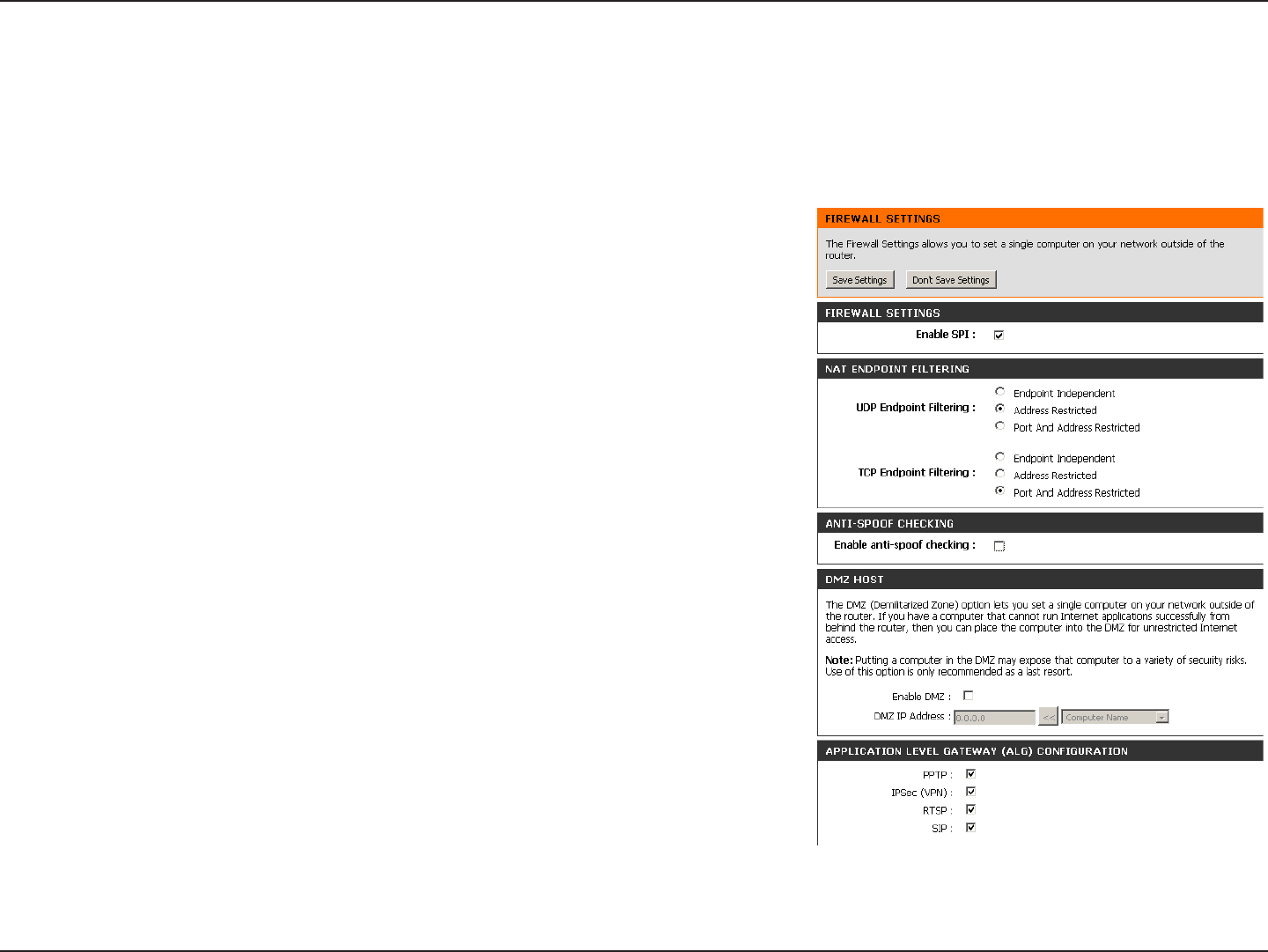

Firewall Settings ..................................................................59

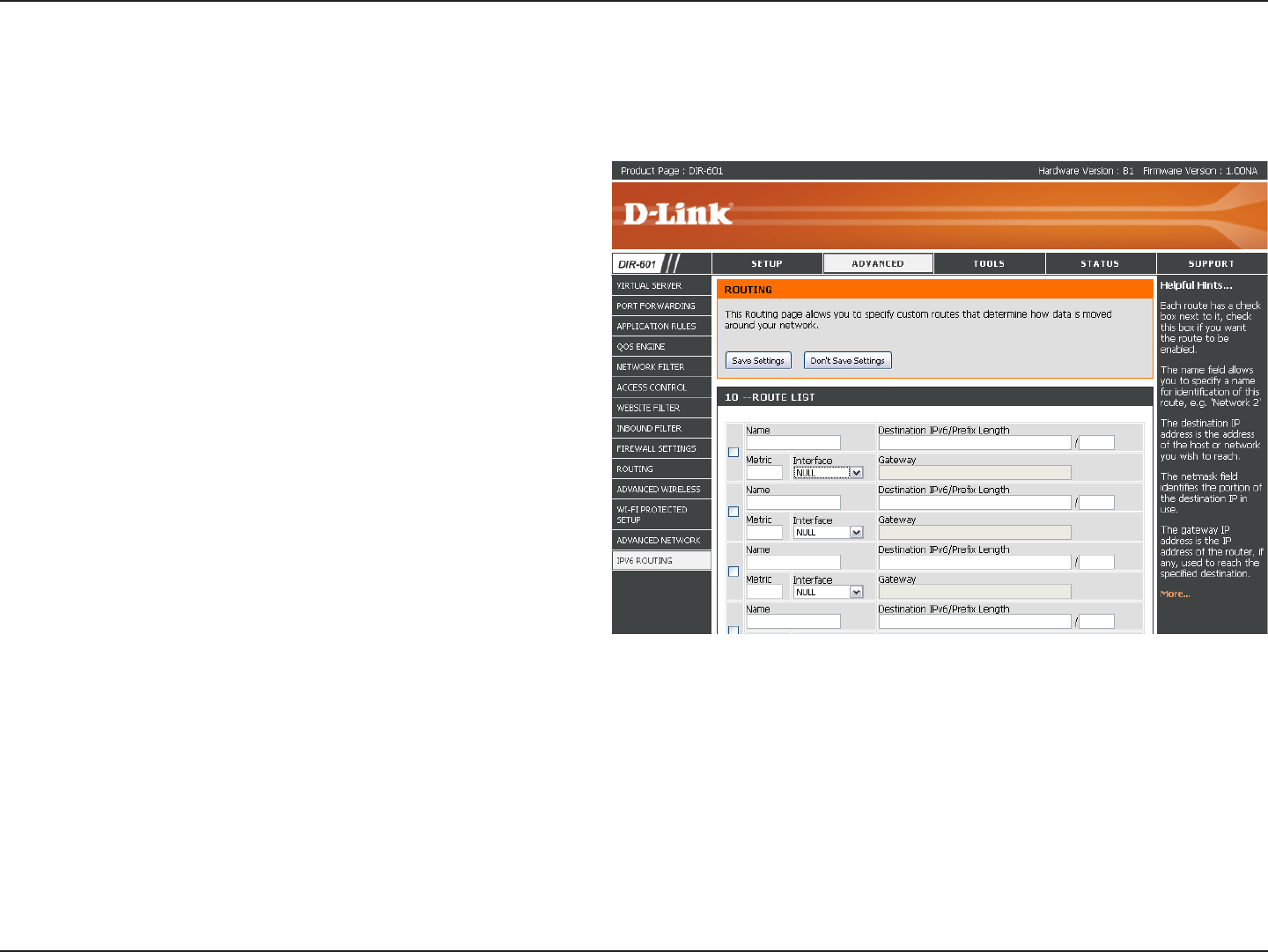

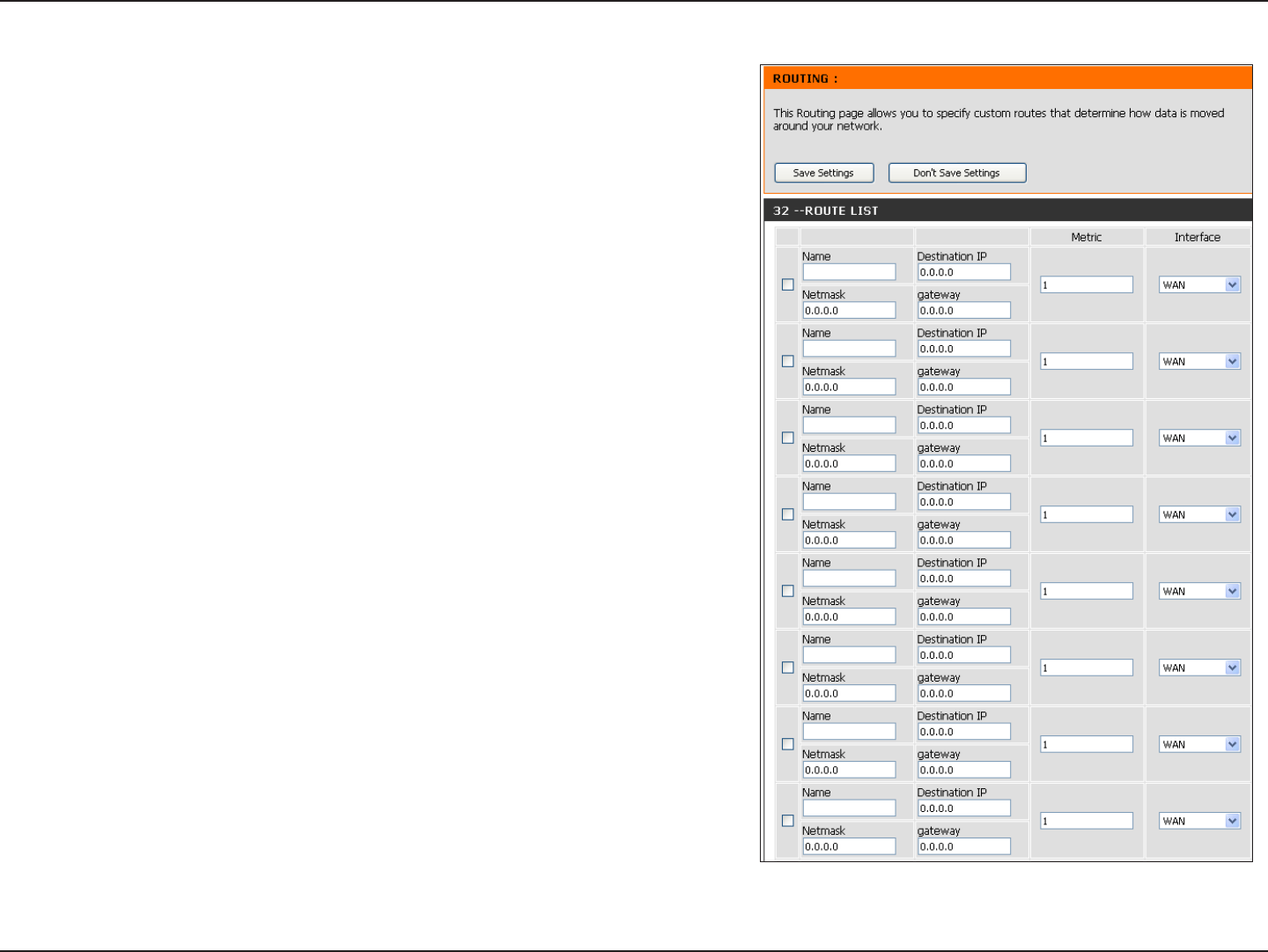

Routing ...................................................................................60

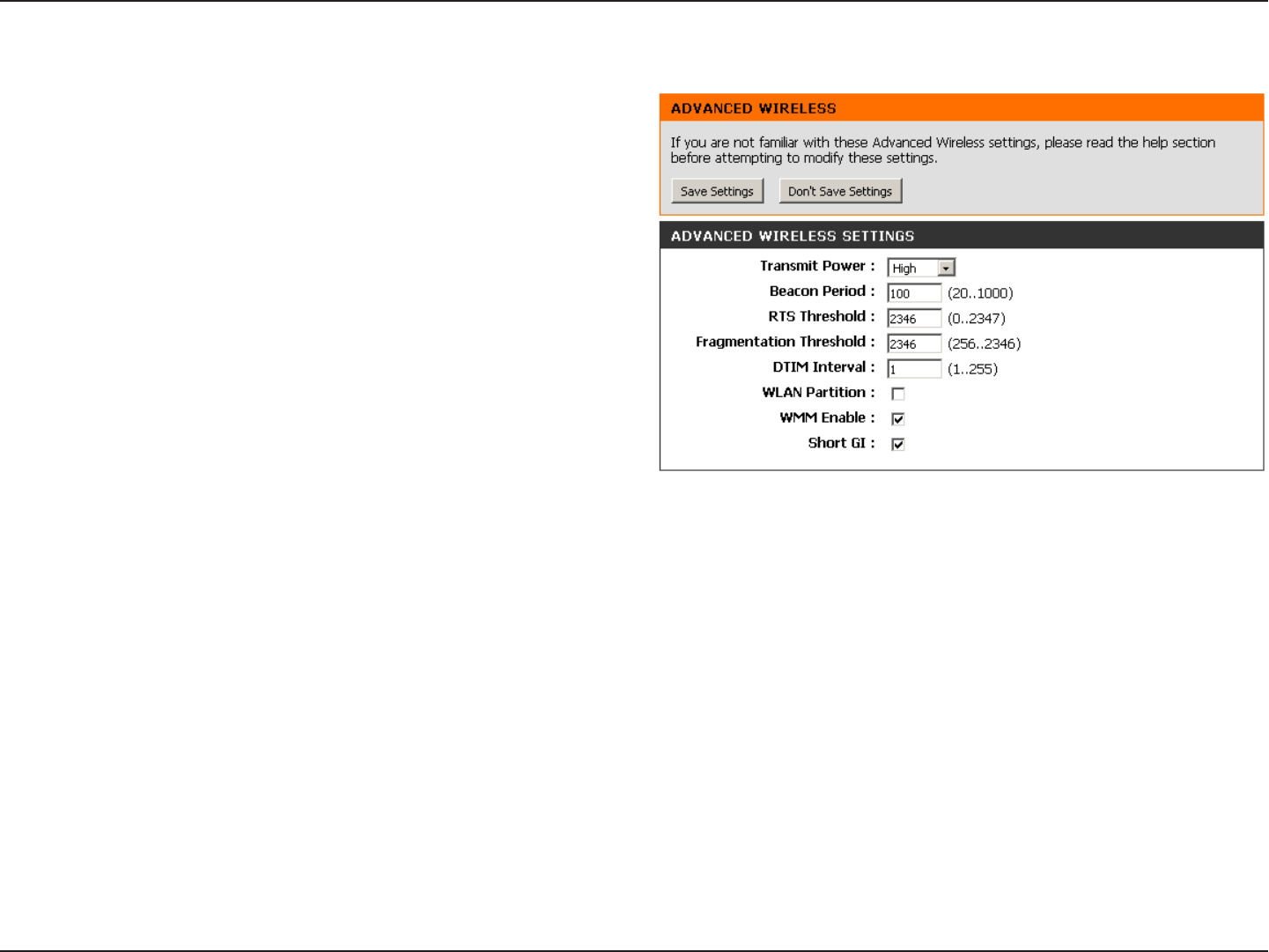

Advanced Wireless Settings ............................................61

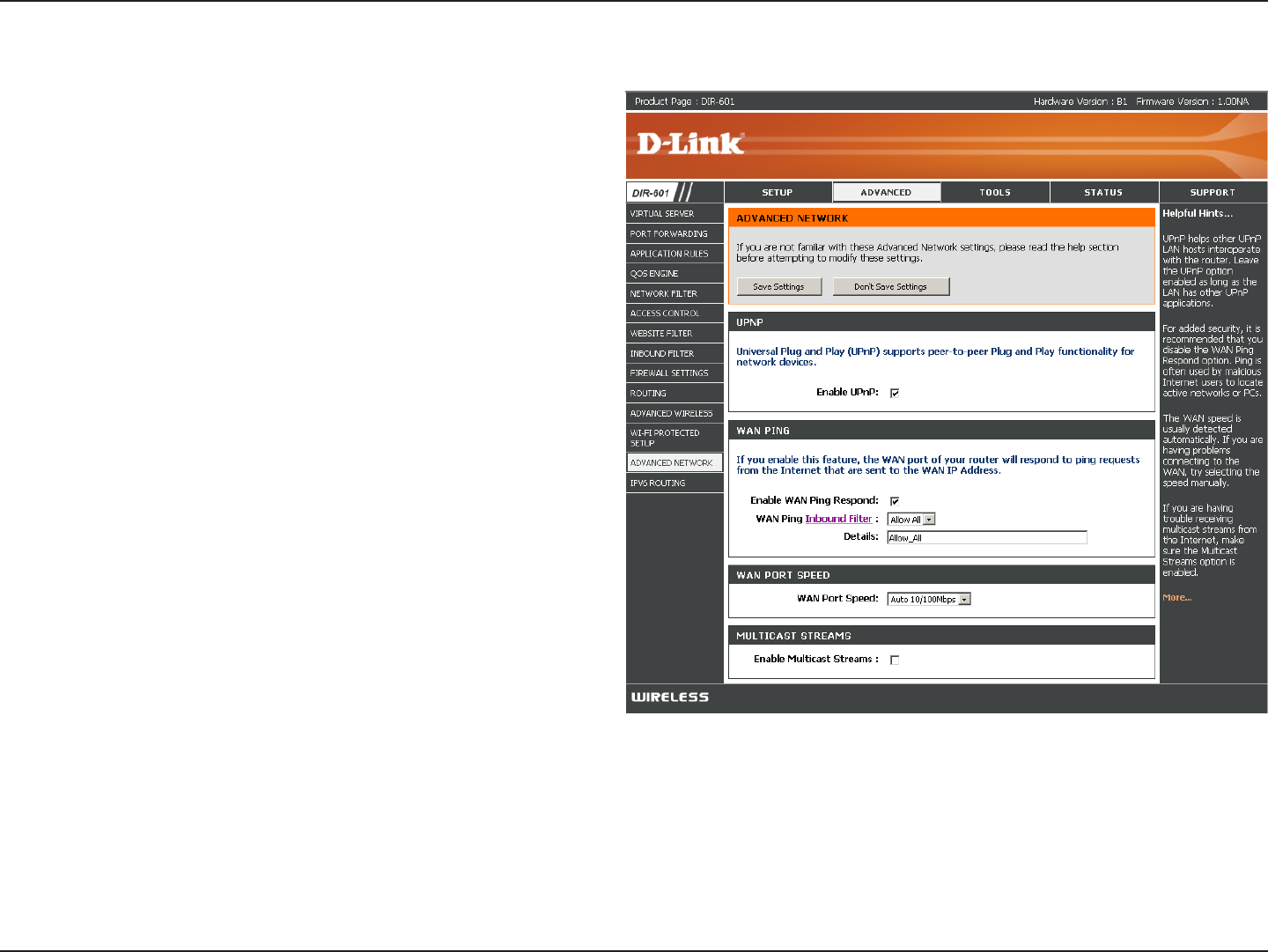

Advanced Network Settings ...........................................62
IPv6 Routing .........................................................................63

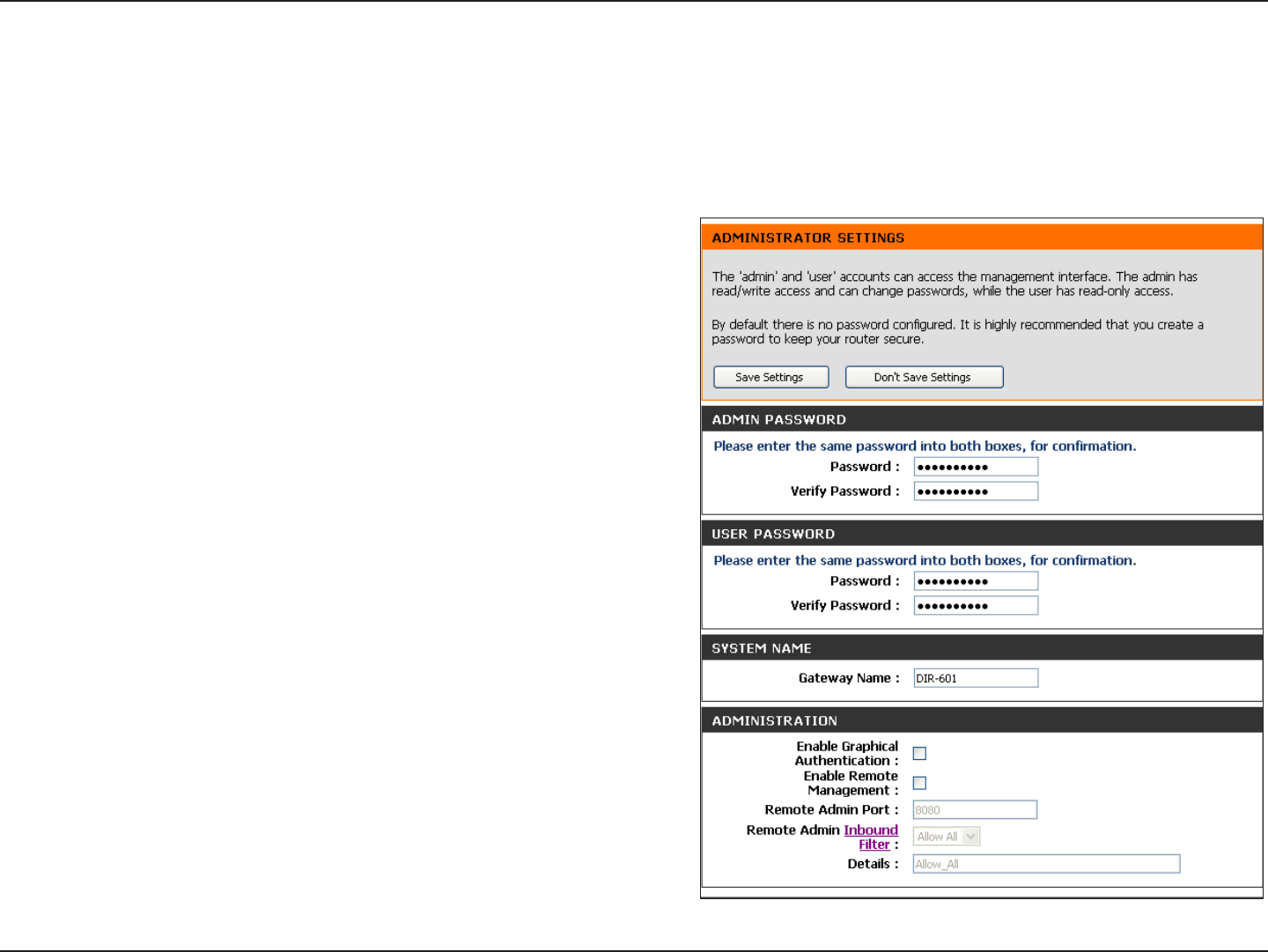

Administrator Settings ......................................................64

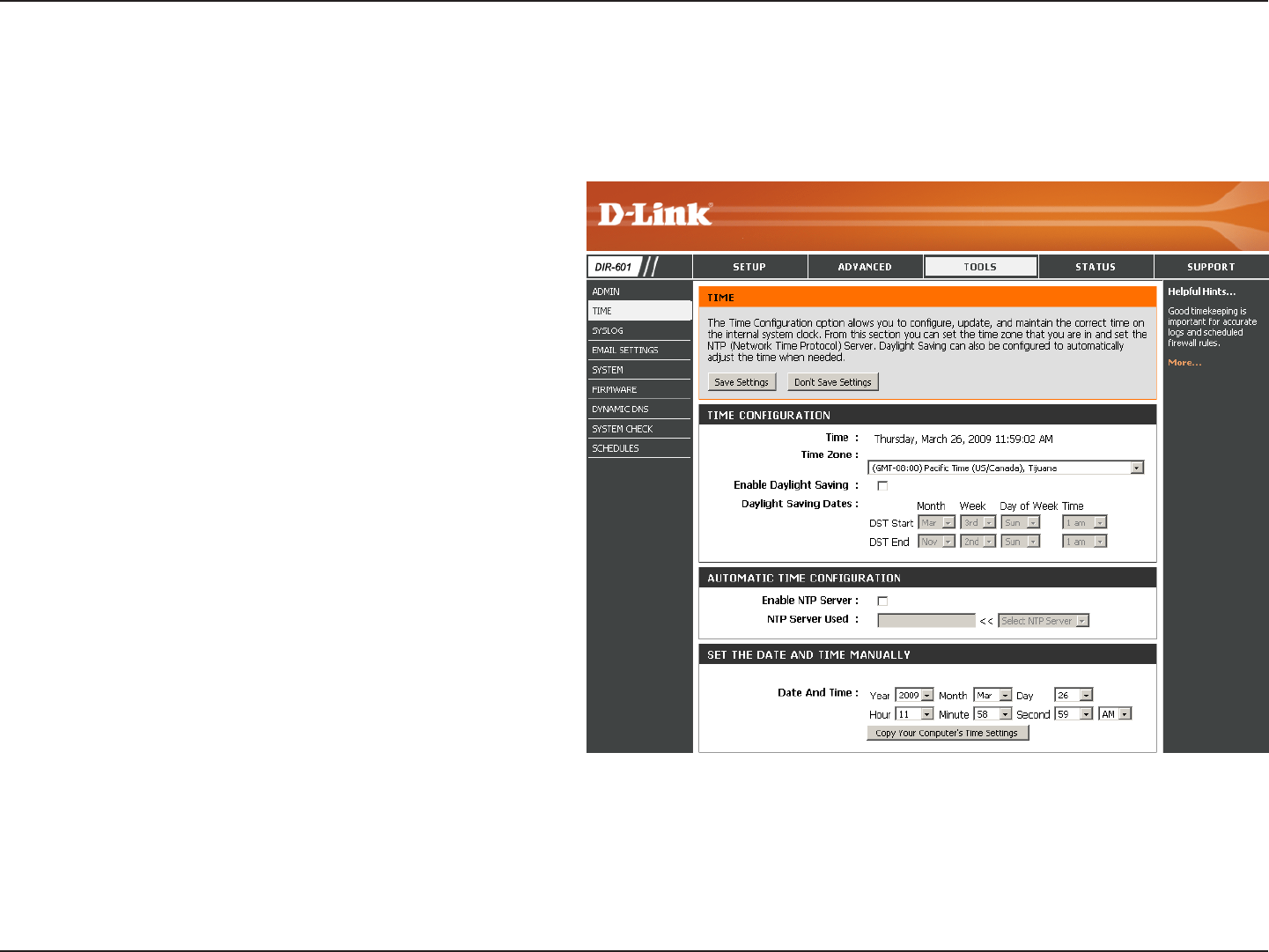

Time Settings .......................................................................66

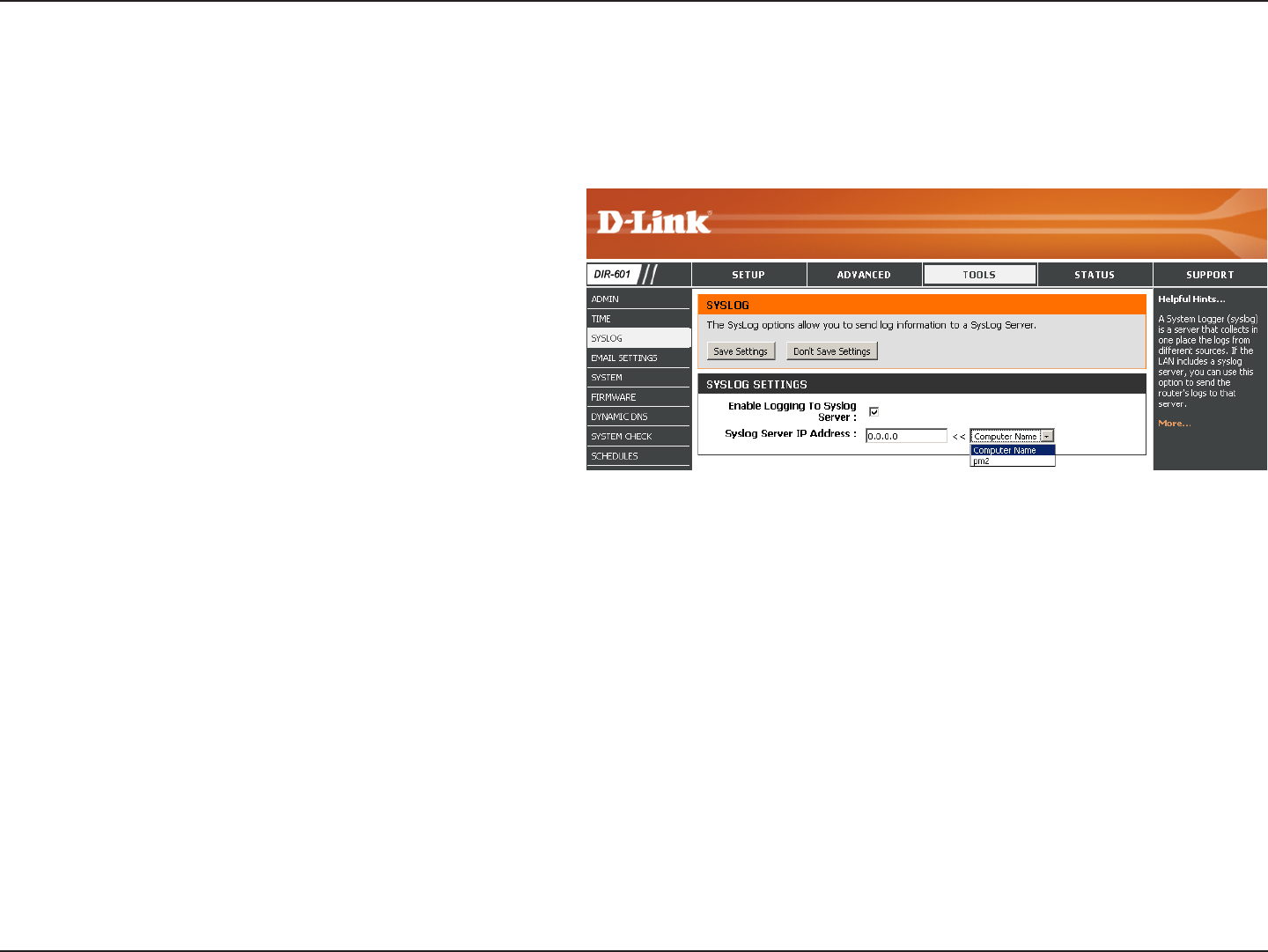

SysLog .....................................................................................67
E-mail Settings .....................................................................68

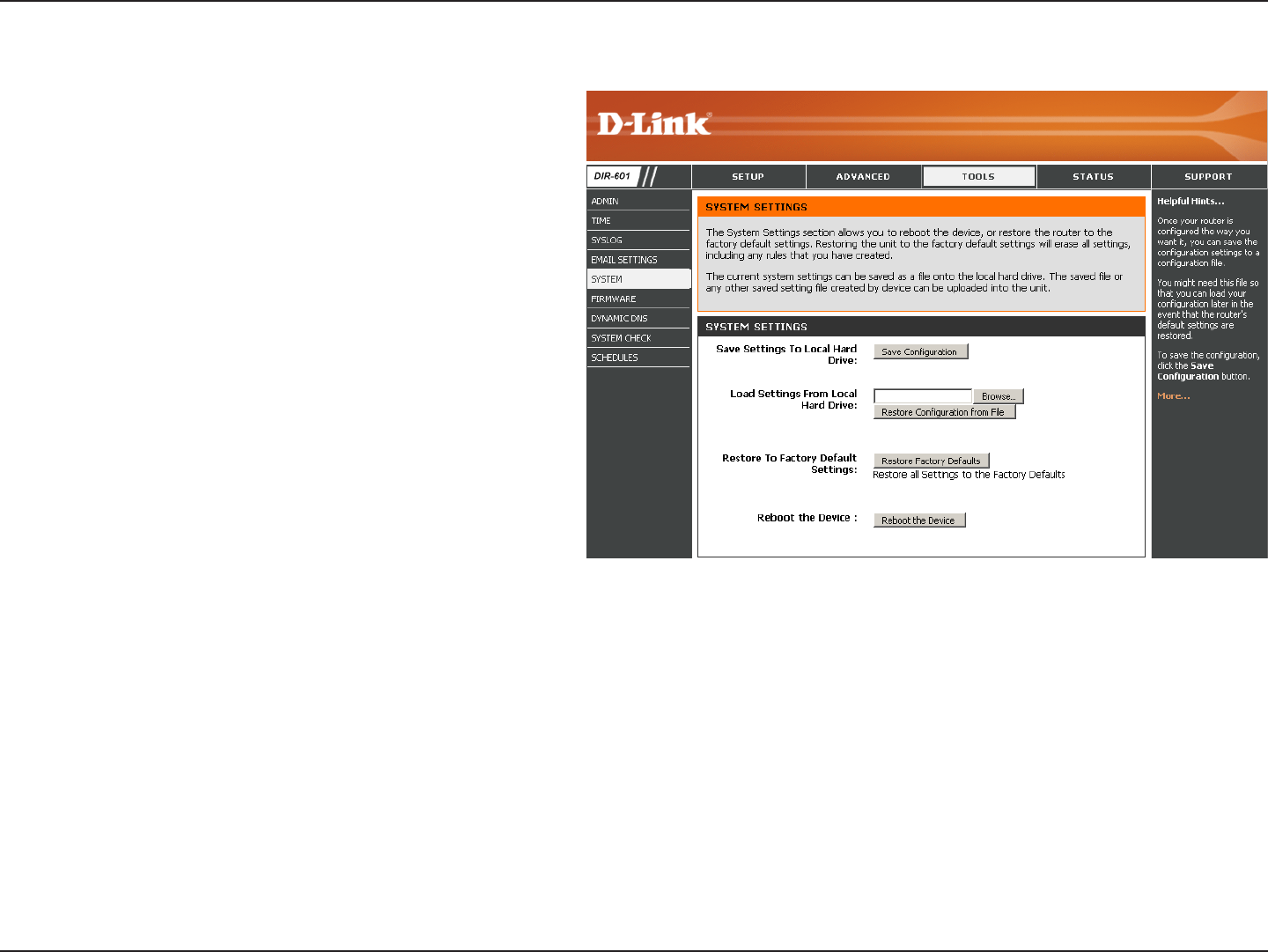

System Settings ...................................................................69

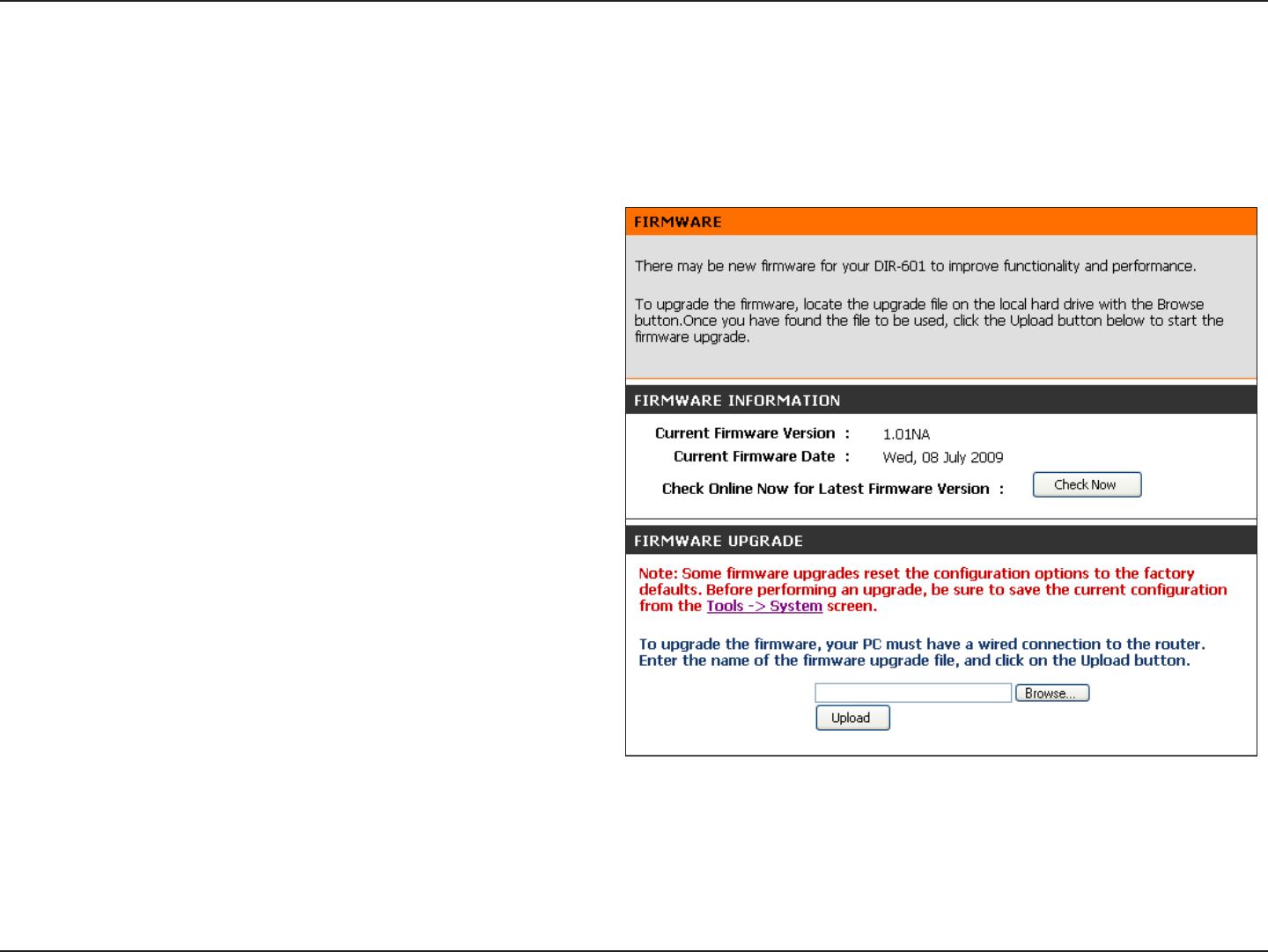

Update Firmware ................................................................70

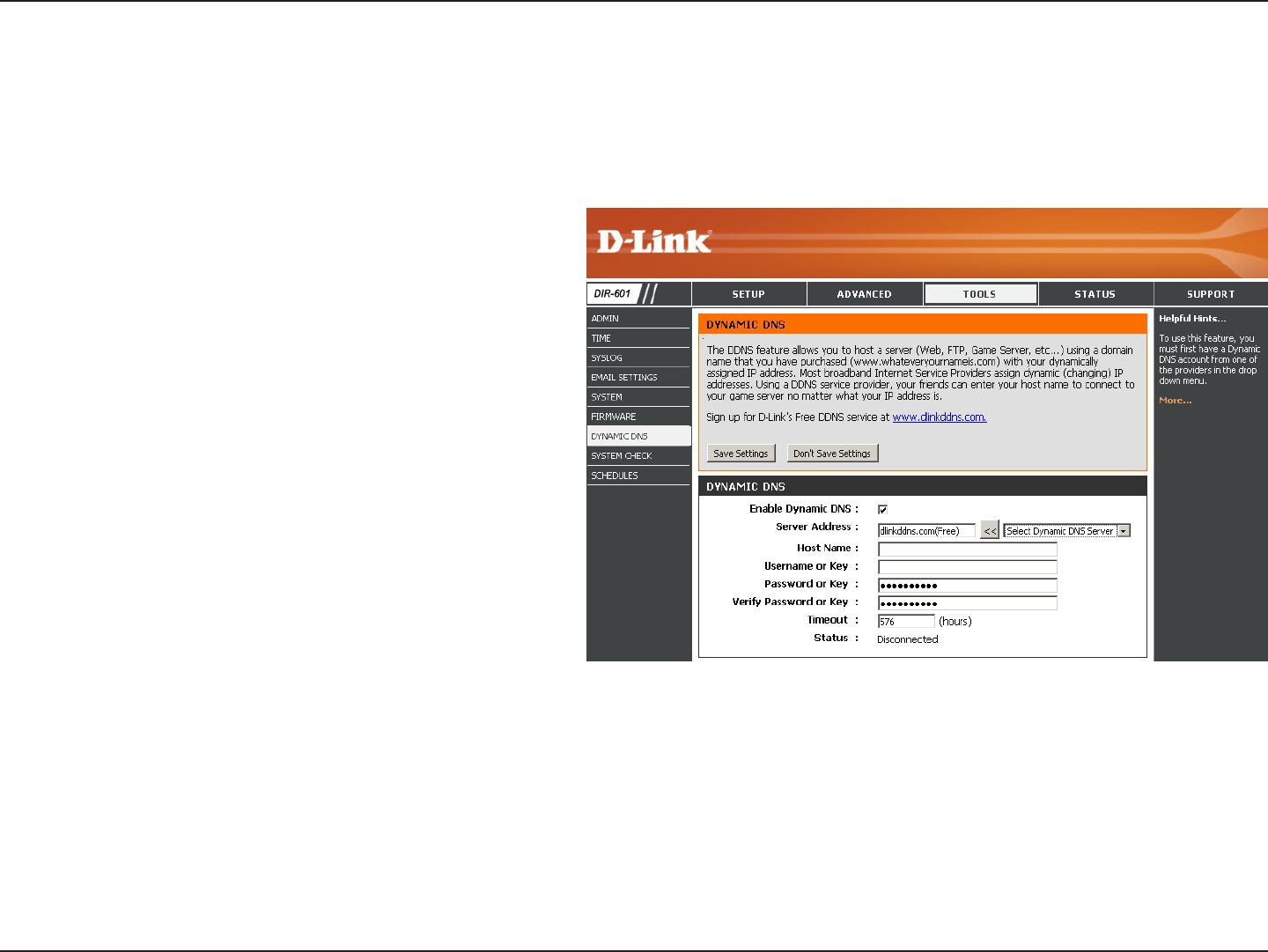

DDNS .......................................................................................71

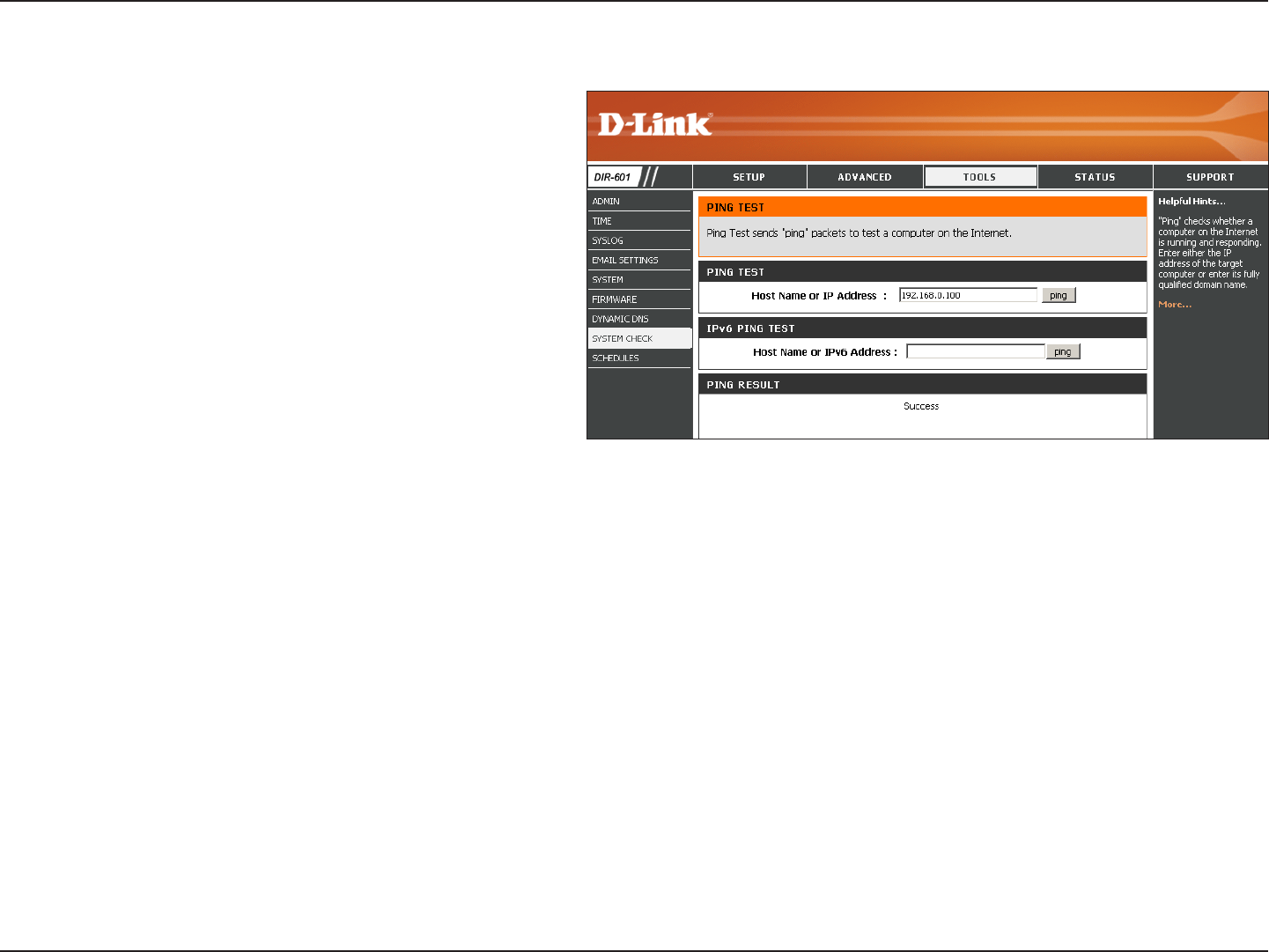

System Check .......................................................................72

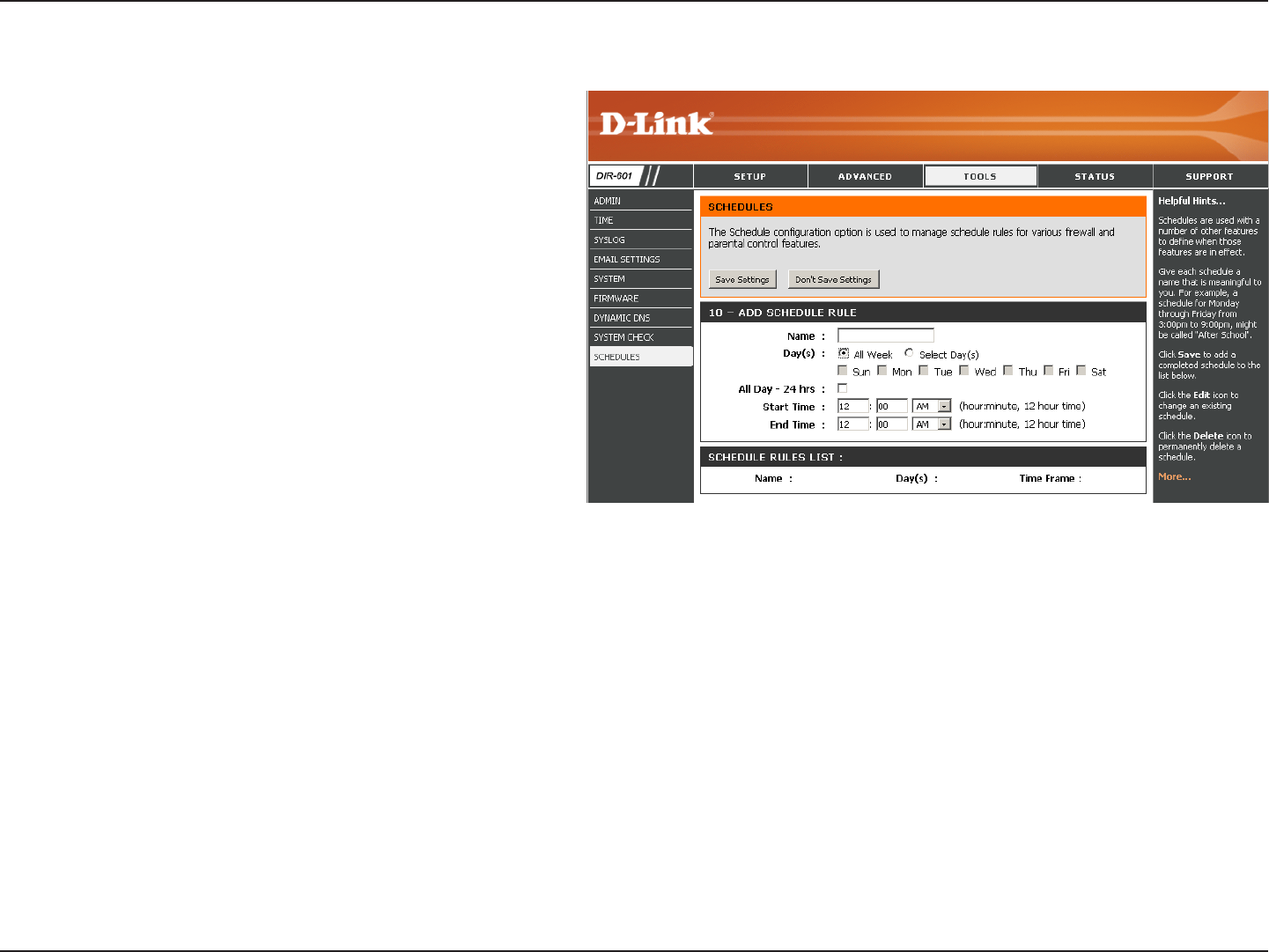

Schedules ..............................................................................73

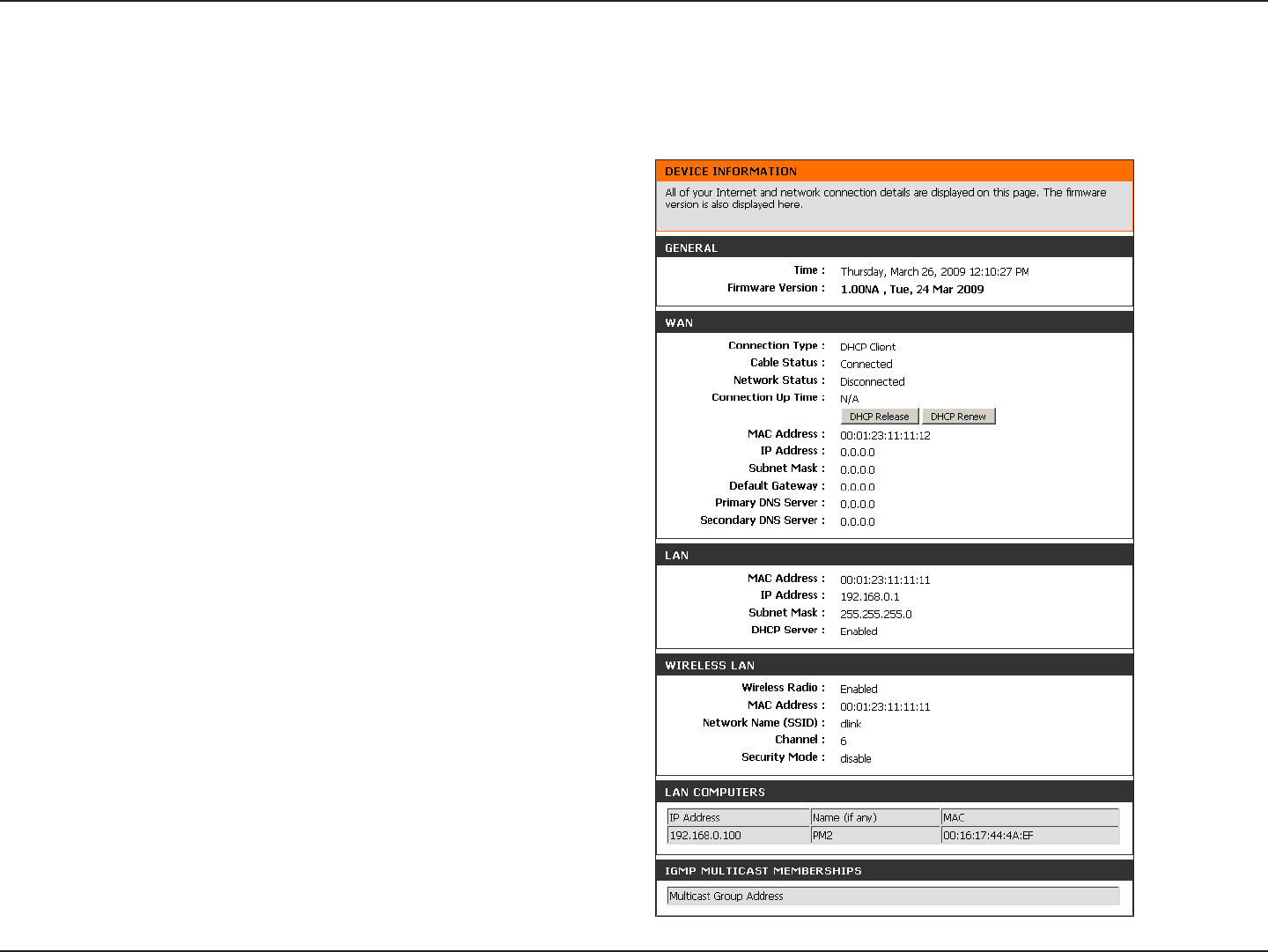

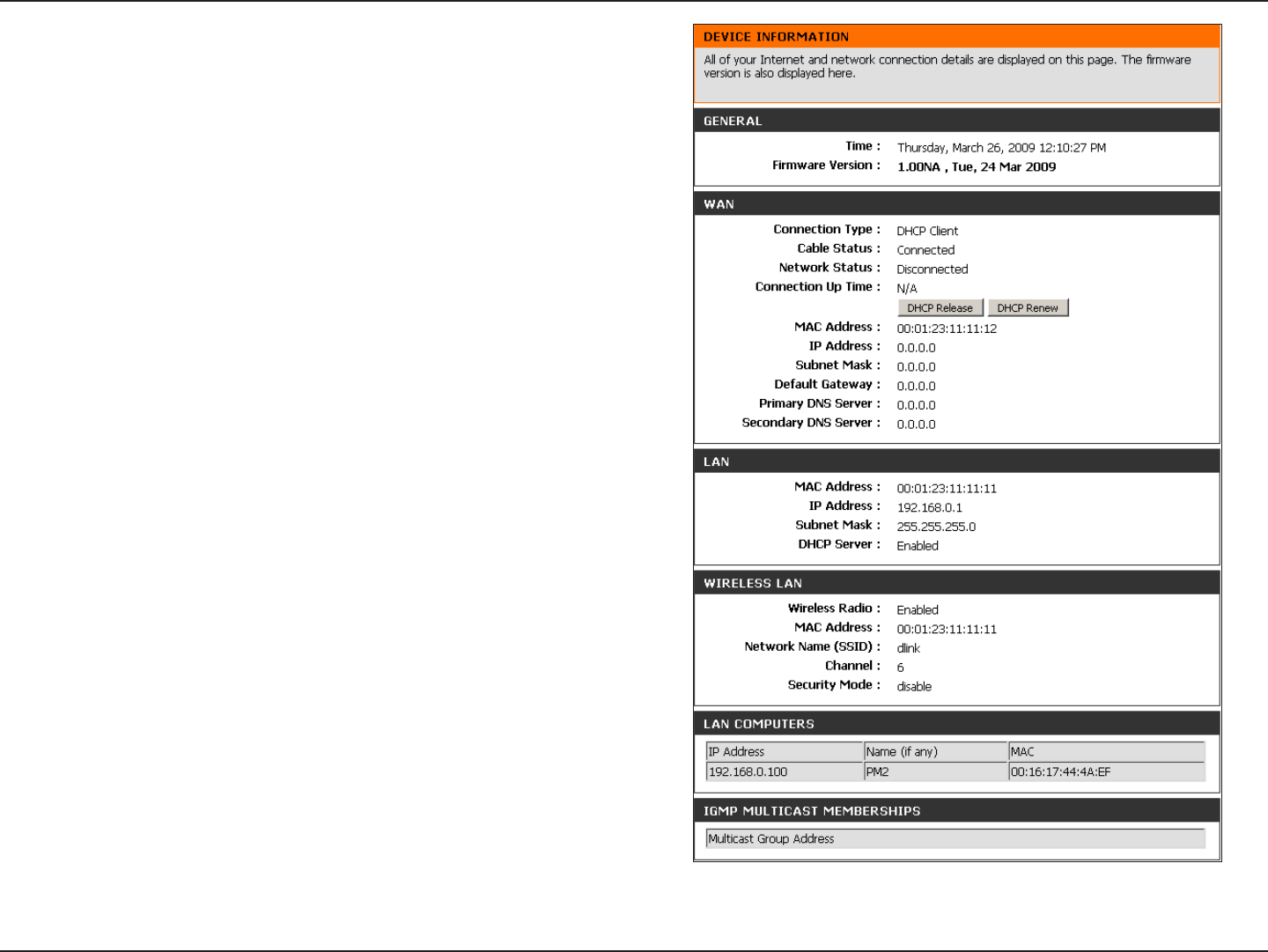

Device Information ............................................................74

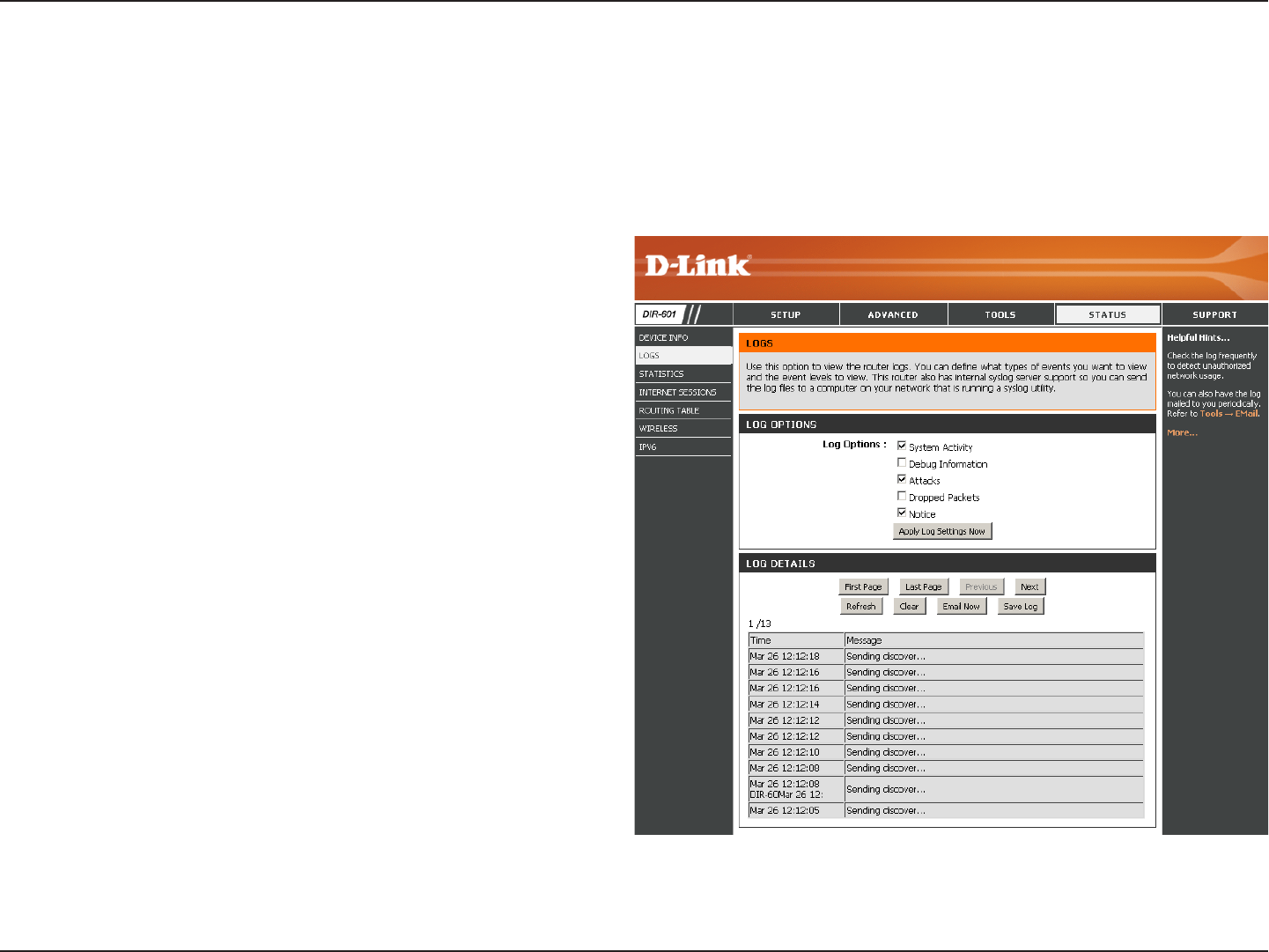

Log ...........................................................................................76

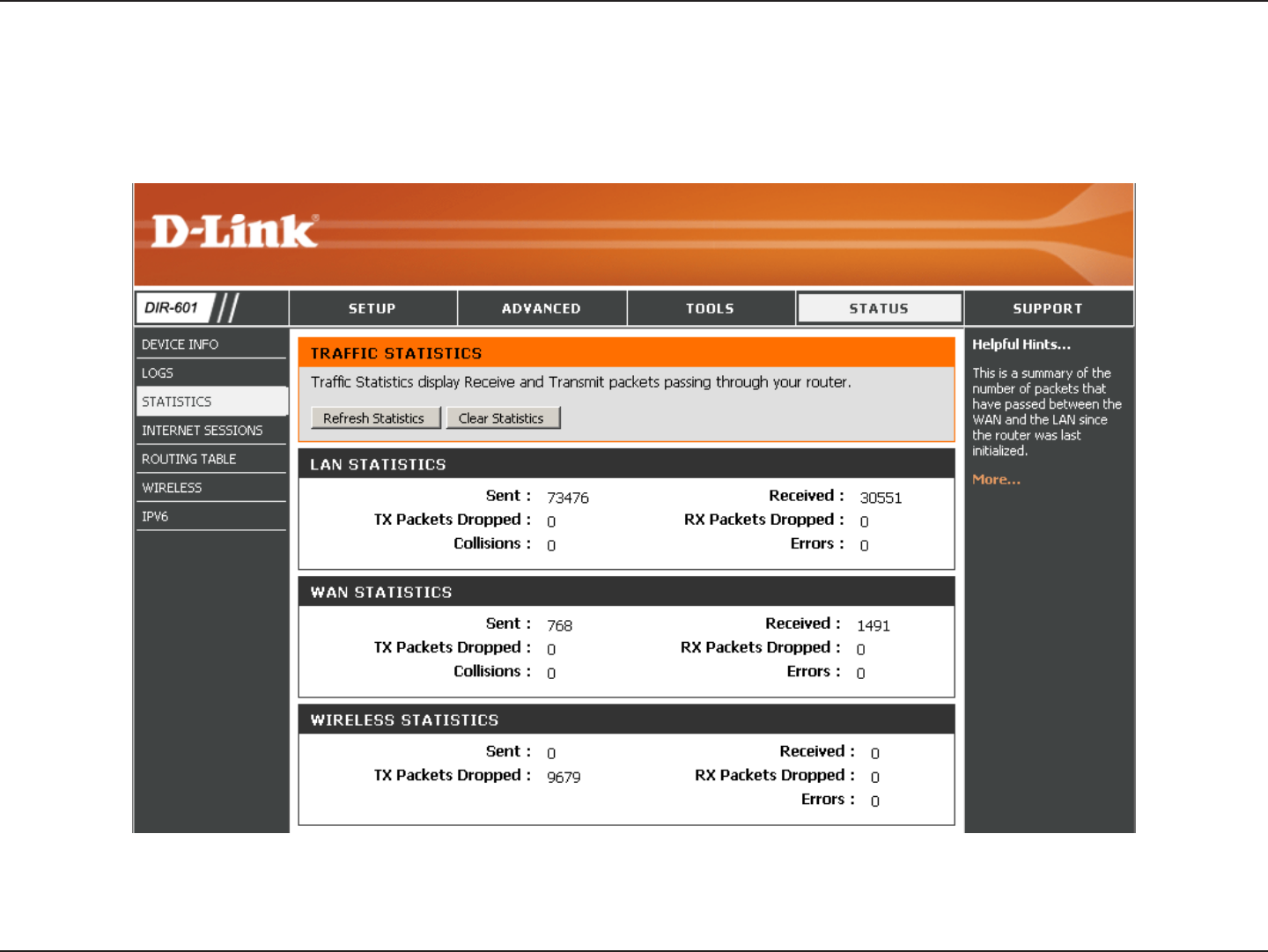

Stats .........................................................................................77

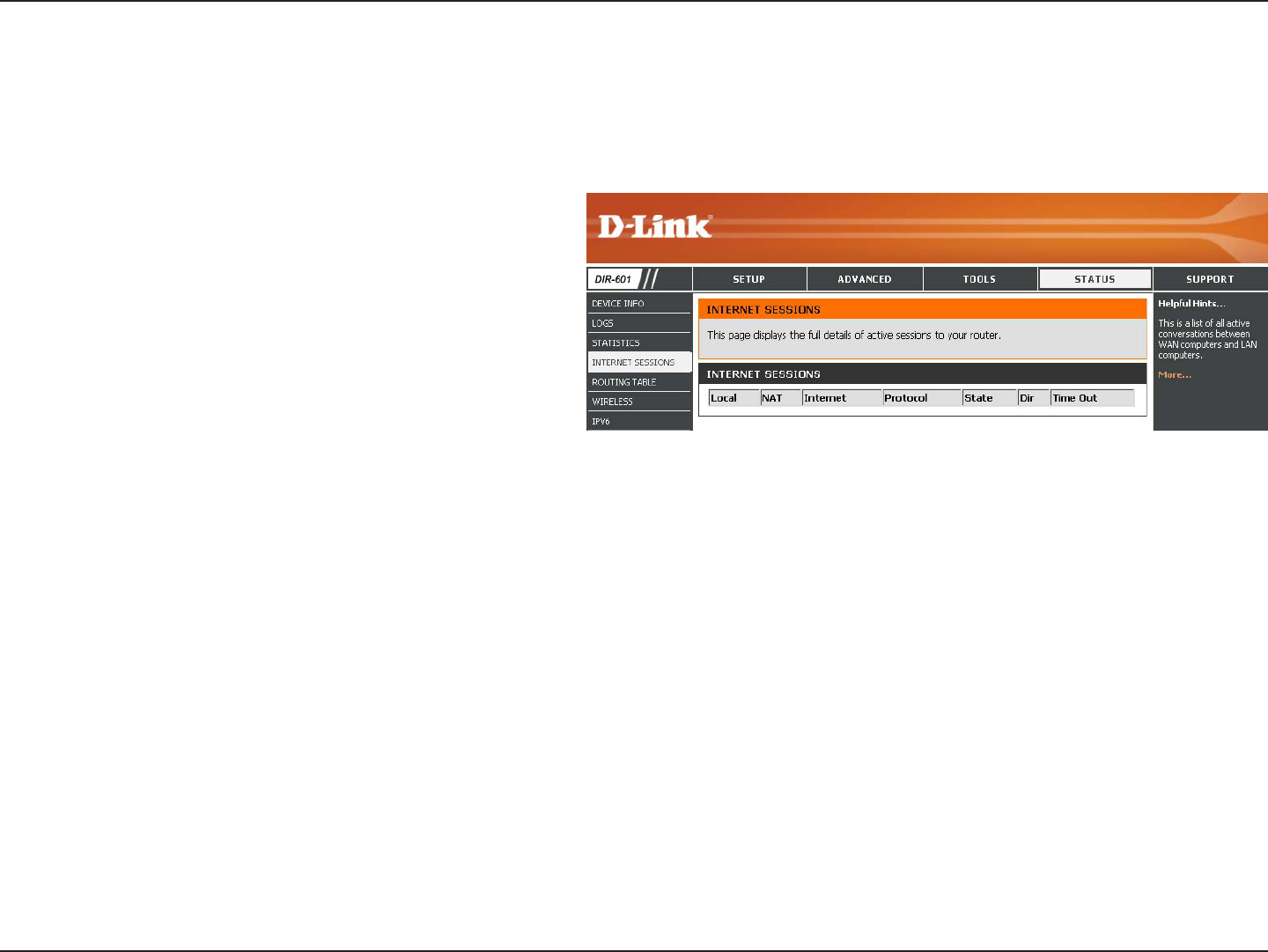

Internet Sessions .................................................................78

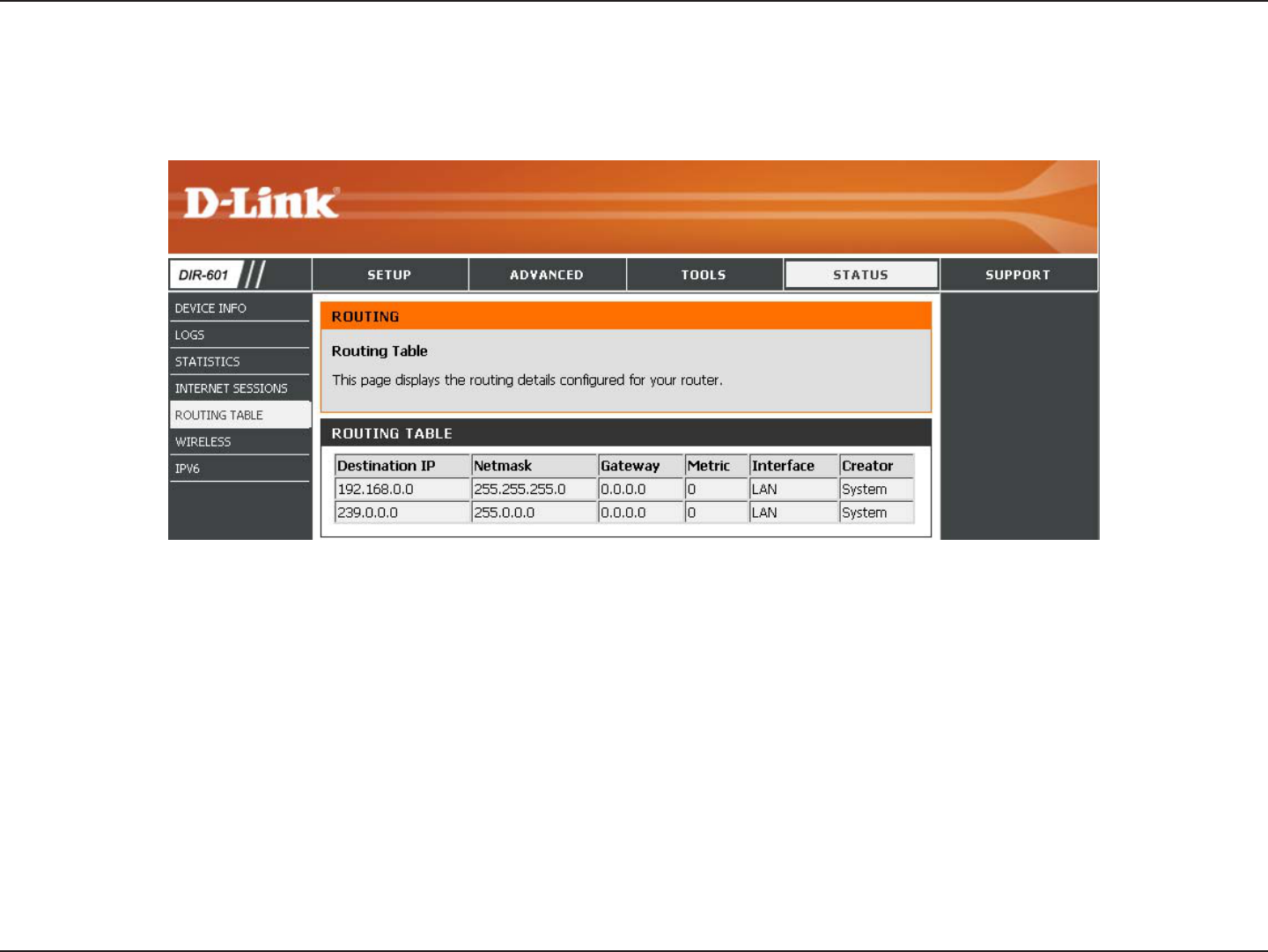

Routing Table .......................................................................80

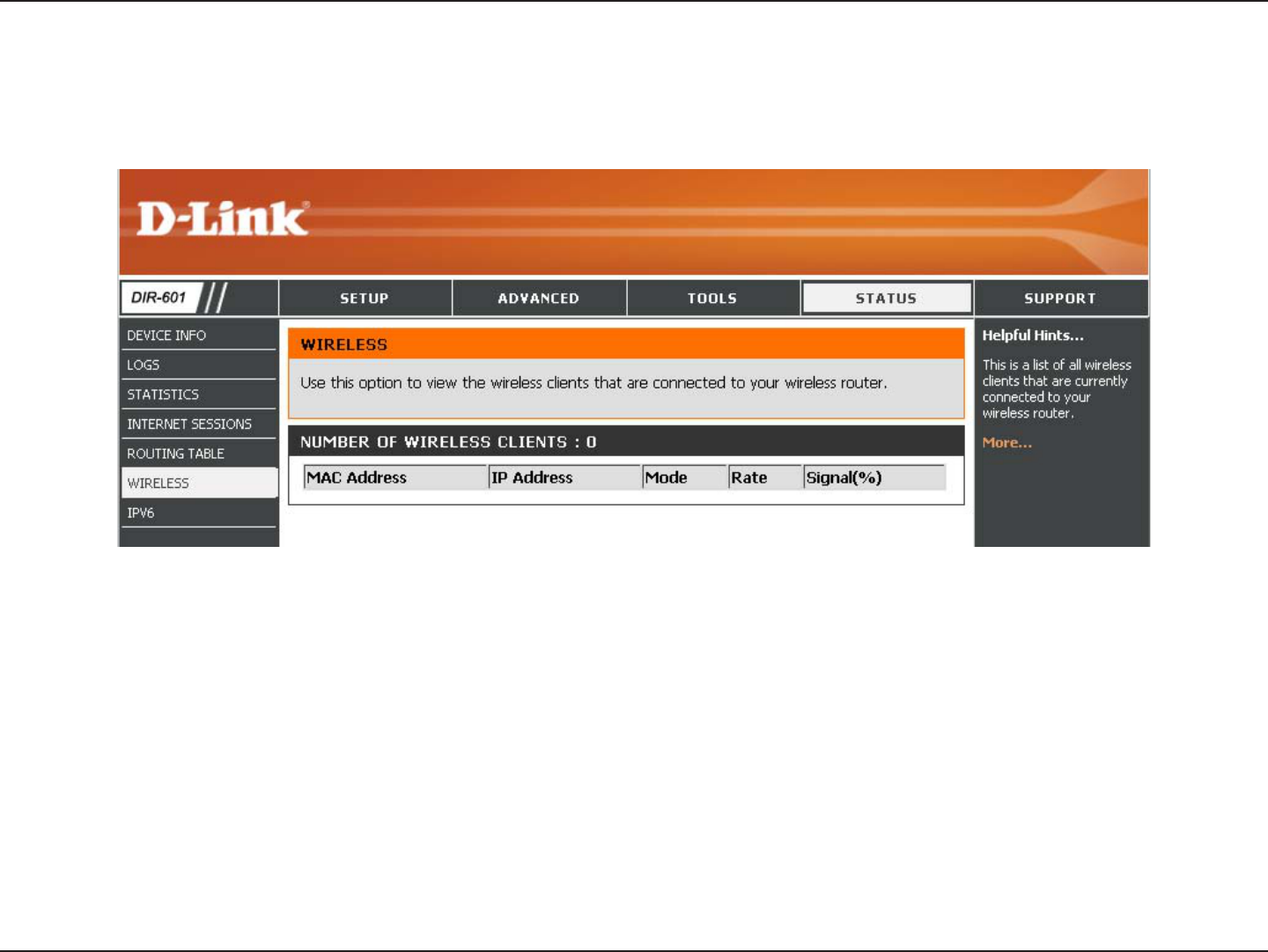

Wireless ..................................................................................81

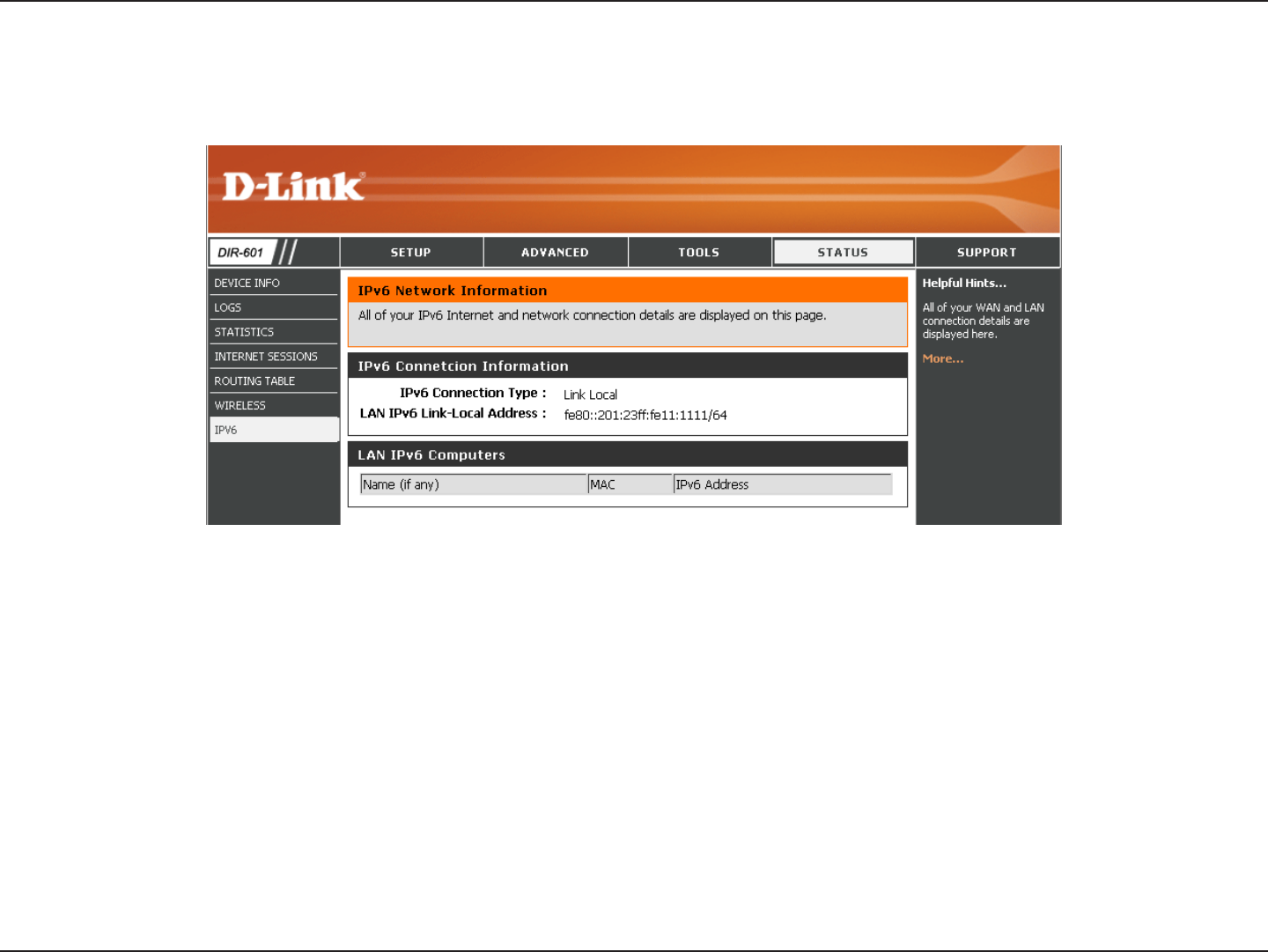

IPv6 ..........................................................................................82

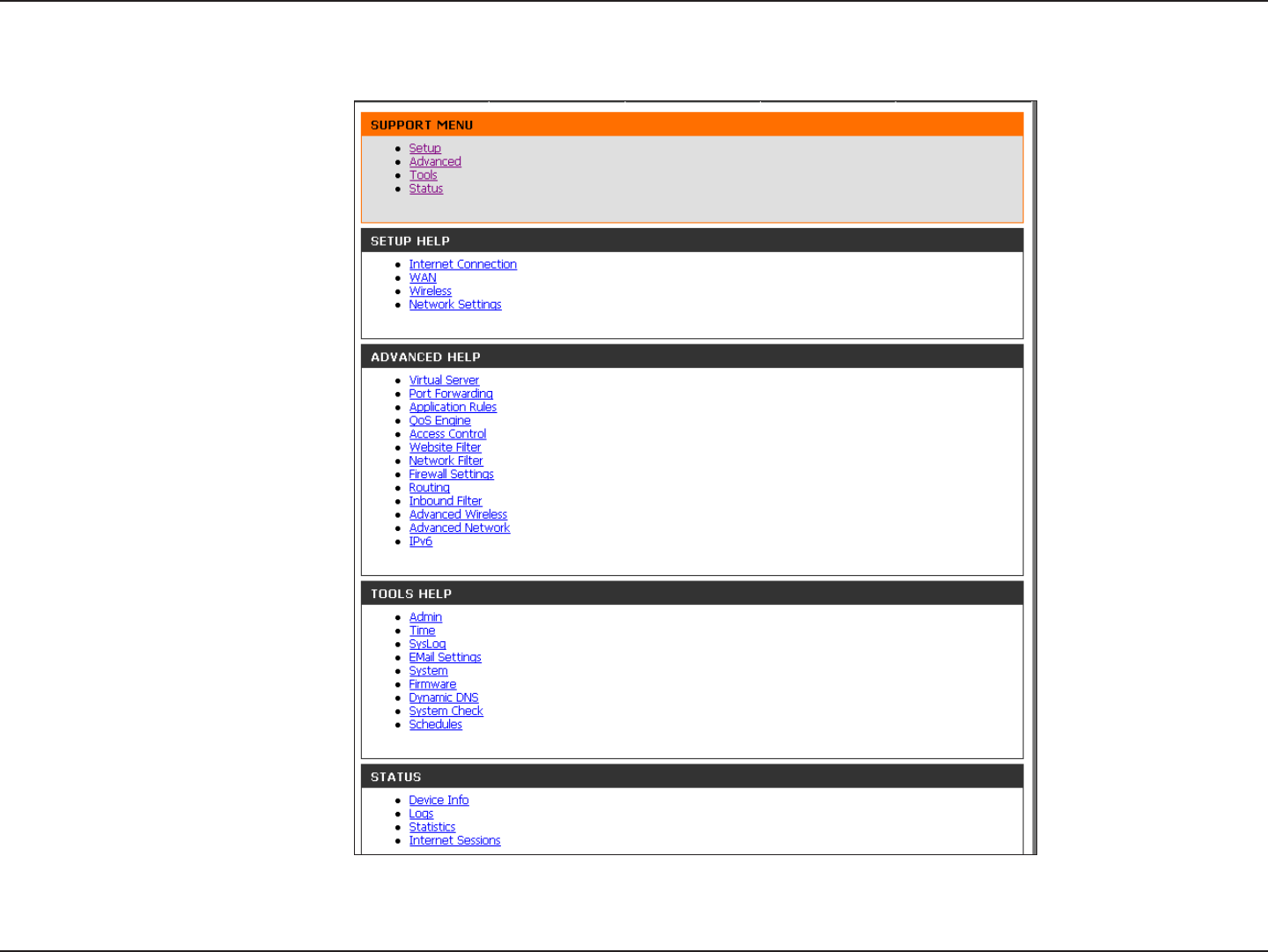

Support ..................................................................................83
Wireless Security ..................................................................... 84
What is WPA? ................................................................................84

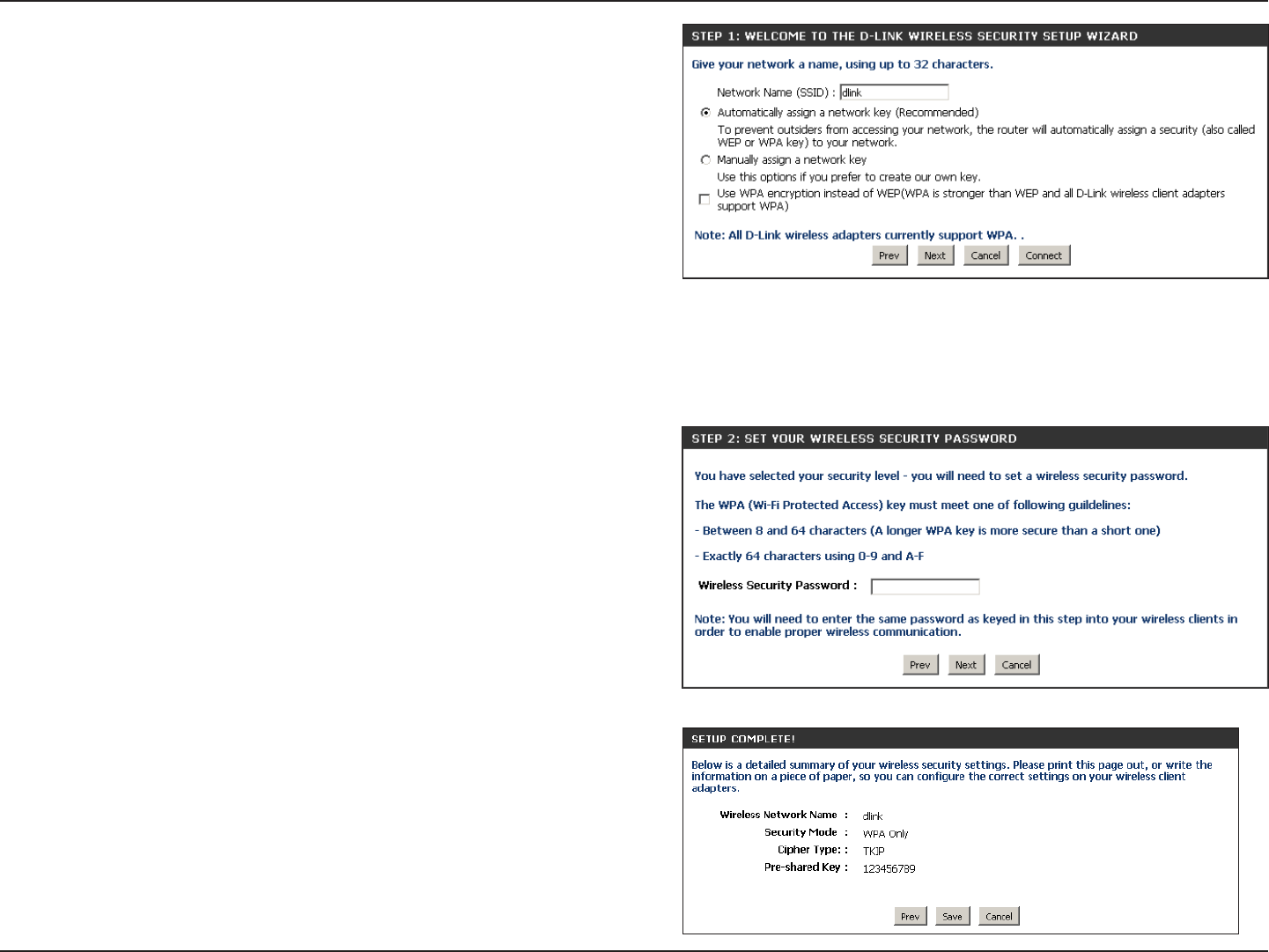

Wireless Connection Setup Wizard ......................................85

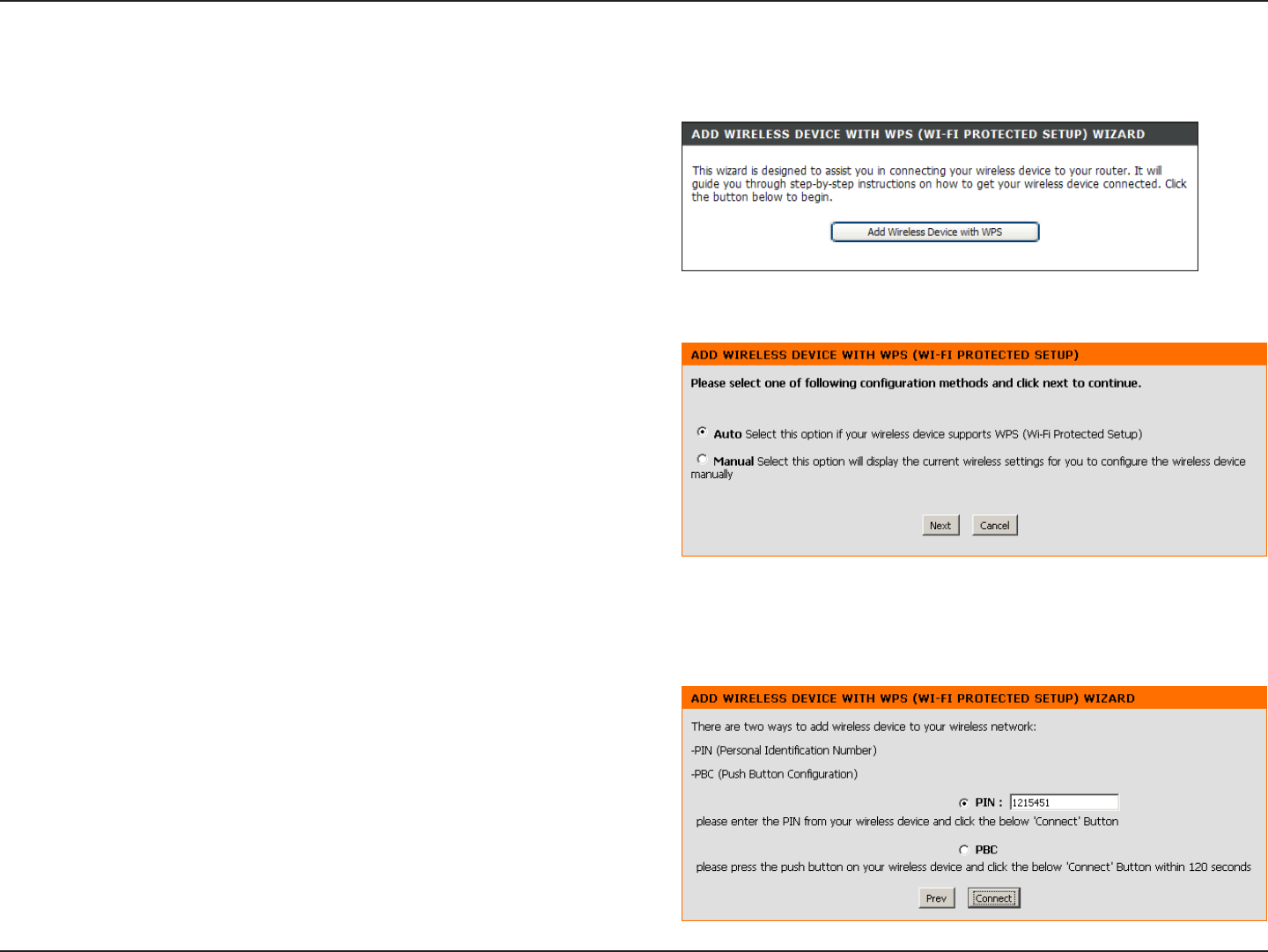

Add Wireless Device with WPS Wizard ................................87

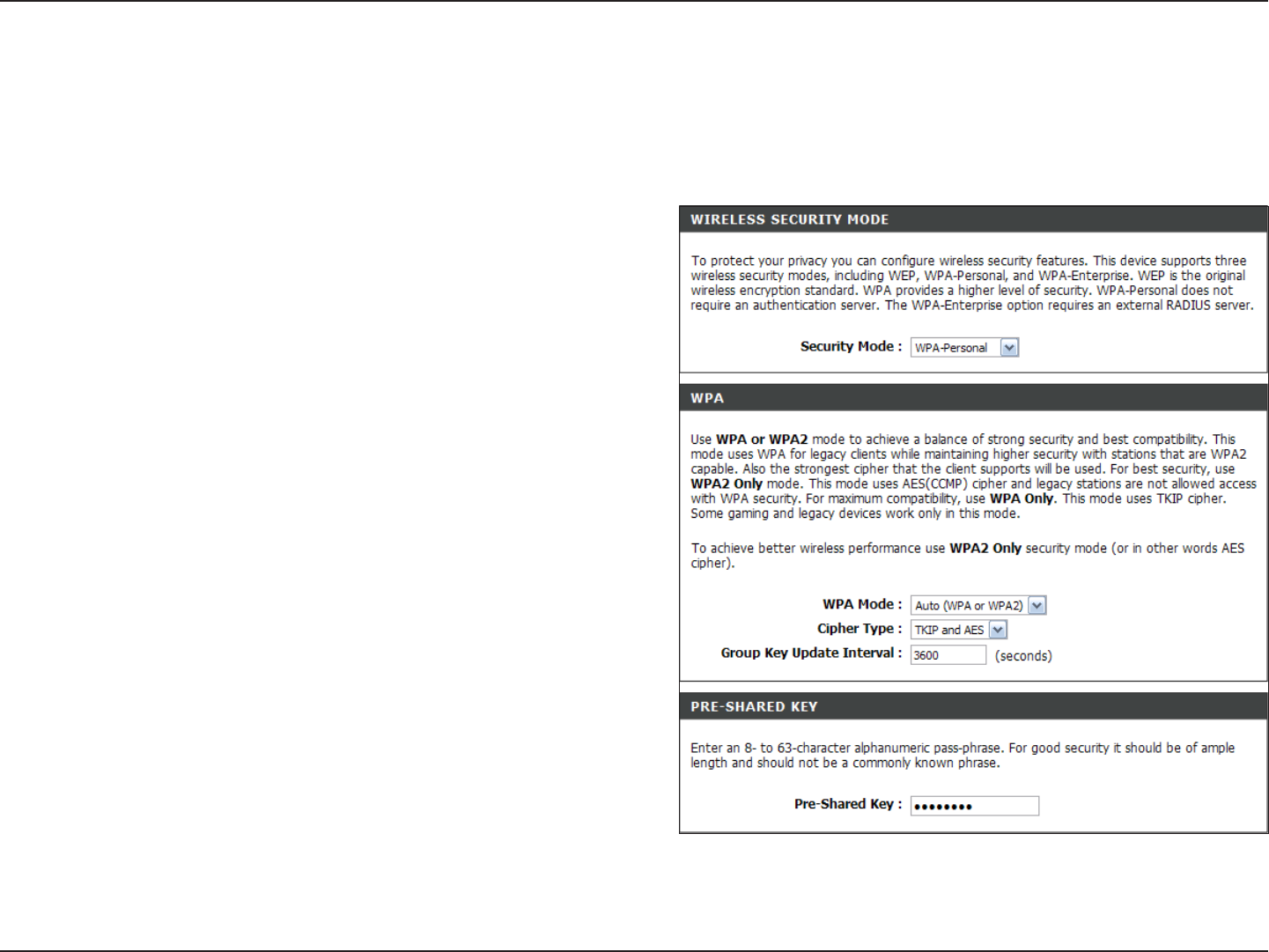

Congure WPA-Personal (PSK) ...............................................88

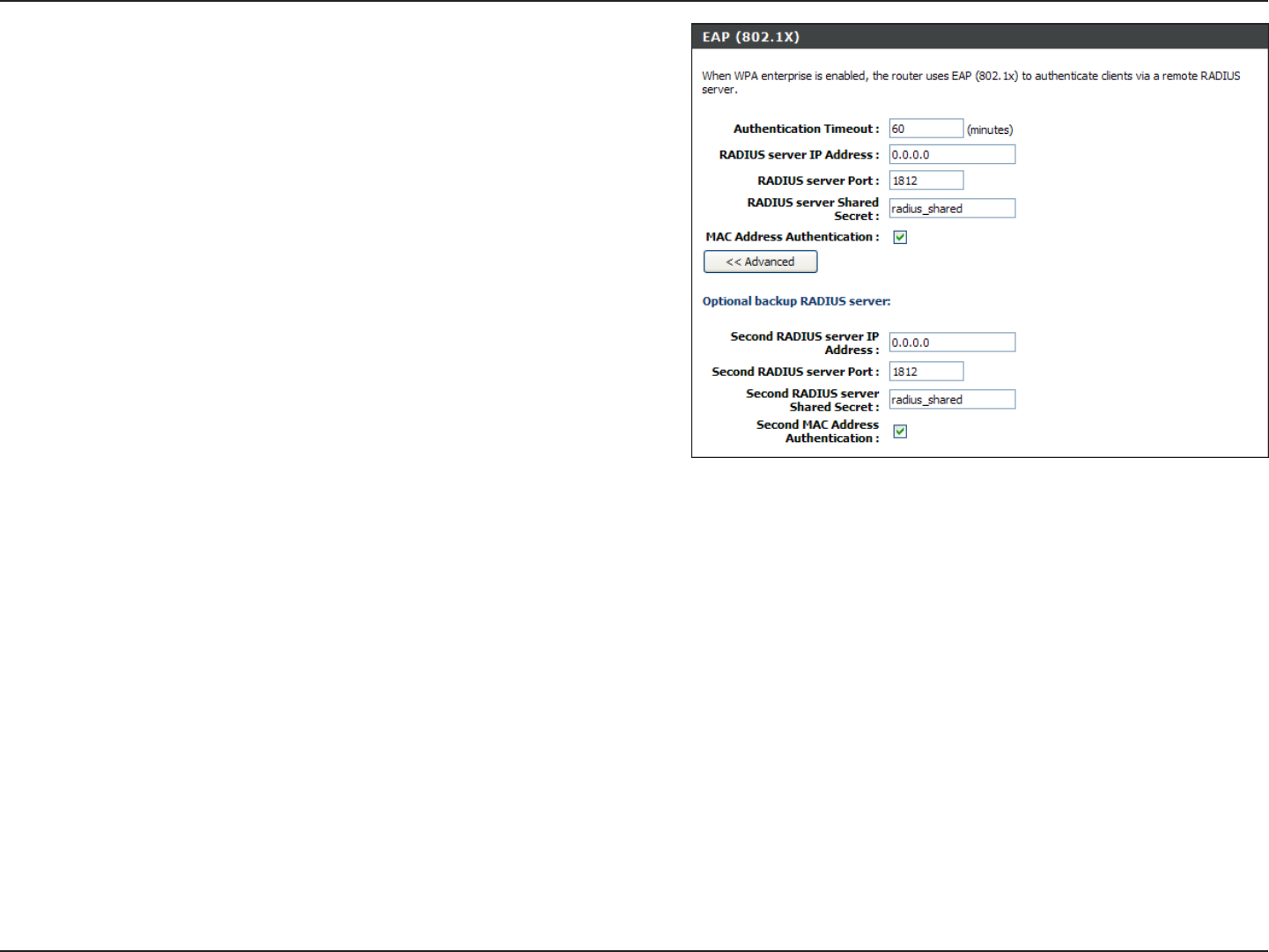

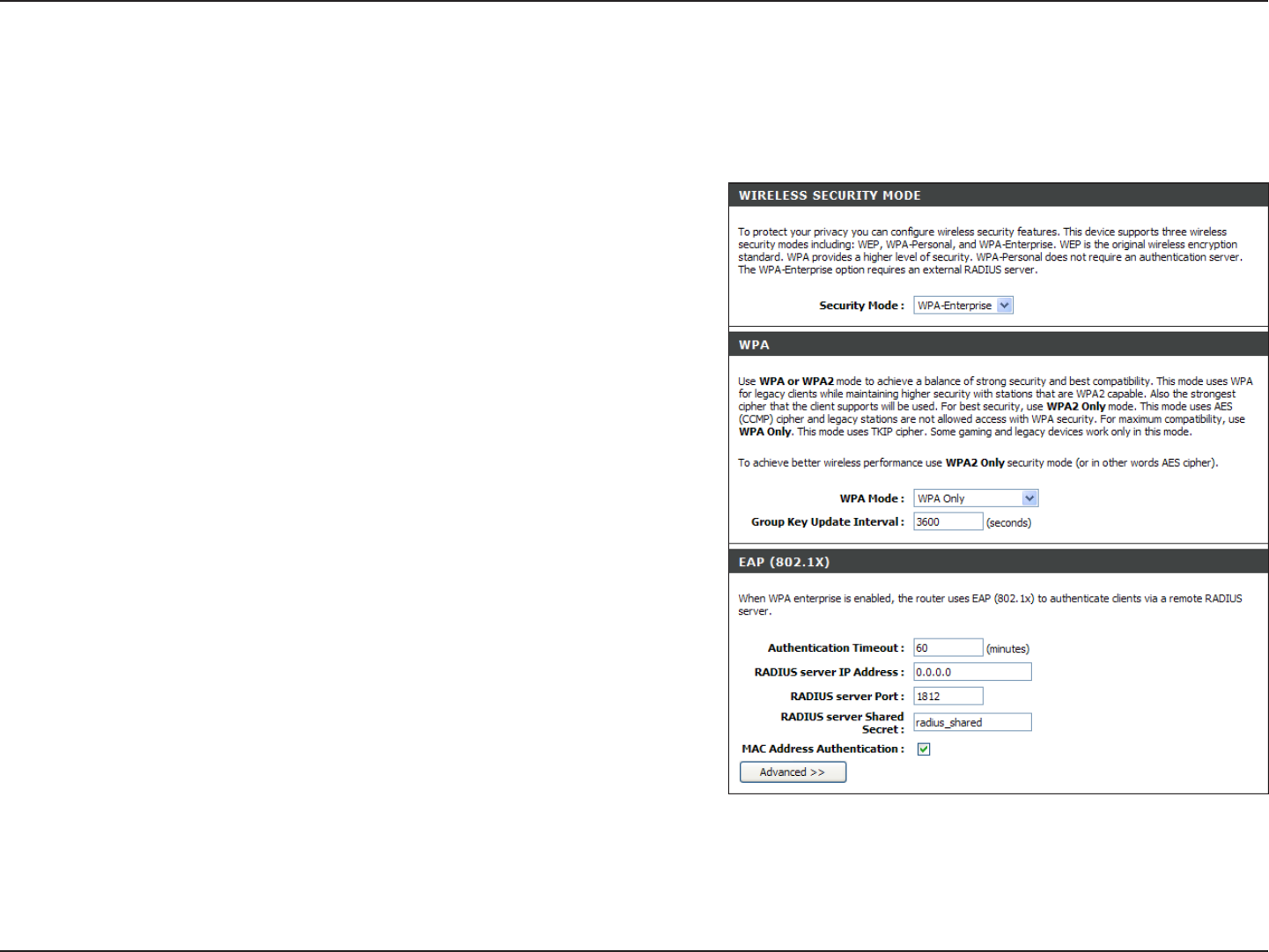

Congure WPA-Enterprise (RADIUS) ....................................89
Connect to a Wireless Network ............................................ 91

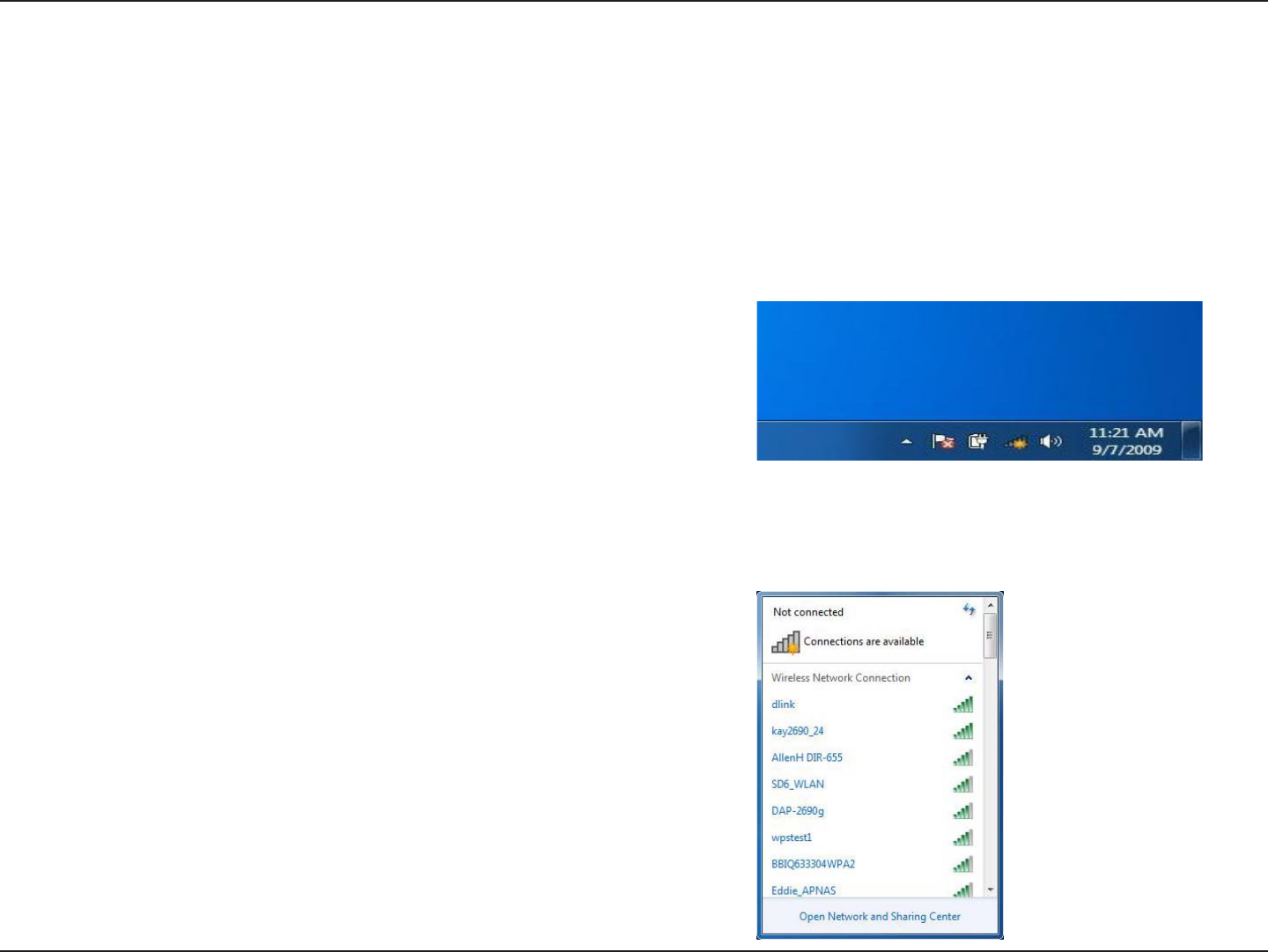

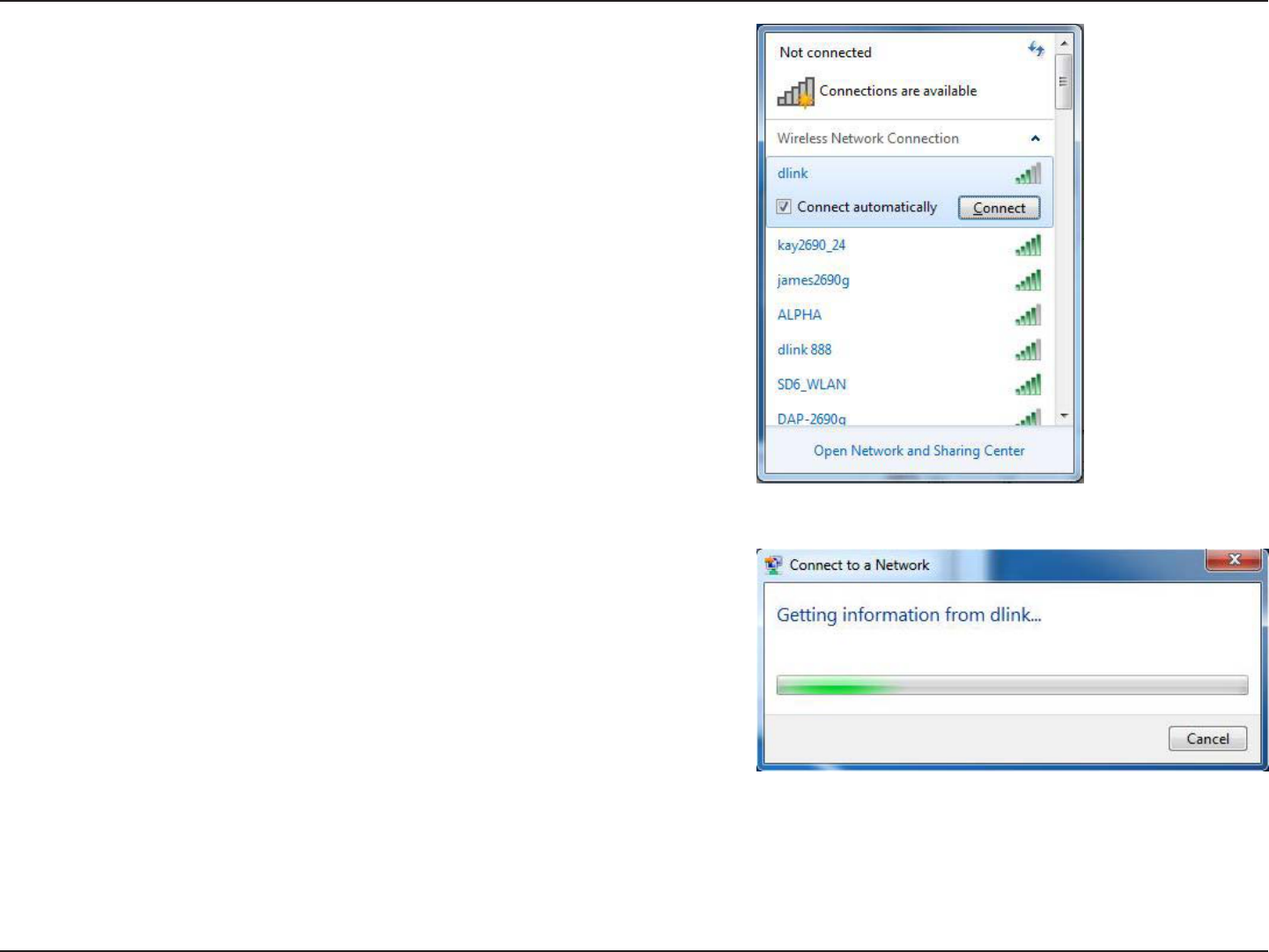

Using Windows® 7 .......................................................................91

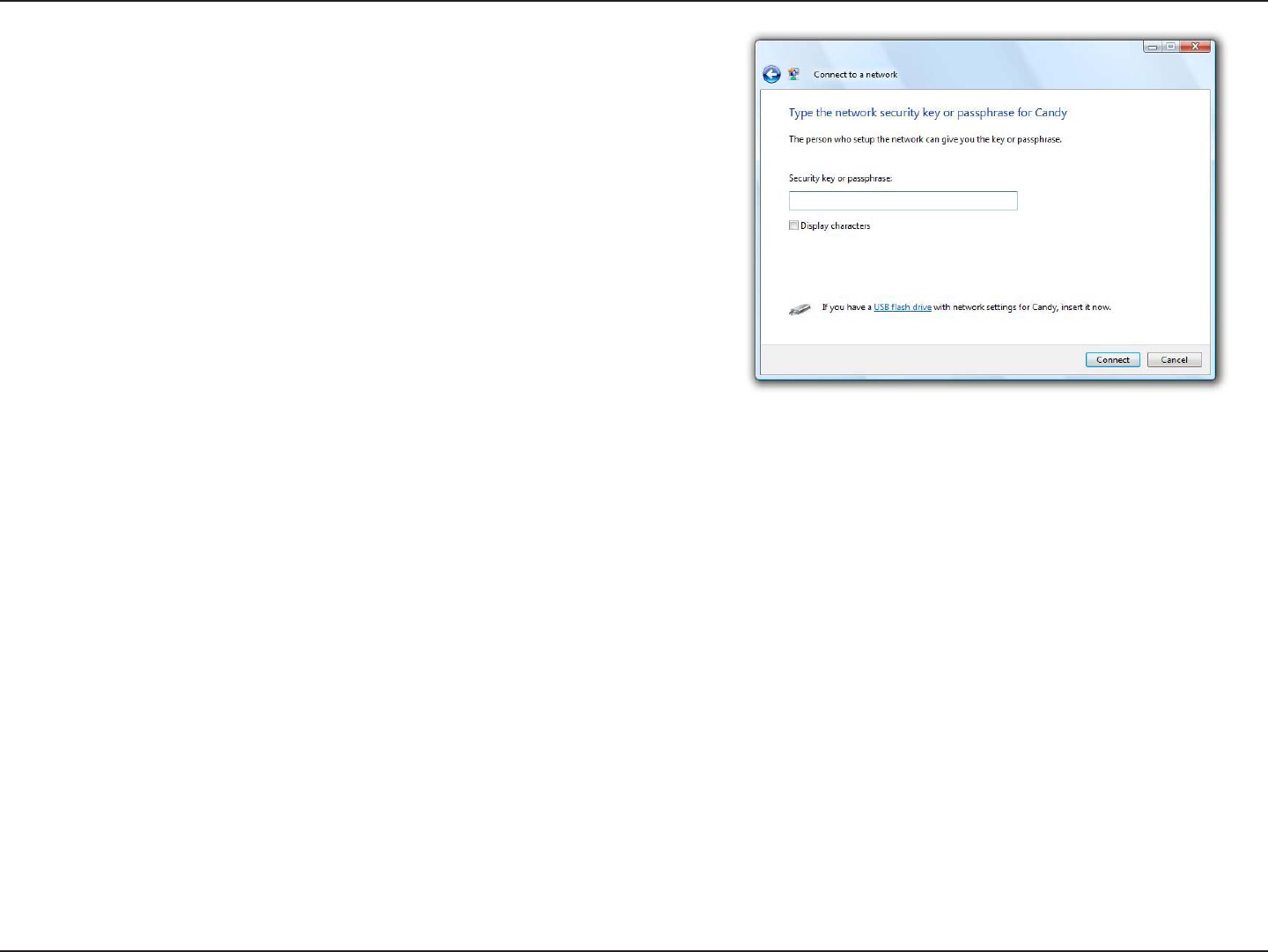

Using Windows Vista® ..................................................................................................................94
Congure WPA/WPA2 ........................................................95
Connect Using WCN 2.0 ...................................................97

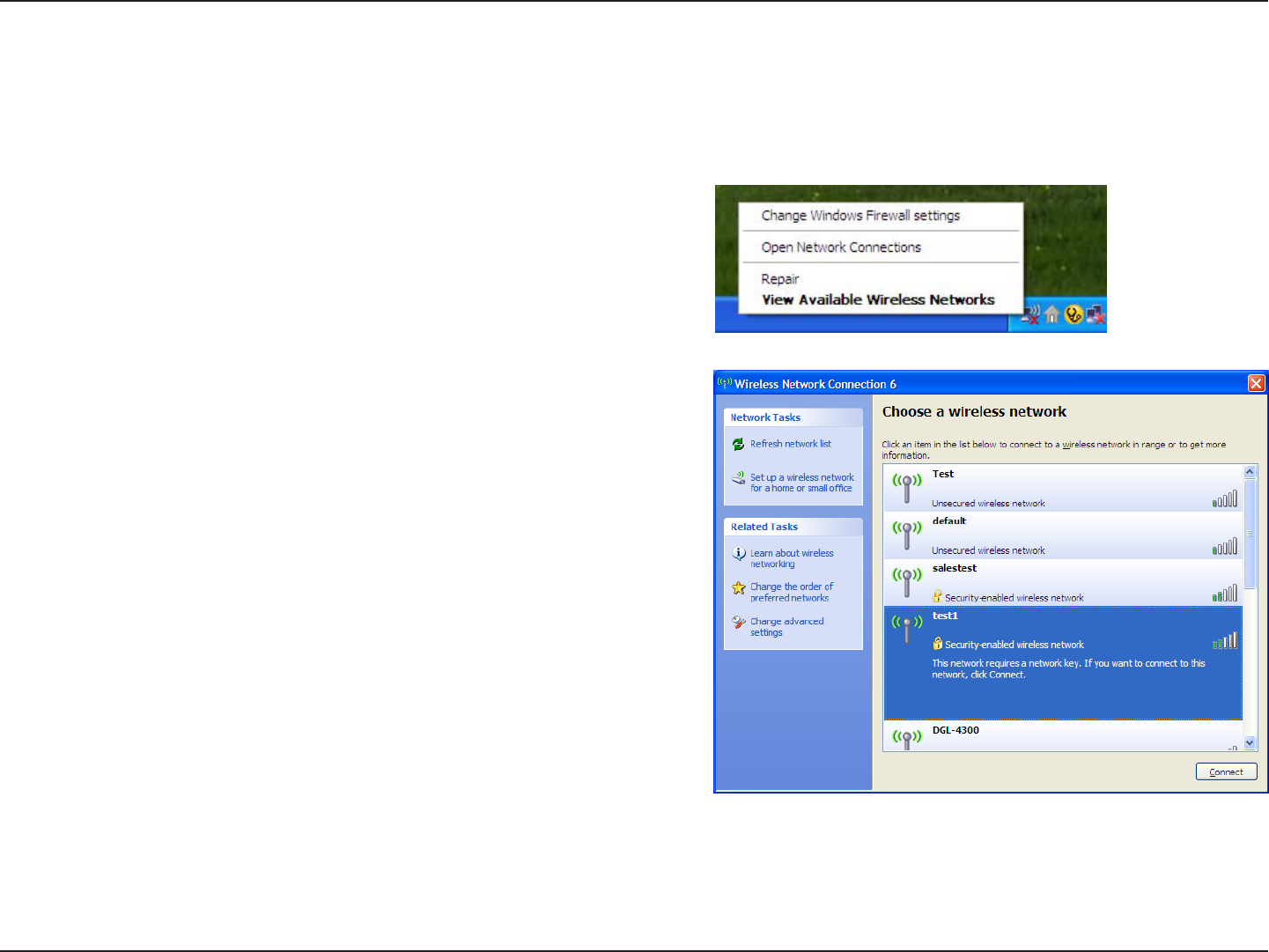

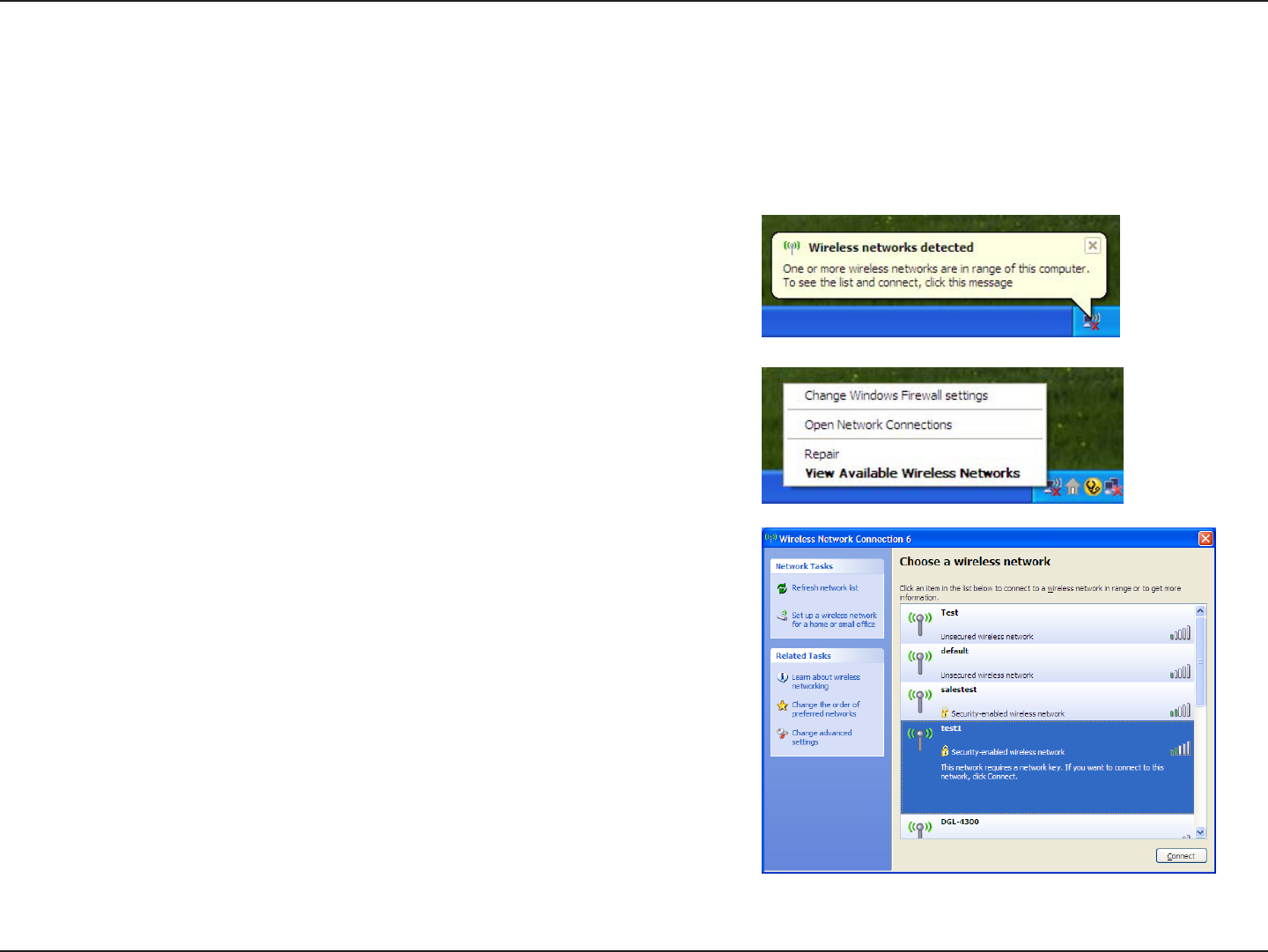

Using Windows® XP ....................................................................98
Congure WPA-PSK ............................................................99
Troubleshooting ................................................................... 101
Wireless Basics ...................................................................... 105
What is Wireless? ...................................................................... 106
Wireless Modes ......................................................................... 109
Networking Basics ................................................................ 110
Check your IP address ............................................................ 110
Statically Assign an IP address ............................................ 111
Technical Specications ...................................................... 112
Contacting Technical Support ............................................ 113
Warranty ................................................................................. 114
Registration ........................................................................... 120
1D-Link DIR-601 User Manual
Section 1 - Product Overview
Product Overview
Note: Using a power supply with a dierent voltage rating than the one included with the DIR-601 will cause damage and void the
warranty for this product.

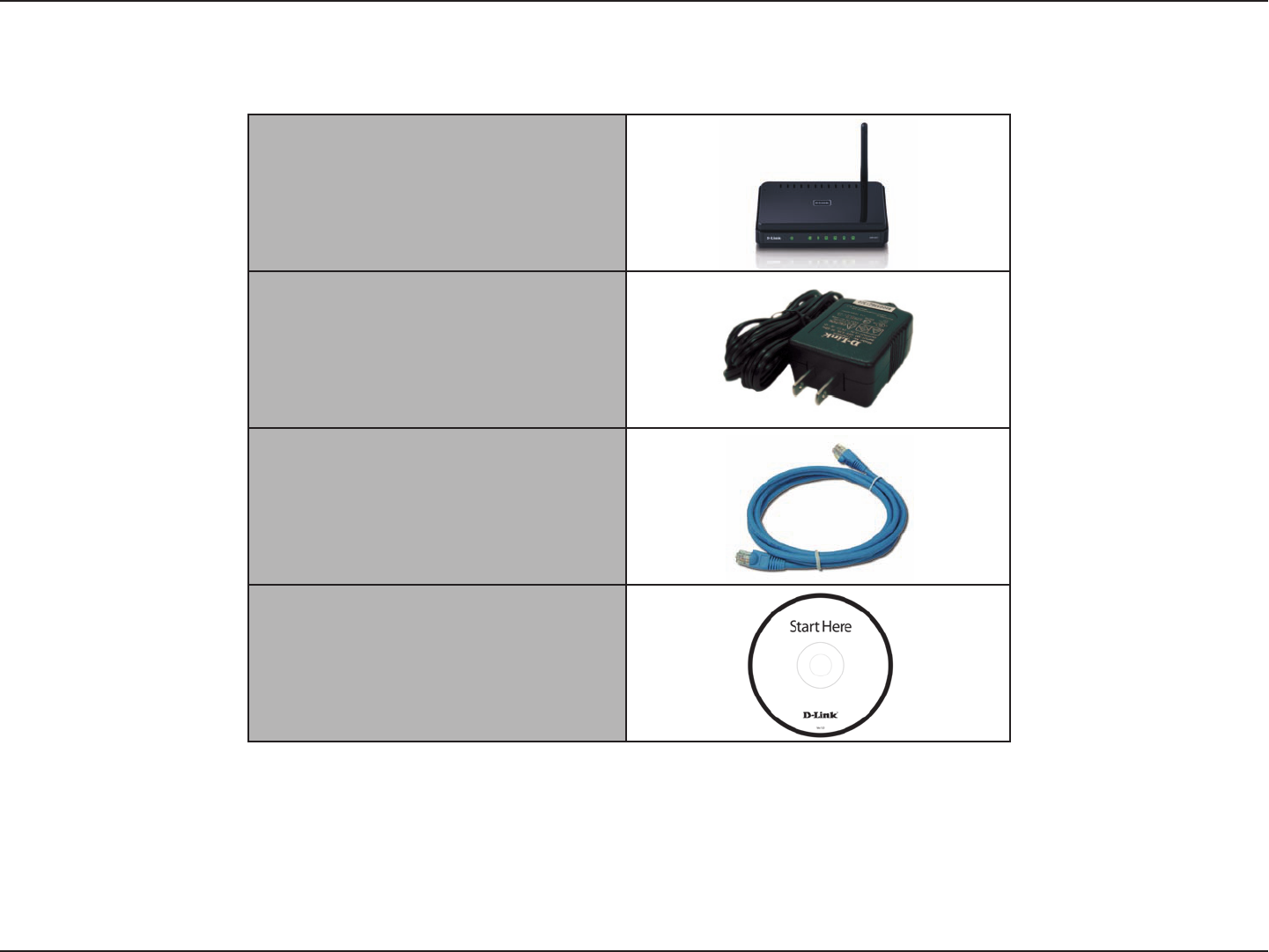

Package Contents
D-Link DIR-601 Wireless N
150 Home Router
Power Adapter
Ethernet Cable
CD-ROM
2D-Link DIR-601 User Manual
Section 1 - Product Overview
Network Requirements
• An Ethernet-based Cable or DSL modem
• IEEE 802.11n/g wireless clients
• 10/100 Ethernet
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer® 6.0 and higher
• Mozilla Firefox 3.0 and higher
• Google™ Chrome 2.0 and higher
• Apple Safari 3.0 and higher
Windows® Users: Make sure you have the latest version of
Java installed. Visit www.java.com to download the latest
version.

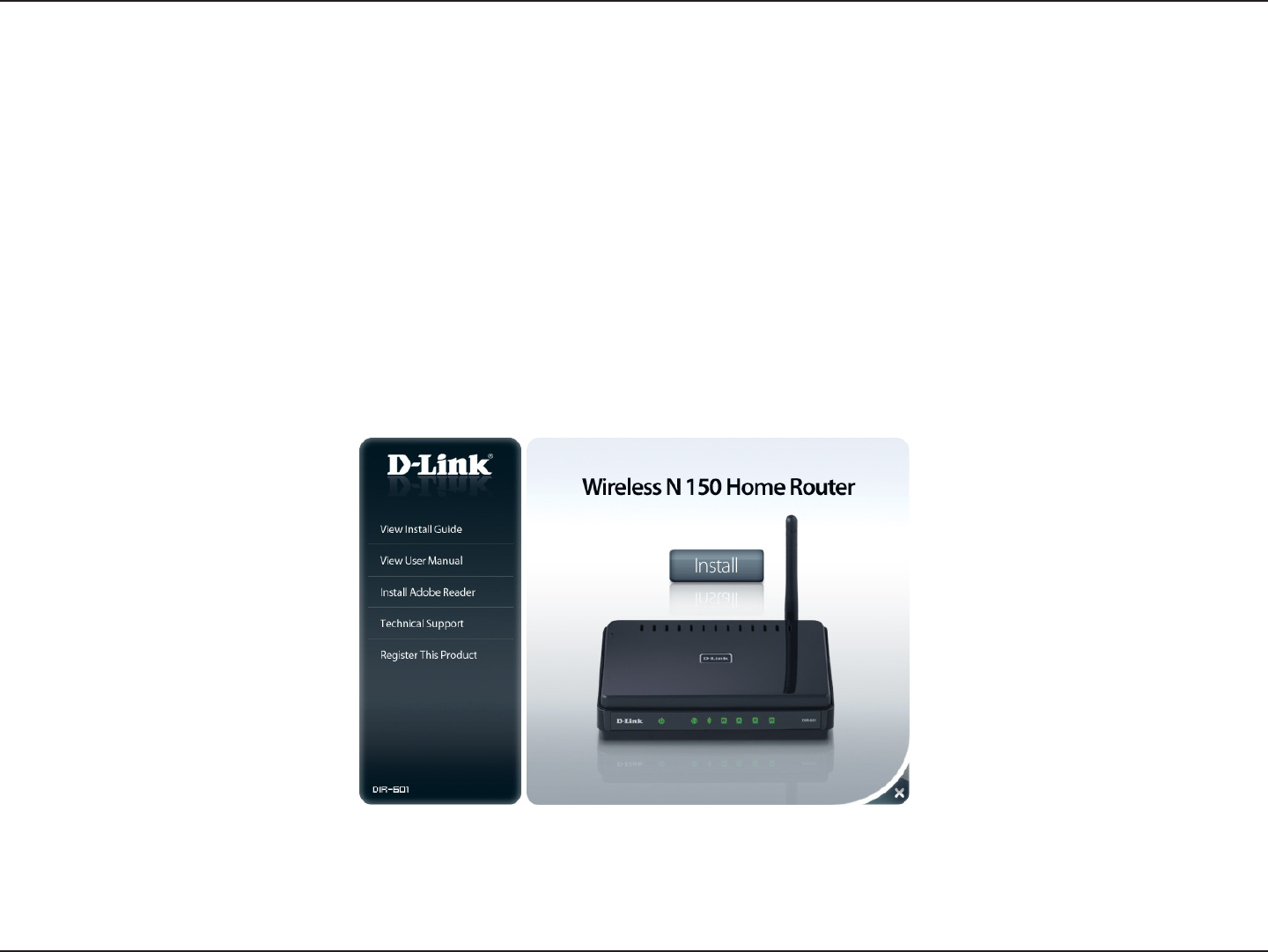

CD Installation Wizard
Requirements
Computer with the following:
• Windows® XP with Service Pack 2, Vista® or Windows®7
• An installed Ethernet adapter
• CD-ROM drive
System Requirements
3D-Link DIR-601 User Manual
Section 1 - Product Overview
• FasterWirelessNetworking - The DIR-601 provides up to 150Mbps.* This capability allows users to participate in real-time activities
online, such as video streaming, online gaming, and real-time audio.
• Compatiblewith802.11gDevices - The DIR-601 is still fully compatible with the IEEE 802.11g standard, so it can connect with
existing 802.11g PCI, USB and Cardbus adapters.
• AdvancedFirewallFeatures - The Web-based user interface displays a number of advanced network management features
including:
• ContentFiltering - Easily applied content ltering based on MAC Address, URL, and/or Domain Name.
• FilterScheduling - These lters can be scheduled to be active on certain days or for a duration of hours or
minutes.
• SecureMultiple/ConcurrentSessions - The DIR-601 can pass through VPN sessions. It supports multiple and
concurrent IPSec and PPTP sessions, so users behind the DIR-601 can securely access corporate networks.
•User-friendlySetupWizard - Through its easy-to-use Web-based user interface, you can congure your router to your specic
settings within minutes.
* Maximum wireless signal rate derived from IEEE Standard 802.11g specications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network
trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely aect wireless signal range.
Features
4D-Link DIR-601 User Manual
Section 1 - Product Overview

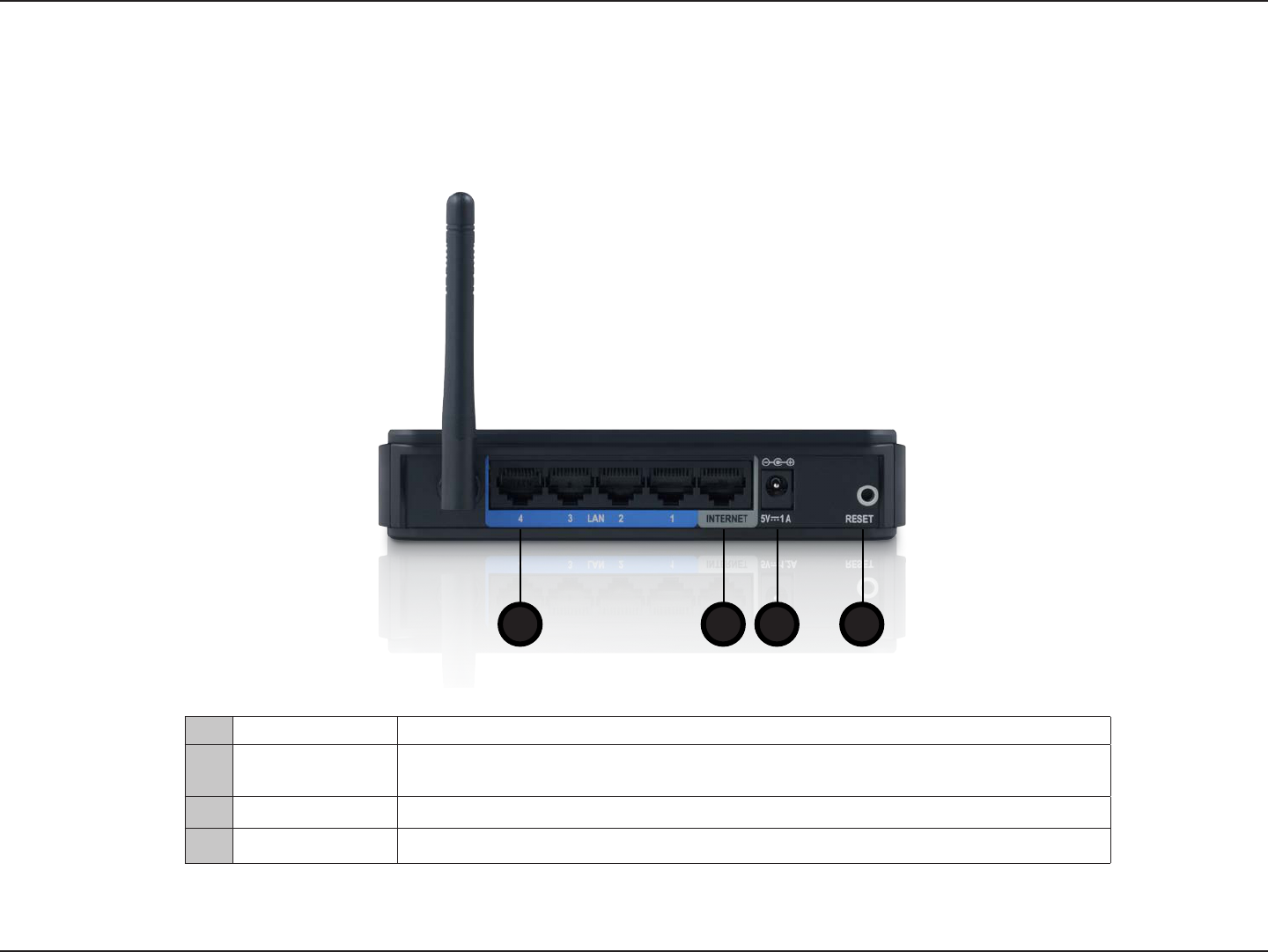

Hardware Overview
Connections
1LAN Ports (1-4) Connect Ethernet devices such as computers, switches, and hubs.
2Internet Port The auto MDI/MDIX Internet port is the connection for the Ethernet cable to the cable or DSL
modem.
3Power Receptor The Power LED will illuminate red when the camera is receiving power.
4Reset Pressing the Reset button restores the router to its original factory default settings.
41 32
5D-Link DIR-601 User Manual
Section 1 - Product Overview
Hardware Overview

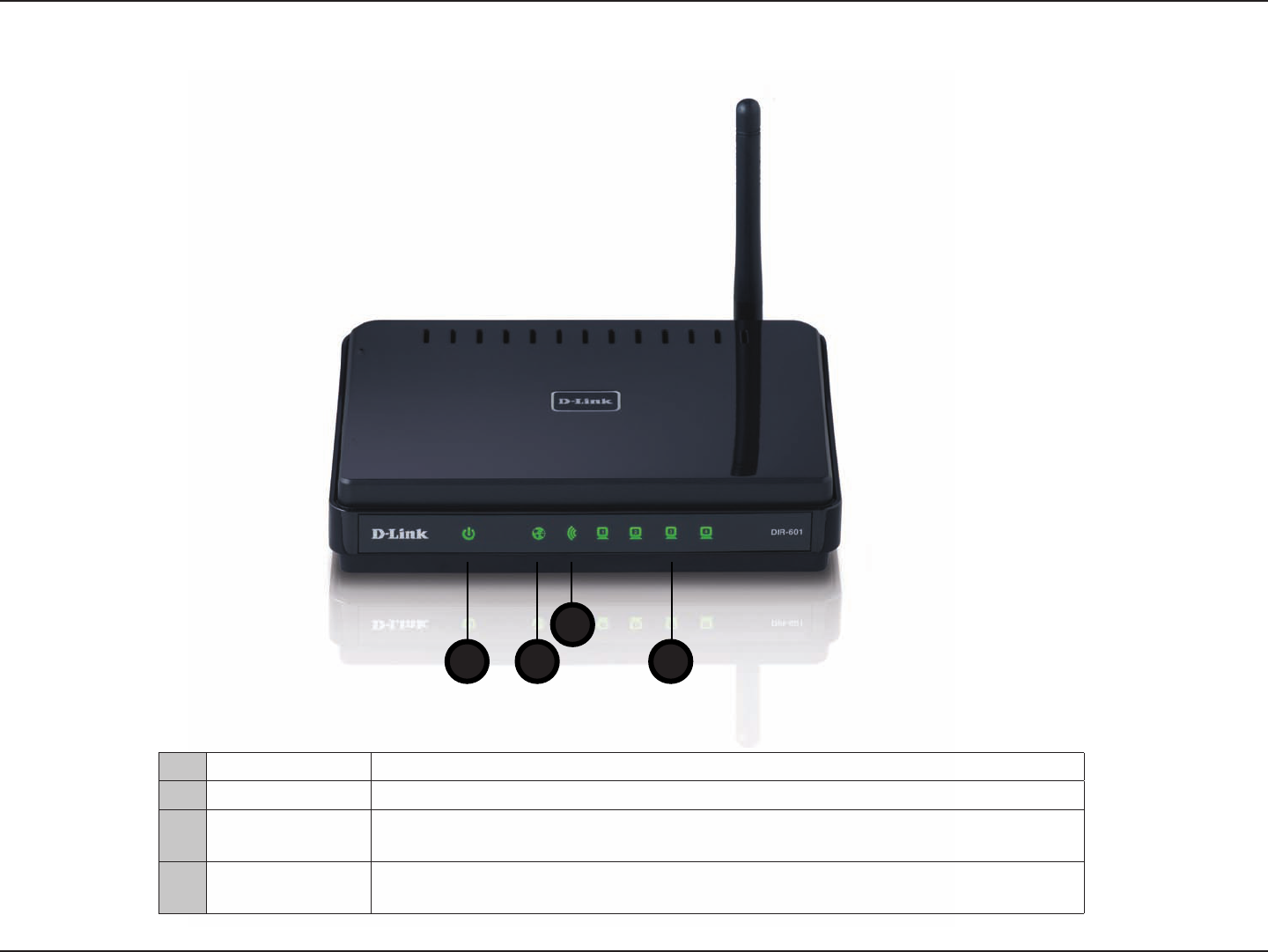

LEDs
1Power LED A solid light indicates a proper connection to the power supply.
2Internet LED A solid light indicates connection on the Internet port. This LED blinks during data transmission.
3WLAN LED A solid light indicates that the wireless segment is ready. This LED blinks during wireless data
transmission.
4Local Network LEDs A solid light indicates a connection to an Ethernet-enabled computer on ports 1-4. This LED
blinks during data transmission.
1 2
3
4
6D-Link DIR-601 User Manual
Section 2 - Installation
Before you Begin
This section will walk you through the installation process. Placement of the router is very important. Do not place the router in an enclosed area
such as a closet, cabinet, or in the attic or garage.
• Please congure the router with the computer that was last connected directly to your modem.
• You can only use the Ethernet port on your modem. If you were using the USB connection before using the router, then you must
turn o your modem, disconnect the USB cable and connect an Ethernet cable to the Internet port on the router, and then turn
the modem back on. In some cases, you may need to call your ISP to change connection types (USB to Ethernet).
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such as WinPoet, Broadjump,
or Enternet 300 from your computer or you will not be able to connect to the Internet.
• When running the Setup Wizard from the D-Link CD, make sure the computer you are running the CD from is connected to the
Internet and online or the wizard will not work. If you have disconnected any hardware, re-connect your computer back to the
modem and make sure you are online.
Installation
7D-Link DIR-601 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the operating range of your
wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must
pass through, may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your
home or business. The key to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum - each wall or ceiling
can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or ceilings is
minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be
almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position devices so that the signal will
travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range. Try to position
access points, wireless routers, and computers so that the signal passes through drywall or open doorways. Materials and objects
such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your
wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security systems), your
wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone base is as far away from your
wireless devices as possible. The base transmits a signal even if the phone in not in use.
8D-Link DIR-601 User Manual
Section 2 - Installation

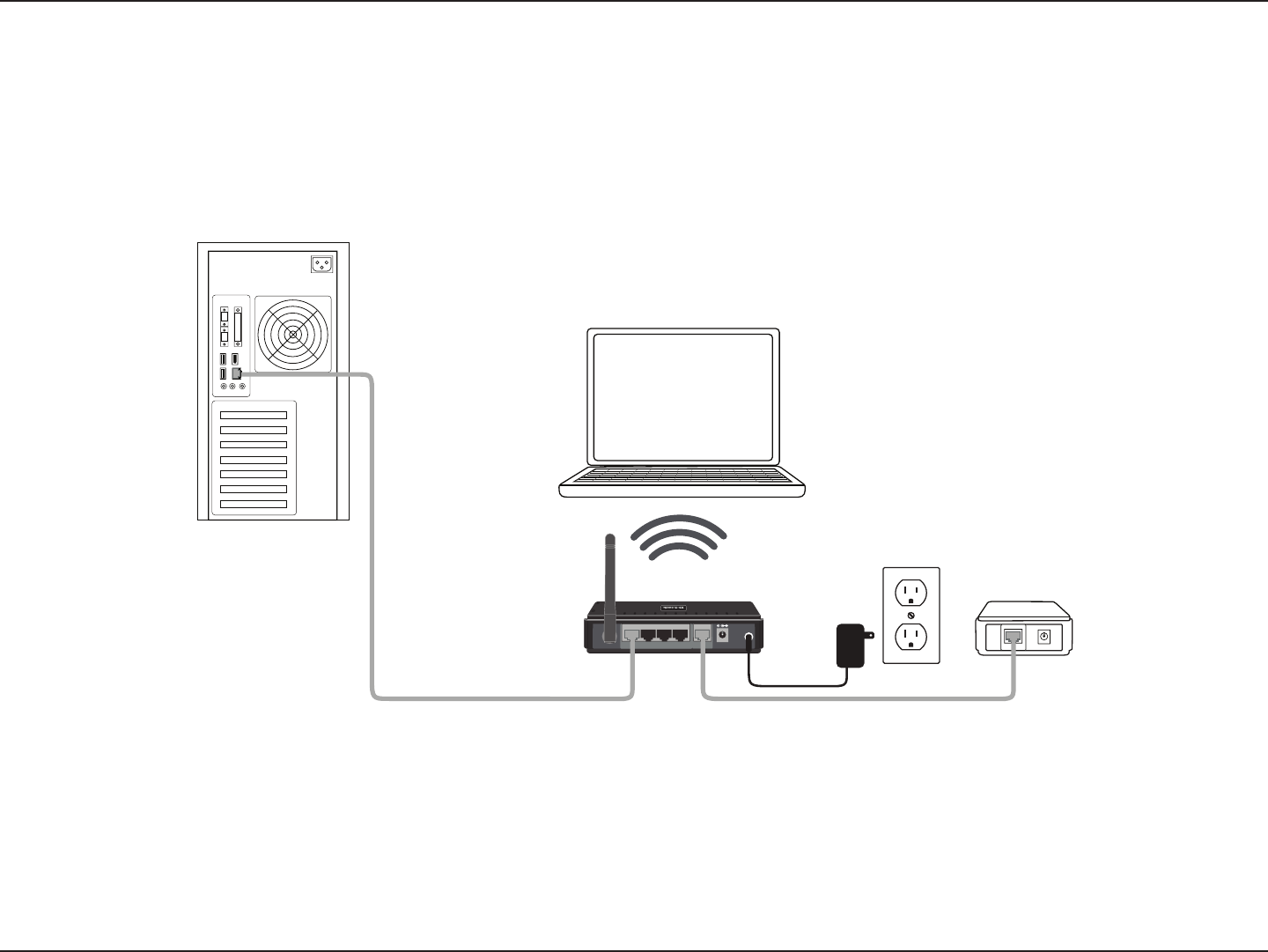

Network Diagram
5V
- - -
1A
1 2 LAN 3 4 INTERNET RESET
INTERNET
Desktop Computer
DIR-601 Router
9D-Link DIR-601 User Manual
Section 2 - Installation
If you are connecting the router to a cable/DSL/satellite modem, please follow the steps below:
1. Place the router in an open and central location. Do not plug the power adapter into the router.
2. Turn the power o on your modem. If there is no on/o switch, then unplug the modem’s power adapter. Shut down your computer.
3. Unplug the Ethernet cable (that connects your computer to your modem) from your computer and place it into the Internet port on the
router.
4. Plug an Ethernet cable into one of the four LAN ports on the router. Plug the other end into the Ethernet port on your computer.
5. Turn on or plug in your modem. Wait for the modem to boot (about 30 seconds).
6. Plug the power adapter to the router and connect to an outlet or power strip. Wait about 30 seconds for the router to boot.
7. Turn on your computer.
8. Verify the link lights on the router. The power light, Internet light, and the LAN light (the port that your computer is plugged into) should be lit.
If not, make sure your computer, modem, and router are powered on and verify the cable connections are correct.
9. Skip to page 12 to congure your router.
Connect to Cable/DSL/Satellite Modem
10D-Link DIR-601 User Manual
Section 2 - Installation
If you are connecting the D-Link router to another router to use as a wireless access point and/or switch, you will have to do the following before
connecting the router to your network:
• Disable UPnP™
• Disable DHCP
• Change the LAN IP address to an available address on your network. The LAN ports on the router cannot accept a DHCP address
from your other router.
To connect to another router, please follow the steps below:
1. Plug the power into the router. Connect one of your computers to the router (LAN port) using an Ethernet cable. Make sure your IP address on
the computer is 192.168.0.xxx (where xxx is between 2 and 254). Please see the Networking Basics section for more information. If you need
to change the settings, write down your existing settings before making any changes. In most cases, your computer should be set to receive an
IP address automatically in which case you will not have to do anything to your computer.
2. Open a web browser and enter http://192.168.0.1 and press Enter. When the login window appears, set the user name to Admin and leave
the password box empty. Click Log In to continue.
3. Click on Advanced and then click Advanced Network. Uncheck the Enable UPnP checkbox. Click SaveSettings to continue.
4. Click Setup and then click NetworkSettings. Uncheck the Enable DHCP Server server checkbox. Click SaveSettings to continue.
5. Under Router Settings, enter an available IP address and the subnet mask of your network. Click SaveSettings to save your settings. Use this
new IP address to access the conguration utility of the router in the future. Close the browser and change your computer’s IP settings back to
the original values as in Step 1.
6. Disconnect the Ethernet cable from the router and reconnect your computer to your network.
7. Connect an Ethernet cable in one of the LAN ports of the router and connect it to your other router. Do not plug anything into the Internet port
of the D-Link router.
Connect to Another Router
11D-Link DIR-601 User Manual
Section 2 - Installation
8. You may now use the other 3 LAN ports to connect other Ethernet devices and computers. To congure your wireless network, open a web
browser and enter the IP address you assigned to the router. Refer to the Conguration and Wireless Security sections for more information
on setting up your wireless network.
12D-Link DIR-601 User Manual
Section 2 - Installation
Note: It is recommended to write down the login password on the provided CD holder.
The DIR-601 includes a Quick Router Setup Wizard CD. Follow the simple steps below to run the Setup Wizard to guide you quickly through the
installation process. You may manually congure your router without the wizard. Refer to the next page to manually setup your router.
Insert the QuickRouterSetupWizardCD in the CD-ROM drive. The step-by-step instructions that follow are shown in Windows® XP or Vista®.
The steps and screens are similar for the other Windows® operating systems.
If the CD autorun function does not automatically start on your computer, go to Start > Run. In the run box type “D:\autorun.exe” (where D:
represents the drive letter of your CD-ROM drive).
When the autorun screen appears, click Install Router and follow the on-screen instructions.
Getting Started
13D-Link DIR-601 User Manual
Section 3 - Conguration
Conguration
This section will show you how to congure your new D-Link wireless router using the web-based conguration utility.
Web-based Conguration Utility
To access the conguration utility, open a web-browser such as Internet
Explorer and enter the IP address of the router (192.168.0.1).
Select Admin from the drop-down menu and then enter your
password. Leave the password blank by default.
If you get a Page Cannot be Displayed error, please refer to the
Troubleshooting section for assistance.
14D-Link DIR-601 User Manual
Section 3 - Conguration
Internet Connection Setup Wizard
Once logged into the web interface of the router, the Setup>Internet page will appear. Click the InternetConnectionSetupWizard button to
quickly congure your router using the setup wizard.
If you want to enter your settings without running the wizard, click Manual Internet Conguration Wizard and skip to page 18.
15D-Link DIR-601 User Manual
Section 3 - Conguration
Click Next to continue.
Create a new password and then click Next to continue.
Select your time zone from the drop-down menu and then click
Next to continue.
16D-Link DIR-601 User Manual
Section 3 - Conguration
If you selected Dynamic, you may need to enter the MAC address
of the computer that was last connected directly to your modem.
If you are currently using that computer, click Clone Your PC’s
MAC Address and then click Next to continue.
The Host Name is optional but may be required by some ISPs.
The default host name is the device name of the Router and may
be changed.
Select the type of Internet connection you use and then click
Next to continue.
17D-Link DIR-601 User Manual
Section 3 - Conguration
If you selected PPTP, enter your PPTP username and password.
Click Next to continue.
If you selected PPPoE, enter your PPPoE username and password.
Click Next to cozntinue.
Select Static if your ISP assigned you the IP address, subnet mask,
gateway, and DNS server addresses.
Note: Make sure to remove your PPPoE software from your computer.
The software is no longer needed and will not work through a
router.
18D-Link DIR-601 User Manual
Section 3 - Conguration
If you selected L2TP, enter your L2TP username and password.
Click Next to continue.
If you selected Static, enter your network settings supplied by
your Internet provider. Click Next to continue.
Click Connect to save your settings. Once the router is nished
rebooting, click Continue. Please allow 1-2 minutes to connect.
19D-Link DIR-601 User Manual
Section 3 - Conguration
If you opt to set up your Internet connection manually, you will be redirected to a WAN page that allows you to select your Internet type and enter
the correct conguration parameters.
Select your Internet connection type using the “My Internet
Connection is” drop-down menu.
Click the SaveSettings button when you have congured the
connection.
Manual Conguration
Dynamic (Cable)
20D-Link DIR-601 User Manual
Section 3 - Conguration
Dynamic IP Address (DHCP)
Advanced Domain Name System (DNS) services
enhances your Internet performance by getting
you the information and web pages you are looking
for faster and more reliably. In addition, it improves
your overall Internet experience by correcting many
common typo mistakes automatically, taking you
where you intended to go and saving you valuable
time.
Disclaimer: D-Link makes no warranty as to the
availability, reliability, functionality and operation of
the Advanced DNS service or its features.
The Host Name is optional but may be required
by some ISPs.
Check the box if you are having problems obtaining
an IP address from your ISP.
Enter the Primary DNS server IP address assigned
by your ISP.
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1500 is the default
MTU.
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended
that you change the default MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to
replace the Internet port’s MAC address with the MAC address of your Ethernet card.
Enable
Advanced
DNS Service:
Host Name:
MAC
Address:
DNS Addresses:
MTU:
Use
Unicasting:
21D-Link DIR-601 User Manual
Section 3 - Conguration
Select Dynamic IP (DHCP) to obtain IP Address
information automatically from your ISP. Select this
option if your ISP does not give you any IP numbers to
use. This option is commonly used for Cable modem
services.
Advanced Domain Name System (DNS) services
enhances your Internet performance by getting you the
information and web pages you are looking for faster
and more reliably. In addition, it improves your overall
Internet experience by correcting many common typo
mistakes automatically, taking you where you intended
to go and saving you valuable time.
Disclaimer: D-Link makes no warranty as to the availability,
reliability, functionality and operation of the Advanced
DNS service or its features.
Select Static if your ISP assigned you the IP address,
subnet mask, gateway, and DNS server addresses. In
most cases, select Dynamic.
Enter the IP address (Static PPPoE only).
Enter your PPPoE user name.
Enter your PPPoE password and then retype the
password in the next box.
Enter the ISP Service Name (optional).
My Internet
Connection:
Enable
Advanced DNS
Service:
Address Mode:
IP Address:
User Name:
Password:
Service Name:
PPPoE (DSL)
Choose PPPoE (Point to Point Protocol over Ethernet) if your ISP uses a PPPoE connection. Your ISP will provide you with a username and password.
This option is typically used for DSL services. Make sure to remove your PPPoE software from your computer. The software is no longer needed and
will not work through a router.
22D-Link DIR-601 User Manual
Section 3 - Conguration
Select either Always-on, On-Demand, or Manual.
Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disable this feature, enable
Auto-reconnect.
Enter the Primary and Secondary DNS Server Addresses (Static PPPoE only).
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1492 is the default
MTU.
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended
that you change the default MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to
replace the Internet port’s MAC address with the MAC address of your Ethernet card.
Reconnection
Mode:
Maximum Idle
Time:
DNS Addresses:
MTU:
MAC Address:
23D-Link DIR-601 User Manual
Section 3 - Conguration
Select Dynamic IP (DHCP) to obtain IP Address information
automatically from your ISP. Select this option if your ISP
does not give you any IP numbers to use. This option is
commonly used for Cable modem services.
Advanced Domain Name System (DNS) services enhances
your Internet performance by getting you the information
and web pages you are looking for faster and more reliably.
In addition, it improves your overall Internet experience
by correcting many common typo mistakes automatically,
taking you where you intended to go and saving you
valuable time.
Disclaimer: D-Link makes no warranty as to the availability,
reliability, functionality and operation of the Advanced DNS
service or its features.
Select Static if your ISP assigned you the IP address, subnet
mask, gateway, and DNS server addresses. In most cases,
select Dynamic.
Enter the IP address (Static PPTP only).
Enter the Primary and Secondary DNS Server Addresses
(Static PPTP only).
My Internet
Connection:
Enabled
Advanced
DNS
Service:
Address
Mode:
PPTP IP
Address:
PPTP
Subnet
Mask:
PPTP
Choose PPTP (Point-to-Point-Tunneling Protocol ) if your ISP uses a PPTP connection. Your ISP will provide you with a username and password. This
option is typically used for DSL services.
24D-Link DIR-601 User Manual
Section 3 - Conguration
Enter the Gateway IP Address provided by your ISP.
Enter the Server IP provided by your ISP (optional).
Enter your PPTP username.
Enter your PPTP password and then retype the password in the next box.
Select either Always-on, On-Demand, or Manual.
Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disable this feature, enable
Auto-reconnect.
The DNS server information will be supplied by your ISP (Internet Service Provider.)
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP (1400 is the
default MTU).
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended
that you change the default MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to
replace the Internet port’s MAC address with the MAC address of your Ethernet card.
PPTP Gateway:
PPTP Server IP:
Username:
Password:
Reconnect
Mode:
Maximum Idle
Time:
DNS Servers:
MTU:
MAC Address:
25D-Link DIR-601 User Manual
Section 3 - Conguration
Select Dynamic IP (DHCP) to obtain IP Address
information automatically from your ISP. Select this
option if your ISP does not give you any IP numbers to
use. This option is commonly used for Cable modem
services.
Advanced Domain Name System (DNS) services enhances
your Internet performance by getting you the information
and web pages you are looking for faster and more
reliably. In addition, it improves your overall Internet
experience by correcting many common typo mistakes
automatically, taking you where you intended to go and
saving you valuable time.
Disclaimer: D-Link makes no warranty as to the availability,
reliability, functionality and operation of the Advanced DNS
service or its features.
Select Static if your ISP assigned you the IP address,
subnet mask, gateway, and DNS server addresses. In
most cases, select Dynamic.
Enter the L2TP IP address supplied by your ISP (Static
only).
Enter the Subnet Mask supplied by your ISP (Static
only).
Enter the Gateway IP Address provided by your ISP.
Enter the Server IP provided by your ISP (optional).
My Internet
Connection:
Enabled
Advanced DNS
Service:
Address Mode:
L2TP IP
Address:
L2TP Subnet
Mask:
L2TP Gateway:
L2TP Server IP:
L2TP
Choose L2TP (Layer 2 Tunneling Protocol) if your ISP uses a L2TP connection. Your ISP will provide you with a username and password. This option
is typically used for DSL services.
26D-Link DIR-601 User Manual
Section 3 - Conguration
MTU:
Clone MAC
Address:
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1400 is the default
MTU.
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended
that you change the default MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to
replace the Internet port’s MAC address with the MAC address of your Ethernet card.
Username:
Password:
Reconnect
Mode:
Maximum Idle
Time:
DNS Servers:
Enter your L2TP username.
Enter your L2TP password and then retype the password in the next box.
Select either Always-on, On-Demand, or Manual.
Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disable this feature, enable
Auto-reconnect.
Enter the Primary and Secondary DNS Server Addresses (Static L2TP only).
27D-Link DIR-601 User Manual
Section 3 - Conguration
Select Dynamic IP (DHCP) to obtain IP Address
information automatically from your ISP. Select this
option if your ISP does not give you any IP numbers
to use. This option is commonly used for Cable
modem services.
Advanced Domain Name System (DNS) services
enhances your Internet performance by getting you
the information and web pages you are looking for
faster and more reliably. In addition, it improves
your overall Internet experience by correcting many
common typo mistakes automatically, taking you
where you intended to go and saving you valuable
time.
Disclaimer: D-Link makes no warranty as to the
availability, reliability, functionality and operation of
the Advanced DNS service or its features.
Enter the IP address assigned by your ISP.
Enter the Subnet Mask assigned by your ISP.
Enter the Gateway assigned by your ISP.
The DNS server information will be supplied by your
ISP (Internet Service Provider.)
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP (1500 is the default
MTU).
My Internet
Connection:
Enabled
Advanced DNS
Service:
IP Address:
Subnet Mask:
Default
Gateway:
DNS Servers:
MTU:
Static IP Address
Select Static IP Address if all the Internet port’s IP information is provided to you by your ISP. You will need to enter in the IP address, subnet mask,
gateway address, and DNS address(es) provided to you by your ISP. Each IP address entered in the elds must be in the appropriate IP form, which
are four octets separated by a dot (x.x.x.x). The Router will not accept the IP address if it is not in this format.
28D-Link DIR-601 User Manual
Section 3 - Conguration
MAC
Address:
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended
that you change the default MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to
replace the Internet port’s MAC address with the MAC address of your Ethernet card.
29D-Link DIR-601 User Manual
Section 3 - Conguration
Wireless Settings
If you want to congure the wireless settings on your router using
the wizard, click WirelessConnectionSetupWizardand refer to
page 81.
Click AddWirelessDevicewithWPS if you want to add a wireless
device using Wi-Fi Protected Setup (WPS) and refer to page 83.
If you want to manually congure the wireless settings on your router
click Manual WirelessNetworkSetupand refer to the next page.
30D-Link DIR-601 User Manual
Section 3 - Conguration
Manual Wireless Network Setup
Check the box to enable the wireless function. If you do
not want to use wireless, uncheck the box to disable all
the wireless functions. Click Add New to create your own
time schedule to enable the wireless function.
Service Set Identier (SSID) is the name of your wireless
network. Create a name using up to 32 characters. The
SSID is case-sensitive.
Select one of the following:
802.11gOnly - Select if all of your wireless clients are
802.11g.
802.11nOnly - Select only if all of your wireless clients
are 802.11n.
Mixed802.11nand802.11g - Select if you are using
a mix of 802.11n and 802.11g wireless clients.
The AutoChannelScan setting can be selected to allow
the DIR-601 to choose the channel with the least amount
of interference.
Indicates the channel setting for the DIR-601. By default
the channel is set to 6. The Channel can be changed to
t the channel setting for an existing wireless network
or to customize the wireless network. If you enable Auto
ChannelScan, this option will be greyed out.
Select the Channel Width:
Auto20/40 - Select if you are using both
802.11n and non-802.11n wireless devices.
20MHz - Select if you are not using any 802.11n wireless
clients. This is the default setting.
40MHz - Select if you are using only 802.11n wireless
clients.
Enable
Wireless:
Wireless
Network
Name:
802.11 Mode:
Enable Auto
Channel Scan:
Wireless
Channel:
Channel
Width:
31D-Link DIR-601 User Manual
Section 3 - Conguration
Select Invisible if you do not want the SSID of your wireless network to be broadcasted by the DIR-601. If Invisible is selected, the
SSID of the DIR-601 will not be seen by Site Survey utilities so your wireless clients will have to know the SSID of your DIR-601 in
order to connect to it.
Refer to page 82 for more information regarding wireless security.
Wireless
Security:
Visibility
Status:
32D-Link DIR-601 User Manual
Section 3 - Conguration
This section will allow you to change the local network settings of the router and to congure the DHCP settings.
Network Settings
Enter the IP address of the router. The default IP address
is 192.168.0.1.
If you change the IP address, once you click Apply, you
will need to enter the new IP address in your browser to
get back into the conguration utility.
Enter the Subnet Mask. The default subnet mask is
255.255.255.0.
Enter the Domain name (Optional).
Uncheck the box to transfer the DNS server information
from your ISP to your computers. If checked, your
computers will use the router for a DNS server.
IP Address:
Subnet Mask:
Local Domain:
Enable DNS
Relay:
33D-Link DIR-601 User Manual
Section 3 - Conguration
Check this box to enable the DHCP server on your
router. Uncheck to disable this function.
Enter the starting and ending IP addresses for the
DHCP server’s IP assignment.
Note: If you statically (manually) assign IP addresses to
your computers or devices, make sure the IP addresses
are outside of this range or you may have an IP conict.
The length of time for the IP address lease. Enter the
Lease time in minutes.
Enable this feature to broadcast your LAN/WLAN network.
Enable DHCP
Server:
DHCP IP
Address
Range:
Lease Time:
Always
Broadcast:
DHCP Server Settings
DHCP stands for Dynamic Host Control Protocol. The DIR-601 has a built-in DHCP server. The DHCP Server will automatically assign an IP address
to the computers on the LAN/private network. Be sure to set your computers to be DHCP clients by setting their TCP/IP settings to “Obtain an IP
Address Automatically.” When you turn your computers on, they will automatically load the proper TCP/IP settings provided by the DIR-601. The
DHCP Server will automatically allocate an unused IP address from the IP address pool to the requesting computer. You must specify the starting
and ending address of the IP address pool.
34D-Link DIR-601 User Manual
Section 3 - Conguration
DHCP Reservation
If you want a computer or device to always have the same IP address assigned, you can create a DHCP reservation. The router will assign the IP
address only to that computer or device.
Note: This IP address must be within the DHCP IP Address Range.
Check this box to enable the reservation.
Enter the computer name or select from the drop-down
menu and click <<.
Enter the IP address you want to assign to the computer
or device. This IP Address must be within the DHCP IP
Address Range.
Enter the MAC address of the computer or device.
If you want to assign an IP address to the computer you
are currently on, click this button to populate the elds.
Click Save to save your entry. You must click Save
Settings at the top to activate your reservations.
In this section you can see what LAN devices are currently
leasing IP addresses.
Click Revoke to cancel the lease for a specic LAN device and free an entry in the lease table. Do this only if the device no longer
needs the leased IP address, because, for example, it has been removed from the network.
Note: The Revoke option will not disconnect a PC with a current network session from the network; you would need to use MAC Address
Filter to do that. Revoke will only free up a DHCP Address for the very next requester. If the previous owner is still available, those two devices
may both receive an IP Address Conict error, or the second device may still not receive an IP Address; in that case, you may still need to
extend the “DHCP IP Address Range” to address the issue, it is located in the DHCP Server section.
Enable:
Computer
Name:
IP Address:
MAC Address:
Copy Your PC’s
MAC Address:
Save:
Number of
Dynamic DHCP
Clients:
Revoke:
35D-Link DIR-601 User Manual
Section 3 - Conguration
IPv6
Select Link-Local Only from the drop-down
menu.
Displays the IPv6 address of the router.
My IPv6 Connection:
LAN IPv6 Address
Settings:
Link-Local Connectivity
36D-Link DIR-601 User Manual
Section 3 - Conguration
Static IPv6 (Stateful)
Select Static IPv6 from the drop-down
menu.
Enter the address settings supplied by your
Internet provider (ISP).
Enter the LAN (local) IPv6 address for the
router.
Displays the Router’s LAN Link-Local Address.
Check to enable the Autoconfiguration
feature.
Select Stateful(DHCPv6) or Stateless. Refer
to the next page for Stateless.
Enter the start IPv6 Address for the DHCPv6
range for your local computers.
Enter the end IPv6 Address for the DHCPv6
range for your local computers.
Enter the IPv6 Address Lifetime (in minutes).
My IPv6 Connection:
WAN IPv6 Address
Settings:
LAN IPv6 Address:
LAN Link-Local
Address:
Enable
Autoconguration:
Autoconguration
Type:
IPv6 Address Range
Start:
IPv6 Address Range
End:
IPv6 Address
Lifetime:
37D-Link DIR-601 User Manual
Section 3 - Conguration
Static IPv6 (Stateless)
Select Static IPv6 from the drop-down
menu.
Enter the address settings supplied by your
Internet provider (ISP).
Enter the LAN (local) IPv6 address for the
router.
Displays the Router’s LAN Link-Local Address.
Check to enable the Autoconfiguration
feature.
Select Stateless. Refer to the previous page
for Stateful.
Enter the Router Advertisement Lifetime (in
minutes).
My IPv6 Connection:
WAN IPv6 Address
Settings:
LAN IPv6 Address:
LAN Link-Local
Address:
Enable
Autoconguration:
Autoconguration
Type:
Router
Advertisement
Lifetime:
38D-Link DIR-601 User Manual
Section 3 - Conguration
DHCPv6 (Stateful)
Select DHCPv6 from the drop-down menu.
Select either ObtainDNSserveraddress
automatically or Usethe followingDNS
Address.
Enter the primary and secondary DNS server
addresses.
Enter the LAN (local) IPv6 address for the
router.
Displays the Router’s LAN Link-Local Address.
Check to enable the Autoconfiguration
feature.
Select Stateful(DHCPv6) or Stateless. Refer to
the next page for Stateless.
Enter the start IPv6 Address for the DHCPv6
range for your local computers.
Enter the end IPv6 Address for the DHCPv6 range
for your local computers.
Enter the IPv6 Address Lifetime (in minutes).
My IPv6 Connection:
IPv6 DNS Settings:
Primary/Secondary
DNS Address:
LAN IPv6 Address:
LAN Link-Local
Address:
Enable
Autoconguration:
Autoconguration
Type:
IPv6 Address Range
Start:
IPv6 Address Range
End:
IPv6 Address
Lifetime:
39D-Link DIR-601 User Manual
Section 3 - Conguration
DHCPv6 (Stateless)
Select DHCPv6 from the drop-down menu.
Select either Obtain DNS server address
automatically or Usethe followingDNS
Address.
Enter the primary and secondary DNS server
addresses.
Enter the LAN (local) IPv6 address for the
router.
Displays the Router’s LAN Link-Local Address.
Check to enable the Autoconfiguration
feature.
Select Stateless. Refer to the previous page
for Stateful.
Enter the Router Advertisement Lifetime (in
minutes).
My IPv6 Connection:
IPv6 DNS Settings:
Primary/Secondary
DNS Address:
LAN IPv6 Address:
LAN Link-Local
Address:
Enable
Autoconguration:
Autoconguration
Type:
Router Advertisement
Lifetime:
40D-Link DIR-601 User Manual
Section 3 - Conguration
IPv6 over PPPoE (Stateful)
Select PPPoE from the drop-down menu.
Enter the PPPoE account settings supplied by your Internet
provider (ISP).
Select Static if your ISP assigned you the IP address, subnet
mask, gateway, and DNS server addresses. In most cases, select
Dynamic.
Enter the IP address (Static PPPoE only).
Enter your PPPoE user name.
Enter your PPPoE password and then retype the password in
the next box.
Enter the ISP Service Name (optional).
Select either Always-on, On-Demand, or Manual.
Enter a maximum idle time during which the Internet connection
is maintained during inactivity. To disable this feature, enable
Auto-reconnect.
Select either ObtainDNSserveraddressautomatically or Use
thefollowingDNSAddress.
Enter the primary and secondary DNS server addresses.
Enter the LAN (local) IPv6 address for the router.
Displays the Router’s LAN Link-Local Address.
My IPv6 Connection:
PPPoE:
Address Mode:
IP Address:
User Name:
Password:
Service Name:
Reconnection Mode:
Maximum Idle Time:
IPv6 DNS Settings:
Primary/Secondary DNS
Address:
LAN IPv6 Address:
LAN Link-Local Address:
41D-Link DIR-601 User Manual
Section 3 - Conguration
Enable
Autoconguration:
Autoconguration Type:
IPv6 Address Range Start:
IPv6 Address Range End:
IPv6 Address Lifetime:
Check to enable the Autoconguration feature.
Select Stateful(DHCPv6) or Stateless. Refer to the next page for Stateless.
Enter the start IPv6 Address for the DHCPv6 range for your local computers.
Enter the end IPv6 Address for the DHCPv6 range for your local computers.
Enter the IPv6 Address Lifetime (in minutes).
42D-Link DIR-601 User Manual
Section 3 - Conguration
IPv6 over PPPoE (Stateless)
Select PPPoE from the drop-down menu.
Enter the PPPoE account settings supplied by your Internet
provider (ISP).
Select Static if your ISP assigned you the IP address, subnet
mask, gateway, and DNS server addresses. In most cases, select
Dynamic.
Enter the IP address (Static PPPoE only).
Enter your PPPoE user name.
Enter your PPPoE password and then retype the password in
the next box.
Enter the ISP Service Name (optional).
Select either Always-on, On-Demand, or Manual.
Enter a maximum idle time during which the Internet connection
is maintained during inactivity. To disable this feature, enable
Auto-reconnect.
Select either ObtainDNSserveraddressautomatically or Use
thefollowingDNSAddress.
Enter the primary and secondary DNS server addresses.
Enter the LAN (local) IPv6 address for the router.
Displays the Router’s LAN Link-Local Address.
My IPv6 Connection:
PPPoE:
Address Mode:
IP Address:
User Name:
Password:
Service Name:
Reconnection Mode:
Maximum Idle Time:
IPv6 DNS Settings:
Primary/Secondary
DNS Address:
LAN IPv6 Address:
LAN Link-Local
Address:
43D-Link DIR-601 User Manual
Section 3 - Conguration
Enable
Autoconguration:
Autoconguration Type:
Router Advertisement
Lifetime:
Check to enable the Autoconguration feature.
Select Stateful(DHCPv6) or Stateless.
Enter the Router Advertisement Lifetime (in minutes).
44D-Link DIR-601 User Manual
Section 3 - Conguration
6 to 4 Tunneling (Stateful)
Select 6 to 4 from the drop-down menu.
Enter the IPv6 settings supplied by your Internet
provider (ISP).
Enter the primary and secondary DNS server
addresses.
Enter the LAN (local) IPv6 address for the
router.
Displays the Router’s LAN Link-Local Address.
Check to enable the Autoconguration feature.
Select Stateful(DHCPv6) or Stateless. Refer to
the next page for Stateless.
Enter the start IPv6 Address for the DHCPv6
range for your local computers.
Enter the end IPv6 Address for the DHCPv6 range
for your local computers.
Enter the IPv6 Address Lifetime (in minutes).
My IPv6 Connection:
6 to 4 Settings:
Primary/Secondary
DNS Address:
LAN IPv6 Address:
LAN Link-Local
Address:
Enable
Autoconguration:
Autoconguration
Type:
IPv6 Address Range
Start:
IPv6 Address Range
End:
IPv6 Address
Lifetime:
45D-Link DIR-601 User Manual
Section 3 - Conguration
6 to 4 Tunneling (Stateless)
Select 6 to 4 from the drop-down menu.
Enter the IPv6 settings supplied by your Internet
provider (ISP).
Enter the primary and secondary DNS server
addresses.
Enter the LAN (local) IPv6 address for the
router.
Displays the Router’s LAN Link-Local Address.
Check to enable the Autoconguration feature.
Select Stateless. Refer to the previous page for
Stateful.
Enter the Router Advertisement Lifetime (in
minutes).
My IPv6 Connection:
6 to 4 Settings:
Primary/Secondary
DNS Address:
LAN IPv6 Address:
LAN Link-Local
Address:
Enable
Autoconguration:
Autoconguration
Type:
Router
Advertisement
Lifetime:
46D-Link DIR-601 User Manual
Section 3 - Conguration
IPv6 in IPv4 Tunneling (Stateful)
Select IPv6 in IPv4 Tunnel from the drop-down
menu.
Enter the settings supplied by your Internet
provider (ISP).
Enter the LAN (local) IPv6 address for the router.
Displays the Router’s LAN Link-Local Address.
Check to enable the Autoconguration feature.
Select Stateless. Refer to the previous page for
Stateful.
Enter the Router Advertisement Lifetime (in
minutes).
My IPv6 Connection:
IPv6 in IPv4 Tunnel
Settings:
LAN IPv6 Address:
LAN Link-Local
Address:
Enable
Autoconguration:
Autoconguration
Type:
Router
Advertisement
Lifetime:
47D-Link DIR-601 User Manual
Section 3 - Conguration
IPv6 in IPv4 Tunneling (Stateless)
Select IPv6 in IPv4 Tunnel from the drop-down
menu.
Enter the settings supplied by your Internet
provider (ISP).
Enter the LAN (local) IPv6 address for the router.
Displays the Router’s LAN Link-Local Address.
Check to enable the Autoconguration feature.
Select Stateful(DHCPv6) or Stateless. Refer to
the next page for Stateless.
Enter the start IPv6 Address for the DHCPv6 range
for your local computers.
Enter the end IPv6 Address for the DHCPv6 range
for your local computers.
Enter the IPv6 Address Lifetime (in minutes).
My IPv6 Connection:
IPv6 in IPv4 Tunnel
Settings:
LAN IPv6 Address:
LAN Link-Local
Address:
Enable
Autoconguration:
Autoconguration
Type:
IPv6 Address Range
Start:
IPv6 Address Range
End:
IPv6 Address
Lifetime:
48D-Link DIR-601 User Manual
Section 3 - Conguration
The DIR-601 can be congured as a virtual server so that remote users accessing Web or FTP services via the public IP address can be automatically
redirected to local servers in the LAN (Local Area Network).
The DIR-601 rewall feature lters out unrecognized packets to protect your LAN
network so all computers networked with the DIR-601 are invisible to the outside
world. If you wish, you can make some of the LAN computers accessible from
the Internet by enabling Virtual Server. Depending on the requested service, the
DIR-601 redirects the external service request to the appropriate server within
the LAN network.
The DIR-601 is also capable of port-redirection meaning incoming trac to a
particular port may be redirected to a dierent port on the server computer.
Each virtual service that is created will be listed at the bottom of the screen in the
Virtual Servers List. There are pre-dened virtual services already in the table. You
may use them by enabling them and assigning the server IP to use that particular
virtual service.
For a list of ports for common applications, please visit http://support.dlink.
com/faq/view.asp?prod_id=1191.
Virtual Server
49D-Link DIR-601 User Manual
Section 3 - Conguration
This will allow you to open a single port. If you would like to open a range of ports, refer to the next page.
Enter a name for the rule or select an application from
the drop-down menu. Select an application and click
<< to populate the elds.
Enter the IP address of the computer on your local
network that you want to allow the incoming service
to. If your computer is receiving an IP address
automatically from the router (DHCP), you computer
will be listed in the “Computer Name” drop-down menu. Select your computer and click <<.
Enter the port that you want to open next to Private Port and Public Port. The private and public ports are usually the same. The
public port is the port seen from the Internet side, and the private port is the port being used by the application on the computer
within your local network.
Select TCP, UDP, or Both from the drop-down menu.
Select Allow All (most common) or a created Inbound lter. You may create your own inbound lters in the Advanced>Inbound
Filter page.
The schedule of time when the Virtual Server Rule will be enabled. The schedule may be set to Always, which will allow the particular
service to always be enabled. You can create your own times in the Tools > Schedules section.
Name:
IP Address:
Private Port/
Public Port:
Protocol Type:
Inbound Filter:
Schedule:
50D-Link DIR-601 User Manual
Section 3 - Conguration
This will allow you to open a single port or a range of ports.
Port Forwarding
Enter a name for the rule or select an application from
the drop-down menu. Select an application and click
<< to populate the elds.
Enter the IP address of the computer on your local
network that you want to allow the incoming
service to. If your computer is receiving an IP address
automatically from the router (DHCP), you computer
will be listed in the “Computer Name” drop-down
menu. Select your computer and click <<.
Enter the TCP and/or UDP port or ports that you want
to open. You can enter a single port or a range of ports.
Separate ports with a common.
Example: 24,1009,3000-4000
Select Allow All (most common) or a created Inbound
lter. You may create your own inbound lters in the
Advanced>InboundFilter page.
The schedule of time when the Virtual Server Rule
will be enabled. The schedule may be set to Always,
which will allow the particular service to always
be enabled. You can create your own times in the
Tools > Schedules section.
Name:
IP Address:
TCP/UDP:
Inbound Filter:
Schedule:
51D-Link DIR-601 User Manual
Section 3 - Conguration
Enter a name for the rule. You may select a pre-dened
application from the drop-down menu and click <<.
This is the port used to trigger the application. It can
be either a single port or a range of ports.
Select the protocol of the trigger port (TCP, UDP, or
Both).
This is the port number on the Internet side that will
be used to access the application. You may dene a
single port or a range of ports. You can use a comma
to add multiple ports or port ranges.
Select the protocol of the rewall port (TCP, UDP, or
Both).
The schedule of time when the Application Rule
will be enabled. The schedule may be set to Always,
which will allow the particular service to always be
enabled. You can create your own times in the Tools
> Schedules section.
Name:
Trigger:
Trac Type:
Firewall:
Trac Type:
Schedule:
Application Rules
Some applications require multiple connections, such as Internet gaming, video conferencing, Internet telephony and others. These applications
have diculties working through NAT (Network Address Translation). Special Applications makes some of these applications work with the DIR-601.
If you need to run applications that require multiple connections, specify the port normally associated with an application in the “Trigger Port” eld,
select the protocol type as TCP or UDP, then enter the rewall (public) ports associated with the trigger port to open them for inbound trac.
The DIR-601 provides some predened applications in the table on the bottom of the web page. Select the application you want to use and enable
it.
52D-Link DIR-601 User Manual
Section 3 - Conguration
QoS Engine
This option is disabled by default. Enable this
option for better performance and experience
with online games and other interactive
applications, such as VoIP.
This option is enabled by default when the QoS
Engine option is enabled. This option will allow
your router to automatically determine the uplink
speed of your Internet connection.
This displays the detected uplink speed.
The speed at which data can be transferred from
the router to your ISP. This is determined by
your ISP. ISP’s oer speed as a download/upload
pair. For example, 1.5Mbits/284Kbits. Using this
example, you would enter 284. Alternatively you
can test your uplink speed with a service such as
www.dslreports.com.
Enable QoS
Engine:
Automatic
Uplink Speed:
Measured Uplink
Speed:
Manual Uplink
Speed:
The QoS Engine option helps improve your network gaming performance by prioritizing applications. By default the QoS Engine settings are
disabled and application priority is not classied automatically.
53D-Link DIR-601 User Manual
Section 3 - Conguration
Network Filters
Select Turn MAC Filtering O, allow MAC addresses
listed below, or deny MAC addresses listed below from
the drop-down menu.
Enter the MAC address you would like to lter.
To nd the MAC address on a computer, please refer to
the Networking Basics section in this manual.
Select a DHCP client from the drop-down menu and
click << to copy that MAC Address.
Congure MAC
Filtering:
MAC Address:
DHCP Client:
Use MAC (Media Access Control) Filters to allow or deny LAN (Local Area Network) computers by their MAC addresses from accessing the Network. You
can either manually add a MAC address or select the MAC address from the list of clients that are currently connected to the Broadband Router.
54D-Link DIR-601 User Manual
Section 3 - Conguration
Access Control
Check the Enable Access Control check box and
click the Add Policy button to start the Access
Control Wizard.
Add Policy:
The Access Control section allows you to control access in and out of your network. Use this feature as Parental Controls to only grant access to
approved sites, limit web access based on time or dates, and/or block access from applications like P2P utilities or games.
Click Next to continue with the wizard.
Access Control Wizard
55D-Link DIR-601 User Manual
Section 3 - Conguration
Enter a name for the policy and then click Next to continue.
Select a schedule (I.E. Always) from the drop-down menu and
then click Next to continue.
Enter the following information and then click Next to
continue.
• Address Type - Select IP address, MAC address, or Other
Machines.
• IP Address - Enter the IP address of the computer you
want to apply the rule to.
56D-Link DIR-601 User Manual
Section 3 - Conguration
Select the ltering method and then click Next to continue.
Enter the rule:
Enable - Check to enable the rule.
Name - Enter a name for your rule.
DestIPStart - Enter the starting IP address.
Dest IP End - Enter the ending IP address.
Protocol - Select the protocol.
DestPortStart - Enter the starting port number.
Dest Port End - Enter the ending port number.
To enable web logging, click Enable.
Click Save to save the access control rule.
57D-Link DIR-601 User Manual
Section 3 - Conguration
Select Deny or Allow computers access to only
these sites.
Click to delete all entries in the list.
Enter the keywords or URLs that you want to allow
or deny.
Congure
Website Filter
Below:
Clear the list
below:
Website URL/
Domain:
Website Filters
Website Filters are used to allow you to set up a list of allowed Web sites that can be used by multiple users through the network. To use this feature
select to Allow or Deny, enter the domain or website and click Add, and then click SaveSettings. You must also select ApplyWebFilter under
the Access Control section (page 41).
58D-Link DIR-601 User Manual
Section 3 - Conguration
Enter a name for the inbound lter rule.
Select Allow or Deny.
Check to enable rule.
Enter the starting IP address. Enter 0.0.0.0 if you
do not want to specify an IP range.
Enter the ending IP address. Enter 255.255.255.255
if you do not want to specify and IP range.
Click the Save button to apply your settings. You
must click SaveSettings at the top to save the
settings.
This section will list any rules that are created. You
may click the Edit icon to change the settings or
enable/disable the rule, or click the Delete icon
to remove the rule.
Name:
Action:
Enable:
Source IP Start:
Source IP End:
Save:
Inbound Filter
Rules List:
The Inbound Filter option is an advanced method of controlling data received from the Internet. With this feature you can congure inbound
data ltering rules that control data based on an IP address range. Inbound Filters can be used with Virtual Server, Port Forwarding, or Remote
Administration features.
Inbound Filters
59D-Link DIR-601 User Manual
Section 3 - Conguration
SPI (Stateful Packet Inspection, also known as dynamic packet ltering)
helps to prevent cyber attacks by tracking more state per session. It
validates that the trac passing through the session conforms to the
protocol.
Select one of the following for TCP and UDP ports:
Endpoint Independent - Any incoming trac sent to an open port will
be forwarded to the application that opened the port. The port will close
if idle for 5 minutes.
Address Restricted - Incoming trac must match the IP address of the
outgoing connection.
Address + Port Restriction - Incoming trac must match the IP address
and port of the outgoing connection.
Enable this option to provide protection from certain kinds of “spoong”
attacks.
If an application has trouble working from behind the router, you can
expose one computer to the Internet and run the application on that
computer.
Note: Placing a computer in the DMZ may expose that computer to a variety
of security risks. Use of this option is only recommended as a last resort.
Specify the IP address of the computer on the LAN that you want to have
unrestricted Internet communication. If this computer obtains its IP address automatically using DHCP, be sure to make a static
reservation on the System>NetworkSettings page so that the IP address of the DMZ machine does not change.
Enable SPI:
NAT Endpoint
Filtering:
Enable Anti-Spoof
Checking:
Enable DMZ Host:
IP Address:
Firewall Settings
A rewall protects your network from the outside world. The D-Link DIR-601 oers a rewall type functionality. The SPI feature helps prevent cyber
attacks. Sometimes you may want a computer exposed to the outside world for certain types of applications. If you choose to expose a computer,
you can enable DMZ. DMZ is short for Demilitarized Zone. This option will expose the chosen computer completely to the outside world.
60D-Link DIR-601 User Manual
Section 3 - Conguration
Routing
Enter the IP address of packets that will take this route.
Enter the netmask of the route, please note that the octets must match
your destination IP address.
Enter your next hop gateway to be taken if this route is used.
The route metric is a value from 1 to 16 that indicates the cost of using
this route. A value 1 is the lowest cost and 15 is the highest cost.
Select the interface that the IP packet must use to transit out of the
router when this route is used.
Destination IP:
Netmask:
Gateway:
Metric:
Interface:
The Routing option is an advanced method of customizing specic routes of data
through your network.
61D-Link DIR-601 User Manual
Section 3 - Conguration
Set the transmit power of the antennas.
Beacons are packets sent by an Access Point to synchronize
a wireless network. Specify a value. 100 is the default
setting and is recommended.
This value should remain at its default setting of 2432.
If inconsistent data flow is a problem, only a minor
modication should be made.
The fragmentation threshold, which is specied in bytes,
determines whether packets will be fragmented. Packets
exceeding the 2346 byte setting will be fragmented before
transmission. 2346 is the default setting.
(Delivery Traffic Indication Message) 3 is the default
setting. A DTIM is a countdown informing clients of the
next window for listening to broadcast and multicast
messages.
This feature enables client isolation. If enabling, all clients will not be able to view or access each other’s information or within the
network.
WMM is QoS for your wireless network. This will improve the quality of video and voice applications for your wireless clients.
Check this box to reduce the guard interval time therefore increasing the data capacity. However, it’s less reliable and may create
higher data loss.
Transmit
Power:
Beacon Period:
RTS Threshold:
Fragmentation
Threshold:
DTIM Interval:
WLAN
Partition:
WMM Enable:
Short GI:
Advanced Wireless Settings
62D-Link DIR-601 User Manual
Section 3 - Conguration
To use the Universal Plug and Play (UPnP™) feature click
on Enable UPnP. UPNP provides compatibility with
networking equipment, software and peripherals.
Unchecking the box will not allow the DIR-601 to
respond to pings. Blocking the Ping may provide
some extra security from hackers. Check the box to
allow the Internet port to be “pinged”.
You may set the port speed of the Internet port to
10Mbps, 100Mbps, or Auto. Some older cable or
DSL modems may require you to set the port speed
to 10Mbps.
Check the box to allow multicast traffic to pass
through the router from the Internet.
UPnP Settings:
WAN Ping:
WAN Port Speed:
Multicast
Streams:
Advanced Network Settings
63D-Link DIR-601 User Manual
Section 3 - Conguration
IPv6 Routing
Destination IP:
Gateway:
Metric:
Interface:
Enter the IP address of packets that will take this
route.
Enter your next hop gateway to be taken if this
route is used.
The route metric is a value from 1 to 16 that
indicates the cost of using this route. A value 1 is
the lowest cost and 15 is the highest cost.
Select the interface that the IP packet must use to
transit out of the router when this route is used.
This page allows you to specify custom routes that determine how data is moved around your network.
64D-Link DIR-601 User Manual
Section 3 - Conguration
Enter a new password for the Administrator Login Name. The
administrator can make changes to the settings.
Enter the new password for the User login. If you login as the
User, you can only see the settings, but cannot change them.
Enter a name for the DIR-601 router.
Enables a challenge-response test to require users to type
letters or numbers from a distorted image displayed on the
screen to prevent online hackers and unauthorized users from
gaining access to your router’s network settings.
Remote management allows the DIR-601 to be congured from
the Internet by a web browser. A username and password is still
required to access the Web-Management interface. In general,
only a member of your network can browse the built-in web
pages to perform Administrator tasks. This feature enables
you to perform Administrator tasks from the remote (Internet)
host.
The port number used to access the DIR-601.
Example: http://x.x.x.x:8080 whereas x.x.x.x is the Internet IP
address of the DIR-601 and 8080 is the port used for the Web
Management interface.
This section will list any rules that are created. You may click the
Edit icon to change the settings or enable/disable the rule, or
click the Delete icon to remove the rule.
Admin Password:
User Password:
Gateway Name:
Enable Graphical
Authentication:
Remote
Management:
Remote Admin
Port:
Remote Admin
Inbound Filter:
Administrator Settings
This page will allow you to change the Administrator and User passwords. You can also enable Remote Management. There are two accounts that
can access the management interface through the web browser. The accounts are admin and user. Admin has read/write access while user has
read-only access. User can only view the settings but cannot make any changes. Only the admin account has the ability to change both admin and
user account passwords.
65D-Link DIR-601 User Manual
Section 3 - Conguration
The Reserve option converts this dynamic IP allocation into a DHCP Reservation and adds the corresponding entry to the DHCP
Reservations List.
Reserve:
66D-Link DIR-601 User Manual
Section 3 - Conguration
Time Settings
Select the Time Zone from the drop-down menu.
To select Daylight Saving time manually, select
enabled or disabled, and enter a start date and an
end date for daylight saving time.
NTP is short for Network Time Protocol. NTP
synchronizes computer clock times in a network
of computers. Check this box to use a NTP server.
This will only connect to a server on the Internet,
not a local server.
Enter the NTP server or select one from the drop-
down menu.
To manually input the time, enter the values in
these elds for the Year, Month, Day, Hour, Minute,
and Second and then click SetTime. You can also
click CopyYourComputer’sTimeSettings.
Time Zone:
Daylight
Saving:
Enable NTP
Server:
NTP Server
Used:
Manual:
The Time Conguration option allows you to congure, update, and maintain the correct time on the internal system clock. From this section you can
set the time zone that you are in and set the Time Server. Daylight Saving can also be congured to automatically adjust the time when needed.
67D-Link DIR-601 User Manual
Section 3 - Conguration
SysLog
The Broadband Router keeps a running log of events and activities occurring on the Router. You may send these logs to a SysLog server on your
network.
Enable Logging
to SysLog
Server:
SysLog Server
IP Address:
Check this box to send the router logs to a SysLog
Server.
The address of the SysLog server that will be used
to send the logs. You may also select your computer
from the drop-down menu (only if receiving an IP
address from the router via DHCP).
68D-Link DIR-601 User Manual
Section 3 - Conguration
E-mail Settings
The Email feature can be used to send the system log les, router alert messages, and rmware update notication to your e-mail address.
Enable Email
Notication:
From Email
Address:
To Email
Address:
SMTP Server
Address:
Enable
Authentication:
Account Name:
Password:
On Log Full:
On Schedule:
Schedule:
When this option is enabled, router activity logs are
e-mailed to a designated e-mail address.
This e-mail address will appear as the sender when you
receive a log le or rmware upgrade notication via
e-mail.
Enter the e-mail address where you want the e-mail
sent.
Enter the SMTP server address for sending e-mail. If
your SMTP server requires authentication, select this
option.
Check this box if your SMTP server requires
authentication.
Enter your account for sending e-mail.
Enter the password associated with the account.
Re-type the password associated with the account.
When this option is selected, logs will be sent via e-mail when the log is full.
Selecting this option will send the logs via e-mail according to schedule.
This option is enabled when On Schedule is selected. You can select a schedule from the list of dened schedules. To create a schedule,
go to Tools>Schedules.
69D-Link DIR-601 User Manual
Section 3 - Conguration
Use this option to save the current router
conguration settings to a le on the hard disk
of the computer you are using. First, click the
Save button. You will then see a le dialog, where
you can select a location and le name for the
settings.
Use this option to load previously saved router
conguration settings. First, use the Browse control
to find a previously save file of configuration
settings. Then, click the Load button to transfer
those settings to the router.
This option will restore all conguration settings
back to the settings that were in effect at the
time the router was shipped from the factory.
Any settings that have not been saved will be
lost, including any rules that you have created. If
you want to save the current router conguration
settings, use the Save button above.
Click to reboot the router.
Save Settings
to Local Hard
Drive:
Load Settings
from Local
Hard Drive:
Restore to
Factory Default
Settings:
Reboot Device:
System Settings
70D-Link DIR-601 User Manual
Section 3 - Conguration
Click on Check Now to find out if there is an
updated firmware; if so, download the new
rmware to your hard drive.
After you have downloaded the new rmware,
click Browse to locate the rmware update on your
hard drive. Click Upload to complete the rmware
upgrade.
Check Now:
Firmware
Upgrade:
Update Firmware
You can upgrade the rmware of the Router here. Make sure the rmware you want to use is on the local hard drive of the computer. Click on Browse
to locate the rmware le to be used for the update. Please check the D-Link support site for rmware updates at http://support.dlink.com. You can
download rmware upgrades to your hard drive from the D-Link support site.
71D-Link DIR-601 User Manual
Section 3 - Conguration
Check to enable DDNS.
Choose your DDNS provider from the drop down
menu.
Enter the Host Name that you registered with your
DDNS service provider.
Enter the Username for your DDNS account.
Enter the Password for your DDNS account.
Enter a time (in hours).
Displays the current connection status to your
DDNS server.
Enable DDNS:
Server
Address:
Host Name:
Username or
Key:
Password or
Key:
Timeout:
Status:
DDNS
The DDNS feature allows you to host a server (Web, FTP, Game Server, etc…) using a domain name that you have purchased (www.whateveryournameis.
com) with your dynamically assigned IP address. Most broadband Internet Service Providers assign dynamic (changing) IP addresses. Using a DDNS
service provider, your friends can enter in your domain name to connect to your server no matter what your IP address is.
72D-Link DIR-601 User Manual
Section 3 - Conguration
System Check
The Ping Test is used to send Ping packets to test if
a computer is on the Internet. Enter the IP Address
that you wish to Ping, and click Ping.
The results of your ping attempts will be displayed
here.
Ping Test/IPv6
Ping Test:
Ping Results:
73D-Link DIR-601 User Manual
Section 3 - Conguration
Enter a name for your new schedule.
Select a day, a range of days, or All Week to
include every day.
Check AllDay-24hrs or enter a start and end
time for your schedule.
Click Save to save your schedule. You must click
Save Settings at the top for your schedules to go
into eect.
The list of schedules will be listed here. Click the
Edit icon to make changes or click the Delete
icon to remove the schedule.
Name:
Days:
Time:
Save:
Schedule Rules
List:
Schedules
74D-Link DIR-601 User Manual
Section 3 - Conguration
This page displays the current information for the DIR-601. It will display the LAN, WAN (Internet), and Wireless information.
Device Information
If your Internet connection is set up for a Dynamic IP address then a
Release button and a Renew button will be displayed. Use Release
to disconnect from your ISP and use Renew to connect to your ISP.
If your Internet connection is set up for PPPoE, a Connect button
and a Disconnect button will be displayed. Use Disconnect to
drop the PPPoE connection and use Connect to establish the PPPoE
connection.
See the following page for more information.
75D-Link DIR-601 User Manual
Section 3 - Conguration
Displays the router’s time and rmware version.
Displays the MAC address and the public IP settings
for the router.
Displays the MAC address and the private (local) IP
settings for the router.
Displays the wireless MAC address and your wireless
settings such as SSID and Channel.
Displays computers and devices that are connected
to the router via Ethernet and that are receiving an IP
address assigned by the router (DHCP).
Displays the Multicast Group IP Address.
General:
WAN:
LAN:
Wireless LAN:
LAN
Computers:
IGMP Multicast
Memberships:
76D-Link DIR-601 User Manual
Section 3 - Conguration
Log
Log Options:
Apply Log
Settings:
Refresh:
Clear:
Email Now:
Save Log:
You can select the types of messages that you want
to display from the log.
Will lter the log results so that only the selected
options appear.
Updates the log details on the screen so it displays
any recent activity.
Clears all of the log contents.
This option will send a copy of the router log to
the e-mail address congured in the Tools>Email
Settings screen.
This option will save the router to a log le on your
computer.
The router automatically logs (records) events of possible interest in it’s internal memory. If there isn’t enough internal memory for all events, logs
of older events are deleted but logs of the latest events are retained. The Logs option allows you to view the router logs. You can dene what types
of events you want to view and the level of the events to view. This router also has external Syslog Server support so you can send the log les to
a computer on your network that is running a Syslog utility.
77D-Link DIR-601 User Manual
Section 3 - Conguration
Stats
The screen below displays the Trac Statistics. Here you can view the amount of packets that pass through the DIR-601 on both the Internet and the LAN
ports. The trac counter will reset if the device is rebooted.
78D-Link DIR-601 User Manual
Section 3 - Conguration
Internet Sessions
The Internet Sessions page displays full details of active Internet sessions through your router. An Internet session is a conversation between a
program or application on a LAN-side computer and a program or application on a WAN-side computer.
Local:
NAT:
Internet:
Protocol:
State:
Dir:
Priority:
The IP address and, where appropriate, port number
of the local application.
The port number of the LAN-side application as
viewed by the WAN-side application.
The IP address and, where appropriate, port number
of the application on the Internet.
The communications protocol used for the
conversation.
State for sessions that use the TCP protocol:
NO: None -- This entry is used as a placeholder for a future connection that may occur.
SS: SYN Sent -- One of the systems is attempting to start a connection.
EST: Established -- the connection is passing data.
FW: FIN Wait -- The client system has requested that the connection be stopped.
CW: Close Wait -- The server system has requested that the connection be stopped.
TW: Time Wait -- Waiting for a short time while a connection that was in FIN Wait is fully closed.
LA: Last ACK -- Waiting for a short time while a connection that was in Close Wait is fully closed.
CL: Closed -- The connection is no longer active but the session is being tracked in case there are any retransmitted packets still pending.
The direction of initiation of the conversation:
Out - Initiated from LAN to WAN.
In - Initiated from WAN to LAN.
The preference given to outbound packets of this conversation by the QoS Engine logic. Smaller numbers represent higher
priority.
79D-Link DIR-601 User Manual
Section 3 - Conguration
Time Out: The number of seconds of idle time until the router considers the session terminated. The initial value of Time Out depends on the
type and state of the connection.
300 seconds - UDP connections.
240seconds - Reset or closed TCP connections. The connection does not close instantly so that lingering packets can pass or the connection can be
re-established.
7800seconds - Established or closing TCP connections.
80D-Link DIR-601 User Manual
Section 3 - Conguration
This page displays the routing details congured for your router.
Routing Table
81D-Link DIR-601 User Manual
Section 3 - Conguration
The wireless client table displays a list of current connected wireless clients. This table also displays the connection time and MAC address of the
connected wireless clients.
Wireless
82D-Link DIR-601 User Manual
Section 3 - Conguration
All of your IPv6 Internet and network connection details are displayed on this page.
IPv6
83D-Link DIR-601 User Manual
Section 3 - Conguration
Support
84D-Link DIR-601 User Manual
Section 4 - Security
Wireless Security
This section will show you the dierent levels of security you can use to protect your data from intruders. The DIR-601 oers the following types
of security:
• WPA2 (Wi-Fi Protected Access 2) • WPA2-PSK(Pre-Shared Key)
• WPA (Wi-Fi Protected Access) • WPA-PSK (Pre-Shared Key)
What is WPA?
WPA, or Wi-Fi Protected Access, is a Wi-Fi standard that was designed to improve the security features of WEP (Wired Equivalent Privacy).
The 2 major improvements over WEP:
• Improved data encryption through the Temporal Key Integrity Protocol (TKIP). TKIP scrambles the keys using a hashing algorithm
and, by adding an integrity-checking feature, ensures that the keys haven’t been tampered with. WPA2 is based on 802.11i and
uses Advanced Encryption Standard (AES) instead of TKIP.
• User authentication, which is generally missing in WEP, through the extensible authentication protocol (EAP). WEP regulates
access to a wireless network based on a computer’s hardware-specic MAC address, which is relatively simple to be snied out
and stolen. EAP is built on a more secure public-key encryption system to ensure that only authorized network users can access
the network.
WPA-PSK/WPA2-PSK uses a passphrase or key to authenticate your wireless connection. The key is an alpha-numeric password between 8 and 63
characters long. The password can include symbols (!?*&_) and spaces. This key must be the exact same key entered on your wireless router or
access point.
WPA/WPA2 incorporates user authentication through the Extensible Authentication Protocol (EAP). EAP is built on a more secure public key encryption
system to ensure that only authorized network users can access the network.
85D-Link DIR-601 User Manual
Section 4 - Security
Wireless Connection Setup Wizard
To run the security wizard, browse to the Setup page and then click the WirelessConnectionSetupWizardbutton.
Click Next to continue.
86D-Link DIR-601 User Manual
Section 4 - Security
Enter the SSID (Service Set Identier). The SSID is the name of your wireless
network. Create a name using up to 32 characters. The SSID is case-
sensitive.
Select Automatically assign a network key to have the router create a
security key for you or select Manually assign a network key if you would
like to create your own security key or passphrase.
If you want to use WPA, check the Use WPA encryption instead of WEP
box.
If you select Manually assign a network key, enter your encryption key in
the box and click Next to continue. You will need to enter this key on your
wireless clients to connect to the router.
If you selected Automatically, the following screen will show you your
security key to enter on your wireless clients.
Click Save to nish the Security Wizard.
87D-Link DIR-601 User Manual
Section 4 - Security
From the Setup > WirelessSettings screen, click Add Wireless Device
withWPS.
Add Wireless Device with WPS Wizard
PIN: Select this option to use PIN method. In order to use this method you
must know the wireless client’s 8 digit PIN and click Connect.
PBC: Select this option to use PBC (Push Button) method to add a wireless
client. Click Connect.
Select Auto to add a wireless client using WPS (Wi-Fi Protected Setup). Once
you select Auto and click Connect, you will have a 120 second time limit
to apply the settings to your wireless client(s) and successfully establish a
connection.
If you select Manual, a settings summary screen will appear. Write down
the security key and enter this on your wireless clients.
88D-Link DIR-601 User Manual
Section 4 - Security
Congure WPA-Personal (PSK)
It is recommended to enable encryption on your wireless router before your wireless network adapters. Please establish wireless connectivity before
enabling encryption. Your wireless signal may degrade when enabling encryption due to the added overhead.
1. Log into the web-based conguration by opening a web browser and
entering the IP address of the router (192.168.0.1). Click onSetupand then
clickWirelessSettings on the left side.
2. Next to Security Mode, select WPA-Personal.
3. Next to WPA Mode, select Auto, WPA2Only, or WPA Only. Use Auto if you
have wireless clients using both WPA and WPA2.
4. Next to Cypher Type, select TKIPandAES, TKIP, or AES. If you have wireless
clients that use both types, use TKIPandAES.
5. Next to Group Key Update Interval, enter the amount of time before the group
key used for broadcast and multicast data is changed (3600 is default).
6. Next to Pre-Shared Key, enter a key (passphrase). The key is entered as a
pass-phrase in ASCII format at both ends of the wireless connection. The
pass-phrase must be between 8-63 characters.
7. Click SaveSettings to save your settings. If you are conguring the router
with a wireless adapter, you will lose connectivity until you enable WPA-PSK
on your adapter and enter the same passphrase as you did on the router.
89D-Link DIR-601 User Manual
Section 4 - Security
It is recommended to enable encryption on your wireless router before your wireless network adapters. Please establish wireless connectivity before
enabling encryption. Your wireless signal may degrade when enabling encryption due to the added overhead.
1. Log into the web-based conguration by opening a web browser and entering
the IP address of the router (192.168.0.1). Click onSetupand then click Wireless
Settings on the left side.
2. Next to Security Mode, select WPA-Enterprise.
3. Next to WPA Mode, select Auto, WPA2Only, or WPA Only. Use Auto if you have
wireless clients using both WPA and WPA2.
4. Next to Cypher Type, select TKIPandAES, TKIP, or AES. If you have wireless
clients that use both types, use TKIPandAES.
5. Next to Group Key Update Interval, enter the amount of time before the group
key used for broadcast and multicast data is changed (3600 is default).
6. Next to Authentication Timeout, enter the amount of time before a client is
required to re-authenticate (60 minutes is default).
7. Next to RADIUS Server IP Address enter the IP Address of your RADIUS server.
8. Next to RADIUS Server Port, enter the port you are using with your RADIUS server.
1812 is the default port.
9. Next to RADIUS Server Shared Secret, enter the security key
Congure WPA-Enterprise (RADIUS)
90D-Link DIR-601 User Manual
Section 4 - Security
.
10. If the MAC Address Authentication box is selected then the user will need
to connect from the same computer whenever logging into the wireless
network.
11. Click Advanced to enter settings for a secondary RADIUS Server.
12. Click ApplySettings to save your settings.
91D-Link DIR-601 User Manual
Section 5 - Connecting to a Wireless Network
Connect to a Wireless Network
Using Windows® 7
It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before conguring your wireless adapter. If you
are joining an existing network, you will need to know the security key or passphrase being used.
1. Click on the wireless icon in your system tray (lower-right corner).
2. The utility will display any available wireless networks in your area.
92D-Link DIR-601 User Manual
Section 5 - Connecting to a Wireless Network
3. Highlight the wireless network (SSID) you would like to connect to and click
the Connect button.
If you get a good signal but cannot access the Internet, check your TCP/IP
settings for your wireless adapter. Refer to the Networking Basics section in
this manual for more information.
4. The following window appears while your computer tries to connect to the
router.
93D-Link DIR-601 User Manual
Section 5 - Connecting to a Wireless Network
5. Enter the same security key or passphrase that is on your router and click
Ok.
It may take 20-30 seconds to connect to the wireless network. If the connection
fails, please verify that the security settings are correct. The key or passphrase
must be exactly the same as on the wireless router.
94D-Link DIR-601 User Manual
Section 5 - Connecting to a Wireless Network
Using Windows Vista®
Windows Vista® users may use the built-in wireless utility. If you are using another company’s utility or Windows® 2000, please refer to the user manual
of your wireless adapter for help with connecting to a wireless network. Most utilities will have a “site survey” option similar to the Windows Vista®
utility as seen below.
Right-click on the wireless computer icon in your system tray (lower-right
corner next to the time). Select Connect to a network.
If you receive the Wireless Networks Detected bubble, click on the center
of the bubble to access the utility.
or
The utility will display any available wireless networks in your area. Click on a
network (displayed using the SSID) and click the Connect button.
If you get a good signal but cannot access the Internet, check you TCP/IP settings
for your wireless adapter. Refer to the Networking Basics section in this manual
for more information.
95D-Link DIR-601 User Manual
Section 5 - Connecting to a Wireless Network
Congure WPA/WPA2
It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before conguring your wireless adapter. If you
are joining an existing network, you will need to know the security key or passphrase being used.
2. Highlight the wireless network (SSID) you would like to connect to
and click Connect.
1. Open the Windows Vista® Wireless Utility by right-clicking on the wireless
computer icon in your system tray (lower right corner of screen). Select
Connect to a network.
96D-Link DIR-601 User Manual
Section 5 - Connecting to a Wireless Network
3. Enter the same security key or passphrase that is on your router and click
Connect.
It may take 20-30 seconds to connect to the wireless network. If the connection
fails, please verify that the security settings are correct. The key or passphrase
must be exactly the same as on the wireless router.
97D-Link DIR-601 User Manual
Section 5 - Connecting to a Wireless Network
Connect Using WCN 2.0
The router supports Wi-Fi protection, referred to as WCN 2.0 in Windows Vista®. The following instructions for setting this up depends on whether
you are using Windows Vista® to congure the router or third party software.
When you rst set up the router, Wi-Fi protection is disabled and uncongured. To enjoy the benets of Wi-Fi protection, the router must be both
enabled and congured. There are three basic methods to accomplish this: use Windows Vista’s built-in support for WCN 2.0, use software provided
by a third party, or manually congure.
If you are running Windows Vista®, log into the router and click the Enable checkbox in the Basic > Wireless section. Use the Current PIN that is
displayed on the Advanced > Wi-FiProtectedSetup section or choose to click the Generate New PIN button or Reset PIN to Default button.
If you are using third party software to set up Wi-Fi Protection, carefully follow the directions. When you are nished, proceed to the next section
to set up the newly-congured router.
98D-Link DIR-601 User Manual
Section 5 - Connecting to a Wireless Network
Using Windows® XP
Windows® XP users may use the built-in wireless utility (Zero Conguration Utility). The following instructions are for Service Pack 2 users. If you are
using another company’s utility or Windows® 2000, please refer to the user manual of your wireless adapter for help with connecting to a wireless
network. Most utilities will have a “site survey” option similar to the Windows® XP utility as seen below.
If you receive the Wireless Networks Detected bubble, click on the center
of the bubble to access the utility.
or
Right-click on the wireless computer icon in your system tray (lower-right
corner next to the time). Select View Available Wireless Networks.
The utility will display any available wireless networks in your area. Click on a
network (displayed using the SSID) and click the Connect button.
If you get a good signal but cannot access the Internet, check you TCP/IP settings
for your wireless adapter. Refer to the Networking Basics section in this manual
for more information.
99D-Link DIR-601 User Manual
Section 5 - Connecting to a Wireless Network
Congure WPA-PSK
It is recommended to enable WEP on your wireless router or access point before conguring your wireless adapter. If you are joining an existing
network, you will need to know the WEP key being used.
2. Highlight the wireless network (SSID) you would like to connect to and
click Connect.
1. Open the Windows® XP Wireless Utility by right-clicking on the wireless
computer icon in your system tray (lower-right corner of screen). Select
View Available Wireless Networks.
100D-Link DIR-601 User Manual
Section 5 - Connecting to a Wireless Network
3. The Wireless Network Connection box will appear. Enter the WPA-PSK passphrase
and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the connection fails,
please verify that the WPA-PSK settings are correct. The WPA-PSK passphrase must be
exactly the same as on the wireless router.
101D-Link DIR-601 User Manual
Section 6 - Troubleshooting
Troubleshooting
This chapter provides solutions to problems that can occur during the installation and operation of the DIR-601. Read the following descriptions if
you are having problems. (The examples below are illustrated in Windows® XP. If you have a dierent operating system, the screen shots on your
computer will look similar to the following examples.)
1.Whycan’tIaccesstheweb-basedcongurationutility?
When entering the IP address of the D-Link router (192.168.0.1 for example), you are not connecting to a website on the Internet or have to be
connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your computer must be on the same IP subnet to
connect to the web-based utility.
• Make sure you have an updated Java-enabled web browser. We recommend the following:
• Microsoft Internet Explorer® 6.0 and higher
• Mozilla Firefox 3.0 and higher
• Google™ Chrome 2.0 and higher
• Apple Safari 3.0 and higher
• Verify physical connectivity by checking for solid link lights on the device. If you do not get a solid link light, try using a dierent cable or connect
to a dierent port on the device if possible. If the computer is turned o, the link light may not be on.
• Disable any Internet security software running on the computer. Software rewalls such as Zone Alarm, Black Ice, Sygate, Norton Personal Firewall,
and Windows® XP rewall may block access to the conguration pages. Check the help les included with your rewall software for more information
on disabling or conguring it.
102D-Link DIR-601 User Manual
Section 6 - Troubleshooting
• Congure your Internet settings:
• Go to Start > Settings > Control Panel. Double-click the Internet Options Icon. From the Security tab, click the button to restore
the settings to their defaults.
• Click the Connection tab and set the dial-up option to Never Dial a Connection. Click the LAN Settings button. Make sure nothing
is checked. Click OK.
• Go to the Advanced tab and click the button to restore these settings to their defaults. Click OK three times.
• Close your web browser (if open) and open it.
• Access the web management. Open your web browser and enter the IP address of your D-Link router in the address bar. This should open the
login page for your the web management.
• If you still cannot access the conguration, unplug the power to the router for 10 seconds and plug back in. Wait about 30 seconds and try accessing
the conguration. If you have multiple computers, try connecting using a dierent computer.
2.WhatcanIdoifIforgotmypassword?
If you forgot your password, you must reset your router. Unfortunately this process will change all your settings back to the factory defaults.
To reset the router, locate the reset button (hole) on the rear panel of the unit. With the router powered on, use a paperclip to hold the button
down for 10 seconds. Release the button and the router will go through its reboot process. Wait about 30 seconds to access the router. The default
IP address is 192.168.0.1. When logging in, the username is admin and leave the password box empty.
103D-Link DIR-601 User Manual
Section 6 - Troubleshooting
3.Whycan’tIconnecttocertainsitesorsendandreceivee-mailswhenconnectingthroughmyrouter?
If you are having a problem sending or receiving e-mail, or connecting to secure sites such as eBay, banking sites, and Hotmail, we suggest lowering
the MTU in increments of ten (Ex. 1492, 1482, 1472, etc).
Note: AOL DSL+ users must use MTU of 1400.
To nd the proper MTU Size, you’ll have to do a special ping of the destination you’re trying to go to. A destination could be another computer, or
a URL.
• Click on Start and then click Run.
• Windows® 95, 98, and Me users type in command (Windows® NT, 2000, and XP users type in cmd) and press Enter (or click OK).
• Once the window opens, you’ll need to do a special ping. Use the following syntax:
ping [url] [-f] [-l] [MTU value]
Example: pingyahoo.com-f-l1472
104D-Link DIR-601 User Manual
Section 6 - Troubleshooting
You should start at 1472 and work your way down by 10 each time. Once you get a reply, go up by 2 until you get a fragmented packet. Take that
value and add 28 to the value to account for the various TCP/IP headers. For example, lets say that 1452 was the proper value, the actual MTU size
would be 1480, which is the optimum for the network we’re working with (1452+28=1480).
Once you nd your MTU, you can now congure your router with the proper MTU size.
To change the MTU rate on your router follow the steps below:
• Open your browser, enter the IP address of your router (192.168.0.1) and click OK.
• Enter your username (admin) and password (blank by default). Click OK to enter the web conguration page for the device.
• Click on Setup and then click Manual Congure.
• To change the MTU enter the number in the MTU eld and click SaveSettings to save your settings.
• Test your e-mail. If changing the MTU does not resolve the problem, continue changing the MTU in increments of ten.
105D-Link DIR-601 User Manual
Appendix A - Wireless Basics
D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity within your
home, business or public access wireless networks. Strictly adhering to the IEEE standard, the D-Link wireless family of products will allow you to
securely access the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking delivers.
A wireless local area network (WLAN) is a cellular computer network that transmits and receives data with radio signals instead of wires. Wireless
LANs are used increasingly in both home and oce environments, and public areas such as airports, coee shops and universities. Innovative ways
to utilize WLAN technology are helping people to work and communicate more eciently. Increased mobility and the absence of cabling and other
xed infrastructure have proven to be benecial for many users.
Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop systems support
the same protocols as Ethernet adapter cards.
Under many circumstances, it may be desirable for mobile network devices to link to a conventional Ethernet LAN in order to use servers, printers
or an Internet connection supplied through the wired LAN. A Wireless Router is a device used to provide this link.
Wireless Basics
106D-Link DIR-601 User Manual
Appendix A - Wireless Basics
WhatisWireless?
Wireless or Wi-Fi technology is another way of connecting your computer to the network without using wires. Wi-Fi uses radio frequency
to connect wirelessly, so you have the freedom to connect computers anywhere in your home or oce network.
Why D-Link Wireless?
D-Link is the worldwide leader and award winning designer, developer, and manufacturer of networking products. D-Link delivers
the performance you need at a price you can aord. D-Link has all the products you need to build your network.
Howdoeswirelesswork?
Wireless works similar to how cordless phone work, through radio signals to transmit data from one point A to point B. But wireless
technology has restrictions as to how you can access the network. You must be within the wireless network range area to be able to
connect your computer. There are two dierent types of wireless networks Wireless Local Area Network (WLAN), and Wireless Personal
Area Network (WPAN).
Wireless Local Area Network (WLAN)
In a wireless local area network, a device called an Access Point (AP) connects computers to the network. The access point has a small
antenna attached to it, which allows it to transmit data back and forth over radio signals. With an indoor access point as seen in the
picture, the signal can travel up to 300 feet. With an outdoor access point the signal can reach out up to 30 miles to serve places like
manufacturing plants, industrial locations, college and high school campuses, airports, golf courses, and many other outdoor venues.
Wireless Personal Area Network (WPAN)
Bluetooth is the industry standard wireless technology used for WPAN. Bluetooth devices in WPAN operate in a range up to 30 feet
away.
Compared to WLAN the speed and wireless operation range are both less than WLAN, but in return it doesn’t use nearly as much power
which makes it ideal for personal devices, such as mobile phones, PDAs, headphones, laptops, speakers, and other devices that operate
on batteries.
107D-Link DIR-601 User Manual
Appendix A - Wireless Basics
Whouseswireless?
Wireless technology as become so popular in recent years that almost everyone is using it, whether it’s for home, oce, business,
D-Link has a wireless solution for it.
Home
• Gives everyone at home broadband access
• Surf the web, check e-mail, instant message, and etc
• Gets rid of the cables around the house
• Simple and easy to use
SmallOceandHomeOce
• Stay on top of everything at home as you would at oce
• Remotely access your oce network from home
• Share Internet connection and printer with multiple computers
• No need to dedicate oce space
108D-Link DIR-601 User Manual
Appendix A - Wireless Basics
Whereiswirelessused?
Wireless technology is expanding everywhere not just at home or oce. People like the freedom of mobility and it’s becoming so
popular that more and more public facilities now provide wireless access to attract people. The wireless connection in public places is
usually called “hotspots”.
Using a D-Link Cardbus Adapter with your laptop, you can access the hotspot to connect to Internet from remote locations like: Airports,
Hotels, Coee Shops, Libraries, Restaurants, and Convention Centers.
Wireless network is easy to setup, but if you’re installing it for the rst time it could be quite a task not knowing where to start. That’s
why we’ve put together a few setup steps and tips to help you through the process of setting up a wireless network.
Tips
Here are a few things to keep in mind, when you install a wireless network.
Centralize your router or Access Point
Make sure you place the router/access point in a centralized location within your network for the best performance. Try to place the
router/access point as high as possible in the room, so the signal gets dispersed throughout your home. If you have a two-story home,
you may need a repeater to boost the signal to extend the range.
Eliminate Interference
Place home appliances such as cordless telephones, microwaves, and televisions as far away as possible from the router/access point.
This would signicantly reduce any interference that the appliances might cause since they operate on same frequency.
Security
Don’t let you next-door neighbors or intruders connect to your wireless network. Secure your wireless network by turning on the WPA
or WEP security feature on the router. Refer to product manual for detail information on how to set it up.
109D-Link DIR-601 User Manual
Appendix A - Wireless Basics
There are basically two modes of networking:
• Infrastructure – All wireless clients will connect to an access point or wireless router.
• Ad-Hoc – Directly connecting to another computer, for peer-to-peer communication, using wireless network adapters on each
computer, such as two or more DIR-601 wireless network Cardbus adapters.
An Infrastructure network contains an Access Point or wireless router. All the wireless devices, or clients, will connect to the wireless router or access
point.
An Ad-Hoc network contains only clients, such as laptops with wireless cardbus adapters. All the adapters must be in Ad-Hoc mode to
communicate.
Wireless Modes
110D-Link DIR-601 User Manual
Appendix B - Networking Basics
Networking Basics
Check your IP address
After you install your adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP server (i.e. wireless router) automatically.
To verify your IP address, please follow the steps below.
Click on Start > Run. In the run box type cmd and click OK. (Windows Vista® users type cmd in the StartSearch box.)
At the prompt, type ipcong and press Enter.
This will display the IP address, subnet mask, and the default
gateway of your adapter.
If the address is 0.0.0.0, check your adapter installation, security
settings, and the settings on your router. Some rewall software
programs may block a DHCP request on newly installed
adapters.
111D-Link DIR-601 User Manual
Appendix B - Networking Basics
Statically Assign an IP address
If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps below:
Step1
Windows Vista® - Click on Start > Control Panel > Network and Internet > Network and Sharing Center > Manage Network
Connections.
Windows® XP - Click on Start > Control Panel > Network Connections.
Windows® 2000 - From the desktop, right-click My Network Places > Properties.
Step2
Right-click on the Local Area Connection which represents your network adapter and select Properties.
Step3
Highlight InternetProtocol(TCP/IP) and click Properties.
Step4
Click Use the following IP address and enter an IP address that is on the same subnet as your network or the LAN IP address on your router.
Example: If the router´s LAN IP address is 192.168.0.1, make your IP address 192.168.0.X where X is a
number between 2 and 99. Make sure that the number you choose is not in use on the network. Set
Default Gateway the same as the LAN IP address of your router (192.168.0.1).
Set Primary DNS the same as the LAN IP address of your router (192.168.0.1). The Secondary DNS is not
needed or you may enter a DNS server from your ISP.
Step5
Click OK twice to save your settings.
112D-Link DIR-601 User Manual
Standards
• IEEE 802.11g
• IEEE 802.3
• IEEE 802.3u
Security
• WPA-Personal
• WPA2-Personal
• WPA-Enterprise
• WPA2-Enterprise
Data Rates*
MSC (0-15)
• 6.5Mbps (13.5) • 7.2Mbps (15)
• 13Mbps (27) • 14.4Mbps (30)
• 19.5Mbps (40.5) • 21.7Mbps (45)
• 26Mbps (54) • 28.9Mbps (60)
• 39Mbps (81) • 43.3Mbps (90)
• 52Mbps (108) • 57.8Mbps (120)
• 58.5Mbps (121.5) • 65Mbps (135)
• 65Mbps (135) • 72.2Mbps (150)
Frequency Range
• 2.4GHz to 2.4835GHz
Transmitter Output Power
• 18.7dBm (average)
LEDs
• Power • Internet
• WLAN • LAN (10/100)
Operating Temperature
• 32°F to 104°F ( 0°C to 40°C)
Humidity
• 95% maximum (non-condensing)
Safety & Emissions
• FCC
• IC
Dimensions
• L = 4.6 inches
• W = 5.75 inches
• H = 1.2 inches
Warranty
• 1 Year Limited
*
signal range.
113D-Link DIR-601 User Manual
Appendix D - Contacting Technical Support
Contacting Technical Support
U.S. and Canadian customers can contact D-Link technical support through our web site or by phone.
Before you contact technical support, please have the following ready:
• Model number of the product (e.g. DIR-601)
• Hardware Revision (located on the label on the bottom of the router (e.g. rev B1))
• Serial Number (s/n number located on the label on the bottom of the router).
You can nd software updates and user documentation on the D-Link website as well as frequently asked questions and answers to technical
issues.
ForcustomerswithintheUnitedStates:
PhoneSupport:
(877) 453-5465
InternetSupport:
http://support.dlink.com
ForcustomerswithinCanada:
PhoneSupport:
(800) 361-5265
InternetSupport:
http://support.dlink.ca
114D-Link DIR-601 User Manual
Appendix E - Warranty
Warranty
Subject to the terms and conditions set forth herein, D-Link Systems, Inc. (“D-Link”) provides this Limited Warranty:
• Only to the person or entity that originally purchased the product from D-Link or its authorized reseller or distributor, and
• Only for products purchased and delivered within the fty states of the United States, the District of Columbia, U.S. Possessions or Protectorates,
U.S. Military Installations, or addresses with an APO or FPO.
Limited Warranty:
D-Link warrants that the hardware portion of the D-Link product described below (“Hardware”) will be free from material defects in workmanship
and materials under normal use from the date of original retail purchase of the product, for the period set forth below (“Warranty Period”), except
as otherwise stated herein.
• Hardware (excluding power supplies and fans): One (1) year limited
• Power supplies and fans: One (1) year limited
• Spare parts and spare kits: Ninety (90) days
The customer’s sole and exclusive remedy and the entire liability of D-Link and its suppliers under this Limited Warranty will be, at
D-Link’s option, to repair or replace the defective Hardware during the Warranty Period at no charge to the original owner or to refund the actual
purchase price paid. Any repair or replacement will be rendered by D-Link at an Authorized D-Link Service Oce. The replacement hardware
need not be new or have an identical make, model or part. D-Link may, at its option, replace the defective Hardware or any part thereof with any
reconditioned product that D-Link reasonably determines is substantially equivalent (or superior) in all material respects to the defective Hardware.
Repaired or replacement hardware will be warranted for the remainder of the original Warranty Period or ninety (90) days, whichever is longer,
and is subject to the same limitations and exclusions. If a material defect is incapable of correction, or if D-Link determines that it is not practical
to repair or replace the defective Hardware, the actual price paid by the original purchaser for the defective Hardware will be refunded by D-Link
upon return to D-Link of the defective Hardware. All Hardware or part thereof that is replaced by D-Link, or for which the purchase price is refunded,
shall become the property of D-Link upon replacement or refund.
LimitedSoftwareWarranty:
D-Link warrants that the software portion of the product (“Software”) will substantially conform to D-Link’s then current functional specications
for the Software, as set forth in the applicable documentation, from the date of original retail purchase of the Software for a period of ninety (90)
days (“Software Warranty Period”), provided that the Software is properly installed on approved hardware and operated as contemplated in its
documentation. D-Link further warrants that, during the Software Warranty Period, the magnetic media on which D-Link delivers the Software will be
free of physical defects. The customer’s sole and exclusive remedy and the entire liability of D-Link and its suppliers under this Limited Warranty will
115D-Link DIR-601 User Manual
Appendix E - Warranty
be, at D-Link’s option, to replace the non-conforming Software (or defective media) with software that substantially conforms to D-Link’s functional
specications for the Software or to refund the portion of the actual purchase price paid that is attributable to the Software. Except as otherwise
agreed by D-Link in writing, the replacement Software is provided only to the original licensee, and is subject to the terms and conditions of the
license granted by D-Link for the Software. Replacement Software will be warranted for the remainder of the original Warranty Period and is subject
to the same limitations and exclusions. If a material non-conformance is incapable of correction, or if D-Link determines in its sole discretion that it
is not practical to replace the non-conforming Software, the price paid by the original licensee for the non-conforming Software will be refunded by
D-Link; provided that the non-conforming Software (and all copies thereof) is rst returned to D-Link. The license granted respecting any Software
for which a refund is given automatically terminates.
Non-Applicability of Warranty:
The Limited Warranty provided hereunder for Hardware and Software portions of D-Link’s products will not be applied to and does not cover any
refurbished product and any product purchased through the inventory clearance or liquidation sale or other sales in which D-Link, the sellers, or
the liquidators expressly disclaim their warranty obligation pertaining to the product and in that case, the product is being sold “As-Is” without any
warranty whatsoever including, without limitation, the Limited Warranty as described herein, notwithstanding anything stated herein to the contrary.
SubmittingAClaim:
The customer shall return the product to the original purchase point based on its return policy. In case the return policy period has expired and
the product is within warranty, the customer shall submit a claim to D-Link as outlined below:
• The customer must submit with the product as part of the claim a written description of the Hardware defect or Software
nonconformance in sucient detail to allow D-Link to conrm the same, along with proof of purchase of the product (such as a
copy of the dated purchase invoice for the product) if the product is not registered.
• The customer must obtain a Case ID Number from D-Link Technical Support at 1-877-453-5465, who will attempt to assist the
customer in resolving any suspected defects with the product. If the product is considered defective, the customer must obtain a
Return Material Authorization (“RMA”) number by completing the RMA form and entering the assigned Case ID Number at https://
rma.dlink.com/.
• After an RMA number is issued, the defective product must be packaged securely in the original or other suitable shipping package
to ensure that it will not be damaged in transit, and the RMA number must be prominently marked on the outside of the package.
Do not include any manuals or accessories in the shipping package. D-Link will only replace the defective portion of the product
and will not ship back any accessories.
• The customer is responsible for all in-bound shipping charges to D-Link. No Cash on Delivery (“COD”) is allowed. Products sent COD
will either be rejected by D-Link or become the property of D-Link. Products shall be fully insured by the customer and shipped
to D-Link Systems, Inc., 17595 Mt. Herrmann, Fountain Valley, CA 92708. D-Link will not be held responsible for any packages that
116D-Link DIR-601 User Manual
Appendix E - Warranty
are lost in transit to D-Link. The repaired or replaced packages will be shipped to the customer via UPS Ground or any common
carrier selected by D-Link. Return shipping charges shall be prepaid by D-Link if you use an address in the United States, otherwise
we will ship the product to you freight collect. Expedited shipping is available upon request and provided shipping charges are
prepaid by the customer. D-Link may reject or return any product that is not packaged and shipped in strict compliance with the
foregoing requirements, or for which an RMA number is not visible from the outside of the package. The product owner agrees to
pay D-Link’s reasonable handling and return shipping charges for any product that is not packaged and shipped in accordance
with the foregoing requirements, or that is determined by D-Link not to be defective or non-conforming.
What Is Not Covered:
The Limited Warranty provided herein by D-Link does not cover:
Products that, in D-Link’s judgment, have been subjected to abuse, accident, alteration, modication, tampering, negligence, misuse, faulty installation,
lack of reasonable care, repair or service in any way that is not contemplated in the documentation for the product, or if the model or serial number
has been altered, tampered with, defaced or removed; Initial installation, installation and removal of the product for repair, and shipping costs;
Operational adjustments covered in the operating manual for the product, and normal maintenance; Damage that occurs in shipment, due to act
of God, failures due to power surge, and cosmetic damage; Any hardware, software, rmware or other products or services provided by anyone
other than D-Link; and Products that have been purchased from inventory clearance or liquidation sales or other sales in which D-Link, the sellers,
or the liquidators expressly disclaim their warranty obligation pertaining to the product.
While necessary maintenance or repairs on your Product can be performed by any company, we recommend that you use only an Authorized D-Link
Service Oce. Improper or incorrectly performed maintenance or repair voids this Limited Warranty.
Disclaimer of Other Warranties:
EXCEPT FOR THE LIMITED WARRANTY SPECIFIED HEREIN, THE PRODUCT IS PROVIDED “AS-IS” WITHOUT ANY WARRANTY OF ANY KIND WHATSOEVER
INCLUDING, WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT.
IF ANY IMPLIED WARRANTY CANNOT BE DISCLAIMED IN ANY TERRITORY WHERE A PRODUCT IS SOLD, THE DURATION OF SUCH IMPLIED WARRANTY
SHALL BE LIMITED TO THE DURATION OF THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE. EXCEPT AS EXPRESSLY COVERED UNDER THE
LIMITED WARRANTY PROVIDED HEREIN, THE ENTIRE RISK AS TO THE QUALITY, SELECTION AND PERFORMANCE OF THE PRODUCT IS WITH THE
PURCHASER OF THE PRODUCT.
Limitation of Liability:
TO THE MAXIMUM EXTENT PERMITTED BY LAW, D-LINK IS NOT LIABLE UNDER ANY CONTRACT, NEGLIGENCE, STRICT LIABILITY OR OTHER LEGAL
OR EQUITABLE THEORY FOR ANY LOSS OF USE OF THE PRODUCT, INCONVENIENCE OR DAMAGES OF ANY CHARACTER, WHETHER DIRECT, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL (INCLUDING, BUT NOT LIMITED TO, DAMAGES FOR LOSS OF GOODWILL, LOSS OF REVENUE OR PROFIT, WORK
STOPPAGE, COMPUTER FAILURE OR MALFUNCTION, FAILURE OF OTHER EQUIPMENT OR COMPUTER PROGRAMS TO WHICH D-LINK’S PRODUCT
117D-Link DIR-601 User Manual
Appendix E - Warranty
IS CONNECTED WITH, LOSS OF INFORMATION OR DATA CONTAINED IN, STORED ON, OR INTEGRATED WITH ANY PRODUCT RETURNED TO D-LINK
FOR WARRANTY SERVICE) RESULTING FROM THE USE OF THE PRODUCT, RELATING TO WARRANTY SERVICE, OR ARISING OUT OF ANY BREACH OF
THIS LIMITED WARRANTY, EVEN IF D-LINK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE SOLE REMEDY FOR A BREACH OF
THE FOREGOING LIMITED WARRANTY IS REPAIR, REPLACEMENT OR REFUND OF THE DEFECTIVE OR NONCONFORMING PRODUCT. THE MAXIMUM
LIABILITY OF D-LINK UNDER THIS WARRANTY IS LIMITED TO THE PURCHASE PRICE OF THE PRODUCT COVERED BY THE WARRANTY. THE FOREGOING
EXPRESS WRITTEN WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ANY OTHER WARRANTIES OR REMEDIES, EXPRESS, IMPLIED
OR STATUTORY.
Governing Law:
This Limited Warranty shall be governed by the laws of the State of California. Some states do not allow exclusion or limitation of incidental or
consequential damages, or limitations on how long an implied warranty lasts, so the foregoing limitations and exclusions may not apply. This
Limited Warranty provides specic legal rights and you may also have other rights which vary from state to state.
Trademarks:
D-Link is a registered trademark of D-Link Corporation/D-Link Systems, Inc. Other trademarks or registered trademarks are the property of their
respective owners.
CopyrightStatement:
No part of this publication or documentation accompanying this product may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from D-Link Corporation/D-Link Systems, Inc., as stipulated by the
United States Copyright Act of 1976 and any amendments thereto. Contents are subject to change without prior notice.
Copyright ©2010 by D-Link Corporation/D-Link Systems, Inc. All rights reserved.
CE Mark Warning:
This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take
adequate measures.
FCCStatement:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one of the following measures:
118D-Link DIR-601 User Manual
Appendix E - Warranty

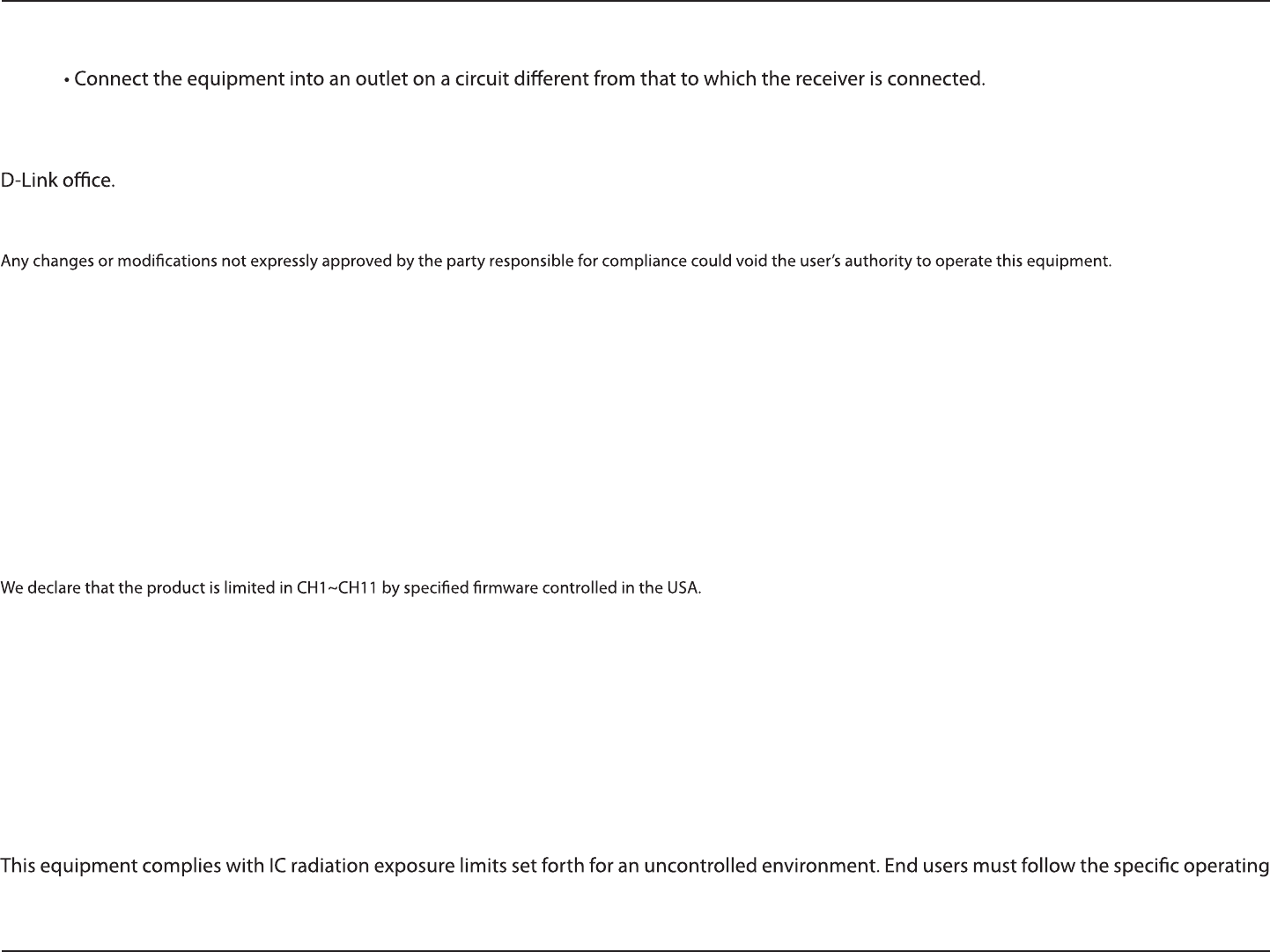

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Consult the dealer or an experienced radio/TV technician for help.
For detailed warranty information applicable to products purchased outside the United States, please contact the corresponding local
FCC Caution:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
IC statement
Operation is subject to the following two conditions:
1) This device may not cause interference and
2) This device must accept any interference, including interference that may cause undesired operation of the device.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
instructions for satisfying RF exposure compliance. This equipment should be installed and operated with minimum distance 20cm between the
119D-Link DIR-601 User Manual
Appendix F - Registration
radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonction-
nement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit
accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable.
NOTE IMPORTANTE:
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipe-
ment doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
120D-Link DIR-601 User Manual
Appendix F - Registration
Version 2.0
March 15, 2011
Product registration is entirely voluntary and failure to complete or return this form will not diminish your warranty rights.
Registration

Navigation menu
