D Link IR603A1 Wireless N 150 Home Router User Manual

D Link Corporation Wireless N 150 Home Router

User Manual

iD-Link DIR-603 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to
notify any person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the
United States or other countries. All other company or product names mentioned herein are trademarks or registered
trademarks of their respective companies.
Copyright © 2010 by D-Link Systems, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Systems, Inc.
Revision Date Description
1.0 May 25th, 2010 • First release version
Preface
iiD-Link DIR-603 User Manual
Table of Contents
Preface ............................................................... i
Manual Revisions ............................................................... i
Trademarks ........................................................................i
Product Overview ...................................................1
Package Contents ..............................................................1
System Requirements .......................................................1
System Requirements .......................................................2
Features .............................................................................3
Hardware Overview............................................................4
Connections ................................................................4
LEDs ........................................................................... 5
Installation ...........................................................6
Before you Begin ...............................................................6
Wireless Installation Considerations ..................................7
Connect to Cable/DSL/Satellite Modem .............................8
Connect to Another Router ................................................9
Conguration ...................................................... 11
Web-based Conguration Utility ......................................11

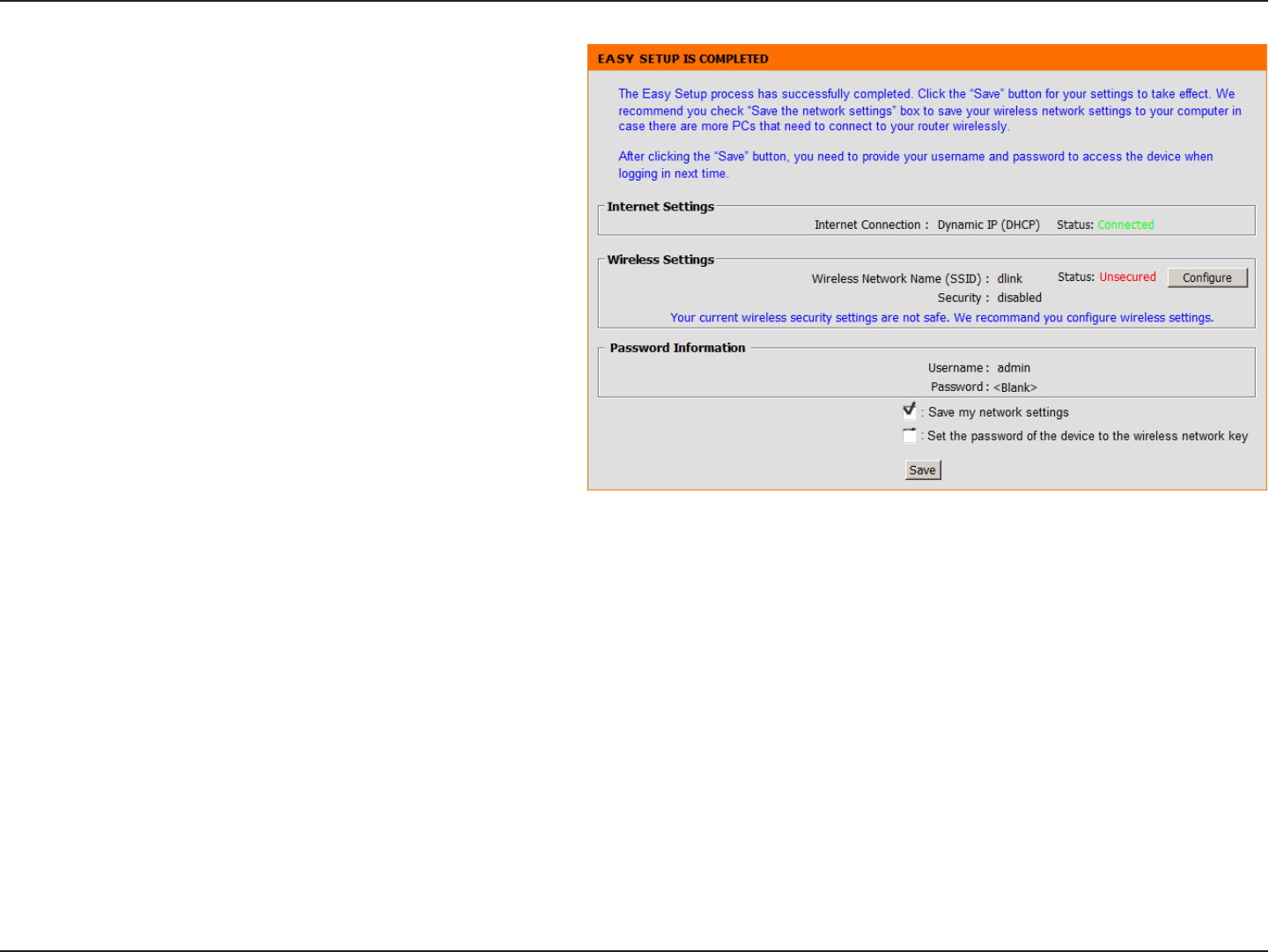

Easy Setup Wizard ....................................................12
Manual Conguration ................................................15
Dynamic (Cable) ...................................................15

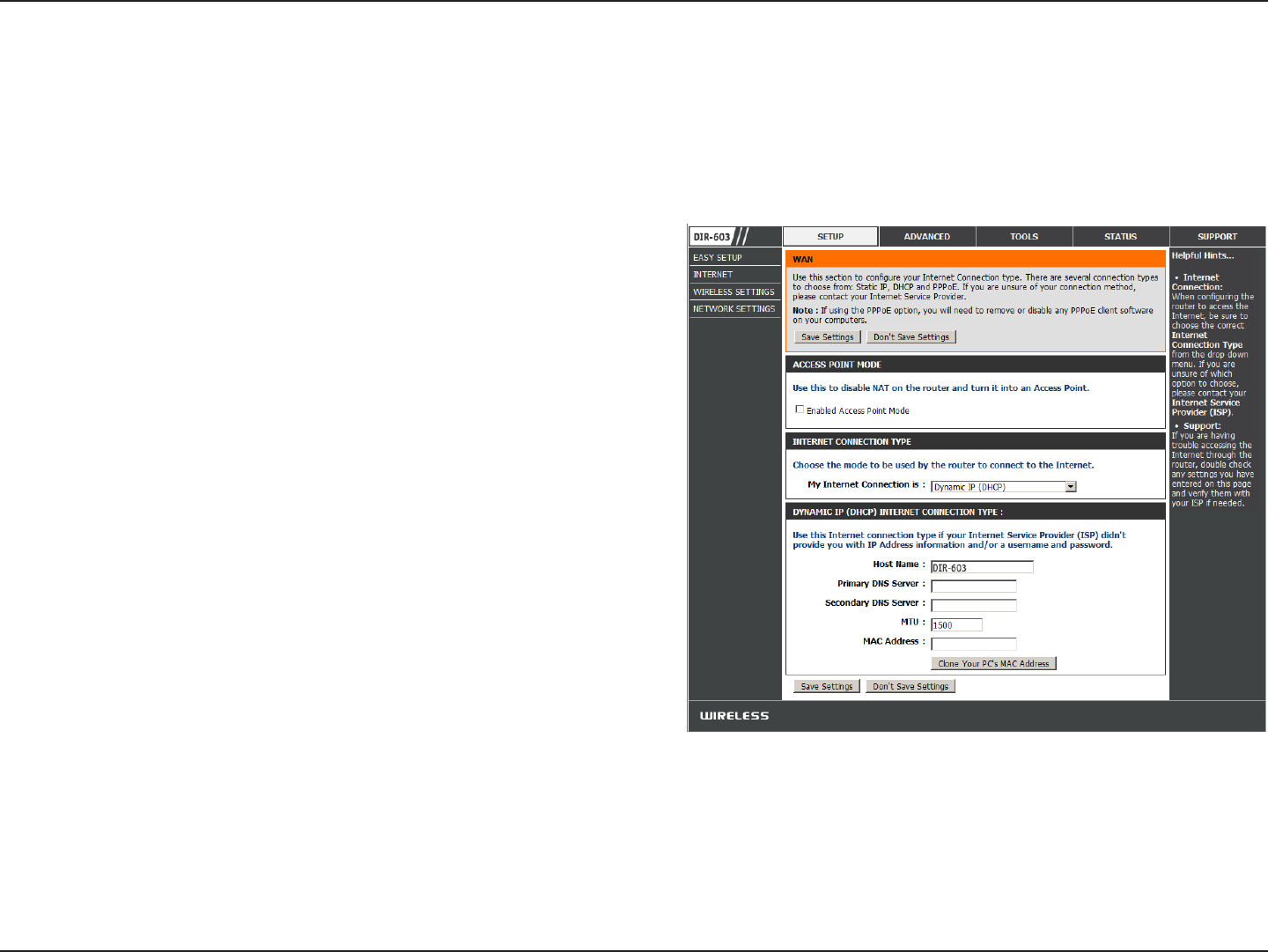

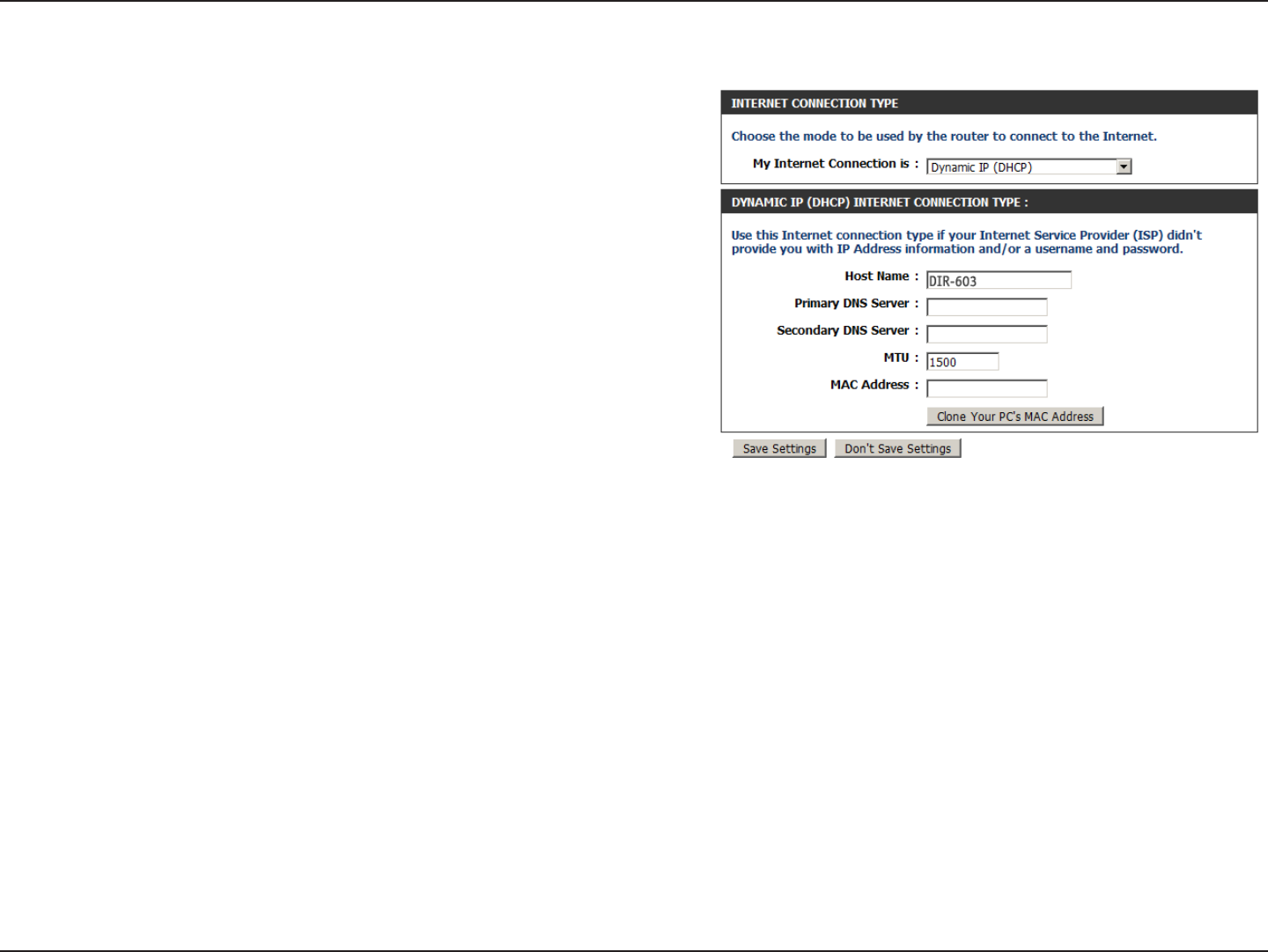

Dynamic IP Address (DHCP) .................................16

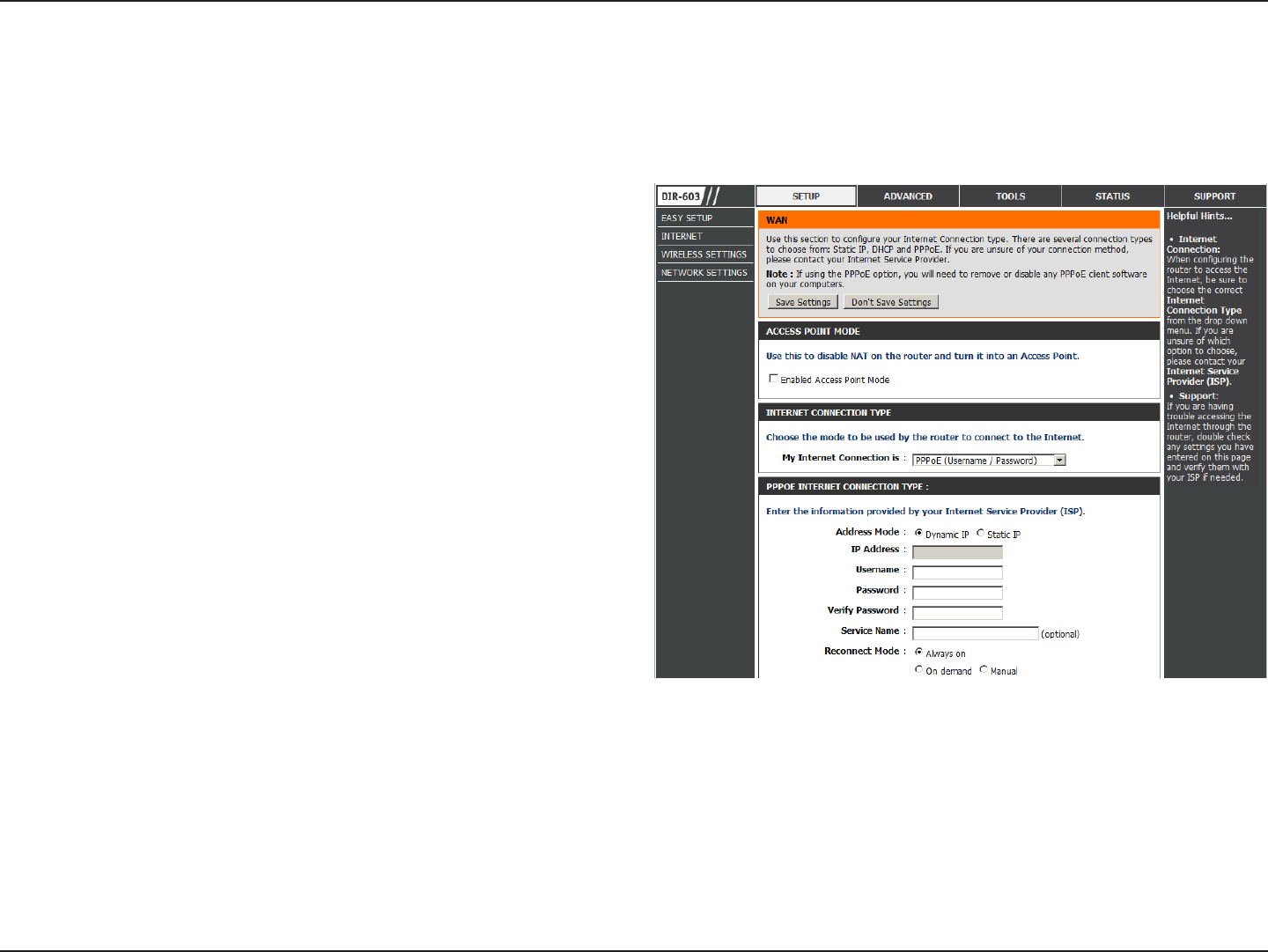

PPPoE (DSL).........................................................17

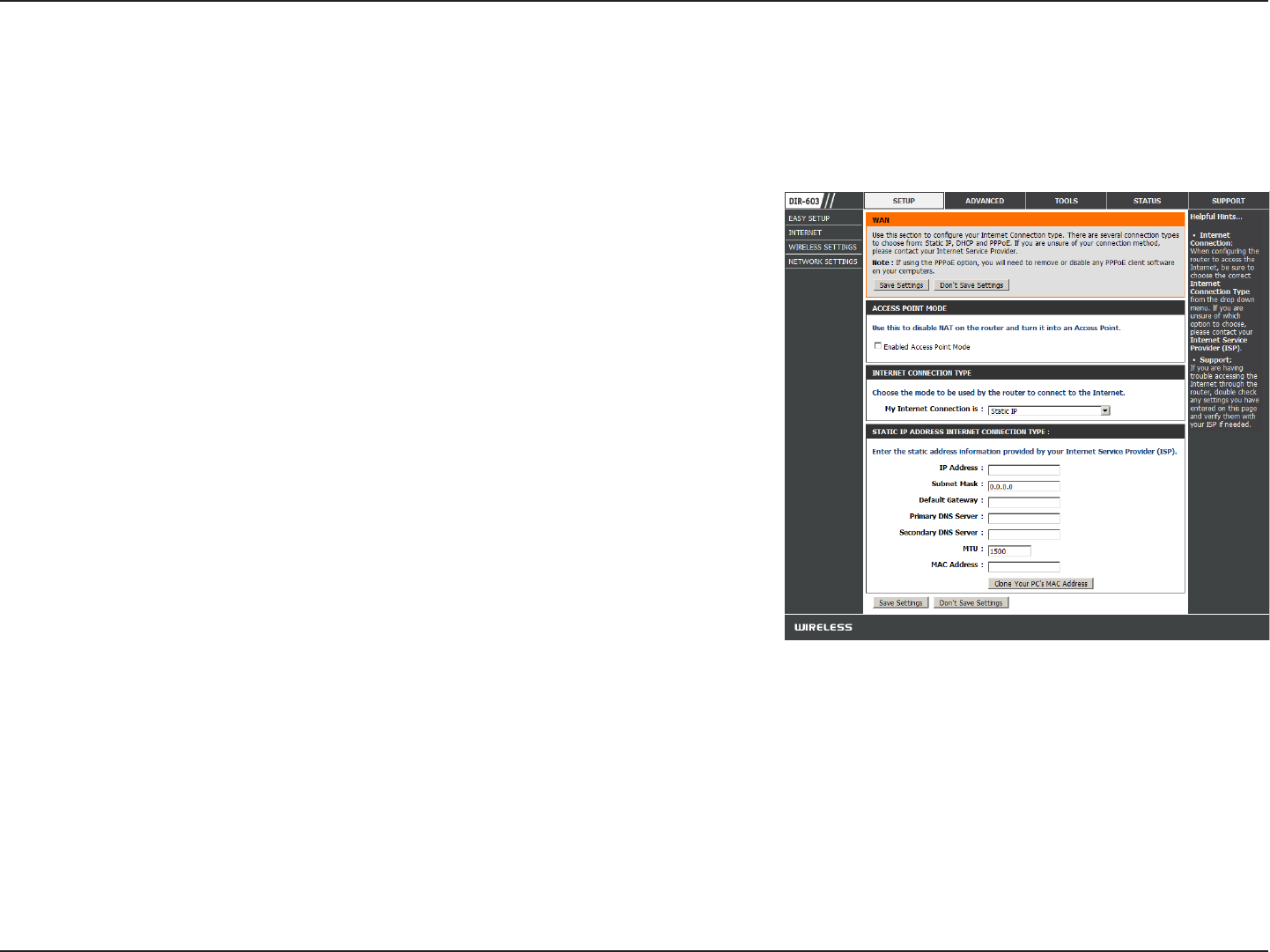

Static IP Address ..................................................18

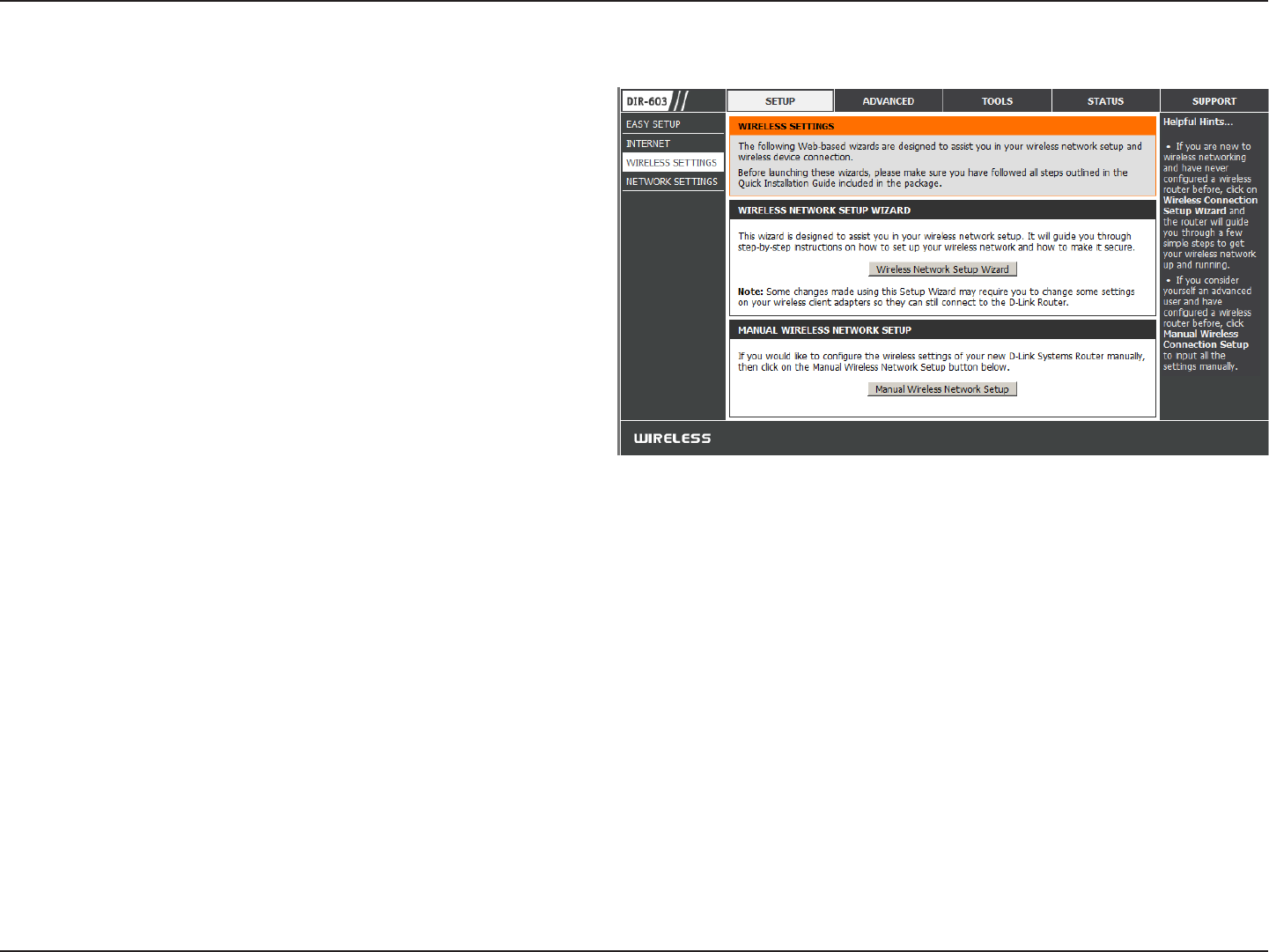

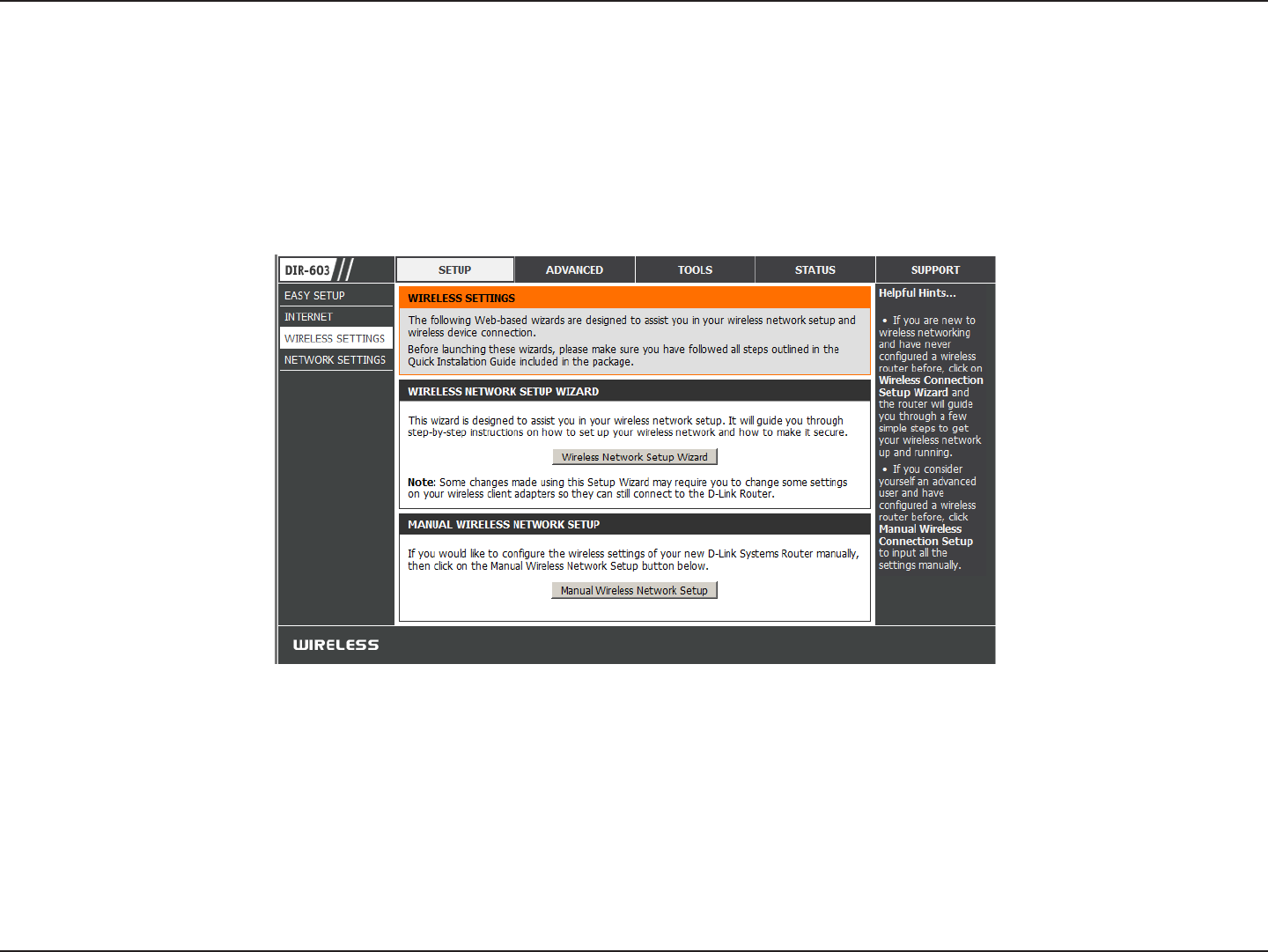

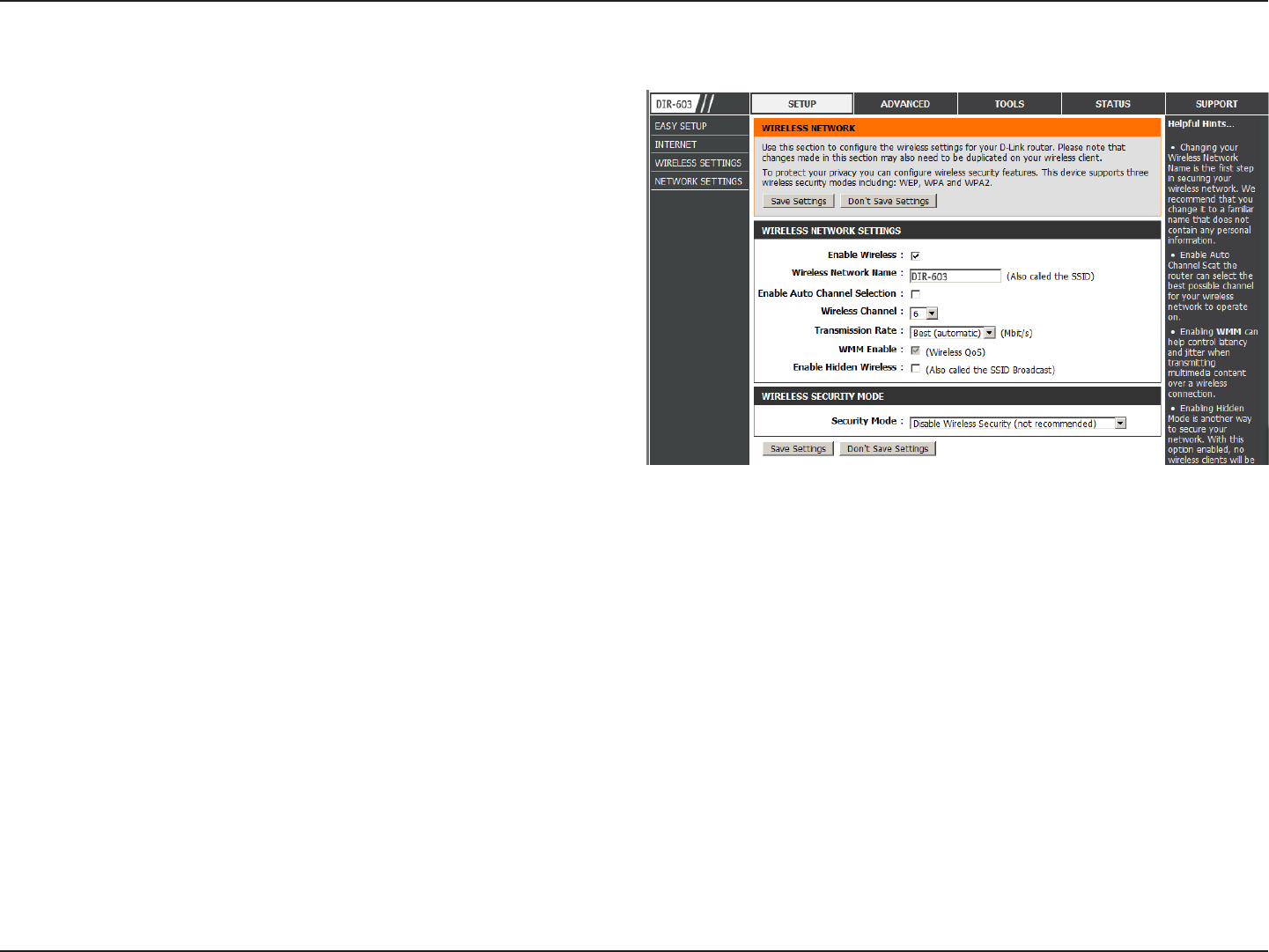

Wireless Settings ......................................................19
Manual Wireless Network Setup ...........................20

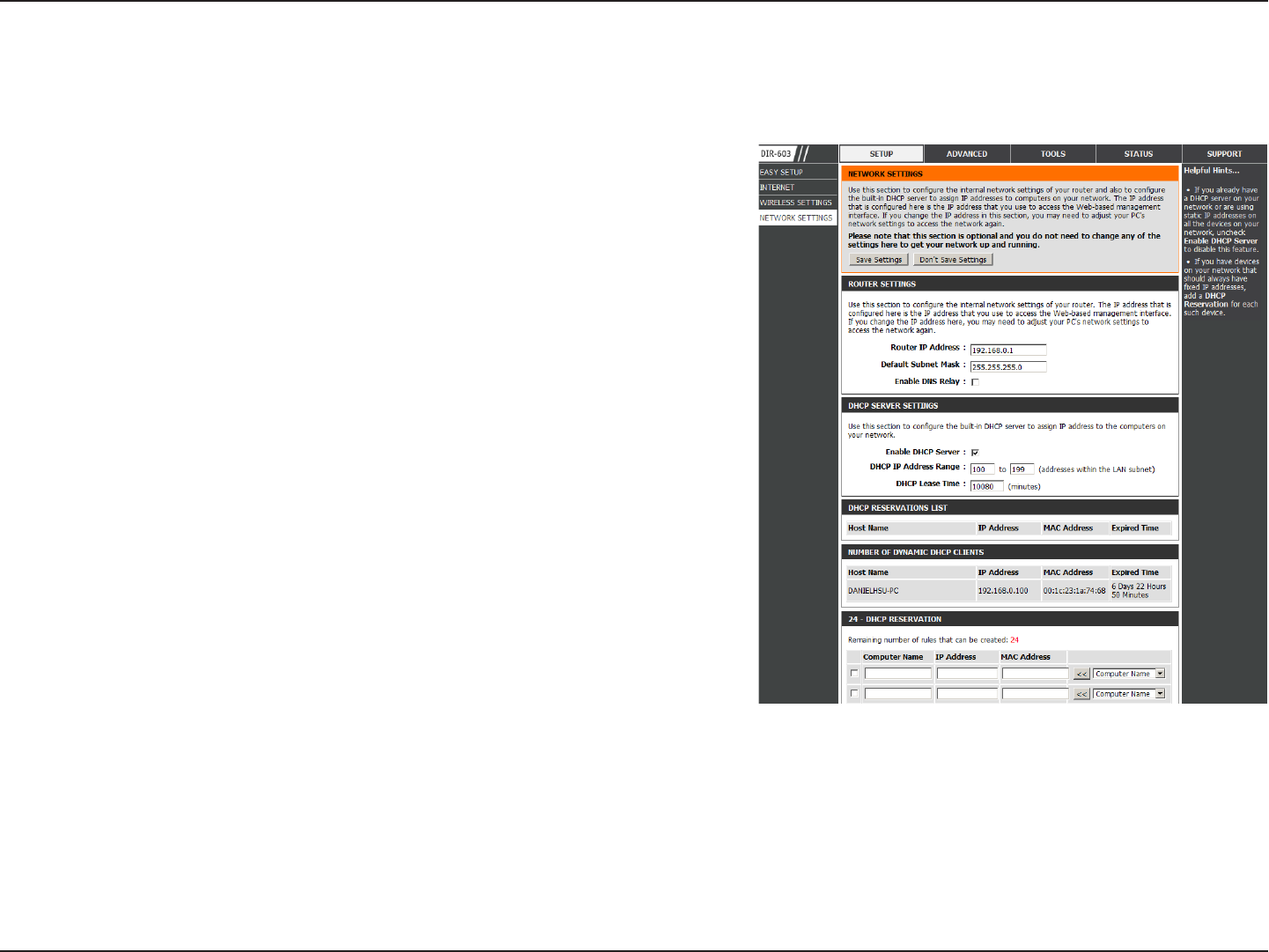

Network Settings .......................................................22

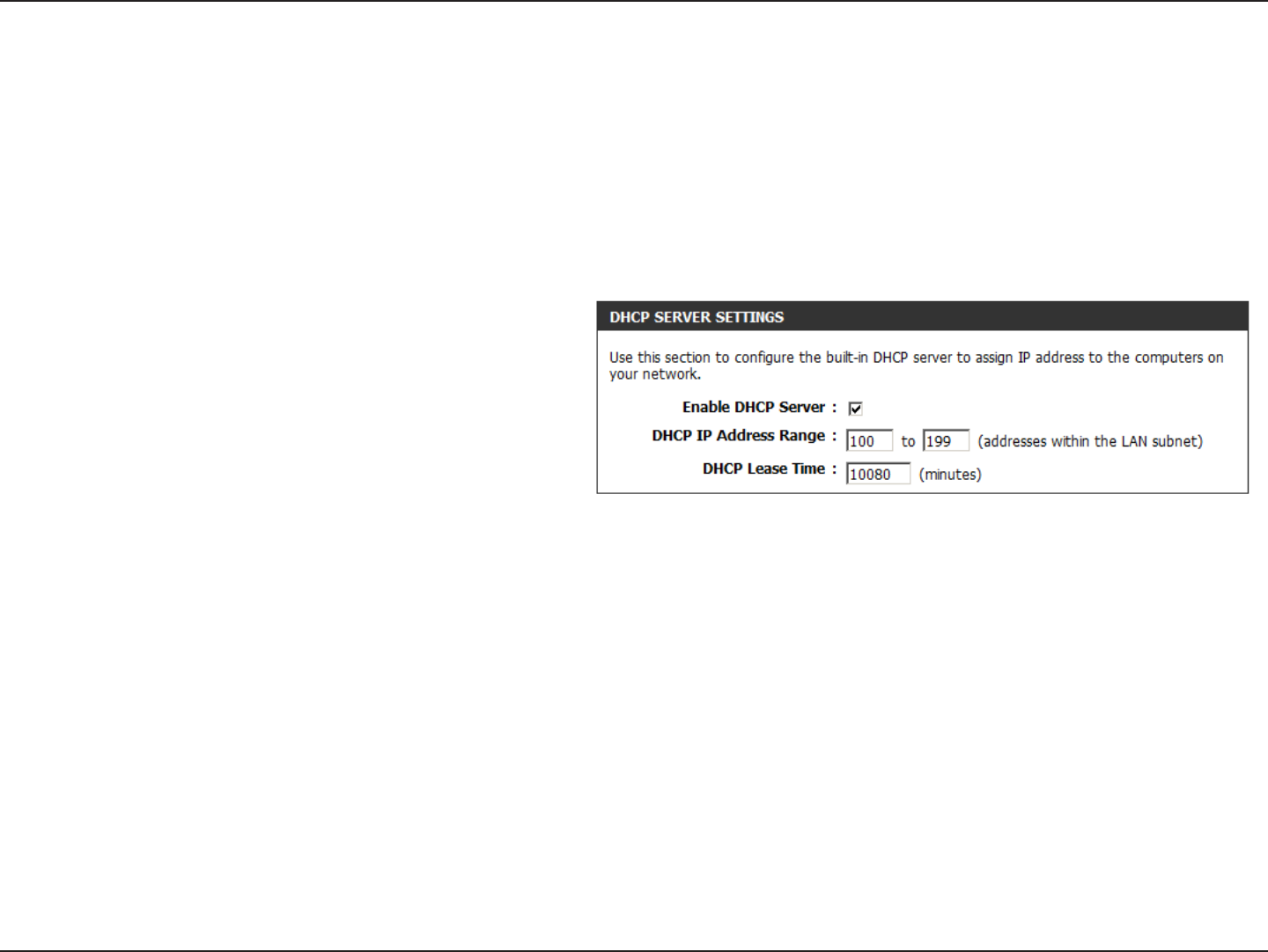

DHCP Server Settings ...........................................23

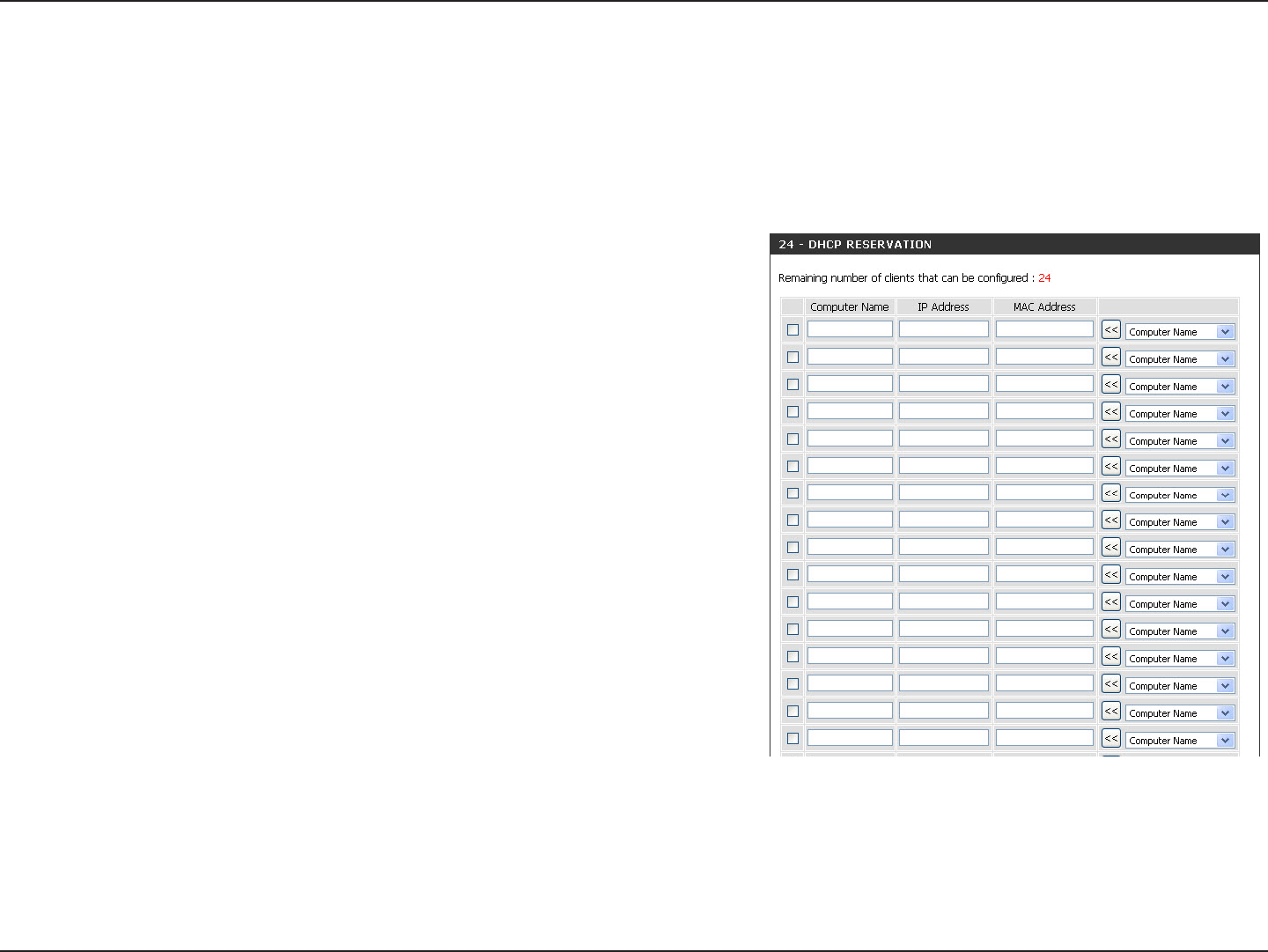

DHCP Reservation .................................................24

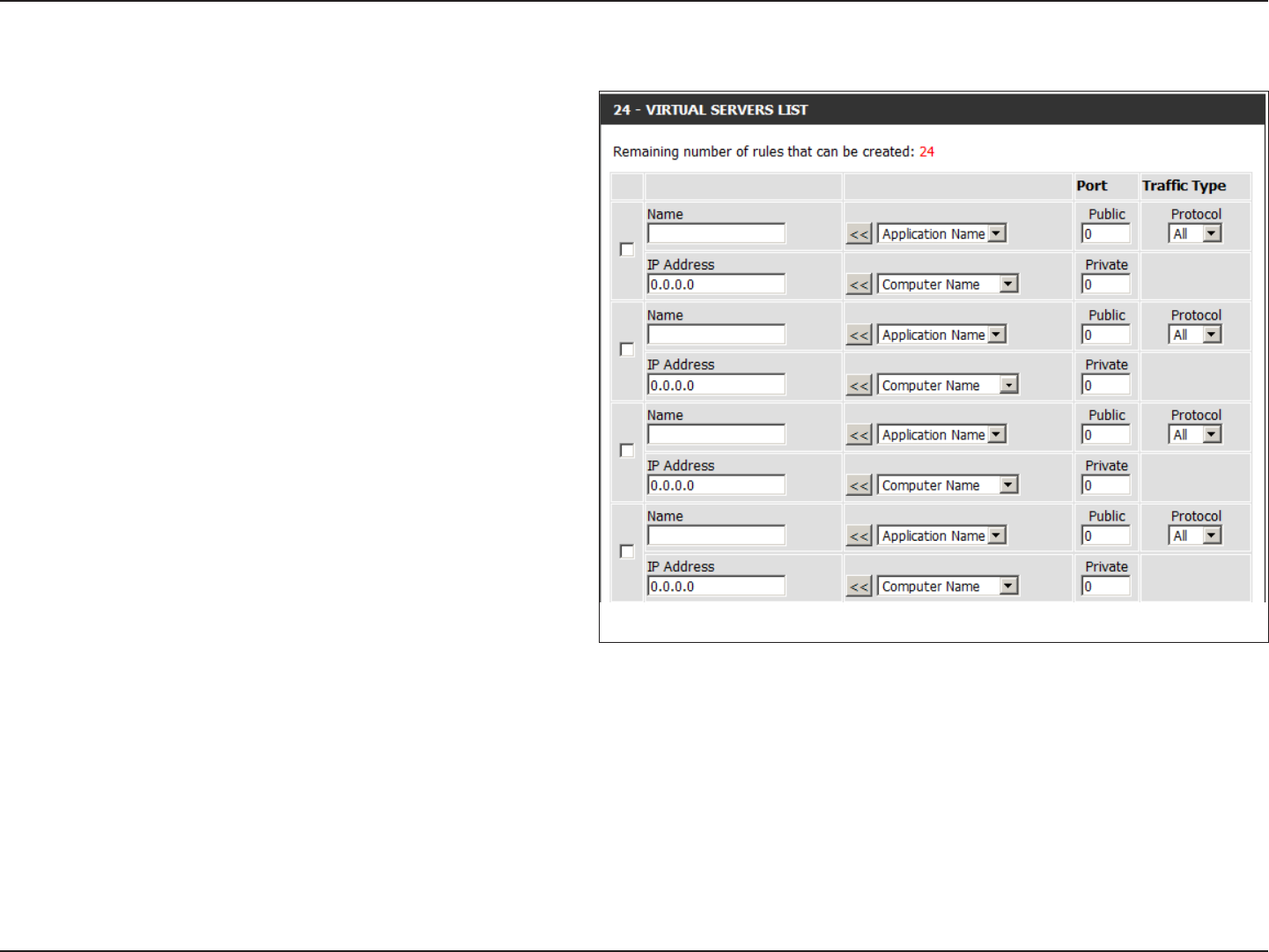

Virtual Server ............................................................25

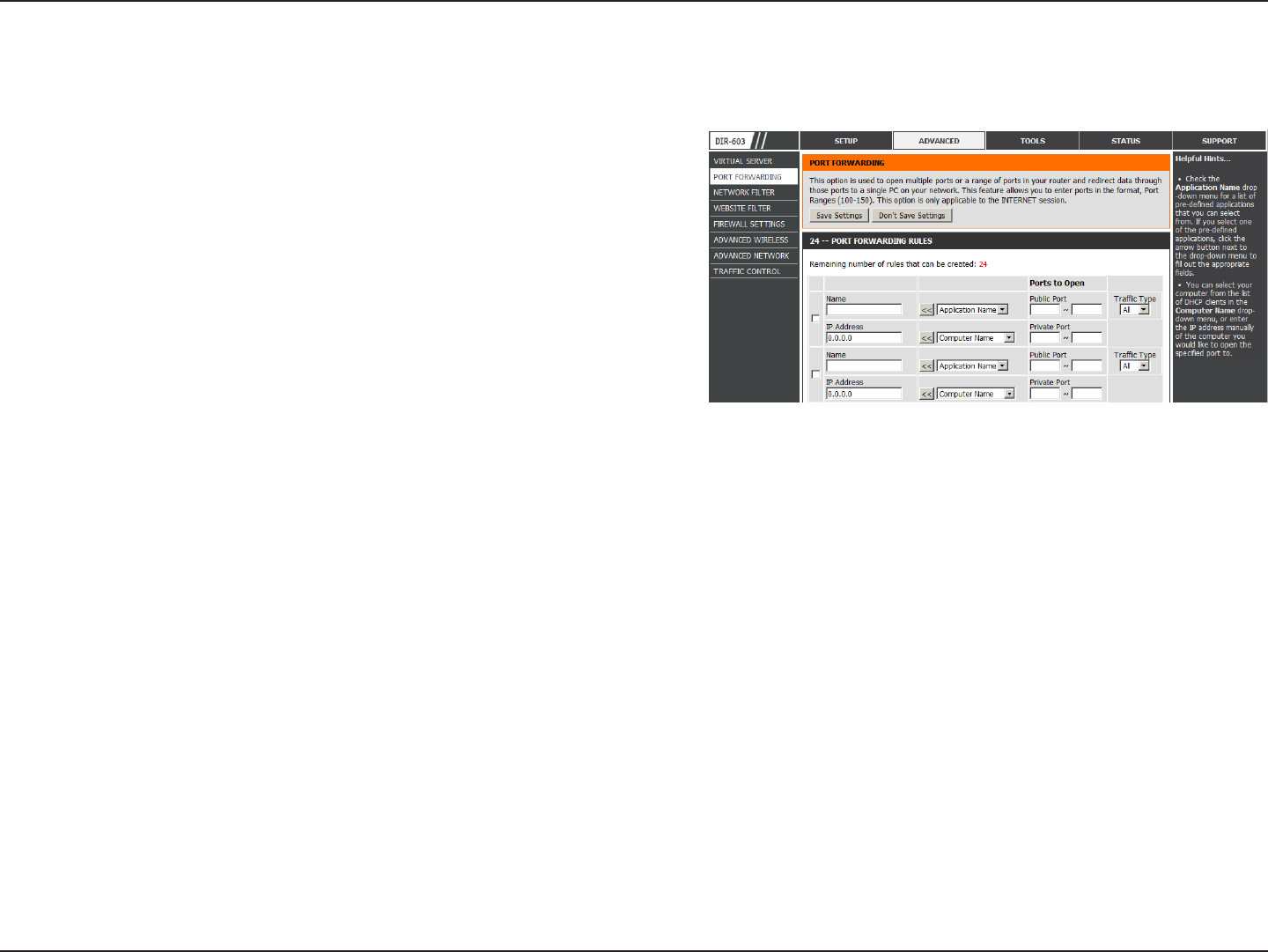

Port Forwarding ........................................................27

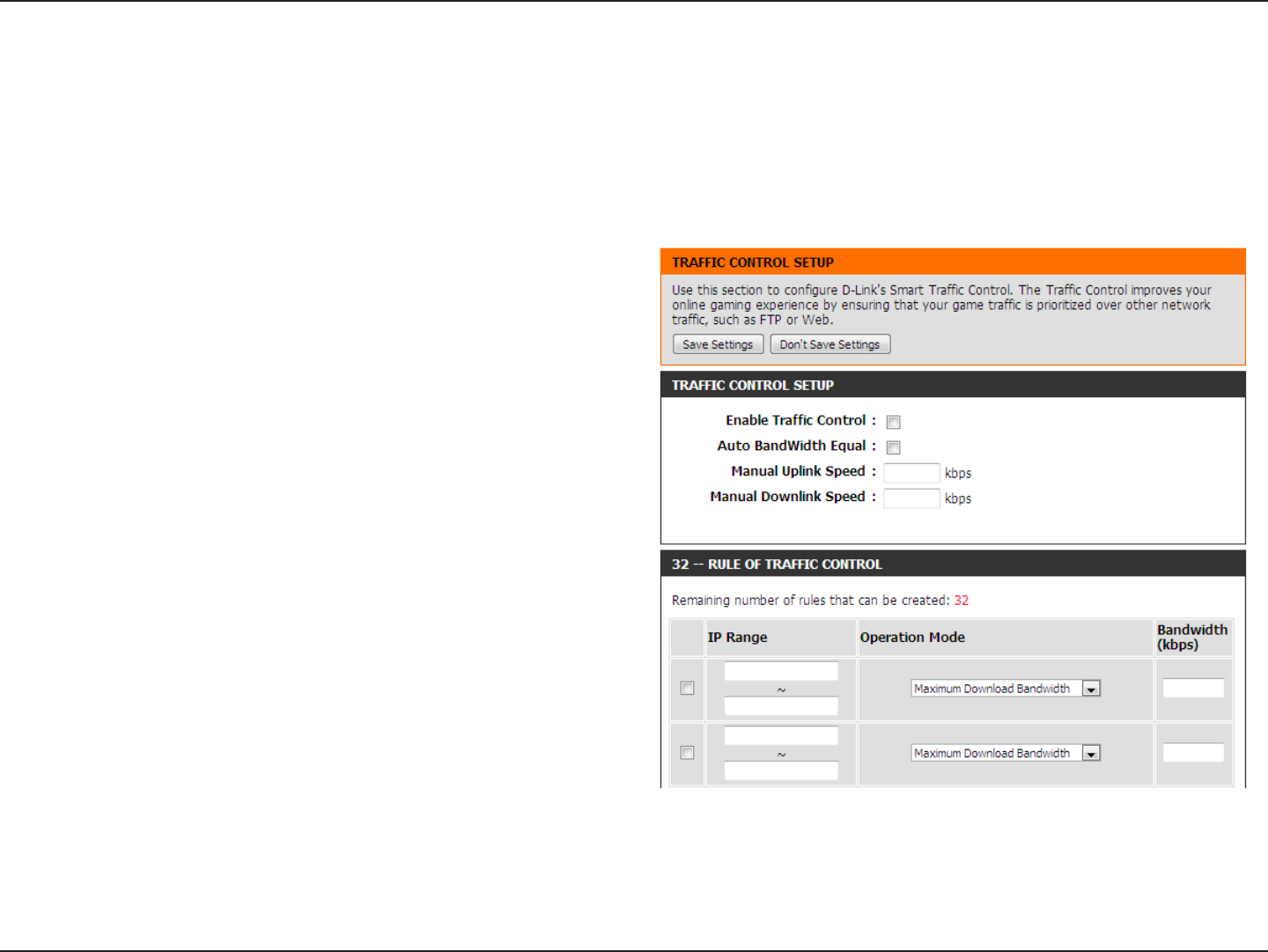

Trafc Control ...........................................................28
Network Filters .......................................................... 29

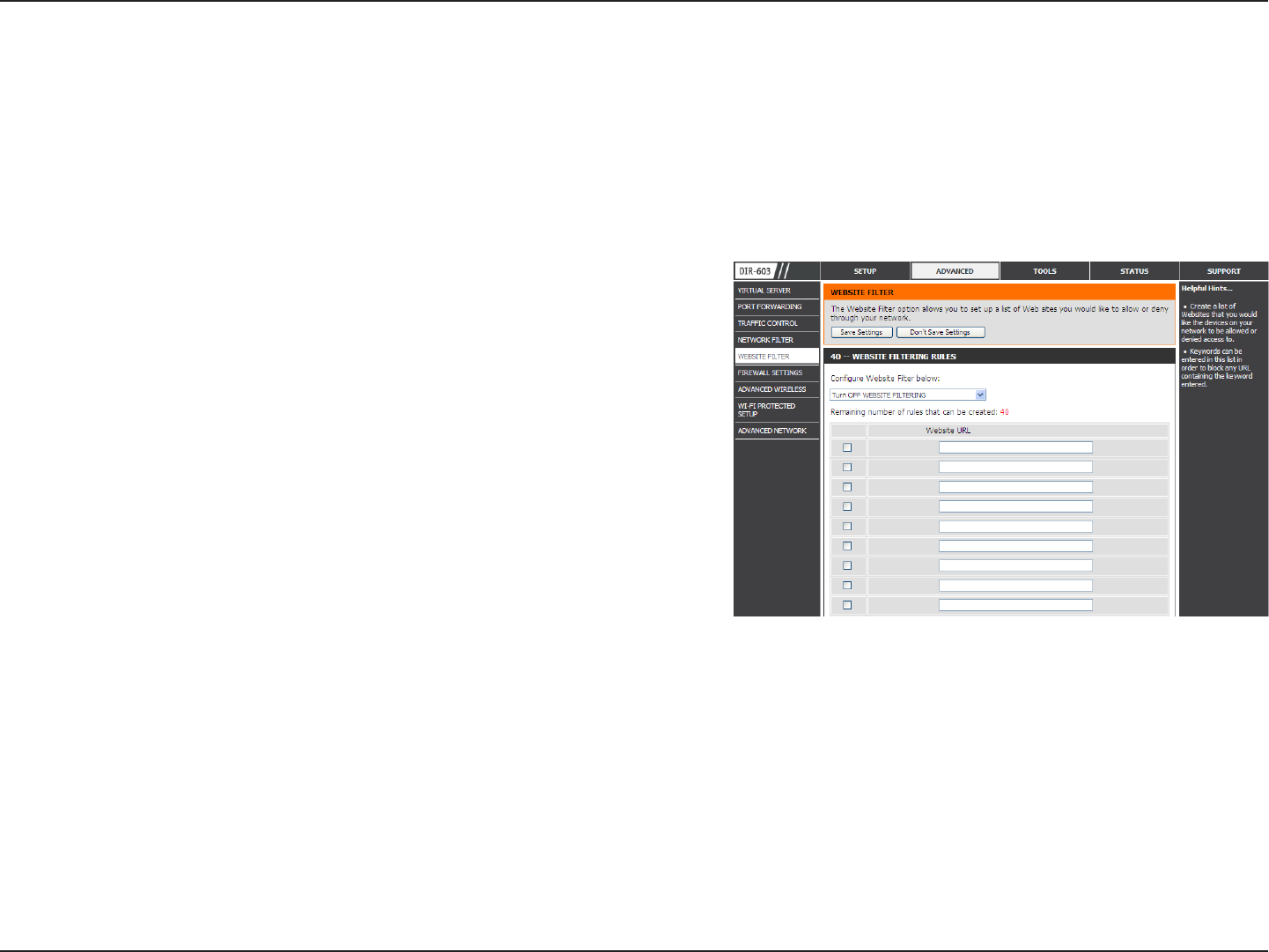

Website Filters ..........................................................30
Firewall Settings ........................................................31

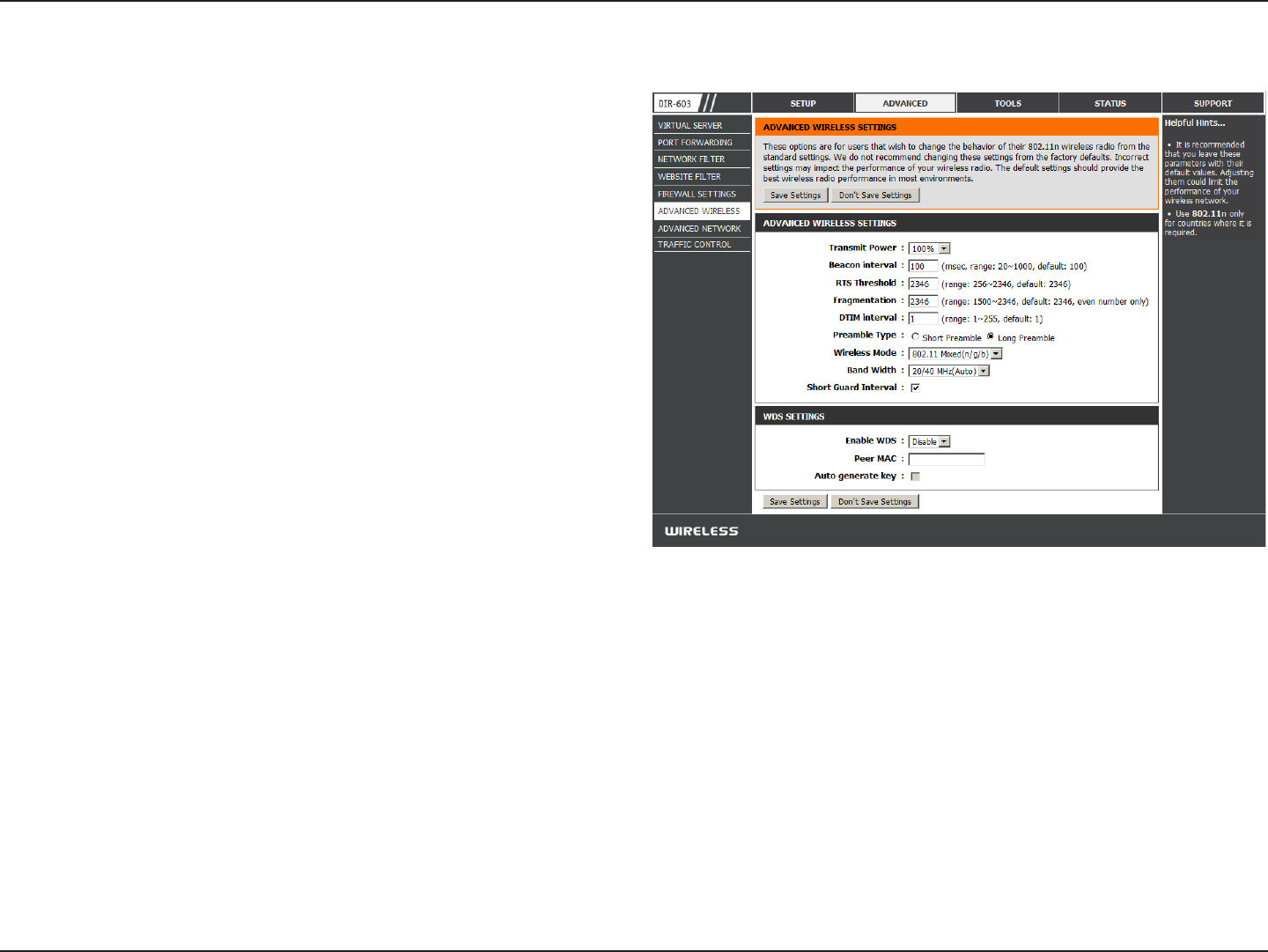

Advanced Wireless Settings ......................................32

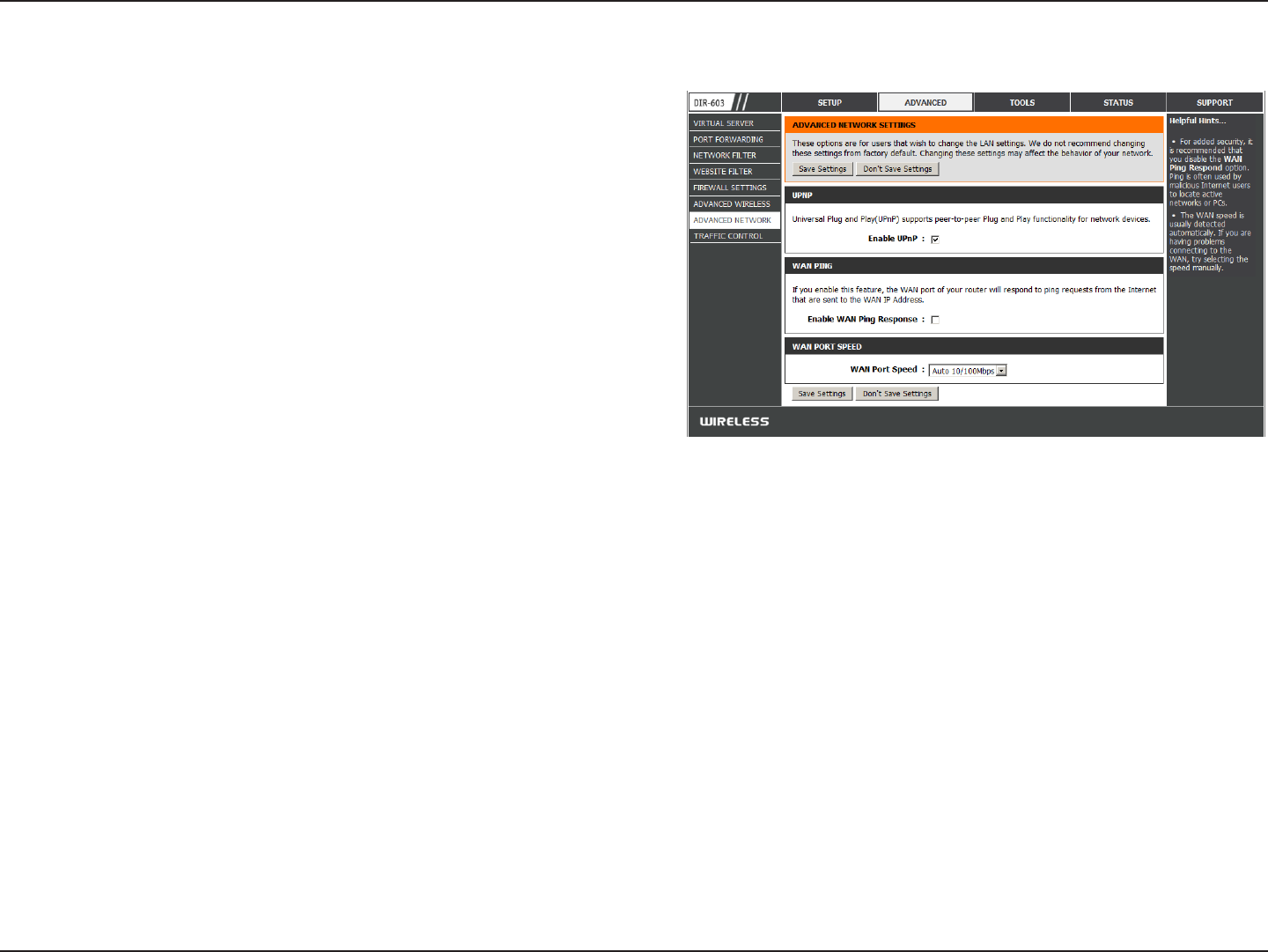

Advanced Network Settings ......................................33
UPnP .....................................................................33
Internet Ping Block................................................33
Internet Port Speed ...............................................33
Multicast Streams .................................................33
Administrator Settings ..............................................34
Time Settings ............................................................35
E-mail Settings ..........................................................36

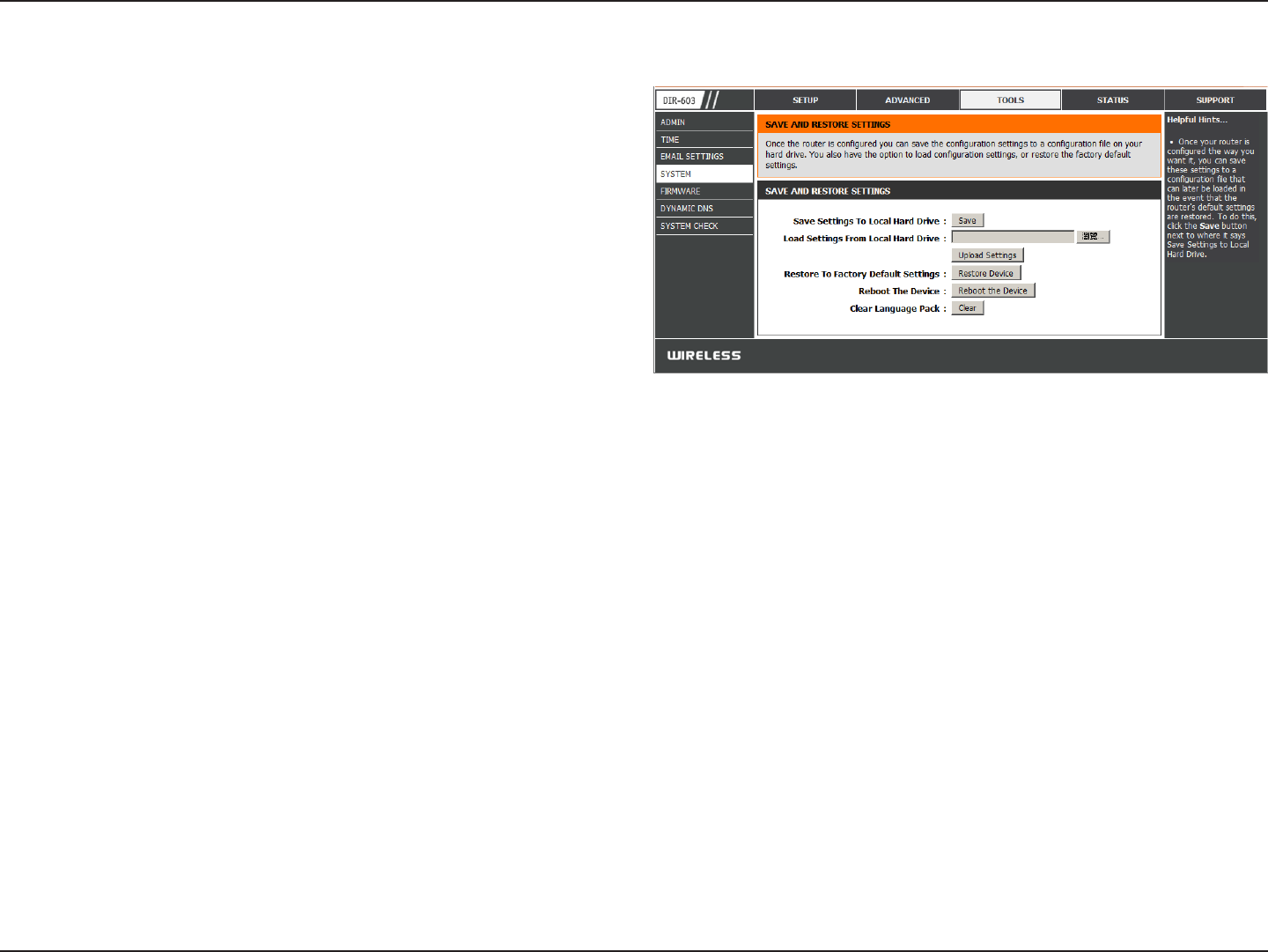

System Settings ........................................................37

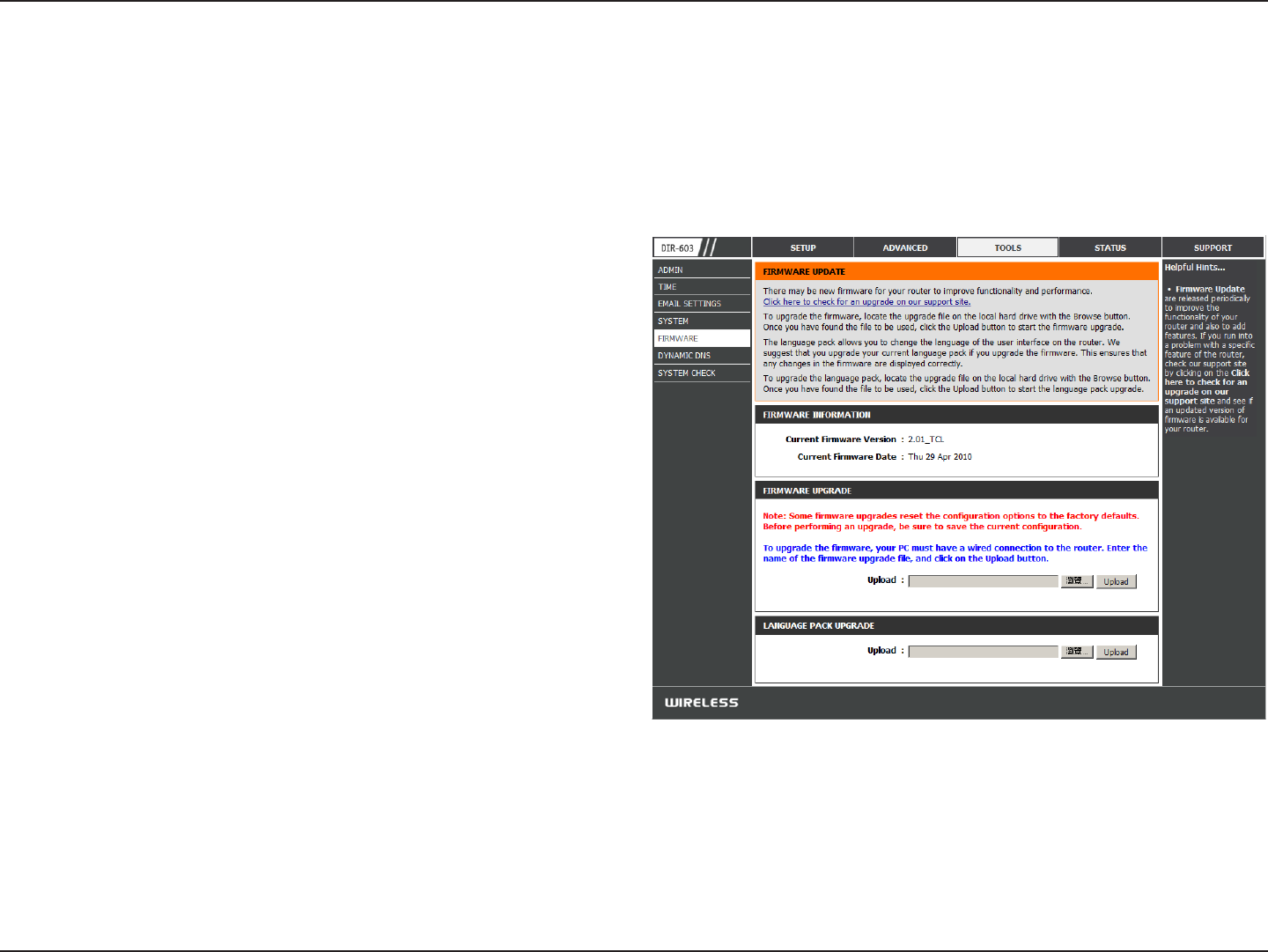

Update Firmware .......................................................38

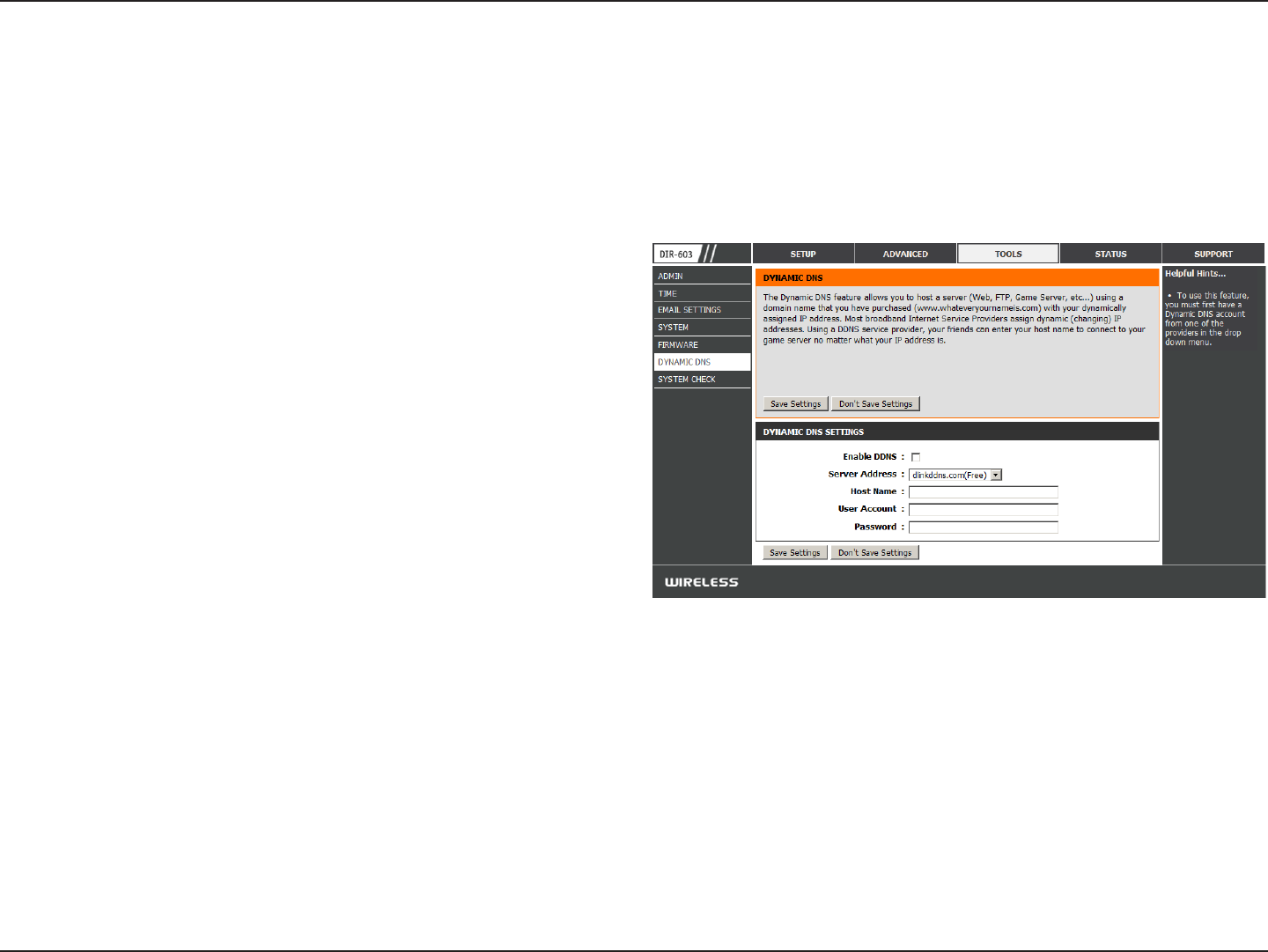

DDNS ........................................................................ 39

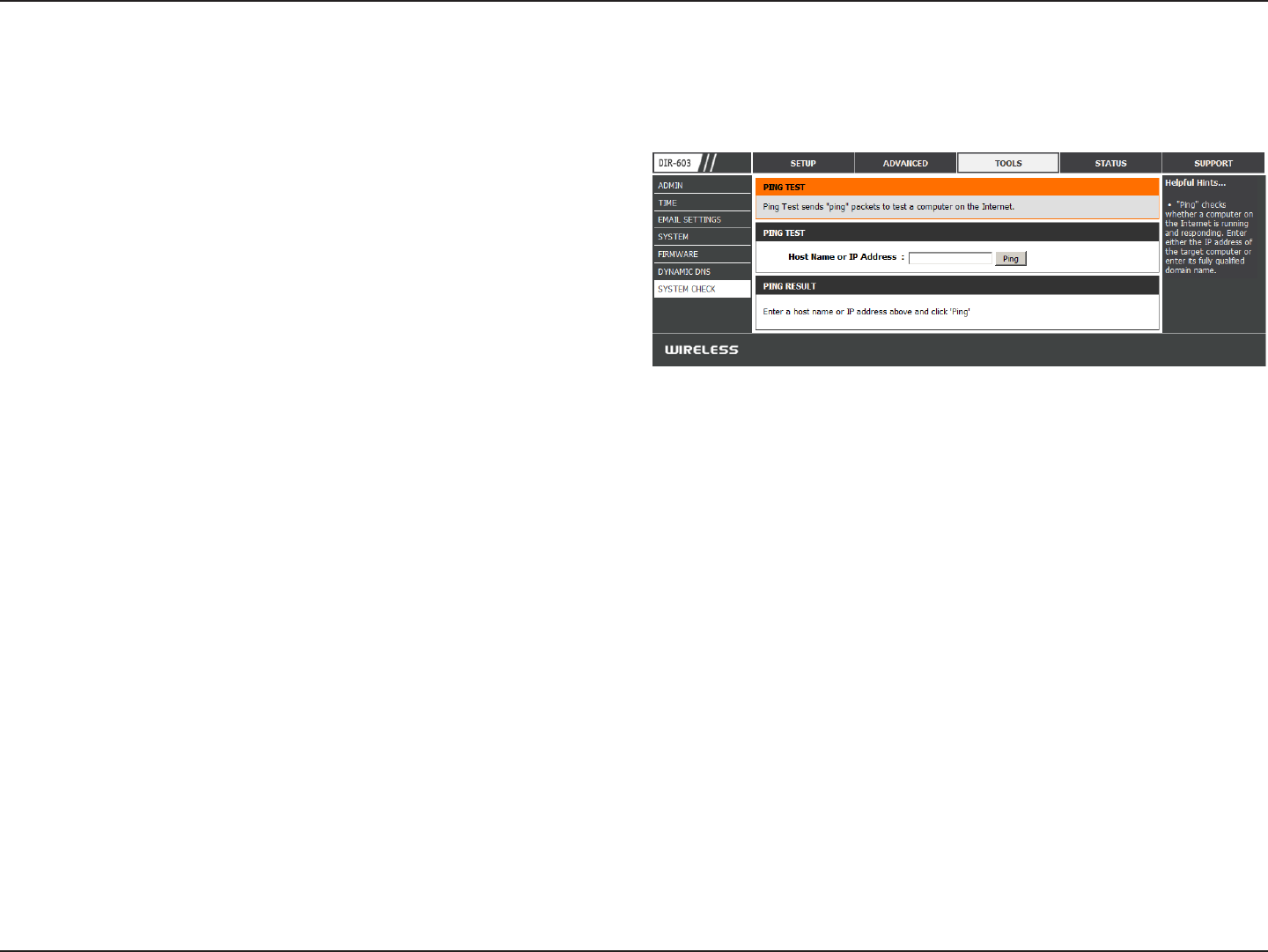

System Check ...........................................................40

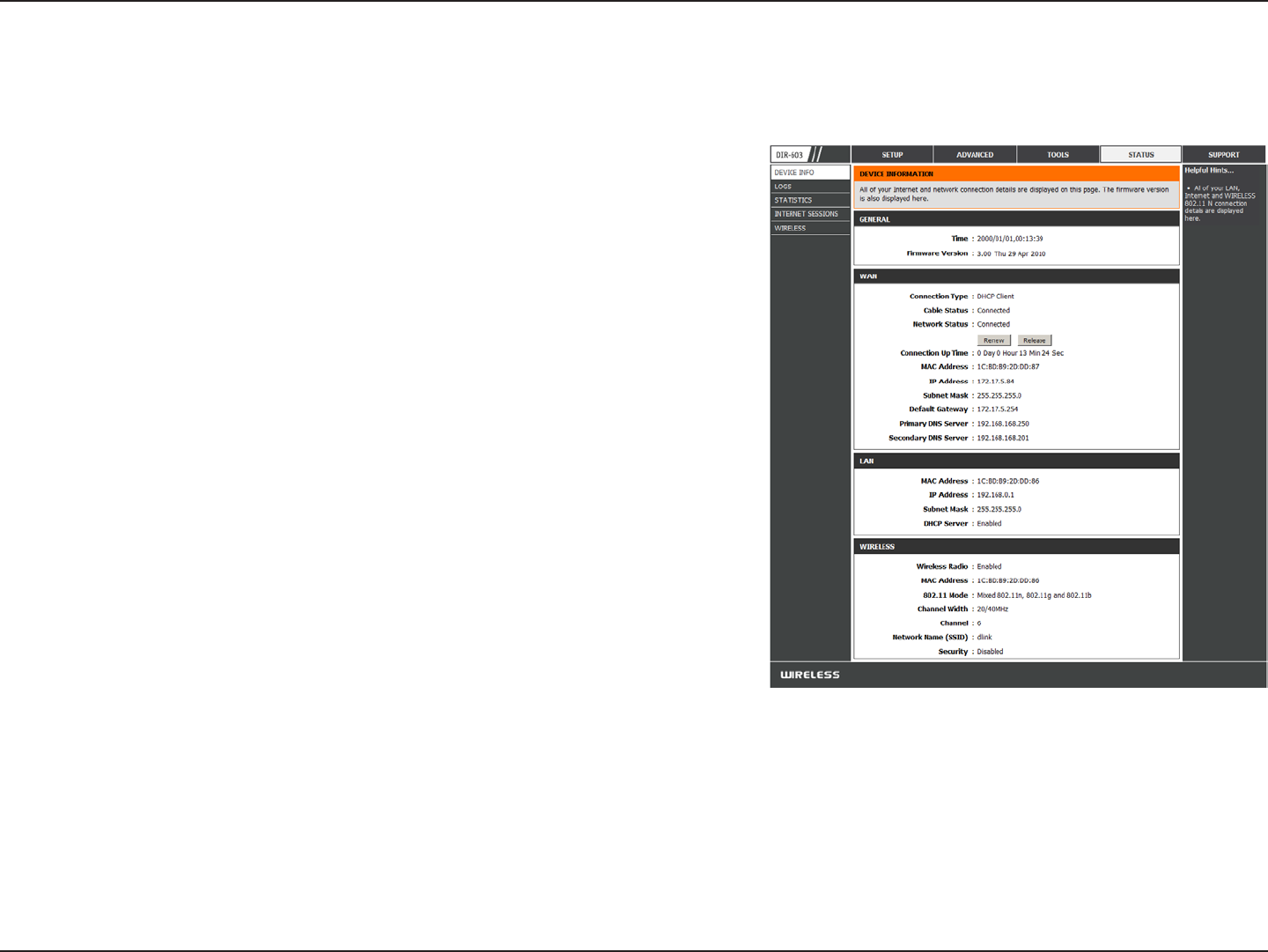

Device Information ....................................................41

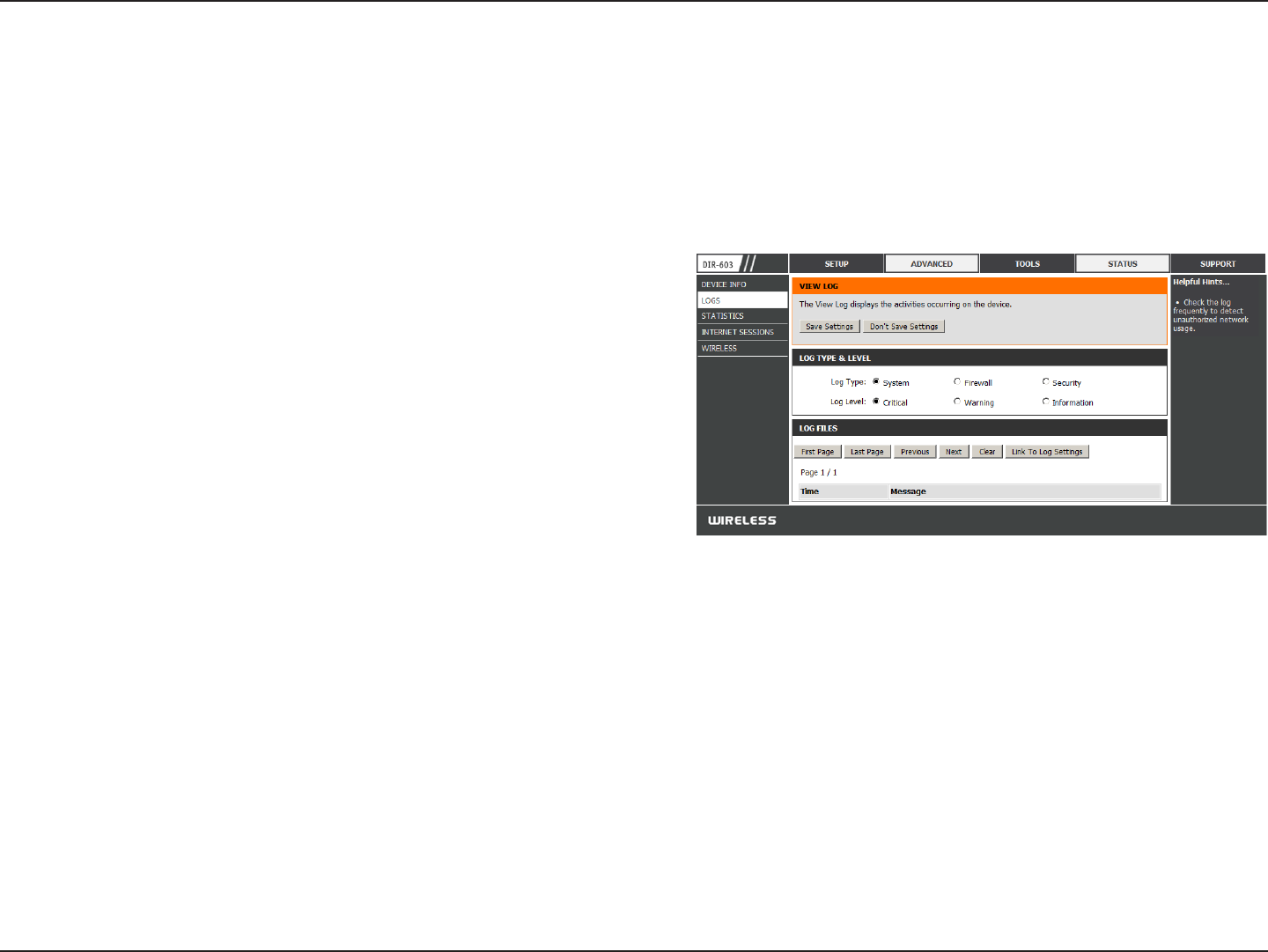

Log ............................................................................42

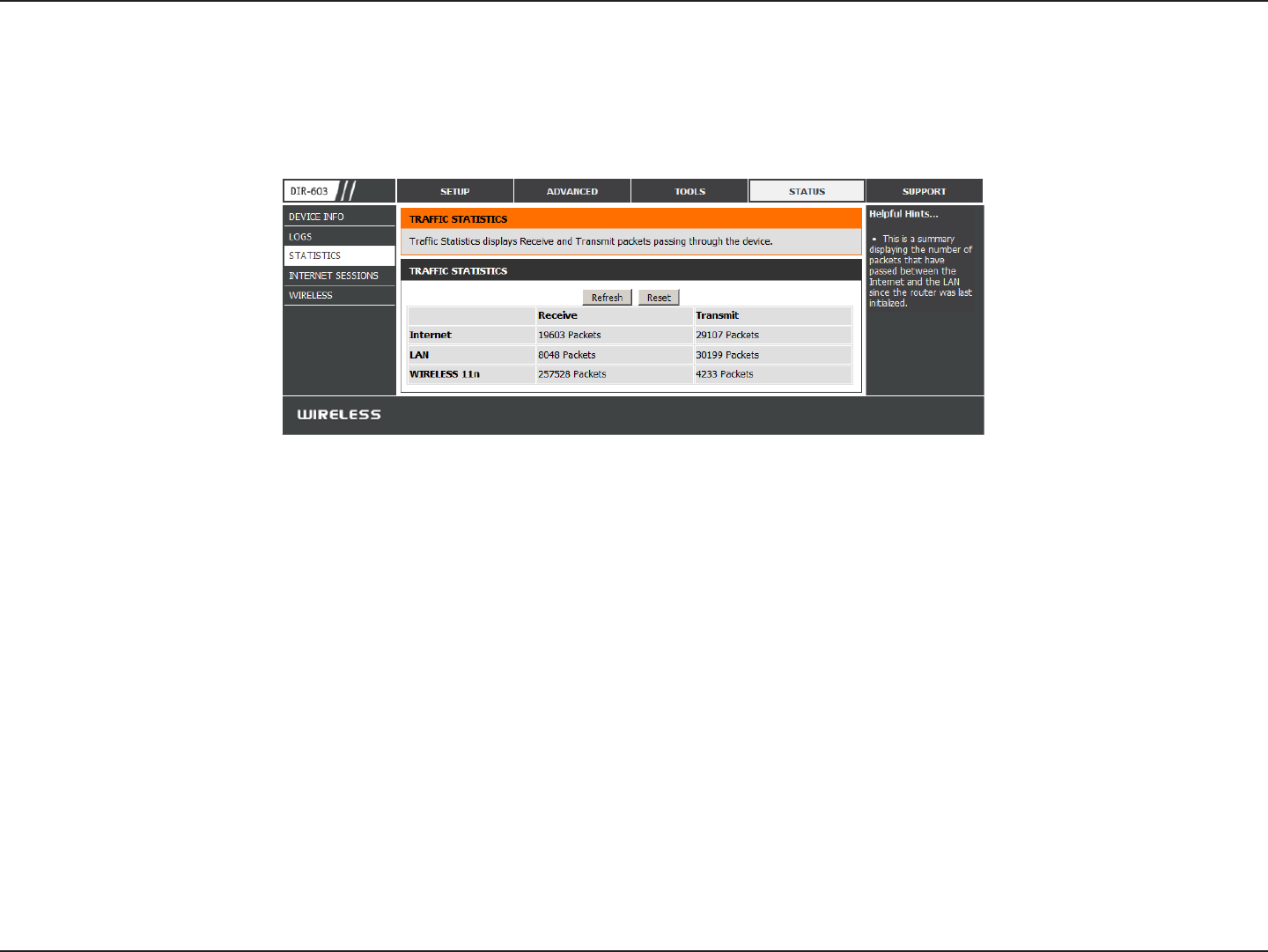

Stats ..........................................................................43

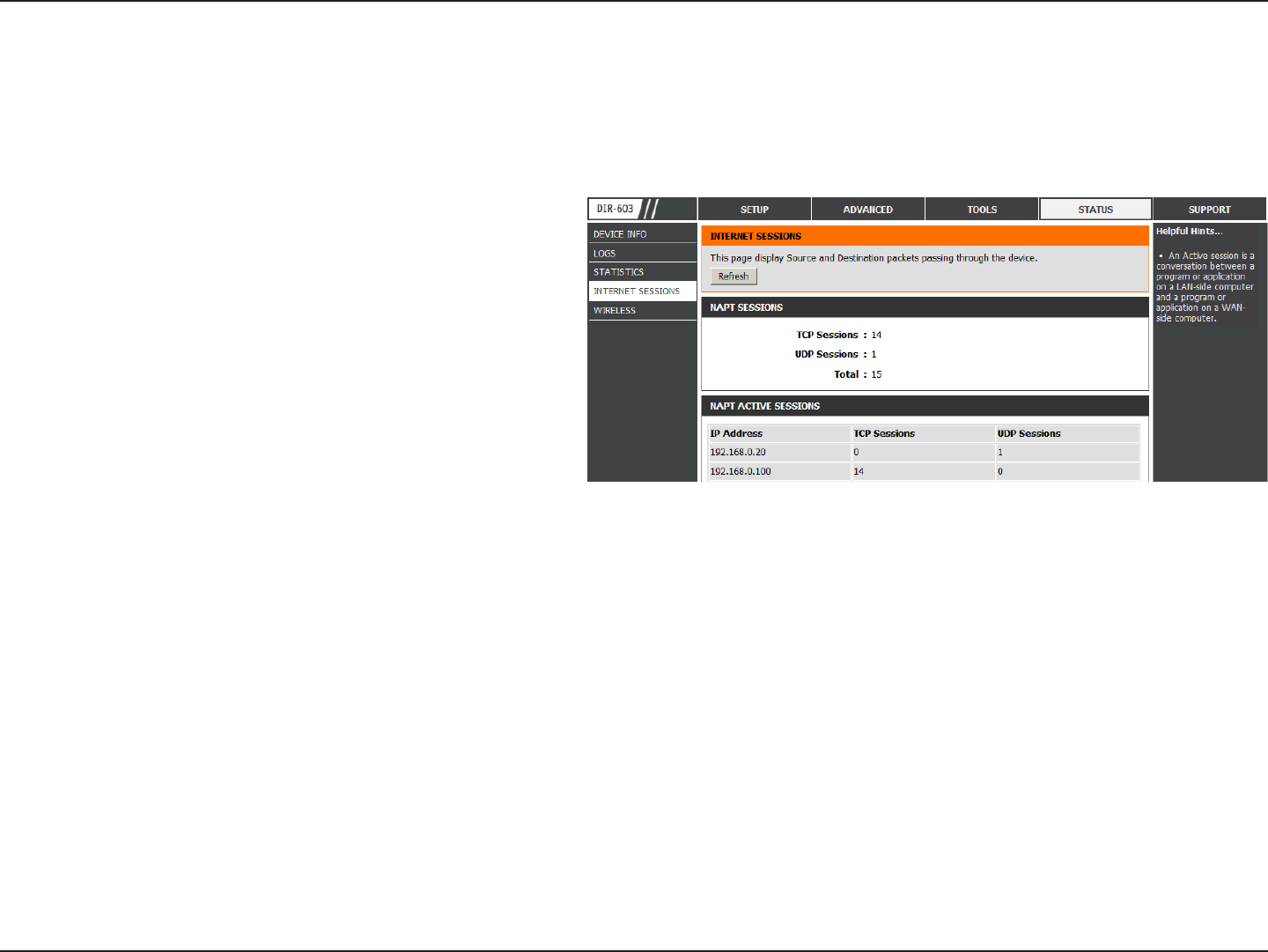

Internet Sessions ......................................................44
Table of Contents
iiiD-Link DIR-603 User Manual
Table of Contents
Wireless ....................................................................45

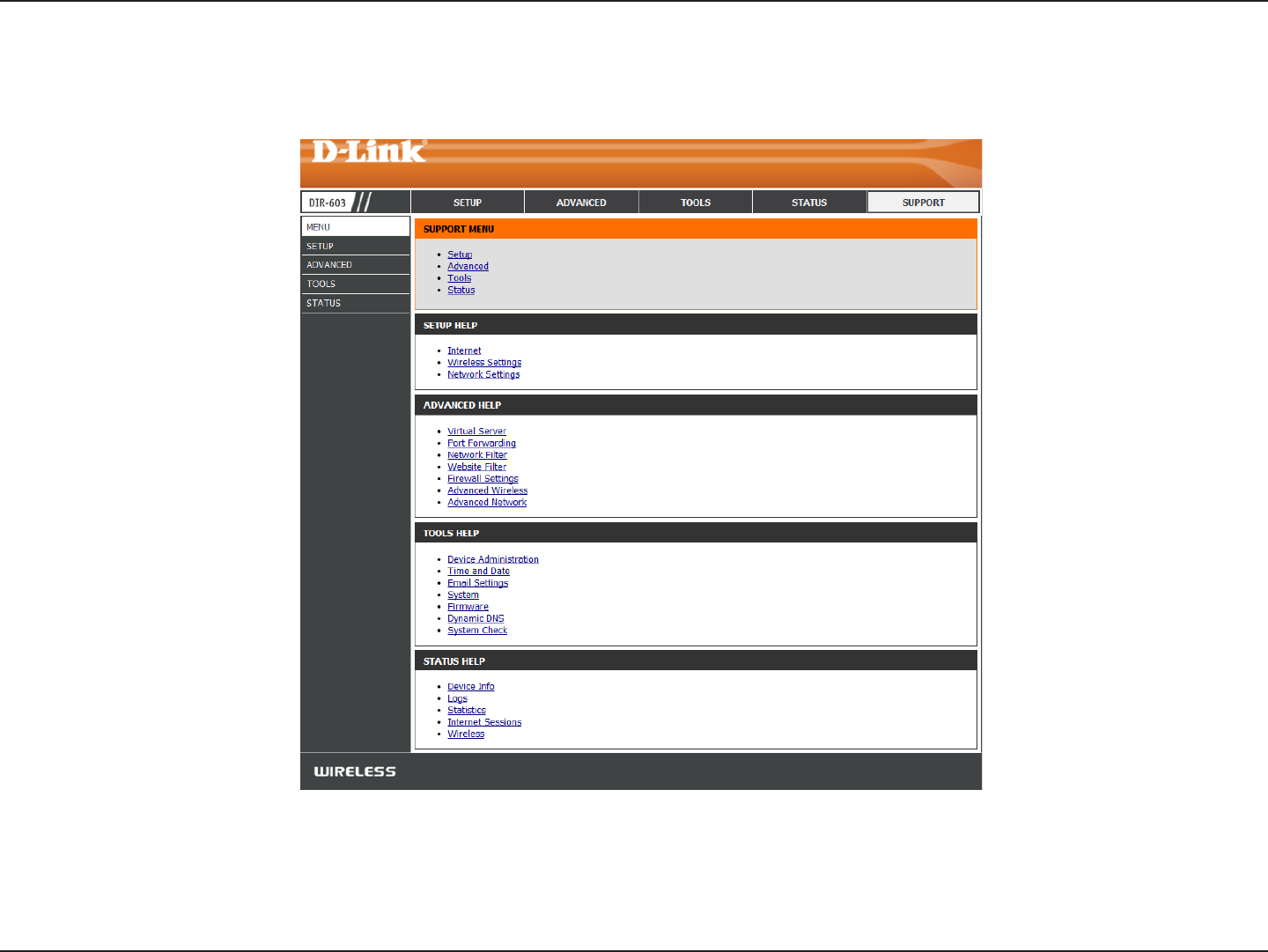

Support .....................................................................46
Wireless Security ................................................. 47
What is WPA? .................................................................47

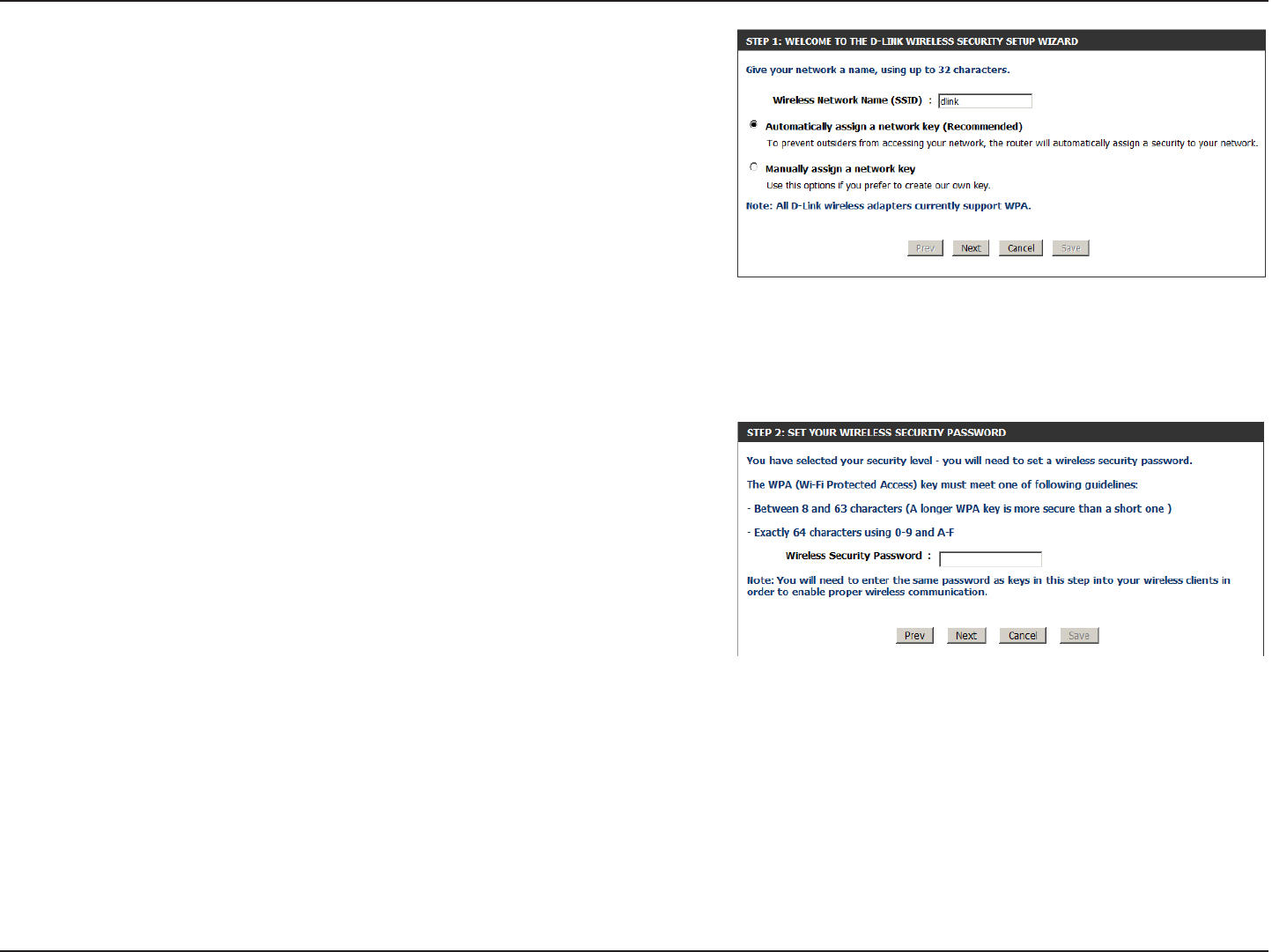

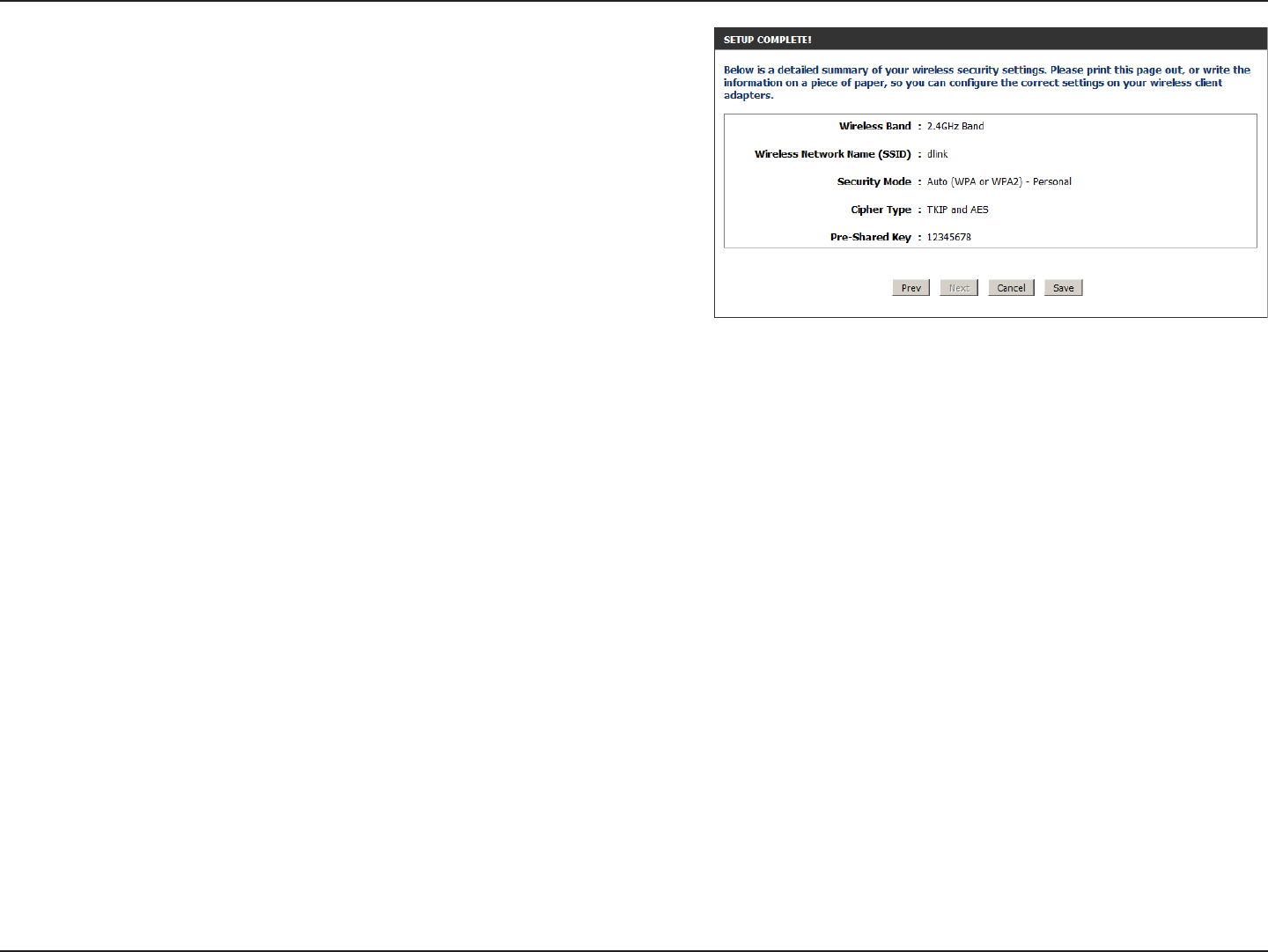

Wireless Connection Setup Wizard ..................................48
Congure WPA-Personal (PSK) ......................................51

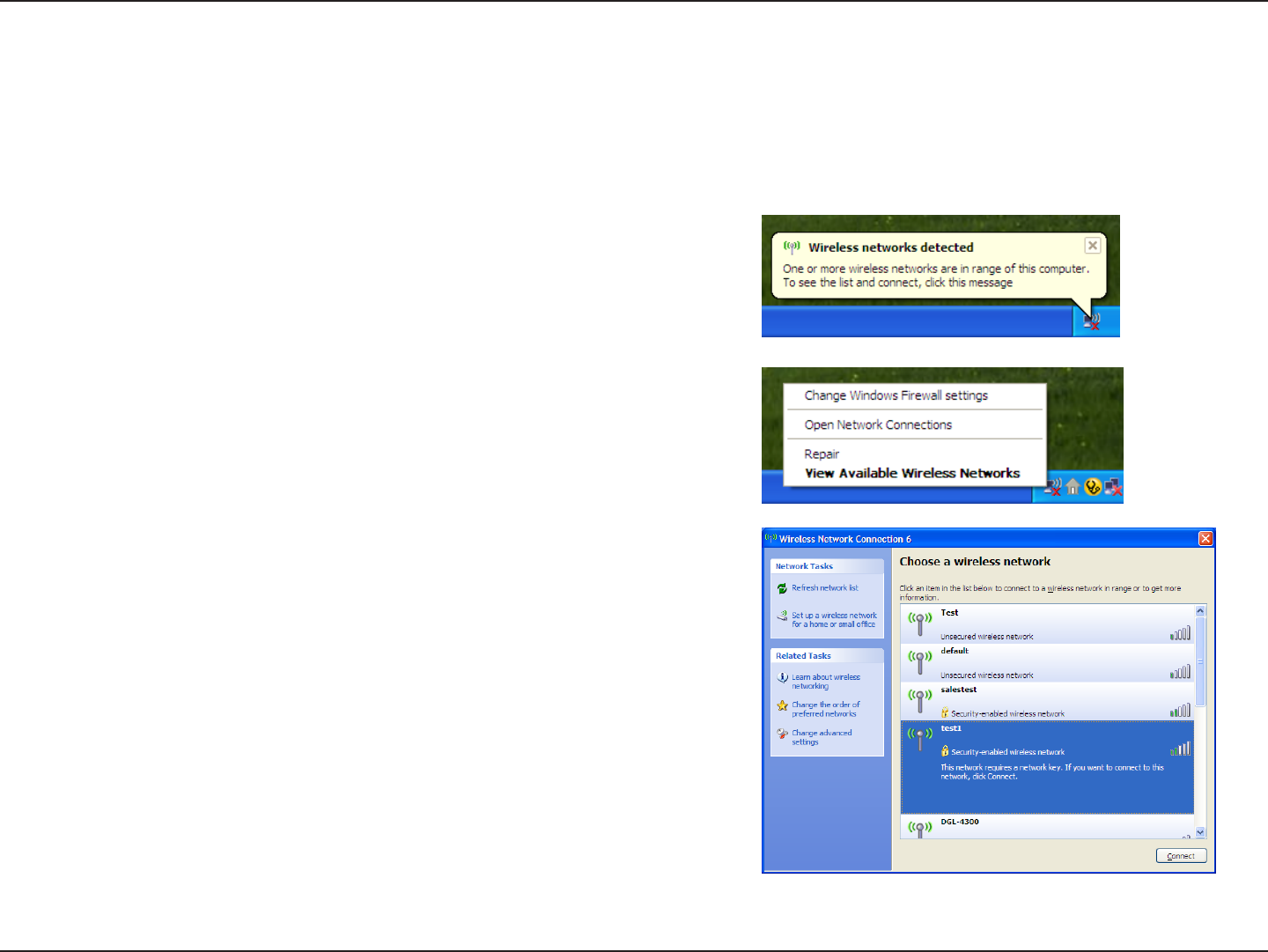

Connect to a Wireless Network ................................. 52
Using Windows 7 ............................................................52

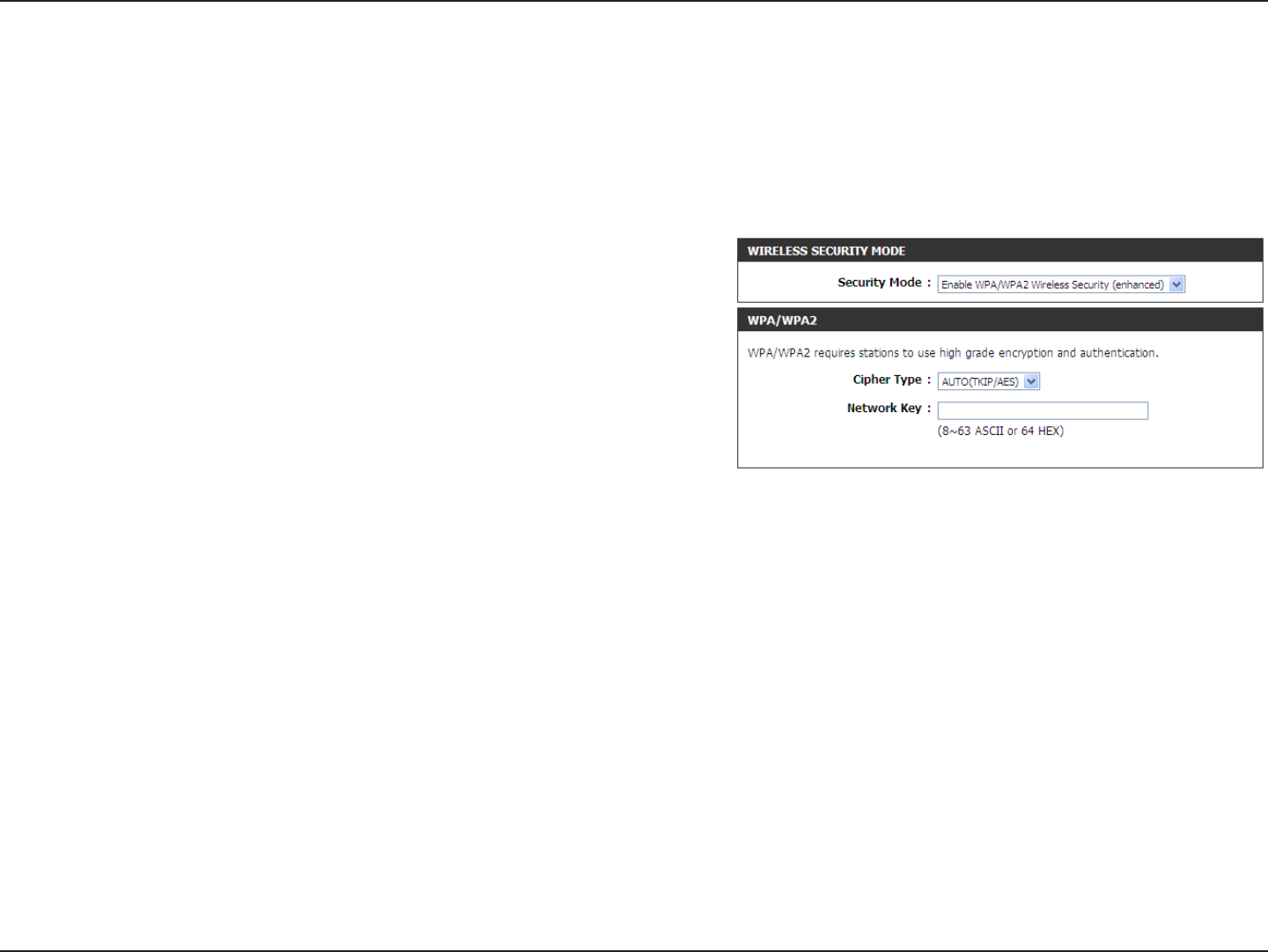

Congure WPA/WPA2 ...............................................53
Using Windows® XP ........................................................55
Congure WPA-PSK .................................................56
Troubleshooting ................................................... 58
Wireless Basics ................................................... 62
What is Wireless? ............................................................63
Tips .................................................................................65
Wireless Modes ...............................................................66
Networking Basics ................................................ 67

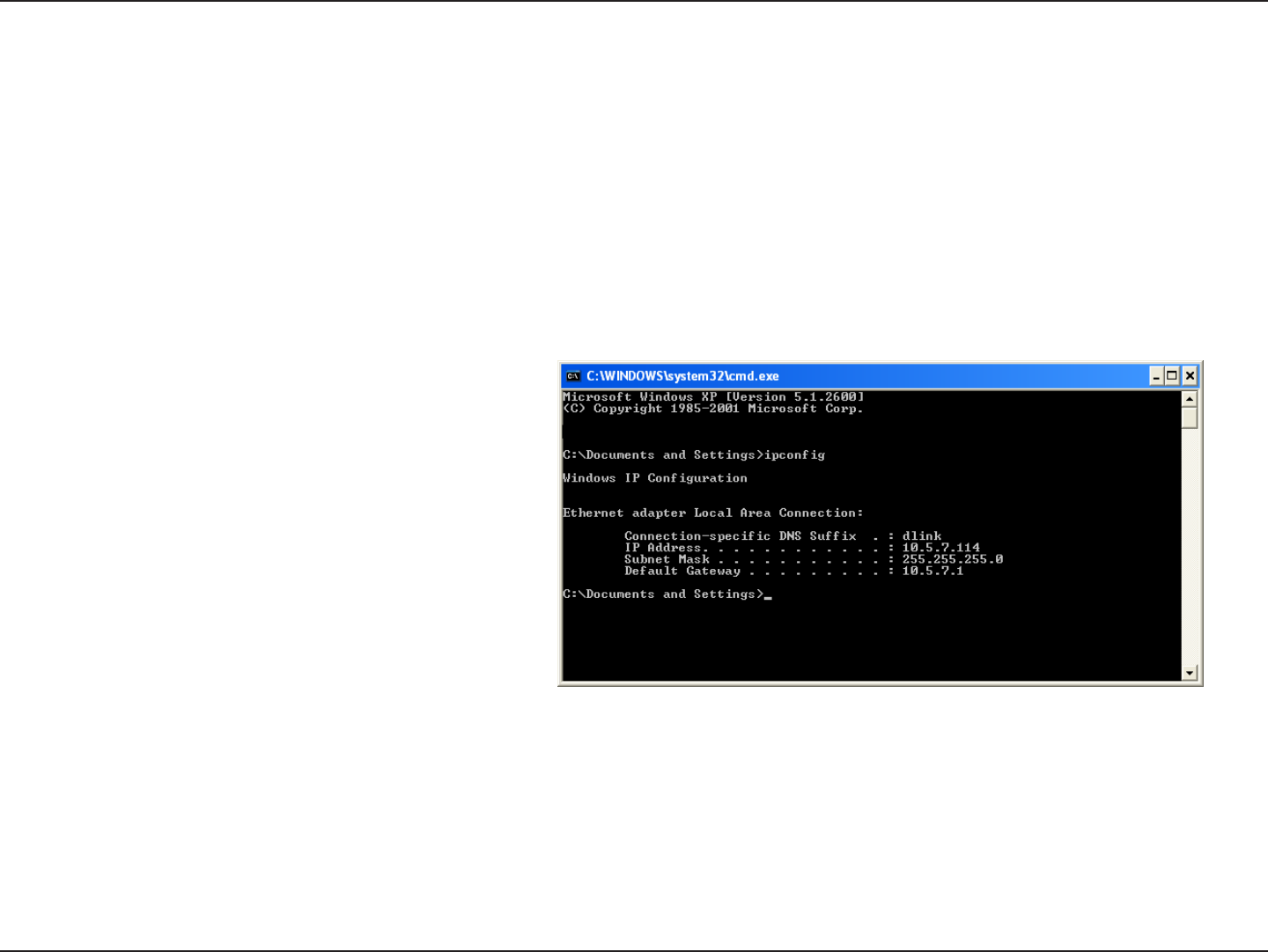

Check your IP address .....................................................67
Statically Assign an IP address ........................................68
Technical Specications ......................................... 69
1D-Link DIR-603 User Manual
Section 1 - Product Overview
Product Overview
Note: Using a power supply with a different voltage rating than the one included with the DIR-603 will cause damage and void the warranty for this
product.
Package Contents
• D-Link DIR-603 Wireless Router
• Power Adapter
System Requirements
• Ethernet-based Cable or DSL Modem
• Computers with Windows®, Macintosh®, or Linux-based operating systems with an installed Ethernet
adapter
• Internet Explorer 6 or Firefox 2.0 or above (for conguration)
Note: Using a power supply with a different voltage rating than the one included
with the DIR-603 will cause damage and void the warranty for this product.
Note: Always attach the power cord plug to the power supply, before inserting
the power cord and connected power supply to the wall outlet.
The product must be used with the power adapter included with the device.
2D-Link DIR-603 User Manual
Section 1 - Product Overview
Network Requirements
• An Ethernet-based Cable or DSL modem
• IEEE 802.11n/g wireless clients
• 10/100 Ethernet
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating
system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 6.0 or higher
• Mozilla 1.7.12 or higher
• Firefox 1.5 or higher
• Safari 1.0 or higher (with Java 1.3.1 or higher)
• Flock 0.7.14 or higher
• Opera 6.0 or higher
Windows® Users: Make sure you have the latest version
of Java installed. Visit www.java.com to download the
latest version.
System Requirements
3D-Link DIR-603 User Manual
Section 1 - Product Overview
• Faster Wireless Networking - The DIR-603 provides up to 150Mbps* wireless connection with other
802.11n wireless clients. This capability allows users to participate in real-time activities online, such as
video streaming, online gaming, and real-time audio.
• Compatible with 802.11g Devices - The DIR-603 is still fully compatible with the IEEE 802.11g standard,
so it can connect with existing 802.11g PCI, USB and Cardbus adapters.
• Advanced Firewall Features - The Web-based user interface displays a number of advanced network
management features including:
• Content Filtering - Easily applied content ltering based on URL, and/or Domain Name.
• Secure Multiple/Concurrent Sessions - The DIR-603 can pass through VPN sessions. It
supports multiple and concurrent IPSec and PPTP sessions, so users behind the DIR-603
can securely access corporate networks.
• Easy Setup Wizard - Through its easy-to-use Web-based user interface, the DIR-603 lets you control
what information is accessible to those on the wireless network, whether from the Internet or from your
company’s server. Congure your router to your specic settings within minutes.
* Maximum wireless signal rate derived from IEEE Standard 802.11g and Draft 802.11n specications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network trafc, building materials and construction, and network overhead, lower actual data throughput rate. Environmental
conditions will adversely affect wireless signal range.
Features
4D-Link DIR-603 User Manual
Section 1 - Product Overview
Hardware Overview
Connections
WPS
Internet Port
The auto MDI/MDIX Internet port is
the connection for the Ethernet cable
to the cable or DSL modem.
Power Receptor
Receptor for the supplied power
adapter.
Reset
Pressing the Reset button restores the router to
its original factory default settings.
LAN Ports
Connect Ethernet devices such as
computers, switches, and hubs.
5D-Link DIR-603 User Manual
Section 1 - Product Overview
Hardware Overview

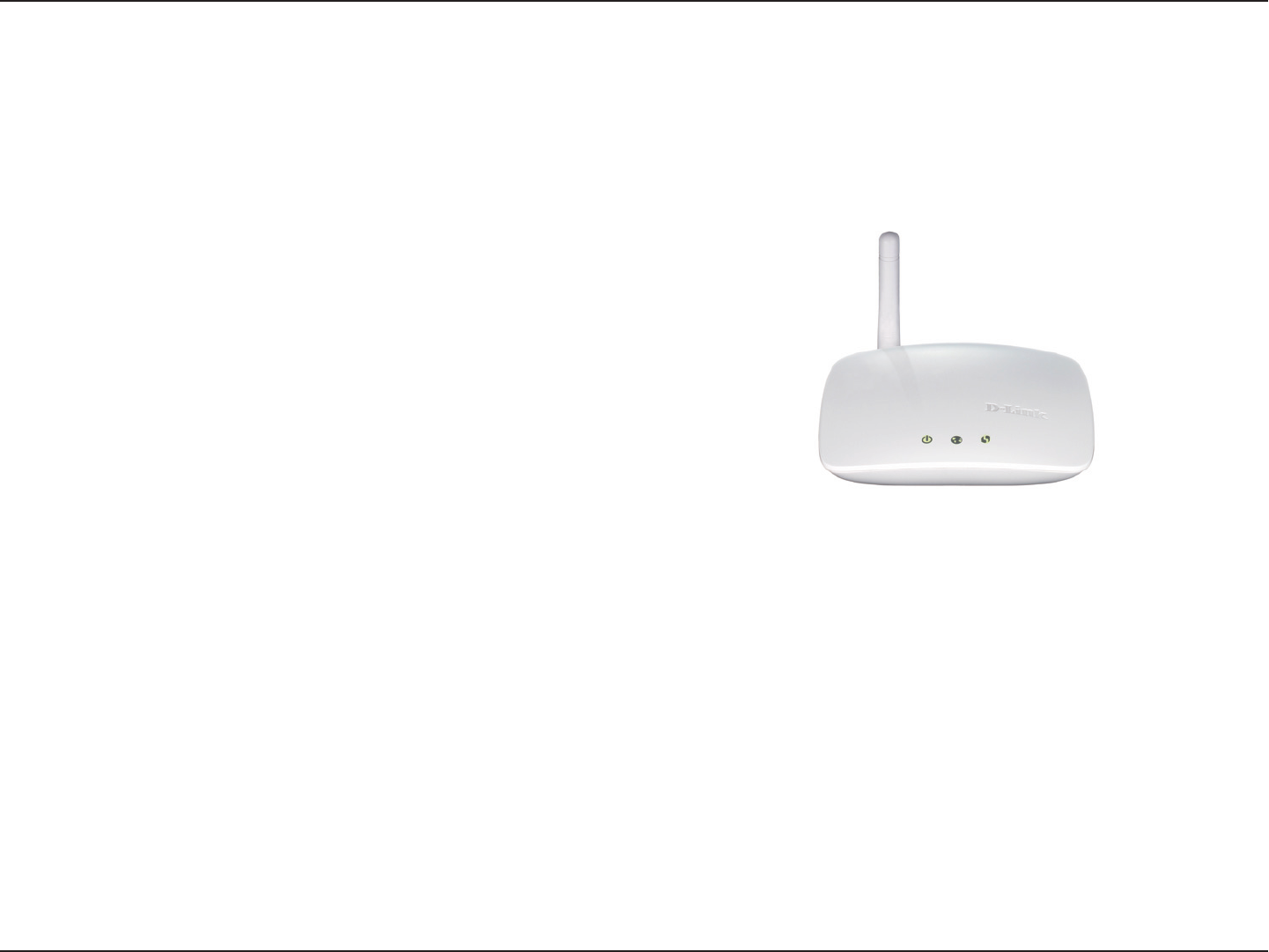

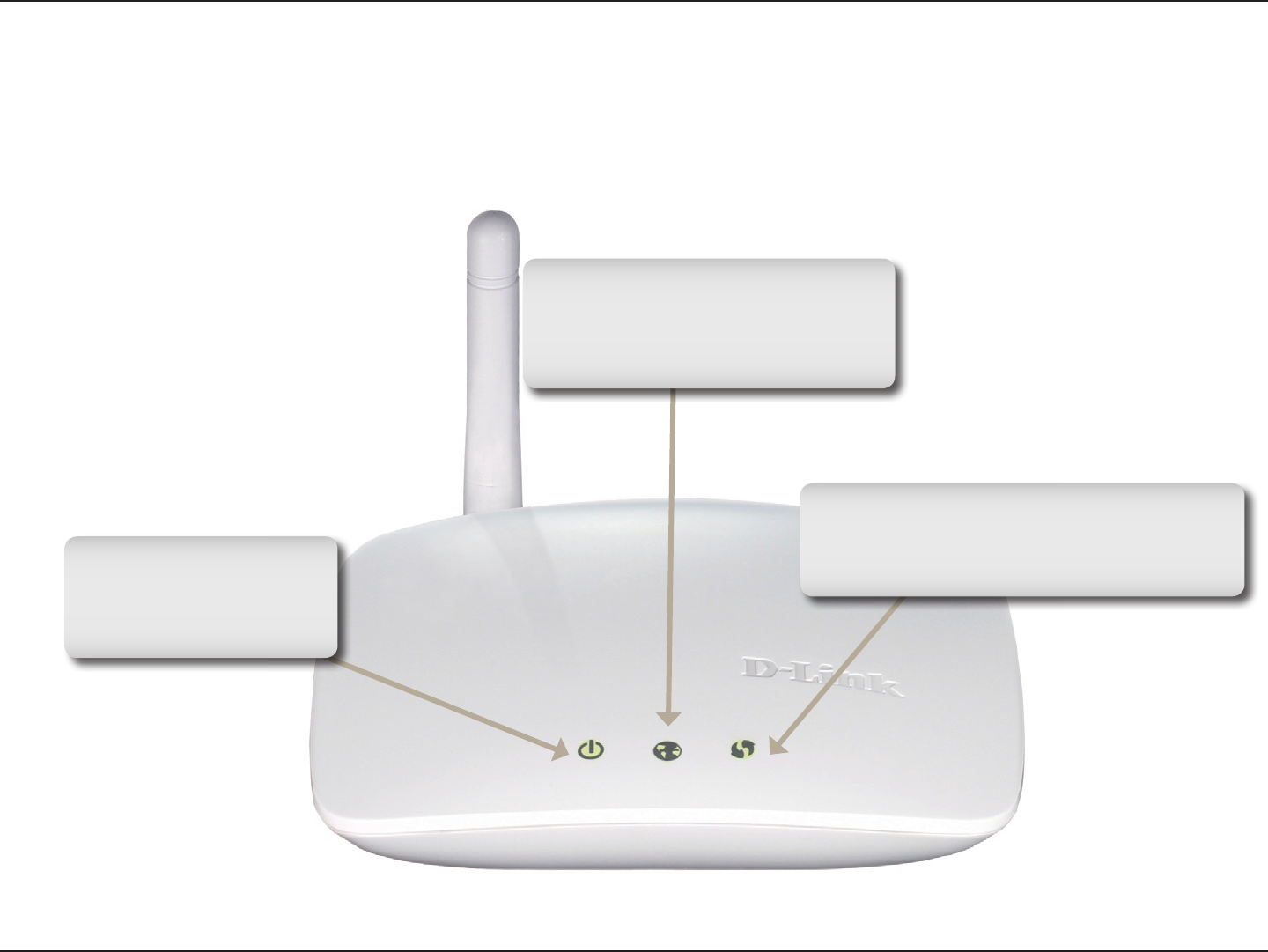

LEDs
Power LED
A solid light indicates a
proper connection to the
power supply.
WPS LED
A blinking light indicates that the DAP-1560
is performing the WPS function.
WLAN LED
A solid light indicates that the wireless
segment is ready. This LED blinks
during wireless data transmission.
6D-Link DIR-603 User Manual
Section 2 - Installation
Before you Begin
This section will walk you through the installation process. Placement of the router is very important. Do not place the
router in an enclosed area such as a closet, cabinet, or in the attic or garage.
• Please congure the router with the computer that was last connected directly to your modem.
• You can only use the Ethernet port on your modem. If you were using the USB connection before using
the router, then you must turn off your modem, disconnect the USB cable and connect an Ethernet cable
to the Internet port on the router, and then turn the modem back on. In some cases, you may need to
call your ISP to change connection types (USB to Ethernet).
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software
such as WinPoet, Broadjump, or Enternet 300 from your computer or you will not be able to connect to
the Internet.
Installation
7D-Link DIR-603 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within
the operating range of your wireless network. Keep in mind, however, that the number, thickness and location of
walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary
depending on the types of materials and background RF (radio frequency) noise in your home or business. The key
to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a
minimum - each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position
your devices so that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a
45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet
(14 meters) thick! Position devices so that the signal will travel straight through a wall or ceiling (instead
of at an angle) for better reception.
3. Building Materials make a difference. A solid metal door or aluminum studs may have a negative effect on
range. Try to position access points, wireless routers, and computers so that the signal passes through
drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water
(sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that
generate RF noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and
home security systems), your wireless connection may degrade dramatically or drop completely. Make
sure your 2.4GHz phone base is as far away from your wireless devices as possible. The base transmits
a signal even if the phone in not in use.
8D-Link DIR-603 User Manual
Section 2 - Installation
If you are connecting the router to a cable/DSL/satellite modem, please follow the steps below:
1. Place the router in an open and central location. Do not plug the power adapter into the router.
2. Turn the power off on your modem. If there is no on/off switch, then unplug the modem’s power adapter. Shut down
your computer.
3. Unplug the Ethernet cable (that connects your computer to your modem) from your computer and place it into the
Internet port on the router.
4. Plug an Ethernet cable into one of the four LAN ports on the router. Plug the other end into the Ethernet port on
your computer.
5. Turn on or plug in your modem. Wait for the modem to boot (about 30 seconds).
6. Plug the power adapter to the router and connect to an outlet or power strip. Wait about 30 seconds for the router
to boot.
7. Turn on your computer.
8. Verify the link lights on the router. The power light, Internet light, and the LAN light (the port that your computer is
plugged into) should be lit. If not, make sure your computer, modem, and router are powered on and verify the cable
connections are correct.
9. Skip to page 11 to congure your router.
Connect to Cable/DSL/Satellite Modem
9D-Link DIR-603 User Manual
Section 2 - Installation
If you are connecting the D-Link router to another router to use as a wireless access point and/or switch, you will have
to do the following before connecting the router to your network:
• Disable UPnP™
• Disable DHCP
• Change the LAN IP address to an available address on your network. The LAN ports on the router cannot
accept a DHCP address from your other router.
To connect to another router, please follow the steps below:
1. Plug the power into the router. Connect one of your computers to the router (LAN port) using an Ethernet cable.
Make sure your IP address on the computer is 192.168.0.xxx (where xxx is between 2 and 254). Please see the
Networking Basics section for more information. If you need to change the settings, write down your existing settings
before making any changes. In most cases, your computer should be set to receive an IP address automatically in
which case you will not have to do anything to your computer.
2. Open a web browser and enter http://192.168.0.1 and press Enter. When the login window appears, set the user
name to Admin and leave the password box empty. Click Log In to continue.
3. Click on Advanced and then click Advanced Network. Uncheck the Enable UPnP checkbox. Click Save Settings
to continue.
4. Click Setup and then click Network Settings. Uncheck the Enable DHCP Server server checkbox. Click Save
Settings to continue.
5. Under Router Settings, enter an available IP address and the subnet mask of your network. Click Save Settings to
save your settings. Use this new IP address to access the conguration utility of the router in the future. Close the
browser and change your computer’s IP settings back to the original values as in Step 1.
Connect to Another Router
10D-Link DIR-603 User Manual
Section 2 - Installation
6. Disconnect the Ethernet cable from the router and reconnect your computer to your network.
7. Connect an Ethernet cable in one of the LAN ports of the router and connect it to your other router. Do not plug
anything into the Internet port of the D-Link router.
8. You may now use the other 3 LAN ports to connect other Ethernet devices and computers. To congure your wireless
network, open a web browser and enter the IP address you assigned to the router. Refer to the Conguration and
Wireless Security sections for more information on setting up your wireless network.
11D-Link DIR-603 User Manual
Section 3 - Conguration
Conguration
This section will show you how to congure your new D-Link wireless router using the web-based conguration
utility.
Web-based Conguration Utility
To access the Easy Setup Wizard or conguration utility,
open a web-browser such as Internet Explorer and enter
the IP address of the router (192.168.0.1). DIR-603 will
detect WAN connection type.
12D-Link DIR-603 User Manual
Section 3 - Conguration
Easy Setup Wizard
Once logged into the web interface of the router, Easy Setup Wizard will appear and perform WAN auto detection for
the type of Internet connection.
13D-Link DIR-603 User Manual
Section 3 - Conguration
According to the detection result, the wizard will
indicate the type of Internet connection that you’re
currently use.
You can configure your wireless network. Click
Congure button in Wireless Settings. Select the
type of Wireless security you use (Disable Wireless
Security or AUTO-WPA/WPA2) and enter the
network name (SSID, Service Set Identier) and
security password. The network name(SSID) is the
name of your wireless network. Create a name using
up to 32 characters.
If the type is Dynamic IP(DHCP), click Save to
continue.
If the type is PPPoE, enter your PPPoE username
and password. Click Next to continue.
If the type is Static IP, please enter the IP
address, subnet mask, gateway, and DNS server
addresses that your ISP assigned to you. Click
Connect to continue.
Note: Make sure to remove your PPPoE software
from your computer. The software is no longer
needed and will not work through a router.
14D-Link DIR-603 User Manual
Section 3 - Conguration
In the nal stage of Easy setup wizard, the summary
will show your current conguration. Click Save to
complete the setting.
When the internet connectivity is established, the
webpage will be redirected to D-Link Website.
15D-Link DIR-603 User Manual
Section 3 - Conguration
If you opt to set up your Internet connection manually, you will be redirected to a WAN page that allows you to select
your Internet type and enter the correct conguration parameters.
Select your Internet connection type using the “My
Internet Connection is” drop-down menu.
Click the Save Settings button when you have
congured the connection.
Manual Conguration
Dynamic (Cable)
Use this mode to disable NAT on the router and turn it into
an Access Point
Select your Internet connection type using the “Internet
connection type” drop-down menu.
Access Point
Mode:
Internet
Connection
Type:
16D-Link DIR-603 User Manual
Section 3 - Conguration
Dynamic IP Address (DHCP)
Select Dynamic IP (DHCP) to obtain IP Address information
automatically from your ISP. Select this option if your ISP does
not give you any IP numbers to use. This option is commonly
used for Cable modem services.
The Host Name is optional but may be required by some ISPs.
Enter the Primary DNS server IP address assigned by your ISP.
Maximum Transmission Unit - you may need to change the
MTU for optimal performance with your specic ISP. 1500 is
the default MTU.
The default MAC Address is set to the Internet port’s physical
interface MAC address on the Broadband Router. It is not
recommended that you change the default MAC address unless required by your ISP. You can use the Clone Your PC’s
MAC Address button to replace the Internet port’s MAC address with the MAC address of your Ethernet card.
My Internet
Connection:
Host Name:
MTU:
MAC Address:
DNS Addresses:
17D-Link DIR-603 User Manual
Section 3 - Conguration
Select PPPoE (Username/Password) from the drop-
down menu.
Select Static if your ISP assigned you the IP address,
subnet mask, gateway, and DNS server addresses.
In most cases, select Dynamic.
Enter the IP address (Static PPPoE only).
Enter your PPPoE user name.
Enter your PPPoE password and then retype the
password in the next box.
Enter the ISP Service Name (optional).
Select either Always-on, On-Demand, or Manual.
Enter a maximum idle time during which the Internet
connection is maintained during inactivity. To disable
this feature, enable Auto-reconnect.
Enter the Primary and Secondary DNS Server Addresses (Static PPPoE only).
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1492 is the default
MTU.
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not
recommended that you change the default MAC address unless required by your ISP. You can use the Clone Your PC’s
MAC Address button to replace the Internet port’s MAC address with the MAC address of your Ethernet card.
My Internet
Connection:
Address Mode:
IP Address:
User Name:
Password:
Service Name:
Reconnection Mode:
Maximum Idle Time:
DNS Addresses:
MTU:
MAC Address:
PPPoE (DSL)
Choose PPPoE (Point to Point Protocol over Ethernet) if your ISP uses a PPPoE connection. Your ISP will provide
you with a username and password. This option is typically used for DSL services. Make sure to remove your PPPoE
software from your computer. The software is no longer needed and will not work through a router.
18D-Link DIR-603 User Manual
Section 3 - Conguration
Enter the IP address assigned by your ISP.
Enter the Subnet Mask assigned by your ISP.
Enter the Gateway assigned by your ISP.
The DNS server information will be supplied by your ISP (Internet
Service Provider.)
Maximum Transmission Unit - you may need to change the MTU
for optimal performance with your specic ISP. 1500 is the default
MTU.
The default MAC Address is set to the Internet port’s physical
interface MAC address on the Broadband Router. It is not
recommended that you change the default MAC address unless
required by your ISP. You can use the Clone Your PC’s MAC
Address button to replace the Internet port’s MAC address with
the MAC address of your Ethernet card.
IP Address:
Subnet Mask:
Default Gateway:
DNS Servers:
MTU:
MAC Address:
Static IP Address
Select Static IP Address if all the Internet port’s IP information is provided to you by your ISP. You will need to enter in the IP address,
subnet mask, gateway address, and DNS address(es) provided to you by your ISP. Each IP address entered in the elds must be in the
appropriate IP form, which are four octets separated by a dot (x.x.x.x). The Router will not accept the IP address if it is not in this format.
19D-Link DIR-603 User Manual
Section 3 - Conguration
Wireless Settings
If you want to congure the wireless settings on your
router using the wizard, click Wireless Connection
Setup Wizard and refer to page 51.
If you want to manually congure the wireless settings
on your router click Manual Wireless Network Setup
and refer to the next page.
20D-Link DIR-603 User Manual
Section 3 - Conguration
Manual Wireless Network Setup
Check the box to enable the wireless function. If you do
not want to use wireless, uncheck the box to disable all
the wireless functions. Click Add New to create your
own time schedule to enable the wireless function.
Service Set Identier (SSID) is the name of your
wireless network. Create a name using up to 32
characters. The SSID is case-sensitive.
Select one of the following:
Mixed 802.11g and 802.11b - Select if you are
using both 802.11b and 802.11g wireless clients.
802.11n Only - Select only if all of your wireless
clients are 802.11n.
Mixed 802.11n, 802.11b, and 802.11g - Select
if you are using a mix of 802.11n, 11g, and 11b
wireless clients.
The Auto Channel Scan setting can be selected to
allow the DIR-603 to choose the channel with the least
amount of interference.
Indicates the channel setting for the DIR-603. By
default the channel is set to 6. The Channel can
be changed to t the channel setting for an existing
wireless network or to customize the wireless network.
If you enable Auto Channel Scan, this option will be
greyed out.
Enable Wireless:
Wireless Network
Name:
802.11 Mode:
Enable Auto
Channel Scan:
Wireless Channel:
21D-Link DIR-603 User Manual
Section 3 - Conguration
Select the transmit rate. It is strongly suggested to select Best (Auto) for best performance.
Enabling Hidden Mode is another way to secure your network. With this option enabled, no wireless clients will
be able to see your wireless network when they perform a scan to see what’s available. In order for your wireless
devices to connect to your router, you will need to manually enter the Wireless Network Name on each device.
Refer to Section 4- Wireless security for more information regarding wireless security.
Enable Hidden
Wireless:
Transmission
Rate:
Wireless Security:
22D-Link DIR-603 User Manual
Section 3 - Conguration
This section will allow you to change the local network settings of the router and to congure the DHCP settings.
Network Settings
Enter the IP address of the router. The default IP
address is 192.168.0.1.
If you change the IP address, once you click Save
Settings, you will need to enter the new IP address in
your browser to get back into the conguration utility.
Enter the Subnet Mask. The default subnet mask is
255.255.255.0.
Uncheck the box to transfer the DNS server information
from your ISP to your computers. If checked, your
computers will use the router for a DNS server.
IP Address:
Subnet Mask:
Enable DNS Relay:
23D-Link DIR-603 User Manual
Section 3 - Conguration
Check this box to enable the DHCP server on your
router. Uncheck to disable this function.
Enter the starting and ending IP addresses for the
DHCP server’s IP assignment.
Note: If you statically (manually) assign IP
addresses to your computers or devices, make
sure the IP addresses are outside of this range
or you may have an IP conict.
The length of time for the IP address lease. Enter
the Lease time in minutes.
Enable DHCP
Server:
DHCP IP Address
Range:
Lease Time:
DHCP Server Settings
DHCP stands for Dynamic Host Control Protocol. The DIR-603 has a built-in DHCP server. The DHCP Server will
automatically assign an IP address to the computers on the LAN/private network. Be sure to set your computers to be
DHCP clients by setting their TCP/IP settings to “Obtain an IP Address Automatically.” When you turn your computers
on, they will automatically load the proper TCP/IP settings provided by the DIR-603. The DHCP Server will automatically
allocate an unused IP address from the IP address pool to the requesting computer. You must specify the starting and
ending address of the IP address pool.
24D-Link DIR-603 User Manual
Section 3 - Conguration
DHCP Reservation
If you want a computer or device to always have the same IP address assigned, you can create a DHCP reservation. The router
will assign the IP address only to that computer or device.
Note: This IP address must be within the DHCP IP Address Range.
Enter the computer name or select from the drop-down menu and
click <<.
Enter the IP address you want to assign to the computer or device.
This IP Address must be within the DHCP IP Address Range.
Enter the MAC address of the computer or device.
Click Save to save your entry. You must click Save Settings at the
top to activate your reservations.
In this section, you can see what LAN devices are currently leasing
IP addresses.
The Reserve option converts this dynamic IP allocation into a
DHCP Reservation and adds the corresponding entry to the DHCP
Reservations List.
Computer Name:
IP Address:
MAC Address:
Save:
Number of
Dynamic DHCP
Clients:
Reserve:
25D-Link DIR-603 User Manual
Section 3 - Conguration
The DIR-603 can be congured as a virtual server so that remote users accessing Web or FTP services via the public
IP address can be automatically redirected to local servers in the LAN (Local Area Network).
The DIR-603 rewall feature lters out unrecognized packets to protect
your LAN network so all computers networked with the DIR-603 are
invisible to the outside world. If you wish, you can make some of the
LAN computers accessible from the Internet by enabling Virtual Server.
Depending on the requested service, the DIR-603 redirects the external
service request to the appropriate server within the LAN network.
The DIR-603 is also capable of port-redirection meaning incoming
trafc to a particular port may be redirected to a different port on the
server computer.
Each virtual service that is created will be listed at the bottom of the
screen in the Virtual Servers List. Pre-dened virtual services are
already listed in the table. You may use them by enabling them and
assigning the server IP to use that particular virtual service.
Virtual Server
26D-Link DIR-603 User Manual
Section 3 - Conguration
This will allow you to open a single port. If you would like to open a range of ports, refer to the next page.
Enter a name for the rule or select an application
from the drop-down menu. Select an application
and click << to populate the elds.
Enter the IP address of the computer on your
local network that you want to allow the incoming
service to. If your computer is receiving an IP
address automatically from the router (DHCP),
you computer will be listed in the “Computer
Name” drop-down menu. Select your computer
and click <<.
Enter the port that you want to open next to Private
Port and Public Port. The private and public ports
are usually the same. The public port is the port
seen from the Internet side, and the private port
is the port being used by the application on the
computer within your local network.
Select TCP, UDP, or Both from the drop-down
menu.
Name:
IP Address:
Private Port/
Public Port:
Protocol Type:
27D-Link DIR-603 User Manual
Section 3 - Conguration
This will allow you to open a single port or a range of ports.
Port Forwarding
Enter a name for the rule or select an application
from the drop-down menu. Select an application
and click << to populate the elds.
Enter the IP address of the computer on your local
network that you want to allow the incoming service
to. If your computer is receiving an IP address
automatically from the router (DHCP), you computer
will be listed in the “Computer Name” drop-down
menu. Select your computer and click <<.
Enter the TCP and/or UDP port or ports that you
want to open. You can enter a single port or a range
of ports. Separate ports with a common.
Example: 24,1009,3000-4000
Name:
IP Address:
TCP/UDP:
28D-Link DIR-603 User Manual
Section 3 - Conguration
Trafc Control
Use this section to congure D-Link’s Smart Trafc Control. The Trafc Control improves your online gaming experience
by ensuring that your game trafc is prioritized over other network trafc, such as FTP or Web.
Select this function to control the access bandwidth
of computer in LAN.
All the computers in LAN will be distributed the
bandwidth equally.
Key in the value to setup the Uplink bandwidth
manually.
Key in the value to setup the Download bandwidth
manually.
When the option Auto Bandwidth Equal is unchecked,
you can control the access bandwidth of the specic
IP address.
Enable Trafc
Control:
Auto Bandwidth
Equal:
Key in bandwidth
Uplink manually:
Key in bandwidth
Downlink
manually:
Tafc Control
Rules:
29D-Link DIR-603 User Manual
Section 3 - Conguration
Network Filters
Select Turn MAC Filtering Off, allow MAC addresses listed
below, or deny MAC addresses listed below from the
drop-down menu.
Enter the MAC address you would like to lter.
To nd the MAC address on a computer, please refer to
the Networking Basics section in this manual.
Select a DHCP client from the drop-down menu and
click << to copy that MAC Address.
Congure MAC
Filtering:
MAC Address:
DHCP Client:
Use MAC (Media Access Control) Filters to allow or deny LAN (Local Area Network) computers by their MAC addresses
from accessing the Network. You can either manually add a MAC address or select the MAC address from the list of
clients that are currently connected to the Broadband Router.
30D-Link DIR-603 User Manual
Section 3 - Conguration
Select Deny or Allow computers access to only these sites.
Click to delete all entries in the list.
Enter the keywords or URLs that you want to allow or deny.
Congure Website
Filter Below:
Clear the list
below:
Website URL/
Domain:
Website Filters
Website Filters are used to allow you to set up a list of allowed Web sites that can be used by multiple users through
the network. To use this feature select to Allow or Deny, enter the domain or website and click Add, and then click
Save Settings. You must also select Apply Web Filter under the Access Control section (page 40).
31D-Link DIR-603 User Manual
Section 3 - Conguration
SPI (Stateful Packet Inspection, also known as dynamic packet ltering)
helps to prevent cyber attacks by tracking more state per session. It
validates that the trafc passing through the session conforms to the
protocol.
If an application has trouble working from behind the router, you can
expose one computer to the Internet and run the application on that
computer.
Note: Placing a computer in the DMZ may expose that computer to
a variety of security risks. Use of this option is only recommended
as a last resort.
Enable SPI:
Enable DMZ Host:
Firewall Settings
A rewall protects your network from the outside world. The D-Link DIR-603 offers a rewall type functionality. The SPI feature helps
prevent cyber attacks. Sometimes you may want a computer exposed to the outside world for certain types of applications. If you choose
to expose a computer, you can enable DMZ. DMZ is short for Demilitarized Zone. This option will expose the chosen computer completely
to the outside world.
IP Address: Specify the IP address of the computer on the LAN that you want to
have unrestricted Internet communication. If this computer obtains
its IP address automatically using DHCP, be sure to make a static
reservation on the Setup > Network Settings page so that the IP
address of the DMZ machine does not change.
32D-Link DIR-603 User Manual
Section 3 - Conguration
Set the transmit power of the antennas.
Beacons are packets sent by an Access Point to synchronize
a wireless network. Specify a value. 100 is the default setting
and is recommended.
This value should remain at its default setting of 2346.
If inconsistent data ow is a problem, only a minor
modication should be made.
The fragmentation threshold, which is specied in bytes,
determines whether packets will be fragmented. Packets
exceeding the 2346 byte setting will be fragmented
before transmission. 2346 is the default setting.
(Delivery Trafc Indication Message) 3 is the default
setting. A DTIM is a countdown informing clients of the
next window for listening to broadcast and multicast
messages.
Check this box to reduce the guard interval time therefore
increasing the data capacity. However, it’s less reliable
and may create higher data loss.
Transmit Power:
Beacon Period:
RTS Threshold:
Fragmentation
Threshold:
DTIM Interval:
Short GI:
Advanced Wireless Settings
33D-Link DIR-603 User Manual
Section 3 - Conguration
UPnP
Internet Ping Block
Internet Port Speed
Multicast Streams
To use the Universal Plug and Play (UPnP™) feature
click on Enabled. UPNP provides compatibility with
networking equipment, software and peripherals.
Unchecking the box will not allow the DIR-603 to respond
to pings. Blocking the Ping may provide some extra
security from hackers. Check the box to allow the Internet
port to be “pinged”.
You may set the port speed of the Internet port to 10Mbps,
100Mbps, or auto. Some older cable or DSL modems
may require you to set the port speed to 10Mbps.
UPnP Settings:
Enable WAN Ping
Response:
WAN Port Speed:
Advanced Network Settings
34D-Link DIR-603 User Manual
Section 3 - Conguration
Enter a new password for the Administrator Login Name.
The administrator can make changes to the settings.
Remote management allows the DIR-603 to be
configured from the Internet by a web browser. A
username and password is still required to access the
Web-Management interface. In general, only a member
of your network can browse the built-in web pages to
perform Administrator tasks. This feature enables you to
perform Administrator tasks from the remote (Internet)
host.
The port number used to access the DIR-603.
Example: http://x.x.x.x:8080 whereas x.x.x.x is the
Internet IP address of the DIR-603 and 8080 is the port
used for the Web Management interface.
Admin Password:
Remote
Management:
Remote Admin
Port:
Administrator Settings
This page will allow you to change the Administrator and User passwords. You can also enable Remote Management.
There are two accounts that can access the management interface through the web browser. The accounts are admin
and user. Admin has read/write access while user has read-only access. User can only view the settings but cannot
make any changes. Only the admin account has the ability to change both admin and user account passwords.
35D-Link DIR-603 User Manual
Section 3 - Conguration
Time Settings
Select the Time Zone from the drop-down menu.
To select Daylight Saving time manually, select enabled
or disabled, and enter a start date and an end date for
daylight saving time.
Press this button to set the device’s time the same to
local PC.
NTP stands for Network Time Protocol. NTP
synchronizes computer clock times in a network
of computers. Check this box to use a NTP server.
This will only connect to a server on the Internet,
not a local server.
Enter the NTP server or select one from the drop-
down menu, then the DIR-603 will sync the same
time to D-Link Internet time server.
To manually input the time, enter the values in these
elds for the Year, Month, Day, Hour, Minute, and
Second and then click Save Settings.
Time Zone:
Daylight Saving:
Sync your
Computer’s Time
Settings:
Enable NTP
Server:
NTP Server Used:
Manual:
The Time Conguration option allows you to congure, update, and maintain the correct time on the internal system
clock. From this section you can set the time zone that you are in and set the Time Server. Daylight Saving can also
be congured to automatically adjust the time when needed.
36D-Link DIR-603 User Manual
Section 3 - Conguration
E-mail Settings
The Email feature can be used to send the system log les, router alert messages, and rmware update notication
to your e-mail address.
From Email
Address:
To Email Address:
SMTP Server
Address:
This e-mail address will appear as the sender when
you receive a log le or rmware upgrade notication
via e-mail.
Enter the e-mail address where you want the e-mail sent.
Enter the SMTP server address for sending
e-mail. If your SMTP server requires authentication,
select this option.
37D-Link DIR-603 User Manual
Section 3 - Conguration
Use this option to save the current router conguration
settings to a le on the hard disk of the computer you
are using. First, click the Save button. You will then
see a le dialog, where you can select a location and
le name for the settings.
Use this option to load previously saved router
conguration settings. First, use the Browse control
to nd a previously save le of conguration settings.
Then, click the Load button to transfer those settings
to the router.
This option will restore all conguration settings back
to the settings that were in effect at the time the router
was shipped from the factory. Any settings that have
not been saved will be lost, including any rules that you
have created. If you want to save the current router
conguration settings, use the Save button above.
Click to reboot the router.
This is to restore the device back to English version only.
Remove other languages installed for the system web
pages.
Save Settings to
Local Hard Drive:
Load Settings
from Local Hard
Drive:
Restore to Factory
Default Settings:
Reboot Device:
Clear Language
Pack:
System Settings
38D-Link DIR-603 User Manual
Section 3 - Conguration
Displays the current firmware version and date.
After you have downloaded the new rmware, click
Browse to locate the firmware update on your
hard drive. Click Upload to complete the rmware
upgrade.
This function allows the user to transfer the language of
GUI from English to theirs by upgrading the language
pack.
Firmware
Information:
Firmware
Upgrade:
Language Pack
Upgrade:
Update Firmware
You can upgrade the rmware of the Router here. Make sure the rmware you want to use is on the local hard drive of
the computer. Click on Browse to locate the rmware le to be used for the update. Please check the D-Link support
site for rmware updates at http://support.dlink.com. You can download rmware upgrades to your hard drive from the
D-Link support site.
39D-Link DIR-603 User Manual
Section 3 - Conguration
Dynamic Domain Name System is a method of keeping
a domain name linked to a changing IP Address. Check
the box to enable DDNS.
Choose your DDNS provider from the drop down
menu.
Enter the Host Name that you registered with your DDNS
service provider.
Enter the Username for your DDNS account.
Enter the Password for your DDNS account.
DDNS:
Server Address:
Host Name:
User Account:
Password:
DDNS
The DDNS feature allows you to host a server (Web, FTP, Game Server, etc…) using a domain name that you have
purchased (www.whateveryournameis.com) with your dynamically assigned IP address. Most broadband Internet
Service Providers assign dynamic (changing) IP addresses. Using a DDNS service provider, your friends can enter in
your domain name to connect to your server no matter what your IP address is.
40D-Link DIR-603 User Manual
Section 3 - Conguration
The Ping Test is used to send Ping packets to
test if a computer is on the Internet. Enter the IP
Address that you wish to Ping, and click Ping.
The results of your ping attempts will be displayed
here.
Ping Test:
Ping Results:
The System Check feature allows you to verify the physical connectivity on both LAN and Internet interface.
System Check
41D-Link DIR-603 User Manual
Section 3 - Conguration
This page displays the current information for the DIR-603. It will display the LAN, WAN (Internet), and Wireless
information.
If your Internet connection is set up for a Dynamic IP address then a
Release button and a Renew button will be displayed. Use Release
to disconnect from your ISP and use Renew to connect to your ISP.
If your Internet connection is set up for PPPoE, a Connect button
and a Disconnect button will be displayed. Use Disconnect to drop
the PPPoE connection and use Connect to establish the PPPoE
connection.
See the following for more information.
Device Information
General:
Internet:
LAN:
Wireless LAN:
Displays the router’s time and rmware version.
Displays the MAC address and the public IP settings
for the router.
Displays the MAC address and the private (local) IP
settings for the router.
Displays the wireless MAC address and your
wireless settings such as SSID and Channel.
42D-Link DIR-603 User Manual
Section 3 - Conguration
Log
What to View:
View Levels:
Clear:
Link to Log
Settings:
You can select the types of messages that you want
to display from the log. Firewall & Security, System,
and Router Status messages can be selected.
There are three levels of message importance:
Informational, Warning, and Critical. Select the levels
that you want displayed in the log.
Clears all of the log contents.
The user can click the button to “ Link To Email
Settings” and send the logs to the designated E-mail
account.
The router automatically logs (records) events of possible interest in it’s internal memory. If there isn’t enough internal
memory for all events, logs of older events are deleted but logs of the latest events are retained. The Logs option allows
you to view the router logs. You can dene what types of events you want to view and the level of the events to view.
This router also has external Syslog Server support so you can send the log les to a computer on your network that
is running a Syslog utility.
43D-Link DIR-603 User Manual
Section 3 - Conguration
Stats
The screen below displays the Trafc Statistics. Here you can view the amount of packets that pass through the DIR-603
on both the Internet and the LAN ports. The trafc counter will reset if the device is rebooted.
44D-Link DIR-603 User Manual
Section 3 - Conguration
Internet Sessions
The Internet Sessions page displays full details of active Internet sessions through your router. An Internet session is
a conversation between a program or application on a LAN-side computer and a program or application on a WAN-
side computer.
IP Address:
TCP Session:
UDP Session:
The IP address and, where appropriate, port number
of the local application.
This shows the number of TCP packets being sent
from the source IP address.
This shows the number of UDP packets being sent
from the source IP address.
45D-Link DIR-603 User Manual
Section 3 - Conguration
The wireless client table displays a list of current connected wireless clients. This table also displays the connection
time and MAC address of the connected wireless clients.
Wireless
46D-Link DIR-603 User Manual
Section 3 - Conguration
Support
47D-Link DIR-603 User Manual
Section 4 - Security
Wireless Security
This section will show you the different levels of security you can use to protect your data from intruders. The DIR-603
offers the following types of security:
• WPA2 (Wi-Fi Protected Access 2) • WPA2-PSK(Pre-Shared Key)
• WPA (Wi-Fi Protected Access) • WPA-PSK (Pre-Shared Key)
What is WPA?
WPA, or Wi-Fi Protected Access, is a Wi-Fi standard that was designed to improve the security features of WEP (Wired
Equivalent Privacy).
The 2 major improvements over WEP:
• Improved data encryption through the Temporal Key Integrity Protocol (TKIP). TKIP scrambles the keys
using a hashing algorithm and, by adding an integrity-checking feature, ensures that the keys haven’t
been tampered with. WPA2 is based on 802.11i and uses Advanced Encryption Standard (AES) instead
of TKIP.
• User authentication, which is generally missing in WEP, through the extensible authentication protocol
(EAP). WEP regulates access to a wireless network based on a computer’s hardware-specic MAC
address, which is relatively simple to be sniffed out and stolen. EAP is built on a more secure public-key
encryption system to ensure that only authorized network users can access the network.
WPA-PSK/WPA2-PSK uses a passphrase or key to authenticate your wireless connection. The key is an alpha-numeric
password between 8 and 63 characters long. The password can include symbols (!?*&_) and spaces. This key must
be the exact same key entered on your wireless router or access point.
48D-Link DIR-603 User Manual
Section 4 - Security
Wireless Connection Setup Wizard
To run the security wizard, browse to the Setup page and then click the Wireless Connection Setup Wizard
button.
49D-Link DIR-603 User Manual
Section 4 - Security
Enter the SSID (Service Set Identier). The SSID is the name of your
wireless network. Create a name using up to 32 characters. The SSID
is case-sensitive.
If you would like the router to automatically assign a network key
to your network, you can click the button- “automatically assign a
network key”.
Click Next to continue.
Or if you would like to create the key by your own, please click the
button- “ Manual assign a Network key” and click Next to continue.
WPA/WPA2 AUTO for wireless transmission encrption.
All D-Link devices supports WPA to protect your wireless network.
50D-Link DIR-603 User Manual
Section 4 - Security
Click Save to nish the Security Wizard.
51D-Link DIR-603 User Manual
Section 4 - Security
Congure WPA-Personal (PSK)
It is recommended to enable encryption on your wireless router before your wireless network adapters. Please establish
wireless connectivity before enabling encryption. Your wireless signal may degrade when enabling encryption due to
the added overhead.
1. Log into the web-based conguration by opening a web browser
and entering the IP address of the router (192.168.0.1). Click on
Setup and then click Wireless Settings on the left side and then
click Manual Wireless Network Setup.
2. Next to Security Mode, select WPA/WPA2.
3. Next to Cypher Type, select AUTO(TKIP/AES) TKIP, or AES. If you
have wireless clients that use both types, use AUTO(TKIP/AES).
4. Next to Pre-Shared Key, enter a key (passphrase). The key is entered as a pass-phrase in ASCII format at both ends
of the wireless connection. The pass-phrase must be between 8-63 characters.
5. Click Save Settings to save your settings. If you are conguring the router with a wireless adapter, you will lose
connectivity until you enable WPA-PSK on your adapter and enter the same passphrase as you did on the router.
52D-Link DIR-603 User Manual
Section 5 - Connecting to a Wireless Network
Connect to a Wireless Network
Using Windows 7
It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before conguring
your wireless adapter. If you are joining an existing network, you will need to know the security key or passphrase
being used.
1. Click on the wireless icon in your system tray (lower-right corner).
2. The utility will display any available wireless networks in your area.
Wireless Icon
53D-Link DIR-603 User Manual
Section 5 - Connecting to a Wireless Network
3. Highlight the wireless network (SSID) you would like to connect
to and click the Connect button.
If you get a good signal but cannot access the Internet, check
your TCP/IP settings for your wireless adapter. Refer to the
Networking Basics section in this manual for more information.
4. The following window appears while your computer tries to
connect to the router.
54D-Link DIR-603 User Manual
Section 5 - Connecting to a Wireless Network
5. Enter the same security key or passphrase that is on your
router and click Connect. You can also connect by pushing
the WPS button on the router.
It may take 20-30 seconds to connect to the wireless network. If
the connection fails, please verify that the security settings are
correct. The key or passphrase must be exactly the same as on
the wireless router.
55D-Link DIR-603 User Manual
Section 5 - Connecting to a Wireless Network
Using Windows® XP
Windows® XP users may use the built-in wireless utility (Zero Conguration Utility). The following instructions are for
Service Pack 2 users. If you are using another company’s utility or Windows® 2000, please refer to the user manual
of your wireless adapter for help with connecting to a wireless network. Most utilities will have a “site survey” option
similar to the Windows® XP utility as seen below.
If you receive the Wireless Networks Detected bubble, click
on the center of the bubble to access the utility.
or
Right-click on the wireless computer icon in your system tray
(lower-right corner next to the time). Select View Available
Wireless Networks.
The utility will display any available wireless networks in your
area. Click on a network (displayed using the SSID) and click
the Connect button.
If you get a good signal but cannot access the Internet, check you
TCP/IP settings for your wireless adapter. Refer to the Networking
Basics section in this manual for more information.
56D-Link DIR-603 User Manual
Section 5 - Connecting to a Wireless Network
Congure WPA-PSK
It is recommended to enable WEP on your wireless router or access point before conguring your wireless adapter. If
you are joining an existing network, you will need to know the WEP key being used.
2. Highlight the wireless network (SSID) you would like to
connect to and click Connect.
1. Open the Windows® XP Wireless Utility by right-clicking
on the wireless computer icon in your system tray
(lower-right corner of screen). Select View Available
Wireless Networks.
57D-Link DIR-603 User Manual
Section 5 - Connecting to a Wireless Network
3. The Wireless Network Connection box will appear. Enter the
WPA-PSK passphrase and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the WPA-PSK settings are correct.
The WPA-PSK passphrase must be exactly the same as on the
wireless router.
58D-Link DIR-603 User Manual
Section 6 - Troubleshooting
Troubleshooting
This chapter provides solutions to problems that can occur during the installation and operation of the DIR-603. Read
the following descriptions if you are having problems. (The examples below are illustrated in Windows® XP. If you
have a different operating system, the screen shots on your computer will look similar to the following examples.)
1. Why can’t I access the web-based conguration utility?
When entering the IP address of the D-Link router (192.168.0.1 for example), you are not connecting to a website on
the Internet or have to be connected to the Internet. The device has the utility built-in to a ROM chip in the device itself.
Your computer must be on the same IP subnet to connect to the web-based utility.
• Make sure you have an updated Java-enabled web browser. We recommend the following:
• Internet Explorer 6.0 or higher
• Netscape 8 or higher
• Mozilla 1.7.12 (5.0) or higher
• Opera 8.5 or higher
• Safari 1.2 or higher (with Java 1.3.1 or higher)
• Camino 0.8.4 or higher
• Firefox 1.5 or higher
• Verify physical connectivity by checking for solid link lights on the device. If you do not get a solid link light, try using
a different cable or connect to a different port on the device if possible. If the computer is turned off, the link light may
not be on.
• Disable any Internet security software running on the computer. Software rewalls such as Zone Alarm, Black Ice,
Sygate, Norton Personal Firewall, and Windows® XP rewall may block access to the conguration pages. Check the
help les included with your rewall software for more information on disabling or conguring it.
59D-Link DIR-603 User Manual
Section 6 - Troubleshooting
• Congure your Internet settings:
• Go to Start > Settings > Control Panel. Double-click the Internet Options Icon. From the Security tab,
click the button to restore the settings to their defaults.
• Click the Connection tab and set the dial-up option to Never Dial a Connection. Click the LAN Settings
button. Make sure nothing is checked. Click OK.
• Go to the Advanced tab and click the button to restore these settings to their defaults. Click OK three
times.
• Close your web browser (if open) and open it.
• Access the web management. Open your web browser and enter the IP address of your D-Link router in the address
bar. This should open the login page for your the web management.
• If you still cannot access the conguration, unplug the power to the router for 10 seconds and plug back in. Wait
about 30 seconds and try accessing the conguration. If you have multiple computers, try connecting using a different
computer.
2. What can I do if I forgot my password?
If you forgot your password, you must reset your router. Unfortunately this process will change all your settings back
to the factory defaults.
To reset the router, locate the reset button (hole) on the rear panel of the unit. With the router powered on, use a
paperclip to hold the button down for 10 seconds. Release the button and the router will go through its reboot process.
Wait about 30 seconds to access the router. The default IP address is 192.168.0.1. When logging in, the username is
admin and leave the password box empty.
60D-Link DIR-603 User Manual
Section 6 - Troubleshooting
3. Why can’t I connect to certain sites or send and receive e-mails when connecting through my router?
If you are having a problem sending or receiving e-mail, or connecting to secure sites such as eBay, banking sites,
and Hotmail, we suggest lowering the MTU in increments of ten (Ex. 1492, 1482, 1472, etc).
Note: AOL DSL+ users must use MTU of 1400.
To nd the proper MTU Size, you’ll have to do a special ping of the destination you’re trying to go to. A destination
could be another computer, or a URL.
• Click on Start and then click Run.
• Windows® 95, 98, and Me users type in command (Windows® NT, 2000, and XP users type in cmd) and
press Enter (or click OK).
• Once the window opens, you’ll need to do a special ping. Use the following syntax:
ping [url] [-f] [-l] [MTU value]
Example: ping yahoo.com -f -l 1472
61D-Link DIR-603 User Manual
Section 6 - Troubleshooting
You should start at 1472 and work your way down by 10 each time. Once you get a reply, go up by 2 until you get a
fragmented packet. Take that value and add 28 to the value to account for the various TCP/IP headers. For example,
lets say that 1452 was the proper value, the actual MTU size would be 1480, which is the optimum for the network
we’re working with (1452+28=1480).
Once you nd your MTU, you can now congure your router with the proper MTU size.
To change the MTU rate on your router follow the steps below:
• Open your browser, enter the IP address of your router (192.168.0.1) and click OK.
• Enter your username (admin) and password (blank by default). Click OK to enter the web conguration
page for the device.
• Click on Setup and then click Manual Congure.
• To change the MTU enter the number in the MTU eld and click Save Settings to save your settings.
• Test your e-mail. If changing the MTU does not resolve the problem, continue changing the MTU in
increments of ten.
62D-Link DIR-603 User Manual
Appendix A - Wireless Basics
D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless
connectivity within your home, business or public access wireless networks. Strictly adhering to the IEEE standard,
the D-Link wireless family of products will allow you to securely access the data you want, when and where you want
it. You will be able to enjoy the freedom that wireless networking delivers.
A wireless local area network (WLAN) is a cellular computer network that transmits and receives data with radio signals
instead of wires. Wireless LANs are used increasingly in both home and ofce environments, and public areas such
as airports, coffee shops and universities. Innovative ways to utilize WLAN technology are helping people to work and
communicate more efciently. Increased mobility and the absence of cabling and other xed infrastructure have proven
to be benecial for many users.
Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop
and desktop systems support the same protocols as Ethernet adapter cards.
Under many circumstances, it may be desirable for mobile network devices to link to a conventional Ethernet LAN in
order to use servers, printers or an Internet connection supplied through the wired LAN. A Wireless Router is a device
used to provide this link.
Wireless Basics
63D-Link DIR-603 User Manual
Appendix A - Wireless Basics
What is Wireless?
Wireless or Wi-Fi technology is another way of connecting your computer to the network without using wires.
Wi-Fi uses radio frequency to connect wirelessly, so you have the freedom to connect computers anywhere
in your home or ofce network.
Why D-Link Wireless?
D-Link is the worldwide leader and award winning designer, developer, and manufacturer of networking
products. D-Link delivers the performance you need at a price you can afford. D-Link has all the products
you need to build your network.
How does wireless work?
Wireless works similar to how cordless phone work, through radio signals to transmit data from one point
A to point B. But wireless technology has restrictions as to how you can access the network. You must be
within the wireless network range area to be able to connect your computer. There are two different types of
wireless networks Wireless Local Area Network (WLAN), and Wireless Personal Area Network (WPAN).
Wireless Local Area Network (WLAN)
In a wireless local area network, a device called an Access Point (AP) connects computers to the network.
The access point has a small antenna attached to it, which allows it to transmit data back and forth over radio
signals. With an indoor access point as seen in the picture, the signal can travel up to 300 feet. With an outdoor
access point the signal can reach out up to 30 miles to serve places like manufacturing plants, industrial
locations, college and high school campuses, airports, golf courses, and many other outdoor venues.
64D-Link DIR-603 User Manual
Appendix A - Wireless Basics
Wireless Personal Area Network (WPAN)
Bluetooth is the industry standard wireless technology used for WPAN. Bluetooth devices in WPAN operate
in a range up to 30 feet away.
Compared to WLAN the speed and wireless operation range are both less than WLAN, but in return it
doesn’t use nearly as much power which makes it ideal for personal devices, such as mobile phones, PDAs,
headphones, laptops, speakers, and other devices that operate on batteries.
Who uses wireless?
Wireless technology as become so popular in recent years that almost everyone is using it, whether it’s for
home, ofce, business, D-Link has a wireless solution for it.
Home
• Gives everyone at home broadband access
• Surf the web, check e-mail, instant message, and etc
• Gets rid of the cables around the house
• Simple and easy to use
Small Ofce and Home Ofce
• Stay on top of everything at home as you would at ofce
• Remotely access your ofce network from home
• Share Internet connection and printer with multiple computers
• No need to dedicate ofce space
65D-Link DIR-603 User Manual
Appendix A - Wireless Basics
Where is wireless used?
Wireless technology is expanding everywhere not just at home or ofce. People like the freedom of mobility
and it’s becoming so popular that more and more public facilities now provide wireless access to attract people.
The wireless connection in public places is usually called “hotspots”.
Using a D-Link USB Adapter with your laptop, you can access the hotspot to connect to Internet from remote
locations like: Airports, Hotels, Coffee Shops, Libraries, Restaurants, and Convention Centers.
Wireless network is easy to setup, but if you’re installing it for the rst time it could be quite a task not knowing
where to start. That’s why we’ve put together a few setup steps and tips to help you through the process of
setting up a wireless network.
Tips
Here are a few things to keep in mind, when you install a wireless network.
Centralize your router or Access Point
Make sure you place the router/access point in a centralized location within your network for the best
performance. Try to place the router/access point as high as possible in the room, so the signal gets dispersed
throughout your home. If you have a two-story home, you may need a repeater to boost the signal to extend
the range.
Eliminate Interference
Place home appliances such as cordless telephones, microwaves, and televisions as far away as possible
from the router/access point. This would signicantly reduce any interference that the appliances might cause
since they operate on same frequency.
66D-Link DIR-603 User Manual
Appendix A - Wireless Basics
Security
Don’t let you next-door neighbors or intruders connect to your wireless network. Secure your wireless network
by turning on the WPA or WEP security feature on the router. Refer to product manual for detail information
on how to set it up.
There are basically two modes of networking:
• Infrastructure – All wireless clients will connect to an access point or wireless router.
• Ad-Hoc – Directly connecting to another computer, for peer-to-peer communication, using wireless
network adapters on each computer, such as two or more DWM-140 wireless network USB adapters.
An Infrastructure network contains an Access Point or wireless router. All the wireless devices, or clients, will connect
to the wireless router or access point.
An Ad-Hoc network contains only clients, such as laptops with wireless cardbus adapters. All the adapters must be in
Ad-Hoc mode to communicate.
Wireless Modes
67D-Link DIR-603 User Manual
Appendix B - Networking Basics
Networking Basics
Check your IP address
After you install your adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP server
(i.e. wireless router) automatically. To verify your IP address, please follow the steps below.
Click on Start > Run. In the run box type cmd and click OK. (Windows Vista® users type in the Start Search box.)
At the prompt, type ipcong and press Enter.
This will display the IP address, subnet mask, and
the default gateway of your adapter.
If the address is 0.0.0.0, check your adapter
installation, security settings, and the settings on
your router. Some rewall software programs may
block a DHCP request on newly installed adapters.
68D-Link DIR-603 User Manual
Appendix B - Networking Basics
Statically Assign an IP address
If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps
below:
Step 1
Windows Vista® - Click on Start > Control Panel > Network and Internet > Network and Sharing Center > Manage
Network Connections.
Windows® XP - Click on Start > Control Panel > Network Connections.
Windows® 2000 - From the desktop, right-click My Network Places > Properties.
Step 2
Right-click on the Local Area Connection which represents your network adapter and select Properties.
Step 3
Highlight Internet Protocol (TCP/IP) and click Properties.
Step 4
Click Use the following IP address and enter an IP address that is on the same
subnet as your network or the LAN IP address on your router.
Example: If the router´s LAN IP address is 192.168.0.1, make your IP address
192.168.0.X where X is a number between 2 and 99. Make sure that the number
you choose is not in use on the network. Set Default Gateway the same as the LAN
IP address of your router (192.168.0.1).
Set Primary DNS the same as the LAN IP address of your router (192.168.0.1). The
Secondary DNS is not needed or you may enter a DNS server from your ISP.
Step 5
Click OK twice to save your settings.
69D-Link DIR-603 User Manual
Appendix C - Technical Specications
Technical Specications
Standards
• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3x
Security
• 64/128-bit WEP
• WPA-Personal
• WPA2-Personal
Wireless Signal Rates*
• 150Mbps • 48Mbps
• 54Mbps • 24Mbps
• 36Mbps • 12Mbps
• 18Mbps • 9Mbps
• 11Mbps • 5.5Mbps
• 6Mbps • 1Mbps
• 2Mbps
Frequency Range
• 2.4GHz to 2.483GHz
Transmitter Output Power
• 17dBm (average)
LEDs
• Power
• WLAN
• WPS
Operating Temperature
• 32°F to 104°F ( 0°C to 40°C)
Operating Humidity
• 10%-90% non-condensing
Storage Humidity
• 5%-95% non-condensing
Safety & Emissions
• FCC
• CE
• C-tick
Dimensions
• L = 4.02 inches
• W = 3.23 inches
• H = 1.06 inches
Warranty
• 1 Year Limited
* Maximum wireless signal rate derived from IEEE Standard 802.11g and Draft 802.11n specications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network trafc,
building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
70D-Link DIR-603 User Manual
Appendix D - Contacting Technical Support
Copyright ©2010 by D-Link Corporation/D-Link Systems, Inc. All rights reserved.
CE Mark Warning:
This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required
to take adequate measures.
FCC Statement:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
For detailed warranty information applicable to products purchased outside the United States, please contact the corresponding local
D-Link ofce.
FCC Caution:
Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate
this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed
and operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
71D-Link DIR-603 User Manual
Industry Canada statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 20cm between the radiator & your body.

Navigation menu
