Wireless AC600 Dual Band Cloud Router
DIR-808L
Version 1.0 | 05/31/2013
User Manual
iD-Link DIR-808L User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of
their respective companies.
Copyright © 2013 by D-Link Systems, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Corporation.
Revision Date Description
1.0 May 31, 2013 • Initial release for Revision A1
Preface
iiD-Link DIR-808L User Manual
Table of Contents
Preface ................................................................................. i
Manual Revisions ........................................................................... i
Trademarks ...................................................................................... i
Product Overview .............................................................. 1
Package Contents ......................................................................... 1
System Requirements ................................................................. 2
Introduction ................................................................................... 3
Features ............................................................................................ 4
Hardware Overview ..................................................................... 5
Connections ...........................................................................5
LEDs ...........................................................................................6
Installation ......................................................................... 7
Before you Begin ........................................................................... 7
Wireless Installation Considerations ...................................... 8

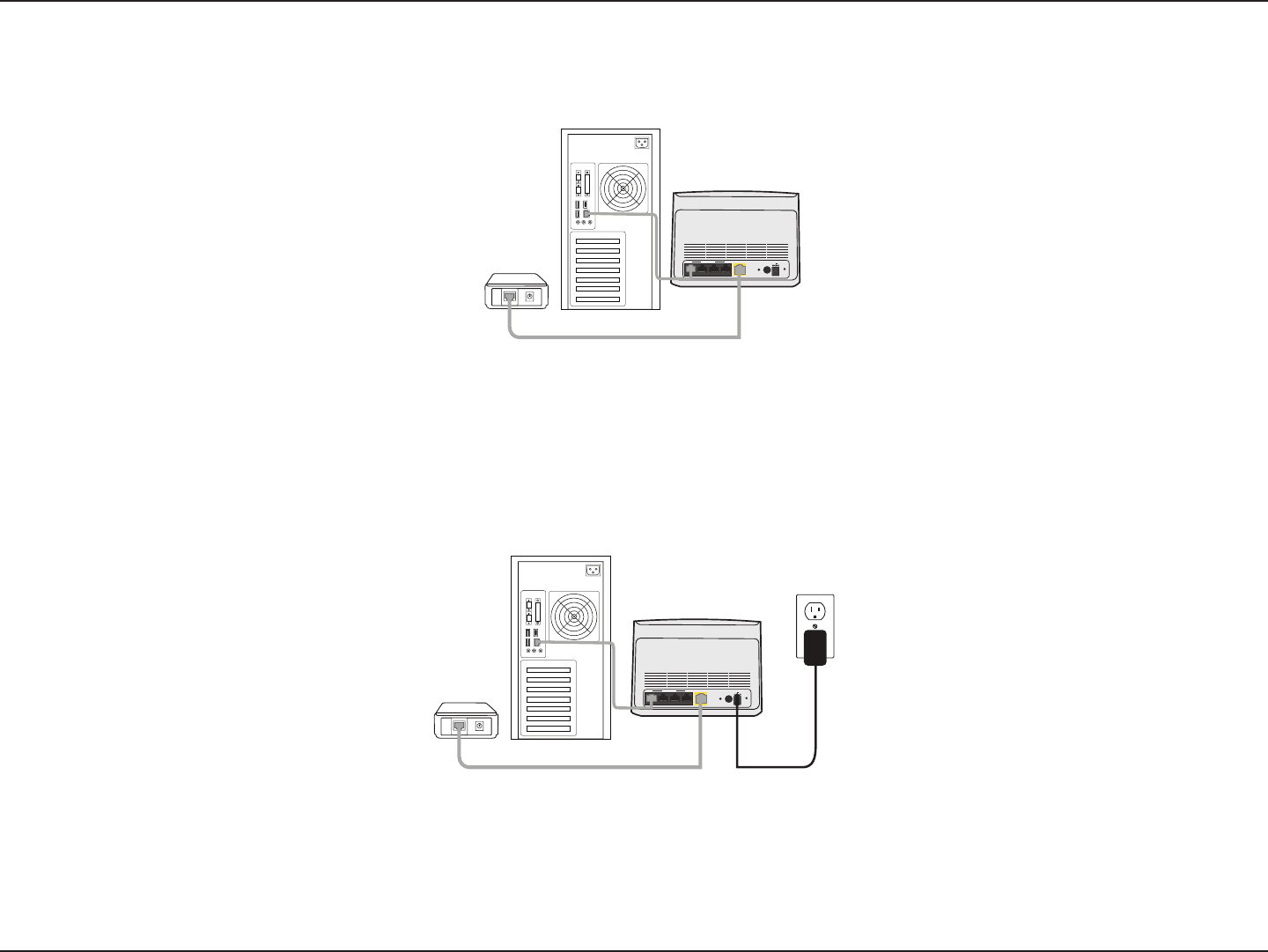

Manual Setup .................................................................................9
Conguration ...................................................................11

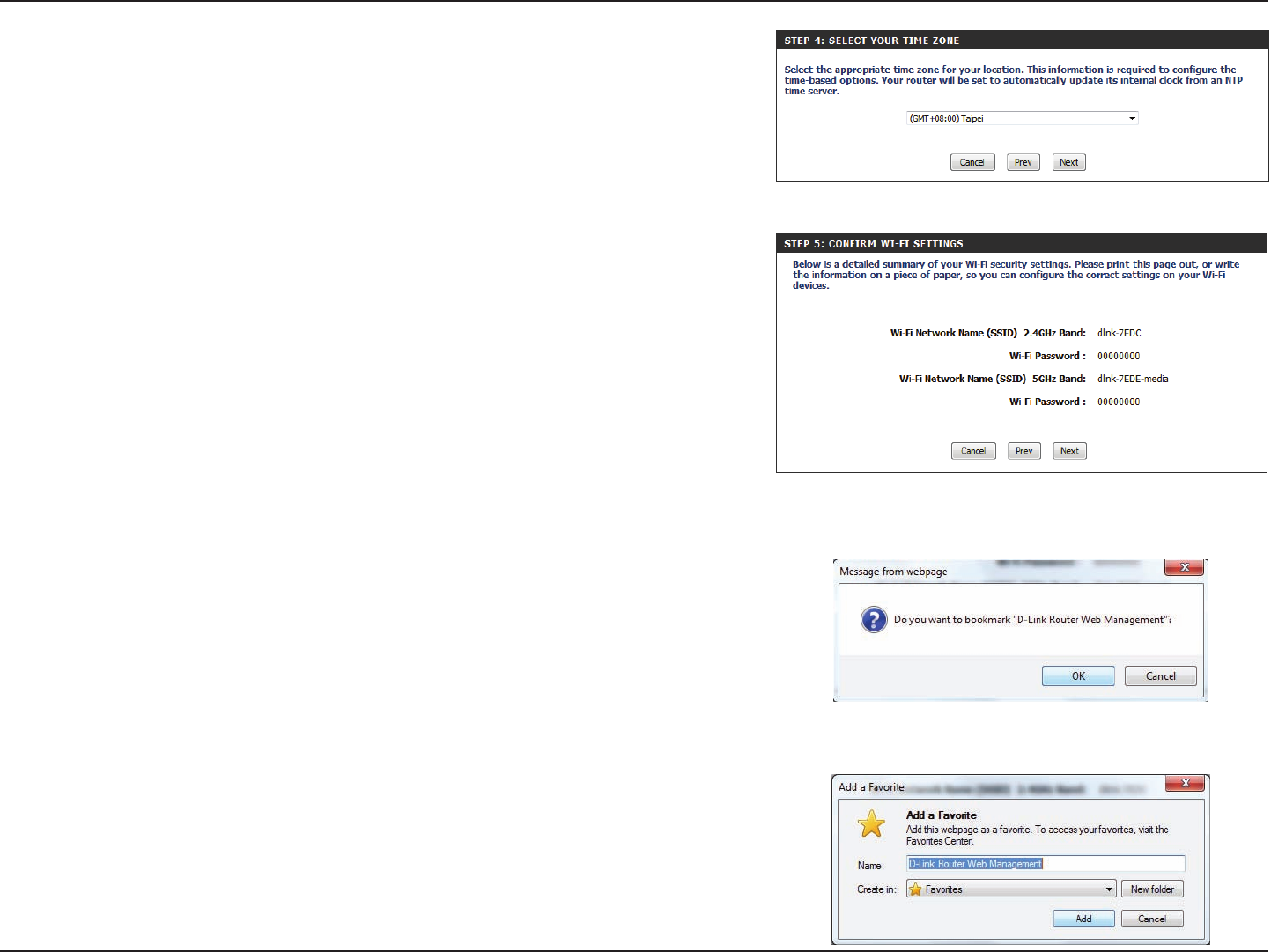

Quick Setup Wizard ....................................................................12
QRS Mobile App (iOS, Android) .............................................19
Web-based Conguration Utility ..........................................20

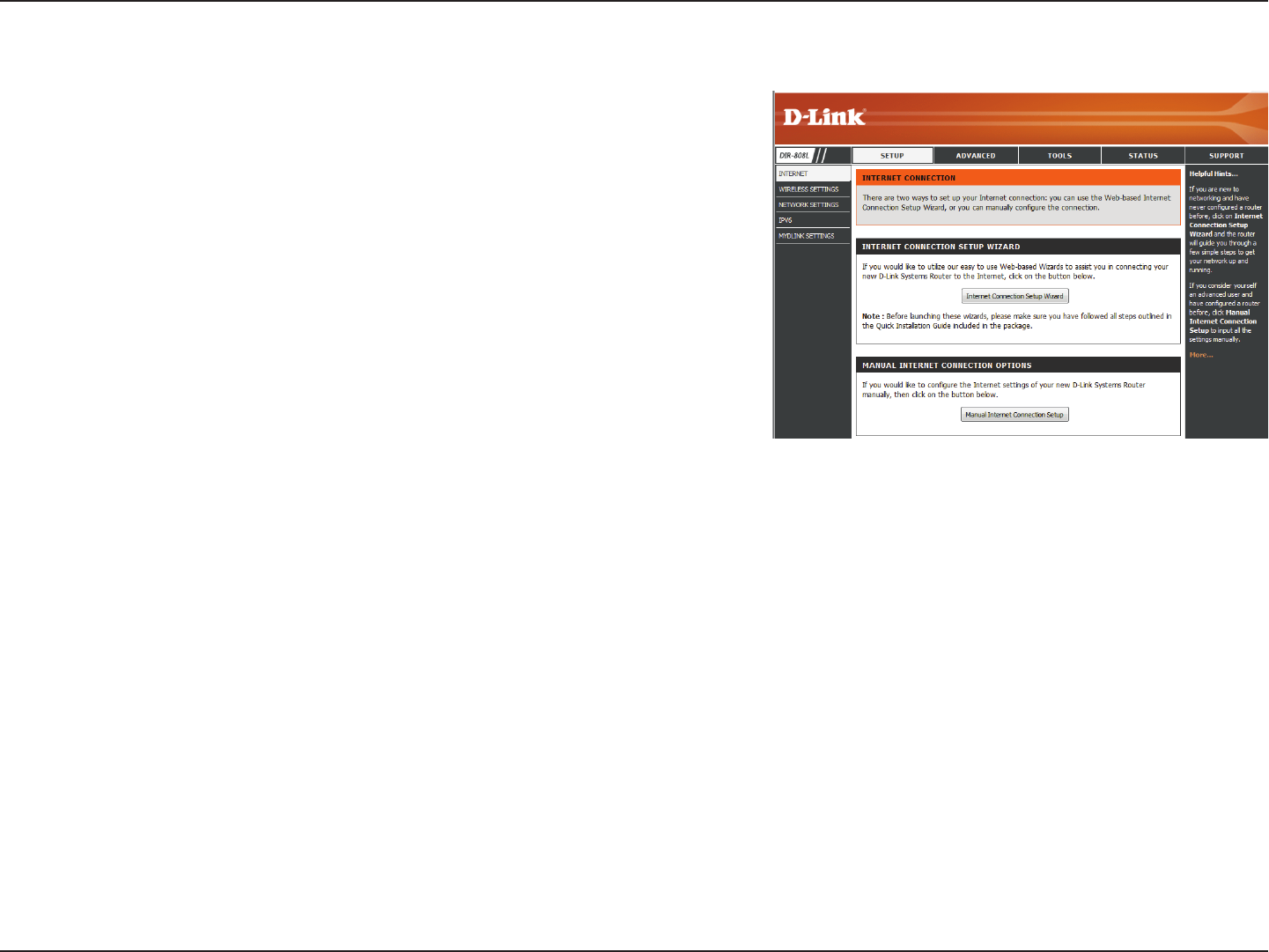

Internet Connection Setup .............................................21

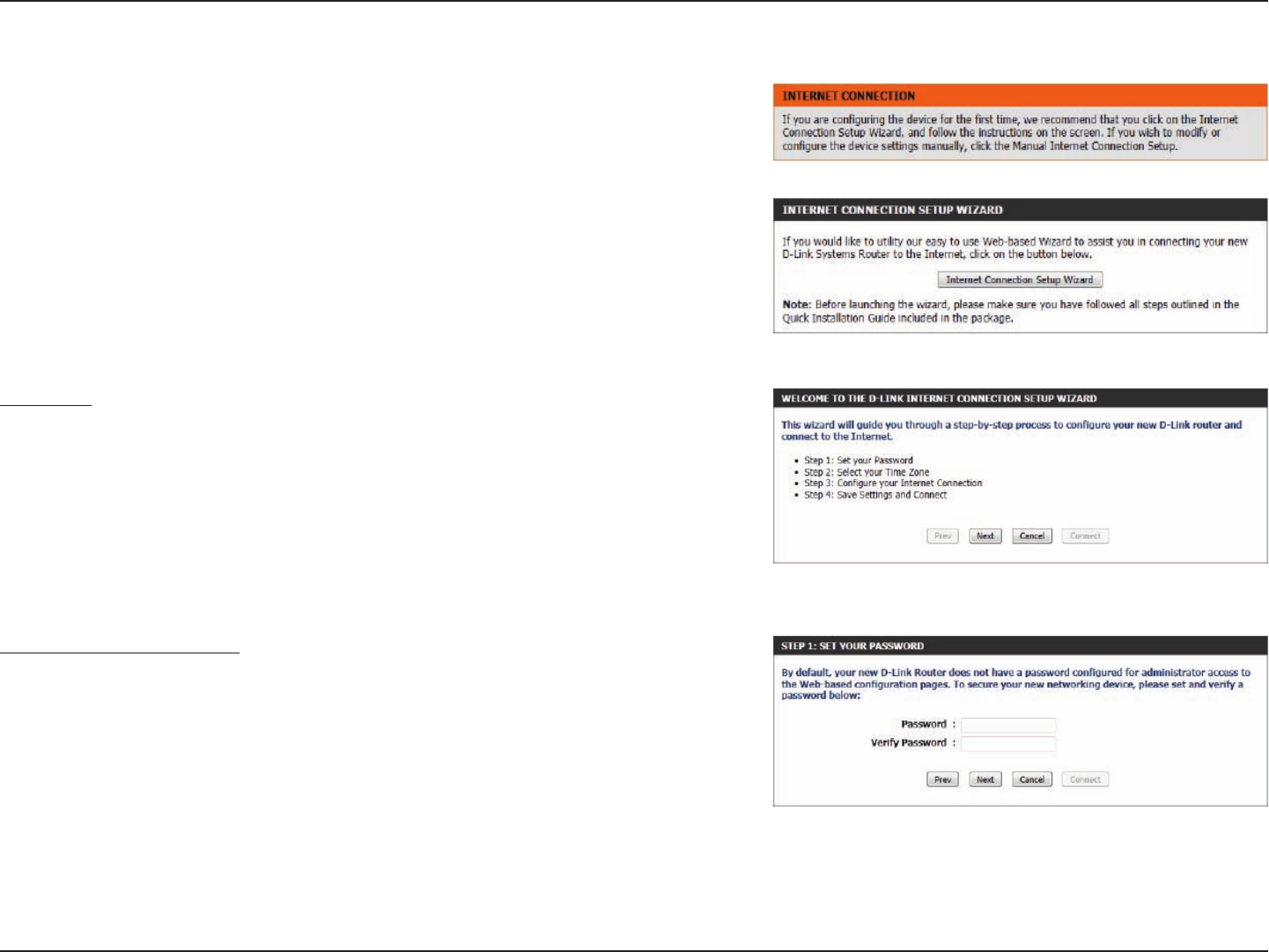

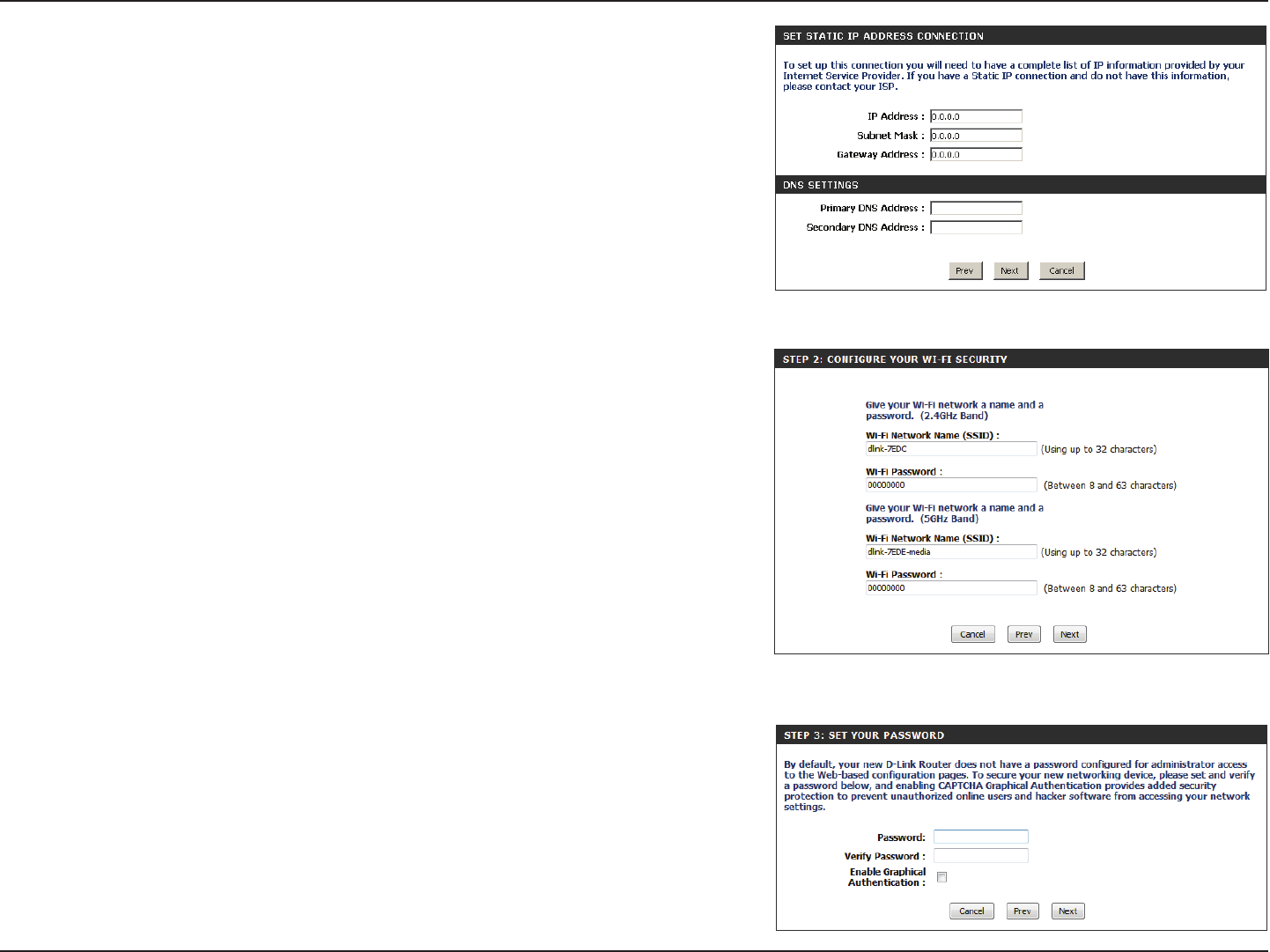

Internet Connection Setup Wizard ...............................22

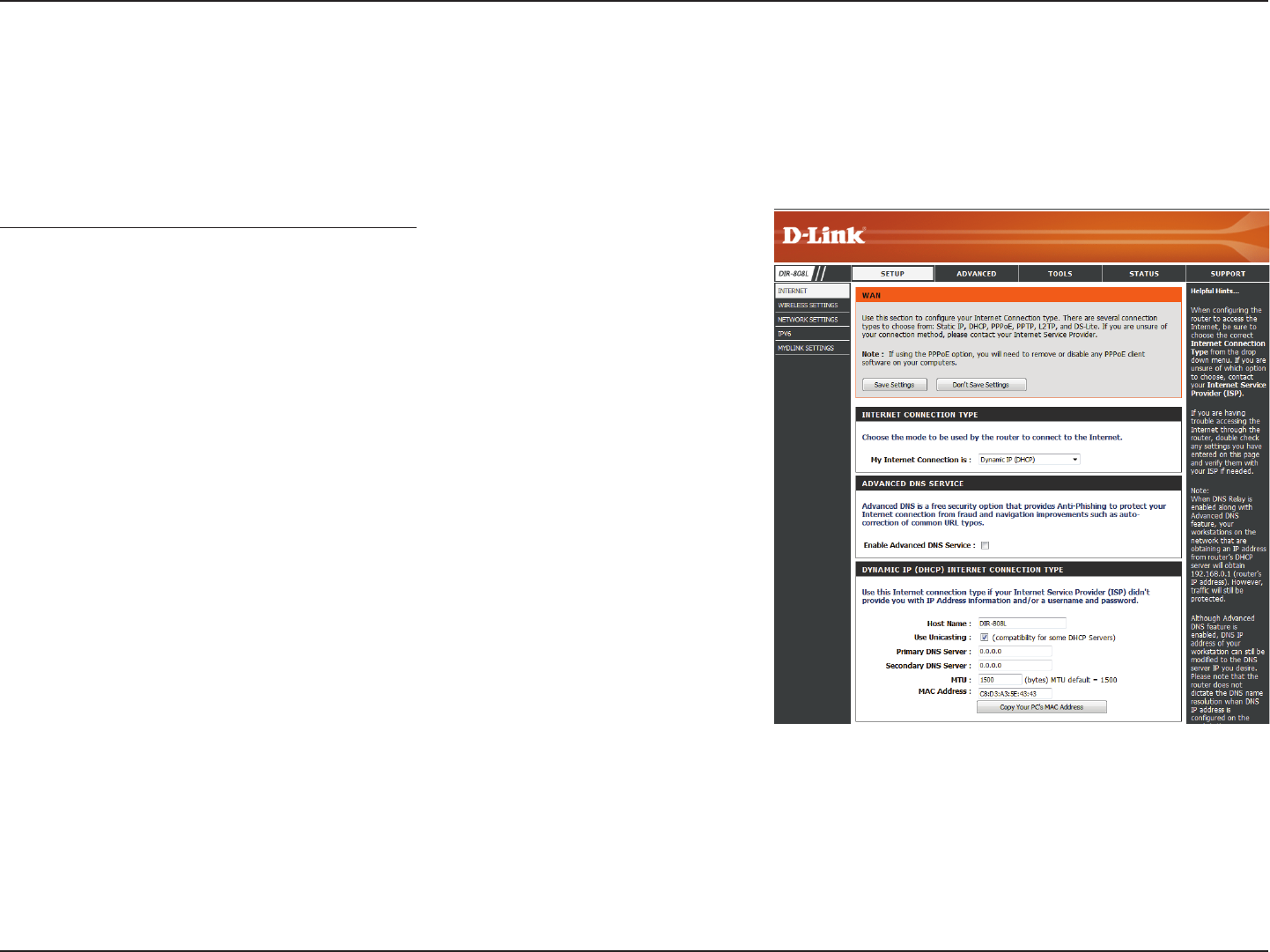

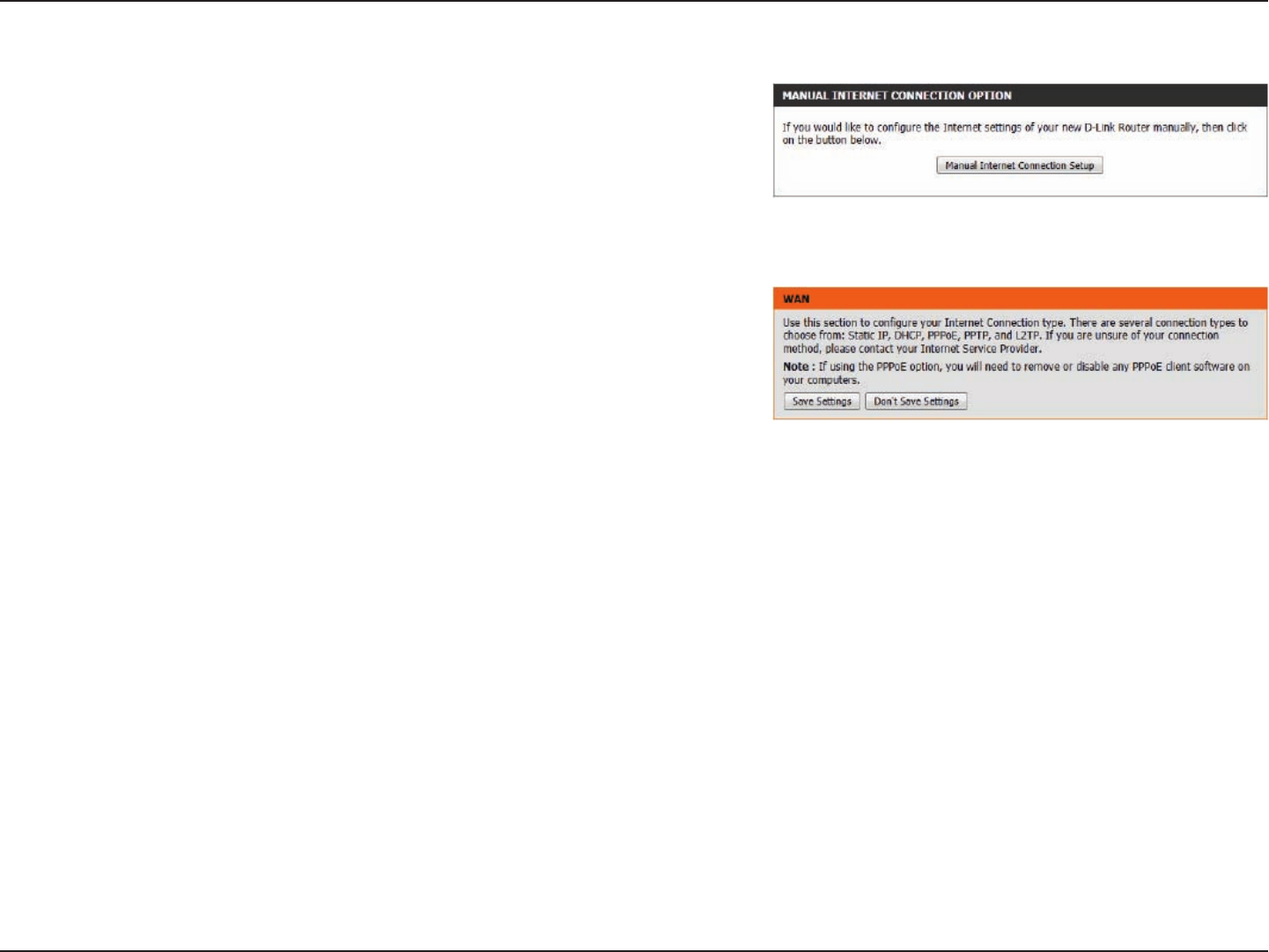

Internet (Manual Setup) ...................................................28
Internet Connection Type ...................................................29

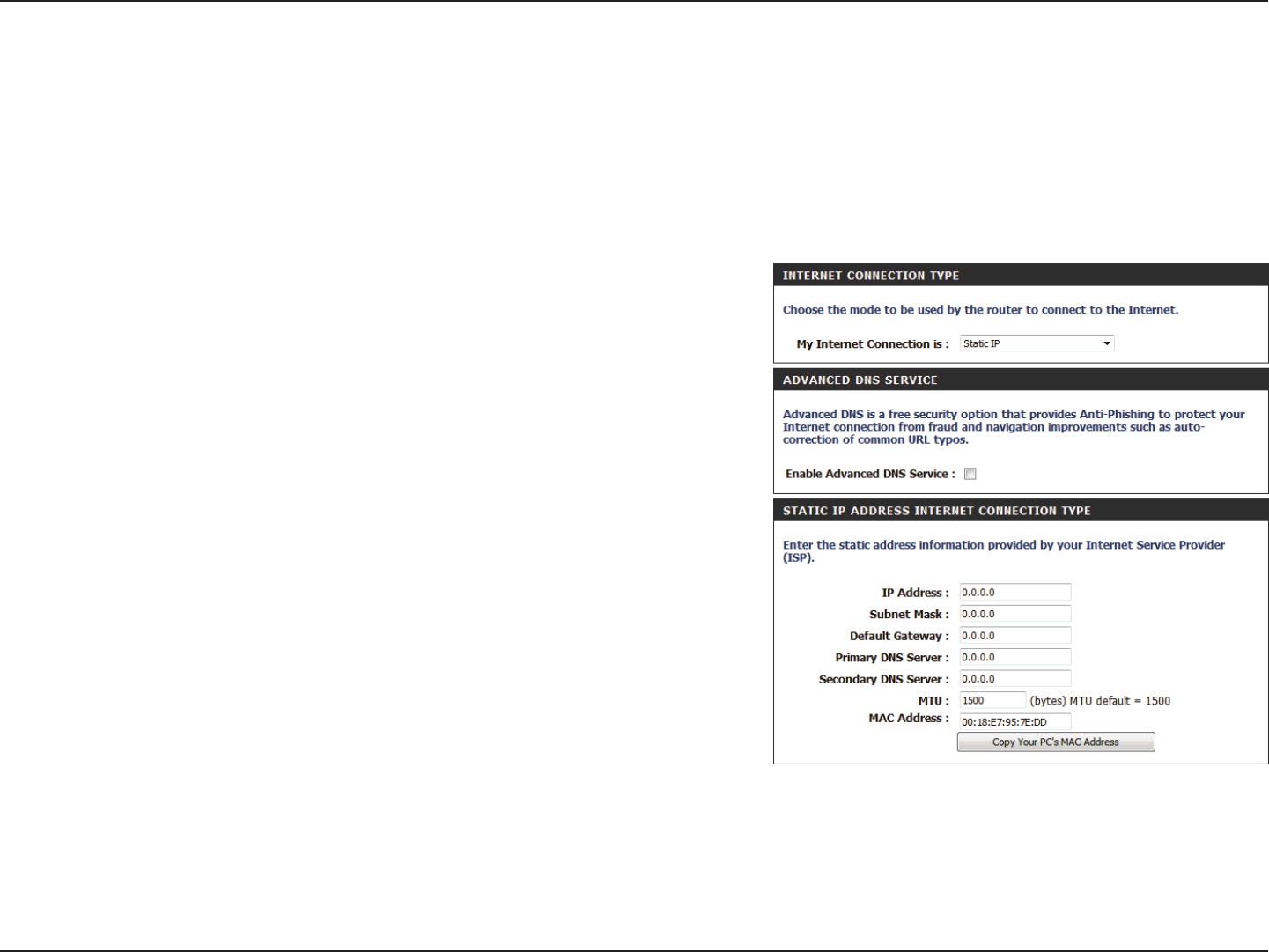

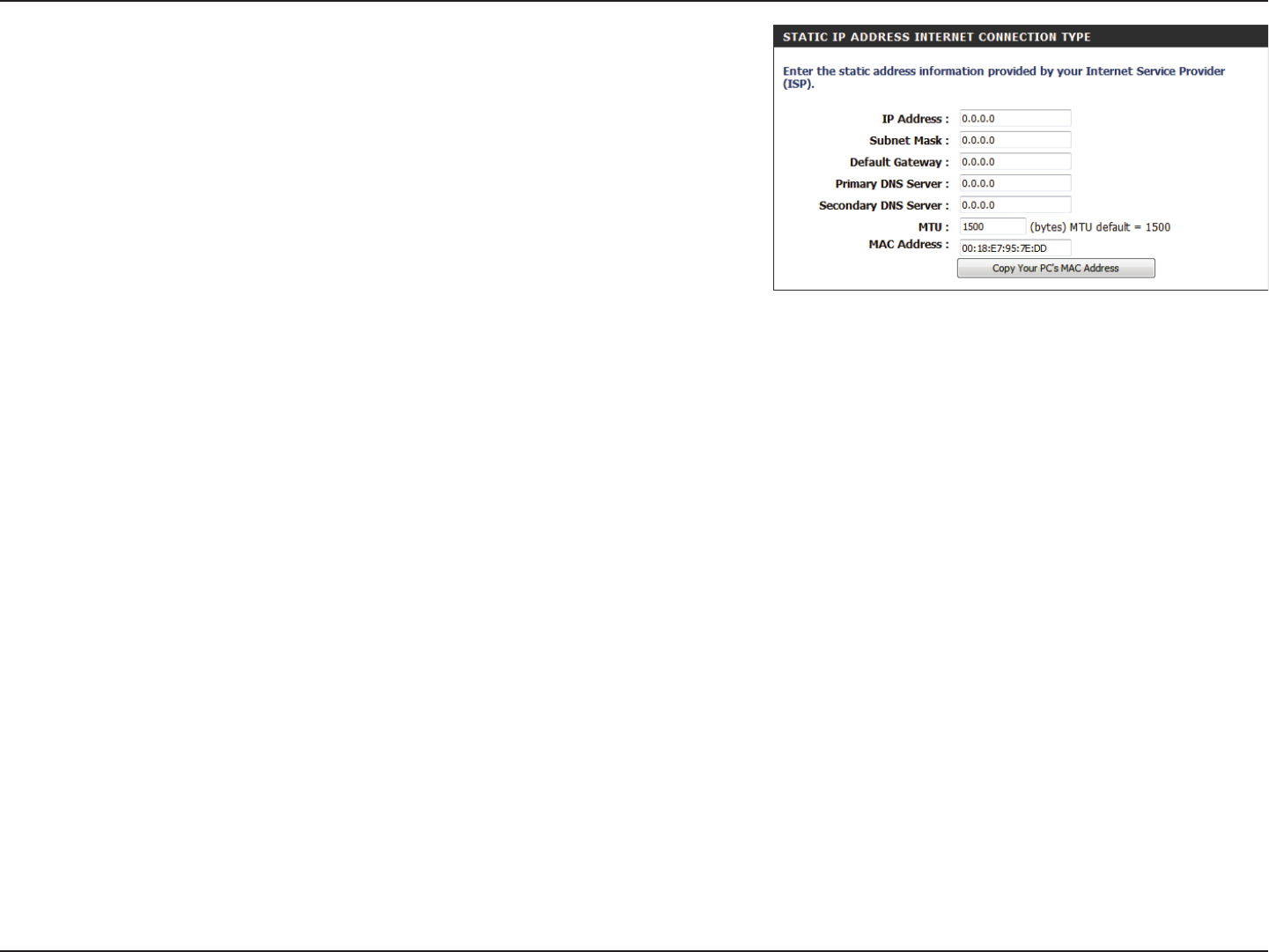

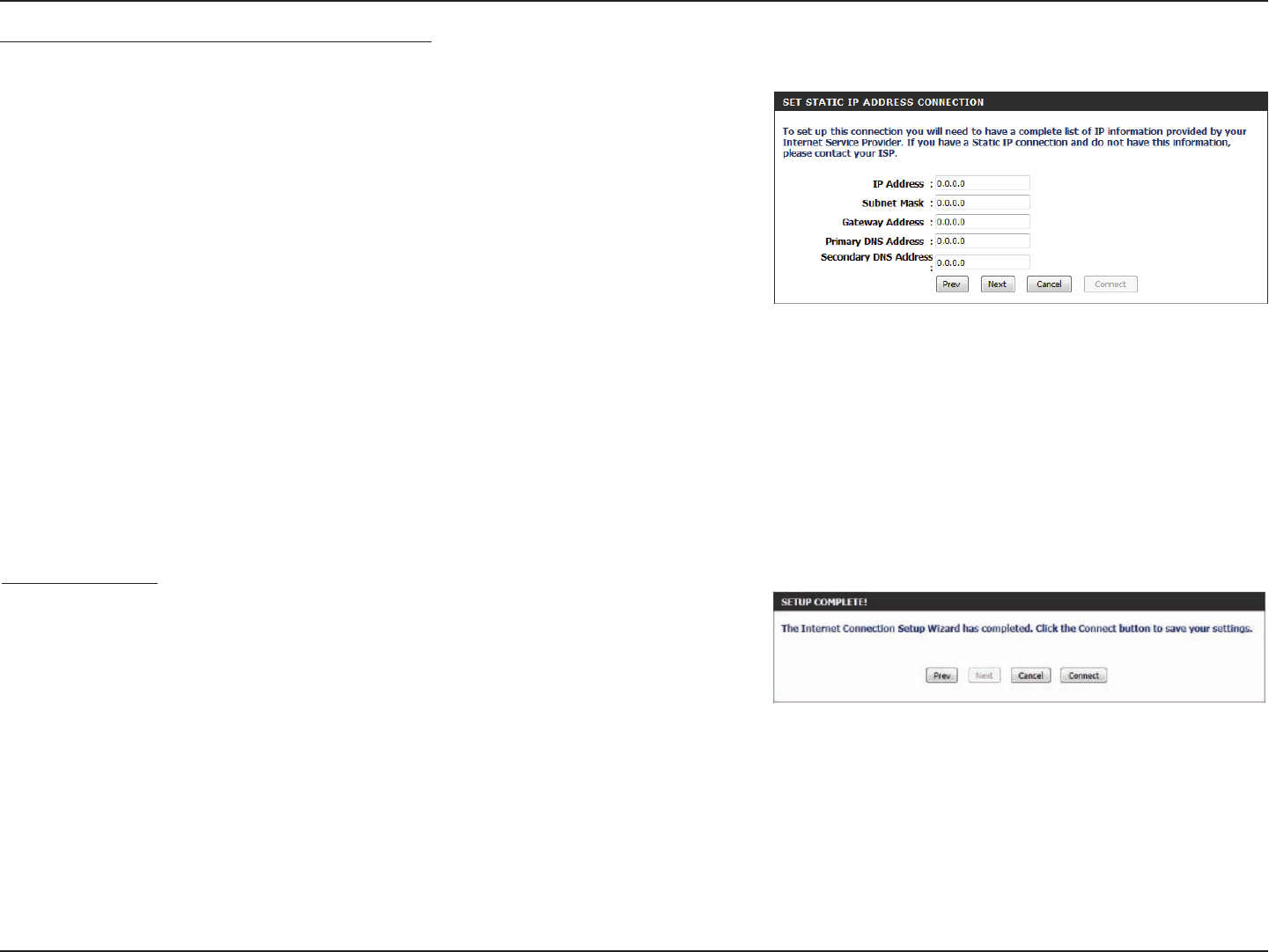

Static (assigned by ISP) ................................................31

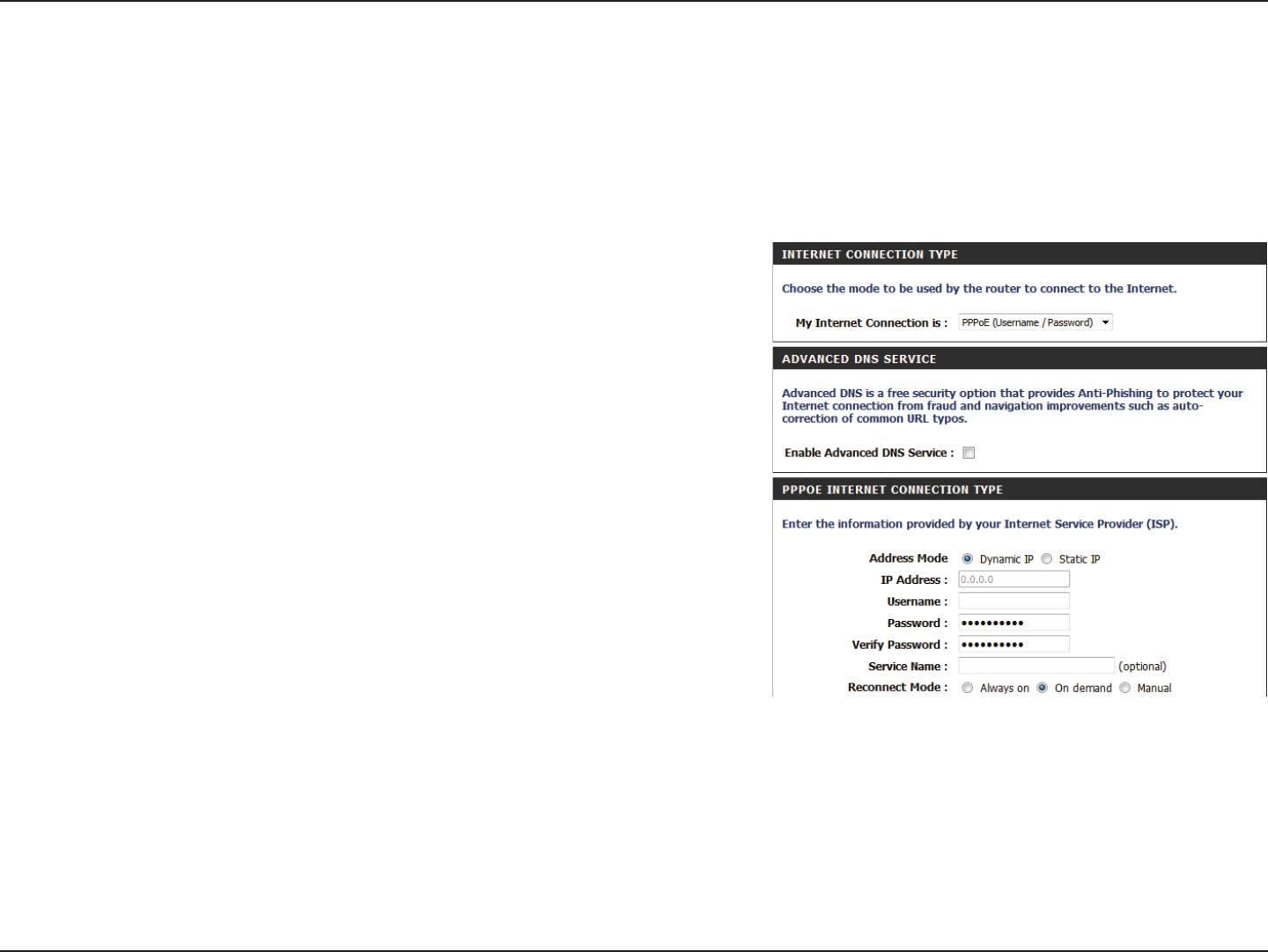

PPPoE (DSL) ......................................................................33
PPTP ....................................................................................35

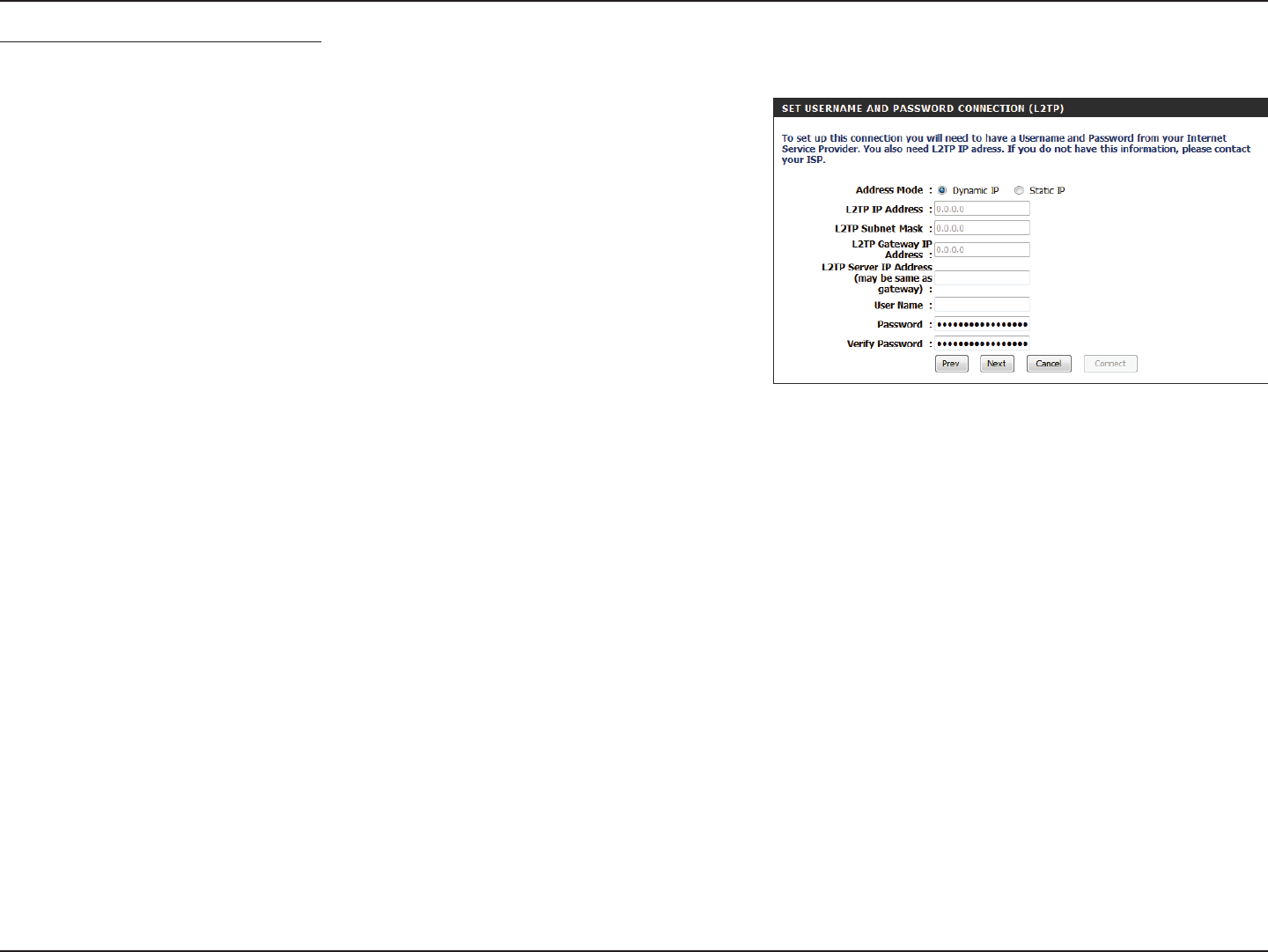

L2TP ....................................................................................37
DS-Lite ...............................................................................39

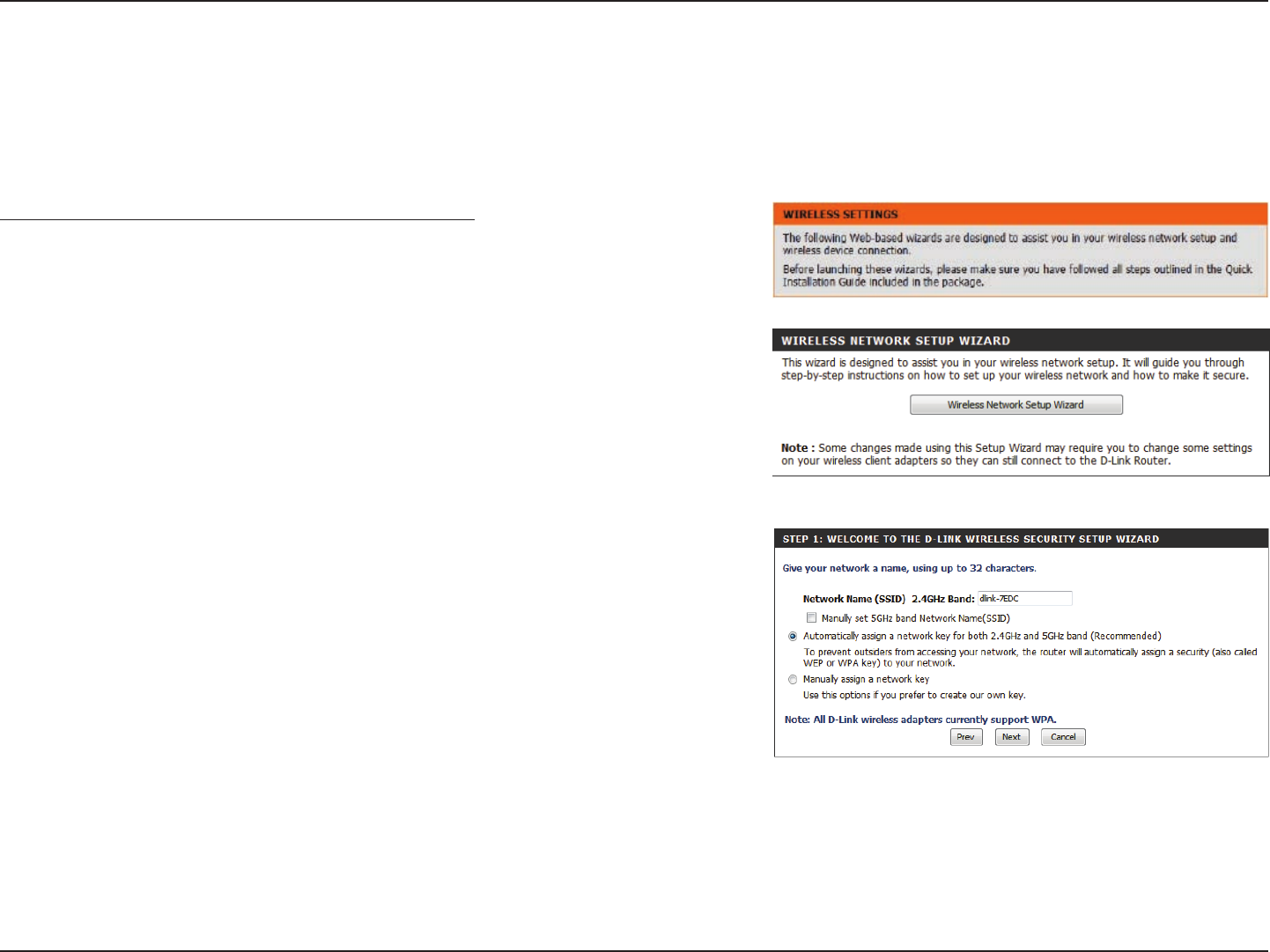

Wireless Connection Setup Wizard ..............................40

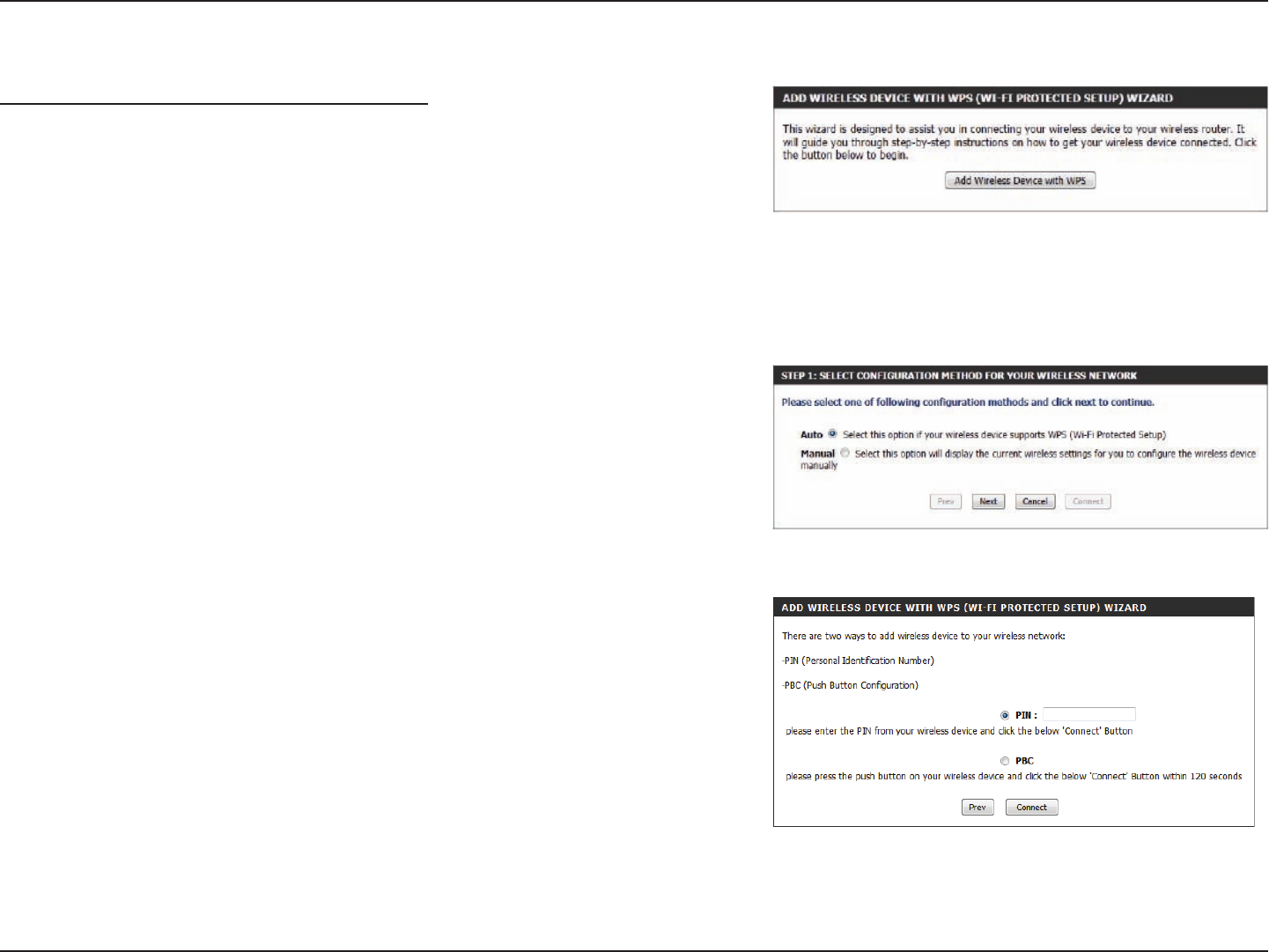

Wi-Fi Protected Setup Wizard .........................................43

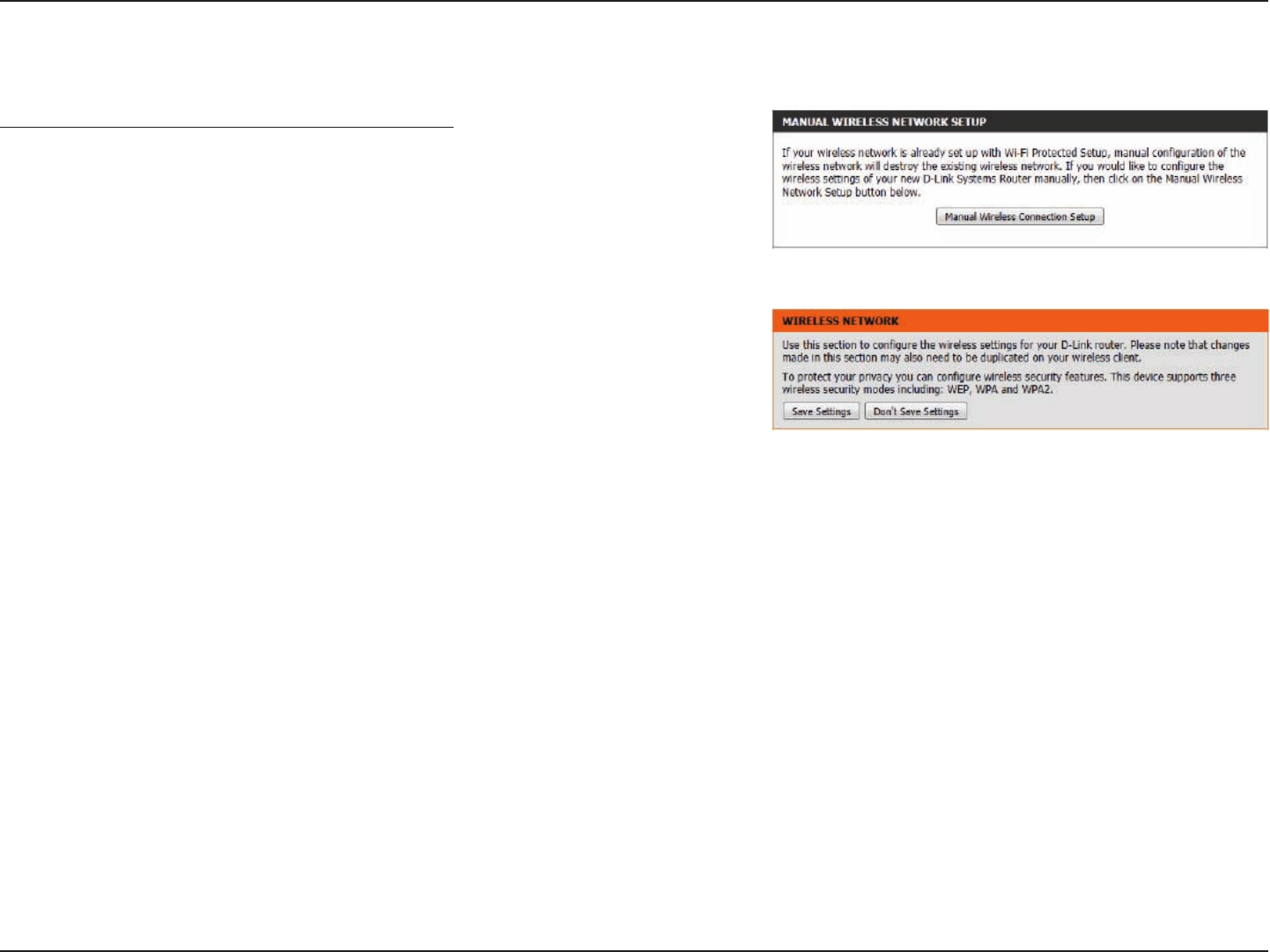

Manual Wireless Network Setup ...................................45

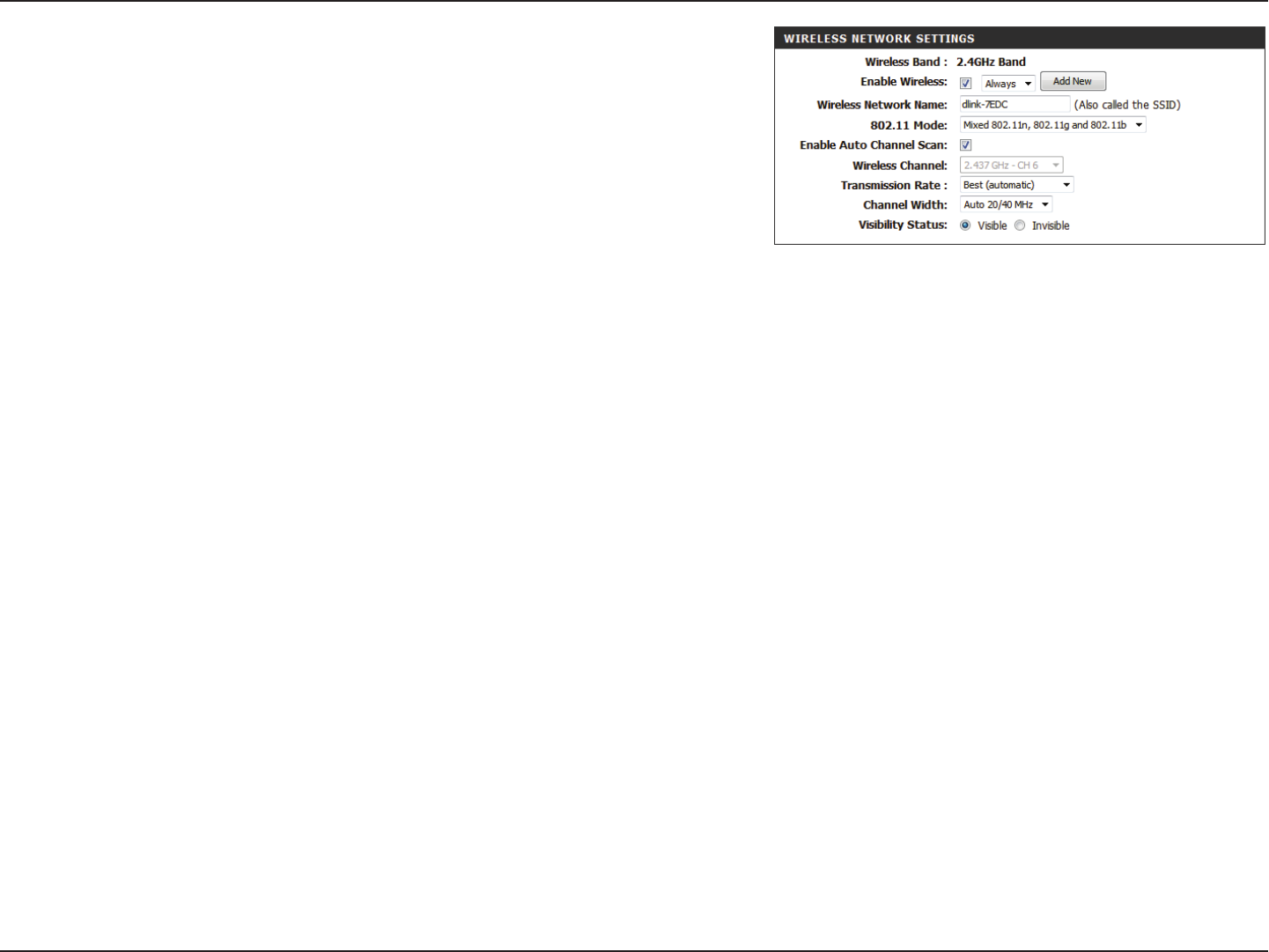

Manual Setup - 2.4 Ghz Band ....................................46

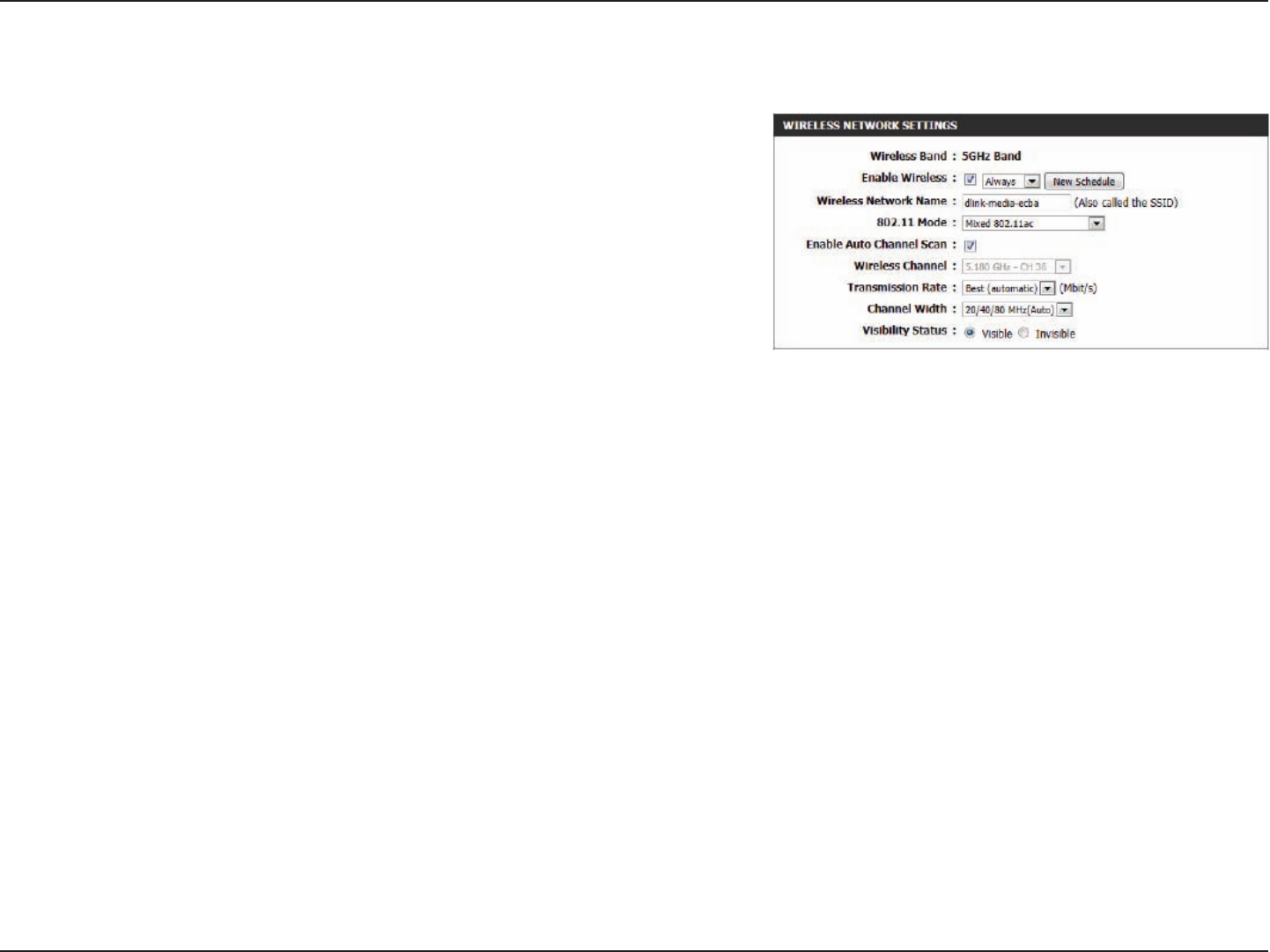

Manual Setup - 5 Ghz Band ........................................52

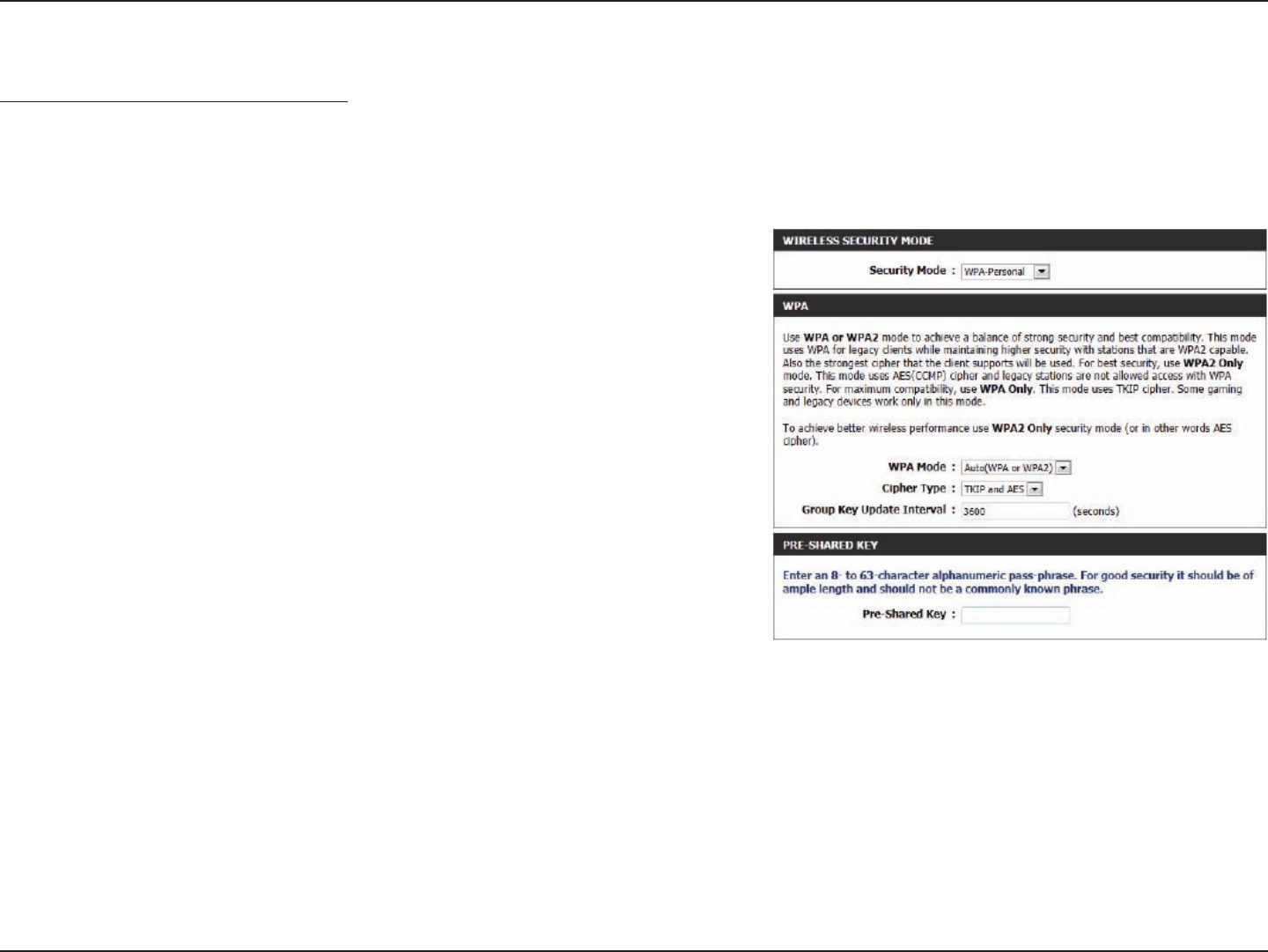

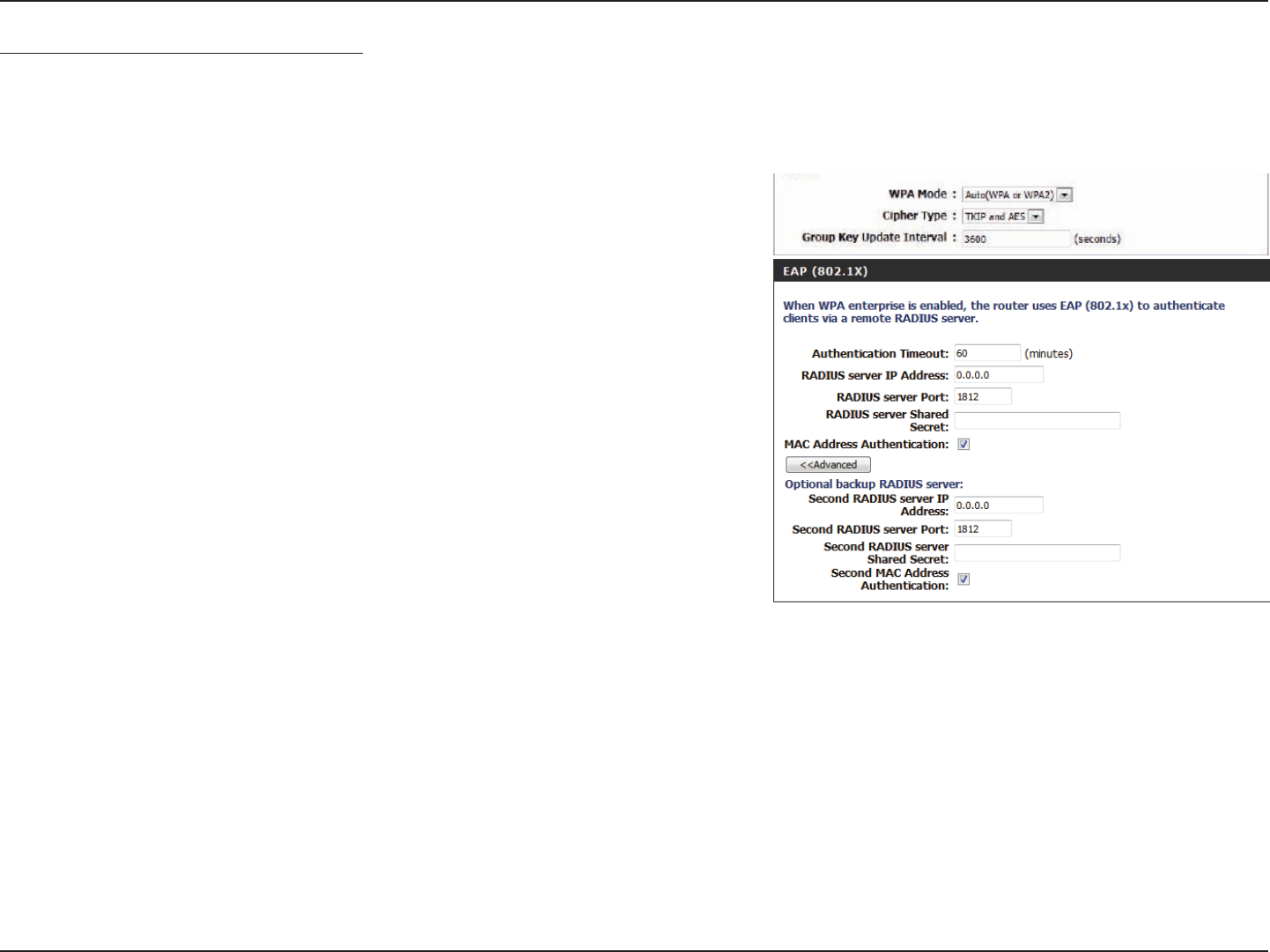

Wireless Security .................................................................57
What is WPA? ...................................................................57
Network Settings ................................................................58

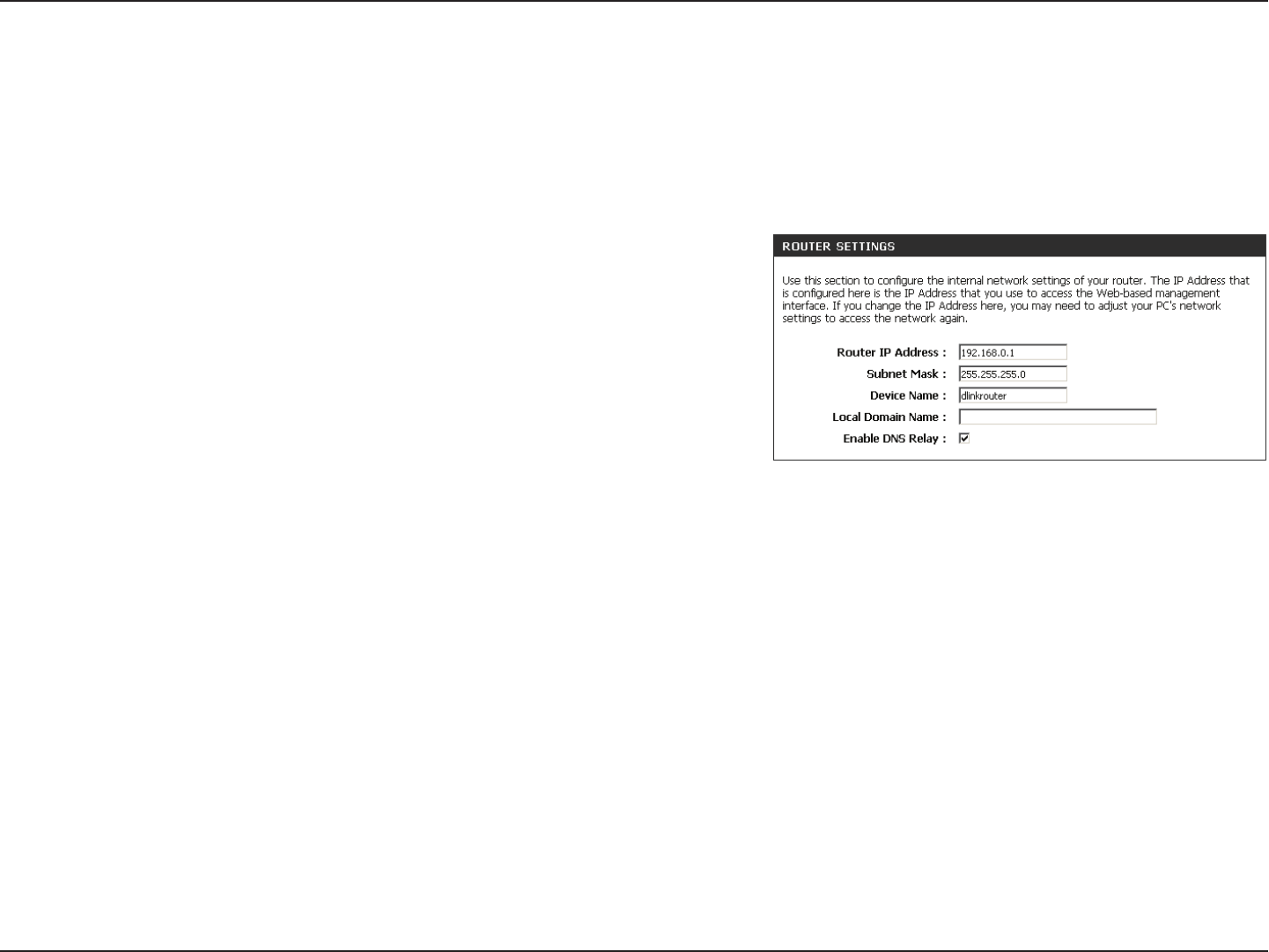

Router Settings ...............................................................58

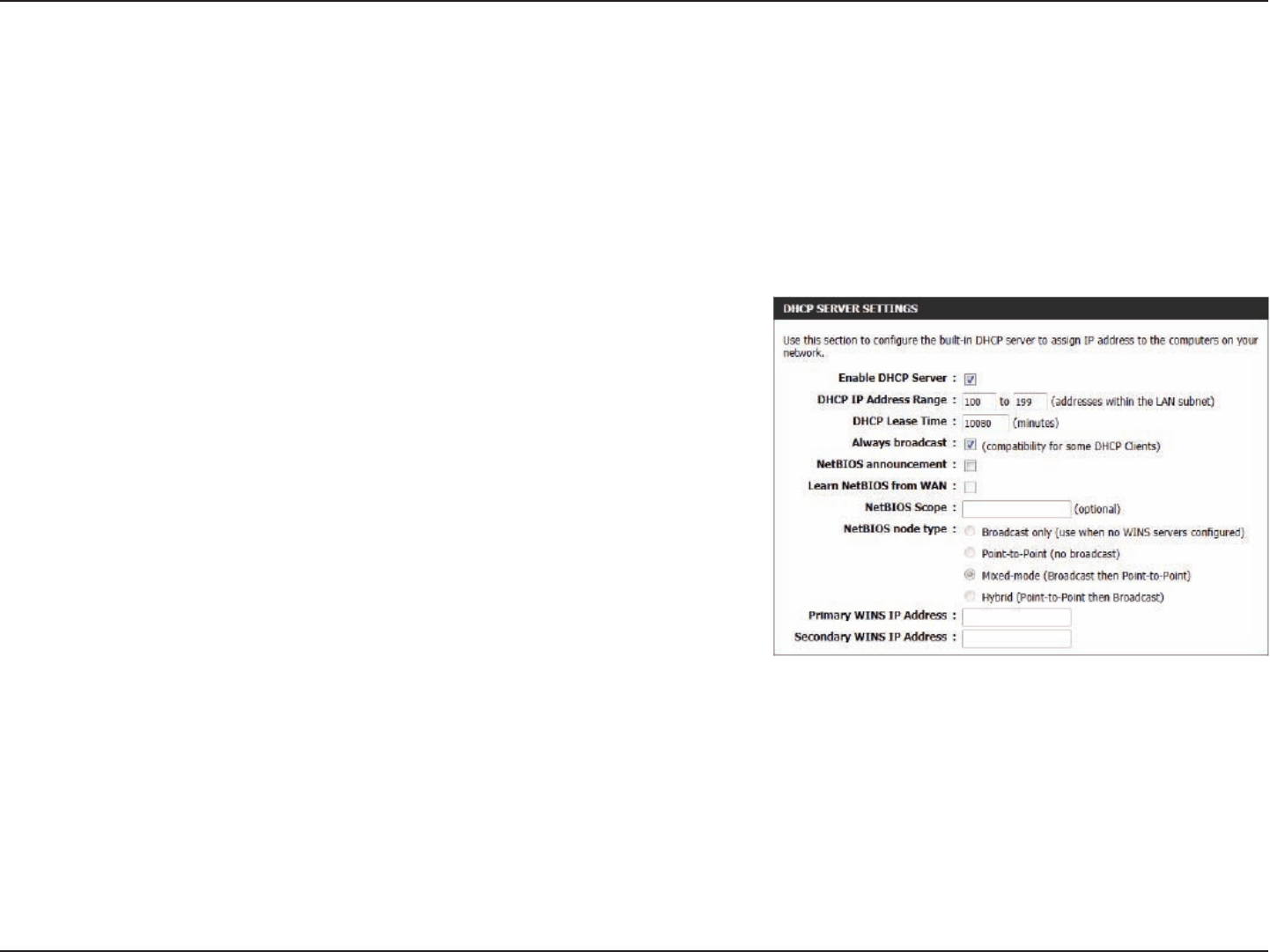

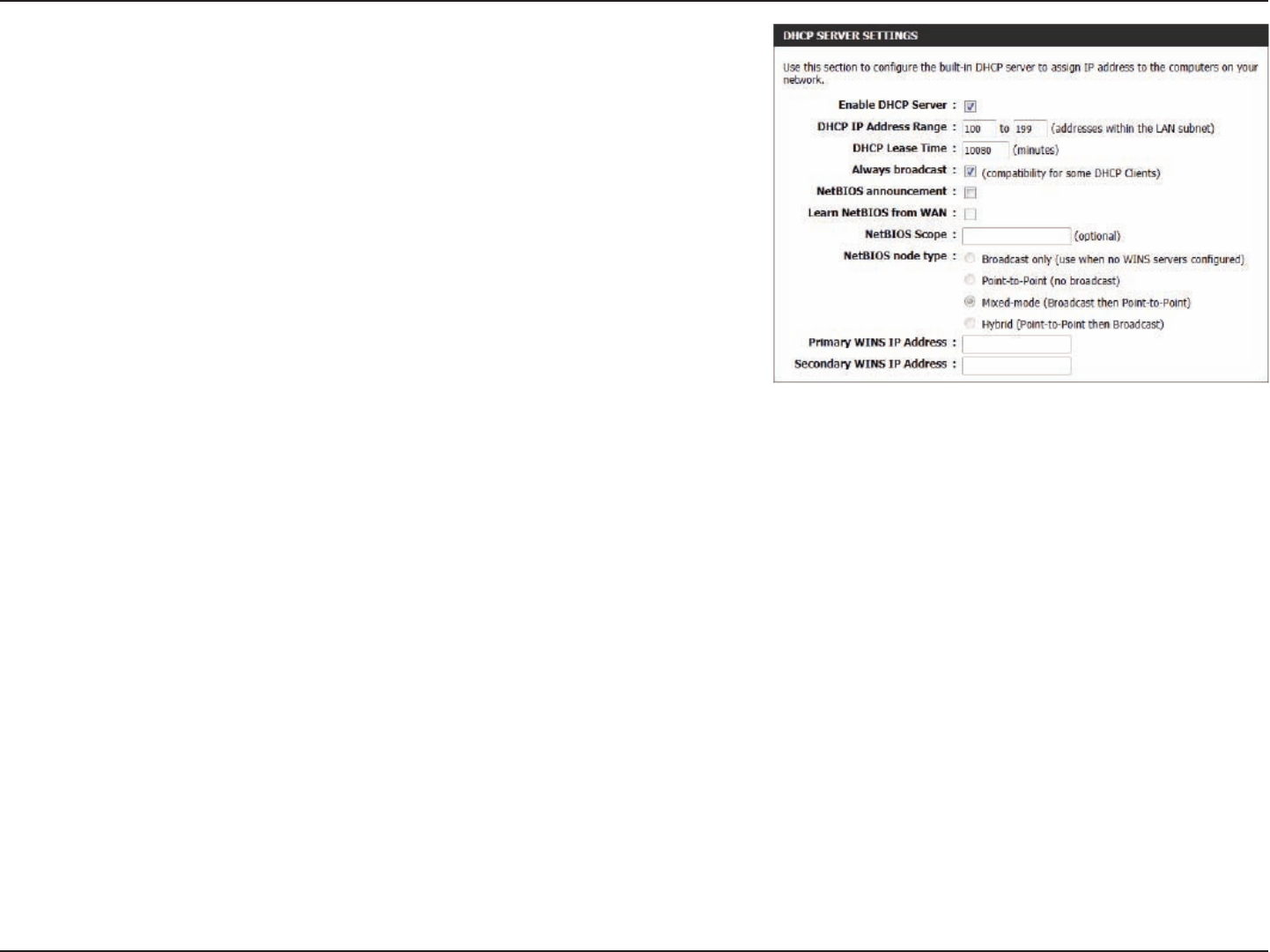

DHCP Server Settings ...................................................59
DHCP Reservation .........................................................61

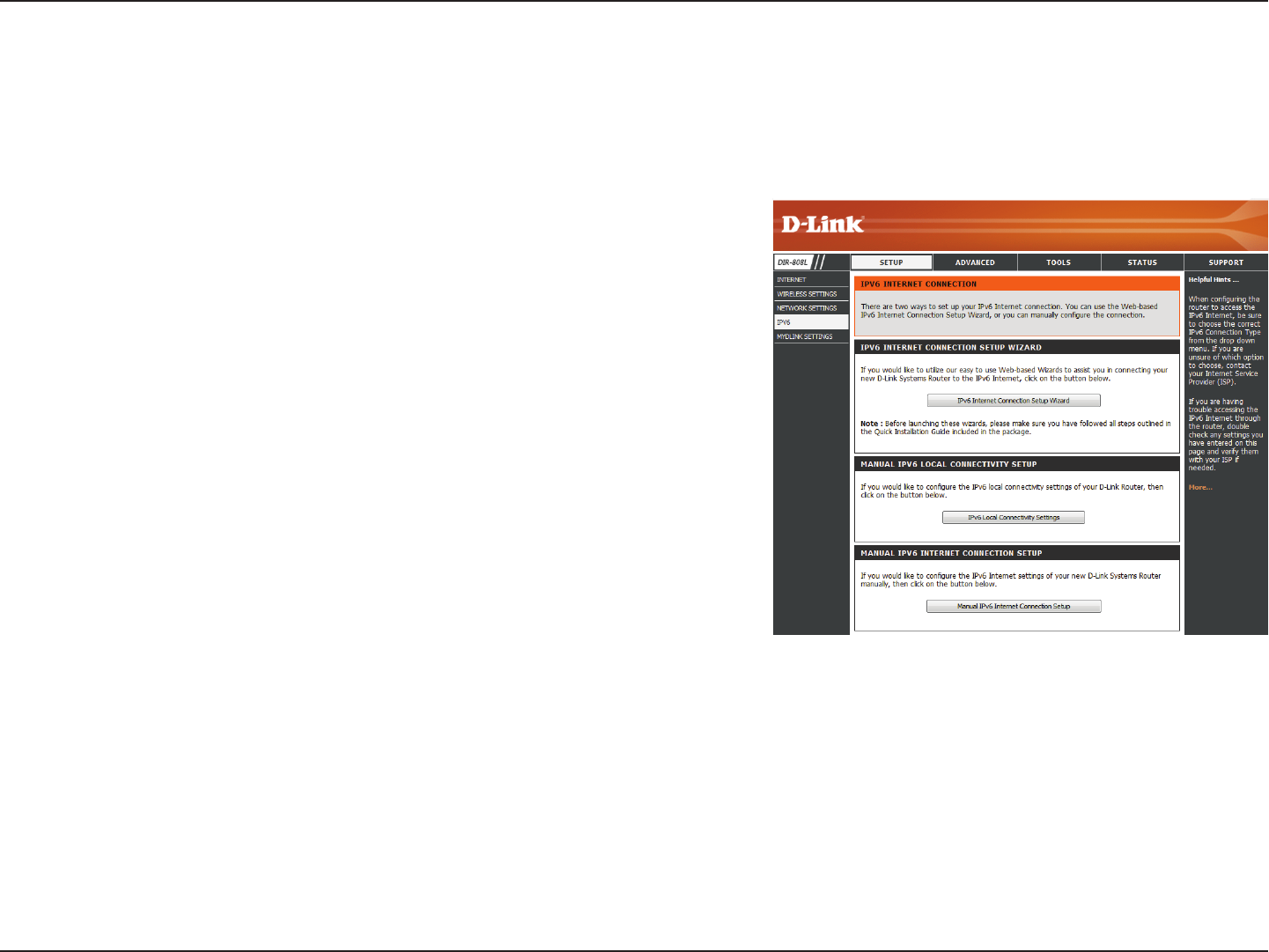

IPv6 Internet Connection .................................................62

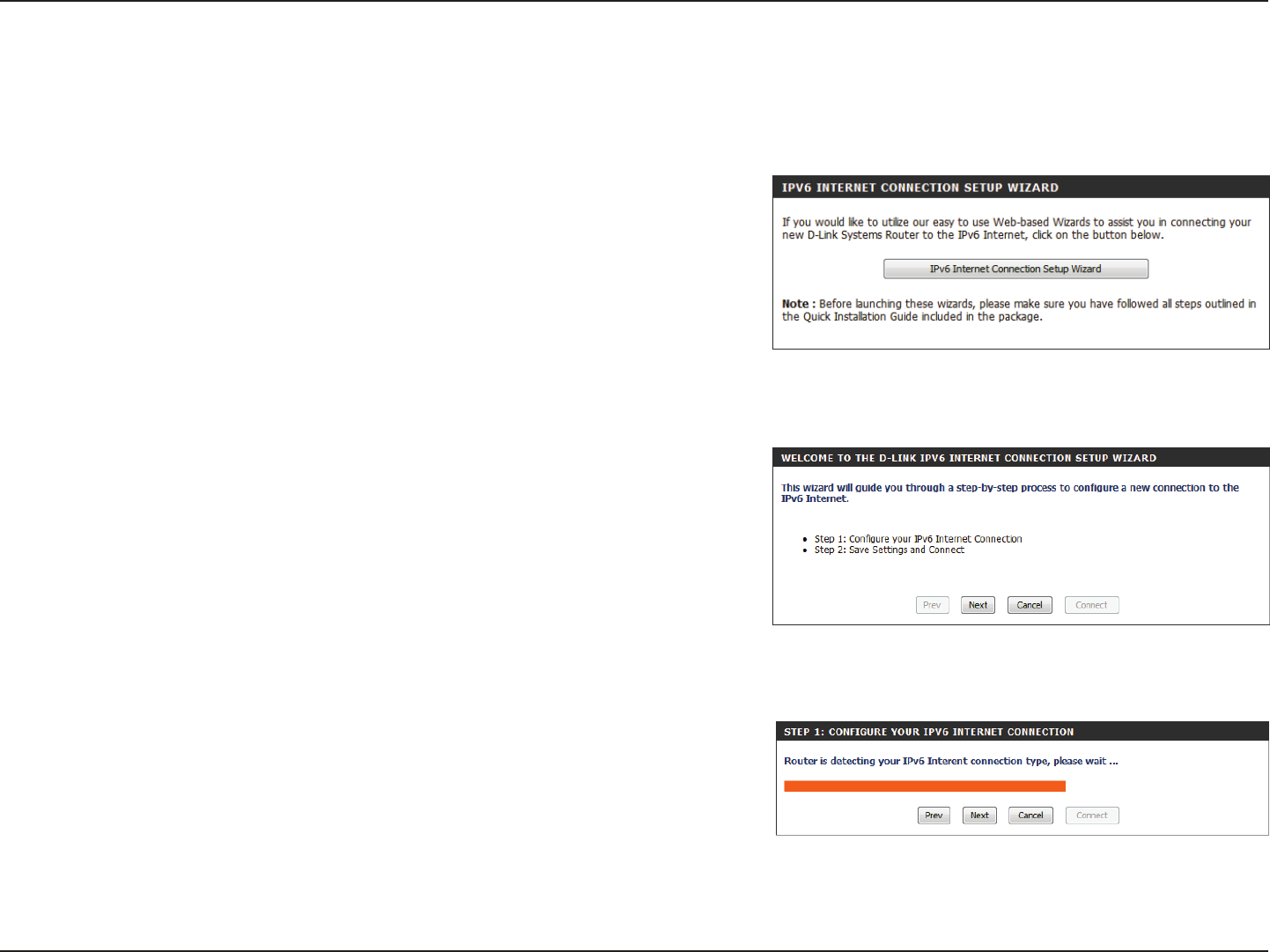

IPv6 Internet Connection Setup Wizard ................63

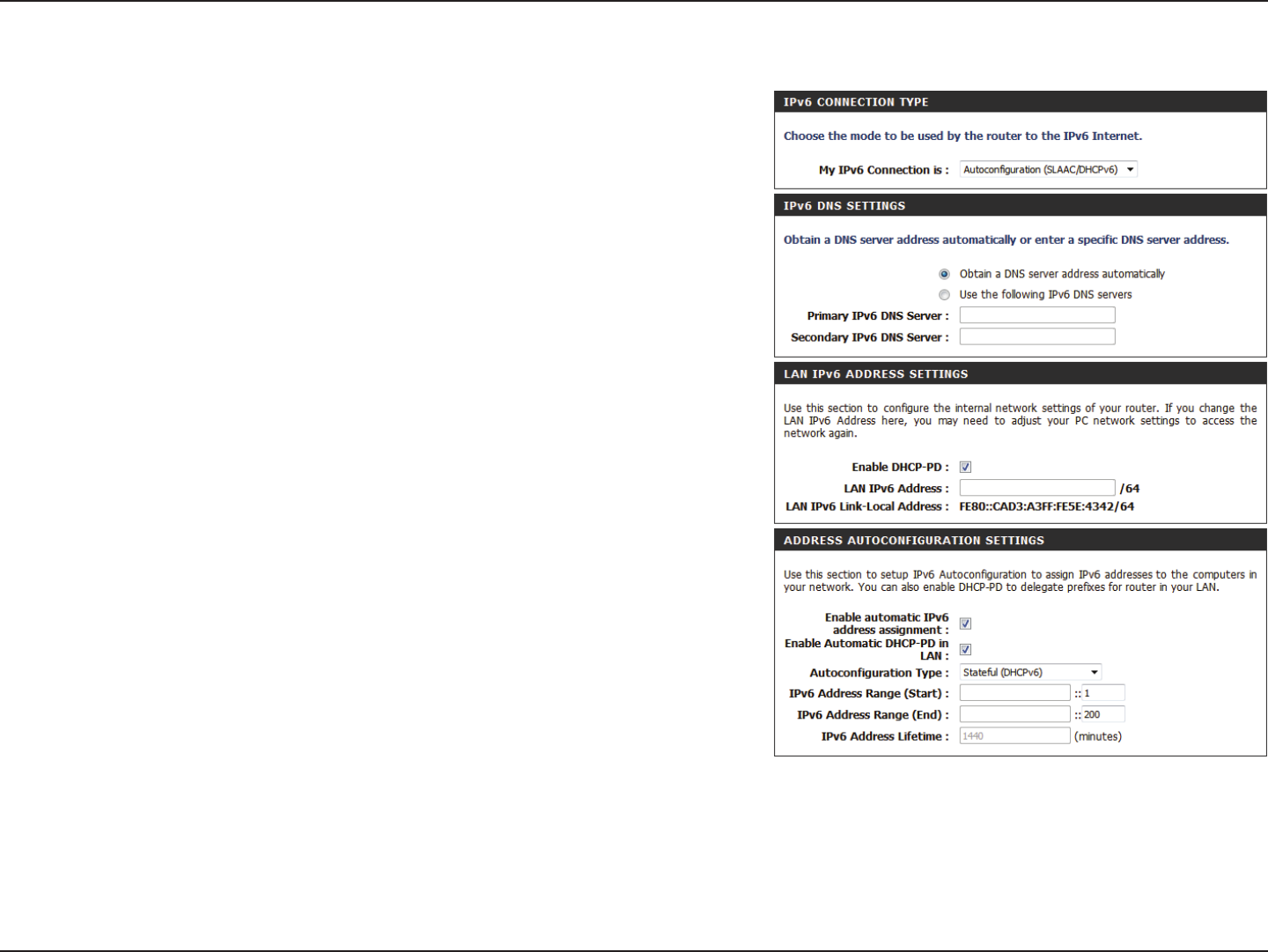

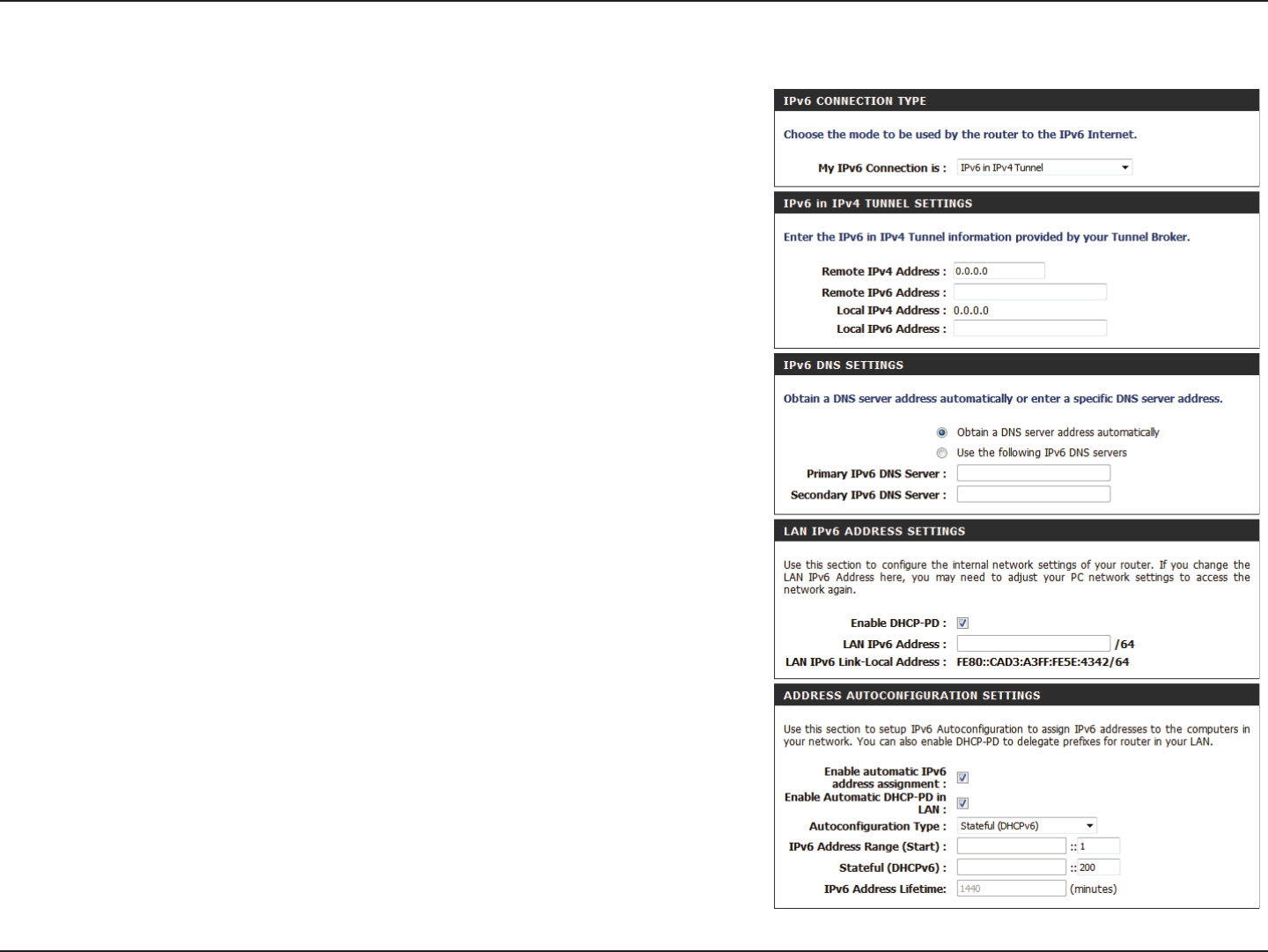

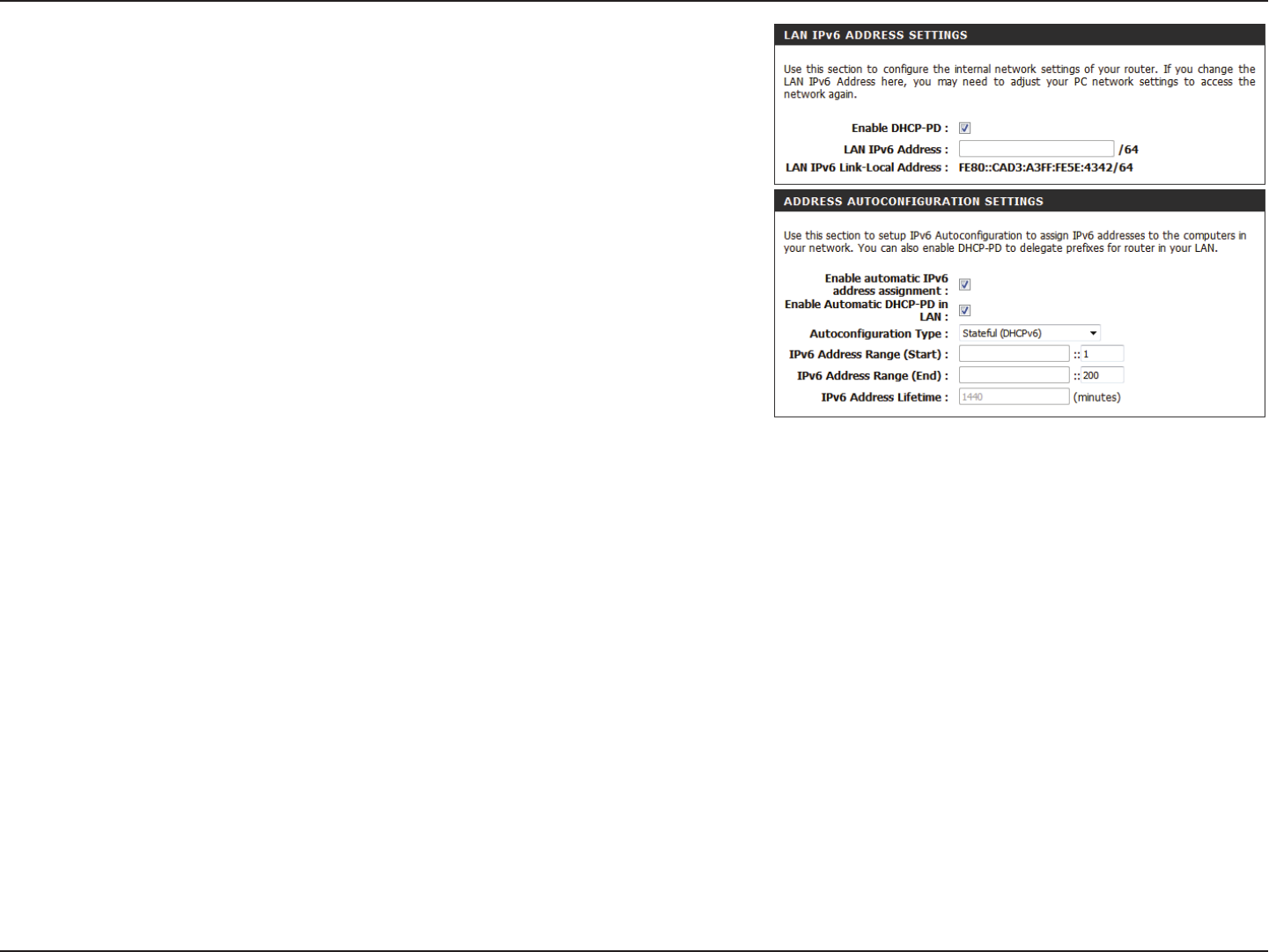

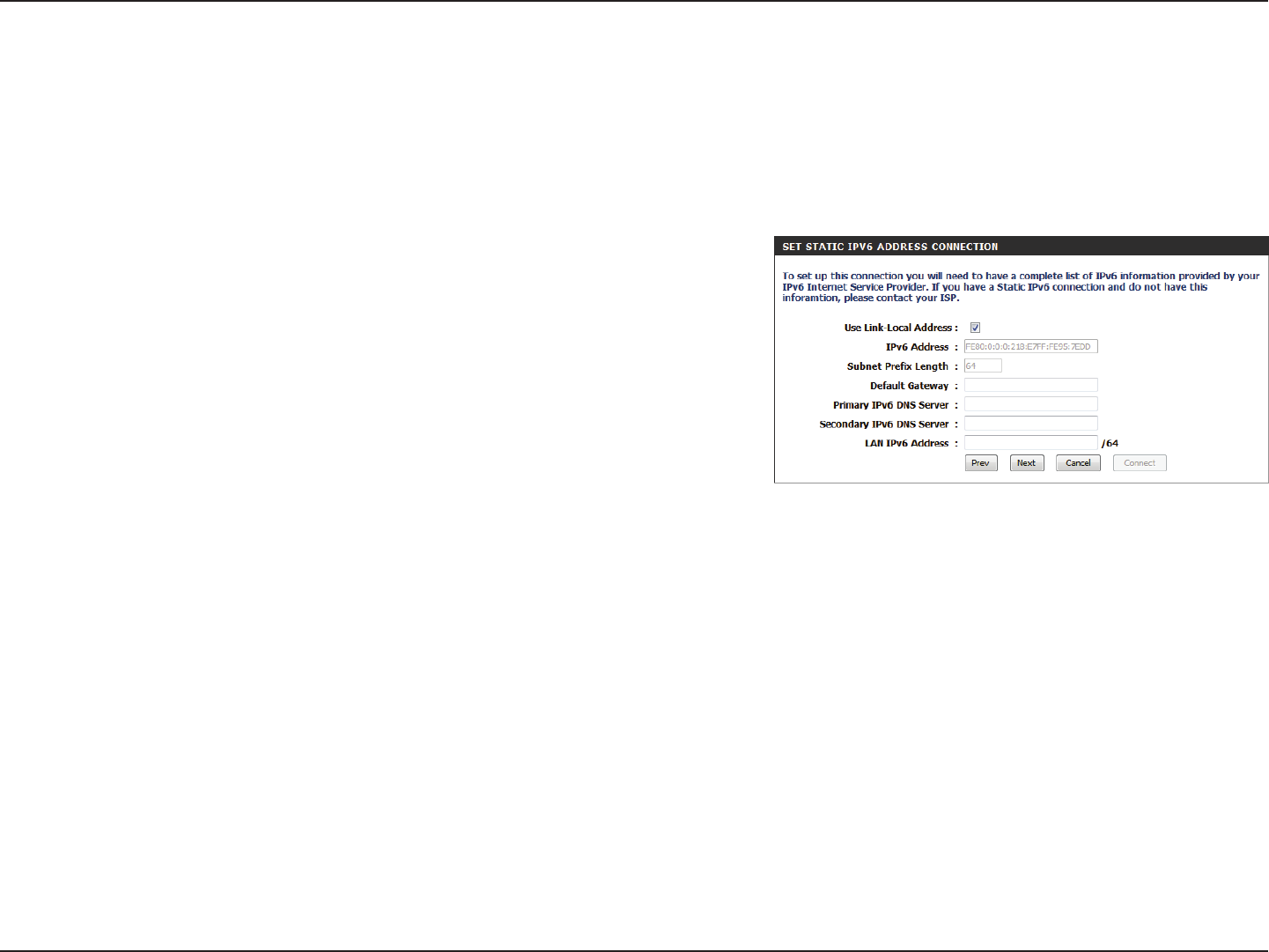

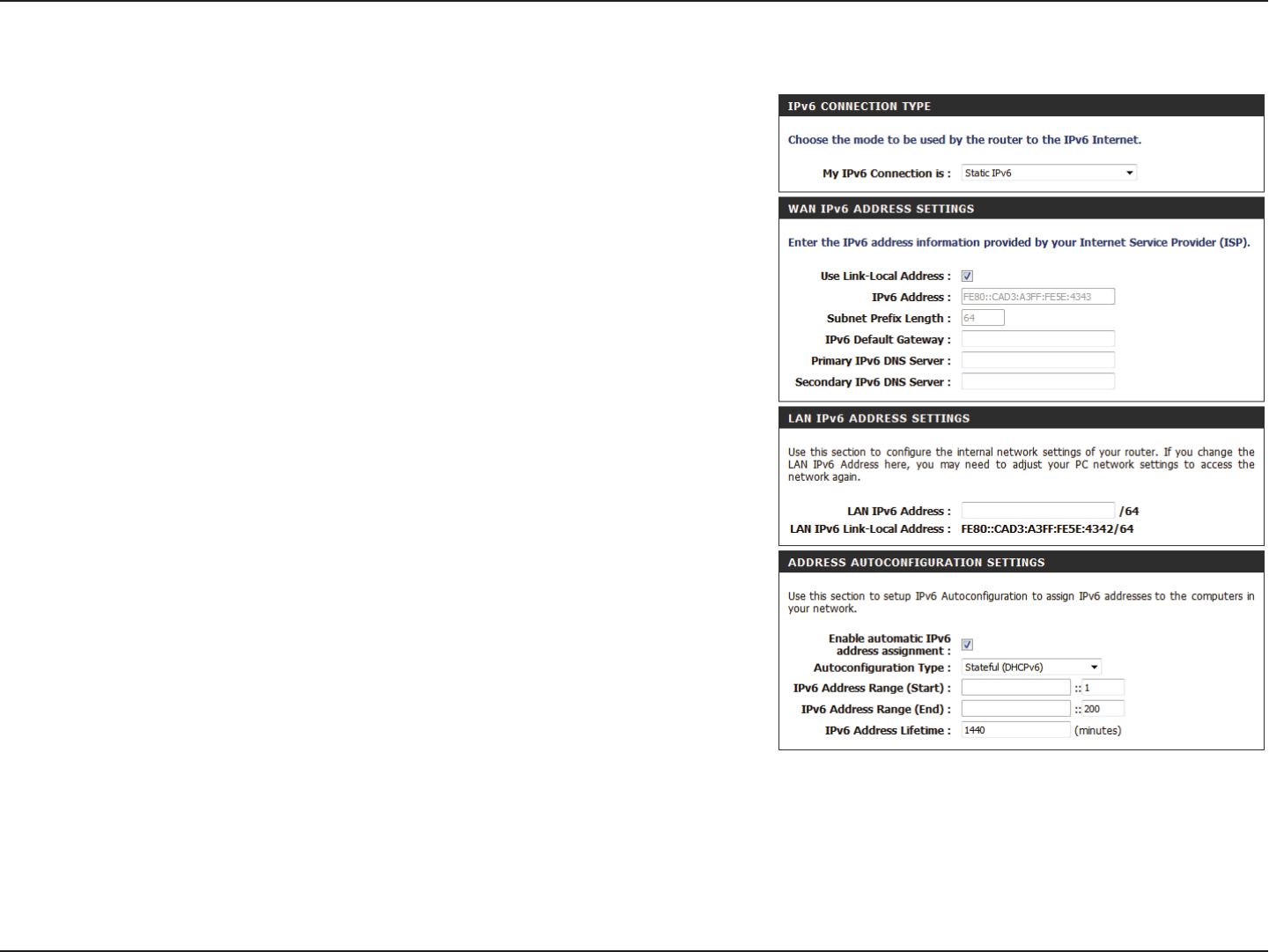

IPv6 Manual Setup.........................................................69

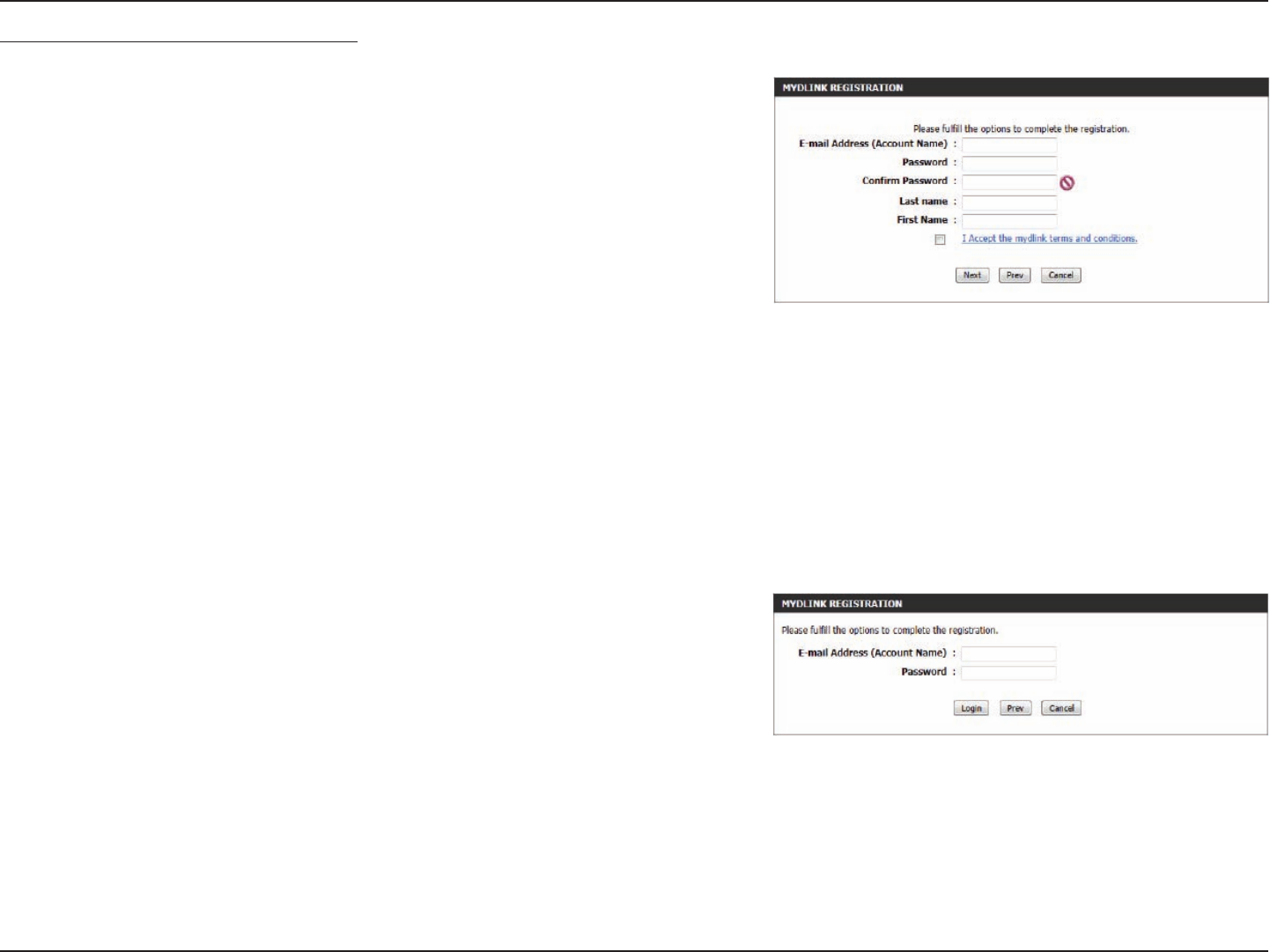

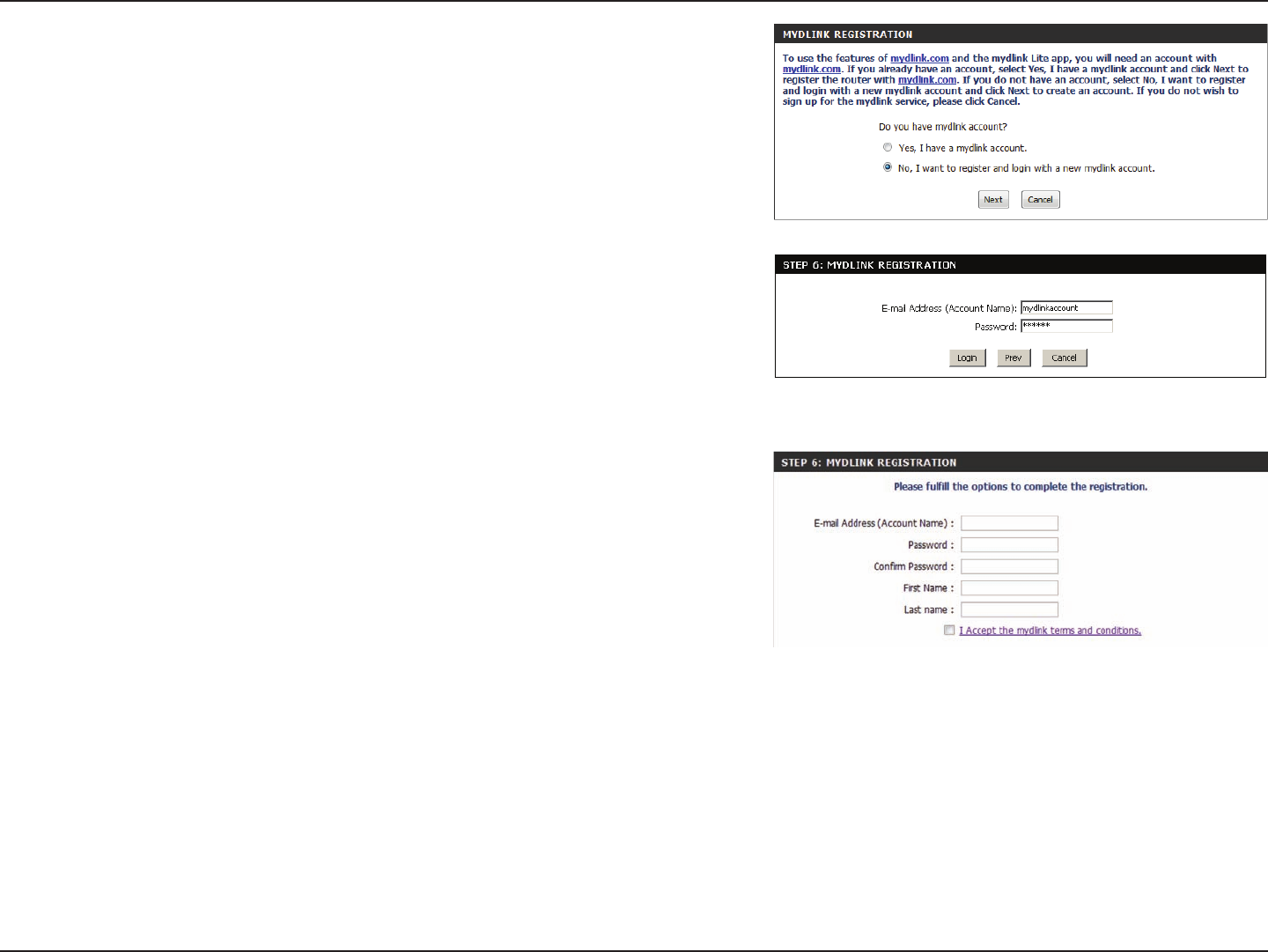

mydlinkTM Settings ..............................................................79
Advanced ...............................................................................82

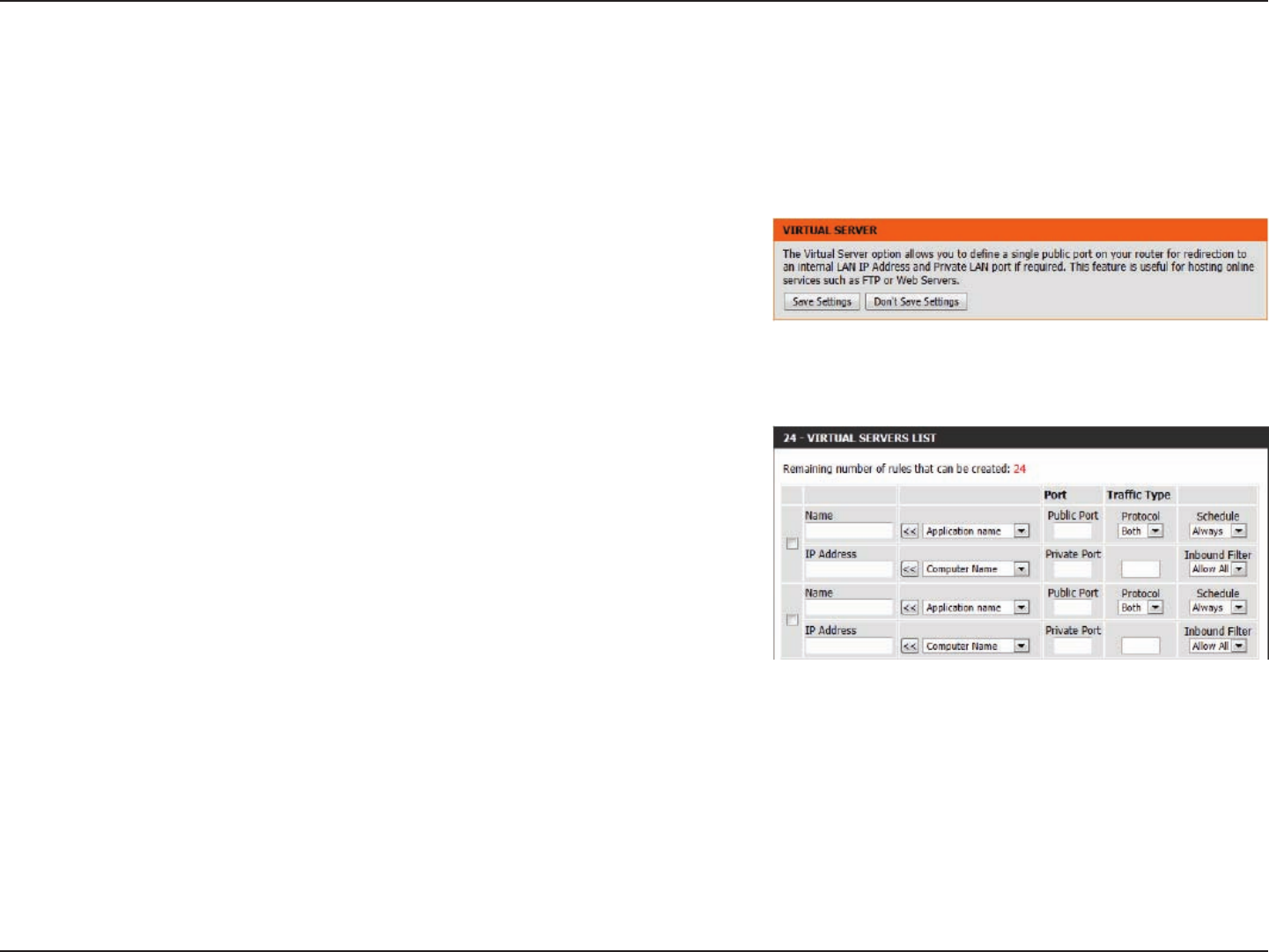

Virtual Server ...................................................................82

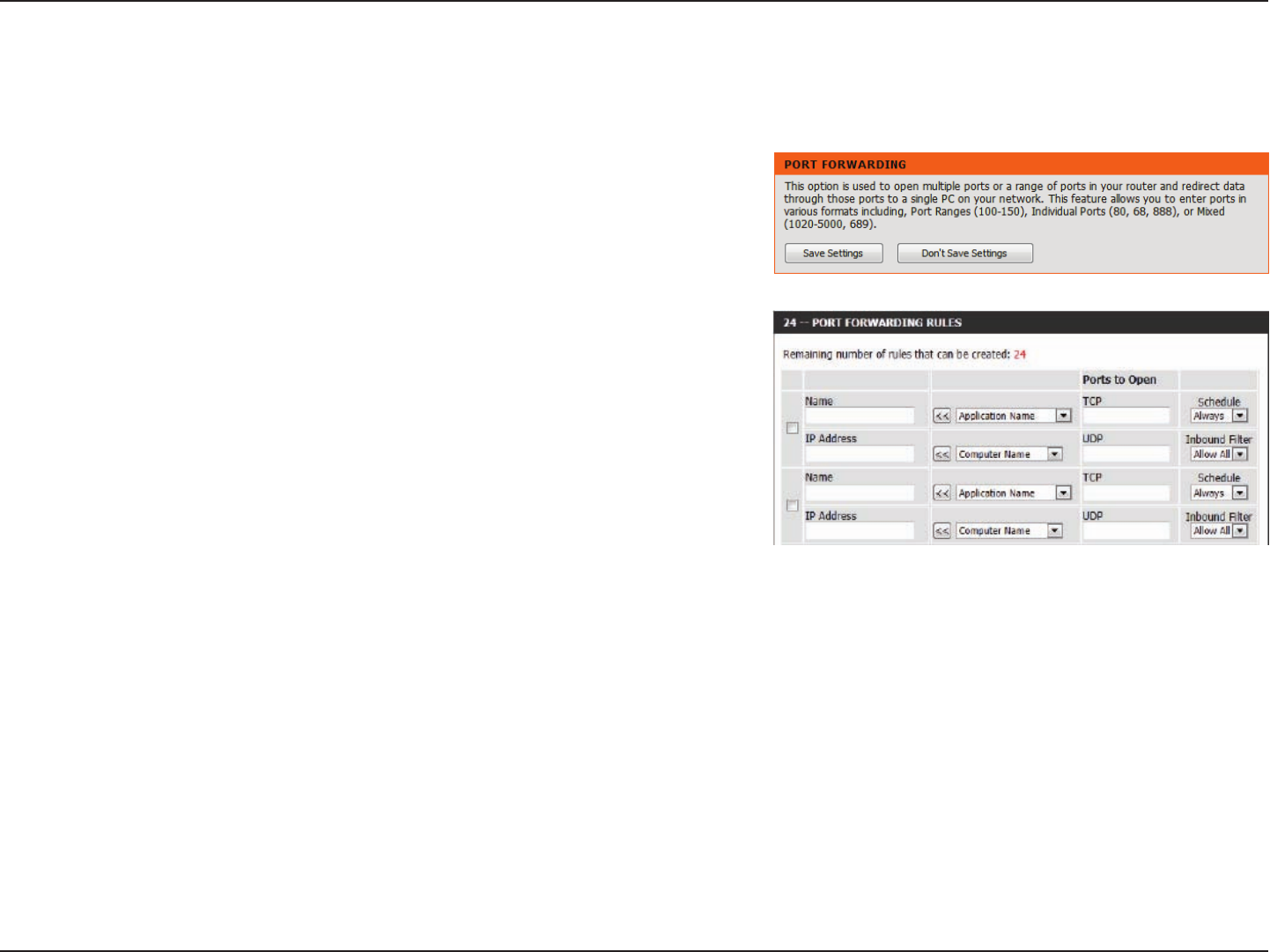

Port Forwarding .............................................................83
Application Rules ...........................................................84

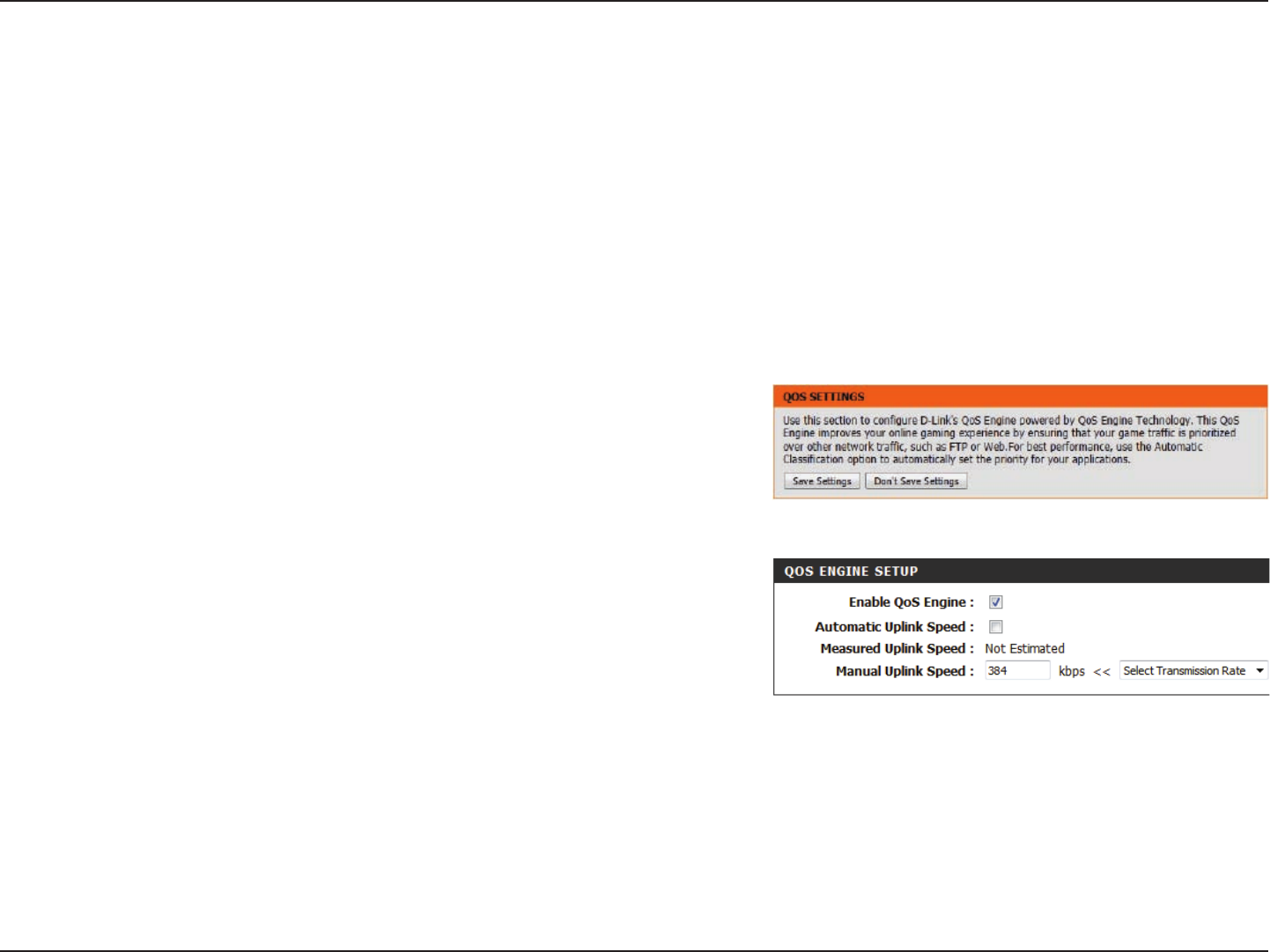

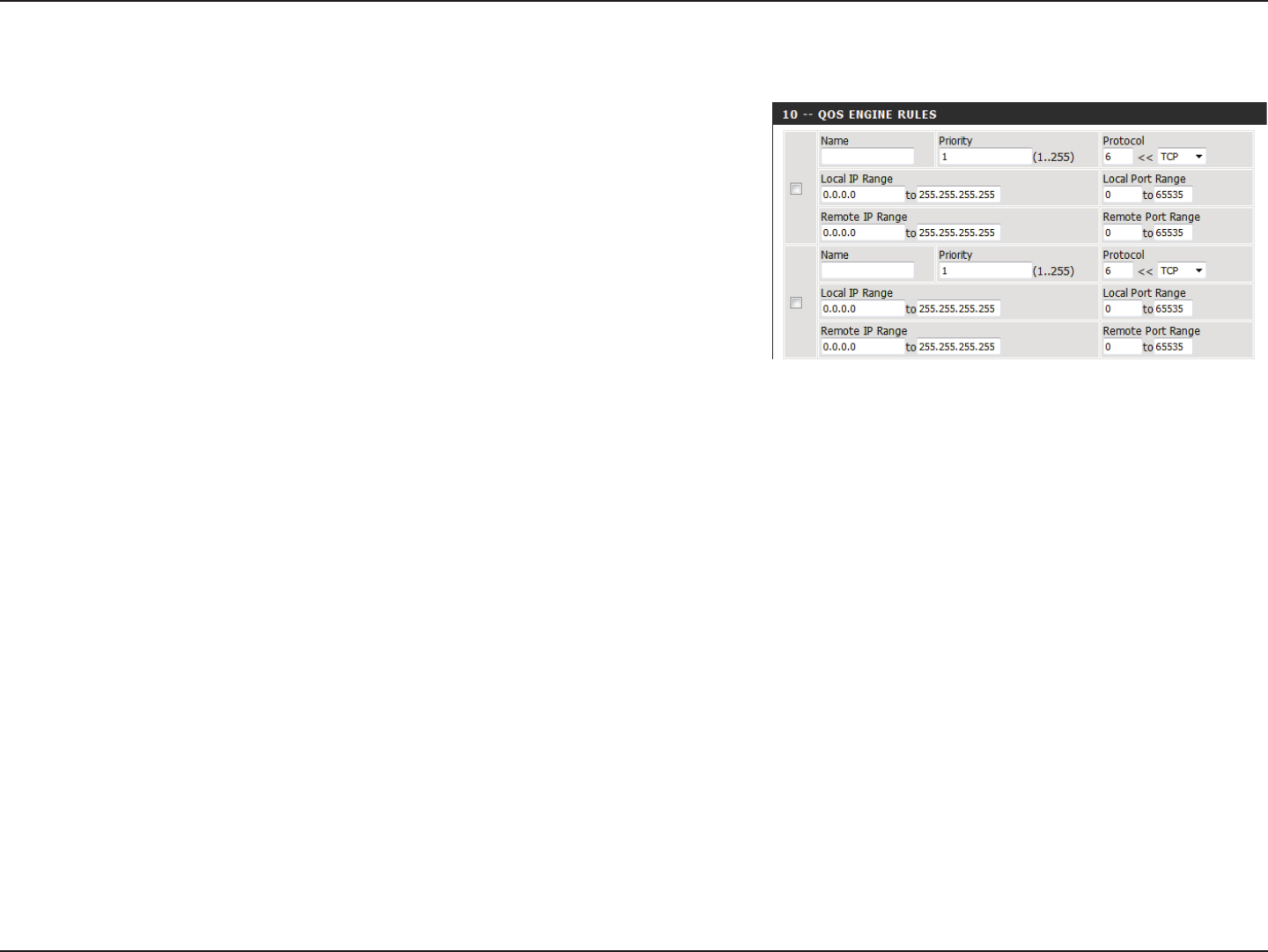

QoS Engine .......................................................................85
Network Filters ................................................................87
Access Control .................................................................88
Table of Contents
iiiD-Link DIR-808L User Manual
Table of Contents
Website Filters .................................................................91

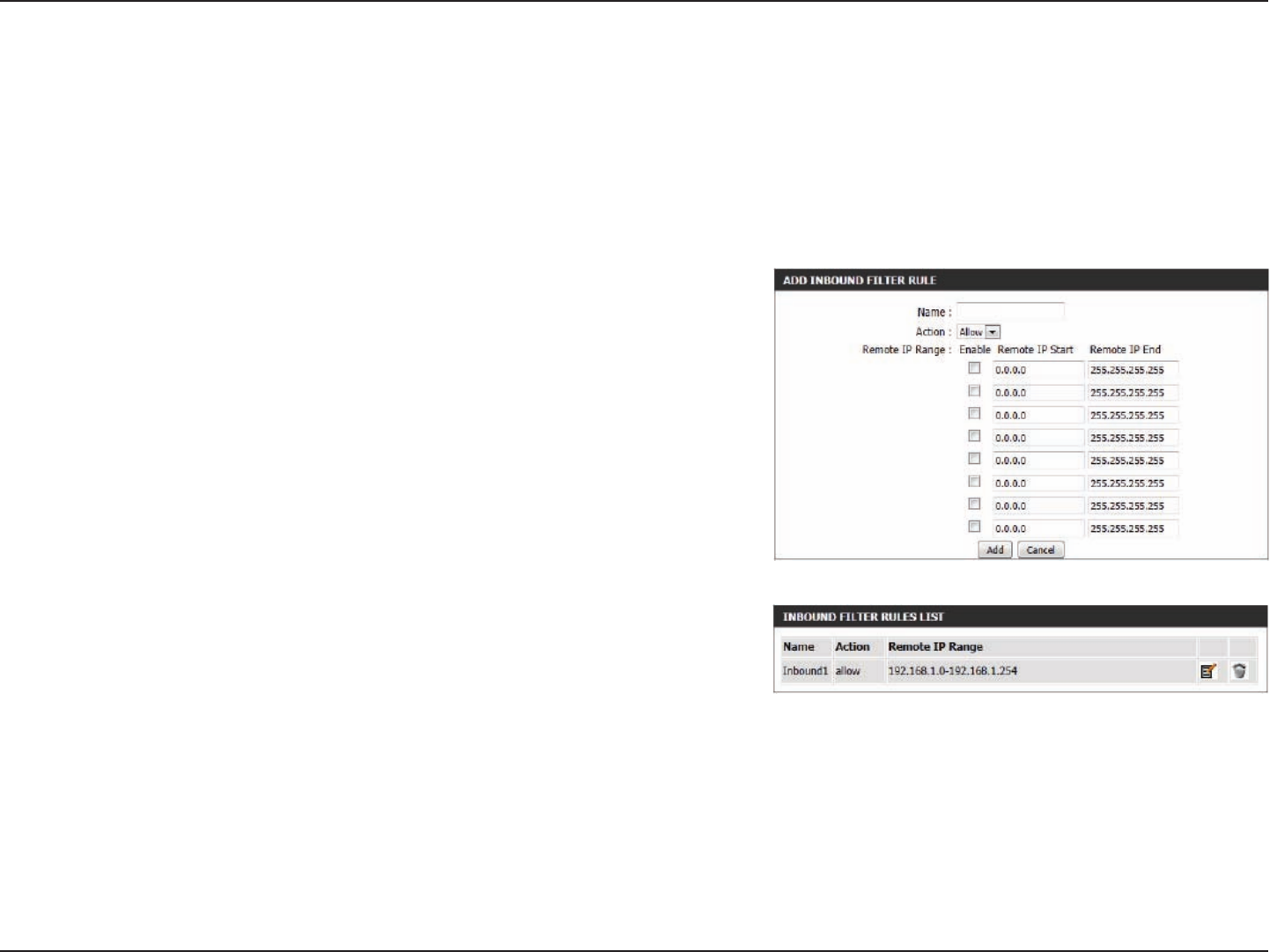

Inbound Filters ................................................................92

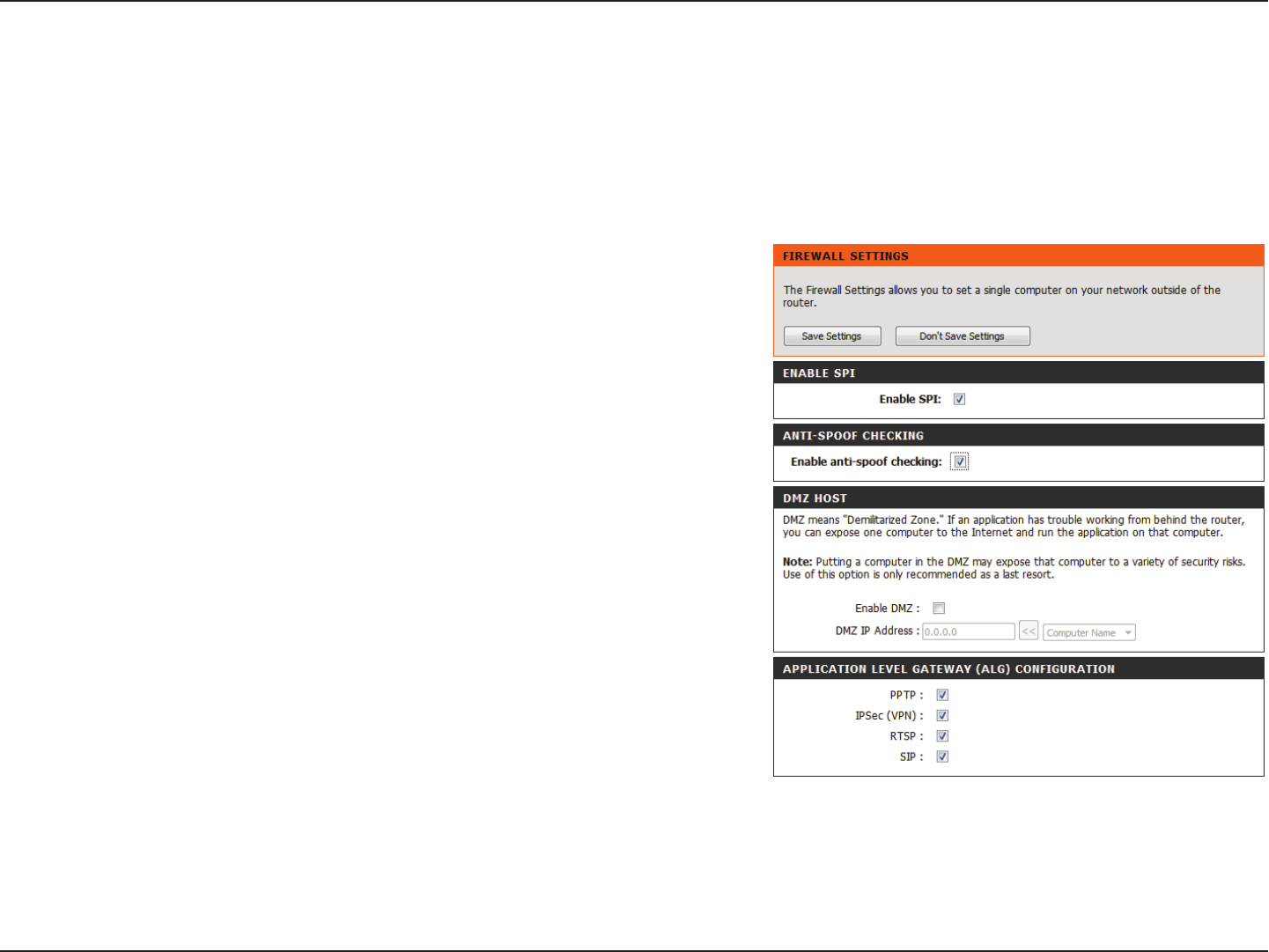

Firewall Settings .............................................................93
Routing ..............................................................................95

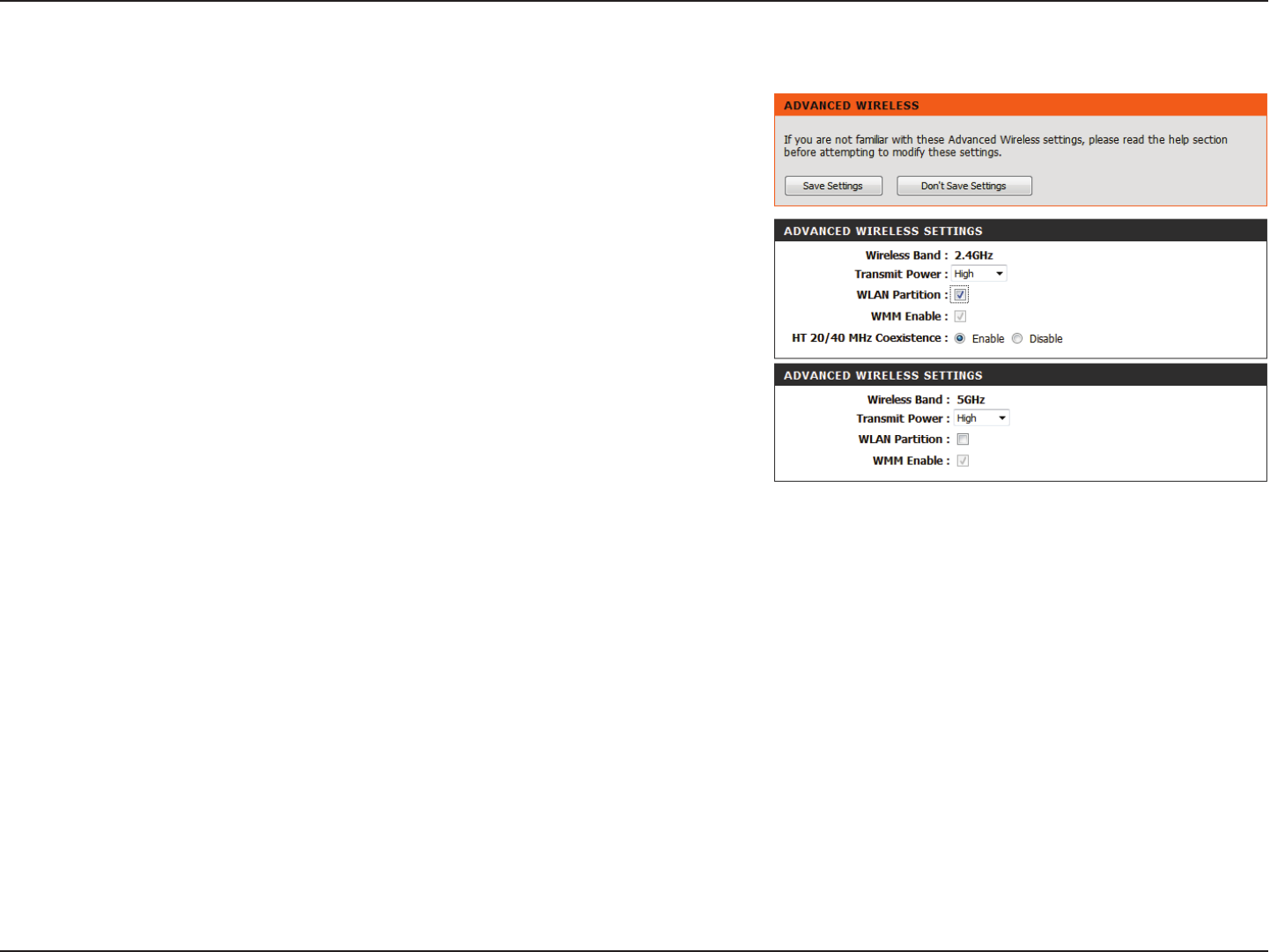

Advanced Wireless ........................................................96

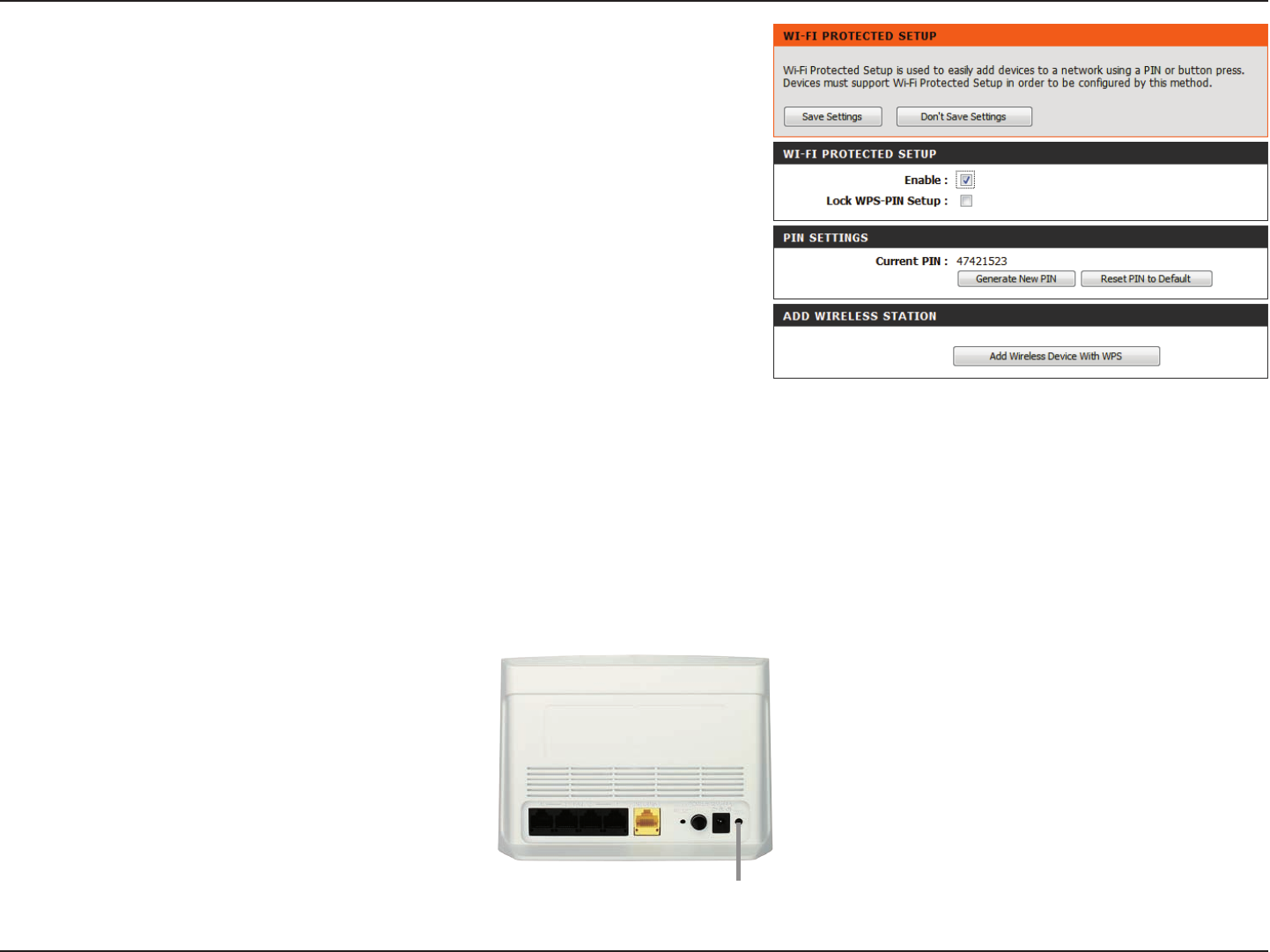

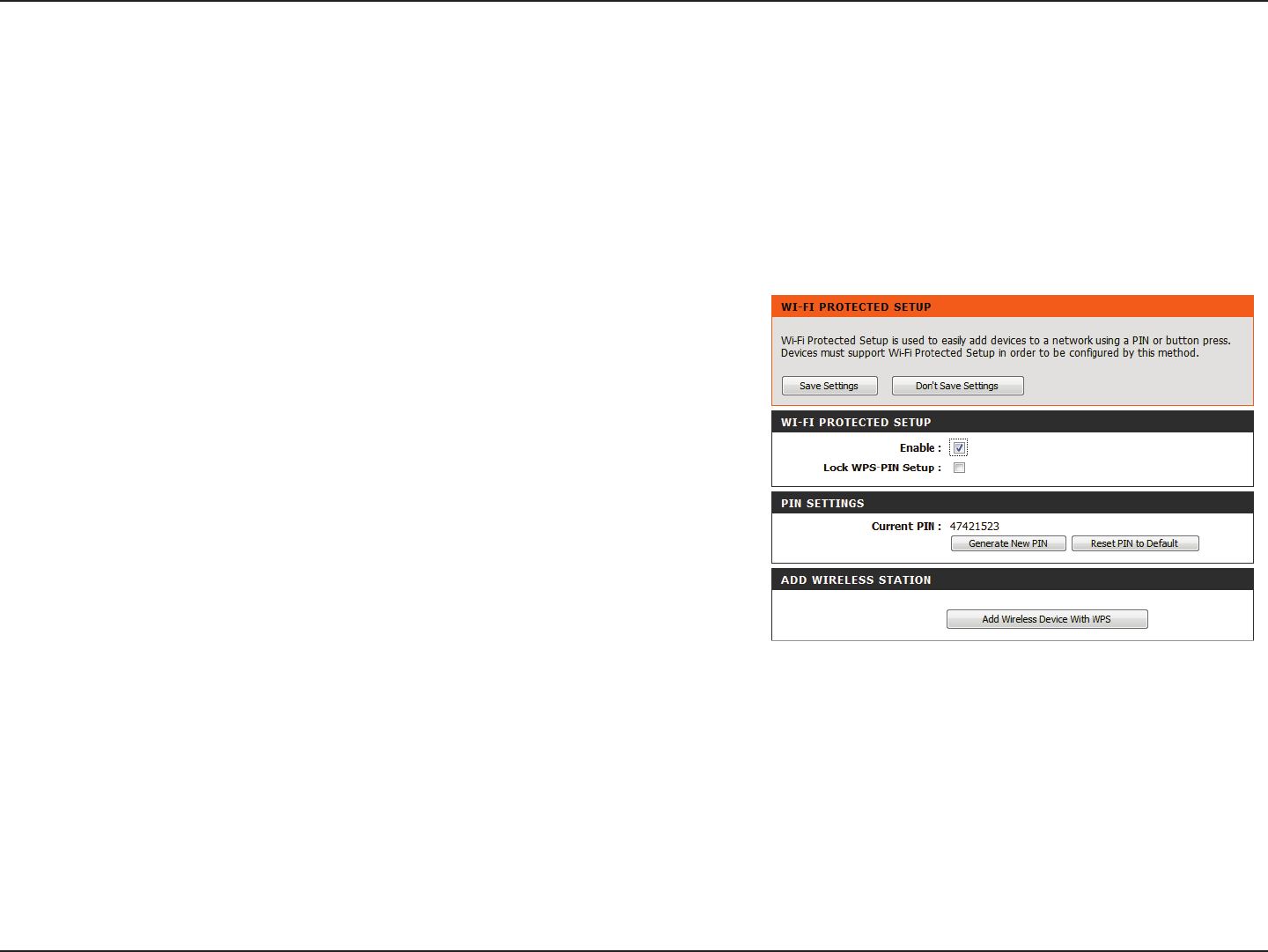

Wi-Fi Protected Setup (WPS) .....................................97

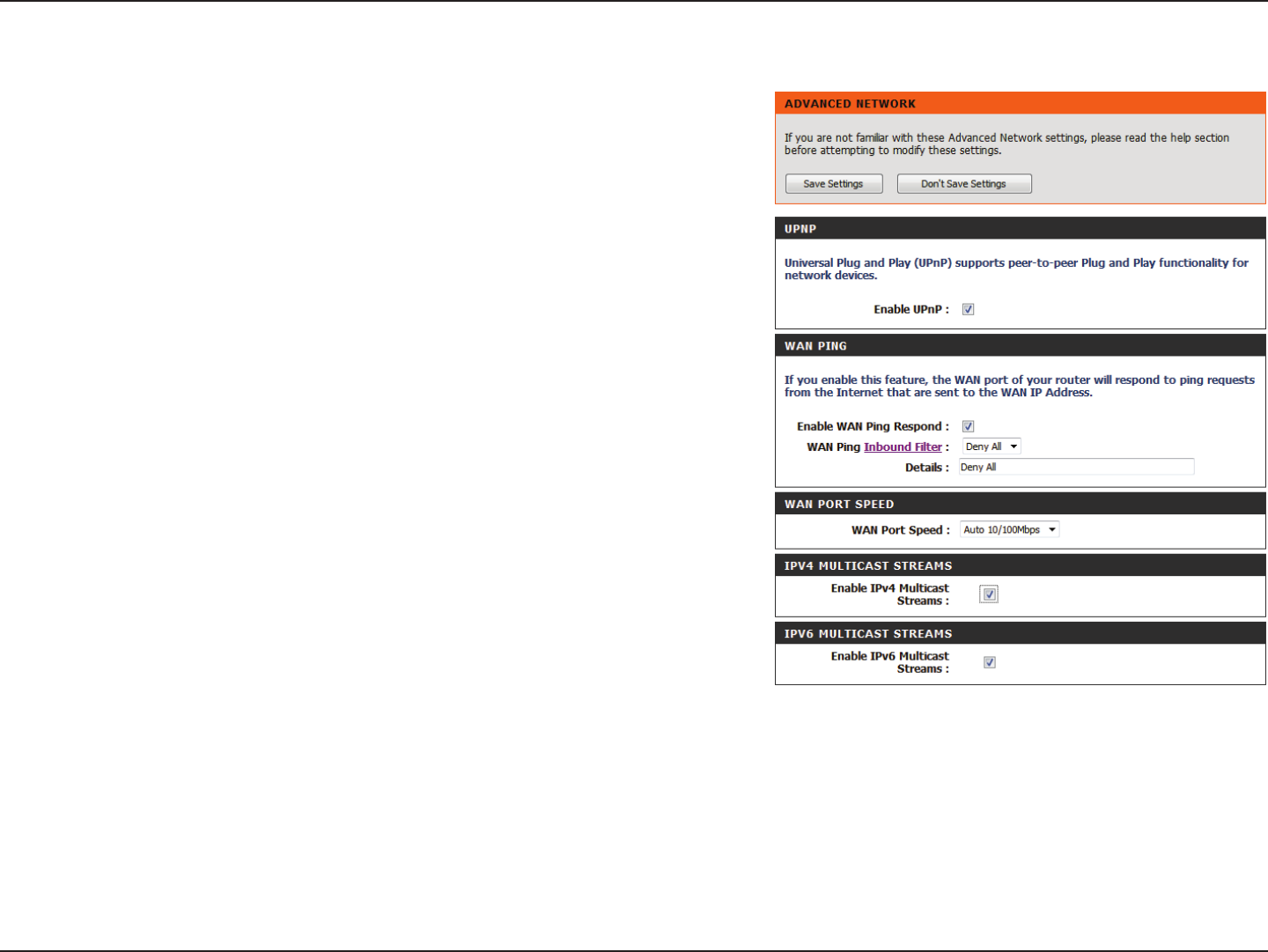

Advanced Network Settings ......................................99

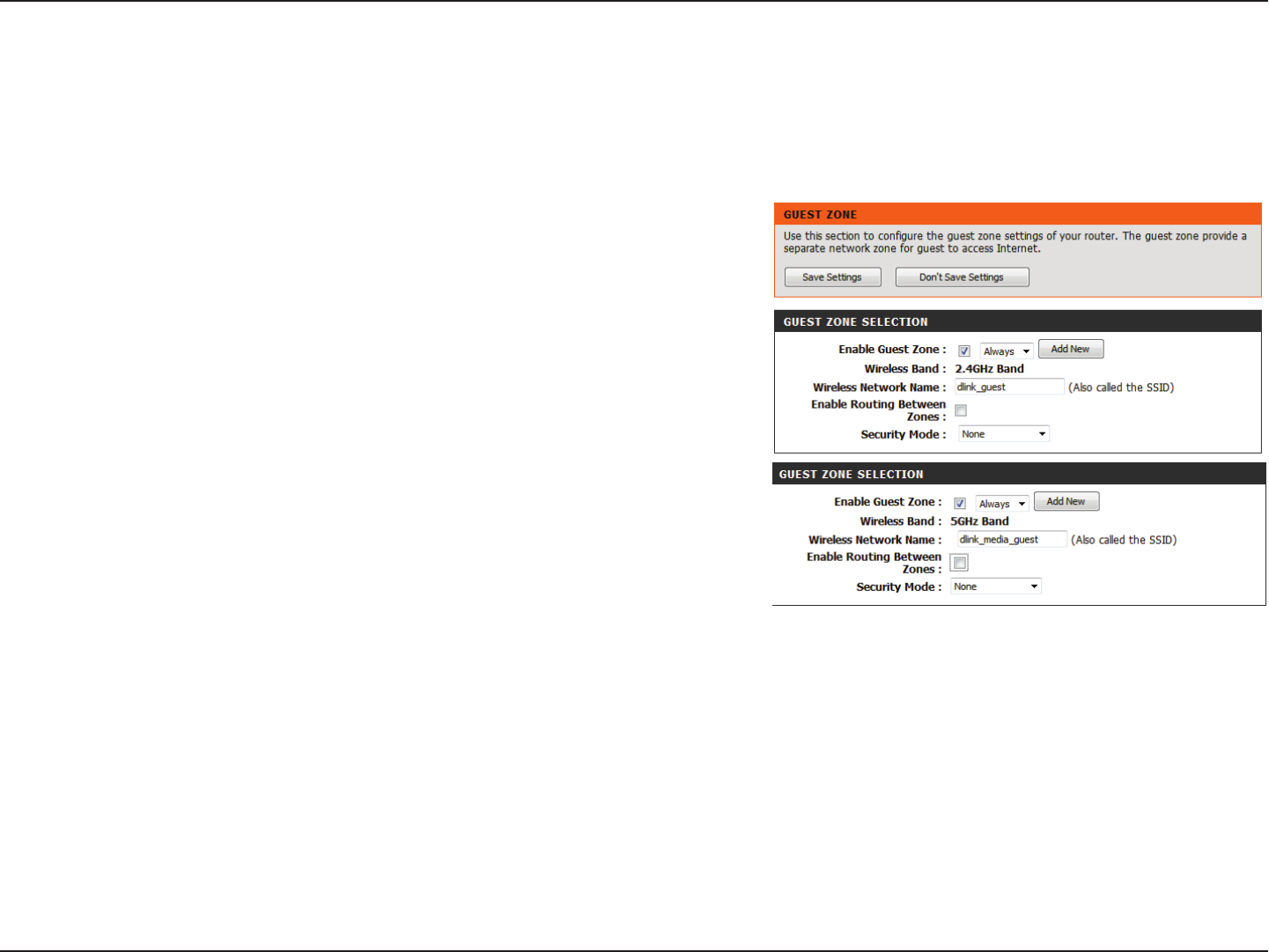

Guest Zone .................................................................... 100
IPv6 Firewall .................................................................. 101

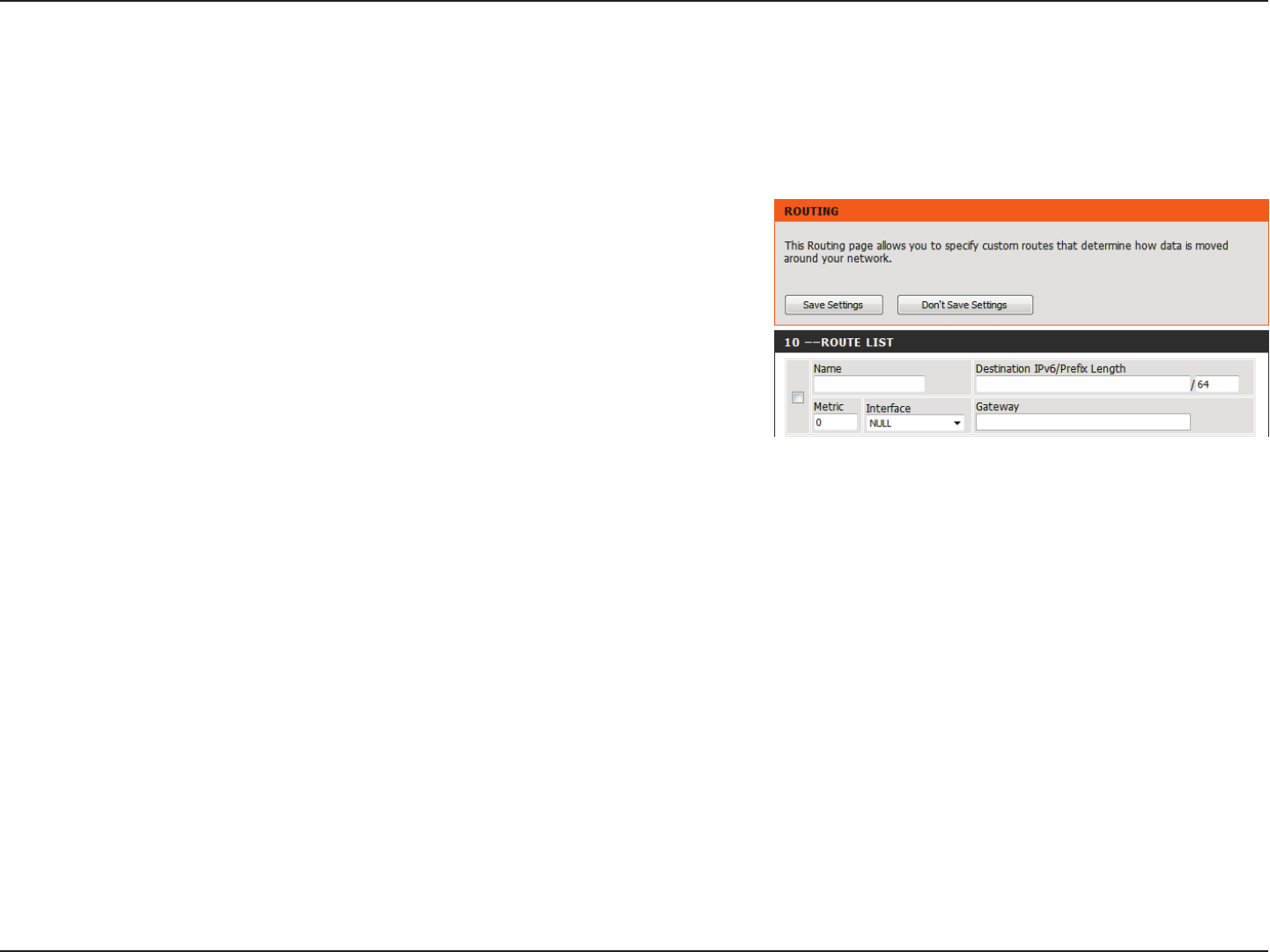

IPv6 Routing ................................................................. 102
Tools ..................................................................................... 103

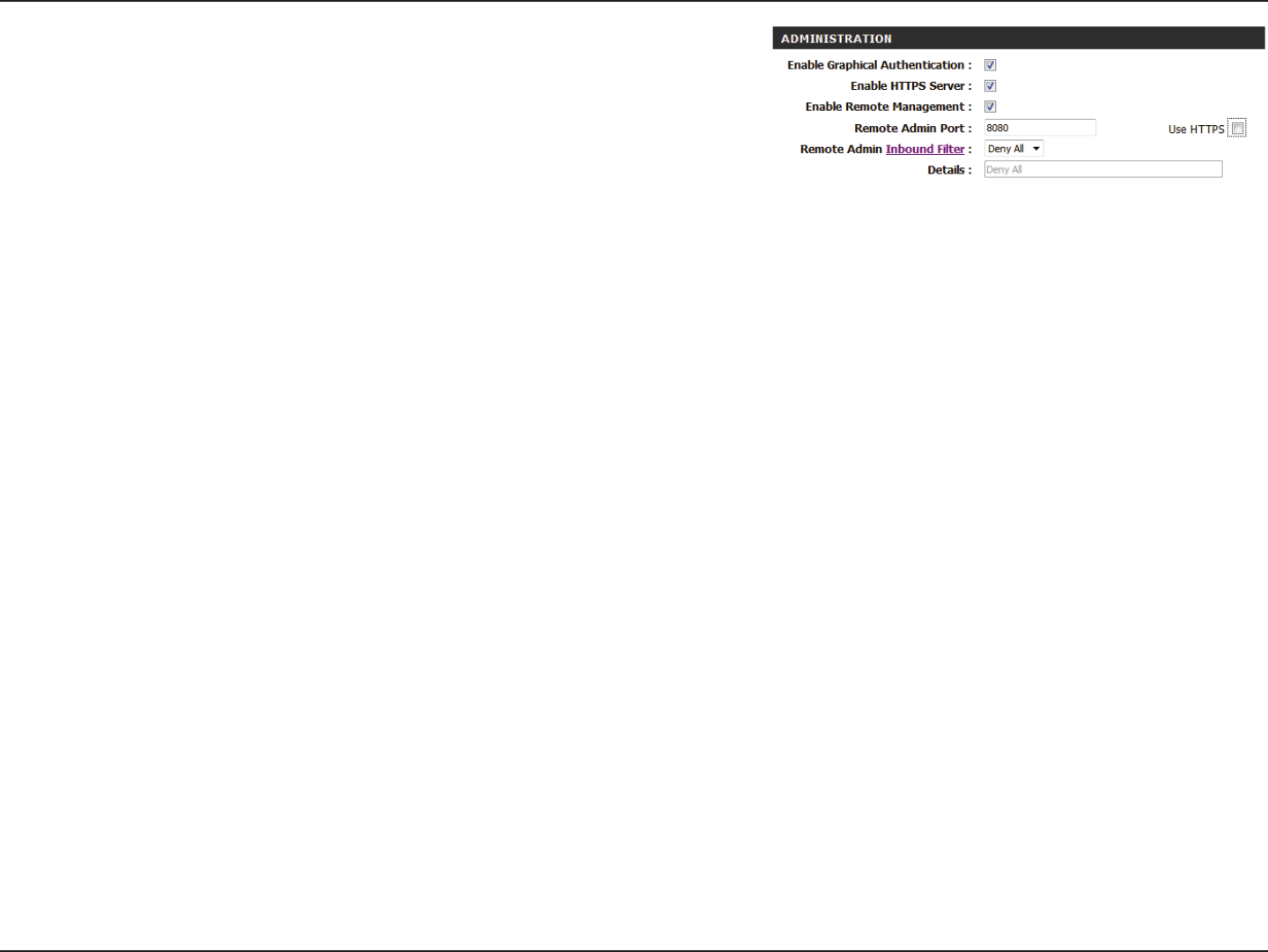

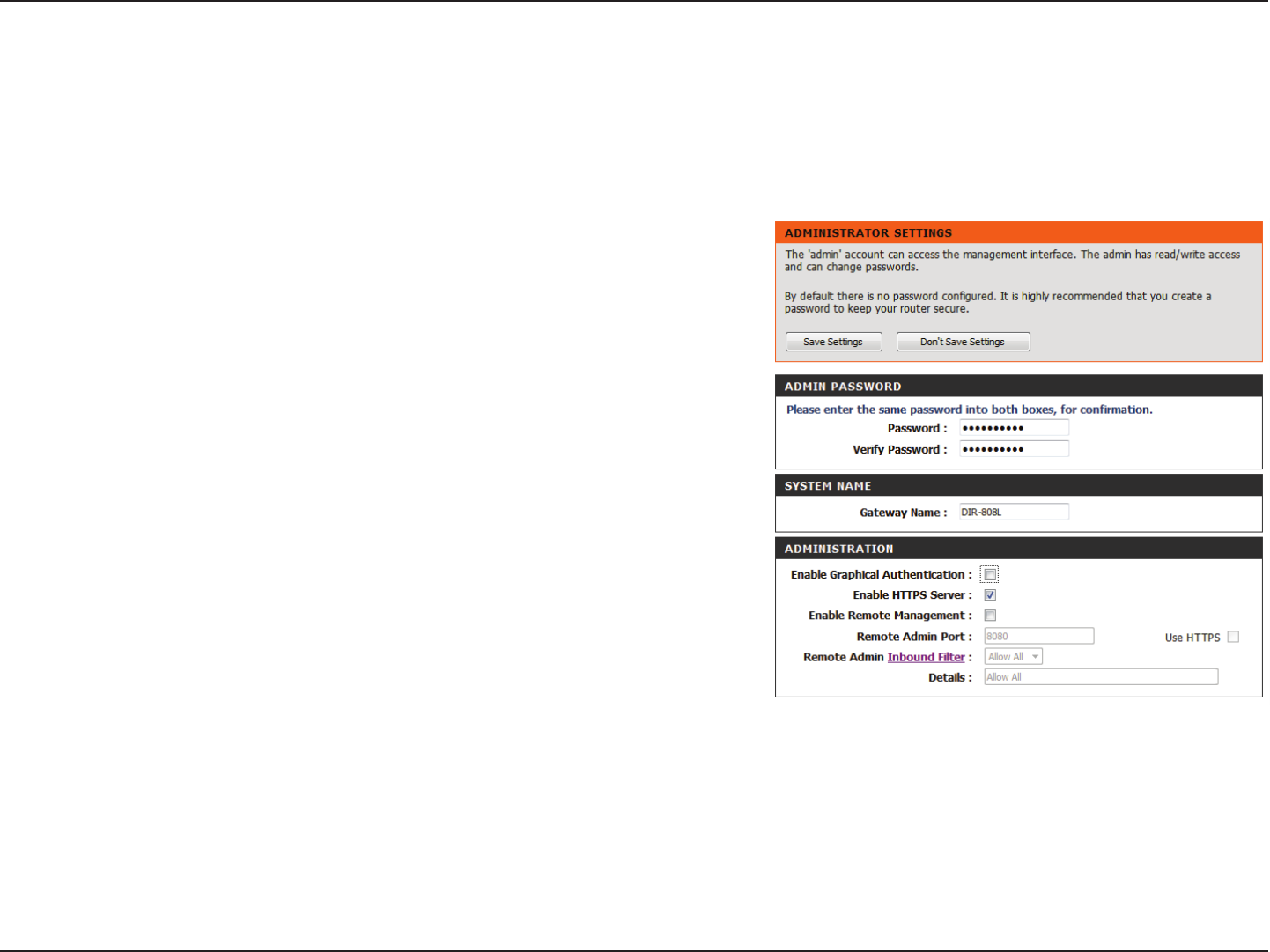

Admin.............................................................................. 103
Time ................................................................................. 105

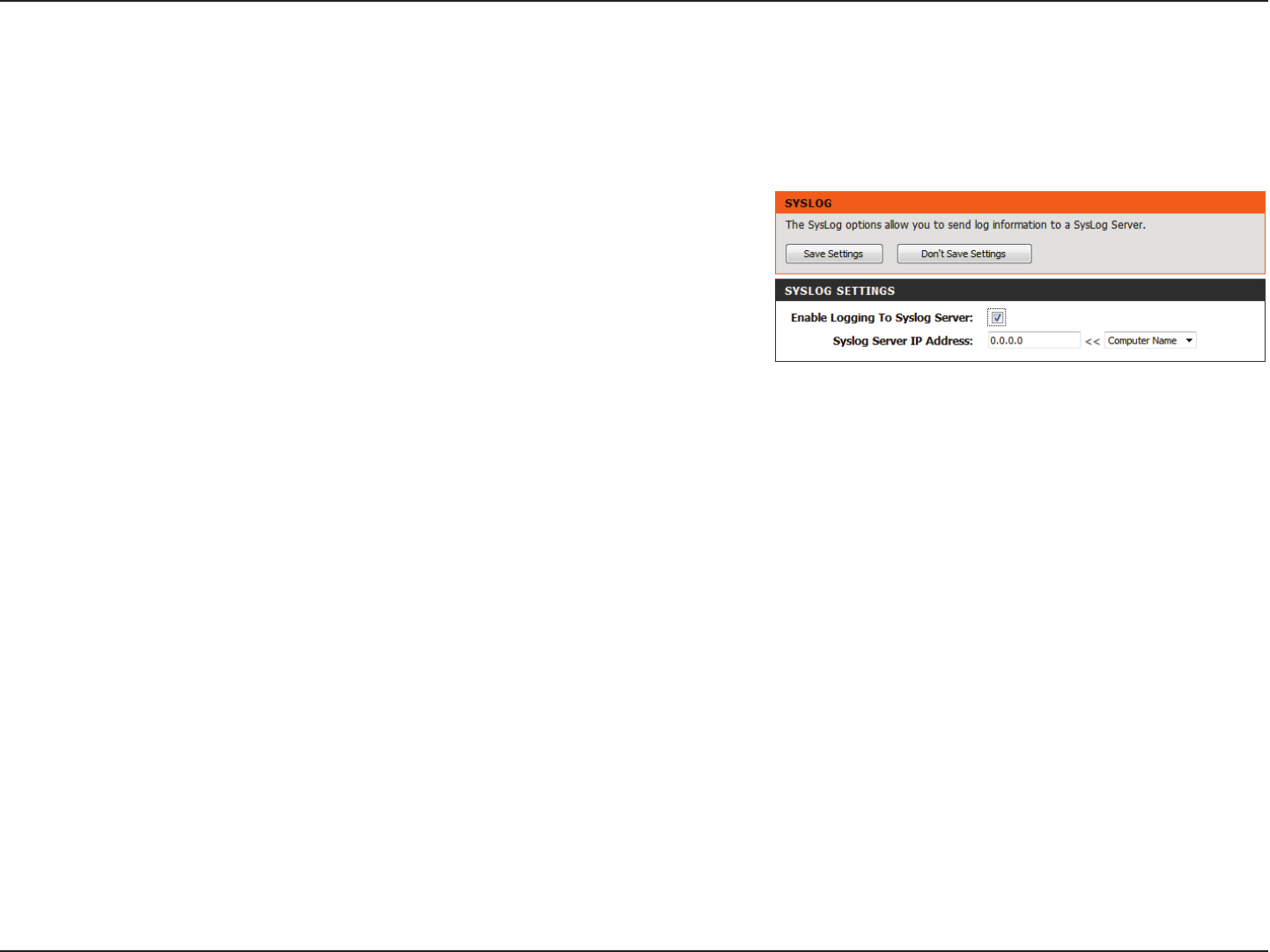

SysLog ............................................................................. 106
Email Settings............................................................... 107
System Settings ........................................................... 108

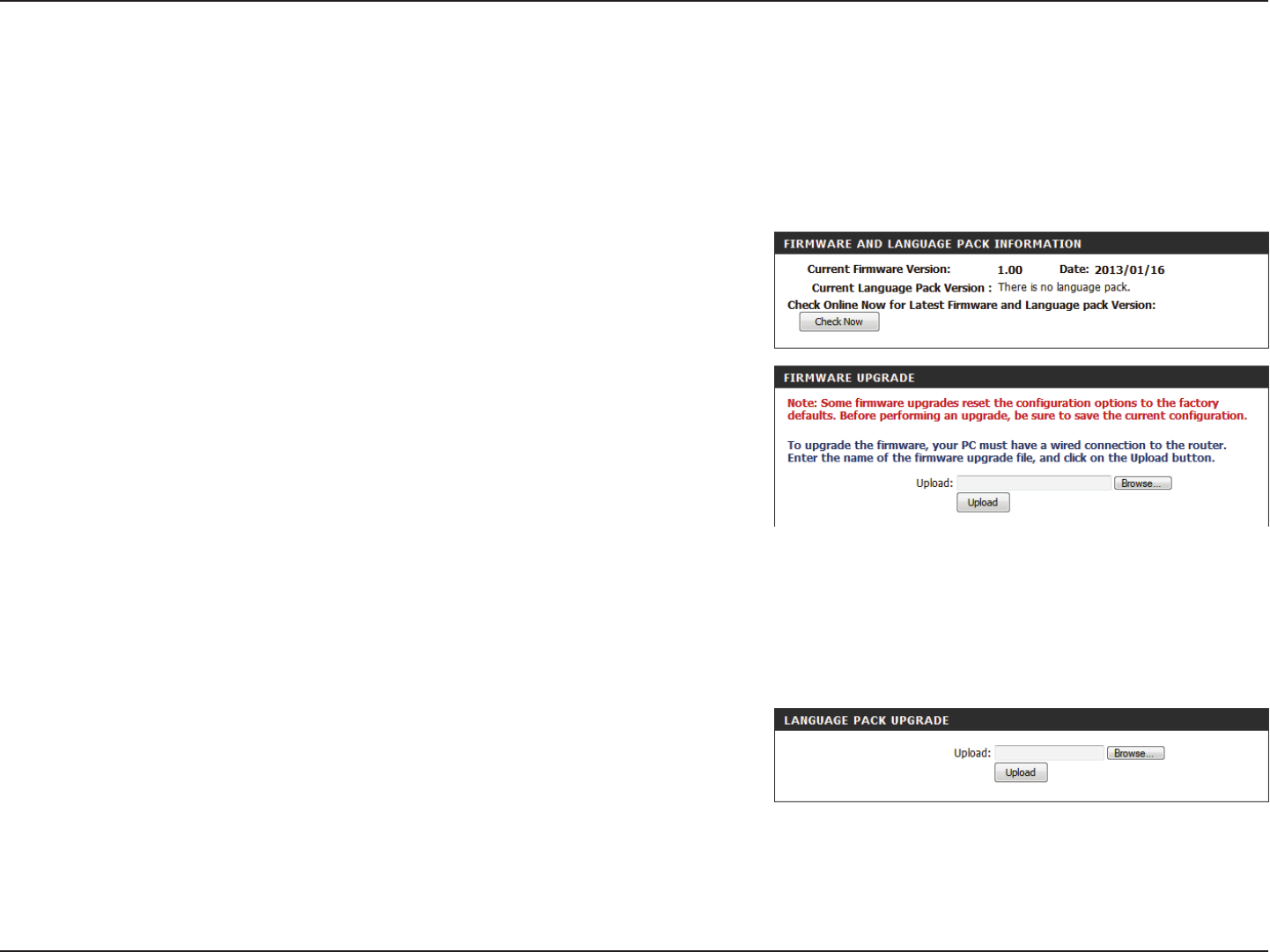

Firmware Update ........................................................ 109

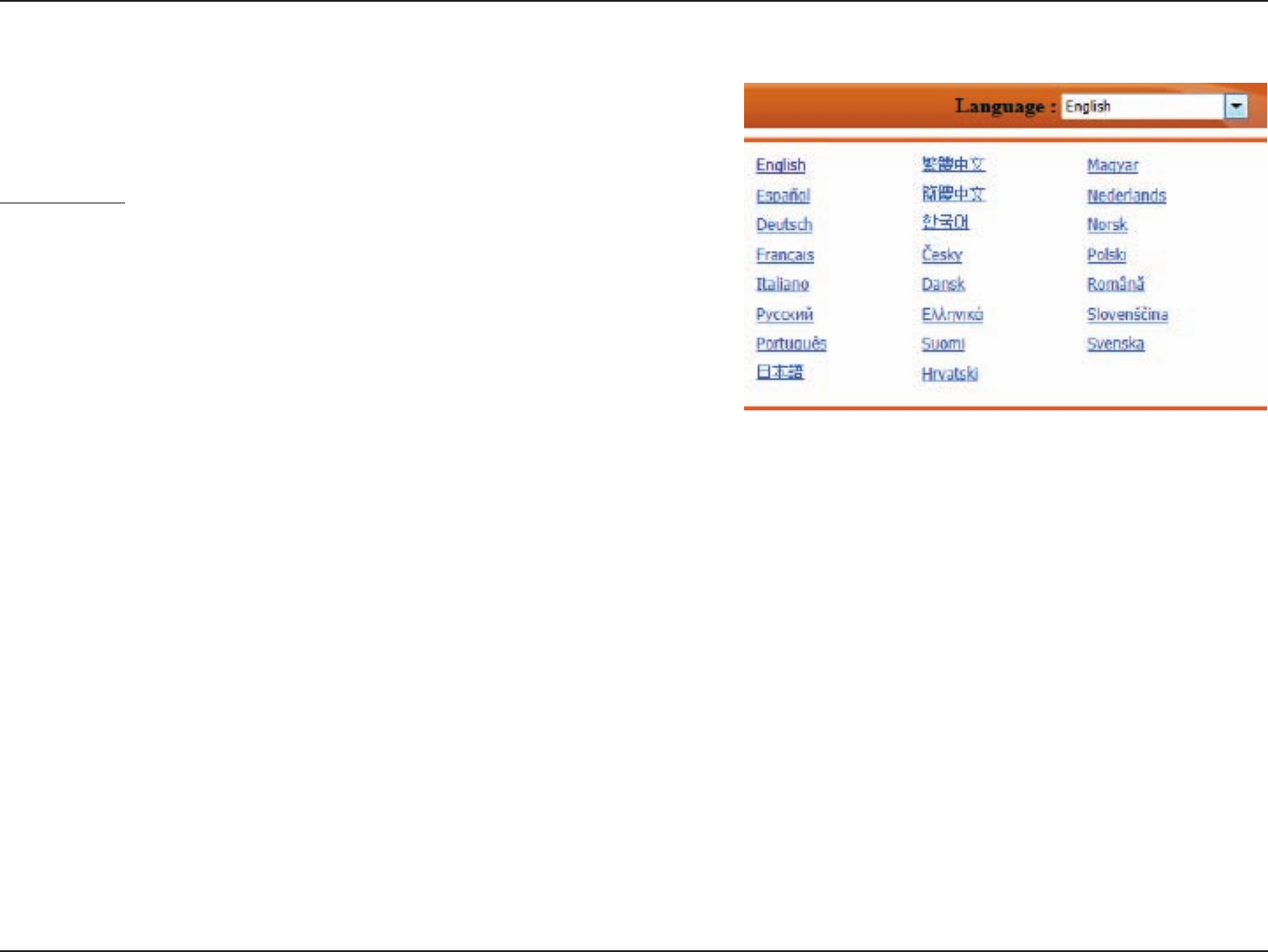

Language Pack ............................................................. 109

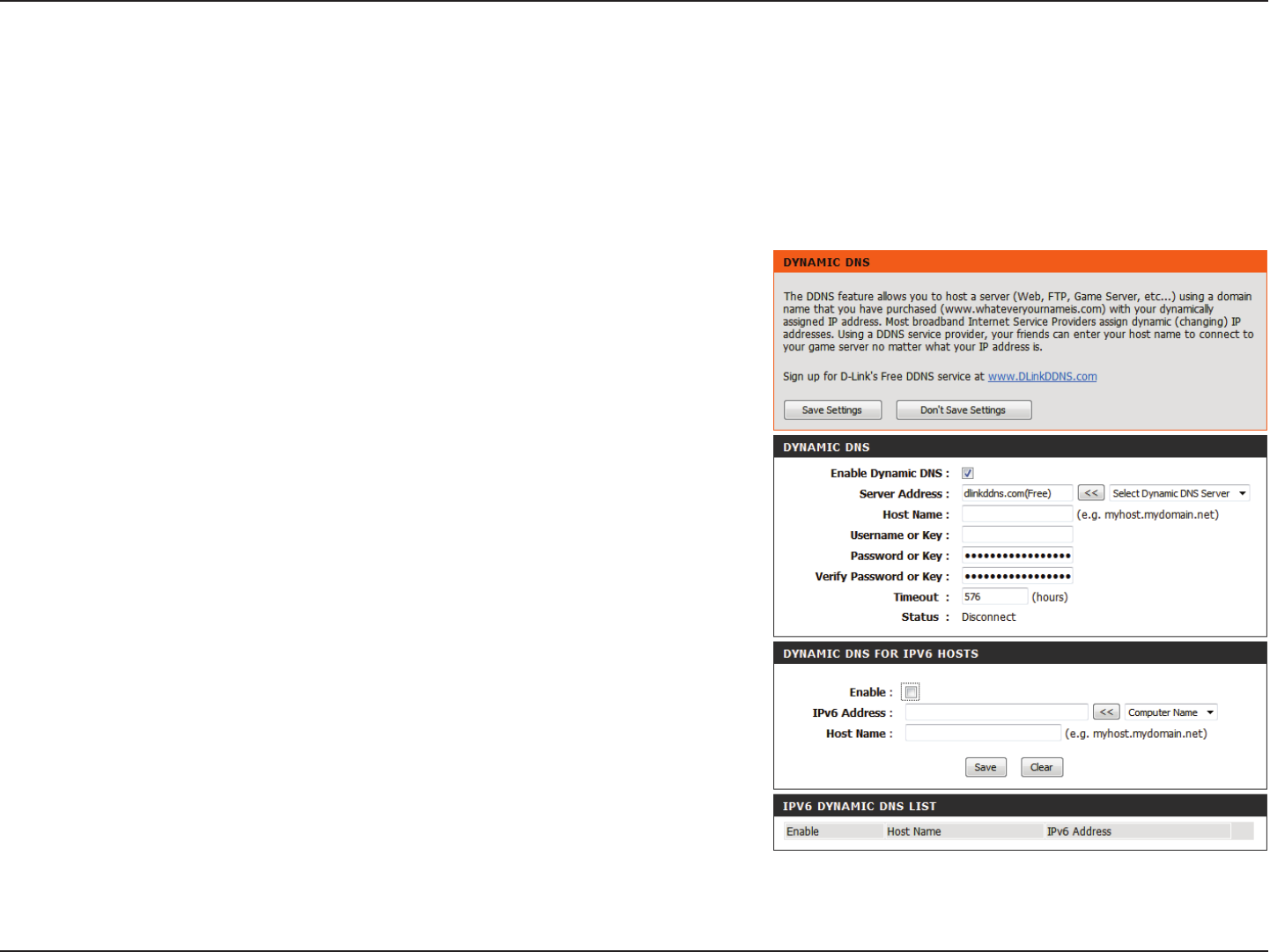

Dynamic DNS ............................................................... 110

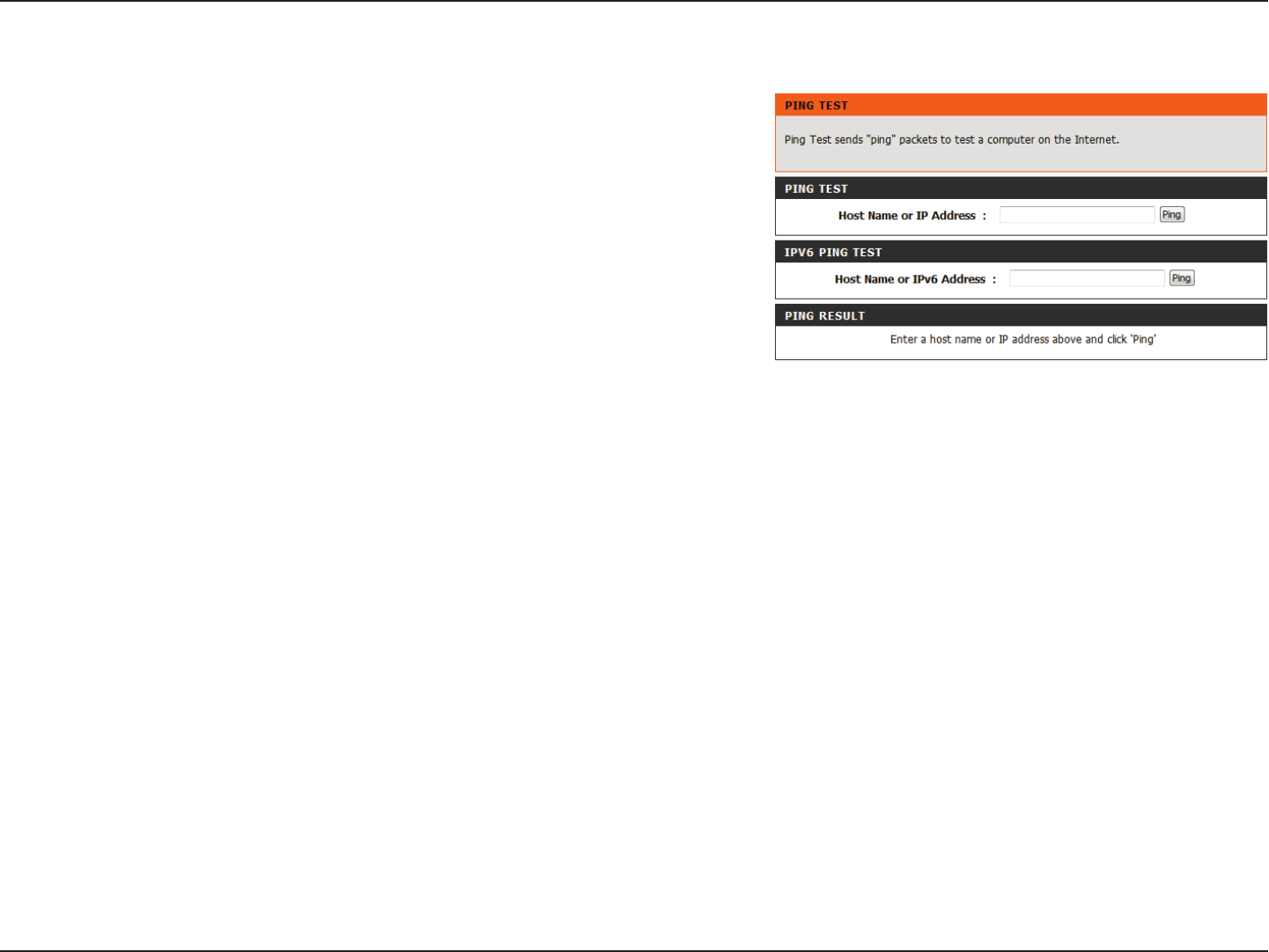

System Check ............................................................... 111

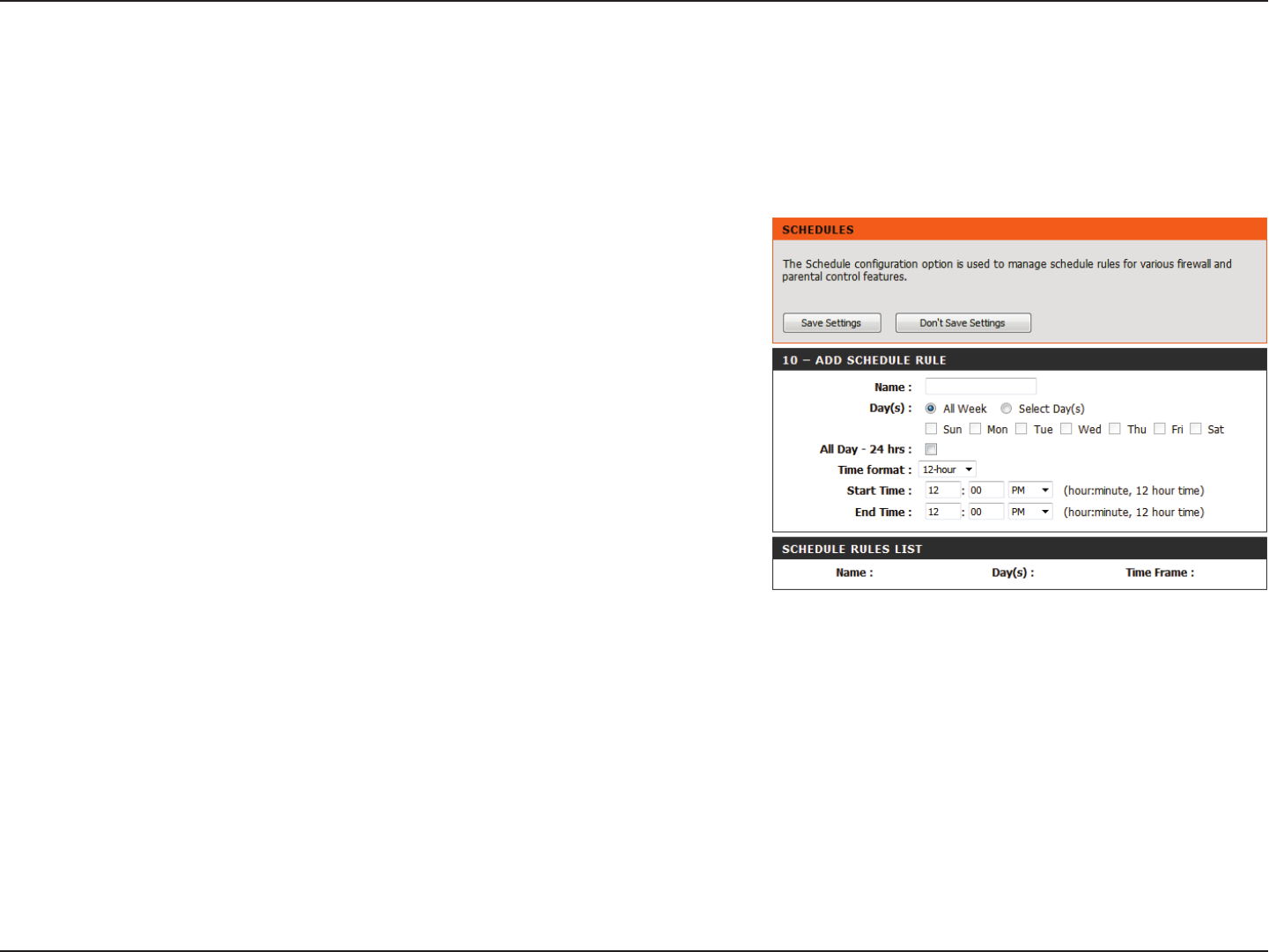

Schedules ...................................................................... 112
Status ................................................................................... 113

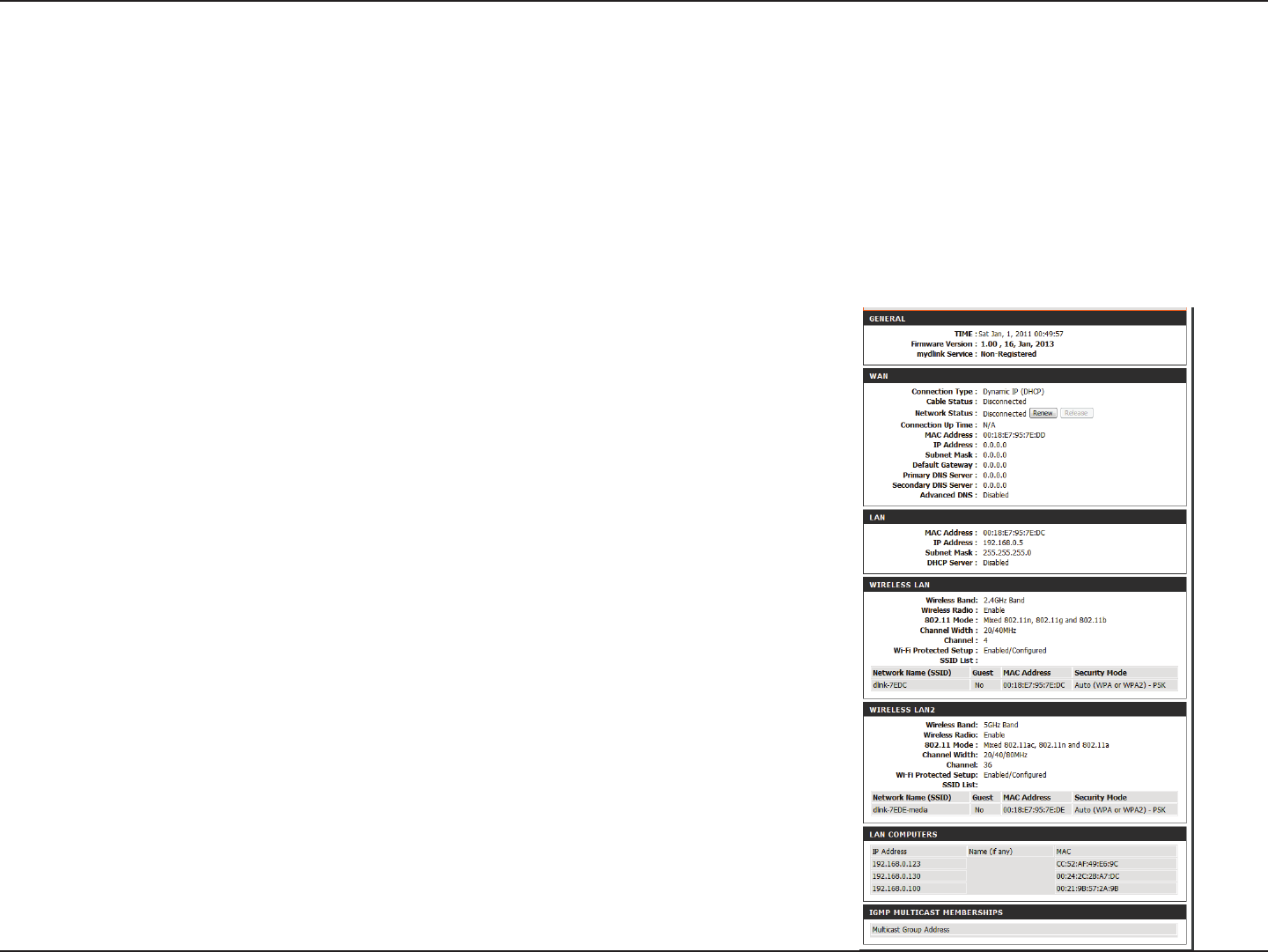

Device Info .................................................................... 113

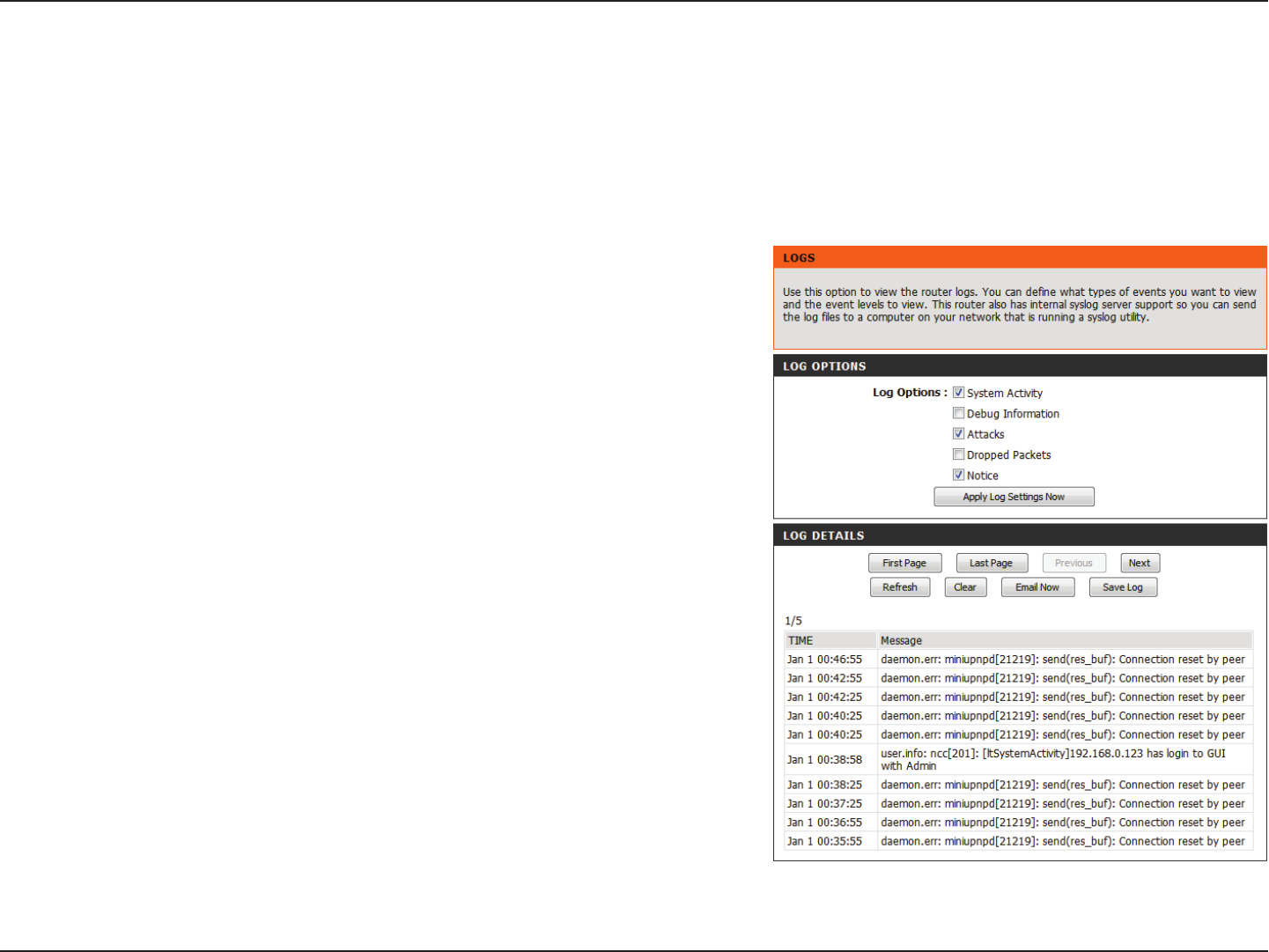

Logs.................................................................................. 114
Statistics ......................................................................... 115

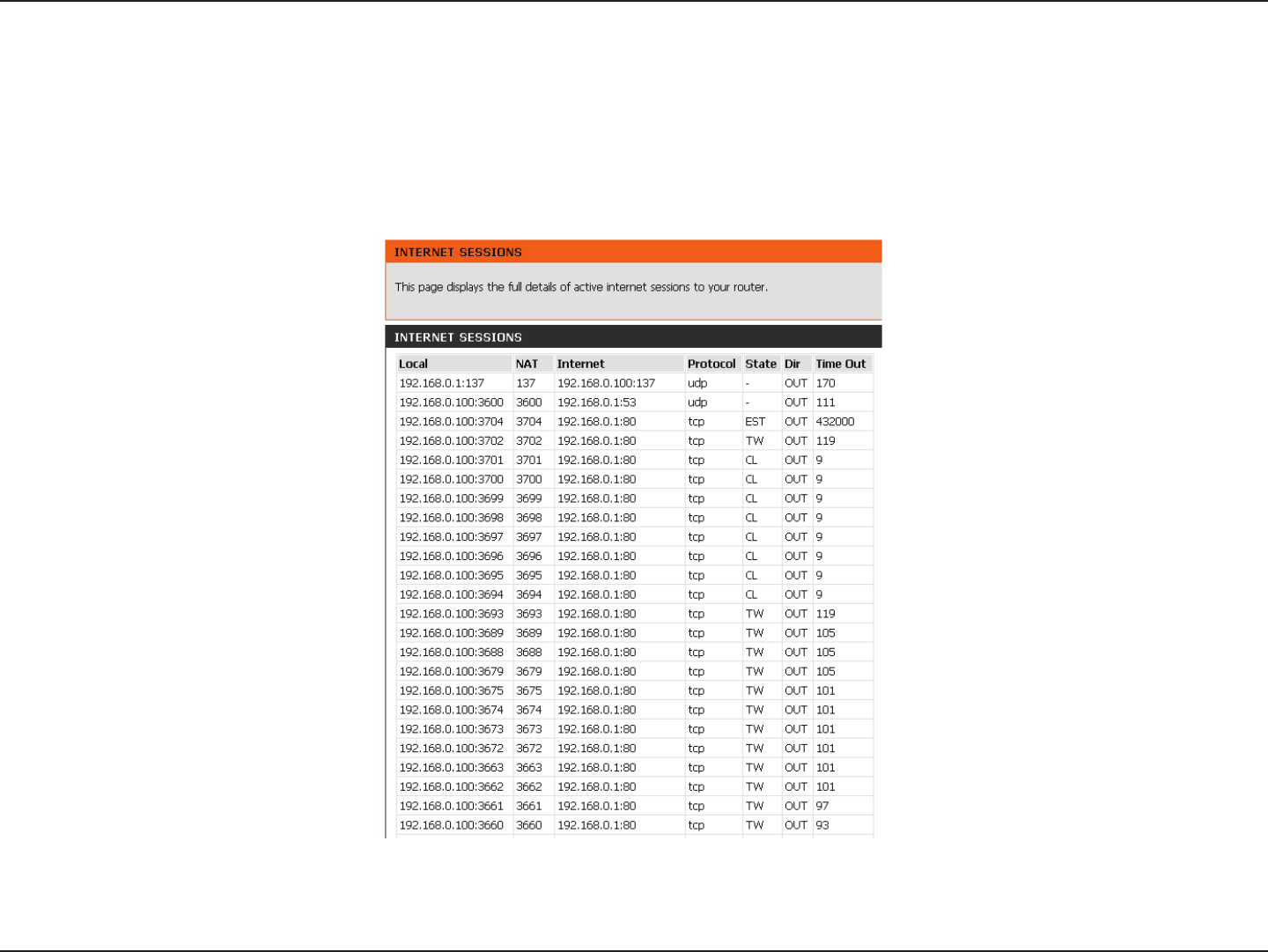

Internet Sessions ......................................................... 116
Routing ........................................................................... 117
Wireless........................................................................... 118

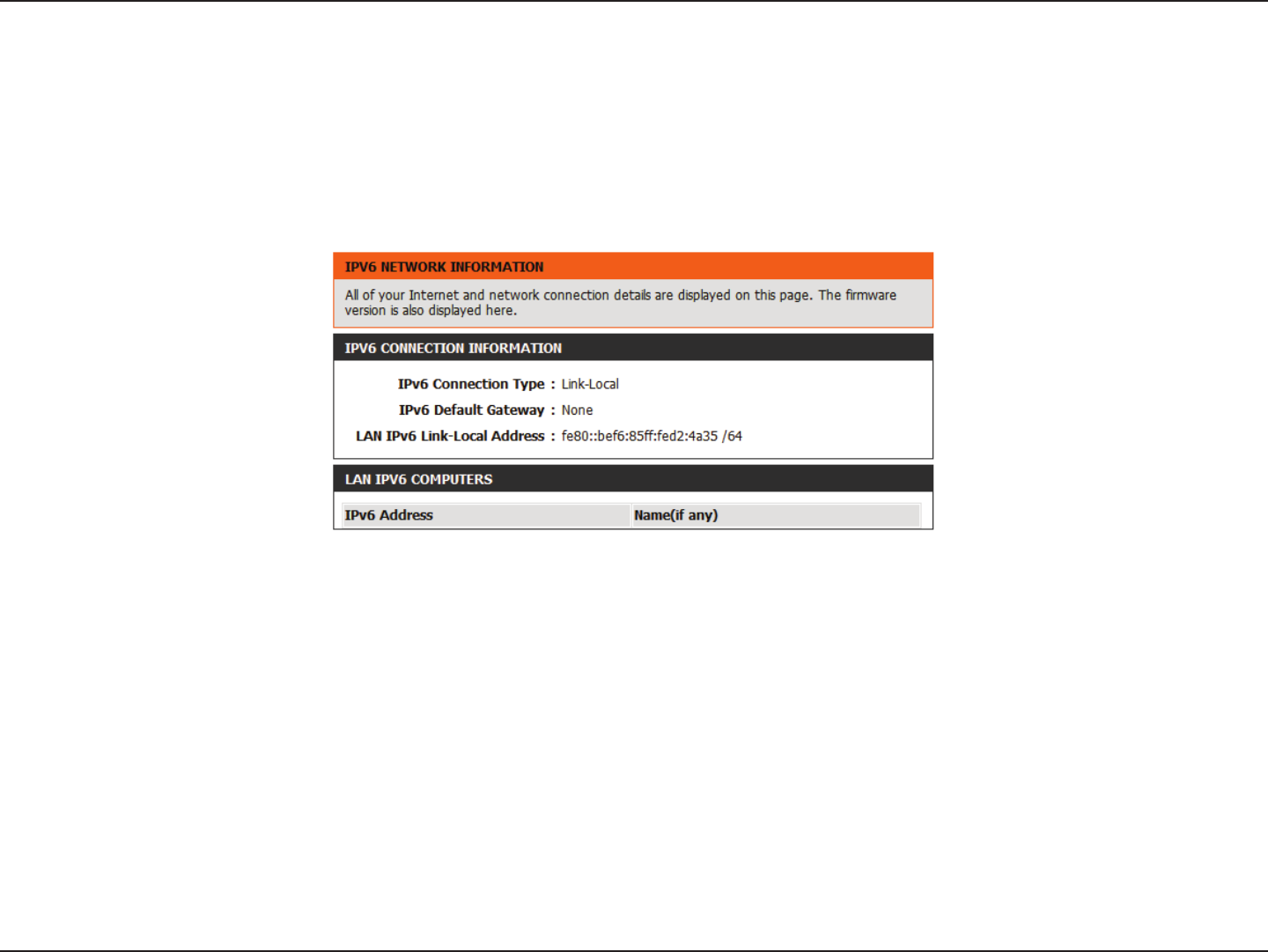

IPv6 .................................................................................. 119

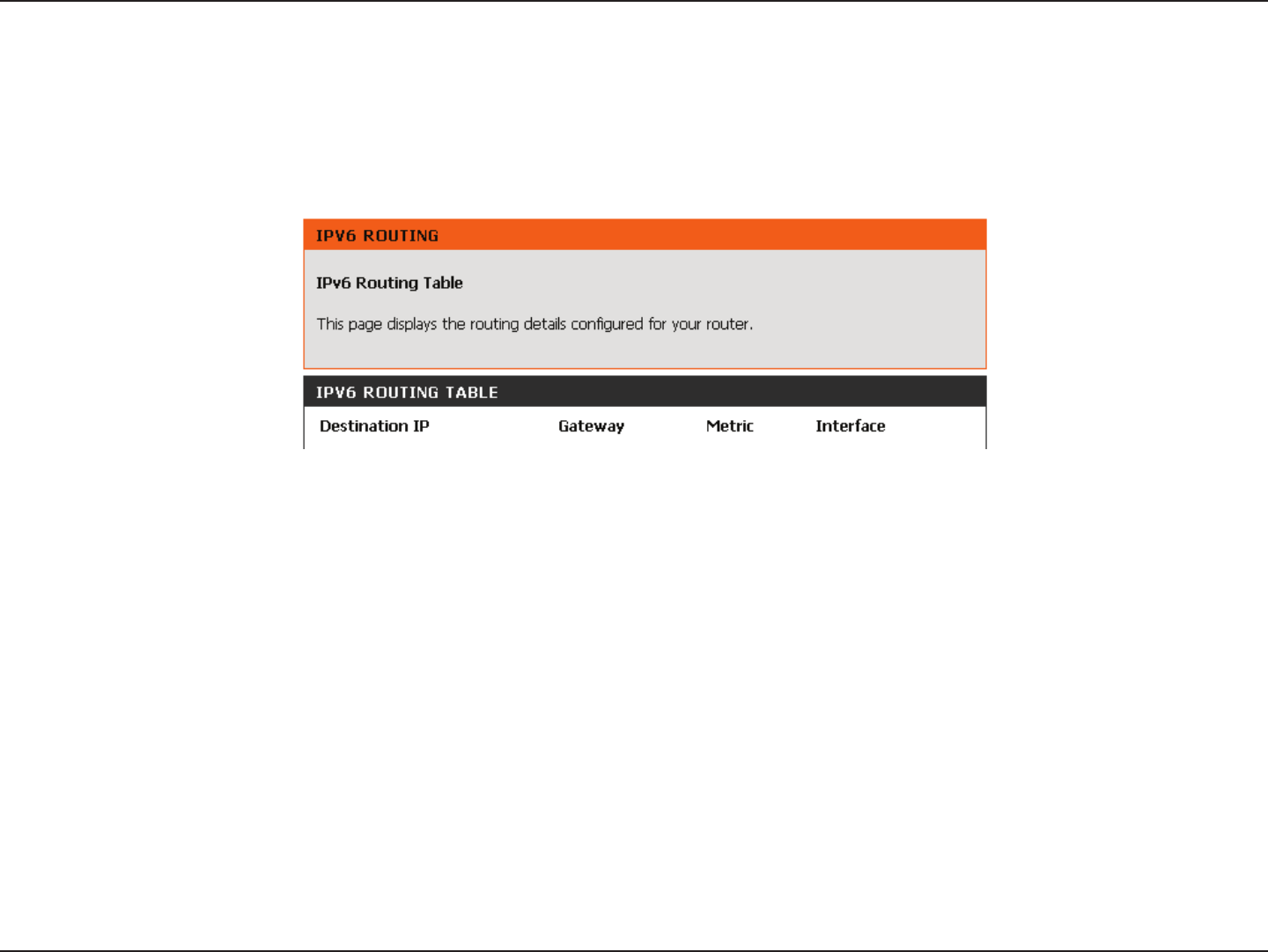

IPV6 Routing ................................................................. 120

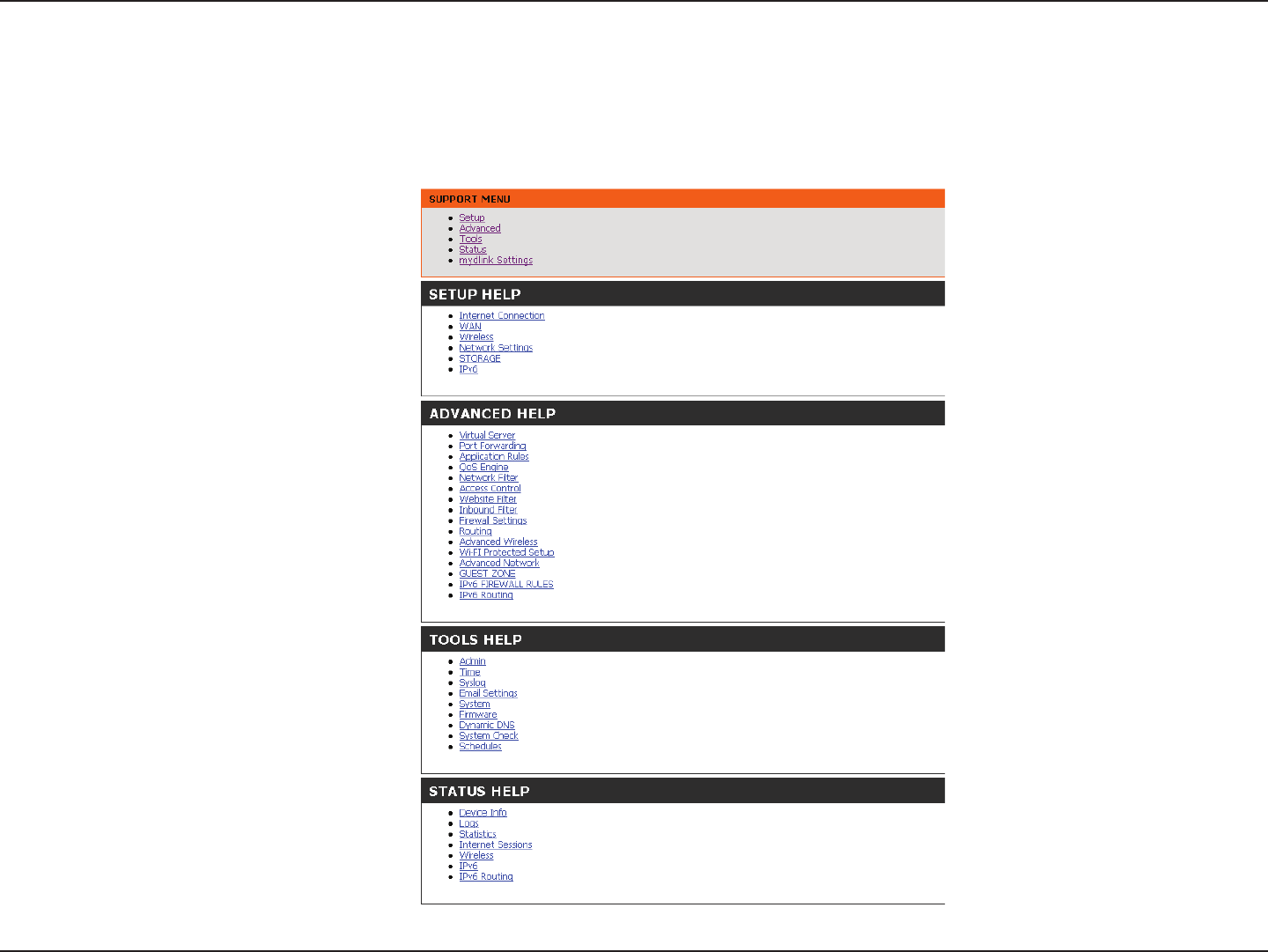

Support ............................................................................... 121

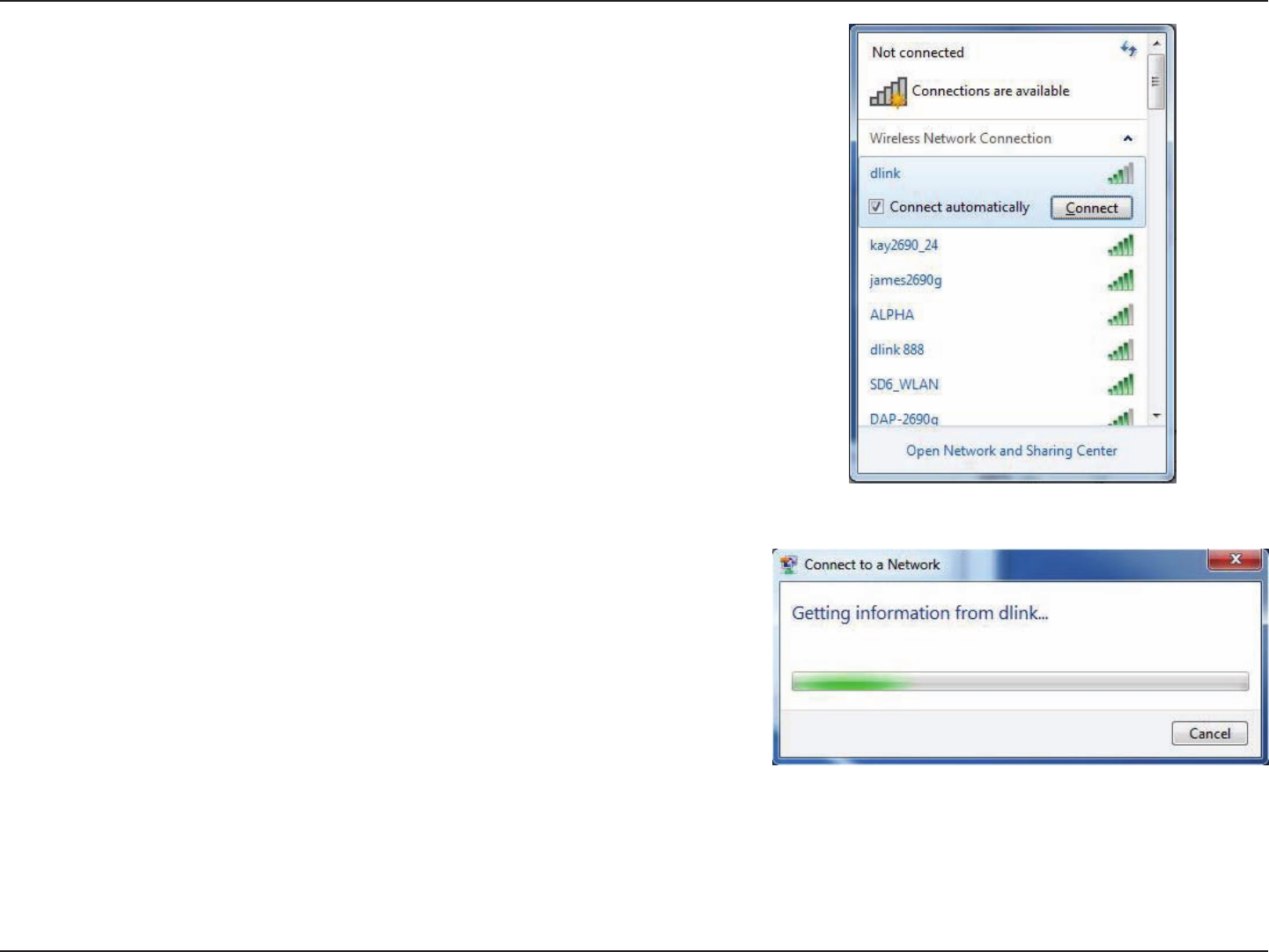

Connect a Wireless Client to your Router ....................122
WPS Button ................................................................................ 122

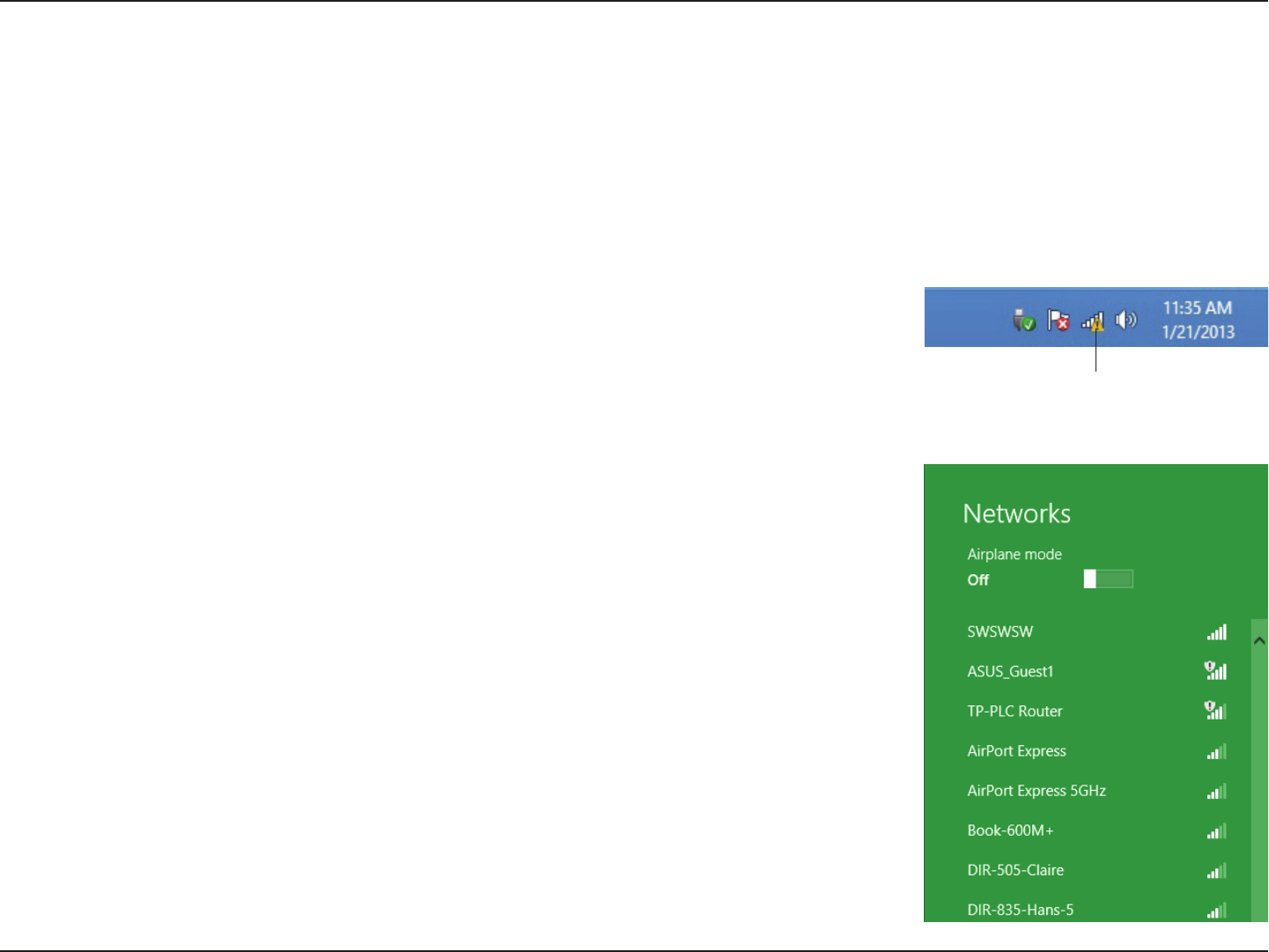

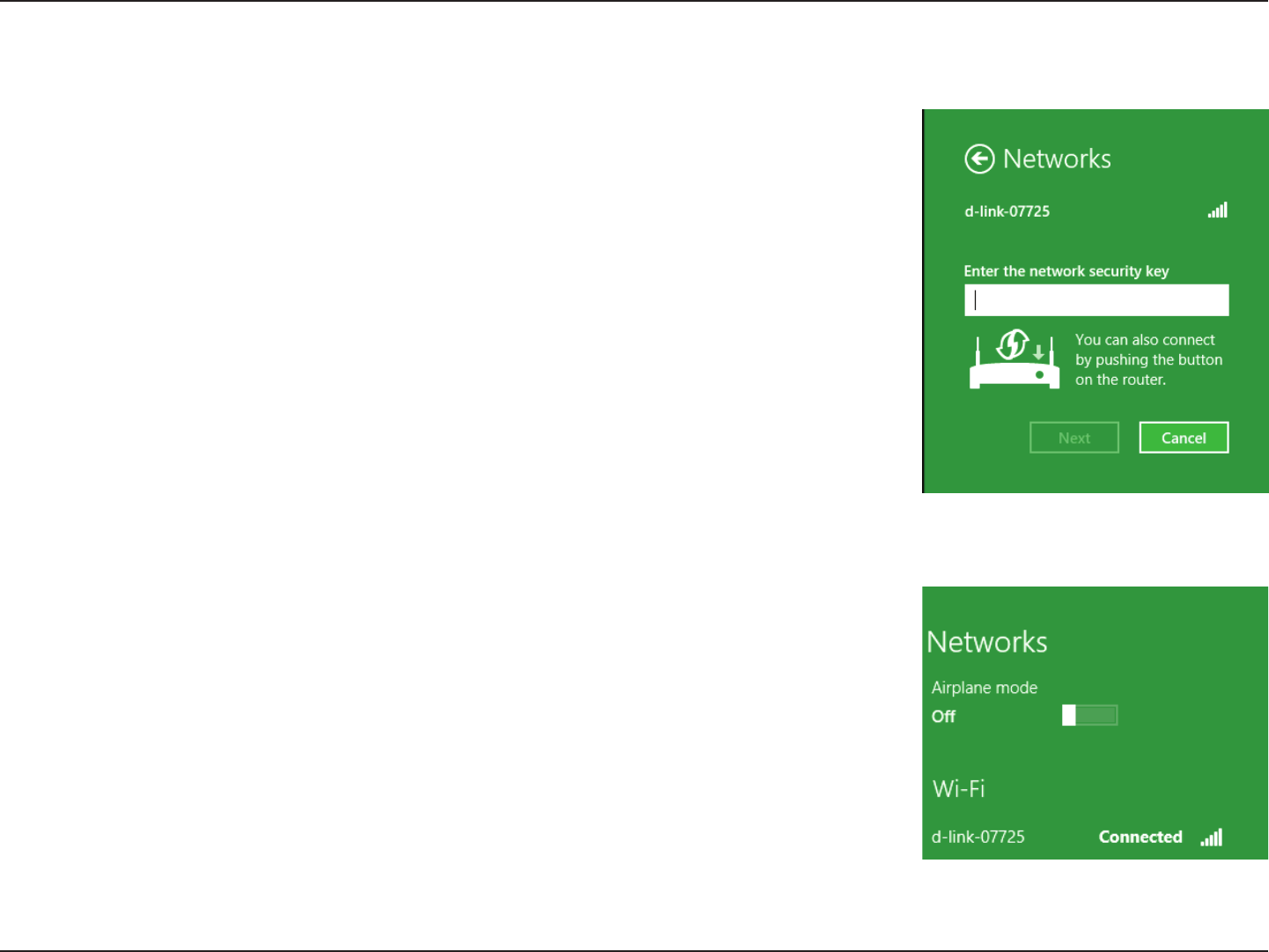

Windows® 8 ................................................................................ 123
WPA/WPA2 ......................................................................... 123

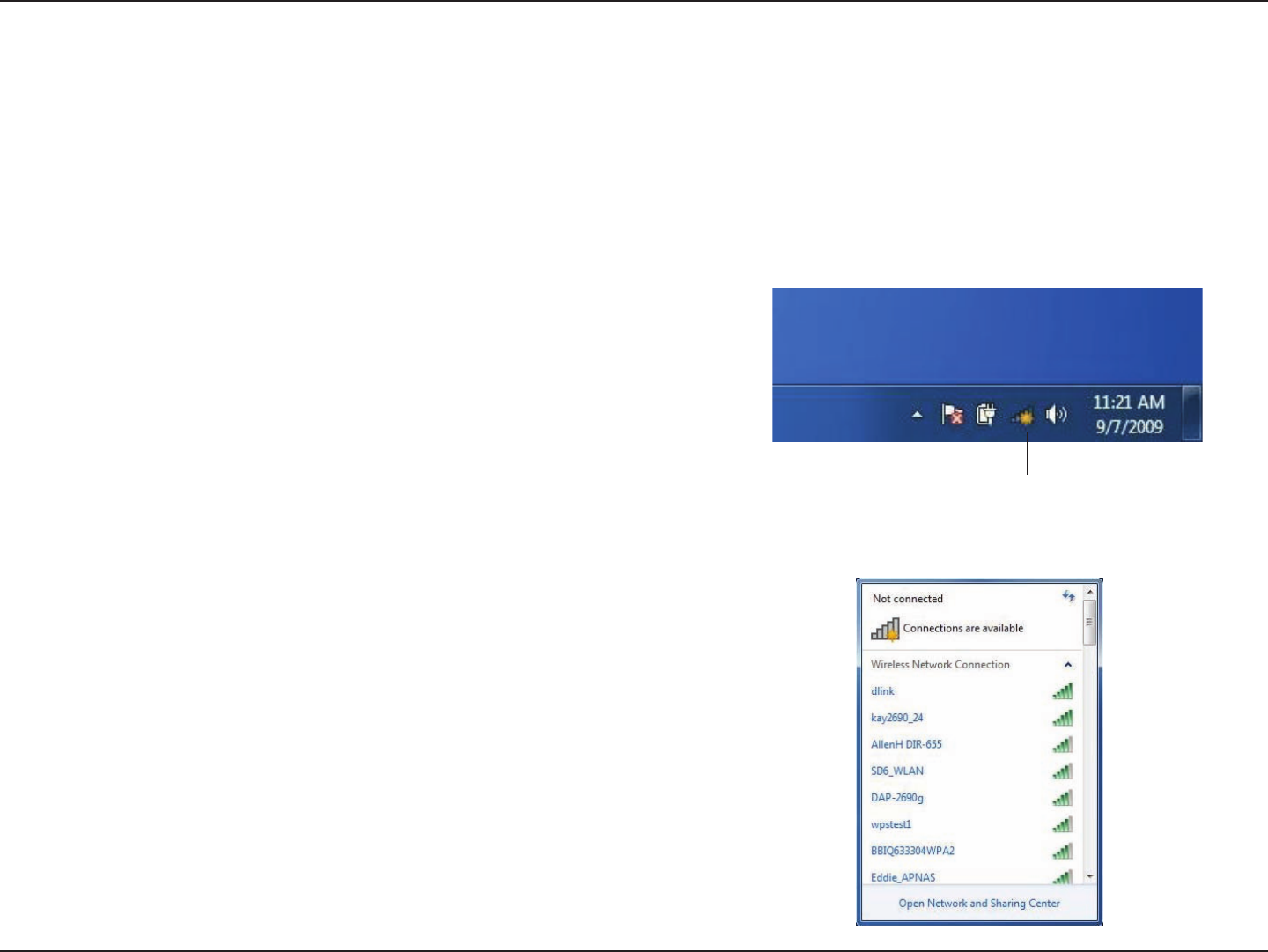

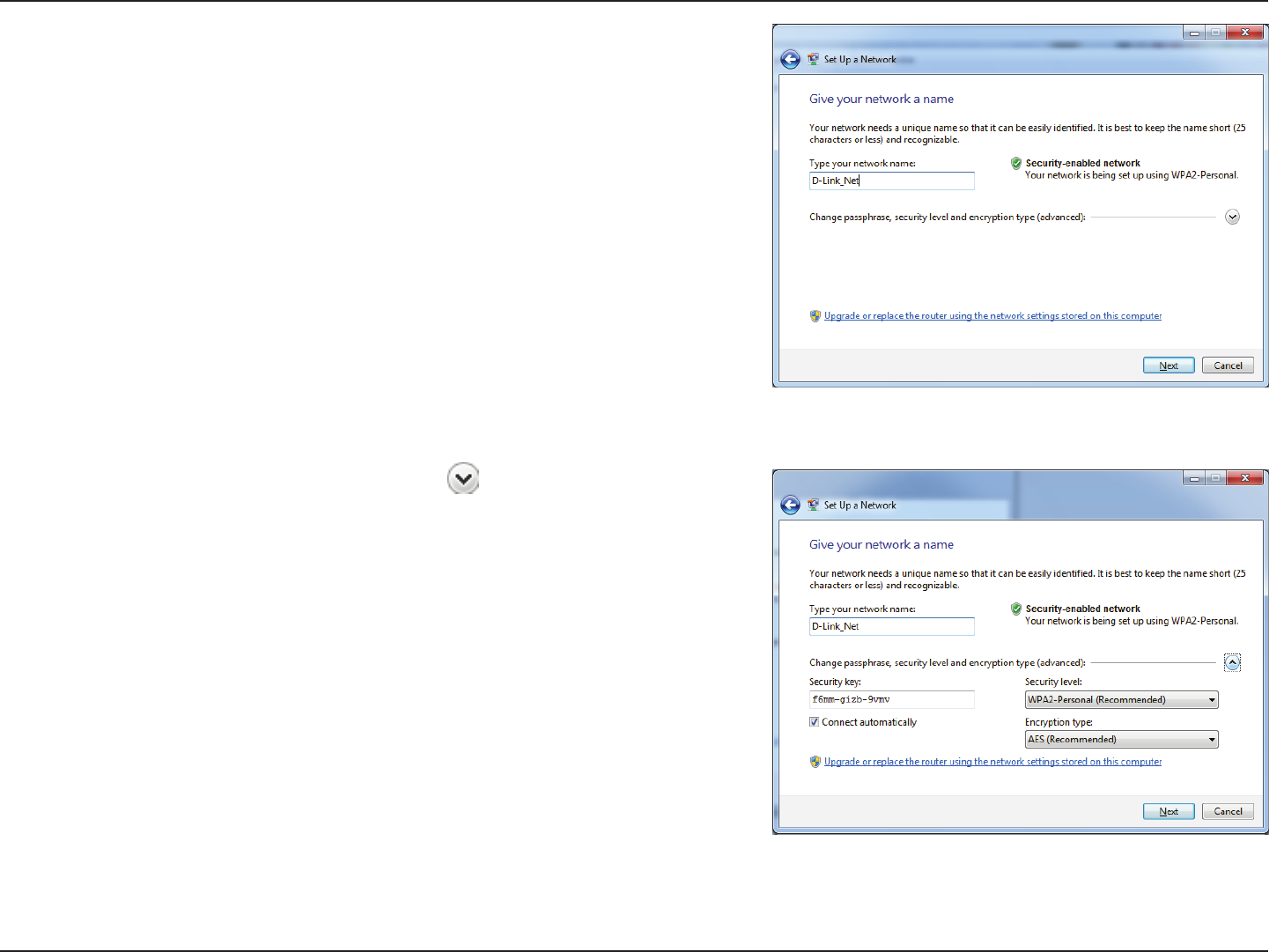

Windows® 7 ................................................................................ 125
WPA/WPA2 ......................................................................... 125
WPS ....................................................................................... 128

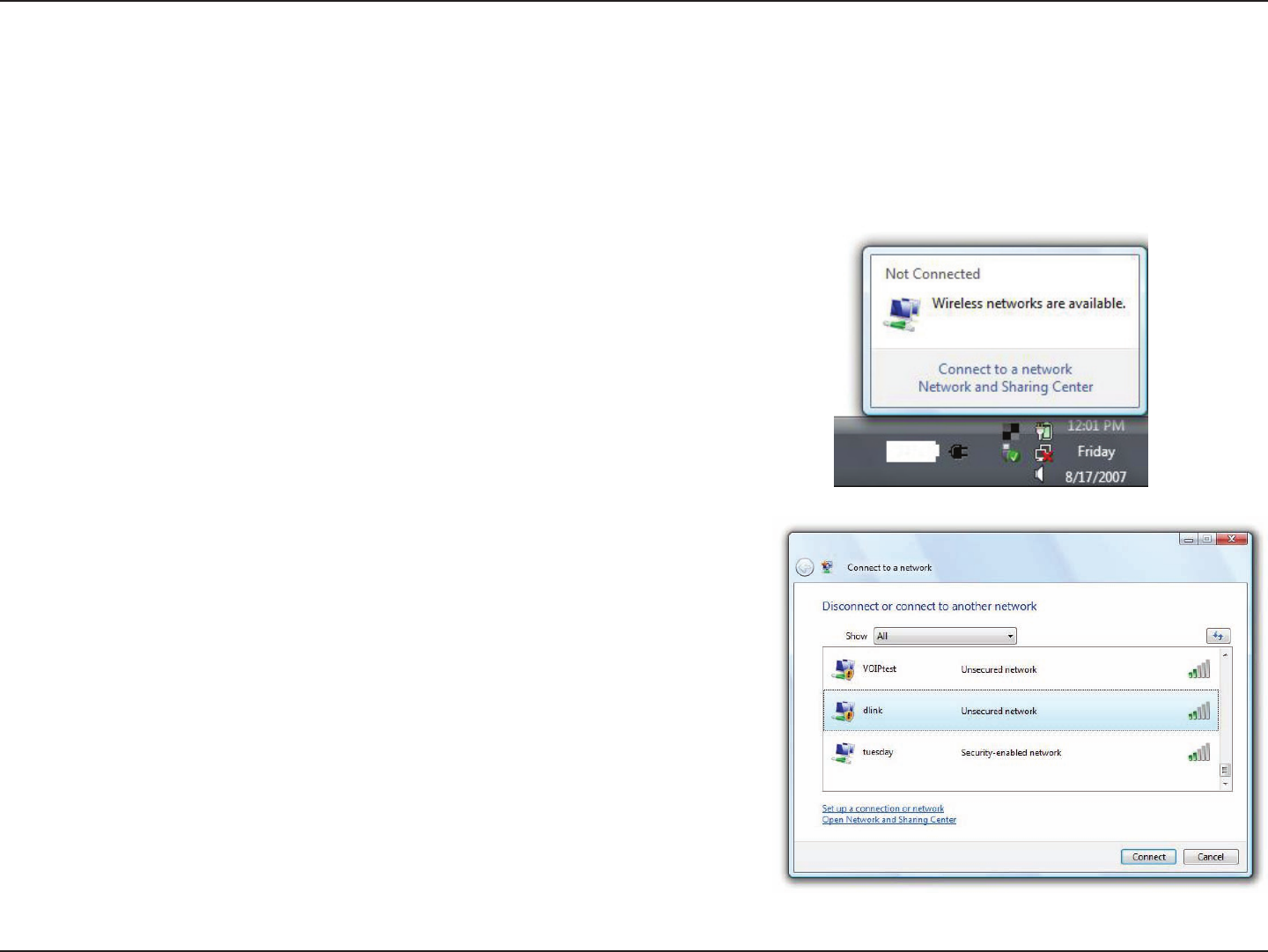

Windows Vista® ......................................................................... 132
WPA/WPA2 ......................................................................... 133
WPS/WCN 2.0 .................................................................... 135

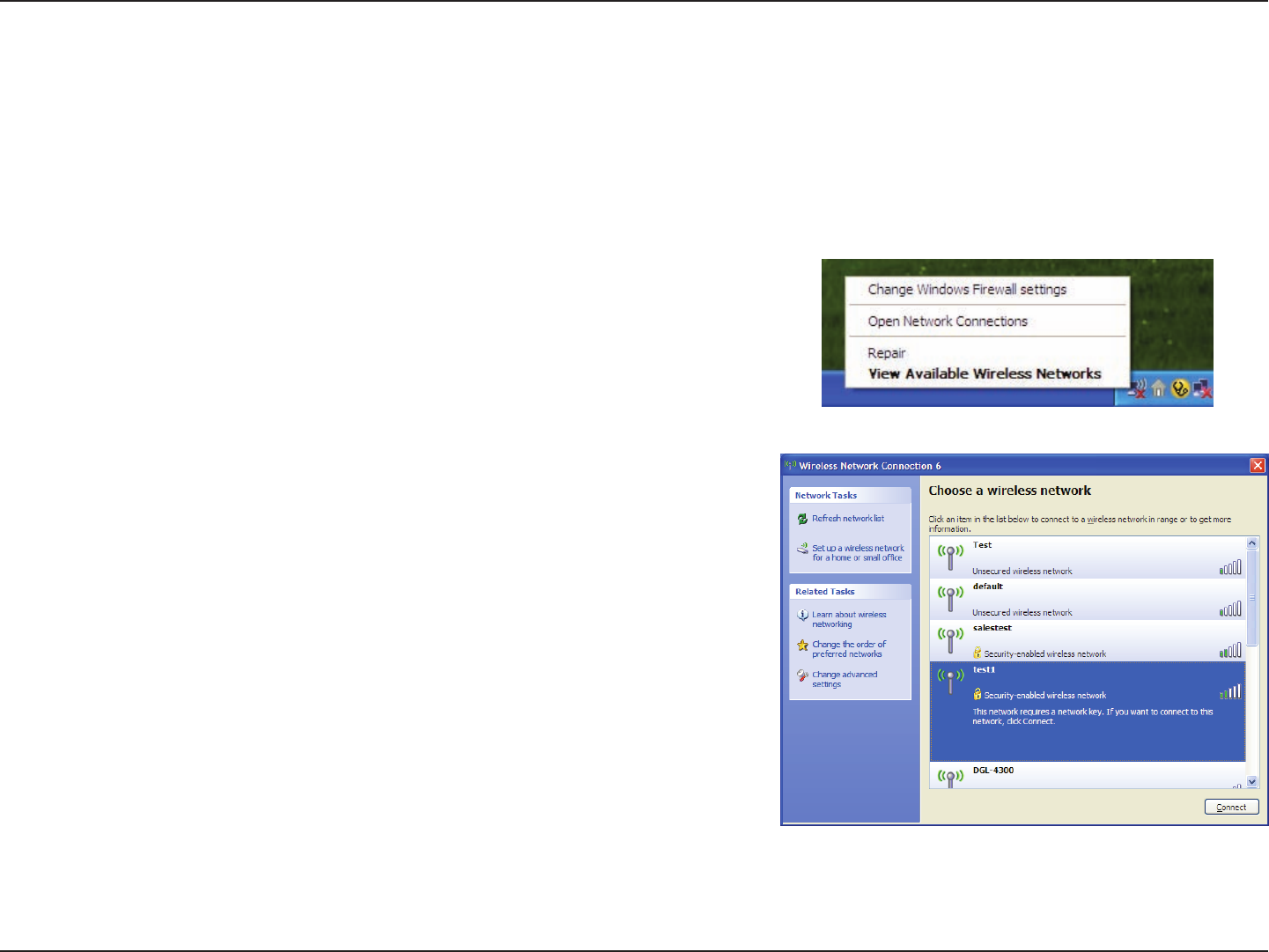

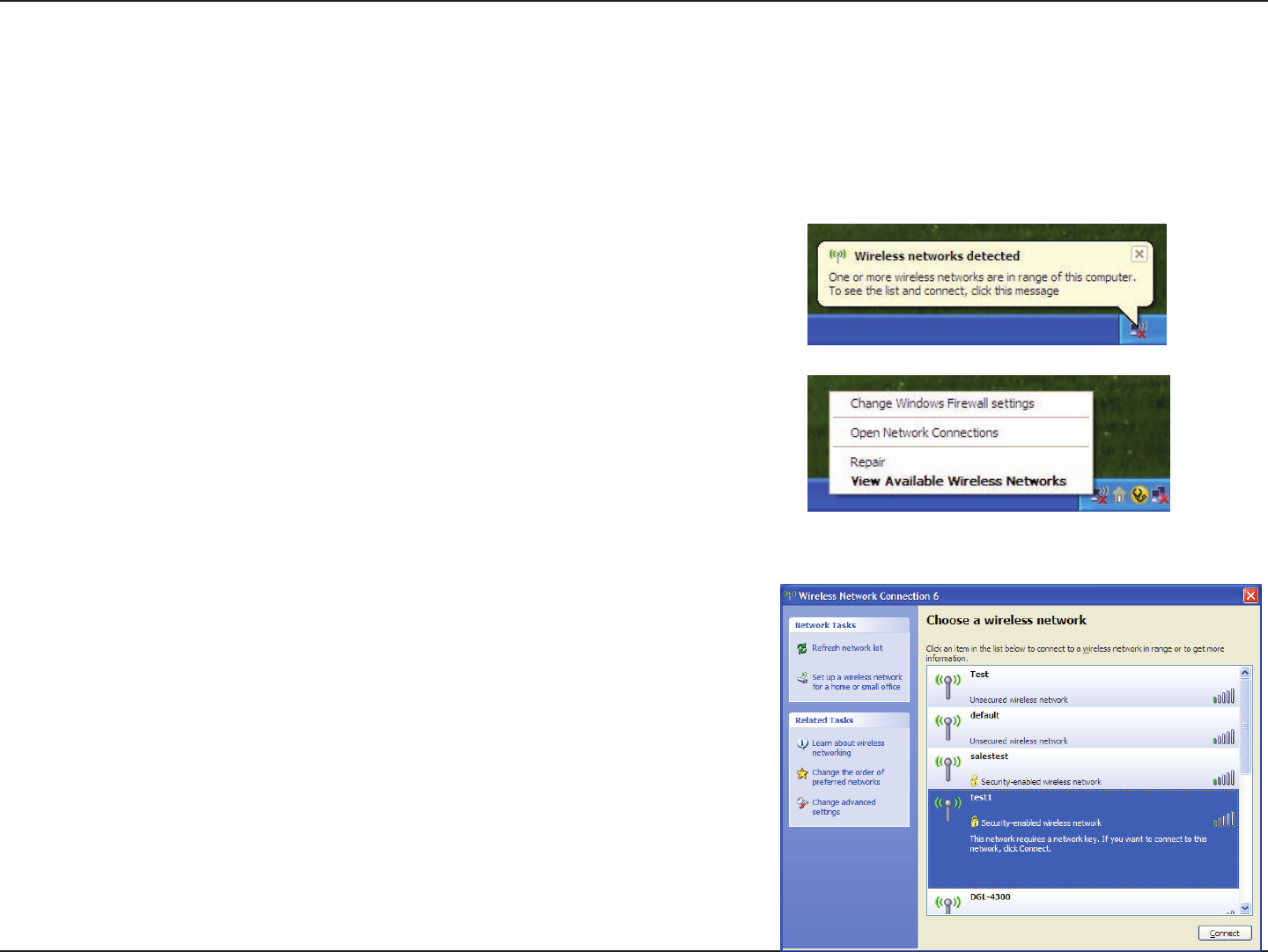

Windows® XP ............................................................................. 136
WPA/WPA2 ......................................................................... 137
Troubleshooting ............................................................139
Wireless Modes ......................................................................... 143
Networking Basics .........................................................144

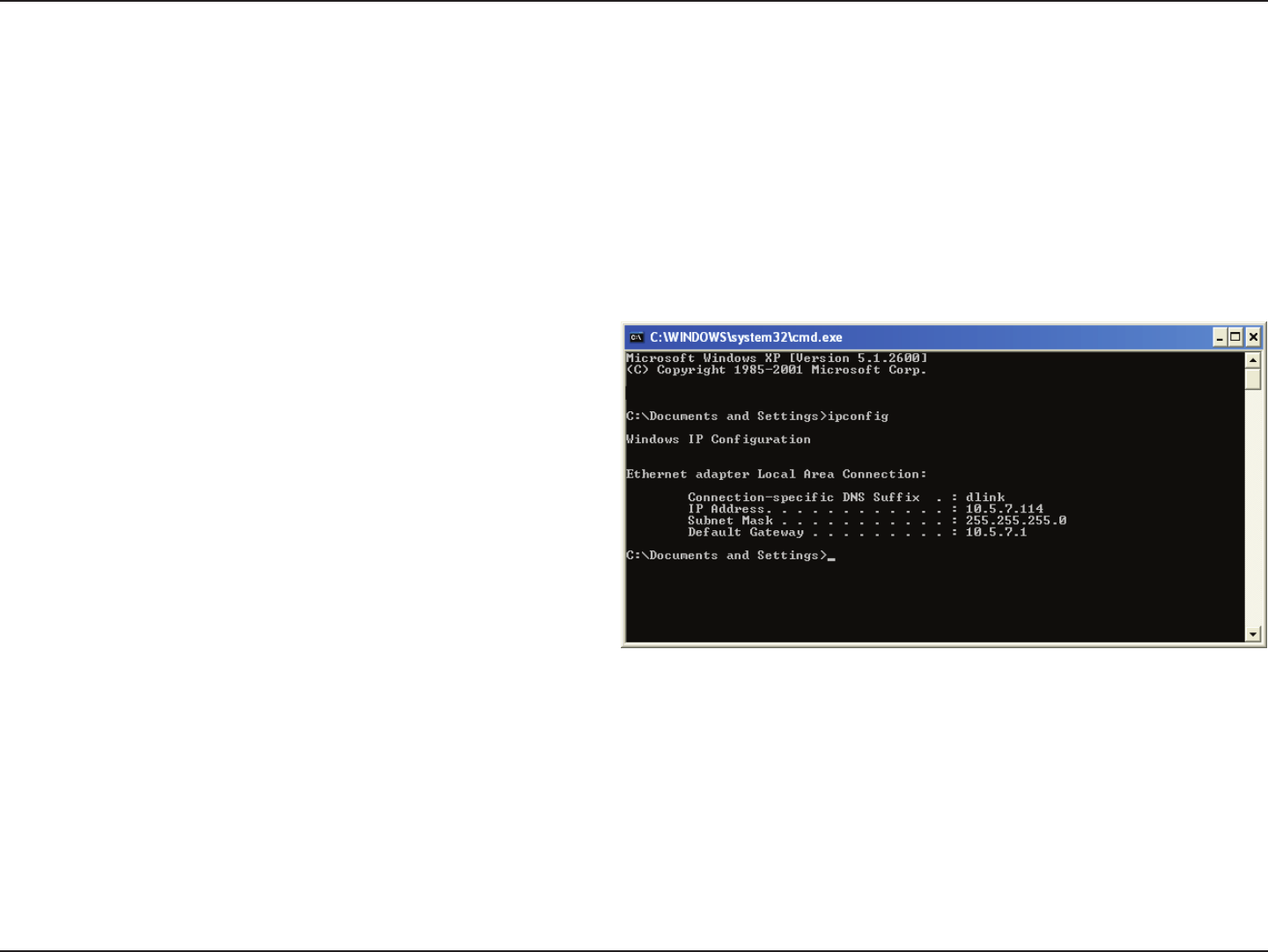

Check your IP address ............................................................ 144

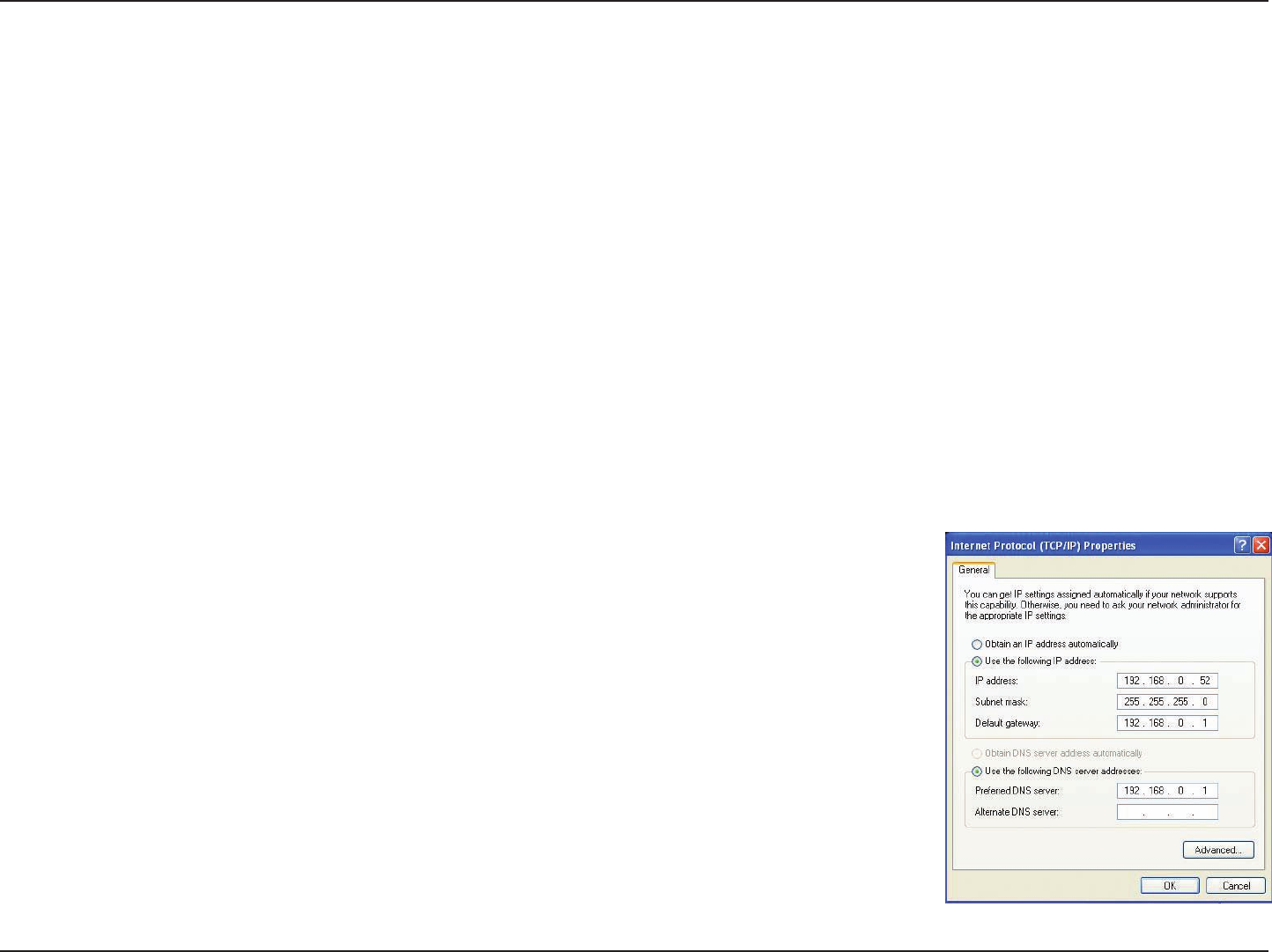

Assign a Static IP address ...................................................... 145
Technical Specications ................................................146
1D-Link DIR-808L User Manual
Section 1 - Product Overview
Product Overview

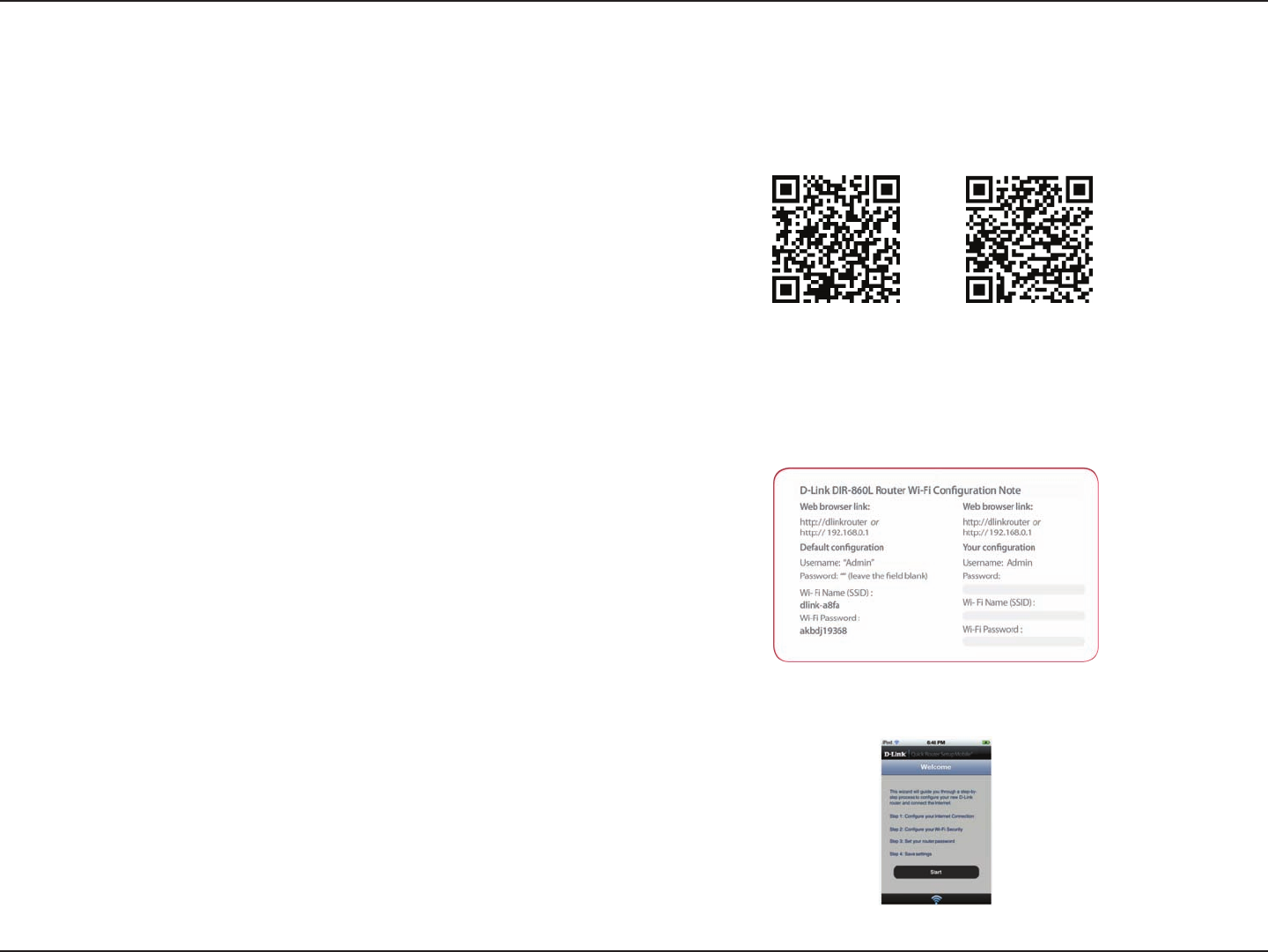

Package Contents
Note: Using a power supply with a dierent voltage rating than the one included with the DIR-808L will cause damage and void the warranty
for this product.
If any of the above items are missing, please contact your reseller.

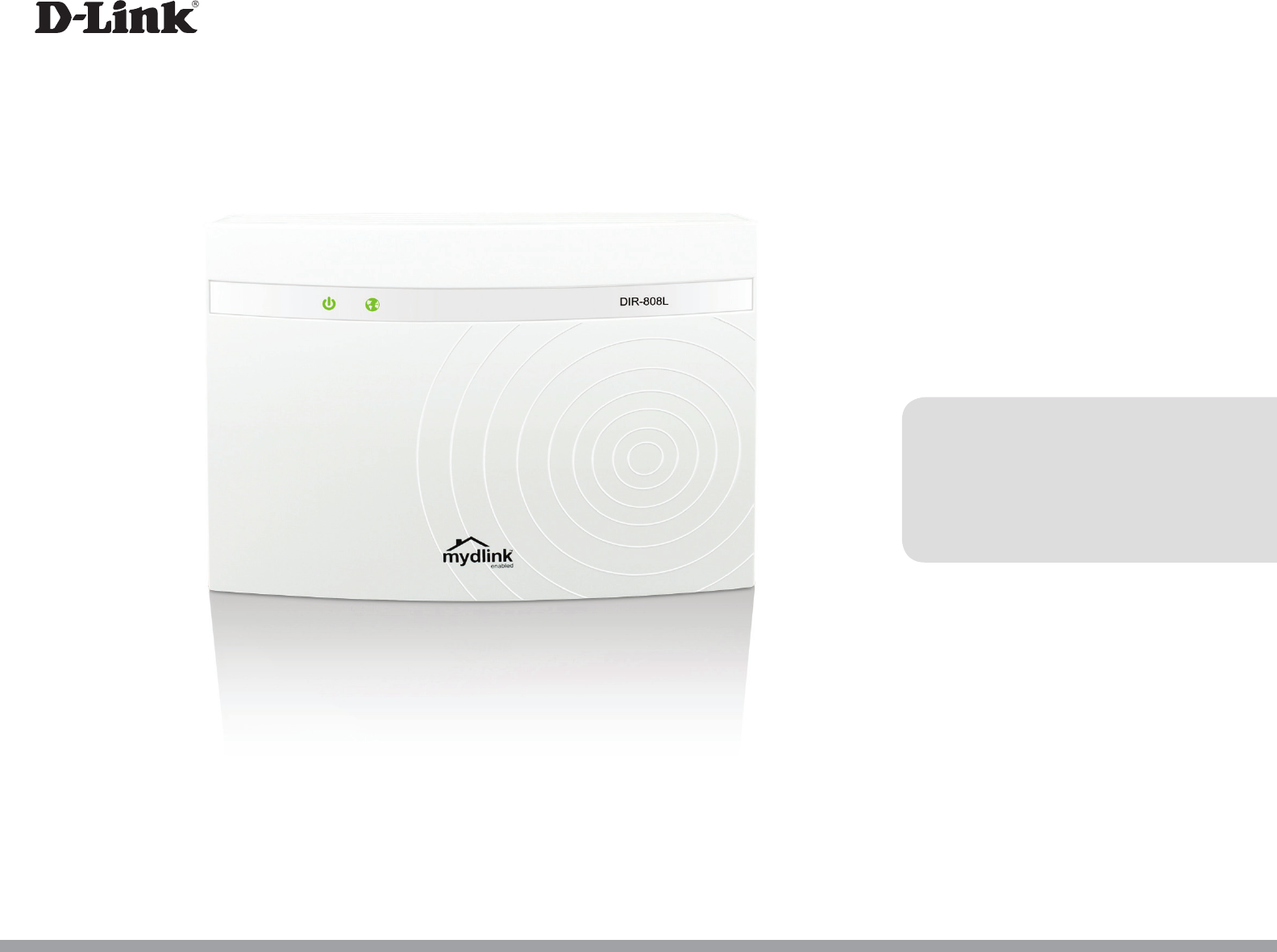

DIR-808L Wireless AC600 Dual Band Cloud Router
Ethernet Cable
Power Adapter
Wi-Fi Conguration Note
Wi-Fi Conguration Note
2D-Link DIR-808L User Manual
Section 1 - Product Overview
Network Requirements
• An Ethernet-based cable or DSL modem
• 802.11a, 802.11g, 802.11n, or 802.11ac wireless clients
• 10/100 Ethernet
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 7 or higher
• Firefox 3.5 or higher
• Safari 4 or higher
• Chrome 8 or higher
Windows® Users: Make sure you have the latest version of Java
installed. Visit www.java.com to download the latest version.

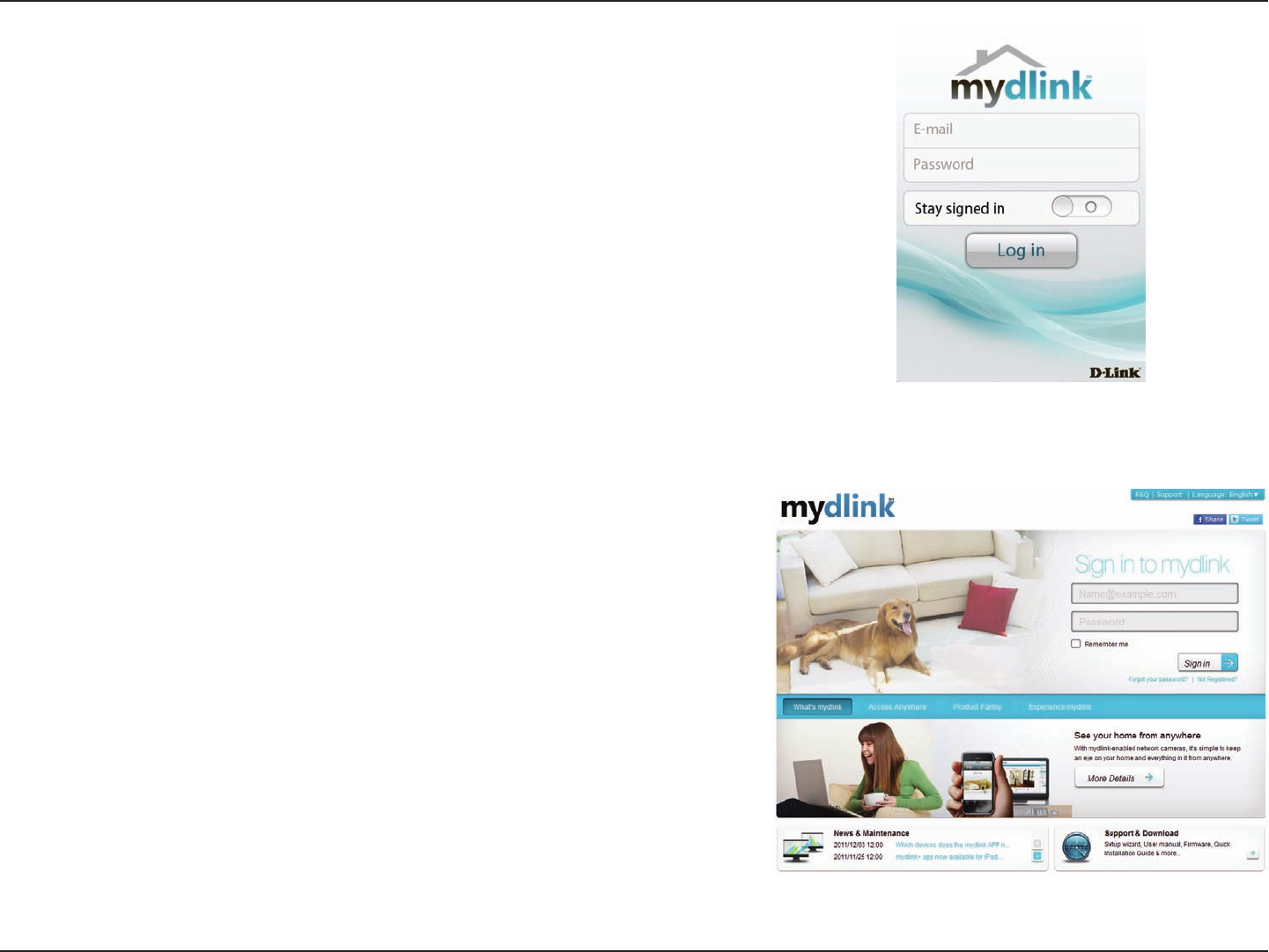

mydlink Requirements
• iPhone/iPad/iPod Touch (iOS 3.0 or higher)
• Android device (1.6 or higher)
• Computer with the following browser requirements:
• Internet Explorer 7 or higher
• Firefox 3 or higher
• Safari 5 or higher
• Chrome 5 or higher
iPhone, iPad, and iPod touch are registered trademarks of Apple Inc. Android is a trademark of Google, Inc.
System Requirements
3D-Link DIR-808L User Manual
Section 1 - Product Overview
Introduction
The D-Link DIR-808L is a draft IEEE 802.11ac compliant device that delivers speeds up to 3 times faster than 802.11n, while
staying backward compatible with older 802.11b/g/n devices. Connect the DIR-808L to a cable or DSL modem and provide
high-speed Internet access to multiple wireless clients. Powered by the latest 802.11ac technology, this router provides superior
wireless coverage for small to medium sized homes. The DIR-808L also includes a 4-port 10/100 Fast Ethernet switch that
connects Ethernet wired devices for high-speed wired connectivity.
With the DIR-808L Wireless AC600 Dual Band Cloud Router you can monitor and manage your home network right from
your laptop, iOS™, or Android™ device. This cloud-enabled router can be congured to notify you whenever new devices are
connected to your network or unwanted access is detected. Monitor in real-time websites that are being visited, with recent
browser history displayed on the mydlink™ Lite app – which is great for parents keeping an eye on children using the Internet
at home. The D-Link Cloud Service can help you to detect and block unwelcome guests who attempt to access your wireless
network, and any suspicious activities will be displayed right on your mydlink Lite app or browser.
With some routers, all wired and wireless trac, including VoIP, video streaming, online gaming, and web browsing is mixed
together into a single data stream. By handling data this way, applications like video streaming could experience lags or delays.
With D-Link Intelligent QoS Technology, wired and wireless trac are analyzed and separated into multiple data streams. You
can also assign priorities to dierent data streams to ensure that the trac most important to you receives optimum bandwidth.
The DIR-808L supports the latest wireless security features to help prevent unauthorized access, be it from inside your wireless
network or from the Internet. Support for the WPA and WPA2 standards gives you a range of security and encryption choices,
based on the capabilities of your wireless clients. In addition, this router utilizes dual active rewalls (SPI and NAT) to prevent
potential attacks from across the Internet.
4D-Link DIR-808L User Manual
Section 1 - Product Overview
• Ultimate Fast Wireless Networking - The DIR-808L provides a wireless connection up to 150 Mbps on the
2.4 GHz band, and up to 433 Mbps on the 5 GHz band. This capability allows users to participate in real-time
activities online, such as video streaming, online gaming, and real-time audio. The performance of this 802.11ac
wireless router gives you the freedom of wireless networking at speeds up to three times faster than 802.11n.
• Compatible with 802.11a/g/n Devices - The DIR-808L remains fully compatible with the IEEE 802.11b, 802.11g
and 802.11n standards, so it can connect your existing wireless clients, providing backwards compatibility for
older devices.
• Advanced Security Features - The Web-based user interface displays a number of advanced network
management features including:
• Content Filtering - Easily applied content ltering based on MAC address, URL, and/or domain
name.
• Filter Scheduling - These lters can be scheduled to be active on certain days or for a duration of
hours or minutes.
• Secure Multiple/Concurrent Sessions - The DIR-808L can pass through VPN sessions. It supports
multiple and concurrent IPSec and PPTP sessions, so users behind the DIR-808L can securely access
corporate networks.
• User-friendly Setup Wizard - Through its easy-to-use web-based user interface, the DIR-808L guides you
through the process of setting up a customized, secure wireless network, allowing you to congure your router
to your specic settings within minutes.
* Maximum wireless signal rate derived from IEEE Standard 802.11b, 802.11g, 802.11n and draft 802.11ac specications. Actual data throughput will vary. Network conditions
and environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental
conditions will adversely aect wireless signal range.
Features
5D-Link DIR-808L User Manual
Section 1 - Product Overview

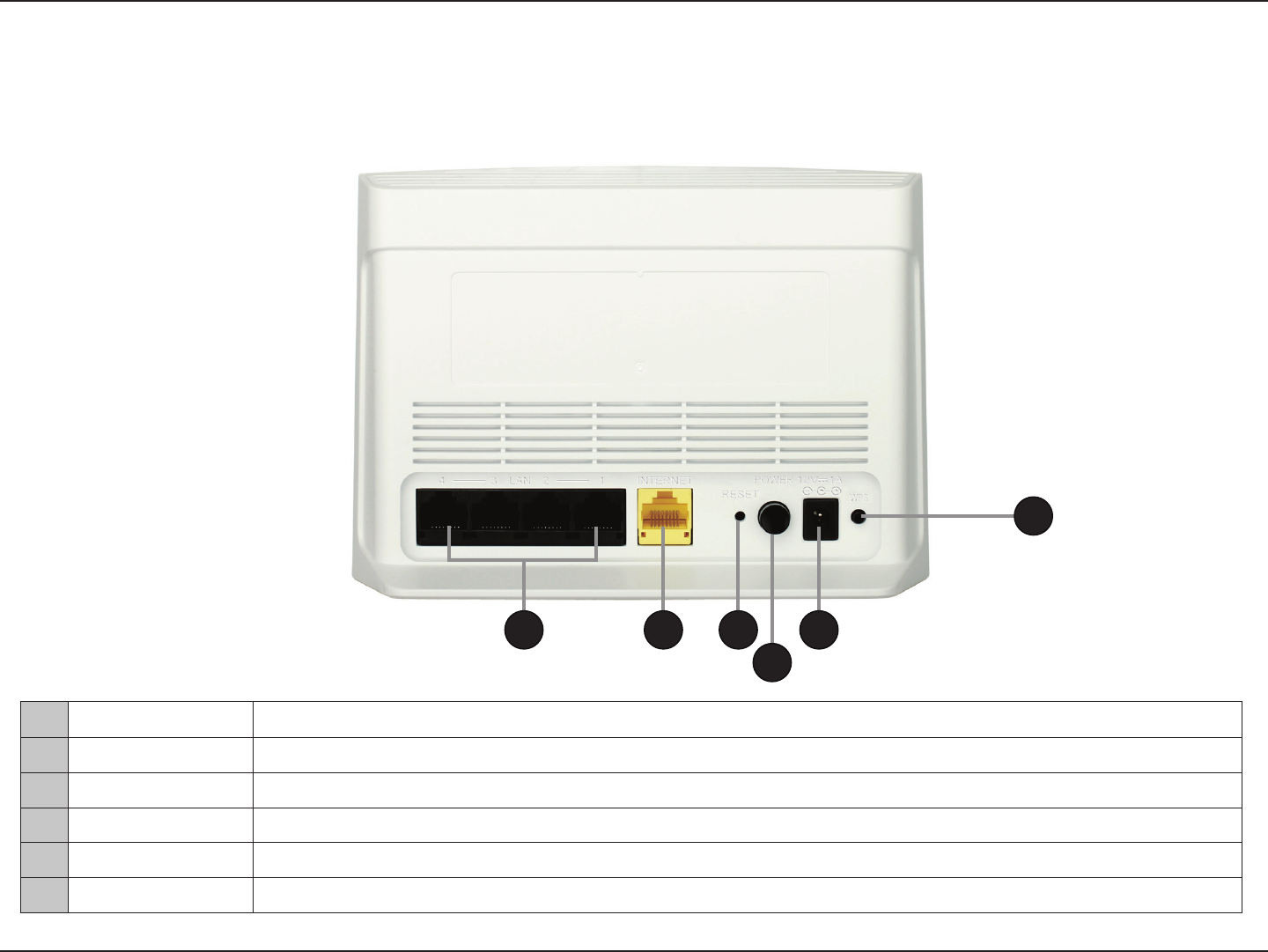

Hardware Overview
Connections
1WPS Button Press to start the WPS process. The power LED will start to blink.
2LAN Ports (1-4) Connect 10/100 Ethernet devices such as computers, switches, storage (NAS) devices and game consoles.
3Internet Port Using an Ethernet cable, connect your broadband modem to this port.
4Power Button Press the power button to power on and o.
5Power Receptor Receptor for the supplied power adapter.
6Reset Button (Hole) Use a paperclip to depress the reset button and restore the router to its original factory settings.
3
4
562
1
6D-Link DIR-808L User Manual
Section 1 - Product Overview
Hardware Overview

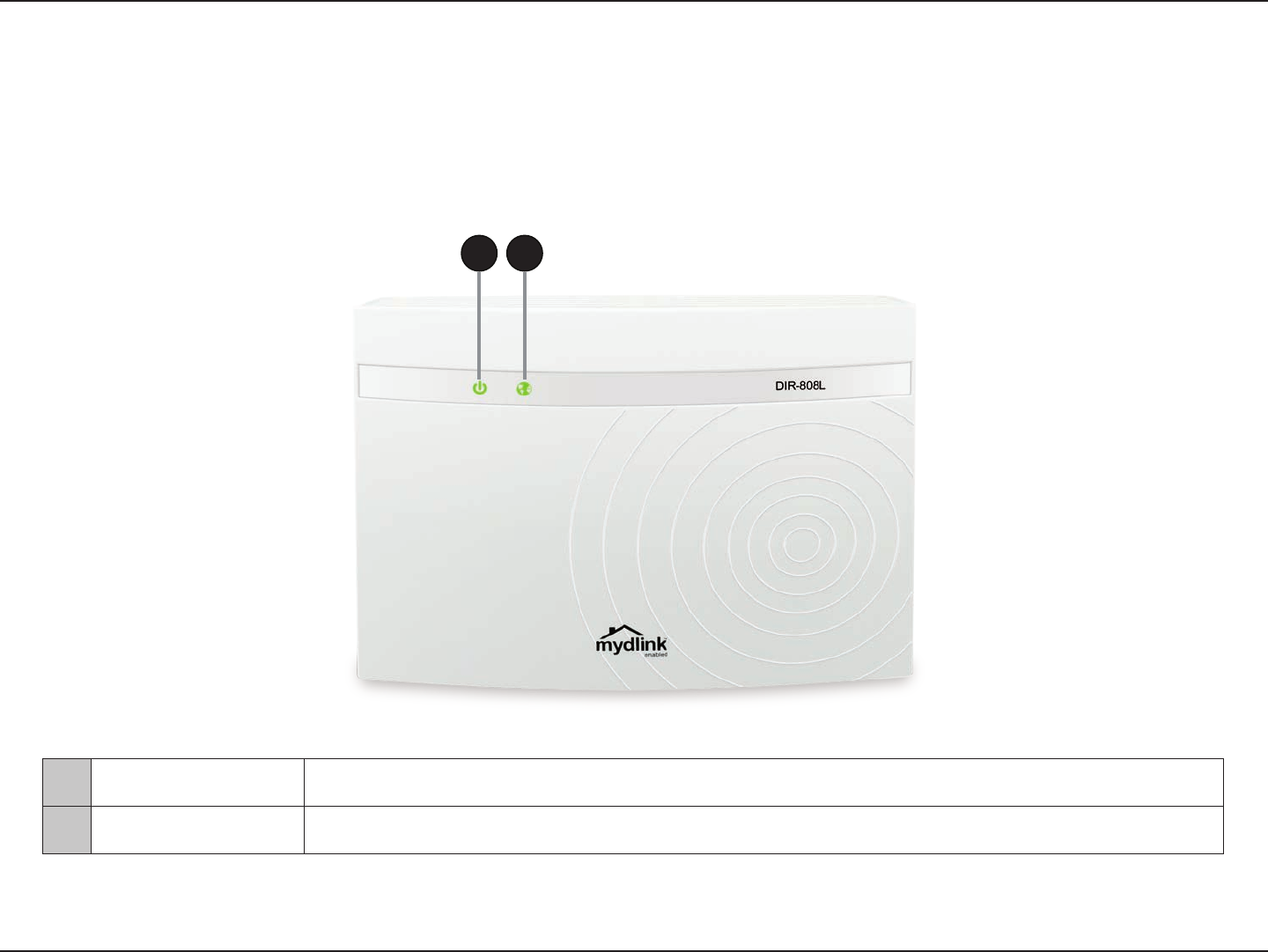

LEDs
1Power LED A solid green light indicates a proper connection to the power supply. The light will blink green during the
WPS process. The light will be solid orange during boot up.
2Internet LED A solid light indicates connection on the Internet port. If the LED is orange, a connection is present but the
router cannot connect to the Internet.
1 2
7D-Link DIR-808L User Manual
Section 2 - Installation
Before you Begin
Installation
This section will walk you through the installation process. Placement of the router is very important. Do not place the router
in an enclosed area such as a closet, cabinet, an attic, or a garage.
• Please congure the router with the computer that was last connected directly to your modem.
• You can only use the Ethernet port on your modem. If you were using the USB connection before using this router,
then you must turn o your modem, disconnect the USB cable and connect an Ethernet cable to the Internet port
on the router, and then turn the modem back on. In some cases, you may need to call your ISP to change connection
types (USB to Ethernet).
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such as WinPoET,
Broadjump, or Enternet 300 from your computer, or you will not be able to connect to the Internet.
8D-Link DIR-808L User Manual
Section 2 - Installation
Wireless Installation Considerations
The DIR-808L Wireless AC600 Dual Band Cloud Router lets you access your network using a wireless connection from virtually
anywhere within the operating range of your wireless network. Keep in mind, however, that the number, thickness and location
of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending
on the types of materials used and background RF (radio frequency) noise in your home or business. The key to maximizing
wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the router and other network devices to a minimum - each wall
or ceiling can reduce your adapter’s range by 3-90 feet (1-30 meters.) Position your devices so that the number
of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 0.5 meters thick (1.5 feet), at a 45-degree
angle appears to be almost 1 meter (3 feet) thick. At a 2-degree angle it can appear over 14 meters (42 feet)
thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for
better reception.
3. Building materials can aect your wireless signal. A solid metal door or aluminum studs may have a negative
eect on range. Try to position access points, wireless routers, and computers so that the signal passes through
drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh
tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4 GHz cordless phones or X-10 wireless products (such as ceiling fans, lights, and home security
systems), your wireless connection may be degraded dramatically or even drop completely. Make sure your 2.4
GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even if the
phone in not in use.
9D-Link DIR-808L User Manual
Section 2 - Installation
Manual Setup
1. Turn o and unplug your cable or DSL broadband modem. This is required.
2. Position your router close to your modem and a computer. Place the router in an open area of your intended
work area for better wireless coverage.
3. Unplug the Ethernet cable from your modem (or existing router if upgrading) that is connected to your computer.
Plug it into the LAN port labeled 1 on the back of your router. The router is now connected to your computer.
Modem
LAN
RESET
INTERNET1234 12V 1A
POWER
WPS
DIR-808LComputer
10D-Link DIR-808L User Manual
Section 2 - Installation

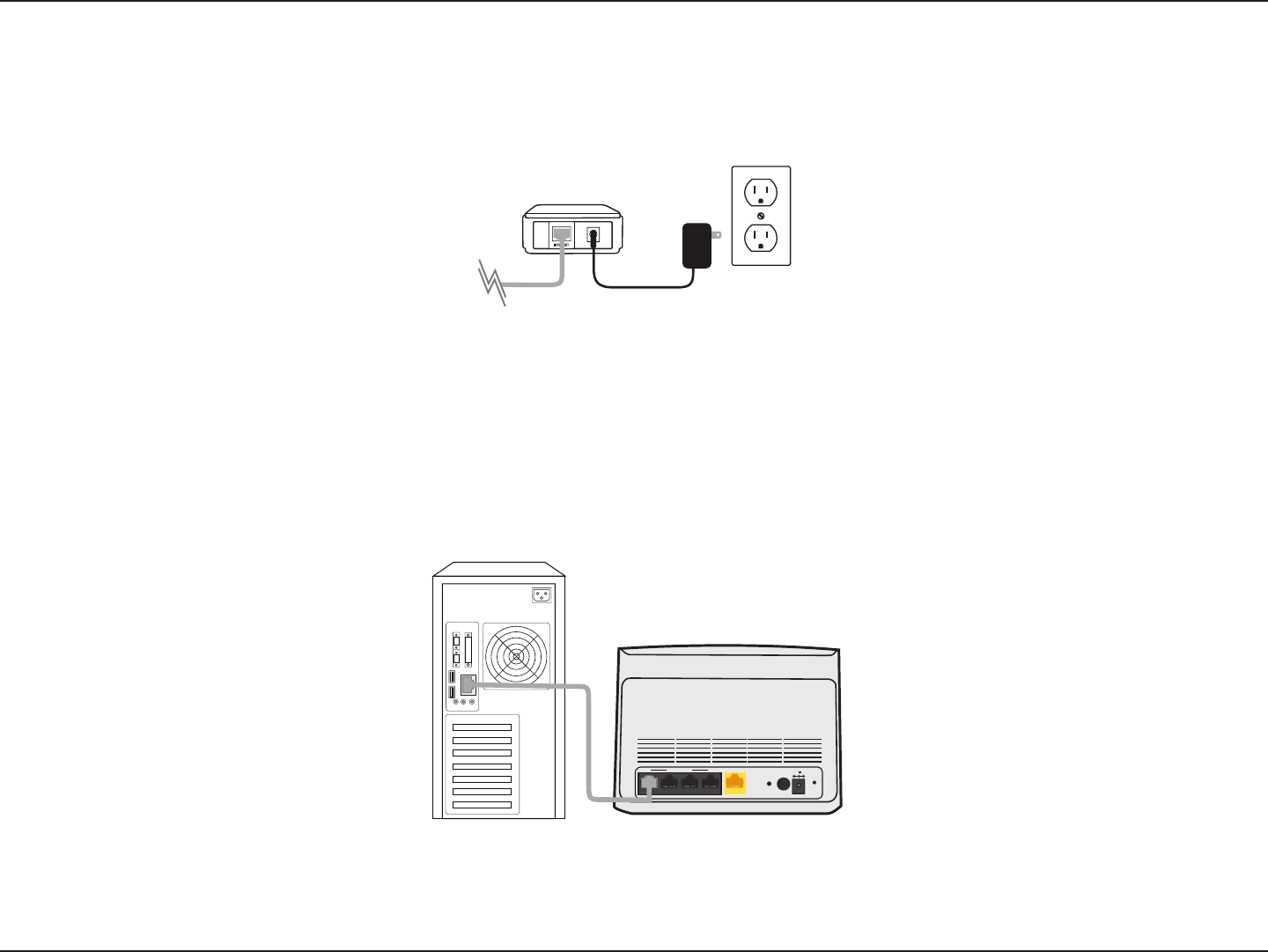

4. Plug one end of the included blue Ethernet cable that came with your router into the yellow port labeled
INTERNET on the back of the router. Plug the other end of this cable into the Ethernet port on your modem.
5. Reconnect the power adapter to your cable or DSL broadband modem and wait for two minutes.
6. Connect the supplied power adaptor into the power port on the back of the router and then plug it into a power
outlet or surge protector. Press the power button and verify that the power LED is lit. Allow 1 minute for the
router to boot up.
7. If you are connecting to a broadband service that uses a dynamic connection (not PPPoE), you may be online
already. Try opening a web browser and enter a web site. A solid light on the Internet LED indicates connection
on the Internet port and the router can connect to the Internet. If the LED is orange, a connection is present but
the router cannot connect to the Internet.
INTERNET
LAN
RESET
INTERNET1234 12V 1A
POWER
WPS
DIR-808L
Modem
Computer
DIR-808L
Modem
Computer
INTERNET
LAN
RESET
INTERNET1234 12V 1A
POWER
WPS
11D-Link DIR-808L User Manual
Section 3 - Conguration
There are several dierent ways you can congure your router to connect to the Internet and connect to your clients:
• Quick Setup Wizard - This wizard will launch when you log into the router for the rst time. Refer to “Quick Setup Wizard”
on page 12.
• QRS Mobile App - Use your iOS or Android device to congure your router. Refer to ”QRS Mobile App (iOS, Android)” on
page 19.
• Manual Setup - Log into the router and manually congure your router (advanced users only). Refer to ”Internet (Manual
Setup)” on page 28.
Conguration
12D-Link DIR-808L User Manual
Section 3 - Conguration
If this is your rst time logging into the router, this wizard will start
automatically.
This wizard is designed to guide you through a step-by-step process to
congure your new D-Link router and connect to the Internet.
Click Next to continue.
Quick Setup Wizard
If this is your rst time installing the router, open your web browser. You
will automatically be directed to the Wizard Setup Screen. If not, enter
“http://dlinkrouter.local”. Then, press Enter.
If you have already congured your settings and you would like to access
the conguration utility, please refer to “Internet (Manual Setup)” on page 28.
Please wait while your router detects your Internet connection type. This
process may take a few minutes.
13D-Link DIR-808L User Manual
Section 3 - Conguration

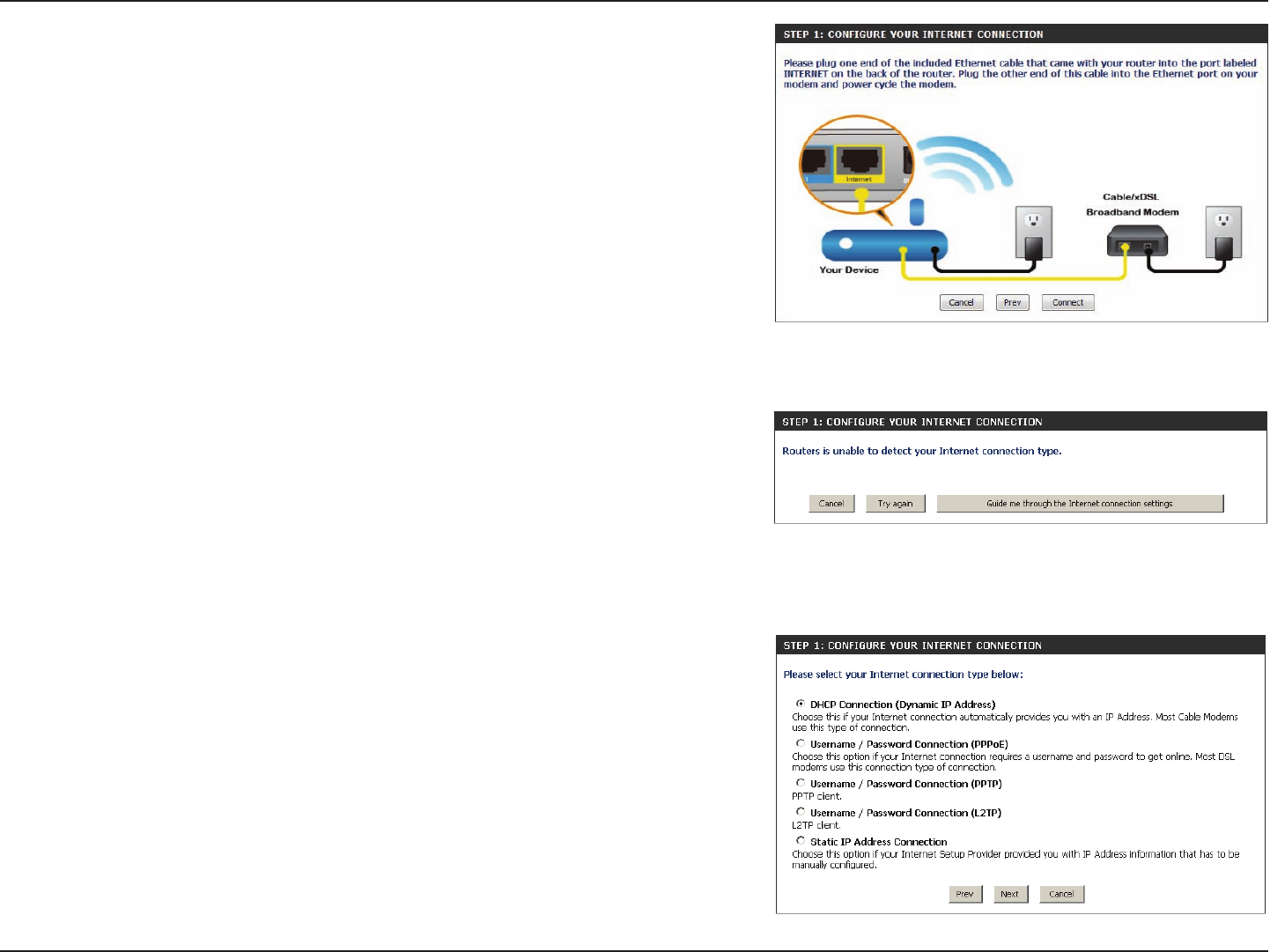

If the router does not detect a valid Ethernet connection from the
Internet port, this screen will appear. Check the connection between your
broadband modem to the Internet port and then click Prev to return to
the previous page and try again.
If the router detects an Ethernet connection but does not detect the type
of Internet connection you have, this screen will appear. Click Guide me
through the Internet Connection Settings to display a list of connection
types to choose from.
Select your Internet connection type and click Next to continue.
14D-Link DIR-808L User Manual
Section 3 - Conguration

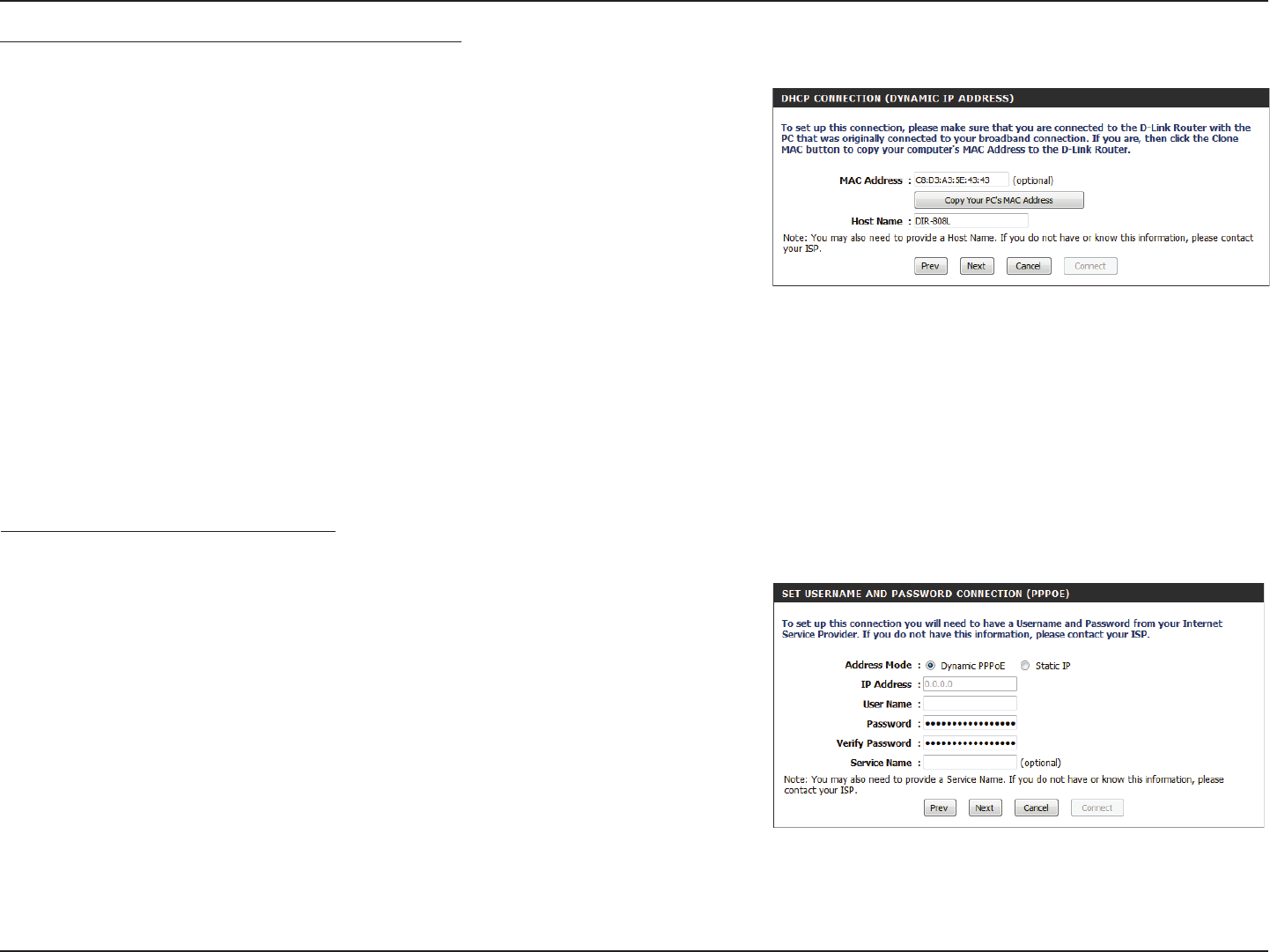

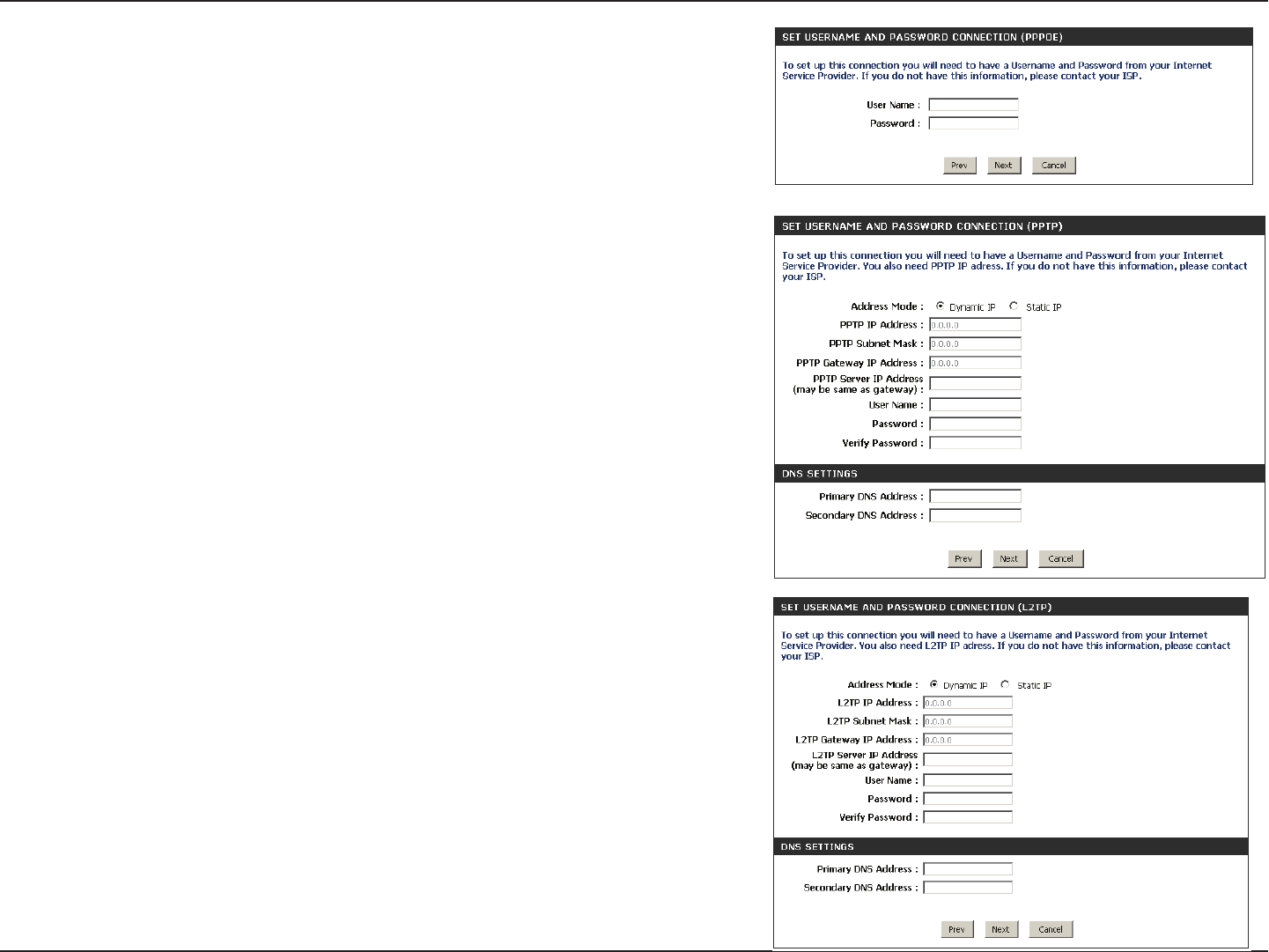

If the router detected, or you selected PPPoE, enter your PPPoE username
and password and click Next to continue.
Note: Make sure to remove any PPPoE software from your computer. The
software is no longer needed and will not work through a router.

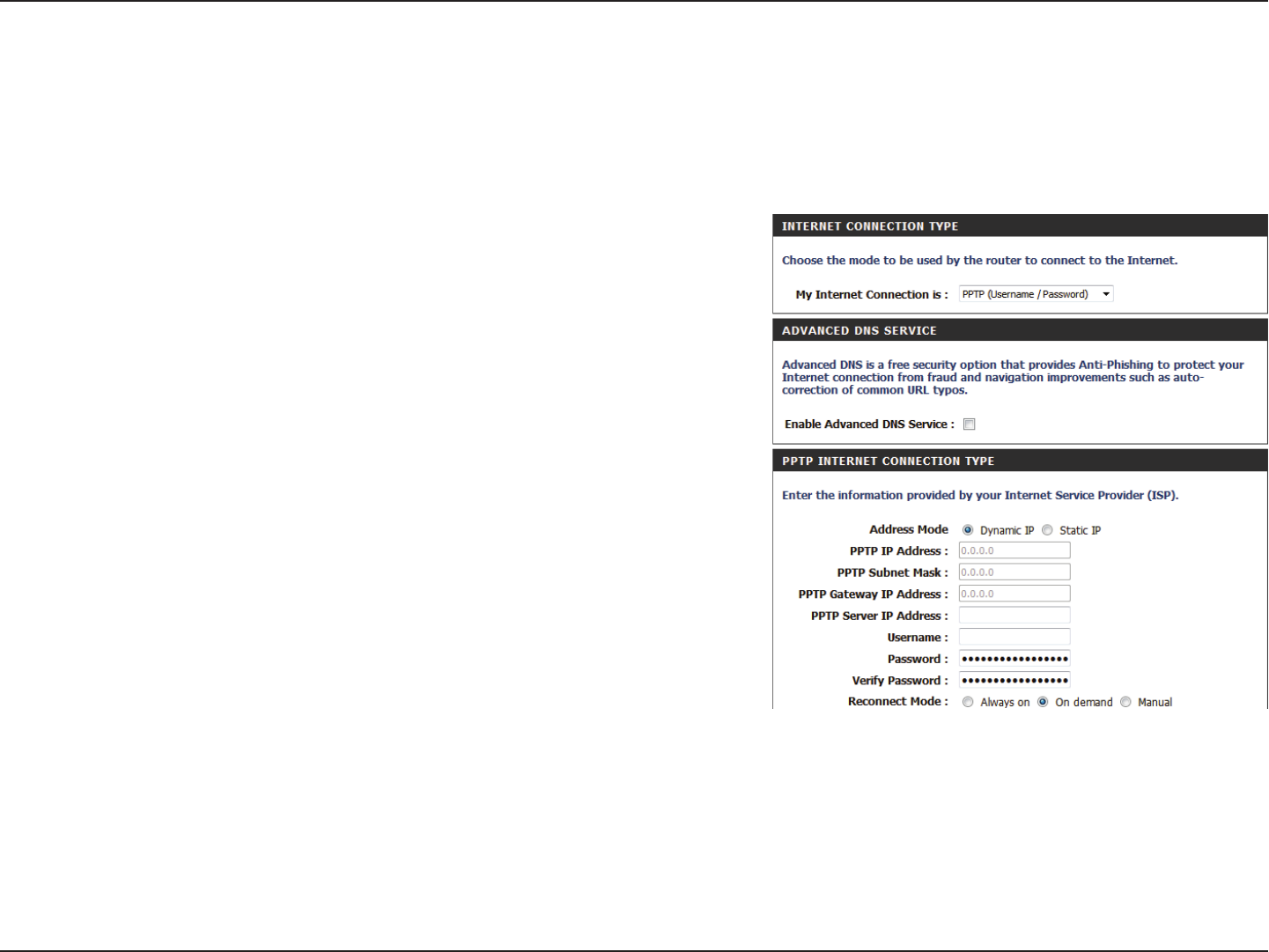

If the router detected or you selected PPTP, enter your PPTP username,
password, and other information supplied by your ISP. Click Next to
continue.
If the router detected, or you selected L2TP, enter your L2TP username,
password, and other information supplied by your ISP. Click Next to
continue.
15D-Link DIR-808L User Manual
Section 3 - Conguration
If the router detected, or you selected Static, enter the IP and DNS settings
supplied by your ISP. Click Next to continue.
For both the 2.4 GHz and 5 GHz bands, create a Wi-Fi network name (SSID)
using up to 32 characters. These names will identify your wireless network.

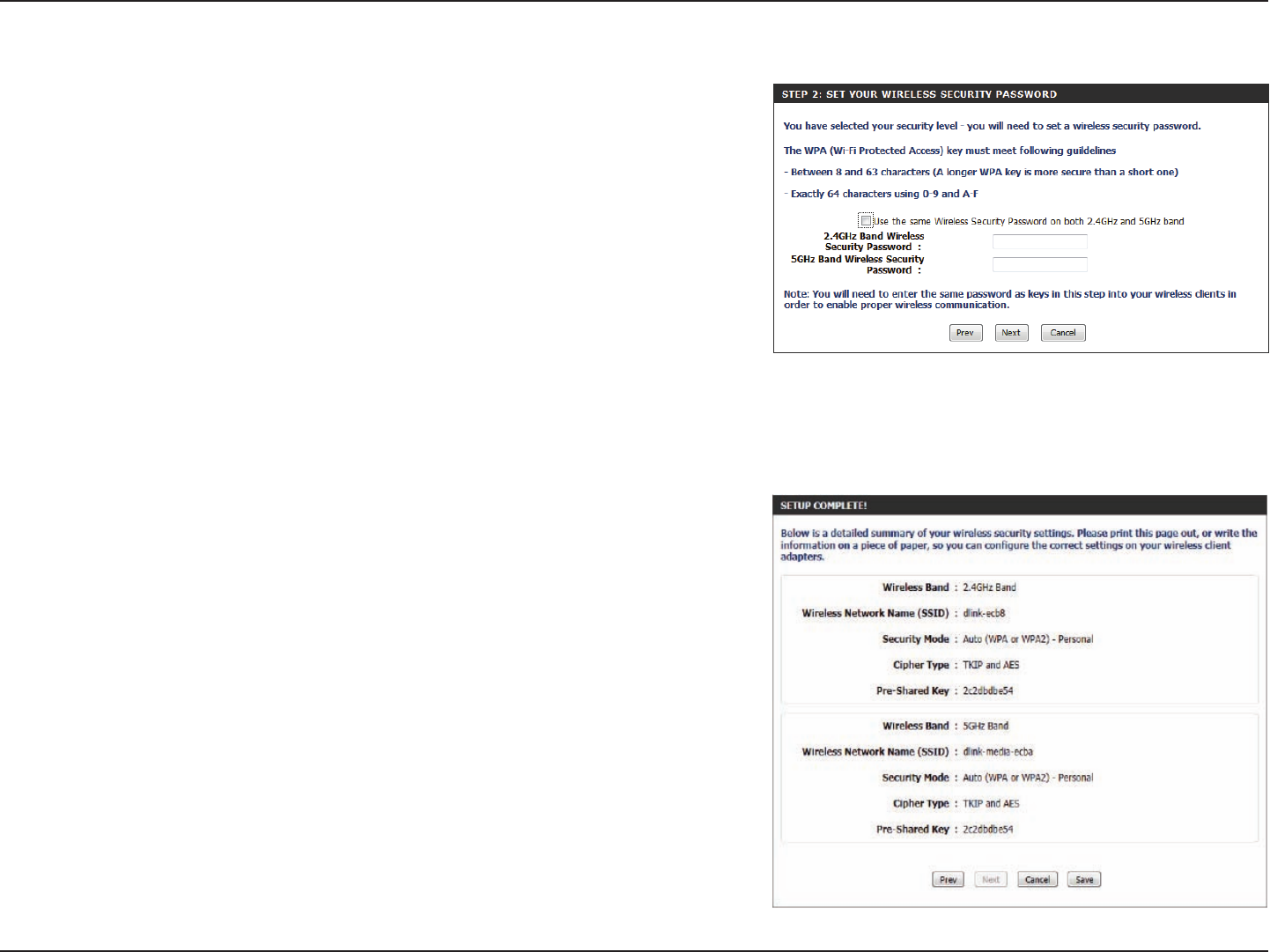

Create a Wi-Fi password (Network Key) (between 8-63 characters). Your
wireless clients will need to have this password or key entered to be able
to connect to your wireless network. It is recommended that you make a
record of this information for future reference.
Click Next to continue.
In order to secure your router, please enter a new password, which will
be used to access the web-based conguration utility. Check the Enable
Graphical Authentication box to enable CAPTCHA authentication for
added security. Click Next to continue.
16D-Link DIR-808L User Manual
Section 3 - Conguration
Select your time zone from the drop-down menu and click Next to
continue.

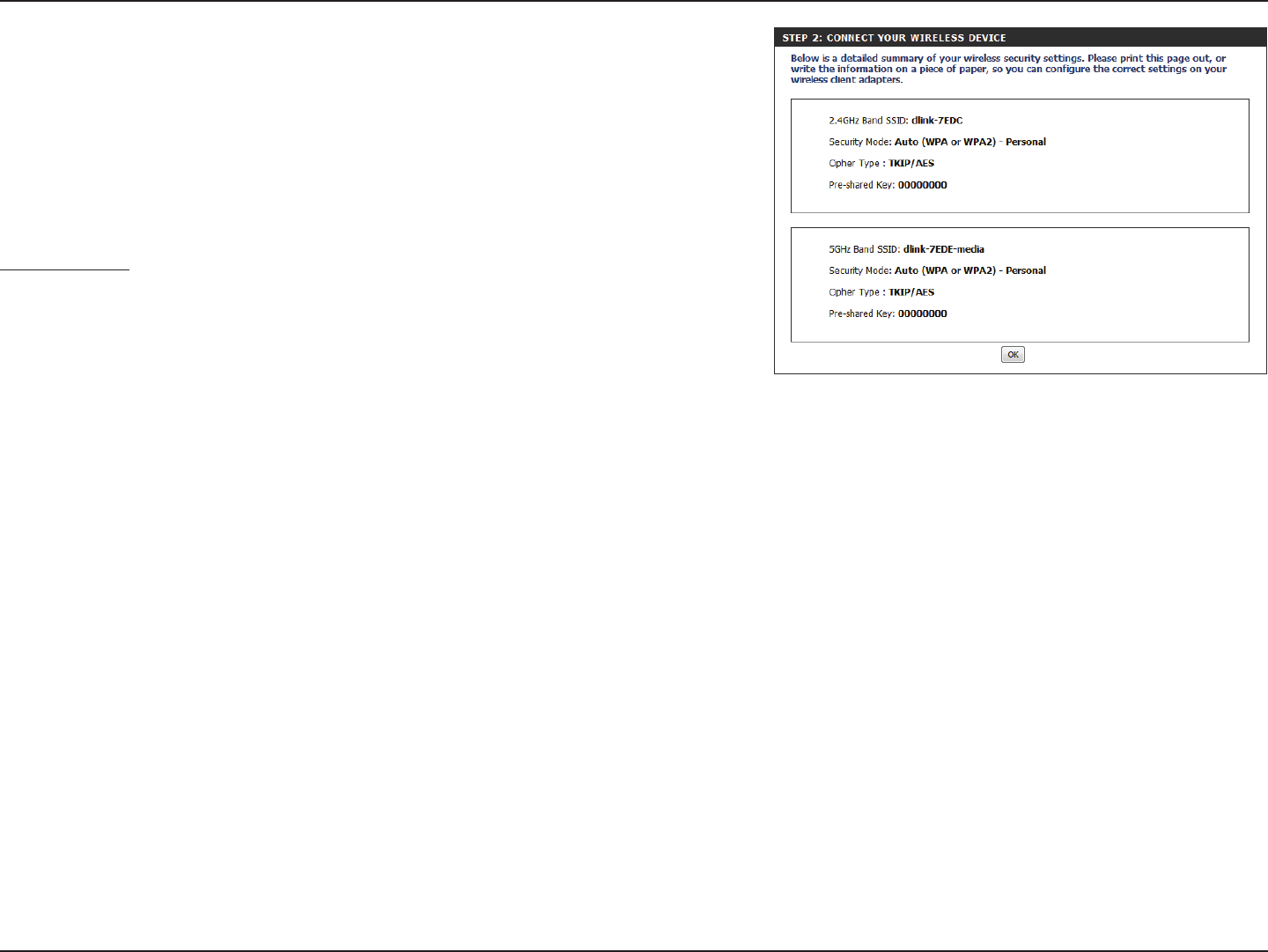

The next window will display your Wi-Fi settings and confirm the
completion of the setup process. Click Next to continue.
If you want to create a bookmark for the router’s web-based conguration
utility, click OK. Click Cancel if you do not want to create a bookmark.
If you clicked Yes, a window may appear (depending on which web
browser you are using) to create a bookmark.
17D-Link DIR-808L User Manual
Section 3 - Conguration

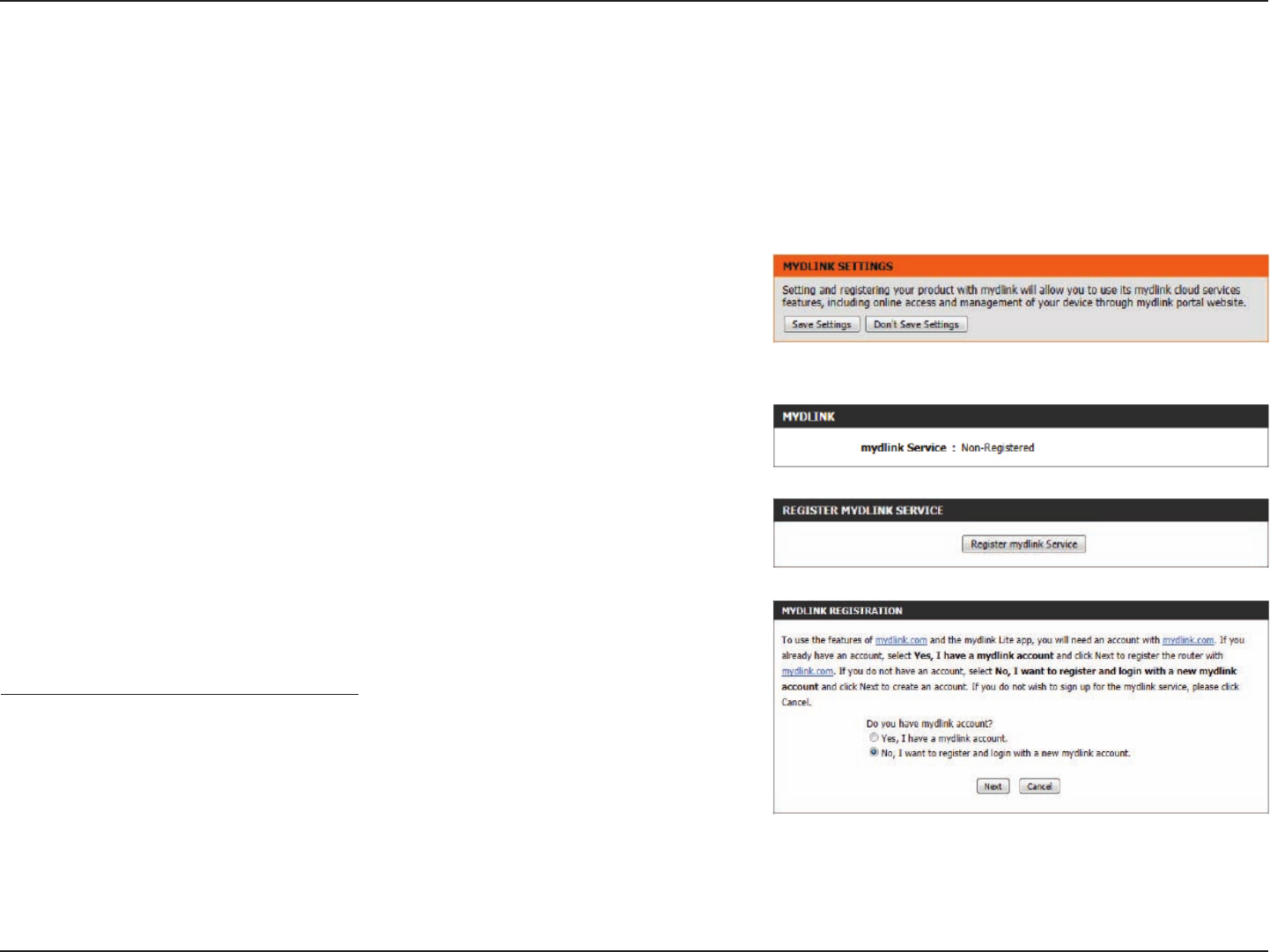

To use the mydlink service (mydlink.com or the mydlink Lite app), you
must have an account. Select whether you do have a mydlink account or
if you need to create one. Click Next to continue.
If you do not want to register at this time, click Cancel.
If you clicked Yes, enter your mydlink account name (email address) and
password. Click Login to register your router.
If you clicked No, ll out the requested information, check the box to accept
the terms and conditions of use, and click Sign Up to create your mydlink
account. Click the hyperlink if you wish to read the terms and conditions
before you proceed.
18D-Link DIR-808L User Manual
Section 3 - Conguration
The mydlink app will allow you to receive notications, browse network
usage, and congure your router from an iOS (3.0 or higher), Android (1.6
or higher) device.
To download the "mydlink lite" app, visit the iOS App Store, Google Play
Store, or http://mydlink.com/Lite.
PC and Mac users can use the mydlink portal at http://mydlink.com.
19D-Link DIR-808L User Manual
Section 3 - Conguration
QRS Mobile App (iOS, Android)
D-Link oers an app for your iOS or Android device which will assist you to install and congure your router.
Step 1
From an iOS device, go to the iOS App Store. From an Android device
go to the Google Play Store. Search for ‘D-Link’, select QRS Mobile, and
download the app to your device. You may also scan the appropriate code
on the right to locate the app download page.
Step 2
Once you have installed the app, you can now congure your router.
Connect to the router wirelessly by going to your wireless utility on your
device. Scan for the Wi-Fi name (SSID) as listed on the supplied info card.
Select and then enter your Wi-Fi password.
Step 3
Once you have connected to the router, launch the QRS mobile app and
it will guide you through the installation of your router.
iOS Android
20D-Link DIR-808L User Manual
Section 3 - Conguration
Web-based Conguration Utility
Enter “Admin” as the administrator login name. Leave the password blank
by default. Click Login to continue.
To access the conguration utility, open a web-browser such as Internet
Explorer and enter the address of the router
(http://dlinkrouter.local or http://192.168.0.1).
Non-Windows and Non-Mac users may also connect by typing
http://192.168.0.1 in the address bar.
21D-Link DIR-808L User Manual
Section 3 - Conguration
Internet Connection Setup
If you want to congure your router to connect to the Internet using the
wizard, click Internet Connection Setup Wizard. You will be directed to
the Quick Setup Wizard.
Click Manual Internet Connection Setup to congure your connection
manually and continue to the next page.
22D-Link DIR-808L User Manual
Section 3 - Conguration
Internet Connection Setup Wizard
When conguring the router for the rst time, we recommend that you use the Internet
Connection Setup Wizard, and follow the instructions on the screen. This wizard is
designed to provide users with a quick and easy method to congure the Internet
connectivity of this router.
At any time during the Internet Connection Setup Wizard, users can click on the Cancel
button to discard any changes made and return to the main Internet page. Also, users
can click on the Prev button to return to the previous window for re-conguration.
Welcome:
This wizard will guide you through a step-by-step process to congure your new
D-Link router and connect to the Internet.
Click Next to continue.
Step 1: Set Your Password
By default, the router does not have a password congured for administrator
access to the Web-based conguration pages. To secure your new networking
device, please enter and verify a password in the spaces provided. The two passwords
must match. You should also make a record of this password for future reference.
Click Next to continue.
23D-Link DIR-808L User Manual
Section 3 - Conguration
Step 2: Select Your Time Zone
Select the appropriate time zone for your location. This information is required to
congure the time-based options for the router.
Click Next to continue.
Step 3: Internet Connection
Here the user will be able to congure the Internet connectivity used by this device. If your ISP connection is listed in the drop-down menu, select
it and click Next. If your ISP connection is not listed then you can proceed to select any of the other manual Internet connection methods listed
below.
Dynamic IP Address:
PPPoE:
PPTP:
L2TP:
Static IP Address:
Choose this if your Internet connection automatically
provides you with an IP address. Most cable modems use
this type of connection.
Choose this option if your Internet connection requires
a PPPoE username and password to access the Internet.
Most DSL modems use this type of connection.
Choose this option if your Internet connection requires a
PPTP username and password to access the Internet.
Choose this option if your Internet connection requires
an L2TP username and password to access the Internet.
Choose this option if your Internet Service Provider
provided you with IP Address information that has to be
manually congured.
24D-Link DIR-808L User Manual
Section 3 - Conguration
Step 3: Internet Connection (Dynamic IP Address)
After selecting the Dynamic IP Address Internet connection method, the following page will appear.
The following parameters will be available for conguration:
MAC Address: Enter the MAC address of the Internet gateway (plugged
into the Internet port of this device) here.
Copy Button: If the conguration PC also acts as the Internet gate-
way, then click on the Copy Your PC’s MAC Address
button to copy the PC’s MAC address into the space
provided. If you’re not sure, leave the MAC address
eld blank.
Host Name: Enter the host name used here. You may also need to
provide a host name. If you do not have or know this
information, please contact your ISP.
Click Next to continue.
Step 3: Internet Connection (PPPoE)
After selecting the PPPoE Internet connection method, the following page will appear:
The following parameters will be available for conguration:
Address Mode: Choose the IP address mode for your PPPoE connection.
IP Address: If you are using Static PPPoE, enter the IP address
provided by your ISP.
User Name: Enter the PPPoE account user name used here. This
information is given by the ISP.
Password: Enter the PPPoE account password used here. This
information is given by the ISP.
Service Name: You may be required to enter a service name by your
ISP.
25D-Link DIR-808L User Manual
Section 3 - Conguration
Step 3: Internet Connection (PPTP)
After selecting the PPTP Internet connection method, the following page will appear:
The following parameters will be available for conguration:
Address Mode: Here the user can specify whether this Internet
connection requires the use of a dynamic or static IP
address. PPTP usually requires a dynamic IP conguration.
PPTP IP Address: Enter the PPTP IP address used here. This option is only
available if Static IP is selected.
PPTP Subnet Mask: Enter the PPTP subnet mask used here.
PPTP Gateway IP Address: Enter the PPTP gateway IP address used here.
PPTP Server IP Address: Enter the PPTP server IP address used here. This is
normally the same a the PPTP gateway IP address.
User Name: Enter the PPTP username used here.
Password: Enter the PPTP password used here.
Verify Password: Re-enter the PPTP password used here.
Click Next to continue.
26D-Link DIR-808L User Manual
Section 3 - Conguration
Step 3: Internet Connection (L2TP)
After selecting the L2TP Internet connection method, the following page will appear:
The following parameters will be available for conguration:
Address Mode: Here the user can specify whether this Internet
connection requires the use of a dynamic or static IP
address. L2TP usual requires a dynamic IP conguration.
L2TP IP Address: Enter the L2TP IP address used here. This option is
only available if Static IP is selected.
L2TP Subnet Mask: Enter the L2TP subnet mask used here.
L2TP Gateway IP Address: Enter the L2TP gateway IP address used here.
L2TP Server IP Address: Enter the L2TP server IP address used here. This is
normally the same a the L2TP gateway IP address.
User Name: Enter the L2TP username used here.
Password: Enter the L2TP password used here.
Verify Password: Re-enter the L2TP password used here.
Click Next to continue.
27D-Link DIR-808L User Manual
Section 3 - Conguration
Step 3: Internet Connection (Static IP Address)
After selecting the Static IP Address Internet connection method, the following page will appear:
Setup Complete!
This is the last page of the Internet Connection Setup Wizard.
Click the Connect button to save your settings.
The following parameters will be available for conguration:
IP Address: Enter the static IP address provided by the ISP here.
Subnet Mask: Enter the subnet mask provided by the ISP here.
Gateway Address: Enter the gateway IP address provided by the ISP here.
Primary DNS Address: Enter the primary DNS IP address used here.
Secondary DNS Address: Enter the secondary DNS IP address used here. This
eld is normally optional. Only one DNS address is
required for a functional Internet connection, but
using a second DNS address provides more stability.
Click Next to continue.
28D-Link DIR-808L User Manual
Section 3 - Conguration
Internet (Manual Setup)
On this page the you can congure the Internet connection settings manually. To
access the Manual Internet Connection Setup page, click on the Manual Internet
Connection Setup button. On this page there are multiple parameters that can be
congured regarding the Internet connection setup.
At any stage throughout the wizard, you can save the current conguration by click-
ing on the Save Settings button. If you wish to discard the changes made, click on
the Don’t Save Settings button.
29D-Link DIR-808L User Manual
Section 3 - Conguration
My Internet Connection is: Dynamic IP (DHCP)
The default WAN conguration for this router is Dynamic IP (DHCP). This option
allows the router to obtain an IP address automatically from the device that is con-
nected to the Internet port.
Note: If you’re not sure about the type of Internet connection you have, please con-
tact your Internet Service Provider (ISP) for assistance.
After selecting Dynamic IP, the following parameters will be available for
conguration:
Enable Advanced
DNS Service:
Check the box to enable advanced DNS service
Host Name: The host name is optional, but may be required by some ISPs.
Leave blank if you are not sure.
Use Unicasting: Tick this option if your ISP uses the unicast method to provide
IP addresses.
Primary DNS: Enter the primary DNS IP address used here.
Secondary DNS: Enter the secondary DNS IP address used here. This eld is
normally optional. Only one DNS address is required for a
functional Internet connection, but using a second DNS
address provides more stability.

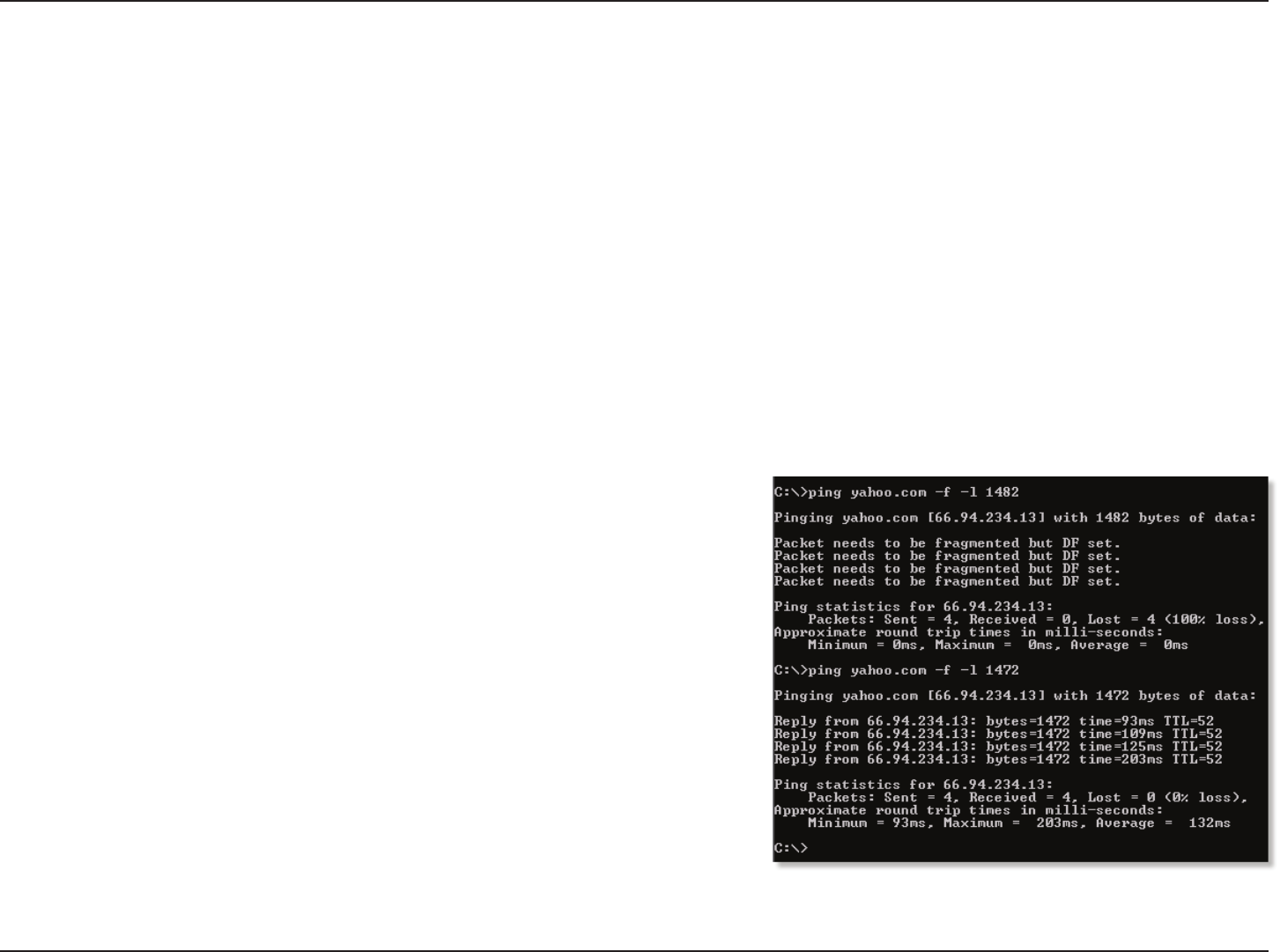

MTU: Maximum Transmission Unit - you may need to change the
MTU for optimal performance with your specic ISP. The de-
fault MTU is 1500.
Internet Connection Type
In this section, you can select from a list of Internet connection types that can be congured and used on this router. Options to choose from are

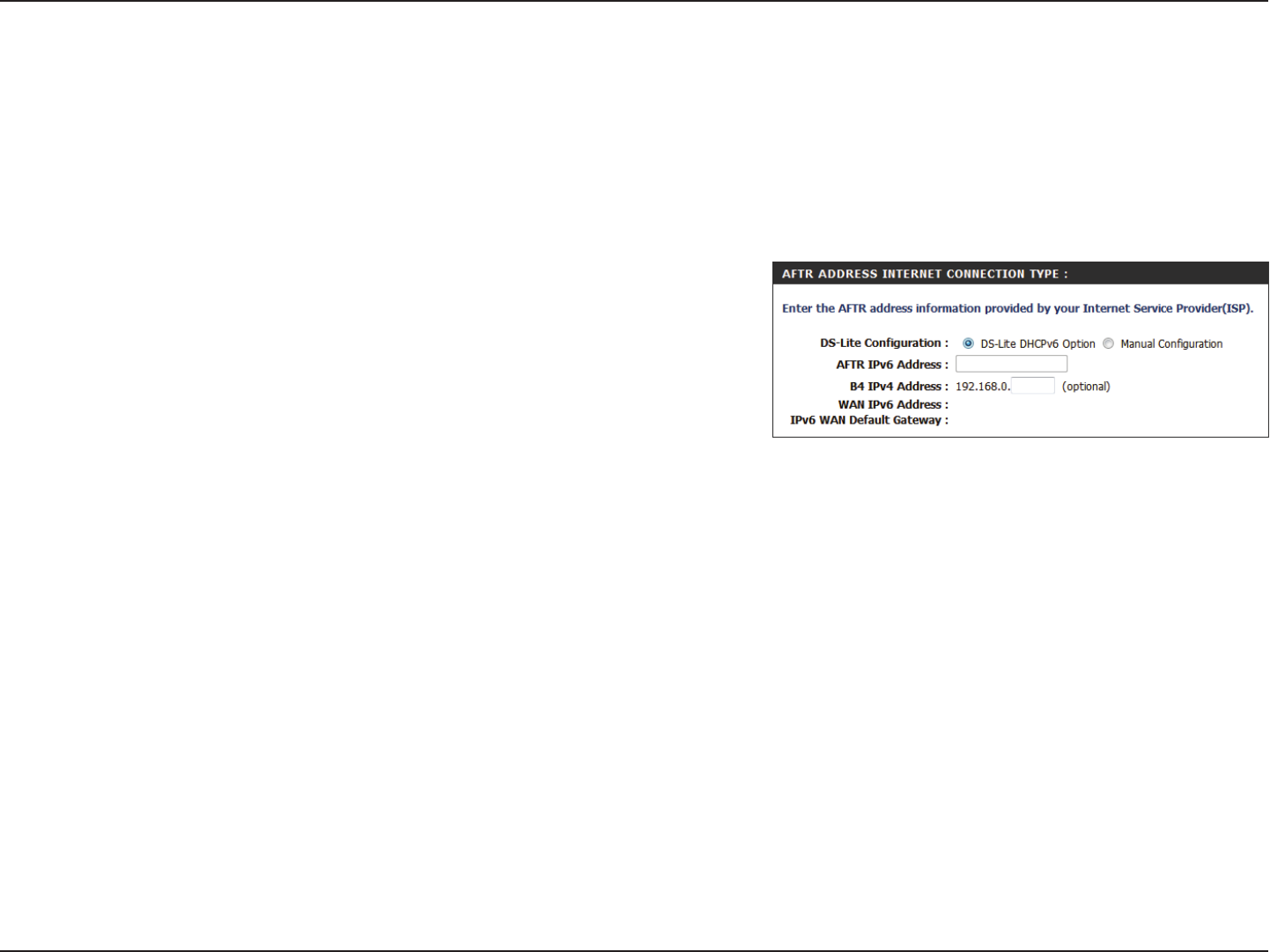

Static IP, Dynamic IP, PPPoE, PPTP, L2TP, and DS-Lite.
After selecting a specic Internet connection type, this page will automatically refresh and provide unique elds to congure related to the
specied Internet connection type.
30D-Link DIR-808L User Manual
Section 3 - Conguration
MAC Address: The default MAC address is set to the Internet port’s physi-
cal interface MAC address on the broadband router. It is not
recommended that you change the default MAC address
unless required by your ISP. You can use the Copy Your PC’s
MAC Address button to replace the Internet port’s MAC
address with the MAC address of your Ethernet card.
31D-Link DIR-808L User Manual
Section 3 - Conguration
Select Static IP to manually enter the IP settings supplied by
your ISP.
Check the box to enable advanced DNS service.
Enter the IP address assigned by your ISP.
Enter the subnet mask assigned by your ISP.
Enter the gateway assigned by your ISP.
Enter the primary DNS IP address used here
Enter the secondary DNS IP address used here. This eld is
normally optional. Only one DNS address is required for a
functional Internet connection, but using a second DNS
address provides more stability.
My Internet
Connection:
Enable Advanced
DNS Service:
IP Address:
Subnet Mask:
Default Gateway:
Primary DNS Server:
Secondary DNS
Server:
Manual Internet Setup
Static (assigned by ISP)
Select Static IP Address if your Internet Service Provider has supplied you with IP settings. You will need to enter in the IP
address, subnet mask, gateway address, and DNS address(es) provided to you by your ISP. Each IP address entered in the elds
must be in the appropriate IP form, which are four octets each separated by a dot (x.x.x.x). The router will not accept the IP
address if it is not in this format.
32D-Link DIR-808L User Manual
Section 3 - Conguration
Maximum Transmission Unit - you may need to change the
MTU for optimal performance with your specic ISP. 1500 is
the default MTU.
The default MAC address is set to the Internet port’s physical
interface MAC address on the broadband router. It is not
recommended that you change the default MAC address unless
required by your ISP. You can use the Copy Your PC’s MAC
Address button to replace the Internet port’s MAC address
with the MAC address of your Ethernet card.
MTU:
MAC Address:
33D-Link DIR-808L User Manual
Section 3 - Conguration
Internet Setup
PPPoE (DSL)
Choose PPPoE (Point to Point Protocol over Ethernet) if your ISP uses a PPPoE connection. Your ISP will provide you with a
username and password in this case. This option is typically used for DSL services. Make sure to remove any existing PPPoE
software from your computer. The software is no longer needed and will not work through a router.
My Internet Connection: Select PPPoE (Username/Password) from the drop-down
menu.
Advanced DNS Service: Check the box to enable advanced DNS service.
Address Mode: Here the user can specify whether this Internet connection
requires the use of a Dynamic or Static IP address. PPPoE
usually requires a Dynamic IP conguration.
IP Address: Enter the PPPoE IP address used here. This option is only
available if Static IP is selected.
Username: Enter the PPPoE account user name used here. This informa-
tion is given by the ISP.
Password: Enter the PPPoE account password used here. This informa-
tion is given by the ISP.
Verify Password: Re-enter the PPPoE account password used here.
Service Name: This optional eld enables the user to enter a service name to
identify this Internet connection here.
Reconnect Mode: Use the radio buttons to specify the reconnect mode. The user
can specify a custom schedule or specify the On Demand, or
Manual option. To specify a custom schedule, use the drop-
down menu to select one of the schedules that has been de-
ned in the Schedules page.
34D-Link DIR-808L User Manual
Section 3 - Conguration

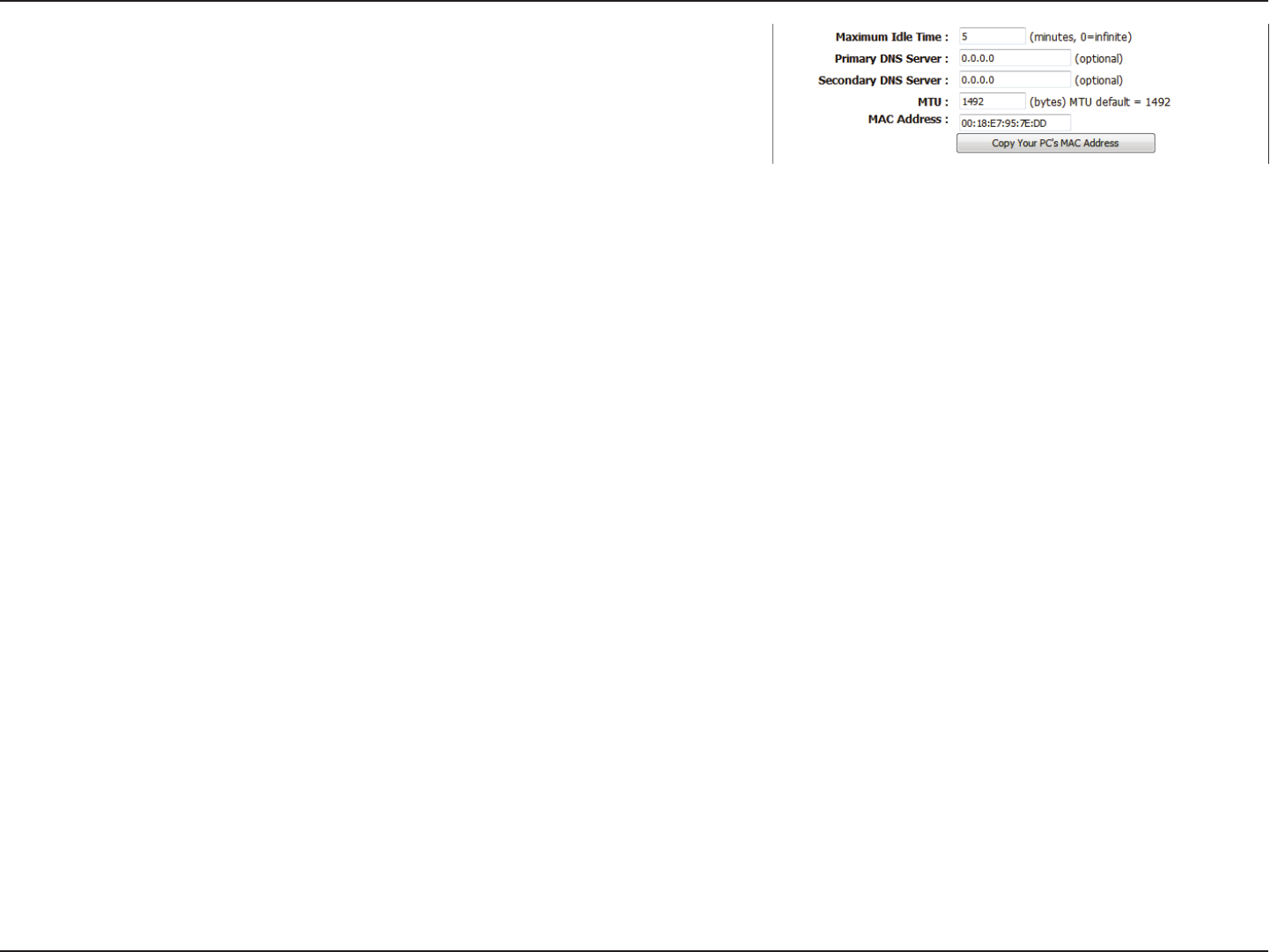

Maximum Idle Time: Enter a maximum idle time during which the Internet con-
nection is maintained during inactivity. To disable this feature,
set the reconnect mode to Always on.
Primary DNS Server: Enter the primary DNS IP address used here.
Secondary DNS Server: Enter the secondary DNS IP address used here. This eld is
normally optional. Only one DNS address is required for a
functional Internet connection, but using a second DNS
address provides more stability.
MTU: Maximum Transmission Unit - you may need to change the
MTU for optimal performance with your specic ISP. The
default MTU is 1492.
MAC Address: The default MAC address is set to the Internet port’s physi-
cal interface MAC address on the broadband router. It is not
recommended that you change the default MAC address
unless required by your ISP. You can use the Copy Your PC’s
MAC Address button to replace the Internet port’s MAC
address with the MAC address of your Ethernet card.
35D-Link DIR-808L User Manual
Section 3 - Conguration
Internet Setup
PPTP
Choose PPTP (Point-to-Point-Tunneling Protocol ) if your ISP uses a PPTP connection. Your ISP will provide you with a username
and password. This option is typically used for DSL services.
My Internet
Connection:
Select PPTP (Username/Password) from the drop-down
menu.
Advanced DNS
Service:
Check the box to enable advanced DNS service.
Address Mode: Here the user can specify whether this Internet connection
requires the use of a Dynamic or Static IP address. PPTP
usually requires a dynamic IP conguration.
PPTP IP Address: Enter the PPTP IP address used here. This option is only
available if static IP is selected.
PPTP Subnet Mask: Enter the PPTP subnet mask used here.
PPTP Gateway IP
Address:
Enter the PPTP gateway IP address used here.
PPTP Server IP
Address:
Enter the PPTP server IP address used here. This is normally
the same a the PPTP gateway IP address.
Username: Enter the PPTP username used here.
Password: Enter the PPTP password used here.
Verify Password: Re-enter the PPTP password used here.
36D-Link DIR-808L User Manual
Section 3 - Conguration
Primary DNS Server: Enter the primary DNS IP address used here.
Secondary DNS Server: Enter the secondary DNS IP address used here. This eld
is normally optional. Only one DNS address is required for
a functional Internet connection, but using a second DNS
address provides more stability.
MTU: Maximum Transmission Unit - you may need to change the
MTU for optimal performance with your specic ISP. 1400 is
the default MTU.
MAC Address: The default MAC address is set to the Internet port’s physical
interface MAC address on the broadband router. It is not rec-
ommended that you change the default MAC address unless
required by your ISP. You can use the Copy Your PC’s MAC
Address button to replace the Internet port’s MAC address
with the MAC address of your Ethernet card.
Reconnect Mode: Use the radio buttons to specify the reconnect mode. You
can specify a custom schedule or specify the On Demand, or
Manual option. To specify a custom schedule, use the drop-
down menu to select one of the schedules that has been
dened in the Schedules page. To create a new schedule,
click the New Schedule button to open the Schedules page.
Maximum Idle Time: Enter a maximum idle time during which the Internet
connection is maintained during inactivity. To disable this
feature, set the reconnect mode to Always on.
37D-Link DIR-808L User Manual
Section 3 - Conguration
Internet Setup
L2TP
Choose L2TP (Layer 2 Tunneling Protocol) if your ISP uses a L2TP connection. Your ISP will provide you with a username and
password. This option is typically used for DSL services.
My Internet
Connection:
Select L2TP (Username/Password) from the drop-down
menu.
Advanced DNS
Service:
Check the box to enable advanced DNS service.
Address Mode: Here the user can specify whether this Internet connection
requires the use of a dynamic or static IP address. L2TP usual
requires a dynamic IP conguration.
L2TP IP Address: Enter the L2TP IP address used here. This option is only avail-
able if Static IP is selected.
L2TP Subnet Mask: Enter the L2TP subnet mask used here.
L2TP Gateway IP
Address:
Enter the L2TP gateway IP address used here.
L2TP Server IP
Address:
Enter the L2TP server IP address used here. This is normally
the same a the L2TP gateway IP address.
Username: Enter the L2TP username used here.
Password: Enter the L2TP password used here.
Verify Password: Re-enter the L2TP password used here.
38D-Link DIR-808L User Manual
Section 3 - Conguration
Maximum Idle Time: Enter a maximum idle time during which the Internet
connection is maintained during inactivity. To disable this
feature, set the reconnect mode to Always on.
Primary DNS Server: Enter the primary DNS IP address used here.
Secondary DNS Server: Enter the secondary DNS IP address used here. This eld is
normally optional. Only one DNS address is required for a
functional Internet connection, but using a second DNS
address provides more stability.
MTU: Maximum Transmission Unit - you may need to change the
MTU for optimal performance with your specic ISP. 1400 is
the default MTU.
MAC Address: The default MAC address is set to the Internet port’s physical
interface MAC address on the broadband router. It is not rec-
ommended that you change the default MAC address unless
required by your ISP. You can use the Copy Your PC’s MAC
Address button to replace the Internet port’s MAC address
with the MAC address of your Ethernet card.
Reconnect Mode: Use the radio buttons to specify the reconnect mode. You
can specify a custom schedule or specify the On Demand, or
Manual option. To specify a custom schedule, use the drop-
down menu to select one of the schedules that has been
dened in the Schedules page. To create a new schedule, click
the New Schedule button to open the Schedules page.
39D-Link DIR-808L User Manual
Section 3 - Conguration
Internet Setup
DS-Lite
DS-Lite is an IPv6 connection type. After selecting DS-Lite, the following parameters will be available for conguration:
DS-Lite Conguration: Select the DS-Lite DHCPv6 Option to let the router
allocate the AFTR IPv6 address automatically. Select Manual
Conguration to enter the AFTR IPv6 address in manually.
AFTR IPv6 Address: After selecting the Manual Conguration option above, the
user can enter the AFTR IPv6 address used here.
B4 IPv4 Address: Enter the B4 IPv4 address value used here.
WAN IPv6 Address: Once connected, the WAN IPv6 address will be displayed here.
IPv6 WAN Default Gateway Once connected, the IPv6 WAN Default Gateway address will
be displayed here.
Click on the Save Settings button to accept the changes made.
Click on the Don’t Save Settings button to discard the changes made.
40D-Link DIR-808L User Manual
Section 3 - Conguration

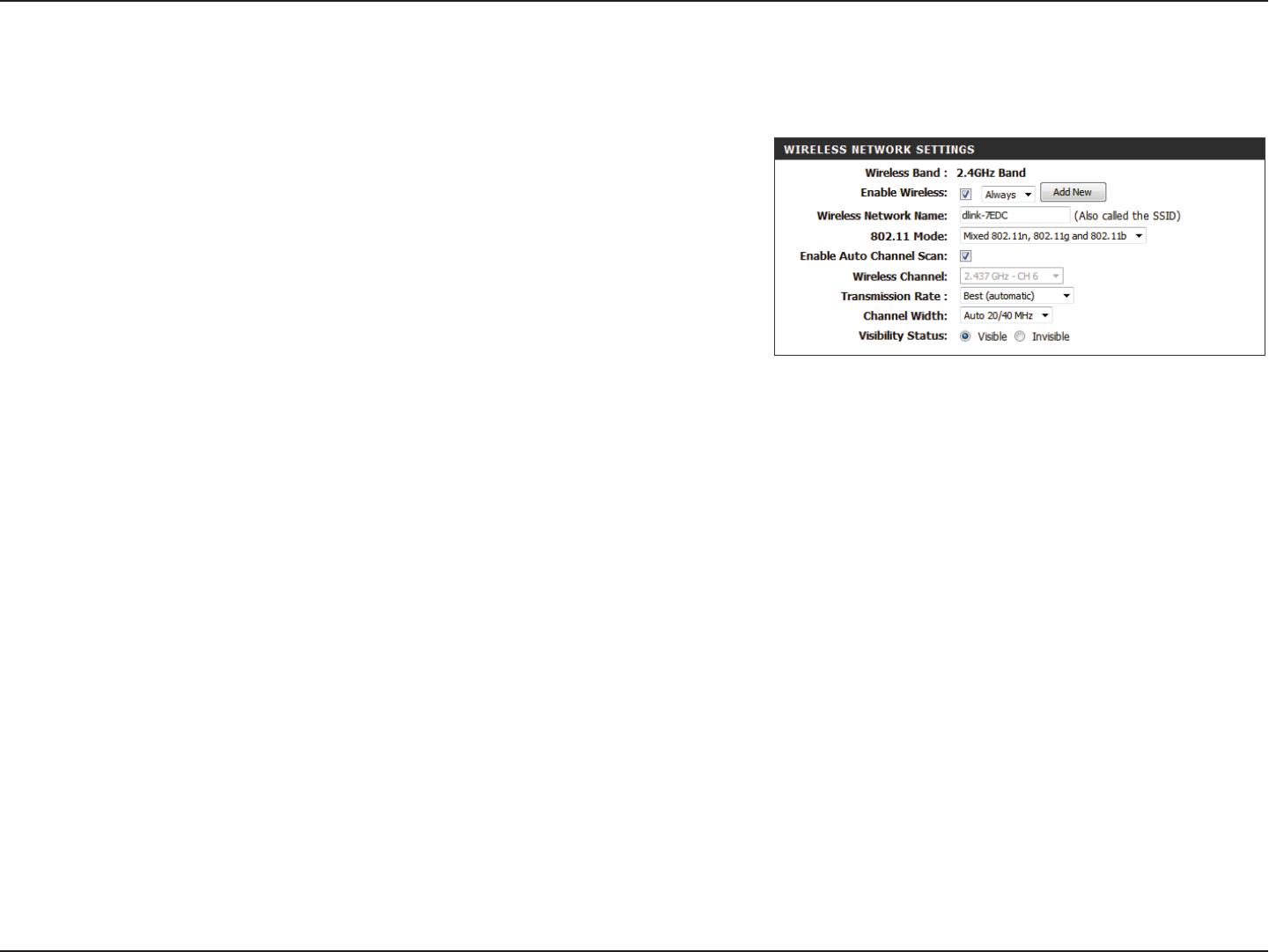

On this page you can congure the wireless settings for this device. There are three ways to congure wireless using this
router. Firstly, the user can make use of the quick and easy Wireless Connection Setup Wizard. Secondly, the user can choose
Wi-Fi Protected Setup. Lastly, the user can congure the wireless settings manually.
Wireless Settings: Wireless Connection Setup Wizard
The Wireless Connection Setup Wizard is specially designed to assist basic network
users with a simple, step-by-step set of instructions to congure the wireless settings
of this router. It is highly recommended to customize the wireless network settings to
t into your environment and to add higher security.
Step 1: In this step, you must enter a custom wireless network name or SSID. Enter
the new Network Name (SSID) in the appropriate space provided.
By default, the SSID selected for the 2.4 GHz network name will be the same for
the 5 GHz network name. Users can check the Manually set 5 GHz band Network
Name(SSID) checkbox to specify a dierent SSID for the 5 GHz band.
You can choose between two wireless security wizard congurations. Users can
select Automatically assign a network key, by which the router will automatically
generate a WPA/WPA2 pre-shared key using the TKIP and AES encryption methods;
or you can select Manually assign a network key by which you will be prompted
to manually enter a WPA/WPA2 pre-shared key using the TKIP and AES encryption
methods.
At any stage during this wizard, you can click on the Prev button to return to the
previous page, click on the Next button to continue to the next page, or click on the
Cancel button to discard the changes made and return to the main wireless page.
To initiate the Wireless Connection Setup Wizard click on the Wireless Network
Setup Wizard button.
Wireless Connection Setup Wizard
41D-Link DIR-808L User Manual
Section 3 - Conguration
Step 2: This step will only be available if you have selected Manually assign a
network key in the previous step. Here you can manually enter the WPA/WPA2 pre-
shared key in the Wireless Security Password space provided. The key entered must be
between 8 and 63 characters long. Remember, this key will be used when wireless clients
connect to this device, so it is important to make a record of this key to prevent
trouble when accessing your wireless network in the future.
If you wish to use the same Wireless Security Password for both 2.4 GHz and 5 GHz
bands, check the option provided. If not selected, you need to input two separate
wireless security passwords for each individual wireless band.
Click on the Next button to advance to the next step.
Setup Complete: The wireless conguration information will be summarized on this
page. It is recommended that you check the correctness of these settings and make
a record of the information listed on this page for future reference.
Click on the Save button to complete the setup wizard and save the changes made.
42D-Link DIR-808L User Manual
Section 3 - Conguration

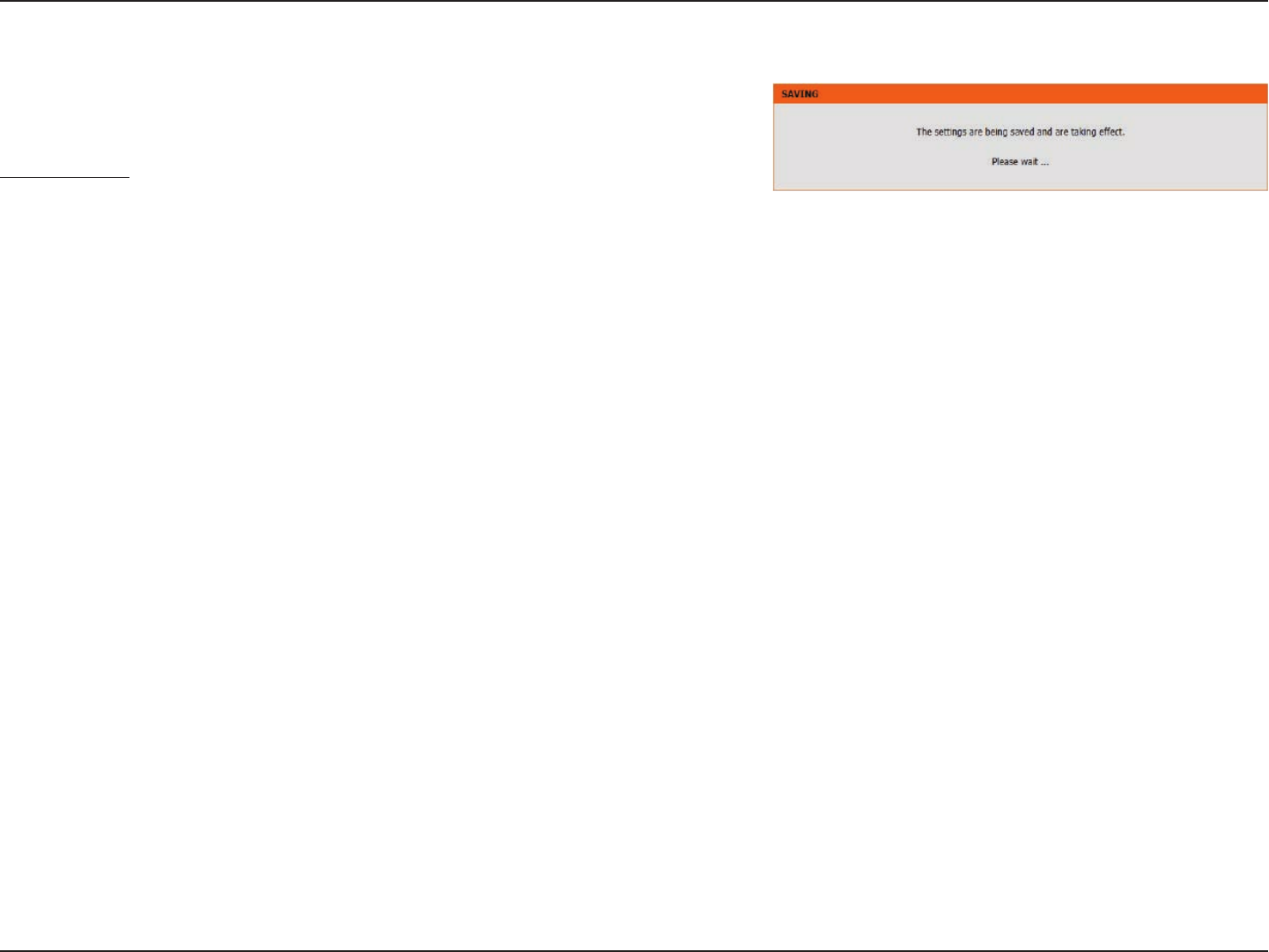

After clicking the Save button, the device will save the settings made and return to
the main wireless page.
End of Wizard.
43D-Link DIR-808L User Manual
Section 3 - Conguration
Wireless Settings: Wi-Fi Protected Setup Wizard
If your wireless clients support the W-Fi Protected Setup (WPS) connection method,
this wizard can be used to initiate a secure wireless connection between this device
and wireless clients with a simple click of the WPS button. The Wi-Fi Protected Setup
wizard is specially designed to assist basic network users with a simple, step-by-step
set of instructions to connect wireless clients to this router securely using the WPS
method.
To initiate the Wi-Fi Protected Setup wizard click on the Add Wireless Device with
WPS button.
Step 1: In this step there are two options to choose from. You can choose Auto if the
wireless client supports WPS, or Manual if the wireless client does not support WPS.
At any stage during this wizard, you can click on the Prev button to return to the
previous page, click on the Next button to continue to the next page, or click on the
Cancel button to discard the changes made and return to the main wireless page.
Step 2 - Auto: After selecting Auto, the following page will appear. There are two
ways to add a wireless device which supports WPS. Firstly, the Personal Identication
Number (PIN) method will prompt you to enter the PIN code which was provided
with your wireless device. This PIN code should be identical on the wireless client.
Secondly, the Push Button Conguration (PBC) method will allow the wireless client
to connect to your router by pressing the WPS button on the client device.
Choose the preferred method of WPS and click on the Connect button to establish a
connection.
Wi-Fi Protected Setup Wizard
44D-Link DIR-808L User Manual
Section 3 - Conguration
Step 2 - Manual: After selecting Manual, the following page will appear. On this page
you can view the wireless conguration of this router. The wireless clients should
congure their wireless settings to be identical to the settings displayed on this page
for a successful connection. This option is for wireless clients that do not support the
WPS Push Button method to connect to this router.
It is recommended that you make a record of this information for future reference.
Click on the OK button to the Wireless Settings page.
End of Wizard.
45D-Link DIR-808L User Manual
Section 3 - Conguration
Wireless Settings: Manual Wireless Network Setup
The Manual Wireless Network Setup option allows you to congure the wireless
settings of this device manually. This option is for advanced users and includes all
parameters that can be congured for wireless connectivity.
To initiate the Manual Wireless Setup page, click on the Manual Wireless
Connection Setup button.
At any stage during setup, you can click on the Save Settings button to save the
current conguration, or click on the Don’t Save Settings button to discard any
changes made and return to the main wireless setup page.
Manual Wireless Network Setup
46D-Link DIR-808L User Manual
Section 3 - Conguration
The following parameters will be available for conguration:
Wireless Band: Displays the wireless band being congured. The following
conguration relates to the 2.4 GHz band.
Enable Wireless: Tick the box to enable the wireless function. Select Always
from the drop-down menu to enable wireless at all times. If
you do not want to use wireless, uncheck the box to disable
all wireless functions. To set a schedule for the times when
you want the wireless network to be available, click on the
Add New button to specify a new schedule.
Wireless Network Name: The Service Set Identier (SSID) is the name of your wireless
network. Create a name using up to 32 characters. The SSID is
case-sensitive.
802.11 Mode: Here you can manually select the preferred wireless standard
to use for this wireless network. You should select the 802.11
mode according to the capabilities of the wireless clients/
devices which will be accessing this network. If only 802.11n
devices will be accessing your network, it is recommended to
set the 802.11 mode to 802.11n only.
Enable Auto Channel Scan: The auto channel selection setting can be selected to allow
this device to choose the wireless channel with the least
amount of interference.
Wireless Channel: If auto channel scan is disabled, you can select your preferred
wireless channel. By default the channel is set to 1. The channel
can be changed to t the channel setting for an existing wire-
less network or to customize the wireless network.
Transmission Rate: Select the transmission rate. It is strongly suggested that Best
(Automatic) is selected for best performance.
Manual Setup - 2.4 Ghz Band
47D-Link DIR-808L User Manual
Section 3 - Conguration
Channel Width: When using the 802.11n frequency band, you have an option
to choose between a 20 MHz only, or 20/40 MHz bandwidth.
Visibility Status: This option allows you to adjust the visibility of your SSID.
If Visible is selected, the SSID of your wireless network will
be visible to any wireless clients within range of the signal. If
Invisible mode is selected, clients must search for the SSID
of your wireless network manually in order to connect to the
network.
48D-Link DIR-808L User Manual
Section 3 - Conguration
By default the wireless security of this router will be disabled. In this option you can enable or disable wireless security for the
frequency band 2.4 GHz. There are two types of encryption that can be used: WEP or WPA/WPA2. For further information on
these security types, please refer to “Wireless Security” on page 57.

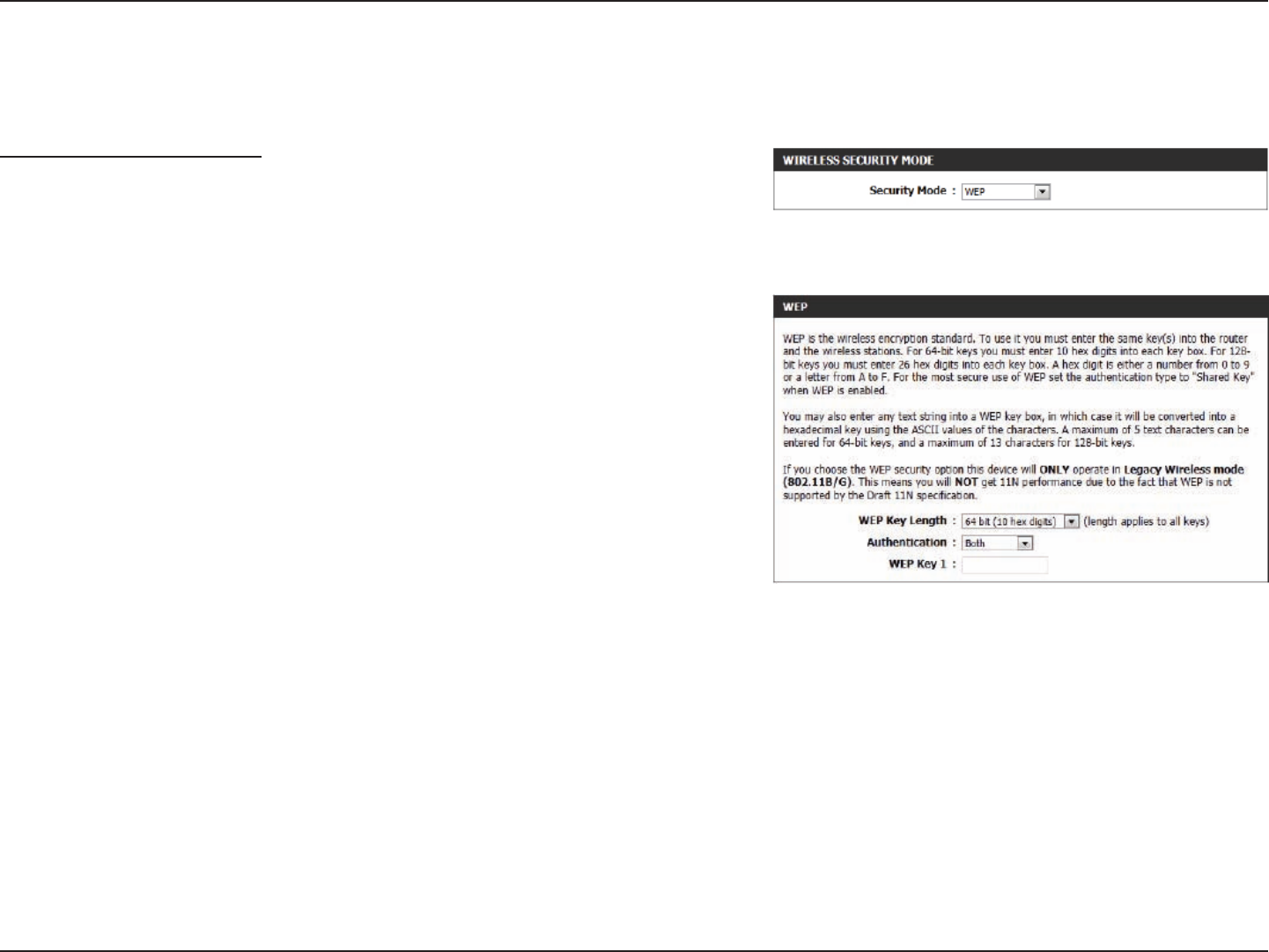

Wireless Security Mode: WEP
Wired Equivalent Privacy (WEP) is the most basic form of encryption that can be used
for wireless networks. WEP is considered to be a relatively weak security method,
however it provides more protection than an unsecured network. Older wireless
adapters may only support WEP encryption. It is recommended that this method is
used only if your wireless clients do not support WPA.
The following parameters are available for conguration:
WEP Key Length: Here the user can specify to either use a 64-bit or a 128-bit
encryption key.
Authentication: Authentication is a process by which the router veries the
identity of a network device that is attempting to join the
wireless network. There are two types authentication
for this device when using WEP. Open System allows all
wireless devices to communicate with the router before they are
required to provide the encryption key needed to gain
access to the network. Shared Key requires any wireless
device attempting to communicate with the router to pro-
vide the encryption key needed to access the network before
they are allowed to communicate with the router.
WEP Key 1:Enter the WEP key used here. For 64-bit keys you must enter
10 hex digits into each key box. For 128-bit keys you must
enter 26 hex digits into each key box. A hex digit is either a
number from 0 to 9 or a letter from A to F. You may also enter
any text string into a WEP key box, in which case it will be
converted into a hexadecimal key using the ASCII values
of the characters. A maximum of 5 text characters can be
entered for 64-bit keys, and a maximum of 13 characters for
128-bit keys.
49D-Link DIR-808L User Manual
Section 3 - Conguration

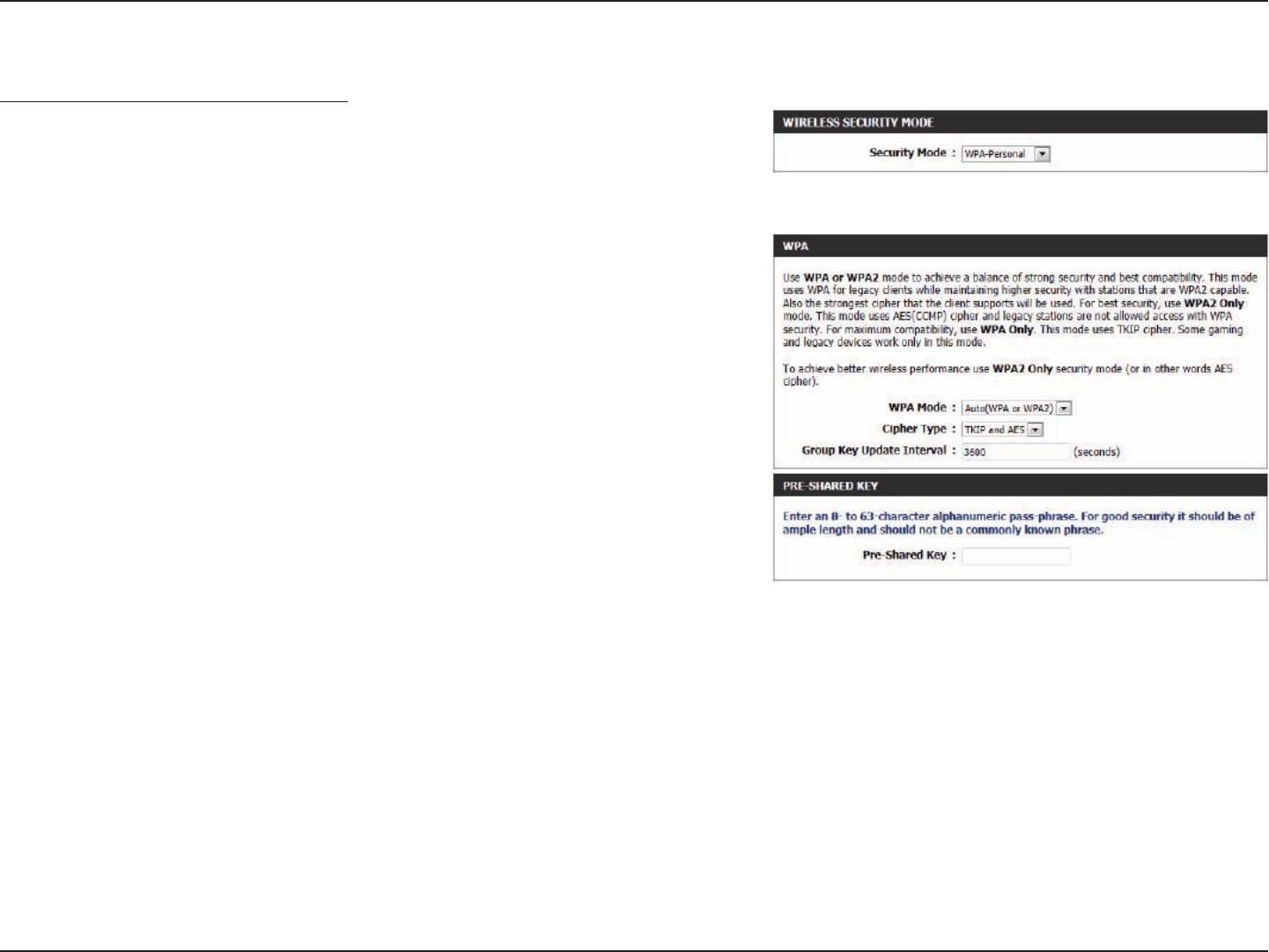

Wireless Security Mode: WPA-Personal
Wi-Fi Protected Access (WPA) is the most advanced wireless encryption method used
today. This is the recommended wireless security option. WPA supports two authen-
tication frameworks. Personal (PSK) and Enterprise (EAP). Personal requires only the
use of a passphrase (Pre-Shared Key) for security.
The following parameters will be available for conguration:
WPA Mode: WPA is an older standard; select this option if the clients
that will be used with the router only support this older stan-
dard. WPA2 is the newer implementation of the stronger
IEEE 802.11i security standard. Select Auto (WPA or WPA2)
to have the security set automatically depending on the
compatibility of connected clients. With the WPA2 option,
the router tries WPA2 rst, but falls back to WPA if the client
only supports WPA. With the WPA2 Only option, the router
associates only with clients that also support WPA2 security.
Cipher Type: Select the appropriate cipher type to use here. Options to
choose from are Temporal Key Integrity Protocol (TKIP),
Advanced Encryption Standard (AES), or Both (TKIP and AES).
Group Key Update
Interval:
Enter the amount of time before the group key used for
broadcast and multicast data is changed.
Pre-Shared Key: Enter the password to be used for the wireless network here.
This password is required by wireless clients for them to be
able to connect to the wireless network successfully.
50D-Link DIR-808L User Manual
Section 3 - Conguration

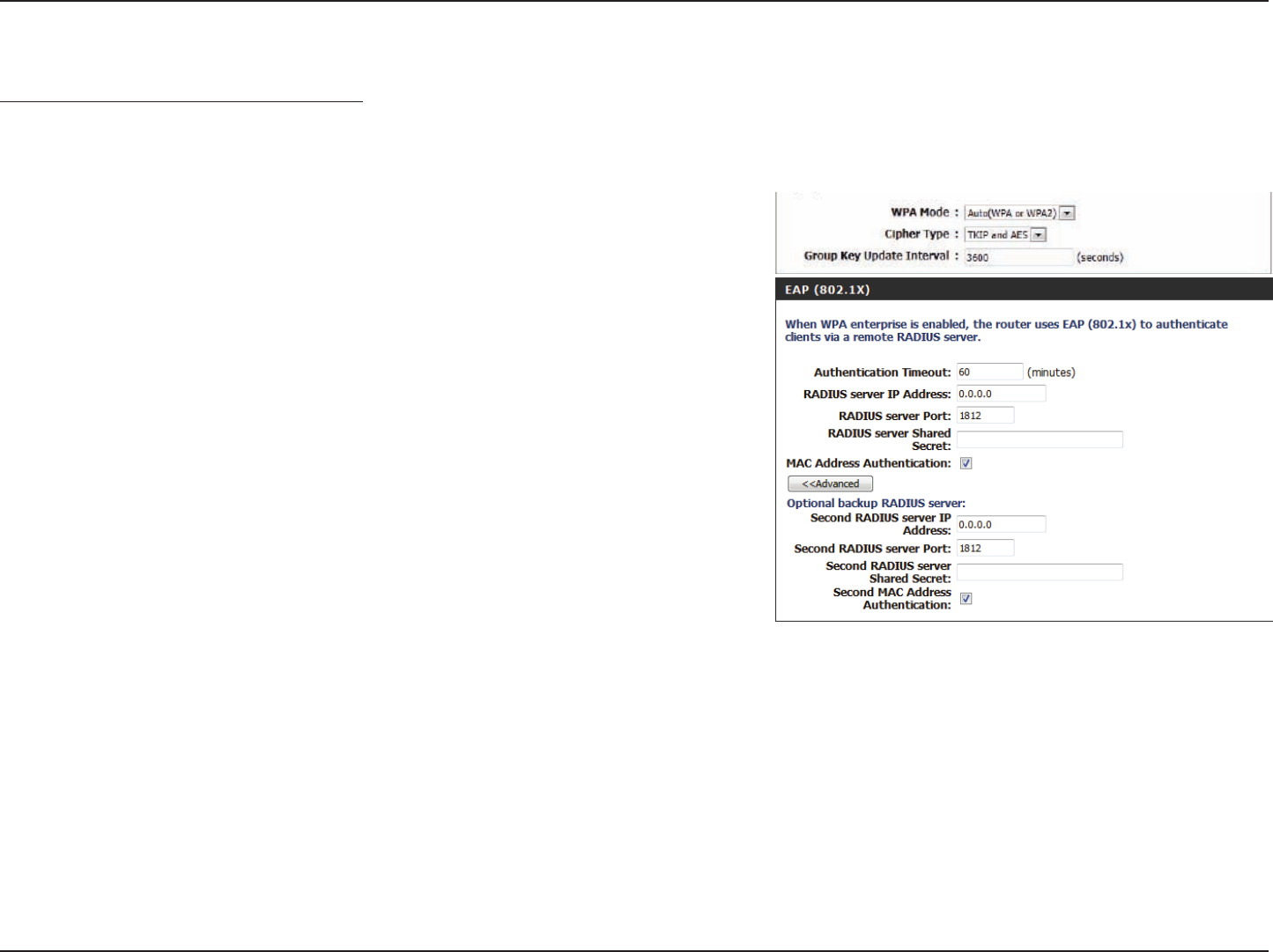

Wireless Security Mode: WPA-Enterprise
WPA-Enterprise is a more sophisticated level of wireless security which requires a RADIUS Authentication Server. This form of security is used
primarily in medium to large-scale network environments.
The following parameters will be available for conguration:
WPA Mode: WPA is an older standard; select this option if the clients
that will be used with the router only support this standard.
WPA2 is the newer implementation of the stronger IEEE
802.11i security standard. Select Auto (WPA or WPA2) to
have the security set automatically depending on the com-
patibility of connected clients. With the WPA2 option, the
router tries WPA2 rst, but falls back to WPA if the client only
supports WPA. With the WPA2 Only option, the router asso-
ciates only with clients that also support WPA2 security.
Cipher Type: Select the appropriate cipher type to use here. Options to
choose from are Temporal Key Integrity Protocol (TKIP),
Advanced Encryption Standard (AES), and Both (TKIP and
AES).
Group Key Update
Interval:
Enter the amount of time before the group key used for
broadcast and multicast data is changed.
Authentication
Timeout:
Species the amount of time before a client will be required
to re-authenticate.
RADIUS Server IP
Address:
When the user chooses to use the EAP authentication frame-
work, the RADIUS server’s IP address can be entered here.
RADIUS Server Port: When you can choose to use the EAP authentication framework,
the RADIUS server’s port number can be entered here.
RADIUS Server Shared
Secret:
Enter the shared secret (password) used here. This password
needs to be the same on all of the wireless clients for them to
be able to connect to the wireless network successfully.
51D-Link DIR-808L User Manual
Section 3 - Conguration

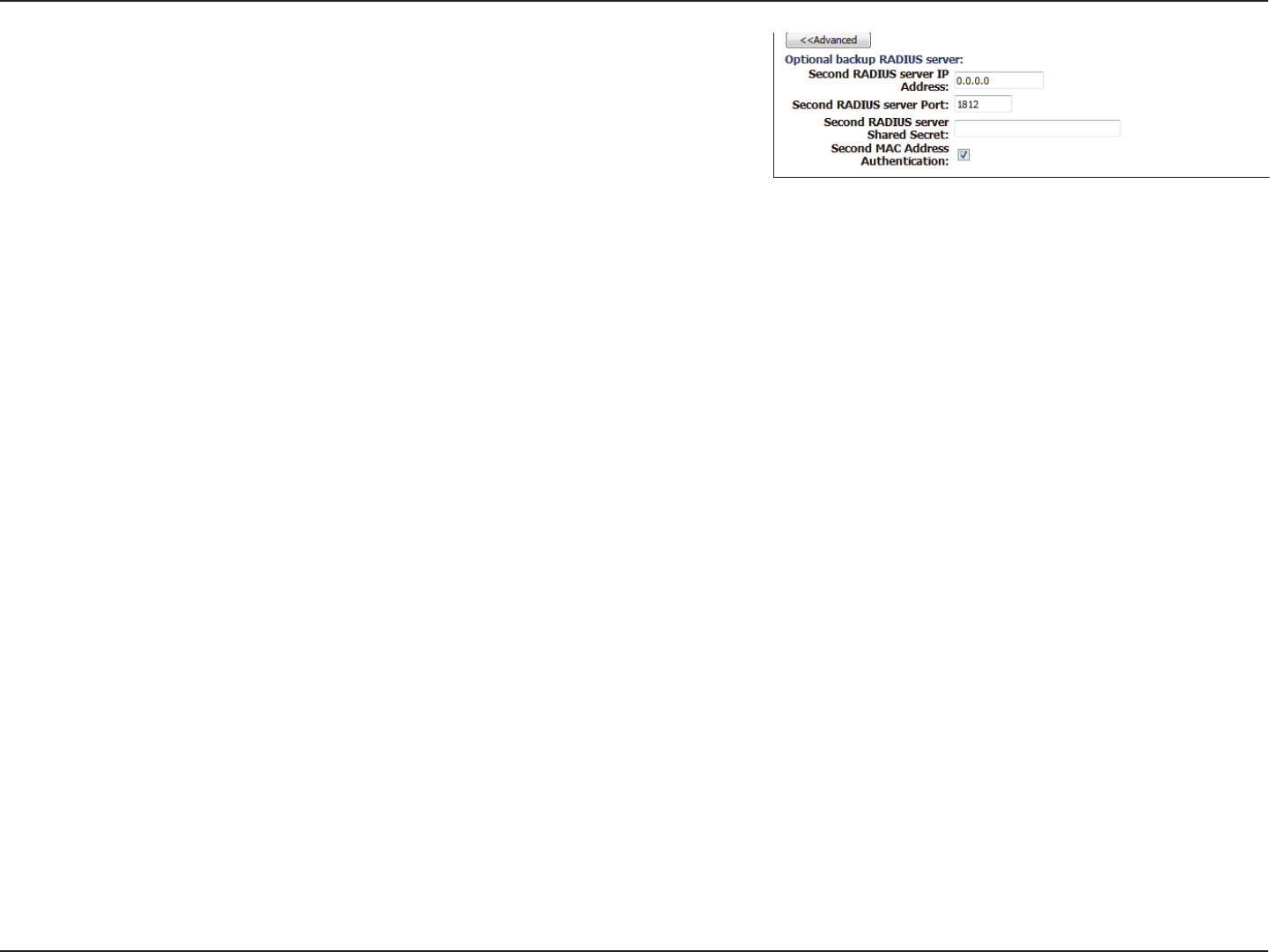

Optional backup
RADIUS server:
This option allows you to specify a secondary RADIUS server to
be used in the event that the primary RADIUS server fails. Enter
the information for the secondary server in the same manner as
the primary server described in the steps on the previous page.
MAC Address
Authentication:
Select this option to include authentication of clients according
to their MAC address.
52D-Link DIR-808L User Manual
Section 3 - Conguration
The following parameters will be available for conguration:
Wireless Band: Displays the wireless band being congured. The following
conguration relates to the 5 GHz band.
Enable Wireless: Check the box to enable the wireless function at all times. If
you do not want to use wireless, uncheck the box to disable
all wireless functions. To set a schedule for the times when
you want the wireless network to be available, click on the
Add New button to specify a new schedule.
Wireless Network Name: The Service Set Identier (SSID) is the name of your wireless
network. Create a name using up to 32 characters. The SSID is
case-sensitive.
802.11 Mode: Here you can manually select the preferred frequency band
to use for this wireless network.
Enable Auto Channel
Scan:
The auto channel selection setting can be selected to allow
this device to choose the channel with the least amount of
interference.
Wireless Channel: If Auto Channel Scan is not enabled, you can manually select
a wireless channel. By default the channel is set to 36. The
channel can be changed to t the channel setting for an ex-
isting wireless network or to customize the wireless network.
Transmission Rate: Select the transmission rate. It is strongly suggested to select
Best (Automatic) for best performance.
Channel Width: When using the 802.11n frequency band, you have an option
to choose between a 20 MHz, 20/40 MHz, or 20/40/80 MHz
bandwidth for 802.11ac.
Visibility Status: This option allows you to adjust the visibility of your SSID. If
Visible is selected, the SSID of your wireless network will be
visible to any wireless clients within range of the signal. If In-
visible mode is selected, clients must search for the SSID of
your wireless network manually in order to connect to the
network.
Manual Setup - 5 Ghz Band
53D-Link DIR-808L User Manual
Section 3 - Conguration
By default the wireless security of this router will be disabled. In this option you can enable or disable wireless security for the
frequency band 2.4 GHz. There are two types of encryption that can be used: WEP or WPA/WPA2. For further information on
these security types, please refer to “Wireless Security” on page 57.

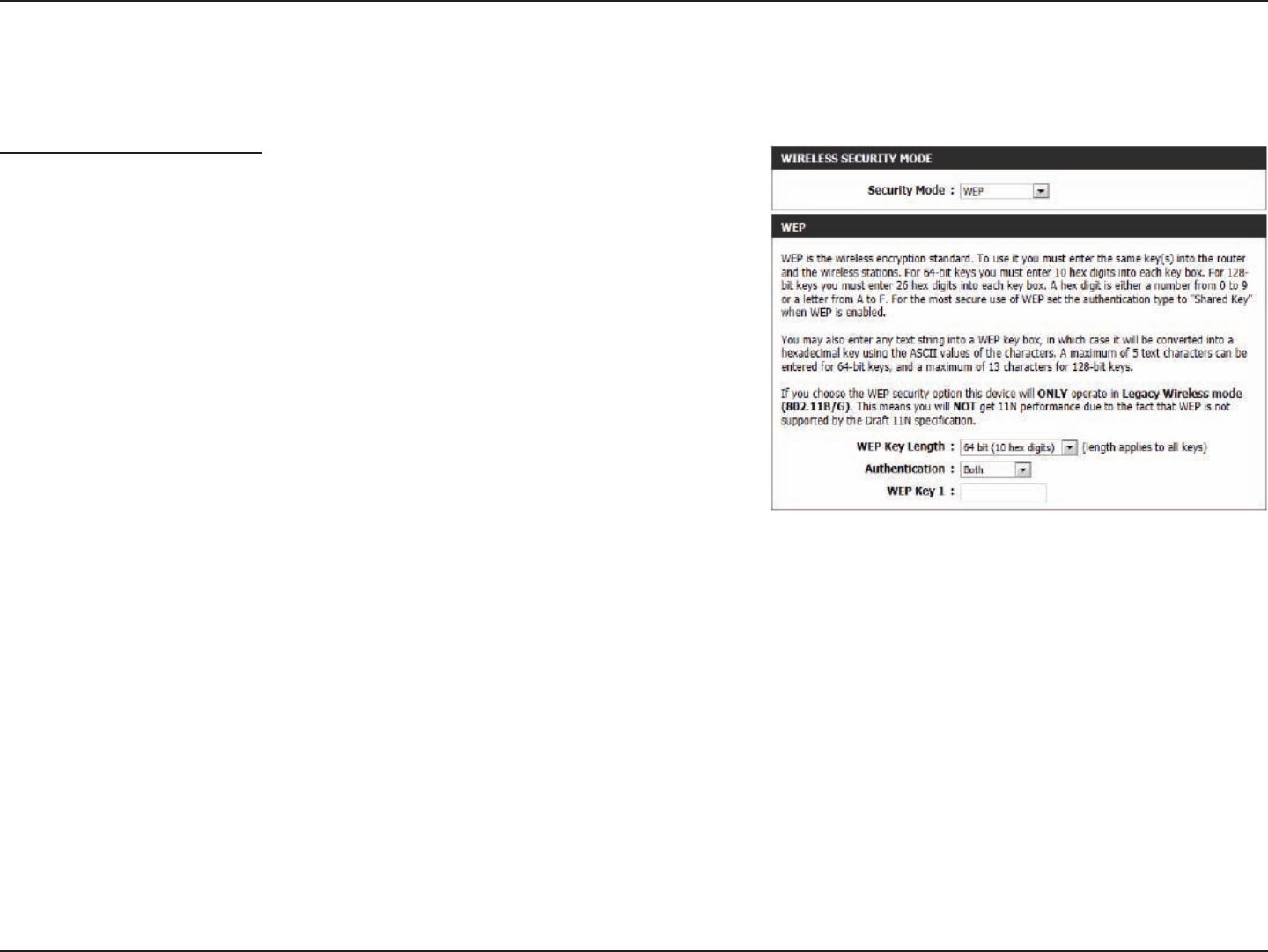

Wireless Security Mode: WEP
Wired Equivalent Privacy (WEP) is the most basic form of encryption that can be
used for wireless networks. WEP is considered to be a relatively weak security
method, however it provides more protection than an unsecured network. Older
wireless adapters may only support WEP encryption. It is recommended that this
method is used only if your wireless clients do not support WPA.
The following parameters will be available for conguration:
WEP Key Length: Here the user can specify to either use a 64-Bit or a 128-Bit
encrypted key.
Authentication: Authentication is a process by which the router veries the
identity of a network device that is attempting to join the
wireless network. There are two types authentication for
this device when using WEP. Open System allows all wire-
less devices to communicate with the router before they are
required to provide the encryption key needed to gain
access to the network. Shared Key requires any wireless device
attempting to communicate with the router to provide the
encryption key needed to access the network before they are
allowed to communicate with the router.
WEP Key 1: Enter the WEP key used here. For 64-bit keys you must enter 10
hex digits into each key box. For 128-bit keys you must enter
26 hex digits into each key box. A hex digit is either a number
from 0 to 9 or a letter from A to F. You may also enter any text
string into a WEP key box, in which case it will be converted
into a hexadecimal key using the ASCII values of the characters.
A maximum of 5 text characters can be entered for 64-bit
keys, and a maximum of 13 characters for 128-bit keys.
54D-Link DIR-808L User Manual
Section 3 - Conguration
Wireless Security Mode: WPA-Personal
Wi-Fi Protected Access (WPA) is the most advanced wireless encryption method used
today. This is the recommended wireless security option. WPA supports two
authentication frameworks. Personal (PSK) and Enterprise (EAP). Personal requires
only the use of a passphrase (Pre-Shared Key) for security.
The following parameters will be available for conguration:
WPA Mode: WPA is the older standard; select this option if the clients
that will be used with the router only support the older
standard. WPA2 is the newer implementation of the stronger
IEEE 802.11i security standard. Select Auto (WPA or WPA2)
to have the security set automatically depending on the
compatibility of connected clients. With the WPA2 option,
the router tries WPA2 rst, but falls back to WPA if the client
only supports WPA. With the WPA2 Only option, the router
associates only with clients that also support WPA2 security.
Cipher Type: Select the appropriate cipher type to use here. Options to
choose from are Temporal Key Integrity Protocol (TKIP),
Advanced Encryption Standard (AES), and Both (TKIP and
AES).
Group Key Update
Interval:
Enter the amount of time before the group key used for
broadcast and multicast data is changed.
Pre-Shared Key: Enter the password to be used for the wireless network here.
This password is required by wireless clients for them to be
able to connect to the wireless network successfully.
55D-Link DIR-808L User Manual
Section 3 - Conguration
Wireless Security Mode: WPA-Enterprise
WPA-Enterprise is a more sophisticated level of wireless security which requires a RADIUS Authentication Server. This form of security is used
primarily in medium to large-scale network environments.
The following parameters will be available for conguration:
WPA Mode: WPA is the older standard; select this option if the clients that
will be used with the router only support this older standard.
WPA2 is the newer implementation of the stronger IEEE 802.11i
security standard. Select Auto (WPA or WPA2) to have the
security set automatically depending on the compatibility
of connected clients. With the WPA2 option, the router tries
WPA2 rst, but falls back to WPA if the client only supports
WPA. With the WPA2 Only option, the router associates only
with clients that also support WPA2 security.
Cipher Type: Select the appropriate cipher type to use here. Options to
choose from are Temporal Key Integrity Protocol (TKIP),
Advanced Encryption Standard (AES), and Both (TKIP and
AES).
Group Key Update
Interval:
Enter the amount of time before the group key used for
broadcast and multicast data is changed.
Authentication
Timeout:
Species the amount of time before a client will be required
to re-authenticate.
RADIUS Server
IP Address:
When you choose to use the EAP authentication framework,
the RADIUS server’s IP address can be entered here.
RADIUS Server Port: When the user chooses to use the EAP authentication frame-
work, the RADIUS server’s port number can be entered here.
RADIUS Server
Shared Secret:
Enter the shared secret (password) used here. This password
needs to be the same on all of the wireless clients for them to
be able to connect to the wireless network successfully.
MAC Address
Authentication:
Select this option to include authentication of clients according
to their MAC address.
56D-Link DIR-808L User Manual
Section 3 - Conguration

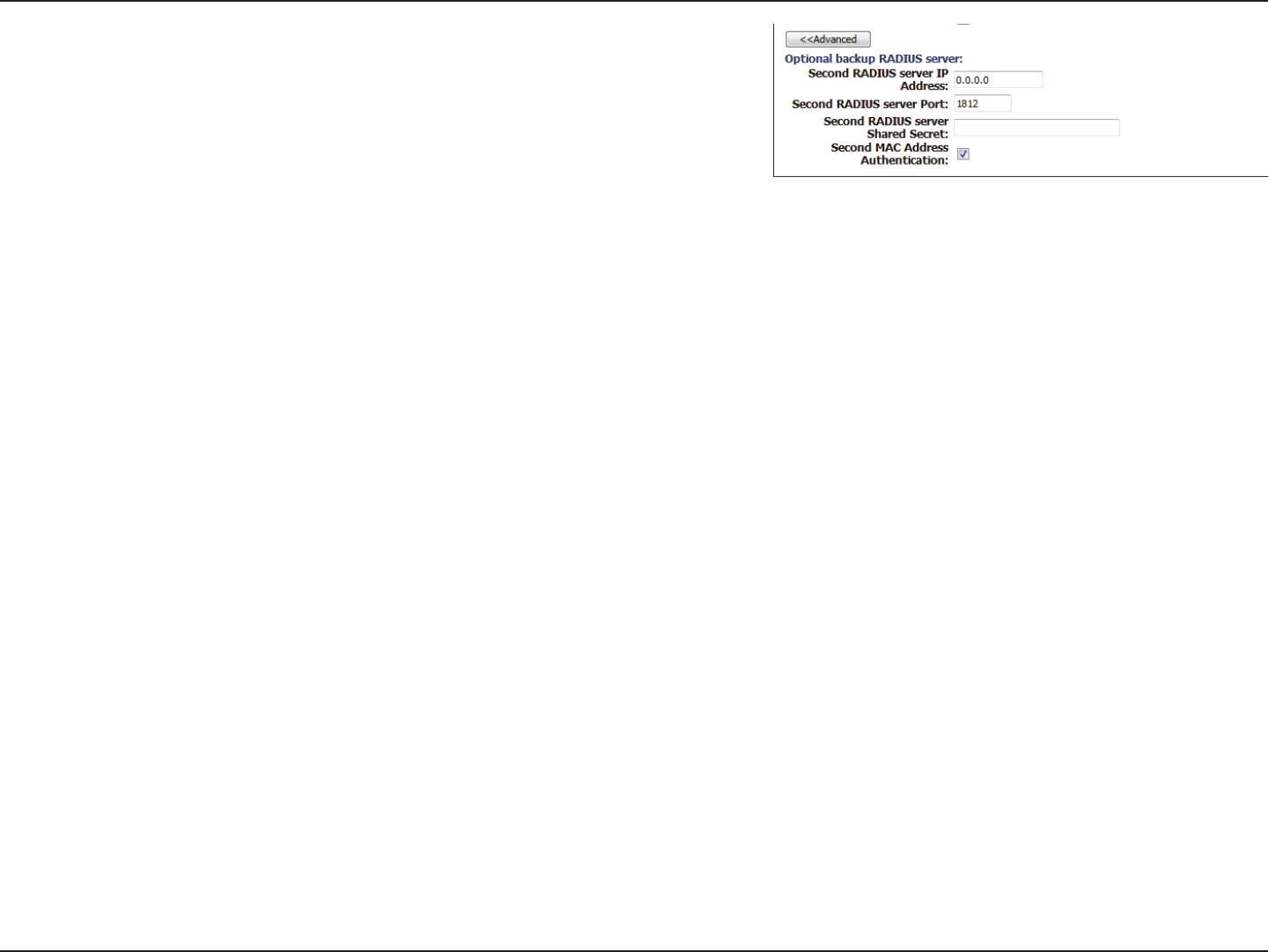

Optional Backup RADIUS
Server:
This option allows you to specify a secondary RADIUS server
to be used in the event that the primary RADIUS server fails.
Enter the information for the secondary server in the same
manner as the primary server described in the steps on the
previous page.
57D-Link DIR-808L User Manual
Section 3 - Conguration
Wireless Security
This section discusses the dierent levels of security you can use to protect your data from intruders. The DIR-808L oers the
following types of security:
• WPA2 (Wi-Fi Protected Access 2) • WPA2-PSK (Pre-Shared Key) • Wired Equivalent Privacy (WEP)
• WPA (Wi-Fi Protected Access) • WPA-PSK (Pre-Shared Key)
What is WPA?
WPA (Wi-Fi Protected Access), is a Wi-Fi standard that was designed to improve the security features of WEP.
The 2 major improvements over WEP:
• Improved data encryption through the Temporal Key Integrity Protocol (TKIP). TKIP scrambles the keys using a hashing algorithm
and, by adding an integrity-checking feature, ensures that the keys haven’t been tampered with. WPA2 is based on 802.11i and
uses Advanced Encryption Standard (AES) instead of TKIP.
• User authentication, which is generally missing in WEP, through the extensible authentication protocol (EAP). WEP regulates access
to a wireless network based on a computer’s hardware-specic MAC address, which is relatively simple to be snied out and stolen.
EAP is built on a more secure public-key encryption system to ensure that only authorized network users can access the network.
WPA-PSK/WPA2-PSK uses a passphrase or key to authenticate your wireless connection. The key is an alpha-numeric password between 8 and 63
characters long. The password can include symbols (!?*&_) and spaces. This key must be the exact same key entered on your wireless router or
access point.
WPA/WPA2 incorporates user authentication through the Extensible Authentication Protocol (EAP). EAP is built on a more secure public key encryption
system to ensure that only authorized network users can access the network.
58D-Link DIR-808L User Manual
Section 3 - Conguration
This section will allow you to change the local network settings of the router and to congure the DHCP settings.
Network Settings
Enter the IP address of the router. The default IP address is 192.168.0.1.
If you change the IP address, once you click Save Settings, you will
need to enter the new IP address in your browser in order to return
to the conguration utility.
Enter the subnet mask. The default subnet mask is 255.255.255.0.
Enter a name for the router.
Enter the domain name (Optional).
Uncheck the box to transfer the DNS server information from your ISP
to your computers. If checked, your computers will use the router for
a DNS server.
Router IP Address:
Subnet Mask:
Device Name:
Local Domain:
Enable DNS Relay:
Router Settings
59D-Link DIR-808L User Manual
Section 3 - Conguration
DHCP Server Settings
DHCP stands for Dynamic Host Conguration Protocol. The DIR-808L has a built-in DHCP server. The DHCP Server will
automatically assign an IP address to the computers on the LAN/private network. If using DHCP, be sure to set your computers
to be DHCP clients by setting their TCP/IP settings to Obtain an IP Address Automatically. When your wireless devices connect
to the router, they will automatically load the TCP/IP settings provided by the DIR-808L. The DHCP Server will automatically
allocate an unused IP address from the IP address pool to the requesting device. You must specify the starting and ending
address of the IP address pool.
Check this box to enable the DHCP server on your router. Uncheck to
disable this function.
Enter the starting and ending IP addresses for the DHCP server’s IP
assignment.
Note: If you statically (manually) assign IP addresses to your computers or
devices, make sure the IP addresses are outside of this range or you may
have an IP conict.
The length of time for the IP address lease. Enter the Lease time in
minutes.
If all the computers on the LAN successfully obtain their IP addresses
from the router’s DHCP server as expected, this option can remain
disabled. However, if one of the computers on the LAN fails to obtain an
IP address from the router’s DHCP server, it may have an old DHCP client
that incorrectly turns o the broadcast ag of DHCP packets. Enabling
this option will cause the router to always broadcast its responses to all
clients, thereby working around the problem, at the cost of increased
broadcast trac on the LAN.
Check this box to allow the DHCP Server to oer NetBIOS conguration
settings to the LAN hosts. NetBIOS allows LAN hosts to discover all other
computers within the network.
Enable DHCP
Server:
DHCP IP Address
Range:
DHCP Lease Time:
Always
Broadcast:
NetBIOS
Announcement:
60D-Link DIR-808L User Manual
Section 3 - Conguration
Learn NetBIOS
from WAN:
NetBIOS Scope:
NetBIOS Node
Type:
Primary WINS IP
Address:
Secondary
WINS IP
Address:
If NetBIOS announcement is switched on, it will cause WINS information
to be learned from the WAN side, if available. Turn this setting o to
congure manually.
This is an advanced setting and is normally left blank. This allows the
conguration of a NetBIOS domain name under which network hosts
operate. This setting has no eect if Learn NetBIOS information from
WAN is activated.
This eld indicates how network hosts are to perform NetBIOS name
registration and discovery. Broadcast only indicates to use local
network broadcast ONLY. This setting is useful where there are no WINS
servers available, however, it is recommended that you try Mixed-
mode operation rst. This setting has no eect if the Learn NetBIOS
information from WAN option is activated. Point-to-point indicates
to use WINS servers ONLY. This setting is useful to force all NetBIOS
operations to the congured WINS servers. You must have congured
at least the primary WINS server IP to point to a working WINS server.
Mixed-mode (default), this indicates a Mixed-Mode of operation. First
a broadcast operation is performed to register hosts and discover
other hosts, if the broadcast operation fails, WINS servers are tried, if
any. This mode favours broadcast operations which may be preferred
if WINS servers are reachable by a slow network link and the majority
of network services such as servers and printers are local to the LAN.
Hybrid indicates a Hybrid-State of operation. First WINS servers are
tried, if any, followed by local network broadcast. This is generally the
preferred mode if you have congured WINS servers.
Enter your primary WINS Server IP address.
Enter your secondary WINS Server IP address.
61D-Link DIR-808L User Manual
Section 3 - Conguration
DHCP Reservation
If you want a computer or device to always have the same IP address assigned, you can create a DHCP reservation. The router
will assign the specied IP address only to that computer or device.
Note: This IP address must be within the DHCP IP address range.
Check this box to enable the reservation.
Enter the computer name or select from the drop-down menu and
click <<.
Enter the IP address you want to assign to the computer or device. This
IP address must be within the DHCP IP address range.
Enter the MAC address of the computer or device.
If you want to assign an IP address to the computer you are currently
on, click this button to populate the elds.
Click Save to save your entry. You must click Save Settings at the top
to activate your reservations.
Displays any reservation entries. Displays the host name (name of your
computer or device), MAC address, and IP address.
Check to enable the reservation.
Click the edit icon to make changes to the reservation entry.
Click on the trash can icon to remove the reservation from the list.
Enable:
Computer Name:
IP Address:
MAC Address:
Copy Your PC’s
MAC Address:
Save:
DHCP
Reservations List:
Enable:
Edit:
Delete:
DHCP Reservations List
62D-Link DIR-808L User Manual
Section 3 - Conguration
IPv6 Internet Connection
On this page, you can congure the IPv6 connection type. There are two ways to set up the IPv6 Internet connection. You can
use the Web-based IPv6 Internet Connection Setup Wizard, or you can manually congure the connection.
For beginner users that have not congured a router before, click on the IPv6 Internet
Connection Setup Wizard button and the router will guide you through a few simple
steps to get your network up and running.
For the advanced user that has congured a router before, click on the Manual IPv6
Internet Connection Setup button to input all the settings manually.
To congure the IPv6 local settings, click on the IPv6 Local Connectivity Setup button.
63D-Link DIR-808L User Manual
Section 3 - Conguration
IPv6 Internet Connection Setup Wizard
On this page, you can congure the IPv6 connection type using the IPv6 Internet Connection Setup Wizard.
Click the IPv6 Internet Connection Setup Wizard button and the router will guide
you through a few simple steps to get your network up and running.
Click Next to continue to the next page. Click Cancel to discard the changes made
and return to the main page.
The router will try to detect whether it is possible to obtain the IPv6 Internet
connection type automatically. If this succeeds, you will be guided through the input
of the appropriate parameters for the connection type found.
64D-Link DIR-808L User Manual
Section 3 - Conguration

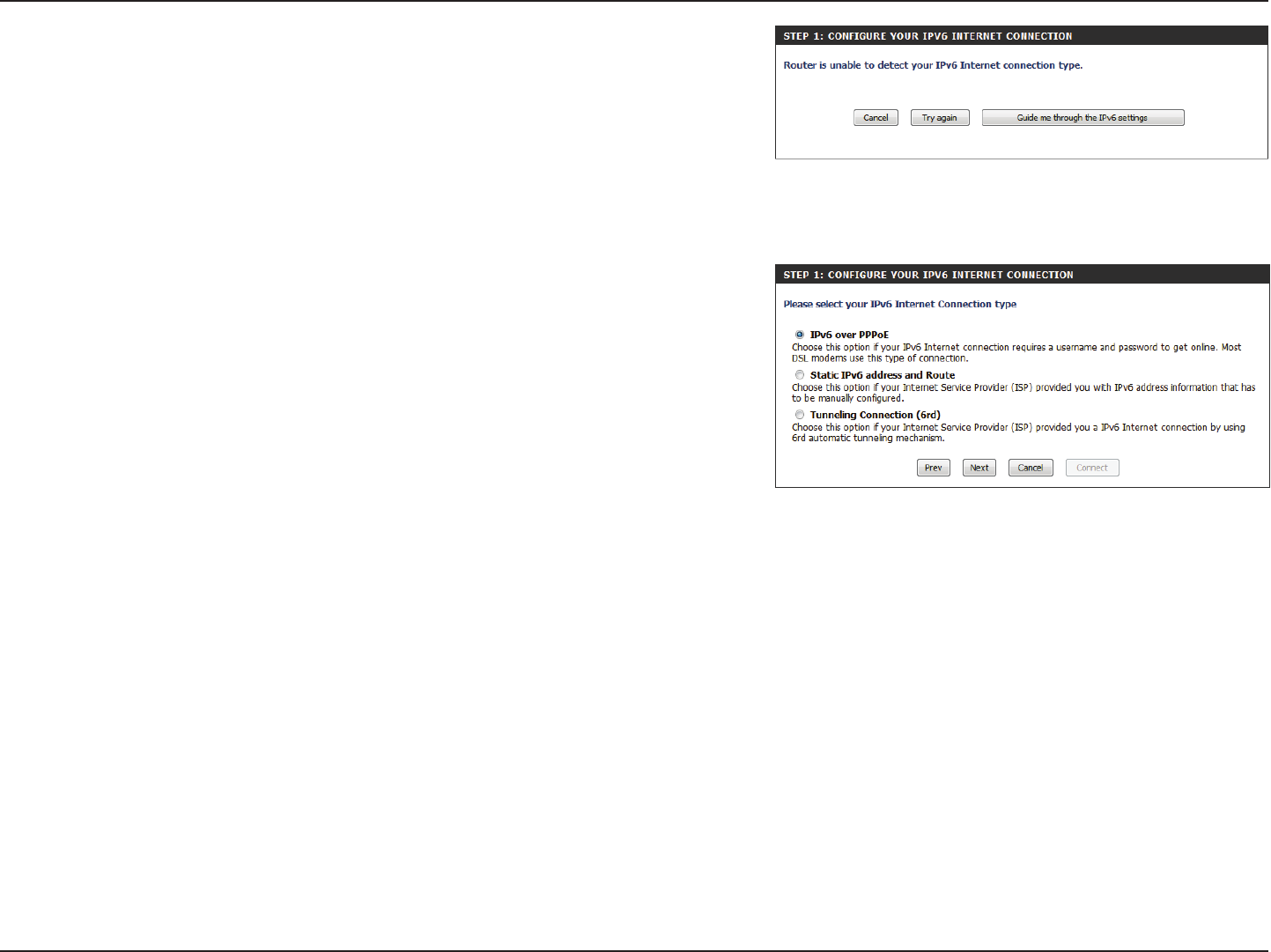

However, if the automatic detection fails, you will be prompted to either Try again or
to click on the Guide me through the IPv6 settings button to manually congure
the IPv6 settings using the wizard.
There are several connection types to choose from. If you are unsure of your
connection method, please contact your IPv6 Internet service provider.
Note: If using the PPPoE option, you will need to ensure that any PPPoE client
software on your computers has been removed or disabled. The 3 options available
on this page are IPv6 over PPPoE, Static IPv6 address and Route, and Tunneling
Connection.
Choose the required IPv6 Internet connection type and click on the Next button to
continue. Click on the Prev button to return to the previous page. Click on the Cancel
button to discard all the changes made and return to the main page.
65D-Link DIR-808L User Manual
Section 3 - Conguration
After selecting the IPv6 over PPPoE option, you will be able to congure the IPv6
Internet connection that requires a username and password to access the Internet.
Most DSL modems use this type of connection.
The following parameters will be available for conguration:
PPPoE Session: Select the rst option to share the conguration settings with
those for IPv4 over PPPoE, or alternatively select the second
option to congure a new session.
User Name: Enter the PPPoE username used here. If you do not know your
user name, please contact your ISP.
Password: Enter the PPPoE password used here. If you do not know your
password, please contact your ISP.
Verify Password: Re-enter the PPPoE password used here.
Service Name: Enter the service name for this connection here (optional).
IPv6 over PPPoE
66D-Link DIR-808L User Manual
Section 3 - Conguration
This mode is used when your ISP provides you with a set IPv6 addresses that does not change. The IPv6 information is manually entered in your
IPv6 conguration settings. You must enter the IPv6 address, subnet prex length, default gateway, primary DNS server, and secondary DNS server.
Your ISP should provide you with this information.
Use Link-Local
Address:
IPv6 Address:
Subnet Prex Length:
Default Gateway:
Primary IPv6
DNS Address:
Secondary IPv6
DNS Address:
LAN IPv6 Address:
The link-local address is used by nodes and routers when
communicating with neighboring nodes on the same link.
This mode enables IPv6-capable devices to communicate
with each other on the LAN side.
Enter the WAN IPv6 address for the router here.
Enter the WAN subnet prex length value used here.
Enter the WAN default gateway IPv6 address used here.
Enter the WAN primary DNS server address used here.
Enter the WAN secondary DNS server address used here.
These are the settings of the LAN (Local Area Network)
IPv6 interface for the router. The router’s LAN IPv6 Address
conguration is based on the IPv6 address and subnet assigned
by your ISP. (A subnet with prex /64 is supported in LAN.)
Static IPv6 Address Connection
67D-Link DIR-808L User Manual
Section 3 - Conguration

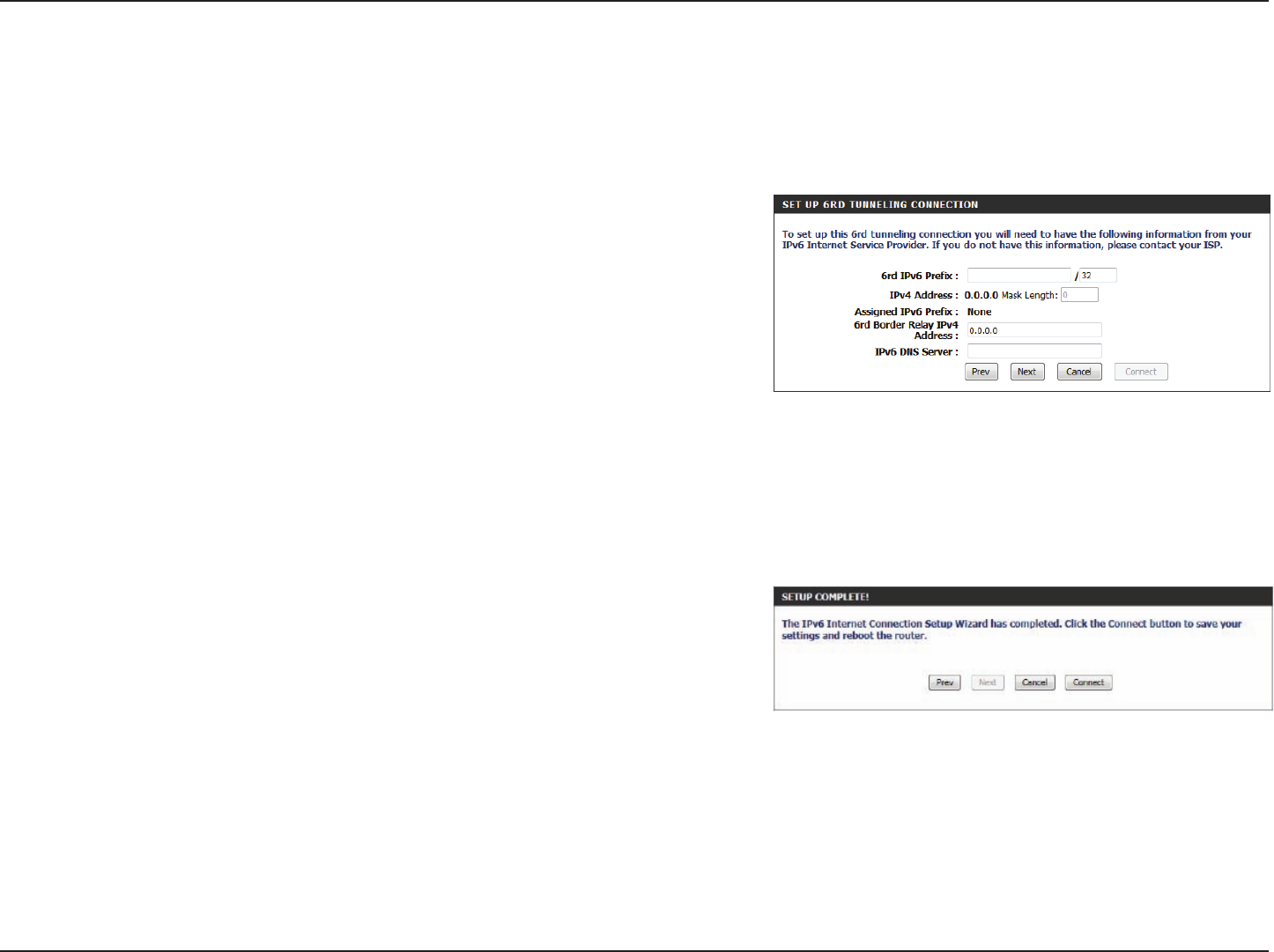

6rd IPv6 Prex: Enter the 6rd IPv6 address and prex value used here.
IPv4 Address: Enter the IPv4 address used here.
Mask Length: Enter the IPv4 mask length used here.
Assigned IPv6 Prex: Displays the IPv6 assigned prex value here.
6rd Border Relay IPv4
Address:
Enter the 6rd border relay IPv4 address used here.
IPv6 DNS Server: Enter the primary DNS server address used here.
The IPv6 Internet Connection Setup Wizard is complete.
Click on the Connect button to continue. Click on the Prev button to return to the
previous page. Click on the Cancel button to discard all the changes made and return
to the main page.
After selecting the Tunneling Connection (6rd) option, you can congure the IPv6 6rd connection settings.
The following parameters will be available for conguration:
Tunneling Connection (6rd)
68D-Link DIR-808L User Manual
Section 3 - Conguration

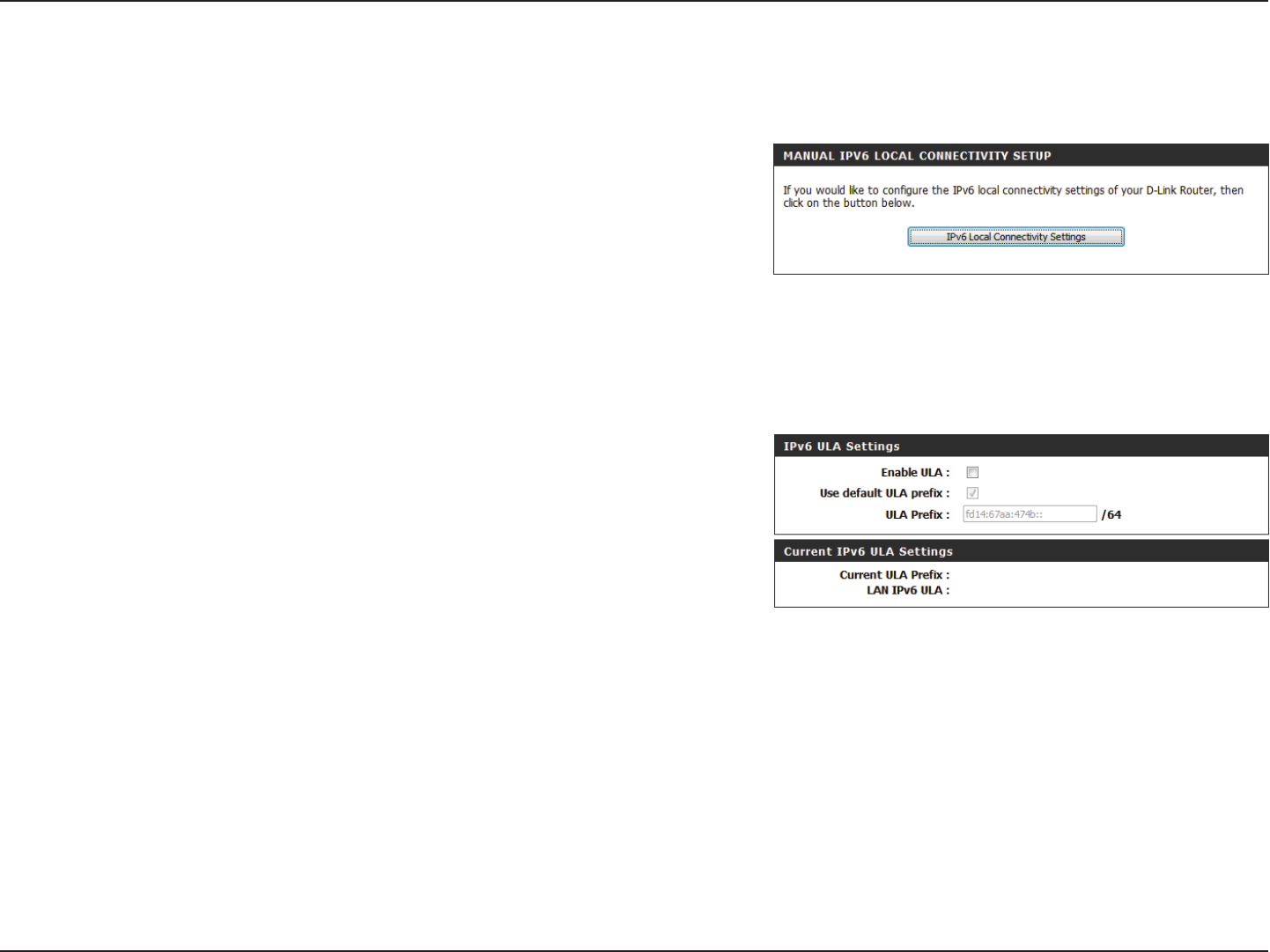

Manual IPv6 Local Connectivity Settings
Enable ULA:
Use Default
ULA Prex:
ULA Prex:
Current IPv6
ULA Settings:
Click here to enable Unique Local IPv6 Unicast Addresses
settings.
Checking this box will automatically congure the ULA prex
for the default setting.
If you wish to choose your own ULA prex, enter it here.
This section with display the current settings for your IPv6
ULA.
This option can be used to manually congure IPv6 settings for local connectivity. These
settings are used only on the local network, and will not be used to access the Internet.
69D-Link DIR-808L User Manual
Section 3 - Conguration
IPv6 Manual Setup
There are several connection types to choose from: Auto Detection, Static IPv6, Autoconguration (SLAAC/DHCPv6), PPPoE,
IPv6 in IPv4 tunnel, 6to4, 6rd, and Link-local. If you are unsure of your connection method, please contact your IPv6 Internet
Service Provider.
Note: If using the PPPoE option, you will need to ensure that any PPPoE client software on your computers has been removed
or disabled.
Auto Detection
Select Auto Detection to have the router detect and automatically
congure your IPv6 setting from your ISP.
70D-Link DIR-808L User Manual
Section 3 - Conguration
Static IPv6
Select Static IPv6 from the drop-down menu.
Tick this box to use the link-local address as the IPv6 address.
If you did no tick the box above, enter the IPv6 address provided
to you by your Internet Service Provider (ISP).
Enter the subnet prex length specied by your ISP.
Enter the default gateway provided by your ISP.
Enter the primary DNS server provided by your ISP.
Enter the secondary DNS server provided by your ISP.
Enter the LAN (local) IPv6 address for the router.
Displays the Router’s LAN Link-Local Address.
Tick to enable the automatic assignment of IPv6 addresses to
computers on your network.
Select Stateful (DHCPv6), SLAAC + RDNSS, or SLAAC +
Stateless DHCPv6.
If you selected Stateful (DHCPv6) above, enter the start IPv6
address for the DHCPv6 range for your local computers.
If you selected Stateful (DHCPv6) above, enter the end IPv6
address for the DHCPv6 range for your local computers.
Enter the IPv6 address lifetime (in minutes).
My IPv6 Connection:
Use Link-Local Address:
IPv6 Address:
Subnet Prex Length:
Default Gateway:
Primary DNS Server:
Secondary DNS Server:
LAN IPv6 Address:
LAN Link-Local Address:
Enable Automatic IPv6
address assignment:
Autoconguration Type:
IPv6 Address Range
Start:
IPv6 Address Range
End:
IPv6 Address Lifetime:
71D-Link DIR-808L User Manual
Section 3 - Conguration
Autoconguration
Select Autoconguration (SLAAC/DHCPv6) from the drop-
down menu.
Select either Obtain DNS server address automatically or
Use the following DNS Address.
Enter the primary and secondary DNS server addresses.
Tick to enable DHCP-PD.
Enter the LAN (local) IPv6 address for the router.
Displays the router’s LAN Link-Local Address.
Tick to enable the automatic assignment of IPv6 addresses to
computers on your network.
Select Stateful (DHCPv6), SLAAC + RDNSS, or SLAAC +
Stateless DHCPv6.
If you selected Stateful (DHCPv6) above, enter the start IPv6
address for the DHCPv6 range for your local computers.
If you selected Stateful (DHCPv6) above, enter the end IPv6
address for the DHCPv6 range for your local computers.
Enter the IPv6 address Lifetime (in minutes).
My IPv6 Connection:
IPv6 DNS Settings:
Primary/Secondary
DNS Address:
Enable DHCP-PD:
LAN IPv6 Address:
LAN IPv6
Link-Local Address:
Enable Automatic IPv6
address assignment:
Autoconguration
Type:
IPv6 Address
Range Start:
IPv6 Address
Range End:
IPv6 Address Lifetime:
72D-Link DIR-808L User Manual
Section 3 - Conguration
PPPoE
Select PPPoE from the drop-down menu.
Enter the PPPoE account settings supplied by your Internet
provider (ISP).
Select Static if your ISP assigned you the IP address, subnet
mask, gateway, and DNS server addresses. In most cases, select
Dynamic.
Enter the IP address (Static PPPoE only).
Enter your PPPoE user name.
Enter your PPPoE password and then verify the password in
the next box.
Enter the ISP service name (optional).
Select either Always-on, On-Demand, or Manual.
Enter a maximum idle time during which the Internet
connection is maintained during inactivity. To disable this
feature, enable auto-reconnect.
Maximum Transmission Unit - you may need to change the
MTU for optimal performance with your specic ISP. 1492 is
the default MTU.
Select either Obtain DNS server address automatically or
Use the following DNS Address.
Enter the primary and secondary DNS server addresses.
Tick to enable DHCP-PD.
Enter the LAN (local) IPv6 address for the router.
Displays the router’s LAN Link-Local Address.
My IPv6 Connection:
PPPoE Session:
Address Mode:
IP Address:
Username:
Password:
Service Name:
Reconnection Mode:
Maximum Idle Time:
MTU:
IPv6 DNS Settings:
Primary/Secondary
DNS Address:
Enable DHCP-PD:
LAN IPv6 Address:
LAN IPv6 Link-Local
Address:
73D-Link DIR-808L User Manual
Section 3 - Conguration

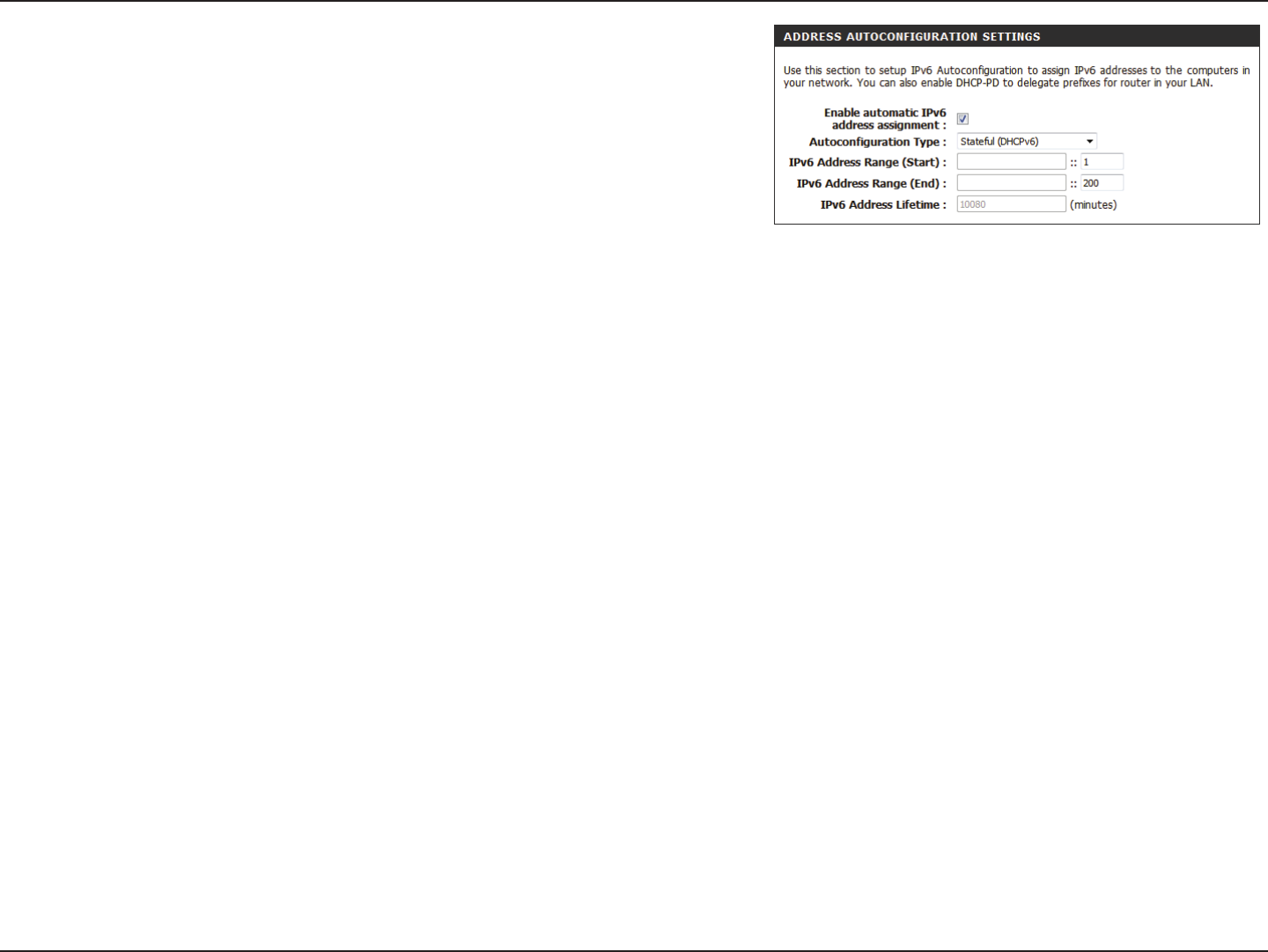

Enable Automatic IPv6
address assignment:
Autoconguration
Type:
IPv6 Address
Range Start:
IPv6 Address
Range End:
IPv6 Address Lifetime:
Tick to enable the automatic assignment of IPv6 addresses to
computers on your network.
Select Stateful (DHCPv6), SLAAC + RDNSS, or SLAAC +
Stateless DHCPv6.
If you selected Stateful (DHCPv6) above, enter the start IPv6
address for the DHCPv6 range for your local computers.
If you selected Stateful (DHCPv6) above, enter the end IPv6
address for the DHCPv6 range for your local computers.
Enter the IPv6 address lifetime (in minutes).
74D-Link DIR-808L User Manual
Section 3 - Conguration
IPv6 in IPv4 Tunneling
Select IPv6 in IPv4 Tunnel from the drop-down menu.
Enter the remote and local IPv4 and IPv6 settings supplied by
your Internet Service Provider (ISP).
Select Obtain a DNS server address automatically, or Use
the following IPv6 DNS servers. If you chose to use IPv6 DNS
servers, enter the primary and secondary DNS server addresses
provided to you by your ISP.
Tick to enable DHCP-PD.
Enter the LAN (local) IPv6 address for the router.
Displays the router’s LAN Link-Local Address.
Tick to enable the automatic assignment of IPv6 addresses to
computers on your network.
Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC +
Stateless DHCPv6.
If you selected Stateful (DHCPv6) above, enter the start IPv6
address for the DHCPv6 range for your local computers.
If you selected Stateful (DHCPv6) above, enter the end IPv6
address for the DHCPv6 range for your local computers.
Enter the router advertisement lifetime (in minutes).
My IPv6
Connection is:
IPv6 in IPv4
Tunnel Settings:
IPv6 DNS Settings:
LAN IPv6 Address:
Enable DHCP-PD:
LAN IPv6 Address
LAN IPv6 Link-
Local Address:
Enable Automatic
IPv6 address
assignment:
Autoconguration
Type:
IPv6 Address
Range Start:
IPv6 Address
Range End:
IPv6 Address
Lifetime:
75D-Link DIR-808L User Manual
Section 3 - Conguration
6 to 4 Tunneling
Select 6 to 4 from the drop-down menu.
Displays the 6 to 4 address of the router.
Enter the 6 to 4 relay address provided by your Internet Service
Provider (ISP).
Enter the primary and secondary DNS server addresses
provided by your ISP.
Enter the LAN (local) IPv6 address for the router.
Displays the router’s LAN link-local address.
Tick to enable the automatic assignment of IPv6 addresses to
computers on your network.
Select Stateful (DHCPv6), SLAAC + RDNSS, or SLAAC +
Stateless DHCPv6.
If you selected Stateful (DHCPv6) above, enter the start IPv6
address for the DHCPv6 range for your local computers.
If you selected Stateful (DHCPv6) above, enter the end IPv6
address for the DHCPv6 range for your local computers.
Enter the IPv6 address lifetime (in minutes).
My IPv6
Connection:
6 to 6 Address
6 to 4 Relay:
Primary/Secondary
DNS Address:
LAN IPv6 Address:
LAN IPv6 Link-
Local Address:
Enable Automatic
IPv6 address
assignment:
Autoconguration
Type:
IPv6 Address
Range Start:
IPv6 Address
Range End:
IPv6 Address
Lifetime:
76D-Link DIR-808L User Manual
Section 3 - Conguration

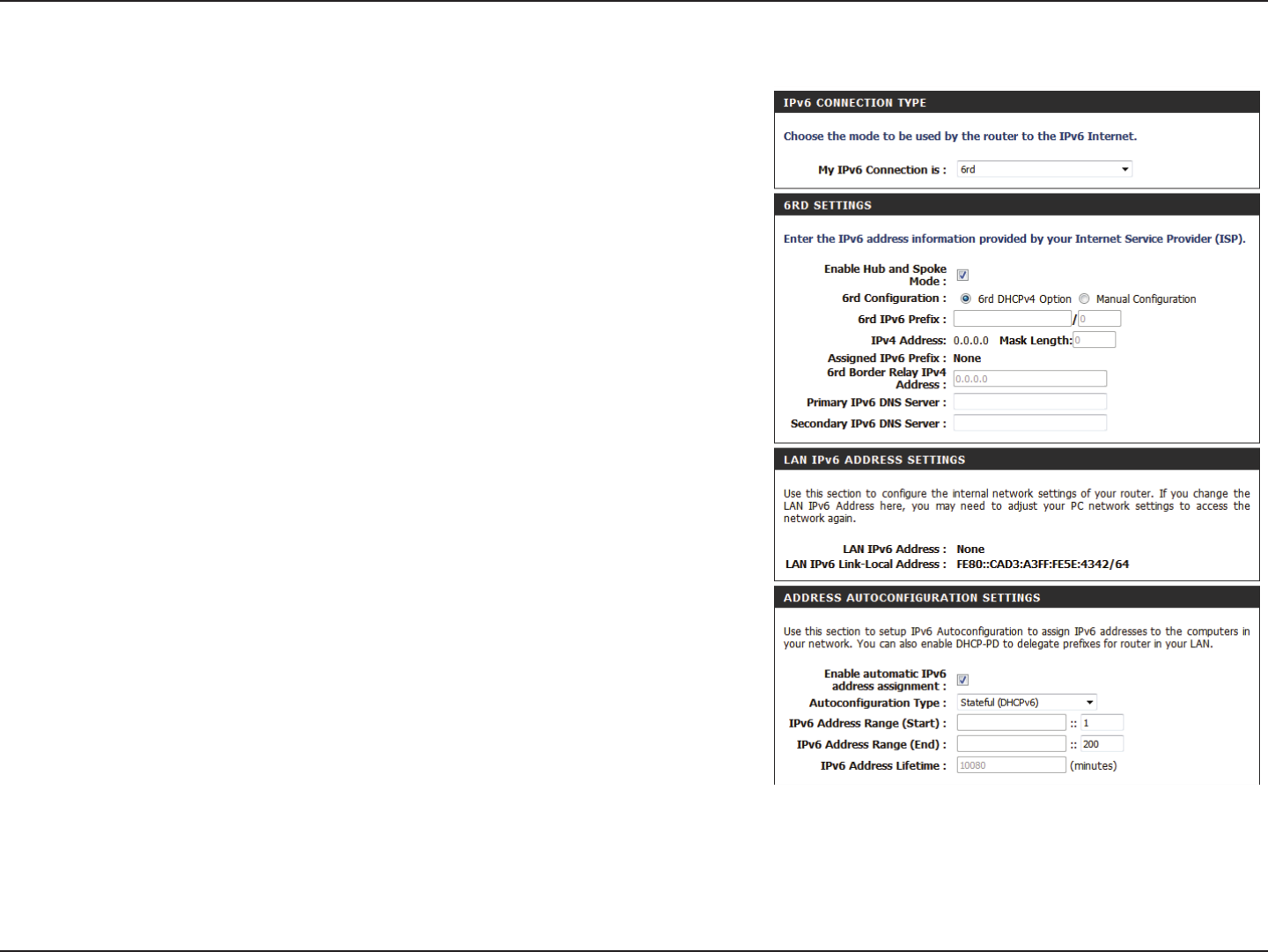

6rd
Select 6rd from the drop-down menu.
Tick to enable hub and spoke mode.
Select either 6rd DHCPv4 Option or Manual Conguration.
If you select manual, there will be additional elds available
for conguration.
Enter the 6rd IPv6 prex provided by your Internet Service
Provider (ISP)
Displays the IPv4 address. Enter the mask length provided by
your ISP.
Displays the assigned IPv6 prex.
Enter the 6rd border relay IPv4 address provided by your ISP.
Enter the primary IPv6 DNS server address provided by your ISP.
Enter the secondary IPv6 DNS server address provided by your
ISP.
Enter the LAN (local) IPv6 address for the router.
Displays the router’s LAN Link-Local Address.
Tick to enable the automatic assignment of IPv6 addresses to
computers on your network.
My IPv6
Connection:
Enable Hub and
Spoke Mode:
6rd Conguration:
6rd IPv6 Prex:
IPv4 Address/
Mask Length:
Assigned
IPv6 Prex:
6rd Border Relay
IPv4 Address:
Primary IPv6
DNS Server:
Secondary IPv6
DNS Server:
LAN IPv6 Address:
LAN IPv6 Link-
Local Address:
Enable Automatic
IPv6 address
assignemtn:
77D-Link DIR-808L User Manual
Section 3 - Conguration
Autoconguration
Type:
IPv6 Address
Range Start:
IPv6 Address
Range End:
IPv6 Address
Lifetime:
Select Stateful (DHCPv6), SLAAC+RDNSS, or SLAAC +
Stateless DHCPv6.
If you selected Stateful (DHCPv6) above, enter the start IPv6
address for the DHCPv6 range for your local computers.
If you selected Stateful (DHCPv6) above, enter the end IPv6
address for the DHCPv6 range for your local computers.
Enter the router advertisement lifetime (in minutes).
78D-Link DIR-808L User Manual
Section 3 - Conguration

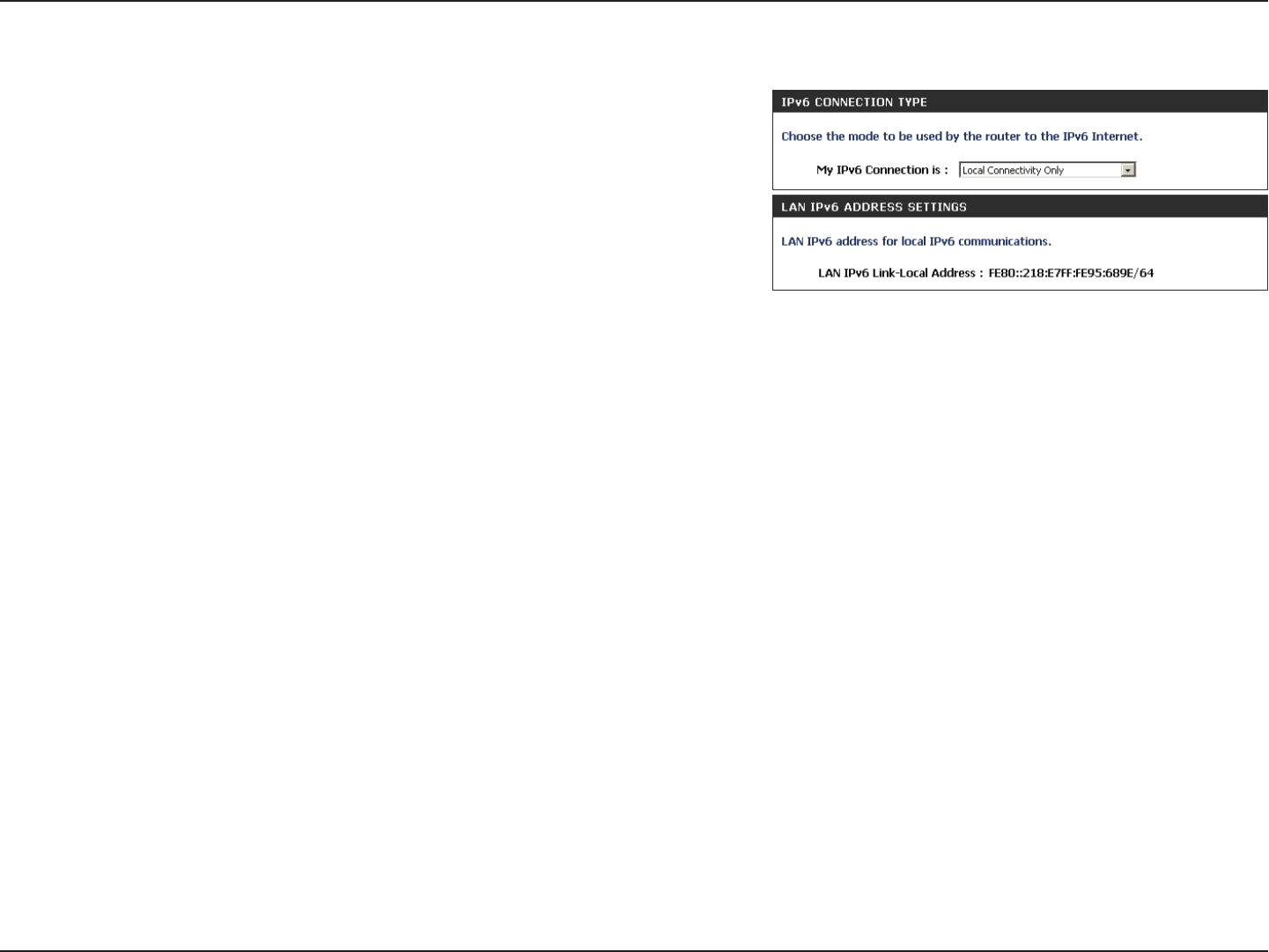

Select Link-Local Only from the drop-down menu.
Displays the IPv6 address of the router.
My IPv6 Connection:
LAN IPv6 Address
Settings:
Link-Local Connectivity
79D-Link DIR-808L User Manual
mydlinkTM Settings
On this page you can congure the mydlink settings for this router. This feature will
allow you to use the mydlink cloud services, which include online access and
management of this router through the mydlink portal website or the mydlink Lite
app for iOS and Android mobile devices.
In the mydlink section, you can view the registration status of the
mydlink account service. The mydlink Service eld will either display Registered or
Non-Registered.
In the Register mydlink Service section, you can register or modify a mydlink
account. Click on the Register mydlink Service button to initiate this procedure.
After clicking the Register mydlink Service button, this window will
appear.
Register mydlink Service Wizard: Step 1
In this section you can select one of two options.
• Select the ‘Yes, I have a mydlink account’ option if you already have a mydlink
account that you want to use on this router.
• Select the ‘No, I want to register and login with a new mydlink
account’ option to register a new account and use it on this router.
Click the Next button to proceed to the next step.
Click the Cancel button to discard the changes made and return to the main page.
The DIR-808L features a new cloud service that pushes information such as rmware upgrade notications, user activity, and
intrusion alerts to the mydlink app on your Android or iOS mobile device. To ensure that your router is up to date with the
latest features, mydlink will notify you when an update is available for your router. You can also monitor users’ online activity
with real-time website browsing history, maintaining a safe and secure environment, especially useful for monitoring your
children’s Internet usage at home.
80D-Link DIR-808L User Manual
Register mydlink Service Wizard: Step 2
When registering a new account, the following page appears. The following
parameters will be available for conguration:
E-mail Address (Account
Name):
Enter your e-mail address here. This e-mail
address will also become your account
name.
Password: Enter your preferred password here.
Conrm Password: Re-enter your preferred password here.
Last Name: Enter your last name here.
First Name: Enter your rst name here.
Accept terms and
conditions:
Tick this option to accept the mydlink
terms and conditions.
Click the Next button to proceed to the next step.
Click the Prev button to return to the previous step.
Click the Cancel button to discard the changes made and return to the main page.
When logging in with an existing account, the following page appears. The following
parameters will be available for conguration:
E-mail Address
(Account Name):
Enter your e-mail address here. This e-mail
address that you used to register with the
mydlink service.
Password: Enter your mydlink password here.
Click the Login button to login using these account details.
Click the Prev button to return to the previous step.
Click the Cancel button to discard the changes made and return to the main page.
81D-Link DIR-808L User Manual
At any point during this wizard, you can change the preferred language. To change
the language, select the desired language option from the Language drop-down
menu, found on the top right of this page.
End of Wizard
82D-Link DIR-808L User Manual
Section 3 - Conguration
This will allow you to open a single port. If you would like to open a range of ports, refer to the next page. Tick the box next to
each tule to enable that rule.
Enter a name for the rule or select an application from the drop-
down menu. Select an application and click << to populate
the elds.
Enter the IP address of the computer on your local network that
you want to allow the incoming service to. If your computer is
receiving an IP address automatically from the router (DHCP),
you computer will be listed in the “Computer Name” drop-down
menu. Select your computer and click <<.
Enter the port that you want to under Private Port and Public
Port. The private and public ports are usually the same. The
public port is the port seen from the Internet side, and the
private port is the port being used by the application on the
computer within your local network.
Select TCP, UDP, or Both from the drop-down menu.
The schedule of time when the Virtual Server Rule will be
enabled. The schedule may be set to Always, which will allow
the particular service to always be enabled. You can create your
own times in the Tools > Schedules section.
Select Allow All (most common) or a created Inbound lter.
You may create your own inbound lters in the Advanced >
Inbound Filter page.
Name:
IP Address:
Private Port/
Public Port:
Protocol Type:
Schedule:
Inbound Filter:
Virtual Server
Advanced
83D-Link DIR-808L User Manual
Section 3 - Conguration
This will allow you to open a single port or a range of ports. Tick the box next to each rule to enable that rule.
Port Forwarding
Enter a name for the rule or select an application from the drop-
down menu. Select an application and click << to populate
the elds.
Enter the IP address of the computer on your local network that
you want to allow the incoming service to. If your computer is
receiving an IP address automatically from the router (DHCP),
your computer will be listed in the “Computer Name” drop-
down menu. Select your computer and click <<.
Enter the TCP and/or UDP port or ports that you want to open.
You can enter a single port or a range of ports. Separate ports
with a comma.
Example: 24,1009,3000-4000
The schedule of time when the Virtual Server Rule will be
enabled. The schedule may be set to Always, which will allow
the particular service to always be enabled. You can create your
own times in the Tools > Schedules section.
Select Allow All (most common) or a created Inbound lter.
You may create your own inbound lters in the Advanced >
Inbound Filter page.
Name:
IP Address:
TCP/UDP:
Schedule:
Inbound Filter:
84D-Link DIR-808L User Manual
Section 3 - Conguration
Enter a name for the rule. You may select a pre-defined
application from the drop-down menu and click <<.
This is the port used to trigger the application. It can be either
a single port or a range of ports.
Select the protocol of the trigger port (TCP, UDP, or Both).
This is the port number on the Internet side that will be used
to access the application. You may dene a single port or a
range of ports. You can use a comma to add multiple ports or
port ranges.
Select the protocol of the rewall port (TCP, UDP, or Both).
The schedule of time when the Application Rule will be
enabled. The schedule may be set to Always, which will allow
the particular service to always be enabled. You can create your
own times in the Tools > Schedules section.
Name:
Trigger:
Trac Type:
Firewall:
Trac Type:
Schedule:

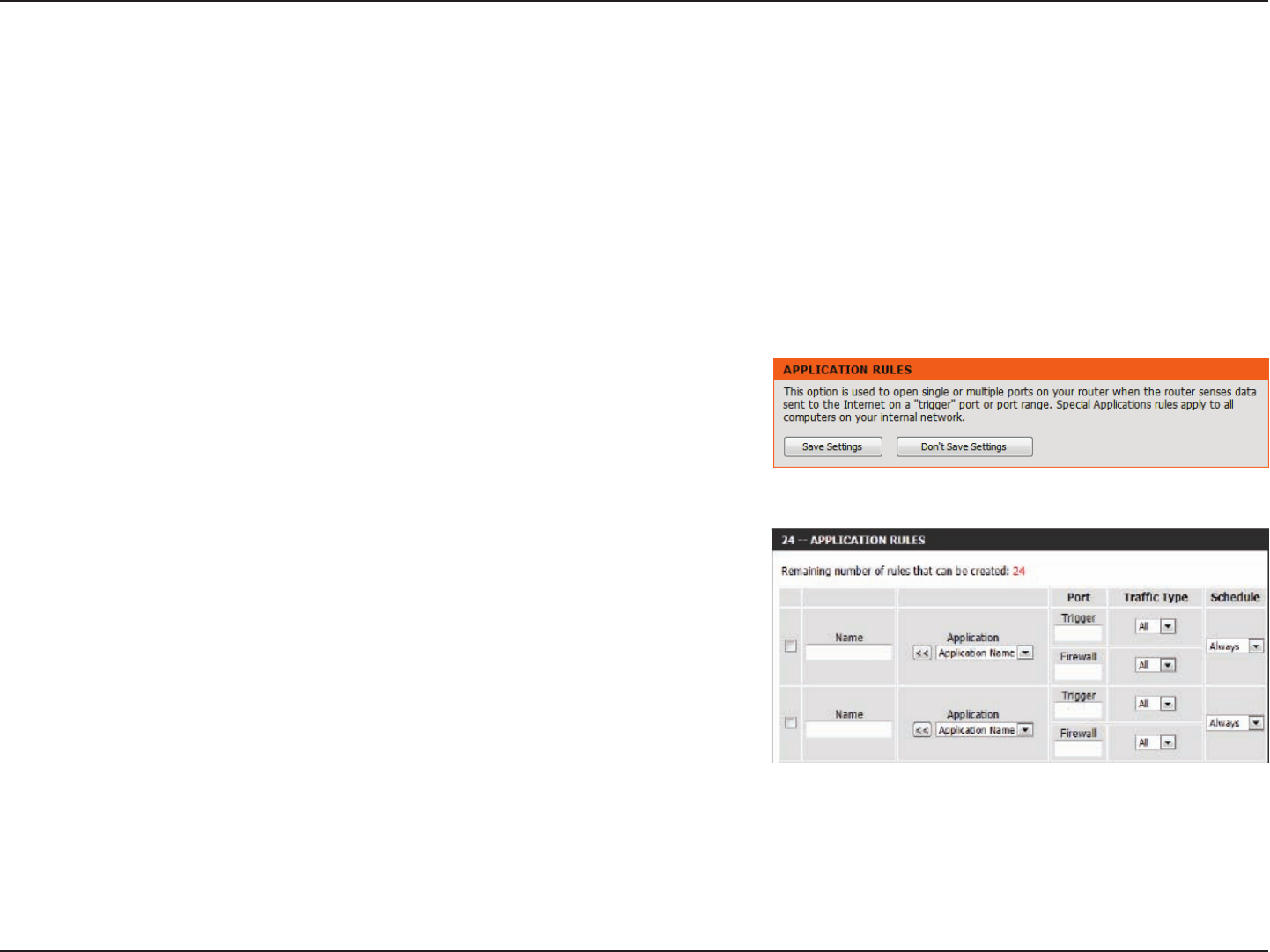

Application Rules
Some applications require multiple connections, such as Internet gaming, video conferencing, Internet telephony and others.
These applications have diculties working through NAT (Network Address Translation). Special application rules allow some
of these applications to work with the DIR-808L. If you need to run applications that require multiple connections, specify the
port normally associated with an application in the Trigger Port eld, select the protocol type as TCP or UDP, then enter the
rewall (public) ports associated with the trigger port to open them for inbound trac.
The DIR-808L provides some predened applications in the table on the bottom of the web page. Select the application you
want to use and enable it.
85D-Link DIR-808L User Manual
Section 3 - Conguration
QoS Engine
The QoS Engine option helps improve your network performance by prioritizing applications. By default the QoS Engine set-
tings are disabled and application priority is not classied automatically. The QoS section contains a queuing mechanism,
trac shaping, and classication. It supports two kinds of queuing mechanisms: Strict Priority Queue (SPQ) and Weighted Fair
Queue (WFQ). SPQ will process trac based on trac priority; queue 1 has the highest priority and queue 4 has the lowest
priority. WFQ will process trac based on the queue weight; you can congure each queue’s weight, where the sum of all the
queues’ weights must be 100. When surng the Internet, the system will do trac shaping based on the uplink and downlink
speed. The classication rules can be used to classify trac to dierent queues, then SPQ or WFQ will do QoS based on the
queue’s priority or weight.
The following parameters will be available for conguration:
Enable QoS: This option is disabled by default. Enable this option for
better performance and experience with online games and
other interactive applications, such as VoIP.
Automatic
Uplink Speed:
Measured
Uplink Speed:
Tick this option to have the QoS engine automatically set
your uplink speed.
Displays the uplink speed measured by the router.
Manual Uplink
Speed:
This section allows you to specify the speed at which data can
be transferred from the ISP to the router. This is determined
by your ISP. ISPs often dene speed as a download/upload
pair. For example, 1.5 Mbits/284 Kbits.
86D-Link DIR-808L User Manual
Section 3 - Conguration
The following parameters will be available for conguration:
Checkbox: Tick this option to enable the rule specied.
Name: Enter a custom name for the rule being created here. This
name is used for identication.
Priority: Select the appropriate priority requirement by entering a
value between 1 and 255 in the box provided.
Protocol: Select the protocol used for the application for in the drop-
down menu and it will automatically place it in the Protocol
eld.
Local IP Range: Enter the local IP range used here. This is the IP range of your
Local Area Network. The router’s IP cannot be included in this
range.
Remote IP Range: Enter the remote IP range used here. This is the IP range of
the public network from the Internet port side. To apply this
rule to any IP addresses from the public side, enter the range
0.0.0.1 to 255.255.255.254.
Local Port Range: Enter the local port range to be used for this rule.
Remote Port Range: Enter the remote port range to be used for this rule.
Click on the Save Settings button to accept the changes made.
Click on the Don’t Save Settings button to discard the changes made.
After specifying the QoS framework used, in the QoS setup section, the user can now create individual rules for scenarios that require the use of
trac control and data priority manipulation.
87D-Link DIR-808L User Manual
Section 3 - Conguration
Network Filters
Select Turn MAC Filtering O, Allow MAC addresses listed
below, or Deny MAC addresses listed below from the drop-
down menu.
Enter the MAC address you would like to lter.
To nd the MAC address on a computer, please refer to the
Networking Basics section in this manual.
Select a DHCP client from the drop-down menu and click << to
copy that MAC address.
Click the Clear button to clear the MAC address and DHCP client
list elds for each line.
Congure MAC
Filtering:
MAC Address:
DHCP Client:
Clear:
Use MAC (Media Access Control) Filters to allow or deny LAN (Local Area Network) computers by their MAC addresses from
accessing the network. You can either manually add a MAC address or select the MAC address from the list of clients that are
currently connected to the broadband router.
88D-Link DIR-808L User Manual
Section 3 - Conguration

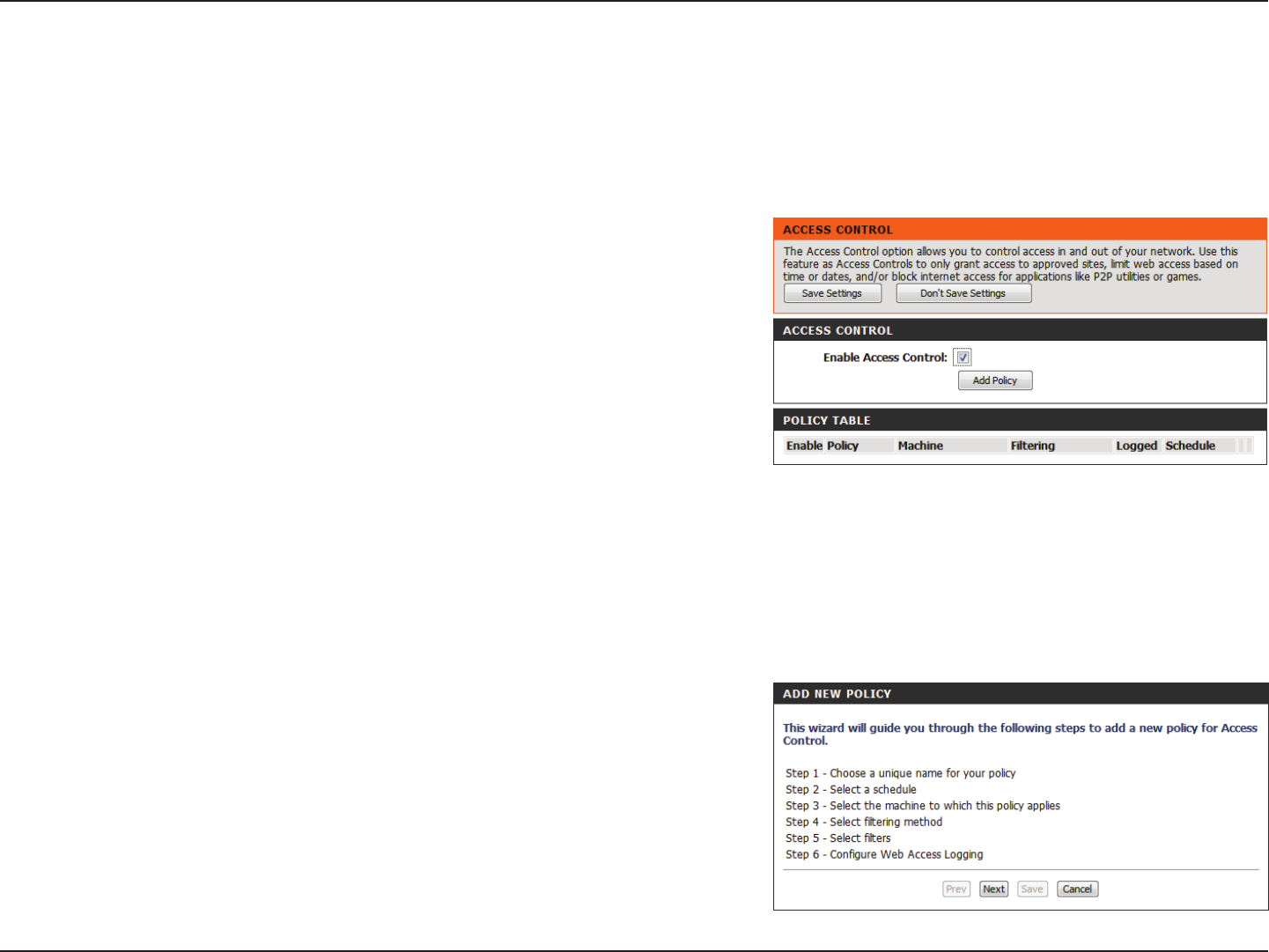

Access Control
Tick the box to enable access control. Any policies specied
will be enabled.
Click the Add Policy button to start the Access Control Wizard.
Enable Access
Control:
Add Policy:
The Access Control section allows you to control access in and out of your network. Use this feature as a parental control to
only grant access to approved sites, limit web access based on time or dates, and/or block access from applications like P2P
utilities or games.
Click Next to continue with the wizard.
Access Control Wizard
89D-Link DIR-808L User Manual
Section 3 - Conguration
Enter a name for the policy and then click Next to continue.
Select a schedule (eg: Always) from the drop-down menu and then click Next to
continue.
Enter the following information and then click Next to continue.
• Address Type - Select IP address, MAC address, or Other Machines.
• IP Address - Enter the IP address of the computer you want to apply the rule
to.
• Machine Address - Enter the PC MAC address (i.e. 00:00.00.00.00).
Select the ltering method. If you choose Block Some Access, there will be two
ltering options available:
• Apply Web Filter - This will enable the website ltering rules selected in the
Advanced >> Website Filter section.
• Apply Advanced Port Filters - This will enable the port ltering rules, which
will be specied on the subsequent page.
Click Next to continue.
90D-Link DIR-808L User Manual
Section 3 - Conguration

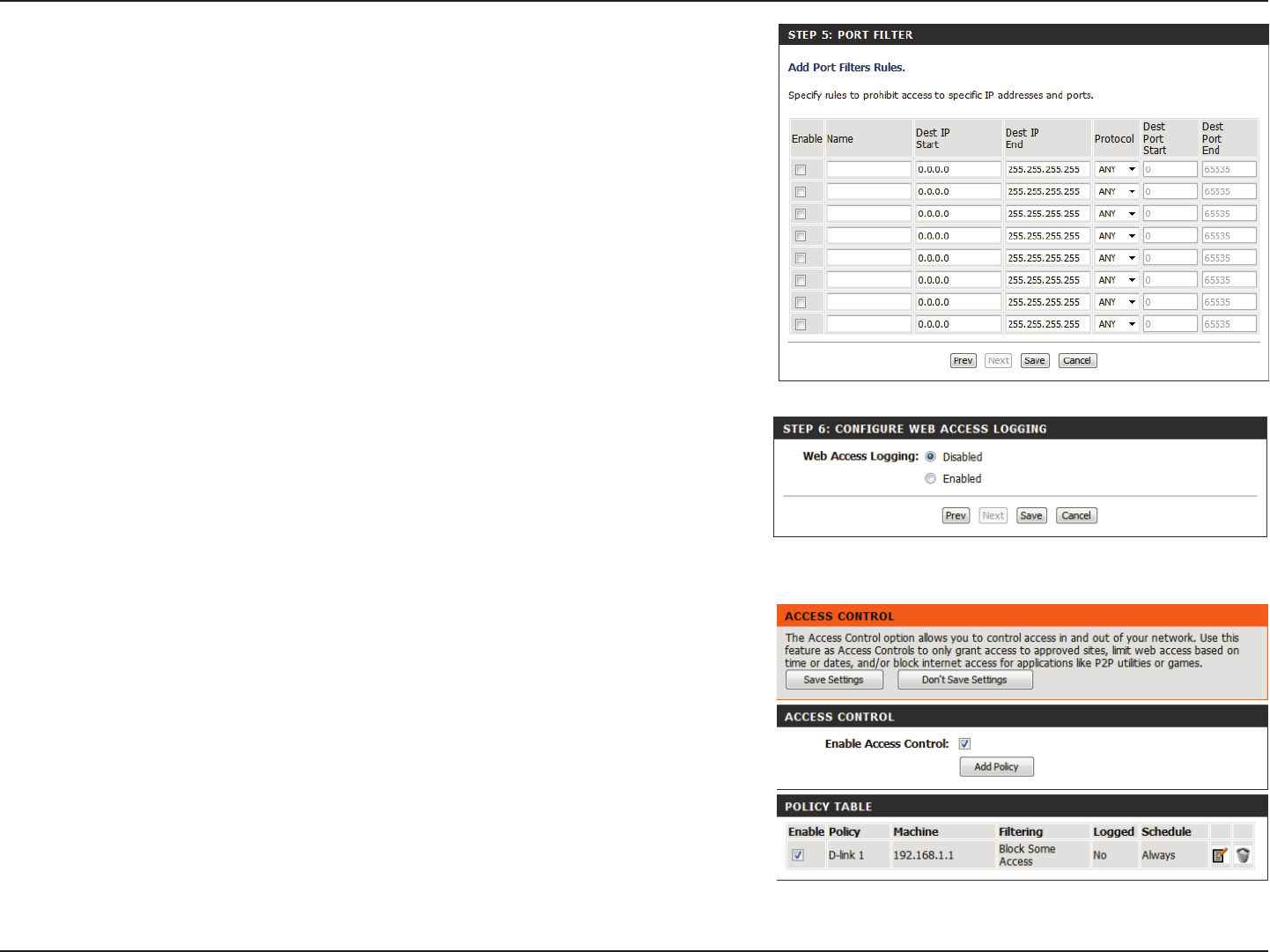

Enter the rule:
Enable - Tick to enable the rule.
Name - Enter a name for your rule.
Dest IP Start - Enter the starting IP address.
Dest IP End - Enter the ending IP address.
Protocol - Select the protocol.
Dest Port Start - Enter the starting port number.
Dest Port End - Enter the ending port number.
Click Save to continue.
To enable web logging, click Enable.
Click Save to save the access control rule.
Your newly created policy will now show up under Policy Table.
91D-Link DIR-808L User Manual
Section 3 - Conguration
Add Website
Filtering Rule:
Website URL/
Domain:
Clear the list
below:
Website Filters
Select either DENY computers access to ONLY these sites or
ALLOW computers access to ONLY these sites.
Enter the keywords or URLs that you want to allow or block.
Click Save Settings.
Click this button to clear the list of ltered websites.
Website lters are used to allow you to control access to websites by users connected to the network. To use this feature select
to Allow or Deny, enter the domain or website and click Save Settings. You must also select Apply Web Filter under the
Access Control section in order to activate this lter.
92D-Link DIR-808L User Manual
Section 3 - Conguration
Enter a name for the inbound lter rule.
Select Allow or Deny.
Check to enable rule.
Enter the starting IP address. Enter 0.0.0.0 if you do not want
to specify an IP range.
Enter the ending IP address. Enter 255.255.255.255 if you do
not want to specify and IP range.
Click the Add button to apply your settings. You must click
Save Settings at the top to save the settings.
This section will list any rules that are created. You may click the
Edit icon to change the settings or enable/disable the rule, or
click the Delete icon to remove the rule.
Name:
Action:
Enable:
Remote IP Start:
Remote IP End:
Add:
Inbound Filter
Rules List:
The Inbound Filter option is an advanced method of controlling data received from the Internet. With this feature you can
congure inbound data ltering rules that control data based on an IP address range. Inbound lters can be used with virtual
server, port forwarding, or remote administration features.
Inbound Filters
93D-Link DIR-808L User Manual
Section 3 - Conguration
SPI (Stateful Packet Inspection, also known as Dynamic Packet
Filtering) helps to prevent cyber attacks by tracking more state
per session. It validates that the trac passing through the
session conforms to the protocol.
Enable this feature to protect your network from certain kinds
of “spoong” attacks.

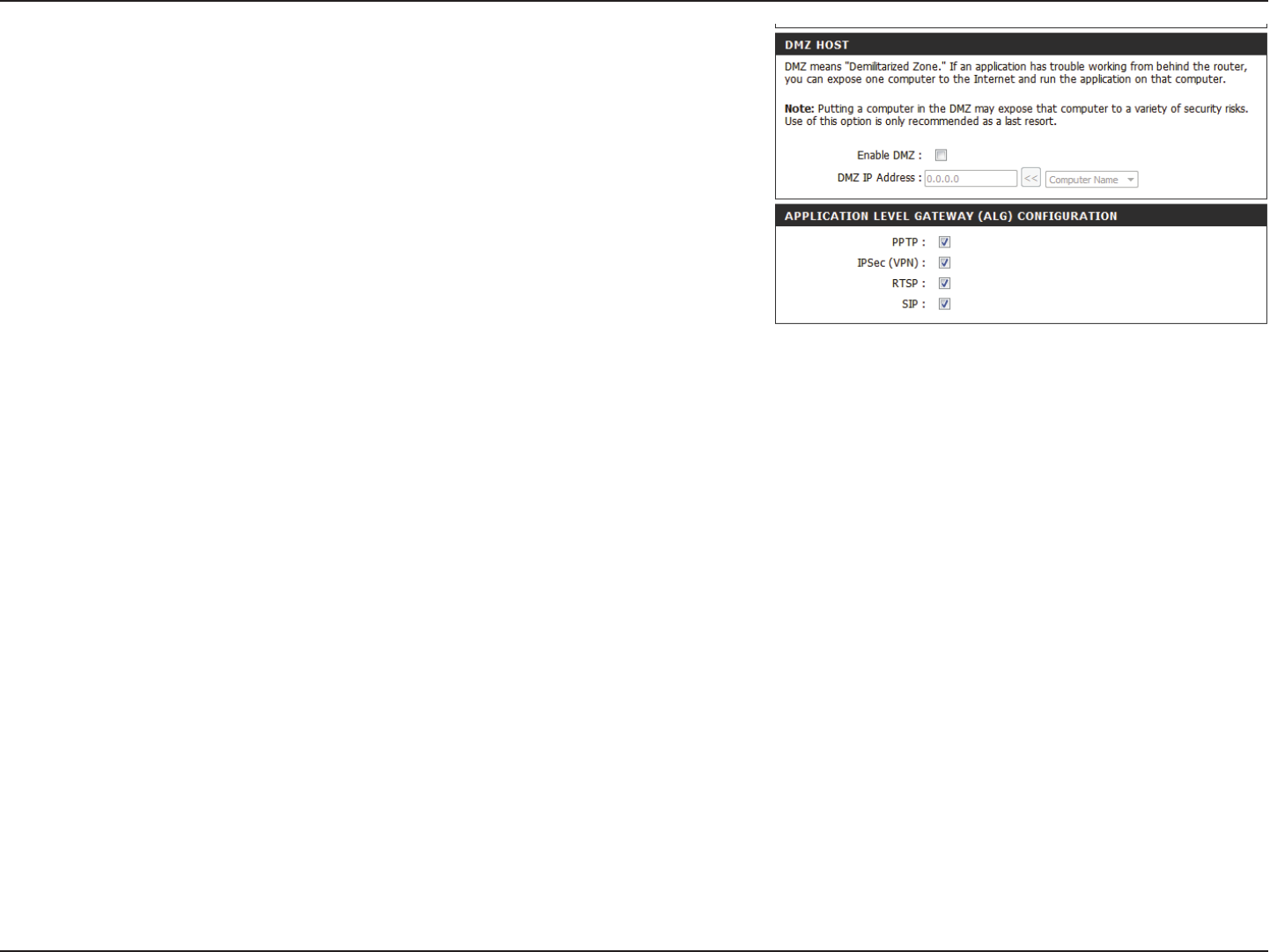

Tick the box to enable to DMZ feature.
Specify the IP address of the computer on the LAN that you
want to have unrestricted Internet communication. If this
computer obtains its IP address automatically using DHCP,
be sure to make a static reservation on the Setup > Network
Settings page so that the IP address of the DMZ machine does
not change.
Allows multiple machines on the LAN to connect to their
corporate network using PPTP protocol.
Allows multiple VPN clients to connect to their corporate
network using IPSec. Some VPN clients support traversal of
IPSec through
NAT. This ALG may interfere with the operation of such
VPN clients. If you are having trouble connecting with your
corporate network, try turning this ALG o. Please check with
the system administrator of your corporate network whether
your VPN client supports NAT traversal.
Enable SPI:
Anti-Spoof Check:
Enable DMZ:
DMZ IP Address:
PPTP:
IPSEC (VPN):
Firewall Settings
The DIR-808L oers a rewall which helps protect your network from external threats. The SPI feature helps prevent malicious
attacks by inspecting and verifying incoming data packets. In certain cases, you may also want a computer exposed to the
outside world for certain types of applications. The rewall setup also features a Demilitarized Zone (DMZ) option, which will
expose the selected clients completely to the outside world.
94D-Link DIR-808L User Manual
Section 3 - Conguration
RTSP:
SIP:
Allows applications that use Real Time Streaming Protocol to
receive streaming media from the Internet. QuickTime and
Real Player are some of the common applications using this
protocol.
Allows devices and applications using VoIP (Voice over IP) to
communicate across NAT. Some VoIP applications and devices
have the ability to discover NAT devices and work around them.
This ALG may interfere with the operation of such devices. If you
are having trouble making VoIP calls, try turning this ALG o.
95D-Link DIR-808L User Manual
Section 3 - Conguration

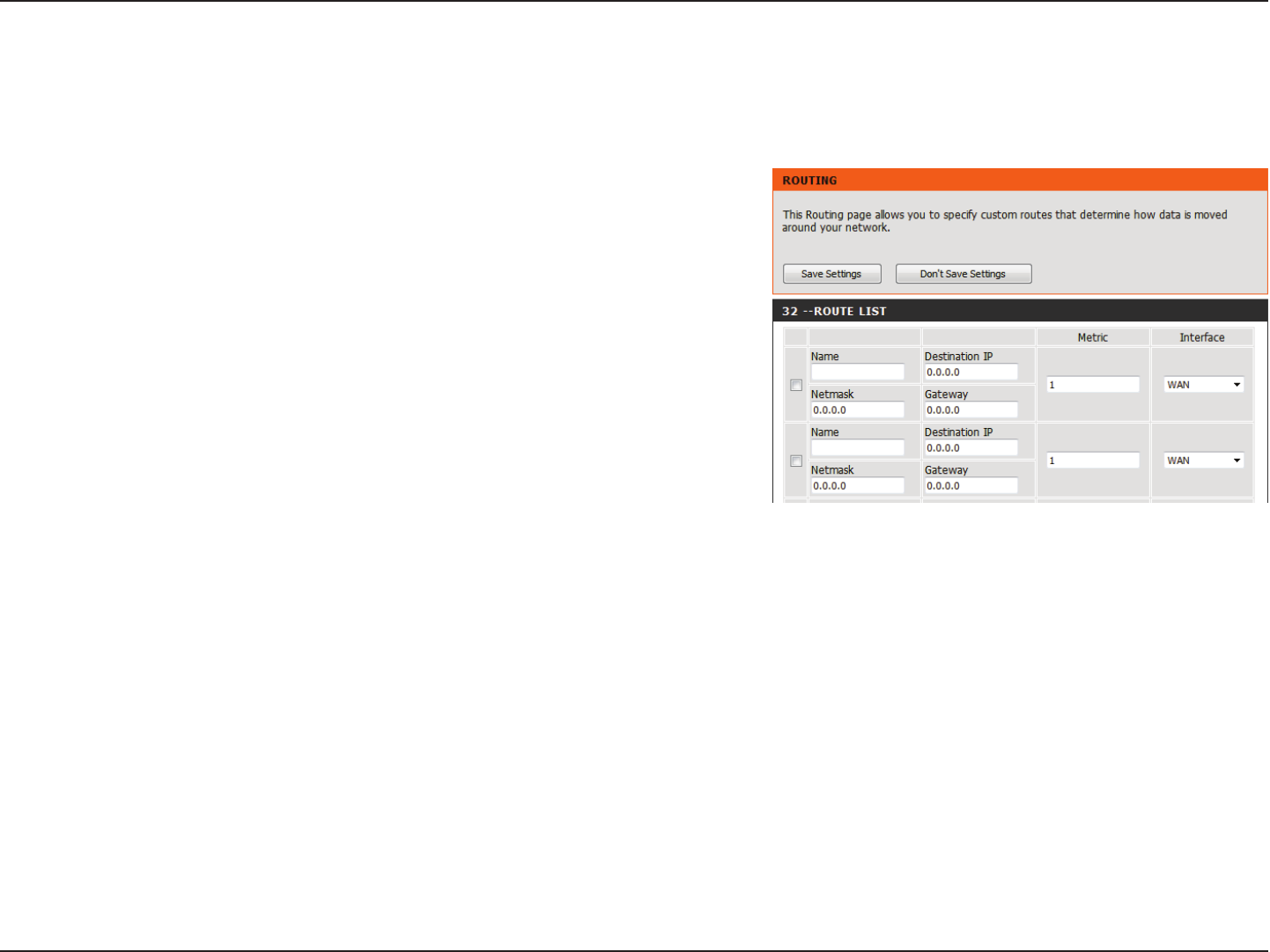

Enter a name for your route.
Enter the IP address of packets that will take this route.
Enter the netmask of the route, please note that the octets
must match your destination IP address.
Enter your next hop gateway to be taken if this route is used.
The route metric is a value from 1 to 15 that indicates the cost
of using this route. A value 1 is the lowest cost and 15 is the
highest cost.
Select the interface that the IP packet must use to transit out
of the router when this route is used.
Name:
Destination IP:
Netmask:
Gateway:
Metric:
Interface:
Routing
The Routing option is an advanced method of customizing specic routes of data through your network.
96D-Link DIR-808L User Manual
Section 3 - Conguration
Advanced Wireless
Set the transmit power of the antennas.
This enables 802.11d operation. 802.11d is a wireless specication
developed to allow implementation of wireless networks in
countries that cannot use the 802.11 standard. This feature should
only be enabled if you are in a country that requires this.
WMM is QoS for your wireless network. This will improve the quality
of video and voice applications for your wireless clients.
Enable this option to reduce interference from other wireless
networks in your area. If the channel width is operating at 40 MHz
and there is another wireless network’s channel over-lapping and
causing interference, the router will automatically change to 20
MHz.
Transmit Power:
WLAN Partition:
WMM Enable:
HT 20/40
Coexistence:
97D-Link DIR-808L User Manual
Section 3 - Conguration
Wi-Fi Protected Setup (WPS)
Enable the Wi-Fi Protected Setup feature.
Note: if this option is unchecked, the WPS button on the side of
the router will be disabled.
Tick this option to lock the use of the WPS-PIN setup feature.
A PIN is a unique number that can be used to add the router
to an existing network or to create a new network. Only the
Administrator (“admin” account) can change or reset the PIN.
Shows the current PIN.
Restore the default PIN of the router.
Create a random number that is a valid PIN. This becomes the
router’s PIN. You can then copy this PIN to the user interface
of the wireless client.
Enable:
Lock WPS-PIN
Setup:

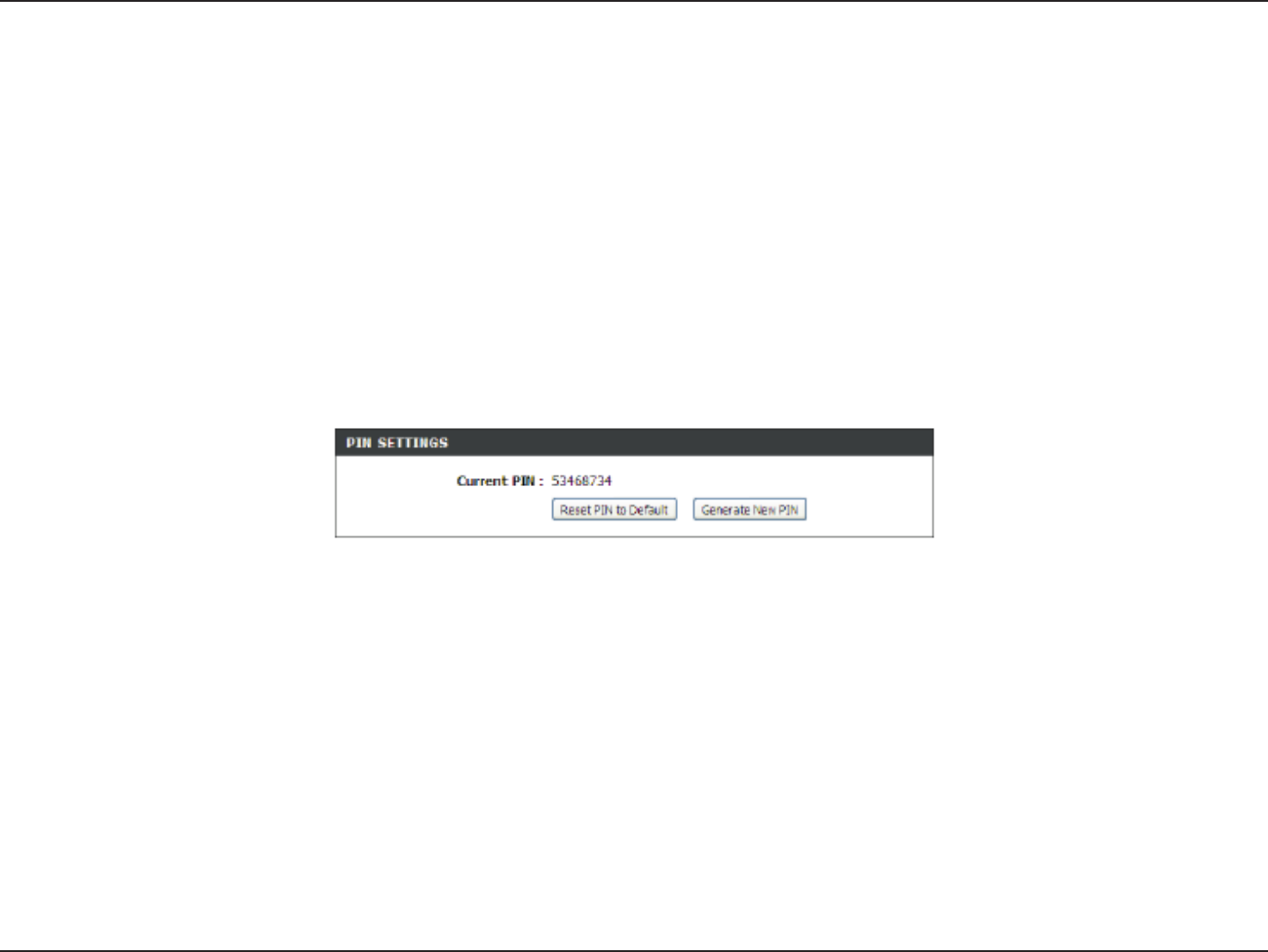

PIN Settings:
Current PIN:
Reset PIN to
Default:
Generate New
PIN:
Wi-Fi Protected Setup (WPS) System is a simplied method for securing your wireless network during the “Initial setup” as well
as the “Add New Device” processes. The Wi-Fi Alliance has certied WPS across dierent products as well as manufacturers.
The process as simple as pressing a button for the Push Button Method or correctly entering an 8-digit code for the Pin Code
Method. WPS signicantly reduces the amount of time required to set up a secure wireless network, while maintaining the
highest level of wireless security provided by the WPA2 standard.
98D-Link DIR-808L User Manual
Section 3 - Conguration
Click this button to begin the WPS wizard, which will guide you through
the process of adding a wireless device to your network using WPS.
Click to start the wizard and refer to “Wi-Fi Protected Setup Wizard”
on page 43.
Add Wireless
Device Wizard:
You can also simply press the WPS button on the side of the router, and then press the WPS button on your wireless client to automatically connect
without logging into the router.
Refer to “Connect a Wireless Client to your Router” on page 122 for more information.
WPS Button
WPS Button
99D-Link DIR-808L User Manual
Section 3 - Conguration
To use the Universal Plug and Play (UPnP) feature, click on
Enable UPnP. UPnP provides compatibility with networking
equipment, software and peripherals.
Checking the box will allow the DIR-808L to respond to
pings, which may be required by some ISPs. If not required,
unchecking the box may provide some extra security from
outside intruders.
Choose whether to Allow All or Deny All WAN pings according
to the inbound lter rules determined under the Inbound
Filters section.
Displays the state of the WAN ping inbound lter.
You may set the port speed of the Internet port to 10 Mbps,
100 Mbps, or Auto (recommended).
Check the box to allow multicast trac to pass through the
router from the Internet (IPv4).
Check the box to allow multicast trac to pass through the
router from the Internet (IPv6).
Enable UPnP:
Enable WAN
Ping Respond:
WAN Ping
Inbound Filter:
Details:
WAN Port Speed:
Enable IPV4
Multicast Streams:
Enable IPV6
Multicast Streams:
Advanced Network Settings
100D-Link DIR-808L User Manual
Section 3 - Conguration
Guest Zone
Check to enable the Guest Zone feature.
The schedule of time when the guest zone will be active. The
schedule may be set to Always, which will allow the particular
service to always be enabled. You can create your own times in
the Tools > Schedules section or click Add New.
Indicates whether the settings are for the 2.4 GHz or 5 GHz
band.
Enter a wireless network name (SSID) that is dierent from your
main wireless network.
Check to allow network connectivity between the dierent
zones created.
Select the type of security or encryption you would like to
enable for the guest zone.
Enable Guest
Zone:
Schedule:
Wireless Band:
Wireless
Network Name:
Enable Routing
Between Zones:
Security Mode:
The Guest Zone feature will allow you to create temporary zones that can be used by guests to access the Internet. These zones
will be separate from your main wireless network, and will allow only Internet access to any clients that are connected. You
may congure dierent zones for the 2.4 GHz and 5 GHz wireless bands.
101D-Link DIR-808L User Manual
Section 3 - Conguration

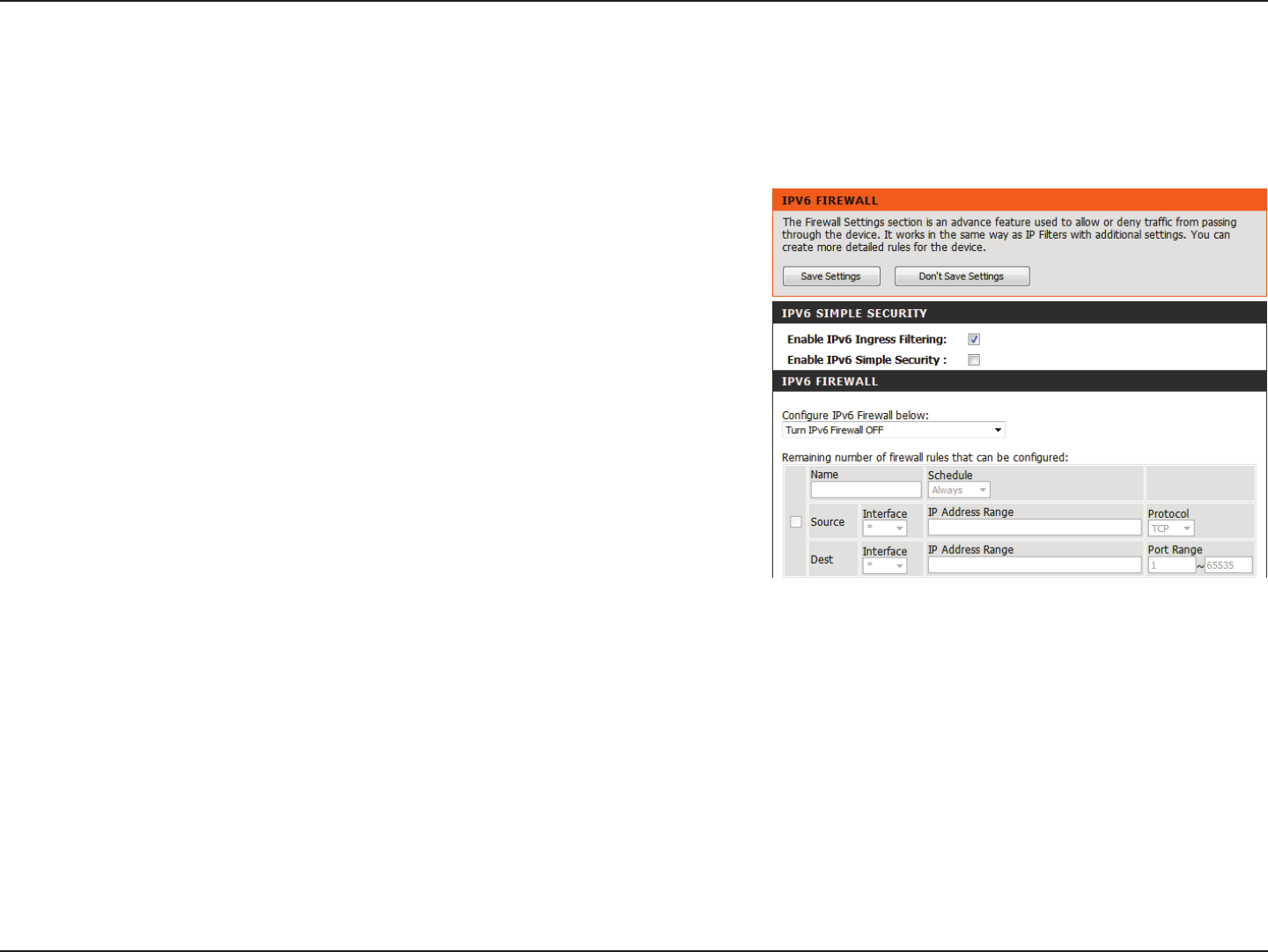

IPv6 Firewall
The DIR-808L’s IPv6 rewall feature allows you to congure which kind of IPv6 trac is allowed to pass through the device.
The DIR-808L’s IPv6 rewall functions in a similar way to the IP Filters feature.
Tick the box to enable ingress ltering protection for IPv6.
Check the box to enable the IPv6 rewall simple security.
Select an action from the drop-down menu.
Enter a name to identify the IPv6 rewall rule.
Use the drop-down menu to select the time schedule that the
IPv6 rewall rule will be enabled on. The schedule may be set
to Always, which will allow the particular service to always
be enabled. You can create your own times in the Tools >
Schedules section.
Use the drop-down menu to specify the interface that connects
to the source IPv6 addresses of the rewall rule.
Enter the source IPv6 address range in the adjacent IP Address
Range eld.
Select the protocol of the rewall port (All, TCP, UDP, or ICMP).
Use the drop-down menu to specify the interface that connects
to the destination IP addresses of the rewall rule.
Enter the destination IPv6 address range in the adjacent IP
Address Range eld.
Enter the rst port of the range that will be used for the rewall
rule in the rst box and enter the last port in the eld in the
second box.
Enable IPv6
Ingress Filtering:
Enable IPv6
Simple Security:
Congure IPv6
Firewall:
Name:
Schedule:
Interface (Source):
IP Address Range
(Source):
Protocol:
Interface (Dest):
IP Address
Range (Dest):
Port Range:
102D-Link DIR-808L User Manual
Section 3 - Conguration
IPv6 Routing
Tick the box next to the route you wish to enable.
Enter a specic name to identify this route.
This is the IP address of the router used to reach the specied
destination or enter the IPv6 address prex length of the
packets that will take this route.
Enter the metric value for this rule here.
Use the drop-down menu to specify if the IP packet must use
the WAN or LAN interface to transit out of the router.
Enter the next hop that will be taken if this route is used.
Checkbox:
Name:
Destination IP/
Prex Length:
Metric:
Interface:
Gateway:
This page allows you to specify custom routes that determine how data is moved around your network.
103D-Link DIR-808L User Manual
Section 3 - Conguration
Admin
This page will allow you to change the Administrator password. You can also enable remote management and specify the
settings for the remote management feature.
Tools
Enter a new password for the Administrator Login Name. The
administrator can make changes to the settings.
Enter a name for your router.
Enables a challenge-response test to require users to type
letters or numbers from a distorted image displayed on the
screen to prevent online hackers and unauthorized users from
gaining access to your router’s network settings.
Check to enable HTTPS to connect to the router securely.
This means to connect to the router, you must enter
https://192.168.0.1 (for example) instead of http://192.168.0.1.
Remote management allows the DIR-808L to be congured
from the Internet by a web browser. A username/password is
still required to access the web management interface.
The port number used to access the DIR-808L is used in the
URL. Example: http://x.x.x.x:8080 where x.x.x.x is the Internet
IP address of the DIR-808L and 8080 is the port used for the
Admin
Password:
Gateway name:
Enable
Graphical
Authentication:
Enable HTTPS
Server:
Enable Remote
Management:
Remote
Admin Port:
104D-Link DIR-808L User Manual
Section 3 - Conguration
Web Management interface.
If you have enabled HTTPS Server, you must enter https:// as
part of the URL to access the router remotely.
This section will list any rules that are created. You may click
the Edit icon to change the settings or enable/disable the rule,
or click the Delete icon to remove the rule. Details will display
the current status.
Remote Admin
Inbound Filter:
105D-Link DIR-808L User Manual
Section 3 - Conguration

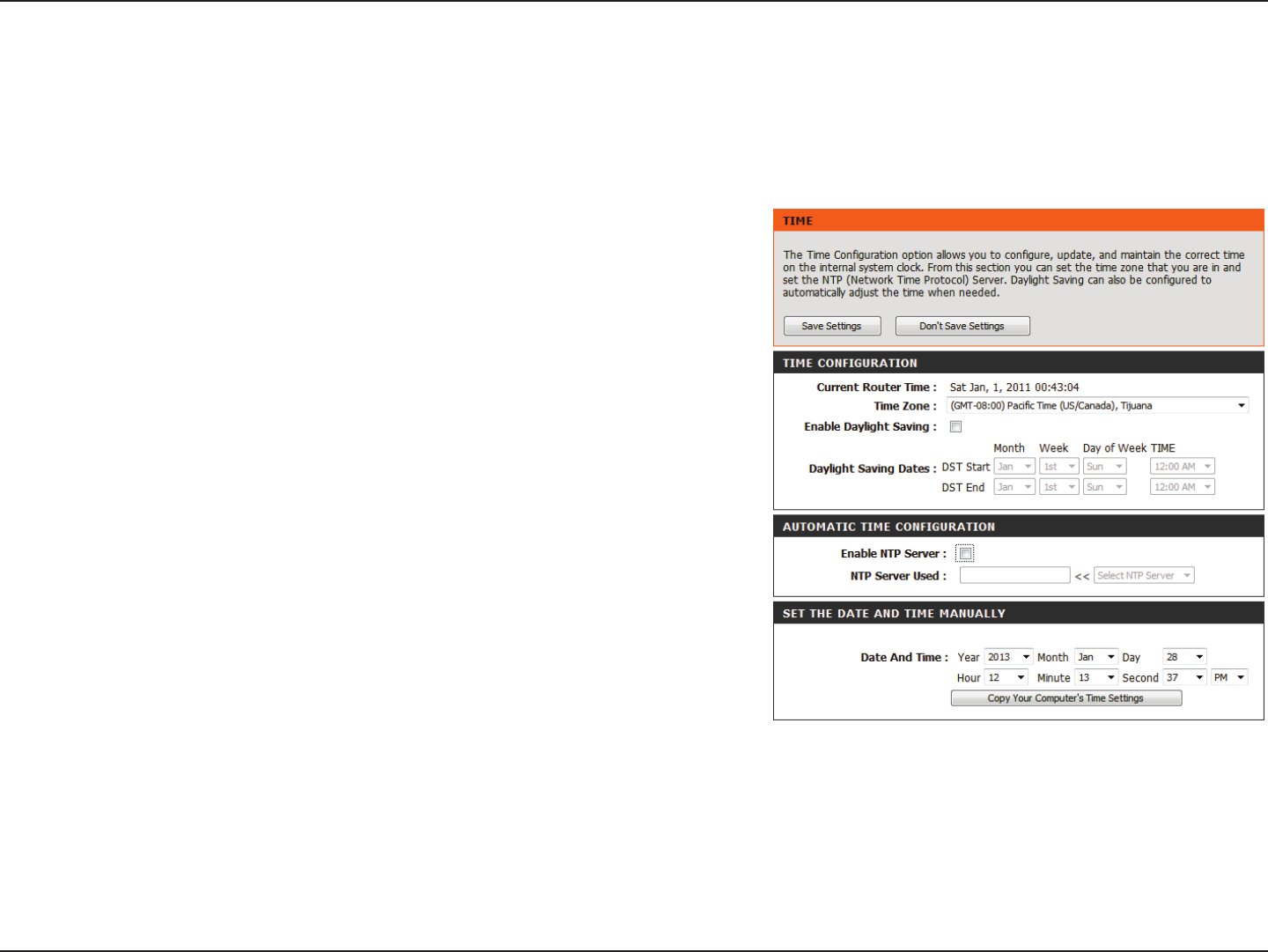

Time
Displays the current date and time of the router.
Select your time zone from the drop-down menu.
To select Daylight Saving time manually, select enabled or
disabled, and enter a start date and an end date for daylight
saving time.
NTP is short for Network Time Protocol. A NTP server will
synchronize the time and date with your router. This will only
connect to a server on the Internet, not a local server. Check
the box to enable this feature.
Enter the IP address of a NTP server or select one from the
drop-down menu.
To manually input the time, enter the values in these elds for
the Year, Month, Day, Hour, Minute, and Second and then click
Set Time.
Note: You can also click Copy Your Computer’s Time Settings
to sync the date and time with the computer you are currently
on.
Current Router
Time:
Time Zone:
Enable Daylight
Saving:
Enable NTP
Server:
NTP Server Used:
Date and Time:
The Time Conguration option allows you to congure, update, and maintain the correct time on the internal system clock.
From this section you can set the time zone that you are in and set the time server. Daylight Saving can also be congured to
automatically adjust the time when needed.
106D-Link DIR-808L User Manual
Section 3 - Conguration
SysLog
The DIR-808L keeps a running log of events and activities occurring on the Router. You may send these logs to a SysLog server
on your network.
Enable Logging
to SysLog Server:
SysLog Server
IP Address:
Check this box to send the router logs to a SysLog server.
The address of the SysLog server that will be used to send the
logs. You may also select your computer from the drop-down
menu (only if receiving an IP address from the router via DHCP).
107D-Link DIR-808L User Manual
Section 3 - Conguration

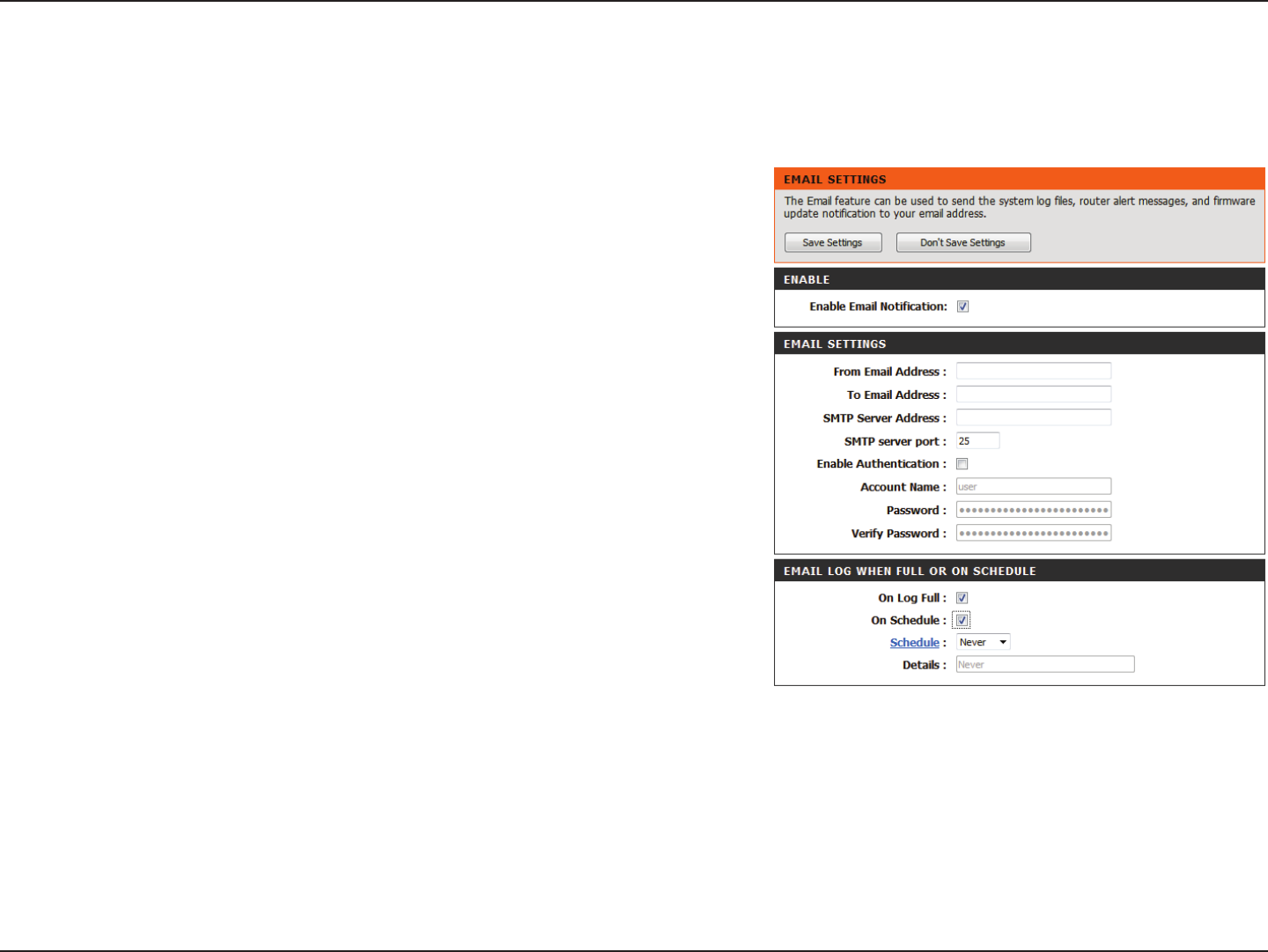

Email Settings
The Email feature can be used to send the system log les, router alert messages, and rmware update notication to your
email address.
Enable Email
Notication:
From Email
Address:
To Email Address:
SMTP Server
Address:
SMTP Server Port:
Enable
Authentication:
Account Name:
Password:
On Log Full:
On Schedule:
Schedule:
Details:
When this option is enabled, router activity logs are emailed
to a designated email address.
This email address will appear as the sender when you receive
a log le or rmware upgrade notication via email.
Enter the email address where you want the email sent.
Enter the SMTP server address for sending email.
Enter the SMTP port used on the server.
Check this box if your SMTP server requires authentication.
Enter your account for sending email.
Enter the password associated with the account. Re-type the
password associated with the account.
When this option is selected, logs will be sent via email to your
account when the log is full.
Selecting this option will send the logs via email according to
schedule.
This option is enabled when On Schedule is selected. You can
select a schedule from the list of dened schedules. To create
a schedule, go to Tools > Schedules.
Lists the details of the current schedule.
108D-Link DIR-808L User Manual
Section 3 - Conguration

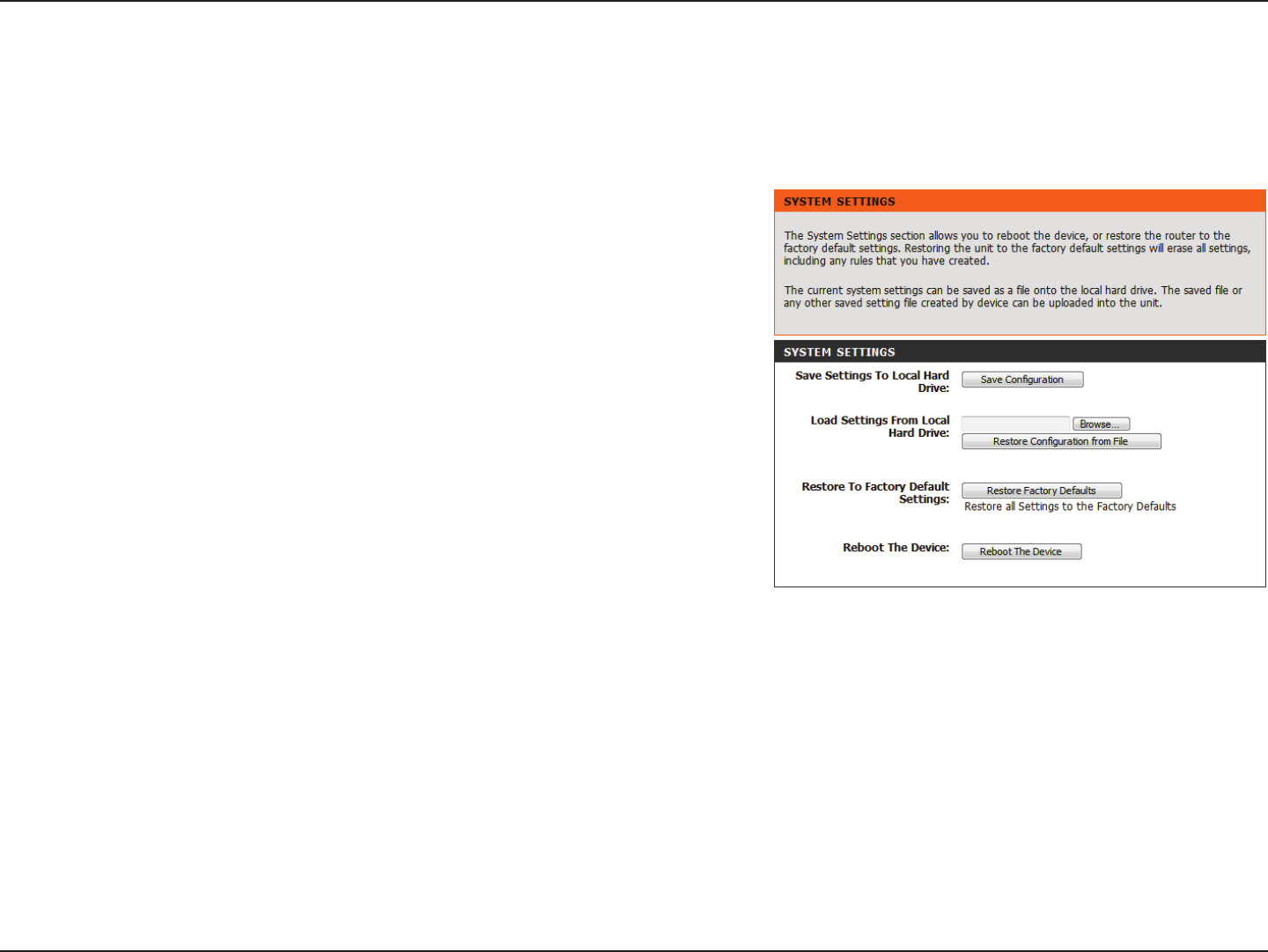

Use this option to save the current router conguration settings
to a le on the hard disk of the computer you are using. First,
click the Save button. A le dialog will appear, allowing you to
select a location and le name for the settings.
Use this option to load previously saved router conguration
settings. First, use the Browse option to nd a previously saved
le of conguration settings. Then, click the Load button to
transfer those settings to the router.
This option will restore all conguration settings back to the
settings that were in eect at the time the router was shipped
from the factory. Any settings that have not been saved will
be lost, including any rules that you have created. If you want
to save the current router conguration settings, use the Save
Conguration button above.
Click to reboot the router.
Save Settings
to Local Hard
Drive:
Load Settings
from Local
Hard Drive:
Restore to
Factory Default
Settings:
Reboot Device:
System Settings
This section allows you to manage the router’s conguration settings, reboot the router, and restore the router to the factory
default settings. Restoring the unit to the factory default settings will erase all settings, including any rules that you’ve created.
109D-Link DIR-808L User Manual
Section 3 - Conguration
Firmware Update
Browse: After you have downloaded the new rmware, click Browse to
locate the rmware update on your hard drive. Click Upload
to complete the rmware upgrade.
You can upgrade the rmware of the router here. Make sure the rmware you want to use is on the local hard drive of the
computer. Please check the D-Link support website for rmware updates at http://support.dlink.com. You can download
rmware upgrades to your computer from this site.
After you have downloaded the new language pack, click
Browse to locate the language pack le on your hard drive.
Click Upload to complete the language pack upgrade.
Language Pack
You can change the language of the web UI by uploading available language packs.
Browse:
110D-Link DIR-808L User Manual
Section 3 - Conguration
Dynamic Domain Name System is a method of keeping a
domain name linked to a changing IP address. Check the box
to enable DDNS.
Select your DDNS provider from the drop-down menu or enter
the DDNS server address.
Enter the host name that you registered with your DDNS service
provider.
Enter the username or key for your DDNS account.
Enter the password or key for your DDNS account.
Enter a timeout time (in hours).
Displays the current connection status.
Enable
Dynamic DNS:
Server
Address:
Host Name:
Username
or Key:
Password
or Key:
Timeout:
Status:
Dynamic DNS
The DDNS feature allows you to host a server (Web, FTP, Game Server, etc.) using a domain name that you have purchased
(www.yourdomainname.com) with your dynamically assigned IP address. Most broadband Internet Service Providers assign
dynamic (changing) IP addresses. Using a DDNS service provider, anyone wanting to access your server can enter your domain
name to connect to your server no matter what your IP address is.
111D-Link DIR-808L User Manual
Section 3 - Conguration
The Ping Test is used to send ping packets to test if a computer
is on the Internet. Enter the IP address that you wish to ping
and click Ping.
Enter the IPv6 address that you wish to ping and click Ping.
The results of your ping attempts will be displayed here.
System Check
Ping Test:
IPv6 Ping Test:
Ping Results:
112D-Link DIR-808L User Manual
Section 3 - Conguration
Enter a name for your new schedule.
All Week to include every day, or choose Select to specify a
day, or multiple days.
Check All Day - 24hrs to have the schedule on 24-hours per
day.
Select 12-hour or 24-hour as the time format.
Enter the starting time for the schedule each day.
Enter the end time for the schedule each day
You must click Save Settings at the top for your schedules to
go into eect.
The list of schedules will be listed here. Click the Edit icon to
make changes or click the Delete icon to remove the schedule.
Name:
Days:
All Day - 24
Hours:
Time Format:
Start Time:
End Time:
Save Settings:
Schedule
Rules List:
Schedules
Schedules can be created for use with enforcing rules. For example, if you want to restrict web access to Mon-Fri from 3pm to
8pm, you could create a schedule selecting Mon, Tue, Wed, Thu, and Fri and enter a start time of 3pm and end time of 8pm.
113D-Link DIR-808L User Manual
Section 3 - Conguration
This page displays the current information for the DIR-808L. It will display the LAN, WAN (Internet), and wireless information.
If your Internet connection is set up for a Dynamic IP address, then a Release button and a Renew button will be displayed.
Use Release to disconnect from your ISP and use Renew to connect to your ISP.
If your Internet connection is set up for PPPoE, a Connect button and a Disconnect button will be displayed. Use Disconnect
to drop the PPPoE connection and use Connect to establish the PPPoE connection.
Displays the router’s time and rmware version.
Displays the MAC address and the public IP settings
Displays the MAC address and the private (local) IP settings
for the router.
Displays the 2.4 GHz wireless MAC address and your wireless
settings such as SSID and channel.
Displays the 5 GHz wireless MAC address and your wireless
settings such as SSID and channel.
Displays computers and devices that are connected to the
router via Ethernet and that are receiving an IP address assigned
by the router (DHCP).
Shows details of current multicast connections.
General:
WAN:
LAN:
Wireless LAN:
Wireless LAN2:
LAN Computers:
IGMP Multicast
Memberships:
Device Info
Status
114D-Link DIR-808L User Manual
Section 3 - Conguration
Logs
Log Options:
Refresh:
First Page:
Last Page:
Previous:
Next:
Clear:
Email Now:
Save Log:
You can select the types of messages that you want to display
from the log. System Activity, Debug Information, Attacks,
Dropped Packets, and Notice messages can be selected. Click
Apply Log Settings Now to activate your settings.
Updates the log details on the screen so it displays any recent
activity.
Click to go to the rst page.
Click to go to the last page.
Click to go back one page.
Click to go to the next page.
Clears all of the log contents.
This option will send a copy of the router log to your email
address congured in the Tools > Email Settings screen.
This option will save the router log to a le on your computer.
The router automatically logs (records) events of possible interest in its internal memory. If there isn’t enough internal memory
for all events, logs of older events are deleted but logs of the latest events are retained. The Logs option allows you to view
the router logs. You can dene what types of events you want to view and the level of the events to view. This router also has
external Syslog Server support so you can send the log les to a computer on your network that is running a Syslog utility.
115D-Link DIR-808L User Manual
Section 3 - Conguration

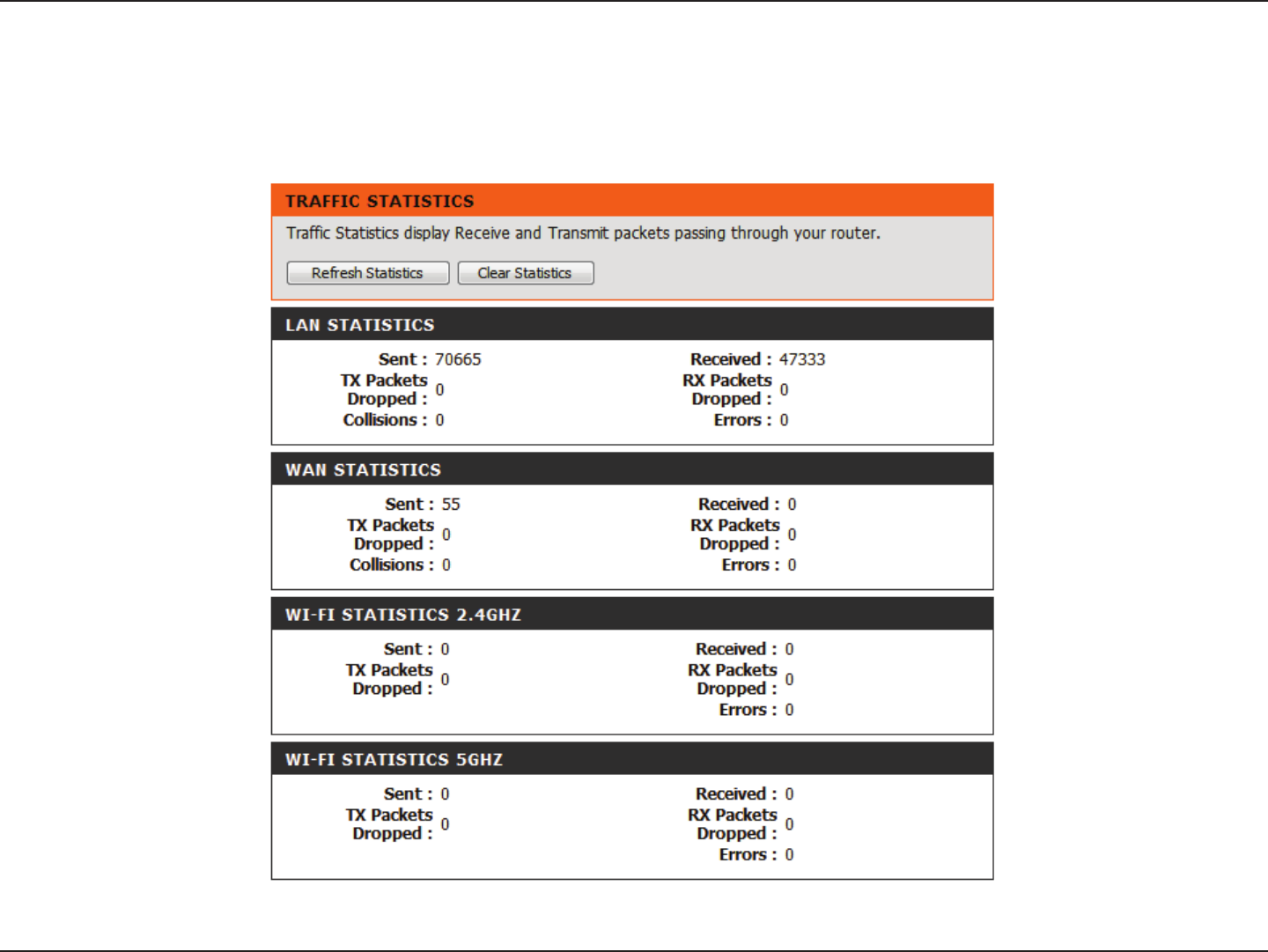

Statistics
The screen below displays the Trac Statistics. Here you can view the amount of packets that pass through the DIR-808L on both
the WAN and LAN ports, and the wireless segments. The trac counter will reset if the device is rebooted.
116D-Link DIR-808L User Manual
Section 3 - Conguration
Internet Sessions
The Internet Sessions page displays full details of active Internet sessions through your router. An Internet session is a
conversation between a program or application on a LAN-side computer and a program or application on a WAN-side computer.
For further information regarding the information in this table, please refer to the relevant article in the Support section of the
user interface.
117D-Link DIR-808L User Manual
Section 3 - Conguration

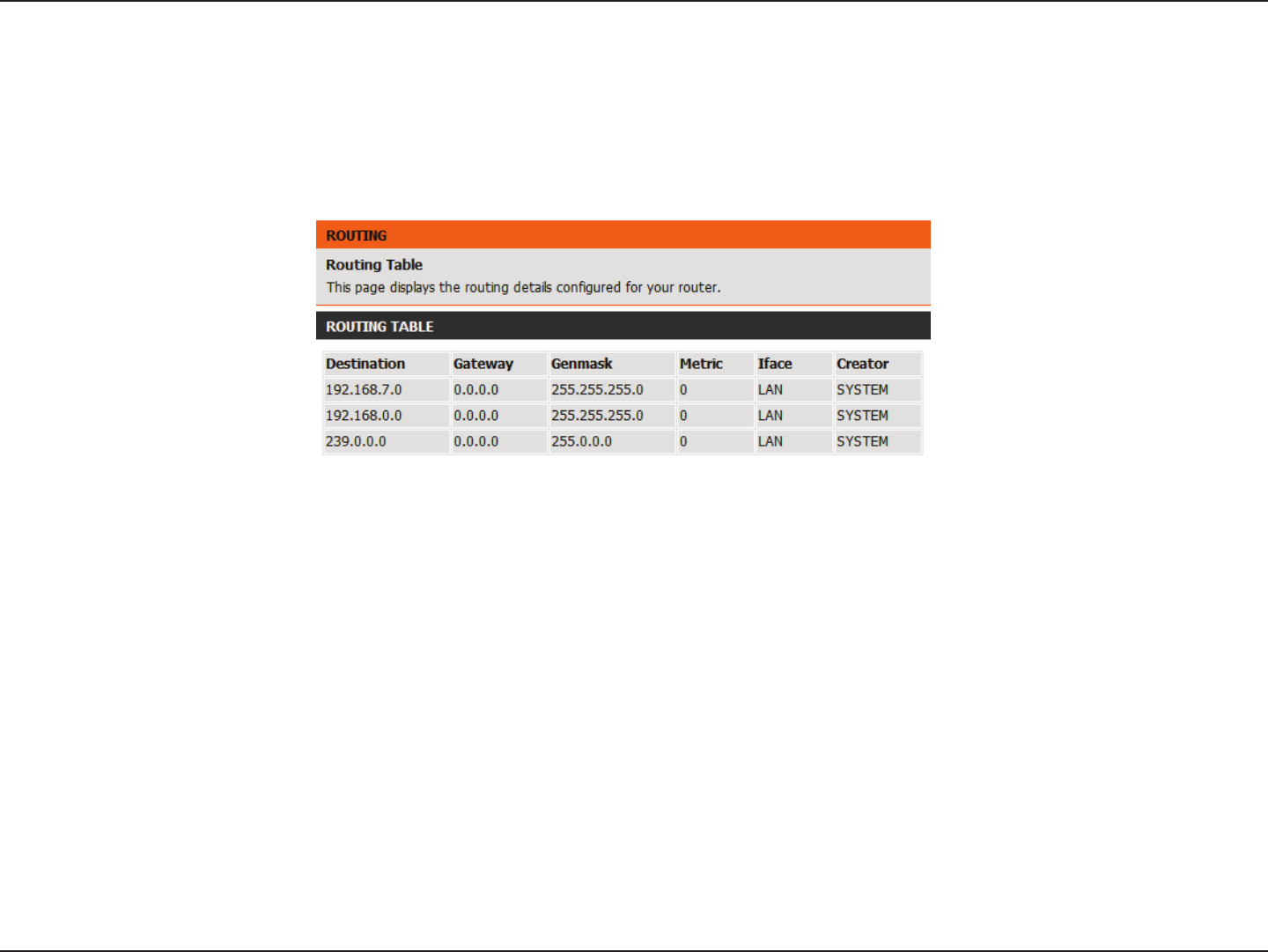

Routing
This page will display your current routing table. This information will also reect any routing settings congured in the Routing
section of the setup.
118D-Link DIR-808L User Manual
Section 3 - Conguration

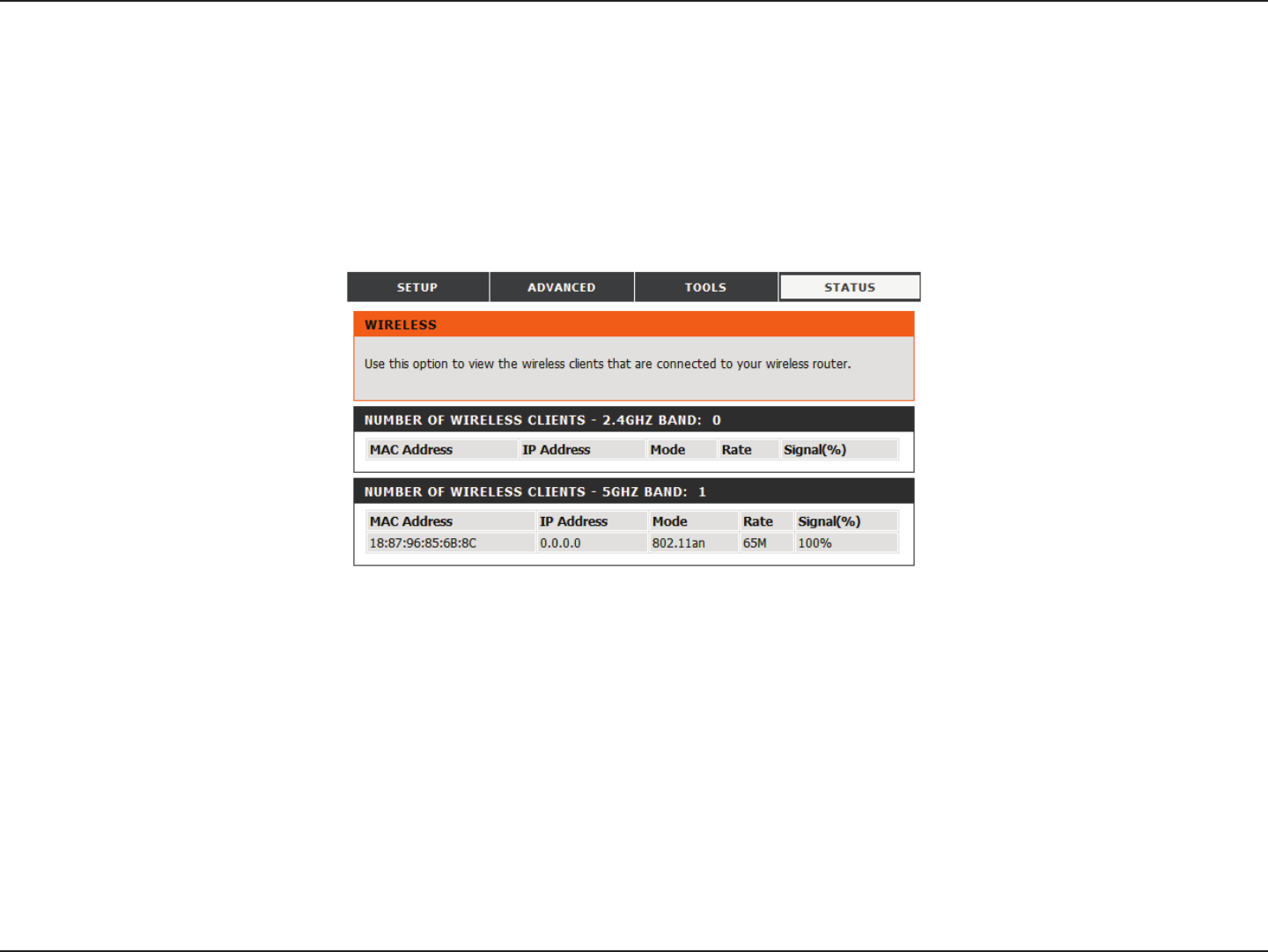

The wireless client table displays a list of currently connected wireless clients. This table displays the MAC address of the
connected wireless clients, as well as client IP address, wireless mode, connection rate, and signal strength for each client.
Wireless
119D-Link DIR-808L User Manual
Section 3 - Conguration
IPv6
The IPv6 page displays a summary of the router’s IPv6 settings and lists the IPv6 address and host name of any IPv6 clients.
120D-Link DIR-808L User Manual
Section 3 - Conguration
IPV6 Routing
This page displays the IPV6 routing details congured for your router.
121D-Link DIR-808L User Manual
Section 3 - Conguration
Support
122D-Link DIR-808L User Manual
Section 4 - Security
Connect a Wireless Client to your Router
WPS Button
Step 2 - Within 120 seconds, press the WPS button on your wireless client (or launch the software utility and start the WPS
process).
The easiest and most secure way to connect your wireless devices to the router is WPS (Wi-Fi Protected Setup). Most wireless
devices such as wireless adapters, media players, Blu-ray DVD players, wireless printers and cameras will have a WPS button
(or a software utility with WPS) that you can press to connect to the DIR-808L router. Please refer to your user manual for the
wireless device you want to connect to make sure you understand how to enable WPS. Once you know, follow the steps below:
Step 1 - Press the WPS button on the DIR-808L for about 1 second. The power LED on the front will start to blink.
Step 3 - Allow up to 1 minute for the conguration process to complete. Once the power light stops blinking, you will be
connected and your wireless connection will be secured with WPA2.
WPS Button
123D-Link DIR-808L User Manual
Section 4 - Security
Windows® 8
WPA/WPA2
It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before conguring your
wireless adapter. If you are joining an existing network, you will need to know the security key (Wi-Fi password) being used.
To join an existing network, locate the wireless network icon in the taskbar, next to the
time display.
Wireless Icon
Clicking on this icon will display a list of wireless networks which are within connecting
proximity of your computer. Select the desired network by clicking on the network name.
124D-Link DIR-808L User Manual
Section 4 - Security
You will then be prompted to enter the network security key (Wi-Fi password) for
the wireless network. Enter the password into the box and click Next.
If you wish to use Wi-Fi Protected Setup (WPS) to connect to the router, you can also
press the WPS button on your router at this point to enable the WPS function.
When you have established a successful connection to a wireless network, the word
Connected will appear next to the name of the network to which you are connected.
125D-Link DIR-808L User Manual
Section 4 - Security
Windows® 7
It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before conguring your
wireless adapter. If you are joining an existing network, you will need to know the security key or passphrase being used.
1. Click on the wireless icon in your system tray (lower-right corner).
2. The utility will display any available wireless networks in your area.
Wireless Icon
WPA/WPA2
126D-Link DIR-808L User Manual
Section 4 - Security
3. Highlight the wireless connection with the Wi-Fi name (SSID) you
would like to connect to and click the Connect button.
If you get a good signal but cannot access the Internet, check your
TCP/IP settings for your wireless adapter. Refer to the Networking
Basics section in this manual for more information.
4. The following window appears while your computer tries to
connect to the router.
127D-Link DIR-808L User Manual
Section 4 - Security
5. Enter the same security key or passphrase (Wi-Fi password) that is
on your router and click Connect. You can also connect by pushing
the WPS button on the router.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the security settings are correct. The
key or passphrase must be exactly the same as on the wireless router.
128D-Link DIR-808L User Manual
Section 4 - Security
WPS
The WPS feature of the DIR-808L can be congured using Windows® 7. Carry out the following steps to use Windows® 7 to
congure the WPS feature:

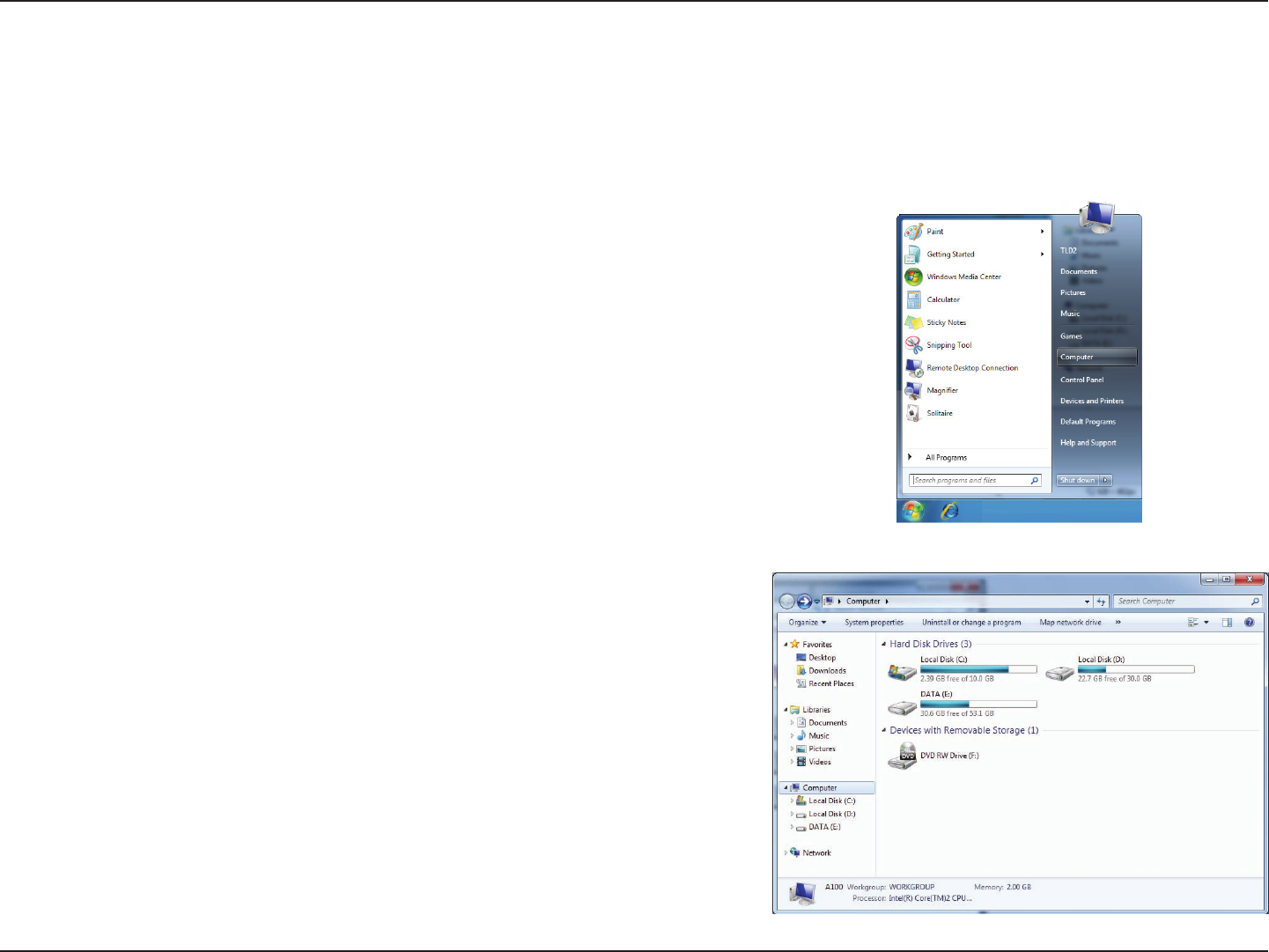

1. Click the Start button and select Computer from the Start menu.
2. Click Network on the left side.
129D-Link DIR-808L User Manual
Section 4 - Security

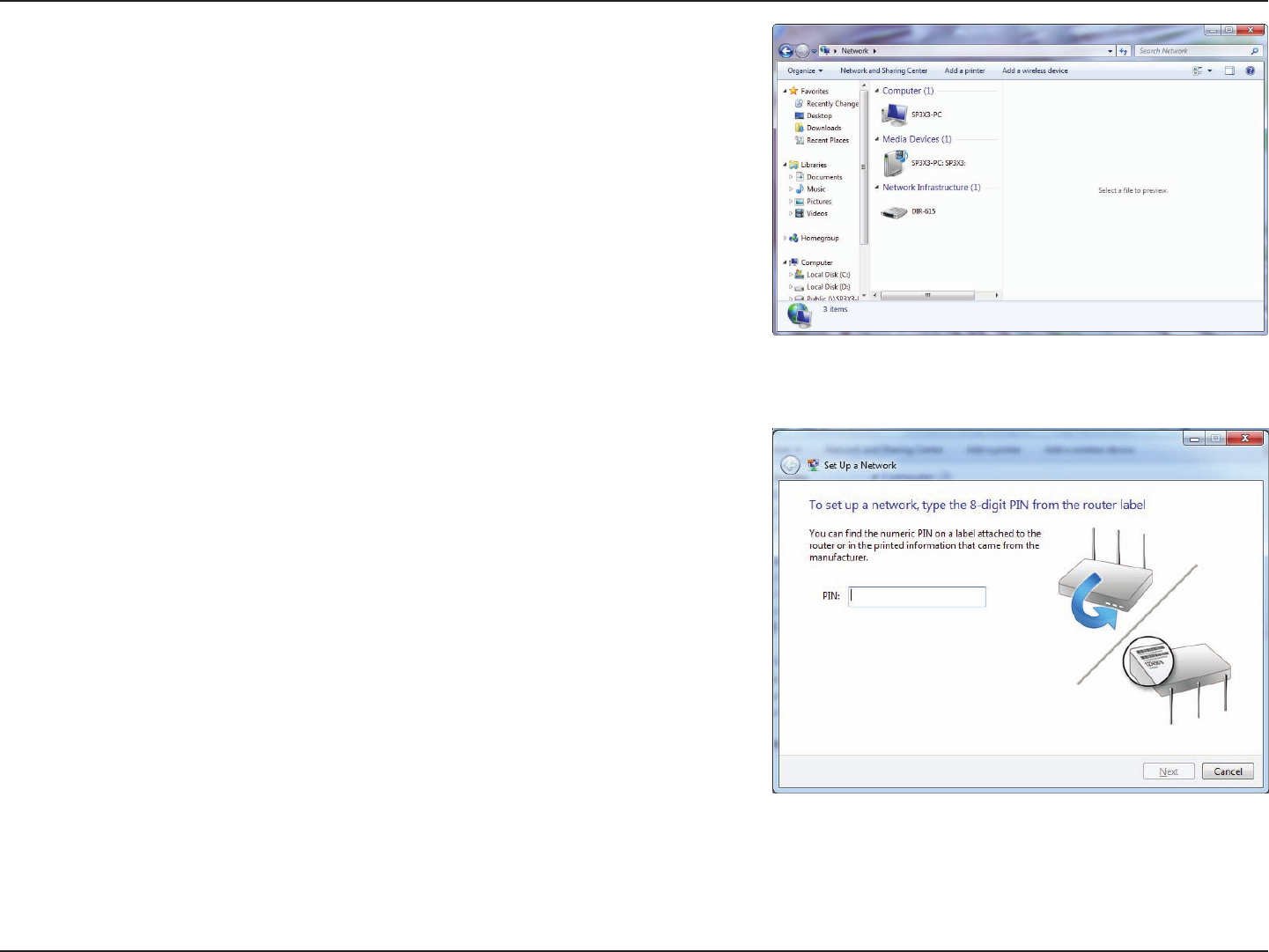

3. Double-click the DIR-808L.
4. Input the WPS PIN number (displayed in the WPS box on the
router’s label, or in the Setup > Wireless Setup menu in the
Router’s Web UI) and click Next.
130D-Link DIR-808L User Manual
Section 4 - Security
5. Type a name to identify the network.
6. To congure advanced settings, click the icon.
Click Next to continue.
131D-Link DIR-808L User Manual
Section 4 - Security

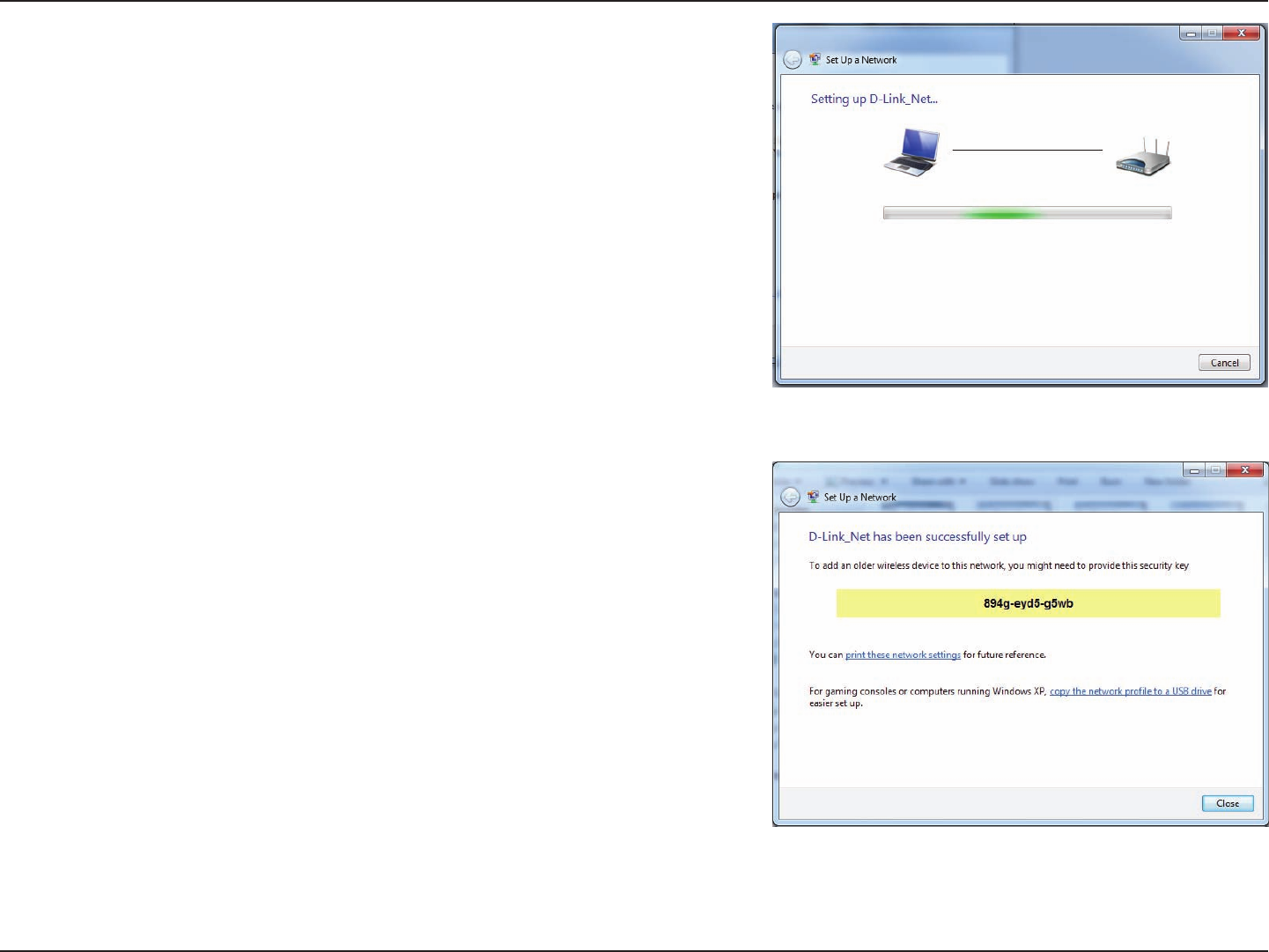

7. The following window appears while the router is being congured.
Wait for the conguration to complete.
8. The following window informs you that WPS on the router has
been setup successfully.
Make a note of the security key as you may need to provide this
security key if adding an older wireless device to the network in
the future.
9. Click Close to complete WPS setup.
132D-Link DIR-808L User Manual
Section 5 - Connecting to a Wireless Network
Windows Vista®
Windows Vista users may use the built-in wireless utility. If you are using another company’s utility, please refer to the user
manual of your wireless adapter for help with connecting to a wireless network. Most utilities will have a “site survey” option
similar to the Windows Vista® utility as seen below.
Right-click on the wireless computer icon in your system tray (lower-right
corner next to the time). Select Connect to a network.
If you receive the “Wireless Networks Detected” bubble, click on the
center of the bubble to access the utility.
or
The utility will display any available wireless networks in your area. Click
on a network (displayed using the SSID) and click the Connect button.
If you get a good signal but cannot access the Internet, check your TCP/
IP settings for your wireless adapter. Refer to the Networking Basics
section in this manual for more information.
133D-Link DIR-808L User Manual
Section 5 - Connecting to a Wireless Network
WPA/WPA2
It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before conguring your
wireless adapter. If you are joining an existing network, you will need to know the security key or passphrase being used.
2. Highlight the Wi-Fi name (SSID) you would like to connect to and
click Connect.
1. Open the Windows Vista Wireless Utility by right-clicking on the
wireless computer icon in your system tray (lower right corner of
screen). Select Connect to a network.
134D-Link DIR-808L User Manual
Section 5 - Connecting to a Wireless Network
3. Enter the same security key or passphrase (Wi-Fi password) that is on
your router and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the security settings are correct. The
key or passphrase must be exactly the same as on the wireless router.
135D-Link DIR-808L User Manual
Section 5 - Connecting to a Wireless Network
WPS/WCN 2.0
The router supports Wi-Fi protection, referred to as WCN 2.0 in Windows Vista. The following instructions for setting this up
depends on whether you are using Windows Vista to congure the router or any third party software.
When you rst set up the router, Wi-Fi protection is disabled and uncongured. To enjoy the benets of Wi-Fi protection, the
router must be both enabled and congured. There are three basic methods to accomplish this: use Windows Vista’s built-in
support for WCN 2.0, use software provided by a third party, or congure manually.
If you are running Windows Vista, log into the router and click the Enable checkbox in the Basic > Wireless section. You can
use the Current PIN that is displayed on the Advanced > Wi-Fi Protected Setup section, click the Generate New PIN button,
or Reset PIN to Default button.
If you are using third party software to set up Wi-Fi Protection, carefully follow the directions. When you are nished, proceed
to the next section to set up the newly-congured router.
136D-Link DIR-808L User Manual
Section 5 - Connecting to a Wireless Network
Windows® XP
Windows XP users may use the built-in wireless utility (Zero Conguration Utility). The following instructions are for Service Pack
2 users. If you are using a third party utility, please refer to the user manual of your wireless adapter for help with connecting
to a wireless network. Most utilities will have a “site survey” option similar to the Windows® XP utility as seen below.
Right-click on the wireless computer icon in your system tray (lower-right
corner next to the time). Select View Available Wireless Networks.
If you receive the Wireless Networks Detected bubble, click on the
center of the bubble to access the utility.
or
The utility will display any available wireless networks in your area. Click
on a Wi-Fi network (displayed using the SSID) and click the Connect
button.
If you get a good signal but cannot access the Internet, check your TCP/
IP settings for your wireless adapter. Refer to the Networking Basics
section in this manual for more information.
137D-Link DIR-808L User Manual
Section 5 - Connecting to a Wireless Network
It is recommended to enable WPA on your wireless router or access point before conguring your wireless adapter. If you are
joining an existing network, you will need to know the WPA key being used.
2. Highlight the Wi-Fi network (SSID) you would like to connect
to and click Connect.
1. Open the Windows XP Wireless Utility by right-clicking on the
wireless computer icon in your system tray (lower-right corner
of screen). Select View Available Wireless Networks.
WPA/WPA2
138D-Link DIR-808L User Manual
Section 5 - Connecting to a Wireless Network
3. The Wireless Network Connection box will appear. Enter the WPA-PSK
Wi-Fi password and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the WPA-PSK settings are correct. The
Wi-Fi password must be exactly the same as on the wireless router.
139D-Link DIR-808L User Manual
Section 6 - Troubleshooting
Troubleshooting
This chapter provides solutions to problems that can occur during the installation and operation of the DIR-808L. Read the
following descriptions if you are having problems. The examples below are illustrated in Windows XP. If you have a dierent
operating system, any screenshots on your computer may appear dierent to the following examples.
1. Why can’t I access the web-based conguration utility?
When entering the IP address of the D-Link router (192.168.0.1 for example), you are not connecting to a website nor do you
have to be connected to the Internet. The device has the utility built-in on a ROM chip in the device itself. Your computer must
be on the same IP subnet to connect to the web-based utility.
• Make sure you have an updated Java-enabled web browser. We recommend the following:
- Microsoft Internet Explorer® 7 and higher
- Mozilla Firefox 3.5 and higher
- Google™ Chrome 8 and higher
- Apple Safari 4 and higher
• Verify physical connectivity by checking for solid link lights on the device. If you do not get a solid link light, try using a
dierent cable or connect to a dierent port on the device if possible. If the computer is turned o, the link light may not be
on.
• Disable any Internet security software running on the computer. Software rewalls such as ZoneAlarm, BlackICE, Sygate,
Norton Personal Firewall, and Windows XP rewall may block access to the conguration pages. Check the help les included
with your rewall software for more information on disabling or conguring it.
140D-Link DIR-808L User Manual
Section 6 - Troubleshooting
• Congure your Internet settings:
• Go to Start > Settings > Control Panel. Double-click the Internet Options Icon. From the Security tab, click
the button to restore the settings to their defaults.
• Click the Connection tab and set the dial-up option to Never Dial a Connection. Click the LAN Settings button.
Make sure nothing is checked. Click OK.
• Go to the Advanced tab and click the button to restore these settings to their defaults. Click OK three times.
• Close your web browser (if open) and re-open it.
• Access the web management. Open your web browser and enter the IP address of your D-Link router in the address bar. This
should open the login page for your web management.
• If you still cannot access the conguration, unplug the power to the router for 10 seconds and plug back in. Wait about 30
seconds and try accessing the conguration. If you have multiple computers, try connecting using a dierent computer.
2. What can I do if I forgot my password?
If you forgot your password, you must reset your router. Unfortunately this process will change all your settings back to the
factory defaults.
To reset the router, locate the reset button (hole) on the rear panel of the unit. With the router powered on, use a paperclip
to hold the button down for 10 seconds. Release the button and the router will go through its reboot process. Wait about 30
seconds to access the router. The default IP address is 192.168.0.1. When logging in, the username is admin and leave the
password box empty.
141D-Link DIR-808L User Manual
Section 6 - Troubleshooting
3. Why can’t I connect to certain sites or send and receive emails when connecting through my router?
If you are having a problem sending or receiving email, or connecting to secure sites such as eBay, banking sites, and Hotmail,
we suggest lowering the MTU in increments of ten (Ex. 1492, 1482, 1472, etc).
To nd the proper MTU Size, you’ll have to do a special ping of the destination you’re trying to go to. A destination could be
another computer, or a URL.
• Click on Start and then click Run.
• Windows NT, 2000, XP, Vista, 7, and 8 users type in cmd and press Enter (or click OK).
• Once the window opens, you’ll need to do a special ping. Use the following syntax:
ping [url] [-f] [-l] [MTU value]
Example: ping yahoo.com -f -l 1472
You should start at 1472 and work your way down by 10 each time. Once you
142D-Link DIR-808L User Manual
Section 6 - Troubleshooting
get a reply, go up by 2 until you get a fragmented packet. Take that value and add 28 to the value to account for the various
TCP/IP headers. For example, lets say that 1452 was the proper value, the actual MTU size would be 1480, which is the optimum
for the network we’re working with (1452+28=1480).
Once you nd your MTU, you can now congure your router with the proper MTU size.
To change the MTU rate on your router, follow the steps below:
• Open your browser, enter the IP address of your router (192.168.0.1) and click OK.
• Enter your username (admin) and password (blank if you have not changed the default setting). Click OK to
enter the web conguration page for the device.
• Click on Setup and then click Manual Congure.
• To change the MTU, enter the number in the MTU eld and click Save Settings to save your settings.
• Test the site that you were trying to visit. If changing the MTU has not resolved the problem, continue changing
the MTU in increments of ten.
143D-Link DIR-808L User Manual
Appendix A - Wireless Basics
There are basically two modes of networking:
• Infrastructure – All wireless clients will connect to an access point or wireless router.
• Ad-Hoc – Directly connecting to another computer, for peer-to-peer communication, using wireless network
adapters on each computer, such as two or more wireless network Cardbus adapters.
An Infrastructure network contains an Access Point or wireless router. All the wireless devices, or clients, will connect to the
wireless router or access point.
An Ad-Hoc network contains only clients, such as laptops with wireless cardbus adapters. All the adapters must be in Ad-Hoc
mode to communicate.
Wireless Modes
144D-Link DIR-808L User Manual
Appendix B - Networking Basics
Networking Basics
Check your IP address
After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP
server (i.e. wireless router) automatically. To verify your IP address, please follow the steps below.
Click on Start > Run. In the run box type cmd and click OK. (Windows® 7/Vista® users type cmd in the Start Search box.)
At the prompt, type ipcong and press Enter.
This will display the IP address, subnet mask, and the default
gateway of your adapter.
If the address is 0.0.0.0, check your adapter installation,
security settings, and the settings on your router. Some
rewall software programs may block a DHCP request on
newly installed adapters.
145D-Link DIR-808L User Manual
Appendix B - Networking Basics
Assign a Static IP address
If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps below:
Step 1
Windows® 7 - Click on Start > Control Panel > Network and Internet > Network and Sharing Center.
Windows Vista® - Click on Start > Control Panel > Network and Internet > Network and Sharing Center > Manage Network
Connections.
Windows® XP - Click on Start > Control Panel > Network Connections.
Windows® 2000 - From the desktop, right-click My Network Places > Properties.
Step 2
Right-click on the Local Area Connection which represents your network adapter and select Properties.
Step 3
Highlight Internet Protocol (TCP/IP) and click Properties.
Step 4
Click Use the following IP address and enter an IP address that is on the same subnet as
your network or the LAN IP address on your router.
Example: If the router´s LAN IP address is 192.168.0.1, make your IP address 192.168.0.X
where X is a number between 2 and 99. Make sure that the number you choose is not in use
on the network. Set the default gateway the same as the LAN IP address of your router (I.E.
192.168.0.1).
Set the primary DNS the same as the LAN IP address of your router (192.168.0.1). The
secondary DNS is not required, however you may be required to enter a DNS server by your ISP.
Step 5
Click OK twice to save your settings.
146D-Link DIR-808L User Manual
Appendix C - Technical Specications
Technical Specications
Hardware Specications
• LAN Interface: Four 10/100 Mbps LAN ports
• WAN Interface: One 10/100 Mbps Internet port
• Wireless Interface (2.4 Ghz): IEEE 802.11b/g/n
• Wireless Interface (5 Ghz): IEEE 802.11a/n/ac
Temperature
• Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -20 to 65 °C (-4 to 149 °F)
Humidity
• Operating: 10% - 90% non-condensing
• Non-Operating: 5% - 95% non-condensing
Wireless Frequency Range*
• 2.412 GHz ~ 2.483.5 GHz (802.11b/g/n)
• 5.15 GHz ~ 5.825 GHz (802.11a/n/ac)
Wireless Bandwidth Rate
• IEEE 802.11n: 6.5 to 150 Mbps
• IEEE 802.11ac: 6.5 to 433 Mbps
Antenna Type
• Internal Antenna
Wireless Security
• 64/128-bit WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPS
(PIN & PBC)
Certications
• FCC, CE, C-Tick.
• Wi-Fi Certied
• IPv6 Certied
• CCC
Dimensions & Weight
• 156.5 x 113.2 x 53.6 mm (6.16 x 4.46 x 2.11 inches)
• 184.7 grams (0.41 lbs)
* Wireless frequency range may vary depending on region
147D-Link DIR-808L User Manual
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modications not expressly approved by the party responsible for compliance could void the
user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Operations in the
5.15-5.25GHz band are restricted to indoor usage only.
Important Note:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should
be installed and operated with minimum distance 20cm between the radiator & your body.
148D-Link DIR-808L User Manual
Industry Canada statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Ce dispositif est conforme à la norme CNR-210 d’Industrie Canada applicable aux appareils radio exempts de licence. Son
fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce
dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable.
Caution :
(i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference
to co-channel mobile satellite systems;
(ii) high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and
that these radars could cause interference and/or damage to LE-LAN devices.
Avertissement:
(i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur an
de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;
(ii) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont désignés utilisateurs
principaux (c.-à-d., qu’ils ont la priorité) pour les bandes 5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient causer
du brouillage et/ou des dommages aux dispositifs LAN-EL.
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should
be installed and operated with minimum distance 20cm between the radiator & your body.
Déclaration d’exposition aux radiations:
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet
équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.

Navigation menu
