User Manual (DAP-1750) rev.pdf
Version 1.0 | 01/16/2013
User Manual
DAP-1750
AC1750 Wi-Fi Range Extender
iD-Link %"1 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of
their respective companies.
Copyright © 2013 by D-Link Corporation.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Corporation.
Revision Date Description
1.0 January 16, 2013 • Initial release
Preface
iiD-Link %"1 User Manual
Table of Contents
Preface ................................................................................. i
Manual Revisions ........................................................................... i
Trademarks ...................................................................................... i
Product Overview .............................................................. 1
Package Contents ......................................................................... 1
System Requirements ................................................................. 2
Introduction ................................................................................... 3
Features ............................................................................................ 4
Hardware Overview ..................................................................... 5
Connections ........................................................................... 5
LEDs ........................................................................................... 6
Installation ......................................................................... 7
Before you Begin ........................................................................... 7
Wireless Installation Considerations ...................................... 8
Manual Setup ................................................................................. 9
Conguration ...................................................................11

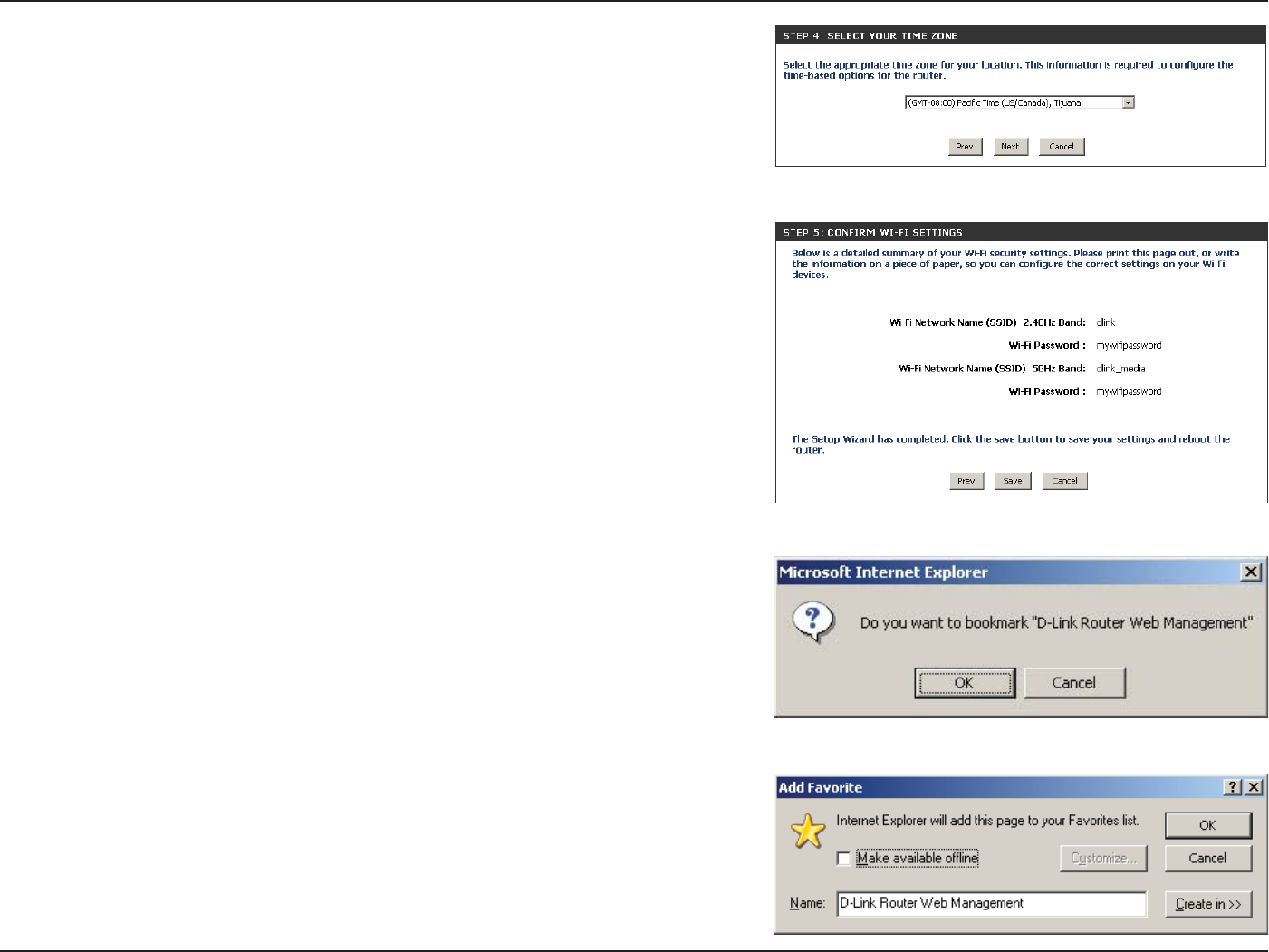

D-Link Quick Setup Wizard .....................................................12

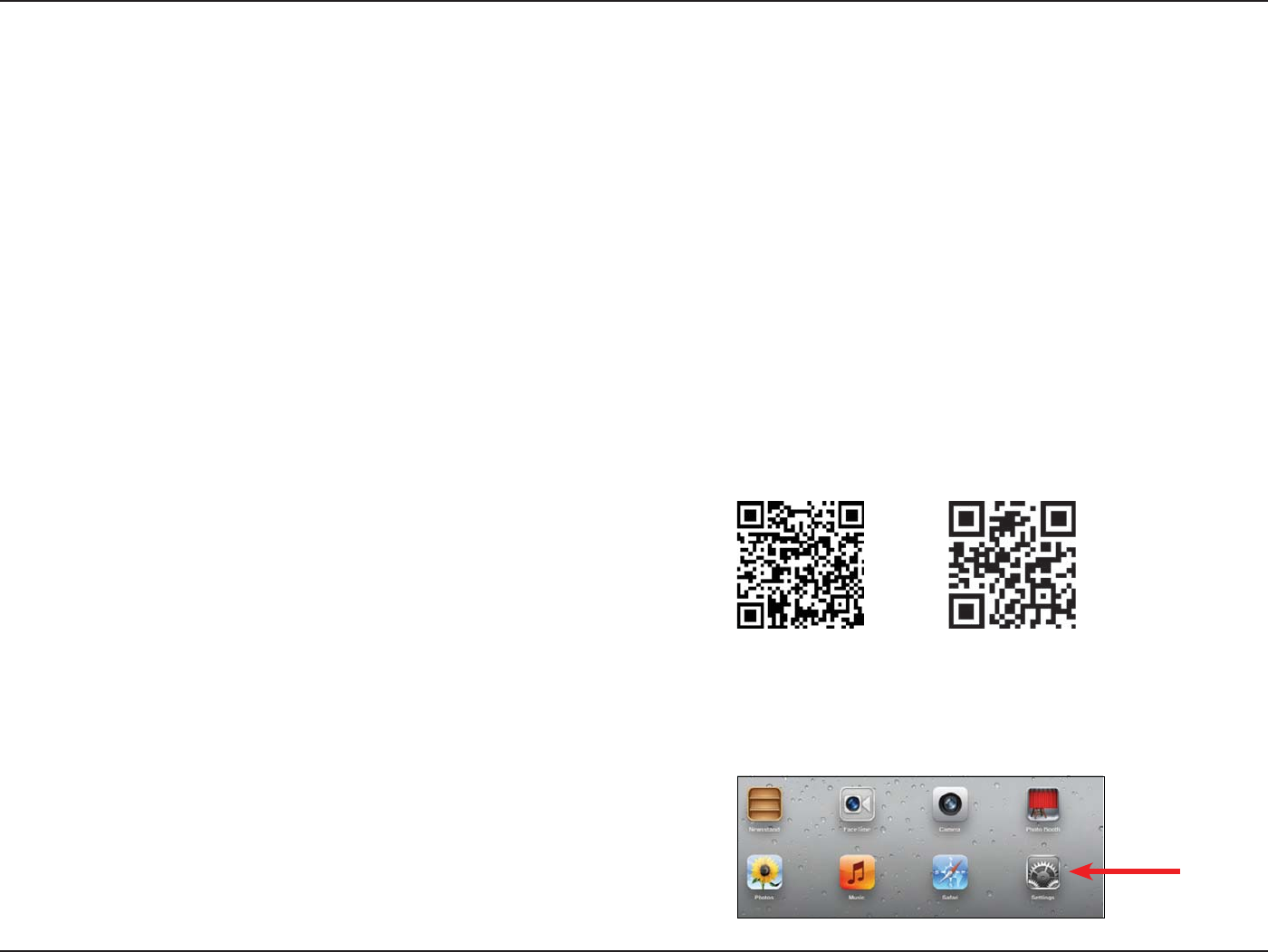

QRS Mobile App (iOS, Android) .............................................19

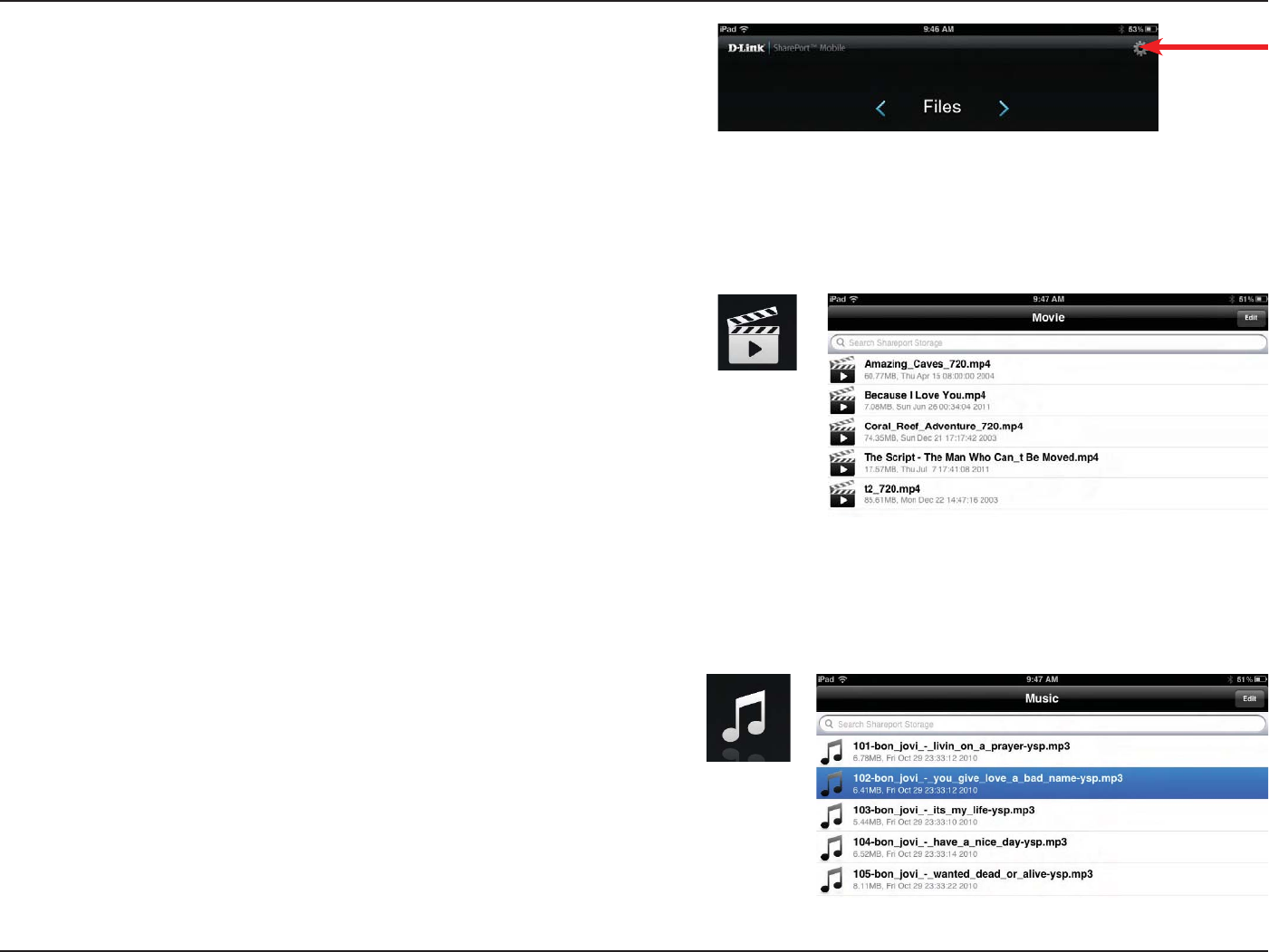

SharePort Mobile App (iOS, Android) .................................20
Web-based Conguration Utility ..........................................24

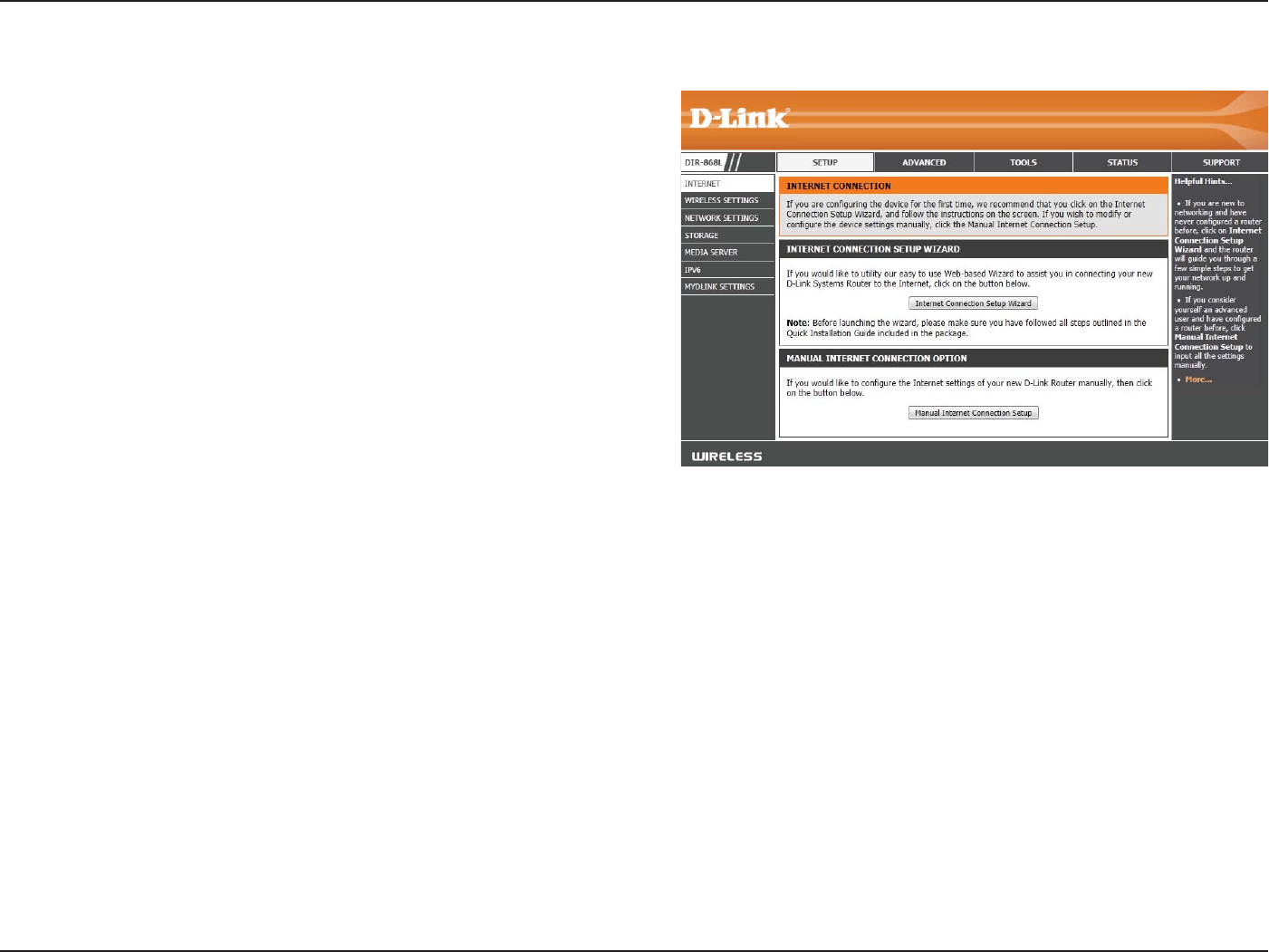

Internet Connection Setup .............................................25

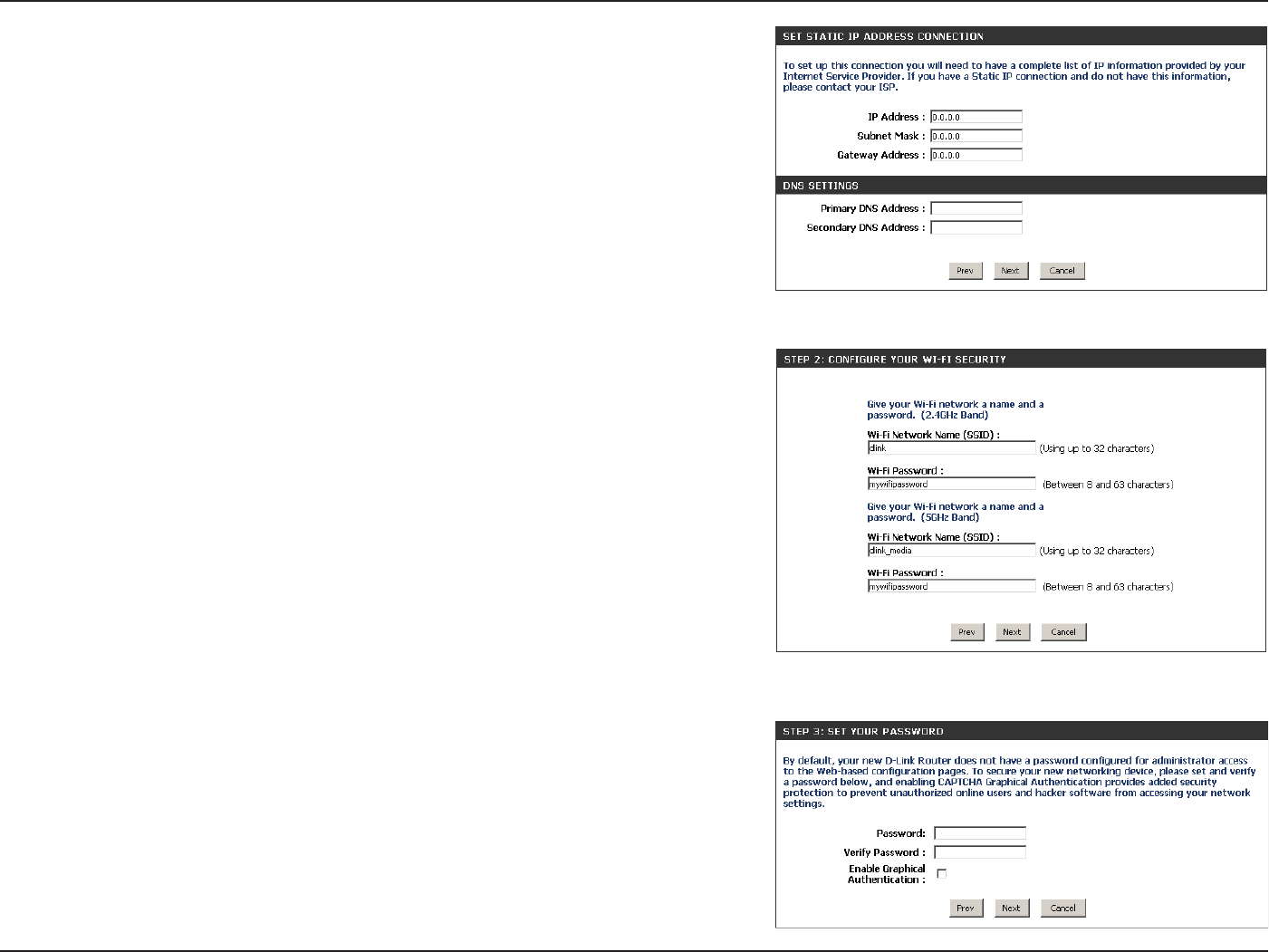

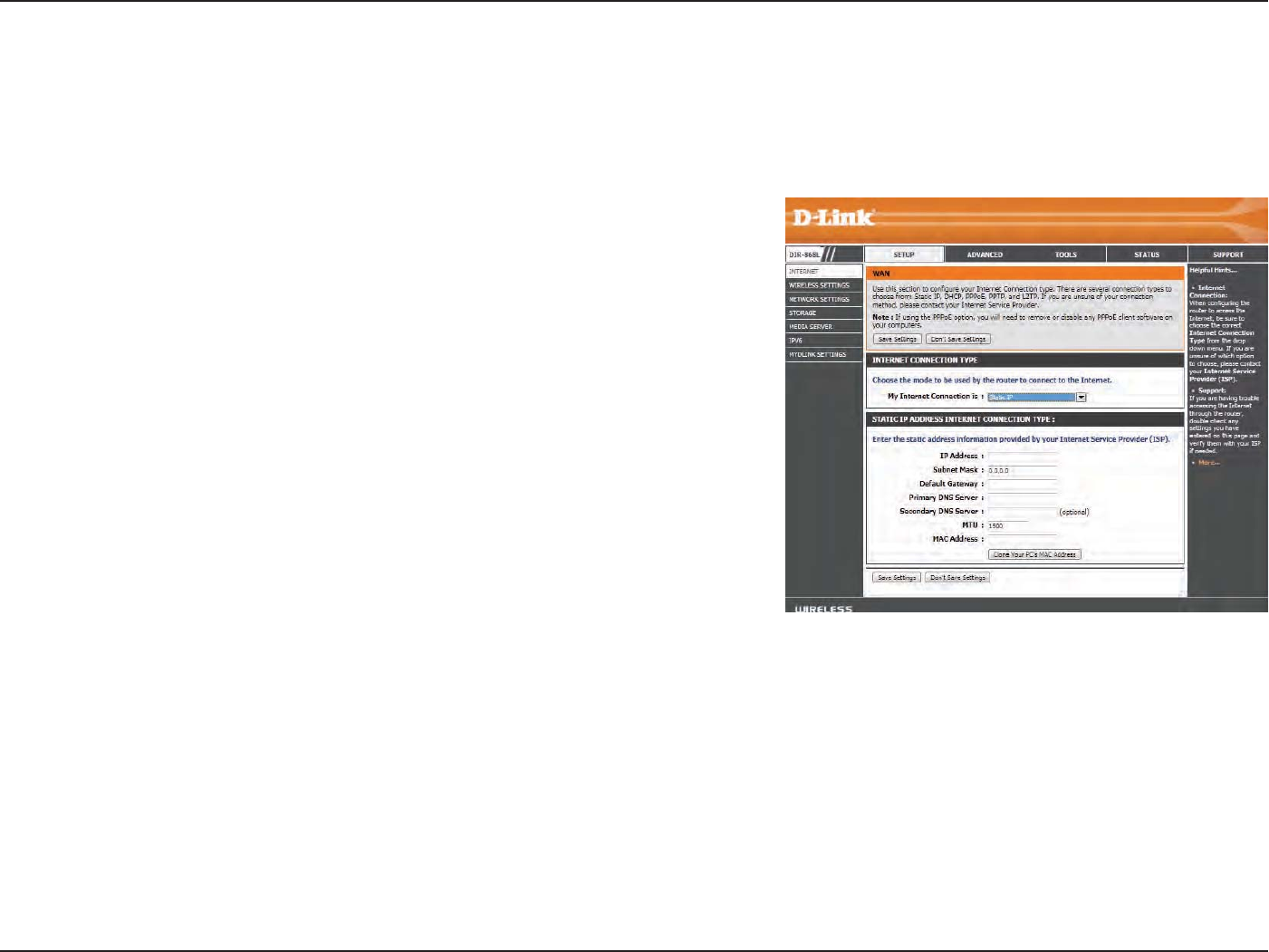

Static IP ..............................................................................26

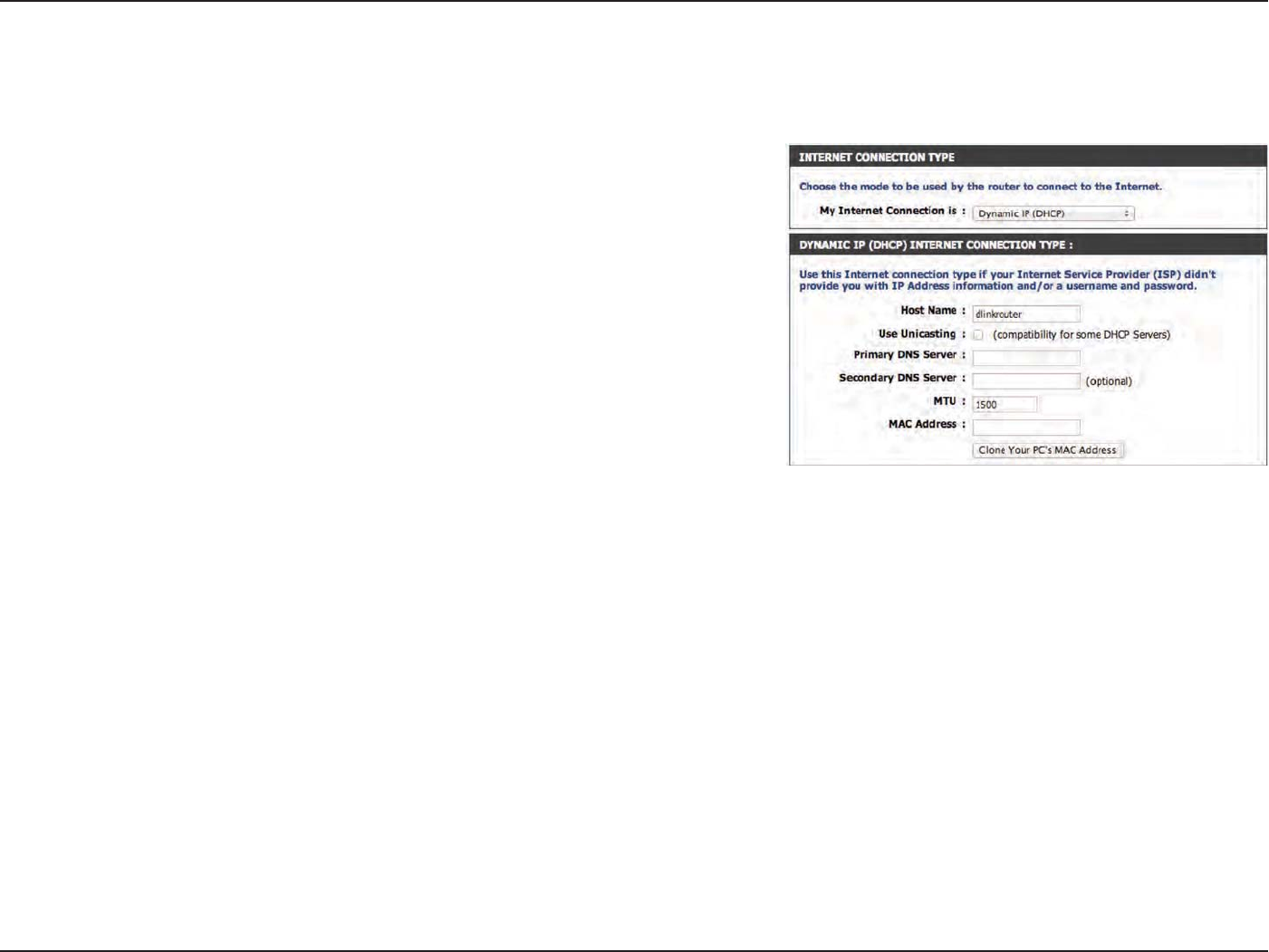

Dynamic IP (DHCP) ........................................................27

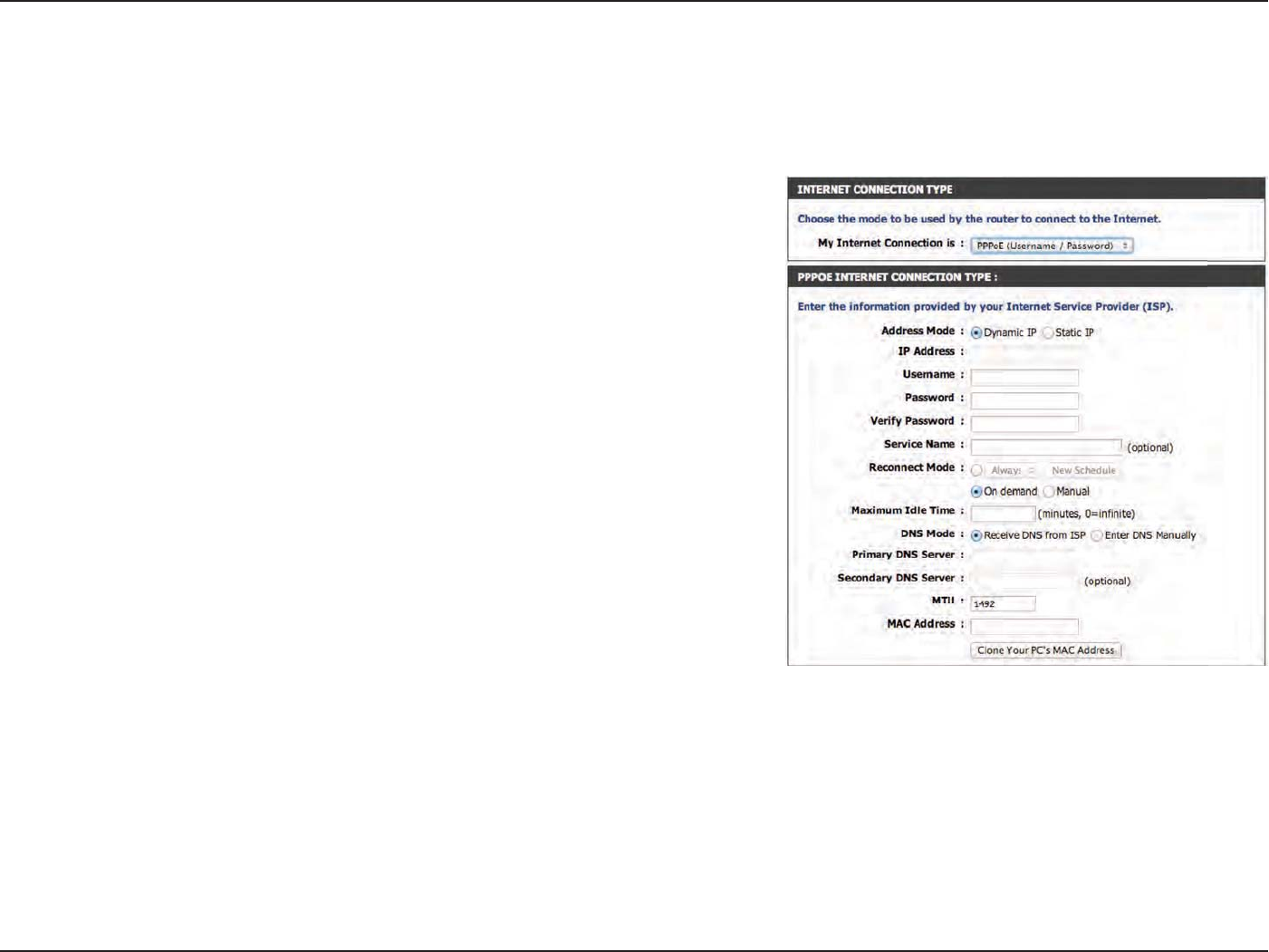

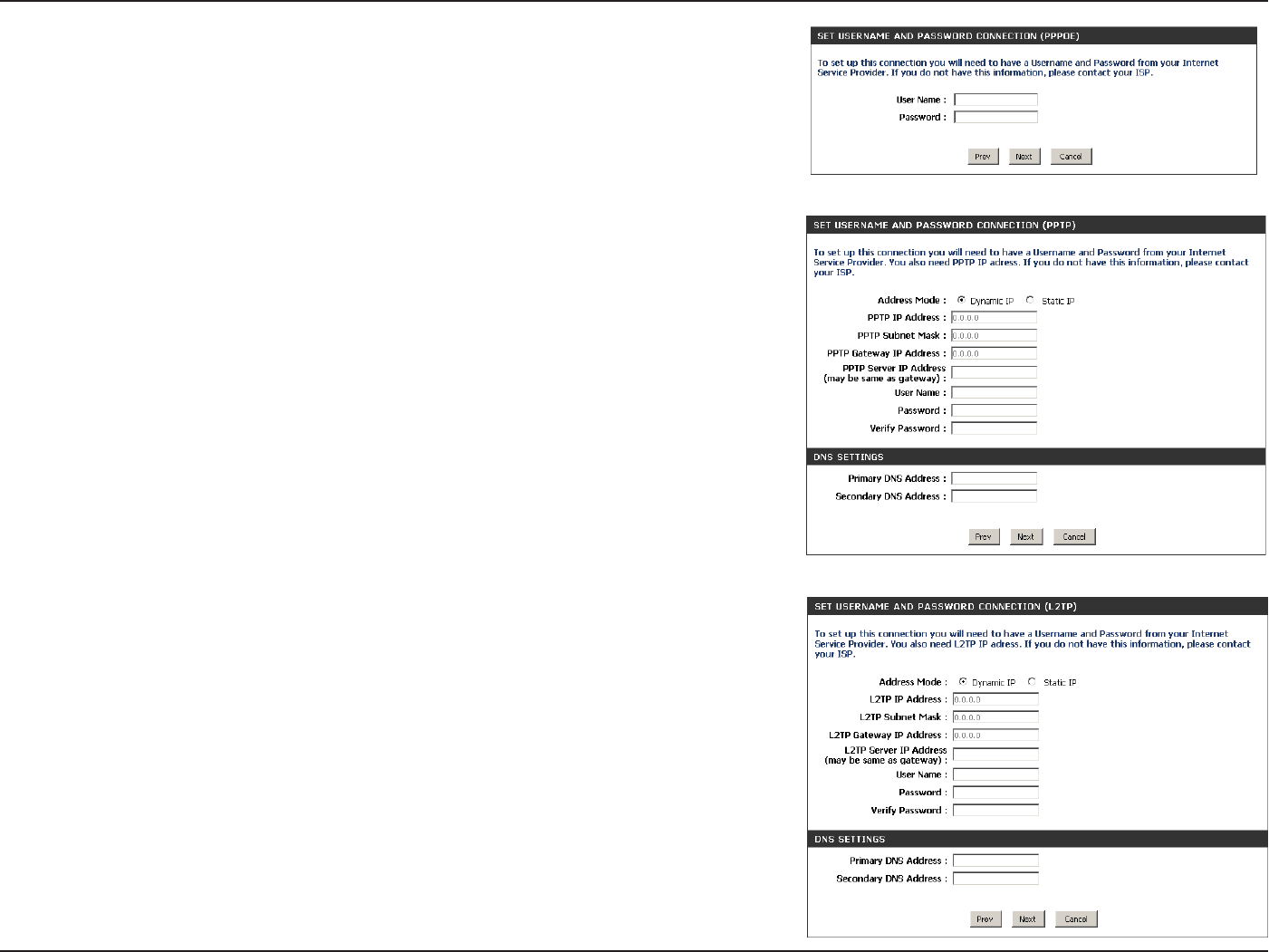

PPPoE (Username/Password) ....................................28
PPTP ....................................................................................30
L2TP ....................................................................................31

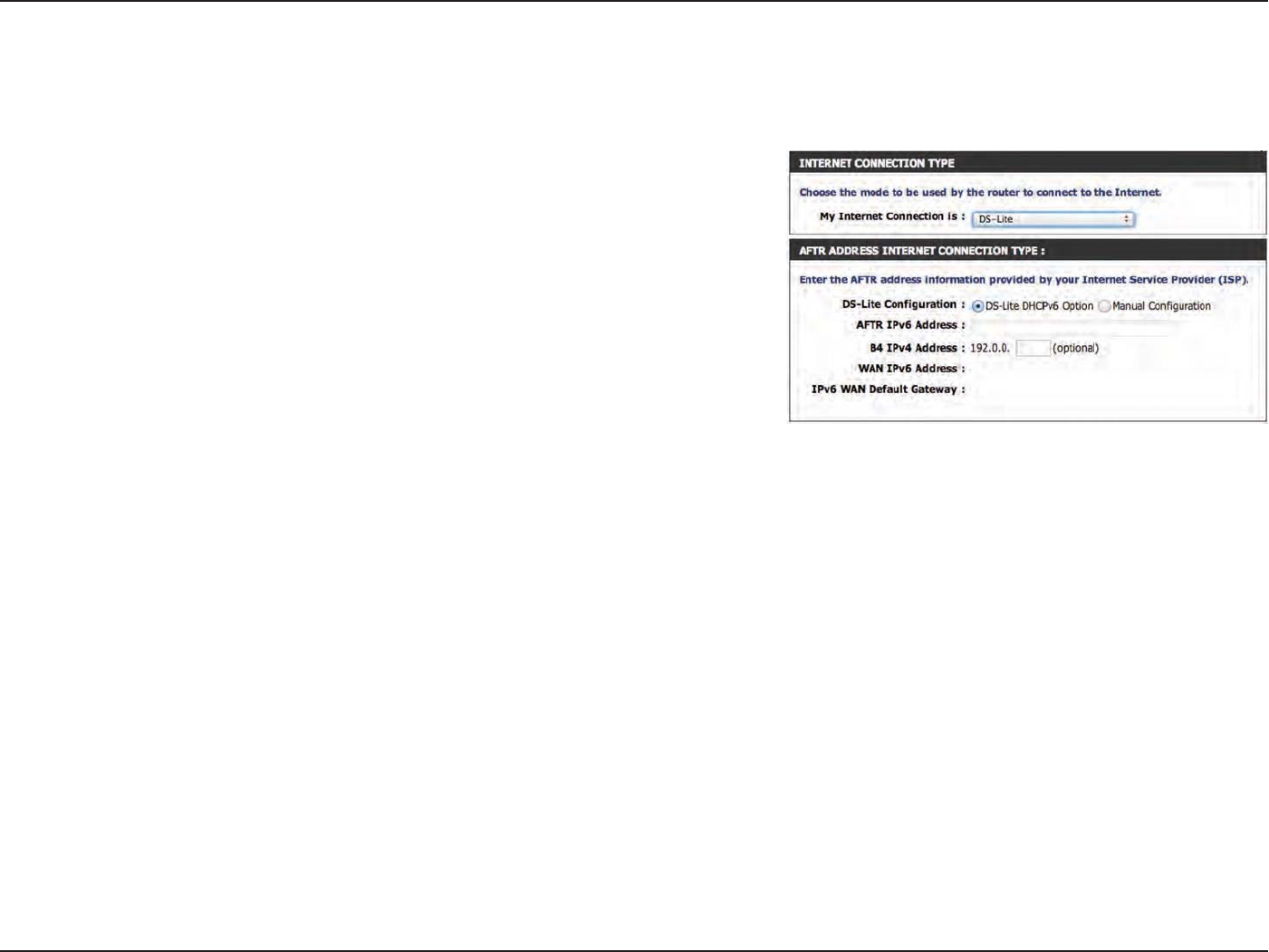

DS-Lite ...............................................................................33

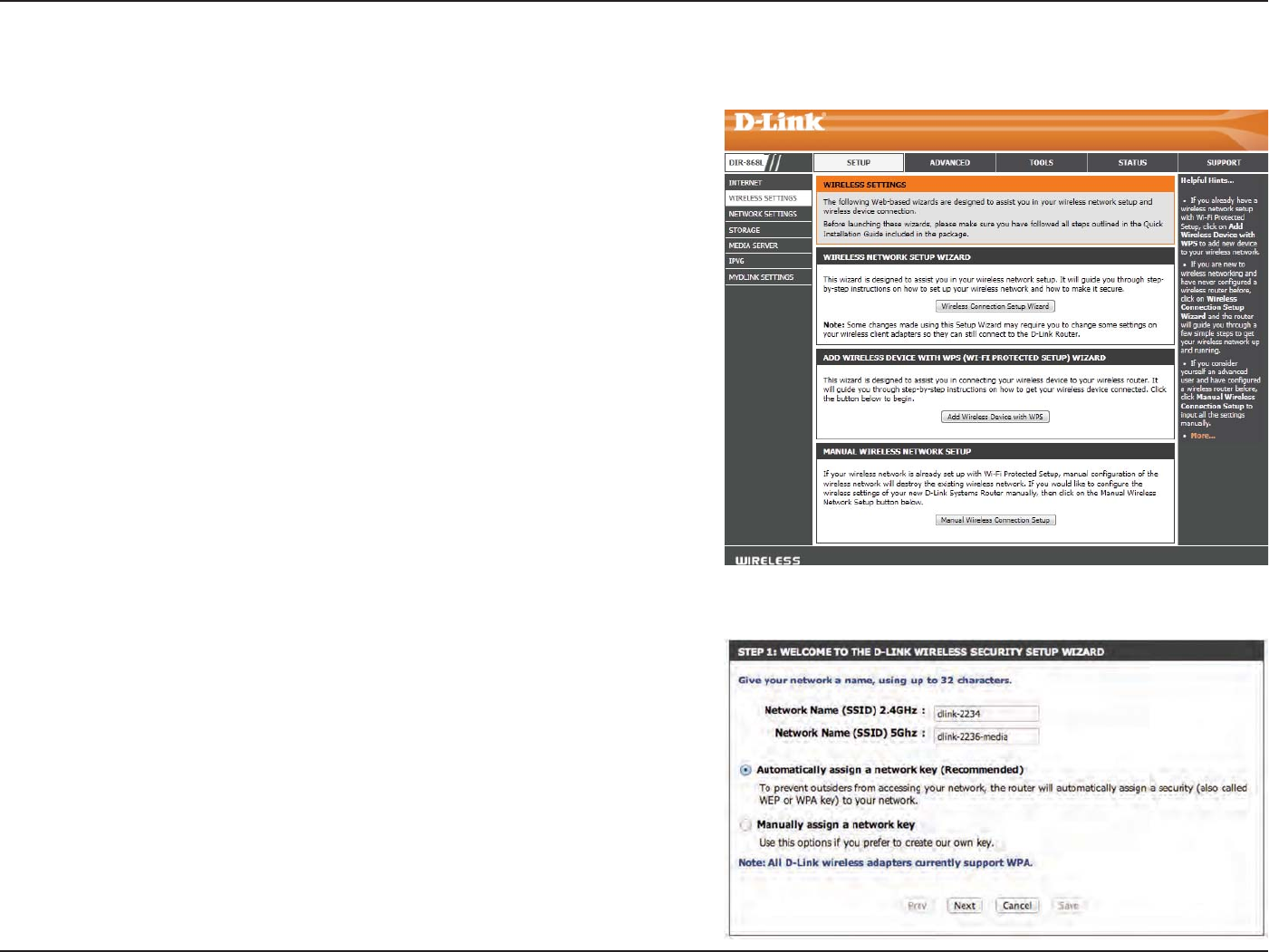

Wireless Settings .................................................................34
Wireless Connection Setup Wizard..........................35

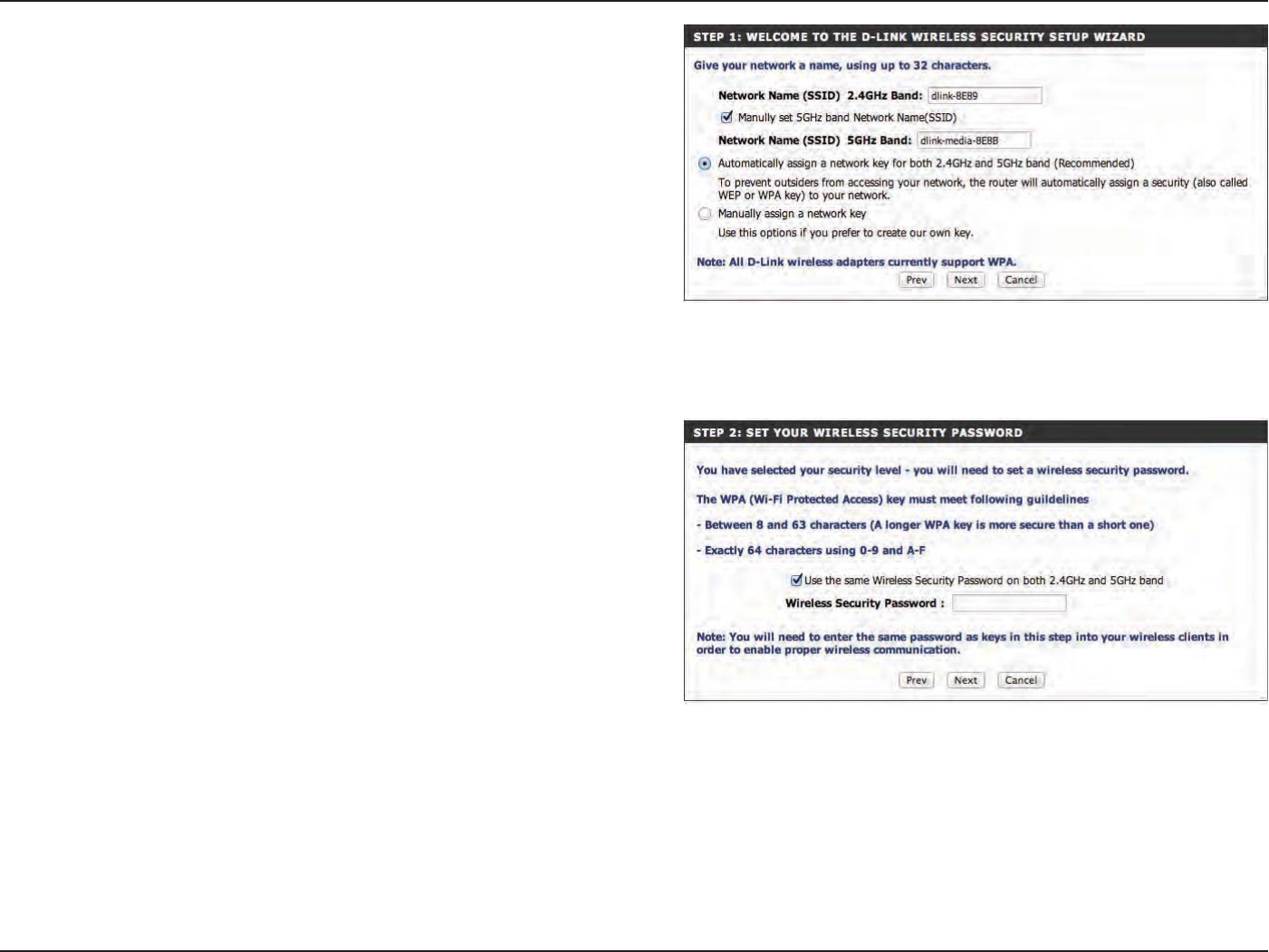

Wireless Security Setup Wizard .................................38

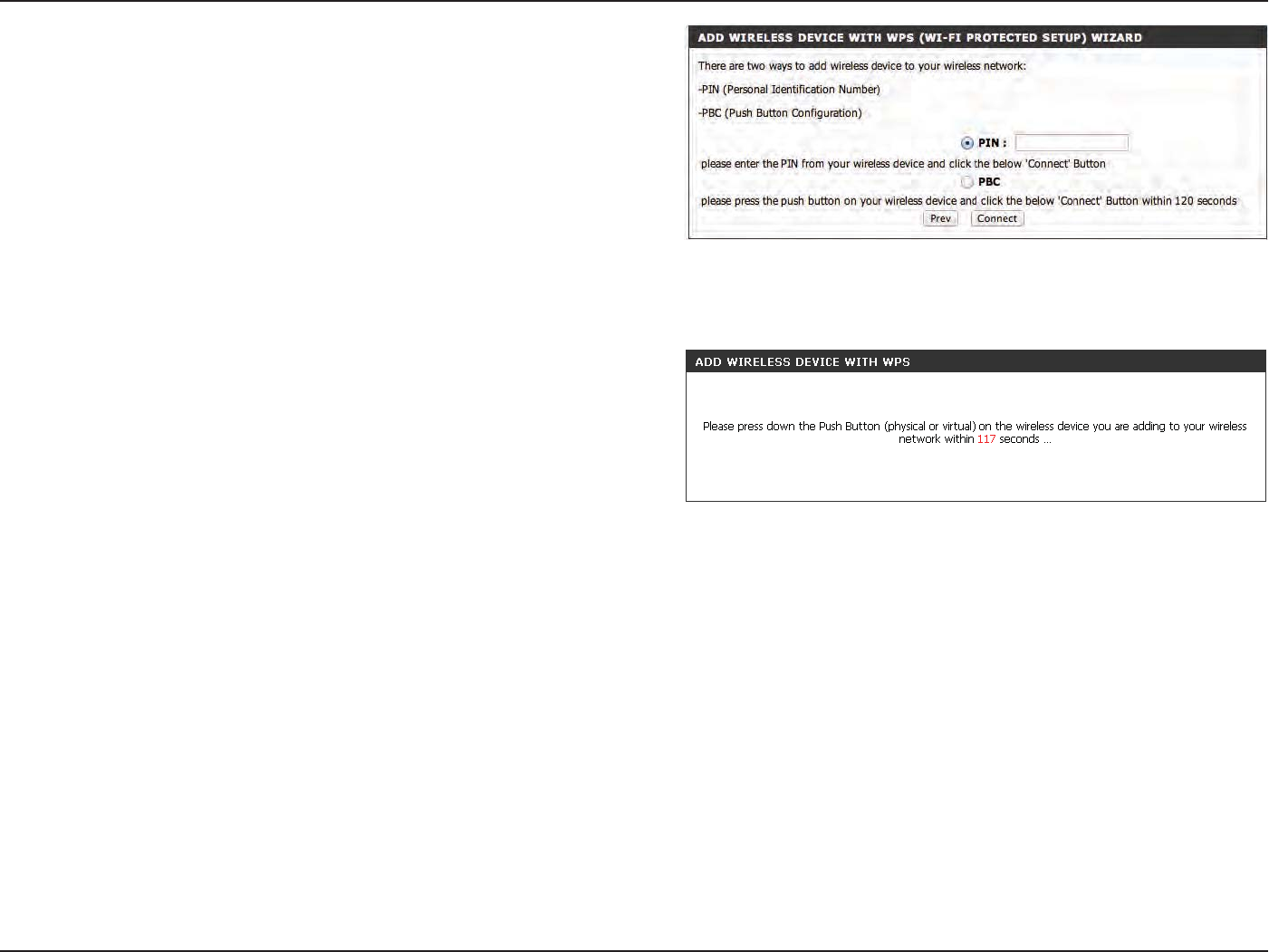

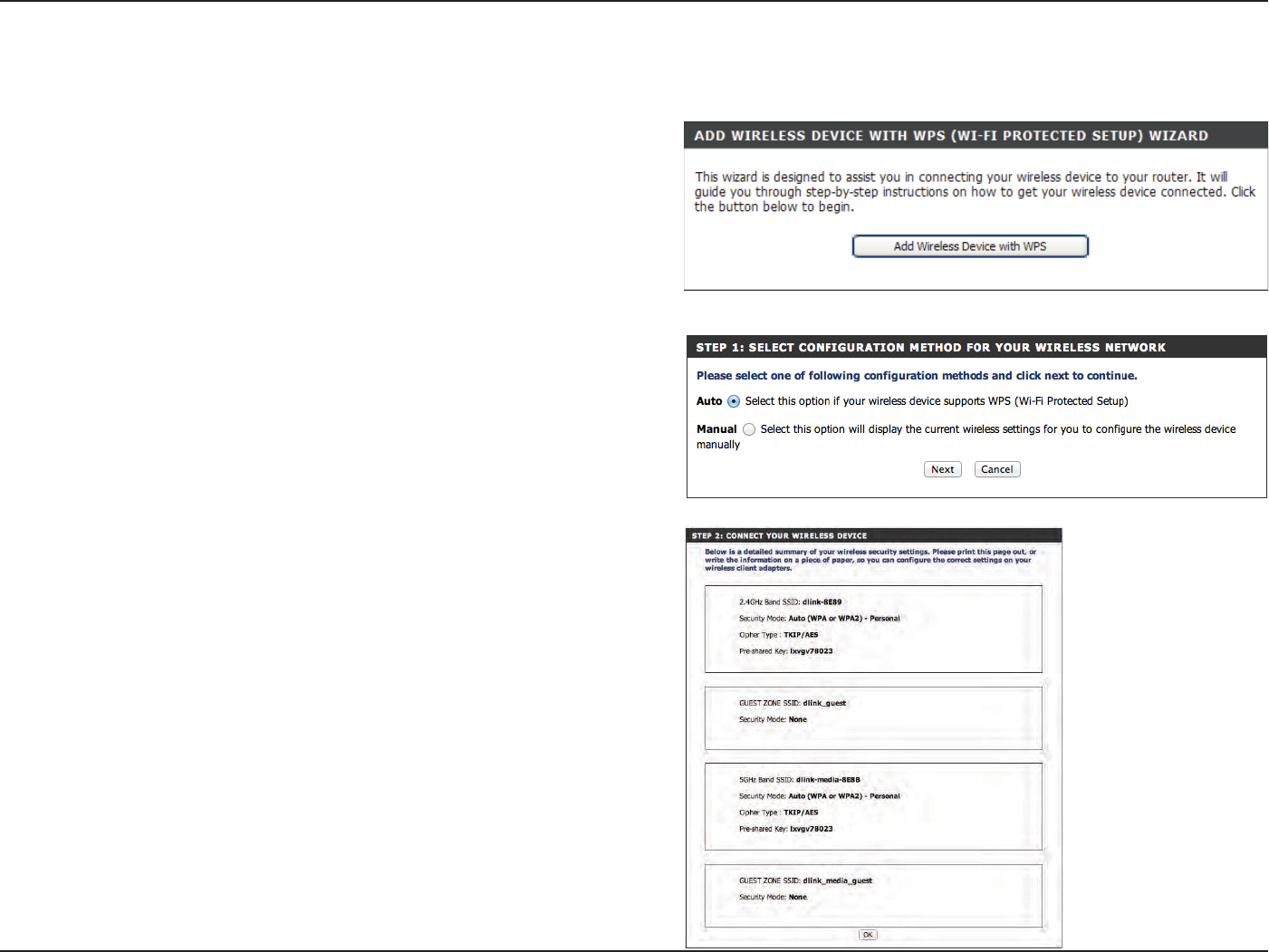

Add Wireless Device with WPS Wizard ...................40
Manual Wireless Settings .................................................42

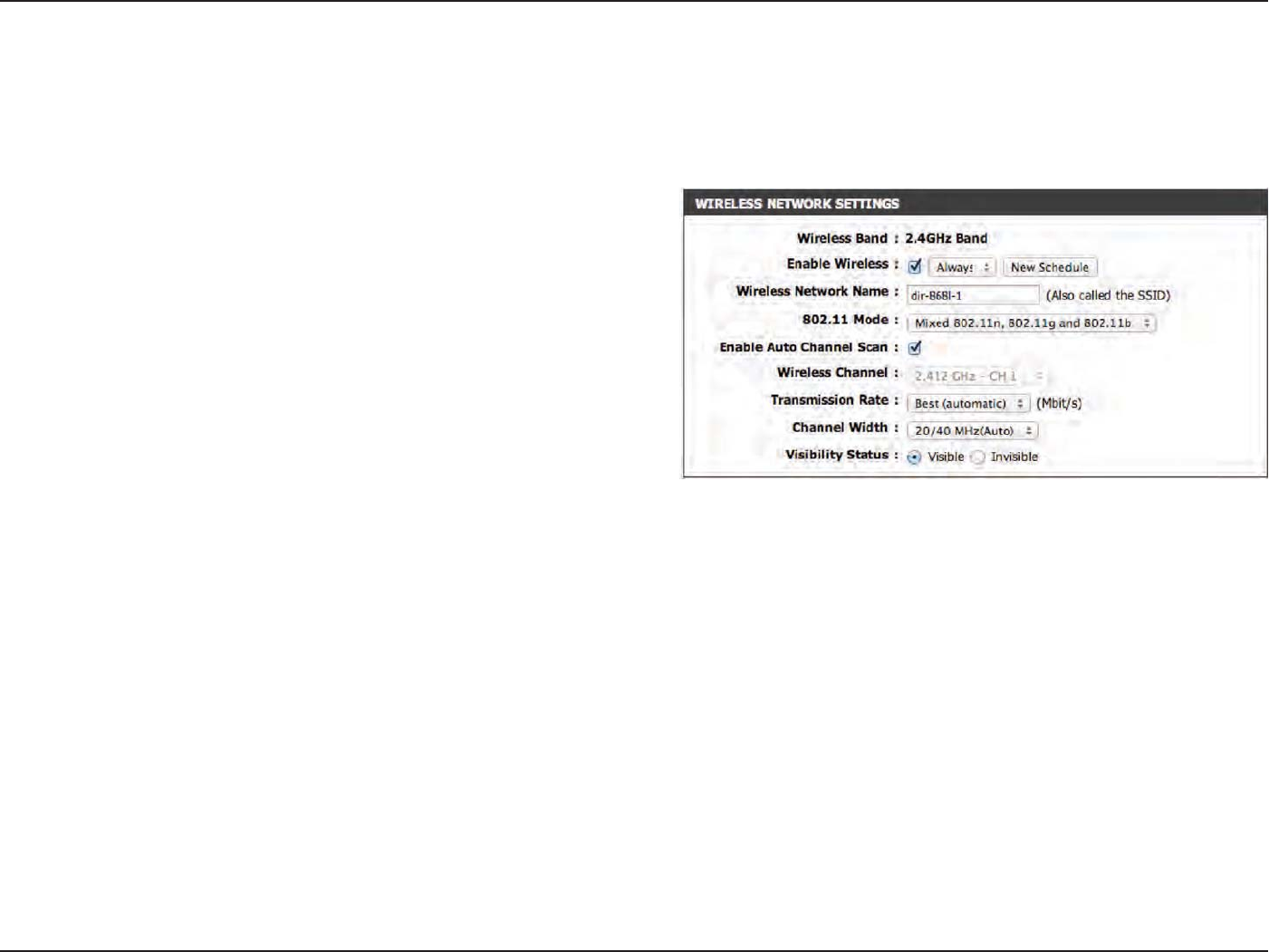

802.11 b/g/n (2.4GHz) ..................................................42
802.11ac draft (5GHz) ...................................................43
Network Settings ................................................................44

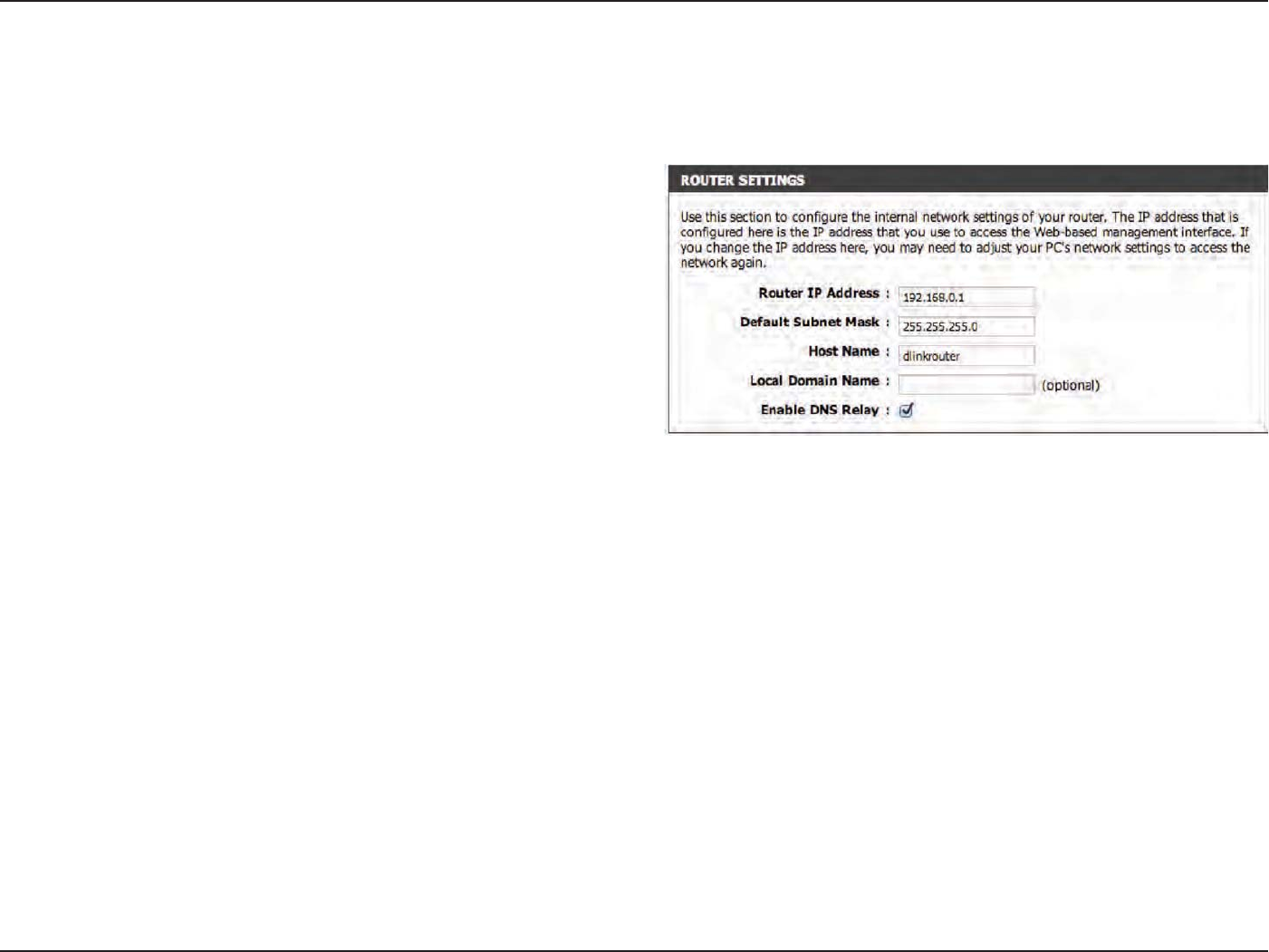

Router Settings ...............................................................45
DHCP Server Settings ...................................................46

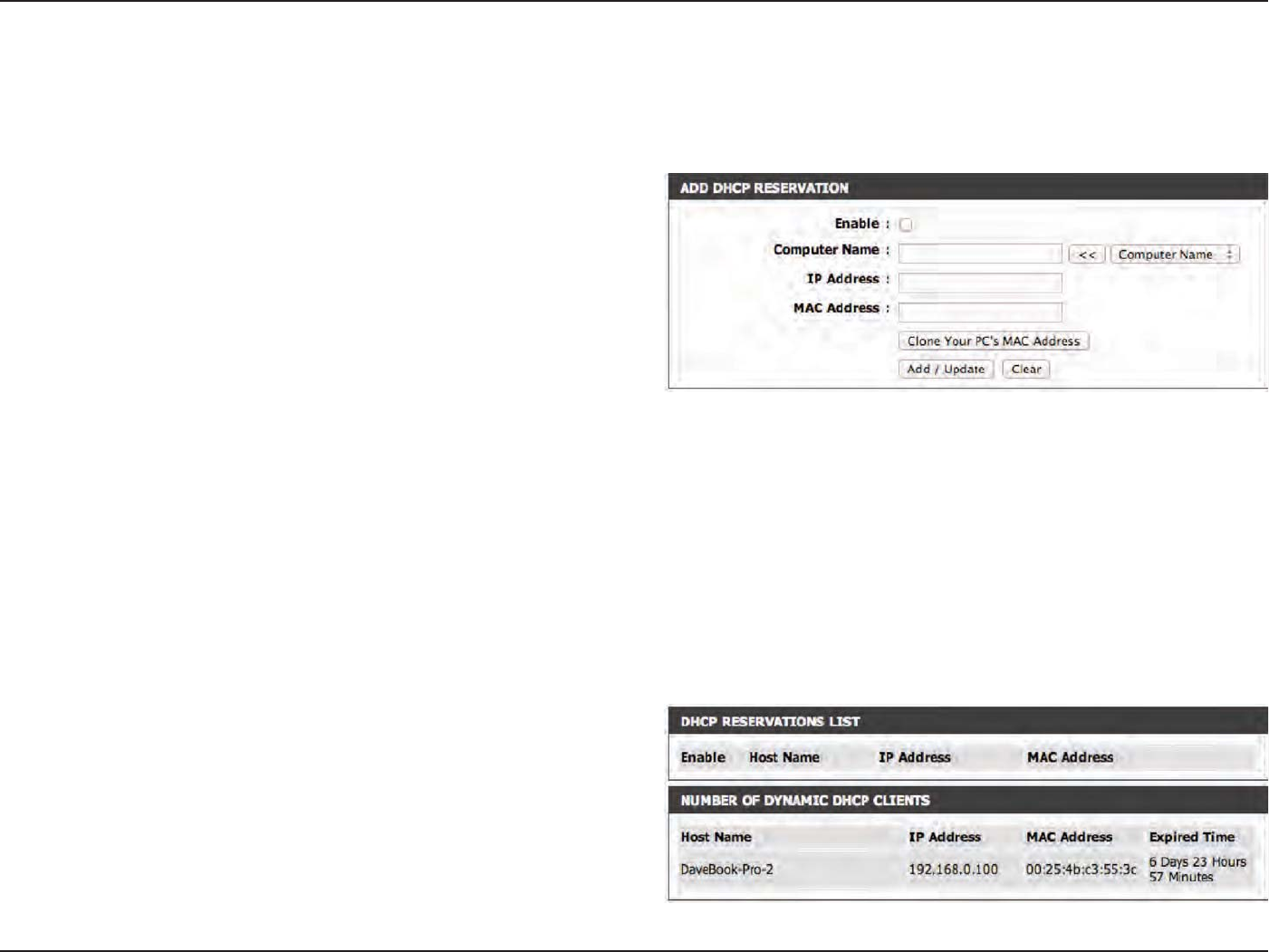

DHCP Reservation .........................................................47
Storage ...................................................................................48

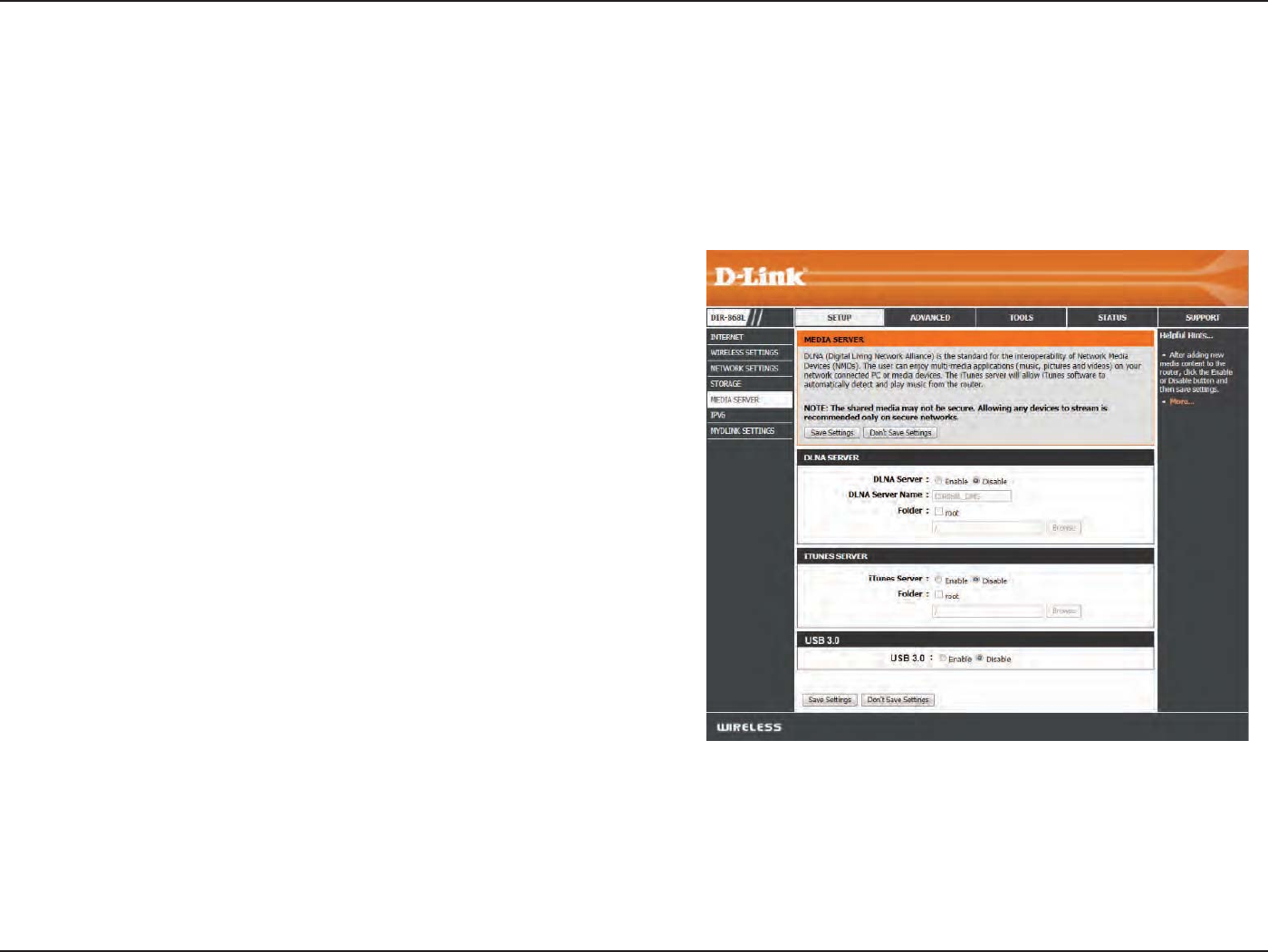

Media Server.........................................................................49

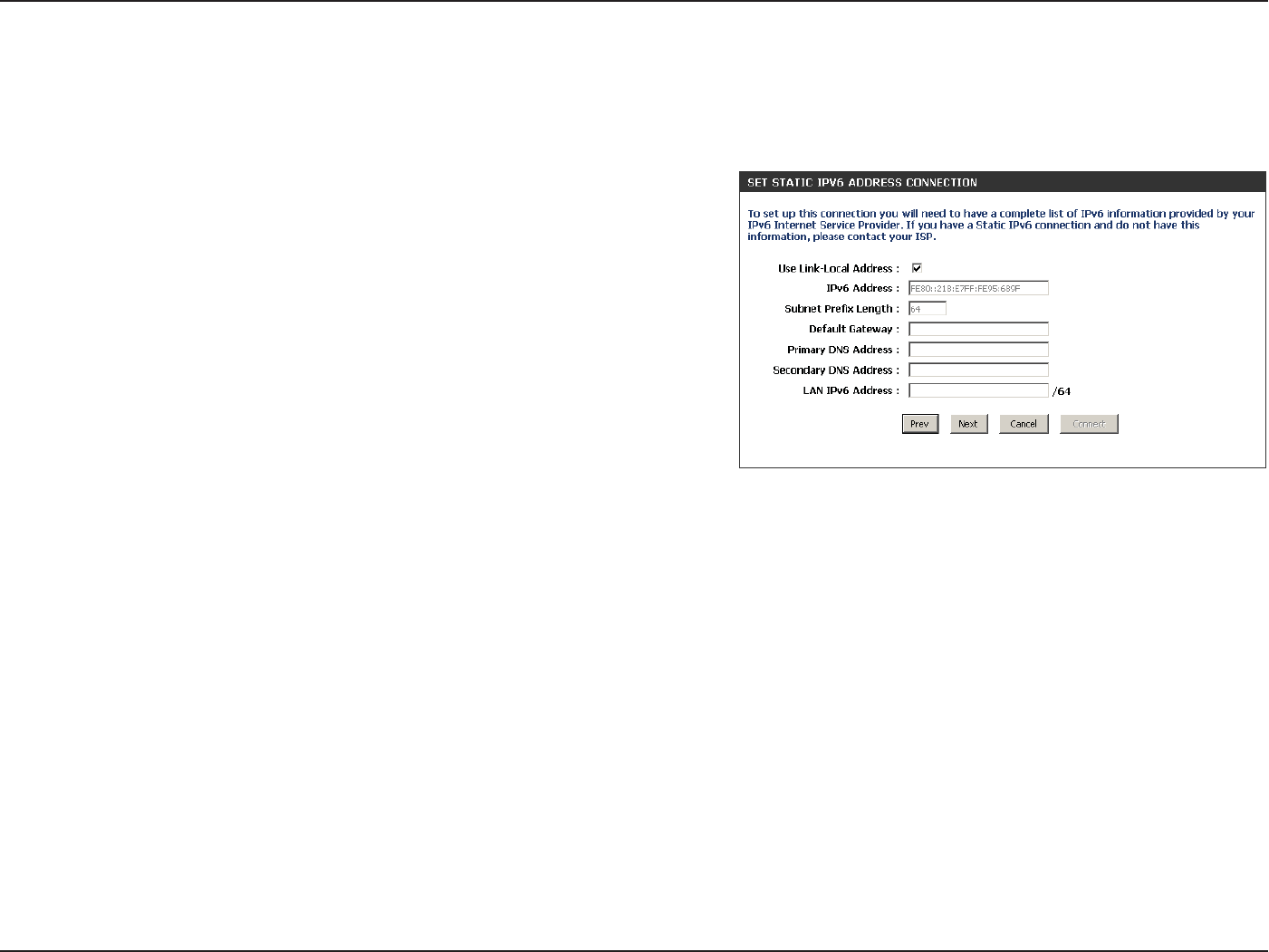

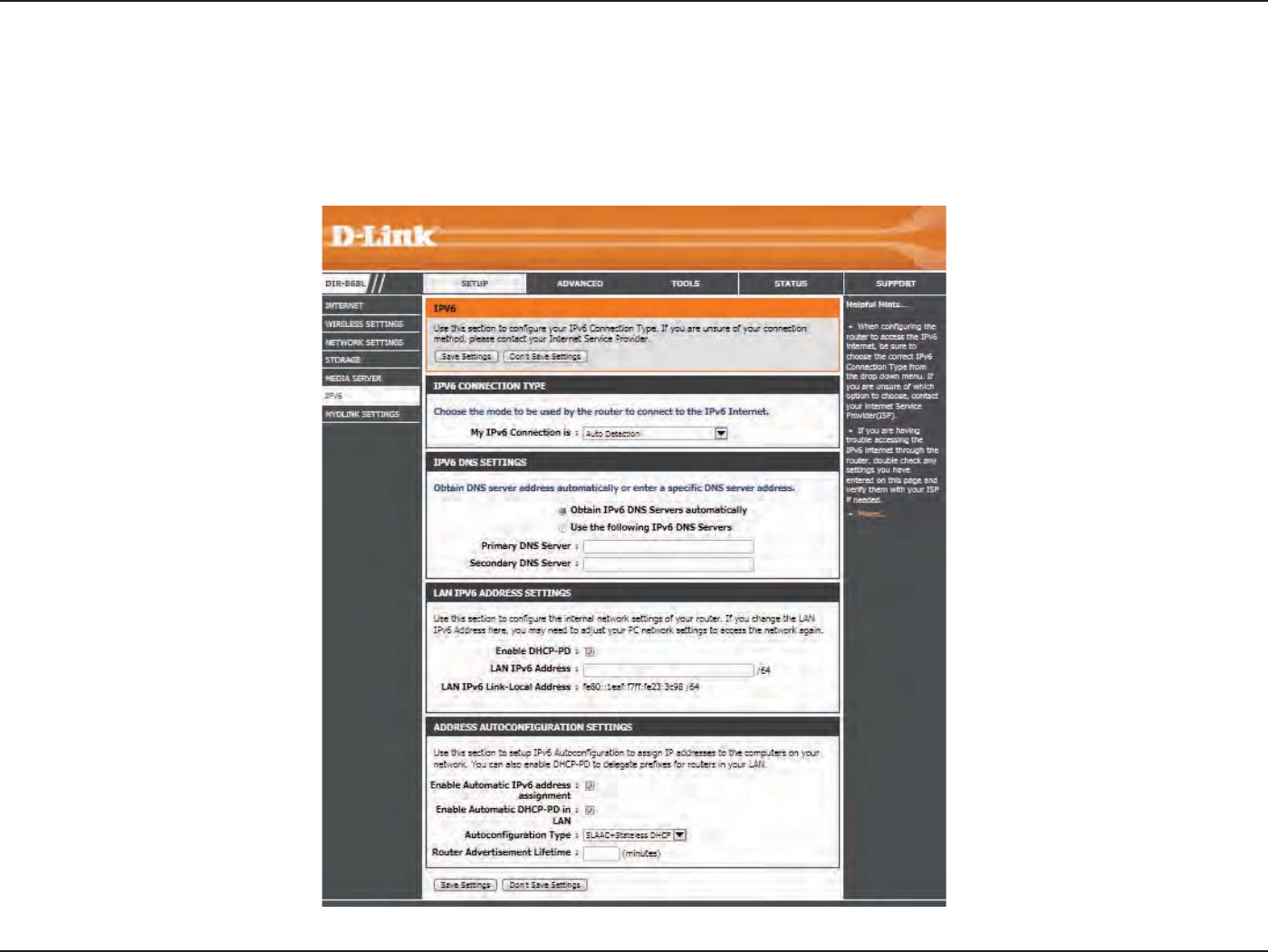

IPv6 ..........................................................................................50

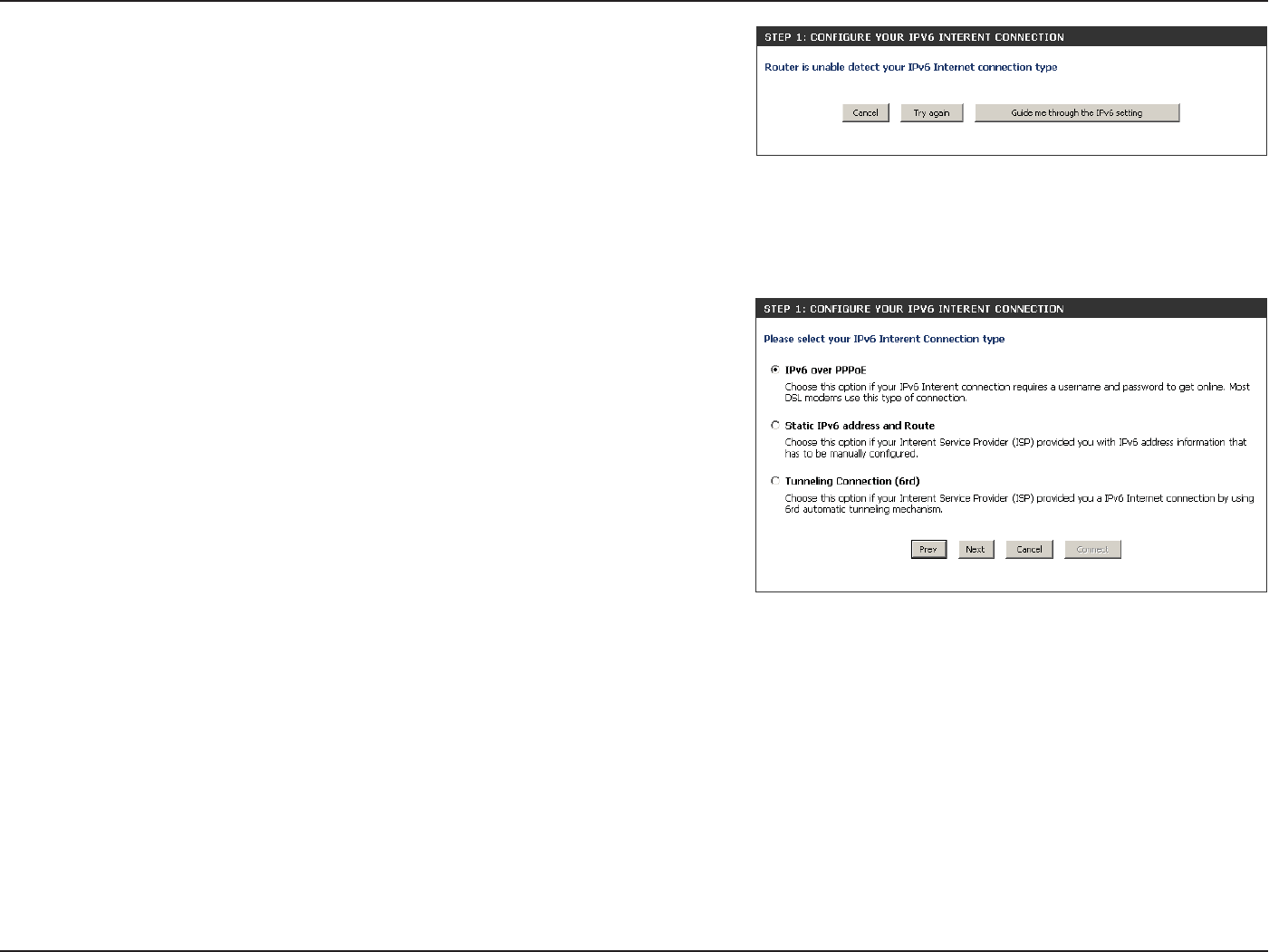

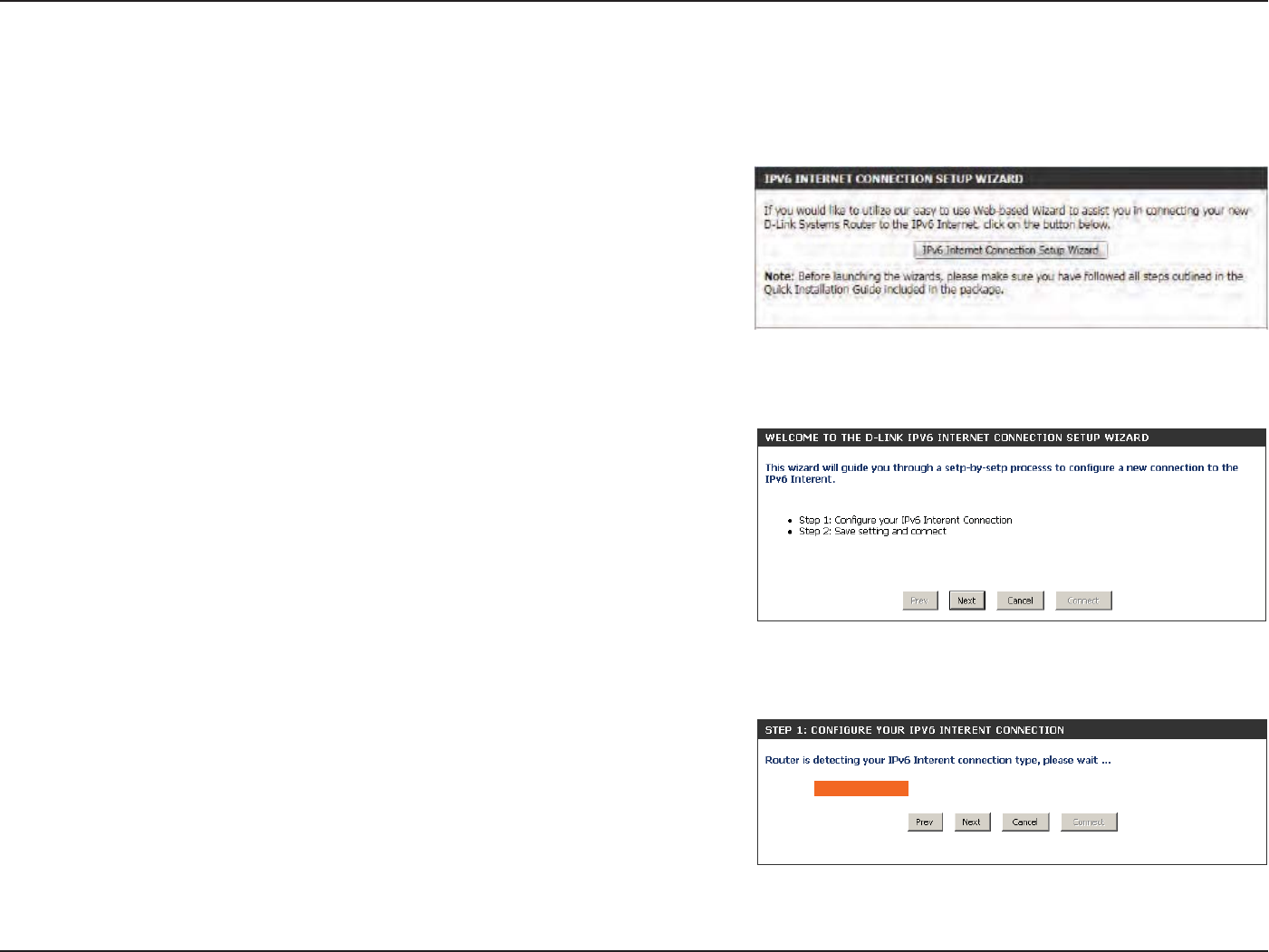

IPv6 Internet Connection Setup Wizard ................51

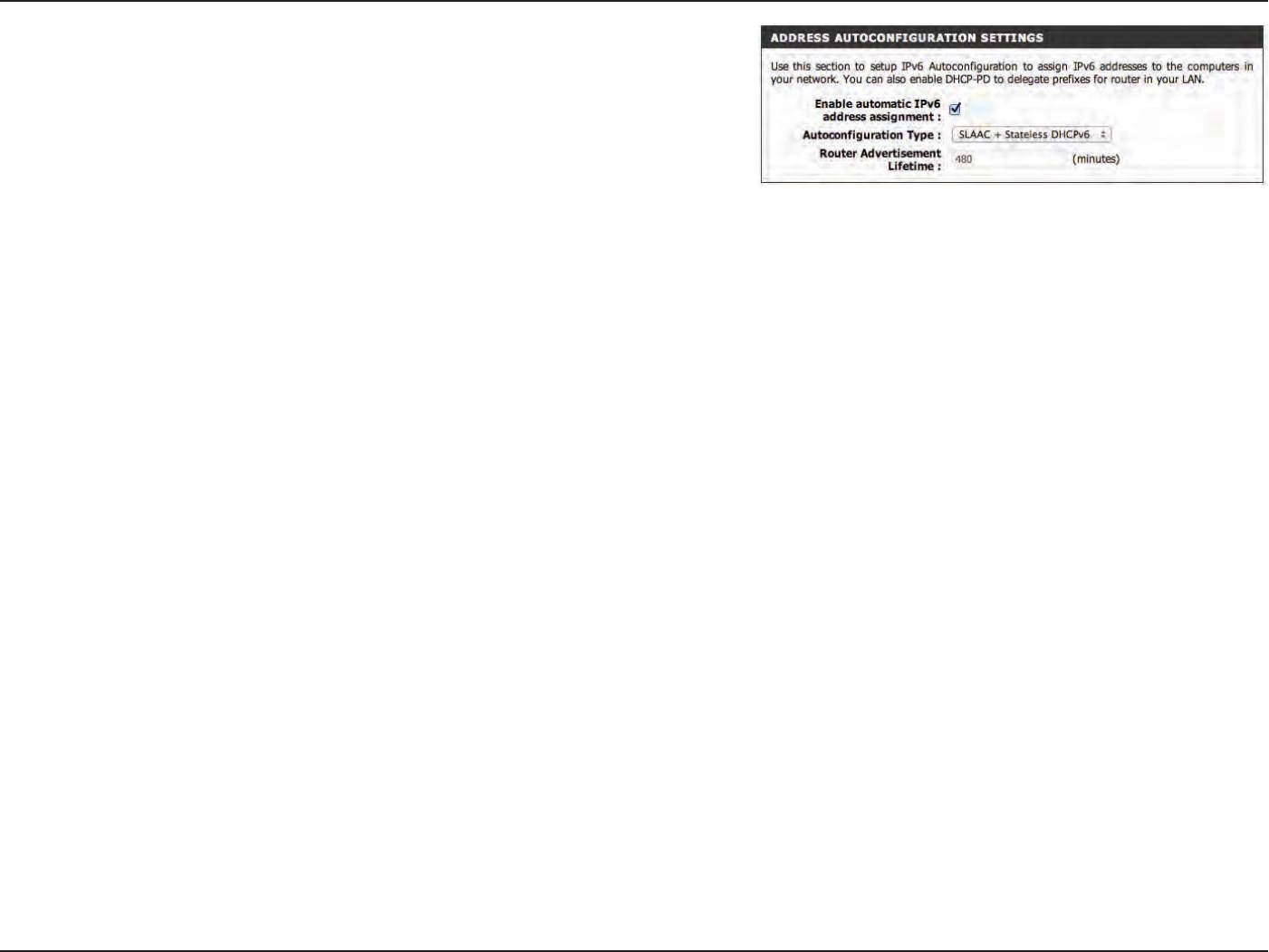

Manual IPv6 Local Connectivity Setup ..................56

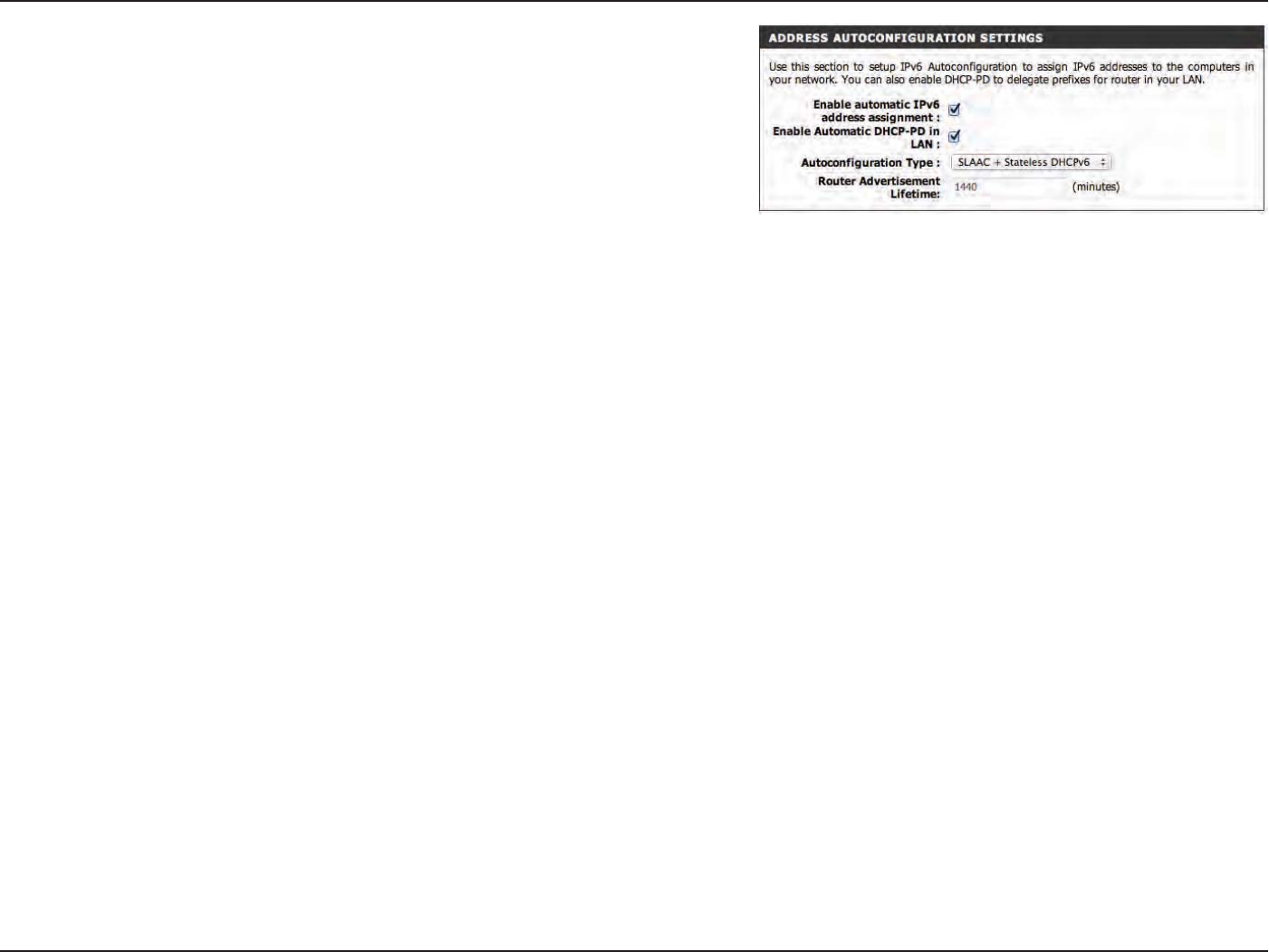

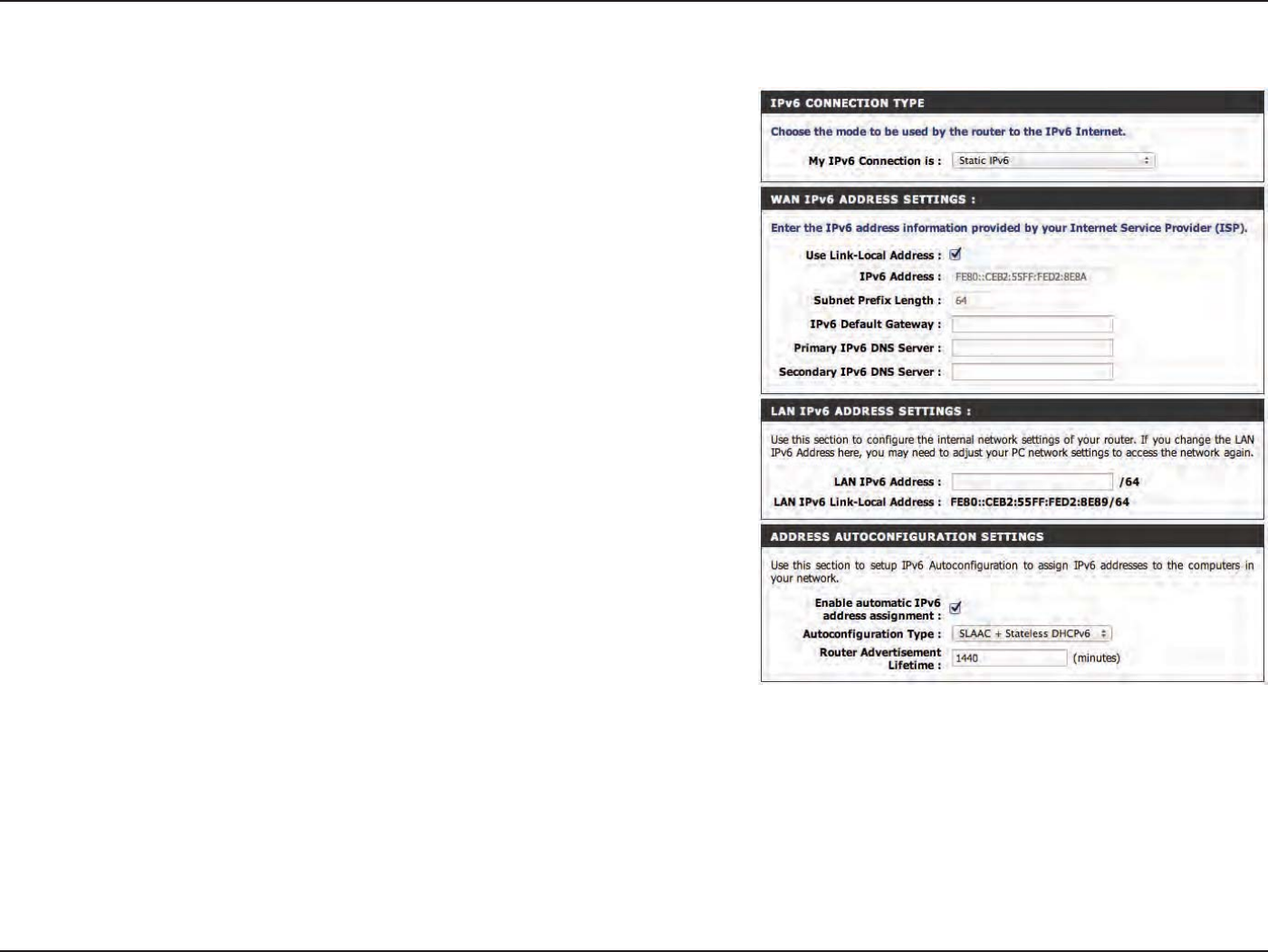

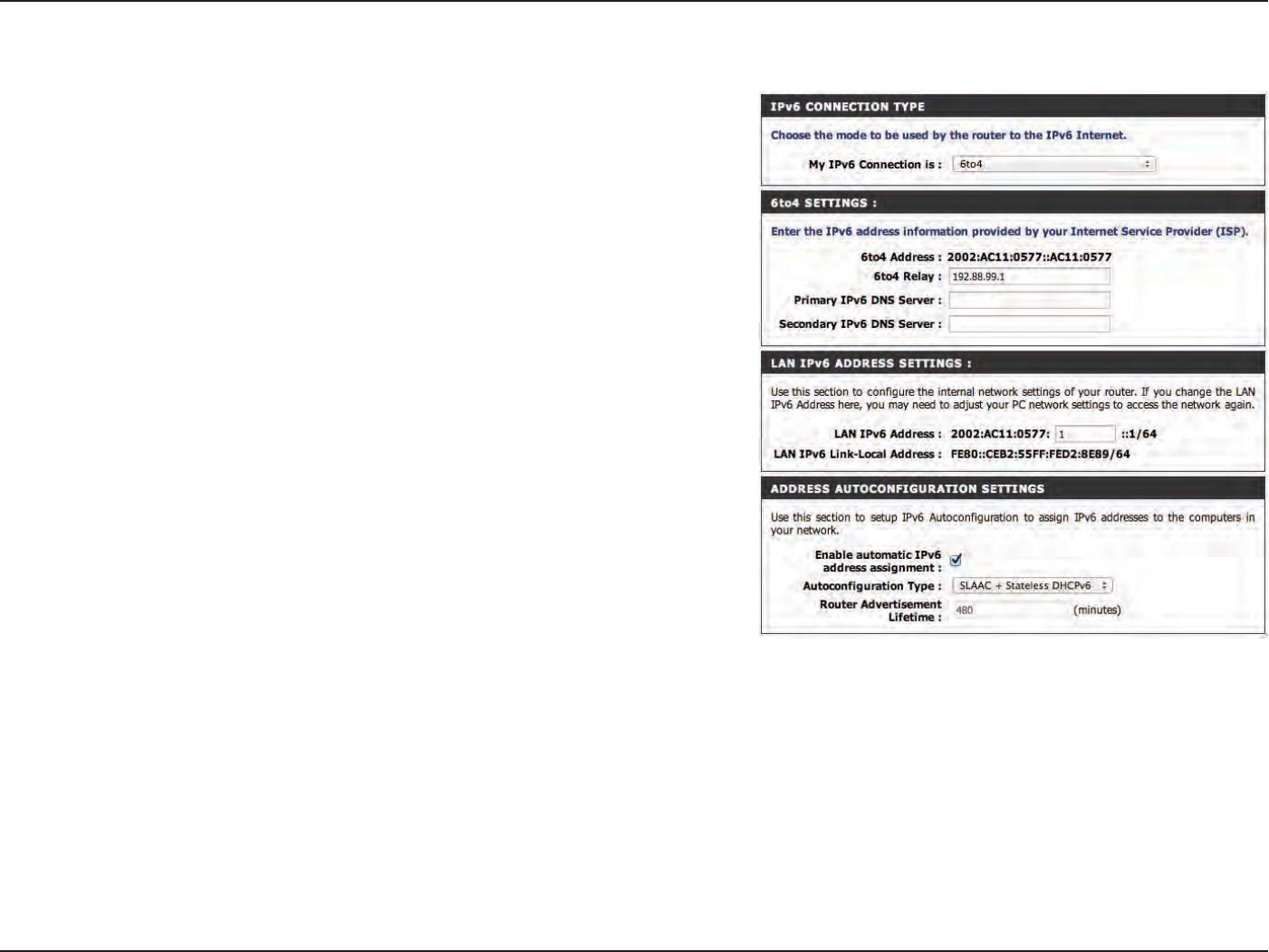

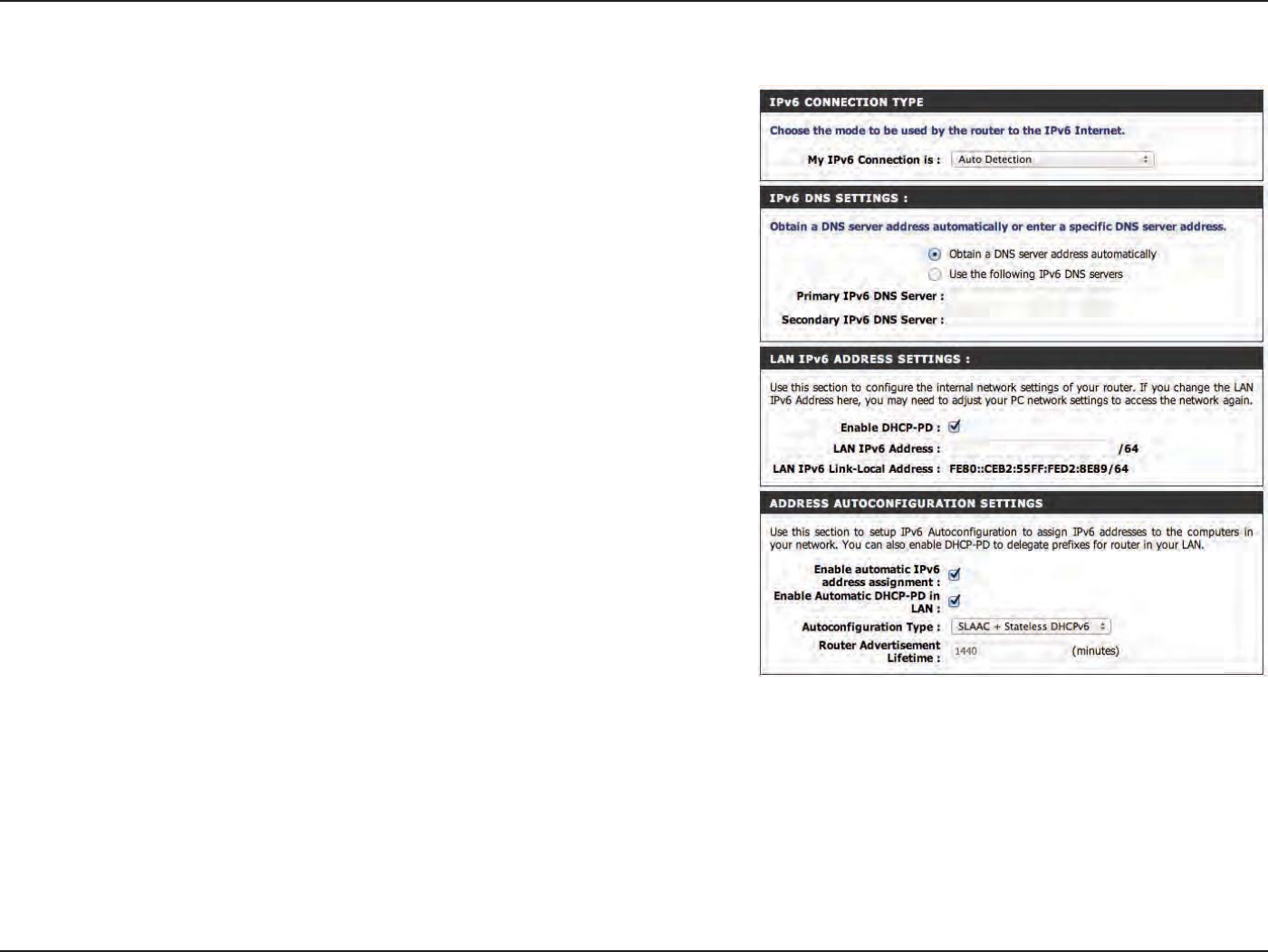

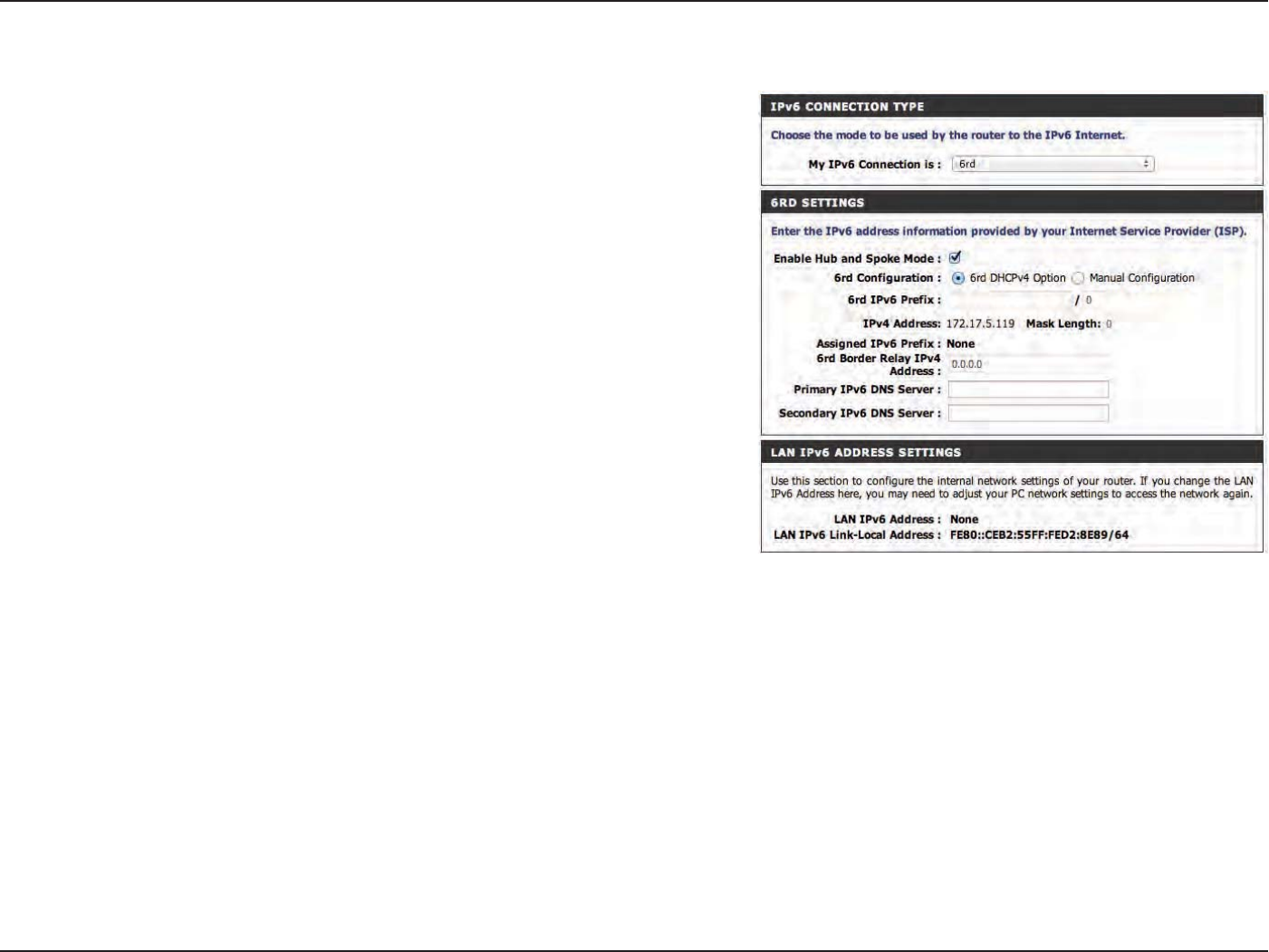

IPv6 Manual Setup.........................................................57

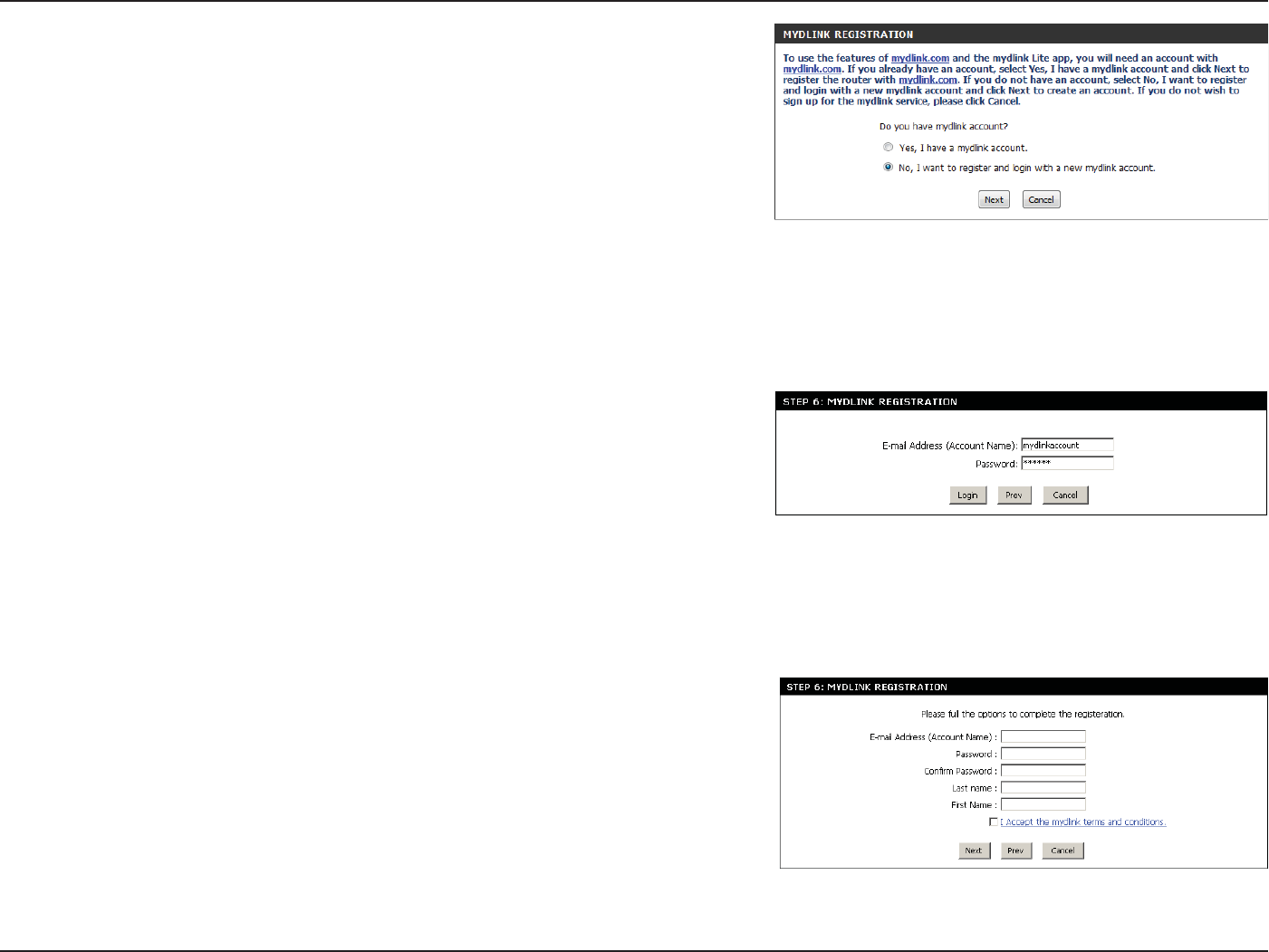

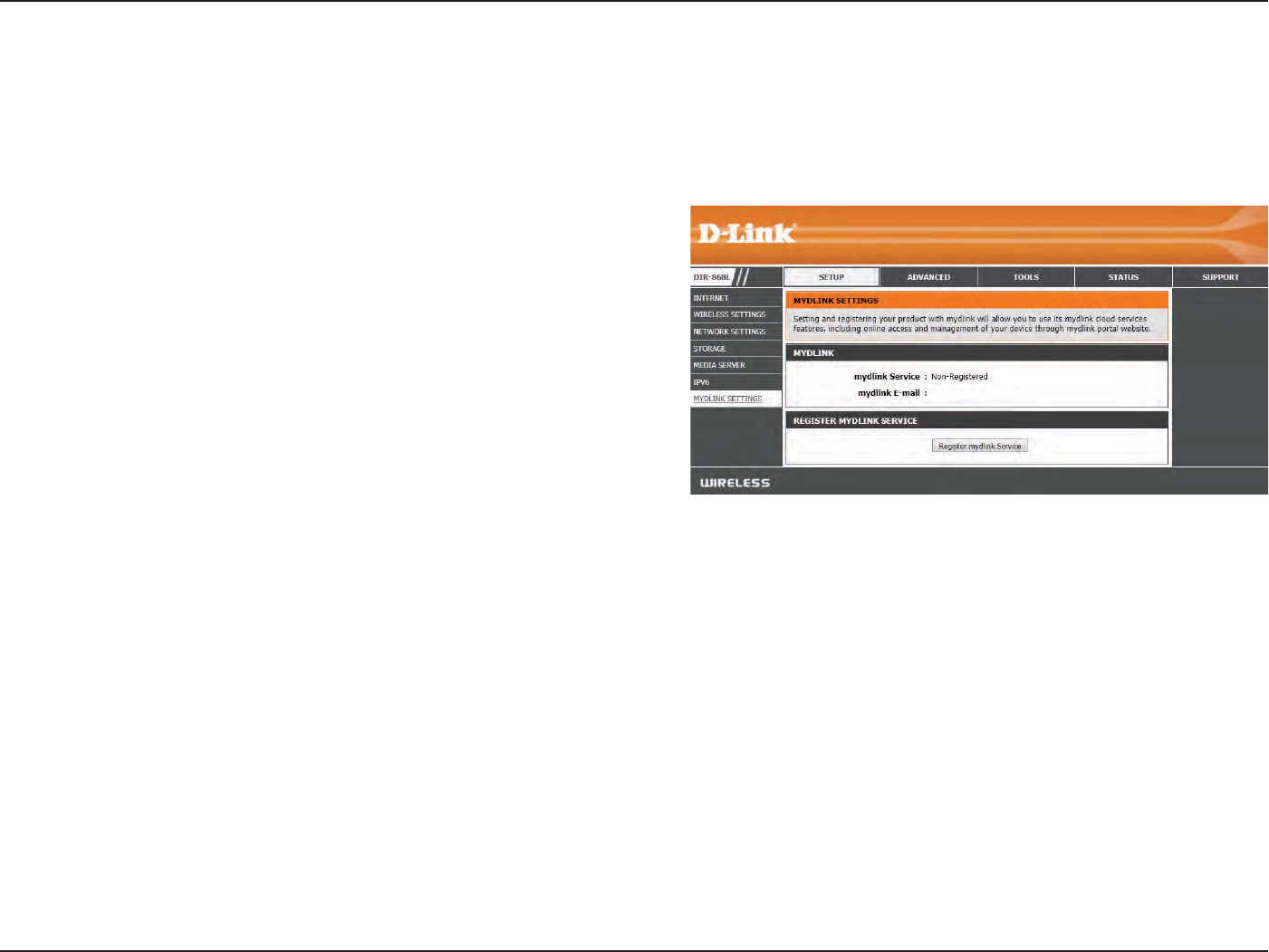

mydlink Settings .................................................................68
Advanced ......................................................................................69
Virtual Server ........................................................................69

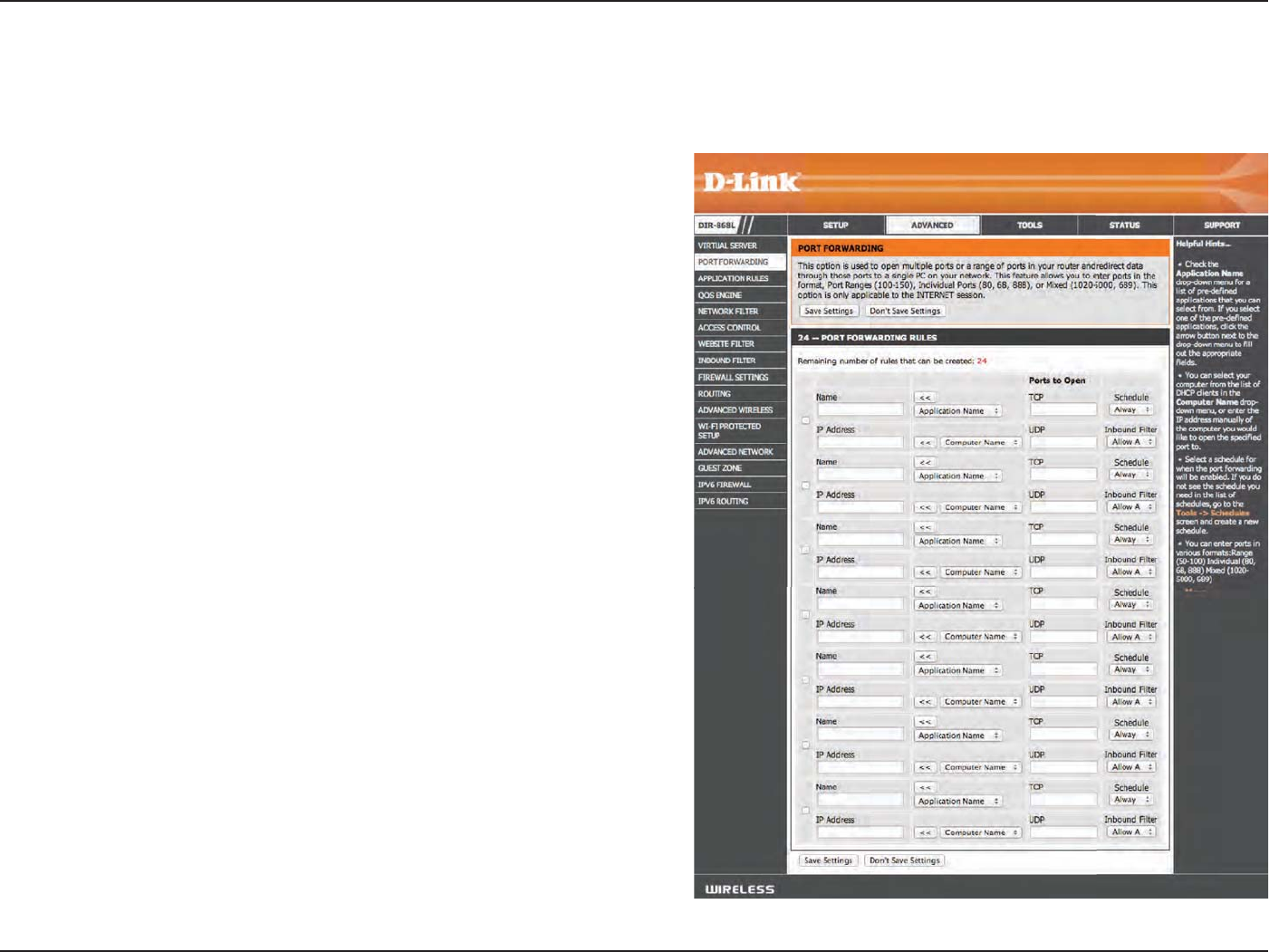

Port Forwarding ..................................................................70

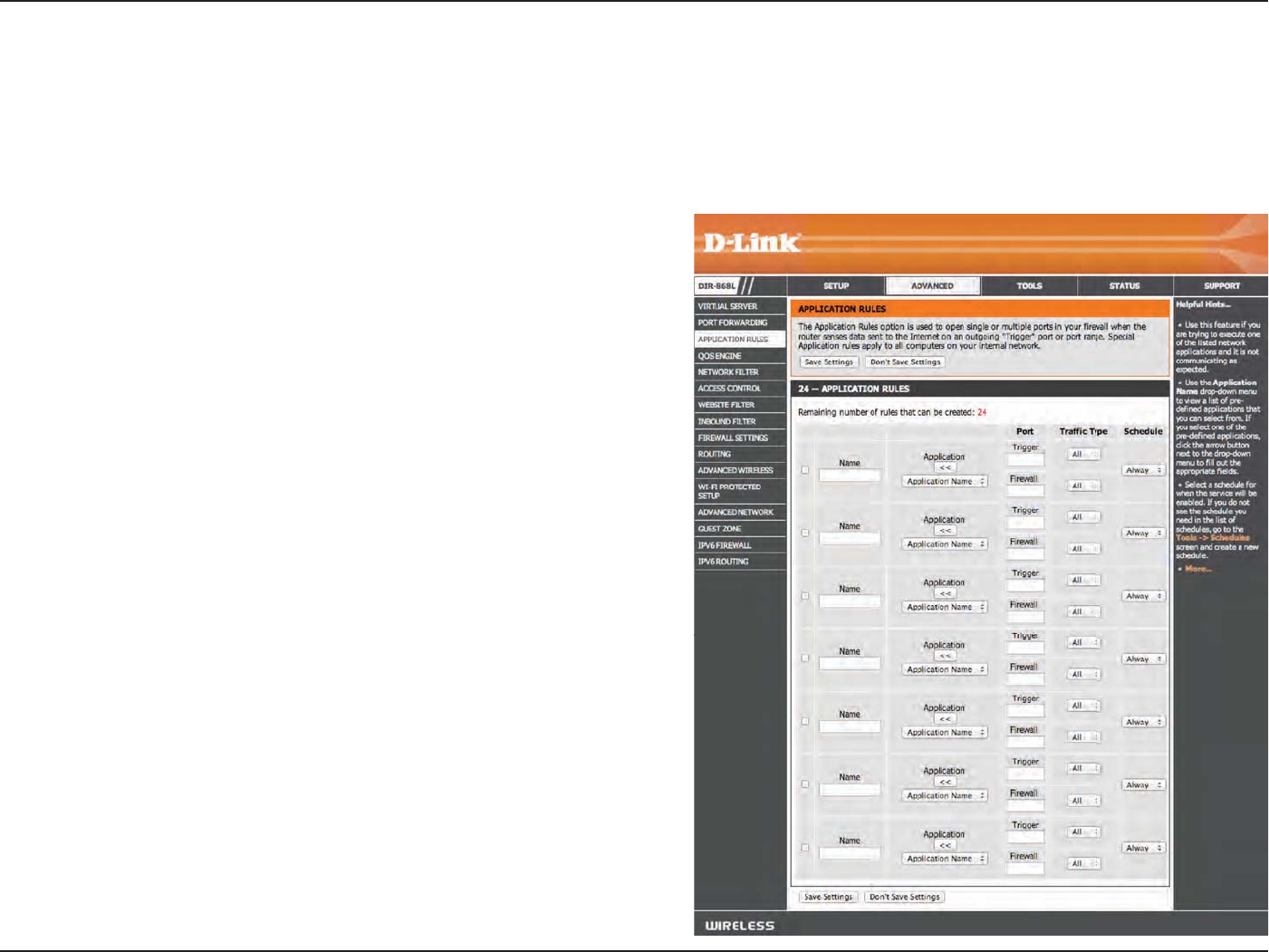

Application Rules ................................................................71
QoS Engine............................................................................72

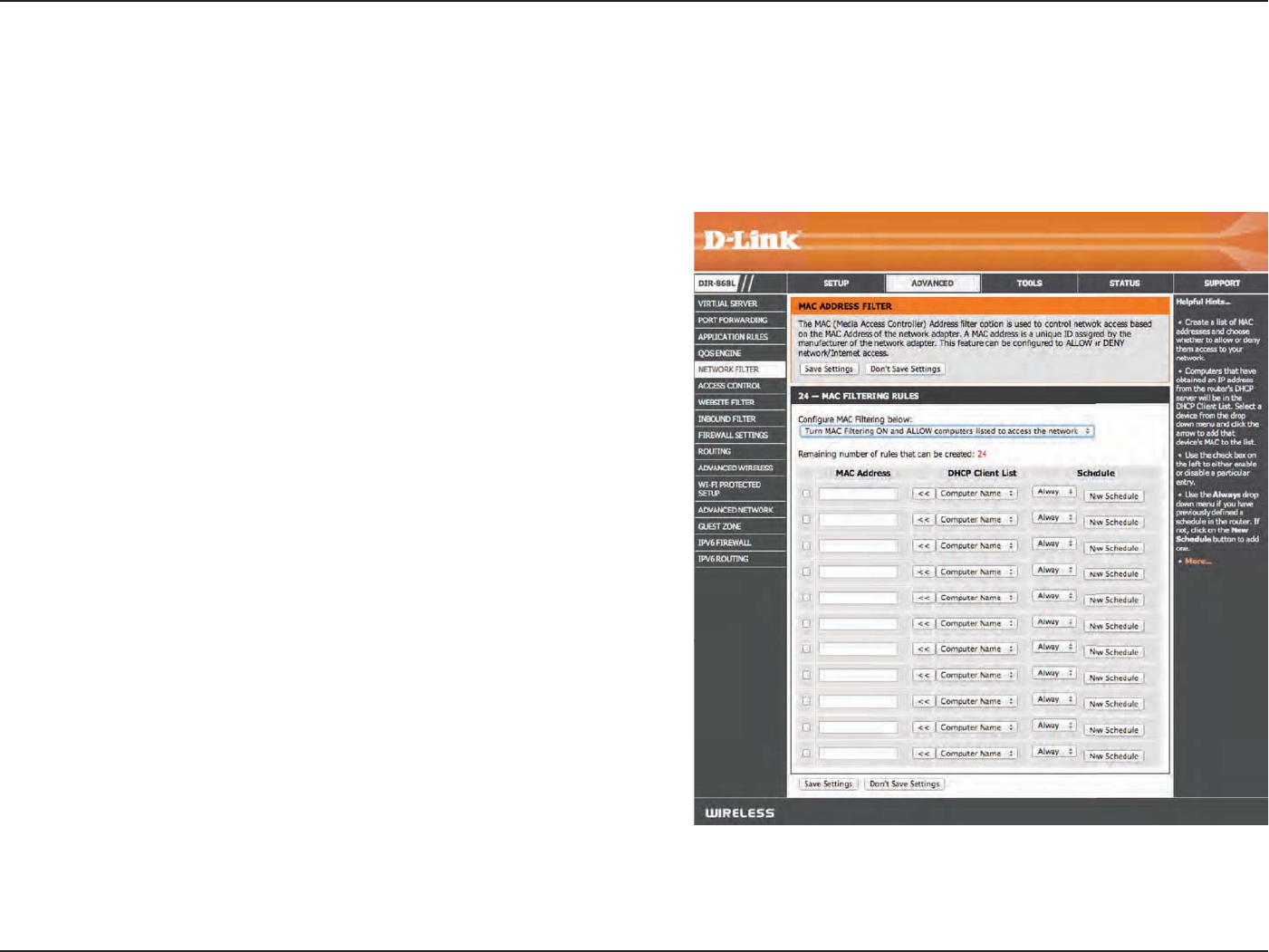

Network Filters .....................................................................74

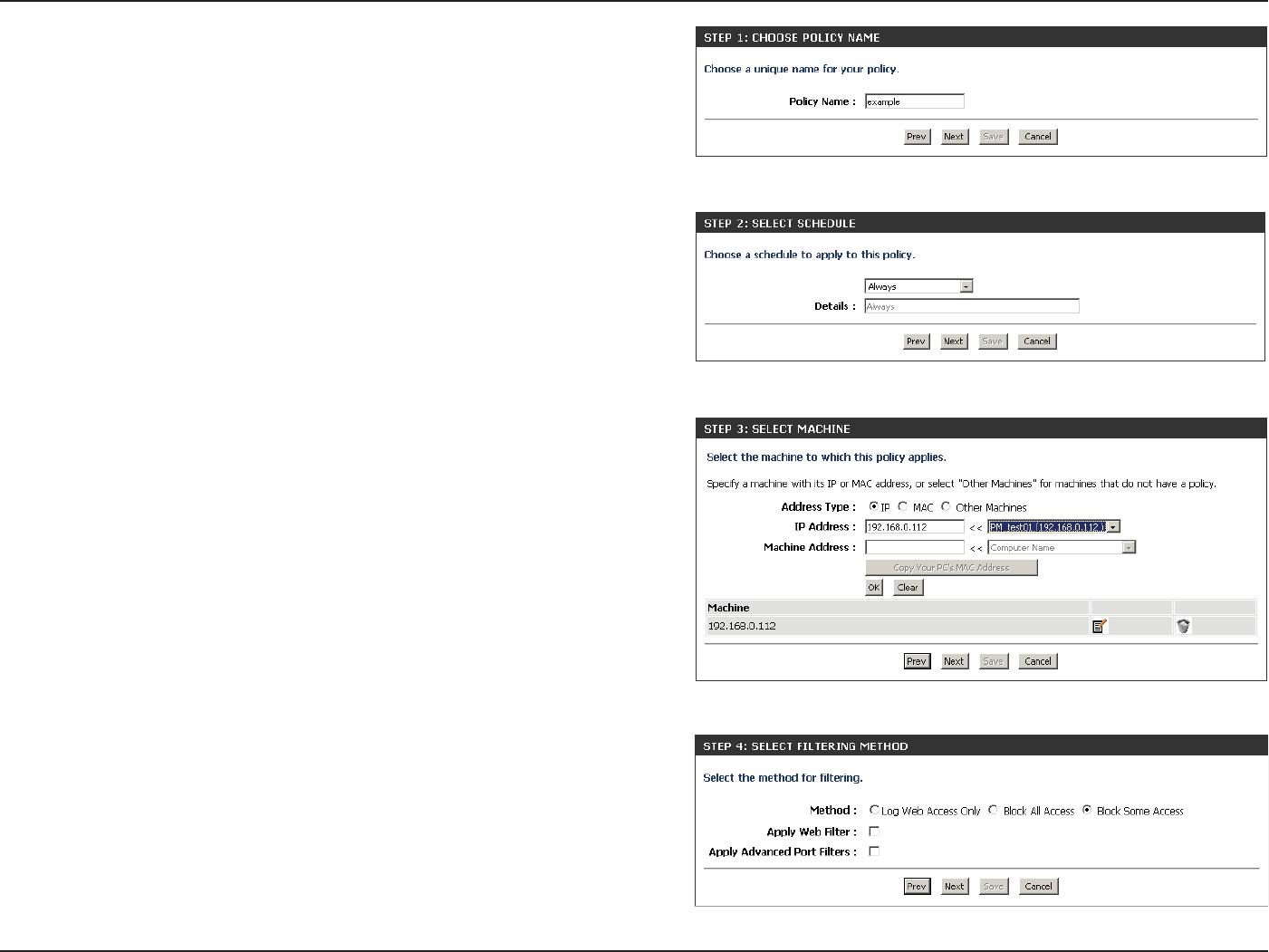

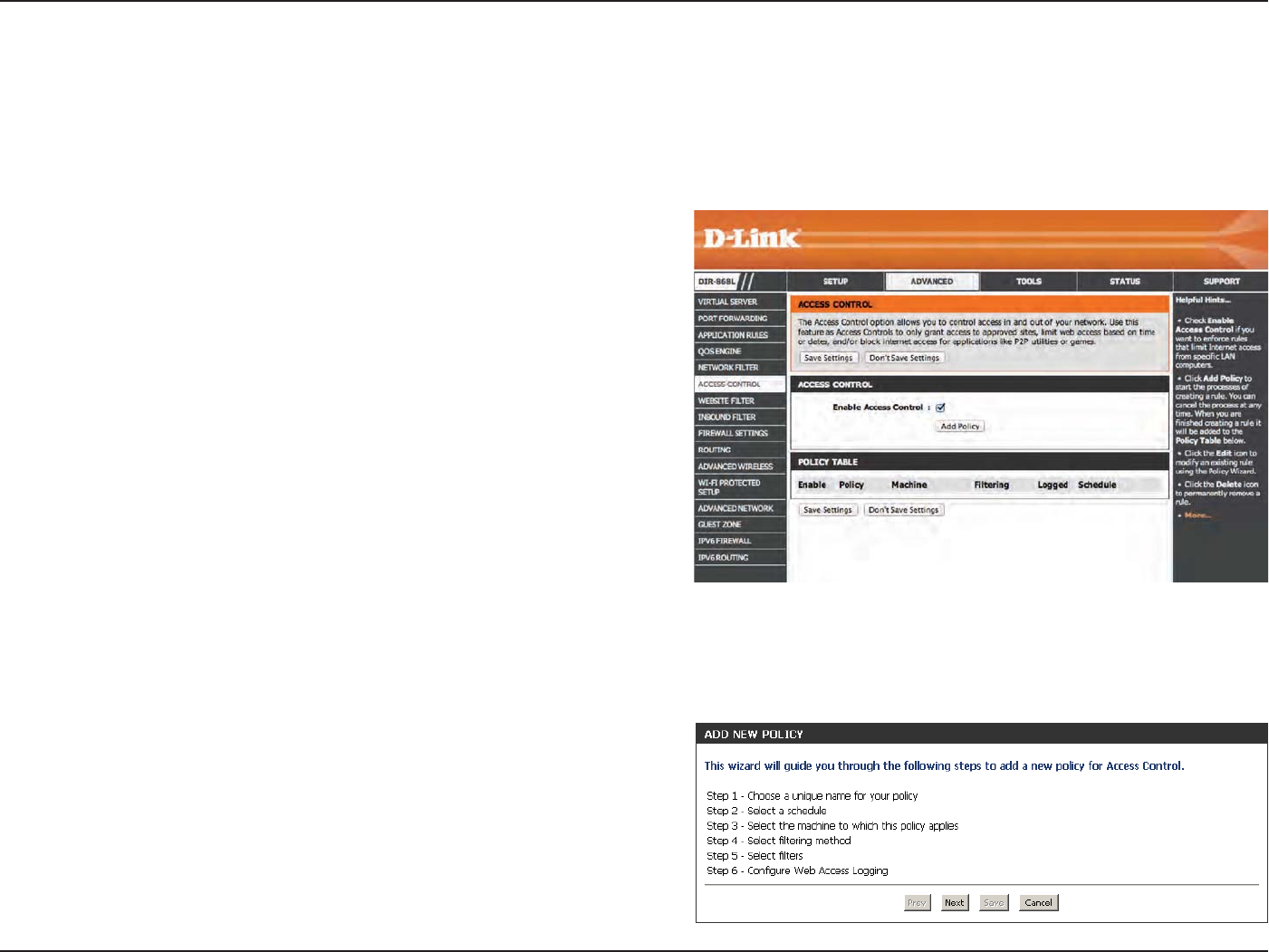

Access Control .....................................................................75
Table of Contents
iiiD-Link %"1 User Manual
Table of Contents

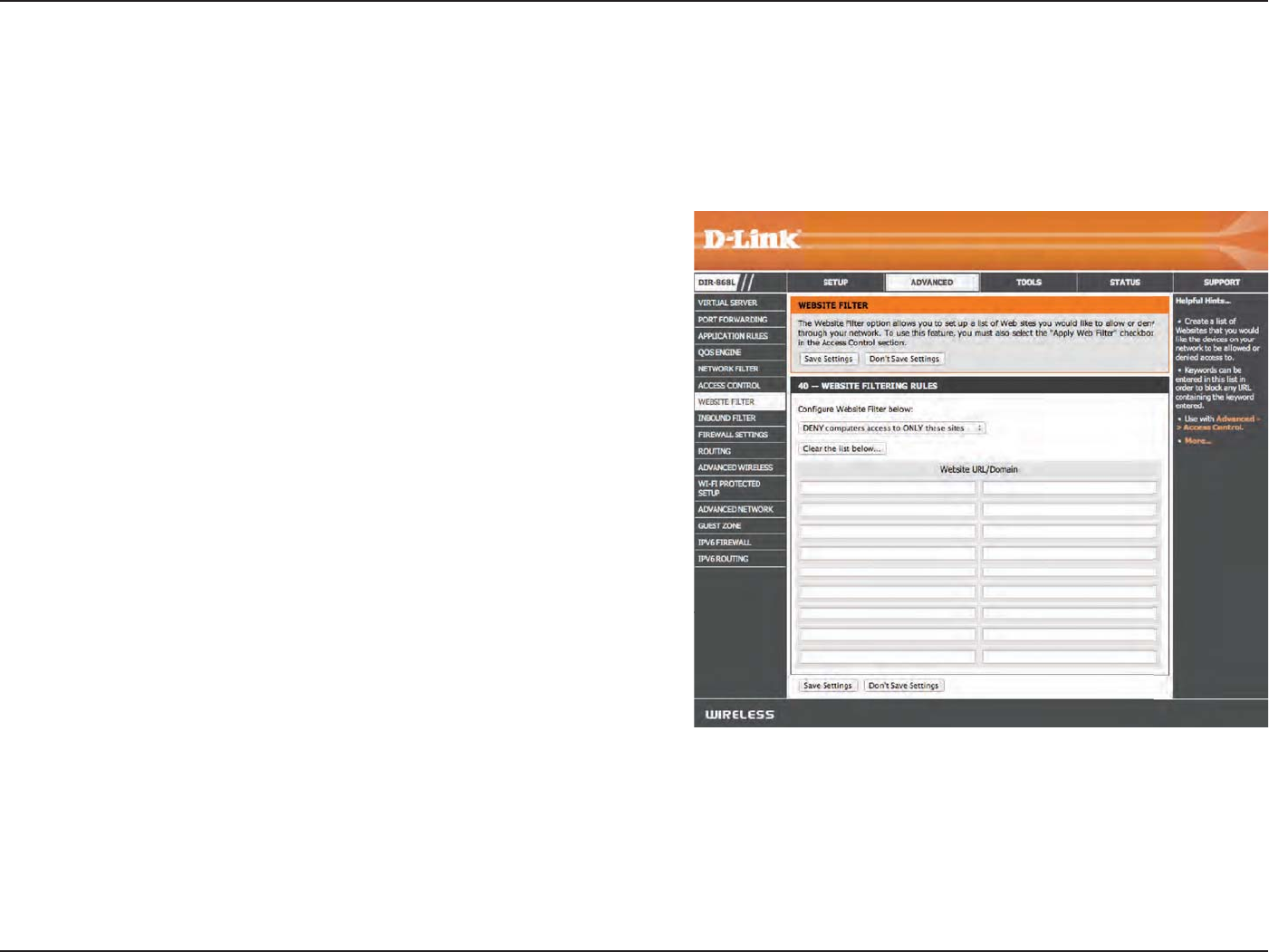

Website Filters ......................................................................78
Inbound Filter ......................................................................79

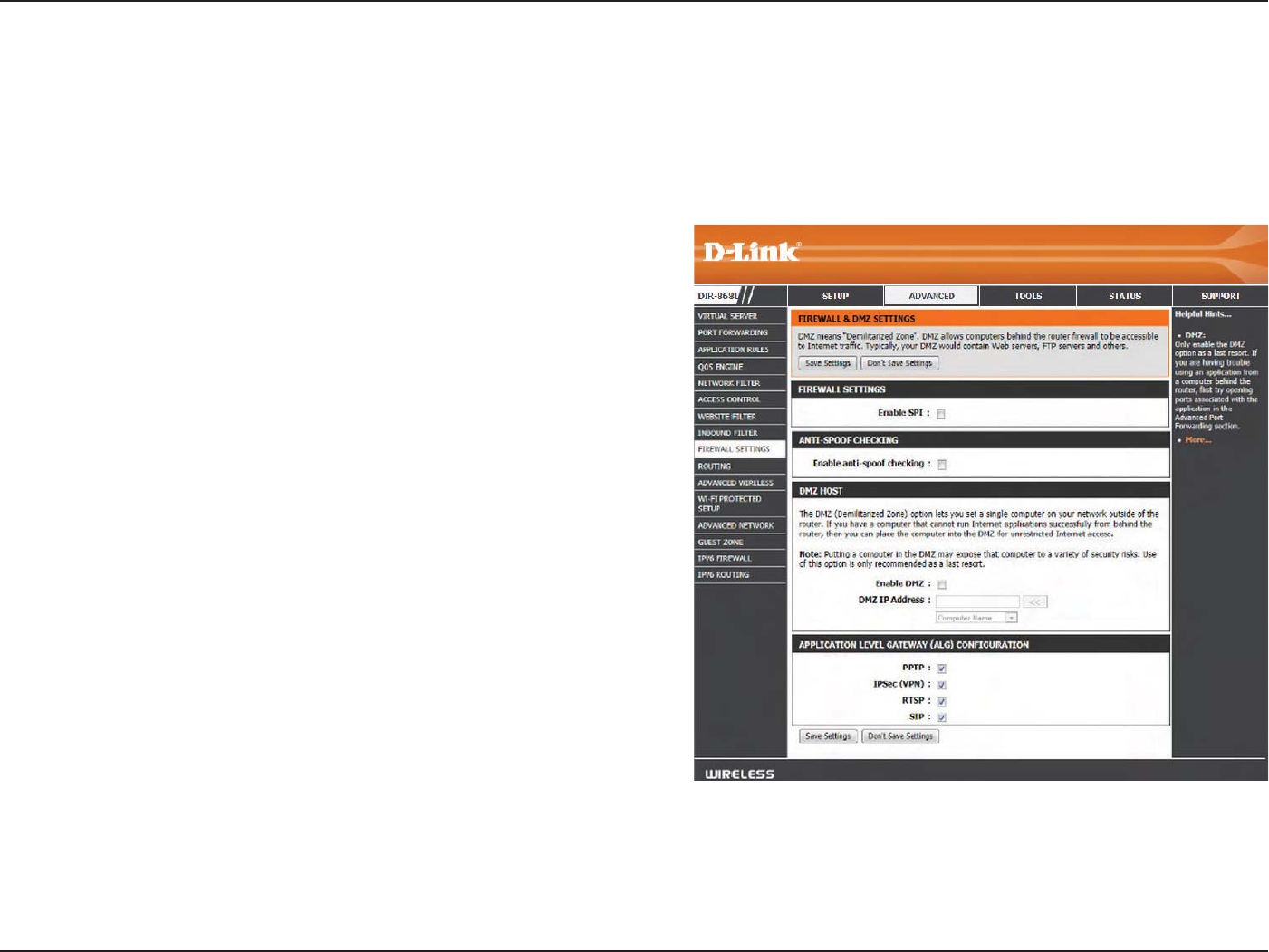

Firewall Settings ..................................................................80

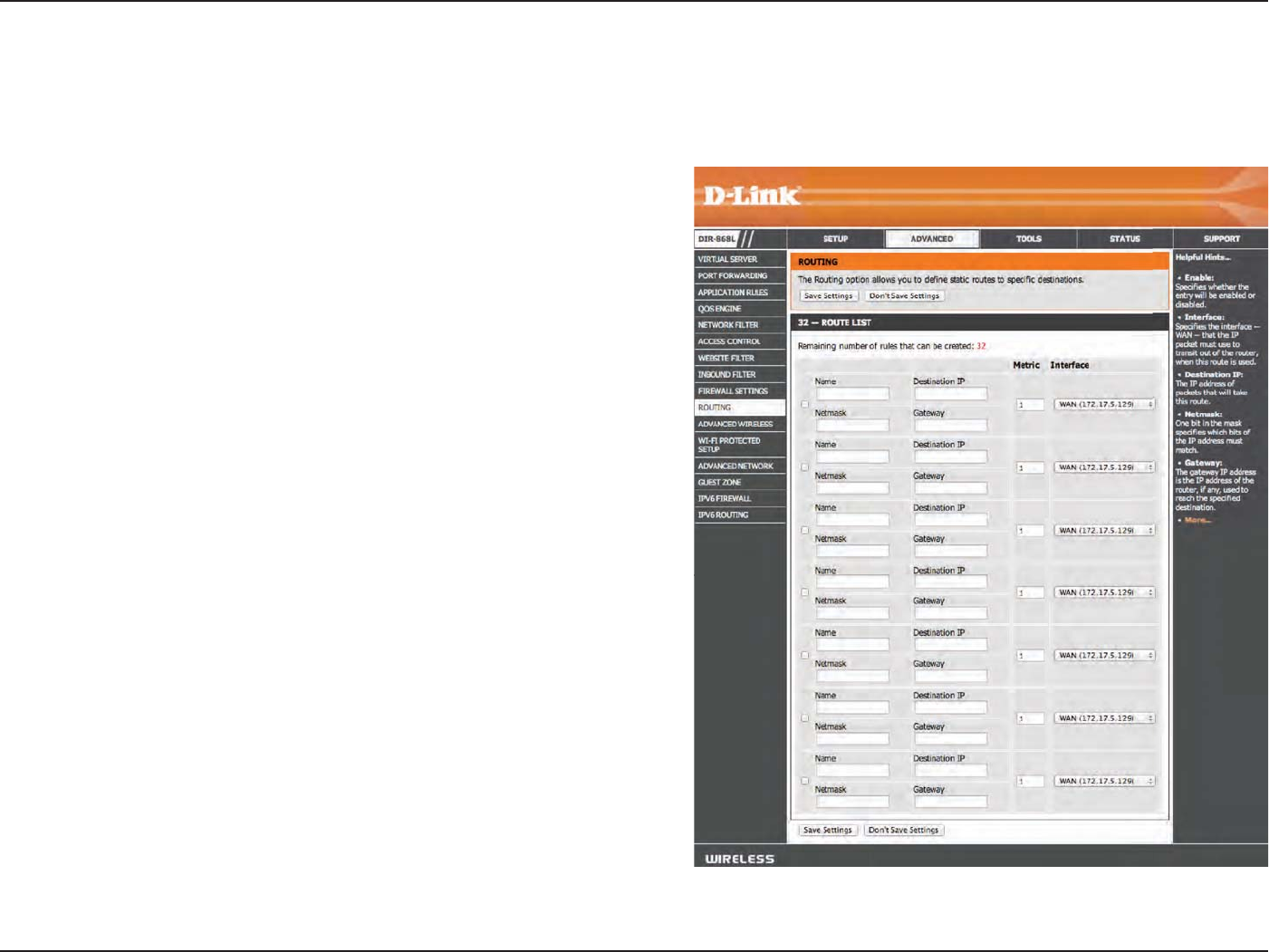

Routing ...................................................................................82

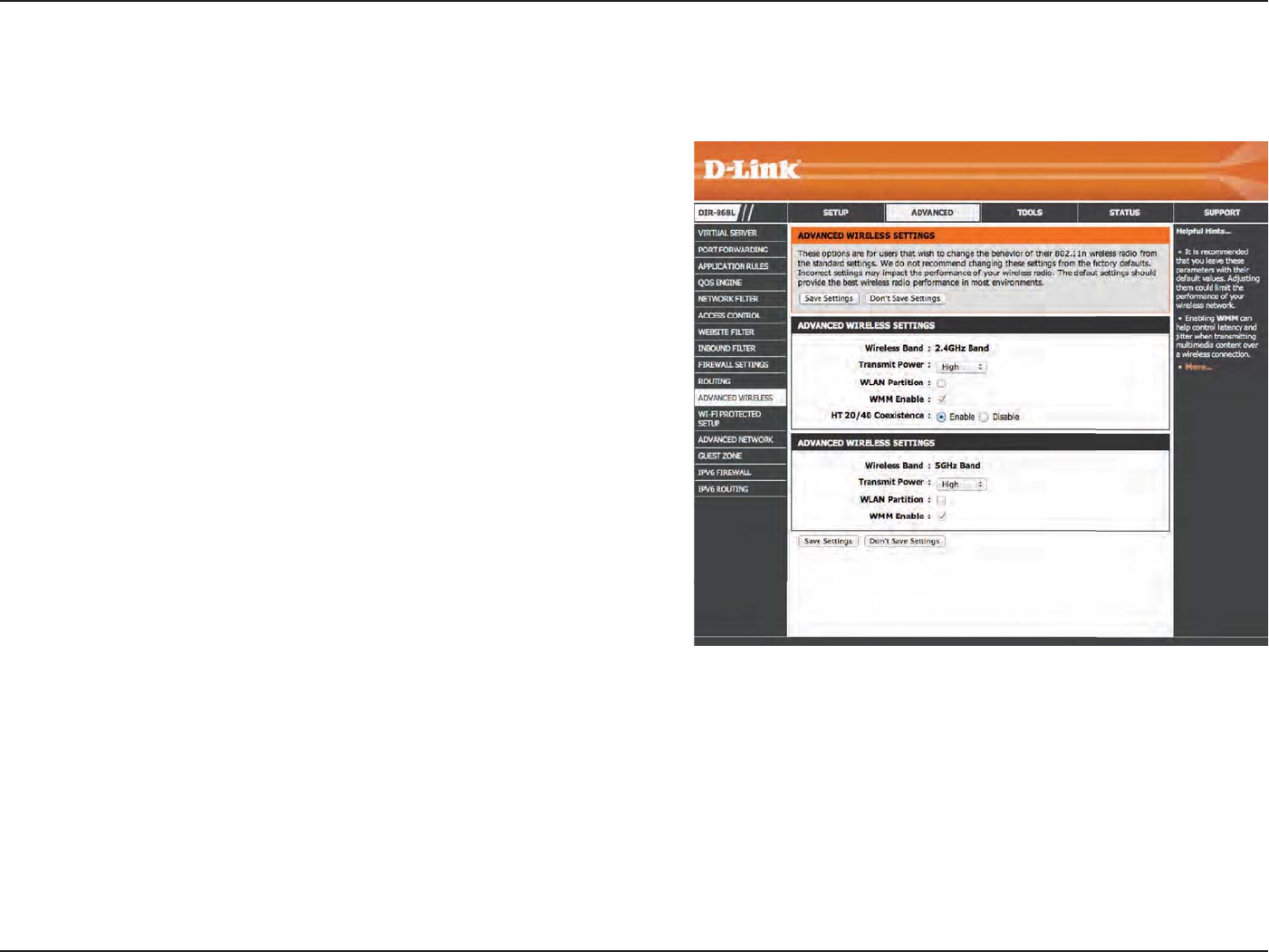

Advanced Wireless .............................................................83
Wi-Fi Protected Setup .......................................................84

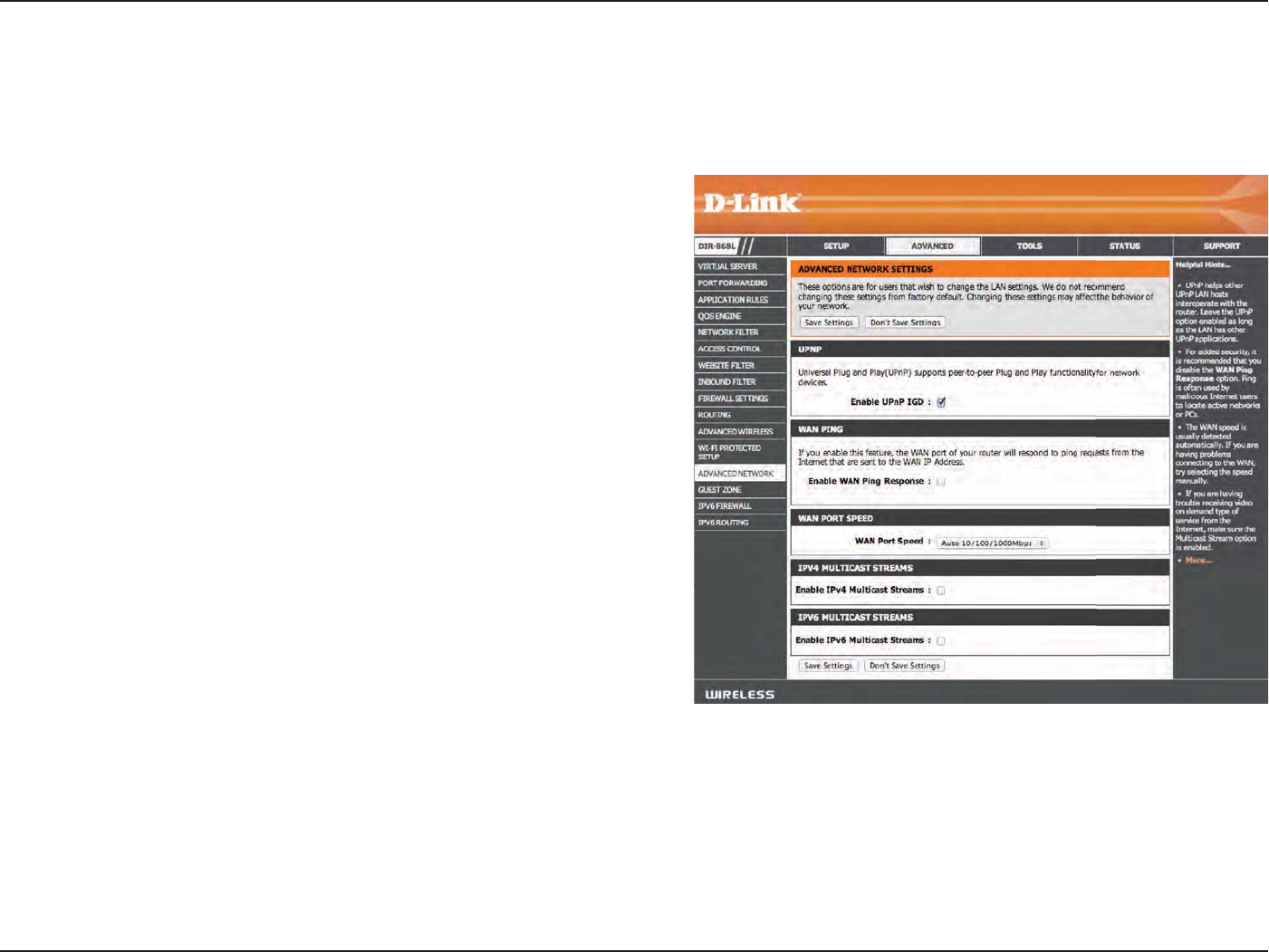

Advanced Network ............................................................86

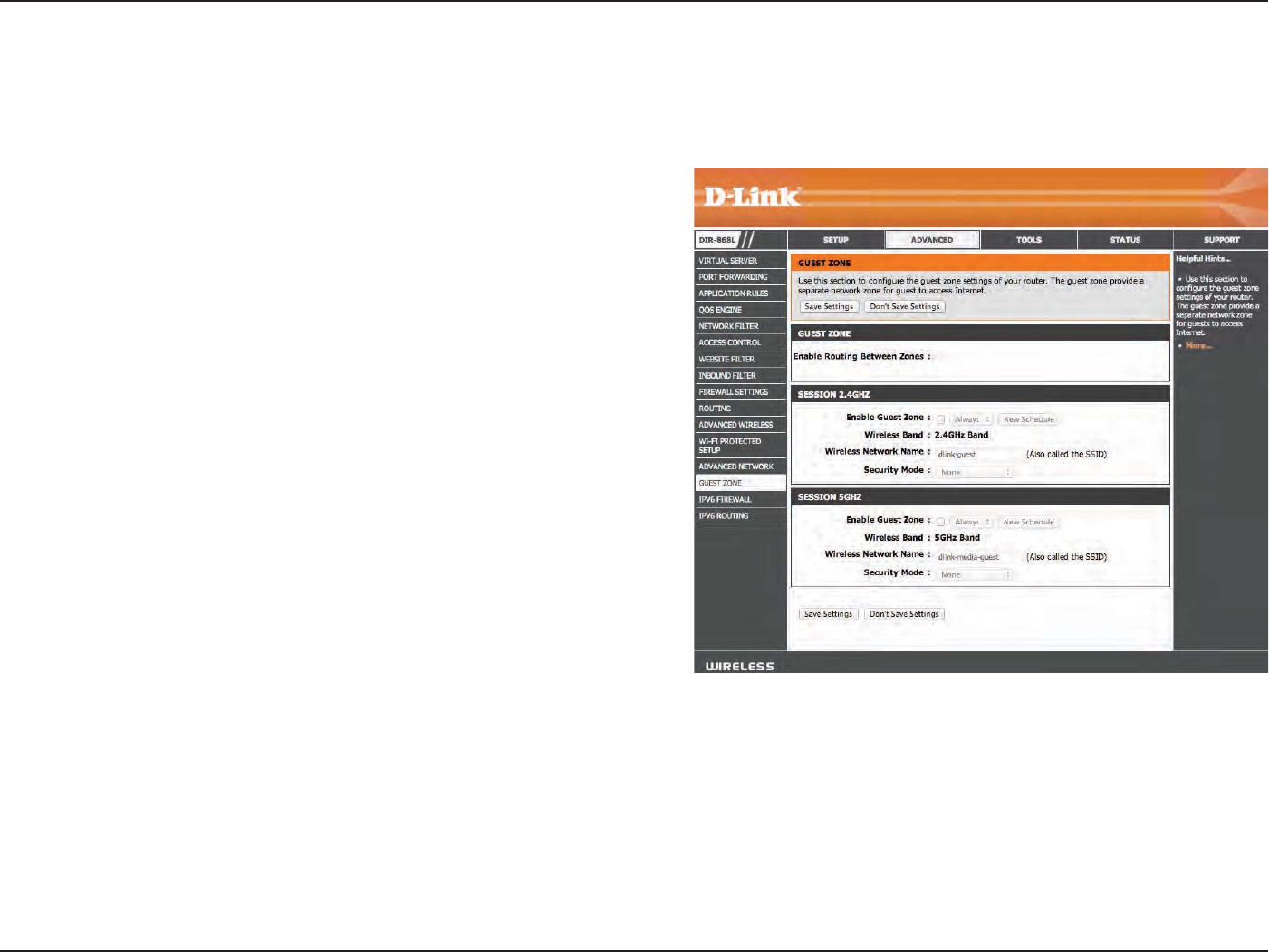

Guest Zone ............................................................................87

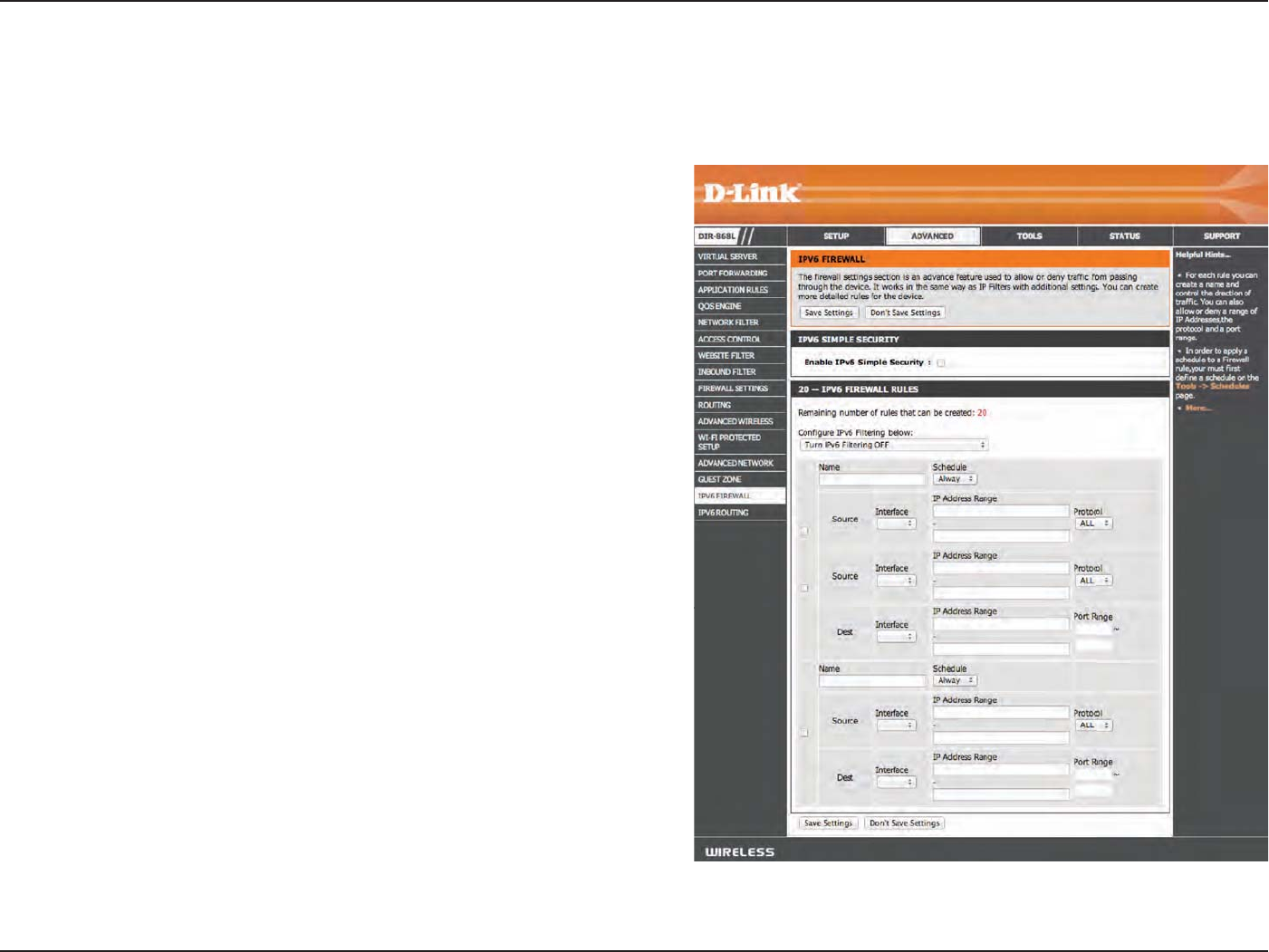

IPv6 Firewall ..........................................................................88
IPv6 Routing .........................................................................89
Tools ................................................................................................90
Admin .....................................................................................90
Time .........................................................................................91

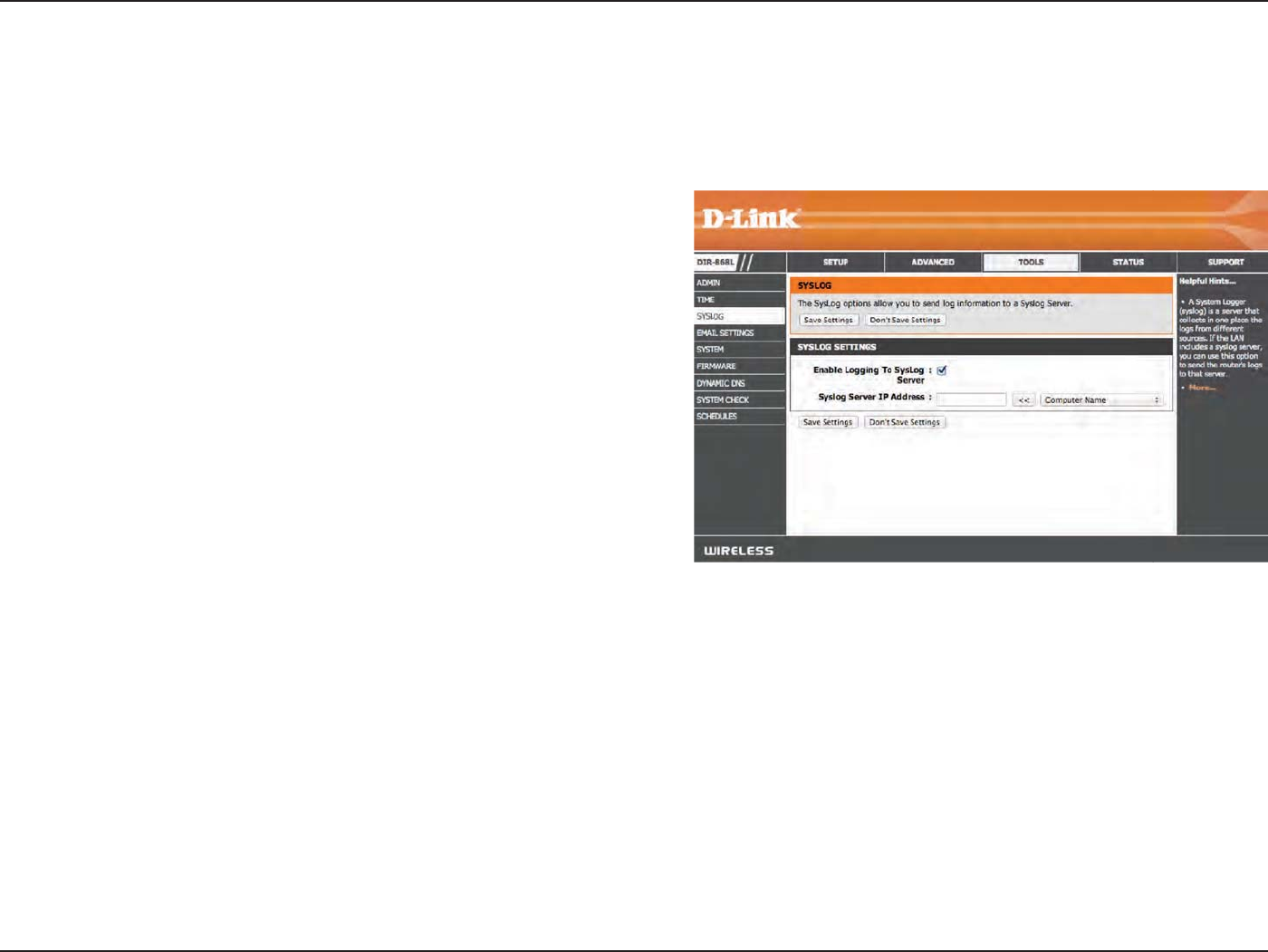

SysLog ..................................................................................... 92
Email Settings ......................................................................93

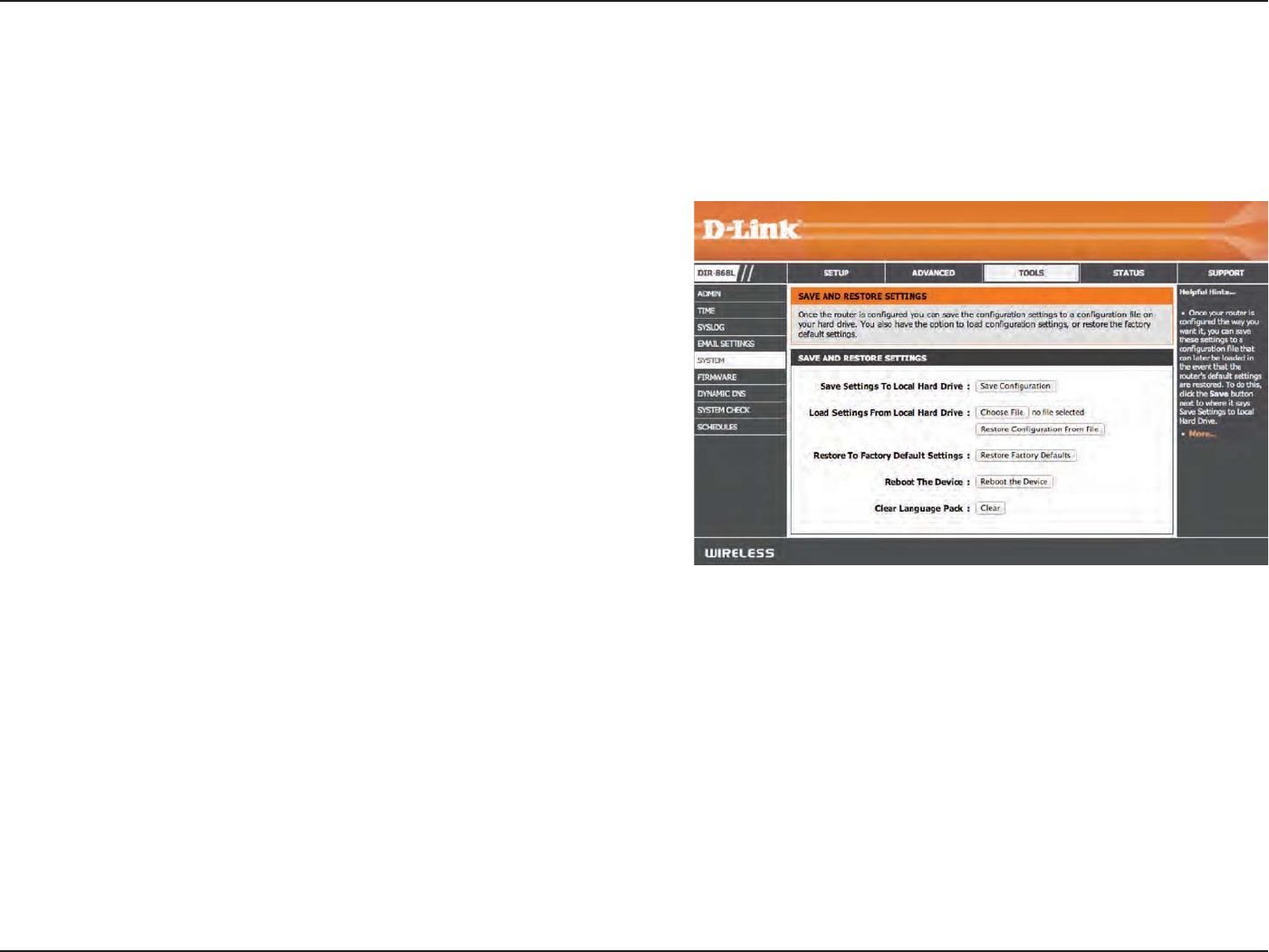

System ....................................................................................94
Firmware ................................................................................95

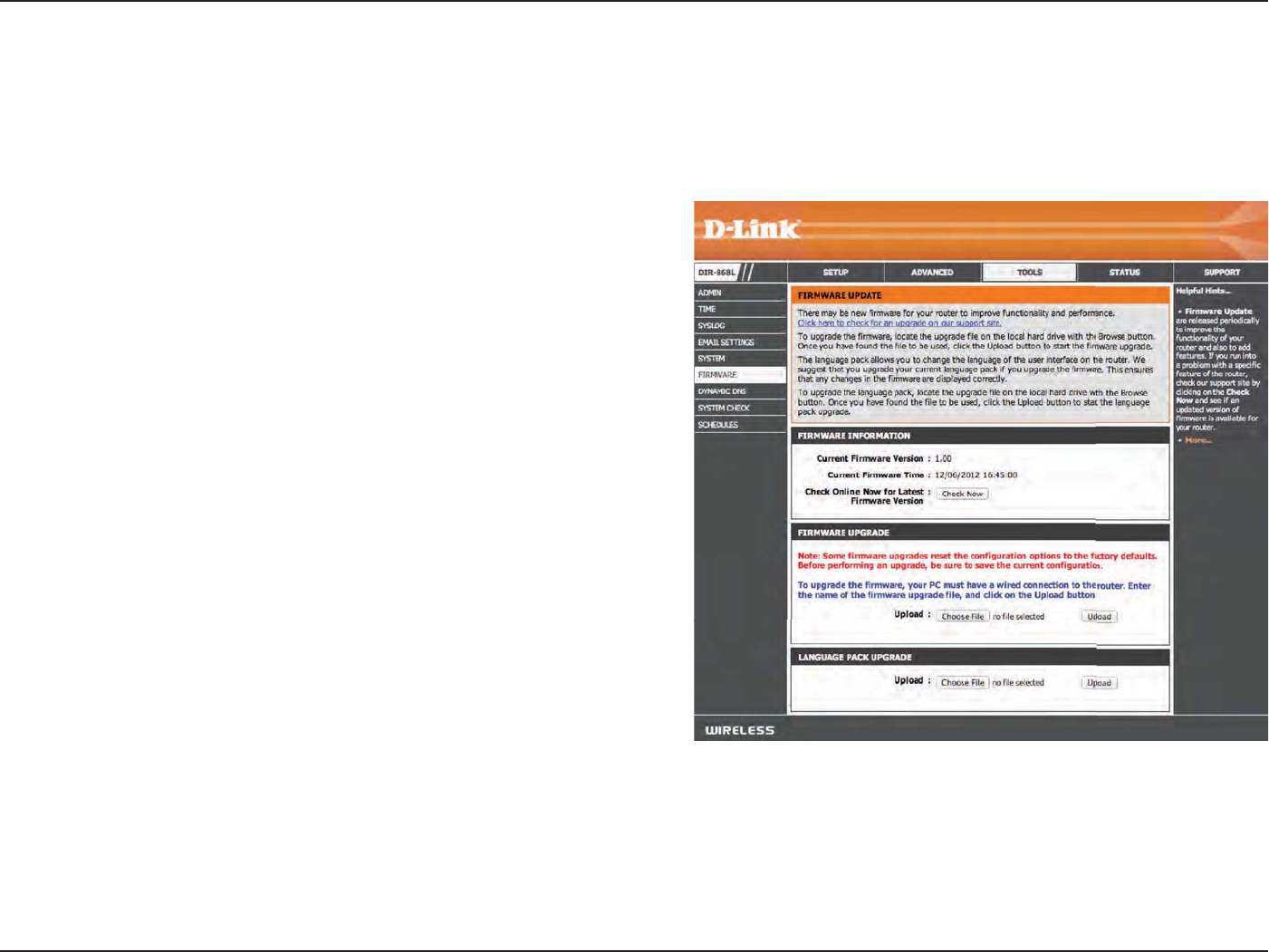

Firmware Upgrade .........................................................95
Language Pack ................................................................95

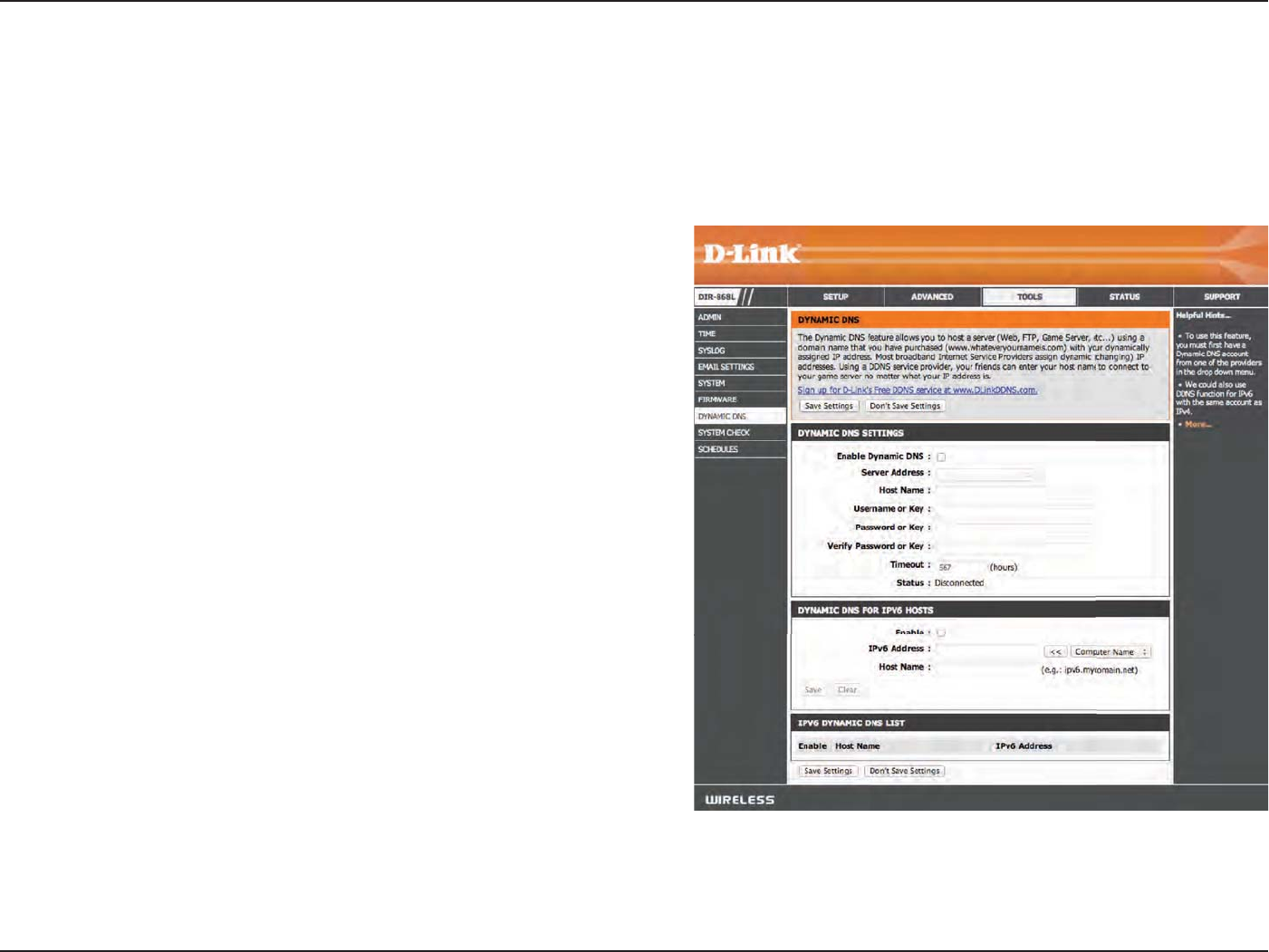

Dynamic DNS .......................................................................96

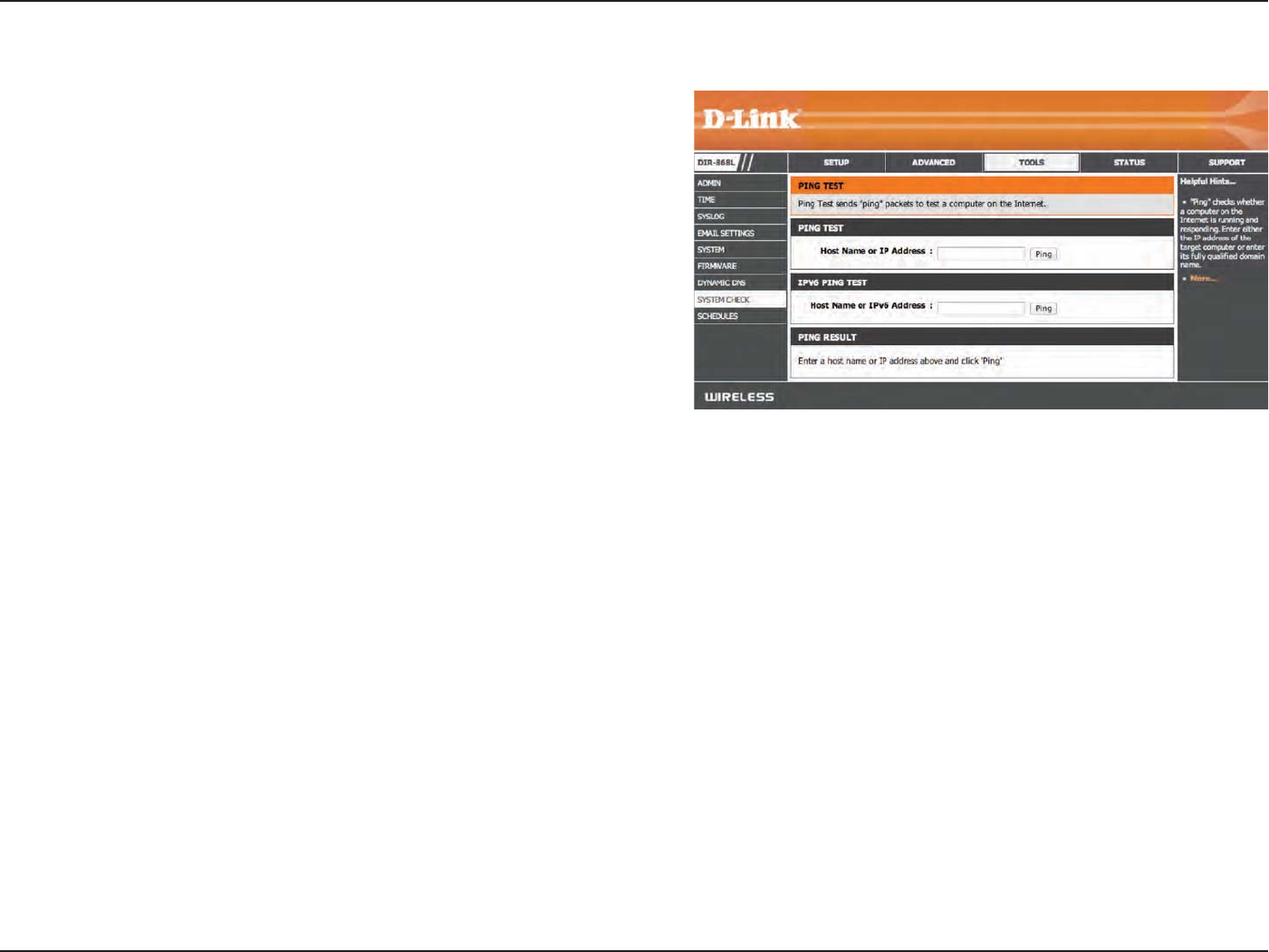

System Check .......................................................................97
Schedules ..............................................................................98
Status ..............................................................................................99

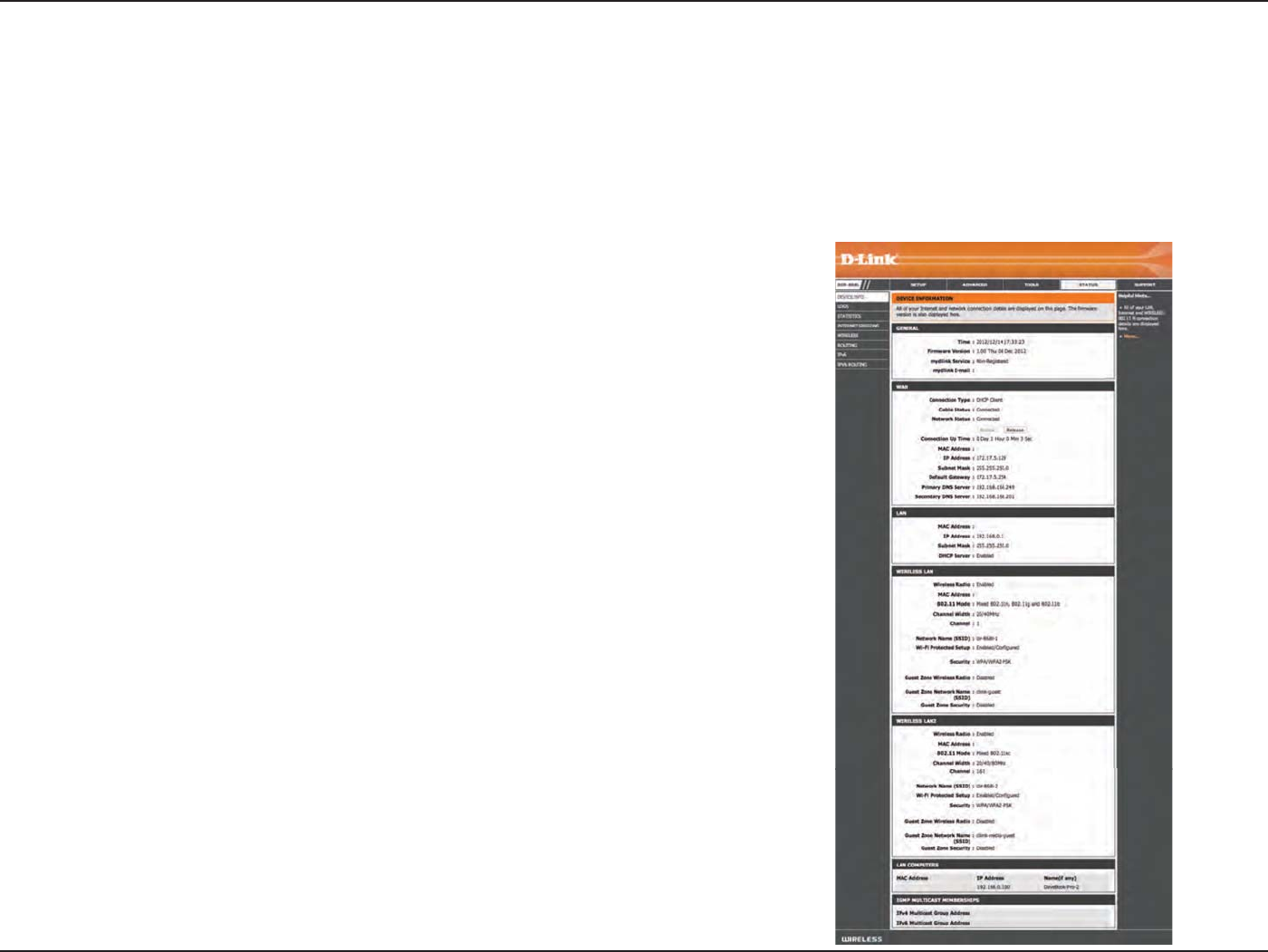

Device Info ............................................................................99

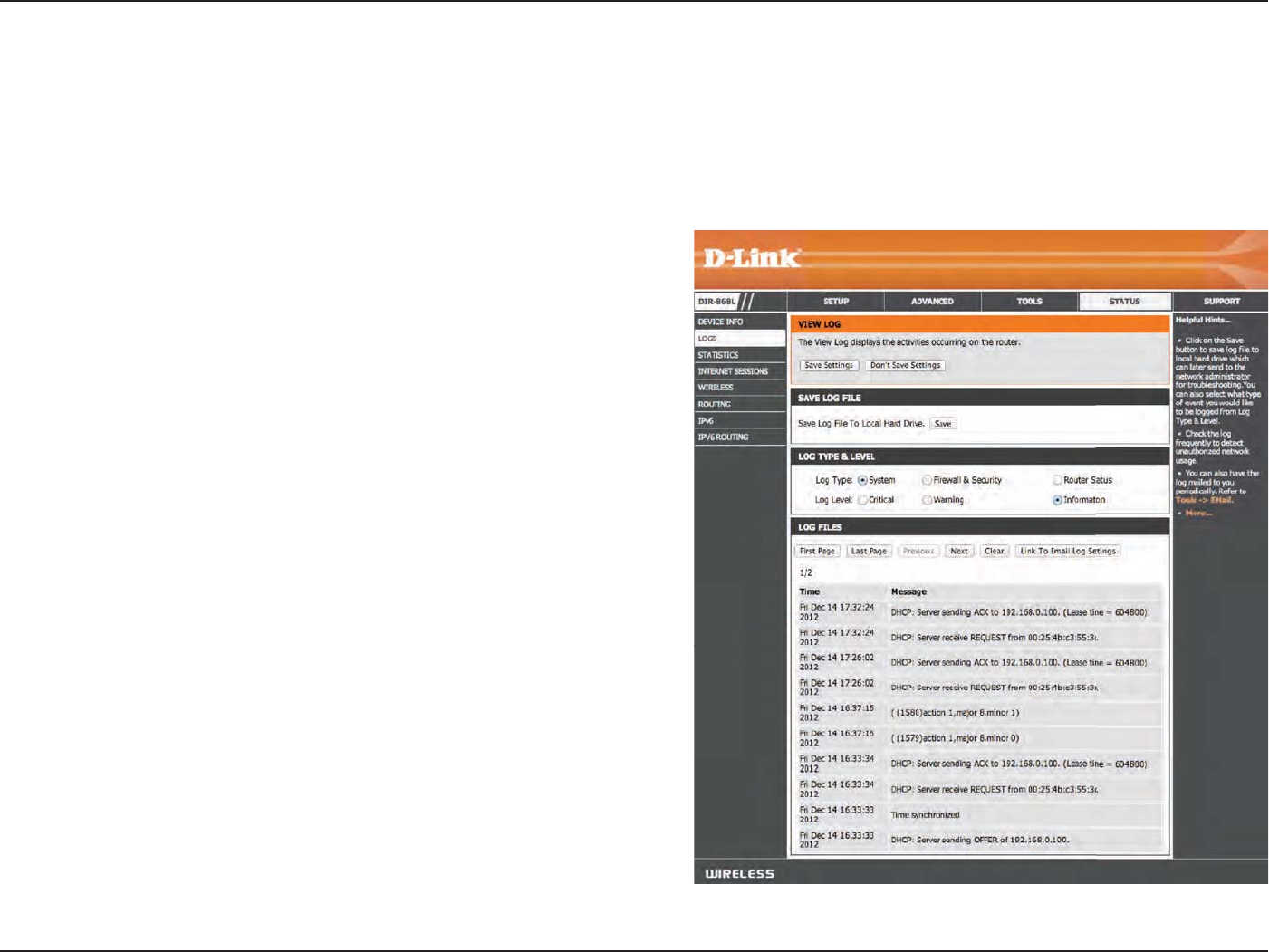

Logs ...................................................................................... 100

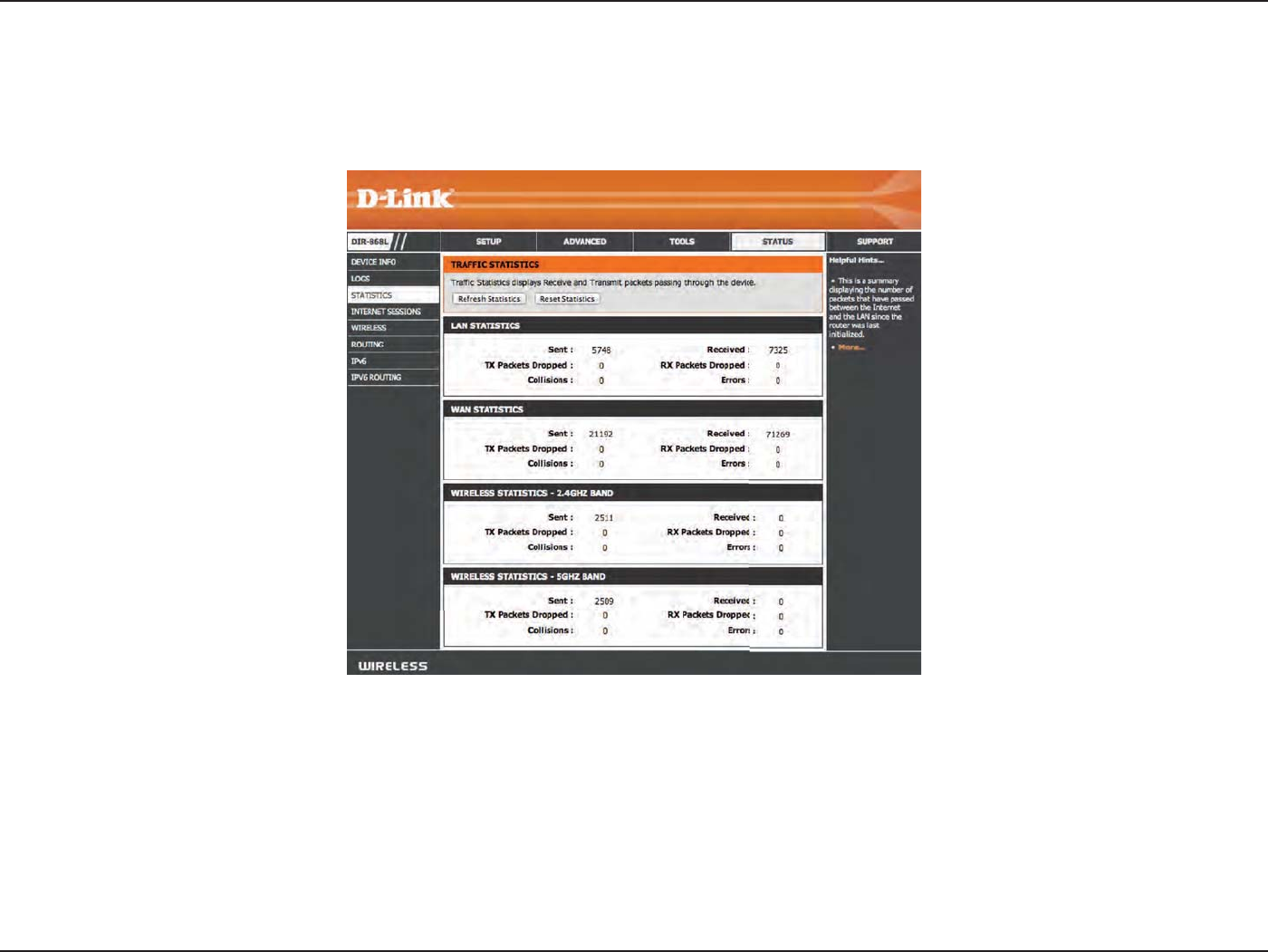

Statistics .............................................................................. 101
Internet Sessions .............................................................. 102

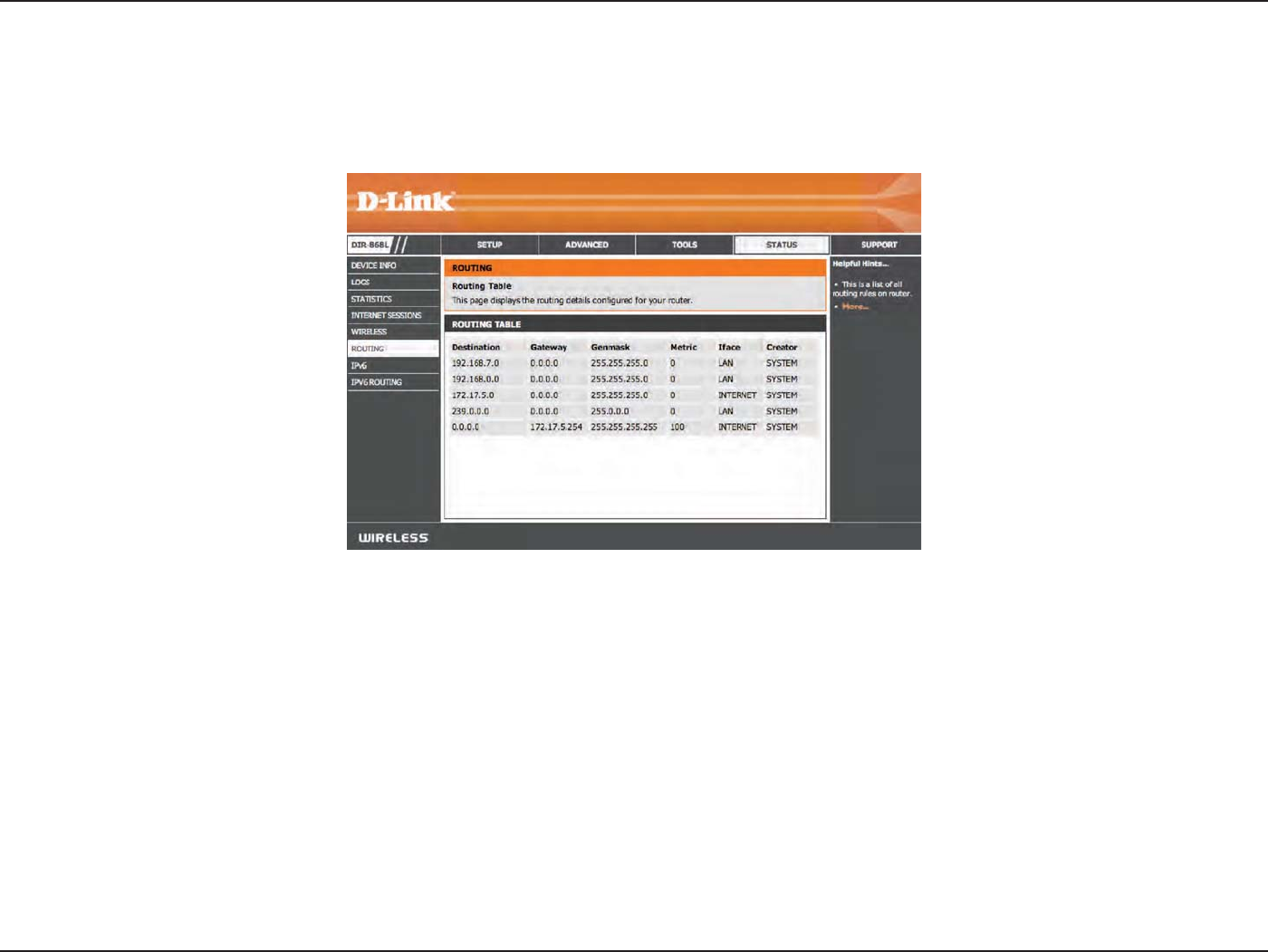

Routing ................................................................................ 103

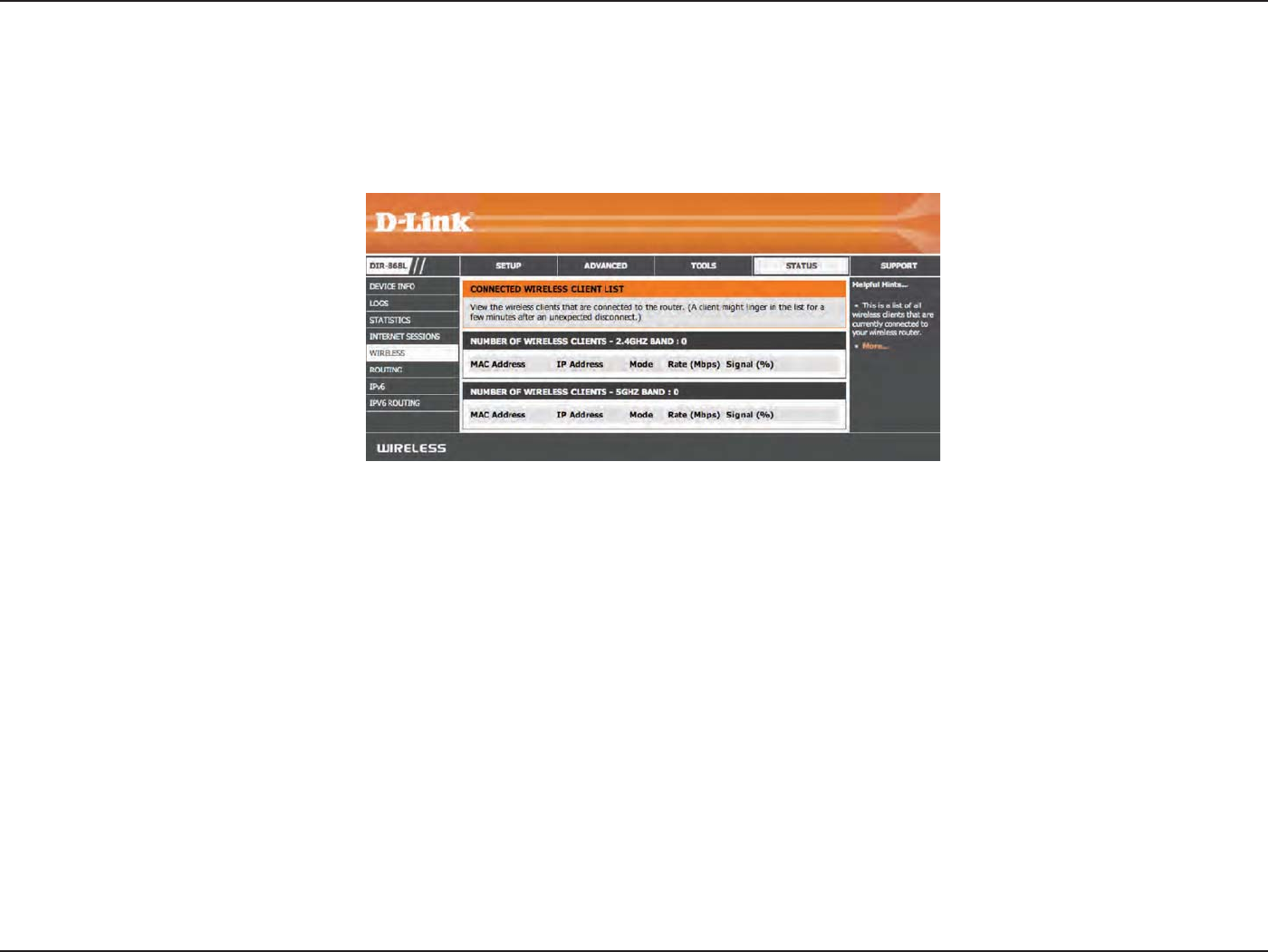

Wireless ............................................................................... 104

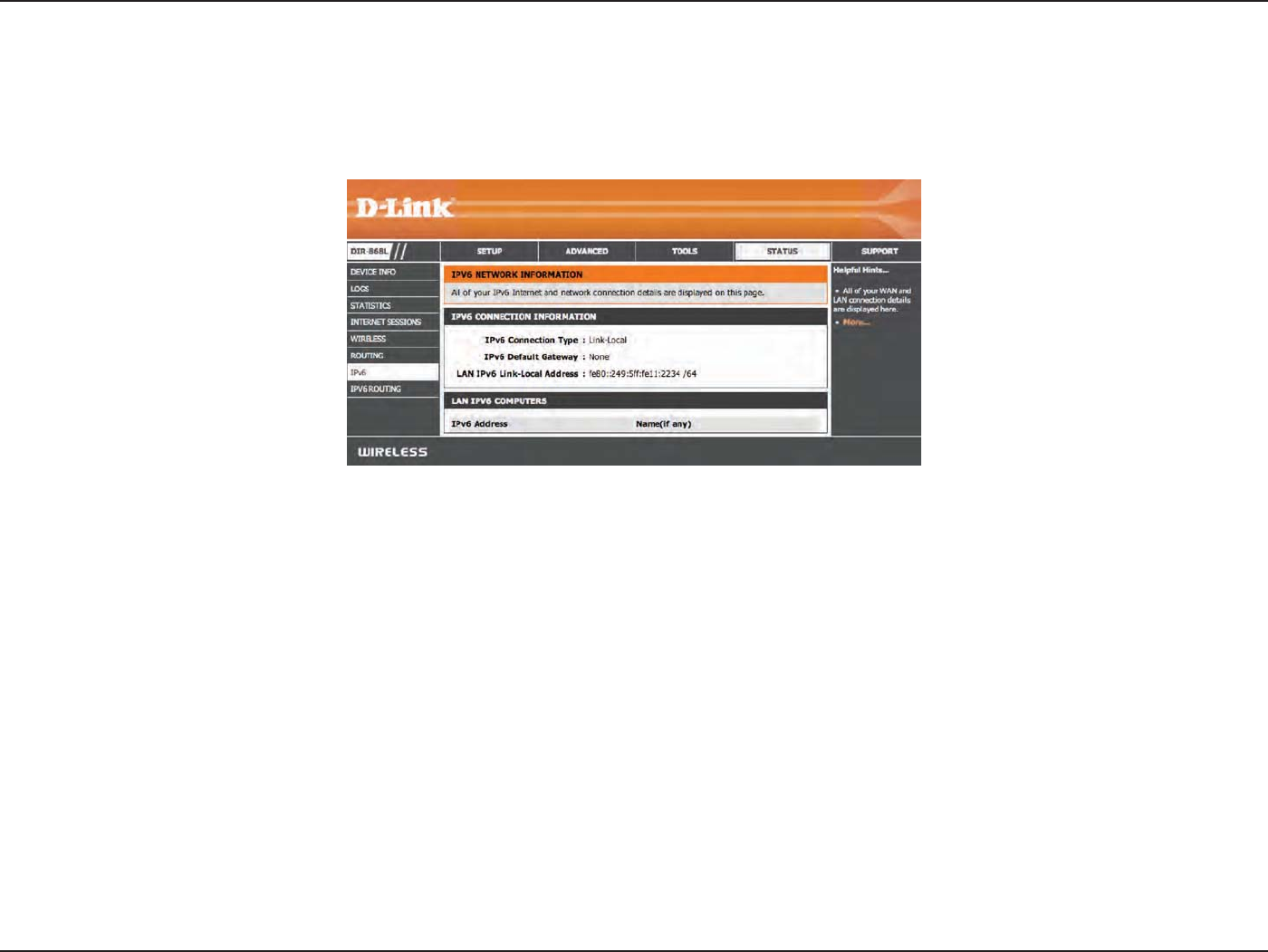

IPv6 ....................................................................................... 105

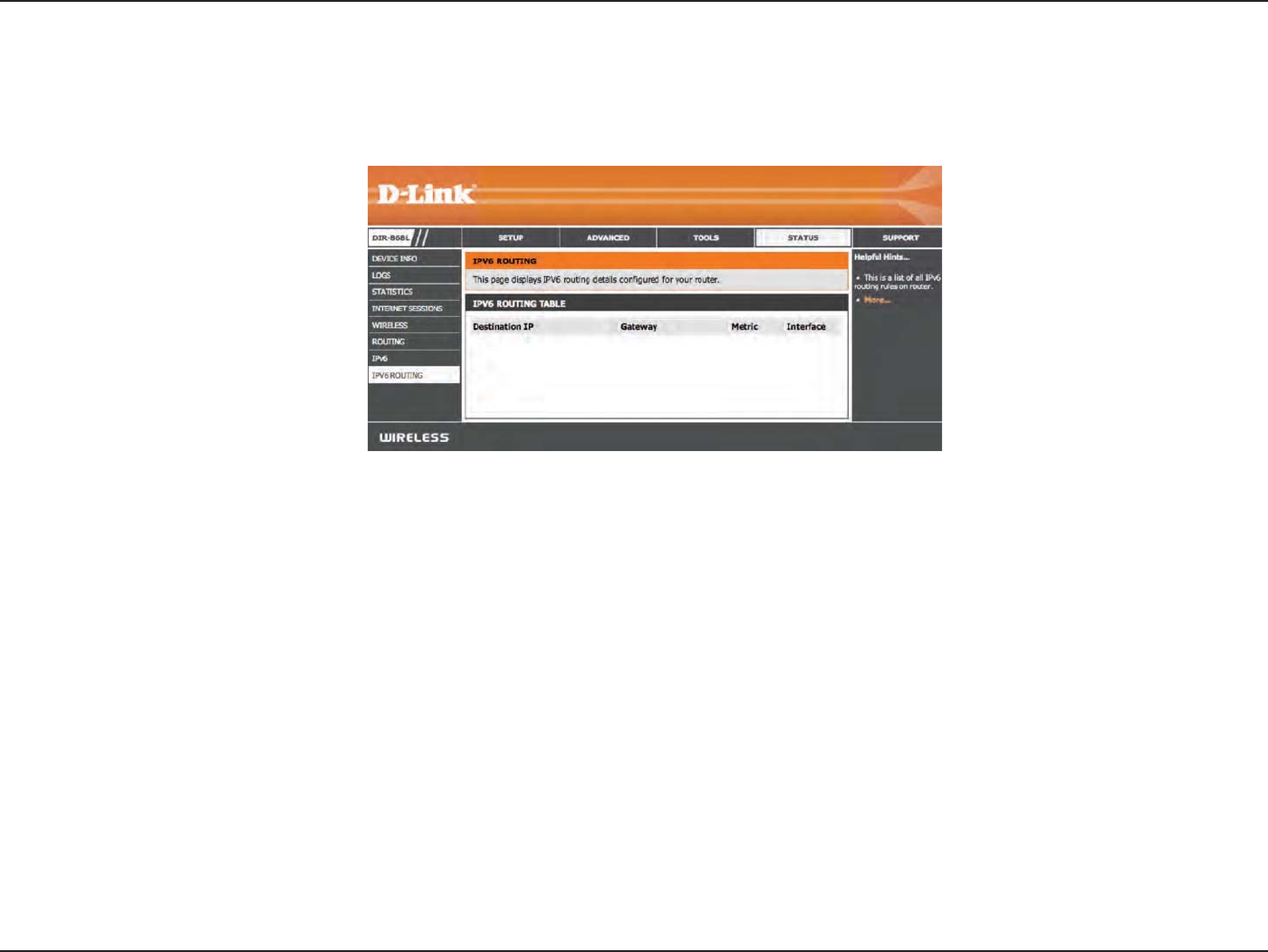

IPv6 Routing ...................................................................... 106

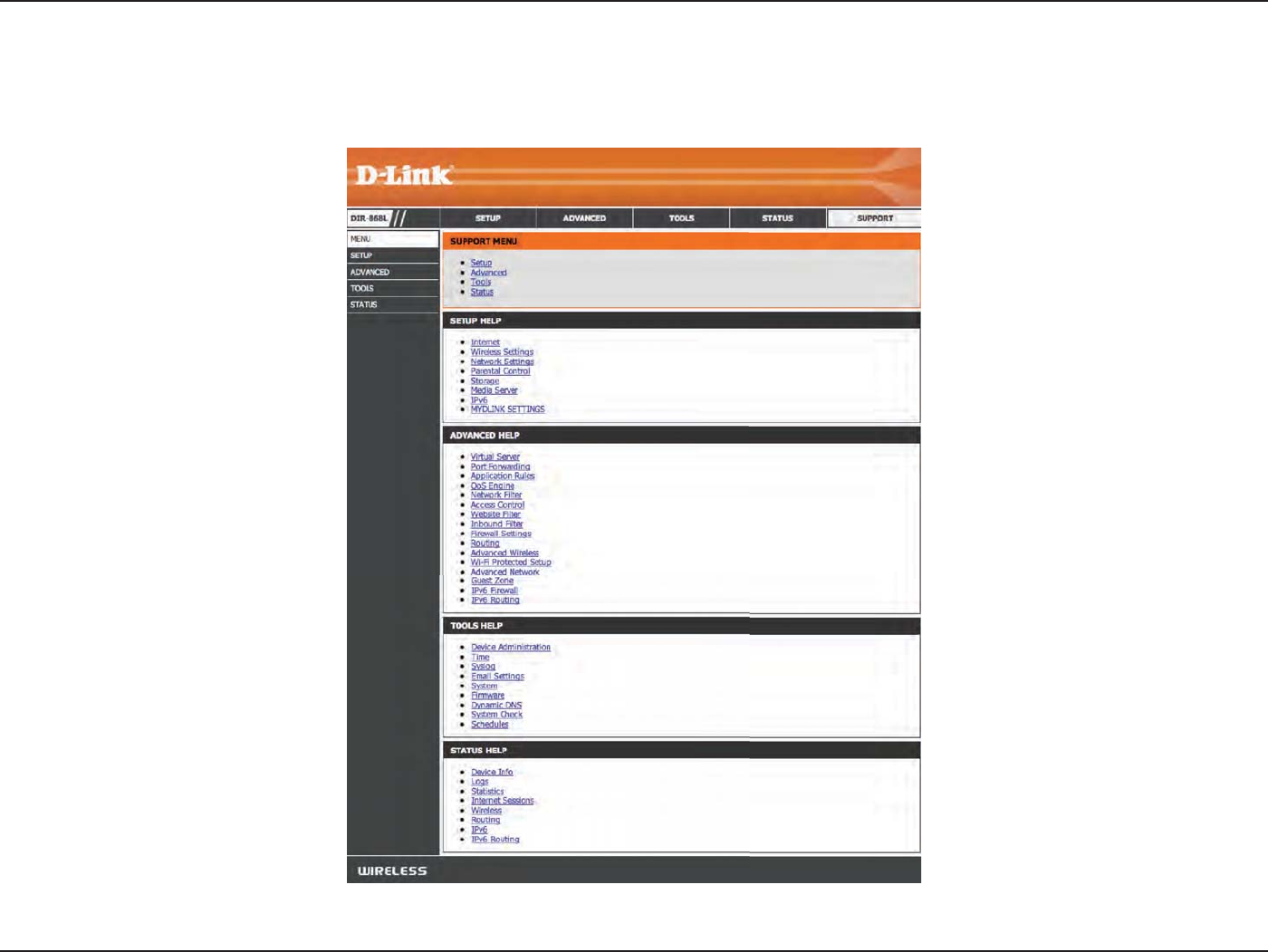

Support ....................................................................................... 107
Connect a Wireless Client to your Router ....................108
WPS Button ................................................................................ 108

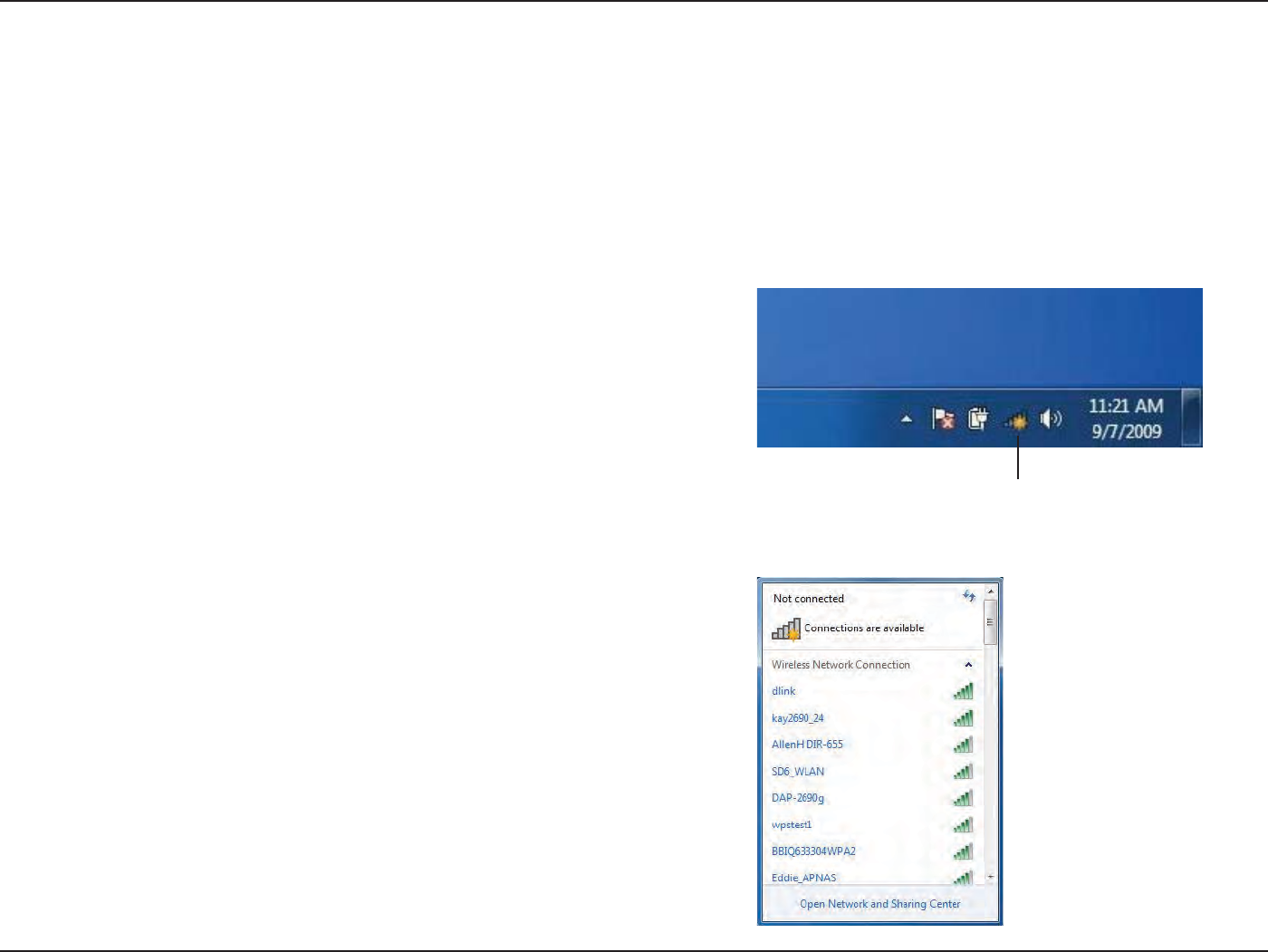

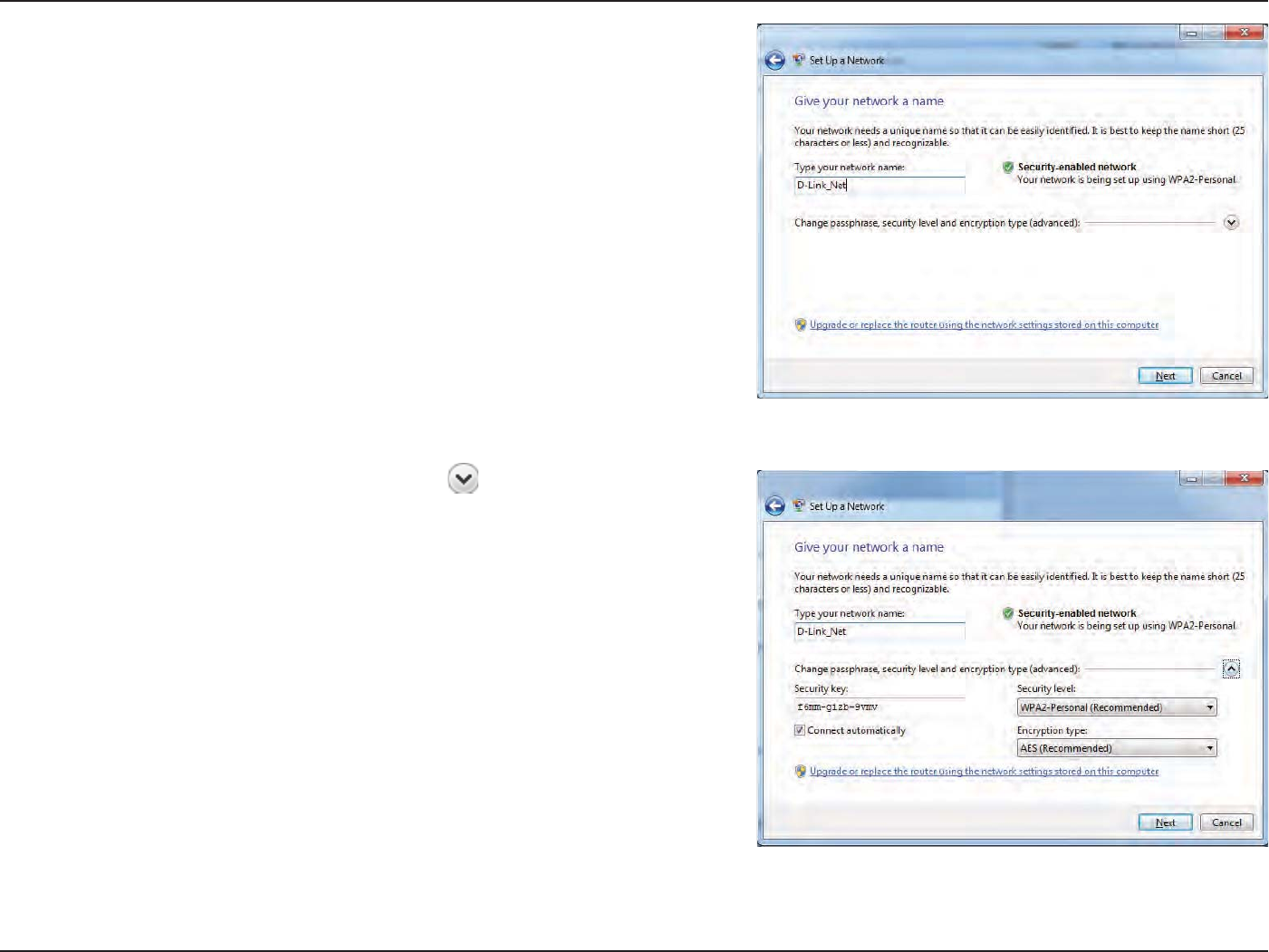

Windows® 7 ................................................................................ 109
WPA/WPA2 ......................................................................... 109
WPS ....................................................................................... 112
Windows Vista® ......................................................................... 116
WPA/WPA2 ......................................................................... 117
WPS/WCN 2.0 .................................................................... 119
Windows® XP ............................................................................. 120
WPA/WPA2 ......................................................................... 121
Troubleshooting ............................................................123
Wireless Basics ...............................................................127
What is Wireless? ...................................................................... 128
Tips ................................................................................................ 130
Wireless Modes ......................................................................... 131
Networking Basics .........................................................132
Check your IP address ............................................................ 132
Statically Assign an IP address ............................................ 133
Wireless Security ......................................................... 134
What is WPA? ................................................................ 134
Technical Specications ................................................135
D-Link %"1 User Manual
Section 1 - Product Overview
Product Overview

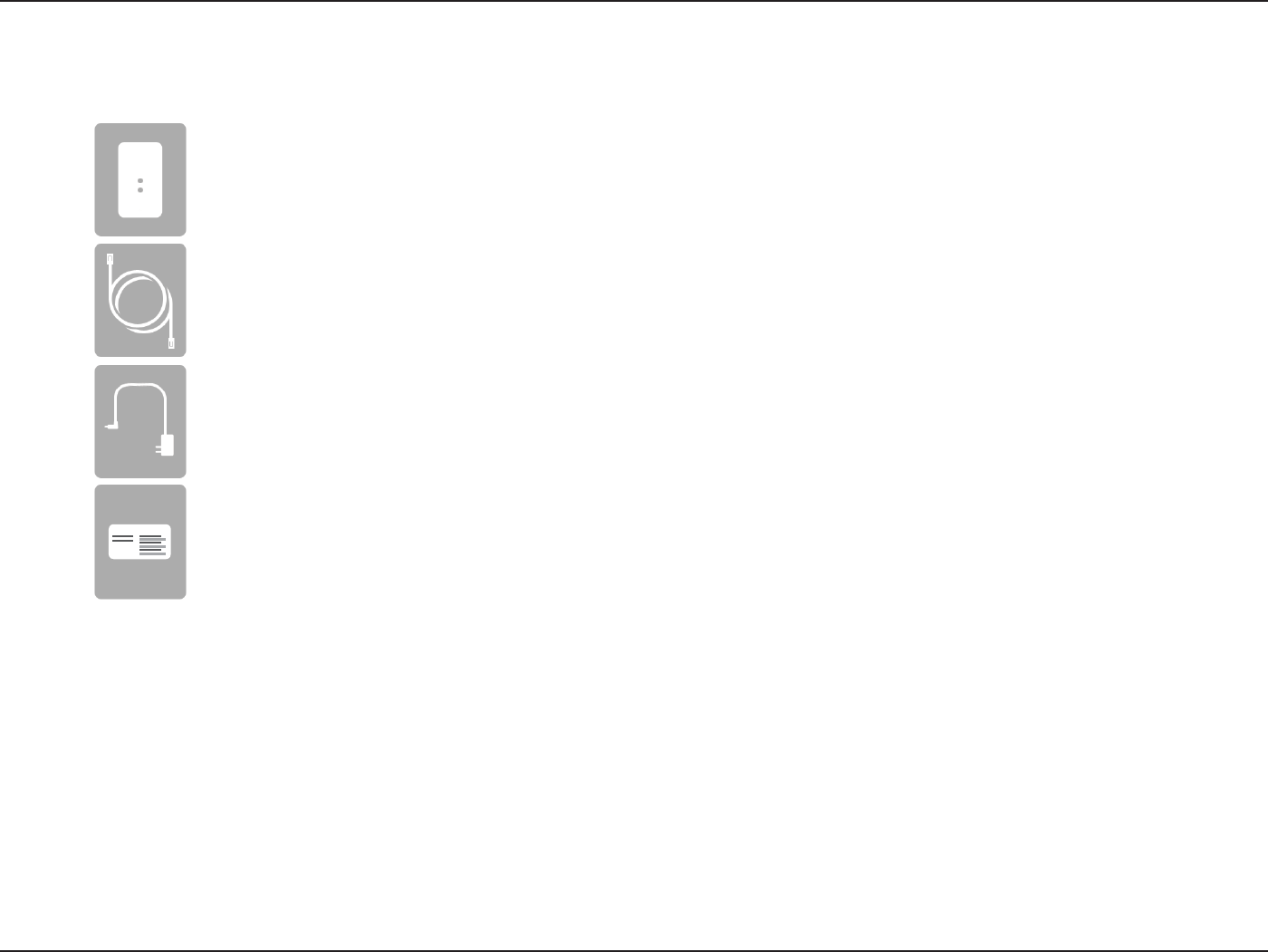

Package Contents
Note: Using a power supply with a different voltage rating than the one included with th%"1L will cause damage and void the
warranty for this product.
If any of the above items are missing, please contact your reseller.
%"1 "$8J'J3BOHF&YUFOEFS
Ethernet Cable
Power Adapter

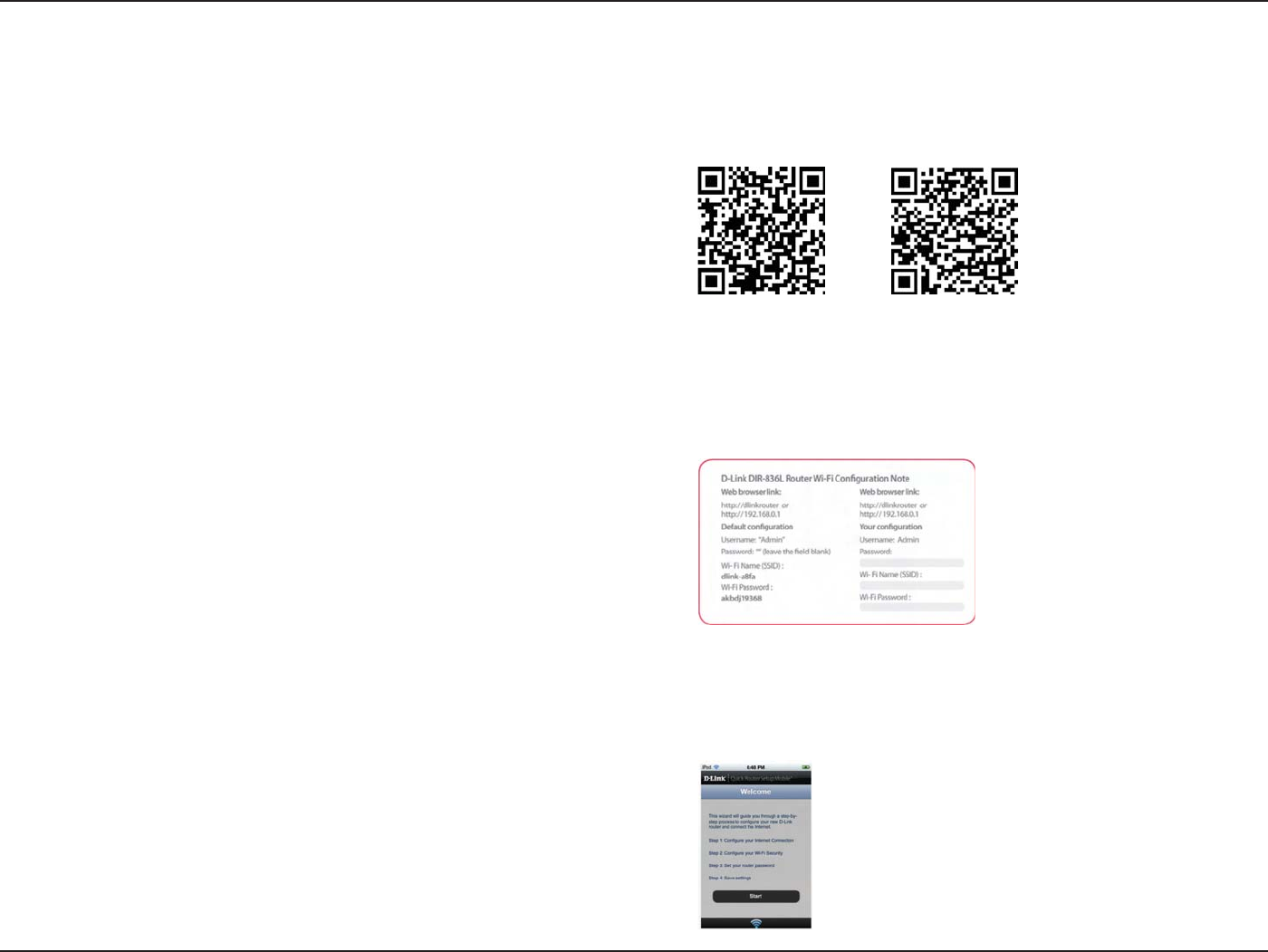

Wi-Fi Conguration Note
Wi-Fi Conguration Note
1
D-Link %"1 User Manual
Section 1 - Product Overview
Network Requirements • An Ethernet-based Cable or DSL modem
• 802.11ac (draft), n, g, b, or a wireless or Ethernet port
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 7 or higher
• Firefox 3.5 or higher
• Safari 4 or higher
• Chrome 8 or higher
Windows® Users: Make sure you have the latest version of Java
installed. Visit www.java.com to download the latest version.
mydlink Requirements
• iPhone/iPad/iPod Touch (iOS 3.0 or higher)
• Android device (1.6 or higher)
• Computer with the following browser requirements:
• Internet Explorer 7 or higher
• Firefox 3 or higher
• Safari 5 or higher
• Chrome 5 or higher
iPhone, iPad, and iPod touch are registered trademarks of Apple Inc. Android is a trademark of Google, Inc.
System Requirements
2
D-Link %"1 User Manual
Section 1 - Product Overview
Introduction
The D-Link Wireless AC1750 Dual-Band Gigabit Cloud Router USB 3.0 (%"1 comes equipped with four Gigabit ports to
provide speeds up to 10x faster than standard 10/100 ports. It also uses 802.11ac (draft) technology with multiple intelligent
antennas to maximize the speed and range of your wireless signal to signicantly outperform 802.11n devices. With the addition
of Intelligent Quality of Service (QoS), data streams are separated which helps organize and prioritize your network trac so
your video streaming, gaming, and VoIP calls run smoother over both your wired and wireless network.
The %"1 supports a host of cloud features inclouding QRS Mobile which allows you to setup and configure the
router using a mobile app. You can set up your router right from your sofa, no PC required.
The Wireless AC1750 Dual-Band Gigabit Cloud Router USB 3.0 is also mydlink-enabled, which gives you access to your home
network no matter where you go. Now you can monitor and manage your home network right from your laptop, iPhone®, iPad®,
or Android™ device. mydlink-enabled routers can be congured to send an email to keep you informed anywhere, anytime
when new devices are connecting to your network or unwanted access is detected. Monitor in real-time websites that are
being visited with recent browser history displayed on the mydlink™ Lite app – which is great for parents.

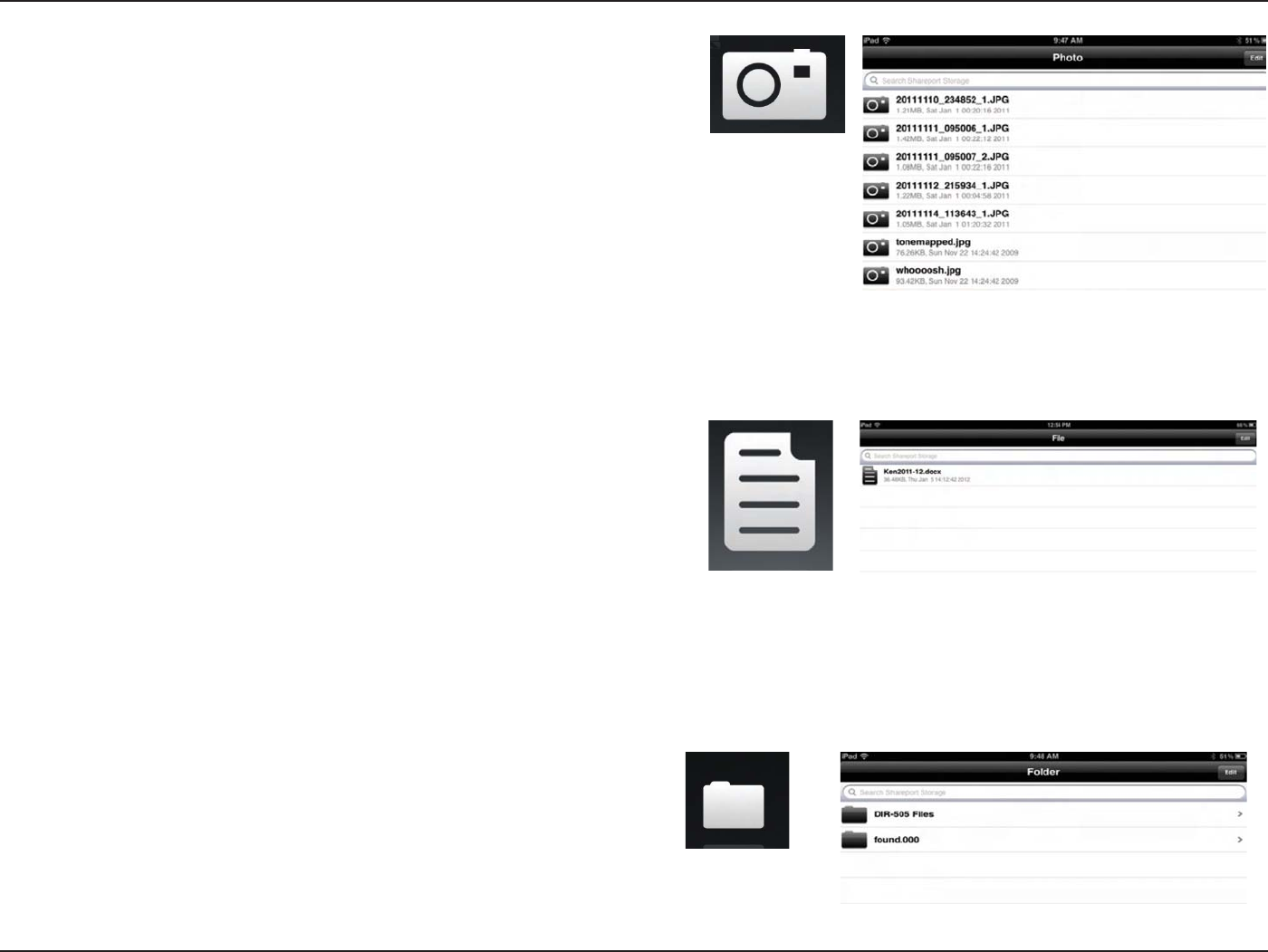

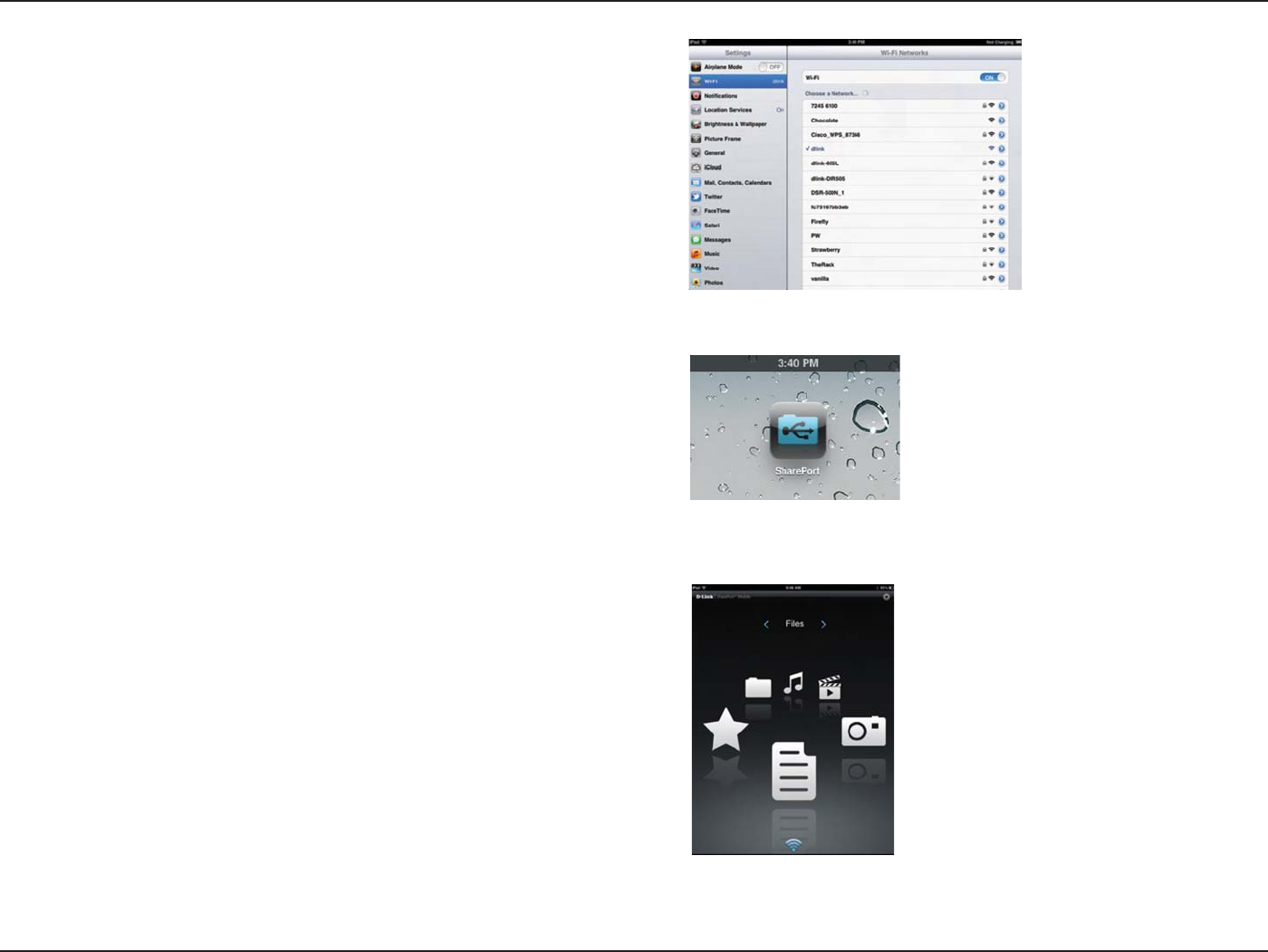

SharePort Mobile technology lets you take advantage of the USB 3.0 port found on the back of your %"1 Plug in a USB
storage drive and you can use the SharePort Mobile app for iOS and Android to access files, stream videos, view photos, or
listen to music on your laptop or mobile devices. Plug in a printer and you can use the SharePort Mobile Plus app to share
that printer with all of your devices.
The %"1 Wireless AC1750 Dual-Band Gigabit Cloud Router USB 3.0 provides incredible speeds, smart antenna
technology, fast ports, cloud features, and terrific security features. It also features an innovative design and easy
installation options.
3
D-Link %"1 User Manual
Section 1 - Product Overview
• Faster Wireless Networking - The %"1 can provide up to a full 1750Mbps* wireless connection with
concurrent 801.11ac and 802.11n wireless clients . It also operates on both the 2.4 GHz and 5 GHz bands to
allow separation of traffic so users can participate in high-bandwidth activities, such as video streaming,
onlinegaming, and real-time audio, without affecting low-priority traffic like email and web surfing.
• Cloud Features - The %"1 support the QRS Mobile app to setup the router using a mobile device. It is
alsomydlink-enabled so you can remotely access and mange your %"1 from a mobile device. SharePort
Mobilecan be used to share files, stream videos, view photos, and play music. SharePort Plus lets you share a
printer.
• Compatible with 802.11a/b/g/n Devices - The %"1 is still fully compatible with the 802.11n, IEEE
802.11gand 802.11a standards, so it can connect with existing 802.11n, 802.11g, 802.11b, and 802.11a wireless
devices.
• Advanced Firewall Features - The Web-based user interface displays a number of advanced network
management features including:
•Content Filtering - Easily applied content ltering based on MAC Address, URL, and/or Domain
Name.
•Filter Scheduling - These lters can be scheduled to be active on certain days or for a duration of
hours or minutes.
•Secure Multiple/Concurrent Sessions - The %"1 can pass through VPN sessions. It
supportsmultiple and concurrent IPSec and PPTP sessions, so users behind the %"1 can
securely accesscorporate networks.
• User-friendly Setup Wizard - Through its easy-to-use Web-based user interface, the %"1 lets you
controlwhat information is accessible to those on the wireless network, whether from the Internet or from
your company’sserver. Configure your router to your specific settings within minutes.
* Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11b, 802.11g, and 802.11n specications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental
conditions will adversely aect wireless signal range.
Features
4
D-Link %"1 User Manual
Section 1 - Product Overview

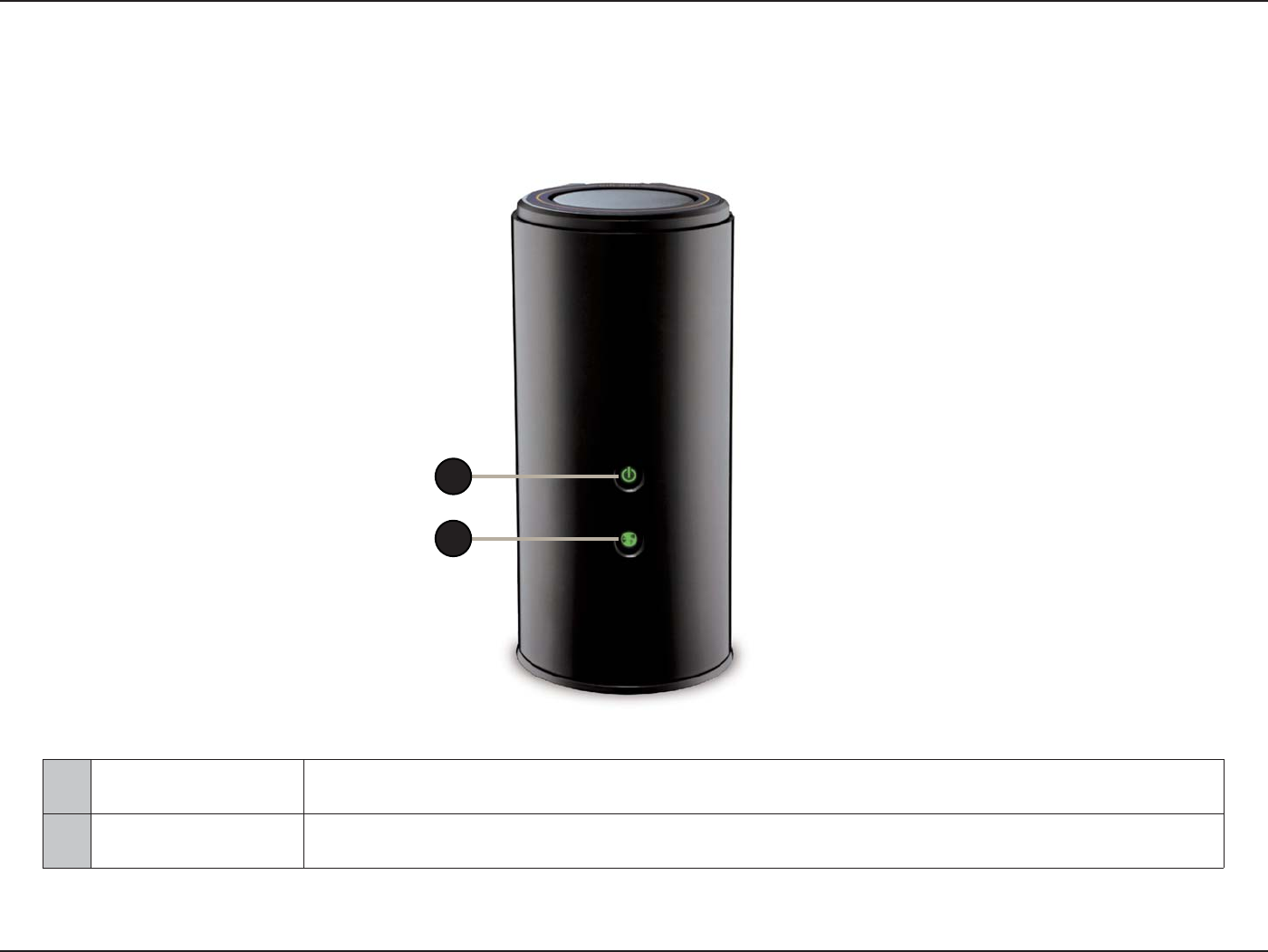

Hardware Overview
LEDs
1Power LED A solid green light indicates a proper connection to the power supply. The light will blink green during
the WPS process. The light will be a solid orange during boot up.
2Internet LED A solid light indicates connection on the Internet port. If the LED is orange, the connection is good but
the router cannot connect to the Internet.
1
2
5
D-Link %"1 User Manual
Section 2 - Installation
Before you Begin
Installation
This section will walk you through the installation process. Placement of the router is very important. Do not place the router
in an enclosed area such as a closet, cabinet, or in the attic or garage.
• Please congure the router with the computer that was last connected directly to your modem.
• You can only use the Ethernet port on your modem. If you were using the USB connection before using the router,
then you must turn o your modem, disconnect the USB cable and connect an Ethernet cable to the Internet port
on the router, and then turn the modem back on. In some cases, you may need to call your ISP to change connection
types (USB to Ethernet).
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such as WinPoet,
Broadjump, or Enternet 300 from your computer or you will not be able to connect to the Internet.
6
D-Link %"1 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the
operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings,
or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types
of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to
follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum -
each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that
the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle
appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position
devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range.
Try to position access points, wireless routers, and computers so that the signal passes through drywall or open
doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le
cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security
systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone
base is as far away from your wireless devices as possible. The base transmits a signal even if the phone in not
in use.
7
D-Link %"1 User Manual
Section 2 - Installation
There are several dierent ways you can congure your router to connect to the Internet and connect to your clients:
•D-Link Setup Wizard - This wizard will launch when you log into the router for the rst time. Refer to page 12.
•QRS Mobile App - Use your iPhone, iPad, or iPod Touch to congure your router. Refer to page 19.
•Manual Setup - Log into the router and manually congure your router (advanced users only). Refer to pagepage 26.
Conguration
8
D-Link %"1 User Manual
Section 3 - Conguration

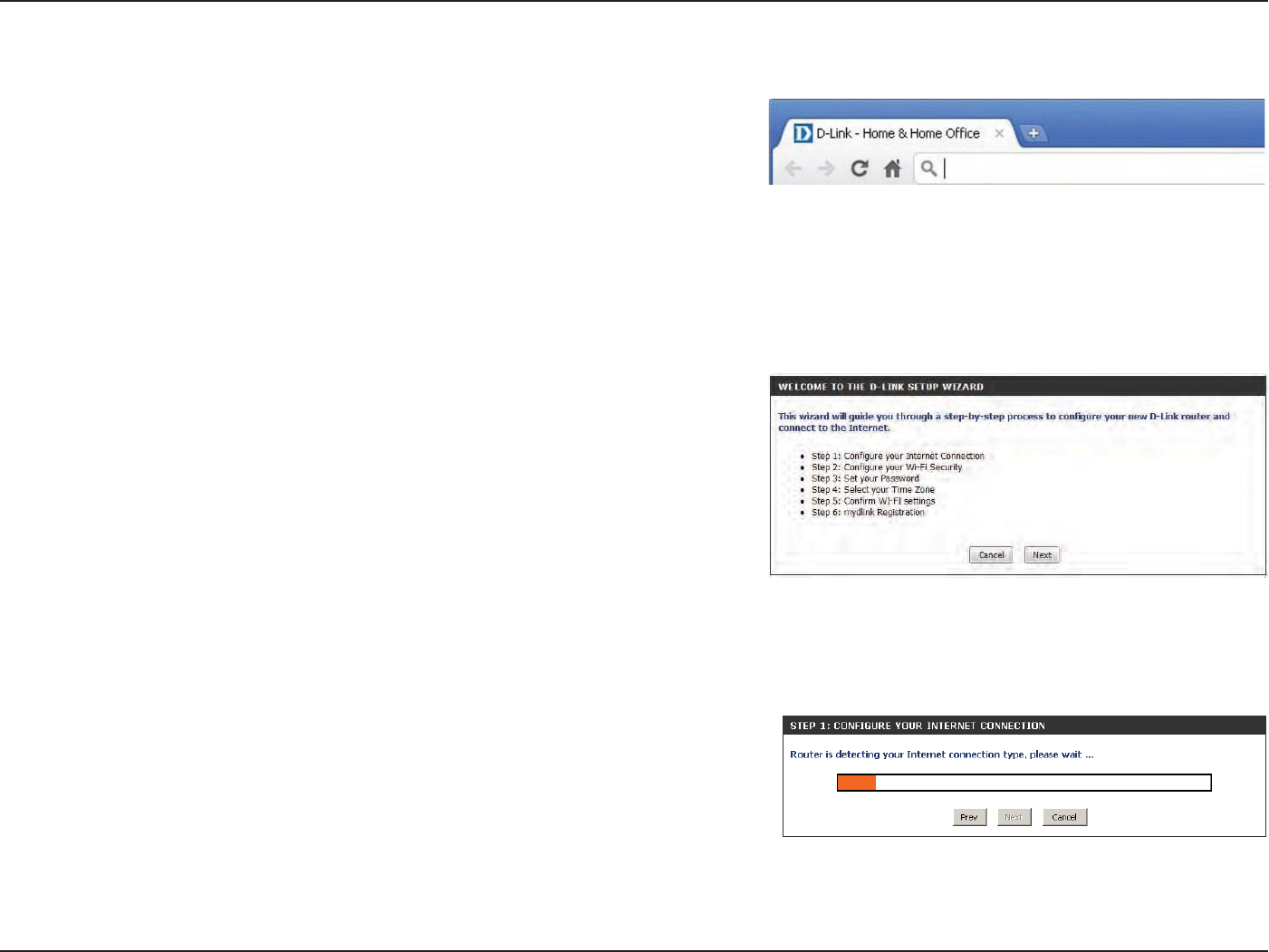

This wizard is designed to guide you through a step-by-step
process to congure your new D-Link router and connect to the
Internet.
Click Next to continue.
D-Link Quick Setup Wizard
If this is your rst time installing the router, open your web browser. You
will automatically be directed to the Wizard Setup Screen.
If the wizard does not open automatically, you can alternately reach
the configuration utility by entering the IP address of the router
(http://192.168.0.1). Please refer to page 24.
Please wait while your router detects your internet connection type.
If the router detects your Internet connection, you may need to enter
your ISP information such as username and password.
9
D-Link %"1 User Manual
Section 3 - Conguration

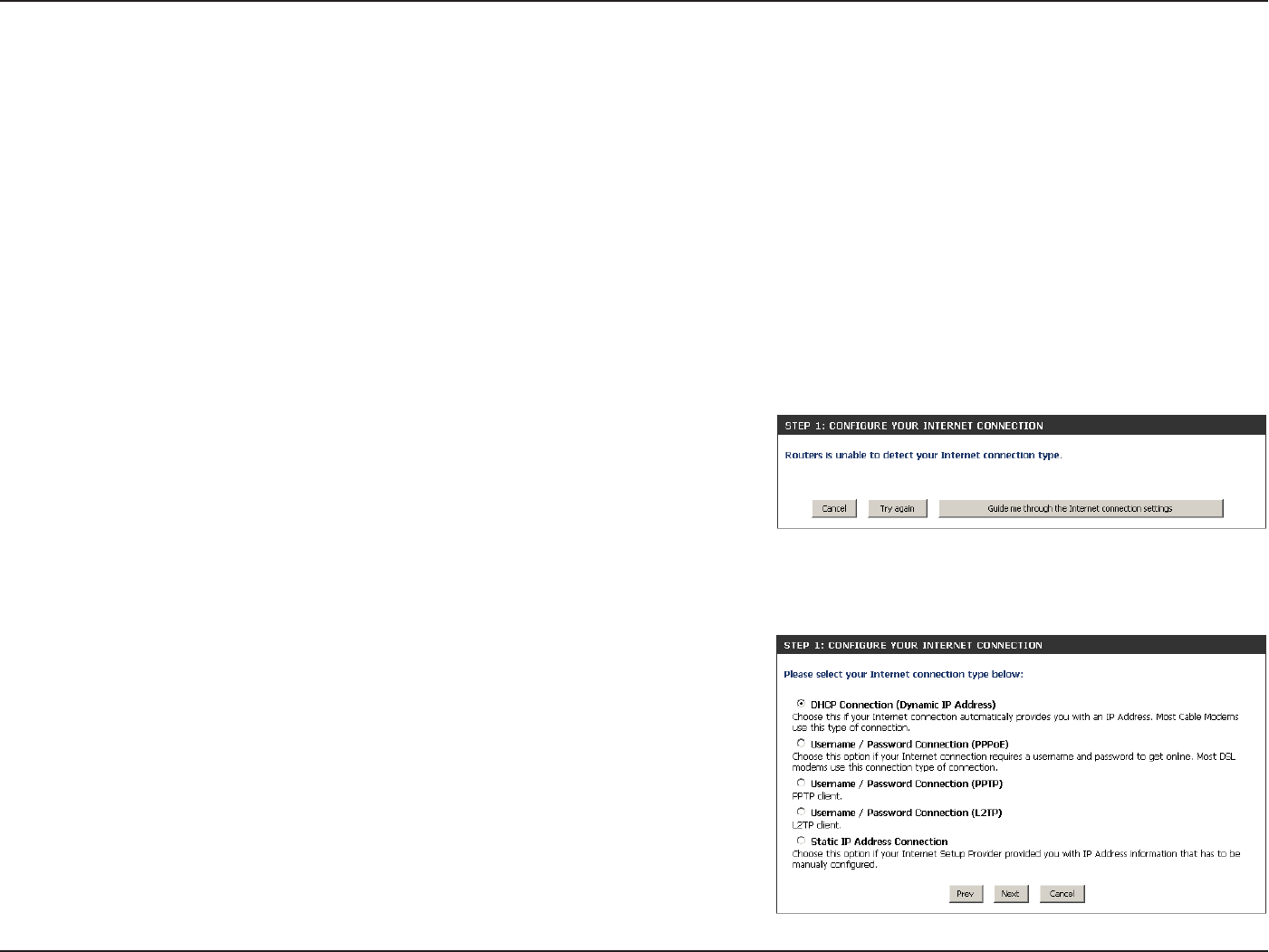

If the router does not detect a valid Ethernet connection from the
Internet port, this screen will appear. Connect your broadband modem
to the Internet port and then click Try Again.
If the router detects an Ethernet connection but does not detect the type
of Internet connection you have, this screen will appear. Click Guide me
through the Internet Connection Settings to display a list of connection
types to choose from.
Select your Internet connection type and click Next to continue.
10
D-Link %"1 User Manual
Section 3 - Conguration

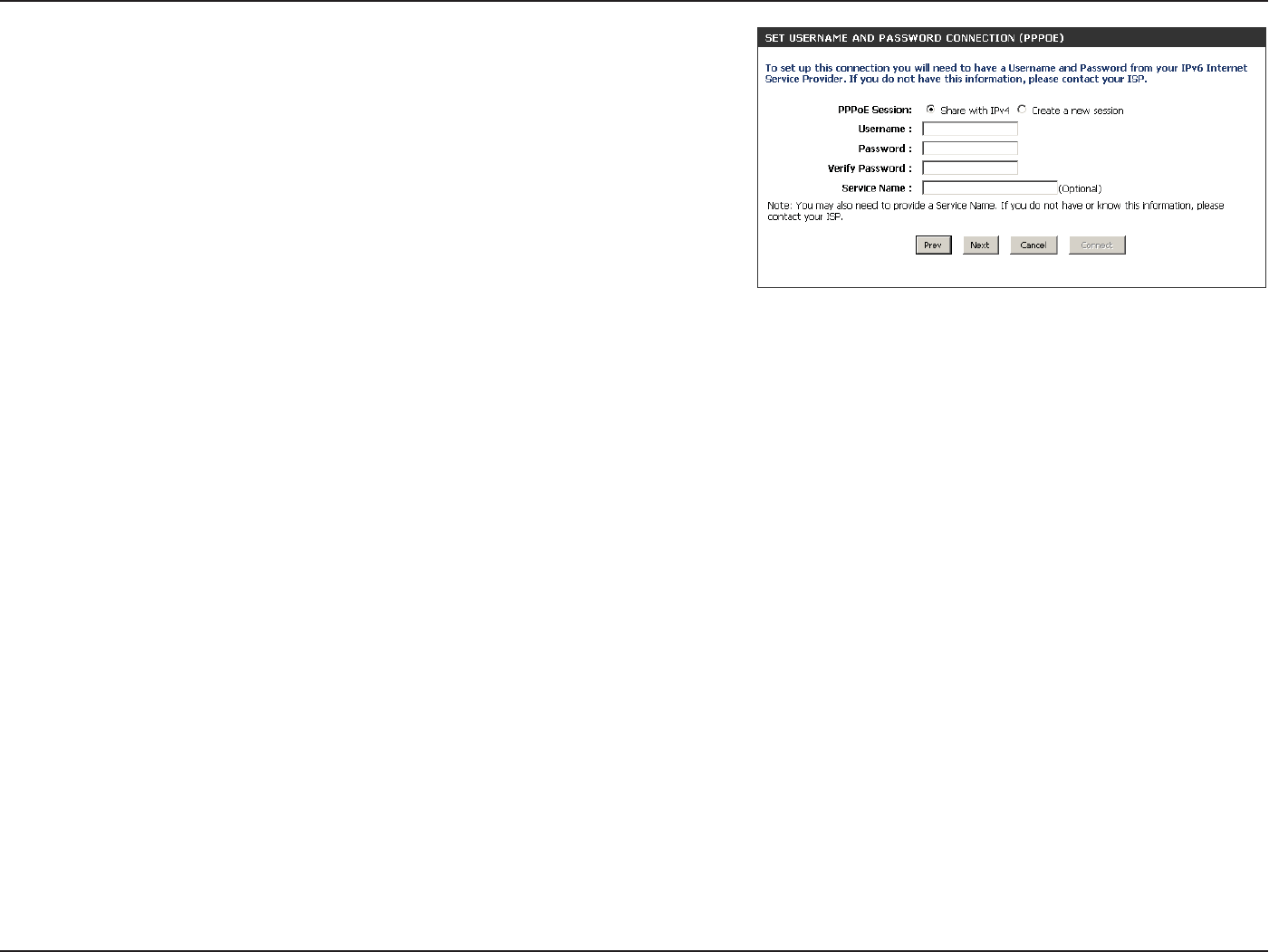

If the router detected or you selected PPPoE, enter your PPPoE username
and password and click Next to continue.
Note: Make sure to remove your PPPoE software from your computer. The
software is no longer needed and will not work through a router.

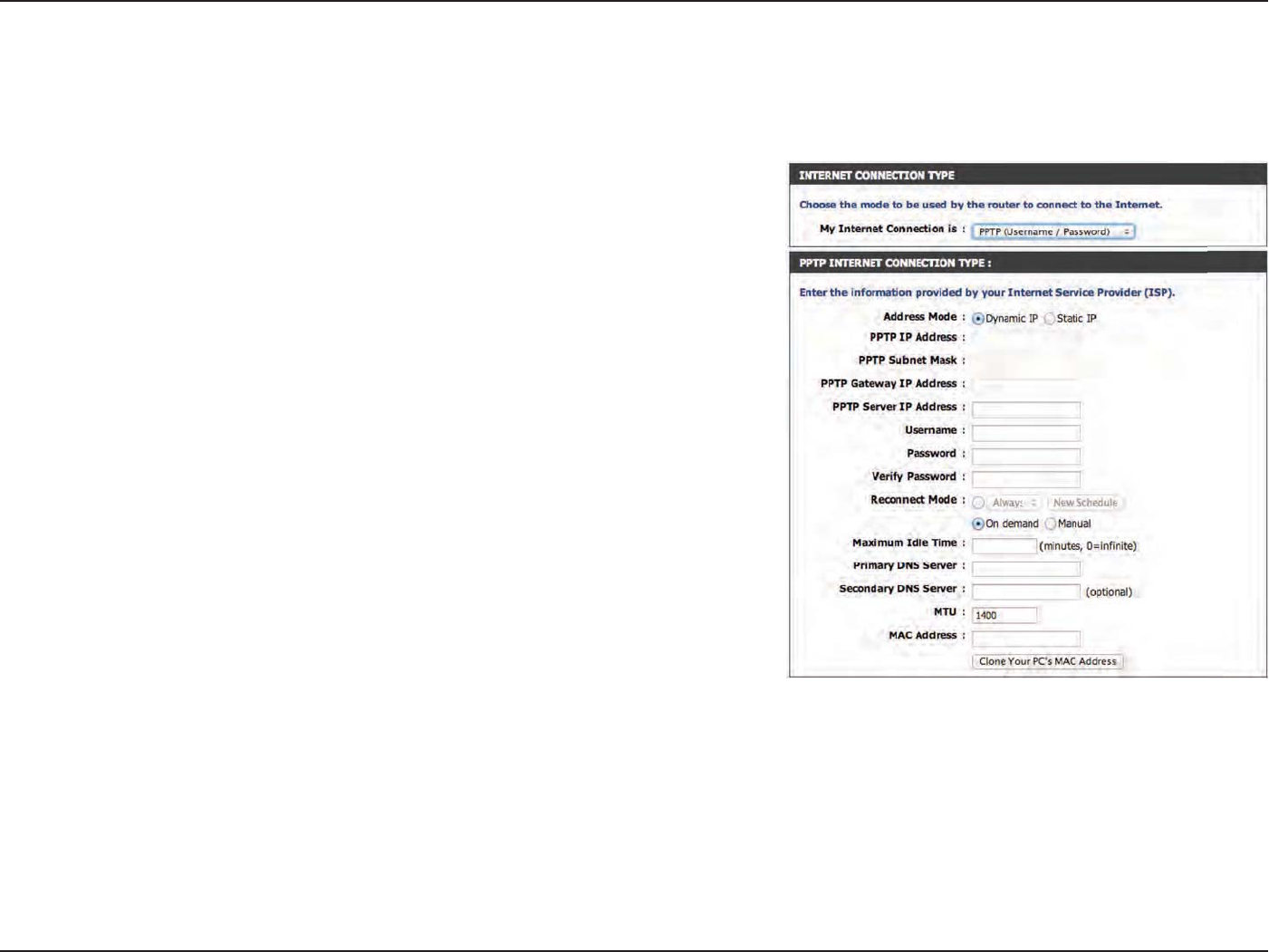

If the router detected or you selected PPTP, enter your PPTP username,
password, and other information supplied by your ISP. Click Next to
continue.
If the router detected or you selected L2TP, enter your L2TP username,
password, and other information supplied by your ISP. Click Next to
continue.
11
D-Link %"1 User Manual
Section 3 - Conguration
If the router detected or you selected Static, enter the IP and DNS
settings supplied by your ISP. Click Next to continue.

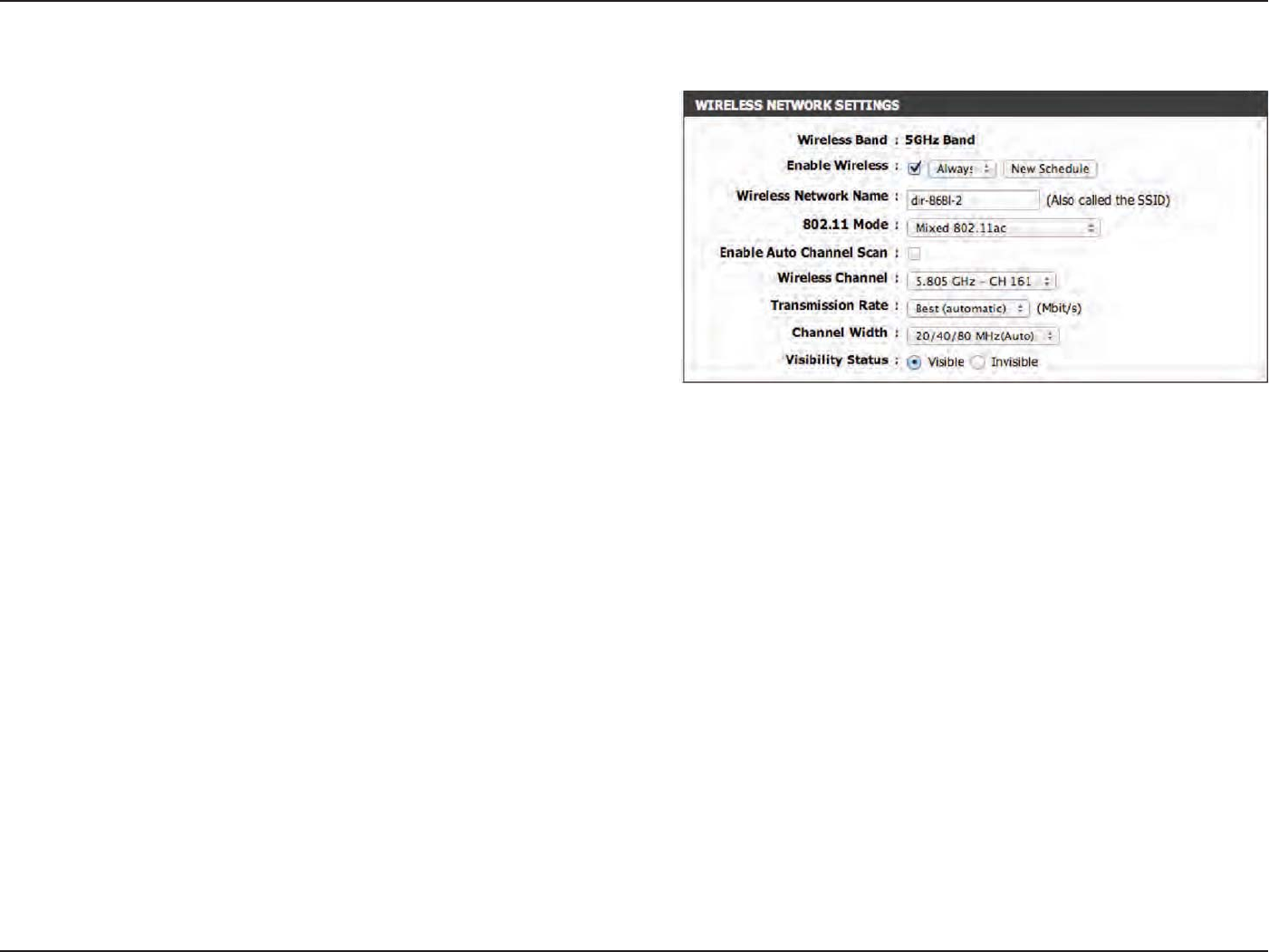

For both the 2.4GHz and 5GHz segments, create a Wi-Fi network name
(SSID) using up to 32 characters.

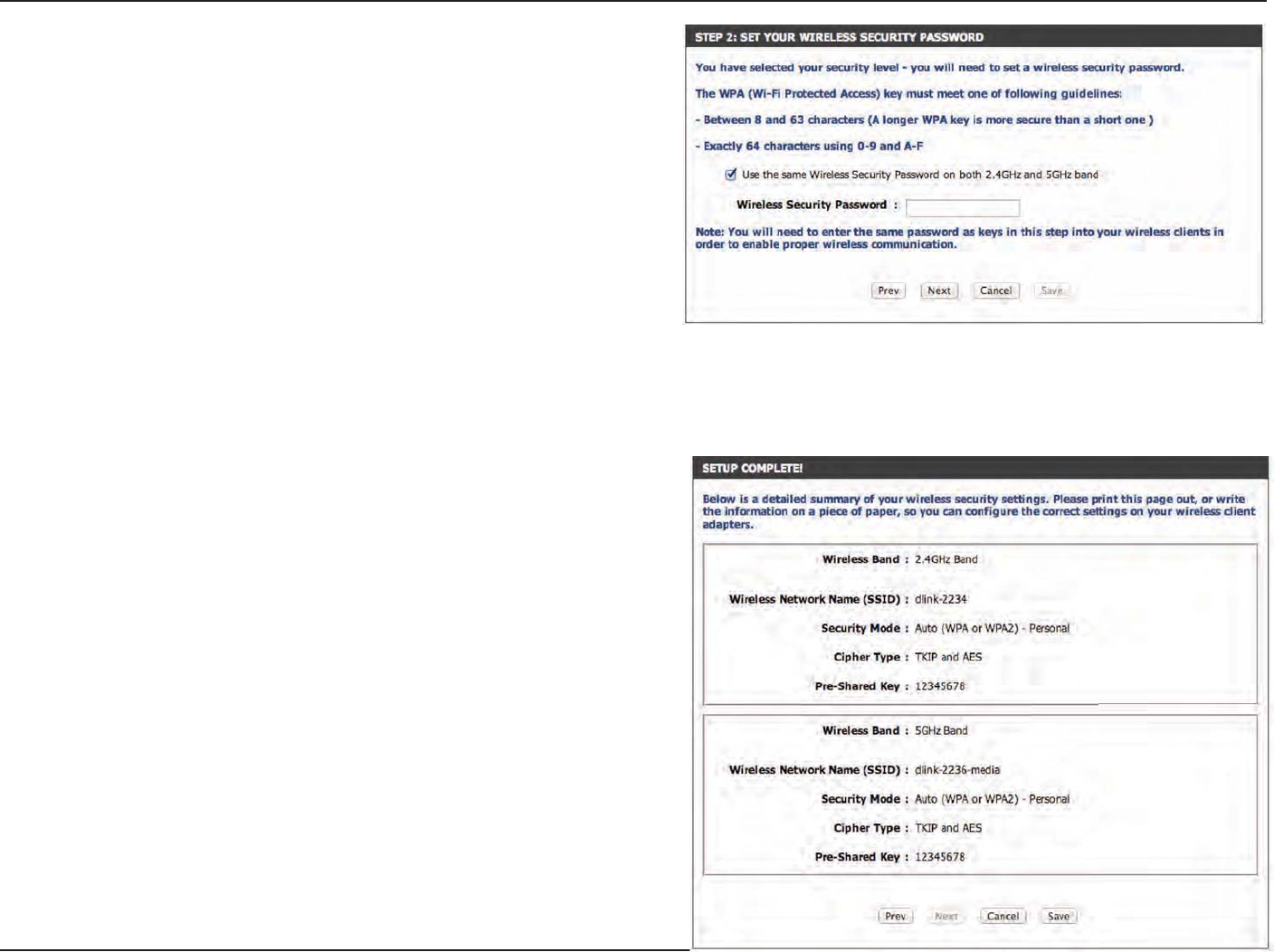

Create a Wi-Fi password (between 8-63 characters). Your wireless clients
will need to have this passphrase or key entered to be able to connect
to your wireless network.
Click Next to continue.

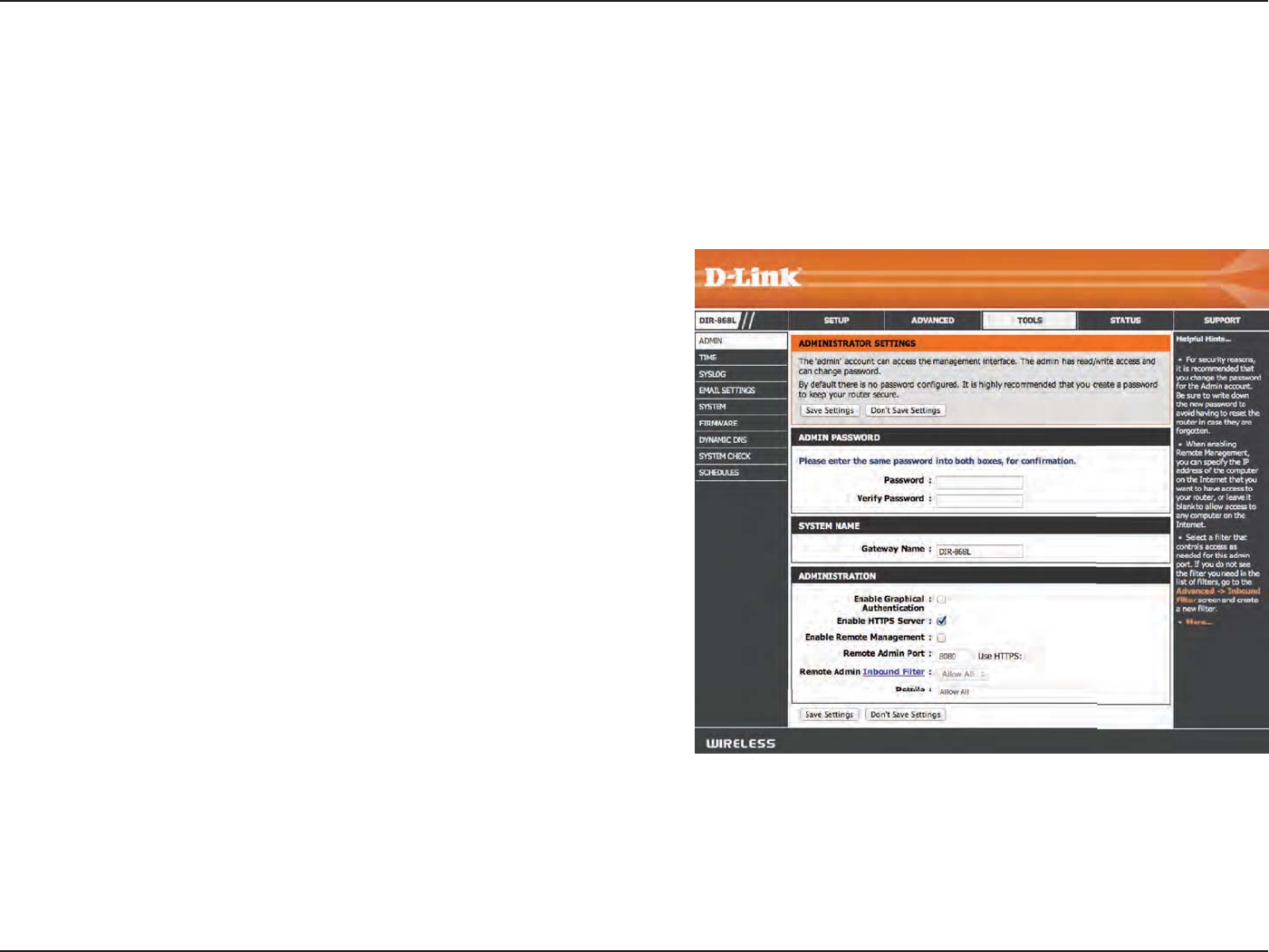

In order to secure your router, please enter a new password. Check the
Enable Graphical Authentication box to enable CAPTCHA authentication
for added security. Click Next to continue.
12
D-Link %"1 User Manual
Section 3 - Conguration

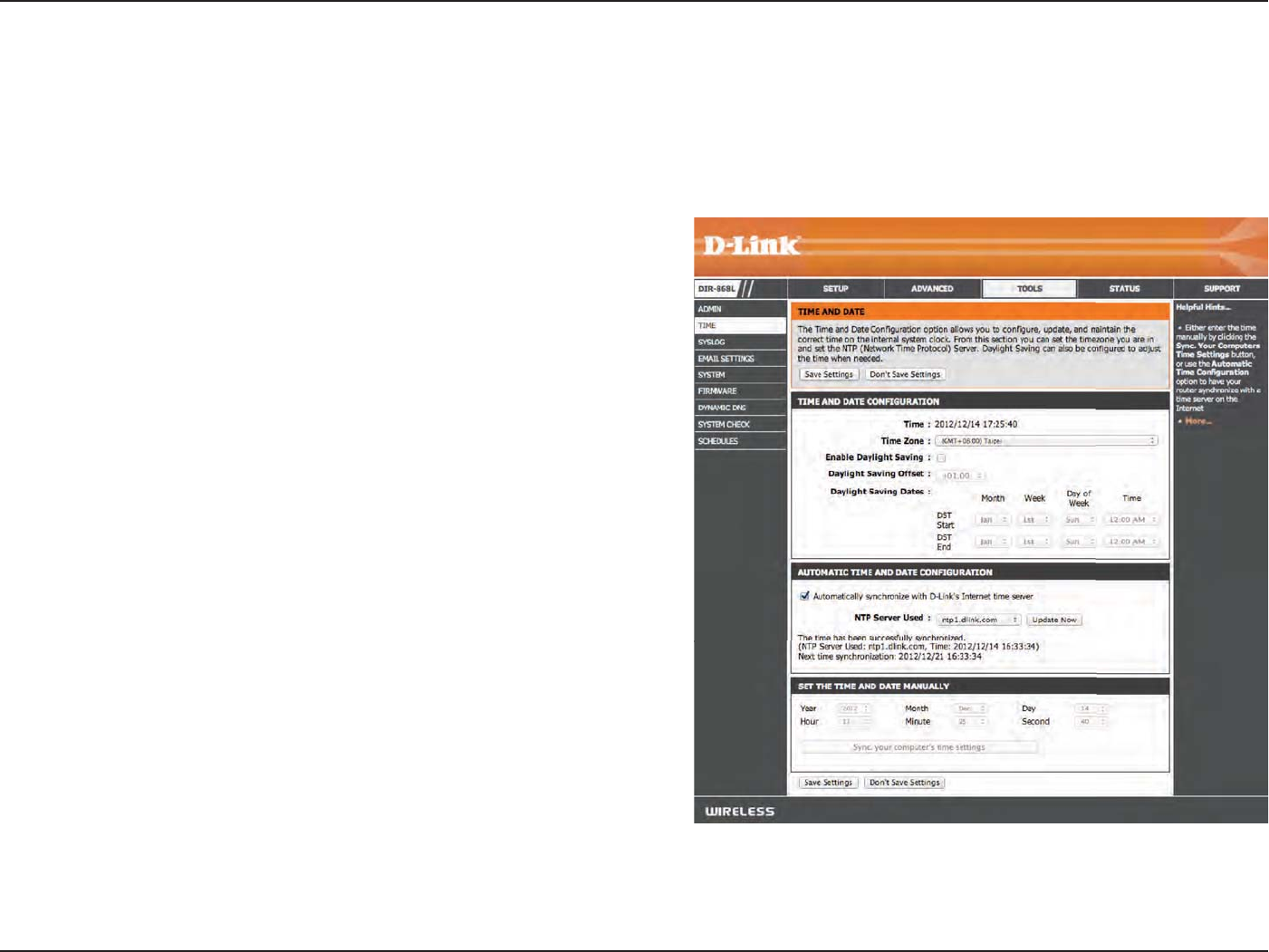

Select your time zone from the drop-down menu and click Next to
continue.

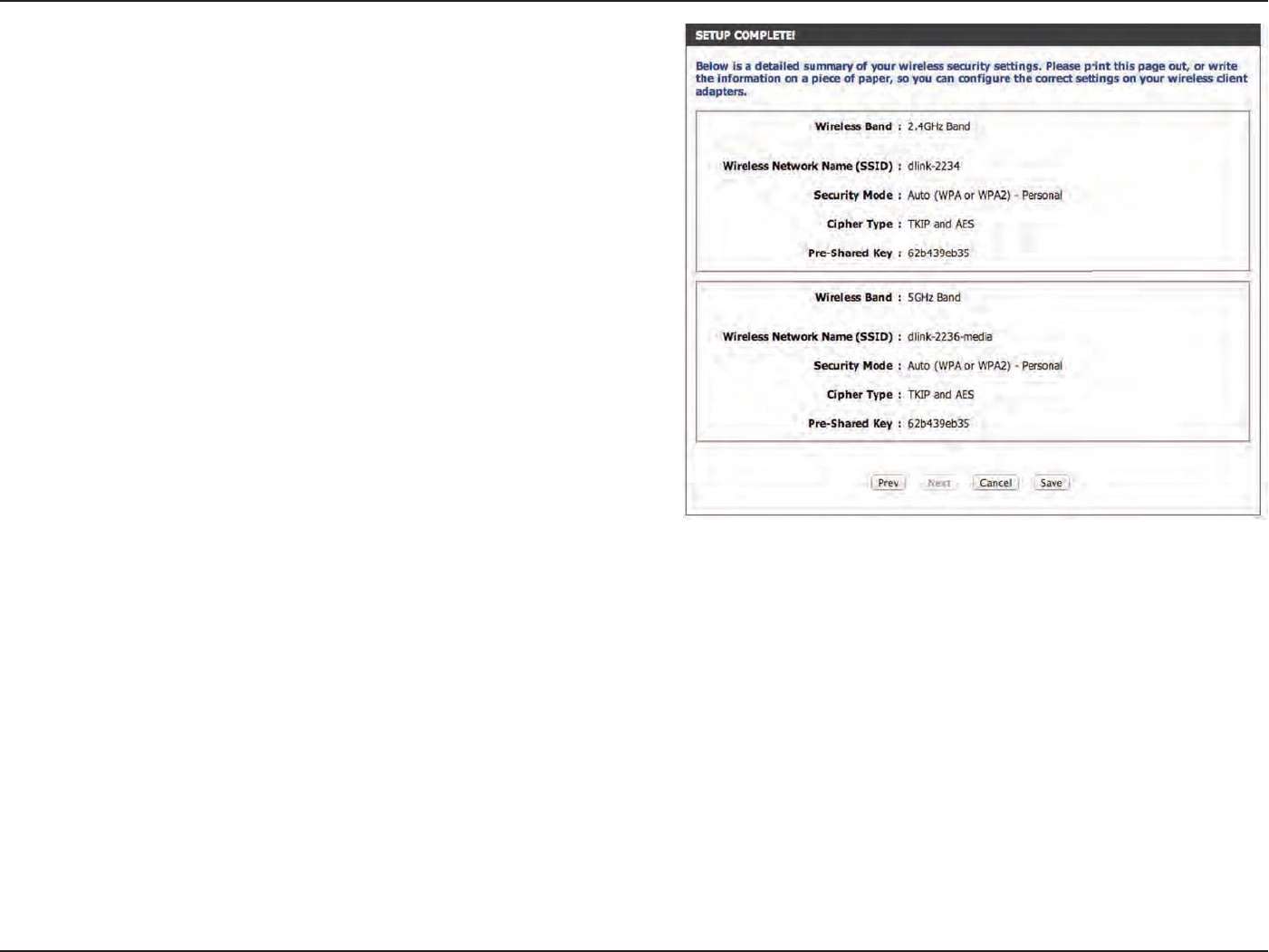

The Setup Complete window will display your Wi-Fi settings. Click Save
and Connect to continue.
If you want to create a bookmark to the router, click OK. Click Cancel if
you do not want to create a bookmark.
If you clicked Yes, a window may appear (depending on what web
browser you are using) to create a bookmark.
13
D-Link %"1 User Manual
Section 3 - Conguration
To use the mydlink service (mydlink.com or the mydlink Lite app), you
must have an account. Select if you do have a mydlink account or if you
need to create one. Click Next to continue.
If you do not want to register at this time, click Cancel.
If you clicked Yes, enter your mydlink account name (email address) and
password. Click Login to register your router.
If you clicked No, ll out the requested information and click Next to
create your mydlink account.
14
D-Link %"1 User Manual
Section 3 - Conguration

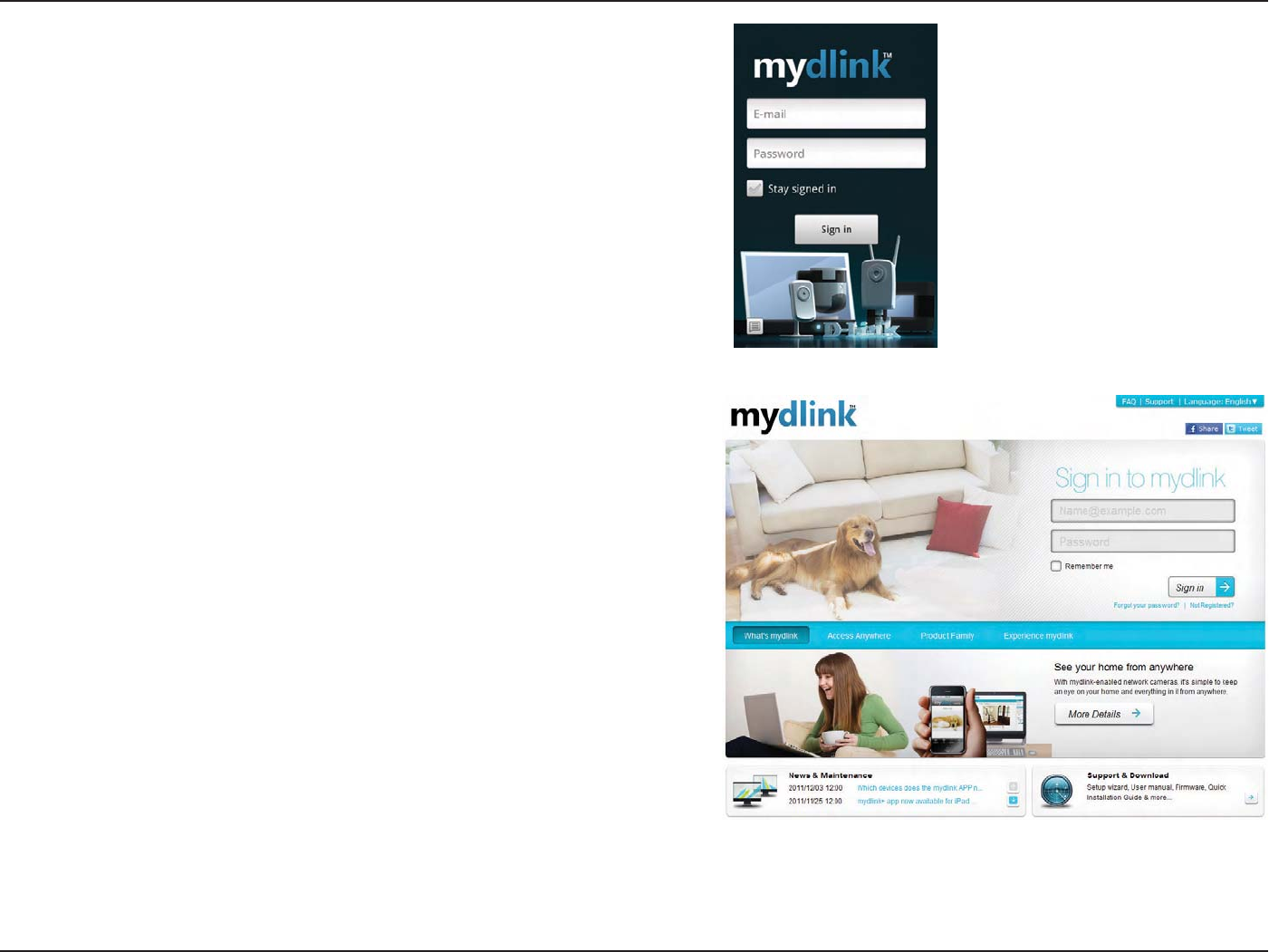

The mydlink App will allow you to receive notices, browse network
users, and congure your router from an iPhone/iPad/iPod Touch
(iOS 3.0 or higher), Android device (1.6 or higher).
To download the "mydlink lite" app, visit the Apple Store, Android
Market or http://mydlink.com/Lite.
PC and Mac users can use the mydlink portal at http://mydlink.com.
15
D-Link %"1 User Manual
Section 3 - Conguration
QRS Mobile App (iOS, Android)
D-Link oers an app for your iOS or Android device to install and congure your router.
Step 1
From an iOS device, go to the iTunes Store. From an Android
device go to Google Play. Search for ‘D-Link’, select QRS Mobile,
and download the app to your device. You may also scan the
appropriate code on the right to locate the app download page.
Step 2
Once your app is installed, you may now congure your router.
Connect to the router wirelessly by going to your wireless utility
on your device. Scan for the Wi-Fi name (SSID) as listed on the
supplied info card. Select and then enter your Wi-Fi password.
Step 3
Once you connect to the router, launch the QRS mobile app and
it will guide you through the installation of your router.
iOS Android
16
D-Link %"1 User Manual
Section 3 - Conguration
2. Use your iOS or Android mobile device to scan the QR code
to the right to download the SharePort Mobile app.
You can also search for the SharePort Mobile app directly in
the iOS App Store or Google Play.
SharePort Mobile App (iOS, Android)
3. From your iOS or Android mobile device, choose Settings.
Note: These steps are for the iOS version of the
app. The Android version may dier slightly. Settings
iOS Android
1. Plug your USB storage drive into the USB port.
Note: The %"1 supports hard drives with up
toone terabyte of storage capacity.
The SharePort Mobile app will allow you to access les from a USB storage drive that is plugged into your router. You must enable le sharing from
the Setup > Storage page (refer to page 22) for this app to work properly.
17
D-Link %"1 User Manual
Section 3 - Conguration
4. Click Wi-Fi, select the Wi-Fi Network Name (SSID) that you created during
setup and then enter the default Wi-Fi password located on your Wi-Fi
conguration note.
6. The following screen will appear.
5. Once connected, tap on the SharePort Mobile icon.
18
D-Link %"1 User Manual
Section 3 - Conguration
7. Tap on the Settings icon located on the right top corner of the screen.
Tap Edit to enter your User Name and Password (the default username
is admin and the password eld should be left blank). Once you nish,
click Done to continue.
9. For the Music section, click the music icon to play your music from your
USB ash drive.
8. For the Movie section, click the movie icon to play your movie from your
USB ash drive.
19
D-Link %"1 User Manual
Section 3 - Conguration
10. For the Photo section, click the Photo icon to view your photos from
your USB ash drive.
11. For the Files section, click on the Files icon to view your les from your
USB ash drive.
12. For the Folder section, click the folder icon to view your folders
from your USB ash drive.
20
D-Link %"1 User Manual
Section 3 - Conguration

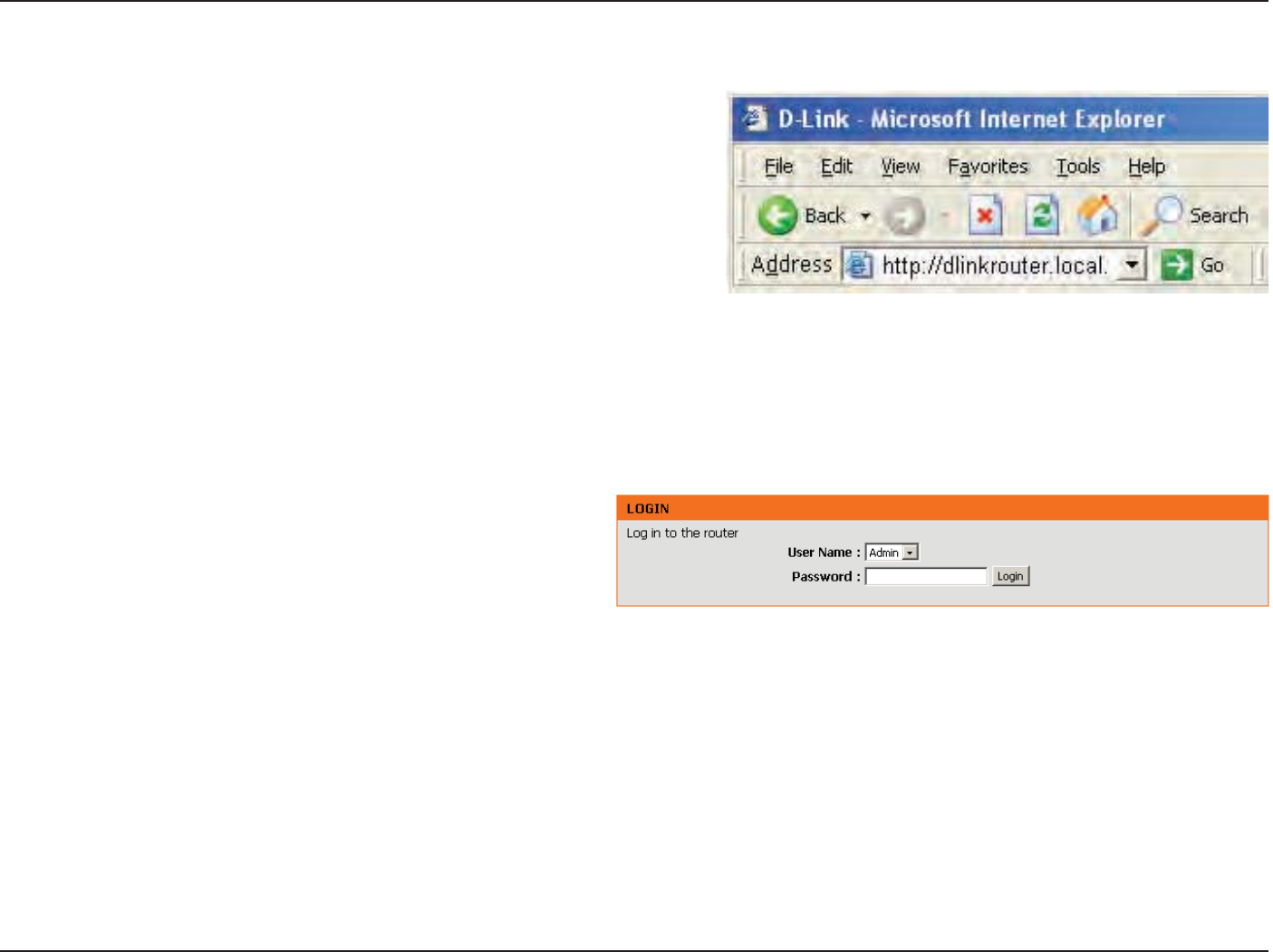

Web-based Conguration Utility
Enter your password. The password should be left blank
by default.
To access the conguration utility, open a web-browser such as
Internet Explorer and enter http://dlinkrouter.local.
Windows and Mac users may also connect by typing the IP address
of the router (http://192.168.0.1) in the address bar.
21
D-Link %"1 User Manual
Section 3 - Conguration
Internet Connection Setup
If you want to congure your router to connect to the Internet
using the wizard, click Internet Connection Setup Wizard.
You will be directed to the Quick Setup Wizard. Please refer
to page 12.
Click Manual Internet Connection Setup to congure your
connection manually and continue to the next page.
22
D-Link %"1 User Manual
Section 3 - Conguration
Select Static IP to manually enter the IP settings supplied by your ISP.
Advanced Domain Name System (DNS) services enhances your Internet
performance by getting you the information and web pages you are looking
for faster and more reliably. In addition, it improves your overall Internet
experience by correcting many common typo mistakes automatically,
taking you where you intended to go and saving you valuable time.
Check to enable true Gigabit routing. This will increase the through-put
of the WAN-LAN connectivity of the router.
Enter the IP address assigned by your ISP.
Enter the Subnet Mask assigned by your ISP.
Enter the Gateway assigned by your ISP.
The DNS server information will be supplied by your ISP
Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your specic ISP. 1500 is the default MTU.
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended
that you change the default MAC address unless required by your ISP. You can use the Copy Your PC’s MAC Address button to
replace the Internet port’s MAC address with the MAC address of your Ethernet card.
My Internet
Connection Is:
Enable Advanced
DNS Service:
Enable True
Gigabit Routing
Connectivity:
IP Address:
Subnet Mask:
Default Gateway:
DNS Servers:
MTU:
MAC Address:
Manual Internet Setup
Static IP
Select your connection type from the My Internet Connect Is drop-down box. Choose Static IP if all of the port’s IP information has been provided
by your ISP. You will need to enter the IP address, subnet mask, gateway address, and DNS address(es). Each IP address entered in the elds must
be in the appropriate IP form, which are four octets separated by a dot (x.x.x.x). The Router will not accept the IP address if it is not in this format.
23
D-Link %"1 User Manual
Section 3 - Conguration
Select Dynamic IP (DHCP) to obtain IP Address information automatically
from your ISP. Select this option if your ISP does not give you any IP
numbers to use. This option is commonly used for cable modem services.
Advanced Domain Name System (DNS) services enhances your Internet
performance by getting you the information and web pages you are looking
for faster and more reliably. In addition, it improves your overall Internet
experience by correcting many common typo mistakes automatically,
taking you where you intended to go and saving you valuable time.
Disclaimer: D-Link makes no warranty as to the availability, reliability,
functionality and operation of the Advanced DNS service or its features.
Check to enable true Gigabit routing. This will increase the through-put of the WAN-LAN connectivity of the router.
The Host Name is optional but may be required by some ISPs. Leave blank if you are not sure.
Check the box if you are having problems obtaining an IP address from your ISP.
Enter the Primary and secondary DNS server IP addresses assigned by your ISP. These addresses are usually obtained automatically
from your ISP. Leave at 0.0.0.0 if you did not specically receive these from your ISP.
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1500 is the default
MTU.
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended
that you change the default MAC address unless required by your ISP. You can use the Copy Your PC’s MAC Address button to
replace the Internet port’s MAC address with the MAC address of your Ethernet card.
My Internet
Connection:
Enable Advanced
DNS Service:
Enable True
Gigabit Routing
Connectivity:
Host Name:
Use Unicasting:
Primary/Secondary
DNS Server:
MTU:
MAC Address:
Dynamic IP (DHCP)
If you are unsure what method you use to connect to the Internet, try this rst. Cable modems usually use this type of connection
24
D-Link %"1 User Manual
Section 3 - Conguration
Select PPPoE (Username/Password) from the drop-down menu.
Advanced Domain Name System (DNS) services enhances your Internet
performance by getting you the information and web pages you are looking
for faster and more reliably. In addition, it improves your overall Internet
experience by correcting many common typo mistakes automatically,
taking you where you intended to go and saving you valuable time.
Disclaimer: D-Link makes no warranty as to the availability, reliability,
functionality and operation of the Advanced DNS service or its features.
Check to enable true Gigabit routing. This will increase the through-put
of the WAN-LAN connectivity of the router.
Select Static IP if your ISP assigned you the IP address, subnet mask,
gateway, and DNS server addresses. In most cases, select Dynamic.
Enter the IP address (Static PPPoE only).
Enter your PPPoE user name.
Enter your PPPoE password and then retype the password in the next box.
Enter the ISP Service Name (optional).
Select either Always-on, On-Demand, or Manual.
My Internet
Connection:
Enable
Advanced DNS
Service:
Enable True
Gigabit Routing
Connectivity:
Address Mode:
IP Address:
User Name:
Password:
Service Name:
Reconnect
Mode:
PPPoE (Username/Password)
Choose PPPoE (Point to Point Protocol over Ethernet) if your ISP uses a PPPoE connection. Your ISP will provide you with a username and password.
This option is typically used for DSL services. Make sure to remove your PPPoE software from your computer. The software is no longer needed and
will not work through a router.
25
D-Link %"1 User Manual
Section 3 - Conguration
Maximum
Idle Time:
DNS
Addresses:
MTU:
MAC Address:
Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disable this feature, enable
Auto-reconnect.
Enter the Primary and Secondary DNS Server Addresses (Static PPPoE only).
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1492 is the default
MTU.
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended
that you change the default MAC address unless required by your ISP. You can use the Copy Your PC’s MAC Address button to
replace the Internet port’s MAC address with the MAC address of your Ethernet card.
26
D-Link %"1 User Manual
Section 3 - Conguration
Select PPTP (Username/Password) from the drop-down menu.
Advanced Domain Name System (DNS) services enhances your Internet
performance by getting you the information and web pages you are looking
for faster and more reliably. In addition, it improves your overall Internet
experience by correcting many common typo mistakes automatically,
taking you where you intended to go and saving you valuable time.
Disclaimer: D-Link makes no warranty as to the availability, reliability,
functionality and operation of the Advanced DNS service or its features.
Check to enable true Gigabit routing. This will increase the throughput of
the WAN-LAN connectivity of the router.
Select Static if your ISP assigned you the IP address, subnet mask,
gateway, and DNS server addresses. In most cases, select Dynamic.
Enter the IP address (Static PPTP only).
Enter the Primary and Secondary DNS Server Addresses (Static PPTP only).
Enter the Gateway IP Address provided by your ISP.
Enter the Server IP provided by your ISP (optional).
Enter your PPTP username.
Enter your PPTP password and then retype the password in the next box.
Select either Always-on, On-Demand, or Manual.
PPTP
Choose PPTP (Point-to-Point-Tunneling Protocol ) if your ISP uses a PPTP connection. Your ISP will provide you with a username and password. This
option is typically used for DSL services.
My Internet
Connection:
Enable Advanced
DNS Service:
Enable True
Gigabit Routing
Connectivity:
Address Mode:
PPTP IP Address:
PPTP Subnet Mask:
PPTP Gateway:
PPTP Server IP:
Username:
Password:
Reconnect Mode:
27
D-Link %"1 User Manual
Section 3 - Conguration
Select L2TP (Username/Password) from the drop-down menu.
Advanced Domain Name System (DNS) services enhances your Internet
performance by getting you the information and web pages you are looking
for faster and more reliably. In addition, it improves your overall Internet
experience by correcting many common typo mistakes automatically,
taking you where you intended to go and saving you valuable time.
Disclaimer: D-Link makes no warranty as to the availability, reliability,
functionality and operation of the Advanced DNS service or its features.
Check to enable true Gigabit routing. This will increase the throughput of
the WAN-LAN connectivity of the router.
Select Static if your ISP assigned you the IP address, subnet mask,
gateway, and DNS server addresses. In most cases, select Dynamic.
Enter the IP address (Static PPTP only).
Enter the Primary and Secondary DNS Server Addresses (Static PPTP only).
Enter the Gateway IP Address provided by your ISP.
Enter the Server IP provided by your ISP (optional).
Enter your PPTP username.
Enter your PPTP password and then retype the password in the next box.
Select either Always-on, On-Demand, or Manual.
L2TP
Choose L2TP (Layer 2 Tunneling Protocol ) if your ISP uses a L2TP connection. Your ISP will provide you with a username and password. This option
is typically used for DSL services.
My Internet
Connection:
Enable Advanced
DNS Service:
Enable True
Gigabit Routing
Connectivity:
Address Mode:
PPTP IP Address:
PPTP Subnet Mask:
PPTP Gateway:
PPTP Server IP:
Username:
Password:
Reconnect Mode:
28
D-Link %"1 User Manual
Section 3 - Conguration
Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disable this feature, enable
Auto-reconnect.
The DNS server information will be supplied by your ISP (Internet Service Provider.)
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1400 is the default
MTU.
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended
that you change the default MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to
replace the Internet port’s MAC address with the MAC address of your Ethernet card.
Maximum Idle
Time:
DNS Servers:
MTU:
MAC Address:
29
D-Link %"1 User Manual
Section 3 - Conguration
DS-Lite
DS-Lite is an IPv6 connection type. After selecting DS-Lite, the following parameters will be available for conguration:
DS-Lite
Conguration:
AFTR IPv6 Address:
B4 IPv4 Address:
WAN IPv6 Address:
IPv6 WAN Default
Gateway:
Select the DS-Lite DHCPv6 option to let the router allocate the AFTR
IPv6 address automatically. Select the Manual Conguration to enter
the AFTR IPv6 address in manually.
After selecting the Manual Conguration option above, enter the AFTR
IPv6 address used here.
Enter the B4 IPv4 address value used here.
Once connected, the WAN IPv6 address will be displayed here.
Once connected, the IPv6 WAN Default Gateway address will be
displayed here.
30
D-Link %"1 User Manual
Section 3 - Conguration

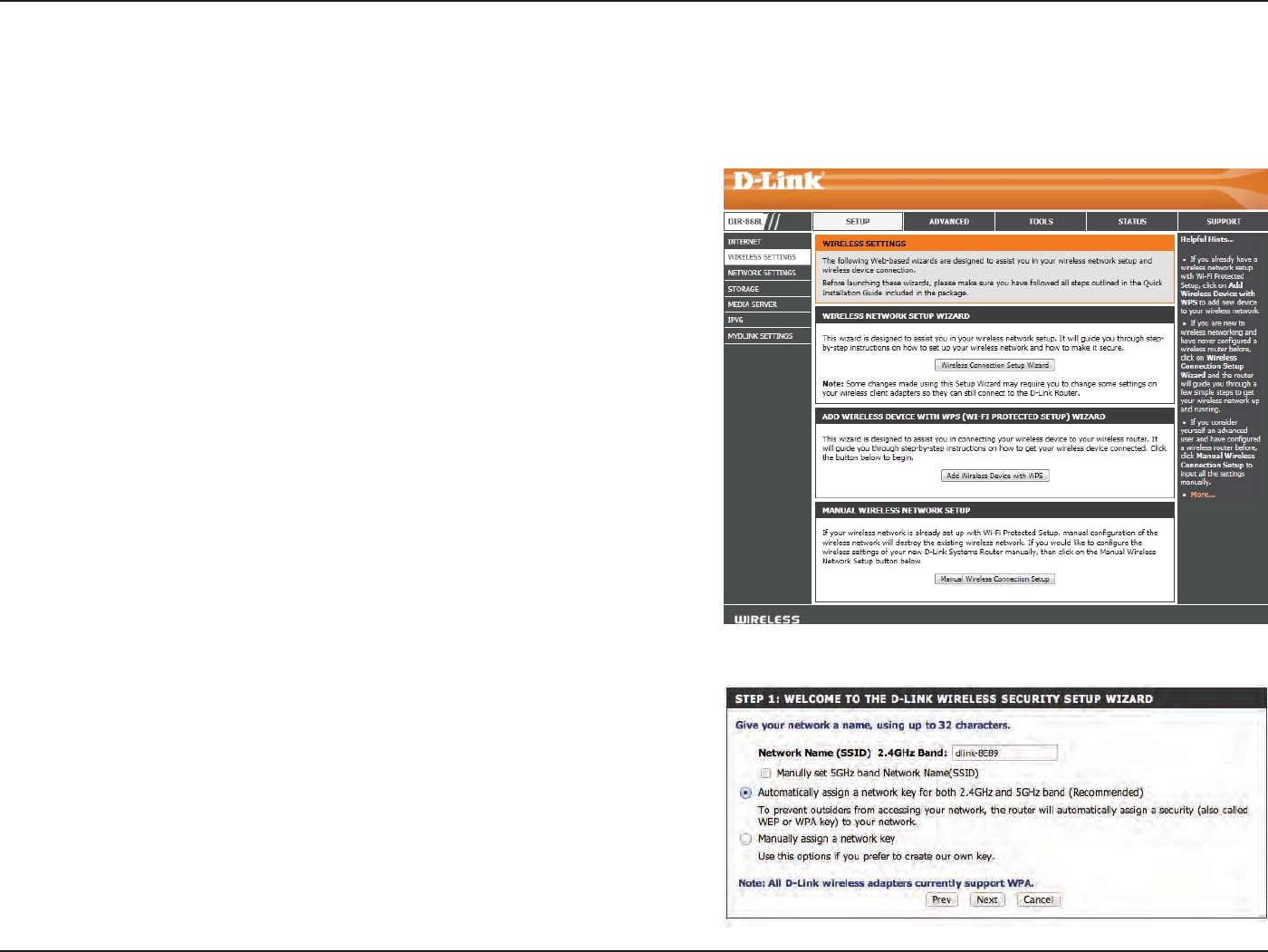

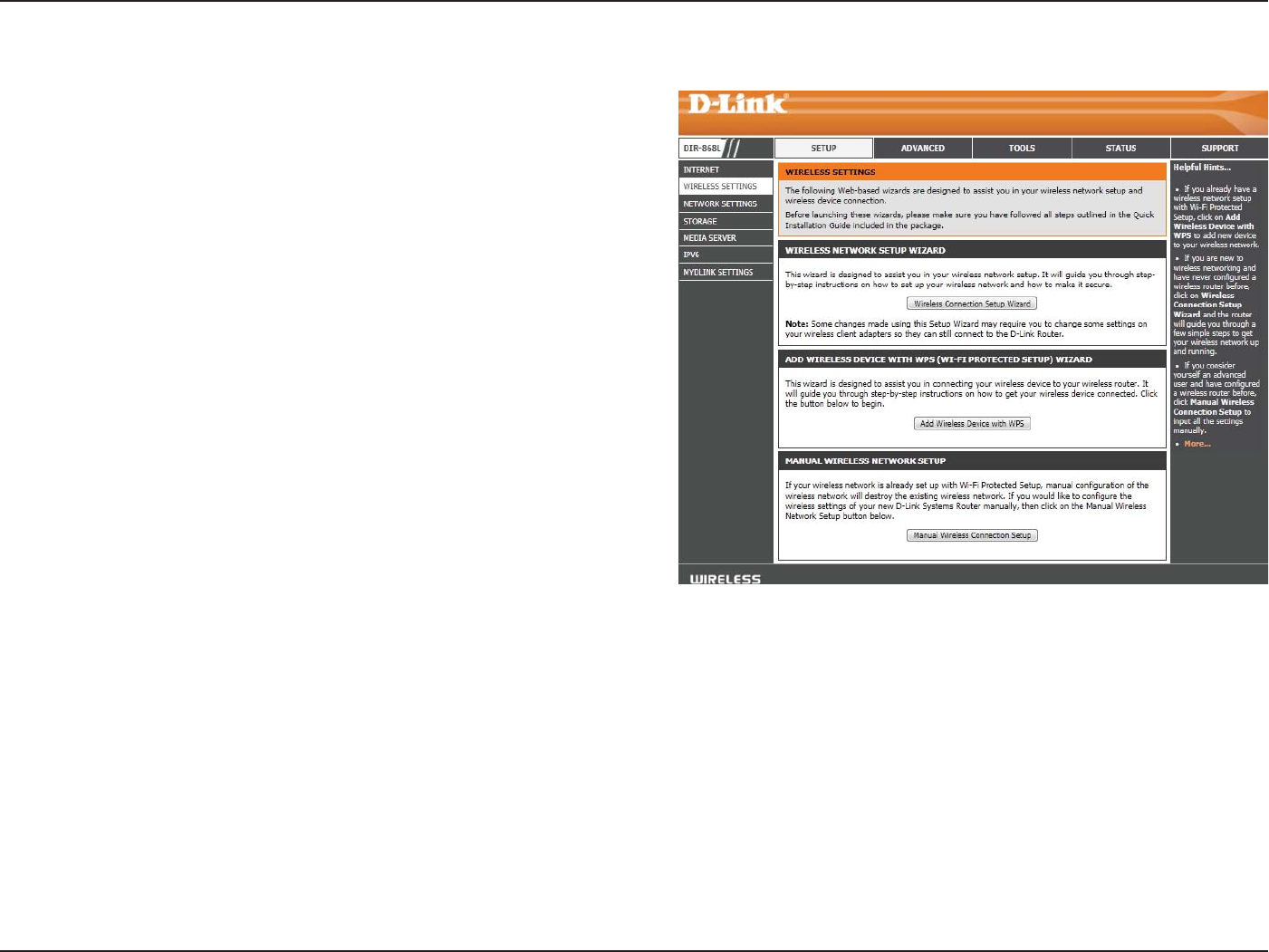

Wireless Settings
If you want to congure the wireless settings on your router using the wizard,
click Wireless Network Setup Wizard and refer to page 42.
Click Add Wireless Device with WPS if you want to add a wireless device
using Wi-Fi Protected Setup (WPS) and refer to page 44.
If you want to manually congure the wireless settings on your router click
Manual Wireless Network Setup and refer to the next page.
31
D-Link %"1 User Manual
Section 4 - Security
Wireless Connection Setup Wizard
To run the security wizard, click on Setup at the top and then click Wireless
Connection Setup Wizard.
STEP 1: Type your desired wireless network names (SSIDs) for both the 2.4 GHz
band and the 5 GHz band.
Automatically: Select this option to automatically generate the router’s
network key and click Next.
Manually: Select this option to manually enter your network key and
click Next.
32
D-Link %"1 User Manual
Section 4 - Security
If you selected Automatically, the option to make your password the same
on both bands with be oered. If you choose to make them the same, you
can select your own password in the box below.
Click Next.
You will now see a summary window that displays your settings. Write down
the security key and enter this on your wireless clients.
Click Save to save your settings.
33
D-Link %"1 User Manual
Section 4 - Security
If you selected Manually, the option to make your password the same on
both bands with be oered.
Enter your wireless password in the box below.
Click Next.
You will now see a summary window that displays your settings. Write down
the security key and enter this on your wireless clients.
Click Save to save your settings.
34
D-Link %"1 User Manual
Section 4 - Security
Wireless Security Setup Wizard
To run the security wizard, click on Setup at the top and then click Wireless
Network Setup Wizard.
Type your desired wireless network name (SSID).
Automatically: Select this option to automatically generate the router’s
network key and click Next.
Manually: Select this option to manually enter your network key and
click Next.
If you are unfamiliar with the types of wireless security, more information is located in the appendix at back of this manual.
35
D-Link %"1 User Manual
Section 4 - Security
If you selected Automatically, the summary window will display your
settings. Write down the security key and enter this on your wireless clients.
Click Save to save your settings.
If you selected Manually, the following screen will appear. Create a
passphrase for your security password. Click Next to continue.
36
D-Link %"1 User Manual
Section 4 - Security
From the Setup > Wireless Settings screen, click Add Wireless Device with
WPS.
Add Wireless Device with WPS Wizard
If you select Manual, a settings summary screen will appear. Write down the
security key and enter this on your wireless clients. Click OK to nish.
Select Auto to add a wireless client using WPS (Wi-Fi Protected Setup) and
then click Next. Skip to the next page.
If you are unfamiliar with the types of wireless security, more information is located in the appendix at back of this manual.
37
D-Link %"1 User Manual
Section 4 - Security
PIN: Select this option to use PIN method. In order to use this method you
must know the wireless client’s 8 digit PIN and click Connect.
PBC: Select this option to use PBC (Push Button) method to add a wireless
client. Click Connect.
Once you click Connect, you will have a 120 second time limit to apply the
settings to your wireless client(s) and successfully establish a connection.
38
D-Link %"1 User Manual
Section 3 - Conguration
Check the box to enable the wireless function. If you do not want to use
wireless, uncheck the box to disable all the wireless functions.
Select the time frame that you would like your wireless network enabled.
The schedule may be set to Always. Any schedule you create will be
available in the drop-down menu. Click New Schedule to create a
schedule.
Service Set Identier (SSID) is the name of your wireless network. Create
a name for your wireless network using up to 32 characters. The SSID is
case-sensitive.
Select one of the following:
802.11b Only - Select only if all of your wireless clients are 802.11b.
802.11g Only - Select only if all of your wireless clients are 802.11g.
802.11n Only - Select only if all of your wireless clients are 802.11n.
Mixed 802.11g and 802.11b - Select if you are using both 802.11g and 802.11b wireless clients.
Mixed 802.11n and 802.11g - Select if you are using both 802.11n and 802.11g wireless clients.
Mixed 802.11n, 11g, and 11b - Select if you are using a mix of 802.11n, 802.11g, and 802.11b wireless clients.
The Auto Channel Scan setting can be selected to allow the %"1 to choose the channel with the least amount of interference.
Indicates the channel setting for the %"1 By default the channel is set to 6. The Channel can be changed to fit the channel setting for an existing
wireless network or to customize the wireless network. If you enable Auto Channel Scan, this option will be greyed out.
Select the Channel Width:
Auto 20/40 - This is the default setting. Select if you are using both 802.11n and non-802.11n wireless devices.
20MHz - Select if you are not using any 802.11n wireless clients.
Select Invisible if you do not want the SSID of your wireless network to be broadcasted by the %"1 If Invisible is selected, the SSID of the %"1
will not be seen by Site Survey utilities so your wireless clients will have to know the SSID of your %"1 in order to connect to it.
Refer to the appendix in the back of the manual for more information regarding wireless security.
Enable Wireless:
Schedule:
Wireless Network
Name:
802.11 Mode:
Enable Auto Channel
Scan:
Wireless Channel:
Manual Wireless Settings
Channel Width:
Visibility Status:
Wireless Security:
802.11 b/g/n (2.4GHz)
If you are unfamiliar with the types of wireless security, more information is located in the appendix at back of this manual.
39
D-Link %"1 User Manual
Section 3 - Conguration
802.11ac draft (5GHz)
Check the box to enable the wireless function. If you do not want to use
wireless, uncheck the box to disable all the wireless functions.
Select the time frame that you would like your wireless network enabled.
The schedule may be set to Always. Any schedule you create will be
available in the drop-down menu. Click New Schedule to create a
schedule.
Service Set Identier (SSID) is the name of your wireless network. Create
a name for your wireless network using up to 32 characters. The SSID is
case-sensitive.
Select one of the following:
802.11n Only - Select only if all of your wireless clients are 802.11n.
802.11ac Only - Select if all of your wireless clients are 802.11ac.
Mixed 802.11n and 802.11a - Select if you are using both 802.11n and 802.11a wireless clients.
Mixed 802.11ac and 802.11n - Select if you are using both 802.11ac and 802.11n wireless clients.
Mixed 802.11ac and 802.11a - Select if you are using both 802.11ac and 802.11a wireless clients.
The Auto Channel Scan setting can be selected to allow the %"1 to choose the channel with the least amount of interference.
Indicates the channel setting for the %"1 By default the channel is set to 6. The Channel can be changed to fit the channel setting for an existing
wireless network or to customize the wireless network. If you enable Auto Channel Scan, this option will be greyed out.
Select the Channel Width:
Auto 20/40/80 - Select if you are using both 802.11ac, 802.11n and non-802.11n wireless devices.
Auto 20/40 - This is the default setting. Select if you are using both 802.11n and non-802.11n wireless devices.
20MHz - Select if you are not using any 802.11n wireless clients.
Select Invisible if you do not want the SSID of your wireless network to be broadcasted by the %"1 If Invisible is selected, the SSID of the %"1
will not be seen by Site Survey utilities so your wireless clients will have to know the SSID of your %"1 in order to connect to it.
Refer to the next page for more information regarding wireless security.
Enable Wireless:
Schedule:
Wireless Network
Name:
802.11 Mode:
Enable Auto Channel
Scan:
Wireless Channel:
Channel Width:
Visibility Status:
Wireless Security:
40
D-Link %"1 User Manual
Section 3 - Conguration

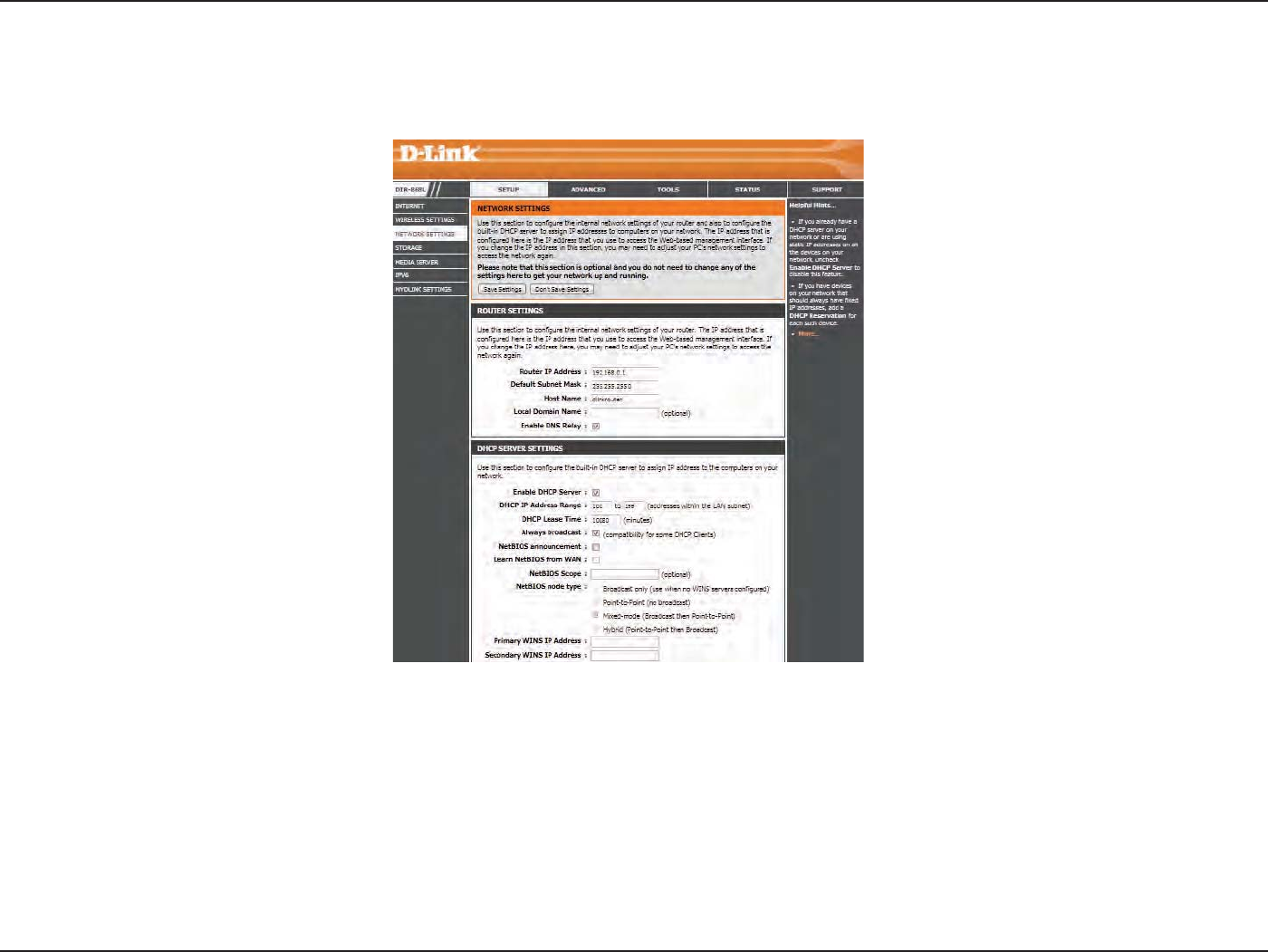

This section will allow you to change the local network settings of the router and to congure the DHCP settings.
Network Settings
41
D-Link %"1 User Manual
Section 3 - Conguration
This section will allow you to congure the router settings.
Router Settings
Enter the IP address of the router. The default IP address
is 192.168.0.1.
If you change the IP address, once you click Save Settings,
you will need to enter the new IP address in your browser
to get back into the conguration utility.
Enter the Subnet Mask. The default subnet mask is
255.255.255.0.
Enter a name for the router.
Enter the Domain name (Optional).
Uncheck the box to transfer the DNS server information
from your ISP to your computers. If checked, your
computers will use the router for a DNS server.
Router IP Address:
Subnet Mask:
Device Name:
Local Domain:
Enable DNS Relay:
42
D-Link %"1 User Manual
Section 3 - Conguration

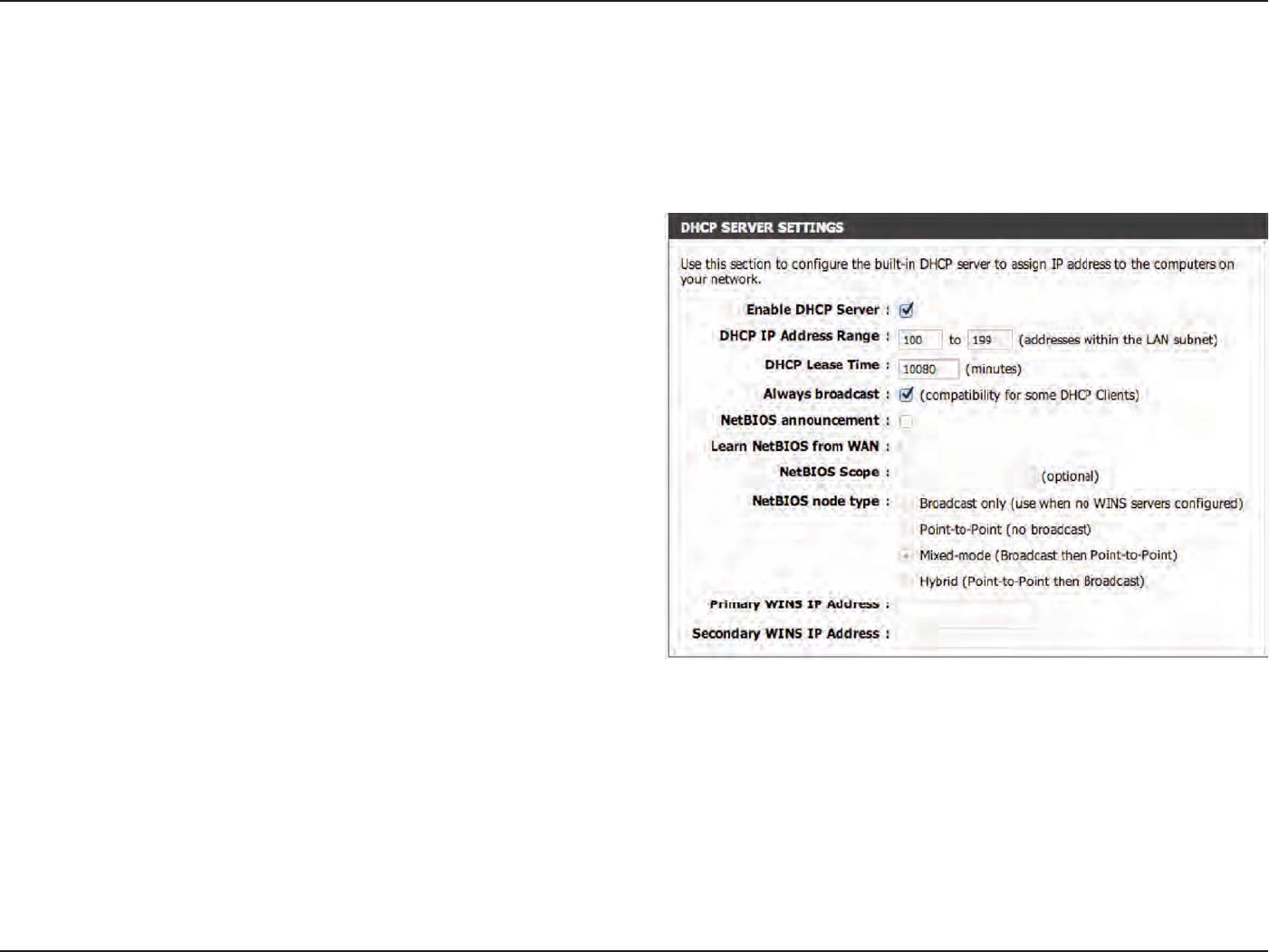

DHCP Server Settings
DHCP stands for Dynamic Host Control Protocol. The %"1 has a built-in DHCP server. The DHCP Server will automatically assign an IP
address to the computers on the LAN/private network. Be sure to set your computers to be DHCP clients by setting their TCP/IP settings to
“Obtain an IP Address Automatically.” When you turn your computers on, they will automatically load the proper TCP/IP settings provided by the
%"1 The DHCP Server will automatically allocate an unused IP address from the IP address pool to the requesting computer. You must
specify the starting and ending address of the IP address pool.
Check this box to enable the DHCP server on your router.
Uncheck to disable this function.
Enter the starting and ending IP addresses for the DHCP
server’s IP assignment.
Note: If you statically (manually) assign IP addresses to your
computers or devices, make sure the IP addresses are outside
of this range or you may have an IP conict.
The length of time for the IP address lease. Enter the Lease
time in minutes.
Enable this feature to broadcast your networks DHCP server
to LAN/WLAN clients.
NetBIOS allows LAN hosts to discover all other computers
within the network, enable this feature to allow the DHCP
Server to oer NetBIOS conguration settings.
Enable this feature to allow WINS information to be learned from the WAN side, disable to allow manual conguration.
This feature allows the conguration of a NetBIOS ‘domain’ name under which network hosts operates. This setting has no eect
if the ‘Learn NetBIOS information from WAN’ is activated.
Select the dierent type of NetBIOS node; Broadcast only, Point-to-Point, Mixed-mode, and Hybrid.
Enter your WINS Server IP address(es).
Enable DHCP
Server:
DHCP IP Address
Range:
DHCP Lease Time:
Always
Broadcast:
NetBIOS
Announcement:
Learn NetBIOS
from WAN:
NetBIOS Scope:
NetBIOS Node:
WINS IP Address:
43
D-Link %"1 User Manual
Section 3 - Conguration
DHCP Reservation
If you want a computer or device to always have the same IP address assigned, you can create a DHCP reservation. The router will assign the IP
address only to that computer or device.
Note: This IP address must be within the DHCP IP Address Range.
Check this box to enable the reservation.
Enter the computer name or select from the drop-down
menu and click <<.
Enter the IP address you want to assign to the computer
or device. This IP Address must be within the DHCP IP
Address Range.
Enter the MAC address of the computer or device.
If you want to assign an IP address to the computer you
are currently on, click this button to populate the elds.
Click Save to save your entry. You must click Save Settings
at the top to activate your reservations.
Displays any reservation entries. Displays the host name
(name of your computer or device), MAC Address, and IP
address.
Check to enable the reservation.
Click the edit icon to make changes to the reservation entry.
Click to remove the reservation from the list.
Enable:
Computer Name:
IP Address:
MAC Address:
Copy Your PC’s
MAC Address:
Save:
DHCP
Reservations List:
Enable:
Edit:
Delete:
DHCP Reservations List
44
D-Link %"1 User Manual
Section 3 - Conguration
Storage
This page will allow you to set up access to les on an external USB hard drive1 or thumb drive that is plugged into the router. You can do this
through local network or from the Internet using either a web browser or an app on your smartphone or tablet. You can create users that can be
allowed access to these les through SharePort Mobile services accessible through a web UI or on mobile devices using the SharePort Mobile app
available for iOS and Android.
1 Supports capacities of up to 1TB for USB storage drives.
Check this box if you wish to be able to access SharePort through
a browser as well as the mobile app.
Enter the port you want to use when accessing SharePort using
a web browser.
Enter the port you want to use when accessing SharePort through
a secure connection using a web browser.
Check this box if you wish to be able to access SharePort through
a web browser over the Internet.
To give a new user access to your SharePort storage, enter a User
Name and Password here. You can Add new users or choose
existing users from the drop-down menu if you wish to Edit or
Delete them.
Note: The Admin password is the same as the admin password for
the router. The Guest password is “guest” and cannot be changed.
This list displays all of the users with access to the SharePort Mobile
content, what they can access, and their Read/Write Permissions.
All devices you have set up for SharePort access will be listed here.
This area will display the HTTP and HTTPS links to connect to your SharePort drive through a web browser from a device on
your network.
Enable SharePort
Web Access
HTTP Access Port:
HTTPS Access Port:
Allow Remote
Access:
User Creation:
User List:
Number of Devices:
SharePort Web
Access Link:
45
D-Link %"1 User Manual
Section 3 - Conguration
Media Server
This page will allow you to enable a DLNA Media Server. DLNA (Digital Living Network Alliance) is the standard for the interoperability of Network
Media Devices (NMDs). The user can enjoy multimedia applications (music, pictures and videos) on your network connected PC or media devices.
If you agree to share media with devices, any computer or device that connects to your network can play your shared music, pictures and videos.
Note: The shared media may not be secure. Allowing any devices to stream is recommended only on secure networks.
Check to enable DLNA Media Server functions.
Choose a name for your DLNA media server so that it can be
found.
Choose the location of the folder you wish to share or check the
box to use the root folder of the entire drive.
Check to enable iTunes Server functions.
Choose the location of the iTunes Library folder you wish to share
or check the box to use the root folder if it is located on the root
folder of the connected drive.
Use this setting to enable USB 3.0 functionality for the USB port
on the back of the router. USB 3.0 provides high-speed transfer
speeds with compatible devices. This setting is disabled by
default, which means that the USB port will operate at the USB
2.0 specication.
DLNA Server:
DLNA Server
Name:
Folder:
iTunes Server:
Folder:
USB 3.0:
46
D-Link %"1 User Manual
Section 3 - Conguration
IPv6
On this page, you can congure the IPv6 Connection type. There are two ways to set up the IPv6 Internet connection. You can use the Web-based
IPv6 Internet Connection Setup Wizard, or you can manually congure the connection.
If you are a beginner that has not congured a router before, click on the IPv6 Internet
Connection Setup Wizard button and the router will guide you through a few simple
steps to get your network up and running.
If you are an advanced user that has congured a router before, click on the Manual
IPv6 Internet Connection Setup button to input all the settings manually.
47
D-Link %"1 User Manual
Section 3 - Conguration
IPv6 Internet Connection Setup Wizard
On this page, the user can congure the IPv6 Connection type using the IPv6 Internet Connection Setup Wizard.
Click the IPv6 Internet Connection Setup Wizard button and the router will guide
you through a few simple steps to get your network up and running.
Click Next to continue to the next page. Click Cancel to discard the changes made
and return to the main page.
The router will try to detect whether its possible to obtain the IPv6 Internet
connection type automatically. If this succeeds then the user will be guided through
the input of the appropriate parameters for the connection type found.
48
D-Link %"1 User Manual
Section 3 - Conguration
However, if the automatic detection fails, the user will be prompt to either Try
again or to click on the Guide me through the IPv6 settings button to initiate the
manual continual of the wizard.
There are several connection types to choose from. If you are unsure of your
connection method, please contact your IPv6 Internet Service Provider.
Note: If using the PPPoE option, you will need to ensure that any PPPoE client
software on your computers has been removed or disabled. The 3 options available
on this page are IPv6 over PPPoE, Static IPv6 address and Route, and Tunneling
Connection.
Choose the required IPv6 Internet Connection type and click on the Next button
to continue. Click on the Prev button to return to the previous page. Click on the
Cancel button to discard all the changes made and return to the main page.
Click on the Next button to continue. Click on the Prev button to return to the previous page.
Click on the Cancel button to discard all the changes made and return to the main page.
49
D-Link %"1 User Manual
Section 3 - Conguration
IPv6 over PPPoE
After selecting the IPv6 over PPPoE option, the user will be able to congure the
IPv6 Internet connection that requires a username and password to get online.
Most DSL modems use this type of connection.
The following parameters will be available for conguration:
PPPoE Session: Select the PPPoE Session value used here. This
option will state that this connection shares it’s
information with the already congured IPv6
PPPoE connection, or the user can create a new
PPPoE connection here.
User Name: Enter the PPPoE username used here. If you do not
know your user name, please contact your ISP.
Password: Enter the PPPoE password used here. If you do not
know your password, please contact your ISP.
Verify Password: Re-enter the PPPoE password used here.
Service Name: Enter the service name for this connection here.
This option is optional.
50
D-Link %"1 User Manual
Section 3 - Conguration
Static IPv6 Address Connection
This mode is used when your ISP provides you with a set IPv6 addresses that does not change. The IPv6 information is manually entered in your
IPv6 conguration settings. You must enter the IPv6 address, Subnet Prex Length, Default Gateway, Primary DNS Server, and Secondary DNS
Server. Your ISP provides you with all this information.
Use Link-Local
Address:
IPv6 Address:
Subnet Prex
Length:
Default Gateway:
Primary DNS
Address:
Secondary DNS
Address:
LAN IPv6 Address:
The Link-local address is used by nodes and routers when
communicating with neighboring nodes on the same link. This
mode enables IPv6-capable devices to communicate with each
other on the LAN side.
Enter the WAN IPv6 address for the router here.
Enter the WAN subnet prex length value used here.
Enter the WAN default gateway IPv6 address used here.
Enter the WAN primary DNS Server address used here.
Enter the WAN secondary DNS Server address used here.
These are the settings of the LAN (Local Area Network) IPv6 interface for the router. The router’s LAN IPv6 Address conguration is
based on the IPv6 Address and Subnet assigned by your ISP. (A subnet with prex /64 is supported in LAN.)
51
D-Link %"1 User Manual
Section 3 - Conguration
The IPv6 Internet Connection Setup Wizard is complete.
Click on the Connect button to continue. Click on the Prev button to return to
the previous page. Click on the Cancel button to discard all the changes made
and return to the main page.

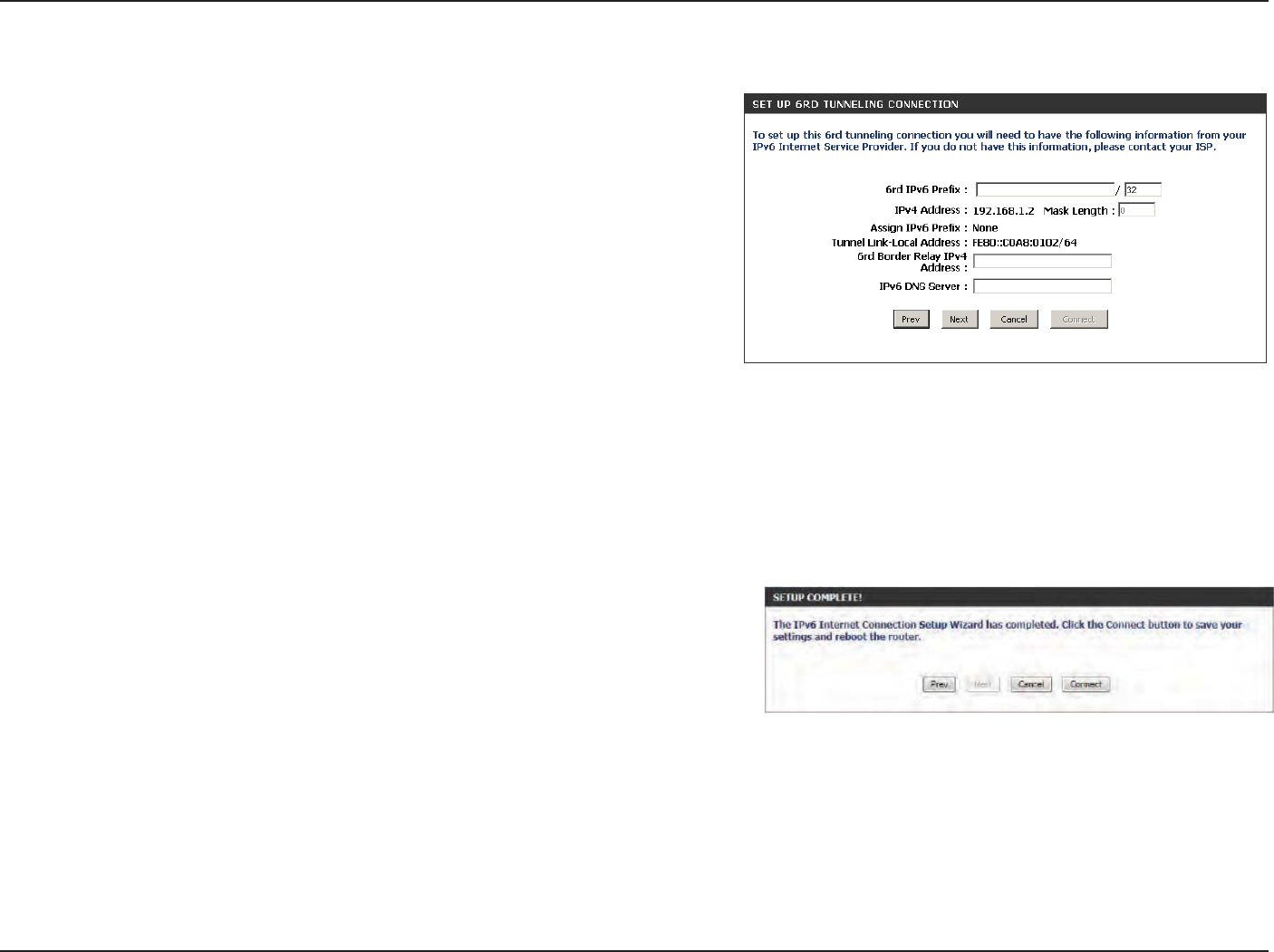

Tunneling Connection (6rd)
After selecting the Tunneling Connection (6rd) option, the user can congure the IPv6 6rd connection settings.
Enter the 6rd IPv6 address and prex value used here.
Enter the IPv4 address used here.
Enter the IPv4 mask length used here.
Displays the IPv6 assigned prex value here.
Enter the 6rd border relay IPv4 address used here.
Enter the primary DNS Server address used here.
6rd IPv6 Prex:
IPv4 Address:
Mask Length:
Assigned
IPv6 Prex:
6rd Border Relay
IPv4 Address:
IPv6 DNS Server:
52
D-Link %"1 User Manual
Section 3 - Conguration

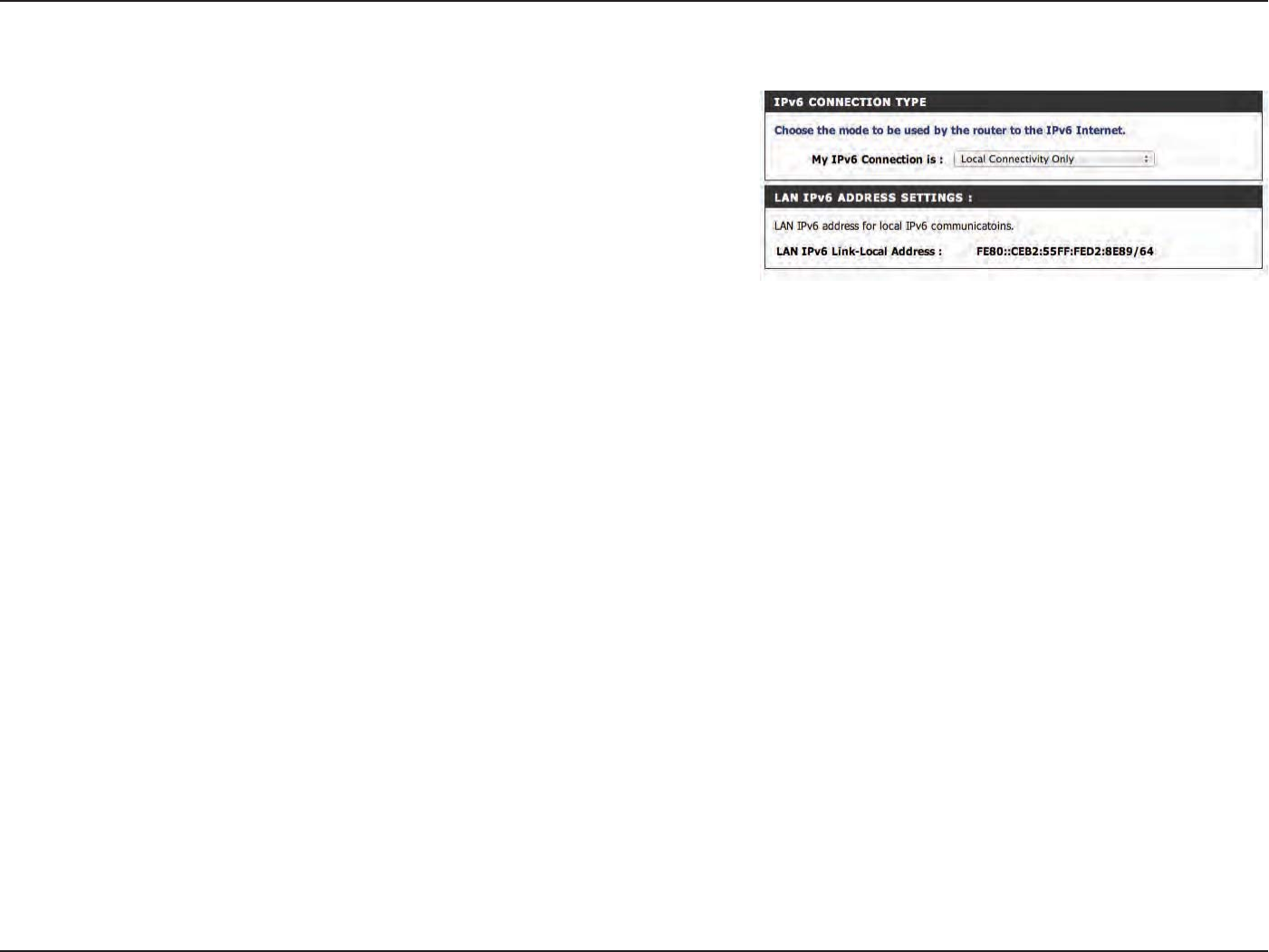

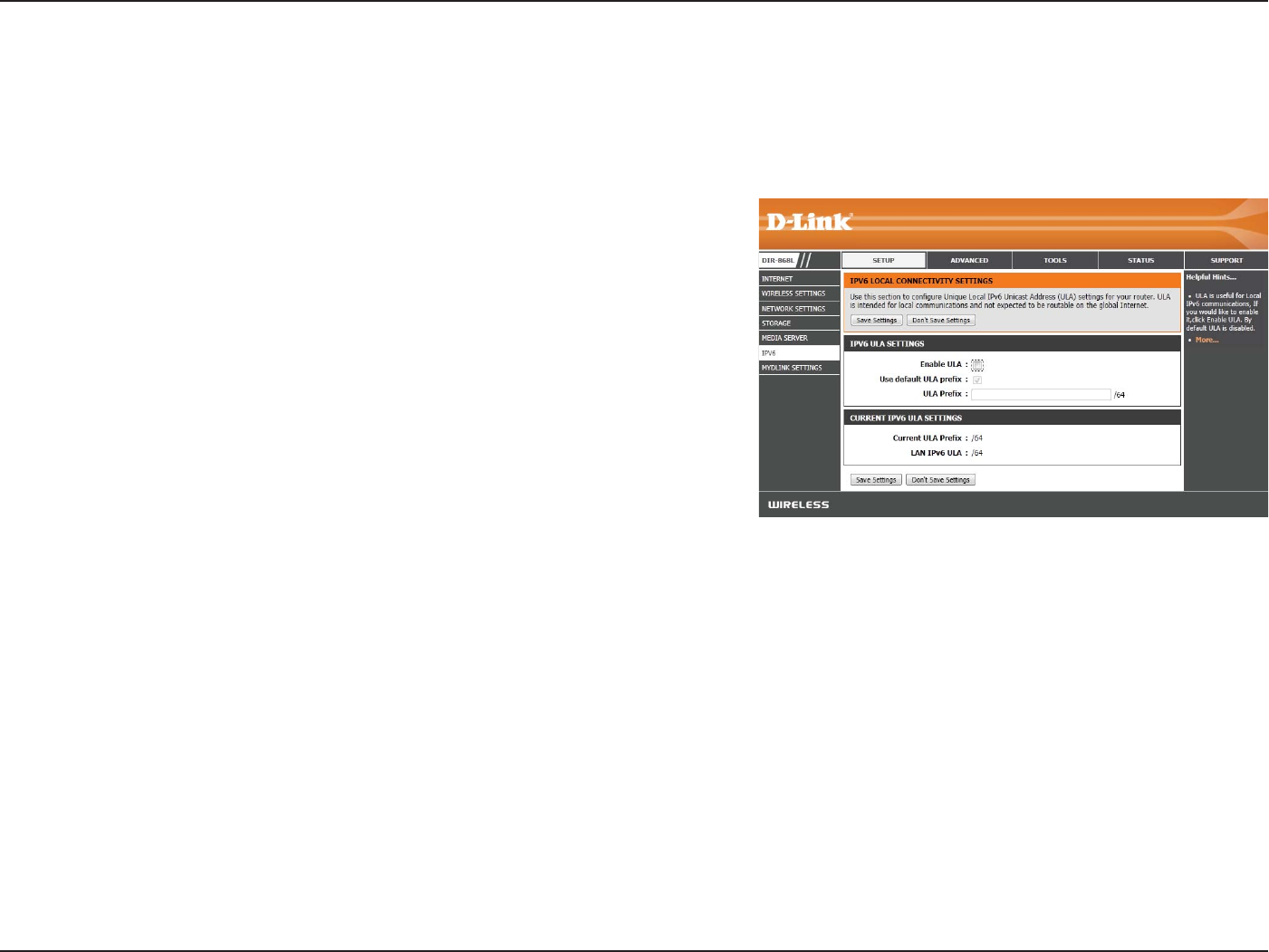

Manual IPv6 Local Connectivity Setup
You can set up a local-only IPv6 Internet connection as well. If you want to congure an IPv6 connection that will not connect to the Internet, click
on the Manual IPv6 Local Connectivity Settings button.
Enable ULA:
Use Default
ULA Prex:
ULA Prex:
Current IPv6
ULA Settings:
Click here to enable Unique Local IPv6 Unicast Addresses settings.
Checking this box will automatically congure
the ULA prex for the default setting.
If you wish to choose your own ULA prex, enter it here.
This section with display the current settings for your IPv6 ULA.
53
D-Link %"1 User Manual
Section 3 - Conguration
IPv6 Manual Setup
There are several connection types to choose from: Auto Detection, Static IPv6, Autoconguration (SLAAC/DHCPv6), PPPoE, IPv6 in IPv4 Tunnel,
6to4, 6rd, and Link-local. If you are unsure of your connection method, please contact your IPv6 Internet Service Provider.
Note: If using the PPPoE option, you will need to ensure that any PPPoE client software on your computers has been removed or disabled.
54
D-Link %"1 User Manual
Section 3 - Conguration
Static IPv6
Select Static IPv6 from the drop-down menu.
Enter the address settings supplied by your Internet provider (ISP).
Enter a subnet prex length.
Enter the default gateway for your IPv6 connection.
Enter the primary and secondary DNS server addresses.
Enter the LAN (local) IPv6 address for the router.
Displays the router’s LAN Link-Local Address.
Check to enable the Autoconguration feature.
Choose either Stateful DHCPv6, SLAAC + RDNSS or SLAAC +
Stateless DHCPv6 from the drop-down menu.
Enter the IPv6 Address Lifetime (in minutes).
My IPv6
Connection Is:
Use Link-Local
Address:
Subnet Prex
Length:
IPv6 Default
Gateway:
Primary/
Secondary IPv6
DNS Servers:
LAN IPv6 Address:
LAN Link-Local
Address:
Enable Automatic
IPv6 Address
Assignment:
Autoconguration
Type:
Router
Advertisement
Lifetime:
55
D-Link %"1 User Manual
Section 3 - Conguration
Auto Detection
Select Auto Detection from the drop-down menu.
Select either Obtain DNS server address automatically or Use the
following DNS Address.
Enter the primary and secondary DNS server addresses.
Check this box to enable DHCP-PD services.
Enter the LAN (local) IPv6 address for the router.
Displays the Router’s LAN Link-Local Address.
Check to enable the Automatic IPv6 Address Assignment feature.
Check this box to automatically enable DHCP-PD services.
Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless
DHCPv6.
Enter the IPv6 Address Lifetime (in minutes).
My IPv6
Connection Is:
IPv6 DNS Settings:
Primary/Secondary
DNS Address:
Enable DHCP-PD:
LAN IPv6 Address:
LAN Link-Local
Address:
Enable Automatic
IPv6 Address
Assignment:
Enable Automatic
DHCP-PD in LAN:
Autoconguration
Type:
Router
Advertisement
Lifetime:
56
D-Link %"1 User Manual
Section 3 - Conguration

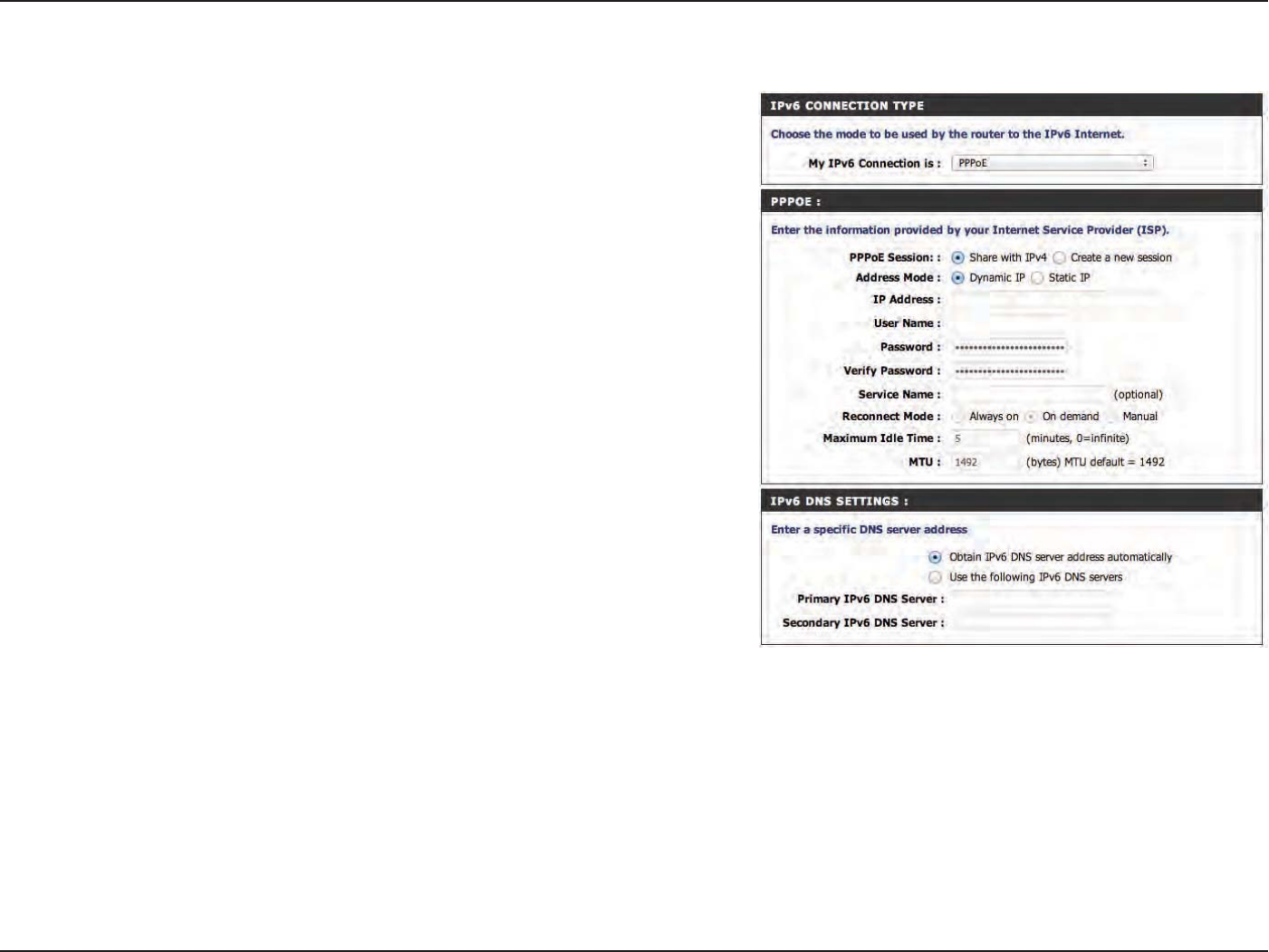

PPPoE
Select PPPoE from the drop-down menu.
Enter the PPPoE account settings supplied by your Internet provider.
Select Static if your ISP assigned you the IP address, subnet mask,
gateway, and DNS server addresses. In most cases, select Dynamic.
Enter the IP address (Static PPPoE only).
Enter your PPPoE user name.
Enter your PPPoE password and retype the password in the next box.
Enter the ISP Service Name (optional).
Select either Always-on, On-Demand, or Manual.
Enter a maximum idle time during which the Internet connection is
maintained during inactivity.
Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your specic ISP. 1492 is the default MTU.
Select either Obtain DNS server address automatically or Use the following DNS Address.
Enter the primary and secondary DNS server addresses.
My IPv6
Connection Is:
PPPoE Session:
Address Mode:
IP Address:
Username:
Password:
Service Name:
Reconnection
Mode:
Maximum Idle
Time:
MTU:
IPv6 DNS Settings:
Primary/Secondary
DNS Address:
57
D-Link %"1 User Manual
Section 3 - Conguration
Enable DHCP-D:
LAN IPv6 Address:
LAN Link-Local
Address:
Enable Automatic
IPv6 Address
Assignment:
Enable Automatic
DHCP-PD in LAN:
Autoconguration
Type:
IPv6 Address
Lifetime:
Check this box to enable DHCP prex delegation for each LAN on the
network.
Enter the LAN (local) IPv6 address for the router.
Displays the router’s LAN Link-Local Address.
Check to enable the Automatic IPv6 Address Assignment feature.
Check this box to enable automatica conguration of the DHCP prex
delegation for each LAN on the network.
Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless DHCPv6.
Enter the IPv6 Address Lifetime (in minutes).
58
D-Link %"1 User Manual
Section 3 - Conguration

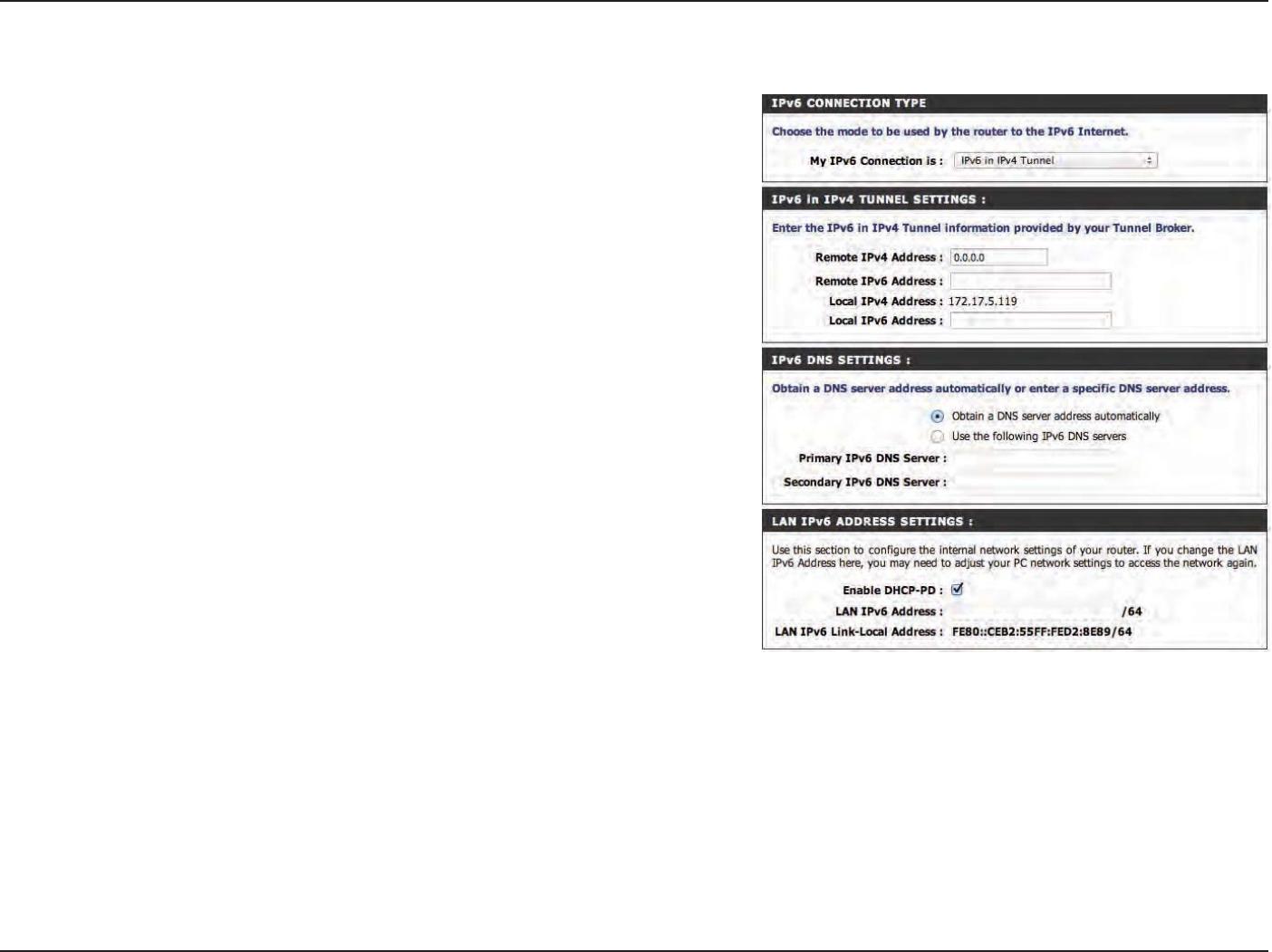

IPv6 in IPv4 Tunneling
Select IPv6 in IPv4 Tunnel from the drop-down menu.
Enter the IPv4 remote address you will use.
Enter the IPv6 remote address you will use.
Enter the IPv4 local address you will use.
Enter the IPv6 local address you will use.
Select either Obtain DNS server address automatically or Use the
following DNS Address.
Enter the primary and secondary DNS server addresses.
Check this box to enable DHCP prex delegation for each LAN.
Enter the LAN (local) IPv6 address for the router.
Displays the router’s LAN Link-Local Address.
My IPv6
Connection Is:
Remote IPv4
Address:
Remote IPv6
Address:
Local IPv4 Address:
Local IPv6 Address:
IPv6 DNS Settings:
Primary/Secondary
DNS Address:
Enable DHCP-D:
LAN IPv6 Address:
LAN IPv6 Lin-Local
Address:
59
D-Link %"1 User Manual
Section 3 - Conguration
Enable Automatic
IPv6 Address
Assignment:
Enable Automatic
DHCP-PD in LAN:
Autoconguration
Type:
Router
Advertisement
Lifetime:
Check to enable the Automatic IPv6 Address Assignment feature.
Check this box to enable automatic conguration of the DHCP prex
delegation for each LAN on the network.
Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless
DHCPv6.
Enter the Router Advertisement Lifetime (in minutes).
60
D-Link %"1 User Manual
Section 3 - Conguration
6to4
Select 6to4 from the drop-down menu.
Enter the IPv6 settings supplied by your ISP.
Enter the IPv6 relay supplied by your ISP.
Enter the primary and secondary DNS server addresses.
Enter the LAN (local) IPv6 address for the router.
Displays the Router’s LAN Link-Local Address.
Check to enable the Automatic IPv6 Address Assignment feature.
Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless
DHCPv6.
Enter the IPv6 Address Lifetime (in minutes).
My IPv6
Connection Is:
6to4 Address:
6to4 Relay:
Primary/Secondary
DNS Address:
LAN IPv6 Address:
LAN Link-Local
Address:
Enable Automatic
IPv6 Address
Assignment:
Autoconguration
Type:
Router
Advertisement
Lifetime:
61
D-Link %"1 User Manual
Section 3 - Conguration
6rd
Select 6rd from the drop-down menu.
Check this box if you want to minimize the number of routes to the
destination by using a hub and spoke method of networking.
Choose the 6rd DHCPv4 Option to automatically discover and populate
the data values, or Manual Conguration to enter the settings yourself.
Enter the 6rd IPv6 prex settings supplied by your ISP.
You IPv4 address will appear here.
Enter the desired IPv4 mask length.
When an IPv6 prex is assigned, it will appear here.
Enter the 6rd Border Relay IPv4 address settings supplied by your ISP.
Enter the primary and secondary DNS server addresses.
Enter the LAN (local) IPv6 address for the router.
Displays the Router’s LAN Link-Local Address.
My IPv6
Connection Is:
Enable Hub and
Spoke Mode:
6rd Conguration:
6rd IPv6 Prex:
IPv4 Address:
Mask Length:
Assigned IPv6
Prex:
6rd Border Relay
IPv4 Address:
Primary/
Secondary DNS
Address:
LAN IPv6 Address:
LAN Link-Local
Address:
62
D-Link %"1 User Manual
Section 3 - Conguration
Enable Automatic
IPv6 Address
Assignment:
Autoconguration
Type:
Router
Advertisement
Lifetime:
Check to enable the Automatic IPv6 Address Assignment feature.
Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless
DHCPv6.
Enter the IPv6 Address Lifetime (in minutes).
63
D-Link %"1 User Manual
Section 3 - Conguration
Select Link-Local Only from the drop-down menu.
Displays the IPv6 address of the router.
My IPv6
Connection Is:
LAN IPv6 Address
Settings:
Link-Local Connectivity
64
D-Link %"1 User Manual
Section 3 - Conguration
mydlink Settings
Displays whether your device is registered with a mydlink
account or not.
Displays the email address associated with your mydlink
account if you have an active account.
Click to go to the mydlink website to register your device or
edit your settings.
mydlink Service:
mydlink E-mail:
Register mydlink
Service:
Devices that are mydlink-enabled can be accessed and managed through the mydlink website and by using mydlink mobile apps for iOS and
Android. You cannot take advantage of these features without a mydlink account. If you have a mydlink account already, you can log in when you
rst set up the router, or by visitng this setup page.
65
D-Link %"1 User Manual
Section 3 - Conguration

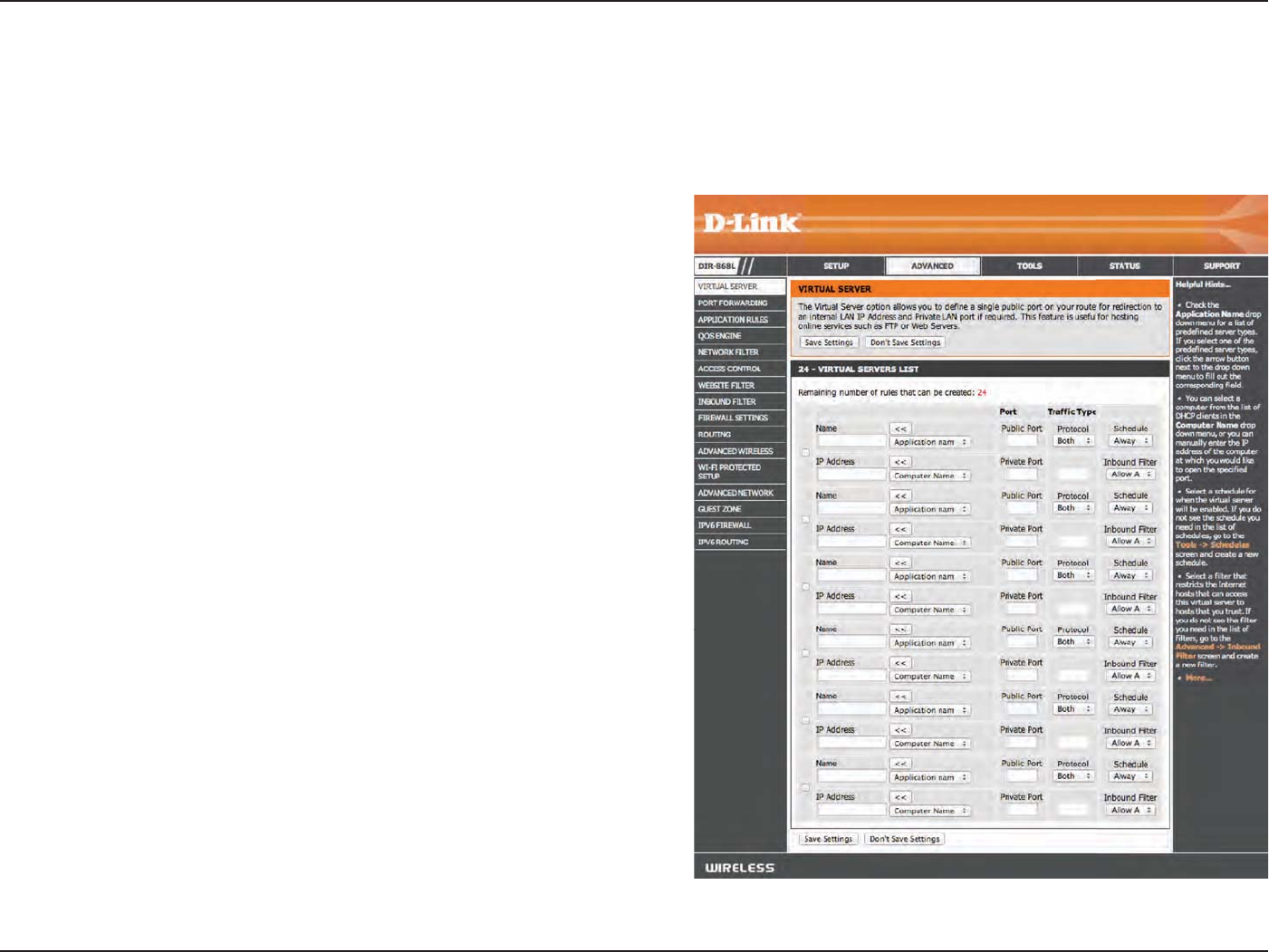

This page will allow you to open a single port. If you would like to open a range of ports, refer to the next page.
Enter a name for the rule or select an application from the
drop-down menu. Select an application and click << to
populate the elds.
Enter the IP address of the computer on your local network
that you want to allow the incoming service to. If your
computer is receiving an IP address automatically from the
router (DHCP), your computer will be listed in the “Computer
Name” drop-down menu.
Enter the port that you want to open next to Private Port
and Public Port. The private and public ports are usually the
same. The public port is seen from the Internet side, and
the private port is used by the application on the computer
within your local network.
Select TCP, UDP, or Both from the drop-down menu.
The schedule of time when the Virtual Server Rule will be
enabled. The schedule may be set to Always, which will allow
the particular service to always be enabled. You can create
your own times in the Tools > Schedules section.
Select Allow All (most common) or a created Inbound lter.
You may create your own inbound lters in the Advanced >
Inbound Filter page.
Name:
IP Address:
Private Port/
Public Port:
Protocol:
Schedule:
Inbound Filter:
Virtual Server
Advanced
66
D-Link %"1 User Manual
Section 3 - Conguration
This page will allow you to open a single port or a range of ports.
Port Forwarding
Enter a name for the rule or select an application from the
drop-down menu. Select an application and click to populate
the elds.
Enter the IP address of the computer on your local network that
you want to allow the incoming service to. If your computer is
receiving an IP address automatically from the router (DHCP),
you computer will be listed in the “Computer Name” drop-
down menu. Select your computer and click <<.
Enter the TCP and/or UDP port or ports that you want to open.
You can enter a single port or a range of ports. Separate ports
with a common. Example: 24,1009,3000-4000
The schedule of time when the Virtual Server Rule will be
enabled. The schedule may be set to Always, which will allow
the particular service to always be enabled. You can create your
own times in the Tools > Schedules section.
Select Allow All (most common) or a created Inbound lter.
You may create your own inbound lters in the Advanced >
Inbound Filter page.
Name:
IP Address:
TCP/UDP:
Schedule:
Inbound Filter:
67
D-Link %"1 User Manual
Section 3 - Conguration
Enter a name for the rule. You may select a pre-dened
application from the drop-down menu and click.
This is the port used to trigger the application. It
can be either a single port or a range of ports.
Select the protocol of the trigger port (TCP, UDP, or Both).
This is the port number on the Internet side that
will be used to access the application. You may
dene a single port or a range of ports. You can use
a comma to add multiple ports or port ranges.
Select the protocol of the rewall port (TCP, UDP, or Both).
The schedule of time when the Application Rule will be
enabled. The schedule may be set to Always, which will
allow the particular service to always be enabled. You can
create your own times in the Tools > Schedules section.
Name:
Trigger:
Trac Type:
Firewall:
Trac Type:
Schedule:
Application Rules
Some applications require multiple connections, such as Internet gaming, video conferencing, Internet telephony and others. These applications
have difficulties working through NAT (Network Address Translation). Special Applications makes some of these applications work with the
%"1 If you need to run applications that require multiple connections, specify the port normally associated with an application in the
“Trigger Port” field, select the protocol type as TCP or UDP, then enter the firewall (public) ports associated with the trigger port to open them for
inbound traffic.
68
D-Link %"1 User Manual
Section 3 - Conguration
QoS Engine
This option is disabled by default. Enable this option for better
performance and experience with online games and other
interactive applications, such as VoIP.
This option is enabled by default when the QoS Engine option
is enabled. This option will allow your router to automatically
determine the uplink speed of your Internet connection.
This displays the detected uplink speed.
The speed at which data can be transferred from the router to
your ISP. This is determined by your ISP. ISP’s often speed as a
download/upload pair. For example, 1.5Mbits/284Kbits. Using
this example, you would enter 284. Alternatively you can test
your uplink speed with a service such as speedtest.net.
A QoS Engine Rule identies a specic message ow and
assigns a priority to that ow. For most applications, automatic
classication will be adequate, and specic QoS Engine Rules
will not be required.
The QoS Engine supports overlaps between rules, where more
than one rule can match for a specic message ow. If more
than one rule is found to match the rule with the highest
priority will be used.
Create a name for the rule that is meaningful to you.
The priority of the message ow is entered here -- 1 receives
the highest priority (most urgent) and 255 receives the lowest priority (least urgent).
Enable QoS
Engine:
Automatic Uplink
Speed:
Measured Uplink
Speed:
Manual Uplink
Speed:
QoS Engine Rules:
Name:
Priority:
The QoS Engine option helps improve your network gaming performance by prioritizing applications. By default the QoS Engine settings are
disabled and application priority is not classied automatically.
69
D-Link %"1 User Manual
Section 3 - Conguration
The protocol used by the messages.
The rule applies to a ow of messages whose LAN-side IP address falls within the range set here.
The rule applies to a ow of messages whose LAN-side port number is within the range set here.
The rule applies to a ow of messages whose WAN-side IP address falls within the range set here.
The rule applies to a ow of messages whose WAN-side port number is within the range set here.
Protocol:
Local IP Range:
Local Port Range:
Remote IP Range:
Remote Port
Range:
70
D-Link %"1 User Manual
Section 3 - Conguration
Network Filters
Select Turn MAC Filtering O, Allow MAC addresses listed
below, or Deny MAC addresses listed below from the drop-
down menu.
Enter the MAC address you would like to lter.
To nd the MAC address on a computer, please refer to the
Networking Basics section in this manual.
Select a DHCP client from the drop-down menu and click << to
copy that MAC Address.
Click to remove the MAC address.
Congure MAC
Filtering:
MAC Address:
DHCP Client:
Clear:
Use MAC (Media Access Control) Filters to allow or deny LAN (Local Area Network) computers by their MAC addresses from
accessing the network. You can either manually add a MAC address or select the MAC address from the list of clients that are
currently connected to the Broadband Router.
71
D-Link %"1 User Manual
Section 3 - Conguration

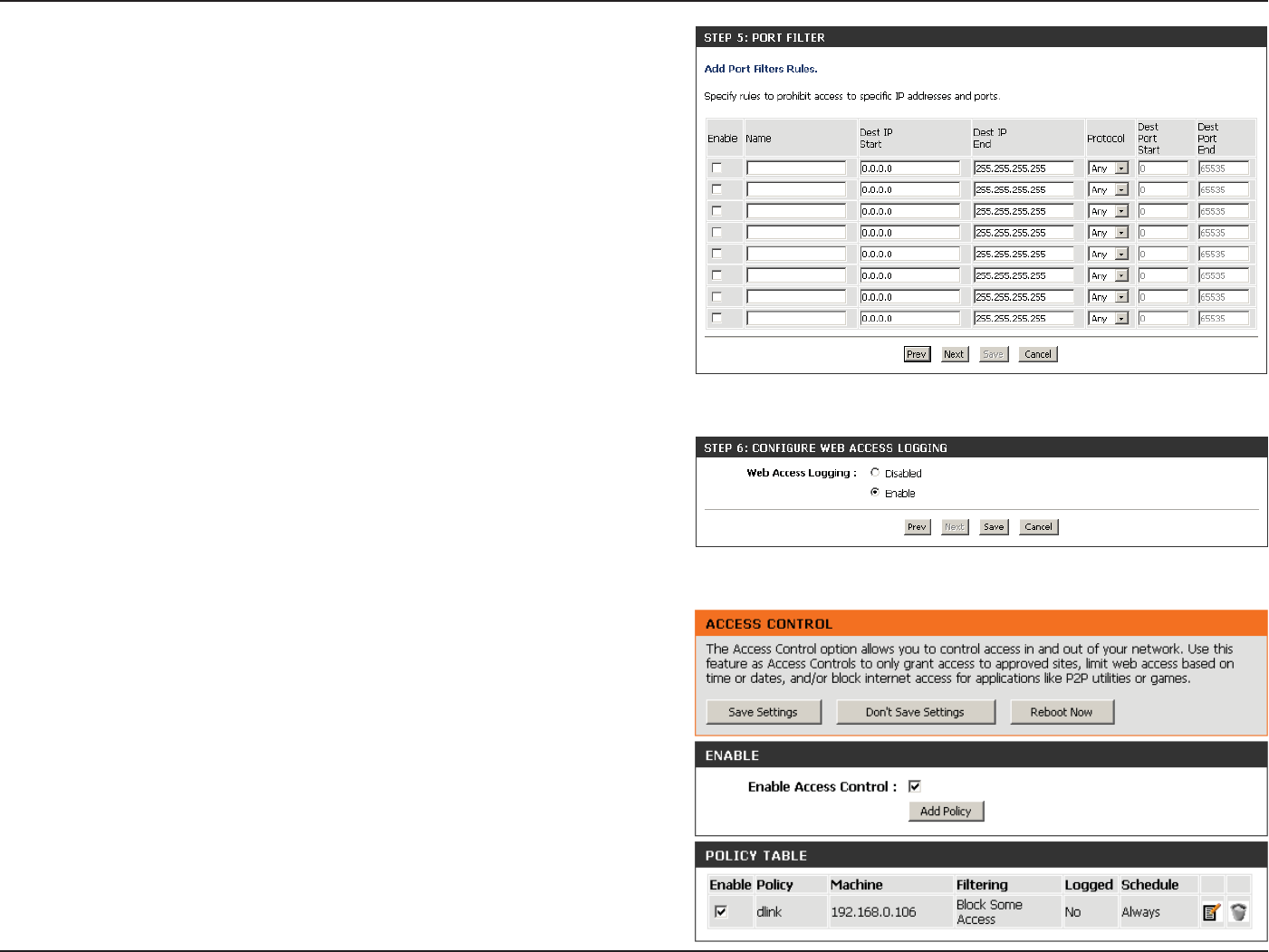

Access Control
Click the Add Policy button to start the Access Control Wizard. Add Policy:
The Access Control section allows you to control access in and out of your network. Use this feature as Parental Controls to
only grant access to approved sites, limit web access based on time or dates, and/or block access from applications like P2P
utilities or games.
Click Next to continue with the wizard.
Access Control Wizard
72
D-Link %"1 User Manual
Section 3 - Conguration
Enter a name for the policy and then click Next to continue.
Select a schedule (I.E. Always) from the drop-down menu and
then click Next to continue.
Enter the following information and then click Next to continue.
•Address Type - Select IP address, MAC address, or Other
Machines.
•IP Address - Enter the IP address of the computer you want to
apply the rule to.
•Machine Address - Enter the PC MAC address (i.e. 00:00.00.00.00).
Select the ltering method and then click Next to continue.
73
D-Link %"1 User Manual
Section 3 - Conguration
Enter the rule:
Enable - Check to enable the rule.
Name - Enter a name for your rule.
Dest IP Start - Enter the starting IP address.
Dest IP End - Enter the ending IP address.
Protocol - Select the protocol.
Dest Port Start - Enter the starting port number.
Dest Port End - Enter the ending port number.
To enable web logging, click Enable.
Click Save to save the access control rule.
Your newly created policy will now show up under Policy Table.
74
D-Link %"1 User Manual
Section 3 - Conguration
Congure Website
Filter:
Website URL/
Domain:
Website Filters
Select either DENY computers access to ONLY these sites
or ALLOW computers access to ONLY these sites.
Enter the keywords or URLs that you want to allow or block.
Click Save Settings.
Website Filters are used to allow you to set up a list of Web sites that can be viewed by multiple users through the network.
To use this feature select to Allow or Deny, enter the domain or website and click Save Settings. You must also select Apply
Web Filter under the Access Control section.
75
D-Link %"1 User Manual
Section 3 - Conguration
Enter a name for the inbound lter rule.
Select Allow or Deny.
Check to enable rule.
Enter the starting IP address. Enter 0.0.0.0 if you do not want
to specify an IP range.
Enter the ending IP address. Enter 255.255.255.255 if you do
not want to specify and IP range.
Click the Add button to apply your settings. You must click
Save Settings at the top to save the settings.
This section will list any rules that are created. You may click
the Edit icon to change the settings or enable/disable the rule,
or click the Delete icon to remove the rule.
Name:
Action:
Enable:
Remote IP Start:
Remote IP End:
Add:

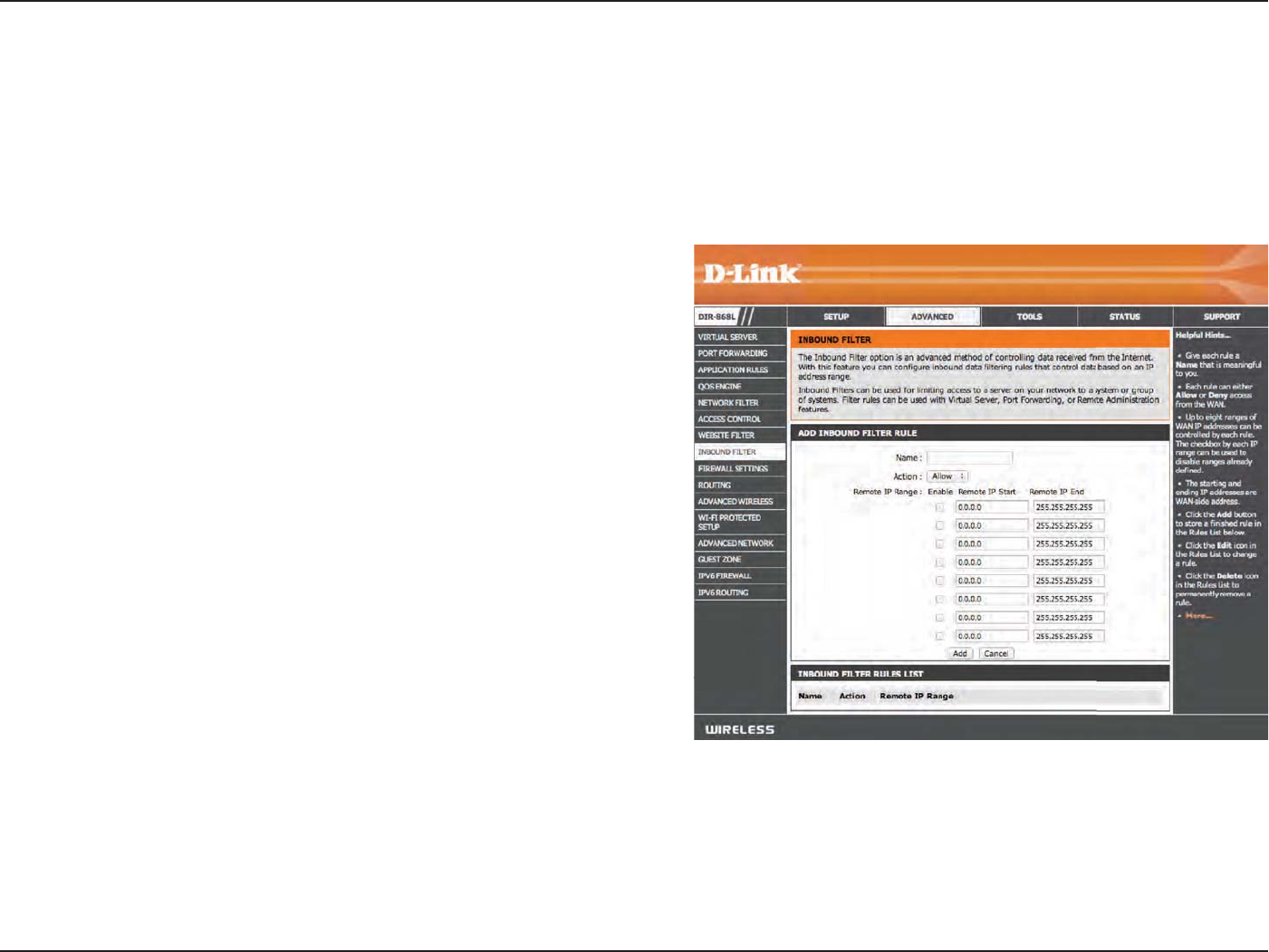

Inbound Filter
Rules List:
The Inbound Filter option is an advanced method of controlling data received from the Internet. With this feature you can
congure inbound data ltering rules that control data based on an IP address range. Inbound Filters can be used with Virtual
Server, Port Forwarding, or Remote Administration features.
Inbound Filter
76
D-Link %"1 User Manual
Section 3 - Conguration
SPI (Stateful Packet Inspection, also known as dynamic packet
ltering) helps to prevent cyber attacks by tracking more state
per session. It validates that the trac passing through the
session conforms to the protocol.
Enable this feature to protect your network from certain kinds
of “spoong” attacks.
If an application has trouble working from behind the router,
you can expose one computer to the Internet and run the
application on that computer.
Note: Placing a computer in the DMZ may expose that computer
to a variety of security risks. Use of this option is only recommended
as a last resort.
Specify the IP address of the computer on the LAN that you
want to have unrestricted Internet communication. If this
computer obtains it’s IP address automatically using DHCP,
be sure to make a static reservation on the Setup > Network
Settings page so that the IP address of the DMZ machine
does not change.
Allows multiple machines on the LAN to connect to their
corporate network using PPTP protocol.
Allows multiple VPN clients to connect to their corporate
network using IPSec. Some VPN clients support traversal of
IPSec through
Enable SPI:
Anti-Spoof Check:
Enable DMZ:
DMZ IP Address:
PPTP:
IPSEC (VPN):
Firewall Settings
A firewall protects your network from the outside world. The %"1 offers a firewall type functionality. The SPI feature
helps prevent cyber attacks. Sometimes you may want a computer exposed to the outside world for certain types of
applications. If you choose to expose a computer, you can enable DMZ. DMZ is short for Demilitarized Zone. This option will
expose the chosen computer completely to the outside world.
77
D-Link %"1 User Manual
Section 3 - Conguration
RTSP:
SIP:
NAT. This ALG may interfere with the operation of such VPN clients. If you are having trouble connecting with your corporate network,
try turning this ALG o. Please check with the system administrator of your corporate network whether your VPN client supports
NAT traversal.
Allows application that uses Real Time Streaming Protocol to receive streaming media from the Internet. QuickTime and Real Player
are some of the common applications using this protocol.
Allows devices and applications using VoIP (Voice over IP) to communicate across NAT. Some VoIP applications and devices have
the ability to discover NAT devices and work around them. This ALG may interfere with the operation of such devices. If you are
having trouble making VoIP calls, try turning this ALG o.
78
D-Link %"1 User Manual
Section 3 - Conguration
Enter a name for your route.
Enter the IP address of packets that will take this route.
Enter the netmask of the route, please note that the octets
must match your destination IP address.
Enter your next hop gateway to be taken if this route is used.
The route metric is a value from 1 to 16 that indicates the
cost of using this route. A value 1 is the lowest cost and 15
is the highest cost.
Select the interface that the IP packet must use to transit out
of the router when this route is used.
Name:
Destination IP:
Netmask:
Gateway:
Metric:
Interface:

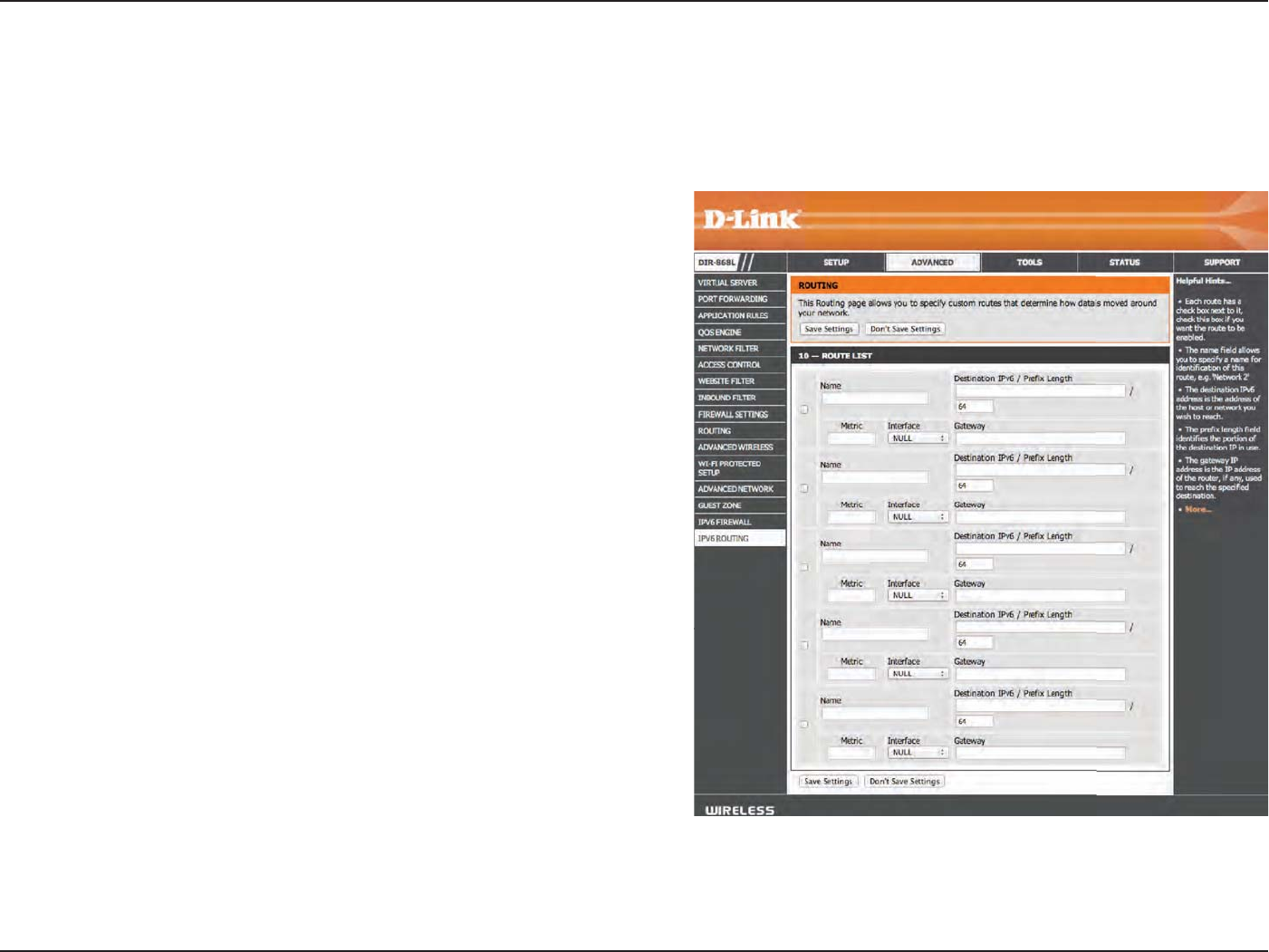

Routing
The Routing option is an advanced method of customizing specic routes of data through your network.
79
D-Link %"1 User Manual
Section 3 - Conguration
Advanced Wireless
This will display which radio band the following
settings will be ued for. This top box will be
the settings for the 2.4 GHz band.
Set the transmit power of the antennas
for the 2.4 GHz band.
This enables 802.11d operation. 802.11d is a wireless
specication developed to allow implementation
of wireless networks in countries that cannot use
the 802.11 standard. This feature should only be
enabled if you are in a country that requires it.
WMM is QoS for your wireless network. This
will improve the quality of video and voice
applications for your wireless clients.
Enable this option to reduce interference from other
wireless networks in your area. If the channel width
is operating at 40MHz and there is another wireless
network’s channel over-lapping and causing interference,
the router will automatically change to 20MHz.
This will display which radio band settings will be used. This top box will be the settings for the 5 GHz band.
Set the transmit power of the antennas for the 5 GHz band.
This enables 802.11d operation. 802.11d is a wireless specication developed to allow implementation of wireless networks
in countries that cannot use the 802.11 standard. This feature should only be enabled if you are in a country that requires it.
WMM is QoS for your wireless network. This will improve the quality of video and voice applications for your wireless clients.
Wireless Band:
Transmit Power:
WLAN Partition:
WMM Enable:
HT20/40
Coexistence:
Wireless Band:
Transmit Power:
WLAN Partition:
WMM Enable:
This page allows you to change some of the advanced wireless settings of the %"1 It is recommended that you only change these settings
if you are familiar with their functions and proper settings, or are instructed to do so.
80
D-Link %"1 User Manual
Section 3 - Conguration

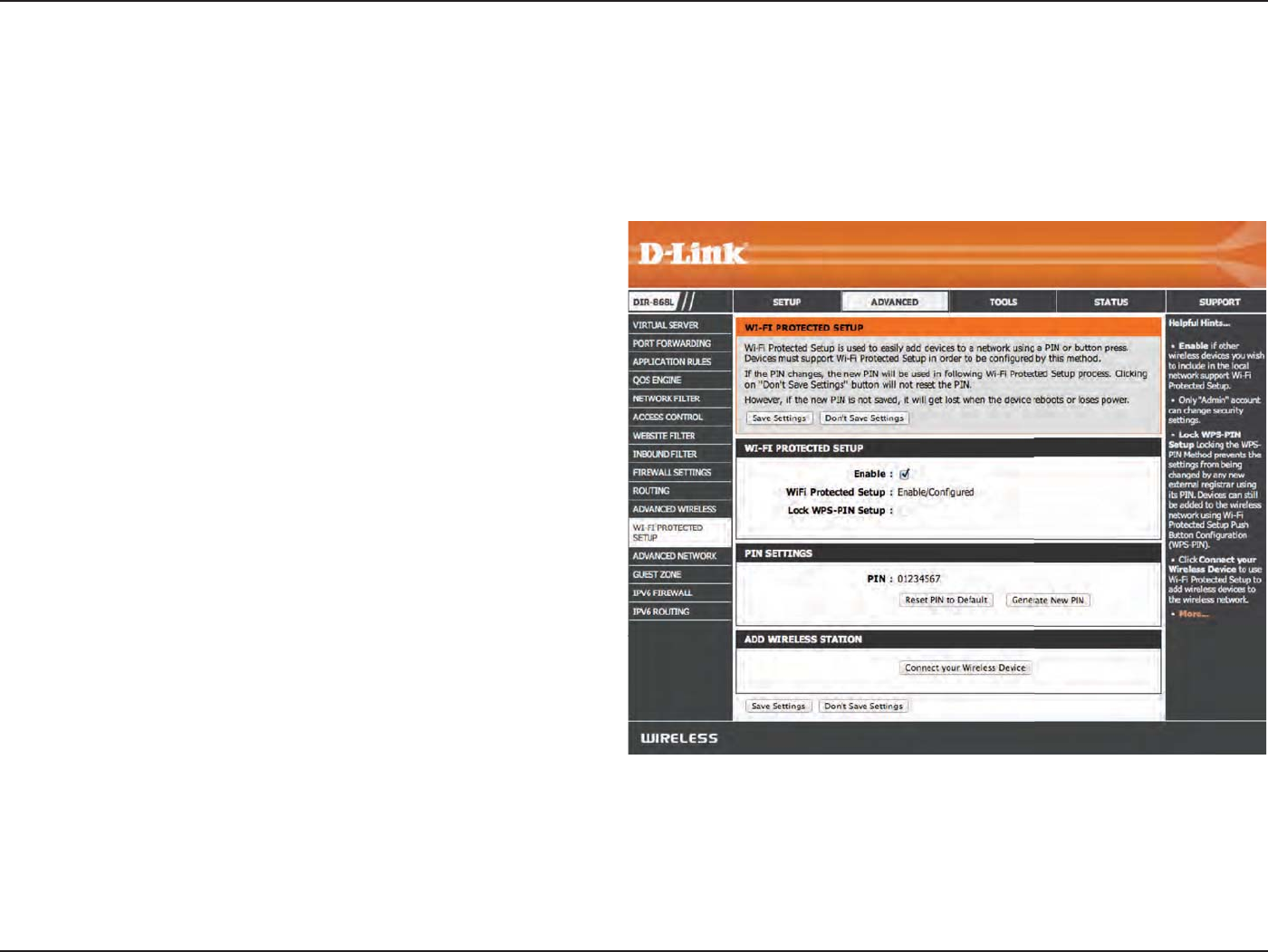

Wi-Fi Protected Setup
Enable the Wi-Fi Protected Setup feature.
Note: if this option is unchecked, the WPS button
on the side of the router will be disabled.
Check to disable the option of
conguring the WPS PIN options.
A PIN is a unique number that can be used to
add the router to an existing network or to
create a new network. Only the Administrator
(“admin” account) can change or reset the PIN.
Shows the current PIN.
Create a random number that is a valid PIN. This
becomes the router’s PIN. You can then copy this
PIN to the user interface of the wireless client.
Restore the default PIN of the router.
Enable:
Lock WPS-PIN
Setup:

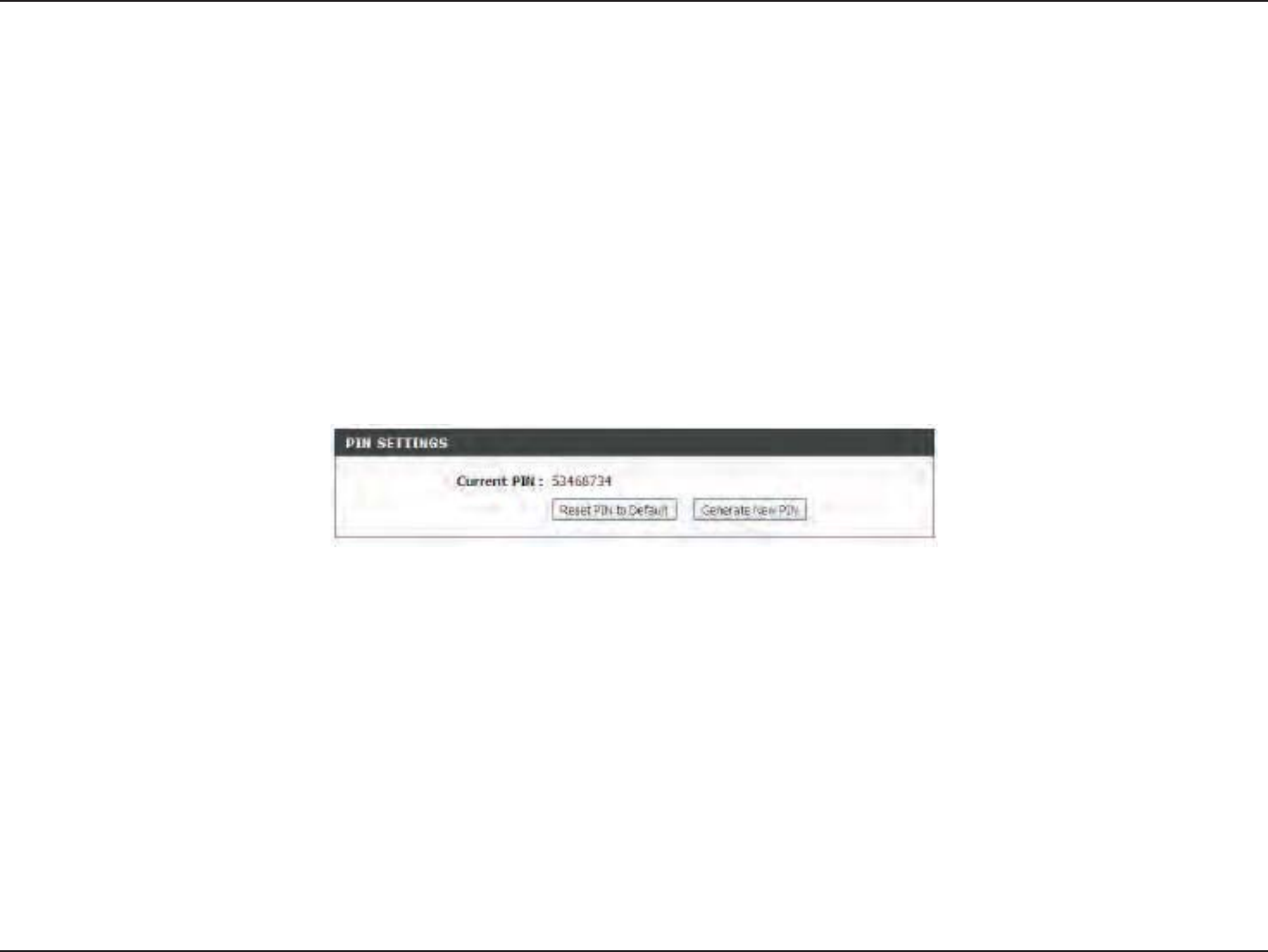

PIN Settings:
Current PIN:
Generate New
PIN:
Reset PIN to
Default:
Wi-Fi Protected Setup (WPS) System is a simplied method for securing your wireless network during the “Initial setup” as well as the “Add New
Device” processes. The Wi-Fi Alliance (WFA) has certied it across dierent products as well as manufacturers. The process is just as easy as pressing
a button for the Push-Button Method or correctly entering the 8-digit code for the PIN Code Method. The time reduction in setup and ease of use
are quite benecial, and the highest wireless security setting of WPA2 is automatically used.
81
D-Link %"1 User Manual
Section 3 - Conguration
This Wizard helps you add wireless devices to the wireless network.
The wizard will either display the wireless network settings to guide you through manual conguration, prompt you to enter the
PIN for the device, or ask you to press the conguration button on the device. If the device supports Wi-Fi Protected Setup and has a
conguration button, you can add it to the network by pressing the conguration button on the device and then the on the router
within 60 seconds. The status LED on the router will ash three times if the device has been successfully added to the network.
There are several ways to add a wireless device to your network. A “registrar” controls access to the wireless network. A registrar
only allows devices onto the wireless network if you have entered the PIN, or pressed a special Wi-Fi Protected Setup button on the
device. The router acts as a registrar for the network, although other devices may act as a registrar as well.
Click to start the wizard and turn to page 40.
Add Wireless
Station:
You can also simply press the WPS button on the side of the router, and then press the
WPS button on your wireless client within 120 seconds to automatically connect without
logging into the router.
Refer to page 108 for more information.
WPS Button
82
D-Link %"1 User Manual
Section 3 - Conguration
To use the Universal Plug and Play (UPnP™) feature click on
Enabled. UPnP provides compatibility with networking
equipment, software and peripherals.
Checking the box will allow the %"1 to respond to
pings. Unchecking the box may provide some extra
security from hackers.
Select from the drop-down menu if you would like to apply
the Inbound Filter to the WAN ping. Refer to the Inbound
Filters section for more information.
You may set the port speed of the Internet port to 10Mbps,
100Mbps, 1000Mbps, or Auto (recommended).
Check the box to allow multicast trac to pass through
the router from the Internet (IPv4).
Check the box to allow multicast trac to pass through
the router from the Internet (IPv6).
Enable UPnP:
WAN Ping:
WAN Ping Inbound
Filter:
WAN Port Speed:
Enable IPV4
Multicast Streams:
Enable IPV6
Multicast Streams:
Advanced Network
This page allows you to change some of the advanced network settings of the %"1 It is recommended that you only change these settings
if you are familiar with their functions and proper settings, or are instructed to do so.
83
D-Link %"1 User Manual
Section 3 - Conguration
Guest Zone
Check to allow network connectivity between the dierent
zones created.
Check to enable the Guest Zone feature for the 2.4 GHz band.
The schedule of time when the Guest Zone will be active. The
schedule may be set to Always, which will allow the particular
service to always be enabled. You can create your own times
in the Tools > Schedules section or click Add New.
Enter a wireless network name (SSID) that is dierent from
your main wireless network.
If you want to choose a security mode for the 2.4 GHz band,
choose from the drop-down menu.
Check to enable the Guest Zone feature for the 5 GHz band.
The schedule of time when the Guest Zone will be active. The
schedule may be set to Always, which will allow the particular
service to always be enabled. You can create your own times
in the Tools > Schedules section or click Add New.
Enter a wireless network name (SSID) that is dierent from your main wireless network.
If you want to choose a security mode for the 5 GHz band, choose from the drop-down menu.
Enable Routing
Between Zones:
Enable Guest Zone:
Schedule:
Wireless Network
Name:
Security Mode:
Enable Guest Zone:
Schedule:
Wireless Network
Name:
Security Mode:
The Guest Zone feature will allow you to create temporary zones that can be used by guests to access the Internet. These zones will be separate
from your main wireless network. You may congure dierent zones for the 2.4GHz and 5GHz wireless bands.
84
D-Link %"1 User Manual
Section 3 - Conguration
IPv6 Firewall
The DAP-1750’s IPv6 Firewall feature allows you to congure which kind of IPv6 trac is allowed to pass through the device. The DAP-1750’s IPv6
Firewall functions in a similar way to the IP Filters feature.
Check the box to enable the IPv6 rewall simple security.
Select an action from the drop-down menu.
Enter a name to identify the IPv6 rewall rule.
Use the drop-down menu to select the time schedule that the
IPv6 Firewall Rule will be enabled on. The schedule may be set
to Always, which will allow the particular service to always
be enabled. You can create your own times in the Tools >
Schedules section.
Use the Source drop-down menu to specify the interface that
connects to the source IPv6 addresses of the rewall rule.
Enter the source IPv6 address range in the adjacent IP Address
Range eld.
Use the Destination drop-down menu to specify the interface
that connects to the destination IP addresses of the rewall rule.
Select the protocol of the rewall port (All, TCP, UDP, or ICMP).
Enter the rst port of the range that will be used for the rewall
rule in the rst box and enter the last port in the eld in the
second box.
Enable IPv6 Simple
Security:
Congure IPv6
Firewall:
Name:
Schedule:
Source:
IP Address Range:
Destination:
Protocol:
Port Range:
85
D-Link %"1 User Manual
Section 3 - Conguration
IPv6 Routing
Check the box next to the route you wish to enable.
Enter a specic name to identify this route.
This is the IP address of the router used to reach the specied
destination or enter the IPv6 address prex length of the packets
that will take this route.
Enter the metric value for this rule here.
Use the drop-down menu to specify if the IP packet must use
the WAN or LAN interface to transit out of the Router.
Enter the next hop that will be taken if this route is used.
Route List:
Name:
Destination IP/
Prex Length:
Metric:
Interface:
Gateway:
This page allows you to specify custom routes that determine how data is moved around your network.
86
D-Link %"1 User Manual
Section 3 - Conguration
Admin
This page will allow you to change the Administrator and User passwords. You can also enable Remote Management. There are two accounts that
can access the management interface through the web browser. The accounts are admin and user. Admin has read/write access while user has
read-only access. User can only view the settings but cannot make any changes. Only the admin account has the ability to change both admin and
user account passwords.
Tools
Here you can enter a new password for the Administrator Login
Name. The administrator can make changes to the settings.
Enter the new password for the User login. If you login as the
User, you cannot change the settings (you can only view them).
Then enter the password again for verication.
Enter a name for your router.
Enables a challenge-response test to require users to type letters
or numbers from a distorted image displayed on the screen to
prevent online hackers and unauthorized users from gaining
access to your router’s network settings.
Check to enable HTTPS to connect to the router securely. This
means to connect to the router, you must enter https://192.168.0.1
(for example) instead of http://192.168.0.1.
Remote management allows the %"1 to be configured
from the Internet by a web browser. A username/password
is still required to access the Web Management interface.
The port number used to access the %"1 is used in the URL. Example: http://x.x.x.x:8080 whereas x.x.x.x is the Internet IP
address of the %"1 and 8080 is the port used for the Web Management interface. If you have enabled HTTPS Server, you
must enter https:// as part of the URL to access the router remotely.
This section will list any rules that are created. You may click the Edit icon to change the settings or enable/disable the rule, or click the
Delete icon to remove the rule. Details will display the current status of the rule.
Admin
Password:
Password:
Gateway Name:
Enable Graphical
Authentication:
Enable HTTPS
Server:
Enable Remote
Management:
Remote Admin
Port:
Remote Admin
Inbound Filter:
87
D-Link %"1 User Manual
Section 3 - Conguration
Time
Displays the current date and time of the router.
Select your Time Zone from the drop-down menu.
To select Daylight Saving time manually, select enabled or
disabled, and enter a start date and an end date for daylight
saving time.
NTP is short for Network Time Protocol. A NTP server will synch
the time and date with your router. This will only connect to
a server on the Internet, not a local server. Check the box to
enable this feature.
Enter the IP address of a NTP server or select one from the
drop-down menu.
To manually input the time, enter the values in these elds
for the Year, Month, Day, Hour, Minute, and Second and then
click Set Time.
You can also click Sync Your Computer’s Time Settings to
synch the date and time with the computer you are currently
on.
Time:
Time Zone:
Enable Daylight
Saving:
Enable NTP Server:
NTP Server Used:
Manual:
The Time Conguration option allows you to congure, update, and maintain the correct time on the internal system clock.
From this section you can set the time zone that you are in and set the Time Server. Daylight Saving can also be congured to
automatically adjust the time when needed.
88
D-Link %"1 User Manual
Section 3 - Conguration
SysLog
The Broadband Router keeps a running log of events and activities occurring on the Router. You may send these logs to a
SysLog server on your network.
Enable Logging to
SysLog Server: Check this box to send the router logs to a SysLog Server.
89
D-Link %"1 User Manual
Section 3 - Conguration
Email Settings
The Email feature can be used to send the system log les, router alert messages, and rmware update notication to your
email address.
Enable Email
Notication:
From Email
Address:
To Email Address:
SMTP Server
Address:
SMTP Server Port:
Enable
Authentication:
Account Name:
Password:
On Log Full:
On Schedule:
Schedule:
Details:
When this option is enabled, router activity logs are emailed
to a designated email address.
This email address will appear as the sender when you receive
a log le or rmware upgrade notication via email.
Enter the email address where you want the email sent.
Enter the SMTP server address for sending email.
Enter the SMTP port used on the server.
Check this box if your SMTP server requires authentication.
Enter your account for sending email.
Enter the password associated with the account. Re-type the
password associated with the account.
When this option is selected, logs will be sent via email to your
account when the log is full.
Selecting this option will send the logs via email according to schedule.
This option is enabled when On Schedule is selected. You can select a schedule from the list of dened schedules.
To create a schedule, go to Tools > Schedules.
Here you can choose from a drop down menu whether email details are kept in the log or not.
90
D-Link %"1 User Manual
Section 3 - Conguration
Use this option to save the current router conguration settings
to a le on the hard disk of the computer you are using. First, click
the Save Conguration button. A le dialog will appear, allowing
you to select a location and le name for the settings.
Use this option to load previously saved router conguration
settings. First, use the Browse option to nd a previously saved le
of conguration settings. Then, click the Load button to transfer
those settings to the router.
This option will restore all conguration settings back to the
settings that were in eect at the time the router was shipped
from the factory. Any settings that have not been saved will be lost,
including any rules that you have created. If you want to save the
current router conguration settings, use the Save button above.
Click to reboot the router.
Save Settings to
Local Hard Drive:
Load Settings
from Local Hard
Drive:
Restore to
Factory Default
Settings:
Reboot Device:
System
This section allows you to manage the router’s conguration settings, reboot the router, and restore the router to the factory
default settings. Restoring the unit to the factory default settings will erase all settings, including any rules that you’ve created.
91
D-Link %"1 User Manual
Section 3 - Conguration
Firmware
Choose File:
Upload:
After you have downloaded the new rmware, click
Choose File to locate the rmware update on your
hard drive.
Click Upload to complete the rmware upgrade.
You can upgrade the rmware of the access point here. Make sure the rmware you want to use is on the local hard drive of the computer. Click on
Choose File to locate the rmware le to be used for the update. Please check the D-Link support website for rmware updates at http://support.
dlink.com. You can download rmware upgrades to your hard drive from this site.
After you have downloaded the new language pack,
click Choose File to locate the language pack le on
your hard drive.
Click Upload to complete the language pack upgrade.
Language Pack
You can change the language of the web UI by uploading
available language packs.
Choose File:
Upload:
Click Check Now to check for new rmware and
language pack versions online.
Check Now:
Firmware Upgrade
You can change update the internal router software by
uploading a new rmware version.
92
D-Link %"1 User Manual
Section 3 - Conguration
Dynamic Domain Name System is a method of keeping a
domain name linked to a changing IP Address. Check the box
to enable DDNS.
Select your DDNS provider from the drop-down menu or enter
the DDNS server address.
Enter the Host Name that you registered with your DDNS
service provider.
Enter the Username or key for your DDNS account.
Enter the Password or key for your DDNS account.
Enter a timeout time (in hours).
Displays the current connection status.
Check the Enable box to enable DDNS for IPv6 Hosts.
Select your DDNS provider from the drop-down menu or enter
the DDNS server address.
Enter the Host Name that you registered with your DDNS service provider.
Displays the list of active IPv6 Dynamic DNS addresses.
Enable Dynamic
DNS:
Server Address:
Host Name:
Username or
Key:
Password or Key:
Timeout:
Status:
Enable DDNS for
IPv6 Hosts
IPv6 Address:
Host Name:
IPv6 DDNS List:
Dynamic DNS
The DDNS feature allows you to host a server (Web, FTP, Game Server, etc…) using a domain name that you have purchased (www.yourname.com)
with your dynamically assigned IP address. Most broadband Internet Service Providers assign dynamic (changing) IP addresses. Using a DDNS
service provider, your friends can enter in your domain name to connect to your server no matter what your IP address is.
93
D-Link %"1 User Manual
Section 3 - Conguration
The Ping Test is used to send Ping packets to test if a
computer is on the Internet. Enter the IP address that you
wish to Ping and click Ping.
Enter the IPv6 address that you wish to Ping and click Ping.
The results of your ping attempts will be displayed here.
System Check
Ping Test:
IPv6 Ping Test:
Ping Results:
94
D-Link %"1 User Manual
Section 3 - Conguration

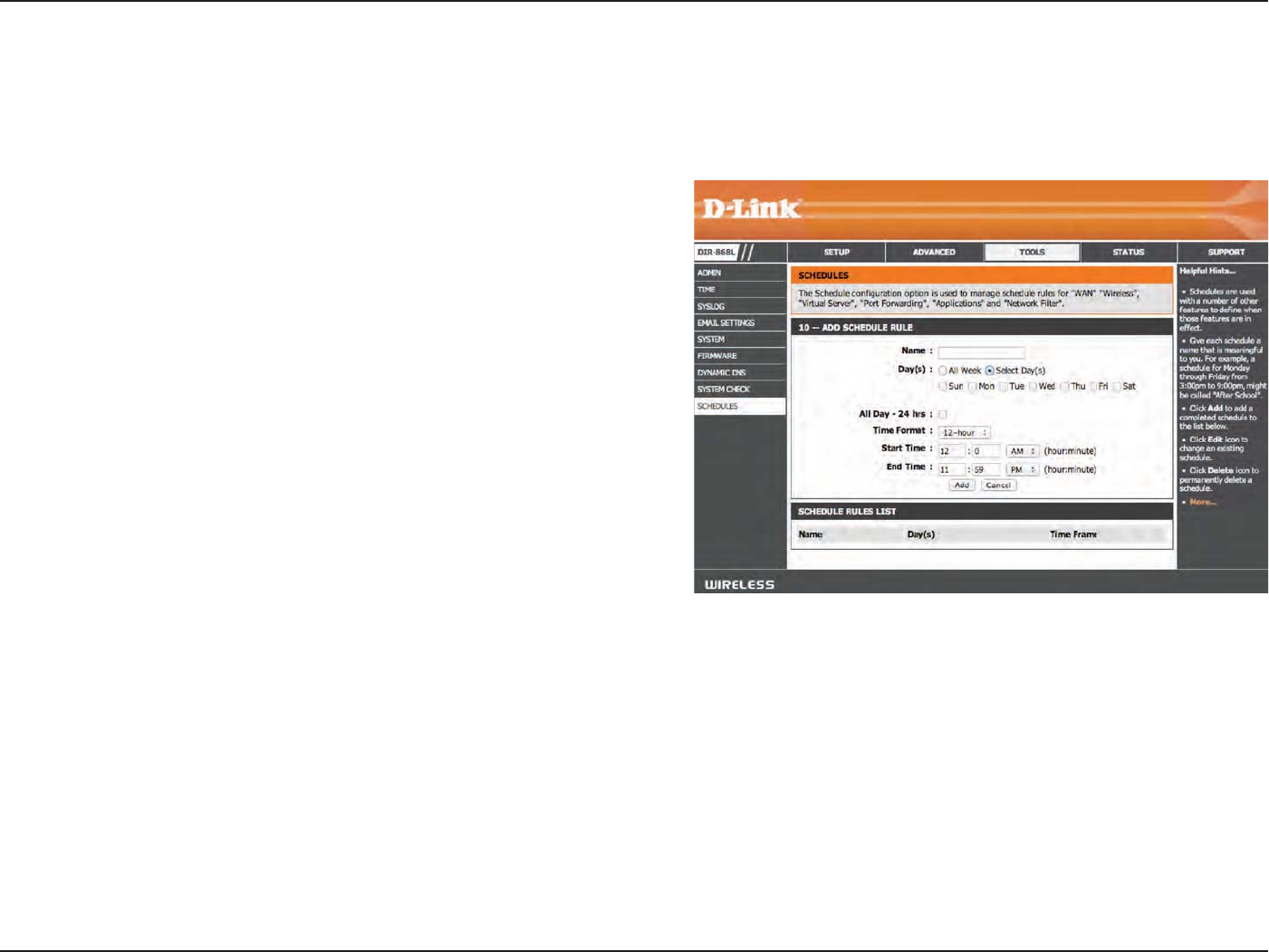

Enter a name for your new schedule.
Select a day, a range of days, or All Week to include every day.
Check All Day - 24hrs to schedule the entire day.
Choose a 24 hour or 12 hour clock-style.
Enter a start time for your schedule.
Enter an end time for your schedule.
The list of schedules will be listed here. Click the Edit icon to
make changes or click the Delete icon to remove the schedule.
Name:
Days:
All Day - 24 Hrs:
Time Format:
Start Time:
End Time:
Schedule Rules
List:
Schedules
Schedules can be created for use with enforcing rules. For example, if you want to restrict web access to Mon-Fri from 3pm to
8pm, you could create a schedule selecting Mon, Tue, Wed, Thu, and Fri and enter a Start Time of 3pm and End Time of 8pm.
95
D-Link %"1 User Manual
Section 3 - Conguration
This page displays the current information for the %"1 It will display the LAN, WAN (Internet), and Wireless information. If your Internet
connection is set up for a Dynamic IP address then a Release button and a Renew button will be displayed. Use Release to disconnect from
your ISP and use Renew to connect to your ISP. If your Internet connection is set up for PPPoE, a Connect button and a Disconnect button will
be displayed. Use Disconnect to drop the PPPoE connection and use Connect to establish the PPPoE connection.
Displays the router’s time and rmware version.
Displays the MAC address and the public IP settings
Displays the MAC address and the private (local) IP settings for the router.
Displays the 2.4GHz wireless MAC address and your wireless settings such as
SSID and Channel.
Displays the 5GHz wireless MAC address and your wireless settings such as
SSID and Channel.
Displays computers and devices that are connected to the router via Ethernet
and that are receiving an IP address assigned by the router (DHCP).
Displays the group address of any IGMP multicasts.
General:
WAN:
LAN:
Wireless LAN1:
Wireless LAN2:
LAN Computers:
IGMP Multicast
Memberships:
Device Info
Status
96
D-Link %"1 User Manual
Section 3 - Conguration
Logs
Log Options:
Refresh:
First Page:
Last Page:
Previous:
Next:
Clear:
Email Now:
Save Log:
You can select the types of messages that you want to display
from the log. System Activity, Debug Information, Attacks,
Dropped Packets, and Notice messages can be selected. Click
Apply Log Settings Now to activate your settings.
Updates the log details on the screen so it displays any recent
activity.
Click to go to the rst page.
Click to go to the last page.
Click to go back one page.
Click to go to the next page.
Clears all of the log contents.
This option will send a copy of the router log to your email
address congured in the Tools > Email Settings screen.
This option will save the router log to a le on your computer.
The router automatically logs (records) events of possible interest in it’s internal memory. If there isn’t enough internal memory for all events, logs
of older events are deleted but logs of the latest events are retained. The Logs option allows you to view the router logs. You can dene what types
of events you want to view and the level of the events to view. This router also has external Syslog Server support so you can send the log les to
a computer on your network that is running a Syslog utility.
97
D-Link %"1 User Manual
Section 3 - Conguration
Statistics
The screen below displays the Traffic Statistics. Here you can view the amount of packets that pass through th%"1L on both the WAN, LAN
ports and the wireless segments. The traffic counter will reset if the device is rebooted.
98
D-Link %"1 User Manual
Section 3 - Conguration
Internet Sessions
The Internet Sessions page displays full details of active Internet sessions through your router. An Internet session is a conversation between a
program or application on a LAN-side computer and a program or application on a WAN-side computer.
99
D-Link %"1 User Manual
Section 3 - Conguration
Routing
This page will display your current routing table.
100
D-Link %"1 User Manual
Section 3 - Conguration
The wireless client table displays a list of current connected wireless clients. This table also displays the connection time and MAC address of the
connected wireless clients.
Wireless
101
D-Link %"1 User Manual
Section 3 - Conguration
IPv6
The IPv6 page displays a summary of the Router’s IPv6 settings and lists the IPv6 address and host name of any IPv6 clients.
102
D-Link %"1 User Manual
Section 3 - Conguration
IPv6 Routing
This page displays the IPV6 routing details congured for your router.
103
D-Link %"1 User Manual
Section 3 - Conguration
Support
The Support pages let you jump to descriptions of the settings and their functions.
104
D-Link %"1 User Manual
Section 4 - Security
Connect a Wireless Client to your Router
WPS Button
Step 2 - Within 2 minutes, press the WPS button on your wireless client (or launch the software utility and start the WPS
process).
The easiest and most secure way to connect your wireless devices to the router is WPS (Wi-Fi Protected Setup). Most wireless
devices such as wireless adapters, media players, Blu-ray DVD players, wireless printers and cameras will have a WPS button
(or a software utility with WPS) that you can press to connect to the %"1 router. Please refer to your user manual for
the wireless device you want to connect to make sure you understand how to enable WPS. Once you know, follow the steps
below:
Step 1 - Press the WPS button on the %"1 for about 1 second. The Internet LED on the front will start to blink.
Step 3 - Allow up to 1 minute while your connection is congured. Once the Internet light stops blinking, you will be connected
and your wireless connection will be secure with WPA2.
105
D-Link %"1 User Manual
Section 4 - Security
Windows® 7
It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before conguring your
wireless adapter. If you are joining an existing network, you will need to know the security key or passphrase being used.
1. Click on the wireless icon in your system tray (lower-right corner).
2. The utility will display any available wireless networks in your area.
Wireless Icon
WPA/WPA2
106
D-Link %"1 User Manual
Section 4 - Security

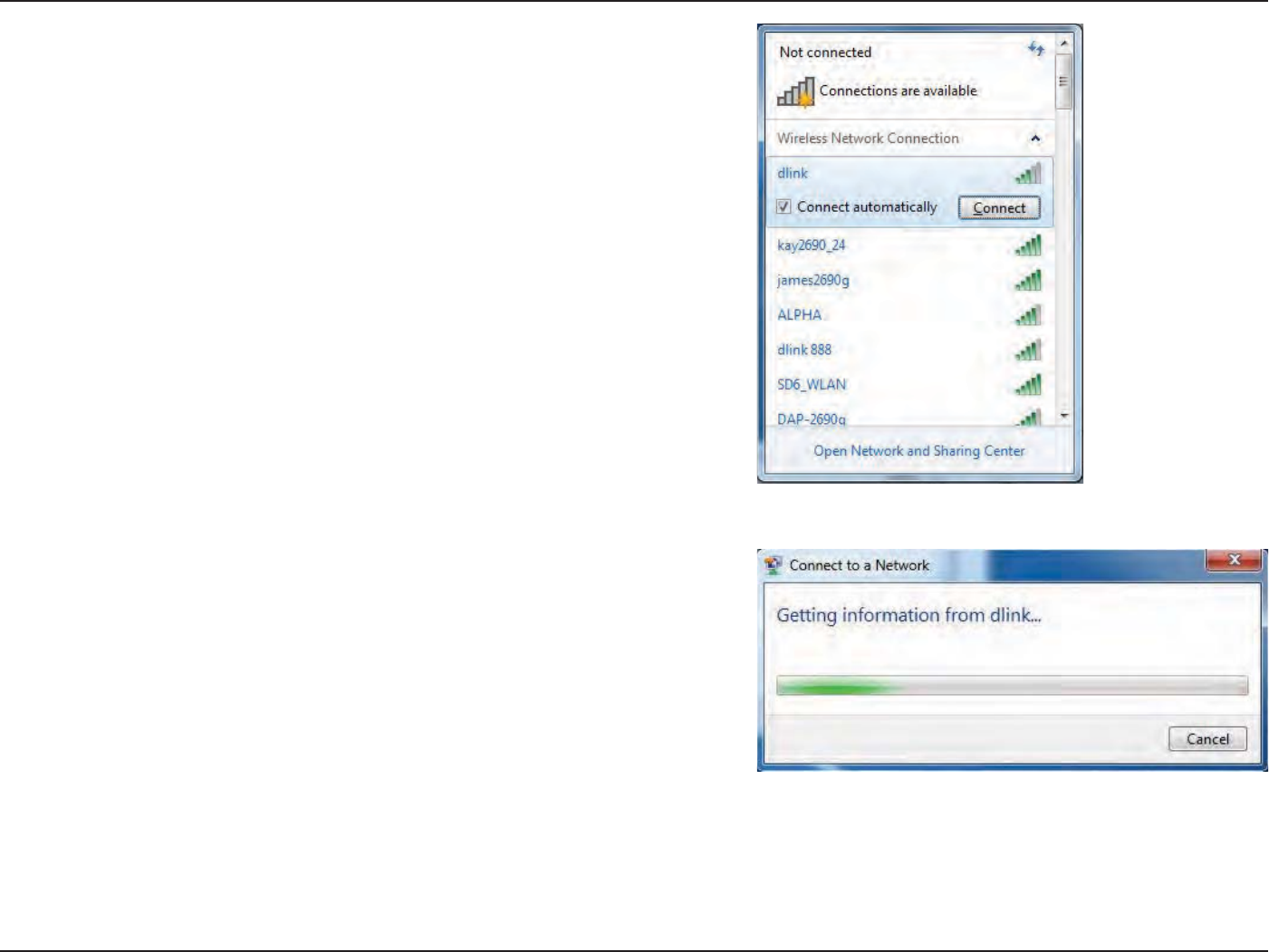

3. Highlight the wireless connection with Wi-Fi name (SSID) you would
like to connect to and click the Connect button.
If you get a good signal but cannot access the Internet, check your
TCP/IP settings for your wireless adapter. Refer to the Networking
Basics section in this manual for more information.
4. The following window appears while your computer tries to
connect to the router.
107
D-Link %"1 User Manual
Section 4 - Security

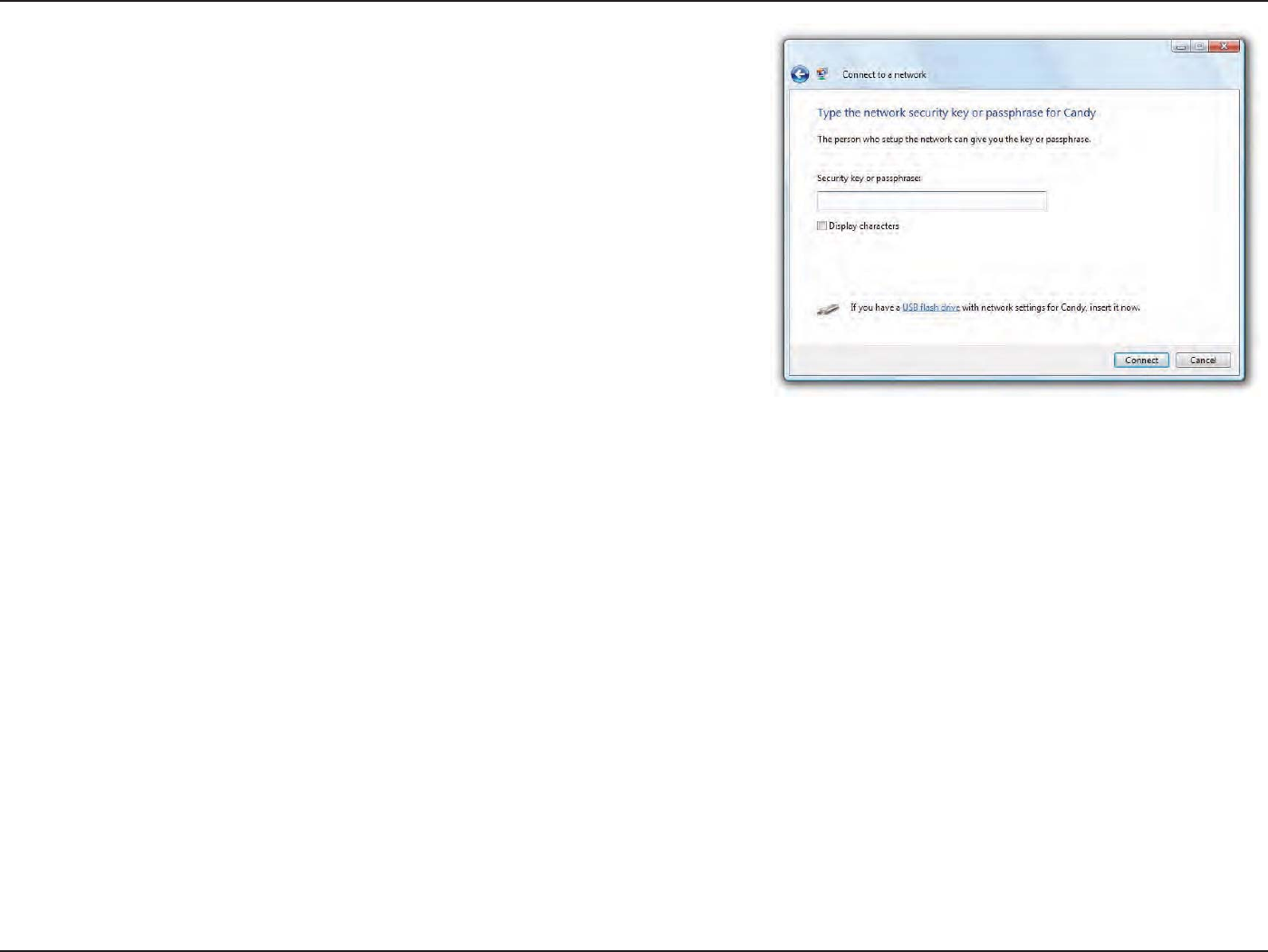

5. Enter the same security key or passphrase (Wi-Fi password) that is
on your router and click Connect. You can also connect by pushing
the WPS button on the router.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the security settings are correct. The
key or passphrase must be exactly the same as on the wireless router.
108
D-Link %"1 User Manual
Section 4 - Security
WPS
The WPS feature of the %"1 can be configured using Windows® 7. Carry out the following steps to use Windows® 7
to configure the WPS feature:

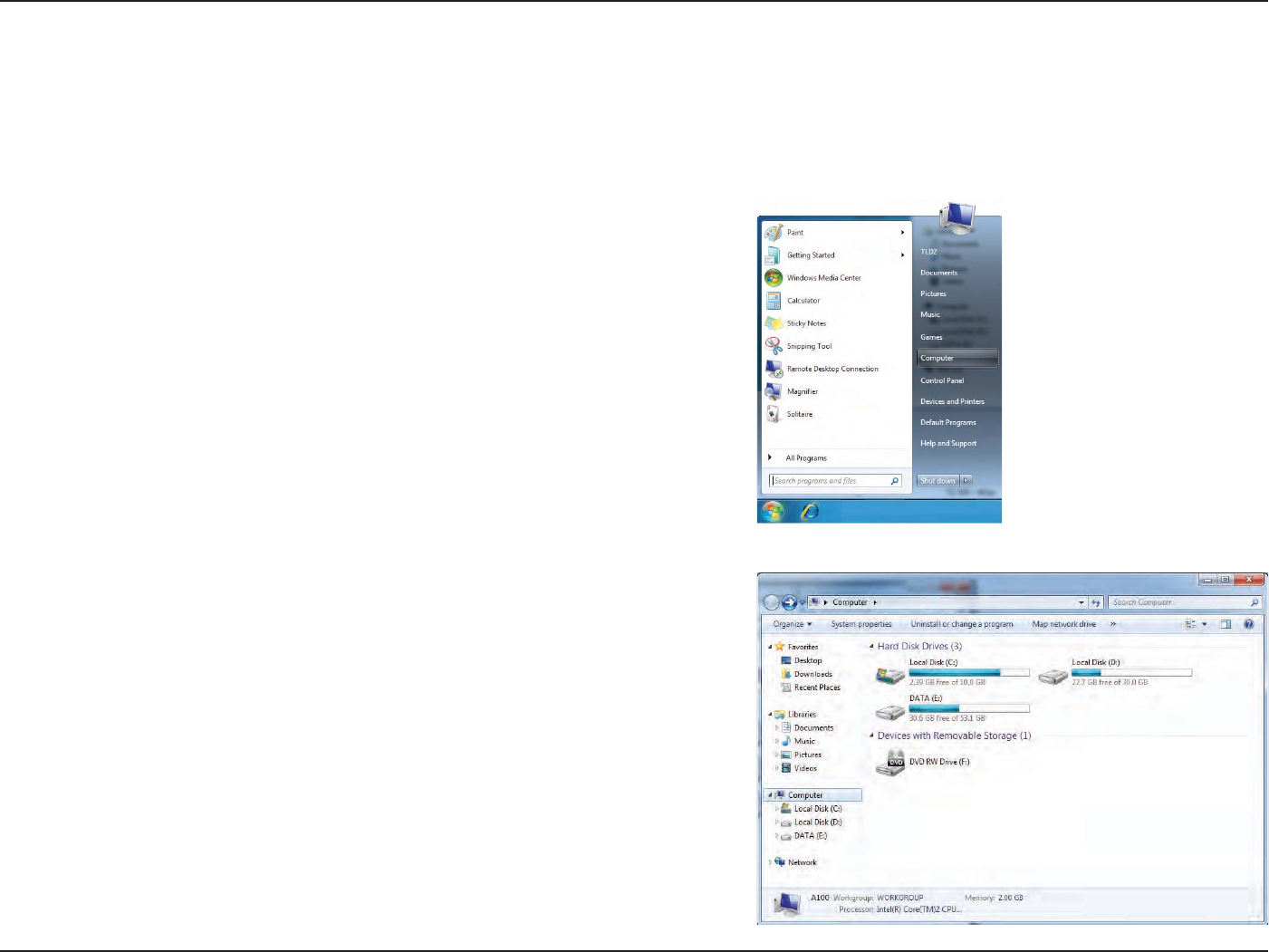

1. Click the Start button and select Computer from the Start menu.
2. Click Network on the left side.
109
D-Link %"1 User Manual
Section 4 - Security

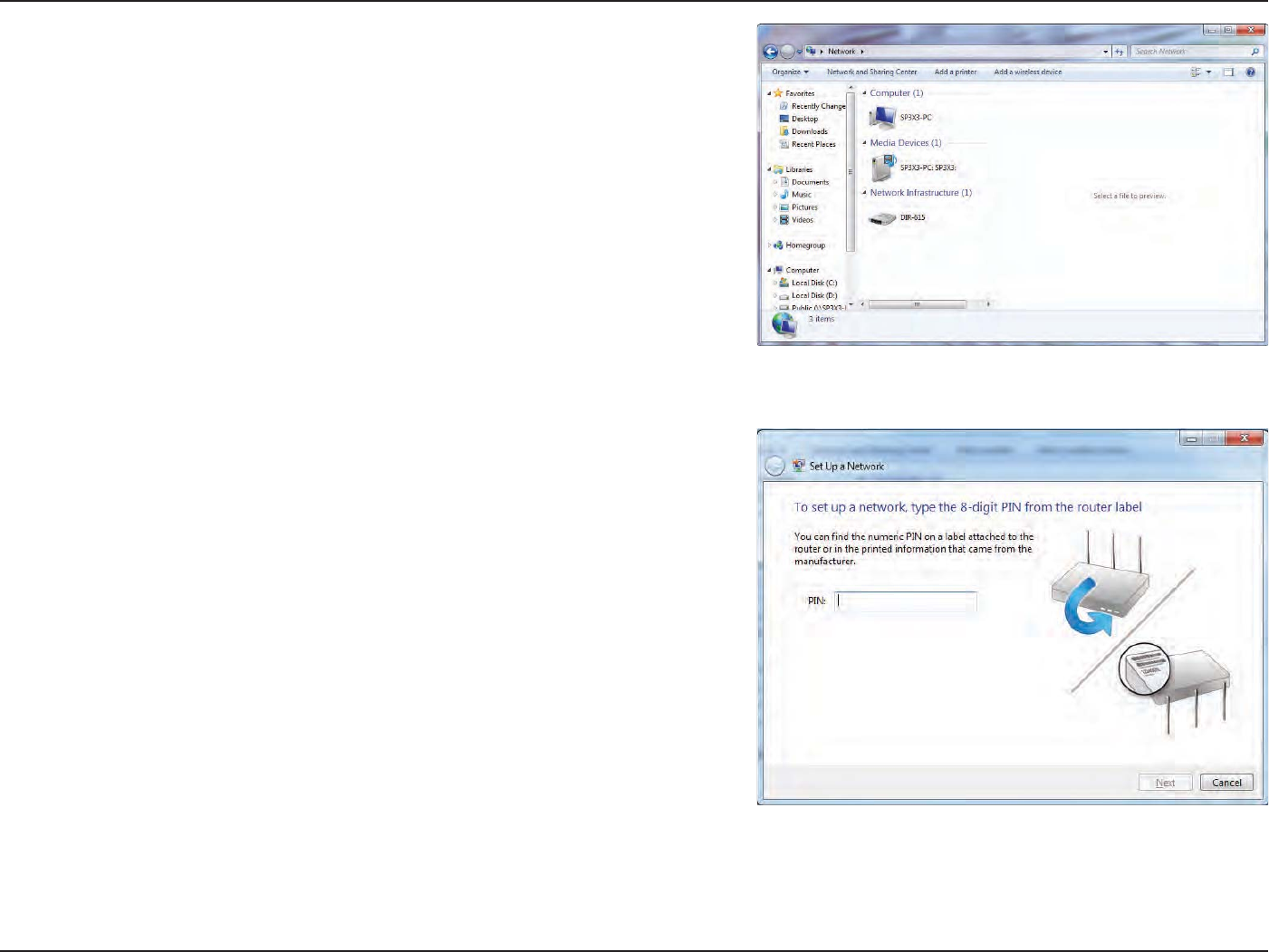

3. Double-click the %"1
4. Input the WPS PIN number (displayed in the WPS window on the
Router’s LCD screen or in the Setup > Wireless Setup menu in
the Router’s Web UI) and click Next.
110
D-Link %"1 User Manual
Section 4 - Security
5. Type a name to identify the network.
6. To congure advanced settings, click the icon.
Click Next to continue.
111
D-Link %"1 User Manual
Section 4 - Security

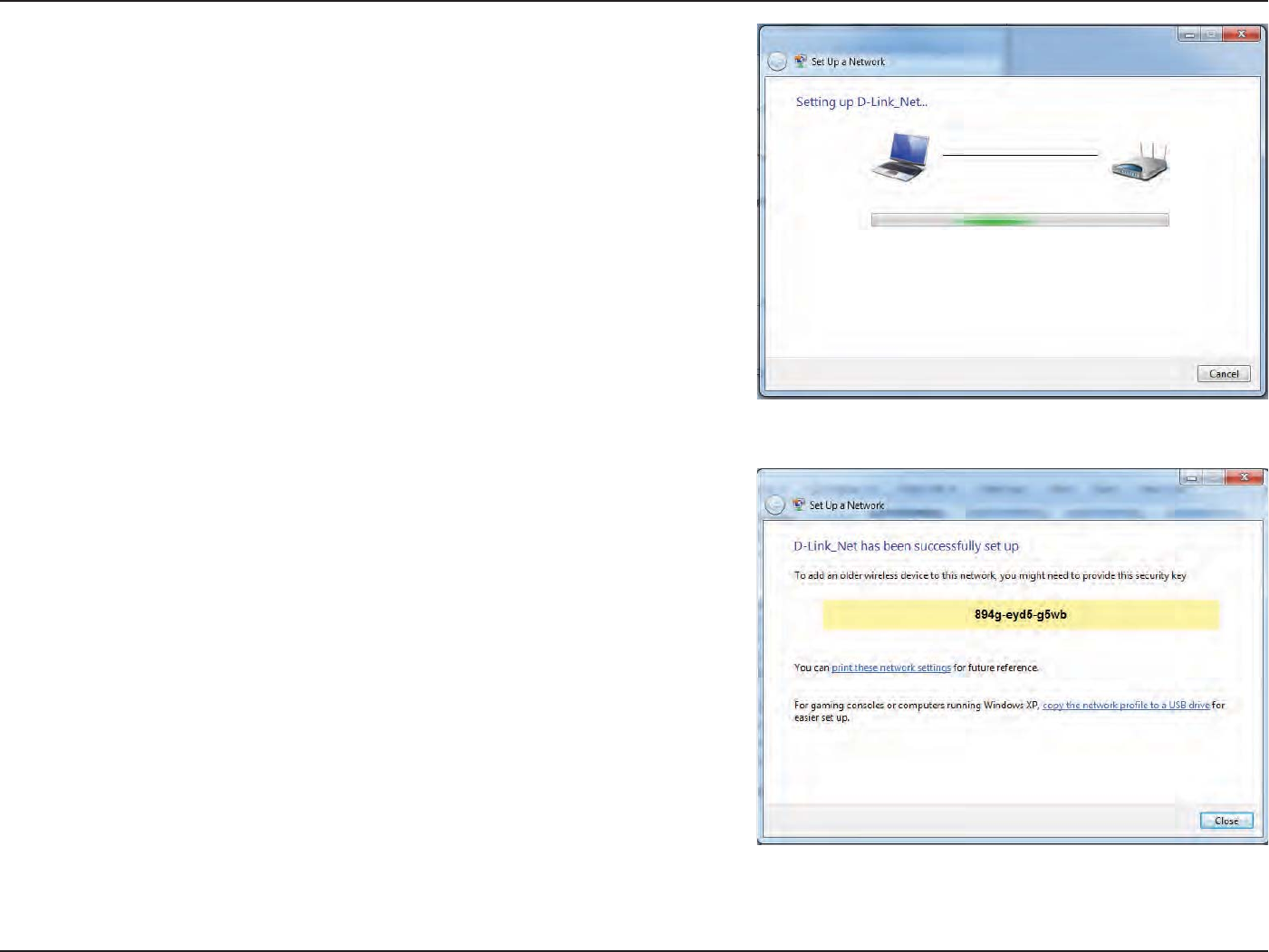

7. The following window appears while the Router is being
congured.
Wait for the conguration to complete.
8. The following window informs you that WPS on the router has
been setup successfully.
Make a note of the security key as you may need to provide this
security key if adding an older wireless device to the network in
the future.
9. Click Close to complete WPS setup.
112
D-Link %"1 User Manual
Section 5 - Connecting to a Wireless Network
Windows Vista®
Windows Vista® users may use the built-in wireless utility. If you are using another company’s utility, please refer to the user
manual of your wireless adapter for help with connecting to a wireless network. Most utilities will have a “site survey” option
similar to the Windows Vista® utility as seen below.
Right-click on the wireless computer icon in your system tray (lower-right
corner next to the time). Select Connect to a network.
If you receive the Wireless Networks Detected bubble, click on the
center of the bubble to access the utility.
or
The utility will display any available wireless networks in your area. Click
on a network (displayed using the SSID) and click the Connect button.
If you get a good signal but cannot access the Internet, check you TCP/
IP settings for your wireless adapter. Refer to the Networking Basics
section in this manual for more information.
113
D-Link %"1 User Manual
Section 5 - Connecting to a Wireless Network
WPA/WPA2
It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before conguring your
wireless adapter. If you are joining an existing network, you will need to know the security key or passphrase being used.
2. Highlight the Wi-Fi name (SSID) you would like to connect to and
click Connect.
1. Open the Windows Vista® Wireless Utility by right-clicking on the
wireless computer icon in your system tray (lower right corner of
screen). Select Connect to a network.
114
D-Link %"1 User Manual
Section 5 - Connecting to a Wireless Network
3. Enter the same security key or passphrase (Wi-Fi password) that is on
your router and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the security settings are correct. The
key or passphrase must be exactly the same as on the wireless router.
115
D-Link %"1 User Manual
Section 5 - Connecting to a Wireless Network
WPS/WCN 2.0
The router supports Wi-Fi protection, referred to as WCN 2.0 in Windows Vista®. The following instructions for setting this up
depends on whether you are using Windows Vista® to congure the router or third party software.
When you rst set up the router, Wi-Fi protection is disabled and uncongured. To enjoy the benets of Wi-Fi protection, the
router must be both enabled and congured. There are three basic methods to accomplish this: use Windows Vista’s built-in
support for WCN 2.0, use software provided by a third party, or manually congure.
If you are running Windows Vista®, log into the router and click the Enable checkbox in the Basic > Wireless section. Use the
Current PIN that is displayed on the Advanced > Wi-Fi Protected Setup section or choose to click the Generate New PIN
button or Reset PIN to Default button.
If you are using third party software to set up Wi-Fi Protection, carefully follow the directions. When you are nished, proceed
to the next section to set up the newly-congured router.
116
D-Link %"1 User Manual
Section 5 - Connecting to a Wireless Network
Windows® XP
Windows® XP users may use the built-in wireless utility (Zero Conguration Utility). The following instructions are for Service
Pack 2 users. If you are using another company’s utility, please refer to the user manual of your wireless adapter for help with
connecting to a wireless network. Most utilities will have a “site survey” option similar to the Windows® XP utility as seen below.

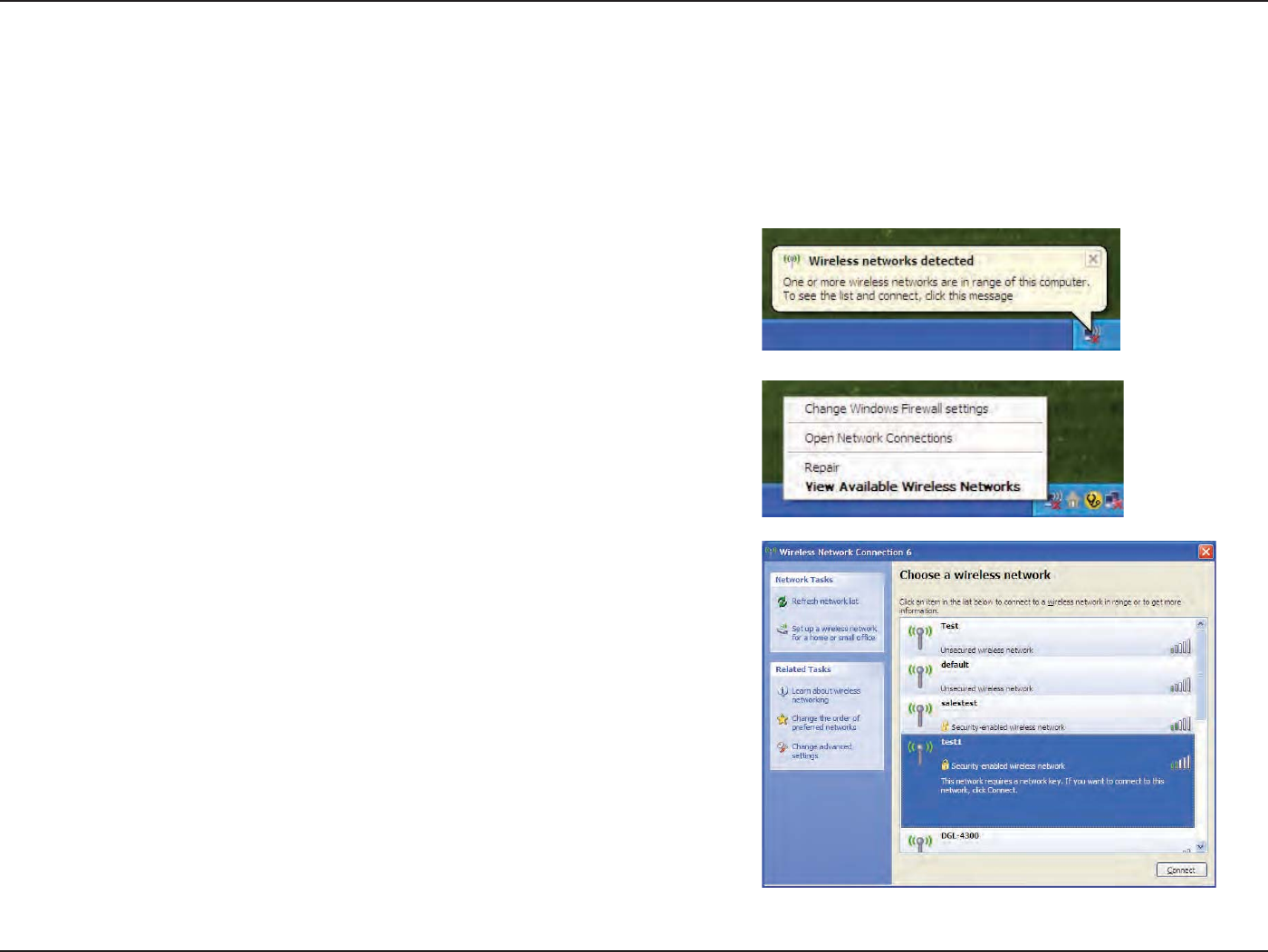

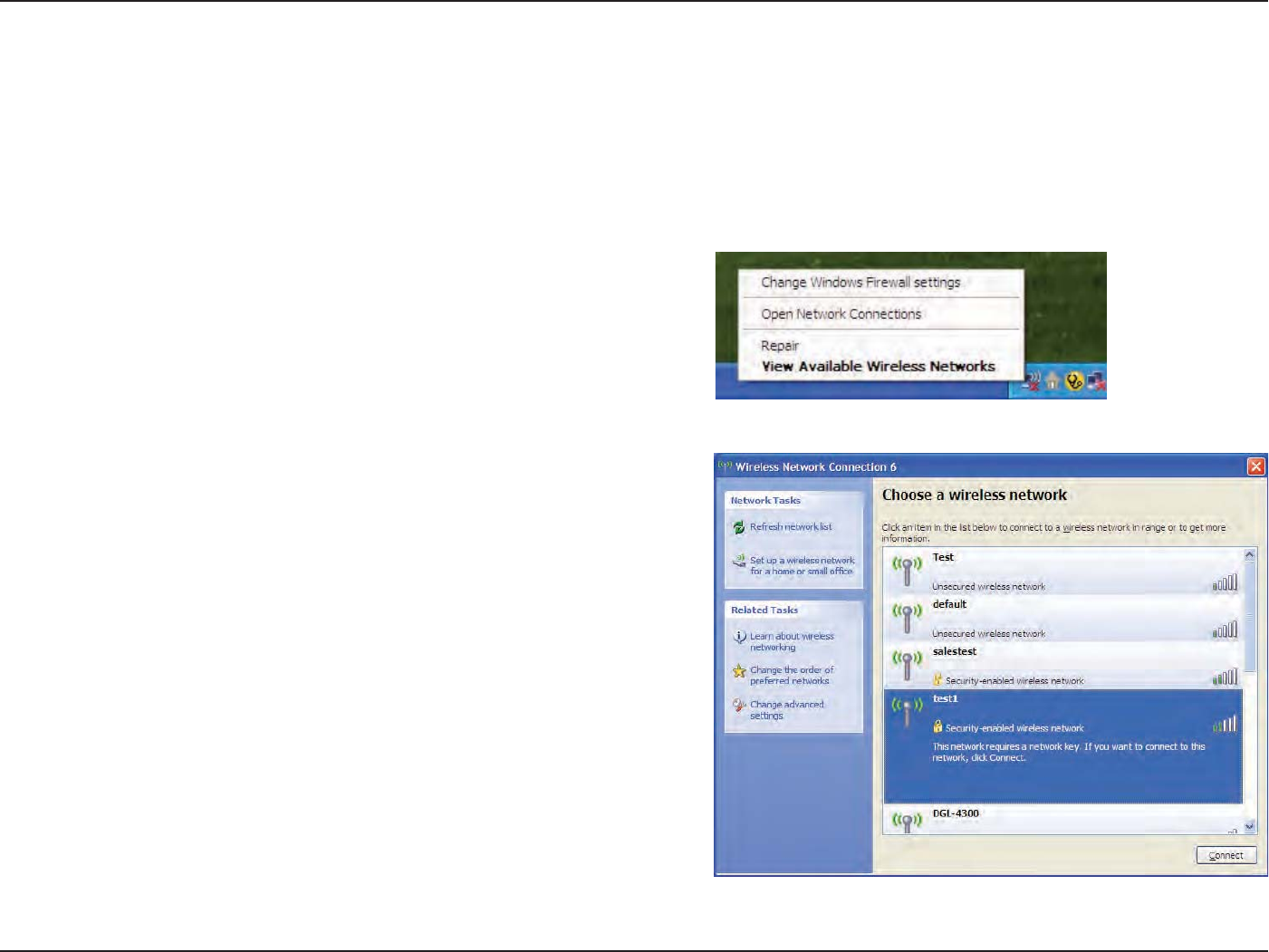

Right-click on the wireless computer icon in your system tray (lower-right
corner next to the time). Select View Available Wireless Networks.
If you receive the Wireless Networks Detected bubble, click on the
center of the bubble to access the utility.
or
The utility will display any available wireless networks in your area. Click
on a Wi-Fi network (displayed using the SSID) and click the Connect
button.
If you get a good signal but cannot access the Internet, check you TCP/
IP settings for your wireless adapter. Refer to the Networking Basics
section in this manual for more information.
117
D-Link %"1 User Manual
Section 5 - Connecting to a Wireless Network
It is recommended to enable WPA on your wireless router or access point before conguring your wireless adapter. If you are
joining an existing network, you will need to know the WPA key being used.
2. Highlight the Wi-Fi network (SSID) you would like to connect
to and click Connect.
1. Open the Windows® XP Wireless Utility by right-clicking on the
wireless computer icon in your system tray (lower-right corner
of screen). Select View Available Wireless Networks.
WPA/WPA2
118
D-Link %"1 User Manual
Section 5 - Connecting to a Wireless Network
3. The Wireless Network Connection box will appear. Enter the WPA-PSK
Wi-Fi password and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the WPA-PSK settings are correct. The
Wi-Fi password must be exactly the same as on the wireless router.
119
D-Link %"1 User Manual
Section 6 - Troubleshooting
Troubleshooting
This chapter provides solutions to problems that can occur during the installation and operation of the %"1 Read the
following descriptions if you are having problems. The examples below are illustrated in Windows® XP. If you have a
different operating system, the screenshots on your computer will look similar to the following examples.
1. Why can’t I access the web-based conguration utility?
When entering the IP address of the D-Link router (192.168.0.1 for example), you are not connecting to a website nor do you
have to be connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your computer must
be on the same IP subnet to connect to the web-based utility.
• Make sure you have an updated Java-enabled web browser. We recommend the following:
- Microsoft Internet Explorer® 7 and higher
- Mozilla Firefox 3.5 and higher
- Google™ Chrome 8 and higher
- Apple Safari 4 and higher
• Verify physical connectivity by checking for solid link lights on the device. If you do not get a solid link light, try using a
dierent cable or connect to a dierent port on the device if possible. If the computer is turned o, the link light may not be
on.
• Disable any Internet security software running on the computer. Software rewalls such as Zone Alarm, Black Ice, Sygate,
Norton Personal Firewall, and Windows® XP rewall may block access to the conguration pages. Check the help les included
with your rewall software for more information on disabling or conguring it.
120
D-Link %"1 User Manual
Section 6 - Troubleshooting
• Congure your Internet settings:
• Go to Start > Settings > Control Panel. Double-click the Internet Options Icon. From the Security tab, click
the button to restore the settings to their defaults.
• Click the Connection tab and set the dial-up option to Never Dial a Connection. Click the LAN Settings button.
Make sure nothing is checked. Click OK.
• Go to the Advanced tab and click the button to restore these settings to their defaults. Click OK three times.
• Close your web browser (if open) and open it.
• Access the web management. Open your web browser and enter the IP address of your D-Link router in the address bar. This
should open the login page for your web management.
• If you still cannot access the conguration, unplug the power to the router for 10 seconds and plug back in. Wait about 30
seconds and try accessing the conguration. If you have multiple computers, try connecting using a dierent computer.
2. What can I do if I forgot my password?
If you forgot your password, you must reset your router. Unfortunately this process will change all your settings back to the
factory defaults.
To reset the router, locate the reset button (hole) on the rear panel of the unit. With the router powered on, use a paperclip
to hold the button down for 10 seconds. Release the button and the router will go through its reboot process. Wait about 30
seconds to access the router. The default IP address is 192.168.0.1. When logging in, the username is admin and leave the
password box empty.
121
D-Link %"1 User Manual
Section 6 - Troubleshooting
3. Why can’t I connect to certain sites or send and receive emails when connecting through my router?
If you are having a problem sending or receiving email, or connecting to secure sites such as eBay, banking sites, and Hotmail,
we suggest lowering the MTU in increments of ten (Ex. 1492, 1482, 1472, etc).
To nd the proper MTU Size, you’ll have to do a special ping of the destination you’re trying to go to. A destination could be
another computer, or a URL.
• Click on Start and then click Run.
• Windows® 95, 98, and Me users type in command (Windows® NT, 2000, XP, Vista®, and 7 users type in cmd) and
press Enter (or click OK).
• Once the window opens, you’ll need to do a special ping. Use the following syntax:
ping [url] [-f] [-l] [MTU value]
Example: ping yahoo.com -f -l 1472
122
D-Link %"1 User Manual
Section 6 - Troubleshooting
You should start at 1472 and work your way down by 10 each time. Once you get a reply, go up by 2 until you get a fragmented
packet. Take that value and add 28 to the value to account for the various TCP/IP headers. For example, lets say that 1452 was the
proper value, the actual MTU size would be 1480, which is the optimum for the network we’re working with (1452+28=1480).
Once you nd your MTU, you can now congure your router with the proper MTU size.
To change the MTU rate on your router follow the steps below:
• Open your browser, enter the IP address of your router (192.168.0.1) and click OK.
• Enter your username (admin) and password (blank by default). Click OK to enter the web conguration page
for the device.
• Click on Setup and then click Manual Congure.
• To change the MTU enter the number in the MTU eld and click Save Settings to save your settings.
• Test your email. If changing the MTU does not resolve the problem, continue changing the MTU in increments
of ten.
123
D-Link %"1 User Manual
Appendix A - Wireless Basics
D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless
connectivity within your home, business or public access wireless networks. Strictly adhering to the IEEE standard, the D-Link
wireless family of products will allow you to securely access the data you want, when and where you want it. You will be able
to enjoy the freedom that wireless networking delivers.
A wireless local area network (WLAN) is a cellular computer network that transmits and receives data with radio signals instead of
wires. Wireless LANs are used increasingly in both home and oce environments, and public areas such as airports, coee shops
and universities. Innovative ways to utilize WLAN technology are helping people to work and communicate more eciently.
Increased mobility and the absence of cabling and other xed infrastructure have proven to be benecial for many users.
Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop
systems support the same protocols as Ethernet adapter cards.
Under many circumstances, it may be desirable for mobile network devices to link to a conventional Ethernet LAN in order to
use servers, printers or an Internet connection supplied through the wired LAN. A Wireless Router is a device used to provide
this link.
Wireless Basics
124
D-Link %"1 User Manual
Appendix A - Wireless Basics
What is Wireless?
Wireless or Wi-Fi technology is another way of connecting your computer to the network without using wires. Wi-Fi uses radio
frequency to connect wirelessly, so you have the freedom to connect computers anywhere in your home or oce network.
Why D-Link Wireless?
D-Link is the worldwide leader and award winning designer, developer, and manufacturer of networking products. D-Link
delivers the performance you need at a price you can aord. D-Link has all the products you need to build your network.
How does wireless work?
Wireless works similar to how cordless phone work, through radio signals to transmit data from one point A to point B. But
wireless technology has restrictions as to how you can access the network. You must be within the wireless network range area
to be able to connect your computer. There are two dierent types of wireless networks Wireless Local Area Network (WLAN),
and Wireless Personal Area Network (WPAN).
Wireless Local Area Network (WLAN)
In a wireless local area network, a device called an Access Point (AP) connects computers to the network. The access point has
a small antenna attached to it, which allows it to transmit data back and forth over radio signals. With an indoor access point
as seen in the picture, the signal can travel up to 300 feet. With an outdoor access point the signal can reach out up to 30 miles
to serve places like manufacturing plants, industrial locations, college and high school campuses, airports, golf courses, and
many other outdoor venues.
125
D-Link %"1 User Manual
Appendix A - Wireless Basics
Wireless Personal Area Network (WPAN)
Bluetooth is the industry standard wireless technology used for WPAN. Bluetooth devices in WPAN operate in a range up to
30 feet away.
Compared to WLAN the speed and wireless operation range are both less than WLAN, but in return it doesn’t use nearly as
much power which makes it ideal for personal devices, such as mobile phones, PDAs, headphones, laptops, speakers, and other
devices that operate on batteries.
Who uses wireless?
Wireless technology as become so popular in recent years that almost everyone is using it, whether it’s for home, oce, business,
D-Link has a wireless solution for it.
Home
• Gives everyone at home broadband access
• Surf the web, check email, instant message, etc.
• Gets rid of the cables around the house
• Simple and easy to use
Small Oce and Home Oce
• Stay on top of everything at home as you would at oce
• Remotely access your oce network from home
• Share Internet connection and printer with multiple computers
• No need to dedicate oce space
126
D-Link %"1 User Manual
Appendix A - Wireless Basics
Where is wireless used?
Wireless technology is expanding everywhere not just at home or oce. People like the freedom of mobility and it’s becoming
so popular that more and more public facilities now provide wireless access to attract people. The wireless connection in public
places is usually called “hotspots”.
Using a D-Link Cardbus Adapter with your laptop, you can access the hotspot to connect to Internet from remote locations
like: Airports, Hotels, Coee Shops, Libraries, Restaurants, and Convention Centers.
Wireless network is easy to setup, but if you’re installing it for the rst time it could be quite a task not knowing where to start.
That’s why we’ve put together a few setup steps and tips to help you through the process of setting up a wireless network.
Tips
Here are a few things to keep in mind, when you install a wireless network.
Centralize your router or Access Point
Make sure you place the router/access point in a centralized location within your network for the best performance. Try to
place the router/access point as high as possible in the room, so the signal gets dispersed throughout your home. If you have
a two-story home, you may need a repeater to boost the signal to extend the range.
Eliminate Interference
Place home appliances such as cordless telephones, microwaves, and televisions as far away as possible from the router/access
point. This would signicantly reduce any interference that the appliances might cause since they operate on same frequency.
Security
127
D-Link %"1 User Manual
Appendix A - Wireless Basics
Don’t let you next-door neighbors or intruders connect to your wireless network. Secure your wireless network by turning on
the WPA or WEP security feature on the router. Refer to product manual for detail information on how to set it up.
There are basically two modes of networking:
•Infrastructure – All wireless clients will connect to an access point or wireless router.
•Ad-Hoc – Directly connecting to another computer, for peer-to-peer communication, using wireless network
adapters on each computer, such as two or more %"1 wireless network Cardbus adapters.
An Infrastructure network contains an Access Point or wireless router. All the wireless devices, or clients, will connect to the
wireless router or access point.
An Ad-Hoc network contains only clients, such as laptops with wireless cardbus adapters. All the adapters must be in Ad-Hoc
mode to communicate.
Wireless Modes
128
D-Link %"1 User Manual
Appendix B - Networking Basics
Networking Basics
Check your IP address
After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP
server (i.e. wireless router) automatically. To verify your IP address, please follow the steps below.
Click on Start > Run. In the run box type cmd and click OK. (Windows® 7/Vista® users type cmd in the Start Search box.)
At the prompt, type ipcong and press Enter.
This will display the IP address, subnet mask, and the
default gateway of your adapter.
If the address is 0.0.0.0, check your adapter installation,
security settings, and the settings on your router.
Some rewall software programs may block a DHCP
request on newly installed adapters.
129
D-Link %"1 User Manual
Appendix B - Networking Basics
Statically Assign an IP address
If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps below:
Step 1
Windows® 7 - Click on Start > Control Panel > Network and Internet > Network and Sharing Center.
Windows Vista® - Click on Start > Control Panel > Network and Internet > Network and Sharing Center > Manage Network
Connections.
Windows® XP - Click on Start > Control Panel > Network Connections.
Windows® 2000 - From the desktop, right-click My Network Places > Properties.
Step 2
Right-click on the Local Area Connection which represents your network adapter and select Properties.
Step 3
Highlight Internet Protocol (TCP/IP) and click Properties.
Step 4
Click Use the following IP address and enter an IP address that is on the same subnet
as your network or the LAN IP address on your router.
Example: If the router´s LAN IP address is 192.168.0.1, make your IP address 192.168.0.X
where X is a number between 2 and 99. Make sure that the number you choose is not
in use on the network. Set the Default Gateway the same as the LAN IP address of your
router (I.E. 192.168.0.1).
Set Primary DNS the same as the LAN IP address of your router (192.168.0.1). The
Secondary DNS is not needed or you may enter a DNS server from your ISP.
Step 5
Click OK twice to save your settings.
130
D-Link %"1 User Manual
Appendix B - Networking Basics
Wireless Security
This section will show you the different levels of security you can use to protect your data from intruders. The %"1
offers the following types of security:
• WPA2 (Wi-Fi Protected Access 2) • WPA2-PSK (Pre-Shared Key)
• WPA (Wi-Fi Protected Access) • WPA-PSK (Pre-Shared Key)
What is WPA?
WPA (Wi-Fi Protected Access), is a Wi-Fi standard that was designed to improve the security features of WEP (Wired Equivalent Privacy).
The 2 major improvements over WEP:
• Improved data encryption through the Temporal Key Integrity Protocol (TKIP). TKIP scrambles the keys using a hashing
algorithm and, by adding an integrity-checking feature, ensures that the keys haven’t been tampered with. WPA2 is
based on 802.11i and uses Advanced Encryption Standard (AES) instead of TKIP.
• User authentication, which is generally missing in WEP, through the extensible authentication protocol (EAP). WEP
regulates access to a wireless network based on a computer’s hardware-specic MAC address, which is relatively simple
to be snied out and stolen. EAP is built on a more secure public-key encryption system to ensure that only authorized
network users can access the network.
WPA-PSK/WPA2-PSK uses a passphrase or key to authenticate your wireless connection. The key is an alpha-numeric password between
8 and 63 characters long. The password can include symbols (!?*&_) and spaces. This key must be the exact same key entered on your
wireless router or access point.
WPA/WPA2 incorporates user authentication through the Extensible Authentication Protocol (EAP). EAP is built on a more secure public
key encryption system to ensure that only authorized network users can access the network.
131
D-Link %"1 User Manual
Appendix C - Technical Specications
Technical Specications
Device Interfaces
• 802.11 a/b/g/n/ac wireless LAN
• Four 10/100/1000 Gigabit LAN ports
• USB 3.0 port
Antenna Types
• Six internal antennas
Standards
• IEEE 802.11ac
• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b
• IEEE 802.11a
• IEEE 802.3
• IEEE 802.3u
Security
•WPA™
- Personal/Enterprise
•WPA2™
- Personal/Enterprise
• Wi-Fi Protected Setup (WPS) PIN/PBC
Power
• Input: 100 to 240 V AC, 50/60 Hz
• Output: 12 V DC, 2. A
USB Port Power
• 5 V / 0.9 A
Operating Temperature
• 32°F to 104°F ( 0°C to 40°C)
Humidity
• 95% maximum (non-condensing)
Safety & Emissions
• FCC Class B
• CE Class B
• C-Tick
• DLNA
• IPv6 Ready
• Wi-Fi Protected Setup (WPS)
• Wi-Fi Multimedia (WMM)
• Compatible with Windows 8
Dimensions
• L = 102.3 mm (4.03 inches)
• W = 123.3 mm (4.85 inches)
• H = 217 mm (8.54 inches)
1 Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11g, and 802.11n specications. Actual data throughput will vary. Network conditions and environmental factors, including
volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely aect wireless signal range.
2 Frequency Range varies depending on country’s regulation.
3 The %"1 does not include 5.25-5.35GHz & 5.47-5.725GHz in some regions.
132
Federal Communicaon Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operaon is subject to the following two condions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operaon.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protecon against harmful interference in a residen installaon. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instrucons, may cause
harmful interference to radio communicaons. However, there is no guarantee that interference will not occur in a parcular installaon.
If this equipment does cause harmful interference to radio or television recepon, which can be determined by turning the equipment
and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separaon between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Cauon: Any changes or modicaons not expressly approved by the party responsible for compliance could void the user's authority
to operate this equipment.
This transmier must not be co-located or operang in conjuncon with any other antenna or transmier.
