D Link IR869A1 AC1750 Wi-Fi Router User Manual
D Link Corporation AC1750 Wi-Fi Router Users Manual
D Link >
Users Manual
Version 1.00 | 2016/01/27
User Manual
DIR-869
AC1750 Wi-Fi Router
iD-Link DIR-869 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Apple®, Apple logo®, Safari®, iPhone®, iPad®, iPod touch® and Macintosh® are trademarks of Apple Inc., registered in the U.S. and other countries.
App StoreSM is a service mark of Apple Inc.
Chrome™ browser, Google Play™ and Android™ are trademarks of Google Inc.
Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies.
Copyright © 2016 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation, Inc.
Power Usage
This device is an Energy Related Product (ErP) with High Network Availability (HiNA), and automatically switches to a power-saving Network
Standby mode within 1 minute of no packets being transmitted. It can also be turned o through a power switch to save energy when it is not
needed.
Network Standby: TBD watts
Switched O: TBD watts
Preface
Revision Date Description
1.00 January 27, 2016 Initial release
iiD-Link DIR-869 User Manual
Table of Contents
Preface ................................................................................. i
Product Overview .............................................................. 1
Package Contents .........................................................................1
System Requirements .................................................................2
Introduction ................................................................................... 3
Features ............................................................................................ 5
Hardware Overview .....................................................................6
Back Panel ...............................................................................6

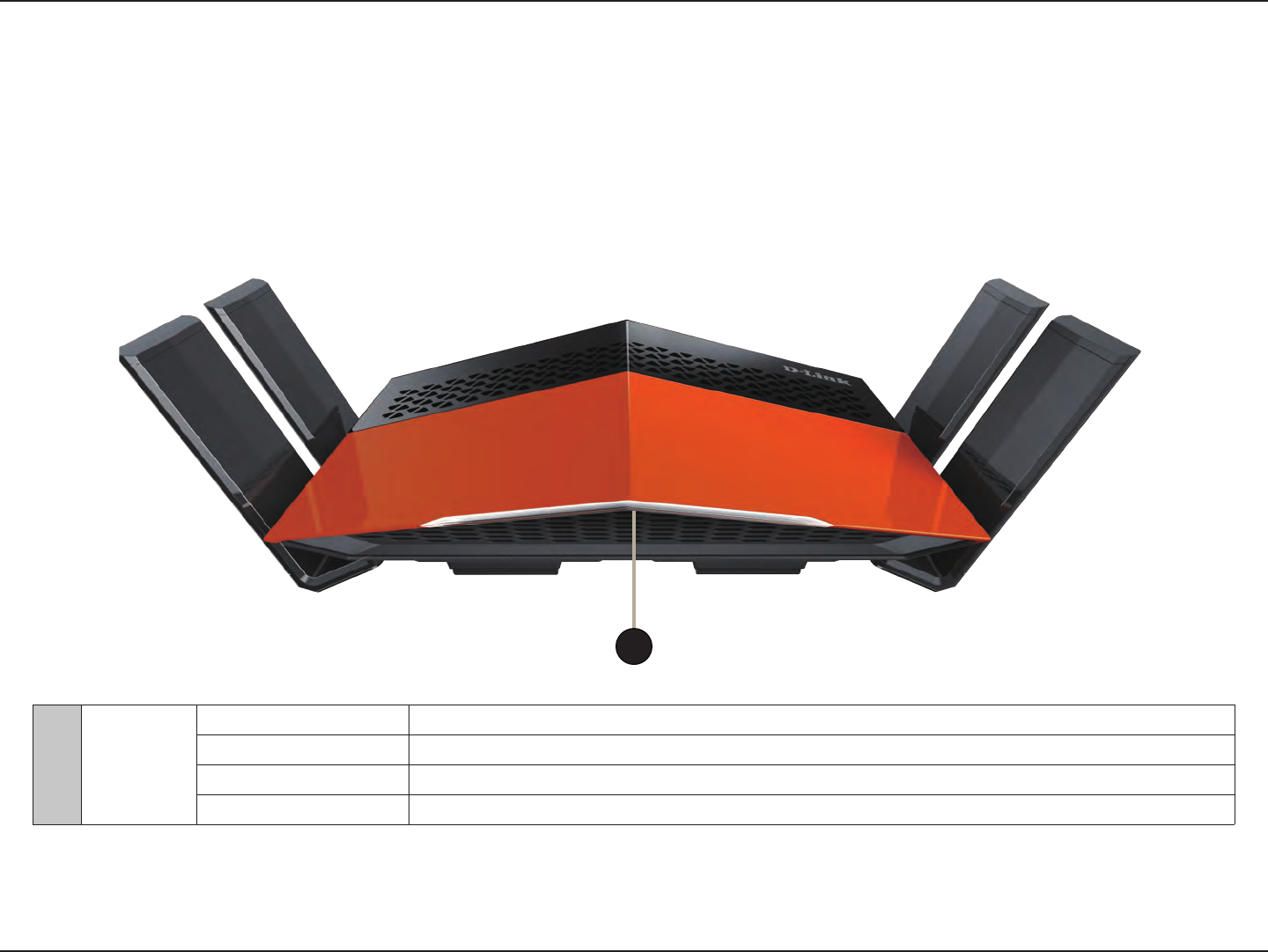

LED Indicator ..........................................................................7
Operation Modes ..........................................................................8

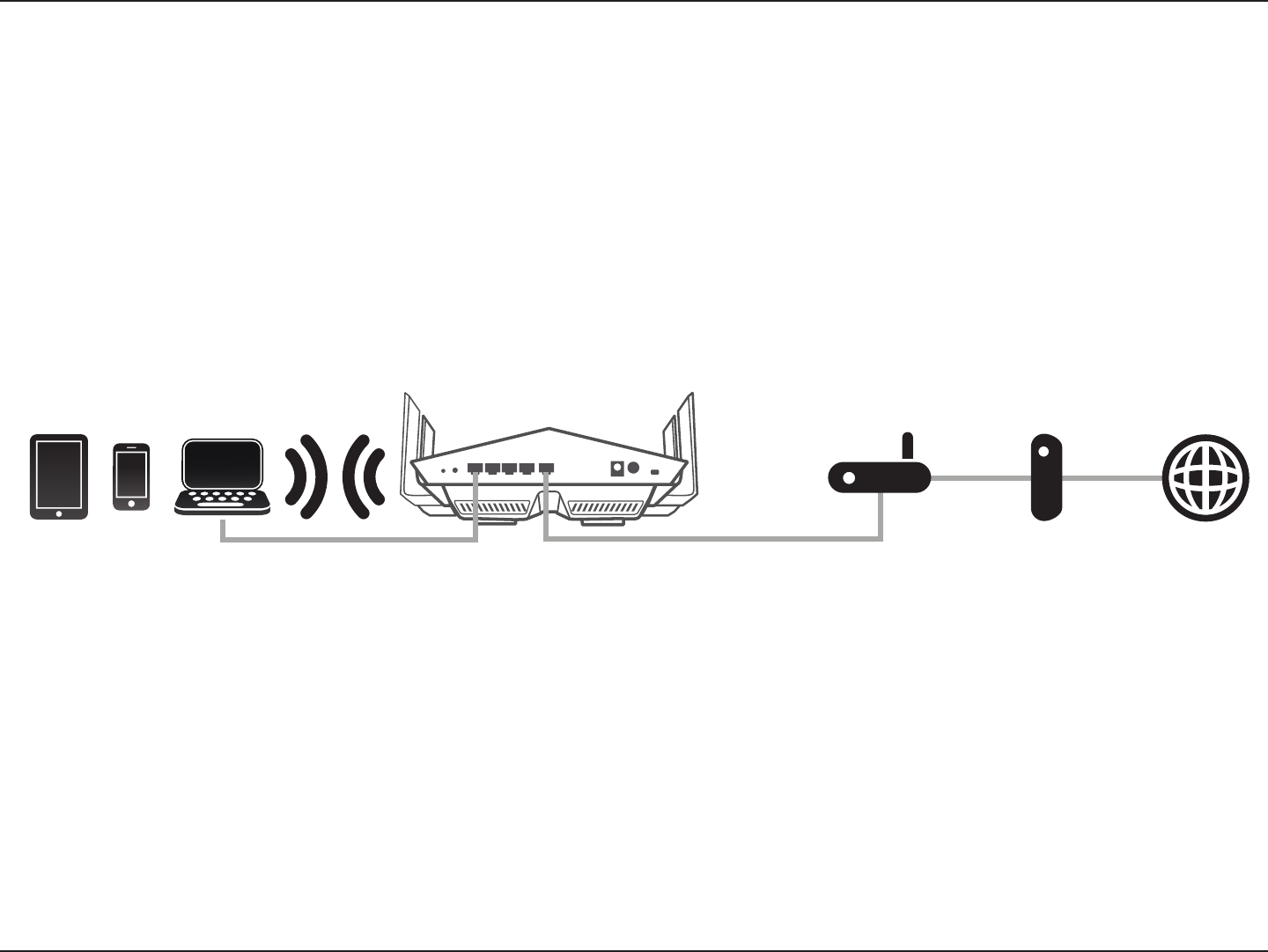

Router Mode ...........................................................................9
Extender Mode ....................................................................10
Access Point Mode ........................................................11
Installation .......................................................................12
Before you Begin ......................................................................... 12
Wireless Installation Considerations ....................................13

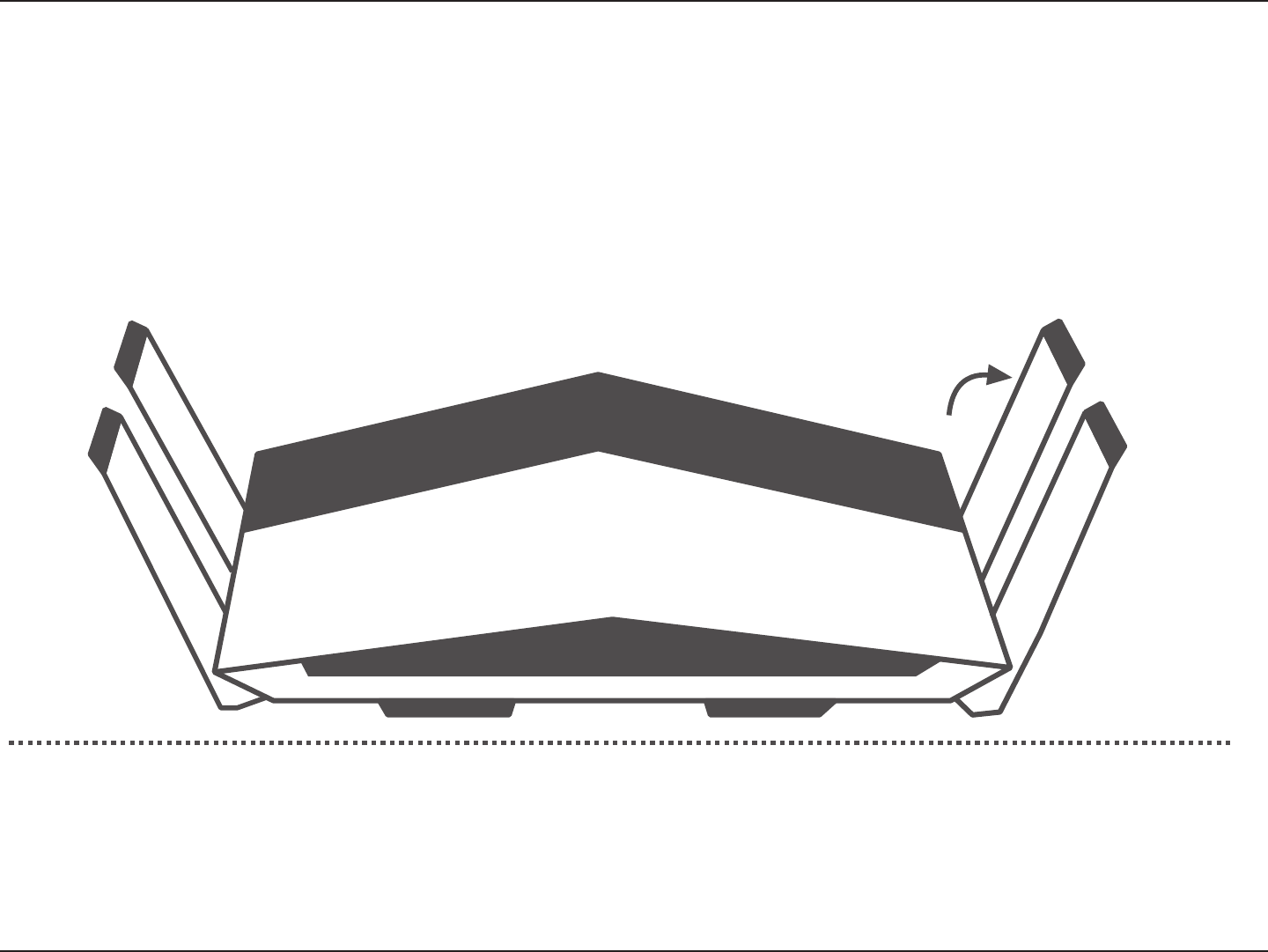

Antenna Setup ............................................................................. 14

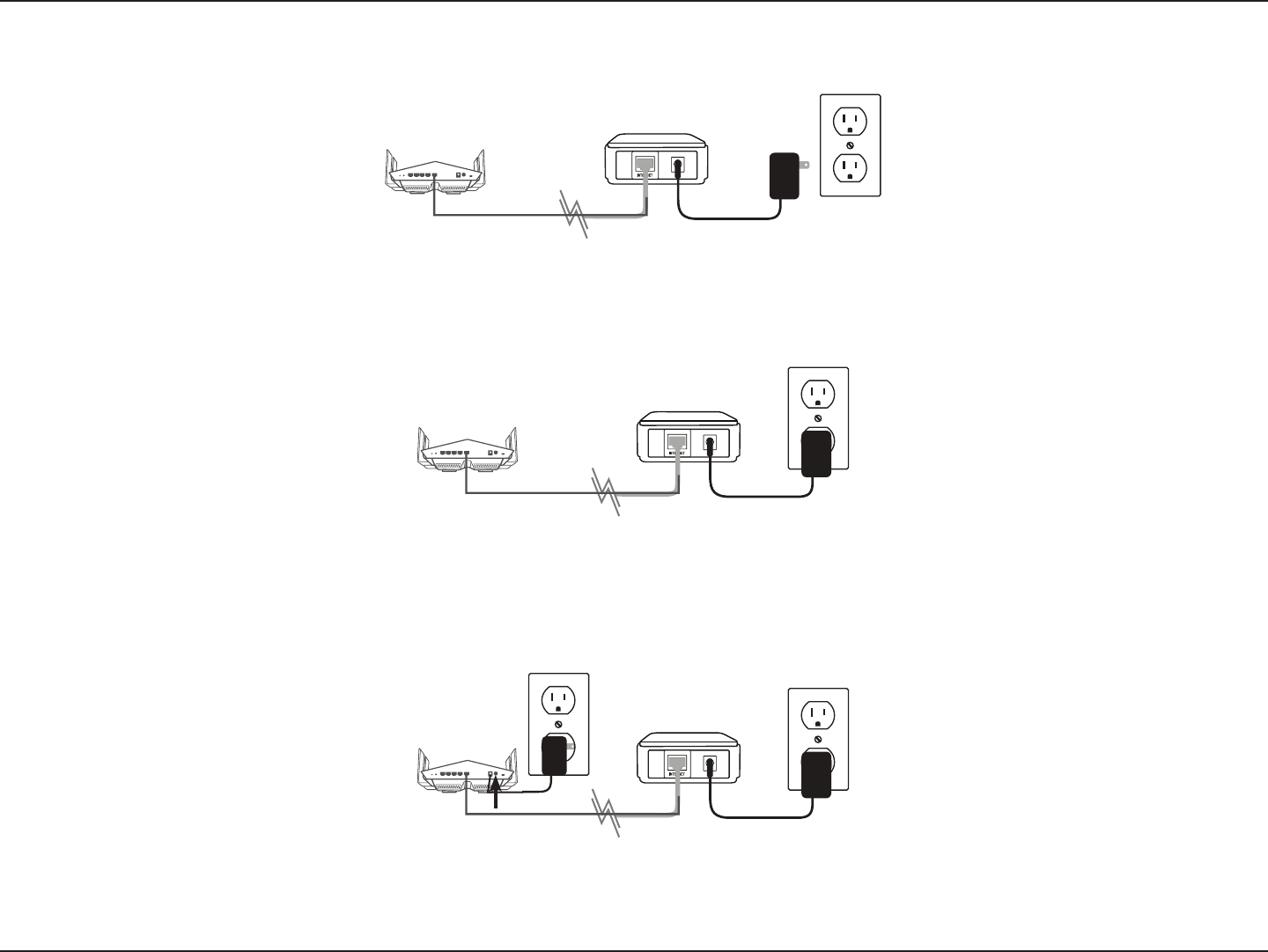

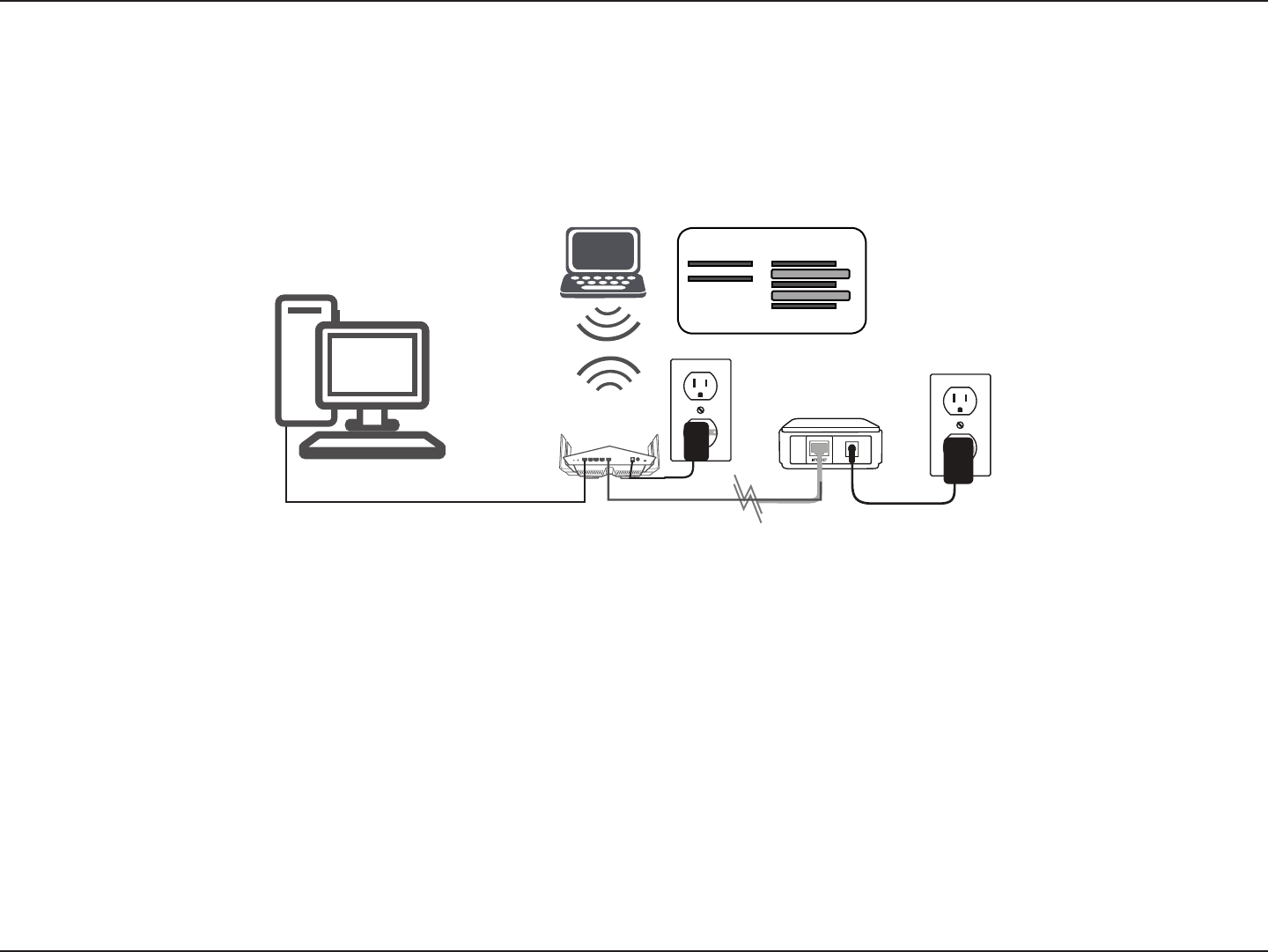

Manual Setup ............................................................................... 15
Router Mode ......................................................................... 15

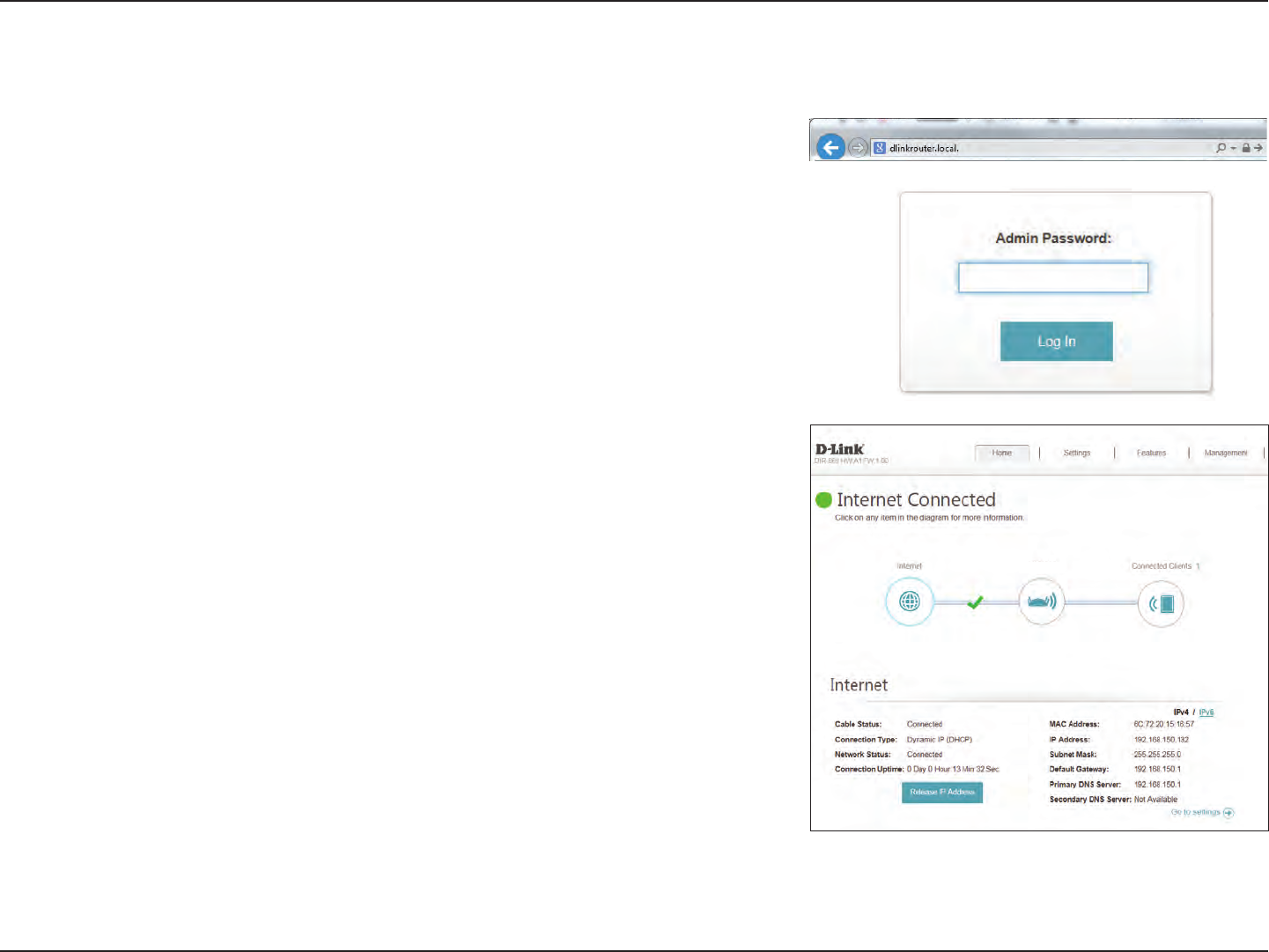

Getting Started ................................................................18
Router Mode ................................................................................18

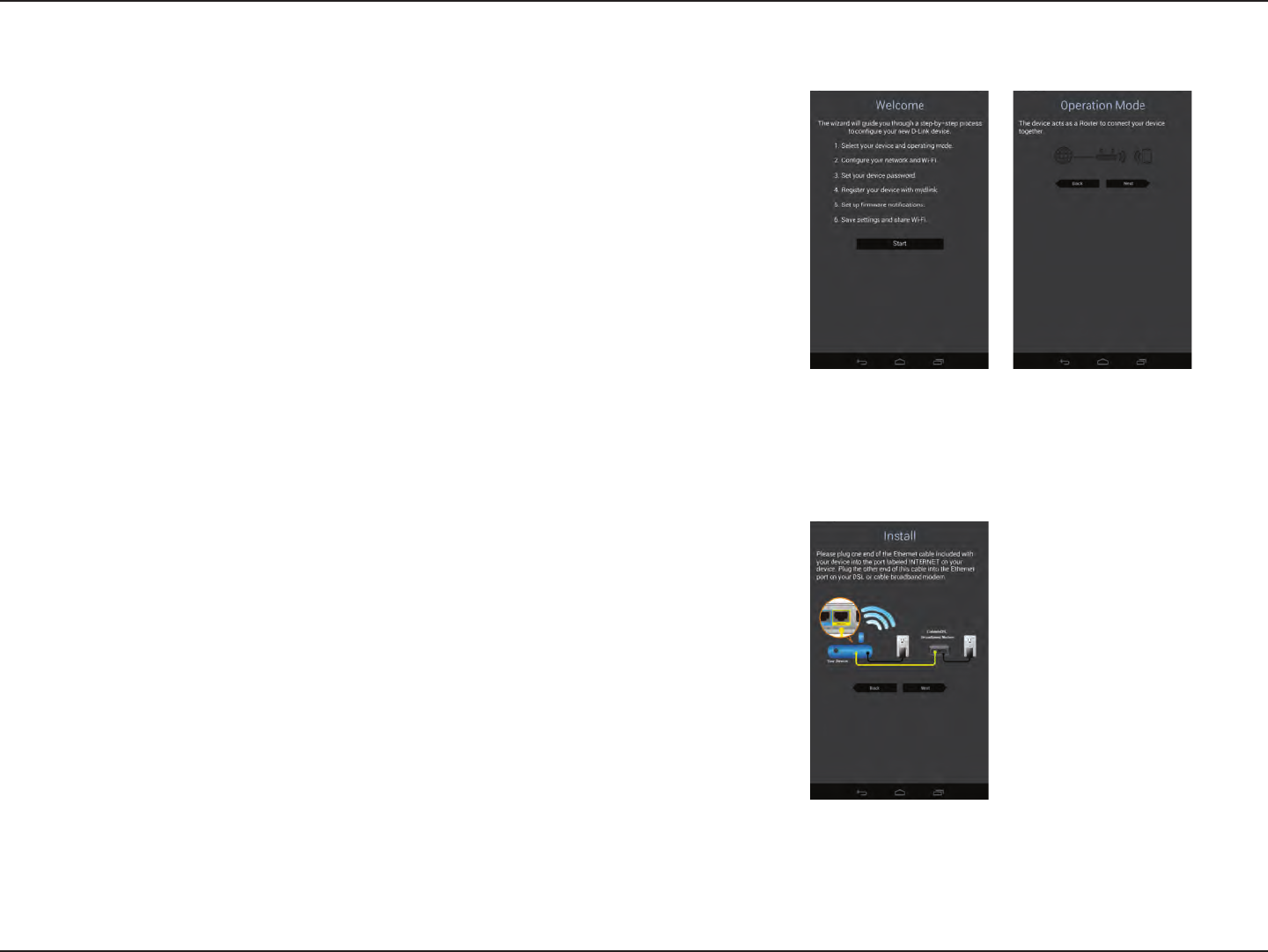

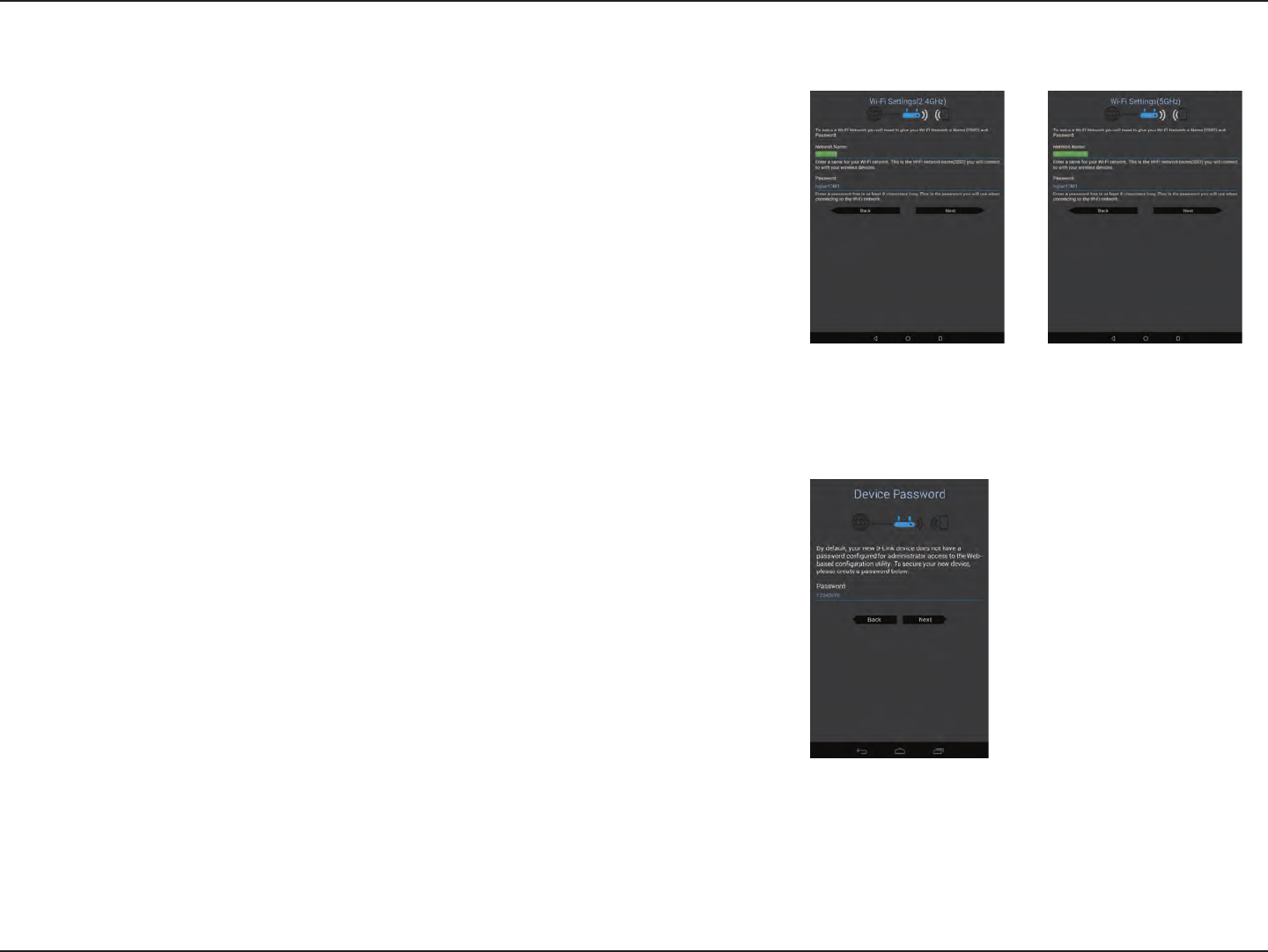

QRS Mobile App ..................................................................19

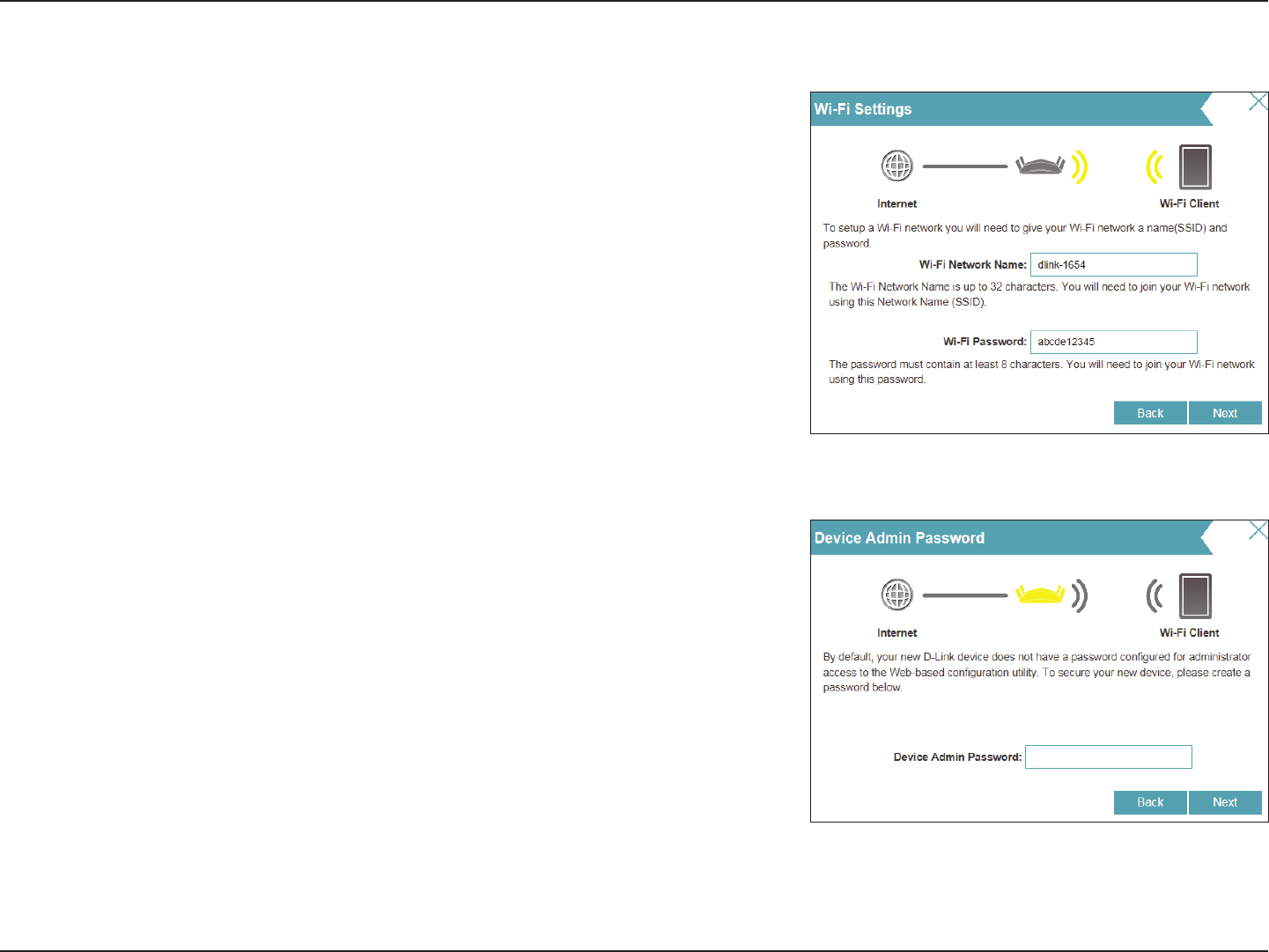

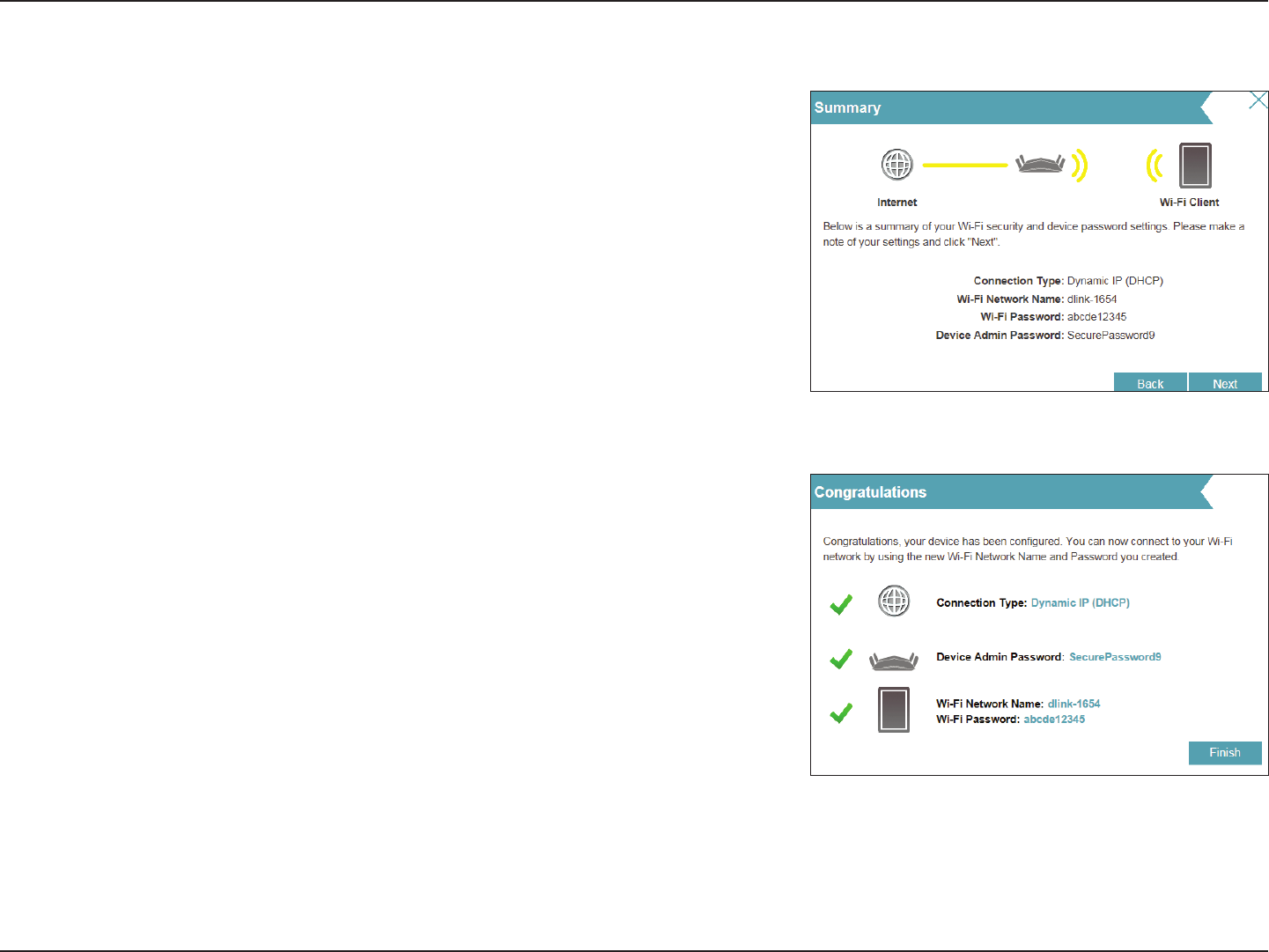

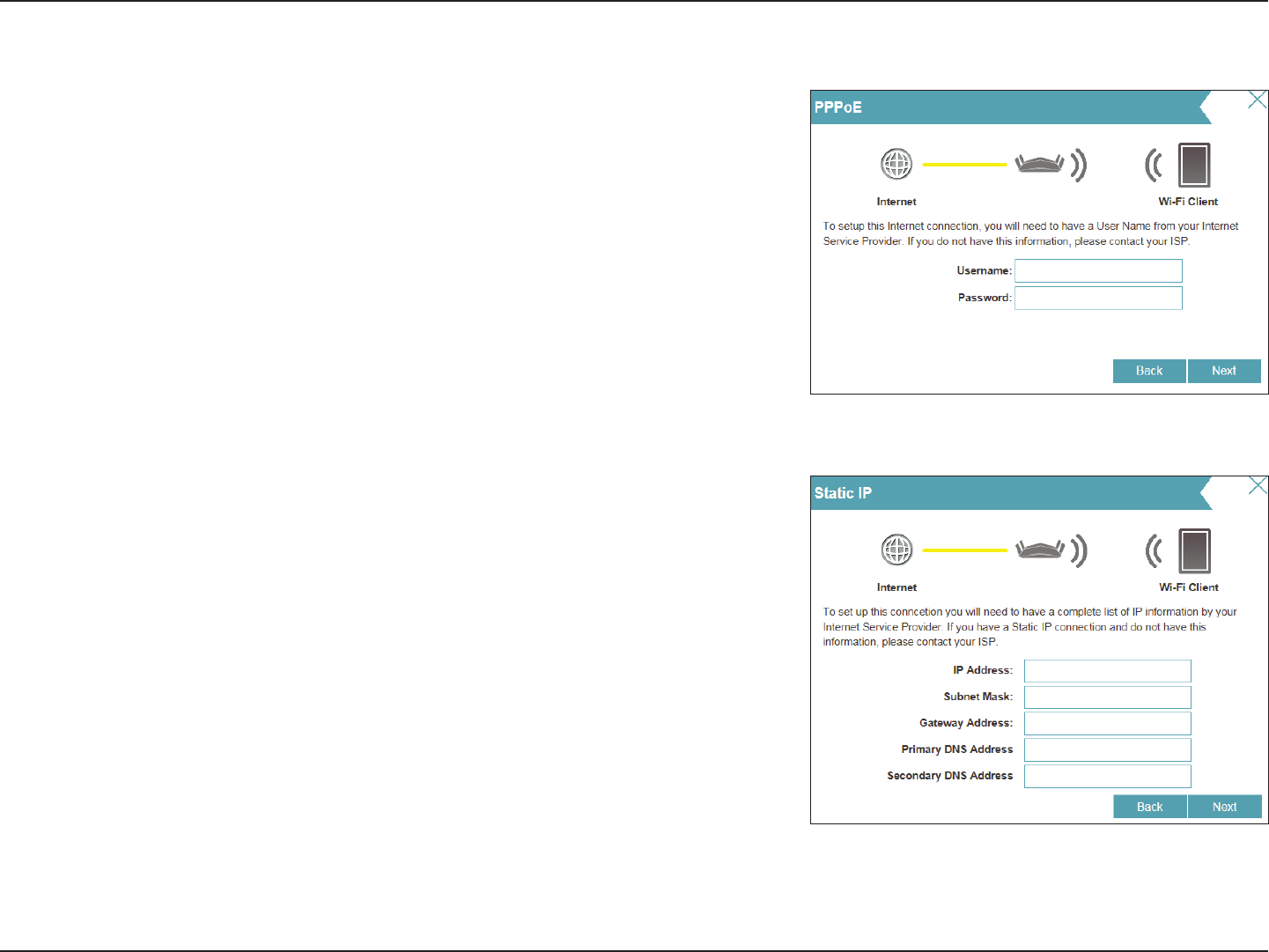

Setup Wizard ........................................................................24
Conguration - Router Mode ..........................................28
Home ..............................................................................................29

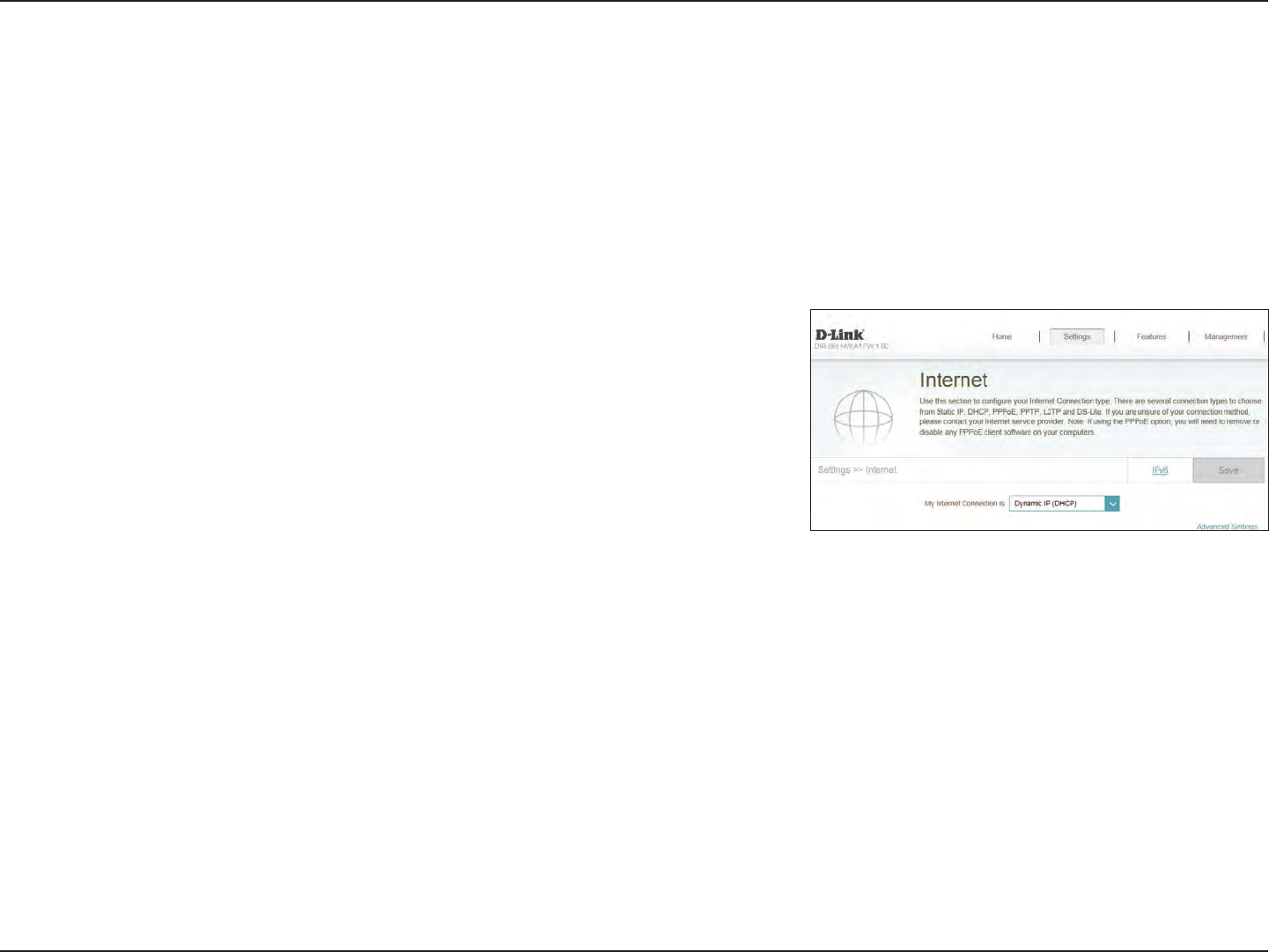

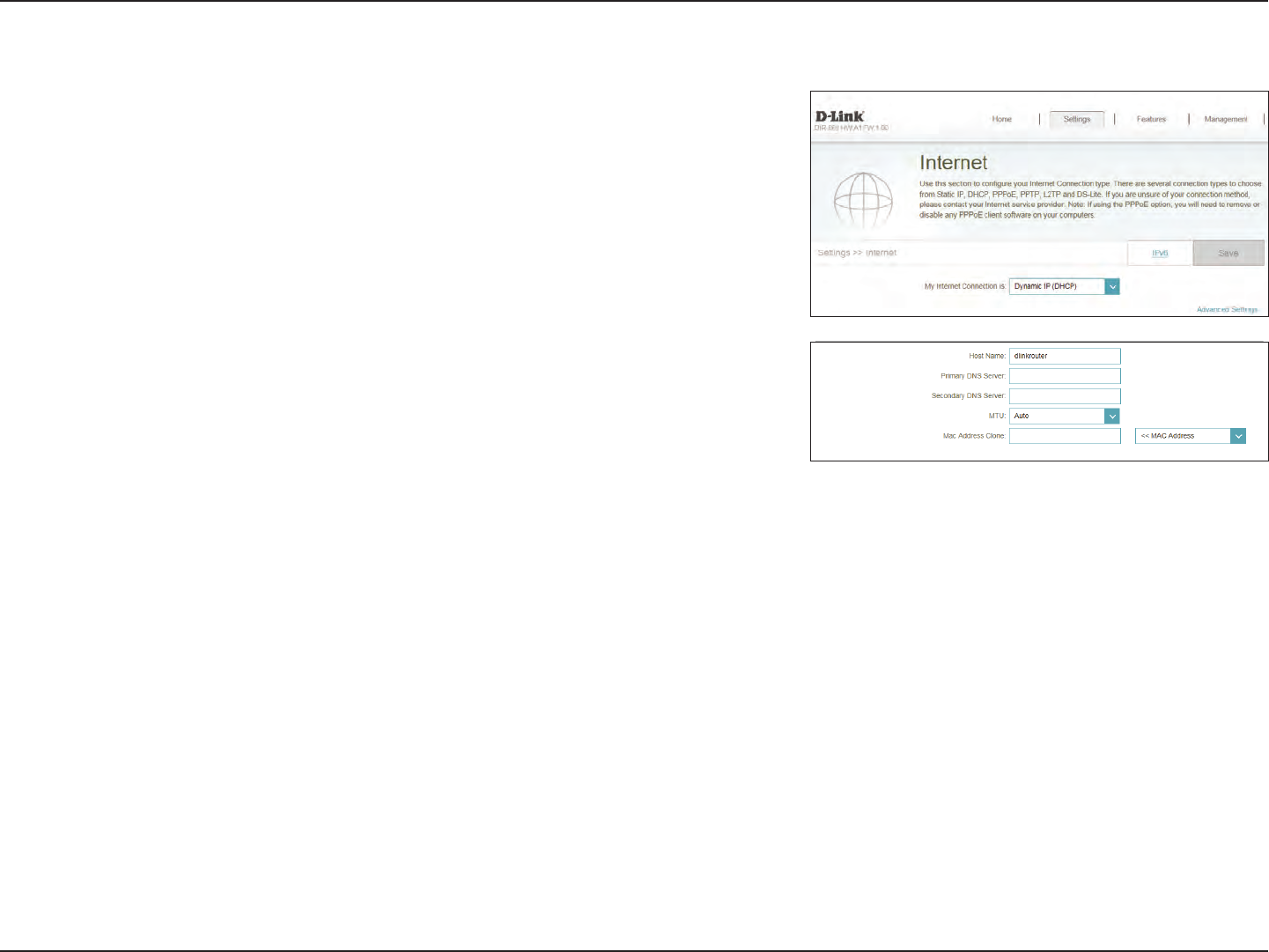

Internet ................................................................................... 29
DIR-869 ...................................................................................30

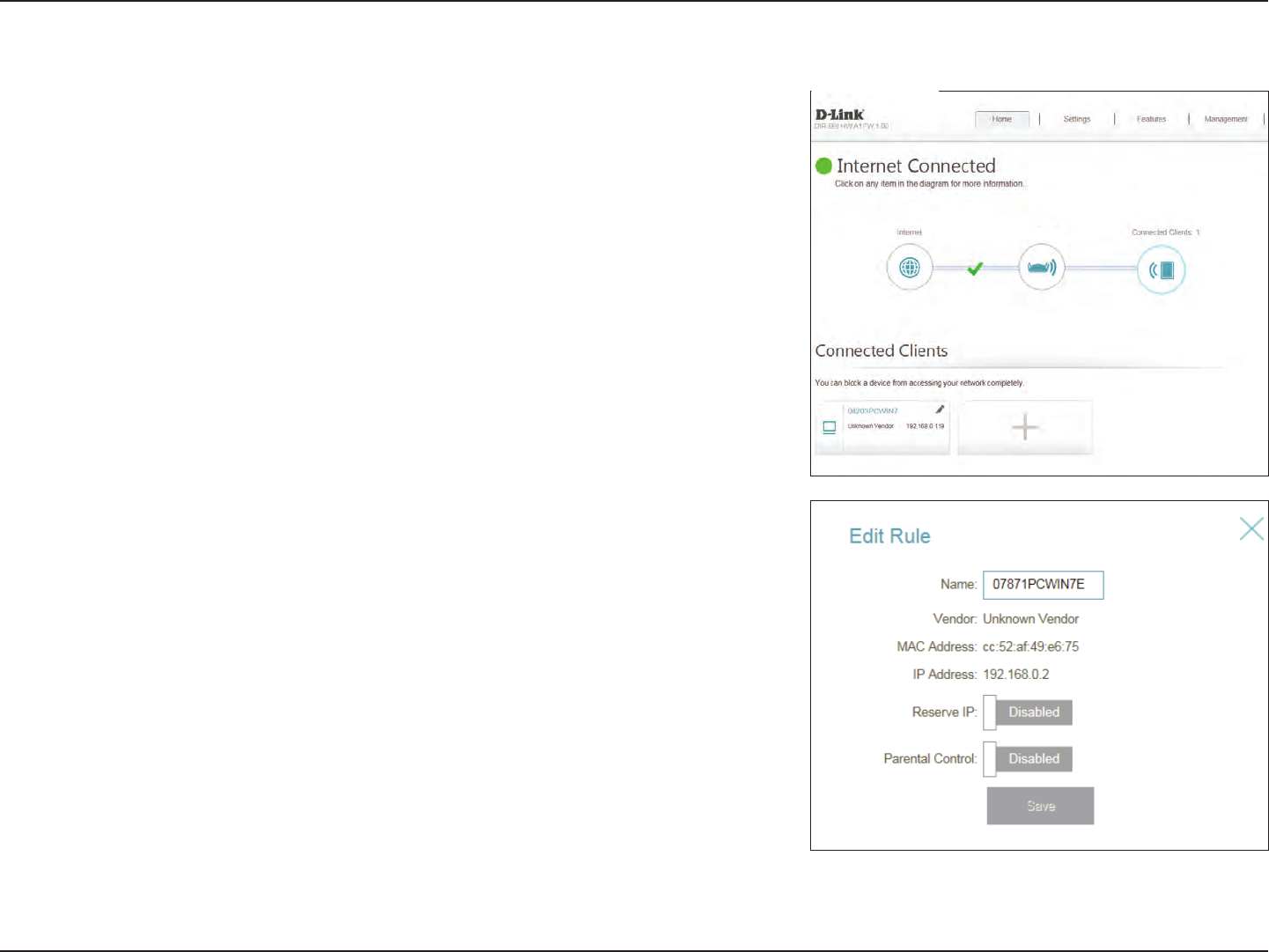

Connected Clients ..............................................................31
Settings ..........................................................................................32
Wizard .....................................................................................32

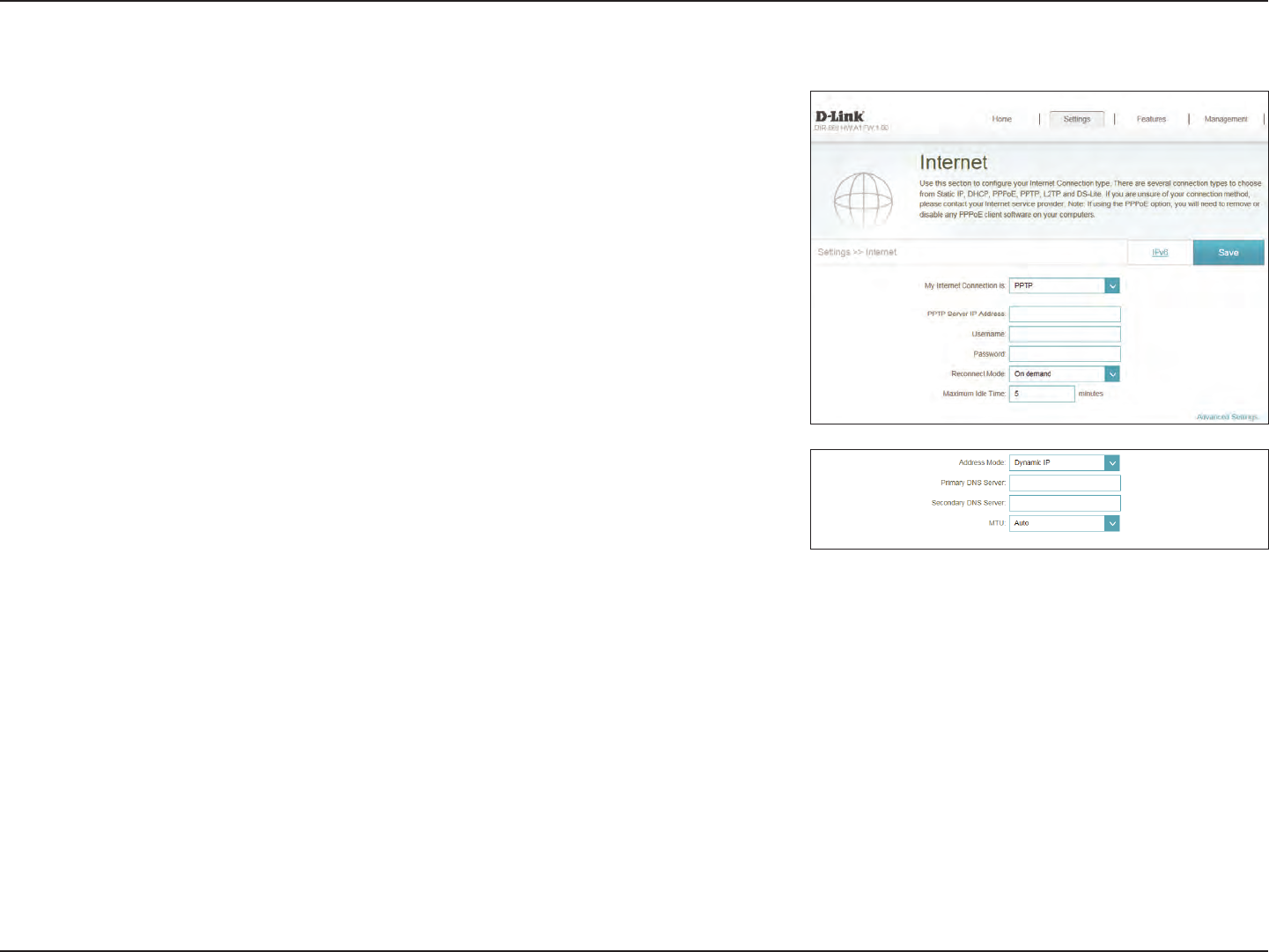

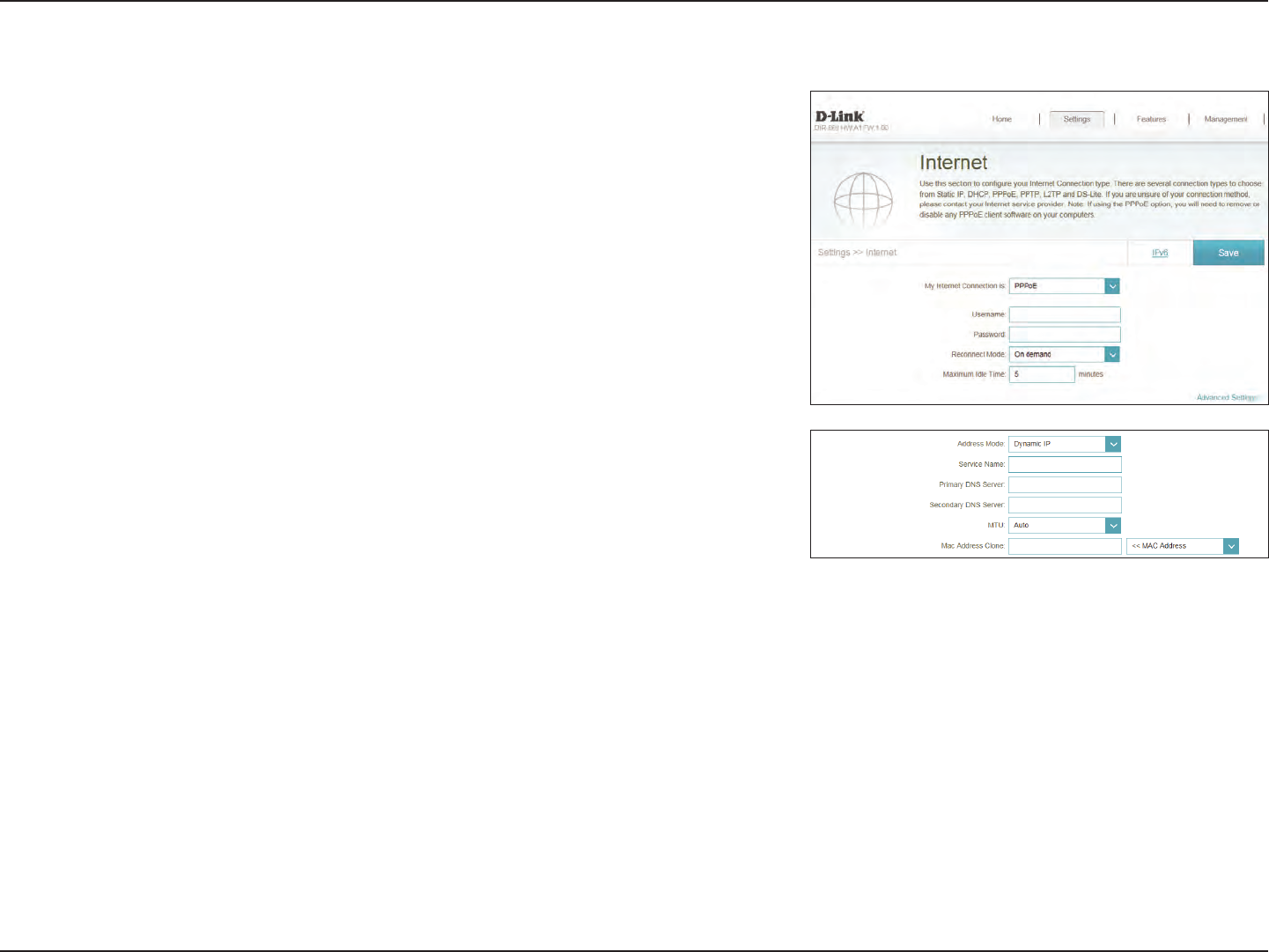

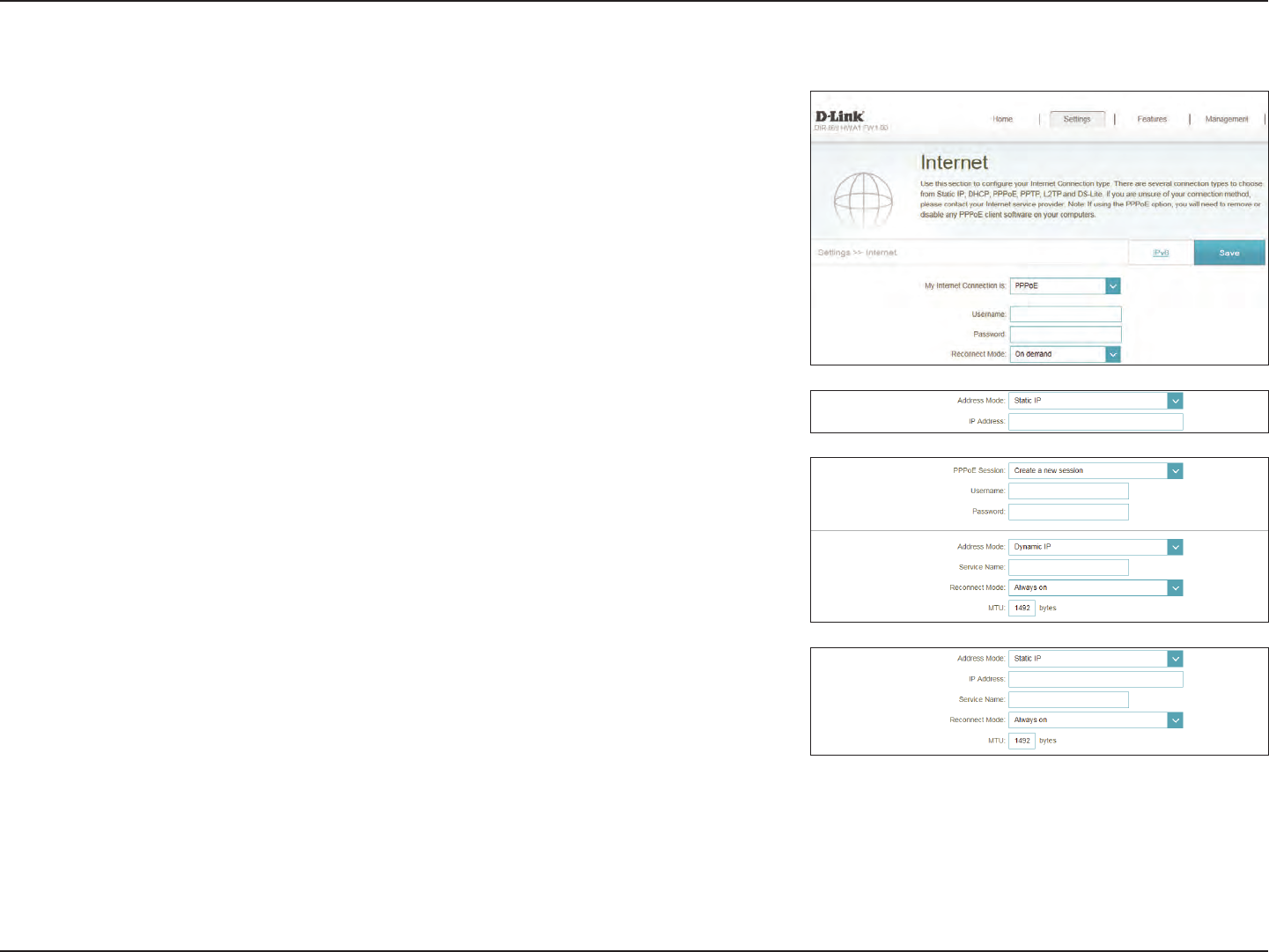

Internet ................................................................................... 32

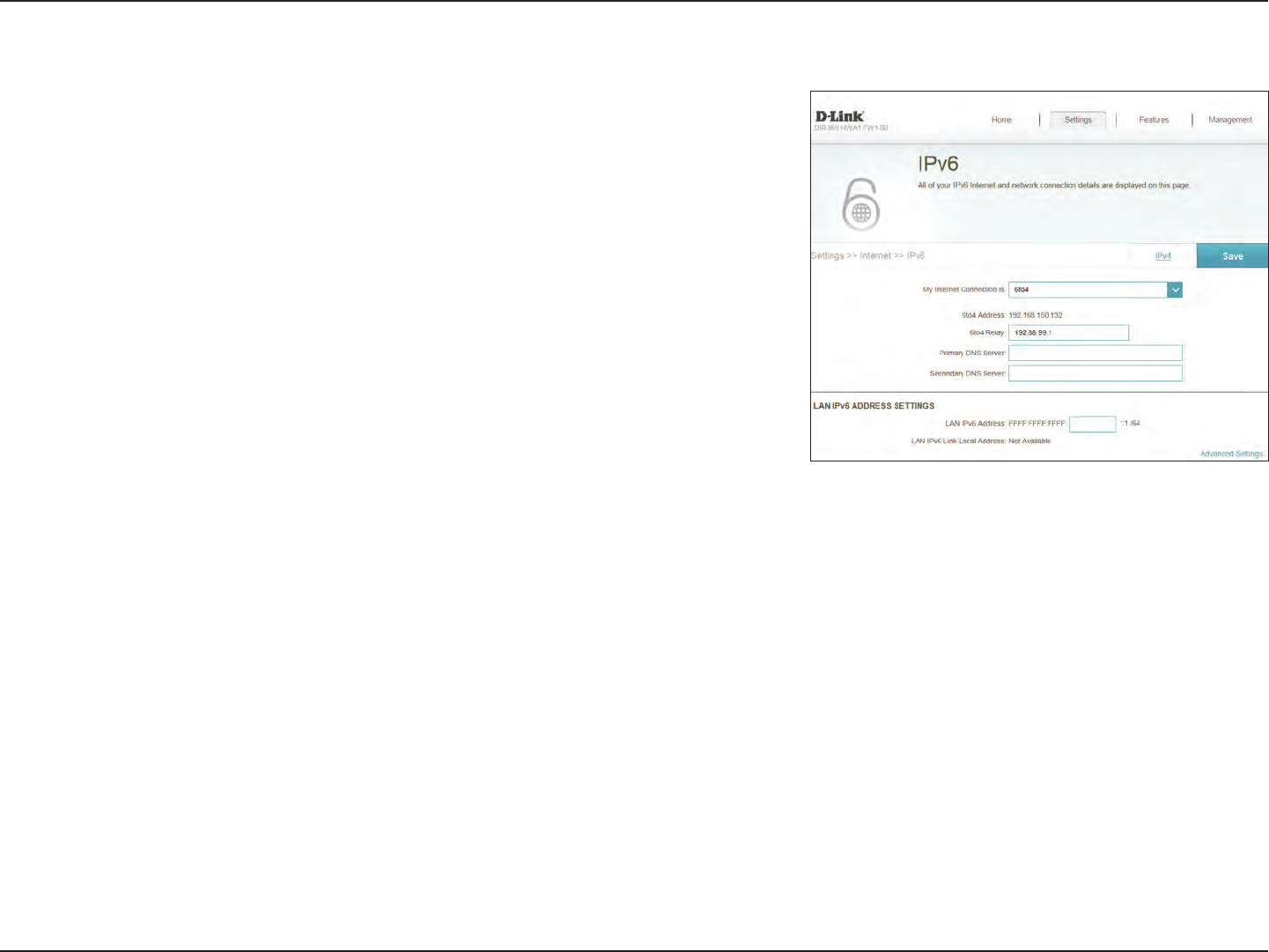

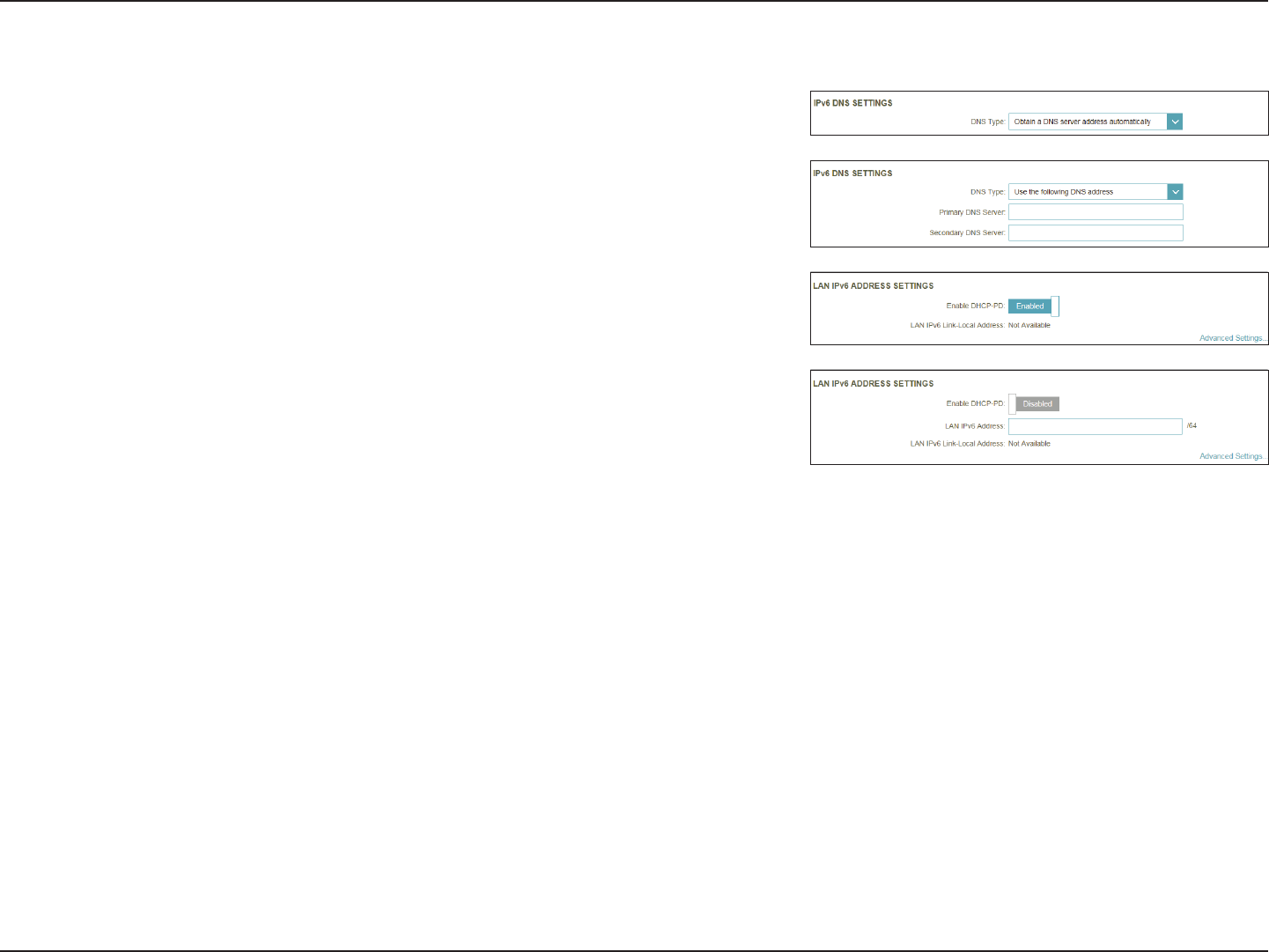

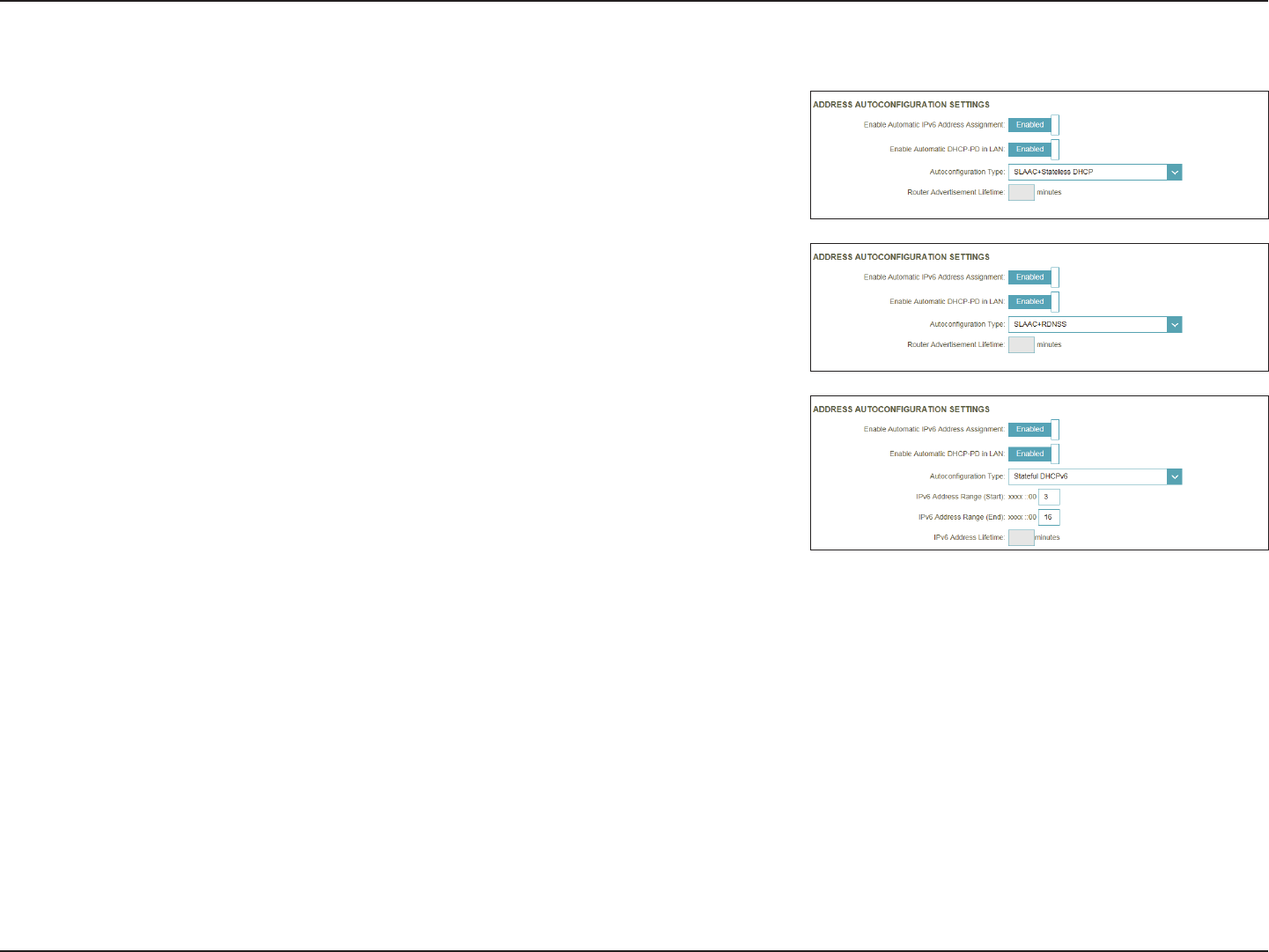

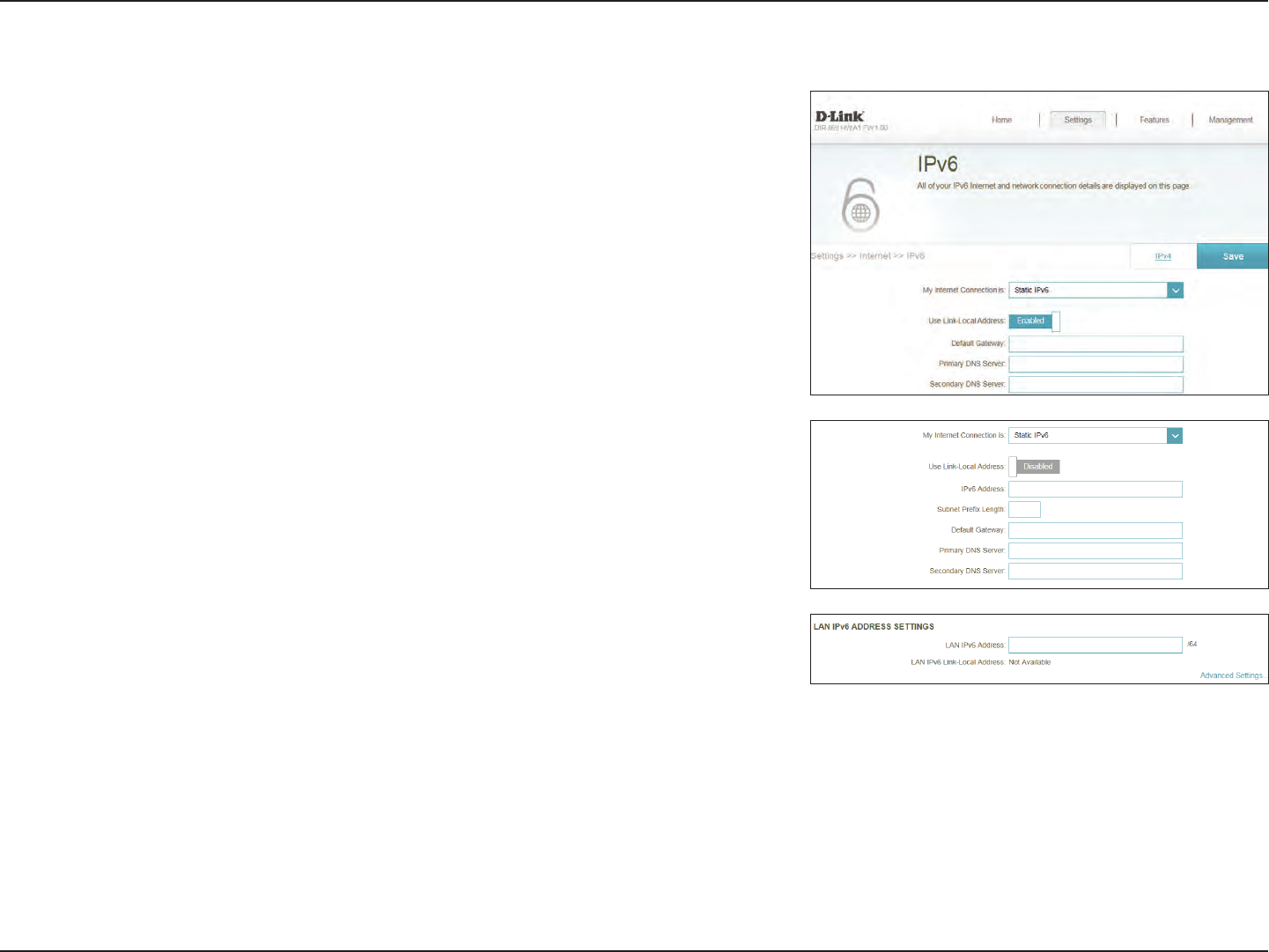

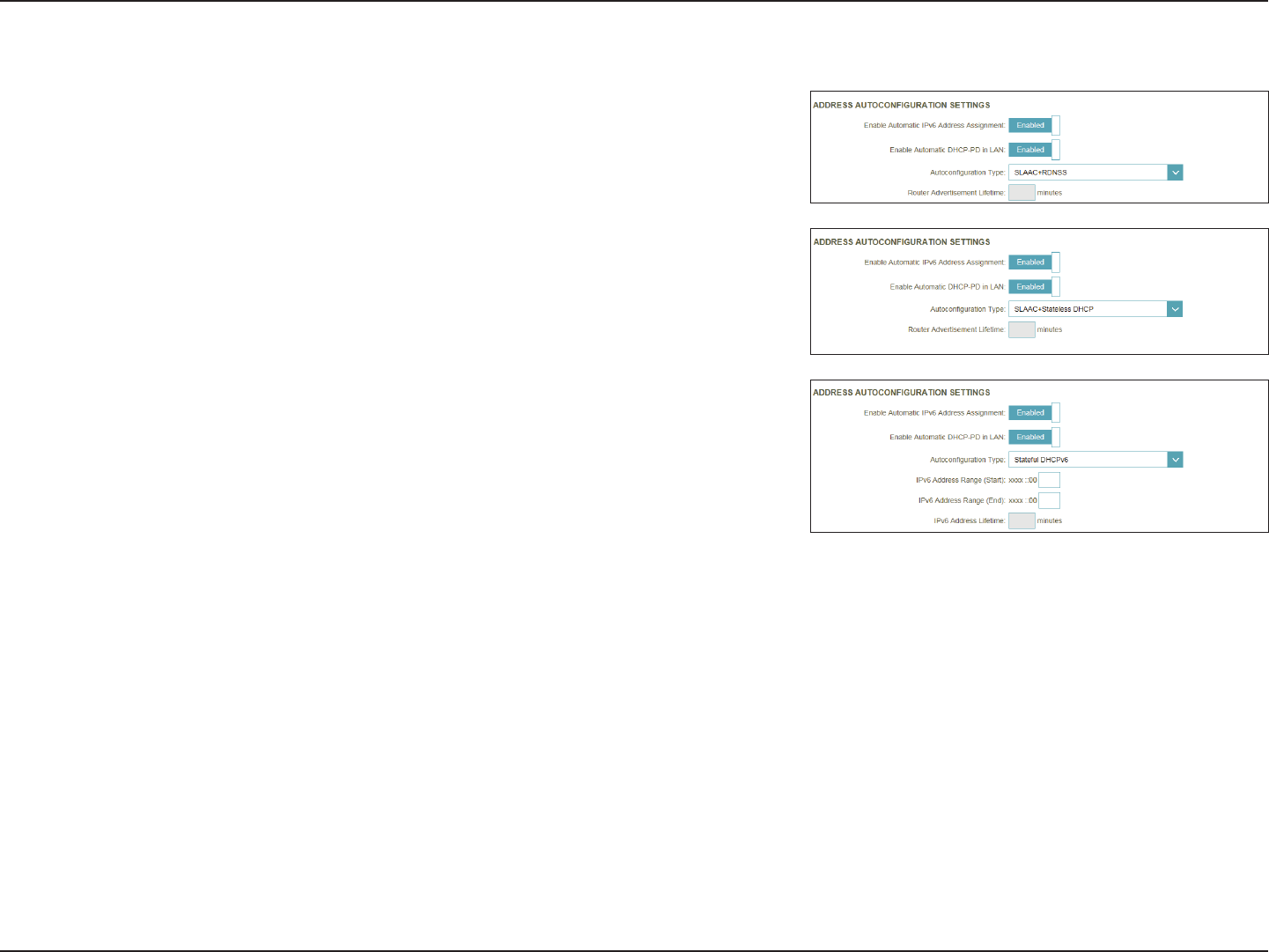

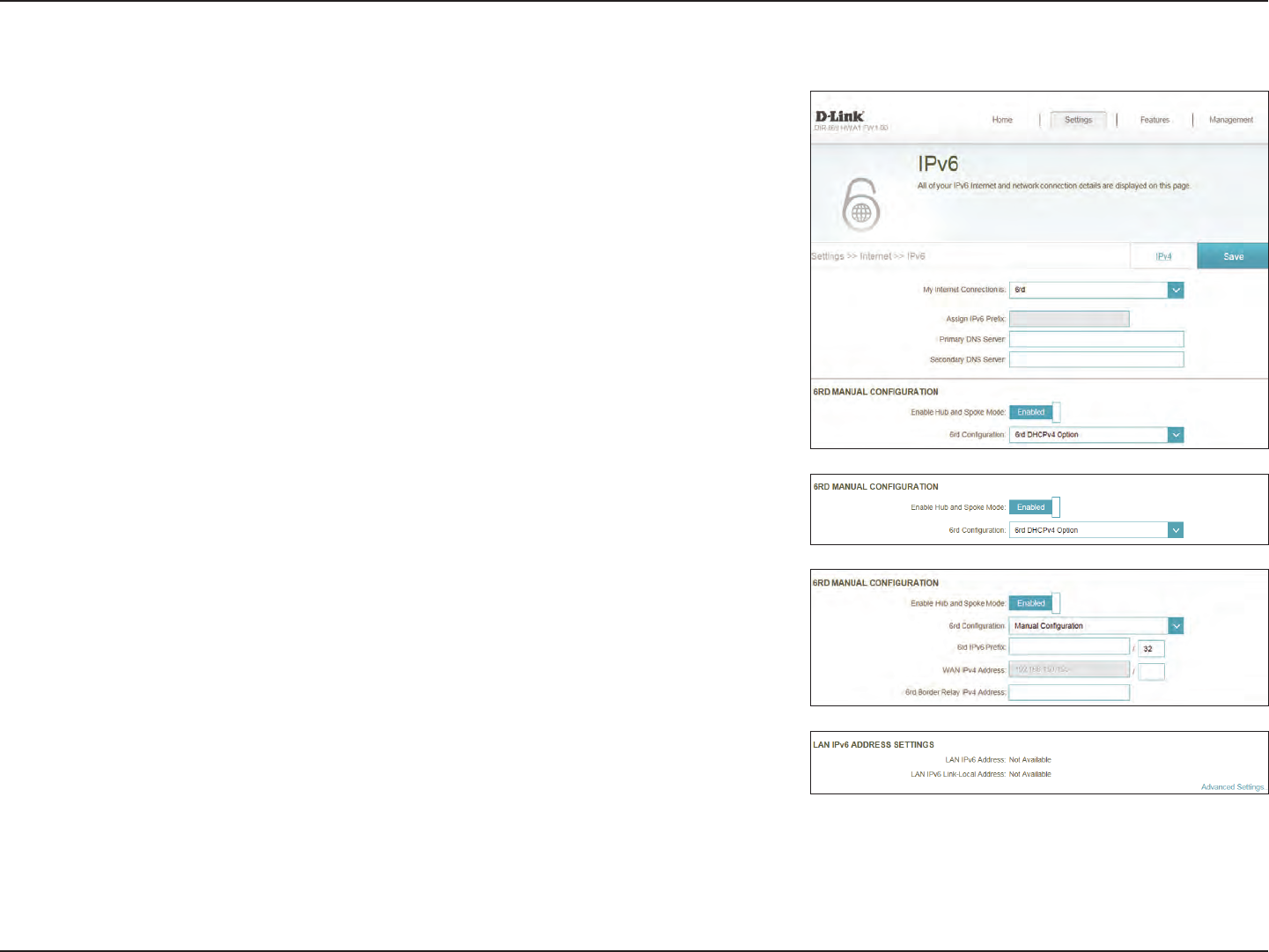

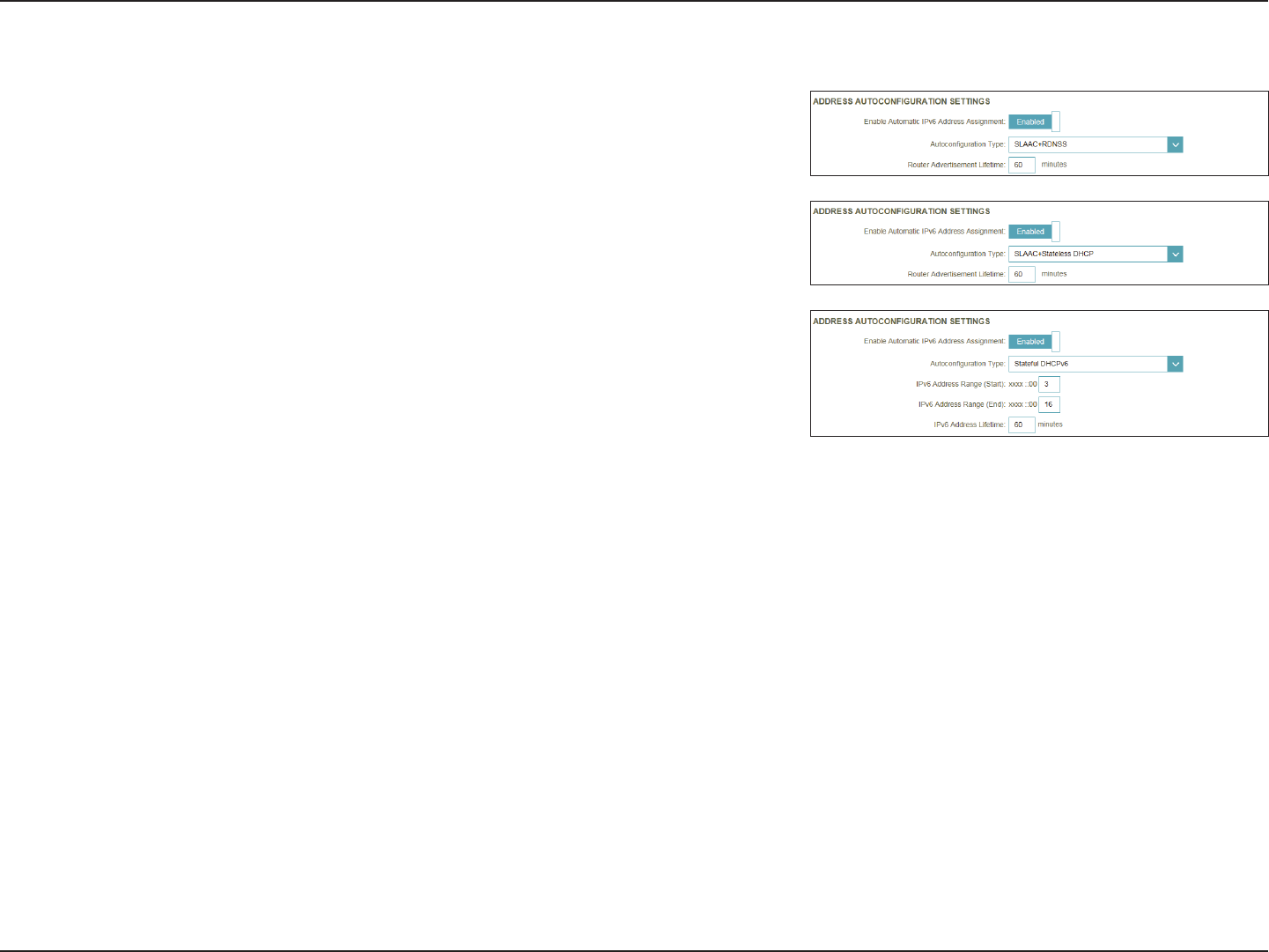

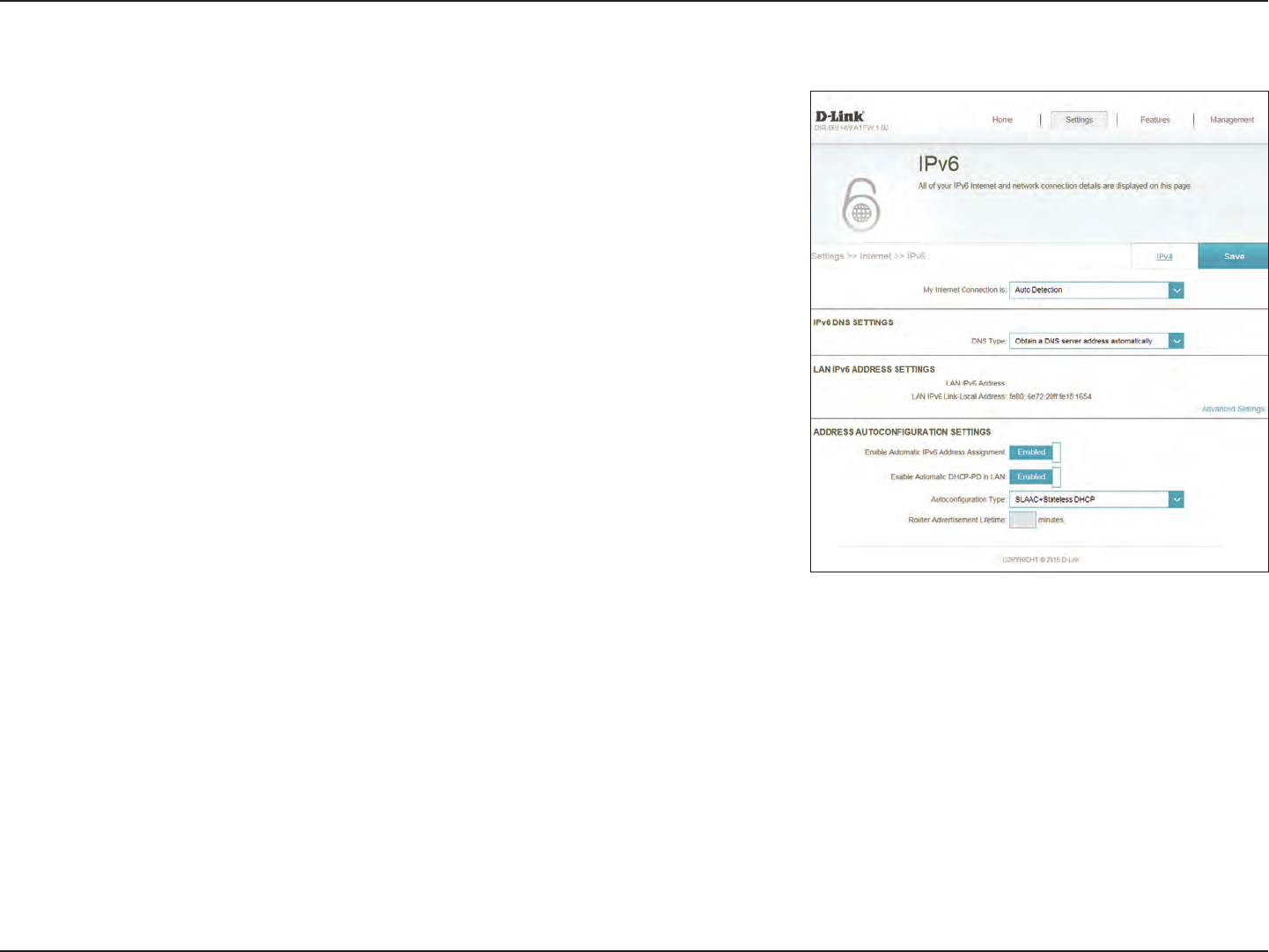

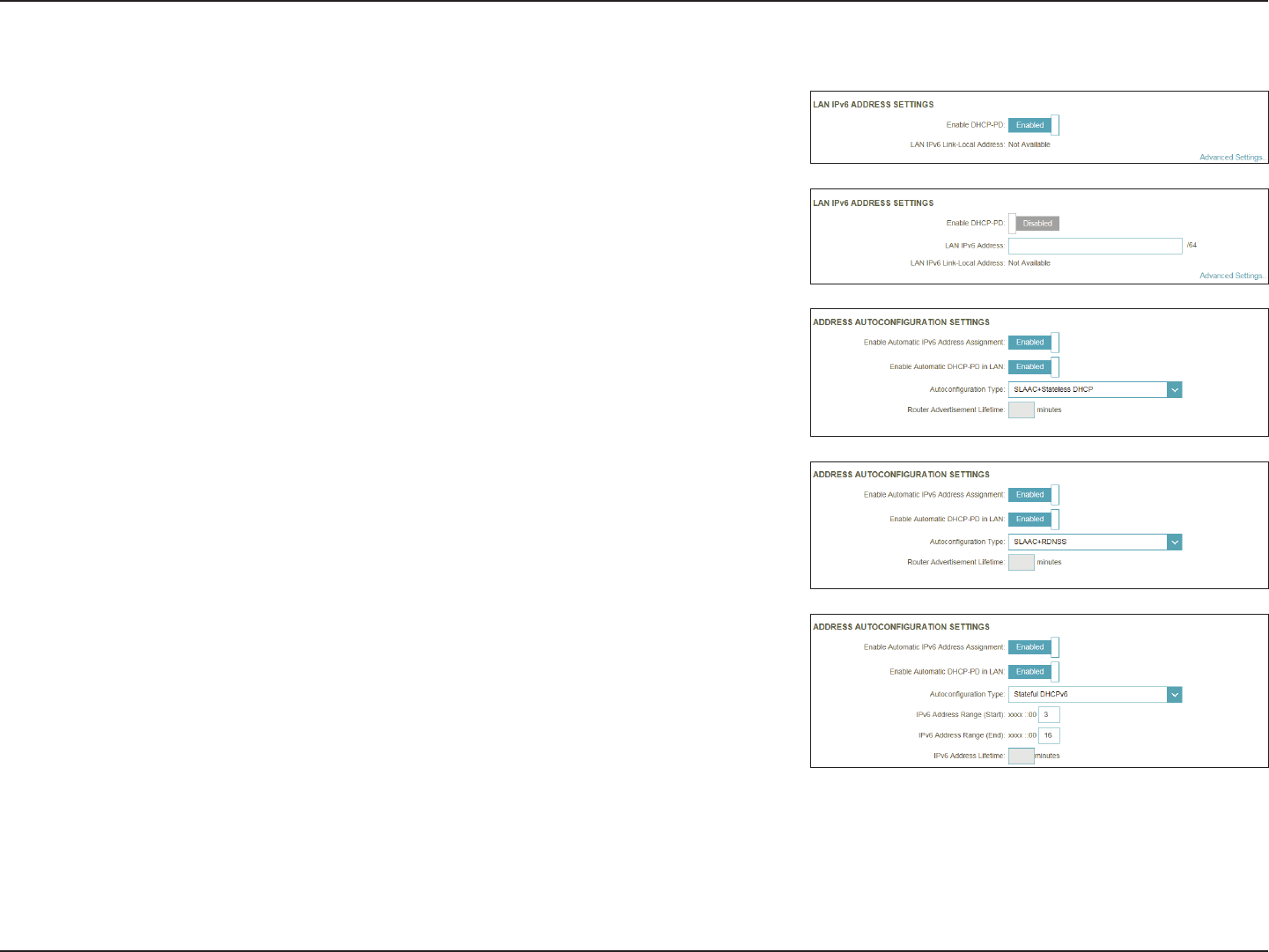

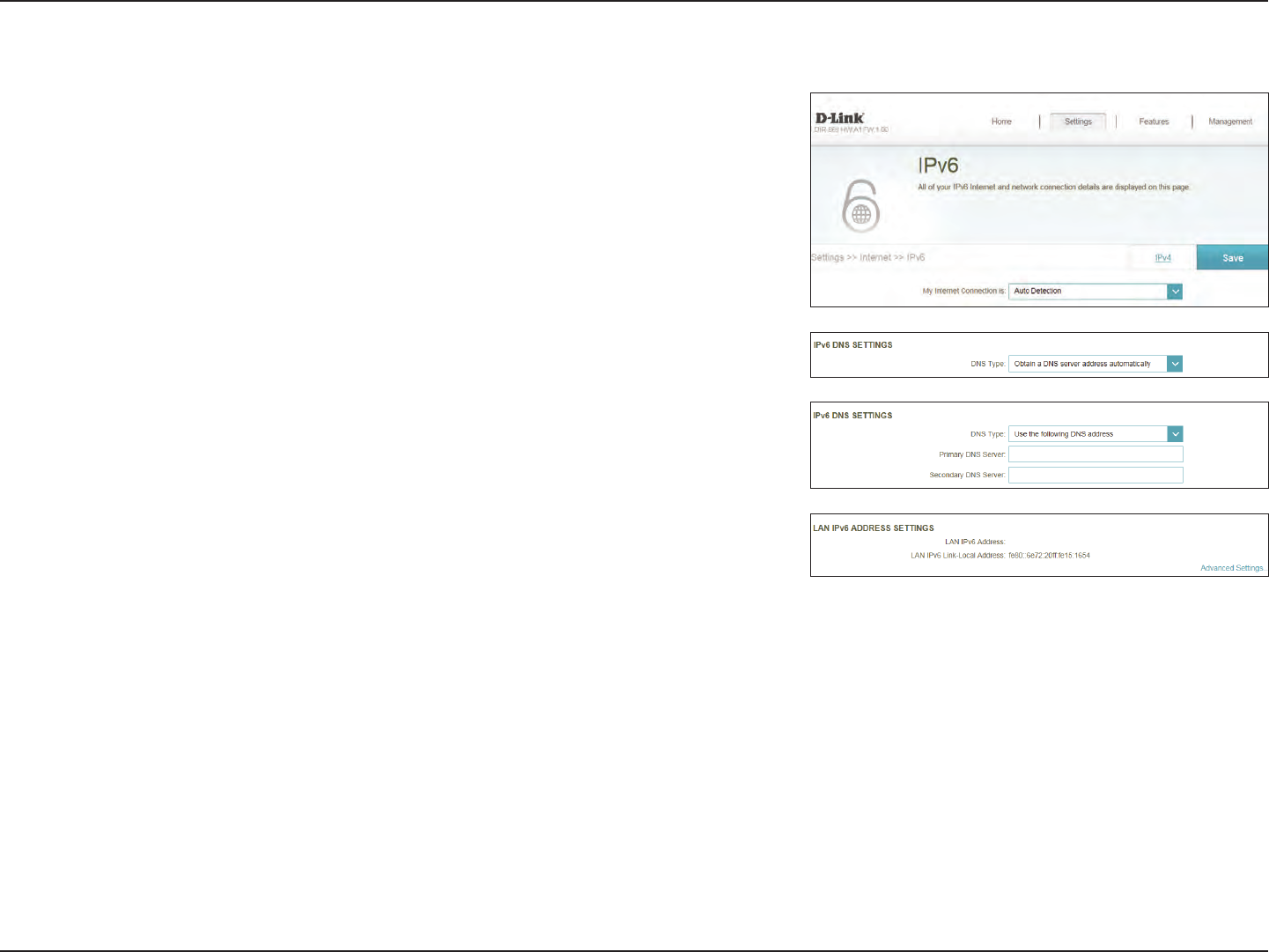

IPv6 .....................................................................................42

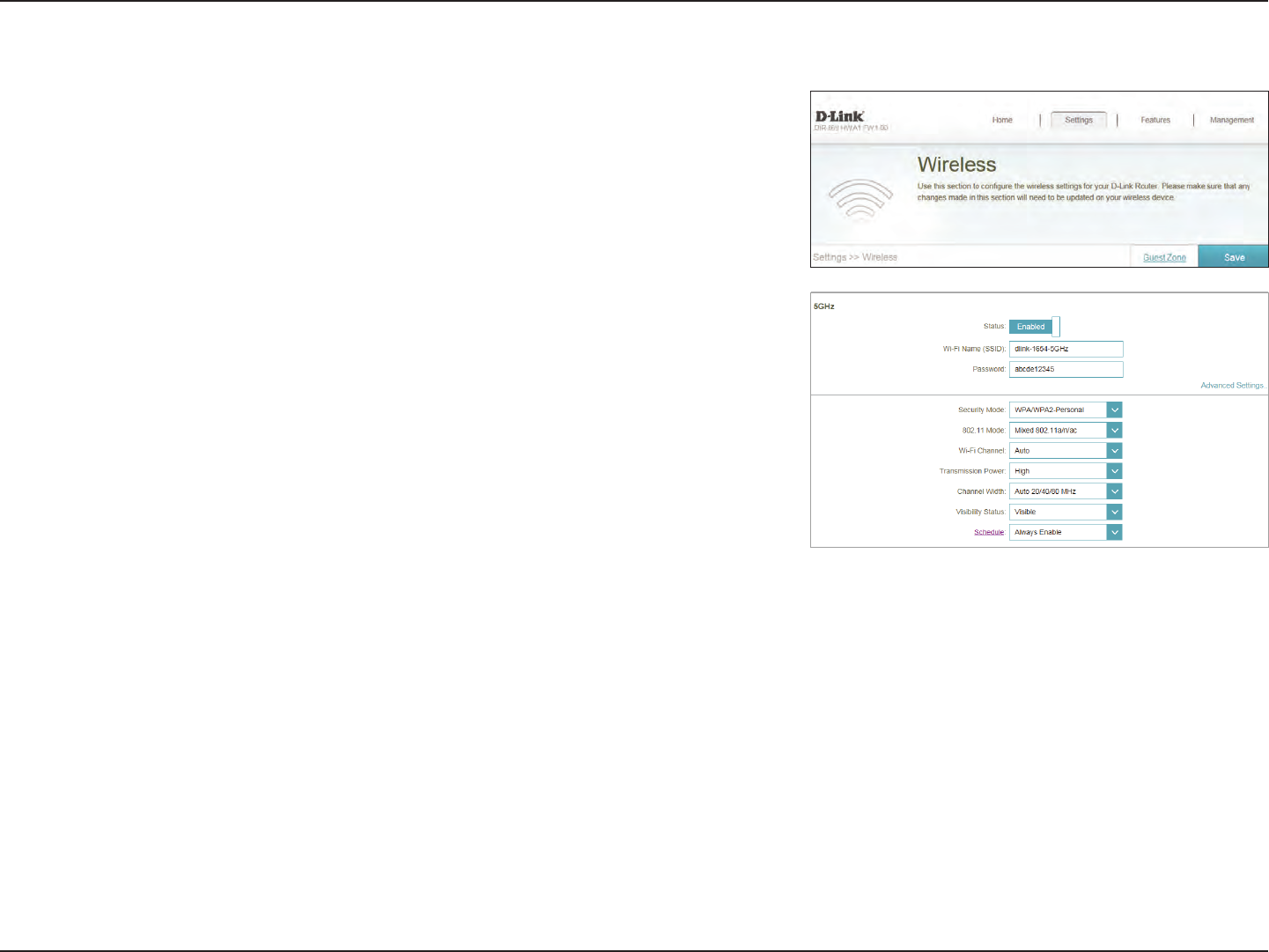

Wireless..............................................................................59
Guest Zone .......................................................................61

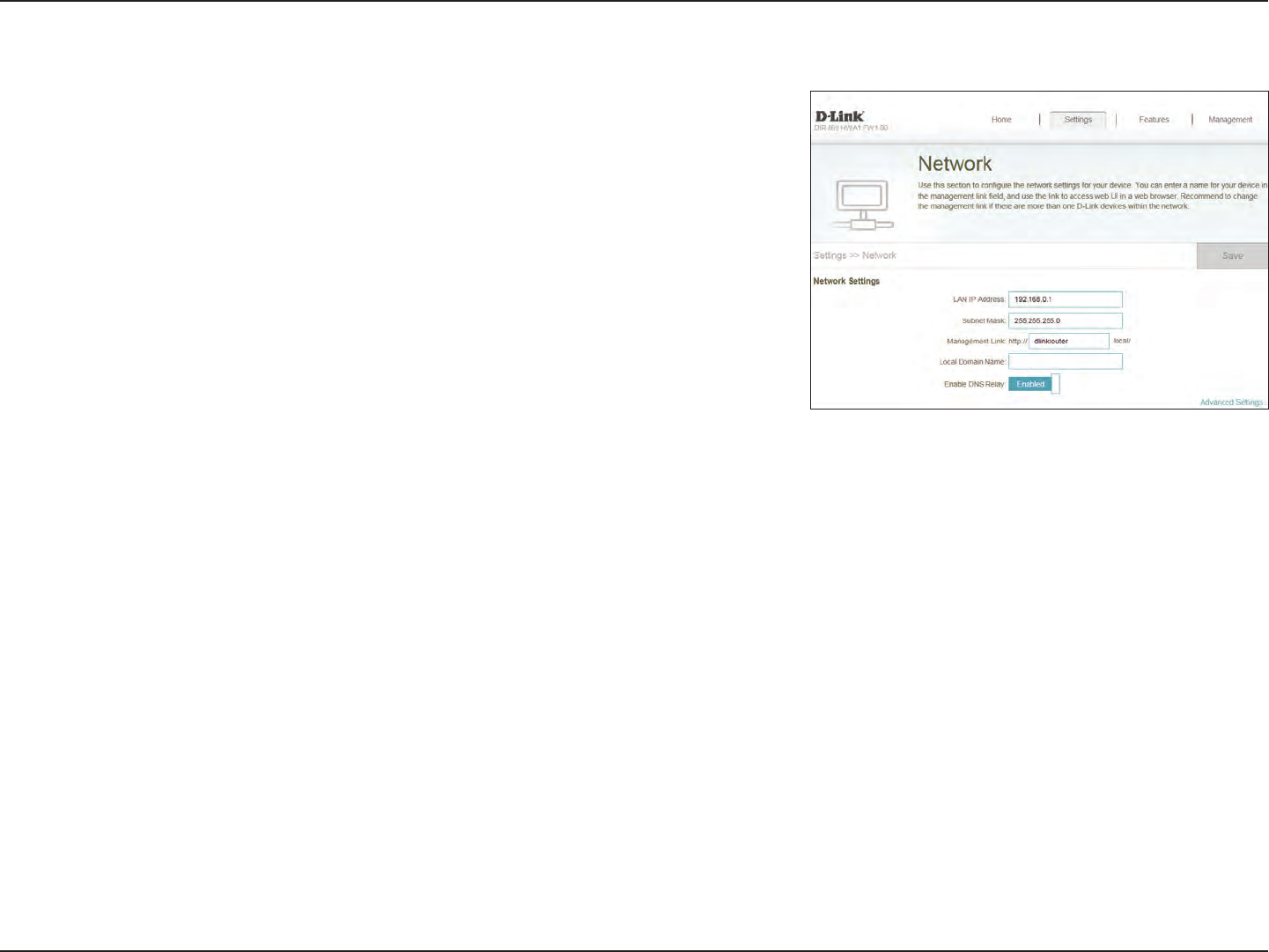

Network .................................................................................. 62
Features .......................................................................................... 64
QoS Engine............................................................................64

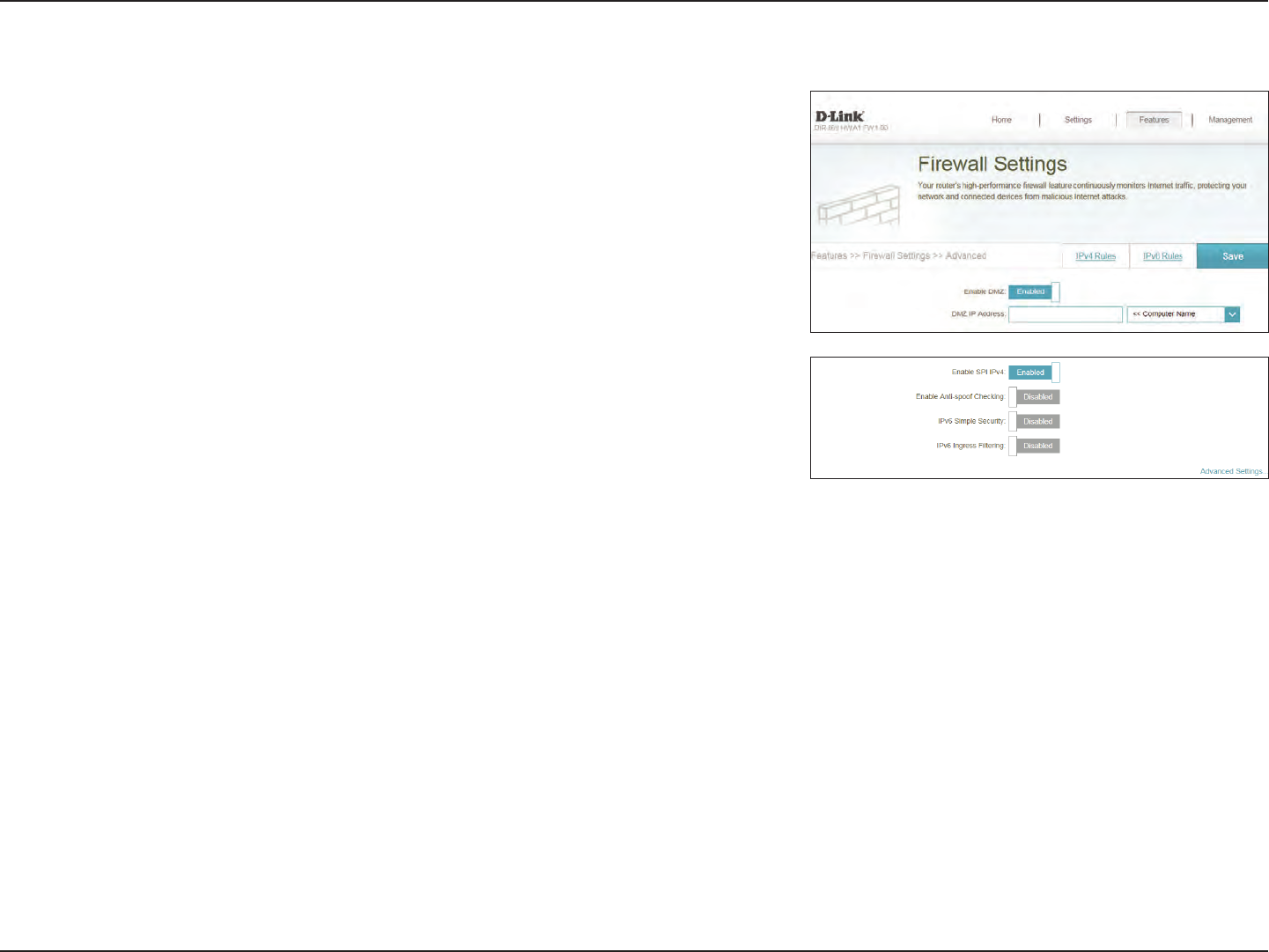

Firewall Settings ..................................................................65
IPv4/IPv6 Rules ...............................................................67

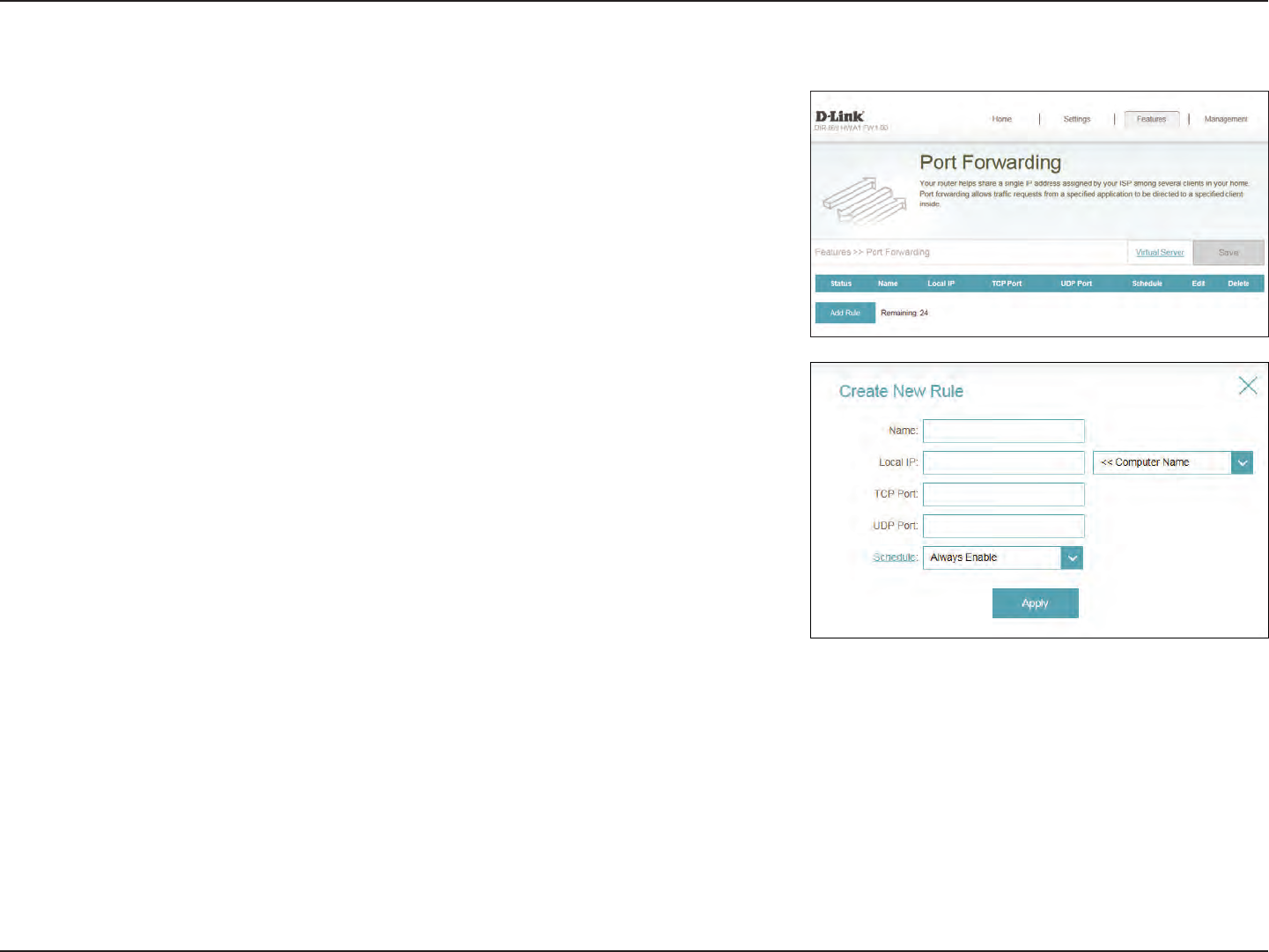

Port Forwarding ..................................................................68
Virtual Server ...................................................................69

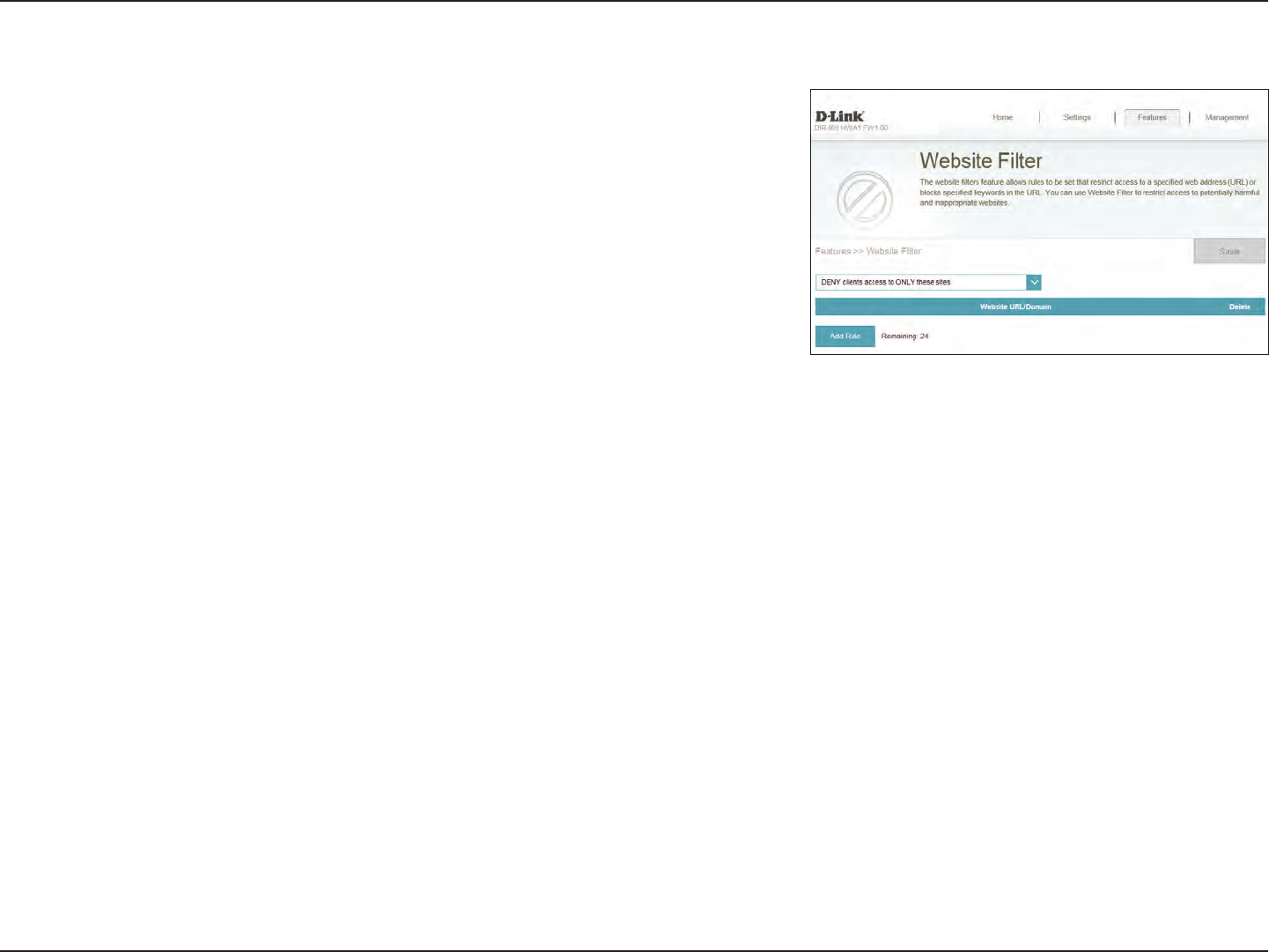

Website Filter ........................................................................70

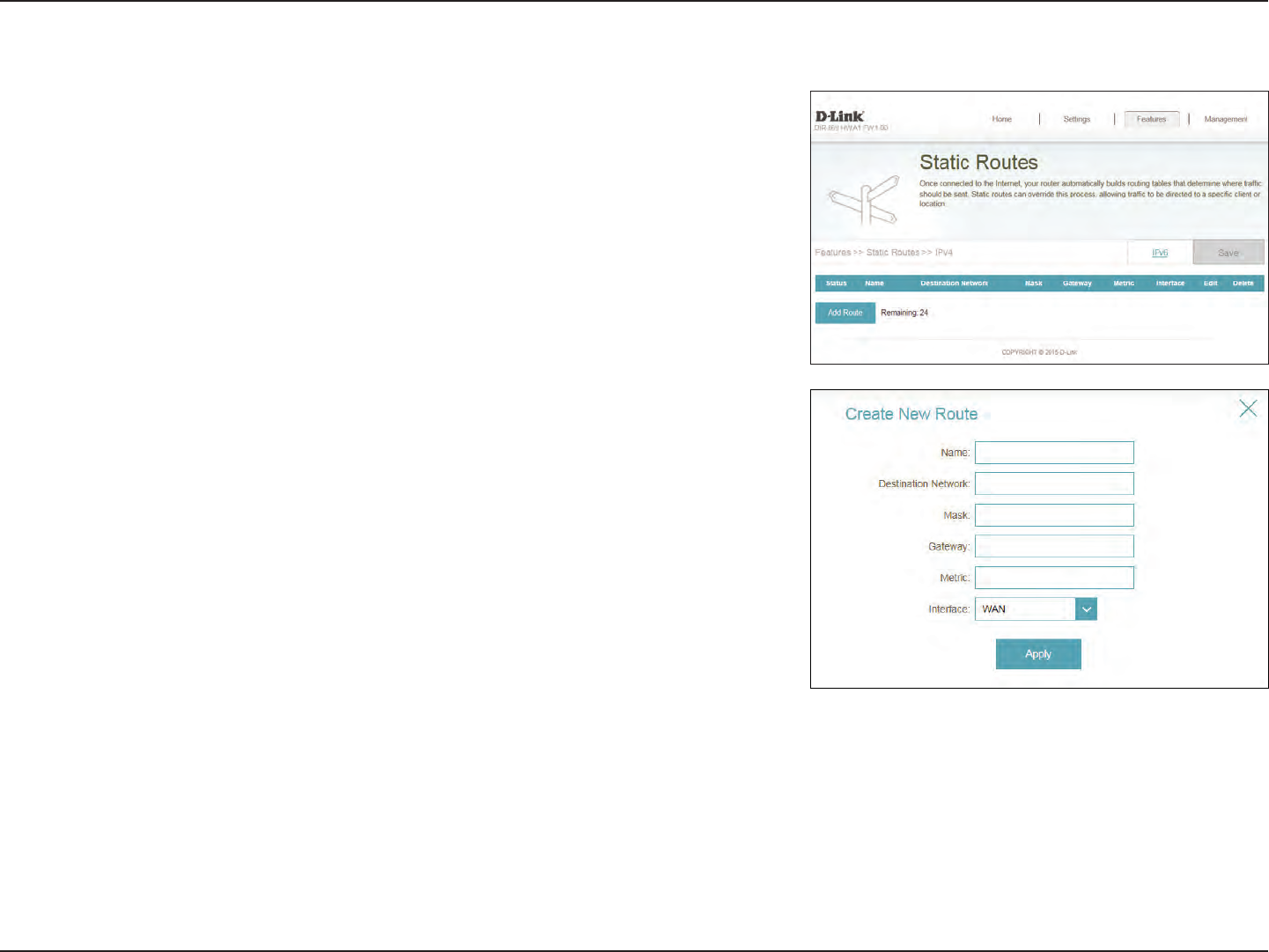

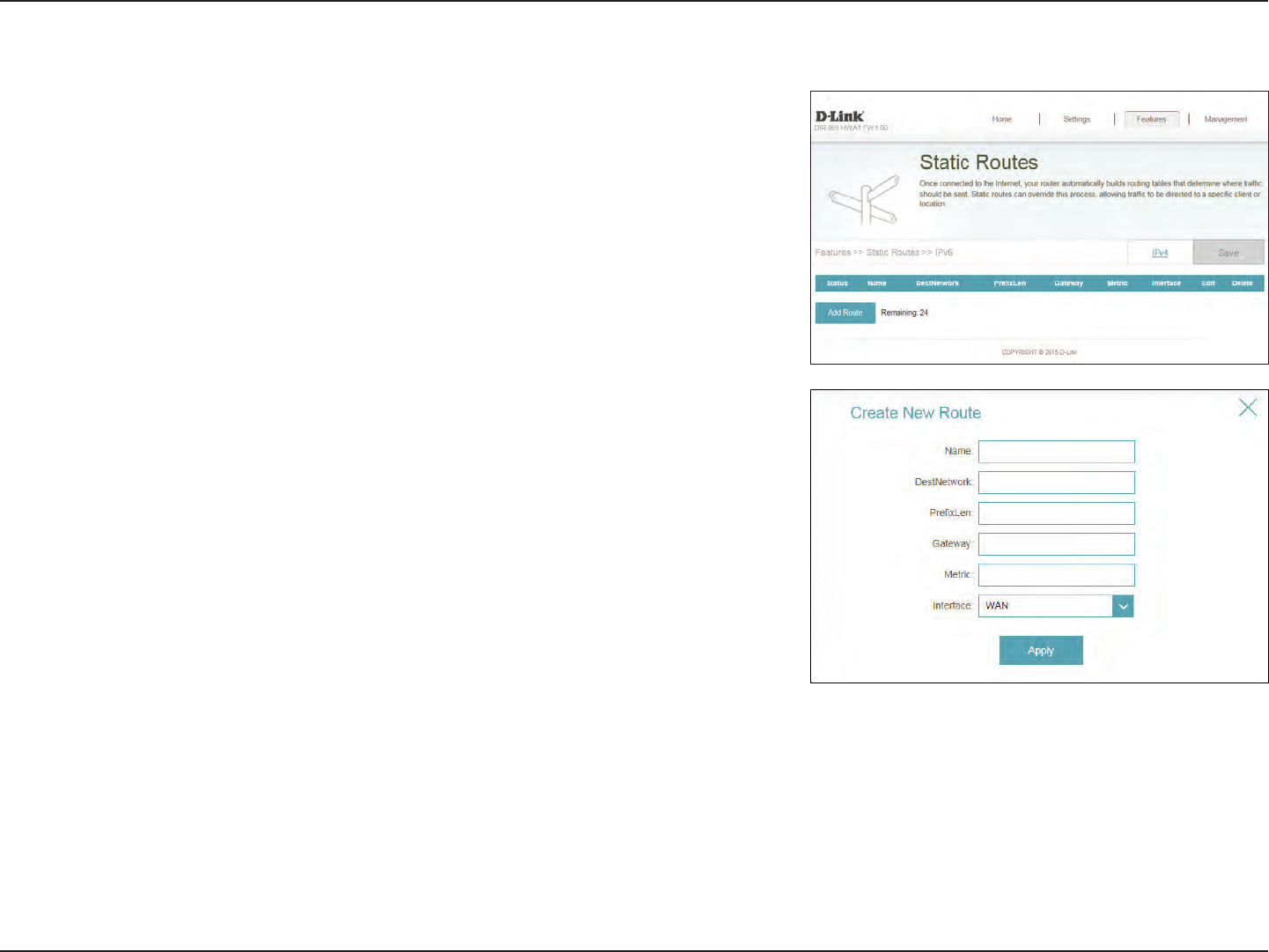

Static Routes .........................................................................71
IPv6 .....................................................................................72

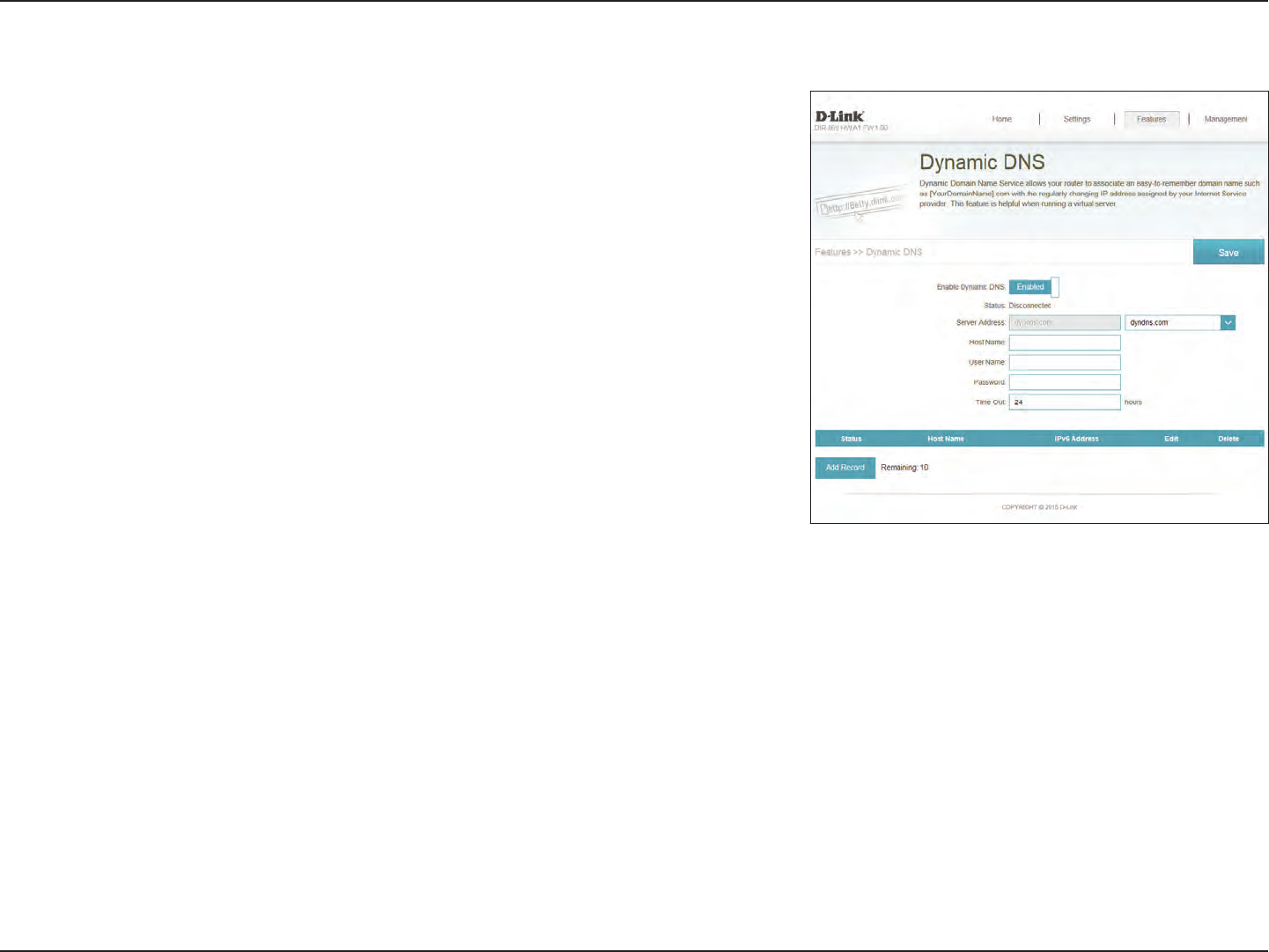

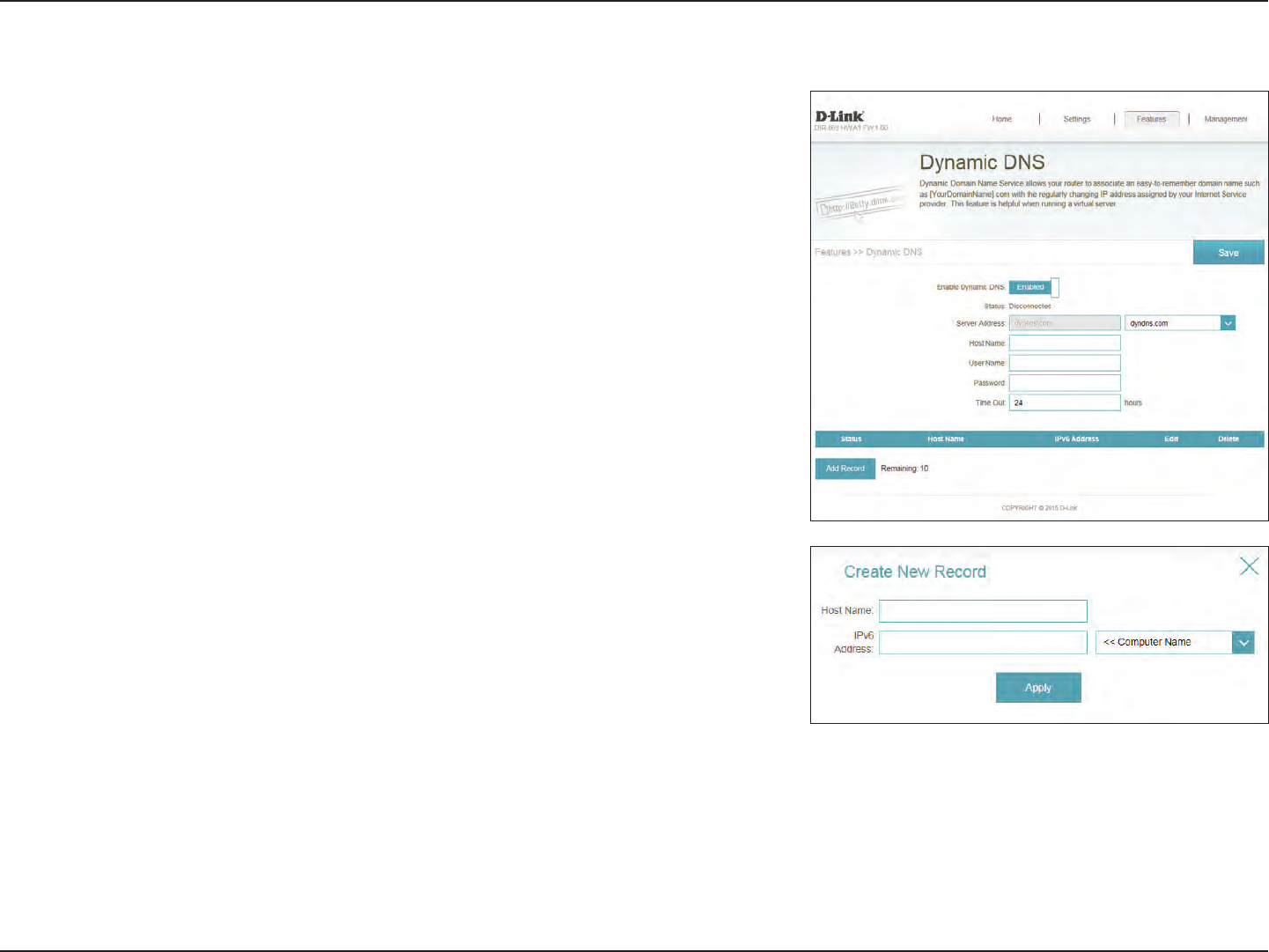

Dynamic DNS .......................................................................73
IPv6 Host ...........................................................................74
Management ................................................................................ 75
Time & Schedule .................................................................75
Time ....................................................................................75

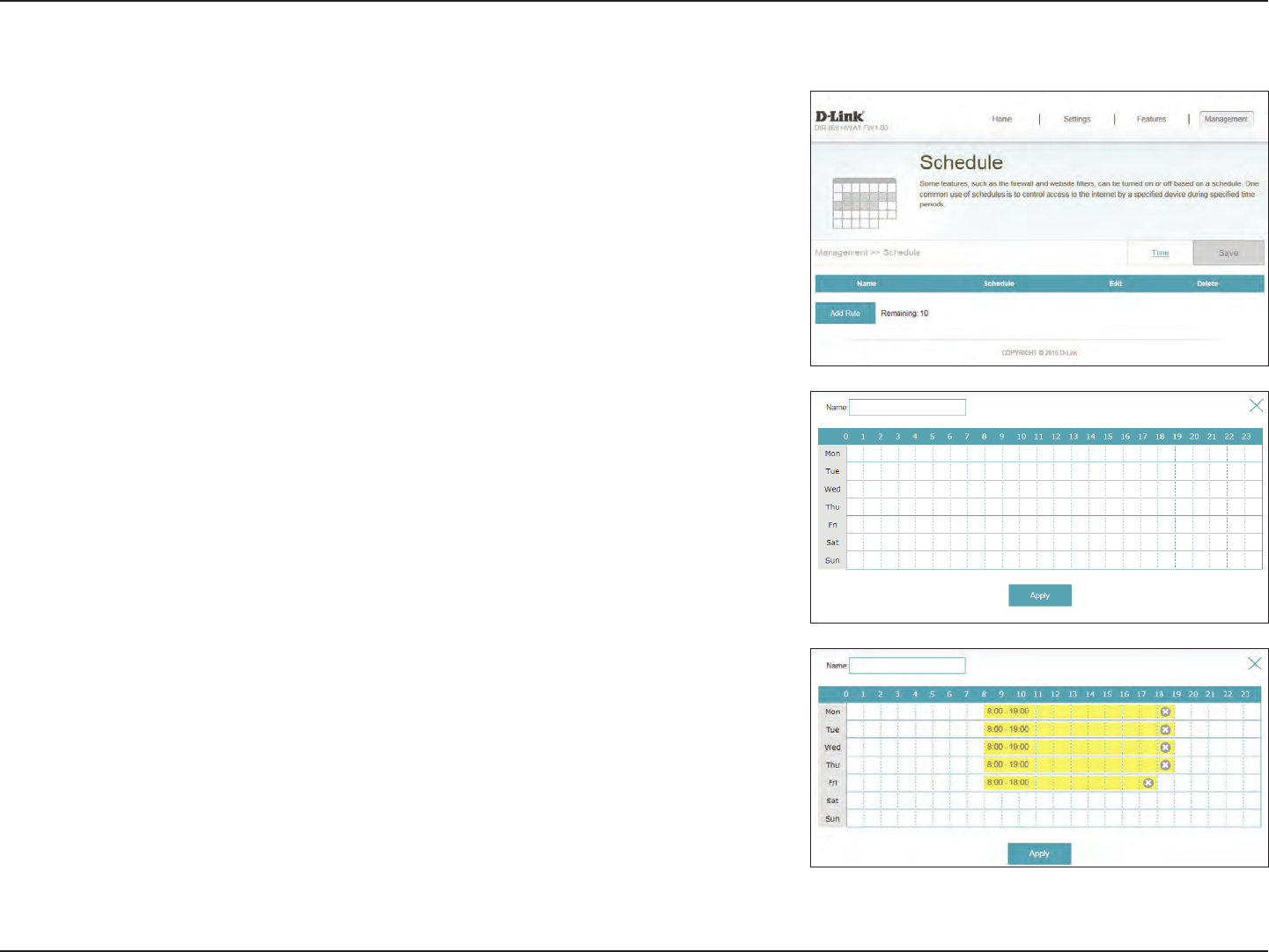

Schedule ...........................................................................76
Table of Contents
iiiD-Link DIR-869 User Manual
Table of Contents

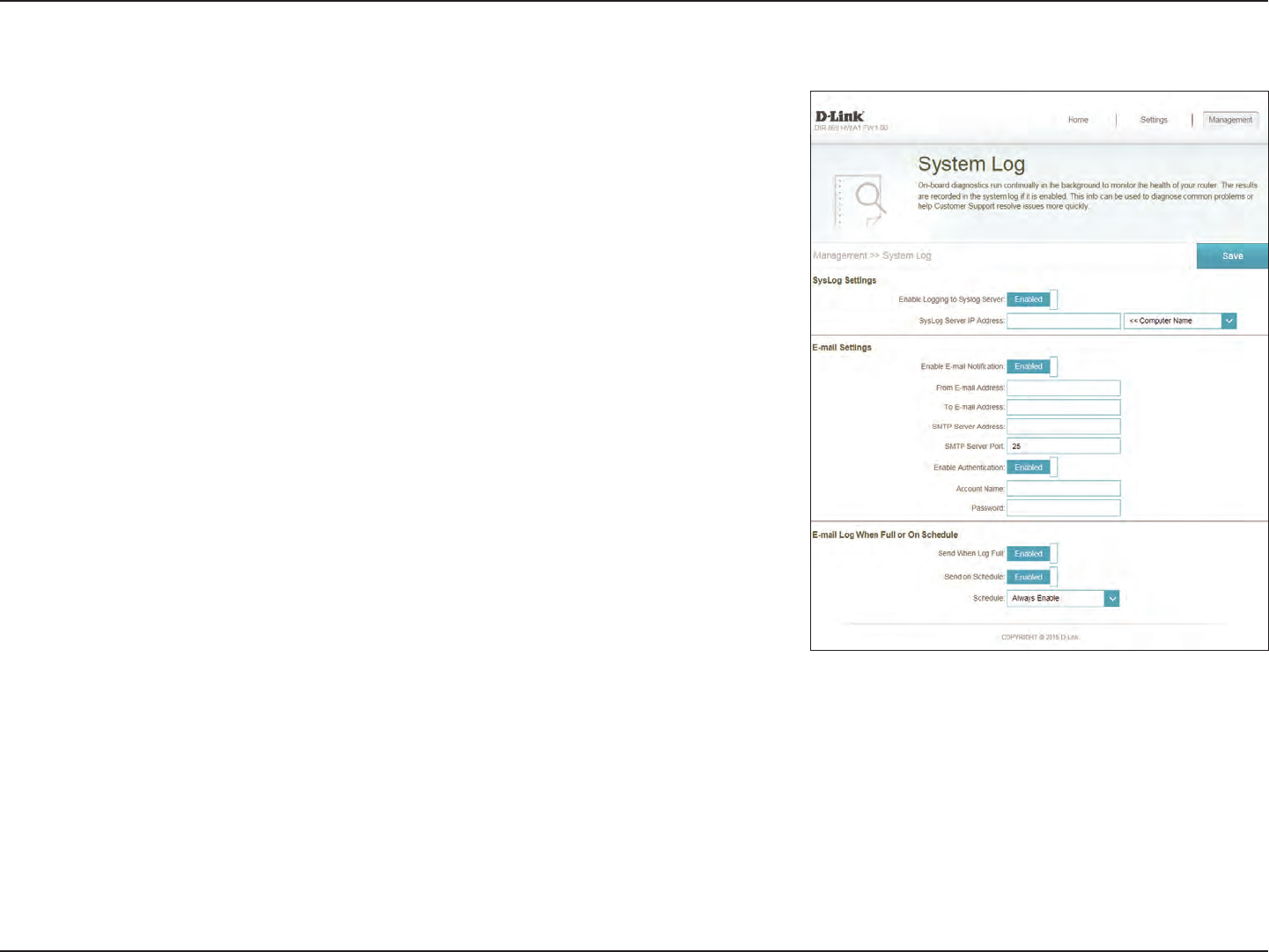

System Log ............................................................................77

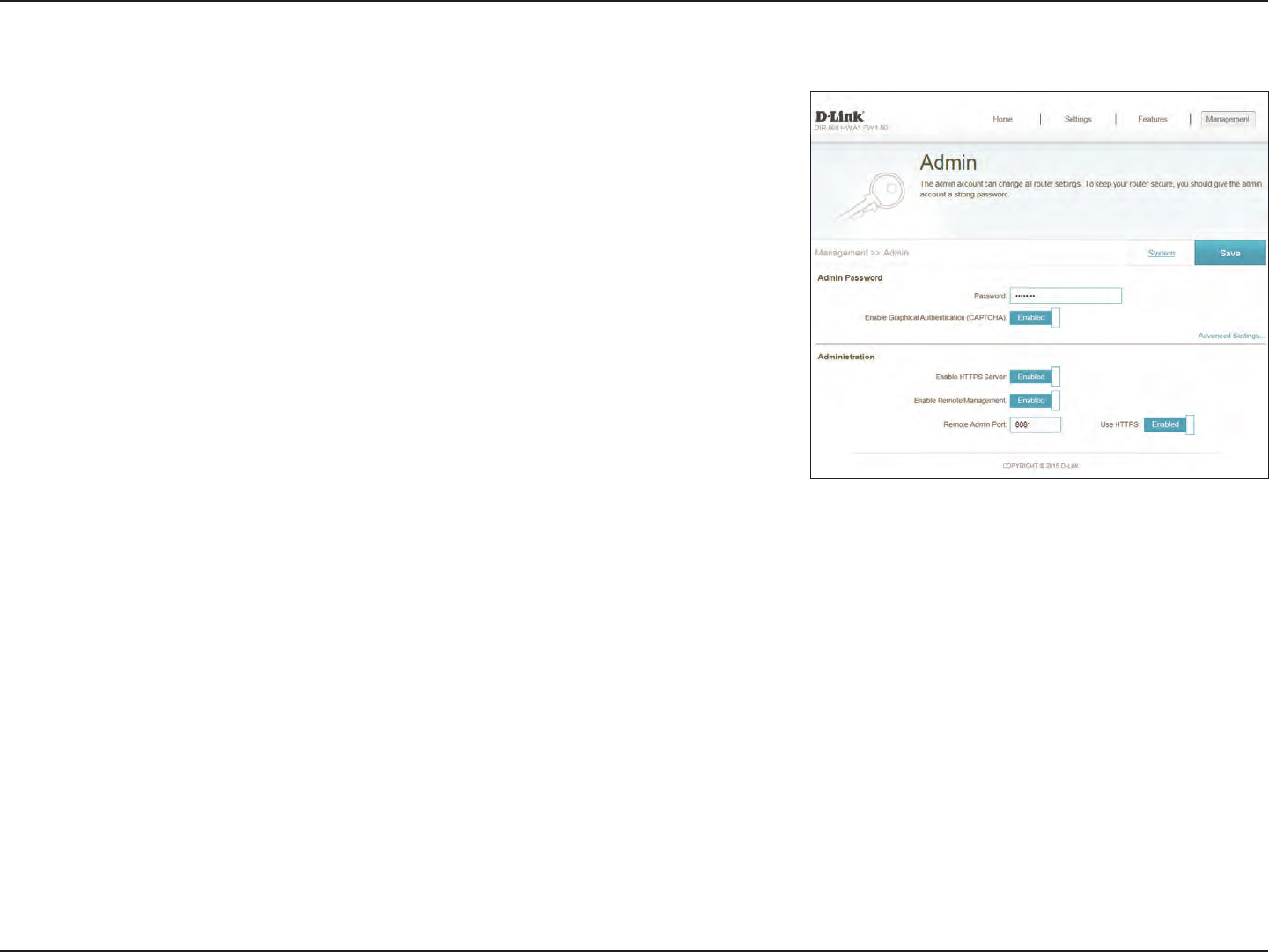

Admin .....................................................................................79

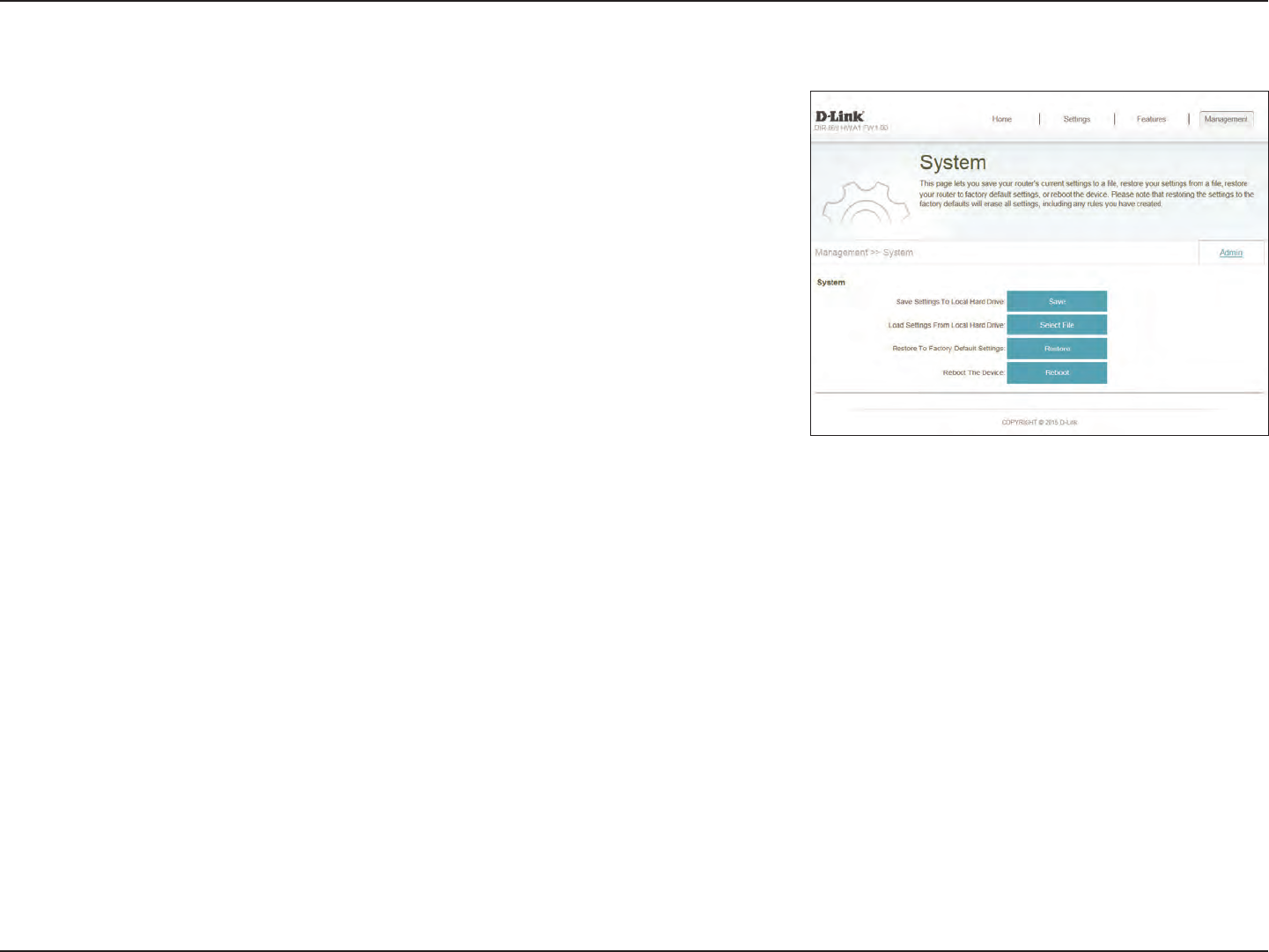

System ...............................................................................80
Upgrade .................................................................................81

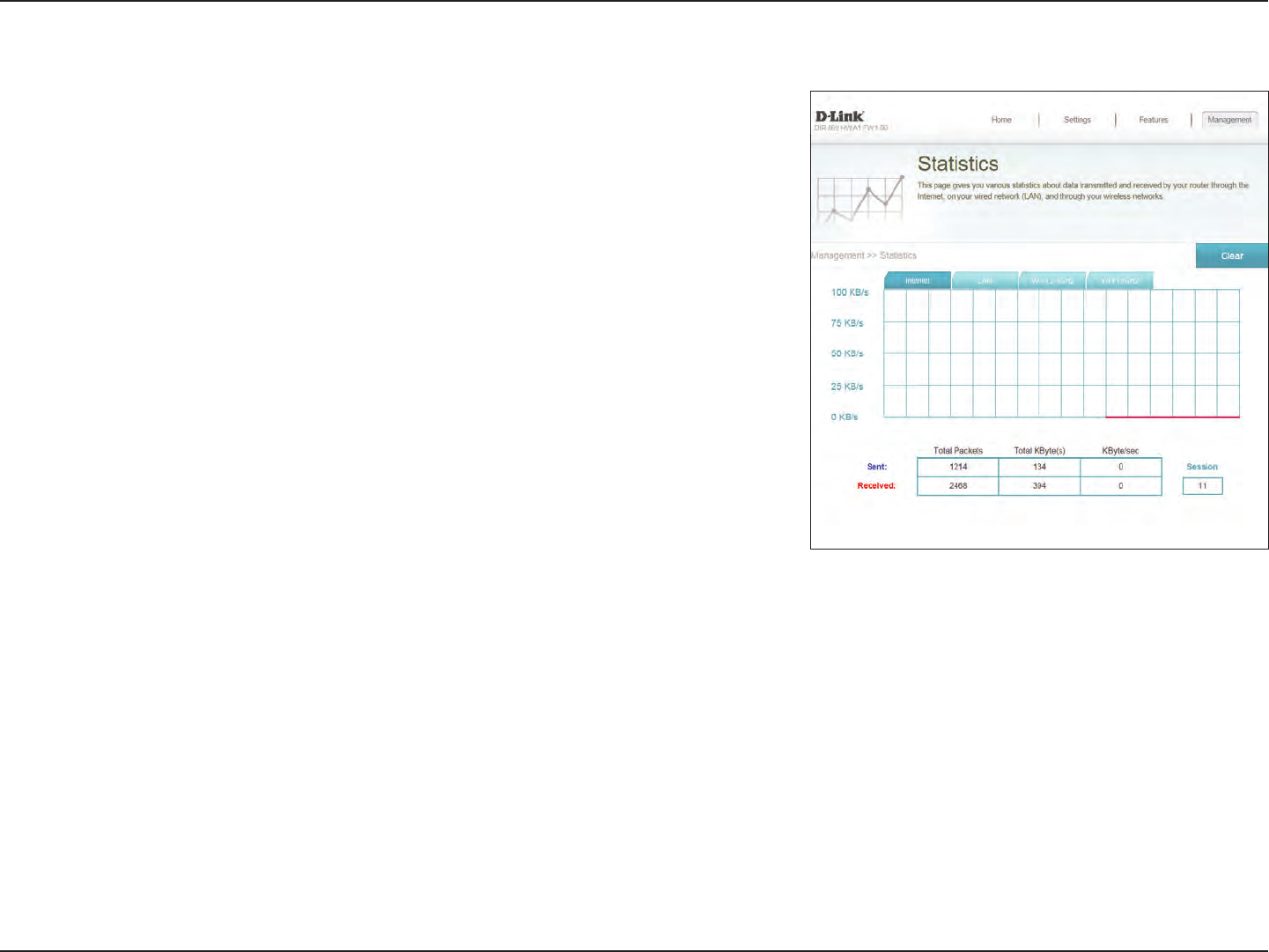

Statistics .................................................................................82
Connect a Wireless Client to your Router ......................83

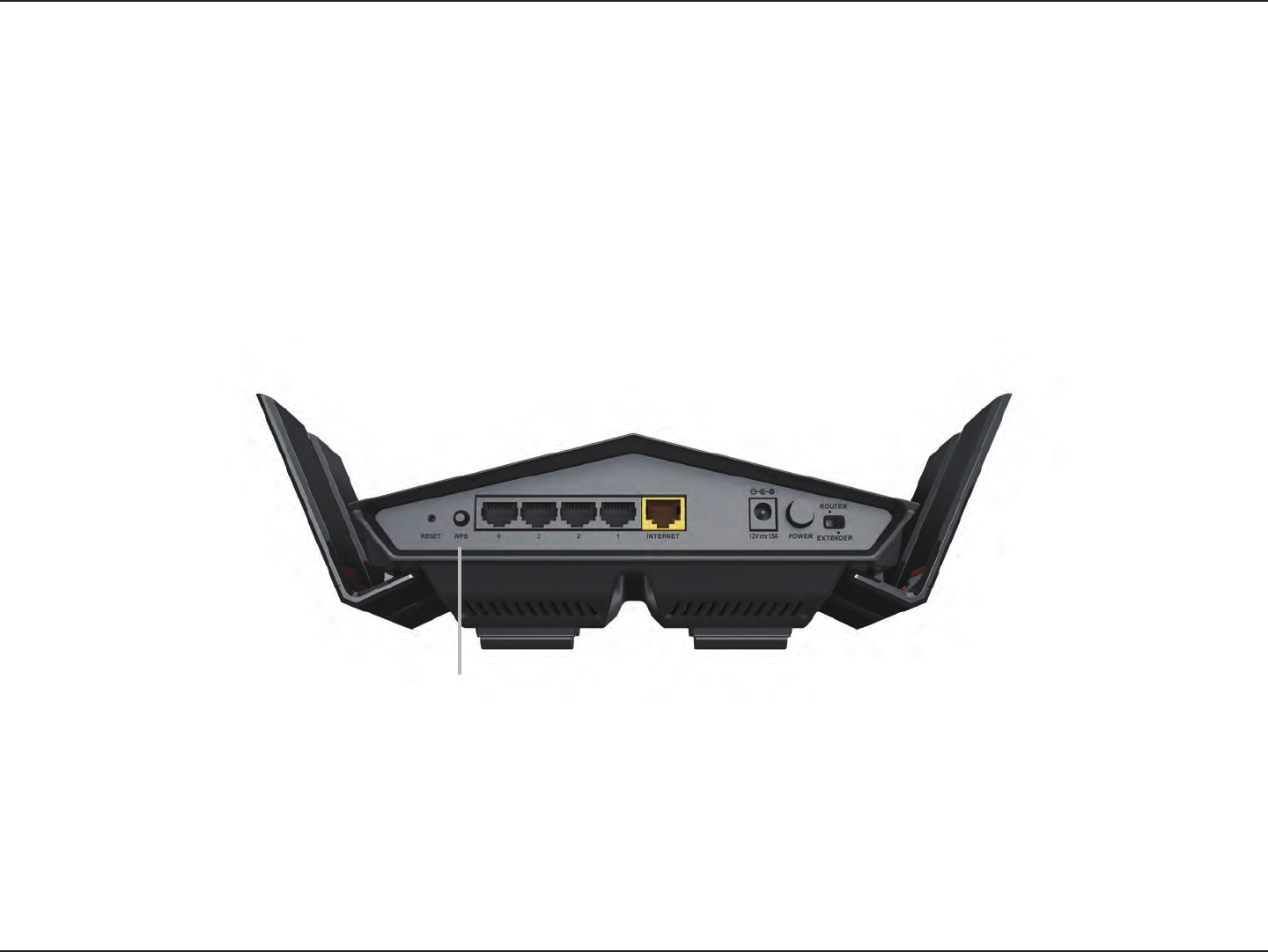

WPS Button ...................................................................................83

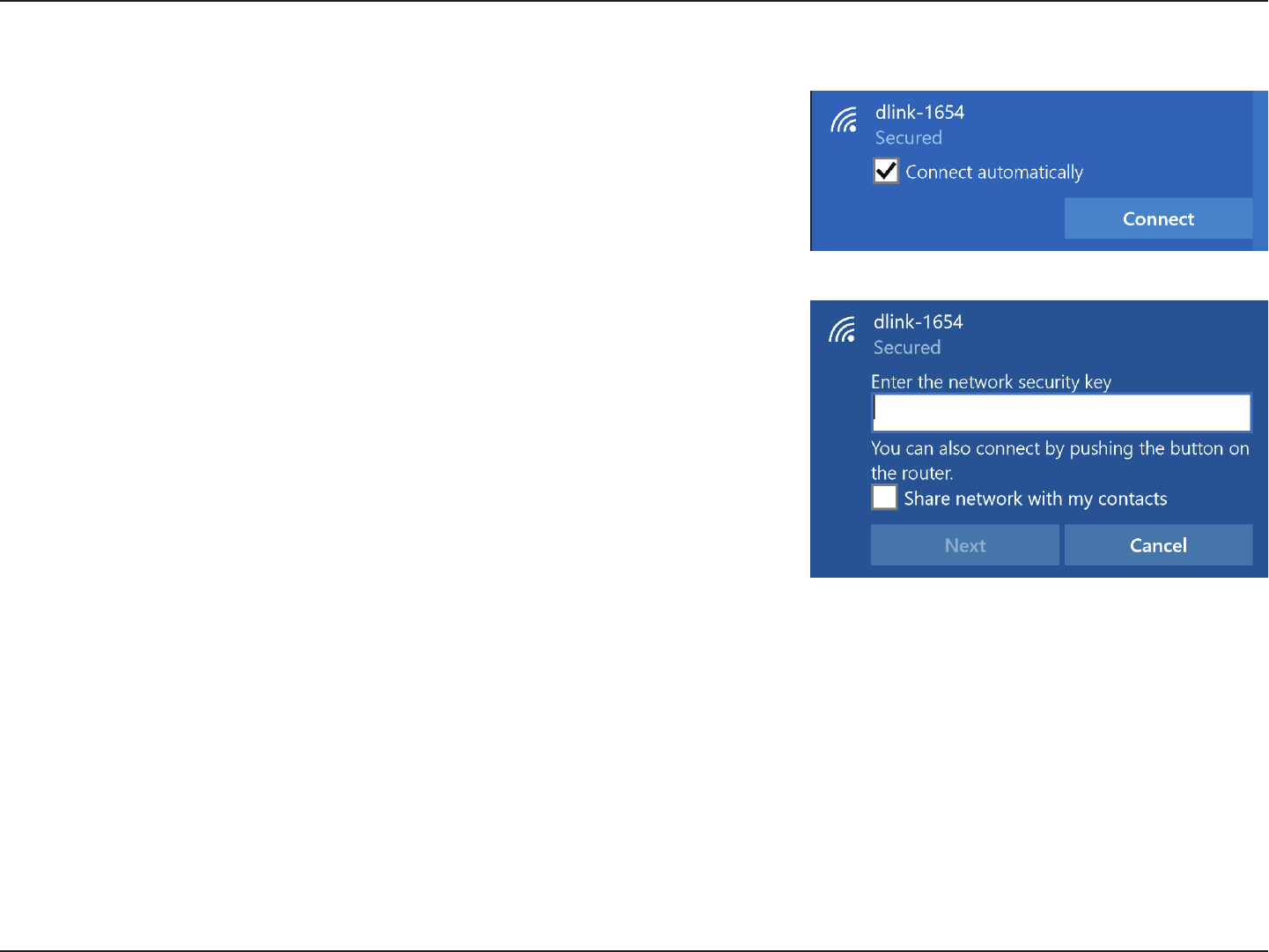

Windows® 10 ................................................................................84

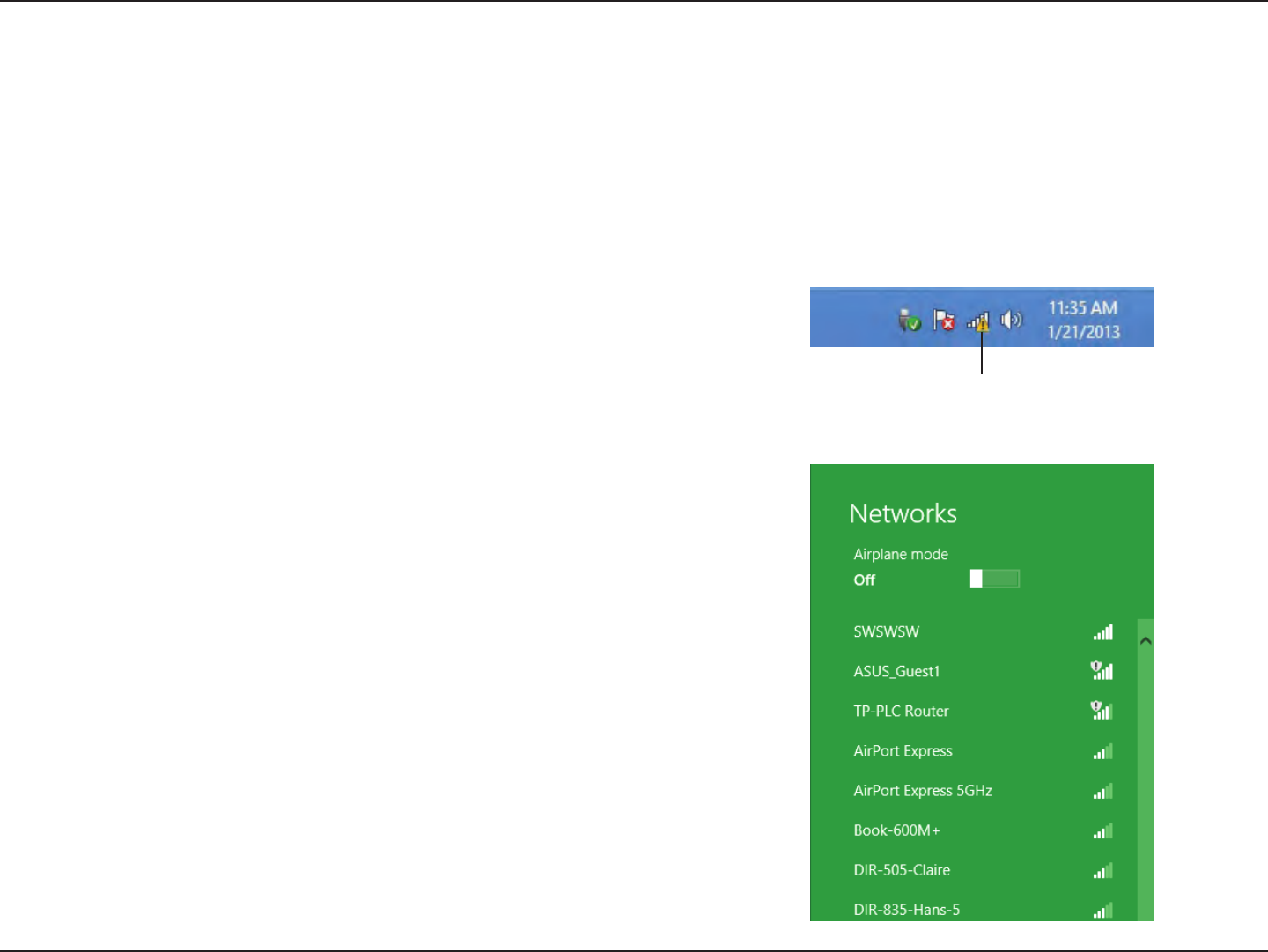

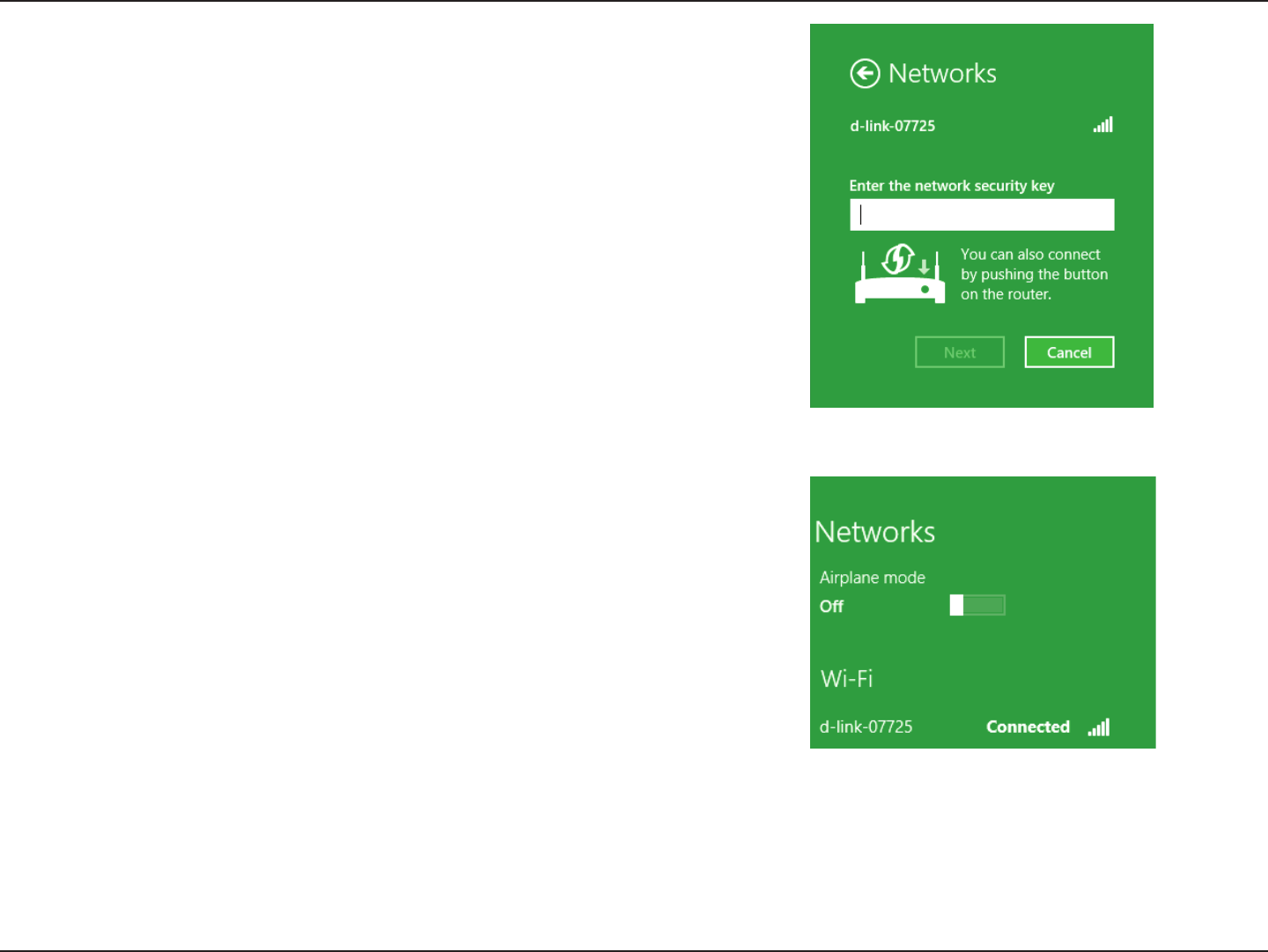

Windows® 8 ................................................................................... 86
WPA/WPA2 ............................................................................86
WPS ..........................................................................................88

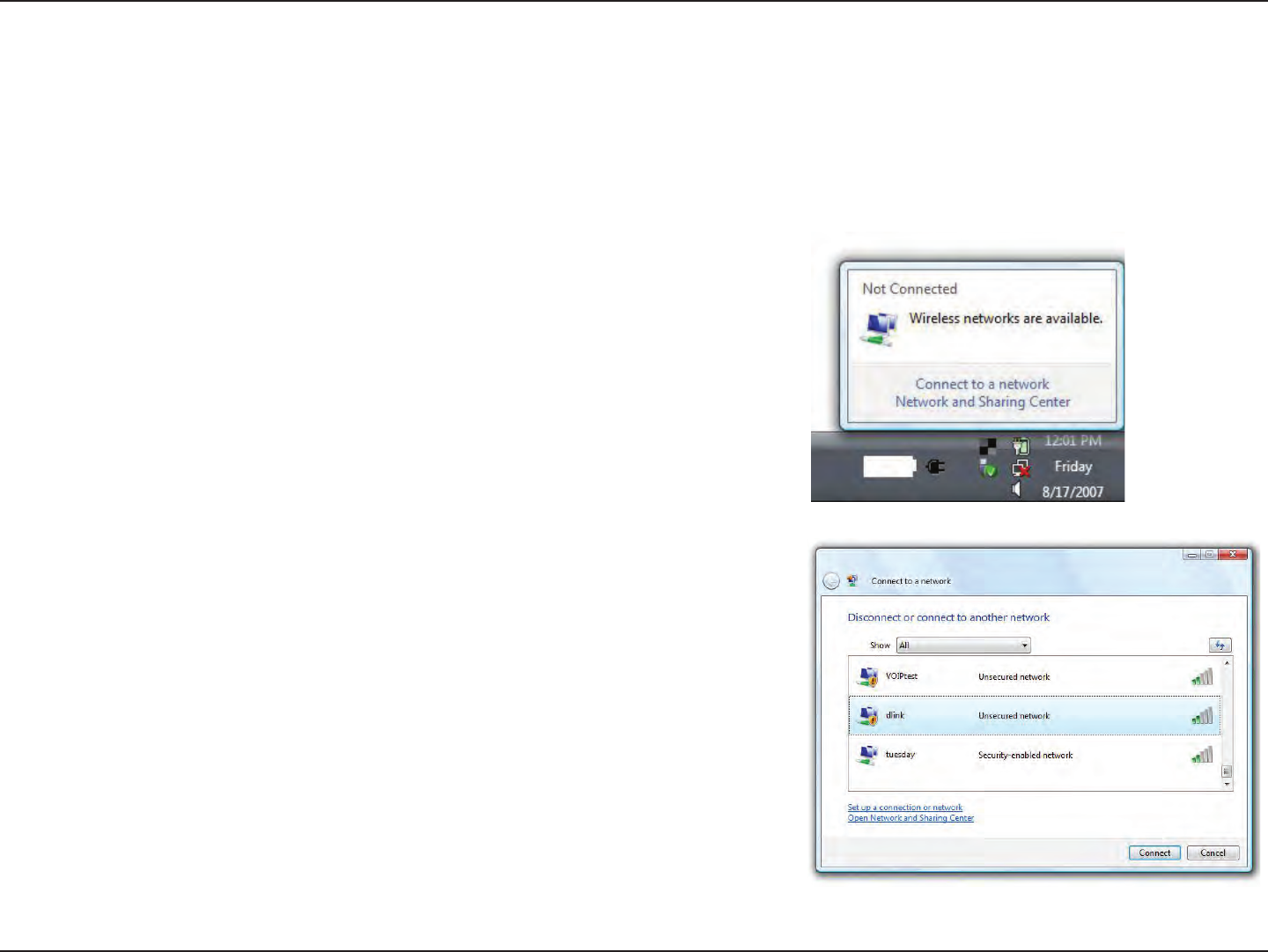

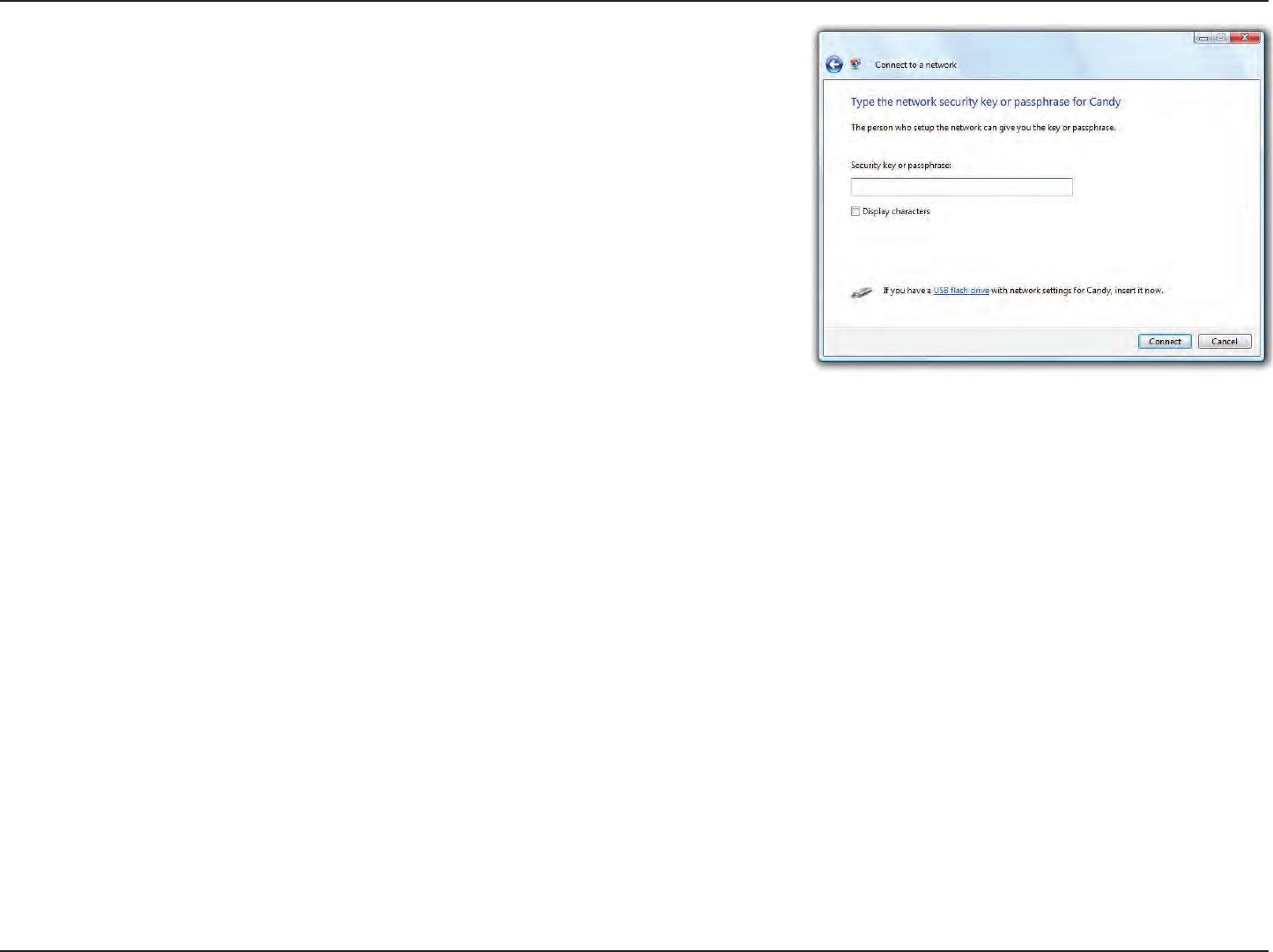

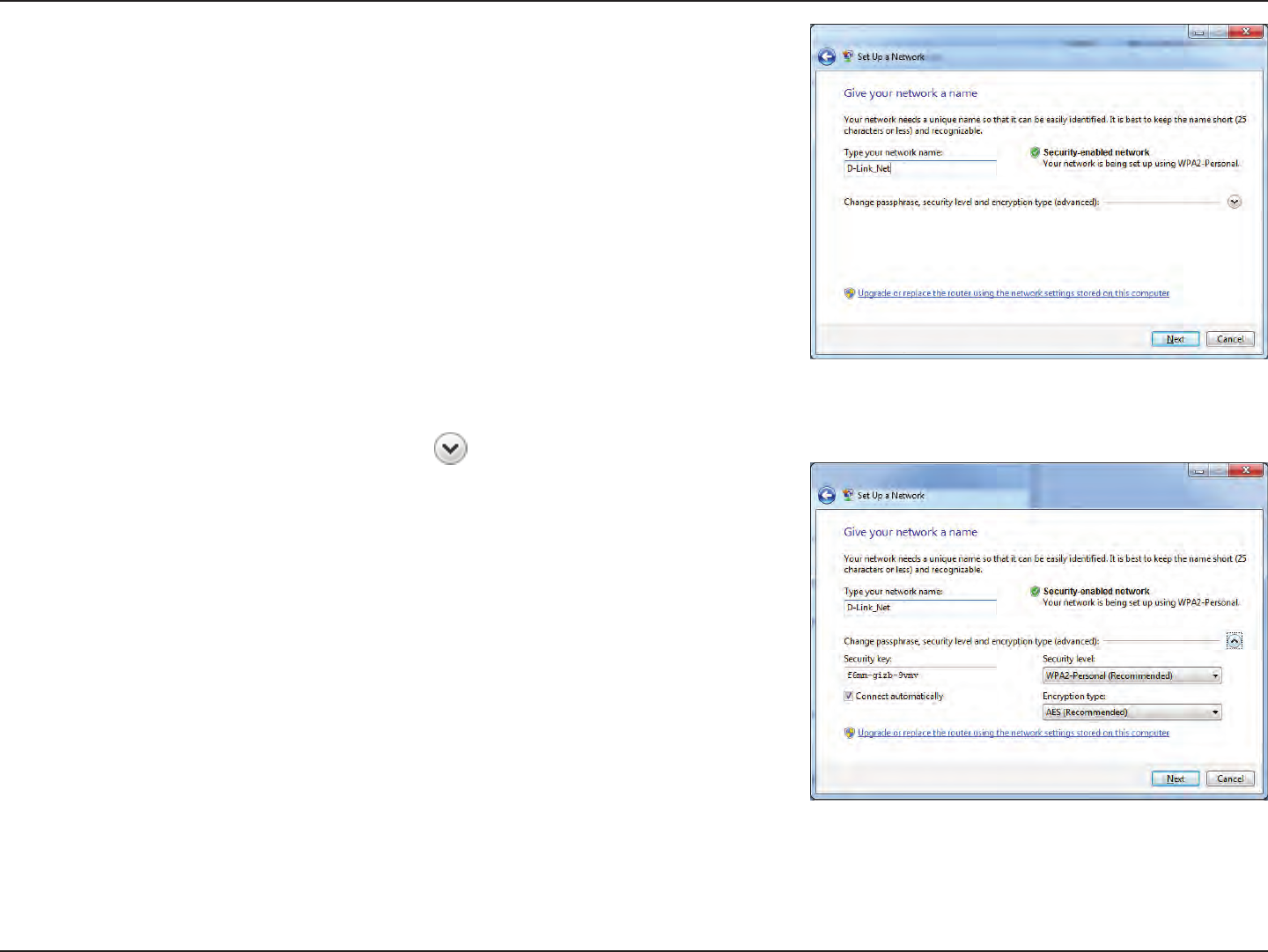

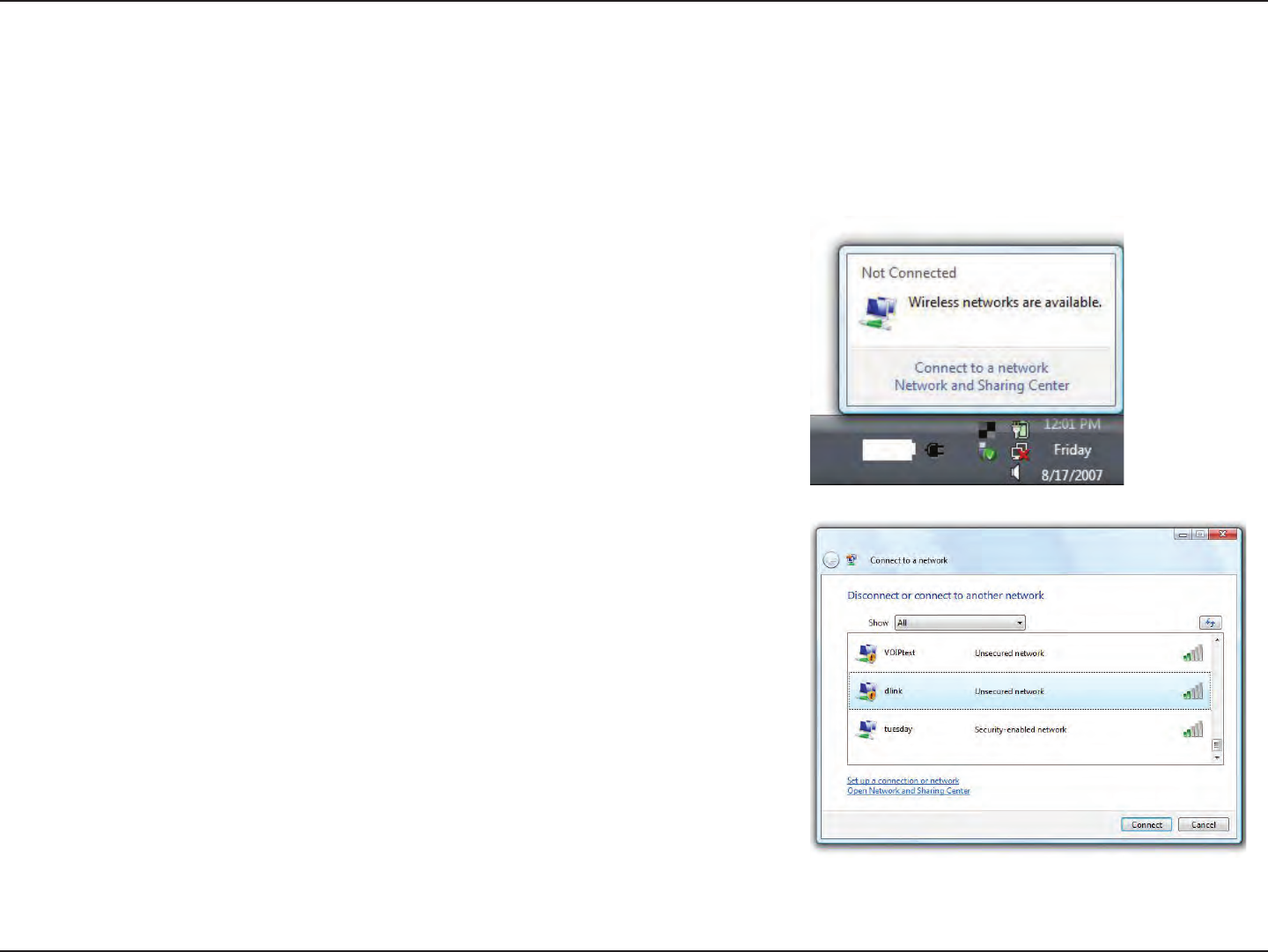

Windows Vista® ............................................................................ 92
WPA/WPA2 ............................................................................93
Troubleshooting ..............................................................95
Wireless Basics .................................................................99
What is Wireless? ...................................................................... 100
Tips ................................................................................................102
Wireless Modes ......................................................................... 103
Networking Basics .........................................................104
Check your IP address ............................................................ 104
Statically Assign an IP address ............................................ 105
Wireless Security ......................................................... 106
What is WPA? ................................................................ 106
Technical Specications ................................................107
Regulatory Statements .................................................108
1D-Link DIR-869 User Manual
Section 1 - Product Overview
Product Overview

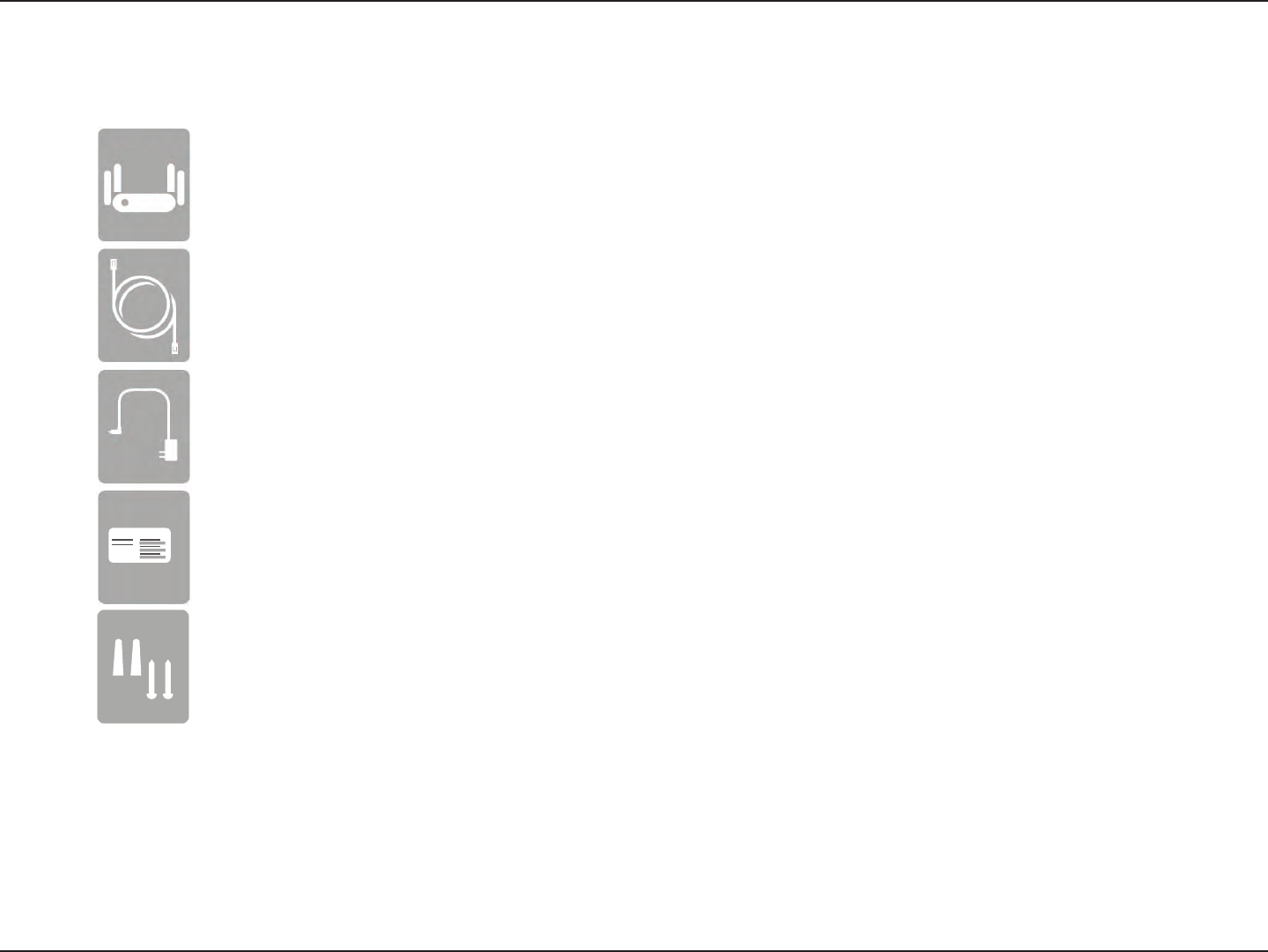

Package Contents
Note: Using a power supply with a dierent voltage rating than the one included with the DIR-869 will cause damage and void the warranty
for this product.
If any of the above items are missing, please contact your reseller.
DIR-869 AC1750 Wi-Fi Router
Ethernet Cable
Power Adapter

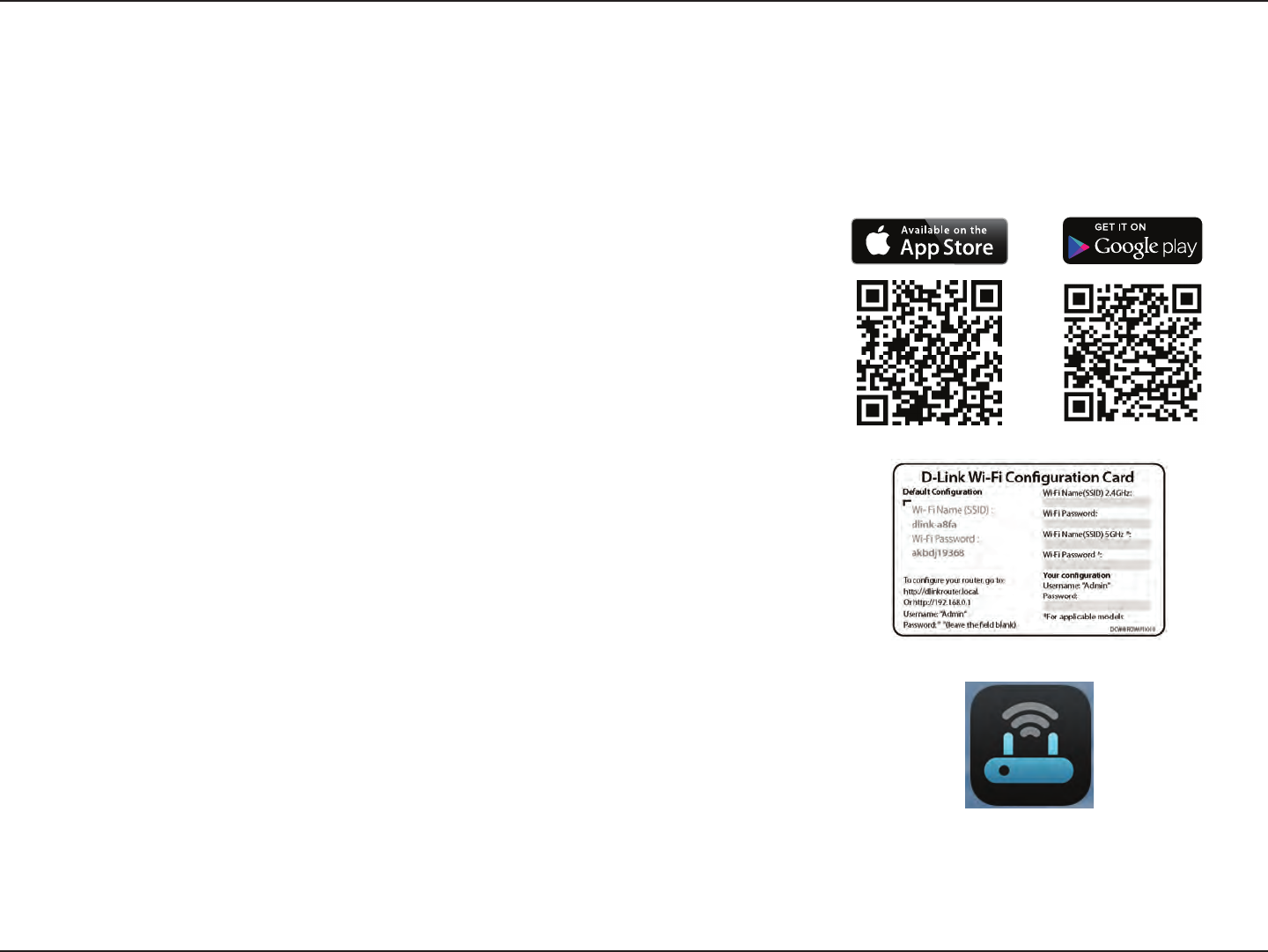

WI-FI Conguration Note
Wall Mount Hardware
Wi-Fi Conguration Note
2D-Link DIR-869 User Manual
Section 1 - Product Overview
Network Requirements
• An Ethernet-based cable or DSL modem
• IEEE 802.11ac/n/g/b/a wireless clients
• 10/100 Ethernet
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 11 or higher
• Firefox 20 or higher
• Safari 7 or higher
• Chrome 25 or higher
Windows® Users: Make sure you have the latest version of Java
installed. Visit www.java.com to download the latest version.
QRS Mobile Requirements • iPhone®/iPad®/iPod Touch® (iOS 7.0 or higher)
• Android™ device (2.3.3 or higher)
System Requirements
3D-Link DIR-869 User Manual
Section 1 - Product Overview
Introduction
The D-Link DIR-869 AC1750 Wi-Fi Router shares your Internet connection over a blazing-fast Gigabit Wireless AC connection of
up to 1750 Mbps (Up to 1300 Mbps 5 GHz Wireless AC and up to 450 Mbps 2.4 GHz Wireless N)1, using advanced AC technology
to maximize the speed and range of your wireless signal. Equipped with one Gigabit WAN/Internet port and four Gigabit ports
to provide speeds up to 10x faster than standard 10/100 ports, the DIR-869 creates the best networking experience to date.
With the addition of Advanced Quality of Service (QoS), data streams are separated, which helps organize and prioritize your
network trac so your computers, game consoles, 3D/4K video streaming, gaming, and VoIP calls run smoother over both your
wired and wireless network.
The DIR-869 features the strongest and most sensitive wireless radio we’ve ever built, oering four times the power of a typical
wireless router2, letting you blanket large areas or multi-story buildings with Wi-Fi. The DIR-869’s superior design allows you to
enjoy full motion, high denition video calls on your mobile device while moving around. The DIR-869 prepares your home to
become a Connected Home by bringing Wi-Fi to places your old signal can’t reach. A stronger Wi-Fi signal means you can install
more wireless surveillance cameras, baby monitors, sensors, and alarms in the places where you need them.
Featuring a 3x3 MIMO antenna conguration, the DIR-869 oers better data rates, fewer dead-spots, more coverage, and
higher reliability. Operating exclusively in the 5 GHz band, the DIR-869's 802.11ac wireless connections avoid crowded the 2.4
GHz band trac, allowing you faster speeds while still maintaining backwards compatibility with older 802.11n/g/b devices.

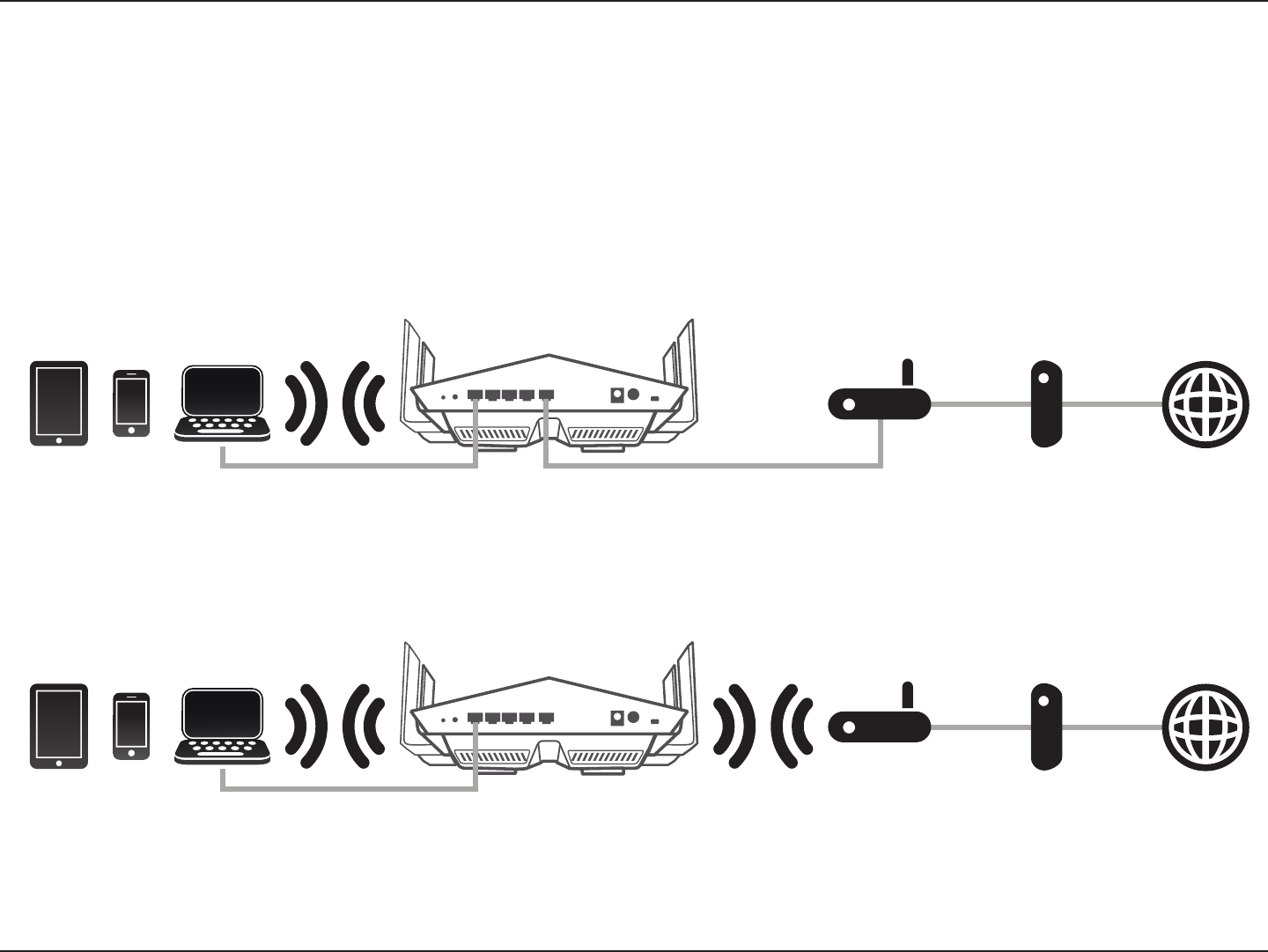

Equipped with an easily accessible mode switch, the versatile DIR-869 can assist you in solving your unique networking

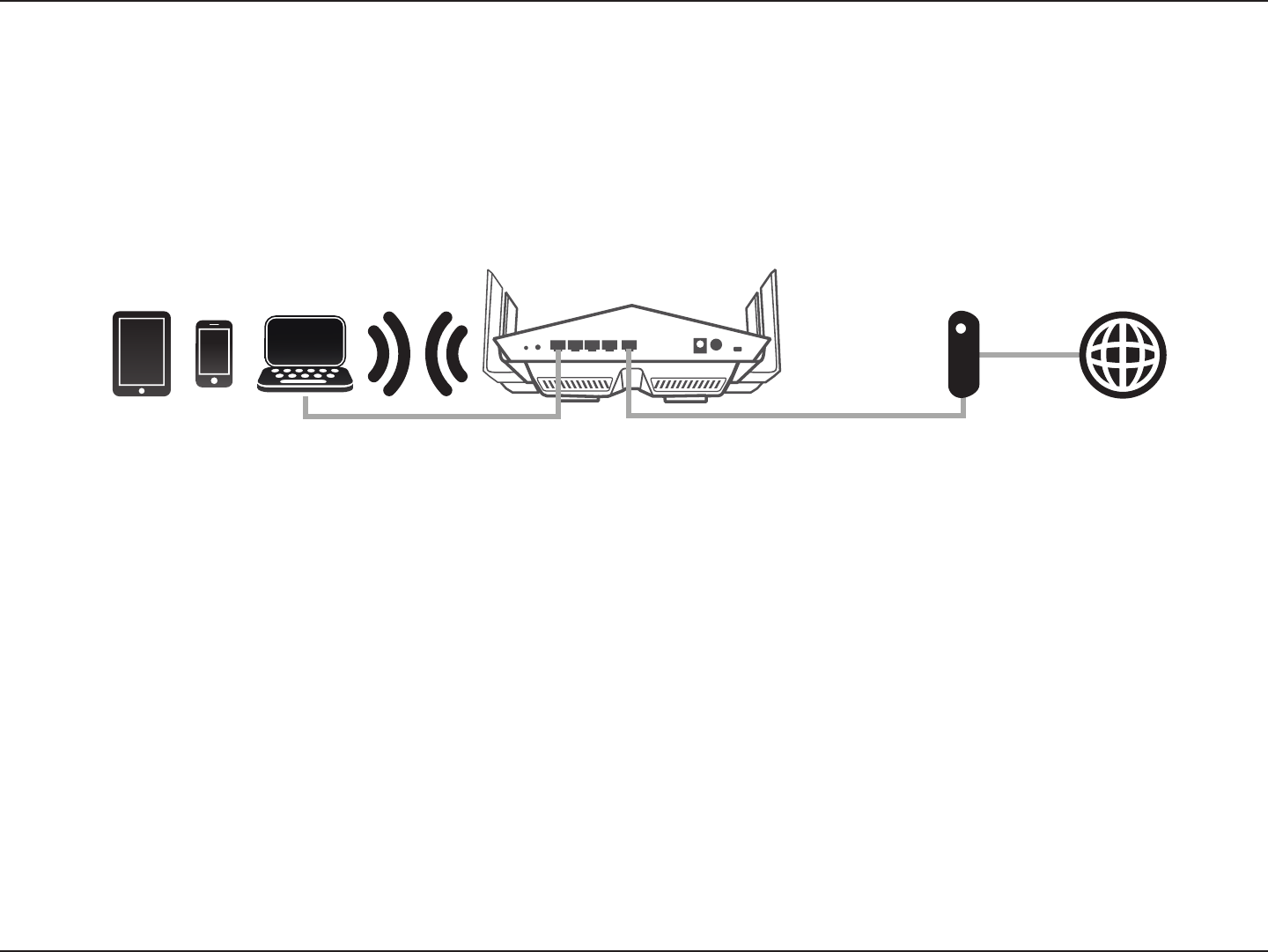

challenges. In router mode, the DIR-869 operates as a traditional router, sharing your Internet connection. In Extender mode3,
the DIR-869 connects and works with your existing networking equipment to extend the range and enhance the capabilities
of your home or oce network. This means you can bring Wi-Fi to places where your current signal doesn't reach, letting you
move from room to room, oce to oce, oor to oor, or yard to yard without losing signal. Enjoy Wi-Fi on your porch, balcony,
next to your pool, breakroom, the far end of your oce, or in your basement. The DIR-869's extender mode prepares your
home to become a Connected Home by allowing you to install more wireless surveillance cameras, baby monitors, sensors,
and alarms in the places where you need them.
4D-Link DIR-869 User Manual
Section 1 - Product Overview
D-Link Intelligent QoS Technology helps to increase network eciency by analyzing network trac and prioritizing it in order
of importance. This way, two-way video, voice chat, and online gaming, take priority over background network trac such as a
le downloads, ensuring you have optimal network performance.
The DIR-869 supports the latest wireless security features to help prevent unauthorized access, be it from over a wireless
network or the Internet. Support for WPA™ and WPA2™ standards ensure that you will be able to use the best possible
encryption regardless of your client devices. In addition, this router is equipped with a dual-active rewall (SPI and NAT) to
prevent potential attacks over the Internet.
1 Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11g, 802.11n and 802.11ac specications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental
conditions will adversely aect wireless signal range.
2 Determined by FCC regulation. Maximum wireless transmission power output is subject to regional radio frequency guidelines.
3 Extender Mode Access Point functionality available at launch, additional functionality available via rmware update in Q2 2016.
5D-Link DIR-869 User Manual
Section 1 - Product Overview
• Superior Wireless Networking - The DIR-869 provides Gigabit wireless speeds of up to a combined 1750 Mbps
(1300 Mbps 802.11ac 5 GHz, plus 450 Mbps 802.11n 2.4 GHz)1. This capability rivals wired connections, allowing
users to participate in real-time activities online, such as HD video communication, online gaming, and use
mobile devices from anywhere in your home while still oering full 802.11n/g/b backward compatibility.
• Extreme Wired LAN and WAN Networking - With four 10/100/1000 Gigabit Ethernet LAN ports, and a
10/100/1000 Gigabit Ethernet WAN port, the DIR-869 has an enormous amount of bandwidth to take full
advantage of the highest speed broadband connections available. Powered by a 1.0 GHz Dual Core CPU, the
DIR-869 has the brains and the power to simultaneously stream multiple HD videos to set top boxes and mobile
devices, participate in online gaming with consoles or PCs, run a cloud-enabled home surveillance system, and
copy massive les without slowdowns, lag, or stuttering.
• Advanced Firewall Features - The web-based user interface displays a number of advanced network
management features. Easily apply content ltering based on MAC address, URL, and/or domain name.
Schedule these lters to be active on certain days or for a duration of hours or minutes.
• Secure Multiple/Concurrent Sessions - The DIR-869 can pass through VPN sessions. It supports multiple and
concurrent IPSec and PPTP sessions, so users behind the DIR-869 can securely access corporate networks.
• User-friendly Setup Wizard - Through its easy-to-use web-based user interface or QRS (Mobile Quick Router
Setup) App, the DIR-869 lets you quickly congure and secure your router to your specic settings in minutes.
• Router or Extender Mode - With the ick of a switch, you can easily set up your DIR-869 to operate as the core
device of your network in Router Mode, or add your DIR-869 to an existing network using Extender Mode using
Ethernet.2
1 Maximum wireless signal rate derived from IEEE Standard 802.11a, 802.11g, 802.11n and 802.11ac specications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental
conditions will adversely aect wireless signal range.
2 Extender Mode Access Point functionality available at launch, additional functionality available via rmware update in Q2 2016.
Features
6D-Link DIR-869 User Manual
Section 1 - Product Overview

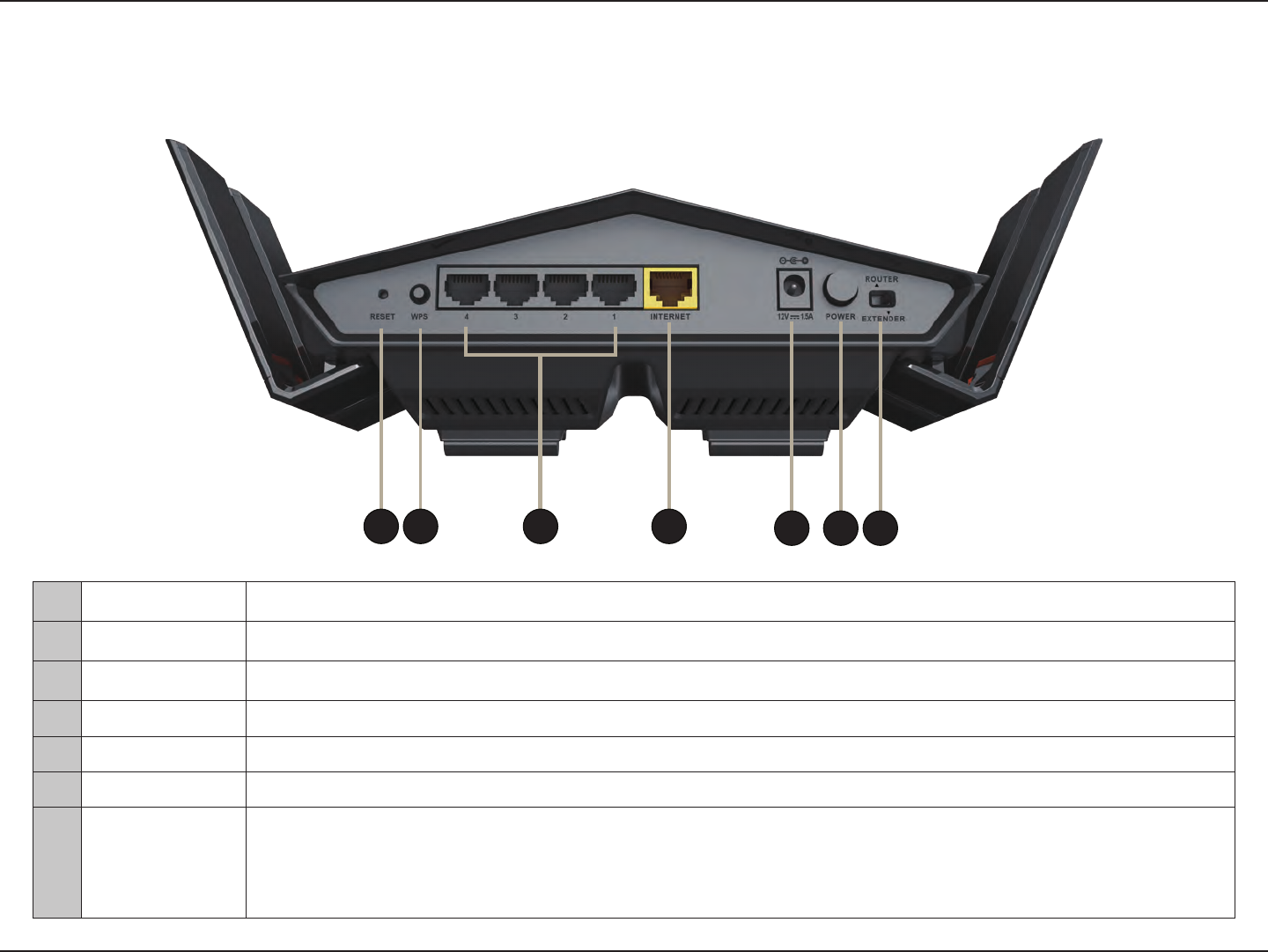

Hardware Overview

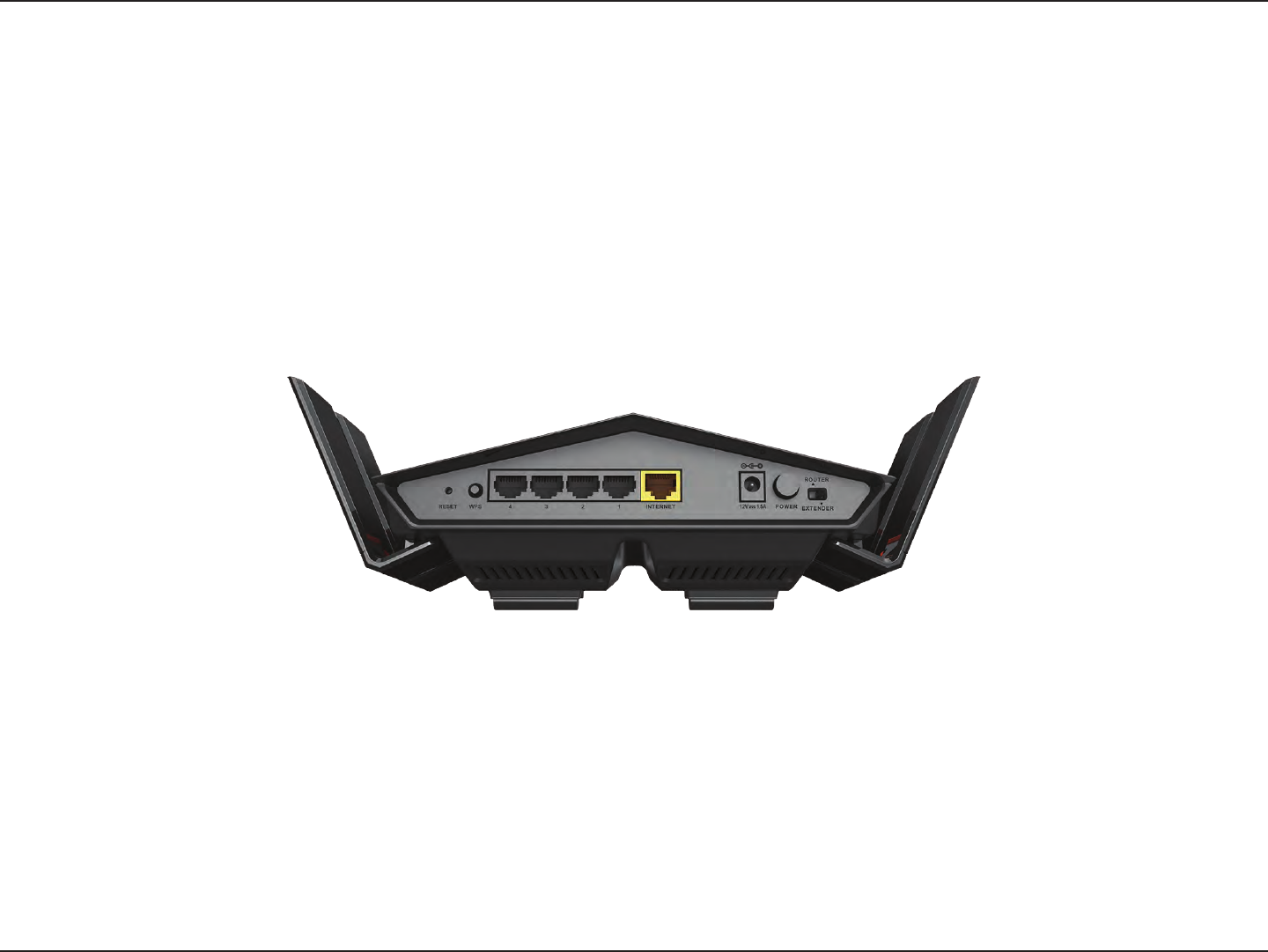

Back Panel
1Reset Button To reset the device to its factory default settings, use a paper clip press and hold the reset button for 3 seconds.
2WPS Press to start the WPS process and automatically create a secure connection to a WPS client.
3LAN Ports (1-4) Connect 10/100/1000 Ethernet devices such as computers, switches, storage (NAS) devices and game consoles.
4Internet Port Using an Ethernet cable, connect your broadband modem to this port.
5Power Connector Connector for the supplied power adapter.
6Power Button Press the power button to power the DIR-869 on and o.
7Mode Switch
Select between Router and Extender modes. To change modes, move the switch to the desired position and
after 5 seconds the router will reboot into the desired mode. Router is the default mode.
Note: Extender Mode Access Point functionality available at launch, additional functionality available via rmware
update in Q2 2016.
45 6 7
321
7D-Link DIR-869 User Manual
Section 1 - Product Overview
Hardware Overview
LED Indicator
1
1Power LED
Solid White A solid white light indicates that the device is powered on and healthy.
Solid Orange A solid orange light indicates that the device is booting or undergoing a factory reset.
Blinking Orange A blinking orange light indicates that the device is in recovery mode.
Blinking White A blinking white light indicates that WPS client search mode is active.
8D-Link DIR-869 User Manual
Section 1 - Product Overview
Operation Modes
The mode switch let's you choose how the DIR-869 operates. Select either Router Mode or Extender Mode.
• Router Mode shares your Internet connection. This is the factory default setting suitable for most users.
• Extender Mode extends your existing network.
Refer to the following pages for information on the DIR-869's operation modes. This information includes usage scenarios,
cable diagrams, and network conguration information.
Note: Determine your desired type of operation and adjust the mode switch before you begin your installation. If the mode
switch is adjusted while powered on, the DIR-869 will reboot into the new mode after ve seconds.
Note: Extender Mode Access Point functionality available at launch, additional functionality available via rmware update in
Q2 2016.
9D-Link DIR-869 User Manual
Section 1 - Product Overview
Router Mode
In Router Mode, the DIR-869 AC1750 Wi-Fi Router operates as the central device of your network. This is the most common
type of installation and is the factory default mode switch setting suitable for most users. The DIR-869 connects to your cable
modem, DSL modem, or other Internet source and shares your Internet connection with your wired and wireless devices.
Create a Home Network (Router Mode)
DIR-869
Router Mode
Wired and Wireless Devices Broadband
Connection Device
(e.g. DSL/Cable Modem)
Internet
Use this mode for:
• Setting up a network for the rst time.
• Replacing an existing router or network equipment.
• Adding a router to share a broadband connection which was previously connected to a single device.
Place your DIR-869 near your Broadband Internet Connection Device (e.g. DSL/Cable Modem) and connect via Ethernet cable.
10D-Link DIR-869 User Manual
Section 1 - Product Overview
What is a Wireless Extender?
In Extender Mode, the DIR-869 AC1750 Wi-Fi Router operates in conjunction with your existing networking equipment to
provide Wi-Fi for parts of your home or oce that may have poor or no reception. Use this mode with an existing router which
is sharing your Internet connection. Place the DIR-869 in an area where you wish to get Wi-Fi, but is reachable by Ethernet
cables or Wireless signals from you uplink network.
Create a Wireless Network Using Ethernet (Access Point Mode)
Extender Mode
Note: Extend Your Wireless Network using Wi-Fi (Repeater Mode) available via rmware update in Q2 2016.
Extend Your Wireless Network Using Wi-Fi (Repeater Mode)
Broadband
Connection Device
(e.g. DSL/Cable Modem)
Existing
Router
InternetDIR-869
Repeater Mode
Wired and Wireless Devices
Broadband
Connection Device
(e.g. DSL/Cable Modem)
Existing
Router
InternetDIR-869
Access Point Mode
Wired and Wireless Devices
11D-Link DIR-869 User Manual
Section 1 - Product Overview
Access Point Mode
Create a Wireless Network using Ethernet
The DIR-869 operates as an Access Point when the mode switch is in the Extender position and an Ethernet cable is connected
to the Internet Port from an uplink network. In Access Point Mode, the DIR-869 connects your wireless devices together, but
does not provide routing functionality. It also allows a connected wired devices to connect to your other devices wirelessly.
This can be useful if you already have an existing Internet router that does not have built-in wireless capabilities. The DIR-869
creates a new wireless network and devices connected via Wi-Fi and LAN ports obtain IP addresses from the existing router.
Use a Gigabit capable Ethernet connection where possible to ensure the best networking experience.
Create a Wireless Network using Ethernet (Access Point Mode)
Use this mode for:
• Extending your current network.
• Bringing Wi-Fi to an area it doesn't currently reach.
Place your DIR-869 near the area you wish to bring Wi-Fi to and connect via Ethernet cable to your uplink network.
Broadband
Connection Device
(e.g. DSL/Cable Modem)
Router
(Optional)
InternetDIR-869
Access Point Mode
Wired and Wireless Devices
Note: Extending network to desired location via Ethernet may require purchase of additional cable.
12D-Link DIR-869 User Manual
Section 2 - Installation
Before you Begin
• Congure the router with the computer that was last connected directly to your Internet connection. Verify that it
is connected to the Internet before connecting additional devices.
• If your ISP provided you with a modem/router combo, you will need to set it to “bridge” mode so the router can
work properly. Please contact your ISP or refer to the user manual for your modem/router device.
• You can only use the Ethernet port on your modem. If you were using the USB connection before using the router,
then you must turn o your modem, disconnect the USB cable and connect an Ethernet cable to the Internet
port on the router, and then turn the modem back on. In some cases, you may need to call your Internet Service
Provider (ISP) to change connection types (USB to Ethernet).
• If connecting to a DSL modem, make sure to have your DSL service information provided by your Internet Service
Provider handy. This information is likely to include your DSL account's Username and Password. Your ISP may also
supply you with additional WAN conguration settings which might be necessary to establish a connection.
• If you are connecting a considerable amount of networking equipment, it may be a good idea to take the time to
label each cable or take a picture of your existing setup before making any changes.
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such as
WinPoET, BroadJump, or EnterNet 300 from your computer or you will not be able to connect to the Internet.
• If you are using this device to extend the range of your existing wireless network, you may need to use trial and
error to determine an acceptable placement location.
Installation
This section will walk you through the installation process. Placement of the router is very important. Do not place the router in
an enclosed area such as a closet, cabinet, attic, or garage.
13D-Link DIR-869 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless router lets you access your network using a wireless connection from virtually anywhere within the
operating range of your wireless network. Keep in mind that the number, thickness and location of walls, ceilings, or other
objects that the wireless signals must pass through may limit the range. Typical ranges vary depending on the types of
materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to
follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum -
each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that
the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree
angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick!
Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better
reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on
range. Try to position access points, wireless routers, and computers so that the signal passes through drywall or
open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors,
le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home
security systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4
GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even if the
phone is not in use.
14D-Link DIR-869 User Manual
Section 2 - Installation
Antenna Setup
The DIR-869 is designed to give you the fastest, most stable network connection possible. In order to maximize performance,
fully extend the antennas to provide optimal wireless coverage. Keep the router in an open area for better wireless coverage.
115°
15D-Link DIR-869 User Manual
Section 2 - Installation

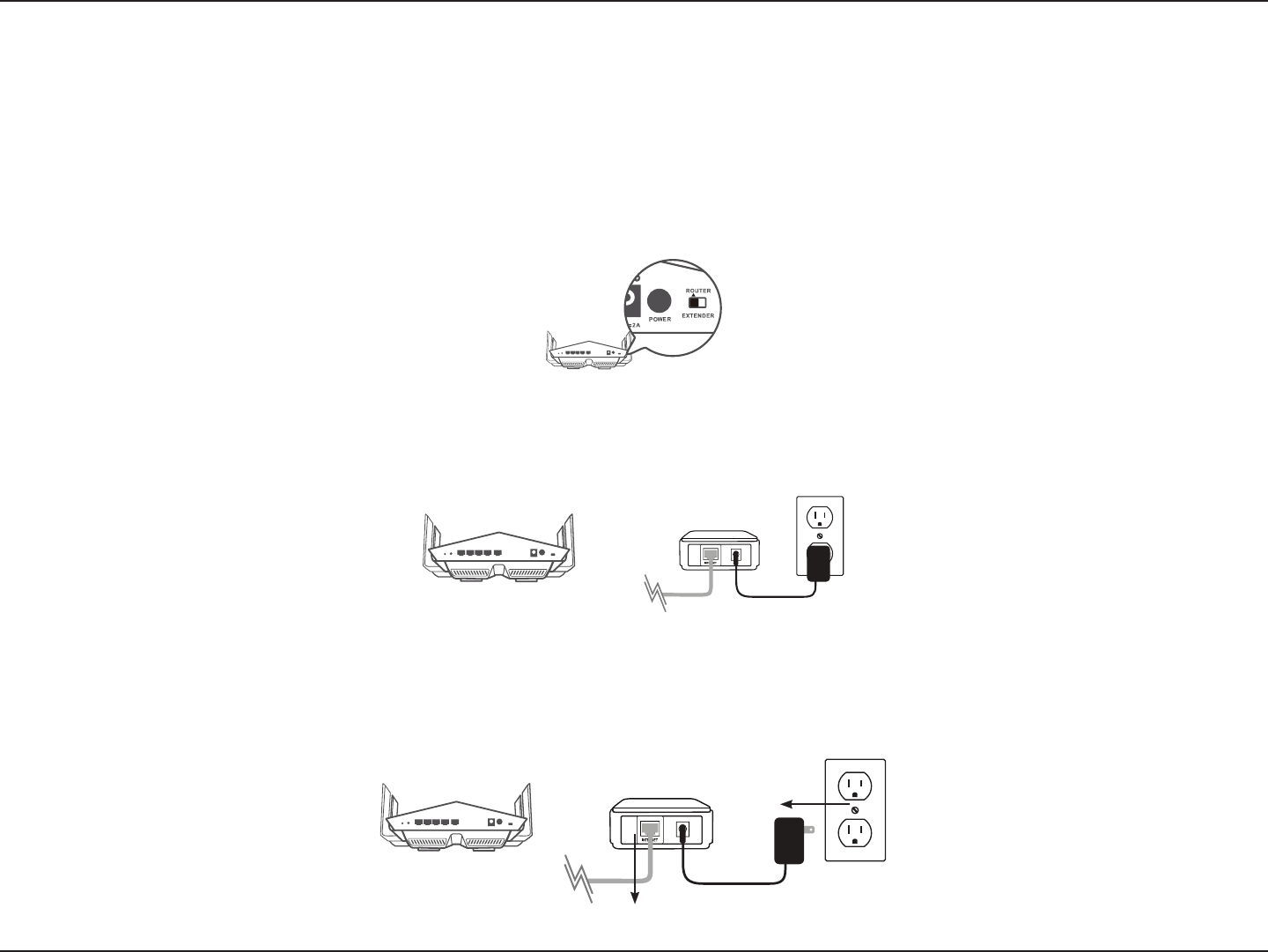

Manual Setup
Router Mode
3. Turn o and unplug the power and Ethernet cable to your cable or DSL broadband modem. This is required. In some
cases, you may need to turn it o for up to ve minutes.
1. Inspect the mode switch to ensure that it is in the factory default ROUTER position. Adjust the switch if necessary.
2. Position your DIR-869 near your Internet-connected modem. Place it in an open area for better wireless coverage.
DIR-869
DIR-869 Modem
DIR-869
Modem
16D-Link DIR-869 User Manual
Section 2 - Installation
6. Connect the supplied power adapter to the router and a power outlet, press the power button, and wait approximately
one minute until the LED indicator on the front of the device changes from orange to solid white.
4. Use the included Ethernet cable to connect your modem to the yellow port labeled INTERNET on the router.
5. Turn on or plug your modem back in and wait approximately one minute before proceeding onward.
Modem
DIR-869
Modem
DIR-869
Modem
DIR-869
Note: This unit is to be used with power supply model MU18A2120150-A1 or 2ABB018F US.
17D-Link DIR-869 User Manual
Section 2 - Installation

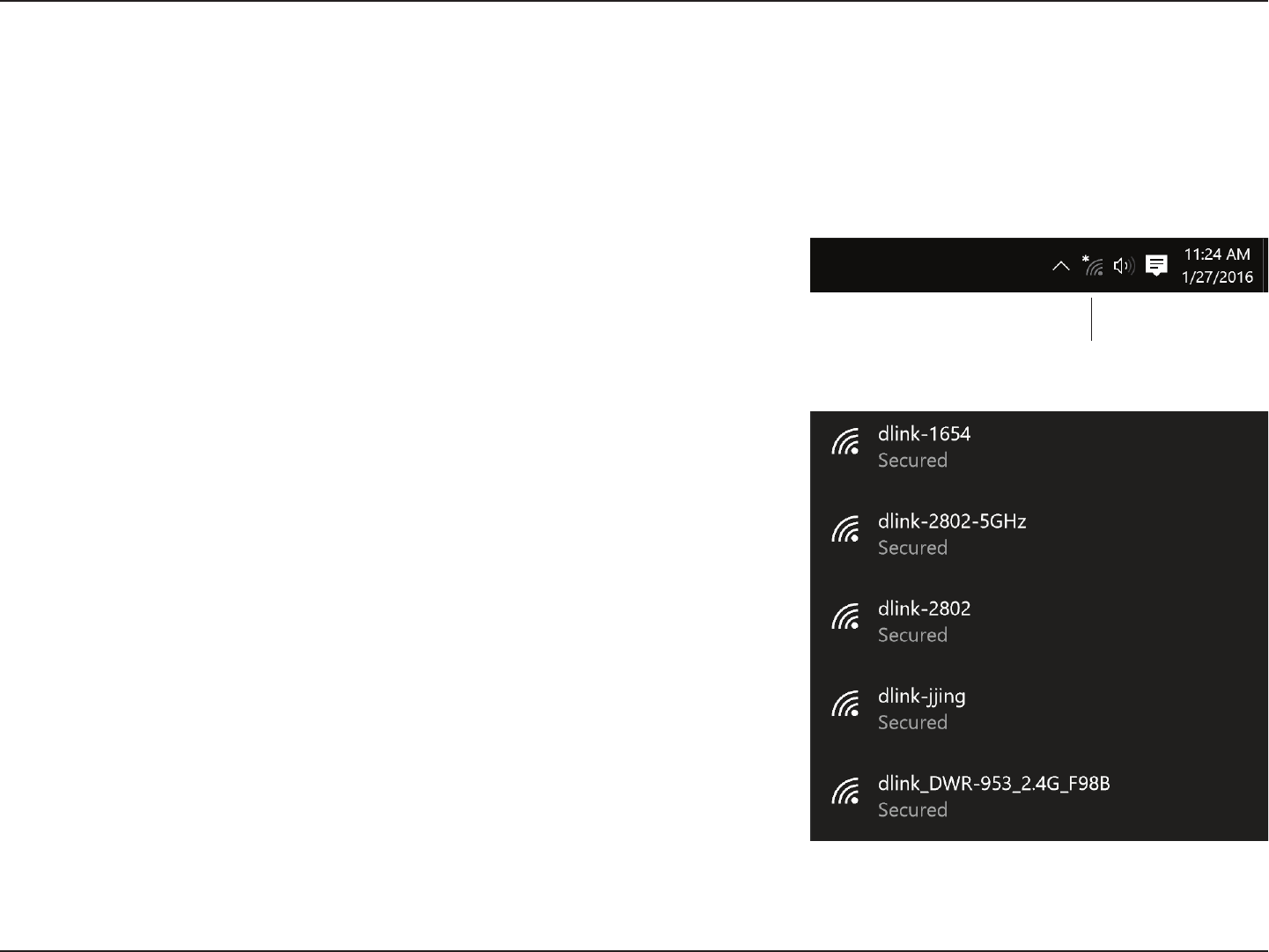

7. If you are conguring the DIR-869 wirelessly from a PC, connect to a Wi-Fi network printed on the included Wi-Fi
Conguration Card. You can also nd the Wi-Fi network names and passwords printed on the label attached to the
bottom your router.
If you are conguring the from a PC with a wired Ethernet connection, plug one end of an Ethernet cable into the port
labeled 1 on the back of the router, and the other end into the Ethernet port on your computer.
8. If you are connecting to a broadband service that uses a dynamic connection (not PPPoE), you may be online already.
Try opening a web browser and connecting to a website. If the website does not load, proceed to Getting Started on
page 18.
Modem
DIR-869
Wi-Fi Conguration Note
18D-Link DIR-869 User Manual
Section 3 - Getting Started
There are several dierent ways you can congure your router to connect to the Internet and connect to your clients:
• QRS Mobile App - Use your Android device, iPhone, iPad, or iPod touch to congure your router. Refer to page 19.

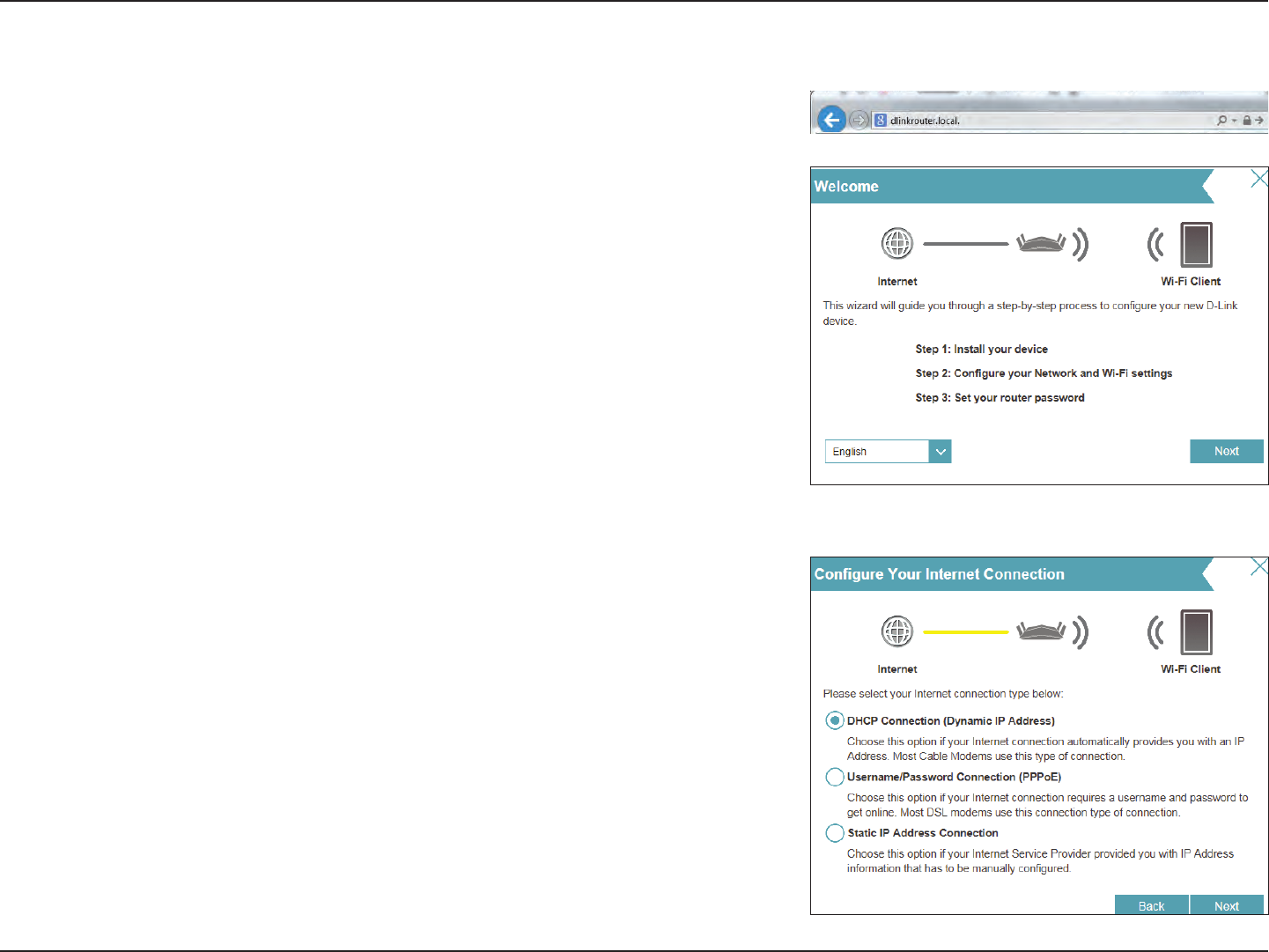

• D-Link Setup Wizard - This wizard will launch when you log into the router for the rst time. Refer to page 24.
• Manual Setup - Log into the router and manually congure your router. Refer to page 28
Getting Started
Router Mode
19D-Link DIR-869 User Manual
Section 3 - Getting Started
QRS Mobile App
QRS Mobile app allows you to install and congure your router from your mobile device.
Note: The screenshots may be dierent depending on your mobile device’s OS version.
Step 1
Search for the free QRS Mobile App on the iTunes Store or Google Play.
Step 2
Once your app is installed, you may now congure your router. Connect to
the router wirelessly by going to your wireless utility on your device. Scan for
the Wi-Fi name (SSID) as listed on the supplied info card. Select and then enter
your Wi-Fi password.
Step 3
Once you connect to the router, launch the QRS Mobile app from the Home
screen of your device.
Note: The following steps show the Android interface of the QRS Mobile app. If you
are using an iPhone, iPad, or iPod touch, the appearance may be dierent to that
of the screenshots, but the process is the same.
20D-Link DIR-869 User Manual
Section 3 - Getting Started
Step 4
You will see the welcome screen. Tap Start to proceed, then enter your device
password and tap Log In. Tap Next once the Operation Mode screen appears.
Step 5
At this point, please ensure that you the router is connected to a modem. Plug
one end of the provided Ethernet cable into your DSL or cable modem, and
plug the other end into the port marked INTERNET on the DIR-869. Tap Next
to automatically detect your Internet connection and proceed to the next
step.
21D-Link DIR-869 User Manual
Section 3 - Getting Started
Step 7
Enter the administrator password of your choice. Unlike the Wi-Fi password,
this password is only required when you need to congure the router. See
Conguration - Router Mode on page 28 for details of when this password
is used. Tap Next to proceed.
Step 6
You will be asked to congure your 2.4 GHz wireless network. Enter a network
name (SSID) of your choice, or leave it unchanged to accept the default SSID.
Next, choose a Wi-Fi password of at least 8 characters. Any device trying to
connect to the router wirelessly will need to enter this password the rst time
it connects.
Tap Next to congure your 5 GHz wireless network. When satised tap Next to
proceed.
22D-Link DIR-869 User Manual
Section 3 - Getting Started
Step 8

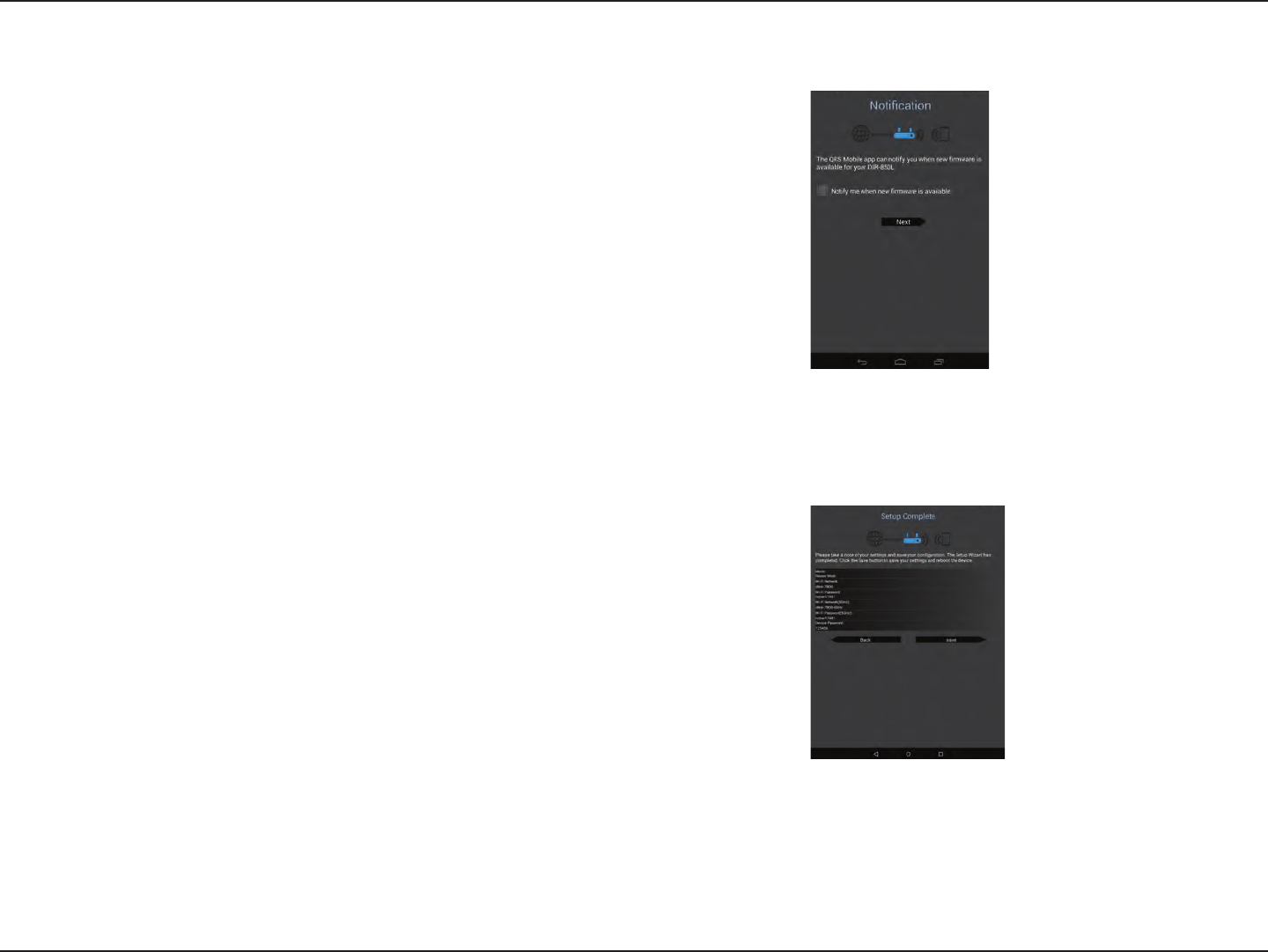

If you wish to receive push notications whenever a new rmware update is
available, check the Notify me when new rmware is available box and tap
Next.
Otherwise, just tap Next to proceed.
Step 10
You will be presented with a summary of your chosen settings.
Tap Save to complete the setup.
23D-Link DIR-869 User Manual
Section 3 - Getting Started

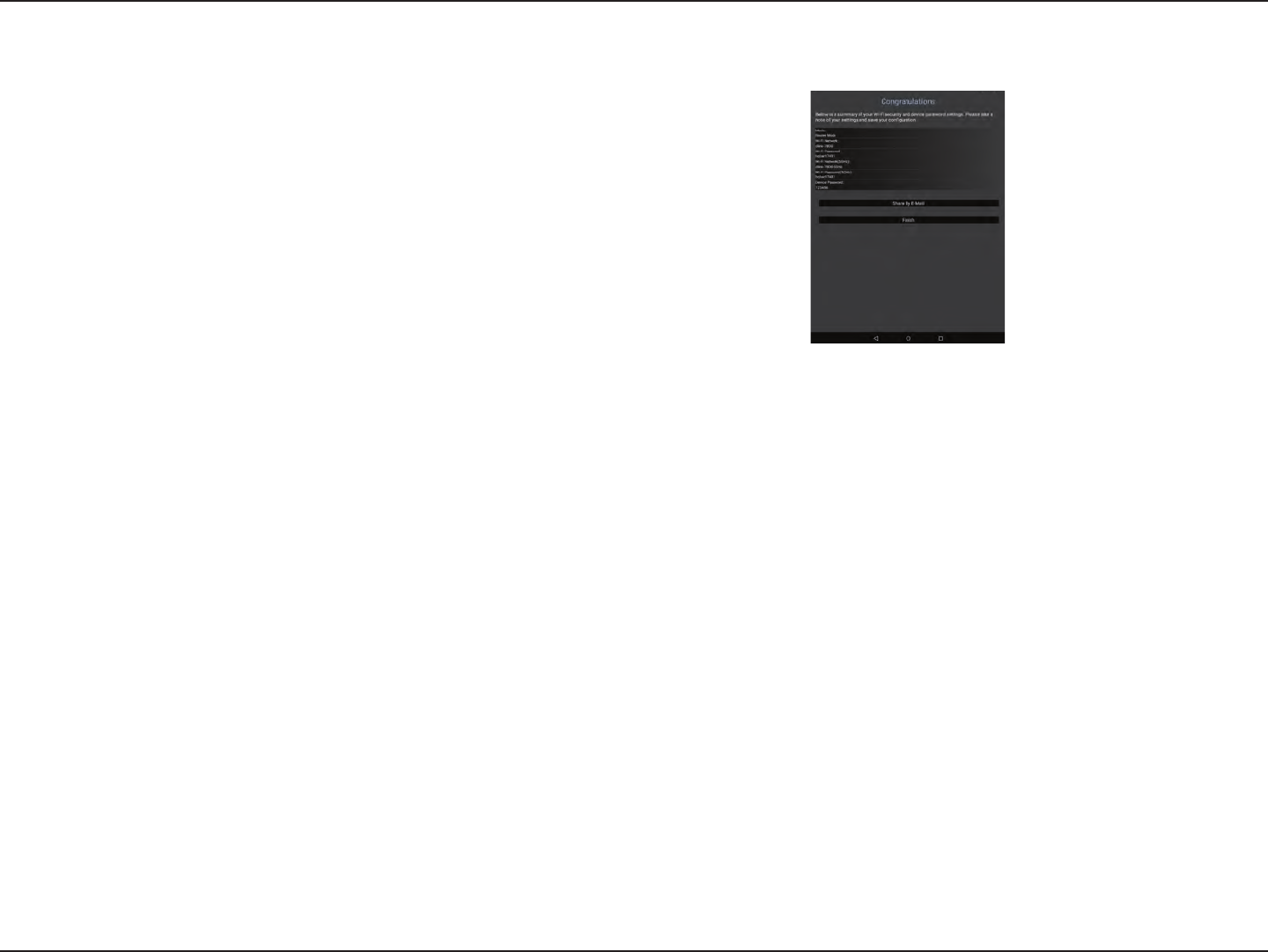

Congratulations, your device has been successfully congured! You can share
this information by tapping Share By E-mail, or tap Finish to exit the app.
24D-Link DIR-869 User Manual
Section 3 - Getting Started
The wizard is designed to guide you through a step-by-step process to congure
your new D-Link router and connect to the Internet.
Click Next to continue.
Setup Wizard
If this is your rst time installing the router, open your web browser and enter
http://dlinkrouter.local./ in the address bar. Alternatively, enter the IP address
of the router (default: http://192.168.0.1).
Please wait while your router detects your Internet connection type. If the router
detects your Internet connection, you may need to enter your ISP information
such as username and password.
If the router does not detect a valid Internet connection, a list of connection
types to choose from will be displayed.
Select your Internet connection type (this information can be obtained from
your Internet Service Provider) and click Next to continue.
DIR-869
DIR-869
25D-Link DIR-869 User Manual
Section 3 - Getting Started
If the router detected or you selected PPPoE, enter your PPPoE username and
password and click Next to continue.
Note: Make sure to remove your PPPoE software from your computer. The software
is no longer needed and will not work through a router.
If the router detected or you selected Static, enter the IP and DNS settings
supplied by your ISP. Click Next to continue.
DIR-869
DIR-869
26D-Link DIR-869 User Manual
Section 3 - Getting Started
Create a Wi-Fi password (between 8-63 characters). Your wireless clients will
need to have this passphrase or key entered to be able to connect to your
wireless network.
Click Next to continue.
In order to secure the router, please enter a new password. You will be prompted
for this password every time you want to use the router’s web conguration
utility. Click Next to continue.
DIR-869
DIR-869
27D-Link DIR-869 User Manual
Section 3 - Getting Started
At the end of the wizard, you will be presented with a summary of your settings.
Click Next to nalize the settings or Back to make changes.
At the end of the wizard, you will be presented with a nal summary of your
settings. Click Finish to close the wizard.
DIR-869
28D-Link DIR-869 User Manual
Section 4 - Conguration
Conguration - Router Mode
Enter your password. If you previously followed the setup wizard, please use
the admin password you entered during the wizard. Otherwise, leave the
password blank. Click Log In to proceed.
Note: If you cannot remember your password and cannot log in, press the reset/
wps button on the back of the device for longer than 10 seconds to restore the
router to its default settings.
To access the conguration utility, open a web-browser such as Internet
Explorer and enter http://dlinkrouter.local./ or you may also connect by
typing the IP address of the router (by default this is http://192.168.0.1) in the
address bar.
The router’s home page will open displaying its current connection status.
The bar at the top of the page has quick access to Settings and Management
functions. You may quickly jump back Home at any time.
Note: The system will automatically log out after a period of inactivity.
DIR-869
29D-Link DIR-869 User Manual
Section 4 - Conguration
Home

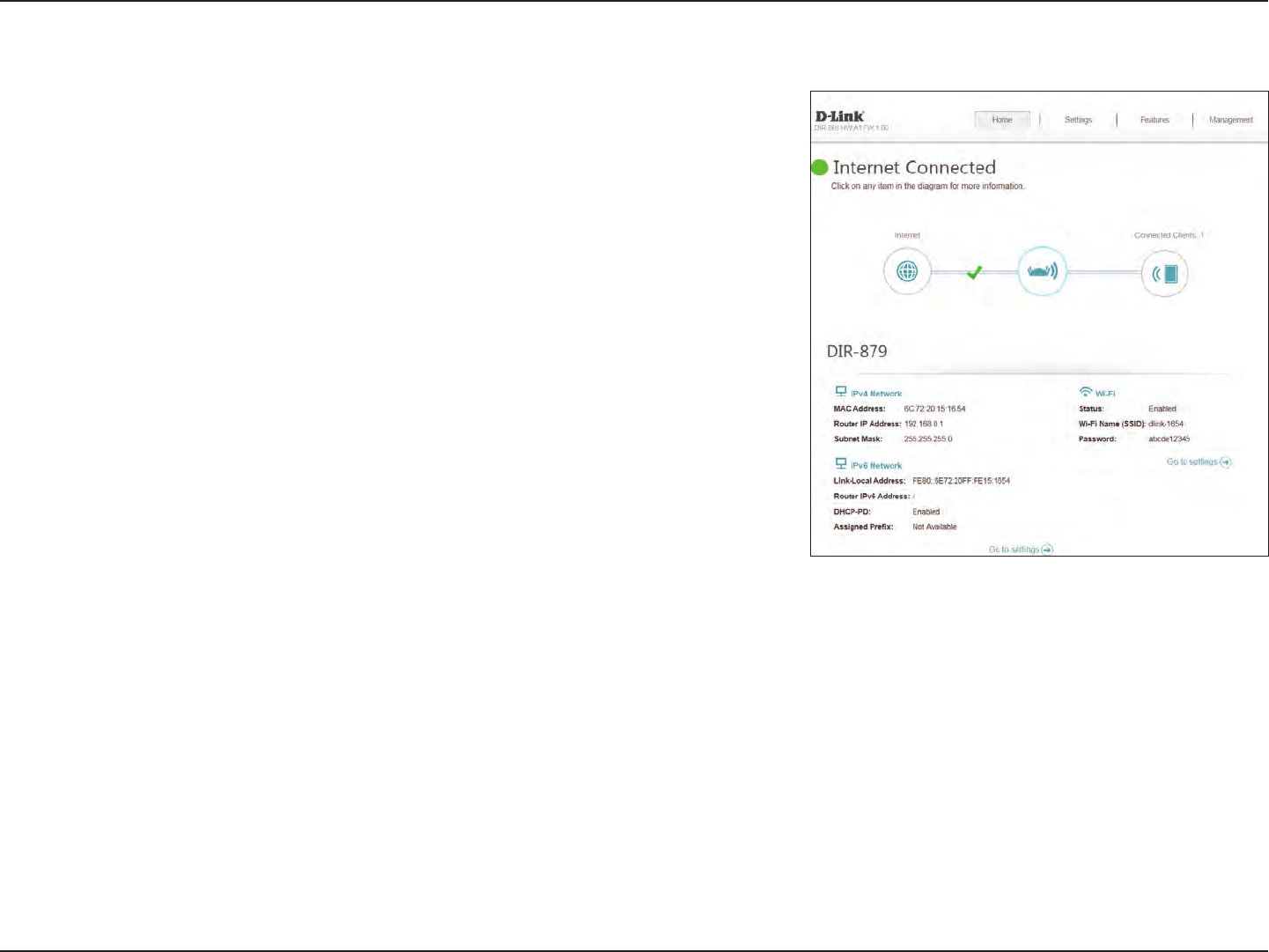

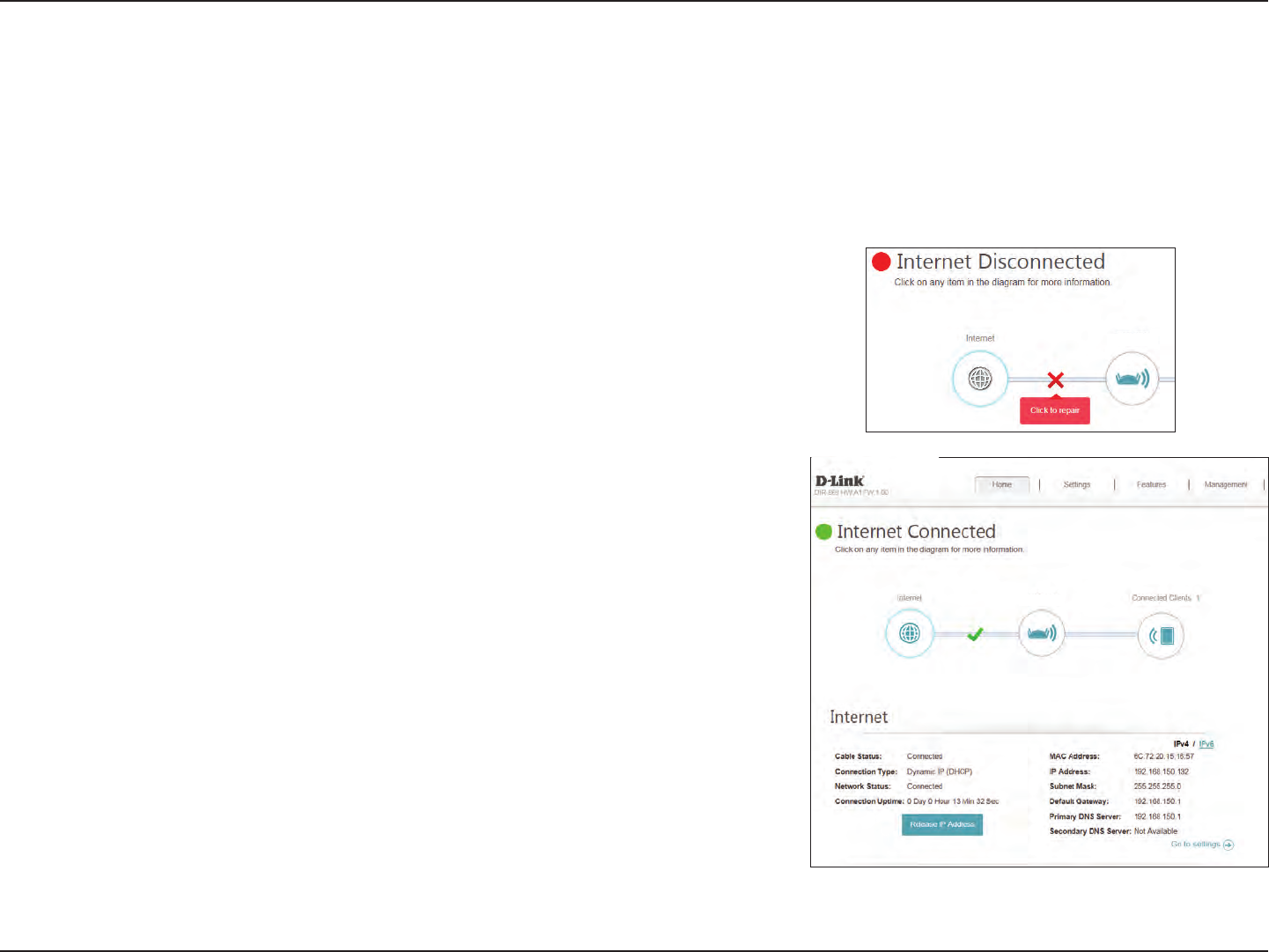

The Home page displays the current status of the router in the form of an interactive diagram. You can click each icon to display
information about each part of the network at the bottom of the screen. The menu bar at the top of the page will allow you to
quickly navigate to other pages.
The Home page displays whether or not the router is currently connected to the Internet.
If it is disconnected, click Click to repair to bring up the setup wizard, refer to page 24
for more information.
To bring up more details about your Internet connection, click on the Internet icon. Click
IPv4 or IPv6 to see details of the IPv4 connection and IPv6 connection respectively.
Click Release to disconnect from the Internet. If you do this and wish to reconnect, click
Renew.
To recongure the Internet settings, refer to page 32.
Internet
DIR-869
DIR-869
30D-Link DIR-869 User Manual
Section 4 - Conguration
DIR-869
Click on the DIR-869 icon to view details about the router and its wireless settings.
Here you can see the router’s current Wi-Fi network name and password, as well as the
router's MAC address, IPv4 address, and IPv6 address.
To recongure the network settings, either click Go to settings on the lower left, or click
Settings (at the top of the page) and then Network on the menu that appears. For more
information refer to page 62.

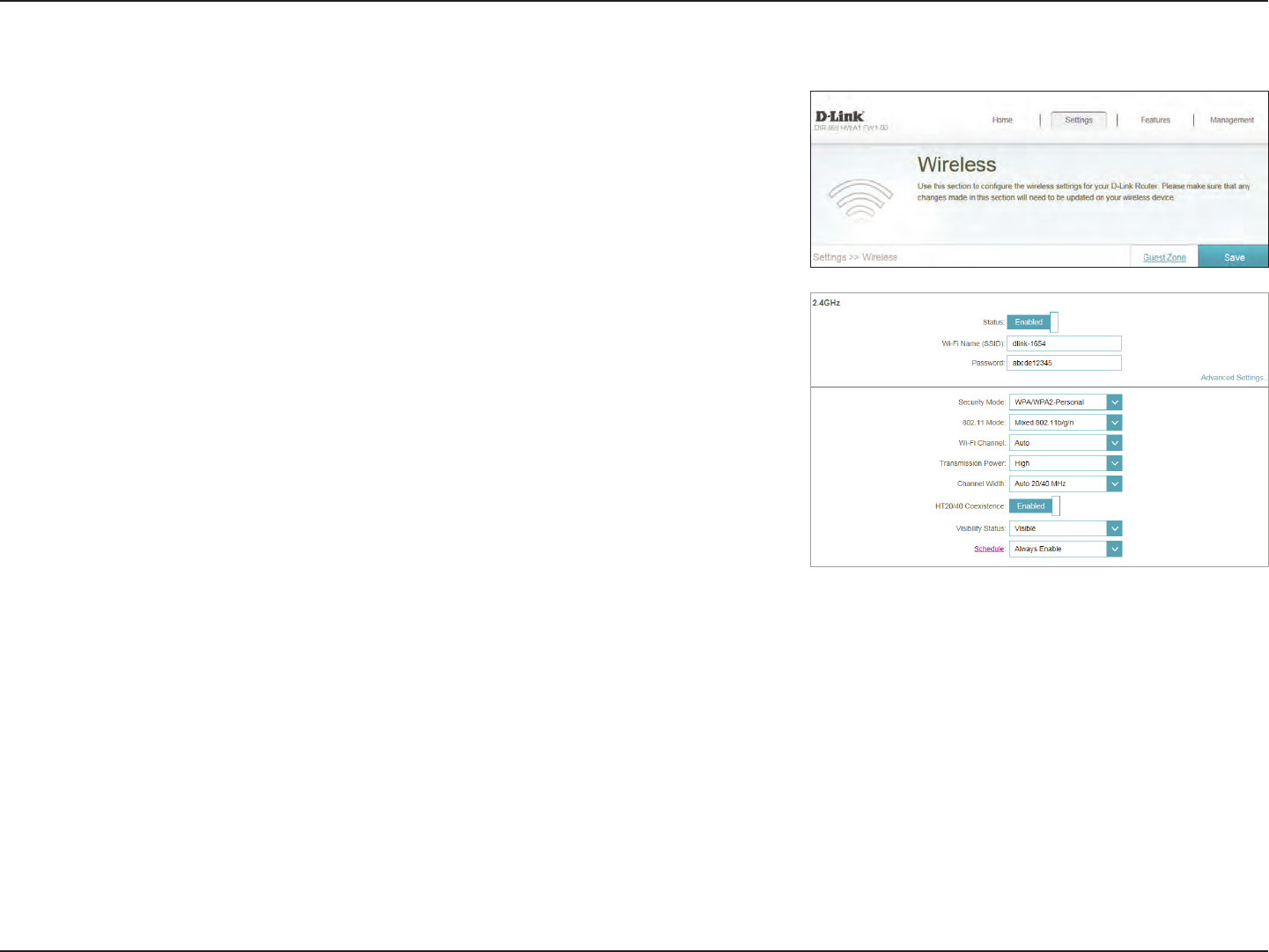

To recongure the wireless settings, either click Go to settings, on the lower right, or click
Settings (at the top of the page) and then Wireless on the menu that appears. For more
information refer to page 59.
DIR-869
31D-Link DIR-869 User Manual
Section 4 - Conguration
Connected Clients
Click on the Connected Clients icon to view details about the router and its wireless settings.
On this page you can see all the clients currently connected to the router, and their IP
addresses.
To edit each client’s settings, click the pencil icon on the client you want to edit.
Name: Enter a custom name for this client.
Vendor: Displays the vendor of the device.
MAC Address: Displays the MAC address of the device.
IP Address: Displays the current IP address of this client.
Reserve IP: Enable to reserve this IP address for this client.
IP Address
(Reserved):
Specify an IP address for the DIR-869's DHCP server to assign.
Parental Control: Allow or Block access to the router.
Click Save when you are done.
DIR-869
32D-Link DIR-869 User Manual
Section 4 - Conguration
Settings
Wizard
Internet
In the Settings menu on the bar on the top of the page, click Wizard to open the setup wizard. This is the same wizard that appears when you start
the router for the rst time. Refer to page 24 for details.
In the Settings menu on the bar on the top of the page, click Internet to see the Internet conguration options.
For Dynamic IP (DHCP) refer to page 33.
For Static IP refer to page 34.
For PPPoE refer to page 35.
For PPTP refer to page 37.
For L2TP refer to page 39.

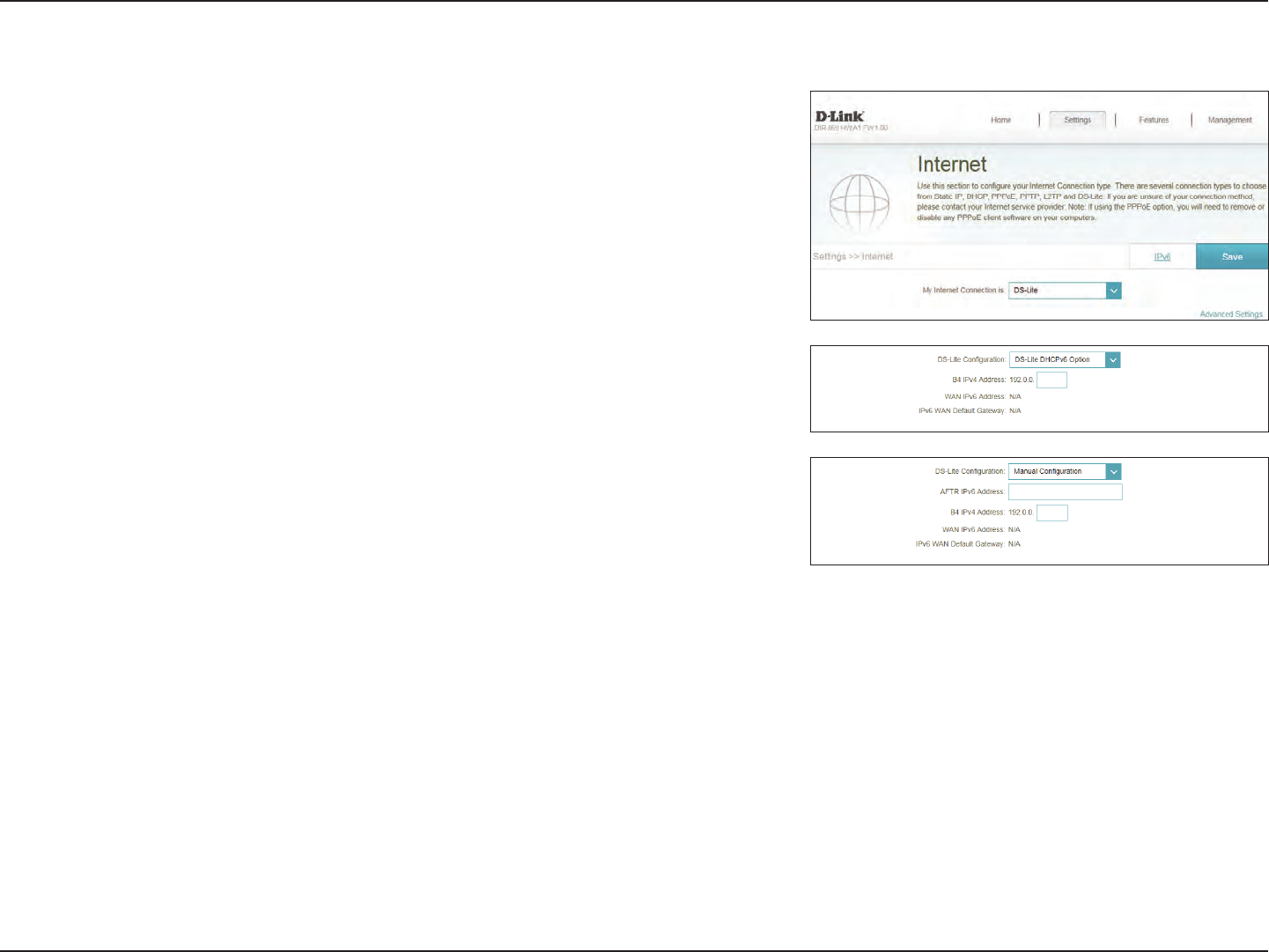

For DS-Lite refer to page 41.
To congure an IPv6 connection, click the IPv6 link. Refer to page 42.
My Internet
Connection Is:
Choose your Internet connection type from the drop-down menu. You
will be presented with the appropriate options for your connection
type. Click Advanced Settings... to expand the list and see all of the
options.
33D-Link DIR-869 User Manual
Section 4 - Conguration
Dynamic IP (DCHP)
Select Dynamic IP (DHCP) to obtain IP address information automatically from your Internet
Service Provider (ISP). Select this option if your ISP does not specify and IP address to use.
Advanced Settings
Host Name: The host name is optional but may be required by some ISPs. Leave
it blank if you are not sure.
Primary DNS
Server:
Enter the primary DNS server IP address assigned by your ISP. This
address is usually obtained automatically from your ISP.
Secondary DNS
Server:
Enter the secondary DNS server IP address assigned by your ISP. This
address is usually obtained automatically from your ISP.
MTU: Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP.
MAC Address
Clone:
The default MAC address is set to the Internet port’s physical interface
MAC address on the router. You can use the drop-down menu to
replace the Internet port’s MAC address with the MAC address of a
connected client.
Click Save when you are done.
34D-Link DIR-869 User Manual
Section 4 - Conguration

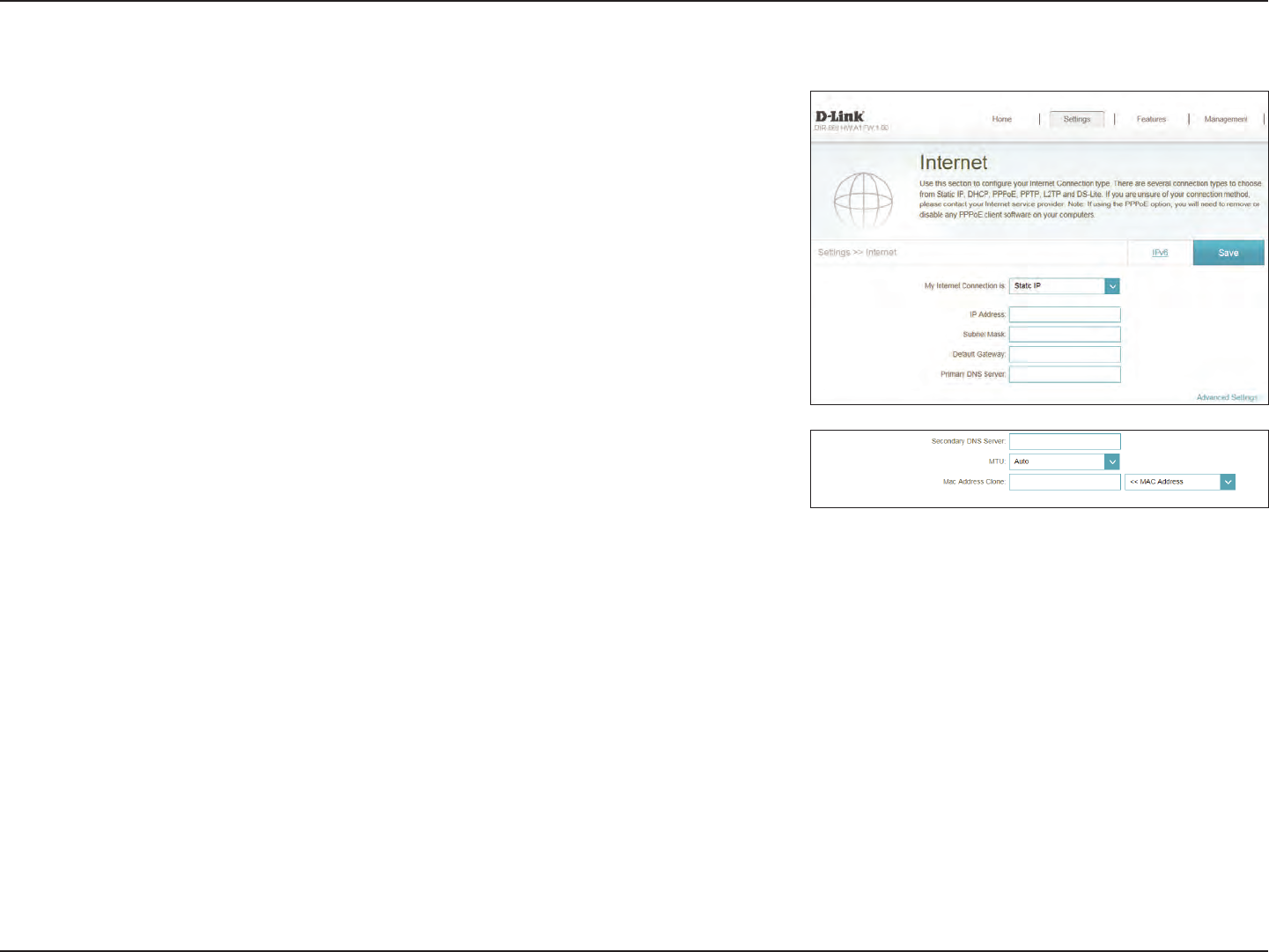

Static IP
Select Static IP if your IP information is provided by your Internet Service Provider (ISP).
IP Address: Enter the IP address provided by your ISP.
Subnet Mask: Enter the subnet mask provided by your ISP.
Default Gateway: Enter the default gateway address provided by your ISP.
Primary DNS
Server:
Enter the primary DNS server IP address assigned by your ISP.
Advanced Settings
Secondary DNS
Server:
Enter the secondary DNS server IP address assigned by your ISP.
MTU: Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP.
MAC Address
Clone:
The default MAC address is set to the Internet port’s physical interface
MAC address on the router. You can use drop-down menu to replace
the Internet port’s MAC address with the MAC address of a connected
client.
Click Save when you are done.
35D-Link DIR-869 User Manual
Section 4 - Conguration
PPPoE
Select PPPoE if your Internet connection requires you to enter a username and password.
This information is provided by your Internet Service Provider (ISP).
Username: Enter the username provided by your ISP.
Password: Enter the password provided by your ISP.
Reconnect Mode: Select either Always-on, On-Demand, or Manual.
Maximum Idle
Time:
Enter a maximum idle time during which the Internet connection
is maintained during inactivity. To disable this feature, enable Auto-
reconnect.
Advanced Settings
Address Mode: Select Static IP if your ISP assigned you the IP address, subnet mask,
gateway, and DNS server addresses. In most cases, select Dynamic IP.
Dynamic IP
IP Address: Enter the IP address provided by your ISP (Static IP only).
Service Name: Enter the ISP service name (optional).
Primary DNS
Server:
Enter the primary DNS server IP address assigned by your ISP.
Secondary DNS
Server:
Enter the secondary DNS server IP address assigned by your ISP.
MTU: Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP. The recommended setting is Auto.
36D-Link DIR-869 User Manual
Section 4 - Conguration
MAC Address
Clone:
The default MAC address is set to the Internet port’s physical interface
MAC address on the router. You can use the drop-down menu to
replace the Internet port’s MAC address with the MAC address of a
connected client.

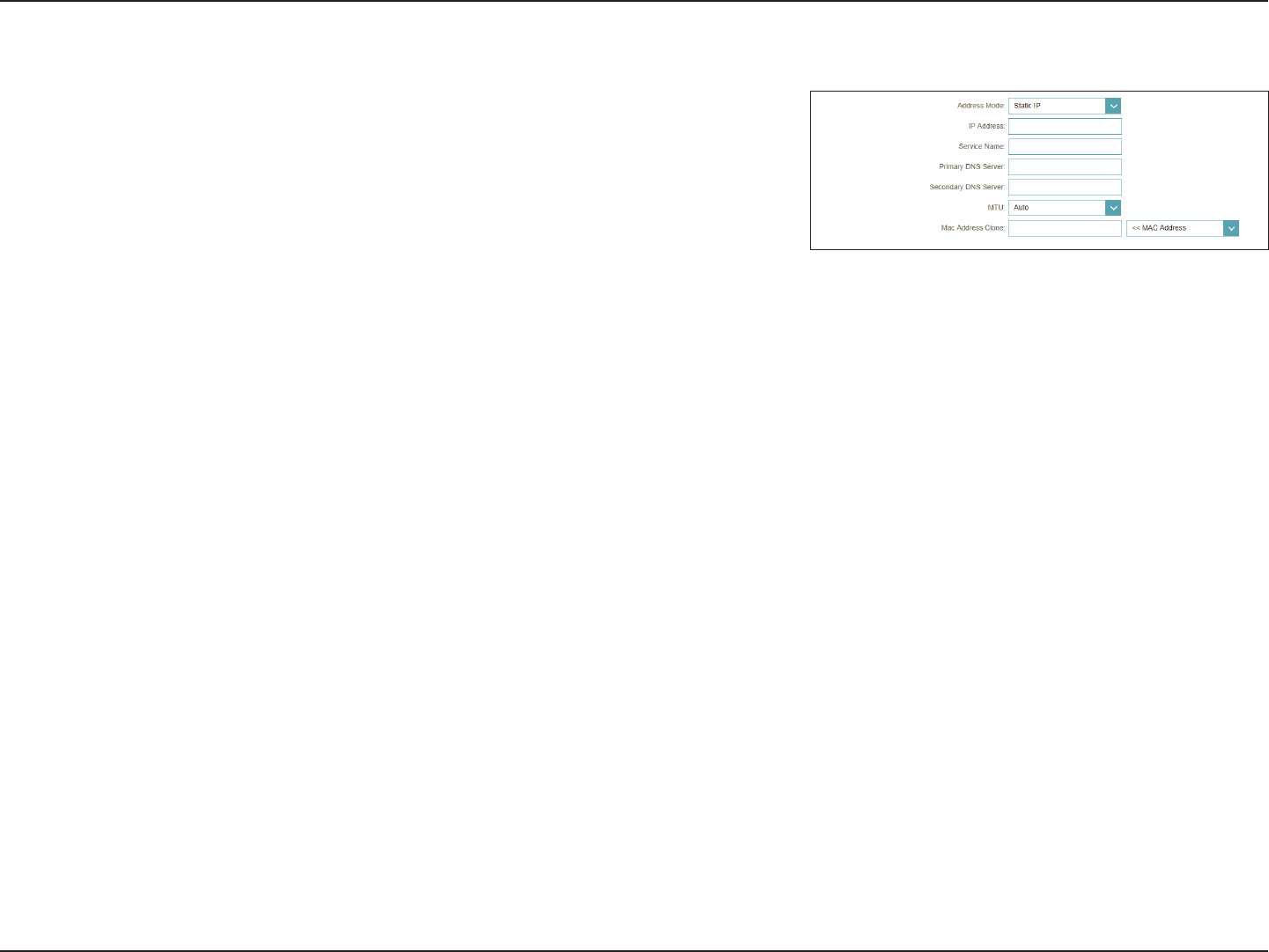

Static IP
IP Address: Enter the IP address provided by your ISP (Static IP only).
Service Name: Enter the ISP service name (optional).
Primary DNS
Server:
Enter the primary DNS server IP address assigned by your ISP.
Secondary DNS
Server:
Enter the secondary DNS server IP address assigned by your ISP.
MTU: Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP.
MAC Address
Clone:
The default MAC address is set to the Internet port’s physical interface
MAC address on the router. You can use the drop-down menu to
replace the Internet port’s MAC address with the MAC address of a
connected client.
Click Save when you are done.
37D-Link DIR-869 User Manual
Section 4 - Conguration

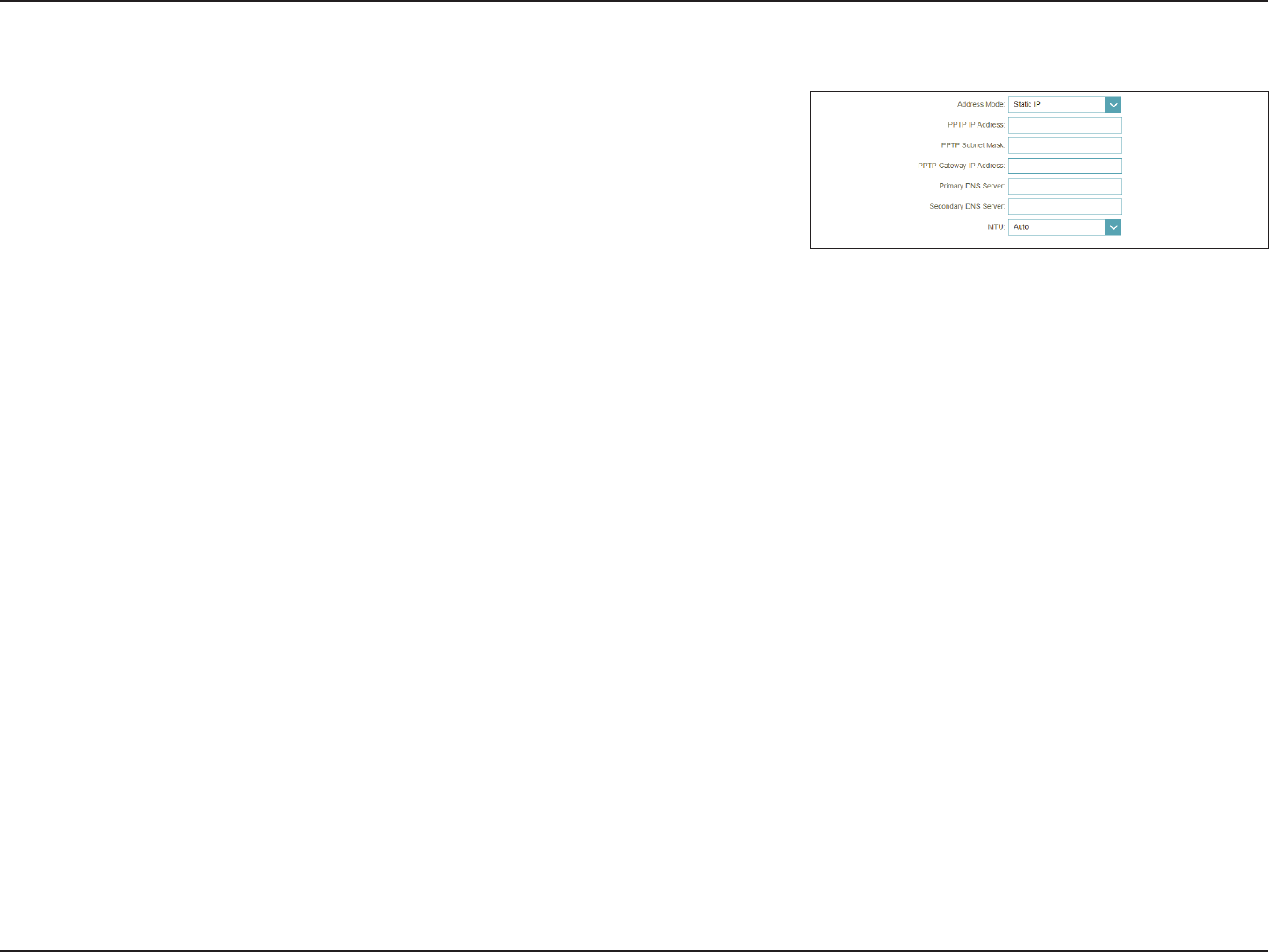

Choose PPTP (Point-to-Point-Tunneling Protocol ) if your Internet Service Provider (ISP) uses
a PPTP connection. Your ISP will provide you with a username and password.
PPTP
PPTP Server IP
Address:
Enter the PPTP server IP address provided by your ISP.
Username: Enter the username provided by your ISP.
Password: Enter the password provided by your ISP.
Reconnect Mode: Select either Always-on, On-Demand, or Manual.
Maximum Idle
Time:
Enter a maximum idle time during which the Internet connection
is maintained during inactivity. To disable this feature, enable Auto-
reconnect.
Advanced Settings
Address Mode: Select Static IP if your ISP assigned you the IP address, subnet mask,
gateway, and DNS server addresses. In most cases, select Dynamic IP.
Dynamic IP
Primary DNS
Server:
Enter the primary DNS server IP address assigned by your ISP.
Secondary DNS
Server:
Enter the secondary DNS server IP address assigned by your ISP.
MTU: Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP. The recommended setting is Auto.
38D-Link DIR-869 User Manual
Section 4 - Conguration
Static IP
PPTP IP Address: Enter the IP address provided by your ISP (Static IP only).
PPTP Subnet
Mask:
Enter the subnet mask provided by your ISP (Static IP only).
PPTP Gateway IP
Address:
Enter the gateway IP address provided by your ISP (Static IP only).
Primary DNS
Server:
Enter the primary DNS server IP address assigned by your ISP.
Secondary DNS
Server:
Enter the secondary DNS server IP address assigned by your ISP.
MTU: Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP.
Click Save when you are done.
39D-Link DIR-869 User Manual
Section 4 - Conguration
L2TP
Choose L2TP (Layer 2 Tunneling Protocol) if your Internet Service Provider (ISP) uses a L2TP
connection. Your ISP will provide you with a username and password.
L2TP Server IP
Address:
Enter the L2TP server IP address provided by your ISP.
Username: Enter the username provided by your ISP.
Password: Enter the password provided by your ISP.
Reconnect Mode: Select either Always-on, On-Demand, or Manual.
Maximum Idle
Time:
Enter a maximum idle time during which the Internet connection
is maintained during inactivity. To disable this feature, enable Auto-
reconnect.
Advanced Settings
Address Mode: Select Static IP if your ISP assigned you the IP address, subnet mask,
gateway, and DNS server addresses. In most cases, select Dynamic IP.
Dynamic IP
Primary DNS
Server:
Enter the primary DNS server IP address assigned by your ISP.
Secondary DNS
Server:
Enter the secondary DNS server IP address assigned by your ISP.
MTU: Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP. The recommended setting is Auto.
40D-Link DIR-869 User Manual
Section 4 - Conguration

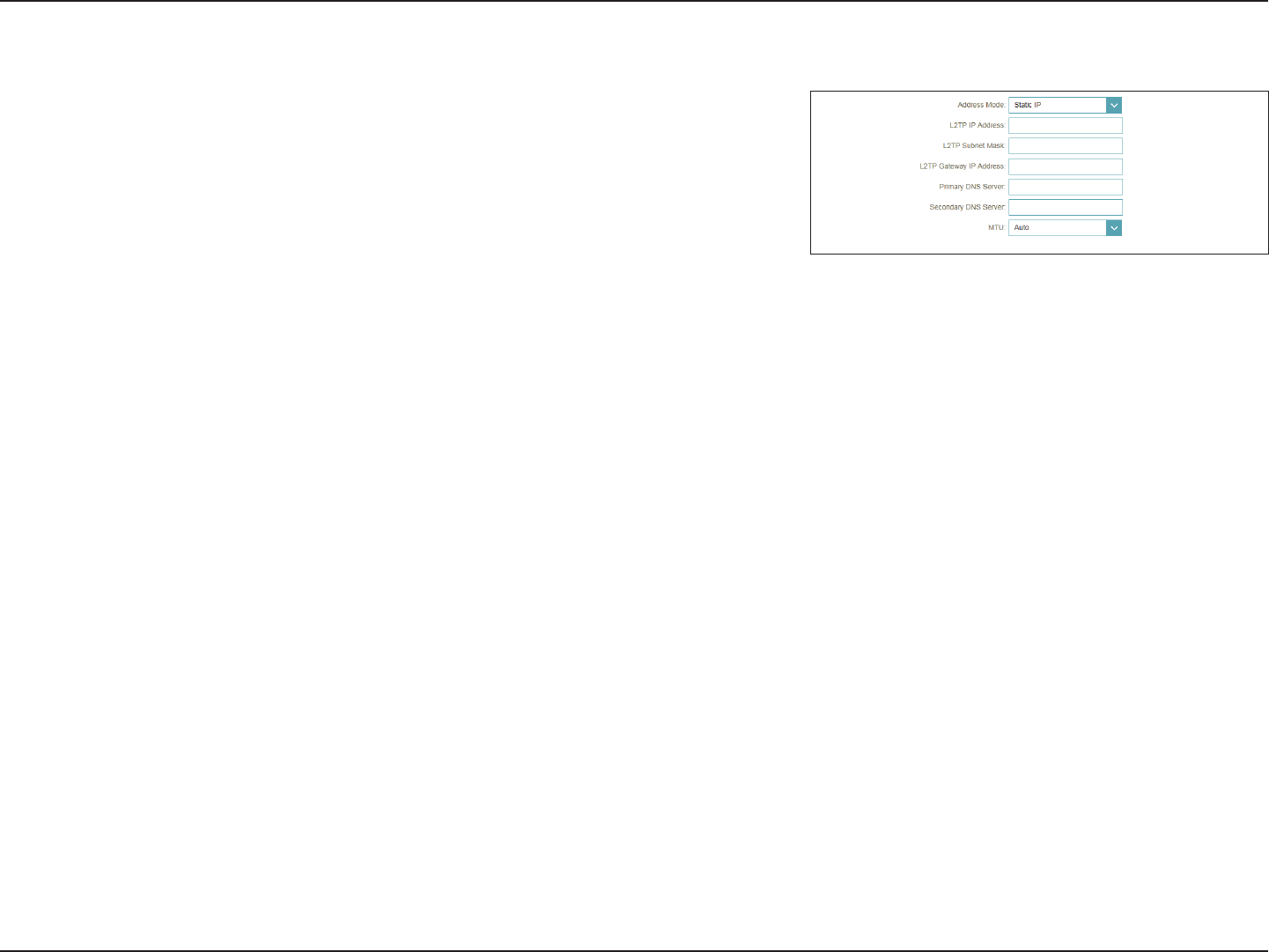

Static IP
L2TP IP Address: Enter the IP address provided by your ISP (Static IP only).
L2TP Subnet
Mask:
Enter the subnet mask provided by your ISP (Static IP only).
L2TP Gateway IP
Address:
Enter the gateway IP address provided by your ISP (Static IP only).
Primary DNS
Server:
Enter the primary DNS server IP address assigned by your ISP.
Secondary DNS
Server:
Enter the secondary DNS server IP address assigned by your ISP.
MTU: Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP.
Click Save when you are done.
41D-Link DIR-869 User Manual
Section 4 - Conguration
DS-Lite is an IPv6 connection type. After selecting DS-Lite, the following parameters will
be available for conguration:
DS-Lite
Advanced Settings
DS-Lite
Conguration:
Select DS-Lite DHCPv6 to let the router allocate the AFTR IPv6
address automatically. Select Manual Conguration to enter the
AFTR IPv6 address manually.
DS-Lite DHCPv6
B4 IPv6 Address: Enter the B4 IPv4 address value used here.
WAN IPv6
Address:
Once connected, the WAN IPv6 address will be displayed here.
IPv6 WAN Default
Gateway:
Once connected, the IPv6 WAN default gateway address will be
displayed here.
Manual
AFTR IPv6
Address:
Enter the AFTR IPv6 address used here.
B4 IPv6 Address: Enter the B4 IPv4 address value used here.
WAN IPv6
Address:
Once connected, the WAN IPv6 address will be displayed here.
IPv6 WAN Default
Gateway:
Once connected, the IPv6 WAN default gateway address will be
displayed here.
Click Save when you are done.
42D-Link DIR-869 User Manual
Section 4 - Conguration
IPv6
To congure an IPv6 connection, click the IPv6 link. To return to the IPv4 settings, click IPv4.
For Auto Detection refer to page 43.
For Static IPv6 refer to page 45.
For Auto Conguration (SLAAC/DHCPv6) refer to page 47.
For PPPoE refer to page 49.
For IPv6 in IPv4 Tunnel refer to page 52.
For 6 to 4 refer to page 54.
For 6rd refer to page 56.
For Local Connectivity Only refer to page 58.
My Internet
Connection Is:
Choose your IPv6 connection type from the drop-down menu. You
will be presented with the appropriate options for your connection
type. Click Advanced Settings... to expand the list and see all of the
options.
43D-Link DIR-869 User Manual
Section 4 - Conguration
Auto Detection
This is a connection method where the ISP assigns your IPv6 address when your router
requests one from the ISP’s server. Some ISPs require you to make some settings on your
side before your router can connect to the IPv6 Internet.
IPv6 DNS Settings
DNS Type: Select either Obtain DNS server address automatically or Use the
following DNS address.
If Use the following DNS address is selected:
Primary DNS
Server:
If you selected Use the following DNS address above, enter the
primary DNS server address.
Secondary DNS
Server:
If you selected Use the following DNS address above, enter the
secondary DNS server address.
LAN IPv6 Address Settings
LAN IPv6 Address: Displays the router’s LAN IPv6 Address link-local address.
LAN IPv6 Link-
Local Address:
Displays the router’s LAN link-local address.
44D-Link DIR-869 User Manual
Section 4 - Conguration

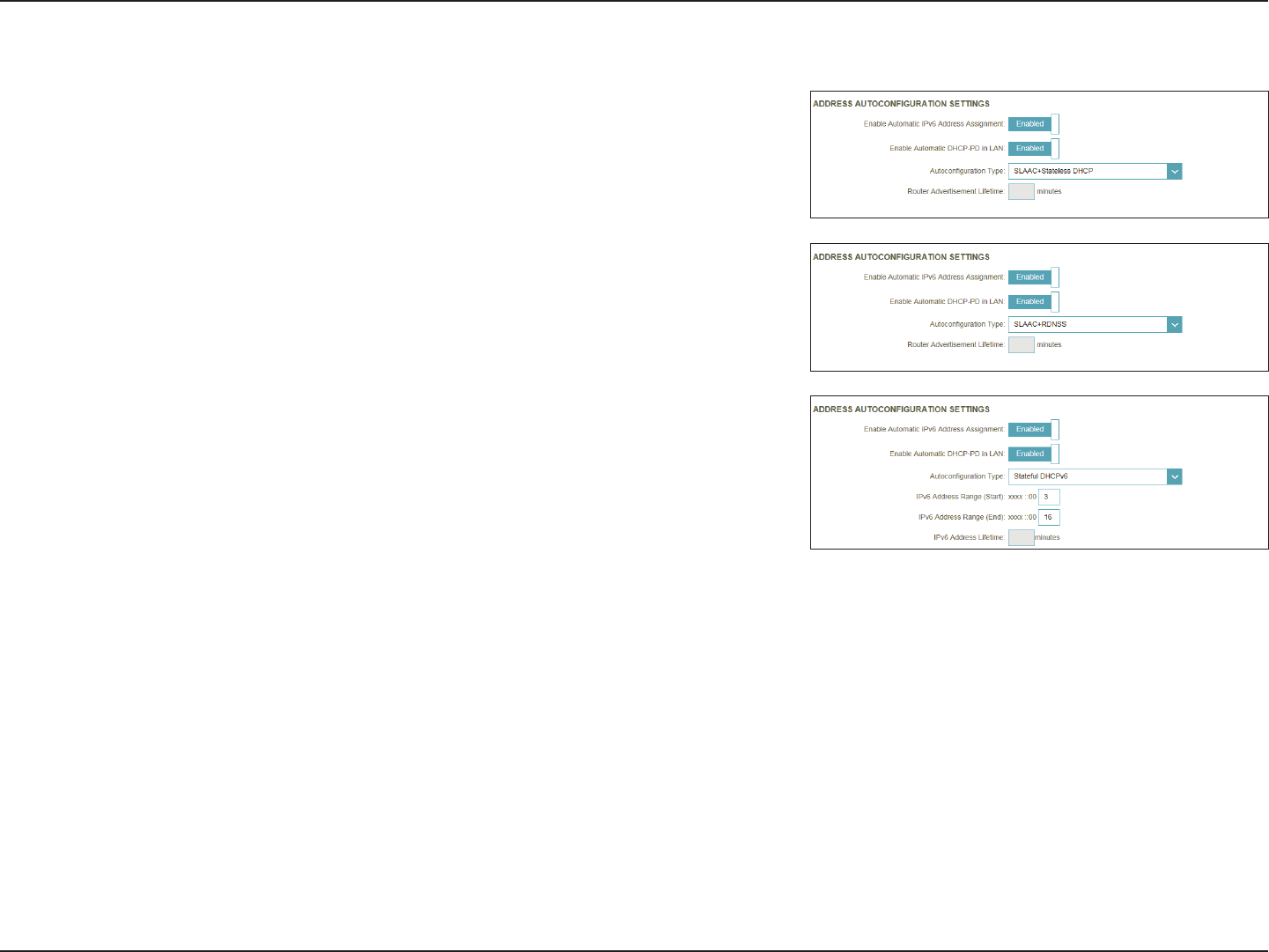

Advanced Settings - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment:
Enable or disable the Automatic IPv6 Address Assignment feature.
Enable Automatic
DHCP-PD in LAN:
Enable or disable DHCP-PD for other IPv6 routers connected to the
LAN interface.
Note: This feature requires a smaller subnet prex than /64 (i.e. allowing
for a larger address allocation), such as /63. Contact your ISP for more
information.
Autoconguration
Type:
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful DHCPv6.
If you selected Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start):
Enter the starting IPv6 address for the DHCP server’s IPv6 assignment.
IPv6 Address
Range (End):
Enter the ending IPv6 address for the DHCP server’s IPv6 assignment.
Router
Advertisement
Lifetime:
Enter the IPv6 address lifetime (in minutes).
Click Save when you are done.
45D-Link DIR-869 User Manual
Section 4 - Conguration
Static IPv6
Select Static IP if your IPv6 information is provided by your Internet Service Provider (ISP).
Use Link-Local
Address:
Enable or disable link-local address use.
Default Gateway: Enter the default gateway for your IPv6 connection.
Primary DNS
Server:
Enter the primary DNS server address.
Secondary DNS
Server:
Enter the secondary DNS server address.
If Use Link-Local Address is disabled these additional parameters are available for
conguration:
IPv6 Address: Enter the address supplied by your ISP.
Subnet Prex
Length:
Enter the subnet prex length supplied by your ISP.
LAN IPv6 Address Settings
LAN IPv6 Address: Enter the LAN (local) IPv6 address for the router.
LAN IPv6 Link-
Local Address:
Displays the router’s LAN link-local address.
46D-Link DIR-869 User Manual
Section 4 - Conguration
Advanced Settings - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment:
Enable or disable the Automatic IPv6 Address Assignment feature.
Autoconguration
Type:
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful DHCPv6.
If you selected Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start):
Enter the starting IPv6 address for the DHCP server’s IPv6 assignment.
IPv6 Address
Range (End):
Enter the ending IPv6 address for the DHCP server’s IPv6 assignment.
Router
Advertisement
Lifetime:
Enter the IPv6 address lifetime (in minutes).
Click Save when you are done.
47D-Link DIR-869 User Manual
Section 4 - Conguration

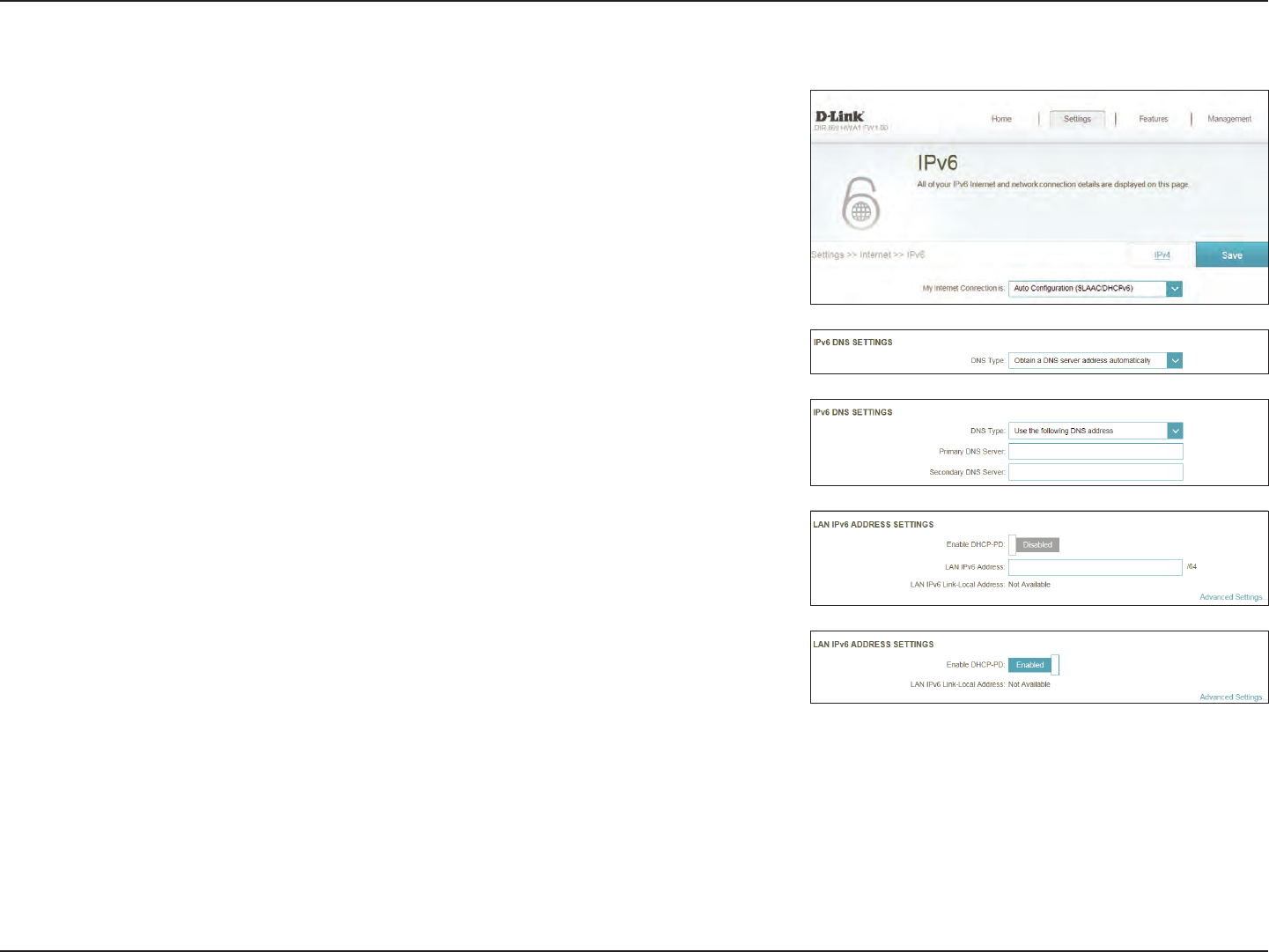

Auto Conguration (SLAAC/DHCPv6)
This is a connection method where the ISP assigns your IPv6 address when your router
requests one from the ISP’s server. Some ISPs require you to make some settings on your
side before your router can connect to the IPv6 Internet.
IPv6 DNS Settings
DNS Type: Select either Obtain DNS server address automatically or Use the
following DNS address.
If Use the following DNS address is selected:
Primary DNS
Server:
Enter the primary DNS server address.
Secondary DNS
Server:
Enter the secondary DNS server address.
LAN IPv6 Address Settings
Enable DHCP-PD: Enable or disable prex delegation services.
LAN IPv6 Address: If you disabled DHCP-PD, enter the LAN (local) IPv6 address for the
router.
LAN IPv6 Link-
Local Address:
Displays the router’s LAN link-local address.
48D-Link DIR-869 User Manual
Section 4 - Conguration
Advanced Settings - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment:
Enable or disable the Automatic IPv6 Address Assignment feature.
If DHCP-PD is enabled in LAN IPv6 Address Settings:
Enable Automatic
DHCP-PD in LAN:
Enable or disable DHCP-PD for other IPv6 routers connected to the
LAN interface. Note: This feature requires a smaller subnet prex than
/64 (i.e. allowing for a larger address allocation), such as /63. Contact
your ISP for more information.
Autoconguration
Type:
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful DHCPv6.
If you selected Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start):
Enter the starting IPv6 address for the DHCP server’s IPv6 assignment.
IPv6 Address
Range (End):
Enter the ending IPv6 address for the DHCP server’s IPv6 assignment.
Router
Advertisement
Lifetime:
Enter the IPv6 address lifetime (in minutes).
Click Save when you are done.
49D-Link DIR-869 User Manual
Section 4 - Conguration
PPPoE
Select PPPoE if your Internet connection requires you to enter a username and password.
This information is provided by your Internet Service Provider (ISP).
PPPoE Session: Choose Share with IPv4 to re-use your IPv4 PPPoE username and
password, or Create a new session.
Username: Enter the username provided by your ISP. (Create a new session only)
Password: Enter the password provided by your ISP. (Create a new session only)
Address Mode: Select Static IP if your ISP assigned you an IP address. In most cases,
select Dynamic IP.
IP Address: Enter the IP address provided by your ISP. (Static IP only)
Service Name: Enter the ISP service name (optional).
Reconnect Mode: Select either Always-on or Manual.
MTU: Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP.
50D-Link DIR-869 User Manual
Section 4 - Conguration
IPv6 DNS Settings
DNS Type: Select either Obtain DNS server address automatically or Use the
following DNS address.
If Use the following DNS address is selected:
Primary DNS
Server:
Enter the primary DNS server address.
Secondary DNS
Server:
Enter the secondary DNS server address.
LAN IPv6 Address Settings
Enable DHCP-PD: Enable or disable prex delegation services. Dynamic IP only
LAN IPv6 Address: If DHCP-PD disabled or static address mode is selected, enter the LAN
(local) IPv6 address for the router.
LAN IPv6 Link-
Local Address:
Displays the router’s LAN link-local address.
51D-Link DIR-869 User Manual
Section 4 - Conguration
Advanced Settings - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment:
Enable or disable the Automatic IPv6 Address Assignment feature.
If DHCP-PD is available and enabled in LAN IPv6 Address Settings:
Enable Automatic
DHCP-PD in LAN:
Enable or disable DHCP-PD for other IPv6 routers connected to the
LAN interface. Note: This feature requires a smaller subnet prex than
/64 (i.e. allowing for a larger address allocation), such as /63. Contact
your ISP for more information.
Autoconguration
Type:
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful DHCPv6.
If you selected Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start):
Enter the starting IPv6 address for the DHCP server’s IPv6 assignment.
IPv6 Address
Range (End):
Enter the ending IPv6 address for the DHCP server’s IPv6 assignment.
Router
Advertisement
Lifetime:
Enter the IPv6 address lifetime (in minutes).
Click Save when you are done.
52D-Link DIR-869 User Manual
Section 4 - Conguration

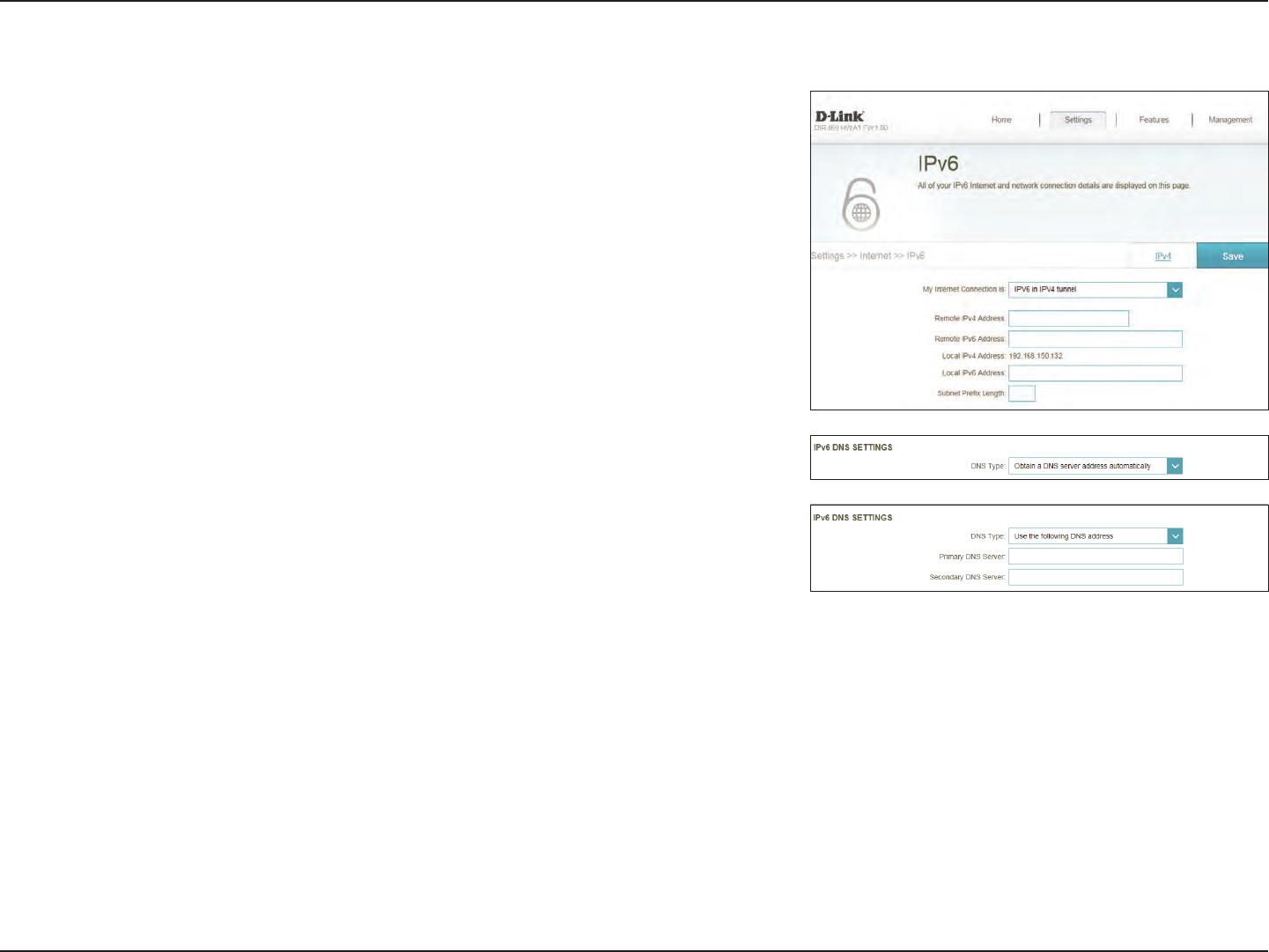

IPv6 in IPv4 Tunnel
The user can congure the IPv6 connection to run in IPv4 Tunnel mode. IPv6 over IPv4
tunnelling encapsulates IPv6 packets in IPv4 packets so that IPv6 packets can be sent
over an IPv4 infrastructure.
Remote IPv4
Address:
Enter the IPv4 remote address you will use.
Remote IPv6
Address:
Enter the IPv6 remote address you will use.
Local IPv4
Address:
Displays the current local IPv4 address.
Local IPv6
Address:
Enter the IPv6 local address you will use.
Subnet Prex
Length:
Enter the subnet prex length supplied by your ISP.
IPv6 DNS Settings
DNS Type: Select either Obtain DNS server address automatically or Use the
following DNS address.
If Use the following DNS address is selected:
Primary DNS
Server:
Enter the primary DNS server address.
Secondary DNS
Server:
Enter the secondary DNS server address.
53D-Link DIR-869 User Manual
Section 4 - Conguration
LAN IPv6 Address Settings
Enable DHCP-PD: Enable or disable prex delegation services.
LAN IPv6 Address: If you disabled DHCP-PD, enter the LAN (local) IPv6 address for the
router.
LAN IPv6 Link-
Local Address:
Displays the router’s LAN link-local address.
Advanced Settings - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment:
Enable or disable the Automatic IPv6 Address Assignment feature.
Autoconguration
Type:
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful DHCPv6.
If you selected Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start):
Enter the starting IPv6 address for the DHCP server’s IPv6 assignment.
IPv6 Address
Range (End):
Enter the ending IPv6 address for the DHCP server’s IPv6 assignment.
Router
Advertisement
Lifetime:
Enter the IPv6 address lifetime (in minutes).
Click Save when you are done.
54D-Link DIR-869 User Manual
Section 4 - Conguration
6to4
In this section the user can congure the IPv6 6 to 4 connection settings. 6to4 is an IPv6
address assignment and automatic tunnelling technology that is used to provide unicast
IPv6 connectivity between IPv6 sites and hosts across the IPv4 Internet.
6to4 Address: Displays the 6 to 4 address.
6to4 Relay: Enter the 6 to 4 relay supplied by your ISP.
Primary DNS
Server:
Enter the primary DNS server address.
Secondary DNS
Server:
Enter the secondary DNS server address.
LAN IPv6 Address Settings
LAN IPv6 Address: Enter the LAN (local) IPv6 address for the router.
LAN IPv6 Link-
Local Address:
Displays the router’s LAN link-local address.
55D-Link DIR-869 User Manual
Section 4 - Conguration
Advanced Settings - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment:
Enable or disable the Automatic IPv6 Address Assignment feature.
Autoconguration
Type:
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful DHCPv6.
If you selected Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start):
Enter the starting IPv6 address for the DHCP server’s IPv6 assignment.
IPv6 Address
Range (End):
Enter the ending IPv6 address for the DHCP server’s IPv6 assignment.
Router
Advertisement
Lifetime:
Enter the IPv6 address lifetime (in minutes).
Click Save when you are done.
56D-Link DIR-869 User Manual
Section 4 - Conguration
6rd
In this section the user can congure the IPv6 6rd connection settings.
Assign IPv6 Prex: Currently unsupported.
Primary DNS
Server:
Enter the primary DNS server address.
Secondary DNS
Server:
Enter the secondary DNS server address.
6rd Manual Conguration
Enable Hub and
Spoke Mode:
Enable if you want to minimize the number of routes to the destination
by using a hub and spoke method of networking.
6rd Conguration: Choose the 6rd DHCPv4 Option to automatically discover and
populate the data values, or Manual Conguration to enter the
settings yourself.
If you selected Manual conguration
6rd IPv6 Prex: Enter the 6rd IPv6 prex and mask length supplied by your ISP.
WAN IPv4 Address Displays the router’s IPv4 address.
6rd Border Relay
IPv4 Address:
Enter the 6rd border relay IPv4 address settings supplied by your ISP.
LAN IPv6 Address Settings
LAN IPv6 Address: Displays the router’s LAN IPv6 Address link-local address.
LAN IPv6 Link-
Local Address:
Displays the router’s LAN link-local address.
57D-Link DIR-869 User Manual
Section 4 - Conguration
Advanced Settings - Address Autoconguration Settings
Enable Automatic
IPv6 Address
Assignment:
Enable or disable the Automatic IPv6 Address Assignment feature.
Autoconguration
Type:
Select SLAAC+RDNSS, SLAAC+Stateless DHCP, or Stateful DHCPv6.
If you selected Stateful DHCPv6 as the Autoconguration Type:
IPv6 Address
Range (Start):
Enter the starting IPv6 address for the DHCP server’s IPv6 assignment.
IPv6 Address
Range (End):
Enter the ending IPv6 address for the DHCP server’s IPv6 assignment.
Router
Advertisement
Lifetime:
Enter the IPv6 address lifetime (in minutes).
Click Save when you are done.
58D-Link DIR-869 User Manual
Section 4 - Conguration
Local Connectivity Only
Local Connectivity Only allows you to set up an IPv6 connection that will not connect to
the Internet.
Advanced Settings
IPv6 ULA Settings
Enable ULA: Click here to enable Unique Local IPv6 Unicast Addresses settings.
If you selected Enable ULA and Disabled Default ULA Prex:
ULA Prex: Enter your own ULA prex.
Current IPv6 ULA Settings
Current ULA
Prex:
Displays the current ULA prex.
LAN IPv6 ULA: Displays the LAN's IPv ULA.
Click Save when you are done.
59D-Link DIR-869 User Manual
Section 4 - Conguration
2.4GHz
Status: Enable or disable the 2.4GHz wireless network.
Wi-Fi Name (SSID): Create a name for your wireless network using up to 32 characters.
Password: Create a password to use for wireless security.
Advanced Settings
Security Mode: Choose None, WEP, or WPA/WPA2-(Personal) (recommended).
802.11 Mode: Select the desired wireless networking standards to use. The available
options are Mixed 802.11b/g/n, Mixed 802.11g/n, 802.11n only.
Wi-Fi Channel: Select the desired channel. The default is Auto (recommended).
Transmission
Power:
Select the desired wireless transmission power.
Channel Width: Select Auto 20/40 if you are using both 802.11n and non-802.11n
devices, or select 20 MHz if you are not using any 802.11n devices.
HT20/40
Coexistence:
Enable or disable HT20/40 Coexistence.
Visibility Status: The default setting is Visible. Select Invisible if you do not want to
broadcast the SSID of your wireless network.
Schedule: Use the drop-down menu to select the time schedule that the rule
will be enabled on. The schedule may be set to Always Enable, or
you can create your own schedules in the Schedules section. Refer
to page 76 for more information.
From this page you can congure your wireless network settings.
Wireless
60D-Link DIR-869 User Manual
Section 4 - Conguration
5GHz
Status: Enable or disable the 2.4GHz wireless network.
Wi-Fi Name (SSID): Create a name for your wireless network using up to 32 characters.
Password: Create a password to use for wireless security.
Advanced Settings
Security Mode: Choose None, WEP, or WPA/WPA2-(Personal) (recommended).
802.11 Mode: Select the desired wireless networking standards to use. The available
options are Mixed 802.11a/n/ac, Mixed 802.11n/ac, 802.11ac only,
Mixed 802.11a/n, Mixed 802.11n only, or 802.11a only
Wi-Fi Channel: Select the desired channel. The default is Auto (recommended).
Transmission
Power:
Select the desired wireless transmission power.
Channel Width: These options will change depending upon the selected 802.11 Mode.
Select Auto 20/40/80 if you are using 802.11ac, 802.11n, and 802.11a
devices, select Auto 20/40 if you are using 802.11n and 802.11a
devices, or select 20 MHz if you are only using 802.11a devices.
Visibility Status: The default setting is Visible. Select Invisible if you do not want to
broadcast the SSID of your wireless network.
Schedule: Use the drop-down menu to select the time schedule that the rule
will be enabled on. The schedule may be set to Always Enable, or
you can create your own schedules in the Schedules section. Refer
to page 76 for more information.
Click Save when you are done.
61D-Link DIR-869 User Manual
Section 4 - Conguration

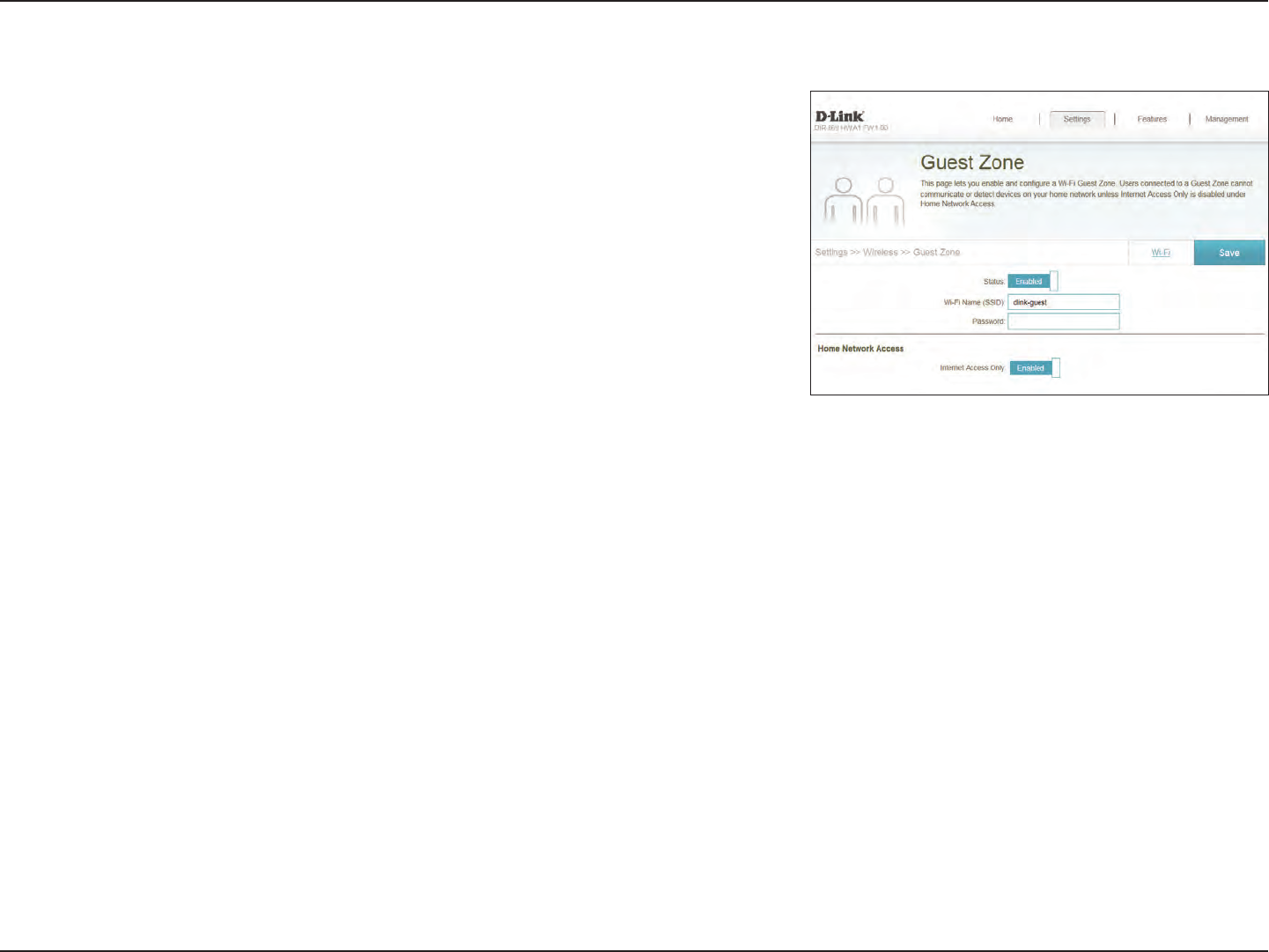

Guest Zone
In the Settings menu on the bar on the top of the page, click Wireless, then click the Guest
Zone link. Click Advanced Settings... to expand the list and see all of the options. The
following options apply to both the 2.4 GHz and the 5 GHz wireless frequency bands:
The guest zone feature will allow you to create temporary zones that can be used by guests
to access the Internet. These zones will be separate from your main wireless network. You
may congure dierent zones for the 2.4 GHz and 5 GHz wireless bands.
Status: Enable or disable the guest zone for each wireless frequency band.
Wi-Fi Name (SSID): Enter a wireless network name (SSID) that is dierent from your main
wireless network.
Password: Create a password to use for wireless security. Wireless clients will
need to enter this password to successfully connect to the guest zone.
Home Network Access
Internet Access
Only:
Enabling this option will confine connectivity to the Internet,
disallowing guests from accessing other local network devices.
Click Save when you are done.
62D-Link DIR-869 User Manual
Section 4 - Conguration
Network
This section will allow you to change the local network settings of the router and to congure
the DHCP settings. In the Settings menu on the bar on the top of the page, click Network.
Click Advanced Settings... to expand the list and see all of the options.
Network Settings
LAN IP Address: Enter the IP address of the router. The default IP address is 192.168.0.1.
If you change the IP address, once you click Save, you will need
to enter the new IP address in your browser to get back into the
conguration utility
Subnet Mask: Enter the subnet mask of the router. The default subnet mask is
255.255.255.0.
Management
Link:
The default address to access the router’s conguration is http://
dlinkrouter.local./ Here, you can replace dlinkrouter with a name
of your choice.
Local Domain
Name:
Enter the domain name (optional).
Enable DNS Relay: Disable to transfer the DNS server information from your ISP to your
computers. If enabled, your computers will use the router for a DNS
server.
63D-Link DIR-869 User Manual
Section 4 - Conguration
Advanced Settings - DHCP Server
Status: Enable or disable the DHCP server.
DHCP IP Address
Range:
Enter the starting and ending IP addresses for the DHCP server’s IP
assignment.
Note: If you statically (manually) assign IP addresses to your computers
or devices, make sure the IP addresses are outside of this range or you
may have an IP conict.
DHCP Lease Time: Enter the length of time for the IP address lease in minutes.
Always Broadcast: Enable this feature to broadcast your networks DHCP server to LAN/
WLAN clients.
Advanced Settings
WAN Port Speed: You may set the port speed of the Internet port to 10 Mbps, 100 Mbps,
1000 Mbps, or Auto (recommended).
UPnP: Enable or disable Universal Plug and Play (UPnP). UPnP provides
compatibility with networking equipment, software and peripherals.
IPv4 Multicast
Stream:
Enable to allow IPv4 multicast trac to pass through the router from
the Internet.
IPv6 Multicast
Stream:
Enable to allow IPv6 multicast trac to pass through the router from
the Internet.
Click Save when you are done.
64D-Link DIR-869 User Manual
Section 4 - Conguration
Features

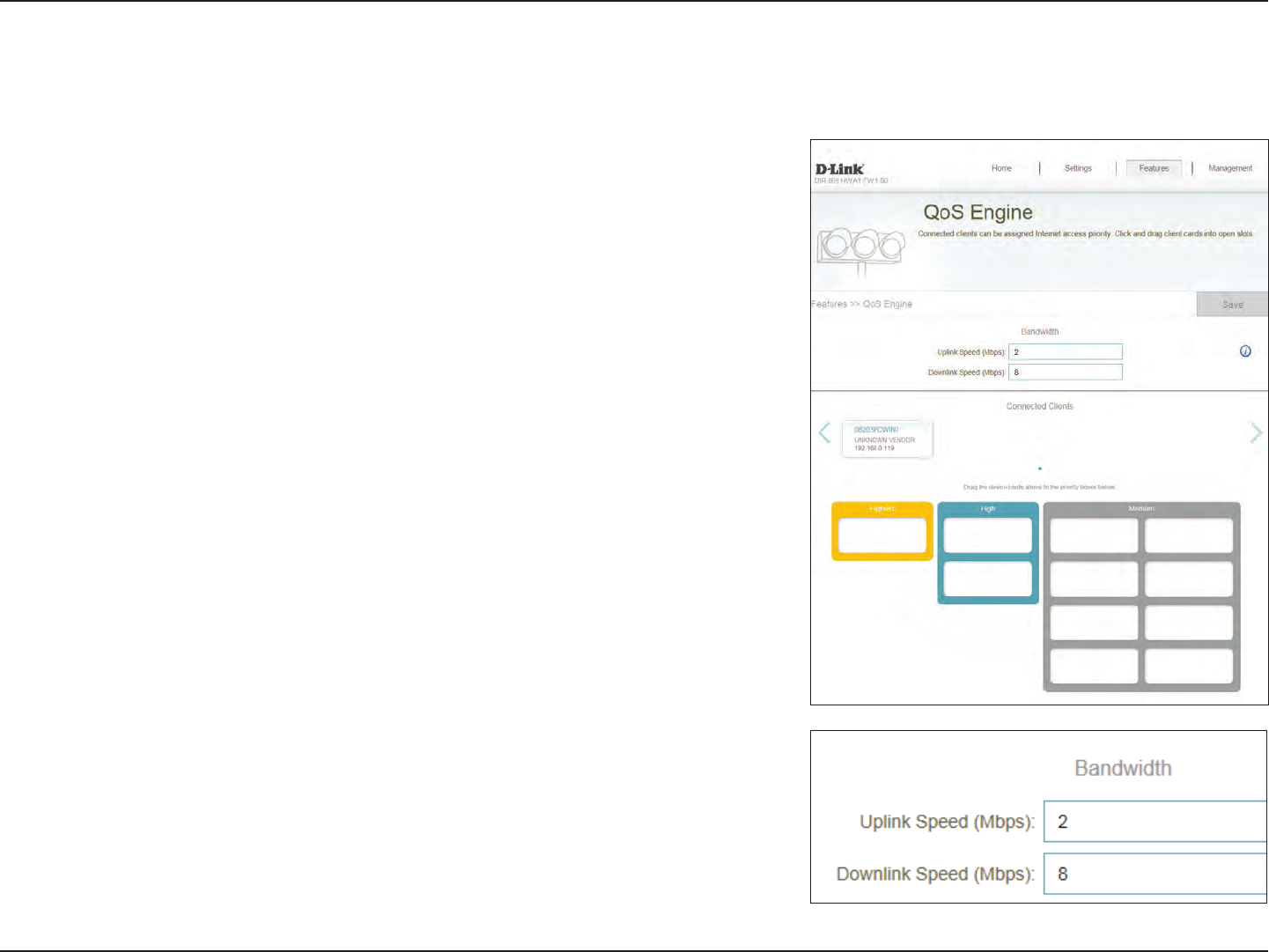

QoS Engine
This section will allow you to prioritize particular clients over others, so that those clients
receive higher bandwidth. For example, if one client is streaming a movie and another is
downloading a non-urgent le, you might wish to assign the former device a higher priority
than the latter so that the movie streaming is not disrupted by the trac of the other devices
on the network.
In the Features menu on the bar on the top of the page, click QoS Engine.
Under All Devices, you will see device cards representing each connected client. If some are
o-screen, you can use the < and > buttons to scroll through the cards.
A maximum of one device can be assigned Highest priority.
A maximum of two devices can be assigned High priority.
A maximum of eight devices can be assigned Medium priority.
If no devices are explicitly assigned a priority, they will all be treated with equal priority.
If some devices are not assigned a priority and others are, the unassigned devices will be
treated with the lowest priority.
To assign a priority level to a device, drag the device card from the All Devices list over an
empty slot and release the mouse button. The card will remain in the slot. If you want to
remove a priority assignment from a device and return it to the All Devices list, click the
cross icon in the top right of the device card.
Click Save when you are done.
65D-Link DIR-869 User Manual
Section 4 - Conguration
Firewall Settings
The router’s rewall protects your network from malicious attacks over the Internet. In the
Features menu on the bar on the top of the page, click Firewall Settings. Click Advanced
Settings... to expand the list and see all of the options.
Enable DMZ: Enable or disable Demilitarized Zone (DMZ). This completely exposes
the client to threats over the Internet, and is not recommended in
ordinary situations.
DMZ IP Address: If you enabled DMZ, enter the IP address of the client you wish to
expose, or use the drop-down menu to quickly select it.
Enable SPI IPv4: Enabling Stateful Packet Inspection (SPI) helps to prevent cyber
attacks by validating that the trac passing through the session
conforms to the protocol.
Enable Anti-Spoof
Checking:
Enable this feature to protect your network from certain kinds of
“spoong” attacks.
IPv6 Simple
Security:
Enable or disable IPv6 simple security.
IPv6 Ingress
Filtering:
Enable or disable IPv6 ingress ltering.
66D-Link DIR-869 User Manual
Section 4 - Conguration

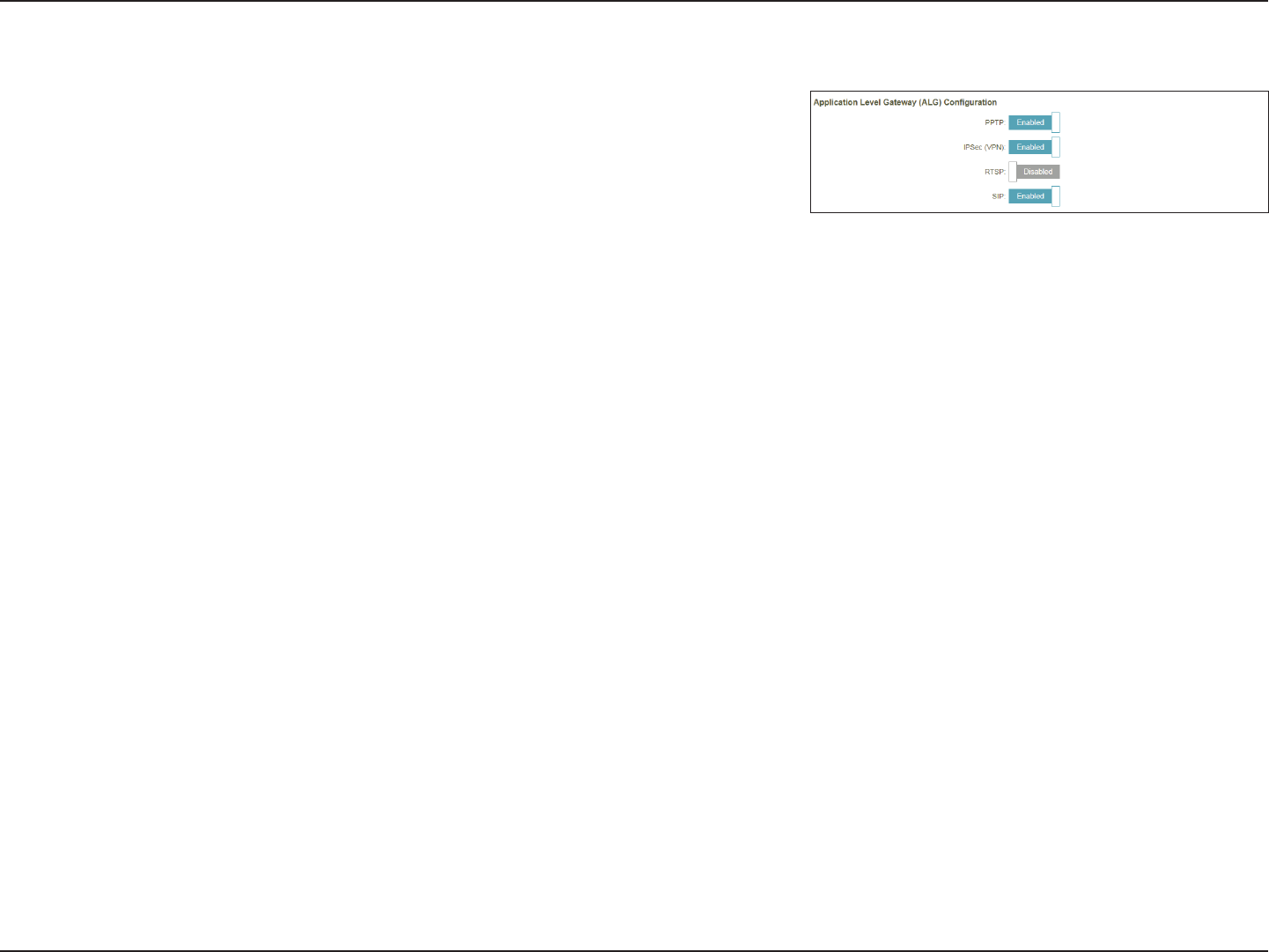

Advanced Settings - Application Level Gateway (ALG) Conguration
PPTP: Allows multiple machines on the LAN to connect to their corporate
network using the PPTP protocol.
IPSec (VPN): Allows multiple VPN clients to connect to their corporate network
using IPSec. Some VPN clients support traversal of IPSec through
NAT. This Application Level Gateway (ALG) may interfere with the
operation of such VPN clients. If you are having trouble connecting
with your corporate network, try turning this ALG o. Please check
with the system administrator of your corporate network whether
your VPN client supports NAT traversal.
RTSP: Allows applications that uses Real Time Streaming Protocol (RTSP)to
receive streaming media from the Internet.
SIP: Allows devices and applications using VoIP (Voice over IP) to
communicate across NAT. Some VoIP applications and devices have
the ability to discover NAT devices and work around them. This ALG
may interfere with the operation of such devices. If you are having
trouble making VoIP calls, try turning this ALG o.
Click Save when you are done.
67D-Link DIR-869 User Manual
Section 4 - Conguration

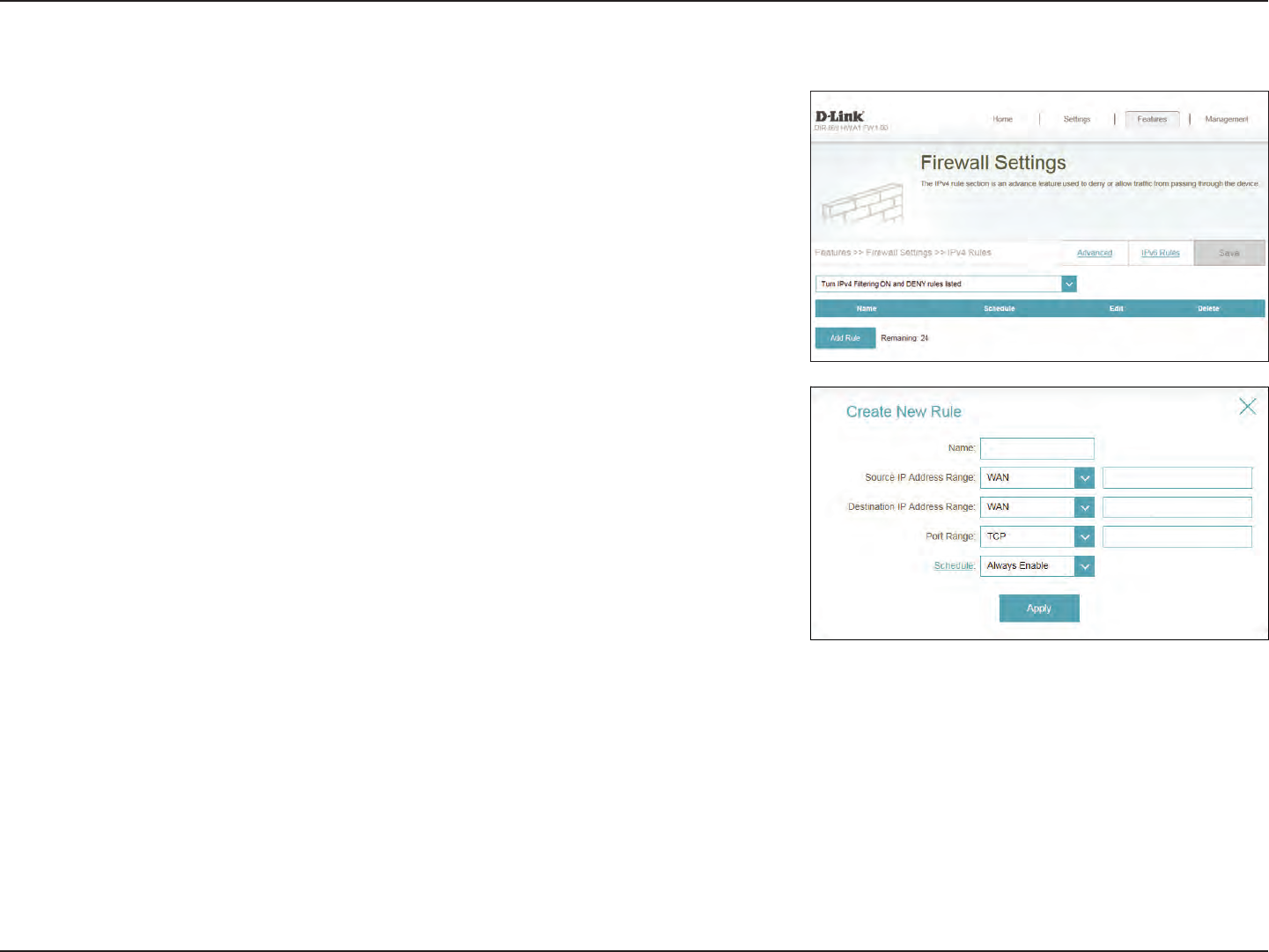

IPv4/IPv6 Rules
The IPv4/IPv6 Rules section is an advanced option that lets you congure what kind of
trac is allowed to pass through the network. To congure the IPv4 rules, from the Firewall
Settings page click IPv4 Rules. To congure IPv6 rules, from the Firewall Settings page click
IPv6 Rules. To return to the main Firewall Settings page, click Security Check.
To begin, use the drop-down menu to select whether you want to ALLOW or DENY the
rules you create. You can also choose to turn ltering OFF.
If you wish to remove a rule, click on its trash can icon in the Delete column. If you wish
to edit a rule, click on its pencil icon in the Edit column. If you wish to create a new rule,
click the Add Rules button. Click Save when you are done. If you edit or create a rule, the
following options will appear:
Name: Enter a name for the rule.
Source IP Address
Range:
Enter the source IP address range that the rule will apply to, and using
the drop-down menu, specify whether it is a WAN or LAN IP address.
Destination IP
Address Range:
Enter the destination IP address range that the rule will apply to, and
using the drop-down menu, specify whether it is a WAN or LAN IP
address.
Port Range: Select the protocol of the trac to allow or deny (Any, TCP, or UDP)
and then enter the range of ports that the rule will apply to.
Schedule: Use the drop-down menu to select the time schedule that the rule
will be enabled on. The schedule may be set to Always Enable, or
you can create your own schedules in the Schedules section. Refer
to page 76 for more information.
Click Apply when you are done.
68D-Link DIR-869 User Manual
Section 4 - Conguration
Port Forwarding
Port forwarding allows you to specify a port or range of ports to open for specic devices
on the network. This might be necessary for certain applications to connect through the
router. In the Features menu on the bar on the top of the page, click Port Forwarding.
If you wish to remove a rule, click on its trash can icon in the Delete column. If you wish
to edit a rule, click on its pencil icon in the Edit column. If you wish to create a new rule,
click the Add Rules button. Click Save when you are done. If you edit or create a rule, the
following options will appear:
Name: Enter a name for the rule.
Local IP: Enter the IP address of the computer on your local network that you
want to allow the incoming service to. Alternatively, select the device
from the drop-down menu.
TCP Port: Enter the TCP ports that you want to open. You can enter a single
port or a range of ports. Separate ports with a comma (for example:
24,1009,3000-4000).
UDP Port: Enter the UDP ports that you want to open. You can enter a single
port or a range of ports. Separate ports with a comma (for example:
24,1009,3000-4000).
Schedule: Use the drop-down menu to select the time schedule that the rule
will be enabled on. The schedule may be set to Always Enable, or
you can create your own schedules in the Schedules section. Refer
to page 76 for more information.
Click Apply when you are done.
69D-Link DIR-869 User Manual
Section 4 - Conguration
Virtual Server
The virtual server allows you to specify a single public port on your router for redirection
to an internal LAN IP Address and Private LAN port. To congure the virtual server, from the
Port Forwarding page click Virtual Server. To return to the main Port Forwarding page,
click Port Forwarding.
If you wish to remove a rule, click on its trashcan icon in the Delete column. If you wish to
edit a rule, click on its pencil icon in the Edit column. If you wish to create a new rule, click the
Add Rules button. Click Save when you are done. If you edit or create a rule, the following
options will appear:
Name: Enter a name for the rule. Alternatively, select the protocol/Application
from the drop-down menu.
Local IP: Enter the IP address of the computer on your local network that you
want to allow the incoming service to. Alternatively, select the device
from the drop-down menu.
Protocol: Select the protocol of the trac to allow or deny (TCP, UDP, Both,
or Other).
Protocol Number: If you entered Other above, enter the protocol number.
External Port: Enter the public port you want to open.
Internal Port: Enter the private port you want to open.
Schedule: Use the drop-down menu to select the time schedule that the rule
will be enabled on. The schedule may be set to Always Enable, or
you can create your own schedules in the Schedules section. Refer
to page 76 for more information.
Click Apply when you are done.
70D-Link DIR-869 User Manual
Section 4 - Conguration
Website Filter
The website lter settings allow you to block access to certain web sites. You can either create
a list of sites to block, or create a list of sites to allow (with all other sites being blocked).
In the Features menu on the bar on the top of the page, click Website Filter.
If you want to create a list of sites to block, select DENY computers access to ONLY these
sites from the drop-down menu. All other sites will be accessible. If you want to specify a
list of sites to allow, select ALLOW computers access to ONLY these sites from the drop-
down menu. All other sites will be blocked.
You may specify a maximum of fteen web sites. To add a new site to the list, click Create
New Rule. Next, under Website URL/Domain enter the URL or domain. If you wish to remove
a rule, click on its trashcan icon in the Delete column. If you wish to edit a rule, simply replace
the URL or domain.
Click Save when you are done.
71D-Link DIR-869 User Manual
Section 4 - Conguration
Static Routes
The Static Routes section allows you to dene custom routes to control how data trac is
moved around your network.
In the Features menu on the bar on the top of the page, click Static Routes.
To congure IPv6 rules, click IPv6 and refer to page 72. To return to the main IPv4 static
routes page, click IPv4.
If you wish to remove a rule, click on its trash can icon in the Delete column. If you wish
to edit a rule, click on its pencil icon in the Edit column. If you wish to create a new rule,
click the Add Rules button. Click Save when you are done. If you edit or create a rule, the
following options will appear:
Name: Enter a name for the rule.
Destination
Network:
Enter the IP address of packets that will take this route.
Mask: Enter the netmask of the route.
Gateway: Enter your next hop gateway to be taken if this route is used.
Metric: The route metric is a value from 1 to 16 that indicates the cost of using
this route. A value 1 is the lowest cost and 15 is the highest cost.
Interface: Select the interface that the IP packet must use to transit out of the
router when this route is used.
Click Apply when you are done.
72D-Link DIR-869 User Manual
Section 4 - Conguration
IPv6
To congure IPv6 rules, on the Static Routes page click IPv6. To return to the main IPv4 static
routes page, click IPv4.
If you wish to remove a rule, click on its trash can icon in the Delete column. If you wish
to edit a rule, click on its pencil icon in the Edit column. If you wish to create a new rule,
click the Add Rules button. Click Save when you are done. If you edit or create a rule, the
following options will appear:
Name: Enter a name for the rule.
DestNetwork: This is the IP address of the router used to reach the specified
destination.
PrexLen: Enter the IPv6 address prex length of the packets that will take this
route.
Gateway: Enter your next hop gateway to be taken if this route is used.
Metric: Enter the metric value for this rule here.
Interface: Select the interface that the IP packet must use to transit out of the
router when this route is used.
Click Apply when you are done.
73D-Link DIR-869 User Manual
Section 4 - Conguration
Dynamic DNS
Most Internet Service Providers (ISPs) assign dynamic (changing) IP addresses. Using a
dynamic DNS service provider, people can enter your domain name in their web browser
to connect to your server no matter what your IP address is.
In the Features menu on the bar on the top of the page, click Dynamic DNS.
At the bottom of the page are the IPv6 host settings. To congure an IPv6 dynamic DNS
host, refer to page 74.
Enable Dynamic
DNS:
Enabling dynamic DNS will reveal further conguration options.
Status: Displays the current dynamic DNS connection status.
Server Address: Enter the address of your dynamic DNS server, or select one from the
drop-down menu.
Host Name: Enter the host name that you registered with your dynamic DNS
service provider.
User Name: Enter your dynamic DNS username.
Password: Enter your dynamic DNS password.
Time Out: Enter a timeout time (in hours).
Click Save when you are done.
74D-Link DIR-869 User Manual
Section 4 - Conguration
The IPv6 host settings are found at the bottom of the Dynamic DNS page.
If you wish to remove a rule, click on its trash can icon in the Delete column. If you wish
to edit a rule, click on its pencil icon in the Edit column. If you wish to create a new rule,
click the Add Rules button. Click Save when you are done. If you edit or create a rule, the
following options will appear:
IPv6 Host
Host Name: Enter the host name that you registered with your dynamic DNS
service provider.
IPv6 Address: Enter the IPv6 address of the dynamic DNS server. Alternatively, select
the server device in the drop-down menu.
Click Apply when you are done.
75D-Link DIR-869 User Manual
Section 4 - Conguration
Management
Time & Schedule
Time

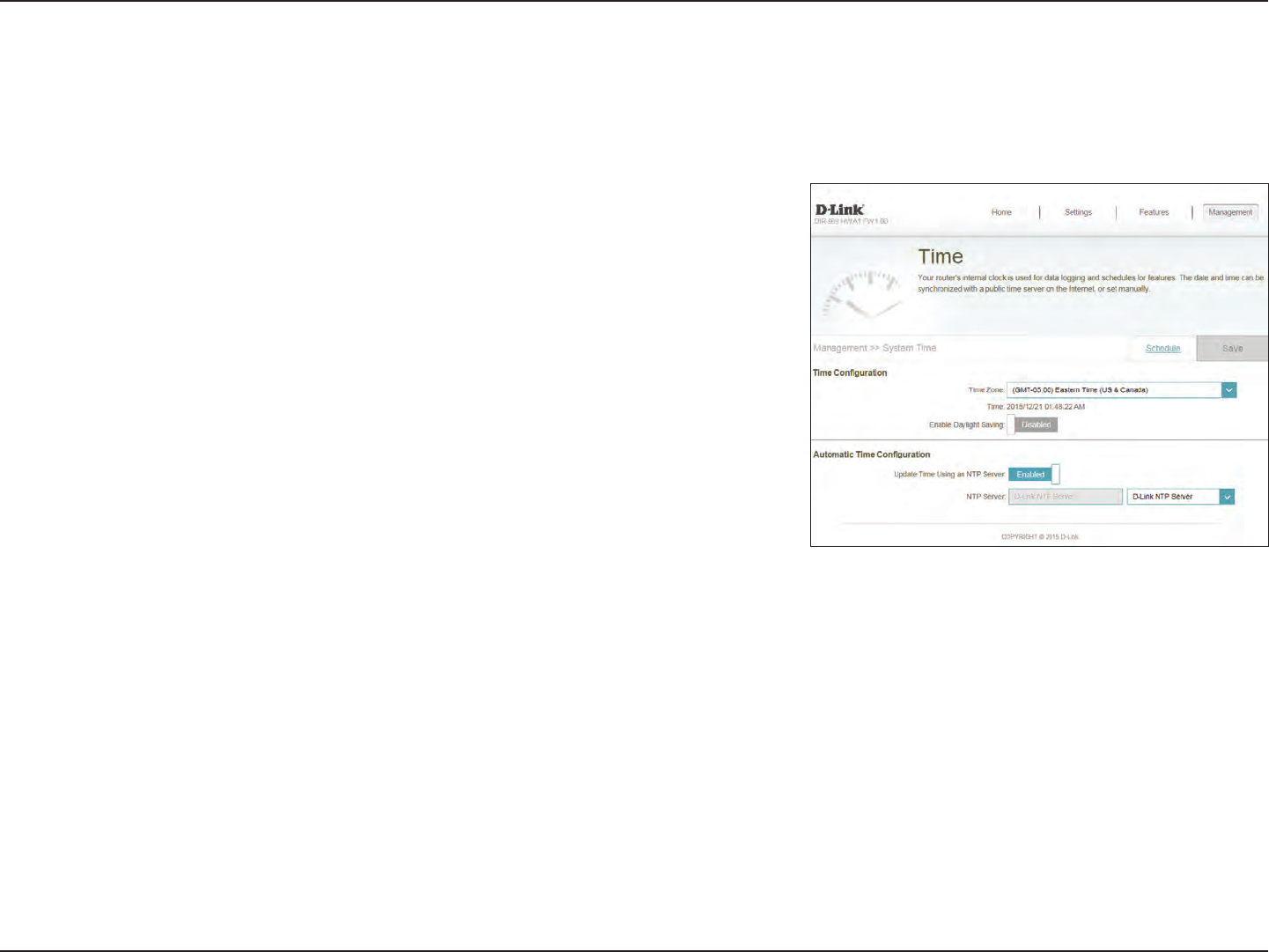

The Time page allows you to congure, update, and maintain the correct time on the internal
system clock. From here you can set the time zone, the Network Time Protocol (NTP) server,
and enable or disable daylight saving time.
In the Management menu on the bar on the top of the page, click Time & Schedule.
To congure and manage your schedules, click Schedule and refer to page 76.
Time Conguration
Time Zone: Select your time zone from the drop-down menu.
Time: Displays the current date and time of the router.
Daylight Saving: Enable or disable daylight saving time.
Automatic Time Conguration
Update Time
Using an NTP
Server:
Enable or disable to allow an NTP server on the Internet to synchronize
the time and date with your router. If you enable this option, select
an NTP server from the drop-down menu. To congure the router's
time and date manually, disable this option and use the drop-down
menus that appear to input the time and date.
Click Save when you are done.
Need Update disable
Screenshot
76D-Link DIR-869 User Manual
Section 4 - Conguration
Schedule
Some conguration rules can be set according to a pre-congured schedule. To create, edit, or
delete schedules, from the Time page click Schedule. To return to the Time page, click Time.
If you wish to remove a rule, click on its trash can icon in the Delete column. If you wish
to edit a rule, click on its pencil icon in the Edit column. If you wish to create a new rule,
click the Add Rules button. Click Save when you are done. If you edit or create a rule, the
following screen will appear:
First, enter the name of your schedule in the Name eld.
Each box represents one hour, with the time at the top of each column. To add a time period
to the schedule, simply click on the start hour and drag to the end hour. You can add multiple
days to the schedule, but only one period per day.
To remove a time period from the schedule, click on the cross icon.
Click Apply when you are done.
77D-Link DIR-869 User Manual
Section 4 - Conguration
System Log
The router keeps a running log of events. This log can be sent to a Syslog server, and sent
to your email address. In the Management menu on the bar on the top of the page, click
System Log.
SysLog Settings
Enable Logging to
Syslog Server:
Check this box to send the router logs to a SysLog Server. If this is
disabled, there will be no other options on this page.
Syslog Server IP
Address:
Enter the IP address for the Syslog server. If the Syslog server is
connected to the router, select it from the drop-down menu to
automatically populate the eld.
Email Settings
Enable Email
Notication:
If you want the logs to be automatically sent to an email address,
enable this option.
From E-mail
Address:
Enter the email address your SysLog messages will be sent from.
To E-mail Address: Enter the email address your SysLog messages will be sent to.
SMTP Server
Address:
Enter your SMTP server address.
78D-Link DIR-869 User Manual
Section 4 - Conguration

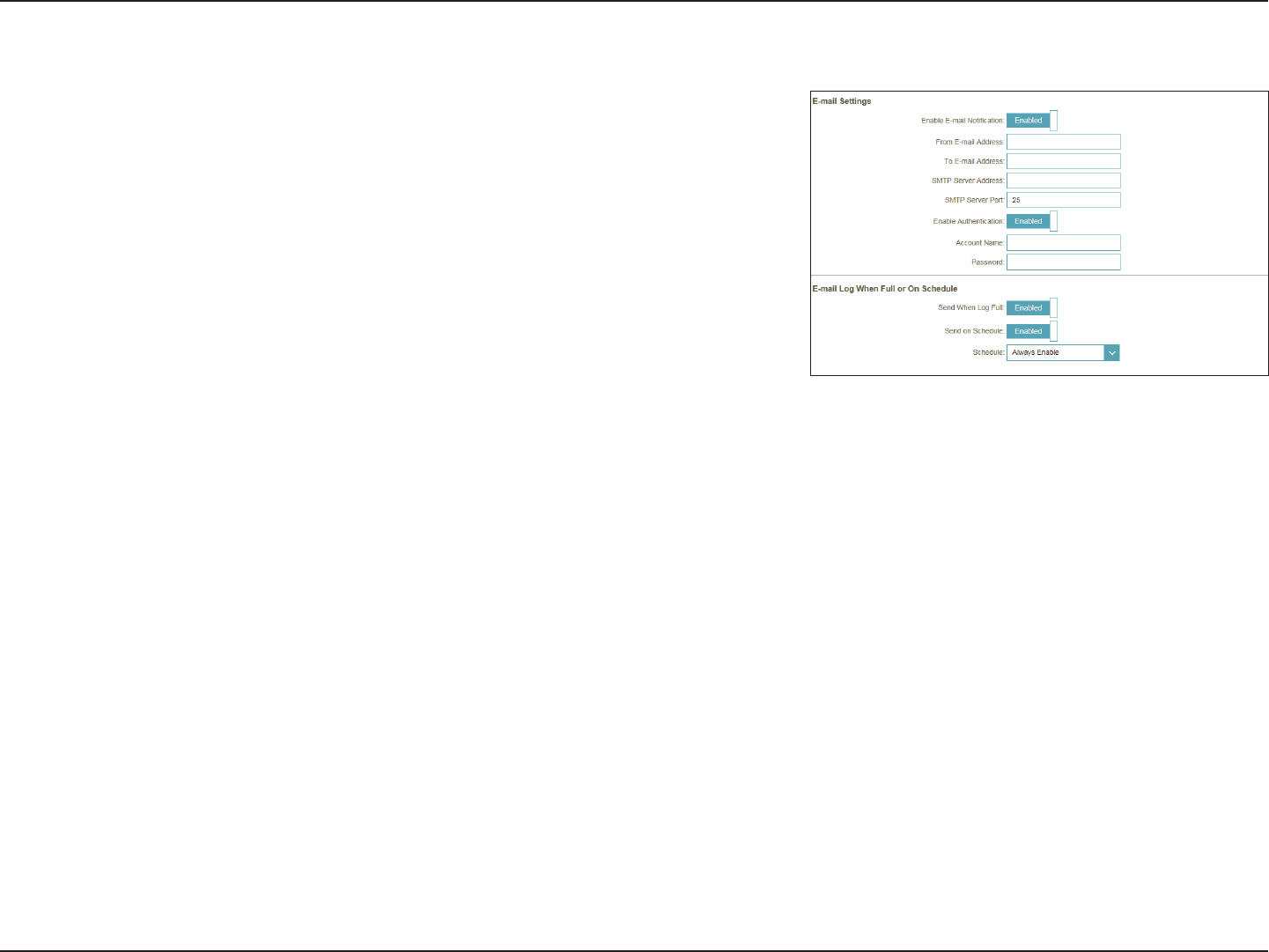

SMTP Server Port: Enter your SMTP server port.
Enable
Authentication:
Check this box if your SMTP server requires authentication.
Account Name: Enter your SMTP account name.
Password Enter your SMTP account name's password.
E-mail Log When Full or On Schedule
Send On
Schedule:
If email notication is enabled, this option will set the router to send
the log by email when the log is fully.
Schedule: This option can be enabled to send an email according to a
precongured schedule. See below.
If you enable On Schedule is enabled, use the drop-down menu to
select the time schedule that the rule will be enabled on. The schedule
may be set to Always Enable, or you can create your own schedules
in the Schedules section. Refer to page 76 for more information.
Click Save when you are done.
79D-Link DIR-869 User Manual
Section 4 - Conguration
Admin
This page will allow you to change the administrator (Admin) password and enable remote
management.
In the Management menu on the bar on the top of the page, click Admin.
To load, save, or reset settings, or reboot the router, click System and refer to page 80.
Admin Password
Password: Enter a new password for the administrator account. You will need to
enter this password whenever you congure the router using a web
browser.
Enable Graphical
Authentication
(CAPTCHA):
Enables a challenge-response test to require users to type letters or
numbers from a distorted image displayed on the screen to prevent
online hackers and unauthorized users from gaining access to your
router’s network settings.
Administration
Enable HTTPS
Server:
Check to enable HTTPS to connect to the router securely. Instead of using
http://dlinkrouter.local./, you must use https://dlinkrouter.local./ in
order to connect to the router.
Enable Remote
Management:
Remote management allows the DIR-869 to be congured from the
Internet by a web browser. A password is still required to access the web
management interface.
Remote Admin
Port:
The port number used to access the DIR-869 is used in the URL. Example:
http://x.x.x.x:8080 where x.x.x.x is the Internet IP address of the DIR-869
and 8080 is the port used for the web management interface.
Note: If you enabled HTTPS Server and wish to access the router remotely
and securely, you must enter https:// at the beginning of the address.
Click Save when you are done.
80D-Link DIR-869 User Manual
Section 4 - Conguration
System
This page allows you to save the router’s current conguration, load a previously saved
conguration, reset the router to its factory default settings, or reboot the router.
From the Admin page, click System. To return to the Admin page, click Admin.
Sytem
Save Settings To
Local Hard Drive:
This option will save the current router conguration settings to a le
on your computer.
Load Settings
From Local Hard
Drive:
This option will load a previously saved router conguration le. This will
overwrite the router’s current conguration.
Restore To Factory
Default Settings:
This option will restore all conguration settings back to the settings that
were in eect at the time the router was shipped from the factory. Any
settings that have not been saved will be lost, including any rules that
you have created. If you want to save the current router conguration
settings, use the Save Settings To Local Hard Drive button above.
Reboot The
Device:
Click to reboot the router immediately.
Click Save when you are done.
81D-Link DIR-869 User Manual
Section 4 - Conguration
Upgrade

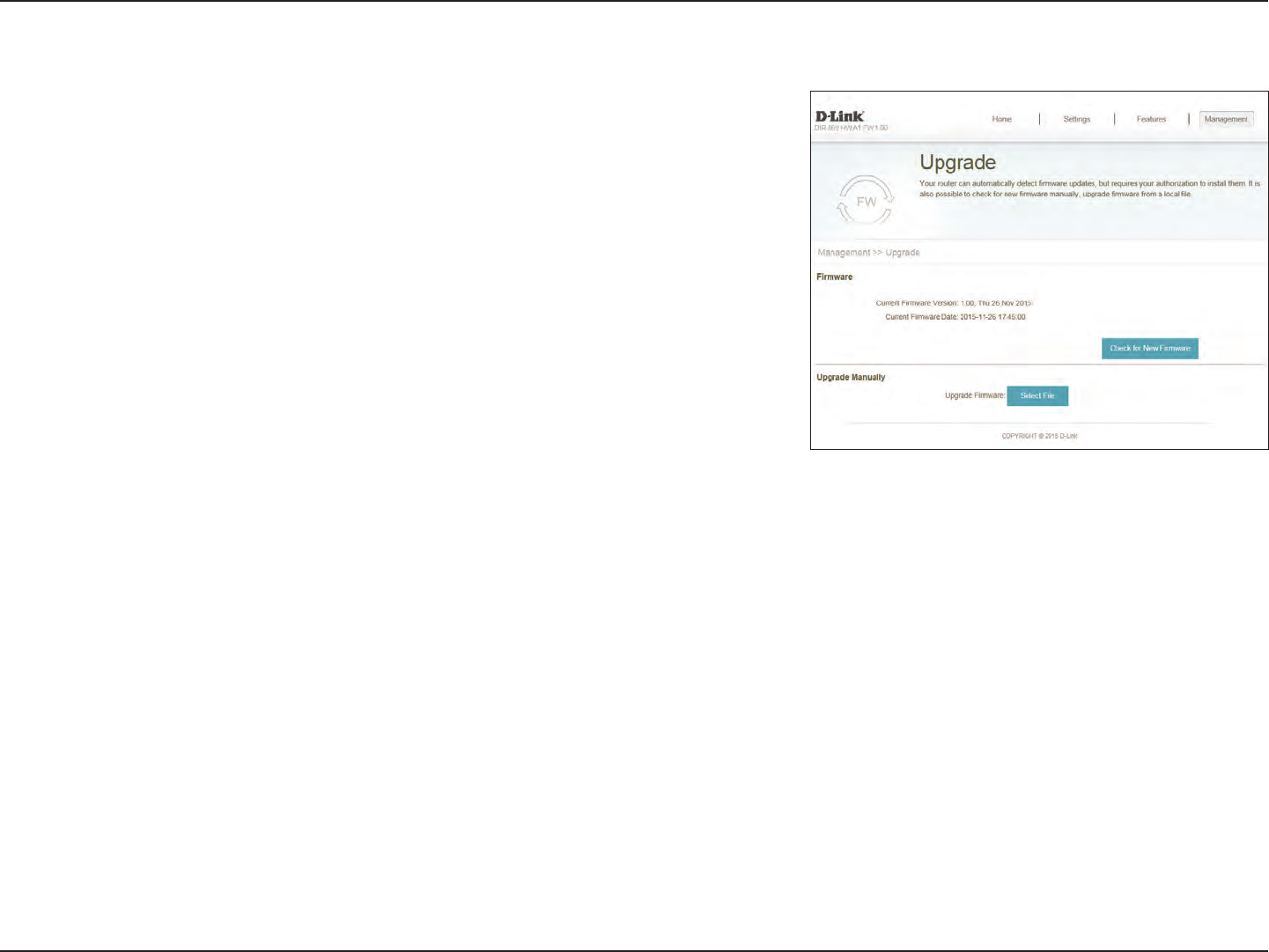

This page will allow you to upgrade the router’s firmware or language pack, either
automatically or manually. To manually upgrade the rmware or language pack, you must
rst download the relevant le from http://support.dlink.com.
In the Management menu on the bar on the top of the page, click Upgrade.
Firmware
Firmware
Information:
The current rmware’s version and date will be displayed.
Check for New
Firmware:
Click this button to prompt the router to automatically check for a new
rmware version. If a newer version is found, it will prompt you to install it.
Upgrade Manually
Upgrade
Firmware:
If you wish to upgrade manually, rst download the rmware le you wish
to upgrade to. Next, click the Upgrade Firmware button and browse to
the le to install the new rmware. You can also browse to a language
pack le to install a new language pack.
82D-Link DIR-869 User Manual
Section 4 - Conguration
Statistics
On the Statistics page you can view the amount of packets that pass through the router on
the WAN, LAN, and wireless segments.
In the Management menu on the bar on the top of the page, click Statistics.
You can view the Internet, LAN, Wi-Fi 2.4 GHz, or Wi-Fi 5 GHz by clicking on the respective
tabs at the top. The graph will update in real time. To clear the information on the graph,
click Clear.
The trac counter will reset if the device is rebooted.
83D-Link DIR-869 User Manual
Section 5 - Connecting to a Wireless Network
Connect a Wireless Client to your Router
WPS Button
Step 2 - Within 2 minutes, press the WPS button on your wireless device (or launch the software utility and start the WPS
process).
The easiest and most secure way to connect your wireless devices to the router is with WPS (Wi-Fi Protected Setup). Most
wireless devices such as wireless adapters, media players, Blu-ray DVD players, wireless printers and cameras will have a WPS
button (or a software utility with WPS) that you can press to connect to the DIR-869 router. Please refer to your user manual for
the wireless device you want to connect to make sure you understand how to enable WPS. Once you know, follow the steps
below:
Step 1 - Press the WPS button on the DIR-869 for about 1 second. The LED on the front will start to blink.
Step 3 - Allow up to 1 minute for your connection to be congured. Once the Internet light stops blinking, you will be
connected and your wireless connection will be secure with WPA2.
WPS Button
84D-Link DIR-869 User Manual
Section 4 - Connecting a Wireless Client
When connecting to the DIR-869 wirelessly for the rst time, you will need to input the wireless network name (SSID) and
Wi-Fi password (security key) of the device you are connecting to. If your product has a Wi-Fi conguration card, you can
nd the default network name and Wi-Fi password here. Otherwise refer to the product label for the default Wi-Fi network
SSID and password, or enter the Wi-Fi credentials set during the product conguration.
To join an existing network, locate the wireless network icon in the taskbar,
next to the time display and click on it.
Wireless Icon
Clicking on this icon will display a list of wireless networks which are within
range of your computer. Select the desired network by clicking on the SSID.
Windows® 10
85D-Link DIR-869 User Manual
Section 4 - Connecting a Wireless Client
To connect to the SSID, click Connect.
To automatically connect with the router when your device next detects the
SSID, click the Connect Automatically check box.
You will then be prompted to enter the Wi-Fi password (network security key)
for the wireless network. Enter the password into the box and click Next to
connect to the network. Your computer will now automatically connect to this
wireless network when it is detected.
You can also use Wi-Fi Protected Setup (WPS) to connect to the router.
Press the WPS button on your D-Link device and you will be automatically
connected.
86D-Link DIR-869 User Manual
Section 5 - Connecting to a Wireless Network
Windows® 8
WPA/WPA2
It is recommended that you enable wireless security (WPA/WPA2) on your wireless router or access point before conguring
your wireless adapter. If you are joining an existing network, you will need to know the security key (Wi-Fi password) being
used.
To join an existing network, locate the wireless network icon in the taskbar
next to the time display.
Wireless Icon
Clicking on this icon will display a list of wireless networks that are within
connecting proximity of your computer. Select the desired network by clicking
on the network name.
87D-Link DIR-869 User Manual
Section 5 - Connecting to a Wireless Network
You will then be prompted to enter the network security key (Wi-Fi password)
for the wireless network. Enter the password into the box and click Next.
If you wish to use Wi-Fi Protected Setup (WPS) to connect to the router, you
can also press the WPS button on your router during this step to enable the
WPS function.
When you have established a successful connection to a wireless network, the
word Connected will appear next to the name of the network to which you
are connected to.
88D-Link DIR-869 User Manual
Section 5 - Connecting to a Wireless Network
WPS
The WPS feature of the DIR-869 can be congured using Windows® 7. Carry out the following steps to use Windows® 7 to
congure the WPS feature:
1. Click the Start button and select Computer from the Start menu.
2. Click Network on the left side.
89D-Link DIR-869 User Manual
Section 5 - Connecting to a Wireless Network

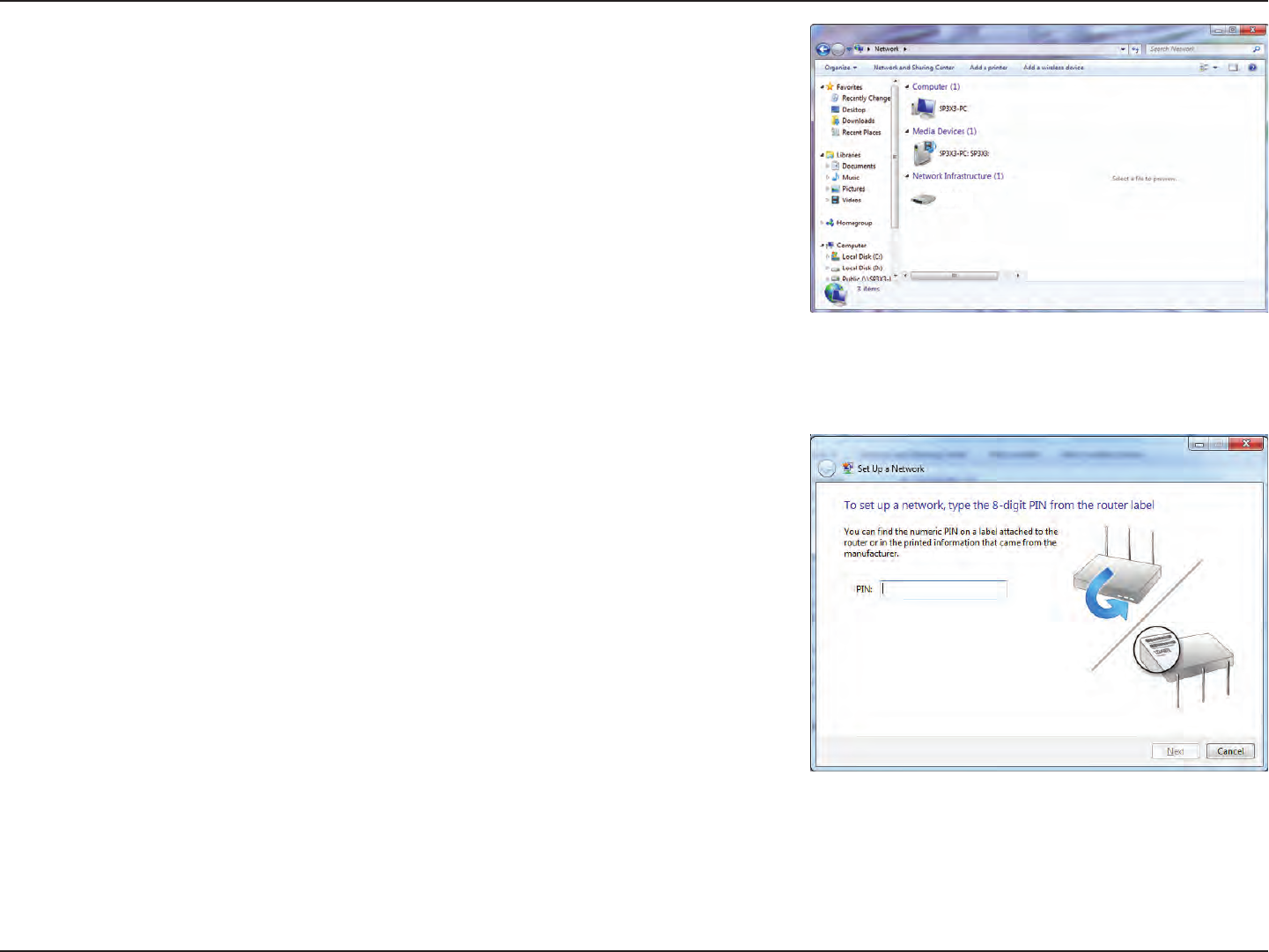

3. Double-click the DIR-869.
4. Input the WPS PIN number (on the router label) in the Setup >
Wireless Setup menu in the Router’s Web UI) and click Next.
DIR-869
90D-Link DIR-869 User Manual
Section 5 - Connecting to a Wireless Network
5. Type a name to identify the network.
6. To congure advanced settings, click the icon.
Click Next to continue.
91D-Link DIR-869 User Manual
Section 5 - Connecting to a Wireless Network
7. The following window appears while the Router is being congured.
Wait for the conguration to complete.
8. The following window informs you that WPS on the router has been set up
successfully.
Make a note of the security key as you may need to provide this security key
if adding an older wireless device to the network in the future.
9. Click Close to complete WPS setup.
92D-Link DIR-869 User Manual
Section 5 - Connecting to a Wireless Network
Windows Vista®
Windows Vista® users may use the built-in wireless utility. If you are using another company’s wireless utility, please refer to the
user manual of your wireless adapter for help connecting to a wireless network. Most wireless utilities will have a “site survey”
option similar to the Windows Vista® utility as seen below.
Right-click on the wireless computer icon in your system tray (lower-right
corner next to the time). Select Connect to a network.
If you receive the Wireless Networks Detected bubble, click on the center of
the bubble to access the utility.
or
The utility will display any available wireless networks in your area. Click on a
network (displayed using the SSID) and click the Connect button.
If you get a good signal but cannot access the Internet, check you TCP/IP
settings for your wireless adapter. Refer to the Networking Basics section in
this manual for more information.
93D-Link DIR-869 User Manual
Section 5 - Connecting to a Wireless Network
WPA/WPA2
It is recommended that you enable wireless security (WPA/WPA2) on your wireless router or access point before conguring
your wireless adapter. If you are joining an existing network, you will need to know the security key or passphrase being used.
2. Highlight the Wi-Fi name (SSID) you would like to connect to and click
Connect.
1. Open the Windows Vista® Wireless Utility by right-clicking on the wireless
computer icon in your system tray (lower right corner of screen). Select
Connect to a network.
94D-Link DIR-869 User Manual
Section 5 - Connecting to a Wireless Network
3. Enter the same security key or passphrase (Wi-Fi password) that is on your
router and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the security settings are correct. The key or
passphrase must be exactly the same as the one on the wireless router.
95D-Link DIR-869 User Manual
Section 6 - Troubleshooting
Troubleshooting
This chapter provides solutions to problems that can occur during the installation and operation of the DIR-869. Read the
following descriptions if you are having problems. The examples below are illustrated in Windows® XP. If you have a dierent
operating system, the screenshots on your computer will look similar to these examples.
1. Why can’t I access the web-based conguration utility?
When entering the IP address of the D-Link router (192.168.0.1 for example), you are not connecting to a website, nor do you
have to be connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your computer must
be on the same IP subnet to connect to the web-based utility.
• Make sure you have an updated Java-enabled web browser. We recommend the following:
- Microsoft Internet Explorer® 7 or higher
- Mozilla Firefox 3.5 or higher
- Google™ Chrome 8 or higher
- Apple Safari 4 or higher
• Verify physical connectivity by checking for solid link lights on the device. If you do not get a solid link light, try using a
dierent cable, or connect to a dierent port on the device if possible. If the computer is turned o, the link light may not be
on.
• Disable any Internet security software running on the computer. Software rewalls such as ZoneAlarm, BLACKICE, Sygate,
Norton Personal Firewall, and Windows® XP rewall may block access to the conguration pages. Check the help les
included with your rewall software for more information on disabling or conguring it.
96D-Link DIR-869 User Manual
Section 6 - Troubleshooting
• Congure your Internet settings:
• Go to Start > Settings > Control Panel. Double-click the Internet Options Icon. From the Security tab, click
the button to restore the settings to their defaults.
• Click the Connection tab and set the dial-up option to Never Dial a Connection. Click the LAN Settings button.
Make sure nothing is checked. Click OK.
• Go to the Advanced tab and click the button to restore these settings to their defaults. Click OK three times.
• Close your web browser (if open) and open it.
• Access the web management. Open your web browser and enter the IP address of your D-Link router in the address bar. This
should open the login page for your web management.
• If you still cannot access the conguration, unplug the power to the router for 10 seconds and plug back in. Wait about 30
seconds and try accessing the conguration. If you have multiple computers, try connecting using a dierent computer.
2. What can I do if I forgot my password?
If you forgot your password, you must reset your router. This process will change all your settings back to the factory defaults.
To reset the router, locate the reset button (hole) on the rear panel of the unit. With the router powered on, use a paperclip
to hold the button down for 10 seconds. Release the button and the router will go through its reboot process. Wait about 30
seconds to access the router. The default IP address is 192.168.0.1. When logging in, leave the password box empty.
97D-Link DIR-869 User Manual
Section 6 - Troubleshooting
3. Why can’t I connect to certain sites or send and receive emails when connecting through my router?
If you are having a problem sending or receiving email, or connecting to secure sites such as eBay, banking sites, and Hotmail,
we suggest lowering the MTU in increments of ten (Ex. 1492, 1482, 1472, etc).
To nd the proper MTU Size, you’ll have to do a special ping of the destination you’re trying to go to. A destination could be
another computer, or a URL.
• Click on Start and then click Run.
• Windows® 95, 98, and Me users type in command (Windows® NT, 2000, XP, Vista®, and 7 users type in cmd) and
press Enter (or click OK).
• Once the window opens, you’ll need to do a special ping. Use the following syntax:
ping [url] [-f] [-l] [MTU value]
Example: ping yahoo.com -f -l 1472
98D-Link DIR-869 User Manual
Section 6 - Troubleshooting
You should start at 1472 and work your way down by 10 each time. Once you get a reply, go up by 2 until you get a
fragmented packet. Take that value and add 28 to the value to account for the various TCP/IP headers. For example, lets say
that 1452 was the proper value, the actual MTU size would be 1480, which is the optimum for the network we’re working with
(1452+28=1480).
Once you nd your MTU, you can now congure your router with the proper MTU size.
To change the MTU rate on your router follow the steps below:
• Open your browser, enter the IP address of your router (192.168.0.1) and click OK.
• Enter your username (admin) and password (blank by default). Click OK to enter the web conguration page for
the device.
• Click on Setup and then click Manual Congure.
• To change the MTU, enter the number in the MTU eld and click Save Settings to save your settings.
• Test your email. If changing the MTU does not resolve the problem, continue changing the MTU in increments
of ten.
99D-Link DIR-869 User Manual
Appendix A - Wireless Basics
D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless
connectivity within your home, business, or public access wireless networks. Strictly adhering to the IEEE standard, the D-Link
wireless family of products will allow you to securely access the data you want, when, and where you want it. You will be able to
enjoy the freedom that wireless networking delivers.
A wireless local area network (WLAN) is a cellular computer network that transmits and receives data with radio signals
instead of wires. Wireless LANs are used increasingly in both home and oce environments, and public areas such as airports,
coee shops and universities. Innovative ways to utilize WLAN technology are helping people work, and communicate more
eciently. Increased mobility and the absence of cabling and other xed infrastructure have proven to be benecial for many
users.
Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop
systems support the same protocols as Ethernet adapter cards.
Under many circumstances, it may be desirable for mobile network devices to link to a conventional Ethernet LAN in order to
use servers, printers or an Internet connection supplied through the wired LAN. A wireless router is a device used to provide
this link.
Wireless Basics
100D-Link DIR-869 User Manual
Appendix A - Wireless Basics
What is Wireless?
Wireless or Wi-Fi technology is another way of connecting your computer to the network without using wires. Wi-Fi uses radio
frequency to connect wirelessly so you have the freedom to connect computers anywhere in your home or oce network.
Why D-Link Wireless?
D-Link is the worldwide leader and award winning designer, developer, and manufacturer of networking products.
D-Link delivers the performance you need at a price you can aord. D-Link has all the products you need to build your
network.
How does wireless work?
Wireless works similarly to how cordless phones work, through radio signals that transmit data from one point A to point B. But
wireless technology has restrictions as to how you can access the network. You must be within the wireless network range area
to be able to connect your computer. There are two dierent types of wireless networksl: Wireless Local Area Network (WLAN),
and Wireless Personal Area Network (WPAN).
Wireless Local Area Network (WLAN)
In a wireless local area network, a device called an Access Point (AP) connects computers to the network. The access point
has a small antenna attached to it, which allows it to transmit data back and forth over radio signals. With an indoor access
point the signal can travel up to 300 feet. With an outdoor access point the signal can reach out up to 30 miles to serve places
like manufacturing plants, industrial locations, university and high school campuses, airports, golf courses, and many other
outdoor venues.
101D-Link DIR-869 User Manual
Appendix A - Wireless Basics
Wireless Personal Area Network (WPAN)
Bluetooth is the industry standard wireless technology used for WPAN. Bluetooth devices in WPAN operate in a range up to 30
feet away.
Compared to WLAN the speed and wireless operation range are both less than WLAN, but in return it doesn’t use nearly as
much power. This makes it ideal for personal devices, such as mobile phones, PDAs, headphones, laptops, speakers, and other
devices that operate on batteries.
Who uses wireless?
Wireless technology as become so popular in recent years that almost everyone is using it, whether it’s for home, oce,
business, D-Link has a wireless solution for it.
Home Uses/Benets
• Gives everyone at home broadband access
• Surf the web, check email, instant message, etc.
• Gets rid of the cables around the house
• Simple and easy to use
Small Oce and Home Oce Uses/Benets
• Stay on top of everything at home as you would at oce
• Remotely access your oce network from home
• Share Internet connection and printer with multiple computers
• No need to dedicate oce space
102D-Link DIR-869 User Manual
Appendix A - Wireless Basics
Where is wireless used?
Wireless technology is expanding everywhere, not just at home or oce. People like the freedom of mobility and it’s becoming
so popular that more and more public facilities now provide wireless access to attract people. The wireless connection in public
places is usually called “hotspots”.
Using a D-Link CardBus adapter with your laptop, you can access the hotspot to connect to the Internet from remote locations
like: airports, hotels, coee shops, libraries, restaurants, and convention centers.
Wireless network is easy to setup, but if you’re installing it for the rst time it could be quite a task not knowing where to start.
That’s why we’ve put together a few setup steps and tips to help you through the process of setting up a wireless network.
Tips
Here are a few things to keep in mind, when you install a wireless network.
Centralize your router or access point
Make sure you place the router/access point in a centralized location within your network for the best performance. Try to
place the router/access point as high as possible in the room, so the signal gets dispersed throughout your home. If you have a
two-story home, you may need a repeater to boost the signal to extend the range.
Eliminate Interference
Place home appliances such as cordless telephones, microwaves, and televisions as far away as possible from the router/access
point. This would signicantly reduce any interference that the appliances might cause since they operate on same frequency.
Security
103D-Link DIR-869 User Manual
Appendix A - Wireless Basics
Don’t let your next-door neighbors or intruders connect to your wireless network. Secure your wireless network by turning on
the WPA or WEP security feature on the router. Refer to the product manual for detail information on how to set it up.
There are basically two modes of networking:
• Infrastructure – All wireless clients will connect to an access point or wireless router.
• Ad-hoc – Directly connecting to another computer for peer-to-peer communication using wireless network
adapters on each computer, such as two or more DIR-869 wireless network CardBus adapters.
An Infrastructure network contains an access point or wireless router. All the wireless devices, or clients, will connect to the
wireless router or access point.
An Ad-hoc network contains only clients, such as laptops with wireless CardBus adapters. All the adapters must be in Ad-hoc
mode to communicate.
Wireless Modes
104D-Link DIR-869 User Manual
Appendix B - Networking Basics
Networking Basics
Check your IP address
After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP
server (i.e. wireless router) automatically. To verify your IP address, please follow the steps below.
Click on Start > Run. In the run box type cmd and click OK. (Windows® 7/Vista® users type cmd in the Start Search box.)
At the prompt, type ipcong and press Enter.
This will display the IP address, subnet mask, and the
default gateway of your adapter.
If the address is 0.0.0.0, check your adapter
installation, security settings, and the settings on
your router. Some rewall software programs may
block a DHCP request on newly installed adapters.
105D-Link DIR-869 User Manual
Appendix B - Networking Basics
Statically Assign an IP address
If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps below:
Step 1
Windows® 7 - Click on Start > Control Panel > Network and Internet > Network and Sharing Center.
Windows Vista® - Click on Start > Control Panel > Network and Internet > Network and Sharing Center > Manage
Network
Connections.
Windows® XP - Click on Start > Control Panel > Network Connections.
Windows® 2000 - From the desktop, right-click My Network Places > Properties.
Step 2
Right-click on the Local Area Connection which represents your network adapter and select Properties.
Step 3
Highlight Internet Protocol (TCP/IP) and click Properties.
Step 4
Click Use the following IP address and enter an IP address that is on the same subnet
as your network or the LAN IP address on your router.
Example: If the router´s LAN IP address is 192.168.0.1, make your IP address 192.168.0.X
where X is a number between 2 and 99. Make sure that the number you choose is not
in use on the network. Set the Default Gateway the same as the LAN IP address of your
router (I.E. 192.168.0.1).
Set Primary DNS the same as the LAN IP address of your router (192.168.0.1). The
Secondary DNS is not needed or you may enter a DNS server from your ISP.
Step 5
Click OK twice to save your settings.
106D-Link DIR-869 User Manual
Appendix B - Networking Basics
Wireless Security
This section will show you the dierent levels of security you can use to protect your data from intruders. The DIR-869 oers the following
types of security:
• WPA2 (Wi-Fi Protected Access 2) • WPA2-PSK (Pre-Shared Key)
• WPA (Wi-Fi Protected Access) • WPA-PSK (Pre-Shared Key)
What is WPA?
WPA (Wi-Fi Protected Access), is a Wi-Fi standard that was designed to improve the security features of WEP (Wired Equivalent Privacy).
The 2 major improvements over WEP:
• Improved data encryption through the Temporal Key Integrity Protocol (TKIP). TKIP scrambles the keys using a hashing
algorithm and by adding an integrity-checking feature, ensures that the keys haven’t been tampered with. WPA2 is
based on 802.11i and uses Advanced Encryption Standard (AES) instead of TKIP.
• User authentication, which is generally missing in WEP, through the extensible authentication protocol (EAP). WEP
regulates access to a wireless network based on a computer’s hardware-specic MAC address, which is relatively simple
to be snied out and stolen. EAP is built on a more secure public-key encryption system to ensure that only authorized
network users can access the network.
WPA-PSK/WPA2-PSK uses a passphrase or key to authenticate your wireless connection. The key is an alpha-numeric password between
8 and 63 characters long. The password can include symbols (!?*&_) and spaces. This key must be the exact same key entered on your
wireless router or access point.
WPA/WPA2 incorporates user authentication through the Extensible Authentication Protocol (EAP). EAP is built on a more secure public
key encryption system to ensure that only authorized network users can access the network.
107D-Link DIR-869 User Manual
Appendix C - Technical Specications
Technical Specications
Hardware Specications
• LAN Interface: Four 10/100/1000 Mbps LAN ports
• WAN Interface: One 10/100/1000 Mbps Internet port
• Wireless Interface (2.4 GHz): IEEE 802.11n/g/b
• Wireless Interface (5 GHz): IEEE 802.11 ac/n/a
Operating Voltage
• Input: 100~240 V AC, 50~60 Hz
• Output: 12 V DC, 1.5 A
Temperature
• Operating: 0 ~ 40 oC (32 ~ 104 oF)
• Non-Operating: -20 ~ 65 oC (-20 ~ 149 oF)
Humidity
• Operating: 10% - 90% non-condensing
• Non-Operating: 5% - 95% non-condensing
Wireless Frequency Range
• IEEE 802.11a: 5150 MHz~5250 MHz, 5725 MHz~5850 MHz
• IEEE 802.11b: 2400 MHz~2483.5 MHz
• IEEE 802.11g: 2400 MHz~2483.5 MHz
• IEEE 802.11n: 2400 MHz~2483.5 MHz, 5150 MHz~5250 MHz, 5725
MHz~5850 MHz
• IEEE 802.11ac: 5150 MHz~5250 MHz, 5725 MHz~5850 MHz
Wireless Bandwidth Rate
• IEEE 802.11a: 54, 48, 36, 24, 18, 12, 9, and 6 Mbps
• IEEE 802.11b: 11, 5.5, 2, and 1 Mbps
• IEEE 802.11g: 54, 48, 36, 24, 18, 12, 9, and 6 Mbps
• IEEE 802.11n: 6.5 to 450 Mbps
• IEEE 802.11ac: 6.5 to 1300 Mbps
Antenna Type
• Four external antennas
Wireless Security
• 64/128bit WEP, WPA/WPA2-Personal, WPS-PBC
EMI/EMC Certication
• CE
• FCC
• IC
• BSMI
• CCC
RF Certication
• CE
• FCC
• IC
• NCC
Safety Certication
• CSA
• CCC
• BSMI
Dimensions & Weight
• 221.52 x 160.15 x 60.36 mm (8.72 x 6.30 x 2.38 inches)
• 432 g (15.24 ounces)
108D-Link DIR-869 User Manual
Appendix D - Regulatory Information
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to
correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Non-modications Statement:
Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate this
equipment.
Caution:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and
its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-
transmitter product procedures.
Note
The country code selection is for non-USA models only and is not available to all USA models. Per FCC regulations, all WiFi product marketed in
the USA must be xed to USA operational channels only.
Regulatory Statements
It is restricted to indoor environments only.
109D-Link DIR-869 User Manual
Appendix D - Regulatory Information
IMPORTANT NOTICE:
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20 cm between the radiator and your body.
Industry Canada Statement:
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux
deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si lebrouillage est susceptible d'en compromettre le
fonctionnement.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible.
Pour les produits disponibles aux États-Unis / Canada du marché, seul le canal 1 à 11 peuvent être exploités. Sélection d'autres canaux n'est pas
possible.
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance
with IC multi-transmitter product procedures.
Cet appareil et son antenne (s) ne doit pas être co-localisés ou fonctionnement en association avec une autre antenne ou transmetteur.
The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile
satellite systems;
Les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur an de réduire les risques
de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;
The maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p.
limits specied for point-to-point and non-point-to-point operation as appropriate;
Pour les dispositifs munis d'antennes amovibles, le gain maximal d'antenne permis (pour les dispositifs utilisant la bande de 5725 à 5850 MHz)
doit être conforme à la limite de la p.i.r.e. spéciée pour l'exploitation point à point et l'exploitation non point à point, selon le cas;
110D-Link DIR-869 User Manual
Appendix D - Regulatory Information
Radiation Exposure Statement
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 20 cm between the radiator and your body.
Déclaration d'exposition aux radiations
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit
être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
This radio transmitter DIR-869A1 has been approved by Industry Canada to operate with the antenna types listed below with the maximum
permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater
than the maximum gain indicated for that type, are strictly prohibited for use with this device.
Le présent émetteur radio DIR-869A1 a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et
ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont
le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.
Table for Filed Antenna
Ant. Brand Model Name Antenna Type Connector 2.4 G Gain (dBi) 5 G Gain (dBi)
1Nienyi NYS1811 PCB Antenna 5G ipex/2.4G Stripped 3 dBi 3 dBi
2Nienyi NYS1812 PCB Antenna 5G ipex/2.4G Stripped 3 dBi 3 dBi
3Nienyi NYS1813 PCB Antenna ipex 3 dBi 3 dBi
4Nienyi NYS1814 PCB Antenna Stripped 2.5 dBi 2.5 dBi
