D-Link Wireless ADSL2/2+ 4-port Ethernet Router 2007/3/22PM 04:50
User Manual
Version 1.2
Document #: BD-ZU0026-12 61

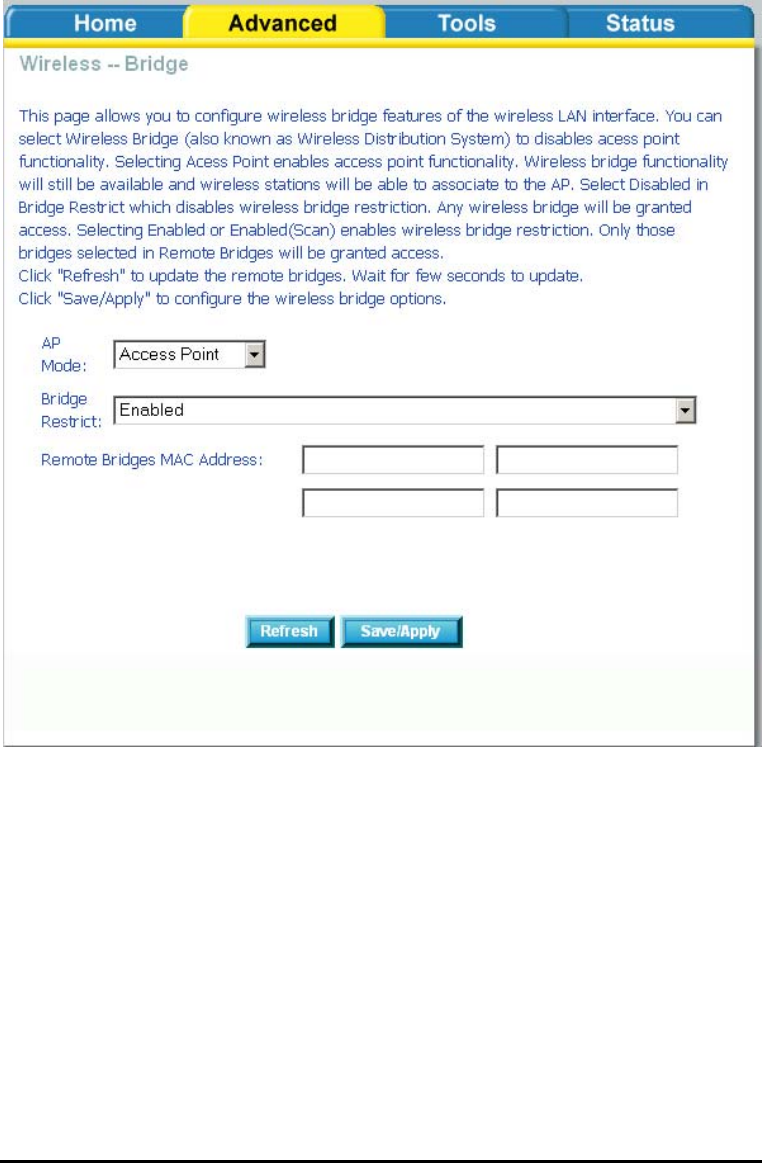

Wireless—Bridge
In this next screen, you can select which mode you want the router to be in, either
access point or wireless bridge. If you enable bridge restrict, then enter the MAC
addresses of the remote bridges. If you disable the bridge restrict function, then
there are no MAC addresses to enter. Click on Save / Apply to save and continue.
D-Link Wireless ADSL2/2+ 4-port Ethernet Router 2007/3/22PM 04:50
User Manual
Version 1.2
Document #: BD-ZU0026-12 62

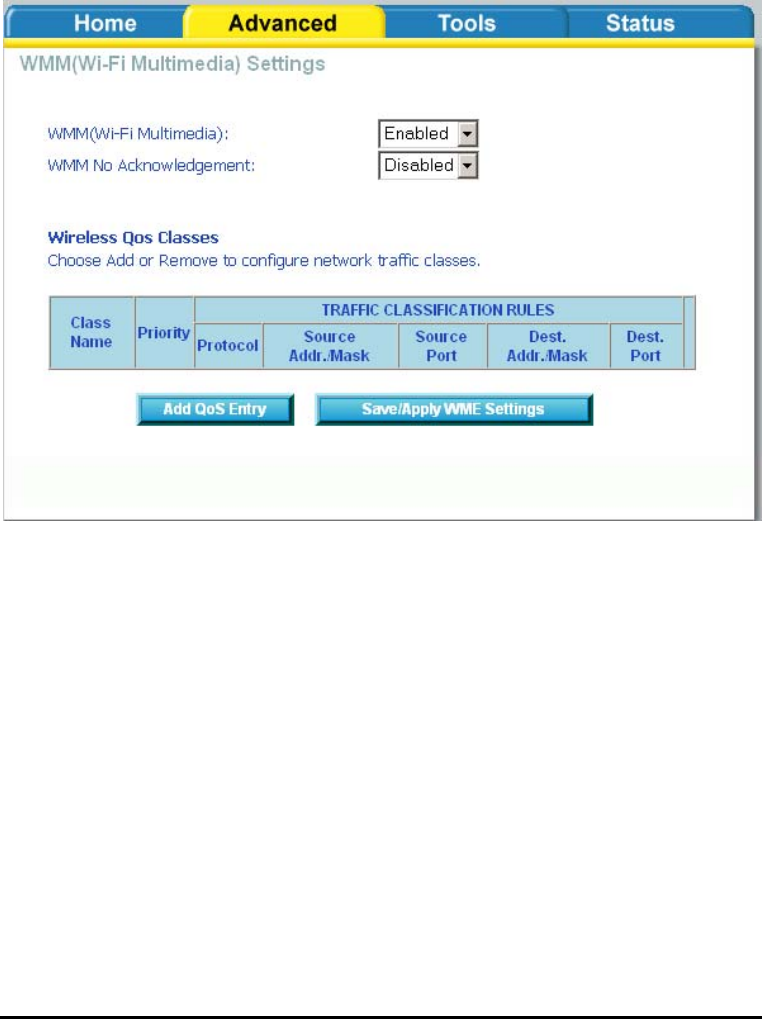

Wireless—QoS
WMM (Wi-Fi Multimedia) technology is available on the wireless router, allowing you
to give multimedia applications a higher quality of service and priority in a wireless
network so applications such as videos will be of higher quality. Enabling WMM may
delay the network traffic of other lower assigned quality applications.
WMM No Acknowledgement can be enabled if you enable WMM which refers to the
acknowledgement policy used at the MAC level.
To create a QoS entry, click the Add QoS Entry button to proceed to add or remove
traffic class rules for your network. Click on Save/Apply WME Settings.
D-Link Wireless ADSL2/2+ 4-port Ethernet Router 2007/3/22PM 04:50
User Manual
Version 1.2
Document #: BD-ZU0026-12 63
Tools
The tools section contains various administrator functions to maintain your router.
Sections include the following—Admin, Time, Remote Log, System, Firmware, and
Test.
• Admin: Allows you to change the password for the various user
names available
• Time: Allows you to set the router’s time
• Remote Log: Allows you to view logs of the router’s activities
• System: Allows you to perform functions such as save / reboot,
backup, update settings, and restore default settings
• Firmware: Allows you to upgrade your router with new available
firmware versions
• Test: Allows you to view test information for your Internet
connection

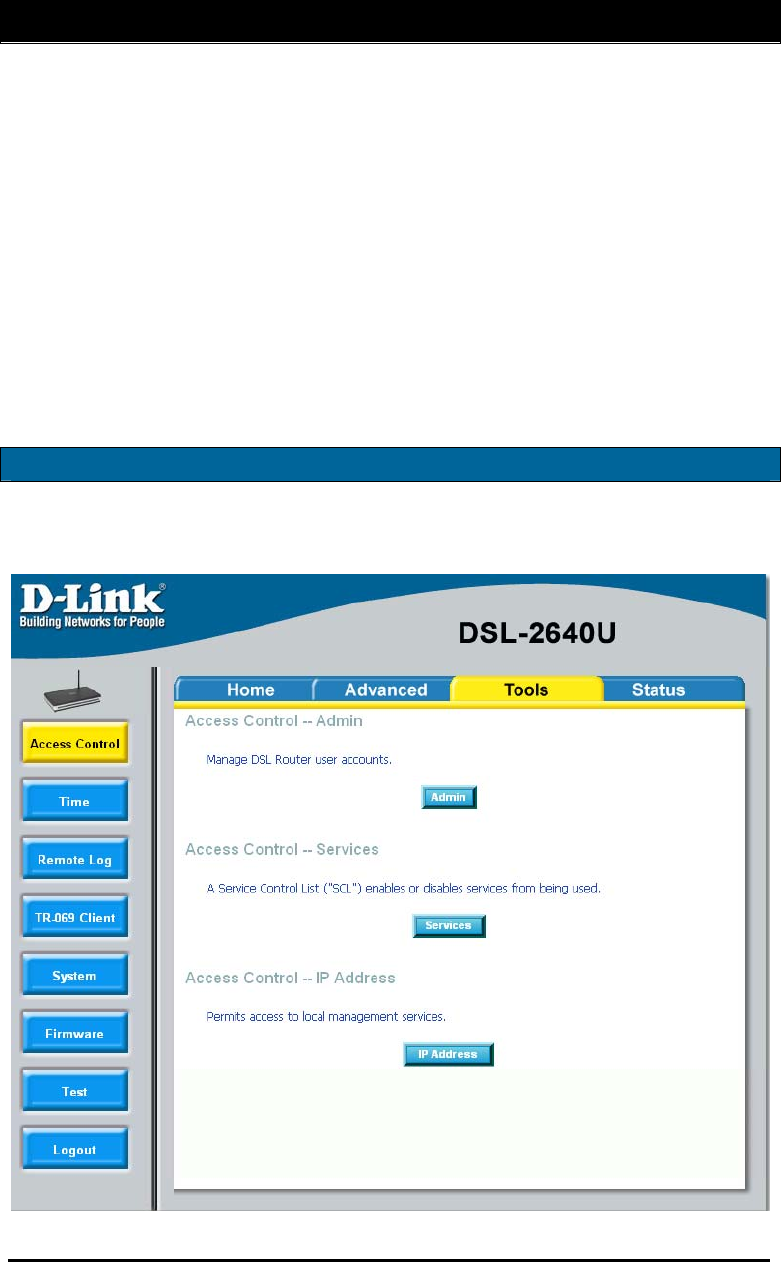

Access Control
You can enable or disable some services of your router by LAN or WAN. If no WAN
connection is defined, only the LAN side can be configured.
D-Link Wireless ADSL2/2+ 4-port Ethernet Router 2007/3/22PM 04:50
User Manual
Version 1.2
Document #: BD-ZU0026-12 64

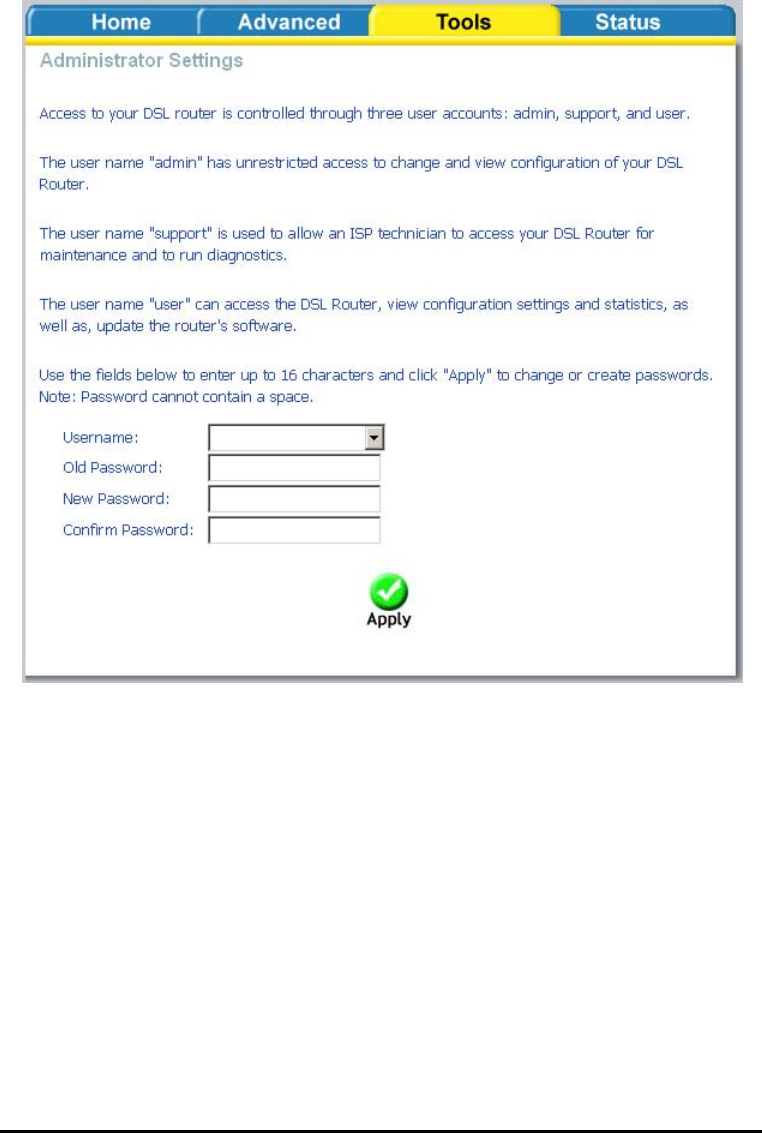

Access Control—Admin
Three user names and passwords—admin, support, and user—can be used to
control your router. The passwords for these user names can be changed on the
following screen. Enter the user name followed by the old password and the new
password that you wish to change to.
D-Link Wireless ADSL2/2+ 4-port Ethernet Router 2007/3/22PM 04:50
User Manual
Version 1.2
Document #: BD-ZU0026-12 65

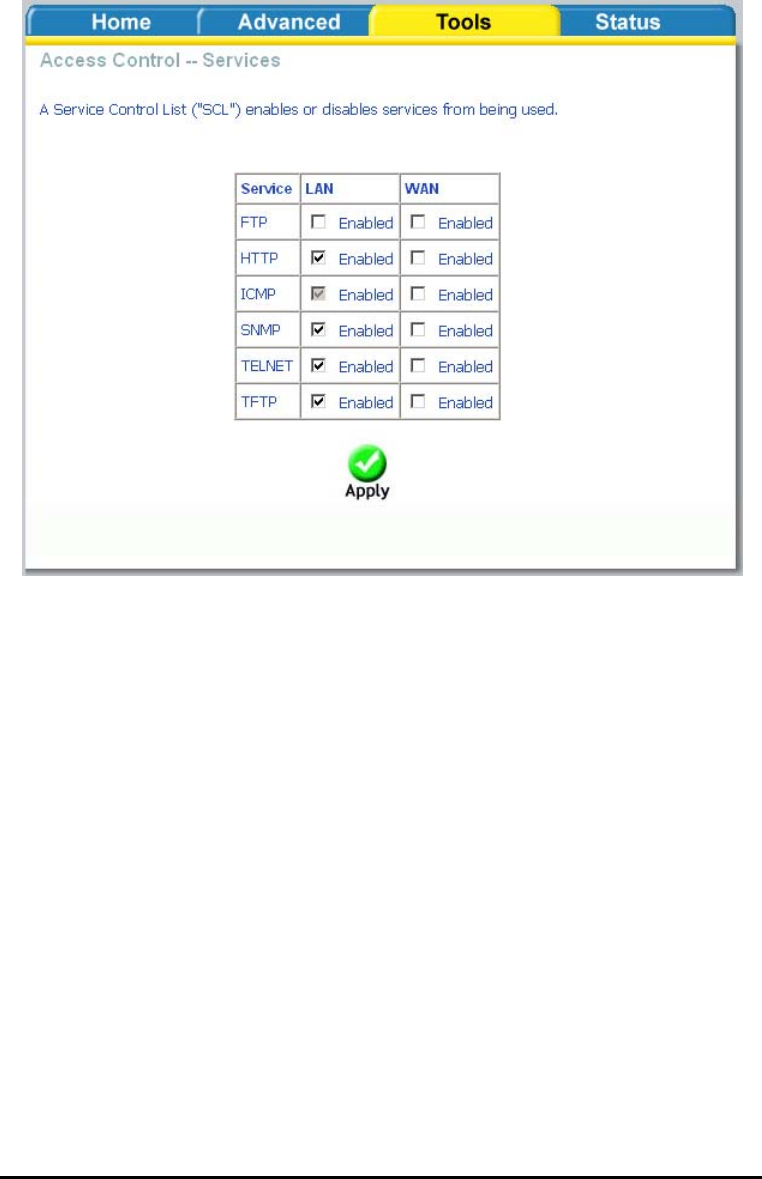

Access Control—Services
Services that can be enabled / disabled on the LAN / WAN are FTP, HTTP, ICMP,
SNMP, Telnet, and TFTP.
Access Control—IP Address
Web access to the router can be limited when Access Control Mode is enabled. The
IP addresses of allowed hosts can be added using Access Control IP Address. →
Add the IP address to the IP address list by clicking on the Add button, then select
“Enabled” to enable Access Control Mode.
D-Link Wireless ADSL2/2+ 4-port Ethernet Router 2007/3/22PM 04:50
User Manual
Version 1.2
Document #: BD-ZU0026-12 66
To assign the IP address of the management station that is permitted to access the
local management services, enter the IP address in the box and click on the Apply
button.
D-Link Wireless ADSL2/2+ 4-port Ethernet Router 2007/3/22PM 04:50
User Manual
Version 1.2
Document #: BD-ZU0026-12 67

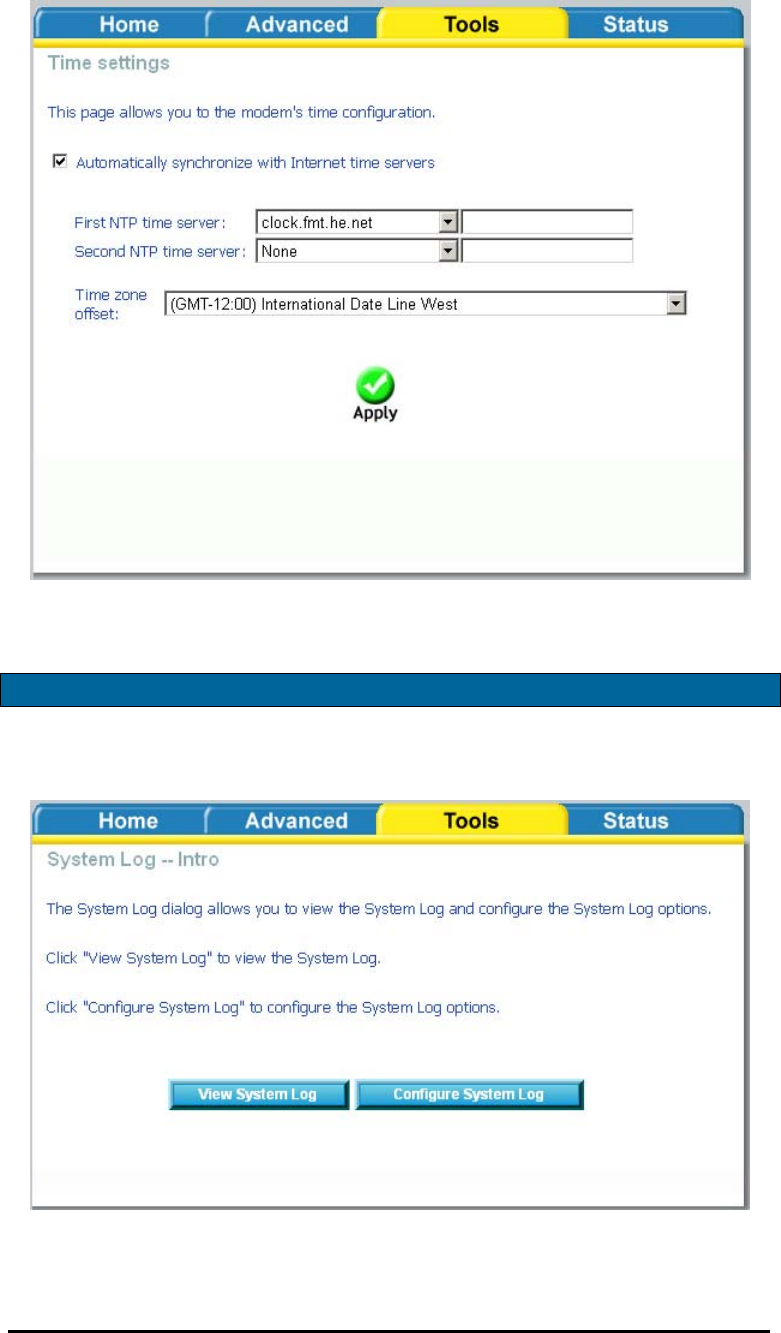

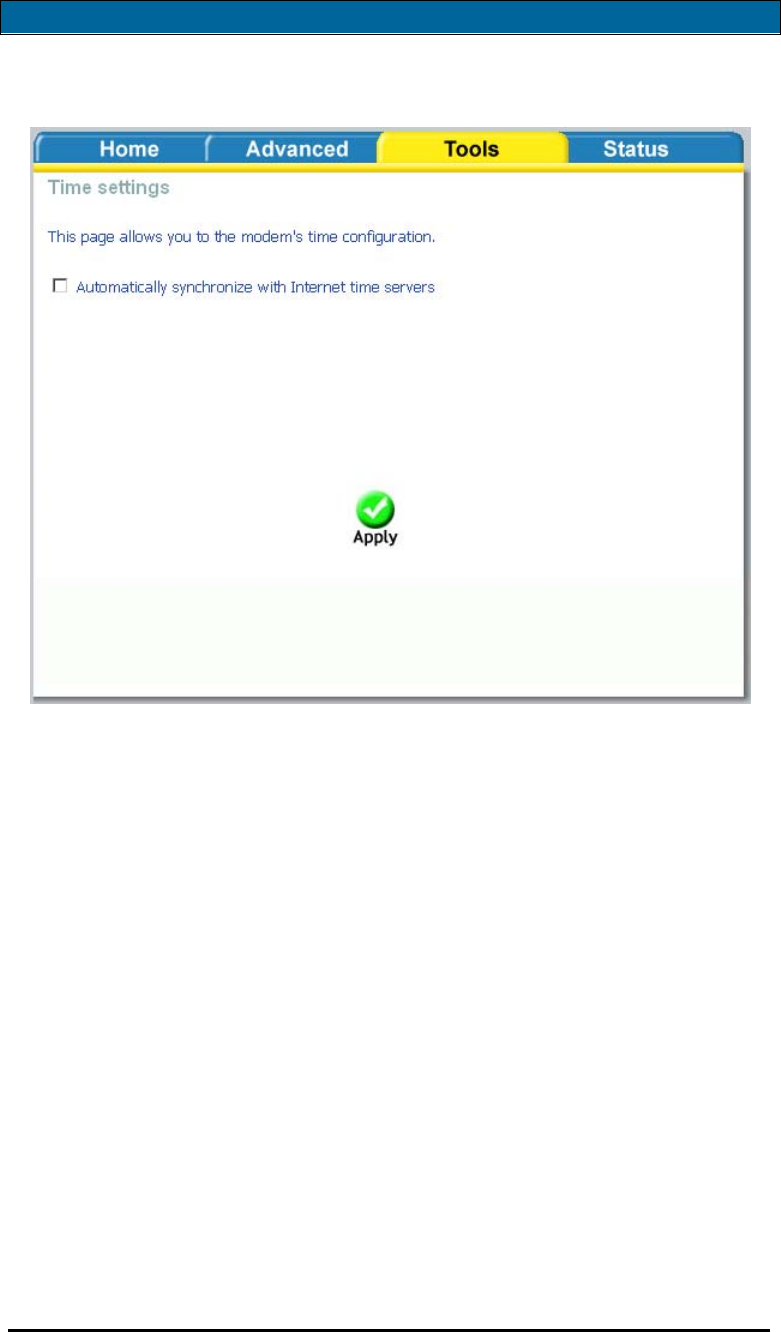

Time
The Time Settings page allows you to automatically synchronize your time with a
time server on the Internet.
If you choose to set the router’s time, click on the “automatically synchronize with
Internet time servers” checkbox and the below fields appear.
D-Link Wireless ADSL2/2+ 4-port Ethernet Router 2007/3/22PM 04:50
User Manual
Version 1.2
Document #: BD-ZU0026-12 68
Select from the list of NTP (Network Time Protocol) time servers. Then select the
time zone that you are in and click on Apply to save.
Remote Log
The Log dialog allows you to view and configure the log. To view the log, click on
the View System Log button.

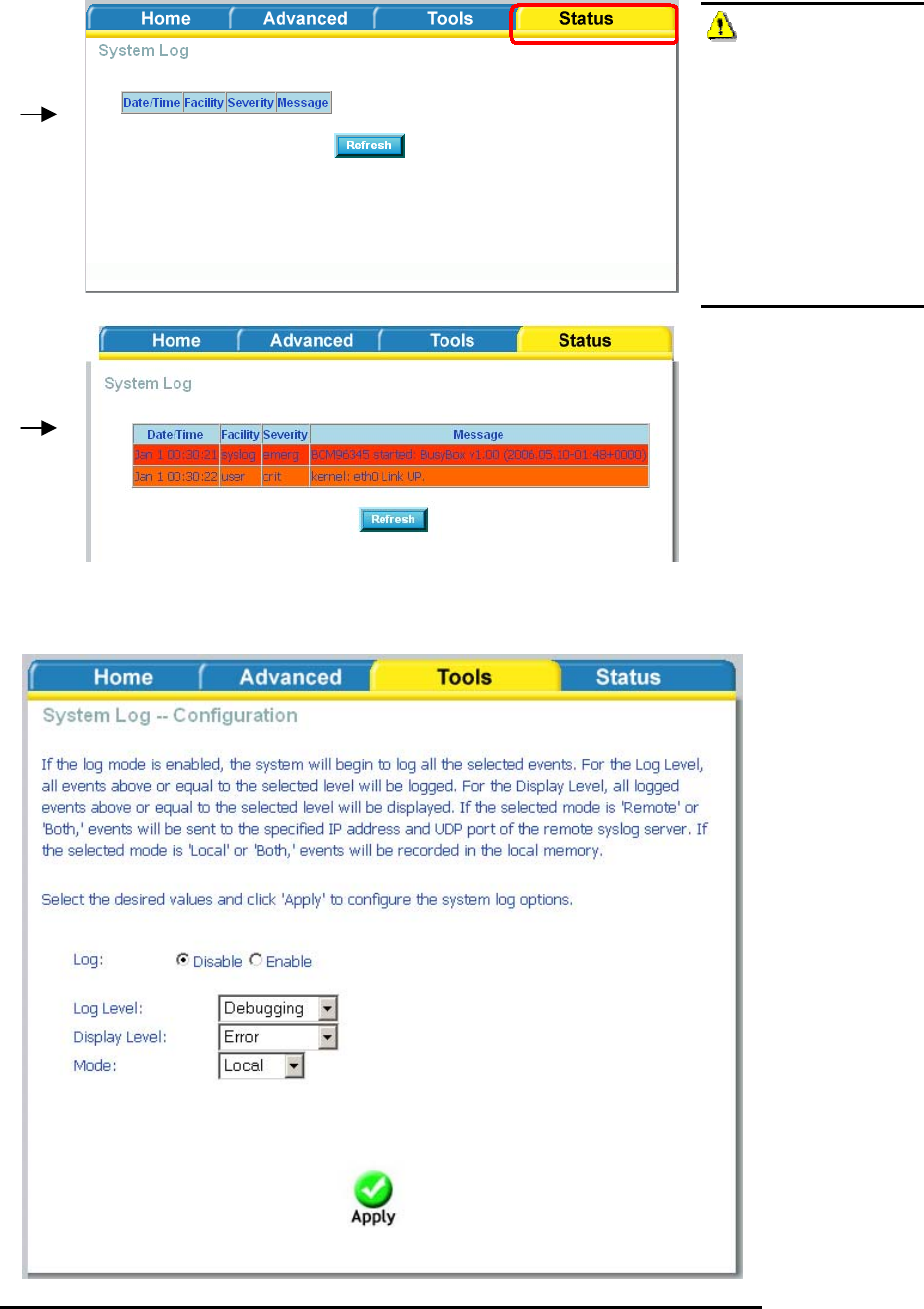

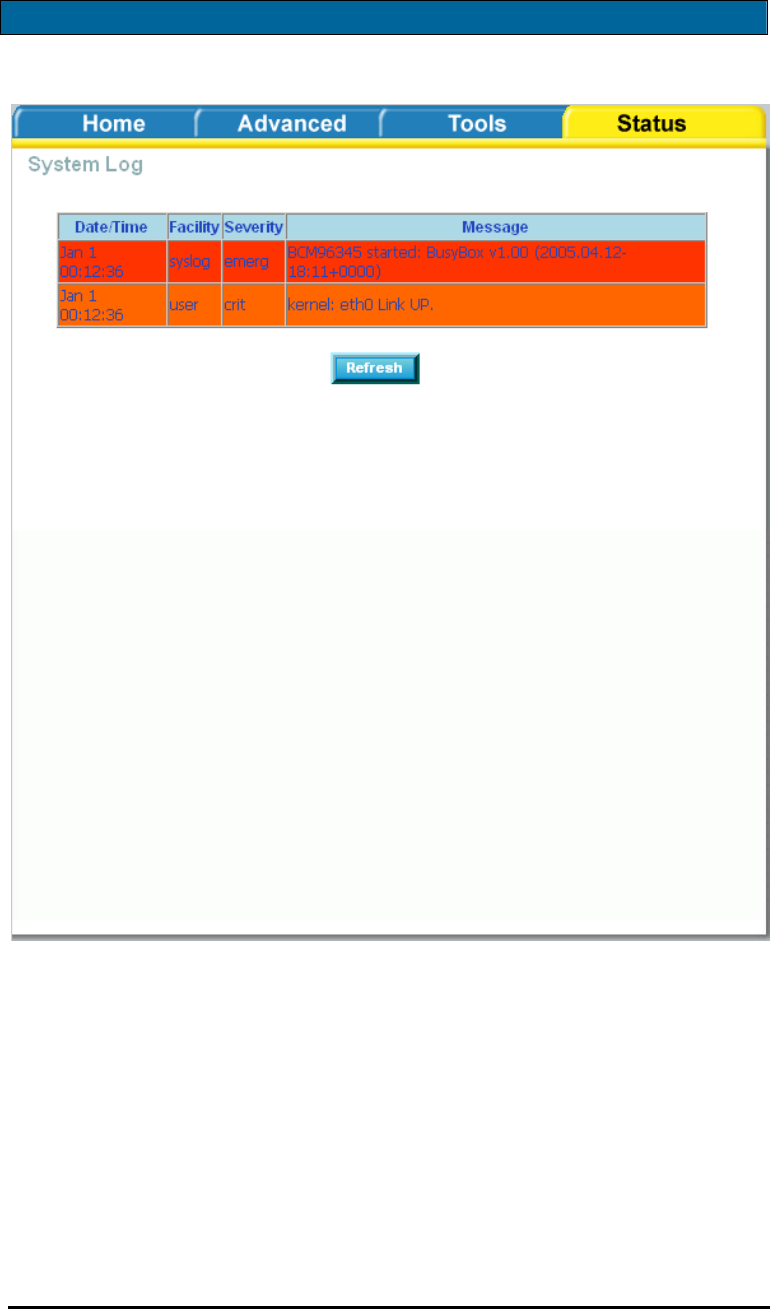

Below is the System Log screen which shows the date/time of the log, the facility
that was logged, the severity level and the log message. Click on Refresh to view
any new information that is logged.
D-Link Wireless ADSL2/2+ 4-port Ethernet Router 2007/3/22PM 04:50
User Manual
Version 1.2
Document #: BD-ZU0026-12 69
To configure the system log settings, click on the Configure System Log button to
view the following screen.
NOTE: When you
click on the View System
Log button, the System
Log screen that you access
will be located under the
Status section (see screen
on left). To return to the
p
revious screen to
configure system log,
remember to click on the
Tools tab (located on top
row) first and then click on
Remotelog.
System Log when log
mode is ENABLED
System Log when log
mode is DISABLED
D-Link Wireless ADSL2/2+ 4-port Ethernet Router 2007/3/22PM 04:50
User Manual
Version 1.2
Document #: BD-ZU0026-12 70
If the log is enabled, the system will log selected events including Emergency, Alert,
Critical, Error, Warning, Notice, Informational, and Debugging. All events above or
equal to the selected log level will be logged and displayed.
If the selected mode is “Remote” or “Both”, events will be sent to the specified IP
address and UDP port of a remote system log server. If the selected mode is “Local”
or “Both”, events will be recorded in the local memory. Select the desired values
and click on Apply to configure the system log options.

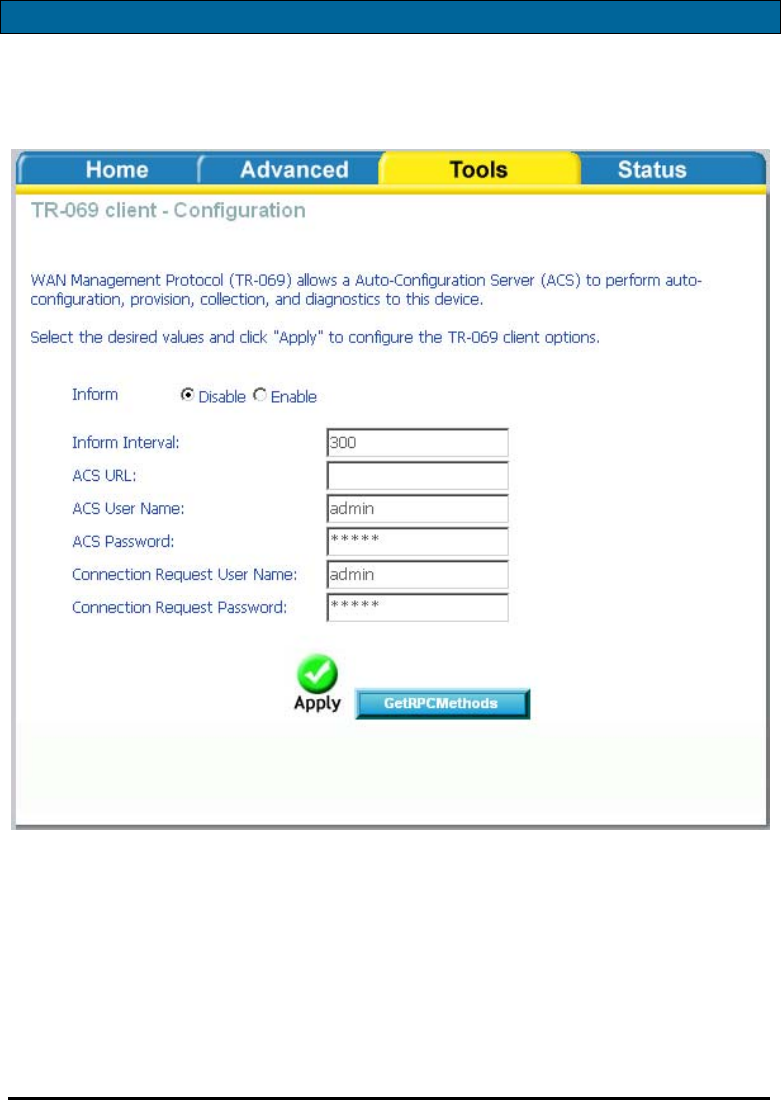

TR-069 Client
The router includes a TR-069 client, a WAN management protocol. All the values
are already filled in. If you wish to enable this protocol, then select enable. You
must click on the Apply button for the setting to take place.
D-Link Wireless ADSL2/2+ 4-port Ethernet Router 2007/3/22PM 04:50
User Manual
Version 1.2
Document #: BD-ZU0026-12 71
System
The system section includes several tools on one page, including save and reboot,
backup settings, update settings, and restore default settings.
Save and Reboot
To save all configurations made, click on the Save/Reboot button. This will save
all your settings and restart the router for the settings to take effect.
When completed, the below pop-up window will appear confirmation that the
router has been rebooted.

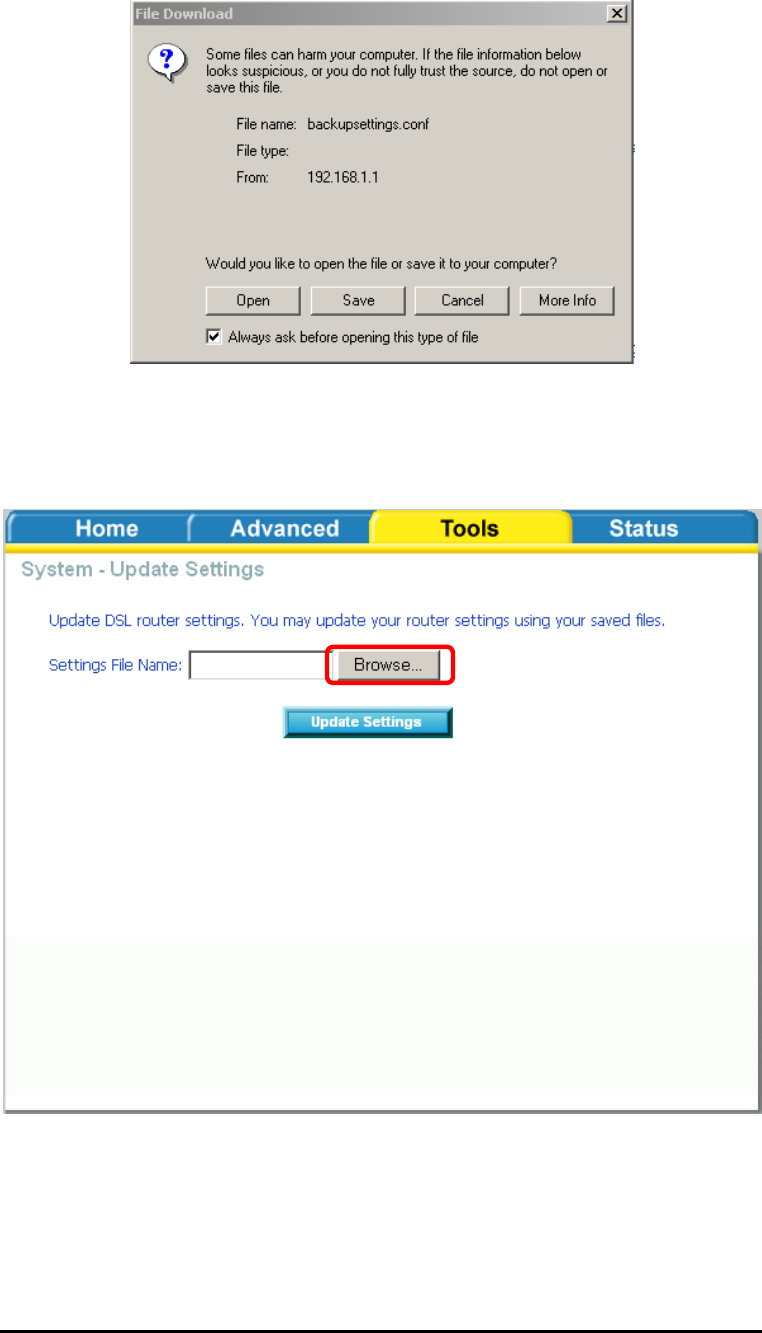

Backup Settings
To save your configurations in a file on your computer so that it may be accessed
again later if your current settings are changed, click on the Backup Settings
button. The below pop-up screen will appear with a prompt to open or save the
file to your computer.
D-Link Wireless ADSL2/2+ 4-port Ethernet Router 2007/3/22PM 04:50
User Manual
Version 1.2
Document #: BD-ZU0026-12 72
Update Settings
To load a previously saved configuration file onto your router, click Browse and
select the file on your computer and then click on Update Settings.
The router will restore settings and reboot to activate the restored settings.
Restore Default Settings
Restore Default will delete all current settings and restore the router to factory
default settings. Click on the Restore Default Settings button to proceed. The
D-Link Wireless ADSL2/2+ 4-port Ethernet Router 2007/3/22PM 04:50
User Manual
Version 1.2
Document #: BD-ZU0026-12 73
following confirmation dialog will appear confirming your decision to restore
default settings. Click on OK to continue.
Click on the OK button to start. The below screen will appear with the progress of
restoring the default settings.
When completed, the below pop-up window will appear confirmation that the
router has been rebooted.
D-Link Wireless ADSL2/2+ 4-port Ethernet Router 2007/3/22PM 04:50
User Manual
Version 1.2
Document #: BD-ZU0026-12 74

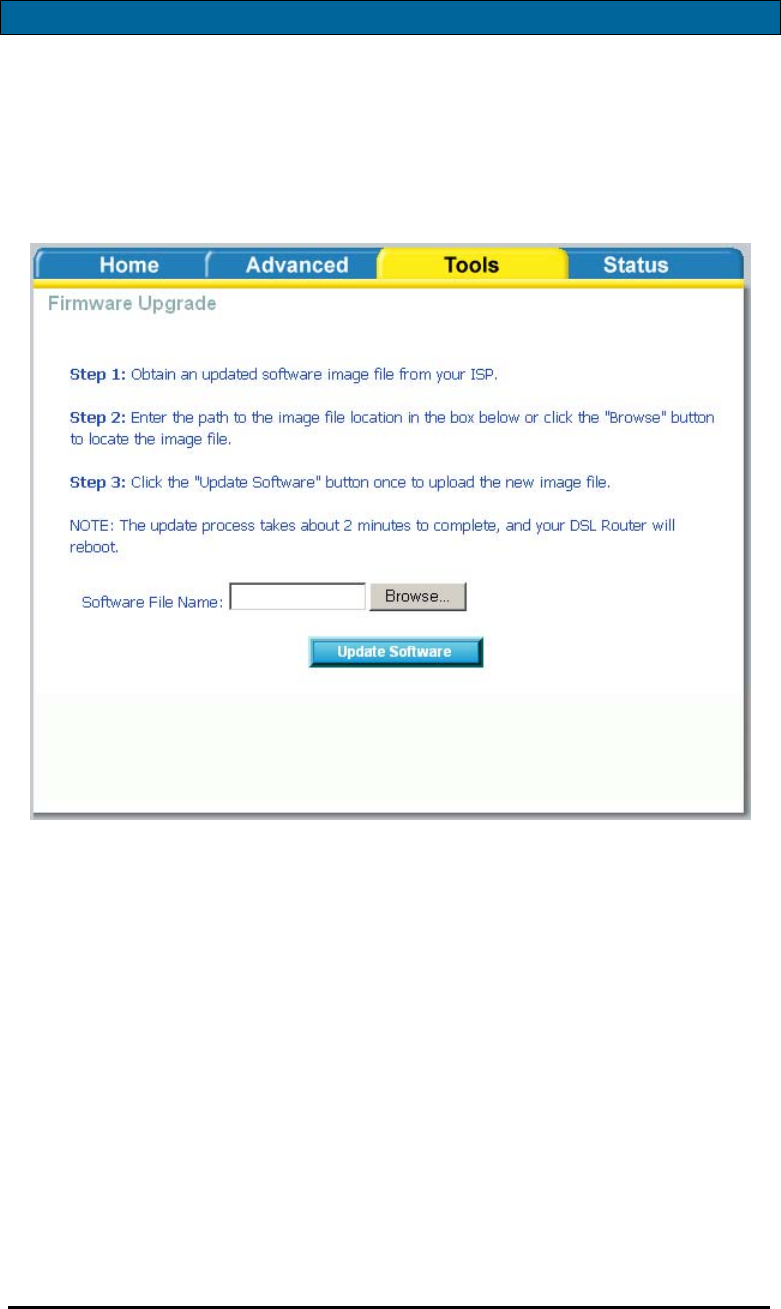

Firmware
If your ISP releases new software for this router, follow these steps to perform an
upgrade.
1. Obtain an updated software image file from your ISP.
2. Enter the path to the image file location or click on the Browse button to
locate the image file.
3. Click the Update Software button once to upload the new image file.

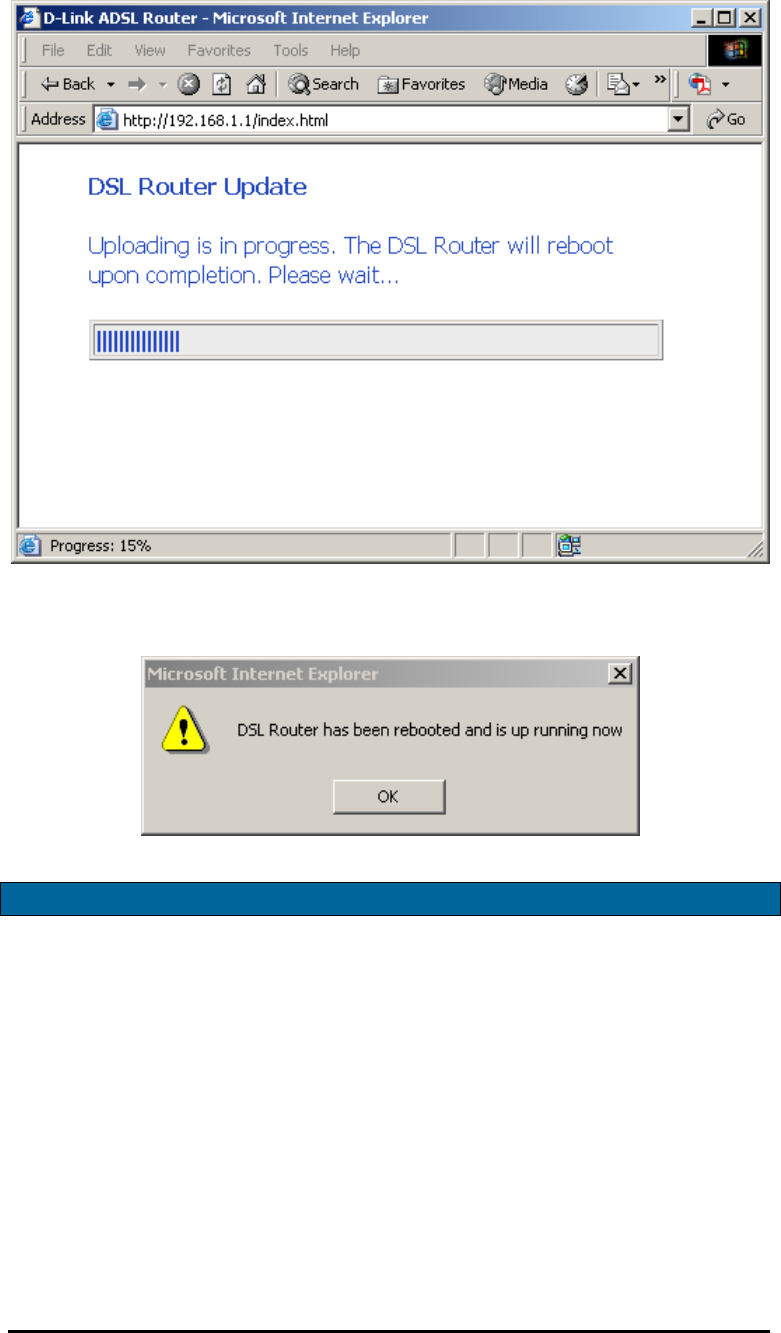

The below page will appear when you click on the Update Software button.
D-Link Wireless ADSL2/2+ 4-port Ethernet Router 2007/3/22PM 04:50
User Manual
Version 1.2
Document #: BD-ZU0026-12 75
When completed, the below pop-up window will appear confirmation that the
router has been rebooted.

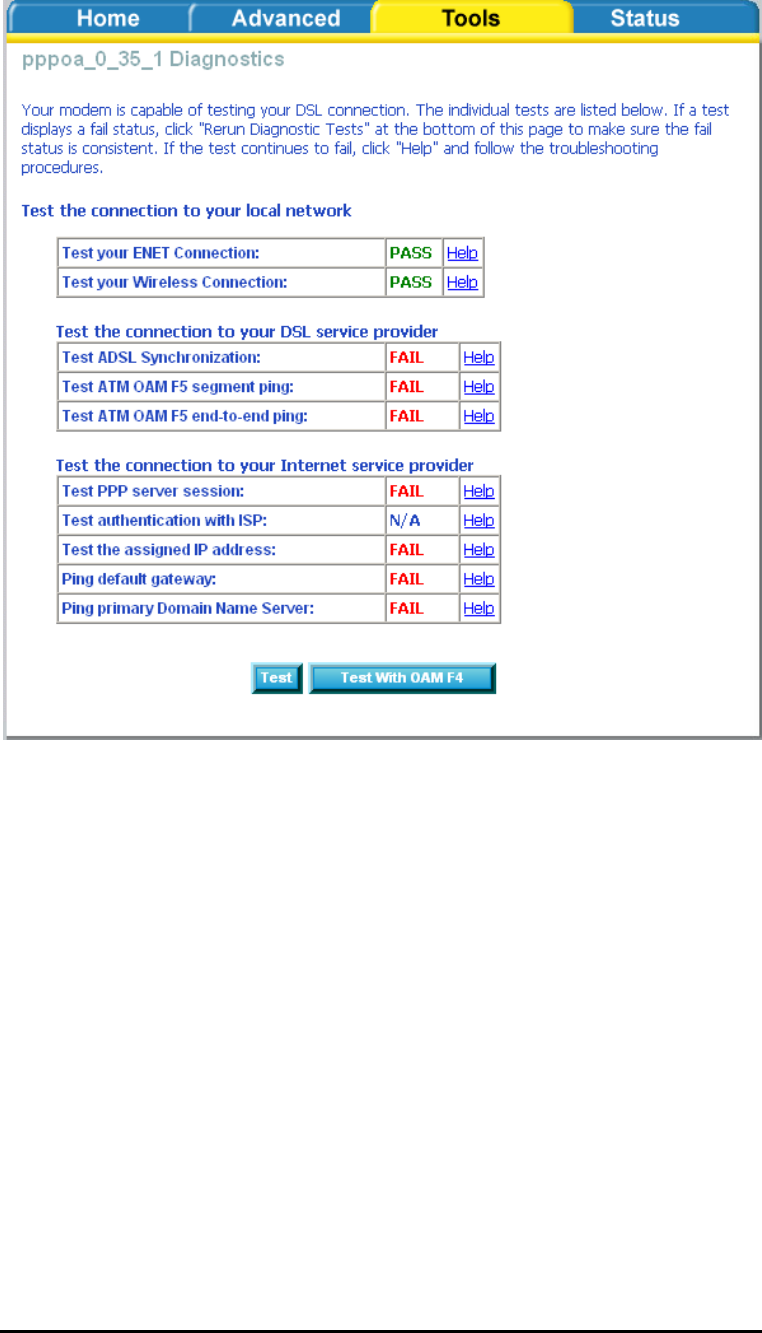

Test
The diagnostics screen allows you to run diagnostic tests to check your DSL
connection. The results will show test results of three connections—
• Connection to your local network
• Connection to your DSL service provider
• Connection to your Internet service provider
There are three buttons at the bottom of the page—Next Connection (appears only
if you have created more than one connection), Test and Test with OAM F4—which
will allow you to retest if necessary.
D-Link Wireless ADSL2/2+ 4-port Ethernet Router 2007/3/22PM 04:50
User Manual
Version 1.2
Document #: BD-ZU0026-12 76
D-Link Wireless ADSL2/2+ 4-port Ethernet Router 2007/3/22PM 04:50
User Manual
Version 1.2
Document #: BD-ZU0026-12 77
Status
The status section allows you to view general and status information for your
router’s connection.

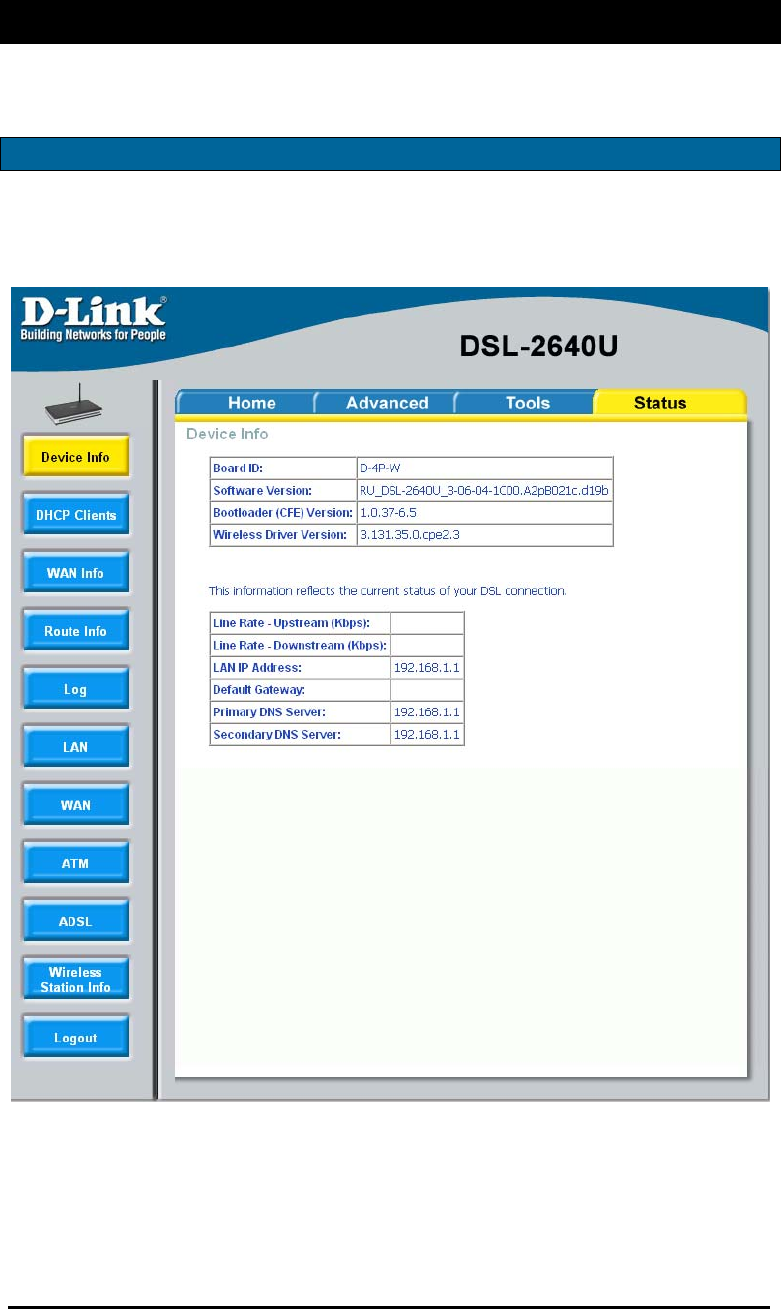

Device Info
It shows details of the router such as the version of the software, bootloader, LAN
IP address, etc. It also displays the current status of your DSL connection as shown
below—
D-Link Wireless ADSL2/2+ 4-port Ethernet Router 2007/3/22PM 04:50
User Manual
Version 1.2
Document #: BD-ZU0026-12 78

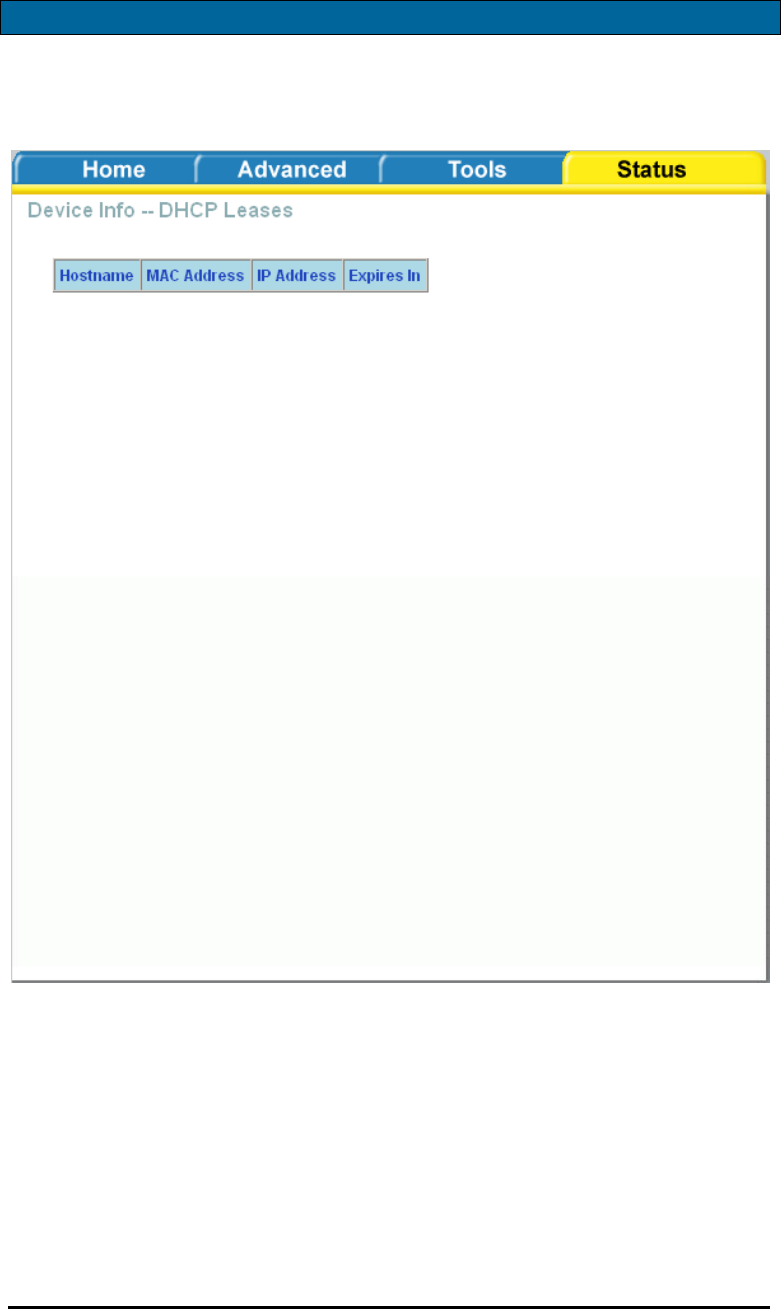

DHCP Clients
Access the DHCP Leases screen by clicking “DHCP” under “Statistics”. This shows
the computers, identified by the hostname and MAC address that have acquired IP
addresses by the DHCP server with the time that the lease for the IP address is up.
D-Link Wireless ADSL2/2+ 4-port Ethernet Router 2007/3/22PM 04:50
User Manual
Version 1.2
Document #: BD-ZU0026-12 79
WAN Info
The WAN Info screen displays WAN connections previously set up in the Home
section. The information added in the status section is the extra column for
connection status information, displaying either ADSL Link Down or ADSL Link Up.
Route Info
The Route Info section displays route information showing the IP addresses of the
destination, gateway, and subnet mask as well as other route information.
D-Link Wireless ADSL2/2+ 4-port Ethernet Router 2007/3/22PM 04:50
User Manual
Version 1.2
Document #: BD-ZU0026-12 80
Log
This is the same screen as seen in the Remotelog section under tools.
D-Link Wireless ADSL2/2+ 4-port Ethernet Router 2007/3/22PM 04:50
User Manual
Version 1.2
Document #: BD-ZU0026-12 81

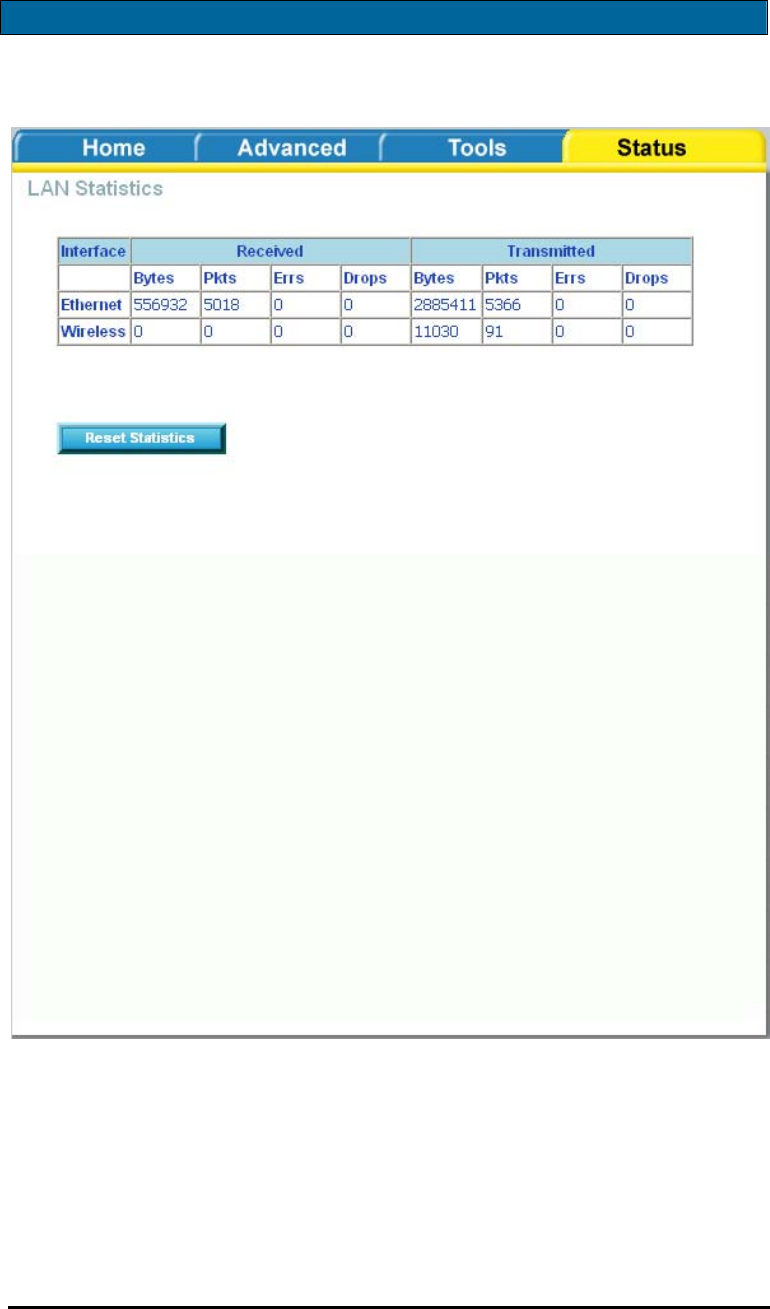

LAN
The LAN section shows received and transmitted packet information for the
Ethernet interfaces. Click on Reset Statistics to renew the information.
D-Link Wireless ADSL2/2+ 4-port Ethernet Router 2007/3/22PM 04:50
User Manual
Version 1.2
Document #: BD-ZU0026-12 82

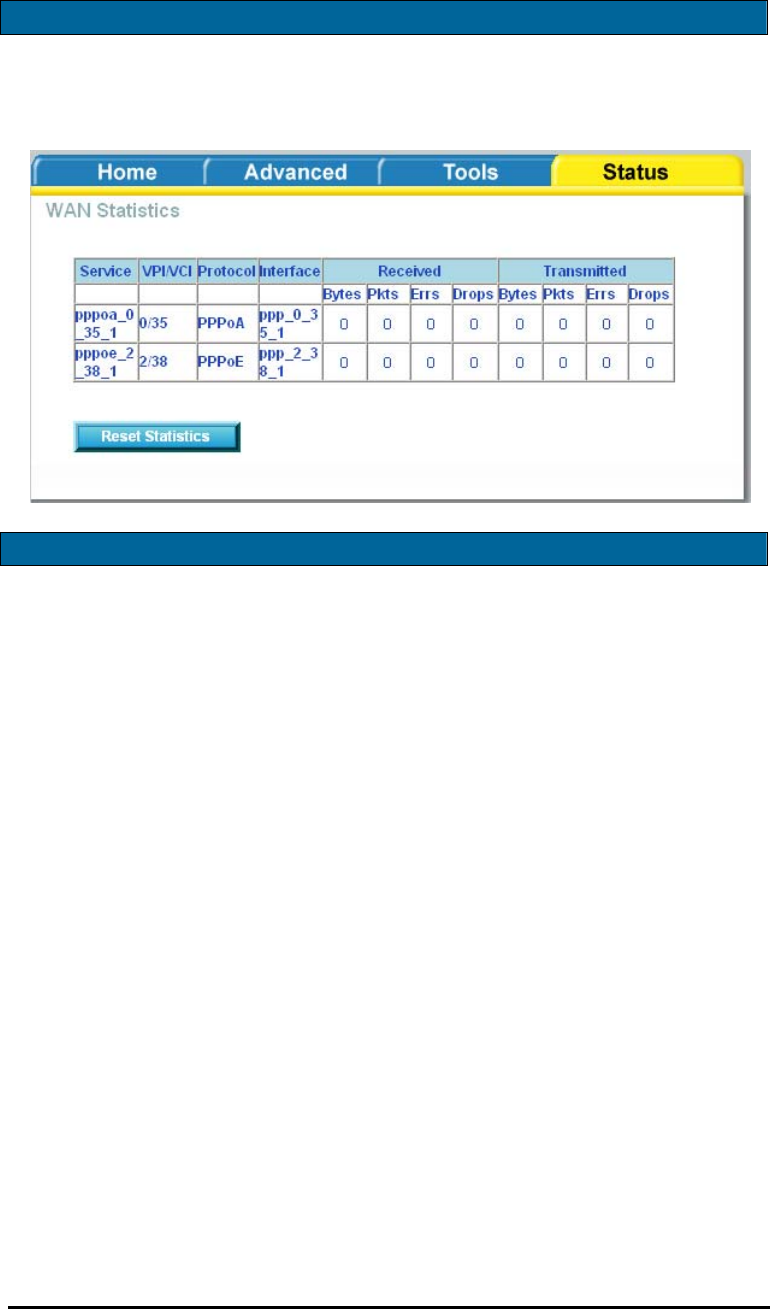

WAN
The WAN section shows received and transmitted packet information for the WAN
connections that you have set up. Click on Reset Statistics to renew the
information.

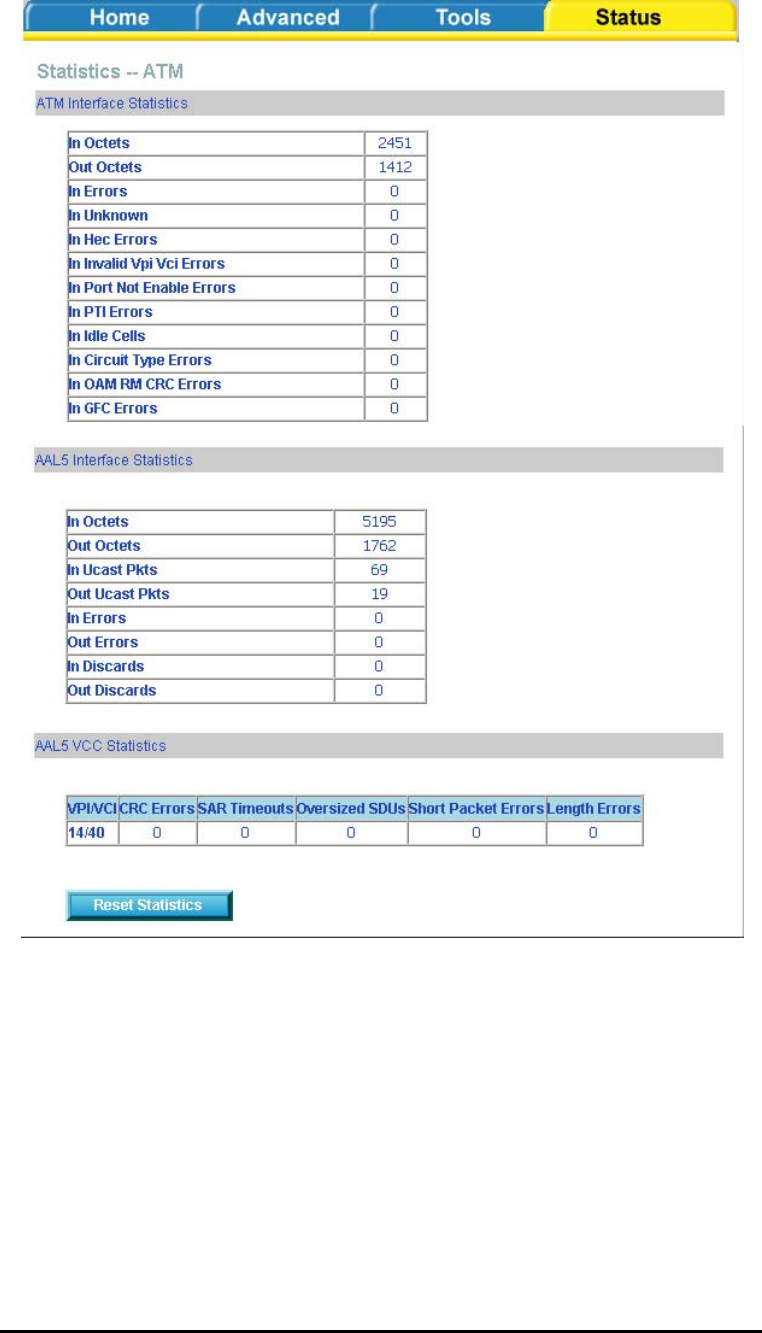

ATM
The ATM section displays statistical values for your ATM interface as well as for
AAL5 and AAL5 VCC. Click on Reset Statistics to renew the values.
D-Link Wireless ADSL2/2+ 4-port Ethernet Router 2007/3/22PM 04:50
User Manual
Version 1.2
Document #: BD-ZU0026-12 83
D-Link Wireless ADSL2/2+ 4-port Ethernet Router 2007/3/22PM 04:50
User Manual
Version 1.2
Document #: BD-ZU0026-12 84

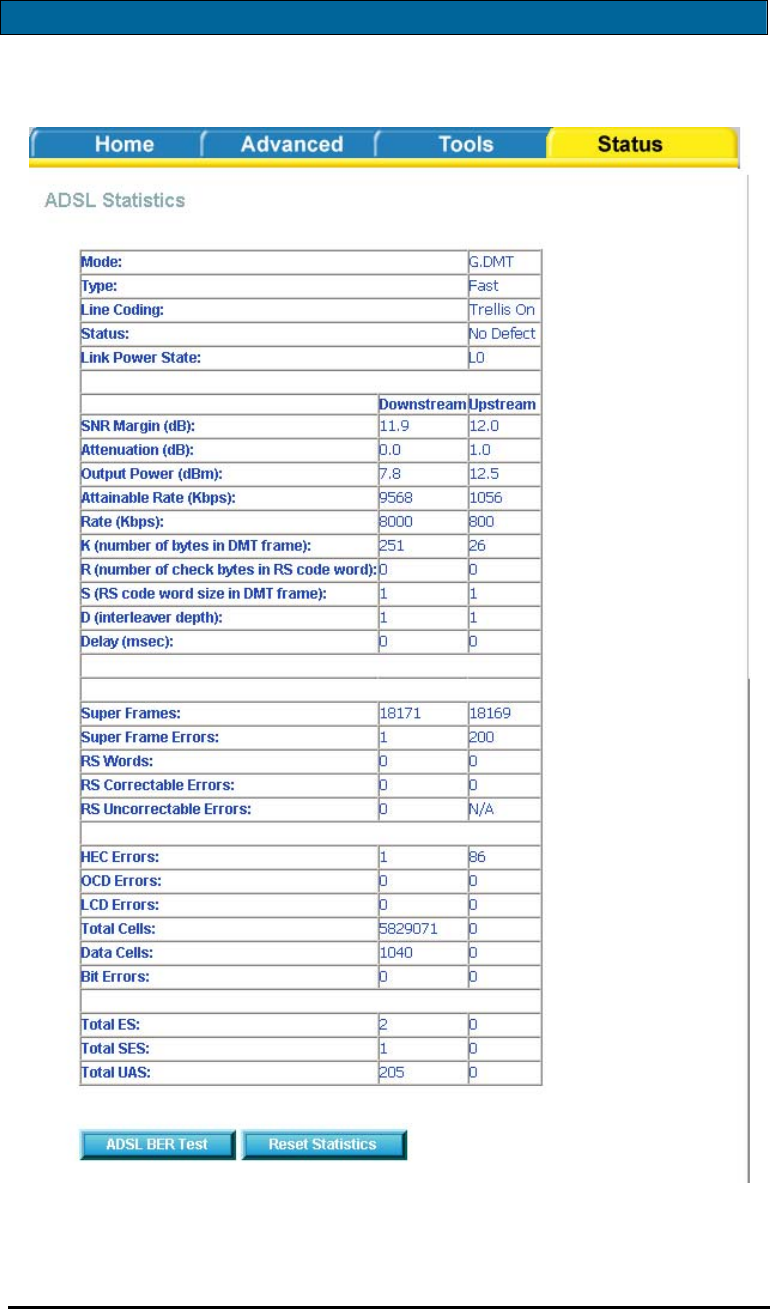

ADSL
Information contained in the ADSL screen is useful for troubleshooting and
diagnostics of connection problems.
D-Link Wireless ADSL2/2+ 4-port Ethernet Router 2007/3/22PM 04:50
User Manual
Version 1.2
Document #: BD-ZU0026-12 85
ADSL BER Test
A Bit Error Rate Test (BER Test) is a test that reflects the ratio of error bits to the
total number transmitted.

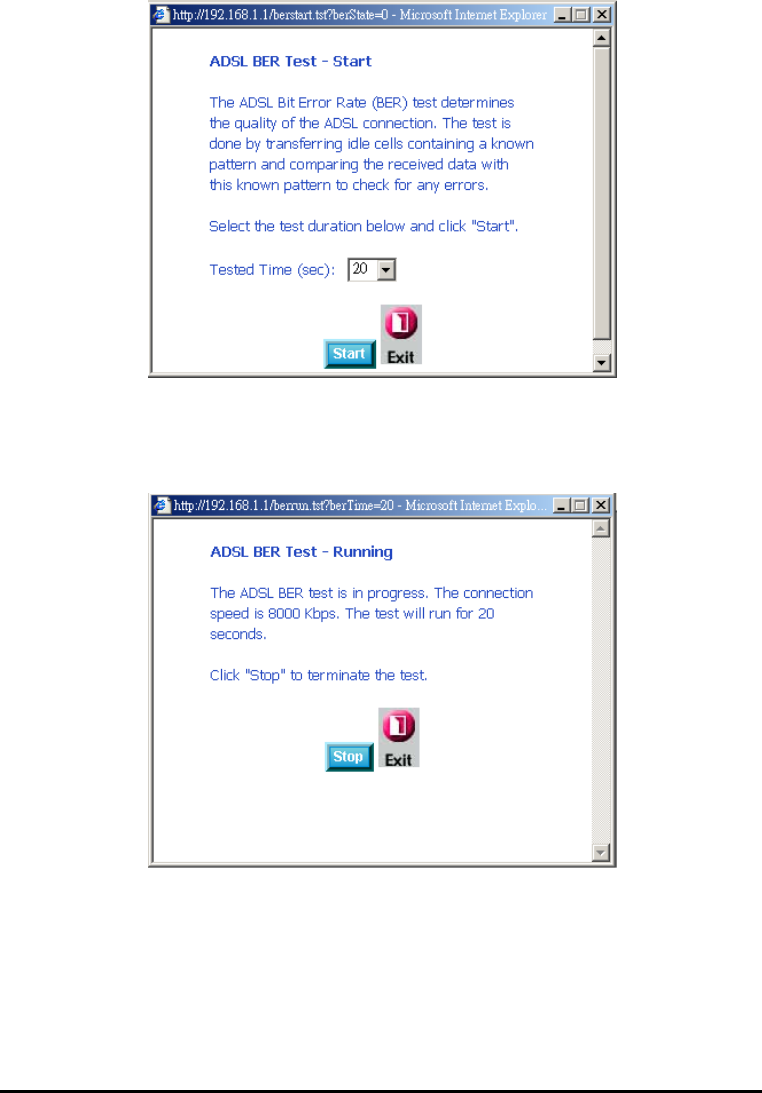

If you click on the ADSL BER Test button at the bottom of the ADSL Statistics page,
the following pop-up screen will appear allowing you to set the tested time and to
begin the test.
When you start the ADSL BER Test, the following progress window will display the
connection speed as well as the length of time that the test will run for. At any
time during the test, click on the Stop button to terminate the test.
D-Link Wireless ADSL2/2+ 4-port Ethernet Router 2007/3/22PM 04:50
User Manual
Version 1.2
Document #: BD-ZU0026-12 86

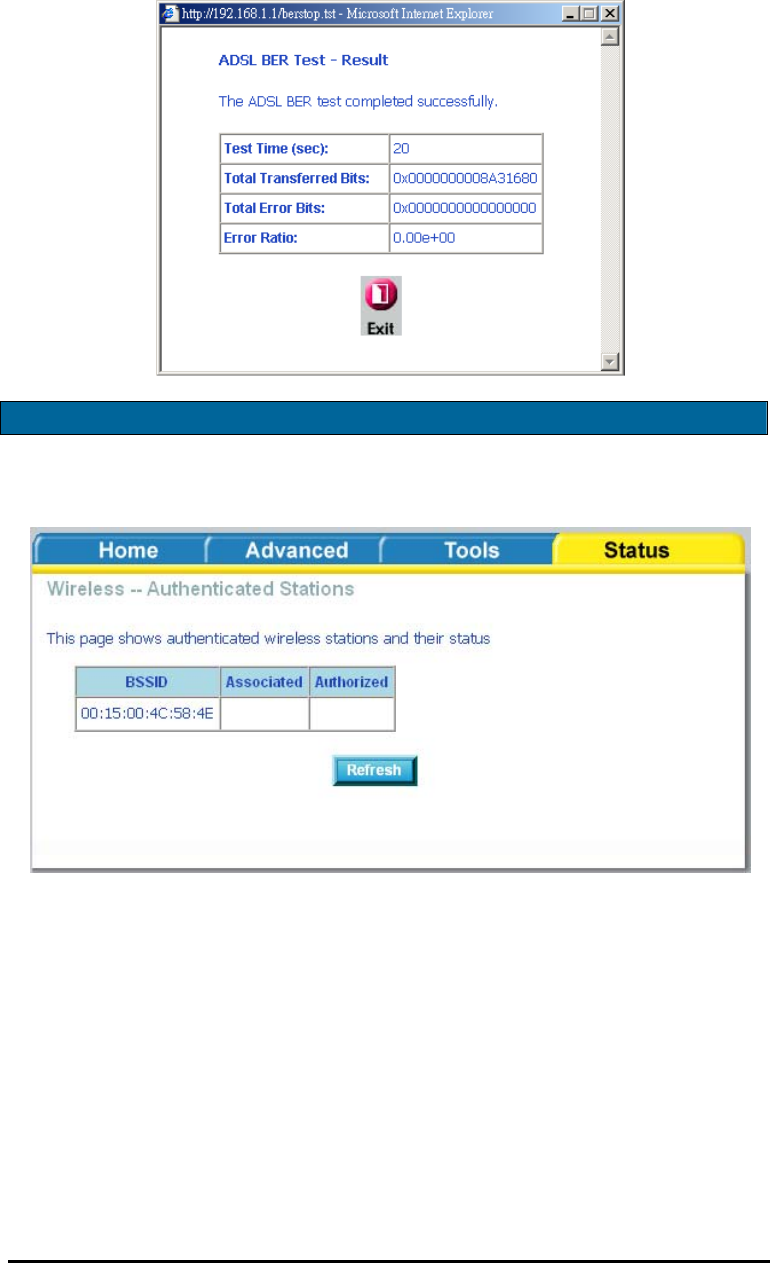

When the test is complete, the following window will display the test results
showing the test time, total transferred bits, total error bits and error ratio.
Wireless Station Info
This page displays the stations (identified by their BSSID) that are associated with
your wireless router. Click on Refresh to renew the page for new wireless stations.

Navigation menu
