DSP-W110
User Manual
mydlink™ Wi-Fi Smart Plug
Version DRAFT | 04/29/2014
2
D-Link DSP-W110 User Manual
Section 1 - Product Overview

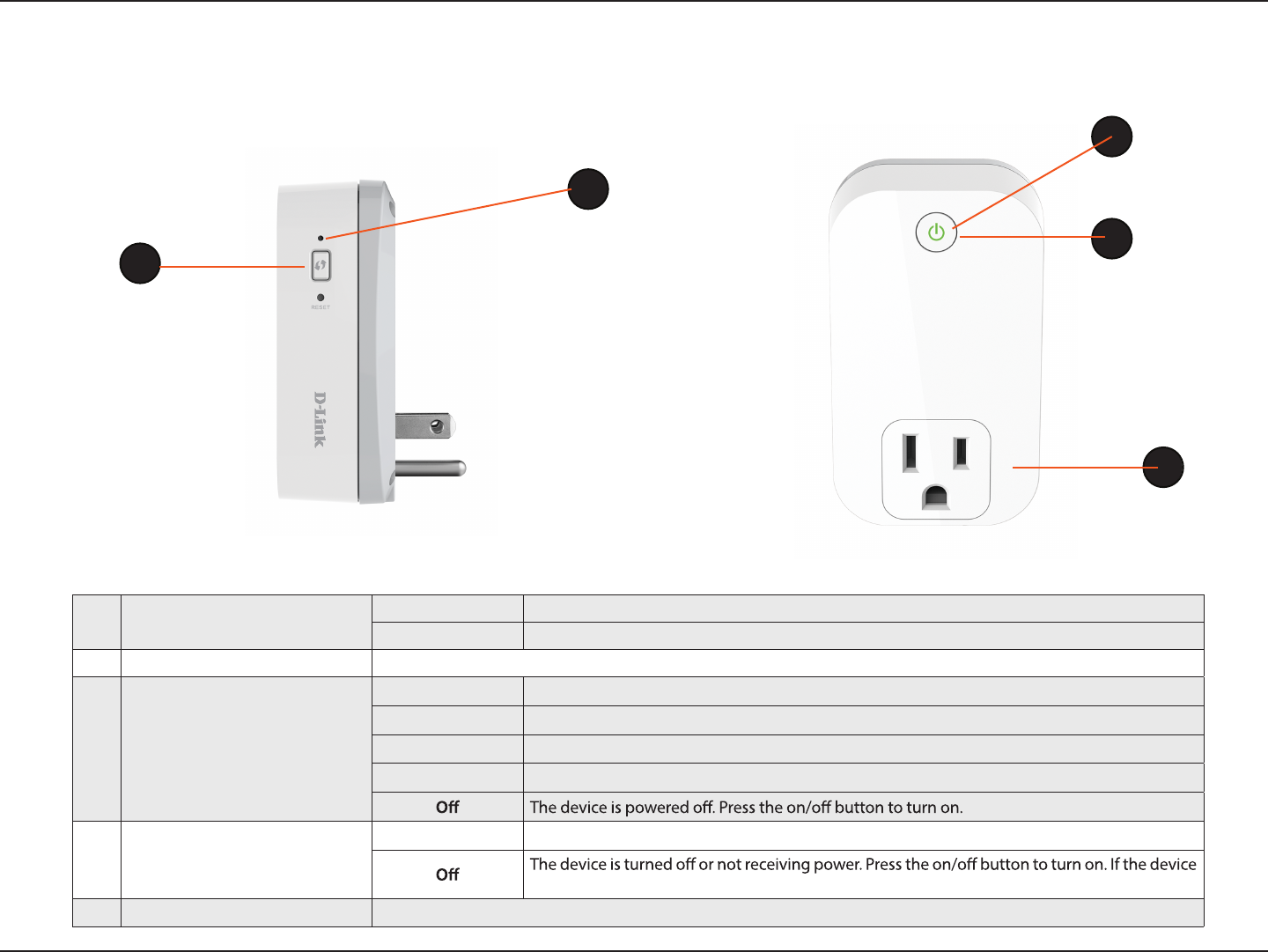

Hardware Overview
LEDs and Buttons
1WPS/Reset Button WPSPress for one second to start the WPS connection process. The Status LED will start to blink.
ResetPress and hold for 10 seconds to reset the device back to the factory default settings.
2ON/OFF Button Press to turn the device ON or OFF.
3Status LED
Solid GreenThe device is successfully connected to your network.
Blinking GreenDuring the WPS process.
Blinking OrangeThe device is attempting to communicate with your wireless network.
Solid Red During power on/boot process or device is defective.
4Power LED
Solid GreenThe device is powered on.
will not power on, try another outlet.
5Plug Connect your appliances, lamps, and other devices to monitor.
1
2
3
4
5
3
D-Link DSP-W110 User Manual
Section 2 - Installation and Setup

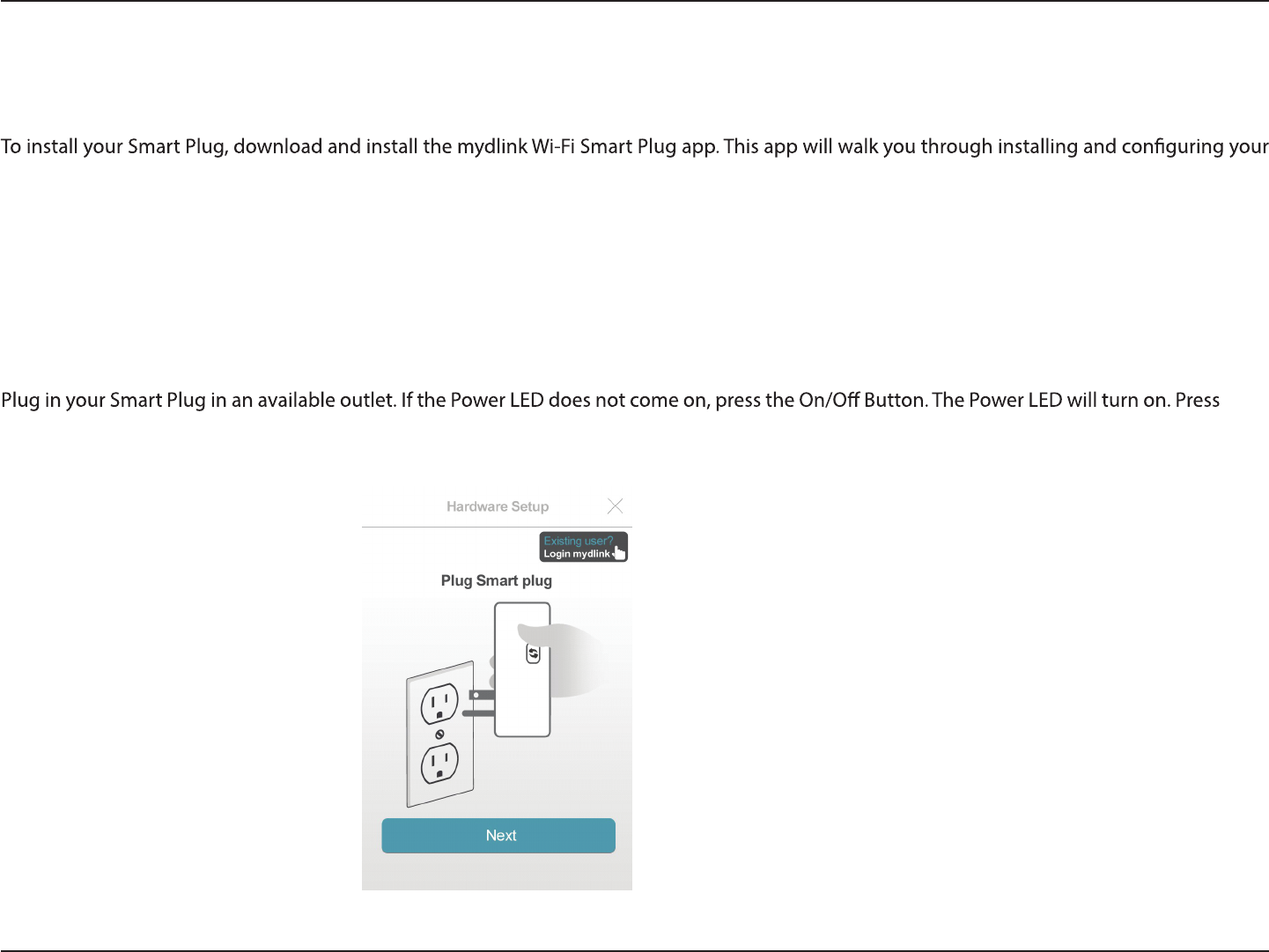

Installation and Setup
Smart Plug.
Step 1
Download the app from the App Store (iOS) or Google Play (Android).
Step 2
Once installed, launch the app.
Step 3
Next
to continue.
4
D-Link DSP-W110 User Manual
Section 2 - Installation and Setup

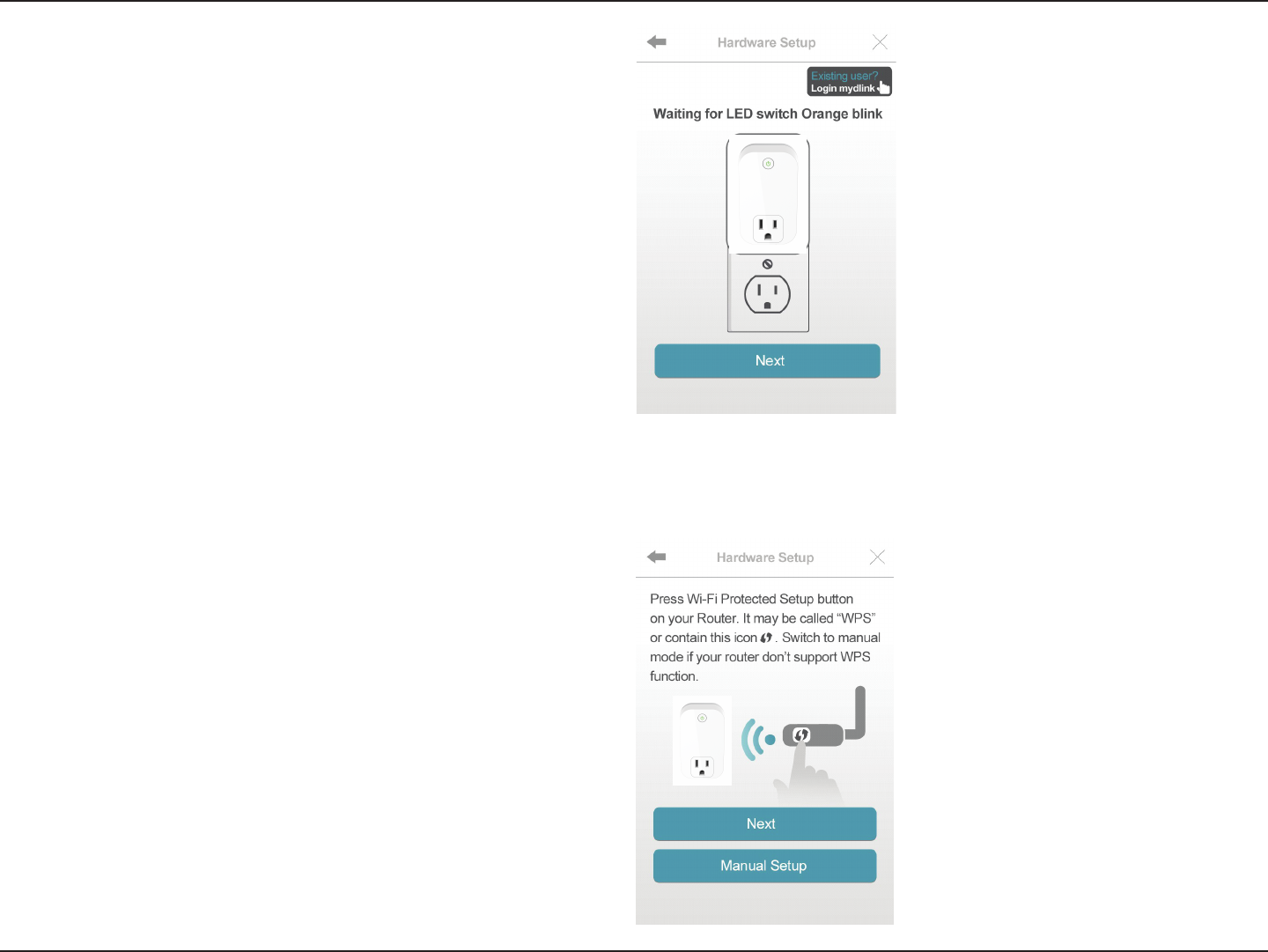

Step 4
When the Status LED is blinking orange, press Next.
Step 5
If your router supports WPS, press the WPS button on your router. Press
Next to continue. Please refer to your router’s documentation if you are
unsure if your router supports WPS.
If your router does not support WPS or you want to manually connect
to your wireless router, press Manual Setup and skip to Step 6 - Manual
on page 11.
5
D-Link DSP-W110 User Manual
Section 2 - Installation and Setup

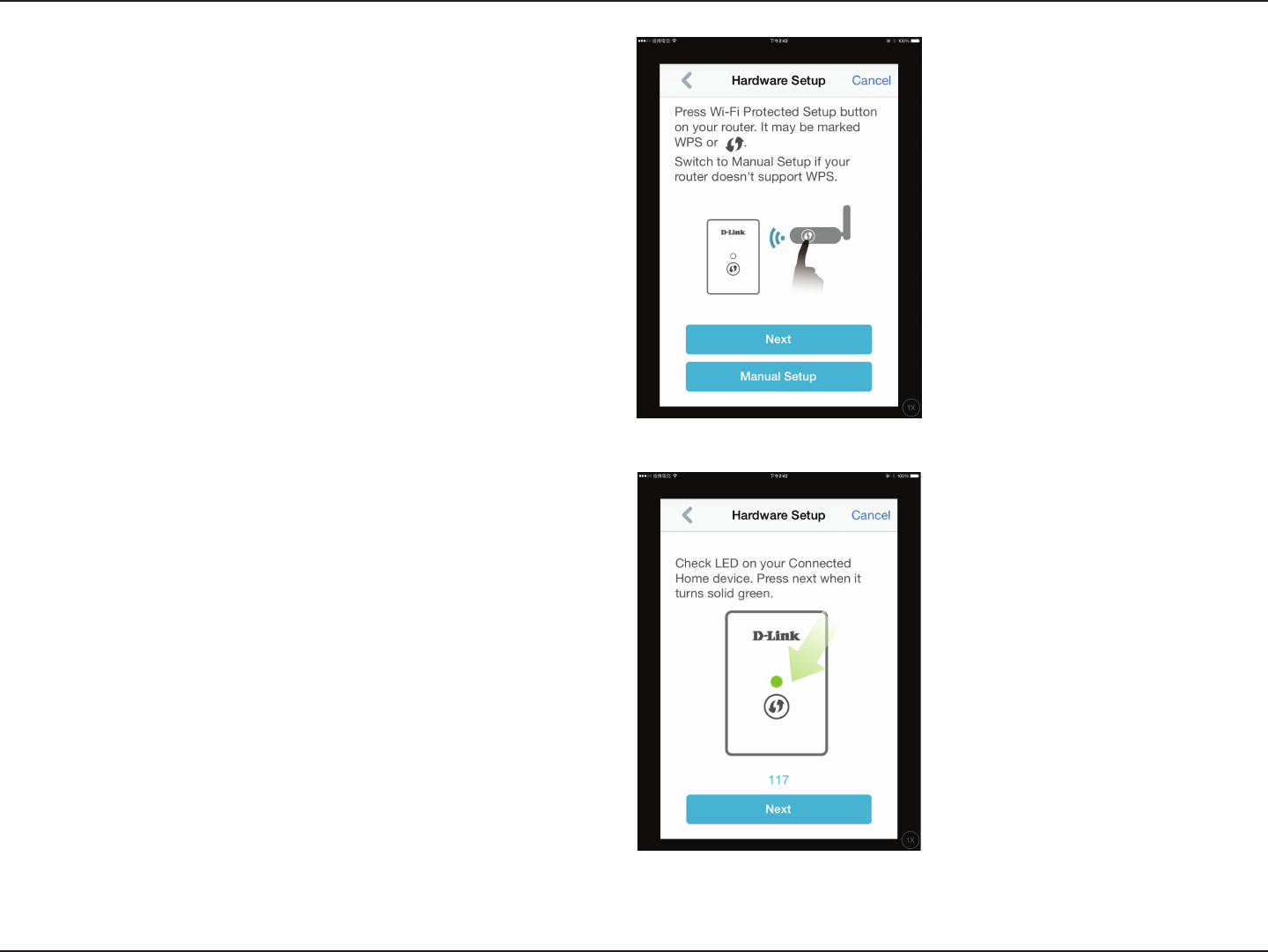

Step 6 - WPS
Press the WPS button on your Smart Plug. The Status LED will start to
blink green. Allow up to two minutes to connect to your router. Press
Next to continue.
Note: You must press the WPS button on your router and the Smart Plug
within two minutes.
Step 7 - WPS
After about two minutes, the Status LED will turn solid green. This
indicates that the Smart Plug has successfully connected to your wireless
router. Press Next to continue.
6
D-Link DSP-W110 User Manual
Section 2 - Installation and Setup

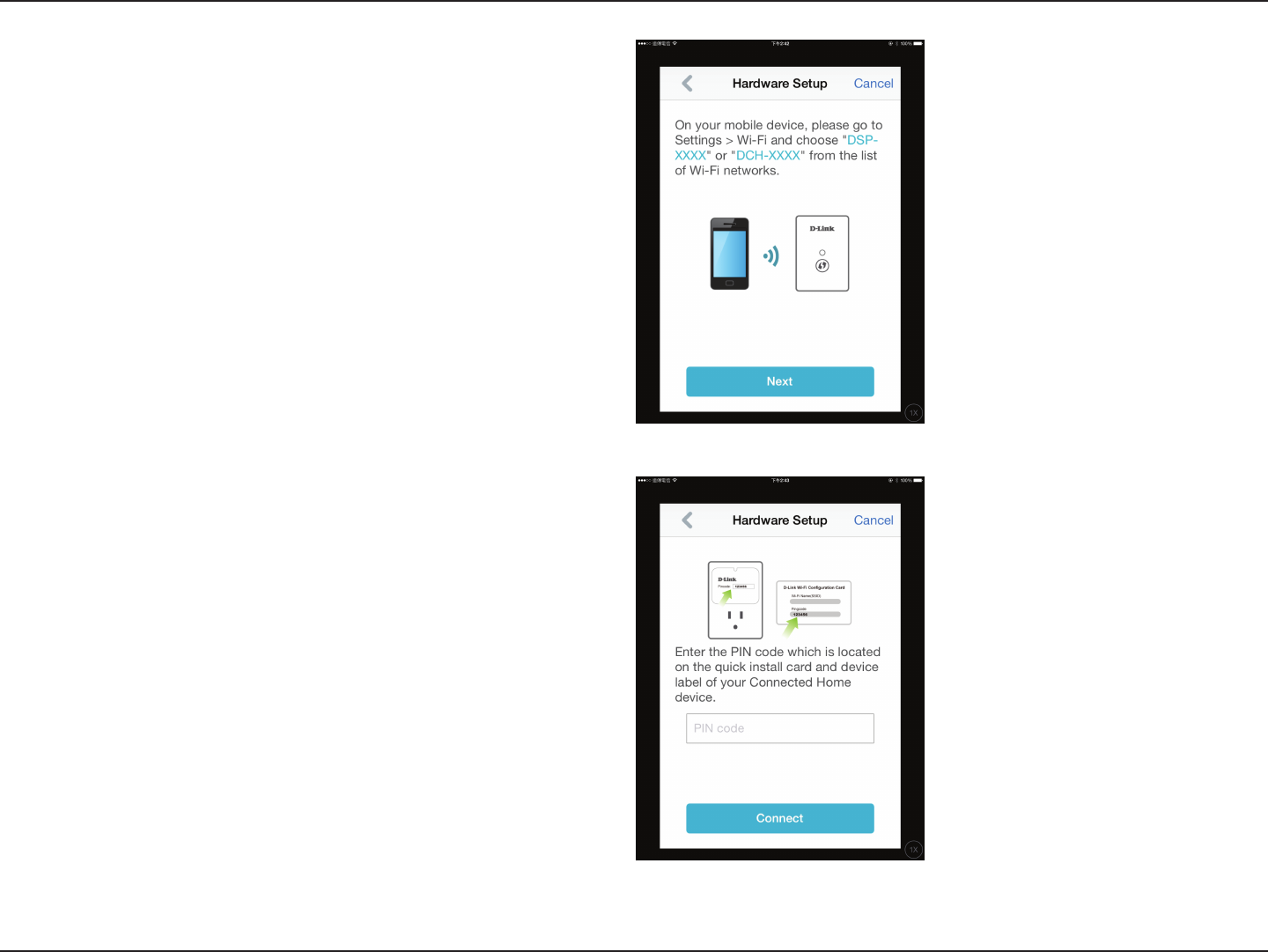

Step 6 - Manual
You must connect to the Smart Plug directly. Do not close this app.
On your device, go to Settings > Wi-Fi. Select the network called DSP-
xxxx or DSP-xxxx_AC.
Note: xxxx represents numbers and/or letters that are unique to your Smart
Plug device. For the exact network name (SSID), refer to the Quick Install
card that came with the product.
Press Next to continue.
Step 7 - Manual
Enter the PIN code and press Connect.
This code is located both on the front of the Smart Plug and the Quick
Install card.
7
D-Link DSP-W110 User Manual
Section 2 - Installation and Setup

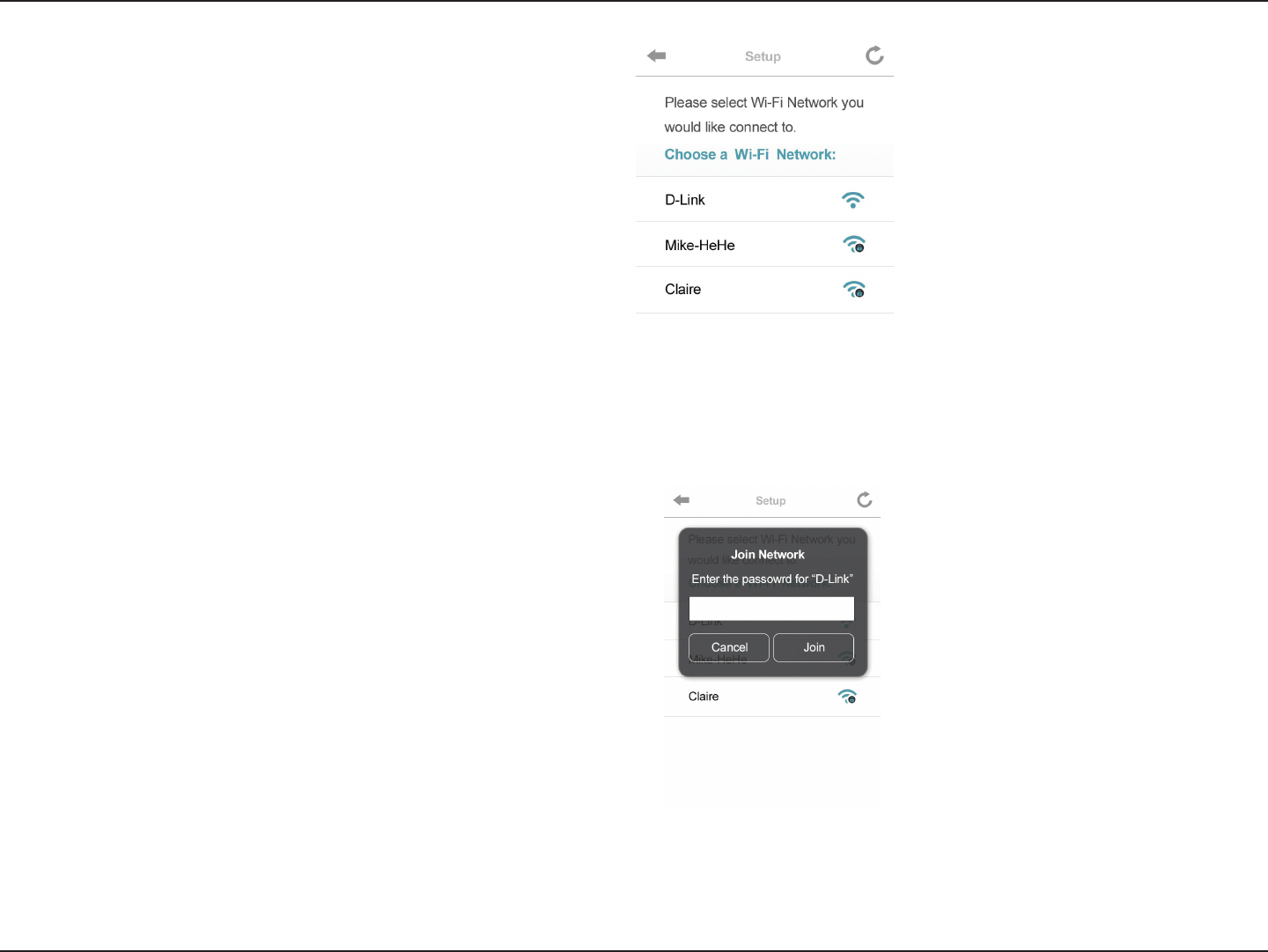

Step 8 - Manual
A list of available wireless networks will appear. Press your wireless
network (the SSID of your wireless router).
Step 9 - Manual
If you have secured your wireless network, enter your Wi-Fi password
and click Join.
Continue with step 10 on the next page.
8
D-Link DSP-W110 User Manual
Section 2 - Installation and Setup

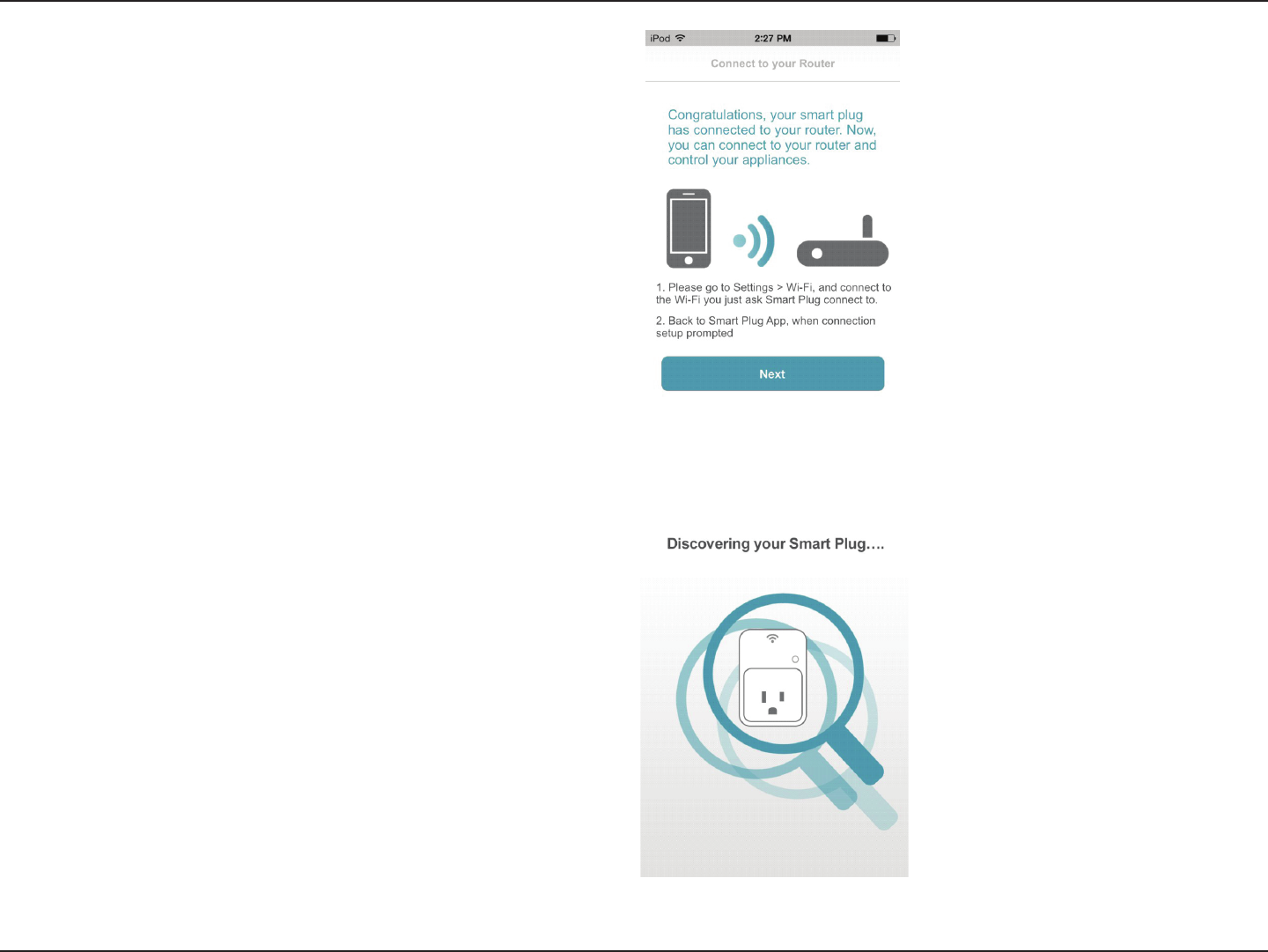

Step 10
Once you connect, you will need to connect to your mobile device or
tablet (that you are currently running the app from) to your wireless
router (if you are not already). Make sure you keep this app running.
On your device, go to Settings > Wi-Fi. Connect to your wireless router
and enter your Wi-Fi password (if you have one).
Go back to this app and press Next to continue.
Step 11
Your device will now scan your network for Smart Plugs.
9
D-Link DSP-W110 User Manual
Section 2 - Installation and Setup

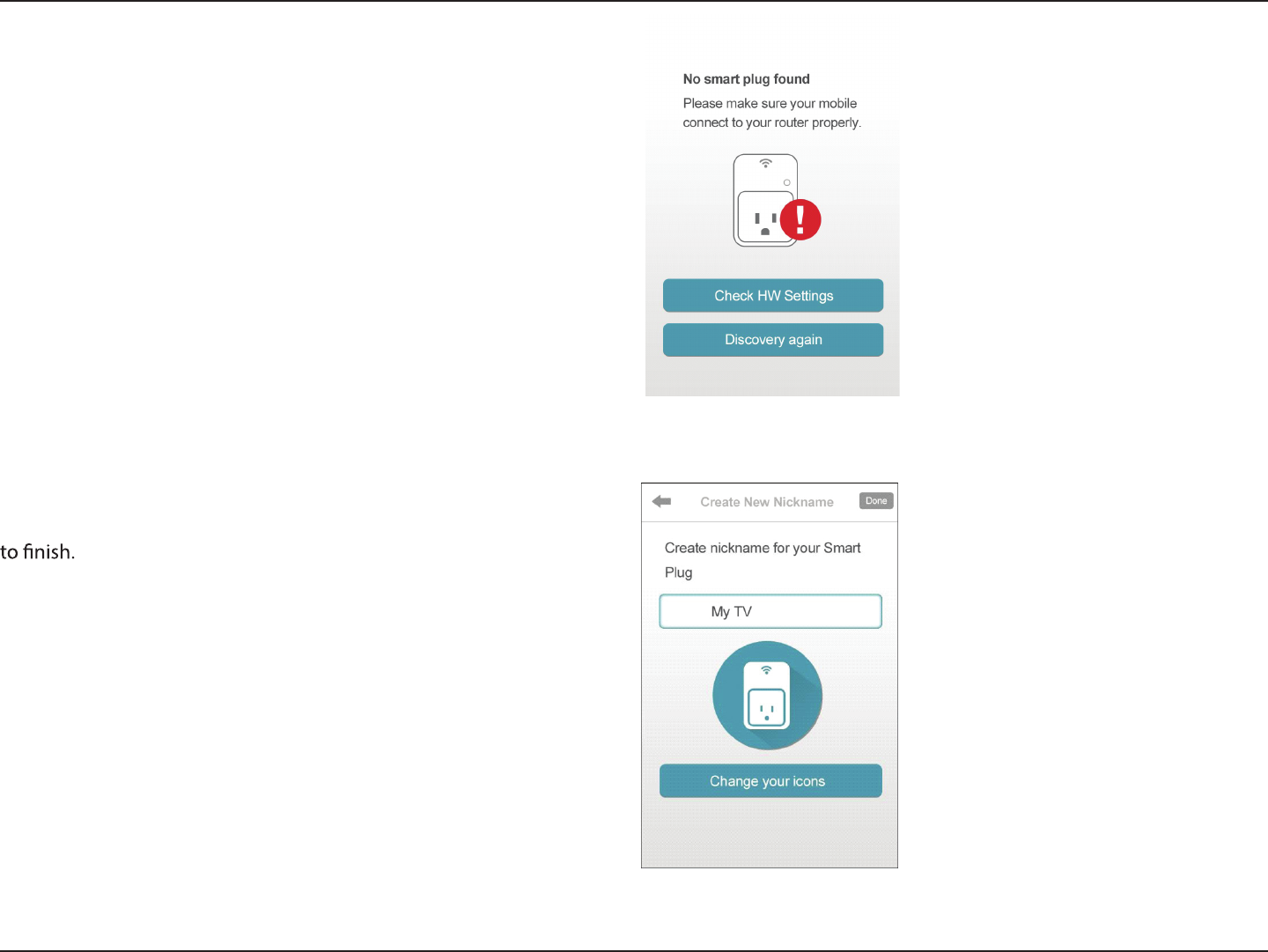

Step 12
If you have received this error message, please do the following:
a. Please make sure your mobile device is connected to your router.
b. Make sure the Power LED and Status LEDs on your Smart Plug
are both solid green.
c. Press Hardware Settings and verify the settings.
d. Press Discovery Again to rescan.
Step 13
Enter a nickname for your Smart Plug. Click Change your Icons to
change the icon for your device or click Done in the upper right corner
10
D-Link DSP-W110 User Manual
Section 2 - Installation and Setup

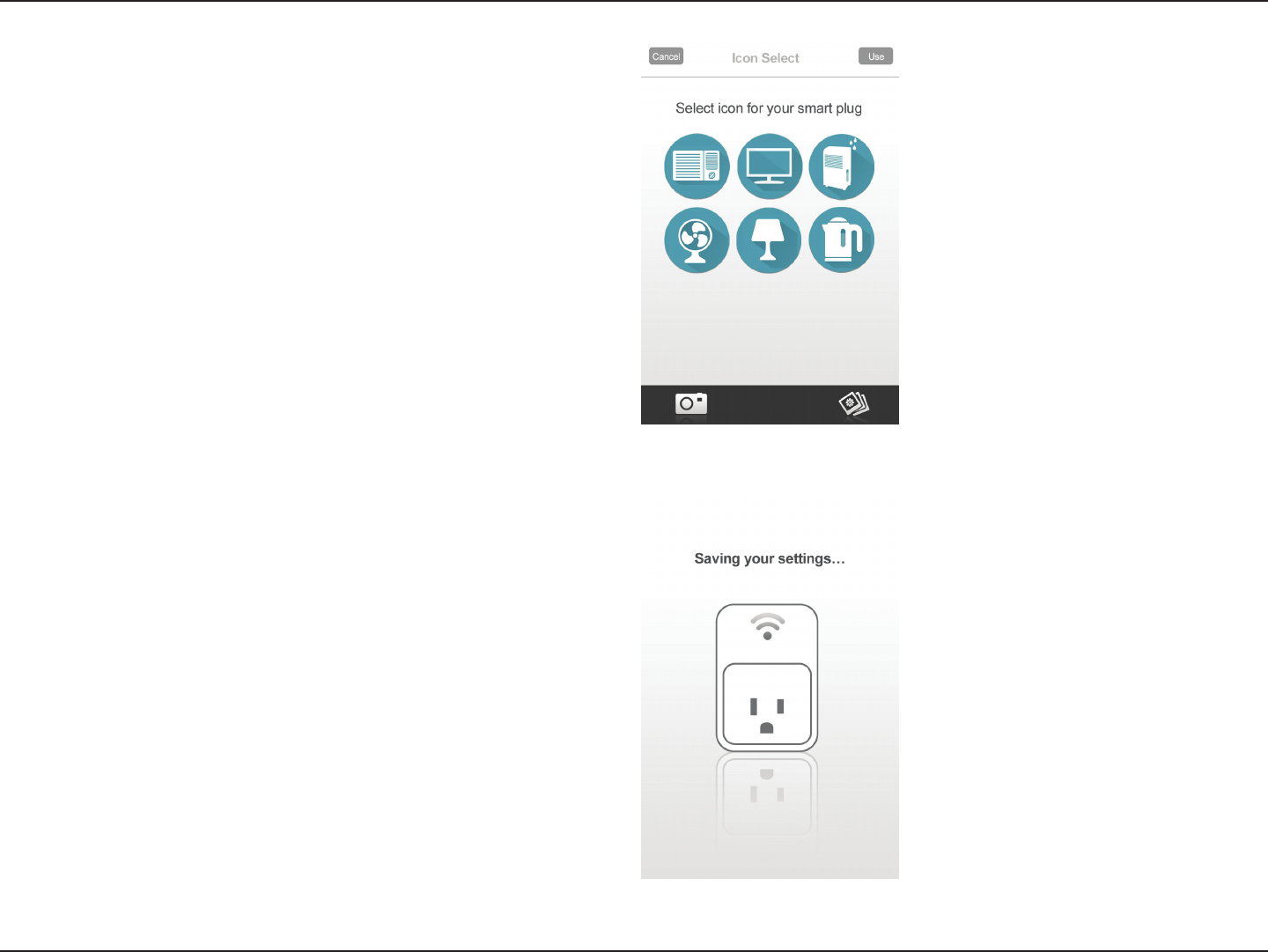

Step 14
Select an icon that represents the device plugged into your Smart Plug
and then press Use in the upper right corner. If you do not want to
change the icon, press Cancel.
Step 15
Your settings will now save.
11
D-Link DSP-W110 User Manual
Standards
t*&&&O
t*&&&H
Support Functions
t4NBrt rFNPte cPOtrPM
tPPwFSTDIFEVMJOH
Security
t WPA
t WP"
t 814(WJFJPrPtected 4etup)
Temperature
t0QFSBUJOHtP °C
Humidity
t0QFSBUJPOtPOPOcPOEFOTJOH
t4tPrBHFtPOPOcPOEFOTJOH
Power Input
t*OQVU
Power Consumption
tMBYJNVN W FYDMVEJOH"$PVUQVUPG4PDLFU0VUMFU
LEDs
tPPwer
t4tBtus
t'CC
t6-
Dimensions
tYYNN
Weight
t5#%
*
t
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
Note: The country code selection is for non-US model only and is not available to all
US model. Per FCC regulation, all WiFi product marketed in US must fixed to US
operation channels only.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
IC Statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that
may cause undesired operation.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux
appareils radio exempts de licence. Son fonctionnement est sujet aux deux
conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable,
et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage
susceptible de provoquer un fonctionnement indésirable.
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies
pour un environnement non contrôlé. Cet équipement doit être installé et utilisé
avec un minimum de 20cm de distance entre la source de rayonnement et votre
corps.
