User Manual 2
30
D-Link DWA-182 User Manual
Section 4 - Connect to a Wireless Network
Windows® 7
Left-click the wireless icon in your system tray (lower-right corner next to
the time).
If you receive the Wireless Networks Detected bubble, click on the center of
the bubble to access the utility.
or
The utility will display any available wireless networks in your area. Click on a
network (displayed using the SSID) and click the Connect button.
If you get a good signal but cannot access the Internet, check your TCP/IP
settings for your wireless adapter. Refer to the Networking Basics section in this
manual for more information.
31
D-Link DWA-182 User Manual
Section 4 - Connect to a Wireless Network
Windows Vista®
Right-click on the wireless computer icon in your system tray (lower-right
corner next to the time). Select Connect to a network.
If you receive the Wireless Networks Detected bubble, click on the center
of the bubble to access the utility.
or
The utility will display any available wireless networks in your area. Click on a
network (displayed using the SSID) and click the Connect button.
If you get a good signal but cannot access the Internet, conrm the encryption
by reviewing the prole or check the TCP/IP settings for your wireless adapter.
Refer to the Networking Basics section in this manual for more information.
32
D-Link DWA-182 User Manual
Section 4 - Connect to a Wireless Network
Windows® XP
Right-click on the wireless computer icon in your system tray (lower-right
corner next to the time). Select View Available Wireless Networks.
If you receive the Wireless Networks Detected bubble, click on the center of
the bubble to access the utility.
or
The utility will display any available wireless networks in your area. Click on a
network (displayed using the SSID) and click the Connect button.
If you get a good signal but cannot access the Internet, check the TCP/IP settings
for your wireless adapter. Refer to the Networking Basics section in this manual
for more information.
33
D-Link DWA-182 User Manual
Section 5 - Wireless Security
Wireless Security
This section will show you the dierent levels of security you can use to protect your data from intruders. The DWA-182 oers the following types
of security:
• WPA/WPA2-Personal
• WPA/WPA2-Enterprise
What is WPA™?
WPA™, or Wi-Fi® Protected Access, is a Wi-Fi standard that was designed to improve the security features of WEP (Wired Equivalent Privacy).
The 2 major improvements over WEP:
• Improved data encryption through the Temporal Key Integrity Protocol (TKIP). TKIP scrambles the keys using a hashing algorithm
and, by adding an integrity-checking feature, ensures that the keys haven’t been tampered with. WPA2™ is based on 802.11i and
uses Advanced Encryption Standard instead of TKIP.
• User authentication, which is generally missing in WEP, through the extensible authentication protocol (EAP). WEP regulates access
to a wireless network based on a computer’s hardware-specic MAC address, which is relatively simple to be snied out and stolen.
EAP is built on a more secure public-key encryption system to ensure that only authorized network users can access the network.
WPA/WPA2-Personal uses a passphrase or key to authenticate your wireless connection. The key is an alpha-numeric password between 8 and 63
characters long. The password can include symbols (!?*&_) and spaces. This key must be the exact same key entered on your wireless router or
access point.
WPA/WPA2-Enterprise incorporates user authentication through the Extensible Authentication Protocol (EAP). EAP is built on a more secure public
key encryption system to ensure that only authorized network users can access the network.
34
D-Link DWA-182 User Manual
Section 5 - Wireless Security
Congure WPA/WPA2-Personal
Using the D-Link Wireless Connection Manager
It is recommended to enable WPA/WPA2-Personal on your wireless router or access point before conguring your wireless adapter. If you are joining
an existing network, you will need to know the WPA/WPA2-Personal passphrase being used.
1. Open the Wireless Connection Manager by double-clicking on the D-Link icon on
your desktop.
2. Highlight the wireless network (SSID) you would like to connect to and click Connect.
If the network is using WPA/WPA2-Personal, the screen (as shown to the bottom-right)
will appear.
3. Enter the WPA/WPA2-Personal passphrase exactly as it is on your wireless router or
access point. Click the Show text in the password eld box to see the passphrase.
Unchecking it will hide it.
4. Click OK to connect to the network. Allow up to 30 seconds to connect.
If you would like to create a new network and enter the WPA/WPA2-Personal settings, refer
to the next page.
35
D-Link DWA-182 User Manual
Section 5 - Wireless Security
It is recommended to enable WPA/WPA2-Personal on your wireless router or access point before conguring your wireless adapter. Make sure you
enter the passphrase exactly the same on all wireless devices.
1. Open the Wireless Connection Manager by double-clicking on the D-Link
icon on your desktop. Click on New to create a new prole or highlight an
existing prole and click Modify.
2. Select WPA/WPA2-Personal under Set Security Option.
3. Select TKIP, AES, or Auto.
4. Enter the passphrase exactly as it is on your wireless router or access point.
5. Click OK to connect to the network. Allow up to 30 seconds to connect.
36
D-Link DWA-182 User Manual
Section 5 - Wireless Security
Congure WPA/WPA2 Passphrase
Windows® 7
It is recommended to enable wireless security (WPA™/WPA2™) on your wireless router or access point before conguring your wireless adapter. If
you are joining an existing network, you will need to know the security key or passphrase being used.
2. The utility will display any available wireless networks in your area.

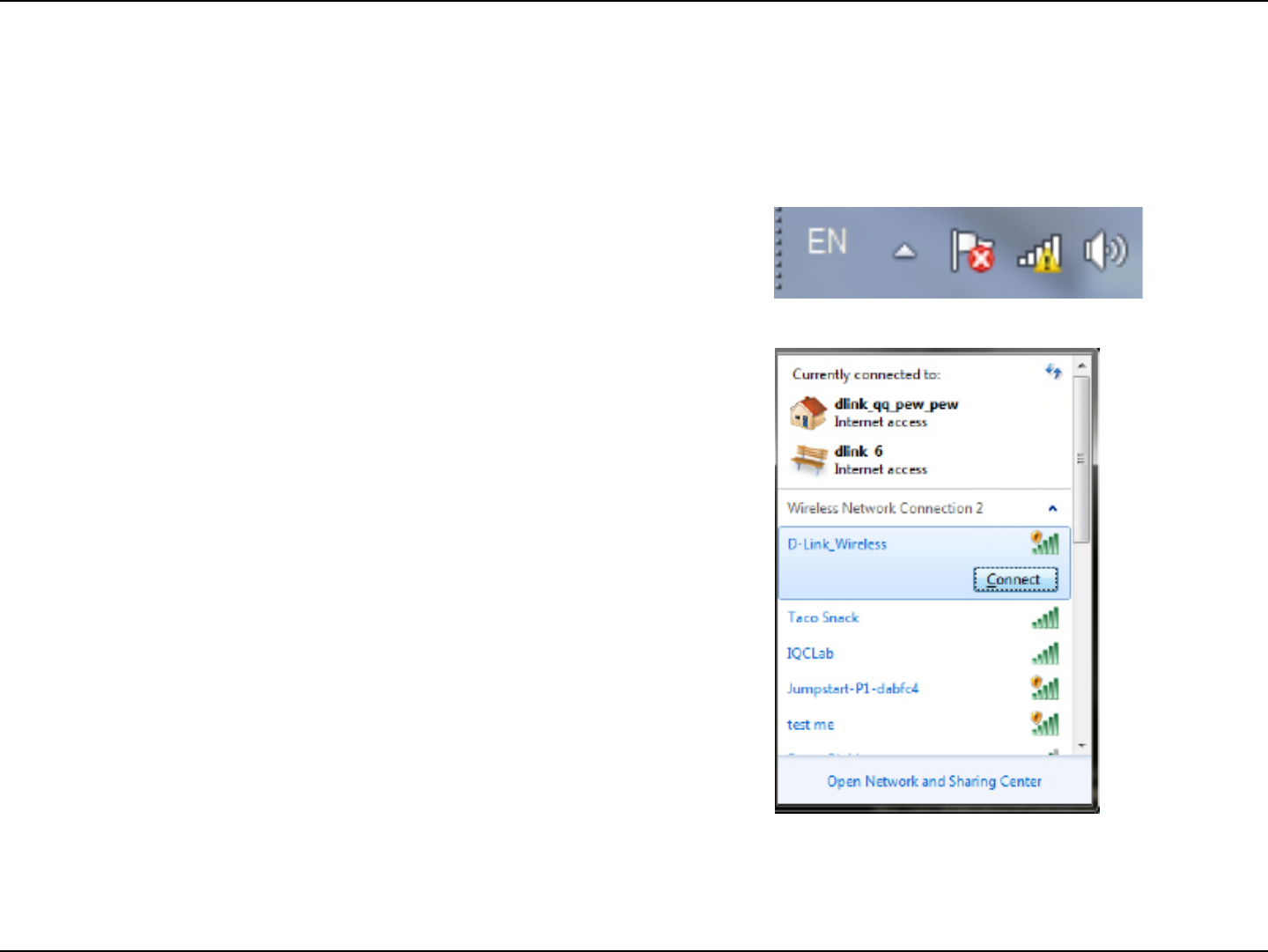

1. Click on the wireless icon in your system tray (lower-right corner).
37
D-Link DWA-182 User Manual
Section 5 - Wireless Security

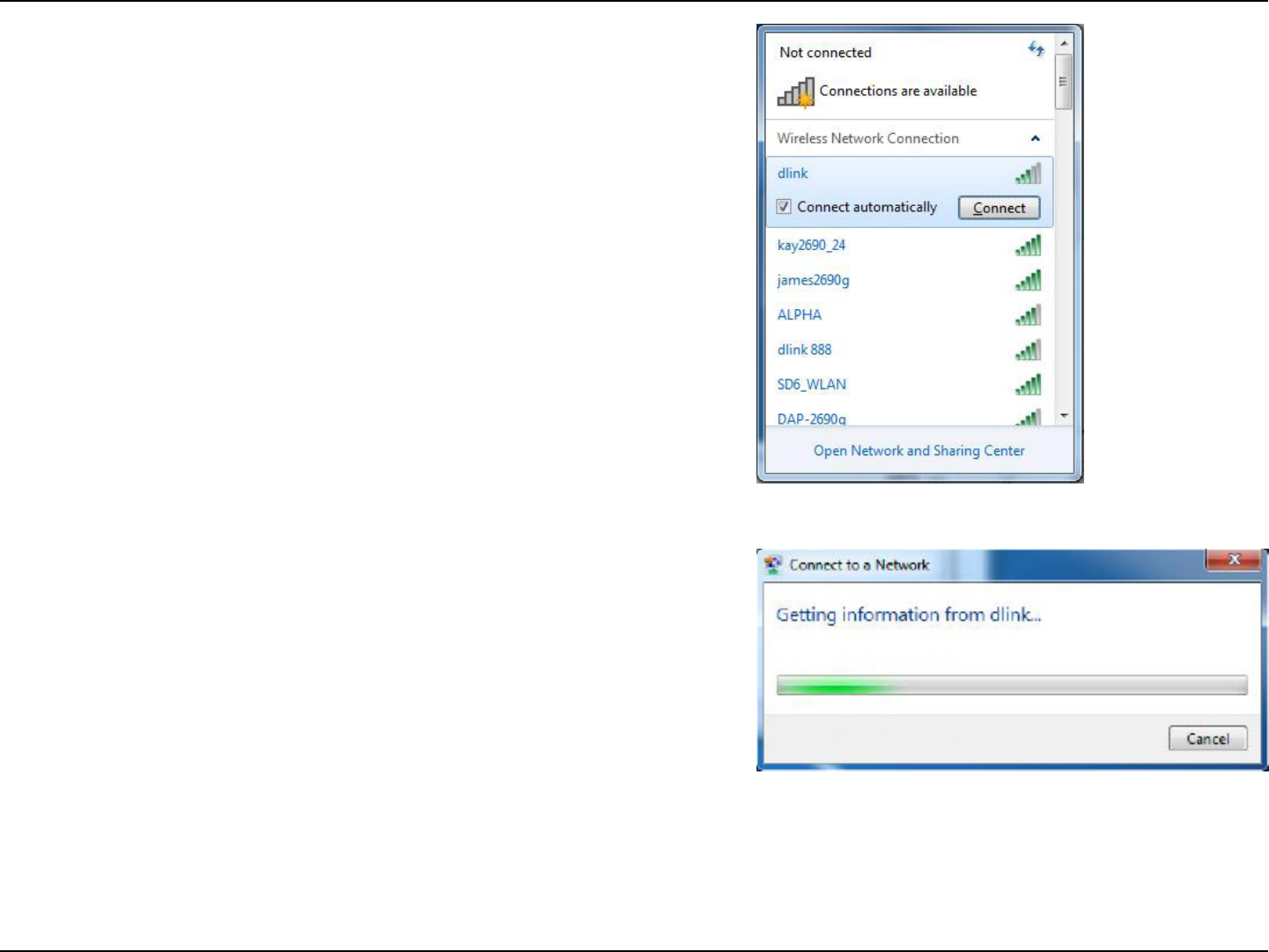

3. Highlight the wireless network (SSID) you would like to connect to and click
the Connect button.
If you get a good signal but cannot access the Internet, check your TCP/IP
settings for your wireless adapter. Refer to the Networking Basics section in
this manual for more information.
4. The following window appears while your computer tries to connect to the
router.
38
D-Link DWA-182 User Manual
Section 5 - Wireless Security

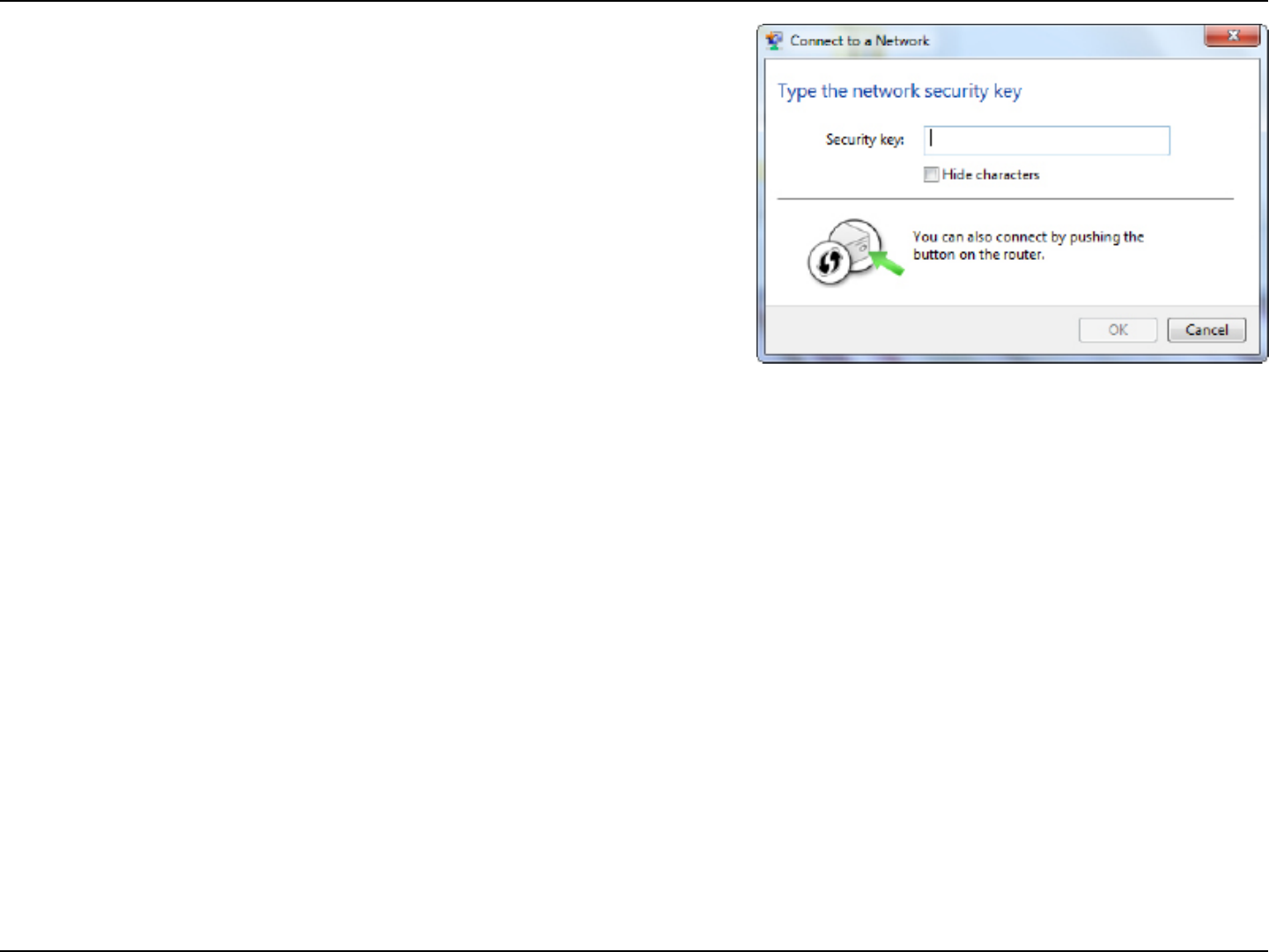

5. Enter the same security key or passphrase that is on your router and click
Connect. You can also connect by pushing the WPS button on the router.
It may take 20-30 seconds to connect to the wireless network. If the connection
fails, please verify that the security settings are correct. The key or passphrase
must be exactly the same as on the wireless router.
39
D-Link DWA-182 User Manual
Section 5 - Wireless Security
It is recommended to enable wireless security (WPA™/WPA2™) on your wireless router or access point before conguring your wireless adapter. If
you are joining an existing network, you will need to know the security key or passphrase being used.
2. Highlight the wireless network (SSID) you would like to connect to and
click Connect.

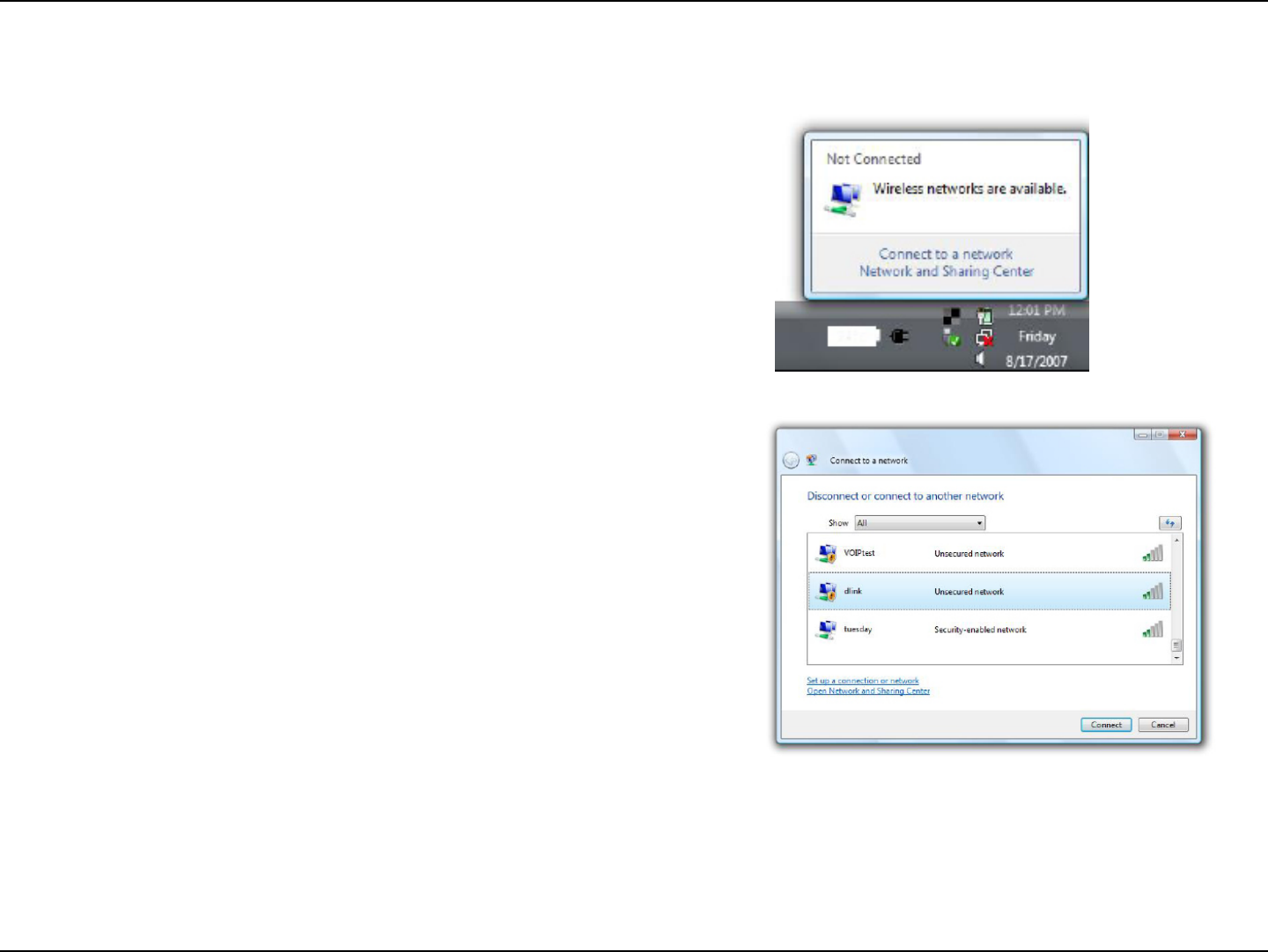

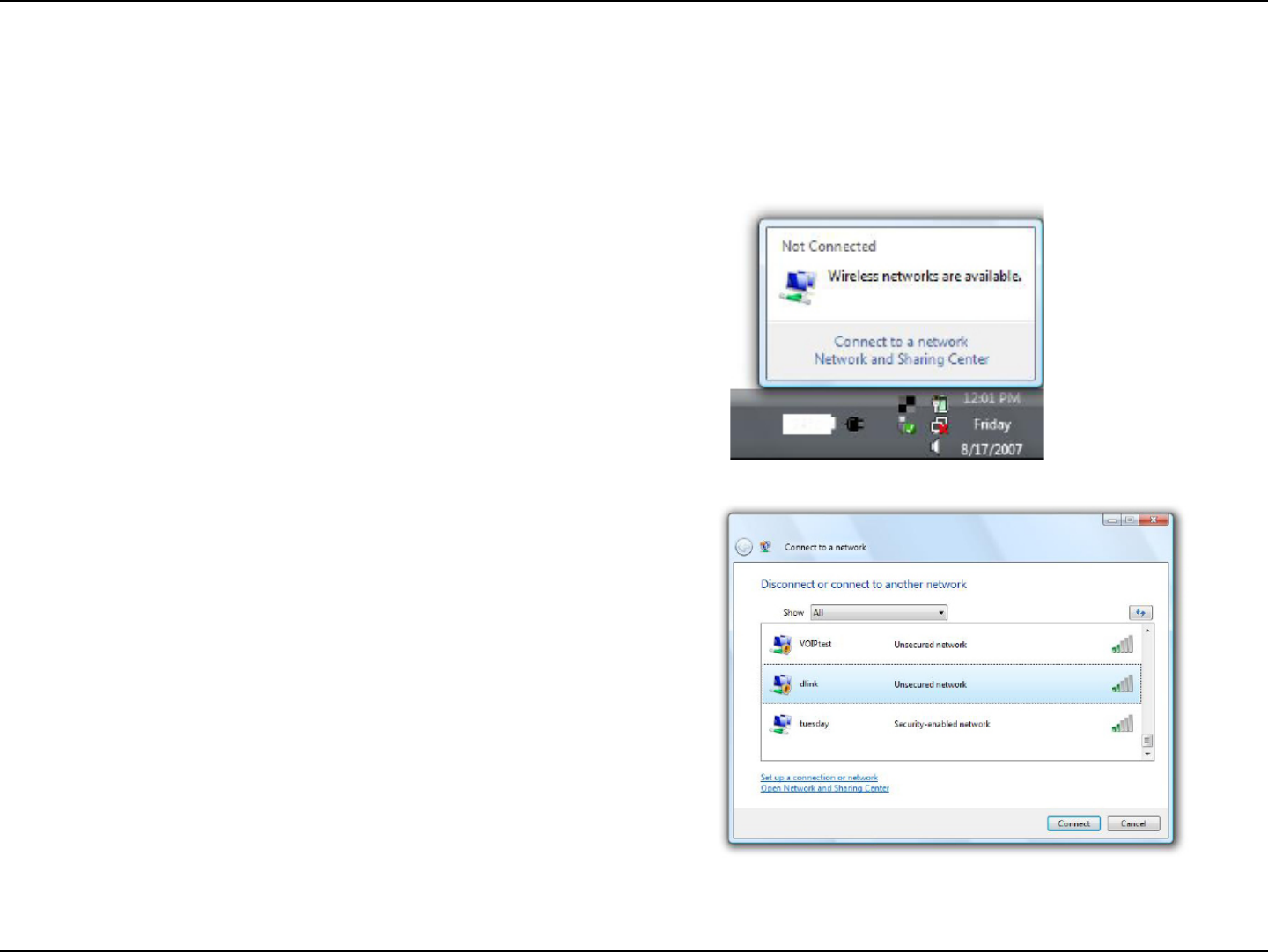

1. Open the Windows Vista Wireless Utility by right-clicking on the wireless
computer icon in your system tray (lower right corner of screen). Select
Connect to a network.
Windows Vista®
40
D-Link DWA-182 User Manual
Section 5 - Wireless Security

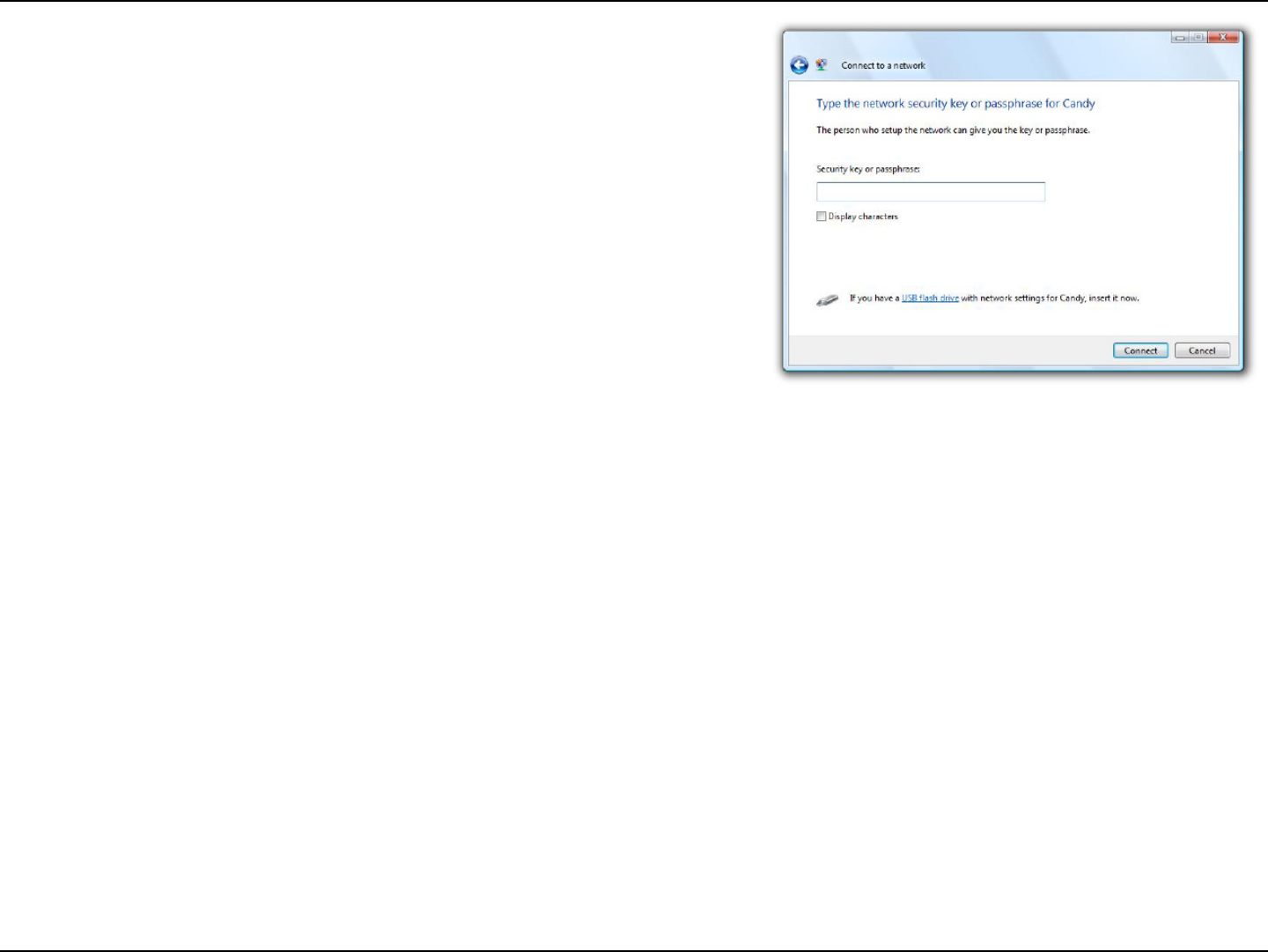

3. Enter the same security key or passphrase that is on your router and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the connection fails,
please verify that the security settings are correct. The key or passphrase must be
exactly the same as on the wireless router.
41
D-Link DWA-182 User Manual
Section 5 - Wireless Security

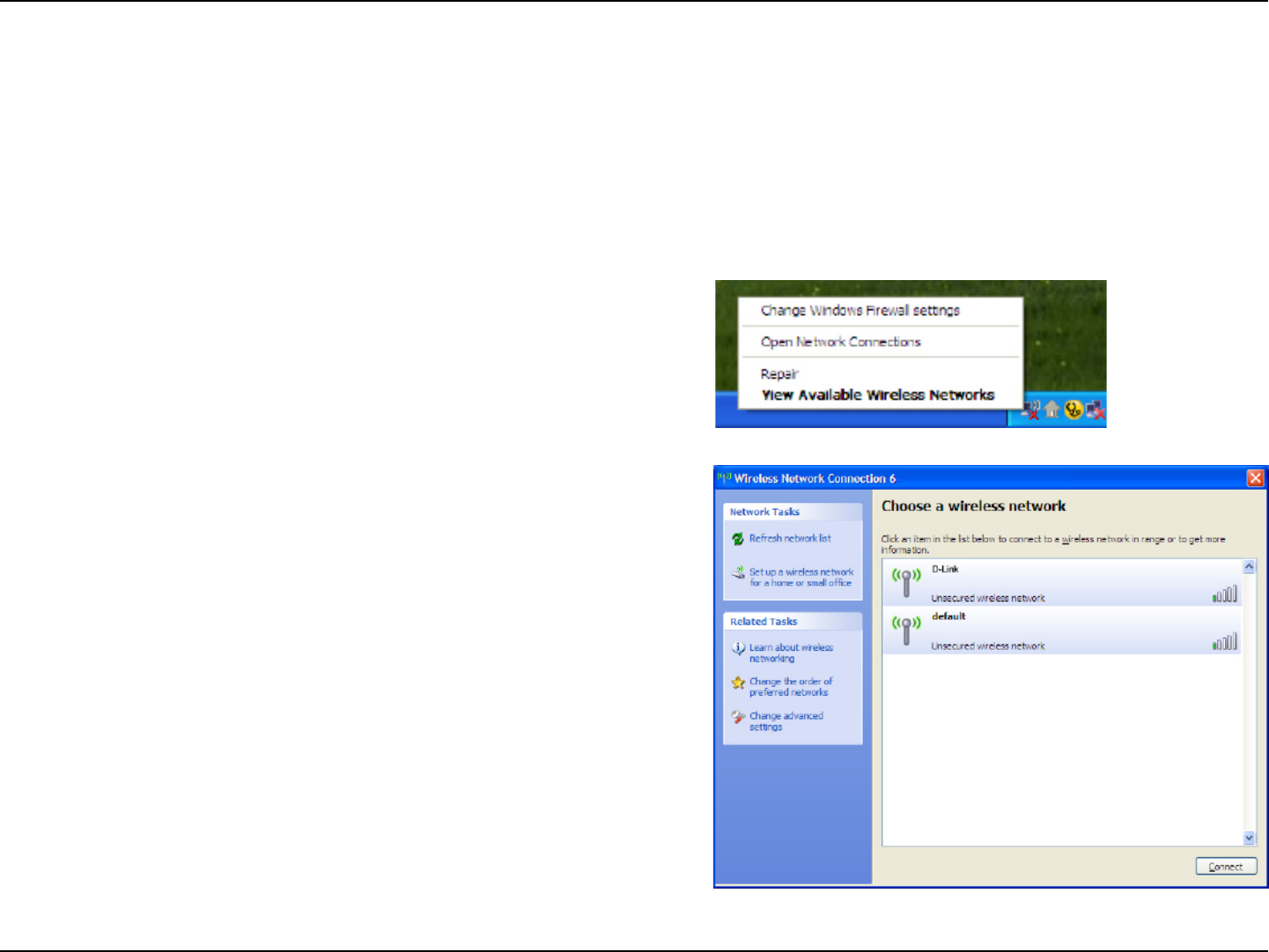

Windows® XP
It is recommended to enable WPA/WPA2-Personal on your wireless router or access point before conguring your wireless adapter. If you are joining
an existing network, you will need to know the WPA/WPA2-Personal key being used.
2. Highlight the wireless network (SSID) you would like to connect to and
click Connect.
1. Open the Windows XP Wireless Utility by right-clicking on the wireless
computer icon in your system tray (lower-right corner of screen). Select
View Available Wireless Networks.
42
D-Link DWA-182 User Manual
Section 5 - Wireless Security

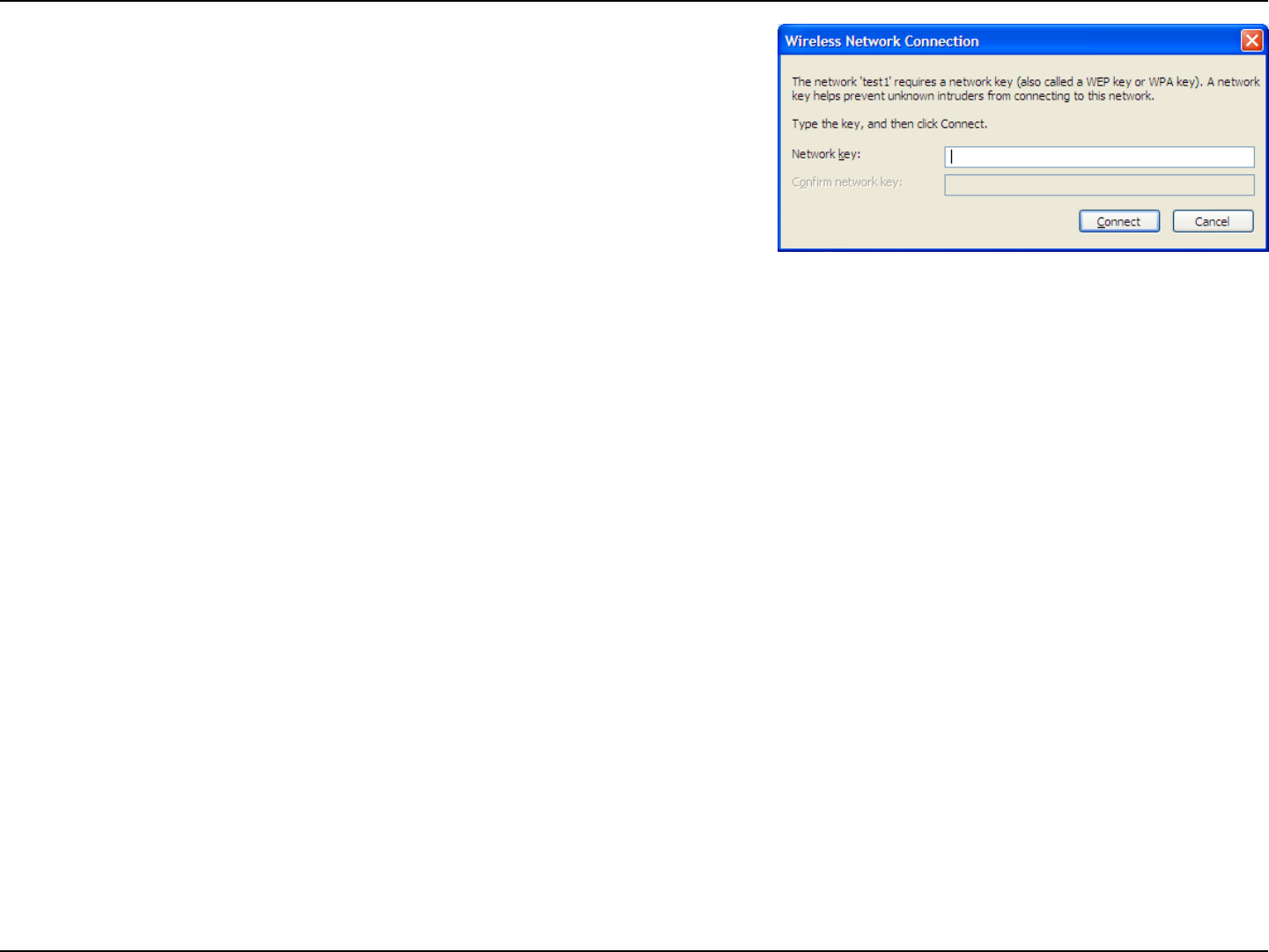

3. The Wireless Network Connection box will appear. Enter the WPA/WPA2-Personal
passphrase and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the connection fails,
please verify that the WPA/WPA2-Personal settings are correct. The WPA/WPA2-Personal
passphrase must be exactly the same as on the wireless router or access point.
43
D-Link DWA-182 User Manual
Section 5 - Wireless Security
Congure WPA/WPA2-Enterprise
Using the D-Link Wireless Connection Manager
WPA/WPA2-Enterprise is for advanced users who are familiar with using a RADIUS server and setting up certicates.

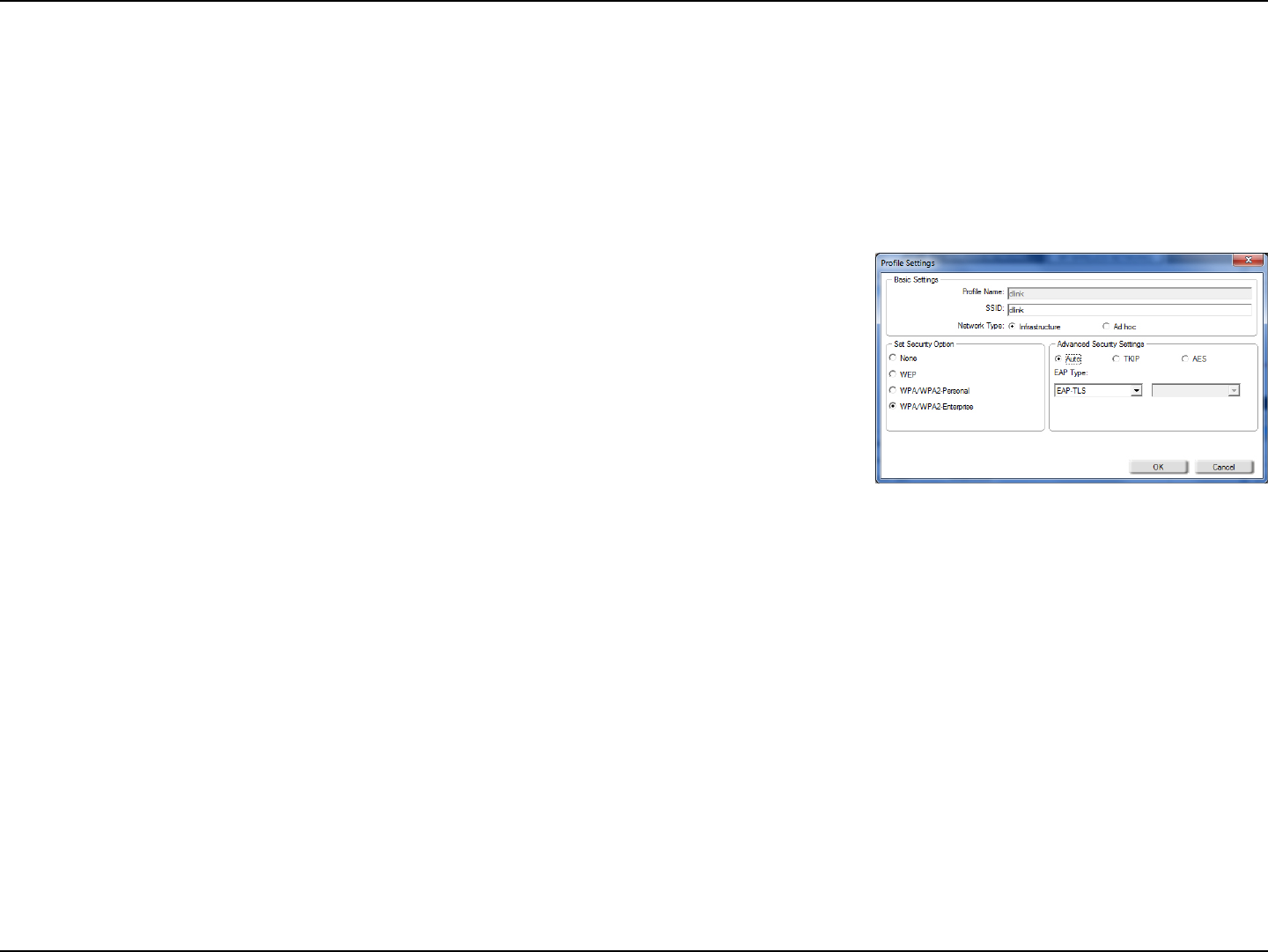

1. Open the Wireless Connection Manager by double-clicking on the D-Link icon on your desktop. Click on New to create a new prole or highlight
an existing prole and click Modify.
2. Select WPA/WPA2-Enterprise under Set Security Option and then select Auto, TKIP or AES.
3. Under EAP Type, select EAP-TLS or PEAP. Extensible Authentication Protocols allow devices on
the network to request authentication from the RADIUS server in the network. All the devices on
the network must use the same EAP type when using a RADIUS server for authentication.
4. Click OK to save your settings.
44
D-Link DWA-182 User Manual
Section 6 - Troubleshooting
Troubleshooting
1. How do I know if my adapter is installed properly?
This chapter provides solutions to problems that can occur during the installation and operation of the DWA-182. Read the following descriptions
if you are having problems.

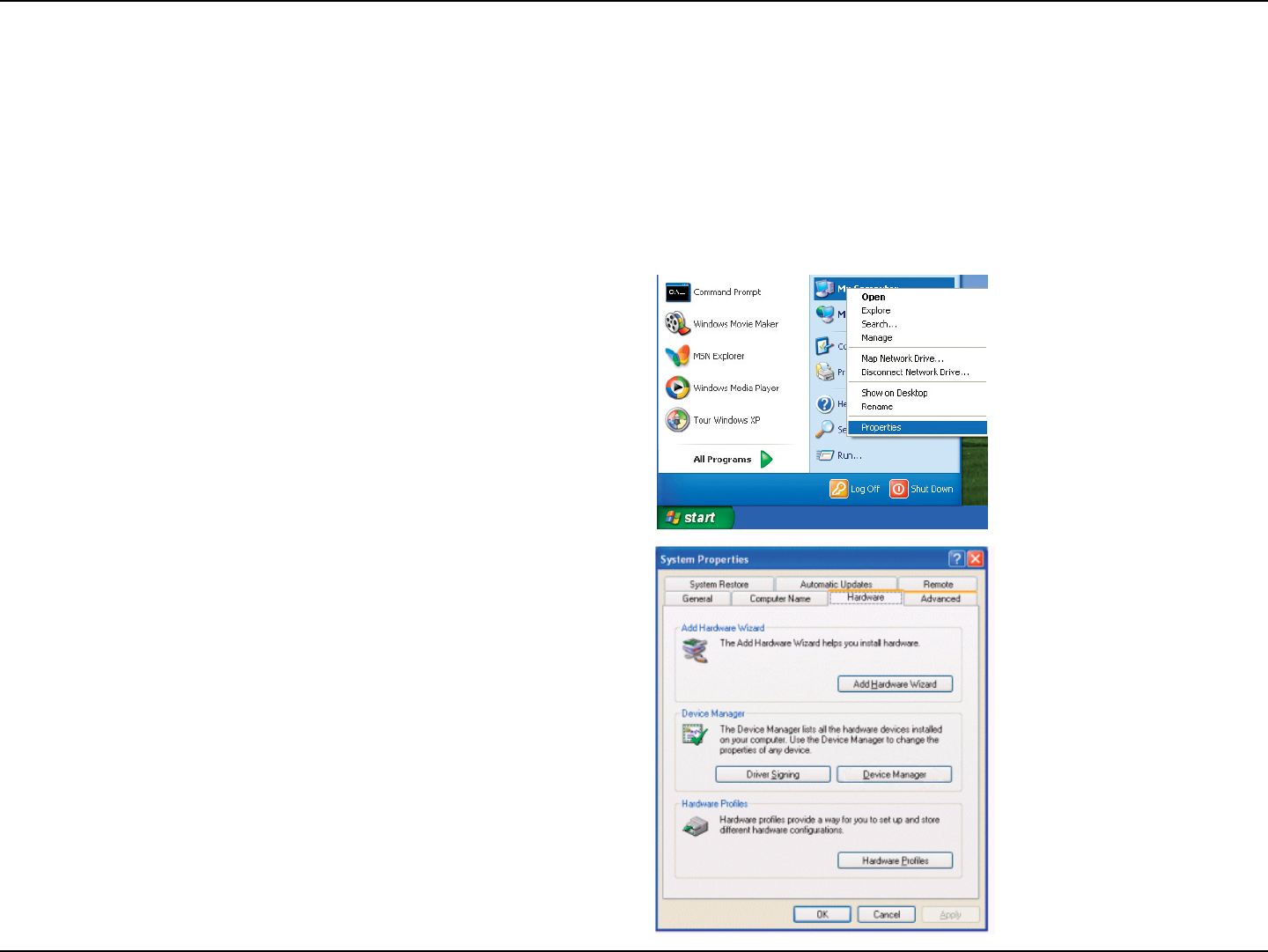

Windows XP - Go to Start > My Computer > Properties >
Hardware > Device Manager.
Windows Vista/7 - Go to Start > Device Manager.
Windows 8 - Press the Windows key and X together and
then click Device Manager.
45
D-Link DWA-182 User Manual
Section 6 - Troubleshooting
D-Link DWA-182
Xtreme N Dual Band USB Adapter

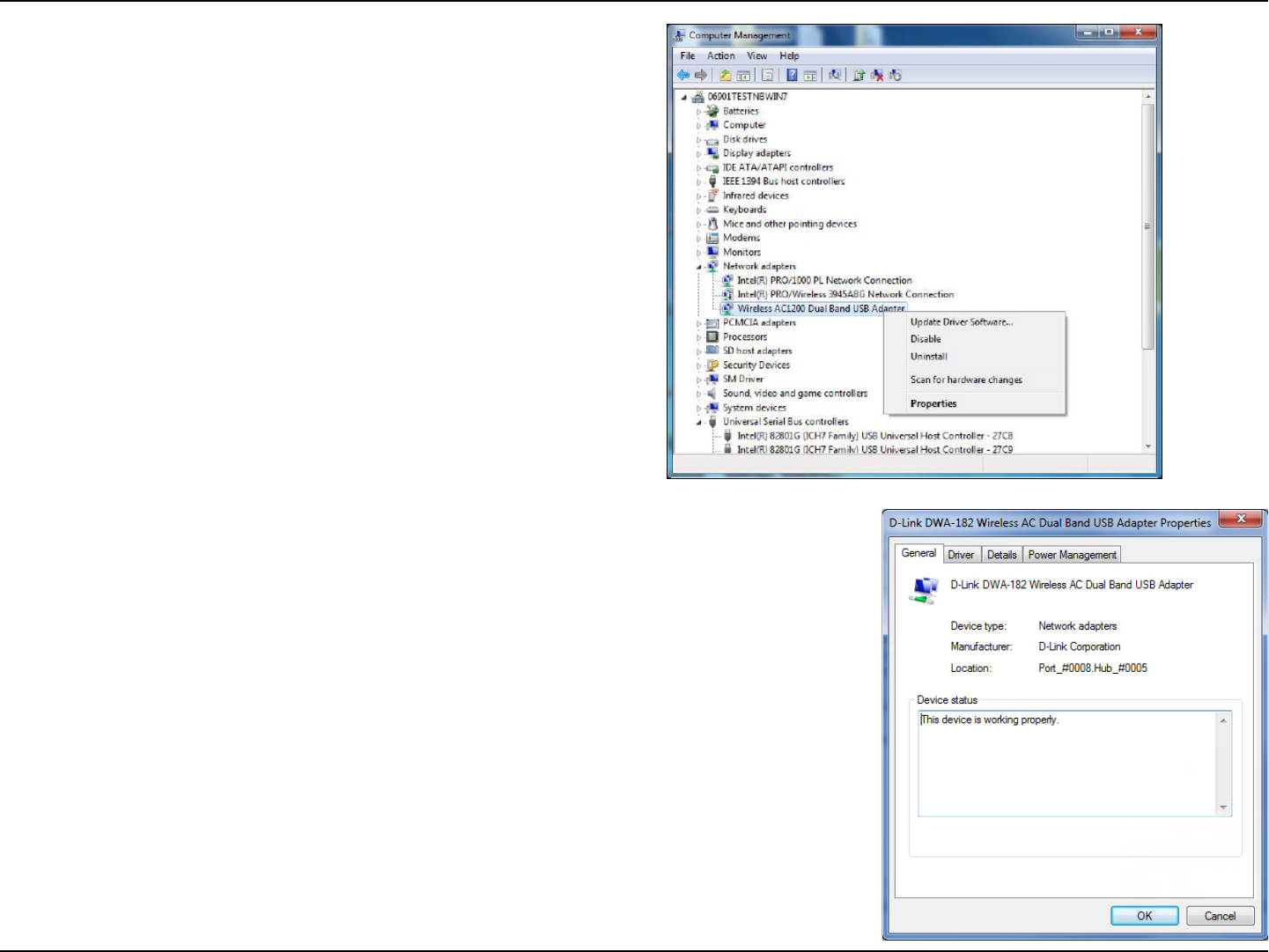

Click the + sign next to Network Adapters.
Right-click on Wireless AC1200 Dual Band USB Adapter.
Select Properties to check that the drivers are installed properly.
Look under Device Status to check that the device is working
properly. Click OK to continue.
46
D-Link DWA-182 User Manual
Section 6 - Troubleshooting
Make sure that the DWA-182 Wireless Adapter is properly seated in the computer’s USB port.
If Windows® does not detect the hardware upon insertion of the adapter, make sure to completely remove drivers that were previously loaded.
2. The computer does not recognize the DWA-182 Wireless Adapter.
• Check that the LED indicators for the broadband modem are indicating normal activity. If not, there may be a problem with the
broadband connection.
• Check that the LED indicators on the wireless router are functioning properly. If not, check that the AC power and Ethernet cables
are rmly connected.

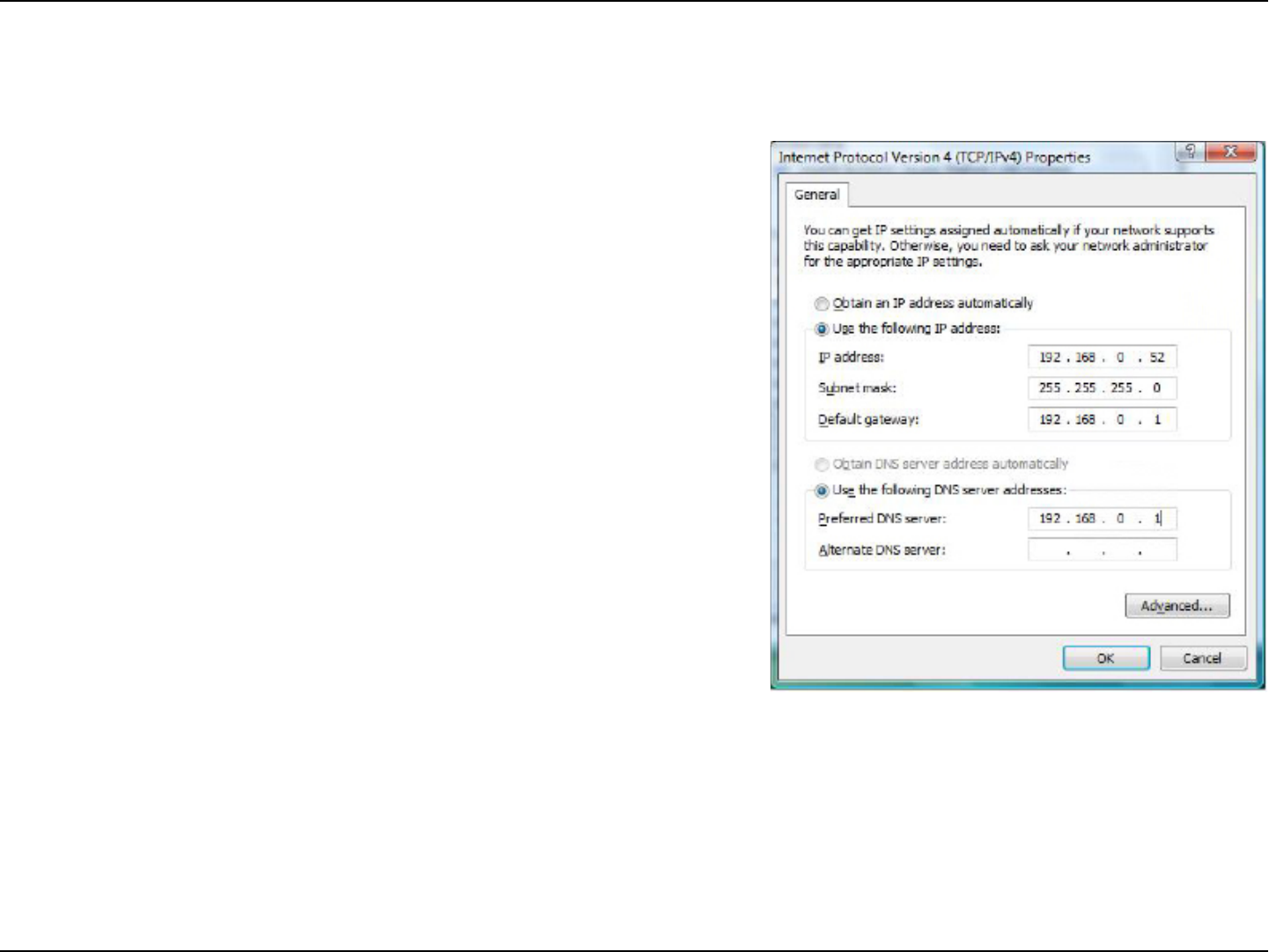

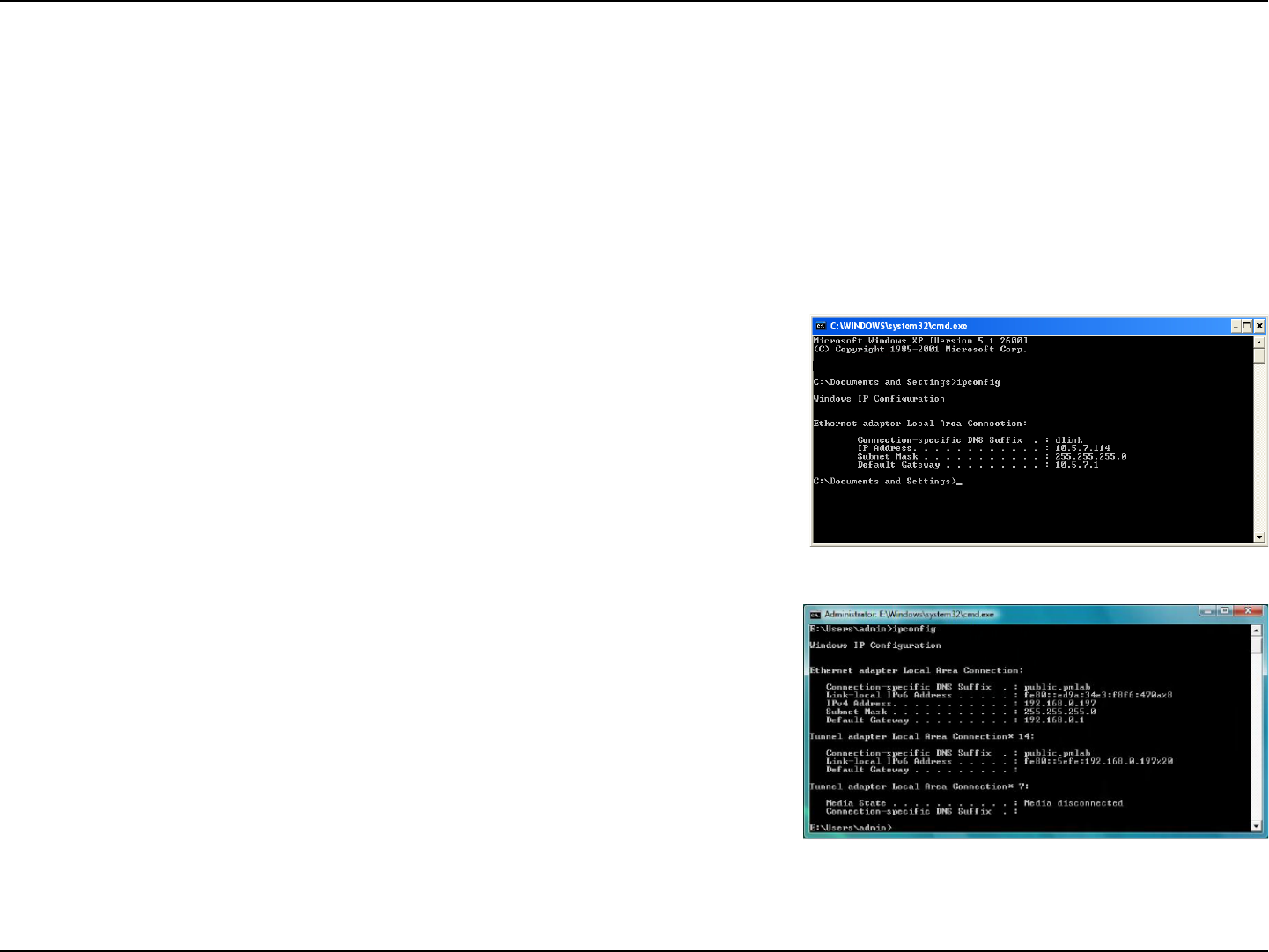

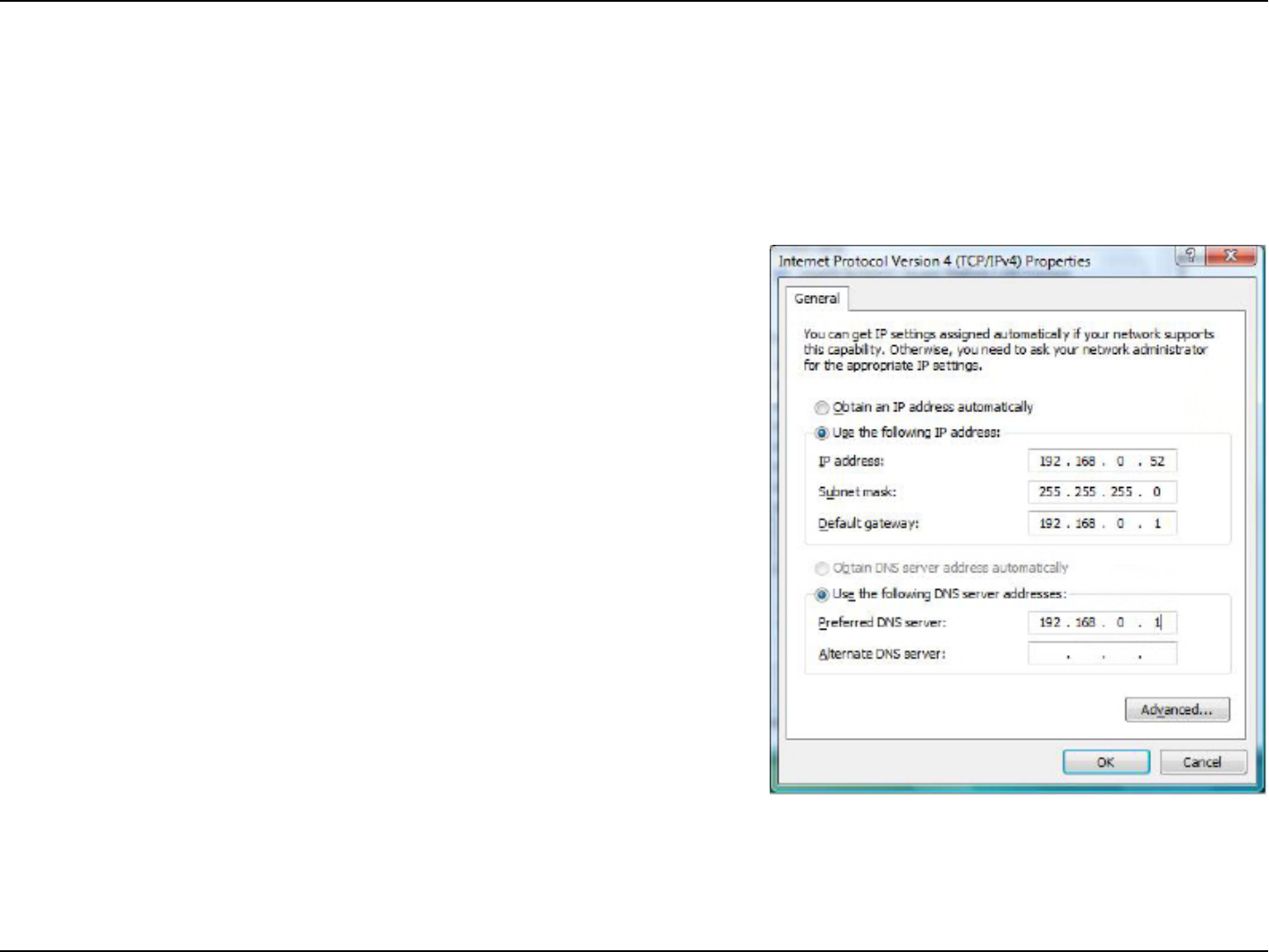

• Check that the IP Address, subnet mask, gateway, and DNS settings are correctly entered for the network
• In Infrastructure mode, make sure the same Service Set Identier (SSID) is specied on the settings for the wireless clients and
access points. By default, the SSID factory setting for D-Link products is blank. (Double-click on the WLAN icon in the taskbar. The
Link Info screen will display the SSID setting.)
3. The computer with the DWA-182 installed is unable to connect to the wireless network and/or the Internet.
47
D-Link DWA-182 User Manual
Section 6 - Troubleshooting

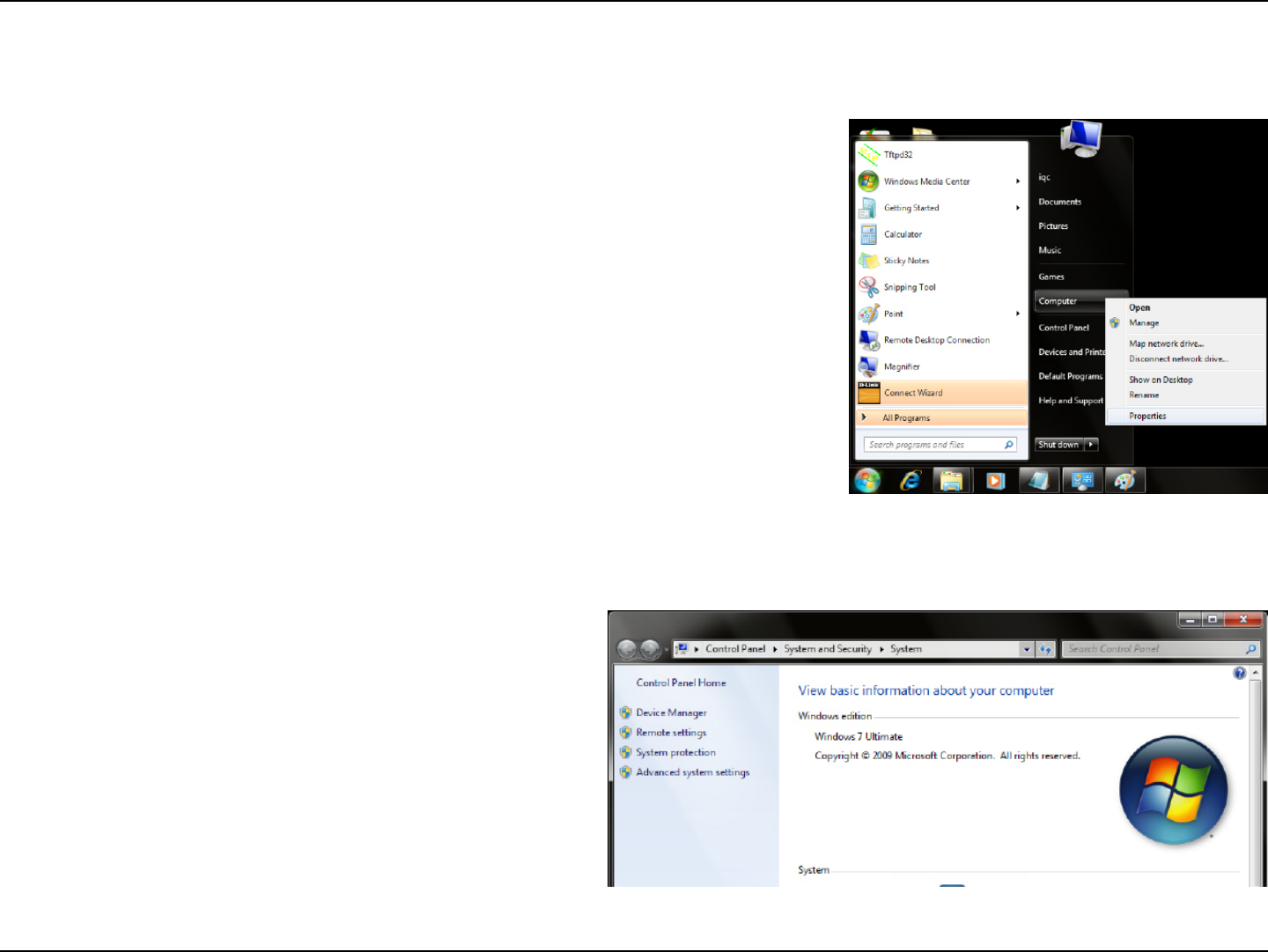

Windows® 7 Troubleshooting
Go to Start > right-click Computer > Properties.
Select the Device Manager.
48
D-Link DWA-182 User Manual
Section 6 - Troubleshooting
Click the + sign next to Network Adapters.
Right-click on D-Link DWA-182 Wireless Desktop Adapter.
Select Properties to check that the drivers are installed properly.
Look under Device Status to check that the device is working properly. Click OK to continue.
49
D-Link DWA-182 User Manual
Appendix A - Wireless Basics
D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity within your
home, business or public access wireless networks. Strictly adhering to the IEEE standard, the D-Link wireless family of products will allow you to
securely access the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking delivers.
A wireless local area network (WLAN) is a cellular computer network that transmits and receives data with radio signals instead of wires. Wireless
LANs are used increasingly in both home and oce environments, and public areas such as airports, coee shops and universities. Innovative ways
to utilize WLAN technology are helping people to work and communicate more eciently. Increased mobility and the absence of cabling and other
xed infrastructure have proven to be benecial for many users.
Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop systems support the
same protocols as Ethernet adapter cards.
Under many circumstances, it may be desirable for mobile network devices to link to a conventional Ethernet LAN in order to use servers, printers
or an Internet connection supplied through the wired LAN. A Wireless Router is a device used to provide this link.
Wireless Basics
50
D-Link DWA-182 User Manual
Appendix A - Wireless Basics
What is Wireless?
Wireless or Wi-Fi® technology is another way of connecting your computer to the network without using wires. Wi-Fi uses radio
frequency to connect wirelessly, so you have the freedom to connect computers anywhere in your home or oce network.
Why D-Link Wireless?
D-Link is the worldwide leader and award winning designer, developer, and manufacturer of networking products. D-Link
delivers the performance you need at a price you can aord. D-Link has all the products you need to build your network.
How does wireless work?
Wireless works similar to how cordless phone work, through radio signals to transmit data from one point A to point B. But wireless
technology has restrictions as to how you can access the network. You must be within the wireless network range area to be able
to connect your computer. There are two dierent types of wireless networks Wireless Local Area Network (WLAN), and Wireless
Personal Area Network (WPAN).
Wireless Local Area Network (WLAN)
In a wireless local area network, a device called an Access Point (AP) connects computers to the network. The access point has a small
antenna attached to it, which allows it to transmit data back and forth over radio signals. With an indoor access point, the signal
can travel up to 300 feet. With an outdoor access point the signal can reach out up to 30 miles to serve places like manufacturing
plants, industrial locations, college and high school campuses, airports, golf courses, and many other outdoor venues.
Wireless Personal Area Network (WPAN)
Bluetooth® is the industry standard wireless technology used for WPAN. Bluetooth devices in WPAN operate in a range up to 30
feet away.
Compared to WLAN the speed and wireless operation range are both less than WLAN, but in return it doesn’t use nearly as much
power which makes it ideal for personal devices, such as mobile phones, PDAs, headphones, laptops, speakers, and other devices
that operate on batteries.
51
D-Link DWA-182 User Manual
Appendix A - Wireless Basics
Who uses wireless?
Wireless technology has become so popular in recent years that almost everyone is using it, whether it’s for home, oce, or
business, D-Link has a wireless solution for it.
Home
• Gives everyone at home broadband access
• Surf the web, check email, instant message, and etc
• Gets rid of the cables around the house
• Simple and easy to use
Small Oce and Home Oce
• Stay on top of everything at home as you would at the oce
• Remotely access your oce network from home
• Share an Internet connection and printer with multiple computers
• No need to dedicate oce space
52
D-Link DWA-182 User Manual
Appendix A - Wireless Basics
Where is wireless used?
Wireless technology is expanding everywhere not just at home or the oce. People like the freedom of mobility and it’s becoming
so popular that more and more public facilities now provide wireless access to attract people. The wireless connection in public
places is usually called “hotspots”.
Using a D-Link USB Adapter with your laptop, you can access the hotspot to connect to the Internet from remote locations like:
Airports, Hotels, Coee Shops, Libraries, Restaurants, and Convention Centers.
Wireless networks are easy to setup, but if you’re installing it for the rst time it could be quite a task not knowing where to start.
That’s why we’ve put together a few setup steps and tips to help you through the process of setting up a wireless network.
Tips
Here are a few things to keep in mind, when you install a wireless network.
Centralize your router or Access Point
Make sure you place the router/access point in a centralized location within your network for the best performance. Try to place
the router/access point as high as possible in the room, so the signal gets dispersed throughout your home. If you have a two-
story home, you may need a repeater to boost the signal to extend the range.
Eliminate Interference
Place home appliances such as cordless telephones, microwaves, and televisions as far away as possible from the router/access
point. This can signicantly reduce any interference that the appliances might cause since they operate on the same frequency.
Security
Don’t let your next-door neighbors or intruders connect to your wireless network. Secure your wireless network by turning on
WPA™/WPA2™ security features on the router. Refer to the product manual for detailed information on how to set it up.
53
D-Link DWA-182 User Manual
Appendix A - Wireless Basics
There are basically two modes of networking:
• Infrastructure – All wireless clients will connect to an access point or wireless router.
• Ad-Hoc – Directly connecting to another computer, for peer-to-peer communication, using wireless network adapters on each
computer.
An Infrastructure network contains an Access Point or wireless router. All the wireless devices, or clients, will connect to the wireless router or access
point.
An Ad-Hoc network contains only clients, such as laptops with wireless USB Adapters. All the adapters must be in Ad-Hoc mode to communicate.
Wireless Modes
54
D-Link DWA-182 User Manual
Appendix B - Networking Basics
Networking Basics
Check your IP address
After you install your new D-Link wireless adapter and have established a wireless connection, by default, the TCP/IP settings should be set to obtain
an IP address from a DHCP server (i.e. router) automatically. To verify your IP address, please follow the steps below.
Windows® XP Users
• Click on Start > Run. In the run box type cmd and click OK.
• At the prompt, type ipcong and press Enter.
• This will display the IP address, subnet mask, and the default gateway of your adapter.
Windows® 7/Vista Users
• Click Start > All Programs > Accessories > Command Prompt. You may need
administrative access to run this application.
• For all additional prompt windows inquiring of running the command prompt
application, select Yes, OK, or Continue.
• At the prompt, type ipcong and press Enter.
• This will display the IP address, subnet mask, and default gateway of your adapter.
If the address is 0.0.0.0, check your adapter installation, security settings, and the settings on your router. Some rewall software programs may
block a DHCP request on newly installed adapters.
55
D-Link DWA-182 User Manual
Appendix B - Networking Basics
Statically Assign an IP Address
If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps below:
Windows® XP Users
• Windows® XP - Click on Start > Control Panel. Make sure you are in Classic View. Double-click on the Network Connections icon.
• Right-click on the Local Area Connection which represents your D-Link wireless network adapter (or other adapter) which will be connected
to your router.
• Highlight Internet Protocol (TCP/IP) and click Properties.
• Click Use the following IP address and enter an IP address that is on the same subnet as your network or LAN IP address on your router.
Example: If the router’s LAN IP address is 192.168.0.1, make your IP address 192.168.0.X where
X is a number between 2 and 99. Make sure that the number you choose is not in use on the
network.
• Set Default Gateway the same as the LAN IP address of your router or gateway.
• Set Primary DNS the same as the LAN IP address of your router or gateway.
• The Secondary DNS is optional (you may enter a DNS server from your ISP).
• Click OK to save your settings.
56
D-Link DWA-182 User Manual
Appendix B - Networking Basics
Windows® 7/Vista Users
• Click on Start > Control Panel (make sure you are in Classic View). Double-click on the Network and Sharing Center icon. If you are using
Windows Vista, click on Manage network connections along the left panel in the window. For Windows® 7, click on Change adapter
settings.
• Right-click on the Local Area Connection which represents your D-Link wireless network adapter which will be connected to your network.
• Highlight Internet Protocol Version 4 (TCP /IPv4) and click Properties.
• Click Use the following IP address and enter an IP address that is on the same
subnet as your network or LAN IP address on your router or network.
Example: If the router’s LAN IP address is 192.168.0.1, make your IP address
192.168.0.X where X is a number between 2 and 99. Make sure that the number
you choose is not in use on the network.
• Set Default Gateway the same as the LAN IP address of your router or gateway.
• Set Primary DNS the same as the LAN IP address of your router or gateway.
• The Secondary DNS is optional (you may enter a DNS server from your ISP).
• Click OK to save your settings.
57
D-Link DWA-182 User Manual
Appendix B - Networking Basics
Windows® 8 Users
• Press the Windows key and then type IP. Click Settings on the right side and then click View Network Connections.
• Right-click on the adapter which represents your D-Link wireless network
adapter.
• Highlight Internet Protocol Version 4 (TCP /IPv4) and click Properties.
• Click Use the following IP address and enter an IP address that is on the same
subnet as your network or LAN IP address on your router or network.
Example: If the router’s LAN IP address is 192.168.0.1, make your IP address
192.168.0.X where X is a number between 2 and 99. Make sure that the number
you choose is not in use on the network.
• Set Default Gateway the same as the LAN IP address of your router or gateway.
• Set Primary DNS the same as the LAN IP address of your router or gateway.
• The Secondary DNS is optional (you may enter a DNS server from your ISP).
• Click OK to save your settings.
58
D-Link DWA-182 User Manual
Appendix C - Technical Specications
Technical Specications
Standards
• IEEE 802.11ac
• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11a
Bus Type
• USB 3.0 or USB 2.0
Security
• Wi-Fi Protected Access (WPA™ & WPA2™)
• Wi-Fi Protected Setup - PIN & PBC
Current Consumption (802.11n)
• Tx: 760mA
• Rx: 220mA
Operating Voltage
• 5.0 VDC +/- 10%
Operating Temperature
• 32°F to 104°F ( 0°C to 40°C)
Operating Humidity
• 10% to 90% maximum (non-condensing)
Dimensions
• 96.73x28.6x11.5 mm (3.8x1.13x0.45 inches)
Weight
• 15.65 grams
Certications
• FCC Class B
• CE
• C-Tick
• IC
• Wi-Fi
• Wi-Fi Protected Setup
* Maximum wireless signal rate derived from IEEE Standard 802.11ac, 802.11n and 802.11g specications. Actual data throughput will vary. Network conditions
and environmental factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate.
Environmental factors will adversely aect wireless signal range.
59
D-Link DWA-182 User Manual
Appendix E - Warranty
Warranty
Federal Communication Commission Interference Statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to
operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
For operation within 5.15 ~ 5.25GHz / 5.47 ~5.725GHz frequency range, it is restricted to indoor environment. The band from 5600-5650MHz will be
disabled by the software during the manufacturing and cannot be changed by the end user. This device meets all the other requirements specied
in Part 15E, Section 15.407 of the FCC Rules.
Radiation Exposure Statement:
The product comply with the FCC portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as
described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or
set the device to lower output power if such function is available.
60
D-Link DWA-182 User Manual
Appendix E - Warranty
Industry Canada statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Ce dispositif est conforme à la norme CNR-210 d’Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet
aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu,
y compris un brouillage susceptible de provoquer un fonctionnement indésirable.
Caution:
(i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile
satellite systems;
(ii) the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall comply with the e.i.r.p. limit; and
(iii) the maximum antenna gain permitted for devices in the band 5725-5825 MHz shall comply with the e.i.r.p. limits specied for point-to-point
and non point-to-point operation as appropriate.
(iv) Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-
5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.
Avertissement:
Le guide d’utilisation des dispositifs pour réseaux locaux doit inclure des instructions précises sur les restrictions susmentionnées, notamment :
(i) l es dispositifs fonctionnant dans la bande 5 150-5 250 MHz sont réservés uniquement pour une utilisation à l’intérieur an de réduire les risques
de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;
(ii) le gain maximal d’antenne permis pour les dispositifs utilisant les bandes 5 250-5 350 MHz et 5 470-5 725 MHz doit se conformer à la limite de
p.i.r.e.;
(iii) le gain maximal d’antenne permis (pour les dispositifs utilisant la bande 5 725-5 825 MHz) doit se conformer à la limite de p.i.r.e. spéciée pour
l’exploitation point à point et non point à point, selon le cas.
(iv) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont désignés utilisateurs principaux (c.-
à-d., qu’ils ont la priorité) pour les bandes 5 250-5 350 MHz et 5 650-5 850 MHz et que ces radars pourraient causer du brouillage et/ou des
dommages aux dispositifs LAN-EL.
Radiation Exposure Statement:
The product comply with the Canada portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as
described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set
the device to lower output power if such function is available.
61
D-Link DWA-182 User Manual
Appendix E - Warranty
Déclaration d’exposition aux radiations:
Le produit est conforme aux limites d’exposition pour les appareils portables RF pour les Etats-Unis et le Canada établies pour un environnement
non contrôlé.
Le produit est sûr pour un fonctionnement tel que décrit dans ce manuel. La réduction aux expositions RF peut être augmentée si l’appareil peut
être conservé aussi loin que possible du corps de l’utilisateur ou que le dispositif est réglé sur la puissance de sortie la plus faible si une telle fonction
est disponible.
以下警語適用台灣地區
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項
合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
5.25 ~ 5.35GHz 限室內使用 (802.11a used)
