Users Manual
DWL-3260AP Install Guide Installing the Hardware
System Requirements:
Minimum System Requirements:
• CD-ROM Drive
• Computers with Windows, Macintosh, or Linux-based operating systems
• Installed Ether
net Adapter Internet Explorer version 6.0 or Netscape
Navigator version 7.0 and above
Package Contents
-D-Link AirPremierTM DWL-3260AP Wireless Access Point with PoE
D
WL-32
DWL-3200AP Install Guide Installing the Hardware
D-Link Systems, Inc.
DWL-3260AP Install Guide Installing the Hardware
D
Connect one end of an Ethernet cable (included
with your package) to the LAN port on the
DWL-3260AP and the other end of the Ethernet
cable to the port labeled P+DATA
OUT on the PoE base unit.
WL-3200AP Install Guide Installing the Hardware
Connect another Ethernet cable
from the DATA IN port on the PoE
base unit to your router/switch or to a
PC.
D-Link Systems, Inc.
DWL-3260AP Install Guide Installing the Hardware
D-Link Systems, Inc.
DWL-3260AP Install Guide Installing the Hardware

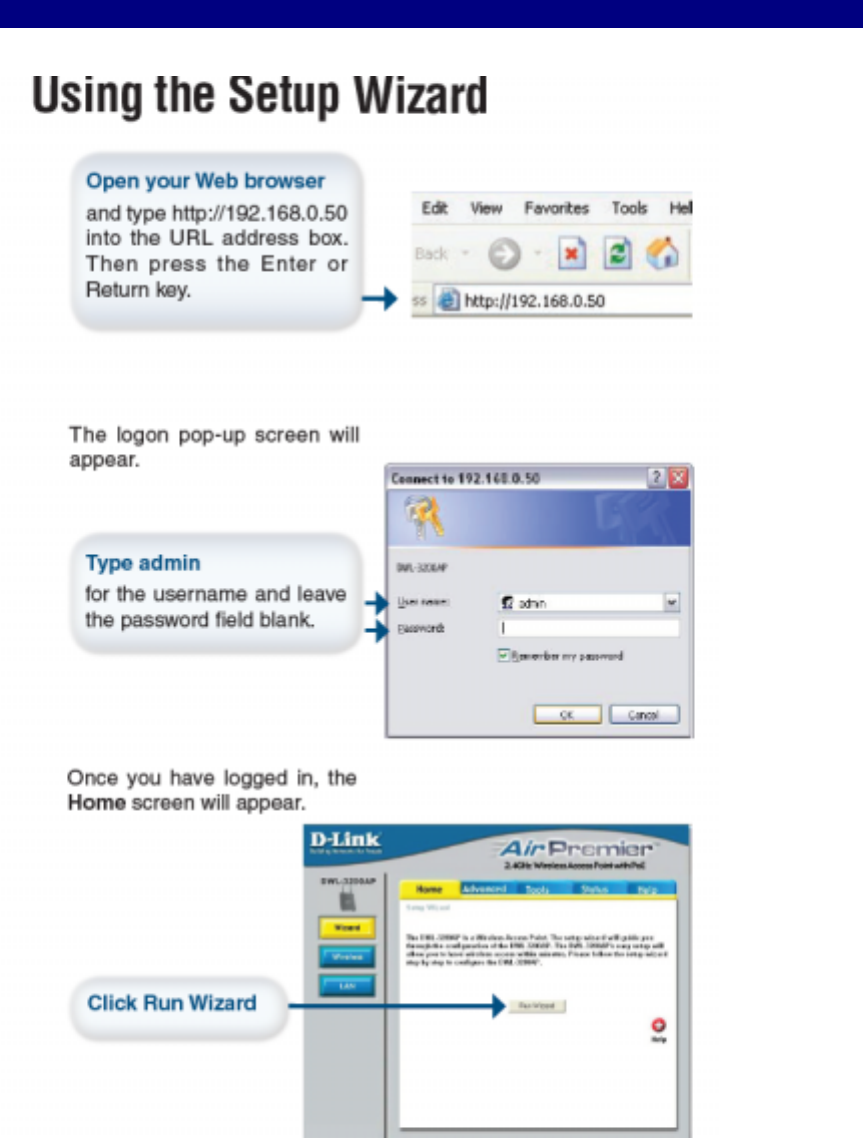

Step 1 - Setup your new
password. You have the
option to establish a
password.
By default the
DWL-3260AP SSID is set to
default with a Channel
setting of 6.
For 802.11g networks please
continue as follows:
Step 3 – Encryption
The DWL-3260AP is capable
Of three levels of wireless encryption:
64-,128-,152-bit,using either
Hexadecimal or ASCII key type By
default encryption is disabled.
You can change the encryption
settings for more secure
wireless communication.
D-Link Systems, Inc.
DWL-3260AP Install Guide Installing the Hardware
Your Setup is Complete!
When you have completed the steps in this Quick Installation Guide,
your connected network should look similar to this:
DWL-3260AP
DWL-3260AP
D-Link Systems, Inc.
DWL-3260AP Install Guide Installing the Hardware
D-Link Systems, Inc.
DWL-3260AP Install Guide Installing the Hardware
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction
with any other antenna or transmitter.
If this device is going to be operated in 5.15 ~ 5.25GHz frequency range, then it is
restricted in indoor environment only.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
User’s manual for Canada with warning as following:
"Operation is subject to the following two conditions: (1) this device may not cause
D-Link Systems, Inc.
DWL-3260AP Install Guide Installing the Hardware
interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device."
"The installer of this radio equipment must ensure that the antenna is located or
pointed such that it does not emit RF field in excess of Health Canada limits for
the general population; consult Safety Code 6, obtainable from Health Canada’s
website www.hc-sc.gc.ca/rpb"
"To reduce potential radio interference to other users, the antenna type and its
gain should be so chosen that the equivalent isotropically radiated power (EIRP) is
not more than that required for successful communication"
"This device has been designed to operate with an antenna having a maximum
gain of 2.0 dBi. Antenna having a higher gain is strictly prohibited per regulations of
Industry Canada. The required antenna impedance is 50 ohms."
“To reduce potential radio interference to other users, the antenna type and its
gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.)
is not more than that permitted for successful communication.”
D-Link Systems, Inc.
DWL-3260AP Install Guide Installing the Hardware
802.11b/802.11g/BT 警語：
第十二條:經型式認證合格之低功率射頻電機，非經許可，公司，商號或使用者均不
得擅自變更頻率、加大功率或變更原設計之特性及功能。
第十四條:低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾
現象時，應立即停用，並改善至無干擾時方得繼續使用。
前項合法通信，指依電信法規定作業之無線電通信。 低功率射頻電機須忍受合法通
信或工業、科學及醫療用電波輻射性電機設備之干擾。
