User Manual

Unified Access Point

Administrator's Guide

Product Model: DWL-3600AP

DWL-6600AP

DWL-8600AP

Unified Wired & Wireless Access System

Release 2.0

November 2011

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page2

UnifiedAccessPointAdministrator’sGuide

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page3

UnifiedAccessPointAdministrator’sGuide

TableofContents

Section1:AboutThisDocument ..................................................................................... 12

DocumentOrganization ............................................................................................................................... 12

AdditionalDocumentation...........................................................................................................................12

DocumentConventions................................................................................................................................13

OnlineHelp,SupportedBrowsers,andLimitations ....................................................................................14

Section2:GettingStarted ............................................................................................... 15

Administrator’sComputerRequirements ...................................................................................................16

WirelessClientRequirements......................................................................................................................17

DynamicandStaticIPAddressingontheAP...............................................................................................17

RecoveringanIPAddress.......................................................................................................................18

DiscoveringaDynamicallyAssignedIPAddress ....................................................................................18

InstallingtheUAP.........................................................................................................................................19

BasicSettings................................................................................................................................................22

ConnectingtotheAPWebInterfacebyUsingtheIPv6Address...........................................................24

UsingtheCLItoViewtheIPAddress...........................................................................................................24

ConfiguringtheEthernetSettings................................................................................................................25

UsingtheCLItoConfigureEthernetSettings.........................................................................................26

ConfiguringIEEE802.1XAuthentication......................................................................................................27

UsingtheCLItoConfigure802.1XAuthenticationInformation ............................................................27

VerifyingtheInstallation..............................................................................................................................28

ConfiguringSecurityontheWirelessAccessPoint .....................................................................................29

Section3:ViewingAccessPointStatus ............................................................................ 30

ViewingInterfaceStatus ..............................................................................................................................31

WiredSettings(InternalInterface) ........................................................................................................31

WirelessSettings....................................................................................................................................31

ViewingEvents .............................................................................................................................................32

ConfiguringPersistentLoggingOptions.................................................................................................32

ConfiguringtheLogRelayHostforKernelMessages ............................................................................34

EnablingorDisablingtheLogRelayHostontheEventsPage ...............................................................34

ViewingTransmitandReceiveStatistics .....................................................................................................36

ViewingAssociatedWirelessClientInformation ........................................................................................38

ViewingTSPECClientAssociations ..............................................................................................................39

LinkIntegrityMonitoring .......................................................................................................................41

ViewingRogueAPDetection .......................................................................................................................41

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page4

UnifiedAccessPointAdministrator’sGuide

SavingandImportingtheKnownAPList ...............................................................................................44

ViewingManagedAPDHCPInformation.....................................................................................................45

ViewingTSPECStatusandStatisticsInformation........................................................................................45

ViewingTSPECAPStatisticsInformation.....................................................................................................47

ViewingRadioStatisticsInformation ..........................................................................................................48

ViewingEmailAlertOperationalStatus ......................................................................................................50

Section4:ManagingtheAccessPoint.............................................................................. 51

EthernetSettings ..........................................................................................................................................51

WirelessSettings ..........................................................................................................................................54

Usingthe802.11hWirelessMode.........................................................................................................57

EnablingAeroScout™EngineSupport ...................................................................................................57

ModifyingRadioSettings .............................................................................................................................58

ConfiguringRadioandVAPScheduler .........................................................................................................65

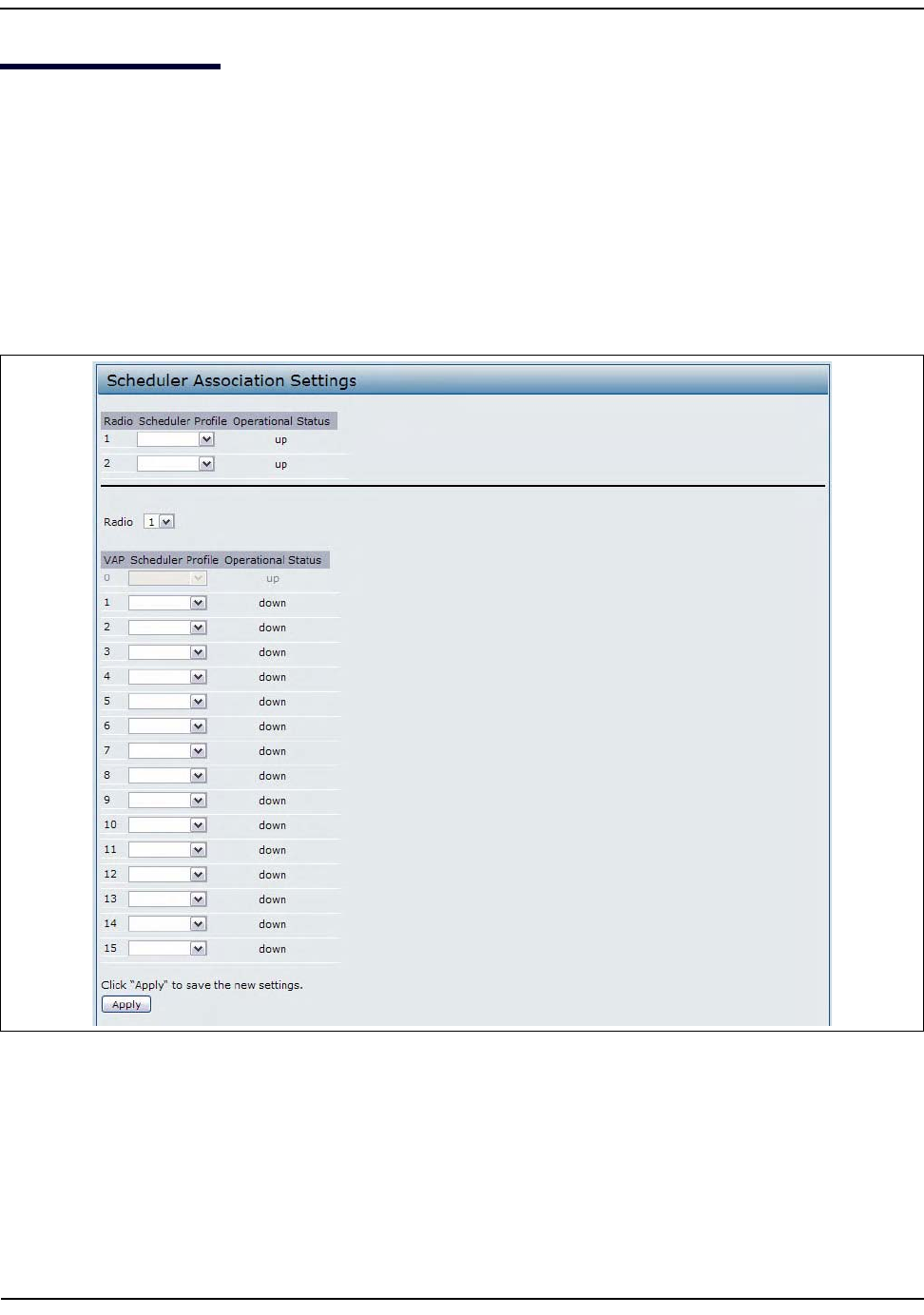

SchedulerAssociationSettings ....................................................................................................................68

VirtualAccessPointSettings........................................................................................................................70

None(Plain‐text)....................................................................................................................................74

StaticWEP..............................................................................................................................................74

StaticWEPRules .............................................................................................................................76

IEEE802.1X ............................................................................................................................................76

WPAPersonal ........................................................................................................................................78

WPAEnterprise......................................................................................................................................79

ConfiguringtheWirelessDistributionSystem(WDS) .................................................................................81

WEPonWDSLinks .................................................................................................................................84

WPA/PSKonWDSLinks .........................................................................................................................84

ControllingAccessbyMACAuthentication .................................................................................................85

ConfiguringaMACFilterandStationListontheAP..............................................................................85

ConfiguringMACAuthenticationontheRADIUSServer .......................................................................87

ConfiguringLoadBalancing..........................................................................................................................88

ManagedAccessPointOverview.................................................................................................................89

TransitioningBetweenModes...............................................................................................................89

ConfiguringManagedAccessPointSettings..........................................................................................90

Configuring802.1XAuthentication..............................................................................................................92

CreatingaManagementAccessControlList ...............................................................................................94

Section5:ConfiguringAccessPointServices.................................................................... 95

ConfiguringSNMPontheAccessPoint .......................................................................................................95

WebServerSettings .....................................................................................................................................99

D‐Link UnifiedAccessPointAdministrator’sGuide

November2011 Page5

UnifiedAccessPointAdministrator’sGuide

SettingtheSSHStatus ................................................................................................................................101

SettingtheTelnetStatus ............................................................................................................................101

ConfiguringQualityofService....................................................................................................................102

ConfiguringEmailAlert ..............................................................................................................................106

EnablingtheTimeSettings(NTP)...............................................................................................................109

Section6:ConfiguringSNMPv3 ..................................................................................... 111

ConfiguringSNMPv3Views........................................................................................................................111

ConfiguringSNMPv3Groups......................................................................................................................113

ConfiguringSNMPv3Users ........................................................................................................................115

ConfiguringSNMPv3Targets .....................................................................................................................116

Section7:MaintainingtheAccessPoint ........................................................................ 117

SavingtheCurrentConfigurationtoaBackupFile....................................................................................117

RestoringtheConfigurationfromaPreviouslySavedFile........................................................................118

PerformingAPMaintenance......................................................................................................................120

ResettingtheFactoryDefaultConfiguration .......................................................................................120

RebootingtheAccessPoint .................................................................................................................120

UpgradingtheFirmware ............................................................................................................................120

PacketCaptureConfigurationandSettings...............................................................................................122

PacketCaptureStatus..........................................................................................................................124

PacketCaptureParameterConfiguration............................................................................................124

PacketFileCapture ..............................................................................................................................125

RemotePacketCapture .......................................................................................................................125

PacketCaptureFileDownload.............................................................................................................127

Section8:ConfiguringClientQualityofService ............................................................. 128

ConfiguringVAPQoSParameters ..............................................................................................................128

ManagingClientQoSACLs .........................................................................................................................131

IPv4andIPv6ACLs ...............................................................................................................................131

MACACLs.............................................................................................................................................131

ACLConfigurationProcess ...................................................................................................................131

CreatingaDiffServClassMap ....................................................................................................................138

DefiningDiffServ ..................................................................................................................................138

CreatingaDiffServPolicyMap...................................................................................................................144

ClientQoSStatus ........................................................................................................................................146

ConfiguringRADIUS‐AssignedClientQoSParameters..............................................................................147

Section9:ClusteringMultipleAPs ................................................................................. 149

ManagingAccessPointsintheCluster ......................................................................................................149

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page6

UnifiedAccessPointAdministrator’sGuide

ClusteringSingleandDualRadioAPs ..................................................................................................149

ViewingandConfiguringClusterMembers .........................................................................................149

RemovinganAccessPointfromtheCluster ........................................................................................151

AddinganAccessPointtoaCluster.....................................................................................................152

NavigatingtoConfigurationInformationforaSpecificAP..................................................................152

NavigatingtoanAPbyUsingitsIPAddressinaURL...........................................................................152

ManagingClusterSessions.........................................................................................................................153

SortingSessionInformation.................................................................................................................154

ConfiguringandViewingChannelManagementSettings.........................................................................154

Stopping/StartingAutomaticChannelAssignment .............................................................................155

ViewingCurrentChannelAssignmentsandSettingLocks ...................................................................156

ViewingtheLastProposedSetofChanges..........................................................................................156

ConfiguringAdvancedSettings ............................................................................................................157

ViewingWirelessNeighborhoodInformation...........................................................................................158

ViewingDetailsforaClusterMember .................................................................................................160

AppendixA:DefaultAPSettings.................................................................................... 161

AppendixB:ConfigurationExamples............................................................................. 164

ConfiguringaVAP.......................................................................................................................................164

VAPConfigurationfromtheWebInterface.........................................................................................164

VAPConfigurationfromtheCLI...........................................................................................................165

VAPConfigurationUsingSNMP ...........................................................................................................166

ConfiguringRadioSettings .........................................................................................................................166

RadioConfigurationfromtheWebInterface ......................................................................................166

RadioConfigurationfromtheCLI ........................................................................................................168

RadioConfigurationUsingSNMP ........................................................................................................168

ConfiguringtheWirelessDistributionSystem...........................................................................................169

WDSConfigurationfromtheWebInterface .......................................................................................169

WDSConfigurationfromtheCLI..........................................................................................................170

WDSConfigurationUsingSNMP..........................................................................................................171

ClusteringAccessPoints.............................................................................................................................172

ClusteringAPsbyUsingtheWebInterface .........................................................................................172

ClusteringAPsbyUsingtheCLI............................................................................................................173

ClusteringAPsbyUsingSNMP.............................................................................................................174

ConfiguringClientQoS ............................................................................................................................... 174

ConfiguringQoSbyUsingtheWebInterface ......................................................................................174

ACLConfiguration.........................................................................................................................174

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page7

UnifiedAccessPointAdministrator’sGuide

DiffServConfiguration .................................................................................................................. 176

ConfiguringQoSbyUsingtheCLI ........................................................................................................179

ACLConfiguration.........................................................................................................................179

DiffServConfiguration .................................................................................................................. 179

ACLConfiguration.........................................................................................................................180

DiffServConfiguration .................................................................................................................. 182

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page8

UnifiedAccessPointAdministrator’sGuide

ListofFigures

Figure1:AdministratorUIOnlineHelp ............................................................................................................14

Figure2:ViewingInterfaceStatus....................................................................................................................31

Figure3:ViewingEvents ..................................................................................................................................32

Figure4:PersistentLoggingOptions................................................................................................................33

Figure5:LogRelayHost ...................................................................................................................................34

Figure6:ViewingTrafficStatistics....................................................................................................................36

Figure7:ViewingClientAssociationInformation ............................................................................................38

Figure8:ViewingTSPECClientAssociations ....................................................................................................39

Figure9:ViewingRogueandKnownAccessPoints .........................................................................................41

Figure10:ViewingTSPECStatusandStatistics ................................................................................................45

Figure11:RadioStatistics ................................................................................................................................48

Figure12:EmailAlertOperationalStatus ........................................................................................................50

Figure13:EthernetSettings.............................................................................................................................52

Figure14:WirelessInterfaceConfiguration.....................................................................................................54

Figure15:ConfiguringRadioSettings ..............................................................................................................58

Figure16:ConfiguringRadioSettings(Continued) ..........................................................................................59

Figure17:SchedulerConfiguration.................................................................................................................. 65

Figure18:ModifyRuleConfiguration ..............................................................................................................67

Figure19:SchedulerAssociation .....................................................................................................................68

Figure20:SettingUpVirtualAccessPoints......................................................................................................71

Figure21:ConfiguringWDSSettings................................................................................................................82

Figure22:ConfiguringMACAuthentication ....................................................................................................86

Figure23:ConfiguringLoadBalancing .............................................................................................................88

Figure24:ConfiguringManagedAccessPointSettings ...................................................................................90

Figure25:IEEE802.1XAuthentication.............................................................................................................92

Figure26:ManagementACL ............................................................................................................................ 94

Figure27:ModifyingSNMPSettings................................................................................................................96

Figure28:ConfiguringWebServerSettings.....................................................................................................99

Figure29:SSHStatus......................................................................................................................................101

Figure30:TelnetStatus..................................................................................................................................101

Figure31:ConfiguringQoSSettings...............................................................................................................103

Figure32:ConfiguringEmailAlert..................................................................................................................106

Figure33:SettingtheSystemTime................................................................................................................109

Figure34:SNMPv3Views...............................................................................................................................111

Figure35:SNMPv3Groups ............................................................................................................................113

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page9

UnifiedAccessPointAdministrator’sGuide

Figure36:SNMPv3Users ...............................................................................................................................115

Figure37:SNMPv3Target..............................................................................................................................116

Figure38:Maintenance .................................................................................................................................120

Figure39:PacketCaptureConfiguration .......................................................................................................123

Figure40:VAPQoSParameters ..................................................................................................................... 129

Figure41:ClientQoSACL...............................................................................................................................132

Figure42:ClientQoSDiffServClassMap .......................................................................................................139

Figure43:ClientQoSDiffServPolicyMap......................................................................................................144

Figure44:ClientQoSStatus ...........................................................................................................................146

Figure45:ClusterInformationandMemberConfiguration ..........................................................................150

Figure46:ClusterInformationandMemberConfiguration ..........................................................................150

Figure47:SessionManagement ....................................................................................................................153

Figure48:ChannelManagement ...................................................................................................................155

Figure49:WirelessNeighborhood.................................................................................................................158

Figure50:DetailsforaClusterMemberAP...................................................................................................160

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page10

UnifiedAccessPointAdministrator’sGuide

ListofTables

Table1:TypographicalConventions ................................................................................................................13

Table2:RequirementsfortheAdministrator’sComputer ..............................................................................16

Table3:RequirementsforWirelessClients .....................................................................................................17

Table4:BasicSettingsPage .............................................................................................................................22

Table5:CLICommandsforEthernetSetting ...................................................................................................26

Table6:CLICommandsforthe802.1XSupplicant ..........................................................................................27

Table7:LoggingOptions ..................................................................................................................................33

Table8:LogRelayHost ....................................................................................................................................34

Table9:Transmit/Receive................................................................................................................................37

Table10:AssociatedClients.............................................................................................................................38

Table11:TSPECClientAssociations .................................................................................................................39

Table12:RogueAPDetection..........................................................................................................................42

Table13:TSPECStatusandStatistics ...............................................................................................................46

Table14:TSPECAPStatistics............................................................................................................................47

Table15:RadioStatisticsInformation .............................................................................................................48

Table16:EmailAlertStatus .............................................................................................................................50

Table17:EthernetSettingsPage .....................................................................................................................52

Table18:WirelessSettings ..............................................................................................................................55

Table19:RadioSettings ...................................................................................................................................60

Table20:SchedulerConfiguration ...................................................................................................................66

Table21:SchedulerAssociationSettings.........................................................................................................69

Table22:VirtualAccessPointSettings ............................................................................................................71

Table23:StaticWEP.........................................................................................................................................74

Table24:IEEE802.1X .......................................................................................................................................76

Table25:WPAPersonal ...................................................................................................................................78

Table26:WPAEnterprise.................................................................................................................................79

Table27:WDSSettings ....................................................................................................................................83

Table28:WEPonWDSLinks............................................................................................................................84

Table29:WPA/PSKonWDSLinks ....................................................................................................................84

Table30:MACAuthentication .........................................................................................................................86

Table31:RADIUSServerAttributesforMACAuthentication ..........................................................................87

Table32:LoadBalancing..................................................................................................................................88

Table33:ManagedAccessPoint......................................................................................................................90

Table34:IEEE802.1XSupplicantAuthentication ............................................................................................92

Table35:ManagementACL .............................................................................................................................94

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page11

UnifiedAccessPointAdministrator’sGuide

Table36:SNMPSettings ..................................................................................................................................96

Table37:WebServerSettings .........................................................................................................................99

Table38:SSHSettings ....................................................................................................................................101

Table39:TelnetSettings ................................................................................................................................101

Table40:QoSSettings....................................................................................................................................103

Table41:EmailAlertConfiguration ...............................................................................................................106

Table42:NTPSettings....................................................................................................................................110

Table43:SNMPv3Views ................................................................................................................................112

Table44:SNMPv3Groups..............................................................................................................................114

Table45:SNMPv3Users................................................................................................................................115

Table46:SNMPv3Targets .............................................................................................................................116

Table47:PacketCaptureStatus.....................................................................................................................124

Table48:PacketCaptureConfiguration ........................................................................................................124

Table49:PacketFileCapture .........................................................................................................................125

Table50:RemotePacketCapture..................................................................................................................127

Table51:PacketCaptureFileDownload........................................................................................................127

Table52:VAPQoSParameters ......................................................................................................................129

Table53:ACLConfiguration ...........................................................................................................................132

Table54:DiffServClassMap ..........................................................................................................................139

Table55:DiffServPolicyMap.........................................................................................................................145

Table56:ClientQoSStatus ............................................................................................................................146

Table57:ClientQoSRADIUSAttributes.........................................................................................................147

Table58:AccessPointsintheCluster ............................................................................................................151

Table59:ClusteringOptions ..........................................................................................................................151

Table60:SessionManagement ..................................................................................................................... 153

Table61:ChannelAssignments......................................................................................................................156

Table62:LastProposedChanges...................................................................................................................156

Table63:AdvancedChannelManagementSettings......................................................................................157

Table64:WirelessNeighborhoodInformation..............................................................................................159

Table65:ClusterMemberDetails..................................................................................................................160

Table66:UAPDefaultSettings....................................................................................................................... 161

AboutThisDocument

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page12

UnifiedAccessPointAdministrator’sGuide

Section1:AboutThisDocument

Thisguidedescribessetup,configuration,administrationandmaintenancefortheD‐LinkDWL‐x600APUnified

AccessPoint(UAP)onawirelessnetwork.ThethreeUAPmodelsintheDWL‐x600APfamilyincludethe

DWL‐3600AP,DWL‐6600AP,andDWL‐8600AP.

DocumentOrganization

TheUnifiedAccessPointAdministrator’sGuidecontainsthefollowingsections:

•Section1:“AboutThisDocument,”onpage12

•Section2:“GettingStarted,”onpage15

•Section3:“ViewingAccessPointStatus,”onpage30

•Section4:“ManagingtheAccessPoint,”onpage51

•Section5:“ConfiguringAccessPointServices,”onpage95

•Section6:“ConfiguringSNMPv3,”onpage111

•Section7:“MaintainingtheAccessPoint,”onpage117

•Section8:“ConfiguringClientQualityofService,”onpage128

•Section9:“ClusteringMultipleAPs,”onpage149

•AppendixA:“DefaultAPSettings,”onpage161

•AppendixB:“ConfigurationExamples,”onpage164

AdditionalDocumentation

ThefollowingdocumentationprovidesadditionalinformationaboutUnifiedAccessPointsoftware:

•TheUnifiedAccessPointCLICommandReferencedescribesthecommandsavailablefromthecommand‐

lineinterface(CLI)formanaging,monitoring,andconfiguringtheswitch.

•TheUserManualfortheD‐LinkUnifiedWiredandWirelessSystemprovidesinformationaboutsettingup

andmanagingtheUnifiedWirelessSwitch(UWS),includinginformationabouthowtousetheswitchto

managemultipleUAPs.

•ReleasenotesfortheD‐LinkUnifiedWiredandWirelessSystemdetailtheplatform‐specificfunctionality

ofthesoftwarepackages,includingissuesandworkarounds.

DocumentConventions

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page13

UnifiedAccessPointAdministrator’sGuide

DocumentConventions

Thissectiondescribestheconventionsthisdocumentuses.

Thefollowingtabledescribesthetypographicalconventionsusedinthisguide.

Note:Anoteprovidesmoreinformationaboutafeatureortechnologyandcross‐referencestorelated

topics.

Caution!AcautionprovidesinformationaboutcriticalaspectsofAPconfiguration,combinationsof

settings,events,orproceduresthatcanadverselyaffectnetworkconnectivity,security,andsoon.

Table1:TypographicalConventions

Symbol Example Description

Bold ClickApplytosaveyour

settings.

Menutitles,pagenames,andbuttonnames

BlueText See“Document

Conventions”onpage13.

Hyperlinkedtext.

courierfont WLAN‐AP#shownetwork Screentext,filenames,commands,user‐typed

command‐lineentries

courierfontitalics value Commandparameter,whichmightbeavariableor

fixedvalue.

[]Squarebrackets [value] Indicatesanoptionalfixedparameter.

{}curlybraces {choice1|choice2} Indicatesthatyoumustselectaparameterfrom

thelistofchoices.

|Verticalbars choice1|choice2 Separatesthemutuallyexclusivechoices.

[{}]Braceswithinsquare

brackets

[{choice1|choice2}] Indicateachoicewithinanoptionalelement.

OnlineHelp,SupportedBrowsers,andLimitations

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page14

UnifiedAccessPointAdministrator’sGuide

OnlineHelp,SupportedBrowsers,andLimitations

OnlinehelpfortheUAPAdministrationWebpagesprovidesinformationaboutallfieldsandfeaturesavailable

fromtheuserinterface(UI).Theinformationintheonlinehelpisasubsetoftheinformationavailableinthe

UnifiedAccessPointAdministrator’sGuide.

OnlinehelpinformationcorrespondstoeachpageontheUAPAdministrationUI.

Forinformationaboutthesettingsonthecurrentpage,clicktheHelplinkontheupperrightsideofapage.

Thefollowingfigureshowsanexampleoftheonlinehelpavailablefromthelinksontheuserinterface.

Figure1:AdministratorUIOnlineHelp

GettingStarted

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page15

UnifiedAccessPointAdministrator’sGuide

Section2:GettingStarted

TheD‐LinkDWL‐x600APunifiedaccesspoint(UAP)providescontinuous,high‐speedaccessbetweenwireless

devicesandEthernetdevices.Itisanadvanced,standards‐basedsolutionforwirelessnetworkinginbusinesses

ofanysize.TheUAPenableswirelesslocalareanetwork(WLAN)deploymentwhileprovidingstate‐of‐the‐art

wirelessnetworkingfeatures.

TheUAPcanoperateintwomodes:StandaloneModeorManagedMode.InStandaloneMode,theUAPacts

asanindividualaccesspointinthenetwork,andyoumanageitbyusingtheAdministratorWebUserInterface

(UI),command‐lineinterface(CLI),orSNMP.InManagedMode,theUAPispartoftheD‐LinkUnifiedWiredand

WirelessSystem,andyoumanageitbyusingtheD‐LinkUnifiedWirelessSwitch.IfanAPisinManagedMode,

theAdministratorWebUI,Telnet,SSH,andSNMPservicesaredisabled.

Thisdocumentdescribeshowtoperformthesetup,management,andmaintenanceoftheUAPinStandalone

Mode.ForinformationaboutconfiguringtheAPinManagedModebyusingtheD‐LinkUnifiedWirelessSwitch,

seetheUserManualfortheswitch.

BeforeyoupoweronanewUAP,reviewthefollowingsectionstocheckrequiredhardwareandsoftware

components,clientconfigurations,andcompatibilityissues.Makesureyouhaveeverythingyouneedfora

successfullaunchandtestofyourneworextendedwirelessnetwork.

TheDWL‐6600APandDWL‐8600AParedual‐radioaccesspointsandsupporttheIEEE802.11a,802.11b,

802.11g,and802.11nmodes.TheDWL‐3600APisasingle‐radioaccesspointandsupportstheIEEE802.11b,

IEEE802.11g,and802.11n(2.4GHz)modes.

Thissectioncontainsthefollowingtopics:

•“Administrator ’sComputerRequirements”

•“WirelessClientRequirements”

•“DynamicandStaticIPAddressingontheAP”

•“InstallingtheUAP”

•“BasicSettings”

•“UsingtheCLItoViewtheIPAddress”

•“ConfiguringtheEthernetSettings”

•“ConfiguringIEEE802.1XAuthentication”

•“VerifyingtheInstallation”

•“ConfiguringSecurityontheWirelessAccessPoint”

TomanagetheUAPbyusingtheWebinterfaceorbyusingtheCLIthroughTelnetorSSH,theAPneedsanIP

address.IfyouuseVLANsorIEEE802.1XAuthentication(portsecurity)onyournetwork,youmightneedto

configureadditionalsettingsontheAPbeforeitcanconnecttothenetwork.

Note:TheWLANAPisnotdesignedtofunctionasagatewaytotheInternet.ToconnectyourWLAN

tootherLANsortheInternet,youneedagatewaydevice.

Administrator’sComputerRequirements

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page16

UnifiedAccessPointAdministrator’sGuide

Administrator’sComputerRequirements

Thefollowingtabledescribestheminimumrequirementsfortheadministrator’scomputerforconfiguration

andadministrationoftheUAPthroughaWeb‐baseduserinterface(UI).

Table2:RequirementsfortheAdministrator’sComputer

RequiredSoftwareorComponent Description

SerialorEthernetConnectiontothe

AccessPoint

Thecomputerusedtoconfigurethefirstaccesspointmustbe

connectedtotheaccesspointbyaserialcableoranEthernetcable.

WirelessConnectiontotheNetwork Afterinitialconfigurationandlaunchofthefirstaccesspointonyour

newwirelessnetwork,youcanmakesubsequentconfiguration

changesthroughtheAdministrationWebpagesusingawireless

connectiontotheinternalnetwork.Forwirelessconnectiontothe

accesspoint,youradministrationdevicewillneedWi‐Ficapability

similartothatofanywirelessclient:

Portableorbuilt‐inWi‐Ficlientadapterthatsupportsoneormoreof

theIEEE802.11modesinwhichyouplantoruntheaccesspoint.

WirelessclientsoftwareconfiguredtoassociatewiththeUAP.

WebBrowserandOperatingSystem ConfigurationandadministrationoftheUAPisprovidedthrougha

Web‐baseduserinterfacehostedontheaccesspoint.We

recommendusingoneofthefollowingsupportedWebbrowsersto

accesstheaccesspointAdministrationWebpages:

• Microsoft®InternetExplorer®version7.xor8.x(withup‐to‐date

patchlevelforeithermajorversion)

• Mozilla®Firefoxversion3.5orlater

•Safari5andlaterversions

TheadministrationWebbrowsermusthaveJavaScript™enabledto

supporttheinteractivefeaturesoftheadministrationinterface.

SecuritySettings Ensurethatsecurityisdisabledonthewirelessclientusedtoinitially

configuretheaccesspoint.

WirelessClientRequirements

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page17

UnifiedAccessPointAdministrator’sGuide

WirelessClientRequirements

TheUAPprovideswirelessaccesstoanyclientwithaproperlyconfiguredWi‐Ficlientadapterforthe802.11

modeinwhichtheaccesspointisrunning.TheUAPsupportsmultipleclientoperatingsystems.Clientscanbe

laptopordesktopcomputers,personaldigitalassistants(PDAs),oranyotherhand‐held,portableorstationary

deviceequippedwithaWi‐Fiadapterandsupportingdrivers.

Toconnecttotheaccesspoint,wirelessclientsneedthesoftwareandhardwaredescribedinthefollowing

table.

DynamicandStaticIPAddressingontheAP

Whenyoupowerontheaccesspoint,thebuilt‐inDHCPclientsearchesforaDHCPserveronthenetworkin

ordertoobtainanIPAddressandothernetworkinformation.IftheAPdoesnotfindaDHCPserveronthe

network,theAPcontinuestouseitsdefaultStaticIPAddress(10.90.90.91)untilyoure‐assignitanewstatic

IPaddress(andspecifyastaticIPaddressingpolicy)oruntiltheAPsuccessfullyreceivesnetworkinformation

fromaDHCPserver.

TochangetheconnectiontypeandassignastaticIPaddressbyusingtheCLI,see“ConfiguringtheEthernet

Settings”onpage25or,byusingtheWebUI,see“EthernetSettings”onpage51.

Table3:RequirementsforWirelessClients

RequiredComponent Description

Wi‐FiClientAdapter Portableorbuilt‐inWi‐FiclientadapterthatsupportsoneormoreoftheIEEE

802.11modesinwhichyouplantoruntheaccesspoint.

WirelessClientSoftware Clientsoftware,suchasMicrosoftWindowsSupplicant,configuredtoassociate

withtheUAP.

ClientSecuritySettings Securityshouldbedisabledontheclientusedtodoinitialconfigurationofthe

accesspoint.

IftheSecuritymodeontheaccesspointissettoanythingotherthanplaintext,

wirelessclientswillneedtosetaprofiletotheauthenticationmodeusedbythe

accesspointandprovideavalidusernameandpassword,certificate,orsimilaruser

identityproof.SecuritymodesareStaticWEP,IEEE802.1X,WPAwithRADIUS

server,andWPA‐PSK.

Forinformationaboutconfiguringsecurityontheaccesspoint,see“VirtualAccess

PointSettings”onpage70.

Caution!IfyoudonothaveaDHCPserveronyourinternalnetwork,anddonotplantouseone,the

firstthingyoumustdoafterpoweringontheaccesspointischangetheconnectiontypefromDHCP

tostaticIP.YoucaneitherassignanewstaticIPaddresstotheAPorcontinueusingthedefault

address.WerecommendassigninganewstaticIPaddresssothatifyoubringupanotherWLANAP

onthesamenetwork,theIPaddressforeachAPwillbeunique.

DynamicandStaticIPAddressingontheAP

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page18

UnifiedAccessPointAdministrator’sGuide

RecoveringanIPAddress

Ifyouexperiencetroublecommunicatingwiththeaccesspoint,youcanrecoverastaticIPaddressbyresetting

theAPconfigurationtothefactorydefaults(see“ResettingtheFactoryDefaultConfiguration”onpage120),

oryoucangetadynamicallyassignedaddressbyconnectingtheAPtoanetworkthathasaDHCPserver.

DiscoveringaDynamicallyAssignedIPAddress

IfyouhaveaccesstotheDHCPserveronyournetworkandknowtheMACaddressofyourAP,youcanview

thenewIPaddressassociatedwiththeMACaddressoftheAP.

IfyoudonothaveaccesstotheDHCPserverthatassignedtheIPaddresstotheAPordonotknowtheMAC

addressoftheAP,youmightneedtousetheCLItofindoutwhatthenewIPaddressis.Forinformationabout

howtodiscoveradynamicallyassignedIPaddress,see“UsingtheCLItoViewtheIPAddress”onpage24.

InstallingtheUAP

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page19

UnifiedAccessPointAdministrator’sGuide

InstallingtheUAP

ToaccesstheAdministrationWebUI,youentertheIPaddressoftheAPintoaWebbrowser.Youcanusethe

defaultIPaddressoftheAP(10.90.90.91)tologontotheAPandassignastaticIPaddress,oryoucanusea

DHCPserveronyounetworktoassignnetworkinformationtotheAP.TheDHCPclientontheAPisenabledby

default.

ToinstalltheUAP,usethefollowingsteps:

1. ConnecttheAPtoanadministrativePCbyusingaLANconnectionoradirect‐cableconnection.

•TouseaLANconnection,connectoneendofanEthernetcabletothenetworkportontheaccesspoint

andtheotherendtothesamehubwhereyourPCisconnected,asshowninthefollowingfigure.

Thehuborswitchyouusemustpermitbroadcastsignalsfromtheaccesspointtoreachallotherdevices

onthenetwork.

•Touseadirect‐cableconnection,connectoneendofanEthernetstraight‐throughorcrossovercableto

thenetworkportontheaccesspointandtheotherendofthecabletotheEthernetportonthePC,as

showninthefollowingfigure.YoucanalsouseaserialcabletoconnecttheserialportontheAPtoa

serialportontheadministrativecomputer.

ForinitialconfigurationwithadirectEthernetconnectionandnoDHCPserver,besuretosetyourPCtoa

staticIPaddressinthesamesubnetasthedefaultIPaddressontheaccesspoint.(ThedefaultIPaddress

fortheaccesspointis10.90.90.91.)

Ifyouusethismethod,youwillneedtoreconfigurethecablingforsubsequentstartupanddeploymentof

theaccesspointsothattheaccesspointisnolongerconnecteddirectlytothePCbutinsteadisconnected

totheLAN(eitherbyusingahubordirectly).

InstallingtheUAP

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page20

UnifiedAccessPointAdministrator’sGuide

2. Connectthepoweradaptertothepowerportonthebackoftheaccesspoint,andthenplugtheotherend

ofthepowercordintoapoweroutlet.

3. UseyourWebbrowsertologontotheUAPAdministrationWebpages.

–IftheAPdidnotacquireanIPaddressfromaDHCPserveronyournetwork,enter10.90.90.91inthe

addressfieldofyourbrowser,whichisthedefaultIPaddressoftheAP.

–IfyouusedaDHCPserveronyournetworktoautomaticallyconfigurenetworkinformationfortheAP,

enterthenewIPaddressoftheAPintotheWebbrowser.

–IfyouusedaDHCPserverandyoudonotknowthenewIPaddressoftheAP,usethefollowing

procedurestoobtaintheinformation:

a. ConnectaserialcablefromtheadministrativecomputertotheAPanduseaterminalemulation

programtoaccessthecommand‐lineinterface(CLI).

b. Attheloginprompt,enteradminfortheusernameandadminforthepassword.Atthecommand

prompt,entergetmanagement.

–ThecommandoutputdisplaystheIPaddressoftheAP.Enterthisaddressintheaddressfieldofyour

browser.ForamoredetailedexplanationabouthowtologontotheCLIbyusingtheconsoleport,see

“UsingtheCLItoViewtheIPAddress”onpage24.

4. Whenprompted,enteradminfortheusernameandadminforthepassword,thenclickOK.

Note:Itispossibletodetectaccesspointsonthenetworkwithawirelessconnection.However,

westronglyadviseagainstusingthismethod.Inmostenvironmentsyoumayhavenowayof

knowingwhetheryouareactuallyconnectingtotheintendedAP.Also,manyoftheinitial

configurationchangesrequiredwillcauseyoutoloseconnectivitywiththeAPoverawireless

connection.

InstallingtheUAP

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page21

UnifiedAccessPointAdministrator’sGuide

Whenyoufirstlogin,theBasicSettingspageforUAPadministrationisdisplayed,asthefollowingfigure

shows.

5. VerifythesettingsontheBasicSettingspage.

• Reviewaccesspointdescriptionandprovideanewadministratorpasswordfortheaccesspointifyou

donotwanttousethedefaultpassword,whichisadmin.

•ClicktheApplybuttontoactivatethewirelessnetworkwiththesenewsettings.

BasicSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page22

UnifiedAccessPointAdministrator’sGuide

ForinformationaboutthefieldsandconfigurationoptionsontheBasicSettingspage,see“BasicSettings”

onpage22.

6. IfyoudonothaveaDHCPserveronthemanagementnetworkanddonotplantouseone,youmustchange

theConnectionTypefromDHCPtoStaticIP.

YoucaneitherassignanewStaticIPaddresstotheAPorcontinueusingthedefaultaddress.We

recommendassigninganewStaticIPaddresssothatifyoubringupanotherUAPonthesamenetwork,

theIPaddressforeachAPwillbeunique.TochangetheconnectiontypeandassignastaticIPaddress,see

“ConfiguringtheEthernetSettings”onpage25(CLI)or“EthernetSettings”onpage51(Web).

7. IfyournetworkusesVLANs,youmightneedtoconfigurethemanagementVLANIDoruntaggedVLANID

ontheUAPinorderforittoworkwithyournetwork.

ForinformationabouthowtoconfigureVLANinformation,see“ConfiguringtheEthernetSettings”on

page25(CLI)or“EthernetSettings”onpage51(Web).

8. IfyournetworkusesIEEE802.1Xportsecurityfornetworkaccesscontrol,youmustconfigurethe802.1X

supplicantinformationontheAP.

Forinformationabouthowtoconfigurethe802.1Xusernameandpassword,see“ConfiguringIEEE802.1X

Authentication”onpage27.

BasicSettings

FromtheBasicSettingspage,youcanviewvariousinformationabouttheUAP,includingIPandMACaddress

information,andconfiguretheadministratorpasswordfortheUAP.Table4describesthefieldsand

configurationoptionsontheBasicSettingspage.

Note:ThechangesyoumakearenotsavedorapplieduntilyouclickApply.Changingsomeaccess

pointsettingsmightcausetheAPtostopandrestartsystemprocesses.Ifthishappens,wireless

clientswilltemporarilyloseconnectivity.Werecommendthatyouchangeaccesspointsettings

whenWLANtrafficislow.

Table4:BasicSettingsPage

FieldDescription

IPAddress ShowstheIPaddressassignedtotheAP.Thisfieldisnoteditableonthispagebecause

theIPaddressisalreadyassigned(eitherbyDHCP,orstaticallythroughtheEthernet

Settingspage).

IPv6Address ShowstheIPv6addressassignedtotheAP.Thisfieldisnoteditableonthispagebecause

theIPaddressisalreadyassigned(eitherbyDHCPv6,orstaticallythroughtheEthernet

Settingspage).

IPv6LinkLocal

Address

ShowstheIPv6LinkLocaladdress,whichistheIPv6addressusedbythelocalphysical

link.ThelinklocaladdressisnotconfigurableandisassignedbyusingtheIPv6Neighbor

Discoveryprocess.

MACAddress ShowstheMACaddressoftheAP.TheaddressshownhereistheMACaddress

associatedwiththemanagementinterface.ThisistheaddressbywhichtheAPisknown

externallytoothernetworks.

BasicSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page23

UnifiedAccessPointAdministrator’sGuide

FirmwareVersion ShowsversioninformationaboutthefirmwarecurrentlyinstalledontheAP.Asnew

versionsoftheWLANAPfirmwarebecomeavailable,youcanupgradethefirmwareon

yourAPs.

ProductIdentifier IdentifiestheAPhardwaremodel.

HardwareVersion IdentifiestheAPhardwareversion.

SerialNumber ShowstheAPserialnumber.

DeviceName Genericnametoidentifythetypeofhardware.

DeviceDescription Providesinformationabouttheproducthardware.

CurrentPassword Enterthecurrentadministratorpassword.Youmustcorrectlyenterthecurrentpassword

beforeyouareabletochangeit.

NewPassword Enteranewadministratorpassword.Thecharactersyouenteraredisplayedasbullet

characterstopreventothersfromseeingyourpasswordasyoutype.

Theadministratorpasswordmustbeanalphanumericstringofupto8characters.Donot

usespecialcharactersorspaces.

Note:Asanimmediatefirststepinsecuringyourwirelessnetwork,werecommendthat

youchangetheadministratorpasswordfromthedefault.

ConfirmNew

Password

Re‐enterthenewadministratorpasswordtoconfirmthatyoutypeditasintended.

BaudRate Selectabaudratefortheserialportconnection.ThebaudrateontheAPmustmatch

thebaudrateontheterminalorterminalemulatortoconnecttotheAPcommand‐line

interface(CLI)byusingaserial(console)connection.

Thefollowingbaudratesareavailable:

• 9600

•19200

• 38400

•57600

• 115200

SystemName EnteranamefortheAP.ThisnameappearsonlyontheBasicSettingspageandisaname

toidentifytheAPtotheadministrator.Useupto64alphanumericcharacters,for

exampleMyAP.

SystemContact Enterthename,e‐mailaddress,orphonenumberofthepersontocontactregarding

issuesrelatedtotheAP.

SystemLocation EnterthephysicallocationoftheAP,forexampleConferenceRoomA.

Table4:BasicSettingsPage(Cont.)

FieldDescription

UsingtheCLItoViewtheIPAddress

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page24

UnifiedAccessPointAdministrator’sGuide

ConnectingtotheAPWebInterfacebyUsingtheIPv6Address

ToconnecttotheAPbyusingtheIPv6globaladdressorIPv6linklocaladdress,youmustentertheAPaddress

intoyourbrowserinaspecialformat.

ToconnecttoanIPv6globaladdress,addsquarebracketsaroundtheIPv6address.Forexample,iftheAP

globalIPv6addressis2520::230:abff:fe00:2420,typethefollowingaddressintotheIE7addressfield:http://

[2520::230:abff:fe00:2420].

ToconnecttotheiPv6linklocaladdress,replacethecolons(:)withhyphens(‐),addtheinterfacenumber

precededwithan"s,"thenadd".ipv6‐literal.net."Forexample,iftheAPlinklocaladdressis

fe80::230:abff:fe00:2420,andtheWindowsinterfaceisdefinedas"%6,"typethefollowingaddressintothe

IE7addressfield:http://fe80‐‐230‐abff‐fe00‐2420s6.ipv6‐literal.net.

UsingtheCLItoViewtheIPAddress

TheDHCPclientontheUAPisenabledbydefault.IfyouconnecttheUAPtoanetworkwithaDHCPserver,the

APautomaticallyacquiresanIPaddress.TomanagetheUAPbyusingtheAdministratorUI,youmustenterthe

IPaddressoftheaccesspointintoaWebbrowser.

IfaDHCPserveronyournetworkassignsanIPaddresstotheUAP,andyoudonotknowtheIPaddress,use

thefollowingstepstoviewtheIPaddressoftheUAP:

1. Usinganull‐modemcable,connectaVT100/ANSIterminaloraworkstationtotheconsole(serial)port.

IfyouattachedaPC,Apple,orUNIXworkstation,startaterminal‐emulationprogram,suchas

HyperTerminalorTeraTerm.

2. Configuretheterminal‐emulationprogramtousethefollowingsettings:

•Baudrate:115200bps

•Databits:8

•Parity:none

•Stopbit:1

• Flowcontrol:none

3. Pressthereturnkey,andaloginpromptshouldappear.

Theloginnameisadmin.Thedefaultpasswordisadmin.Afterasuccessfullogin,thescreenshowsthe

(AccessPointName)#prompt.

Note:ThefollowinginstructionsandexamplesworkwithMicrosoftInternetExplorer7(IE7)and

mightnotworkwithotherbrowsers.

ConfiguringtheEthernetSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page25

UnifiedAccessPointAdministrator’sGuide

4. Attheloginprompt,entergetmanagement.

Informationsimilartothefollowingprintstothescreen.

ConfiguringtheEthernetSettings

ThedefaultEthernetsettings,whichincludeDHCPandVLANinformation,mightnotworkforallnetworks.

Bydefault,theDHCPclientontheUAPautomaticallybroadcastsrequestsfornetworkinformation.Ifyouwant

touseastaticIPaddress,youmustdisabletheDHCPclientandmanuallyconfiguretheIPaddressandother

networkinformation.

ThemanagementVLANisVLAN1bydefault.ThisVLANisalsothedefaultuntaggedVLAN.Ifyoualreadyhave

amanagementVLANconfiguredonyournetworkwithadifferentVLANID,youmustchangetheVLANIDof

themanagementVLANontheaccesspoint.

ForinformationaboutusingtheWebinterfacetoconfiguretheEthernetsettings,see“EthernetSettings”on

page51.YoucanalsousetheCLItoconfiguretheEthernetsettings,whichthefollowingsectiondescribes.

ConfiguringtheEthernetSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page26

UnifiedAccessPointAdministrator’sGuide

UsingtheCLItoConfigureEthernetSettings

UsethecommandsshowninthefollowingtabletoviewandsetvaluesfortheEthernet(wired)interface.For

moreinformationabouteachsetting,seethedescriptionforthefieldinTable17onpage52.

Inthefollowingexample,theadministratorusestheCLItosetthemanagementVLANIDto123andtodisable

theuntaggedVLANsothatalltrafficistaggedwithaVLANID.

D‐Link‐WLAN‐AP#setmanagementvlan‐id123

D‐Link‐WLAN‐AP#setuntagged‐vlanstatusdown

Table5:CLICommandsforEthernetSetting

Action Command

GettheDNSName gethostid

SettheDNSName sethostid<host_name>

Forexample:

sethostidvicky‐ap

GetCurrentSettingsfortheEthernet(Wired)Internal

Interface

getmanagement

SetthemanagementVLANID setmanagementvlan‐id<1‐4094>

ViewuntaggedVLANinformation getuntagged‐vlan

EnabletheuntaggedVLAN setuntagged‐vlanstatusup

DisabletheuntaggedVLAN setuntagged‐vlanstatusdown

SettheuntaggedVLANID setuntagged‐vlanvlan‐id<1‐4094>

Viewtheconnectiontype getmanagementdhcp‐status

UseDHCPastheconnectiontype setmanagementdhcp‐statusup

UseaStaticIPastheconnectiontype setmanagementdhcp‐statusdown

SettheStaticIPaddress setmanagementstatic‐ip<ip_address>

Forexample:

setmanagementstatic‐ip10.10.12.221

SetaSubnetMask setmanagementstatic‐mask<netmask>

Forexample:

setmanagementstatic‐mask255.255.255.0

SettheDefaultGateway setstatic‐ip‐routegateway<ip_address>

Forexample:

setstatic‐ip‐routegateway10.10.12.1

ViewtheDNSNameservermodeDynamic=up

Manual=down

gethostdns‐via‐dhcp

SetDNSNameserverstoUseStaticIPAddresses(Dynamic

toManualMode)

sethostdns‐via‐dhcpdown

sethoststatic‐dns‐1



<ip_address>

sethoststatic‐dns‐2



<ip_address>

Forexample:

sethoststatic‐dns‐1192.168.23.45

SetDNSNameserverstoUseDHCPIPAddressing(Manual

toDynamicMode)

sethostdns‐via‐dhcpup

ConfiguringIEEE802.1XAuthentication

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page27

UnifiedAccessPointAdministrator’sGuide

D‐Link‐WLAN‐AP#getmanagement

PropertyValue

‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐

vlan‐id123

interfacebrtrunk

static‐ip10.90.90.91

static‐mask255.0.0.0

ip10.90.90.91

mask255.0.0.0

mac5C:D9:98:2F:52:40

dhcp‐statusup

ipv6‐statusup

ipv6‐autoconfig‐statusup

static‐ipv6::

static‐ipv6‐prefix‐length0

D‐Link‐WLAN‐AP#getuntagged‐vlan

PropertyValue

‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐

vlan‐id1

statusdown

D‐Link‐WLAN‐AP#

ConfiguringIEEE802.1XAuthentication

OnnetworksthatuseIEEE802.1X,port‐basednetworkaccesscontrol,asupplicant(client)cannotgainaccess

tothenetworkuntilthe802.1Xauthenticatorgrantsaccess.Ifyournetworkuses802.1X,youmustconfigure

802.1XauthenticationinformationthattheAPcansupplytotheauthenticator.

IfyournetworkusesIEEE802.1Xsee“Configuring802.1XAuthentication”onpage92forinformationabout

howtoconfigure802.1XbyusingtheWebinterface.

UsingtheCLItoConfigure802.1XAuthenticationInformation

Thefollowingtableshowsthecommandsusedtoconfigurethe802.1XsupplicantinformationusingtheCLI.

Table6:CLICommandsforthe802.1XSupplicant

Action Command

View802.1Xsupplicantsettings getdot1x‐supplicant

Enable802.1Xsupplicant setdot1x‐supplicantstatusup

Disable802.1Xsupplicant setdot1x‐supplicantstatusdown

Setthe802.1Xusername setdot1x‐supplicantuser<name>

Setthe802.1spassword setdot1x‐supplicantpassword<password>

VerifyingtheInstallation

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page28

UnifiedAccessPointAdministrator’sGuide

Inthefollowingexample,theadministratorenablesthe802.1XsupplicantandsetstheusernametowlanAP

andthepasswordtotest1234.

D‐Link‐WLAN‐AP#setdot1x‐supplicantstatusup

D‐Link‐WLAN‐AP#setdot1x‐supplicantuserwlanAP

D‐Link‐WLAN‐AP#setdot1x‐supplicantpasswordtest1234

D‐Link‐WLAN‐AP#getdot1x‐supplicant

PropertyValue

‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐

statusup

userwlanAP

VerifyingtheInstallation

MakesuretheaccesspointisconnectedtotheLANandassociatesomewirelessclientswiththenetwork.Once

youhavetestedthebasicsofyourwirelessnetwork,youcanenablemoresecurityandfine‐tunetheAPby

modifyingadvancedconfigurationfeatures.

1. ConnecttheaccesspointtotheLAN.

•IfyouconfiguredtheaccesspointandadministratorPCbyconnectingbothintoanetworkhub,then

youraccesspointisalreadyconnectedtotheLAN.Thenextstepistotestsomewirelessclients.

•Ifyouconfiguredtheaccesspointbyusingadirectcableconnectionfromyourcomputertotheaccess

point,dothefollowingprocedures:

a. Disconnectthecablefromthecomputerandtheaccesspoint.

b. ConnectanEthernetcablefromtheaccesspointtotheLAN.

c. ConnectyourcomputertotheLANbyusinganEthernetcableorawirelesscard.

2. TestLANconnectivitywithwirelessclients.

TesttheUAPbytryingtodetectitandassociatewithitfromsomewirelessclientdevices.Forinformation

aboutrequirementsfortheseclients,see“WirelessClientRequirements”onpage17.

3. Secureandconfiguretheaccesspointbyusingadvancedfeatures.

OncethewirelessnetworkisupandyoucanconnecttotheAPwithsomewirelessclients,youcanaddin

layersofsecurity,createmultiplevirtualaccesspoints(VAPs),andconfigureperformancesettings.

Bydefault,nosecurityisinplaceontheaccesspoint,soanywirelessclientcanassociatewithitandaccess

yourLAN.Animportantnextstepistoconfiguresecurity,asdescribedin“VirtualAccessPointSettings”on

page70.

Note:TheWLANAPisnotdesignedformultiple,simultaneousconfigurationchanges.Ifmorethan

oneadministratorisloggedontotheAdministrationWebpagesandmakingchangestothe

configuration,thereisnoguaranteethatallconfigurationchangesspecifiedbymultipleuserswill

beapplied.

ConfiguringSecurityontheWirelessAccessPoint

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page29

UnifiedAccessPointAdministrator’sGuide

ConfiguringSecurityontheWirelessAccessPoint

Youconfiguresecurewirelessclientaccessbyconfiguringsecurityforeachvirtualaccesspoint(VAP)thatyou

enable.Youcanconfigureupto16VAPsperradiothatsimulatemultipleAPsinonephysicalaccesspoint.By

default,onlyoneVAPisenabled.ForeachVAP,youcanconfigureauniquesecuritymodetocontrolwireless

clientaccess.

Eachradiohas16VAPs,withVAPIDsfrom0‐15.Bydefault,onlyVAP0oneachradioisenabled.VAP0hasthe

followingdefaultsettings:

•VLANID:1

•BroadcastSSID:Enabled

• SSID:dlink1

•Security:None

•MACAuthenticationType:None

• RedirectMode:None

AllotherVAPsaredisabledbydefault.ThedefaultSSIDforVAPs1–15is"dlinkx"wherexistheVAPID.

TopreventunauthorizedaccesstotheUAP,werecommendthatyouselectandconfigureasecurityoption

otherthanNoneforthedefaultVAPandforeachVAPthatyouenable.

ForinformationabouthowtoconfigurethesecuritysettingsoneachVAP,see“VirtualAccessPointSettings”

onpage70.

ViewingAccessPointStatus

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page30

UnifiedAccessPointAdministrator’sGuide

Section3:ViewingAccessPointStatus

ThissectiondescribestheinformationyoucanviewfromthetabsundertheStatusheadingonthe

AdministrationWebUI.Thissectioncontainsthefollowingsubsections:

•“ViewingInterfaceStatus”

•“ViewingEvents”

•“ViewingTransmitandReceiveStatistics”

•“ViewingAssociatedWirelessClientInformation”

•“ViewingTSPECClientAssociations”

•“ViewingRogueAPDetection”

•“ViewingManagedAPDHCPInformation”

•“ViewingTSPECStatusandStatisticsInformation”

•“ViewingTSPECAPStatisticsInformation”

•“ViewingRadioStatisticsInformation”

•“ViewingEmailAlertOperationalStatus”

Note:Theweb‐basedUIimagesinthissectionshowtheDWL‐8600APadministrationpages.Pages

fortheDWL‐3600APwilldisplayinformationforoneradioonly.

ViewingInterfaceStatus

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page31

UnifiedAccessPointAdministrator’sGuide

ViewingInterfaceStatus

TomonitorEthernetLAN(wired)andwirelessLAN(WLAN)settings,clicktheInterfacestab.

Figure2:ViewingInterfaceStatus

ThispagedisplaysthecurrentsettingsoftheUAP.ItdisplaystheWiredSettingsandtheWirelessSettings.

WiredSettings(InternalInterface)

TheInternalinterfaceincludestheEthernetMACAddress,ManagementVLANID,IPAddress(IPv4andIPv6),

SubnetMask,andDNSinformation.Tochangeanyofthesesettings,clicktheEditlink.AfteryouclickEdit,you

areredirectedtotheEthernetSettingspage.

Forinformationaboutconfiguringthesesettings,see“ConfiguringtheEthernetSettings”onpage25.

WirelessSettings

TheRadioInterfaceincludestheAeroScout™EngineCommunicationstatus,RadioModeandChannel.The

WirelessSettingssectionalsoshowstheMACaddress(read‐only)associatedwitheachradiointerface.

TochangetheRadioModeorChannelsettings,clicktheEditlink.AfteryouclickEdit,youareredirectedtothe

ModifyWirelessSettingspage.

Forinformationaboutconfiguringthesesettings,see“WirelessSettings”onpage54and“ModifyingRadio

Settings”onpage58.

ViewingEvents

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page32

UnifiedAccessPointAdministrator’sGuide

ViewingEvents

TheEventspageshowsreal‐timesystemeventsontheAPsuchaswirelessclientsassociatingwiththeAPand

beingauthenticated.

Toviewsystemevents,clicktheEventstab.

Figure3:ViewingEvents

FromtheEventspage,youcanperformthefollowingtasks:

• Viewthemostrecent,high‐leveleventsgeneratedbythisAP.

• Enableandconfigurepersistentloggingtowritesystemeventlogstonon‐volatilememorysothatthe

eventsarenoterasedwhenthesystemreboots.

•SetaSeverityLeveltodeterminewhatcategoryoflogmessagesaredisplayed.

•SetDepthtodeterminehowmanylogmessagesaredisplayedintheEventlog.

• EnablearemotelogrelayhosttocaptureallsystemeventsanderrorsinaKernelLog.

ConfiguringPersistentLoggingOptions

Ifthesystemunexpectedlyreboots,logmessagescanbeusefultodiagnosethecause.However,logmessages

areerasedwhenthesystemrebootsunlessyouenablepersistentlogging.

Note:TheAPacquiresitsdateandtimeinformationusingthenetworktimeprotocol(NTP).Thisdata

isreportedinUTCformat(alsoknownasGreenwichMeanTime).Youneedtoconvertthereported

timetoyourlocaltime.Forinformationonsettingthenetworktimeprotocol,see“”onpage106.

ViewingEvents

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page33

UnifiedAccessPointAdministrator’sGuide

ToconfigurepersistentloggingontheEventspage,setthepersistence,severity,anddepthoptionsas

describedinTable7,andthenclickApply.

Figure4:PersistentLoggingOptions

Caution!Enablingpersistentloggingcanwearouttheflash(non‐volatile)memoryanddegrade

networkperformance.Youshouldonlyenablepersistentloggingtodebugaproblem.Makesureyou

disablepersistentloggingafteryoufinishdebuggingtheproblem.

Table7:LoggingOptions

Field Description

Persistence ChooseEnabledtosavesystemlogstonon‐volatilememorysothatthelogsarenoterased

whentheAPreboots.ChooseDisabledtosavesystemlogstovolatilememory.Logsin

volatilememoryaredeletedwhenthesystemreboots.

Severity Specifytheseveritylevelofthelogmessagestowritetonon‐volatilememory.Forexample,

ifyouspecify2,critical,alert,andemergencylogsarewrittentonon‐volatilememory.Error

messageswithaseveritylevelof3–7arewrittentovolatilememory.

•0—emergency

•1—alert

•2—critical

•3—error

•4—warning

•5—notice

•6—info

•7—debug

Depth Youcanstoreupto128messagesinnon‐volatilememory.Oncethenumberyouconfigure

inthisfieldisreached,theoldestlogeventisoverwrittenbythenewlogevent.

Note:Toapplyyourchanges,clickApply.ChangingsomesettingsmightcausetheAPtostopand

restartsystemprocesses.Ifthishappens,wirelessclientswilltemporarilyloseconnectivity.We

recommendthatyouchangeAPsettingswhenWLANtrafficislow.

ViewingEvents

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page34

UnifiedAccessPointAdministrator’sGuide

ConfiguringtheLogRelayHostforKernelMessages

TheKernelLogisacomprehensivelistofsystemevents(shownintheSystemLog)andkernelmessagessuch

aserrorconditions,likedroppingframes.

YoucannotviewkernellogmessagesdirectlyfromtheAdministrationWebUIforanAP.Youmustfirstsetup

aremoteserverrunningasyslogprocessandactingasasysloglogrelayhostonyournetwork.Then,youcan

configuretheUAPtosendsyslogmessagestotheremoteserver.

RemotelogservercollectionforAPsyslogmessagesprovidesthefollowingfeatures:

• AllowsaggregationofsyslogmessagesfrommultipleAPs

•StoresalongerhistoryofmessagesthankeptonasingleAP

•Triggersscriptedmanagementoperationsandalerts

TouseKernelLogrelaying,youmustconfigurearemoteservertoreceivethesyslogmessages.Theprocedure

toconfigurearemoteloghostdependsonthetypeofsystemyouuseastheremotehost.

EnablingorDisablingtheLogRelayHostontheEventsPage

ToenableandconfigureLogRelayingontheEventspage,settheLogRelayoptionsasdescribedinthe

followingtable,andthenclickApply.

Figure5:LogRelayHost

Note:Thesyslogprocesswilldefaulttouseport514.Werecommendkeepingthisdefaultport.

However;Ifyouchoosetoreconfigurethelogport,makesurethattheportnumberyouassignto

syslogisnotbeingusedbyanotherprocess.

Table8:LogRelayHost

Field Description

RelayLog SelectEnabledtoallowtheUAPtosendlogmessagestoaremotehost.Select

Disabledtokeepalllogmessagesonthelocalsystem.

RelayHost SpecifytheIPAddressorDNSnameoftheremotelogserver.

RelayPort SpecifythePortnumberforthesyslogprocessontheRelayHost.

Thedefaultportis514.

ViewingEvents

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page35

UnifiedAccessPointAdministrator’sGuide

IfyouenabledtheLogRelayHost,clickingApplywillactivateremotelogging.TheAPwillsenditskernel

messagesreal‐timefordisplaytotheremotelogservermonitor,aspecifiedkernellogfile,orotherstorage,

dependingonhowyouconfiguredtheLogRelayHost.

IfyoudisabledtheLogRelayHost,clickingApplywilldisableremotelogging.

Note:Toapplyyourchanges,clickApply.ChangingsomesettingsmightcausetheAPtostopand

restartsystemprocesses.Ifthishappens,wirelessclientswilltemporarilyloseconnectivity.We

recommendthatyouchangeAPsettingswhenWLANtrafficislow.

ViewingTransmitandReceiveStatistics

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page36

UnifiedAccessPointAdministrator’sGuide

ViewingTransmitandReceiveStatistics

TheTransmit/ReceivepageprovidessomebasicinformationaboutthecurrentAPandareal‐timedisplayof

thetransmitandreceivestatisticsfortheEthernetinterfaceontheAPandfortheVAPsonallsupportedradio

interfaces.AlltransmitandreceivestatisticsshownaretotalssincetheAPwaslaststarted.Ifyourebootthe

AP,thesefiguresindicatetransmitandreceivetotalssincethereboot.

ToviewtransmitandreceivestatisticsfortheAP,clicktheTransmit/Receivepage.

Figure6:ViewingTrafficStatistics

ViewingTransmitandReceiveStatistics

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page37

UnifiedAccessPointAdministrator’sGuide

Table9:Transmit/Receive

Field Description

Interface ThenameoftheEthernetorVAPinterface.

Status Showswhethertheinterfaceisupordown.

MACAddress MACaddressforthespecifiedinterface.

TheUAPhasauniqueMACaddressforeachinterface.EachradiohasadifferentMAC

addressforeachinterfaceoneachofitstworadios(DWL‐6600APandDWL‐8600AP).

VLANID VirtualLAN(VLAN)ID.

YoucanuseVLANstoestablishmultipleinternalandguestnetworksonthesameAP.

TheVLANIDissetontheVAPpage.(See“ConfiguringLoadBalancing”onpage88.)

Name(SSID) Wirelessnetworkname.AlsoknownastheSSID,thisalphanumerickeyuniquely

identifiesawirelesslocalareanetwork.

TheSSIDissetontheVAPpage.(See“ConfiguringLoadBalancing”onpage88.)

Transmit and Receive Information

TotalPackets Indicatestotalpacketssent(inTransmittable)orreceived(inReceivedtable)bythis

AP.

TotalBytes Indicatestotalbytessent(inTransmittable)orreceived(inReceivedtable)bythisAP.

TotalDropPackets Indicatestotalnumberofpacketssent(inTransmittable)orreceived(inReceived

table)bythisAPthatweredropped.

TotalDropBytes Indicatestotalnumberofbytessent(inTransmittable)orreceived(inReceivedtable)

bythisAPthatweredropped.

Errors IndicatestotalerrorsrelatedtosendingandreceivingdataonthisAP.

ViewingAssociatedWirelessClientInformation

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page38

UnifiedAccessPointAdministrator’sGuide

ViewingAssociatedWirelessClientInformation

Toviewtheclientstationsassociatedwithaparticularaccesspoint,clicktheClientAssociationstab.

Figure7:ViewingClientAssociationInformation

Theassociatedstationsaredisplayedalongwithinformationaboutpackettraffictransmittedandreceivedfor

eachstation.

Table10describesthefieldsontheClientAssociationspage.

Table10:AssociatedClients

Field Description

Network ShowswhichVAPtheclientisassociatedwith.Forexample,anentryofwlan0vap2meansthe

clientisassociatedwithRadio1,VAP2.

Anentryofwlan0meanstheclientisassociatedwithVAP0onRadio1.Anentryofwlan1

meanstheclientisassociatedwithVAP0onRadio2.

Station ShowstheMACaddressoftheassociatedwirelessclient.

Status TheAuthenticatedandAssociatedStatusshowstheunderlyingIEEE802.11authentication

andassociationstatus,whichispresentnomatterwhichtypeofsecuritytheclientusesto

connecttotheAP.ThisstatusdoesnotshowIEEE802.1Xauthenticationorassociationstatus.

Somepointstokeepinmindwithregardtothisfieldare:

•IftheAPsecuritymodeisNoneorStaticWEP,theauthenticationandassociationstatusof

clientsshowingontheClientAssociationspagewillbeinlinewithwhatisexpected;that

is,ifaclientshowsasauthenticatedtotheAP,itwillbeabletotransmitandreceivedata.

(ThisisbecauseStaticWEPusesonlyIEEE802.11authentication.)

•IftheAPusesIEEE802.1XorWPAsecurity,however,itispossibleforaclientassociationto

showonthispageasauthenticated(viatheIEEE802.11security)butactuallynotbe

authenticatedtotheAPviathesecondlayerofsecurity.

FromStation Showsthenumberofpacketsandbytesreceivedfromthewirelessclientandthenumberof

packetsandbytesthatweredroppedafterbeingreceived.

ToStation ShowsthenumberofpacketsandbytestransmittedfromtheAPtothewirelessclientandthe

numberofpacketsandbytesthatweredroppedupontransmission.

ViewingTSPECClientAssociations

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page39

UnifiedAccessPointAdministrator’sGuide

ViewingTSPECClientAssociations

TheTSPECClientAssociationStatusandStatisticspageprovidessomebasicinformationabouttheclient

associationsstatusandareal‐timedisplayofthetransmitandreceivestatisticsfortheTSPECclients.All

transmitandreceivestatisticsshownaretotalssincetheclientassociationstarted.

ATSPECisatrafficspecificationthatissentfromaQoS‐capablewirelessclienttoanAPrequestingacertain

amountofnetworkaccessforthetrafficstream(TS)itrepresents.Atrafficstreamisacollectionofdatapackets

identifiedbythewirelessclientasbelongingtoaparticularuserpriority.Anexampleofavoicetrafficstream

isaWi‐FiCERTIFIED™telephonehandsetthatmarksitscodec‐generateddatapacketsasvoiceprioritytraffic.

Anexampleofavideotrafficstreamisavideoplayerapplicationonawirelesslaptopthatprioritizesavideo

conferencefeedfromacorporateserver.

ToviewTSPECclientassociationstatistics,clicktheTSPECClientAssociationstab.

Figure8:ViewingTSPECClientAssociations

Table11describestheinformationprovidedontheTSPECClientAssociationStatusandStatisticspage.

Table11:TSPECClientAssociations

Field Description

Status

Network Radiointerfaceusedbytheclient.

Station ClientstationMACaddress.

TSIdentifier TSPECTrafficSessionIdentifier(range0‐7).

AccessCategory TSAccessCategory(voiceorvideo).

Direction ThetrafficdirectionforthisTS.Directioncanbe:

• uplink

• downlink

• bidirectional

ViewingTSPECClientAssociations

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page40

UnifiedAccessPointAdministrator’sGuide

UserPriority TheUserPriority(UP)forthisTS.TheUPissentwitheachpacketintheUPportionof

theIPheader.Typicalvaluesare:

•6or7forvoice

•4or5forvideo

Thevaluemaydifferdependingonotherprioritytrafficsessions.

MediumTime Thetime(in32microsecondpersecondunits)thattheTStrafficoccupiesthe

transmissionmedium.

ExcessUsageEvents ThenumberoftimestheclienthasexceededthemediumtimeestablishedforitsTSPEC.

Minor,infrequentviolationsareignored.

VAP TheVirtualAccessPointassociatedwiththisTSclient.

MACAddress TheVirtualAccessPointMACaddress.

SSID TheservicesetidentifierassociatedwiththisTSclient.

Statistics

Network Radiointerfaceusedbytheclient.

Station ClientstationMACaddress.

TSIdentifier TSPECTrafficSessionIdentifier(range0‐7).

TSType TherewillonlybeanentryintherowforaclientassociationthathasanactiveTS.If

therearenoactivetrafficstreams,thereisnoentryforthestation.

AccessCategory TSAccessCategory(voiceorvideo).

Direction ThetrafficdirectionforthisTS.Directioncanbe:

• uplink

• downlink

• bidirectional

Direction ThetrafficdirectionforthisTS.Directioncanbe:

• uplink

• downlink

• bidirectional

FromStation Showsthenumberofpacketsandbytesreceivedfromthewirelessclientandthe

numberofpacketsandbytesthatweredroppedafterbeingreceived.Alsoshowsthe

numberofpackets:

•inexcessofanadmittedTSPEC.

•forwhichnoTSPEChasbeenestablishedwhenadmissionisrequiredbytheAP.

ToStation ShowsthenumberofpacketsandbytestransmittedfromtheAPtothewirelessclient

andthenumberofpacketsandbytesthatweredroppedupontransmission.Alsoshows

thenumberofpackets:

•inexcessofanadmittedTSPEC.

•forwhichnoTSPEChasbeenestablishedwhenadmissionisrequiredbytheAP.

Table11:TSPECClientAssociations(Cont.)

Field Description

ViewingRogueAPDetection

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page41

UnifiedAccessPointAdministrator’sGuide

LinkIntegrityMonitoring

TheUAPprovideslinkintegritymonitoringtocontinuallyverifyitsconnectiontoeachassociatedclient.Todo

this,theAPsendsdatapacketstoclientseveryfewsecondswhennoothertrafficispassing.ThisallowstheAP

todetectwhenaclientgoesoutofrange,evenduringperiodswhennonormaltrafficisexchanged.Theclient

connectiondropsoffthelistwithin300secondsifthesedatapacketsarenotacknowledged,evenifno

disassociationmessageisreceived.

ViewingRogueAPDetection

ThestatuspagetoviewRogueAPDetectioninformationprovidesreal‐timestatisticsforallAPswithinrange

oftheAPonwhichyouareviewingtheAdministrationWebpages.WhenAPdetectionisenabled,theradio

willperiodicallyswitchfromitsoperatingchanneltoscanotherchannelswithinthesameband.ClickRefresh

toupdatethescreenanddisplaythemostcurrentinformation.

TheRogueAPDetectionpagecontainsthefollowingtwolists:

• DetectedRogueAPList—ListsallAPswithinrangeoftheAPthathavenotbeenacknowledgedasknown

APs.

•KnownAPList—ListsallAPswithinrangeoftheAPthathavebeenacknowledgedasknownAPseitherby

clickingtheGrantbuttonassociatedwithanAPintheDetectedRogueAPListorbyappearinginan

importedAPlist.

Toviewinformationaboutotheraccesspointsonthewirelessnetwork,clicktheRogueAPDetectiontab.

Figure9:ViewingRogueandKnownAccessPoints

ViewingRogueAPDetection

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page42

UnifiedAccessPointAdministrator’sGuide

YoumustenabletheAPdetectiononaradioinordertocollectinformationaboutotherAPswithinrange.

Table12describestheinformationprovidedonneighboringaccesspoints.

Table12:RogueAPDetection

Field Description

APDetectionfor

Radio

ToallowtheAPradiostoperformneighborAPdetectionandcollectinformationabout

neighborAPs,clickEnabled.

TodisableneighborAPdetectionontheradios,clickDisabled.

IfyouchangetheAPdetectionmode,clickApplytosavethenewsettings.

DetectedRogueAPList

Action ClickGranttomovetheAPfromtheDetectedRogueAPListtotheKnownAPList.

Note:TheDetectedRougeAPandKnownAPlistsprovideinformation.TheDWL‐x600AP

doesnothaveanycontrolovertheAPsonthelistandcannotapplyanysecuritypolicies

toAPsdetectedthroughtheRFscan.

MAC ShowstheMACaddressoftheneighboringAP.

Radio TheRadiofieldindicateswhichradiodetectedtheneighboringAP:

•wlan0(RadioOne)

•wlan1(RadioTwo)

BeaconInt. ShowstheBeaconintervalbeingusedbythisAP.

BeaconframesaretransmittedbyanAPatregularintervalstoannouncetheexistenceof

thewirelessnetwork.Thedefaultbehavioristosendabeaconframeonceevery100

milliseconds(or10persecond).

TheBeaconIntervalissetontheRadiopage.(See“ModifyingRadioSettings”onpage58.)

Type Indicatesthetypeofdevice:

•APindicatestheneighboringdeviceisanAPthatsupportstheIEEE802.11Wireless

NetworkingFrameworkinInfrastructureMode.

•AdhocindicatesaneighboringstationrunninginAdhocMode.Stationssettoadhoc

modecommunicatewitheachotherdirectly,withouttheuseofatraditionalAP.Ad‐

hocmodeisanIEEE802.11WirelessNetworkingFrameworkalsoreferredtoaspeer‐

to‐peermodeoranIndependentBasicServiceSet(IBSS).

SSID TheServiceSetIdentifier(SSID)fortheAP.

TheSSIDisanalphanumericstringofupto32charactersthatuniquelyidentifiesawireless

localareanetwork.ItisalsoreferredtoastheNetworkName.

TheSSIDissetontheVAPpage.(See“ConfiguringLoadBalancing”onpage88.)

Privacy Indicateswhetherthereisanysecurityontheneighboringdevice.

•OffindicatesthattheSecuritymodeontheneighboringdeviceissettoNone(no

security).

•Onindicatesthattheneighboringdevicehassomesecurityinplace.

SecurityisconfiguredontheAPfromtheVAPpage.

WPA IndicateswhetherWPAsecurityisonoroffforthisAP.

ViewingRogueAPDetection

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page43

UnifiedAccessPointAdministrator’sGuide

Band ThisindicatestheIEEE802.11modebeingusedonthisAP.(Forexample,IEEE802.11a,

IEEE802.11b,IEEE802.11g.)

Thenumbershownindicatesthemodeaccordingtothefollowingmap:

•2.4indicatesIEEE802.11b,802.11g,or802.11nmode(oracombinationofthemodes)

•5indicatesIEEE802.11aor802.11nmode(orbothmodes)

Channel ShowstheChannelonwhichtheAPiscurrentlybroadcasting.

Thechanneldefinestheportionoftheradiospectrumthattheradiousesfortransmitting

andreceiving.

ThechannelissetinRadioSettings.(See“ModifyingRadioSettings”onpage58.)

Rate Showstherate(inmegabitspersecond)atwhichthisAPiscurrentlytransmitting.

ThecurrentratewillalwaysbeoneoftheratesshowninSupportedRates.

Signal IndicatesthestrengthoftheradiosignalemittingfromthisAP.Ifyouhoverthemouse

pointeroverthebars,anumberappearsandshowsthestrengthindecibels(dB).

Beacons ShowsthetotalnumberofbeaconsreceivedfromthisAPsinceitwasfirstdiscovered.

LastBeacon ShowsthedateandtimeofthelastbeaconreceivedfromthisAP.

Rates Showssupportedandbasic(advertised)ratesetsfortheneighboringAP.Ratesareshown

inmegabitspersecond(Mbps).

AllSupportedRatesarelisted,withBasicRatesshowninbold.

RatesetsareconfiguredontheRadioSettingspage.(See“ModifyingRadioSettings”on

page58.)

KnownAPList

Action AnAPcanappearintheKnownAPListifithasbeenmovedfromtheDetectedRogueAP

ListbyclickingtheGrantbuttonoriftheMACaddressoftheAPappearsinanAPlistthat

hasbeenimported.

TomovetheAPfromtheKnownAPListtotheDetectedRogueAPList,clickDelete.

Note:TheDetectedRougeAPandKnownAPlistsprovideinformation.TheDWL‐x600AP

doesnothaveanycontrolovertheAPsonthelistandcannotapplyanysecuritypolicies

toAPsdetectedthroughtheRFscan.

MAC ShowstheMACaddressoftheneighboringAP.

Radio TheRadiofieldindicateswhichradiodetectedtheneighboringAP:

•wlan0(RadioOne)

•wlan1(RadioTwo)

Type Indicatesthetypeofdevice:

•APindicatestheneighboringdeviceisanAPthatsupportstheIEEE802.11Wireless

NetworkingFrameworkinInfrastructureMode.

•AdhocindicatesaneighboringstationrunninginAdhocMode.Stationssettoadhoc

modecommunicatewitheachotherdirectly,withouttheuseofatraditionalAP.Ad‐

hocmodeisanIEEE802.11WirelessNetworkingFrameworkalsoreferredtoaspeer‐

to‐peermodeoranIndependentBasicServiceSet(IBSS).

SSID TheServiceSetIdentifier(SSID)fortheAP.

TheSSIDisanalphanumericstringofupto32charactersthatuniquelyidentifiesawireless

localareanetwork.ItisalsoreferredtoastheNetworkName.

TheSSIDissetontheVAPpage.(See“ConfiguringLoadBalancing”onpage88.)

Table12:RogueAPDetection(Cont.)

Field Description

ViewingRogueAPDetection

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page44

UnifiedAccessPointAdministrator’sGuide

SavingandImportingtheKnownAPList

TosavetheKnownAPlisttoafile,clickSave.ThelistcontainstheMACaddressesofallAPthathavebeen

addedtotheKnownAPList.Bydefault,thefilenameisRogue1.cfg.YoucanuseatexteditororWebbrowser

toopenthefileandviewitscontents.

UsetheImportfeaturetoimportalistofKnownAPsfromasavedlist.ThelistmightbefromanotherDWL‐

x600APorcreatedfromatextfile.IftheMACaddressofanAPappearsintheKnownAPList,itwillnotbe

detectedasarogue.

ToimportanAPListfromafile,usethefollowingsteps:

1. ChoosewhethertoreplacetheexistingKnownAPlistoraddtheentriesintheimportedfiletotheKnown

APlist.

• SelecttheReplaceoptiontoimportthelistandreplacethecontentsoftheKnownAPList.

• SelecttheMergeoptiontoimportthelistandaddtheAPsintheimportedfiletotheAPscurrently

displayedintheKnownAPList.

2. ClickBrowseandchoosethefiletoimport.

Thefileyouimportmustbeaplain‐textfilewitha.txtor.cfgextension.EntriesinthefileareMAC

addressesinhexidecimalformatwitheachoctetseparatedbycolons,forexample00:11:22:33:44:55.

Separateentrieswithasinglespace.FortheAPtoacceptthefile,itmustcontainonlyMACaddresses.

3. ClickImport.

Oncetheimportiscomplete,thescreenrefreshesandtheMACaddressesoftheAPsintheimportedfile

appearintheKnownAPList.

Privacy Indicateswhetherthereisanysecurityontheneighboringdevice.

•OffindicatesthattheSecuritymodeontheneighboringdeviceissettoNone(no

security).

•Onindicatesthattheneighboringdevicehassomesecurityinplace.

SecurityisconfiguredontheAPfromtheVAPpage.

Band ThisindicatestheIEEE802.11modebeingusedonthisAP.(Forexample,IEEE802.11a,

IEEE802.11b,IEEE802.11g.)

Thenumbershownindicatesthemodeaccordingtothefollowingmap:

•2.4indicatesIEEE802.11b,802.11g,or802.11nmode(oracombinationofthemodes)

•5indicatesIEEE802.11aor802.11nmode(orbothmodes)

Channel ShowstheChannelonwhichtheAPiscurrentlybroadcasting.

Thechanneldefinestheportionoftheradiospectrumthattheradiousesfortransmitting

andreceiving.

ThechannelissetinRadioSettings.(See“ModifyingRadioSettings”onpage58.)

Table12:RogueAPDetection(Cont.)

Field Description

ViewingManagedAPDHCPInformation

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page45

UnifiedAccessPointAdministrator’sGuide

ViewingManagedAPDHCPInformation

TheUAPcanlearnaboutD‐LinkUnifiedWirelessSwitchesonthenetworkthroughDHCPresponsestoitsinitial

DHCPrequest.TheManagedAPDHCPpagedisplaystheDNSnamesorIPaddressesofuptofourD‐LinkUnified

WirelessSwitchesthattheAPlearnedaboutfromaDHCPserveronyournetwork.

ForinformationabouthowtoconfigureaDHCPservertorespondtoAPDHCPrequestswiththeswitchIP

addressinformation,seetheUserManualfortheswitch.

ViewingTSPECStatusandStatisticsInformation

TheTSPECStatusandStatisticspageprovides:

•SummaryinformationaboutTSPECsessionsbyradio

•SummaryinformationaboutTSPECsessionsbyVAP

•Real‐timetransmitandreceivestatisticsfortheTSPECVAPsonallradiointerfaces.

AllofthetransmitandreceivestatisticsshownaretotalssincetheAPwaslaststarted.IfyoureboottheAP,

thesefiguresindicatetransmitandreceivetotalssincethereboot.

ToviewTSPECstatusandstatistics,clicktheTSPECStatusandStatisticstab.

Figure10:ViewingTSPECStatusandStatistics

ViewingTSPECStatusandStatisticsInformation

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page46

UnifiedAccessPointAdministrator’sGuide

Table13describestheinformationprovidedonTSPECStatusandStatisticspage.

Table13:TSPECStatusandStatistics

Field Description

APandVAPStatus

Interface IndicatesthenameoftheRadioorVAPinterface.

AccessCategory IndicatesCurrentAccessCategoryassociatedwiththisTrafficStream(voiceorvideo).

Status IndicateswhethertheTSPECsessionisenabled(up)ornot(down)forthecorresponding

AccessCategory.

Note:Thisisaconfigurationstatus(doesnotnecessarilyrepresentthecurrentsession

activity).

ActiveTS IndicatesthenumberofcurrentlyactiveTSPECTrafficStreamsforthisradioandAccess

Category.

TSClients IndicatesthenumberofTrafficStreamclientsassociatedwiththisradioandAccess

Category.

MediumTime

Admitted

Time(in32microsecondpersecondunits)allocatedforthisAccessCategoryoverthe

transmissionmediumtocarrydata.Thisvalueshouldbelessthanorequaltothe

maximumbandwidthallowedoverthemediumforthisTS.

MediumTime

Unallocated

Time(in32microsecondpersecondunits)ofunusedbandwidthforthisAccess

Category.

TransmitandReceiveStatistics

TotalPackets IndicatesthetotalnumberofTSpacketssent(inTransmittable)orreceived(inReceived

table)bythisRadioforthespecifiedAccessCategory.

TotalBytes IndicatesthetotalnumberofTSbytessent(inTransmittable)orreceived(inReceived

table)bythisRadioforthespecifiedAccessCategory.

TotalVoicePackets IndicatesthetotalnumberofTSvoicepacketssent(inTransmittable)orreceived(in

Receivedtable)bythisAPforthisVAP.

TotalVoiceBytes IndicatesthetotalTSvoicebytessent(inTransmittable)orreceived(inReceivedtable)

bythisAPforthisVAP.

TotalVideoPackets IndicatesthetotalnumberofTSvideopacketssent(inTransmittable)orreceived(in

Receivedtable)bythisAPforthisVAP.

TotalVideoBytes IndicatesthetotalTSvideobytessent(inTransmittable)orreceived(inReceivedtable)

bythisAPforthisVAP.

ViewingTSPECAPStatisticsInformation

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page47

UnifiedAccessPointAdministrator’sGuide

ViewingTSPECAPStatisticsInformation

TheViewTSPECAPStatisticspageprovidesinformationonthevoiceandvideoTrafficStreamsacceptedand

rejectedbytheAP.

ToviewTSPECAPstatistics,clicktheTSPECAPStatisticstab.

Table14describestheinformationprovidedonTSPECAPStatisticspage.

Table14:TSPECAPStatistics

Field Description

TSPECStatisticsSummaryfor

VoiceACM

Indicatesthetotalnumberofacceptedandthetotalnumberofrejected

voiceTrafficStreams.

TSPECStatisticsSummaryfor

VideoACM

Indicatesthetotalnumberofacceptedandthetotalnumberofrejected

videoTrafficStreams.

ViewingRadioStatisticsInformation

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page48

UnifiedAccessPointAdministrator’sGuide

ViewingRadioStatisticsInformation

TheRadioStatisticspageprovidesdetailedinformationaboutthepacketsandbytestransmittedandreceived

ontheradiointerfaceofthisaccesspoint.

Figure11:RadioStatistics

ThefollowingtabledescribesdetailsabouttheRadioStatisticsinformation.

Table15:RadioStatisticsInformation

Field Description

Radio Chooseeitherradio1orradio2toviewstatisticsfortheselectedradio

(DWL‐8600APandDWL‐6600APonly).

WLANPacketsReceived TotalpacketsreceivedbytheAPonthisradiointerface.

WLANBytesReceived TotalbytesreceivedbytheAPonthisradiointerface.

WLANPackets

Transmitted

TotalpacketstransmittedbytheAPonthisradiointerface.

WLANBytesTransmitted TotalbytestransmittedbytheAPonthisradiointerface.

WLANPacketsReceive

Dropped

NumberofpacketsreceivedbytheAPonthisradiointerfacethatweredropped.

WLANBytesReceive

Dropped

NumberofbytesreceivedbytheAPonthisradiointerfacethatweredropped.

WLANPacketsTransmit

Dropped

NumberofpacketstransmittedbytheAPonthisradiointerfacethatwere

dropped.

WLANBytesTransmit

Dropped

NumberofbytestransmittedbytheAPonthisradiointerfacethatweredropped.

ViewingRadioStatisticsInformation

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page49

UnifiedAccessPointAdministrator’sGuide

FragmentsReceived CountofsuccessfullyreceivedMPDUframesoftypedataormanagement.

FragmentsTransmitted NumberoftransmittedMPDUwithanindividualaddressoranMPDUwitha

multicastaddressoftypeDataorManagement.

MulticastFrames

Received

CountofMSDUframesreceivedwiththemulticastbitsetinthedestinationMAC

address.

MulticastFrames

Transmitted

CountofsuccessfullytransmittedMSDUframeswherethemulticastbitissetinthe

destinationMACaddress.

DuplicateFrameCount NumberoftimesaframeisreceivedandtheSequenceControlfieldindicatesisa

duplicate.

FailedTransmitCount NumberoftimesanMSDUisnottransmittedsuccessfullyduetotransmitattempts

exceedingeithertheshortretrylimitorthelongretrylimit.

TransmitRetryCount NumberoftimesanMSDUissuccessfullytransmittedafteroneormoreretries.

MultipleRetryCount NumberoftimesanMSDUissuccessfullytransmittedaftermorethanoneretry.

RTSSuccessCount CountofCTSframesreceivedinresponsetoanRTSframe.

RTSFailureCount CountofCTSframesnotreceivedinresponsetoanRTSframe.

ACKFailureCount CountofACKframesnotreceivedwhenexpected.

FCSErrorCount CountofFCSerrorsdetectedinareceivedMPDUframe.

FramesTransmitted CountofeachsuccessfullytransmittedMSDU.

WEPUndecryptable

Count

Countofencryptedframesreceivedandthekeyconfigurationofthetransmitter

indicatesthattheframeshouldnothavebeenencryptedorthatframewas

discardedduetothereceivingstationnotimplementingtheprivacyoption.

Table15:RadioStatisticsInformation(Cont.)

Field Description

ViewingEmailAlertOperationalStatus

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page50

UnifiedAccessPointAdministrator’sGuide

ViewingEmailAlertOperationalStatus

TheEmailAlertOperationalStatuspageprovidesinformationabouttheemailalertssentbasedonthesyslog

messagesgeneratedintheAP.

ToviewtheEmailAlertOperationalStatus,clicktheStatus>EmailAlertStatustab.

Toconfiguretheemailalerts,see“ConfiguringEmailAlert”onpage106

Figure12:EmailAlertOperationalStatus

ThefollowingtabledescribesdetailsabouttheEmailAlertOperationalStatus.

Table16:EmailAlertStatus

Field Description

EmailAlertStatus TheEmailAlertoperationalstatusThestatusiseitherUporDown.Thedefaultis

Down.

NumberofEmailSent Thetotalnumberofemailsentsofar.Therangeisanunsignedintegerof32bits.

Thedefaultis0.

NumberofEmailFailed Thetotalnumberofemailfailuressofar.Therangeisanunsignedintegerof32

bits.Thedefaultis0.

TimeSinceLastEmail

Sent

Thetimesincethelastemailwassent.Timeformatisused.Thedefaultis00days

00hours00mins00secs.

ManagingtheAccessPoint

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page51

UnifiedAccessPointAdministrator’sGuide

Section4:ManagingtheAccessPoint

ThissectiondescribeshowtomanagetheUAPandcontainsthefollowingsubsections:

•“EthernetSettings”

•“WirelessSettings”

•“ModifyingRadioSettings”

•“ConfiguringRadioandVAPScheduler”

•“SchedulerAssociationSettings”

•“VirtualAccessPointSettings”

•“ConfiguringtheWirelessDistributionSystem(WDS)”

•“ControllingAccessbyMACAuthentication”

•“ConfiguringLoadBalancing”

•“ManagedAccessPointOverview”

•“Configuring802.1XAuthentication”

•“CreatingaManagementAccessControlList”

TheconfigurationpagesforthefeaturesinthissectionarelocatedundertheManageheadingonthe

AdministrationWebUI.

EthernetSettings

Thedefaultwiredinterfacesettings,whichincludeDHCPandVLANinformation,mightnotworkforall

networks.

Bydefault,theDHCPclientontheUAPautomaticallybroadcastsrequestsfornetworkinformation.Ifyouwant

touseastaticIPaddress,youmustdisabletheDHCPclientandmanuallyconfiguretheIPaddressandother

networkinformation.

ThemanagementVLANisVLAN1bydefault.ThisVLANisalsothedefaultuntaggedVLAN.Ifyoualreadyhave

amanagementVLANconfiguredonyournetworkwithadifferentVLANID,youmustchangetheVLANIDof

themanagementVLANontheAP.

ToconfiguretheLANsettings,clicktheEthernetSettingstab.

Note:Theweb‐basedUIimagesinthissectionshowtheDWL‐8600APadministrationpages.Pages

fortheDWL‐3600APdisplayinformationforoneradioonly.

EthernetSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page52

UnifiedAccessPointAdministrator’sGuide

Figure13:EthernetSettings

ThefollowingtabledescribesthefieldstovieworconfigureontheEthernetSettingspage.

Table17:EthernetSettingsPage

FieldDescription

Hostname EnterahostnamefortheAP.ThehostnameappearsintheCLIprompt.

Thehostnamehasthefollowingrequirements:

•Thelengthmustbebetween1–63characters.

• Upperandlowercasecharacters,numbers,andhyphensareaccepted.

•Thefirstcharactermustbealetter(a–zorA–Z),andthelastcharactercannotbea

hyphen.

MACAddress ShowstheMACaddressfortheLANinterfacefortheEthernetportonthisAP.Thisisa

read‐onlyfieldthatyoucannotchange.

ManagementVLAN

ThemanagementVLANistheVLANassociatedwiththeIPaddressyouusetoaccessthe

AP.ThedefaultmanagementVLANIDis1.

Provideanumberbetween1and4094forthemanagementVLANID.

UntaggedVLAN IfyoudisabletheuntaggedVLAN,alltrafficistaggedwithaVLANID.

BydefaultalltrafficontheUAPusesVLAN1,whichisthedefaultuntaggedVLAN.This

meansthatalltrafficisuntaggeduntilyoudisabletheuntaggedVLAN,changethe

untaggedtrafficVLANID,orchangetheVLANIDforaVAPorclientusingRADIUS.

UntaggedVLANID Provideanumberbetween1and4094fortheuntaggedVLANID.TrafficontheVLAN

thatyouspecifyinthisfieldwillnotbetaggedwithaVLANID.

ConnectionType IfyouselectDHCP,theUAPacquiresitsIPaddress,subnetmask,DNS,andgateway

informationfromaDHCPserver.

IfyouselectStaticIP,youmustenterinformationintheStaticIPAddress,SubnetMask,

andDefaultGatewayfields.

EthernetSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page53

UnifiedAccessPointAdministrator’sGuide

StaticIPAddress EnterthestaticIPaddressinthetextboxes.ThisfieldisdisabledifyouuseDHCPasthe

connectiontype.

SubnetMask EntertheSubnetMaskinthetextboxes.

DefaultGateway EntertheDefaultGatewayinthetextboxes.

DNSNameservers SelectthemodefortheDNS.

InDynamicmode,theIPaddressesfortheDNSserversareassignedautomaticallyvia

DHCP.ThisoptionisonlyavailableifyouspecifiedDHCPfortheConnectionType.

InManualmode,youmustassignstaticIPaddressestoresolvedomainnames.

IPv6AdminMode EnableordisableIPv6managementaccesstotheAP

IPv6AutoConfig

AdminMode

EnableordisableIPv6autoaddressconfigurationontheAP.

WhenIPv6AutoConfigModeisenabled,automaticIPv6addressconfigurationand

gatewayconfigurationisallowedbyprocessingtheRouterAdvertisementsreceivedon

theLANport.TheAPcanhavemultipleautoconfiguredIPv6addresses.

StaticIPv6Address EnterastaticIPv6address.TheAPcanhaveastaticIPv6addressevenifaddresseshave

alreadybeenconfiguredautomatically.

StaticIPv6Address

PrefixLength

EnterthestaticIPv6prefixlength,whichisanintegerintherangeof0–128.

IPv6

Autoconfigured

GlobalAddresses

IftheAPhasbeenassignedoneormoreIPv6addressesautomatically,theaddressesare

listed.

IPv6LinkLocal

Address

ShowstheIPv6LinkLocaladdress,whichistheIPv6addressusedbythelocalphysical

link.ThelinklocaladdressisnotconfigurableandisassignedbyusingtheIPv6Neighbor

Discoveryprocess.

DefaultIPv6

Gateway

EnterthedefaultIPv6gateway.

Note:Afteryouconfigurethewiredsettings,youmustclickApplytoapplythechangesandtosave

thesettings.ChangingsomesettingsmightcausetheAPtostopandrestartsystemprocesses.Ifthis

happens,wirelessclientswilltemporarilyloseconnectivity.WerecommendthatyouchangeAP

settingswhenWLANtrafficislow.

Table17:EthernetSettingsPage(Cont.)

FieldDescription

WirelessSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page54

UnifiedAccessPointAdministrator’sGuide

WirelessSettings

Wirelesssettingsdescribeaspectsofthelocalareanetwork(LAN)relatedspecificallytotheradiodeviceinthe

accesspoint(802.11ModeandChannel)andtothenetworkinterfacetotheaccesspoint(MACaddressfor

accesspointandWirelessNetworkname,alsoknownasSSID).

Toconfigurethewirelessinterface,clicktheManage>WirelessSettingstab.

Figure14:WirelessInterfaceConfiguration

WirelessSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page55

UnifiedAccessPointAdministrator’sGuide

Table18describesthefieldsandconfigurationoptionsavailableontheWirelessSettingspage.

Table18:WirelessSettings

Field Description

TSPECViolation

Interval

Specifythetimeinterval(inseconds)fortheAPtoreport(throughthesystemlogand

SNMPtraps)associatedclientsthatdonotadheretomandatoryadmissioncontrol

procedures.

RadioInterface Specifywhetheryouwanttheradiointerfaceonoroff.

MACAddress IndicatestheMediaAccessControl(MAC)addressesfortheinterface.Dual‐radioAPshave

auniqueMACaddressforeachradio.

AMACaddressisapermanent,uniquehardwareaddressforanydevicethatrepresents

aninterfacetothenetwork.TheMACaddressisassignedbythemanufacturer.Youcannot

changetheMACaddress.Itisprovidedhereforinformationalpurposesasaunique

identifierforaninterface.

Mode TheModedefinesthePhysicalLayer(PHY)standardtheradiouses.

Note:Themodesavailabledependonthecountrycodesettingandtheradioselected.

Selectoneofthefollowingmodesforradio1(DWL‐6600APandDWL‐8600APonly):

•IEEE802.11aisaPHYstandardthatspecifiesoperatinginthe5GHzU‐NIIbandusing

orthogonalfrequencydivisionmultiplexing(OFDM).Itsupportsdataratesranging

from6to54Mbps.

•IEEE802.11a/noperatesinthe5GHzISMbandandincludessupportforboth802.11a

and802.11ndevices.IEEE802.11nisanextensionofthe802.11standardthatincludes

multiple‐inputmultiple‐output(MIMO)technology.IEEE802.11nsupportsdataranges

ofupto248Mbpsandnearlytwicetheindoorrangeof802.11b,802.11g,and

802.11a.

•5GHzIEEE802.11nistherecommendedmodefornetworkswith802.11ndevicesthat

operateinthe5GHzfrequencythatdonotneedtosupport802.11adevices.IEEE

802.11ncanachieveahigherthroughputwhenitdoesnotneedtobecompatiblewith

legacydevices(802.11a).

Selectoneofthefollowingmodesforradio2:

•IEEE802.11b/goperatesinthe2.4GHzISMband.IEEE802.11bisanenhancementof

theinitial802.11PHYtoinclude5.5Mbpsand11Mbpsdatarates.Itusesdirect

sequencespreadspectrum(DSSS)orfrequencyhoppingspreadspectrum(FHSS)as

wellascomplementarycodekeying(CCK)toprovidethehigherdatarates.Itsupports

dataratesrangingfrom1to11Mbps.IEEE802.11gisahigherspeedextension(upto

54Mbps)tothe802.11bPHY.Itusesorthogonalfrequencydivisionmultiplexing

(OFDM).Itsupportsdataratesrangingfrom1to54Mbps.

•IEEE802.11b/g/noperatesinthe2.4GHzISMbandandincludessupportfor802.11b,

802.11g,and802.11ndevices.

•2.4GHzIEEE802.11nistherecommendedmodefornetworkswith802.11ndevices

thatoperateinthe2.4GHzfrequencythatdonotneedtosupport802.11b/gdevices.

IEEE802.11ncanachieveahigherthroughputwhenitdoesnotneedtobecompatible

withlegacydevices(802.11b/g).

WirelessSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page56

UnifiedAccessPointAdministrator’sGuide

Channel SelecttheChannel.

Therangeofavailablechannelsisdeterminedbythemodeoftheradiointerfaceandthe

countrycodesetting.IfyouselectAutoforthechannelsetting,theAPscansavailable

channelsandselectsachannelwherenotrafficisdetected.

TheChanneldefinestheportionoftheradiospectrumtheradiousesfortransmittingand

receiving.Eachmodeoffersanumberofchannels,dependingonhowthespectrumis

licensedbynationalandtransnationalauthoritiessuchastheFederalCommunications

Commission(FCC)ortheInternationalTelecommunicationUnion(ITU‐R).

WhenautomaticchannelassignmentisenabledontheChannelManagementpagefor

Clustering,thechannelpolicyfortheradioisautomaticallysettostaticmode,andthe

AutooptionisnotavailablefortheChannelfield.Thisallowstheautomaticchannel

featuretosetthechannelsfortheradiosinthecluster.

StationIsolation ToenableStationIsolation,selectthecheckboxdirectlybesideit.

WhenStationIsolationisdisabled,wirelessclientscancommunicatewithoneanother

normallybysendingtrafficthroughtheAP.

WhenStationIsolationisenabled,theAPblockscommunicationbetweenwirelessclients

onthesameradioandVAP.TheAPstillallowsdatatrafficbetweenitswirelessclientsand

wireddevicesonthenetwork,acrossaWDSlink,andwithotherwirelessclients

associatedwithadifferentVAP,butnotamongwirelessclientsassociatedwiththesame

VAP.

Note:Ondual‐radioAPs,StationIsolationdoesnotblockcommunicationbetweenRadio1

andRadio2,eveniftheVAPconfigurationoneachradioisthesame.

AeroScout™

EngineProtocol

Support

AeroScoutEnginesupportprovideslocation‐basedservicesforwirelessnetworks.Specify

whethertoenablesupportfortheAeroScoutprotocol.

OptionsareEnabledorDisabled.ThedefaultisDisabled.Whenenabled,Aeroscout

devicesarerecognizedanddataissenttoanAeroscoutEngine(AE)foranalysis.TheAE

determinesthegeographicallocationof802.11‐capabledevices,suchasSTAs,APs,and

AeroScout’slineof802.11‐enabledRFIDdevices,ortags.TheAEcommunicateswithAPs

thatsupporttheAEprotocolinordertocollectinformationabouttheRFdevicesdetected

bytheAPs.UsingtheAEprotocol,D‐LinksupportsdirectcommunicationbetweenAEand

theAPs.Whenoperatinginmanagedmode,theAEisconfiguredwiththeIPaddressofthe

managedaccesspointsfromwhichitcollectsinformation.TheWirelessSwitchcannot

communicatewiththeAE.

FormoreinformationabouttheAeroScoutprotocol,see“EnablingAeroScout™Engine

Support”onpage57.

Note:OnlyAeroScouttaghardwareoftypesT2andT3areexplicitlysupported.Othertag

modelsarealsosupportedonlyiftheirimplementationoftheAeroScoutprotocol

conformstotheAeroScoutEngine‐AccessPointInterfaceSpecification,version2.1.

Note:AeroScouttagsoperateonlyin802.11b/gmode.Therefore,networkadministrators

whousetheAeroScouttagsmustconfigureatleastoneradioonAPsthatareexpectedto

detecttagsineither802.11b/gor802.11b/g/nmode.Theradiosconfiguredin2.4GHz

IEEE802.11modeoranyofthe5GHZmodescannotdetectAeroScouttags.

Note:TheAEprotocolallowsaccesspointstomarkdetectedAPsasroguedevices.TheD‐

LinkAPsdonotsupportthisfeatureandneverreportdetectedAPsasrogues.

Table18:WirelessSettings(Cont.)

Field Description

WirelessSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page57

UnifiedAccessPointAdministrator’sGuide

Usingthe802.11hWirelessMode

For802.11aradios,iftheregulatorydomainrequiresradardetectiononthechannel,theDynamicFrequency

Selection(DFS)andTransmitPowerControl(TPC)featuresof802.11hareautomaticallyactivated.

ThereareanumberofkeypointsabouttheIEEE802.11hstandard:

•802.11honlyworksforthe802.11aband.Itisnotrequiredfor802.11bor802.11g.

•Ifyouareoperatinginan802.11henableddomain,theAPattemptstousethechannelyouassign.Ifthe

channelhasbeenblockedbyapreviousradardetection,oriftheAPdetectsaradaronthechannel,then

theAPautomaticallyselectsadifferentchannel.

•When802.11hisenabled,theAPwillnotbeoperationalinthe5GHzbandforatleast60secondsdueto

radarscanning.

•SettingupWDSlinksmaybedifficultwhen802.11hisoperational.Thisisbecausetheoperatingchannels

ofthetwoAPsontheWDSlinkmaykeepchangingdependingonchannelusageandradarinterference.

WDSwillonlyworkifboththeAPsoperateonthesamechannel.FormoreinformationonWDS,see

“ConfiguringLoadBalancing”onpage88.

EnablingAeroScout™EngineSupport

TheAeroScoutEngine(AE)isasoftwareplatformproducedbyAeroScoutInc.forlocation‐basedservices.The

AEcandeterminethephysicallocationof802.11‐capableAeroScoutdevices.TheAEcommunicateswithAPs

thathavetheAEprotocolenabledinordertocollectinformationabouttheRFdevicesdetectedbytheAPs.

TheDWS‐4000SeriesswitchsupportsonlydirectcommunicationbetweentheAEandtheAPs.When

operatinginmanagedmode,theAEisconfiguredwiththeIPaddressofthemanagedaccesspointsfromwhich

itcollectsinformation.TheDWS‐4000SeriesswitchdoesnotcommunicatewiththeAE.

AeroScouttagsoperateonlyin802.11b/gmode.Therefore,networkadministratorswhousetheAeroScout

tagsmustconfigureatleastoneradioonAPsthatareexpectedtodetecttagsineither802.11b/gor

802.11b/g/nmode.Theradiosconfiguredin2.4GHzIEEE802.11nmodeoranyofthe5GHzmodescannot

detectAeroScouttags.

Note:Afteryouconfigurethewirelesssettings,youmustclickApplytoapplythechangesandtosave

thesettings.ChangingsomesettingsmightcausetheAPtostopandrestartsystemprocesses.Ifthis

happens,wirelessclientswilltemporarilyloseconnectivity.WerecommendthatyouchangeAP

settingswhenWLANtrafficislow.

ModifyingRadioSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page58

UnifiedAccessPointAdministrator’sGuide

ModifyingRadioSettings

RadiosettingsdirectlycontrolthebehavioroftheradiodevicesintheAPanditsinteractionwiththephysical

medium;thatis,howandwhattypeofelectromagneticwavestheAPemits.

Tospecifyradiosettings,clicktheRadiotabintheManagesection.

Differentsettingsdisplaydependingonthemodeyouselect.AllsettingsaredescribedinTable19onpage60.

Figure15:ConfiguringRadioSettings

Note:ThefollowingnotesapplytoAeroScoutproductandprotocolsupport:

•D‐LinkdoesnotsellAeroScoutproducts.ContactAeroScoutforAeroScouthardware,softwareor

deploymentinformation.

•TheAEprotocoldoesnotsupportanyauthenticationorencryptionbetweentheAEserverand

theaccesspoint.

•TheAEprotocolrequiresradiostooperateinpromiscuousmode.ThismeansthattheAPreceives

andprocessesallpacketsdetectedbytheradios,asopposedtoprocessingonlypacketsdestined

totheAPsBSSID.ThiscanaffectAPthroughput.

ModifyingRadioSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page59

UnifiedAccessPointAdministrator’sGuide

Figure16:ConfiguringRadioSettings(Continued)

ModifyingRadioSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page60

UnifiedAccessPointAdministrator’sGuide

Table19describesthefieldsandconfigurationoptionsfortheRadioSettingspage.

Note:TheDWL‐3600APsupportsonlyoneradio,anditoperatesinthe2.4GHzband(802.11b/g/n).

SomefieldsinthefollowingtablearenotavailablefortheDWL‐3600AP.

Table19:RadioSettings

Field Description

Radio SelectRadio1orRadio2tospecifywhichradiotoconfigure.Therestofthesettingson

thispageapplytotheradioyouselectinthisfield.Besuretoconfiguresettingsforboth

radios.

Radio1operatesinthe5GHzband(802.11a/n),andRadio2operatesinthe2.4GHz

band(802.11b/g/n).

Status(On/Off) SpecifywhetheryouwanttheradioonoroffbyclickingOnorOff.

Ifyouturnoffaradio,theAPsendsdisassociationframestoallthewirelessclientsitis

currentlysupportingsothattheradiocanbegracefullyshutdownandtheclientscan

starttheassociationprocesswithotheravailableAPs.

Mode TheModedefinesthePhysicalLayer(PHY)standardtheradiouses.

Note:Themodesavailabledependontheradioselected.

Selectoneofthefollowingmodesforradio1(DWL‐6600APandDWL‐8600APonly):

•IEEE802.11aisaPHYstandardthatspecifiesoperatinginthe5GHzU‐NIIbandusing

orthogonalfrequencydivisionmultiplexing(OFDM).Itsupportsdataratesranging

from6to54Mbps.

•IEEE802.11a/noperatesinthe5GHzISMbandandincludessupportforboth

802.11aand802.11ndevices.IEEE802.11nisanextensionofthe802.11standard

thatincludesmultiple‐inputmultiple‐output(MIMO)technology.IEEE802.11n

supportsdatarangesofupto248Mbpsandnearlytwicetheindoorrangeof802.11

b,802.11g,and802.11a.

•5GHzIEEE802.11nistherecommendedmodefornetworkswith802.11ndevices

thatoperateinthe5GHzfrequencythatdonotneedtosupport802.11adevices.

IEEE802.11ncanachieveahigherthroughputwhenitdoesnotneedtobe

compatiblewithlegacydevices(802.11a).

Selectoneofthefollowingmodesforradio2:

•IEEE802.11b/goperatesinthe2.4GHzISMband.IEEE802.11bisanenhancement

oftheinitial802.11PHYtoinclude5.5Mbpsand11Mbpsdatarates.Itusesdirect

sequencespreadspectrum(DSSS)orfrequencyhoppingspreadspectrum(FHSS)as

wellascomplementarycodekeying(CCK)toprovidethehigherdatarates.Itsupports

dataratesrangingfrom1to11Mbps.IEEE802.11gisahigherspeedextension(up

to54Mbps)tothe802.11bPHY.Itusesorthogonalfrequencydivisionmultiplexing

(OFDM).Itsupportsdataratesrangingfrom1to54Mbps.

•IEEE802.11b/g/noperatesinthe2.4GHzISMbandandincludessupportfor

802.11b,802.11g,and802.11ndevices.

•2.4GHzIEEE802.11nistherecommendedmodefornetworkswith802.11ndevices

thatoperateinthe2.4GHzfrequencythatdonotneedtosupport802.11b/gdevices.

IEEE802.11ncanachieveahigherthroughputwhenitdoesnotneedtobe

compatiblewithlegacydevices(802.11b/g).

ModifyingRadioSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page61

UnifiedAccessPointAdministrator’sGuide

Channel SelecttheChannel.

Therangeofavailablechannelsisdeterminedbythemodeoftheradiointerfaceandthe

countrycodesetting.IfyouselectAutoforthechannelsetting,theAPscansavailable

channelsandselectsachannelwherenotrafficisdetected.

Thechanneldefinestheportionoftheradiospectrumtheradiousesfortransmittingand

receiving.Eachmodeoffersanumberofchannels,dependingonhowthespectrumis

licensedbynationalandtransnationalauthoritiessuchastheFederalCommunications

Commission(FCC)ortheInternationalTelecommunicationUnion(ITU‐R).

WhenautomaticchannelassignmentisenabledontheChannelManagementpagefor

Clustering,thechannelpolicyfortheradioisautomaticallysettostaticmode,andthe

AutooptionisnotavailablefortheChannelfield.Thisallowstheautomaticchannel

featuretosetthechannelsfortheradiosinthecluster.

ChannelBandwidth

(802.11nmodes

only)

The802.11nspecificationallowsa40‐MHz‐widechannelinadditiontothelegacy20‐

MHzchannelavailablewithothermodes.The40‐MHzchannelenableshigherdatarates

butleavesfewerchannelsavailableforusebyother2.4GHzand5GHzdevices.

Setthefieldto20‐MHztorestricttheuseofthechannelbandwidthtoa20‐MHz

channel.

PrimaryChannel

(802.11nmodes

only)

Thissettingcanbechangedonlywhenthechannelbandwidthissetto40MHz.A40‐

MHzchannelcanbeconsideredtoconsistoftwo20‐MHzchannelsthatarecontiguous

inthefrequencydomain.Thesetwo20‐MHzchannelsareoftenreferredtoasthe

PrimaryandSecondarychannels.ThePrimaryChannelisusedfor802.11nclientsthat

supportonlya20‐MHzchannelbandwidthandforlegacyclients.

Selectoneofthefollowingoptions:

• Upper—SetthePrimaryChannelastheupper20‐MHzchannelinthe40‐MHzband.

•Lower—SetthePrimaryChannelasthelower20‐MHzchannelinthe40‐MHzband.

ShortGuard

IntervalSupported

Thisfieldisavailableonlyiftheselectedradiomodeincludes802.11n.

Theguardintervalisthedeadtime,innanoseconds,betweenOFDMsymbols.Theguard

intervalpreventsInter‐SymbolandInter‐CarrierInterference(ISI,ICI).The802.11nmode

allowsforareductioninthisguardintervalfromtheaandgdefinitionof800

nanosecondsto400nanoseconds.Reducingtheguardintervalcanyielda10%

improvementindatathroughput.

Selectoneofthefollowingoptions:

•Yes—TheAPtransmitsdatausinga400nsguardIntervalwhencommunicatingwith

clientsthatalsosupporttheshortguardinterval.

•No—TheAPtransmitsdatausingan800nsguardinterval.

STBCMode Thisfieldisavailableonlyiftheselectedradiomodeincludes802.11n.

SpaceTimeBlockCoding(STBC)isan802.11ntechniqueintendedtoimprovethe

reliabilityofdatatransmissions.Thedatastreamistransmittedonmultipleantennasso

thereceivingsystemhasabetterchanceofdetectingatleastoneofthedatastreams.

Selectoneofthefollowingoptions:

•On—TheAPtransmitsthesamedatastreamonmultipleantennasatthesametime.

•Off—TheAPdoesnottransmitsthesamedataonmultipleantennas.

Table19:RadioSettings(Cont.)

Field Description

ModifyingRadioSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page62

UnifiedAccessPointAdministrator’sGuide

ProtectionTheprotectionfeaturecontainsrulestoguaranteethat802.11ntransmissionsdonot

causeinterferencewithlegacystationsorAPs.Bydefault,theseprotectionmechanisms

areenabled(Auto).Withprotectionenabled,protectionmechanismswillbeinvokedif

legacydevicesarewithinrangeoftheAP.Thiscausesmoreoverheadonevery

transmission,whichwillimpactperformance.However,thereisnoimpacton

performanceiftherearenolegacydeviceswithinrangeoftheAP.

Youcandisable(Off)theseprotectionmechanisms;however,when802.11nprotection

isoff,legacyclientsorAPswithinrangecanbeaffectedby802.11ntransmissions.The

802.11protectionfeatureisalsoavailablewhenthemodeis802.11b/g.When

protectionisenabledinthismode,itprotects802.11bclientsandAPsfrom802.11g

transmissions.

Note:ThissettingdoesnotaffecttheabilityoftheclienttoassociatewiththeAP.

BeaconInterval BeaconframesaretransmittedbyanAPatregularintervalstoannouncetheexistence

ofthewirelessnetwork.Thedefaultbehavioristosendabeaconframeonceevery100

milliseconds(or10persecond).

Enteravaluefrom20to2000milliseconds.

DTIMPeriod SpecifyaDTIMperiodfrom1to255beacons.

TheDeliveryTrafficInformationMap(DTIM)messageisanelementincludedinsome

Beaconframes.Itindicateswhichclientstations,currentlysleepinginlow‐powermode,

havedatabufferedontheAPawaitingpick‐up.

TheDTIMperiodyouspecifyindicateshowoftentheclientsservedbythisAPshould

checkforbuffereddatastillontheAPawaitingpickup.

Themeasurementisinbeacons.Forexample,ifyousetthisfieldto1,clientswillcheck

forbuffereddataontheAPateverybeacon.Ifyousetthisfieldto10,clientswillcheck

onevery10thbeacon.

Fragmentation

Threshold

Specifyanumberbetween256and2,346tosettheframesizethresholdinbytes.

Thefragmentationthresholdisawayoflimitingthesizeofpackets(frames)transmitted

overthenetwork.Ifapacketexceedsthefragmentationthresholdyouset,the

fragmentationfunctionisactivatedandthepacketissentasmultiple802.11frames.

Ifthepacketbeingtransmittedisequaltoorlessthanthethreshold,fragmentationisnot

used.

Settingthethresholdtothelargestvalue(2,346bytes)effectivelydisables

fragmentation.FragmentationplaysnorolewhenAggregationisenabled.

Fragmentationinvolvesmoreoverheadbothbecauseoftheextraworkofdividingup

andreassemblingofframesitrequires,andbecauseitincreasesmessagetrafficonthe

network.However,fragmentationcanhelpimprovenetworkperformanceandreliability

ifproperlyconfigured.

Sendingsmallerframes(byusinglowerfragmentationthreshold)mighthelpwithsome

interferenceproblems;forexample,withmicrowaveovens.

Bydefault,fragmentationisoff.Werecommendnotusingfragmentationunlessyou

suspectradiointerference.Theadditionalheadersappliedtoeachfragmentincreasethe

overheadonthenetworkandcangreatlyreducethroughput.

Table19:RadioSettings(Cont.)

Field Description

ModifyingRadioSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page63

UnifiedAccessPointAdministrator’sGuide

RTSThreshold SpecifyaRequesttoSend(RTS)Thresholdvaluebetween0and2347.

TheRTSthresholdindicatesthenumberofoctetsinanMPDU,belowwhichanRTS/CTS

handshakeisnotperformed.

ChangingtheRTSthresholdcanhelpcontroltrafficflowthroughtheAP,especiallyone

withalotofclients.Ifyouspecifyalowthresholdvalue,RTSpacketswillbesentmore

frequently.Thiswillconsumemorebandwidthandreducethethroughputofthepacket.

Ontheotherhand,sendingmoreRTSpacketscanhelpthenetworkrecoverfrom

interferenceorcollisionswhichmightoccuronabusynetwork,oronanetwork

experiencingelectromagneticinterference.

MaximumStations SpecifythemaximumnumberofstationsallowedtoaccessthisAPatanyonetime.

Youcanenteravaluebetween0and200.

TransmitPower EnterapercentagevalueforthetransmitpowerlevelforthisAP.

Thedefaultvalue,whichis100%,canbemorecost‐efficientthanalowerpercentage

sinceitgivestheAPamaximumbroadcastrangeandreducesthenumberofAPsneeded.

Toincreasecapacityofthenetwork,placeAPsclosertogetherandreducethevalueof

thetransmitpower.ThishelpsreduceoverlapandinterferenceamongAPs.Alower

transmitpowersettingcanalsokeepyournetworkmoresecurebecauseweakerwireless

signalsarelesslikelytopropagateoutsideofthephysicallocationofyournetwork.

FixedMulticast

Rate

SelectthemulticasttraffictransmissionrateyouwanttheAPtosupport.

LegacyRateSets CheckthetransmissionratesetsyouwanttheAPtosupportandthebasicratesetsyou

wanttheAPtoadvertise:

•Ratesareexpressedinmegabitspersecond.

•SupportedRateSetsindicateratesthattheAPsupports.Youcancheckmultiplerates

(clickacheckboxtoselectorde‐selectarate).TheAPwillautomaticallychoosethe

mostefficientratebasedonfactorslikeerrorratesanddistanceofclientstations

fromtheAP.

•BasicRateSetsindicateratesthattheAPwilladvertisetothenetworkforthe

purposesofsettingupcommunicationwithotherAPsandclientstationsonthe

network.ItisgenerallymoreefficienttohaveanAPbroadcastasubsetofits

supportedratesets.

MCS(DataRate)

Settings(802.11n

modesonly)

ThisfieldshowstheModulationandCodingScheme(MCS)indexvaluessupportedby

theradio.Eachindexcanbeenabledanddisabledindependently.

Broadcast/

MulticastRate

Limiting

Enablingmulticastandbroadcastratelimitingcanimproveoverallnetworkperformance

bylimitingthenumberofpacketstransmittedacrossthenetwork.

BydefaulttheMulticast/BroadcastRateLimitingoptionisdisabled.Untilyouenable

Multicast/BroadcastRateLimiting,thefollowingfieldswillbedisabled.

Broadcast/

MulticastRateLimit

Entertheratelimityouwanttosetformulticastandbroadcasttraffic.Thelimitshould

begreaterthan1,butlessthan50packetspersecond.Anytrafficthatfallsbelowthis

ratelimitwillalwaysconformandbetransmittedtotheappropriatedestination.

Thedefaultandmaximumratelimitsettingis50packetspersecond.

Broadcast/

MulticastRateLimit

Burst

Settingaratelimitburstdetermineshowmuchtrafficburstscanbebeforealltraffic

exceedstheratelimit.Thisburstlimitallowsintermittentburstsoftrafficonanetwork

abovethesetratelimit.

Thedefaultandmaximumratelimitburstsettingis75packetspersecond.

Table19:RadioSettings(Cont.)

Field Description

ModifyingRadioSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page64

UnifiedAccessPointAdministrator’sGuide

UsetheRadiopagetoconfigurebothRadioOneandRadioTwo.Thesettingsonthepageapplyonlytothe

radiothatyouchoosefromtheRadiodrop‐downlist.Afteryouconfiguresettingsforoneoftheradios,click

Applyandthenselectandconfiguretheotherradio.BesuretoclickApplytoapplythesecondsetof

configurationsettingsfortheotherradio.

TSPECMode RegulatestheoverallTSPECmodeontheAP.Theoptionsare:

•On—TheAPhandlesTSPECrequestsaccordingtotheTSPECsettingsyouconfigure

ontheRadiopage.UsethissettingiftheAPhandlestrafficfromQoS‐capable

devices,suchasaWi‐FiCERTIFIEDphone.

•Off—TheAPignoresTSPECrequestsfromclientstations.Usethissettingifyoudo

notwanttouseTSPECtogiveQoS‐capabledevicespriorityfortime‐sensitivetraffic.

TSPECVoiceACM

Mode

Regulatesmandatoryadmissioncontrol(ACM)forthevoiceaccesscategory.Theoptions

are:

•On—AstationisrequiredtosendaTSPECrequestforbandwidthtotheAPbefore

sendingorreceivingavoicetrafficstream.TheAPrespondswiththeresultofthe

request,whichincludestheallottedmediumtimeiftheTSPECwasadmitted.

•Off—Astationcansendandreceivevoiceprioritytrafficwithoutrequiringan

admittedTSPEC;theAPignoresvoiceTSPECrequestsfromclientstations.

TSPECVoiceACM

Limit

SpecifyanupperlimitontheamountoftraffictheAPattemptstotransmitonthe

wirelessmediumusingavoiceACtogainaccess.

TSPECVideoACM

Mode

Regulatesmandatoryadmissioncontrolforthevideoaccesscategory.Theoptionsare:

•On—AstationisrequiredtosendaTSPECrequestforbandwidthtotheAPbefore

sendingorreceivingavideotrafficstream.TheAPrespondswiththeresultofthe

request,whichincludestheallottedmediumtimeiftheTSPECwasadmitted.

•Off—Astationcansendandreceivevideoprioritytrafficwithoutrequiringan

admittedTSPEC;theAPignoresvideoTSPECrequestsfromclientstations.

TSPECVideoACM

Limit

SpecifyanupperlimitontheamountoftraffictheAPattemptstotransmitonthe

wirelessmediumusingavideoACtogainaccess.

TSPECAPInactivity

Timeout

SpecifytheamountoftimeforanAPtodetectandownlinkTSasidlebeforedeletingit.

TSPECStation

InactivityTimeout

SpecifytheamountoftimeforanAPtodetectanuplinkTSasidlebeforedeletingit.

TSPECLegacyWMM

QueueMapMode

SelectEnabletoallowintermixingoflegacytrafficonqueuesoperatingasACM.

Table19:RadioSettings(Cont.)

Field Description

ConfiguringRadioandVAPScheduler

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page65

UnifiedAccessPointAdministrator’sGuide

ConfiguringRadioandVAPScheduler

TheRadioandVAPschedulerisastandaloneDWL‐x600APfeature.ToconfiguretheRadioandVAPscheduler,

selecttheSchedulertabintheManagesection.TheRadioandVAPSchedulerallowsyoutoconfigurearule

withaspecifictimeintervalforVAPsorradiostobeoperational,therebyautomatingtheenablingordisabling

oftheVAPsandRadios.

Oneofthewaysyoucanusethisfeatureistoscheduleradiostooperateonlyduringtheofficeworkinghours

inordertoachievesecurityandreducepowerconsumption.YoucanalsousetheSchedulertoallowaccessto

VAPsforwirelessclientsonlyduringspecifictimesofday.

Eachrulespecifiesthestarttime,endtimeandday(ordays)oftheweektheradioorVAPcanbeoperational.

Therulesareperiodicinnatureandarerepeatedeveryweek.

Avalidrulemustcontainallofthefollowingparameters:

•DaysoftheWeek

•StartTime(hourandminutes)

•EndTime(hourandminutes)

Onlyvalidrulesareaddedtotheprofile.Upto16rulesaregroupedtogethertoformaschedulingprofile.Any

twoperiodicrulestimeentriesbelongingtothesameprofilemustnotoverlap.Thetimegranularityforthe

schedulesisoneminute.TheDWL‐x600APsupportsupto16profiles.

Figure17:SchedulerConfiguration

ConfiguringRadioandVAPScheduler

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page66

UnifiedAccessPointAdministrator’sGuide

Table20:SchedulerConfiguration

Field Description

GlobalSchedulerMode Aglobalswitchtoenableordisabletheschedulerfeature.ThedefaultisDisable.

SchedulerOperationalStatus

Status TheoperationalstatusoftheScheduler.TherangeisUporDown.Thedefaultis

Down.

Reason Providesadditionalinformationaboutthestatus.Thereasoncanbeoneormoreof

thefollowing:

• IsActive–Operationalstatusisup.

• ConfigDown–Operationalstatusisdownbecauseglobalconfigurationis

disabled.

• TimeNotSet–OperationalstatusisdownbecausetheAPtimehasnotbeenset,

eithermanuallyorbyspecifyinganNTPservertouse.

•ManagedMode–OperationalstatusisdownbecausetheAPisinmanaged

mode.

SchedulerProfile TheSchedulerprofiledefinesthelistofprofilesnamesthatcanbeassociatedtothe

VAPorRadioconfiguration.Rulesareassociatedwithanamedschedulerprofile.You

candefineupto16schedulerprofilenames.Bydefault,noprofilesarecreated.

Theprofilenamecanbeupto32alphanumericcharacters.ClickAddtoaddthe

profilename.

Rule Configuration Eachschedulerprofilemayhaveupto16periodicrules.Thelistofparametersfor

eachperiodicrulearedescribedbelow.

SelectProfile Selecttheprofilenamefromthemenu.

SetSchedule Thedayoftheweek.Rangeis:Daily,Weekday(MondaytoFriday),Weekend

(SaturdayandSunday),Monday,Tuesday,Wednesday,Thursday,Friday,Saturday,

Sunday.ThedefaultisDaily.

StartTime ThetimewhentheradioorVAPwillbeoperationallyenabled.ThetimeisinHH:MM

24‐hourformat.Therangeis<00‐24>:<00‐59>.Thedefaultis00:00.

EndTime ThetimewhentheradioorVAPwillbeoperationallydisabled.ThetimeisinHH:MM

24‐hourformat.Therangeis<00‐24>:<00‐59>.Thedefaultis00:00.

ConfiguringRadioandVAPScheduler

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page67

UnifiedAccessPointAdministrator’sGuide

Tochangeanexistingrule,selecttherule,updatethevaluesintheRuleConfigurationarea,andclickModify

Rule.

Figure18:ModifyRuleConfiguration

ClickApplytosavethenewconfigurationsettings.

Note:Aftermakinganymodifications,youmustclickApplytoapplythechangesandtosavethe

settings.

SchedulerAssociationSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page68

UnifiedAccessPointAdministrator’sGuide

SchedulerAssociationSettings

ForaSchedulerprofiletotakeeffect,youmustassociateitwithatleastoneradioorVAPinterface.Toassociate

theSchedulerprofiles,selecttheSchedulerAssociationtabintheManagesection.Bydefault,thereareno

Schedulerprofilescreated,sonoprofileisassociatedtoanyradioorVAP.TheSchedulerprofileneedstobe

explicitlyassociatedtoaradioorVAPconfiguration.OnlyoneSchedulerprofilecanbeassociatedtoanyradio

orVAPconfiguration;however,asingleprofilecanbeassociatedtomultipleradiosorVAPs.IftheScheduler

profileassociatedwithaVAPorradioisdeleted,thentheassociatedprofiletotheVAPorradioisremoved

implicitly.Iftheradioisoperationallydisabled,thenalltheVAPsassociatedtothatradioarealsooperationally

disabledirrespectiveoftheVAPconfiguration.

Figure19:SchedulerAssociation

SchedulerAssociationSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page69

UnifiedAccessPointAdministrator’sGuide

Table21:SchedulerAssociationSettings

Field Description

RadioSchedulerProfileOperationalStatus

1or2Fromthemenu,selecttheSchedulerprofiletoassociatewithRadio1orRadio2.

Note:TheDWL‐3600APsupportsonlyoneradio.

Status TheoperationalstatusoftheScheduler.TherangeisUporDown.

VAPSchedulerProfileOperationalStatus

Radio Fromthemenu,selectRadio1orRadio2toassociatetheVAPSchedulerProfile.

Note:ThisfieldisnotavailableontheDWL‐3600AP.

0‐15 Fromthemenu,selecttheSchedulerprofiletoassociatewiththerespectiveVAP.

Status TheoperationalstatusoftheScheduler.TherangeisUporDown.

Note:AfteryouassociateaSchedulerprofilewithaRadiointerfaceoraVAPinterface,youmustclick

Applytoapplythechangesandtosavethesettings.

VirtualAccessPointSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page70

UnifiedAccessPointAdministrator’sGuide

VirtualAccessPointSettings

TochangeVAP0ortoenableandconfigureadditionalVAPs,selecttheVAPtabintheManagesection.

VAPssegmentthewirelessLANintomultiplebroadcastdomainsthatarethewirelessequivalentofEthernet

VLANs.VAPssimulatemultipleAPsinonephysicalAP.Eachradiosupportsupto16VAPs.

ForeachVAP,youcancustomizethesecuritymodetocontrolwirelessclientaccess.EachVAPcanalsohavea

uniqueSSID.MultipleSSIDsmakeasingleAPlookliketwoormoreAPstoothersystemsonthenetwork.By

configuringVAPs,youcanmaintainbettercontroloverbroadcastandmulticasttraffic,whichaffectsnetwork

performance.

YoucanconfigureeachVAPtouseadifferentVLAN,oryoucanconfiguremultipleVAPstousethesameVLAN,

whethertheVLANisonthesameradiooronadifferentradio.VAP0,whichisalwaysenabledonbothradios,

isassignedtothedefaultVLAN1.

TheAPaddsVLANIDtagstowirelessclienttrafficbasedontheVLANIDyouconfigureontheVAPpageorby

usingtheRADIUSserverassignment.IfyouuseanexternalRADIUSserver,youcanconfiguremultipleVLANs

oneachVAP.TheexternalRADIUSserverassignswirelessclientstotheVLANwhentheclientsassociateand

authenticate.

YoucanconfigureuptofourglobalIPv4orIPv6RADIUSservers.Oneoftheserversalwaysactsasaprimary

whiletheothersactasbackupservers.Thenetworktype(IPv4orIPv6)andaccountingmodearecommon

acrossallconfiguredRADIUSservers.YoucanconfigureeachVAPtousetheglobalRADIUSserversettings,

whichisthedefault,oryoucanconfigureaper‐VAPRADIUSserverset.YoucanalsoconfigureseparateRADIUS

serversettingsforeachVAP.Forexample,youcanconfigureoneVAPtouseanIPv6RADIUSserverwhileother

VAPsusetheglobalIPv4RADIUSserversettingsyouconfigure.

IfwirelessclientsuseasecuritymodethatdoesnotcommunicatewiththeRAIDUSserver,oriftheRADIUS

serverdoesnotprovidetheVLANinformation,youcanassignaVLANIDtoeachVAP.TheAPassignstheVLAN

toallwirelessclientsthatconnecttotheAPthroughthatVAP.

TosetupmultipleVAPs,clickManage>VAP.

Note:BeforeyouconfigureVLANsontheAP,besuretoverifythattheswitchandDHCPservertheAP

usescansupportIEEE802.1QVLANencapsulation.

VirtualAccessPointSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page71

UnifiedAccessPointAdministrator’sGuide

Figure20:SettingUpVirtualAccessPoints

Table22describesthefieldsandconfigurationoptionsontheVAPpage.

Table22:VirtualAccessPointSettings

Field Description

RADIUSIPAddress

Type

SpecifytheIPversionthattheRADIUSserveruses.

YoucantogglebetweentheaddresstypestoconfigureIPv4andIPv6globalRADIUS

addresssettings,buttheAPcontactsonlytheRADIUSserverorserversfortheaddress

typeyouselectinthisfield.

RADIUSIPAddress

RADIUSIPv6

Address

EntertheIPv4orIPv6addressfortheprimaryglobalRADIUSserver.Bydefault,eachVAP

usestheglobalRADIUSsettingsthatyoudefinefortheAPatthetopoftheVAPpage.

WhenthefirstwirelessclienttriestoauthenticatewiththeAP,theAPsendsan

authenticationrequesttotheprimaryserver.Iftheprimaryserverrespondstothe

authenticationrequest,theAPcontinuestousethisRADIUSserverastheprimaryserver,

andauthenticationrequestsaresenttotheaddressyouspecify.

IftheIPv4RADIUSIPAddressTypeoptionisselectedinthepreviousfield,entertheIP

addressoftheRADIUSserverthatallVAPsusebydefault,forexample192.168.10.23.If

theIPv6RADIUSIPAddressTypeoptionisselected,entertheIPv6addressoftheprimary

globalRADIUSserver,forexample2001:0db8:1234::abcd.

RADIUSIPorIPv6

Address1–3

EnteruptothreeIPv4orIPv6addressestouseasthebackupRADIUSservers.Thefield

labelisRADIUSIPAddresswhentheIPv4RADIUSIPAddressTypeoptionisselectedand

RADIUSIPv6AddresswhentheIPv6RADIUSIPAddressTypeoptionisselected.

Ifauthenticationfailswiththeprimaryserver,eachconfiguredbackupserveristriedin

sequence.TheIPv4orIPv6addressmustbevalidinorderfortheAPtoattemptto

contacttheserver.

VirtualAccessPointSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page72

UnifiedAccessPointAdministrator’sGuide

RADIUSKey EntertheRADIUSkeyinthetextbox.

TheRADIUSKeyisthesharedsecretkeyfortheglobalRADIUSserver.Youcanuseupto

63standardalphanumericandspecialcharacters.Thekeyiscasesensitive,andyoumust

configurethesamekeyontheAPandonyourRADIUSserver.Thetextyouenterwillbe

displayedas“*”characterstopreventothersfromseeingtheRADIUSkeyasyoutype.

RADIUSKey1–3EntertheRADIUSkeyassociatedwiththeconfiguredbackupRADIUSservers.Theserver

atRADIUSIPAddress‐1usesRADIUSKey‐1,RADIUSIPAddress‐2usesRADIUSKey‐2,and

soon.

EnableRADIUS

Accounting

Selectthisoptiontotrackandmeasuretheresourcesaparticularuserhasconsumed

suchassystemtime,amountofdatatransmittedandreceived,andsoon.

IfyouenableRADIUSaccounting,itisenabledfortheprimaryRADIUSserverandall

backupservers.

EnableRADIUS

FailThrough

SelectthisoptiontoallowthesecondaryRADIUSservertoauthenticatewirelessclients

iftheauthenticationwiththeprimaryRADIUSserverisunsuccessful,oriftheprimary

RADIUSserverisunavailable.

Radio Selecttheradiotoconfigure.VAPsareconfiguredindependentlyoneachradio.

Note:TheDWL‐3600APsupportsonlyoneradio.

VAP Youcanconfigureupto16VAPsforeachradio.VAP0isthephysicalradiointerface,soto

disableVAP0,youmustdisabletheradio.

Enabled Youcanenableordisableaconfigurednetwork.

•Toenablethespecifiednetwork,selecttheEnabledoptionbesidetheappropriate

VAP.

•Todisablethespecifiednetwork,cleartheEnabledoptionbesidetheappropriate

VAP.

Ifyoudisablethespecifiednetwork,youwilllosetheVLANIDyouentered.

VLANID WhenawirelessclientconnectstotheAPbyusingthisVAP,theAPtagsalltrafficfrom

thewirelessclientwiththeVLANIDyouenterinthisfieldunlessyouentertheuntagged

VLANIDoruseaRADIUSservertoassignawirelessclienttoaVLAN.Therangeforthe

VLANIDis1–4094.

IfyouuseRADIUS‐basedauthenticationforclients,youcanoptionallyaddthefollowing

attributestotheappropriatefileintheRADIUSorAAAservertoconfigureaVLANforthe

client:

• “Tunnel‐Type”

• “Tunnel‐Medium‐Type”

• “Tunnel‐Private‐Group‐ID”

TheRADIUS‐assignedVLANIDoverridestheVLANIDyouconfigureontheVAPpage.

YouconfiguretheuntaggedandmanagementVLANIDsontheEthernetSettingspage.

Formoreinformation,see“EthernetSettings”onpage51.

SSID Enteranameforthewirelessnetwork.TheSSIDisanalphanumericstringofupto32

characters.YoucanusethesameSSIDformultipleVAPs,oryoucanchooseauniqueSSID

foreachVAP.

Note:IfyouareconnectedasawirelessclienttothesameAPthatyouareadministering,

resettingtheSSIDwillcauseyoutoloseconnectivitytotheAP.Youwillneedtoreconnect

tothenewSSIDafteryousavethisnewsetting.

Table22:VirtualAccessPointSettings(Cont.)

Field Description

VirtualAccessPointSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page73

UnifiedAccessPointAdministrator’sGuide

BroadcastSSID SpecifywhethertoallowtheAPtobroadcasttheServiceSetIdentifier(SSID)inits

beaconframes.TheBroadcastSSIDparameterisenabledbydefault.WhentheVAPdoes

notbroadcastitsSSID,thenetworknameisnotdisplayedinthelistofavailablenetworks

onaclientstation.Instead,theclientmusthavetheexactnetworknameconfiguredin

thesupplicantbeforeitisabletoconnect.

•ToenabletheSSIDbroadcast,selecttheBroadcastSSIDcheckbox.

•ToprohibittheSSIDbroadcast,cleartheBroadcastSSIDcheckbox.

Note:DisablingthebroadcastSSIDissufficienttopreventclientsfromaccidentally

connectingtoyournetwork,butitwillnotpreventeventhesimplestofattemptsbya

hackertoconnectormonitorunencryptedtraffic.SuppressingtheSSIDbroadcastoffers

averyminimallevelofprotectiononanotherwiseexposednetwork(suchasaguest

network)wherethepriorityismakingiteasyforclientstogetaconnectionandwhere

nosensitiveinformationisavailable.

Security SelectoneofthefollowingSecuritymodesforthisVAP:

•None

•StaticWEP

•WPAPersonal

• IEEE802.1X

•WPAEnterprise

IfyouselectasecuritymodeotherthanNone,additionalfieldsappear.Thesefieldsare

explainedbelow.

Note:TheSecuritymodeyousethereisspecificallyforthisVAP.

MAC

Authentication

Type

YoucanconfigureagloballistofMACaddressesthatareallowedordeniedaccesstothe

network.Thedrop‐downmenuforthisfeatureallowsyoutoselectthetypeofMAC

Authenticationtouse:

• Disabled:DonotuseMACAuthentication.

•Local:UsetheMACAuthenticationlistthatyouconfigureontheMACAuthentication

page.

•RADIUS:UsetheMACAuthenticationlistontheexternalRADIUSserver.

FormoreinformationaboutMACAuthentication,see“ControllingAccessbyMAC

Authentication”onpage85.

RedirectMode EnabletheHTTPredirectfeaturetoredirectwirelessclientstoacustomWebpage.

Whenredirectmodeisenabled,theuserwillberedirectedtotheURLyouspecifyafter

thewirelessclientassociateswithanAPandtheuseropensaWebbrowserontheclient

toaccesstheInternet.

ThecustomWebpagemustbelocatedonanexternalWebserverandmightcontain

informationsuchasthecompanylogoandnetworkusagepolicy.

Note:ThewirelessclientisredirectedtotheexternalWebserveronlyoncewhileitis

associatedwiththeAP.

RedirectURL SpecifytheURLwheretheWebbrowseristoberedirectedafterthewirelessclient

associateswiththeAPandsendsHTTPtraffic.

Table22:VirtualAccessPointSettings(Cont.)

Field Description

VirtualAccessPointSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page74

UnifiedAccessPointAdministrator’sGuide

None(Plain‐text)

IfyouselectNoneasyoursecuritymode,nofurtheroptionsareconfigurableontheAP.Thismodemeansthat

anydatatransferredtoandfromtheUAPisnotencrypted.Thissecuritymodecanbeusefulduringinitial

networkconfigurationorforproblemsolving,butitisnotrecommendedforregularuseontheInternal

networkbecauseitisnotsecure.

StaticWEP

WiredEquivalentPrivacy(WEP)isadataencryptionprotocolfor802.11wirelessnetworks.Allwirelessstations

andAPsonthenetworkareconfiguredwithastatic64‐bit(40‐bitsecretkey+24‐bitinitializationvector(IV))

or128‐bit(104‐bitsecretkey+24‐bitIV)SharedKeyfordataencryption.

StaticWEPisnotthemostsecuremodeavailable,butitoffersmoreprotectionthansettingthesecuritymode

toNone(Plain‐text)asitdoespreventanoutsiderfromeasilysniffingoutunencryptedwirelesstraffic.

WEPencryptsdatamovingacrossthewirelessnetworkbasedonastatickey.(Theencryptionalgorithmisa

streamciphercalledRC4.)

Note:AfteryouconfiguretheVAPsettings,youmustclickApplytoapplythechangesandtosavethe

settings.ChangingsomesettingsmightcausetheAPtostopandrestartsystemprocesses.Ifthis

happens,wirelessclientswilltemporarilyloseconnectivity.WerecommendthatyouchangeAP

settingswhenWLANtrafficislow.

Table23:StaticWEP

Field Description

TransferKeyIndex Selectakeyindexfromthedrop‐downmenu.Keyindexes1through4areavailable.The

defaultis1.

TheTransferKeyIndexindicateswhichWEPkeytheAPwillusetoencryptthedatait

transmits.

KeyLength Specifythelengthofthekeybyclickingoneoftheradiobuttons:

•64bits

• 128bits

KeyType Selectthekeytypebyclickingoneoftheradiobuttons:

•ASCII

•Hex

VirtualAccessPointSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page75

UnifiedAccessPointAdministrator’sGuide

WEPKeys YoucanspecifyuptofourWEPkeys.Ineachtextbox,enterastringofcharactersforeach

key.Thekeysyouenterdependonthekeytypeselected:

•ASCII—Includesupperandlowercasealphabeticletters,thenumericdigits,and

specialsymbolssuchas@and#.

•Hex—Includesdigits0to9andthelettersAtoF.

UsethesamenumberofcharactersforeachkeyasspecifiedintheCharactersRequired

field.ThesearetheRC4WEPkeyssharedwiththestationsusingtheAP.

EachclientstationmustbeconfiguredtouseoneofthesesameWEPkeysinthesame

slotasspecifiedhereontheAP.

CharactersRequired:ThenumberofcharactersyouenterintotheWEPKeyfieldsis

determinedbytheKeylengthandKeytypeyouselect.Forexample,ifyouuse128‐bit

ASCIIkeys,youmustenter26charactersintheWEPkey.Thenumberofcharacters

requiredupdatesautomaticallybasedonhowyousetKeyLengthandKeyType.

AuthenticationTheauthenticationalgorithmdefinesthemethodusedtodeterminewhetheraclient

stationisallowedtoassociatewithanAPwhenstaticWEPisthesecuritymode.

Specifytheauthenticationalgorithmyouwanttousebychoosingoneofthefollowing

options:

•OpenSystemauthenticationallowsanyclientstationtoassociatewiththeAP

whetherthatclientstationhasthecorrectWEPkeyornot.Thisalgorithmisalsoused

inplaintext,IEEE802.1X,andWPAmodes.Whentheauthenticationalgorithmisset

toOpenSystem,anyclientcanassociatewiththeAP.

Note:Justbecauseaclientstationisallowedtoassociatedoesnotensureitcan

exchangetrafficwithanAP.AstationmusthavethecorrectWEPkeytobeableto

successfullyaccessanddecryptdatafromanAP,andtotransmitreadabledatatotheAP.

•SharedKeyauthenticationrequirestheclientstationtohavethecorrectWEPkeyin

ordertoassociatewiththeAP.WhentheauthenticationalgorithmissettoShared

Key,astationwithanincorrectWEPkeywillnotbeabletoassociatewiththeAP.

•BothOpenSystemandSharedKey.Whenyouselectbothauthenticationalgorithms:

– ClientstationsconfiguredtouseWEPinsharedkeymodemusthaveavalidWEP

keyinordertoassociatewiththeAP.

– ClientstationsconfiguredtouseWEPasanopensystem(sharedkeymodenot

enabled)willbeabletoassociatewiththeAPeveniftheydonothavethecorrect

WEPkey.

Table23:StaticWEP(Cont.)

Field Description

VirtualAccessPointSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page76

UnifiedAccessPointAdministrator’sGuide

StaticWEPRules

IfyouuseStaticWEP,thefollowingrulesapply:

•AllclientstationsmusthavetheWirelessLAN(WLAN)securitysettoWEP,andallclientsmusthaveoneof

theWEPkeysspecifiedontheAPinordertode‐codeAP‐to‐stationdatatransmissions.

•TheAPmusthaveallkeysusedbyclientsforstation‐to‐APtransmitsothatitcande‐codethestation

transmissions.

•Thesamekeymustoccupythesameslotonallnodes(APandclients).ForexampleiftheAPdefines

abc123keyasWEPkey3,thentheclientstationsmustdefinethatsamestringasWEPkey3.

•Clientstationscanusedifferentkeystotransmitdatatotheaccesspoint.(Ortheycanallusethesame

key,butthisislesssecurebecauseitmeansonestationcandecryptthedatabeingsentbyanother.)

•Onsomewirelessclientsoftware,youcanconfiguremultipleWEPkeysanddefineaclientstation

“transferkeyindex”,andthensetthestationstoencryptthedatatheytransmitusingdifferentkeys.This

ensuresthatneighboringAPscannotdecodeeachother’stransmissions.

•Youcannotmix64‐bitand128‐bitWEPkeysbetweentheaccesspointanditsclientstations.

IEEE802.1X

IEEE802.1Xisthestandarddefiningport‐basedauthenticationandinfrastructurefordoingkeymanagement.

ExtensibleAuthenticationProtocol(EAP)messagessentoveranIEEE802.11wirelessnetworkusingaprotocol

calledEAPEncapsulationOverLANs(EAPOL).IEEE802.1Xprovidesdynamically‐generatedkeysthatare

periodicallyrefreshed.AnRC4streamcipherisusedtoencrypttheframebodyandcyclicredundancychecking

(CRC)ofeach802.11frame.

ThismoderequirestheuseofanexternalRADIUSservertoauthenticateusers.TheAPrequiresaRADIUS

servercapableofEAP,suchastheMicrosoftInternetAuthenticationServer.ToworkwithWindowsclients,the

authenticationservermustsupportProtectedEAP(PEAP)andMSCHAPV2.

YoucanuseanyofavarietyofauthenticationmethodsthattheIEEE802.1Xmodesupports,including

certificates,Kerberos,andpublickeyauthentication.Youmustconfiguretheclientstationstousethesame

authenticationmethodtheAPuses.

Table24:IEEE802.1X

Field Description

UseGlobalRADIUS

ServerSettings

BydefaulteachVAPusestheglobalRADIUSsettingsthatyoudefinefortheAPatthetop

oftheVAPpage.However,youcanconfigureeachVAPtouseadifferentsetofRADIUS

servers.

TousetheglobalRADIUSserversettings,makesurethecheckboxisselected.

TouseaseparateRADIUSserverfortheVAP,clearthecheckboxandentertheRADIUS

serverIPaddressandkeyinthefollowingfields.

RADIUSIPAddress

Type

SpecifytheIPversionthattheRADIUSserveruses.

YoucantogglebetweentheaddresstypestoconfigureIPv4andIPv6globalRADIUS

addresssettings,buttheAPcontactsonlytheRADIUSserverorserversfortheaddress

typeyouselectinthisfield.

VirtualAccessPointSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page77

UnifiedAccessPointAdministrator’sGuide

RADIUSIPAddress

RADIUSIPv6

Address

EntertheIPv4orIPv6addressfortheprimaryRADIUSserverforthisVAP.

IftheIPv4RADIUSIPAddressTypeoptionisselectedinthepreviousfield,entertheIP

addressoftheRADIUSserverthatallVAPsusebydefault,forexample192.168.10.23.If

theIPv6RADIUSIPAddressTypeoptionisselected,entertheIPv6addressoftheprimary

globalRADIUSserver,forexample2001:0db8:1234::abcd.

RADIUSIPorIPv6

Address1–3

EnteruptothreeIPv4and/orIPv6addressestouseasthebackupRADIUSserversforthis

VAP.ThefieldlabelisRADIUSIPAddresswhentheIPv4RADIUSIPAddressTypeoptionis

selectedandRADIUSIPv6AddresswhentheIPv6RADIUSIPAddressTypeoptionis

selected.

Ifauthenticationfailswiththeprimaryserver,eachconfiguredbackupserveristriedin

sequence.

RADIUSKey EntertheRADIUSkeyinthetextbox.

TheRADIUSKeyisthesharedsecretkeyfortheglobalRADIUSserver.Youcanuseupto

63standardalphanumericandspecialcharacters.Thekeyiscasesensitive,andyoumust

configurethesamekeyontheAPandonyourRADIUSserver.Thetextyouenterwillbe

displayedas“*”characterstopreventothersfromseeingtheRADIUSkeyasyoutype.

RADIUSKey1–3EntertheRADIUSkeyassociatedwiththeconfiguredbackupRADIUSservers.Theserver

atRADIUSIPAddress‐1usesRADIUSKey‐1,RADIUSIPAddress‐2usesRADIUSKey‐2,and

soon.

EnableRADIUS

Accounting

Selectthisoptiontotrackandmeasuretheresourcesaparticularuserhasconsumed

suchassystemtime,amountofdatatransmittedandreceived,andsoon.

IfyouenableRADIUSaccounting,itisenabledfortheprimaryRADIUSserverandall

backupservers.

EnableRADIUS

FailThrough

SelectthisoptiontoallowthesecondaryRADIUSservertoauthenticatewirelessclients

iftheauthenticationwiththeprimaryRADIUSserverisunsuccessful,oriftheprimary

RADIUSserverisunavailable.

ActiveServer SpecifywhichconfiguredRADIUSservertouseastheactiveRADIUSserver.

BroadcastKey

RefreshRate

Enteravaluetosettheintervalatwhichthebroadcast(group)keyisrefreshedforclients

associatedtothisVAP(thedefaultis300).

Thevalidrangeis0–86400seconds.Avalueof0indicatesthatthebroadcastkeyisnot

refreshed.

SessionKeyRefresh

Rate

EnteravaluetosettheintervalatwhichtheAPwillrefreshsession(unicast)keysforeach

clientassociatedtotheVAP.

Thevalidrangeis0–86400seconds.Avalueof0indicatesthatthebroadcastkeyisnot

refreshed.

Note:Afteryouconfigurethesecuritysettings,youmustclickApplytoapplythechangesandtosave

thesettings.

Table24:IEEE802.1X(Cont.)

Field Description

VirtualAccessPointSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page78

UnifiedAccessPointAdministrator’sGuide

WPAPersonal

WPAPersonalisaWi‐FiAllianceIEEE802.11istandard,whichincludesAES‐CCMPandTKIPmechanisms.The

PersonalversionofWPAemploysapre‐sharedkey(insteadofusingIEEE802.1XandEAPasisusedinthe

EnterpriseWPAsecuritymode).ThePSKisusedforaninitialcheckofcredentialsonly.

Thissecuritymodeisbackwards‐compatibleforwirelessclientsthatsupporttheoriginalWPA.

Table25:WPAPersonal

Field Description

WPAVersions Selectthetypesofclientstationsyouwanttosupport:

WPA.IfallclientstationsonthenetworksupporttheoriginalWPAbutnonesupportthe

newerWPA2,thenselectWPA.

WPA2.IfallclientstationsonthenetworksupportWPA2,wesuggestusingWPA2which

providesthebestsecuritypertheIEEE802.11istandard.

WPAandWPA2.Ifyouhaveamixofclients,someofwhichsupportWPA2andothers

whichsupportonlytheoriginalWPA,selectbothofthecheckboxes.ThisletsbothWPA

andWPA2clientstationsassociateandauthenticate,butusesthemorerobustWPA2for

clientswhosupportit.ThisWPAconfigurationallowsmoreinteroperability,atthe

expenseofsomesecurity.

CipherSuites Selecttheciphersuiteyouwanttouse:

•TKIP

• CCMP(AES)

•TKIPandCCMP(AES)

BothTKIPandAESclientscanassociatewiththeAP.WPAclientsmusthaveoneofthe

followingtobeabletoassociatewiththeAP:

•AvalidTKIPkey

•AvalidAES‐CCMPkey

ClientsnotconfiguredtouseaWPAPersonalwillnotbeabletoassociatewiththeAP.

Key ThePre‐sharedKeyisthesharedsecretkeyforWPAPersonal.Enterastringofatleast8

characterstoamaximumof63characters.Acceptablecharactersincludeupperand

lowercasealphabeticletters,thenumericdigits,andspecialsymbolssuchas@and#.

BroadcastKey

RefreshRate

Enteravaluetosettheintervalatwhichthebroadcast(group)keyisrefreshedforclients

associatedtothisVAP(thedefaultis300).

Thevalidrangeis0–86400seconds.Avalueof0indicatesthatthebroadcastkeyisnot

refreshed.

VirtualAccessPointSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page79

UnifiedAccessPointAdministrator’sGuide

WPAEnterprise

WPAEnterprisewithRADIUSisanimplementationoftheWi‐FiAllianceIEEE802.11istandard,whichincludes

CCMP(AES),andTKIPmechanisms.TheEnterprisemoderequirestheuseofaRADIUSservertoauthenticate

users.

Thissecuritymodeisbackwards‐compatiblewithwirelessclientsthatsupporttheoriginalWPA.

Table26:WPAEnterprise

Field Description

WPAVersions Selectthetypesofclientstationsyouwanttosupport:

•WPA.IfallclientstationsonthenetworksupporttheoriginalWPAbutnonesupport

thenewerWPA2,thenselectWPA.

•WPA2.IfallclientstationsonthenetworksupportWPA2,wesuggestusingWPA2

whichprovidesthebestsecuritypertheIEEE802.11istandard.

•WPAandWPA2.Ifyouhaveamixofclients,someofwhichsupportWPA2andothers

whichsupportonlytheoriginalWPA,selectbothWPAandWPA2.ThisletsbothWPA

andWPA2clientstationsassociateandauthenticate,butusesthemorerobustWPA2

forclientswhosupportit.ThisWPAconfigurationallowsmoreinteroperability,atthe

expenseofsomesecurity.

Enable

pre‐authentication

IfforWPAVersionsyouselectonlyWPA2orbothWPAandWPA2,youcanenablepre‐

authenticationforWPA2clients.

ClickEnablepre‐authenticationifyouwantWPA2wirelessclientstosendpre‐

authenticationpacket.Thepre‐authenticationinformationwillberelayedfromtheAP

theclientiscurrentlyusingtothetargetAP.Enablingthisfeaturecanhelpspeedup

authenticationforroamingclientswhoconnecttomultipleAPs.

ThisoptiondoesnotapplyifyouselectedWPAforWPAVersionsbecausetheoriginal

WPAdoesnotsupportthisfeature.

CipherSuites Selecttheciphersuiteyouwanttouse:

•TKIP

• CCMP(AES)

•TKIPandCCMP(AES)

BydefaultbothTKIPandCCMPareselected.WhenbothTKIPandCCMPareselected,

clientstationsconfiguredtouseWPAwithRADIUSmusthaveoneofthefollowing:

•AvalidTKIPRADIUSIPaddressandRADIUSKey

•AvalidCCMP(AES)IPaddressandRADIUSKey

UseGlobalRADIUS

ServerSettings

BydefaulteachVAPusestheglobalRADIUSsettingsthatyoudefinefortheAPatthetop

oftheVAPpage.However,youcanconfigureeachVAPtouseadifferentsetofRADIUS

servers.

TousetheglobalRADIUSserversettings,makesurethecheckboxisselected.

TouseaseparateRADIUSserverfortheVAP,clearthecheckboxandentertheRADIUS

serverIPaddressandkeyinthefollowingfields.

RADIUSIPAddress

Type

SpecifytheIPversionthattheRADIUSserveruses.

YoucantogglebetweentheaddresstypestoconfigureIPv4andIPv6globalRADIUS

addresssettings,buttheAPcontactsonlytheRADIUSserverorserversfortheaddress

typeyouselectinthisfield.

VirtualAccessPointSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page80

UnifiedAccessPointAdministrator’sGuide

RADIUSIPAddress

RADIUSIPv6

Address

EntertheIPv4orIPv6addressfortheprimaryRADIUSserverforthisVAP.

IftheIPv4RADIUSIPAddressTypeoptionisselectedinthepreviousfield,entertheIP

addressoftheRADIUSserverthatallVAPsusebydefault,forexample192.168.10.23.If

theIPv6RADIUSIPAddressTypeoptionisselected,entertheIPv6addressoftheprimary

globalRADIUSserver,forexample2001:0db8:1234::abcd.

RADIUSIPorIPv6

Address1–3

EnteruptothreeIPv4and/orIPv6addressestouseasthebackupRADIUSserversforthis

VAP.ThefieldlabelisRADIUSIPAddresswhentheIPv4RADIUSIPAddressTypeoptionis

selectedandRADIUSIPv6AddresswhentheIPv6RADIUSIPAddressTypeoptionis

selected.

Ifauthenticationfailswiththeprimaryserver,eachconfiguredbackupserveristriedin

sequence.

RADIUSKey EntertheRADIUSkeyinthetextbox.

TheRADIUSKeyisthesharedsecretkeyfortheglobalRADIUSserver.Youcanuseupto

63standardalphanumericandspecialcharacters.Thekeyiscasesensitive,andyoumust

configurethesamekeyontheAPandonyourRADIUSserver.Thetextyouenterwillbe

displayedas"*"characterstopreventothersfromseeingtheRADIUSkeyasyoutype.

RADIUSKey1–3EntertheRADIUSkeyassociatedwiththeconfiguredbackupRADIUSservers.Theserver

atRADIUSIPAddress‐1usesRADIUSKey‐1,RADIUSIPAddress‐2usesRADIUSKey‐2,and

soon.

EnableRADIUS

Accounting

Selectthisoptiontotrackandmeasuretheresourcesaparticularuserhasconsumed

suchassystemtime,amountofdatatransmittedandreceived,andsoon.

IfyouenableRADIUSaccounting,itisenabledfortheprimaryRADIUSserverandall

backupservers.

EnableRADIUS

FailThrough

SelectthisoptiontoallowthesecondaryRADIUSservertoauthenticatewirelessclients

iftheauthenticationwiththeprimaryRADIUSserverisunsuccessful,oriftheprimary

RADIUSserverisunavailable.

ActiveServer SpecifywhichconfiguredRADIUSservertouseastheactiveRADIUSserver.

BroadcastKey

RefreshRate

Enteravaluetosettheintervalatwhichthebroadcast(group)keyisrefreshedforclients

associatedtothisVAP(thedefaultis300).

Thevalidrangeis0–86400seconds.Avalueof0indicatesthatthebroadcastkeyisnot

refreshed.

SessionKeyRefresh

Rate

EnteravaluetosettheintervalatwhichtheAPwillrefreshsession(unicast)keysforeach

clientassociatedtotheVAP.

Thevalidrangeis0–86400seconds.Avalueof0indicatesthatthebroadcastkeyisnot

refreshed.

Table26:WPAEnterprise(Cont.)

Field Description

ConfiguringtheWirelessDistributionSystem(WDS)

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page81

UnifiedAccessPointAdministrator’sGuide

ConfiguringtheWirelessDistributionSystem(WDS)

TheWirelessDistributionSystem(WDS)allowsyoutoconnectmultipleUAPs.WithWDS,APscommunicate

withoneanotherwithoutwiresinastandardizedway.Thiscapabilityiscriticalinprovidingaseamless

experienceforroamingclientsandformanagingmultiplewirelessnetworks.Itcanalsosimplifythenetwork

infrastructurebyreducingtheamountofcablingrequired.YoucanconfiguretheAPinpoint‐to‐pointorpoint‐

to‐multipointbridgemodebasedonthenumberoflinkstoconnect.

Inthepoint‐to‐pointmode,theAPacceptsclientassociationsandcommunicateswithwirelessclientsand

otherrepeaters.TheAPforwardsalltrafficmeantfortheothernetworkoverthetunnelthatisestablished

betweentheAPs.Thebridgedoesnotaddtothehopcount.ItfunctionsasasimpleOSIlayer2networkdevice.

Inthepoint‐to‐multipointbridgemode,oneAPactsasthecommonlinkbetweenmultipleAPs.Inthismode,

thecentralAPacceptsclientassociationsandcommunicateswiththeclientsandotherrepeaters.AllotherAPs

associateonlywiththecentralAPthatforwardsthepacketstotheappropriatewirelessbridgeforrouting

purposes.

TheUAPcanalsoactasarepeater.Inthismode,theAPservesasaconnectionbetweentwoAPsthatmight

betoofaraparttobewithincellrange.Whenactingasarepeater,theAPdoesnothaveawiredconnectionto

theLANandrepeatssignalsbyusingthewirelessconnection.NospecialconfigurationisrequiredfortheAP

tofunctionasarepeater,andtherearenorepeatermodesettings.WirelessclientscanstillconnecttoanAP

thatisoperatingasarepeater.

Tospecifythedetailsoftrafficexchangefromthisaccesspointtoothers,clicktheWDStab.

Note:WhenyoumoveanAPfromStandaloneModetoManagedMode,WDSisdisabled.InManaged

Mode,youconfiguretheAPbyusingtheD‐LinkUnifiedWirelessSwitch.TheAdministratorUI,aswell

asTelnet,SSH,andSNMPaccessaredisabledwhentheAPisinManagedMode.

ConfiguringtheWirelessDistributionSystem(WDS)

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page82

UnifiedAccessPointAdministrator’sGuide

Figure21:ConfiguringWDSSettings

BeforeyouconfigureWDSontheAP,notethefollowingguidelines:

•WhenusingWDS,besuretoconfigureWDSsettingsonbothAPsparticipatingintheWDSlink.

•YoucanhaveonlyoneWDSlinkbetweenanypairofAPs.Thatis,aremoteMACaddressmayappearonly

onceontheWDSpageforaparticularAP.

•BothAPsparticipatinginaWDSlinkmustbeonthesameRadiochannelandusingthesameIEEE802.11

mode.(See“ModifyingRadioSettings”onpage58forinformationonconfiguringtheRadiomodeand

channel.)

•When802.11hisoperational,settinguptwoWDSlinkscanbedifficult.See“Usingthe802.11hWireless

Mode”onpage57.

•IfyouuseWPAencryptionontheWDSlinkoverradio1,VAP0ofradio1mustuseWPAPersonalorWPA

Enterpriseasthesecuritymode.IfyouuseWPAonaWDSlinkoverradio2,VAP0ofradio2mustuseWPA

PersonalorWPAEnterpriseasthesecuritymode.

ConfiguringtheWirelessDistributionSystem(WDS)

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page83

UnifiedAccessPointAdministrator’sGuide

ToconfigureWDSonthisAP,describeeachAPintendedtoreceivehand‐offsandsendinformationtothisAP.

ForeachdestinationAP,configurethefieldslistedinTable21.

IfyouselectNoneasyourpreferredWDSencryptionoption,youwillnotbeaskedtofillinanymorefieldson

theWDSpage.AlldatatransferredbetweenthetwoAPsontheWDSlinkwillbeunencrypted.

Table27:WDSSettings

Field Description

SpanningTree

Mode

SpanningTreeProtocol(STP)preventsswitchingloops.STPisrecommendedifyou

configureWDSlinks.

SelectEnabledtouseSTP

SelectDisabledtoturnoffSTPlinks(notrecommended)

Radio ForeachWDSlinkonatwo‐radioAP,selectRadioOneorRadioTwo.Therestofthe

settingsforthelinkapplytotheradioselectedinthisfield.Theread‐onlyLocalAddress

willchangedependingonwhichRadioyouselectinthisfield.

Note:ThisfieldisnotavailableontheDWL‐3600AP.

LocalAddress IndicatestheMACaddressesforthisAP.

ForeachWDSlinkonatwo‐radioAP,theLocalAddressreflectstheMACaddressforthe

internalinterfaceontheselectedradio(RadioOneonwlan0orRadioTwoonwlan1).

RemoteAddress SpecifytheMACaddressofthedestinationAP;thatis,theAPontheotherendofthe

WDSlinktowhichdatawillbesentorhanded‐offandfromwhichdatawillbereceived.

Clickthedrop‐downarrowtotherightoftheRemoteAddressfieldtoseealistofallthe

availableMACAddressesandtheirassociatedSSIDsonthenetwork.Selectthe

appropriateMACaddressfromthelist.

NOTE:TheSSIDdisplayedinthedrop‐downlistissimplytohelpyouidentifythecorrect

MACAddressforthedestinationAP.ThisSSIDisaseparateSSIDtothatwhichyousetfor

theWDSlink.Thetwodonot(andshouldnot)bethesamevalueorname.

Encryption Youcanusenoencryption,WEP,orWPA(PSK)ontheWDSlink.

IfyouareunconcernedaboutsecurityissuesontheWDSlinkyoumaydecidenottoset

anytypeofencryption.Alternatively,ifyouhavesecurityconcernsyoucanchoose

betweenStaticWEPandWPA(PSK).InWPA(PSK)mode,theAPusesWPA2‐PSKwith

CCMP(AES)encryptionovertheWDSlink.

NOTE:InordertoconfigureWPA‐PSKonanyWDSlink,VAP0oftheselectedradiomust

beconfiguredforWPA‐PSKorWPA‐Enterprise.

Note:TodisableaWDSlink,youmustremovethevalueconfiguredintheRemoteAddressfield.

ConfiguringtheWirelessDistributionSystem(WDS)

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page84

UnifiedAccessPointAdministrator’sGuide

WEPonWDSLinks

Table28describestheadditionalfieldsthatappearwhenyouselectWEPastheencryptiontype.

WPA/PSKonWDSLinks

Table29describestheadditionalfieldsthatappearwhenyouselectWPA/PSKastheencryptiontype.

Table28:WEPonWDSLinks

Field Description

Encryption WEP

WEP SelectthisoptionifyouwanttosetWEPencryptionontheWDSlink.

KeyLength IfWEPisenabled,specifythelengthoftheWEPkey:

•64bits

• 128bits

KeyType IfWEPisenabled,specifytheWEPkeytype:

•ASCII

•Hex

Characters

Required

IndicatesthenumberofcharactersrequiredintheWEPkey.

ThenumberofcharactersrequiredupdatesautomaticallybasedonhowyousetKey

LengthandKeyType.

WEPKey Enterastringofcharacters.IfyouselectedASCII,enteranycombinationof0–9,a–z,and

A–Z.IfyouselectedHEX,enterhexadecimaldigits(anycombinationof0–9anda–for

A–F).ThesearetheRC4encryptionkeyssharedwiththestationsusingtheAP.

Note:ToconfigureWPA‐PSKonanyWDSlink,VAP0oftheselectedradiomustbeconfiguredforWPA‐

PSKorWPA‐Enterprise.

Table29:WPA/PSKonWDSLinks

Field Description

Encryption WPA(PSK)

SSID EnteranappropriatenameforthenewWDSlinkyouhavecreated.ThisSSIDshouldbe

differentfromtheotherSSIDsusedbythisAP.However,itisimportantthatthesame

SSIDisalsoenteredattheotherendoftheWDSlink.IfthisSSIDisnotthesameforboth

APsontheWDSlink,theywillnotbeabletocommunicateandexchangedata.

TheSSIDcanbeanyalphanumericcombination.

Key EnterauniquesharedkeyfortheWDSbridge.Thisuniquesharedkeymustalsobe

enteredfortheAPattheotherendoftheWDSlink.Ifthiskeyisnotthesameforboth

APs,theywillnotbeabletocommunicateandexchangedata.

TheWPA‐PSKkeyisastringofatleast8characterstoamaximumof63characters.

Acceptablecharactersincludeupperandlowercasealphabeticletters,thenumeric

digits,andspecialsymbolssuchas@and#.

ControllingAccessbyMACAuthentication

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page85

UnifiedAccessPointAdministrator’sGuide

ControllingAccessbyMACAuthentication

AMediaAccessControl(MAC)addressisahardwareaddressthatuniquelyidentifieseachnodeofanetwork.

AllIEEE802networkdevicesshareacommon48‐bitMACaddressformat,usuallydisplayedasastringof12

hexadecimaldigitsseparatedbycolons,forexample

00:DC:BA:09:87:65

.Eachwirelessnetworkinterface

card(NIC)usedbyawirelessclienthasauniqueMACaddress.

YoucanusetheAdministratorUIontheAPoruseanexternalRADIUSservertocontrolaccesstothenetwork

throughtheAPbasedontheMACaddressofthewirelessclient.ThisfeatureiscalledMACAuthenticationor

MACFiltering.Tocontrolaccess,youconfigureagloballistofMACaddresseslocallyontheAPoronanexternal

RADIUSserver.Then,yousetafiltertospecifywhethertheclientswiththoseMACaddressesareallowedor

deniedaccesstothenetwork.WhenawirelessclientattemptstoassociatewithanAP,theAPlooksupthe

MACaddressoftheclientinthelocalStationsListorontheRADIUSserver.Ifitisfound,theglobalallowor

denysettingisapplied.Ifitisnotfound,theoppositeisapplied.

OntheVAPpage,theMACAuthenticationTypesettingcontrolswhethertheAPusesthestationlistconfigured

locallyontheMACAuthenticationpageortheexternalRADIUSserver.TheAllow/Blockfiltersettingonthe

MACAuthenticationpagedetermineswhethertheclientsinthestationlist(localorRADIUS)canaccessthe

networkthroughtheAP.FormoreinformationaboutsettingtheMACauthenticationtype,see“VirtualAccess

PointSettings”onpage70.

ConfiguringaMACFilterandStationListontheAP

TheMACAuthenticationpageallowsyoutocontrolaccesstoUAPbasedonMACaddresses.Basedonhow

yousetthefilter,youcanallowonlyclientstationswithalistedMACaddressordenyaccesstothestations

listed.

WhenyouenableMACAuthenticationandspecifyalistofapprovedMACaddresses,onlyclientswithalisted

MACaddresscanaccessthenetwork.IfyouspecifyMACaddressestodeny,allclientscanaccessthenetwork

exceptfortheclientsonthedenylist.

ToenablefilteringbyMACaddress,clicktheMACAuthenticationtab.

Note:AfteryouconfiguretheWDSsettings,youmustclickApplytoapplythechangesandtosavethe

settings.ChangingsomesettingsmightcausetheAPtostopandrestartsystemprocesses.Ifthis

happens,wirelessclientswilltemporarilyloseconnectivity.WerecommendthatyouchangeAP

settingswhenWLANtrafficislow.

ControllingAccessbyMACAuthentication

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page86

UnifiedAccessPointAdministrator’sGuide

Figure22:ConfiguringMACAuthentication

Table30describesthefieldsandconfigurationoptionsavailableontheMACAuthenticationpage

Note:GlobalMACAuthenticationsettingsapplytoallVAPsonallsupportedradios.

Table30:MACAuthentication

Field Description

Filter TosettheMACAddressFilter,selectoneofthefollowingoptions:

•Allowonlystationsinthelist.AnystationthatisnotintheStationsListisdenied

accesstothenetworkthroughtheAP.

•Blockallstationsinlist.Onlythestationsthatappearinthelistaredeniedaccessto

thenetworkthroughtheAP.Allotherstationsarepermittedaccess.

Note:Thefilteryouselectisappliedtotheclientsinthestationlist,regardlessof

whetherthatstationlistislocalorontheRADIUSserver.

StationsList Thisisthelocallistofclientsthatareeitherpermittedordeniedaccesstothenetwork

throughtheAP.ToaddaMACAddresstothelocalStationsList,enterits48‐bitMAC

addressintothelowertextboxes,thenclickAdd.

ToremoveaMACAddressfromtheStationsList,selectits48‐bitMACaddress,thenclick

Remove.

Thestationsinthelistwilleitherbeallowedordeniedaccessbasedonhowyousetthe

filterinthepreviousfield.

Note:IftheMACauthenticationtypefortheVAPissettoLocal,theAPusestheStations

Listtopermitordenytheclientsaccesstothenetwork.IftheMACauthenticationtype

issettoRADIUS,theAPignorestheMACaddressesconfiguredinthislistandusesthe

listthatisstoredontheRADIUSserver.TheMACauthenticationtypeissetontheVAP

configurationpage.

ControllingAccessbyMACAuthentication

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page87

UnifiedAccessPointAdministrator’sGuide

ConfiguringMACAuthenticationontheRADIUSServer

IfyouuseRADIUSMACauthenticationforMAC‐basedaccesscontrol,youmustconfigureastationlistonthe

RADIUSserver.ThestationlistcontainsclientMACaddressentries,andtheformatforthelistisdescribedin

thefollowingtable.

Note:AfteryouconfigurelocalMACAuthenticationsettings,youmustclickApplytoapplythe

changesandtosavethesettings.ChangingsomesettingsmightcausetheAPtostopandrestart

systemprocesses.Ifthishappens,wirelessclientswilltemporarilyloseconnectivity.Werecommend

thatyouchangeAPsettingswhenWLANtrafficislow.

Table31:RADIUSServerAttributesforMACAuthentication

RADIUSServerAttribute Description Value

User‐Name(1) MACaddressoftheclientstation. ValidEthernetMAC

Address.

User‐Password(2) AfixedglobalpasswordusedtolookupaclientMAC

entry.

NOPASSWORD

ConfiguringLoadBalancing

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page88

UnifiedAccessPointAdministrator’sGuide

ConfiguringLoadBalancing

YoucansetnetworkutilizationthresholdsontheUAPtomaintainthespeedandperformanceofthewireless

networkasclientsassociateanddisassociatewiththeAP.Theloadbalancingsettingsapplytoallsupported

radios.

Toconfigureloadbalancingandsetlimitsandbehaviortobetriggeredbyaspecifiedutilizationrateofthe

accesspoint,clicktheLoadBalancingtabandupdatethefieldsshowninthefollowingfigure.

Figure23:ConfiguringLoadBalancing

Table32:LoadBalancing

Field Description

LoadBalancing Enableordisableloadbalancing:

ToenableloadbalancingonthisAP,clickEnable.

TodisableloadbalancingonthisAP,clickDisable.

UtilizationforNo

NewAssociations

Providethepercentageofnetworkbandwidthutilizationallowedontheradiobeforethe

APstopsacceptingnewclientassociations.

Thedefaultis0,whichmeansthatallnewassociationswillbeallowedregardlessofthe

utilizationrate.

Note:Afteryouconfiguretheloadbalancingsettings,youmustclickApplytoapplythechangesand

tosavethesettings.ChangingsomesettingsmightcausetheAPtostopandrestartsystemprocesses.

Ifthishappens,wirelessclientswilltemporarilyloseconnectivity.WerecommendthatyouchangeAP

settingswhenWLANtrafficislow.

ManagedAccessPointOverview

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page89

UnifiedAccessPointAdministrator’sGuide

ManagedAccessPointOverview

TheUAPcanoperateintwomodes:StandaloneModeorManagedMode.InStandaloneMode,theUAPacts

asanindividualAPinthenetwork,andyoumanageitbyusingtheAdministratorWebUserInterface(UI),CLI,

orSNMP.InManagedMode,theUAPispartoftheD‐LinkUnifiedWiredandWirelessSystem,andyoumanage

itbyusingtheD‐LinkUnifiedWirelessSwitch.IfanAPisinManagedMode,theAdministratorWebUI,Telnet,

SSH,andSNMPservicesaredisabled.

OntheUAP,youcanconfiguretheIPaddressesofuptofourD‐LinkUnifiedWirelessSwitchesthatcanmanage

it.InordertomanagetheAP,theswitchandAPmustdiscovereachother.Therearemultiplewaysforaswitch

todiscoveranAP.AddingtheIPaddressoftheswitchtotheAPwhileitisinStandaloneModeisonewayto

enableswitch‐to‐APdiscovery.

TransitioningBetweenModes

Every30seconds,theD‐LinkUnifiedWirelessSwitchsendsakeepalivemessagetoalloftheaccesspointsit

manages.EachAPchecksforthekeepalivemessagesontheSSLTCPconnection.AslongastheAPmaintains

communicationwiththeswitchthroughthekeepalivemessages,itremainsinManagedMode.

IftheAPdoesnotreceiveamessagewithin45secondsofthelastkeepalivemessage,theAPassumesthe

switchhasfailedandterminatesitsTCPconnectiontotheswitch,andtheAPentersStandaloneMode.

OncetheAPtransitionstoStandaloneMode,itcontinuestoforwardtrafficwithoutanyloss.TheAPusesthe

configurationontheVAPsconfiguredinVLANForwardingmode(thestandard,non‐tunneledmode).

WhiletheAPisinStandaloneMode,youcanmanageitbyusingtheWebinterfaceortheCLI(throughTelnet

orSSH).

ForanyclientsthatareconnectedtotheAPthroughtunneledVAPs,theAPsendsdisassociatemessagesand

disablesthetunneledVAPs.

AslongastheManagedAPAdministrativeModeissettoEnabled,asFigure24onpage90shows,theAPstarts

discoveryprocedures.IftheAPestablishesaconnectionwithawirelessswitch,whichmayormaynotbethe

sameswitchitwasconnectedtobefore,theswitchsendstheAPitsconfigurationandtheAPsendsthewireless

switchinformationaboutallcurrentlyassociatedclients.

Aftertheconfigurationfromtheswitchisapplied,theAPradio(s)restart.Clienttrafficisbrieflyinterrupted

untiltheradio(s)areupandtheclientsarere‐associated.

ManagedAccessPointOverview

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page90

UnifiedAccessPointAdministrator’sGuide

ConfiguringManagedAccessPointSettings

ToaddtheIPaddressofaD‐LinkUnifiedWirelessSwitchtotheAP,clicktheManagedAccessPointtabunder

theManageheadingandupdatethefieldsshowninTable33.

Figure24:ConfiguringManagedAccessPointSettings

Table33:ManagedAccessPoint

Field Description

ManagedAP

AdministrativeMode

ClickEnabledtoallowtheAPandswitchtodiscovereachother.IftheAPsuccessfully

authenticatesitselfwithawirelessswitch,youwillnotbeabletoaccessthe

AdministratorUI.

ClickDisabledtopreventtheAPfromcontactingwirelessswitches.

SwitchIPaddress EntertheIPaddressofuptofourwirelessswitchesthatcanmanagetheAP.Youcan

entertheIPaddressindottedformatorasanDNSname.

Youcanviewalistofwirelessswitchesonyournetworkthatwereconfiguredbyusing

aDHCPserver.

TheAPattemptstocontactSwitchIPAddress1first.

BaseIPPort ThestartingIPportnumberusedbythewirelessfeature(inarangeof10consecutive

portnumbers).Onlythefirstnumberintherangeisconfigurable.Thedefaultvalueis

57775(through57784).

Note:WhenthewirelessBaseIPPortnumberischangedontheswitch,thewireless

featureisautomaticallydisabledandre‐enabled.Thenewvalueisnotsentaspartof

theglobalswitchconfigurationintheclusterconfigurationdistributioncommand;

everyswitchintheclustermustbeconfiguredindependentlywiththenewWirelessIP

portnumber.

Note:WhentheWirelessBaseIPPortnumberischangedfromitsdefaultvalueonthe

switch,itmustalsobechangedontheAccessPoints.

PassPhrase SelecttheEditoptionandenterapassphrasetoallowtheAPtoauthenticateitselfwith

thewirelessswitch.Thepassphrasemustbebetween8and63characters.

Toremovethepassword,selectEdit,deletetheexistingpassword,andthenclick

Apply.

Youmustconfigurethesamepassphraseontheswitch.

ManagedAccessPointOverview

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page91

UnifiedAccessPointAdministrator’sGuide

IftheUAPsuccessfullyauthenticateswithaD‐LinkUnifiedWirelessSwitch,youwilllooseaccesstotheAP

throughtheAdministratorUI.

WDSManagedMode SpecifywhethertheAPwillactasaRootAPorSatelliteAPwithintheWDSgroup:

•RootAP—Actsasabridgeorrepeateronthewirelessmediumandcommunicates

withtheswitchviathewiredlink.

• SatelliteAP—CommunicateswiththeswitchviaaWDSlinktotheRootAP.This

modeenablestheSatelliteAPtodiscoverandestablishWDSlinkwiththeRootAP.

WDSManaged

EthernetPort

SpecifywhethertheEthernetportistobeenabledordisabledwhentheAPbecomes

partofaWDSgroup.

WDSGroupPassword PasswordforWPA2PersonalauthenticationusedtoestablishtheWDSlinks.Onlythe

SatelliteAPsneedthisconfiguration.TheRootAPsgetthepasswordfromtheswitch

whentheybecomemanaged.

Note:AfteryouconfigurethesettingsontheManagedAccessPointpage,youmustclickApplyto

applythechangesandtosavethesettings.ChangingsomesettingsmightcausetheAPtostopand

restartsystemprocesses.Ifthishappens,wirelessclientswilltemporarilyloseconnectivity.We

recommendthatyouchangeAPsettingswhenWLANtrafficislow.

Table33:ManagedAccessPoint

Field Description

Configuring802.1XAuthentication

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page92

UnifiedAccessPointAdministrator’sGuide

Configuring802.1XAuthentication

OnnetworksthatuseIEEE802.1X,port‐basednetworkaccesscontrol,asupplicant(client)cannotgainaccess

tothenetworkuntilthe802.1Xauthenticatorgrantsaccess.Ifyournetworkuses802.1X,youmustconfigure

802.1XauthenticationinformationthattheAPcansupplytotheauthenticator.

ToconfiguretheUAP802.1XsupplicantusernameandpasswordbyusingtheWebinterface,clickthe

AuthenticationtabandconfigurethefieldsshowninTable34.

Figure25:IEEE802.1XAuthentication

Table34:IEEE802.1XSupplicantAuthentication

FieldDescription

802.1XSupplicant ClickEnabledtoenabletheAdministrativestatusofthe802.1XSupplicant.

ClickDisabledtodisabletheAdministrativestatusofthe802.1XSupplicant.

EAPMethod SelectoneofthefollowingEAPmethodstouseforcommunicationbetweentheAPand

theauthenticator:

•MD5

•PEAP

•TLS

Configuring802.1XAuthentication

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page93

UnifiedAccessPointAdministrator’sGuide

Username EntertheusernamefortheAPtousewhenrespondingtorequestsfroman802.1X

authenticator.

Theusernamecanbe1to64charactersinlength.ASCIIprintablecharactersareallowed,

whichincludesupperandlowercasealphabeticletters,thenumericdigits,andspecial

symbolssuchas@and#.

Password EnterthepasswordfortheAPtousewhenrespondingtorequestsfroman802.1X

authenticator.

Thepasswordcanbe1to64charactersinlength.ASCIIprintablecharactersareallowed,

whichincludesupperandlowercaseletters,numbers,andspecialsymbolssuchas@

and#.

CertificateFile

Status

Indicateswhetheracertificatefileispresentandwhenthatcertificateexpires.

CertificateFile

Upload

UploadacertificatefiletotheAPbyusingHTTPorTFTP:

•HTTP—BrowsetothelocationwherethecertificatefileisstoredandclickUpload.

•TFTP—SpecifytheIPaddressoftheTFTPserverwherethecertificatefileislocated

andprovidethefilename,includingthefilepath,thenclickUpload.

Note:AfteryouconfigurethesettingsontheAuthenticationpage,youmustclickApplytoapplythe

changesandtosavethesettings.ChangingsomesettingsmightcausetheAPtostopandrestart

systemprocesses.Ifthishappens,wirelessclientswilltemporarilyloseconnectivity.Werecommend

thatyouchangeAPsettingswhenWLANtrafficislow.

Table34:IEEE802.1XSupplicantAuthentication(Cont.)

FieldDescription

CreatingaManagementAccessControlList

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page94

UnifiedAccessPointAdministrator’sGuide

CreatingaManagementAccessControlList

Youcancreateanaccesscontrollist(ACL)thatlistsuptofiveIPv4hostsandfiveIPv6hoststhatareauthorized

toaccesstheAPmanagementinterface.Ifthisfeatureisdisabled,anyonecanaccessthemanagement

interfacefromanynetworkclientbysupplyingthecorrectAPusernameandpassword.

Tocreateanaccesslist,clicktheManagementACLtab.

Figure26:ManagementACL

Table35:ManagementACL

Field Description

ManagementACLMode EnableordisablethemanagementACLfeature.AtleastoneIPv4orIPv6address

shouldbeconfiguredbeforeenablingManagementACLMode.Ifenabled,only

theIPaddressesyouspecifywillhaveWeb,Telnet,SSH,andSNMPaccesstothe

managementinterface.

IPAddress(1–5) EnteruptofiveIPv4addressesthatareallowedmanagementaccesstotheAP.Use

dotted‐decimalformat(forexample,192.168.10.10).

IPv6Address(1–5) EnteruptofiveIPv6addressesthatareallowedmanagementaccesstotheAP.Use

thestandardIPv6addressformat(forexample2001:0db8:1234::abcd).

Note:Afteryouconfigurethesettings,clickApplytoapplythechangesandtosavethesettings.

ConfiguringAccessPointServices

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page95

UnifiedAccessPointAdministrator’sGuide

Section5:ConfiguringAccessPointServices

ThissectiondescribeshowtoconfigureservicesontheUAPandcontainsthefollowingsubsections:

•“ConfiguringSNMPontheAccessPoint”

•“WebServerSettings”

•“SettingtheSSHStatus”

•“SettingtheTelnetStatus”

•“ConfiguringQualityofService”

•“ConfiguringEmailAlert”

•“EnablingtheTimeSettings(NTP)”

ConfiguringSNMPontheAccessPoint

SimpleNetworkManagementProtocol(SNMP)definesastandardforrecording,storing,andsharing

informationaboutnetworkdevices.SNMPfacilitatesnetworkmanagement,troubleshooting,and

maintenance.TheAPsupportsSNMPversions1,2,and3.Unlessspecificallynoted,allconfiguration

parametersonthispageapplytoSNMPv1andSNMPv2conly.

KeycomponentsofanySNMP‐managednetworkaremanageddevices,SNMPagents,andamanagement

system.TheagentsstoredataabouttheirdevicesinManagementInformationBases(MIBs)andreturnthis

datatotheSNMPmanagerwhenrequested.ManageddevicescanbenetworknodessuchasAPs,routers,

switches,bridges,hubs,servers,orprinters.

TheUAPcanfunctionasanSNMPmanageddeviceforseamlessintegrationintonetworkmanagementsystems

suchasHPOpenView.

FromtheSNMPpageundertheServicesheading,youcanstartorstopcontrolofSNMPagents,configure

communitypasswords,accessMIBs,andconfigureSNMPTrapdestinations.

FromthepagesundertheSNMPv3heading,youcanmanageSNMPv3usersandtheirsecuritylevelsanddefine

accesscontroltotheSNMPMIBs.ForinformationabouthowtoconfigureSNMPv3views,groups,users,and

targets,see“ConfiguringSNMPv3”onpage111.

ToconfigureSNMP,clicktheSNMPtabundertheServicesheadingandupdatethefieldsdescribedinTable36

onpage96

ConfiguringSNMPontheAccessPoint

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page96

UnifiedAccessPointAdministrator’sGuide

Figure27:ModifyingSNMPSettings

Table36:SNMPSettings

Field Description

SNMP

Enabled/Disabled

YoucanspecifytheSNMPadministrativemodeonyournetwork.BydefaultSNMP

isenabled.ToenableSNMP,clickEnabled.TodisableSNMP,clickDisabled

fter

changingthemode,y

oumustclickApplytosaveyourconfigurationchanges.

Note: IfSNMPisdisabled,allremainingfieldsontheSNMPpagearedisabled.This

isaglobalSNMPparameterwhichappliestoSNMPv1,SNMPv2c,andSNMPv3.

Read‐only

communityname

(forpermittedSNMPget

operations)

Enteraread‐onlycommunityname.Thevalidrangeis1‐256characters.

Thecommunityname,asdefinedinSNMPv2c,actsasasimpleauthentication

mechanismtorestrictthemachinesonthenetworkthatcanrequestdatatothe

SNMPagent.Thenamefunctionsasapassword,andtherequestisassumedtobe

authenticifthesenderknowsthepassword.

Thecommunitynamecanbeinanyalphanumericformat.

ConfiguringSNMPontheAccessPoint

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page97

UnifiedAccessPointAdministrator’sGuide

PortnumbertheSNMP

agentwill

listento

BydefaultanSNMPagentonlylistenstorequestsfromport161.However,youcan

configurethissotheagentlistenstorequestsonanotherport.

EntertheportnumberonwhichyouwanttheSNMPagentstolistentorequests.

Thevalidrangeis1‐65535.

Note:ThisisaglobalSNMPparameterthatappliestoSNMPv1,SNMPv2c,and

SNMPv3.

AllowSNMPsetrequests YoucanchoosewhetherornottoallowSNMPsetrequestsontheAP.Enabling

SNMPsetrequestsmeansthatmachinesonthenetworkcanexecuteconfiguration

changesviatheSNMPagentontheAPtotheD‐LinkSystemMIB.ToenableSNMP

setrequests,clickEnabled.TodisableSNMPsetrequests,clickDisabled.

Read‐writecommunity

name(forpermitted

SNMPsetoperations)

IfyouhaveenabledSNMPsetrequestsyoucansetaread‐writecommunityname.

Thevalidrangeis1‐256characters.

Settingacommunitynameissimilartosettingapassword.Onlyrequestsfromthe

machinesthatidentifythemselveswiththiscommunitynamewillbeaccepted.

Thecommunitynamecanbeinanyalphanumericformat.

Restrictthesourceof

SNMPrequeststoonly

thedesignatedhostsor

subnets

YoucanrestrictthesourceofpermittedSNMPrequests.

TorestrictthesourceofpermittedSNMPrequests,clickEnabled.

TopermitanysourcesubmittinganSNMPrequest,clickDisabled.

Hostname,addressor

subnetofNetwork

ManagementSystem

SpecifytheIPv4DNShostnameorsubnetofthemachinesthatcanexecutegetand

setrequeststothemanageddevices.Thevalidrangeis1‐256characters.

Aswithcommunitynames,thisprovidesalevelofsecurityonSNMPsettings.The

SNMPagentwillonlyacceptrequestsfromthehostnameorsubnetspecifiedhere.

Tospecifyasubnet,enteroneormoresubnetworkaddressrangesintheform

address/mask_lengthwhereaddressisanIPaddressandmask_lengthisthe

numberofmaskbits.Bothformatsaddress/maskandaddress/

mask_lengtharesupported.Individualhostscanbeprovidedforthis,i.e.I.P

AddressorHostname.Forexample,ifyouenterarangeof

192.168.1.0/24

this

specifiesasubnetworkwithaddress

192.168.1.0

andasubnetmaskof

255.255.255.0

.

TheaddressrangeisusedtospecifythesubnetofthedesignatedNMS.Only

machineswithIPaddressesinthisrangearepermittedtoexecutegetandset

requestsonthemanageddevice.Giventheexampleabove,themachineswith

addressesfrom

192.168.1.1

through

192.168.1.254

canexecuteSNMP

commandsonthedevice.(Theaddressidentifiedbysuffix.0inasubnetworkrange

isalwaysreservedforthesubnetaddress,andtheaddressidentifiedby.255inthe

rangeisalwaysreservedforthebroadcastaddress).

Asanotherexample,ifyouenterarangeof

10.10.1.128/25

machineswithIP

addressesfrom

10.10.1.129

through

10.10.1.254

canexecuteSNMP

requestsonmanageddevices.Inthisexample,

10.10.1.128

isthenetwork

addressand

10.10.1.255

isthebroadcastaddress.126addresseswouldbe

designated.

IPv6HostnameorIPv6

subnetofNetwork

ManagementSystem

SpecifytheIPv6DNShostnameorsubnetofthemachinesthatcanexecutegetand

setrequeststothemanageddevices.

Table36:SNMPSettings(Cont.)

Field Description

ConfiguringSNMPontheAccessPoint

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page98

UnifiedAccessPointAdministrator’sGuide

Communitynamefor

traps

EntertheglobalcommunitystringassociatedwithSNMPtraps.Thevalidrangeis

1‐256characters.

Trapssentfromthedevicewillprovidethisstringasacommunityname.

Thecommunitynamecanbeinanyalphanumericformat.Specialcharactersare

notpermitted.

HostnameorIPaddress EntertheDNShostnameofthecomputertowhichyouwanttosendSNMPtraps.

Thevalidrangeis1‐256characters.

AnexampleofaDNShostnameis:snmptraps.foo.com.

SinceSNMPtrapsaresent

randomlyfromtheSNMPagent,itmakessensetospecifywhereexactlythetraps

shouldbesent.YoucanadduptoamaximumofthreeDNShostnames.Ensureyou

selecttheEnabledcheckboxbesidetheappropriatehostname.

Note:AfteryouconfiguretheSNMPsettings,youmustclickApplytoapplythechangesandtosave

thesettings.ChangingsomesettingsmightcausetheAPtostopandrestartsystemprocesses.Ifthis

happens,wirelessclientswilltemporarilyloseconnectivity.WerecommendthatyouchangeAP

settingswhenWLANtrafficislow.

Table36:SNMPSettings(Cont.)

Field Description

WebServerSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page99

UnifiedAccessPointAdministrator’sGuide

WebServerSettings

TheAPcanbemanagedthroughHTTPorsecureHTTP(HTTPS)sessions.BydefaultbothHTTPandHTTPS

accessareenabled.Eitheraccesstypecanbedisabledseparately.

ToconfigureWebserversettings,clickWebServertab.

Figure28:ConfiguringWebServerSettings

Table37:WebServerSettings

Field Description

HTTPSServerStatus EnableordisableaccessthroughaSecureHTTPServer(HTTPS).

HTTPServerStatus EnableordisableaccessthroughHTTP.ThissettingisindependentoftheHTTPSserver

statussetting.

HTTPPort SpecifytheportnumberforHTTPtraffic(defaultis80).

WebServerSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page100

UnifiedAccessPointAdministrator’sGuide

MaximumSessions WhenauserlogsontotheAPwebinterface,asessioniscreated.Thissessionis

maintaineduntiltheuserlogsofforthesessioninactivitytimerexpires.

Enterthenumberwebsessions,includingbothHTTPandHTTPs,thatcanexistatthe

sametime.Therangeis1–10sessions.Ifthemaximumnumberofsessionsisreached,

thenextuserwhoattemptstologontotheAPwebinterfacereceivesanerrormessage

aboutthesessionlimit.

SessionTimeout Enterthemaximumamountoftime,inminutes,aninactiveuserremainsloggedonto

theAPwebinterface.Whentheconfiguredtimeoutisreached,theuserisautomatically

loggedofftheAP.Therangeis1–1440minutes(1440minutes=1day).

GenerateSSL

Certificate

SelectthisoptiontogenerateanewSSLcertificateforthesecureWebserver.Thisshould

bedoneoncetheaccesspointhasanIPaddresstoensurethatthecommonnamefor

thecertificatematchestheIPaddressoftheUAP.GeneratinganewSSLcertificatewill

restartthesecureWebserver.Thesecureconnectionwillnotworkuntilthenew

certificateisacceptedonthebrowser.

HTTPSSLCertificate

FileStatus

Indicateswhetheracertificatefileispresentandspecifiesitsexpirationdateandissuer

commonname.

ToGettheCurrent

HTTPSSLCertificate

SaveacopyofthecurrentHTTPSSLcertificateonalocalsystemorTFTPserver.

•HTTP—ClickDownloadandspecifywheretostorethebackupcopyofthecertificate

file.

•TFTP—Provideafilenameforthecertificatefile,includingthefilepath,specifythe

IPaddressoftheTFTPserverwherethecertificatefilecopyistobestored,andthen

clickDownload.

TouploadaHTTP

SSLCertificatefrom

aPCoraTFTP

Server

UploadacertificatefiletotheAPbyusingHTTPorTFTP:

•HTTP—BrowsetothelocationwherethecertificatefileisstoredandclickUpload.

•TFTP—SpecifytheIPaddressoftheTFTPserverwherethecertificatefileislocated

andprovidethefilename,includingthefilepath,thenclickUpload.

Note:ClickApplytoapplythechangesandtosavethesettings.Ifyoudisabletheprotocolyouare

currentlyusingtoaccesstheAPmanagementinterface,thecurrentconnectionwillendandyouwill

notbeabletoaccesstheAPbyusingthatprotocoluntilitisenabled.

Table37:WebServerSettings(Cont.)

Field Description

SettingtheSSHStatus

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page101

UnifiedAccessPointAdministrator’sGuide

SettingtheSSHStatus

SecureShell(SSH)isaprogramthatprovidesaccesstotheDWL‐x600APCLIfromaremotehost.SSHismore

securethanTelnetforremoteaccessbecauseitprovidesstrongauthenticationandsecurecommunications

overinsecurechannels.FromtheSSHpage,youcanenableordisableSSHaccesstothesystem.

Figure29:SSHStatus

SettingtheTelnetStatus

TelnetisaprogramthatprovidesaccesstotheDWL‐x600APCLIfromaremotehost.FromtheTelnetpage,you

canenableordisableTelnetaccesstothesystem.

Figure30:TelnetStatus

Table38:SSHSettings

Field Description

SSHStatus ChoosetoeitherenableordisableSSHaccesstotheAPCLI:

•TopermitremoteaccesstotheAPbyusingSSH,clickEnabled.

•TopreventremoteaccesstotheAPbyusingSSH,clickDisabled.

Table39:TelnetSettings

Field Description

TelnetStatus ChoosetoeitherenableordisableTelnet accesstotheAPCLI:

•TopermitremoteaccesstotheAPbyusingTelnet,clickEnabled.

•TopreventremoteaccesstotheAPbyusingTelnet,clickDisabled.

ConfiguringQualityofService

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page102

UnifiedAccessPointAdministrator’sGuide

ConfiguringQualityofService

QualityofService(QoS)providesyouwiththeabilitytospecifyparametersonmultiplequeuesforincreased

throughputandbetterperformanceofdifferentiatedwirelesstrafficlikeVoice‐over‐IP(VoIP),othertypesof

audio,video,andstreamingmedia,aswellastraditionalIPdataovertheUAP.

ConfiguringQoSontheUAPconsistsofsettingparametersonexistingqueuesfordifferenttypesofwireless

traffic,andeffectivelyspecifyingminimumandmaximumwaittimes(throughContentionWindows)for

transmission.ThesettingsdescribedhereapplytodatatransmissionbehaviorontheAPonly,nottothatof

theclientstations.

APEnhancedDistributedChannelAccess(EDCA)ParametersaffecttrafficflowingfromtheAPtotheclient

station.

StationEnhancedDistributedChannelAccess(EDCA)Parametersaffecttrafficflowingfromtheclientstationto

theAP.

ThedefaultvaluesfortheAPandstationEDCAparametersarethosesuggestedbytheWi‐FiAllianceinthe

WMMspecification.Innormalusethesevaluesshouldnotneedtobechanged.Changingthesevalueswill

affecttheQoSprovided.

TosetupqueuesforQoS,clicktheQoStabundertheServicesheadingandconfiguresettingsasdescribedin

Table40onpage103.

Note:OntheDWL‐6600APandDWL‐8600AP,theQoSsettingsapplytobothradios,butthetrafficfor

eachradioisqueuedindependently.

ConfiguringQualityofService

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page103

UnifiedAccessPointAdministrator’sGuide

Figure31:ConfiguringQoSSettings

Table40:QoSSettings

Field Description

EDCATemplate Possibleoptionsare:Custom,Default,OptimizedforVoice.

AP EDCA Parameters

Queue QueuesaredefinedfordifferenttypesofdatatransmittedfromAP‐to‐station:

•Data0(Voice)—Highpriorityqueue,minimumdelay.Time‐sensitivedatasuch

asVoIPandstreamingmediaareautomaticallysenttothisqueue.

•Data1(Video)—Highpriorityqueue,minimumdelay.Time‐sensitivevideodata

isautomaticallysenttothisqueue.

•Data2(besteffort)—Mediumpriorityqueue,mediumthroughputanddelay.

MosttraditionalIPdataissenttothisqueue.

•Data3(Background)—Lowestpriorityqueue,highthroughput.Bulkdatathat

requiresmaximumthroughputandisnottime‐sensitiveissenttothisqueue

(FTPdata,forexample).

AIFS

(Inter‐FrameSpace)

TheArbitrationInter‐FrameSpacing(AIFS)specifiesawaittimefordataframes.

Thewaittimeismeasuredinslots.ValidvaluesforAIFSare1through255.

ConfiguringQualityofService

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page104

UnifiedAccessPointAdministrator’sGuide

cwMin

(MinimumContention

Window)

Thisparameterisinputtothealgorithmthatdeterminestheinitialrandombackoff

waittime(window)forretryofatransmission.

ThevaluespecifiedforMinimumContentionWindowistheupperlimit(in

milliseconds)ofarangefromwhichtheinitialrandombackoffwaittimeis

determined.

Thefirstrandomnumbergeneratedwillbeanumberbetween0andthenumber

specifiedhere.

Ifthefirstrandombackoffwaittimeexpiresbeforethedataframeissent,aretry

counterisincrementedandtherandombackoffvalue(window)isdoubled.

Doublingwillcontinueuntilthesizeoftherandombackoffvaluereachesthe

numberdefinedintheMaximumContentionWindow.

ValidvaluesforcwMinare1,3,7,15,31,63,127,255,511,or1024.Thevaluefor

cwMinmustbelowerthanthevalueforcwMax.

cwMax

(MaximumContention

Window)

ThevaluespecifiedfortheMaximumContentionWindowistheupperlimit(in

milliseconds)forthedoublingoftherandombackoffvalue.Thisdoublingcontinues

untileitherthedataframeissentortheMaximumContentionWindowsizeis

reached.

OncetheMaximumContentionWindowsizeisreached,retrieswillcontinueuntila

maximumnumberofretriesallowedisreached.

ValidvaluesforcwMaxare1,3,7,15,31,63,127,255,511,or1024.Thevaluefor

cwMaxmustbehigherthanthevalueforcwMin.

Max.BurstLength TheMax.BurstLengthisanAPEDCAparameterandonlyappliestotrafficflowing

fromtheAPtotheclientstation.

Thisvaluespecifies(inmilliseconds)themaximumburstlengthallowedforpacket

burstsonthewirelessnetwork.Apacketburstisacollectionofmultipleframes

transmittedwithoutheaderinformation.Thedecreasedoverheadresultsinhigher

throughputandbetterperformance.

Validvaluesformaximumburstlengthare0.0through999.

Wi-Fi Multimedia Settings

Wi‐FiMultiMedia Wi‐FiMultiMedia(WMM)isenabledbydefault.WithWMMenabled,QoS

prioritizationandcoordinationofwirelessmediumaccessison.WithWMM

enabled,QoSsettingsontheUAPcontroldownstreamtrafficflowingfromtheAPto

clientstation(APEDCAparameters)andtheupstreamtrafficflowingfromthe

stationtotheAP(stationEDCAparameters).

DisablingWMMdeactivatesQoScontrolofstationEDCAparametersonupstream

trafficflowingfromthestationtotheAP.

WithWMMdisabled,youcanstillsetsomeparametersonthedownstreamtraffic

flowingfromtheAPtotheclientstation(APEDCAparameters).

TodisableWMMextensions,clickDisabled.

ToenableWMMextensions,clickEnabled.

Table40:QoSSettings(Cont.)

Field Description

ConfiguringQualityofService

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page105

UnifiedAccessPointAdministrator’sGuide

Station EDCA Parameters

Queue Queuesaredefinedfordifferenttypesofdatatransmittedfromstation‐to‐AP:

•Data0(Voice)—Highestpriorityqueue,minimumdelay.Time‐sensitivedata

suchasVoIPandstreamingmediaareautomaticallysenttothisqueue.

•Data1(Video)—Highestpriorityqueue,minimumdelay.Time‐sensitivevideo

dataisautomaticallysenttothisqueue.

•Data2(besteffort)—Mediumpriorityqueue,mediumthroughputanddelay.

MosttraditionalIPdataissenttothisqueue.

•Data3(Background)—Lowestpriorityqueue,highthroughput.Bulkdatathat

requiresmaximumthroughputandisnottime‐sensitiveissenttothisqueue

(FTPdata,forexample).

AIFS

(Inter‐FrameSpace)

TheArbitrationInter‐FrameSpacing(AIFS)specifiesawaittimefordataframes.

Thewaittimeismeasuredinslots.ValidvaluesforAIFSare1through255.

cwMin

(MinimumContention

Window)

Thisparameterisusedbythealgorithmthatdeterminestheinitialrandombackoff

waittime(window)forretryofadatatransmissionduringaperiodofcontentionfor

UnifiedAccessPointresources.ThevaluespecifiedhereintheMinimumContention

Windowistheupperlimit(inmilliseconds)ofarangefromwhichtheinitialrandom

backoffwaittimewillbedetermined.Thefirstrandomnumbergeneratedwillbea

numberbetween0andthenumberspecifiedhere.Ifthefirstrandombackoffwait

timeexpiresbeforethedataframeissent,aretrycounterisincrementedandthe

randombackoffvalue(window)isdoubled.Doublingwillcontinueuntilthesizeof

therandombackoffvaluereachesthenumberdefinedintheMaximumContention

Window.

cwMax

(MaximumContention

Window)

ThevaluespecifiedhereintheMaximumContentionWindowistheupperlimit(in

milliseconds)forthedoublingoftherandombackoffvalue.Thisdoublingcontinues

untileitherthedataframeissentortheMaximumContentionWindowsizeis

reached.

OncetheMaximumContentionWindowsizeisreached,retrieswillcontinueuntila

maximumnumberofretriesallowedisreached.

TXOPLimit TheTXOPLimitisastationEDCAparameterandonlyappliestotrafficflowingfrom

theclientstationtotheAP.TheTransmissionOpportunity(TXOP)isanintervalof

time,inmilliseconds,whenaWMEclientstationhastherighttoinitiate

transmissionsontothewirelessmedium(WM)towardstheUnifiedAccessPoint.

TheTXOPLimitmaximumvalueis65535.

Other QoS Settings

NoAcknowledgement SelectOntospecifythattheAPshouldnotacknowledgeframeswithQosNoAckas

theserviceclassvalue.

APSD SelectOntoenableAutomaticPowerSaveDelivery(APSD),whichisapower

managementmethod.APSDisrecommendedifVoIPphonesaccessthenetwork

throughtheAP.

Note:AfteryouconfiguretheQoSsettings,youmustclickApplytoapplythechangesandtosavethe

settings.ChangingsomesettingsmightcausetheAPtostopandrestartsystemprocesses.Ifthis

happens,wirelessclientswilltemporarilyloseconnectivity.WerecommendthatyouchangeAP

settingswhenWLANtrafficislow.

Table40:QoSSettings(Cont.)

Field Description

ConfiguringEmailAlert

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page106

UnifiedAccessPointAdministrator’sGuide

ConfiguringEmailAlert

TheEmailAlertfeatureallowstheAPtoautomaticallysendemailmessageswhenaneventatorabovethe

configuredseverityleveloccurs.UsetheEmailAlertConfigurationpagetoconfiguremailserversettings,toset

theseveritylevelthattriggersalerts,andtoadduptothreeemailaddresseswhereurgentandnon‐urgent

emailalertsaresent.

Figure32:ConfiguringEmailAlert

Note:EmailalertisoperationallydisabledwhentheAPtransitionstomanagedmode.

Table41:EmailAlertConfiguration

Field Description

EmailAlertGlobalConfiguration

AdminMode GloballyenableordisabletheEmailAlertfeatureontheAP.Bydefault,emailalerts

aredisabled.

FromAddress SpecifytheemailaddressthatappearsintheFromfieldofalertmessagessentfrom

theAP,forexampledlinkAP23@foo.com.Theaddresscanbeamaximumof255

charactersandcancontainonlyprintablecharacters.Bydefault,noaddressis

configured.

LogDuration Thisduration,inminutes,determineshowfrequentlythenoncriticalmessagesare

senttotheSMTPServer.Therangeis30‐1440minutes.Thedefaultis30minutes.

ConfiguringEmailAlert

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page107

UnifiedAccessPointAdministrator’sGuide

UrgentMessage

Severity

Configurestheseveritylevelforlogmessagesthatareconsideredtobeurgent.

Messagesinthiscategoryaresentimmediately.Thesecuritylevelyouselectandall

higherlevelsareurgent:

•Emergencyindicatessystemisunusable.Itisthehighestlevelofseverity.

•Alertindicatesactionmustbetakenimmediately.

•Criticalindicatescriticalconditions.

•Errorindicateserrorconditions.

•Warningindicateswarningconditions.

• Noticeindicatesnormalbutsignificantconditions.

• Informationalindicatesinformationalmessages.

• Debugindicatesdebug‐levelmessages.

NonUrgentSeverity Configurestheseveritylevelforlogmessagesthatareconsideredtobenonurgent.

Messagesinthiscategoryarecollectedandsentinadigestformatthetimeinterval

specifiedbytheLogDurationfield.Thesecuritylevelyouselectandalllevelsupto,

butnotincludingthelowestUrgentlevelareconsiderednonurgent.Messages

belowthesecuritylevelyouspecifyarenotsentviaemail.

SeetheUrgentMessagefielddescriptionforinformationaboutthesecuritylevels.

EmailAlertMailServerConfiguration

MailServerAddress SpecifytheIPaddressorhostnameoftheSMTPserveronthenetwork.

MailServerSecurity SpecifywhethertouseSMTPoverSSL(TLSv1)ornosecurity(Open)for

authenticationwiththemailserver.ThedefaultisOpen.

MailServerPort ConfigurestheTCPportnumberforSMTP.Therangeisavalidportnumberfrom0

to65535.Thedefaultis25,whichisthestandardportforSMTP.

Username Specifytheusernametousewhenauthenticationwiththemailserverisrequired.

Theusernameisa64‐bytecharacterstringwithallprintablecharacters.Thedefault

isadmin.

Password Specifythepasswordassociatedwiththeusernameconfiguredinthepreviousfield.

EmailAlertMessageConfiguration

ToAddress1Configurethefirstemailaddresstowhichalertmessagesaresent.Theaddressmust

beavalidemailaddress.Bydefault,noaddressisconfigured.

ToAddress2Optionally,configurethesecondemailaddresstowhichalertmessagesaresent.The

addressmustbeavalidemailaddress.Bydefault,noaddressisconfigured.

ToAddress3Optionally,configurethethirdemailaddresstowhichalertmessagesaresent.The

addressmustbeavalidemailaddress.Bydefault,noaddressisconfigured.

EmailSubject Specifythetexttobedisplayedinthesubjectoftheemailalertmessage.Thesubject

cancontainupto255alphanumericcharacters.ThedefaultisLogmessagefromAP.

Note:AfteryouconfiguretheEmailAlertsettings,clickApplytoapplythechangesandtosavethe

settings.

Table41:EmailAlertConfiguration(Cont.)

Field Description

ConfiguringEmailAlert

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page108

UnifiedAccessPointAdministrator’sGuide

Tovalidatetheconfiguredemailservercredentials,clickTestMail.Youcansendatestemailoncetheemail

serverdetailsareconfigured.

ThefollowingtextshowsanexampleofanemailalertsentfromtheAPtothenetworkadministrator:

From:AP‐192.168.2.10@mailserver.com

Sent:Wednesday,July08,201111:16AM

To:administrator@mailserver.com

Subject:logmessagefromAP

TIMEPriorityProcessIdMessage

Jul803:48:25infologin[1457]rootloginon‘ttyp0’

Jul803:48:26infomini_http‐ssl[1175]Maxconcurrentconnectionsof20reached

EnablingtheTimeSettings(NTP)

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page109

UnifiedAccessPointAdministrator’sGuide

EnablingtheTimeSettings(NTP)

UsetheTimeSettingspagetospecifytheNetworkTimeProtocol(NTP)servertousetoprovidetimeanddate

informationtotheAPortoconfigurethetimeanddateinformationmanually.

NTPisanInternetstandardprotocolthatsynchronizescomputerclocktimesonyournetwork.NTPservers

transmitCoordinatedUniversalTime(UTC,alsoknownasGreenwichMeanTime)totheirclientsystems.NTP

sendsperiodictimerequeststoservers,usingthereturnedtimestamptoadjustitsclock.Thetimestampis

usedtoindicatethedateandtimeofeacheventinlogmessages.

Seehttp://www.ntp.orgformoreinformationaboutNTP.

TosetthesystemtimeeithermanuallyorbyspecifyingtheaddressoftheNTPserverfortheAPtouse,click

theServices>TimeSettings(NTP)tabandupdatethefieldsasdescribedinTable42onpage110.

Figure33:SettingtheSystemTime

EnablingtheTimeSettings(NTP)

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page110

UnifiedAccessPointAdministrator’sGuide

Table42:NTPSettings

Field Description

SetSystemTime NTPprovidesawayfortheAPtoobtainandmaintainitstimefromaserveron

thenetwork.UsinganNTPservergivesyourAPtheabilitytoprovidethe

correcttimeofdayinlogmessagesandsessioninformation.

Choosetouseanetworktimeprotocol(NTP)servertodeterminethesystem

time,orsetthesystemtimemanually:

•TopermittheAPtopollanNTPserver,clickUsingNetworkTimeProtocol

(NTP).

•TopreventtheAPfrompollinganNTPserver,clickManually.

NTPServer(UseNTP) IfNTPisenabled,specifytheNTPservertouse.

YoucanspecifytheNTPserverbyhostnameorIPaddress,althoughusingthe

IPaddressisnotrecommendedasthesecanchangemorereadily.

Ifyouspecifyahostname,notethefollowingrequirements:

•Thelengthmustbebetween1–63characters.

• Upperandlowercasecharacters,numbers,andhyphensareaccepted.

•Thefirstcharactermustbealetter(a–zorA–Z),andthelastcharacter

cannotbeahyphen.

SystemDate(Manual

configuration)

Specifythecurrentmonth,day,andyear.

SystemTime(Manual

configuration)

Specifythecurrenttimeinhoursandminutes.Thesystemusesa24‐hour

clock,so6:00PMisconfiguredas18:00.

TimeZone Selectyourlocaltimezonefromthemenu.ThedefaultisUSA(Pacific).

AdjustTimeforDaylight

Savings

SelecttohavethesystemadjustthereportedtimeforDaylightSavingsTime

(DST).Whenthisfieldisselected,fieldstoconfigureDaylightSavingsTime

settingsappear.

DSTStart(24HR) ConfigurethedateandtimetobeginDaylightSavingsTimefortheSystem

Time.

DSTEnd(24HR) ConfigurethedateandtimetoendDaylightSavingsTimefortheSystemTime.

DSTOffset(minutes) SelectthenumberofminutestooffsetDST.Thedefaultis60minutes.

Note:AfteryouconfiguretheTimesettings,youmustclickApplytoapplythechangesandtosave

thesettings.ChangingsomesettingsmightcausetheAPtostopandrestartsystemprocesses.Ifthis

happens,wirelessclientswilltemporarilyloseconnectivity.WerecommendthatyouchangeAP

settingswhenWLANtrafficislow.

ConfiguringSNMPv3

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page111

UnifiedAccessPointAdministrator’sGuide

Section6:ConfiguringSNMPv3

ThissectiondescribeshowtoconfiguretheSNMPv3settingsontheUAPandcontainsthefollowing

subsections:

•ConfiguringSNMPv3Views

•ConfiguringSNMPv3Groups

•ConfiguringSNMPv3Users

•ConfiguringSNMPv3Targets

ConfiguringSNMPv3Views

AMIBviewiscombinationofasetofviewsubtreesorafamilyofviewsubtreeswhereeachviewsubtreeisa

subtreewithinthemanagedobjectnamingtree.YoucancreateMIBviewstocontroltheOIDrangethat

SNMPv3userscanaccess.

AMIBviewcalled"all"iscreatedbydefaultinthesystem.Thisviewcontainsallmanagementobjects

supportedbythesystem.

Figure34:SNMPv3Views

Note:Ifyoucreateanexcludedviewsubtree,createacorrespondingincludedentrywiththesame

viewnametoallowsubtreesoutsideoftheexcludedsubtreetobeincluded.Forexample,tocreatea

viewthatexcludesthesubtree1.3.6.1.4,createanexcludedentrywiththeOID1.3.6.1.4.Then,create

anincludedentrywithOID.1withthesameviewname.

ConfiguringSNMPv3Views

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page112

UnifiedAccessPointAdministrator’sGuide

Table43describesthefieldsyoucanconfigureontheSNMPv3Viewspage.

Table43:SNMPv3Views

Field Description

ViewName EnteranametoidentifytheMIBview.

Viewnamescancontainupto32alphanumericcharacters.

Type Specifieswhethertoincludeorexcludetheviewsubtreeorfamilyofsubtreesfromthe

MIBview.

OID EnteranOIDstringforthesubtreetoincludeorexcludefromtheview.

Forexample,thesystemsubtreeisspecifiedbytheOIDstring.1.3.6.1.2.1.1.

Mask TheOIDmaskis47charactersinlength.TheformatoftheOIDmaskisxx.xx.xx(.)...or

xx:xx:xx....(:)andis16octetsinlength.Eachoctetis2hexadecimalcharactersseparated

byeither.(period)or:(colon).Onlyhexcharactersareacceptedinthisfield.For

example,OIDmaskFA.80is11111010.10000000.

Afamilymaskisusedtodefineafamilyofviewsubtrees.Thefamilymaskindicateswhich

sub‐identifiersoftheassociatedfamilyOIDstringaresignificanttothefamily's

definition.

Afamilyofviewsubtreesallowscontrolaccesstoonerowinatable,inamoreefficient

manner.

SNMPv3Views ThisfieldshowstheMIBviewsontheUAP.Toremoveaview,selectitandclickRemove.

Note:AfteryouconfiguretheSNMPv3Viewssettings,youmustclickApplytoapplythechangesand

tosavethesettings.

ConfiguringSNMPv3Groups

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page113

UnifiedAccessPointAdministrator’sGuide

ConfiguringSNMPv3Groups

SNMPv3groupsallowyoutocombineusersintogroupsofdifferentauthorizationandaccessprivileges.

Bydefault,theUAPhastwogroups:

•RO—Aread‐onlygroupusingauthenticationanddataencryption.UsersinthisgroupuseanMD5key/

passwordforauthenticationandaDESkey/passwordforencryption.BoththeMD5andDESkey/

passwordsmustbedefined.Bydefault,usersofthisgroupwillhavereadonlyaccesstothedefaultallMIB

view,whichcanbemodifiedbytheuser.

•RW—Aread/writegroupusingauthenticationanddataencryption.UsersinthisgroupuseanMD5key/

passwordforauthenticationandaDESkey/passwordforencryption.BoththeMD5andDESkey/

passwordsmustbedefined.Bydefault,usersofthisgroupwillhavereadandwriteaccesstothedefault

allMIBview,whichcanbemodifiedbytheuser.

RWandROgroupsaredefinedbydefault.

Todefineadditionalgroups,navigatetotheSNMPv3GroupspageandconfigurethesettingsthatTable44on

page114describes.

Figure35:SNMPv3Groups

Note:TheUAPsupportsmaximumofeightgroups.

ConfiguringSNMPv3Groups

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page114

UnifiedAccessPointAdministrator’sGuide

Table44:SNMPv3Groups

Field Description

Name Specifyanametousetoidentifythegroup.ThedefaultgroupnamesareRWandRO.

Groupnamescancontainupto32alphanumericcharacters.

SecurityLevel Selectoneofthefollowingsecuritylevelsforthegroup:

•noAuthentication‐noPrivacy—Noauthenticationandnodataencryption(no

security).

•Authentication‐noPrivacy—Authentication,butnodataencryption.Withthis

securitylevel,userssendSNMPmessagesthatuseanMD5key/passwordfor

authentication,butnotaDESkey/passwordforencryption.

•Authentication‐Privacy—Authenticationanddataencryption.Withthissecurity

level,userssendanMD5key/passwordforauthenticationandaDESkey/password

forencryption.

Forgroupsthatrequireauthentication,encryption,orboth,youmustdefinetheMD5

andDESkey/passwordsontheSNMPv3Userspage.

WriteViews Selectthewriteaccesstomanagementobjects(MIBs)forthegroup:

•write‐all—Thegroupcancreate,alter,anddeleteMIBs.

•write‐none—Thegroupisnotallowedtocreate,alter,ordeleteMIBS.

ReadViews Selectthereadaccesstomanagementobjects(MIBs)forthegroup:

•view‐all—ThegroupisallowedtoviewandreadallMIBs.

•view‐none—ThegroupcannotvieworreadMIBs.

SNMPv3Groups ThisfieldshowsthedefaultgroupsandthegroupsthatyouhavedefinedontheAP.To

removeagroup,selectthegroupandclickRemove.

Note:AfteryouconfiguretheSNMPv3Groupssettings,youmustclickApplytoapplythechangesand

tosavethesettings.

ConfiguringSNMPv3Users

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page115

UnifiedAccessPointAdministrator’sGuide

ConfiguringSNMPv3Users

FromtheSNMPv3Userspage,youcandefinemultipleusers,associatethedesiredsecurityleveltoeachuser,

andconfiguresecuritykeys.

Forauthentication,onlyMD5typeissupported,andforencryptiononlyDEStypeissupported.Thereareno

defaultSNMPv3usersontheUAP.

Figure36:SNMPv3Users

Table45describesthefieldstoconfigureSNMPv3users.

Table45:SNMPv3Users

Field Description

Name EntertheusernametoidentifytheSNMPv3user.

Usernamescancontainupto32alphanumericcharacters.

Group Maptheusertoagroup.ThedefaultgroupsareRWAuth,RWPriv,andRO.Youcan

defineadditionalgroupsontheSNMPv3Groupspage.

AuthenticationType SelectthetypeofauthenticationtouseonSNMPrequestsfromtheuser:

•MD5—RequireMD5authenticationonSNMPv3requestsfromtheuser.

•None—SNMPv3requestsfromthisuserrequirenoauthentication.

AuthenticationKey IfyouspecifyMD5astheauthenticationtype,enterapasswordtoenabletheSNMP

agenttoauthenticaterequestssentbytheuser.

Thepassphrasemustbebetween8and32charactersinlength.

EncryptionType SelectthetypeofprivacytouseonSNMPrequestsfromtheuser:

•DES—UseDESencryptiononSNMPv3requestsfromtheuser.

•None—SNMPv3requestsfromthisuserrequirenoprivacy.

ConfiguringSNMPv3Targets

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page116

UnifiedAccessPointAdministrator’sGuide

ConfiguringSNMPv3Targets

SNMPv3Targetssend"inform"messagestotheSNMPmanager.Eachtargetisidentifiedbyatargetnameand

associatedwithtargetIPaddress,UDPport,andSNMPusername.

Figure37:SNMPv3Target

EncryptionKey IfyouspecifyDESastheprivacytype,enterakeytousetoencrypttheSNMPrequests.

Thepassphrasemustbebetween8and32charactersinlength.

SNMPv3Users ThisfieldshowstheusersthatyouhavedefinedontheAP.Toremoveauser,selectthe

userandclickRemove.

Note:AfteryouconfiguretheSNMPv3Userssettings,youmustclickApplytoapplythechangesand

tosavethesettings.

Table46:SNMPv3Targets

Field Description

IPAddress EntertheIPaddressoftheremoteSNMPmanagertoreceivethetarget.

Port EntertheUDPporttouseforsendingSNMPtargets.

Users EnterthenameoftheSNMPusertoassociatewiththetarget.ToconfigureSNMPusers,

see“ConfiguringSNMPv3Users”onpage115.

SNMPv3Targets ThisfieldshowstheSNMPv3TargetsontheUAP.Toremoveatarget,selectitandclick

Remove.

Note:AfteryouconfiguretheSNMPv3Targetsettings,youmustclickApplytoapplythechangesand

tosavethesettings.

Table45:SNMPv3Users(Cont.)

Field Description

MaintainingtheAccessPoint

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page117

UnifiedAccessPointAdministrator’sGuide

Section7:MaintainingtheAccessPoint

ThissectiondescribeshowtomaintaintheUAP.

FromtheUAPAdministratorUI,youcanperformthefollowingmaintenancetasks:

•“SavingtheCurrentConfigurationtoaBackupFile”

•“RestoringtheConfigurationfromaPreviouslySavedFile”

•“PerformingAPMaintenance”

–“ResettingtheFactoryDefaultConfiguration”

–“RebootingtheAccessPoint”

•“UpgradingtheFirmware”

•“PacketCaptureConfigurationandSettings”

SavingtheCurrentConfigurationtoaBackupFile

TheAPconfigurationfileisinXMLformatandcontainsalloftheinformationabouttheAPsettings.Youcan

downloadtheconfigurationfiletoamanagementstationtomanuallyeditthecontentortosaveasaback‐up

copy.

YoucanuseHTTPorTFTPtotransferfilestoandfromtheUAP.Afteryoudownloadaconfigurationfiletothe

managementstation,youcanmanuallyeditthefile,whichisinXMLformat.Then,youcanuploadtheedited

configurationfiletoapplythoseconfigurationsettingstotheAP.

UsethefollowingstepstosaveacopyofthecurrentsettingsonanAPtoabackupconfigurationfilebyusing

TFTP:

1. SelectTFTPforDownloadMethod.

2. Enteraname(1to63characters)forthebackupfileintheFilenamefield,includingthe.xmlfilename

extensionandthepathtothedirectorywhereyouwanttosavethefile.

3. EntertheIPaddressoftheTFTPserver.

4. ClickDownloadtosaveacopyofthefiletotheTFTPserver.

RestoringtheConfigurationfromaPreviouslySavedFile

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page118

UnifiedAccessPointAdministrator’sGuide

UsethefollowingstepstosaveacopyofthecurrentsettingsonanAPtoabackupconfigurationfilebyusing

HTTP:

1. SelectHTTPforDownloadMethod.

2. ClicktheDownloadbutton.

Adialogboxdisplaysverifyingthedownload.

3. Toproceedwiththedownload,selectOK.

Adialogboxopensallowingyoutovieworsavethefile.

4. SelecttheSaveFileoptionandselectOK.

5. Usethefilebrowsertonavigatetothedirectorywhereyouwanttosavethefile,andclickOKtosavethe

file.

Youcankeepthedefaultfilename(config.xml)orrenamethebackupfile,butbesuretosavethefilewith

an.xmlextension.

RestoringtheConfigurationfromaPreviouslySavedFile

YoucanuseHTTPorTFTPtotransferfilestoandfromtheUAP.Afteryoudownloadaconfigurationfiletothe

managementstation,youcanmanuallyeditthefile,whichisinXMLformat.Then,youcanuploadtheedited

configurationfiletoapplythoseconfigurationsettingstotheAP.

UsethefollowingprocedurestorestoretheconfigurationonanAPtopreviouslysavedsettingsbyusingTFTP:

1. SelectTFTPforUploadMethod.

2. Enteraname(1to63characters)forthebackupfileintheFilenamefield,includingthe.xmlfilename

extensionandthepathtothedirectorythatcontainstheconfigurationfiletoupload.

3. EntertheIPaddressoftheTFTPserverintheServerIPfield.

4. ClicktheRestorebutton.

TheAPreboots.Arebootconfirmationdialogandfollow‐onrebootingstatusmessagedisplays.Pleasewait

fortherebootprocesstocomplete,whichmighttakeseveralminutes.

TheAdministrationWebUIisnotaccessibleuntiltheAPhasrebooted.

RestoringtheConfigurationfromaPreviouslySavedFile

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page119

UnifiedAccessPointAdministrator’sGuide

UsethefollowingstepstosaveacopyofthecurrentsettingsonanAPtoabackupconfigurationfilebyusing

HTTP:

1. SelectHTTPforUploadMethod.

2. UsertheBrowsebuttontoselectthefiletorestore.

3. ClicktheRestorebutton.

AFileUploadorChooseFiledialogboxdisplays.

4. Navigatetothedirectorythatcontainsthefile,thenselectthefiletouploadandclickOpen.

(OnlythosefilescreatedwiththeBackupfunctionandsavedas.xmlbackupconfigurationfilesarevalidto

usewithRestore;forexample,ap_config.xml.)

5. ClicktheRestorebutton.

Adialogboxopensverifyingtherestore.

6. ClickOKtoproceed.

TheAPreboots.Arebootconfirmationdialogandfollow‐onrebootingstatusmessagedisplays.Pleasewait

fortherebootprocesstocomplete,whichmighttakeseveralminutes.

TheAdministrationWebUIisnotaccessibleuntiltheAPhasrebooted.

PerformingAPMaintenance

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page120

UnifiedAccessPointAdministrator’sGuide

PerformingAPMaintenance

FromtheMaintenancepage,youcanresettheAPtoitsfactorydefaultsettingsorreboottheAP.

Figure38:Maintenance

ResettingtheFactoryDefaultConfiguration

IfyouareexperiencingproblemswiththeUAPandhavetriedallothertroubleshootingmeasures,clickReset.

Thisrestoresfactorydefaultsandclearsallsettings,includingsettingssuchasanewpasswordorwireless

settings.Youcanalsousetheresetbuttononthebackpaneltoresetthesystemtothedefaultconfiguration.

RebootingtheAccessPoint

Formaintenancepurposesorasatroubleshootingmeasure,youcanreboottheUAP.ToreboottheAP,click

theRebootbuttonontheConfigurationpage.

UpgradingtheFirmware

AsnewversionsoftheUAPfirmwarebecomeavailable,youcanupgradethefirmwareonyourdevicestotake

advantageofnewfeaturesandenhancements.TheAPusesaTFTPclientforfirmwareupgrades.Youcanalso

useHTTPtoperformfirmwareupgrades.

Afteryouuploadnewfirmwareandthesystemreboots,thenewlyaddedfirmwarebecomestheprimary

image.Iftheupgradefails,theoriginalfirmwareremainsastheprimaryimage.

UsethefollowingstepstoupgradethefirmwareonanaccesspointbyusingTFTP:

1. SelectTFTPforUploadMethod.

2. Enteraname(1to63characters)fortheimagefileintheImageFilenamefield,includingthepathtothe

directorythatcontainstheimagetoupload.

Note:Whenyouupgradethefirmware,theaccesspointretainstheexistingconfiguration

information.

UpgradingtheFirmware

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page121

UnifiedAccessPointAdministrator’sGuide

Forexample,touploadtheap_upgrade.tarimagelocatedinthe/share/builds/apdirectory,enter/share/

builds/ap/ap_upgrade.tarintheImageFilenamefield.

Thefirmwareupgradefilesuppliedmustbeatarfile.Donotattempttousebinfilesorfilesofother

formatsfortheupgrade;thesetypesoffileswillnotwork.

3. EntertheIPaddressoftheTFTPserver.

4. ClickUpgrade.

UponclickingUpgradeforthefirmwareupgrade,apopupconfirmationwindowisdisplayedthatdescribes

theupgradeprocess.

5. ClickOKtoconfirmtheupgradeandstarttheprocess.

Theupgradeprocessmaytakeseveralminutesduringwhichtimetheaccesspointwillbeunavailable.Do

notpowerdowntheaccesspointwhiletheupgradeisinprocess.Whentheupgradeiscomplete,the

accesspointrestarts.TheAPresumesnormaloperationwiththesameconfigurationsettingsithadbefore

theupgrade.

6. Toverifythatthefirmwareupgradecompletedsuccessfully,checkthefirmwareversionshownonthe

Upgradepage(ortheBasicSettingspage).Iftheupgradewassuccessful,theupdatedversionnameor

numberisindicated.

UsethefollowingstepstoupgradethefirmwareonanaccesspointbyusingHTTP:

1. SelectHTTPforUploadMethod.

2. Ifyouknowthepathtothenewfirmwareimagefile,enteritintheImageFilenamefield.Otherwise,click

theBrowsebuttonandlocatethefirmwareimagefile.

Thefirmwareupgradefilesuppliedmustbeatarfile.Donotattempttousebinfilesorfilesofother

formatsfortheupgrade;thesetypesoffileswillnotwork.

3. ClickUpgradetoapplythenewfirmwareimage.

UponclickingUpgradeforthefirmwareupgrade,apopupconfirmationwindowisdisplayedthatdescribes

theupgradeprocess.

4. ClickOKtoconfirmtheupgradeandstarttheprocess.

Note:ThefirmwareupgradeprocessbeginsonceyouclickUpgradeandthenOKinthepopup

confirmationwindow.

PacketCaptureConfigurationandSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page122

UnifiedAccessPointAdministrator’sGuide

Theupgradeprocessmaytakeseveralminutesduringwhichtimetheaccesspointwillbeunavailable.Do

notpowerdowntheaccesspointwhiletheupgradeisinprocess.Whentheupgradeiscomplete,the

accesspointrestarts.TheAPresumesnormaloperationwiththesameconfigurationsettingsithadbefore

theupgrade.

5. Toverifythatthefirmwareupgradecompletedsuccessfully,checkthefirmwareversionshownonthe

Upgradepage(ortheBasicSettingspage).Iftheupgradewassuccessful,theupdatedversionnameor

numberisindicated.

PacketCaptureConfigurationandSettings

Wirelesspacketcaptureoperatesintwomodes:

•Capturefilemode

•Remotecapturemode

Forcapturefilemode,capturedpacketsarestoredinafileontheAccessPoint.TheAPcantransferthefileto

aTFTPserver.ThefileisformattedinpcapformatandcanbeexaminedusingtoolssuchasWiresharkand

OmniPeek.

Forremotecapturemode,thecapturedpacketsareredirectedinrealtimetoanexternalPCrunningthe

Wireshark®tool.

TheAPcancapturethefollowingtypesofpackets:

•802.11packetsreceivedandtransmittedonradiointerfaces.Packetscapturedonradiointerfacesinclude

the802.11header.

•802.3packetsreceivedandtransmittedontheEthernetinterface.

•802.3packetsreceivedandtransmittedontheinternallogicalinterfacessuchasVAPsandWDSinterfaces.

FromthePacketCaptureConfigurationandSettingspage,youcan:

• Viewthecurrentpacketcapturestatus.

• Configurepacketcaptureparameters.

• Configurepacketfilecapture.

• Configurearemotecaptureport.

•Downloadapacketcapturefile.

Note:ThefirmwareupgradeprocessbeginsonceyouclickUpgradeandthenOKinthepopup

confirmationwindow.

PacketCaptureConfigurationandSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page123

UnifiedAccessPointAdministrator’sGuide

Figure39:PacketCaptureConfiguration

PacketCaptureConfigurationandSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page124

UnifiedAccessPointAdministrator’sGuide

PacketCaptureStatus

PacketCaptureStatusallowsyoutoviewthestatusofpacketcaptureontheAP.

Table47describesinformationthepacketcapturestatusfieldsdisplay.

PacketCaptureParameterConfiguration

PacketCaptureConfigurationallowsyoutoconfigureparametersthataffecthowpacketcapturefunctionson

theradiointerfaces.

Table48describesthefieldstoconfigurethepacketcapture.

Table47:PacketCaptureStatus

Field Description

CurrentCaptureStatus Showswhetherpacketcaptureisrunningorstopped.

PacketCaptureTime Showselapsedcapturetime.

PacketCaptureFileSize Showsthecurrentcapturefilesize.

Table48:PacketCaptureConfiguration

Field Description

CaptureBeacons Enabletocapturethe802.11beaconsdetectedortransmittedbytheradio.

PromiscuousCapture Enabletoplacetheradioinpromiscuousmodewhenthecaptureisactive.

Inpromiscuousmodetheradioreceivesalltrafficonthechannel,including

trafficthatisnotdestinedtothisAP.Whiletheradioisoperatingin

promiscuousmode,itcontinuesservingassociatedclients.Packetsnot

destinedtotheAParenotforwarded.

Assoonasthecaptureiscompleted,theradiorevertstonon‐promiscuous

modeoperation.

ClientFilterEnable EnabletousetheWLANclientfiltertocaptureonlyframesthatare

transmittedto,orreceivedfromaWLANclientwithaspecifiedMACaddress.

ClientFilterMACAddress SpecifyaMACaddressforWLANclientfiltering.

Note:TheMACfilterisactiveonlywhencaptureisperformedonan802.11

interface.

Note:Changestopacketcaptureconfigurationparameterstakeaffectafterpacketcaptureis

restarted.Modifyingtheparameterswhilethepacketcaptureisrunningdoesn'taffectthecurrent

packetcapturesession.Inordertobeginusingnewparametervalues,anexistingpacketcapture

sessionmustbestoppedandre‐started.

PacketCaptureConfigurationandSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page125

UnifiedAccessPointAdministrator’sGuide

PacketFileCapture

InPacketFileCapturemodetheAPstorescapturedpacketsintheRAMfilesystem.

Uponactivation,thepacketcaptureproceedsuntiloneofthefollowingoccurs:

•Thecapturetimereachesconfiguredduration

•Thecapturefilereachesitsmaximumsize

•Theadministratorstopsthecapture

Duringthecapture,youcanmonitorthecapturestatus,elapsedcapturetime,andthecurrentcapturefilesize.

Thisinformationcanbeupdated,whilethecaptureisinprogress,byclickingRefresh.

Table49describesthefieldstoconfigurethepacketcapturestatus.

RemotePacketCapture

RemotePacketCaptureallowsyoutospecifyaremoteportasthedestinationforpacketcaptures.Thisfeature

worksinconjunctionwiththeWiresharknetworkanalyzertoolforWindows.Apacketcaptureserverrunson

theAPandsendsthecapturedpacketsviaaTCPconnectiontotheWiresharktool.

AWindowsPCrunningtheWiresharktoolallowsyoutodisplay,log,andanalyzecapturedtraffic.

Whentheremotecapturemodeisinuse,theAPdoesn'tstoreanycaptureddatalocallyinitsfilesystem.

YourcantraceuptofiveinterfacesontheAPatthesametime.However,youmuststartaseparateWireshark

sessionforeachinterface.YoucanconfiguretheIPportnumberusedforconnectingWiresharktotheAP.The

defaultportnumberis2002.Thesystemuses5consecutiveportnumbersstartingwiththeconfiguredportfor

thepacketcapturesessions.

IfafirewallisinstalledbetweentheWiresharkPCandtheAP,theseportsmustbeallowedtopassthroughthe

firewall.ThefirewallmustalsobeconfiguredtoallowtheWiresharkPCtoinitiateTCPconnectiontotheAP.

Table49:PacketFileCapture

Field Description

CaptureInterface SelectanAPCaptureInterfacenamefromthedrop‐downmenu.APcapture

interfacenamesareeligibleforpacketcaptureare:

• brtrunk‐LinuxbridgeinterfaceintheAP

•eth0‐802.3trafficontheEthernetport.

•wlan0‐VAP0trafficonradio1.

•wlan1‐VAP0trafficonradio2.

•radio1‐802.11trafficonradio1.

•radio2‐802.11trafficonradio2.

Note:TheDWL‐3600APhasonlyoneradio.Theavailableoptionsonthe

DWL‐3600APdonotincludewlan0orradio1.

CaptureDuration Specifythetimedurationinsecondsforthecapture(range10to3600).

MaxCaptureFileSize SpecifythemaximumallowedsizeforthecapturefileinKB(range64to4096).

PacketCaptureConfigurationandSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page126

UnifiedAccessPointAdministrator’sGuide

ToconfigureWiresharktousetheAPasthesourceforcapturedpackets,youmustspecifytheremoteinterface

inthe"CaptureOptions"menu.ForexampletocapturepacketsonanAPwithIPaddress192.168.1.10onradio

1usingthedefaultIPport,specifythefollowinginterface:

rpcap://192.168.1.10/radio1

TocapturepacketsontheEthernetinterfaceoftheAPandVAP0onradio1usingIPport58000,starttwo

Wiresharksessionsandspecifythefollowinginterfaces:

rpcap://192.168.1.10:58000/eth0

rpcap://192.168.1.10:58000/wlan0

Whenyouarecapturingtrafficontheradiointerface,youcandisablebeaconcapture,butother802.11control

framesarestillsenttoWireshark.Youcansetupadisplayfiltertoshowonly:

•Dataframesinthetrace

•TrafficonspecificBSSIDs

•Trafficbetweentwoclients

Someexamplesofusefuldisplayfiltersare:

• ExcludebeaconsandACK/RTS/CTSframes:

!(wlan.fc.type_subtype==8||wlan.fc.type==1)

•Dataframesonly:

wlan.fc.type==2

•TrafficonaspecificBSSID:

wlan.bssid==00:02:bc:00:17:d0

•Alltraffictoandfromaspecificclient:

wlan.addr==00:00:e8:4e:5f:8e

Inremotecapturemode,trafficissenttothePCrunningWiresharkviaoneofthenetworkinterfaces.

DependingonwheretheWiresharktoolislocatedthetrafficcanbesentonanEthernetinterfaceoroneofthe

radios.Inordertoavoidatrafficfloodcausedbytracingthetracepackets,theAPautomaticallyinstallsa

capturefiltertofilteroutallpacketsdestinedtotheWiresharkapplication.ForexampleiftheWiresharkIPport

isconfiguredtobe58000thenthefollowingcapturefilterisautomaticallyinstalledontheAP:

notportrange58000‐58004.

EnablingthepacketcapturefeatureimpactsperformanceoftheAPandcancreateasecurityissue

(unauthorizedclientsmaybeabletoconnecttotheAPandtraceuserdata).TheAPperformanceisnegatively

impactedevenifthereisnoactiveWiresharksessionwiththeAP.Theperformanceisnegativelyimpactedto

agreaterextentwhenpacketcaptureisinprogress.

Duetoperformanceandsecurityissues,thepacketcapturemodeisnotsavedinNVRAMontheAP;iftheAP

resets,thecapturemodeisdisabledandtheyoumustre‐enableitinordertoresumecapturingtraffic.Packet

captureparameters(otherthanmode)aresavedinNVRAM.

PacketCaptureConfigurationandSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page127

UnifiedAccessPointAdministrator’sGuide

InordertominimizeperformanceimpactontheAPwhiletrafficcaptureisinprogress,youshouldinstall

capturefilterstolimitwhichtrafficissenttotheWiresharktool.Whencapturing802.11traffic,largeportion

ofthecapturedframestendtobebeacons(typicallysentevery100msbyallAccessPoints).Although

Wiresharksupportsadisplayfilterforbeaconframes,itdoesnotsupportacapturefiltertopreventtheAP

fromforwardingcapturedbeaconpacketstotheWiresharktool.Inordertoreduceperformanceimpactof

capturingthe802.11beacons,youcandisablethecapturebeaconsmode.

TheremotepacketcapturefacilityisastandardfeatureoftheWiresharktoolforWindows.

Wiresharkisanopensourcetoolandisavailableforfree;itcanbedownloadedfromhttp://

www.wireshark.org.

Table50describesthefieldstoconfigurethepacketcapturestatus.

PacketCaptureFileDownload

PacketCaptureFileDownloadallowsyoutodownloadthecapturefilebyTFTPtoaconfiguredTFTPserveror

byHTTP(S)toaPC.Thecapturedpacketsarestoredinfile/tmp/apcapture.pcapontheAP.Acaptureis

automaticallystoppedwhenthecapturefiledownloadcommandistriggered.

BecausethecapturefileislocatedintheRAMfilesystem,itdisappearsiftheAPisreset.

Table51describesthefieldstoconfigurethepacketcapturestatus.

Note:RemotepacketcaptureisnotstandardontheLinuxversionofWireshark;theLinuxversion

doesn'tworkwiththeAP.

Table50:RemotePacketCapture

Field Description

RemoteCapturePort Specifytheremoteporttouseasthedestinationforpacketcaptures.(range1

to65530).

Table51:PacketCaptureFileDownload

Field Description

UseTFTPtodownloadthe

capturefile

SelectorclearthisoptiontodeterminewhethertouseTFTPorHTTP(S)to

downloadthecapturefile:

•TodownloadthefilebyusingTFTP,selectthisoptionandcompletethe

additionalfields.

•TodownloadthefilebyusingHTTPorHTTPS,clearthisoptionandclick

Downloadtobrowsetothelocationwherethefileistobesaved.

TFTPServerFilename WhenusingTFTPtodownloadthefile,specifyanameforthepacketcapture

file,includingthe.pcapfilenameextensionandthepathtothedirectory

whereyouwanttosavethefile.

ServerIP WhenusingTFTPtodownloadthefile,specifytheIPaddressoftheTFTP

server.

ConfiguringClientQualityofService

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page128

UnifiedAccessPointAdministrator’sGuide

Section8:ConfiguringClientQualityofService

ThissectiondescribeshowtoconfigureQoSsettingsthataffecttrafficfromthewirelessclientstotheAP.By

usingtheUAPClientQoSfeatures,youcanlimitbandwidthandapplyACLsandDiffServpoliciestothewireless

interface.IfaVAPusesWPAEnterprisesecuritytoauthenticateclients,youcanconfiguretheRADIUSserver

toprovideper‐clientQoSinformation.

Thissectiondescribesthefollowingfeatures:

•“ConfiguringVAPQoSParameters”

•“ManagingClientQoSACLs”

•“CreatingaDiffServClassMap”

•“CreatingaDiffServPolicyMap”

•“ConfiguringRADIUS‐AssignedClientQoSParameters”

ConfiguringVAPQoSParameters

TheclientQoSfeaturesontheUAPprovideadditionalcontrolovercertainQoSaspectsofwirelessclientsthat

connecttothenetwork,suchastheamountofbandwidthanindividualclientisallowedtosendandreceive.

Tocontrolgeneralcategoriesoftraffic,suchasHTTPtrafficortrafficfromaspecificsubnet,youcanconfigure

ACLsandassignthemtooneormoreVAPs.

Inadditiontocontrollinggeneraltrafficcategories,ClientQoSallowsyoutoconfigureper‐clientconditioning

ofvariousmicro‐flowsthroughDifferentiatedServices(DiffServ).DiffServpoliciesareausefultoolfor

establishinggeneralmicro‐flowdefinitionandtreatmentcharacteristicsthatcanbeappliedtoeachwireless

client,bothinboundandoutbound,whenitisauthenticatedonthenetwork.

FromtheVAPQoSParameterspage,youcanenabletheClientQoSfeature,specifyclientbandwidthlimits,

andselecttheACLsandDiffServpoliciestouseasdefaultvaluesforclientsassociatedwiththeVAPwhenthe

clientdoesnothavetheirownattributesdefinedbyaRADIUSserver.

ToconfiguretheClientQoSadministrativemodeandtoconfiguretheQoSsettingsforaVAP,clicktheVAPQoS

Parameterstab.

Note:Theweb‐basedUIimagesinthissectionshowtheDWL‐8600APadministrationpages.Pages

fortheDWL‐3600APwillnotdisplayinformationforRadio2becauseithasonlyoneradio.

ConfiguringVAPQoSParameters

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page129

UnifiedAccessPointAdministrator’sGuide

Figure40:VAPQoSParameters

Table52:VAPQoSParameters

Field Description

ClientQoSGlobalAdmin

Mode

EnableordisableClientQoSoperationontheAP.

ChangingthissettingwillnotaffecttheWMMsettingsyouconfigureonthe

QoSpage.

Radio Fordual‐radioAPs,selectRadio1orRadio2tospecifywhichradioto

configure.

VAP SpecifytheVAPthatwillhavetheClientQoSsettingsthatyouconfigure.

TheQoSsettingsyouconfigurefortheselectedVAPwillnotaffectclientsthat

accessthenetworkthroughotherVAPs.

ClientQoSMode EnableordisableQoSoperationontheVAPselectedintheVAPmenu.

QoSmustbeenabledglobally(fromtheClientQoSGlobalAdminModefield)

andontheVAP(QoSModefield)fortheClientQoSsettingstobeappliedto

wirelessclients.

BandwidthLimitDown EnterthemaximumallowedtransmissionratefromtheAPtothewireless

clientinbitspersecond.Thevalidrangeis0–429496000bits/sec.

Thevalueyouentermustbeamultipleof8000bits/sec,inotherwords,the

valuemustben×8000bits/sec,wheren=0,1,2,3...Ifyouattempttosetthe

limittoavaluethatisnotamultipleof8000bits/sec,theconfigurationwillbe

rejected.Avalueof0meansthatthebandwidthmaximumlimitisnotenforced

inthisdirection.

ConfiguringVAPQoSParameters

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page130

UnifiedAccessPointAdministrator’sGuide

BandwidthLimitUp EnterthemaximumallowedclienttransmissionratetotheAPinbitsper

second.Thevalidrangeis0–4294967295bps.

Thevalueyouentermustben×8000bits/sec,wheren=0,1,2,3...Ifyou

attempttosetthelimittoavaluethatisnotamultipleof8000bits/sec,the

configurationwillberejected.Avalueof0meansthatthebandwidth

maximumlimitisnotenforcedinthisdirection.

ACLTypeDown SelectthetypeofACLtoapplytotrafficintheoutbound(down)direction,

whichcanbeoneofthefollowing:

•IPv4:TheACLexaminesIPv4packetsformatchestoACLrules

•IPv6:TheACLexaminesIPv6packetsformatchestoACLrules

•MAC:TheACLexamineslayer2framesformatchestoACLrules

ACLNameDown SelectthenameoftheACLappliedtotrafficintheoutbound(down)direction.

Afterswitchingthepacketorframetotheoutboundinterface,theACL'srules

arecheckedforamatch.Thepacketorframeistransmittedifitispermitted,

anddiscardedifitisdenied.

ACLTypeUp SelectthetypeofACLtoapplytotrafficintheinbound(up)direction,which

canbeoneofthefollowing:

•IPv4:TheACLexaminesIPv4packetsformatchestoACLrules

•IPv6:TheACLexaminesIPv6packetsformatchestoACLrules

•MAC:TheACLexamineslayer2framesformatchestoACLrules

ACLNameUp SelectthenameoftheACLappliedtotrafficenteringtheAPintheinbound

(up)direction.

WhenapacketorframeisreceivedbytheAP,theACL'srulesarecheckedfora

match.Thepacketorframeisprocessedifitispermitted,anddiscardedifitis

denied.

DiffServPolicyDown SelectthenameoftheDiffServpolicyappliedtotrafficfromtheAPinthe

outbound(down)direction.

DiffServPolicyUp SelectthenameoftheDiffServpolicyappliedtotrafficsenttotheAPinthe

inbound(up)direction.

Table52:VAPQoSParameters

Field Description

ManagingClientQoSACLs

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page131

UnifiedAccessPointAdministrator’sGuide

ManagingClientQoSACLs

ACLsareacollectionofpermitanddenyconditions,calledrules,thatprovidesecuritybyblockingunauthorized

usersandallowingauthorizeduserstoaccessspecificresources.ACLscanblockanyunwarrantedattemptsto

reachnetworkresources.

TheUAPsupportsupto50IPv4,IPv6,andMACACLs.

IPv4andIPv6ACLs

IPACLsclassifytrafficforLayers3and4.

EachACLisasetofupto10rulesappliedtotrafficsentfromawirelessclientortobereceivedbyawireless

client.Eachrulespecifieswhetherthecontentsofagivenfieldshouldbeusedtopermitordenyaccesstothe

network.Rulescanbebasedonvariouscriteriaandmayapplytooneoremorefieldswithinapacket,suchas

thesourceordestinationIPaddress,thesourceordestinationL4port,ortheprotocolcarriedinthepacket.

MACACLs

MACACLsareLayer2ACLs.Youcanconfiguretherulestoinspectfieldsofaframesuchasthesourceor

destinationMACaddress,theVLANID,ortheClassofService802.1ppriority.Whenaframeentersorexitsthe

APport(dependingonwhethertheACLisappliedintheupordowndirection),theAPinspectstheframeand

checkstheACLrulesagainstthecontentoftheframe.Ifanyoftherulesmatchthecontent,apermitordeny

actionistakenontheframe.

ACLConfigurationProcess

ConfigureACLsandrulesontheClientQoSACLpage(steps1–5),andthenapplytherulestoaspecifiedVAP

ontheAPQoSParameterspage(step6).

UsethefollowinggeneralstepstoconfigureACLs:

1. SpecifyanamefortheACL.

2. SelectthetypeofACLtoadd.

3. AddtheACL

4. AddnewrulestotheACL.

5. Configurethematchcriteriafortherules.

6. ApplytheACLtooneormoreVAPs.

ForanexampleofhowtoconfigureanACL,see“ACLConfiguration”onpage174

ToconfigureanACL,clicktheClientQoSACLtab.

ManagingClientQoSACLs

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page132

UnifiedAccessPointAdministrator’sGuide

ThefieldstoconfigureACLrulesappearonlyafteryouhavecreatedanACL.Thefollowingimageshowsthe

configurationofanewrulefortheIPv4ACLnamedacl1.TherulepreventsHTTPtrafficfromallclientsinthe

192.168.20.0networkfrombeingforwarded.

Figure41:ClientQoSACL

ThefollowingtabledescribesthefieldsavailableontheClientQoSACLpage.

Table53:ACLConfiguration

Field Description

ACLConfiguration

ACLName EnteranametoidentifytheACL.Thenamecancontainfrom1–31alphanumeric

characters.Spacesarenotallowed.

ACLType SelectthetypeofACLtoconfigure:

•IPv4

•IPv6

•MAC

IPv4andIPv6ACLscontrolaccesstonetworkresourcesbasedonLayer3andLayer

4criteria.MACACLscontrolaccessbasedonLayer2criteria.

ManagingClientQoSACLs

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page133

UnifiedAccessPointAdministrator’sGuide

ACLRuleConfiguration

ACLName‐ACLType SelecttheACLtoconfigurewiththenewrule.ThelistcontainsallACLsaddedinthe

ACLConfigurationsection.

Rule ToconfigureanewruletoaddtotheselectedACL,selectNewRule.Toaddan

existingruletoanACLortomodifyarule,selecttherulenumber.

WhenanACLhasmultiplerules,therulesareappliedtothepacketorframeinthe

orderinwhichyouaddthemtotheACL.Thereisanimplicitdenyallruleasthefinal

rule.

Action SpecifieswhethertheACLrulepermitsordeniesanaction.

•WhenyouselectPermit,theruleallowsalltrafficthatmeetstherulecriteriato

enterorexittheAP(dependingontheACLdirectionyouselect).Trafficthat

doesnotmeetthecriteriaisdropped.

•WhenyouselectDeny,theruleblocksalltrafficthatmeetstherulecriteriafrom

enteringorexitingtheAP(dependingontheACLdirectionyouselect).Traffic

thatdoesnotmeetthecriteriaisforwardedunlessthisruleisthefinalrule.

BecausethereisanimplicitdenyallruleattheendofeveryACL,trafficthatis

notexplicitlypermittedisdropped.

MatchEvery Indicatesthattherule,whicheitherhasapermitordenyaction,willmatchthe

frameorpacketregardlessofitscontents.

Ifyouselectthisfield,youcannotconfigureanyadditionalmatchcriteria.The

MatchEveryoptionisselectedbydefaultforanewrule.Youmustcleartheoption

toconfigureothermatchfields.

IPv4ACL

Protocol SelecttheProtocolfieldtouseanL3orL4protocolmatchconditionbasedonthe

valueoftheIPProtocolfieldinIPv4packetsortheNextHeaderfieldofIPv6packets.

Onceyouselectthefield,choosetheprotocoltomatchbykeywordorentera

protocolID.

SelectFromList

Selectoneofthefollowingprotocolsfromthelist:

•IP

•ICMP

•IGMP

•TCP

•UDP

MatchtoValue

Tomatchaprotocolthatisnotlistedbyname,entertheprotocolID.

TheprotocolIDisastandardvalueassignedbytheIANA.Therangeisanumber

from0–255.

SourceIPAddress Selectthisfieldtorequireapacket'ssourceIPaddresstomatchtheaddresslisted

here.EnteranIPaddressintheappropriatefieldtoapplythiscriteria.

Table53:ACLConfiguration(Cont.)

Field Description

ManagingClientQoSACLs

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page134

UnifiedAccessPointAdministrator’sGuide

WildCardMask SpecifiesthesourceIPaddresswildcardmask.

Thewildcardmasksdetermineswhichbitsareusedandwhichbitsareignored.A

wildcardmaskof255.255.255.255indicatesthatnobitisimportant.Awildcardof

0.0.0.0indicatesthatallofthebitsareimportant.ThisfieldisrequiredwhenSource

IPAddressischecked.

Awildcardmaskis,inessence,theinverseofasubnetmask.Forexample,Tomatch

thecriteriatoasinglehostaddress,useawildcardmaskof0.0.0.0.Tomatchthe

criteriatoa24‐bitsubnet(forexample192.168.10.0/24),useawildcardmaskof

0.0.0.255.

SourcePort Selectthisfieldtoincludeasourceportinthematchconditionfortherule.The

sourceportisidentifiedinthedatagramheader.

Onceyouselectthefield,choosetheportnameorentertheportnumber.

SelectFromList

Selectthekeywordassociatedwiththesourceporttomatch:

•ftp

• ftpdata

•http

•smtp

•snmp

•telnet

•tftp

•www

Eachofthesekeywordstranslatesintoitsequivalentportnumber.

MatchtoPort

EntertheIANAportnumbertomatchtothesourceportidentifiedinthedatagram

header.Theportrangeis0–65535andincludesthreedifferenttypesofports:

•0–1023:WellKnownPorts

• 1024–49151:RegisteredPorts

• 49152–65535:Dynamicand/orPrivatePorts

DestinationIPAddress Selectthisfieldtorequireapacket'sdestinationIPaddresstomatchtheaddress

listedhere.EnteranIPaddressintheappropriatefieldtoapplythiscriteria.

WildCardMask SpecifiesthedestinationIPaddresswildcardmask.

Thewildcardmasksdetermineswhichbitsareusedandwhichbitsareignored.A

wildcardmaskof255.255.255.255indicatesthatnobitisimportant.Awildcardof

0.0.0.0indicatesthatallofthebitsareimportant.ThisfieldisrequiredwhenSource

IPAddressischecked.

Awildcardmaskisinessencetheinverseofasubnetmask.Forexample,Tomatch

thecriteriatoasinglehostaddress,useawildcardmaskof0.0.0.0.Tomatchthe

criteriatoa24‐bitsubnet(forexample192.168.10.0/24),useawildcardmaskof

0.0.0.255.

Table53:ACLConfiguration(Cont.)

Field Description

ManagingClientQoSACLs

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page135

UnifiedAccessPointAdministrator’sGuide

DestinationPort Selectthisfieldtoincludeadestinationportinthematchconditionfortherule.The

destinationportisidentifiedinthedatagramheader.

Onceyouselectthefield,choosetheportnameorentertheportnumber.

SelectFromList

Selectthekeywordassociatedwiththedestinationporttomatch:

•ftp

• ftpdata

•http

•smtp

•snmp

•telnet

•tftp

•www

Eachofthesekeywordstranslatesintoitsequivalentportnumber.

MatchtoPort

EntertheIANAportnumbertomatchtothedestinationportidentifiedinthe

datagramheader.Theportrangeis0–65535andincludesthreedifferenttypesof

ports:

•0–1023:WellKnownPorts

• 1024–49151:RegisteredPorts

• 49152–65535:Dynamicand/orPrivatePorts

IPDSCP TouseIPDSCPasamatchcriteria,selectthecheckboxandselectaDSCPvalue

keywordorenteraDSCPvaluetomatch.Youcanselectonlyoneservicetype(DSCP,

IPPrecedenceorTOSbits)touseformatchcriteria.

SelectfromList

SelectfromalistofDSCPtypes.

MatchtoValue

EnteraDSCPValuetomatch(0–63).

IPPrecedence Selectthisoptionandenteravaluetousethepacket'sIPPrecedencevalueinthe

IPheaderasmatchcriteria.Youcanselectonlyoneservicetype(DSCP,IP

PrecedenceorTOSbits)touseformatchcriteria.

TheIPPrecedencerangeis0–7.

IPTOSBits Selectthisoptionandenteravaluetousethepacket'sTypeofServicebitsintheIP

headerasmatchcriteria.Youcanselectonlyoneservicetype(DSCP,IPPrecedence

orTOSbits)touseformatchcriteria.

TheIPTOSfieldinapacketisdefinedasalleightbitsoftheServiceTypeoctetin

theIPheader.TheTOSBitsvalueisatwo‐digithexadecimalnumberfrom00toff.

Thehigh‐orderthreebitsrepresenttheIPprecedencevalue.Thehigh‐ordersixbits

representtheIPDifferentiatedServicesCodePoint(DSCP)value.

Table53:ACLConfiguration(Cont.)

Field Description

ManagingClientQoSACLs

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page136

UnifiedAccessPointAdministrator’sGuide

IPTOSMask EnteranIPTOSmaskvaluetoidentifythebitpositionsintheTOSBitsvaluethatare

usedforcomparisonagainsttheIPTOSfieldinapacket.

TheTOSMaskvalueisatwo‐digithexadecimalnumberfrom00toff,representing

aninverted(i.e.wildcard)mask.Thezero‐valuedbitsintheTOSMaskdenotethe

bitpositionsintheTOSBitsvaluethatareusedforcomparisonagainsttheIPTOS

fieldofapacket.Forexample,tocheckforanIPTOSvaluehavingbits7and5set

andbit1clear,wherebit7ismostsignificant,useaTOSBitsvalueofa0andaTOS

Maskof00.Thisisanoptionalconfiguration.

IPv6ACL

Protocol SelecttheProtocolfieldtouseanL3orL4protocolmatchconditionbasedonthe

valueoftheIPProtocolfieldinIPv4packetsortheNextHeaderfieldofIPv6packets.

Onceyouselectthefield,choosetheprotocoltomatchbykeywordorprotocolID.

SourceIPv6Address Selectthisfieldtorequireapacket'ssourceIPv6addresstomatchtheaddresslisted

here.EnteranIPv6addressintheappropriatefieldtoapplythiscriteria.

SourceIPv6PrefixLength EntertheprefixlengthofthesourceIPv6address.

SourcePort Selectthisoptiontoincludeasourceportinthematchconditionfortherule.The

sourceportisidentifiedinthedatagramheader.

Onceyouselecttheoption,choosetheportnameorentertheportnumber.

DestinationIPv6Address Selectthisfieldtorequireapacket'sdestinationIPv6addresstomatchtheaddress

listedhere.EnteranIPv6addressintheappropriatefieldtoapplythiscriteria.

DestinationIPv6Prefix

Length

EntertheprefixlengthofthedestinationIPv6address.

DestinationPort Selectthisoptiontoincludeadestinationportinthematchconditionfortherule.

Thedestinationportisidentifiedinthedatagramheader.

Onceyouselecttheoption,choosetheportnameorentertheportnumber.

IPv6FlowLabel Flowlabelis20‐bitnumberthatisuniquetoanIPv6packet.Itisusedbyend

stationstosignifyquality‐of‐servicehandlinginrouters(range0to1048575).

IPv6DSCP TouseIPv6DSCPasamatchcriteria,selectthecheckboxandselectaDSCPvalue

keywordorenteraDSCPvaluetomatch.Youcanselectonlyoneservicetype(DSCP,

IPPrecedenceorTOSbits)touseformatchcriteria.

SelectfromList

SelectfromalistofDSCPtypes.

MatchtoValue

EnteraDSCPValuetomatch(0–63).

Table53:ACLConfiguration(Cont.)

Field Description

ManagingClientQoSACLs

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page137

UnifiedAccessPointAdministrator’sGuide

Afteryousetthedesiredrulecriteria,clickApply.TodeleteanACL,selecttheDeleteACLoptionandclick

Apply.

MACACL

EtherType SelecttheEtherTypefieldtocomparethematchcriteriaagainstthevalueinthe

headerofanEthernetframe.

SelectanEtherTypekeywordorenteranEtherTypevaluetospecifythematch

criteria.

SelectfromListSelect

Selectoneofthefollowingprotocoltypes:

• appletalk

•arp

•ipv4

•ipv6

•ipx

•netbios

• pppoe

MatchtoValue

Enteracustomprotocolidentifiertowhichpacketsarematched.Thevalueisafour‐

digithexidecimalnumberintherangeof0600–FFFF.

ClassofService Selectthisfieldandenteran802.1puserprioritytocompareagainstanEthernet

frame.

Thevalidrangeis0–7.Thisfieldislocatedinthefirst/only802.1QVLANtag.

SourceMACAddress SelectthisfieldandenterthesourceMACaddresstocompareagainstanEthernet

frame.

SourceMACMask SelectthisfieldandenterthesourceMACaddressmaskspecifyingwhichbitsinthe

sourceMACtocompareagainstanEthernetframe.

A0indicatesthattheaddressbitissignificant,andanfindicatesthattheaddress

bitistobeignored.AMACmaskof00:00:00:00:00:00matchesasingleMAC

address.

DestinationMAC

Address

SelectthisfieldandenterthedestinationMACaddresstocompareagainstan

Ethernetframe.

DestinationMACMask EnterthedestinationMACaddressmaskspecifyingwhichbitsinthedestination

MACtocompareagainstanEthernetframe.

A0indicatesthattheaddressbitissignificant,andanfindicatesthattheaddress

bitistobeignored.AMACmaskof00:00:00:00:00:00matchesasingleMAC

address.

VLANID SelectthisfieldandentertheVLANIDstocompareagainstanEthernetframe.

Thisfieldislocatedinthefirst/only802.1QVLANtag.

Table53:ACLConfiguration(Cont.)

Field Description

CreatingaDiffServClassMap

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page138

UnifiedAccessPointAdministrator’sGuide

CreatingaDiffServClassMap

TheClientQoSfeaturecontainsDifferentiatedServices(DiffServ)supportthatallowstraffictobeclassifiedinto

streamsandgivencertainQoStreatmentinaccordancewithdefinedper‐hopbehaviors.

StandardIP‐basednetworksaredesignedtoprovidebesteffortdatadeliveryservice.Besteffortserviceimplies

thatthenetworkdeliversthedatainatimelyfashion,althoughthereisnoguaranteethatitwill.Duringtimes

ofcongestion,packetsmaybedelayed,sentsporadically,ordropped.FortypicalInternetapplications,suchas

e‐mailandfiletransfer,aslightdegradationinserviceisacceptableandinmanycasesunnoticeable.However,

onapplicationswithstricttimingrequirements,suchasvoiceormultimedia,anydegradationofservicehas

undesirableeffects.

Byclassifyingthetrafficandcreatingpoliciesthatdefinehowtohandlethesetrafficclasses,youcanmakesure

thattime‐sensitivetrafficisgivenprecedenceoverothertraffic.

TheUAPsupportsupto50ClassMaps.

DefiningDiffServ

TouseDiffServforClientQoS,usetheClassMapandPolicyMappagestodefinethefollowingcategoriesand

theircriteria:

•Class:createclassesanddefineclasscriteria

•Policy:createpolicies,associateclasseswithpolicies,anddefinepolicystatements

Onceyoudefinetheclassandassociateitwithapolicy,applythepolicytoaspecifiedVAPontheVAPQoS

Parameterspage.

Packetsareclassifiedandprocessedbasedondefinedcriteria.Theclassificationcriteriaisdefinedbyaclass.

Theprocessingisdefinedbyapolicy'sattributes.Policyattributesmaybedefinedonaper‐classinstancebasis,

anditistheseattributesthatareappliedwhenamatchoccurs.Apolicycancontainmultipleclasses.Whenthe

policyisactive,theactionstakendependonwhichclassmatchesthepacket.

Packetprocessingbeginsbytestingtheclassmatchcriteriaforapacket.Apolicyisappliedtoapacketwhena

classmatchwithinthatpolicyisfound.DiffServissupportedforIPv4andIPv6packets.

UsetheClassMappagetoaddanewDiffservclassname,ortorenameordeleteanexistingclass,anddefine

thecriteriatoassociatewiththeDiffServclass.

ToconfigureaDiffServClassMap,clicktheClassMaptab.

Note:TheClassMappagedisplaystheMatchCriteriaConfigurationfieldsonlyifaClassMaphasbeen

created.TocreateaClassMap,enteranameintheClassMapNamefieldandclickAddClassMap.

CreatingaDiffServClassMap

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page139

UnifiedAccessPointAdministrator’sGuide

Figure42:ClientQoSDiffServClassMap

Table54:DiffServClassMap

Field Description

ClassMapConfiguration

ClassMapName EnteraClassMapNametoadd.Thenamecanrangefrom1to31

alphanumericcharacters.

MatchLayer3Protocol SpecifywhethertoclassifyIPv4orIPv6packets.

MatchCriteriaConfiguration

ClassMapName Selectnameoftheclasstoconfigure.

UsethefieldsintheMatchCriteriaConfigurationareatomatchpacketstoa

class.Selectthecheckboxforeachfieldtobeusedasacriterionforaclassand

enterdataintherelatedfield.Youcanhavemultiplematchcriteriainaclass.

Note:Thematchcriteriafieldsthatareavailabledependonwhethertheclass

mapisanIPv4orIPv6classmap.

CreatingaDiffServClassMap

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page140

UnifiedAccessPointAdministrator’sGuide

MatchEvery SelectMatchEverytospecifythatthematchconditionistruetoallthe

parametersinanL3packet.

AllL3packetswillmatchanMatchEverymatchcondition.

Protocol SelecttheProtocolfieldtouseanL3orL4protocolmatchconditionbasedon

thevalueoftheIPProtocolfieldinIPv4packetsortheNextHeaderfieldofIPv6

packets.

Onceyouselectthefield,choosetheprotocoltomatchbykeywordorentera

protocolID.

SelectFromList

Selectoneofthefollowingprotocolsfromthelist:

•IP

•ICMP

•IPv6

•ICMPv6

•IGMP

•TCP

•UDP

MatchtoValue

Tomatchaprotocolthatisnotlistedbyname,entertheprotocolID.

TheprotocolIDisastandardvalueassignedbytheIANA.Therangeisanumber

from0–255.

IPv4ClassMaps

SourceIPAddress Selectthisfieldtorequireapacket'ssourceIPaddresstomatchtheaddress

listedhere.EnteranIPaddressintheappropriatefieldtoapplythiscriteria.

SourceIPMask EnterthesourceIPaddressmask.

ThemaskforDiffServisanetwork‐stylebitmaskinIPdotteddecimalformat

indicatingwhichpart(s)ofthedestinationIPAddresstouseformatching

againstpacketcontent.

ADiffServmaskof255.255.255.255indicatesthatallbitsareimportant,anda

maskof0.0.0.0indicatesthatnobitsareimportant.Theoppositeistruewith

anACLwildcardmask.Forexample,tomatchthecriteriatoasinglehost

address,useaDiffServmaskof255.255.255.255.Tomatchthecriteriatoa24‐

bitsubnet(forexample192.168.10.0/24),useamaskof255.255.255.0.

DestinationIPAddress Selectthisfieldtorequireapacket'sdestinationIPaddresstomatchthe

addresslistedhere.EnteranIPaddressintheappropriatefieldtoapplythis

criteria.

DestinationIPMask EnterthedestinationIPaddressmask.

ThemaskforDiffServisanetwork‐stylebitmaskinIPdotteddecimalformat

indicatingwhichpart(s)ofthedestinationIPAddresstouseformatching

againstpacketcontent.

ADiffServmaskof255.255.255.255indicatesthatallbitsareimportant,anda

maskof0.0.0.0indicatesthatnobitsareimportant.Theoppositeistruewith

anACLwildcardmask.Forexample,tomatchthecriteriatoasinglehost

address,useaDiffServmaskof255.255.255.255.Tomatchthecriteriatoa24‐

bitsubnet(forexample192.168.10.0/24),useamaskof255.255.255.0.

Table54:DiffServClassMap(Cont.)

Field Description

CreatingaDiffServClassMap

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page141

UnifiedAccessPointAdministrator’sGuide

IPv6ClassMaps

SourceIPv6Address Selectthisfieldtorequireapacket'ssourceIPv6addresstomatchtheaddress

listedhere.EnteranIPv6addressintheappropriatefieldtoapplythiscriteria.

SourceIPv6PrefixLength EntertheprefixlengthofthesourceIPv6address.

DestinationIPv6Address Selectthisfieldtorequireapacket'sdestinationIPv6addresstomatchthe

addresslistedhere.EnteranIPv6addressintheappropriatefieldtoapplythis

criteria.

DestinationIPv6Prefix

Length

EntertheprefixlengthofthedestinationIPv6address.

IPv6FlowLabelFlowlabelis20‐bitnumberthatisuniquetoanIPv6packet.Itisusedbyend

stationstosignifyquality‐of‐servicehandlinginrouters(range0to1048575).

IPDSCP TouseIPDSCPasamatchcriteria,selectthecheckboxandselectaDSCPvalue

keywordorenteraDSCP.

SelectfromList

SelectfromalistofDSCPtypes.

MatchtoValue

EnteraDSCPValuetomatch(0–63).

IPv4andIPv6ClassMaps

SourcePort Selectthisfieldtoincludeasourceportinthematchconditionfortherule.The

sourceportisidentifiedinthedatagramheader.

Onceyouselectthefield,choosetheportnameorentertheportnumber.

SelectFromList

Selectthekeywordassociatedwiththesourceporttomatch:

•ftp

• ftpdata

•http

•smtp

•snmp

•telnet

•tftp

•www

Eachofthesekeywordstranslatesintoitsequivalentportnumber.

MatchtoPort

EntertheIANAportnumbertomatchtothesourceportidentifiedinthe

datagramheader.Theportrangeis0–65535andincludesthreedifferenttypes

ofports:

•0–1023:WellKnownPorts

•1024–49151:RegisteredPorts

•49152–65535:Dynamicand/orPrivatePorts

Table54:DiffServClassMap(Cont.)

Field Description

CreatingaDiffServClassMap

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page142

UnifiedAccessPointAdministrator’sGuide

DestinationPort Selectthisfieldtoincludeadestinationportinthematchconditionforthe

rule.Thedestinationportisidentifiedinthedatagramheader.

Onceyouselectthefield,choosetheportnameorentertheportnumber.

SelectFromList

Selectthekeywordassociatedwiththedestinationporttomatch:

•ftp

• ftpdata

•http

•smtp

•snmp

•telnet

•tftp

•www

Eachofthesekeywordstranslatesintoitsequivalentportnumber.

MatchtoPort

EntertheIANAportnumbertomatchtothedestinationportidentifiedinthe

datagramheader.Theportrangeis0–65535andincludesthreedifferenttypes

ofports:

•0–1023:WellKnownPorts

•1024

–49151:RegisteredPorts

•49152–65535:Dynamicand/orPrivatePorts

EtherTypeSelecttheEtherTypefieldtocomparethematchcriteriaagainstthevaluein

theheaderofanEthernetframe.

SelectanEtherTypekeywordorenteranEtherTypevaluetospecifythematch

criteria.

SelectfromListSelect

Selectoneofthefollowingprotocoltypes:

• appletalk

•arp

•ipv4

•ipv6

•ipx

•netbios

• pppoe

MatchtoValue

Enteracustomprotocolidentifiertowhichpacketsarematched.Thevalueis

afour‐digithexidecimalnumberintherangeof0600–FFFF.

ClassofService Selectthefieldandenteraclassofservice802.1puserpriorityvaluetobe

matchedforthepackets.Thevalidrangeis0–7.

SourceMACAddress SelectthisfieldandenterthesourceMACaddresstocompareagainstan

Ethernetframe.

Table54:DiffServClassMap(Cont.)

Field Description

CreatingaDiffServClassMap

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page143

UnifiedAccessPointAdministrator’sGuide

TodeleteaClassMap,selecttheDeleteClassMapoptionandclickApply.

SourceMACMask EnterthesourceMACaddressmaskspecifyingwhichbitsinthedestination

MACtocompareagainstanEthernetframe.

Anfindicatesthattheaddressbitissignificant,anda0indicatesthatthe

addressbitistobeignored.AMACmaskofff:ff:ff:ff:ff:ffmatchesasingleMAC

address.

DestinationMACAddress SelectthisfieldandenterthedestinationMACaddresstocompareagainstan

Ethernetframe.

DestinationMACMask EnterthedestinationMACaddressmaskspecifyingwhichbitsinthe

destinationMACtocompareagainstanEthernetframe.

Anfindicatesthattheaddressbitissignificant,anda0indicatesthatthe

addressbitistobeignored.AMACmaskofff:ff:ff:ff:ff:ffmatchesasingleMAC

address.

VLANID SelectthefieldandenteraVLANIDtobematchedforpackets.TheVLANID

rangeis0–4095.

IPv4ClassMaps

ServiceType Youcanspecifyonetypeofservicetouseinmatchingpacketstoclasscriteria.

IPDSCP TouseIPDSCPasamatchcriteria,selectthecheckboxandselectaDSCPvalue

keywordorenteraDSCP.

SelectfromList

SelectfromalistofDSCPtypes.

MatchtoValue

EnteraDSCPValuetomatch(0–63).

IPPrecedence Selectthisfieldtomatchthepacket'sIPPrecedencevaluetotheclasscriteria

IPPrecedencevalue.

TheIPPrecedencerangeis0–7.

IPTOSBits Selectthisfieldandenteravaluetousethepacket'sTypeofServicebitsinthe

IPheaderasmatchcriteria.

TheTOSbitvaluerangesbetween(00–FF).Thehigh‐orderthreebitsrepresent

theIPprecedencevalue.Thehigh‐ordersixbitsrepresenttheIPDifferentiated

ServicesCodePoint(DSCP)value.

IPTOSMask EnteranIPTOSmaskvaluetoperformabooleanANDwiththeTOSfieldinthe

headerofthepacketandcomparedagainsttheTOSenteredforthisrule.

TheTOSMaskcanbeusedtocomparespecificbits(Precedence/Typeof

Service)fromtheTOSfieldintheIPheaderofapacketagainsttheTOSvalue

enteredforthisrule.(00–FF).

DeleteClassMap ChecktodeletetheclassmapselectedintheClassMapNamemenu.Theclass

mapcannotbedeletedifitisalreadyattachedtoapolicy.

Table54:DiffServClassMap(Cont.)

Field Description

CreatingaDiffServPolicyMap

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page144

UnifiedAccessPointAdministrator’sGuide

CreatingaDiffServPolicyMap

UsethePolicyMappagetocreateDiffServpoliciesandtoassociateacollectionofclasseswithoneormore

policystatements.

TheUAPsupportsupto50PolicyMaps.

Packetsareclassifiedandprocessedbasedondefinedcriteria.Theclassificationcriteriaisdefinedbyaclasson

theClassMappage.Theprocessingisdefinedbyapolicy'sattributesonthePolicyMappage.Policyattributes

maybedefinedonaper‐classinstancebasis,anditistheseattributesthatareappliedwhenamatchoccurs.

APolicyMapcancontainupto10ClassMaps.Whenthepolicyisactive,theactionstakendependonwhich

classmatchesthepacket.

Packetprocessingbeginsbytestingtheclassmatchcriteriaforapacket.Apolicyisappliedtoapacketwhena

classmatchwithinthatpolicyisfound.

TocreateaDiffServpolicy,clickthePolicyMaptab.

Figure43:ClientQoSDiffServPolicyMap

CreatingaDiffServPolicyMap

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page145

UnifiedAccessPointAdministrator’sGuide

TodeleteaPolicyMap,selecttheDeletePolicyMapoptionandclickApply.

Table55:DiffServPolicyMap

Field Description

PolicyMapName Enterthennameofthepolicymaptoadd.Thenamecancontainupto31

alphanumericcharacters.

PolicyMapName(Policy

ClassDefinition)

Selectthepolicytoassociatewithamemberclass.

ClassMapName(PolicyClass

Definition)

Selectthememberclasstoassociatewiththispolicyname.

PoliceSimple Selectthisoptiontoestablishthetrafficpolicingstylefortheclass.Thesimple

formofthepolicingstyleusesasingledatarateandburstsize,resultingintwo

outcomes:conformandnonconform.

CommittedRate

Enterthecommittedrate,inKbps,towhichtrafficmustconform.

CommittedBurst

Enterthecommittedburstsize,inbytes,towhichtrafficmustconform.

Send SelectSendtospecifythatallpacketsfortheassociatedtrafficstreamareto

beforwardediftheclassmapcriteriaismet.

Drop SelectDroptospecifythatallpacketsfortheassociatedtrafficstreamareto

bedroppediftheclassmapcriteriaismet.

MarkClassofService Selectthisfieldtomarkallpacketsfortheassociatedtrafficstreamwiththe

specifiedclassofservicevalueinthepriorityfieldofthe802.1pheader.Ifthe

packetdoesnotalreadycontainthisheader,oneisinserted.TheCoSvalueis

anintegerfrom0–7.

MarkIPDSCP SelectthisfieldtomarkallpacketsfortheassociatedtrafficstreamwiththeIP

DSCPvalueyouselectfromthelistorspecify.

SelectfromList

SelectfromalistofDSCPtypes.

MatchtoValue

EnteraDSCPValuetomatch(0–63).

MarkIPPrecedence Selectthisfieldtomarkallpacketsfortheassociatedtrafficstreamwiththe

specifiedIPPrecedencevalue.TheIPPrecedencevalueisanintegerfrom0–7.

DisassociateClassMap SelectthisoptionandclickApplytoremovetheclassselectedintheClassMap

NamemenufromthepolicyselectedinthePolicyMapNamemenu.

MemberClasses ListsallDiffServclassescurrentlydefinedasmembersoftheselectedpolicy.If

noclassisassociatedwiththepolicy,thefieldisempty.

DeletePolicyMap SelectthisfieldtodeletethepolicymapshowinginthePolicyMapName

menu.

ClientQoSStatus

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page146

UnifiedAccessPointAdministrator’sGuide

ClientQoSStatus

TheClientQoSStatuspageshowstheclientQoSsettingsthatareappliedtoeachclientcurrentlyassociated

withtheAP.

ToviewQoSsettingsforanassociatedclient,clicktheClientQoSStatustab.

Figure44:ClientQoSStatus

Table56:ClientQoSStatus

Field Description

Station TheStationmenucontainstheMACaddressofeachclientcurrentlyassociatedwith

theAP.ToviewtheQoSsettingsappliedtoaclient,selectitsMACaddressfromthe

list.

GlobalQoSMode ShowsthecurrentClientQoSGlobalAdminModeontheAP.

ClientQoSMode ShowswhethertheQOSmodefortheselectedclientisenabledordisabled.

Note:FortheQosModetobeenabledonaclient,itmustbegloballyenabledon

theAPandenabledontheVAPtheclientisassociatedwith.UsetheVAPQoS

ParameterspagetoenabletheQoSGlobalAdminmodeandtheper‐VAPQoS

Mode.

BandwidthLimitUp ShowsthemaximumallowedtransmissionratefromtheclienttotheAPinbitsper

second(bps).Thevalidrangeis0–4294967295bps.

BandwidthLimitDown ShowsthemaximumallowedtransmissionratefromtheAPtotheclientinbitsper

second(bps).Thevalidrangeis0–4294967295bps.

ACLTypeUp ShowsthetypeofACLthatisappliedtotrafficintheinbound(client‐to‐AP)

direction,whichcanbeoneofthefollowing:

•IPv4:TheACLexaminesIPv4packetsformatchestoACLrules.

•IPv6:TheACLexaminesIPv6packetsformatchestoACLrules.

•MAC:TheACLexamineslayer2framesformatchestoACLrules.

ConfiguringRADIUS‐AssignedClientQoSParameters

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page147

UnifiedAccessPointAdministrator’sGuide

ConfiguringRADIUS‐AssignedClientQoSParameters

IfaVAPisconfiguredtouseWPAEnterprisesecurity,youcanincludeclientQoSinformationintheclient

databaseontheRADIUSserver.Whenaclientsuccessfullyauthenticates,theRADIUSservercaninclude

bandwidthlimitsandidentifytheACLsandDiffServpoliciestoapplytothespecificwirelessclient.ACLsand

DiffServpoliciesreferencedintheRADIUSclientdatabasemustmatchthenamesoftheACLsandDiffServ

policiesconfiguredontheAPtobesuccessfullyappliedtothewirelessclients.

Table57describestheQoSattributesthatcanbeincludedintheclient'sRADIUSserverentry.Ifawireless

clientsuccessfullyauthenticatesusingWPAEnterprise,eachQoSRADIUSattributethatexistsfortheclientis

senttotheAPforprocessing.Theattributesareoptionalanddonotneedtobepresentinthecliententry.If

theattributeisnotpresent,theClientQoSsettingontheAPisused.

ACLNameUp ShowsthenameoftheACLappliedtotrafficenteringtheAPintheinbound

direction.

WhenapacketorframeisreceivedbytheAP,theACL'srulesarecheckedfora

match.Thepacketorframeisprocessedifitispermittedanddiscardedifitis

denied.

ACLTypeDown ShowsthetypeofACLtoapplytotrafficintheoutbound(AP‐to‐client)direction,

whichcanbeoneofthefollowing:

•IPv4:TheACLexaminesIPv4packetsformatchestoACLrules.

•IPv6:TheACLexaminesIPv6packetsformatchestoACLrules

•MAC:TheACLexamineslayer2framesformatchestoACLrules

ACLNameDown ShowsthenameoftheACLappliedtotrafficintheoutbounddirection.

Afterswitchingthepacketorframetotheoutboundinterface,theACL'srulesare

checkedforamatch.Thepacketorframeistransmittedifitispermittedand

discardedifitisdenied.

DiffServPolicyUp ShowsthenameoftheDiffServpolicyappliedtotrafficsenttotheAPintheinbound

(client‐to‐AP)direction.

DiffServPolicyDown ShowsthenameoftheDiffServpolicyappliedtotrafficfromtheAPintheoutbound

(AP‐to‐client)direction.

Table57:ClientQoSRADIUSAttributes

RADIUSAttribute ID Description Type/Range

Vendor‐Specific(26),

WISPr‐Bandwidth‐

Max‐Down

14122,8 Maximumallowedclientreceptionratefrom

theAPinbitspersecond.Ifnonzero,the

specifiedvalueisroundeddowntothenearest

64KbpsvaluewhenusedintheAP(64Kbps

minimum).Ifzero,bandwidthlimitingisnot

enforcedfortheclientinthisdirection.

Type:integer

32‐bitunsignedinteger

value(0‐4294967295)

Table56:ClientQoSStatus(Cont.)

Field Description

ConfiguringRADIUS‐AssignedClientQoSParameters

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page148

UnifiedAccessPointAdministrator’sGuide

Vendor‐Specific(26),

WISPr‐Bandwidth‐

Max‐Up

14122,7 Maximumallowedclienttransmissionrateto

theAPinbitspersecond.Ifnonzero,the

specifiedvalueisroundeddowntothenearest

64KbpsvaluewhenusedintheAP(64Kbps

minimum).Ifzero,bandwidthlimitingisnot

enforcedfortheclientinthisdirection.

Type:integer

32‐bitunsignedinteger

value(0‐4294967295)

Vendor‐Specific(26),

LVL7‐Wireless‐Client‐

ACL‐Dn

6132,120 Accesslistidentifiertobeappliedto802.1X

authenticatedwirelessclienttrafficinthe

outbound(down)direction.

IfthisattributereferstoanACLthatdoesnot

existontheAP,allpacketsforthisclientwillbe

droppeduntiltheACLisdefined.

Type:string

5‐36characters(notnull‐

terminated)

Thestringisoftheform

“type:name”where:type=

ACLtypeidentifier:IPV4,

IPV6,MAC

:=requiredseparator

character

name=1‐31alphanumeric

characters,specifyingthe

ACLnumber(IPV4)or

name(IPV6,MAC)

Vendor‐Specific(26),

LVL7‐Wireless‐Client‐

ACL‐Up

6132,121 Accesslistidentifiertobeappliedto802.1X

authenticatedwirelessclienttrafficinthe

inbound(up)direction.

IfthisattributereferstoanACLthatdoesnot

existontheAP,allpacketsforthisclientwillbe

droppeduntiltheACLisdefined.

Type:string

5‐36characters(notnull‐

terminated)Thestringisof

theform“type:name”

where:type=ACLtype

identifier:IPV4,IPV6,MAC

:=requiredseparator

character

name=1‐31alphanumeric

characters,specifyingthe

ACLnumber(IPV4)or

name(IPV6,MAC)

Vendor‐Specific(26),

LVL7‐Wireless‐Client‐

Policy‐Dn

6132,122 NameofDiffServpolicytobeappliedto802.1X

authenticatedwirelessclienttrafficinthe

outbound(down)direction.

Ifthisattributereferstoapolicynamethat

doesnotexistontheAP,allpacketsforthis

clientwillbedroppeduntiltheDiffServpolicyis

defined.

Type:string

1‐31characters(notnull‐

terminated)

Vendor‐Specific(26),

LVL7‐Wireless‐Client‐

Policy‐Up

6132,123 NameofDiffServpolicytobeappliedto802.1X

authenticatedwirelessclienttrafficinthe

inbound(up)direction.

Ifthisattributereferstoapolicynamethat

doesnotexistontheAP,allpacketsforthis

clientwillbedroppeduntiltheDiffServpolicyis

defined.

Type:string

1‐31characters(notnull‐

terminated)

Table57:ClientQoSRADIUSAttributes(Cont.)

RADIUSAttribute ID Description Type/Range

ClusteringMultipleAPs

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page149

UnifiedAccessPointAdministrator’sGuide

Section9:ClusteringMultipleAPs

TheUAPsupportsAPclusters.Aclusterprovidesasinglepointofadministrationandletsyouview,deploy,

configure,andsecurethewirelessnetworkasasingleentityratherthanaseriesofseparatewirelessdevices.

ManagingAccessPointsintheCluster

TheAPclusterisadynamic,configuration‐awaregroupofAPsinthesamesubnetofanetwork.Eachcluster

canhaveupto16members.Onlyoneclusterperwirelessnetworkissupported;however,anetworksubnet

canhavemultipleclusters.Clusterscansharevariousconfigurationinformation,suchasVAPsettingsandQoS

queueparameters.

AclustercanbeformedbetweentwoAPsifthefollowingconditionsaremet:

•TheAPsusethesameradiomode(forexample,radio1uses802.11g)

•TheAPsareconnectedonthesamebridgedsegment.

•TheAPsjoiningtheclusterhavethesameClusterName.

• ClusteringmodeisenabledonbothAPs.

ClusteringSingleandDualRadioAPs

Clusteringofsingle‐anddual‐radiosisnotsupported.AclustercancontainamixifDWL‐6600APand

DWL‐8600APaccesspoints,butthisclustershouldnotcontainanyDWL‐3600APs.

ViewingandConfiguringClusterMembers

TheAccessPointspageallowsyoutostartorstopclusteringonanAP,viewtheclustermembers,andconfigure

thelocationandclusternameforaclustermember.FromtheAccessPointspage,youcanalsoclicktheIP

addressofeachclustermembertonavigatetoconfigurationsettingsanddataonanaccesspointinthecluster.

Toviewinformationaboutclustermembersandtoconfigurethelocationandclusterofanindividualmember,

clicktheAccessPointstab.

Note:FortwoAPstobeinthesamecluster,theydonotneedtohavethesamenumberofradios;

however,thesupportedcapabilitiesoftheradiosshouldbesame.

Note:Theweb‐basedUIimagesinthissectionshowtheDWL‐8600APadministrationpages.Pages

fortheDWL‐3600APwillnotdisplayinformationforRadio2becauseithasonlyoneradio.

ManagingAccessPointsintheCluster

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page150

UnifiedAccessPointAdministrator’sGuide

ThefollowingfigureshowstheCluster>AccessPointspagewhenclusteringisnotenabled.

Figure45:ClusterInformationandMemberConfiguration

ThefollowingfigureshowstheCluster>AccessPointspagewhenclusteringisenabledandtwoaccesspoints

areinthecluster.

Figure46:ClusterInformationandMemberConfiguration

IfclusteringiscurrentlydisabledontheAP,theStartClusteringbuttonisvisible.Ifclusteringisenabled,the

StopClusteringbuttonisvisible.Youcanedittheclusteringoptioninformationwhenclusteringisdisabled.

ManagingAccessPointsintheCluster

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page151

UnifiedAccessPointAdministrator’sGuide

ThefollowingtabledescribestheconfigurationandstatusinformationavailableontheclusterAccessPoints

page.

Thefollowingtabledescribestheclusterinformationtoconfigureforanindividualmember.Theclustering

optionsareread‐onlywhenclusteringisenabled.Toconfiguretheclusteringoptions,youmuststopclustering.

RemovinganAccessPointfromtheCluster

Toremoveanaccesspointfromthecluster,dothefollowing.

1. GototheAdministrationWebpagesfortheclusteredaccesspoint.

TheAdministrationWebpagesforthestandaloneaccesspointaredisplayed.

2. ClicktheCluster>AccessPointslinkintheAdministrationpages.

3. ClickStopClustering.

ThechangewillbereflectedunderStatusforthataccesspoint;theaccesspointwillnowshowas

stand‐alone(insteadofcluster).

Table58:AccessPointsintheCluster

Field Description

Status Ifthestatusfieldisvisible,thentheAPisenabledforclustering.Ifclusteringisnotenabled,

thentheAPisoperatinginstand‐alonemodeandnoneoftheinformationinthistableis

visible.

TodisableclusteringontheAP,clickStopClustering.

Location Descriptionofwheretheaccesspointisphysicallylocated.

MACAddress MediaAccessControl(MAC)addressoftheaccesspoint.

TheaddressshownhereistheMACaddressforthebridge(br0).Thisistheaddressby

whichtheAPisknownexternallytoothernetworks.

IPAddress SpecifiestheIPaddressfortheaccesspoint.

EachIPaddressisalinktotheAdministrationWebpagesforthataccesspoint.Youcanuse

thelinkstonavigatetotheAdministrationWebpagesforaspecificaccesspoint.Thisis

usefulforviewingdataonaspecificaccesspointtomakesureaclustermemberispicking

upclusterconfigurationchanges,toconfigureadvancedsettingsonaparticularaccess

point,ortoswitchastandaloneaccesspointtoclustermode.

Table59:ClusteringOptions

Field Description

Location Enteradescriptionofwheretheaccesspointisphysicallylocated.

ClusterName EnterthenameoftheclusterfortheAPtojoin.

TheclusternameisnotsenttootherAPsinthecluster.Youmustconfigurethesame

clusternameoneachAPthatisamemberofthecluster.Theclusternamemustbe

uniqueforeachclusteryouconfigureonthenetwork.

ClusteringIPVersion SpecifytheIPversionthattheAPsintheclusterusetocommunicatewitheach

other.

ManagingAccessPointsintheCluster

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page152

UnifiedAccessPointAdministrator’sGuide

AddinganAccessPointtoaCluster

Toaddanaccesspointthatiscurrentlyinstandalonemodebackintoacluster,dothefollowing.

1. GototheAdministrationWebpagesforthestandaloneaccesspoint.

2. ClicktheCluster>AccessPointslinkintheAdministrationpagesforthestand‐aloneaccesspoint.

TheAccessPoints pageforastandaloneaccesspointindicatesthatthecurrentmodeisstandalone.

3. TypethenameorlocationoftheAPintheLocationfieldtoidentifytheAPwithinthecluster.

4. TypethenameoftheclusterfortheAPtojoinintheClusterNamefield.

5. ClickStartClustering.

Theaccesspointisnowaclustermember.ItsStatus(Mode)ontheCluster>AccessPointspagenow

indicatesClusterinsteadofNotClustered.

NavigatingtoConfigurationInformationforaSpecificAP

Ingeneral,theUAPisdesignedforcentralmanagementofclusteredaccesspoints.Foraccesspointsinacluster,

allaccesspointsintheclusterreflectthesameconfiguration.Inthiscase,itdoesnotmatterwhichaccesspoint

youactuallyconnecttoforadministration.

Theremaybesituations,however,whenyouwanttoviewormanageinformationonaparticularaccesspoint.

Forexample,youmightwanttocheckstatusinformationsuchasclientassociationsoreventsforanaccess

point.Inthiscase,youcannavigatetotheAdministrationWebinterfaceforindividualaccesspointsbyclicking

theIPaddresslinksontheAccessPointspage.

AllclusteredaccesspointsareshownontheCluster>AccessPointspage.Tonavigatetoclusteredaccess

points,youcansimplyclickontheIPaddressforaspecificclustermembershowninthelist.

NavigatingtoanAPbyUsingitsIPAddressinaURL

YoucanalsolinktotheAdministrationWebpagesofaspecificaccesspoint,byenteringtheIPaddressforthat

accesspointasaURLdirectlyintoaWebbrowseraddressbarinthefollowingform:

http://IPAddressOfAccessPoint

whereIPAddressOfAccessPointistheaddressoftheparticularaccesspointyouwanttomonitororconfigure.

ManagingClusterSessions

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page153

UnifiedAccessPointAdministrator’sGuide

ManagingClusterSessions

TheSessionspageshowsinformationaboutclientstationsassociatedwithaccesspointsinthecluster.Each

clientisidentifiedbyitsMACaddress,alongwiththeAP(location)towhichitiscurrentlyconnected.

Toviewaparticularstatisticforclientsessions,selectanitemfromtheDisplaydrop‐downlistandclickGo.You

canviewinformationaboutidletime,datarate,signalstrengthandsoon;allofwhicharedescribedindetail

inthetablebelow.

Asessioninthiscontextistheperiodoftimeinwhichauseronaclientdevice(station)withauniqueMAC

addressmaintainsaconnectionwiththewirelessnetwork.Thesessionbeginswhentheclientlogsontothe

network,andthesessionendswhentheclienteitherlogsoffintentionallyorlosestheconnectionforsome

otherreason.

Tomanagesessionsassociatedwiththecluster,clickCluster>Sessions.

Figure47:SessionManagement

Detailsaboutthesessioninformationshownisdescribedinthefollowingtable.

Note:Asessionisnotthesameasanassociation,whichdescribesaclientconnectiontoaparticular

accesspoint.AclientnetworkconnectioncanshiftfromoneclusteredAPtoanotherwithinthe

contextofthesamesession.AclientstationcanroambetweenAPsandmaintainthesession.

Table60:SessionManagement

Field Description

APLocation Indicatesthelocationoftheaccesspoint.

ThisisderivedfromthelocationdescriptionspecifiedontheBasicSettingspage.

UserMAC IndicatestheMACaddressofthewirelessclientdevice.

AMACaddressisahardwareaddressthatuniquelyidentifieseachnodeofanetwork.

Idle Indicatestheamountoftimethisstationhasremainedinactive.

Astationisconsideredtobeidlewhenitisnotreceivingortransmittingdata.

ConfiguringandViewingChannelManagementSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page154

UnifiedAccessPointAdministrator’sGuide

SortingSessionInformation

Tosorttheinformationshowninthetablesbyaparticularindicator,clickthecolumnlabelbywhichyouwant

toorderthings.Forexample,ifyouwanttoseethetablerowsorderedbysignalstrength,clicktheSignal

columnlabel.Theentrieswillbesortedbysignalstrength.

ConfiguringandViewingChannelManagementSettings

WhenChannelManagementisenabled,theUAPautomaticallyassignsradiochannelsusedbyclusteredaccess

points.Theautomaticchannelassignmentreducesmutualinterference(orinterferencewithotheraccess

pointsoutsideofitscluster)andmaximizesWi‐Fibandwidthtohelpmaintaintheefficiencyofcommunication

overthewirelessnetwork.

Youmuststartchannelmanagementtogetautomaticchannelassignments;itisdisabledbydefaultonanew

AP.

Ataspecifiedinterval,theChannelManagermapsAPstochanneluseandmeasuresinterferencelevelsinthe

cluster.Ifsignificantchannelinterferenceisdetected,theChannelManagerautomaticallyre‐assignssomeor

alloftheAPstonewchannelsperanefficiencyalgorithm(orautomatedchannelplan).IftheChannelManager

determinesthatachangeisnecessary,thatinformationissenttoallmembersoftheclusterandasyslog

messageisgeneratedindicatingthesenderAP,newandoldchannelassignments.

TheChannelManagementpageshowsprevious,current,andplannedchannelassignmentsforclustered

accesspoints.Bydefault,automaticchannelassignmentisdisabled.Youcanstartchannelmanagementto

optimizechannelusageacrosstheclusteronascheduledinterval.

Toconfigureandviewthechannelassignmentsfortheclustermembers,clicktheChannelManagementtab.

Rate Thespeedatwhichthisaccesspointistransferringdatatothespecifiedclient.

Thedatatransmissionrateismeasuredinmegabitspersecond(Mbps).

Thisvalueshouldfallwithintherangeoftheadvertisedratesetforthemodeinuseon

theaccesspoint.Forexample,6to54Mbpsfor802.11a.

Signal Indicatesthestrengthoftheradiofrequency(RF)signaltheclientreceivesfromthe

accesspoint.

ThemeasureusedforthisisavalueknownasReceivedSignalStrengthIndication(RSSI),

andwillbeavaluebetween0and100.

RSSIisdeterminedbyamechanismimplementedonthenetworkinterfacecard(NIC)of

theclientstation.

RxTotal Indicatesnumberoftotalpacketsreceivedbytheclientduringthecurrentsession.

TxTotal Indicatesnumberoftotalpacketstransmittedtotheclientduringthissession.

ErrorRate Indicatesthepercentageoftimeframesaredroppedduringtransmissiononthisaccess

point.

Table60:SessionManagement

Field Description

ConfiguringandViewingChannelManagementSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page155

UnifiedAccessPointAdministrator’sGuide

Figure48:ChannelManagement

Fromthispage,youcanviewchannelassignmentsforallAPsintheclusterandstoporstartautomaticchannel

management.ByusingtheAdvancedsettingsonthepage,youcanmodifytheinterferencereductionpotential

thattriggerschannelre‐assignment,changethescheduleforautomaticupdates,andre‐configurethechannel

setusedforassignments.

Stopping/StartingAutomaticChannelAssignment

Bydefault,automaticchannelassignmentisdisabled(off).

•ClickStarttoresumeautomaticchannelassignment.

Whenautomaticchannelassignmentisenabled,theChannelManagerperiodicallymapsradiochannels

usedbyclusteredaccesspointsand,ifnecessary,re‐assignschannelsonclusteredAPstoreduce

interference(withclustermembersorotherAPsoutsidethecluster).

•ClickStoptostopautomaticchannelassignment.(Nochannelusagemapsorchannelre‐assignmentswill

bemade.Onlymanualupdateswillaffectthechannelassignment.)

Note:ChannelManagementoverridesthedefaultclusterbehavior,whichistosynchronizeradio

channelsofallAPsacrossacluster.WhenChannelManagementisenabled,theradioChannelis

notsyncedacrosstheclustertootherAPs.

ConfiguringandViewingChannelManagementSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page156

UnifiedAccessPointAdministrator’sGuide

ViewingCurrentChannelAssignmentsandSettingLocks

TheCurrentChannelAssignmentssectionshowsalistofallaccesspointsintheclusterbyIPAddress.The

displayshowsthebandonwhicheachAPisbroadcasting(a/b/g/n),thecurrentchannelusedbyeachAP,and

anoptiontolockanAPonitscurrentradiochannelsothatitcannotbere‐assignedtoanother.

ThefollowingtableprovidesdetailsaboutCurrentChannelAssignments.

ViewingtheLastProposedSetofChanges

TheProposedChannelAssignmentsshowsthelastchannelplan.Theplanlistsallaccesspointsinthecluster

byIPAddress,andshowsthecurrentandproposedchannelsforeachAP.Lockedchannelswillnotbere‐

assignedandtheoptimizationofchanneldistributionamongAPswilltakeintoaccountthefactthatlockedAPs

mustremainontheircurrentchannels.APsthatarenotlockedmaybeassignedtodifferentchannelsthanthey

werepreviouslyusing,dependingontheresultsoftheplan.

Table61:ChannelAssignments

Field Description

IPAddress SpecifiestheIPAddressfortheaccesspoint.

Radio IdentifiestheMACaddressoftheradio.

Band Indicatesthebandonwhichtheaccesspointisbroadcasting.

Current IndicatestheradioChannelonwhichthisaccesspointiscurrentlybroadcasting.

Status Showswhethertheradioisup(on)ordown(off).

Locked ClickLockedtoforcetheaccesspointtoremainonthecurrentchannel.

WhenLockedisselected(enabled)foranaccesspoint,automatedchannelmanagement

planswillnotre‐assigntheAPtoadifferentchannelasapartoftheoptimizationstrategy.

Instead,APswithlockedchannelswillbefactoredinasrequirementsfortheplan.

IfyouclickApply,youwillseethatlockedAPsshowthesamechannelfortheCurrent

ChannelandProposedChannelfields.LockedAPswillkeeptheircurrentchannels.

Table62:LastProposedChanges

Field Description

IPAddress SpecifiestheIPAddressfortheaccesspoint.

Radio Indicatestheradiochannelonwhichthisaccesspointiscurrentlybroadcasting.

ProposedChannel Indicatestheradiochanneltowhichthisaccesspointwouldbere‐assignedifthe

ChannelPlanisexecuted.

ConfiguringandViewingChannelManagementSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page157

UnifiedAccessPointAdministrator’sGuide

ConfiguringAdvancedSettings

Theadvancedsettingsallowyoutocustomizeandschedulethechannelplanforthecluster.IfyouuseChannel

Managementasprovided(withoutupdatingAdvancedSettings),channelsareautomaticallyfine‐tunedonce

everyhourifinterferencecanbereducedby25percentormore.Channelswillbere‐assignedevenifthe

networkisbusy.Theappropriatechannelsetswillbeused(b/gforAPsusingIEEE802.11b/gandaforAPsusing

IEEE802.11a).

Thedefaultsettingsaredesignedtosatisfymostscenarioswhereyouwouldneedtoimplementchannel

management.

UseAdvancedSettingstomodifytheinterferencereductionpotentialthattriggerschannelre‐assignment,

changethescheduleforautomaticupdates,andre‐configurethechannelsetusedforassignments.Ifthereare

nofieldsshowingintheAdvancedsection,clickthetogglebuttontodisplaythesettingsthatmodifytiming

anddetailsofthechannelplanningalgorithm.

ClickApplyunderAdvancedsettingstoapplythesesettings.

Advancedsettingswilltakeeffectwhentheyareappliedandinfluencehowautomaticchannelmanagement

isperformed.

Table63:AdvancedChannelManagementSettings

Field Description

Changechannelsif

interferenceisreducedbyat

least

Specifytheminimumpercentageofinterferencereductionaproposedplan

mustachieveinordertobeapplied.Thedefaultis75percent.

Usethedrop‐downmenutochoosepercentagesrangingfrom5percentto

75percent.

Thissettingletsyousetagatingfactorforchannelre‐assignmentsothatthe

networkisnotcontinuallydisruptedforminimalgainsinefficiency.

Forexample,ifchannelinterferencemustbereducedby75percentandthe

proposedchannelassignmentswillonlyreduceinterferenceby30percent,

thenchannelswillnotbere‐assigned.However;ifyoure‐settheminimal

channelinterferencebenefitto25percentandclickApply,theproposed

channelplanwillbeimplementedandchannelsre‐assignedasneeded.

Determineifthereisbetterset

ofchannelsevery

Usethedrop‐downmenutospecifythescheduleforautomatedupdates.

Arangeofintervalsisprovided,from30Minutesto6Months

Thedefaultis1Hour(channelusagere‐assessedandtheresultingchannel

planappliedeveryhour).

ViewingWirelessNeighborhoodInformation

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page158

UnifiedAccessPointAdministrator’sGuide

ViewingWirelessNeighborhoodInformation

TheWirelessNeighborhoodshowsupto20accesspointsperradiowithinrangeofeverymemberofthe

cluster,showswhichaccesspointsarewithinrangeofwhichclustermembers,anddistinguishesbetween

clustermembersandnon‐members.

Foreachneighboraccesspoint,theWirelessNeighborhoodviewshowsidentifyinginformation(SSIDor

NetworkName,IPAddress,MACaddress)alongwithradiostatistics(signalstrength,channel,beaconinterval).

YoucanclickonanAPtogetadditionalstatisticsabouttheAPsinradiorangeofthecurrentlyselectedAP.

TheWirelessNeighborhoodviewcanhelpyou:

• Detectandlocateunexpected(orrogue)accesspointsinawirelessdomainsothatyoucantakeactionto

limitassociatedrisks

• Verifycoverageexpectations.ByassessingwhichAPsarevisibleatwhatsignalstrengthfromotherAPs,

youcanverifythatthedeploymentmeetsyourplanninggoals.

• Detectfaults.Unexpectedchangesinthecoveragepatternareevidentataglanceinthecolorcodedtable.

Figure49:WirelessNeighborhood

Note:TheWirelessNeighborhoodpageshowsupto20accesspointsperradio.Toseealltheaccess

pointsdetectedonagivenclusteraccesspoint,navigatetothatclustermember'swebinterfaceand

gototheStatus>NeighboringAccessPointspage.

ViewingWirelessNeighborhoodInformation

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page159

UnifiedAccessPointAdministrator’sGuide

ThefollowingtabledescribesdetailsabouttheWirelessNeighborhoodinformation.

Table64:WirelessNeighborhoodInformation

Field Description

DisplayneighboringAPs Clickoneofthefollowingradiobuttonstochangetheview:

•Incluster—ShowsonlyneighborAPsthataremembersofthecluster

•Notincluster—ShowsonlyneighborAPsthatarenotclustermembers

•Both—ShowsallneighborAPs(clustermembersandnon‐members)

Cluster TheClusterlistatthetopofthetableshowsIPaddressesforallaccesspointsinthe

cluster.(ThisisthesamelistofclustermembersshownontheCluster>Access

Pointstab.)

IfthereisonlyoneAPinthecluster,onlyasingleIPaddresscolumnwillbe

displayedhere;indicatingthattheAPisclusteredwithitself.

YoucanclickonanIPaddresstoviewmoredetailsonaparticularAP.

Neighbors AccesspointswhichareneighborsofoneormoreoftheclusteredAPsarelistedin

theleftcolumnbySSID(NetworkName).

Anaccesspointwhichisdetectedasaneighborofaclustermembercanalsobea

clustermemberitself.Neighborswhoarealsoclustermembersarealwaysshown

atthetopofthelistwithaheavybaraboveandincludealocationindicator.

ThecoloredbarstotherightofeachAPintheNeighborslistshowsthesignal

strengthforeachoftheneighborAPsasdetectedbytheclustermemberwhoseIP

addressisshownatthetopofthecolumn.

Thecolorofthebarindicatesthesignalstrength:

•DarkBlueBar—Adarkbluebarandahighsignalstrengthnumber(forexample

50)indicatesgoodsignalstrengthdetectedfromtheNeighborseenbytheAP

whoseIPaddressislistedabovethatcolumn.

•LighterBlueBar—Alighterbluebarandalowersignalstrengthnumber(for

example20orlower)indicatesmediumorweaksignalstrengthfromthe

NeighborseenbytheAPwhoseIPaddressislistedabovethatcolumn

•WhiteBar—Awhitebarandthenumber0indicatesthataneighboringAPthat

wasdetectedbyoneoftheclustermemberscannotbedetectedbytheAP

whoseIPaddressiflistedabovethatcolumn.

•LightGrayBar—Alightgraybarandnosignalstrengthnumberindicatesa

NeighborthatisdetectedbyotherclustermembersbutnotbytheAPwhose

IPaddressislistedabovethatcolumn.

•DarkGrayBar—Adarkgraybarandnosignalstrengthnumberindicatesthisis

theAPwhoseIPaddressislistedabovethatcolumn(sinceitisnotapplicable

toshowhowwelltheAPcandetectitself).

ViewingWirelessNeighborhoodInformation

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page160

UnifiedAccessPointAdministrator’sGuide

ViewingDetailsforaClusterMember

ToviewdetailsonaclustermemberAP,clickontheIPaddressofaclustermemberatthetopofthepage.The

followingfigureshowstheNeighborDetailsforRadio1oftheAPwithanIPaddressof10.27.65.66.

Figure50:DetailsforaClusterMemberAP

ThefollowingtableexplainsthedetailsshownabouttheselectedAP.

Table65:ClusterMemberDetails

Field Description

SSID TheServiceSetIdentifier(SSID)fortheaccesspoint.

TheSSIDisanalphanumericstringofupto32charactersthatuniquelyidentifiesa

wirelesslocalareanetwork.ItisalsoreferredtoastheNetworkName.

AGuestnetworkandanInternalnetworkrunningonthesameaccesspointmustalways

havetwodifferentnetworknames.

MACAddress ShowstheMACaddressoftheneighboringaccesspoint.

AMACaddressisahardwareaddressthatuniquelyidentifieseachnodeofanetwork.

Channel Showsthechannelonwhichtheaccesspointiscurrentlybroadcasting.

TheChanneldefinestheportionoftheradiospectrumthattheradiousesfor

transmittingandreceiving.

Rate Showstherate(inmegabitspersecond)atwhichthisaccesspointiscurrently

transmitting.

ThecurrentratewillalwaysbeoneoftheratesshowninSupportedRates.

Signal Indicatesthestrengthoftheradiosignalemittingfromthisaccesspointasmeasuredin

decibels(Db).

BeaconInterval ShowstheBeaconintervalbeingusedbythisaccesspoint.

Beaconframesaretransmittedbyanaccesspointatregularintervalstoannouncethe

existenceofthewirelessnetwork.Thedefaultbehavioristosendabeaconframeonce

every100milliseconds(or10persecond).

BeaconAge Showsthedateandtimeofthelastbeaconreceivedfromthisaccesspoint.

DefaultAPSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page161

UnifiedAccessPointAdministrator’sGuide

AppendixA:DefaultAPSettings

WhenyoufirstpoweronaUAP,ithasthedefaultsettingsshowninthefollowingtable.

Note:TheDWL‐3600APsupportsoneradio,anditiscapableofoperatingintheIEEE802.11b,

802.11g,and802.11n(2.4GHz)modes.Radio1(802.11a/n)settingsdonotapplytothe

DWL‐3600AP.

Table66:UAPDefaultSettings

Feature Default

SystemInformation

UserName admin

Password admin

EthernetInterfaceSettings

ConnectionType DHCP

DHCP Enabled

IPAddress 10.90.90.91(ifnoDHCPserverisavailable)

SubnetMask 255.0.0.0

DNSName None

ManagementVLANID 1

UntaggedVLANID 1

IPv6AdminMode Enabled

IPv6AutoConfigAdminMode Enabled

RadioSettings

Radio(1and2) On

Radio1IEEE802.11Mode 802.11a/n

Radio2IEEE802.11Mode 802.11b/g/n

802.11a/nChannel Auto

802.11b/g/nChannel Auto

Radio1ChannelBandwidth 40MHz

Radio2ChannelBandwidth 20MHz

PrimaryChannel Lower

ShortGuardIntervalSupported Yes

STBCMode On

Protection Auto

MaximumWirelessClients 200

TransmitPower 100percent

DefaultAPSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page162

UnifiedAccessPointAdministrator’sGuide

LegacyRateSetsSupported(Mbps) IEEE802.11a:54,48,36,24,18,12,9,6

IEEE802.11b:11,5.5,2,1

IEEE802.11g:54,48,36,24,18,12,11,9,6,5.5,2,1

LegacyRateSets(Mbps)

(Basic/Advertised)

IEEE802.11a:24,12,6

IEEE802.11b:2,1

IEEE802.11g:11,5.5,2,1

MCS(DataRate)Settings

(802.11nonly)

0–15Enabled

Broadcast/MulticastRateLimiting Disabled

FixedMulticastRate Auto

BeaconInterval 100

DTIMPeriod 2

FragmentationThreshold 2346

RTSThreshold 2347

TSPECMode Off

TSPECVoiceACMMode Off

VirtualAccessPointSettings

Status VAP0isenabledonbothradios,allotherVAPsdisabled

VLANID 1

NetworkName(SSID) dlink1throughdlink16

BroadcastSSID Allow

SecurityMode None(plaintext)

MACAuthenticationType None

RADIUSIPAddress 10.90.90.1

RADIUSKey secret

RADIUSAccounting Disabled

RedirectMode None

OtherDefaultSettings

WDSSettings None

STP Disabled

MACAuthentication Nostationsinlist

LoadBalancing Disabled

SNMP Enabled

ROSNMPCommunityName public

SNMPAgentPort 161

SNMPSetRequests Enabled

ManagedAPMode Enabled

Table66:UAPDefaultSettings(Cont.)

Feature Default

DefaultAPSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page163

UnifiedAccessPointAdministrator’sGuide

Authentication(802.1XSupplicant) Disabled

ManagementACL Disabled

HTTPAccess Enabled;disabledinManagedMode

HTTPSAccess Enabled;disabledinManagedMode

ConsolePortAccess Enabled

TelnetAccess Enabled;disabledinManagedMode

SSHAccess Enabled;disabledinManagedMode

WMM Enabled

EmailAlertAdminMode Down

Time Manual(Notset)

ClientQoSGlobalAdminMode Disabled

Per‐VAPClientQoSMode Disabled

Clustering Stopped

Table66:UAPDefaultSettings(Cont.)

Feature Default

ConfigurationExamples

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page164

UnifiedAccessPointAdministrator’sGuide

AppendixB:ConfigurationExamples

ThisappendixcontainsexamplesofhowtoconfigureselectedfeaturesavailableontheUAP.Eachexample

containsproceduresonhowtoconfigurethefeaturebyusingtheWebinterface,CLI,andSNMP.

Thisappendixdescribeshowtoperformthefollowingprocedures:

•“ConfiguringaVAP”

•“ConfiguringRadioSettings”

•“ConfiguringtheWirelessDistributionSystem”

•“ClusteringAccessPoints”

•“ConfiguringClientQoS”

ForallSNMPexamples,theobjectsyouusetoAPareinaprivateMIB.Thepathtothetablesthatcontainthe

objectsisiso(1).org(3).dod(6).internet(1).private(4).enterprises(1).dlink(171).dlink‐products(10).dwl‐

ap(37).dwlWLANAP(26).

ConfiguringaVAP

ThisexampleshowshowtoconfigureVAP1withthefollowingnon‐defaultsettings:

•VLANID:2

• SSID:Marketing

•Security:WPAPersonalusingWPA2withCCMP(AES)

VAPConfigurationfromtheWebInterface

1. LogontotheAPandnavigatetotheManage>VAPpage.

2. IntheEnabledcolumnforVAP1,selectthecheckbox.

3. Enter2intheVLANIDcolumn.

4. IntheSSIDcolumn,deletetheexistingSSIDandtypeMarketing.

5. SelectWPAPersonalfromthemenuintheSecuritycolumn.

Additionalfieldsappear.

6. SelecttheWPA2andCCMP(AES)options,andcleartheWPAandTKIPoptions.

ConfiguringaVAP

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page165

UnifiedAccessPointAdministrator’sGuide

7. EnteraWPAencryptionkeyintheKeyfield.

Thekeycanbeamixofalphanumericandspecialcharacters.Thekeyiscasesensitiveandcanbebetween

8and63characters.

8. ClickApplytoupdatetheAPwiththenewsettings.

VAPConfigurationfromtheCLI

1. ConnecttotheAPbyusingTelnet,SSHoraserialconnection.

2. EnableVAP1.

setvapvap1statusup

3. SettheVLANIDto2.

setvapvap1vlan‐id2

4. SettheSSIDtoMarketing.

setinterfacewlan0vap1ssidMarketing

5. SettheSecurityModetoWPAPersonal.

setinterfacewlan0vap1securitywpa‐personal

6. AllowWPA2clients,andnotWPAclients,toconnecttotheAP.

setbsswlan0bssvap1wpa‐allowedoff

setbsswlan0bssvap1wpa2‐allowedon

7. SettheCipherSuitetoCCMP(AES)only.

setbsswlan0bssvap1wpa‐cipher‐tkipoff

setbsswlan0bssvap1wpa‐cipher‐ccmpon

8. SetthePre‐sharedkey.

setinterfacewlan0vap1wpa‐personal‐keyJuPXkC7GvY$moQiUttp2

Ifthesharedsecretkeysincludesspaces,placethekeyinsidequotationmarks.

9. Usethefollowingcommandstoviewandverifythesettings.

getinterfacewlan0vap1detail

getvapvap1detail

Note:ThepreviouscommandsetstheVLANIDto2forVAP1onbothradios.TosettheVLANID

forVAP1onradiooneonly,usethefollowingcommand:set vap 1 with radio wlan0 to

vlan-id 2.

ConfiguringRadioSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page166

UnifiedAccessPointAdministrator’sGuide

VAPConfigurationUsingSNMP

1. LoadtheDLINK‐WLAN‐ACCESS‐POINT‐MIBmodule.

2. FromtheMIBtree,navigatetotheobjectsintheapVaptable.

3. WalktheapVapDescriptionobjecttoviewtheinstanceIDforVAP1(wlan0vap1).

VAP1onRadio1isinstance3.

4. UsetheapVapStatusobjecttosetthestatusofVAP1toup(1).

5. UsetheapVapVlanIDobjecttosettheVLANIDofVAP1to2.

6. NavigatetotheobjectsintheapIfConfigtable.

7. WalktheapIfConfigNameobjecttoviewtheinstanceIDforVAP1(wlan0vap1).

VAP1onRadio1isinstance3.

8. Setthevalueofinstance3intheapIfConfigSsidobjecttoMarketing.

9. Setthevalueofinstance3intheapIfConfigSecurityobjecttowpa‐personal(3).

10. Setthevalueofinstance3intheapIfConfigWpaPersonalKeyobjecttoJuPXkC7GvY$moQiUttp2,whichis

theWPApre‐sharedkey.

11. NavigatetotheobjectsintheapRadioBss>apBssTabletable.

12. WalktheapBssDescrobjecttoviewtheinstanceIDforVAP1.

VAP1onRadio1isinstance1.

13. Setthevalueofinstance1intheapBssWpaAllowedobjecttofalse(2).

14. Setthevalueofinstance1intheapBssWpaCipherTkipobjecttofalse(2).

15. Setthevalueofinstance1intheapBssWpaCipherCcmpobjecttotrue(1).

ConfiguringRadioSettings

ThisexampleshowshowtoconfigureRadio2withthefollowingsettings:

•Mode:IEEE802.11b/g/n

•Channel:6

•ChannelBandwidth:40MHz

•MaximumStations:100

•TransmitPower:75%

RadioConfigurationfromtheWebInterface

1. LogontotheAPandnavigatetotheManage>Radiopage.

2. Makesurethenumber2appearsintheRadiofieldandthatthestatusisOn.

3. FromtheModemenu,selectIEEE802.11b/g/n.

4. FromtheChannelfield,select6.

ConfiguringRadioSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page167

UnifiedAccessPointAdministrator’sGuide

5. FromtheChannelBandwidthfield,select40MHz.

6. IntheMaximumStationsfield,changethevalueto100.

7. IntheTransmitPowerfield,changethevalueto75.

ThefollowingimageshowstheRadiopagewiththesettingsspecifiedinthisexample.

8. ClickApplytoupdatetheAPwiththenewsettings.

ConfiguringRadioSettings

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page168

UnifiedAccessPointAdministrator’sGuide

RadioConfigurationfromtheCLI

1. ConnecttotheAPbyusingTelnet,SSH,oraserialconnection.

2. TurnRadio2onifthestatusisnotcurrentlyup.

setradiowlan1statuson

3. SetthemodetoIEEE802.11b/g/n.

setradiowlan1modebg‐n

4. Setthechannelto6.

setradiowlan1channel‐policystatic

setradiowlan1static‐channel6

5. Setthechannelbandwidthto40MHz.

setradiowlan1n‐bandwidth40

6. Allowamaximumof100stationstoconnecttotheAPatatime.

setbsswlan1bssvap0max‐stations100

7. Setthetransmitpowerto75percent.

setradiowlan1tx‐power75

8. Viewinformationabouttheradiosettings.

getradiowlan1detail

RadioConfigurationUsingSNMP

1. LoadtheDLINK‐WLAN‐ACCESS‐POINT‐MIBmodule.

2. FromtheMIBtree,navigatetotheobjectsintheapRadiotable(apRadioBss>apRadioTable).

3. UsetheapRadioStatusobjecttosetthestatusofRadio2toup(1).

4. UsetheapRadioModeobjecttosettheRadio2modetoIEEE802.11b/g/n,whichisbg‐n(4).

5. UsetheapRadioChannelPolicyobjecttosetthechannelpolicytostatic(1),whichdisablestheautomatic

channelassignment.

6. UsetheapRadioStaticChannelobjecttosetthechannelto6.

7. UsetheapRadioChannelBandwithobjecttosetthechannelbandwidthforRadio2toforty‐MHz(2).

8. UsetheapRadioTxPowerobjecttosetthetransmissionpoweronRadio2to75.

9. NavigatetotheobjectsintheapBssTable.

10. UsetheapBssMaxStationsobjecttosetthevalueofthemaximumallowedstationsto100.

ConfiguringtheWirelessDistributionSystem

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page169

UnifiedAccessPointAdministrator’sGuide

ConfiguringtheWirelessDistributionSystem

ThisexamplesshowshowtoconfigureaWDSlinkbetweentwoAPs.ThelocalAPisMyAP1andhasaMAC

addressof00:1B:E9:16:32:40,andtheremoteAPisMyAP2withaMACaddressof00:30:AB:00:00:B0.

TheWDSlinkhasthefollowingsettings,whichmustbeconfiguredonbothAPs:

• Encryption:WPA(PSK)

• SSID:wds‐link

•Key:abcdefghijk

WDSConfigurationfromtheWebInterface

TocreateaWDSlinkbetweenapairofaccesspoints“MyAP1”and“MyAP2”usethefollowingsteps:

1. LogontoMyAP1andnavigatetotheManage>WDSpage.

TheMACaddressforMyAP1(theaccesspointyouarecurrentlyviewing)isautomaticallyprovidedinthe

LocalAddressfield.

2. EntertheMACaddressforMyAP2intheRemoteAddressfield,orclickthearrownexttothefieldandselect

theMACaddressofMyAP2fromthepop‐uplist.

3. SelectWPA(PSK)fromtheEncryptionmenu.

Note:TheWPA(PSK)optionisavailableonlyifVAP0onRadio1usesWPA(PSK)asthesecurity

method.IfVAP0isnotsettoWPAPersonalorWPAEnterprise,youmustchooseeitherNone

(Plain‐text)orWEPforWDSlinkencryption.

ConfiguringtheWirelessDistributionSystem

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page170

UnifiedAccessPointAdministrator’sGuide

4. Enterwds‐linkintheSSIDfieldandabcdefghijkintheKeyfield.

5. ClickApplytoapplytheWDSsettingstotheAP.

6. LogontoMyAP2andrepeatsteps2‐5(butbesuretousetheMACaddressofMyAP1intheRemoteAddress

field.

WDSConfigurationfromtheCLI

1. ConnecttotheMyAP1byusingTelnet,SSH,oraserialconnection.

2. ConfiguretheremoteMACaddressforMyAP2.

setinterfacewlan0wds0statusupremote‐mac00:30:AB:00:00:B0

3. SetWPA(PSK)astheencryptiontypeforthelink.

setinterfacewlan0wds0wds‐security‐policywpa‐personal

4. SettheSSIDontheWDSlink.

setinterfacewlan0wds0wds‐ssidwds‐link

5. Configuretheencryptionkey.

setinterfacewlan0wds0wds‐wpa‐psk‐keyabcdefghijk

6. AdministrativelyenabletheWDSlink.

setinterfacewlan0wds0statusup

7. PerformthesameconfigurationstepsonMyAP2.

Note:MyAP1andMyAP2mustbesettothesameIEEE802.11Modeandbetransmittingonthe

samechannel.

ConfiguringtheWirelessDistributionSystem

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page171

UnifiedAccessPointAdministrator’sGuide

WDSConfigurationUsingSNMP

1. LoadtheFASTPATH‐WLAN‐ACCESS‐POINT‐MIBmodule.

2. FromtheMIBtree,navigatetotheobjectsintheapIfConfigtable.

3. WalktheapIfConfigNameobjecttoviewtheinstanceIDforthefirstWDSlink(wlan0wds0).

ThefirstWDSlinkisinstance1.

4. Setthevalueofinstance1intheapIfConfigRemoteMacobjectto00:30:AB:00:00:B0.

IntheMG‐Softbrowser,theformatfortheMACaddressvaluetosetis#0x000x300xAB0x000x000xB0.

5. Setthevalueofinstance1intheapIfConfigWdsSecPolicyobjecttoWPAPersonal(3).

6. Setthevalueofinstance1intheapIfConfigSsidobjecttowds‐link.

7. Setthevalueofinstance1intheapIfConfigWdsWpaPskKeyobjecttoabcdefthijk.

SomeMIBbrowsersrequirethatthevaluebeenteredinHEXvaluesratherthanASCIIvalues.

8. PerformthesameconfigurationstepsonMyAP2.

ClusteringAccessPoints

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page172

UnifiedAccessPointAdministrator’sGuide

ClusteringAccessPoints

ThisexampleshowshowtoconfigureaclusterwithtwoAPsandtoenableautomaticchannelre‐

assigment.ThelocationofthelocalAPisRoom214,andtheclusternameisMyCluster.

ClusteringAPsbyUsingtheWebInterface

1. LogontotheAPandnavigatetotheCluster>AccessPointspage.

2. Ifclusteringhasstarted,clickStopClusteringsoyoucanchangetheClusteringOptions.

3. EntertheAPlocationandthenameoftheclusterforittojoin.

4. ClickApply.

5. ClickStartClusteringtoenabletheclusteringfeature.

Afteryourefreshthepage,otherAPsthatareonthesamebridgedsegment,haveradiosinthesame

operatingmode,areenabledforclustering,andhavethesameclusternameappearintheAccessPoints

table.

ClusteringAccessPoints

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page173

UnifiedAccessPointAdministrator’sGuide

6. GototheChannelManagementpagetoviewthechannelassignments.

Atableonthepagedisplaysthecurrentchannelassignmentsandtheproposedchannelassignments.The

intervalsettingintheAdvancedsectiondeterminehowoftenproposedchangesareapplied.

ClusteringAPsbyUsingtheCLI

1. ConnecttotheAPbyusingTelnet,SSH,oraserialconnection.

2. Stopclusteringsoyoucanchangethelocationandclustername.

setclusterclustered0

3. SettheAPLocation.

setclustercluster‐name“Room214"

4. Settheclustername.

setclusterlocationMyCluster

5. Startclustering.

setclusterclustered1

6. ViewinformationabouttheclustersettingsontheAP.

getclusterdetail

7. Starttheautomaticchannelplanner.

setchannel‐plannerstatusup

8. Viewthesettingsfortheautomaticchannelplanner.

getchannel‐plannerdetail

Note:Iftheclusternameorclusterlocationhasspaces,youmustenclosethetextinquotation

markswhenyouenterthetextintheCLI,asthecommandexampleshows.Youdonotneedtouse

quotationmarkswhenyouentertextbyusingtheWebUI.

ConfiguringClientQoS

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page174

UnifiedAccessPointAdministrator’sGuide

ClusteringAPsbyUsingSNMP

ClusterconfigurationbyusingSNMPisnotsupported.

ConfiguringClientQoS

ThisexampleshowshowtoenableclientQoS,configureanACLandaDiffServpolicyontheAP,andtoapply

theACLandthePolicytotraffictransmittedfromclientsassociatedwithVAP2andreceivedbytheAP.

TheIPv4ACLisnamedacl1andcontainstworules.ThefirstruleallowsHTTPtrafficfromthe192.168.1.0

subnet.ThesecondruleallowsallIPtrafficfromthemanagementstation(192.168.1.23).Allothertrafficis

deniedduetotheimplicitdenyallruleattheendoftheACL.TheACLisappliedtotheinboundinterfaceon

theAPsothatpacketsarecheckedwhentheAPreceivestrafficfromassociatedclients.

TheDiffServpolicyinthisexampleshowshowtoestablishdefaultDiffServbehaviorforclientsassociatingwith

theVAPthatdonotobtainaDiffServpolicynamethroughtheRADIUSserver.Voicetraffic(UDPpackets)

receivedfromclientsinthe192.168.1.0subnetthathastheVoIPserverasitsdestinationaddress

(192.168.2.200),ismarkedwiththeIPDSCPvalueforexpeditedforwardingsothatittakespriorityoverother

traffic.

ConfiguringQoSbyUsingtheWebInterface

ACLConfiguration

1. LogontotheAPandnavigatetotheClientQoS>ClientQoSACLpage.

2. Enteracl1intheACLNamefield,andclickAddACL.

Thescreenrefreshes,andadditionalfieldsappear.

3. FromtheActionmenu,selectPermit.

4. CleartheMatchEveryoption.

5. VerifythattheProtocoloptionisselectedandIPisselectedfromtheSelectFromListmenu.

ConfiguringClientQoS

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page175

UnifiedAccessPointAdministrator’sGuide

6. Configuretheremainingsettings:

•SourceIPAddress:192.168.1.0

•WildCardMask:0.0.0.255

•SourcePort:Selecttheoption

• SelectFromList(SourcePort):www

7. ClickApplytosavetherule.

8. SelectNewRulefromtheRulemenuandcreateanotherrulewiththefollowingsettings:

•Action:Permit

•MatchEvery:Cleartheoption

•Protocol:IP

• Address:192.168.1.23

•WildCardMask:0.0.0.0

9. ClickApplytosavetherule.

10. NavigatetotheClientQoS>VAPQoSParameterspage.

11. FortheClientQoSGlobalAdminModeoption,selectEnabled.

12. FromtheVAPmenu,selectVAP2.

13. SelecttheEnabledoptionforClientQoSMode.

ConfiguringClientQoS

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page176

UnifiedAccessPointAdministrator’sGuide

14. FromtheACLTypeUpmenu,selectIPv4.

15. FromtheACLNameUpmenu,selectacl1.

16. ClickApplytoupdatetheAPwiththeQoSsettings.

DiffServConfiguration

1. LogontotheAPandnavigatetotheClientQoS>ClassMappage.

2. Enterclass_voipintheClassMapNamefieldandclickAddClassMap.

Thepagerefreshesandadditionalfieldsappear.

3. SelecttheMatchEveryoptiontoindicatethatallmatchcriteriadefinedfortheclassmustbesatisfiedin

orderforapackettobeconsideredamatch.

4. SelectProtocol,andthenselectUDPfromtheSelectFromListfieldtodefineUDPasamatchcriteria.

5. SelectSourceIPAddressandenterthefollowinginformation:

• Address:192.168.1.0

•SourceIPMask:255.255.255.0

6. SelecttheDestinationIPAddressoptionandenterthefollowinginformationfortheVoIPserver:

• Address:192.168.2.200

ConfiguringClientQoS

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page177

UnifiedAccessPointAdministrator’sGuide

•DestinationIPMask:255.255.255.255

7. ClickApplytosavethematchcriteria.

8. NavigatetotheClientQoS>PolicyMappage.

9. Tocreateapolicy,enterpol_voipintothePolicyMapNamefield,andthenclickAddPolicyMap.

Thepagerefreshesandadditionalfieldsappear.

ConfiguringClientQoS

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page178

UnifiedAccessPointAdministrator’sGuide

10. Fortheclass_voipclassmap,selecttheIPDSCPoption,andthenselecteffromtheSelectFromListmenu.

11. Trafficthatmeetsthecriteriadefinedintheclass_voipclassismarkedwithaDSCPvalueofEF(expedited

forwarding).

12. ClickApplytosavethepolicy.

13. NavigatetotheClientQoS>VAPQoSParameterspage.

14. SelectVAP2fromtheVAPmenu.

15. MakesurethattheClientQoSGlobalAdminModeandtheQoSModearebothenabled.

16. FromtheDiffServPolicyUpmenu,selectpol_voip.

ConfiguringClientQoS

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page179

UnifiedAccessPointAdministrator’sGuide

17. ClickApplytoupdatetheAPwiththeQoSsettings.

ConfiguringQoSbyUsingtheCLI

ACLConfiguration

1. ConnecttotheAP.

2. CreateanACLnamedacl1.

addaclacl1acl‐typeipv4

3. Addaruletoacl1thatallowsHTTPtrafficfromthe192.168.1.0subnet.

addruleacl‐nameacl2acl‐typeipv4actionpermitprotocolipsrc‐ip192.168.1.0src‐ip‐mask

0.0.0.255src‐porthttp

4. Addanotherruletoacl1thatallowsalltrafficfromthehostwithanIPaddressof192.168.1.23.

addruleacl‐nameacl2acl‐typeipv4actionpermitprotocolipsrc‐ip192.168.1.23src‐ip‐mask

0.0.0.0

5. EnableClientQoSontheAP.

setclient‐qosmodeup

6. EnableClientQoSonVAP2

setvapwlan0vap2qos‐modeup

7. Applyacl1toVAP2intheinbounddirection(fromtheclienttotheAP).

setvapwlan0vap2def‐acl‐upacl1

DiffServConfiguration

1. LogontotheAPCLI.

2. Createaclassmapnamedclass_voipandconfigureittomatchallUDPpacketsfromthe192.168.1.0

networkthathaveadestinationIPaddressof192.168.2.200(theVoIPserver).

ConfiguringClientQoS

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page180

UnifiedAccessPointAdministrator’sGuide

addclass‐mapclass_voipeveryyesprotocoludpsrc‐ip192.168.1.0src‐ip‐mask255.255.255.0dst‐

ip192.168.2.200dst‐ip‐mask255.255.255.255

3. Addapolicymapnamedpol_voip.

addpolicy‐mappol_voip

4. Definethepol_voippolicymapbyaddingtheclass_voipclassmapandspecifyingthatpacketsthatmatch

theclass_voipcriteriawillbemarkedwithaDSCPvalueofEF(expeditedforwarding).

addpolicy‐attrpolicy‐map‐namepol_voipclass‐map‐nameclass_voipmark‐ip‐dscpef

5. EnableClientQoSontheAP.

setclient‐qosmodeup

6. EnableClientQoSonVAP2

setvapwlan0vap2qos‐modeup

7. Applypol_voiptoVAP2intheinbounddirection(fromtheclienttotheAP).

setvapwlan0vap2def‐policy‐uppol_voip

ConfiguringQoSbyUsingSNMP

ACLConfiguration

1. LoadtheDLINK‐WLAN‐ACCESS‐POINT‐MIBmodule.

2. FromtheMIBtree,navigatetotheobjectsintheapQos>apAclTable.

3. UsetheapQosAclStatusobjecttocreatearowentrywithapQosAclNameandapQosAclTypeastheindexes

forapQosAclEntry.

ThenewapQosAclEntryvalueincludestheapQosAclType(1)followedbythenumberofcharactersinthe

name(4),andthentheASCIIcodeforthename.Inthisexample,acl1is97.99.108.49.Thevaluetosetis4,

whichisCreateandGo.

4. Addaruletoacl1thatallowsHTTPtrafficfromthe192.168.1.0subnet.

•Use1.3.6.1.4.1.6132.1.1.28.10.3.1.14.1.4.97.99.108.49.1tosettheapQosAclRuleStatusofRule1to

active(1)

IntheOID,the14(bold)isthesequenceidentifierfortheapQosAclRuleStatussobject,1istheACLtype,

4.97.99.108.49istheACLname(thenumberofcharactersfollowedbytheASCIIcode),andthefinal1

ConfiguringClientQoS

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page181

UnifiedAccessPointAdministrator’sGuide

istheACLrulenumber.

•Use1.3.6.1.4.1.6132.1.1.28.10.3.1.4.1.4.97.99.108.49.1tosettheapQosAclRuleSrcIpAddresstoa

valueof192.168.1.0.

•Use1.3.6.1.4.1.6132.1.1.28.10.3.1.5.1.4.97.99.108.49.1tosettheapQosAclRuleSrcIpMasktoavalue

of0.0.0.255.

•Use1.3.6.1.4.1.6132.1.1.28.10.3.1.6.1.4.97.99.108.49.1tosetapQosAclRuleSrcProtocoltoavalueof

80(HTTP).

•Use1.3.6.1.4.1.6132.1.1.28.10.3.1.16.1.4.97.99.108.49.1tosetapQosAclRuleCommittoavalueof1

(true),whichsavestherule.

5. Addanotherruletoacl1thatallowsalltrafficfromthehostwithanIPaddressof192.168.1.23.

•Use1.3.6.1.4.1.6132.1.1.28.10.3.1.14.1.4.97.99.108.49.2tosettheapQosAclRuleStatusofRule2to

active(1)

•Use1.3.6.1.4.1.6132.1.1.28.10.3.1.4.1.4.97.99.108.49.2tosettheapQosAclRuleSrcIpAddresstoa

valueof192.168.1.23.

•Use1.3.6.1.4.1.6132.1.1.28.10.3.1.5.1.4.97.99.108.49.2tosettheapQosAclRuleSrcIpMasktoavalue

of0.0.0.0.

•Use1.3.6.1.4.1.6132.1.1.28.10.3.1.16.1.4.97.99.108.49.2tosetapQosAclRuleCommittoavalueof1

(true),whichsavestherule.

6. UsetheapQosGlobalModeobjecttosetthestatustoup(1),whichenablesClientQoSontheAP.

7. WalktheapVapDescriptionobjecttoviewtheinstanceIDforVAP2(wlan0vap2).

VAP2onRadio1isinstance5.

8. UsetheapVapQosModeobjecttosetthestatusofVAP2toup(1).

9. UsetheapVapAclUpobjecttoapplyacl1toVAP2intheinbounddirection(fromtheclienttotheAP).

TheACLnameisthetextstring,andnottheASCIIcode.

ConfiguringClientQoS

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page182

UnifiedAccessPointAdministrator’sGuide

DiffServConfiguration

1. LoadtheDLINK‐WLAN‐ACCESS‐POINT‐MIBmodule.

2. FromtheMIBtree,navigatetotheobjectsintheapQos>apAclTable.

3. UsetheapQosDsClassMapStatusobjecttosetthestatusoftheclassmapnamedclass_voiptoCreateand

Go(4).

TheOIDtosetis1.3.6.1.4.1.6132.1.1.28.10.4.1.2.10.99.108.97.115.115.95.118.111.105.112,where10is

thenumberofcharacters,and99.108.97.115.115.95.118.111.105.112isclass_voipinASCIIcode.

4. Configureclass_voiptomatchallUDPpacketsfromthe192.168.1.0networkthathaveadestinationIP

addressof192.168.2.200(theVoIPserver).

•SetapQosDsClassMapMatchEverytotrue(1).

•SetapQosDsClassMapMatchProtocoltoUDP(17).

•SetapQosDsClassMapMatchSrcIpAddressto192.168.1.0.

•SetapQosDsClassMapMatchSrcIpMaskto255.255.255.0.

•SetapQosDsClassMapMatchDestIpAddressto192.168.2.200.

•SetapQosDsClassMapMatchDestIpMaskto255.255.255.255

•SetapQosDsClassMapMatchCommittotrue(1).

5. Createapolicymapnamedpol_voip(whichis112.111.108.95.118.111.105.112inASCII)bysettingthe

valueoftheOID1.3.6.1.4.1.6132.1.1.28.10.5.1.2.8.112.111.108.95.118.111.105.112toCreateandGo(4).

6. Definethepol_voippolicymapbyaddingtheclass_voipclassmapandspecifyingthatpacketsthatmatch

theclass_voipcriteriawillbemarkedwithaDSCPvalueofEF(expeditedforwarding).

•Set

apQosDsPolicyMapAttrStatus.8.112.111.108.95.118.111.105.112.10.99.108.97.115.115.95.118.111.1

05.112.1toavalueof4(CreateandGo)

•Set

apQosDsPolicyMapAttrMarkIpDscp.8.112.111.108.95.118.111.105.112.10.99.108.97.115.115.95.118.

111.105.112.1to46(whichistheequivalentofef).

ConfiguringClientQoS

D-Link UnifiedAccessPointAdministrator’sGuide

November2011 Page183

UnifiedAccessPointAdministrator’sGuide

7. EnableClientQoSontheAP.

setclient‐qosmodeup

8. UsetheapQosGlobalModeobjecttosetthestatustoup(1),whichenablesClientQoSontheAP.

9. WalktheapVapDescriptionobjecttoviewtheinstanceIDforVAP2(wlan0vap2).

VAP2onRadio1isinstance5.

10. UsetheapVapQosModeobjecttosetthestatusofVAP2toup(1).

11. UsetheapVapPolUpobjecttoapplypol_voiptoVAP2intheinbounddirection(fromtheclienttotheAP).

Thepolicynameisthetextstring,andnottheASCIIcode.

Professional installation instruction

Please be advised that due to the unique function supplied by this product, the

device is intended for use with our interactive entertainment software and

licensed third-party only. The product will be distributed through controlled

distribution channel and installed by trained professional and will not be sold

directly to the general public through retail store.

1. Installation personal

This product is designed for specific application and needs to be

installed by a qualified personal who has RF and related rule

knowledge. The general user shall not attempt to install or change the

setting.

2. Installation location

The product shall be installed at a location where the radiating antenna

can be kept 20 cm from nearby person in normal operation condition to

meet regulatory RF exposure requirement.

3. External antenna

Use only the antennas which have been approved by D-Link

Corporation. The non-approved antenna(s) may produce unwanted

spurious or excessive RF transmitting power which may lead to the

violation of FCC/IC limit and is prohibited.

4. Installation procedure

Please refer to user’s manual for the detail.

5. Warning

Please carefully select the installation position and make sure that the

final output power does not exceed the limit set force in relevant rules.

The violation of the rule could lead to serious federal penalty.

Instructions d'installation professionnelle

Veuillez noter que l'appareil etant dedie a une fonction unique, il doit etre

utilise avec notre logiciel proprietaire de divertissement interactif . Ce produit

sera propose par un reseau de distribution controle et installe par des

professionels; il ne sera pas propose au grand public par le reseau de la

grande distribution.

1. Installation

Ce produit est destine a un usage specifique et doit etre installe par un

personnel qualifie maitrisant les radiofrequences et les regles s'y rapportant.

L'installation et les reglages ne doivent pas etre modifies par l'utilisateur

final.

2. Emplacement d'installation

En usage normal, afin de respecter les exigences reglementaires

concernant l'exposition aux radiofrequences, ce produit doit etre installe de

facon a respecter une distance de 20 cm entre l'antenne emettrice et les

personnes.

3. Antenn externe.

Utiliser uniiquement les antennes approuvees par le fabricant. L'utilisation

d'autres antennes peut conduire a un niveau de rayonnement essentiel ou

non essentiel depassant les niveaux limites definis par FCC/IC, ce qui est

interdit.

4. Procedure d'installation

Consulter le manuel d'utilisation.

5. Avertissement

Choisir avec soin la position d'installation et s'assurer que la puissance de

sortie ne depasse pas les limites en vigueur. La violation de cette regle peut

conduire a de serieuses penalites federales.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one of the

following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

For operation within 5.15 ~ 5.25GHz frequency range, it is restricted to indoor environment.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance 20cm

between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or

transmitter.

The availability of some specific channels and/or operational frequency bands are country

dependent and are firmware programmed at the factory to match the intended destination. The

firmware setting is not accessible by the end user.

Industry Canada statement:

This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio

exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit

pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris

un brouillage susceptible de provoquer un fonctionnement indésirable.

Caution :

(i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for

harmful interference to co-channel mobile satellite systems;

(ii) high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and

5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.

Avertissement:

(i) les dispositifs fonctionnant dans la bande 5 150-5 250 MHz sont réservés uniquement pour une

utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites

mobiles utilisant les mêmes canaux;

(ii) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance

sont désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les bandes 5 250-5 350 MHz et

5 650-5 850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs

LAN-EL.

Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with minimum distance 20cm between the radiator &

your body.

Déclaration d'exposition aux radiations:

Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un

environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de

distance entre la source de rayonnement et votre corps.

This device has been designed to operate with an antenna having a maximum gain of 5 dBi. Antenna

having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna

impedance is 50 ohms.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and

maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio

interference to other users, the antenna type and its gain should be so chosen that the equivalent

isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

This radio transmitter (IC: 4216A-WL6600APA1 / Model: DWL-6600APA1) has been approved by

Industry Canada to operate with the antenna types listed below with the maximum permissible gain and

required antenna impedance for each antenna type indicated. Antenna types not included in this list,

having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with

this device.

Ce dispositif a été conçu pour fonctionner avec une antenne ayant un gain maximal de 5 dBi. Une antenne

à gain plus élevé est strictement interdite par les règlements d'Industrie Canada. L'impédance d'antenne

requise est de 50 ohms.

Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peutfonctionner avec

une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pourl'émetteur par Industrie Canada.

Dans le but de réduire les risques de brouillage radioélectriqueà l'intention des autres utilisateurs, il faut

choisir le type d'antenne et son gain de sorte que lapuissance isotrope rayonnée équivalente (p.i.r.e.) ne

dépasse pas l'intensité nécessaire àl'établissement d'une communication satisfaisante.

Le présent émetteur radio (IC: 4216A-WL6600APA1 / Model: DWL-6600APA1) a été approuvé par

Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain

admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus

dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour

l'exploitation de l'émetteur.

Approved antenna(s) list (for instance)

Type Gain

Dipole 5dBi

NCC Statement

經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功

率或變更原設計之特性及功能

低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應改善至無干擾

時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法

通信或工業、科學及醫療用電波輻射性電機設備之干擾

在 5.25-5.35 秭赫(GHz)頻帶內操作之無線資訊傳輸設備，限於室內使用。

此器材須經專業安裝。

D Link WL6600APA1 Unified Concurrent Dual-band Access Point User Manual

D Link Corporation Unified Concurrent Dual-band Access Point

Contents

User Manual

Navigation menu

Namespaces

Views

Navigation
