Machine!Connect!2.0!Quick&Installation&Guide!
1. What’s)Included)
!
1) Machine!Connect!2.0!(4G! LTE! Only)! device! !
2) USB!cable!for!power!adaptor!
3) Power!adaptor!(indoor!type,!non-industry!grade)!
4) 2!units!of!external!antennas!
5) RJ45!cable.!
!
1. Machine!Connect!2.0!
Main!Device!
2. USB!Cable!For!
Power!Adaptor!
3. Power!Adaptor!
!
!
!
!
!
!
!!!!!!
!
!
!
!
1)!Machine!Connect!
!
!
!
!
!
!
4. External!Antenna!
5. RJ45!Cable!
!
!
!
!
!
!
2. Antenna)Information)
!
There!are!2!units!of!external!antenna!with!2!stands;!which!can!be!used!to!adsorb!to!any!metal!surface!of!machines.!
These!antennas!can!provide!Verizon!B2,!B4!and!B13!radio!connections.!
Note:! Machine! Connect!2.0!requires! an! antenna! to! work! properly.! These! two! antennas! are! only! for!
testing!purpose.!Verizon!does!not!certify!them!yet.!You!may!also!bring!your!own!antenna.!
!
!
!
!
!
!
!
!
!
!
!
!
! !
!
!
!
!
!
!
3. Attaching)the)Antennas)
!
Securely!screw!on!the!antennas:!!
• You!don’t!need!to!figure!out!the!PRI!and!DIV!antenna!when!using!the!supplied!antennas.!
• This!antenna!is!fined!turned!to!handle!the!PRI/DIV!antenna!characteristic.!
If!you!want!to!use!your!own!antennas!that!are!different!than!to!the!supplied!antennas;!then!you!might!need!to!follow!
the!labeled!PRI!and!labeled!DIV!for!your!own!antenna.!
!
!

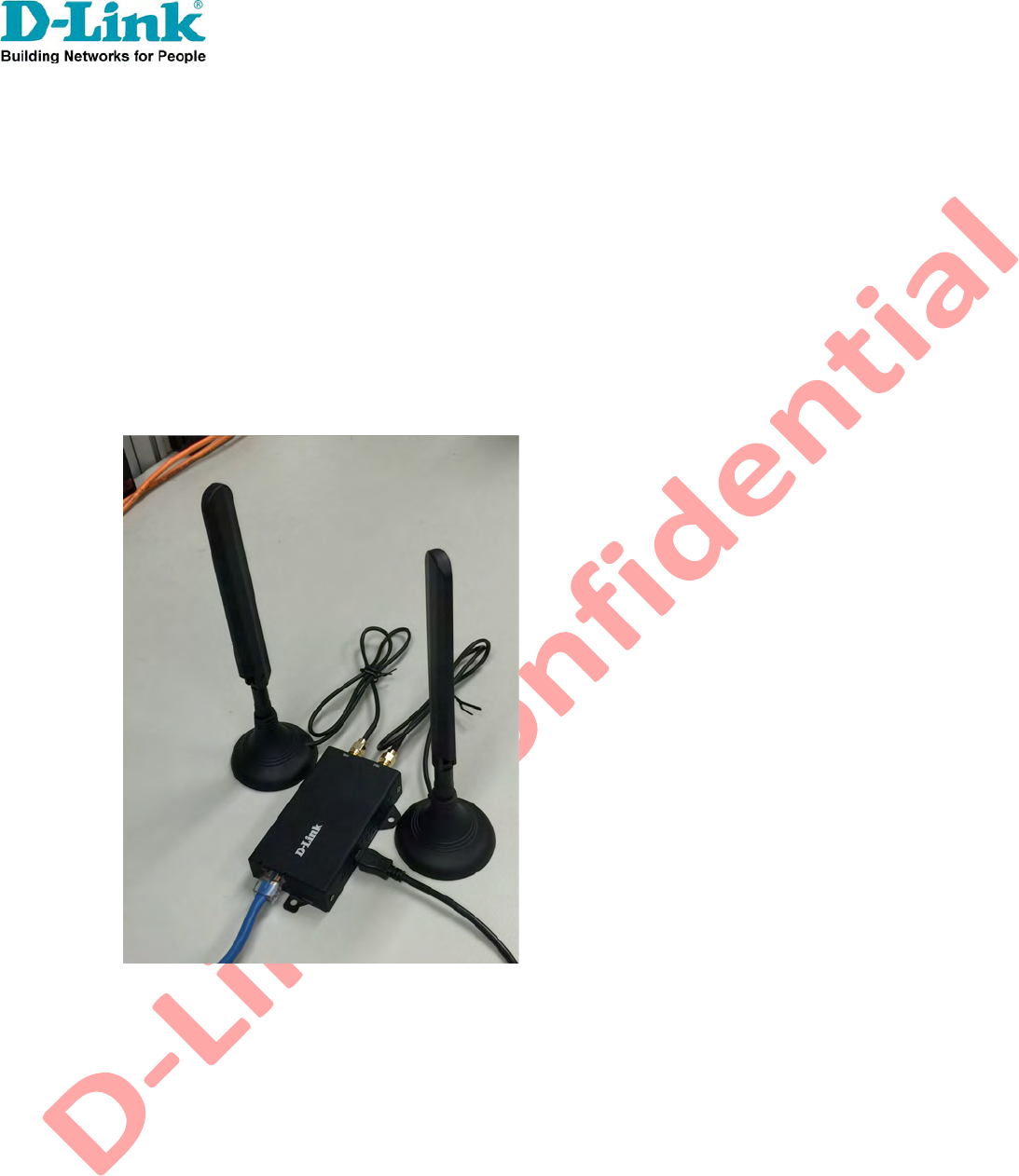

Figure!1!Connect!antenna!to!your!device!
!
!
!
!
!
!
4. Enable)your)device))
Contact!your!Verizon!business!representative!to!activate!your!device!on!the!Verizon!Wireless!Network!by!providing!
IMEI!#!and!ICCID!#!listed!on!the!back!cover!of!the!device.!
5. Use)Ethernet)interface)or)USB)data)interface)to)the)Internet)
For!Machine!Connect!2.0!device,!there!are!two!interfaces!that!can!be!used!to!access!the!Internet.!The!first!one!is!the!
fast!Ethernet!RJ45!interface,!which!is!driverless!for!Linux!based,!and!Windows!based!of!host!devices.!
The!second!interface!is!USB!interface,!which!also!can!be!used!for!Linux!based!and!Windows!based.!For!Windows!
based!hosts,!this!USB!interface!can!only!be!used!in!Windos7!and!above.!
Basically,!RJ45!interface!has!the!higher!priority!than!USB!data!interface.!So!when!these!two!interfaces!are!using!at!the!
same!time,!Machine!Connect!2.0!will!serve!RJ45!only.!!
This!USB!interface!is!provided!as!the!backward!compatible!to!MC1.0!host.!
6. How)to)check)system)status)
!
For!this!Machine!Connect!2.0,!you!can!get!the!overall!system!status!from!WebUI.!Depend!on!which!interface!is!being!
used;!there!are!two!different!IP!address!for!host.!
a) When!using!the!RJ45!interface,!you!can!enter!your!WebUI!page!by!the!following!information.!

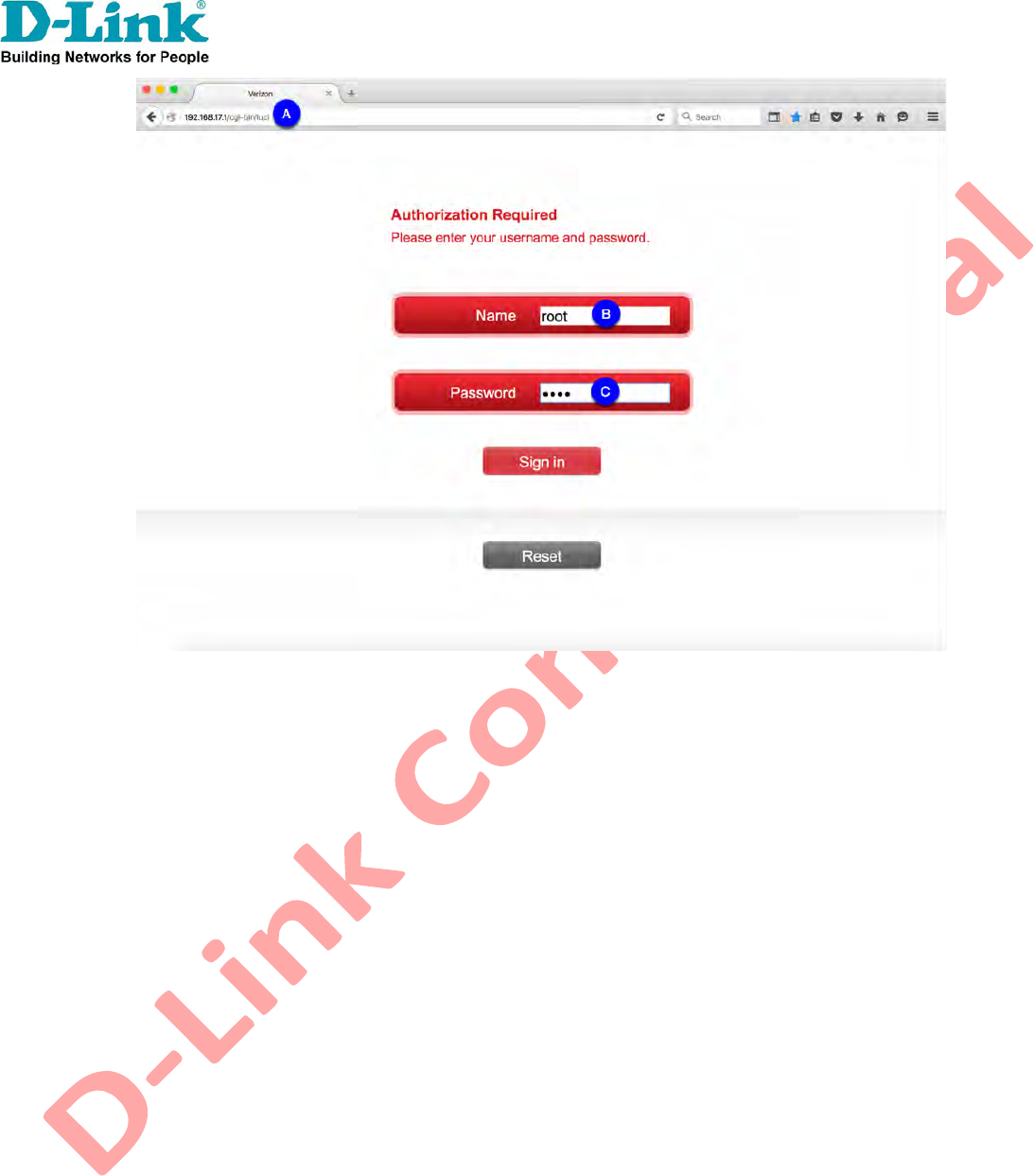

a. http://192.168.17.1!with!account/password:!root/root!for!(A)!and!(B)!in!the!figure!3.!

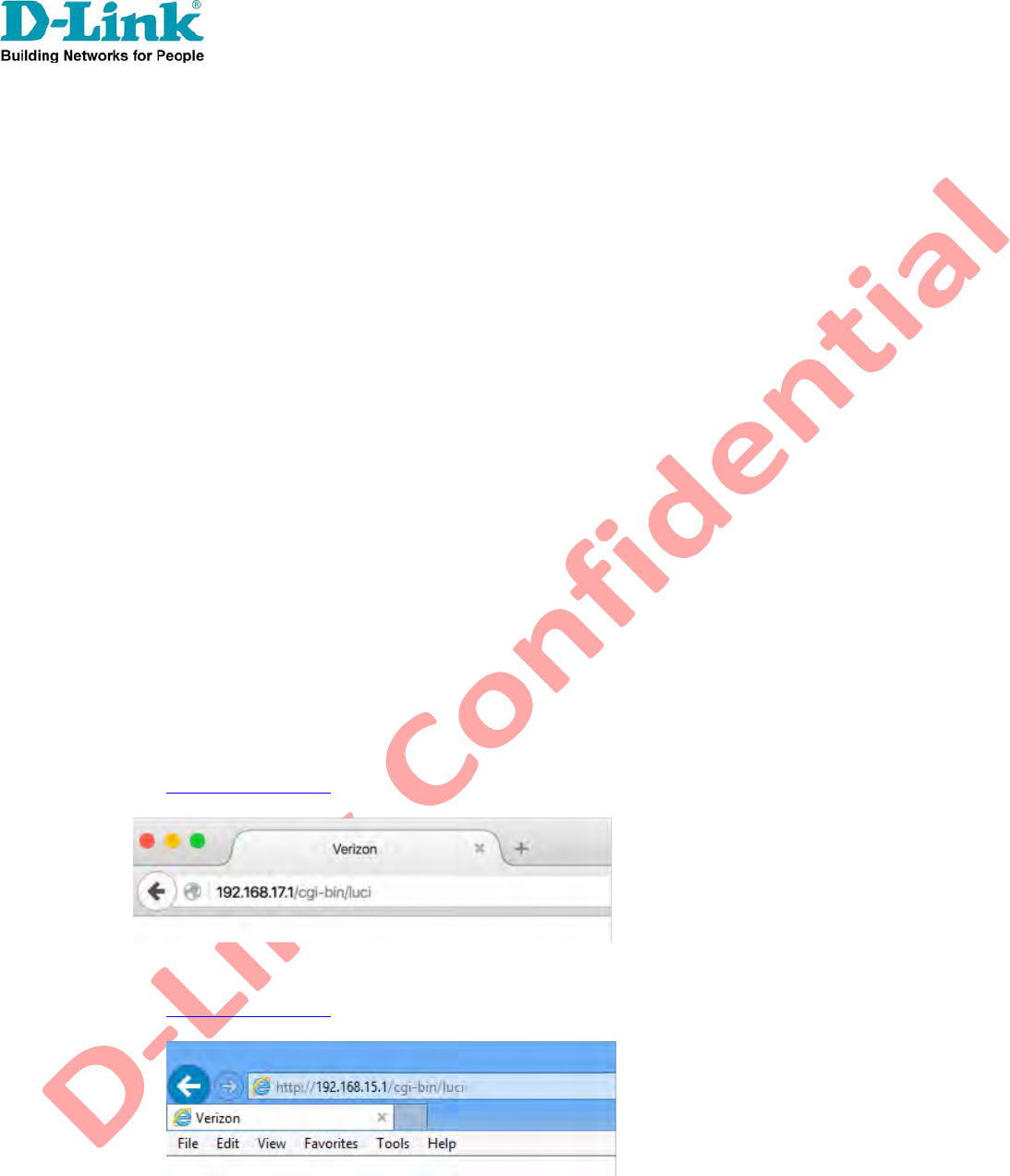

Figure!2!-!URL!address!for!RJ45!connection!
b) When!using!the!USB!data!interface,!you!can!enter!your!WebUI!page!by!the!following!information.!
a. http://192.168.15.1!with!account/password:!root/root!
Figure!3!-!URL!address!for!USB!data!connection!
!
!
!
!
!
!
!
Figure!4!-!WebUI!
!
!
!

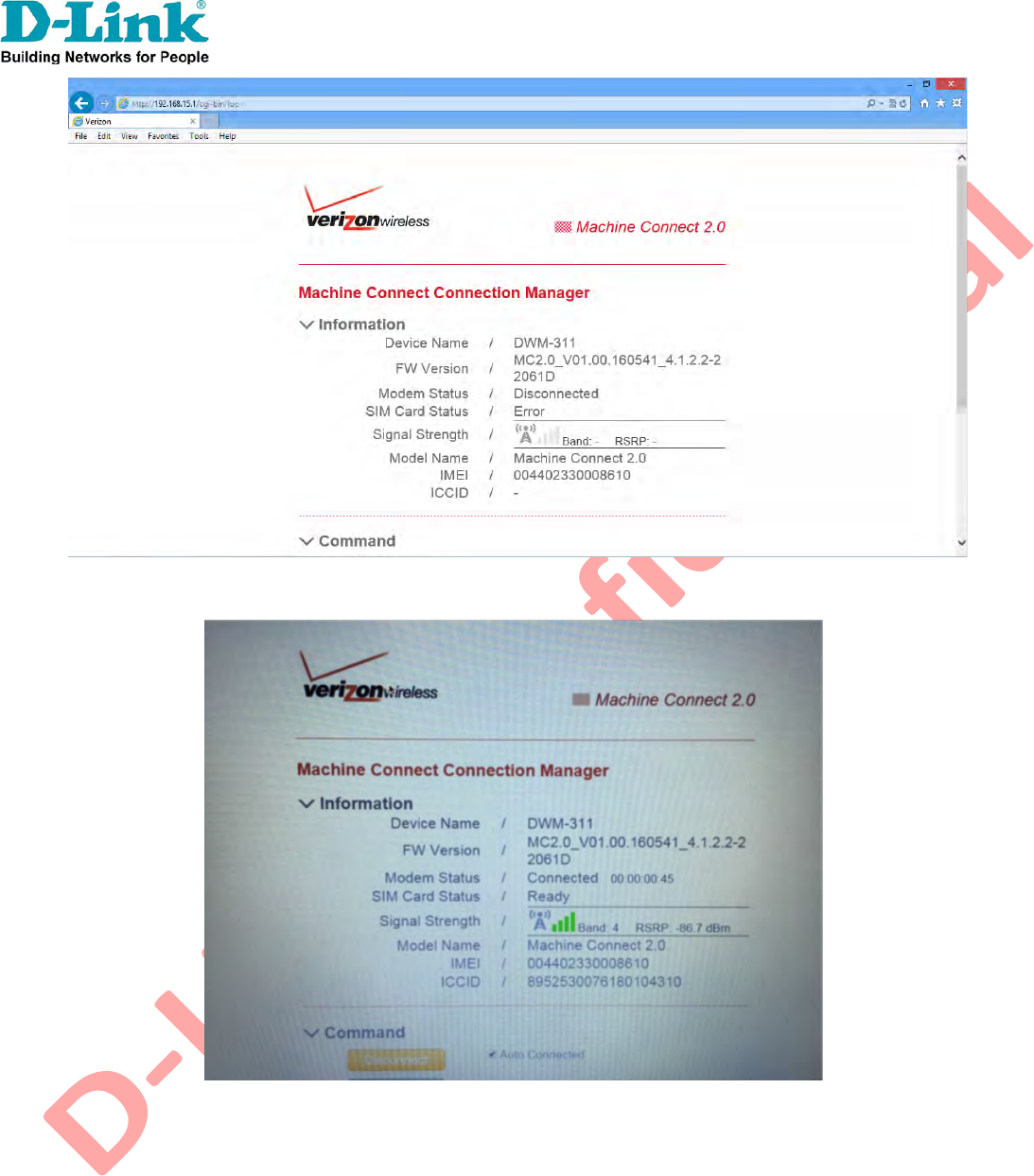

Once!you!enter!the!main!page,!you!will!see!the!following!figure!5!from!RJ45!connection!or!figure!6!from!USB!data!
connection.!
If!your!device!is!connecting!to!Verizon!LTE!live!network,!you!will!see!the!LTE!signal!information!in!figure!7.!

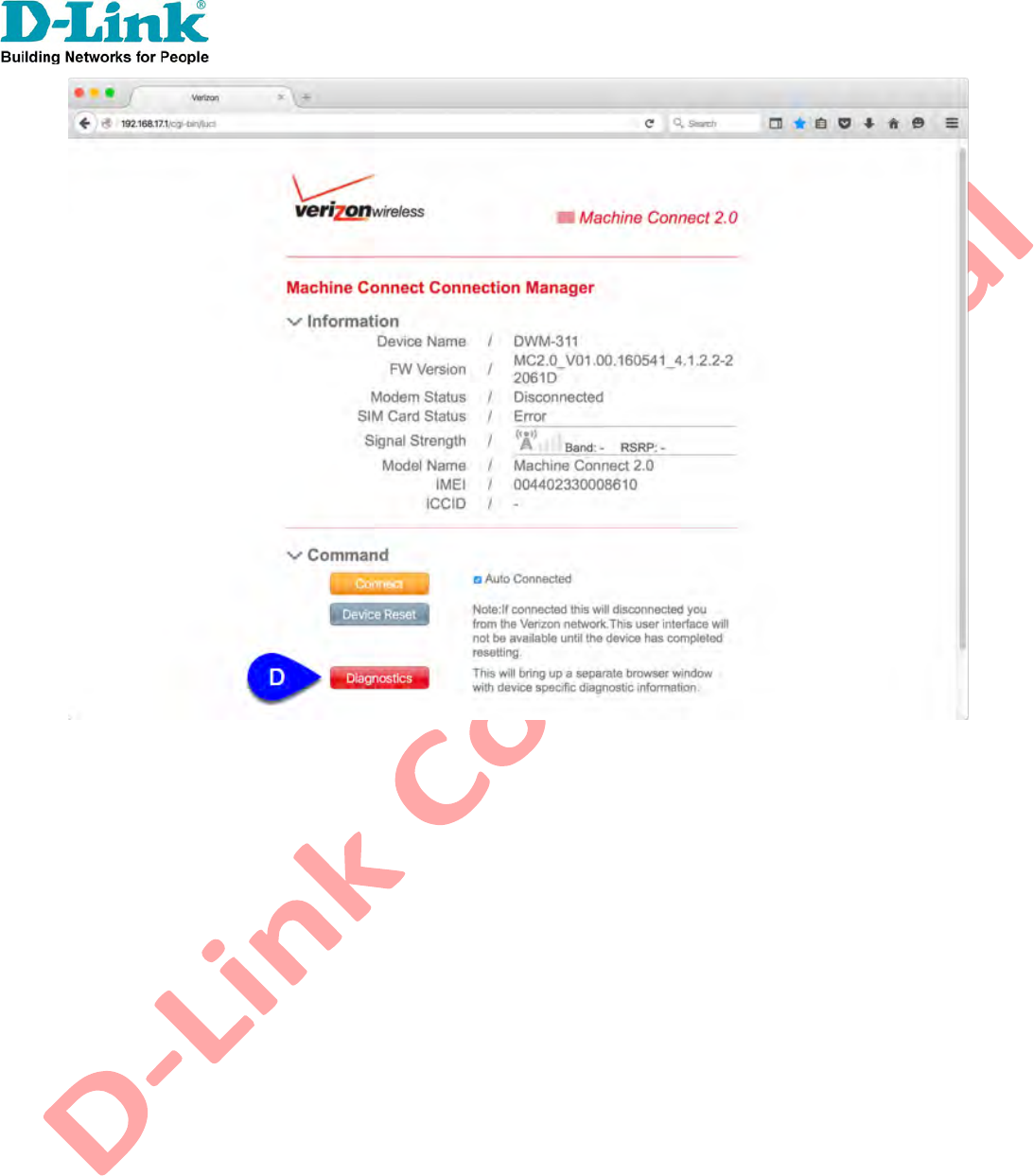

You!can!get!the!more!detail!information!showing!in!figure!8!from!the!“diagnostics”!button,!(D),!in!figure!5.!
!
!
!
!
!
!
!
Figure!5!-!Machine!Connect!2.0!main!page!from!RJ45!connection!
!
!
!
!
!
!
!
Figure!6!-!Machine!Connect!2.0!main!page!from!USB!data!connection!
!
Figure!7!-!LTE!signal!information!!
!
!
!
!
!
!
!
Figure!8!-!Machine!Connect!2.0!system!status!
!
!
7. FCC)Regulations.)
!
15.21!!!Information!to!user.!
Notice:!
Any!changes!or!modifications!not!expressly!approved!by!the!party!responsible!for!compliance!could!
void!your!authority!to!operate!the!equipment.!
!
15.105!!!Information!to!the!user.!
Note:!This!equipment!has!been!tested!and!found!to!comply!with!the!limits!for!a!Class!B!digital!
device,!pursuant!to!part!15!of!the!FCC!Rules.!These!limits!are!designed!to!provide!reasonable!
protection!against!harmful!interference!in!a!residential!installation.!This!equipment!generates,!uses!
and!can!radiate!radio!frequency!energy!and,!if!not!installed!and!used!in!accordance!with!the!
!
!
!
!
!
!
instructions,!may!cause!harmful!interference!to!radio!communications.!However,!there!is!no!
guarantee!that!interference!will!not!occur!in!a!particular!installation.!If!this!equipment!does!cause!
harmful!interference!to!radio!or!television!reception,!which!can!be!determined!by!turning!the!
equipment!off!and!on,!the!user!is!encouraged!to!try!to!correct!the!interference!by!one!or!more!of!
the!following!measures:!
!
• Reorient!or!relocate!the!receiving!antenna.!
• Increase!the!separation!between!the!equipment!and!receiver.!
• Connect!the!equipment!into!an!outlet!on!a!circuit!different!from!that!to!which!the!receiver!is!
connected.!
• Consult!the!dealer!or!an!experienced!radio/TV!technician!for!help.!
15.19!FCC!labeling!requirements!
License!device:!
This!device!complies!with!part!15!of!the!FCC!Rules.!Operation!is!subject!to!the!condition!that!this!
device!does!not!cause!harmful!interference.!
!
FCC!RF!Radiation!Exposure!Statement:!
1.!This!Transmitter!must!not!be!co-located!or!operating!in!conjunction!with!any!other!antenna!or!
transmitter.!
2.!This!equipment!complies!with!FCC!RF!radiation!exposure!limits!set!forth!for!an!uncontrolled!
environment.!This!equipment!should!be!installed!and!operated!with!a!minimum!distance!of!20!
centimeters!between!the!radiator!and!your!body.!
!
!
!
