D Link WR116A2 Wireless N300 3G/4G Multi-WAN Router User Manual
D Link Corporation Wireless N300 3G/4G Multi-WAN Router Users Manual
D Link >
Users Manual

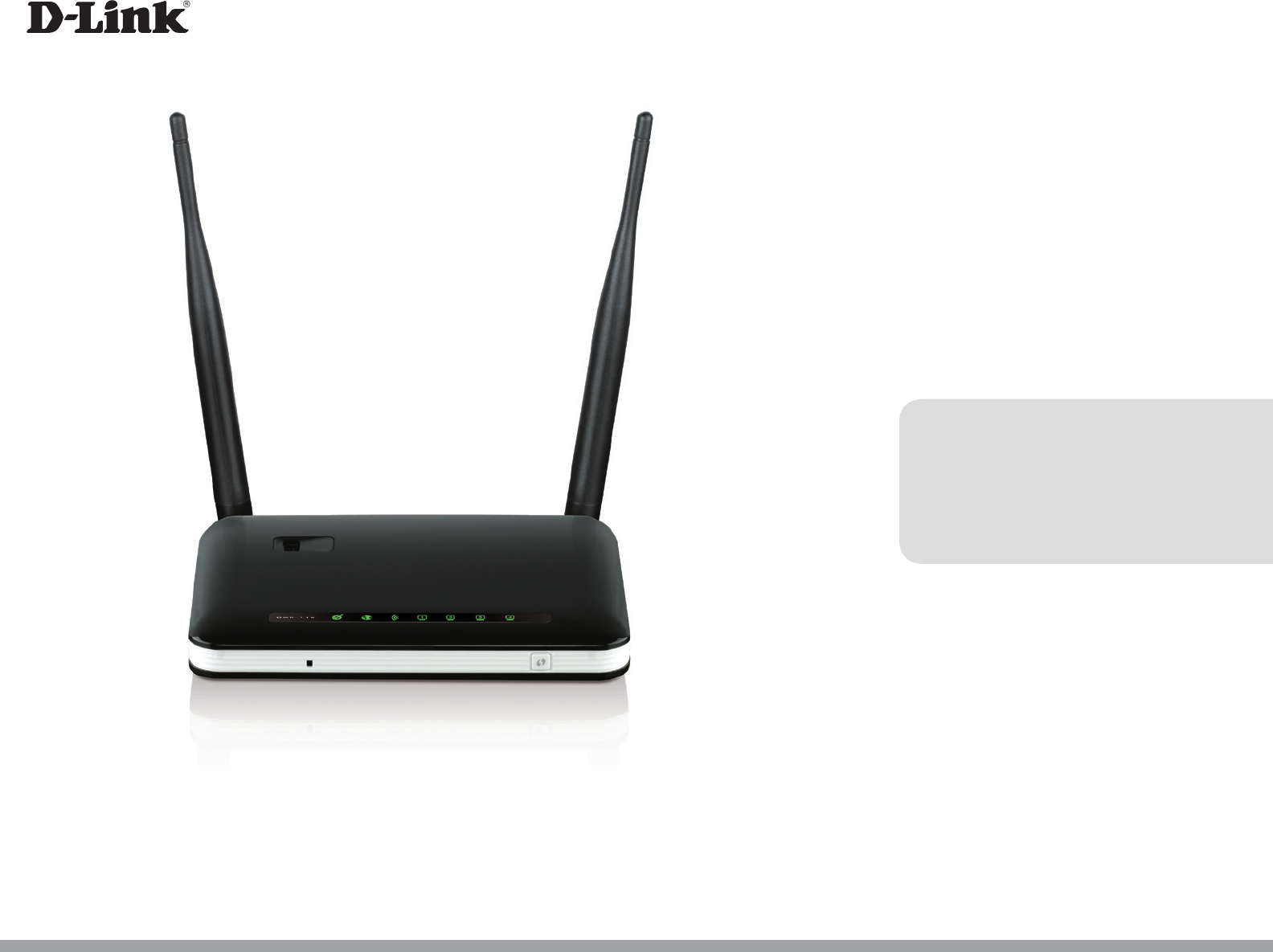

Wireless N300 Multi-WAN Router
DWR-116
Version 1.01 | 10/08/2013
User Manual
iD-Link DWR-116 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of
their respective companies.
Copyright © 2013 by D-Link Corporation.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Corporation.
Revision Date Description
1.0 May 24, 2013 • Initial release for Revision A1
Preface
iiD-Link DWR-116 User Manual
Table of Contents
Preface ................................................................................. i
Manual Revisions ........................................................................... i
Trademarks ...................................................................................... i
Product Overview .............................................................. 1
Package Contents ......................................................................... 1
System Requirements ................................................................. 1
Introduction ................................................................................... 2
Hardware Overview ..................................................................... 3
Back Panel ............................................................................... 3
Front Panel and LEDs ........................................................... 4
Top .............................................................................................5
Installation ......................................................................... 6
Connect to Your Network .......................................................... 6
Wireless Installation Considerations ...................................... 7
Conguration .....................................................................8
Web-based Conguration Utility ............................................ 8

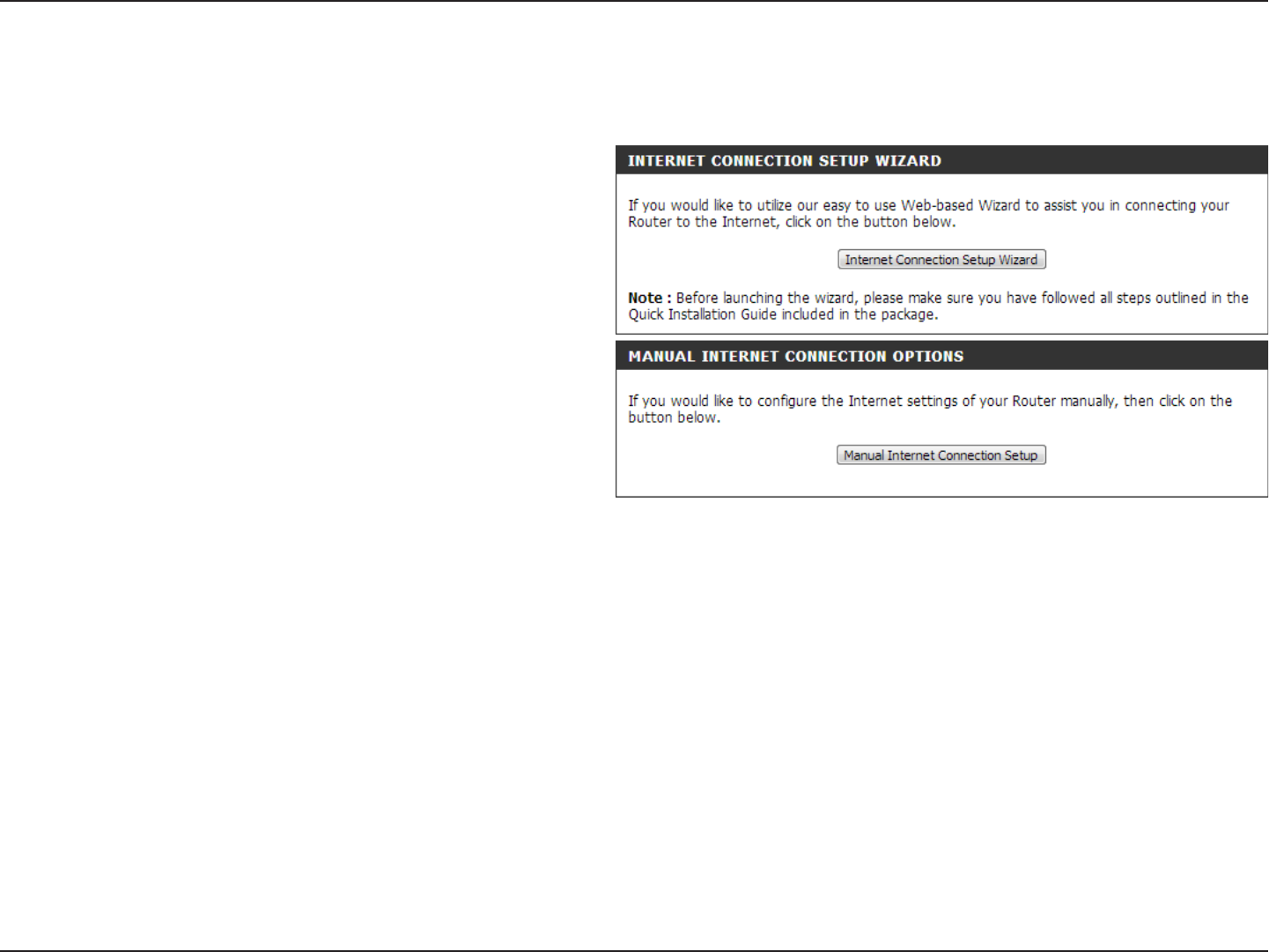

Setup ................................................................................................. 9

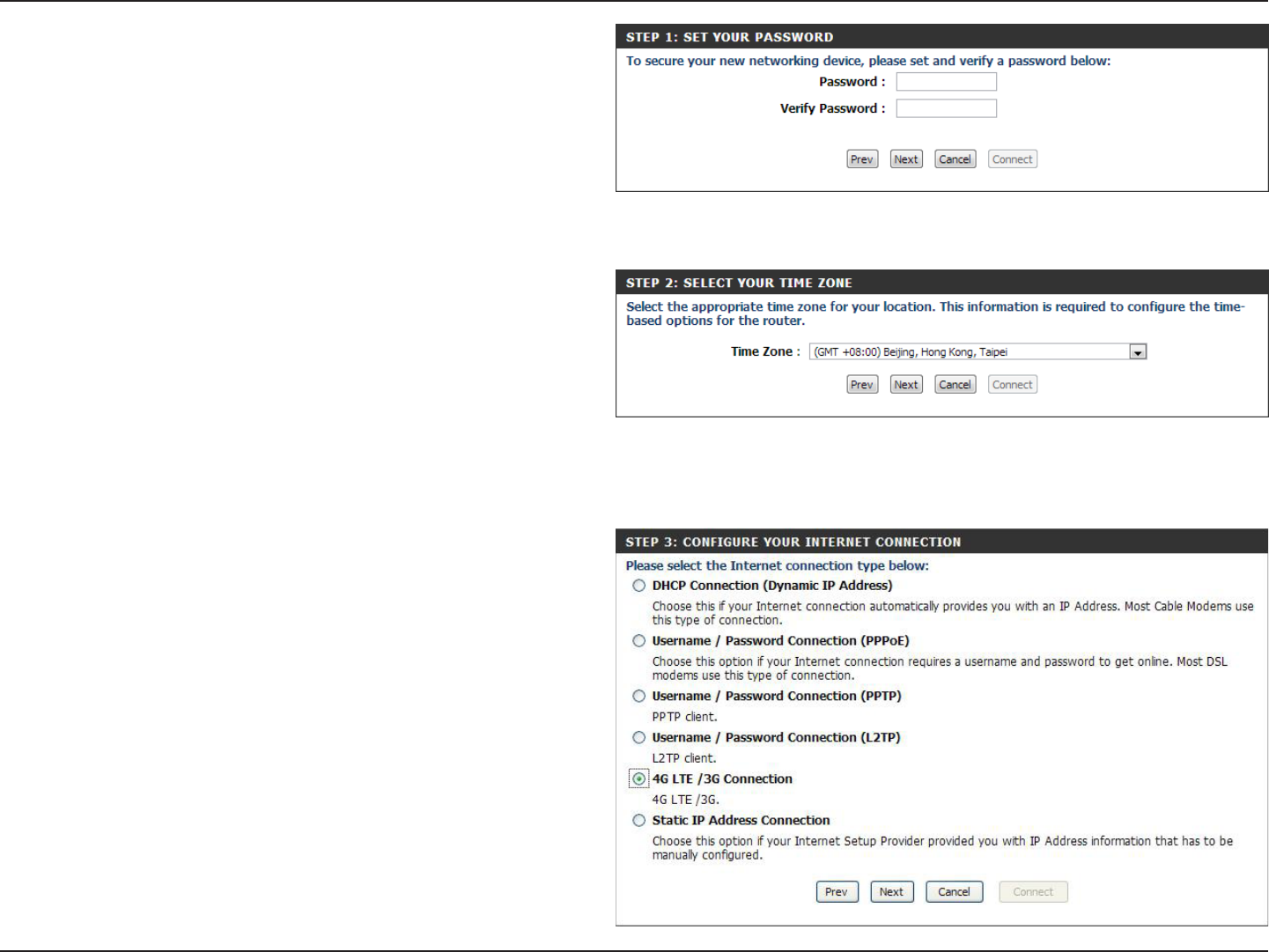

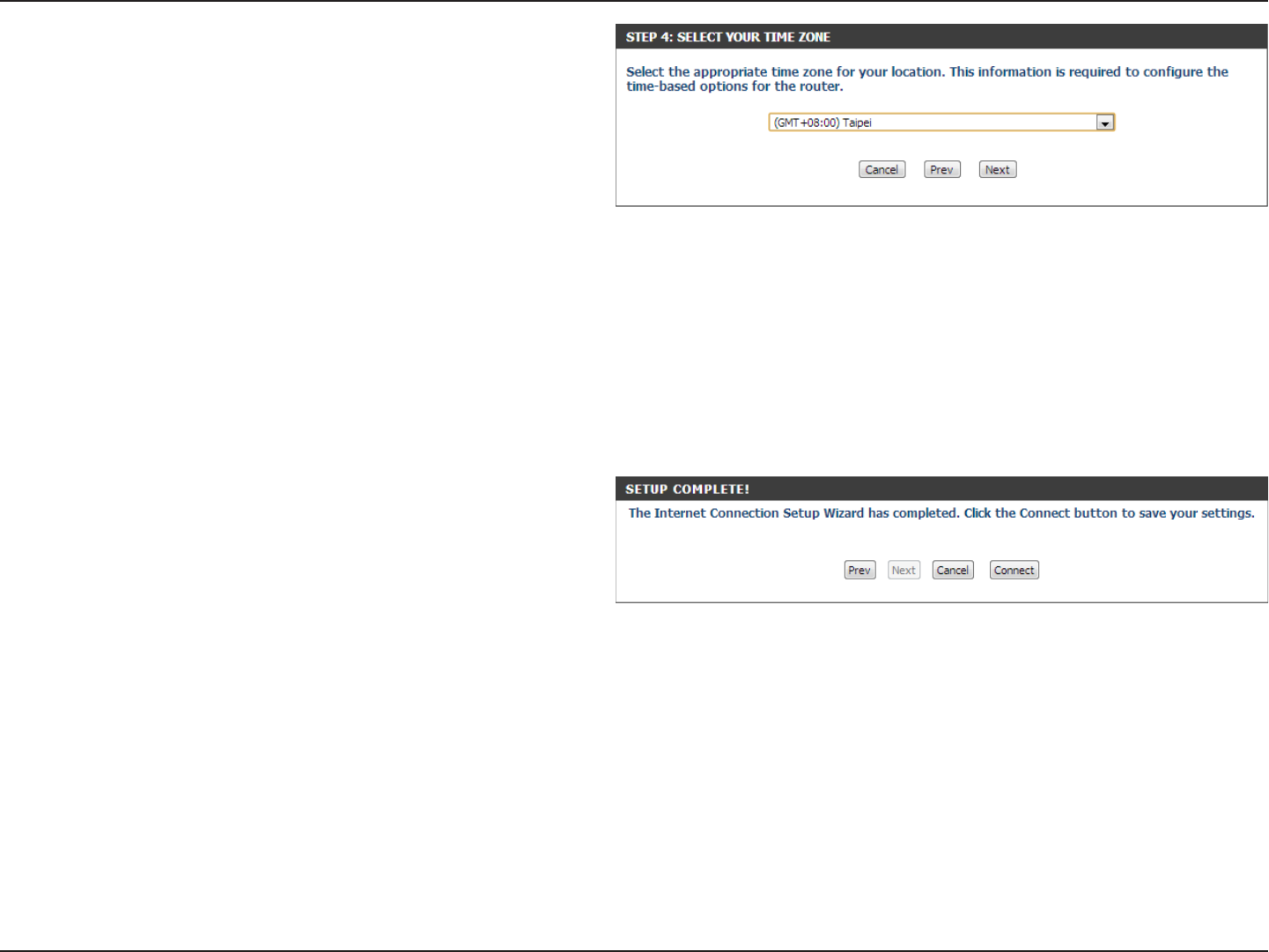

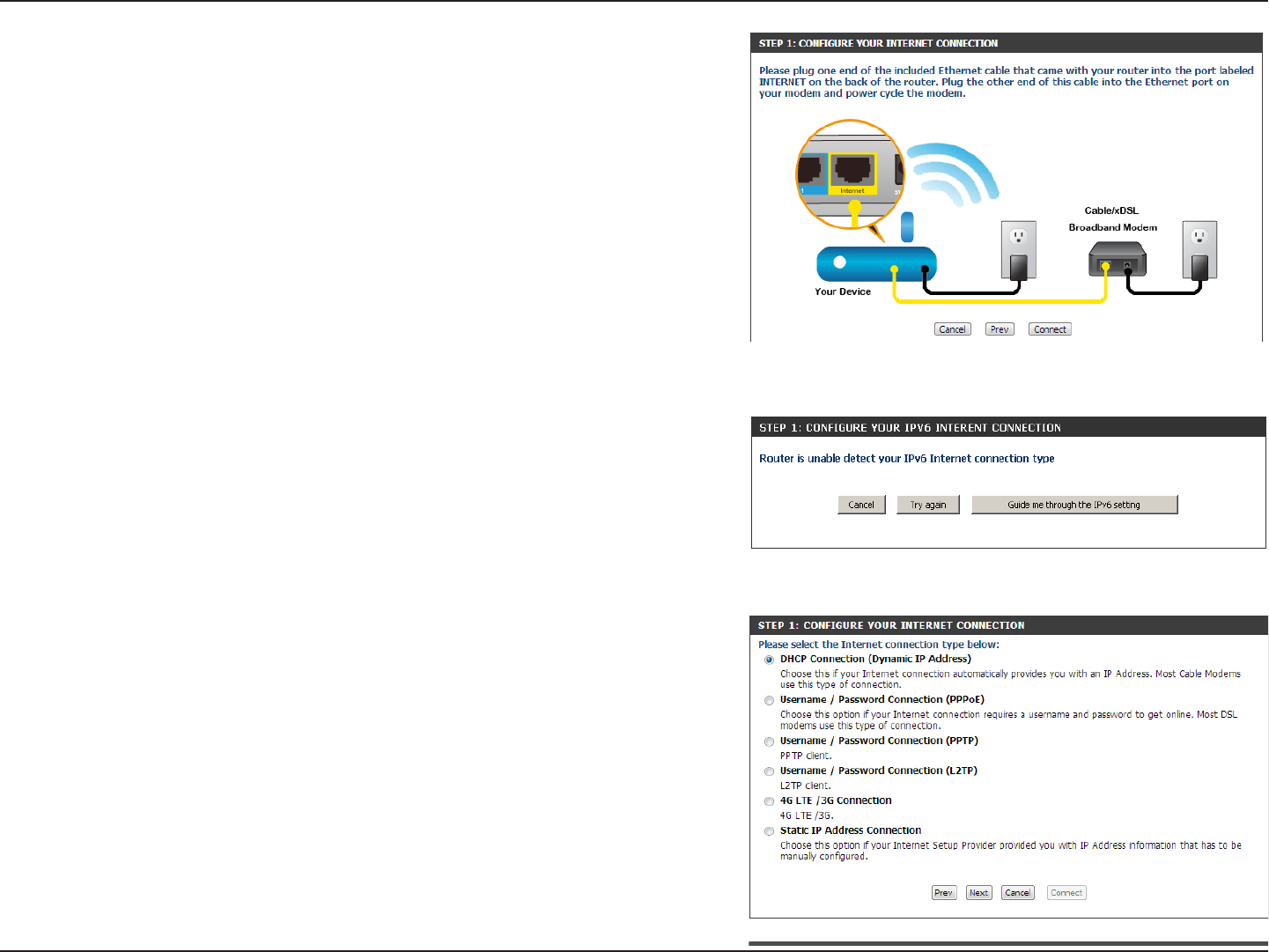

Internet Connection Setup Wizard ................................. 9
Manual Internet Connection Setup .............................16
Internet Connection Type ................................................16

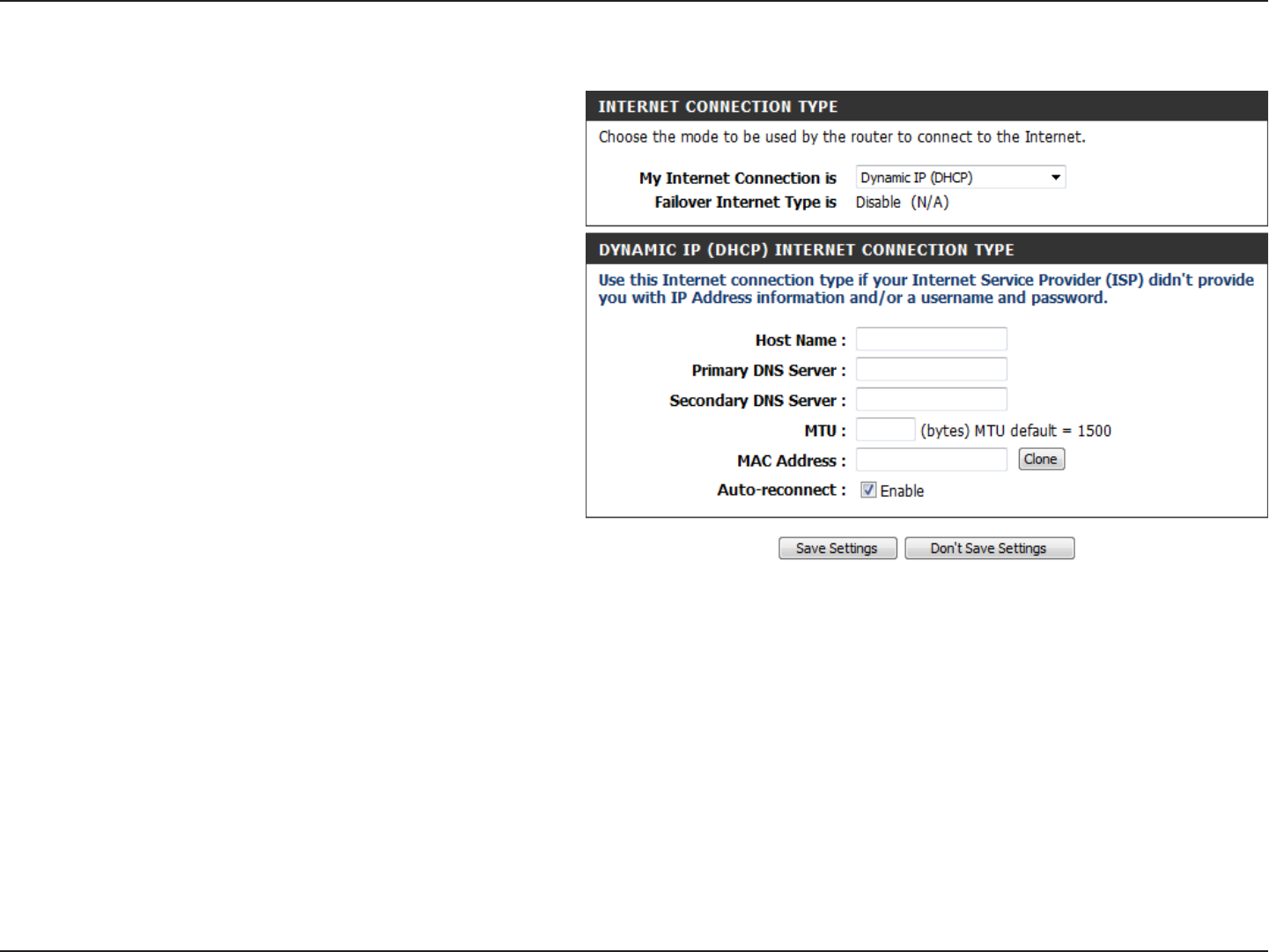

Dynamic IP (DHCP) .............................................................17

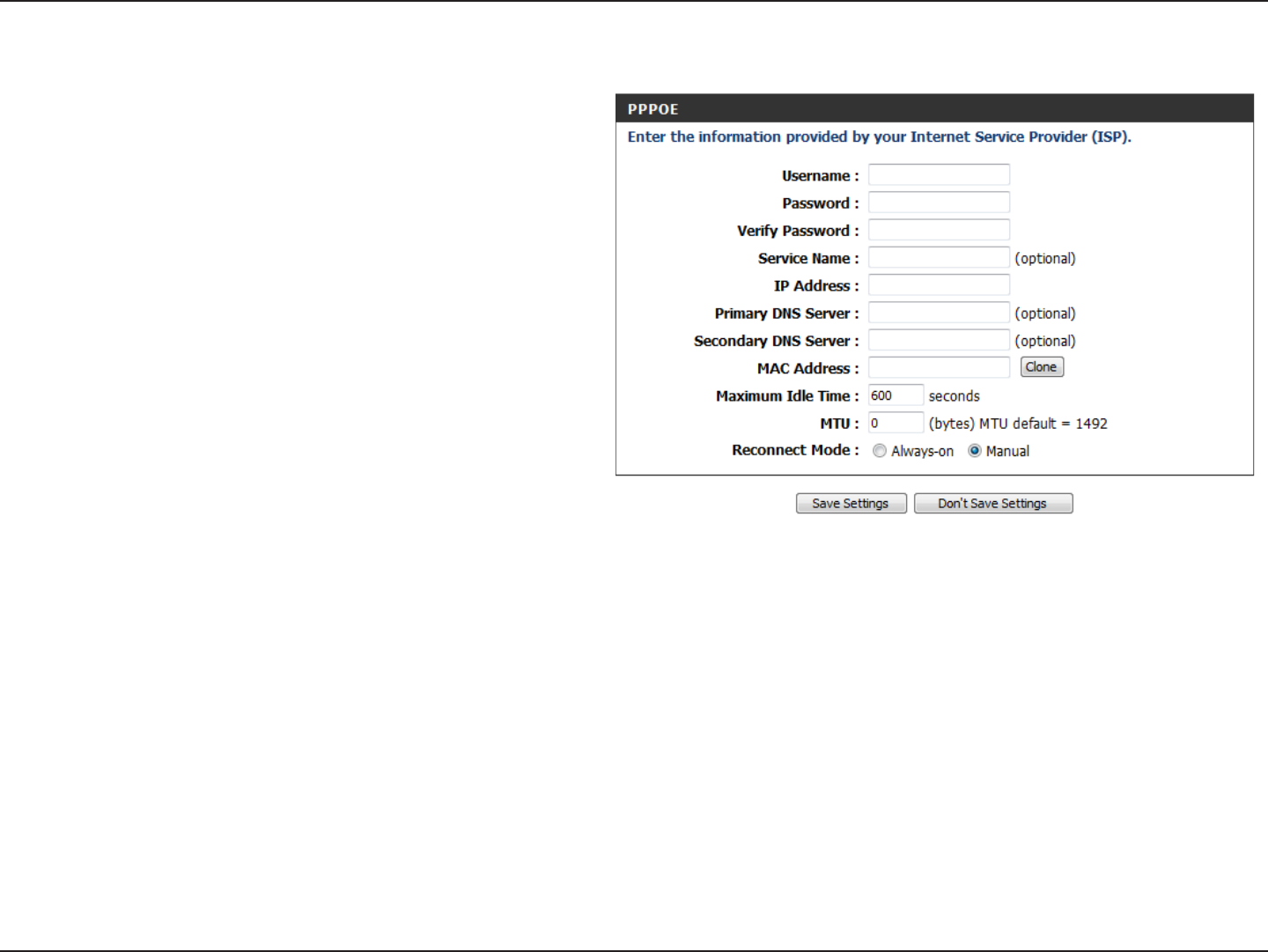

PPPoE ......................................................................................18

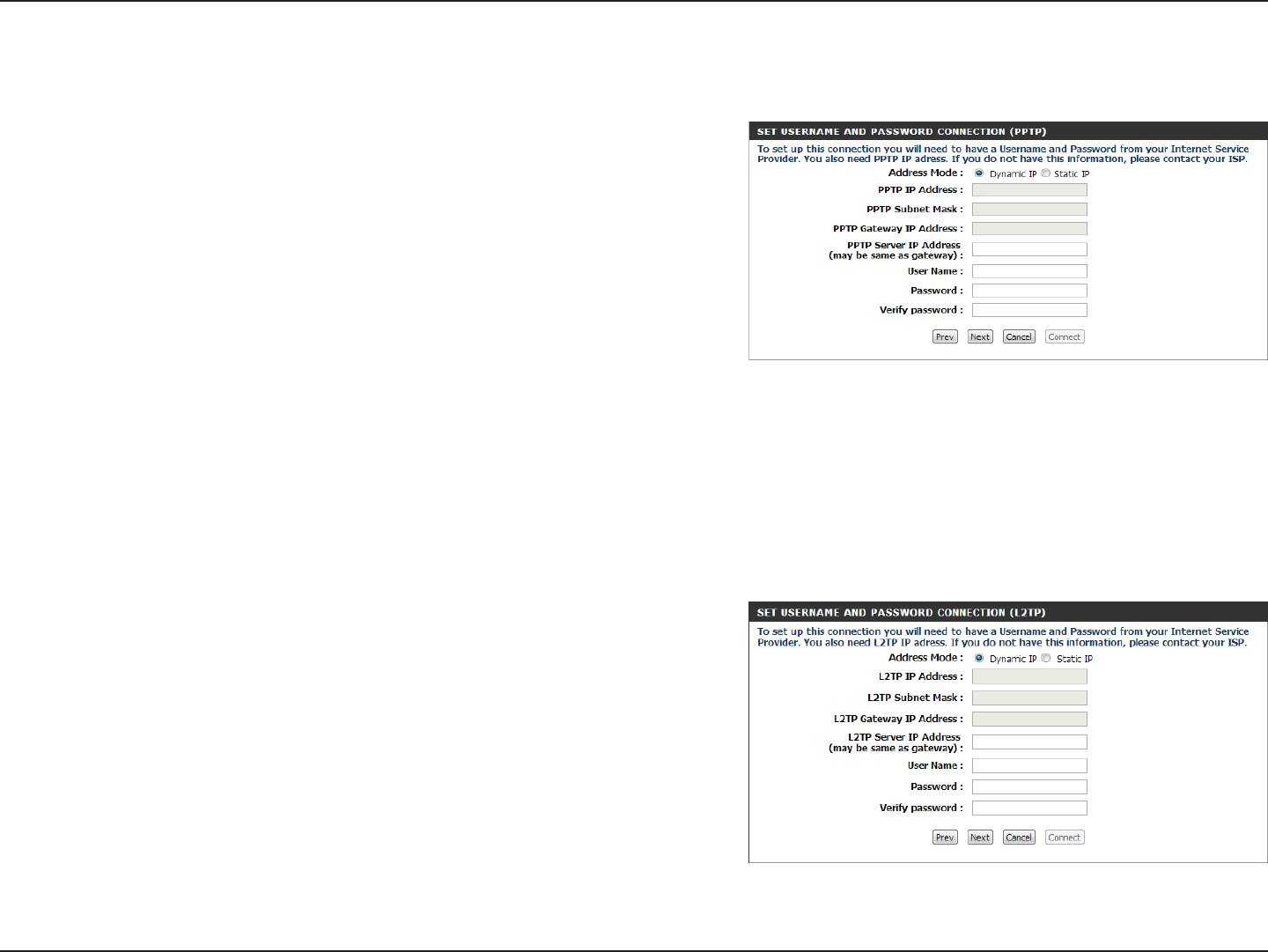

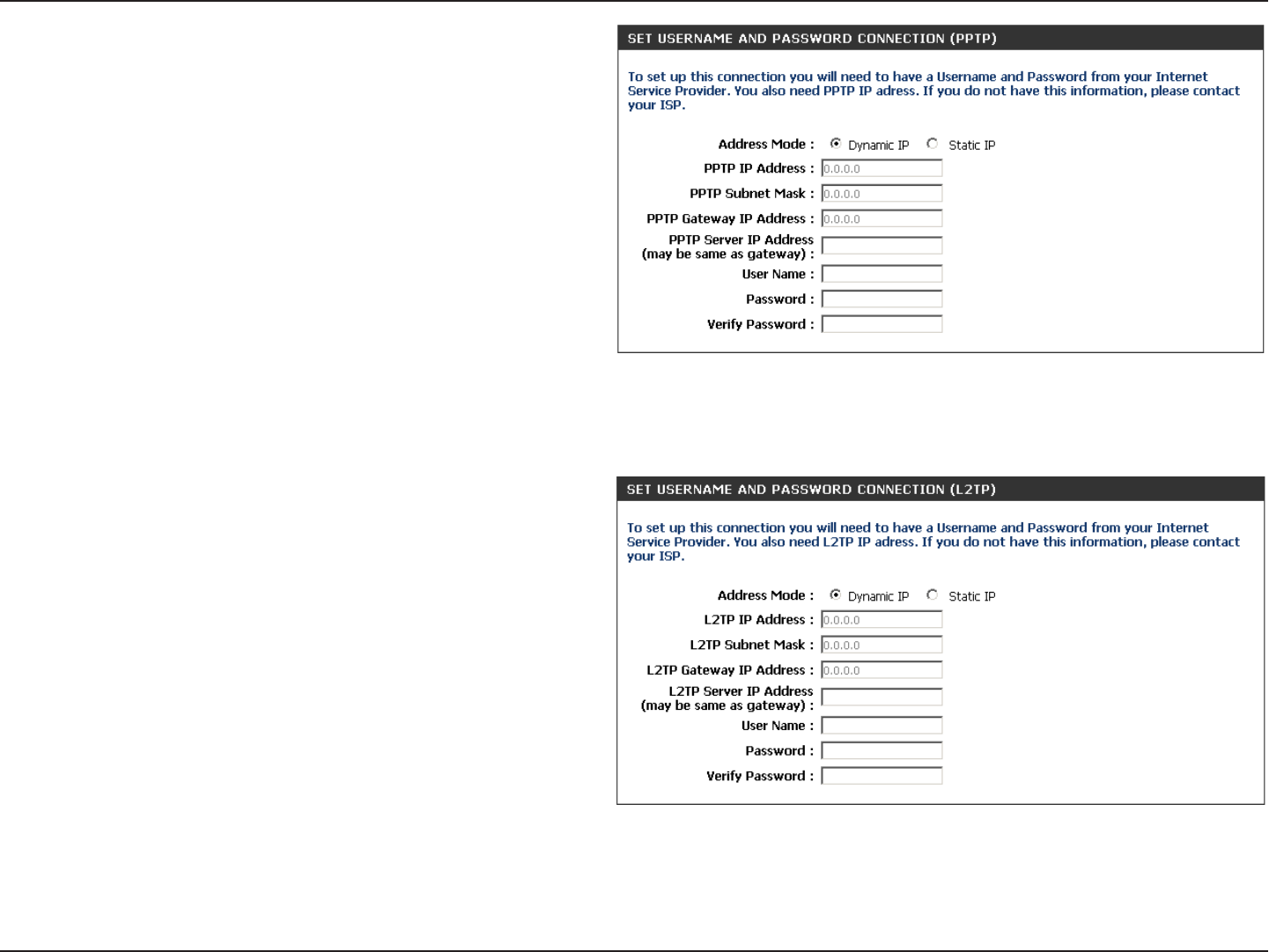

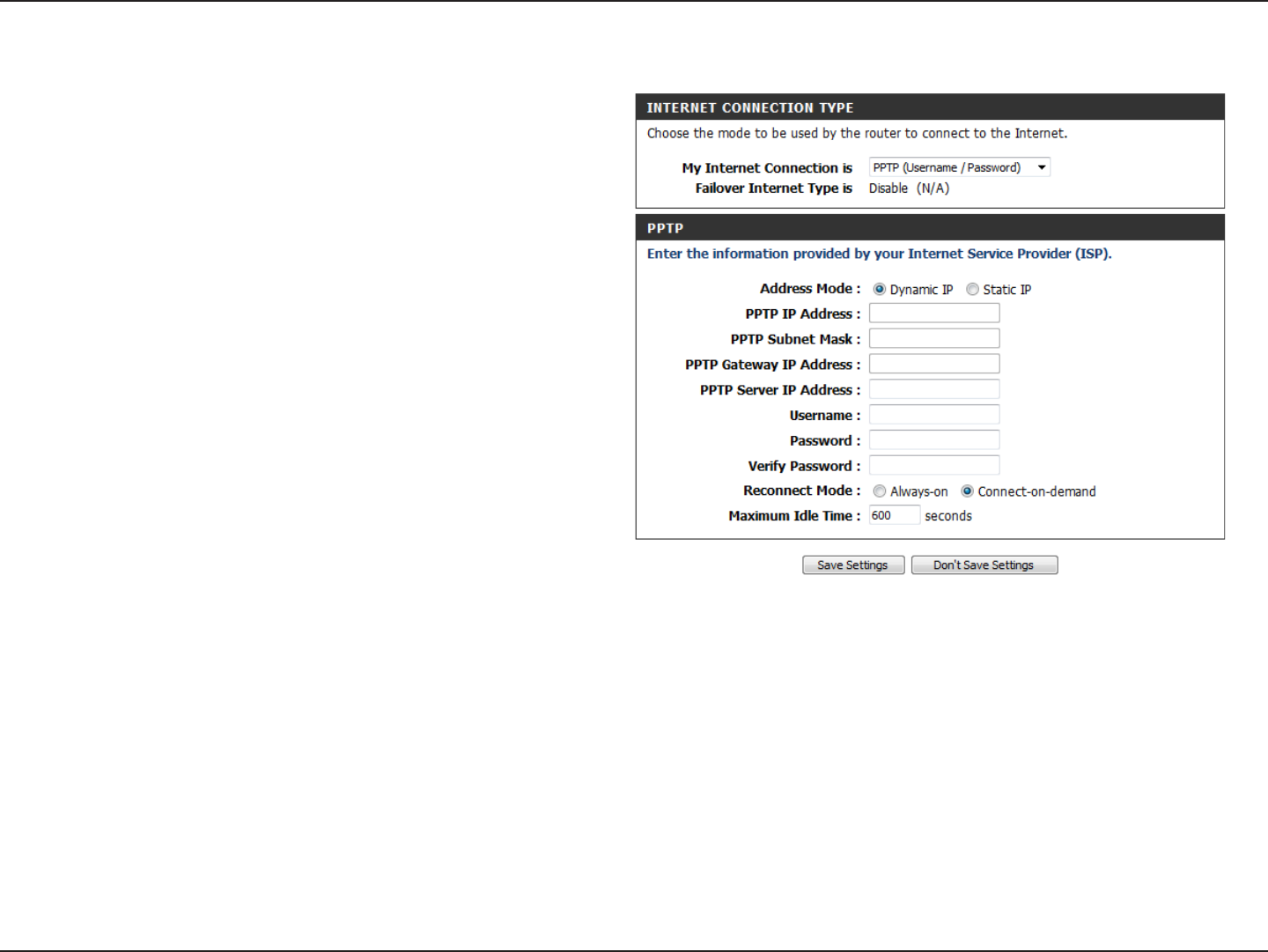

PPTP .........................................................................................19
L2TP .........................................................................................20

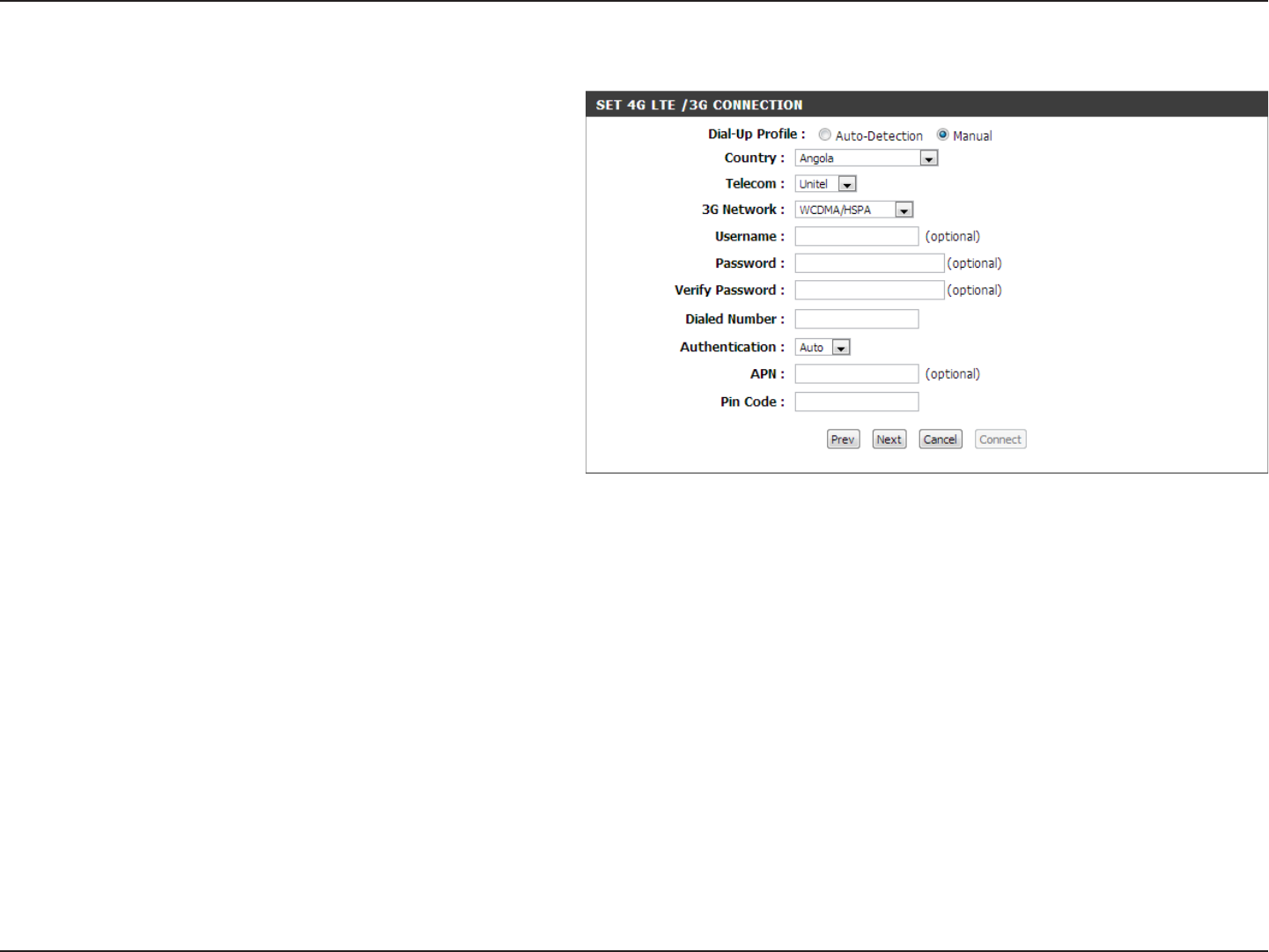

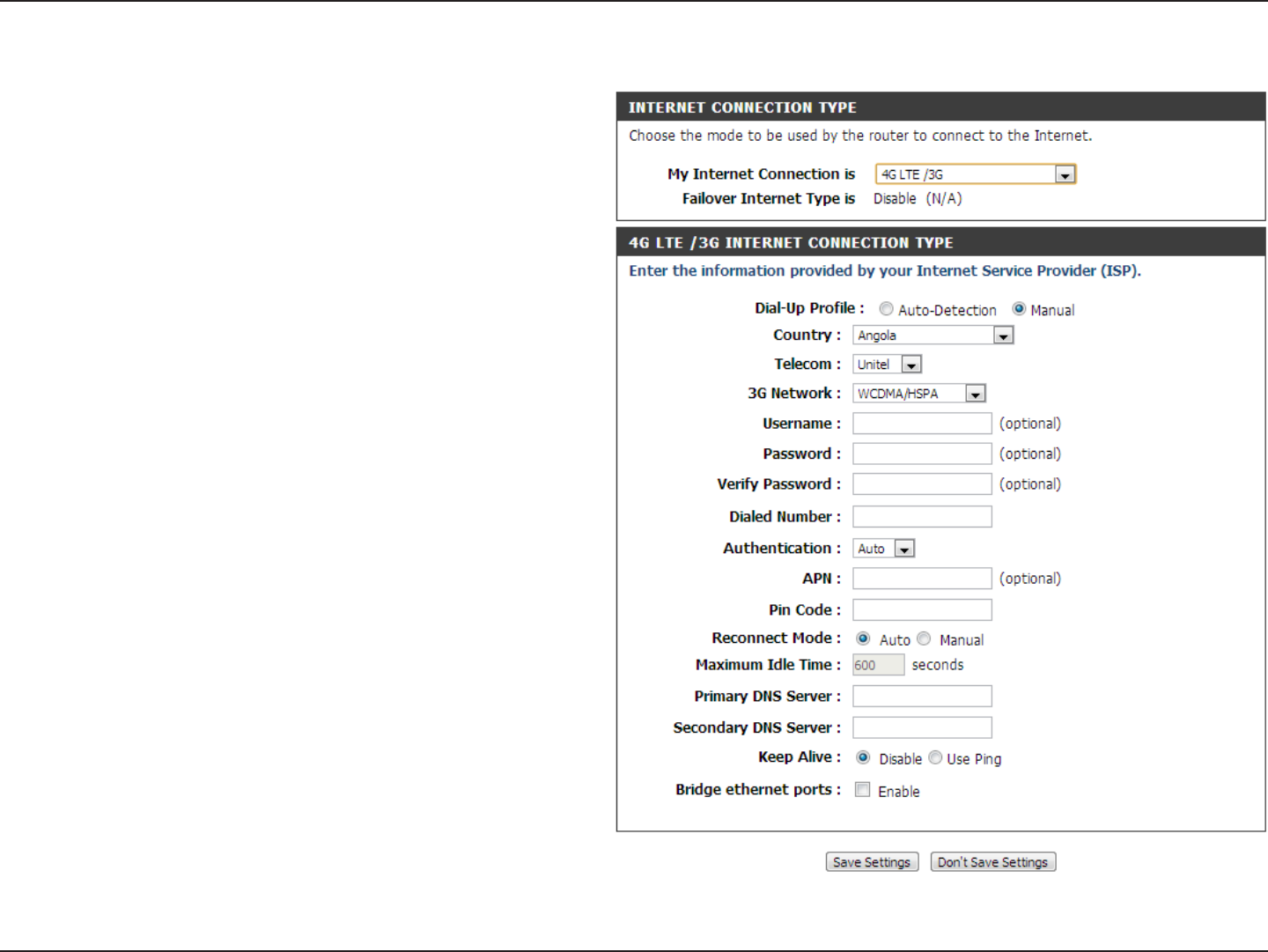

3G / 4G LTE ............................................................................21

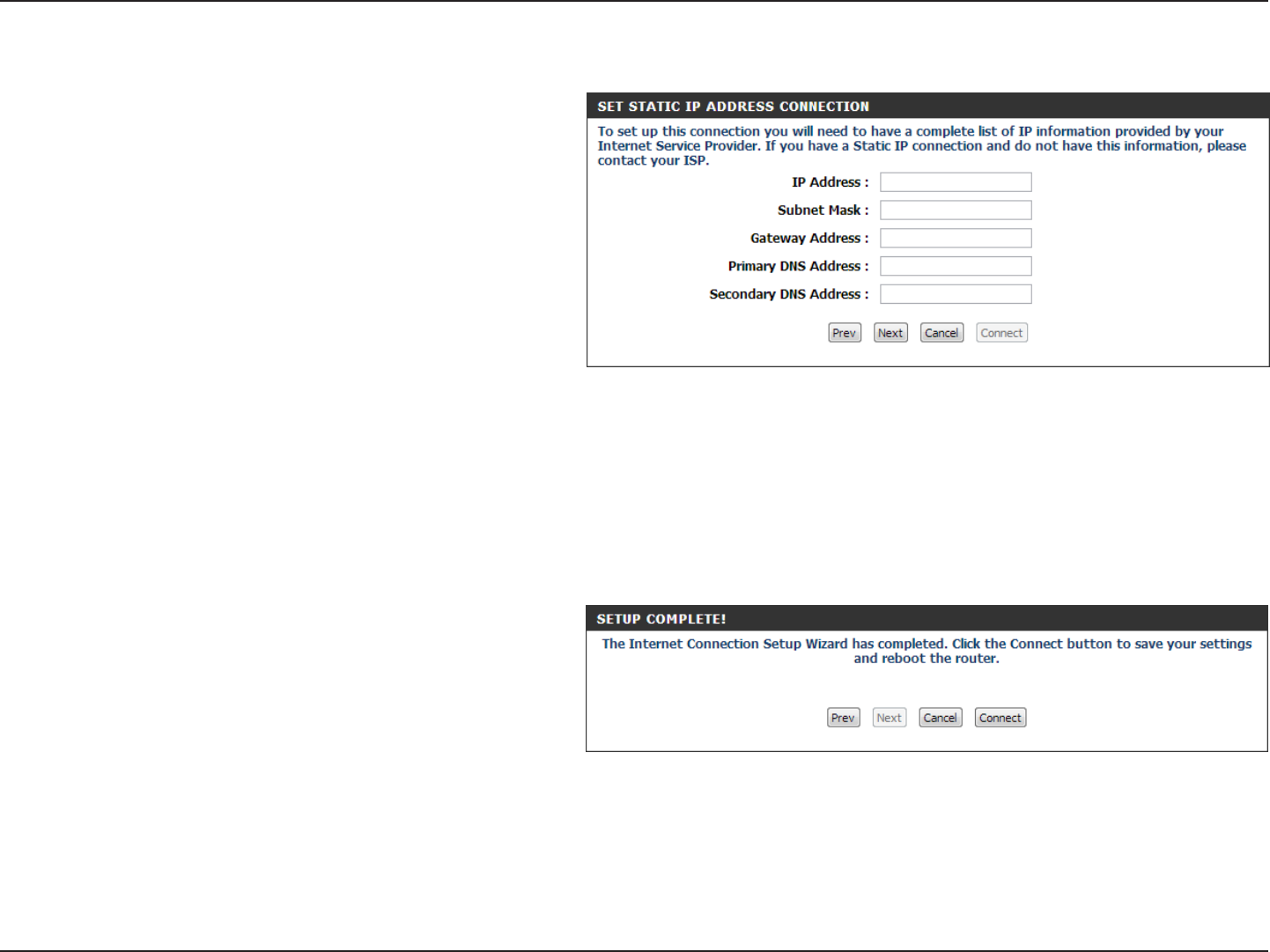

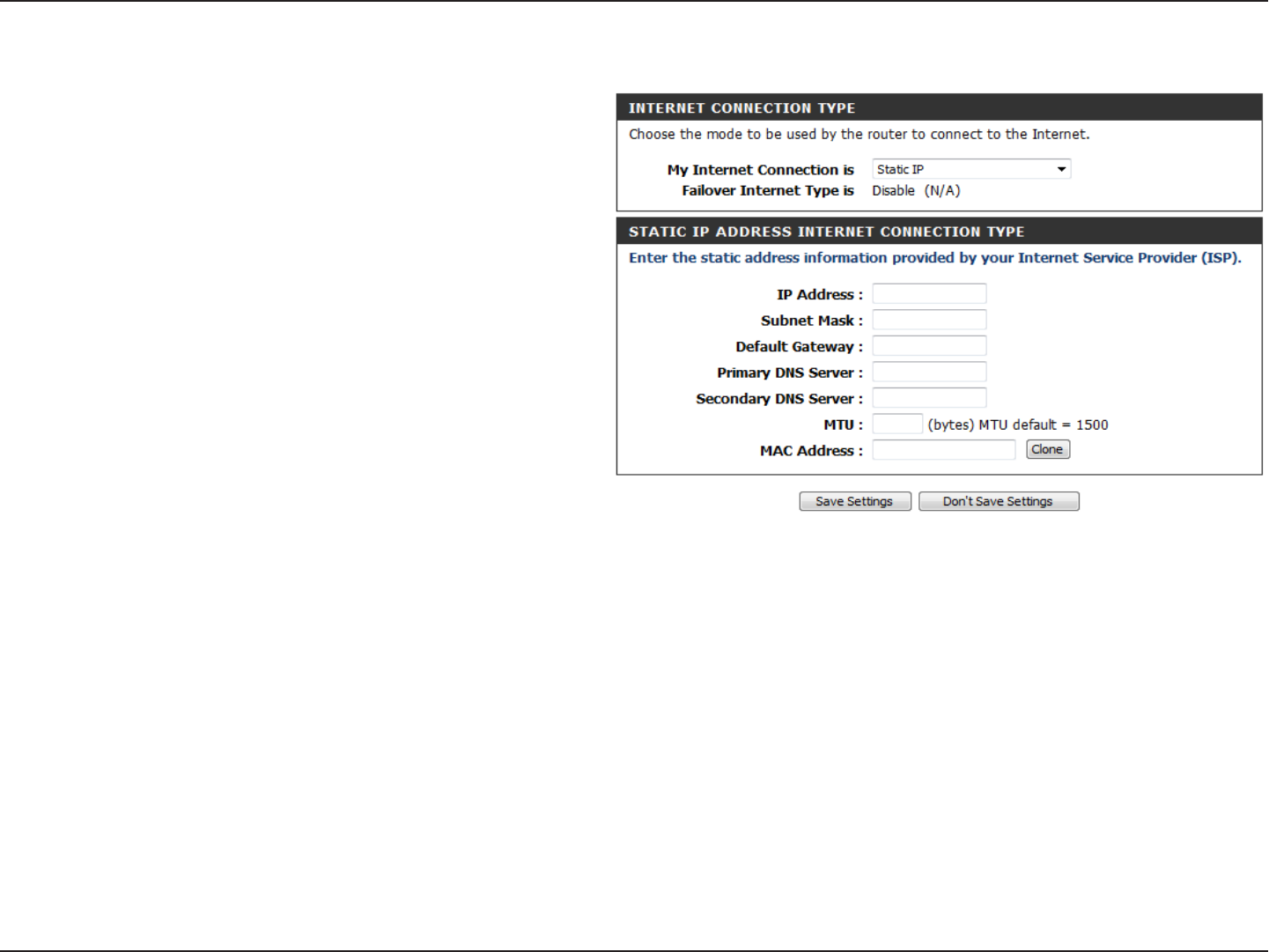

Static IP ...................................................................................22

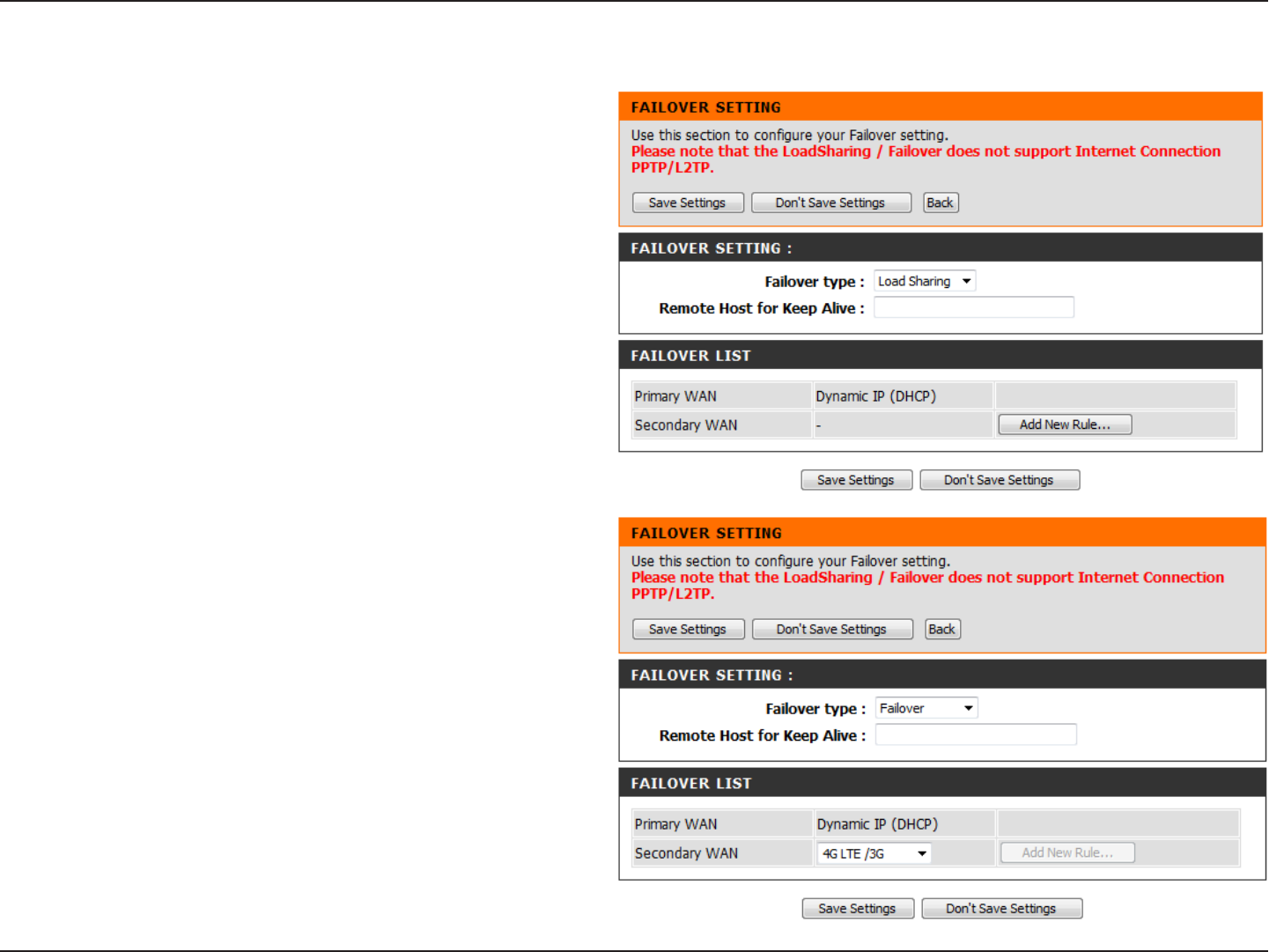

Failover Setting ....................................................................23

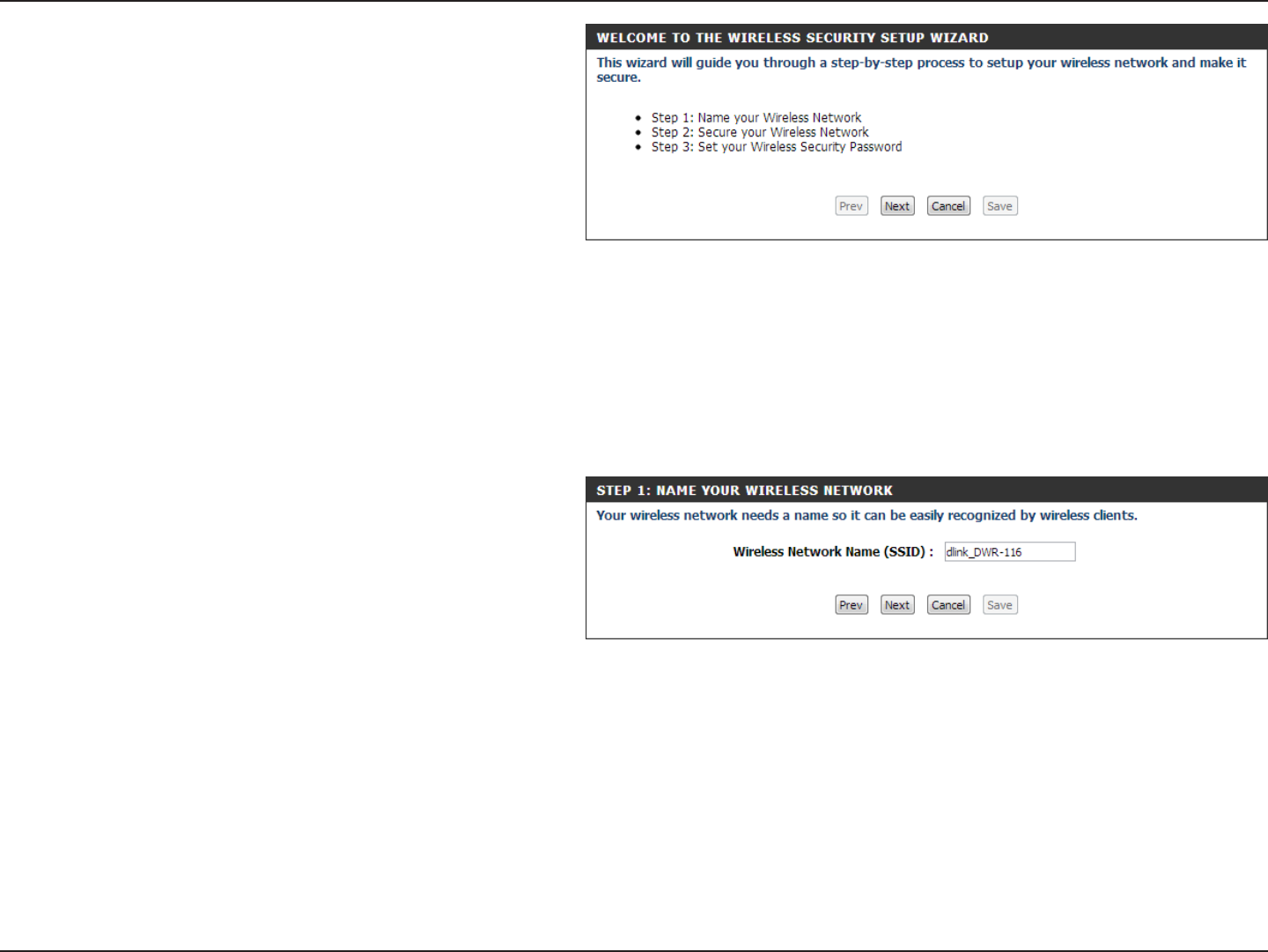

Wireless Connection Setup Wizard ..............................24
Wireless Settings .................................................................28

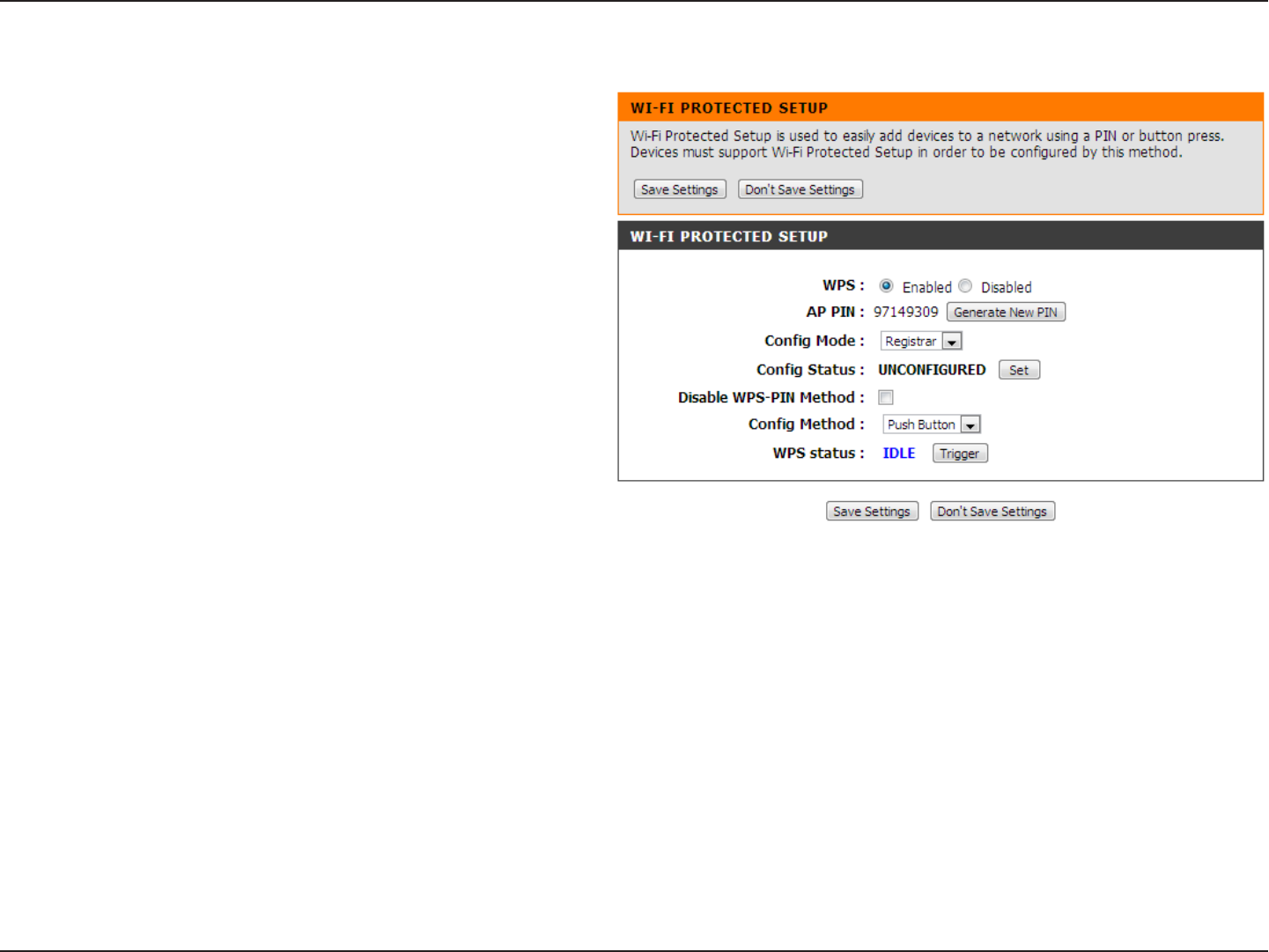

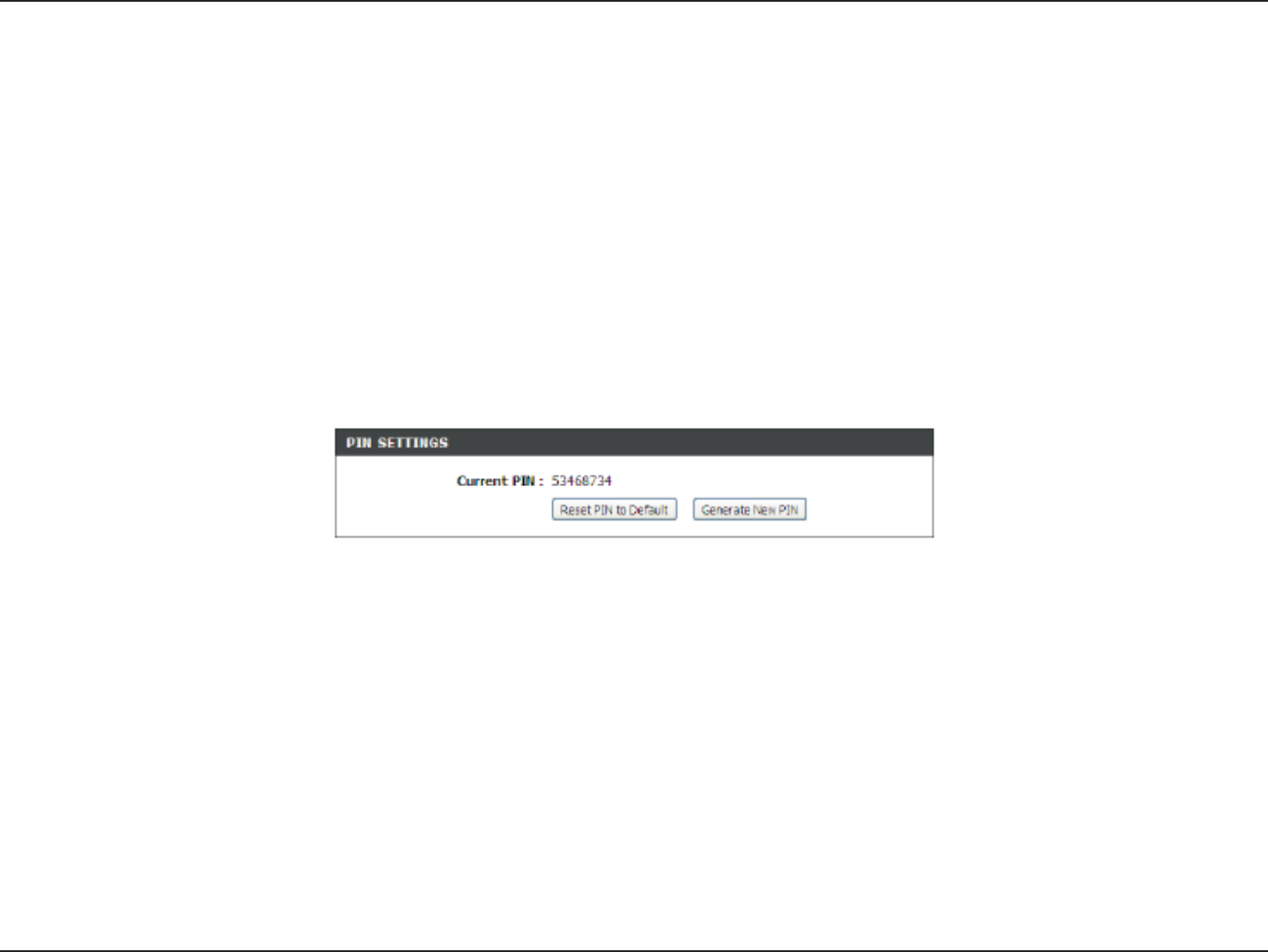

Wi-Fi Protected Setup .......................................................32

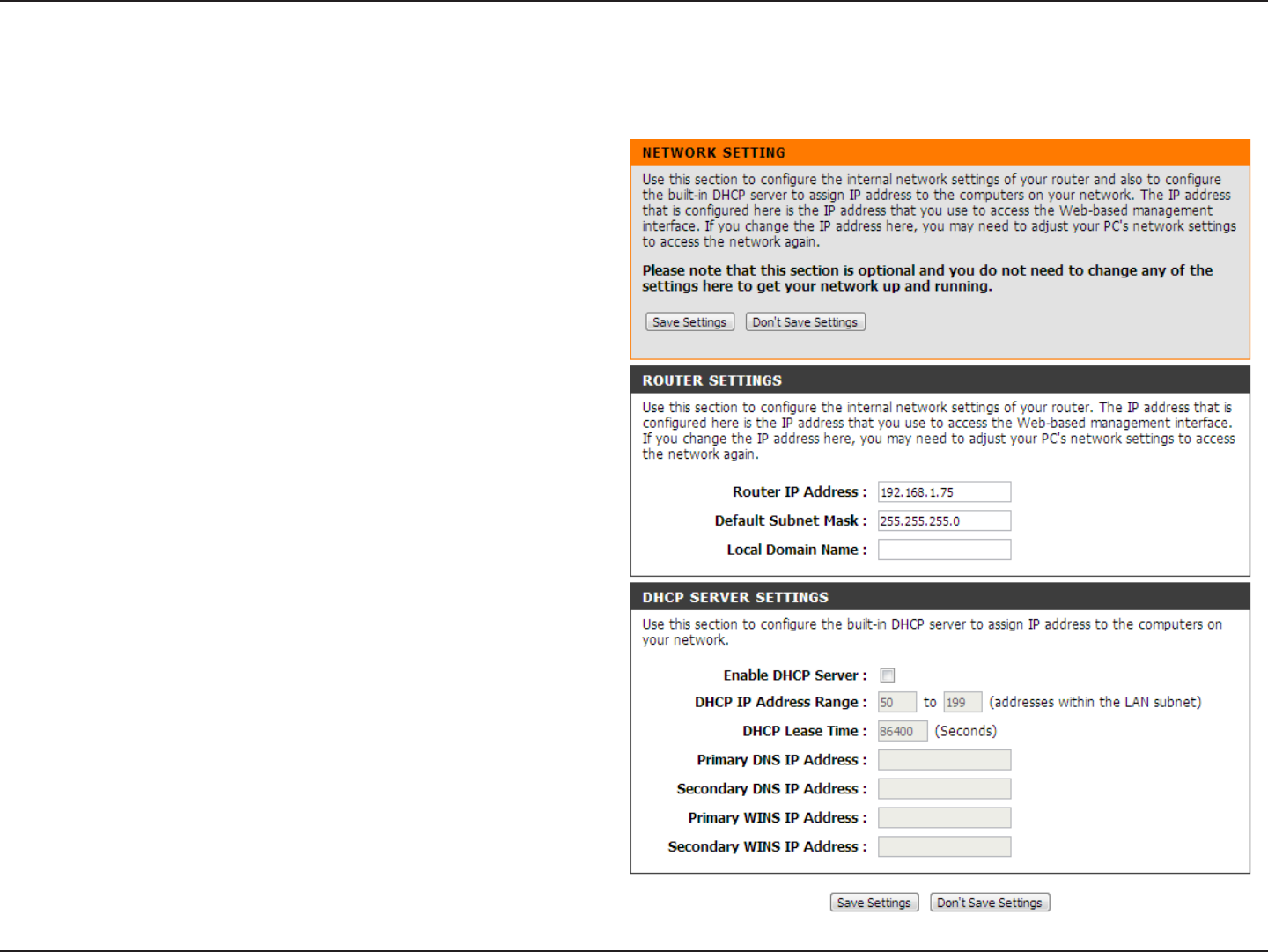

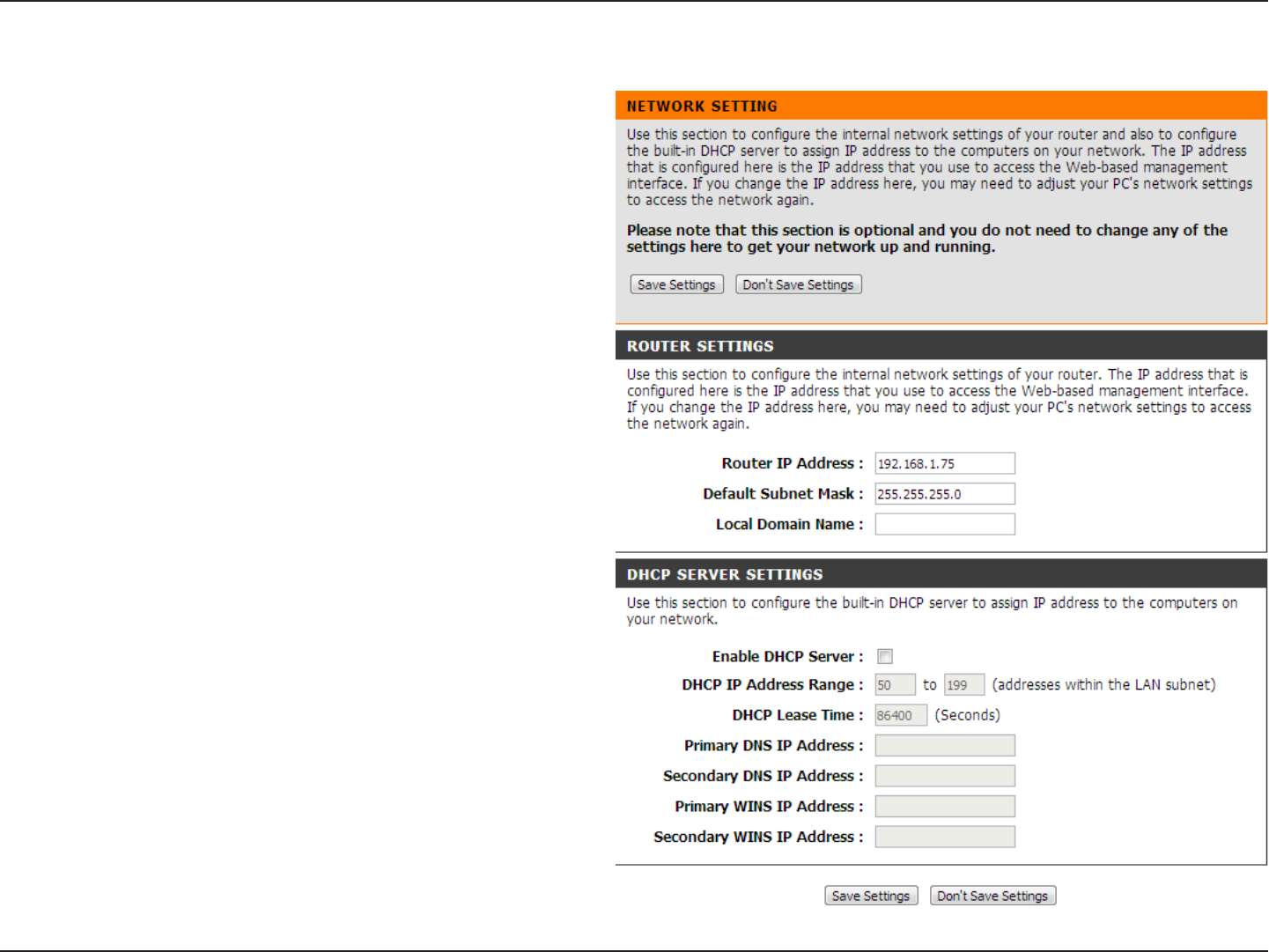

Network Settings ................................................................33
Router Settings ...............................................................33
DHCP Server Settings ...................................................34
Advanced ......................................................................................35

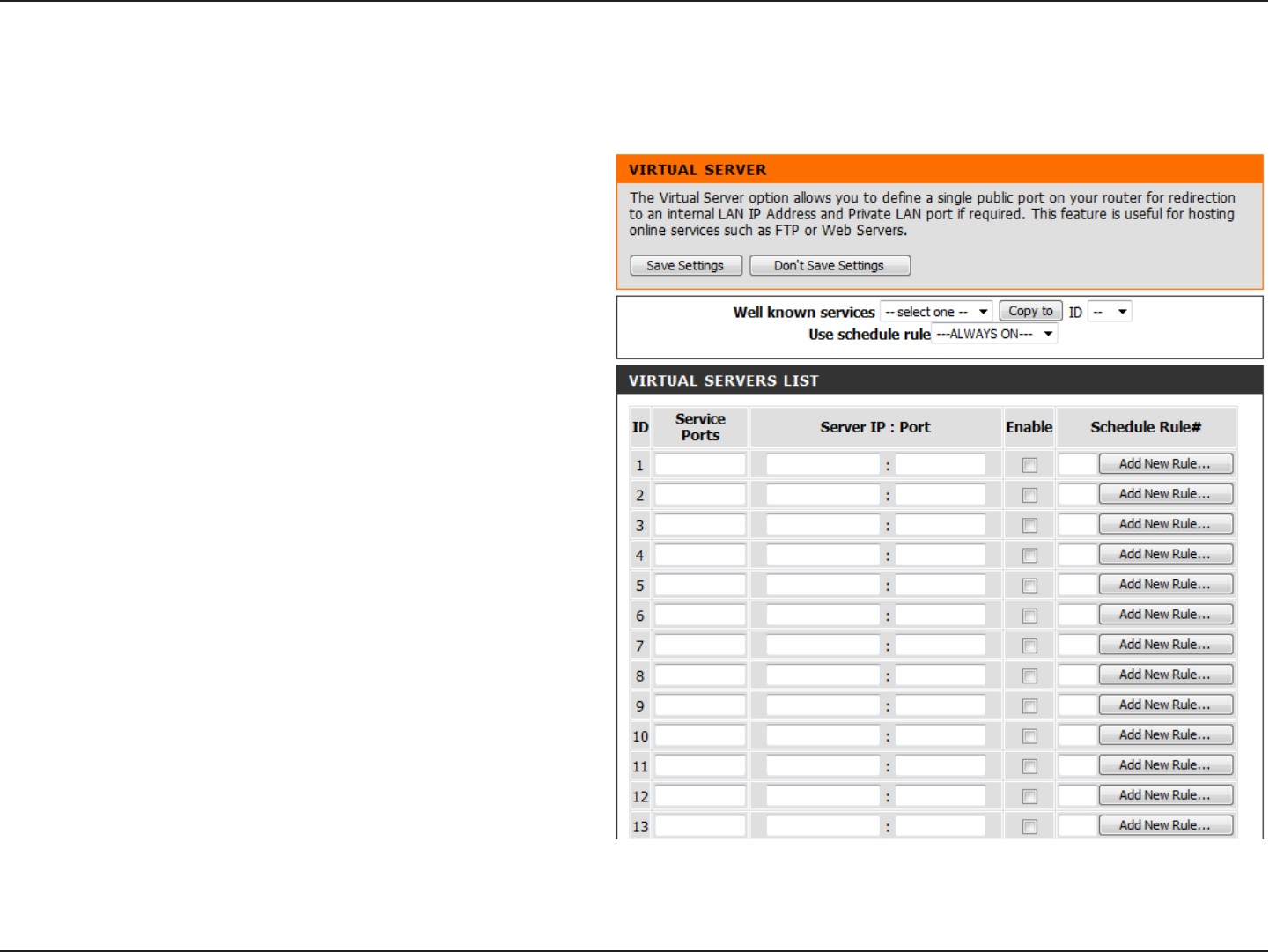

Virtual Server ........................................................................35

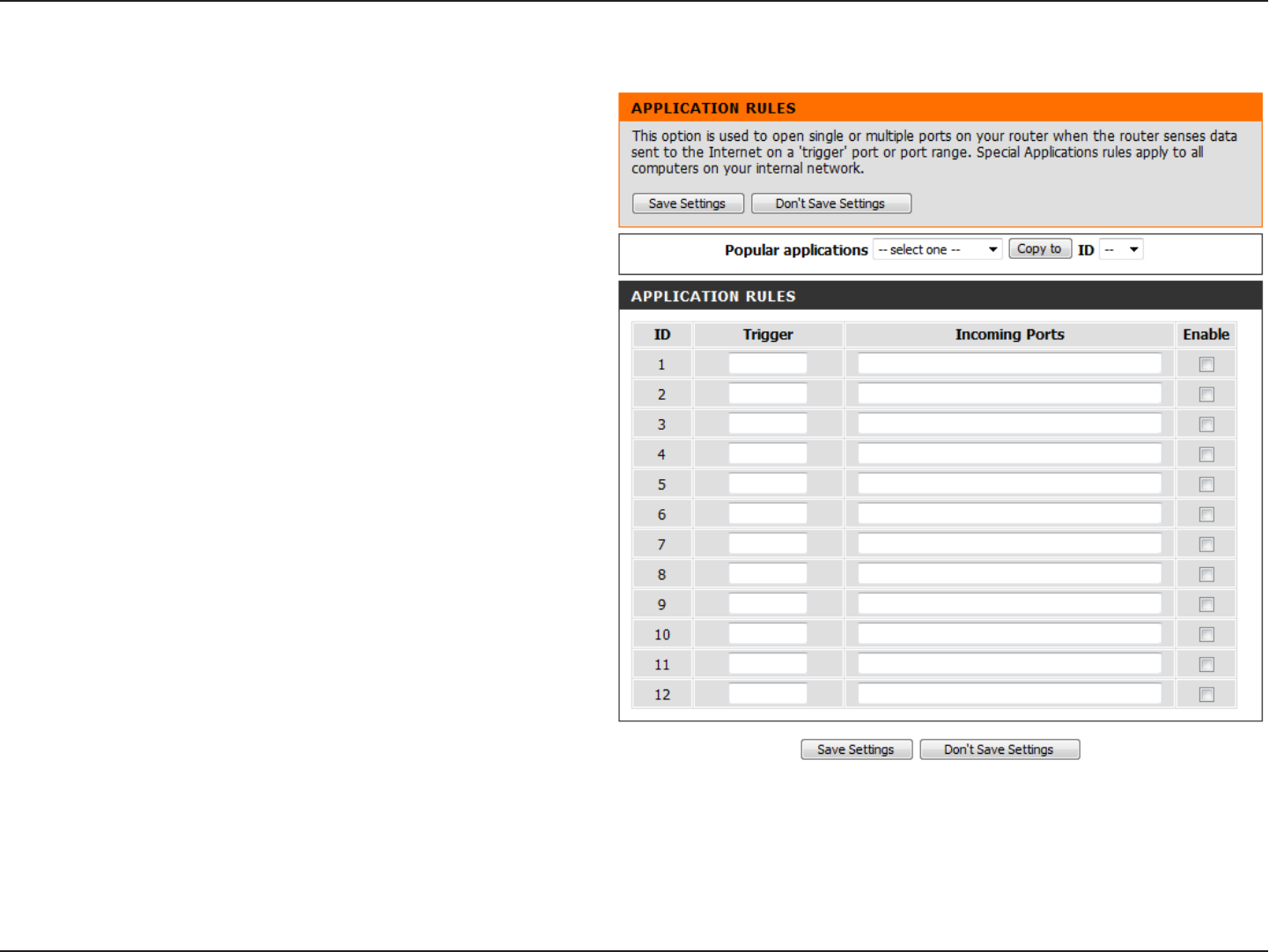

Application Rules ................................................................36

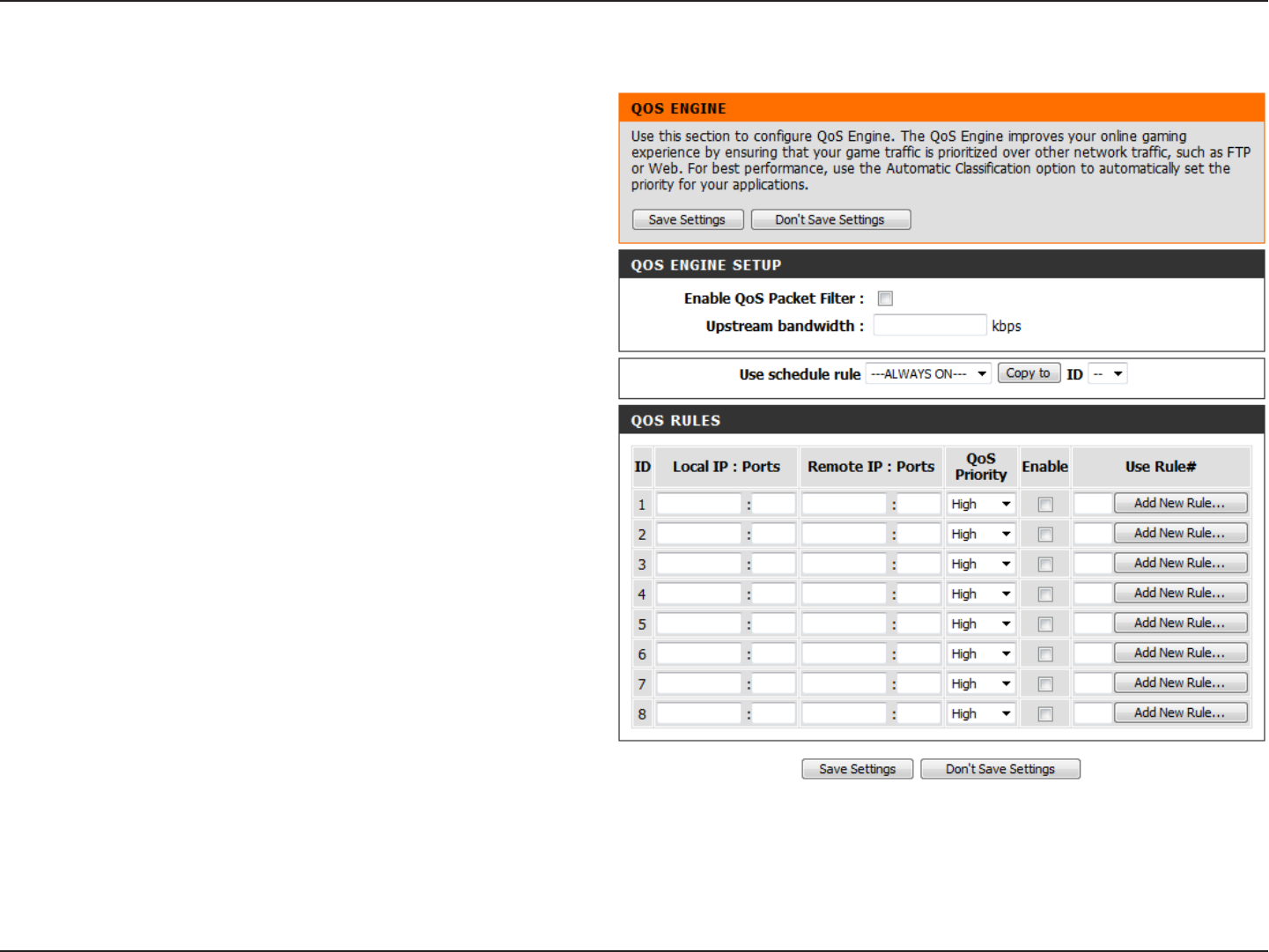

QoS Engine............................................................................37
MAC Address Filter .............................................................38
URL Filter ................................................................................39

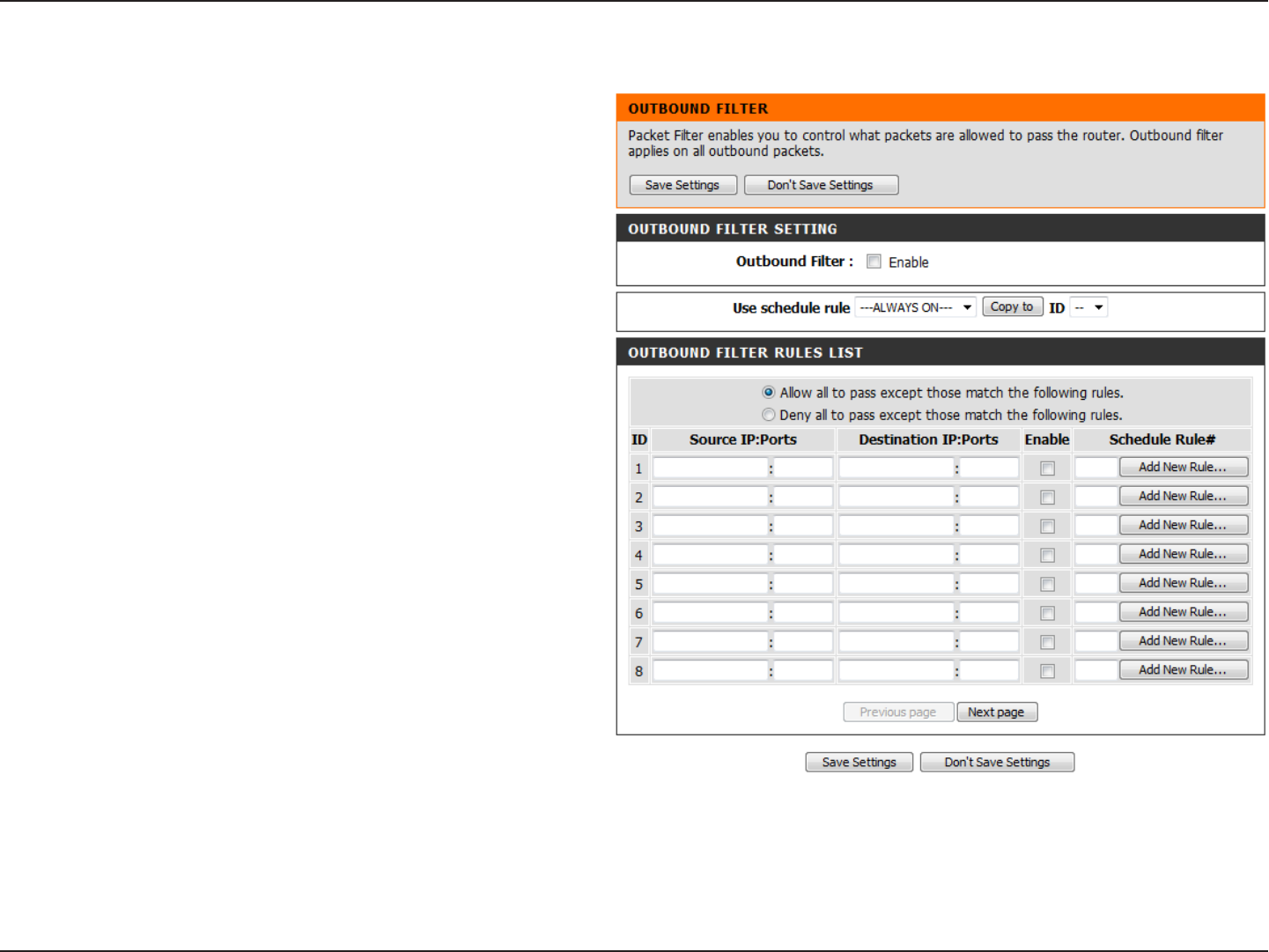

Outbound Filter ...................................................................40

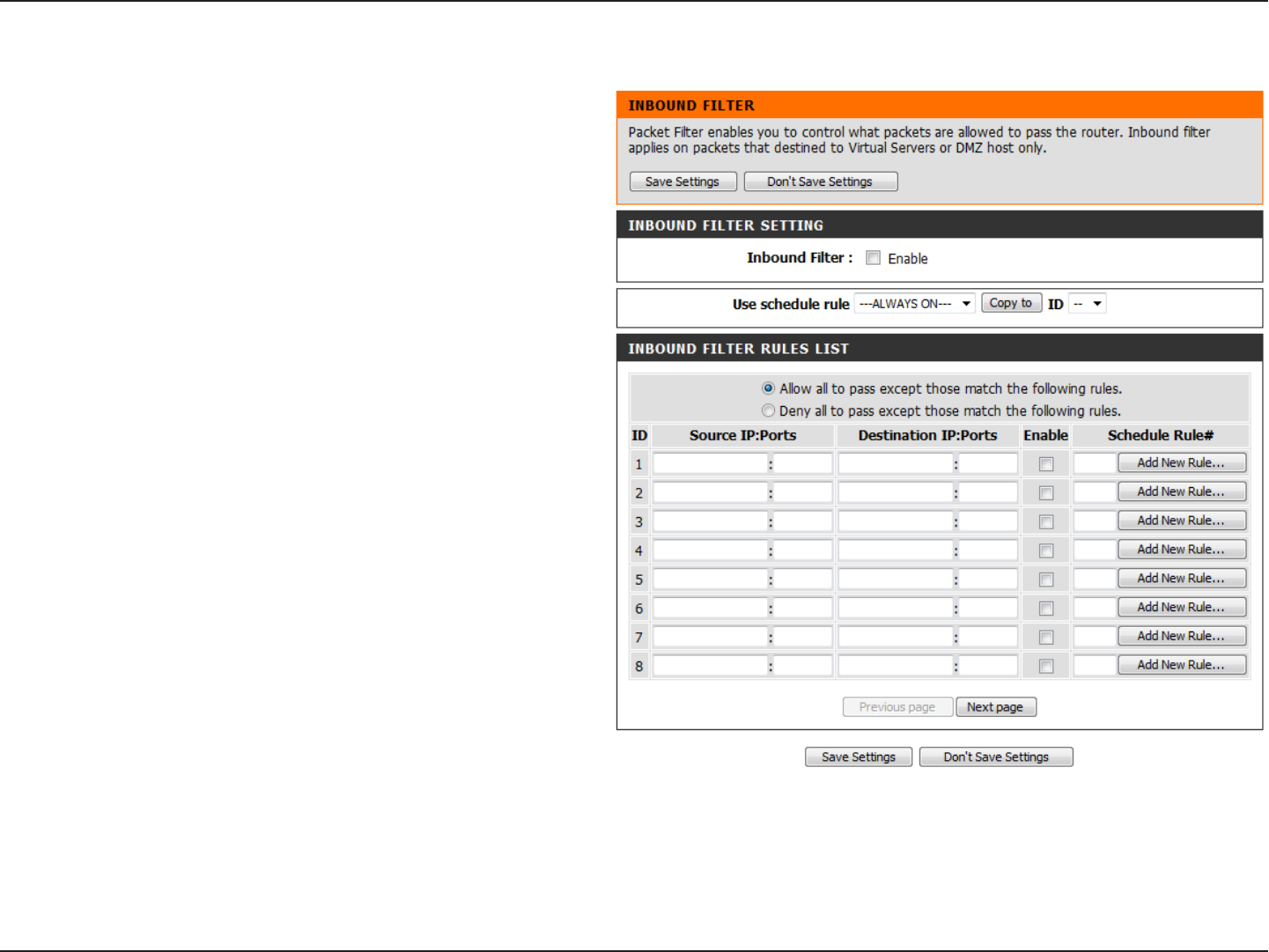

Inbound Filter ......................................................................41

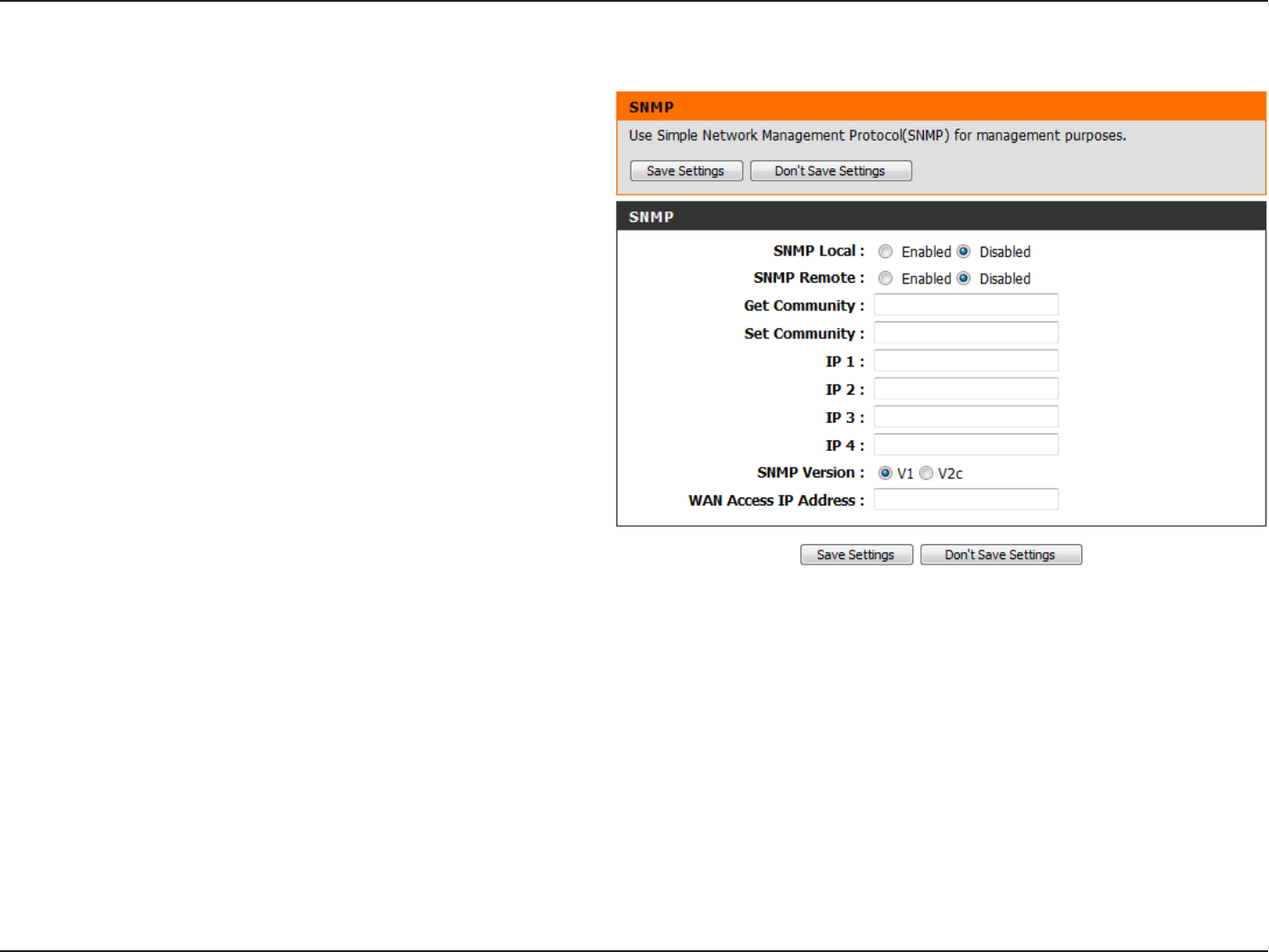

SNMP .......................................................................................42

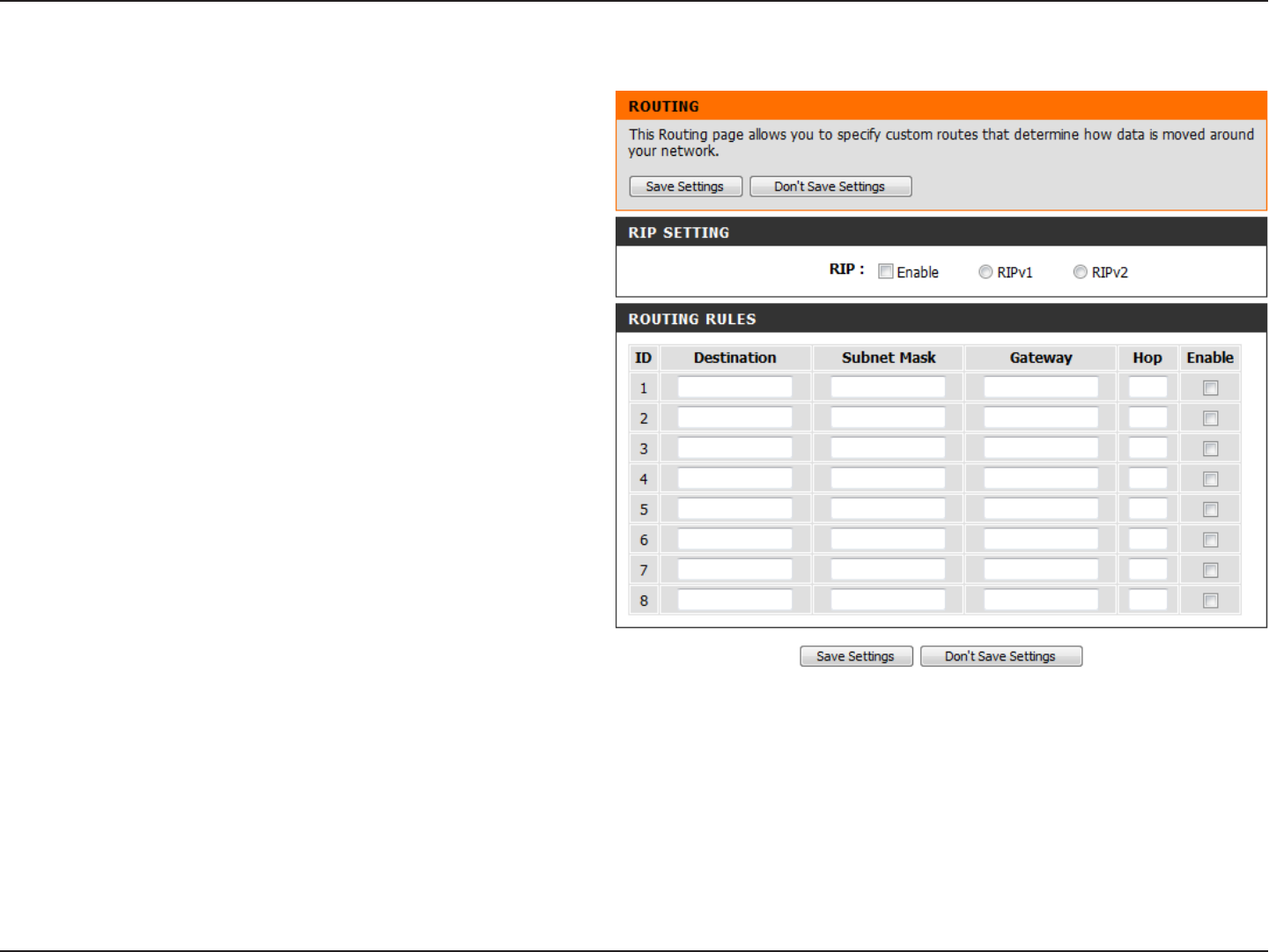

Routing ...................................................................................43

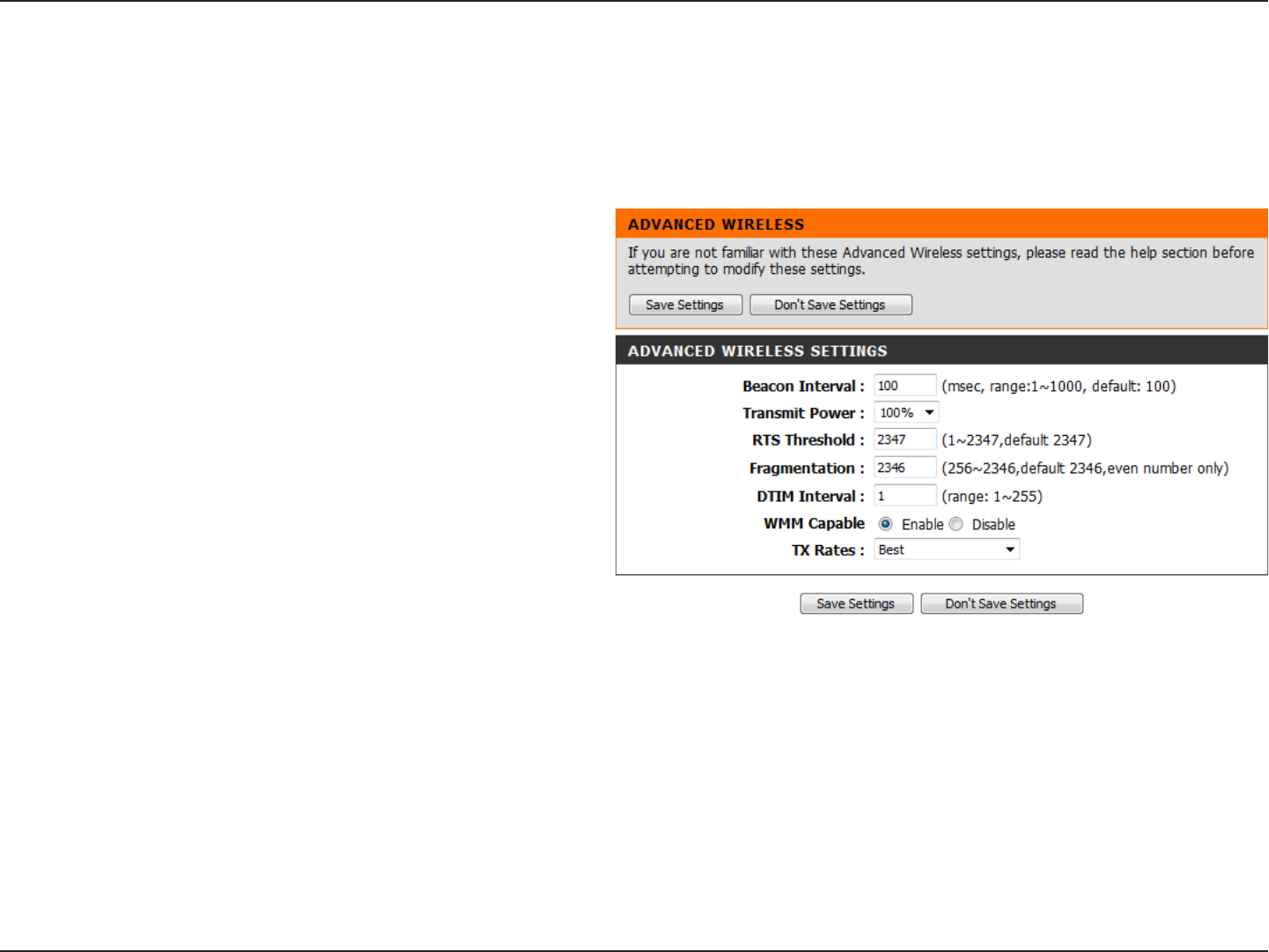

Advanced Wireless .............................................................44

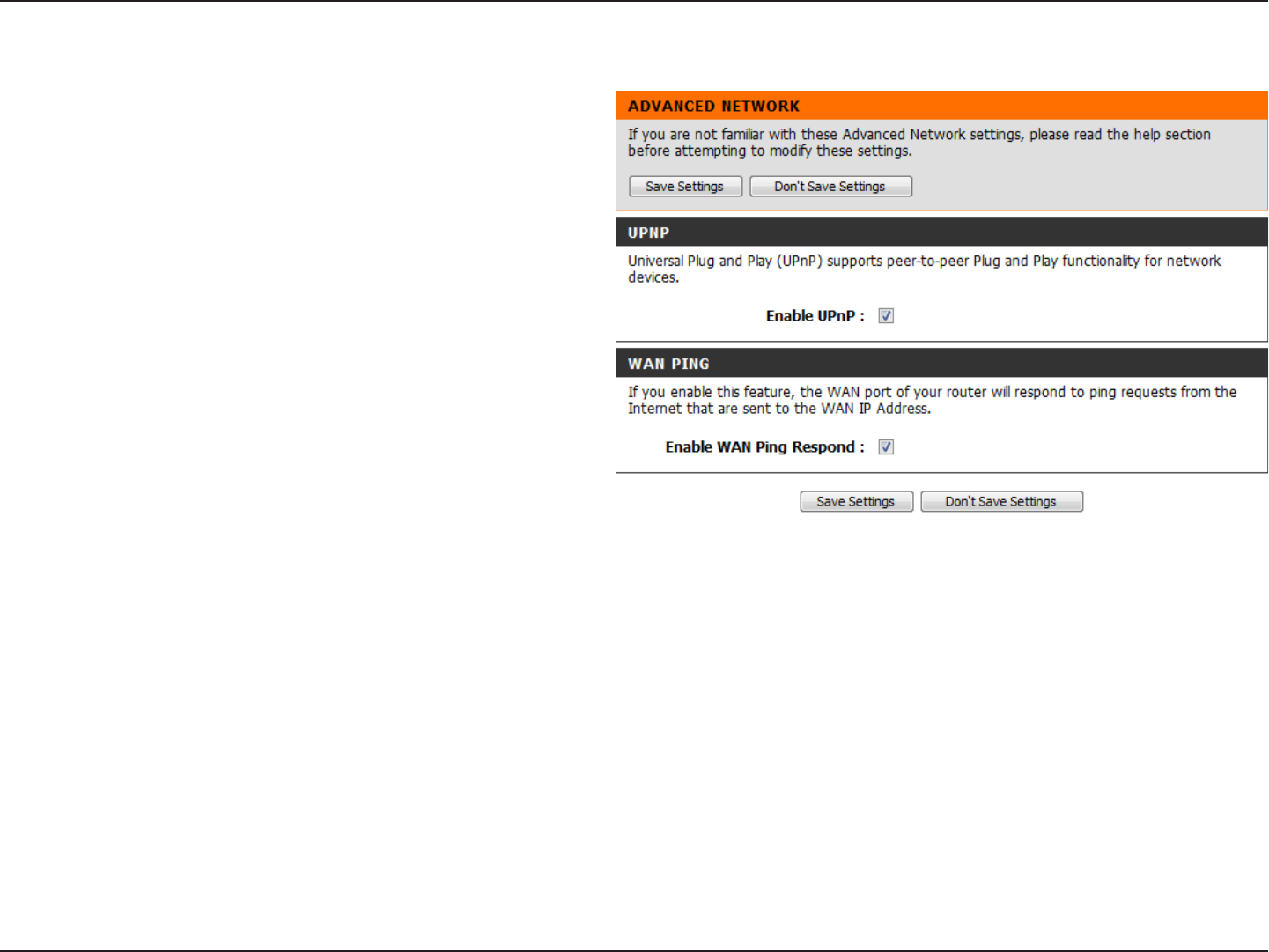

Advanced Network ............................................................45
Tools ................................................................................................46

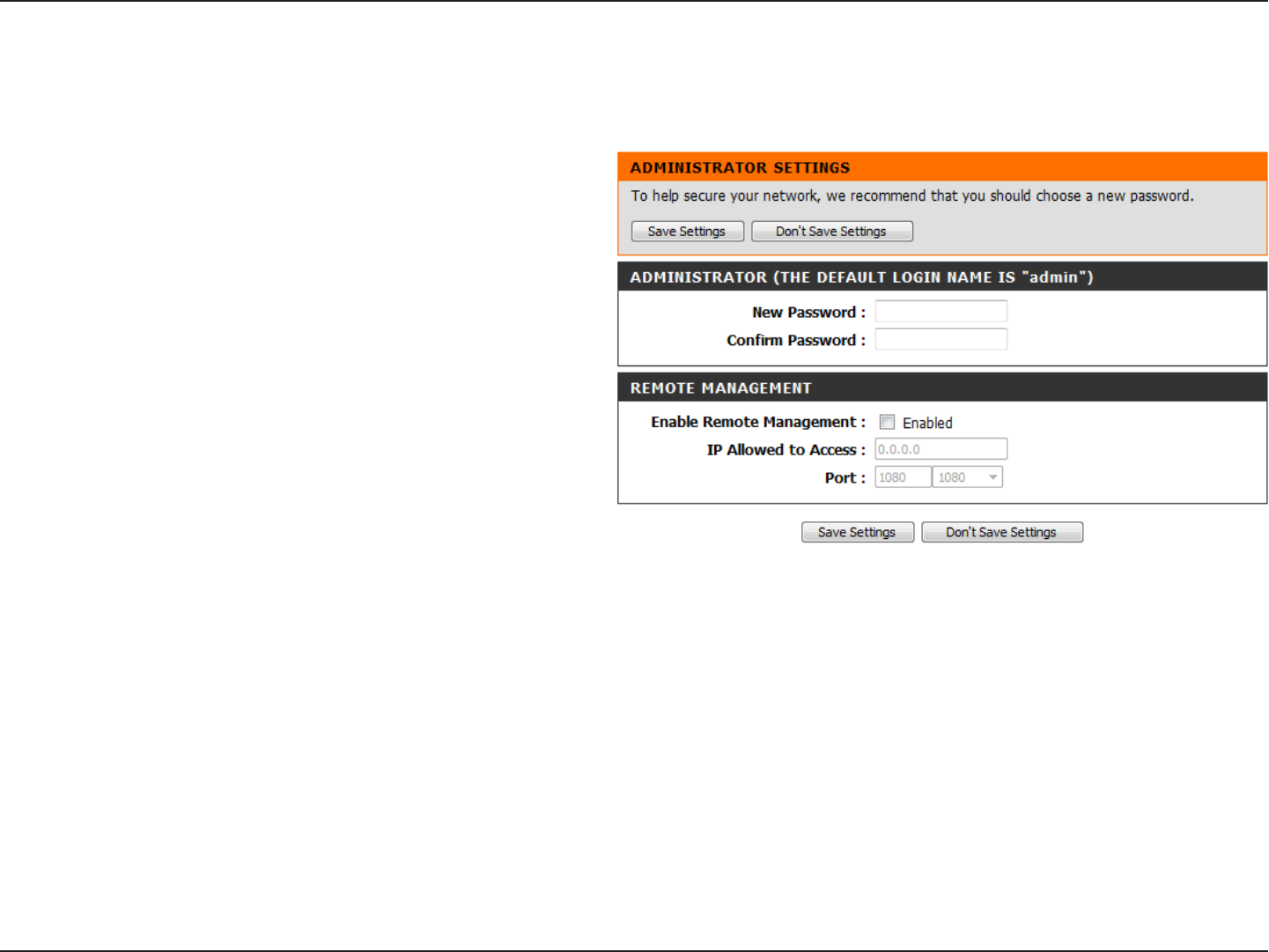

Admin .....................................................................................46

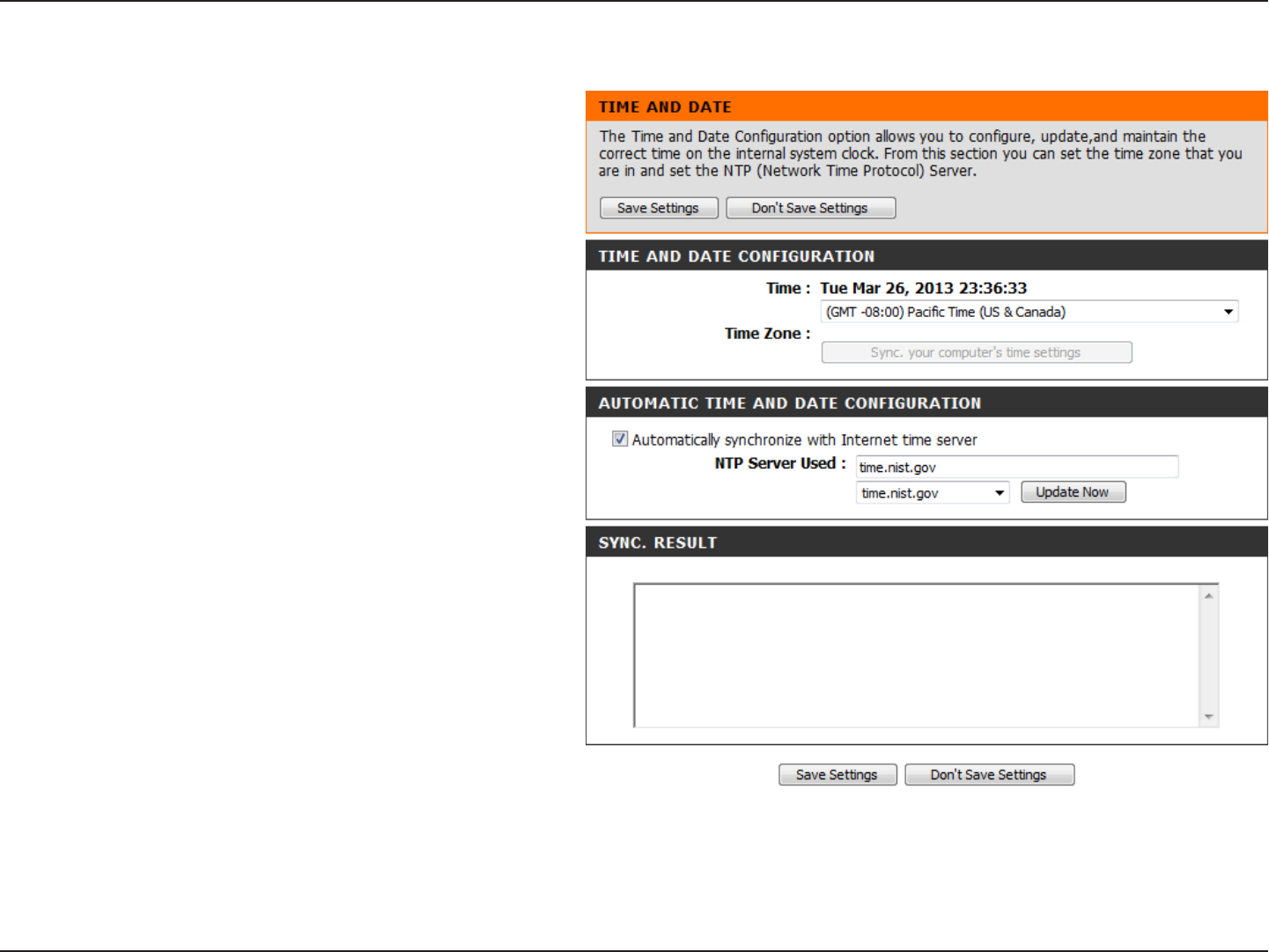

Time .........................................................................................47

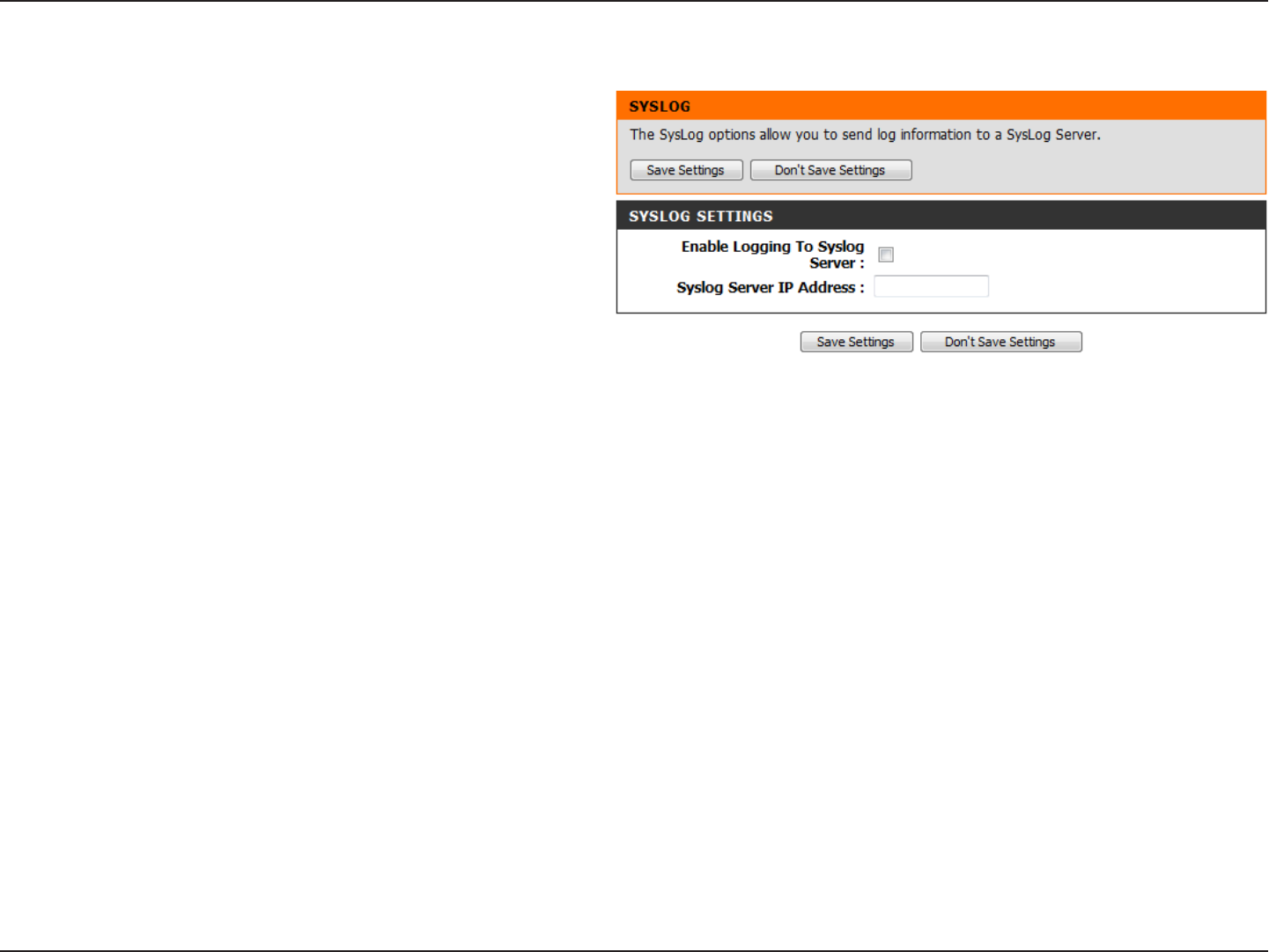

Syslog ......................................................................................48
Email Settings ......................................................................49
Table of Contents
iiiD-Link DWR-116 User Manual
Table of Contents

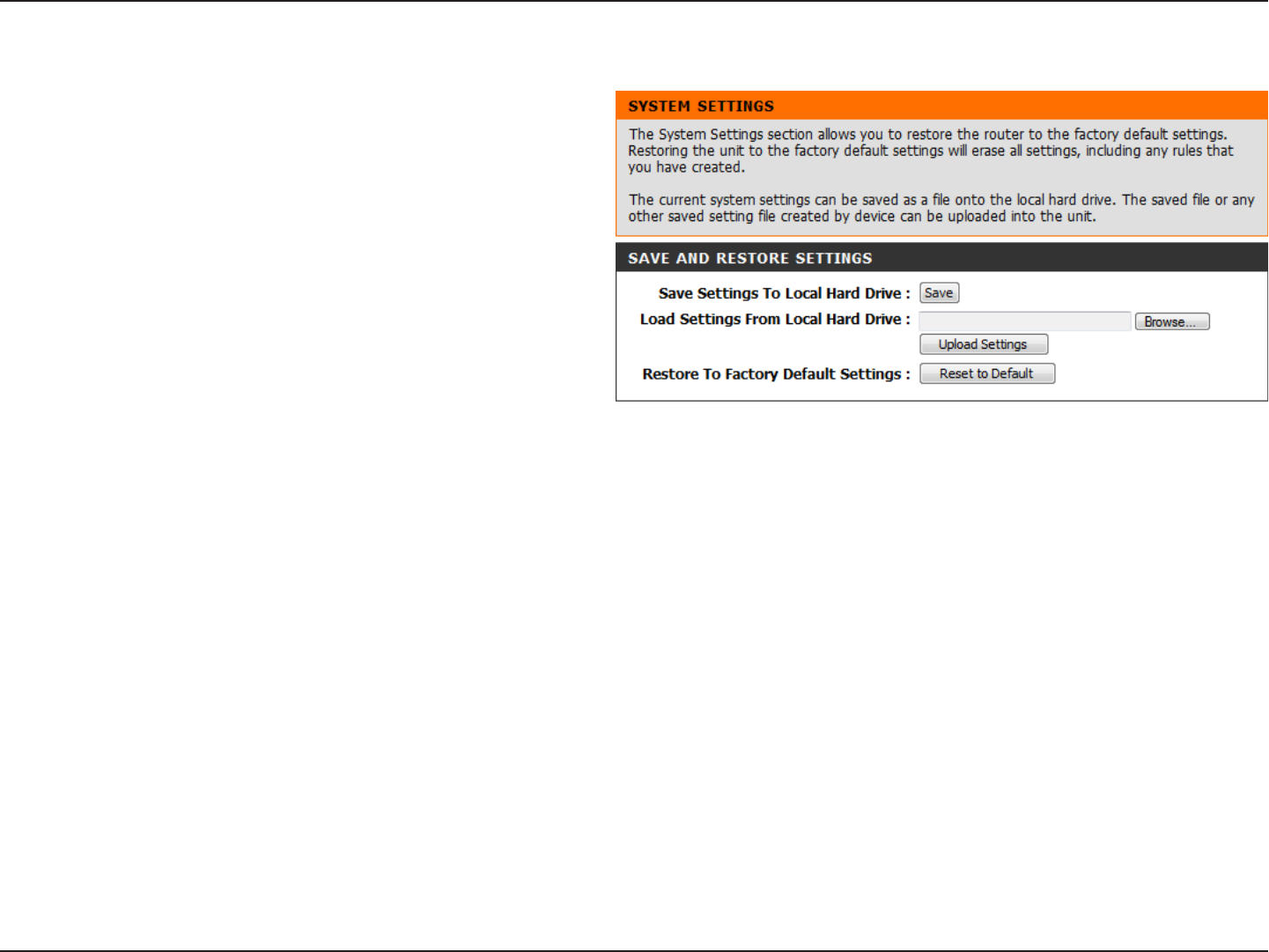

System ....................................................................................50
Firmware ................................................................................51

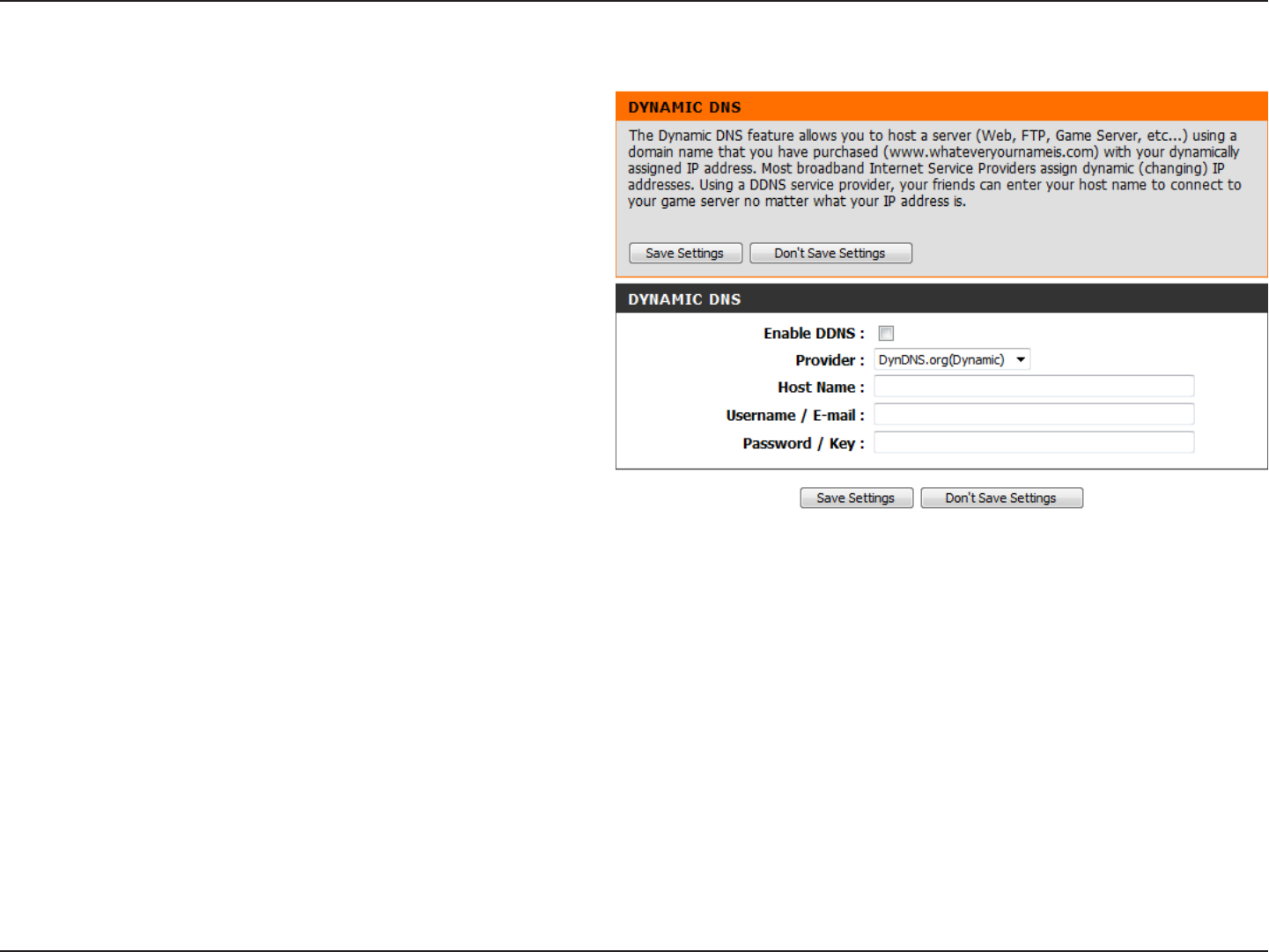

Dynamic DNS .......................................................................52

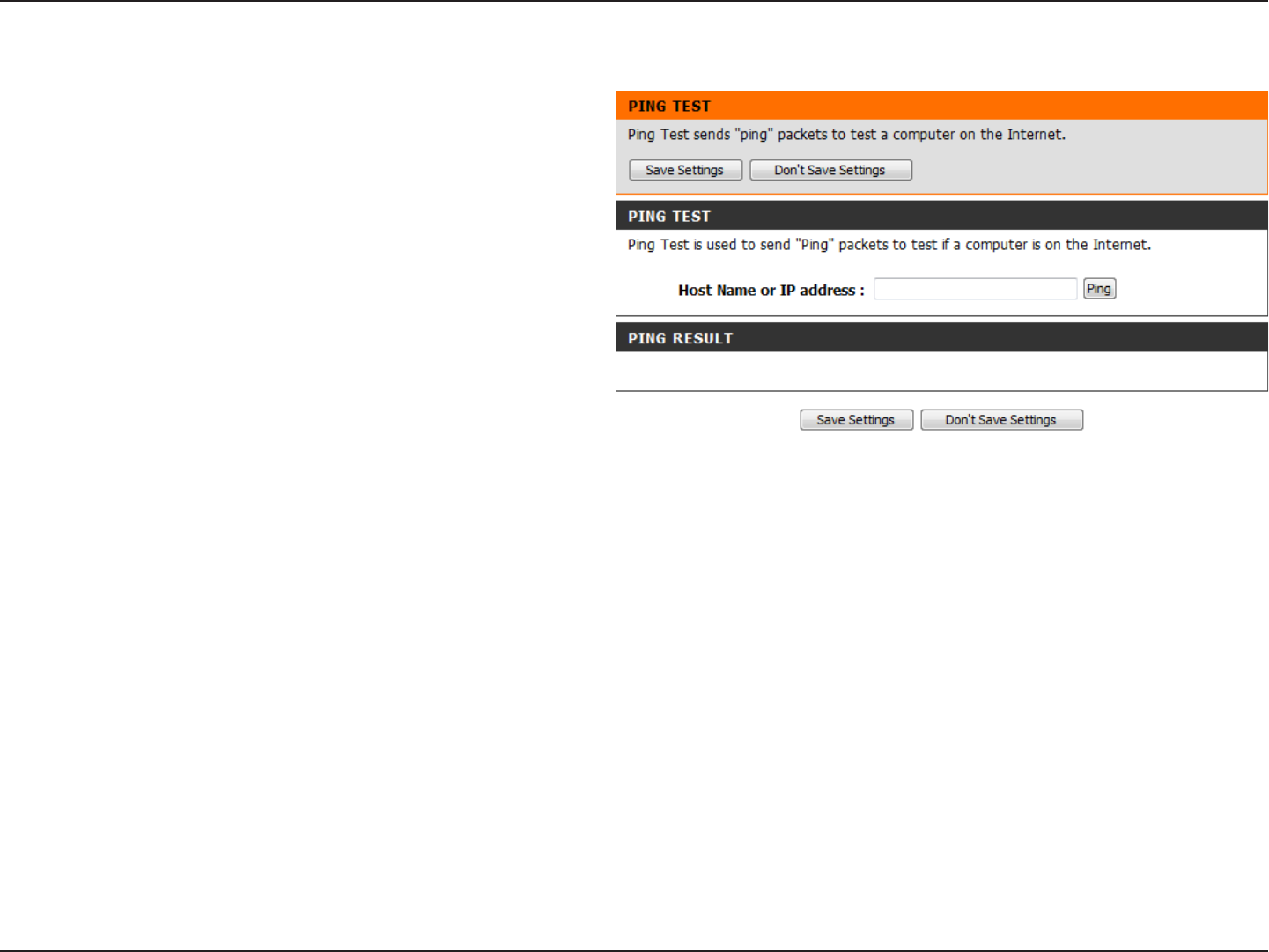

System Check .......................................................................53

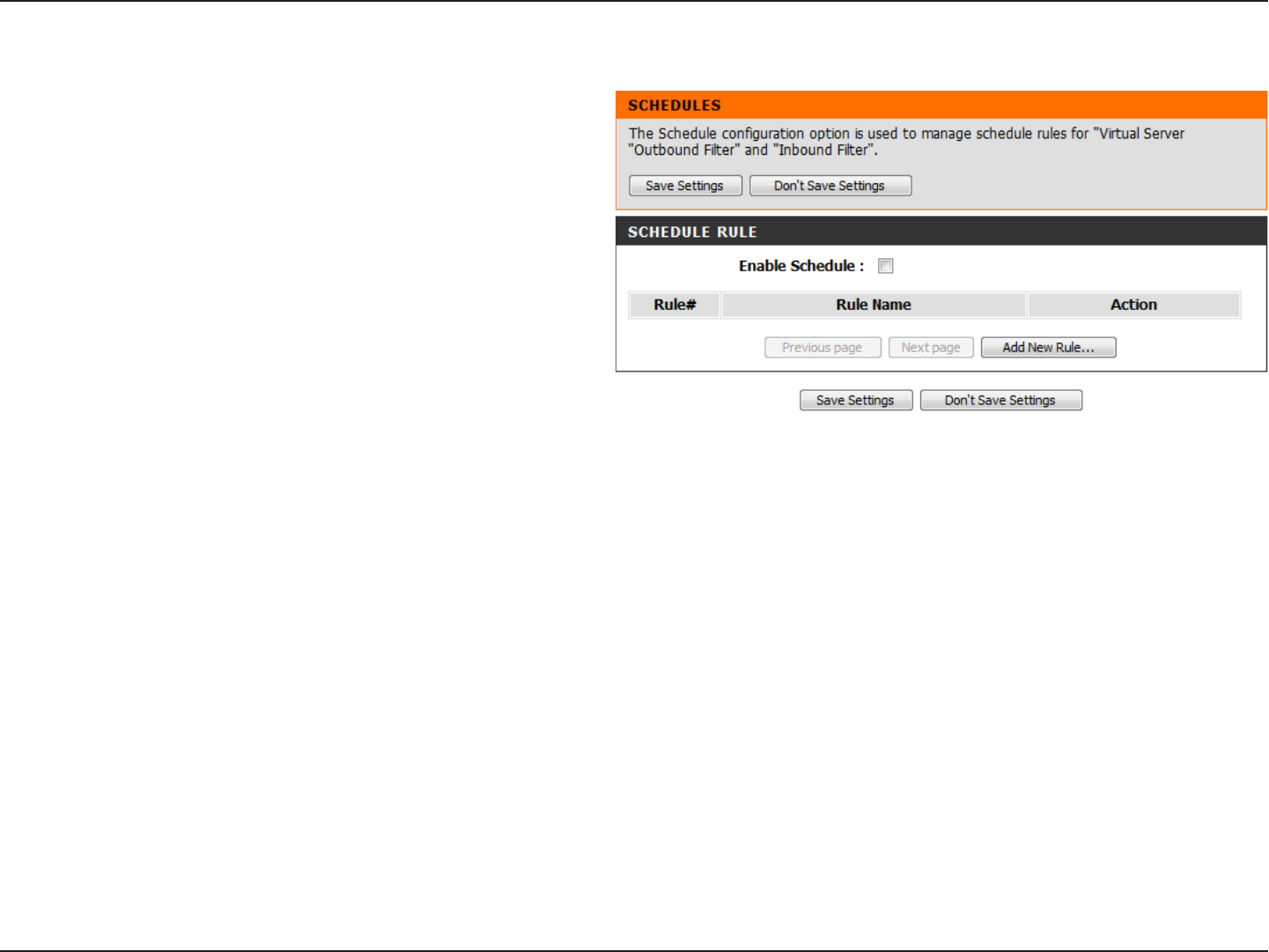

Schedules ..............................................................................54
Status ..............................................................................................55
Device Information ............................................................55

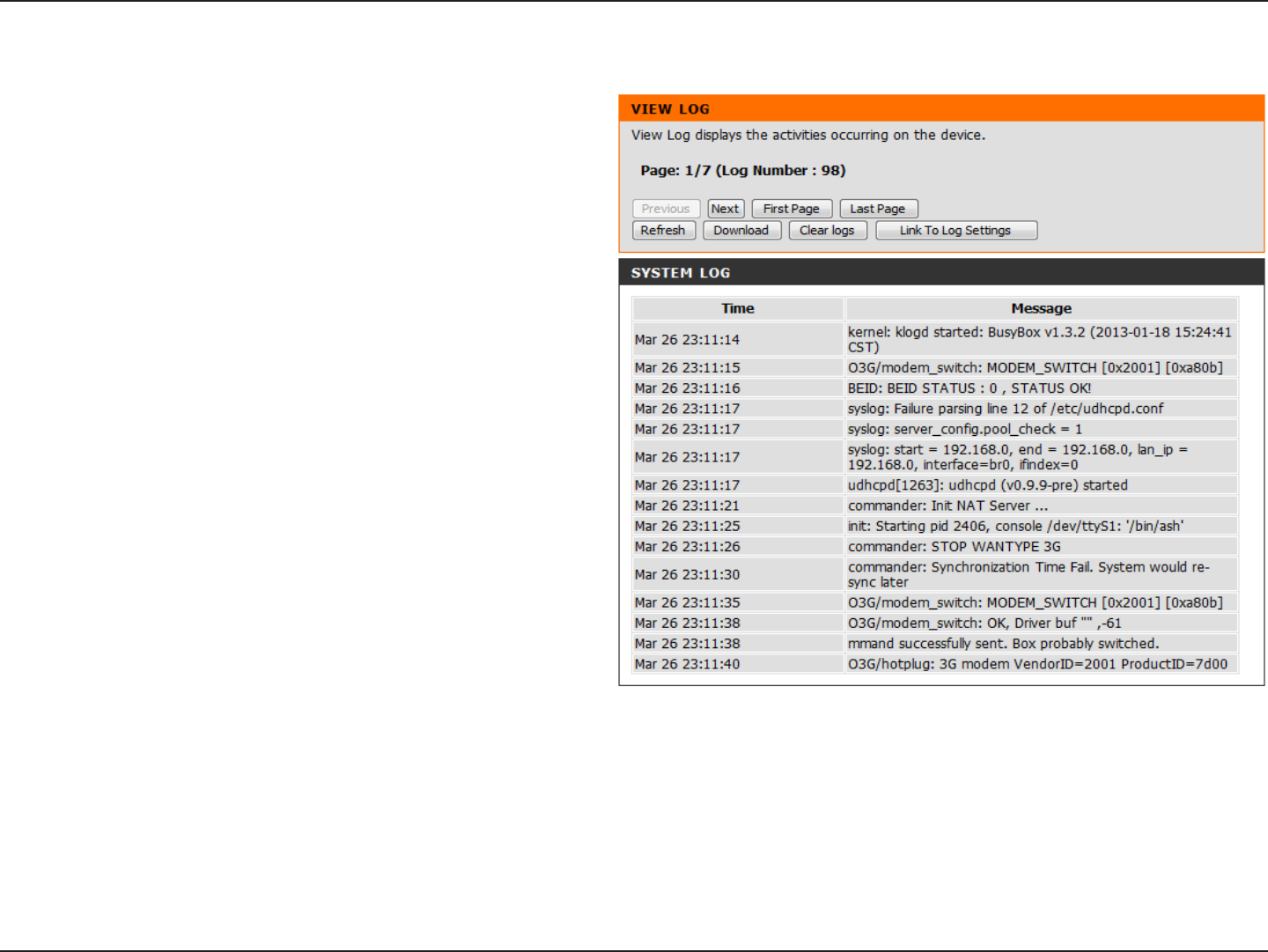

Logs .........................................................................................56

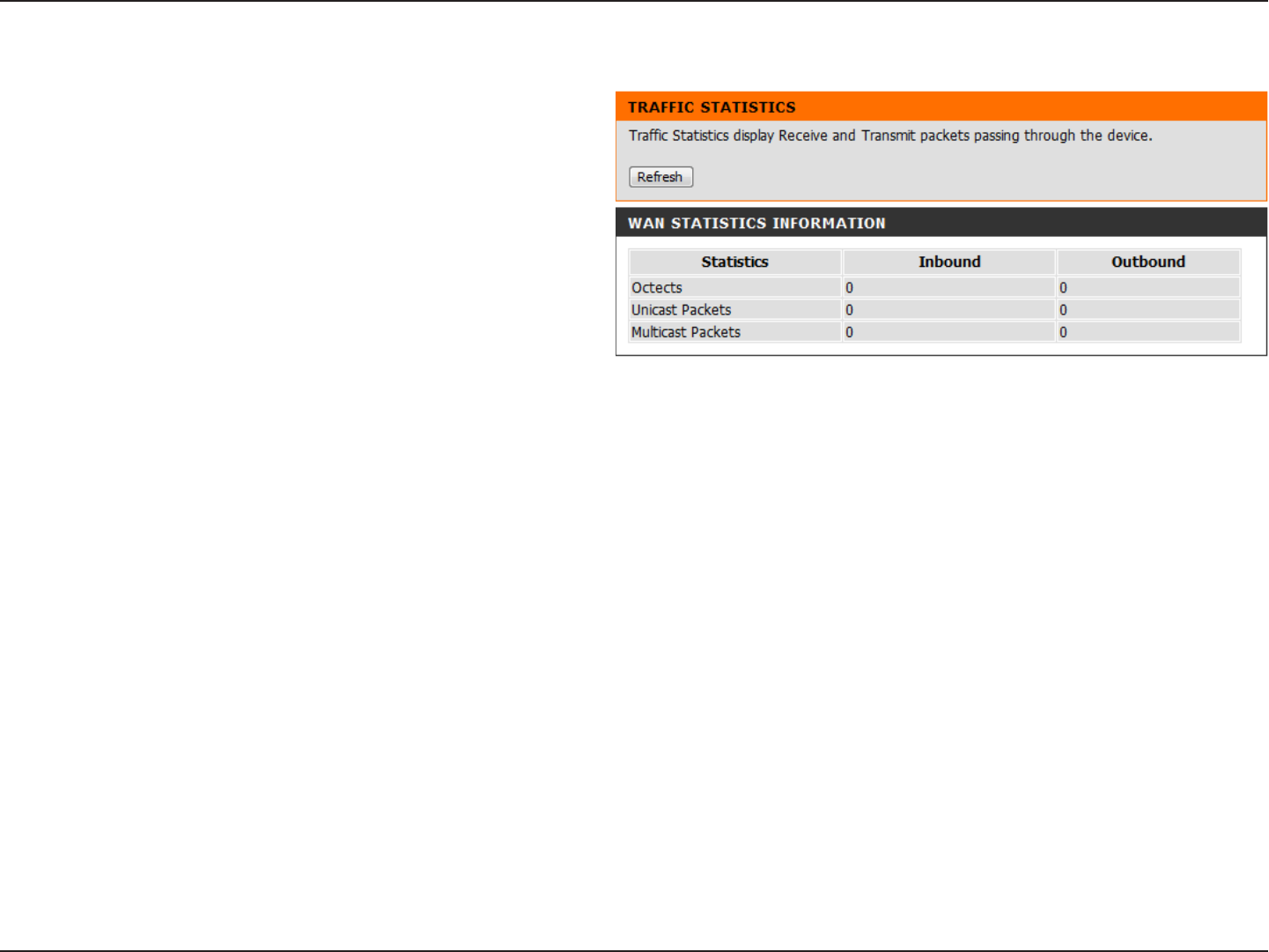

Statistics .................................................................................57
Wireless ..................................................................................58

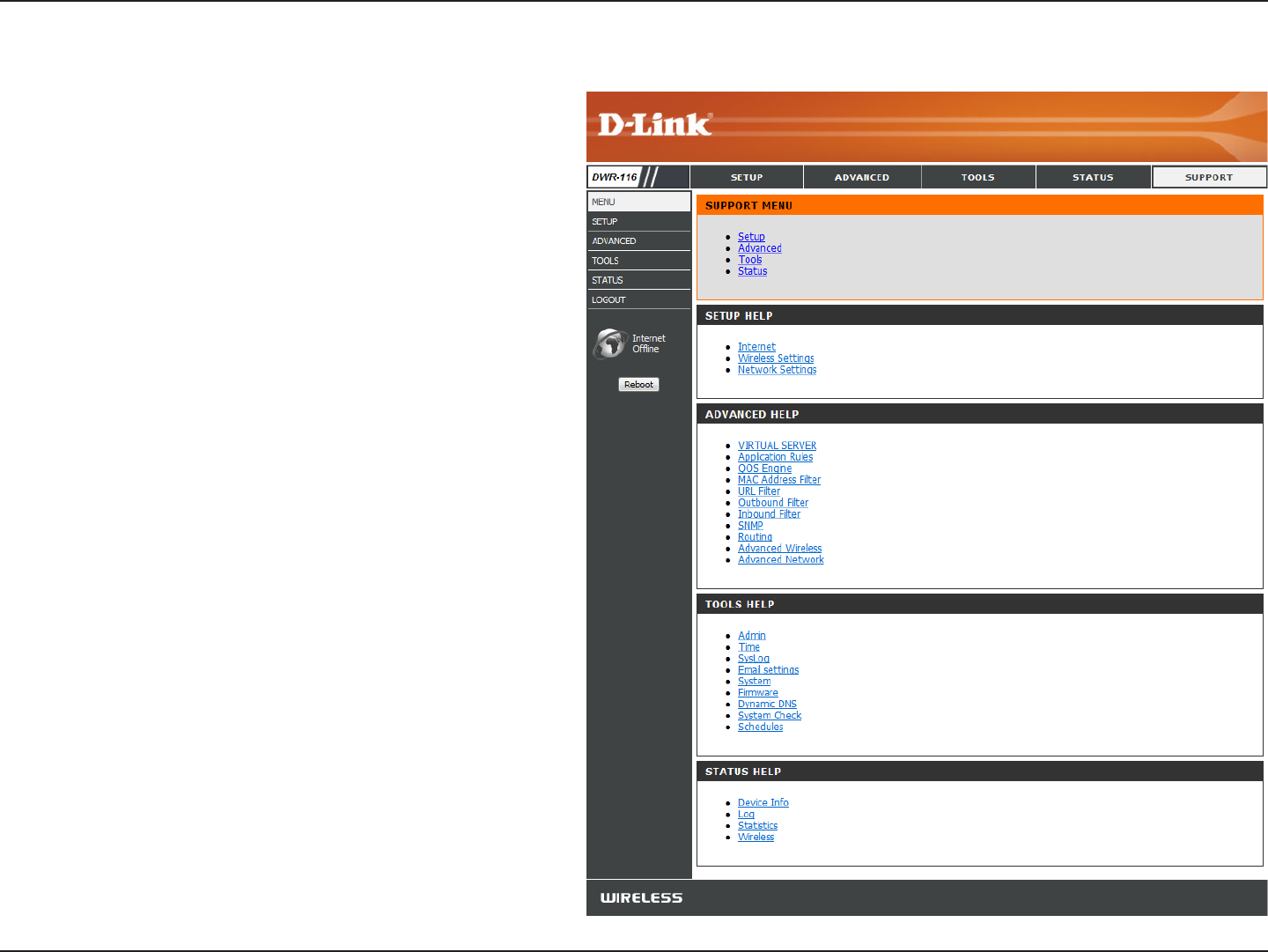

Support ..................................................................................59
Wireless Security .............................................................60
What is WEP? ................................................................................60

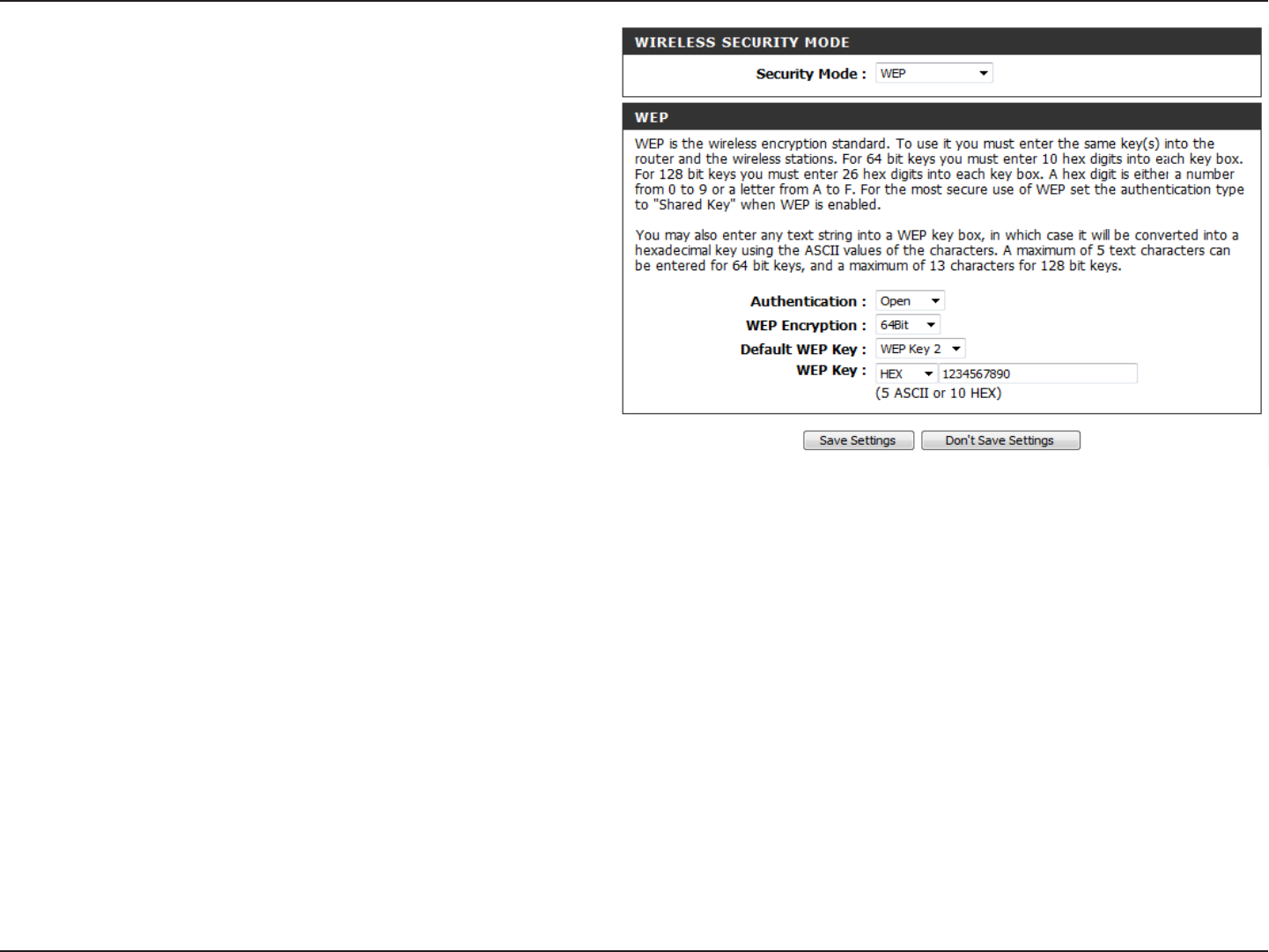

Congure WEP .............................................................................61
What is WPA? ................................................................................62

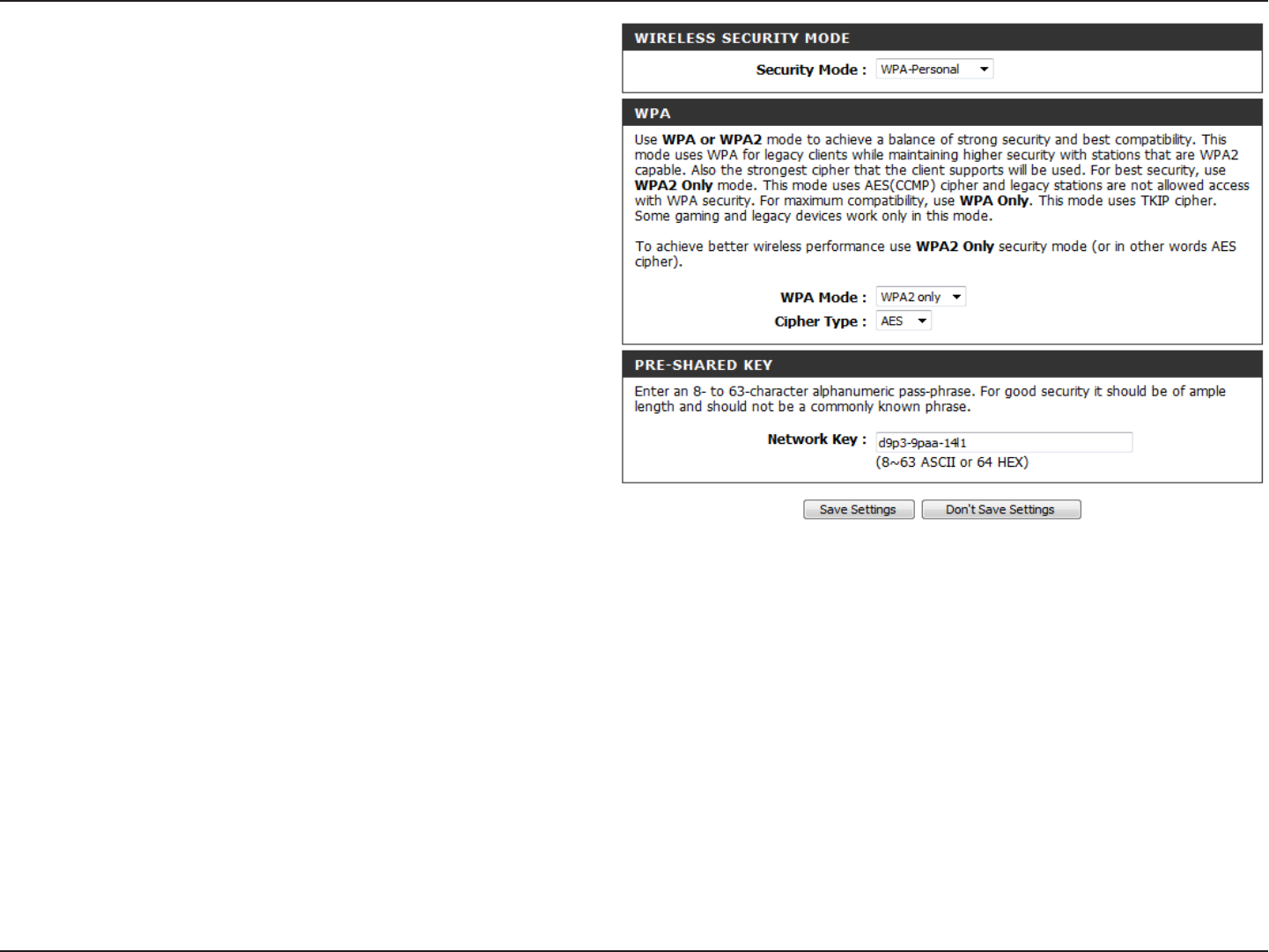

Congure WPA-PSK ....................................................................63

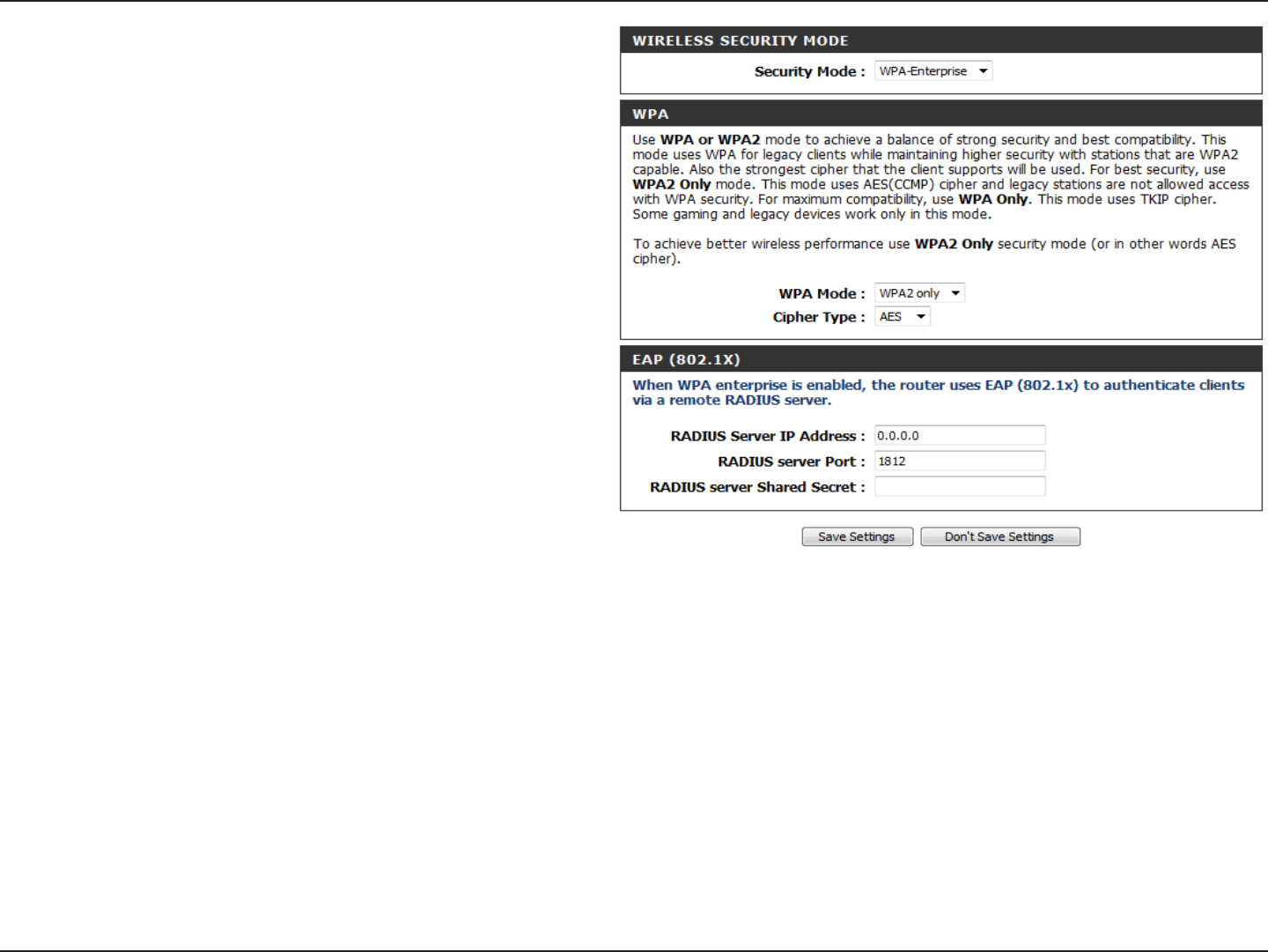

Congure WPA (RADIUS) .........................................................64

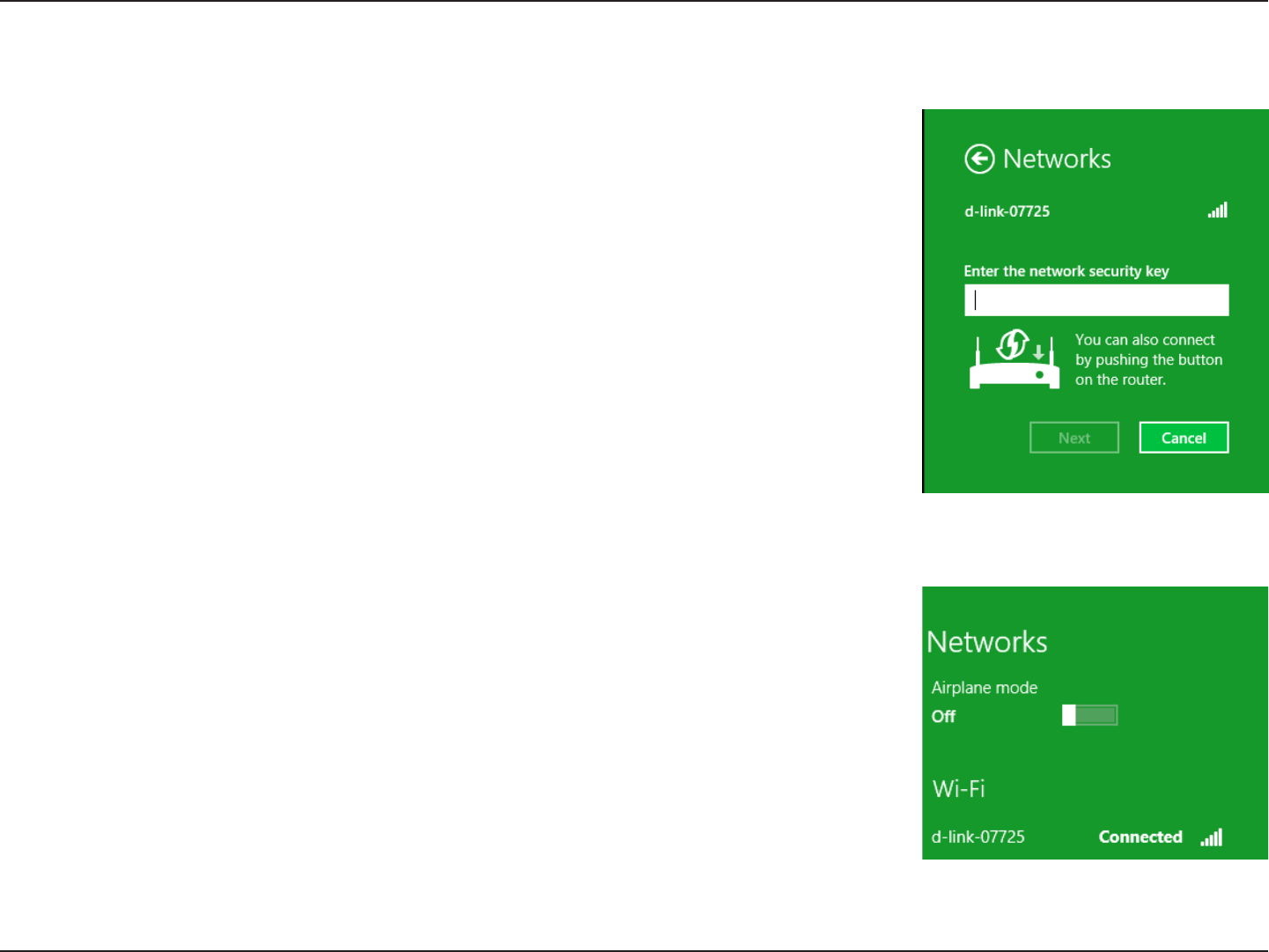

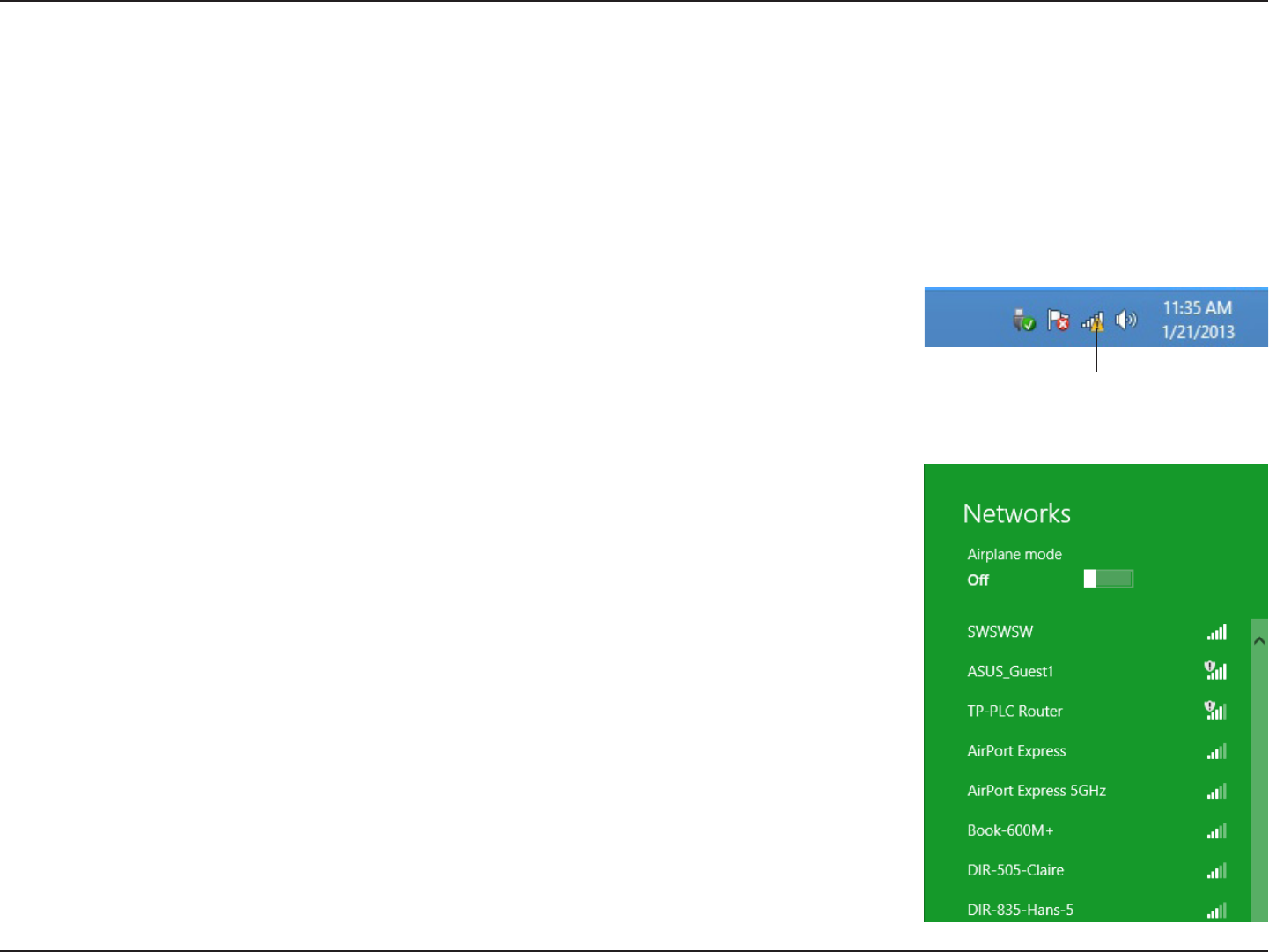

Windows® 8 ...................................................................................65
WPA/WPA2 ............................................................................65

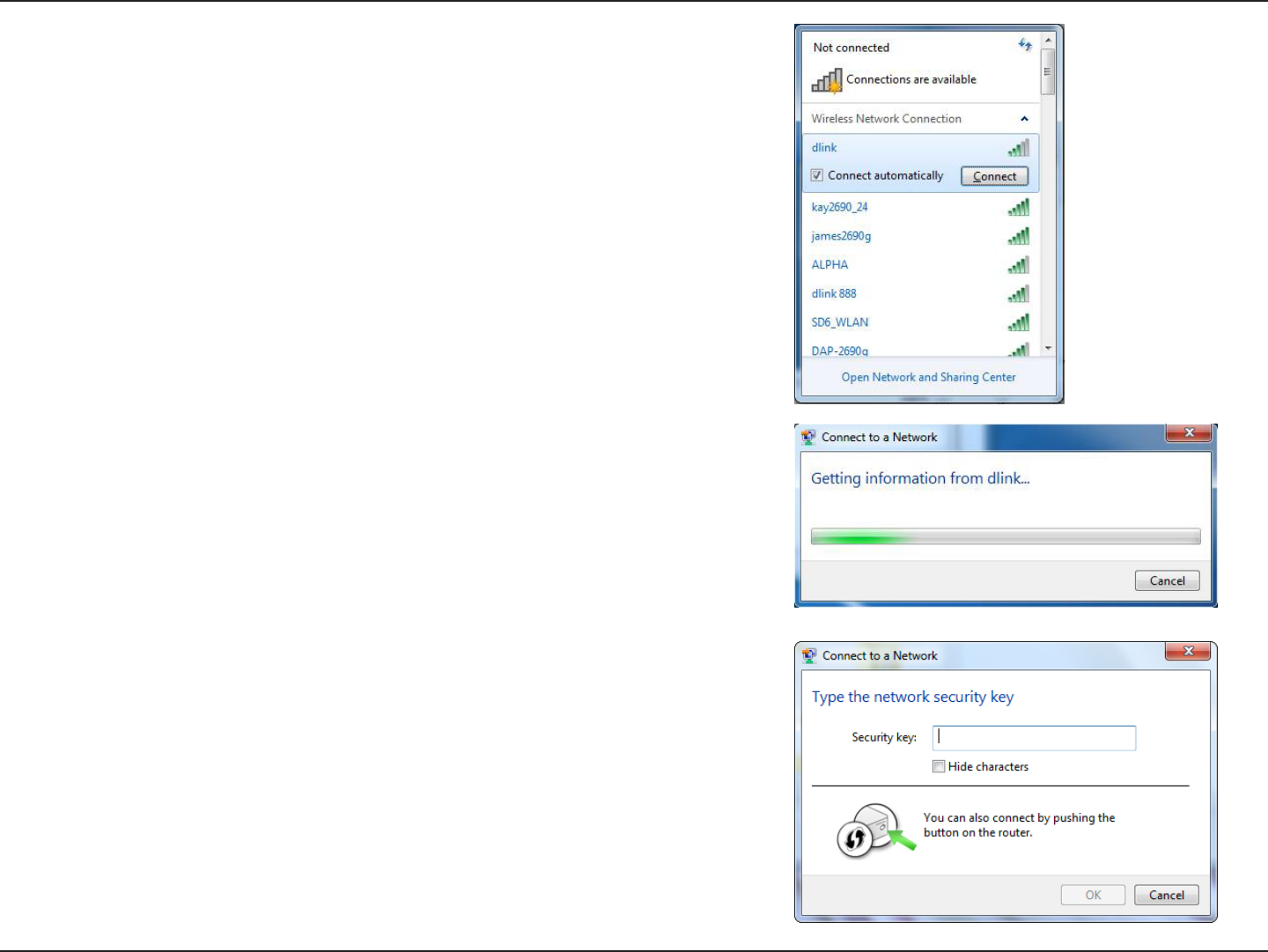

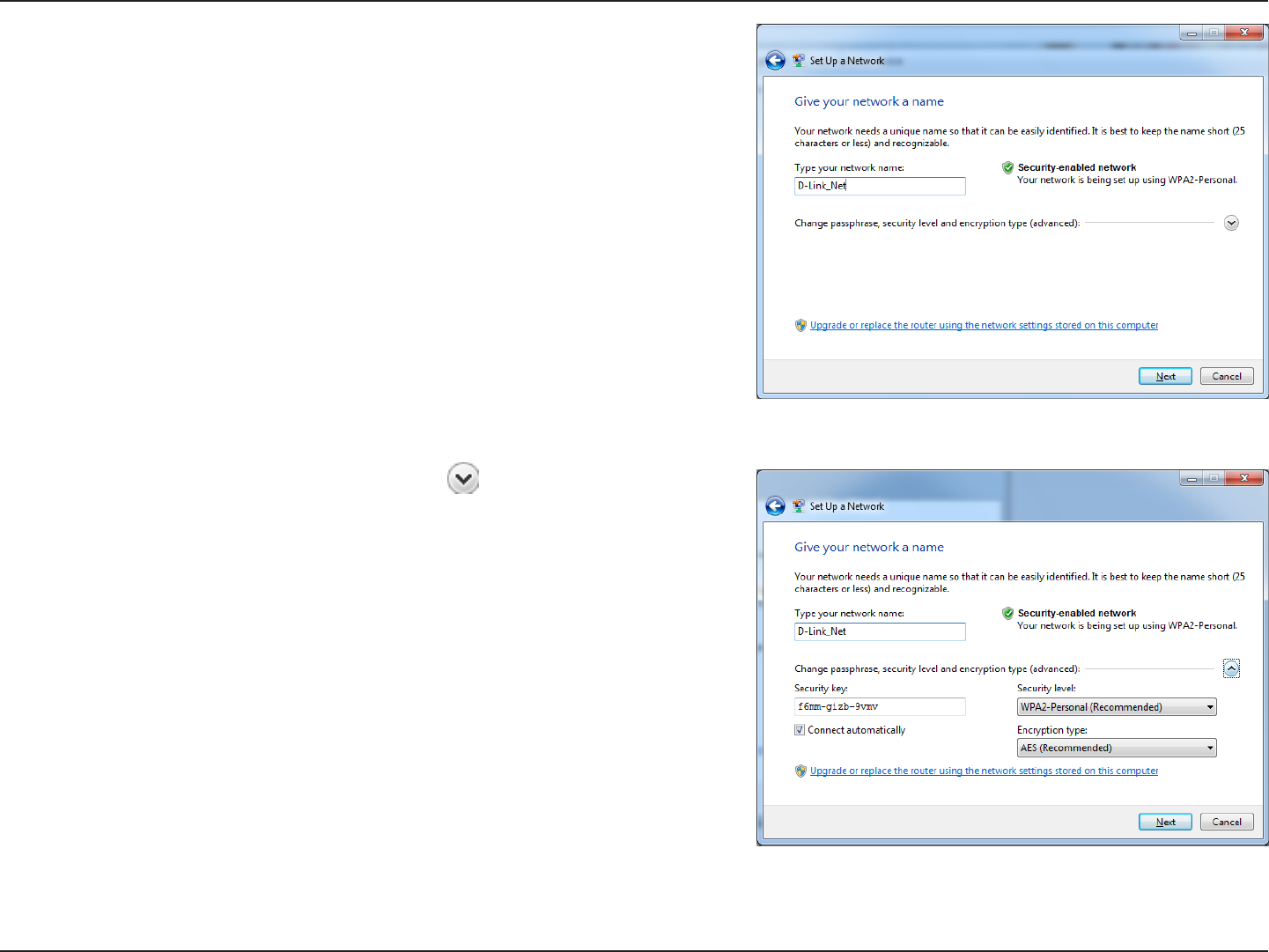

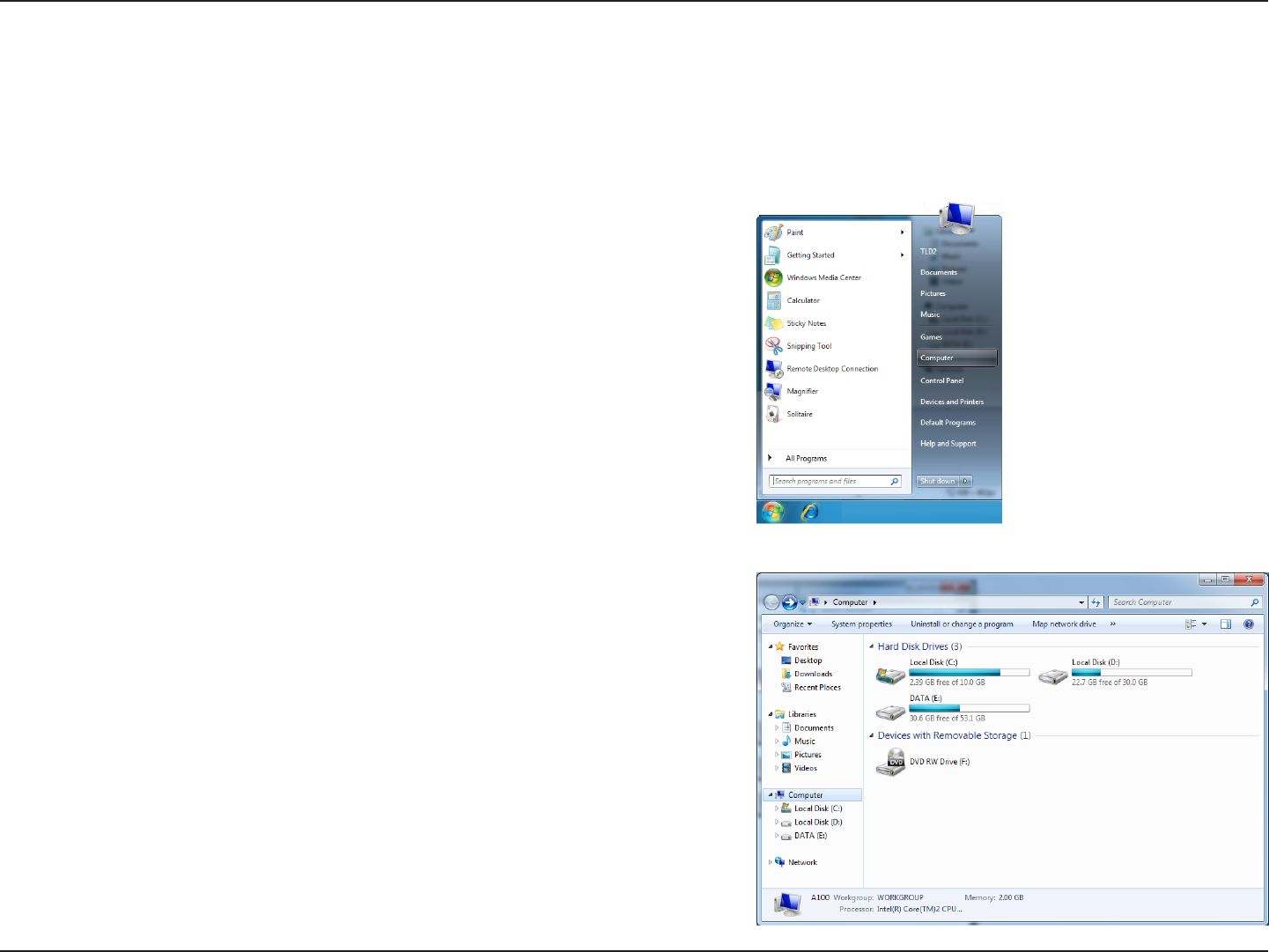

Windows® 7 ...................................................................................67
WPA/WPA2 ............................................................................67

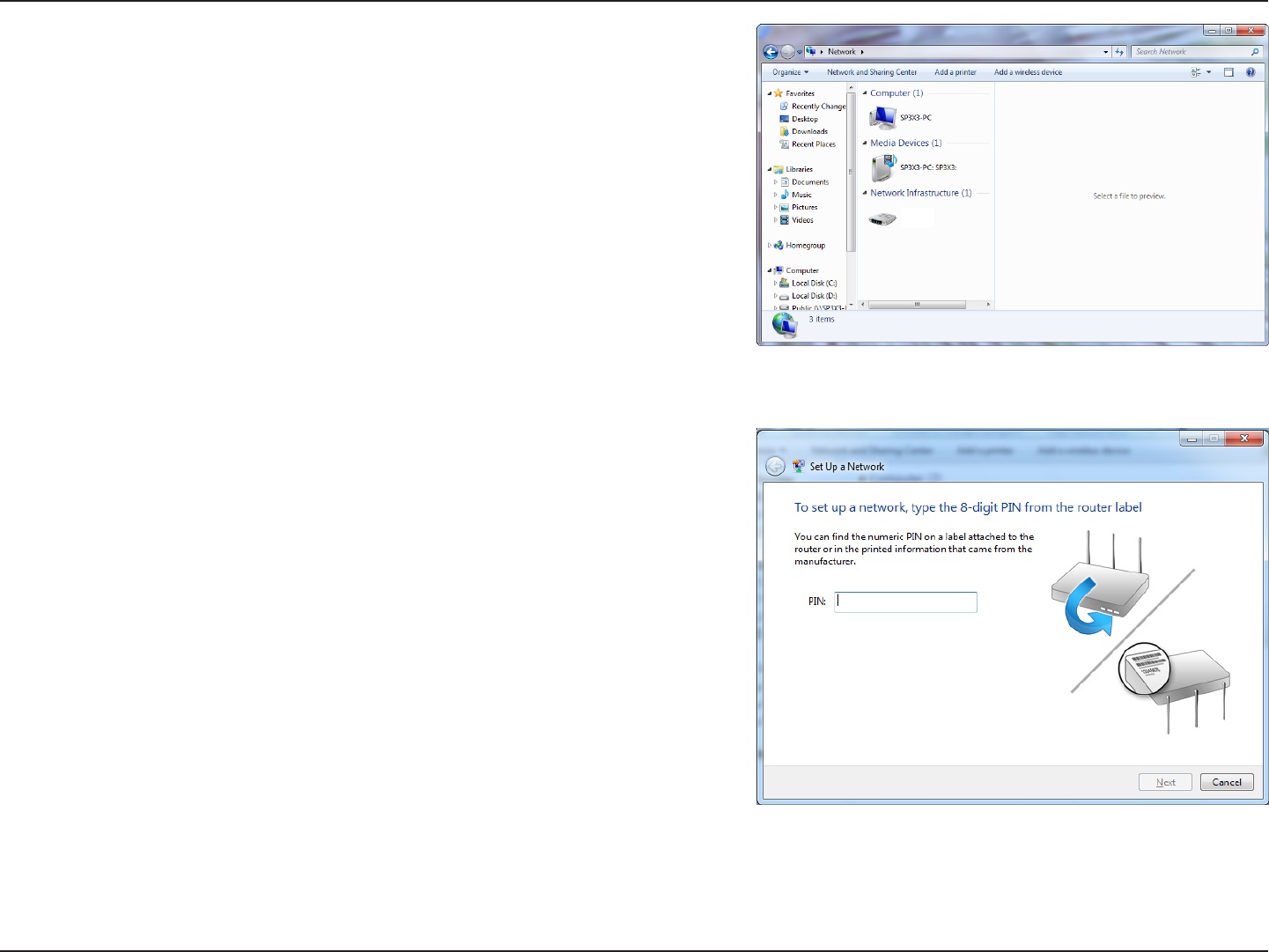

WPS ..........................................................................................69
Windows Vista® ............................................................................73
WPA/WPA2 ............................................................................74
WPS/WCN 2.0 .......................................................................76

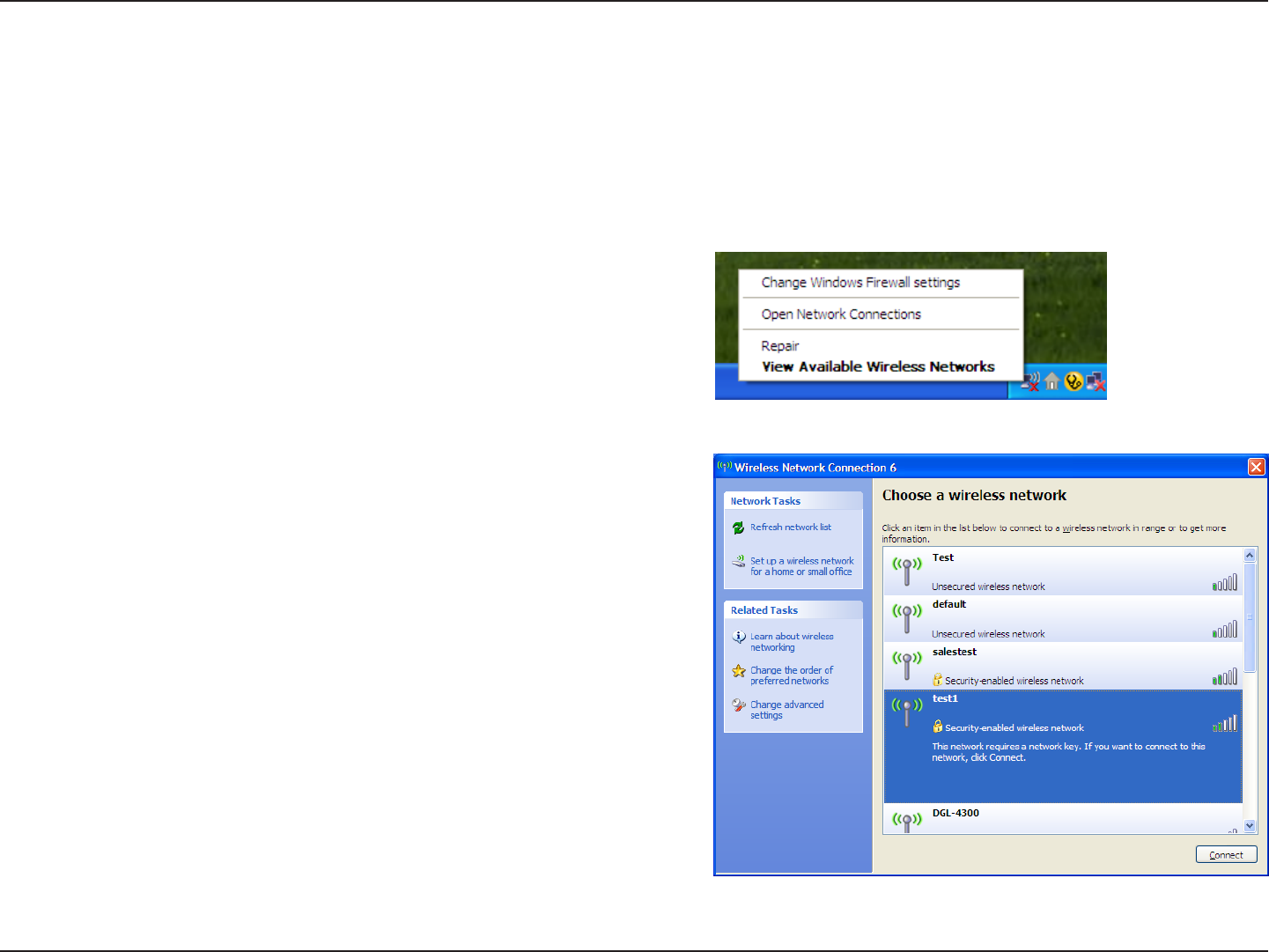

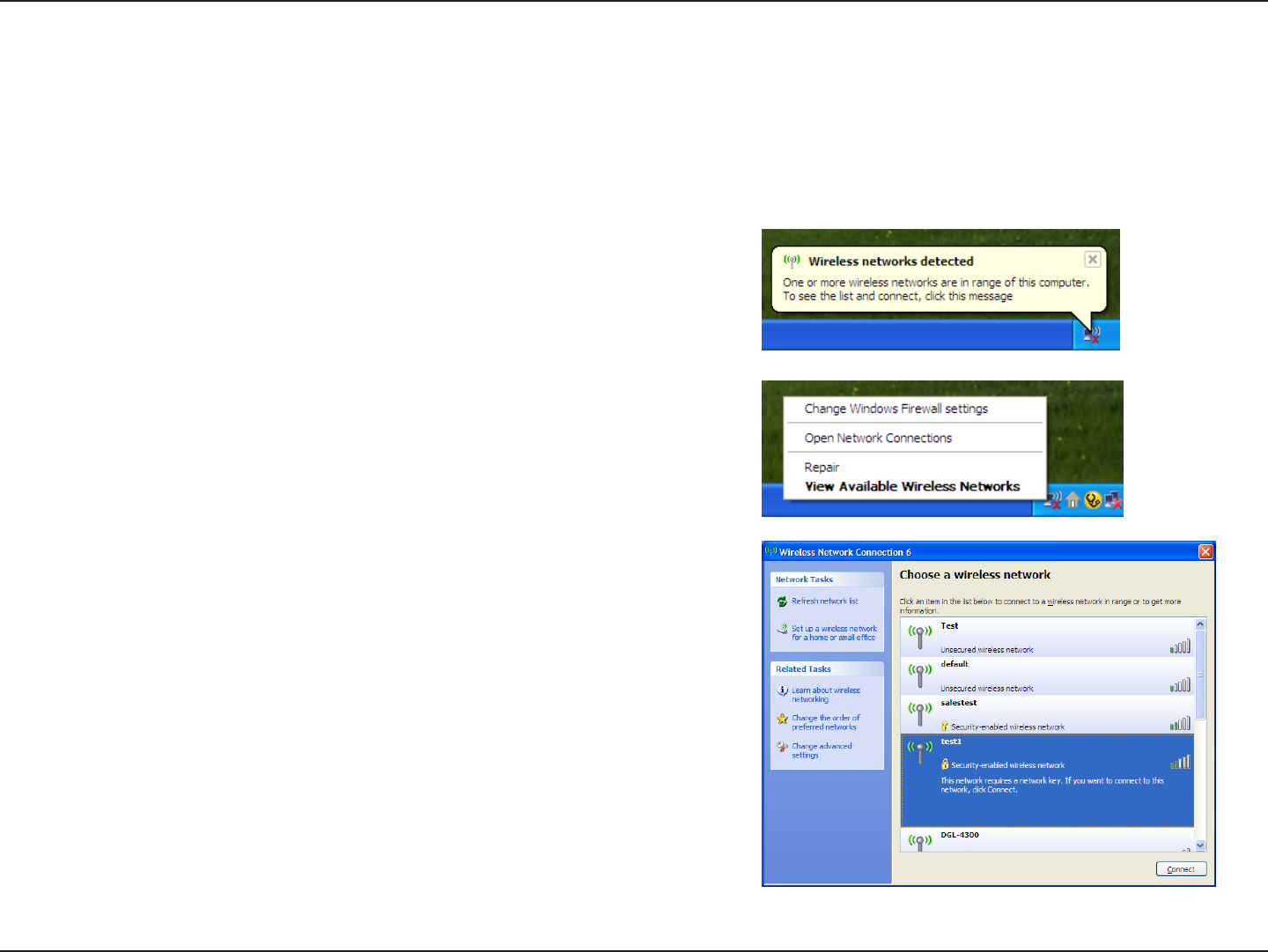

Windows® XP ................................................................................77
WPA/WPA2 ............................................................................78
Troubleshooting ..............................................................80
Wireless Modes ............................................................................82
Networking Basics ...........................................................83
Check your IP address ...............................................................83
Statically Assign an IP address ...............................................84
Technical Specications ..................................................85
1D-Link DWR-116 User Manual
Section 1 - Product Overview
• D-Link DWR-116 Wireless N300 Multi-WAN Router
• Power Adapter
• Manual and Warranty on CD
• External Wi-Fi antenna
System Requirements
• A compatible 3G/4G LTE USB modem
Computer with the following:
• Windows®, Macintosh, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer® 7 and higher
• Mozilla Firefox 12.0 and higher
• Google™ Chrome 20.0 and higher
• Apple Safari 4 and higher
Note: Using a power supply with a different voltage rating than the one included with the DWR-116 will cause damage and void the
warranty for this product.
Product Overview
Package Contents
2D-Link DWR-116 User Manual
Section 1 - Product Overview
Introduction
The D-Link Wireless N300 Multi-WAN Router allows users to access mobile broadband networks worldwide. Once
connected, users can easily transfer data and stream media. Simply connect your USB modem to share your 3G/4G LTE
Internet connection through a secure 802.11n wireless network or using the 10/100 Ethernet port.
The Wireless N300 Multi-WAN Router can be installed quickly and easily almost anywhere. The DWR-116 is great for
situations where an impromptu wireless network must be set up, or wherever conventional network access is unavailable.
The DWR-116 can even be installed in buses, trains, or boats, allowing passengers to check e-mail or chat online while
commuting.
3D-Link DWR-116 User Manual
Section 1 - Product Overview
Hardware Overview

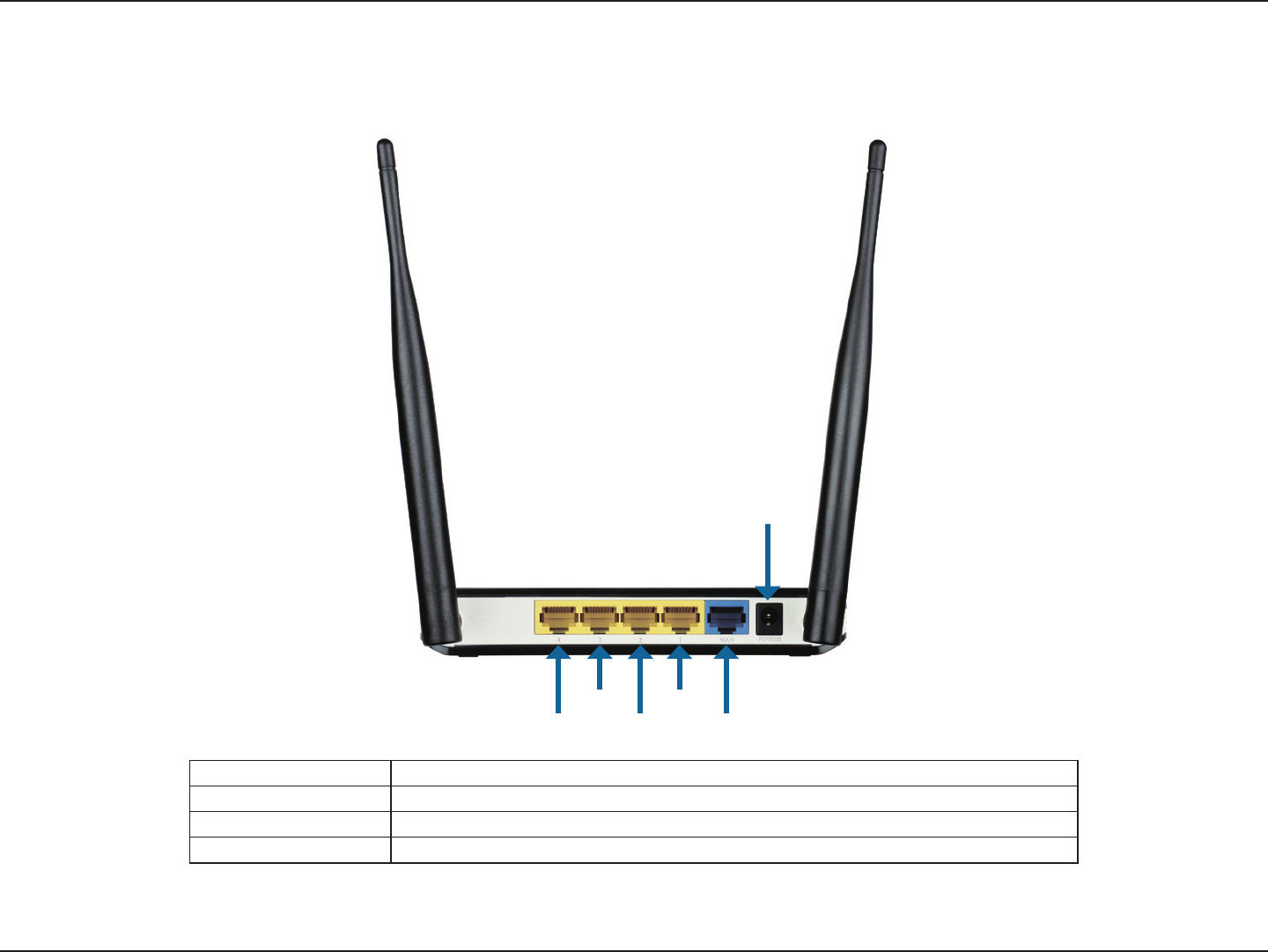

Back Panel
Port Function
LAN Port Connects to wired computers or devices.
WAN Port Connects to the Internet.
Power Port Connects to the power adapter.
LAN 4
LAN 3
LAN 2
LAN 1
WAN
POWER
4D-Link DWR-116 User Manual
Section 1 - Product Overview
Hardware Overview

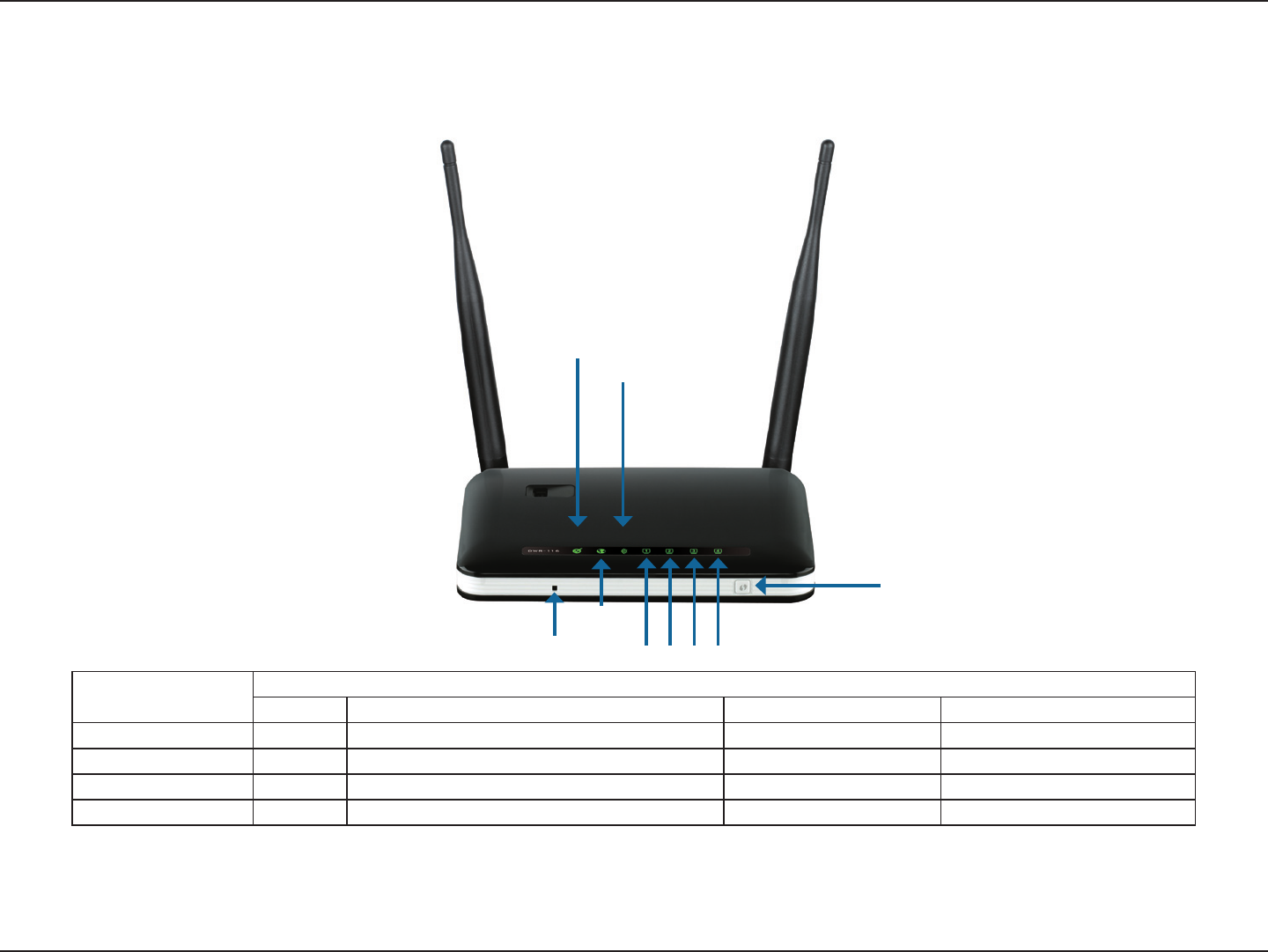

Front Panel and LEDs
3G/4G LTE
WAN
Wi-Fi
LAN Ports 1 to 4
WPS BUTTON
RESET BUTTON
LED Description
Color Solid Blinking Blinking (Fast)
3G/4G LTE Green 3G/4G LTE connection established Data transmitting -
WAN Green WAN connection established Data transmitting -
Wi-Fi Green Wi-Fi active and available Data transmitting Device in WPS mode
LAN 1 - LAN 4 Green Ethernet connection established Data transmitting -
Note: WPS mode can be activated by pressing, and holding the WPS button until the Wi-Fi LED begins to ash rapidly. You can
nd more details about activating WPS mode in the section titled “Wi-Fi Protected Setup” on page 39
5D-Link DWR-116 User Manual
Section 1 - Product Overview
Hardware Overview

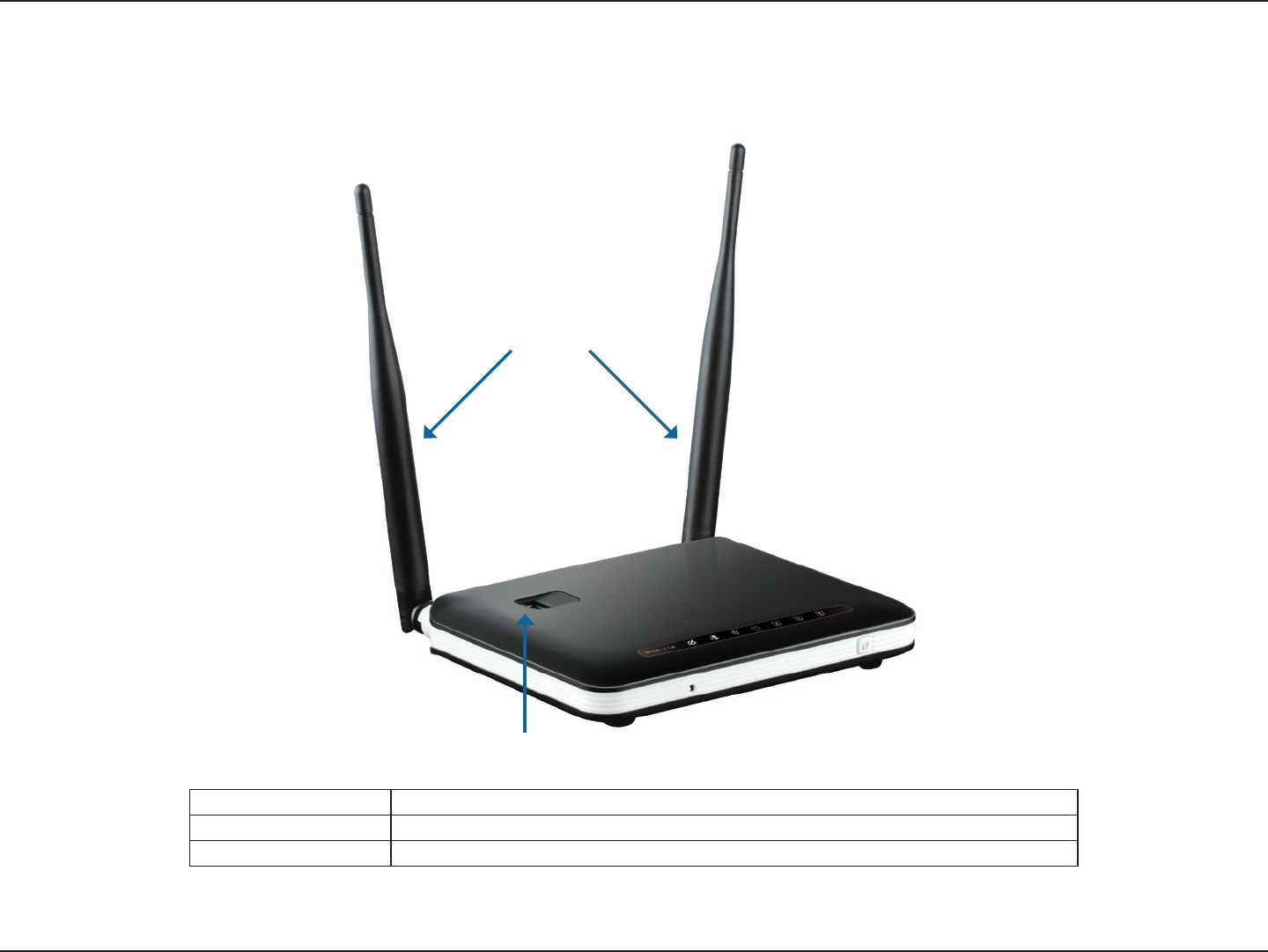

Top
Port Function
USB Port Connects to 3G/4G LTE Modem Dongle
Antennas External WiFi Antennas
USB 2.0 Port
External Antennas
6D-Link DWR-116 User Manual
Section 2 - Installation
Installation
This section will guide you through the installation process. Placement of the router is very important. Do not place the router
in an enclosed area such as a closet or cabinet, or in an attic or garage.
Connect to Your Network
Note: Ensure that your DWR-116 Wireless N300 Multi-WAN Router is disconnected and powered off before performing the
installation steps below.
1. Connect a USB modem to the USB port located on the top of the router.
2. Insert an Ethernet network cable into the LAN port on the back of the router. Plug the other end of the Ethernet cable into
the LAN port of your computer or laptop. The Ethernet LED will turn green if the Ethernet connection is successfully established.
Note: The DWR-116 Wireless N300 Multi-WAN Router’s LAN ports are “Auto-MDI/MDIX.” Therefore, patch or crossover Ethernet
cables can be used.
3. Configure the device using the setup utility.
7D-Link DWR-116 User Manual
Section 2 - Installation
Wireless Installation Considerations
The DWR-116 can be accessed using a wireless connection from virtually anywhere within the operating range of your wireless
network. Keep in mind, however, that the quantity, thickness and location of walls, ceilings, or other objects that the wireless
signals must pass through, may limit the range. Ranges vary depending on the types of materials and background RF (radio
frequency) noise in your home or office. The key to maximizing the wireless range is to follow these basic guidelines:
1. Minimize the number of walls and ceilings between the router and other network devices. Each wall or ceiling
can reduce your adapter’s range from 3 to 90 feet (1 to 30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree
angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick.
Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better
reception.
3. Try to position access points, wireless routers, and computers so that the signal passes through open doorways
or drywall. Materials such as glass, metal, brick, insulation, concrete and water can affect wireless performance.
Large objects such as fish tanks, mirrors, file cabinets, metal doors and aluminum studs may also have a negative
effect on range.
4. If you are using 2.4 GHz cordless phones, make sure that the 2.4 GHz phone base is as far away from your
wireless device as possible. The base transmits a signal even if the phone in not in use. In some cases, cordless
phones, X-10 wireless devices, and electronic equipment such as ceiling fans, fluorescent lights, and home
security systems may dramatically degrade wireless connectivity.
8D-Link DWR-116 User Manual
Section 3 - Conguration

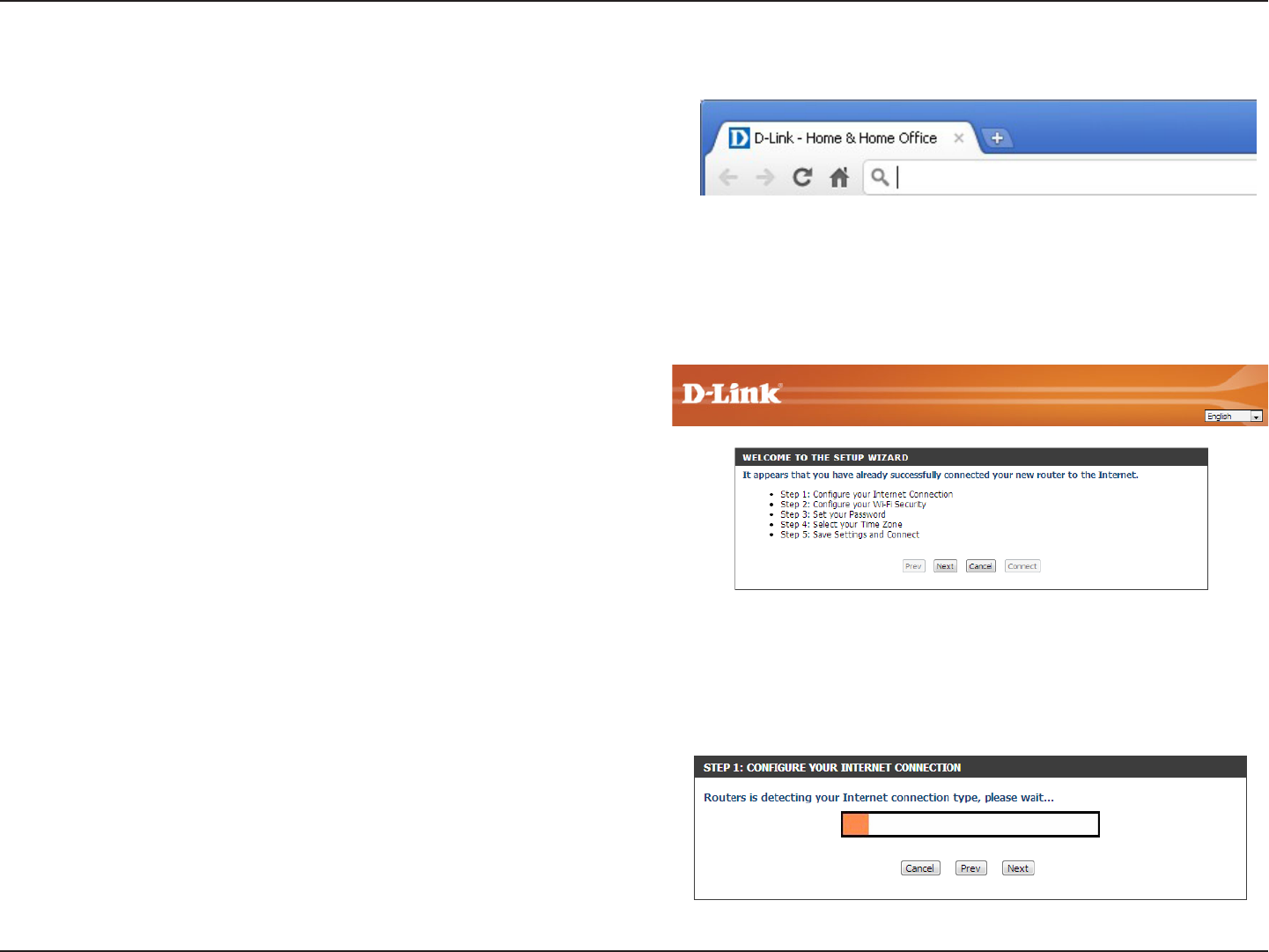

If this is your rst time logging into the router, this wizard will
start automatically.
This wizard is designed to guide you through a step-by-step
process to congure your new D-Link router and connect to the
Internet.
There are a number of languages that can be selected by using
the drop down box in the upper right hand corner of the quick
start wizard.
Click Next to continue.
Quick Setup Wizard
If this is your first time installing the router, open your
web browser. You will automatically be directed to the
Wizard Setup Screen. If not, enter “http://dlinkrouter or
http://dlinkrouter.local in the address bar”. Then, press Enter.
If you have already configured your settings and you would like
to access the configuration utility, please refer to
Please wait while your router detects your internet connection
type. If the router detects your Internet connection, you may need
to enter your ISP information such as username and password.
9D-Link DWR-116 User Manual
Section 3 - Conguration
If the router does not detect a valid Ethernet connection from the
Internet port, this screen will appear. Connect your broadband modem
to the Internet port and then click Try Again.
If the router detects an Ethernet connection but does not detect the type
of Internet connection you have, this screen will appear. Click Guide me
through the Internet Connection Settings to display a list of connection
types to choose from.
Select your Internet connection type and click Next to continue.
10D-Link DWR-116 User Manual
Section 3 - Conguration
If the router detected or you selected PPPoE, enter your
PPPoE username and password and click Next to continue.
Note: Make sure to remove your PPPoE software from your
computer. The software is no longer needed and will not work
through a router.
If the router detected or you selected DHCP, you may enter
a MAC address and host name, click Next to continue. You
may also need to click the Clone button in order to copy
the MAC address from your computer. If you are unsure,
check with your ISP to nd out what their requirements are.
11D-Link DWR-116 User Manual
Section 3 - Conguration
If the router detected or you selected PPTP, enter your
PPTP username, password, and other information supplied
by your ISP. Click Next to continue.
If the router detected or you selected L2TP, enter your L2TP
username, password, and other information supplied by
your ISP. Click Next to continue.
12D-Link DWR-116 User Manual
Section 3 - Conguration
If the router detected or you selected Static, enter the
IP and DNS settings supplied by your ISP. Click Next to
continue.
If the router detected or you selected 4G LTE / 3G
Connection, select whether to use auto-detection or
manual congure the settings. If you choose to manually
congure the settings, you will need to enter the following:
Country:
Telecom:
3G/4G Network:
Username:
Password:
Dialed Number:
Authentication:
APN:
Pin Code:
Select the country that your service is from.
Select the carrier from which you receive service from.
Select the network service type.
The username, if needed to access your service.
The password, if needed to access your service.
The number which is needed to access the service
provided.
The authentication mode which is needed in order
to access the service provided.
The APN supplied by your service provider.
The pin code supplied by your service provider.
13D-Link DWR-116 User Manual
Section 3 - Conguration
In order to secure your router, please enter a new password.
Click Next to continue.

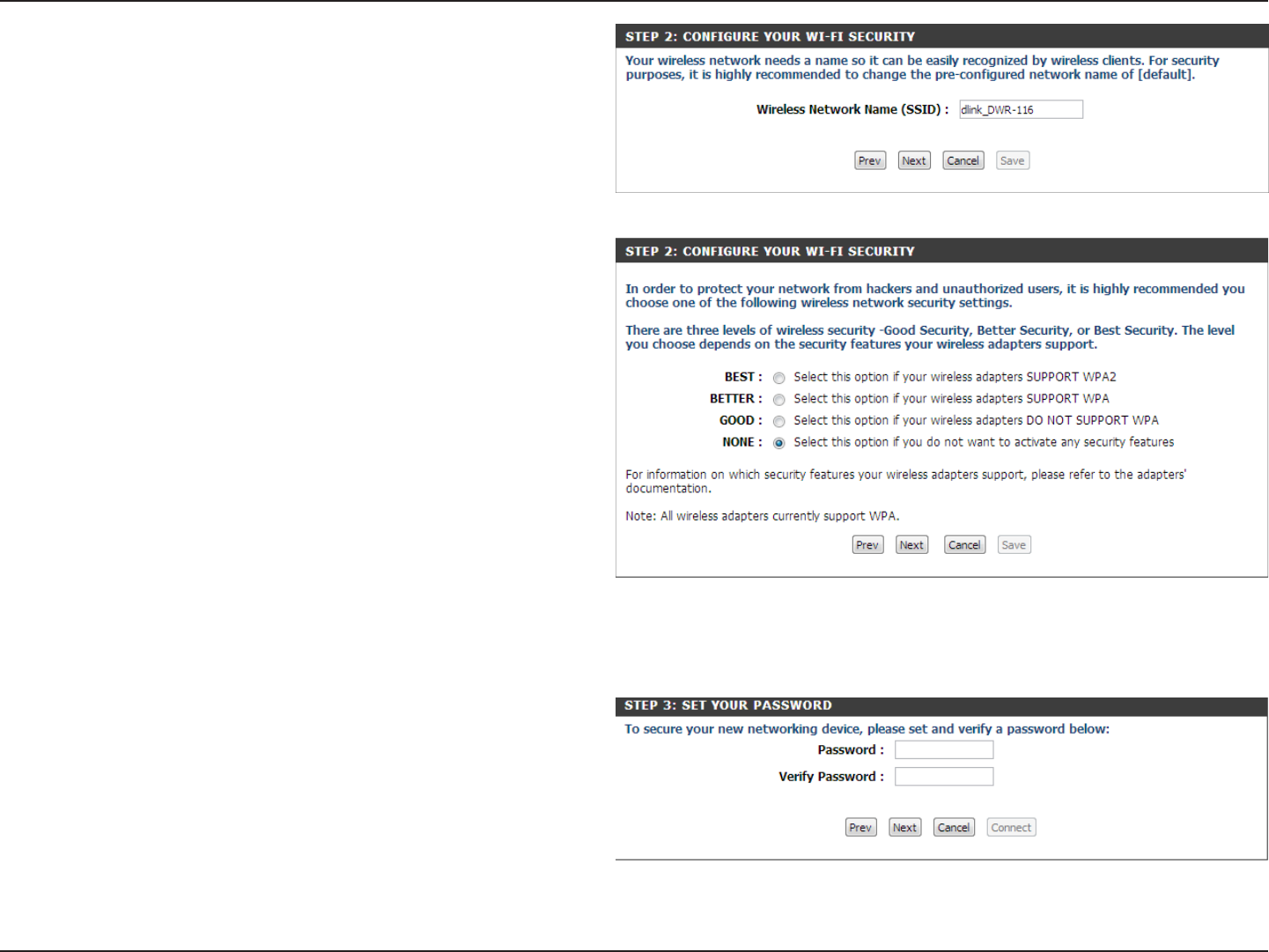

The quick setup wizard will then ask you to configure a wireless SSID
for your to easily identify the wireless network that you will create
with your new D-Link router.
Click Next to continue.
Create a Wi-Fi password (between 8-63 characters). Your wireless
clients will need to have this passphrase or key entered to be able
to connect to your wireless network.
If you chose BEST or BETTER, select whether to use TKIP or AES
encryption, then enter a password to use for your wireless network.
It is recommended that you use AES if your wireless computers and
devices support it, as it is more secure.

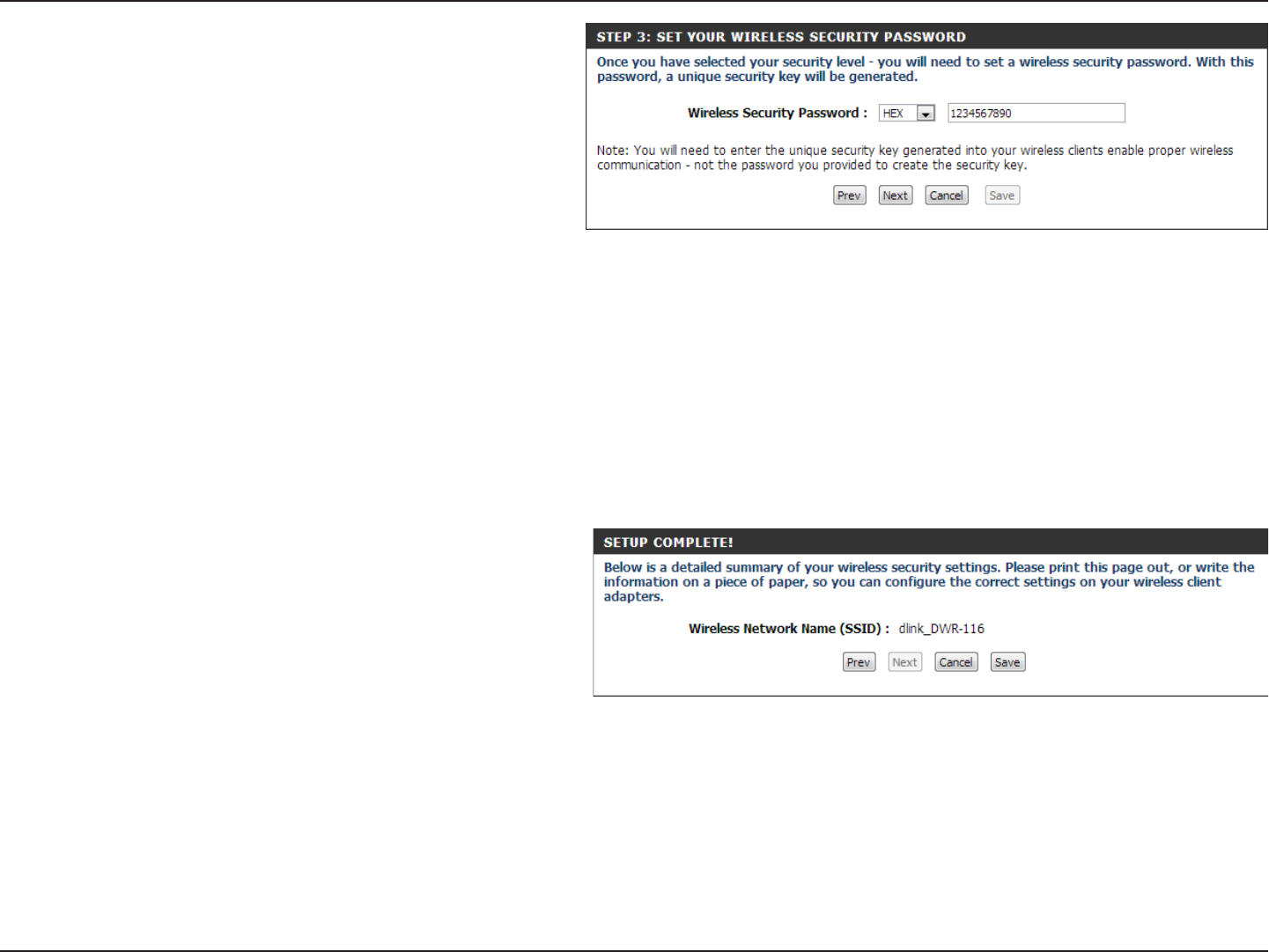

If you chose GOOD, select whether to use a HEX or ASCII password,
then enter a password to use for your wireless network. If you choose
HEX, you will need to enter a 10 or 26 digit password using only
hex characters (0-9, A-F). If you choose ASCII, the password can be
between 5 to 13 alphanumeric characters.
Click Next to continue.
14D-Link DWR-116 User Manual
Section 3 - Conguration
The quick setup wizard is now complete. You may now
click the Connect button to save your conguration and
continue.
Select your time zone from the drop-down menu and click
Next to continue.
15D-Link DWR-116 User Manual
Section 3 - Conguration
Setup
Internet Connection Setup Wizard
The setup wizard guides you through the initial setup of your router.
There are two ways to setup your Internet connection. You can use the
Web-based Internet Connection Setup Wizard or you can manually
configure using the Manual Internet Connection Setup wizard.
This wizard will guide you through a step-by-step process to
configure your D-Link router to connect to the Internet.
Click Internet Connection Setup Wizard to begin.
If you want to enter your settings without running the wizard, click
Manual Internet Connection Setup and skip to page “Manual
Internet Connection Setup” on page 22.
16D-Link DWR-116 User Manual
Section 3 - Conguration
Create a new password that will be used to access the router and
then click Next to continue.
Click Prev to go back to the previous page or click Cancel to close
the wizard.
Select your time zone from the drop-down box and then click Next
to continue.
Click Prev to go back to the previous page or click Cancel to close
the wizard.
Select the Internet connection type. The connection types are
explained on the following page. If you are unsure of the correct
connection type, you may have to contact your Internet Service
Provider (ISP).
Click Prev to go back to the previous page or click Cancel to close
the wizard.
Note: The DWR-116 supports several kinds of WAN interfaces, allowing
you to assign either a WAN or a WWAN(3G/4G LTE) connection as the
backup WAN. If the Primary WAN is down or unavailable, configure
the backup WAN to Enable, and all the traffic will be routed through
backup WAN. This feature is called WAN Failover. You can use WAN
Failover if you need redundancy to your Internet connection or any
other network.
17D-Link DWR-116 User Manual
Section 3 - Conguration
Choose this if your Internet connection automatically provides you with an IP Address. Most cable modems use this type of
connection. See page 18 for information about how to configure this type of connection.
Choose this option if your Internet connection requires a username and password to connect. Most DSL modems use this style
of connection. See page 18 for information about how to configure this type of connection.
Choose this option if your Internet connection requires Point-to-Point Tunneling Protocol (PPTP). See page 19 for information
about how to configure this type of connection.
Choose this option if your Internet connection requires Layer 2 Tunneling Protocol (L2TP). See page 19 for information about how
to configure this type of connection.
Choose this option if your Internet Setup Provider provided you with a user name and password to use with your 3G / 4G LTE
enabled USB Dongle. See page 20 for information about how to configure this type of connection.
Choose this option if your Internet Setup Provider provided you with IP Address information that has to be manually configured.
See page 21 for information about how to configure this type of connection.
DHCP Connection
(Dynamic IP
Address):
Username
/ Password
Connection
(PPPoE):
Username
/ Password
Connection (PPTP):
Username
/ Password
Connection (L2TP):
3G/4G LTE
Connection:
Static IP Address
Connection:
The subsequent configuration pages will differ depending on the selection you make during step 3 of the wizard.
18D-Link DWR-116 User Manual
Section 3 - Conguration

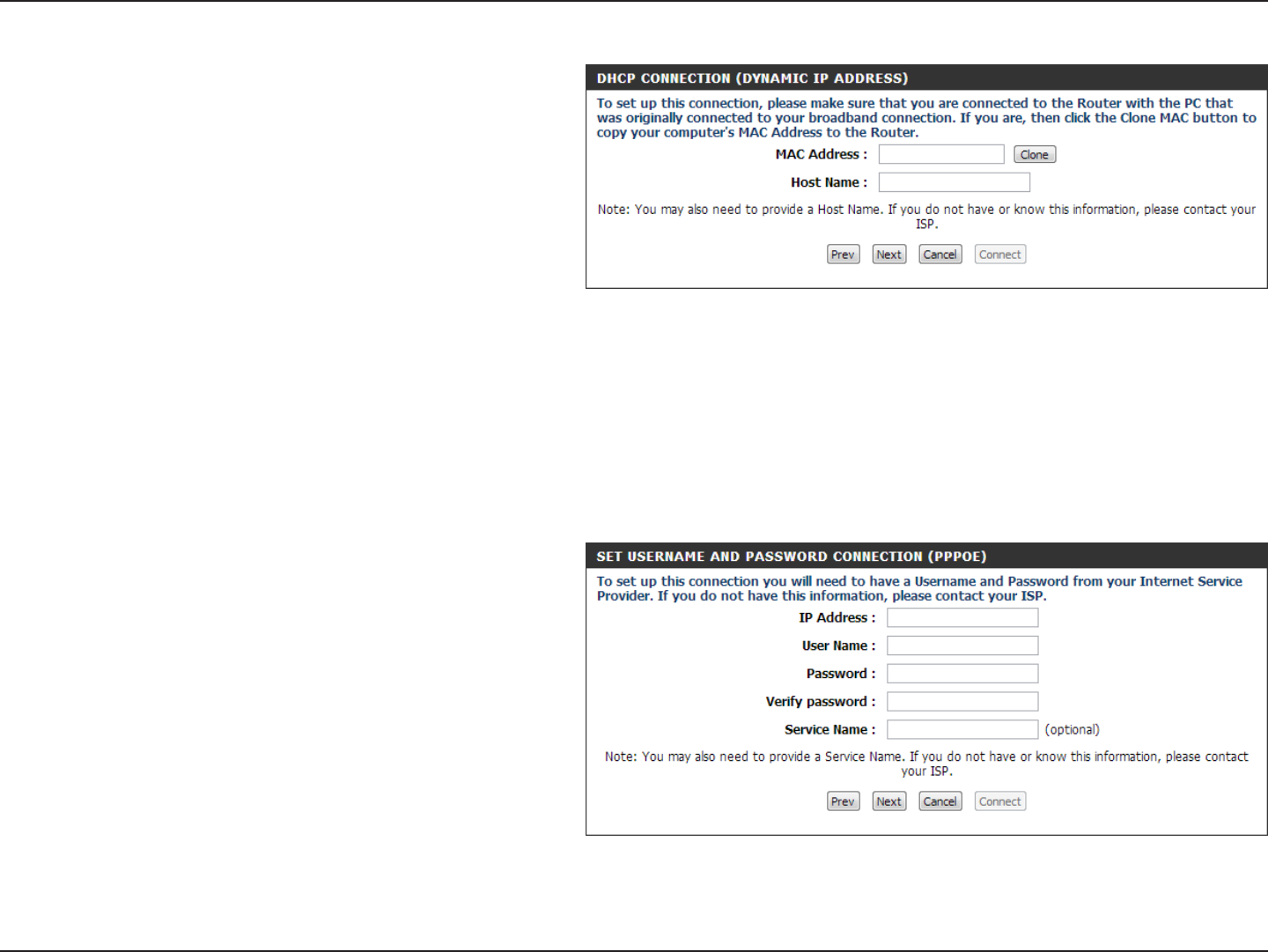

The default MAC Address is set to the Internet
port’s physical interface MAC address on the
broadband router. It is not recommended that
you change the default MAC address unless
required by your ISP. You can use the Clone
button to replace the Internet port’s MAC
address with the MAC address of your PC.
Enter the host name for your router or
computer.
Click Next to continue, Prev to go back to
the previous page or click Cancel to close the
wizard.
Mac Address:
Host Name:
DHCP Connection (Dynamic IP Address):
Fill in if provided by your ISP. If not, keep the
default value.
The username/account name that your ISP
provides to you for PPPoE dial-up.
Password that your ISP provides to you for
PPPoE dial-up.
(Optional) Fill in if provided by your ISP.
Click Next to continue, Prev to go back to
the previous page or click Cancel to close the
wizard.
IP Address:
Username:
Password:
Service Name:
Username / Password Connection (PPPoE):
19D-Link DWR-116 User Manual
Section 3 - Conguration
Choose Static IP only if your ISP assigns you an IP address.
Otherwise, please choose Dynamic IP.
Enter the information provided by your ISP.
Enter the information provided by your ISP.
Enter the information provided by your ISP.
IP address of PPTP server.
User/account name that your ISP provides to you for PPTP dialup.
Password that your ISP provides to you for PPTP dial-up.
Address Mode:
PPTP IP Address:
PPTP Subnet Mask:
PPTP Gateway IP
Address:
PPTP Server IP
Address:
User Name:
Password:
Username / Password Connection (PPTP):
Choose Static IP only if your ISP assigns you an IP address.
Otherwise, please choose Dynamic IP.
Enter the information provided by your ISP.
Enter the information provided by your ISP.
Enter the information provided by your ISP.
IP address of PPTP server.
User/account name that your ISP provides to you for PPTP dialup.
Password that your ISP provides to you for PPTP dial-up.
Address Mode:
L2TP IP Address:
L2TP Subnet Mask:
L2TP Gateway IP
Address:
L2TP Server IP
Address:
User Name:
Password:
Username / Password Connection (L2TP):
20D-Link DWR-116 User Manual
Section 3 - Conguration

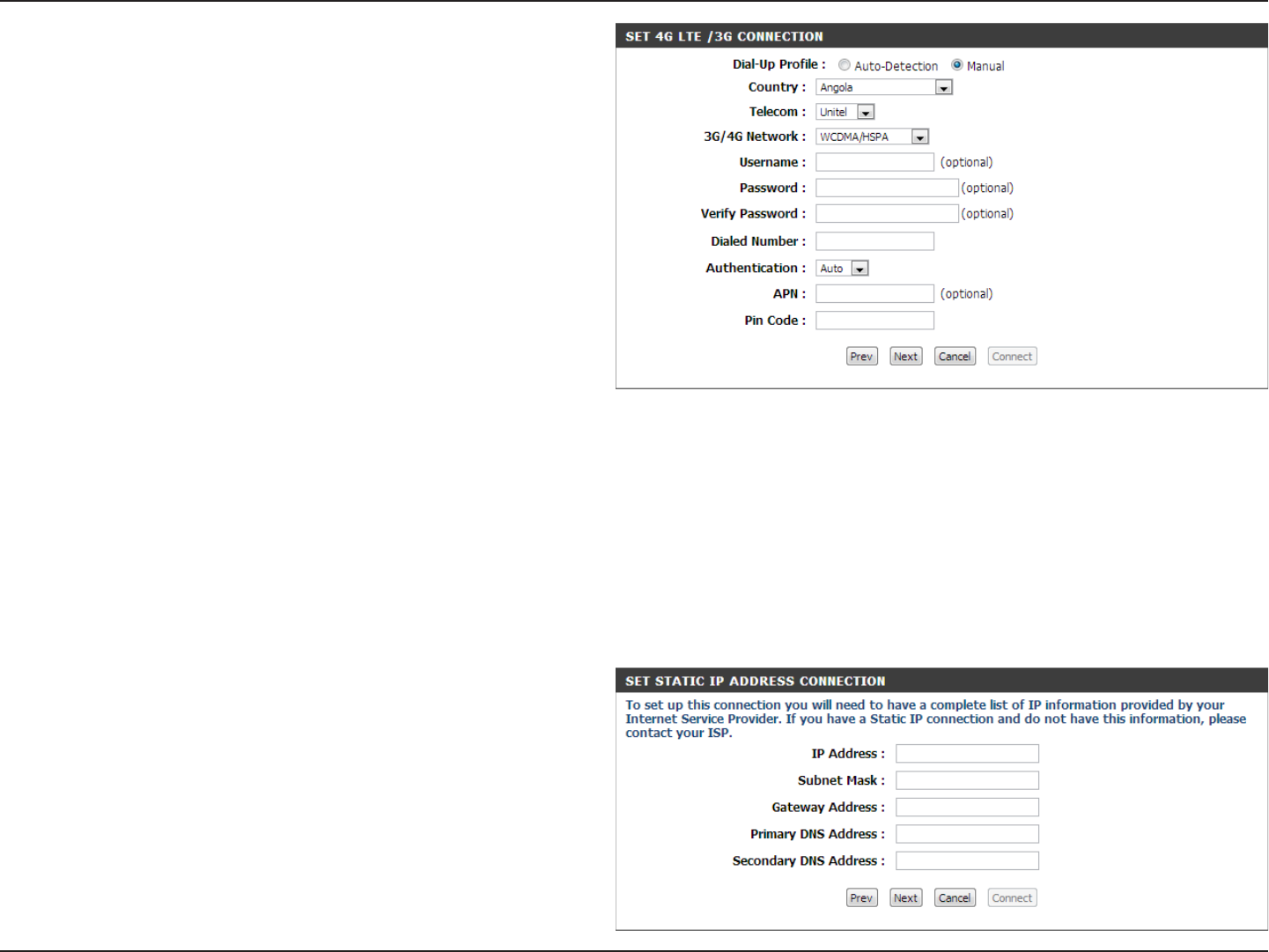

Choose whether to have the router auto-detect
the 3G settings necessary or to manually input
the necessary values.
Use the dropdown menu to select which
country your 3G service provider is based from.
Once you have selected the country from
which your 3G provider resides in, a list of 3G
service telecom providers will be available for
you to choose from.
Select the type of 3G network your provider
uses.
(Optional) Fill in only if requested by ISP.
(Optional) Fill in only if requested by ISP.
Enter the number to be dialed.
Select PAP, CHAP, or Auto detection. The
default authentication method is Auto.
(Optional) Enter the APN information.
Enter the PIN code used with your SIM card.
Dial-Up Profile:
Country:
Telecom:
3G Network:
User Name:
Password:
Dialed Number:
Authentication:
APN:
PIN:
3G/4G LTE Connection
21D-Link DWR-116 User Manual
Section 3 - Conguration
You have completed the Setup Wizard.
Click Connect to save your settings.
A popup will appear, to confirm your settings.
Click OK to save your settings.
Enter the IP address assigned to your network
connection.
Enter the subnet mask.
Enter the default gateway.
Enter the primary DNS server.
Enter the secondary DNS server.
IP Address:
Subnet Mask:
Gateway Address:
Primary DNS
Address:
Secondary DNS
Address
Static IP Address Connection
22D-Link DWR-116 User Manual
Section 3 - Conguration
Manual Internet Connection Setup
Internet Connection Type
Several different Internet connection types can be selected
depending upon the specifications of your Internet Service
Provider (ISP).
Select the Internet connection type specied
by your Internet Service Provider (ISP). The
corresponding settings will be displayed
below. Please see the following pages for
details on how to congure these dierent
connection types.
This connection can serve as a backup for
your default connection. Click on the Failover
Setting button in order to configure this
setting. Please refer to “Failover Setting” on
page 23 for more details on how to congure
settings.
My Internet
Connection is:
Failover Internet
Connection is:
23D-Link DWR-116 User Manual
Section 3 - Conguration
Failover Setting
This option can be set to either Load Sharing
or to Failover. With Load Sharing, the data
usage is distributed evenly over the two
dierent internet connections. With Failover,
the secondary Internet connection will be
in standby mode, until the primary Internet
connection fails.
This option should be set to an external IP
address that can be used to ensure that the
3G/4G LTE connection will be kept from going
oine due to inactivity. An example would be
Google’s public DNS servers (8.8.8.8 or 8.8.4.4)
or your Internet service providers DNS servers.
This will automatically be set to the connection
type selected during the Internet connection
Setup Wizard, or set to the My Internet
Connection is option which is found on the
Manual Internet Connections settings page.
This can be set by clicking on Add New Rule,
the available options will be shown in the drop
down box that appears.
Click Save Settings to save your changes,
or click Don’t Save Settings to discard your
changes.
Failover Type:
Remote Host for
Keep Alive:
Primary WAN:
Secondary WAN:
This connection can serve as a backup for your default connection.
24D-Link DWR-116 User Manual
Section 3 - Conguration
Dynamic IP (DHCP)
(Optional) Required by some ISPs.
(Optional) Fill in with IP address of primary
DNS server.
(Optional) Fill in with IP address of secondary
DNS server.
You may need to change the Maximum
Transmission Unit (MTU) for optimal
performance. The default value is 1500.
The default MAC address is set to the Internet
port’s physical interface MAC address on the
broadband router. It is not recommended that
you change the default MAC address unless
required by your ISP. You can use the Clone
button to replace the Internet port’s MAC
address with the MAC address of your PC.
This feature enables this product to renew
WAN IP address automatically when the lease
time is expiring.
Click Save Settings to save your changes,
or click Don’t Save Settings to discard your
changes.
This section will help you to obtain IP address information
automatically from your ISP. Use this option if your ISP didn’t
provide you with IP address information and/or a username and
password.
Host Name:
Primary DNS
Server:
Secondary DNS
Server:
MTU (Maximum
Transmission
Unit):
MAC Address:
Auto-reconnect:
25D-Link DWR-116 User Manual
Section 3 - Conguration
PPPoE
Choose this Internet connection if your ISP provides you with a
PPPoE account.
The username/account name that your ISP
provides to you for PPPoE dial-up.
Password that your ISP provides to you for
PPPoE dial-up.
Fill in with the same password in Password eld.
(Optional) Fill in if provided by your ISP.
(Optional) Fill in if provided by your ISP. If not,
keep the default value.
(Optional) Fill in if provided by your ISP. If not,
keep the default value.
(Optional) Fill in if provided by your ISP. If not, keep the default value.
MAC address of WAN interface. You can also copy MAC address of your PC to its WAN interface by pressing the Clone button.
The Restore MAC button will reset the router to its default MAC address.
The amount of time of inactivity before disconnecting established PPPoE session. Setting it to zero or enabling Reconnect
Mode: Always-on setting will disable this feature.
You may need to change the Maximum Transmission Unit (MTU) for optimal performance. The default setting of PPPoE is 1492.
The device will dial-up PPPoE connection automatically.
Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes.
Username:
Password:
Verify Password:
Service Name:
IP Address:
Primary DNS Server:
Secondary DNS
Server:
MAC Address:
Maximum Idle Time:
MTU:
Auto-reconnect:
26D-Link DWR-116 User Manual
Section 3 - Conguration
PPTP
Choose this Internet connection if your ISP provides you a PPTP
account.
Choose Static IP only if your ISP assigns you an IP
address. Otherwise, please choose Dynamic IP.
Enter the information provided by your ISP.
(Only applicable for Static IP PPTP.)
Enter the information provided by your ISP.
(Only applicable for Static IP PPTP.)
Enter the information provided by your ISP.
(Only applicable for Static IP PPTP.)
IP address of PPTP server.
User/account name that your ISP provides to you
for PPTP dial-up.
Password that your ISP provides to you for PPTP dial-up.
Fill in with the same password in Password eld.
Choose Always-on when you want to establish PPTP connection all the time. If you choose Connect-on-demand, the device
will establish PPTP connection when local users want to surf the Internet, and disconnect if there is no trac after the time
period set under Maximum Idle Time.
The time of no activity to disconnect your PPTP session. Set it to zero or choose Always-on to disable this feature.
Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes.
Address Mode:
PPTP IP Address:
PPTP Subnet
Mask:
PPTP Gateway
IP Address:
PPTP Server IP
Address:
Username:
Password:
Verify Password:
Reconnect
Mode:
Maximum Idle
Time:
27D-Link DWR-116 User Manual
Section 3 - Conguration
L2TP
Choose this Internet connection if your ISP provides you a L2TP
account.
Choose Static IP only if your ISP assigns you an
IP address. Otherwise, please choose Dynamic IP.
Enter the information provided by your ISP.
(Only applicable for Static IP L2TP.)
Enter the information provided by your ISP.
(Only applicable for Static IP L2TP.)
Enter the information provided by your ISP.
(Only applicable for Static IP L2TP.)
IP address of L2TP server.
User/account name that your ISP provides to you
for L2TP dial-up.
Password that your ISP provides for L2TP dial-up.
Fill in with the same password in Password eld.
Choose Always-on when you want to establish L2TP connection all the time. Choose Connect-on-demand and the device will
establish L2TP connection when local users want to surf Internet, and disconnect if no trac after time period of Maximum Idle
Time.
The time of no activity to disconnect your L2TP session. Set it to zero or choose Always-on to disable this feature.
Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes.
Address Mode:
L2TP IP Address:
L2TP Subnet
Mask:
L2TP Gateway IP
Address:
L2TP Server IP
Address:
Username:
Password:
Verify Password:
Reconnect
Mode:
Maximum Idle
Time:
28D-Link DWR-116 User Manual
Section 3 - Conguration
3G / 4G LTE
Choose this Internet connection if you already use a SIM card
for 3G/4G LTE Internet service from your mobile service provider
company. The fields here may not be necessary for your connection.
The information on this page should only be used if required by your
service provider.
Choose whether to have the router auto-detect
the 3G settings necessary or to manually input
the necessary values.
Use the dropdown menu to select which country
your 3G service provider is based from.
Once you have selected the country from which
your 3G provider resides in, a list of 3G service
telecom providers will be available for you to
choose from.
Select the type of 3G network your provider uses.
(Optional) Fill in only if requested by ISP.
(Optional) Fill in only if requested by ISP.
Enter the number to be dialed.
PAP, CHAP, or Auto detection. The default
authentication method is Auto.
(Optional) Enter the APN information.
Enter the PIN associated with your SIM card.
Dial-Up Profile:
Country:
Telecom:
3G Network:
Username:
Password:
Dialed Number:
Authentication:
APN:
PIN:
29D-Link DWR-116 User Manual
Section 3 - Conguration
Reconnect
Mode:
Maximum Idle
Time:
Primary DNS
Server:
Secondary DNS
Server:
Keep Alive:
Bridge Ethernet
Ports:
Choose whether the device will reconnect to the 3G/4G network automatically or manually.
The time of no activity required to disconnect the established 3G/4G LTE session. Set it to zero or choose Auto in Reconnect
Mode to disable.
(Optional) Fill in if provided by your ISP. If not, keep the default value.
(Optional) Fill in if provided by your ISP. If not, keep the default value.
Disable or Use LCP Echo Request. This depends on ISP requirement.
Activate this feature to change Ethernet WAN port to LAN port.
30D-Link DWR-116 User Manual
Section 3 - Conguration
Enter the IP address assigned to your network
connection.
Enter the subnet mask.
Enter the default gateway.
Enter the primary DNS server.
Enter the secondary DNS server.
You may need to change the Maximum
Transmission Unit (MTU) for optimal performance.
The default value is 1500.
The default MAC Address is set to the Internet
port’s physical interface MAC address on the
broadband router. It is not recommended that you
change the default MAC address unless required
by your ISP. You can use the Clone button to
replace the Internet port’s MAC address with the
MAC address of your Ethernet card.
Click Save Settings to save your changes, or click
Don’t Save Settings to discard your changes.
IP Address:
Subnet Mask:
Default Gateway:
Primary DNS
Server:
Secondary DNS
Server:
MTU:
MAC Address:
Choose this Internet connection if your ISP assigns you a static IP
address.
Static IP
31D-Link DWR-116 User Manual
Section 3 - Conguration

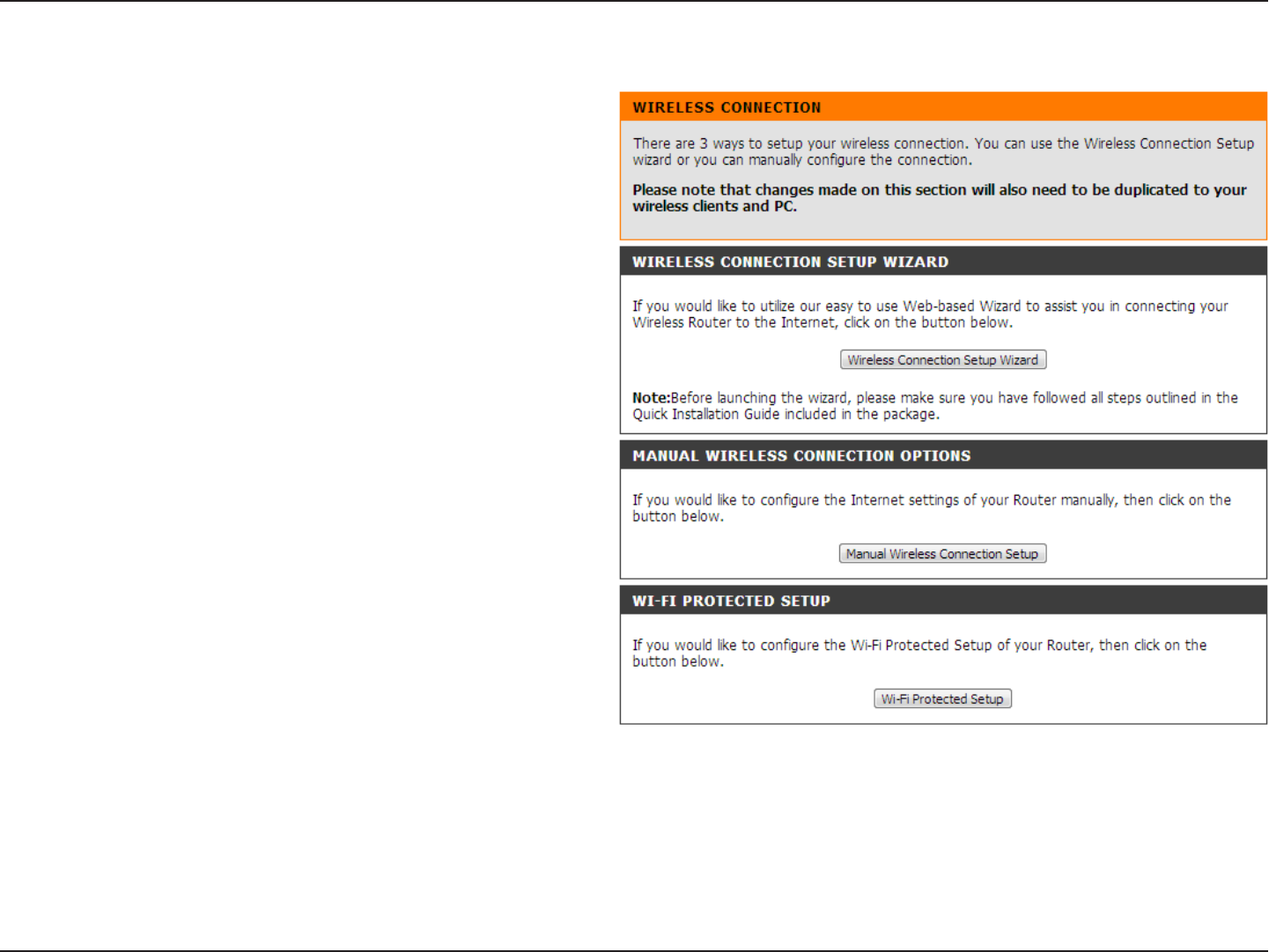

Wireless Connection Setup Wizard
This section will help you to manually congure the wireless
settings of your router. Please note that changes made on this
section may also need to be duplicated on your wireless devices
and clients. The Wireless Settings page allows you to congure
how your router connects to the Internet. There are several ways
to set up your wireless connection.
You can click on the Wireless Connection Setup Wizard button
to start a wizard that will guide you through setting up your
wireless settings.
If you want to manually congure your settings, click the Manual
Wireless Connection Setup button and skip to “Manual Wireless
Connection Setup” on page 35.
You can also set up a wireless connection to a device
automatically, or congure your router automatically through
Windows by clicking the Wi-Fi Protected Setup button. This is
described in “Wi-Fi Protected Setup (WPS)” on page 39.
32D-Link DWR-116 User Manual
Section 3 - Conguration
This wizard will guide you through a step-by-step process to
congure your D-Link router’s wireless . Click Next to continue.
Note: While using the wizard, you can click Prev to go back to
the previous page or you can click Cancel to close the wizard.
Enter a name for your wireless network, then click Next to
continue.
33D-Link DWR-116 User Manual
Section 3 - Conguration
Select a level of wireless security to use, then click Next to
continue.
If you chose BEST or BETTER, select whether to use TKIP or
AES encryption, then enter a password to use for your wireless
network. It is recommended that you use AES if your wireless
computers and devices support it, as it is more secure.
Click Next to continue.
34D-Link DWR-116 User Manual
Section 3 - Conguration
If you chose GOOD, select whether to use a HEX or ASCII
password, then enter a password to use for your wireless
network. If you choose HEX, you will need to enter a 10 or 26
digit password using only hex characters (0-9, A-F). If you choose
ASCII, the password can be between 5 to 13 alphanumeric
characters. Click Next to continue.
This completes the Wireless Connection Setup Wizard. Click Save
to save your changes and reboot the router.
35D-Link DWR-116 User Manual
Section 3 - Conguration
Wireless Settings
This section will help you to manually configure the wireless
settings of your router. Please note that changes made on this
section may also need to be duplicated on your Wireless Client.
Select this checkbox to enable wireless access.
When you set this option, the following parameters
take eect.
Also known as the SSID (Service Set Identier), this
is the name of your Wireless Local Area Network
(WLAN). Enter a name using up to 32 alphanumeric
characters. The SSID is case-sensitive. The default
name is “dlink_DWR-116”.
B/G/N mixed: Enable this mode if your network
contains a mix of 802.11b and 802.11g devices.
G mode: Enable this mode if your network has
only 802.11g devices. If you have both 802.11b
and 802.11g wireless clients, disable this mode.
Click Auto Channel Scan to automatically select
the channel that it will operate on. This option is
recommended because the router will choose the
channel with the least amount of interference.
Choose the clearest channel to help optimize the performance and coverage of your wireless network. By default the channel is
set to 11. This can be changed to t the channel setting for an existing wireless network or to customize your wireless network.
Select Invisible if you do not want the SSID of your wireless network to be broadcast by the DWR-116. The SSID of your router
will not be seen by site survey utilities. Therefore while setting up your wireless clients, you will have to manually enter your
SSID to connect to the router.
Enable Wireless:
Wireless Network
Name:
802.11 Mode:
Auto Channel Scan:
Wireless Channel:
Visibility Status:
36D-Link DWR-116 User Manual
Section 3 - Conguration
Security Mode: This device supports three wireless security modes,
WEP, WPA-Personal, WPA-Enterprise or None.
WEP is the original wireless encryption standard.
WPA provides a higher level of security and WPA-
Personal does not require an authentication
server. When WPA-Enterprise is enabled, the router
uses EAP (802.1x) to authenticate clients via a
remote RADIUS server.
Click Save Settings to save your changes, or click
Don’t Save Settings to discard your changes.
Authentication:
WEP Encryption:
Default WEP
Key:
WEP Key:
Select whether to use Open or Shared
authentication.
Select whether to use 64-bit or 128-bit encryption.
Select which WEP key (1-4) to use as the default
key. This will also change the WEP Key text box to
that WEP key for your to congure(1-4).
Set the WEP key/password for your wireless
network. Based on whether you are using 64 or
128-bit encryption, and whether you are using a
HEX or ASCII key, you will need to enter dierent
numbers of characters for your key, as indicated
below the WEP Key text box. ASCII keys may use
letters and numbers only, and HEX keys may use
numbers 0-9 and letters A-F only.
If you choose WEP, the following options will appear:
37D-Link DWR-116 User Manual
Section 3 - Conguration
WPA Mode:
Cipher Type:
Network Key:
Select whether to use WPA2 only or WPA only.
WPA2 only is the most secure, provided that all
of your clients can support it.
Select whether to use the TKIP or AES cipher. The
AES cipher is the most secure, provided that all of
your clients can support it.
Enter the key/password you want to use for
your wireless network. The key must be 8 to 63
characters long, and may only contain letters and
numbers.
If you choose WPA-Personal, the following options will appear:
38D-Link DWR-116 User Manual
Section 3 - Conguration
WPA Mode:
Cipher Type:
RADIUS Server IP
Address:
RADIUS Server
Port:
RADIUS Server
Shared
Secret:
Select whether to use WPA2 only or WPA only.
WPA2 only is the most secure, provided that all
of your clients can support it.
Select whether to use the TKIP or AES cipher. The
AES cipher is the most secure, provided that all of
your clients can support it.
Enter the IP address of your RADIUS server.
Enter the port used for your RADIUS server.
Enter the shared secret/password for your RADIUS
server.
If you choose WPA-Enterprise, the following options will appear:
39D-Link DWR-116 User Manual
Section 3 - Conguration
Wi-Fi Protected Setup
Wi-Fi Protected Setup (WPS) System is a simplified method for
securing your wireless network during the “Initial setup” as well
as the “Add New Device” processes. The process is just as easy as
pressing a button for the Push-Button Method or correctly entering
an 8-digit code.
Enable/disable the Wi-Fi Protected Setup feature.
Shows the current PIN.
Create a random number that is a valid PIN. This
becomes the router’s PIN. You can then copy this
PIN to the user interface of the wireless client.
Select whether the router is the Enrollee or the
Registrar. If this is set to enrollee, the router will try
to connect to other devices. If it is set to registrar,
other devices will try to connect to the router.
Displays the current state of WPS conguration. Clicking the Release button will disable any previously paired devices from connecting.
You will need to recongure WPS on those devices to connect them again.
This checkbox will disable pin authentication for WPS. You will have to use the push button on the router and the device you are
trying to connect in order to establish a WPS pairing.
Select whether the WPS authentication will use Pin code or push button method.
Displays the current state of the router’s WPS system.
The Trigger button acts like the physical WPS push button, and will search for devices nearby that are trying to establish a WPS
connection.
Enable:
AP PIN:
Generate New
PIN:
Config Mode:
Config Status:
Disable WPS-PIN
Method:
Config Method:
WPS Status:
Trigger:
Note: The DWR-116 has a WPS push button on the front panel that will activate WPS mode by pressing and holding the button
for approximately 6 seconds. The Wi-Fi LED will begin to ash rapidly when WPS mode has been activated.
40D-Link DWR-116 User Manual
Section 3 - Conguration
This section will help you to change the internal network settings
of your router and to configure the DHCP Server settings.
Network Settings
Router Settings
Enter the IP address of the router. The default
IP address is 192.168.0.1.
If you change the IP address, you will need to
enter the new IP address in your browser in
order to access the web-based conguration
utility.
Enter the Subnet Mask of the router. The
default subnet mask is 255.255.255.0.
Enter the local domain name for your network.
Click Save Settings to save your changes,
or click Don’t Save Settings to discard your
changes.
Router IP
Address:
Default Subnet
Mask:
Local Domain
Name:
41D-Link DWR-116 User Manual
Section 3 - Conguration
Select this box to enable the DHCP server on
your router.
Enter the starting and ending IP address for
the server’s IP address pool.
The time period for the IP address lease. Enter
the lease time in minutes.
Assign a primary DNS Server to DHCP clients.
Assign a DNS Server to DHCP clients.
Assign a primary WINS Server to DHCP clients.
Assign a WINS Server to DHCP clients.
Click Save Settings to save your changes,
or click Don’t Save Settings to discard your
changes.
Enable DHCP
Server:
DHCP IP
Address Range:
DHCP Lease
Time:
Primary DNS IP
Address:
Secondary DNS
IP Address:
Primary WINS IP
Address:
Secondary WINS
IP Address:
DHCP Server Settings
The DWR-116 has a built-in DHCP (Dynamic Host Control Protocol)
server. The DHCP server assigns IP addresses to devices on
the network that request them. By default, the DHCP Server is
enabled on the device. The DHCP address pool contains a range
of IP addresses, which are automatically assigned to the clients
on the network.
42D-Link DWR-116 User Manual
Section 3 - Conguration
Advanced
Virtual Server
The device can be configured as a virtual server so that users can
access services such as Web or FTP via the public (WAN) IP address
of the router.
This contains a list of pre-dened services.
Copies the rule to the line of the specied ID.
You may select Always On or choose the number
of a schedule rule that you have dened.
Identies the virtual server.
Enter the IP address of the computer on your local
network that you want to allow the incoming
service. In the next box, enter the port number
that you would like to open.
Select this box to enable the rule.
Specify the schedule rule number.
Click Save Settings to save your changes, or click
Don’t Save Settings to discard your changes.
Well-known
Services:
Copy to:
Use schedule
rule:
ID:
Server IP: Port:
Enable:
Schedule Rule #:
43D-Link DWR-116 User Manual
Section 3 - Conguration
Application Rules
Some applications require multiple connections, such as Internet
gaming, video conferencing, Internet telephony and others. These
applications have difficulties working through NAT (Network Address
Translation). Application Rules allow some of these applications
work with the DWR-116.
Select from a list of popular applications.
Copies the predened application rule to the line
of the specied ID.
Identies the rule.
The name of the trigger.
Specify the incoming port for the trigger rule.
Select this box to enable the rule.
Click Save Settings to save your changes, or click
Don’t Save Settings to discard your changes.
Popular
Applications:
Copy to ID:
ID:
Trigger:
Incoming Ports:
Enable:
44D-Link DWR-116 User Manual
Section 3 - Conguration
QoS Engine
Select this box to enable the QoS Packet Filter.
Specify the maximum upstream bandwidth here
(e.g. 400 kbps).
Identies the rule.
Specify the local IP address and then specify the
port after the colon.
Specify the remote IP address and then the port
after the colon.
Select Low, Normal, or High.
Select a checkbox to enable the particular QoS
rules individually.
Click Save Settings to save your changes, or click
Don’t Save Settings to discard your changes.
Enable QoS
Packet Filter:
Upstream
Bandwidth:
ID:
Local IP : Ports:
Remote IP :
Ports:
QoS Priority:
Enable:
The QoS Engine improves your online experience by ensuring
that certain applications traffic is prioritized over other network
traffic, such as FTP or Web. For best performance, use the Automatic
Classification option to automatically set the priority for the
applications.
45D-Link DWR-116 User Manual
Section 3 - Conguration

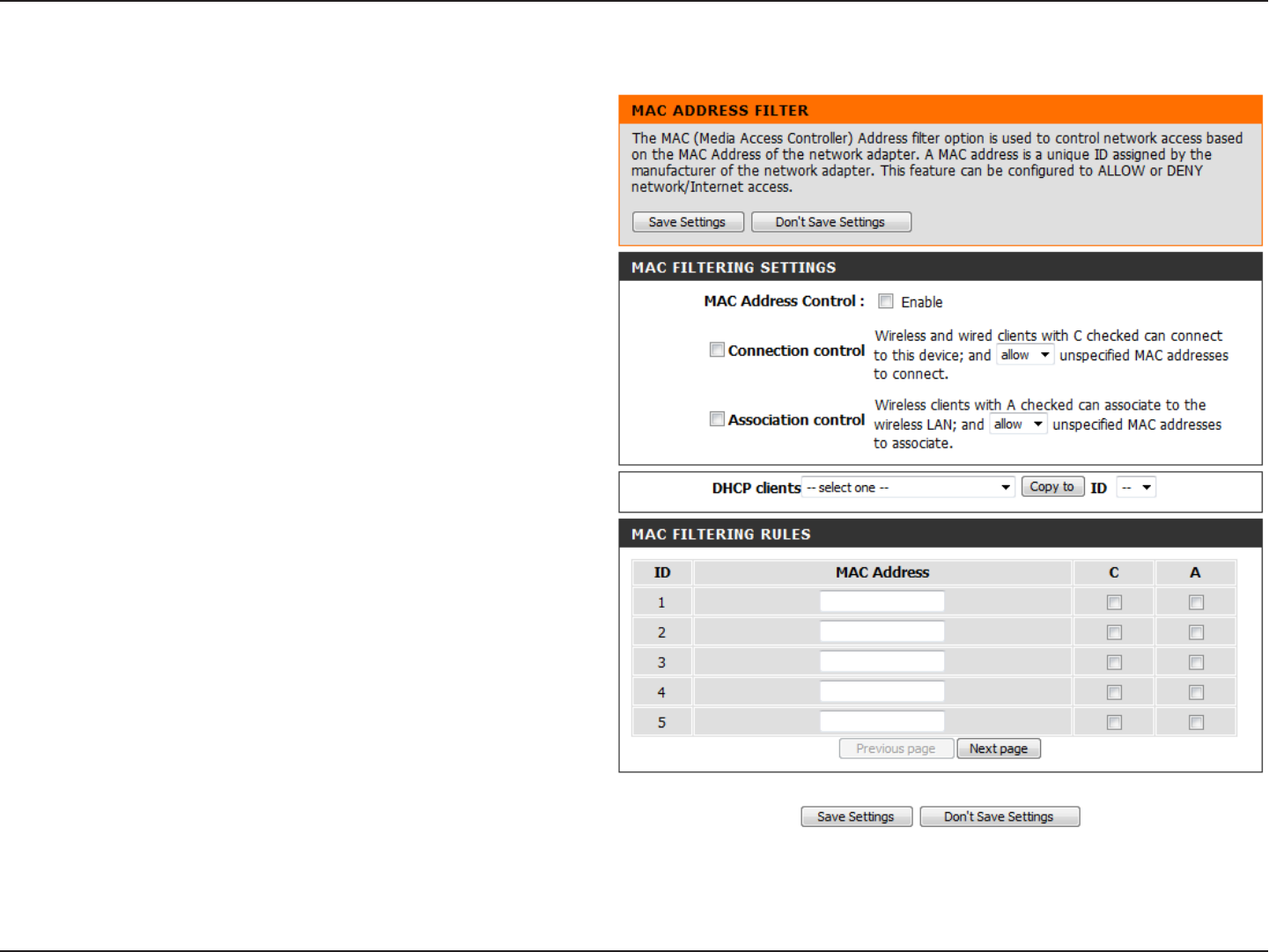

MAC Address Filter
Select this box to enable MAC ltering.
Wireless and wired clients with C selected
can connect to this device and allow/deny
connections from unspecied MAC addresses.
Wireless clients with A selected can associate to
the wireless LAN; and allow/deny connections
from unspecied MAC addresses.
Identies the rule.
Specify the MAC address of the computer to be
ltered.
Specify the last section of the IP address.
Click Trigger to congure Wake On LAN.
If this box is selected, the rule will follow the
connection control setting specified in MAC
ltering settings.
If this box is selected, the rule will follow the connection control setting specied in MAC ltering settings.
Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes.
MAC Address
Control:
Connection
Control:
Association
Control:
ID:
MAC Address:
IP Address:
Wake On LAN:
C:
A:
The MAC (Media Access Controller) Address Filter option is used
to control network access based on the MAC Address of the network
adapter. A MAC address is a unique ID assigned by the manufacturer
of the network adapter. This feature can be configured to ALLOW or
DENY network/Internet access.
46D-Link DWR-116 User Manual
Section 3 - Conguration
Select this box to enable URL Filtering.
Identies the rule.
Enter URL that you would like to block.
Click to enable the specic URL lter.
Click Save Settings to save your changes, or click
Don’t Save Settings to discard your changes.

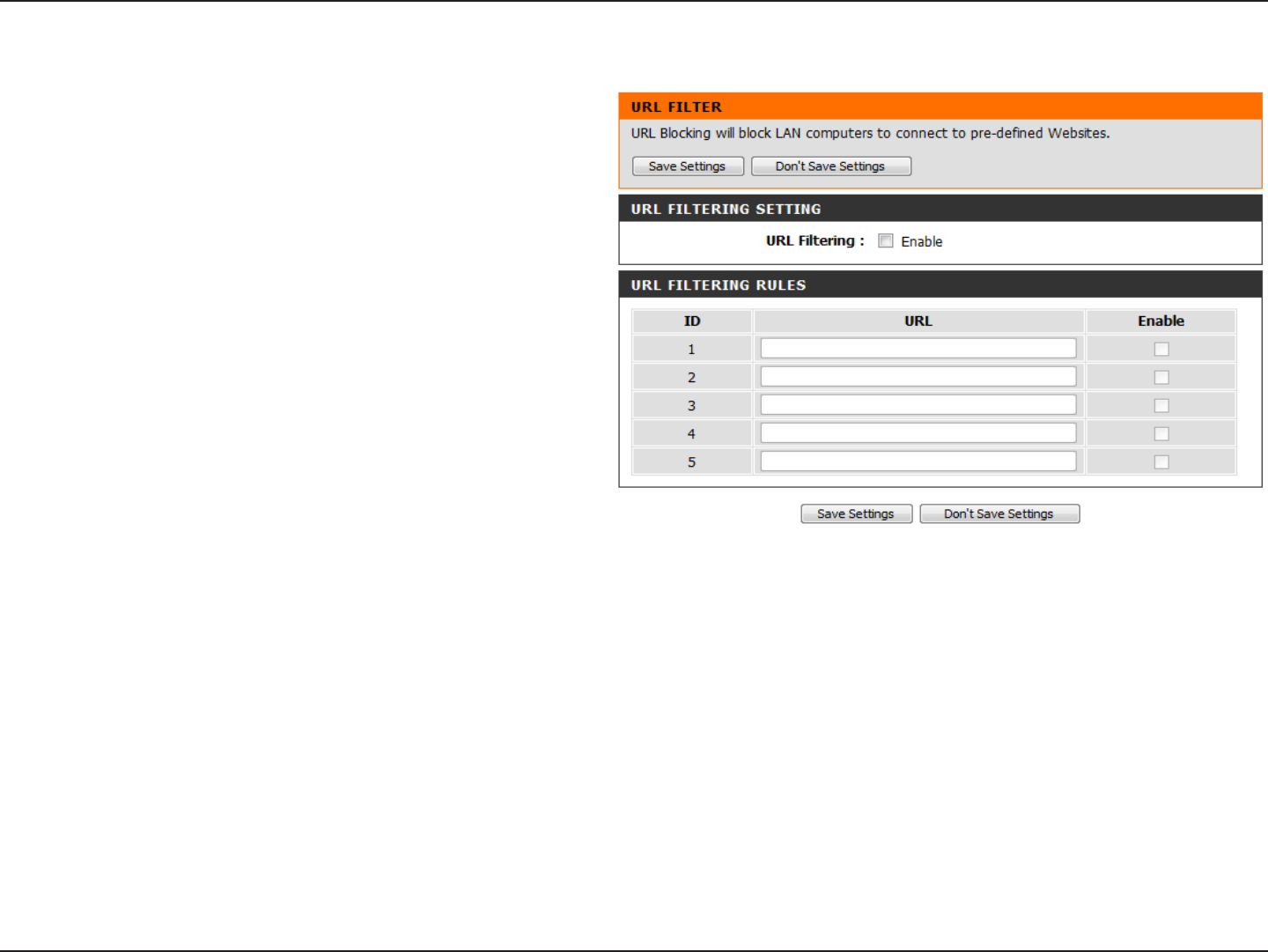

URL Filter allows you to set up a list of websites that will be blocked
from users on your network.
URL Filter
URL Filtering:
ID:
URL:
Enable:
47D-Link DWR-116 User Manual
Section 3 - Conguration
Select this box to Enable the lter.
You may select Always On or choose the
number of a schedule rule that you have
dened.
Copies the predened lter to the specied ID
Identies the lter.
Specify the local IP address and then specify
the port after the colon.
Specify the remote IP address and then the
port after the colon.
Select this box to enable the lter.
Specify the schedule rule number.
Go back to the previous lter page.
Advance to the next lter page.
Click Save Settings to save your changes,
or click Don’t Save Settings to discard your
changes.
Outbound Filter
Outbound Filter:
Use Schedule
Rule:
Copy to ID:
ID:
Source IP : Ports:
Destination IP :
Ports:
Enable:
Schedule Rule #:
Previous Page:
Next Page:
Outbound Filter enables you to control what packets are
allowed to pass through the router. Outbound filter applies on
all outbound packets.
48D-Link DWR-116 User Manual
Section 3 - Conguration
Select this box to Enable the lter.
You may select Always On or choose the
number of a schedule rule that you have
dened.
Copies the predened lter to the specied ID
Identies the lter.
Specify the local IP address
Specify the local port after the colon.
Specify the remote IP address
Specify the remote port after the colon.
Select this box to enable the lter.
Specify the schedule rule number.
Go back to the previous lter page.
Advance to the next lter page.
Click Save Settings to save your changes,
or click Don’t Save Settings to discard your
changes.
Inbound Filter
Inbound Filter:
Use Schedule
Rule:
Copy to ID:
ID:
Source IP :
Source Ports:
Destination IP :
Destination Ports:
Enable:
Schedule Rule #:
Previous Page:
Next Page:
Inbound Filter enables you to control what packets are allowed
to pass through the router. Inbound filter only applies to packets
that are destined for Virtual Servers or DMZ hosts.
49D-Link DWR-116 User Manual
Section 3 - Conguration
Select Enabled to allow local SNMP
administration. Select Disabled to disallow
local SNMP administration.
Select Enabled to allow local SNMP
administration. Select Disabled to disallow
local SNMP administration.
Enter the password in this eld to allow “Read
only” access to network administration using
SNMP. You can view the network, but no
conguration is possible with this setting.
Enter the password in this eld to gain “Read
and Write” access to the network using SNMP
software.
Enter up to four IP addresses of any trap targets
on your network.
Select the SNMP version of your system.
Click Save Settings to save your changes,
or click Don’t Save Settings to discard your
changes.
SNMP
SNMP Local:
SNMP Remote:
Get Community:
Set Community:
IP 1, IP 2, IP 3,
IP 4:
SNMP Version:
SNMP (Simple Network Management Protocol) is a widely used
network monitoring and control protocol that reports activity on
each network device to the administrator of the network. SNMP
can be used to monitor traffic and statistics of the DWR-116. The
DWR-116 supports SNMP v1 or v2c.
50D-Link DWR-116 User Manual
Section 3 - Conguration
Select this box to enable routing.
RIPv1: Protocol in which the IP address is
routed through the Internet.
RIPv2: Enhanced version of RIPv1 with added
features such as authentication, routing
domain, next hop forwarding, and subnet-
mask exchange.
Identies the rule.
Enter the IP of the specied network that you
want to access using the static route.
Enter the subnet mask to be used for the
specied net work.
Enter the gateway IP address to the specied
network.
Enter the amount of hops it will take to reach
the specied network.
Select this box to enable the rule.
Routing
RIP:
ID:
Destination:
Subnet Mask:
Gateway:
Hop:
Enable:
The Routing page allows you to specify custom routes that
determine how data is moved around your network.
51D-Link DWR-116 User Manual
Section 3 - Conguration
Beacons are packets sent by an Access Point to
synchronize a wireless network. Specify a value.
100 is the default setting and is recommended.
Set the transmit power of the antennas.
This value should remain at its default setting of
2347. If inconsistent data ow is a problem, only
a minor modication should be made.
The fragmentation threshold, which is specied
in bytes, determines whether packets will be
fragmented. Packets exceeding the 2346 byte
setting will be fragmented before transmission.
2346 is the default setting.
A Delivery Trac Indication Message (DTIM) is a
countdown informing clients of the next window
for listening to broadcast and multicast messages.
The default interval is 3.
WMM (Wi-Fi Multimedia) is a QoS (Quality of Service) system for your wireless network. Enable this option to improve the quality
of video and voice applications for your wireless clients.
Select the basic transfer rates based on the speed of wireless adapters on your wireless network. It is strongly recommended to
keep this setting to Auto.
Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes.
Beacon Interval:
Transmit Power:
RTS Threshold:
Fragmentation:
DTIM Interval:
WMM Capable:
TX Rates:
Advanced Wireless
Advanced Wireless contains settings which can negatively affect
the performance of your router if configured improperly. Do not
change these settings unless you are already familiar with them
or have been instructed to to do so.
52D-Link DWR-116 User Manual
Section 3 - Conguration
Click Enable UPnP to use the Universal Plug
and Play (UPnP™) feature. UPnP provides
compatibility with networking equipment,
software and peripherals.
Select the box to allow the WAN port to
be “pinged.” Blocking the Ping option may
provide some extra security from hackers.
Click Save Settings to save your changes,
or click Don’t Save Settings to discard your
changes.
Advanced Network
Advanced Network contains settings which can change the way
the router handles certain types of traffic. We recommend that
you do not change any of these settings unless you are already
familiar with them or have been instructed to do so.
Enable UPnP:
Enable WAN
Ping Respond:
53D-Link DWR-116 User Manual
Section 3 - Conguration

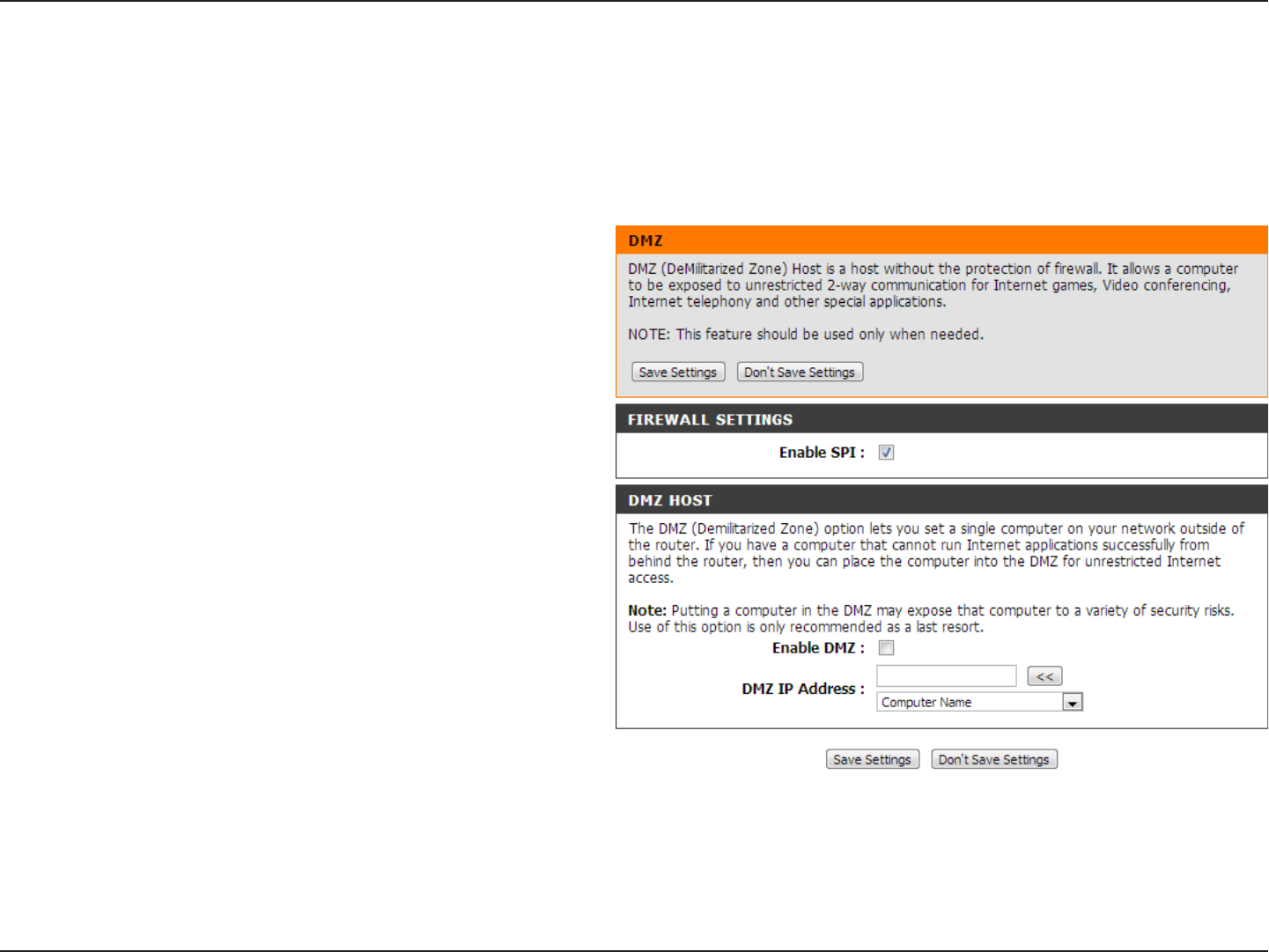

DMZ
SPI (Stateful Packet Inspection), also known as dynamic packet
filtering, helps to prevent cyber attacks by tracking more state
per session. It validates that the traffic passing through the
session conforms to the protocol.
If an application has trouble working from behind the router,
you can expose one computer to the Internet and run the
application on that computer.
Note: Placing a computer in the DMZ may expose that computer
to a variety of security risks. Use of this option is only recommended
as a last resort.
Specify the IP address of the computer on the LAN that you want
to have unrestricted Internet communication. If this computer
obtains its IP address automatically using DHCP, be sure to make
a static reservation on the Setup > Network Settings page
so that the IP address of the DMZ machine does not change.
Enable SPI:
Enable DMZ:
DMZ IP Address:
A firewall protects your network from the outside world. The DWR-116 offers a firewall type functionality. The Stateful Packet
Inpection (SPI) feature helps prevent cyber attacks. Sometimes you may want a computer exposed to the outside world for
certain types of applications. If you choose to expose a computer, you can enable DMZ. DMZ is short for Demilitarized Zone.
This option will expose the chosen computer completely to the outside world.
54D-Link DWR-116 User Manual
Section 3 - Conguration
Enter a password that the admin account will use
to access the router’s management interface.
Conrm the chosen password.
Remote management allows the DWR-116 to be
congured from the Internet using a web browser.
A username and password is still required to
access the web-management interface. Usually
only a member of your network can browse the
built-in web pages to perform Administrator tasks.
This feature enables you to perform Administrator
tasks from the remote (Internet) host.
Enter the Internet IP address of the PC that has access to the broadband router. If you enter an asterisk (*) in this eld, then anyone
will be able to access the router. Adding an asterisk (*) into this eld could present a security risk and is not recommended.
This is the port number used to access the router. Example: 8080 is the port used for the web-management interface.
Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes.
Tools
Admin
The Admin page allows you to change the Administrator
password and enable Remote Management. The Administrator
has read/write access while the user has read-only access. Only
the admin has the ability to change both admin and user account
passwords.
New Password:
Confirm Password:
Remote
Management:
IP Allowed to
Access:
Port:
55D-Link DWR-116 User Manual
Section 3 - Conguration
Time
Displays the current time and date of the
DWR-116.
Select the appropriate Time Zone from the
drop-down box.
Select this checkbox to automatically
synchronize the DWR-116 with an Internet
time server.
Choose the NTP Server used for synchronizing
time and date.
Shows the result of the last time
synchronization.
Click Save Settings to save your changes,
or click Don’t Save Settings to discard your
changes.
This section will help you set the time zone that you are in and
the NTP (Network Time Protocol) server. Daylight Saving can also
be configured to adjust the time when needed.
Time:
Time Zone:
Automatically
synchronize
with Internet
time server:
NTP Server
Used:
Sync. Result:
56D-Link DWR-116 User Manual
Section 3 - Conguration
Syslog
Select this box to send the router logs to a
Syslog server.
Enter the address of the Syslog server that will
be used to send the logs.
Click Save Settings to save your changes,
or click Don’t Save Settings to discard your
changes.
The DWR-116 keeps a running log of events and activities
occurring on the router. You may send these logs to a SysLog
server on your network.
Enable Logging
to Syslog Server:
Syslog Server IP
Address:
57D-Link DWR-116 User Manual
Section 3 - Conguration
Email Settings
When this option is enabled, router activity
logs are e-mailed to a designated e-mail
address.
Enter the SMTP server IP address followed
by a colon and the port number (e.g.
123.123.123.1:25).
Enter the SMTP username.
Enter the SMTP password.
Enter the e-mail address where you would like
the e-mail sent to.
Enter a subject for the e-mail.
Click this button to access the e-mail log.
Click Save Settings to save your changes,
or click Don’t Save Settings to discard your
changes.
Enable E-mail
Notification:
SMTP Sever IP
and Port:
SMTP
Username:
SMTP Password:
Send E-mail
Alert to:
E-mail Subject:
E-mail Log Now:
Email Settings allows you to send the system log files, router alert
messages, and firmware update notifications to an e-mail address.
58D-Link DWR-116 User Manual
Section 3 - Conguration
System
Use this option to save your current router
conguration settings to a le and onto your
computer. Click Save to open a le dialog,
and then select a location and le name for
the settings.
Use this option to load the previously saved
router conguration settings. Browse to nd
the saved le and then click Upload Settings
to transfer those settings to the router.
This option will restore all settings back to
their defaults. Any settings that have not been
backed up will be lost, including any rules that
you have created.
Save Settings
To Local Hard
Drive:
Load Settings
From Local Hard
Drive:
Restore To
Factory Default
Settings:
Here, you can save the current system settings onto the local
hard drive.
59D-Link DWR-116 User Manual
Section 3 - Conguration

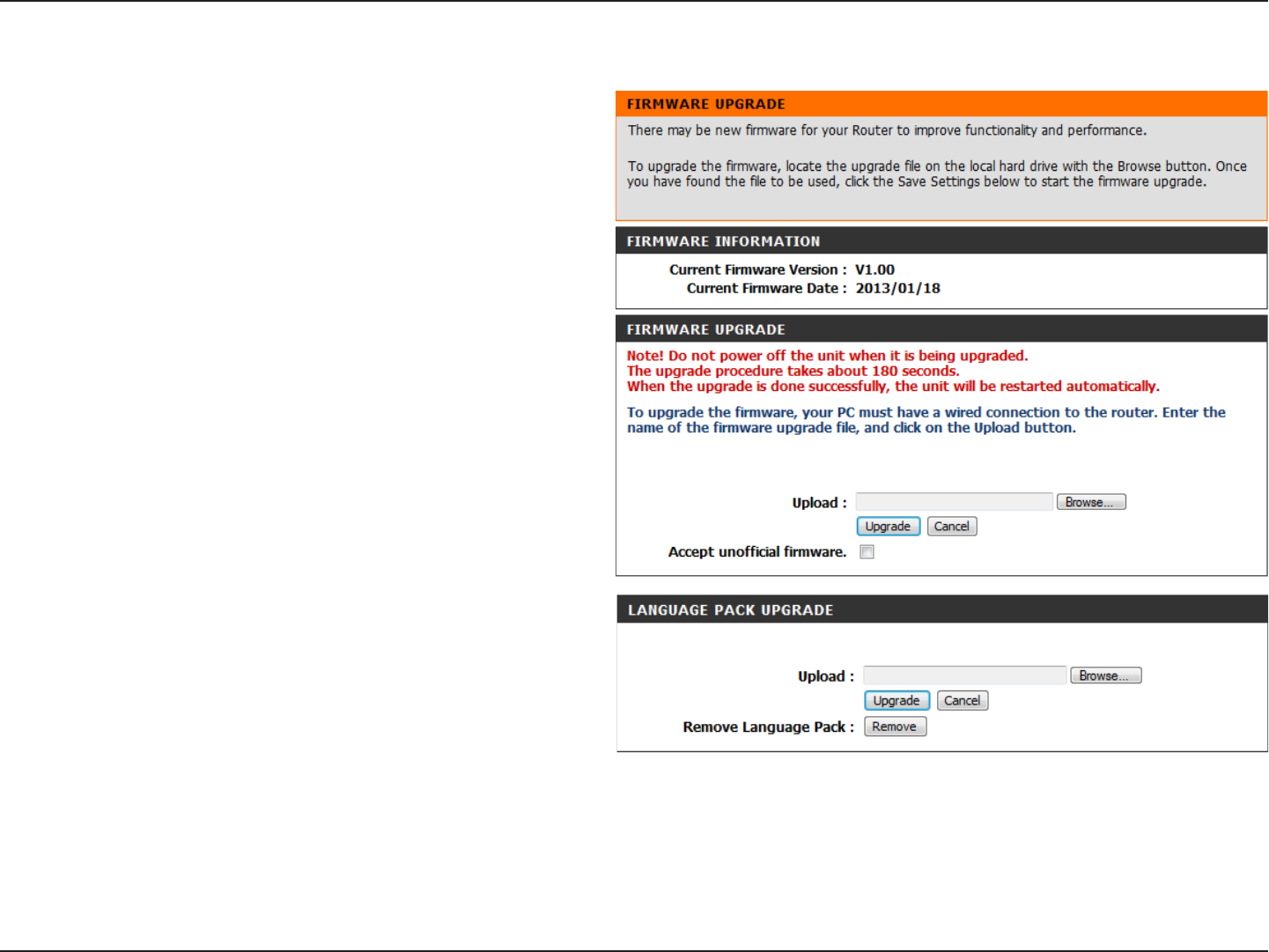

Firmware
Displays your current rmware version.
Displays your current rmware date.
After you have downloaded the new rmware,
click Browse to locate the rmware on your
computer. Tick Accept unocial rmware
if you want to update the DWR-116 with
unocial rmware (not recommended).
Click Upload to start the rmware upgrade.
Here, you can upgrade the firmware of your router. Make sure
the firmware you want to use is on the local hard drive of the
computer and then click Browse to upload the file. Please check
the D-Link support site for firmware updates at http://support.
dlink.com. You can download firmware upgrades to your hard
drive from the D-Link support site.
Current
Firmware
Version:
Current
Firmware Date:
Browse:
60D-Link DWR-116 User Manual
Section 3 - Conguration
Dynamic DNS
DDNS is a method of keeping a domain name
linked to a changing IP Address. Select this box
to enable DDNS.
Select your DDNS provider from the drop-
down box.
Enter the Host Name that you registered with
your DDNS service provider.
Enter the Username for your DDNS account.
Enter the Password for your DDNS account.
Click Save Settings to save your changes,
or click Don’t Save Settings to discard your
changes.
The Dynamic Domain Name System (DDNS) feature allows you
to host a server (Web, FTP, or Game Server) using a domain name
that you have purchased (www.whateveryournameis.com) with
your dynamically assigned IP address.
Sign up for D-Link’s free DDNS service at www.dlinkddns.com.
Enable DDNS:
Provider:
Host Name:
Username /
E-mail:
Password / Key:
61D-Link DWR-116 User Manual
Section 3 - Conguration
System Check
Enter a host name or the IP address that you
want to ping and click Ping.
The status of your Ping attempt will be
displayed in the Ping Result box.
This useful diagnostic utility can be used to check if a computer
is connected to the network. It sends ping packets and listens for
responses from the specific host.
Host Name or IP
Address:
PING Result:
62D-Link DWR-116 User Manual
Section 3 - Conguration
Schedules
Tick this check box to enable schedules.
Click on this button to create a new rule. The
following options will be available.
Edit the rule’s start and end time.
Delete the rule.
Enter a name for your new schedule.
Enter the time at which you would like the
schedule to become active.
Select the time at which you would like the
schedule to become inactive.
Click Save Settings to save your changes,
or click Don’t Save Settings to discard your
changes.
This section allows you to manage schedule rules for various
firewall and parental control features.
Enable
Schedule:
Add New Rule...:
Edit:
Delete:
Name of Rule 1:
Start Time
(hh:mm):
End Time
(hh:mm):
63D-Link DWR-116 User Manual
Section 3 - Conguration
Status
Device Information
All of your Internet and network connection details are displayed on
this page. The firmware version is also displayed here.
Displays the current time and rmware version.
Displays the MAC address and the private (local)
IP settings for the router.
Displays 3G/4G LTE card info, link status, and the
network name.
Displays the MAC address and the public IP
settings for the router.
Displays the wireless MAC address and your
wireless settings such as SSID, channel, and
encryption type. Also displays the list of currently
connected DHCP clients.
General:
WAN:
3G/4G LTE Card:
LAN:
Wireless LAN:
LAN Computers:
64D-Link DWR-116 User Manual
Section 3 - Conguration
Logs
Here you can view logs and define events that you want to view.
This router also has an internal syslog server, so you can send the
log files to a computer that is running a syslog utility.
65D-Link DWR-116 User Manual
Section 3 - Conguration
Statistics
Here you can view the packets transmitted and received passing
through your router on both WAN and LAN ports. The traffic
counter will reset if the device is rebooted.
66D-Link DWR-116 User Manual
Section 3 - Conguration

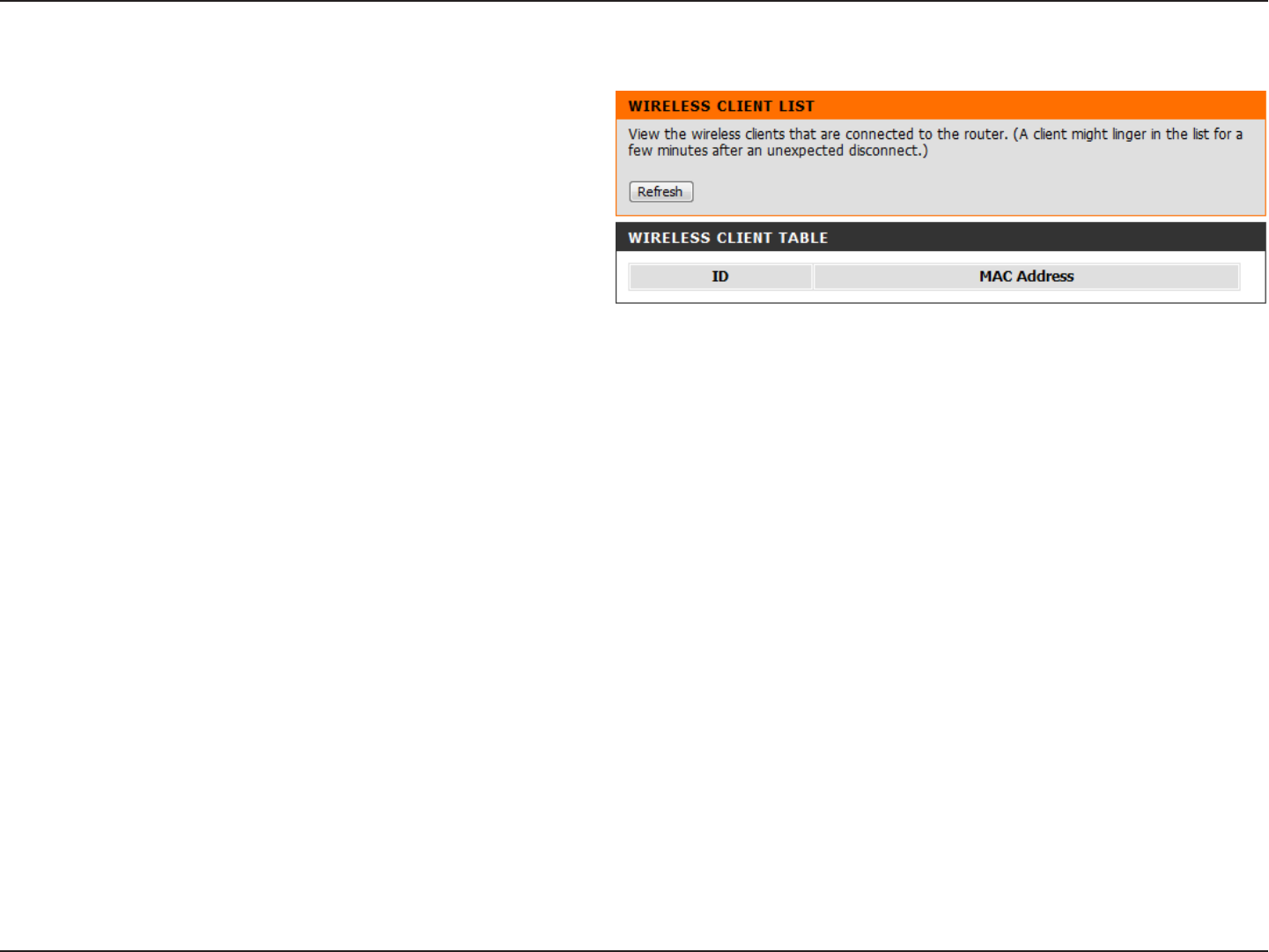

Wireless
This table displays a list of wireless clients that are connected to
your wireless router. It also displays the connection time and
MAC address of the connected wireless clients.
67D-Link DWR-116 User Manual
Section 3 - Conguration
Support
The SUPPORT pages provide help information for each section
of the device’s interface. To view the Support pages, click on
SUPPORT at the top of the screen.
68D-Link DWR-116 User Manual
Section 4 - Security
Wireless Security
This section will show you the different levels of security you can use to protect your data from intruders. The
DWR-116 offers the following types of security:
• WPA2 (Wi-Fi Protected Access 2) • WPA2-PSK (Pre-Shared Key)
• WPA (Wi-Fi Protected Access) • WPA-PSK (Pre-Shared Key)
• WEP (Wired Equivalent Privacy)
What is WEP?
WEP stands for Wired Equivalent Privacy. It is based on the IEEE 802.11 standard and uses the RC4 encryption algorithm. WEP provides security by
encrypting data over your wireless network so that it is protected as it is transmitted from one wireless device to another.
To gain access to a WEP network, you must know the key. The key is a string of characters that you create. When using WEP, you must determine
the level of encryption. The type of encryption determines the key length. 128-bit encryption requires a longer key than 64-bit encryption. Keys
are defined by entering in a string in HEX (hexadecimal - using characters 0-9, A-F) or ASCII (American Standard Code for Information Interchange
– alphanumeric characters) format. ASCII format is provided so you can enter a string that is easier to remember. The ASCII string is converted to
HEX for use over the network. Four keys can be defined so that you can change keys easily.
69D-Link DWR-116 User Manual
Section 4 - Security
Configure WEP
It is recommended to enable encryption on your wireless router before your wireless network adapters. Please establish wireless connectivity before
enabling encryption. Your wireless signal may degrade when enabling encryption due to the added overhead.
1. Log into the web-based configuration by opening a web browser and entering the IP address of the router (192.168.0.1). Click on Wireless
Settings on the left side.
2. Next to Security Mode, select Enable WEP Security.
3. Next to Authentication, select Open or Shared Key.
4. Select either 64-bit or 128-bit encryption from the drop-down box next to WEP Encryption.
5. Next to Key Type, select either Hex or ASCII.
Hex (recommended) - Letters A-F and numbers 0-9 are valid.
ASCII - All numbers and letters are valid.
6. Next to Key 1, enter a WEP key that you create. Make sure you enter this key exactly on all your wireless devices. You may enter up to 4 different
keys.
7. Click Save Settings to save your settings. If you are configuring the router with a wireless adapter, you will lose connectivity until you enable
WEP on your adapter and enter the same WEP key as you did on the router.
70D-Link DWR-116 User Manual
Section 4 - Security
What is WPA?
WPA, or Wi-Fi Protected Access, is a Wi-Fi standard that was designed to improve the security features of WEP (Wired Equivalent Privacy).
The 2 major improvements over WEP:
• Improved data encryption through the Temporal Key Integrity Protocol (TKIP). TKIP scrambles the keys using a hashing algorithm
and, by adding an integrity-checking feature, ensures that the keys haven’t been tampered with. WPA2 is based on 802.11i and
uses Advanced Encryption Standard (AES) instead of TKIP.
• User authentication, which is generally missing in WEP, through the extensible authentication protocol (EAP). WEP regulates access
to a wireless network based on a computer’s hardware-specific MAC address, which is relatively simple to be sniffed out and stolen.
EAP is built on a more secure public-key encryption system to ensure that only authorized network users can access the network.
WPA-PSK/WPA2-PSK uses a passphrase or key to authenticate your wireless connection. The key is an alpha-numeric password between 8 and 63
characters long. The password can include symbols (!?*&_) and spaces. This key must be the exact same key entered on your wireless router or
access point.
WPA/WPA2 incorporates user authentication through the Extensible Authentication Protocol (EAP). EAP is built on a more secure public key encryption
system to ensure that only authorized network users can access the network.
71D-Link DWR-116 User Manual
Section 4 - Security
Configure WPA-PSK
It is recommended to enable encryption on your wireless router before your wireless network adapters. Please establish wireless connectivity before
enabling encryption. Your wireless signal may degrade when enabling encryption due to the added overhead.
1. Log into the web-based configuration by opening a web browser and entering the IP address of the router (192.168.0.1). Click on Wireless
Settings on the left side.
2. Next to Security Mode, select Enable WPA-Personal Security or Enable WPA2-Personal Security.
3. Next to Cipher Mode, select TKIP, AES, or Auto.
4. Next to PSK/EAP, select PSK.
5. Next to Passphrase, enter a key (passphrase). The key is an alpha-numeric password between 8 and 63 characters long. The password can include
symbols (!?*&_) and spaces. Make sure you enter this key exactly the same on all other wireless clients.
6. Enter the passphrase again next to Confirmed Passphrase.
7. Click Save Settings to save your settings. If you are configuring the router with a wireless adapter, you will lose connectivity until you enable
WPA-PSK (or WPA2-PSK) on your adapter and enter the same passphrase as you did on the router.
72D-Link DWR-116 User Manual
Section 4 - Security
Configure WPA (RADIUS)
It is recommended to enable encryption on your wireless router before your wireless network adapters. Please establish wireless connectivity before
enabling encryption. Your wireless signal may degrade when enabling encryption due to the added overhead.
1. Log into the web-based configuration by opening a web browser and entering the IP address of the router (192.168.0.1). Click on Wireless
Settings on the left side.
2. Next to Security Mode, select Enable WPA-Personal Security or Enable WPA2-Personal Security.
3. Next to Cipher Mode, select TKIP, AES, or Auto.
4. Next to PSK/EAP, select EAP.
5. Next to RADIUS Server 1 enter the IP Address of your RADIUS server.
6. Next to Port, enter the port you are using with your RADIUS server. 1812 is the default port.
7. Next to Shared Secret, enter the security key.
8. If you have a secondary RADIUS server, enter its IP address, port, and secret key.
9. Click Apply Settings to save your settings.
73D-Link DWR-116 User Manual
Section 4 - Security
Windows® 8
WPA/WPA2
It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before configuring your
wireless adapter. If you are joining an existing network, you will need to know the security key (Wi-Fi password) being used.
To join an existing network, locate the wireless network icon in the taskbar, next to the
time display.
Wireless Icon
Clicking on this icon will display a list of wireless networks which are within connecting
proximity of your computer. Select the desired network by clicking on the network name.
74D-Link DWR-116 User Manual
Section 4 - Security
You will then be prompted to enter the network security key (Wi-Fi password) for
the wireless network. Enter the password into the box and click Next.
If you wish to use Wi-Fi Protected Setup (WPS) to connect to the router, you can also
press the WPS button on your router at this point to enable the WPS function.
When you have established a successful connection with a wireless network, the word
Connected will appear next to the name of the network to which you are connected.
75D-Link DWR-116 User Manual
Section 4 - Security
Windows® 7
It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before configuring your
wireless adapter. If you are joining an existing network, you will need to know the security key or passphrase being used.
1. Click on the wireless icon in your system tray (lower-right corner).
2. The utility will display any available wireless networks in your area.
Wireless Icon
WPA/WPA2
76D-Link DWR-116 User Manual
Section 4 - Security
3. Highlight the wireless connection with Wi-Fi name (SSID) you would
like to connect to and click the Connect button.
If you get a good signal but cannot access the Internet, check your
TCP/IP settings for your wireless adapter. Refer to the Networking
Basics section in this manual for more information.
4. The following window appears while your computer tries to
connect to the router.
5. Enter the same security key or passphrase (Wi-Fi password) that is
on your router and click Connect. You can also connect by pushing
the WPS button on the router.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the security settings are correct. The
key or passphrase must be exactly the same as on the wireless router.
77D-Link DWR-116 User Manual
Section 4 - Security
WPS
The WPS feature of the DWR-116 can be configured using Windows® 7. Carry out the following steps to use Windows® 7 to
configure the WPS feature:
1. Click the Start button and select Computer from the Start menu.
2. Click Network on the left side.
78D-Link DWR-116 User Manual
Section 4 - Security
3. Double-click the DWR-116
4. Input the WPS PIN number (displayed in the WPS window on the
Router’s LCD screen or in the Setup > Wireless Setup menu in
the Router’s Web UI) and click Next.
DWR-116
79D-Link DWR-116 User Manual
Section 4 - Security
5. Type a name to identify the network.
6. To configure advanced settings, click the icon.
Click Next to continue.
80D-Link DWR-116 User Manual
Section 4 - Security

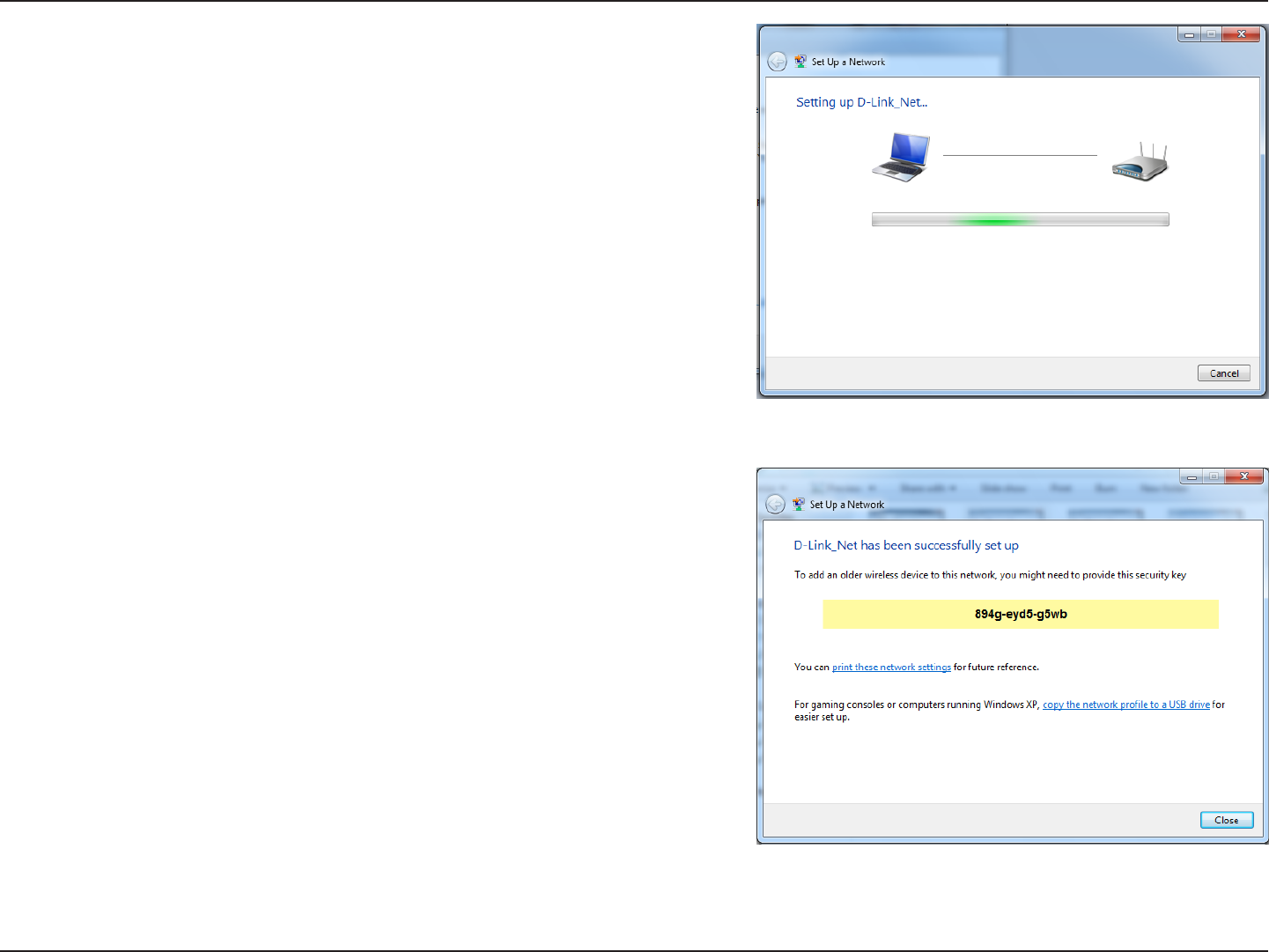

7. The following window appears while the Router is being
configured.
Wait for the configuration to complete.
8. The following window informs you that WPS on the router has
been setup successfully.
Make a note of the security key as you may need to provide this
security key if adding an older wireless device to the network in
the future.
9. Click Close to complete WPS setup.
81D-Link DWR-116 User Manual
Section 5 - Connecting to a Wireless Network
Windows Vista®
Windows Vista® users may use the built-in wireless utility. If you are using another company’s utility, please refer to the user
manual of your wireless adapter for help with connecting to a wireless network. Most utilities will have a “site survey” option
similar to the Windows Vista® utility as seen below.
Right-click on the wireless computer icon in your system tray (lower-right
corner next to the time). Select Connect to a network.
If you receive the Wireless Networks Detected bubble, click on the
center of the bubble to access the utility.
or
The utility will display any available wireless networks in your area. Click
on a network (displayed using the SSID) and click the Connect button.
If you get a good signal but cannot access the Internet, check you TCP/
IP settings for your wireless adapter. Refer to the Networking Basics
section in this manual for more information.
82D-Link DWR-116 User Manual
Section 5 - Connecting to a Wireless Network
WPA/WPA2
It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before configuring your
wireless adapter. If you are joining an existing network, you will need to know the security key or passphrase being used.
2. Highlight the Wi-Fi name (SSID) you would like to connect to and
click Connect.
1. Open the Windows Vista® Wireless Utility by right-clicking on the
wireless computer icon in your system tray (lower right corner of
screen). Select Connect to a network.
83D-Link DWR-116 User Manual
Section 5 - Connecting to a Wireless Network
3. Enter the same security key or passphrase (Wi-Fi password) that is on
your router and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the security settings are correct. The
key or passphrase must be exactly the same as on the wireless router.
84D-Link DWR-116 User Manual
Section 5 - Connecting to a Wireless Network
WPS/WCN 2.0
The router supports Wi-Fi protection, referred to as WCN 2.0 in Windows Vista®. The following instructions for setting this up
depends on whether you are using Windows Vista® to configure the router or third party software.
When you first set up the router, Wi-Fi protection is disabled and not configured. To enjoy the benefits of Wi-Fi protection, the
router must be both enabled and configured. There are three basic methods to accomplish this: use Windows Vista’s built-in
support for WCN 2.0, use software provided by a third party, or manually configure.
If you are running Windows Vista®, log into the router and click the Enable checkbox in the Basic > Wireless section. Use the
Current PIN that is displayed on the Advanced > Wi-Fi Protected Setup section or choose to click the Generate New PIN
button or Reset PIN to Default button.
If you are using third party software to set up Wi-Fi Protection, carefully follow the directions. When you are finished, proceed
to the next section to set up the newly-configured router.
85D-Link DWR-116 User Manual
Section 5 - Connecting to a Wireless Network
Windows® XP
Windows® XP users may use the built-in wireless utility (Zero Configuration Utility). The following instructions are for Service
Pack 2 users. If you are using another company’s utility, please refer to the user manual of your wireless adapter for help with
connecting to a wireless network. Most utilities will have a “site survey” option similar to the Windows® XP utility as seen below.
Right-click on the wireless computer icon in your system tray (lower-right
corner next to the time). Select View Available Wireless Networks.
If you receive the Wireless Networks Detected bubble, click on the
center of the bubble to access the utility.
or
The utility will display any available wireless networks in your area. Click
on a Wi-Fi network (displayed using the SSID) and click the Connect
button.
If you get a good signal but cannot access the Internet, check you TCP/
IP settings for your wireless adapter. Refer to the Networking Basics
section in this manual for more information.
86D-Link DWR-116 User Manual
Section 5 - Connecting to a Wireless Network
It is recommended to enable WPA on your wireless router or access point before configuring your wireless adapter. If you are
joining an existing network, you will need to know the WPA key being used.
2. Highlight the Wi-Fi network (SSID) you would like to connect
to and click Connect.
1. Open the Windows® XP Wireless Utility by right-clicking on the
wireless computer icon in your system tray (lower-right corner
of screen). Select View Available Wireless Networks.
WPA/WPA2
87D-Link DWR-116 User Manual
Section 5 - Connecting to a Wireless Network
3. The Wireless Network Connection box will appear. Enter the WPA-PSK
Wi-Fi password and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the WPA-PSK settings are correct. The
Wi-Fi password must be exactly the same as on the wireless router.
88D-Link DWR-116 User Manual
Section 6 - Troubleshooting
Troubleshooting
This chapter provides solutions to problems that can occur during the installation and operation of the DWR-116. Read the following descriptions
if you are having problems. (The examples below are illustrated in Windows® XP. If you have a different operating system, the screenshots on your
computer will look similar to the following examples.)
1. Why can’t I access the web-based configuration utility?
When entering the IP address of the D-Link router (192.168.0.1 for example), you are not connecting to a website on the Internet or have to be
connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your computer must be on the same IP subnet to
connect to the web-based utility.
• Make sure you have an updated Java-enabled web browser. We recommend the following:
• Internet Explorer 6.0 or higher
• Netscape 8 or higher
• Mozilla 1.7.12 (5.0) or higher
• Opera 8.5 or higher
• Safari 1.2 or higher (with Java 1.3.1 or higher)
• Camino 0.8.4 or higher
• Firefox 1.5 or higher
• Verify physical connectivity by checking for solid link lights on the device. If you do not get a solid link light, try using a different cable or connect
to a different port on the device if possible. If the computer is turned off, the link light may not be on.
• Disable any internet security software running on the computer. Software firewalls such as Zone Alarm, Black Ice, Sygate, Norton Personal Firewall,
and Windows® XP firewall may block access to the configuration pages. Check the help files included with your firewall software for more information
on disabling or configuring it.
89D-Link DWR-116 User Manual
Section 6 - Troubleshooting
• Configure your Internet settings:
• Go to Start > Settings > Control Panel. Double-click the Internet Options Icon. From the Security tab, click the button to restore
the settings to their defaults.
• Click the Connection tab and set the dial-up option to Never Dial a Connection. Click the LAN Settings button. Make sure nothing
is checked. Click OK.
• Go to the Advanced tab and click the button to restore these settings to their defaults. Click OK three times.
• Close your web browser (if open) and open it.
• Access the web management. Open your web browser and enter the IP address of your D-Link router in the address bar. This should open the
login page for your the web management.
• If you still cannot access the configuration, unplug the power to the router for 10 seconds and plug back in. Wait about 30 seconds and try accessing
the configuration. If you have multiple computers, try connecting using a different computer.
2. What can I do if I forgot my password?
If you forgot your password, you must reset your router. Unfortunately this process will change all your settings back to the factory defaults.
To reset the router, locate the reset button (hole) on the rear panel of the unit. With the router powered on, use a paperclip to hold the button
down for 10 seconds. Release the button and the router will go through its reboot process. Wait about 30 seconds to access the router. The default
IP address is 192.168.0.1. When logging in, the username is admin and leave the password box empty.
90D-Link DWR-116 User Manual
Appendix A - Wireless Basics
There are basically two modes of networking:
• Infrastructure – All wireless clients will connect to an access point or wireless router.
• Ad-Hoc – Directly connecting to another computer, for peer-to-peer communication, using wireless network adapters on each
computer, such as two or more WNA-2330 wireless network Cardbus adapters.
An Infrastructure network contains an Access Point or wireless router. All the wireless devices, or clients, will connect to the wireless router or access
point.
An Ad-Hoc network contains only clients, such as laptops with wireless cardbus adapters. All the adapters must be in Ad-Hoc mode to communicate.
Wireless Modes
91D-Link DWR-116 User Manual
Appendix B - Networking Basics
Networking Basics
Check your IP address
After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP server (i.e. wireless
router) automatically. To verify your IP address, please follow the steps below.
Click on Start > Run. In the run box type cmd and click OK. (Windows® Vista™ users type cmd in the Start Search box.)
At the prompt, type ipconfig and press Enter.
This will display the IP address, subnet mask, and the default
gateway of your adapter.
If the address is 0.0.0.0, check your adapter installation, security
settings, and the settings on your router. Some firewall software
programs may block a DHCP request on newly installed
adapters.
92D-Link DWR-116 User Manual
Appendix B - Networking Basics
Statically Assign an IP address
If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps below:
Step 1
Windows® Vista™ - Click on Start > Control Panel > Network and Internet > Network and Sharing Center > Manage Network Connections.
Windows® XP - Click on Start > Control Panel > Network Connections.
Windows® 2000 - From the desktop, right-click My Network Places > Properties.
Step 2
Right-click on the Local Area Connection which represents your network adapter and select Properties.
Step 3
Highlight Internet Protocol (TCP/IP) and click Properties.
Step 4
Click Use the following IP address and enter an IP address that is on the same subnet as your network or the LAN IP address on your router.
Example: If the router´s LAN IP address is 192.168.0.1, make your IP address 192.168.0.X where X is a number between 2 and 99. Make sure that the
number you choose is not in use on the network. Set Default Gateway the same as the LAN IP address of your router (192.168.0.1).
Set Primary DNS the same as the LAN IP address of your router (192.168.0.1). The Secondary DNS is not needed or you may enter a DNS server from
your ISP.
Step 5
Click OK twice to save your settings.
93D-Link DWR-116 User Manual
Appendix C - Technical Specications
Technical Specifications
Data Rates **
300,150,135,120,90,60,45,30,15 Mbps in 802.11n mode
6/9/11/12/18/24/36/48/54Mbps in 802.11g mode
1/2/5.5/11Mbps in 802.11b mode
Standards
IEEE 802.11n compliant (2Tx2R)
IEEE 802.11b/g
IEEE 802.3
IEEE 802.3u
Frequency
2.4 - 2.4835 GHz
Wireless Security
64/128-bit WEP (Wired Equivalent Privacy)
WPA & WPA2 (Wi-Fi Protected Access)
Firewall
IP Filtering
Network Address Translation (NAT)
MAC Filtering
VPN
L2TP/PPTP/IPSEC VPN Pass-through
Ports
4 x LAN (RJ-45)
1x WAN
1 x USB
Antenna
2 x External 5 dBiWi-Fi antenna
LED Status Indicators
3G / 4G LTE
WAN
Wi-Fi
LAN 1, LAN 2, LAN 3, LAN 4
Power
External 5 V DC 2 A power adapter
Dimensions (L x W x H)
• 148.5 x 113.5 x 25 mm (5.85 x 4.47 x .98 inches)
Operating Temperature
Operating: 0 to 40 °C (32 to 104 °F)
Operating Humidity
Operating: 10% to 95% non-condensing
94D-Link DWR-116 User Manual
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference and
(2) this device must accept any interference received, including interference that may cause undesired operation
You are cautioned that changes or modications not expressly approved by the party responsible for compliance could void
your authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a lass B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should
be installed and operated with minimum distance 20cm between the radiator & your body.
