iD-Link DWR-512 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to
notify any person or organization of such revisions or changes.
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in
the United States or other countries. All other company or product names mentioned herein are trademarks or
registered trademarks of their respective companies.
Copyright © 2011 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written
permission from D-Link Corporation, Inc.
Preface
iiD-Link DWR-512 User Manual
FCC Regulations
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the
equipment.
The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of
exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal
operation.
iiiD-Link DWR-512 User Manual
Table of Contents
Preface...........................................................................i
Trademarks .............................................................. i
FCC Regulations ..................................................... ii
Product Overview ........................................................ 1
Package Contents ...................................................1
System Requirements ............................................. 1
Introduction ..............................................................2
Hardware Overview .................................................3
Rear Panel ......................................................... 3
Front Panel ........................................................4
LEDs ..................................................................5
Installation ....................................................................6
Connect to Your Network ........................................6
Connect a Telephone ..............................................7
Wireless Installation Considerations ........................ 8
Conguration ............................................................... 9

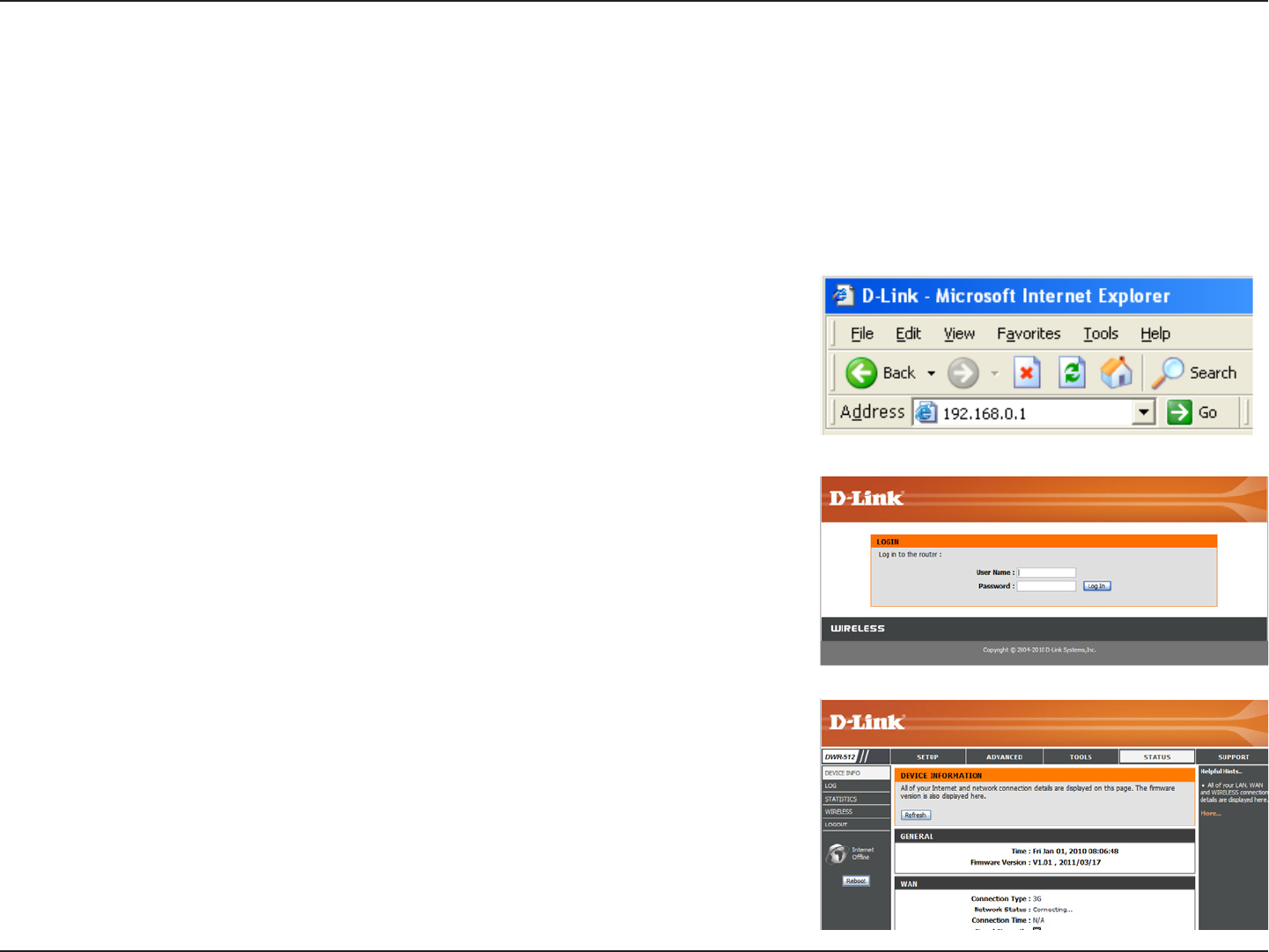

Web-based Conguration Utility ..............................9
Setup .....................................................................10
Internet .............................................................10

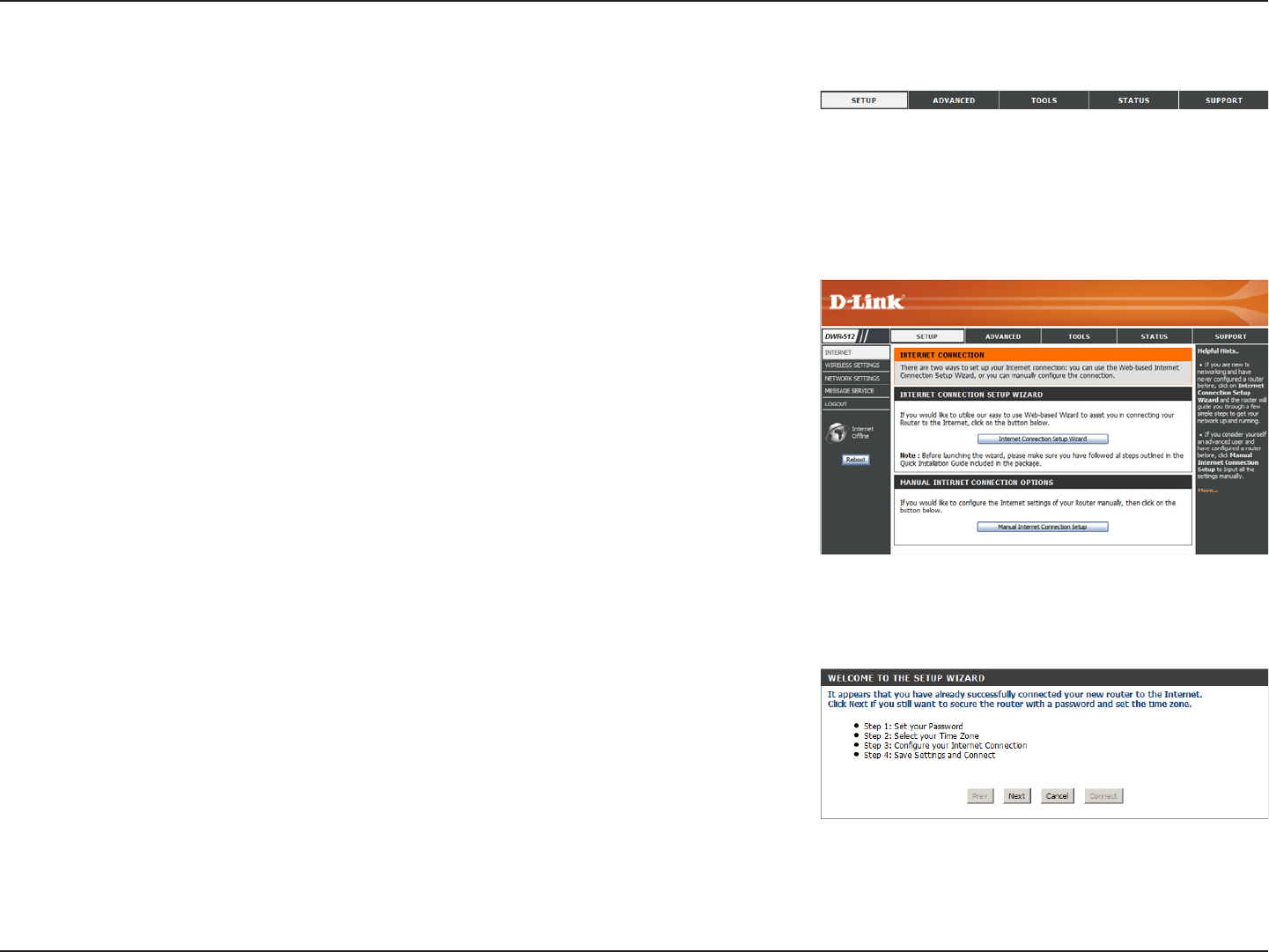

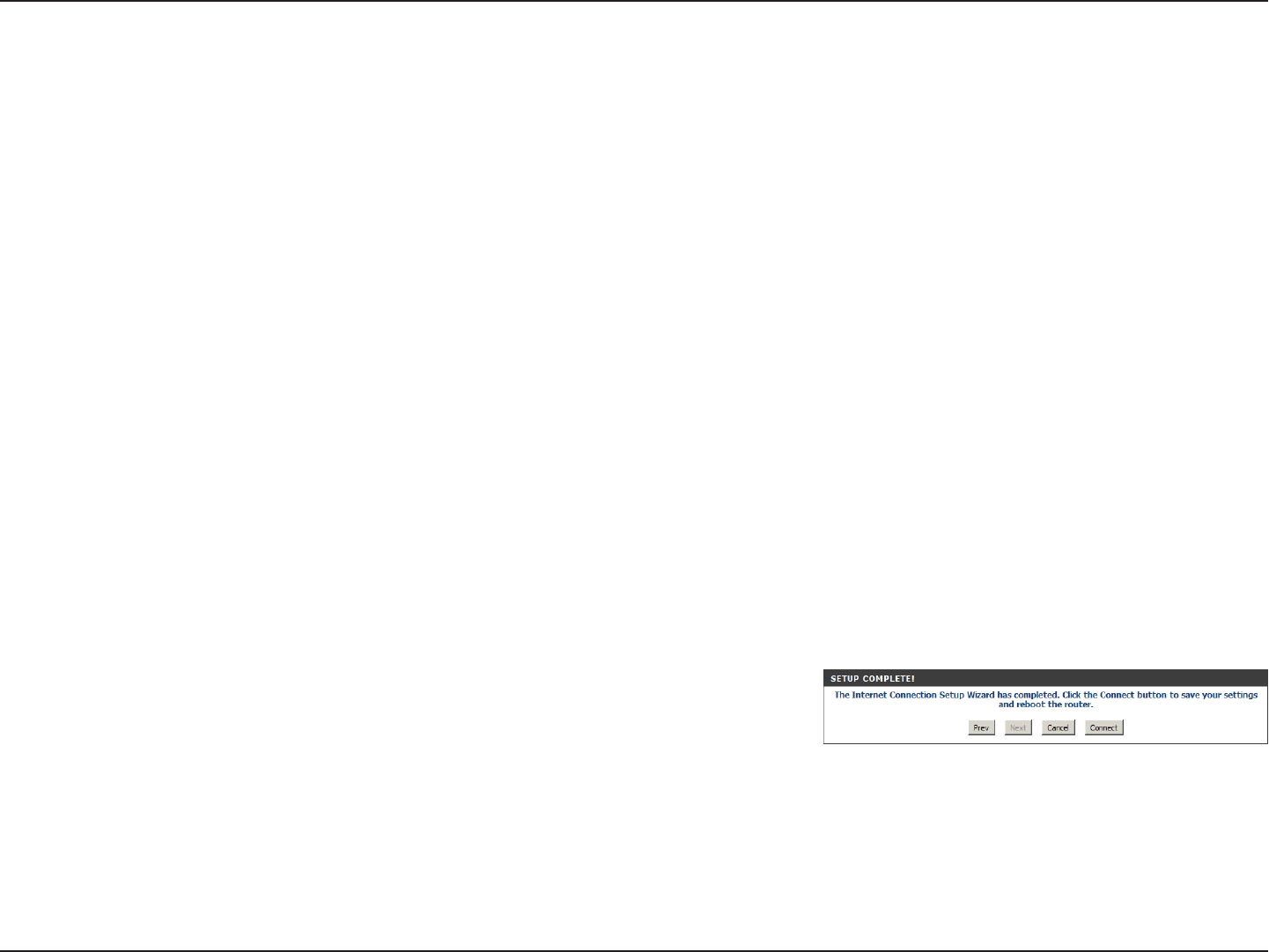

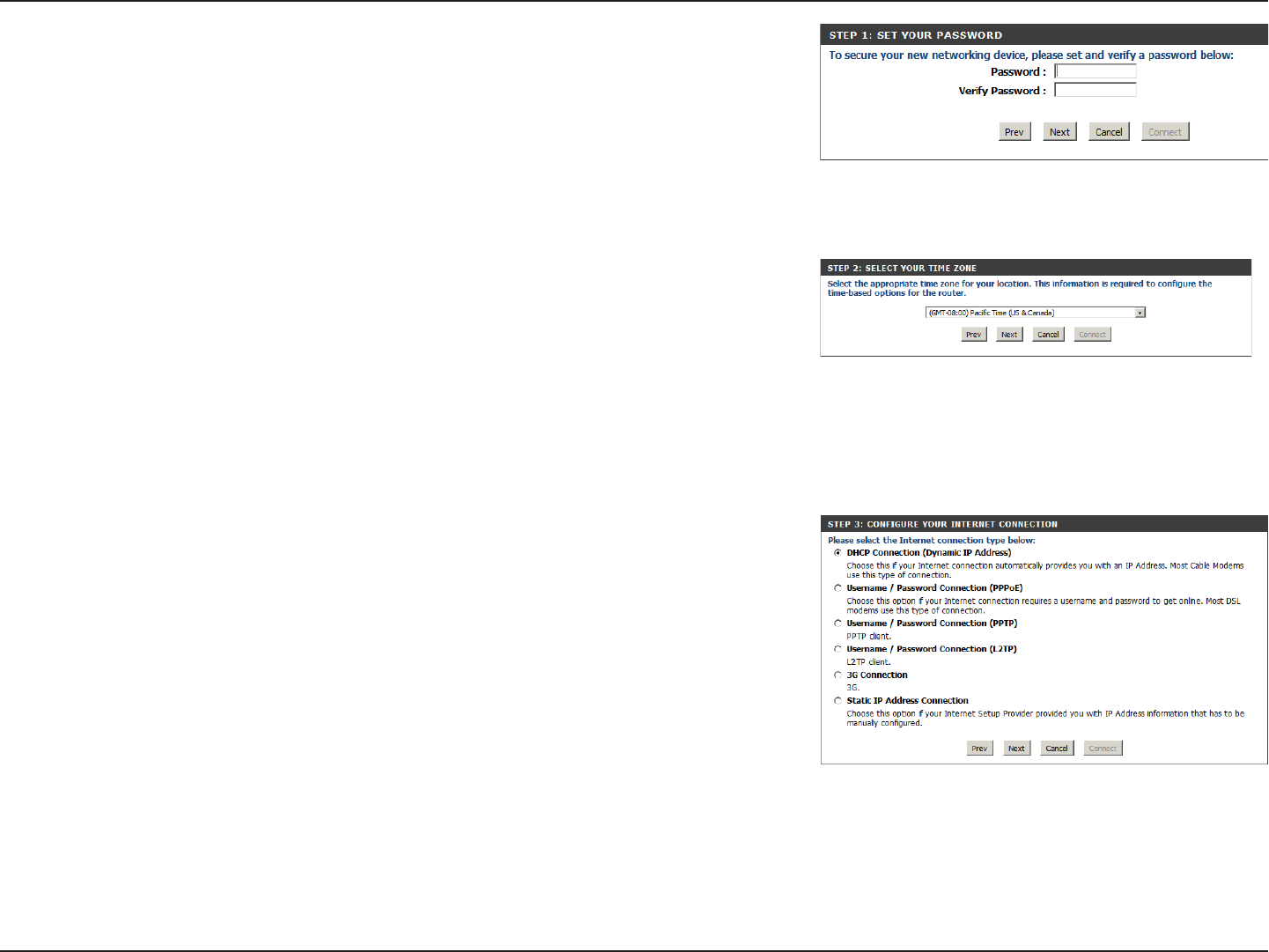

Internet Connection Setup Wizard ............... 10

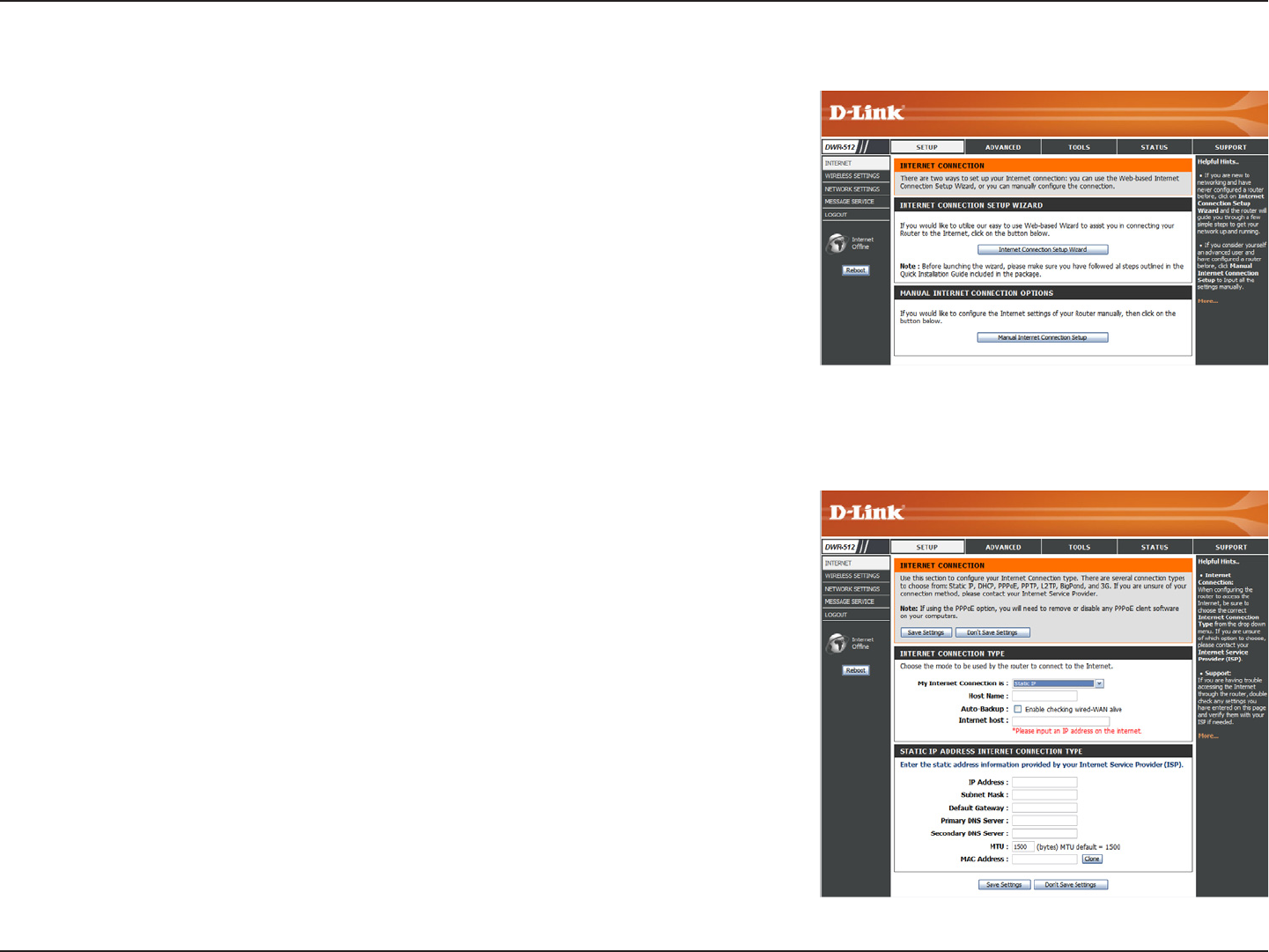

Manual Internet Connection Setup ............... 13
Internet Connection ...................................... 13

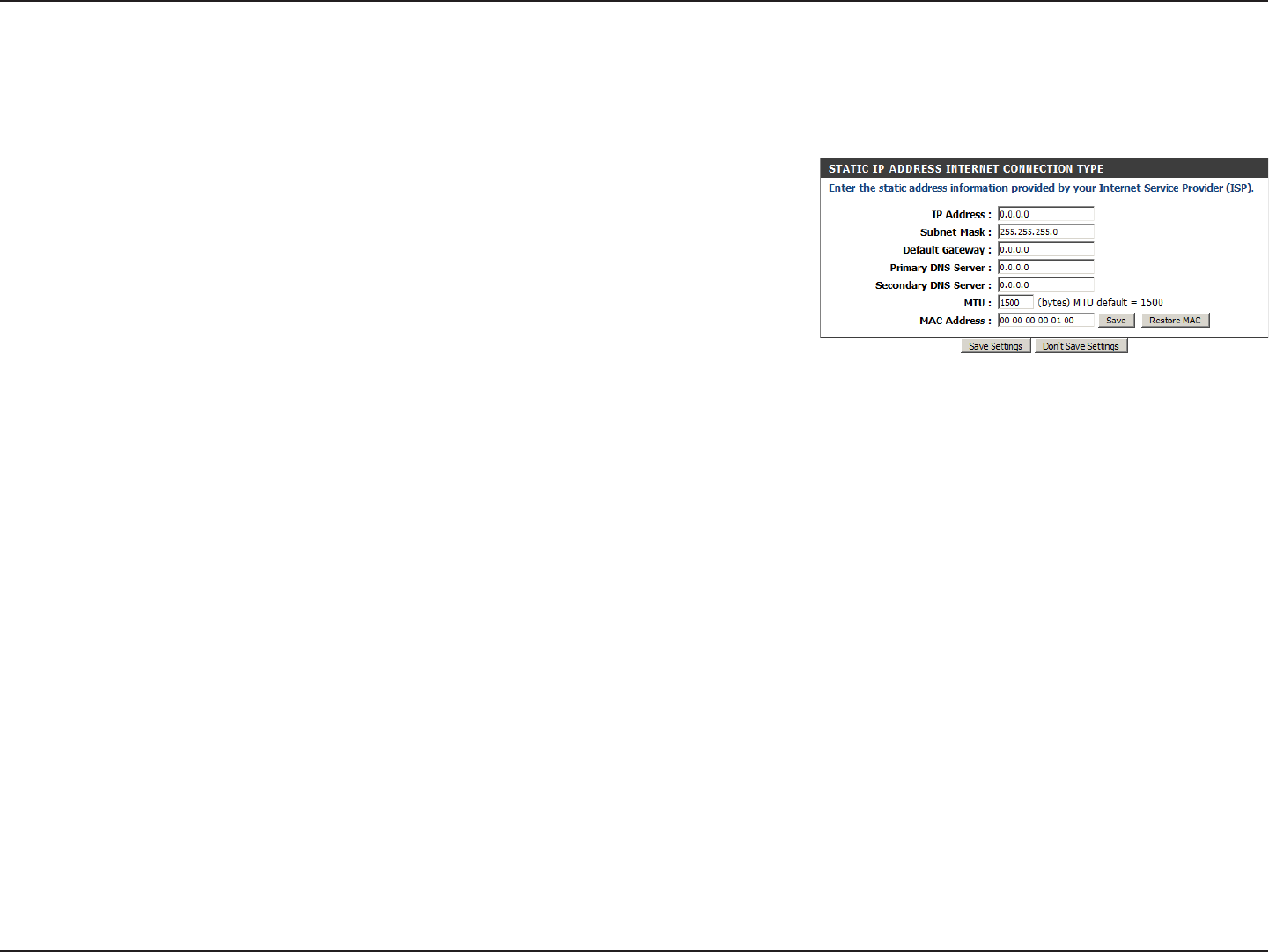

Static IP ........................................................14

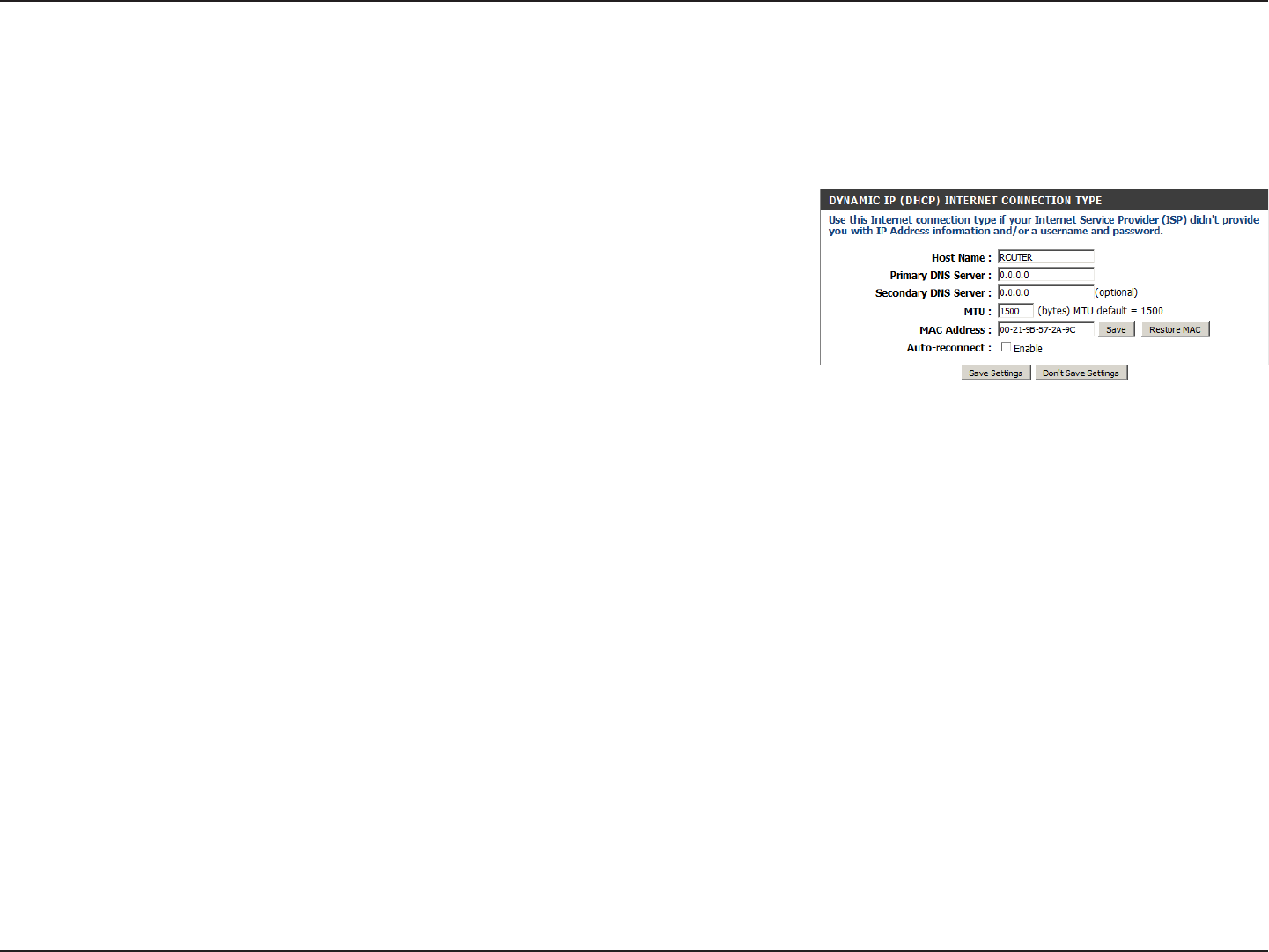

Dynamic IP (DHCP) ..................................... 15

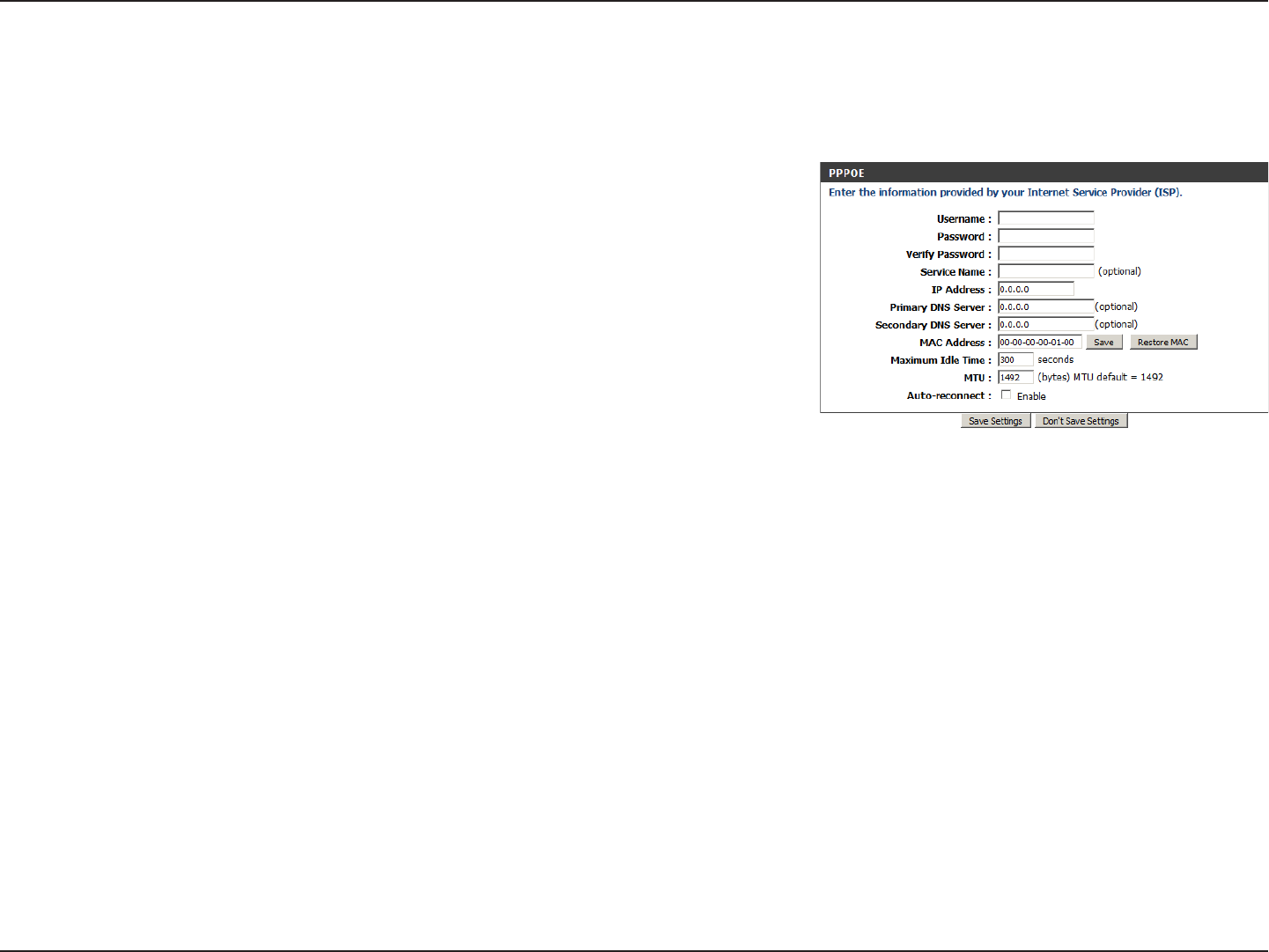

PPPoE .......................................................... 16
PPTP ............................................................17

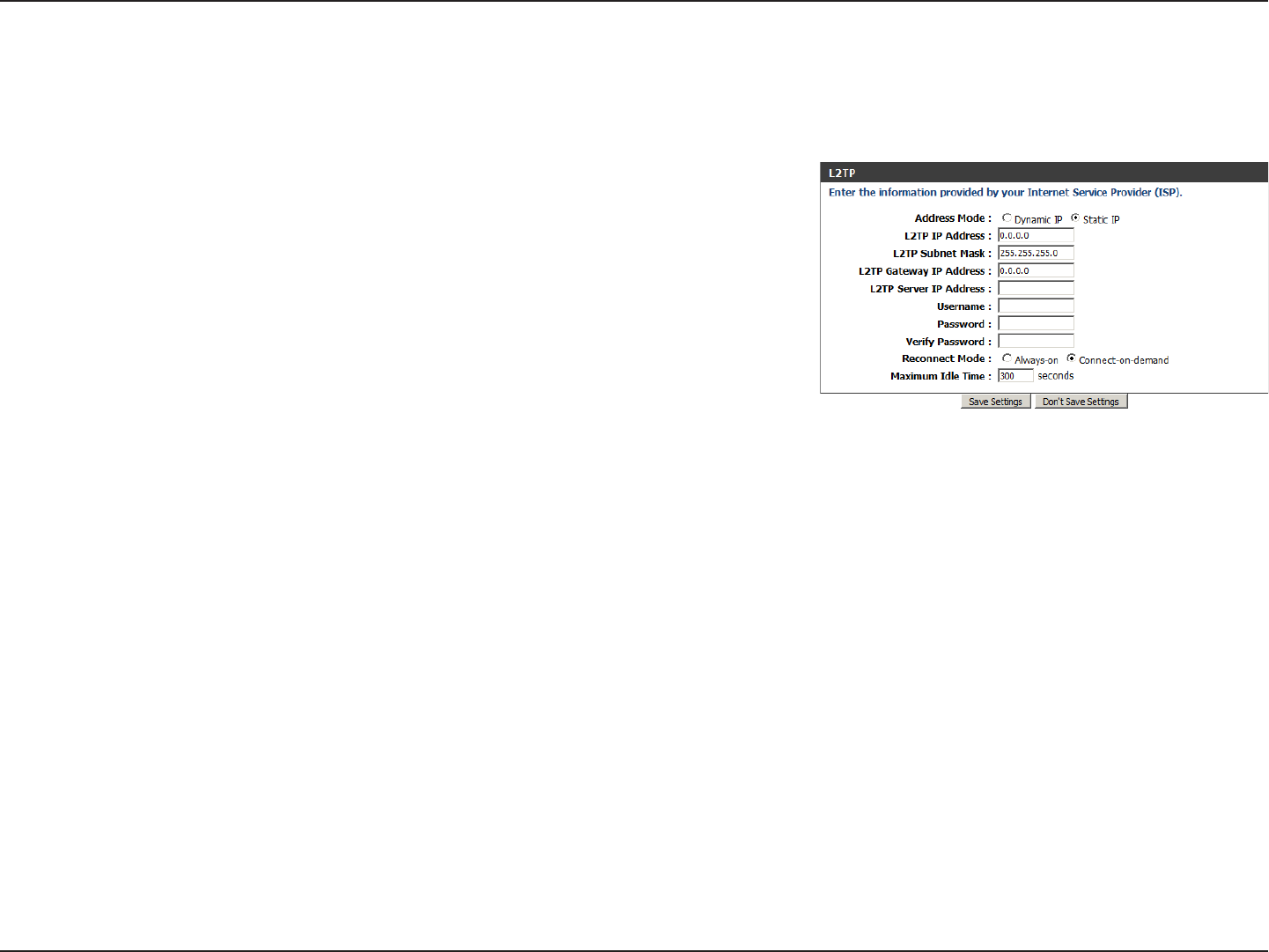

L2TP ............................................................. 18

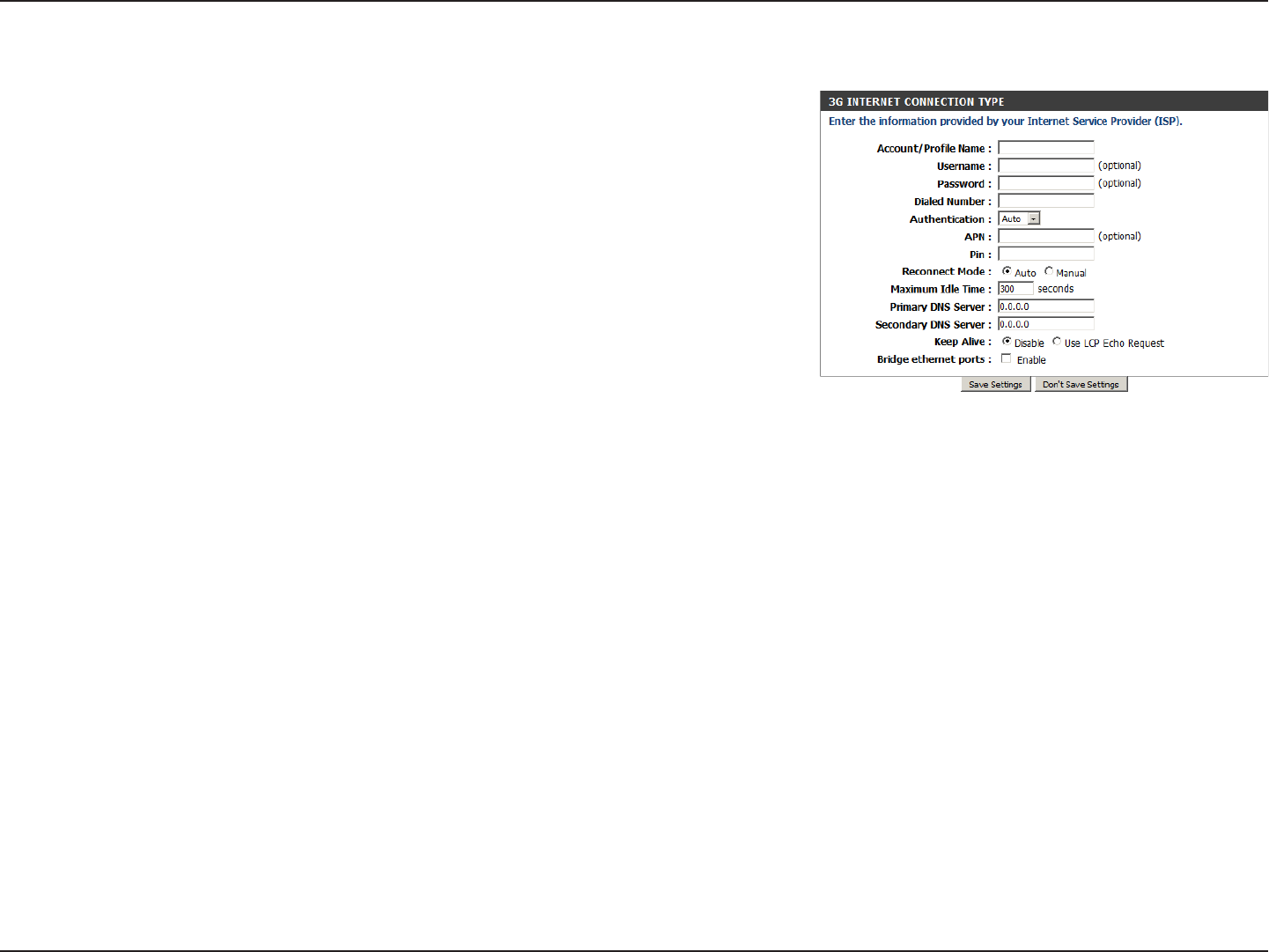

3G ................................................................19

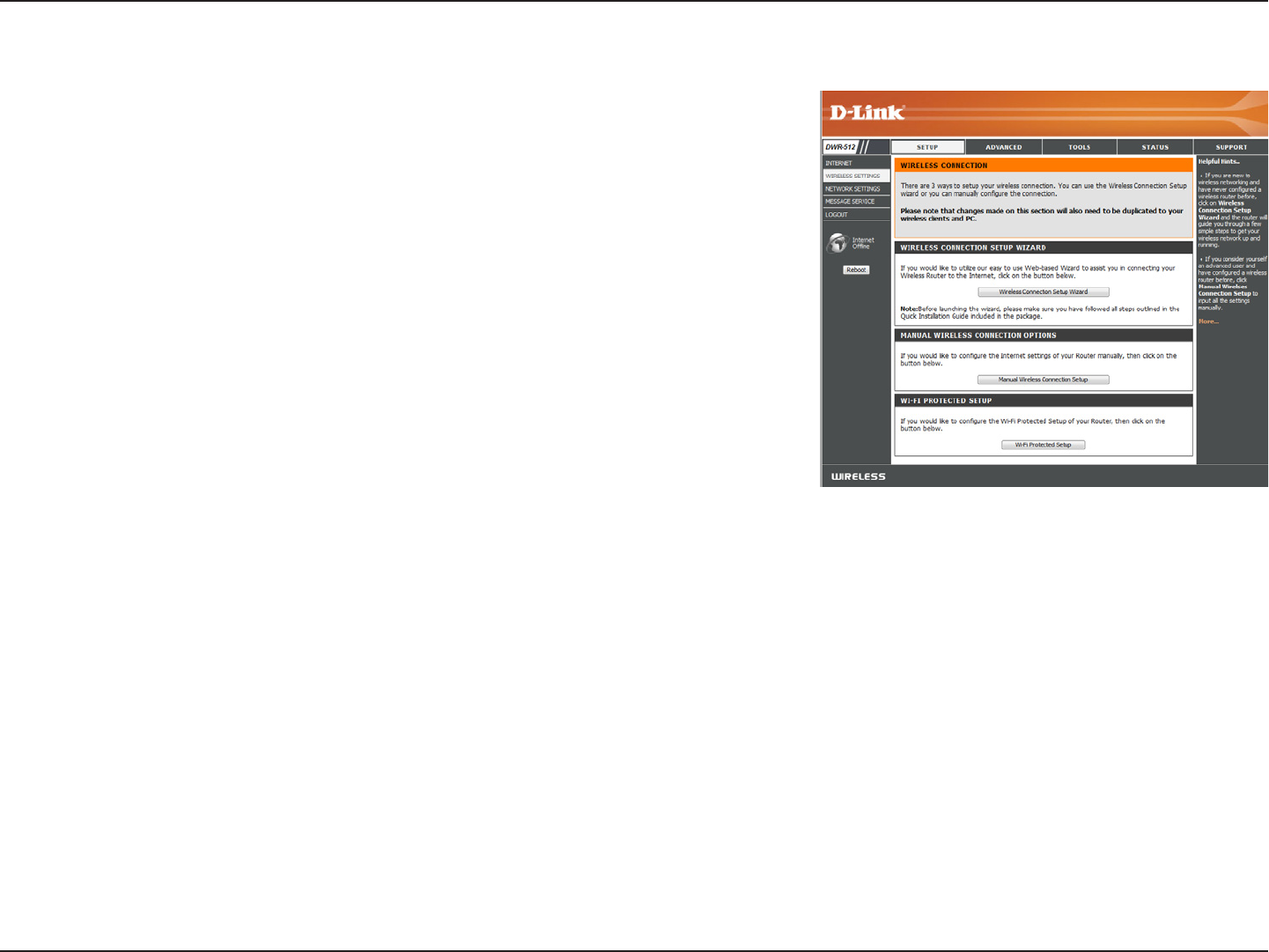

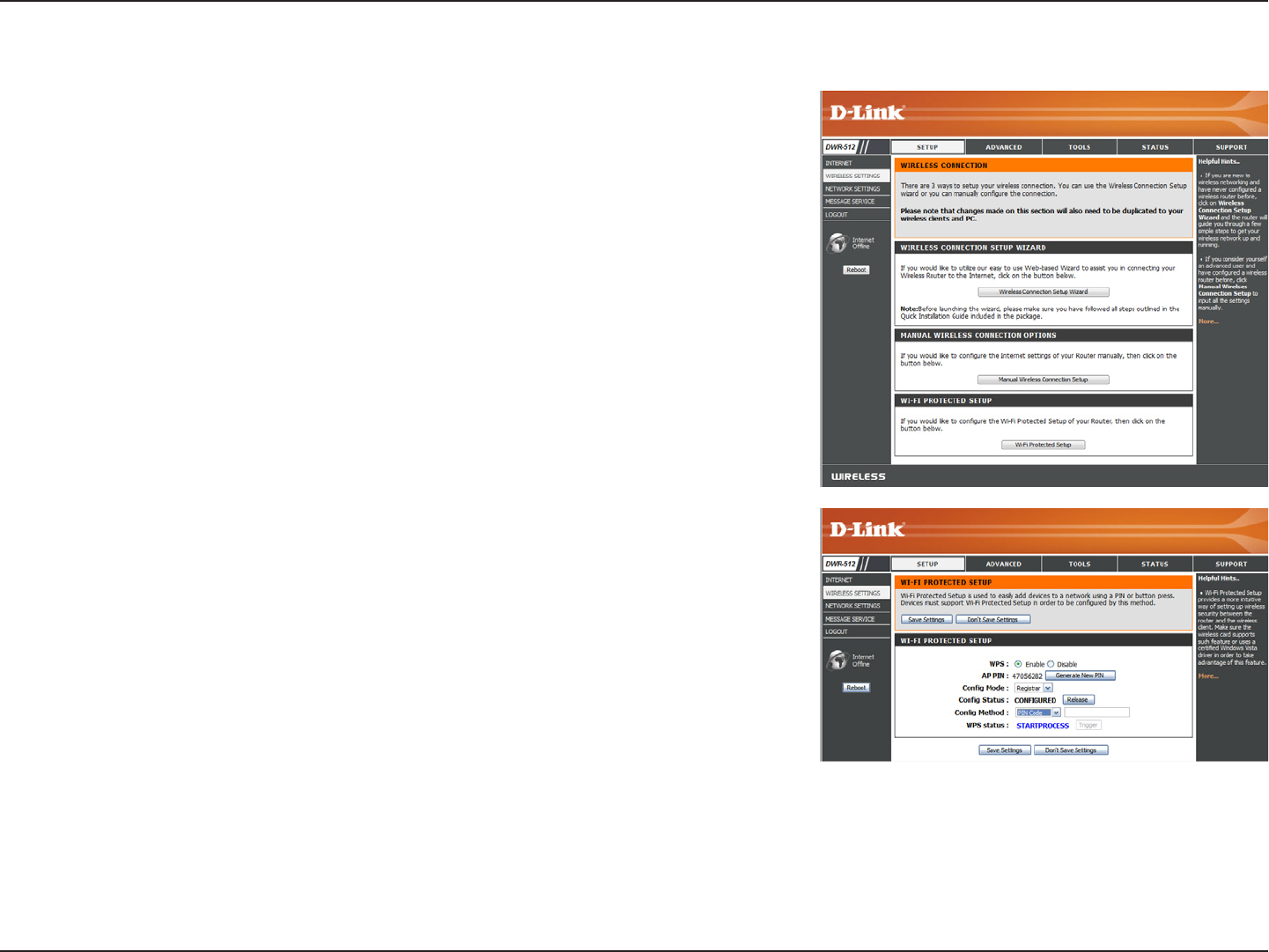

Wireless Settings .............................................21

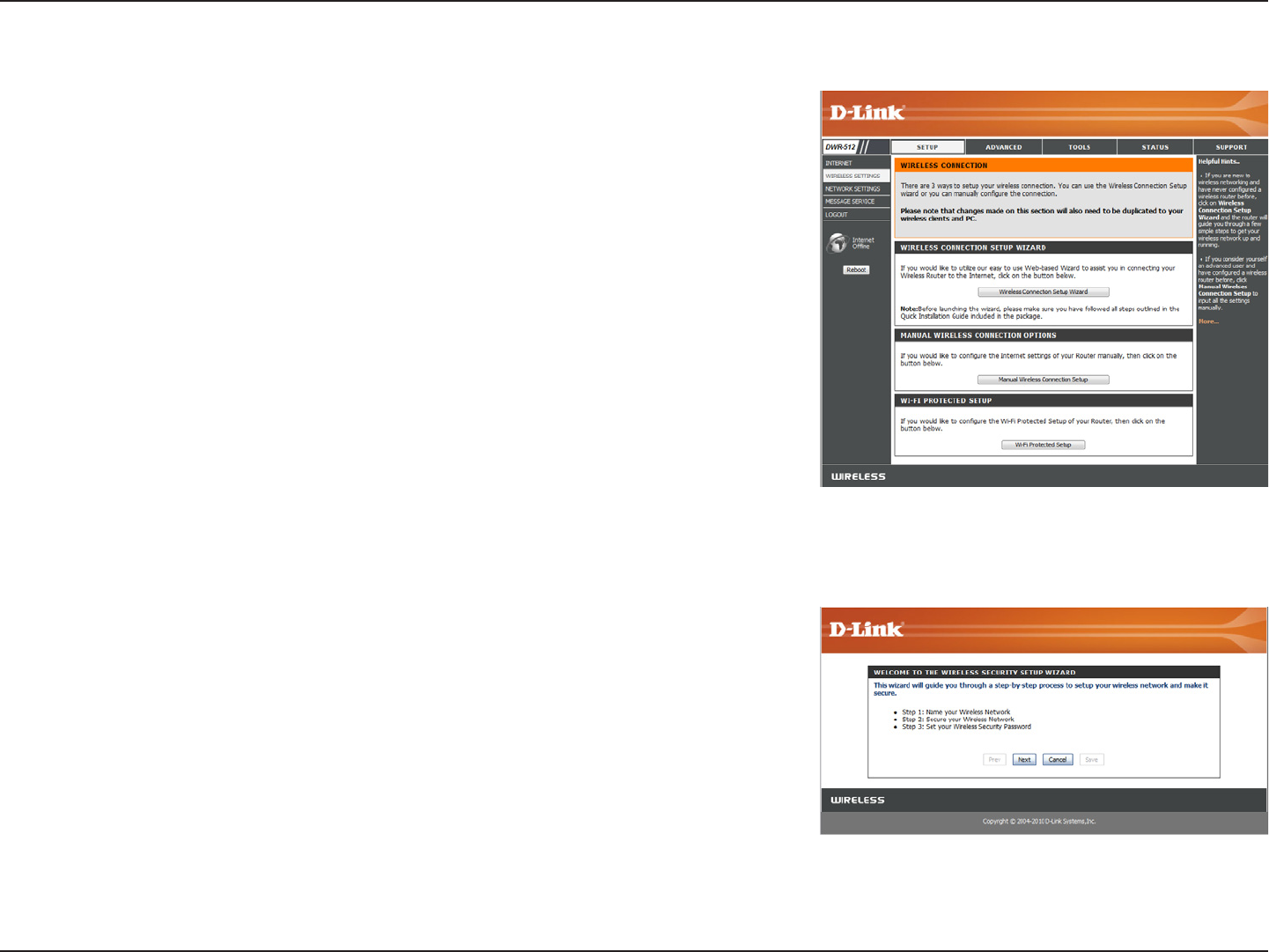

Wireless Connection Setup Wizard .............. 21
Manual Wireless Connection Setup ............. 23

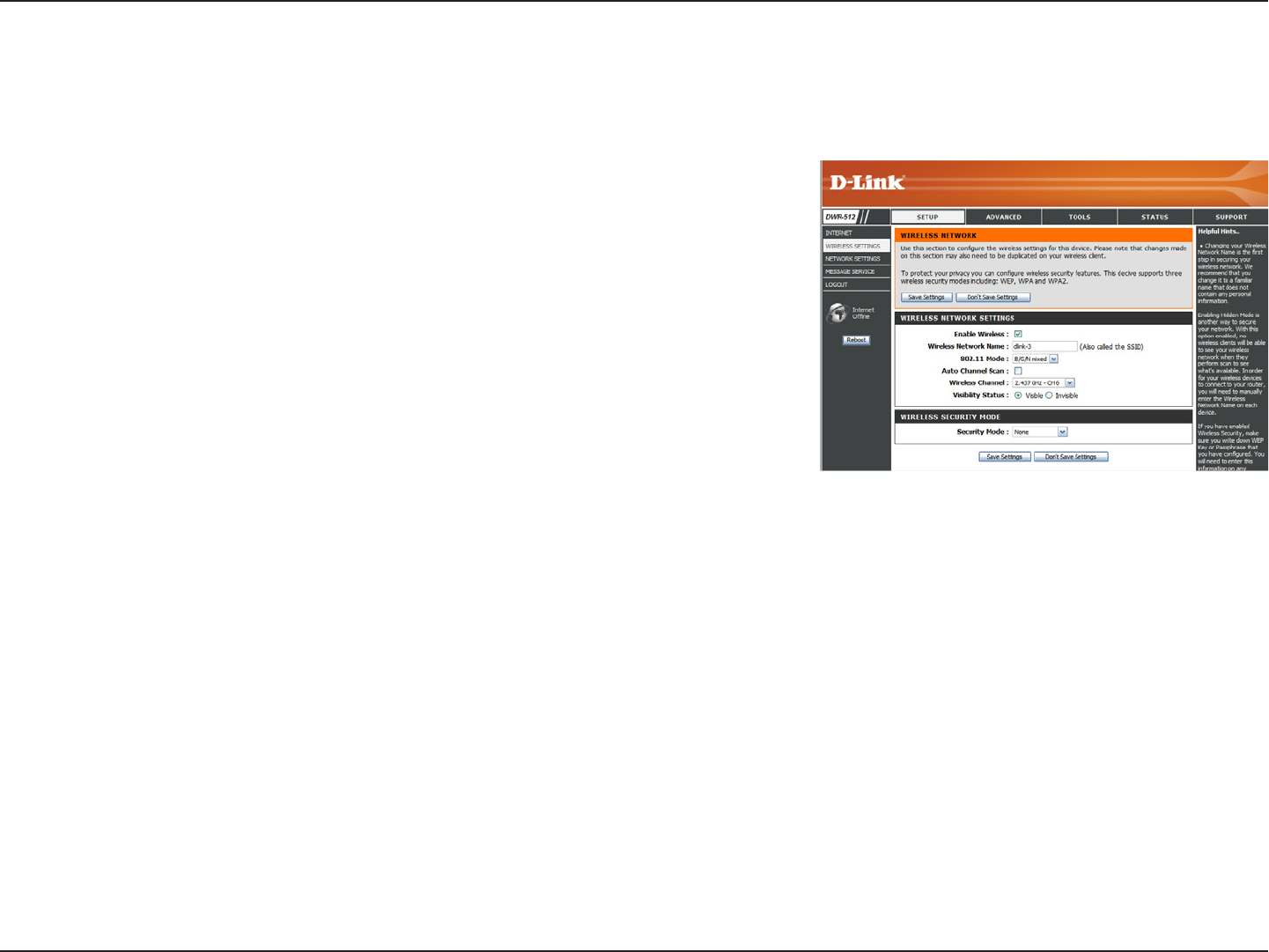

Wireless Settings .........................................24

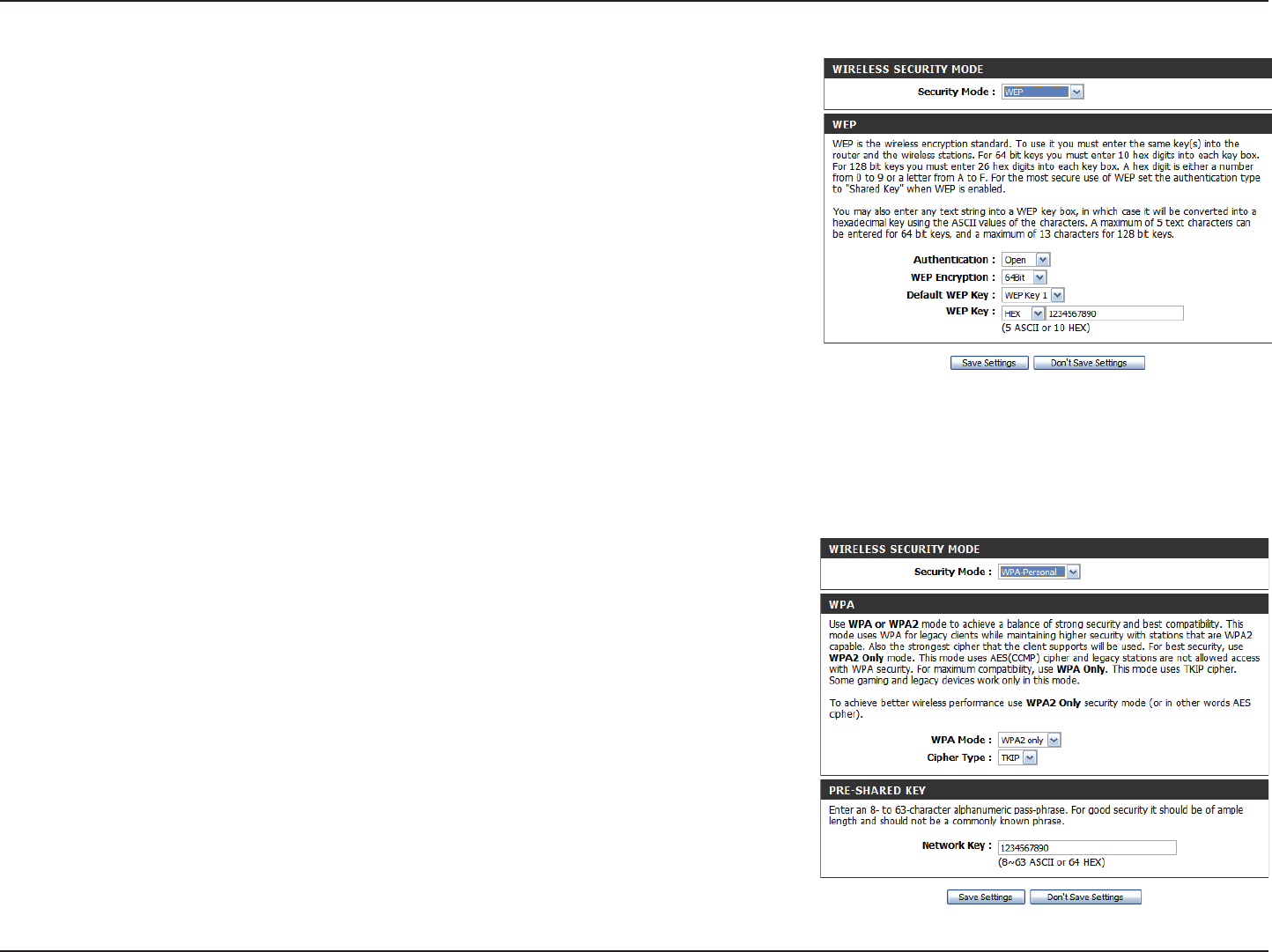

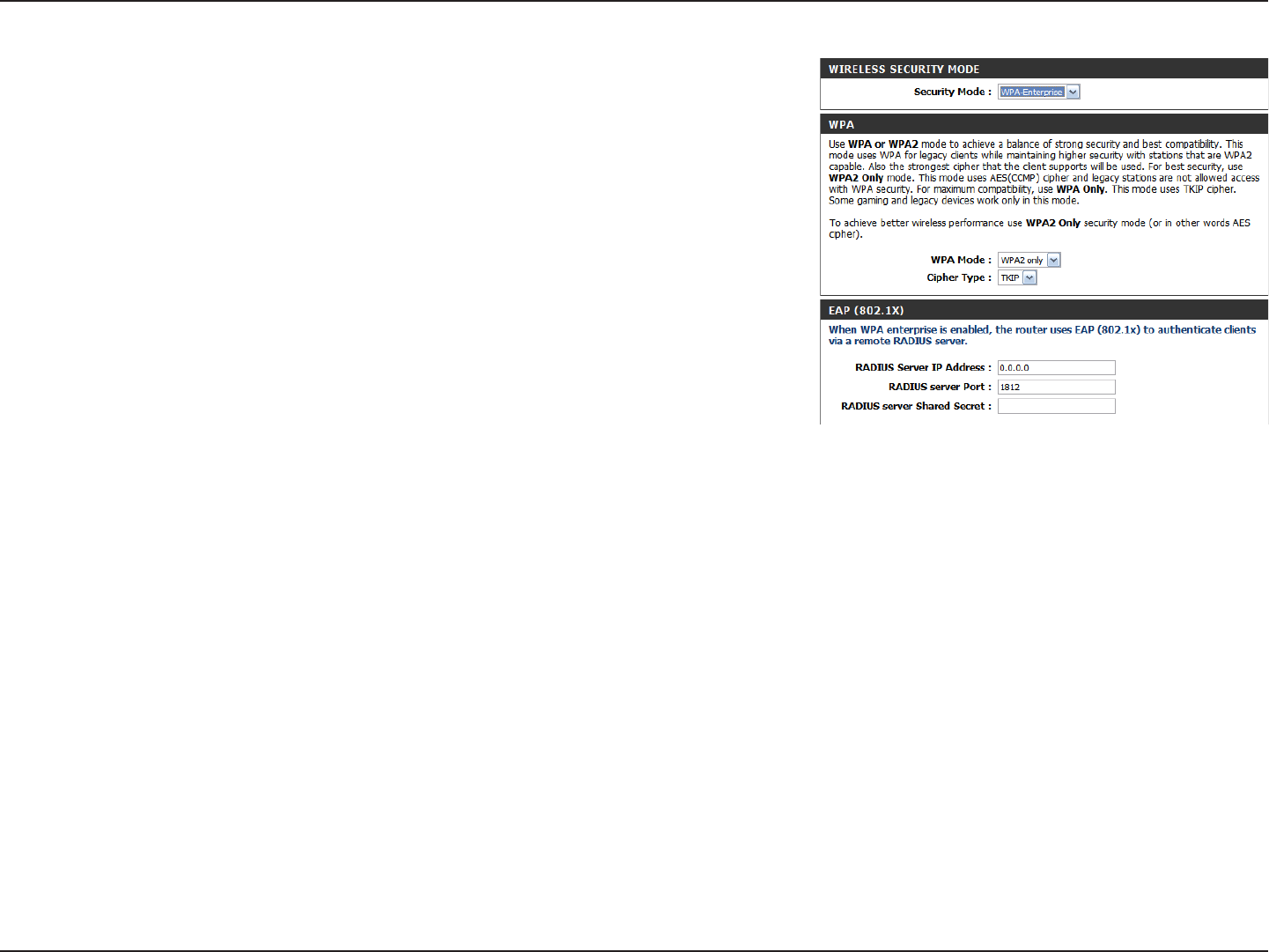

Wireless Security Mode ............................... 25

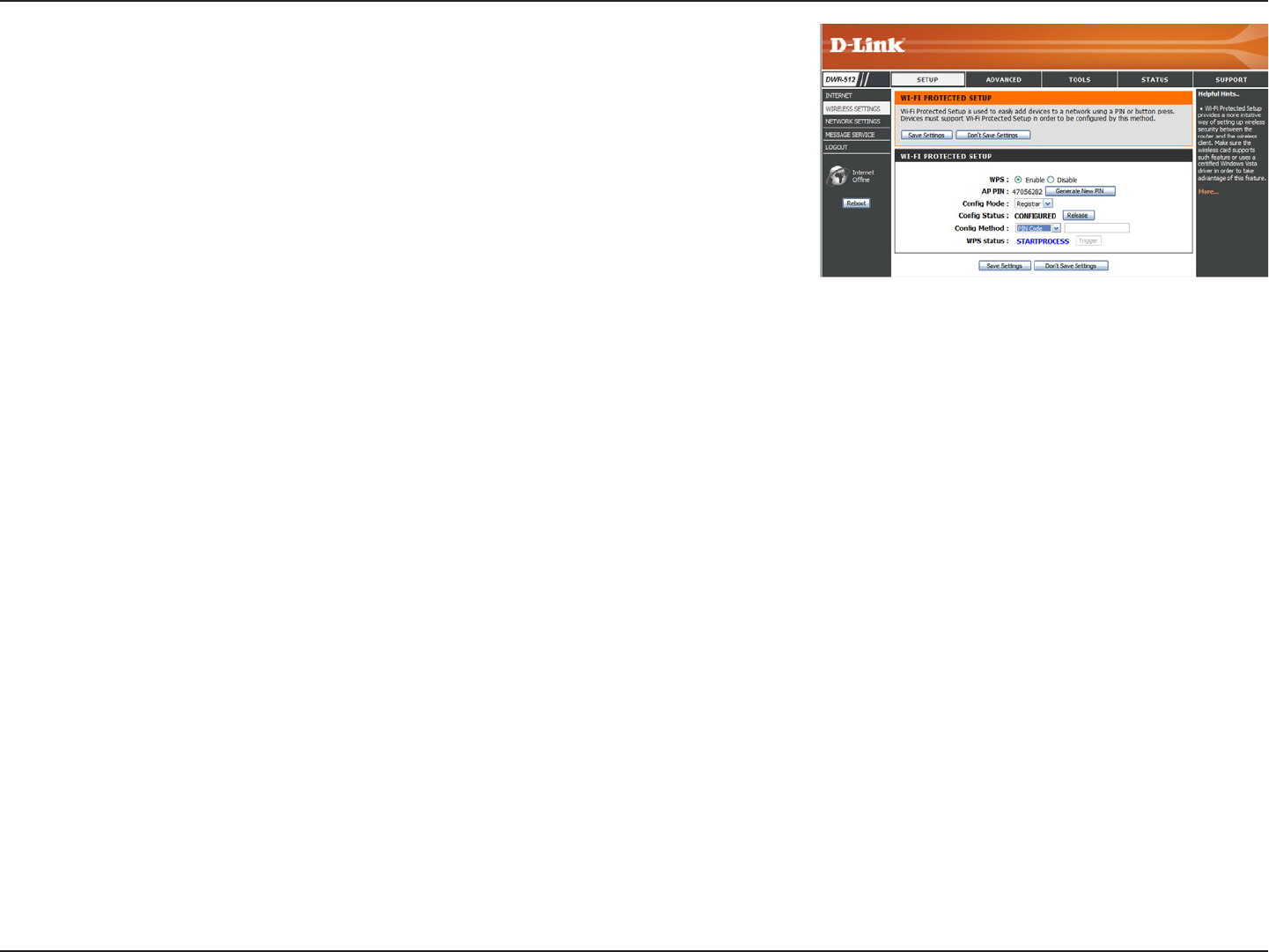

Wi-Fi Protected Setup ...................................... 28

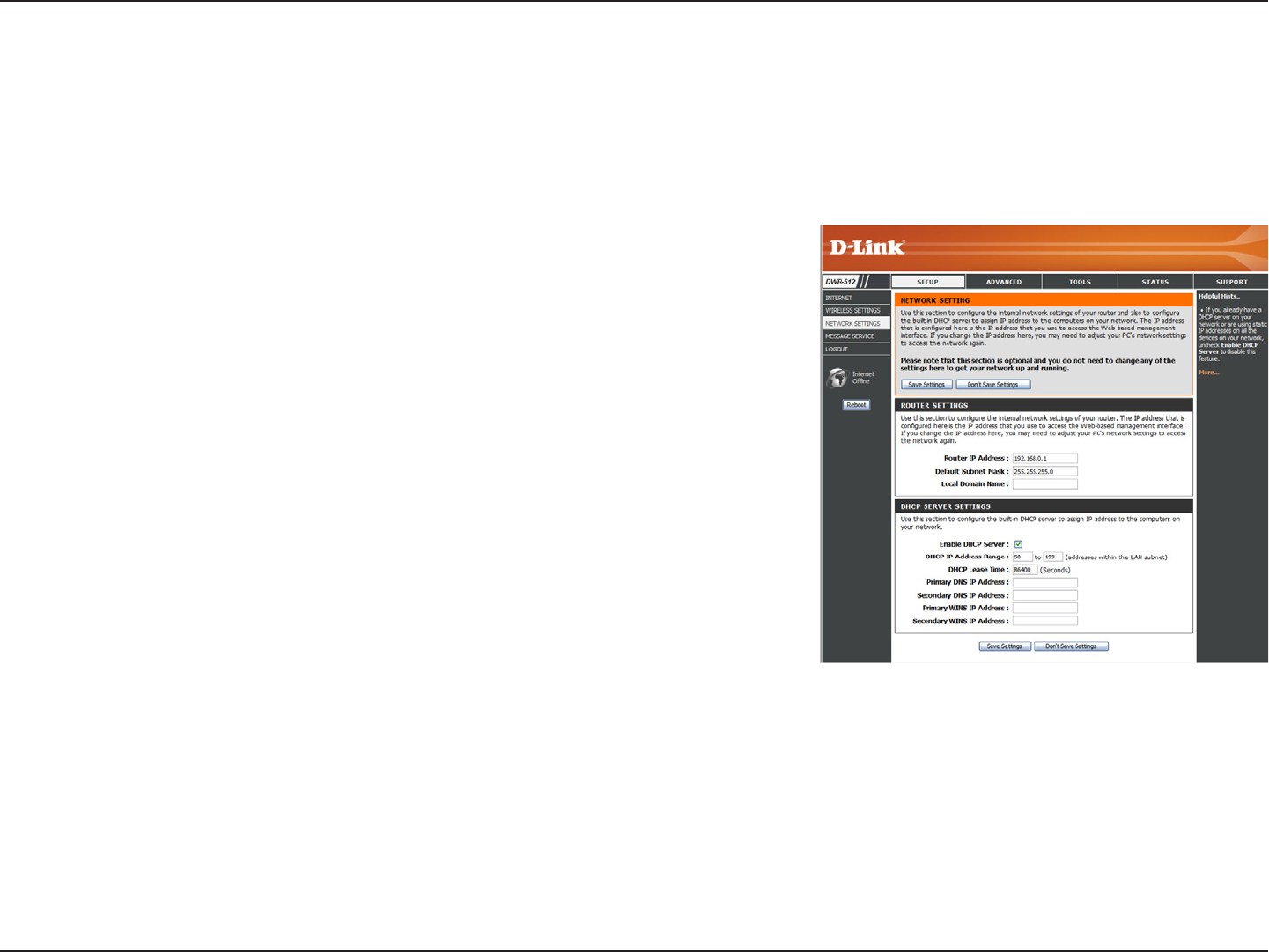

Network Settings .............................................. 30
Router Settings ............................................ 30

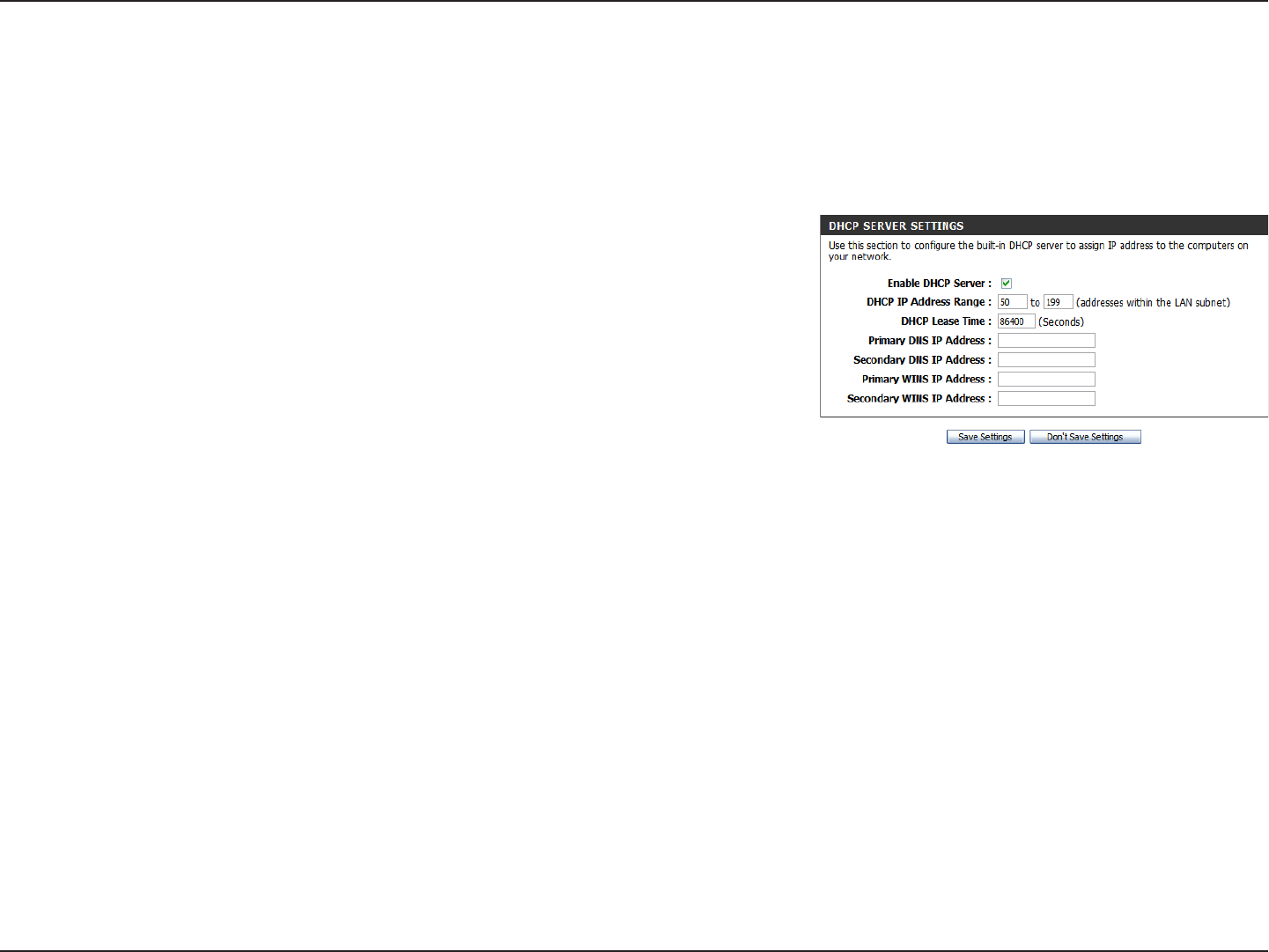

DHCP Server Settings .................................31

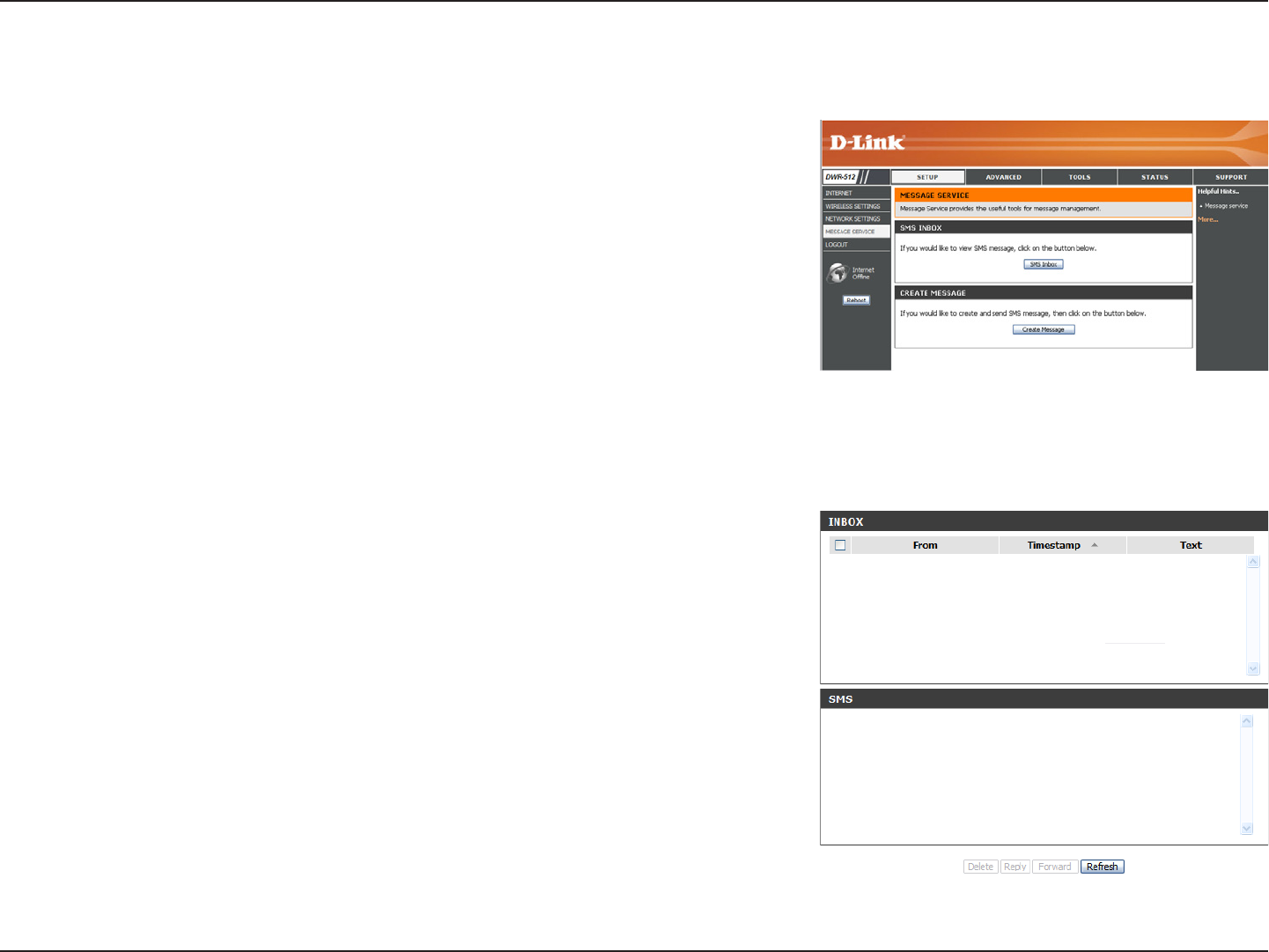

Message Service ............................................. 32
SMS Inbox .................................................... 32

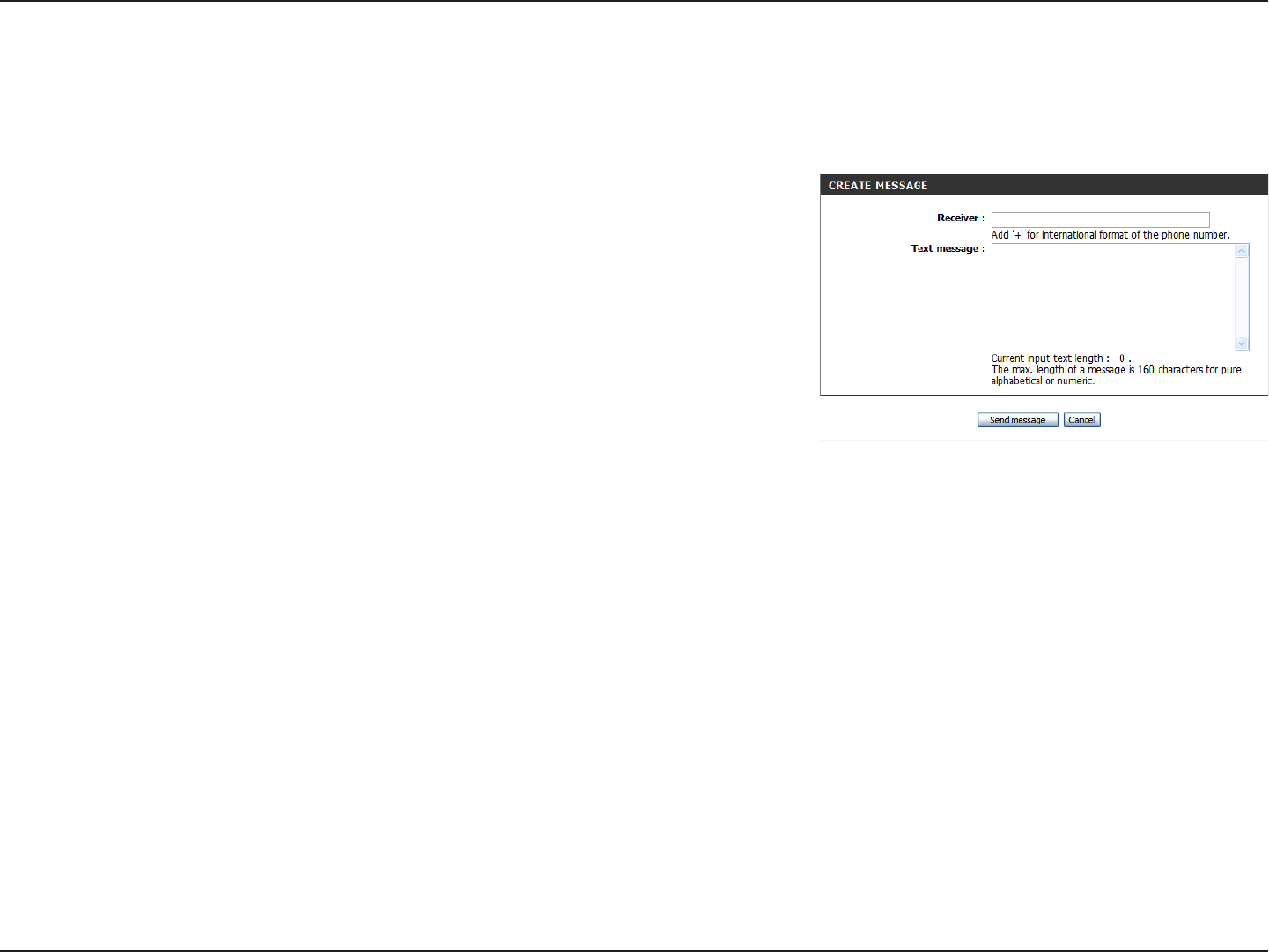

Create Message ........................................... 33
Advanced ...............................................................34

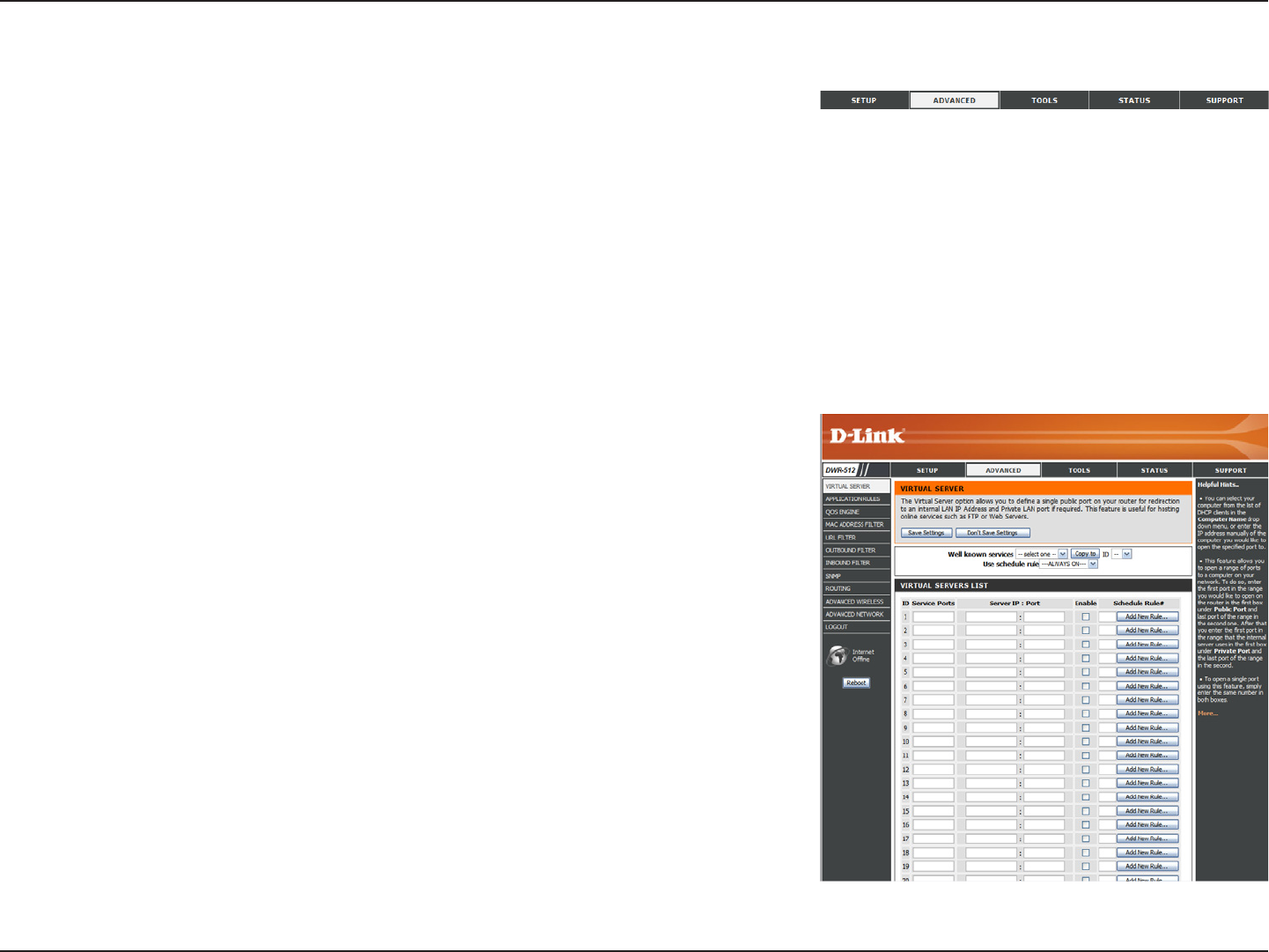

Virtual Server ................................................... 34

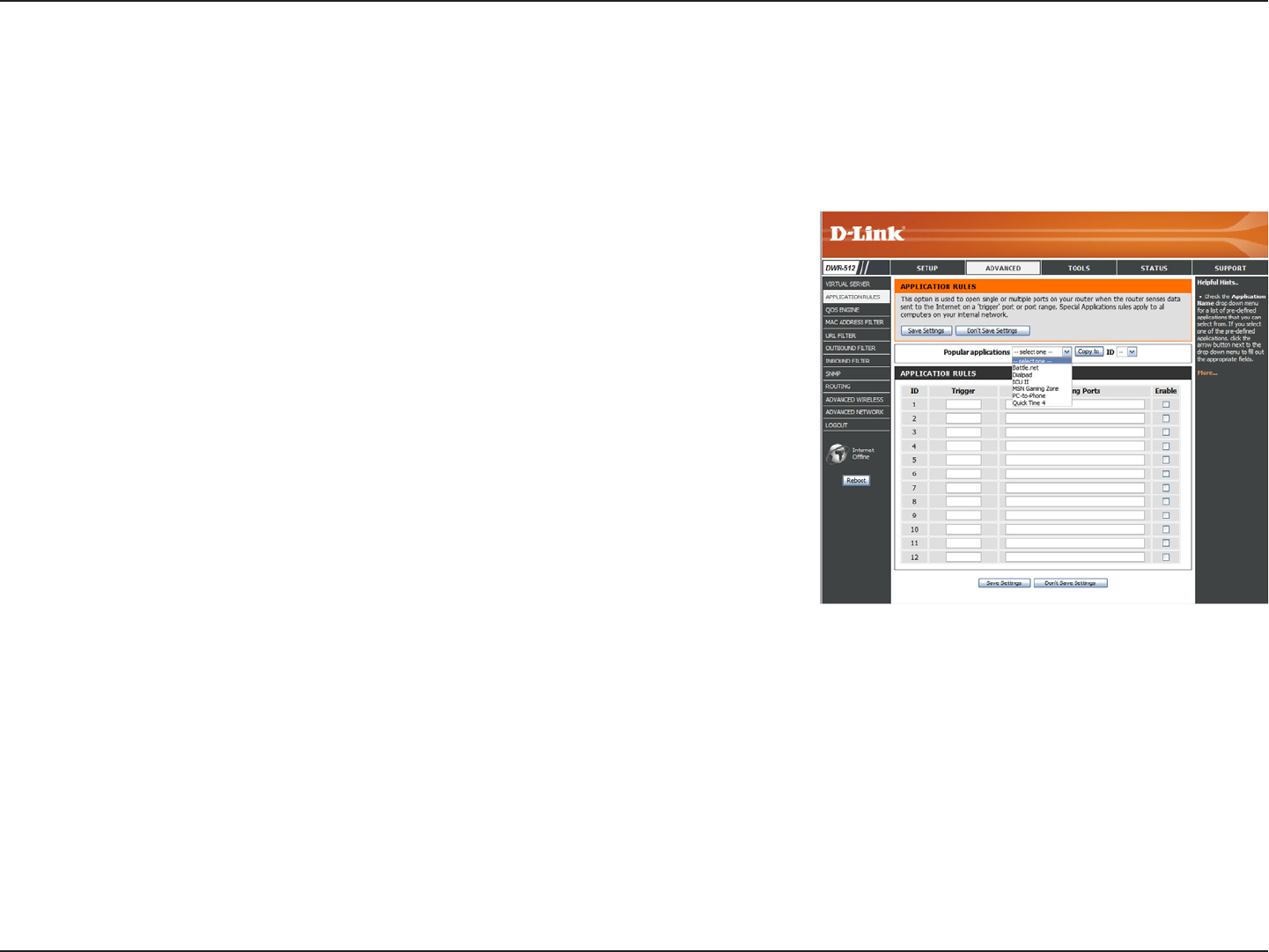

Application Rules ............................................. 36

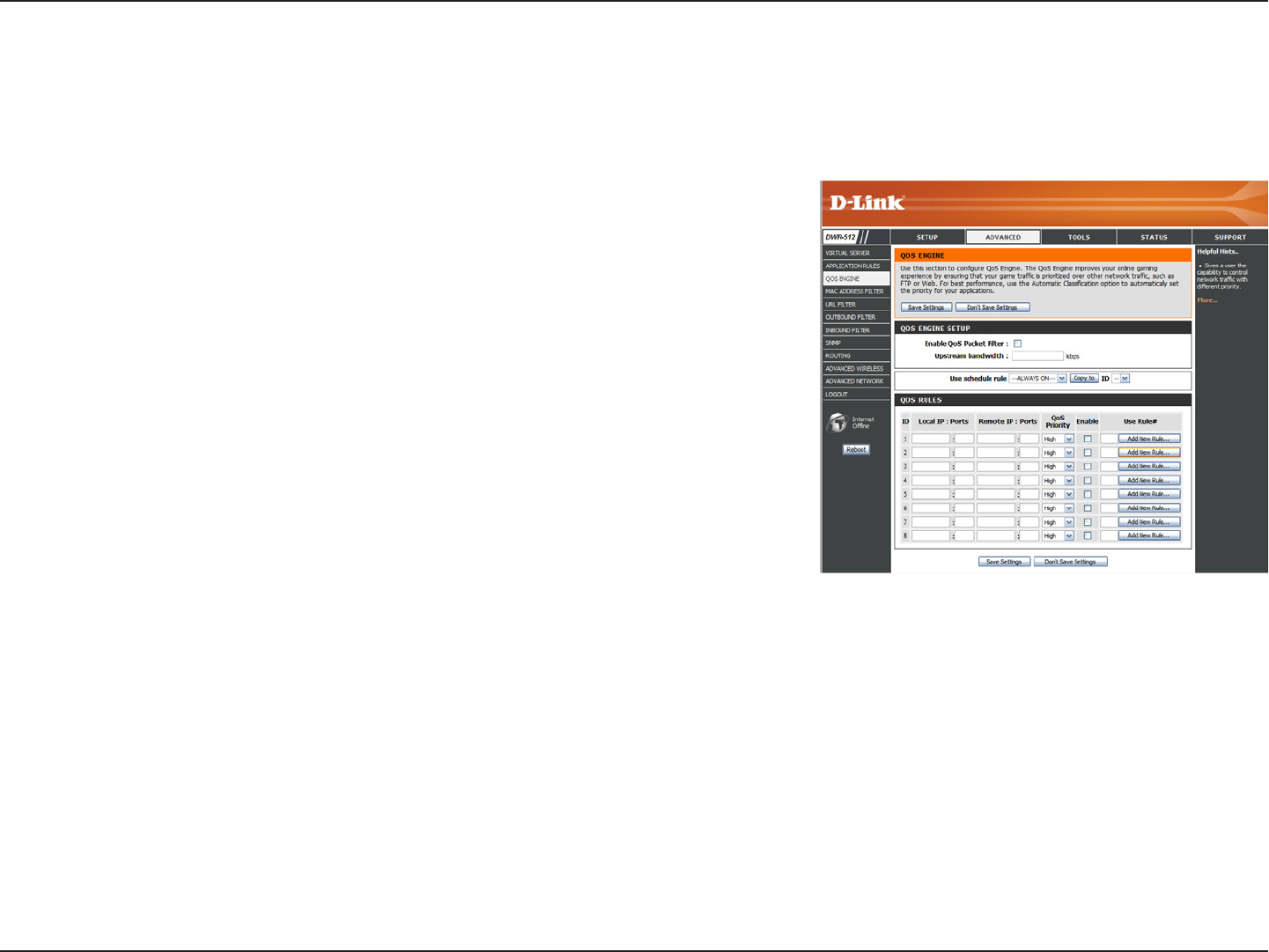

QoS Engine ..................................................... 37

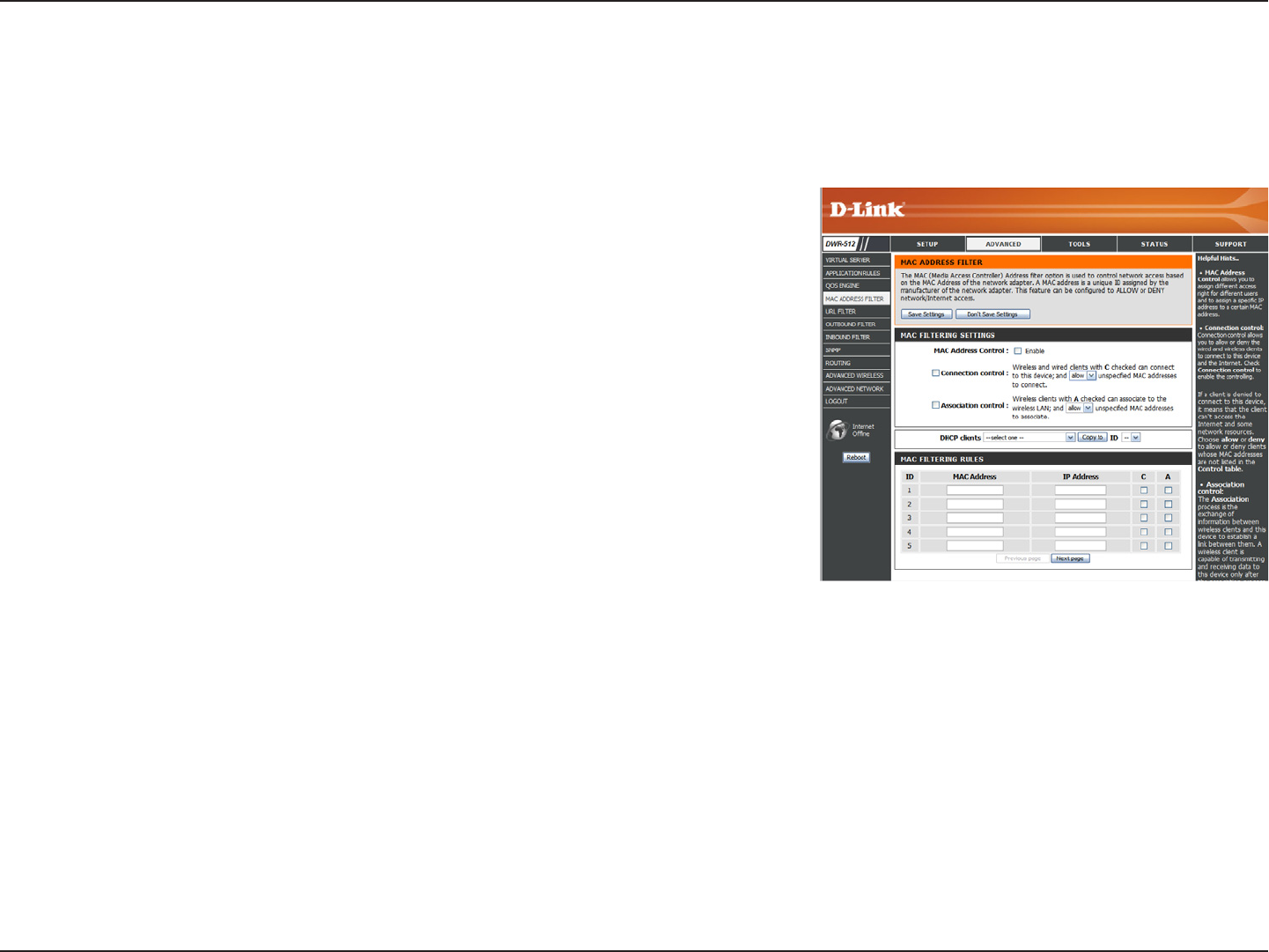

MAC Address Filter .......................................... 38

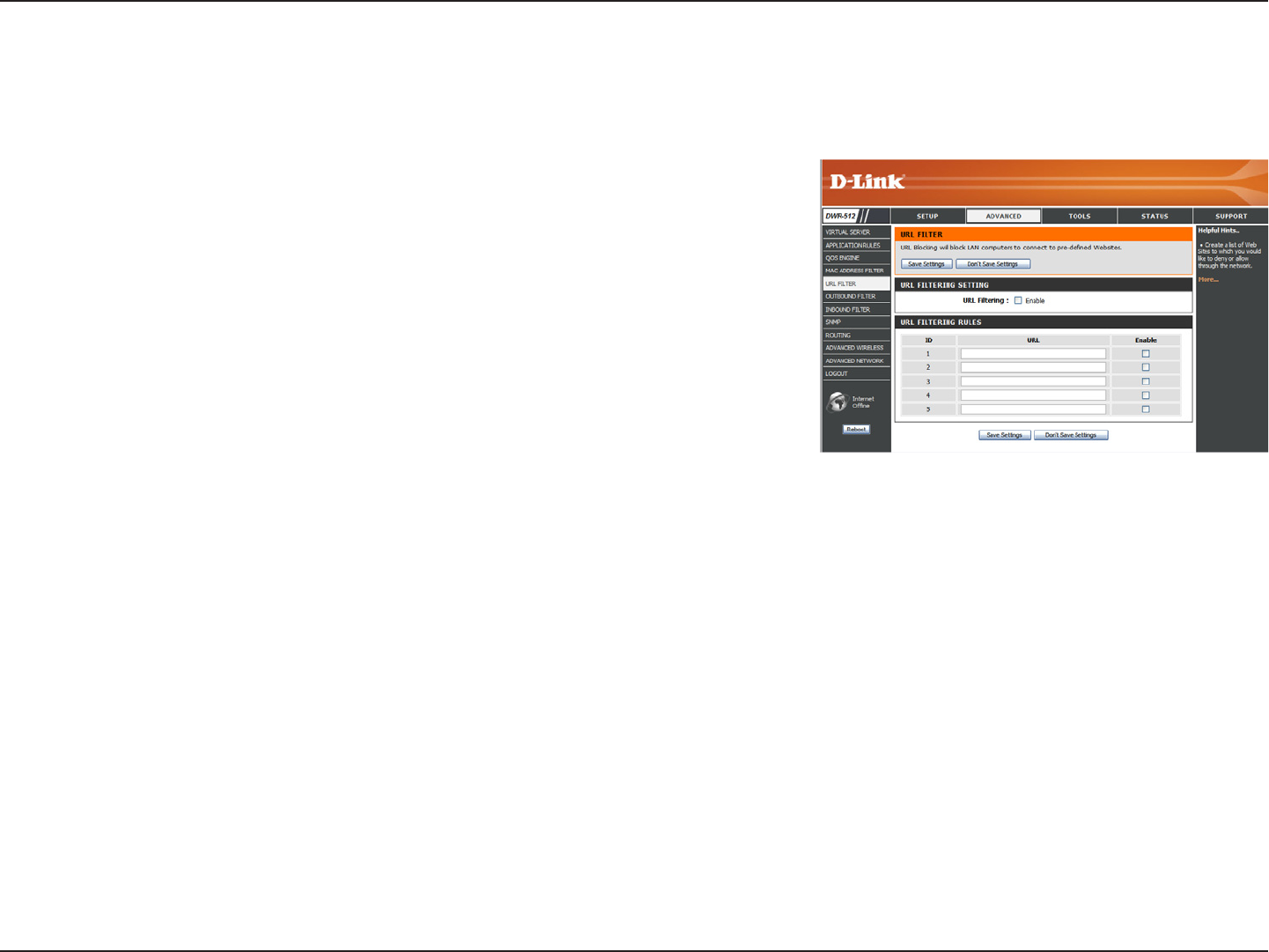

URL Filter ......................................................... 39

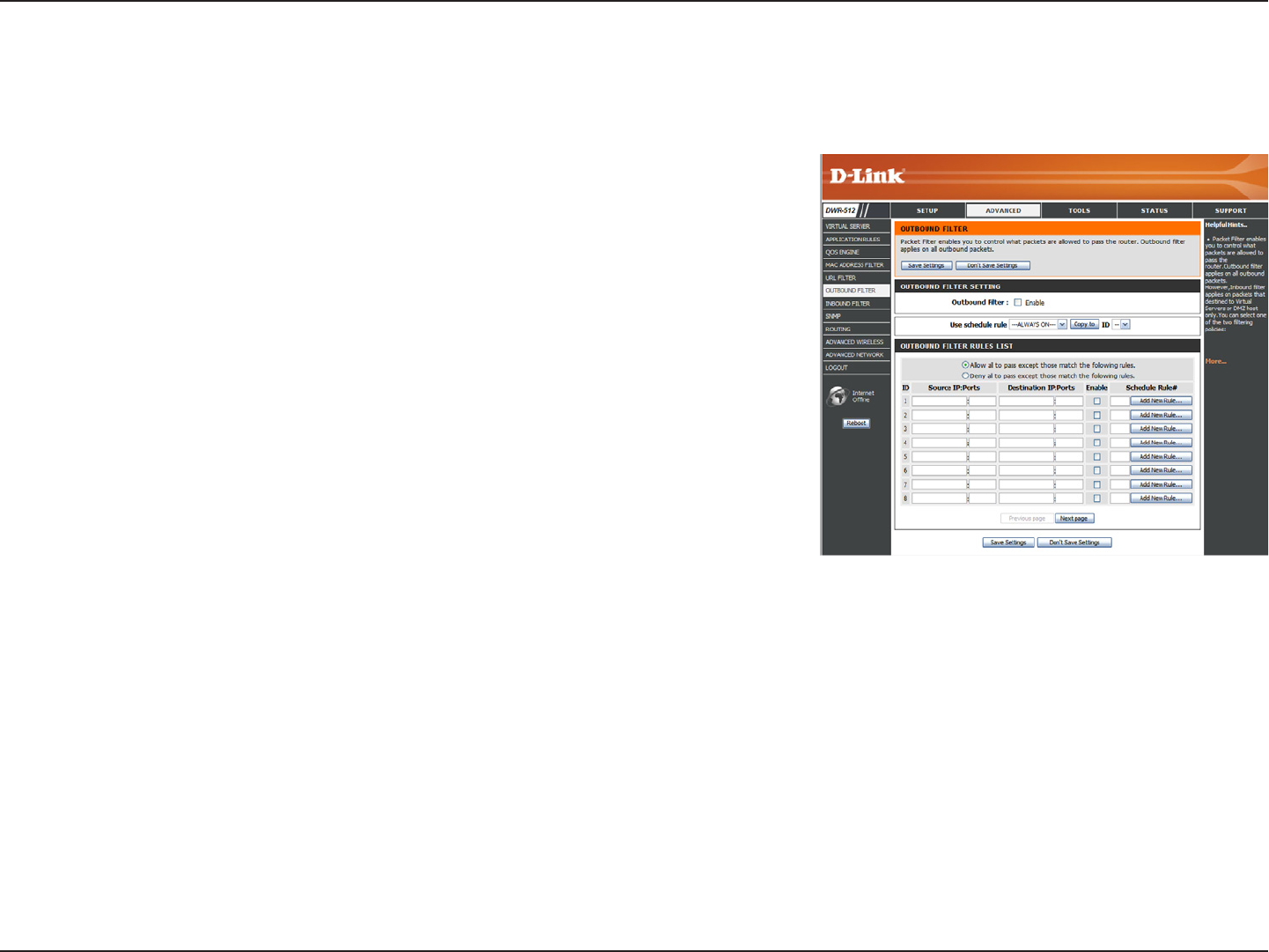

Outbound Filter ................................................ 40
Inbound Filter ................................................... 41

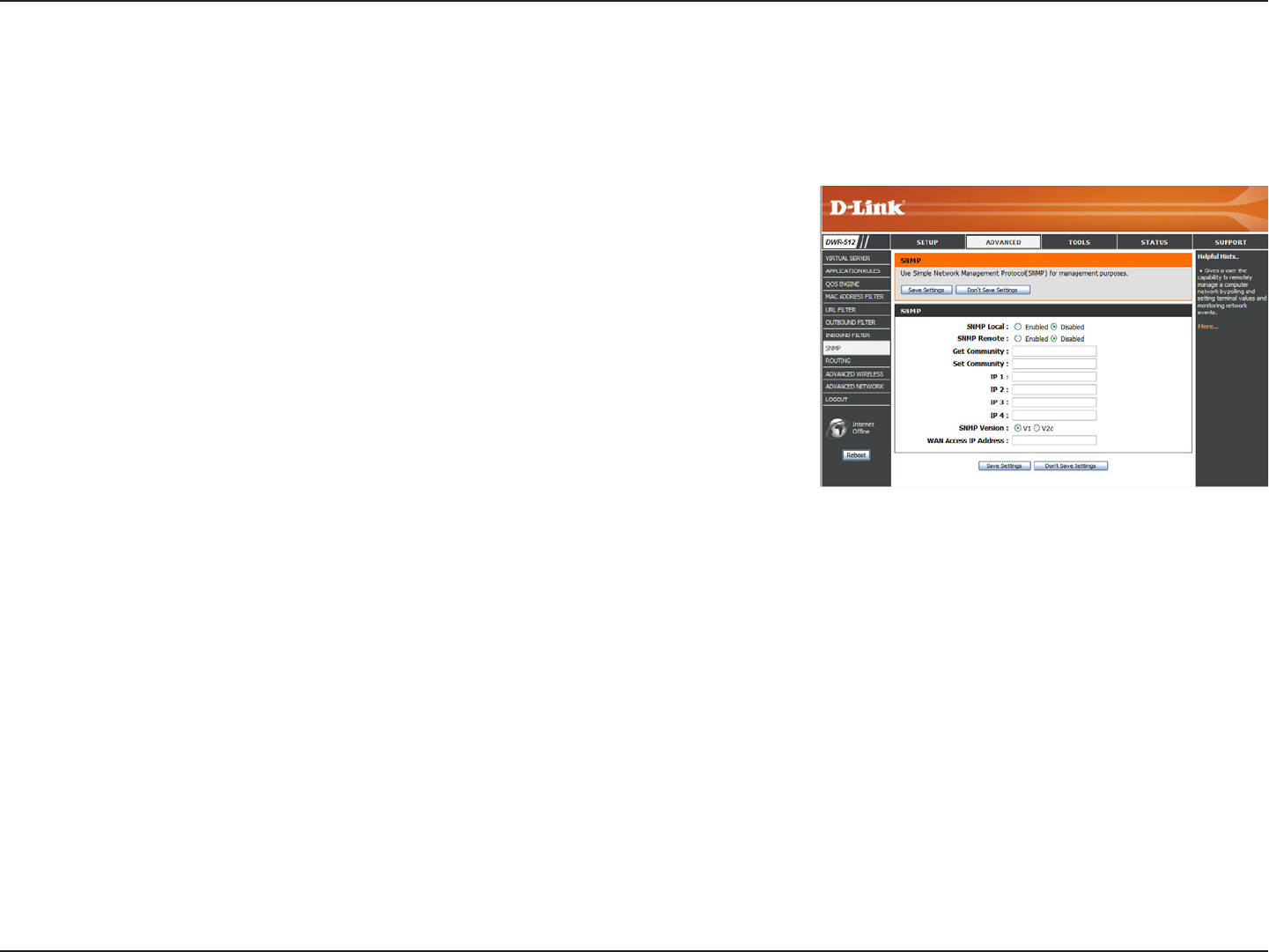

SNMP .............................................................. 42

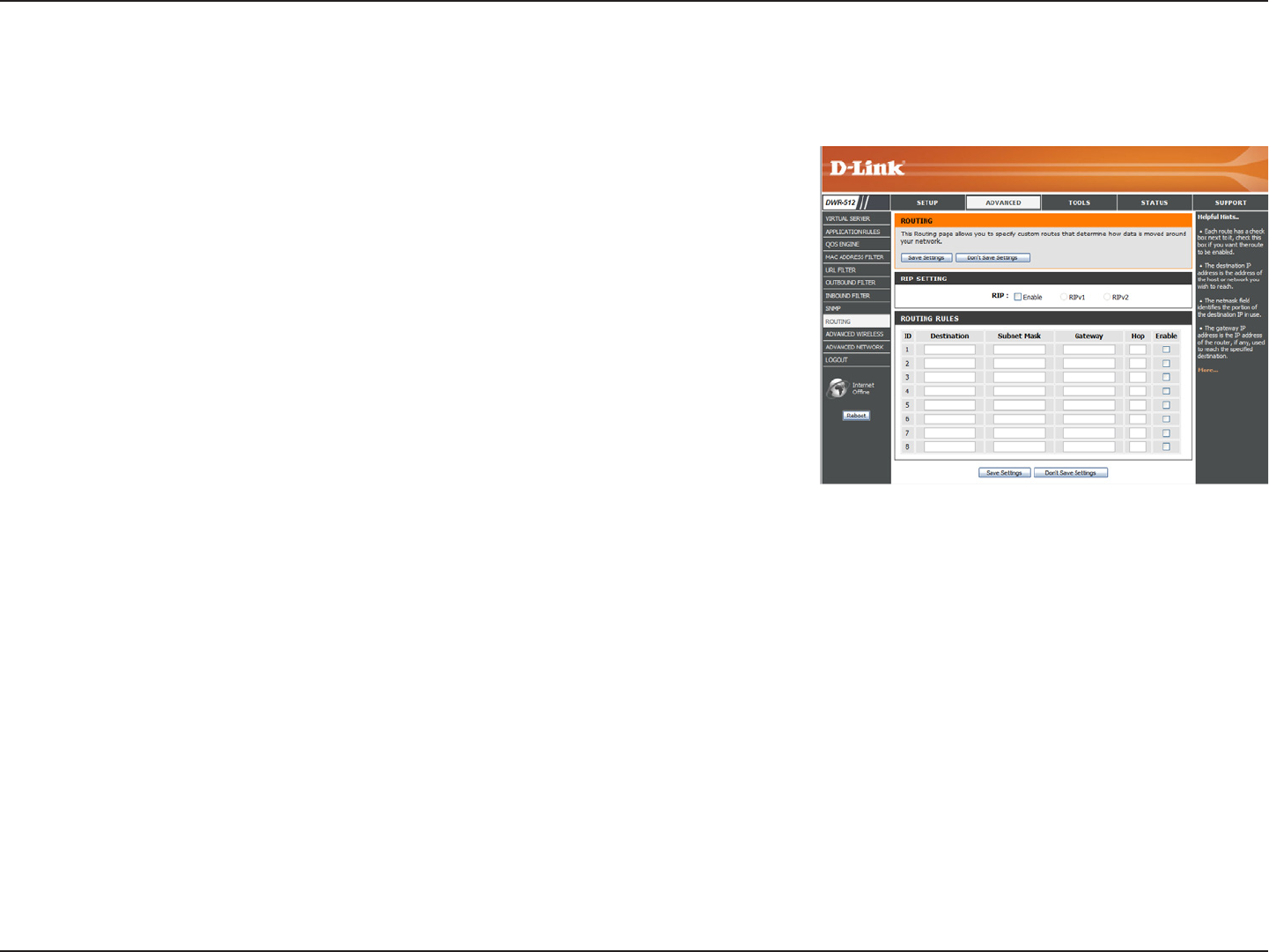

Routing ............................................................ 43
Table of Contents
ivD-Link DWR-512 User Manual
Table of Contents

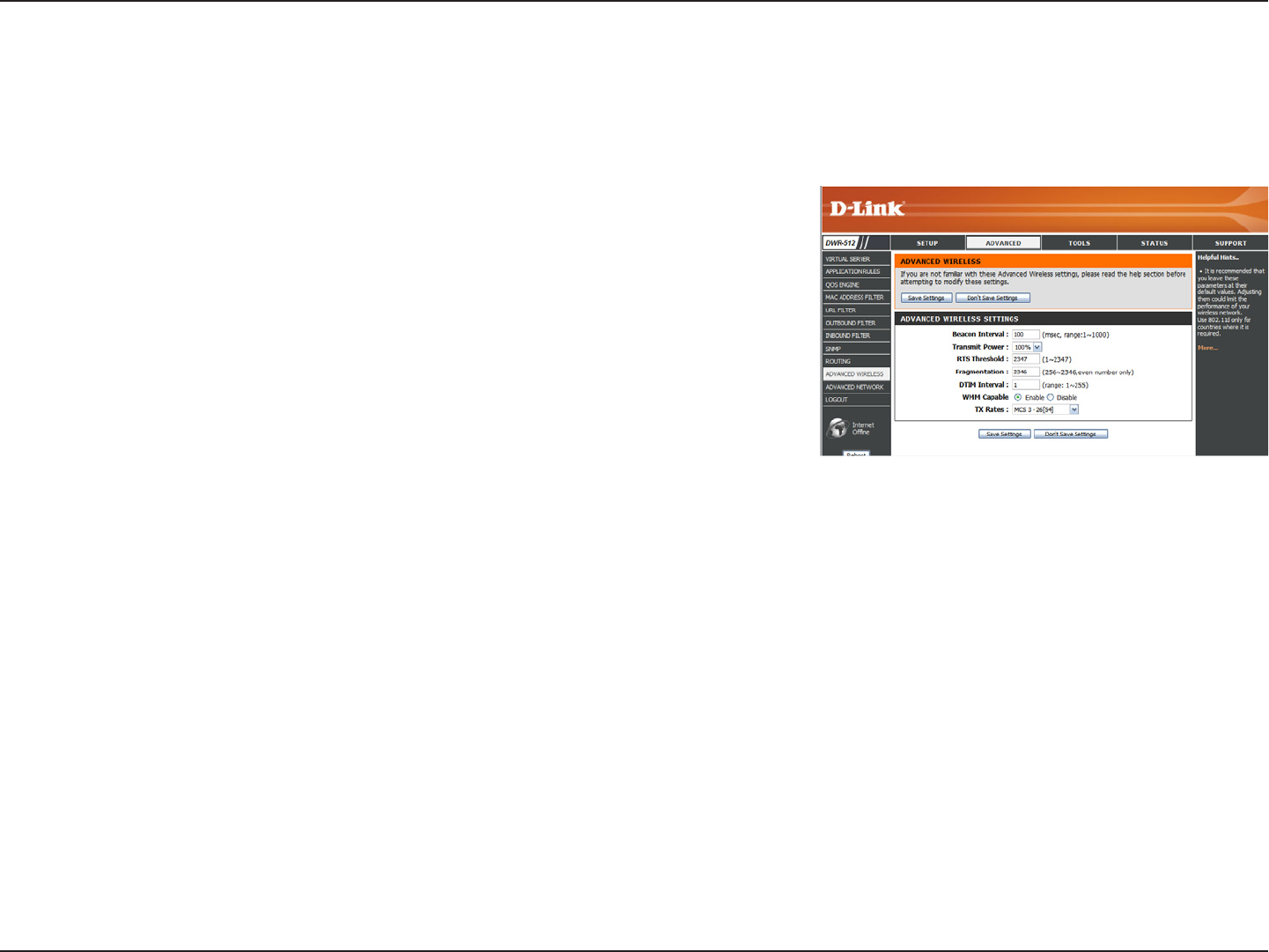

Advanced Wireless .......................................... 44
Advanced Network ........................................... 45
Tools ...................................................................... 46
Admin ............................................................... 46
Time ................................................................. 47
Syslog .............................................................. 48
E-mail Settings ................................................. 49
System ............................................................. 50
Firmware .......................................................... 51
Dynamic DNS .................................................. 52
System Check .................................................. 53
Schedules ........................................................ 54
Status .................................................................... 55
Device Info ....................................................... 55
Log ................................................................... 56
Statistics .......................................................... 57
Wireless ........................................................... 58
Support ..................................................................59
Connecting to a Wireless Network .......................... 60
Using Windows 7 ..................................................60
Conguring Wireless Security .......................... 62
Using Windows Vista™ ......................................... 65
Conguring Wireless Security .......................... 66
Using Windows® XP ............................................... 68
Congure WEP ................................................ 69
Congure WPA-PSK ........................................ 71
Troubleshooting ........................................................ 73
Wireless Basics ......................................................... 75
What is Wireless? ..................................................76
Tips ........................................................................78
Wireless Modes .....................................................79
Networking Basics .................................................... 80
Check your IP address .......................................... 80
Statically Assign an IP address ............................. 81
Technical Specications........................................... 82
1D-Link DWR-512 User Manual
Section 1 - Product Overview
• D-Link DWR-512 HSUPA 3G Router
• Power Adapter
• Manual and Warranty on CD
• 3G Antenna
Note: Using a power supply with a different voltage rating than the one included with the DWR-512 will cause damage and void the
warranty for this product.
System Requirements
• A compatible (U)SIM card with service.*
• Computers with Windows®, Macintosh®, or Linux-based operating system with an installed Ethernet adapter
• Internet Explorer 6 or Netscape Navigator™ Version 6.0 and above (for conguration)
*Subject to services and service terms available from your carrier.
Product Overview
Package Contents
2D-Link DWR-512 User Manual
Section 1 - Product Overview
Introduction
The D-Link HSUPA 3G Router allows users to access worldwide mobile broadband networks. Once connected,
users can transfer data, stream media, send SMS messages, and make mobile phone calls. Simply insert your
UMTS/HSUPA SIM card, and share your 3G Internet connection through a secure 802.11n wireless network or
using any of the four 10/100 Ethernet ports.
While accessing your 3G Internet connection, you will still have the ability to answer incoming mobile calls and
respond to SMS messages. An RJ-11 jack allows you to attach a standard analog phone for high-quality mobile
calls over a GSM network. Enjoy the comfort and convenience of your favorite ofce phone anywhere you go.
Keep your wireless network safe with WPA/WPA2 wireless encryption. The DWR-512 utilizes dual-active rewalls
(SPI and NAT) to prevent potential attacks across the Internet, and includes MAC address ltering to control access
to your network.
The HSUPA 3G Router can be installed quickly and easily almost anywhere. This router is great for situations
where an impromptu wireless network must be set up, or wherever conventional network access is unavailable. The
DWR-512 can even be installed in buses, trains, or boats, allowing passengers to check e-mail or chat online while
commuting.
3D-Link DWR-512 User Manual
Section 1 - Product Overview
Hardware Overview

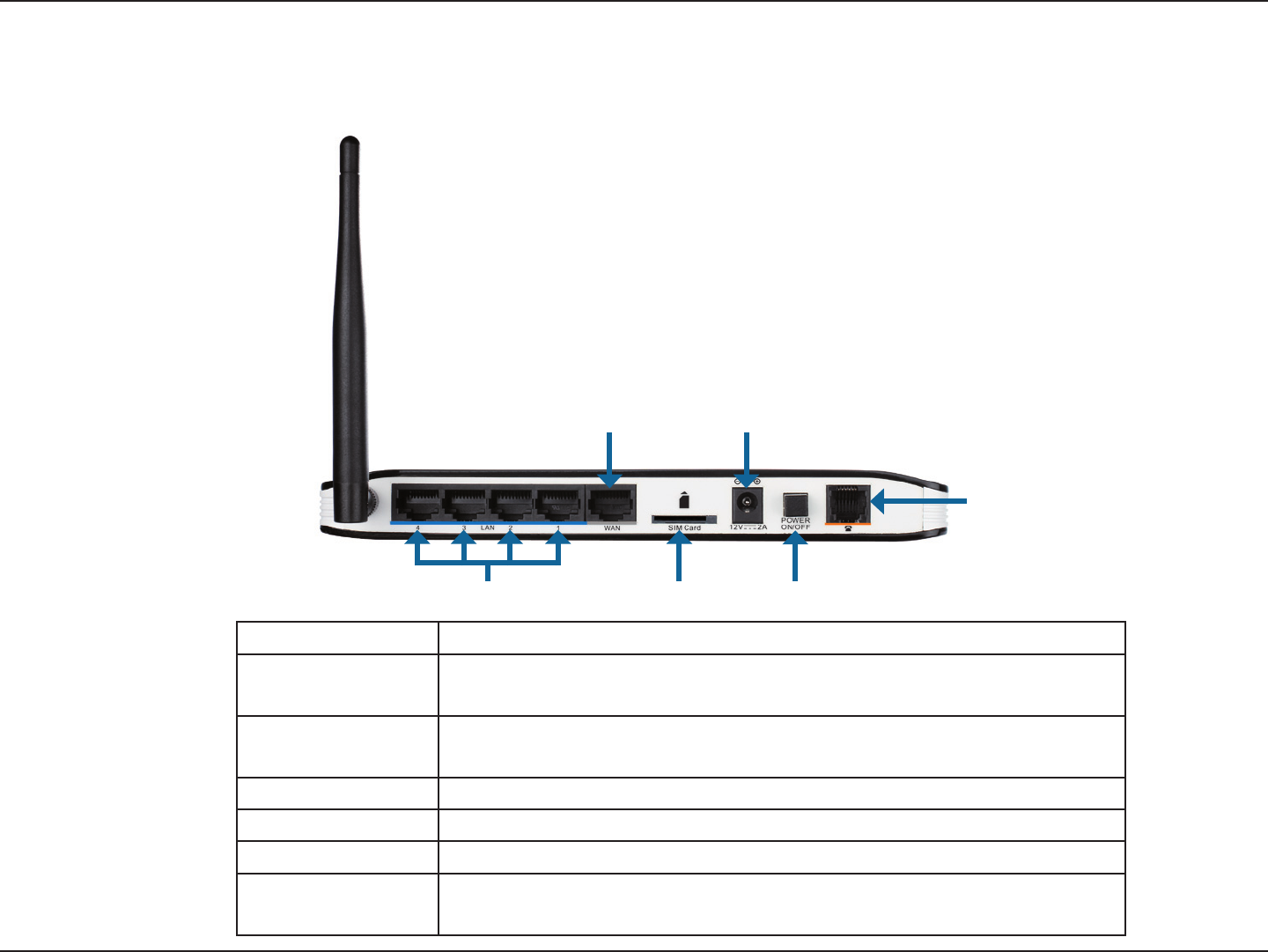

Rear Panel
Port Function
LAN Ports
(RJ-45)
Connects to a network device such as a desktop or notebook
computer through an Ethernet cable.
WAN (RJ-45) Connects to a DSL/Cable modem or router through an
Ethernet cable.
SIM Accepts a standard (U)SIM card for 3G connectivity.
Power Connects to the included power adapter.
Power Switch Turns the device on or off.
Phone (RJ-11) Connects to a telephone through a standard RJ-11 telephone
cable.
LAN Ports
Power ConnectorWAN Port
SIM Card Slot Power Switch
Phone Jack
4D-Link DWR-512 User Manual
Section 1 - Product Overview
Hardware Overview

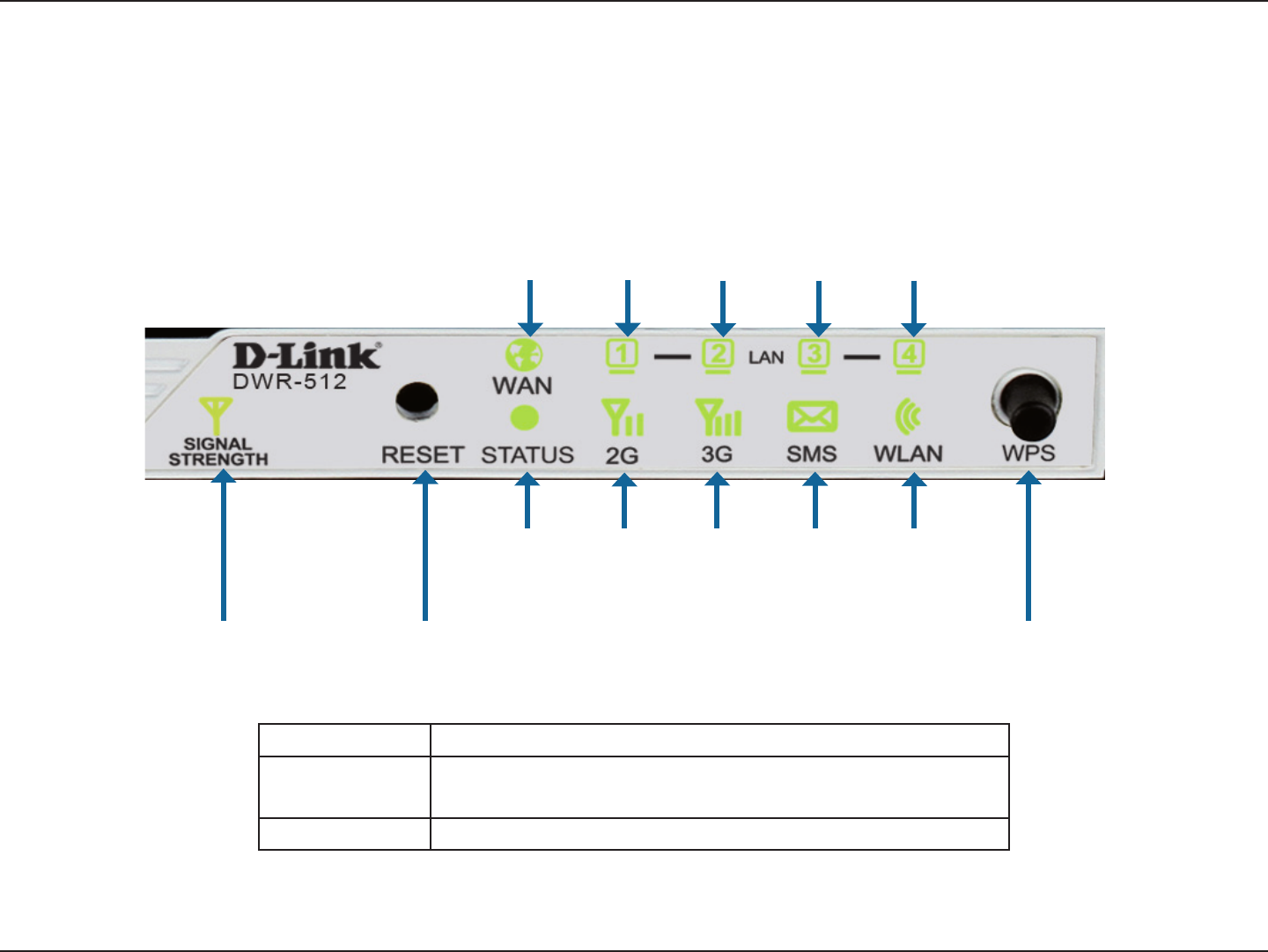

Front Panel
Status 2G 3G SMS WLAN
WAN LAN1 LAN2 LAN3 LAN4
Signal Strength Reset Button WPS Button
Button Name Function
Reset Press this button with an unfolded paperclip to
reset the device.
WPS Press this button to initiate a new WPS connection.
5D-Link DWR-512 User Manual
Section 1 - Product Overview
LED Name Function
Status Blinking Green: Device is working
WAN Solid Green: Ethernet connection has been established
Blinking Green: Data is being transferred
LAN 1-4 Solid Green: Ethernet connection has been established
Blinking Green: Data is being transferred
Signal
Strength
Blinking Red: No SIM card / signal or unveried PIN code
Solid Red: Signal strength is at level one (weak)
Solid Amber: Signal strength is at level two or three (medium)
Solid Green: Signal strength is at level four or ve (strong)
WPS Slow Blinking Green: WPS is functioning normally
Fast Blinking Green: WPS is functioning in PBC mode
2G Solid Green: EDGE or GPRS connection has been established
Blinking Green: Data is being transferred via 2G/2G
3G Solid Green: UMTS/HSDPA/HSUPA connection is established
Blinking: Data is being transferred via 2G
SMS Solid Green: SMS storage is full
Blinking Green: There is an unread SMS message
WLAN Solid Green: WLAN is active and available
Blinking Green: Data is being transferred over the WLAN
Hardware Overview
LEDs
6D-Link DWR-512 User Manual
Section 2 - Installation
Connect to Your Network
Installation
This section will guide you through the installation process. Placement of the router is very important. Do not place the router in an enclosed
area such as a closet, cabinet, or in an attic or garage.
1. Ensure that your DWR-512 HSUPA 3G Router is disconnected and powered off.
2. Insert a standard (U)SIM card into the SIM card slot on the back of the router as indicated by the SIM card logo next to the slot. The
gold contacts should face downwards.
Caution:Always unplug/power down the router before installing or removing the SIM card. Never insert or remove the SIM card while
the router is in use.
3. Insert your Internet/WAN network cable into the WAN port on the back of the router.
Note: The 3G connection can also be used as a backup WAN. Once a backup is congured, the router will automatically use 3G for the
Internet connection if the Ethernet WAN is not available.
4. Insert the Ethernet cable into the LAN Port 1 on the back panel of the DWR-512 HSUPA 3G Router and an available Ethernet port on
the network adapter in the computer you will use to congure the router.
Note:The DWR-512 HSUPA 3G Router LAN Ports are Auto-MDI/MDIX, so both patch and crossover Ethernet cables can be used.
5. Connect the power adapter to the socket on the back panel of your DWR-512 HSUPA 3G Router. Plug the other end of the power
adapter into a wall outlet or power strip and turn the device on.
a. The Status LED will light up to indicate that power has been supplied to the router.
b. The LEDs on the front panel will ash on and off as the DWR-512 HSUPA 3G Router performs initialization and Internet connection
processes.
c. After a few moments, if a connection has been established, the following LEDs will turn solid green: Power, Status, WAN, WLAN,
and any LAN Port LEDs that are connected computers or other devices.
7D-Link DWR-512 User Manual
Section 2 - Installation

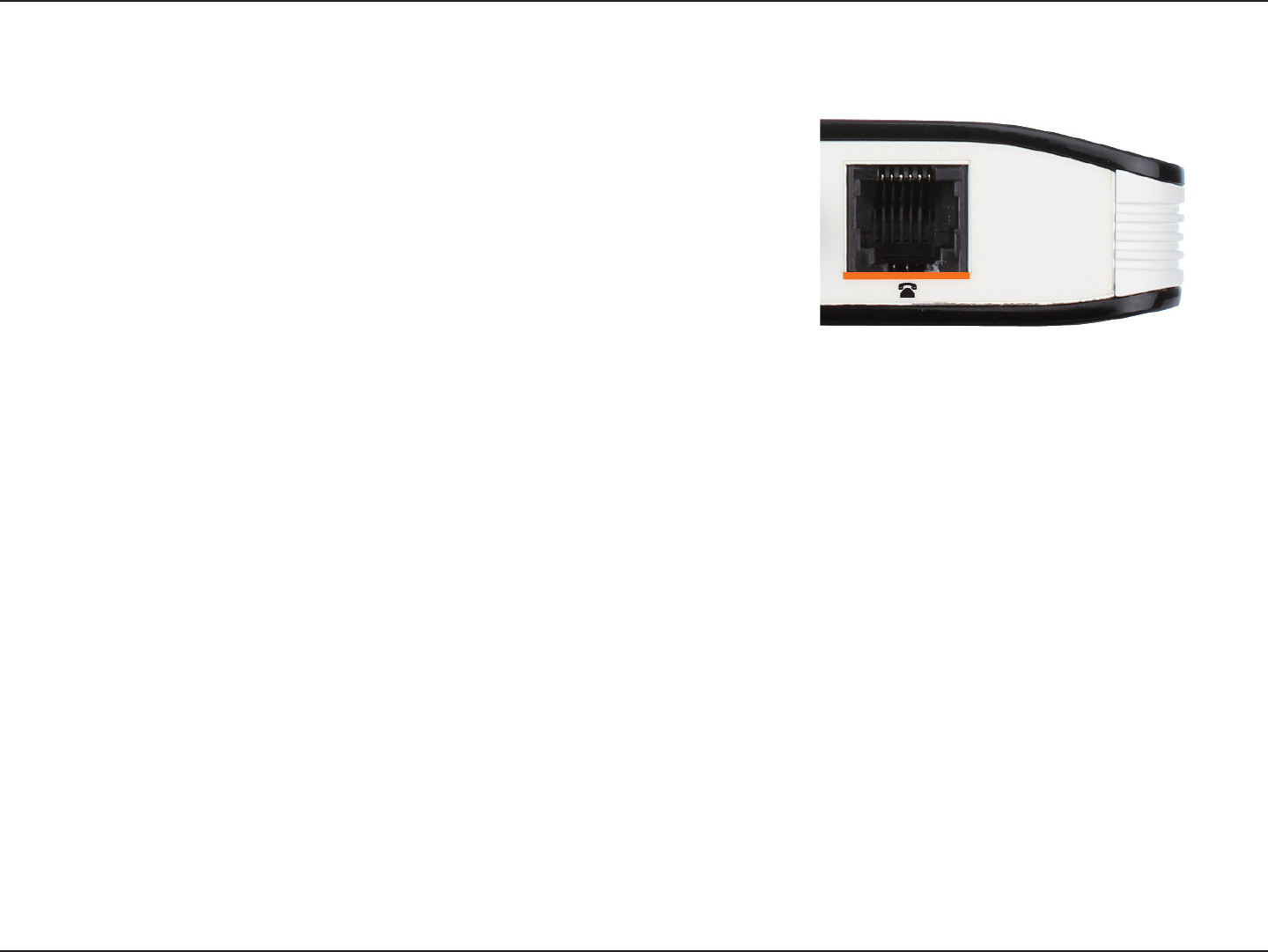

Connect a Telephone
The RJ-11 jack on the back of the router allows you to connect a standard analog
telephone for voice calls.
Simply plug the phone cable into the RJ-11 jack.
You can then use your handset to dial out as you typically would with a standard landline
phone.
Your attached phone will also ring for any incoming voice calls.
Note: Calls made will be charged at a rate determined by your mobile service provider.
8D-Link DWR-512 User Manual
Section 2 - Installation
Wireless Installation Considerations
The DWR-512 can be accessed using a wireless connection from virtually anywhere within the operating range of your wireless network.
Keep in mind that the quantity, thickness, and location of walls, ceilings, or other objects that the wireless signals must pass through may
limit the range of the wireless signal. Ranges vary depending on the types of materials and background RF (radio frequency) noise in your
home or ofce. The key to maximizing the wireless range is to follow these basic guidelines:
1. Minimize the number of walls and ceilings between the D-Link router and other network devices. Each wall or ceiling can reduce your
adapter’s range from 3 to 90 feet (1 to 30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree angle appears to be
almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick. Position devices so that the signal will travel
straight through a wall or ceiling (instead of at an angle) for better reception.
3. Try to position access points, wireless routers, and computers so that the signal passes through open doorways and drywall. Materials
such as glass, metal, brick, insulation, concrete, and water can affect wireless performance. Large objects such as sh tanks, mirrors,
le cabinets, metal doors, and aluminum studs may also have a negative effect on range.
4. If you are using 2.4 GHz cordless phones, make sure that the 2.4 GHz phone base is as far away from your wireless device as possible.
The base transmits a signal even if the phone is not in use. In some cases, cordless phones, X-10 wireless devices, and electronic
equipment such as ceiling fans, uorescent lights, and home security systems may dramatically degrade wireless connectivity.
9D-Link DWR-512 User Manual
Section 3 - Conguration
Conguration
This section will show you how to congure your new D-Link mobile router using the web-based conguration utility.
Web-based Conguration Utility
To access the conguration utility, open a web-browser such as Internet Explorer and
enter the IP address of the router (192.168.0.1 by default).
To log in to the conguration utility, enter admin as the username, and then enter the
password. By default, the password is blank.
If you get a Page Cannot be Displayed error, please refer to the Troubleshooting
section for assistance.
The conguration utility will open to the STATUS > DEVICE INFO page. You can view
different conguration pages by clicking on the categories at the top of the screen
(SETUP/ADVANCED/TOOLS/STATUS/SUPPORT), and then selecting a conguration
page from the bar on the left side.
The following pages will describe each section in detail, starting with the SETUP pages.
10D-Link DWR-512 User Manual
Section 3 - Conguration
Setup
This wizard will guide you through a step-by-step process to congure your D-Link router
to connect to the Internet.
Click Next to continue.
Note: While using the wizard, you can click Prev to go back to the previous page or
you can click Cancel to close the wizard.
Internet Connection Setup Wizard
The SETUP pages allow you to congure your Internet and wireless settings, as well
as manage your SMS inbox. To view the Setup conguration pages, click on SETUP at
the top of the screen.
The Internet page allows you to congure how your router connects to the Internet. There
are two ways to set up your Internet connection.
You can click on the Internet Connection Setup Wizard button to start a wizard that
will guide you through setting up your Internet settings.
If you want to manually congure your settings, click Manual Internet Connection Setup
and skip to “Manual Internet Connection Setup” on page 13.
Internet
11D-Link DWR-512 User Manual
Section 3 - Conguration
Create a new password and then click Next to continue.
Select the Internet connection type you use. The connection types are explained on the
following page. If you are unsure which connection type you should use, contact your
Internet Service Provider (ISP).
Click Prev to go back to the previous page or click Cancel to close the wizard.
Note: The DWR-512 has a WAN Failover feature that allows the router to switch to a
3G connection if the WAN connection is down or unavailable. To congure this
feature, please refer to “Internet Connection” on page 13.
Select your time zone from the drop-down box and then click Next to continue.
12D-Link DWR-512 User Manual
Section 3 - Conguration
Choose this if your Internet connection automatically provides you with an IP Address.
Most cable modems use this type of connection. See “Dynamic IP (DHCP)” on
page 15 for information about how to congure this type of connection.
Choose this option if your Internet connection requires a username and password
to connect. Most DSL modems use this style of connection. See “PPPoE” on
page 16 for information about how to congure this type of connection.
Choose this option if your Internet connection requires Point-to-Point Tunneling Protocol (PPTP).
See “PPTP” on page 17 for information about how to congure this type of connection.
Choose this option if your Internet connection requires Layer 2 Tunneling Protocol (L2TP).
See “L2TP” on page 18 for information about how to congure this type of connection.

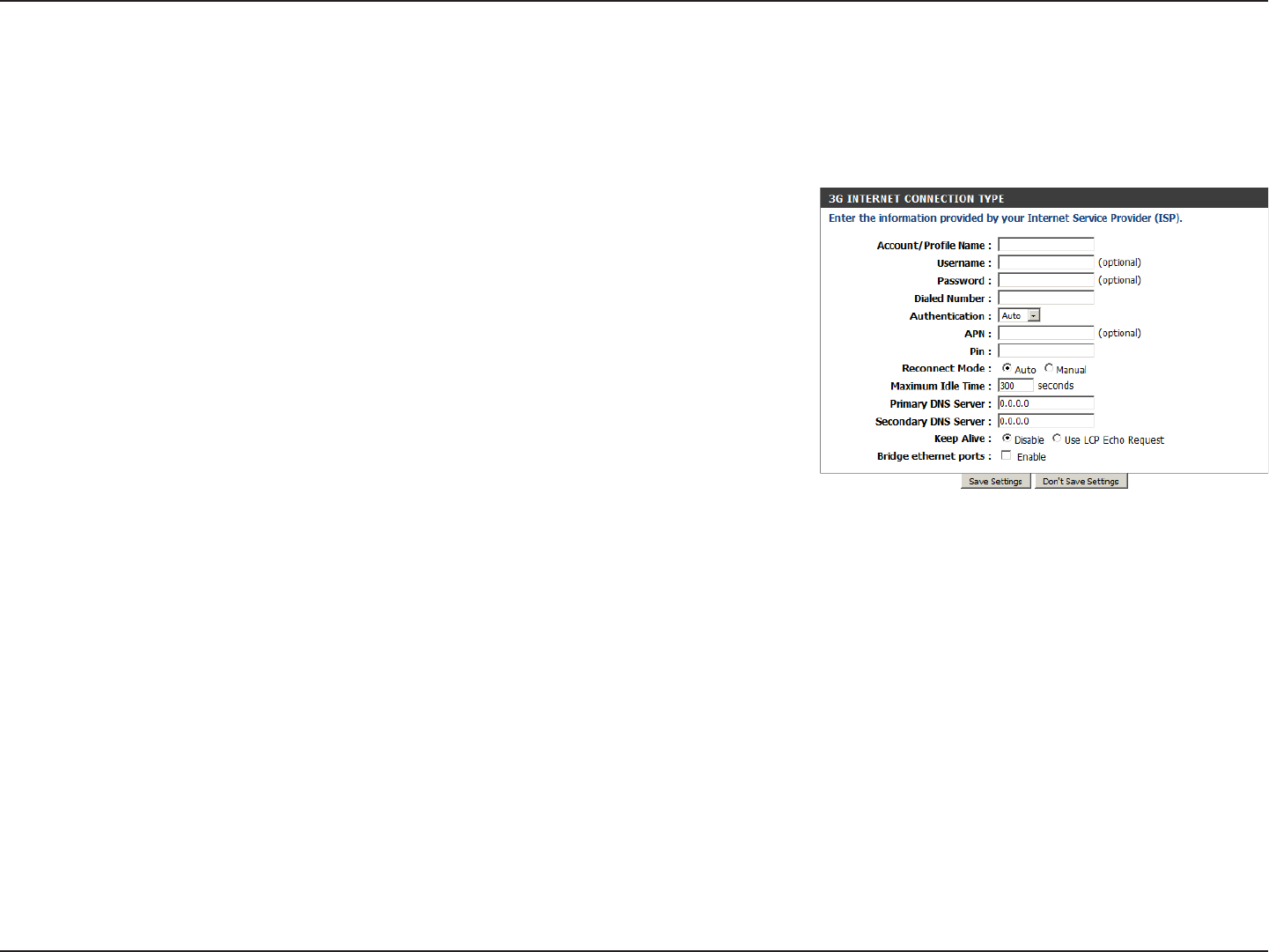

Choose this connection if you have installed a SIM card into the DWR-512. See “3G”
on page 19 for information about how to congure this type of connection.
Choose this option if your Internet Setup Provider provided you with IP Address information that has to be
manually congured. See “Static IP” on page 14 for information about how to congure this type of connection.
DHCP Connection
(Dynamic IP Address):
Username / Password
Connection (PPPoE):
Username / Password
Connection (PPTP):
Username / Password
Connection (L2TP):
3G Connection:
Static IP Address
Connection:
The subsequent conguration pages will differ depending on the selection you make on this page.
After entering the requested information,click Next to continue.
This completes the Internet Connection Setup Wizard. Click Connect to save your
changes and reboot the router.
13D-Link DWR-512 User Manual
Section 3 - Conguration
Manual Internet Connection Setup
To set up your Internet connection manually, click Manual Internet Connection Setup.
Several different Internet Connection types can be selected depending upon the specications of your Internet Service Provider (ISP). You
can also set up the Auto-Backup feature, which allows you to use a 3G connection for your Internet connection if your main connection fails.
Internet Connection
Select the Internet Connection type specied
by your Internet Service Provider (ISP). The
corresponding settings will be displayed below.
Please see the following pages for details on how
to congure these different connection types.
If the Internet Host you are using for the Auto-Backup
feature requires you to enter a Host Name, enter it
here. In most cases, you may leave this blank.
When this box is checked, the router will
switch over to a 3G connection if the Internet
Host (specied below) is unreachable.
Enter an IP address for the router to use to check
if it is connected to the Internet. If Auto-Backup is
enabled and the IP address cannot be reached,
the router will switch over to a 3G connection.
My Internet Connection
is:
Host Name:
Auto-Backup:
Internet Host:
14D-Link DWR-512 User Manual
Section 3 - Conguration
Enter the IP address assigned to your network connection.
Enter the subnet mask.
Enter the default gateway.
Enter the primary DNS server.
Enter the secondary DNS server.
You may need to change the Maximum Transmission Unit
(MTU) for optimal performance. The default value is 1500.
The default MAC Address is set to the Internet port’s
physical interface MAC address on the Broadband
Router. It is not recommended that you change the
default MAC address unless required by your ISP.
You can use the Clone Your PC’s MAC Address
button to replace the Internet port’s MAC address
with the MAC address of your Ethernet card.
IP Address:
Subnet Mask:
Default Gateway:
Primary DNS Server:
Secondary DNS
Server:
MTU:
MAC Address:
Choose this Internet connection if your ISP assigns you a static IP address. After modifying any settings, click Save Settings to save your
changes.
Static IP
15D-Link DWR-512 User Manual
Section 3 - Conguration
Dynamic IP (DHCP)
This section will help you to obtain IP Address information automatically from your ISP. Use this option if your ISP didn’t provide you with
IP Address information and/or a username and password. After modifying any settings, click Save Settings to save your changes.
(Optional) Required by some ISPs.
(Optional) Fill in with IP address of primary DNS server.
(Optional) Fill in with IP address of secondary DNS server.
You may need to change the Maximum Transmission Unit
(MTU) for optimal performance. The default value is 1500.
The default MAC Address is set to the Internet port’s
physical interface MAC address on the Broadband
Router. It is not recommended that you change
the default MAC address unless required by your
ISP. You can use the Clone Your PC’s MAC
Address button to replace the Internet port’s MAC
address with the MAC address of your PC.
This feature enables this product to renew the WAN IP
address automatically when the lease time has expired.
Host Name:
Primary DNS Server:
Secondary DNS
Server:
MTU (Maximum
Transmission Unit):
MAC Address:
Auto-reconnect:
16D-Link DWR-512 User Manual
Section 3 - Conguration
PPPoE
Choose this Internet connection if your ISP provides you PPPoE account. After modifying any settings, click Save Settings to save your
changes.
The username/account name that your ISP
provides to you for PPPoE dial-up.
Password that your ISP provides to you for PPPoE dial-up.
Fill in with the same password in Password eld.
(Optional) Fill in if provided by your ISP.
(Optional) Fill in if provided by your ISP.
If not, keep the default value.
(Optional) Fill in if provided by your ISP. If not, keep the default value.
(Optional) Fill in if provided by your ISP. If not, keep the default value.
MAC address of WAN interface. You can also copy MAC address of your PC
to its WAN interface by pressing Clone Your PC’s MAC button. The Restore
MAC button will reset the router to its default MAC address.
The amount of time of inactivity before disconnecting established PPPoE session.
Set it to zero or enable Auto-reconnect will disable this feature.
The default setting of PPPoE is 1492.
The device will dial-up PPPoE connection automatically.
Username:
Password:
Verify Password:
Service Name:
IP Address:
Primary DNS Server:
Secondary DNS
Server:
MAC Address:
Maximum Idle Time:
Maximum
Transmission Unit
(MTU):
Auto-reconnect:
17D-Link DWR-512 User Manual
Section 3 - Conguration

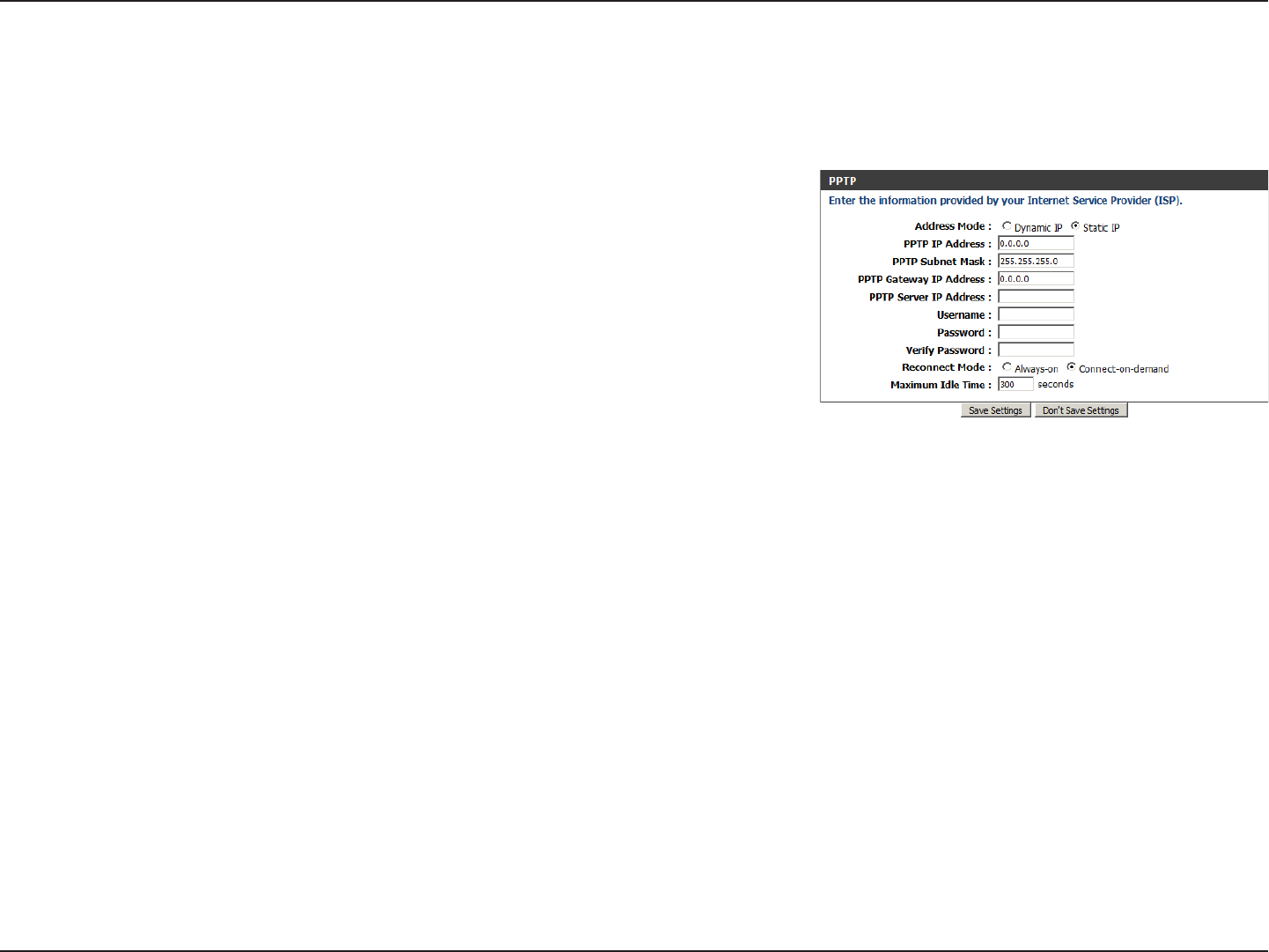

PPTP
Choose this Internet connection if your ISP provides you PPTP account. After modifying any settings, click Save Settings to save your
changes.
Choose Static IP only if your ISP assigns you an IP
address. Otherwise, please choose Dynamic IP.
Enter the information provided by your ISP.
(Only applicable for Static IP PPTP.)
Enter the information provided by your ISP.
(Only applicable for Static IP PPTP.)
Enter the information provided by your ISP.
(Only applicable for Static IP PPTP.)
IP address of PPTP server.
User/account name that your ISP provides to you for PPTP dial-up.
Password that your ISP provides to you for PPTP dial-up.
Fill in with the same password in Password eld.
Choose Always-on when you want to establish PPTP connection
all the time. If you choose Connect-on-demand, the device will
establish PPTP connection when local users want to surf Internet,
and disconnect if no trafc after time period of Maximum Idle Time.
The time of no activity to disconnect your PPTP session. Set
it to zero or choose Always-on to disable this feature.
Address Mode:
PPTP IP Address:
PPTP Subnet Mask:
PPTP Gateway IP
Address:
PPTP Server IP
Address:
Username:
Password:
Verify Password:
Reconnect Mode:
Maximum Idle Time:
18D-Link DWR-512 User Manual
Section 3 - Conguration
L2TP
Choose this Internet connection if your ISP provides you L2TP account. After modifying any settings, click Save Settings to save your
changes.
Choose Static IP only if your ISP assigns you an IP
address. Otherwise, please choose Dynamic IP.
Enter the information provided by your ISP.
(Only applicable for Static IP L2TP.)
Enter the information provided by your ISP.
(Only applicable for Static IP L2TP.)
Enter the information provided by your ISP.
(Only applicable for Static IP L2TP.)
IP address of L2TP server.
User/account name that your ISP provides
to you for L2TP dial-up.
Password that your ISP provides to you for L2TP dial-up.
Fill in with the same password in Password eld.
Choose Always-on when you want to establish L2TP
connection all the time. Choose Connect-on-demand
the device will establish L2TP connection when local
users want to surf Internet, and disconnect if no
trafc after time period of Maximum Idle Time.
The time of no activity to disconnect your L2TP session.
Set it to 0 or choose Always-on to disable this feature.
Address Mode:
L2TP IP Address:
L2TP Subnet Mask:
L2TP Gateway IP
Address:
L2TP Server IP
Address:
Username:
Password:
Verify Password:
Reconnect Mode:
Maximum Idle Time:
19D-Link DWR-512 User Manual
Section 3 - Conguration
Fill in a name to identify the following 3G conguration.
(Optional) Fill in only if requested by ISP.
(Optional) Fill in only if requested by ISP.
Enter the number to be dialed.
Select PAP, CHAP, or Auto detection. The
default authentication method is Auto.
(Optional) Enter the APN information.
Enter the PIN associated with your SIM card.
Select Auto or Manual to decide whether
the routher should reconnect to your 3G
network automatically or manually.
Set the maximum time your connection can be idle
before disconnecting. Set it to 0 or choose Auto
in Reconnect Mode to disable this feature.
(Optional) Fill in if provided by your ISP.
If not, keep the default value.
(Optional) Fill in if provided by your ISP.
If not, keep the default value.
Account/Prole Name:
Username:
Password:
Dialed Number:
Authentication:
APN:
PIN:
Reconnect Mode:
Maximum Idle Time:
Primary DNS Server:
Secondary DNS
Server:
3G
Choose this Internet connection if you already use a SIM card for 3G Internet service from your Telecom company. The elds here may not
be necessary for your connection. The information on this page should only be used if required by your service provider. After modifying
any settings, click Save Settings to save your changes.
20D-Link DWR-512 User Manual
Section 3 - Conguration
Select Disable or Use LCP Echo Request
depending on the settings required by your ISP.
Activate this feature to use the Ethernet
WAN port as an additional LAN port.
Keep Alive:
Bridge Ethernet Ports:
21D-Link DWR-512 User Manual
Section 3 - Conguration
Wireless Settings
This section will help you to manually congure the wireless settings of your router.
Please note that changes made on this section may also need to be duplicated on your
Wireless Client.
The Wireless Settings page allows you to congure how your router connects to the
Internet. There are several ways to set up your wireless connection.
You can click on the Wireless Connection Setup Wizard button to start a wizard that
will guide you through setting up your wireless settings.
If you want to manually congure your settings, click the Manual Wireless Connection
Setup button and skip to “Manual Wireless Connection Setup” on page 23.
You can also set up a wireless connection to a device automatically,
or configure your router automatically from a by clicking the
Wi-Fi Protected Setup button. This is described in “Wi-Fi Protected Setup” on page 28.
This wizard will guide you through a step-by-step process to congure your D-Link
router’s wireless .
Click Next to continue.
Note: While using the wizard, you can click Prev to go back to the previous page or
you can click Cancel to close the wizard.
Wireless Connection Setup Wizard
22D-Link DWR-512 User Manual
Section 3 - Conguration

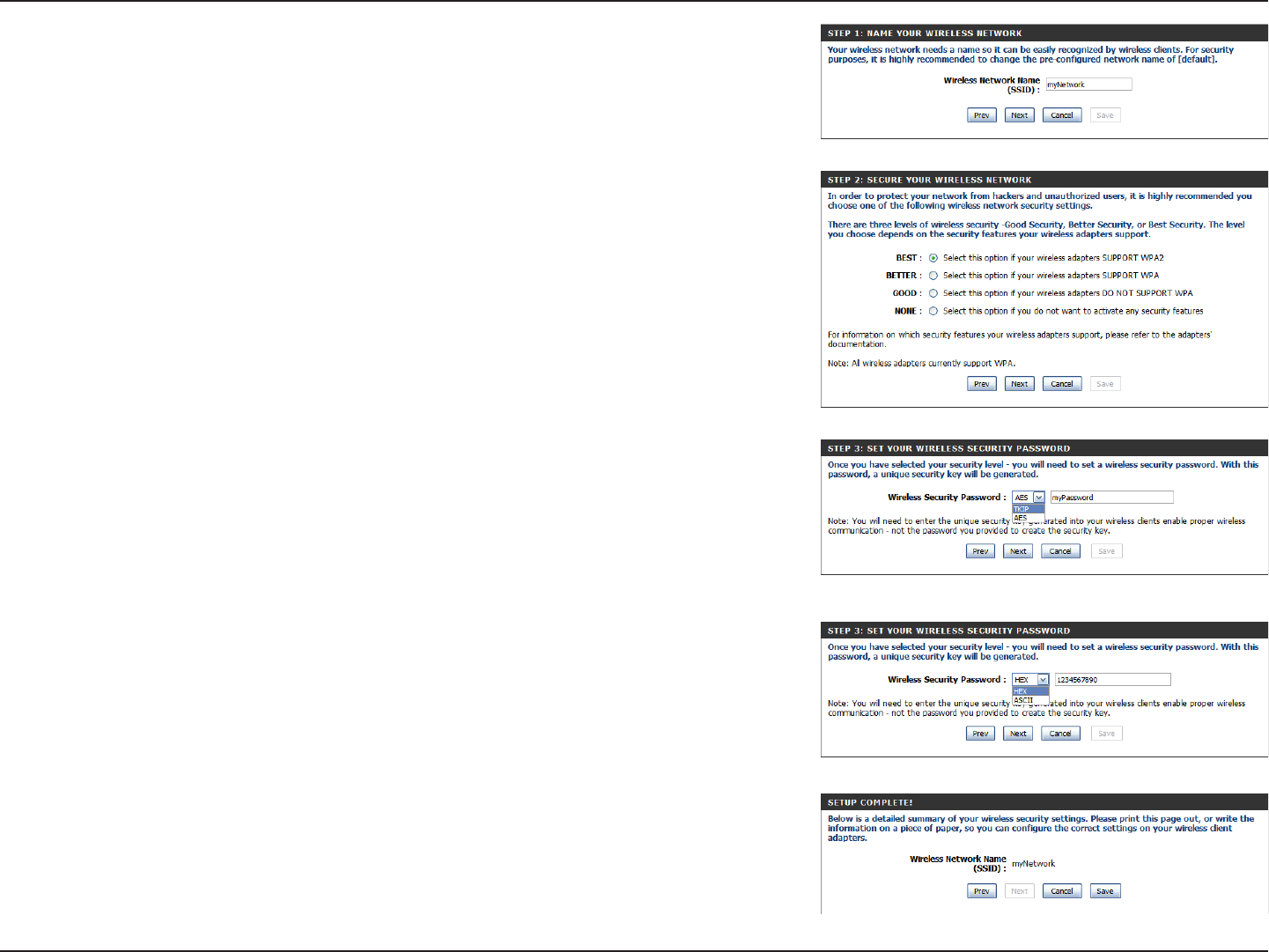

Enter a name for your wireless network, then click Next to continue.
Select a level of wireless security to use, then click Next to continue.
If you chose BEST or BETTER, select whether to use TKIP or AES encryption, then
enter a password to use for your wireless network. It is recommended that you use AES
if your wireless computers and devices support it, as it is more secure. Click Next to
continue.
If you chose GOOD, select whether to use a HEX or ASCII password, then enter a
password to use for your wireless network. If you choose HEX, you will need to enter a
10 or 26 digit password using only hex characters (0-9, A-F). If you choose ASCII, the
password can be up to 5 or 13 alphanumeric characters. Click Next to continue.
This completes the Wireless Connection Setup Wizard. Click Save to save your changes
and reboot the router.
23D-Link DWR-512 User Manual
Section 3 - Conguration
Manual Wireless Connection Setup
To set up your wireless connection manually, click Manual Wireless Connection Setup.
24D-Link DWR-512 User Manual
Section 3 - Conguration
Select this checkbox to enable wireless access. When
you set this option, the following parameters take effect.
Also known as the SSID (Service Set Identier), this
is the name of your Wireless Local Area Network
(WLAN). Enter a name using up to 32 alphanumeric
characters. The SSID is case-sensitive.
B/G mixed: Enable this mode if your network
contains a mix of 802.11b and 802.11g devices.
N only: Enable this mode if your network
only has 802.11n devices.
B/G/N mixed: Enable this mode if you have a mix
of 802.11n, 802.11g, and 802.11b clients.
Enabling this feature will allow the router to scan
for the best channel to use automatically.
A wireless network uses specic channels in the wireless
spectrum to handle communication between clients.
Some channels in your area may experience interference
from other electronic devices. Choose the clearest
channel to help optimize the performance and coverage
of your wireless network, or enable Auto Channel Scan
for the router to automatically select the best channel.
This setting determines whether the SSID will be Visible
or Invisible to wireless clients looking for wireless
networks. Setting this to Invisible can increase the
security of your network by hiding it, but clients will need
to manually enter the SSID of your network to connect.
Enable Wireless:
Wireless Network
Name:
802.11 Mode:
Auto Channel Scan:
Wireless Channel:
Visibility Status:

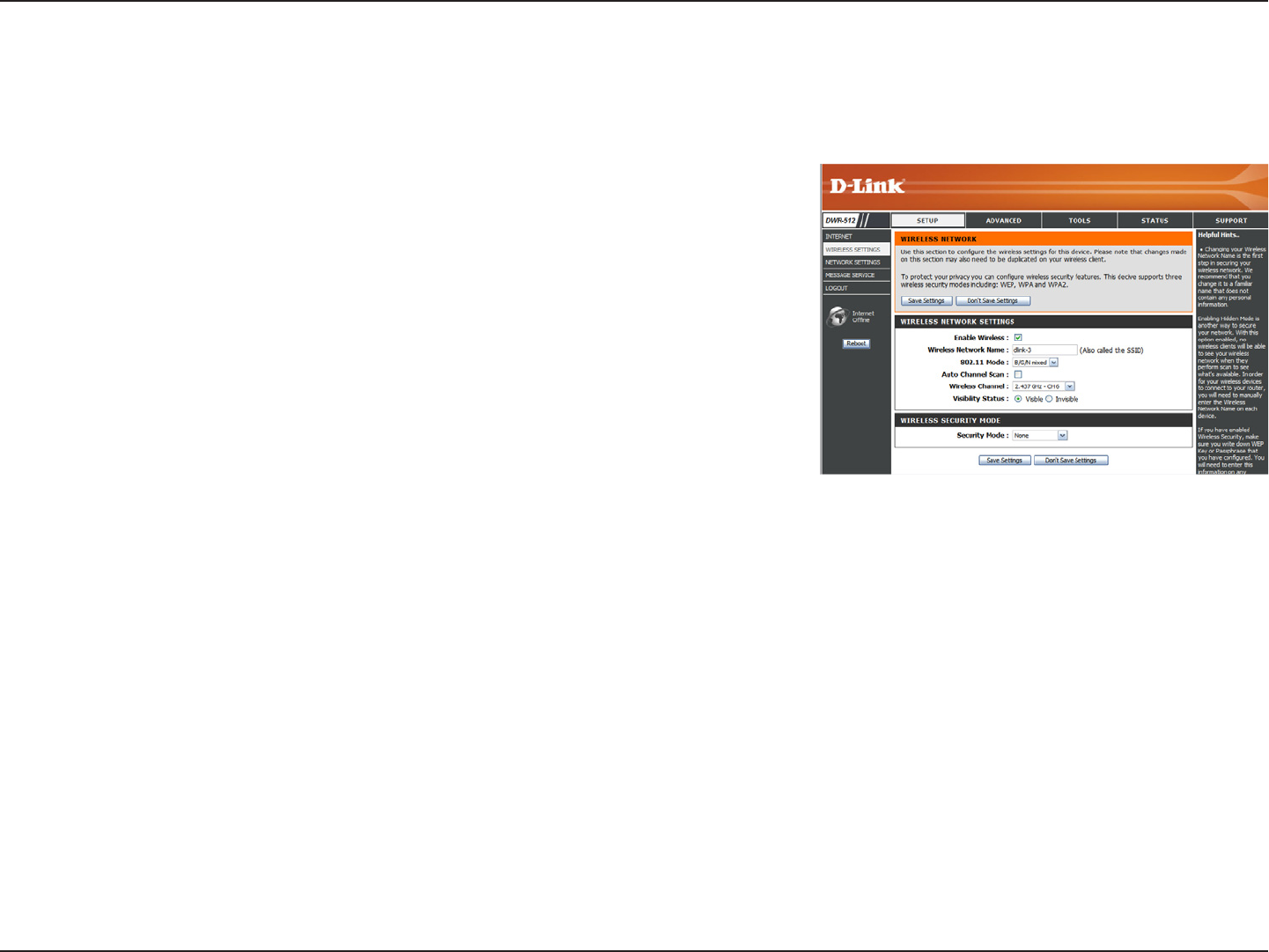

Wireless Settings
This page lets you set up your wireless network and choose a wireless security mode. After modifying any settings, click Save Settings
to save your changes.
25D-Link DWR-512 User Manual
Section 3 - Conguration
Wireless Security Mode
You can choose from several different wireless security modes. After selecting a mode, the settings for that mode will appear. After
modifying any settings, click Save Settings to save your changes.
You can choose from 4 different security modes.
• None: No security will be used. This setting is
not recommended.
• WEP: WEP encryption will be used. This setting
is only recommended if your wireless devices
cannot support WPA or WPA2.
• WPA-Personal: WPA-PSK encryption will be
used. This setting is recommended for most
users.
• WPA-Enterprise: WPA-EAP encryption will
be used. This setting is only recommended
if you have a RADIUS authentication server.
Otherwise, WPA-Personal should be used.
Security Mode:
26D-Link DWR-512 User Manual
Section 3 - Conguration
Select whether to use WPA2 only or WPA
only. WPA2 only is the most secure, provided
that all of your clients can support it.
Select whether to use the TKIP or AES cipher.
The AES cipher is the most secure, provided
that all of your clients can support it.
Enter the key/password you want to use for your
wireless network. The key must be 8 to 63 characters
long, and may only contain letters and numbers.
WPA Mode:
Cipher Type:
Network Key:
If you choose WPA-Personal, the following options will appear:
Select whether to use Open or Shared authentication.
Select whether to use 64-bit or 128-bit encryption.
Select which WEP key (1-4) to use as the default
key. This will also change the WEP Key text box
to that WEP key for your to congure(1-4).
Set the WEP key/password for your wireless network.
Based on whether you are using 64 or 128-bit encryption,
and whether you are using a HEX or ASCII key, you
will need to enter different numbers of characters for
your key, as indicated below the WEP Key text box.
ASCII keys may use letters and numbers only, and
HEX keys may use numbers 0-9 and letters A-F only.
Authentication:
WEP Encryption:
Default WEP Key:
WEP Key:
If you choose WEP, the following options will appear:
27D-Link DWR-512 User Manual
Section 3 - Conguration
Select whether to use WPA2 only or WPA
only. WPA2 only is the most secure, provided
that all of your clients can support it.
Select whether to use the TKIP or AES cipher.
The AES cipher is the most secure, provided
that all of your clients can support it.
Enter the IP address of your RADIUS server.
Enter the port used for your RADIUS server.
Enter the Shared Secret/password
for your RADIUS server.
WPA Mode:
Cipher Type:
RADIUS Server IP
Address:
RADIUS Server Port:
RADIUS Server Shared
Secret:
If you choose WPA-Enterprise, the following options will appear:
28D-Link DWR-512 User Manual
Section 3 - Conguration
Wi-Fi Protected Setup
To open the Wi-Fi Protected Setup page, click Wi-Fi Protected Setup.
The Wi-Fi Protected Setup page allows you to create a wireless connection between your
router and a device automatically by simply pushing a button or entering a PIN code.
You can also use Windows 7 to do initial conguration of your router by using the Connect
to a network wizard in Windows, and entering the WPS PIN/AP PIN of the router when
prompted. After modifying any settings, click Save Settings to save your changes.
29D-Link DWR-512 User Manual
Section 3 - Conguration
Select whether you would like to enable
or disable WPS features.
If you use Windows 7’s Connect to a network
wizard to do initial conguration of the router, you
will need to enter the WPS PIN/AP PIN into the
wizard when prompted. The factory default WPS PIN/
AP PIN is printed on a label located on the bottom
of the router. You can click the Generate New PIN
button to change it to a randomly generated PIN.
Select whether the WPS cong mode should
be set to Registrar or Enrollee. In most cases,
this should be set to Registrar so that you can
use WPS to connect new wireless clients.
If this is set to CONFIGURED, the router will be marked
as “already congured” to computers that try to use
WPS conguration, such as Windows 7’s Connect
to a network wizard. You can click the Release
button to change the status to UNCONFIGURED
to allow for WPS conguration of the router.
If this is set to UNCONFIGURED, you can click the
Set button to change the status to CONFIGURED
to block WPS conguration of the router.
This lets you choose whether to use the Push
Button connection method (PBC) or PIN method to
connect to a wireless client when the Trigger button
is clicked. If you choose the PIN method, you will
need to enter a 8-digit PIN number that the wireless
client need to use to connect to your router.
This will show the current WPS connection process status.
Click the Trigger button to initiate a WPS connection.
WPS:
AP PIN (also known as
WPS PIN):
Cong Mode:
Cong Status:
Cong Method:
WPS Status:
30D-Link DWR-512 User Manual
Section 3 - Conguration
This section will help you to change the internal network settings of your router and to congure the DHCP Server settings. After modifying
any settings, click Save Settings to save your changes.
Network Settings
Enter the IP address you want to use for the router. The
default IP address is 192.168.0.1. If you change the
IP address, you will need to enter the new IP address
in your browser to get into the conguration utility.
Enter the Subnet Mask of the router. The
default subnet mask is 255.255.255.0.
Enter the local domain name for your network.
Router IP Address:
Default Subnet Mask:
Local Domain Name:
Router Settings
31D-Link DWR-512 User Manual
Section 3 - Conguration
Select this box to enable the DHCP server on your router.
Enter the range of IPs for the DHCP server to use to
assign IP addresses to devices on your network.
Enter lease time for IP address assignments.
Enter the primary DNS IP Address that
will be assigned to DHCP clients.
Enter the secondary DNS IP Address that
will be assigned to DHCP clients.
Enter the primary WINS IP Address that
will be assigned to DHCP clients.
Enter the secondary WINS IP Address that
will be assigned to DHCP clients.
Enable DHCP Server:
DHCP IP Address
Range:
DHCP Lease Time:
Primary DNS IP
Address:
Secondary DNS IP
Address:
Primary WINS IP
Address:
Secondary WINS IP
Address:
DHCP Server Settings
The DWR-512 has a built-in DHCP (Dynamic Host Control Protocol) server. The DHCP server assigns IP addresses to devices on the
network that request them. By default, the DHCP Server is enabled on the device. The DHCP address pool contains a range of IP addresses,
which is automatically assigned to the clients on the network. After modifying any settings, click Save Settings to save your changes.
32D-Link DWR-512 User Manual
Section 3 - Conguration
Message Service
If your ISP provides SMS service, you can check and send messages from this page.
Click this button to view SMS messages
that you have received.
Click this button to create a new message to send.
SMS Inbox:
Create Message:
Deletes the selected SMS message.
Opens a Create Message window to reply
to the selected SMS message.
Opens a Create Message windows to forward the
selected SMS message to another recipient.
Click this button to check for new messages.
Delete:
Reply:
Forward:
Refresh:
SMS Inbox
This page shows all messages that are stored on the SIM card. Select a message to display its contents in the SMS window. After you
read it, you can delete it, or reply to the sender. Click the Refresh button to update the list.
33D-Link DWR-512 User Manual
Section 3 - Conguration
Create Message
This page allows you to send an SMS to your contacts. Just ll in the phone number of the recipient, and type the content of message. Then
push the “Send Message” button to send out this message. If you would like to add more than one recipient, you must put a semicolon (;)
between each of the phone numbers.
Type the phone number of the recipient.
Type the message that you would like to send.
Click this button to send the message.
Click this button to clear the message.
Receiver:
Text Message:
Sent Message:
Cancel:
34D-Link DWR-512 User Manual
Section 3 - Conguration
Advanced
The device can be congured as a virtual server so that users can access services such as Web or FTP via the public (WAN) IP address
of the router. You can also allow the settings to run on a specied schedule. The Virtual Server function is also known as Port Forwarding.
After modifying any settings, click Save Settings to save your changes.
This contains a list of pre-dened services. You
can select a service, select a rule ID, then click
the Copy to button to copy the default settings
for that service to the specied rule ID.
Species which rule to copy the selected Well known
service settings to when you click the Copy to button.
Select a schedule to use and copy to the specied
rule ID when you click the Copy to button. You may
select Always On or use a specic schedule that
you have dened. To create and edit schedules,
please refer to “Schedules” on page 54.
Well-known Services:
ID:
Use schedule rule:

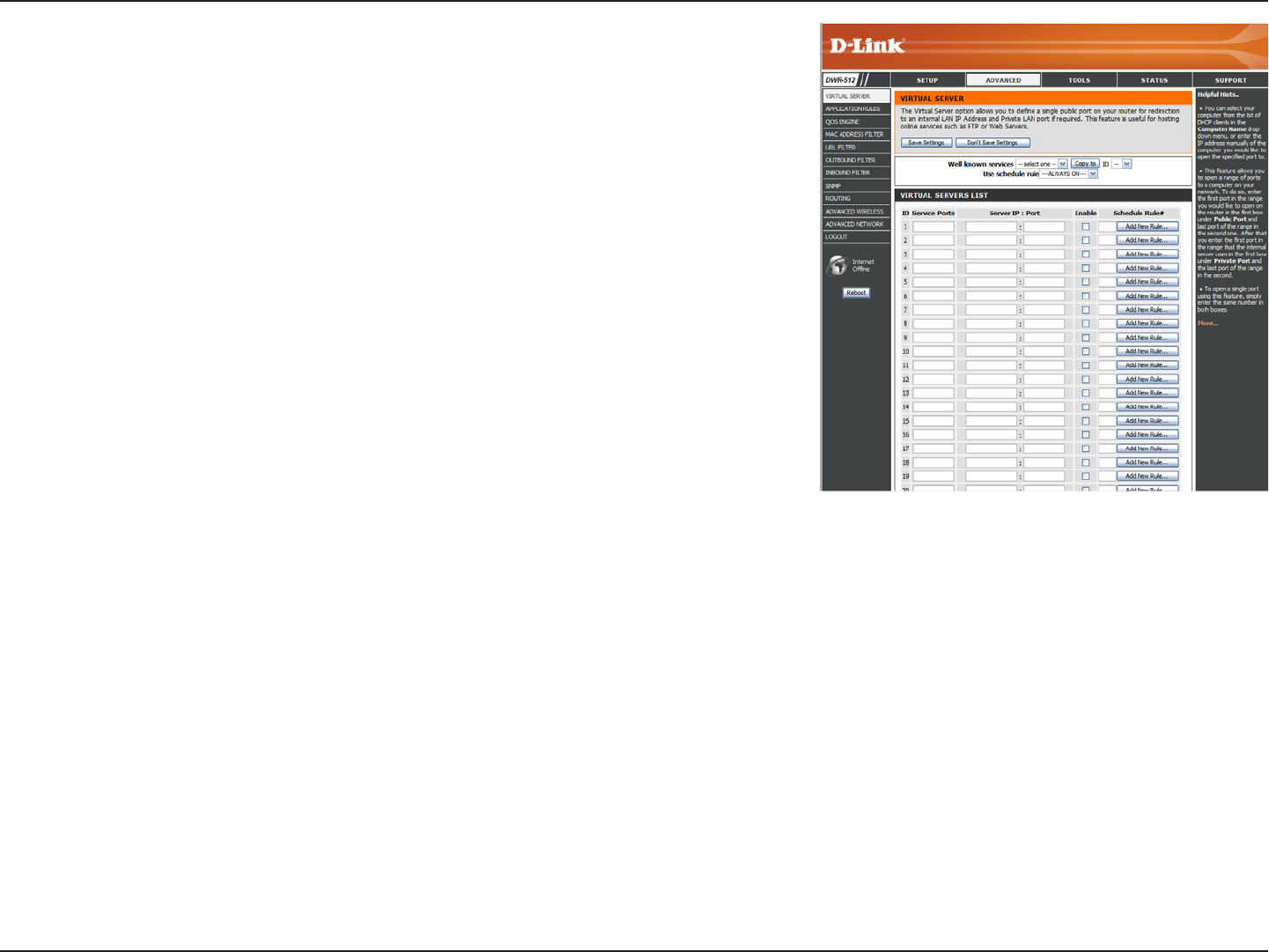

Virtual Server
The ADVANCED pages allow you to congure the more advanced settings of the router,
such as Virtual Server(Port Forwarding), MAC and URL ltering, and advanced wireless
and network settings. To view the Advanced conguration pages, click on ADVANCED
at the top of the screen.
35D-Link DWR-512 User Manual
Section 3 - Conguration
VIRTUAL SERVERS LIST
This identies the rule.
Enter the last digits of the IP address of the
computer on your local network that you want to
allow the incoming service. In the next box, enter
the port number that you would like to open.
Tick the checkbox to enable the specied rule.
Specify the schedule rule number. To create
schedules, please refer to “Schedules” on page 54.
ID:
Server IP: Port:
Enable:
Schedule Rule #:
36D-Link DWR-512 User Manual
Section 3 - Conguration
Application Rules
Some applications require multiple connections, such as Internet gaming, video conferencing, and Internet telephony among others. These
applications may have difculty working through NAT (Network Address Translation). Application Rules allow some of these applications
work with the DWR-512 by opening ports after detecting trafc being sent through a trigger port. After modifying any settings, click Save
Settings to save your changes.
Select from a list of popular applications. You
can select a service, select a rule ID, then click
the Copy to button to copy the default settings
for that service to the specied rule ID.
Species which rule to copy the selected Popular
application settings to when you click the Copy to button.
APPLICATION RULES
This identies the rule.
Enter the port to listen to in order to trigger the rule.
Specify the incoming port(s) to open when
trafc comes over the Trigger port.
Tick the checkbox to enable the specied rule.
Popular Applications:
ID:
ID:
Trigger:
Incoming Ports:
Enable:
37D-Link DWR-512 User Manual
Section 3 - Conguration
QoS Engine
QOS ENGINE SETUP
Select this box to enable the QoS feature.
Specify the maximum upstream
bandwidth here (e.g. 400 kbps).
Select a schedule to use and copy to the specied
rule ID when you click the Copy to button. You may
select Always On or use a specic schedule that
you have dened. To create and edit schedules,
please refer to “Schedules” on page 54.
QOS RULES
This identies the rule.
Specify the local IP address(es) and port(s) for the rule to affect.
Specify the remote IP address(es) and port(s) for the rule to affect.
Select what priority level to use for trafc affected by the rule: Low, Normal, or High.
Tick the checkbox to enable the specied rule.
Specify the schedule rule number. To create schedules, please refer to “Schedules” on page 54.
Enable QOS Packet
Filter:
Upstream Bandwidth:
Use Schedule Rule:
ID:
Local IP : Ports:
Remote IP : Ports:
QoS Priority:
Enable:
Use Rule #:
The QoS Engine improves your online gaming or streaming media experience by ensuring that your game or media trafc is prioritized
over other network trafc, such as FTP or Web. For best performance, use the Automatic Classication option to automatically set the
priority for your applications. After modifying any settings, click Save Settings to save your changes.
38D-Link DWR-512 User Manual
Section 3 - Conguration
MAC Address Filter
MAC FILTERING SETTINGS
Tick this box to enable MAC Filtering.
Wireless and wired clients with C selected
can connect to this device and allow/deny
connections from unspecied MAC addresses.
Wireless clients with A selected can associate to
the wireless LAN and allow/deny connections
from unspecied MAC addresses.
MAC FILTERING RULES
This identies the rule.
Specify the MAC Address of the computer to be ltered.
Specify the last section of the IP address.
Click Trigger to congure Wake On LAN.
If this box is ticked, the rule will follow the
connection control setting specied in MAC
ltering settings specied above.
If this box is ticked, the rule will follow the
association control setting specied in MAC
ltering settings specied above.
MAC Address Control:
Connection Control:
Association Control:
ID:
MAC Address:
IP Address:
Wake On LAN:
C:
A:
The MAC (Media Access Controller) Address Filter option is used to control network access based on the MAC Address of the network
adapter. A MAC address is a unique ID assigned by the manufacturer of the network adapter. This feature can be congured to ALLOW
or DENY network/Internet access. After modifying any settings, click Save Settings to save your changes.
39D-Link DWR-512 User Manual
Section 3 - Conguration
Select this box to enable URL Filtering.
URL FILTERING RULES
This identies the rule.
Enter URL that you would like to block. All URLs
that begin with this URL will be blocked.
Tick the checkbox to enable the specied rule.
URL Filter allows you to set up a list of websites that will be blocked from users on your network. After modifying any settings, click Save
Settings to save your changes.
URL Filter
URL Filtering:
ID:
URL:
Enable:
40D-Link DWR-512 User Manual
Section 3 - Conguration
OUTBOUND FILTER SETTING
Select this box to Enable outbound ltering.
Select a schedule to use and copy to the specied
rule ID when you click the Copy to button. You may
select Always On or use a specic schedule that
you have dened. To create and edit schedules,
please refer to “Schedules” on page 54.
OUTBOUND FILTER RULES LIST
Here, you can select whether to Allow or Deny all outgoing
trafc except for trafc that matches the listed rules.
This identies the rule.
Specify the local IP address and then
specify the port after the colon.
Specify the remote IP address and
then the port after the colon.
Tick the checkbox to enable the specied rule.
Specify the schedule rule number.
Go back to the previous lter page.
Advance to the next lter page.
Outbound Filter
Outbound Filter:
Use Schedule Rule:
ID:
Source IP : Ports:
Destination IP : Ports:
Enable:
Schedule Rule #:
Previous Page:
Next Page:
Outbound Filter enables you to control what packets are allowed to be sent out to the Internet. The outbound lter applies to all outbound
packets. After modifying any settings, click Save Settings to save your changes.
41D-Link DWR-512 User Manual
Section 3 - Conguration
INBOUND FILTER SETTING
Select this box to Enable the lter.
Select a schedule to use and copy to the specied
rule ID when you click the Copy to button. You may
select Always On or use a specic schedule that
you have dened. To create and edit schedules,
please refer to “Schedules” on page 54.
INBOUND FILTER RULES LIST
This identies the rule.
Specify the local IP address and then
specify the port after the colon.
Specify the remote IP address and
then the port after the colon.
Tick the checkbox to enable the specied rule.
Specify the schedule rule number.
Go back to the previous lter page.
Advance to the next lter page.
Inbound Filter
Inbound Filter:
Use Schedule Rule:
ID:
Source IP : Ports:
Destination IP : Ports:
Enable:
Schedule Rule #:
Previous Page:
Next Page:
Inbound Filter enables you to control what packets are allowed to come in to your network from the Internet. The inbound lter only applies
to packets that are destined for Virtual Servers or DMZ hosts. After modifying any settings, click Save Settings to save your changes.
42D-Link DWR-512 User Manual
Section 3 - Conguration
SNMP
Select whether to Enable or Disable
local SNMP administration.
Select whether to Enable or Disable
remote SNMP administration.
Enter the password public in this eld to allow
read-only access to network administration
using SNMP. You can view the network, but no
conguration is possible with this setting.
Enter the password private in this eld to enable
read/write access to the network using SNMP.
Enter up to 4 IP addresses to use as
trap targets for your network.
Select the SNMP version of your system.
If you want to limit remote access SNMP access, enter the
IP address of the remote computer you will use to access
this device. All other IP addresses will be denied remote
SNMP access.
SNMP
SNMP Local:
SNMP Remote:
Get Community:
Set Community:
IP 1, IP 2, IP 3, IP 4:
SNMP Version:
WAN Access IP
Address
SNMP (Simple Network Management Protocol) is a widely used network monitoring and control protocol that reports activity on each
network device to the administrator of the network. SNMP can be used to monitor trafc and statistics of the DWR-512. The DWR-512
supports SNMP v1 and v2c. After modifying any settings, click Save Settings to save your changes.
43D-Link DWR-512 User Manual
Section 3 - Conguration
RIP SETTING
Select this box to enable routing, then
select which routing protocol to use:
• RIPv1: Protocol in which the IP address is
routed through the internet.
• RIPv2: Enhanced version of RIPv1 with added
features such as Authentication, Routing
Domain, Next Hop Forwarding, and Subnet-
mask Exchange.
Routing
RIP:
The Routing page allows you to specify custom routes that determine how data is moved around your network. After modifying any
settings, click Save Settings to save your changes.
ROUTING RULES
This identies the rule.
Enter in the IP of the specied network that
you want to access using the static route.
Enter in the subnet mask to be used
for the specied network.
Enter in the gateway IP address for the specied network.
Enter in the amount of hops it will take
to reach the specied network.
Note: In a transmission path, each link is terminated at a
network device such as a router or gateway. The number
of hops equals the number of routers or gateways that
data must pass through before reaching the destination.
Select this box to enable the rule.
ID:
Destination:
Subnet Mask:
Gateway:
Hop:
Enable:
44D-Link DWR-512 User Manual
Section 3 - Conguration
Specify a value for the beacon interval. Beacons are
packets sent by an Access Point to synchronize a wireless
network. 100 is the default setting and is recommended.
Set the transmit power of the antennas.
This value should remain at its default setting
of 2347. If inconsistent data ow is a problem,
only a minor modication should be made.
The fragmentation threshold, which is specied in bytes,
determines whether packets will be fragmented. Packets
exceeding the 2346 byte setting will be fragmented
before transmission. 2346 is the default setting.
Set the interval for DTIM. A Delivery Trafc Indication
Message (DTIM) is a countdown informing clients
of the next window for listening to broadcast and
multicast messages. The default interval is 3.
WMM (Wi-Fi Multimedia) is a QoS (Quality of
Service) system for your wireless network. Enable
this option to improve the quality of video and
voice applications for your wireless clients.
Select the basic transfer rates based on the speed
of wireless adapters on your wireless network. It is
strongly recommended to keep this setting to Auto.
Beacon Interval:
Transmit Power:
RTS Threshold:
Fragmentation:
DTIM Interval:
WMM Capable:
TX Rates:
Advanced Wireless
Advanced Wireless contains settings which can negatively affect the performance of your router if congured improperly. Do not change
these settings unless you are already familiar with them or have been instructed to make the change by one of our support personnel.
After modifying any settings, click Save Settings to save your changes.

Navigation menu
