1D-Link DWR-712 User Manual

Section 1 - Product Overview

• D-Link DWR-712 HSPA+ 3G Router

• Power adapter

• Manual and Warranty on CD

• Antenna

• RJ45 cable

• RJ11 cable

Note: Using a power supply with a dierent voltage rating than the one included with the DWR-712 will cause damage and void the warranty for

this product.

System Requirements

• A compatible (U)SIM card with service.*

• Computers with Windows®, Macintosh®, or Linux-based operating system with an installed Ethernet adapter

• Internet Explorer 6 or Netscape Navigator™ Version 6.0 and above (for conguration)

* Subject to services and service terms available from your carrier.

Product Overview

Package Contents

2D-Link DWR-712 User Manual

Section 1 - Product Overview

Introduction

The D-Link HSPA+ 3G Router allows users to access worldwide mobile broadband networks. Once connected, users can

transfer data, stream media, and send SMS messages. Simply insert your UMTS/HSUPA SIM card, and share your 3G Internet

connection through a secure 802.11n wireless network or using any of the four 10/100 Ethernet ports.

Keep your wireless network safe with WPA/WPA2 wireless encryption. The DWR-712 utilizes dual-active rewalls (SPI and

NAT) to prevent potential attacks across the Internet, and includes MAC address ltering to control access to your network.

The HSPA+ 3G Router can be installed quickly and easily almost anywhere. This router is great for situations where an

impromptu wireless network must be set up, or wherever conventional network access is unavailable. The DWR-712 can

even be installed in buses, trains, or boats, allowing passengers to check e-mail or chat online while commuting.

4D-Link DWR-712 User Manual

Section 1 - Product Overview

Hardware Overview

Front Panel

Status 2G 3G SMS WLAN

LAN

Signal Strength Reset Button WPS Button

Button Name Function

Reset Press this button with an unfolded paperclip to reset

the device.

WPS Press this button to initiate a new WPS connection.

5D-Link DWR-712 User Manual

Section 1 - Product Overview

LED Name Function

Status Blinking Green: Device is working

LAN Solid Green: Ethernet connection has been established

Blinking Green: Data is being transferred

Signal

Strength

Blinking Red: No SIM card / signal or unveried PIN code

Solid Red: Signal strength is at level one (weak)

Solid Amber: Signal strength is at level two or three (medium)

Solid Green: Signal strength is at level four or ve (strong)

WPS Slow Blinking Green: WPS is functioning normally

Fast Blinking Green: WPS is functioning in PBC mode

2G Solid Green: EDGE or GPRS connection has been established

Blinking Green: Data is being transferred via 2G/2.5G

3G Solid Green: UMTS/HSDPA/HSUPA connection is established

Blinking: Data is being transferred via 3G/3.75G

SMS Solid Green: SMS storage is full

Blinking Green: There is an unread SMS message

WLAN Solid Green: WLAN is active and available

Blinking Green: Data is being transferred over the WLAN

Hardware Overview

LEDs

6D-Link DWR-712 User Manual

Section 2 - Installation

Connect to Your Network

Installation

This section will guide you through the installation process. Placement of the router is very important. Do not place the router in an enclosed area

such as a closet, cabinet, or in an attic or garage.

1. Ensure that your DWR-712 HSPA+ 3G Router is disconnected and powered o.

2. Insert a standard (U)SIM card into the SIM card slot on the back of the router as indicated by the SIM card logo next to the slot. The gold contacts

should face downwards.

Caution: Always unplug/power down the router before installing or removing the SIM card. Never insert or remove the SIM card while the router

is in use.

3. Insert the Ethernet cable into the LAN port on the back panel of the DWR-712 HSPA+ 3G Router and an available Ethernet port on the network

adapter in the computer you will use to congure the router.

Note: The DWR-712 HSPA+ 3G Router LAN port is Auto-MDI/MDIX, so both patch and crossover Ethernet cables can be used.

4. Connect the power adapter to the socket on the back panel of your DWR-712 HSPA+ 3G Router. Plug the other end of the power adapter into

a wall outlet or power strip and turn the device on.

a. The Status LED will light up to indicate that power has been supplied to the router.

b. The LEDs on the front panel will ash on and o as the DWR-712 HSPA+ 3G Router performs initialization and Internet connection processes.

c. After a few moments, if a connection has been established, the following LEDs will turn solid green: Power, Status, WLAN, and LAN LEDs that

are connected computers or other devices.

7D-Link DWR-712 User Manual

Section 2 - Installation

Wireless Installation Considerations

The DWR-712 can be accessed using a wireless connection from virtually anywhere within the operating range of your wireless network. Keep in

mind that the quantity, thickness, and location of walls, ceilings, or other objects that the wireless signals must pass through may limit the range

of the wireless signal. Ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or oce. The key

to maximizing the wireless range is to follow these basic guidelines:

1. Minimize the number of walls and ceilings between the D-Link router and other network devices. Each wall or ceiling can reduce your adapter’s

range from 3 to 90 feet (1 to 30 meters).

2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree angle appears to be almost 3 feet

(1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick. Position devices so that the signal will travel straight through a wall

or ceiling (instead of at an angle) for better reception.

3. Try to position access points, wireless routers, and computers so that the signal passes through open doorways and drywall. Materials such as

glass, metal, brick, insulation, concrete, and water can aect wireless performance. Large objects such as sh tanks, mirrors, le cabinets, metal

doors, and aluminum studs may also have a negative eect on range.

4. If you are using 2.4 GHz cordless phones, make sure that the 2.4 GHz phone base is as far away from your wireless device as possible. The base

transmits a signal even if the phone is not in use. In some cases, cordless phones, X-10 wireless devices, and electronic equipment such as ceiling

fans, uorescent lights, and home security systems may dramatically degrade wireless connectivity.

8D-Link DWR-712 User Manual

Section 3 - Conguration

Conguration

This section will show you how to congure your new D-Link mobile router using the web-based conguration utility.

Web-based Conguration Utility

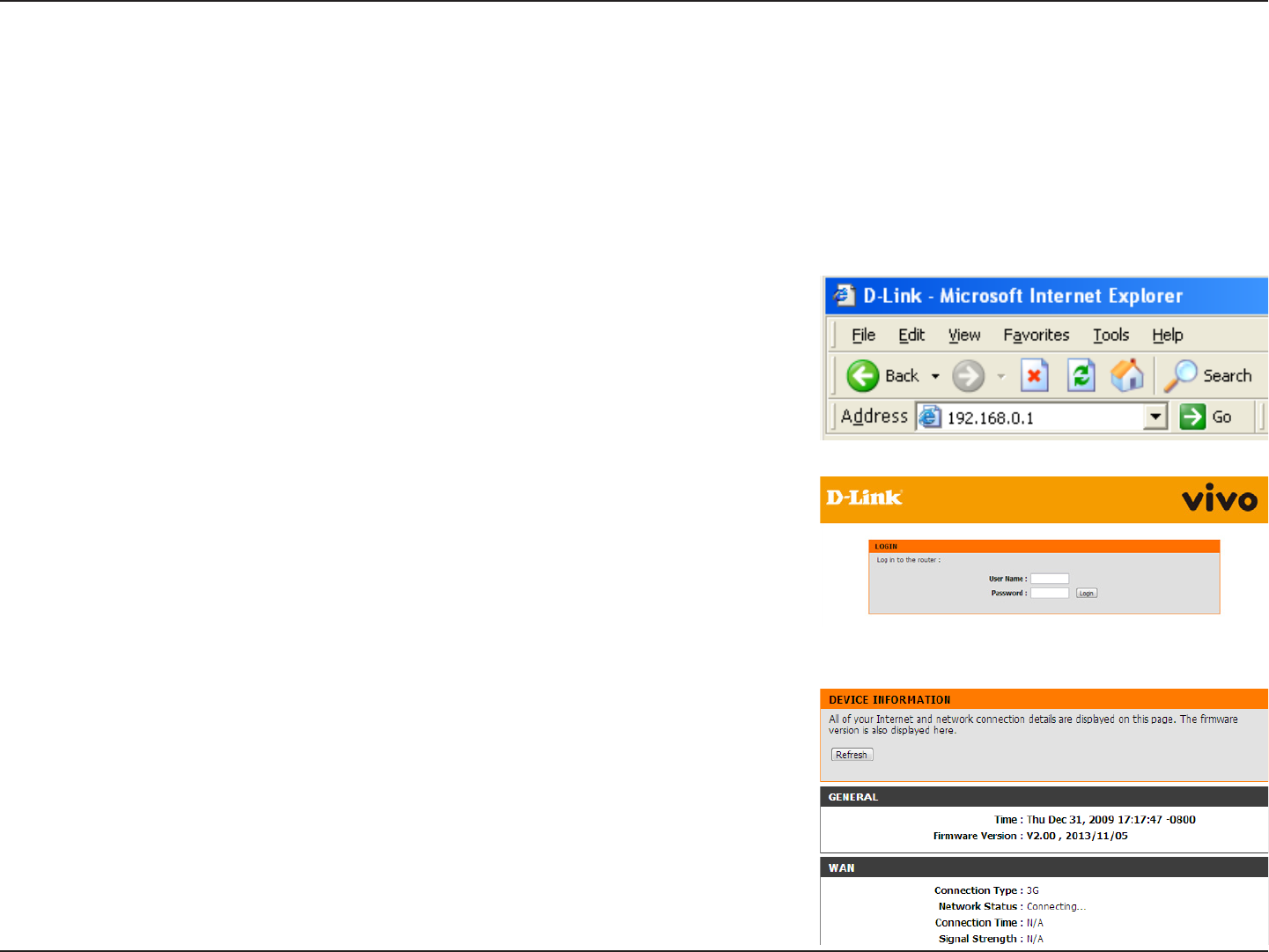

To access the conguration utility, open a web-browser such as Internet Explorer and enter

the IP address of the router (192.168.0.1 by default).

To log in to the conguration utility, enter admin as the username, and then enter the password.

By default, the password is blank.

If you get a Page Cannot be Displayed error, please refer to the Troubleshooting section

for assistance.

The conguration utility will open to the STATUS > DEVICE INFO page. You can view dierent

conguration pages by clicking on the categories at the top of the screen (SETUP/ADVANCED/

TOOLS/STATUS/SUPPORT), and then selecting a conguration page from the bar on the left side.

The following pages will describe each section in detail, starting with the SETUP pages.

9D-Link DWR-712 User Manual

Section 3 - Conguration

Setup

This wizard will guide you through a step-by-step process to congure your D-Link router to

connect to the Internet.

Click Next to continue.

Note: While using the wizard, you can click Prev to go back to the previous page or you can

click Cancel to close the wizard.

Internet Connection Setup Wizard

The SETUP pages allow you to congure your Internet and wireless settings, as well as manage

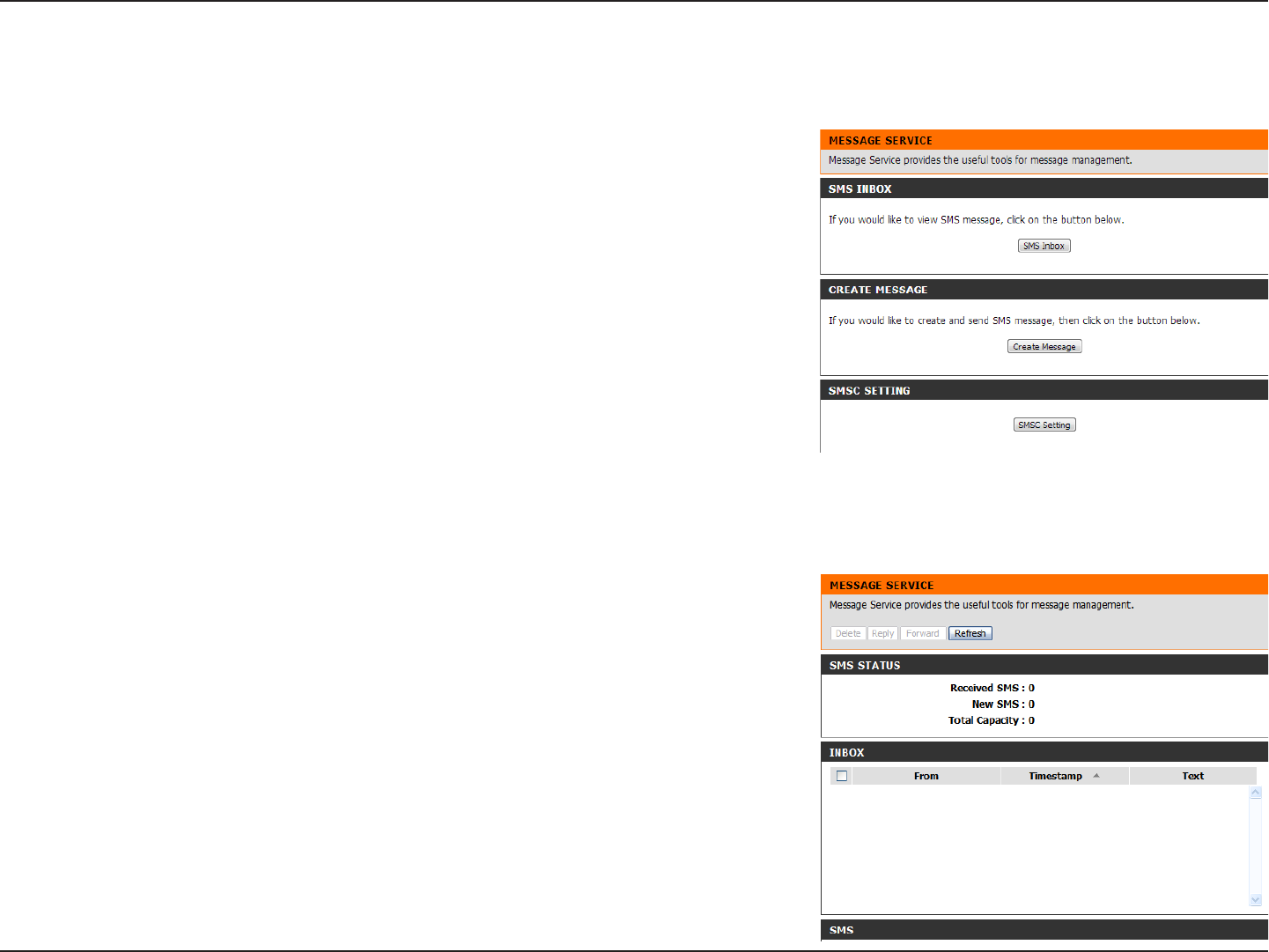

your SMS inbox. To view the Setup conguration pages, click on SETUP at the top of the screen.

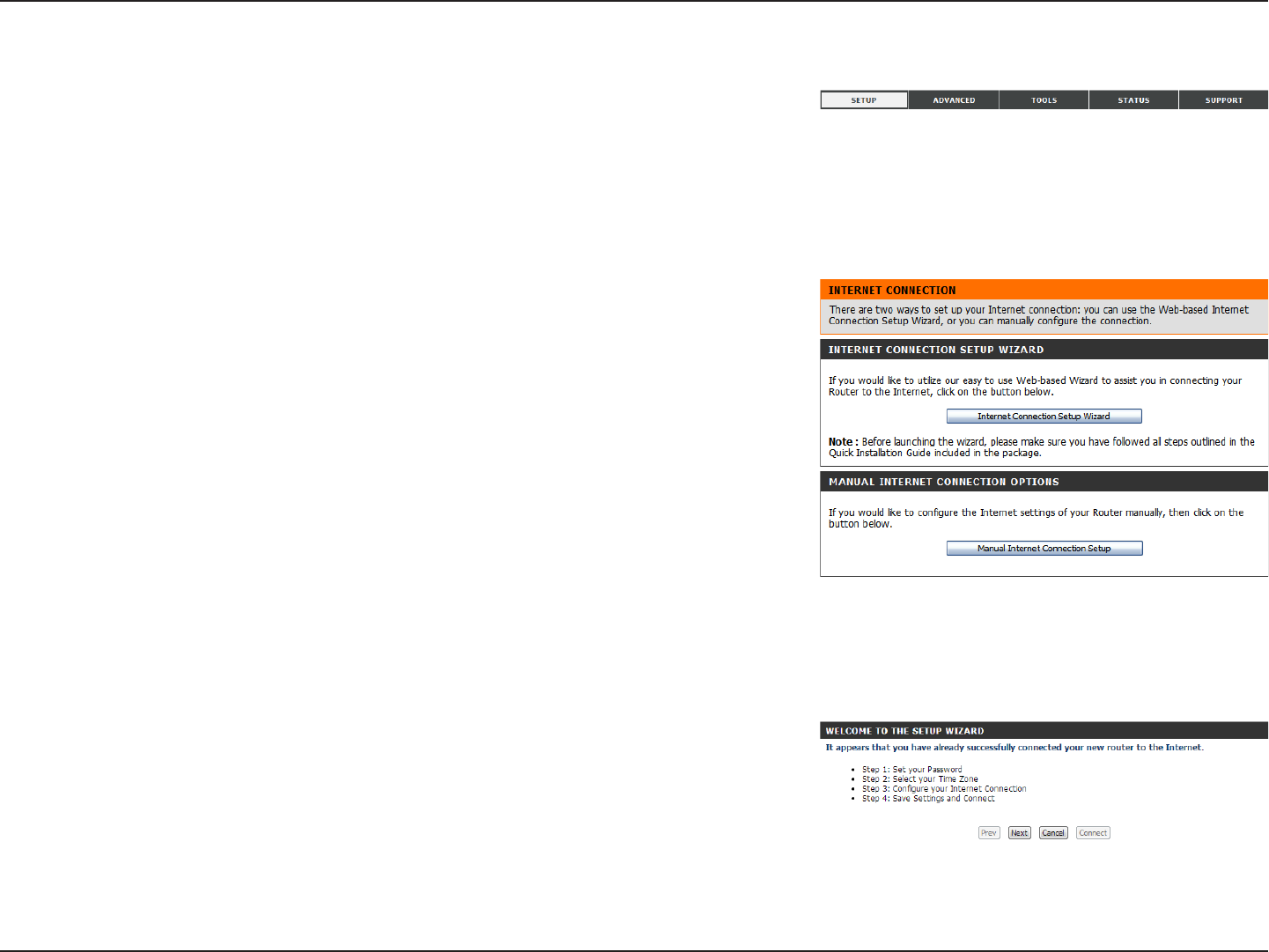

The Internet page allows you to congure how your router connects to the Internet. There are

two ways to set up your Internet connection.

You can click on the Internet Connection Setup Wizard button to start a wizard that will

guide you through setting up your Internet settings.

If you want to manually congure your settings, click Manual Internet Connection Setup

and skip to “Manual Internet Connection Setup” on page 11.

Internet

10D-Link DWR-712 User Manual

Section 3 - Conguration

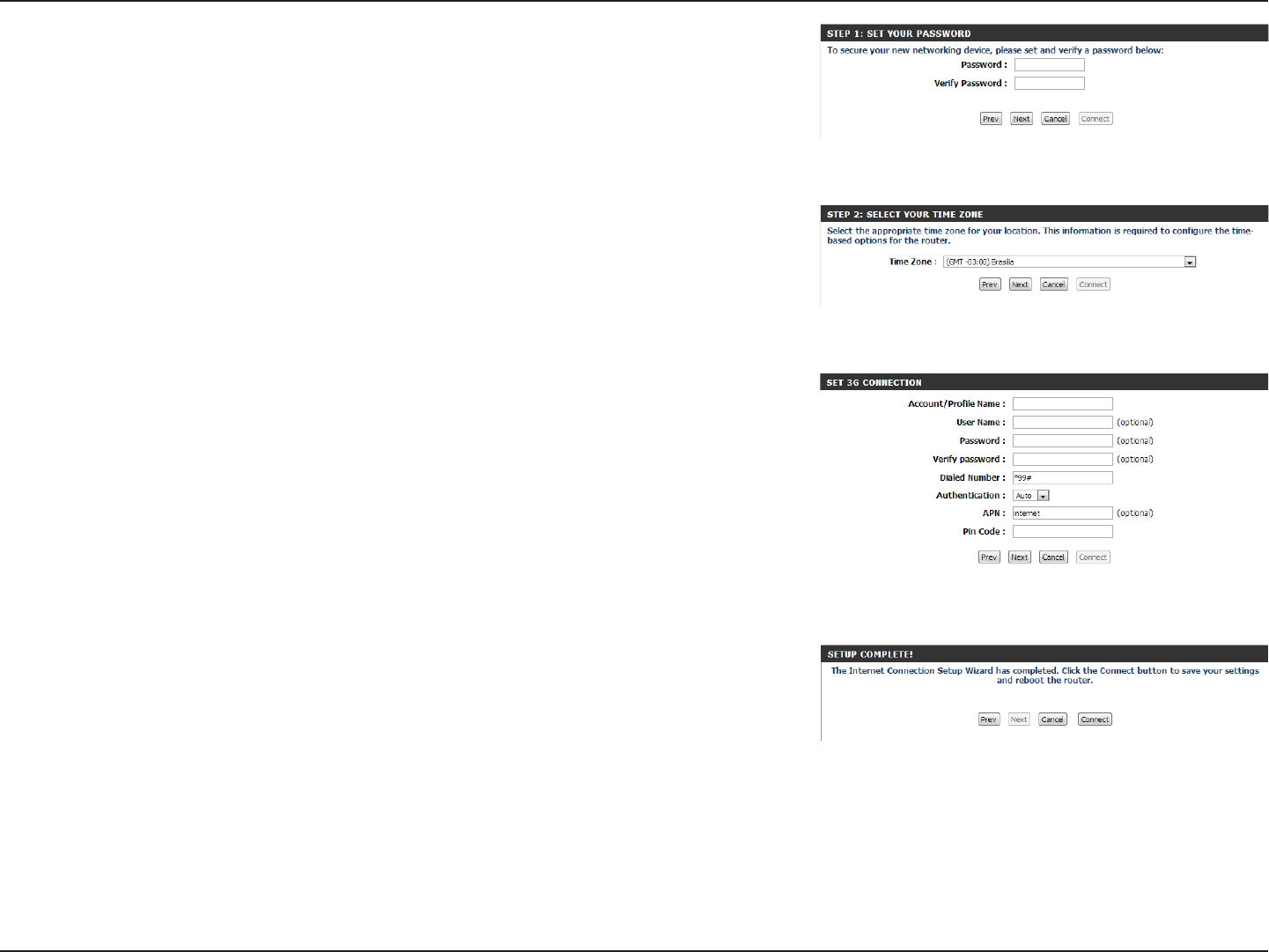

Create a new password and then click Next to continue.

Select your time zone from the drop-down box and then click Next to continue.

See “Manual Internet Connection Setup” on page 11 for information about how to

congure the 3G Internet connection. After entering the requested information, click Next

to continue.

This completes the Internet Connection Setup Wizard. Click Connect to save your changes

and reboot the router.

11D-Link DWR-712 User Manual

Section 3 - Conguration

This is set to the current connection type provided by your

Internet Service Provider (ISP).

If the Internet Host you are using for the Auto-Backup feature

requires you to enter a host name, enter it here. In most cases,

you may leave this blank.

Choose whether the DWR-712 should only use 3G networks,

2G networks, or use Auto Mode to automatically select a

network.

Fill in a name to identify the following 3G conguration.

(Optional) Fill in only if requested by ISP.

If you entered a password above, re-enter it here.

Enter the number to be dialed.

Select PAP, CHAP, or Auto detection. The default authentication

method is Auto.

(Optional) Enter the APN information.

My Internet Connection

is:

Host Name:

Prefer Service Type:

Account/Prole Name:

Username:

Password:

Verify Password:

Dialed Number:

Authentication:

APN:

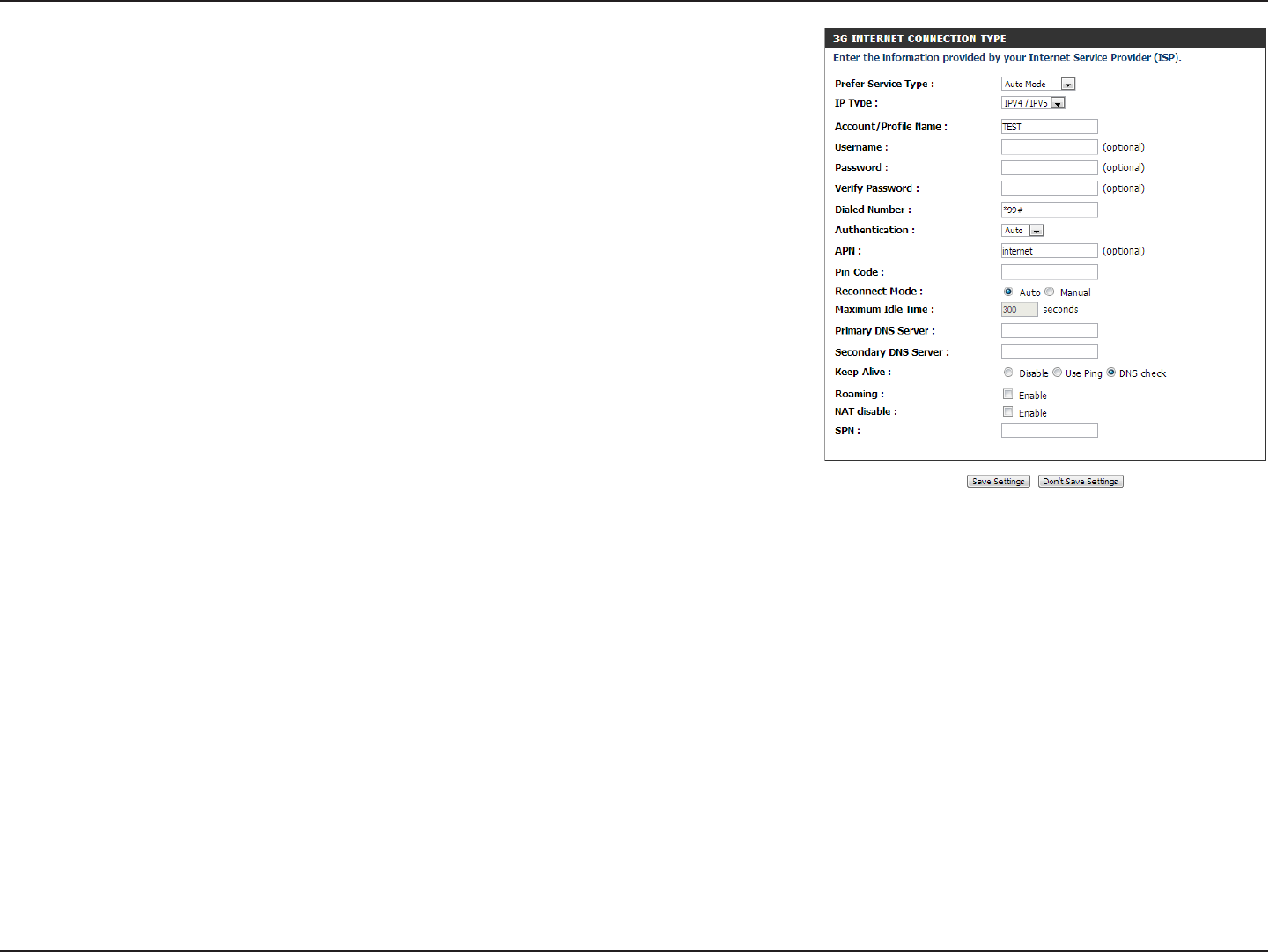

This page allows you to congure your 3G Internet connection. Not all elds here may be necessary, and should only be used if required by your

service provider. After modifying any settings, click Save Settings to save your changes.

Manual Internet Connection Setup

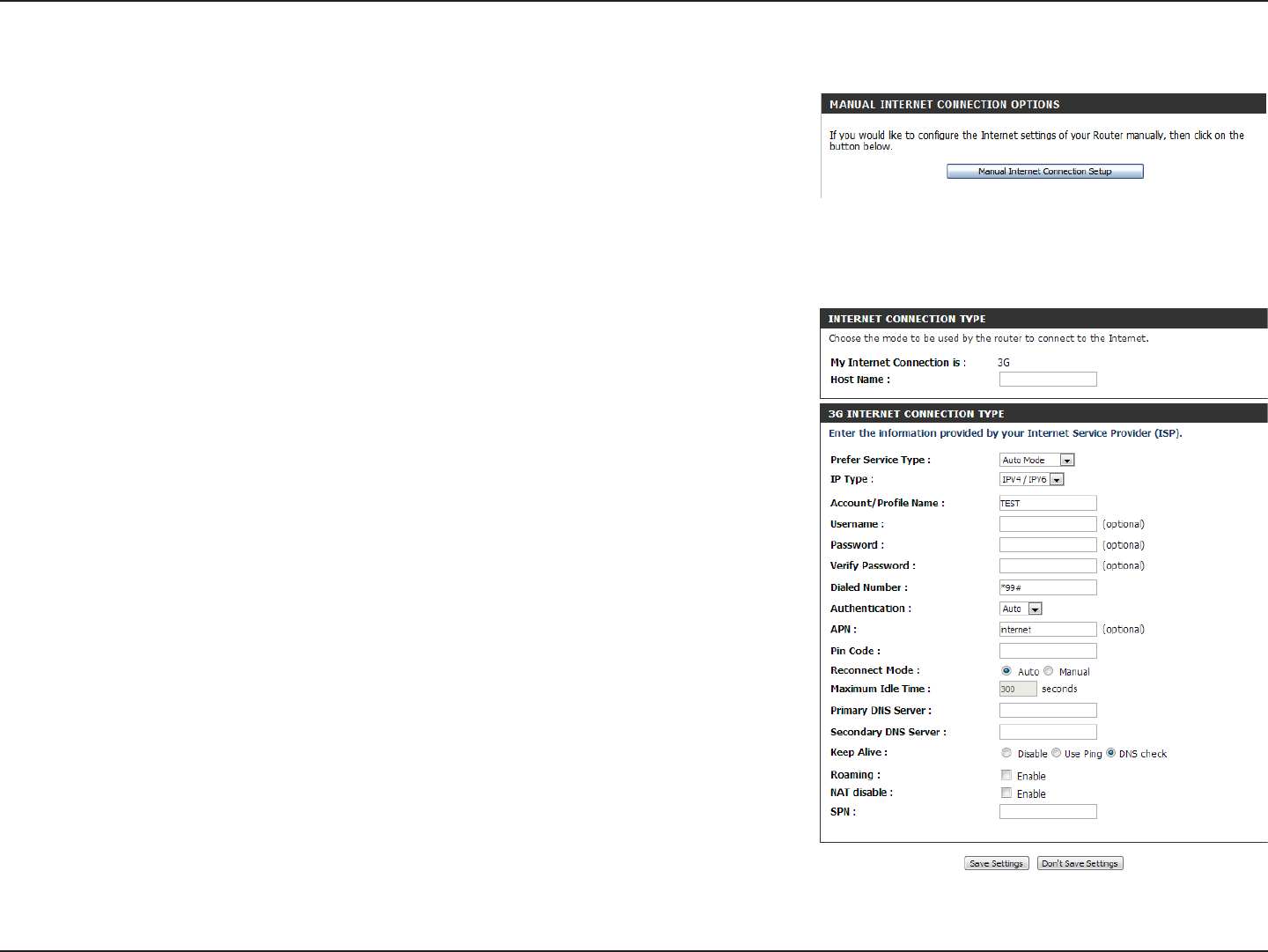

To set up your Internet connection manually, click Manual Internet Connection Setup.

12D-Link DWR-712 User Manual

Section 3 - Conguration

Enter the PIN associated with your SIM card.

Select Auto or Manual to decide whether the router should

reconnect to your 3G network automatically or manually.

Set the maximum time in seconds your connection can be idle

before disconnecting. Set it to 0 or choose Auto in Reconnect

Mode to disable this feature.

(Optional) Fill in if provided by your ISP. If not, keep the default

value.

(Optional) Fill in if provided by your ISP. If not, keep the default

value.

Select Disable, Use Ping, or DNS Check depending on the

settings required by your ISP. If you select Use Ping, set the

ping interval and the IP address to ping. DNS Check enables

periodic DNS checks to make sure your connection is alive,

and if the check fails, it will restart your 3G connection to

resume connectivity.

Enabling this option will allow you to connect when roaming.

Note: Roaming connections may incur additional fees from

your service provider.

Enabling this option will disable the NAT function of the

DWR-712, allowing it to act as a link for your devices to your

Internet connection, but without routing functions.

Enter your Service Provider Network (SPN) if required by your

ISP.

Pin Code:

Reconnect Mode:

Maximum Idle Time:

Primary DNS Server:

Secondary DNS Server:

Keep Alive:

Roaming:

NAT Disable:

SPN:

13D-Link DWR-712 User Manual

Section 3 - Conguration

Wireless Settings

This section will help you to manually congure the wireless settings of your router. Please

note that changes made on this section may also need to be duplicated on your Wireless Client.

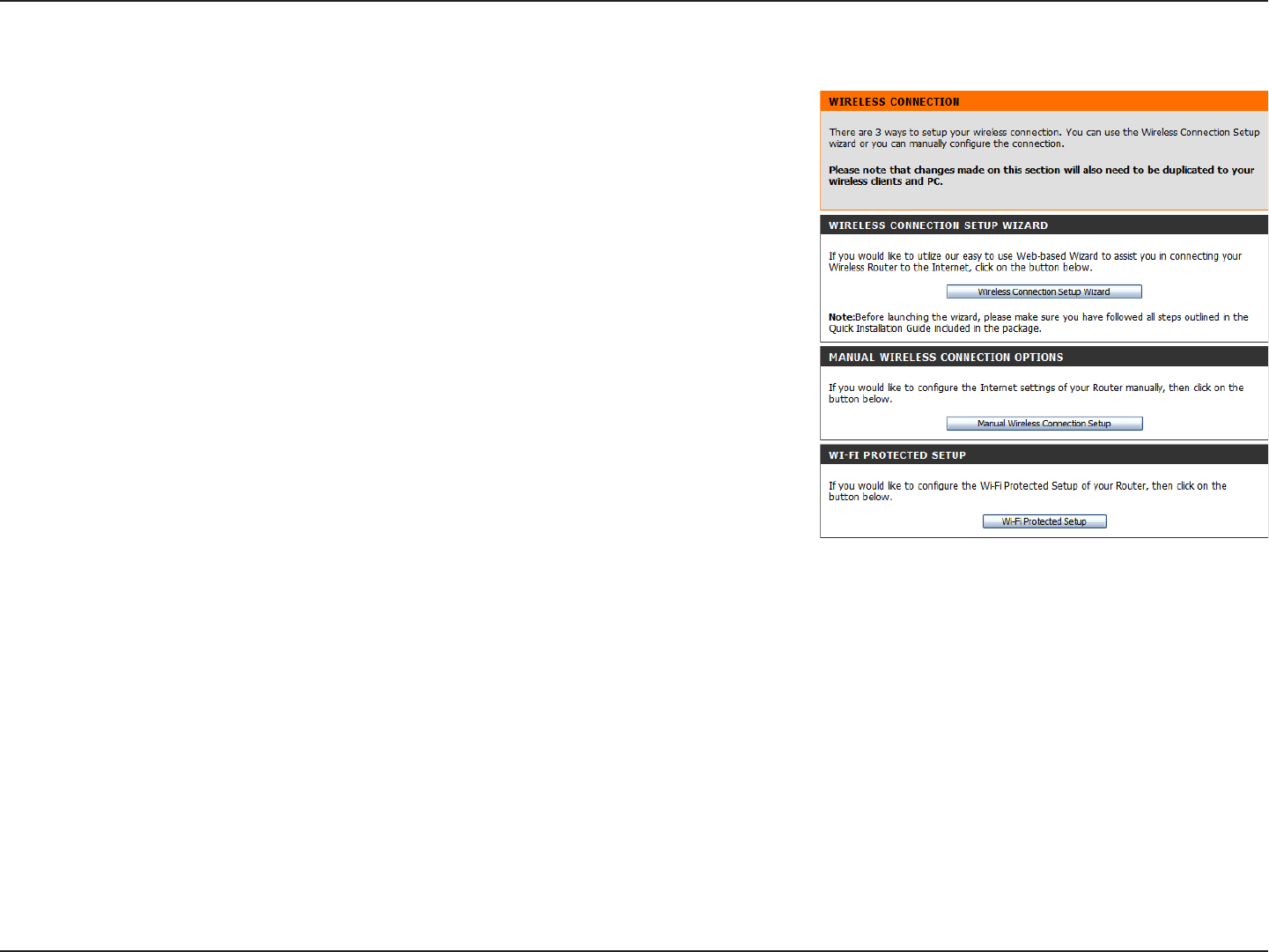

The Wireless Settings page allows you to congure how your router connects to the Internet.

There are several ways to set up your wireless connection.

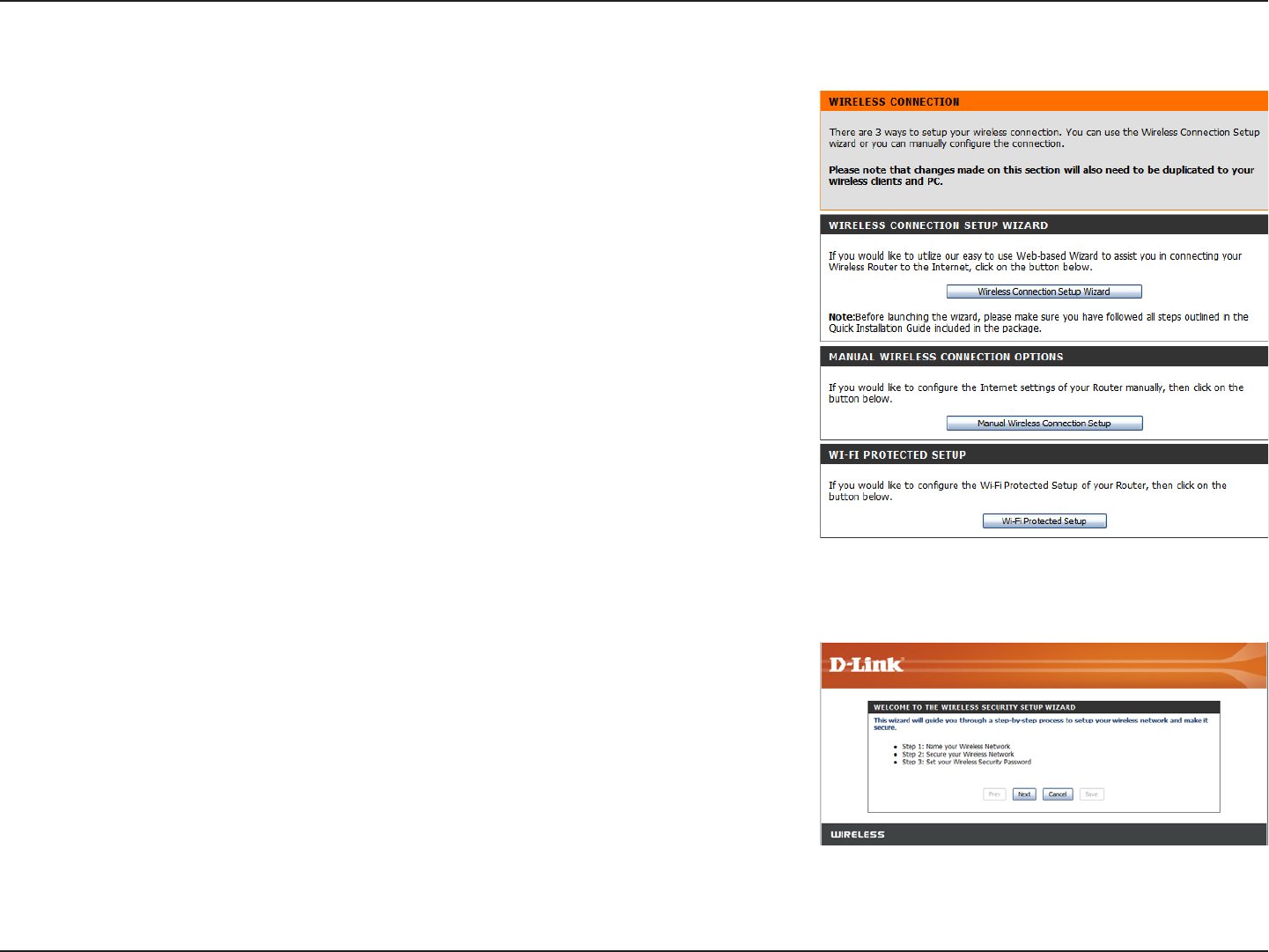

You can click on the Wireless Connection Setup Wizard button to start a wizard that will

guide you through setting up your wireless settings.

If you want to manually congure your settings, click the Manual Wireless Connection Setup

button and skip to “Manual Wireless Connection Setup” on page 15.

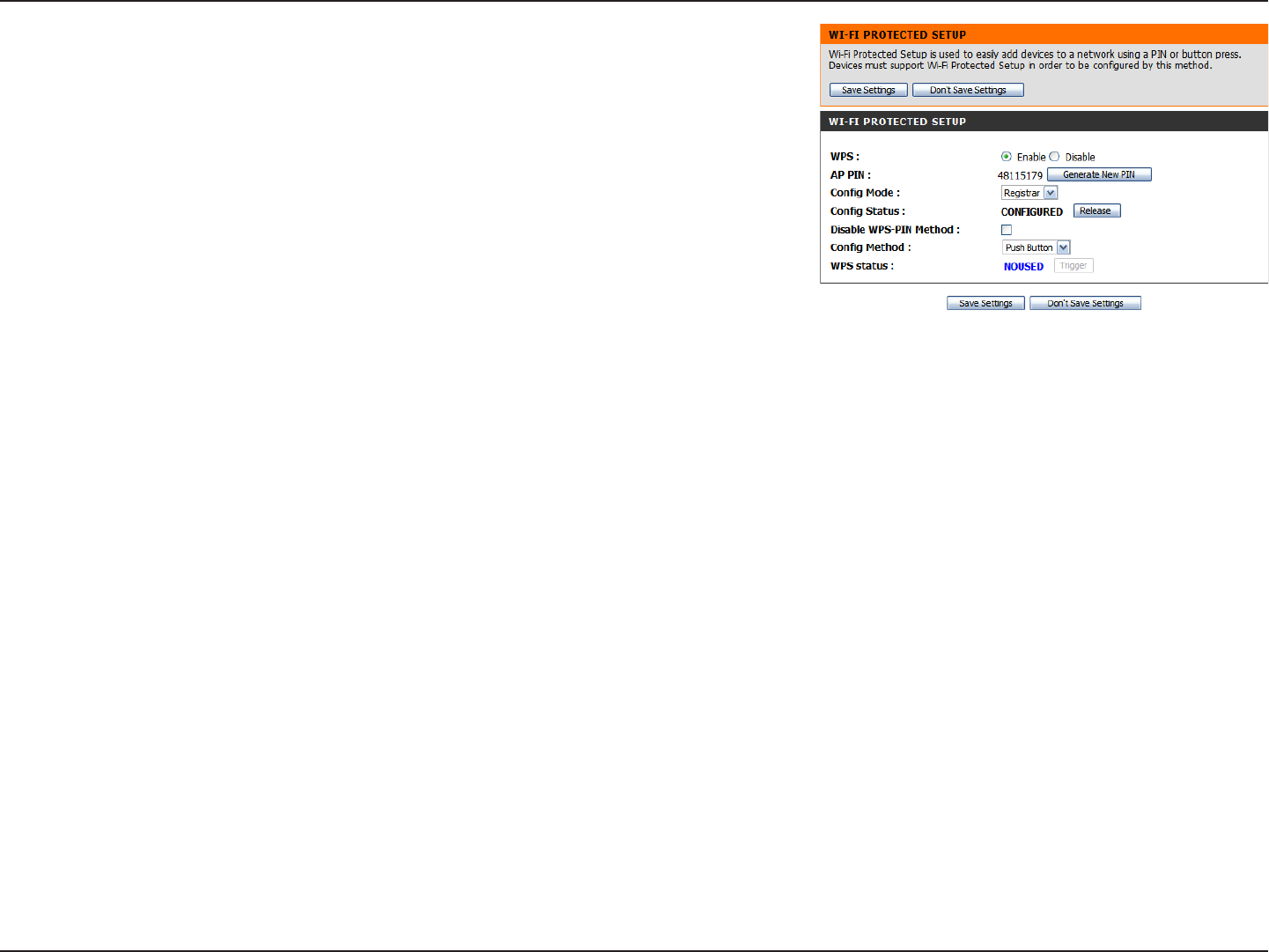

You can also set up a wireless connection to a device automatically, or congure your router

automatically from a by clicking the Wi-Fi Protected Setup button. This is described in “Wi-Fi

Protected Setup” on page 20.

This wizard will guide you through a step-by-step process to congure your D-Link router’s

wireless .

Click Next to continue.

Note: While using the wizard, you can click Prev to go back to the previous page or you can

click Cancel to close the wizard.

Wireless Connection Setup Wizard

14D-Link DWR-712 User Manual

Section 3 - Conguration

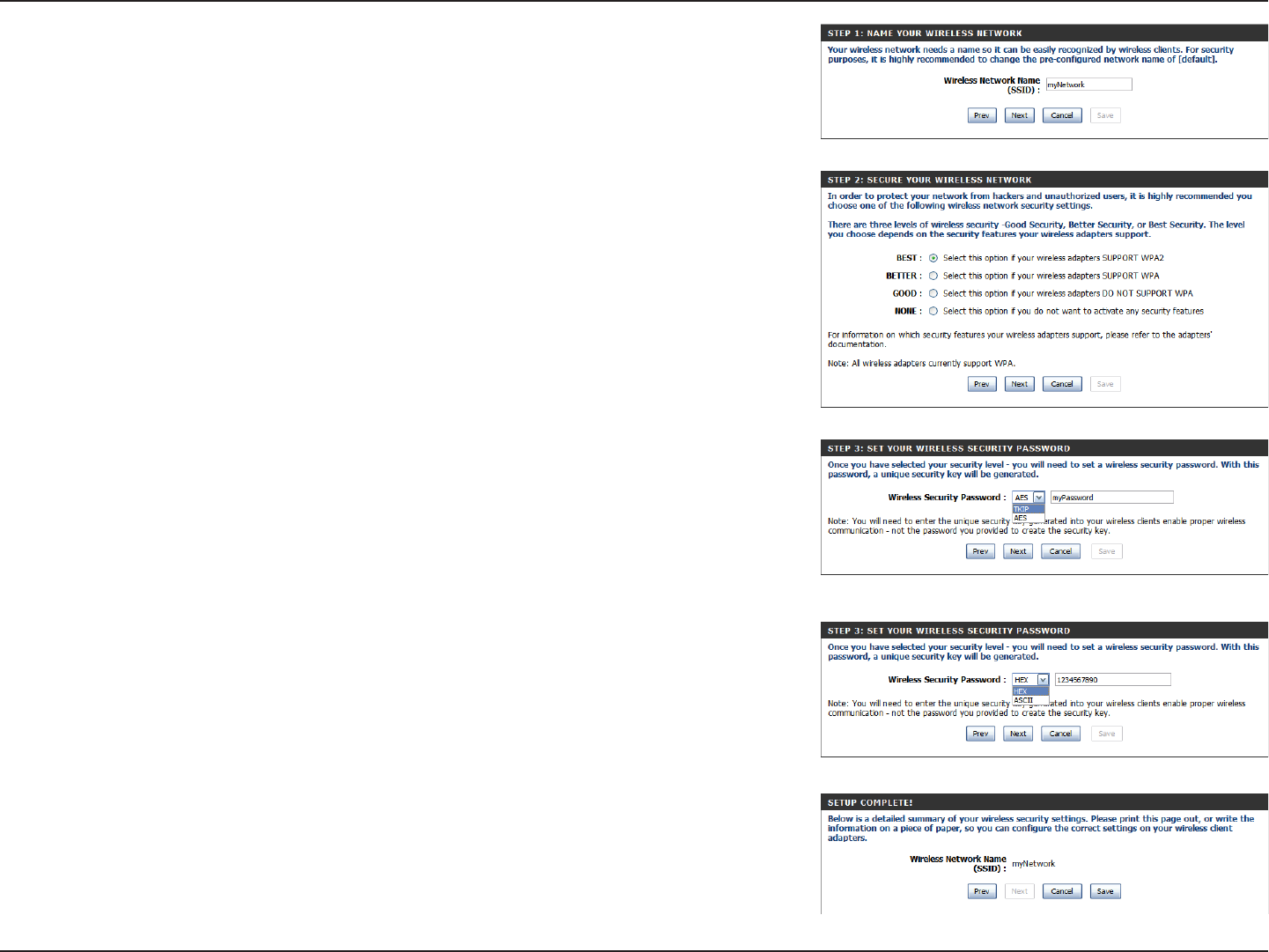

Enter a name for your wireless network, then click Next to continue.

Select a level of wireless security to use, then click Next to continue.

If you chose BEST or BETTER, select whether to use TKIP or AES encryption, then enter a

password to use for your wireless network. It is recommended that you use AES if your wireless

computers and devices support it, as it is more secure. Click Next to continue.

If you chose GOOD, select whether to use a HEX or ASCII password, then enter a password

to use for your wireless network. If you choose HEX, you will need to enter a 10 or 26 digit

password using only hex characters (0-9, A-F). If you choose ASCII, the password can be up to

5 or 13 alphanumeric characters. Click Next to continue.

This completes the Wireless Connection Setup Wizard. Click Save to save your changes and

reboot the router.

15D-Link DWR-712 User Manual

Section 3 - Conguration

Manual Wireless Connection Setup

To set up your wireless connection manually, click Manual Wireless Connection Setup.

Refer to the next page.

16D-Link DWR-712 User Manual

Section 3 - Conguration

Select this checkbox to enable wireless access. When you set

this option, the following parameters take eect.

Also known as the SSID (Service Set Identier), this is the name

of your Wireless Local Area Network (WLAN). Enter a name

using up to 32 alphanumeric characters. The SSID is case-

sensitive.

B/G mixed: Enable this mode if your network contains a mix of

802.11b and 802.11g devices.

N only: Enable this mode if your network only has 802.11n

devices.

B/G/N mixed: Enable this mode if you have a mix of 802.11n,

802.11g, and 802.11b clients.

Enabling this feature will allow the router to scan for the best

channel to use automatically.

A wireless network uses specic channels in the wireless

spectrum to handle communication between clients. Some

channels in your area may experience interference from

other electronic devices. Choose the clearest channel to help

optimize the performance and coverage of your wireless

network, or enable Auto Channel Scan for the router to

automatically select the best channel.

This setting determines whether the SSID will be Visible or

Invisible to wireless clients looking for wireless networks.

Setting this to Invisible can increase the security of your

network by hiding it, but clients will need to manually enter

the SSID of your network to connect.

Enable Wireless:

Wireless Network Name:

802.11 Mode:

Auto Channel Scan:

Wireless Channel:

Visibility Status:

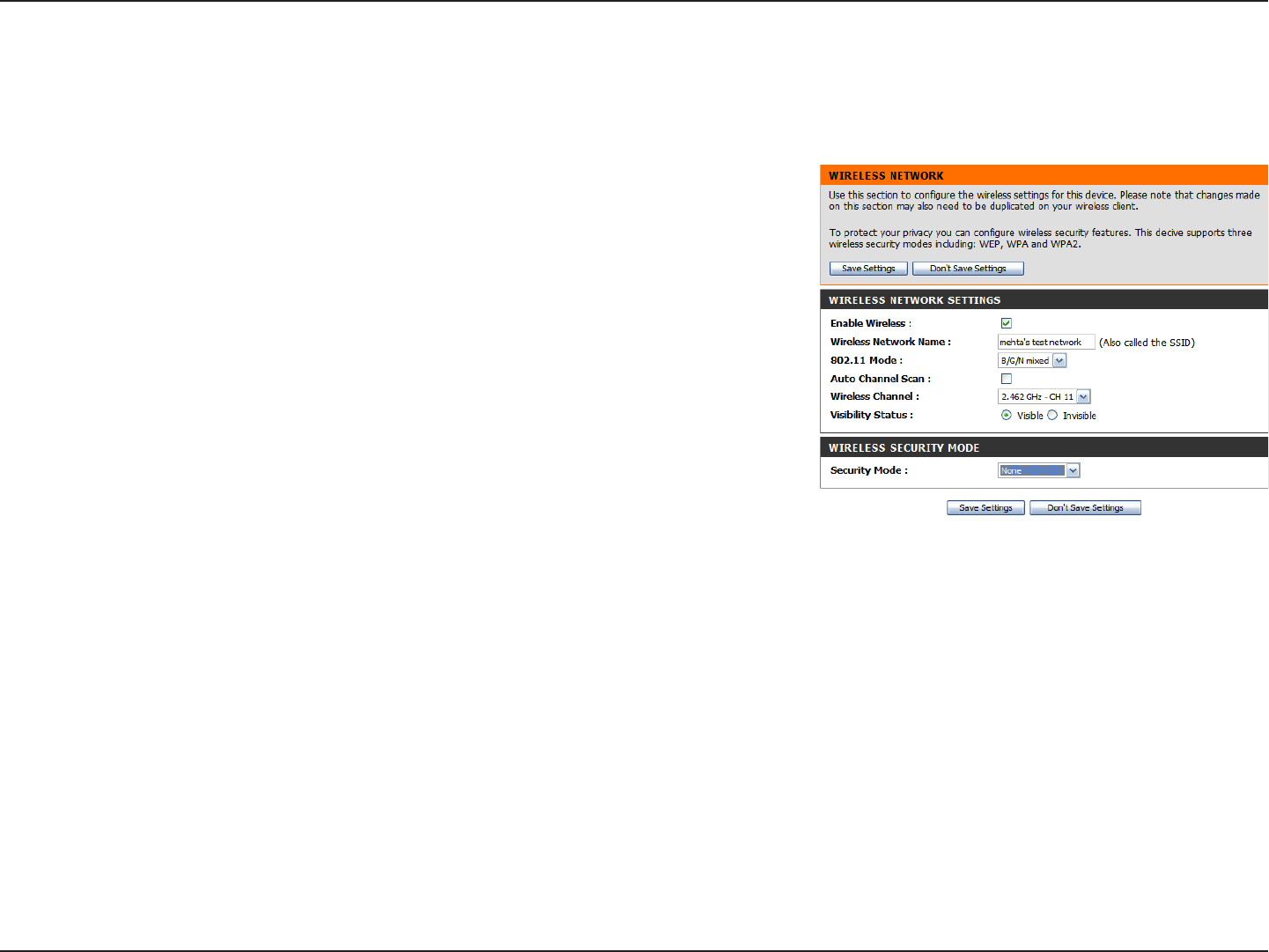

Wireless Settings

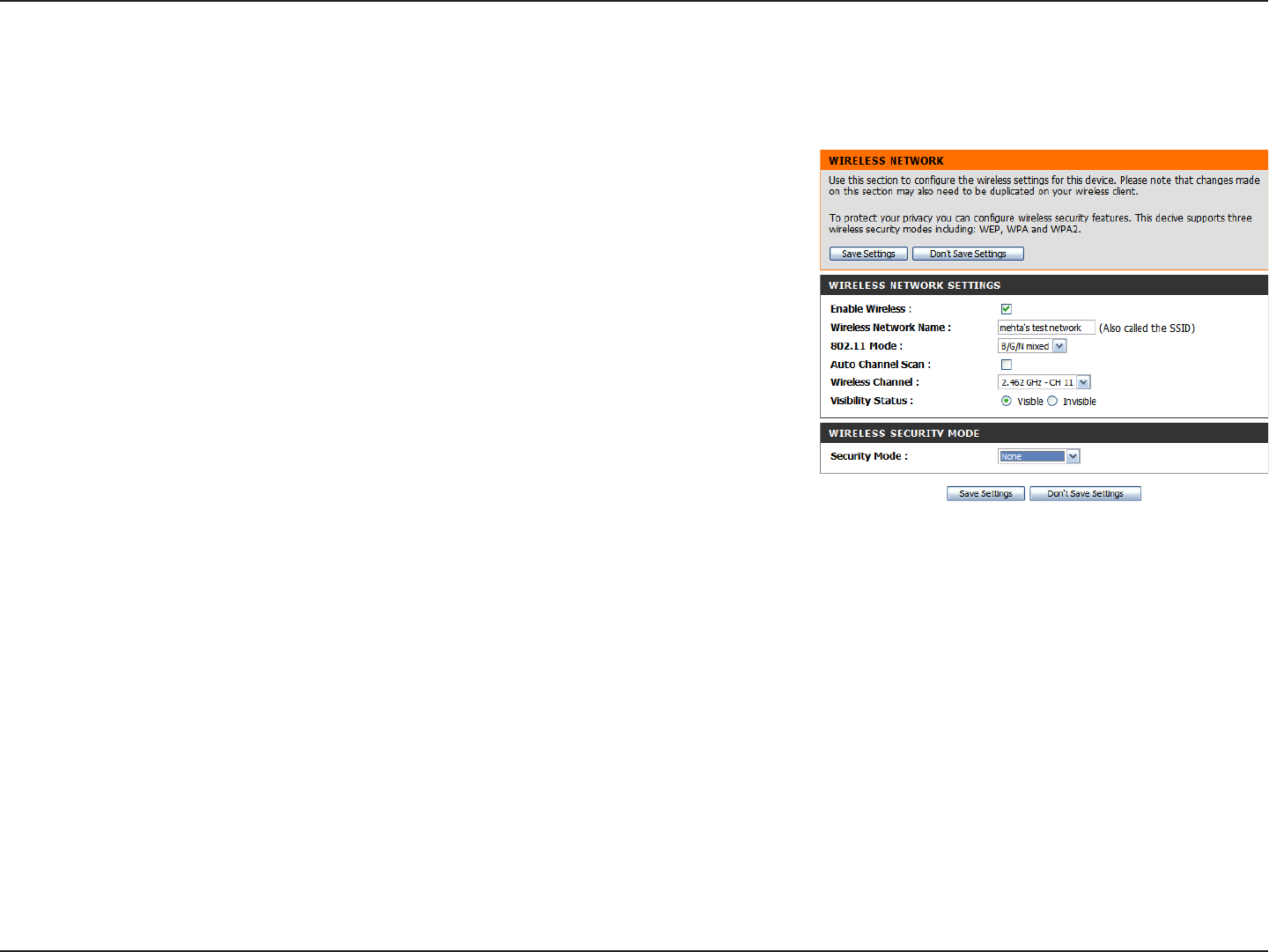

This page lets you set up your wireless network and choose a wireless security mode. After modifying any settings, click Save Settings to save your

changes.

17D-Link DWR-712 User Manual

Section 3 - Conguration

Wireless Security Mode

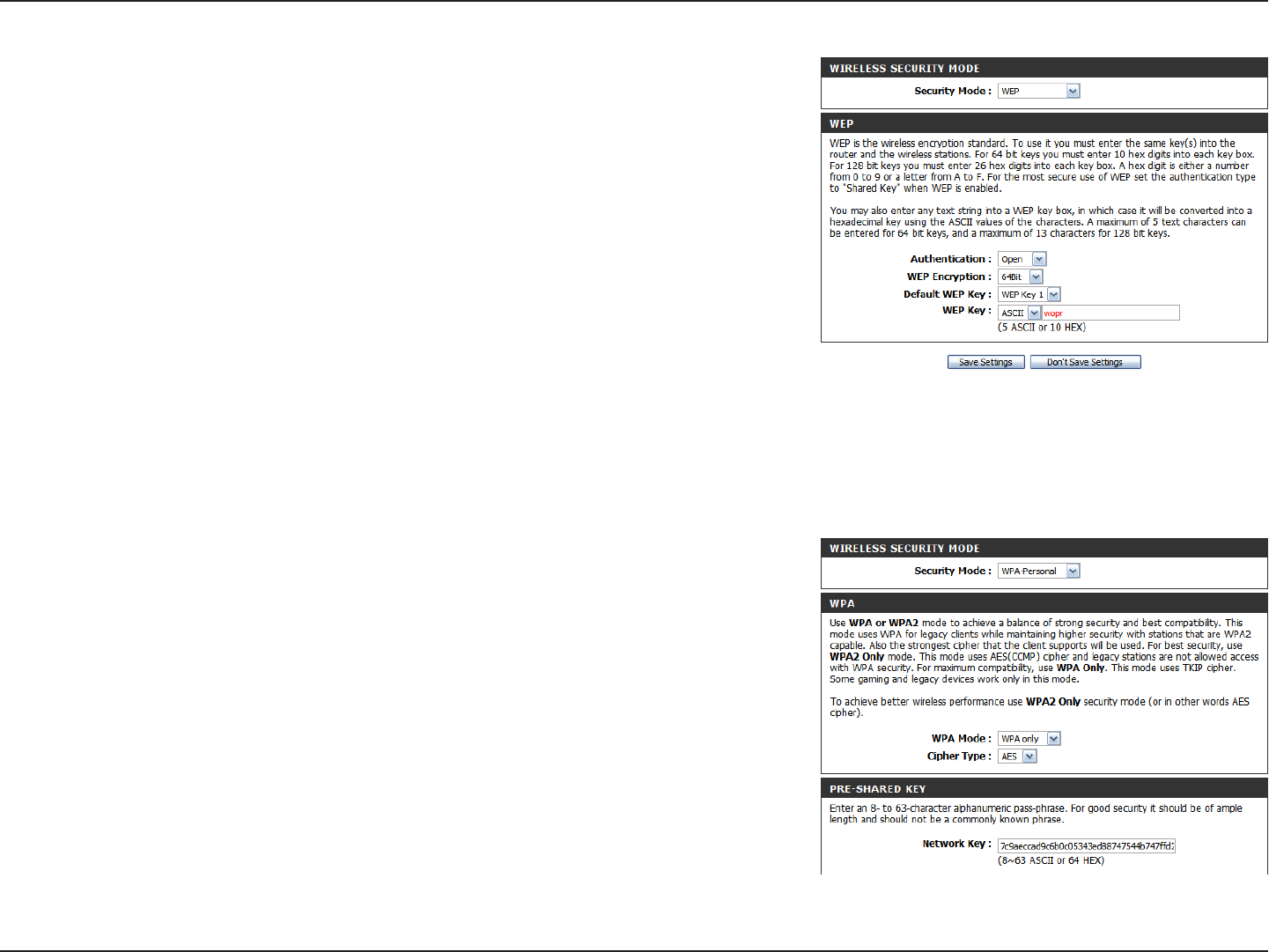

You can choose from several dierent wireless security modes. After selecting a mode, the settings for that mode will appear. After modifying any

settings, click Save Settings to save your changes.

You can choose from 4 dierent security modes.

• None: No security will be used. This setting is not

recommended.

• WEP: WEP encryption will be used. This setting is

only recommended if your wireless devices cannot

support WPA or WPA2.

• WPA-Personal: WPA-PSK encryption will be used.

This setting is recommended for most users.

• WPA-Enterprise: WPA-EAP encryption will be

used. This setting is only recommended if you

have a RADIUS authentication server. Otherwise,

WPA-Personal should be used.

Security Mode:

18D-Link DWR-712 User Manual

Section 3 - Conguration

Select whether to use WPA2 only or WPA only. WPA2 only is

the most secure, provided that all of your clients can support

it.

Select whether to use the TKIP or AES cipher. The AES cipher

is the most secure, provided that all of your clients can support

it.

Enter the key/password you want to use for your wireless

network. The key must be 8 to 63 characters long, and may

only contain letters and numbers.

WPA Mode:

Cipher Type:

Network Key:

If you choose WPA-Personal, the following options will appear:

Select whether to use Open or Shared authentication.

Select whether to use 64-bit or 128-bit encryption.

Select which WEP key (1-4) to use as the default key. This will

also change the WEP Key text box to that WEP key for your to

congure(1-4).

Set the WEP key/password for your wireless network. Based

on whether you are using 64 or 128-bit encryption, and

whether you are using a HEX or ASCII key, you will need to

enter dierent numbers of characters for your key, as indicated

below the WEP Key text box. ASCII keys may use letters and

numbers only, and HEX keys may use numbers 0-9 and letters

A-F only.

Authentication:

WEP Encryption:

Default WEP Key:

WEP Key:

If you choose WEP, the following options will appear:

19D-Link DWR-712 User Manual

Section 3 - Conguration

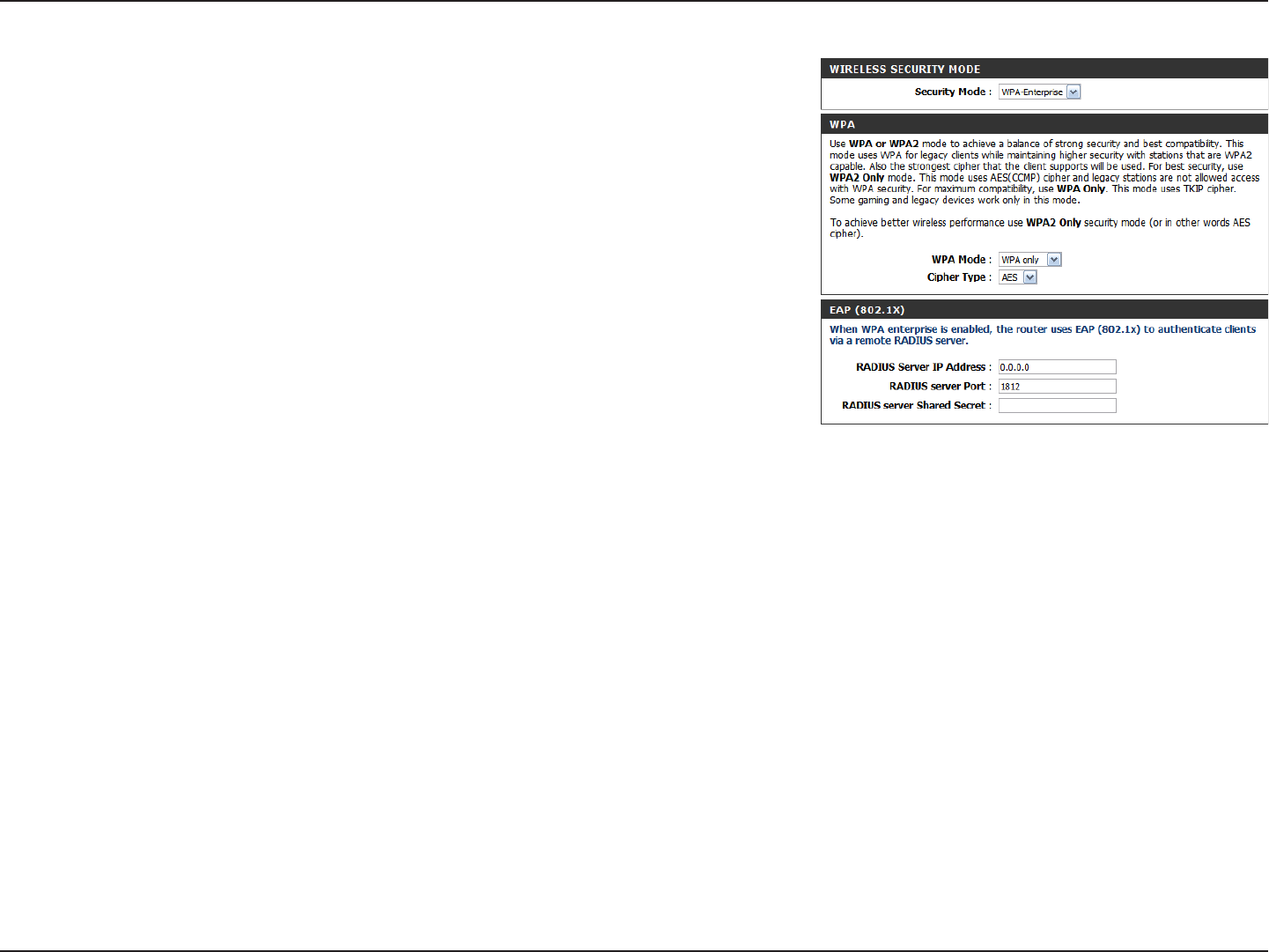

Select whether to use WPA2 only or WPA only. WPA2 only is

the most secure, provided that all of your clients can support

it.

Select whether to use the TKIP or AES cipher. The AES cipher

is the most secure, provided that all of your clients can support

it.

Enter the IP address of your RADIUS server.

Enter the port used for your RADIUS server.

Enter the Shared Secret/password for your RADIUS server.

WPA Mode:

Cipher Type:

RADIUS Server IP

Address:

RADIUS Server Port:

RADIUS Server Shared

Secret:

If you choose WPA-Enterprise, the following options will appear:

20D-Link DWR-712 User Manual

Section 3 - Conguration

Wi-Fi Protected Setup

To open the Wi-Fi Protected Setup page, click Wi-Fi Protected Setup.

The Wi-Fi Protected Setup page allows you to create a wireless connection between your router

and a device automatically by simply pushing a button or entering a PIN code.

You can also use Windows 7 to do initial conguration of your router by using the Connect to

a network wizard in Windows, and entering the WPS PIN/AP PIN of the router when prompted.

After modifying any settings, click Save Settings to save your changes.

21D-Link DWR-712 User Manual

Section 3 - Conguration

Select whether you would like to enable or disable WPS

features.

If you use Windows 7’s Connect to a network wizard to do

initial conguration of the router, you will need to enter the

WPS PIN/AP PIN into the wizard when prompted. The factory

default WPS PIN/AP PIN is printed on a label located on the

bottom of the router. You can click the Generate New PIN

button to change it to a randomly generated PIN.

Select whether the WPS cong mode should be set to

Registrar or Enrollee. In most cases, this should be set to

Registrar so that you can use WPS to connect new wireless

clients.

If this is set to CONFIGURED, the router will be marked

as “already congured” to computers that try to use WPS

conguration, such as Windows 7’s Connect to a network

wizard. You can click the Release button to change the status

to UNCONFIGURED to allow for WPS conguration of the

router.

If this is set to UNCONFIGURED, you can click the Set

button to change the status to CONFIGURED to block WPS

conguration of the router.

This lets you choose whether to use the Push Button

connection method (PBC) or PIN method to connect to a

wireless client when the Trigger button is clicked. If you

choose the PIN method, you will need to enter a 8-digit PIN

number that the wireless client need to use to connect to your

router.

This will show the current WPS connection process status. Click

the Trigger button to initiate a WPS connection.

WPS:

AP PIN (also known as

WPS PIN):

Cong Mode:

Cong Status:

Cong Method:

WPS Status:

22D-Link DWR-712 User Manual

Section 3 - Conguration

This section will help you to change the internal network settings of your router and to congure the DHCP Server settings. After modifying any

settings, click Save Settings to save your changes.

Network Settings

Enter the IP address you want to use for the router. The default

IP address is 192.168.0.1. If you change the IP address, you

will need to enter the new IP address in your browser to get

into the conguration utility.

Enter the Subnet Mask of the router. The default subnet mask

is 255.255.255.0.

Enter the local domain name for your network.

Router IP Address:

Default Subnet Mask:

Local Domain Name:

Router Settings

23D-Link DWR-712 User Manual

Section 3 - Conguration

Select this box to enable the DHCP server on your router.

Enter the range of IPs for the DHCP server to use to assign IP

addresses to devices on your network.

Enter lease time for IP address assignments.

Enter the primary DNS IP Address that will be assigned to

DHCP clients.

Enter the secondary DNS IP Address that will be assigned to

DHCP clients.

Enter the primary WINS IP Address that will be assigned to

DHCP clients.

Enter the secondary WINS IP Address that will be assigned to

DHCP clients.

Enable DHCP Server:

DHCP IP Address Range:

DHCP Lease Time:

Primary DNS IP Address:

Secondary DNS IP

Address:

Primary WINS IP

Address:

Secondary WINS IP

Address:

DHCP Server Settings

The DWR-712 has a built-in DHCP (Dynamic Host Control Protocol) server. The DHCP server assigns IP addresses to devices on the network that

request them. By default, the DHCP Server is enabled on the device. The DHCP address pool contains a range of IP addresses, which is automatically

assigned to the clients on the network. After modifying any settings, click Save Settings to save your changes.

24D-Link DWR-712 User Manual

Section 3 - Conguration

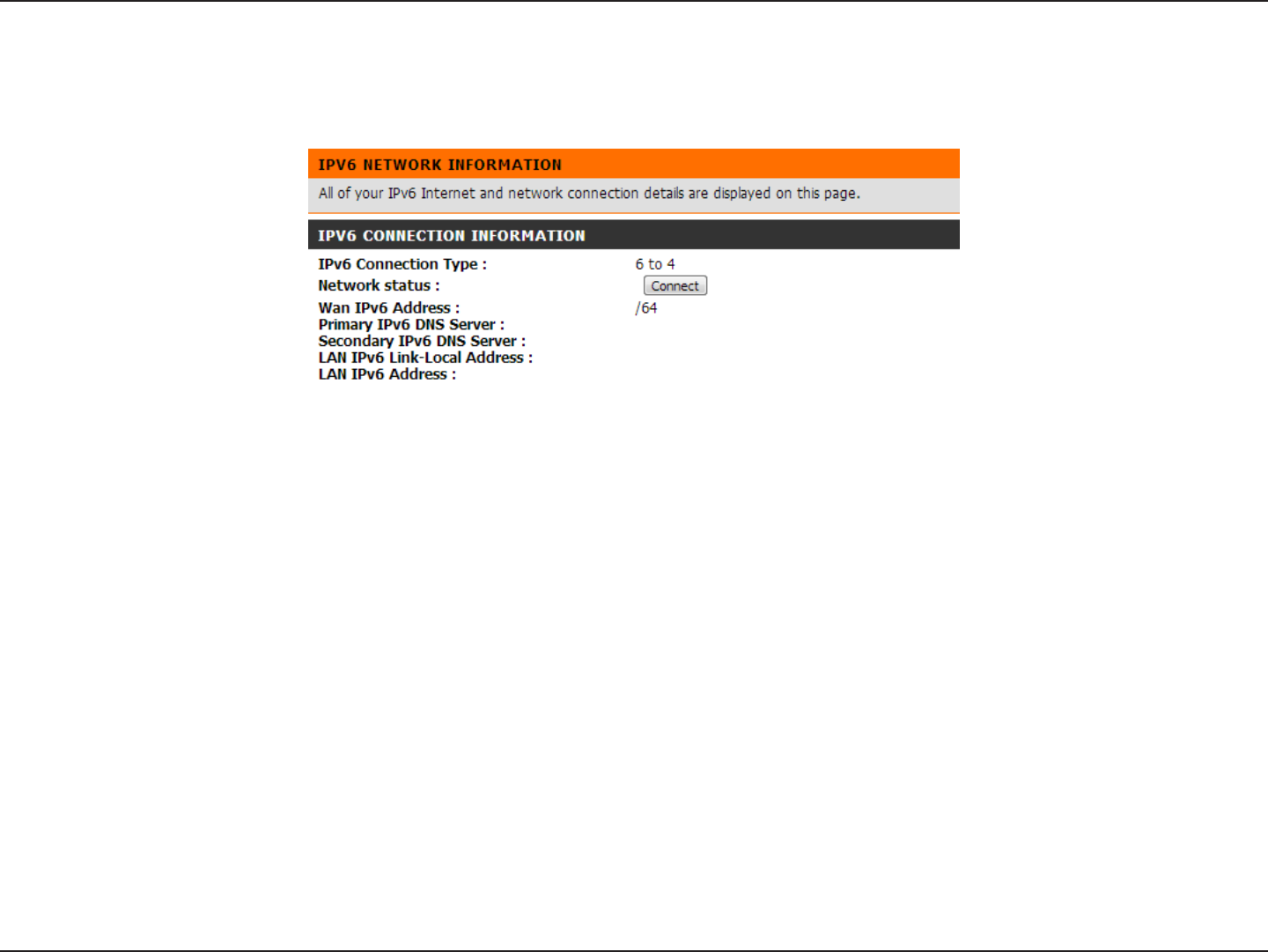

IPv6 Settings

Click Enable to use the 6 to 4 IPv6 connection type.

This displays the current IPv6 connection type (6 to 4).

Enter the primary DNS server address.

Enter the secondary DNS server address.

Displays the router’s LAN IPv6 address.

Displays the router’s LAN link-local address.

Click Enable to use the autoconguration feature.

Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless

DHCPv6.

Enter the IPv6 address lifetime (in seconds).

The settings in this section will help you to congure IPv6 if your Internet Service Provider (ISP) supports it. After modifying any settings, click Save

Settings to save your changes.

6 to 4 Settings:

IPv6 Connection:

Primary DNS Address:

Secondary DNS Address:

LAN IPv6 Address:

LAN IPv6 Link-Local

Address:

Autoconguration:

Autoconguration Type:

Router Advertisement

Lifetime:

25D-Link DWR-712 User Manual

Section 3 - Conguration

Message Service

If your ISP provides SMS service, you can check and send messages from this page.

Click this button to view SMS messages that you have

received.

Click this button to create a new message to send.

Click this button to set up a SMSC number to receive SMS

messages from your ISP.

SMS Inbox:

Create Message:

SMSC Setting:

Deletes the selected SMS message.

Opens a Create Message window to reply to the selected SMS

message.

Opens a Create Message windows to forward the selected SMS

message to another recipient.

Click this button to check for new messages.

Delete:

Reply:

Forward:

Refresh:

SMS Inbox

This page shows all messages that are stored on the SIM card. Select a message to display its contents in the SMS window. After you read it, you

can delete it, or reply to the sender. Click the Refresh button to update the list.

26D-Link DWR-712 User Manual

Section 3 - Conguration

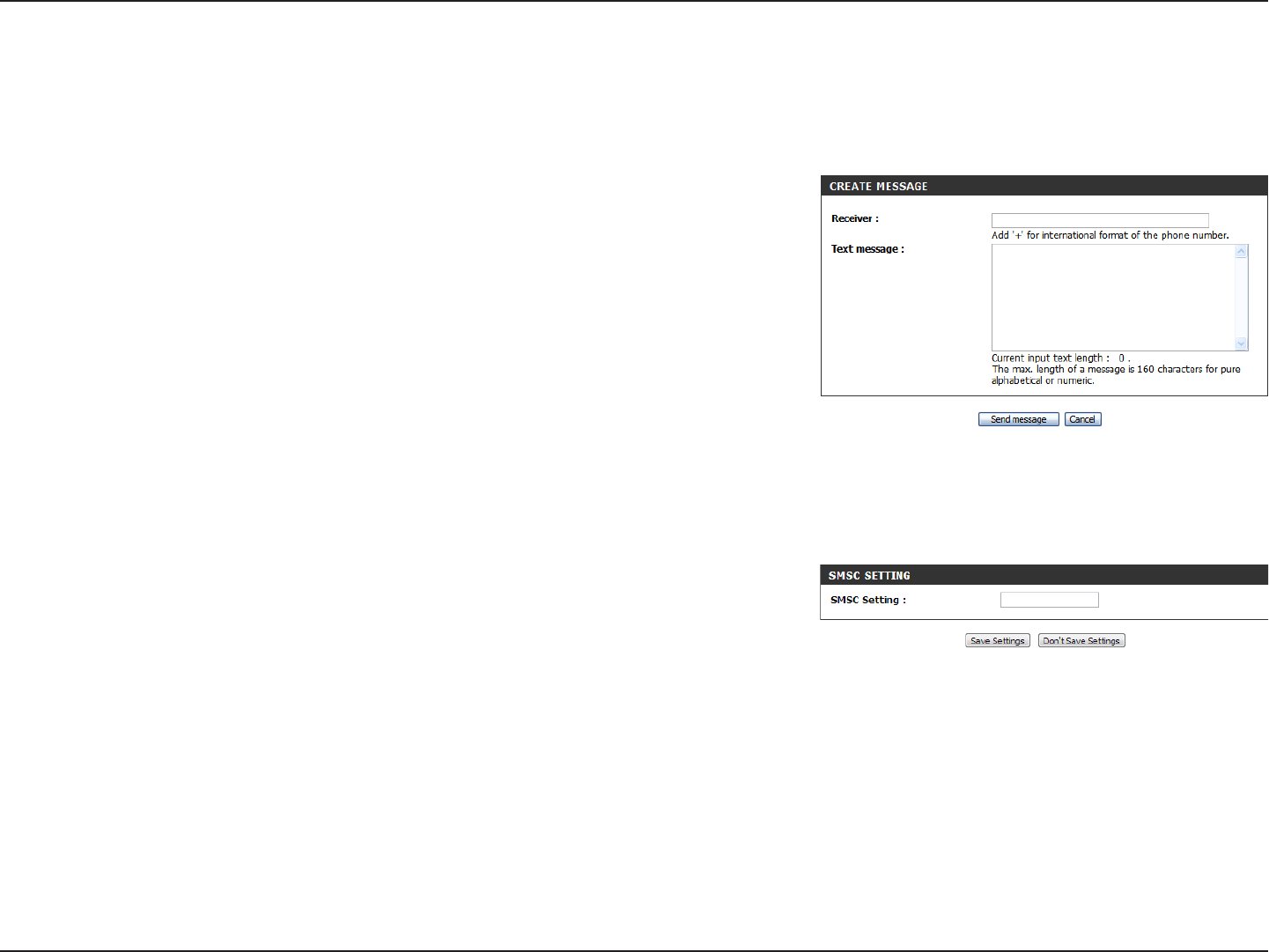

Create Message

This page allows you to send an SMS to your contacts. Just ll in the phone number of the recipient, and type the content of message. Then click

the “Send Message” button to send out this message. If you would like to add more than one recipient, you must put a semicolon (;) between each

of the phone numbers.

Type the phone number of the recipient.

Type the message that you would like to send.

Click this button to send the message.

Click this button to clear the message.

Receiver:

Text Message:

Send Message:

Cancel:

SMSC Setting

This feature will all you to set up a SMSC number to receive SMS messages from your ISP.

Enter the number provided by your ISP and click Save

Settings. This will enable the SMSC feature and allow you to

receive SMS messages.

SMSC Setting:

27D-Link DWR-712 User Manual

Section 3 - Conguration

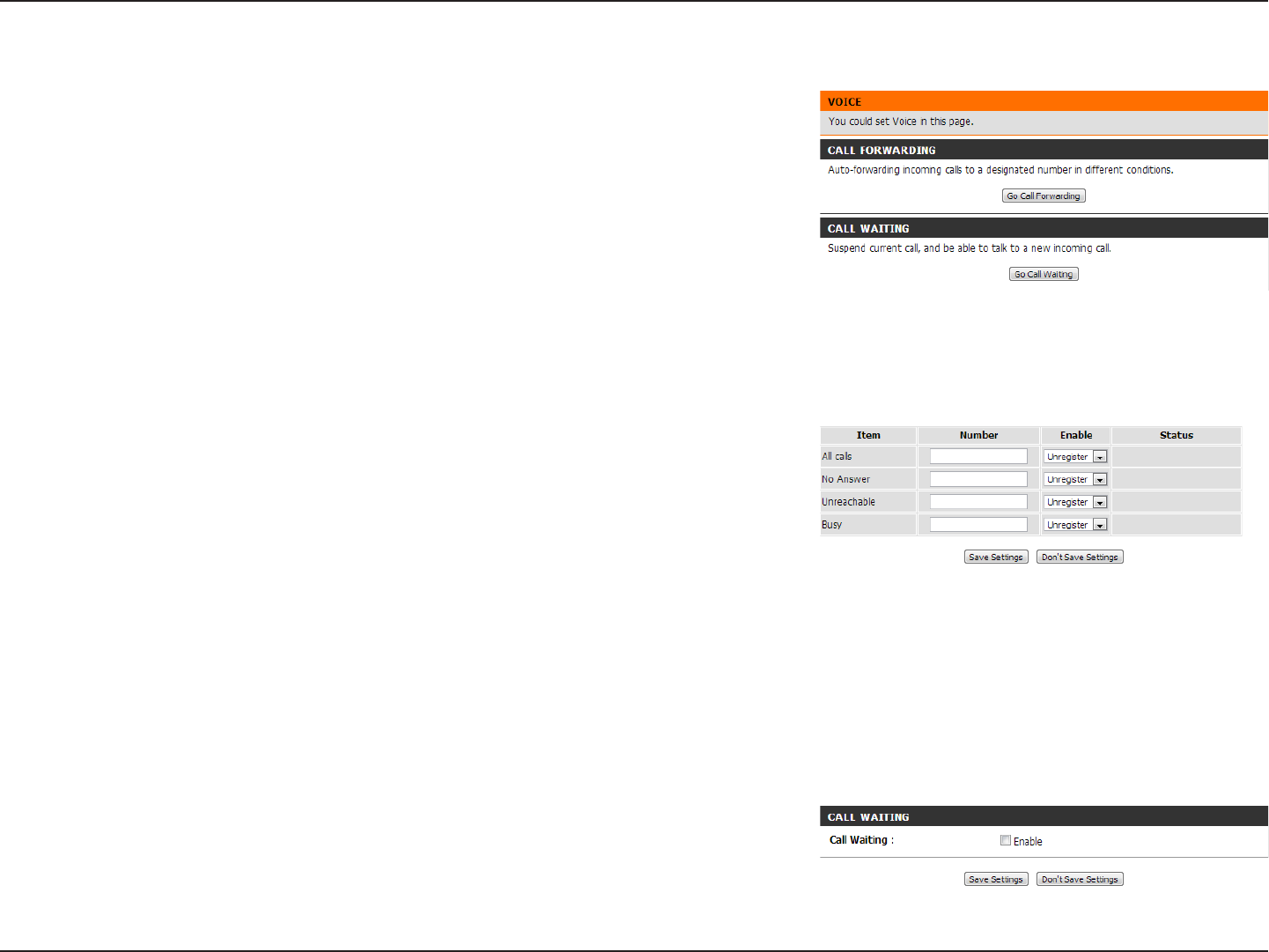

Voice

Enter the number to forward any incoming calls to.

Enter the number to forward any incoming calls to if the

default “all calls” number does not answer.

Enter the number to forward any incoming calls to if the

default “all calls” number is unreachable.

Enter the number to forward any incoming calls to if the

default “all calls” number is busy.

This page allows you to specify what happens when the call forwarding or call waiting feature

of the router is enabled. Select Go Call Forwarding to congure how to forward incoming

calls. Select Go Call Waiting to congure what happens if an incoming call comes in.

All Calls:

No Answer:

Unreachable:

Busy:

Call Forwarding

This feature will allow you to auto-forward incoming calls to a designated number under dierent conditions: All calls / No Answer / Unreachable/

Busy.

Check to enable the call waiting feature.Call Waiting:

This feature will allow you to suspend the current call, and then be able to answer a new incoming call.

Call Waiting

28D-Link DWR-712 User Manual

Section 3 - Conguration

USSD

Enter an application activation code and click Send. This will

allow you to activate applications by sending an SMS message

to your ISP.

Unstructured Supplementary Service Data (USSD) allows ISP-specic applications to be activated with an SMS message.

USSD:

29D-Link DWR-712 User Manual

Section 3 - Conguration

Advanced

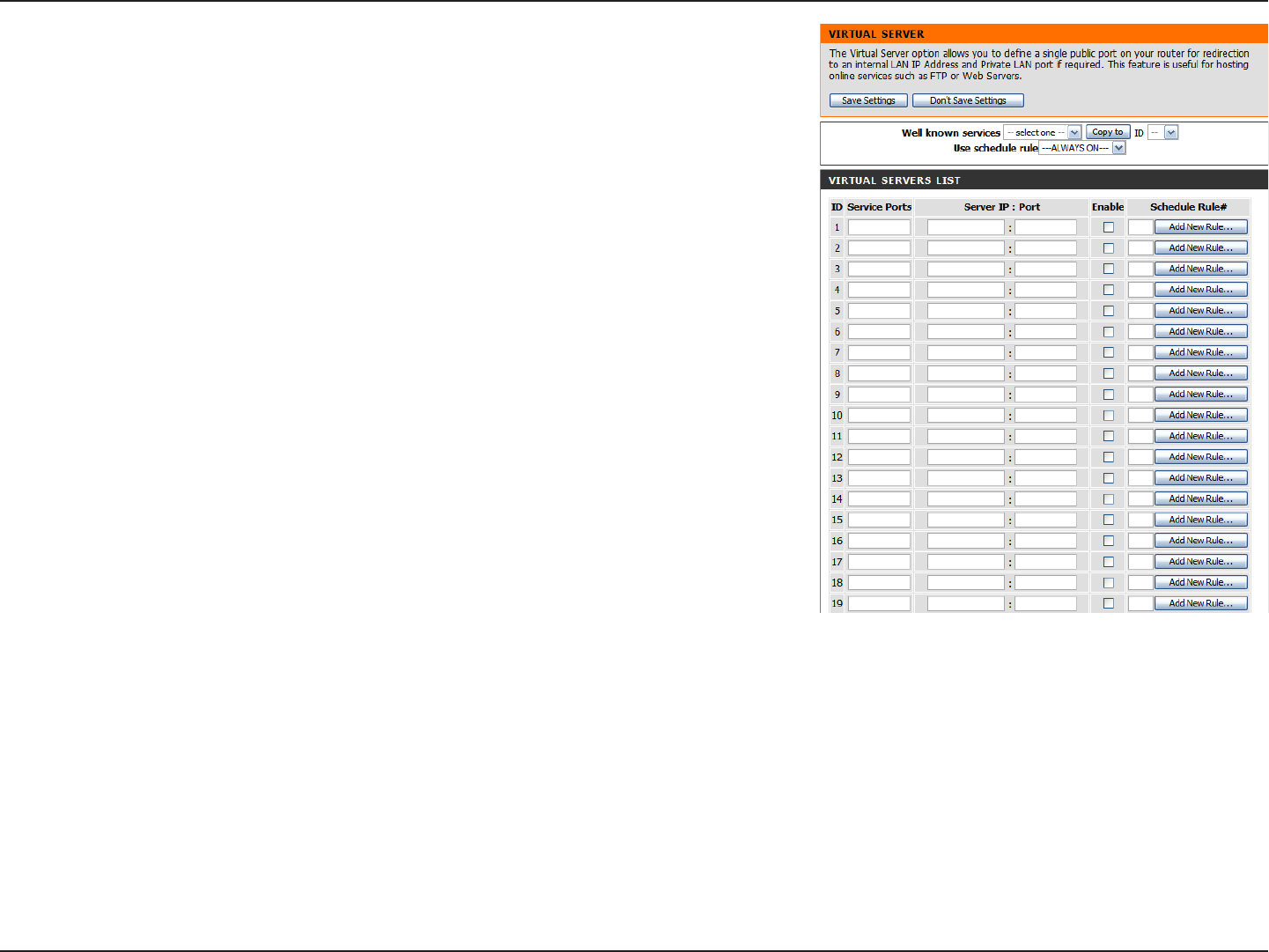

The device can be congured as a virtual server so that users can access services such as Web or FTP via the public (WAN) IP address of the router.

You can also allow the settings to run on a specied schedule. The Virtual Server function is also known as Port Forwarding. After modifying any

settings, click Save Settings to save your changes.

This contains a list of pre-dened services. You can select a

service, select a rule ID, then click the Copy to button to copy

the default settings for that service to the specied rule ID.

Species which rule to copy the selected Well known service

settings to when you click the Copy to button.

Select a schedule to use and copy to the specied rule ID

when you click the Copy to button. You may select Always On

or use a specic schedule that you have dened. To create and

edit schedules, please refer to “Schedules” on page 52.

Well-known Services:

ID:

Use schedule rule:

Virtual Server

The ADVANCED pages allow you to congure the more advanced settings of the router, such

as Virtual Server(Port Forwarding), MAC and URL ltering, and advanced wireless and network

settings. To view the Advanced conguration pages, click on ADVANCED at the top of the

screen.

30D-Link DWR-712 User Manual

Section 3 - Conguration

VIRTUAL SERVERS LIST

This identies the rule.

Enter the last digits of the IP address of the computer on your

local network that you want to allow the incoming service. In

the next box, enter the port number that you would like to

open.

Tick the checkbox to enable the specied rule.

Specify the schedule rule number. To create schedules, please

refer to “Schedules” on page 52.

ID:

Server IP: Port:

Enable:

Schedule Rule #:

31D-Link DWR-712 User Manual

Section 3 - Conguration

Application Rules

Some applications require multiple connections, such as Internet gaming, video conferencing, and Internet telephony among others. These

applications may have diculty working through NAT (Network Address Translation). Application Rules allow some of these applications work

with the DWR-712 by opening ports after detecting trac being sent through a trigger port. After modifying any settings, click Save Settings to

save your changes.

Select from a list of popular applications. You can select a

service, select a rule ID, then click the Copy to button to copy

the default settings for that service to the specied rule ID.

Species which rule to copy the selected Popular application

settings to when you click the Copy to button.

APPLICATION RULES

This identies the rule.

Enter the port to listen to in order to trigger the rule.

Specify the incoming port(s) to open when trac comes over

the Trigger port.

Tick the checkbox to enable the specied rule.

Popular Applications:

ID:

Trigger:

Incoming Ports:

Enable:

32D-Link DWR-712 User Manual

Section 3 - Conguration

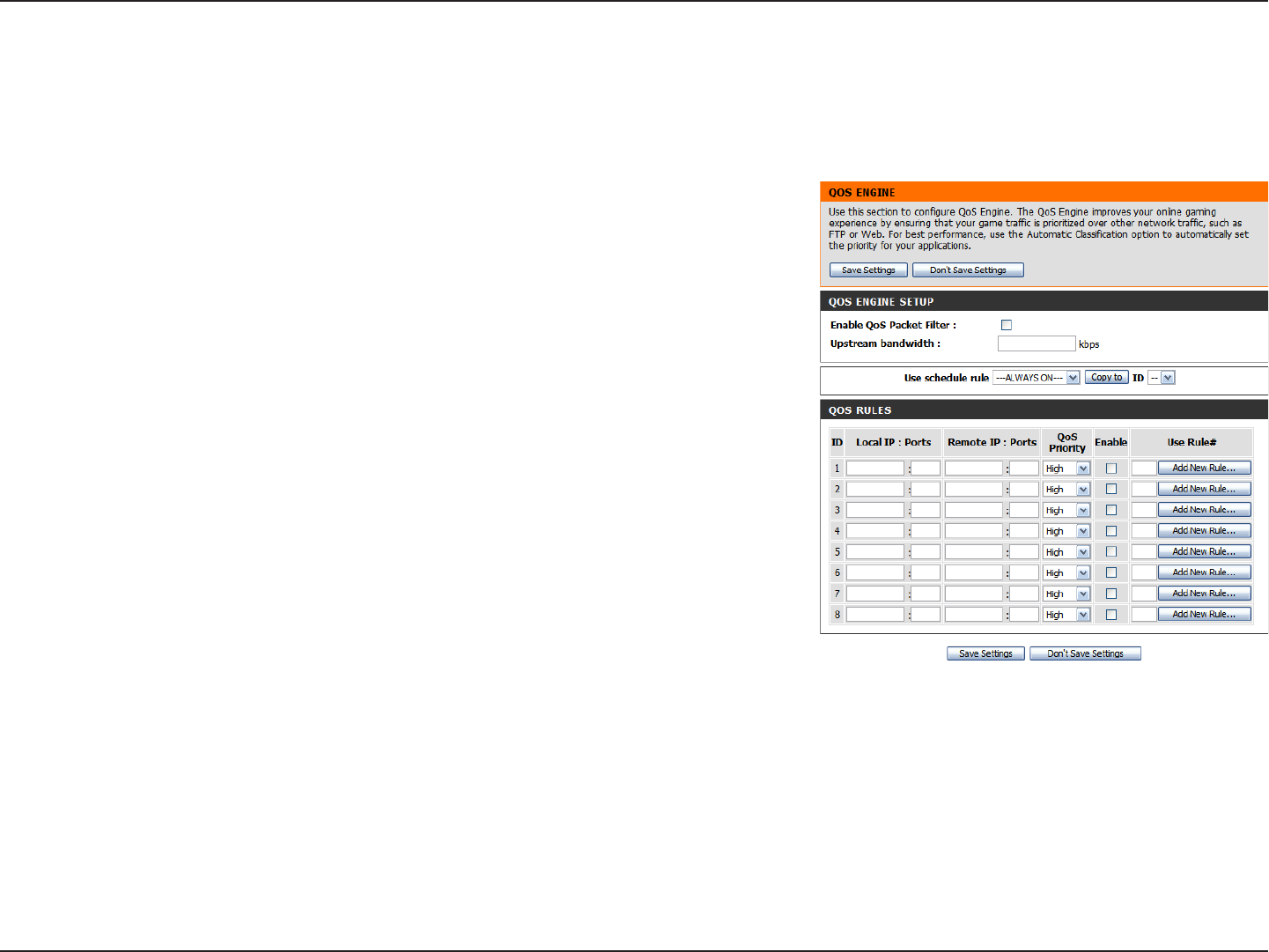

QoS Engine

QOS ENGINE SETUP

Select this box to enable the QoS feature.

Specify the maximum upstream bandwidth here (e.g. 400

kbps).

Select a schedule to use and copy to the specied rule ID

when you click the Copy to button. You may select Always On

or use a specic schedule that you have dened. To create and

edit schedules, please refer to “Schedules” on page 52.

QOS RULES

This identies the rule.

Specify the local IP address(es) and port(s) for the rule to

aect.

Specify the remote IP address(es) and port(s) for the rule to

aect.

Select what priority level to use for trac aected by the rule:

Low, Normal, or High.

Tick the checkbox to enable the specied rule.

Specify the schedule rule number. To create schedules, please

refer to “Schedules” on page 52.

Enable QOS Packet Filter:

Upstream Bandwidth:

Use Schedule Rule:

ID:

Local IP : Ports:

Remote IP : Ports:

QoS Priority:

Enable:

Use Rule #:

The QoS Engine improves your online gaming or streaming media experience by ensuring that your game or media trac is prioritized over

other network trac, such as FTP or Web. For best performance, use the Automatic Classication option to automatically set the priority for your

applications. After modifying any settings, click Save Settings to save your changes.

33D-Link DWR-712 User Manual

Section 3 - Conguration

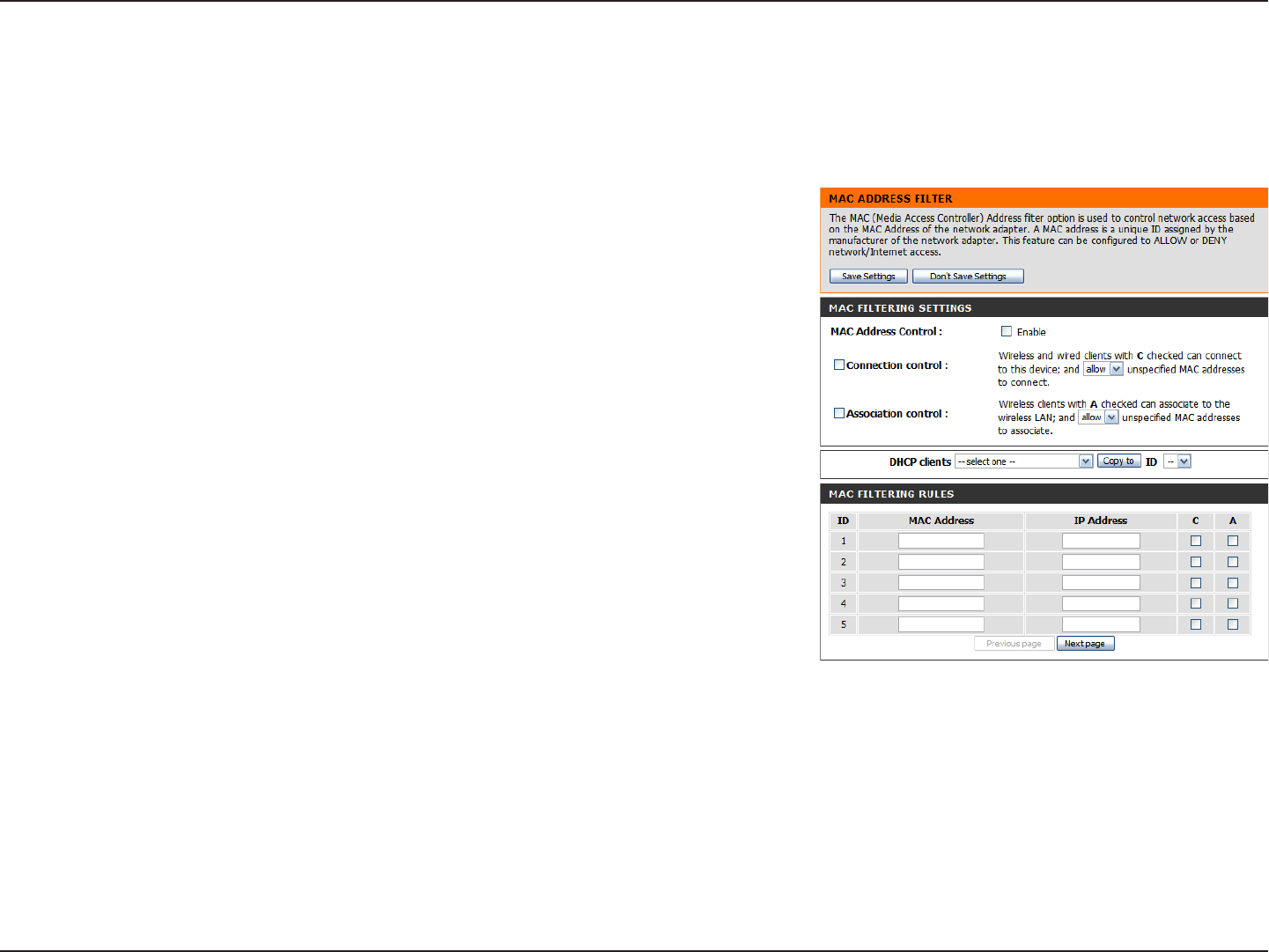

MAC Address Filter

MAC FILTERING SETTINGS

Tick this box to enable MAC Filtering.

Wireless and wired clients with C selected can connect to this

device and allow/deny connections from unspecied MAC

addresses.

Wireless clients with A selected can associate to the wireless

LAN and allow/deny connections from unspecied MAC

addresses.

MAC FILTERING RULES

This identies the rule.

Specify the MAC address of the computer to be ltered.

Specify the last section of the IP address.

Click Trigger to congure Wake On LAN.

If this box is ticked, the rule will follow the connection control

setting specied in MAC ltering settings specied above.

If this box is ticked, the rule will follow the association control

setting specied in MAC ltering settings specied above.

MAC Address Control:

Connection Control:

Association Control:

ID:

MAC Address:

IP Address:

Wake On LAN:

The MAC (Media Access Controller) Address Filter option is used to control network access based on the MAC address of the network adapter.

A MAC address is a unique ID assigned by the manufacturer of the network adapter. This feature can be congured to ALLOW or DENY network/

Internet access. After modifying any settings, click Save Settings to save your changes.

34D-Link DWR-712 User Manual

Section 3 - Conguration

Select this box to enable URL Filtering.

URL FILTERING RULES

This identies the rule.

Enter URL that you would like to block. All URLs that begin

with this URL will be blocked.

Tick the checkbox to enable the specied rule.

URL Filter allows you to set up a list of websites that will be blocked from users on your network. After modifying any settings, click Save Settings

to save your changes.

URL Filter

URL Filtering:

ID:

URL:

Enable:

35D-Link DWR-712 User Manual

Section 3 - Conguration

OUTBOUND FILTER SETTING

Select this box to Enable outbound ltering.

Select a schedule to use and copy to the specied rule ID

when you click the Copy to button. You may select Always On

or use a specic schedule that you have dened. To create and

edit schedules, please refer to “Schedules” on page 52.

OUTBOUND FILTER RULES LIST

Here, you can select whether to Allow or Deny all outgoing

trac except for trac that matches the listed rules.

This identies the rule.

Specify the local IP address and then specify the port after the

colon.

Specify the remote IP address and then the port after the

colon.

Tick the checkbox to enable the specied rule.

Specify the schedule rule number.

Go back to the previous lter page.

Advance to the next lter page.

Outbound Filter

Outbound Filter:

Use Schedule Rule:

ID:

Source IP : Ports:

Destination IP : Ports:

Enable:

Schedule Rule #:

Outbound Filter enables you to control what packets are allowed to be sent out to the Internet. The outbound lter applies to all outbound packets.

After modifying any settings, click Save Settings to save your changes.

36D-Link DWR-712 User Manual

Section 3 - Conguration

INBOUND FILTER SETTING

Select this box to Enable the lter.

Select a schedule to use and copy to the specied rule ID

when you click the Copy to button. You may select Always On

or use a specic schedule that you have dened. To create and

edit schedules, please refer to “Schedules” on page 52.

INBOUND FILTER RULES LIST

Here, you can select whether to Allow or Deny all incoming

trac except for trac that matches the listed rules.

This identies the rule.

Specify the local IP address and then specify the port after the

colon.

Specify the remote IP address and then the port after the

colon.

Tick the checkbox to enable the specied rule.

Specify the schedule rule number.

Go back to the previous lter page.

Advance to the next lter page.

Inbound Filter

Inbound Filter:

Use Schedule Rule:

ID:

Source IP : Ports:

Destination IP : Ports:

Enable:

Schedule Rule #:

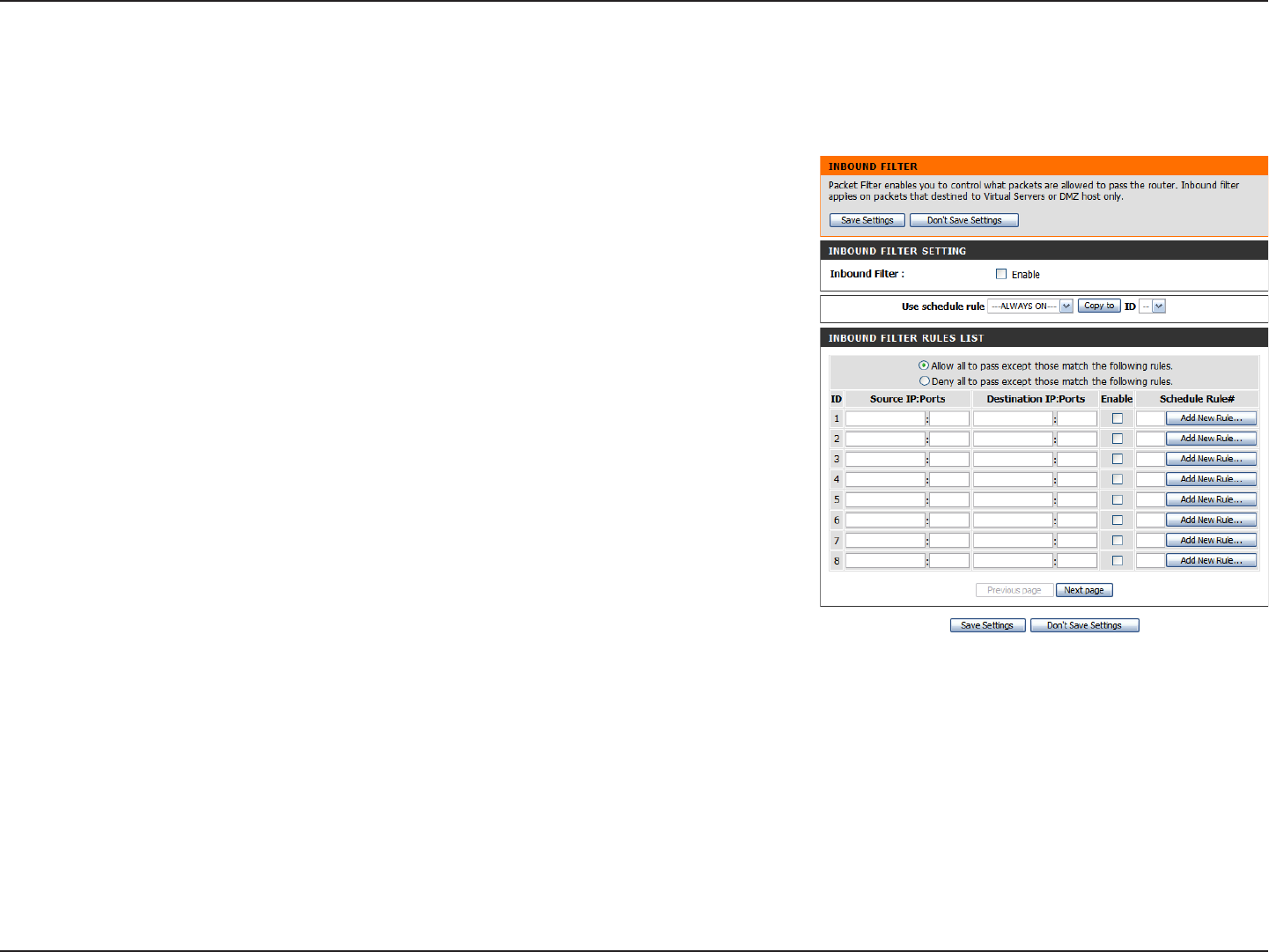

Inbound Filter enables you to control what packets are allowed to come in to your network from the Internet. The inbound lter only applies to

packets that are destined for Virtual Servers or DMZ hosts. After modifying any settings, click Save Settings to save your changes.

37D-Link DWR-712 User Manual

Section 3 - Conguration

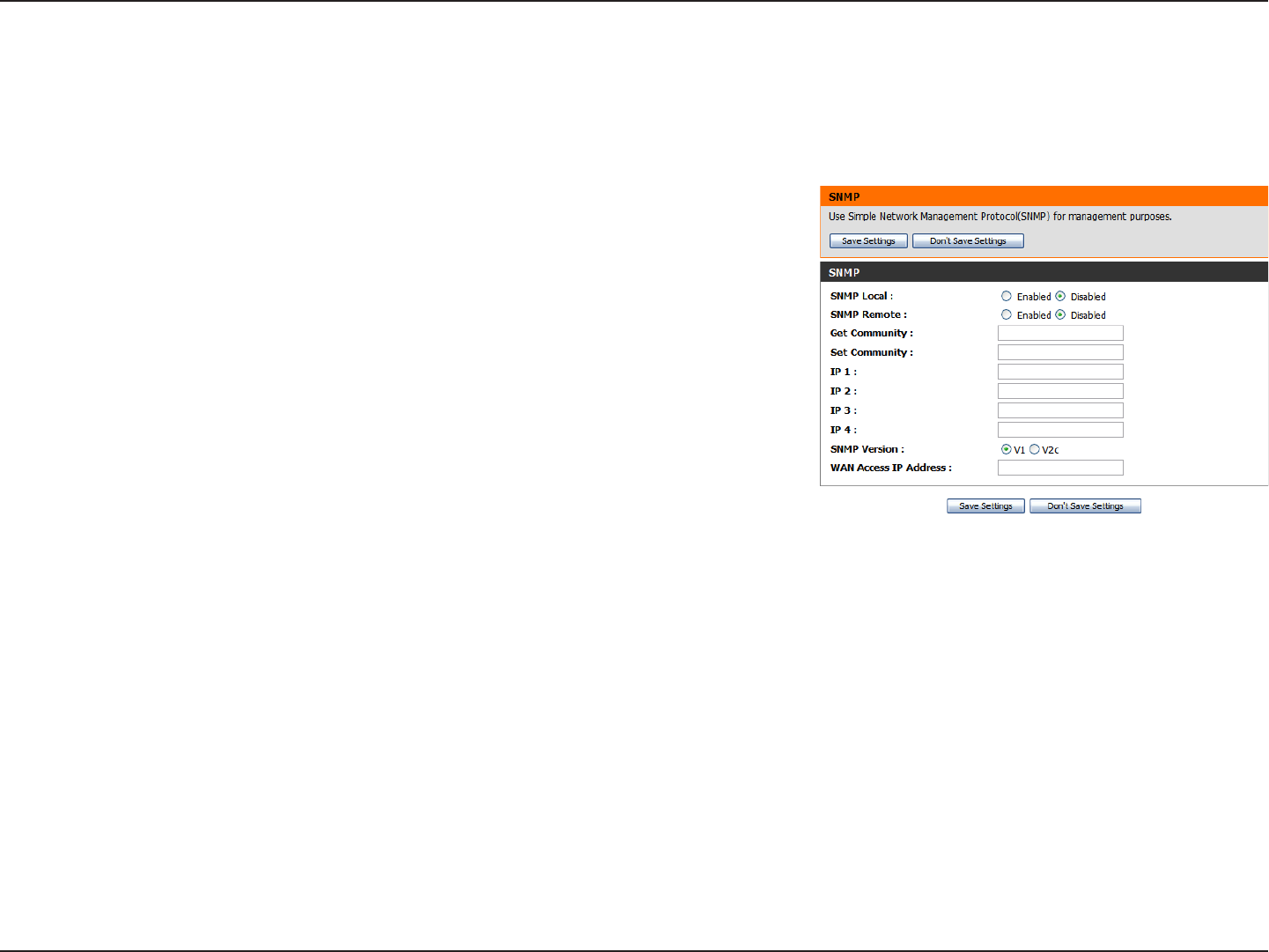

SNMP

Select whether to Enable or Disable local SNMP

administration.

Select whether to Enable or Disable remote SNMP

administration.

Enter the password public in this eld to allow read-only

access to network administration using SNMP. You can view

the network, but no conguration is possible with this setting.

Enter the password private in this eld to enable

read/write access to the network using SNMP.

Enter up to 4 IP addresses to use as trap targets for your

network.

Select the SNMP version of your system.

If you want to limit remote access SNMP access, enter the IP

address of the remote computer you will use to access this

device. All other IP addresses will be denied remote SNMP

access.

SNMP

SNMP Local:

SNMP Remote:

Get Community:

Set Community:

IP 1, IP 2, IP 3, IP 4:

SNMP Version:

WAN Access IP Address

SNMP (Simple Network Management Protocol) is a widely used network monitoring and control protocol that reports activity on each network

device to the administrator of the network. SNMP can be used to monitor trac and statistics of the DWR-712. The DWR-712 supports SNMP v1

and v2c. After modifying any settings, click Save Settings to save your changes.

38D-Link DWR-712 User Manual

Section 3 - Conguration

RIP SETTING

Select this box to enable routing, then select which routing

protocol to use:

• RIPv1: Protocol in which the IP address is routed

through the internet.

• RIPv2: Enhanced version of RIPv1 with added

features such as Authentication, Routing Domain,

Next Hop Forwarding, and Subnet-mask Exchange.

Routing

RIP:

The Routing page allows you to specify custom routes that determine how data is moved around your network. After modifying any settings, click

Save Settings to save your changes.

ROUTING RULES

This identies the rule.

Enter in the IP of the specied network that you want to access

using the static route.

Enter in the subnet mask to be used for the specied network.

Enter in the gateway IP address for the specied network.

Enter in the amount of hops it will take to reach the specied

network.

Note: In a transmission path, each link is terminated at a

network device such as a router or gateway. The number of

hops equals the number of routers or gateways that data must

pass through before reaching the destination.

Select this box to enable the rule.

ID:

Destination:

Subnet Mask:

Gateway:

Hop:

Enable:

39D-Link DWR-712 User Manual

Section 3 - Conguration

Specify a value for the beacon interval. Beacons are packets

sent by an access point to synchronize a wireless network. 100

is the default setting and is recommended.

Set the transmit power of the antennas.

This value should remain at its default setting of 2347. If

inconsistent data ow is a problem, only a minor modication

should be made.

The fragmentation threshold, which is specied in bytes,

determines whether packets will be fragmented. Packets

exceeding the 2346 byte setting will be fragmented before

transmission. 2346 is the default setting.

Set the interval for DTIM. A Delivery Trac Indication Message

(DTIM) is a countdown informing clients of the next window

for listening to broadcast and multicast messages. The default

interval is 3.

WMM (Wi-Fi Multimedia) is a QoS (Quality of Service) system

for your wireless network. Enable this option to improve

the quality of video and voice applications for your wireless

clients.

Select the basic transfer rates based on the speed of

wireless adapters on your wireless network. It is strongly

recommended to keep this setting to Auto.

Beacon Interval:

Transmit Power:

RTS Threshold:

Fragmentation:

DTIM Interval:

WMM Capable:

TX Rates:

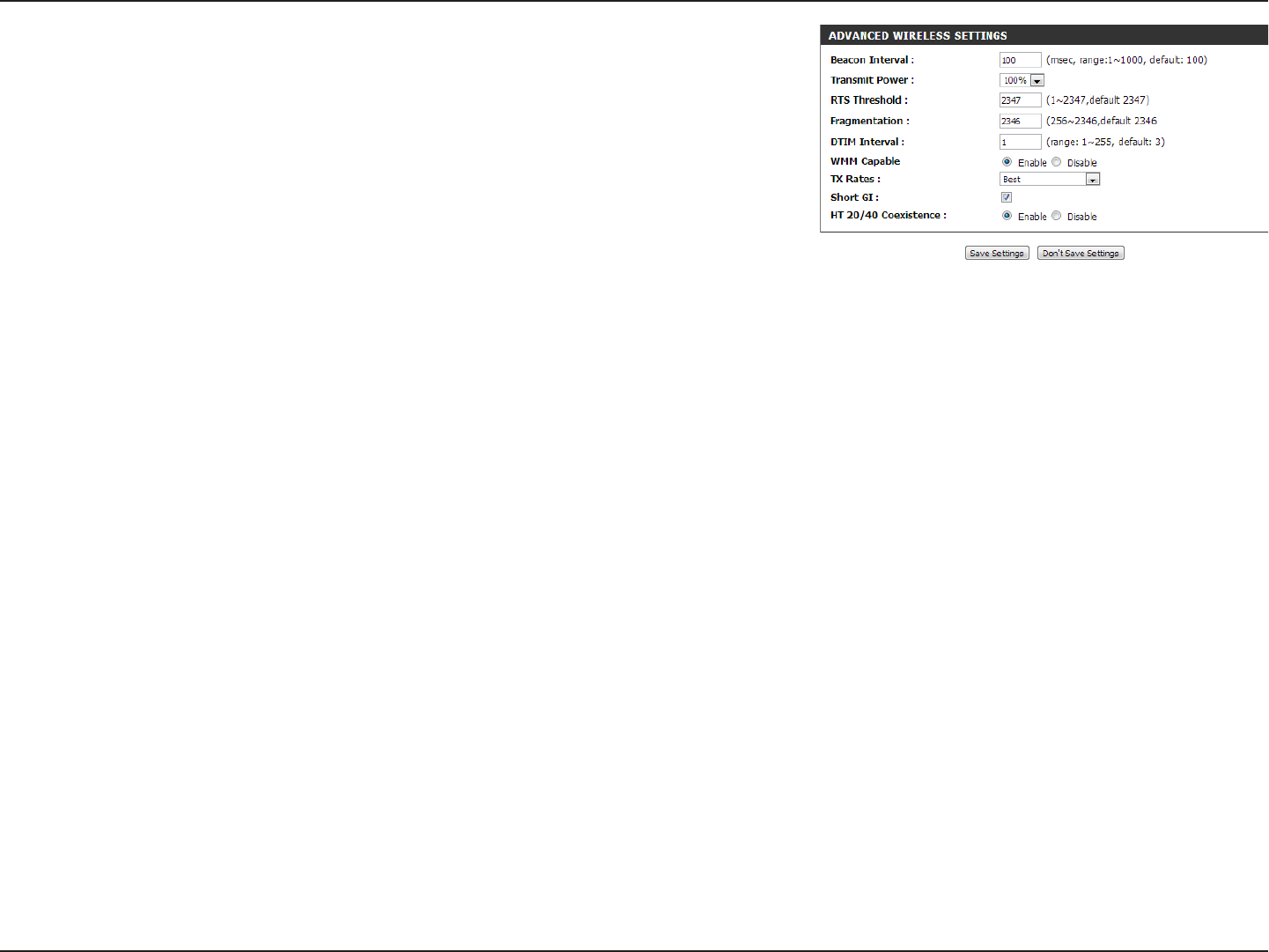

Advanced Wireless

Advanced Wireless contains settings which can negatively aect the performance of your router if congured improperly. Do not change these

settings unless you are already familiar with them or have been instructed to make the change by one of our support personnel. After modifying

any settings, click Save Settings to save your changes.

40D-Link DWR-712 User Manual

Section 3 - Conguration

Check this box to reduce the guard interval to 400 ns. This can

increase the throughput rate provided that the delay spread

of the connection is also low. However, it can also increase

error rate in some installations, due to increased sensitivity to

radio-frequency reections. Select the option that works best

for your installation.

Enable this option to reduce interference from other wireless

networks in your area. If the channel width is operating at 40

MHz and there is another wireless network’s channel over-

lapping and causing interference, the router will automatically

change to 20 MHz.

Short GI:

HT 20/40 Coexistence:

41D-Link DWR-712 User Manual

Section 3 - Conguration

Tick this checkbox to use the Universal Plug and Play (UPnP™)

feature. UPNP provides compatibility with various networking

equipment, software, and peripherals.

Select the box to allow the WAN port to be “pinged.” Blocking

WAN pings may provide some extra security from hackers.

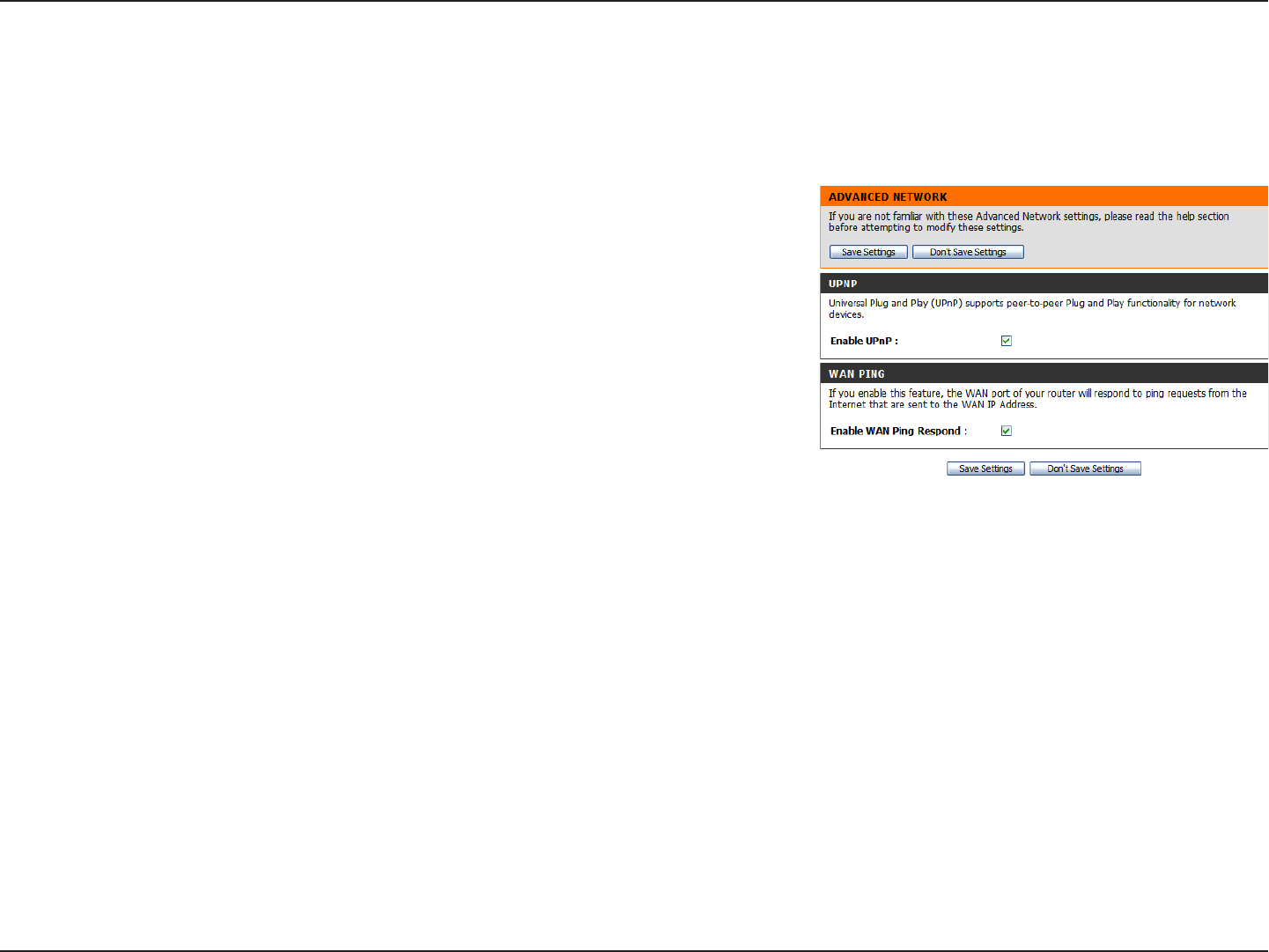

Advanced Network

Advanced Network contains settings which can change the way the router handles certain types of trac. We recommend that you do not change

any of these settings unless you are already familiar with them or have been instructed to make the change by one of our support personnel. After

modifying any settings, click Save Settings to save your changes.

Enable UPnP:

Enable WAN Ping

Respond:

42D-Link DWR-712 User Manual

Section 3 - Conguration

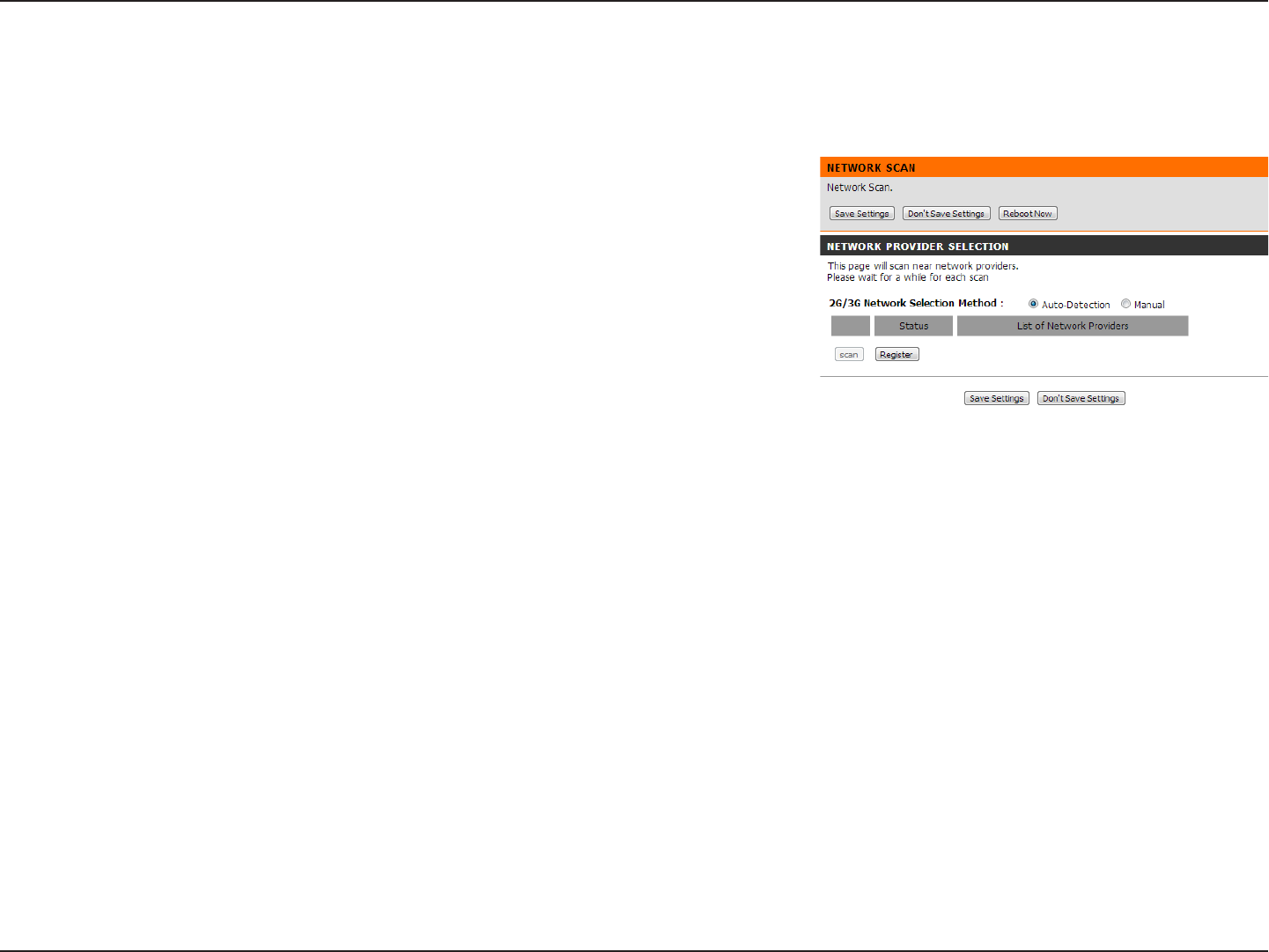

Network Scan

Leave this setting on Auto Detection to allow the DWR-712

to automatically select a cellular network to connect to. If you

need to select a network manually, select Manual, click Scan,

then select an available network to connect to.

Note: You will only be able to scan for networks if the

DWR-712 is not currently connected to a 3G/4G network.

This page lets you set whether to allow the DWR-712 to automatically select a 3G/4G network based on the inserted SIM card, and allows you to

manually scan for networks and select one to connect to.

3G/4G Network Selection

Method:

43D-Link DWR-712 User Manual

Section 3 - Conguration

Enabling Stateful Packet Inspection (SPI) helps to prevent cyber

attacks by validating that the trac passing through the session

conforms to the protocol.

If an application has trouble working from behind the router,

you can expose one computer to the Internet and run the

application on that computer.

Note: Placing a computer in the DMZ may expose that

computer to a variety of security risks. Use of this option is only

recommended as a last resort.

Specify the IP address of the computer on the LAN that you want

to have unrestricted Internet communication. If this computer

obtains its IP address automatically using DHCP, be sure to make

a static reservation on the Setup > Network Settings page so

that the IP address of the DMZ machine does not change.

Click Save Settings to save your changes, or click Don’t Save

Settings to discard your changes.

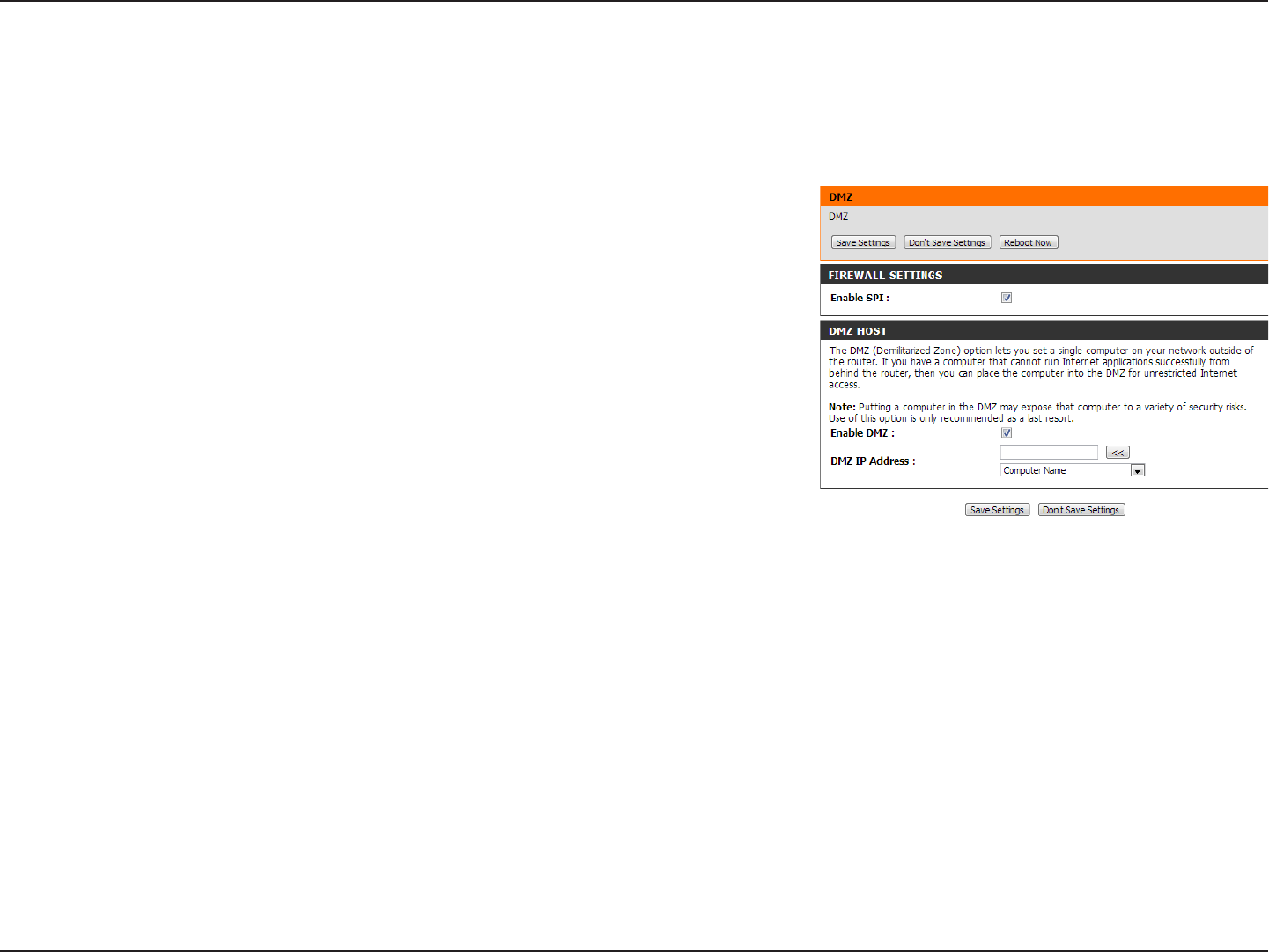

DMZ

Sometimes you may want a computer exposed to the outside world for certain types of applications. If you choose to expose a computer, you can

enable Demilitarized Zone (DMZ). This option will expose the chosen computer completely to the outside world.

Enable SPI:

Enable DMZ:

DMZ IP Address:

44D-Link DWR-712 User Manual

Section 3 - Conguration

ADMINISTRATOR

Enter and conrm the password that the admin account will

use to access the router’s management interface.

REMOTE MANAGEMENT

Tick this check box to enable remote management. Remote

management allows the DWR-712 to be congured over the

Internet through a web browser. A username and password

will still be required to access the Web-Management interface.

Enter the Internet IP address of the PC that has access to the

router. If you enter an asterisk (*) in this eld, then anyone will

be able to access the router. Adding an asterisk (*) into this

eld could present a security risk and is not recommended.

This is the port number used to access the router. 8080 is the

port usually used for the Web-Management interface.

Admin

The Admin page allows you to change the Administrator password and enable Remote Management. The admin has read/write access while users

only have read-only access. Only the admin has the ability to change both admin and user account passwords. After modifying any settings, click

Save Settings to save your changes.

Admin Password:

Remote Management:

IP Allowed to Access:

Port:

Tools

The TOOLS pages allow you to adjust various system setting for your router, such as the system

time, rmware, and custom schedules. To view the Tools pages, click on TOOLS at the top of

the screen.

45D-Link DWR-712 User Manual

Section 3 - Conguration

Time

Select the appropriate Time Zone from the drop-down box.

Check the box to allow for daylight saving adjustments. Use

the drop-down menu to specify a start date and end date for

daylight saving time adjustments.

Check the box to allow the router to use an NTP server to

update the router’s internal clock.

Enter an NTP server to use for time synchronization, or use the

drop-down menu to select one. Click the Update Now button

to synchronize the time with the NTP server.

This box will display information about the time

synchronization attempt.

This section will help you set the time zone that you are in and an NTP (Network Time Protocol) server to use. Daylight Saving can also be congured

to adjust the time when needed. After modifying any settings, click Save Settings to save your changes.

Time Zone:

Enable Daylight Saving:

Automatically

synchronize with

Internet time server:

NTP Server Used:

Sync. Result:

46D-Link DWR-712 User Manual

Section 3 - Conguration

Syslog

Tick this checkbox to send the router logs to a syslog server.

Enter the IP address of the syslog server that the router will

send the logs to.

The DWR-712 keeps a running log of events and activities occurring on the router. You may send these logs to a syslog server on your network.

After modifying any settings, click Save Settings to save your changes.

Enable Logging to Syslog

Server:

Syslog Server IP Address:

47D-Link DWR-712 User Manual

Section 3 - Conguration

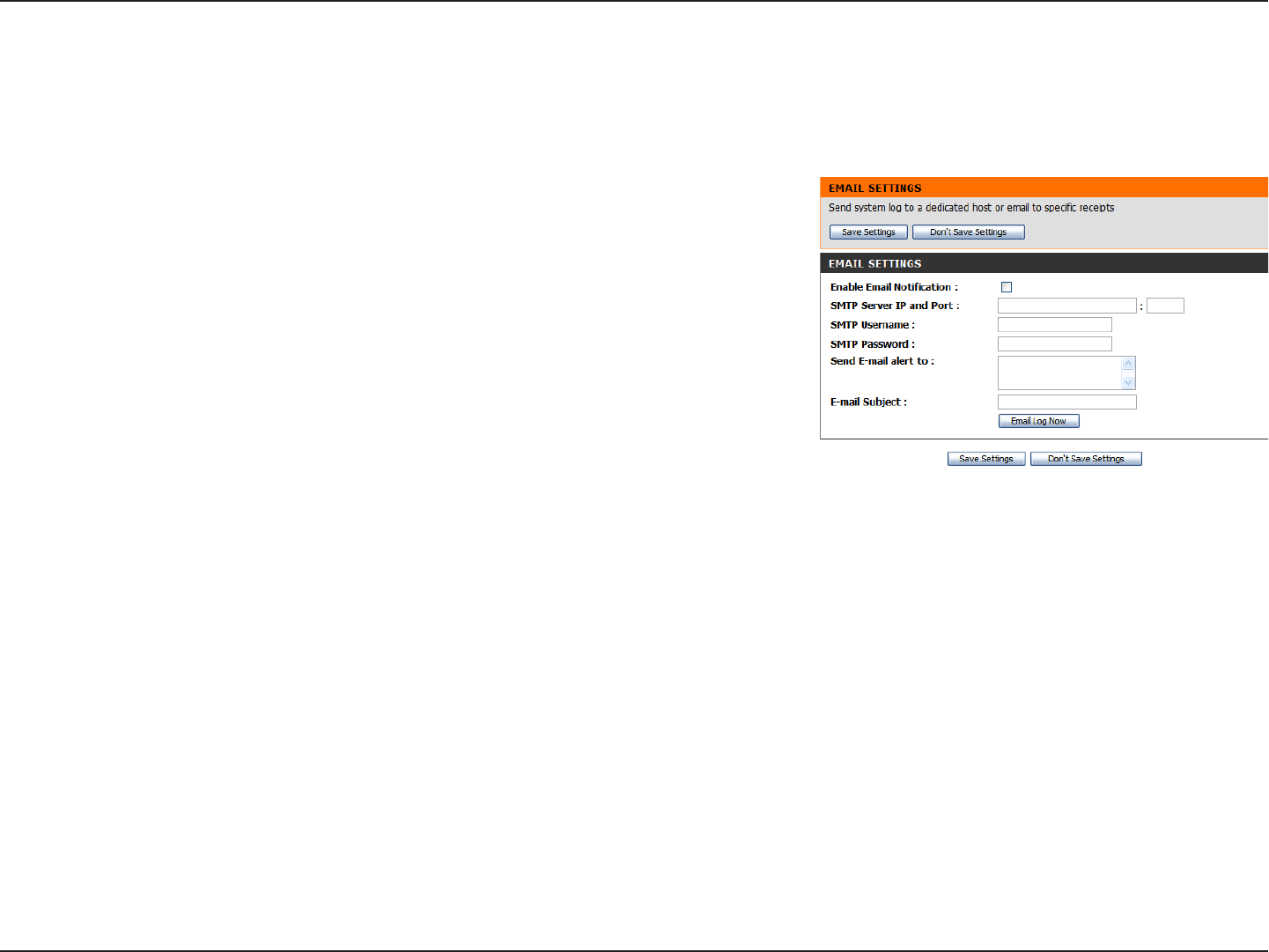

E-mail Settings

When this option is enabled, router activity logs will be

e-mailed to the specied e-mail address.

Enter the SMTP server IP address the router will use to send

e-mails. Enter the complete IP address followed by a colon(:)

and the port number. (e.g. 123.123.123.1:25).

Enter the username for the SMTP account.

Enter the password for the SMTP account.

Enter the e-mail address where you would like the router to

send e-mails to.

Enter a subject for the e-mail.

Click this button to send the current logs to the specied

e-mail address.

Enable E-mail

Notication:

SMTP Sever IP and Port:

SMTP Username:

SMTP Password:

Send E-mail Alert to:

E-mail Subject:

E-mail Log Now:

E-mail Settings allow you to send the system log les, router alert messages, and rmware update notications to an e-mail address. After modifying

any settings, click Save Settings to save your changes.

48D-Link DWR-712 User Manual

Section 3 - Conguration

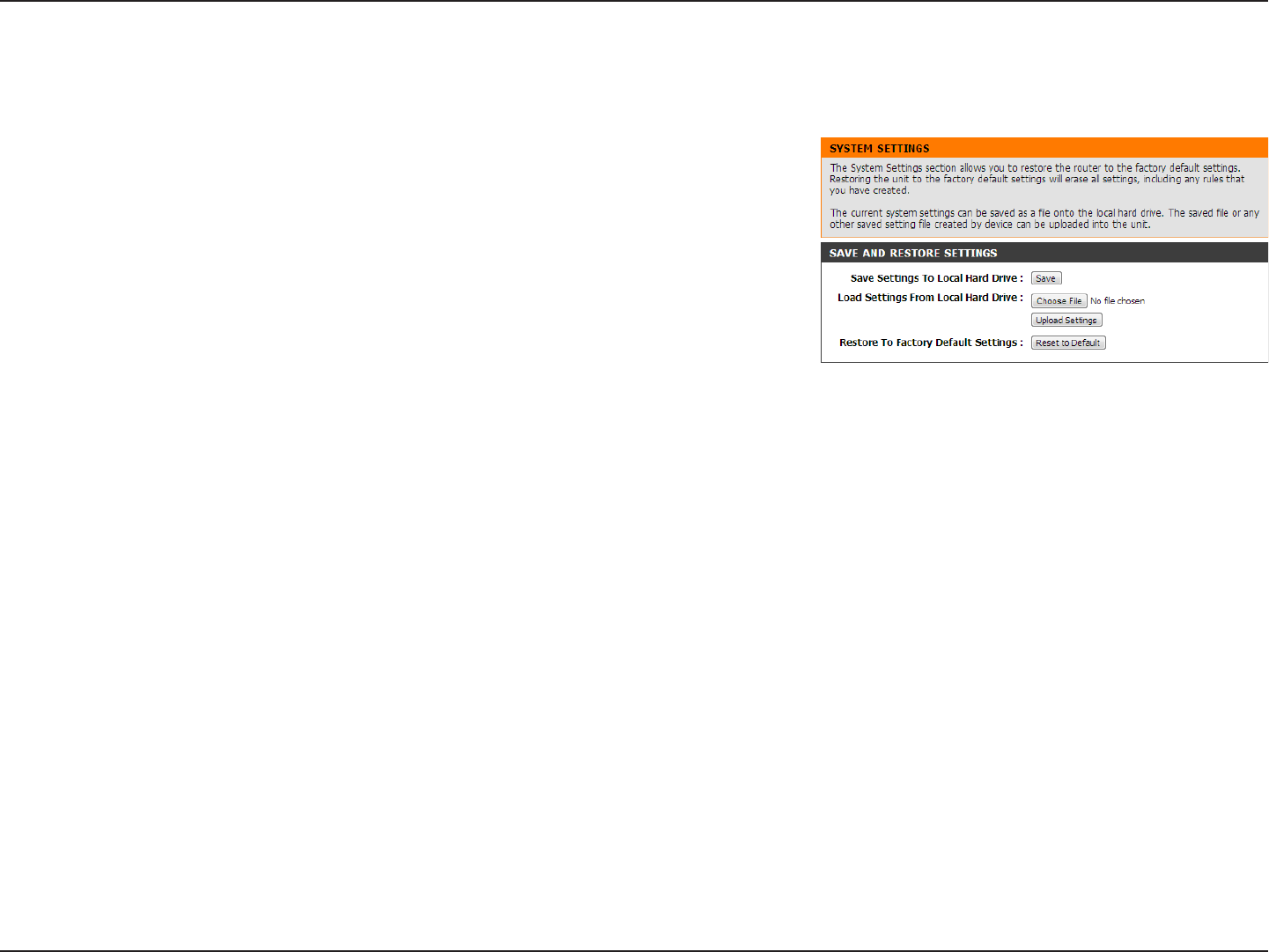

System

Use this option to save your current router conguration

settings to a le. Click Save to open a le dialog, and then

select a location and le name for the settings.

Use this option to load previously saved router conguration

settings. Click Browse... and select the saved le and then

click the Upload Settings button to upload the settings to the

router.

This option will restore all settings back to their defaults. Any

settings that have not been backed up will be lost, including

any rules that you have created.

Save Settings To Local

Hard Drive

Load Settings From Local

Hard Drive:

Restore To Factory

Default Settings:

Here, you can save the current system settings to a local hard drive. After modifying any settings, click Save Settings to save your changes.

49D-Link DWR-712 User Manual

Section 3 - Conguration

Firmware

Displays your current rmware’s version.

Displays your current rmware’s release date.

After you have downloaded a new rmware, click Browse to

locate the rmware on your computer, then click Upload to

start the rmware upgrade.

Warning: You must use a wired computer to upload the

rmware le; do not use a wireless computer. During

the upgrade process, do not power o your computer

or router, and do not refresh the browser window

until the upgrade is complete.

If the rmware you want to install is not an ocial D-Link

release, you will need to check this checkbox.

Warning: Unocial rmwares are not supported, and may

cause damage to your device. Use of unofficial

rmwares is at your own risk.

Here, you can upgrade the firmware of your router. Make sure the firmware you want to use is on the local hard drive of the

computer and then click Browse to upload the file. You can check for and download firmware updates at the D-Link support site at

http://support.dlink.com. After modifying any settings, click Save Settings to save your changes.

Current Firmware

Version:

Current Firmware Date:

Upload:

Accept Unocial

Firmware:

50D-Link DWR-712 User Manual

Section 3 - Conguration

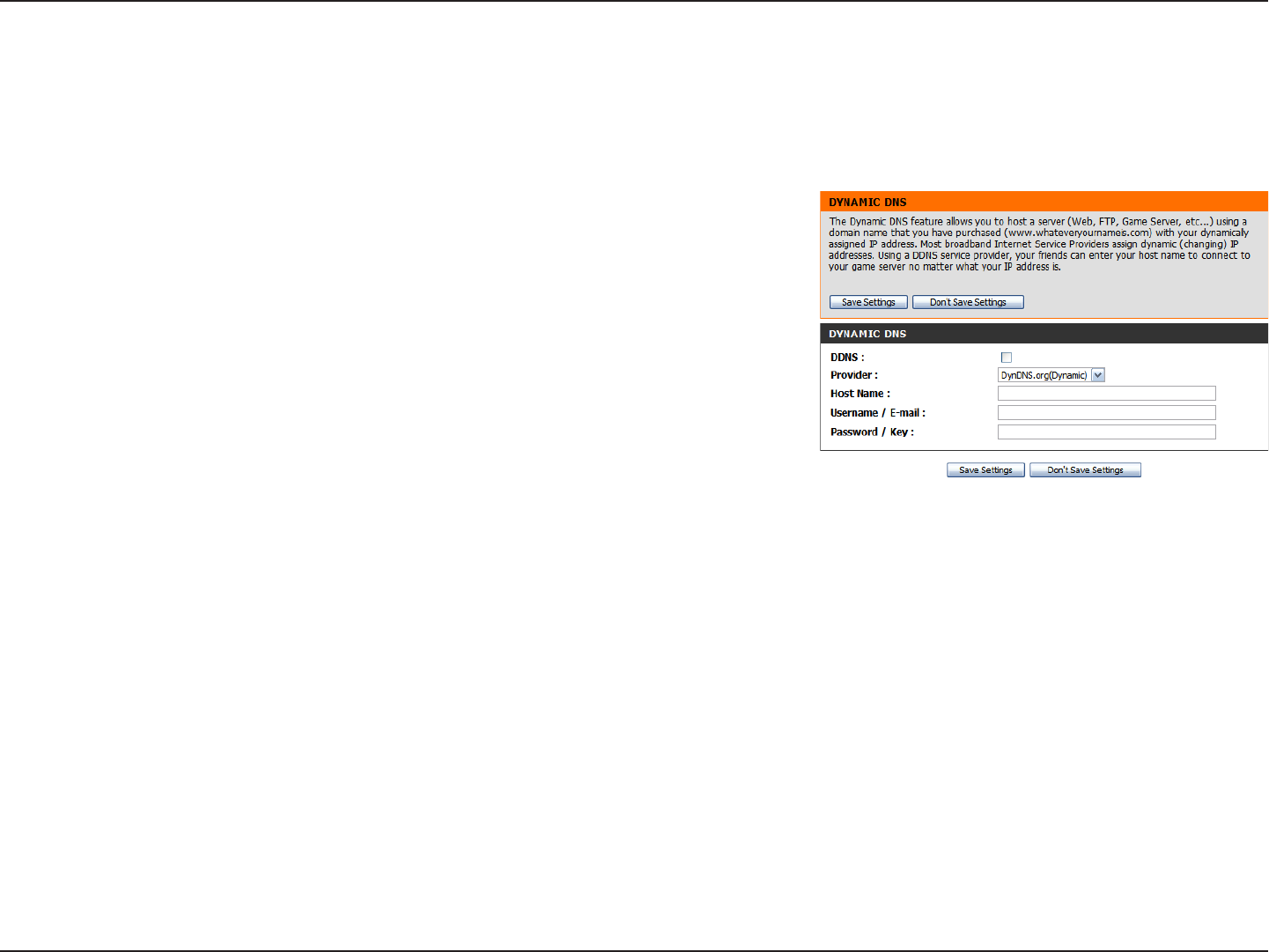

Dynamic DNS

Tick this checkbox to enable the DDNS feature.

Select a DDNS service provider to use.

Enter the Host Name that you registered with your DDNS

service provider.

Enter the Username for your DDNS account.

Enter the Password for your DDNS account.

The DDNS feature allows you to host a server (Web, FTP, or Game Server) using a domain name that you have purchased (such as

www.exampledomain.com) with your dynamically assigned IP address. You can use one of the listed DDNS service, or you can sign up for D-Link’s

free DDNS service at www.dlinkddns.com. After modifying any settings, click Save Settings to save your changes.

DDNS:

Provider:

Host Name:

Username / E-mail:

Password / Key:

51D-Link DWR-712 User Manual

Section 3 - Conguration

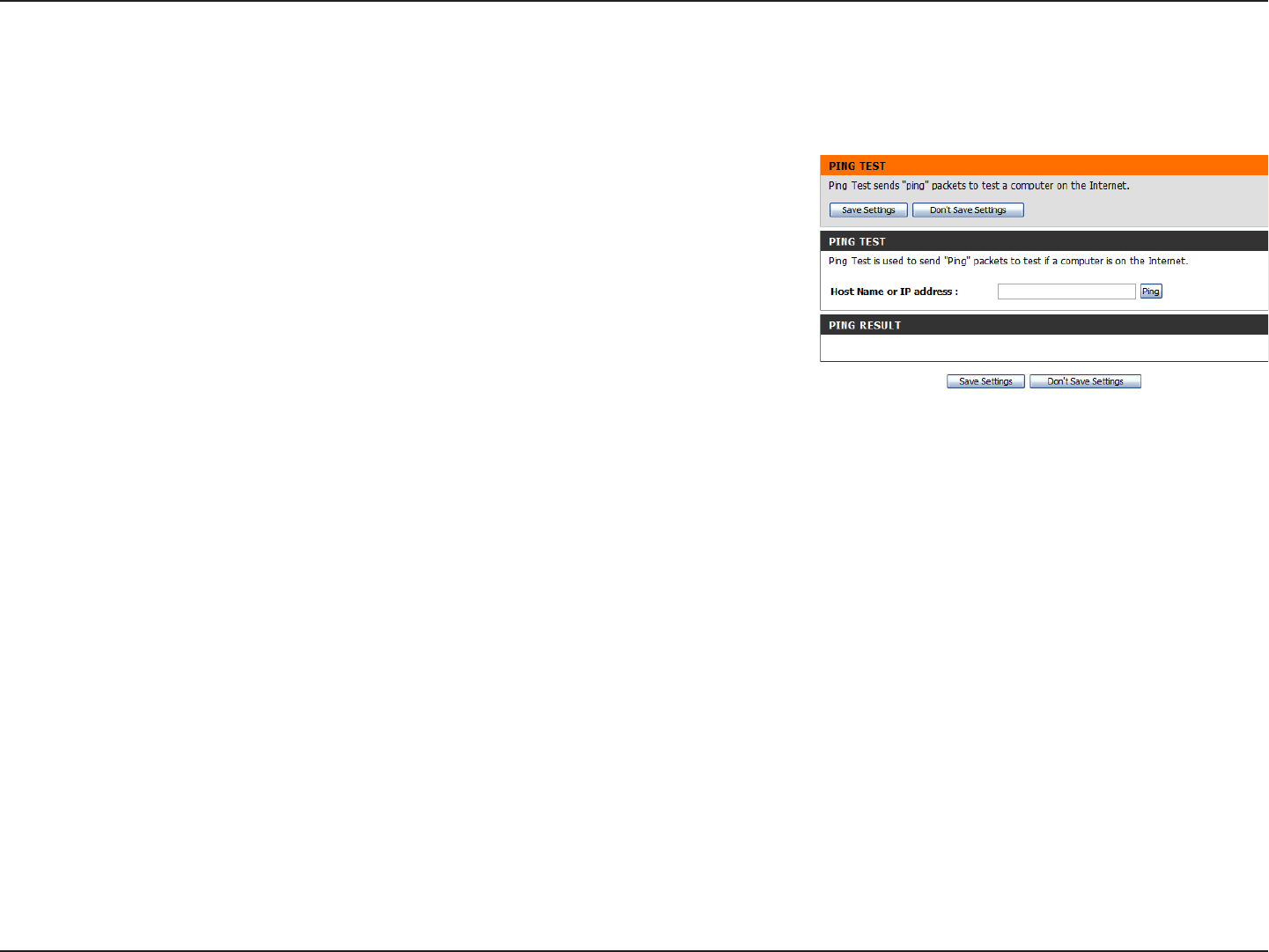

System Check

Enter a host name or the IP address that you want to ping and

click the Ping button. The results of the ping attempt will be

displayed in the PING RESULT section below.

This useful diagnostic utility can be used to check if a computer is connected to the network. It sends ping packets and listens for responses from

the specic host. After modifying any settings, click Save Settings to save your changes.

Host Name or IP Address:

52D-Link DWR-712 User Manual

Section 3 - Conguration

Schedules

Tick this checkbox to enable schedules.

Click this button to edit the selected rule. (see below)

Click this button to delete the selected rule.

Click this button to go to the previous page of rules.

Click this button to go to the next page of rules.

Click this button to specify the start time, end time, and name

of the rule.

Click this button to create a new rule. (see below)

This section allows you to manage schedule rules for various rewall and parental control features. After modifying any settings, click Save Settings

to save your changes.

Enable Schedule:

Edit:

Delete:

Add New Rule..:

Enter a name for your new schedule.

Select Activate or Inactivate to decide whether features that

use the schedule should be active or inactive except during

the times specied.

Select a day of the week for the start time and end time.

Enter the time at which you would like the schedule to

become active.

Select the time at which you would like the schedule to

become inactive.

After making your changes, click Save Settings to save the

schedule.

Name of Rule #:

Policy:

Week Day:

Start Time (hh:mm):

End Time (hh:mm):

53D-Link DWR-712 User Manual

Section 3 - Conguration

Connection Reset

Select whether the connection reset feature should be

Enabled or Disabled.

If the connection reset feature is enabled, select when it

should activate via the hour and minute from the dropdown

boxes.

Select this option if you want the connection reset feature to

activate on a daily schedule.

Select this option if you want the connection reset feature to

activate only on a certain day of the week.

Select this option if you want the connection reset feature to

activate only on a certain day of the month.

This feature allows you to reset the internet connection on your router by periodically resetting the connection. You can choose to have this happen

on a predetermined schedule by conguring the options on this page.

Auto-Reboot:

Reboot-Schedule:

Daily Schedule:

Weekly Schedule

Day of Week:

Date of Month:

54D-Link DWR-712 User Manual

Section 3 - Conguration

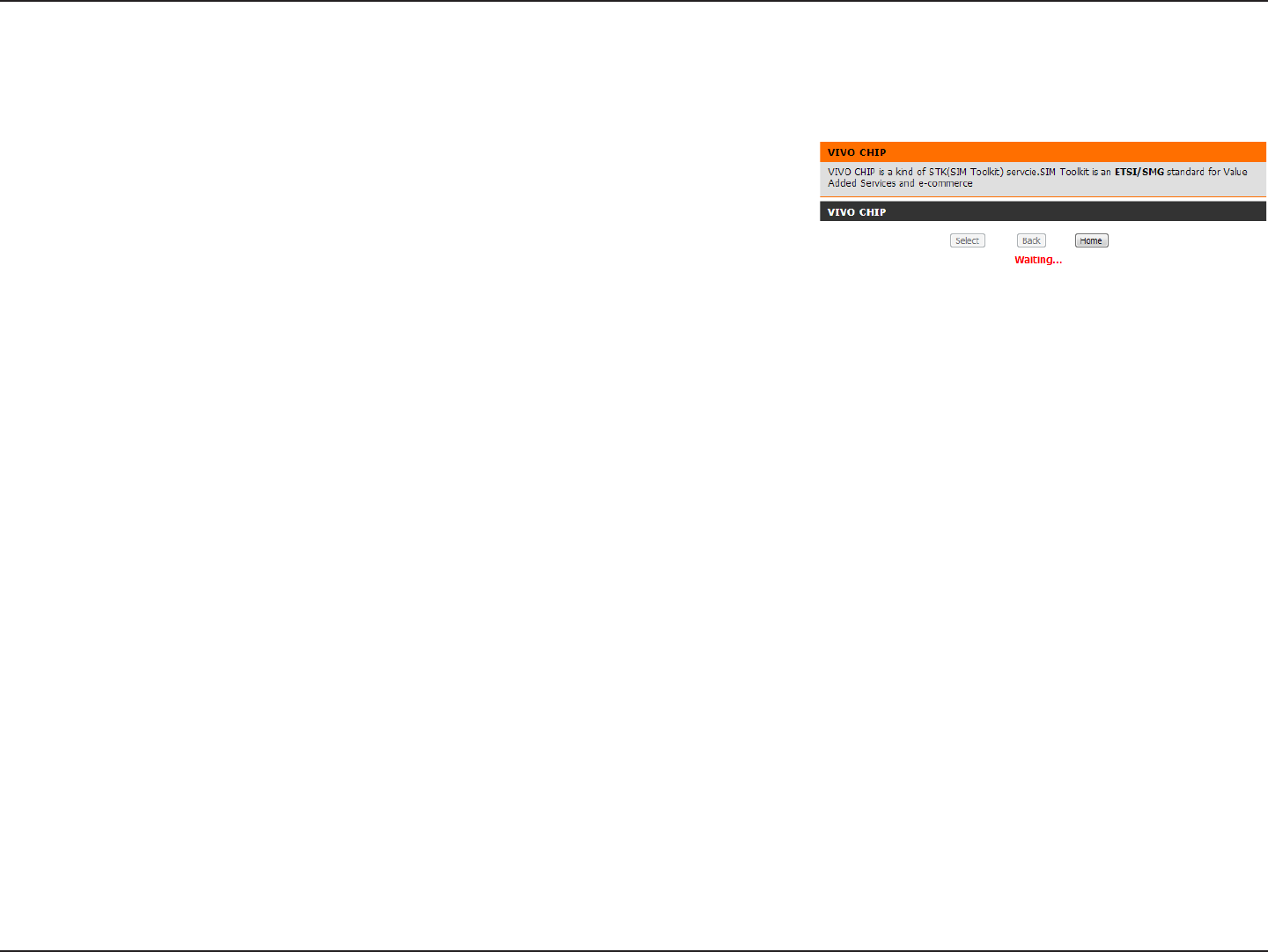

Vivo Chip

Check the box next to the service you wish to enable and click

Select to enable it.

Click Back to view the previous page of available applications.

Click Home to view the home page for all available

applications.

This feature will allow you to select and enable application services that are provided by your ISP.

Select:

Back:

Home:

55D-Link DWR-712 User Manual

Section 3 - Conguration

PIN Control

This feature allows you to set up a pin code in order to activate/deactivate or modify an

existing pin code. After querying your SIM card for an existing PIN, you can Enable, Disable,

or Modify the pin code. Click Save Settings to save any changes made.

56D-Link DWR-712 User Manual

Section 3 - Conguration

General:

WAN:

3G Card:

LAN:

Wireless LAN:

LAN Computers:

Device Info

All of your Internet and network connection details are displayed on this page. The rmware version is also displayed here.

Displays the current time and rmware version.

Displays the WAN connection details of the router.

Displays the 3G connection details of the router.

Displays the LAN connection details of the router.

Displays the wireless LAN connection details of the router

Displays the list of clients connected to the router.

Status

The STATUS pages allow you to see the current status of the router for various categories,

including WAN, 3G, network, and wireless. To view the Status pages, click on STATUS at the

top of the screen.

57D-Link DWR-712 User Manual

Section 3 - Conguration

Log

Here, you can view and download the system log.

First Page:

Last Page:

Refresh:

Download:

Clear Logs:

Link To Log Settings:

Click this button to go to the previous page of the log.

Click this button to go to the next page of the log.

Click this button to skip to the rst page of the log.

Click this button to skip to the last page of the log.

Click this button to refresh the system log.

Click this button to download the current system log to your

computer.

Click this button to clear the system log.

Click this button to go to the Syslog page. For more, refer to

“Syslog” on page 46.

58D-Link DWR-712 User Manual

Section 3 - Conguration

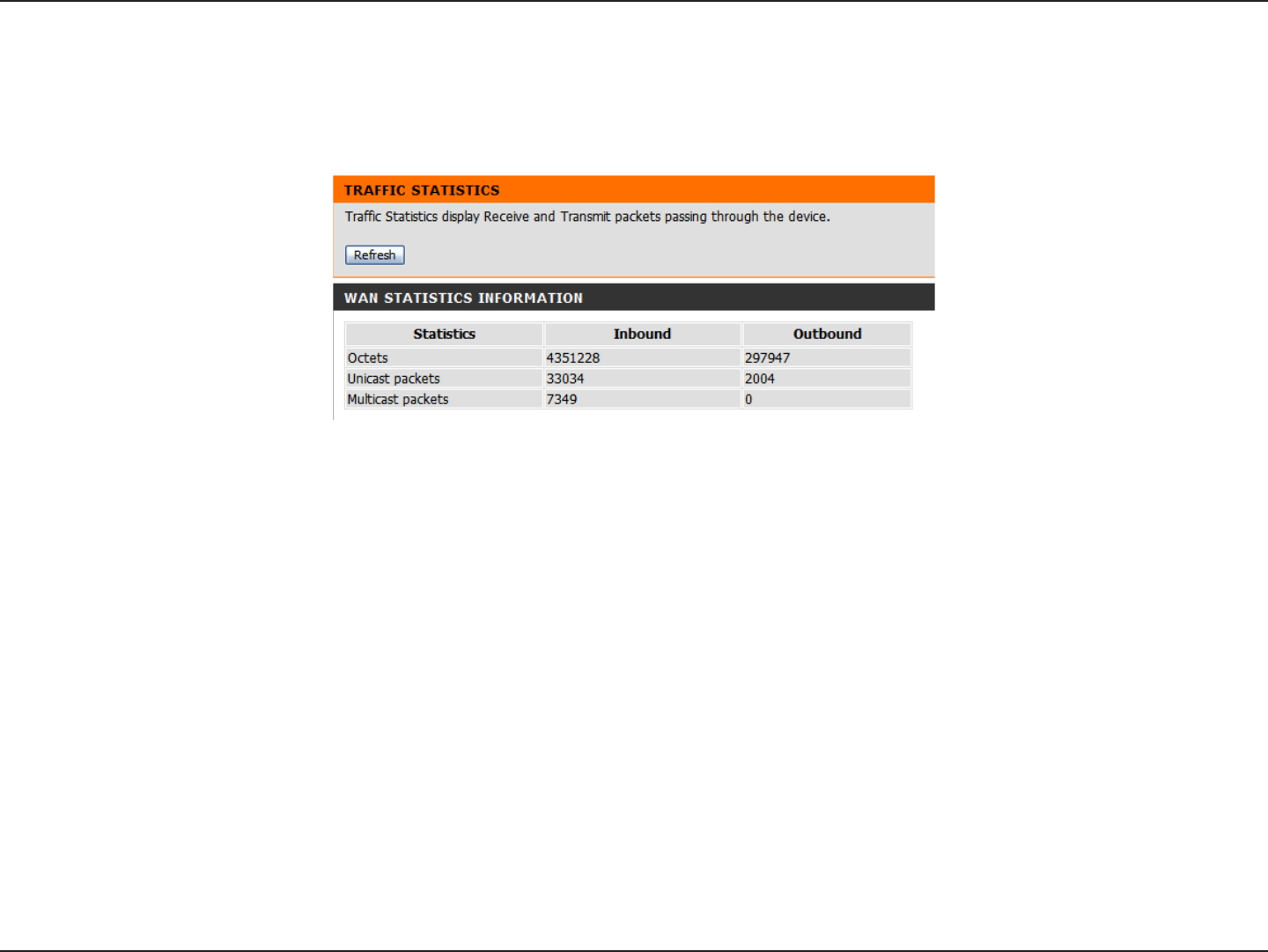

Statistics

Here you can view the packets transmitted and received passing through your router on both WAN and LAN ports. The trac counter will reset if the

device is rebooted. Click the Refresh button to refresh the WAN statistics.

59D-Link DWR-712 User Manual

Section 3 - Conguration

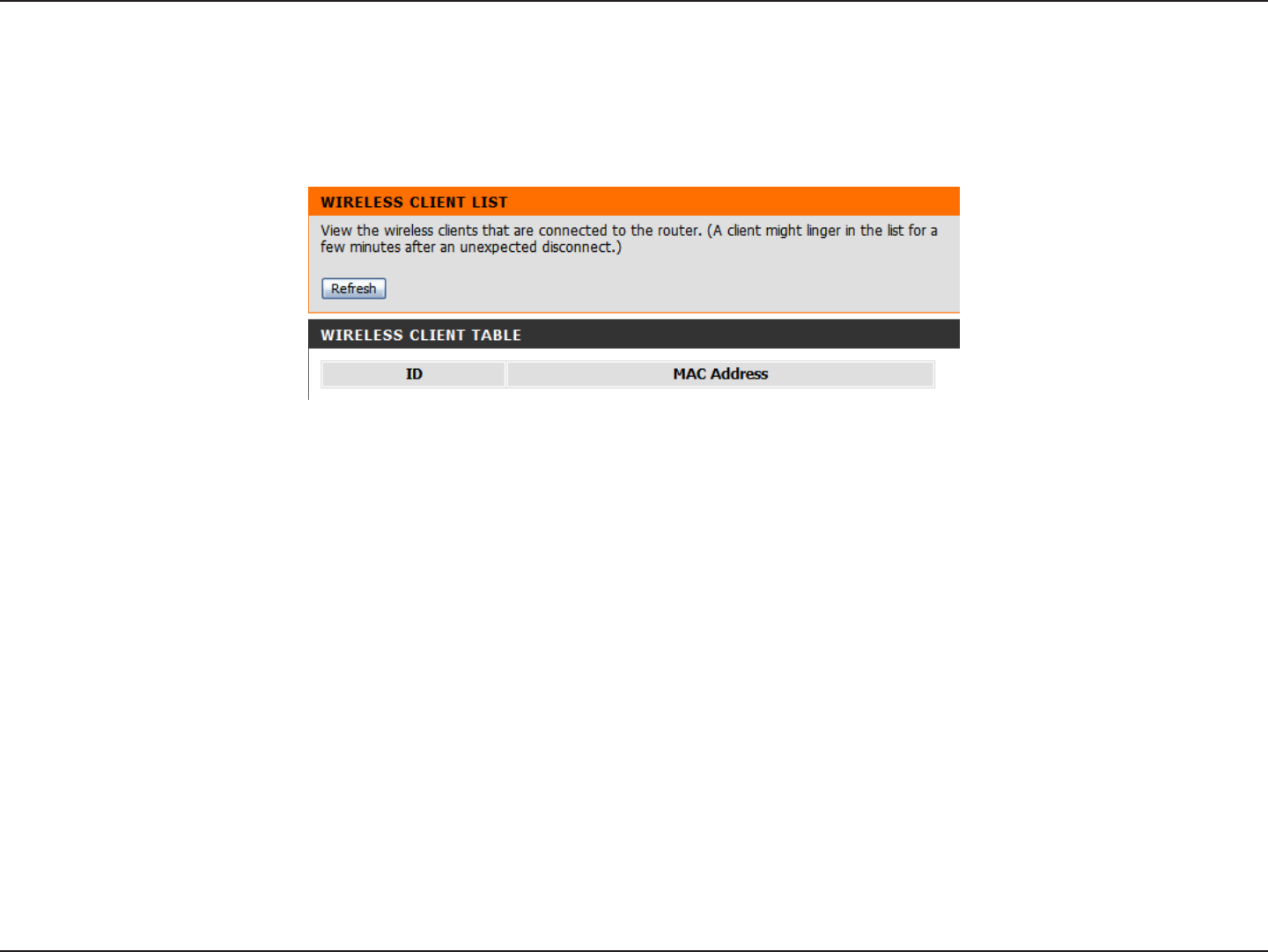

Wireless

This table displays a list of wireless clients that are connected to your wireless router. It also displays the connection time and MAC address of the

connected wireless clients. Click Refresh to refresh the list.

60D-Link DWR-712 User Manual

Section 3 - Conguration

IPv6 Status

The IPv6 page displays a summary of the router’s IPv6 settings and lists the IPv6 address and host name of any IPv6 clients.

61D-Link DWR-712 User Manual

Section 3 - Conguration

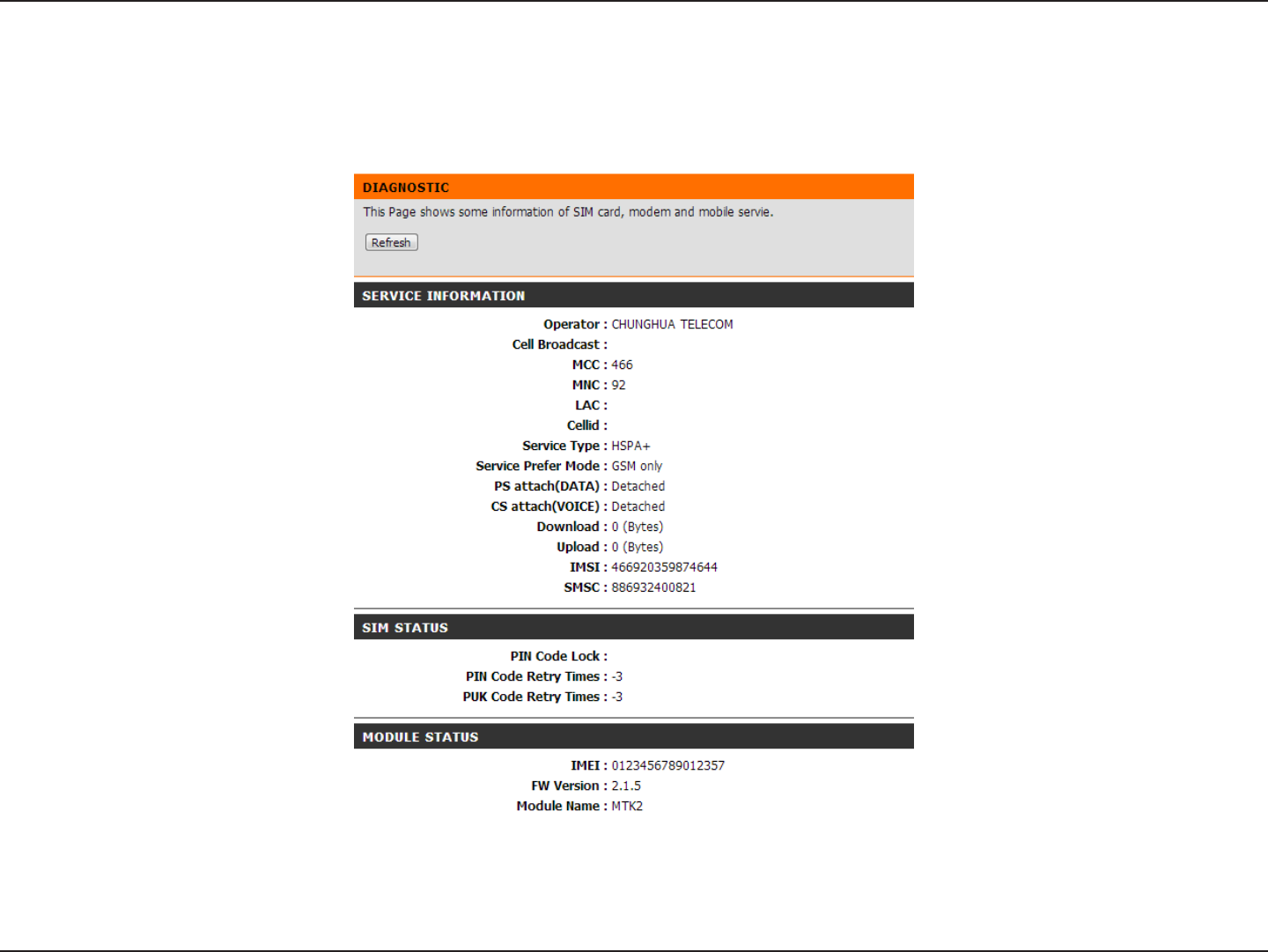

Diagnostic

This page shows detailed information that could be used to help your Internet Service Provider (ISP) troubleshoot connection problems related to

your 4G LTE / 3G Service.

62D-Link DWR-712 User Manual

Section 3 - Conguration

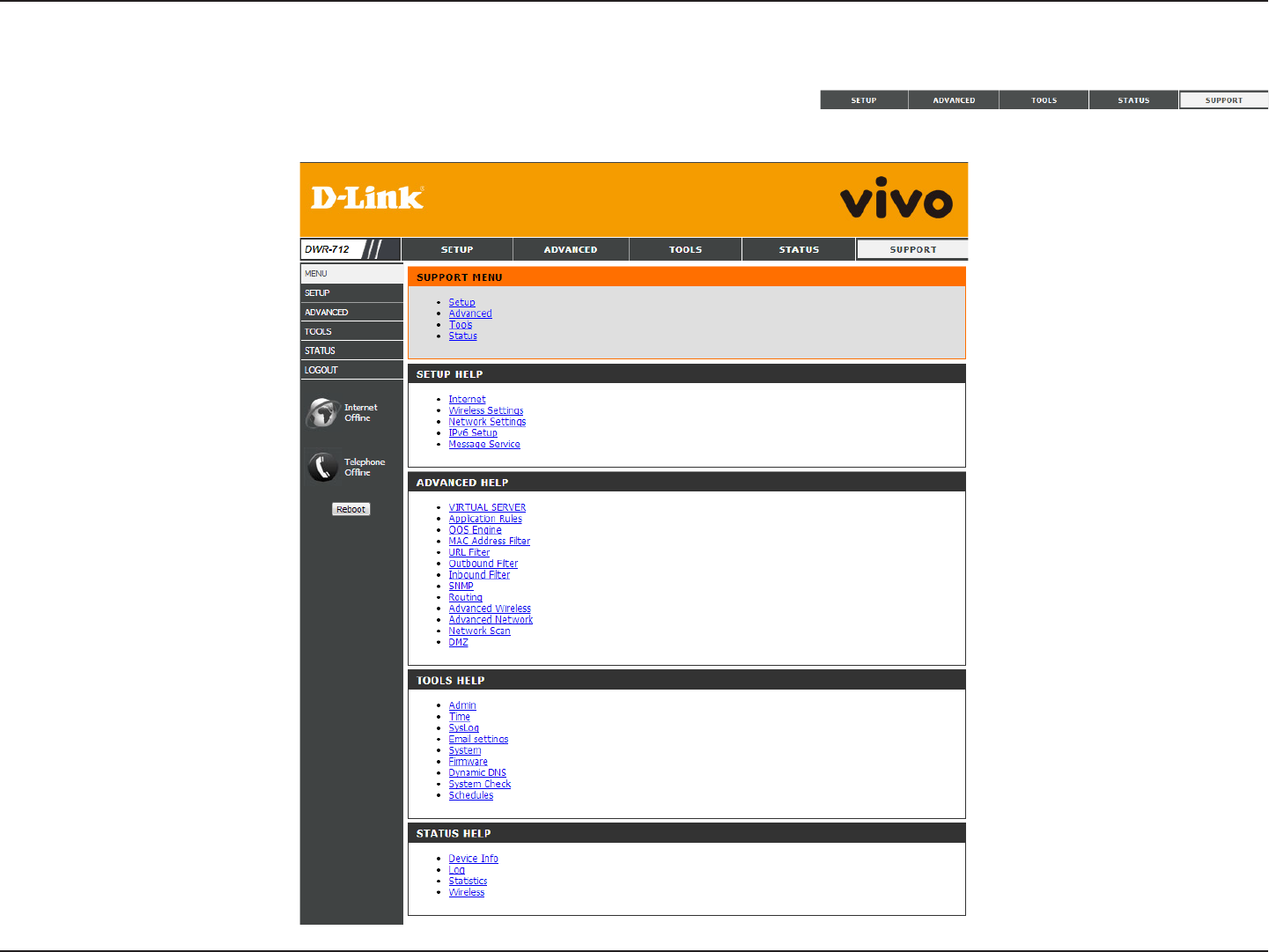

Support

The SUPPORT pages provide help information for each section of the device’s interface. To

view the Support pages, click on SUPPORT at the top of the screen.

63D-Link DWR-712 User Manual

Section 4 - Connecting to a Wireless Network

Connecting to a Wireless Network

Using Windows® 8

WPA/WPA2

It is recommended that you enable wireless security (WPA/WPA2) on your wireless router or access point before conguring

your wireless adapter. If you are joining an existing network, you will need to know the security key (Wi-Fi password) being used.

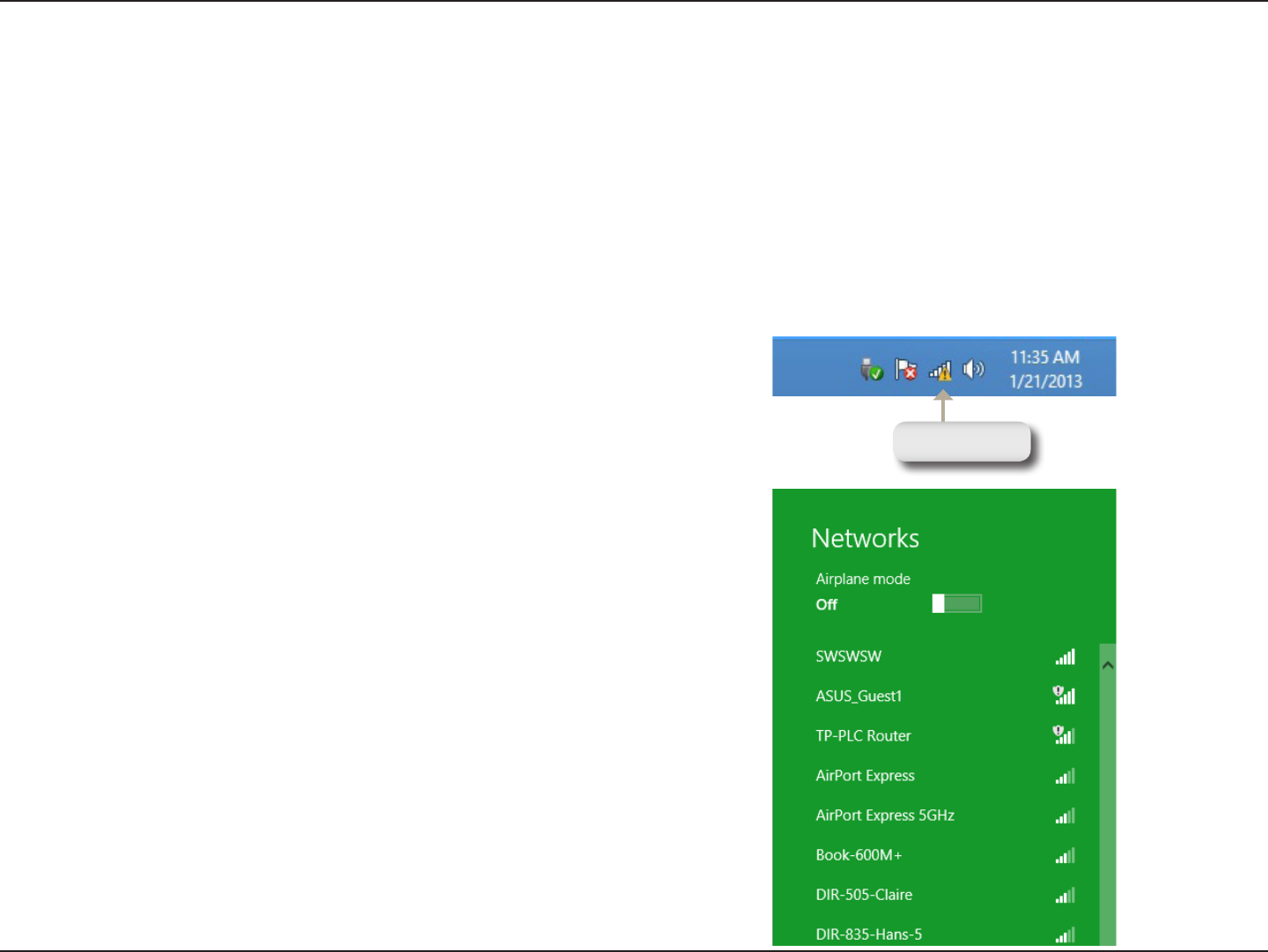

To join an existing network, locate the wireless network icon in the

taskbar next to the time display.

Clicking on this icon will display a list of wireless networks that are within

connecting proximity of your computer. Select the desired network by

clicking on the network name.

Wireless

64D-Link DWR-712 User Manual

Section 4 - Connecting to a Wireless Network

You will then be prompted to enter the network security key (Wi-Fi

password) for the wireless network. Enter the password into the box

and click Next.

If you wish to use Wi-Fi Protected Setup (WPS) to connect to the router,

you can also press the WPS button on your router during this step to

enable the WPS function.

When you have established a successful connection to a wireless network,

the word Connected will appear next to the name of the network to

which you are connected to.

65D-Link DWR-712 User Manual

Section 4 - Connecting to a Wireless Network

Using Windows® 7

Windows 7 users may use the built-in wireless utility to connect to a wireless network. If you are using another company’s utility or Windows 2000,

please refer to the user manual of your wireless adapter for help with connecting to a wireless network. Most utilities will have a “site survey” option

similar to the Windows 7 utility as seen below.

If you receive the Wireless Networks Detected bubble, click on the center of

the bubble to access the utility. You can also click on the wireless icon in your

system tray (lower-right corner).

The utility will display any available wireless networks in your area.

Wireless

66D-Link DWR-712 User Manual

Section 4 - Connecting to a Wireless Network

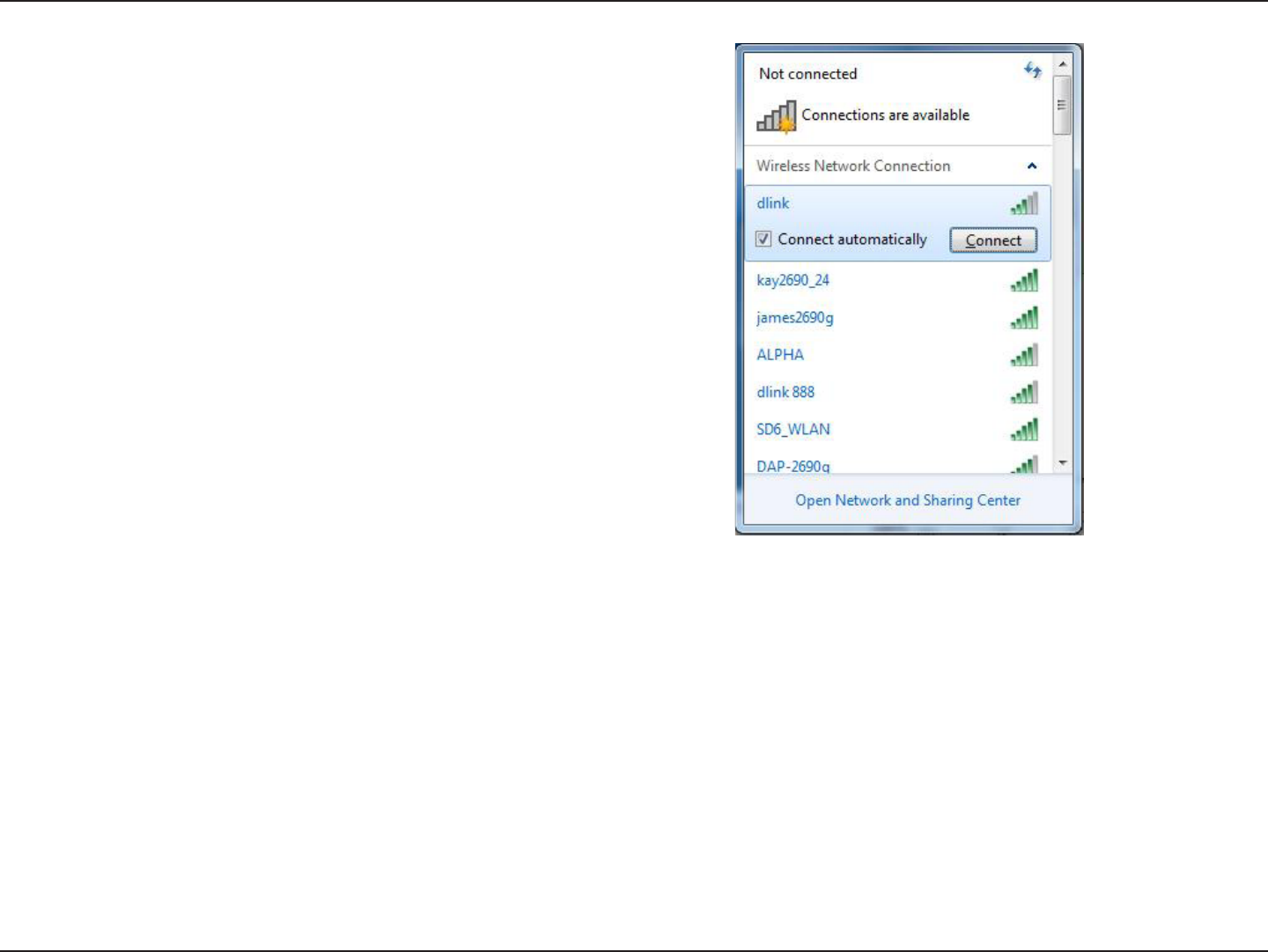

Highlight the wireless network (SSID) you would like to connect to and click

the Connect button.

If you get a good signal but cannot access the Internet, check your TCP/IP

settings for your wireless adapter. Refer to the Networking Basics section

in this manual for more information.

67D-Link DWR-712 User Manual

Section 4 - Connecting to a Wireless Network

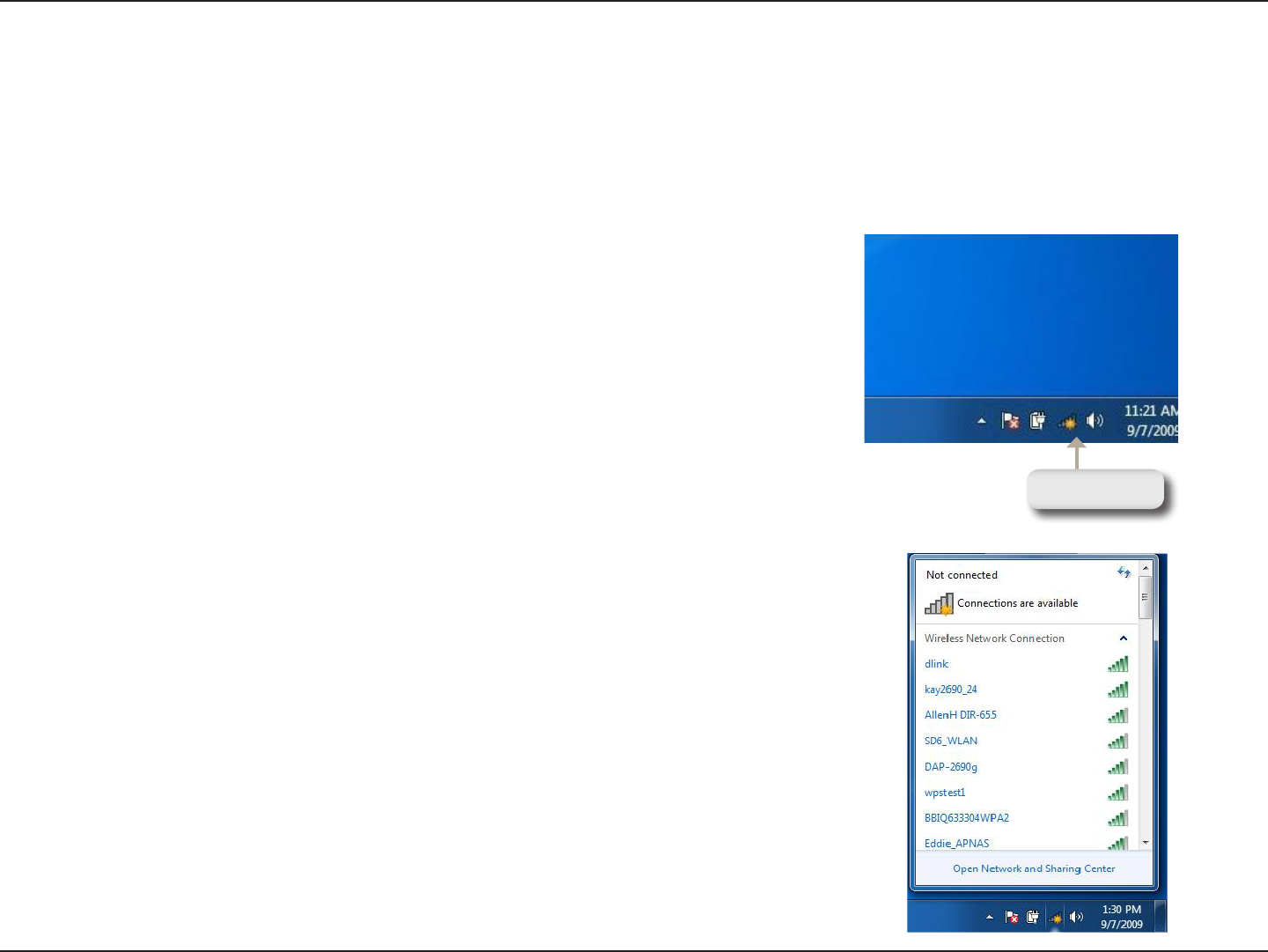

Conguring Wireless Security

It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before conguring your wireless adapter. If you

are joining an existing network, you will need to know the security key or passphrase being used.

2. The utility will display any available wireless networks in your area.

1. Click on the wireless icon in your system tray (lower-right corner).

Wireless

68D-Link DWR-712 User Manual

Section 4 - Connecting to a Wireless Network

3. Highlight the wireless network (SSID) you would like to connect to and

click the Connect button.

4. The following window appears while your computer tries to connect to

the router.

69D-Link DWR-712 User Manual

Section 4 - Connecting to a Wireless Network

5. Enter the same security key or passphrase that is on your router and click

Connect.

It may take 20-30 seconds to connect to the wireless network. If the

connection fails, please verify that the security settings are correct. The key

or passphrase must be exactly the same as on the wireless router.

70D-Link DWR-712 User Manual

Section 4 - Connecting to a Wireless Network

Using Windows Vista™

Windows® Vista™ users may use the built-in wireless utility. If you are using another company’s utility or Windows® 2000, please refer to the user

manual of your wireless adapter for help with connecting to a wireless network. Most utilities will have a “site survey” option similar to the Windows®

Vista™ utility as seen below.

Right-click on the wireless computer icon in your system tray (lower-right corner

next to the time). Select Connect to a network.

If you receive the Wireless Networks Detected bubble, click on the center of

the bubble to access the utility.

The utility will display any available wireless networks in your area. Click on a

network (displayed using the SSID) and click the Connect button.

If you get a good signal but cannot access the Internet, check the TCP/IP settings

for your wireless adapter. Refer to the Networking Basics section in this manual

for more information.

71D-Link DWR-712 User Manual

Section 4 - Connecting to a Wireless Network

Conguring Wireless Security

It is recommended to enable wireless security (WEP/WPA/WPA2) on your wireless router or access point before conguring your wireless adapter.

If you are joining an existing network, you will need to know the security key or passphrase being used.

2. Highlight the wireless network (SSID) you would like to connect to and click

Connect.

1. Open the Windows® Vista™ Wireless Utility by right-clicking on the wireless

computer icon in your system tray (lower right corner of screen). Select

Connect to a network.

72D-Link DWR-712 User Manual

Section 4 - Connecting to a Wireless Network

3. Enter the same security key or passphrase that is on your router and click Connect.

It may take 20-30 seconds to connect to the wireless network. If the connection fails,

please verify that the security settings are correct. The key or passphrase must be

exactly the same as on the wireless router.

73D-Link DWR-712 User Manual

Section 4 - Connecting to a Wireless Network

Connect to a Wireless Network

Using Windows® XP

Windows® XP users may use the built-in wireless utility (Zero Conguration Utility). The following instructions are for Service Pack 2 users. If you are

using another company’s utility or Windows® 2000, please refer to the user manual of your wireless adapter for help with connecting to a wireless

network. Most utilities will have a “site survey” option similar to the Windows® XP utility as seen below.

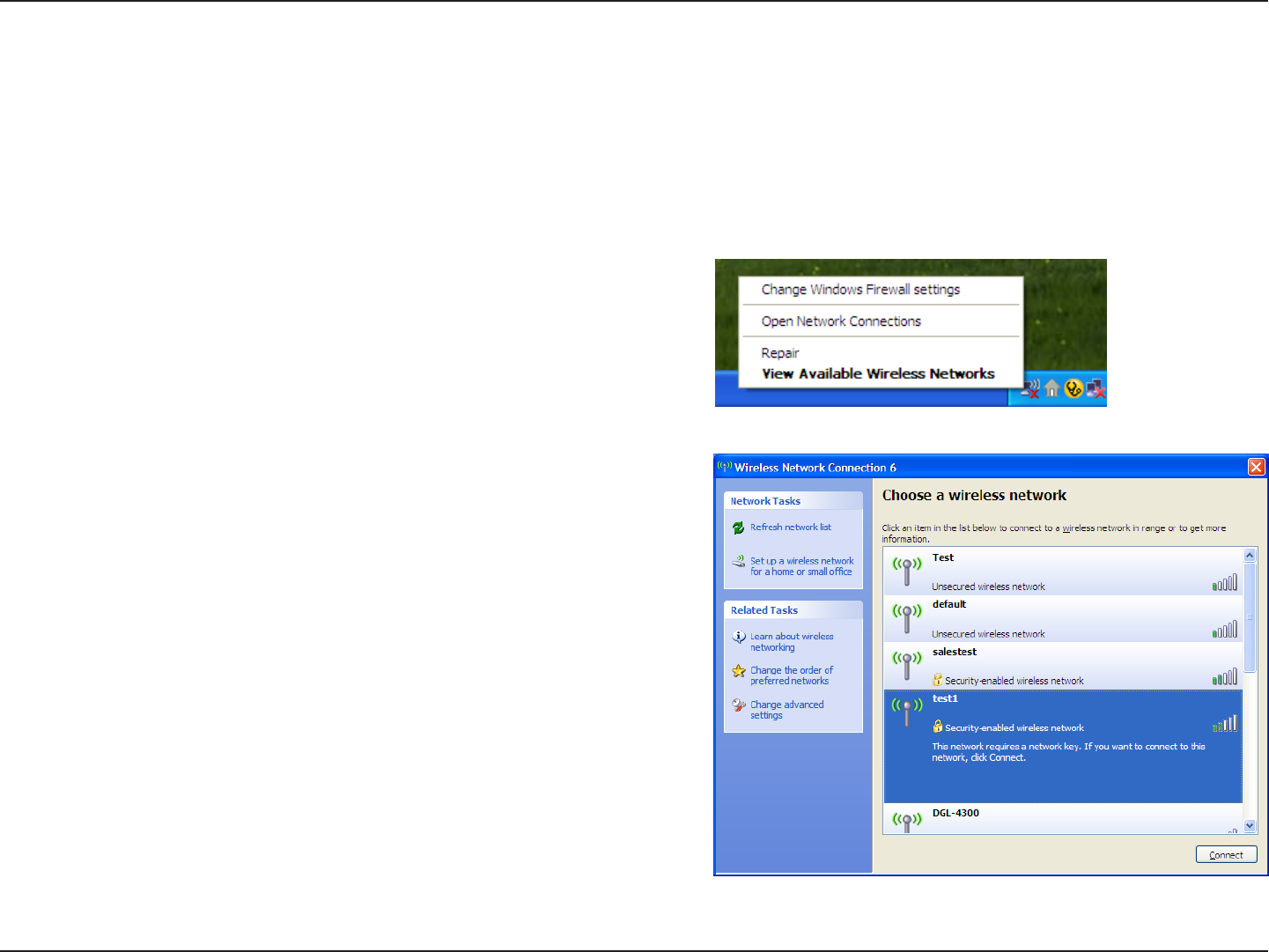

Right-click on the wireless computer icon in your system tray (lower-right corner

next to the time). Select View Available Wireless Networks.

If you receive the Wireless Networks Detected bubble, click on the center of the

bubble to access the utility.

The utility will display any available wireless networks in your area. Click on a

network (displayed using the SSID) and click the Connect button.

If you get a good signal but cannot access the Internet, check the TCP/IP settings

for your wireless adapter. Refer to the Networking Basics section in this manual

for more information.

74D-Link DWR-712 User Manual

Section 4 - Connecting to a Wireless Network

Congure WEP

It is recommended to enable WEP on your wireless router or access point before conguring your wireless adapter. If you are joining an existing

network, you will need to know the WEP key being used.

2. Highlight the wireless network (SSID) you would like to connect to

and click Connect.

1. Open the Windows® XP Wireless Utility by right-clicking on the wireless

computer icon in your system tray (lower-right corner of screen). Select

View Available Wireless Networks.

75D-Link DWR-712 User Manual

Section 4 - Connecting to a Wireless Network

3. The Wireless Network Connection box will appear. Enter the same WEP key that

is on your router and click Connect.

It may take 20-30 seconds to connect to the wireless network. If the connection fails,

please verify that the WEP settings are correct. The WEP key must be exactly the same

as on the wireless router.

76D-Link DWR-712 User Manual

Section 4 - Connecting to a Wireless Network

Congure WPA-PSK

It is recommended to enable WPA on your wireless router or access point before conguring your wireless adapter. If you are joining an existing

network, you will need to know the WPA key being used.

2. Highlight the wireless network (SSID) you would like to connect to and

click Connect.

1. Open the Windows® XP Wireless Utility by right-clicking

on the wireless computer icon in your system tray

(lower-right corner of screen). Select View Available Wireless Networks.

77D-Link DWR-712 User Manual

Section 4 - Connecting to a Wireless Network

3. The Wireless Network Connection box will appear. Enter the WPA-PSK passphrase

and click Connect.

It may take 20-30 seconds to connect to the wireless network. If the connection fails,

please verify that the WPA-PSK settings are correct. The WPA-PSK passphrase must be

exactly the same as on the wireless router.

78D-Link DWR-712 User Manual

Section 6 - Troubleshooting

Troubleshooting

This chapter provides solutions to problems that can occur during the installation and operation of the DWR-712. Read the following descriptions

if you are having problems. (The examples below are illustrated in Windows® XP. If you have a dierent operating system, the screenshots on your

computer will look similar to the following examples.)

1. Why can’t I access the web-based conguration utility?

When entering the IP address of the D-Link router (192.168.0.1 for example), you are not connecting to a website on the Internet or have to be

connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your computer must be on the same IP subnet to

connect to the web-based utility.

• Make sure you have an updated Java-enabled web browser. We recommend the following:

• Internet Explorer 6 or higher

• Netscape 8 or higher

• Mozilla 1.7.12 (5.0) or higher

• Opera 8.5 or higher

• Safari 1.2 or higher (with Java 1.3.1 or higher)

• Camino 0.8.4 or higher

• Firefox 1.5 or higher

• Verify physical connectivity by checking for solid link lights on the device. If you do not get a solid link light, try using a dierent cable or connect

to a dierent port on the device if possible. If the computer is turned o, the link light may not be on.

• Disable any internet security software running on the computer. Software rewalls such as Zone Alarm, Black Ice, Sygate, Norton Personal Firewall,

and Windows® XP rewall may block access to the conguration pages. Check the help les included with your rewall software for more information

on disabling or conguring it.

79D-Link DWR-712 User Manual

Section 6 - Troubleshooting

• Congure your Internet settings:

• Go to Start > Settings > Control Panel. Double-click the Internet Options Icon. From the Security tab, click the

button to restore the settings to their defaults.

• Click the Connection tab and set the dial-up option to Never Dial a Connection. Click the LAN Settings button.

Make sure nothing is checked. Click OK.

• Go to the Advanced tab and click the button to restore these settings to their defaults. Click OK three times.

• Close your web browser (if open) and open it.

• Access the web management. Open your web browser and enter the IP address of your D-Link router in the address bar. This should open the

• If you still cannot access the conguration, unplug the power to the router for 10 seconds and plug back in. Wait about 30 seconds and try accessing

the conguration. If you have multiple computers, try connecting using a dierent computer.

2. What can I do if I forgot my password?

If you forgot your password, you must reset your router. Unfortunately, this process will change all your settings back to the factory defaults.

To reset the router, locate the reset button (hole) on the rear panel of the unit. With the router powered on, use a paperclip to hold the button

down for 10 seconds. Release the button and the router will go through its reboot process. Wait about 30 seconds to access the router. The default

IP address is 192.168.0.1. When logging in, the username is admin and leave the password box empty.

80D-Link DWR-712 User Manual

Appendix A - Wireless Basics

D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity within your

home, business or public access wireless networks. Strictly adhering to the IEEE standard, the D-Link wireless family of products will allow you to

securely access the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking delivers.

A wireless local area network (WLAN) is a cellular computer network that transmits and receives data with radio signals instead of wires. Wireless

LANs are used increasingly in both home and oce environments, and public areas such as airports, coee shops and universities. Innovative ways

to utilize WLAN technology are helping people to work and communicate more eciently. Increased mobility and the absence of cabling and other

xed infrastructure have proven to be benecial for many users.

Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop systems support the

same protocols as Ethernet adapter cards.

Under many circumstances, it may be desirable for mobile network devices to link to a conventional Ethernet LAN in order to use servers, printers

or an Internet connection supplied through the wired LAN. A wireless router is a device used to provide this link.

Wireless Basics

81D-Link DWR-712 User Manual

Appendix A - Wireless Basics

What is Wireless?

Wireless or Wi-Fi technology is another way of connecting your computer to the network without using wires. Wi-Fi uses radio frequency to connect

wirelessly, so you have the freedom to connect computers anywhere in your home or oce network.

Why D-Link Wireless?

D-Link is the worldwide leader and award winning designer, developer, and manufacturer of networking products. D-Link delivers the performance

you need at a price you can aord. D-Link has all the products you need to build your network.

How does wireless work?

Wireless works similar to how cordless phone work, through radio signals to transmit data from one point A to point B. But wireless technology has

restrictions as to how you can access the network. You must be within the wireless network range area to be able to connect your computer. There

are two dierent types of wireless networks Wireless Local Area Network (WLAN), and Wireless Personal Area Network (WPAN).

Wireless Local Area Network (WLAN)

In a wireless local area network, a device called an Access Point (AP) connects computers to the network. The access point has a small antenna

attached to it, which allows it to transmit data back and forth over radio signals. With an indoor access point as seen in the picture, the signal can

travel up to 300 feet. With an outdoor access point the signal can reach out up to 30 miles to serve places like manufacturing plants, industrial

locations, college and high school campuses, airports, golf courses, and many other outdoor venues.

Wireless Personal Area Network (WPAN)

Bluetooth is the industry standard wireless technology used for WPAN. Bluetooth devices in WPAN operate in a range up to 30 feet away.

Compared to WLAN the speed and wireless operation range are both less than WLAN, but in return it doesn’t use nearly as much power which

makes it ideal for personal devices, such as mobile phones, PDAs, headphones, laptops, speakers, and other devices that operate on batteries.

82D-Link DWR-712 User Manual

Appendix A - Wireless Basics

Who uses wireless?

Wireless technology as become so popular in recent years that almost everyone is using it; whether it’s for home, oce, business, D-Link has a

wireless solution for it.

Home

• Gives everyone at home broadband access

• Surf the web, check e-mail, instant message, etc

• Gets rid of the cables around the house

• Simple and easy to use

Small Oce and Home Oce

• Stay on top of everything at home as you would at the oce

• Remotely access your oce network from home

• Share Internet connection and printer with multiple computers

• No need to dedicate oce space

83D-Link DWR-712 User Manual

Appendix A - Wireless Basics

Where is wireless used?

Wireless technology is expanding everywhere not just at home or oce. People like the freedom of mobility and it’s becoming so popular that

more and more public facilities now provide wireless access to attract people. The wireless connection in public places is usually called “hotspots”.

Using a D-Link Cardbus Adapter with your laptop, you can access the hotspot to connect to Internet from remote locations like Airports, Hotels,

Coee Shops, Libraries, Restaurants, and Convention Centers.

Wireless network is easy to setup, but if you’re installing it for the rst time it could be quite a task not knowing where to start. That’s why we’ve put

together a few setup steps and tips to help you through the process of setting up a wireless network.

Tips

Here are a few things to keep in mind, when you install a wireless network.

Centralize your router or access point

Make sure you place the router/access point in a centralized location within your network for the best performance. Try to place the router/access

point as high as possible in the room, so the signal gets dispersed throughout your home. If you have a two-story home, you may need a repeater

to boost the signal to extend the range.

Eliminate Interference

Place home appliances such as cordless telephones, microwaves, and televisions as far away as possible from the router/access point. This would

signicantly reduce any interference that the appliances might cause since they operate on same frequency.

Security

Don’t let your next-door neighbors or intruders connect to your wireless network. Secure your wireless network by turning on the WPA or WEP

security feature on the router. Refer to product manual for detail information on how to set it up.

84D-Link DWR-712 User Manual

Appendix A - Wireless Basics

There are basically two modes of networking:

• Infrastructure – All wireless clients will connect to an access point or wireless router.

• Ad-Hoc – Directly connecting to another computer, for peer-to-peer communication, using wireless network adapters on each

computer, such as two or more WNA-2330 wireless network Cardbus adapters.

An Infrastructure network contains an access point or wireless router. All the wireless devices, or clients, will connect to the wireless router or access

point.

An Ad-Hoc network contains only clients, such as laptops with wireless cardbus adapters. All the adapters must be in Ad-Hoc mode to communicate.

Wireless Modes

85D-Link DWR-712 User Manual

Appendix B - Networking Basics

Networking Basics

Check your IP address

After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP server (i.e. wireless

router) automatically. To verify your IP address, please follow the steps below.

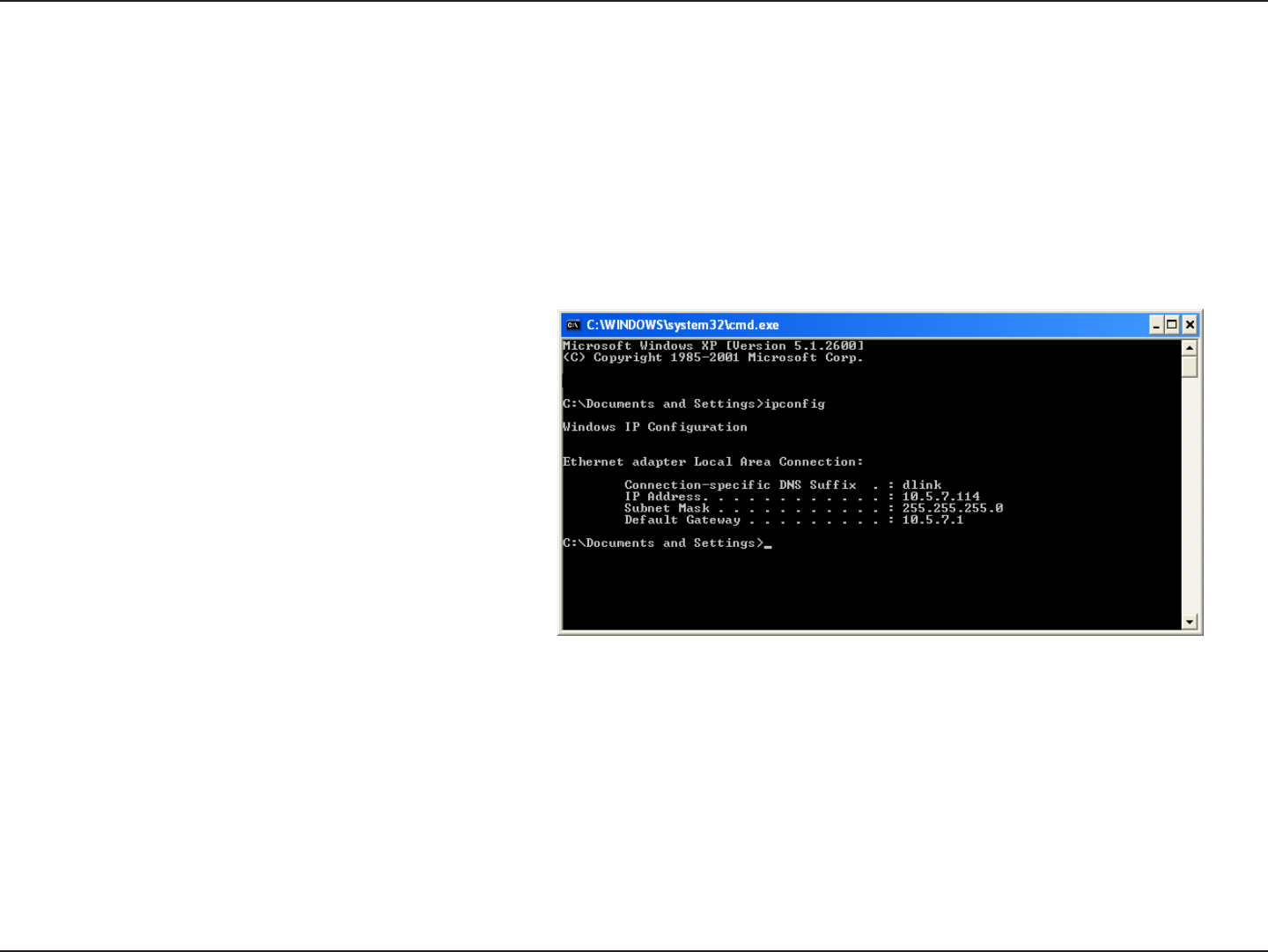

Click on Start > Run. In the run box type cmd and click OK.

(Windows® Vista™ users type cmd in the Start Search box.)

At the prompt, type ipcong and press Enter.

This will display the IP address, subnet mask, and the default

gateway of your adapter.

If the address is 0.0.0.0, check your adapter installation, security settings, and the settings on your router. Some rewall software programs may

block a DHCP request on newly installed adapters.

86D-Link DWR-712 User Manual

Appendix B - Networking Basics

Statically Assign an IP address

If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps below:

Step 1

Windows® Vista™ - Click on Start > Control Panel > Network and Internet > Network and Sharing Center > Manage Network Connections.

Windows® XP - Click on Start > Control Panel > Network Connections.

Windows® 2000 - From the desktop, right-click My Network Places > Properties.

Step 2

Right-click on the Local Area Connection which represents your network adapter and select Properties.

Step 3

Highlight Internet Protocol (TCP/IP) and click Properties.

Step 4

Click Use the following IP address and enter an IP address that is on the same subnet as your network

or the LAN IP address on your router.

Example: If the router´s LAN IP address is 192.168.0.1, make your IP address 192.168.0.X where X is a

number between 2 and 99. Make sure that the number you choose is not in use on the network. Set

Default Gateway the same as the LAN IP address of your router (192.168.0.1).

Set Primary DNS the same as the LAN IP address of your router (192.168.0.1). The Secondary DNS is not

needed or you may enter a DNS server from your ISP.

Step 5

Click OK twice to save your settings.

87D-Link DWR-712 User Manual

Appendix C - Technical Specications

Technical Specications

GSM Band (GSM/GPRS/EDGE)

• 850 / 900 / 1800 / 1900 MHz

• Power Class 4 (850 / 900 MHz)

• Power Class 1 (1800 / 1900 MHz)

UMTS/HSDPA Band 1

• 900/2100 MHz or 850/1900/2100 MHz

• Power Class 3

Data Rates 2

• Up to 150 Mbps with 802.11n clients

• 6/9/11/12/18/24/36/48/54 Mbps in 802.11g mode

• 1/2/5.5/11 Mbps in 802.11b mode

• 3G Uplink: Up to 5.76 Mbps

• 3G Downlink: Up to 21 Mbps

Standards

• 802.11b/g, compatible with 802.11n devices

• 802.3

• 802.3u

Wireless Security

• 64/128-bit WEP (Wired Equivalent Privacy)

• WPA & WPA2 (Wi-Fi Protected Access)

Firewall

• Network Address Translation (NAT)

• Stateful Packet Inspection (SPI)

VPN

• L2TP/PPTP/IPSEC/VPN Pass-through

Antenna

• External 3G antenna

Ports

• Four LAN ports (RJ-45)

• WAN port (RJ-45)

• Phone port (RJ-11)

USIM Slot

• Standard 6-pin SIM card interface

LED Status Indicators

• Status

• WAN

• LAN

• WLAN

• 2G

• 3G

• SMS

• Signal

Dimensions (L x W x H)

• 190 x 119 x 22 mm (7.48 x 4.69 x 0.87 inches)

88D-Link DWR-712 User Manual

Appendix C - Technical Specications

Operating Temperature

• 0 to 40 ˚C (32 to 104 ˚F)

Operating Humidity

• 10% to 90% (Non-condensing)

Certications

• FCC

1 Supported frequency band is dependent upon regional hardware version.

2 Maximum wireless signal rate derived from IEEE Standard 802.11g specications. Actual data throughput will vary. Network conditions and environmental

factors, including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental

factors will adversely aect wireless signal range.

89D-Link DWR-712 User Manual

Appendix D - Safety Statements

Safety Statements

CE Mark Warning:

This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take

adequate measures.

FCC Statement:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are

designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in accordance with the Instructions , may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio

or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

‐Reorient or relocate the receiving antenna.

‐Increase the separation between the equipment and receiver.

‐Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

‐Consult the dealer or an experienced radio/TV technician for help.

FCC Caution:

1. This device complies with Part 15 of the FCC rules/Industry Canada RSS 210 standard . Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation.

2. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.

3. Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate

the equipment.

IMPORTANT NOTE : (For Mobile Device Conguration)

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and

90D-Link DWR-712 User Manual

Appendix D - Safety Statements

operated with minimum distance 20cm between the radiator & your body.

IMPORTANT NOTE : (For Portable Device Conguration)

Federal Communication Commission (FCC) Radiation Exposure Statement

This EUT is compliance with SAR for general population/uncontrolled exposure limits in

ANSI/IEEE C95.1-1999 and had been tested in accordance with the measurement methods

and procedures specied in OET Bulletin 65 Supplement C.

This Class [*] digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [*] est conforme à la norme NMB-003 du Canada.

Industry Canada Caution:

This device complies with Industry Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio

exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:

(1) il ne doit pas produire de brouillage et

(2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu,

même si ce brouillage est susceptible de compromettre le fomctionnement du dispositif.

IC IMPORTANT NOTE : (For Mobile Device Conguration)

IC Radiation Exposure Statement:

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance 20cm

between the radiator & your body.

IC IMPORTANT NOTE : (For Portable Device Conguration)

IC Radiation Exposure Statement

This EUT is compliance with SAR for general population/uncontrolled exposure limits in

IC RSS-102 and had been tested in accordance with the measurement methods and procedures specied in IEEE 1528. This equipment

should be installed and operated with minimum distance 1cm between the radiator & your body.

91D-Link DWR-712 User Manual

Appendix D - Safety Statements

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain

approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain

should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

En vertu de la réglementation de l’industrie du Canada, cet émetteur de radio ne peuvent fonctionner en utilisant une antenne d’un type

et maximum (ou moins) Gain approuvé pour l’émetteur par Industrie Canada. Pour réduire risque d’interférence aux autres utilisateurs,

le type d’antenne et son gain doivent être choisis de sorte que la puissance isotrope rayonnée équivalente (PIRE) ne dépasse pas ce qui

est nécessaire pour la réussite de communication.

附錄(7) 低功率電波輻射性電機管理辦法

第十二條

經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。

第十四條

低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應改善至無干擾時方得繼續使用。前項合法通信，指依

電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

D Link WR712C1 HSPA+ 3G SOHO Router User Manual Manual

D Link Corporation HSPA+ 3G SOHO Router Manual

Manual

Navigation menu

Namespaces

Views

Navigation
