D Link WR730A1 HSPA+ MOBILE ROUTER User Manual
D Link Corporation HSPA+ MOBILE ROUTER Users Manual
D Link >
Users Manual
iD-Link DWR-730 User Manual
Trademarks
Preface
iiD-Link DWR-730 User Manual
Table of Contents
Table of Contents
iiiD-Link DWR-730 User Manual
Table of Contents
1D-Link DWR-730 User Manual
Section 1 - Product Overview
System Requirements
Product Overview
Package Contents
2D-Link DWR-730 User Manual
Section 1 - Product Overview
Introduction
3D-Link DWR-730 User Manual
Section 1 - Product Overview
Hardware Overview

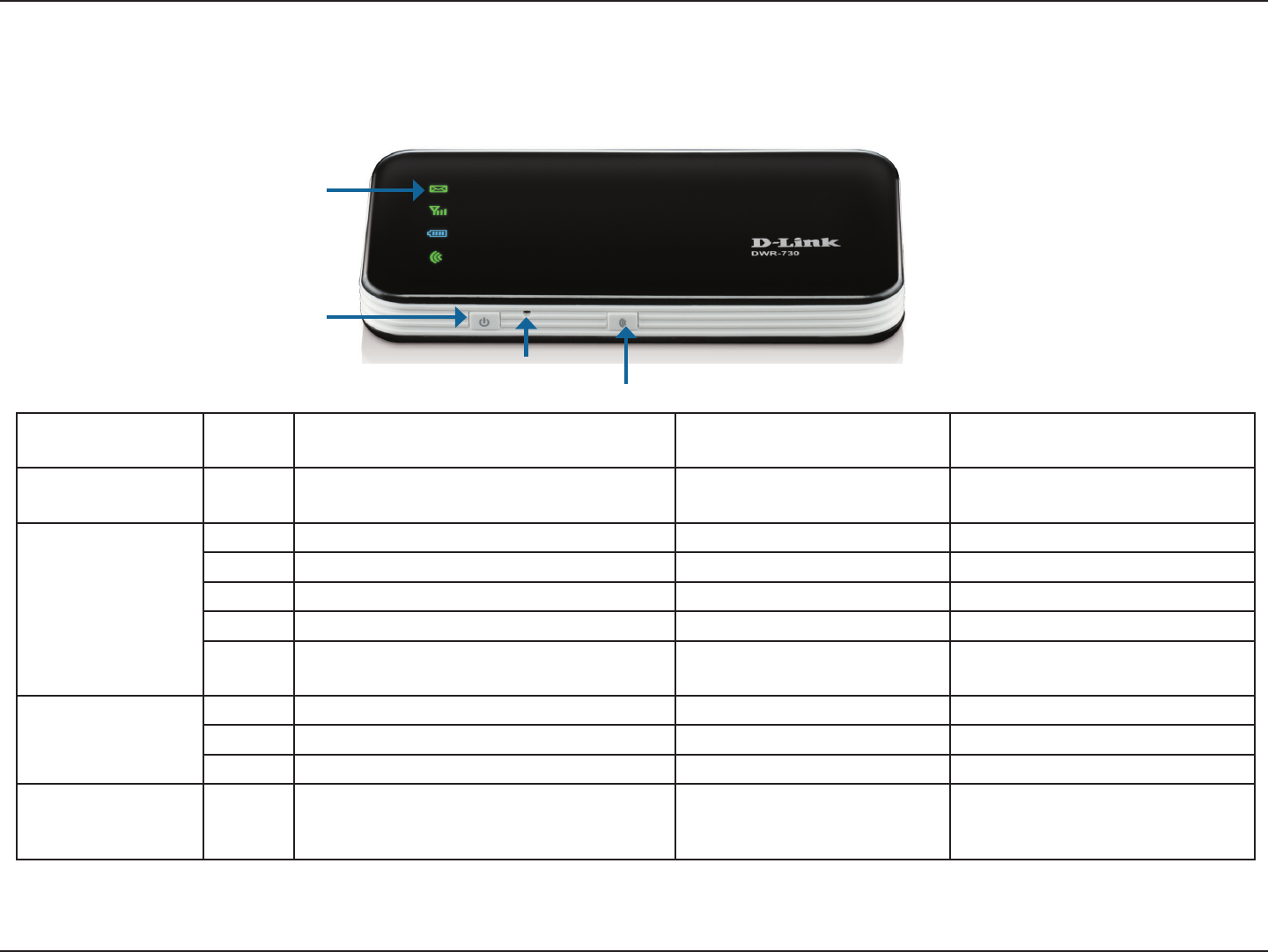

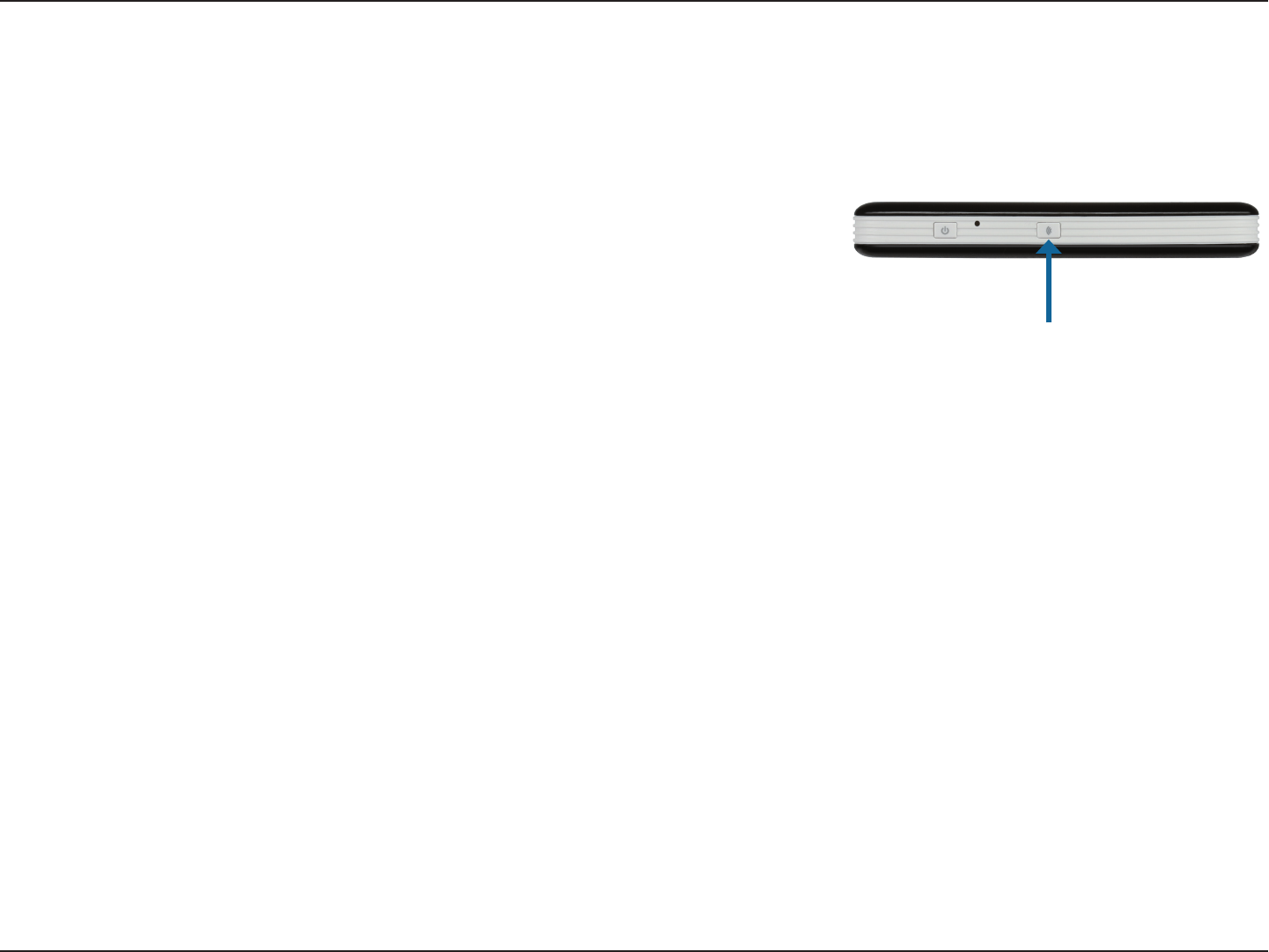

Front
4D-Link DWR-730 User Manual
Section 1 - Product Overview
Hardware Overview

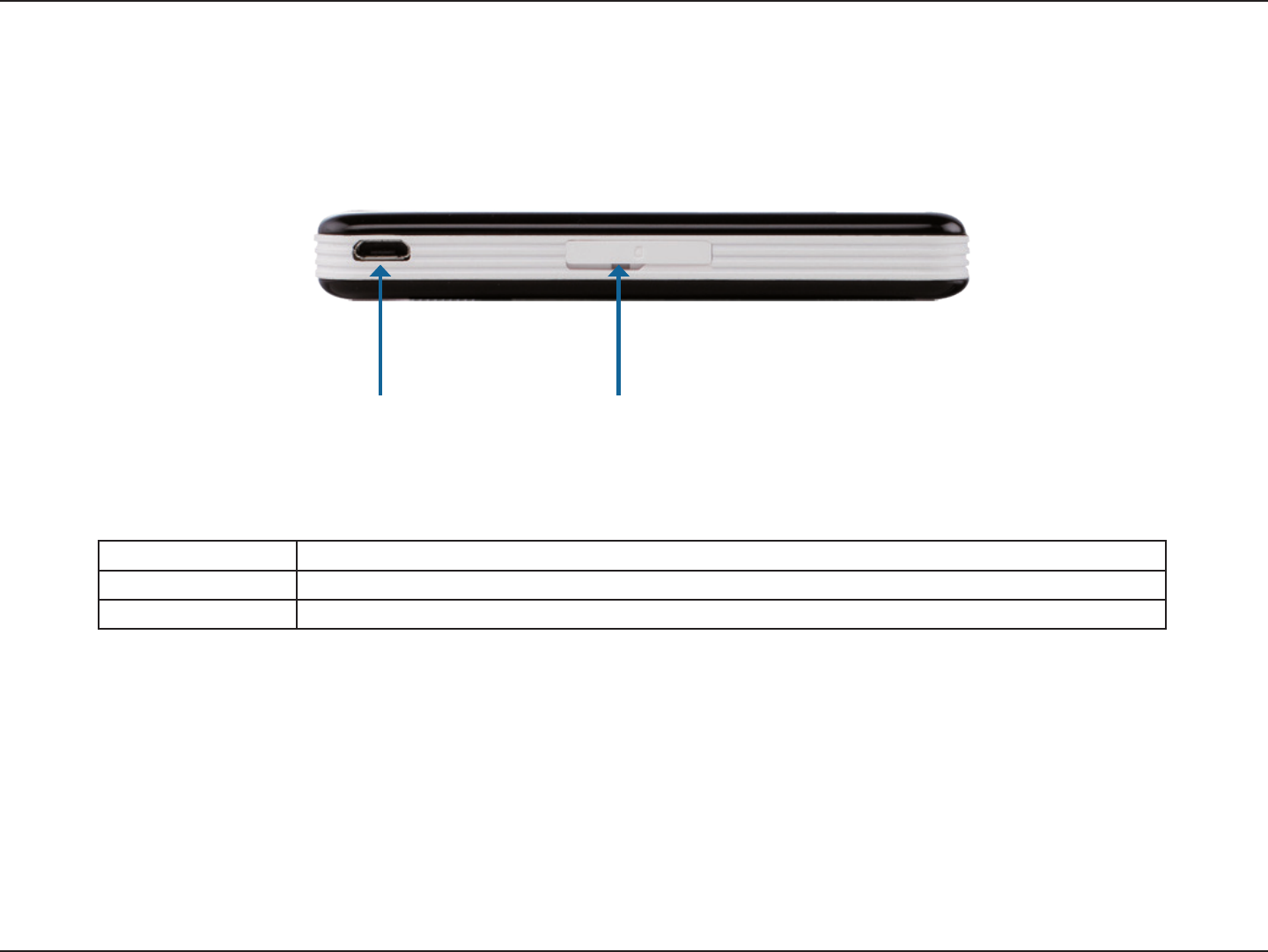

Back
5D-Link DWR-730 User Manual
Section 2 - Installation
Wireless Installation Considerations
6D-Link DWR-730 User Manual
Section 2 - Installation

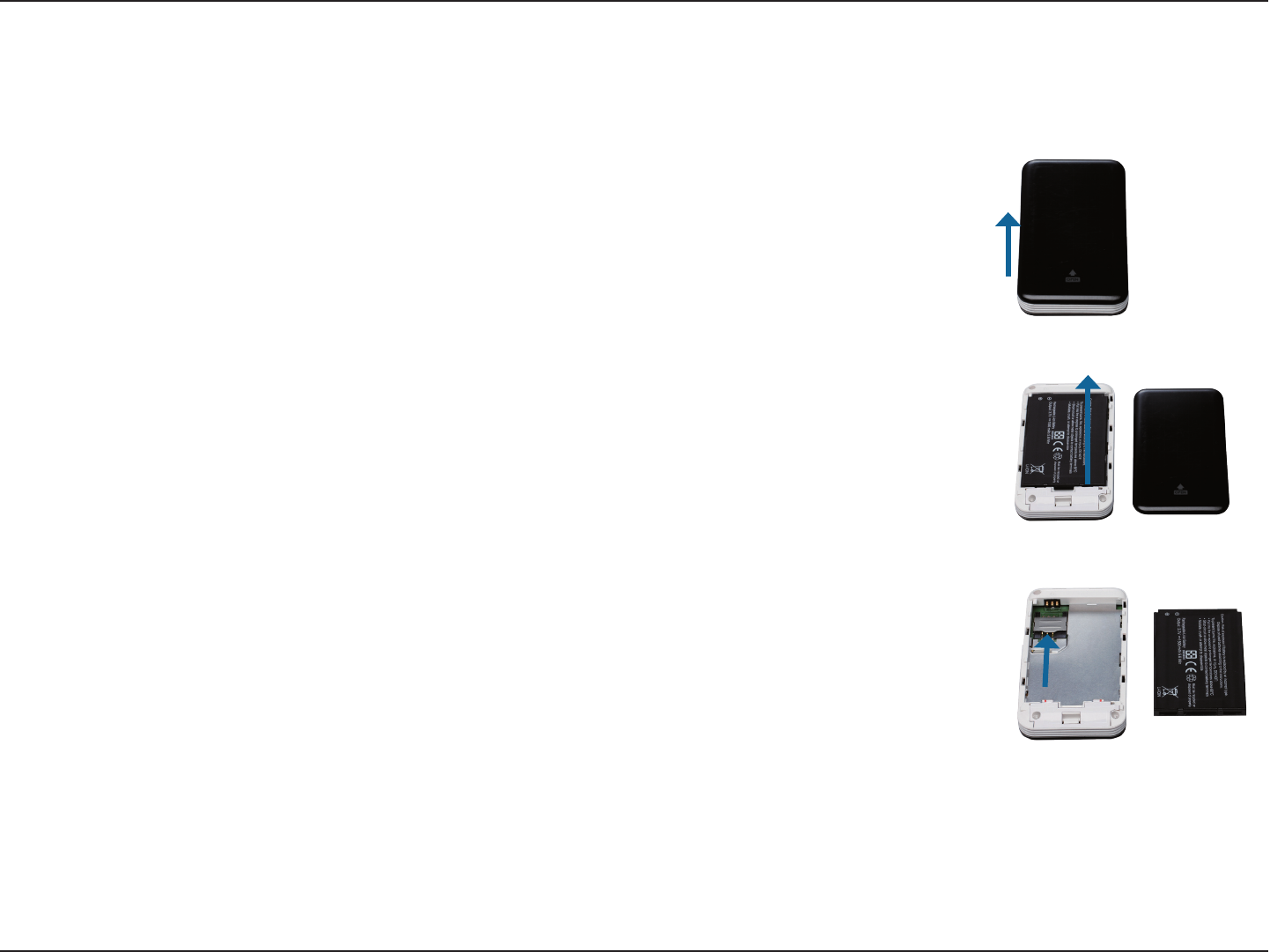

Product Setup
7D-Link DWR-730 User Manual
Section 2 - Installation
WiFi/WPS Configuration
8D-Link DWR-730 User Manual
Section 3 - Configuration

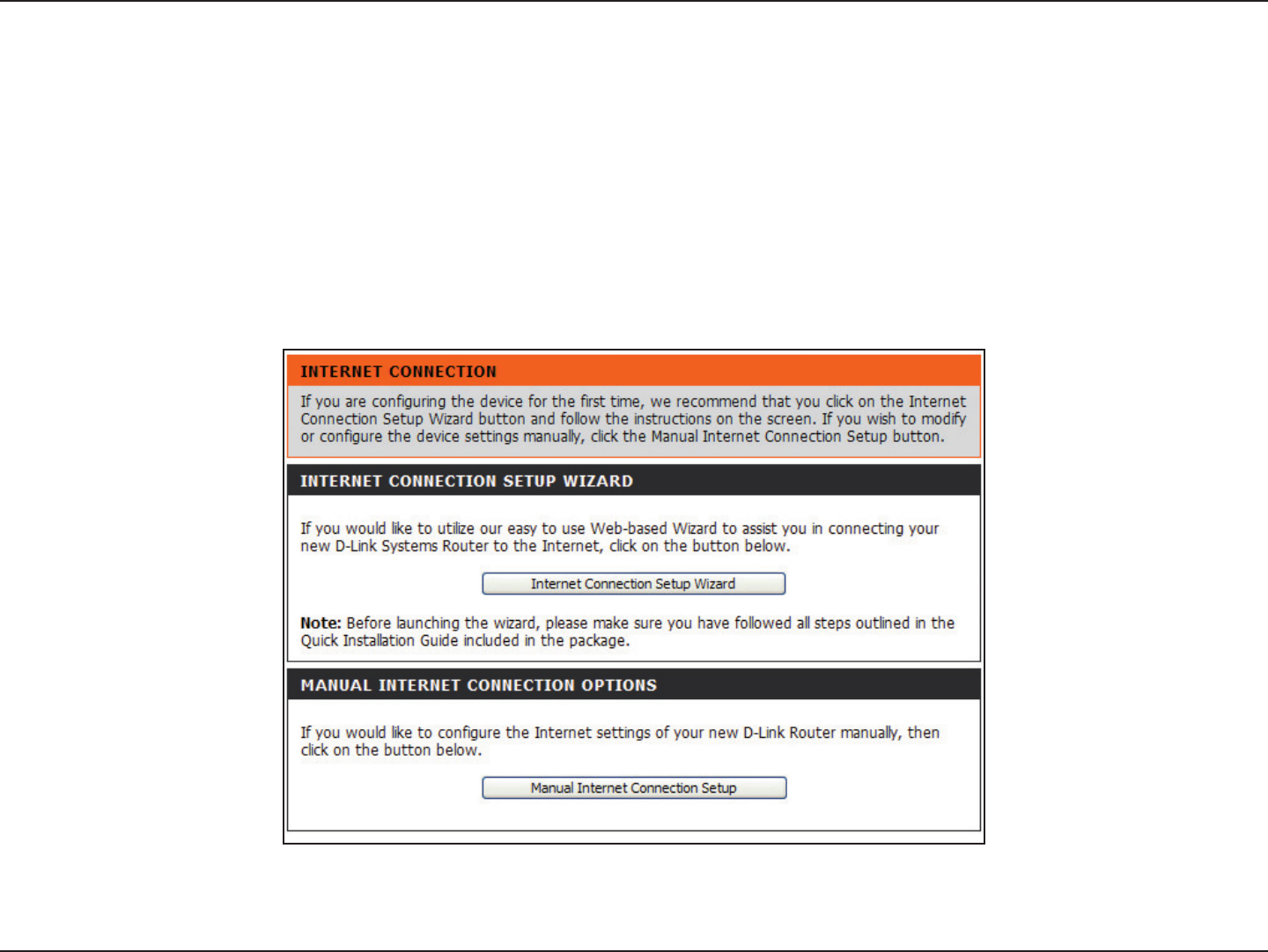

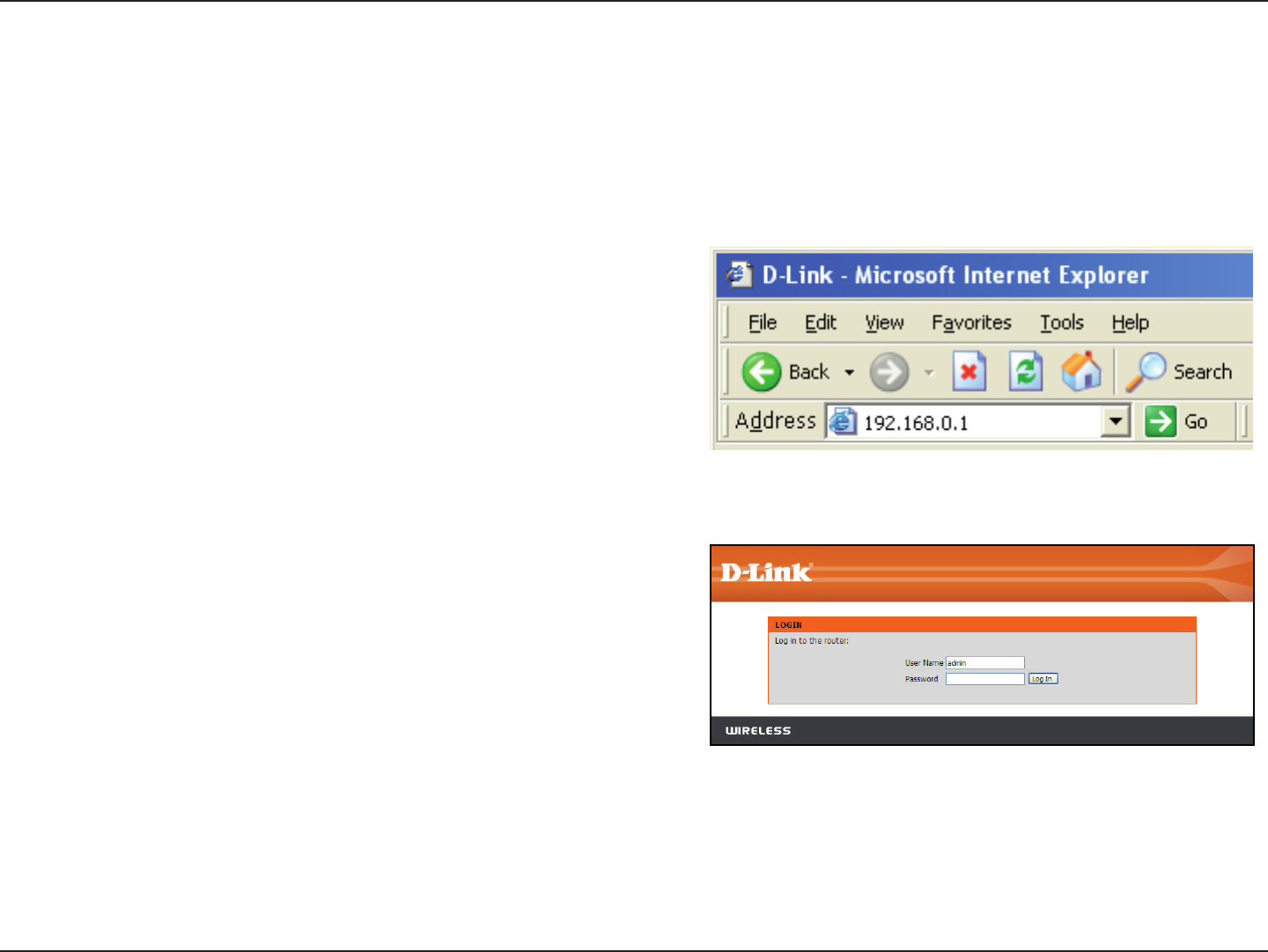

Web-Based Configuration Utility
9D-Link DWR-730 User Manual
Section 3 - Configuration

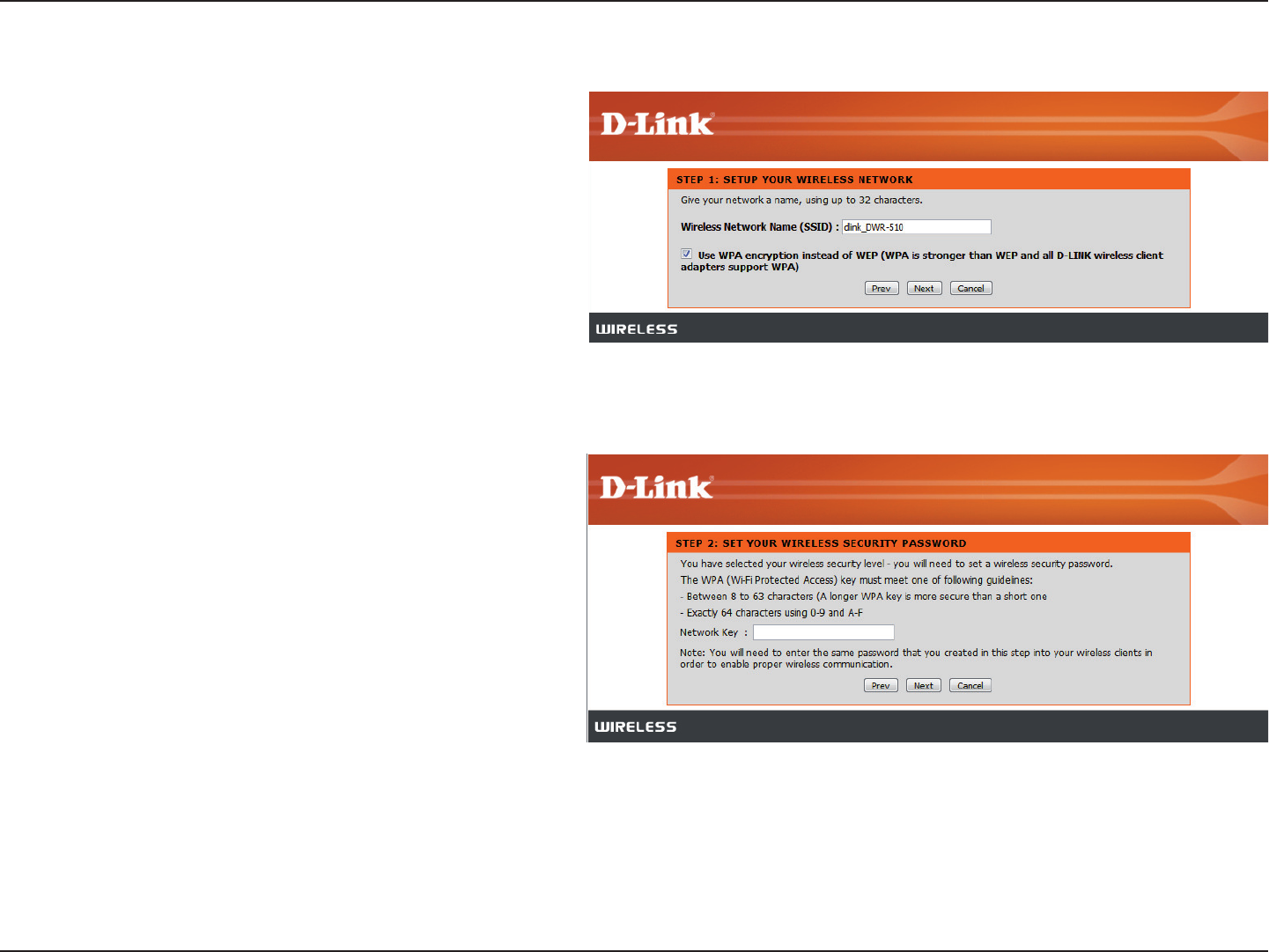

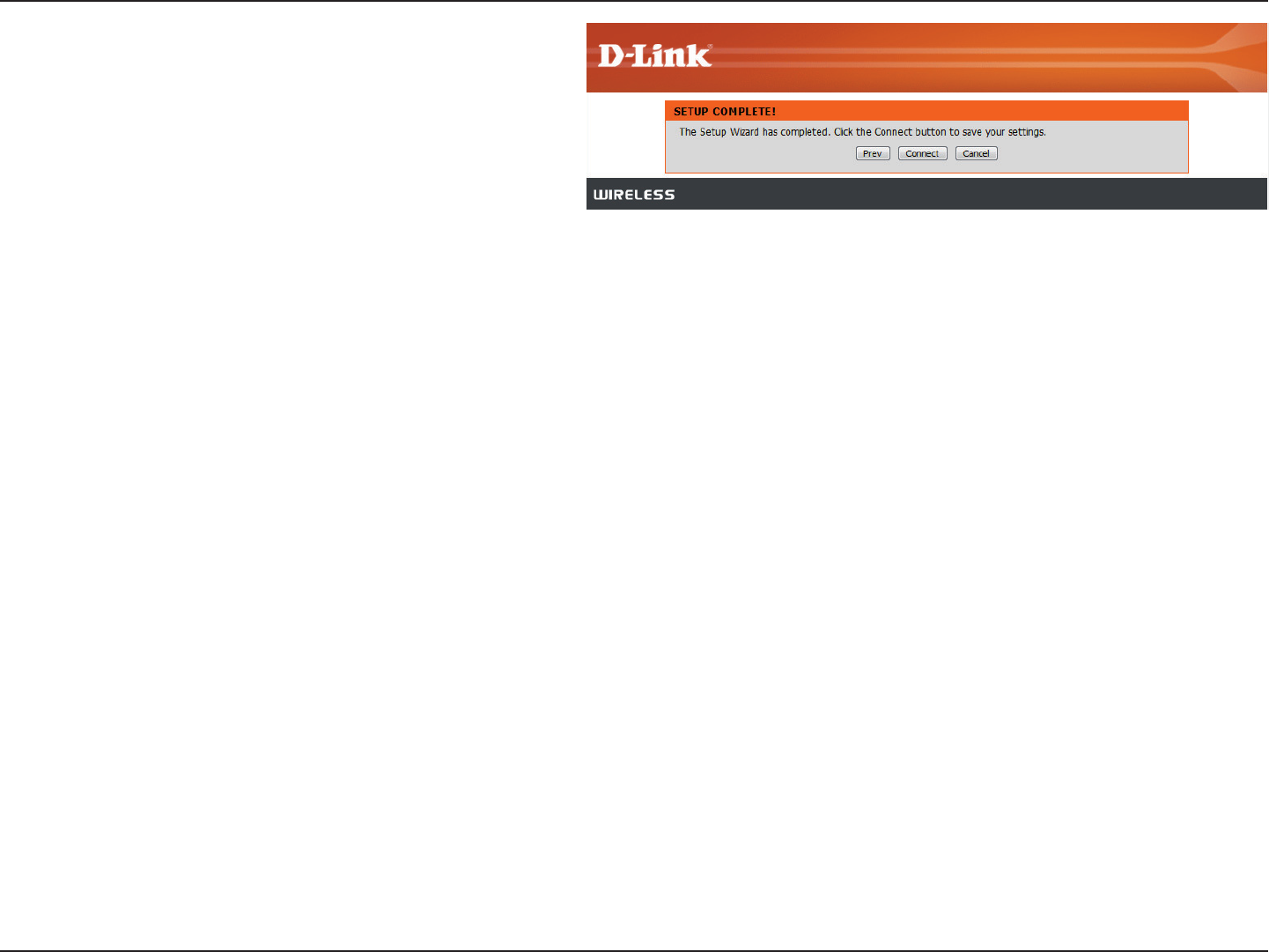

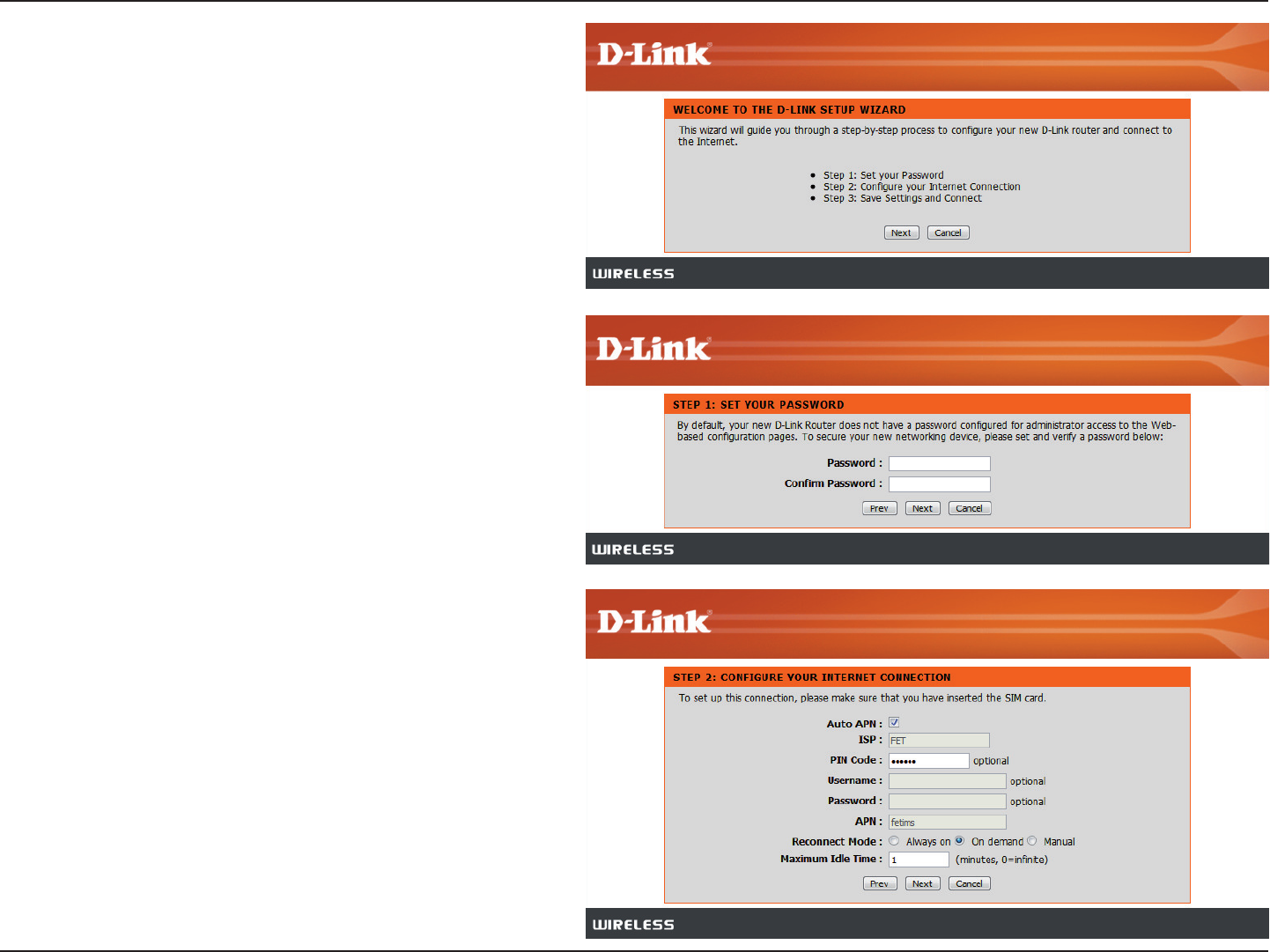

Internet Connection Setup Wizard
10D-Link DWR-730 User Manual
Section 3 - Configuration
11D-Link DWR-730 User Manual
Section 3 - Configuration
12D-Link DWR-730 User Manual
Section 3 - Configuration

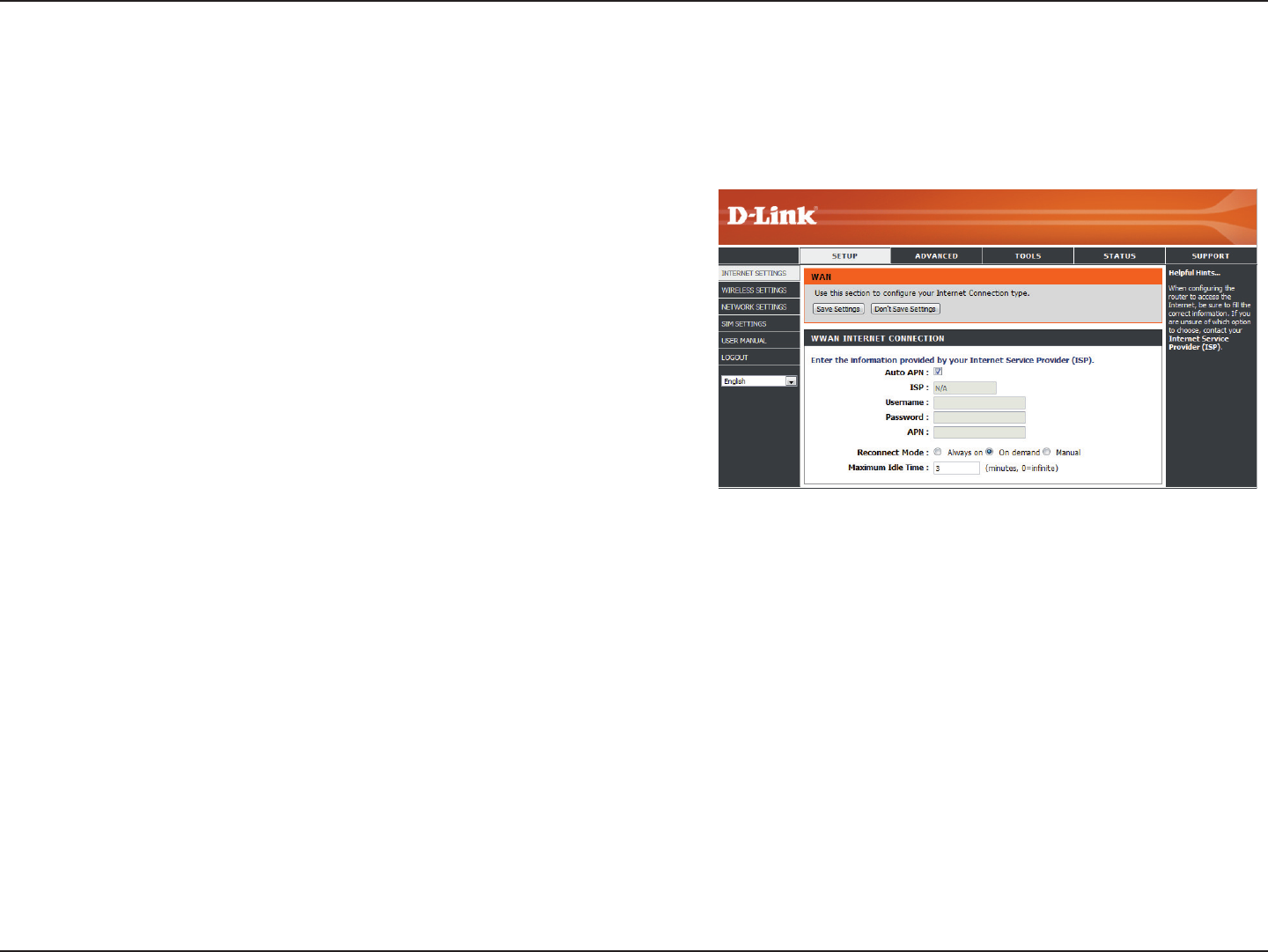

Internet Setup
Auto APN:
ISP:
Username:
Password:
APN:
Reconnect Mode:
Maximum Idle Time:
13D-Link DWR-730 User Manual
Section 3 - Configuration

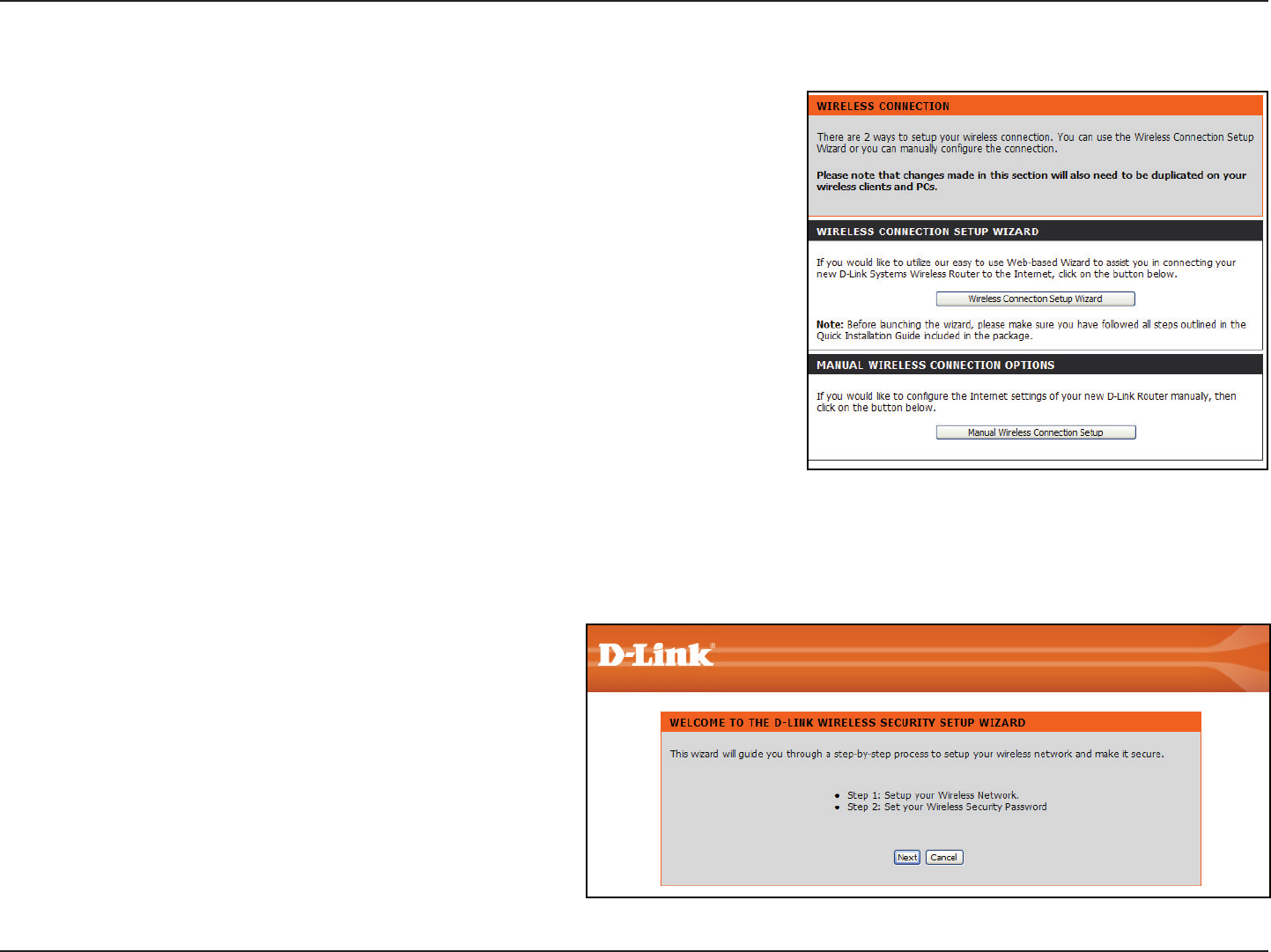

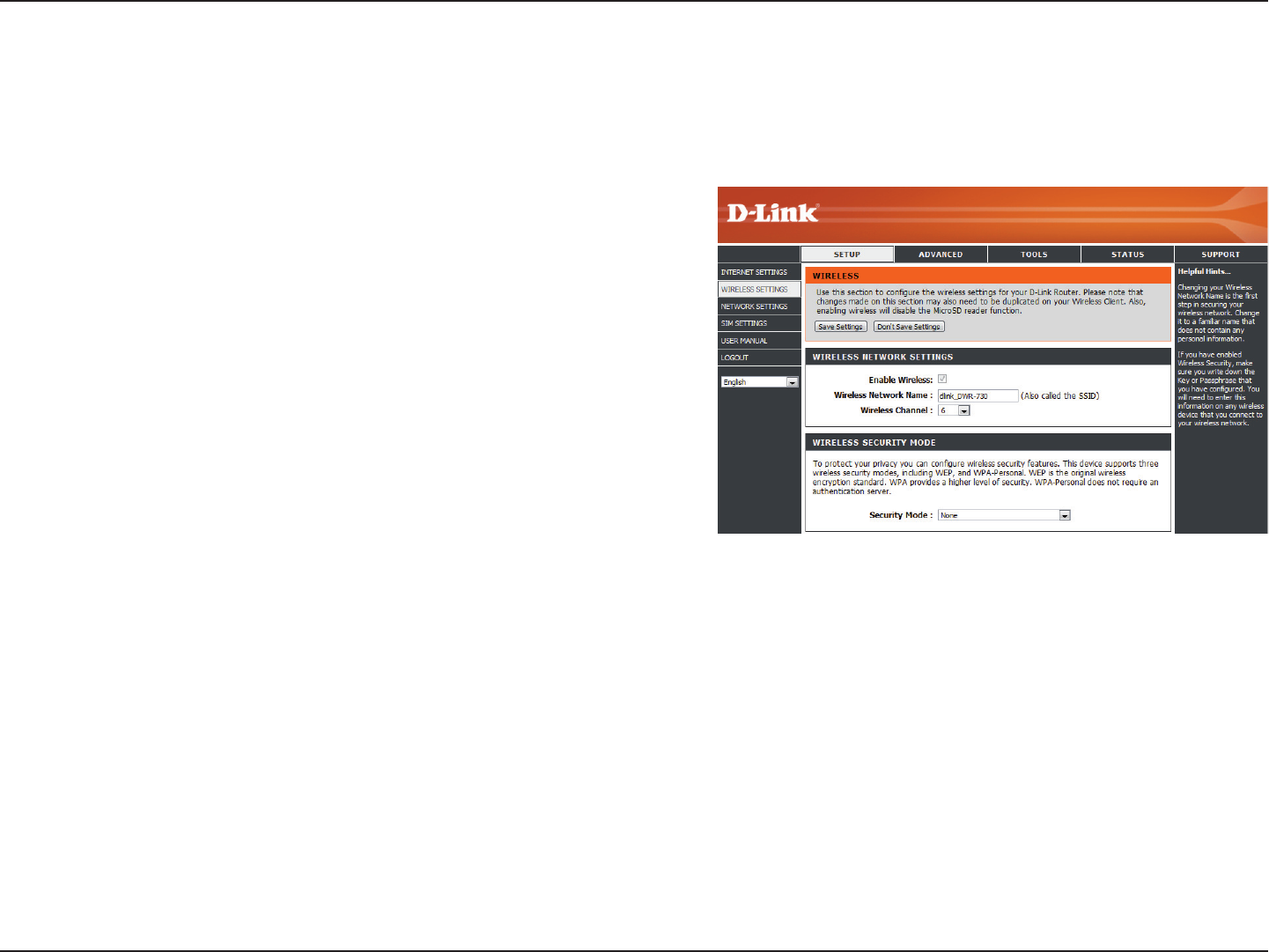

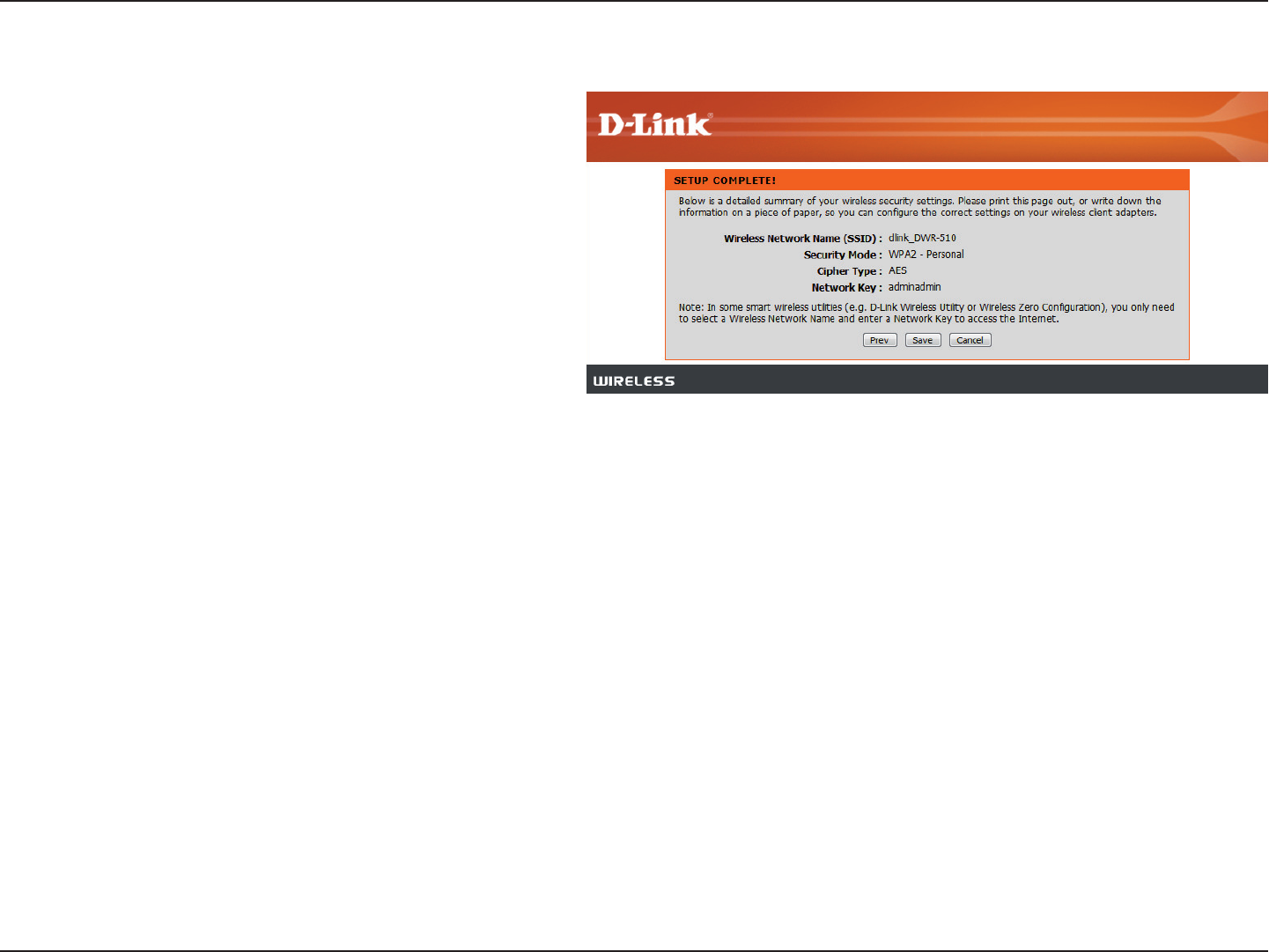

Wireless Settings
14D-Link DWR-730 User Manual
Section 3 - Configuration
15D-Link DWR-730 User Manual
Section 3 - Configuration
16D-Link DWR-730 User Manual
Section 3 - Configuration
Manual Wireless Setup
Enable Wireless :
Wireless Network Name:
Wireless Channel:
Security Mode:
17D-Link DWR-730 User Manual
Section 3 - Configuration

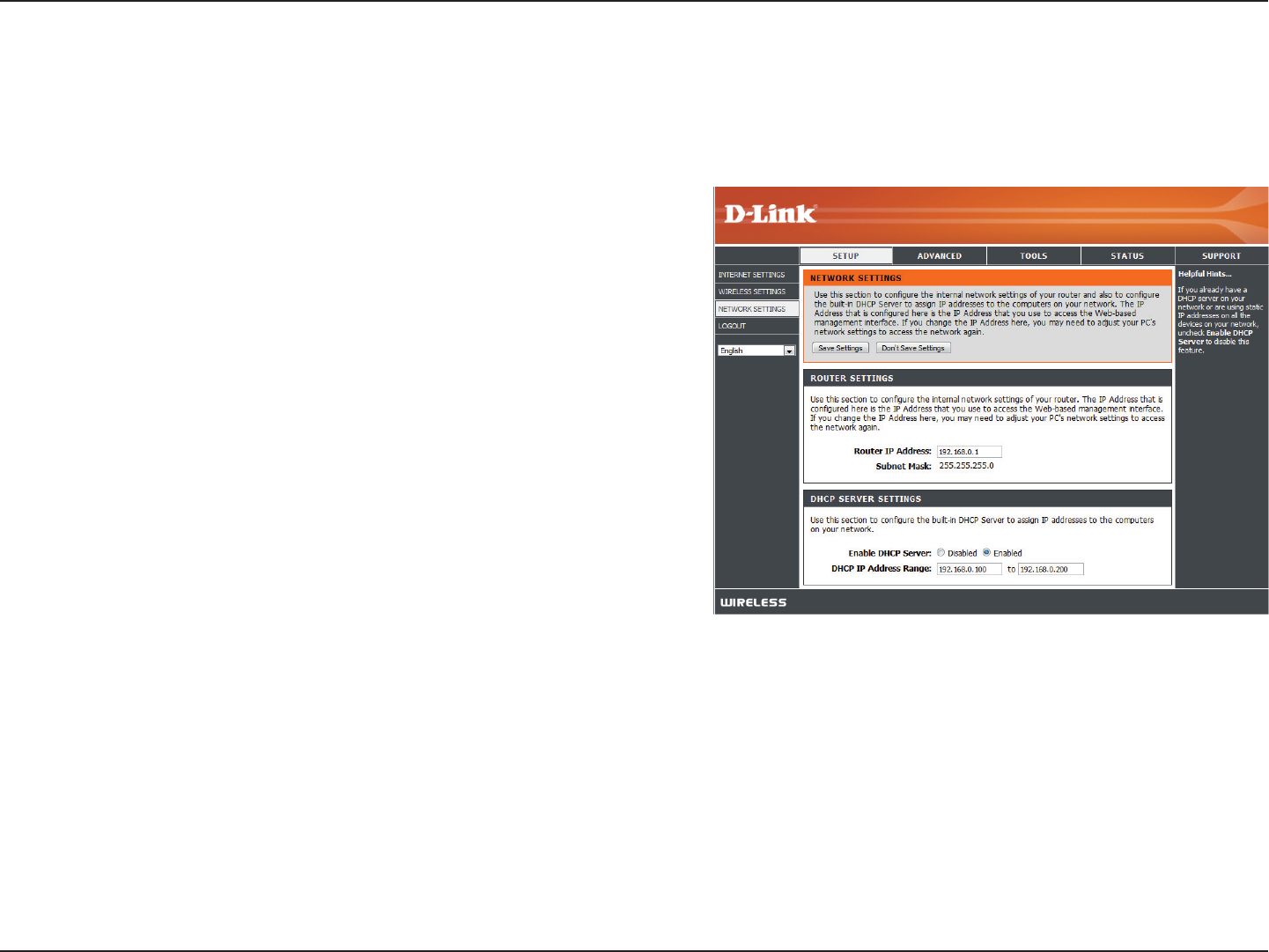

Network Setup
Router IP Address:
Subnet Mask:
Enable DHCP Server:
DHCP IP Address Range:
18D-Link DWR-730 User Manual
Section 3 - Configuration

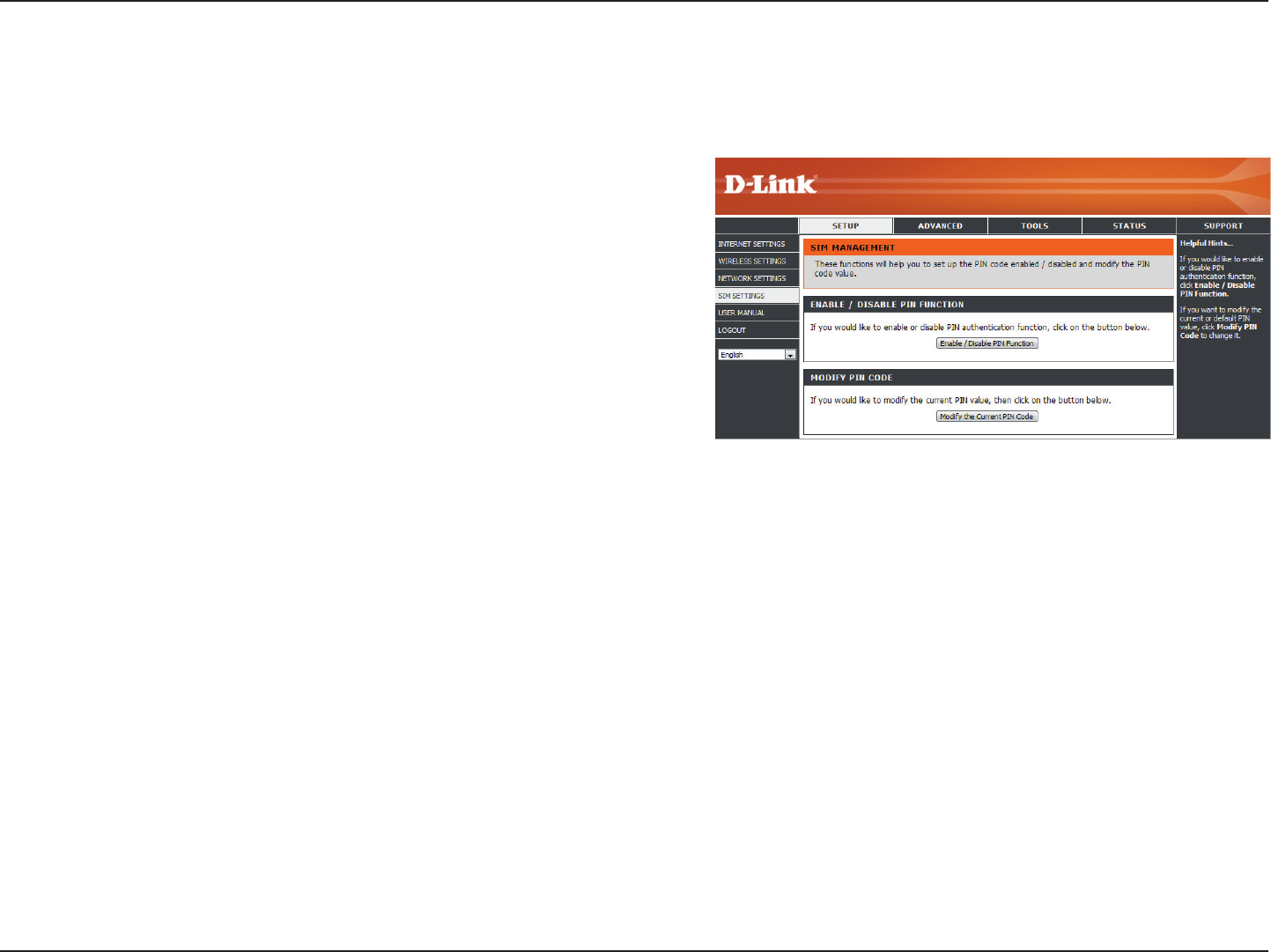

SIM Settings
Enable/ Disable PIN
Function:
Modify PIN Code:
19D-Link DWR-730 User Manual
Section 3 - Configuration

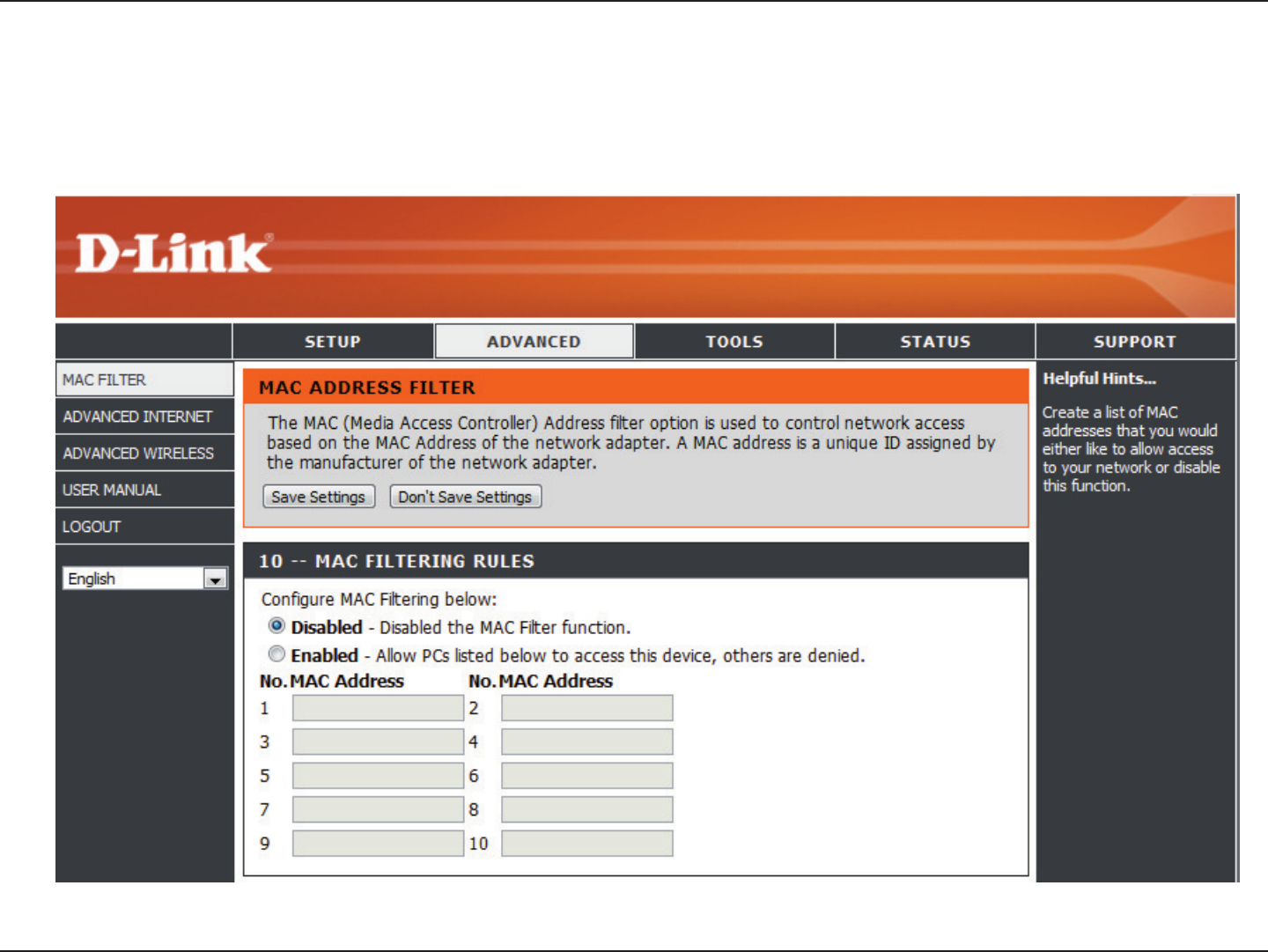

MAC Filter
20D-Link DWR-730 User Manual
Section 3 - Configuration

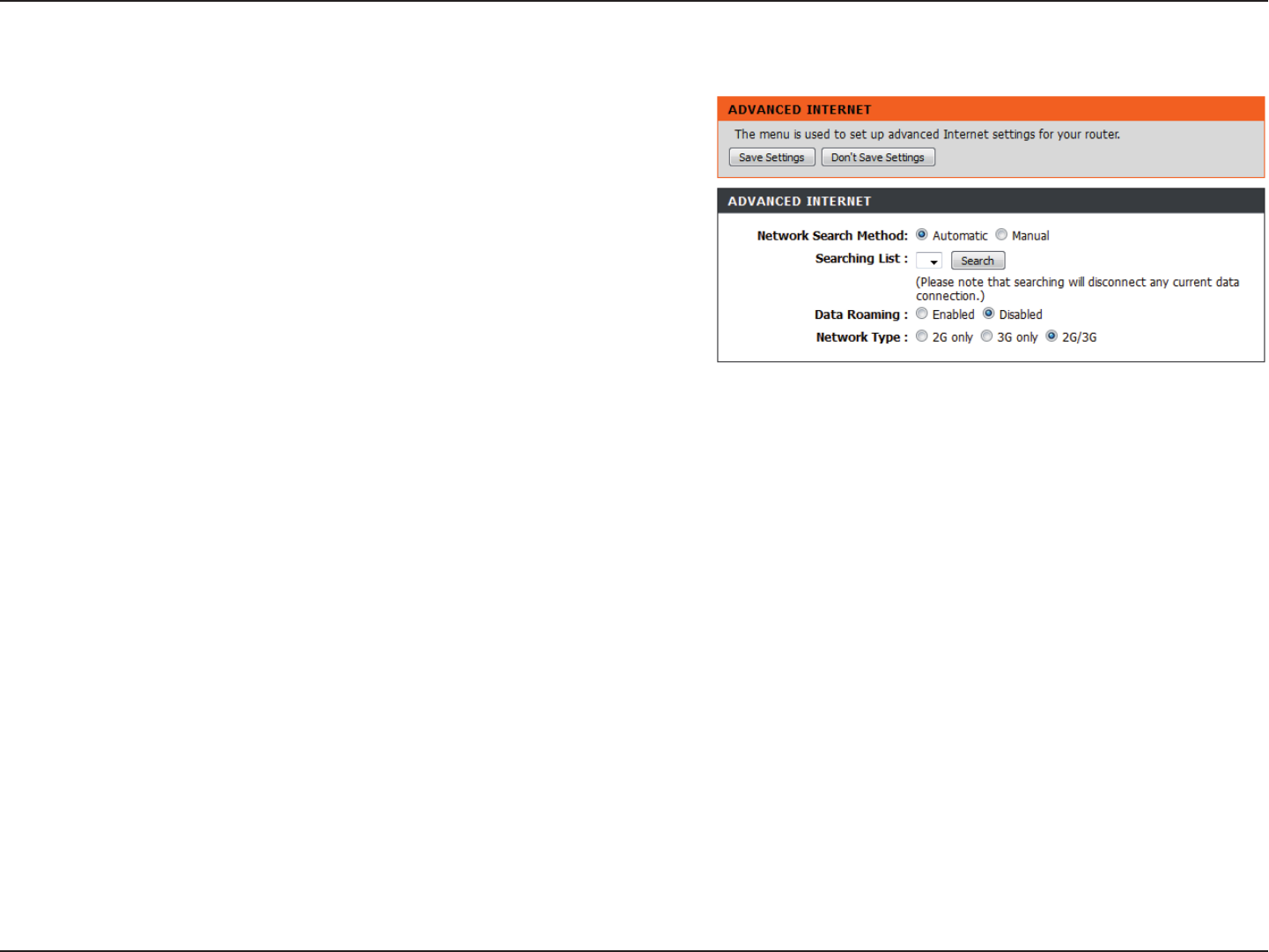

Advanced Internet Settings
Network Search Method:
Data Roaming:
Network Type:
21D-Link DWR-730 User Manual
Section 3 - Configuration

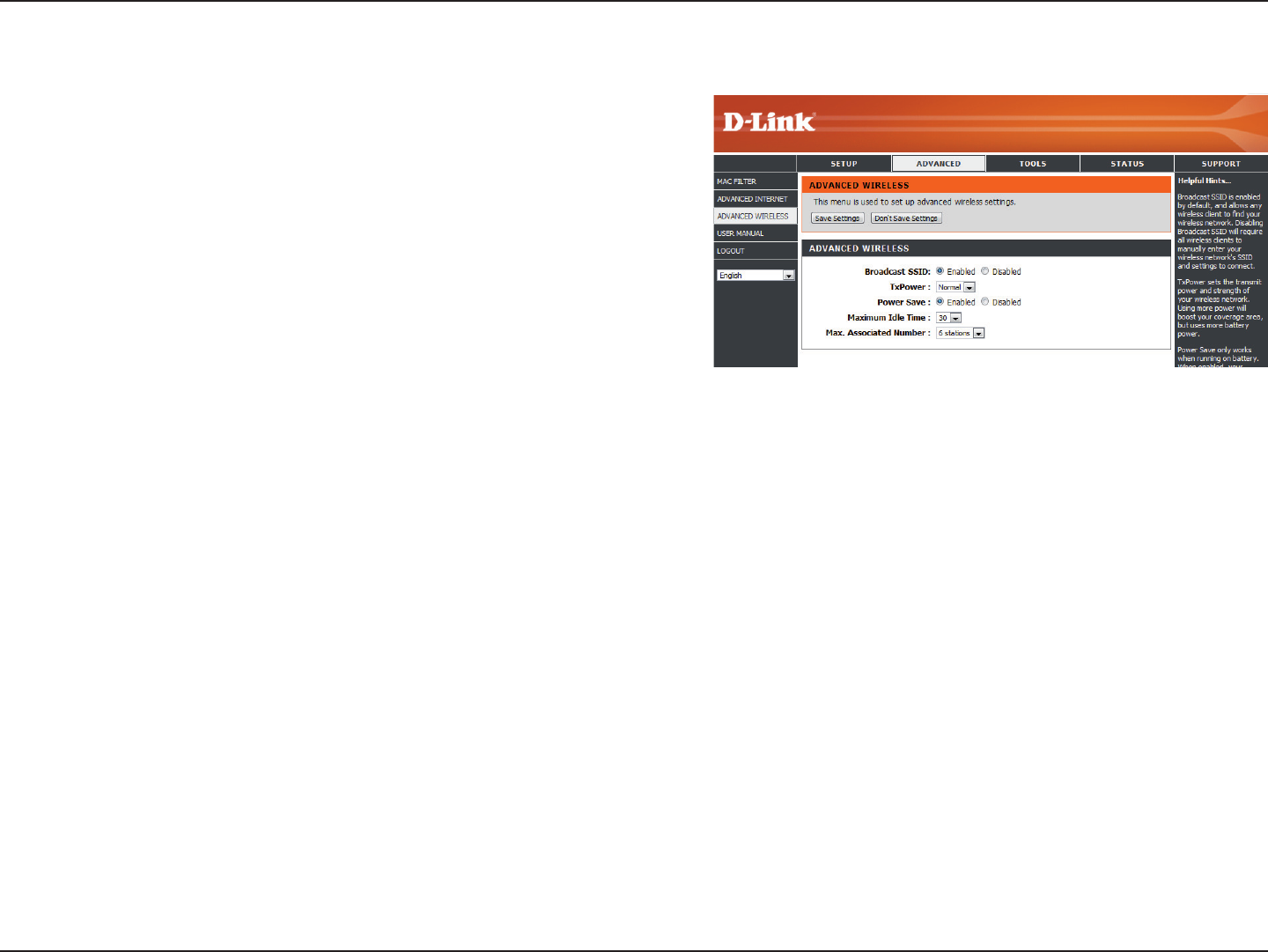

Advanced Wireless
Broadcast SSID:
TxPower:
Power Save:
Maximum Idle Time:
Max. Associated Number:
22D-Link DWR-730 User Manual
Section 3 - Configuration

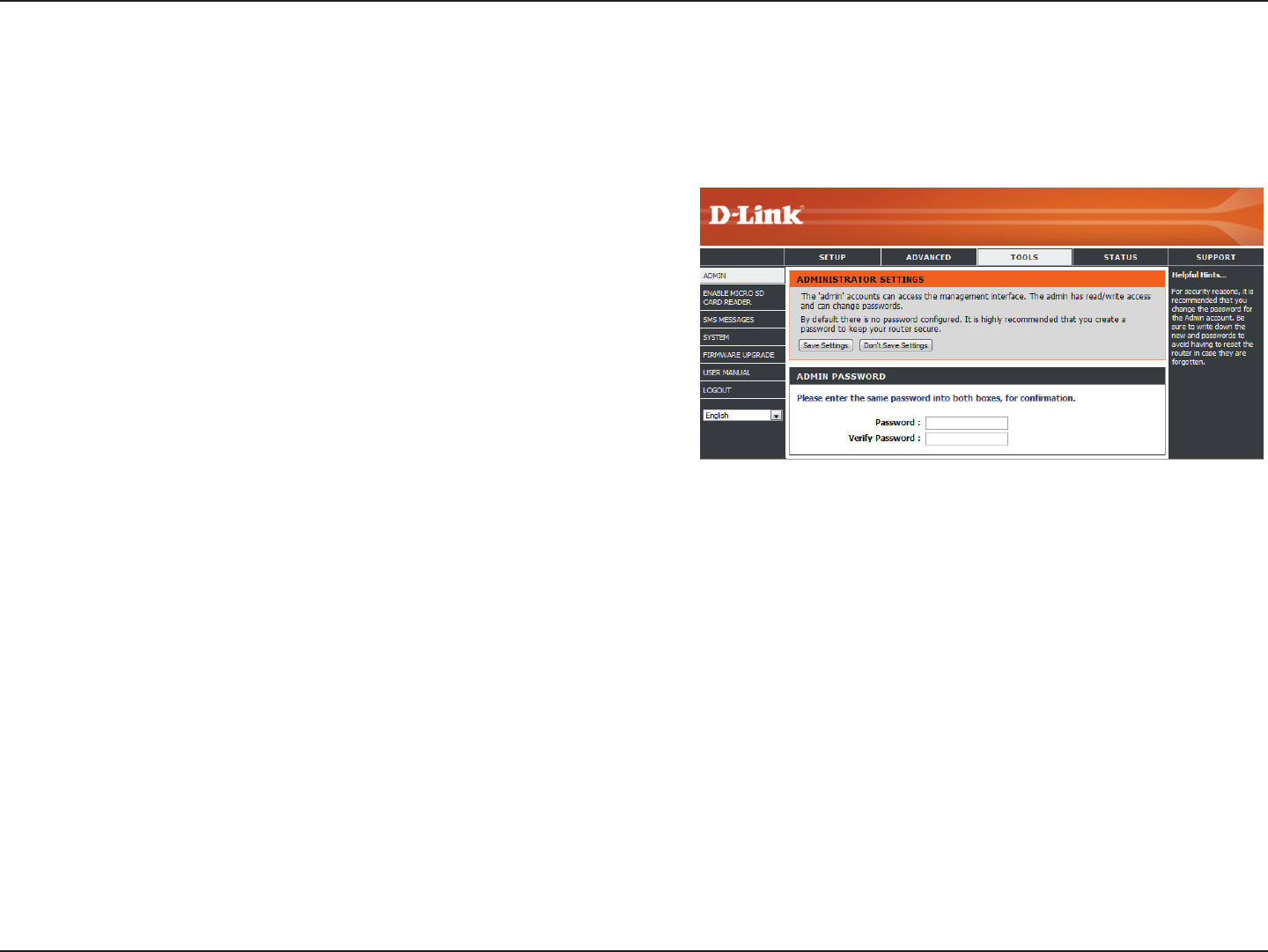

Administrator Settings
Password:
Verify Password:
23D-Link DWR-730 User Manual
Section 3 - Configuration

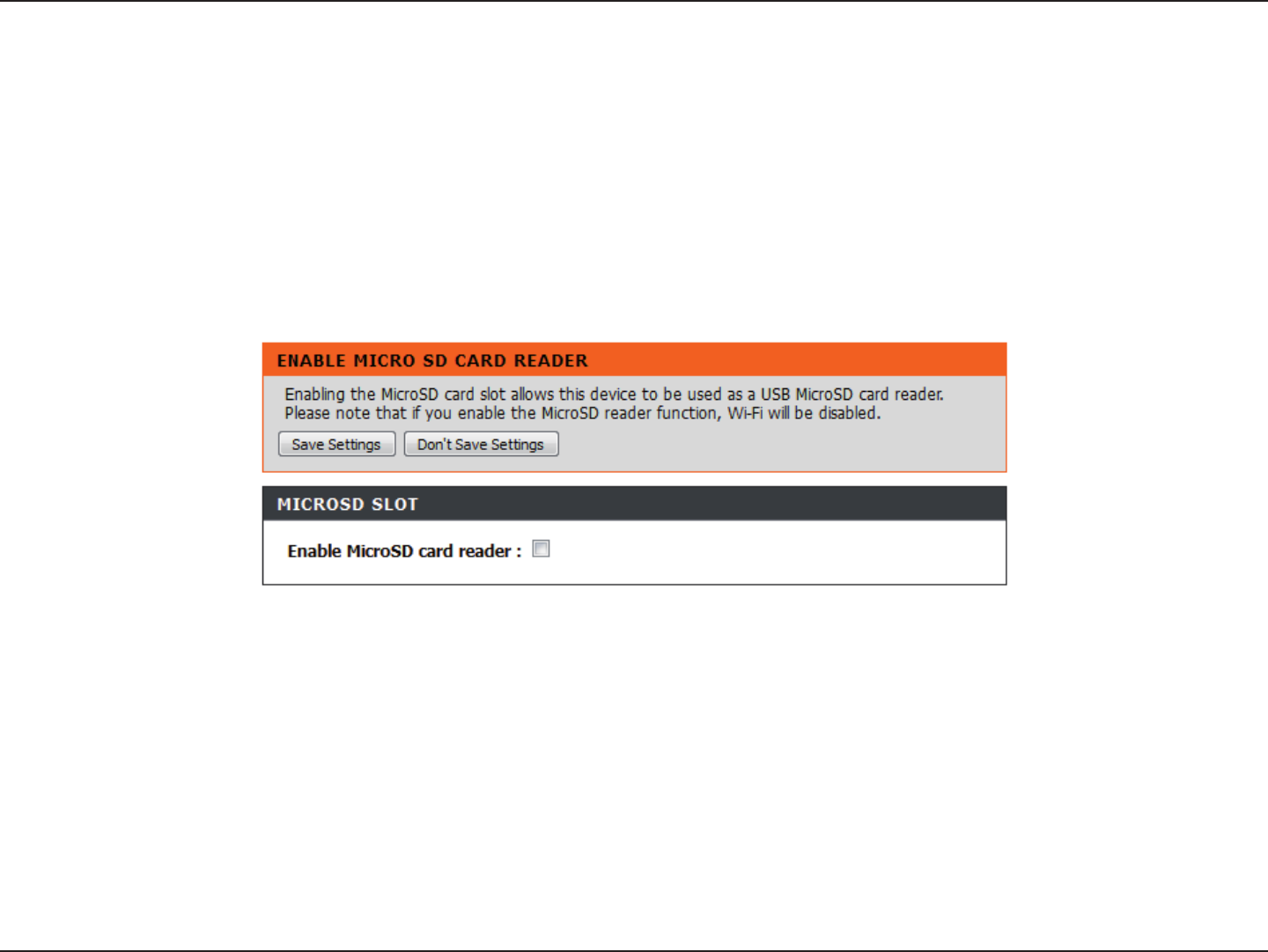

MicroSD Card Reader
24D-Link DWR-730 User Manual
Section 3 - Configuration

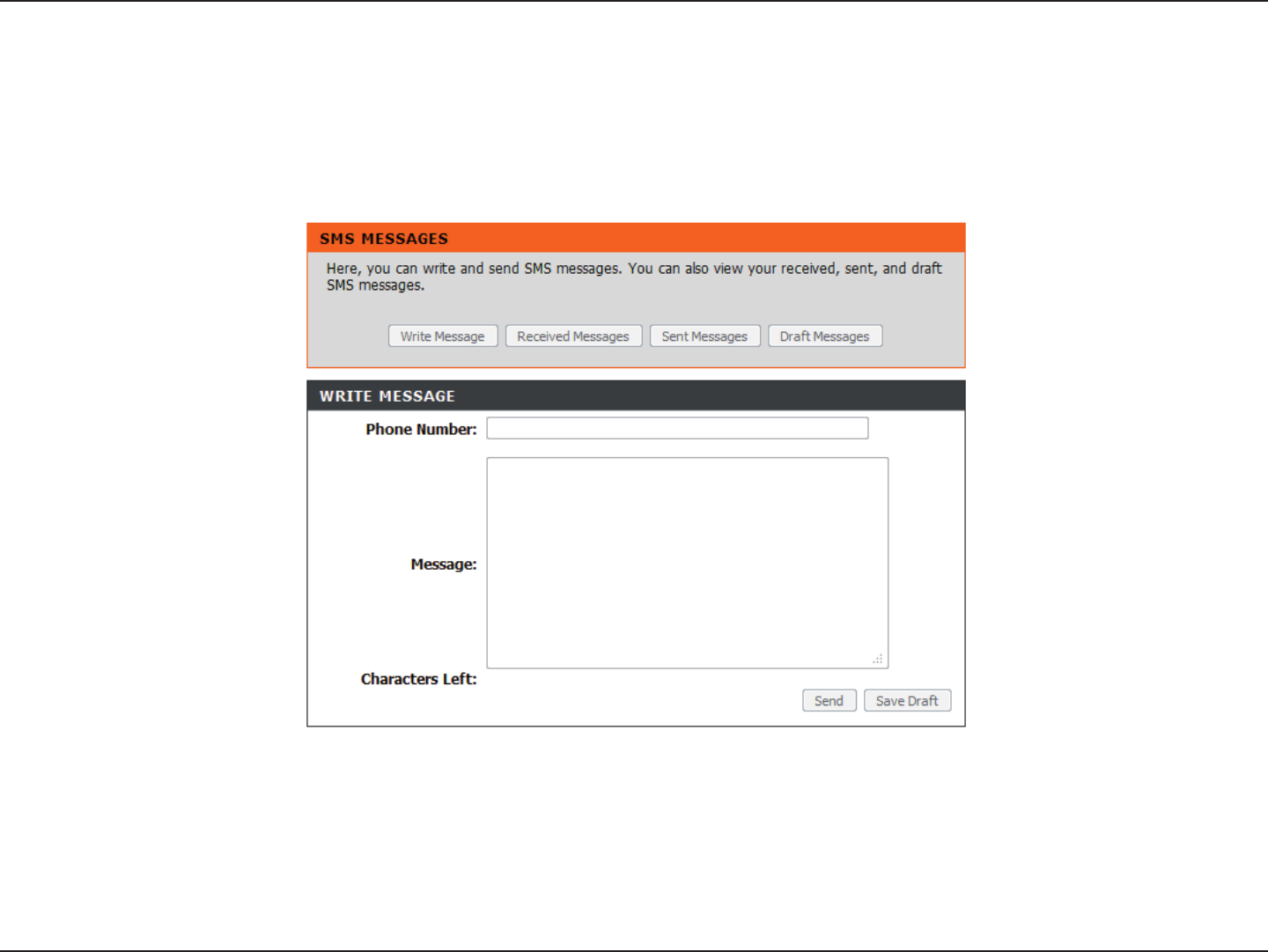

SMS Messages
25D-Link DWR-730 User Manual
Section 3 - Configuration

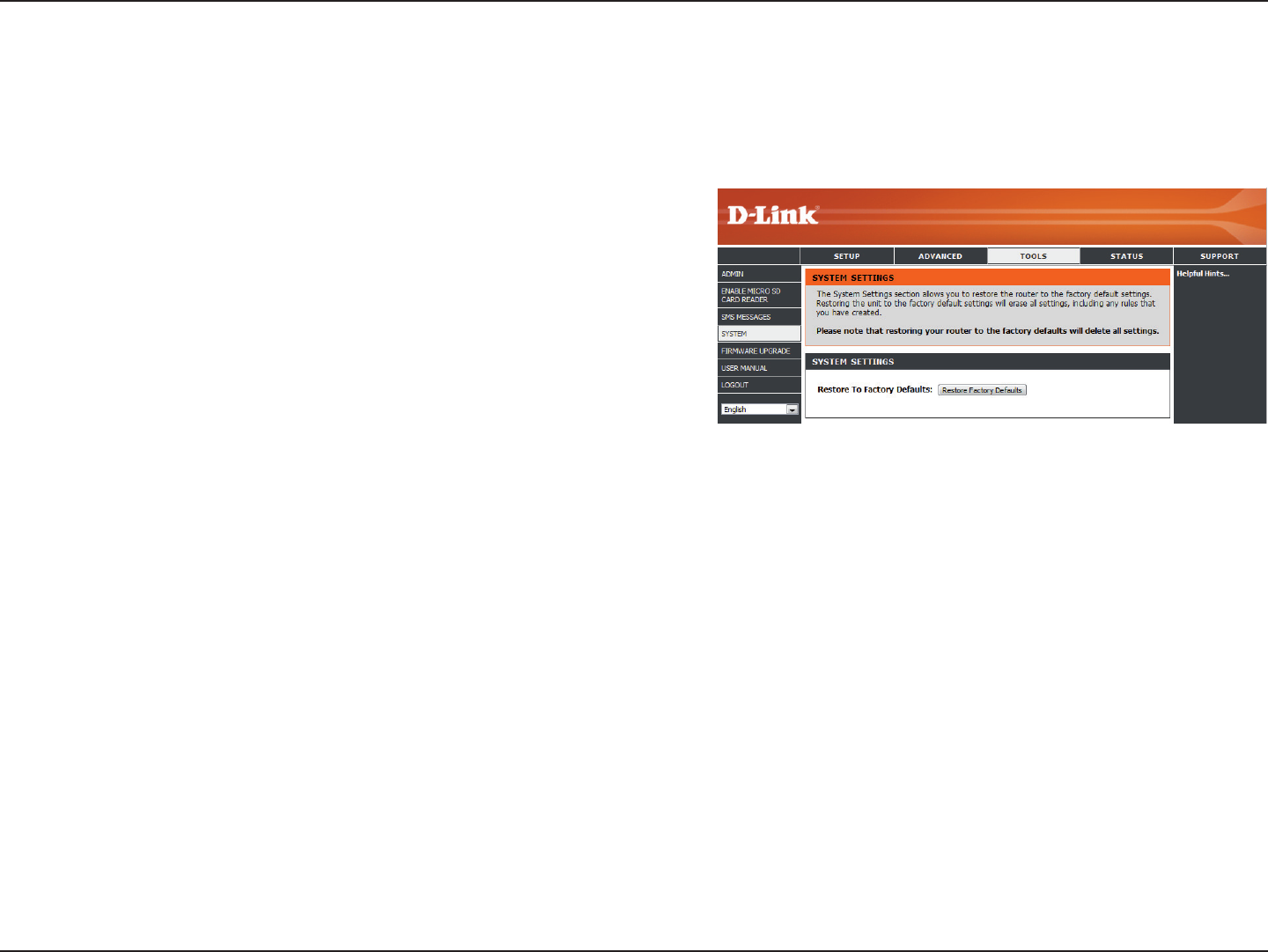

Factory Reset
Restore To Factory Default:
26D-Link DWR-730 User Manual
Section 3 - Configuration

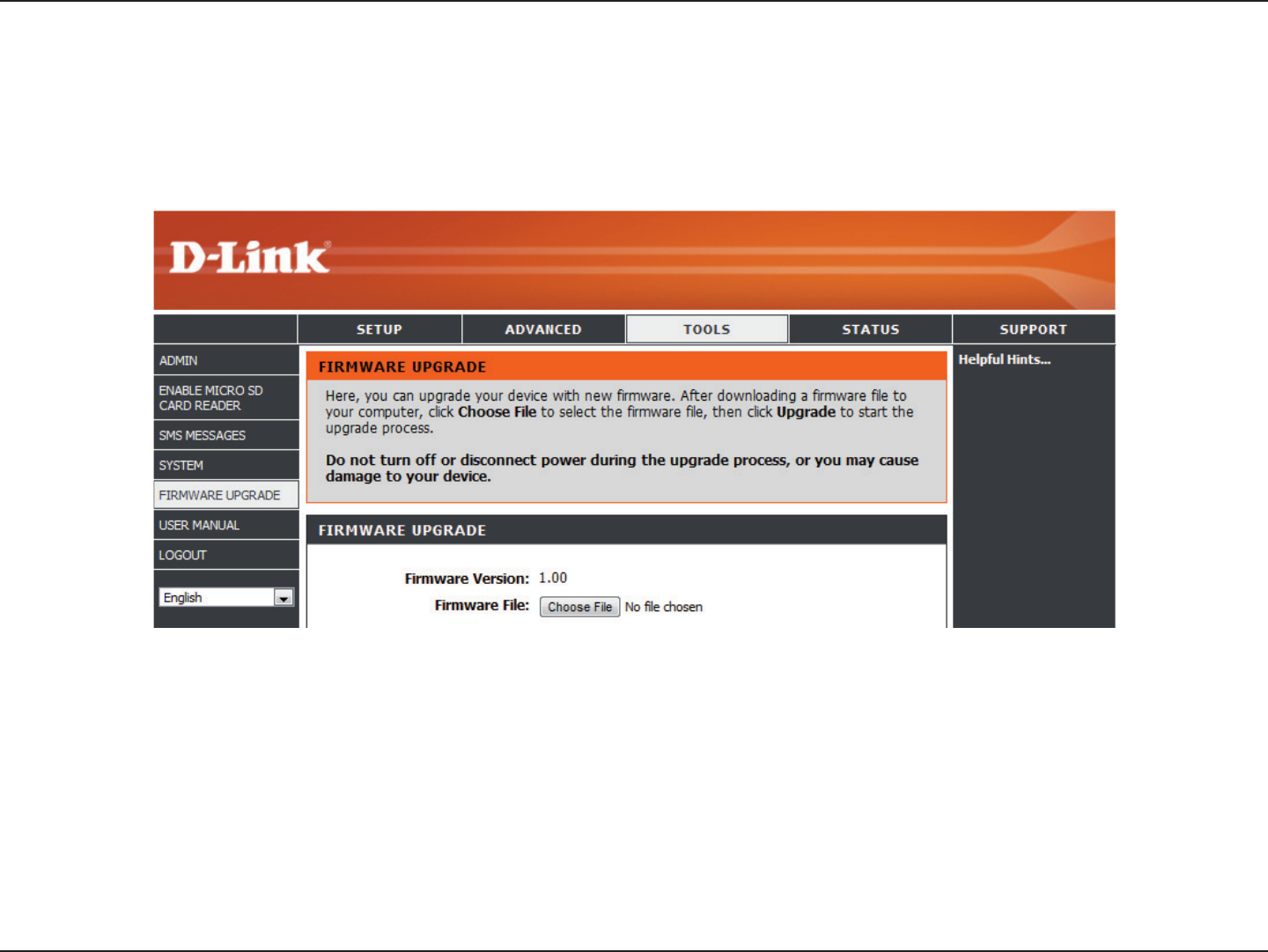

Firmware Upgrade
27D-Link DWR-730 User Manual
Section 3 - Configuration

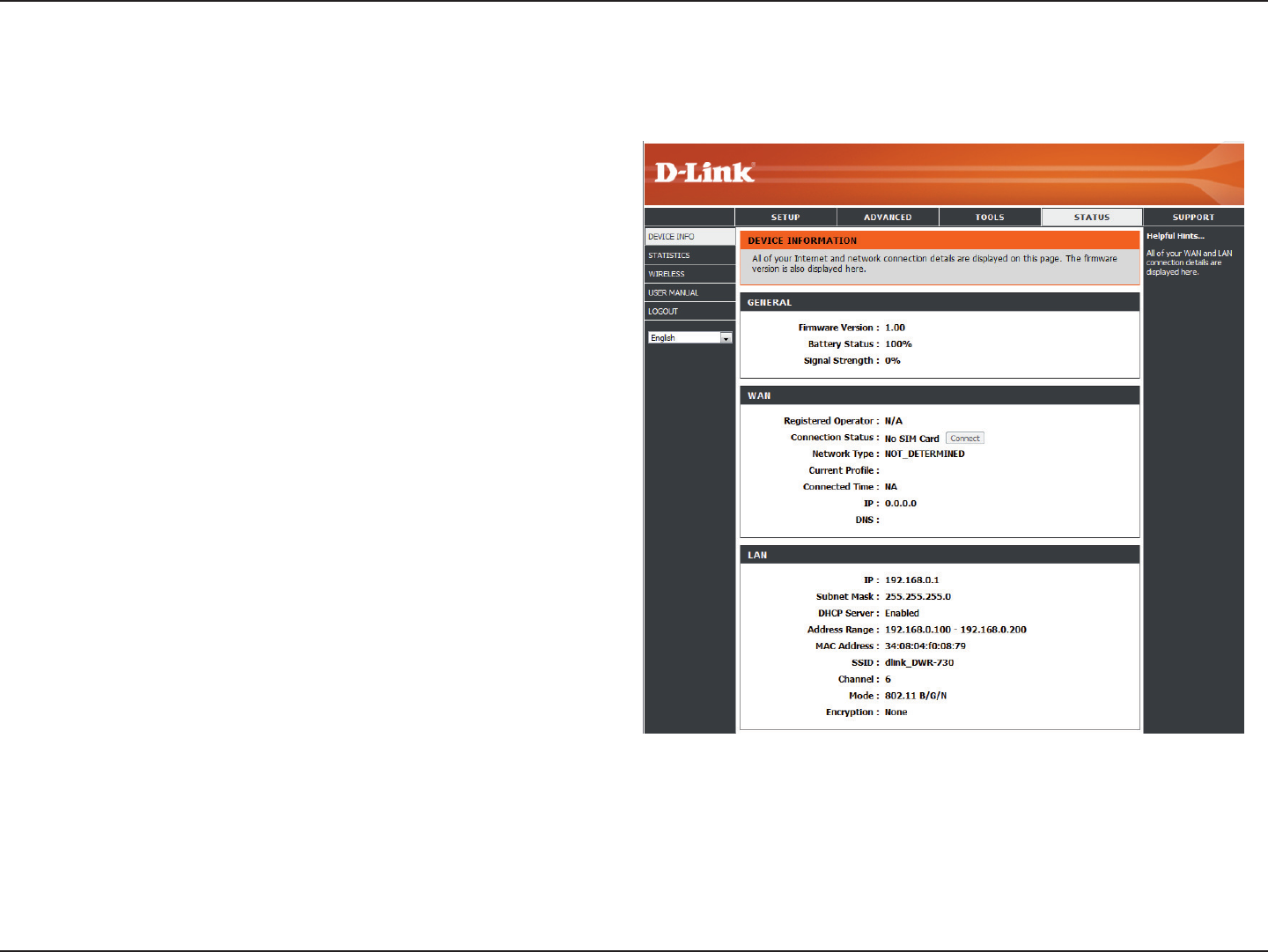

Device Information
General:
WAN:
LAN:
28D-Link DWR-730 User Manual
Section 3 - Configuration

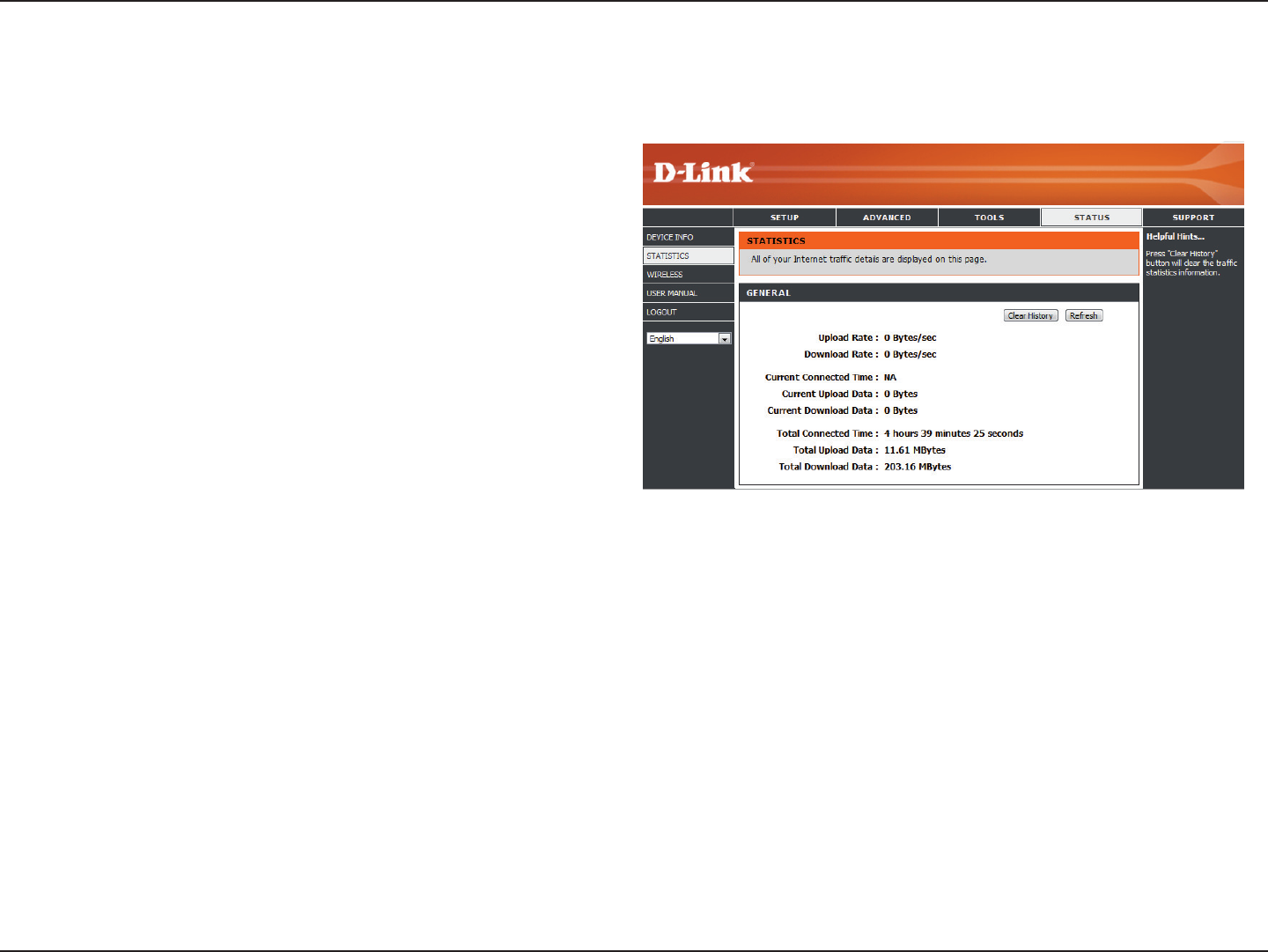

Statistics
Clear History:
29D-Link DWR-730 User Manual
Section 3 - Configuration

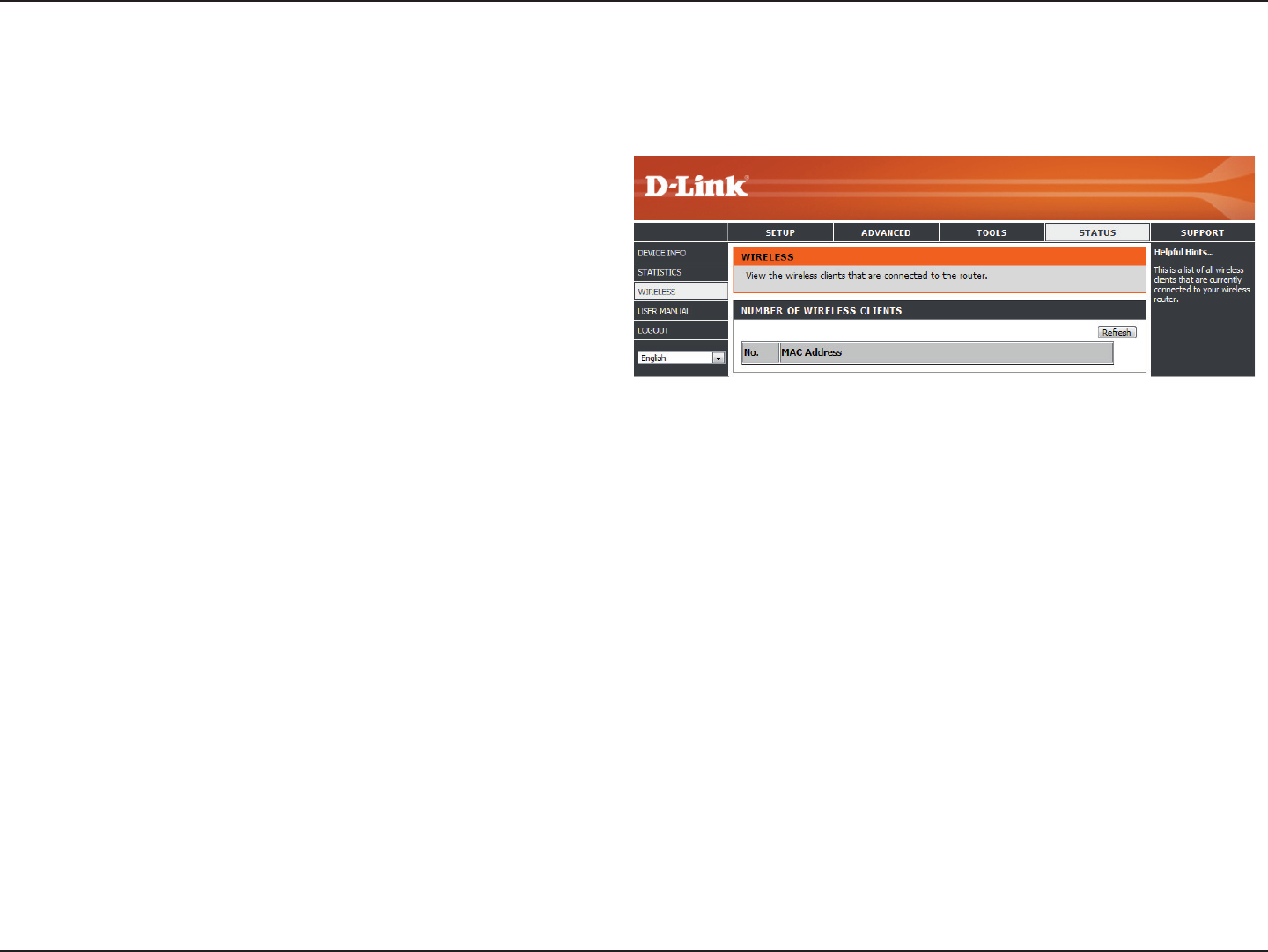

Wireless Information
Number of wireless clients:
30D-Link DWR-730 User Manual
Section 3 - Configuration

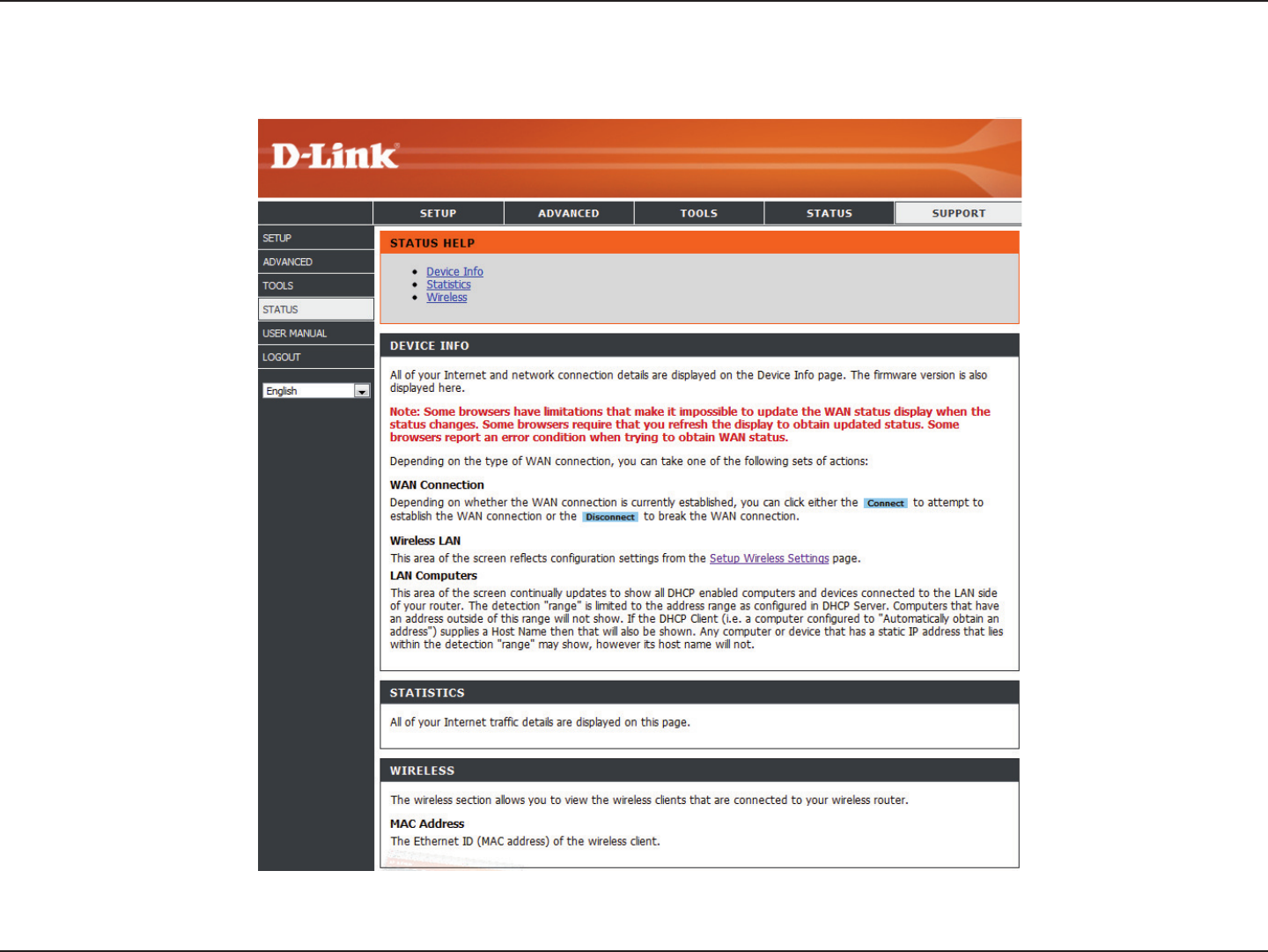

Support
31D-Link DWR-730 User Manual
Section 4 - Security
Wireless Security
What is WEP?
32D-Link DWR-730 User Manual
Section 4 - Security

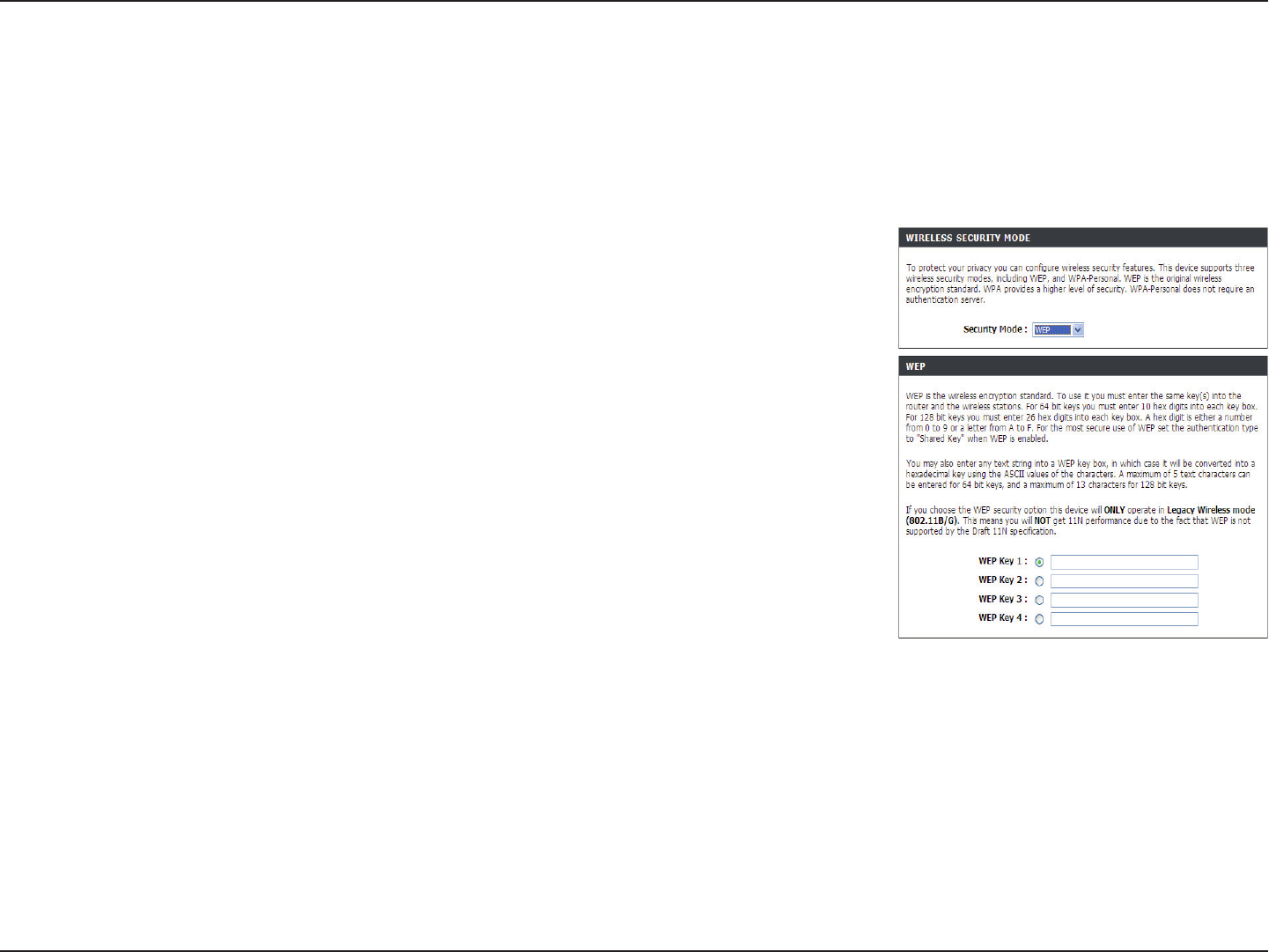

Configure WEP
Security Mode
WEPKey 1
33D-Link DWR-730 User Manual
Section 4 - Security
What is WPA?
34D-Link DWR-730 User Manual
Section 4 - Security

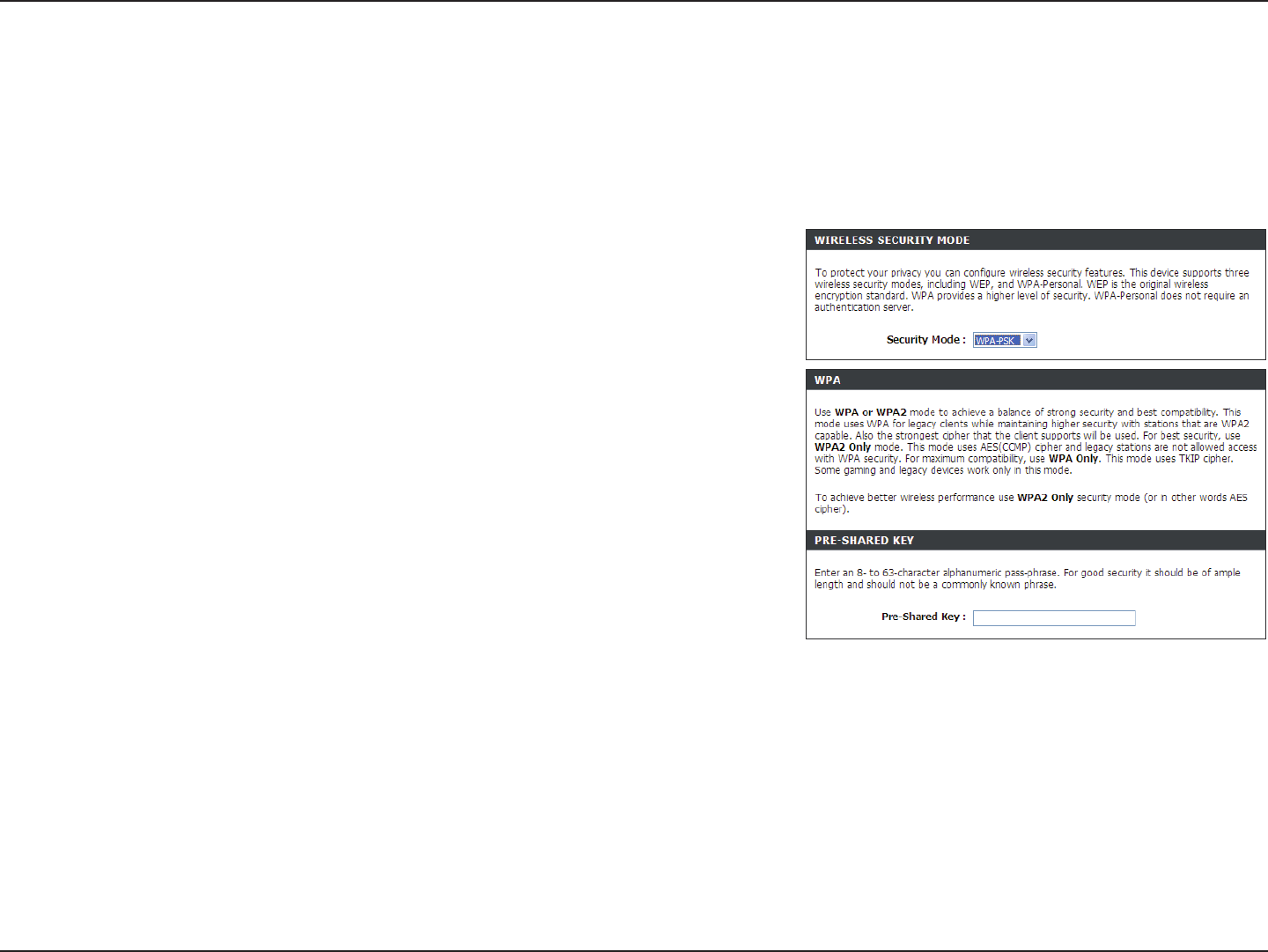

Configure WPA-PSK/WPA2-PSK
Security Mode
Pre-Shared Key
35D-Link DWR-730 User Manual
Section 5 - Connecting to a Wireless Network
Connect to a Wireless Network

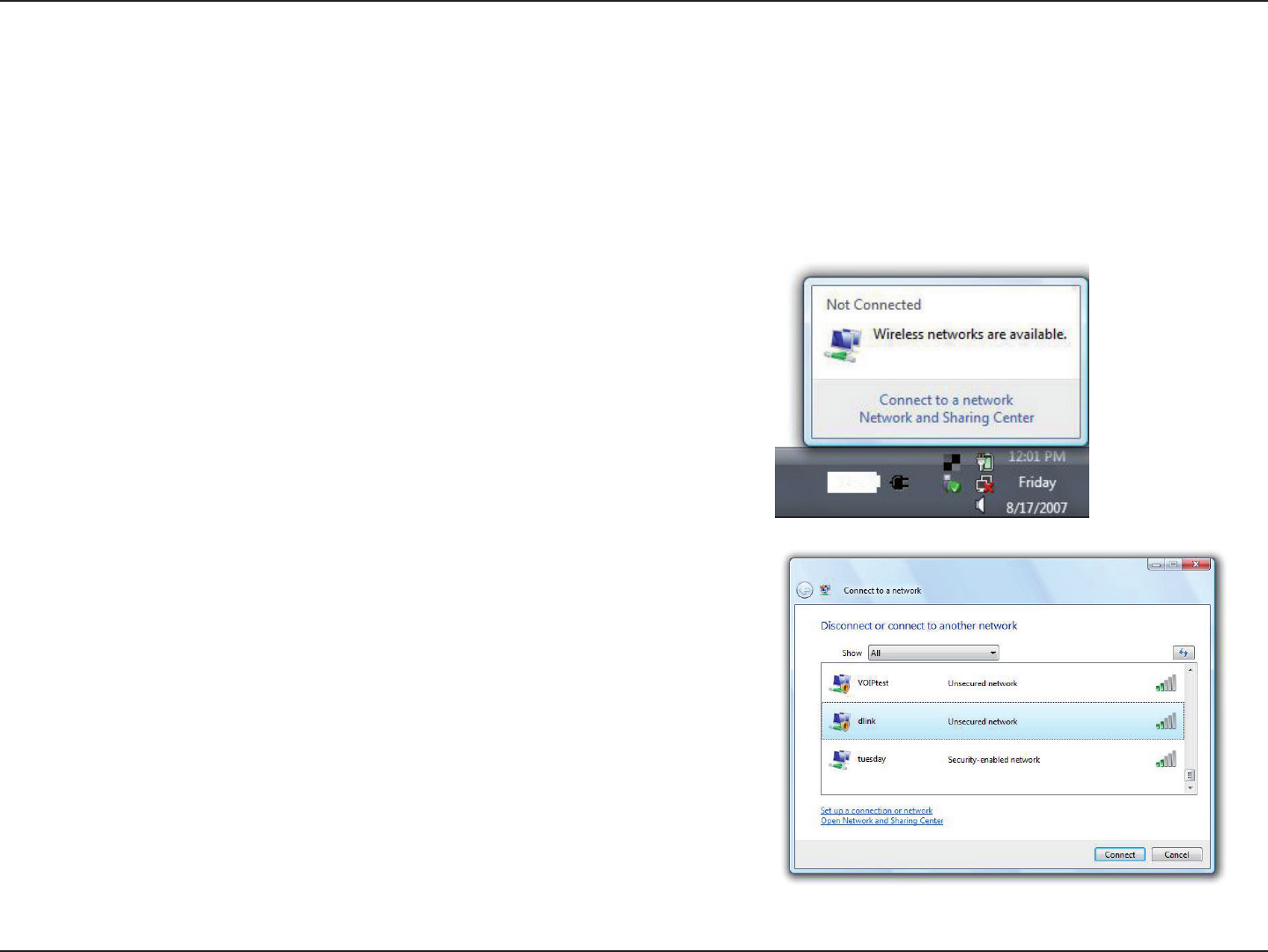

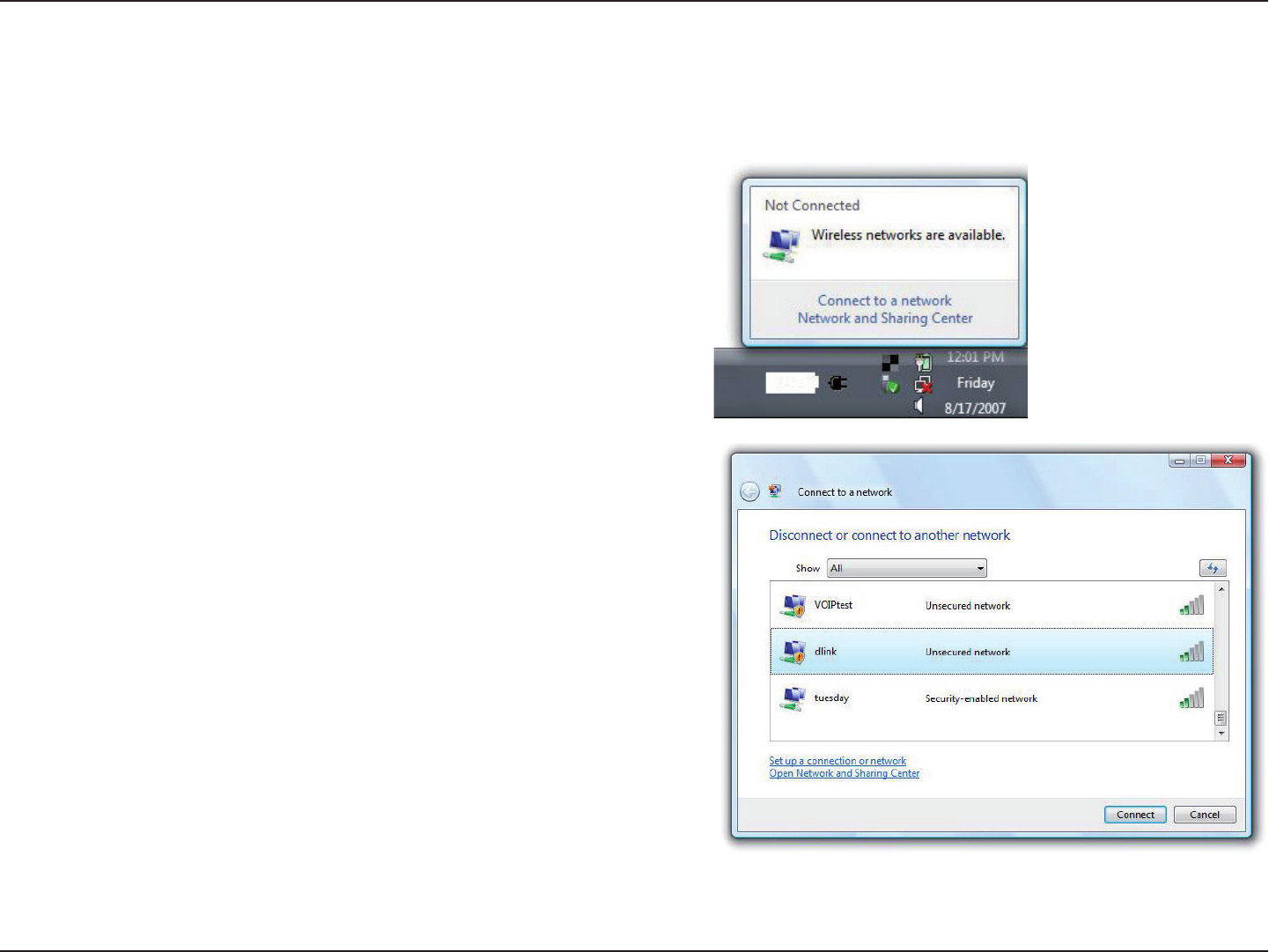

Using Windows Vista™
36D-Link DWR-730 User Manual
Section 5 - Connecting to a Wireless Network
Configure Wireless Security
37D-Link DWR-730 User Manual
Section 5 - Connecting to a Wireless Network
38D-Link DWR-730 User Manual
Section 5 - Connecting to a Wireless Network
Connect to a Wireless Network

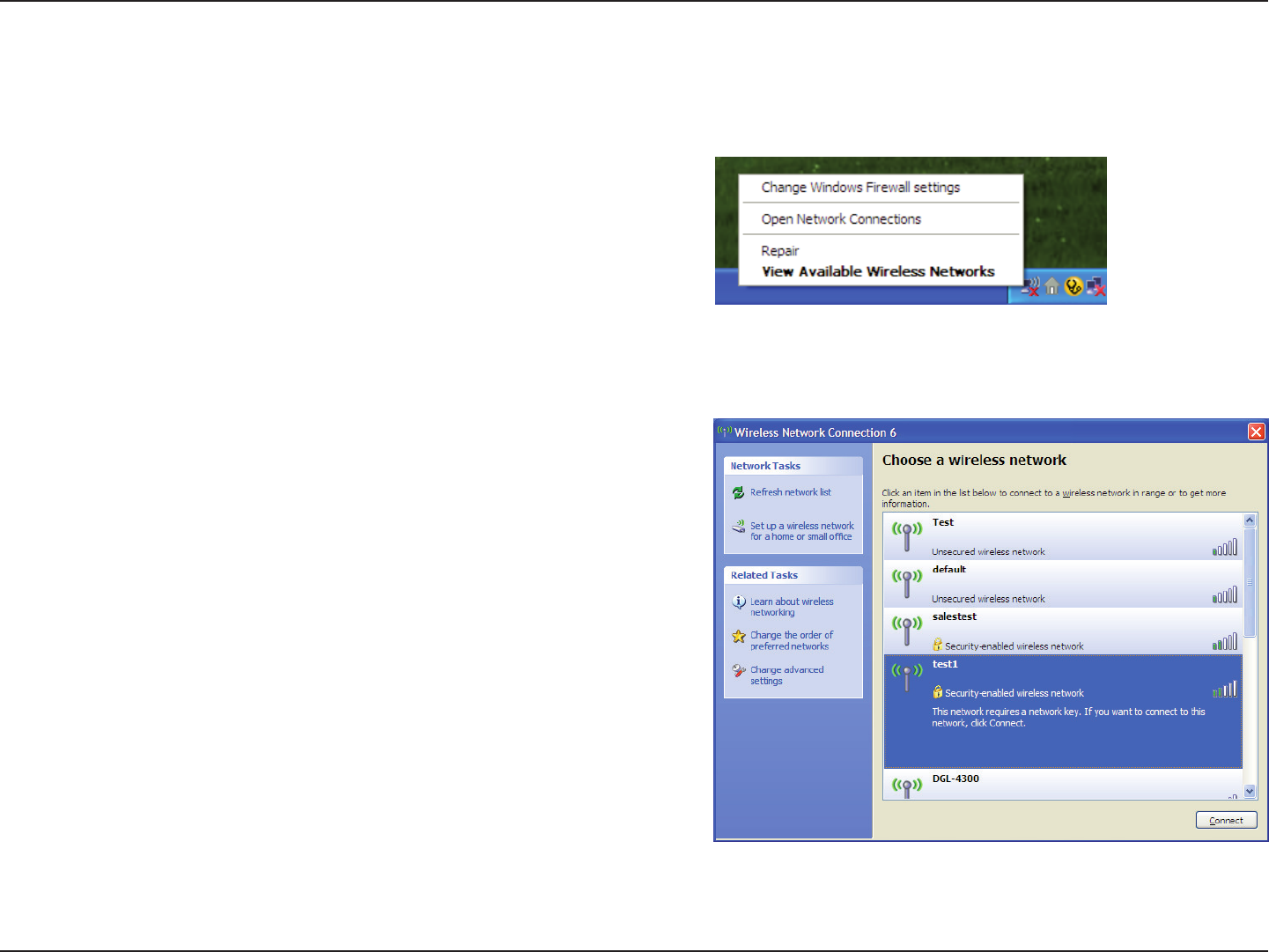

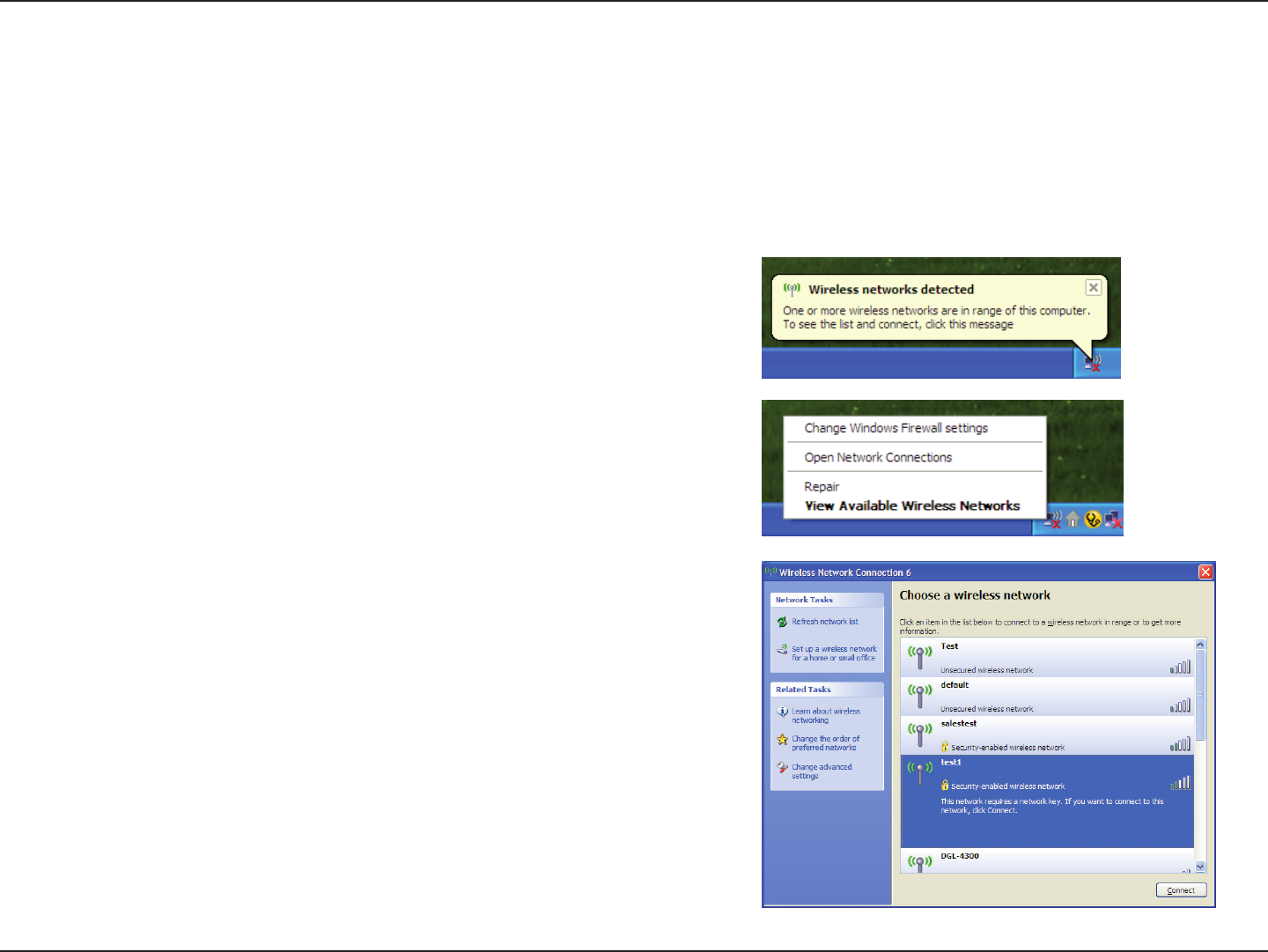

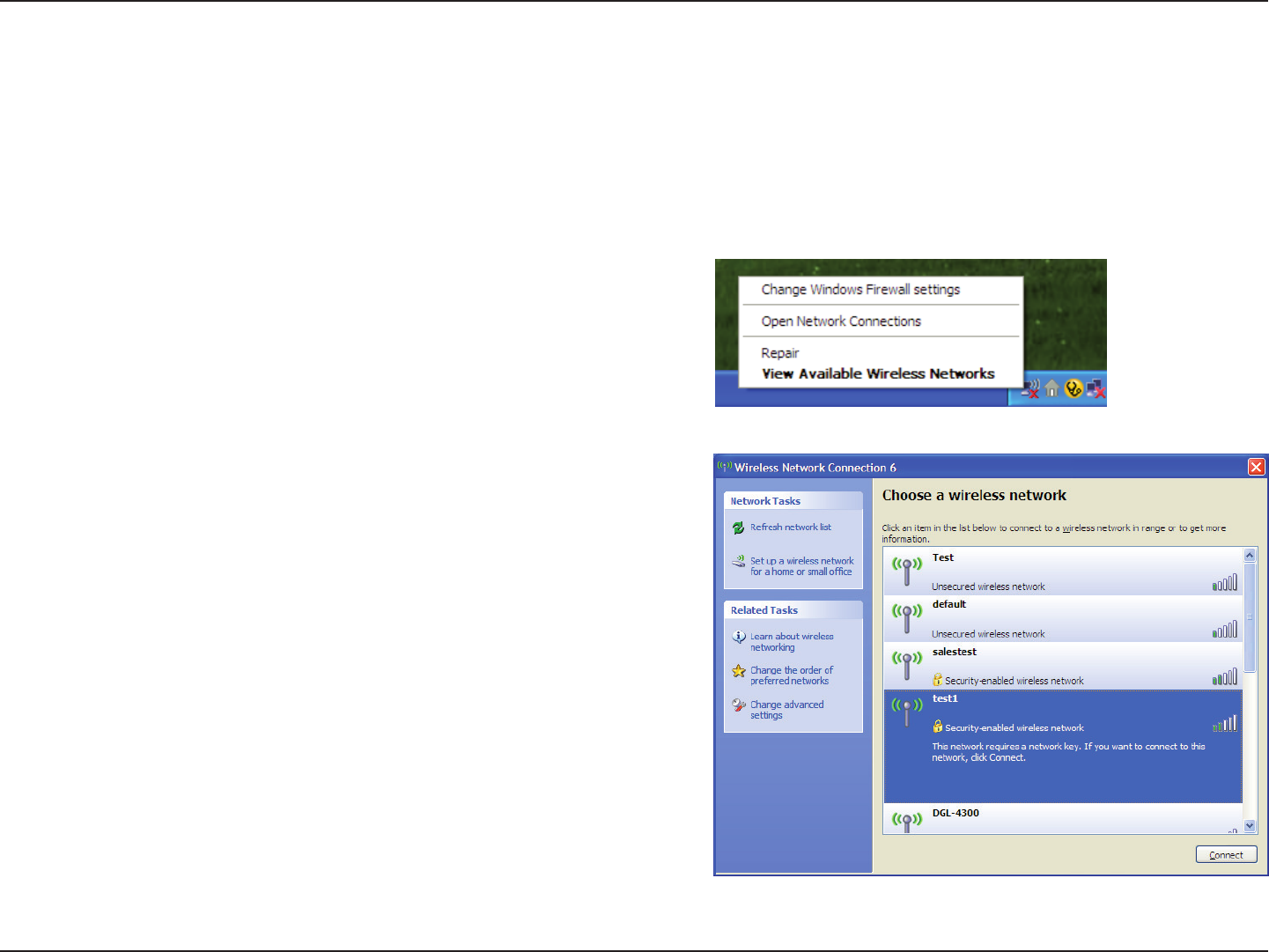

Using Windows® XP
39D-Link DWR-730 User Manual
Section 5 - Connecting to a Wireless Network

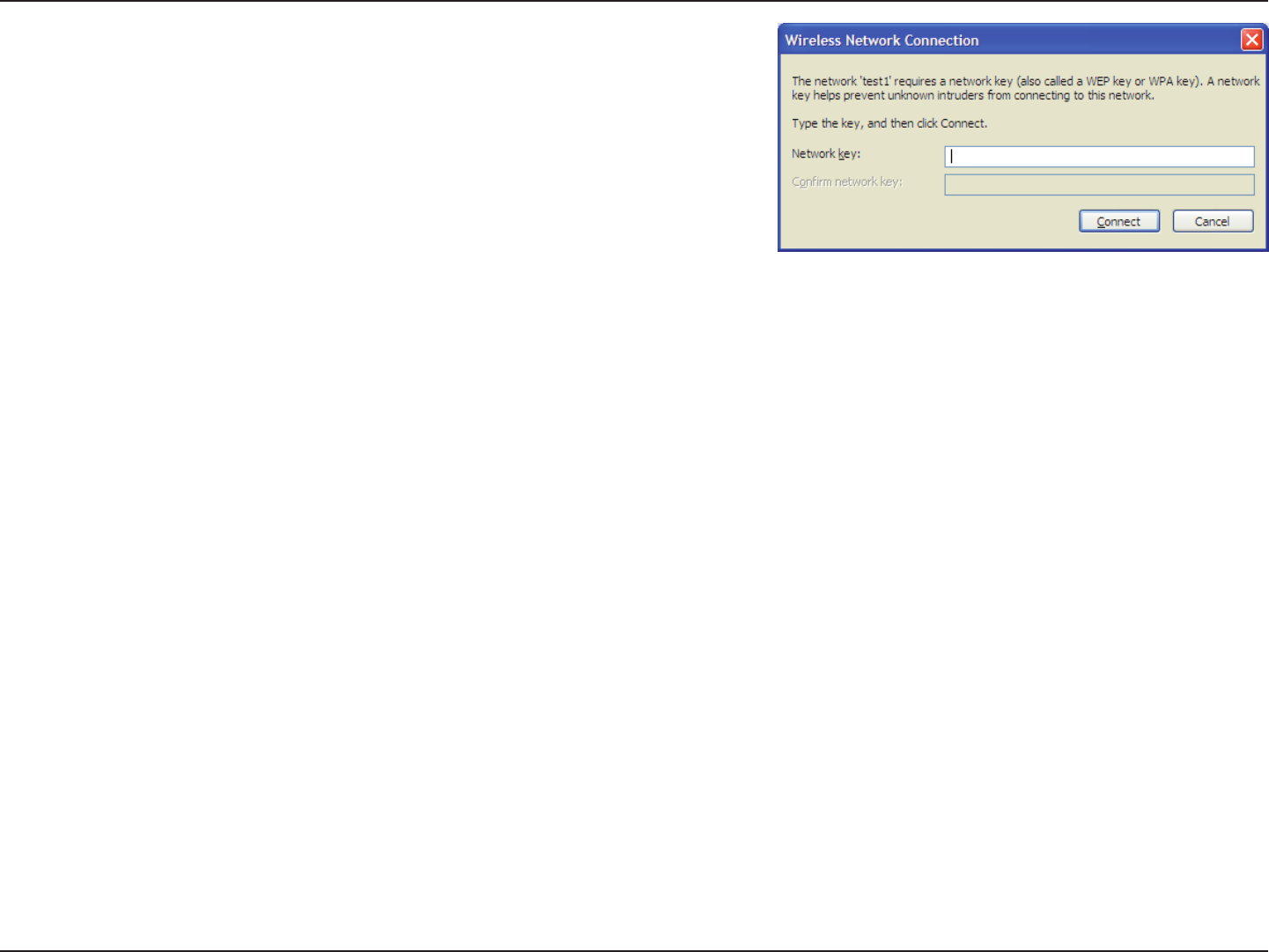

Configure WEP
40D-Link DWR-730 User Manual
Section 5 - Connecting to a Wireless Network
41D-Link DWR-730 User Manual
Section 5 - Connecting to a Wireless Network
Configure WPA-PSK
42D-Link DWR-730 User Manual
Section 5 - Connecting to a Wireless Network
43D-Link DWR-730 User Manual
Section 6 - Troubleshooting
Troubleshooting
44D-Link DWR-730 User Manual
Section 6 - Troubleshooting
45D-Link DWR-730 User Manual
Appendix A - Wireless Basics
Wireless Basics
46D-Link DWR-730 User Manual
Appendix A - Wireless Basics
47D-Link DWR-730 User Manual
Appendix A - Wireless Basics
48D-Link DWR-730 User Manual
Appendix A - Wireless Basics
49D-Link DWR-730 User Manual
Appendix A - Wireless Basics
Wireless Modes
50D-Link DWR-730 User Manual
Appendix B - Networking Basics
Networking Basics

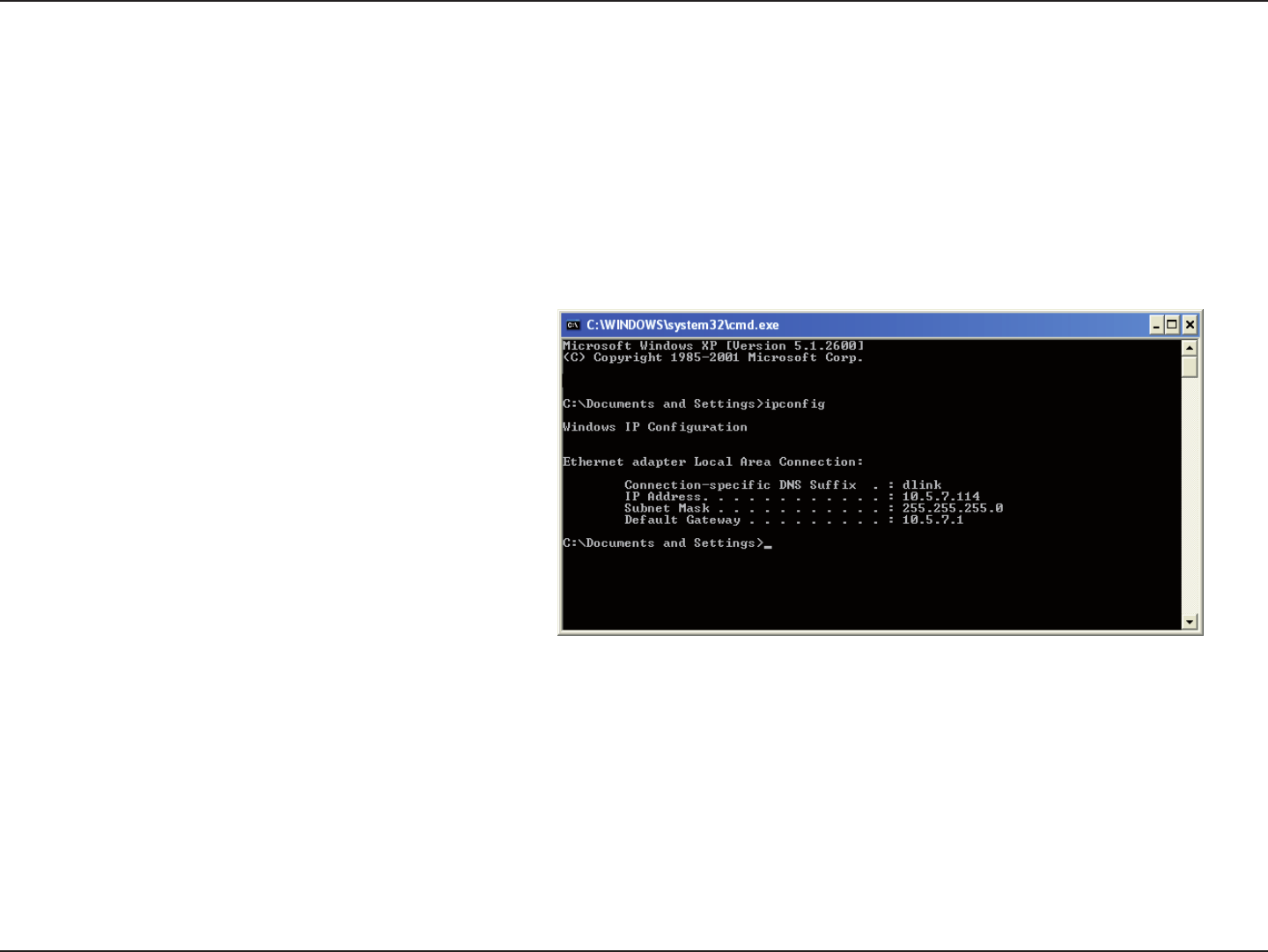

Check your IP address
cmd
cmd
ipconfig
51D-Link DWR-730 User Manual
Appendix B - Networking Basics
Statically Assign an IP address
52D-Link DWR-730 User Manual
Appendix C - Warnings and Declarations
D-Link Corporation
Date: January 18, 2012
Declaration of Conformity
We, D-Link Corporation,
Address: No.289, Sinhu 3rd Rd, Neihu District Taipei City 114 Taiwan
Declare under our own responsibility that the product:
Model: DWR-730
Intended use: HSPA+ Mobile Router
complies with the essential requirements of Article 3 of the R&TTE 1999/5/EC Directive, if used
for its intended use and that the following standards has been applied:
1. Health (Article 3.1(a) of the R&TTE Directive)
Applied Standard(s):
EN62311: 2008/ EN 62209-2:2010
2. Safety (Article 3.1(a) of the R&TTE Directive)
Applied Standard(s):
EN 60950-1:2006+A11:2009
3. Electromagnetic compatibility (Article 3.1 (b) of the R&TTE Directive)
Applied Standard(s):
EN 301 489-1 V1.8.1/-7 V1.3.1/-17 V2.1.1/-24 V1.5.1
4. Radio frequency spectrum usage (Article 3.2 of the R&TTE Directive)
Applied Standard(s):
EN 301 511 V9.0.2
EN 301 908-1 V4.2.1
EN 301 908-2 V5.2.1
EN 300 328 V1.7.1
5. EMC Directive (2004/108 /EC)
Applied Standard(s):
EN 55022:2006/A1:2007 Class B ; EN55024:1998/A1:2001/A2:2003
All the reports of the applied standards have the Positive Opinion of Notified Body:
PHONEIX TESTLAB, Königswinkel 10 D-32825 Blomberg, Germany
Identification mark: 0700 (Notified Body) CE(!)
This equipment may be operated in:
AT BE BG CH CY CZ DE DK
EE ES FI FR GB GR HU IE
IT IS LI LT LU LV MT NL
NO PL PT RO SE SI SK TR
54D-Link DWR-730 User Manual
Appendix D - Technical Specifications
Technical Specifications
55D-Link DWR-730 User Manual
Appendix E - Warranty
Warnings and Declarations
56D-Link DWR-730 User Manual
Appendix E - Warranty
has been tested and meets the FCC RF exposure guidelines.
