User manual

DC-HSPA+ Mobile Router
DWR-830
User Manual
Version 1.0 | 10/15/2013
D-Link DWR-830 User Manual i
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify
any person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks
of their respective companies.
Copyright © 2013 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Corporation, Inc.
Revision Date Description
1.0 October 15, 2013 • Initial release
Preface
D-Link DWR-830 User Manual ii
Table of Contents
Preface ................................................................................. i
Manual Revisions ........................................................................... i
Trademarks ...................................................................................... i
Product Overview .............................................................. 1
Package Contents ......................................................................... 1
System Requirements ................................................................. 1
Introduction ................................................................................... 2
Hardware Overview ..................................................................... 3
Left Side....................................................................................3
OLED Display .......................................................................... 4
Installation ......................................................................... 6
Connect to Your Network .......................................................... 6
Insert a microSD Card ................................................................. 6
Driver Installation ......................................................................... 7
Wireless Installation Considerations ......................................8
Conguration .....................................................................9
Initial Connection to the Router .............................................9
Connect via USB .................................................................... 9
Connect via Wi-Fi ................................................................10
Web-based Conguration .......................................................12
Conguration Utility ..........................................................12
Home ..............................................................................................13
Navigation .............................................................................13
Device Status ........................................................................14
Home ....................................................................................... 15
Wizard .............................................................................................16
Internet ...........................................................................................18
Connection ...........................................................................18
Conguration .......................................................................20
IPv4 - PDP Context .........................................................20
IPv4 - Static Setting .......................................................21
IPv4 - 4to6 .........................................................................22
IPv6 - PDP Context .........................................................23
IPv6 - Static Setting .......................................................24
IPv6 - DHCPv6 .................................................................25
IPv6 - Tethering ...............................................................26
IPv6 - 6to4 .........................................................................27
IPv6 - 6rd ...........................................................................28
2G/3G Modem .....................................................................29
SIM ...........................................................................................30
PLMN .......................................................................................31
Network .........................................................................................32
Wi-Fi .........................................................................................33
DHCP .......................................................................................34
DHCPv6 ..................................................................................36
NAT ........................................................................................... 40
NAT 64 .....................................................................................42
SMS ..................................................................................................43
New Message .......................................................................43
Local ........................................................................................43
Table of Contents
D-Link DWR-830 User Manual iii
Table of Contents
Wi-Fi ................................................................................................. 44
Basic ......................................................................................... 44
Wireless Security .................................................................46
Wired Equivalent Privacy (WEP) ...............................46
Wi-Fi Protected Access (WPA) ....................................47
WLAN Authentication and Privacy Infrastructure
(WAPI).................................................................................48
Wi-Fi Protected Setup (WPS) .....................................49
MAC Filter ..............................................................................50
Station Lists ...........................................................................51
Advanced ......................................................................................52
IPv4 .....................................................................................52
IPv6 .....................................................................................53
RIP .............................................................................................54
LAN IPv6 RA ..........................................................................55
IPv6 Multicast .......................................................................58
Security ..........................................................................................59
Firewall ...................................................................................59
IP Filter ...............................................................................59
IPv6 Filter ..........................................................................60
MAC Filter .........................................................................61
DDOS ..................................................................................62
URL Filter ...........................................................................63
Application ...................................................................................64
About ......................................................................................64
Conguration .......................................................................65
Firmware Upgrade ..............................................................66
Standby Mode .....................................................................67
Password ................................................................................68
Date and Time ......................................................................69
Language ...............................................................................71
System Log ............................................................................72
Connecting to a Wireless Network .................................73
Using Windows 8 .......................................................................73
Connecting to a Wireless Network .................................75
Using Windows 7 .......................................................................75
Conguring Wireless Security ........................................77
Using Windows Vista™ ..............................................................80
Conguring Wireless Security ........................................81
Using Windows® XP ....................................................................83
Congure WEP .....................................................................84
Congure WPA-PSK ............................................................86
Troubleshooting ..............................................................88
Networking Basics ...........................................................90
Check your IP address ...............................................................90
Statically Assign an IP address ...............................................91
Technical Specications ..................................................92
Warnings and Declarations ............................................93
D-Link DWR-830 DC-HSPA+ Mobile Router
D-Link DWR-830 User Manual 1
Section 1 - Product Overview
System Requirements
• A compatible (U)SIM card with mobile data service1
• A computer a with Windows®, Macintosh® , or Linux-based operating systems
• Internet Explorer 8, Firefox 12.0, Chrome 20.0 , or Safari 4.0
1 Subject to services and service terms available from your carrier.
Product Overview
Package Contents
Battery
USB Cable
Power Adapter
If any of the above items are missing from your package, please contact your reseller.
D-Link DWR-830 User Manual
The DWR-830 HSPA+ Mobile Router is small and slim enough to carry around in your purse, bag, or pocket. It features a microSD card slot for optional
The DWR-830 is truly plug and play, with drivers built right into the router so you can connect without the need to install anything. Open a browser,
you can get online with your notebook, smartphone, tablet, or any other wireless device using a single 3G mobile connection. The DWR-830 provides
The HSPA+ Mobile Router lets you share your fast mobile connection over Wi-Fi from a device small enough to t in your pocket. With the DWR-830,
the DWR-830.
The DWR-830 HSPA+ Mobile Router gives you high-speed access to the Internet wherever you are and lets you share it on the go. Using HSPA+
The D-Link DWR-830 HSPA+ Mobile Router lets you share a fast mobile Internet connection with multiple PCs and mobile
2
Section 1 - Product Overview
Introduction
High-Speed Mobile Internet with 3G Connectivity
technology, you can achieve download speeds of up to 21.6 Mbps and upload speeds of up to 5.76 Mbps1. The built-in 3G antenna provides a reliable
connection to your 3G service provider, and a separate Wi-Fi antenna gives extended coverage to the computers and mobile devices connected to
Mobile Internet for All of Your Devices
high-speed Wireless N coverage to give high-speed wireless access to everybody – whether you are with colleagues on a business trip, or travelling
with friends and family.
Built-in Software for Instant Access Anywhere
connect the router, and you can set up your network right from a web interface. This means that notebooks and netbooks without a CD-ROM drive can
connect and get up and running in no time. Once the device is set up, you can simply power it on to start up your portable mobile network, meaning
that you can share your mobile Internet connection without even needing a computer.
Designed for True Portability
removable storage (up to 32 GB), allowing you to always have your les and contacts on hand. The built-in 2380 mAh rechargeable Li-Ion battery can
provide up to six hours of mobile usage, meaning that you can share your mobile Internet connection in the car, in the park, or anywhere, and work
or play longer without needing to recharge.
devices wherever you go. It oers 3G HSPA+ compatibility for fast downlink and uplink data rates, so you get the high-speed
upload and download speeds even when you’re on the go. Set up a personal mobile network anywhere, anytime allowing you
and those around you to access the Internet, and share les.
1 All references to speed are for comparison purposes only. Actual speeds will vary depending on a range of factors including mobile network coverage, signal strength, network activity, and environmental conditions.
D-Link DWR-830 User Manual 3
Section 1 - Product Overview
Hardware Overview

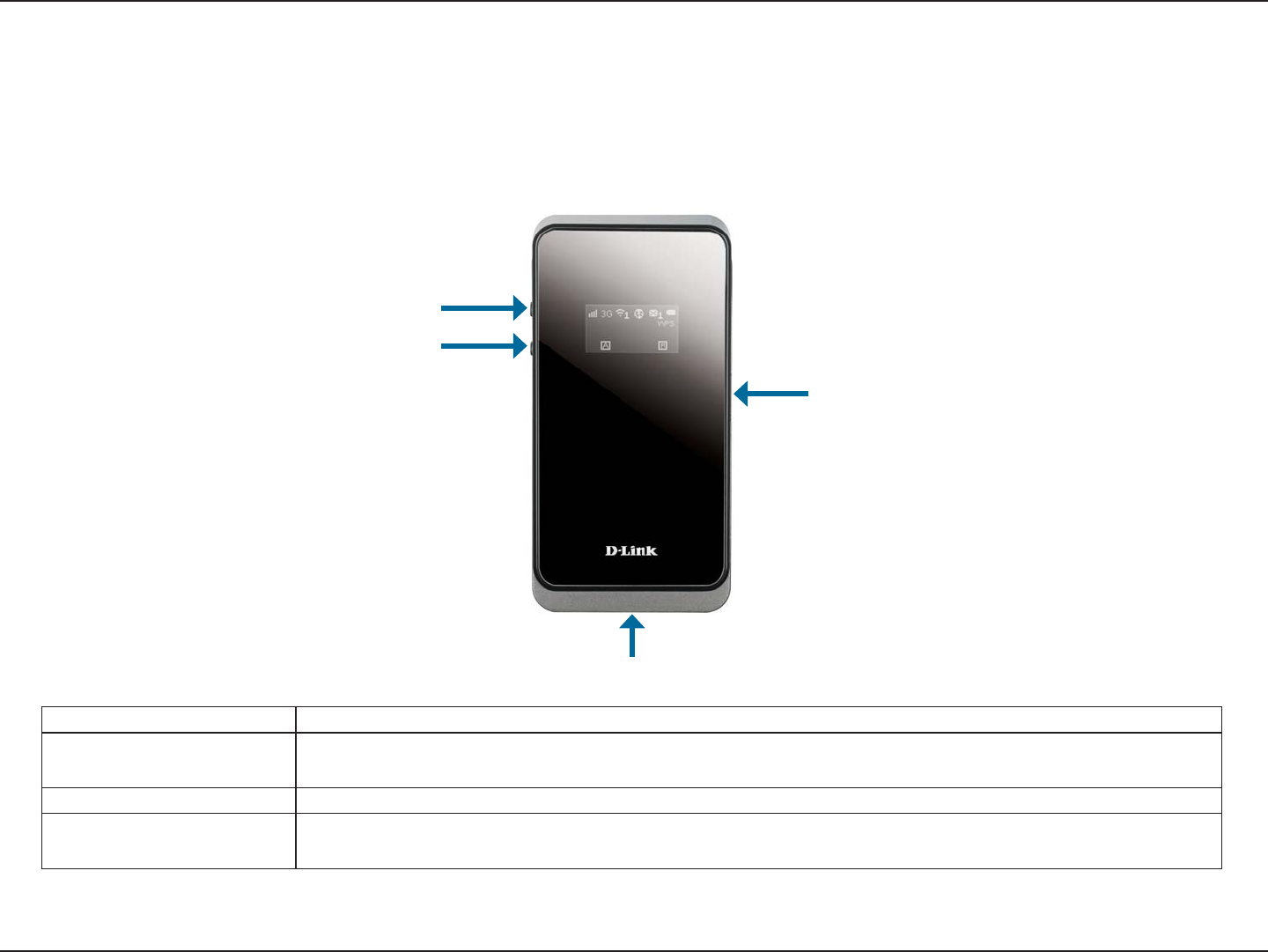

Left Side
Power Button Press and hold this button for 6 seconds to power on/o the device.
WPS Button Press this button to add new wireless devices quickly and easily using Wi-Fi Protected
Setup (WPS). Press and hold for more than 5 seconds to turn the wireless function on/o.
microSD Card Slot Insert a microSD Card (up to 32GB) to access and share les and media wherever you go.
micro USB Connector Use the included cable to connect to a powered USB port to charge the device, or to
access the conguration utility.
WPS Button
microUSB Port
microSD Card Slot
Power Button
Currently connected to DC-HSPA+ or HSPA+ mobile network
D-Link DWR-830 User Manual
The current status of the DWR-830’s functions including mobile network, Wi-Fi, security, Internet status, signal strength, and battery level will be
4
Section 1 - Product Overview
Hardware Overview
OLED Display

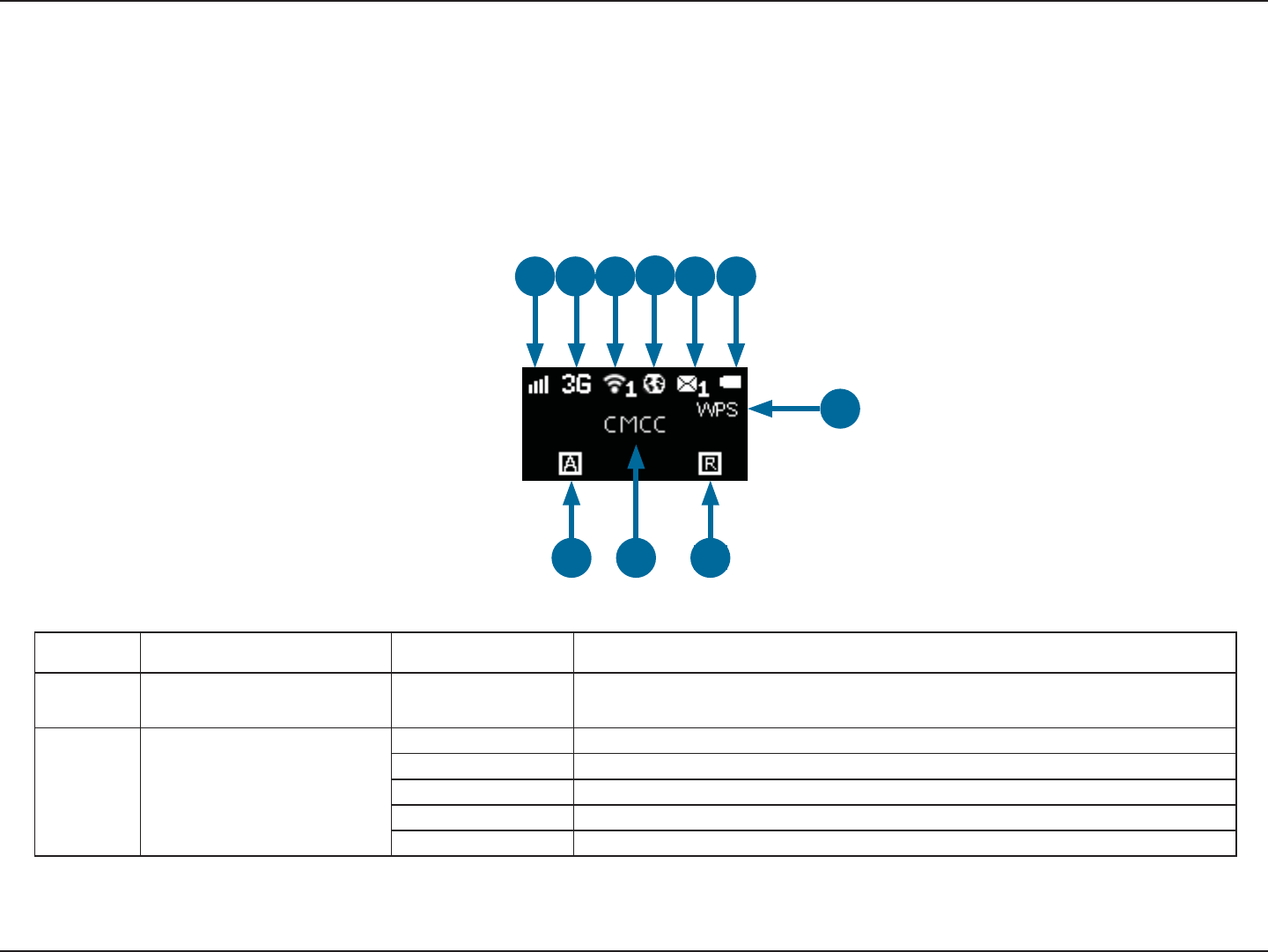

shown on the OLED display. Please refer to the table below for the specic indications which are shown on the display.
1 2 3 45 6
7
810
9
Number Function Icon Indication
1 Network Strength 0-5 Bars Indicates the strength of the current mobile network
connection
2 Network Type
H+
HCurrently connected to HSPA mobile network
3G Currently connected to WCDMA mobile network
2G Currently connected to GPRS/EDGE network
No SIM No SIM card detected in device
D-Link DWR-830 User Manual 5
Section 1 - Product Overview
3 Wi-Fi & Clients
Indicates that the Wi-Fi network is currently tuned on
Number Indicates the number of clients currently connected to the
device by Wi-Fi
4Internet Connection
Status Internet If this icon is displayed, there is an Internet connection present
5 SMS Number There are unread SMS messages in the inbox
6 Battery Status Empty-Full Displays the current battery level. If charging, the animation will
indicate charging status and current battery level
7 Wi-Fi Protected Setup WPS The device is ready for WPS association with wireless clients
8 Connection Method
AThe device is set to connect to the mobile network
automatically
MThe device is set to connect to the mobile network manually
D = On Demand The device will connect to the preferred mobile network when
internet access is required.
9 Operator Name The name of the mobile network operator to which device is
currently connected
10 Roaming R The device is currently roaming on a network other than the
home network
Ensure that your DWR-830 DC-HSPA+ Mobile Router is powered o.
Ensure that your DWR-830 DC-HSPA+ Mobile Router is powered o.
D-Link DWR-830 User Manual 6
Section 2 - Installation
Connect to Your Network
Installation
This section will guide you through the installation process.
1.

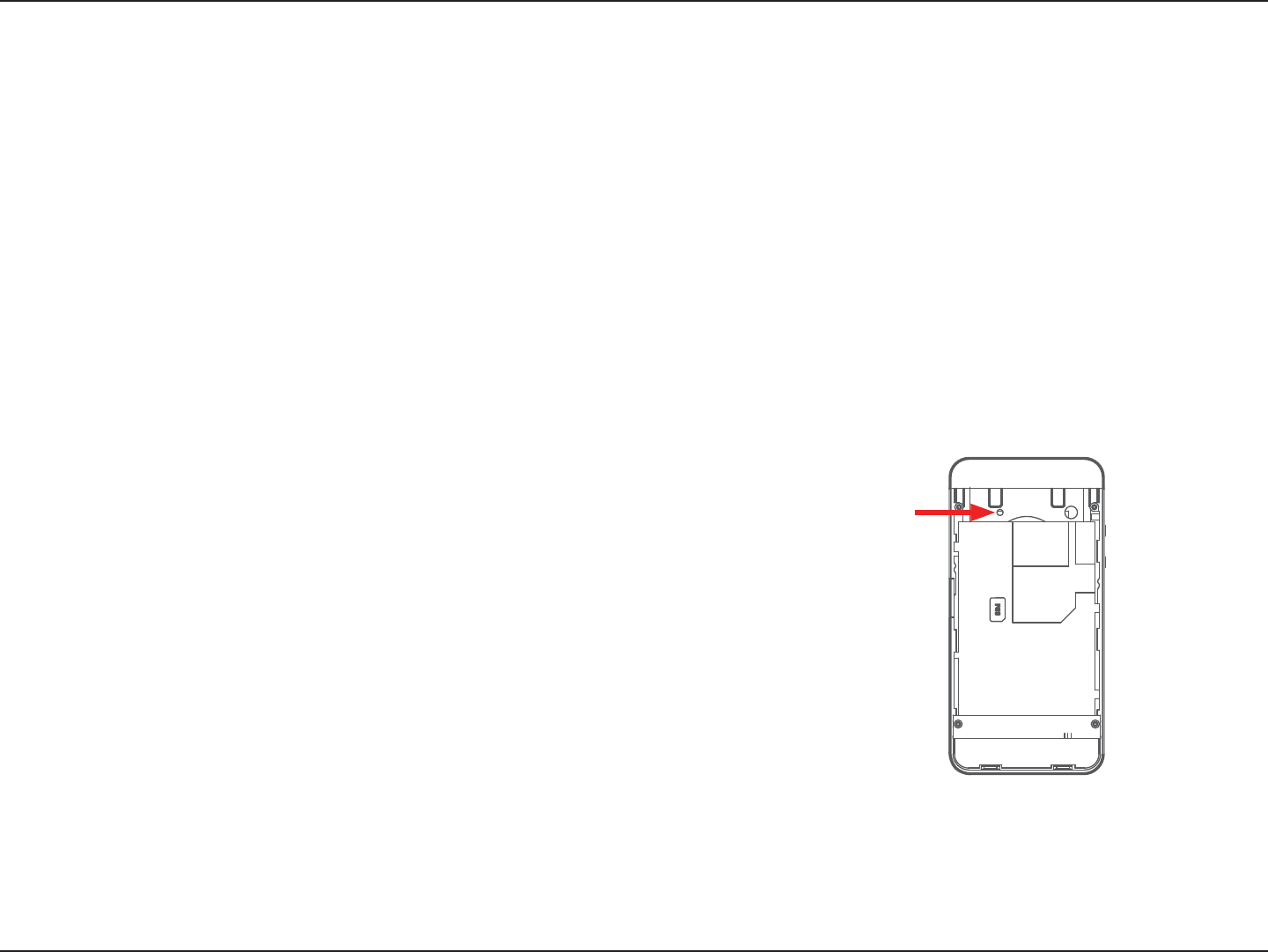

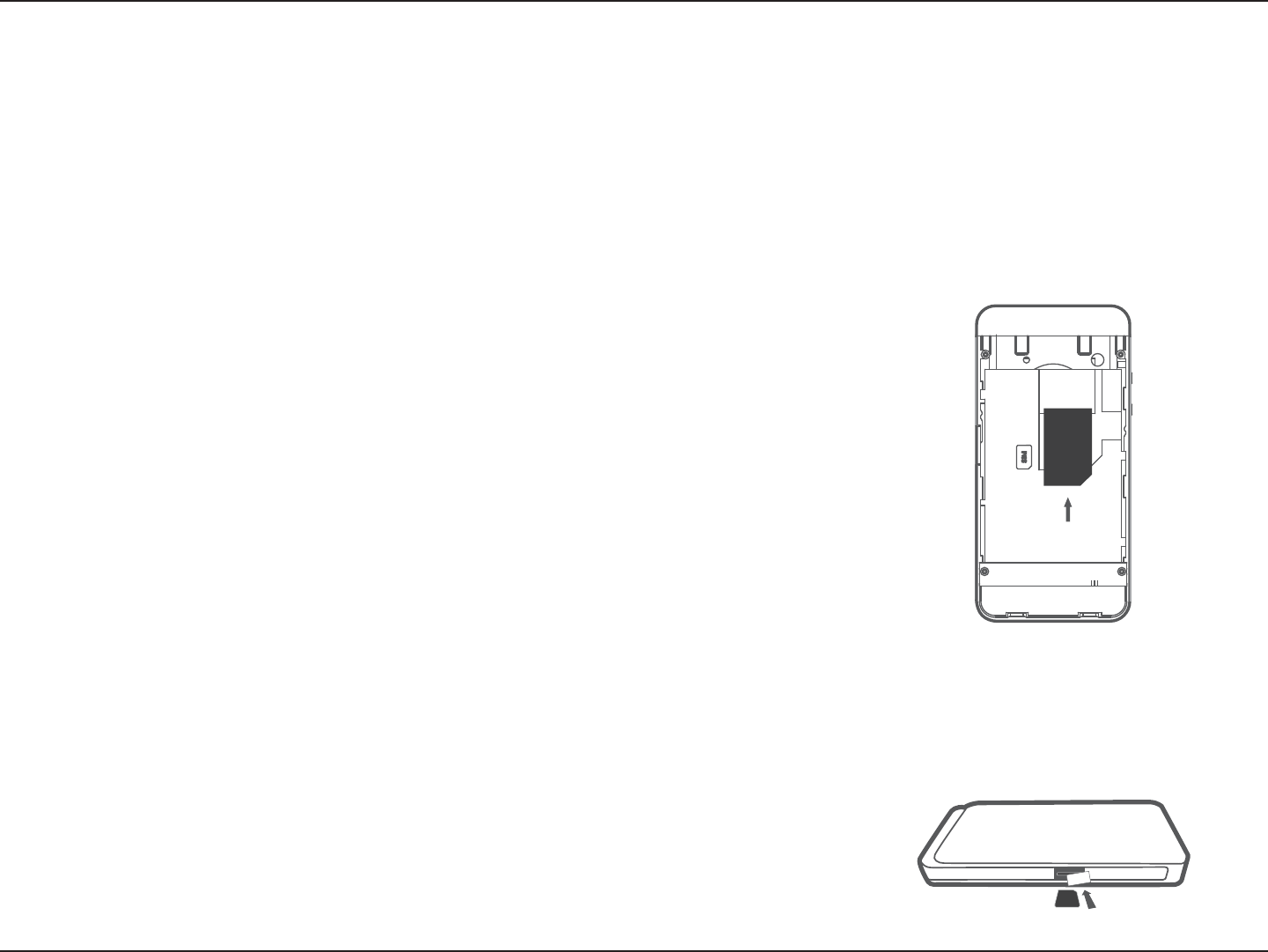

2. Remove the back cover and take out the battery. Slide your (U)SIM card into the slot
provided, ensuring that the alignment is the same as indicated by the logo next to the
slot. The gold contacts on the card should be facing downwards.
Caution: Always unplug and turn o the router before installing or removing the SIM card.
Never insert or remove the SIM card while the router is in use.
3. Press and hold the power button on the side of the router.
a. “D-Link” will be displayed on the screen as the router performs its initialization processes.
b. After a few moments, the OLED display will show the current status of the router’s various
functions. For more details on the OLED display, please refer to “OLED Display” on page 4.
Insert a microSD Card
1.
2. Open the cover of the microSD slot on the side of the router.
3. Insert the microSD card into the slot and push it in until it locks into place.
D-Link DWR-830 User Manual
the DWR-830 using the web conguration utility described in “Conguration Utility” on

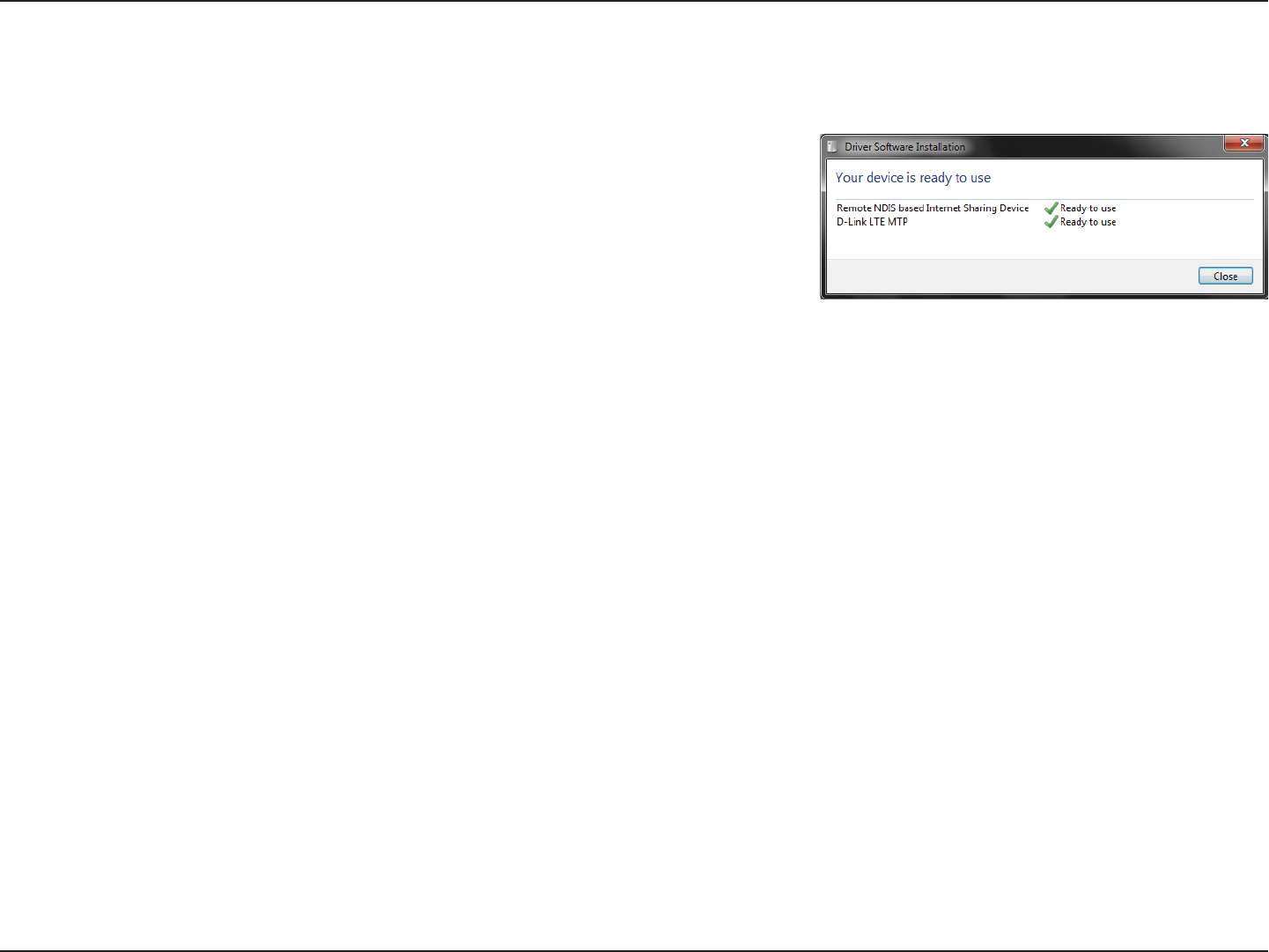

When you plug the DWR-830 into your computer, any necessary drivers will immediately
7
Section 2 - Installation
Driver Installation
install (with your permission).
Note: These drivers are Windows-only. Mac and Linux users will still be able to congure
page 12.
D-Link DWR-830 User Manual
The DWR-830 can be accessed using a wireless connection from anywhere within the operating range of its wireless network. Keep in mind that
8
Section 2 - Installation
Wireless Installation Considerations
the quantity, thickness, and location of walls, ceilings, or other objects that the wireless signals must pass through may adversely aect wireless
signals. Ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or oce. The key to maximizing
the wireless range is to follow these basic guidelines:
1. Minimize the number of walls and ceilings between the router and other network devices. Each wall or ceiling can reduce your adapter’s range
from 3 to 90 feet (1 to 30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters) appears to be almost 3 feet (1 meter) thick at a
45-degree angle. At a 2-degree angle it appears over 42 feet (14 meters) thick. Position devices so that the signal will travel straight through a
wall or ceiling (instead of at an angle) for better reception.
3. Try to position access points, wireless routers, and computers so that the signal passes through open doorways and drywall. Materials such as
glass, metal, brick, insulation, concrete, and water can aect wireless performance. Large objects such as sh tanks, mirrors, le cabinets, metal
doors, and aluminum studs may also have a negative eect on range.
4. If you are using a 2.4 GHz cordless phone, make sure that the 2.4 GHz phone base is as far away from your wireless device as possible. The base
transmits a signal even if the phone is not in use. In some cases, cordless phones, X-10 wireless devices, and electronic equipment such as ceiling
fans, uorescent lights, and home security systems may dramatically degrade wireless connectivity.
D-Link DWR-830 User Manual
conguration utility. This can be done using the included USB cable, or by connecting wirelessly to the DWR-830. Once you have congured your
9
Section 2 - Installation
Conguration
Initial Connection to the Router
This section will show you how to congure your new D-Link mobile router using the conguration utility that can be obtained through a software
interface or a web-based user interface.
When conguring the router for the rst time, you will need to establish a direct connection with the router in order to access the web-based
router, you will be able to connect using the Wi-Fi settings that you have specied in the conguration process. Ensure that the router is powered
on and has sucient battery power before commencing the setup process.
Connect via USB
To connect to the router via USB, plug the provided micro USB cable into the micro USB port on the bottom of the router, and plug the other end
into an available USB port on your computer. Your router is now ready for conguration, please refer to “Conguration Utility” on page 12 to continue
the setup process.
D-Link DWR-830 User Manual
dlink_DWR-830xxxxDWR-830 will be in the format
10
Section 2 - Installation
Connect via Wi-Fi
Note: The following example uses Windows 7’s built-in wireless connection utility. If you are using a dierent operating system, or a third party
connection utility, the process may be dierent. Please refer to the documentation that came with your operating system or wireless client for
further information on how to connect to a wireless network.

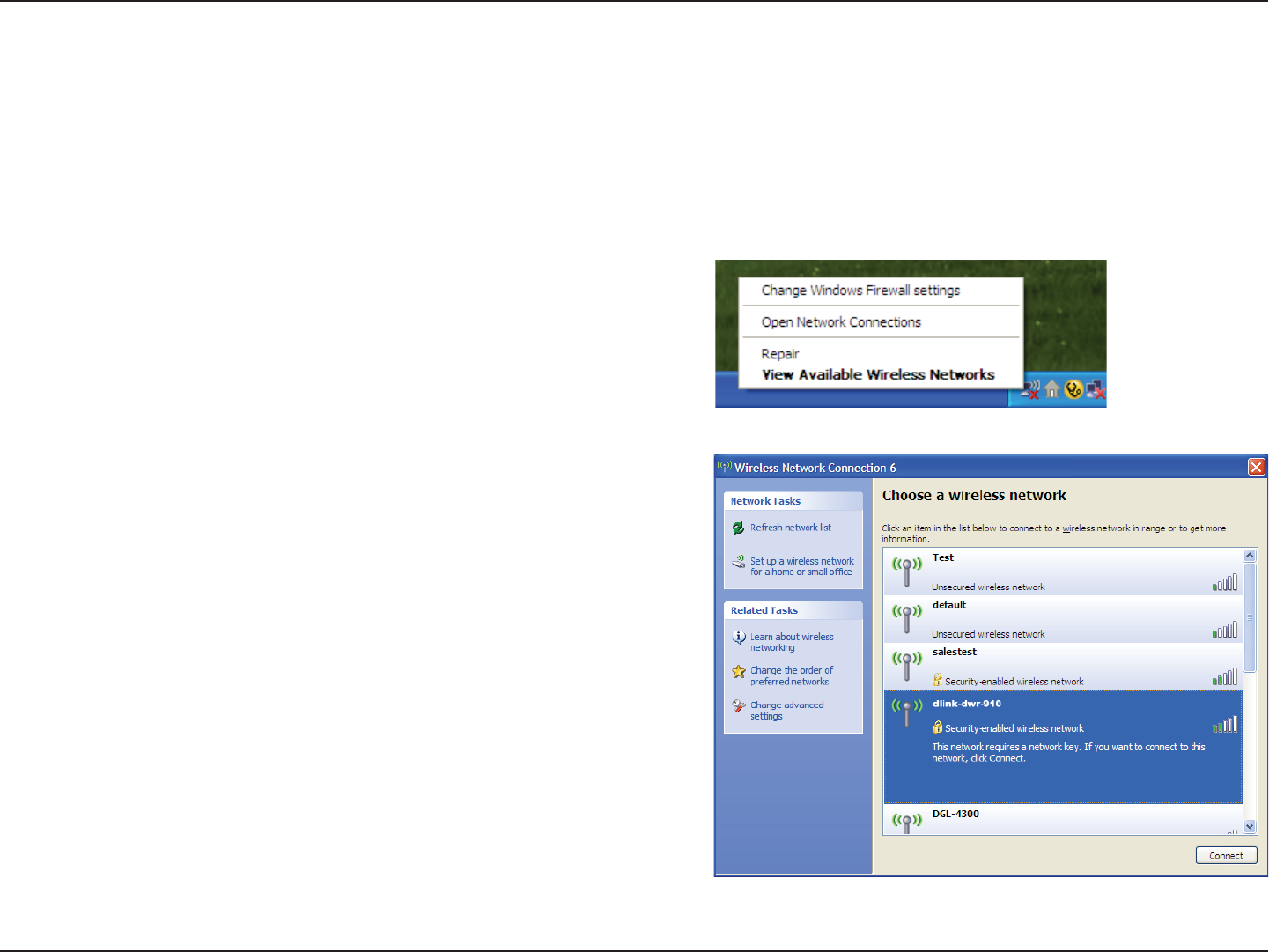

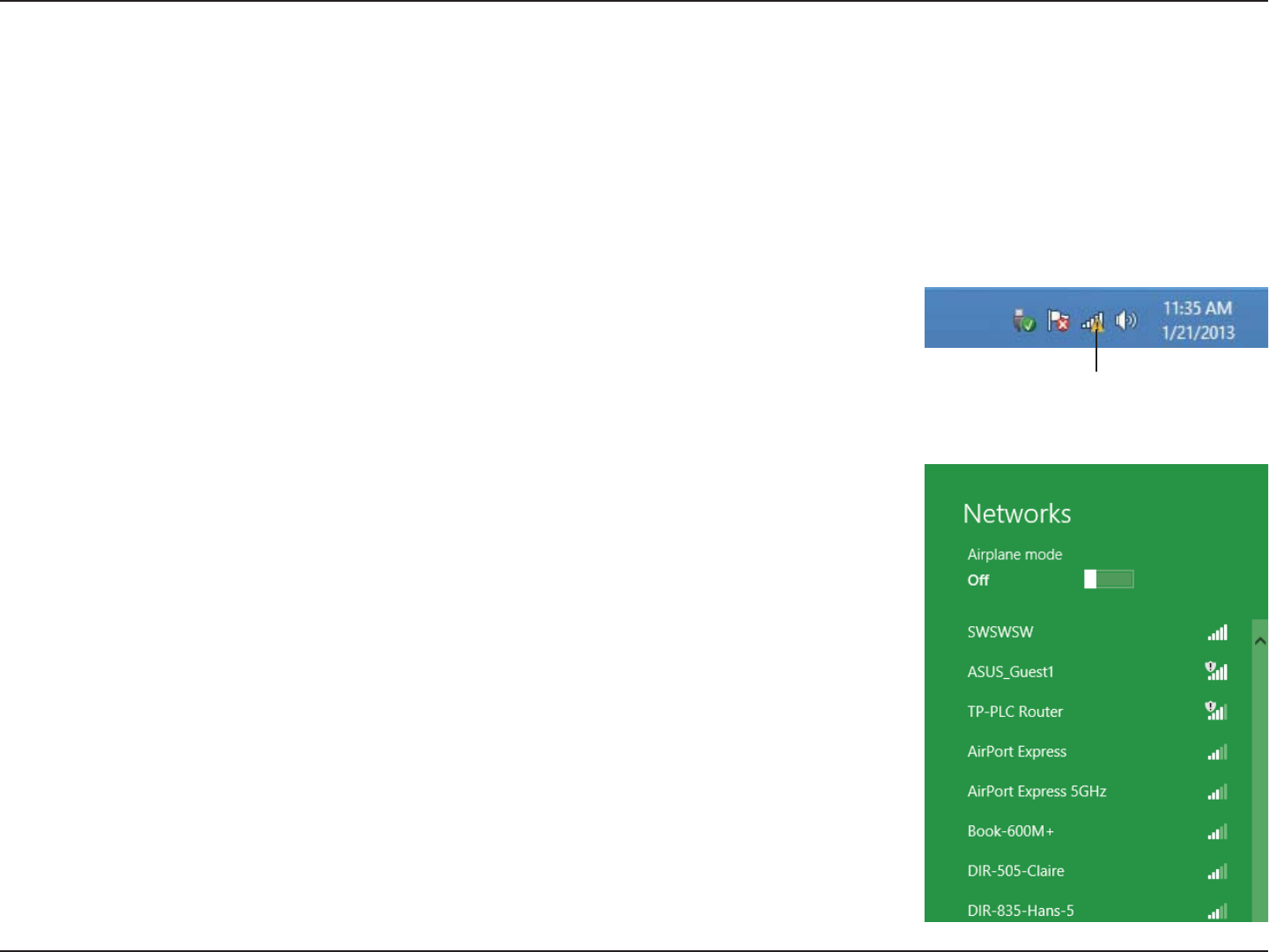

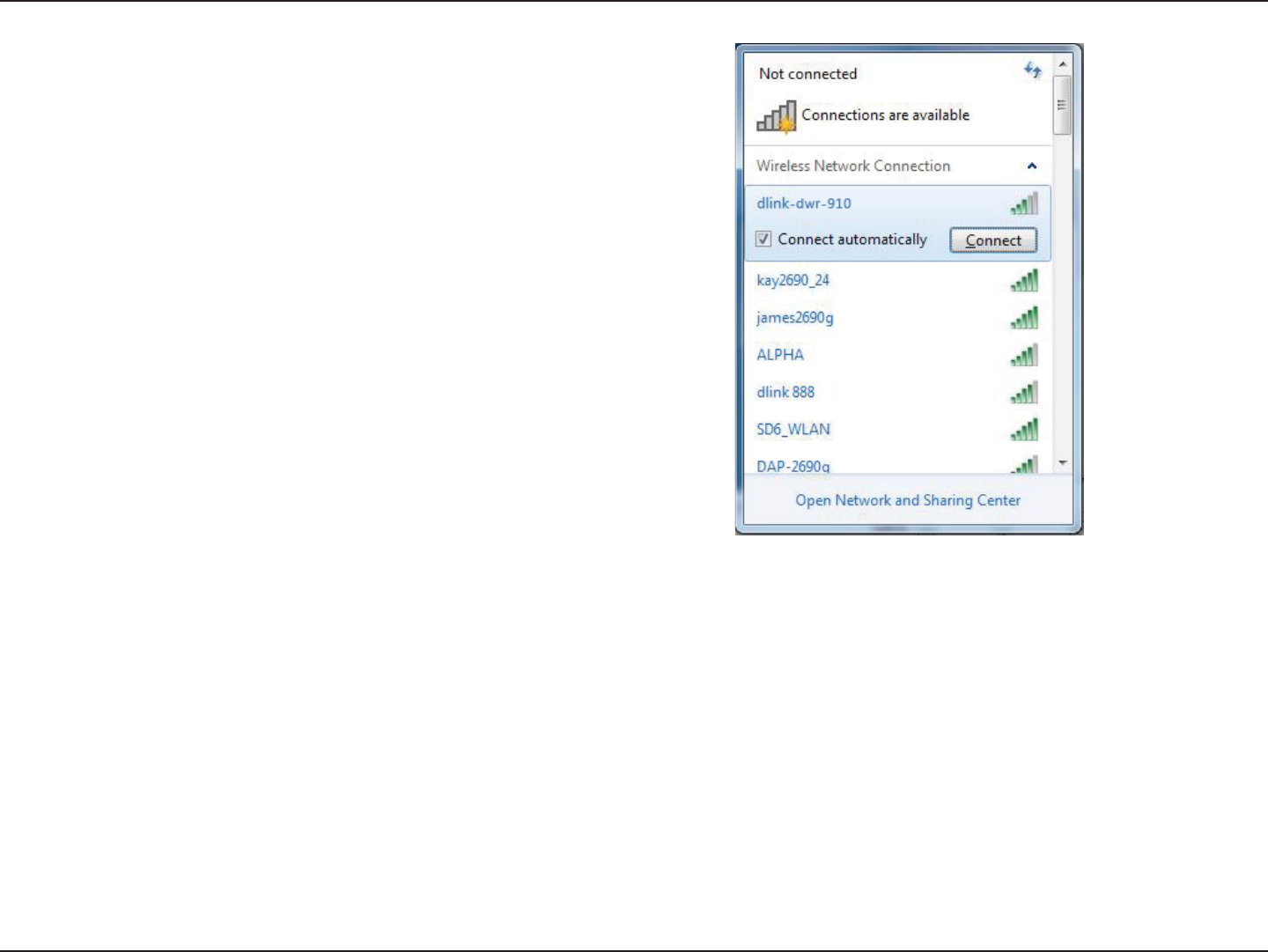

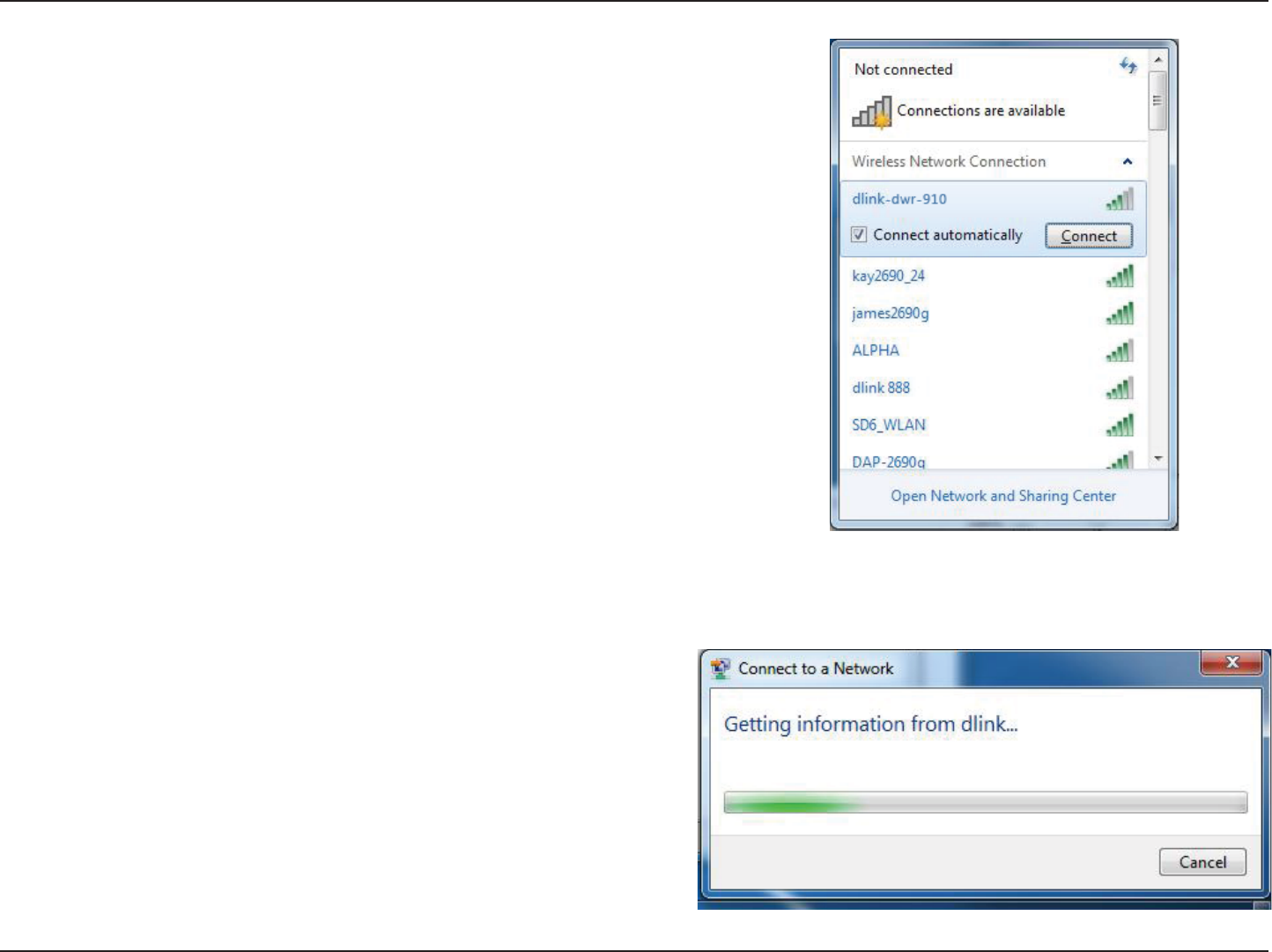

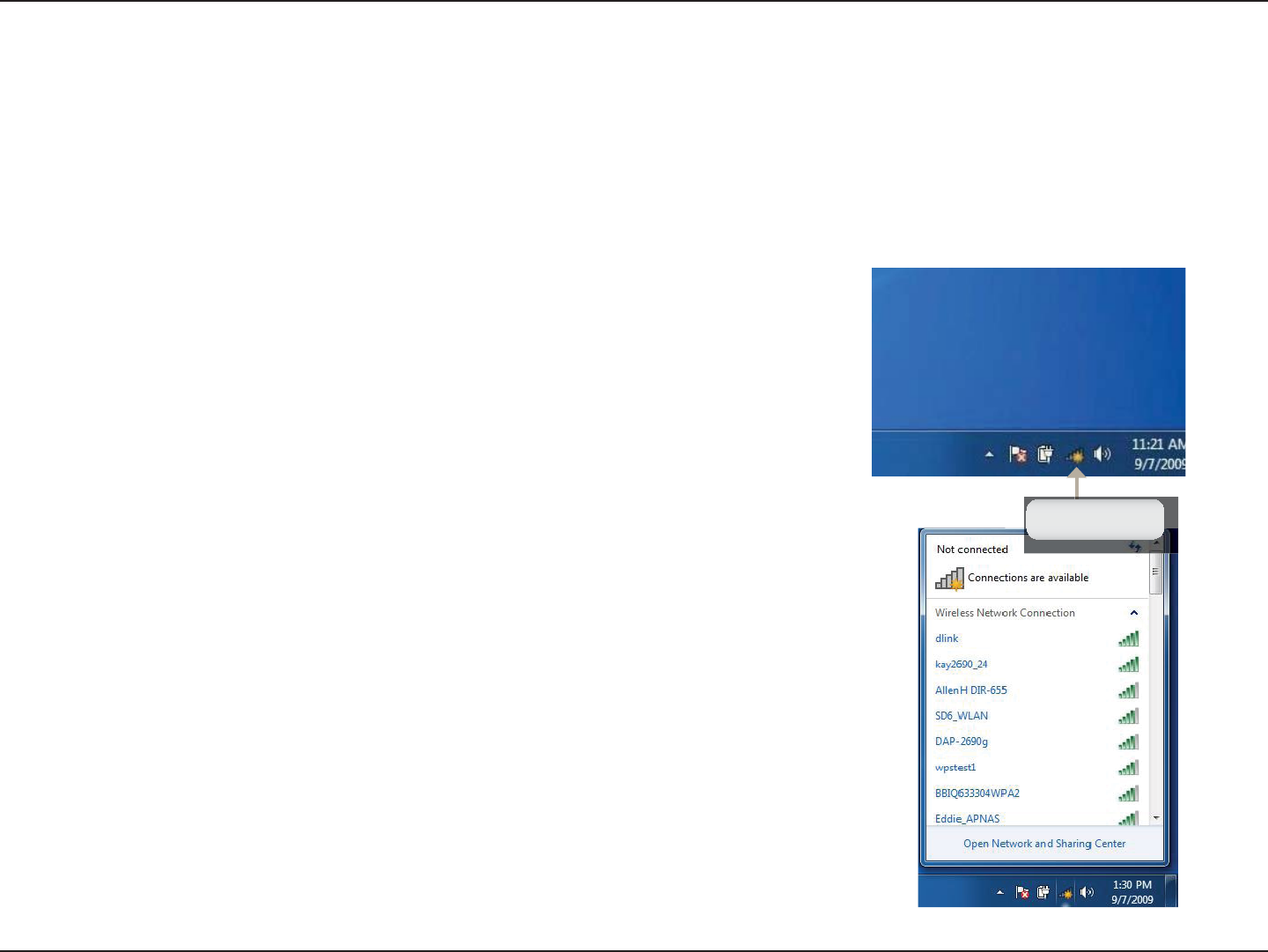

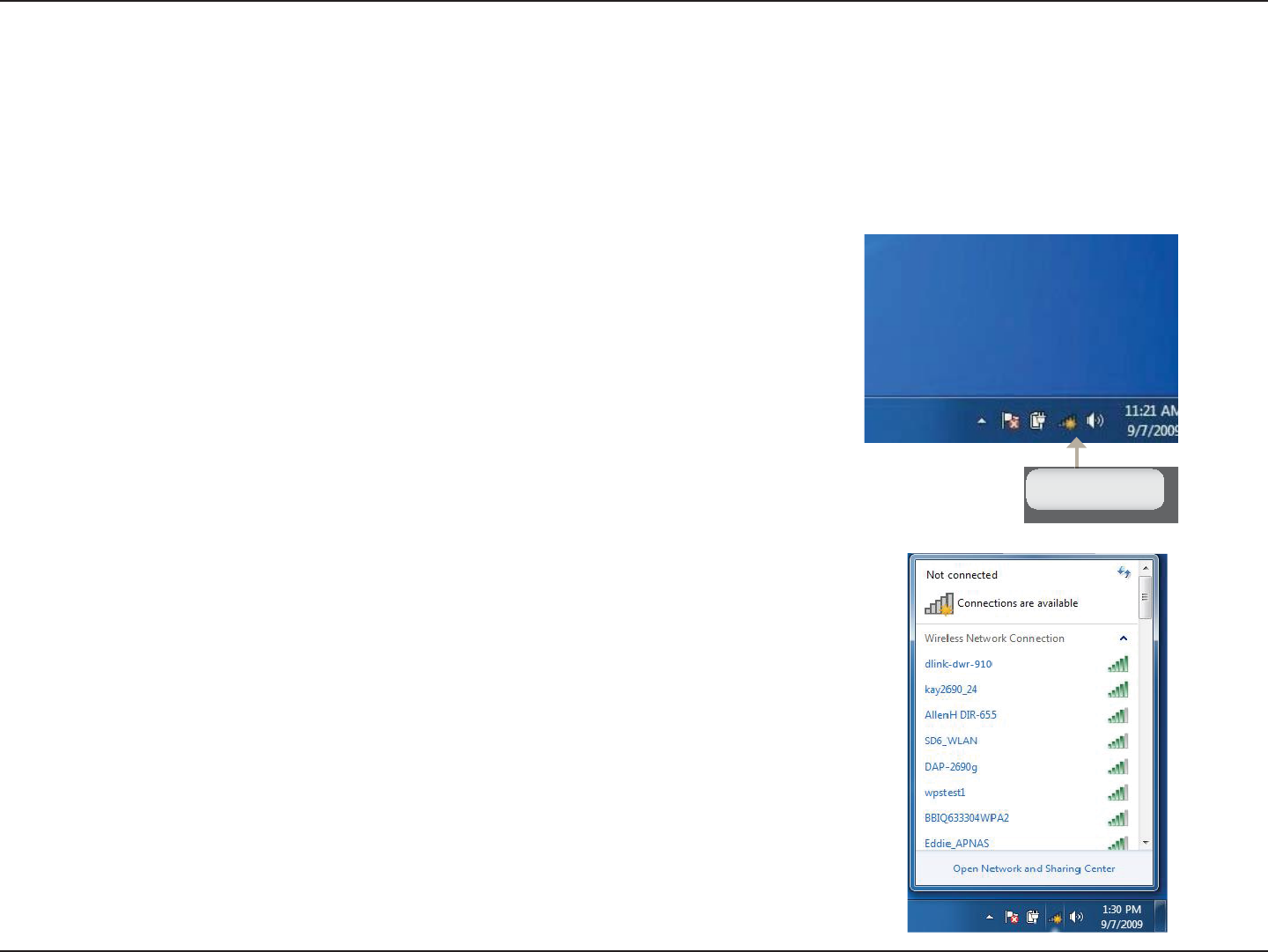

To connect to the router using Wi-Fi, open your operating system’s wireless networking utility
and scan for available networks to connect to. By default, the network name (SSID) of the
, where “xxxx” represents the last four
character’s of the router’s MAC address.

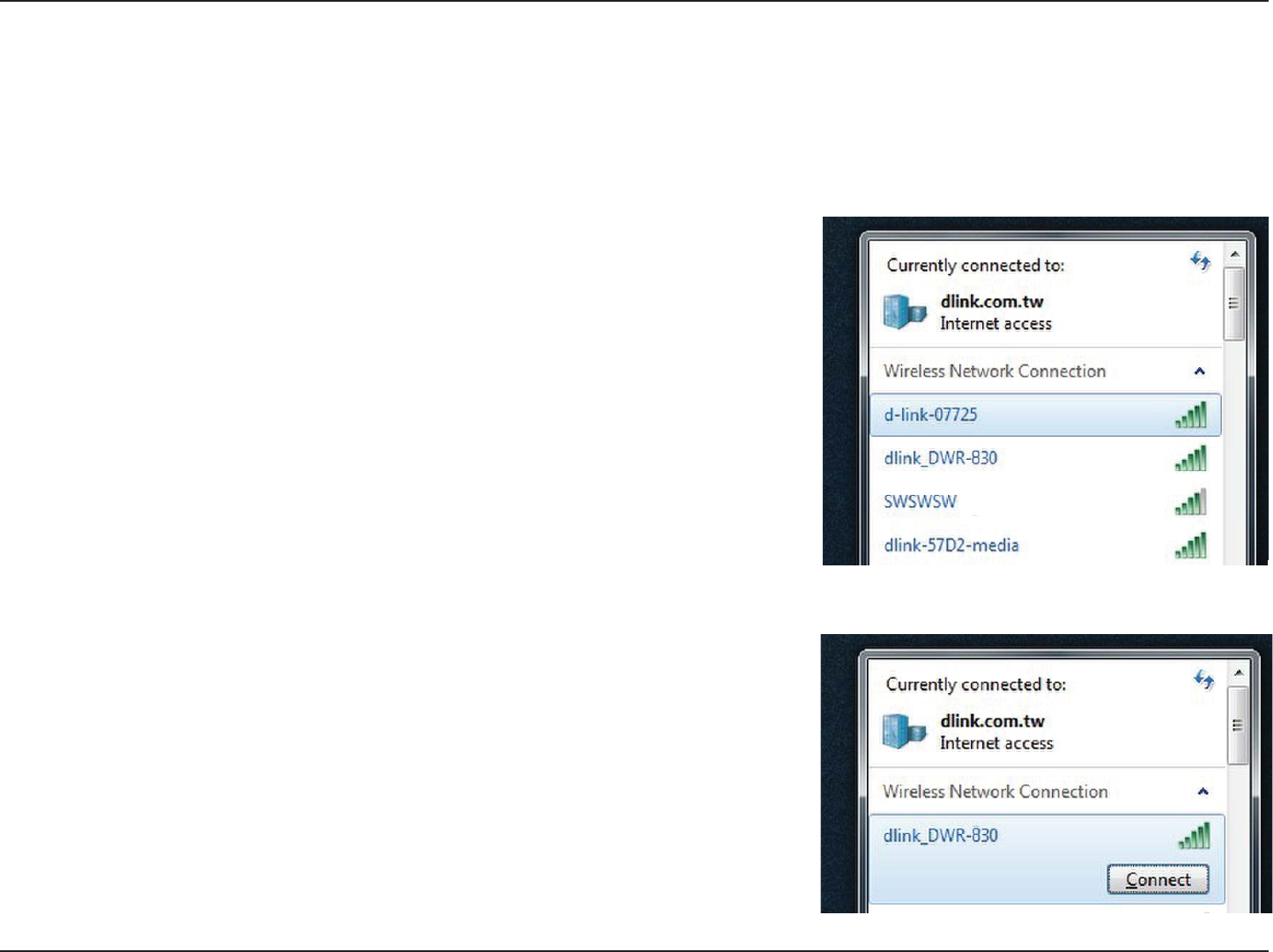

Once you have located this network with your wireless utility, connect to the network using
your wireless networking utility.
D-Link DWR-830 User Manual 11
Section 2 - Installation

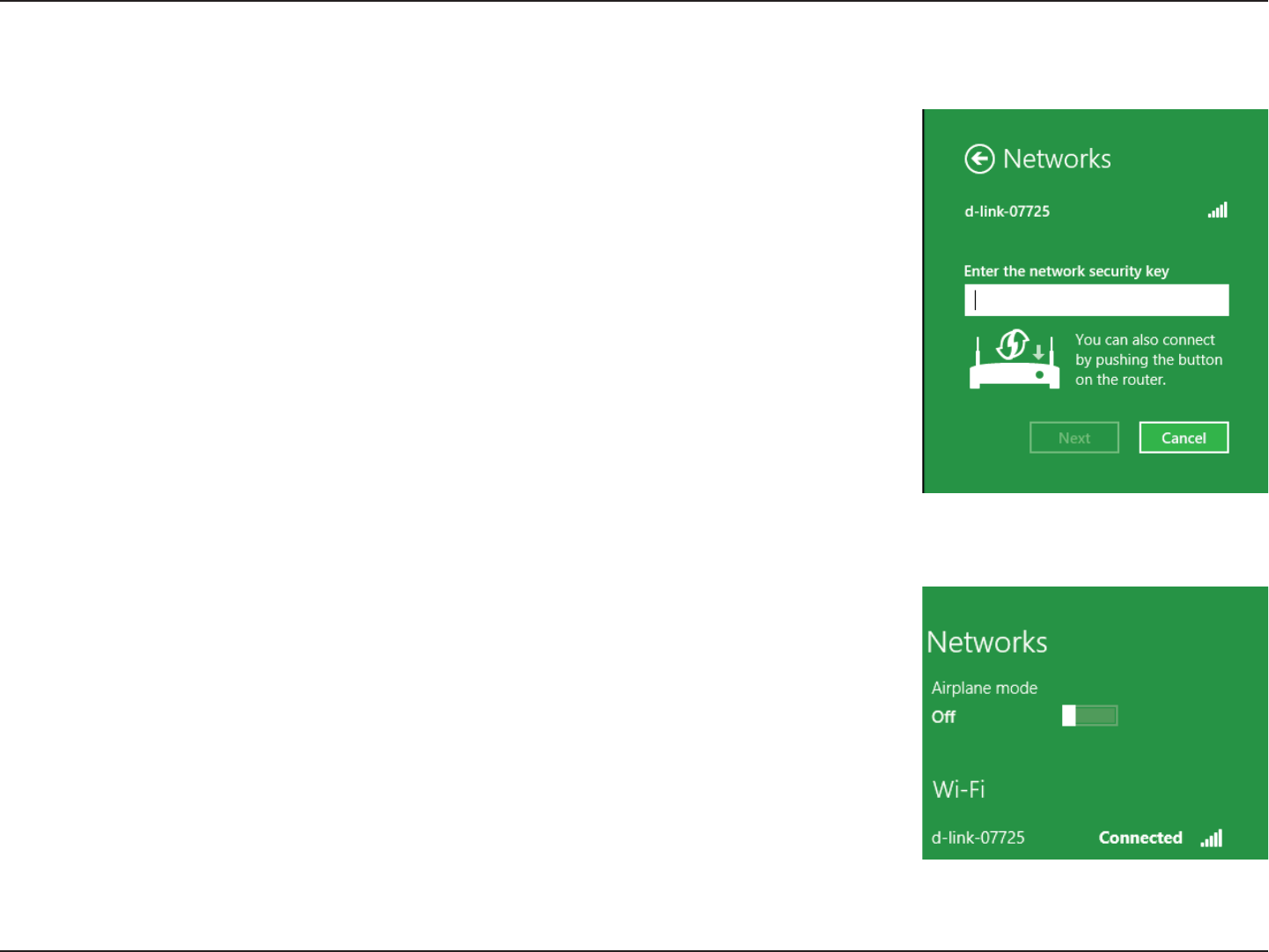

You will then be prompted to enter the network security key for your router. The unique
security key for your router will be displayed on a sticker in the router’s battery bay. Enter
the security key in the box provided and click OK. Your wireless connection utility should
conrm that the connection is successful, and you can move to the next step to continue to
conguration process.
D-Link DWR-830 User Manual 12
Section 3 - Conguration
Web-based Conguration

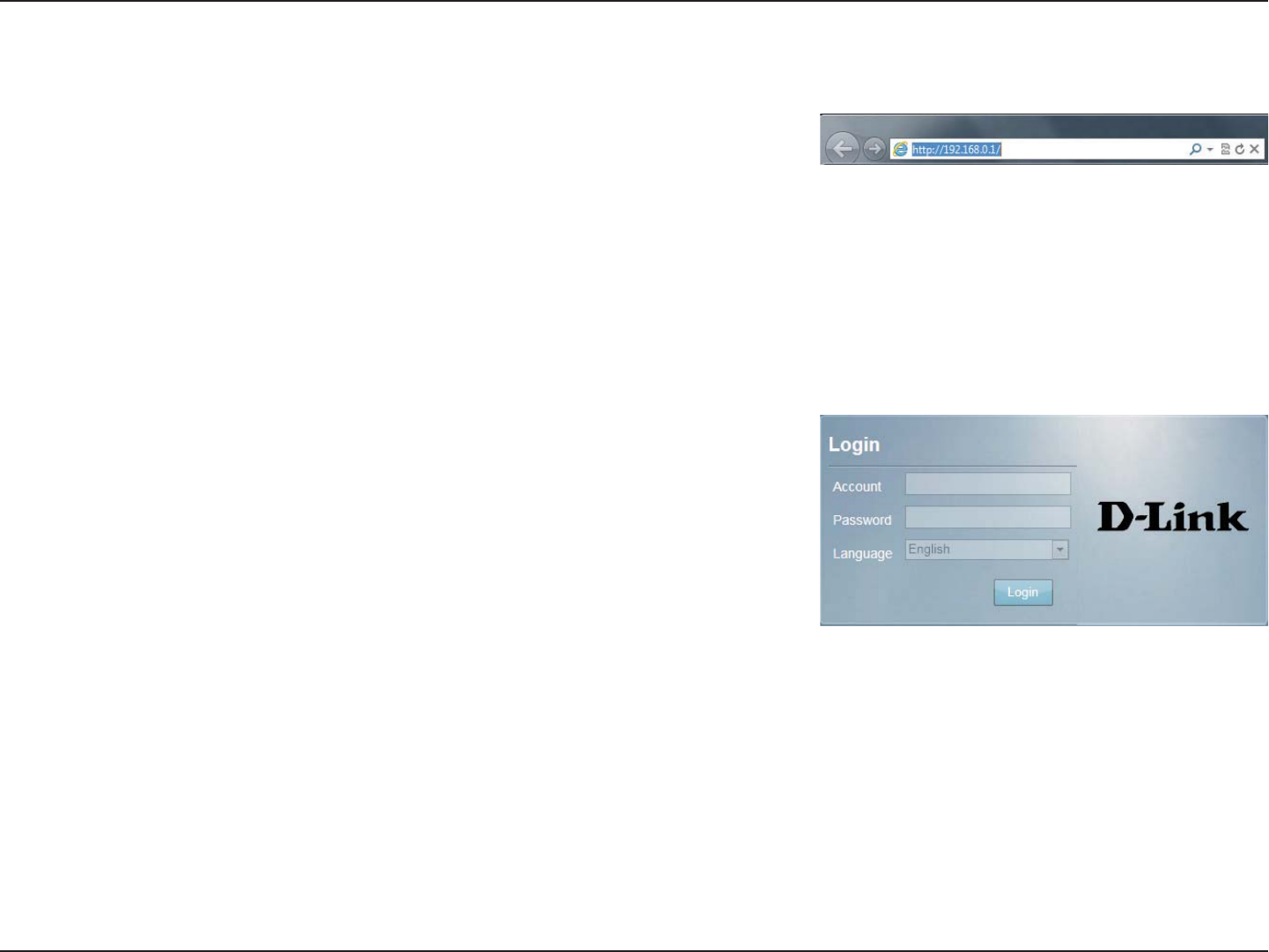

To access the conguration utility, open a web browser (such as Internet Explorer) and enter
the IP address of the router, which is 192.168.0.1 by default.
Once you have reached the conguration utility through the installed software or your
web browser, you will need to log in. Enter admin as the username, and then enter the
password. By default, the password is blank. You can also select your language from the
drop-down menu.
Click Login to continue.
Conguration Utility
D-Link DWR-830 User Manual 13
Section 3 - Conguration
Home

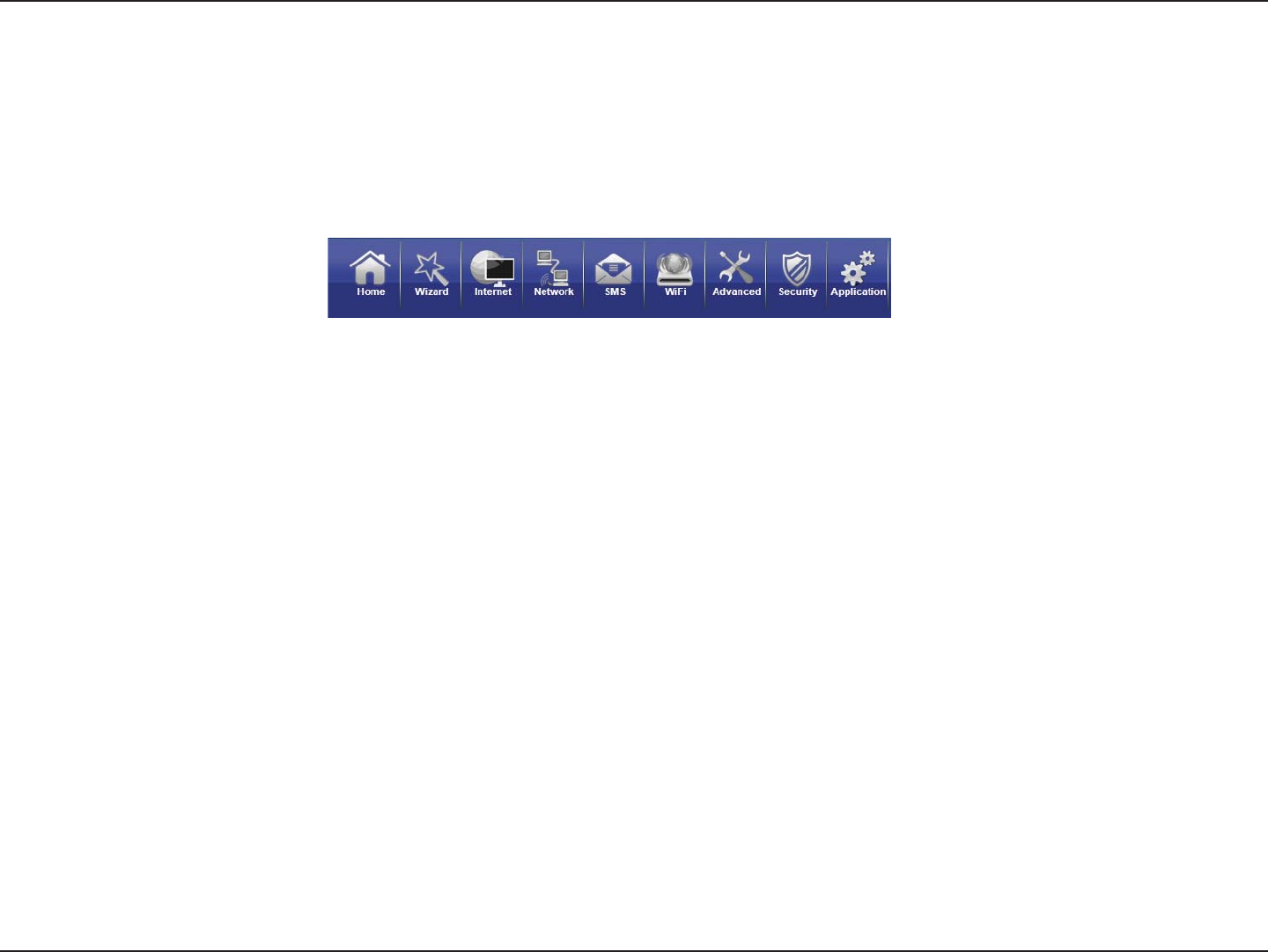

Throughout the interface you will nd a menu bar at the top of the page which includes tabs for easy navigation, and a summary bar in the upper
right corner with a quick view of essential information.
The Home tab will return you the home page, where a summary of the system information is shown.
Click on this tab to start the setup wizard, which will guide you through the basic setup process.
The Internet tab gives you Internet setup and settings options.
The Network tab allows you to congure the network settings for your Local Area Network (LAN).

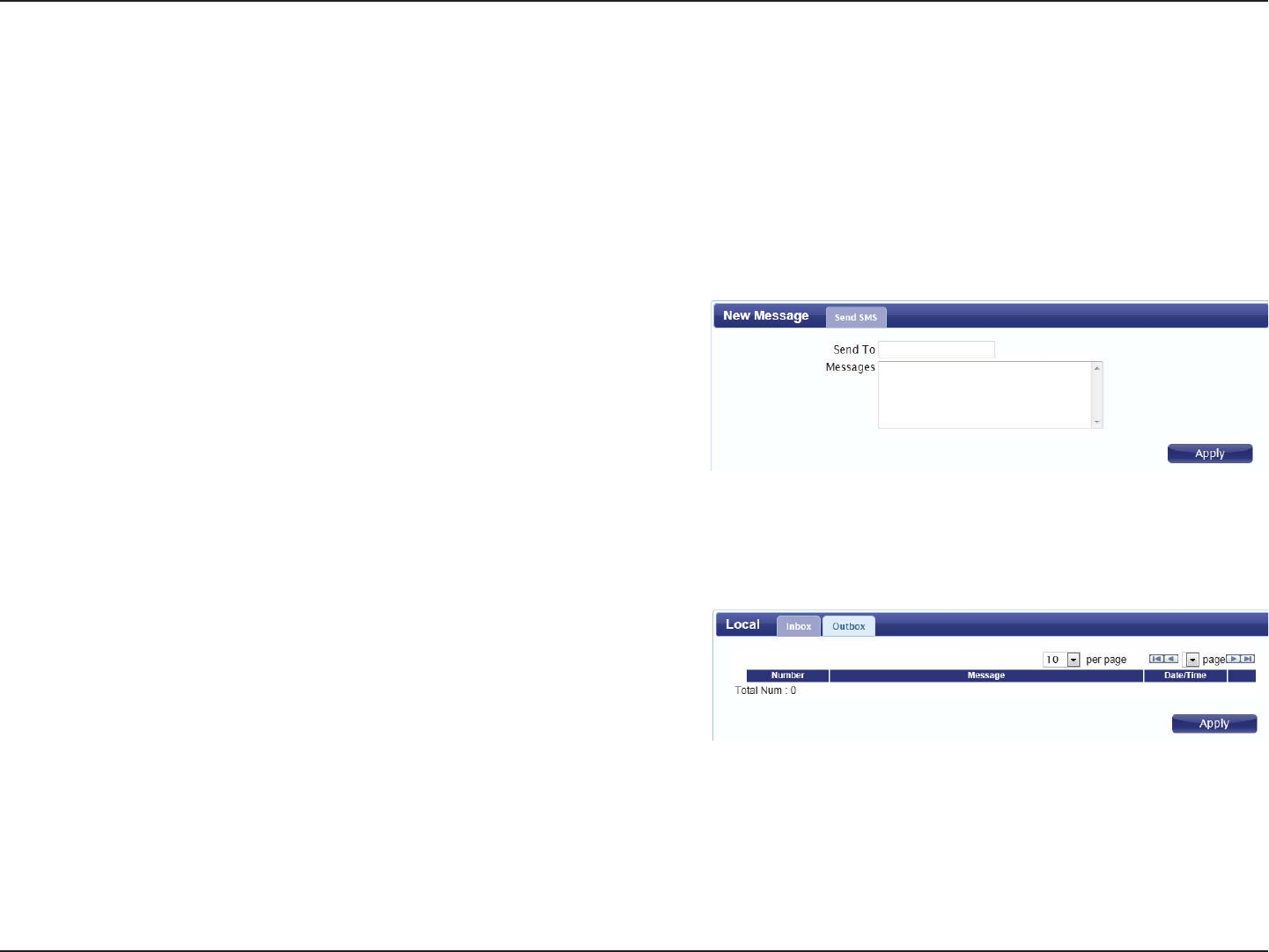

From the SMS you can view and send SMS messages via your mobile network.
The Wi-Fi allows you to congure your Wi-Fi network, as well as add new devices using WPS.
Use this tab to congure advanced network settings such as routing and IPv6.

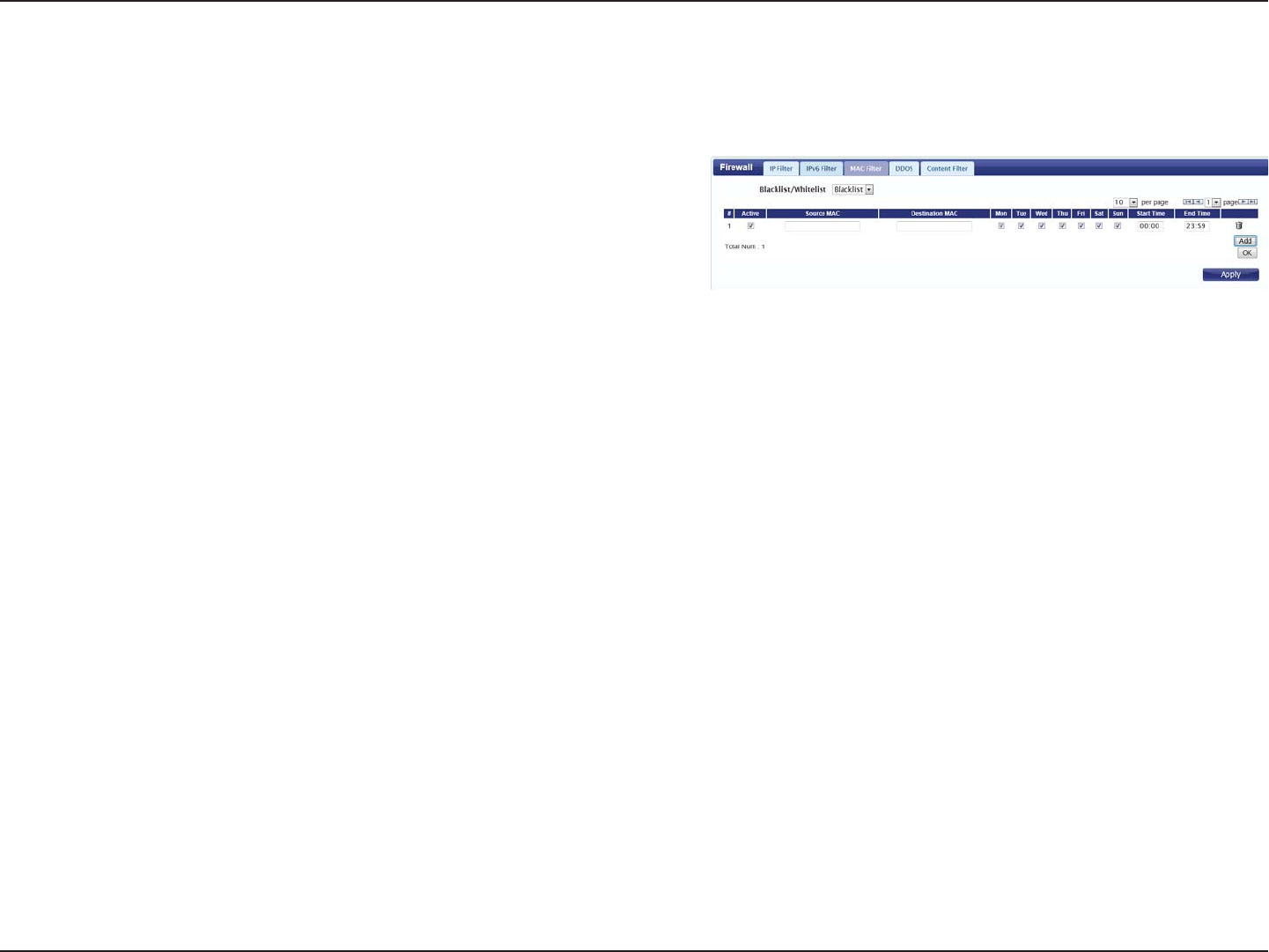

The Security tab allows you to congure rewall and security settings to protect your network from WAN-side
intrusions.
From this tab, you can manage the administrative conguration of your router, such as time and date, rmware,
language, and remote management.
Navigation
Home
Wizard:
Internet:
Network:
SMS:
Wi-Fi:
Advanced:
Security:
Application:
D-Link DWR-830 User Manual 14
Section 3 - Conguration
This icon shows whether or not a compatible (U)SIM card has been inserted into the device.
The number to the right of this icon indicates the number of unread messages in the SMS inbox.
Indicates the current strength of the mobile network signal being received.
The name of the mobile network operator to which the device is currently connected.
Indicates that the device is connected to a network other than your service provider’s home network.
Indicates that there is an Internet connection present.
Indicates that the router’s Wi-Fi network is currently active. The number to the right of this icon indicates the number
of wireless clients currently connected to the router’s Wi-Fi network.
Click this button to log out of the conguration interface.
SIM:
SMS:
Signal Strength:
Operator Name:
Roaming:
Internet:
Wi-Fi Network:
Logout:
Device Status

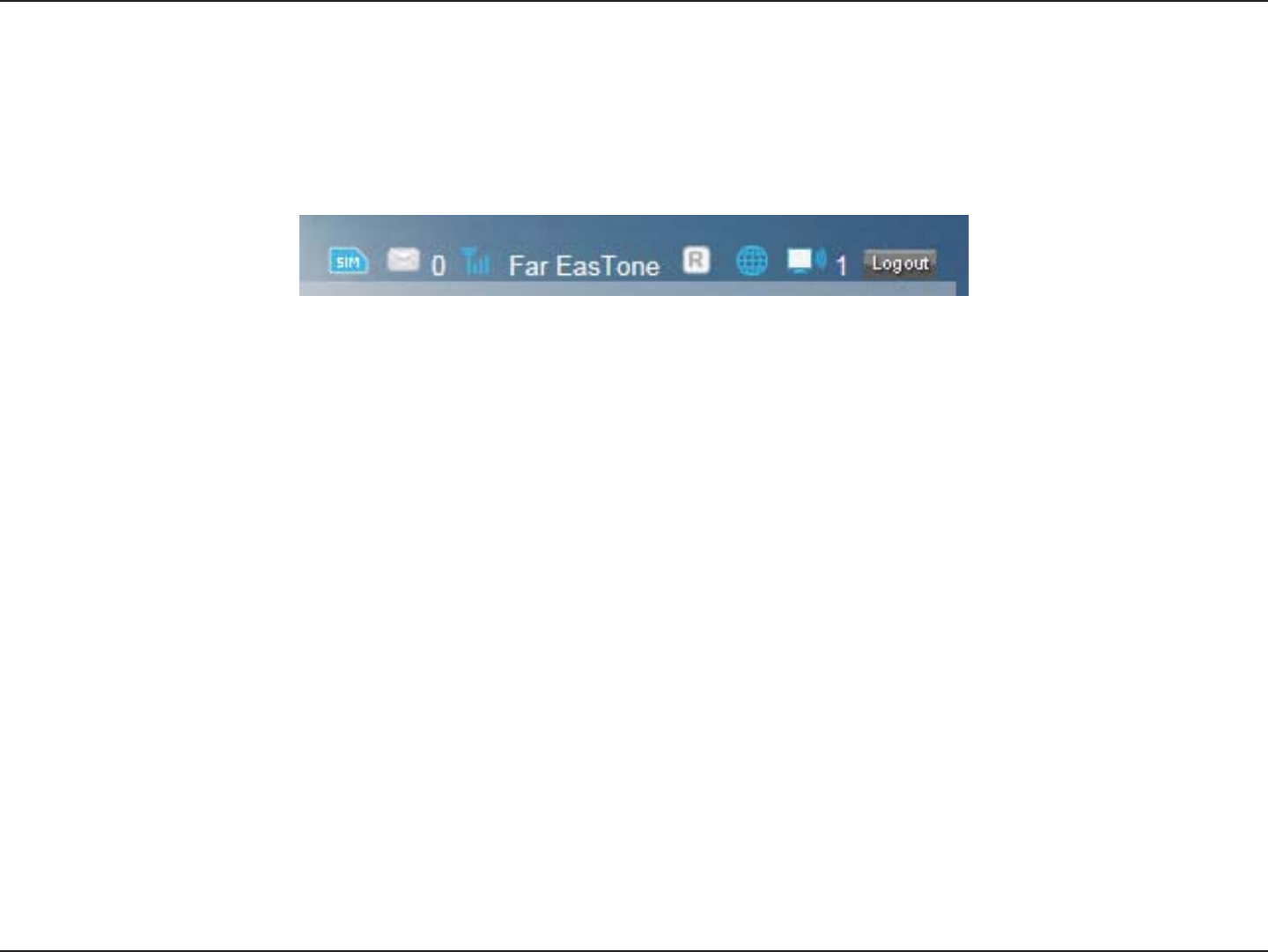

A summary of the device’s current status will be displayed on the information panel at the top of the right-hand side of the navigation bar. The
following is a description of the indications, from left to right.
D-Link DWR-830 User Manual 15
Section 3 - Conguration

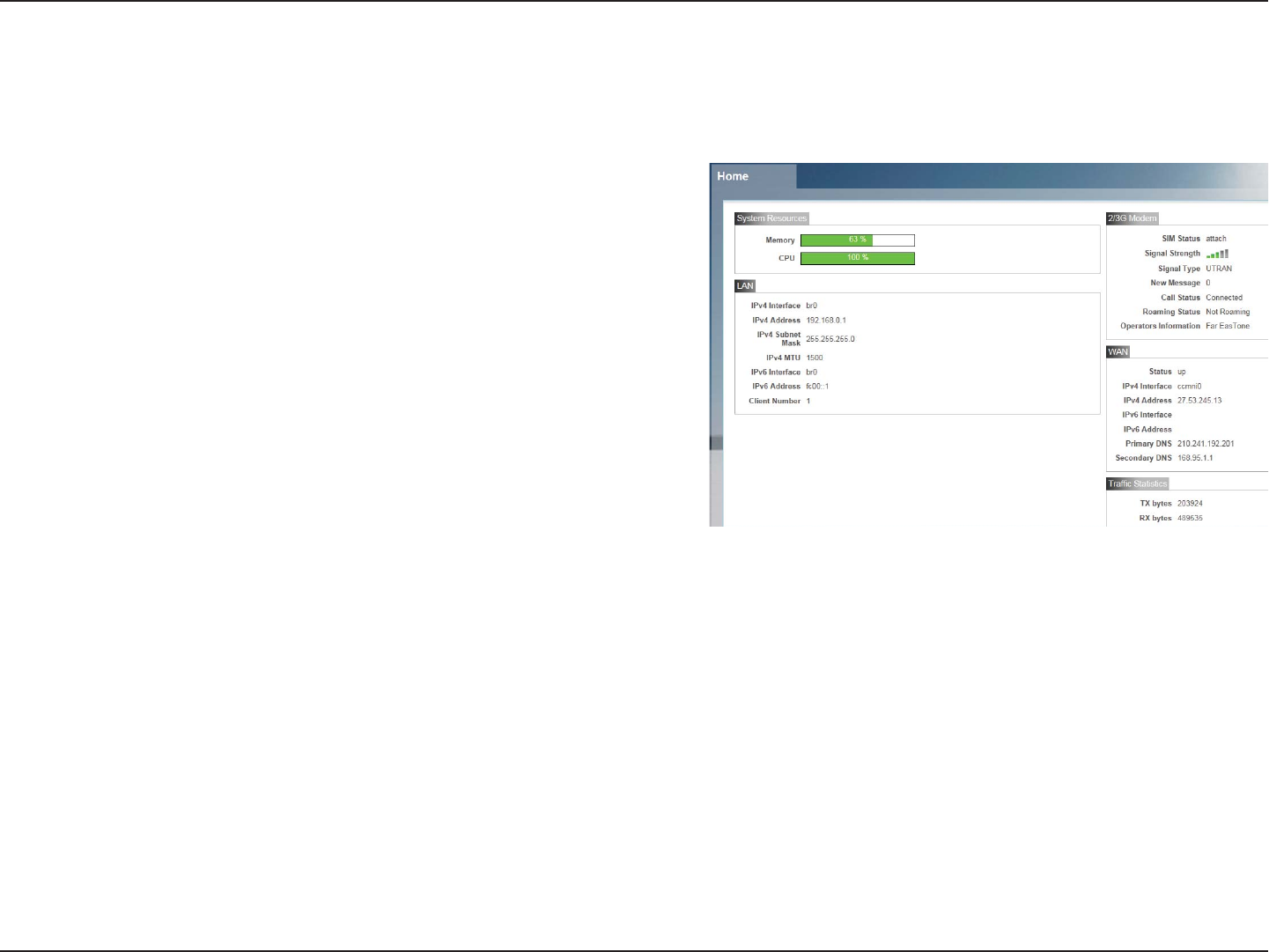

The Home page acts as a dashboard to quickly display your conguration settings and provide a summary of the current status of your network’s
status.
This area displays the percentage of the router’s memory and
CPU currently being used by the system.
This area displays a summary of the current settings for the
router’s LAN.
This area shows the current status of your 2G or 3G mobile
network connection.
This area displays a summary of the router’s current WAN
settings. These details will reect the mobile network
connection which is being received from the service provider.
This area shows the amount of data which has been sent (TX)
and received (RX) over the mobile network. This information
may not reect the amount recorded by your mobile service
provider.
System Resources:
LAN:
2G/3G Modem:
WAN:
Trac Statistics:
Home
D-Link DWR-830 User Manual 16
Section 3 - Conguration
Wizard
The Wizard page will guide you through the steps required to congure the basic settings of your router such as the IP address, network name
(SSID), and password. Click on the Wizard button on the navigation bar to commence the wizard.

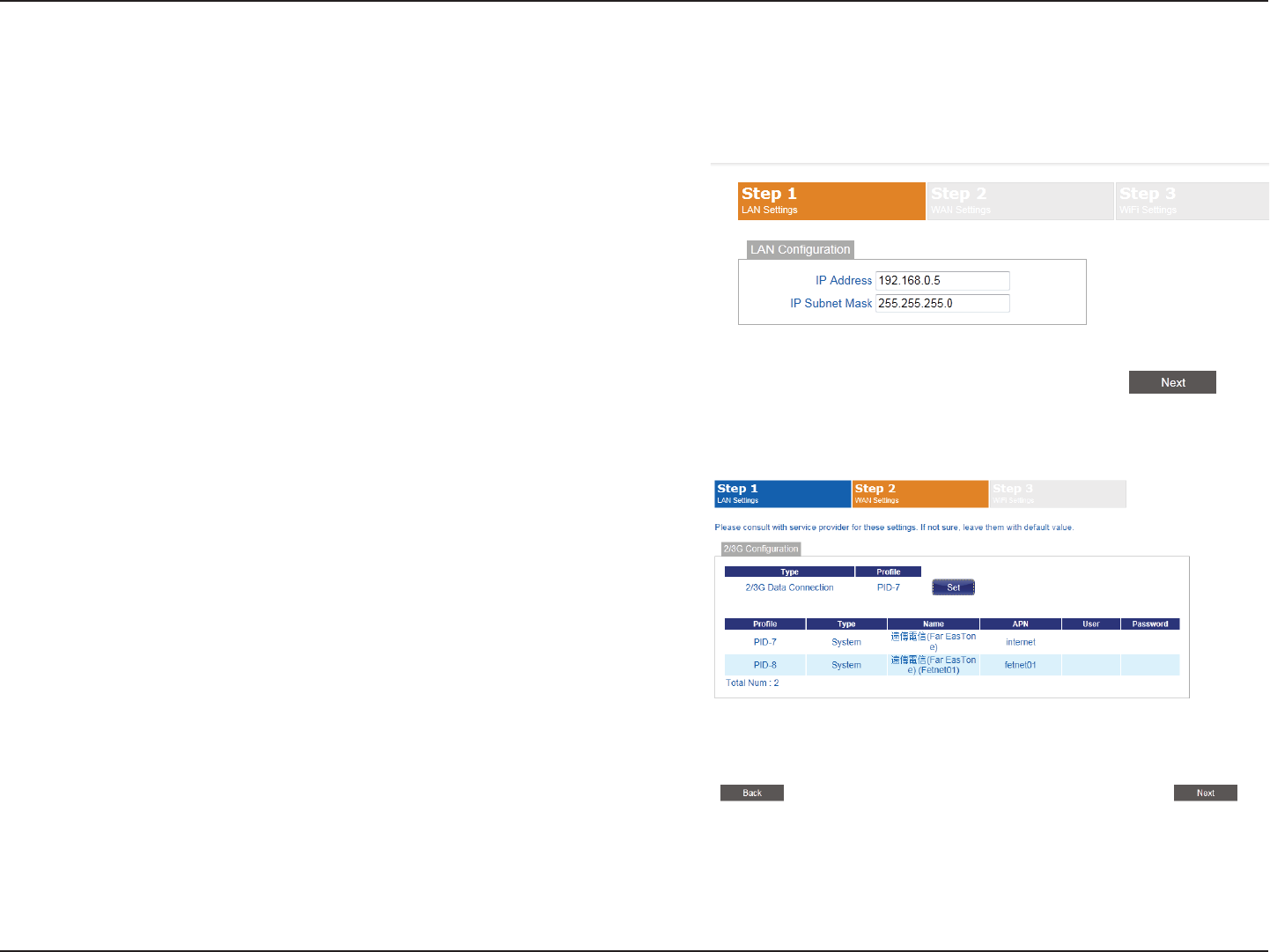

LAN CONFIGURATION
If you wish to change the router’s IP address, enter the new
address here. If you change the IP address from the default,
you will need to enter the new address in your Internet
browser’s address bar in order to access the web-based
conguration utility.
If you wish to change the router’s subnet mask, enter it here.
Click Next to continue.
2/3G CONFIGURATION
If you wish to change the 2G or 3G service provider or
connection type, click on a prole in the list to highlight it,
and click Set to set that prole as the default.
Click Next to continue, or Back to return to the previous step.
IP Address:
IP Subnet Mask:
D-Link DWR-830 User Manual 17
Section 3 - Conguration
WI-FI CONFIGURATION
Choose a password for your wireless security. Clients
will need this password in order to access your network
wirelessly. If you are currently connected to the router using
Wi-Fi, you will need to reconnect to the router using your
new password once the wizard has been completed.
If you wish to change your wireless network name (SSID),
enter a new name in the eld provided. If you change
the SSID, you may need to re-connect to the router using
the new SSID before you can access your network or the
conguration utility.
Click Done to complete the wizard, or click Back to return to
the previous page.

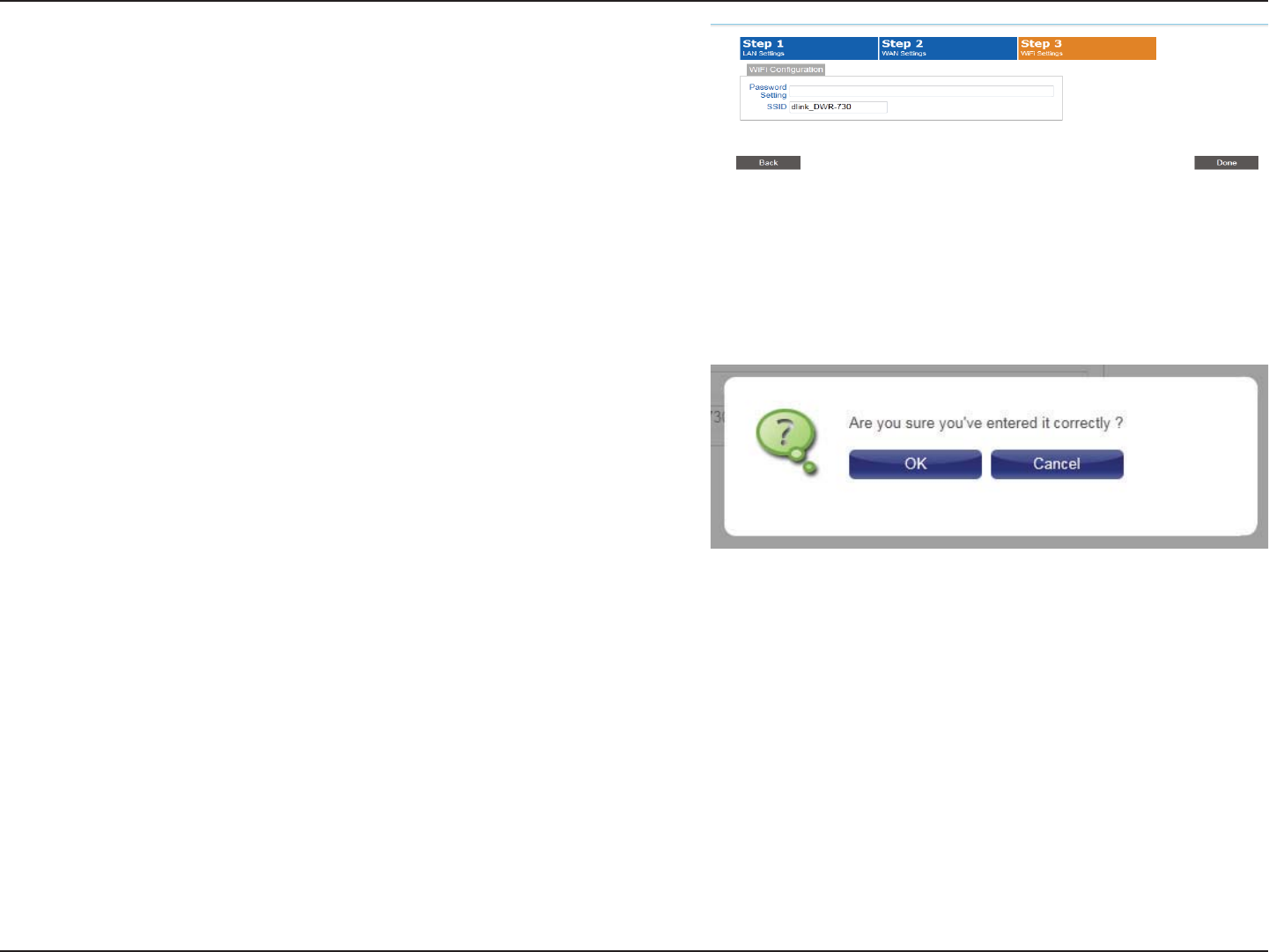

After you have clicked Done, a conrmation window will
appear. Click OK to save the conguration.
Password Setting:
SSID:
D-Link DWR-830 User Manual 18
Section 3 - Conguration
Internet
This page allows you to congure the Internet settings for your mobile network connection. Use the tabs in the left-hand column to navigate
through the dierent settings categories.
CONNECTION OPERATION
Flight mode turns o all communications so that the device
can be powered on safely when in an aircraft. Select whether
you want to Enable or Disable ight mode from the drop-
down menu, and click Change to eect the change.
Select your preferred cellular network connection mode:
Auto Mode - The router will automatically connect to your
preferred mobile network and remain connected while the
device is powered on.
Manual Mode - You must manually connect to the preferred
mobile network.
On Demand - The router will connect to the preferred mobile
network when Internet access is required.
Click Change to eect the change.
Select whether you would like to Enable or Disable mobile
network roaming from the drop-down menu.
Caution: Roaming on networks other than your own may
incur additional usage charges.
Flight Mode:
Preferred Cellular
Network:
Roaming Mode:
Connection
D-Link DWR-830 User Manual 19
Section 3 - Conguration

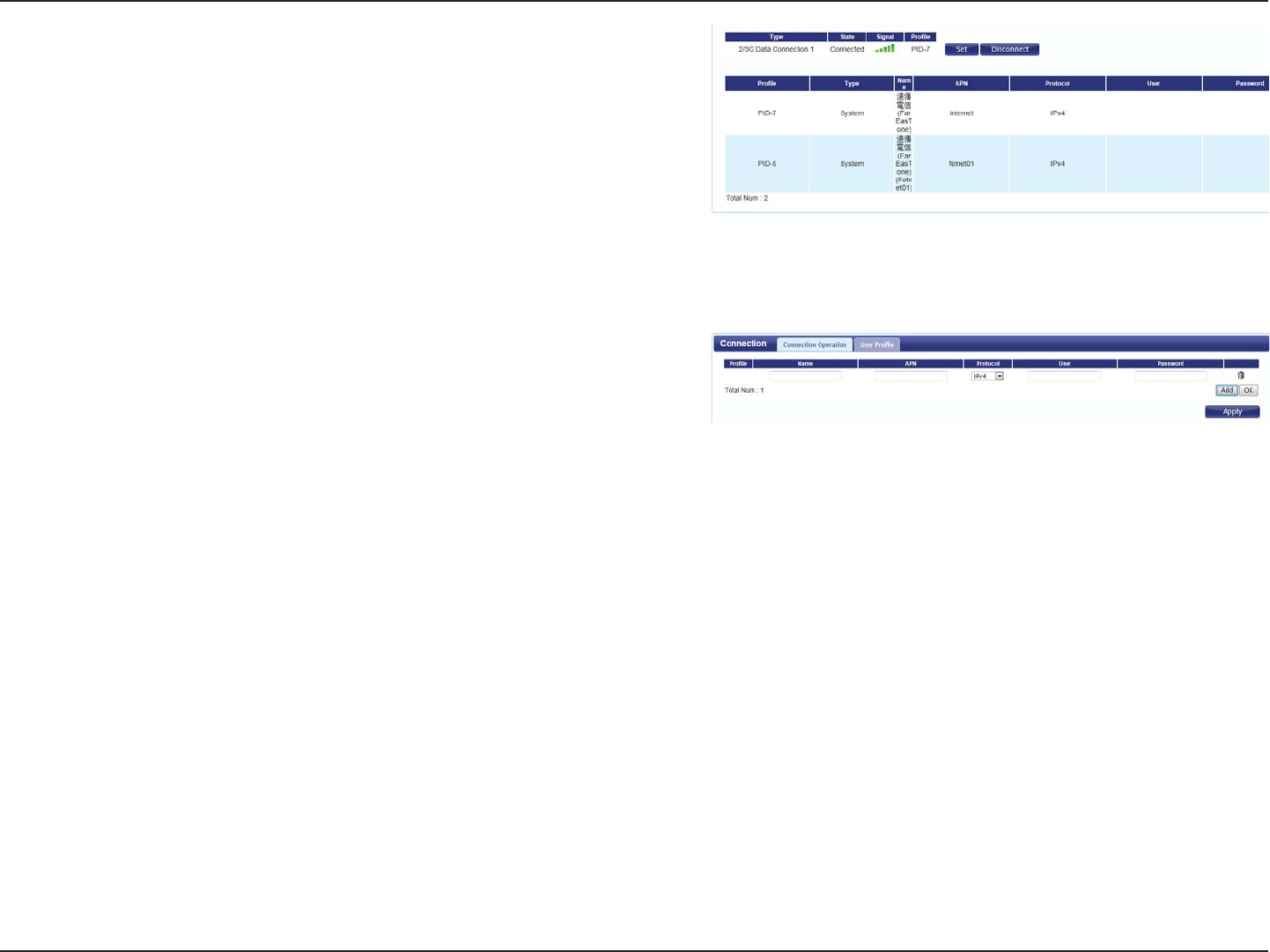

USER PROFILE
Click Add to add a new user prole.
Enter a name to identify the new user prole.
Enter the Access Point Name (APN) for the connection. If you
do not know this information, please contact your service
provider.
Select the protocol to be used for the connection from the
drop-down menu.
Enter the username to be used for this connection.
Enter the password to be used for this connection.
Click the delete icon to delete this prole from the list.
Click OK to save the prole.
Click Apply to apply the prole settings and return to the
Internet menu.
Name:
APN:
Protocol:
User:
Password:
Delete:
Connection:
Proles:
Shows the type and status of the current mobile connection.
To change the connection prole, select a user prole from
the table below and click Set to activate the prole. Click
Disconnect to manually disconnect the current mobile data
service.
The proles table shows the details of currently congured
user proles. To add a new user prole, navigate to the User
Prole tab at the top of this section.
D-Link DWR-830 User Manual 20
Section 3 - Conguration
Conguration

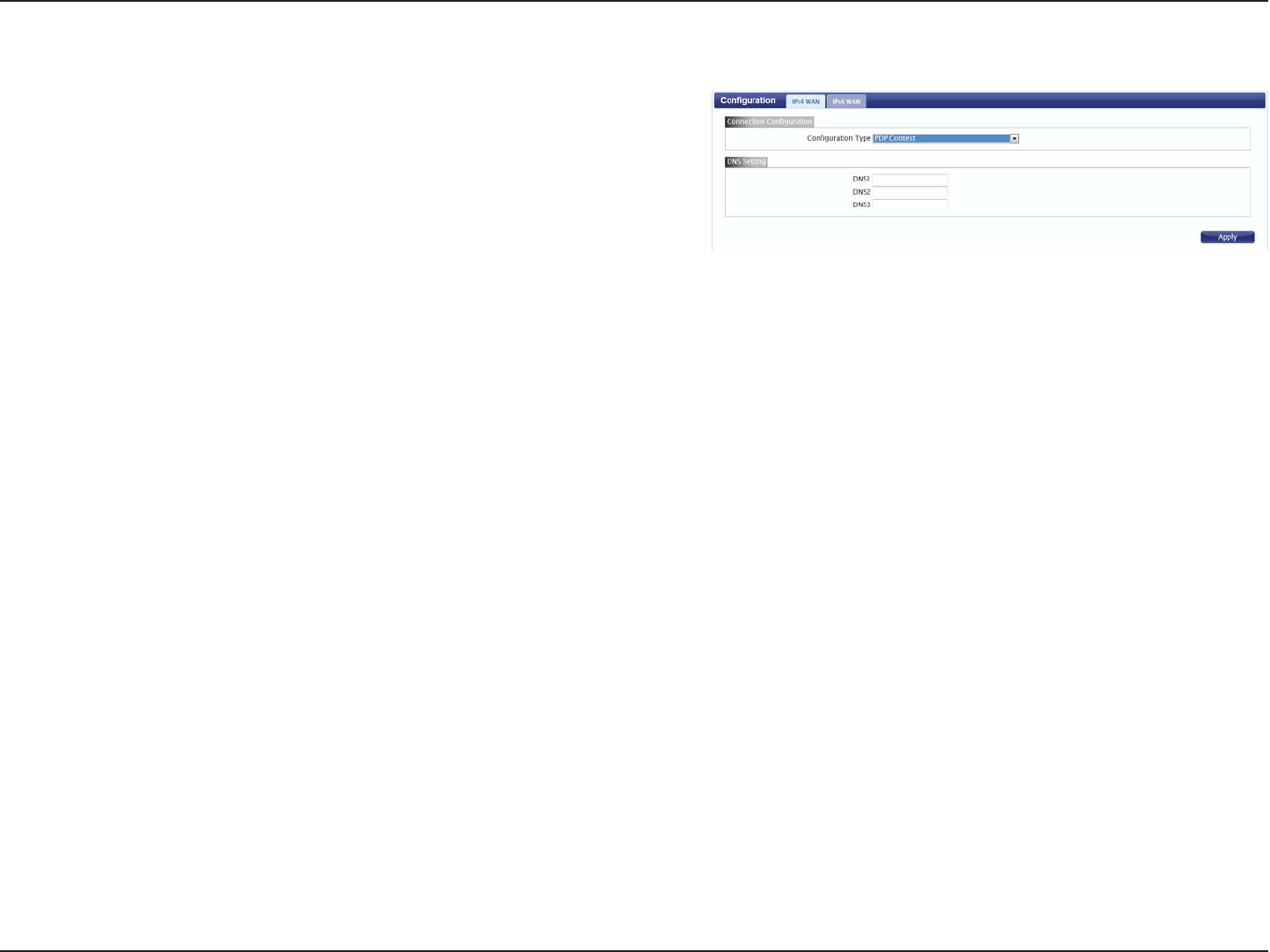

Select PDP Context from the drop-down menu.
Enter up to three DNS servers as provided to you by your
service provider.
Click Apply to apply the changes.
Connection
Type:
DNS Setting:

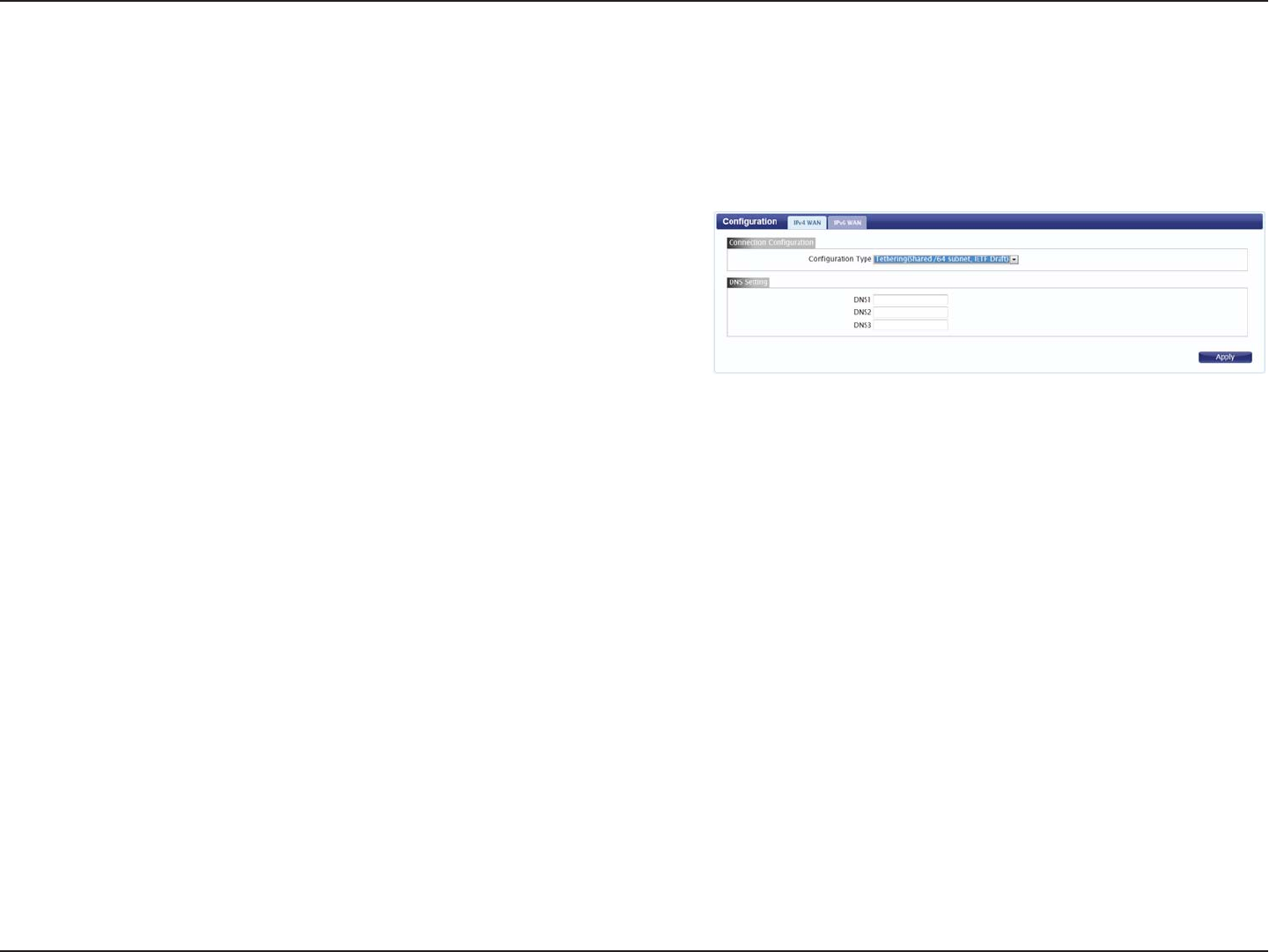

This section allows you to specify the settings for your Internet connection depending on the type of connection you wish to use, or as specied
by your Internet Service Provider. Use the IPv4 and IPv6 tabs at the top of the section to select the IP address mode.
IPv4 - PDP Context
D-Link DWR-830 User Manual 21
Section 3 - Conguration

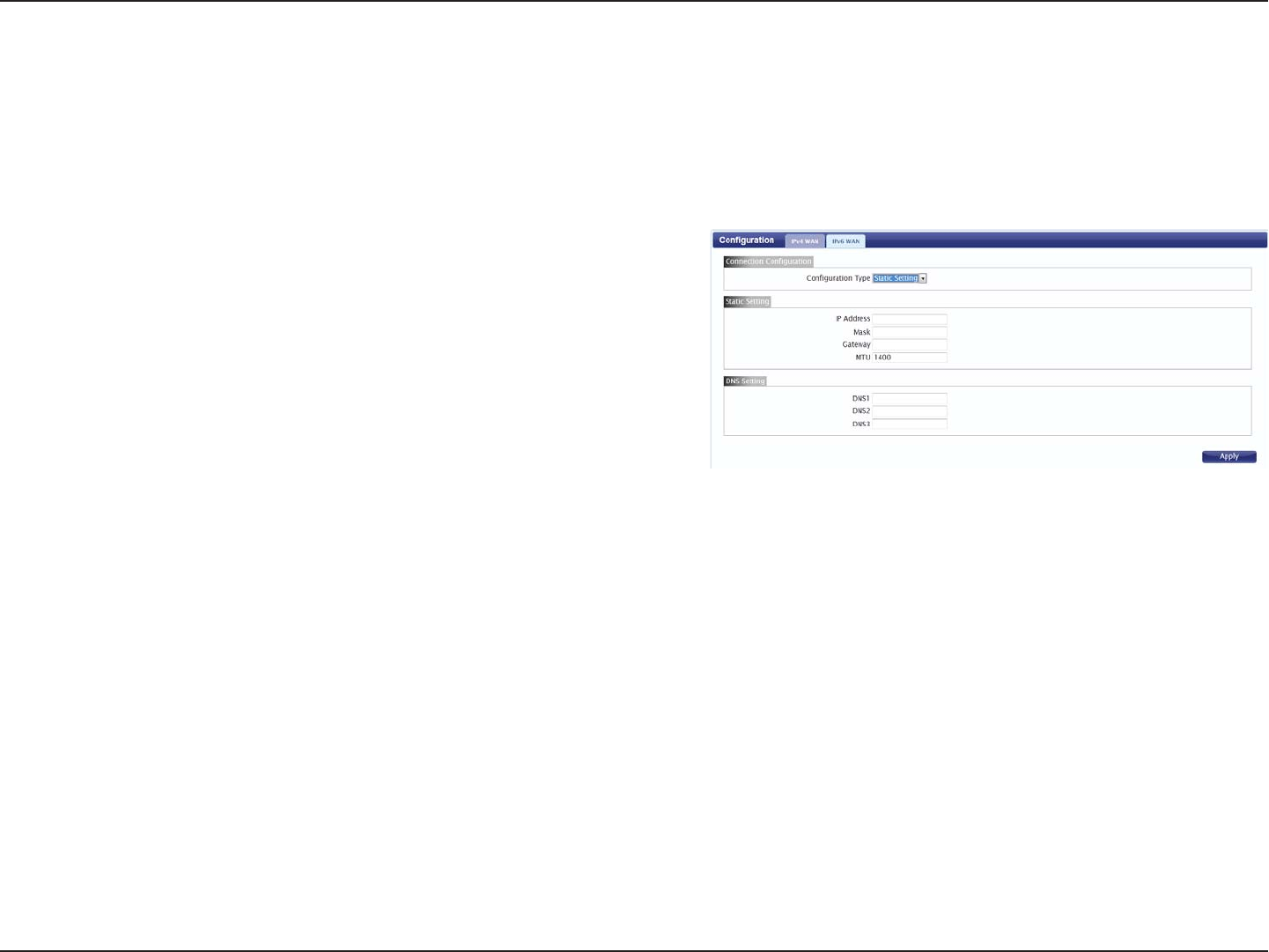

IPv4 - Static Setting
Use this setting if your Internet Service Provider has supplied you with a static (non-changing) IPv4 address. If you are missing any of the information
required in this section, please contact your ISP.
Select Static Setting from the drop-down menu.
Enter the static IP address provided to you by your ISP.
Enter the subnet mask provided to you by your ISP.
Enter the default gateway provided to you by your ISP.
Enter the maximum transmission unit for this connection.
The default MTU is 1400.
Enter up to three DNS servers as provided to you by your ISP.
Click Apply to apply the changes.
Connection
Type:
IP Address:
Mask:
Gateway:
MTU:
DNS Setting:
D-Link DWR-830 User Manual 22
Section 3 - Conguration

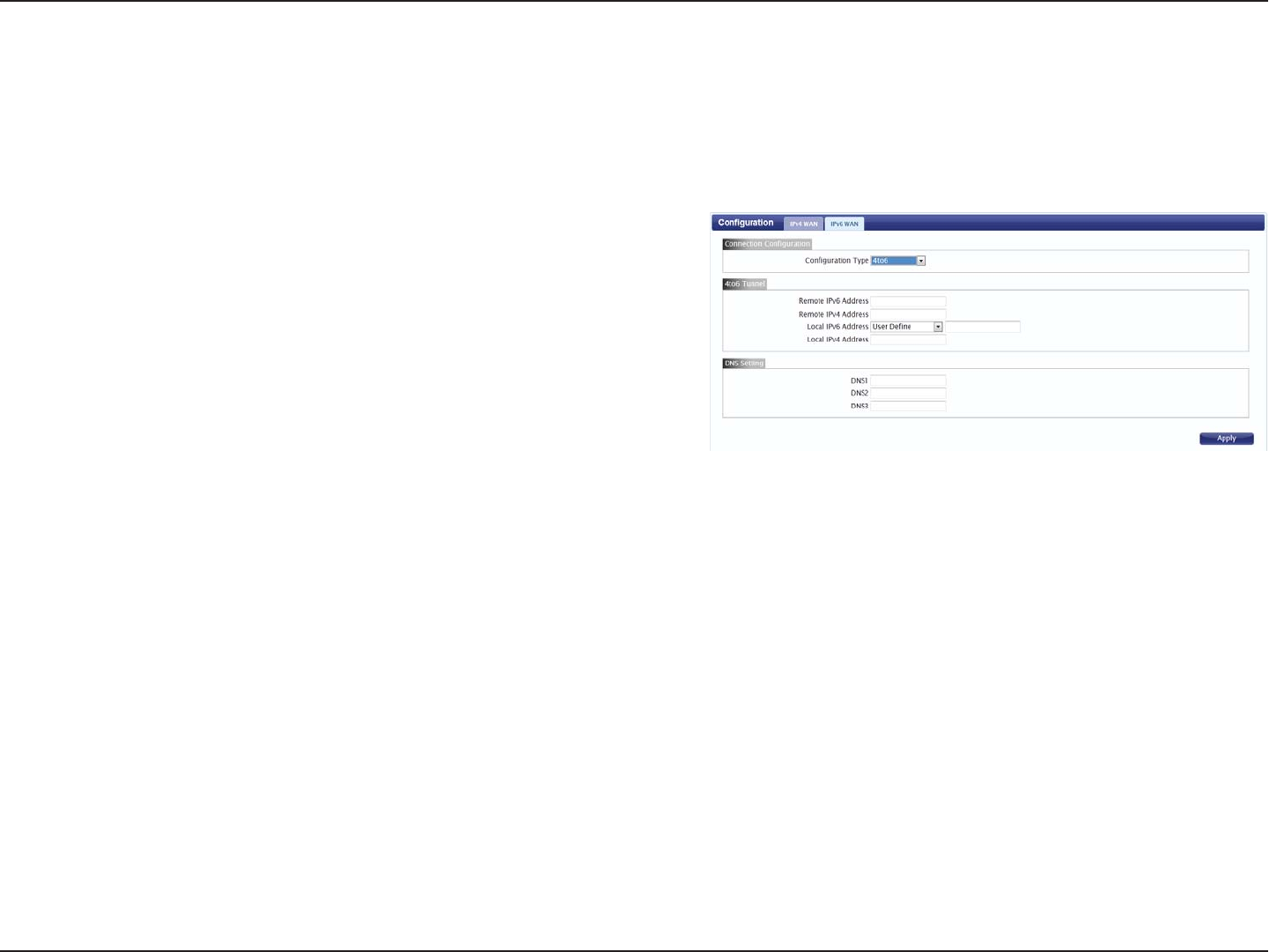

IPv4 - 4to6
Use this setting if you wish to use IPv4 through an IPv6 tunnel.
Select 4to6 from the drop-down menu.
Enter the remote IPv6 address for your connection.
Enter the remote IPv4 address for your connection.
Select User Dene from the drop-down menu to dene your
own local IPv6 address, or select WAN IPv6 Address to use
the remote IPv6 address.
Enter the local IPv4 address for your connection.
Enter up to three DNS servers as provided to you by your ISP.
Click Apply to apply the changes.
Connection
Type:
Remote IPv6
Address:
Remote IPv4
Address:
Local IPv6
Address:
Local IPv4
Address:
DNS Setting:
D-Link DWR-830 User Manual 23
Section 3 - Conguration
IPv6 - PDP Context
Select PDP Context from the drop-down menu.
Enter up to three DNS servers as provided to you by your ISP.
Click Apply to apply the changes.
Connection
Type:
DNS Setting:
D-Link DWR-830 User Manual 24
Section 3 - Conguration

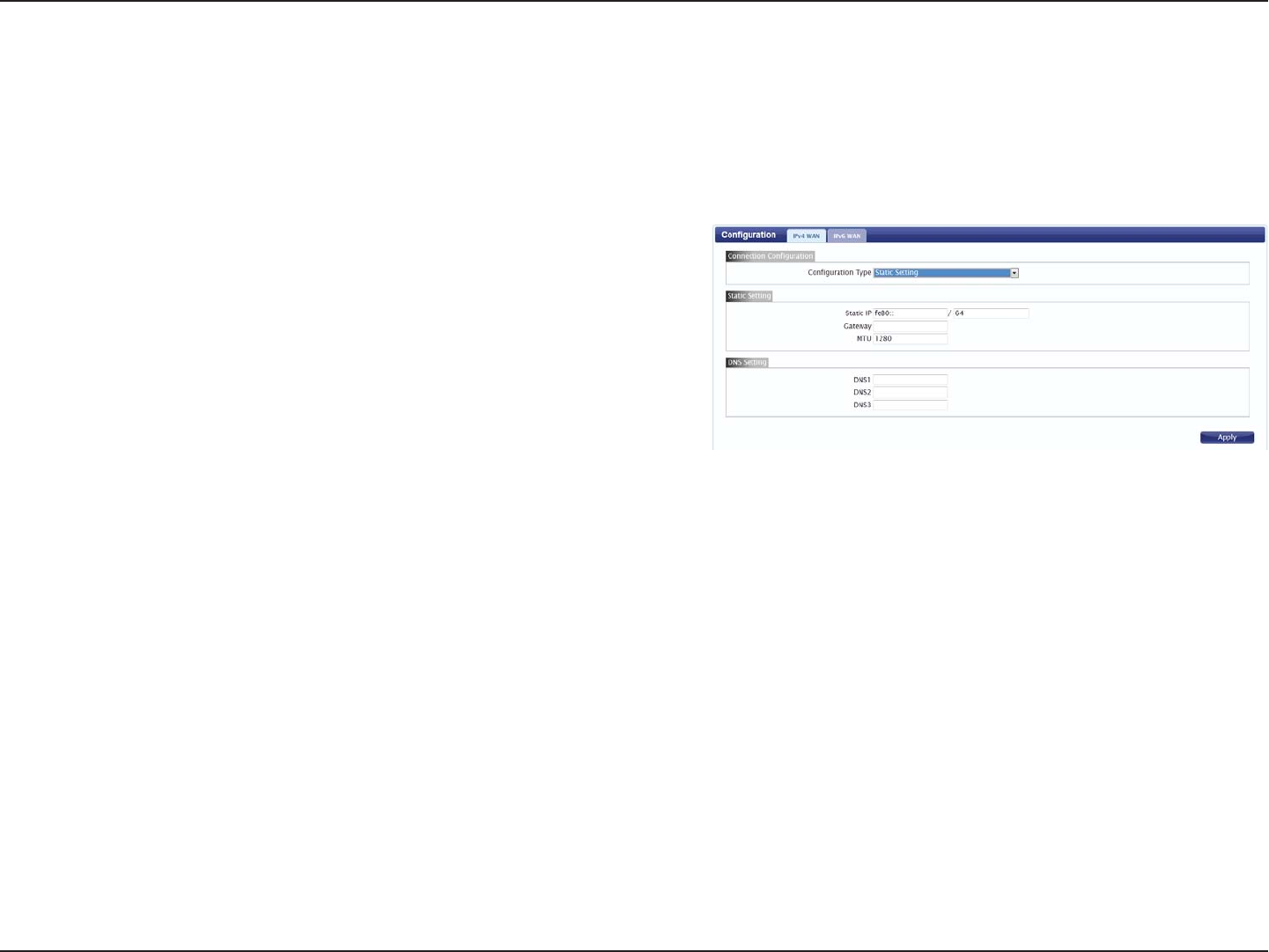

IPv6 - Static Setting
Use this setting if your Internet Service Provider has supplied you with a static (non-changing) IPv6 address. If you are missing any of the information
required in this section, please contact your ISP.
Select Static Setting from the drop-down menu.
Enter the static IPv6 address that has been supplied to you by
your service provider.
Enter the IPv6 gateway that has been supplied to you by your
service provider.
Enter the maximum transmission unit for this connection.
The default MTU is 1280.
Enter up to three DNS servers as provided to you by your ISP.
Click Apply to apply the changes.
Connection
Type:
Static IP
Gateway:
MTU:
DNS Setting:
D-Link DWR-830 User Manual 25
Section 3 - Conguration

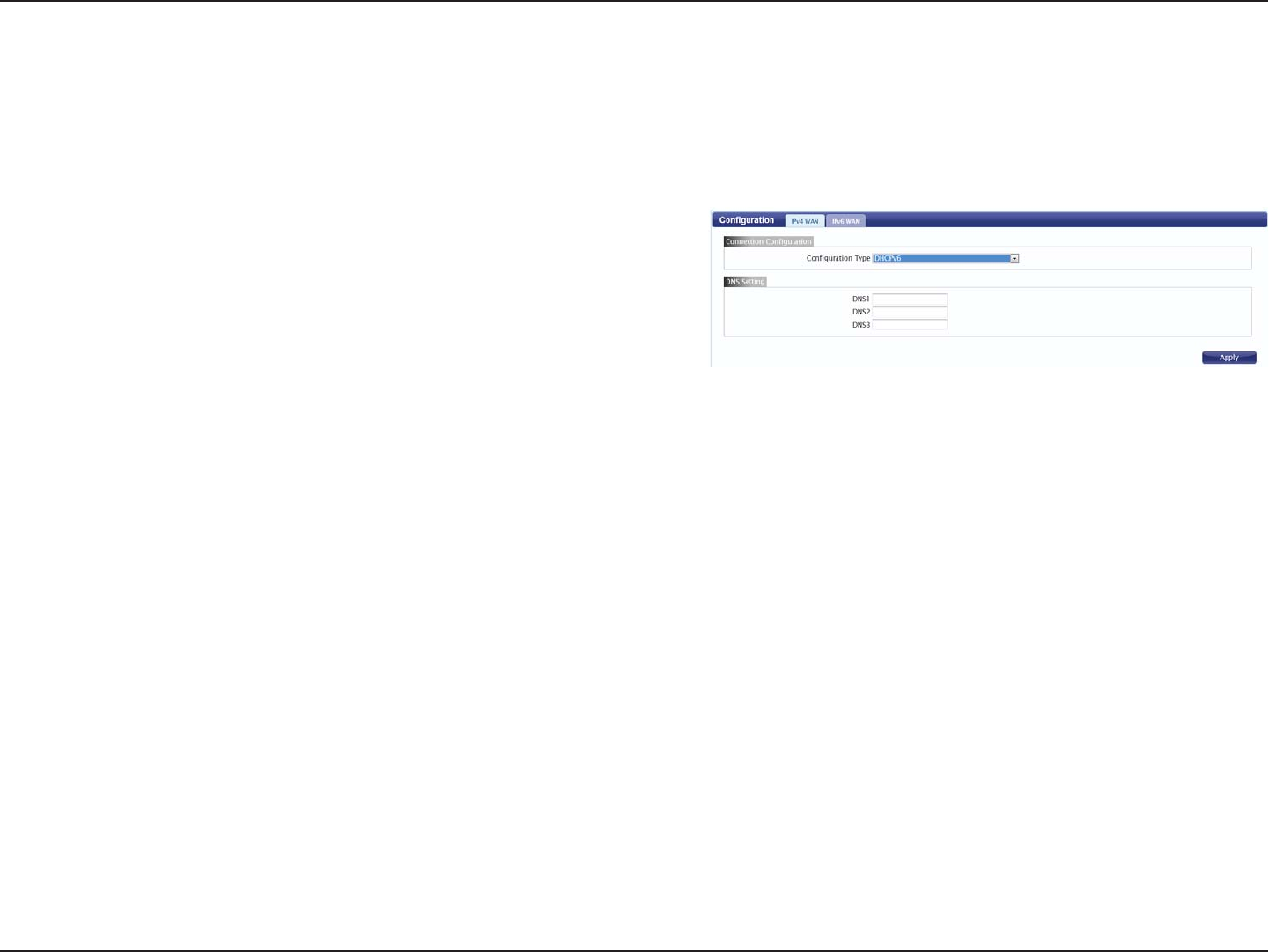

IPv6 - DHCPv6
Use this setting if your Internet connection settings and IP address are to be obtained automatically from your ISP.
Select DHCPv6 from the drop-down menu.
Enter up to three DNS servers as provided to you by your
service provider.
Click Apply to apply the changes.
Connection
Type:
DNS Setting:
D-Link DWR-830 User Manual 26
Section 3 - Conguration
Select Tethering from the drop-down menu.
Enter up to three DNS servers as provided to you by your
service provider.
Click Apply to apply the changes.
Connection
Type:
DNS Setting:

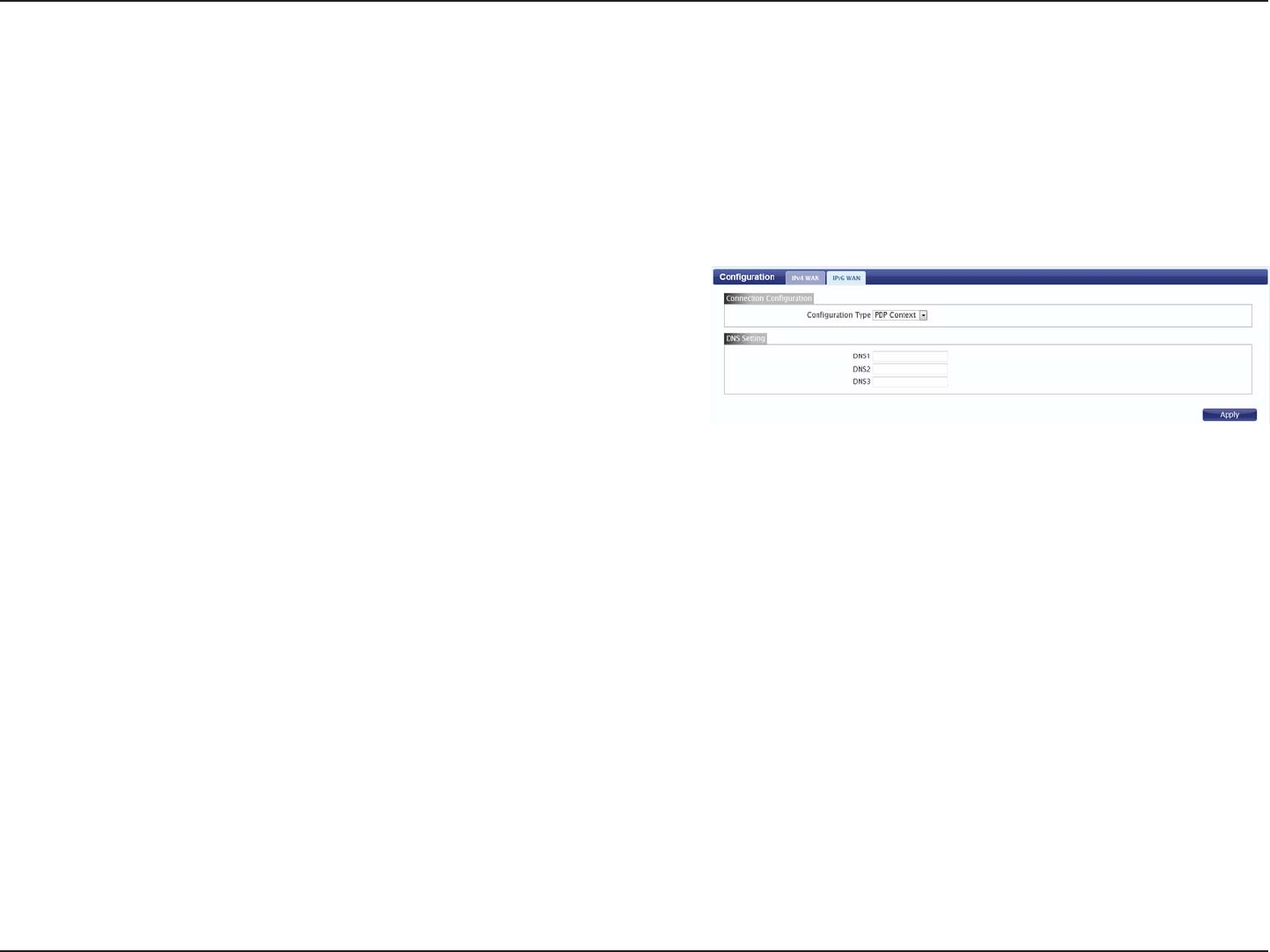

IPv6 - Tethering
Use this option to tether an IPv6 connection.
D-Link DWR-830 User Manual 27
Section 3 - Conguration

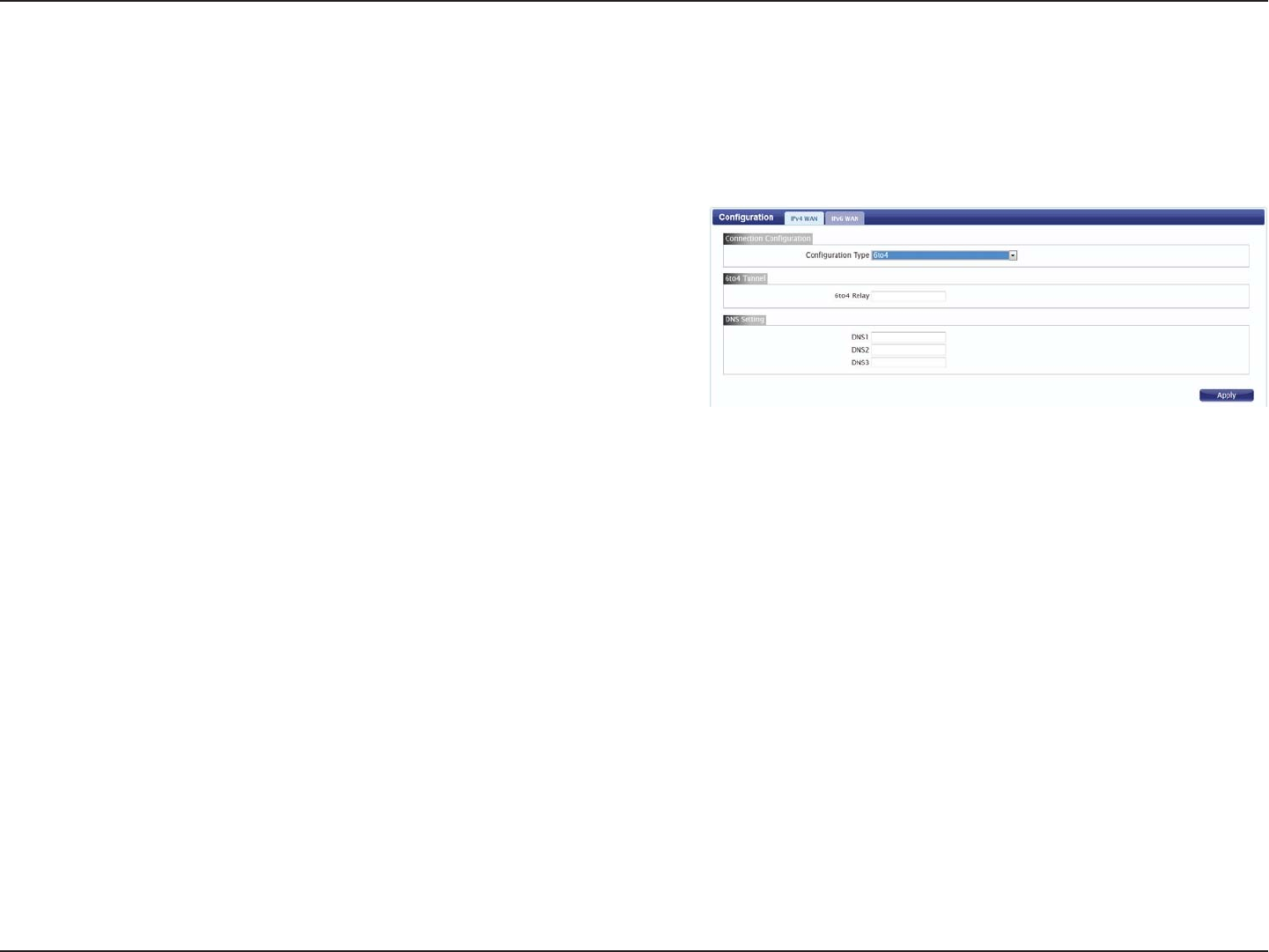

IPv6 - 6to4
Use this setting if you wish to use IPv6 through an IPv4 tunnel.
Select 6to4 from the drop-down menu.
Enter the address of the 6to4 relay server to be used for this
connection.
Enter up to three DNS servers as provided to you by your ISP.
Click Apply to apply the changes.
Connection
Type:
6to4 Relay:
DNS Setting:
D-Link DWR-830 User Manual 28
Section 3 - Conguration

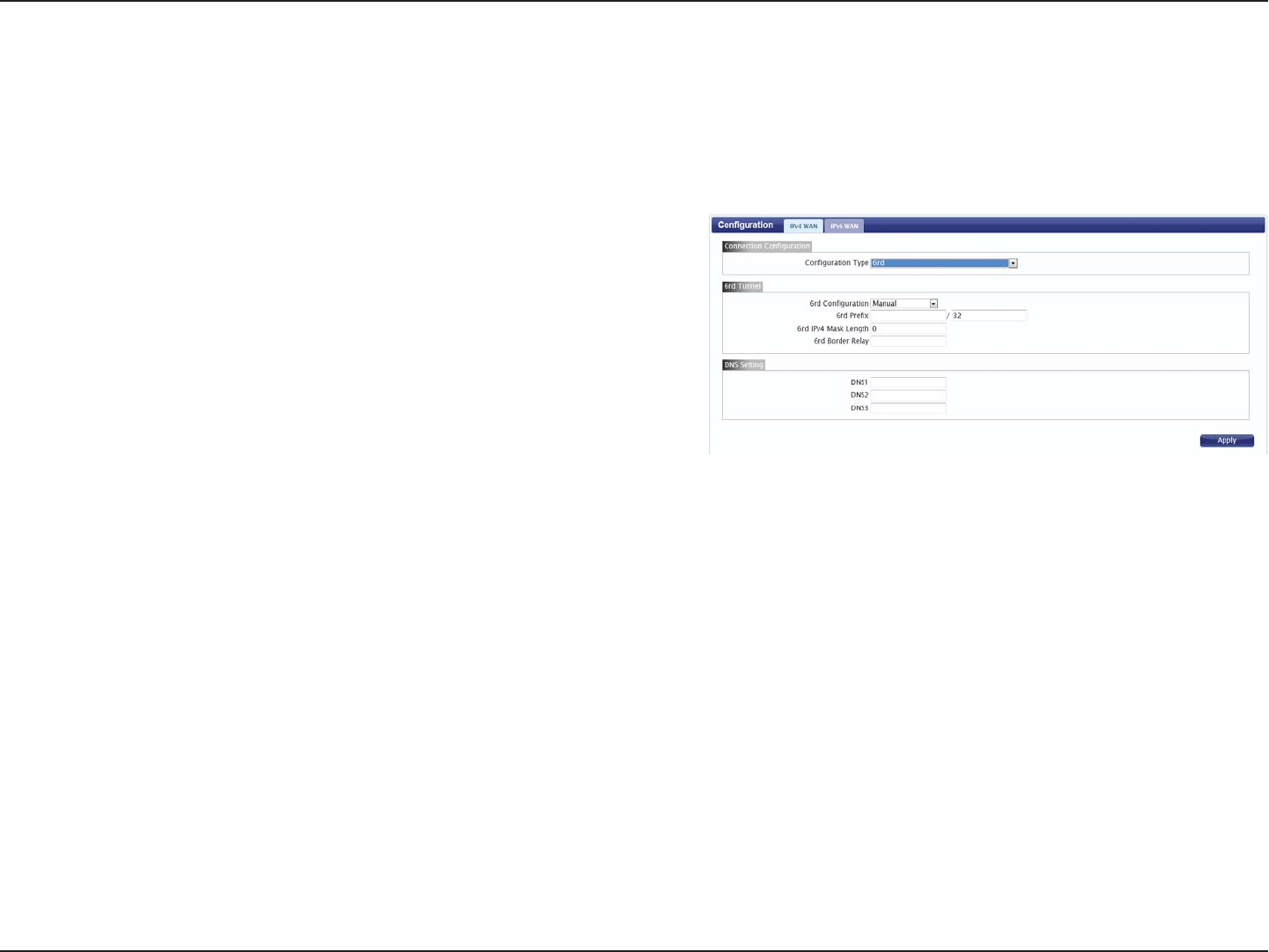

IPv6 - 6rd
Use this setting if you wish to use the IPv6 Rapid Deployment (RD) protocol.
Select 6rd from the drop-down menu.
Select Manual from the drop-down menu to manually enter
your 6rd connection information. Select DHCP 6rd Option
to receive connection information automatically from your
service provider.
Enter the 6rd prex supplied by your service provider.
Enter the mask length supplied by your service provider.
Enter the border relay supplied by your service provider.
Enter up to three DNS servers as provided to you by your ISP.
Click Apply to apply the changes.
Connection
Type:
6rd
Conguration:
6rd Prex:
6rd IPv4 Mask
Length:
6rd Border Relay:
DNS Setting:
D-Link DWR-830 User Manual 29
Section 3 - Conguration

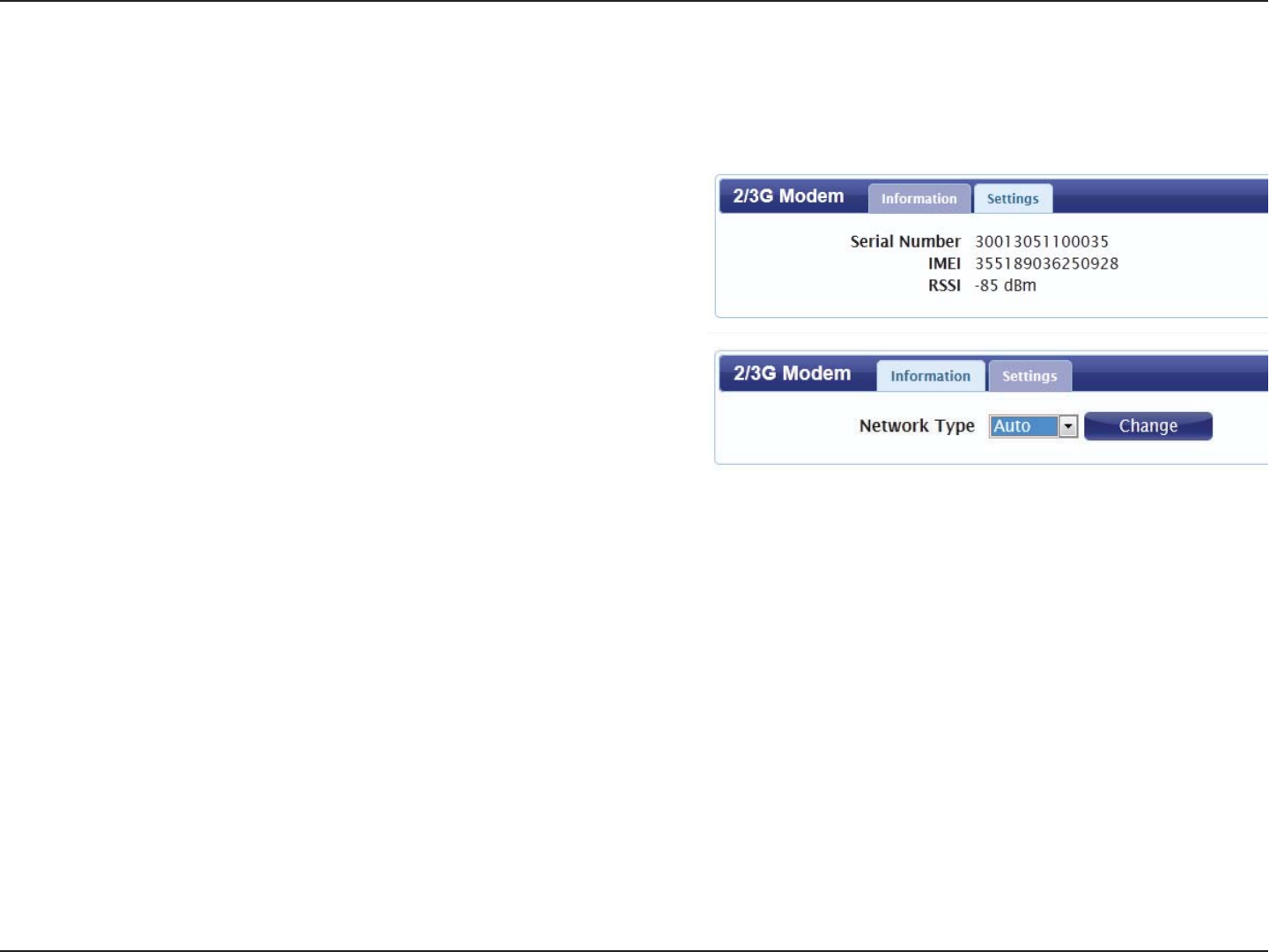

2G/3G Modem
INFORMATION
Displays information about your 2G or 3G modem.
SETTINGS
Select your preferred modem type from the drop-down
menu:
Auto - The modem will automatically select the modem type
depending on the network it is connected to.
3G Only - The modem will only connect to 3G networks.
2G Only - The modem will only connect to 2G networks.
If you wish to change the modem type, select your new
modem type and click Change to eect the change.
Re-enter the new PIN code.
Click Apply to apply the changes.
Information:
Network:
This section displays information about your 2G or 3G modem connection.
D-Link DWR-830 User Manual 30
Section 3 - Conguration

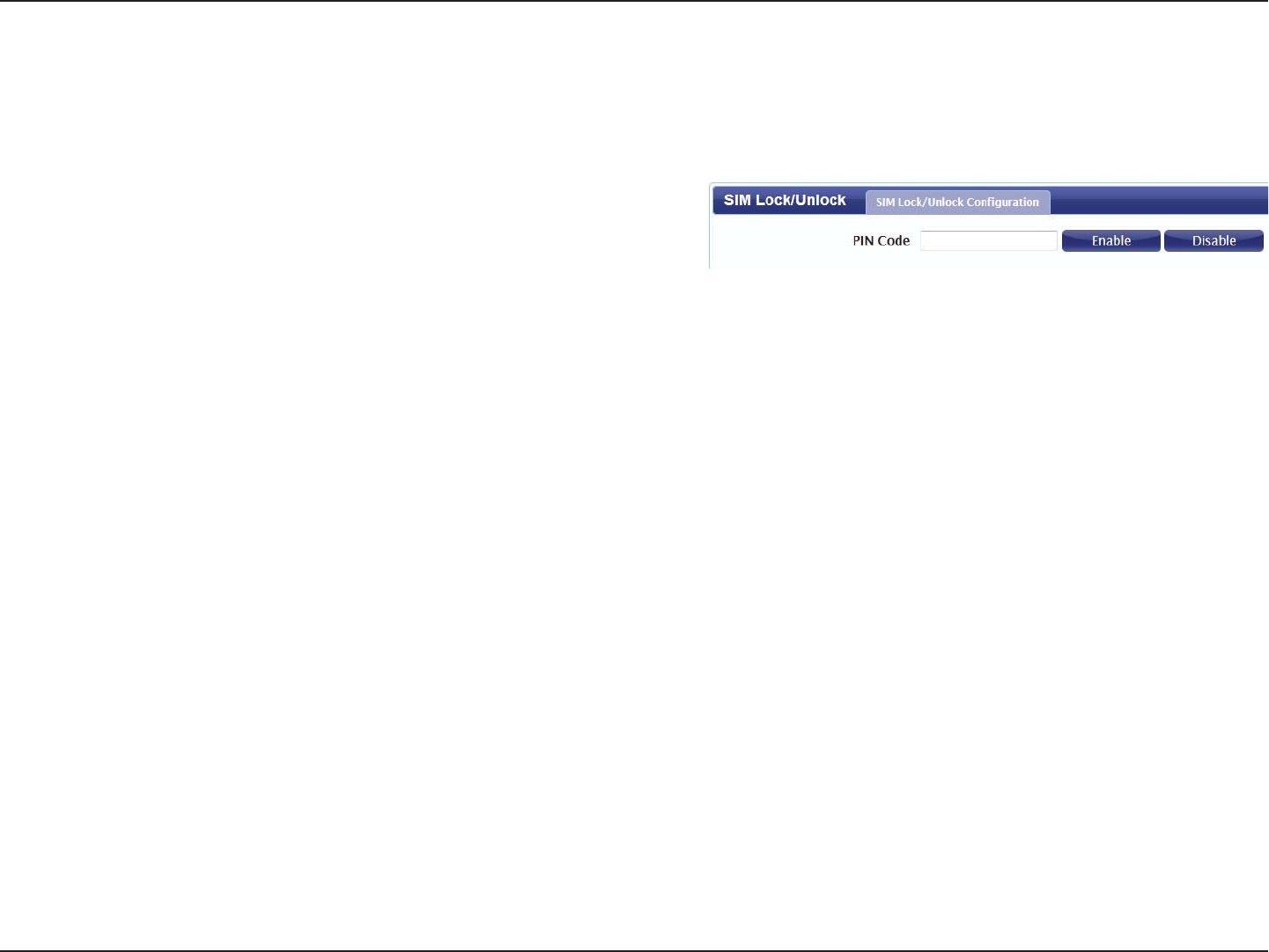

SIM
Enter the PIN code for the SIM card. Click Enable to turn on
SIM lock, or click Disable to turn o SIM lock.
PIN Code:
This section allows you to turn SIM lock on or o for the SIM card which is currently inserted into the router.
D-Link DWR-830 User Manual 31
Section 3 - Conguration

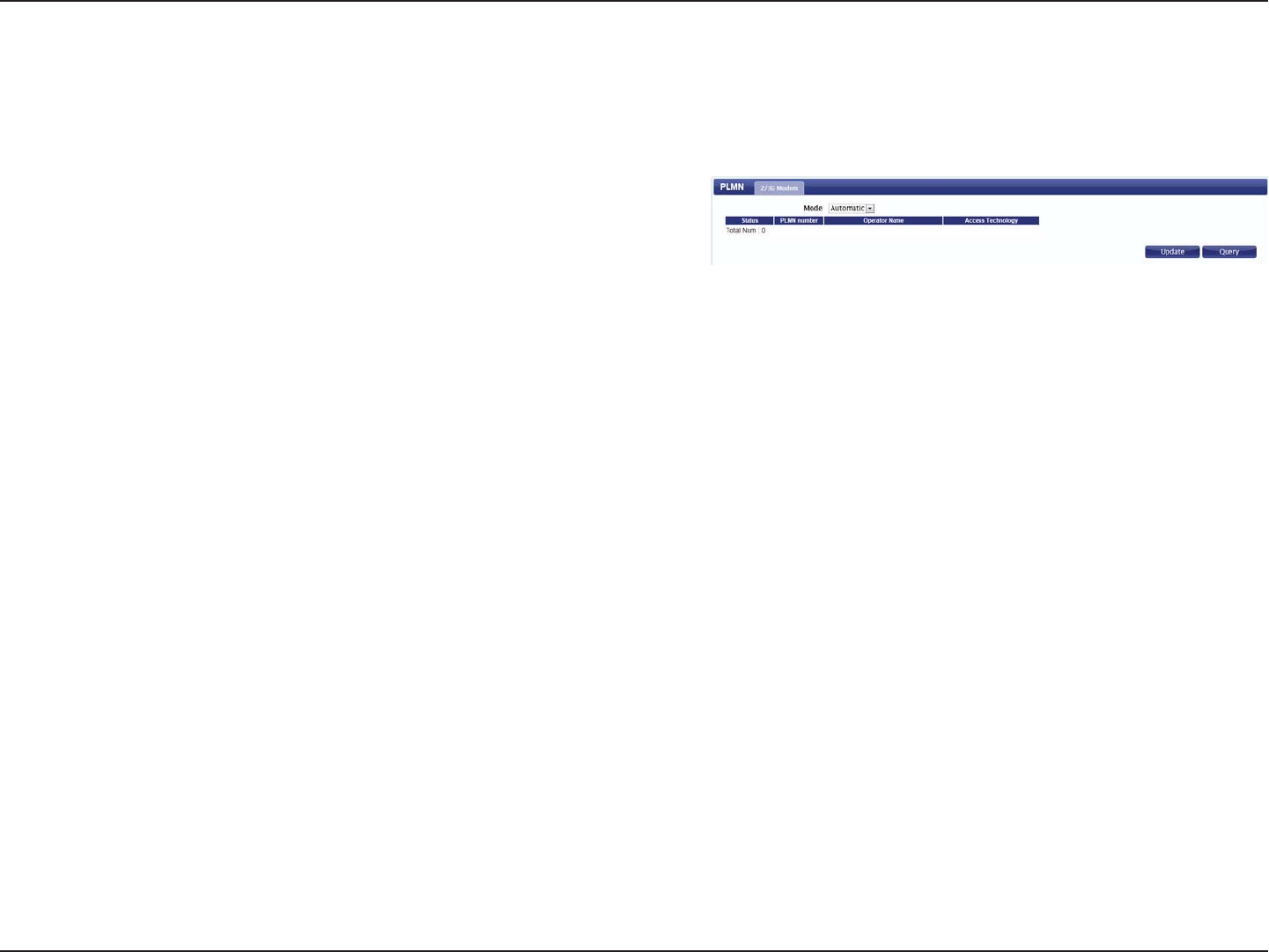

PLMN
Select Automatic to allow the router to automatically
connect to the rst available network when roaming. Select
Manual to choose your preferred roaming network from the
list below.
If you have selected Manual mode, click on the preferred
network to select it, and then click the Update button to
select that network as the preferred network. Click Query to
refresh the list of available networks.
Note: You will need to manually disconnect the current
mobile data service before selecting a network using PLMN.
Please refer to “Connection” on page 18 for further information
on how to do this.
Mode:
This page allows you to view available Public Land Mobile Networks (PLMN). This page can also be used to select a preferred network when you
are roaming outside of your home network.
D-Link DWR-830 User Manual 32
Section 3 - Conguration
Network

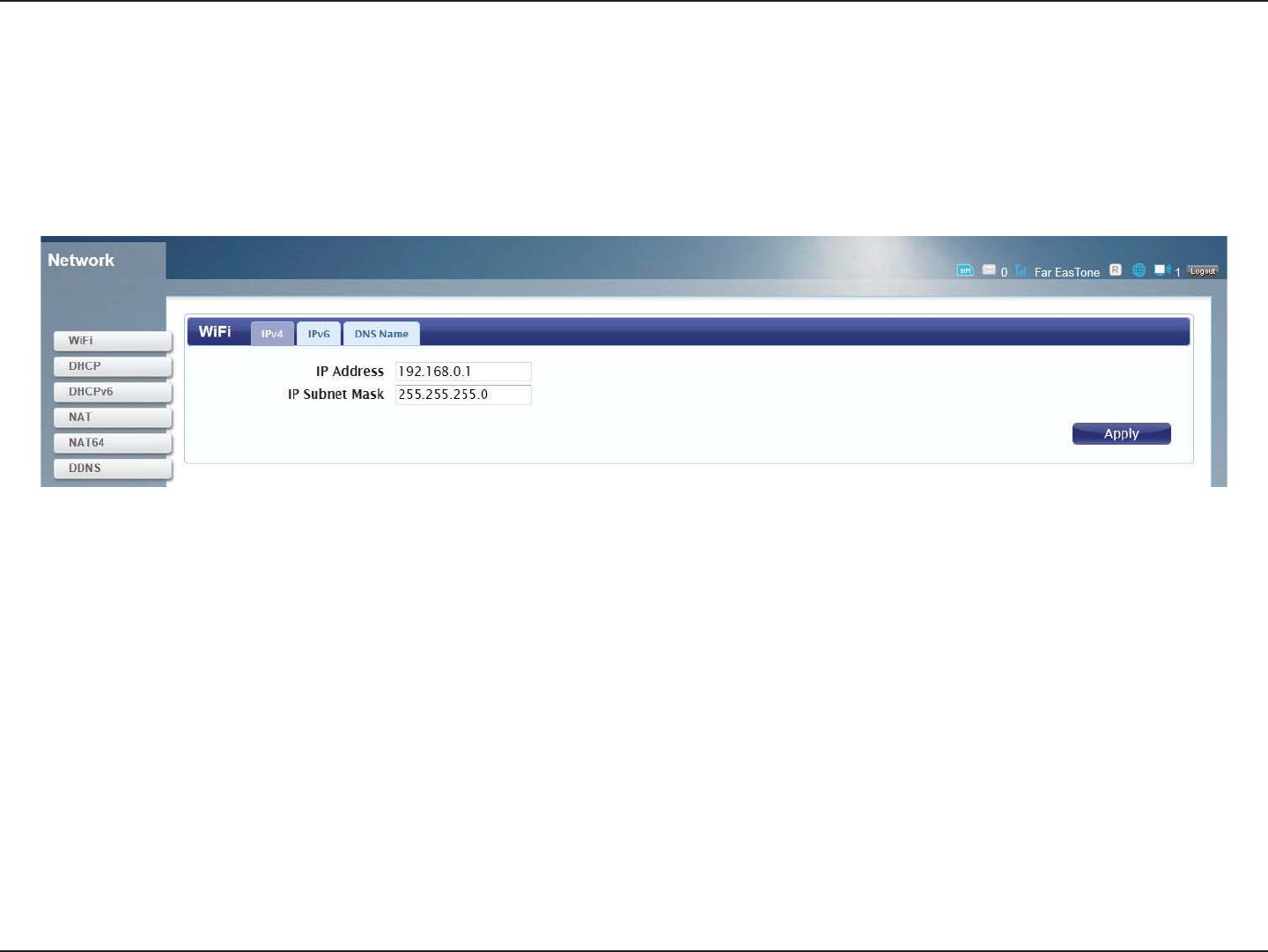

The Network pages allow you to check the current status of your Local Area Network (LAN), and make changes to LAN settings.
D-Link DWR-830 User Manual 33
Section 3 - Conguration
Wi-Fi
This section allows you to congure the IP settings for your
wireless network.
IPV4
Enter the IPv4 address for your Wi-Fi network. If you change
this address, you will need to enter the new address in your
web browser’s address bar in order to access the web-based
conguration utility.
Enter the IPv4 subnet mask for your Wi-Fi network.
Click Apply to save the current conguration.
IPV6
Enter the IPv6 address for your Wi-Fi network.
Enter the prex to be used to delegate IPv6 addresses to the
LAN.
Check the box to set the router announcement mode to
autonomous.
Check the box to enable router announcement on-link
Click Apply to save the current conguration.
DNS NAME
Enter your router’s DNS device name in the eld provided.
Click Apply to save the current conguration.
IP Address:
IP Subnet Mask:
IPv6 Address:
Prex for LAN:
RA Autonomous:
RA On-Link:
DNS Device Name:
D-Link DWR-830 User Manual

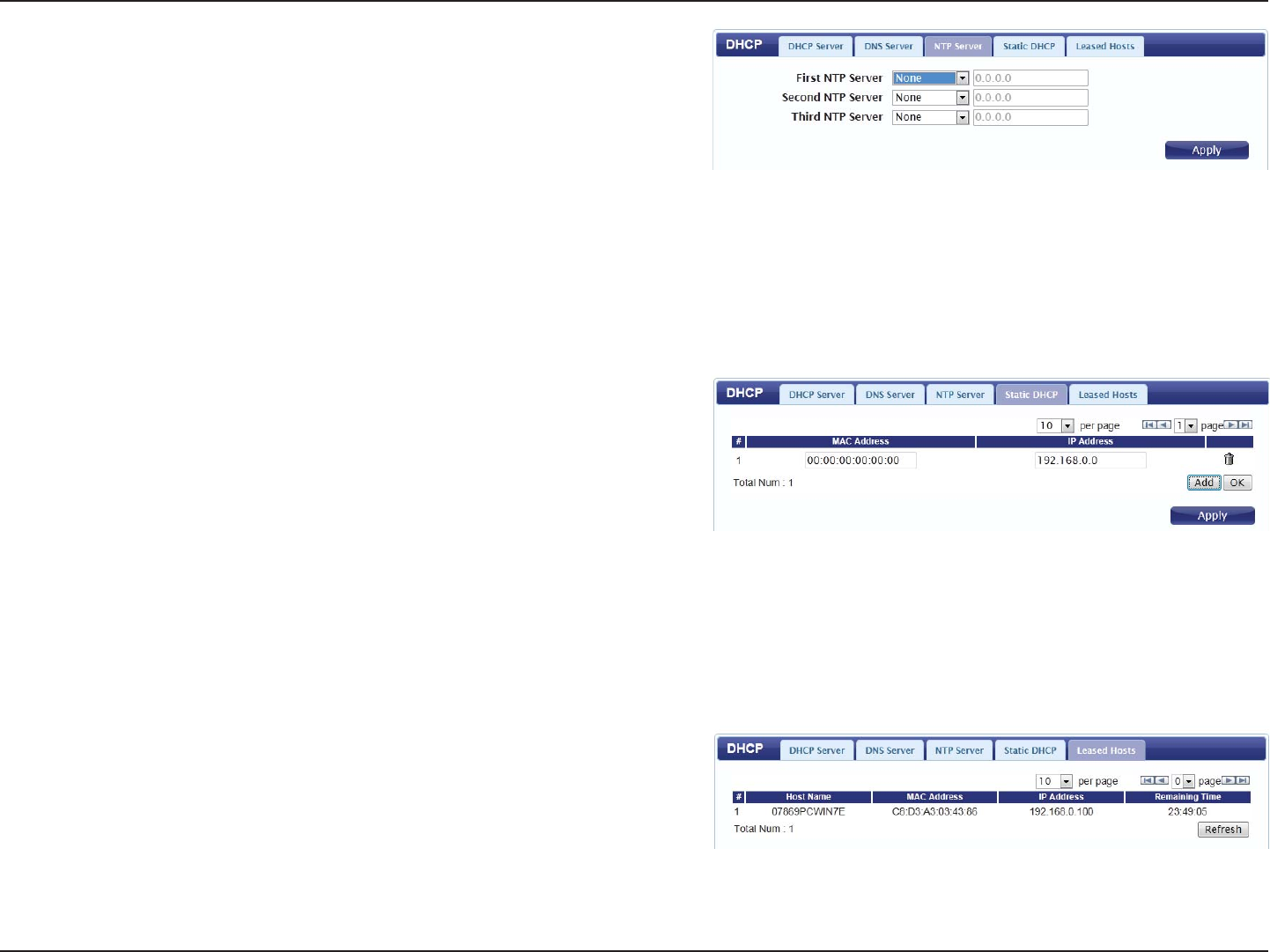

The DWR-830 has a built-in DHCP server which can assign
34
Section 3 - Conguration

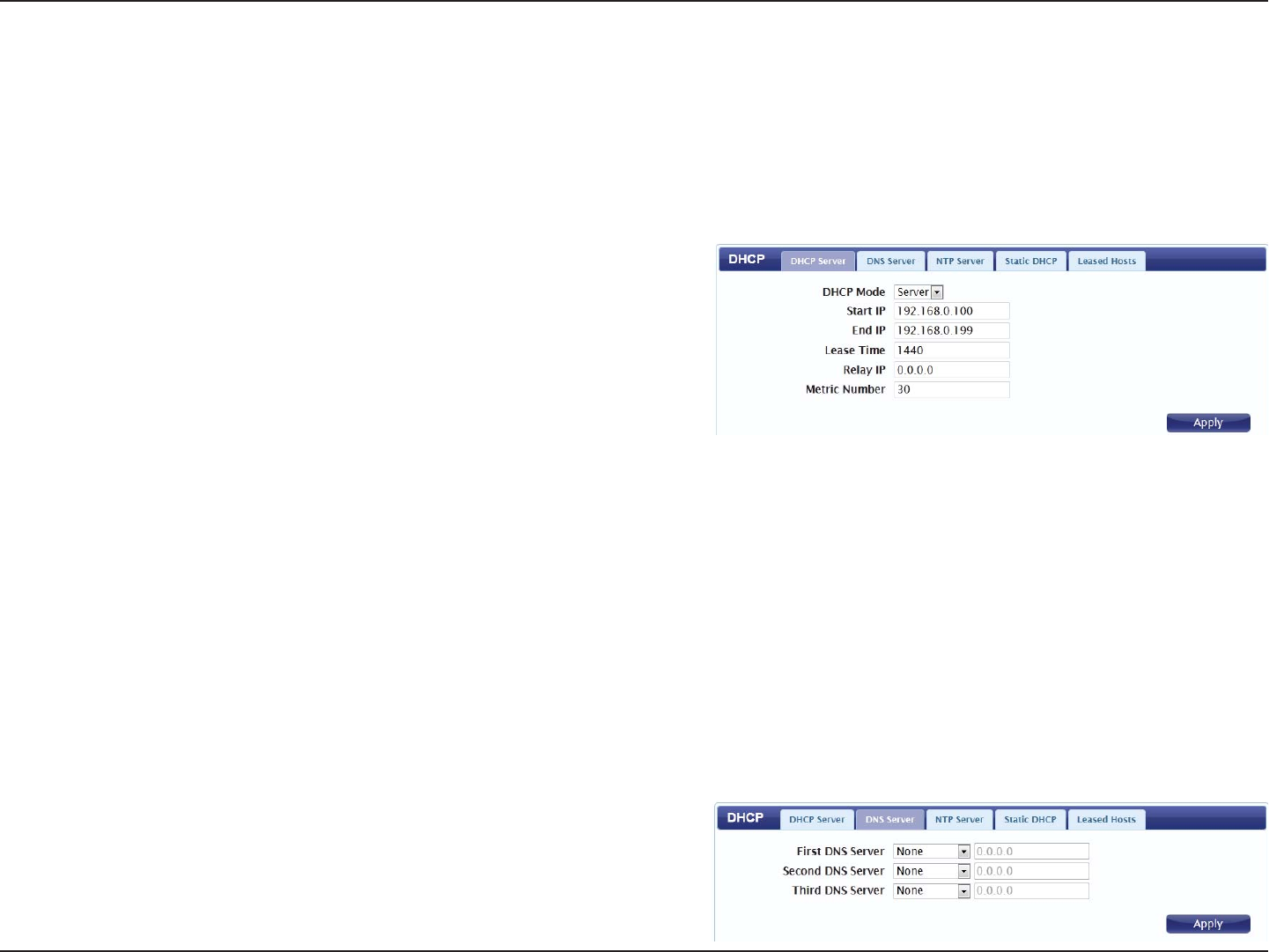

DHCP
IP addresses to connected clients. This section allows you to
congure the DHCP settings.
DHCP SERVER
Select the desired DHCP mode from the drop down menu:
None - Turns o DHCP functionality
Server - The router will act as a DHCP server and assign IP
addresses to connected devices.
Relay - The router will act as a relay between DHCP clients
and a DHCP server on another subnet.
Enter the starting address for the DHCP pool.
Enter the ending address for the DHCP pool.
Enter the lease time (in minutes) for assigned IP addresses.
If you selected Relay above, enter the IP address of the DHCP
server to be relayed.
Enter the metric number to be used for the DHCP server.
Click Apply to save the current conguration.
DNS SERVER
Select None from the drop-down menus if you do not wish to
specify a rst, second, or third DNS server. Select User Dene
to specify a DNS server, and enter the address of the server in
the eld provided.
Click Apply to save the current conguration.
DHCP Mode:
Start IP:
End IP:
Lease Time:
Relay IP:
Metric Number:
First/Second/
Third DNS
Server:
D-Link DWR-830 User Manual 35
Section 3 - Conguration
STATIC DHCP
Use this option to specify a DHCP address reservation to a
particular device or machine based on MAC address. To add a
new reservation, click Add.
Enter the MAC address of the device or machine for which
you wish to make the DHCP reservation.
Enter the IP address that you wish to reserve. This address
must be within the DHCP address pool.
Click OK to save the reservation.
LEASED HOSTS
This table shows the details of clients currently receiving a
DHCP address from the DHCP server. Click Refresh to update
the table.
MAC Address:
IP Address:
NTP SERVER
Select None from the drop-down menus if you do not wish
to specify a rst, second, or third Network Time Protocol
server. Select From ISP to use the automatic settings
supplied by your ISP, or select User Dene to specify an
NTP server, and enter the address of the server in the eld
provided.
Click Apply to save the current conguration.
First/Second/
Third NTP
Server:
D-Link DWR-830 User Manual 36
Section 3 - Conguration

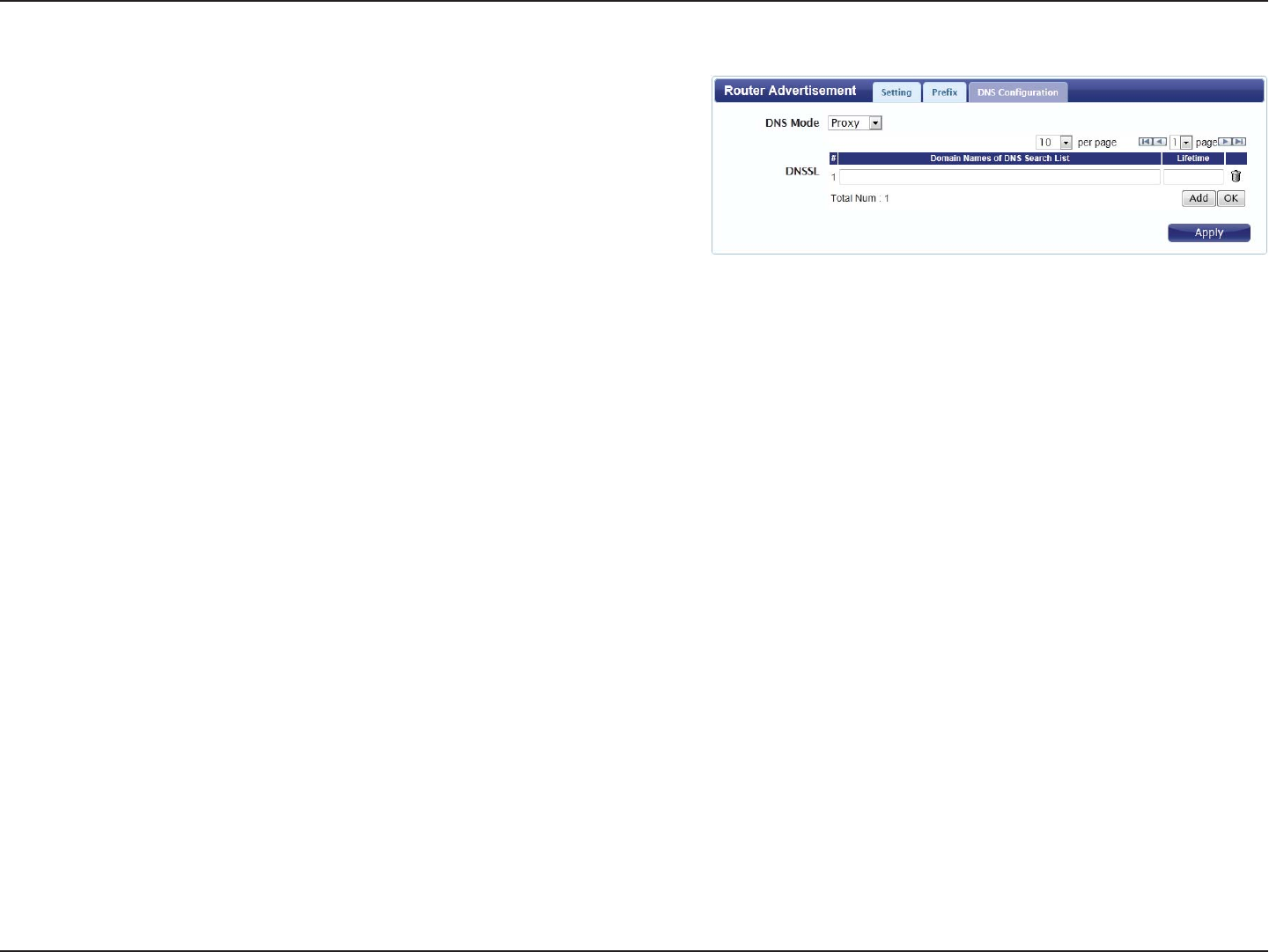

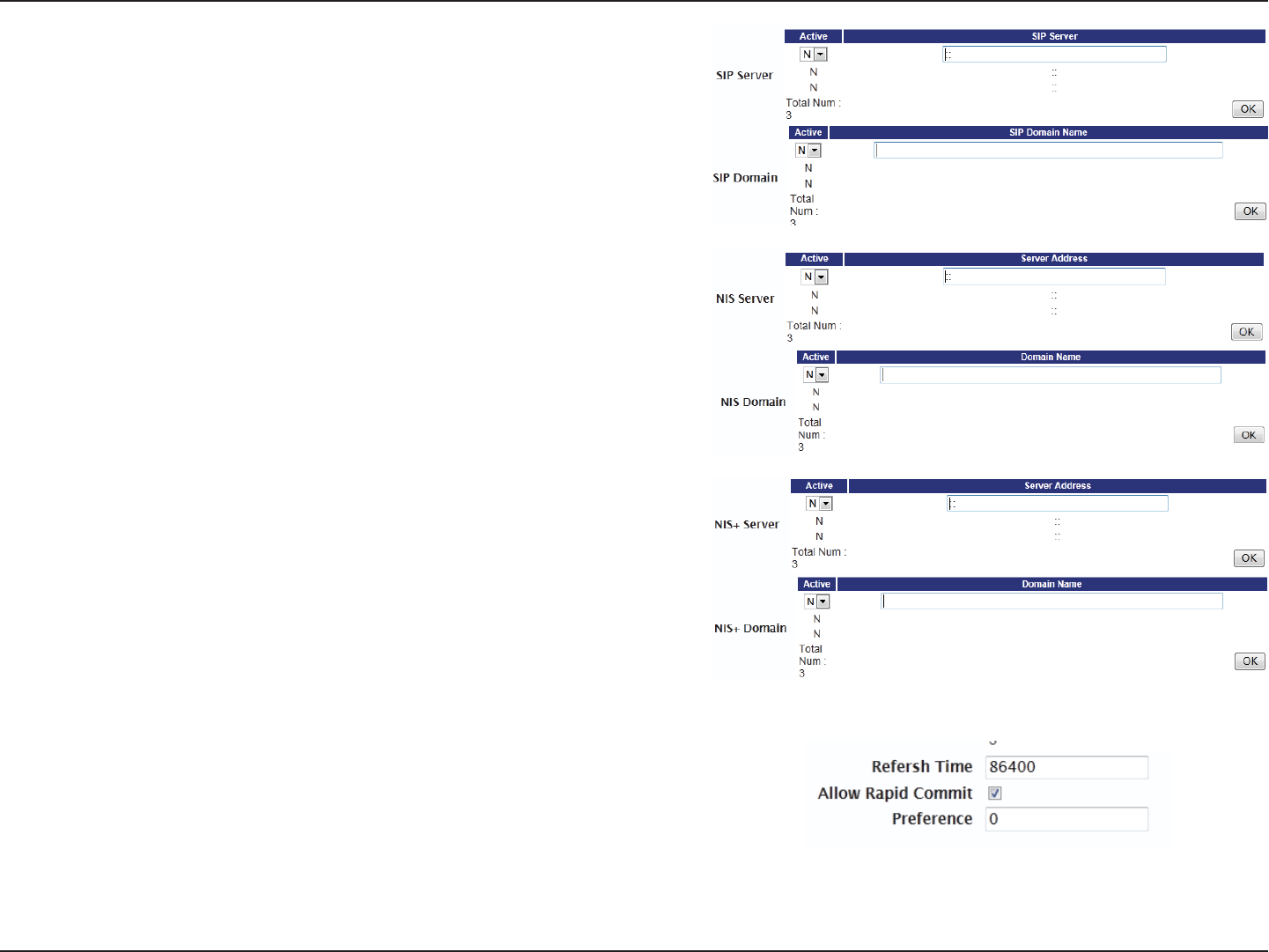

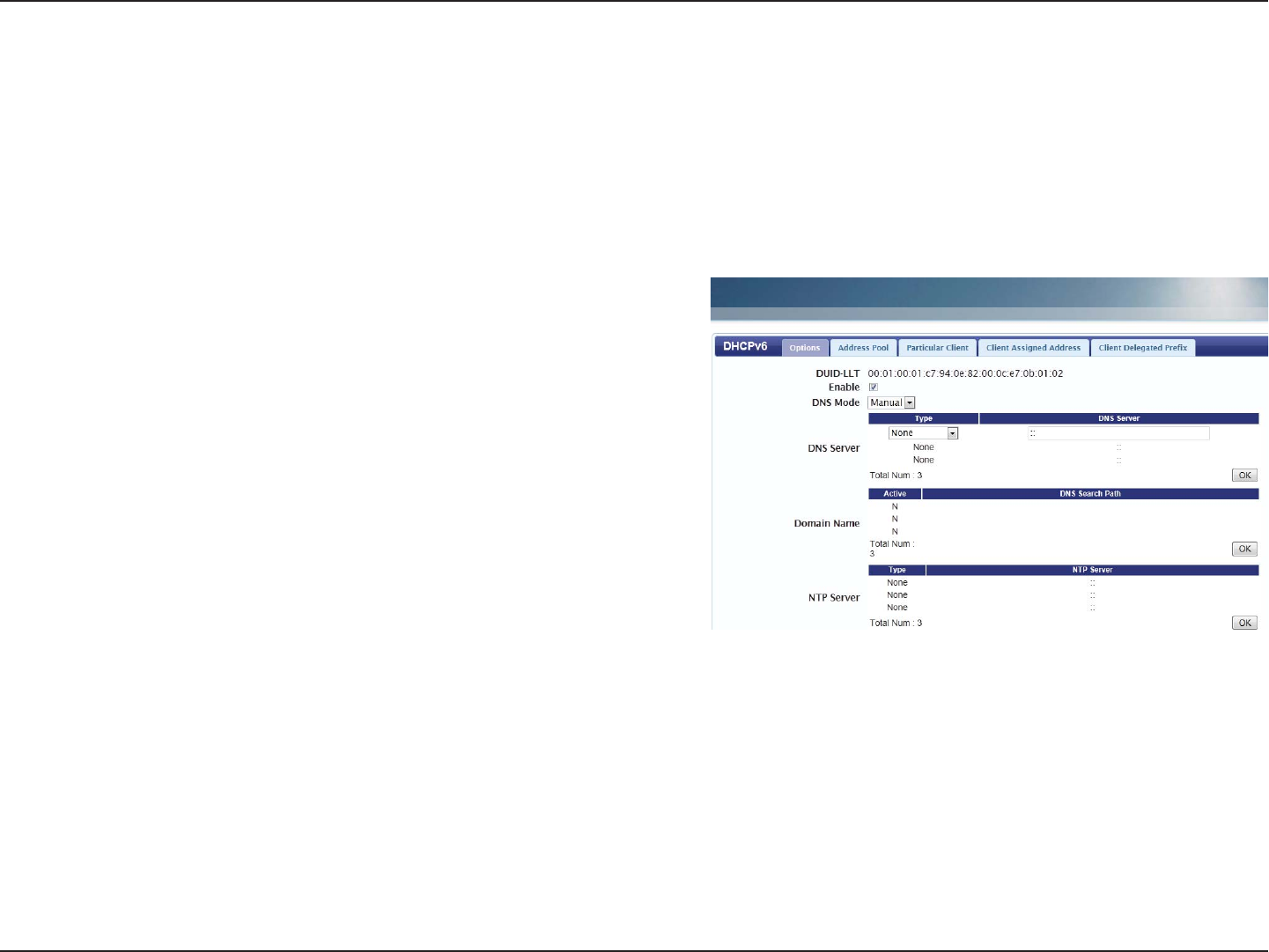

DHCPv6
OPTIONS
Displays the router’s DHCP Unique Identier.
Check the box to enable the router to operate as a DHCPv6
server and issue DHCPv6 IP addresses to requesting clients.
Select the preferred Domain Name Server (DNS) mode from
the drop down menu. Select Manual to manually enter DNS
information. Select Proxy to use a proxy server to resolve the
DNS information.
If you selected Manual above, select whether you want to
use None, From ISP, or User Dened for your domain name
server. Enter the address of your DNS in the eld provided.
Enter the DNS search path for your domain. From the drop-
down menu on the left, select Y to activate the setting, or N
to deactivate it.
Select IP Address from the drop-down menu and enter the
IP address of an NTP server which will provide IPv6 Network
Time Protocol information to IPv6 hosts.
DUID-LLT:
Enable:
DNS Mode:
DNS Server:
Domain Name:
NTP Server:
This section allows you to congure your router’s DHCP server for the IPv6 protocol. To edit any of the elds under this tab,
click on the eld that you wish to edit, and a text box will appear. Click OK at the bottom of each section to save that particular
rule or conguration.
D-Link DWR-830 User Manual 37
Section 3 - Conguration
SIP Server:
SIP Domain:
NIS Server:
NIS Domain:
NIS+ Server:
NIS+ Domain:
Refresh Time:
Allow Rapid
Commit:
Preference:
Select Y(es) or N(o) as the status of the SIP server function.
Enter the address of a Session Information Protocol (SIP)
server.
Select Y(es) or N(o) as the status of the SIP domain name
function. Enter the SIP domain name for the rule.
Select Y(es) or N(o) as the status of the NIS server function.
Enter the address of a Network Information Service (NIS)
server.
Select Y(es) or N(o) as the status of the NIS domain name
function. Enter the NIS domain name for the rule.
Select Y(es) or N(o) as the status of the NIS+ server function.
Enter the address of a Network Information Service Plus
(NIS+) server.
Select Y(es) or N(o) as the status of the NIS+ domain name
function. Enter the NIS+ domain name for the rule.
Enter the amount of time a DHCP client should wait before
refreshing DHCP information with the DHCP server.
Check this option to allow a two-method exchange method
for faster conguration as dened by the rapid commit
protocol.
Enter an integer to represent the preference level for the
advertisement message
D-Link DWR-830 User Manual 38
Section 3 - Conguration

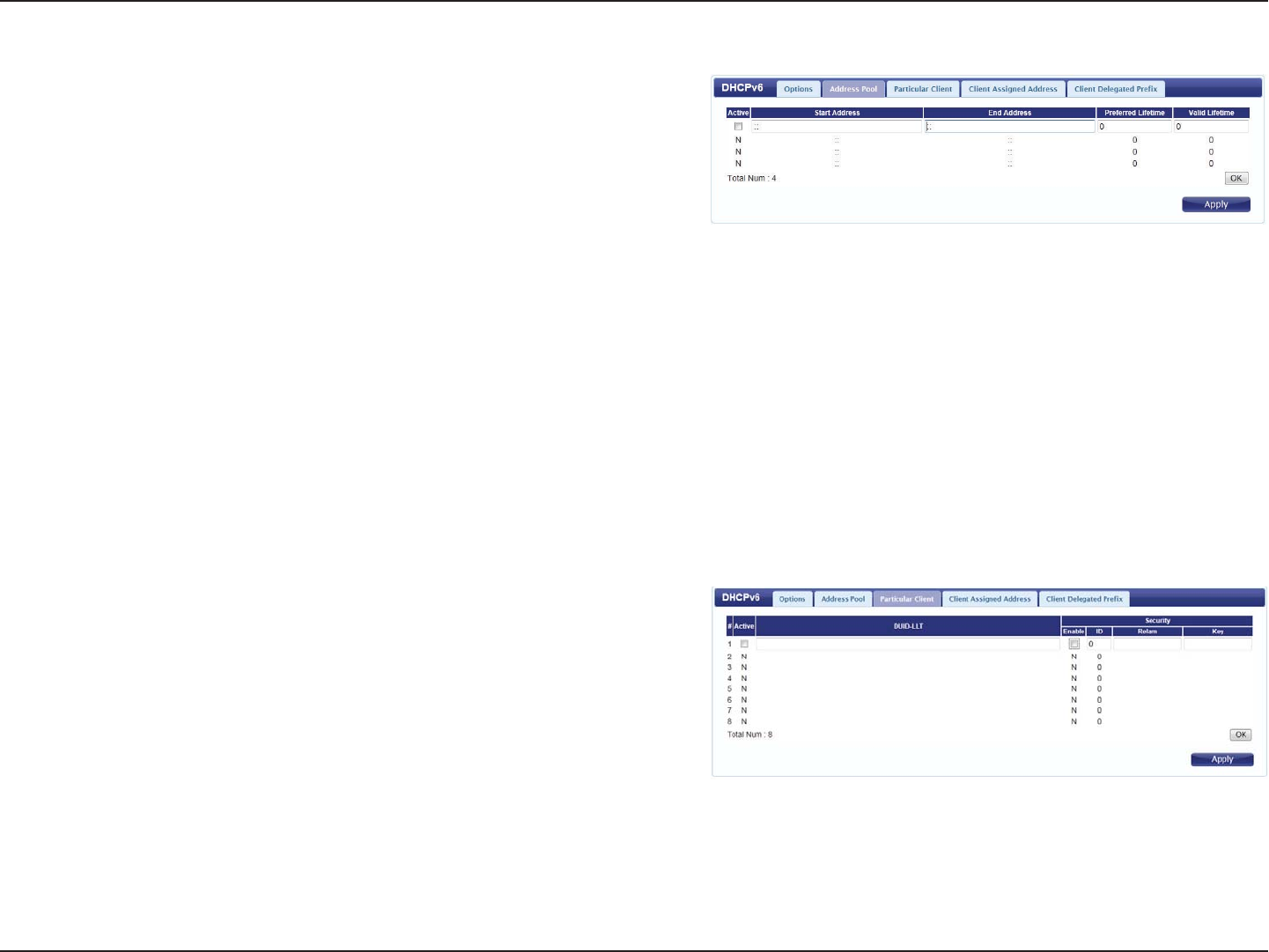

ADDRESS POOL
This tab allows you to specify address ranges for the DHCPv6
address pool. These addresses will be assigned to DHCPv6
clients that request an IPv6 address from the DHCP server.
Check the box to activate the address pool rule.
Enter the starting IPv6 address for the pool range.
Enter the ending IPv6 address for the pool range.
Enter the preferred lifetime for addresses in the DHCP pool.
Enter the valid lifetime for addresses in the DHCP pool. This
value should be larger that the preferred lifetime.
Click OK to save the DHCP address pool rule. Click Apply to
save the current settings.
PARTICULAR CLIENT
Check the box to activate the rule.
Enter the DHCP Unique Identier (DUID) for the rule.
Check the box to enable security on this rule. Enter the ID,
Realm and Key for security using the DUID.
Click OK to save the current conguration.
Active:
Start Address:
End Address:
Preferred
Lifetime:
Valid Lifetime:
Active:
DUID-LLT:
Security:
D-Link DWR-830 User Manual 39
Section 3 - Conguration

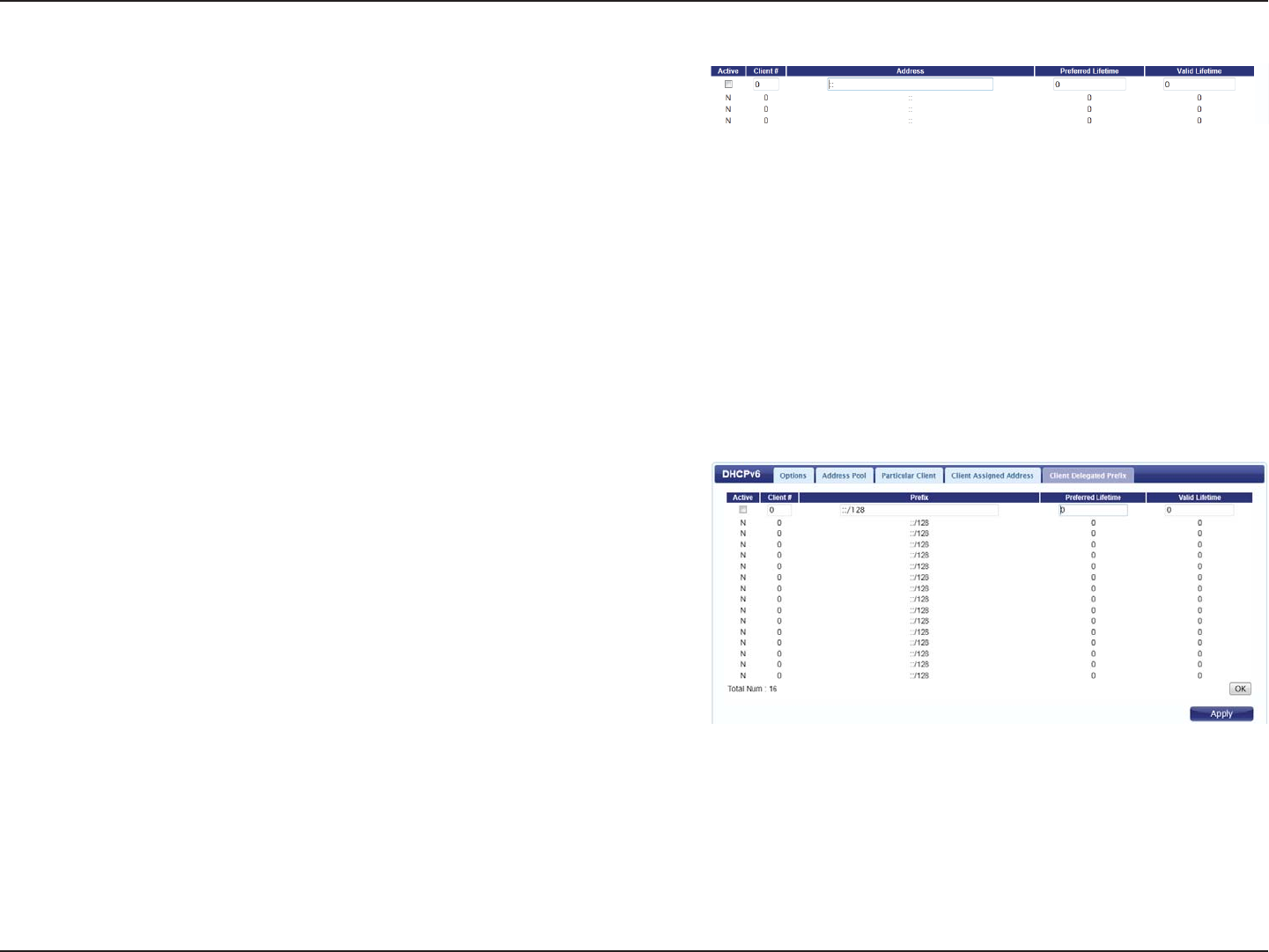

CLIENT ASSIGNED ADDRESS
Check the box to activate the rule.
Enter a number to identify the client.
Enter the address to be assigned.
Enter the preferred lifetime for the address to be assigned.
Enter the valid lifetime for the address to be assigned.
Click OK to save the current rule.
CLIENT DELEGATED PREFIX
Check the box to activate the rule.
Enter a number to identify the client.
Enter the prex to be delegated.
Enter the preferred lifetime for the prex to be assigned.
Enter the valid lifetime for the prex to be assigned.
Click OK to save the current rule.
Active:
Client #:
Address:
Preferred
Lifetime:
Valid Lifetime:
Active:
Client #:
Prex:
Preferred
Lifetime:
Valid Lifetime:
D-Link DWR-830 User Manual 40
Section 3 - Conguration
NAT
This section allows you to congure functions related to Network Address Translation (NAT) such as port triggering.

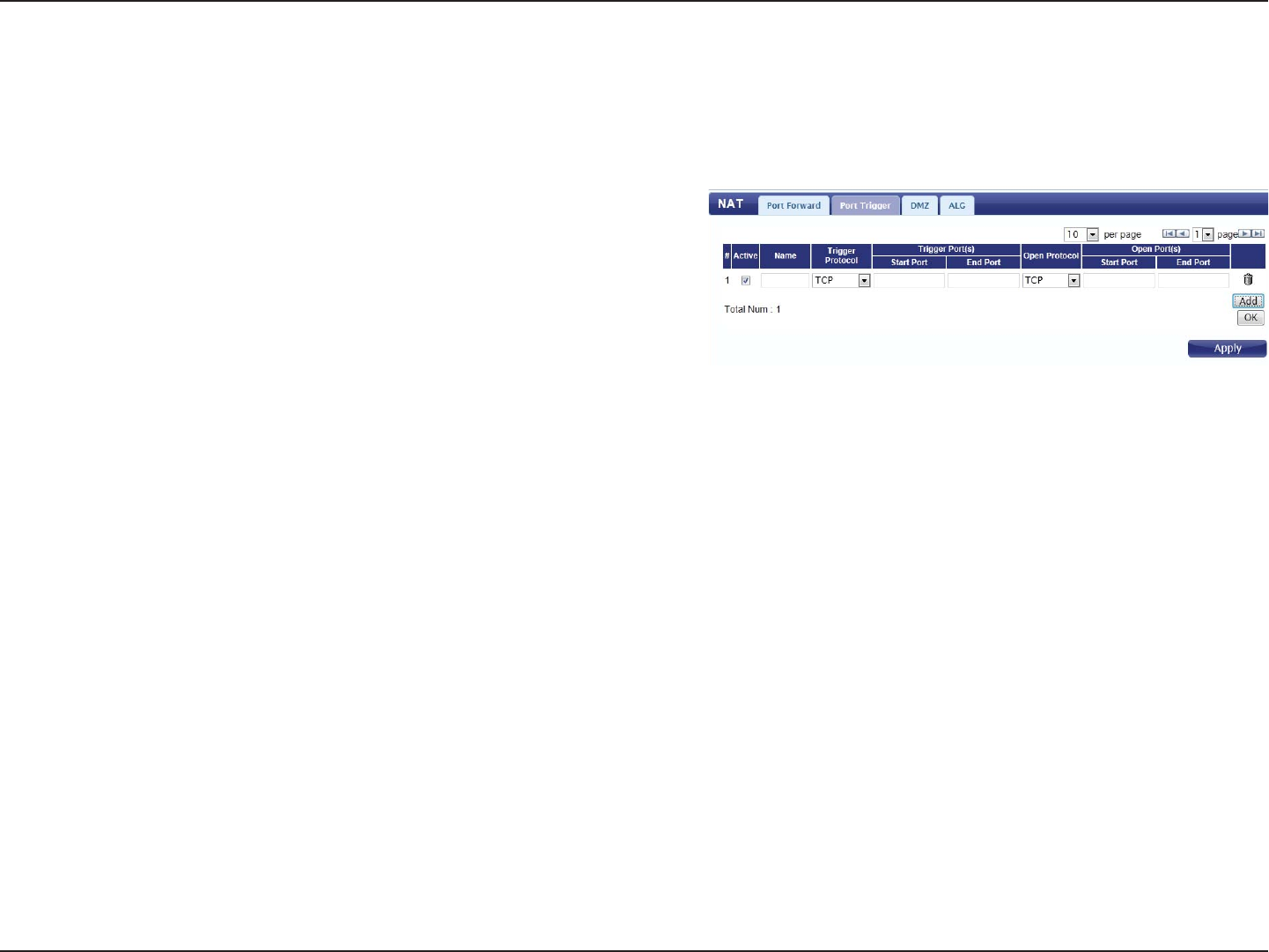

PORT TRIGGER
Use this option to have inbound trac automatically
forwarded to a dynamic address on the LAN when triggered
by outbound trac. To add a new port triggering rule, click
Add.
Check the box to activate this rule.
Specify a name to identify the rule.
Select TCP or UDP as the protocol for the trigger ports from
the drop-down menu.
Enter the starting and ending trigger port for the rule.
Select TCP or UDP as the protocol for the ports to be opened
from the drop-down menu.
Enter the starting and ending ports to be opened when the
trigger occurs.
Click the Delete icon to delete the rule.
Click OK to save the rule. Click Apply to apply the current
rules and return to the Network page.
Active:
Name:
Trigger
Protocol:
Trigger Port:
Open Protocol:
Open Port(s):
Delete:
D-Link DWR-830 User Manual 41
Section 3 - Conguration

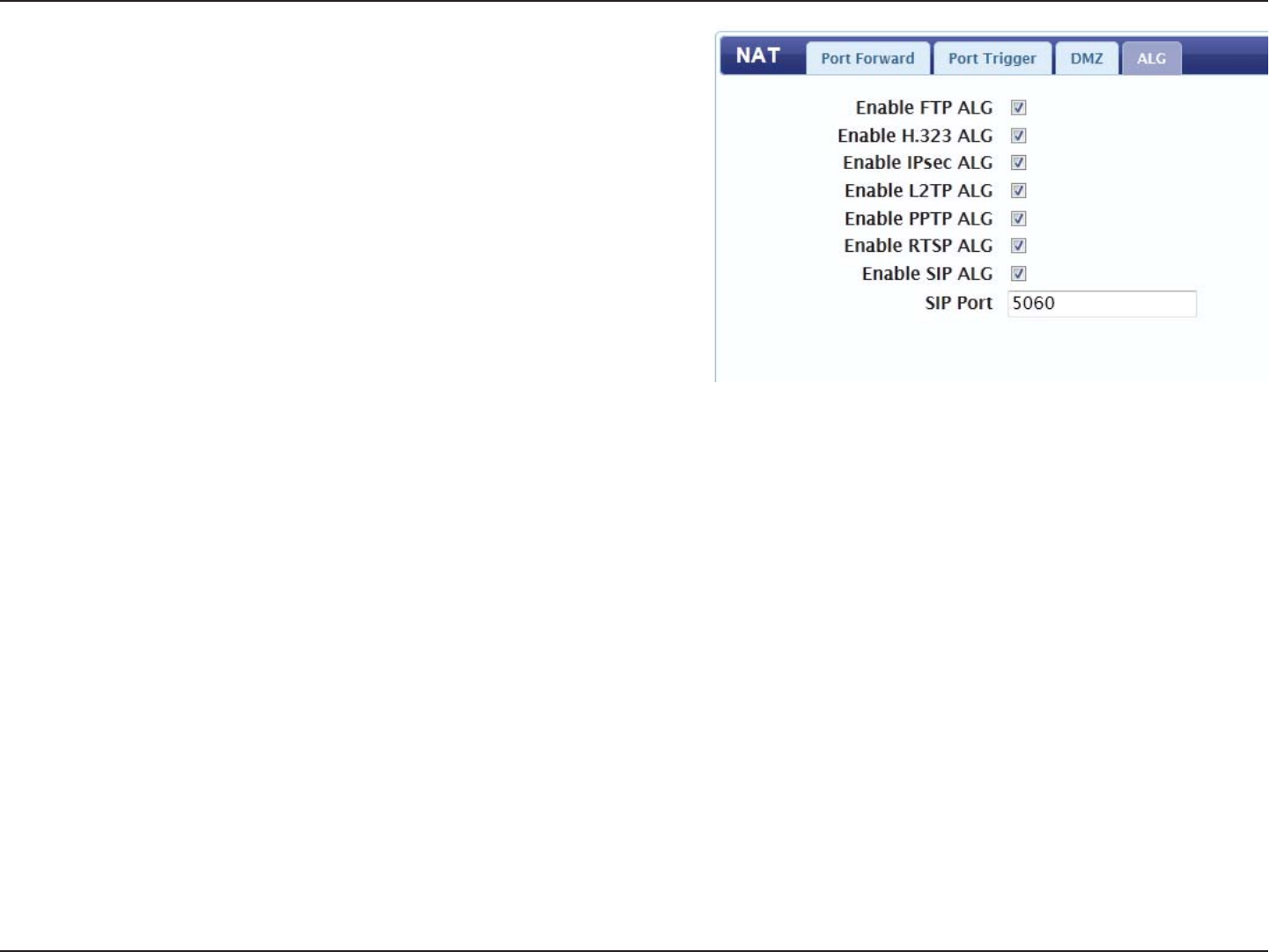

ALG
Application Level Gateways (ALG) allow certain applications
to augment a network’s rewall or NAT. This section
enables you to enable various ALGs as required by specic
applications. To enable an ALG, check the box next to the
name of the rule.
Enter the Session Initiation Protocol (SIP) port required by
your applications.
Click Apply to save the settings and return to the Network
page.
SIP Port:
D-Link DWR-830 User Manual 42
Section 3 - Conguration
NAT 64
NAT 64 allows you to congure Network Address Translation for the IPv6 protocol.

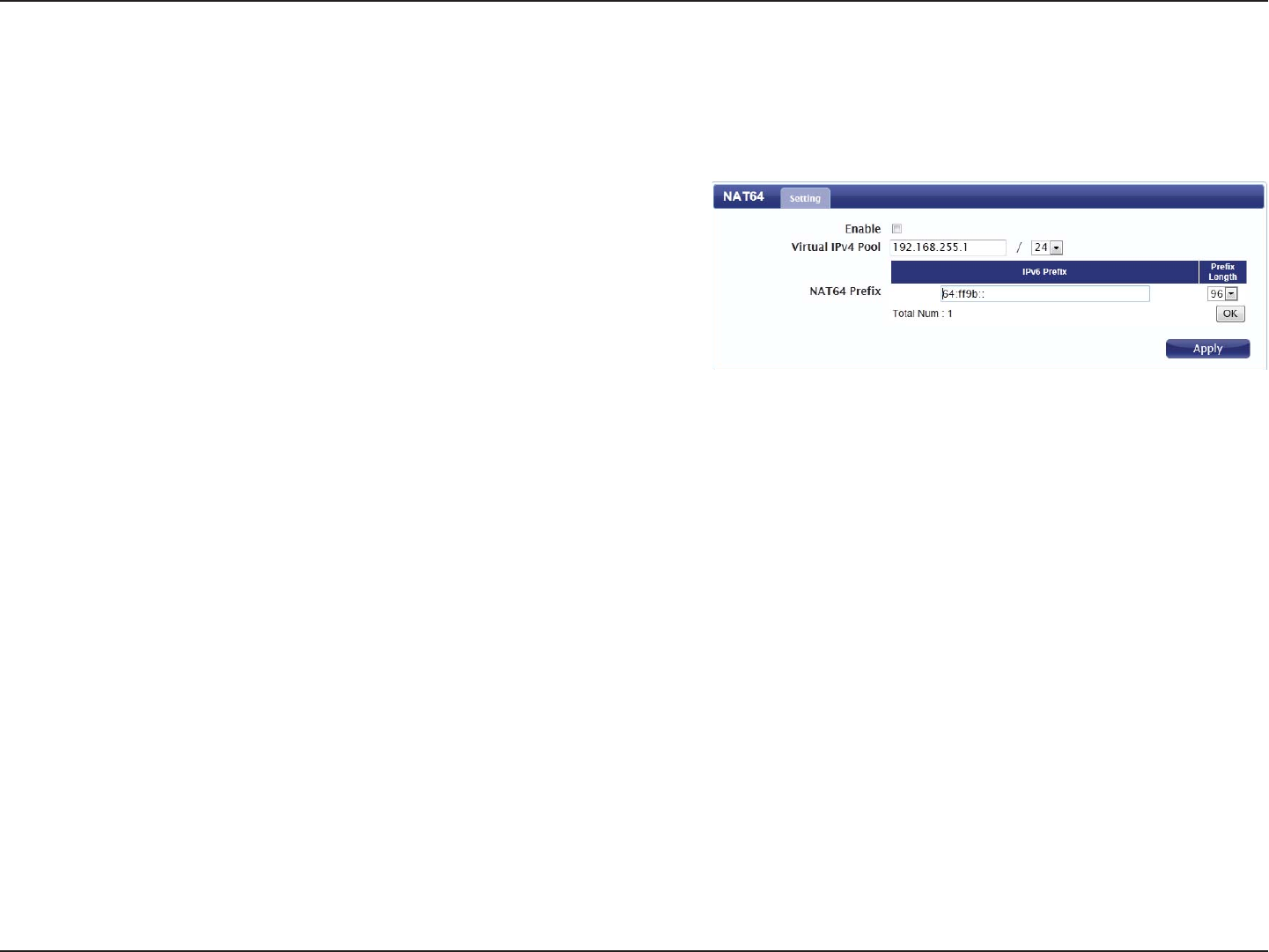

Check the box to enable the NAT64 function.
Enter the IPv4 address to be used for the virtual IPv4 address
pool.
Enter the IPv6 prex you wish to add, and select a prex
length from the drop-down menu. Click OK to save the rule.
Click OK to save the current conguration.
Enable:
Virtual IPv4
Pool:
NAT64 Prex:
D-Link DWR-830 User Manual
The DWR-830 can send and receive SMS text messages through the mobile network’s SMS function. In this section you can check the SIM card’s
43
Section 3 - Conguration
SMS
inbox and outbox, as well as send new messages.
New Message
Send To:
Messages:
Enter the phone number that you wish to send the message
to
Enter the body of the message to be sent.
Click Apply to save the current conguration.
INBOX
This tab shows a summary of SMS messages in the inbox.
OUTBOX
This tab shows a summary of messages in the outbox which
are yet to be sent.
Local
D-Link DWR-830 User Manual 44
Section 3 - Conguration
Wi-Fi
The Wi-Fi pages allow you to check the current status of your Wi-Fi network, and make changes to Wi-Fi settings.
This section allows you to congure your Wi-Fi network and specify the wireless security method to be used to secure your network.

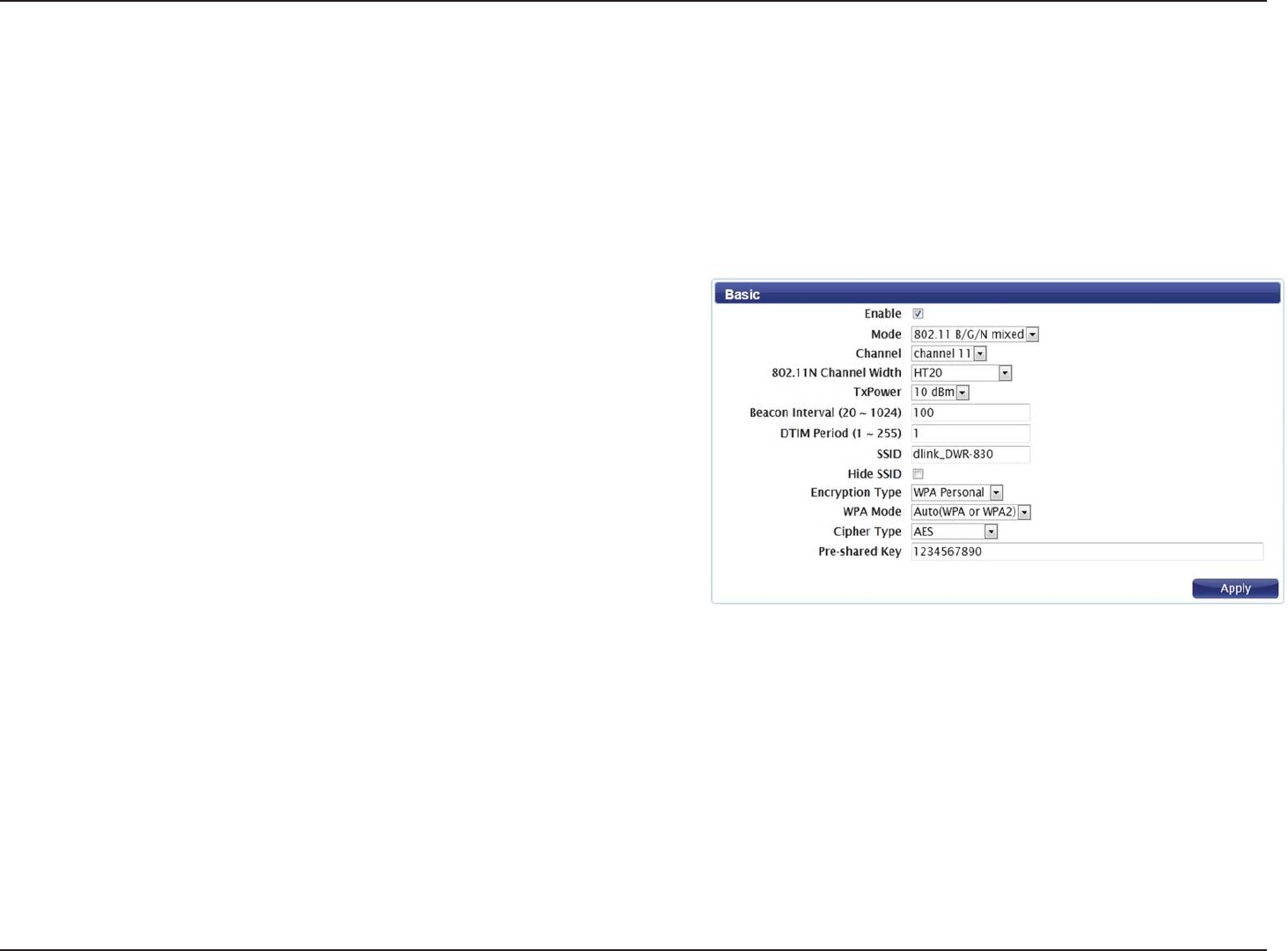

Basic

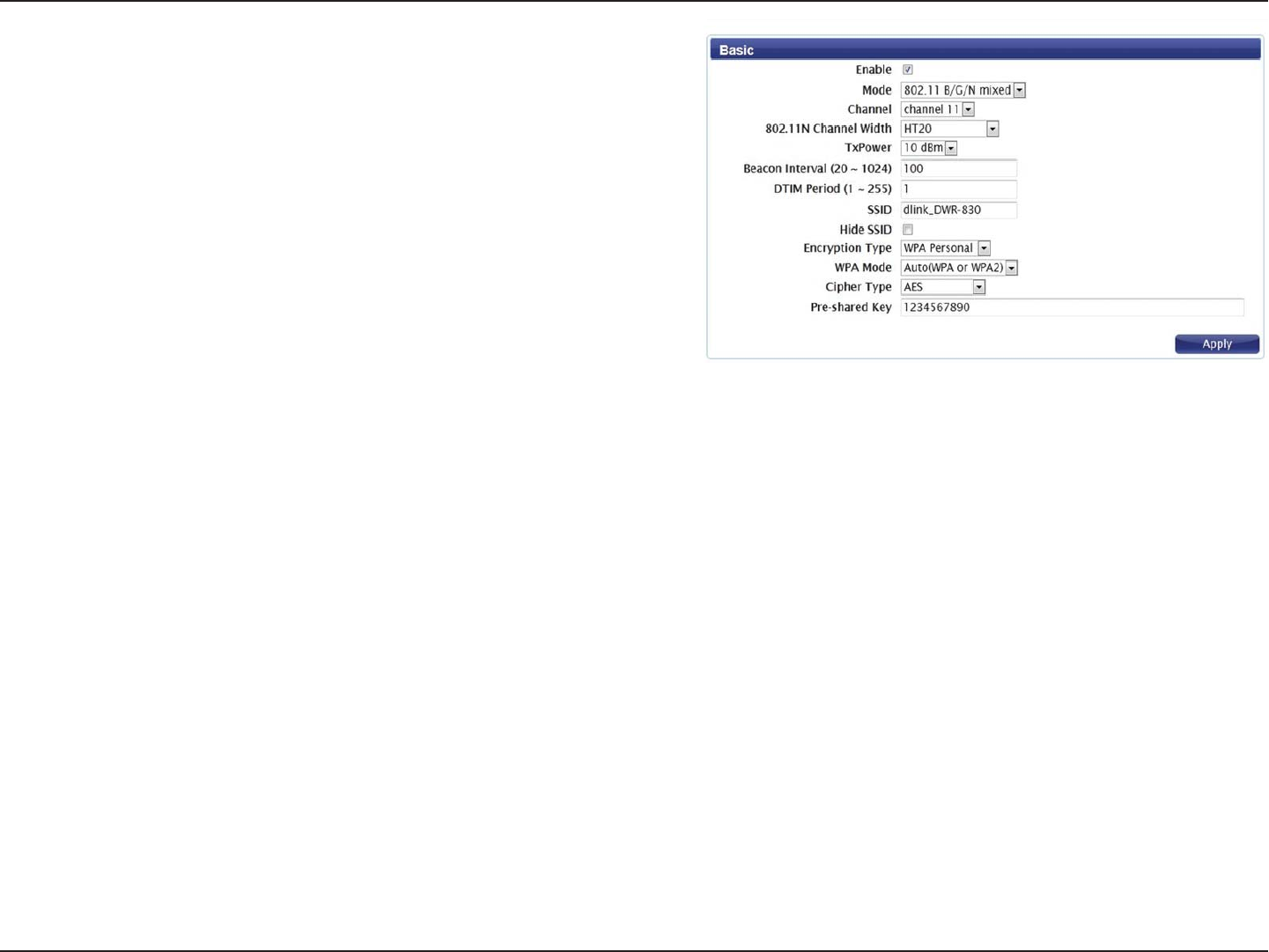

Check the box to enable the Wi-Fi function.
Select the desired 802.11 wireless mode from the drop-
down menu. You should make your selection based on
the standards supported by the wireless clients which
will be connecting to your network.
To have the router automatically select the optimal
wireless channel, select Auto from the drop-down
menu. If you wish to select a particular channel, select
it from the drop-down menu.
If you are using the 802.11n standard, you can
manually select the channel width which best suits
your network environment.
Select the desired transmission power from the drop-
down menu.
The beacon interval determines how often information
about the wireless network is broadcast. It is
recommended that you do not adjust this setting
unless instructed to do so.
Enable
Mode:
Channel:
802.11N
Channel Width:
TxPower:
Beacon Interval:
D-Link DWR-830 User Manual 45
Section 3 - Conguration
The Delivery Trac Indication Message broadcasts
information about buered data to clients that are currently
in low-power mode. Enter the desired DTIM period as a
number of beacon intervals.
Enter the SSID (network name) to identify your wireless
network.
Check the box to hide the SSID of your network. If the SSID
is hidden, wireless clients must manually enter it in order to
connect to your network.
Select the wireless encryption method that you wish to use
from the drop-down menu. Depending on the method that
you select, you may need to congure additional settings.
For more information regarding wireless encryption and how
to congure it, please refer to “Wireless Security” on page 46. If
you do not wish to enable wireless security, select None from
the drop-down menu.
Click Apply to save the current settings.
DTIM Period:
SSID:
Hide SSID:
Encryption
Type:
D-Link DWR-830 User Manual 46
Section 3 - Conguration
Wireless Security
It is recommended that you enable wireless security on your router in order to protect your wireless network from unauthorized access. You should
select a wireless security protocol that is compatible with the wireless clients which will be accessing your network.
Wired Equivalent Privacy (WEP)
Wired Equivalent Privacy (WEP) is an older wireless security standard, which although providing more protection than no security at all, has some
weaknesses which could make it vulnerable to intrusion. It is recommended that you only use WEP if your wireless clients do not support Wi-Fi
Protected Access (WPA). WEP is not supported by the 802.11n standard, and therefore you will not be able to achieve 802.11n speeds if using WEP.
Encryption Type:
Authentication
Method:
WEP Encryption
Length:
Key 1-4:
Select WEP from the drop-down menu.
Select the desired authentication method from the drop-
down menu:
Auto - The router will automatically determine the
authentication method based on the client that is connecting
to it.
Open System - Clients do not require authentication in order
to associate with the router. The encryption key will be used
to encrypt data packets sent over the network.
Shared - The encryption key is used for authentication as
well as to encrypt data packets.
Select the length of the encryption key to be used.
64-bit - A 64-bit key comprises a string of 10 hexadecimal
characters, or 5 ASCII characters.
128-bit - A 128-bit key comprises a string of 26 hexadecimal
characters, or 13 ASCII characters.
You can predetermine up to 4 WEP keys. Select the WEP key
you wish to use by clicking on the radio buttons next to the
keys. Select whether you wish to use HEX or ASCII characters
in your key using the drop-down menu. Enter the desired key
in the eld provided. Click Apply to save the current settings.
D-Link DWR-830 User Manual 47
Section 3 - Conguration
Wi-Fi Protected Access (WPA)
Wi-Fi Protected Access (WPA) is a newer and more secure encryption protocol which makes signicant improvements over WEP. There are two
versions of WPA; the original WPA, and the newer WPA2.

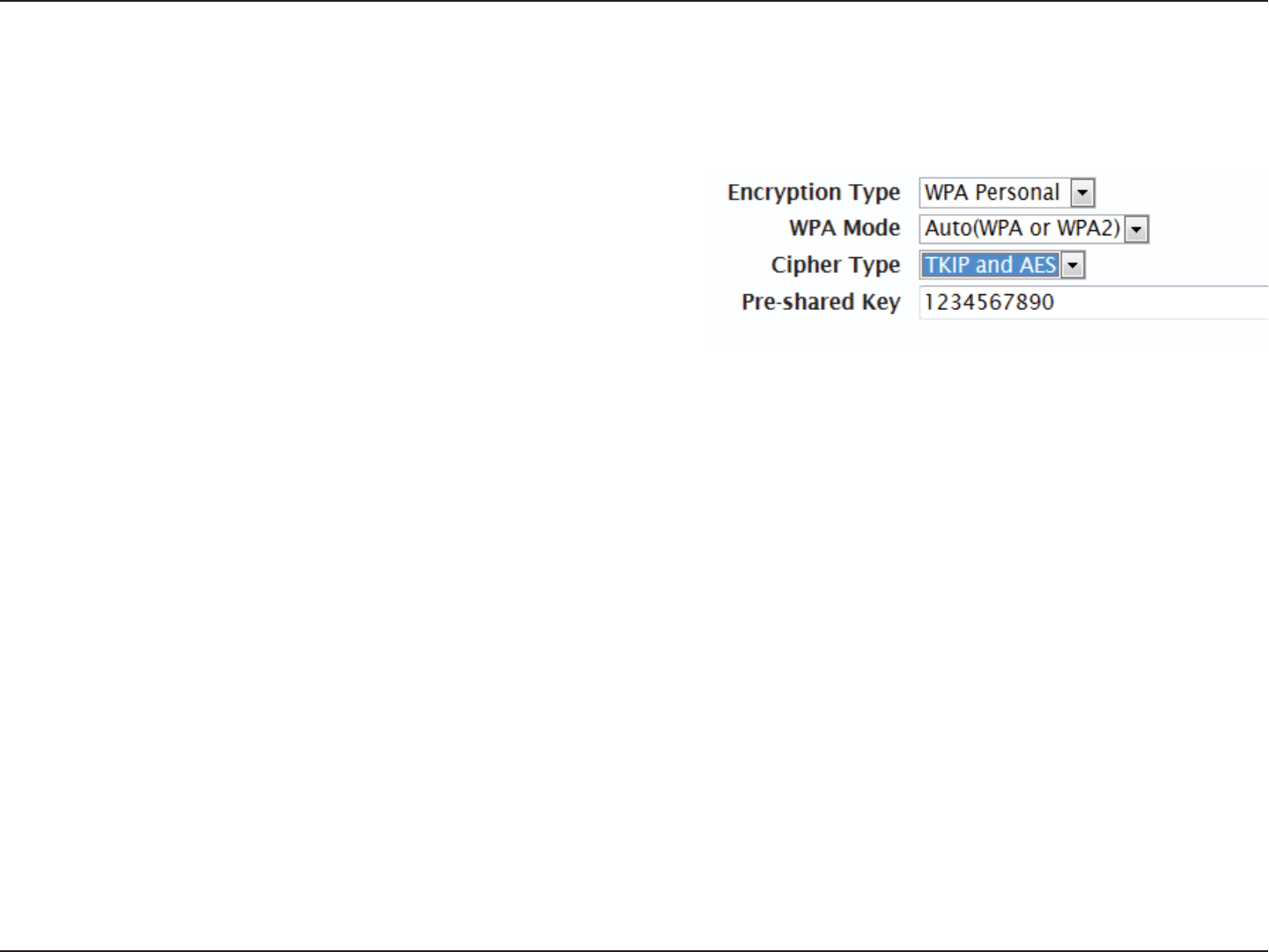

Encryption Type:
WPA Mode:
Cipher Type:
Pre-Shared Key
Select WPA Personal from the drop-down menu.
Select the desired authentication method from the drop-
down menu:
Auto (WPA or WPA2) - The router will automatically
determine the version of WPA to be used based on the client
that is connecting to it.
WPA - Clients will only be able to associate with the router
using the WPA standard.
WPA2 - Clients will only be able to associate with the router
using the WPA2 standard. Clients which do not support WPA2
will not be able to associate with the router.
Select the desired cipher type from the drop-down menu:
TKIP - This cipher is used by the WPA standard.
AES - A newer cipher used by the WPA2 standard. Use of this
cipher type is required in order to achieve 802.11 speeds.
The pre-shared key is the password which clients will require
in order to connect to your network. Enter a password of
between 8 and 63 characters in length.
Click Apply to save the current settings
D-Link DWR-830 User Manual
protocol if your wireless clients do not support any of the other security methods provided by the DWR-830.
48
Section 3 - Conguration

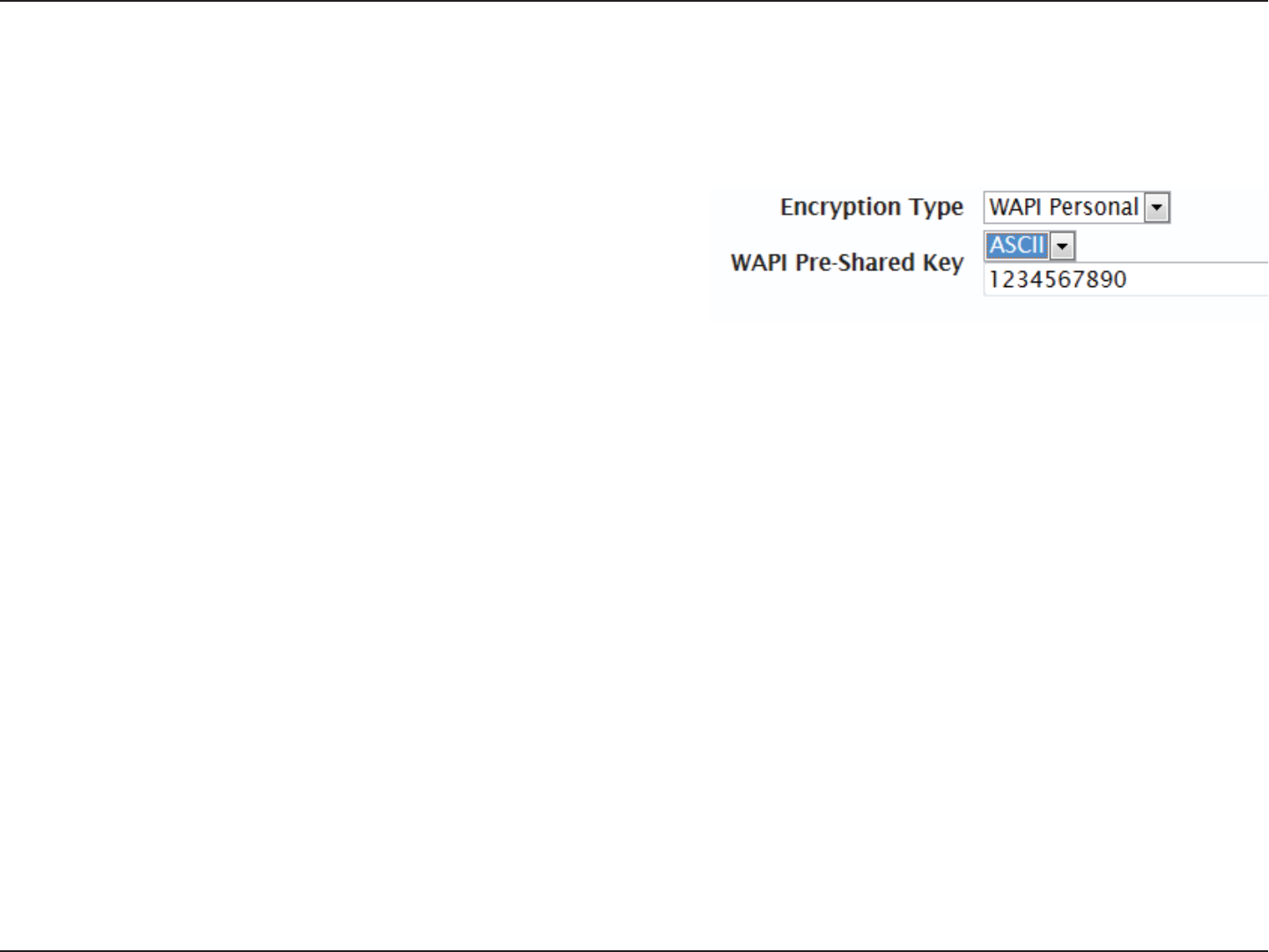

WLAN Authentication and Privacy Infrastructure (WAPI)
WLAN Authentication and Privacy Infrastructure (WAPI) is a wireless security standard which is implemented in China. You should only use this
Encryption Type:
WAPI Pre-Shared
Key:
Select WAPI Personal from the drop-down menu.
Select whether your key should use ASCII or HEX characters
using the drop down menu. Enter your desired key in the
eld provided.
Click Apply to save the current settings.
D-Link DWR-830 User Manual 49
Section 3 - Conguration

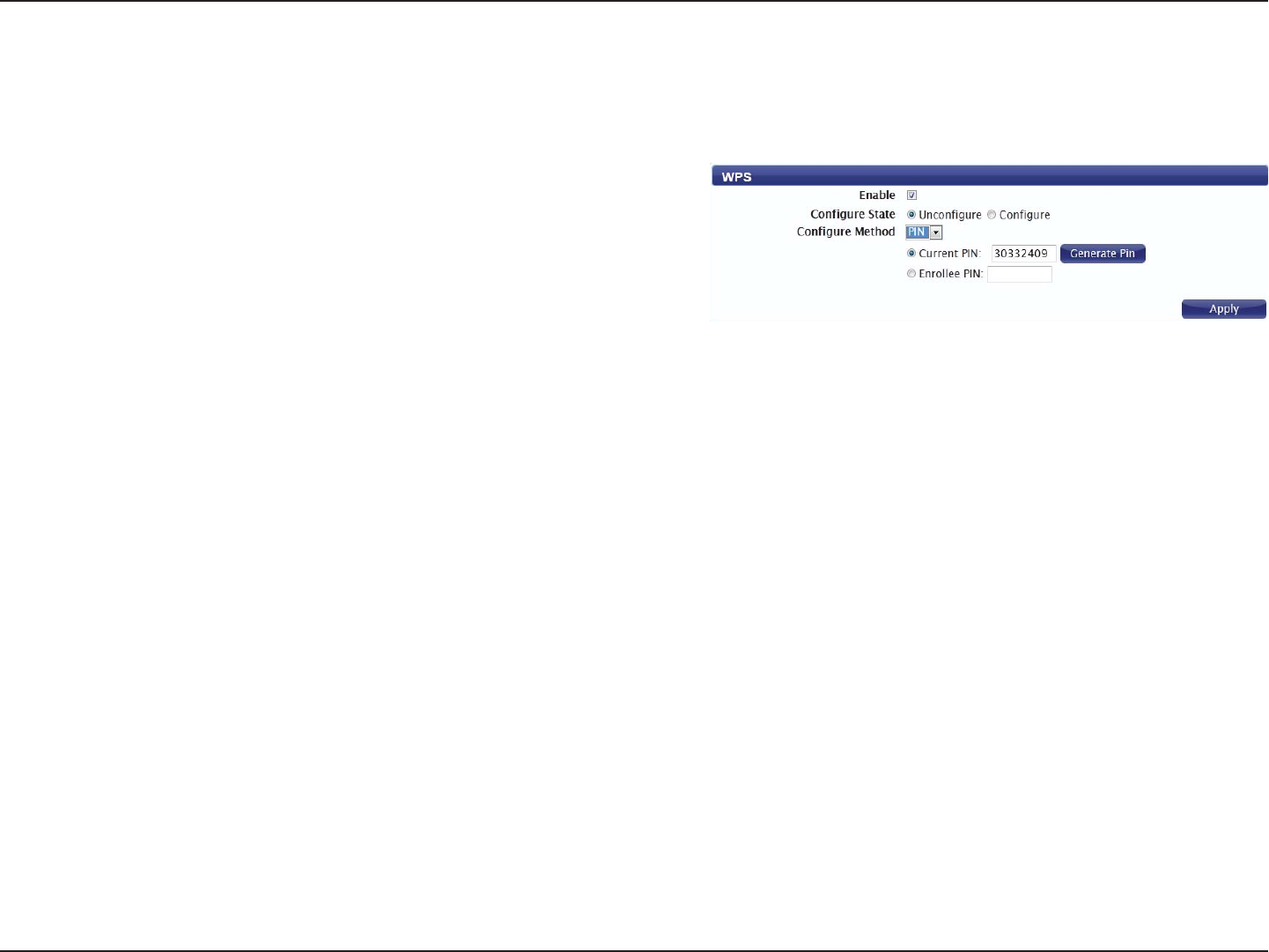

Wi-Fi Protected Setup (WPS)
Check the box to enable the Wi-Fi Protected Setup feature.
Select whether you wish to Congure or Uncongure the
WPS function using the radio buttons.
Select the WPS method that you wish to use. If your device
supports Push Button Connection (PBC), simply select this
option and click Apply to start the connection process. You
will then have 120 seconds to press the WPS button on your
wireless device in order to initiate the connection. If your
device does not support PBC, you can select the PIN method
and continue to the next step.
A PIN is a unique number that can be used to add the router
to an existing network or to create a new network.
For extra security, a new PIN can be generated. Click
Generate to create a new PIN. The current PIN will be shown
in the eld next to Current PIN. This PIN can be used by
wireless clients to join your network using the PIN method.
If the device you are trying to add to the network was
provided with a PIN number, select this option and enter the
device’s PIN in the eld.
Click Apply to commence the connection process.
Enable:
Congure State:
Congure Method:
Current PIN:
Generate PIN:
Enrollee PIN:
Wi-Fi Protected Setup (WPS) enables you to quickly and securely add compatible devices to your wireless network.
D-Link DWR-830 User Manual 50
Section 3 - Conguration
Check the box to enable the MAC ltering feature.
Select the ltering mode from the drop-down menu. You can
choose to Deny Listed Stations access to your network, or
Allow Listed Stations access.
LISTED STATIONS TABLE
To add a new ltering rule, click Add.
Check the box to activate the rule.
Enter a name to identify the machine or station which will be
ltered.
Enter the MAC address of the machine or station which you
wish to lter.
Click the Delete icon to delete the rule from the table.
Click OK to save the current rule and add it to the table.
Click Apply to save all changes and return to the Wi-Fi page.
Enable MAC Address
Filter:
Mode:
Active:
Name:
MAC Address:
Delete:
The MAC ltering option allows you to allow or deny access to wireless clients based on their MAC address.
MAC Filter
D-Link DWR-830 User Manual 51
Section 3 - Conguration

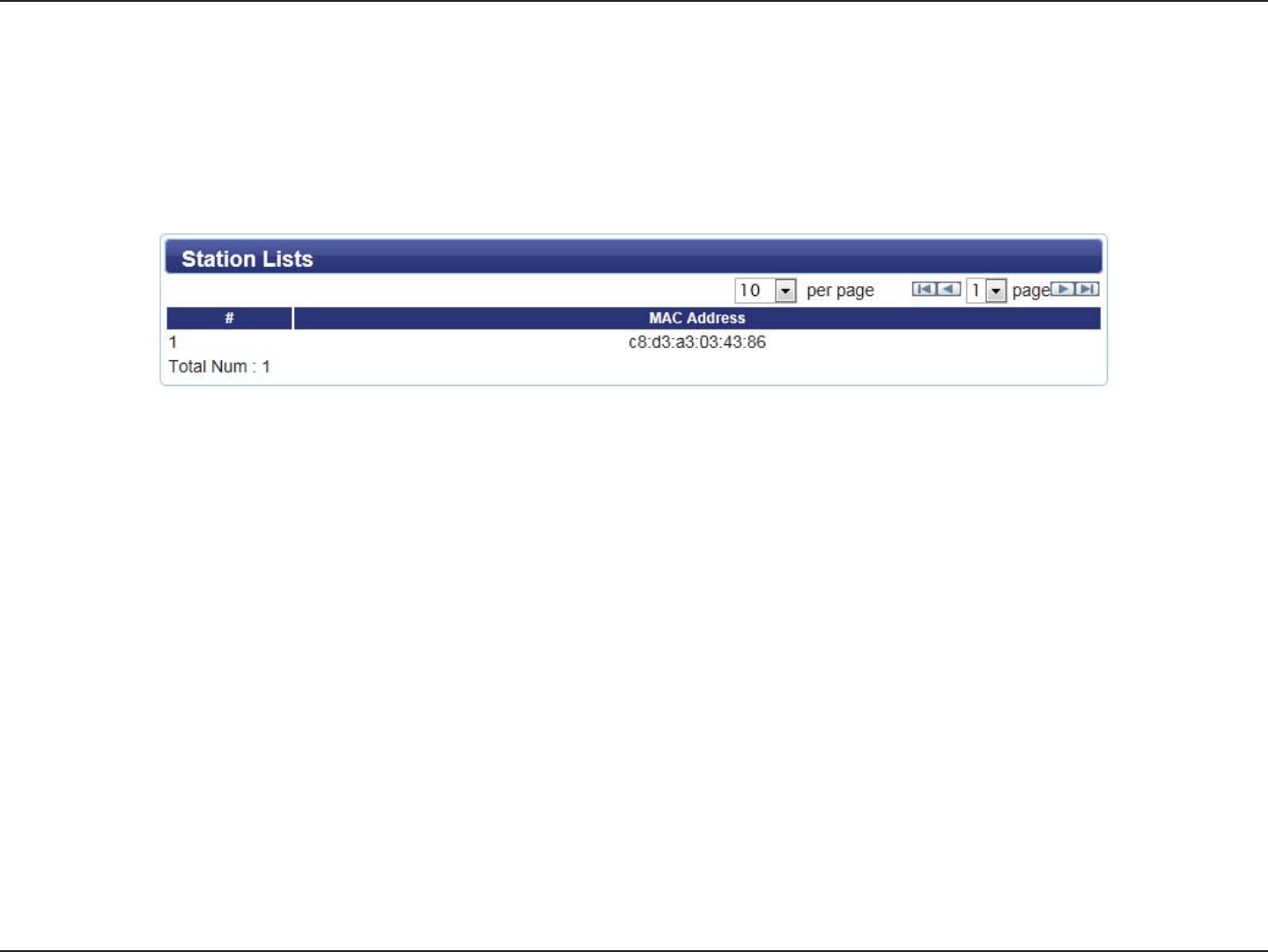

The Station List tab shows a list of all wireless clients currently connected to your wireless network.
Station Lists
D-Link DWR-830 User Manual 52
Section 3 - Conguration
The IPv4 routing table lists all current routing rules. Click Add
to add a new routing rule.
Enter the destination IP address for your route.
Enter the destination mask for your route.
Select Interface or IP Address as the hop type from the
drop-down menu.
Select either LAN or WAN as the next hop interface from the
drop-down menu.
The metric will determine your route selection process. Enter
a metric between 1 and 255 in the eld provided.
Click Apply to save the routing rule.
Destination IP:
Destination Mask:
Next Hop Type:
Next Hop Interface:
Metric:
Advanced
IPv4
D-Link DWR-830 User Manual 53
Section 3 - Conguration
IPv6
The IPv6 routing table lists all current routing rules. Click Add
to add a new routing rule.
Check the box to activate the rule.
Enter the destination IPv6 address prex for your route.
Select Directly Attached, Recursive, or Fully Specied from
the drop-down menu.
Select either LAN or WAN as the next hop interface from the
drop-down menu.
Enter the next hop IPv6 address.
The metric will determine your route selection process. Enter
a metric between 1 and 255 in the eld provided.
Click the Delete icon to delete this rule.
Click OK to save the routing rule. Click Apply to save the
current conguration.
Active:
Destination Prex:
Route Type:
Output Interface:
Next Hop Address:
Metric:
Delete Icon:
D-Link DWR-830 User Manual 54
Section 3 - Conguration

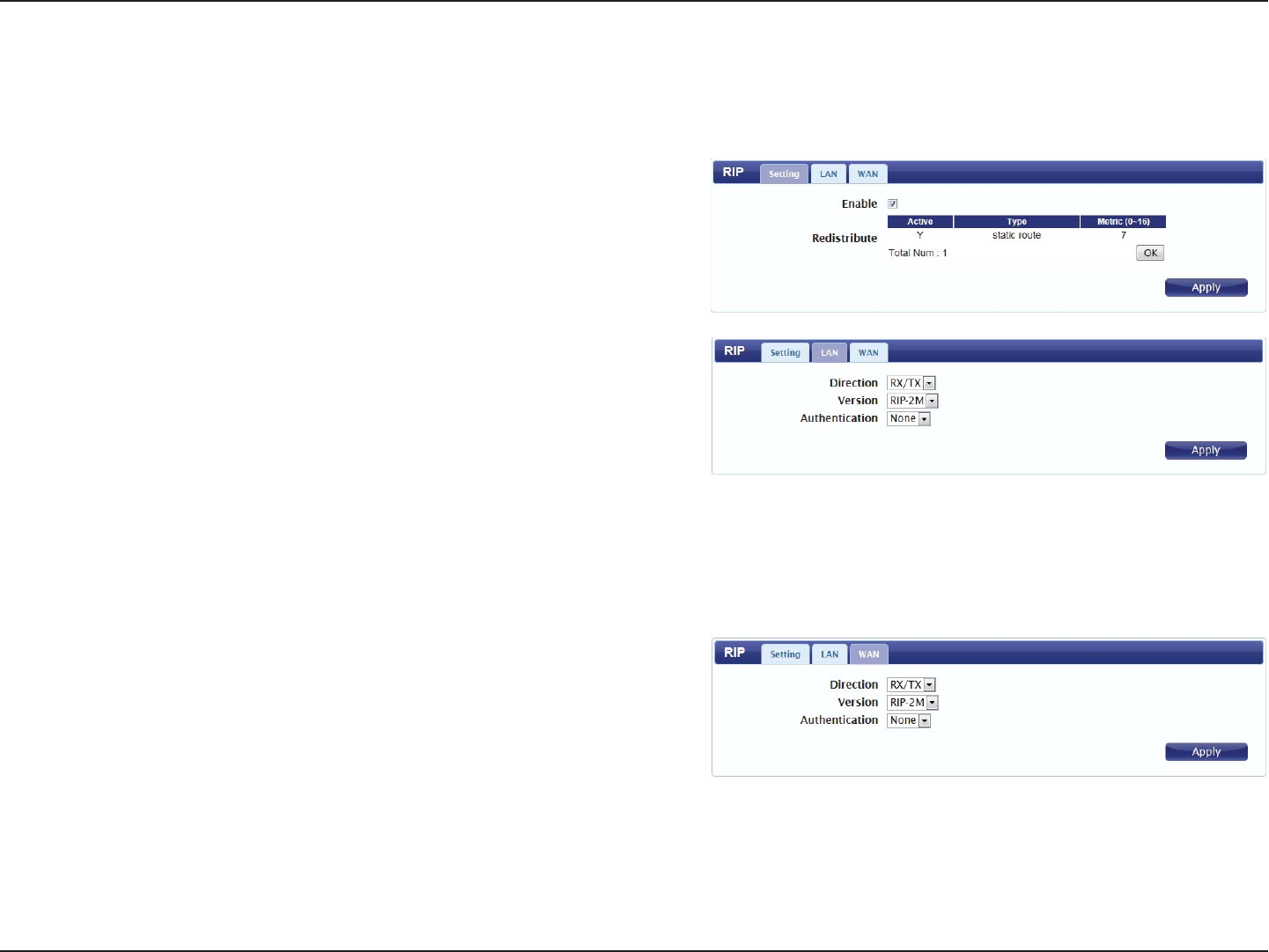

RIP
The Routing Information Protocol (RIP) uses metrics to prevent routing loops from being propagated. Use this section to congure your router’s
RIP settings.
SETTING
Check the box to enable RIP. The table will show details of
your RIP settings.
LAN
Select the desired direction in which to apply RIP. Select RX/
TX to apply RIP in both inbound and outbound directions,
RX for inbound only, and TX for outbound only.
Select the RIP version that you wish to use from the drop-
down menu.
Select the desired authentication type from the drop-down
menu.
WAN
Select the desired direction in which to apply RIP. Select RX/
TX to apply RIP in both inbound and outbound directions,
RX for inbound only, and TX for outbound only.
Select the RIP version that you wish to use from the drop-
down menu.
Select the desired authentication type from the drop-down
menu.
Click Apply to save the current conguration.
Enable:
Direction:
Version:
Authentication:
Direction:
Version:
Authentication:
D-Link DWR-830 User Manual 55
Section 3 - Conguration

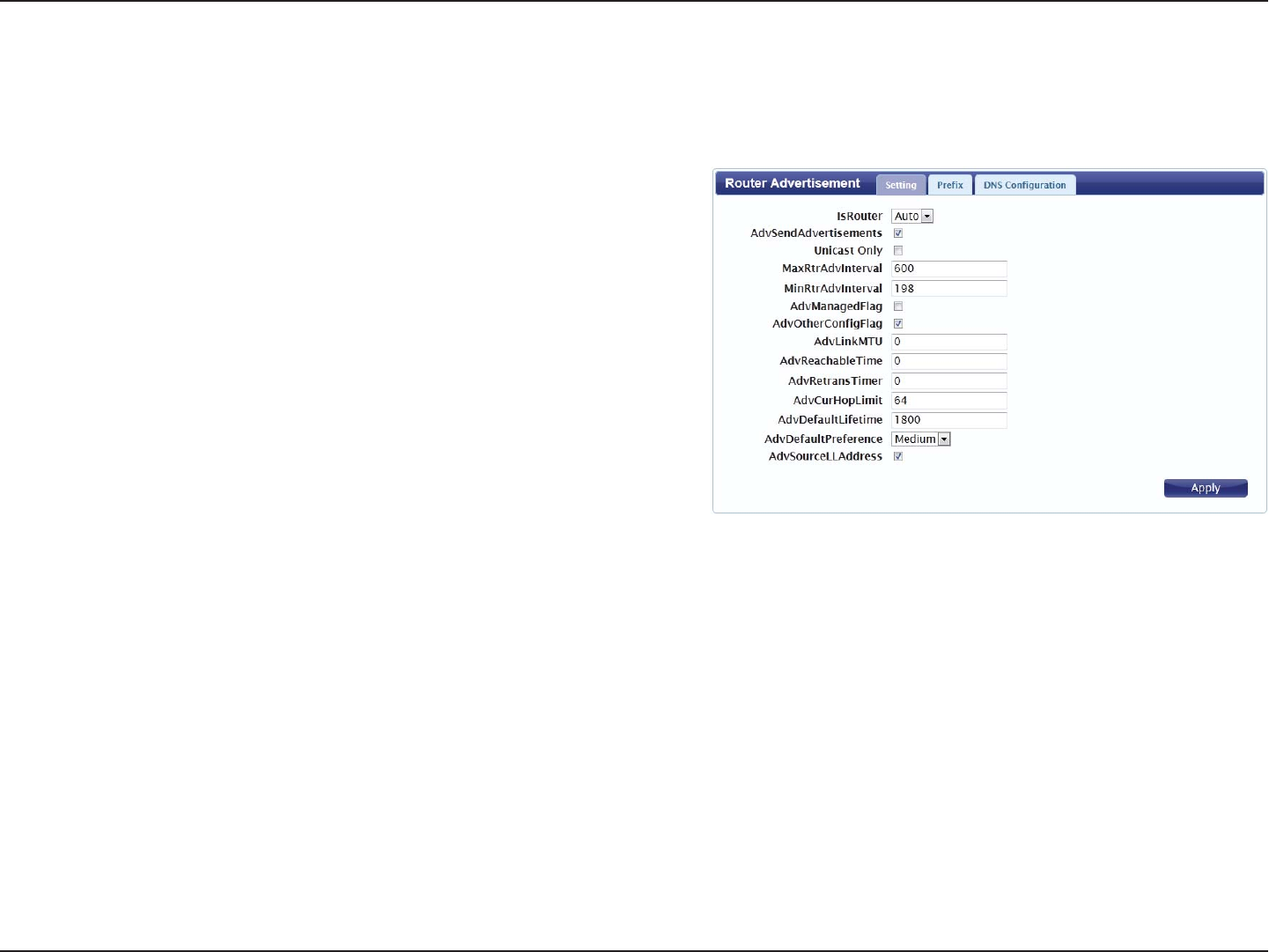

LAN IPv6 RA
This tab allows to you customize what information is sent in the router’s advertisement packets.
Select the router advertisement ag status.
Check this box to have the router send advertisements.
Check the box to have the router advertise unicast addresses
only.
Enter the maximum advertisement interval.
Enter the minimum advertisement interval.
Check the box to advertise that hosts should use managed
protocol.
Check the box to advertise that hosts should use an
alternative conguration.
Enter the Maximum Transmission Unit size for
advertisements.
Enter the amount of time for which the router should
consider a neighbor reachable after receiving a reachability
conrmation.
Enter the amount of time that the host should wait before
retransmitting a solicitation message.
Enter the recommended hop limit which the router will
transmit in datagrams sent.
IsRouter:
AdvSend
Advertisements:
Unicast Only:
MaxRtrAdvInterval:
MinRtrAdvInterval:
AdvManagedFlag:
AdvOtherCongFlag:
AdvLinkMTU:
AdvReachableTime:
AdvRetransTimer:
AdvCurHopLimit:
D-Link DWR-830 User Manual 56
Section 3 - Conguration
AdvDefaultLifetime:
AdvDefault
Preference:
AdvSource
LLAddress:
On-Link:
Autonomous:
Valid Lifetime:
Preferred Lifetime:
Prex:
Prex Length:
Delete Icon:
Enter the default lifetime of router advertisements.
From the drop-down menu, select the default preferability of
the address as a default router address.
Check the box to allow the advertisement of the source link-
local address.
Click Apply to save the current conguration.
PREFIX
Use this tab to customize the prexes for router
advertisements. Click Add to add a new prex.
Check to specify an on-link ag.
Check to specify an autonomous ag.
Enter the amount of time for which the prex will remain
valid for on-link determination.
Enter the amount of time for which a prex generated by
stateless autoconguration will remain valid for on-link
determination.
Enter the name of the prex.
Enter the length of the prex.
Click the icon to delete the prex rule.
Click OK to save the prex rule. Click Apply to save the
current conguration.
D-Link DWR-830 User Manual 57
Section 3 - Conguration
DNS CONFIGURATION
Use this tab to specify how the router delivers DNS
information using router advertisements.
Enter the domain name of the DNS search list to be included
in the advertisement.
Enter the advertisement lifetime for the domain name.
Click the Delete icon to delete the DNS rule.
Click OK to save the current rule. Click Apply to save the
current conguration.
DNSSL:
Domain Name of DNS
Search List:
D-Link DWR-830 User Manual 58
Section 3 - Conguration

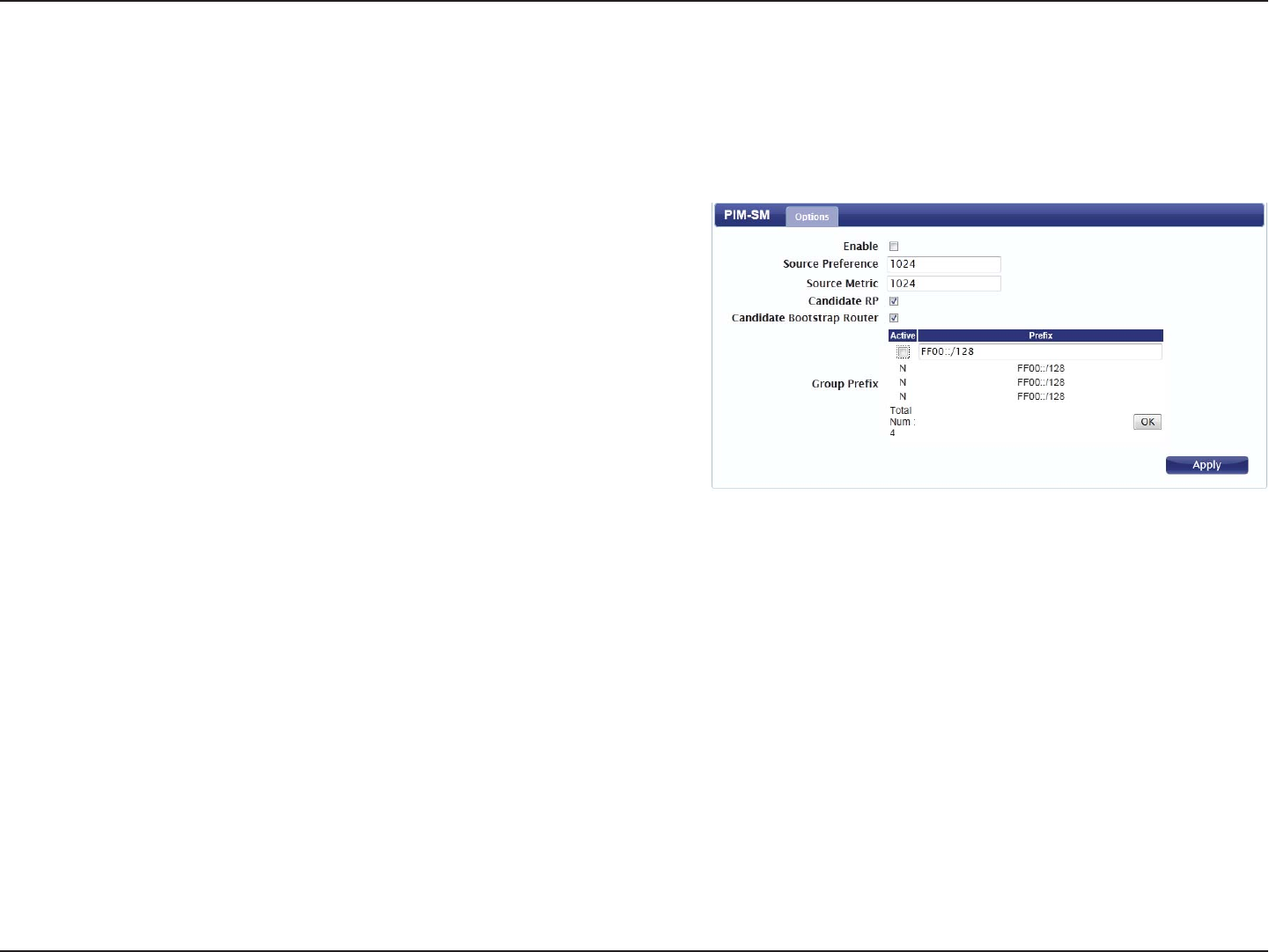

IPv6 Multicast
This section allows you to congure your router to receive multicast streams over the IPv6 protocol.
Check the box to enable the router to receive IPv6 multicast
streams.
Enter the source preference in the eld provided.
Enter the source metric to be used in the eld provided.
Check the box to allow this router to be a candidate
rendezvous point (RP).
Check the box to allow this router to be a candidate
bootstrap router.
To add a group prex, click on an available prex in the
group prex table. Check the box to activate the prex rule,
and enter the desired prex in the eld provided.
Click OK to save the current conguration. Click Apply to
save the current conguration.
Enable:
Source
Preference:
Source Metric:
Candidate RP:
Candidate
Bootstrap
Router:
Group Prex:
D-Link DWR-830 User Manual 59
Section 3 - Conguration

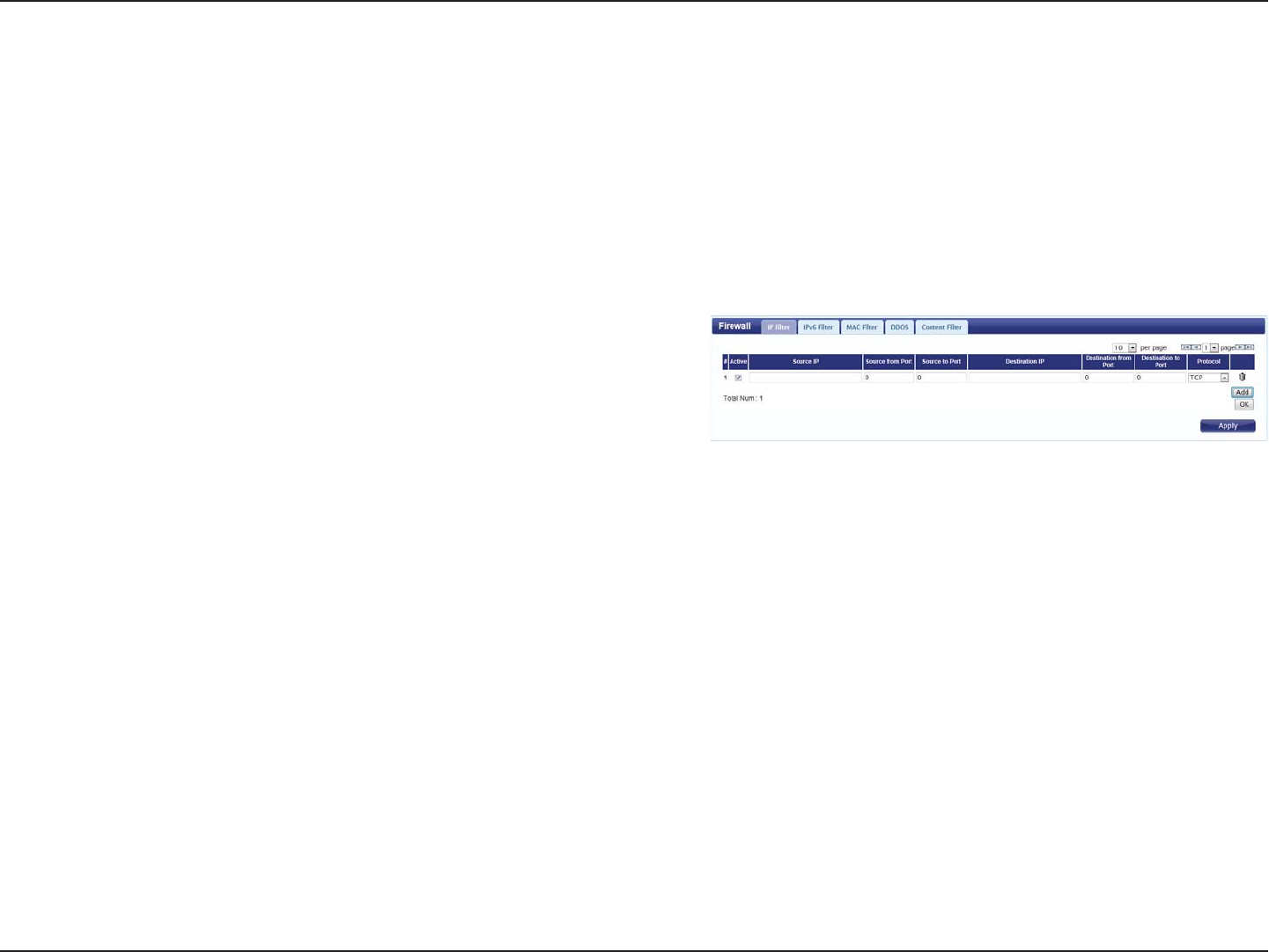

Firewall
Security
The Security tab allows you to congure your router’s rewall settings and enable features to protect your network from outside intrusions and
malicious attacks.
Click Add to add a new ltering rule.
Check the box to activate the IP lter rule.
Enter the source IP address to be ltered.
Enter the starting port on the source IP.
Enter the ending port on the source IP.
Enter the destination IP address to be ltered.
Enter the starting port of the destination IP.
Enter the ending port of the destination IP.
Select the protocol for the IP lter rule.
Click the icon to delete the IP ltering rule.
Click OK to save the ltering rule. Click Apply to save the
current conguration.
Active:
Source IP:
Source From
Port:
Source To Port:
Destination IP:
Destination From
Port:
Destination To
Port:
Protocol:
Delete:
IP Filter
D-Link DWR-830 User Manual 60
Section 3 - Conguration

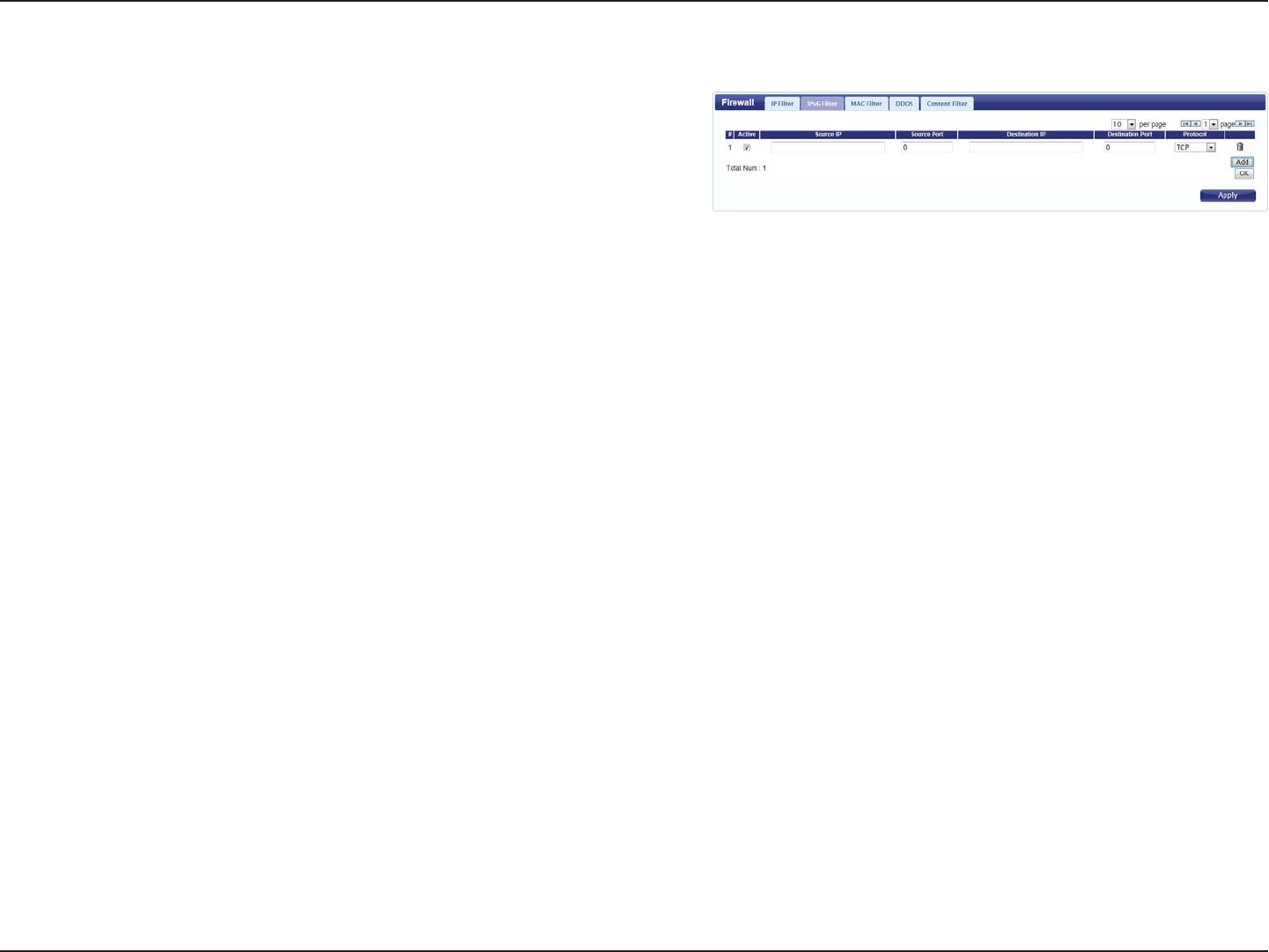

IPv6 Filter
Click Add to add a new ltering rule.
Check the box to active the IP lter rule.
Enter the source IP address to be ltered.
Enter the port for the source IP.
Enter the destination IP address to be ltered.
Enter the port on the destination IP.
Select the protocol for the IP lter rule.
Click the icon to delete the IP ltering rule.
Click OK to save the current ltering rule. Click Apply to save
the current conguration.
Active:
Source IP:
Source Port:
Destination IP:
Destination Port:
Protocol:
Delete:
D-Link DWR-830 User Manual 61
Section 3 - Conguration
MAC Filter
Click Add to add a new MAC ltering rule.
Select Blacklist to deny access to only the MAC addresses
listed below. Select Whitelist to allow access to only the MAC
addresses listed below.
Check the box to activate the MAC lter rule.
Enter the MAC address of the machine or device which you
wish to lter packets coming from.
Enter the MAC address of the machine you wish to lter
packets.
Check the box for each day that you wish to activate the MAC
ltering rule.
Enter the starting time at which you wish to activate the MAC
ltering rule each day.
Enter the ending time at which you wish to deactivate the
MAC ltering rule each day.
Click the icon to delete this MAC ltering rule.
Click OK to add the current rule to the rules list. Click Apply
to save the current conguration.
Blacklist/
Whitelist:
Active:
Source MAC:
Destination MAC:
Day:
Start Time:
End Time:
Delete:
The MAC lter lets you to allow or deny access to your wireless network based on a client’s MAC address.
D-Link DWR-830 User Manual 62
Section 3 - Conguration

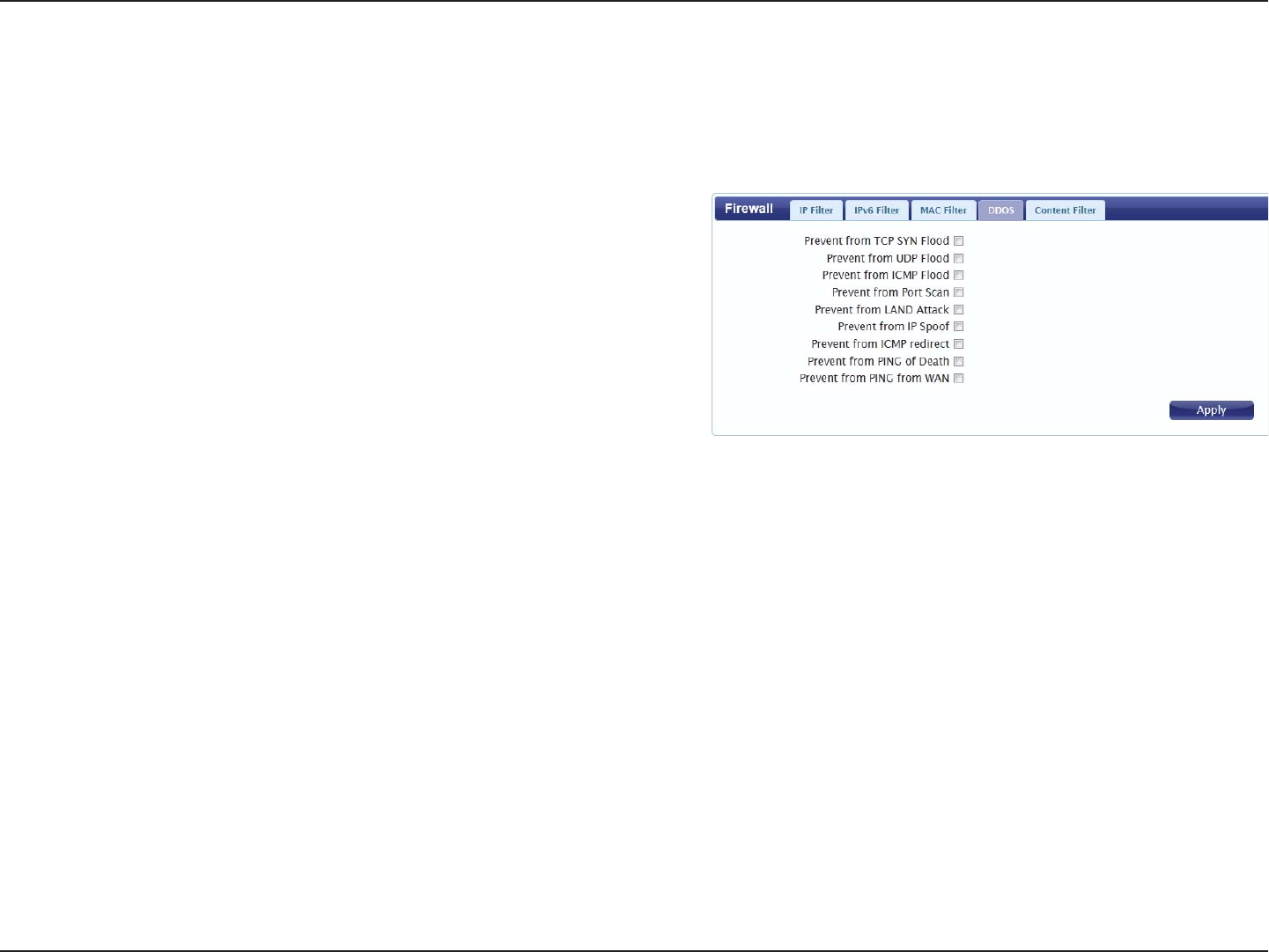

DDOS
Check the box next to the rule to enable prevention against
that specic kind of DoS attack.
Click Apply to save the current conguration.
DoS Prevention
Filters:
This section allows you to enable various security features to protect against Denial of Service (DoS) attacks.
D-Link DWR-830 User Manual 63
Section 3 - Conguration

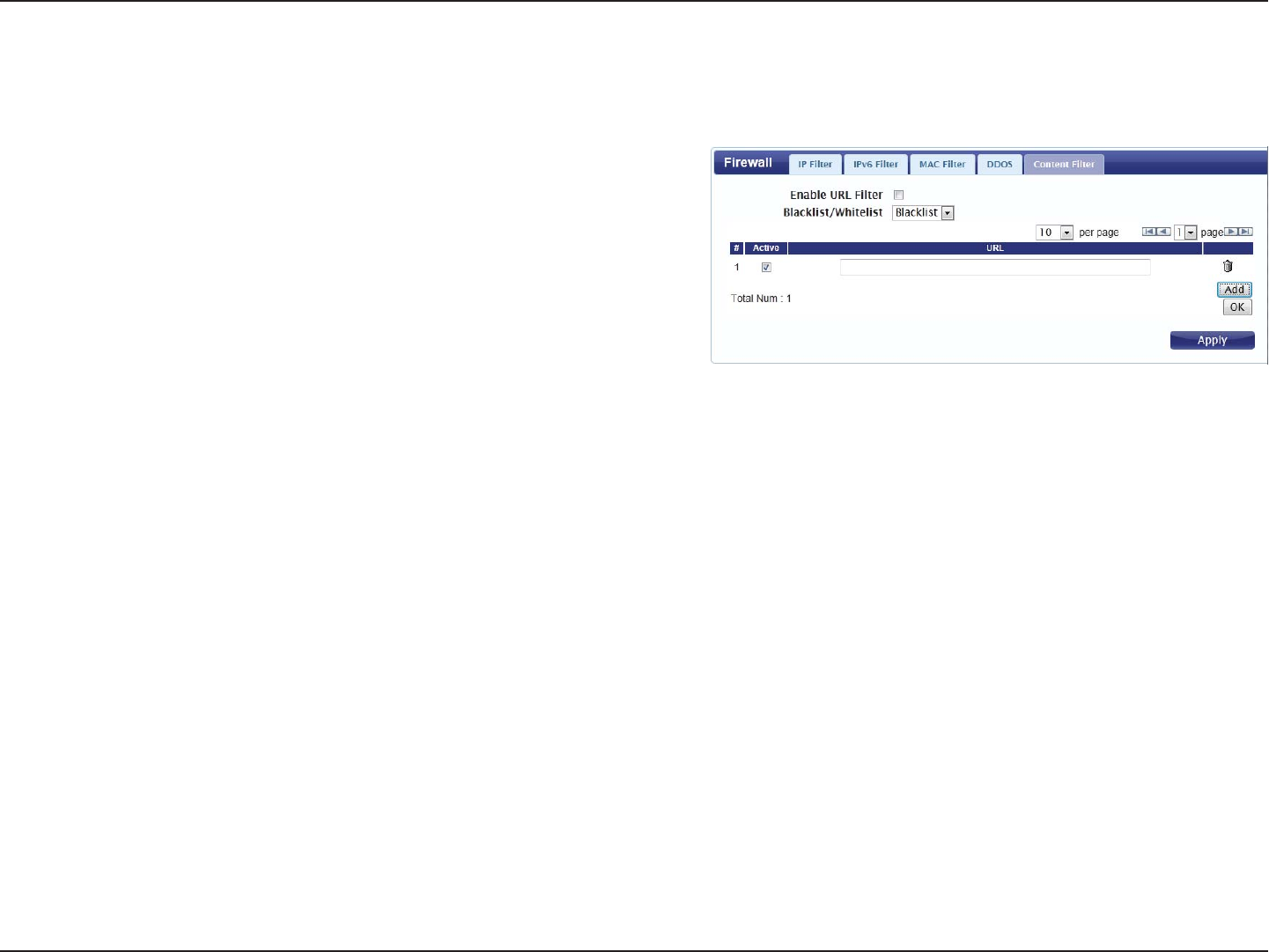

URL Filter
Check the box to enable URL ltering.
Select Blacklist to deny access to only URLs listed in the rule
table. Select Whitelist to allow access to only URLs listed in
the rule list.
Check the box to activate the URL ltering rule.
Enter the URL that you wish to allow or deny access to. If you
enter a domain name, all URLs under this domain will be
allowed or denied access.
Click the icon to delete the rule.
Click Add to save the rule and add it to the rule table. Click
Apply to save the current conguration.
Enable URL Filter:
Blacklist/
Whitelist:
Active:
URL:
Delete:
The content lter allows you to allow or deny access to specic URLs.
D-Link DWR-830 User Manual 64
Section 3 - Conguration

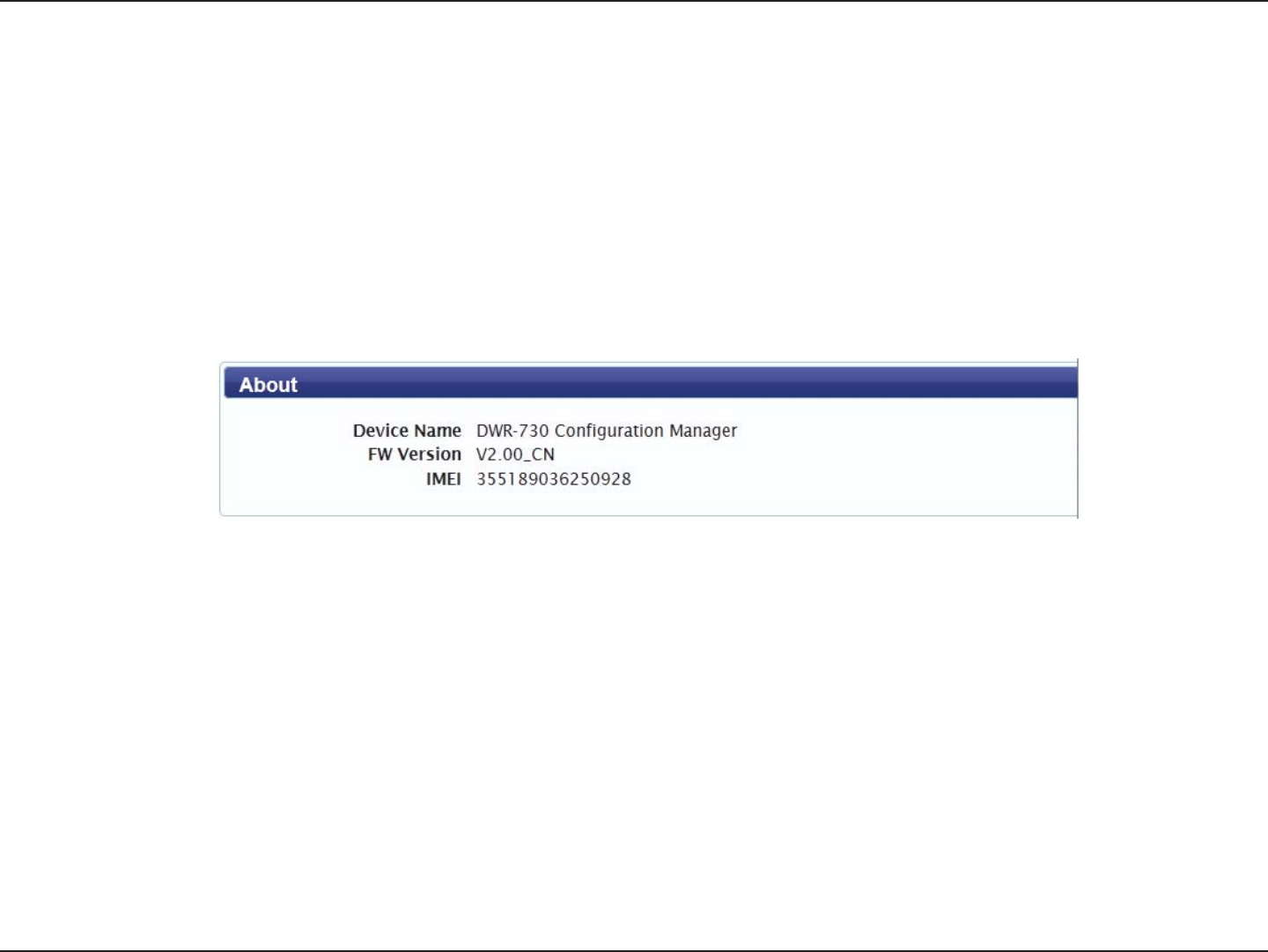

About
This tab shows the router’s basic information.
Application
This tab allows you to congure the router’s administrative functions, such as time & date, remote access, and rmware. You can also access the
system log.
D-Link DWR-830 User Manual 65
Section 3 - Conguration

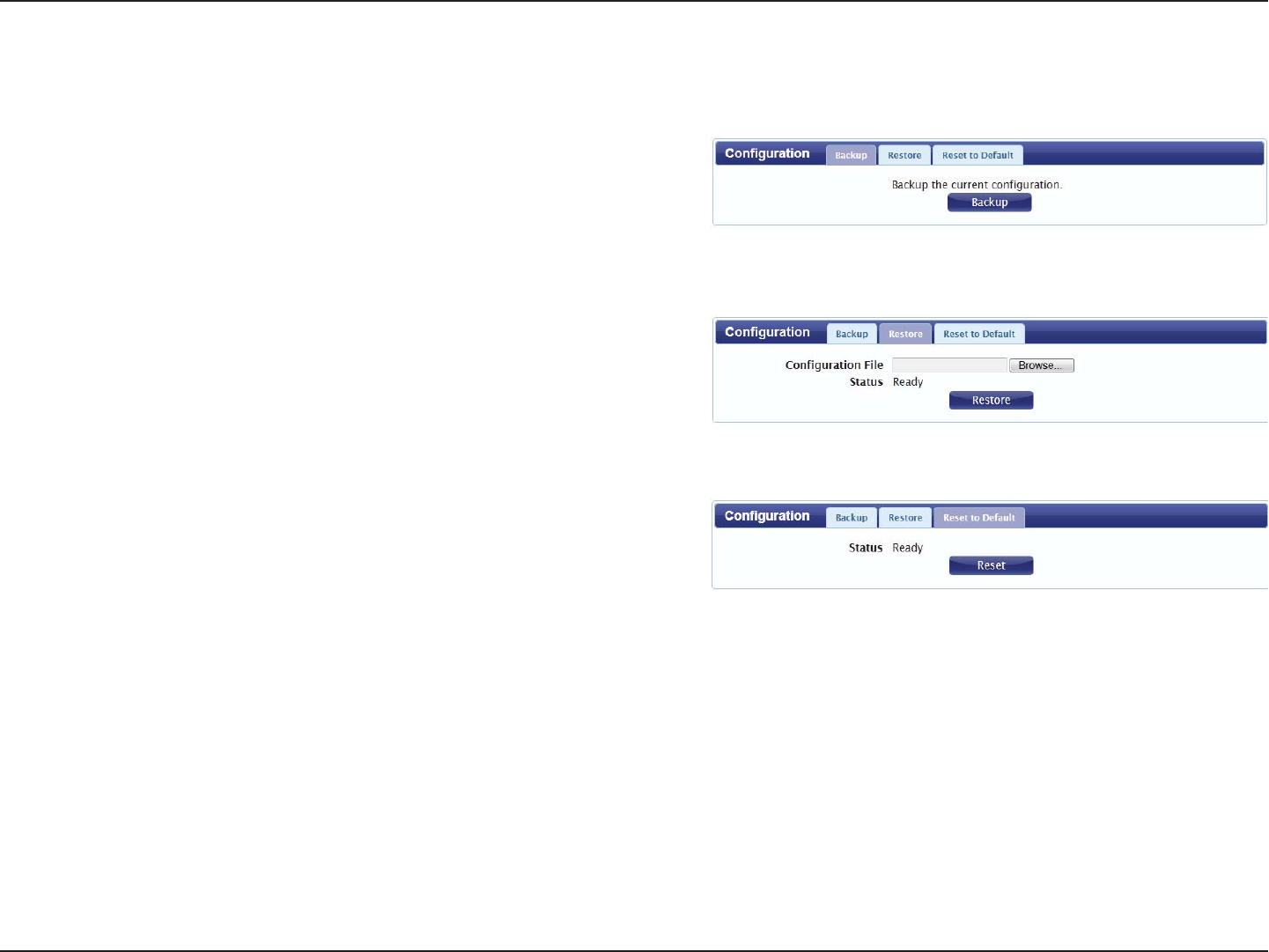

BACKUP
Click Backup to save the router’s current conguration to
a le on your computer. You will then be prompted with a
“save le” dialogue, where you can choose where to save the
conguration le.
RESTORE
Click Browse to locate a previously saved conguration
le on your computer. Once you have located the le, click
Restore to congure the router according to the selected
conguration le.
RESET TO DEFAULT
Click Reset to restore the router’s settings to the factory
defaults.
Important: All settings stored on the router will be lost
following a factory reset.
Conguration
D-Link DWR-830 User Manual 66
Section 3 - Conguration

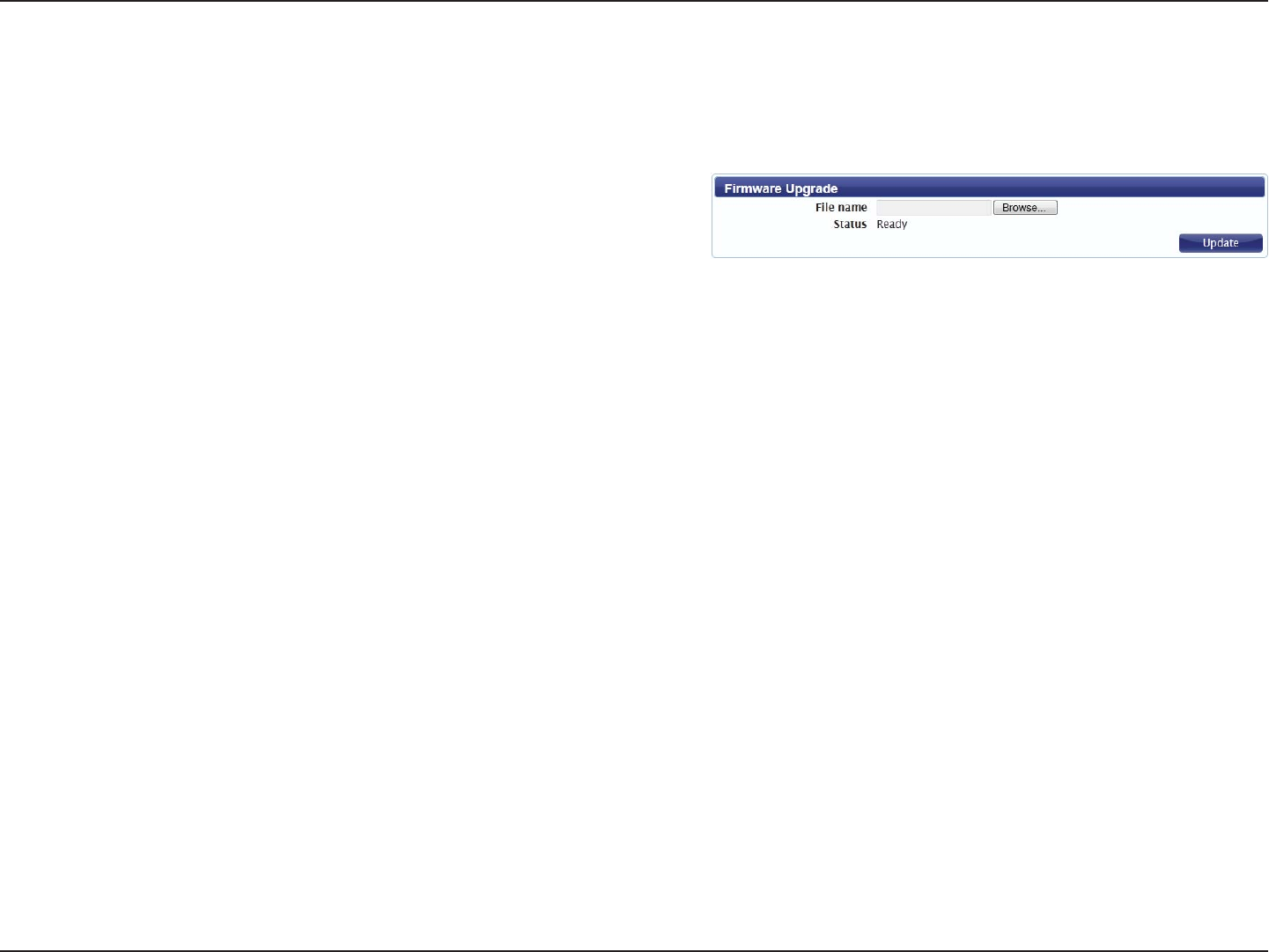

Firmware Upgrade
Click Browse to locate a previously downloaded rmware le
on your computer. Once the le has been located, click Update
to carry out the rmware upgrade process.
Important: All current settings will be restored to their factory
defaults following a rmware upgrade.
You can upgrade the rmware of the router here. Make sure the rmware le you want to use is on the local hard drive of the computer. Please
check your local D-Link support site or http://support.dlink.com for rmware updates and language packs.
D-Link DWR-830 User Manual 67
Section 3 - Conguration

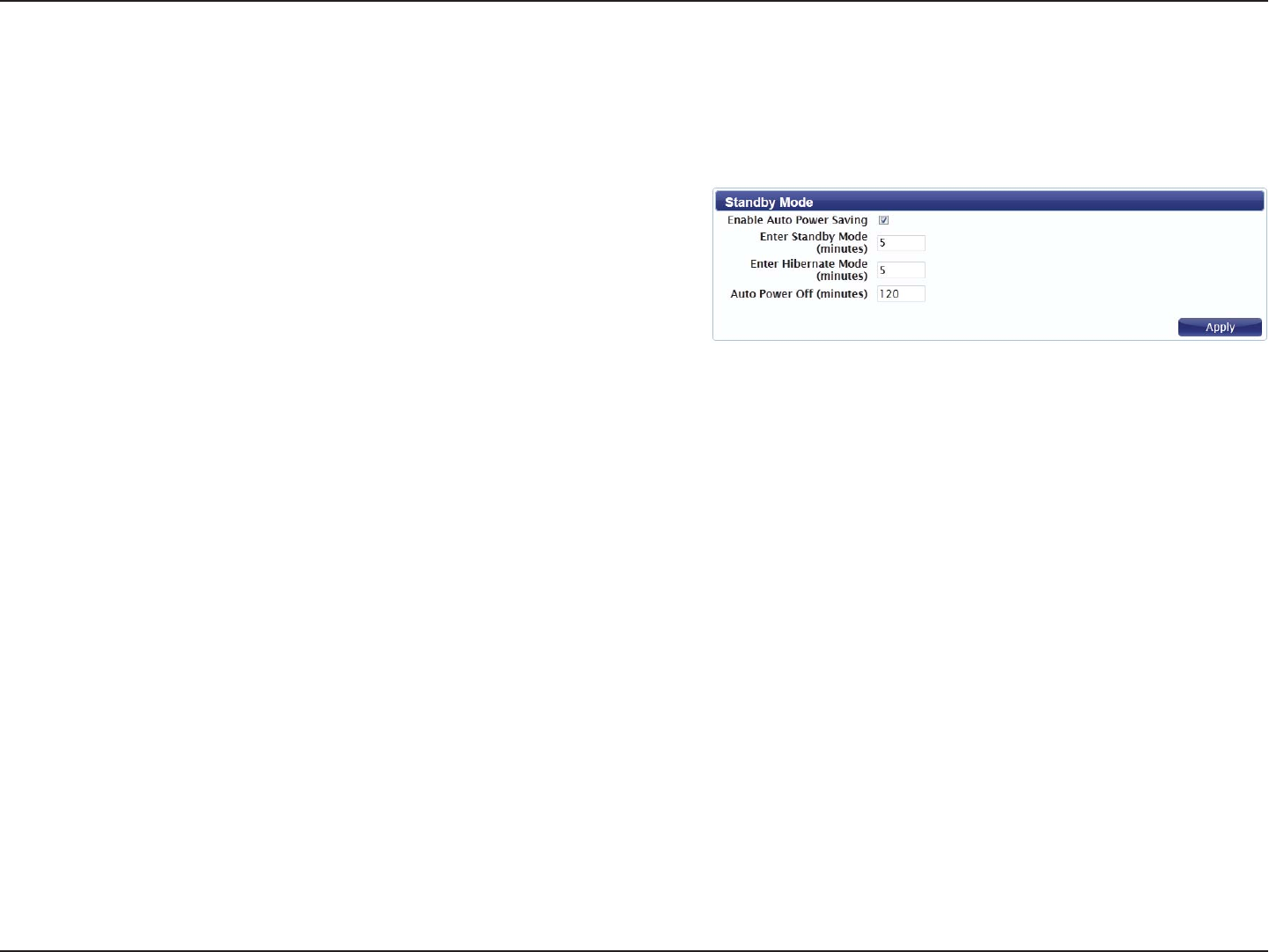

Standby Mode
This section allows you to congure the router’s automatic power-saving modes.
Check the box to enable the automatic power saving
features.
Enter the number of minutes after which the router will enter
standby mode if no activity is detected.
Enter the number of minutes after which the router will enter
hibernate mode if no activity is detected.
Enter the number of minutes after which the router will shut
down if no activity is detected.
Click Apply to save the current conguration.
Enable Auto
Power Saving:
Enter Standby
Mode:
Enter Hibernate
Mode:
Auto Power O:
D-Link DWR-830 User Manual 68
Section 3 - Conguration

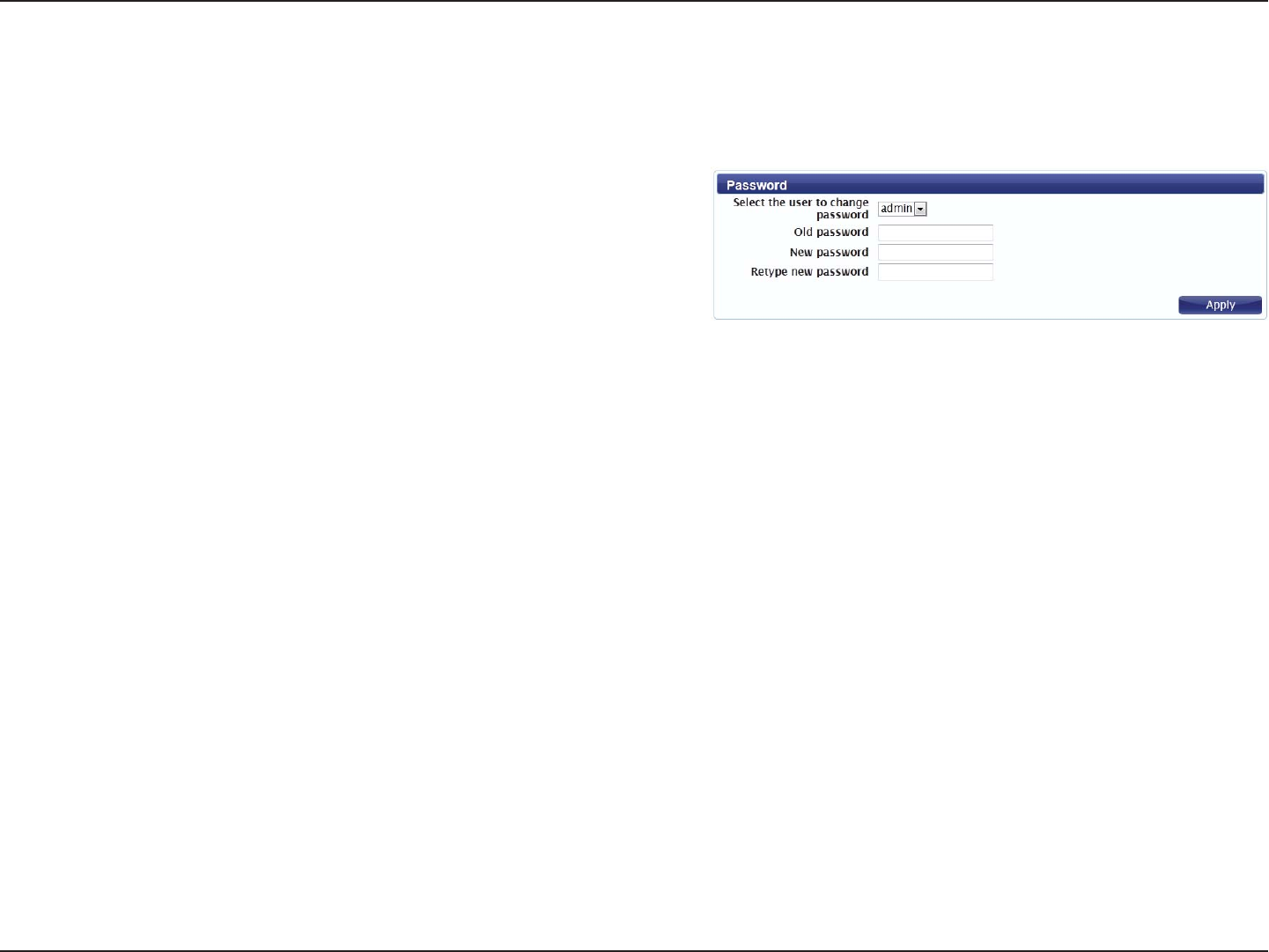

Password
Select whether you wish to change the password for the
admin or user account from the drop down menu.
Enter the existing password for this account.
Enter the new password for this account.
Type the new password again to conrm.
Click Apply to save the current conguration.
Select the user
to change
password:
Old Password:
New Password:
Retype New
Password:
This page lets you change the conguration interface passwords for the Administrator (Admin) and User accounts.
D-Link DWR-830 User Manual 69
Section 3 - Conguration

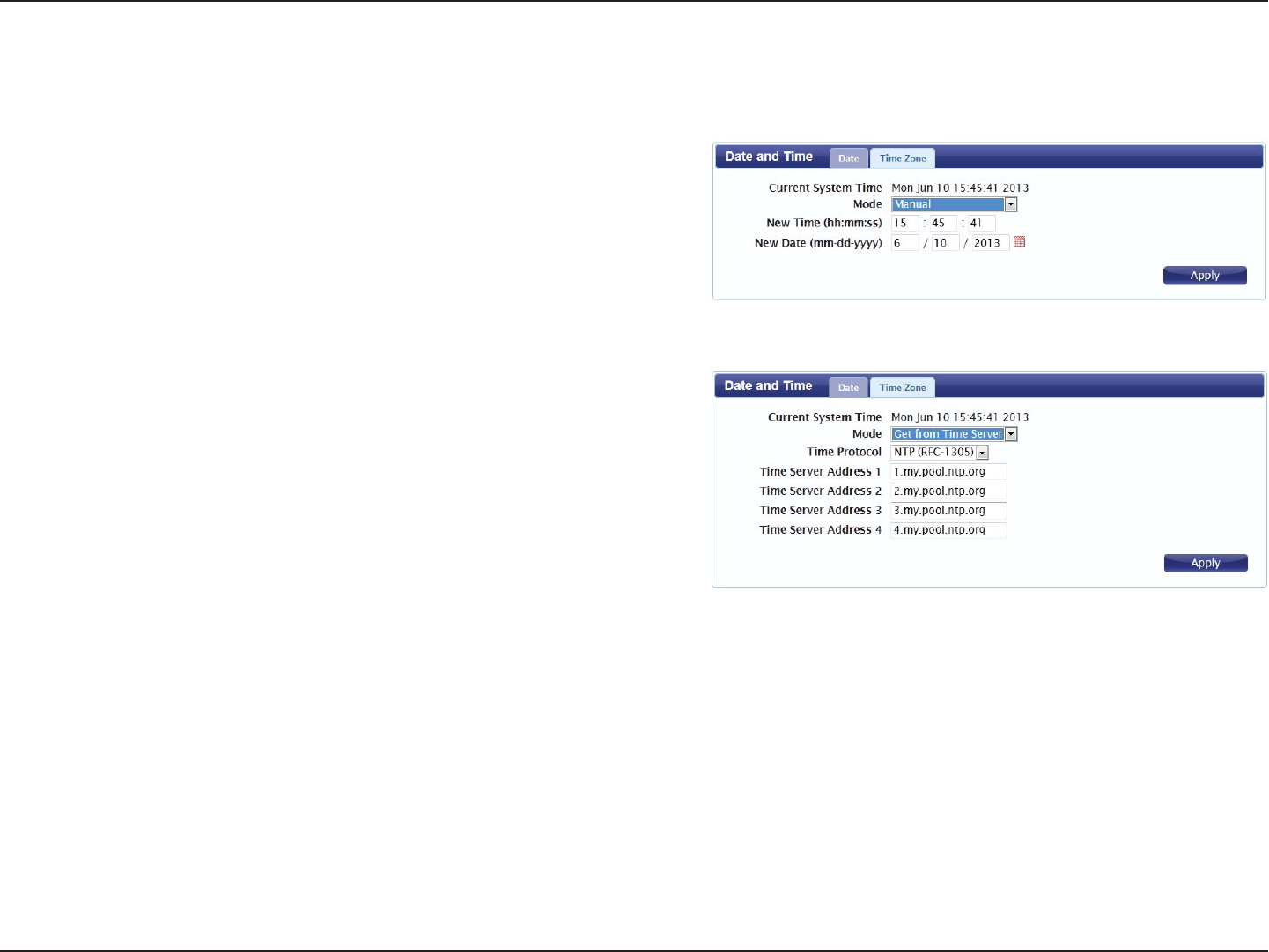

DATE
Displays the current time and date according to the router’s
system clock.
Select Manual to manually set the time and date, or select
Get from Time Server to have the router automatically
synchronize the time with a Network Time Protocol (NTP)
server.
If you selected Manual mode, enter the current time.
If you selected Manual mode, enter the current date.
If you selected Get time From Server, select the desired time
protocol from the drop-down menu.
Enter up to four NTP server addresses which will be used to
synchronize the router’s system time and date.
Click Apply to save the current settings.
Current System
Time:
Mode:
New Time:
New Date:
Time Protocol:
Time Server
Address 1-4:
Date and Time
This page lets you set the time and date for your router, and also congure automatic time synchronization and daylight savings time.
D-Link DWR-830 User Manual 70
Section 3 - Conguration

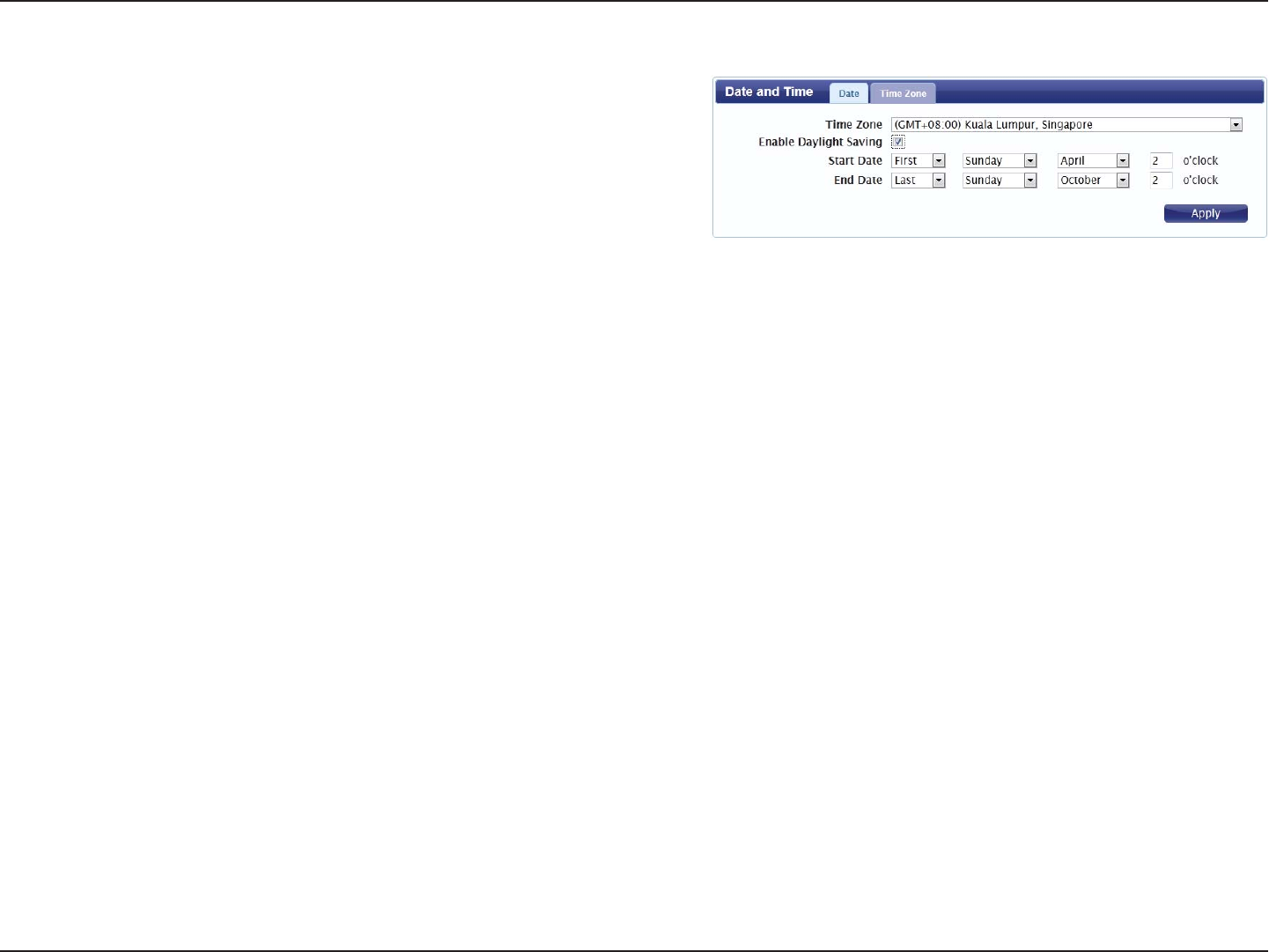

Time Zone:
Enable Daylight
Saving:
Start Date:
End Date:
TIME ZONE
Select your time zone from the drop-down menu.
Check the box to enable automatic adjustment for daylight
saving.
Enter the details of the starting date and time for daylight
saving time in your region.
Enter the details of the ending date and time for daylight
saving time in your region.
Click Apply to save the current settings.
D-Link DWR-830 User Manual 71
Section 3 - Conguration

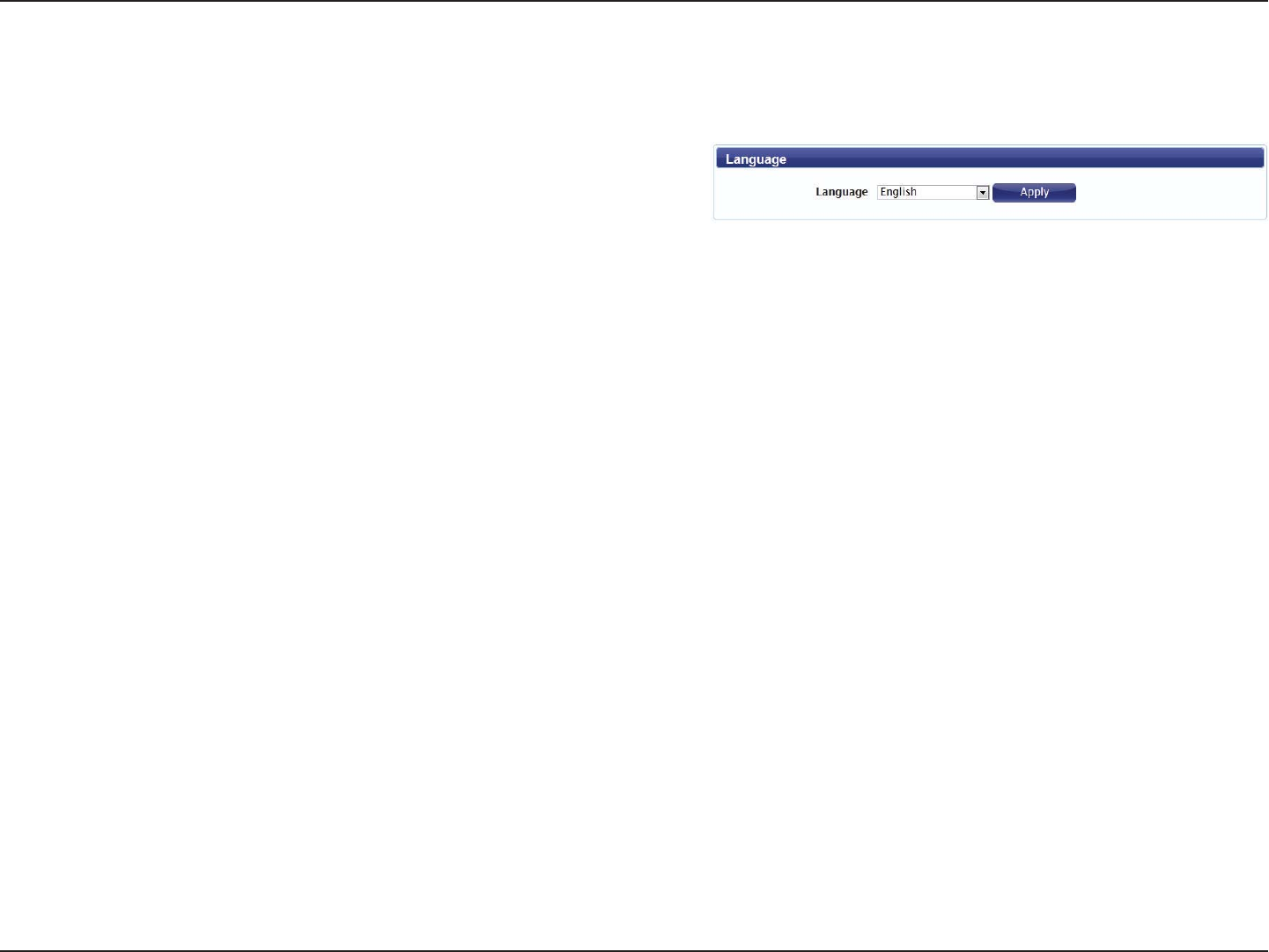

Language
Language: Select your preferred language from the drop-down menu.
Click Apply to save the current conguration.
D-Link DWR-830 User Manual 72
Section 3 - Conguration

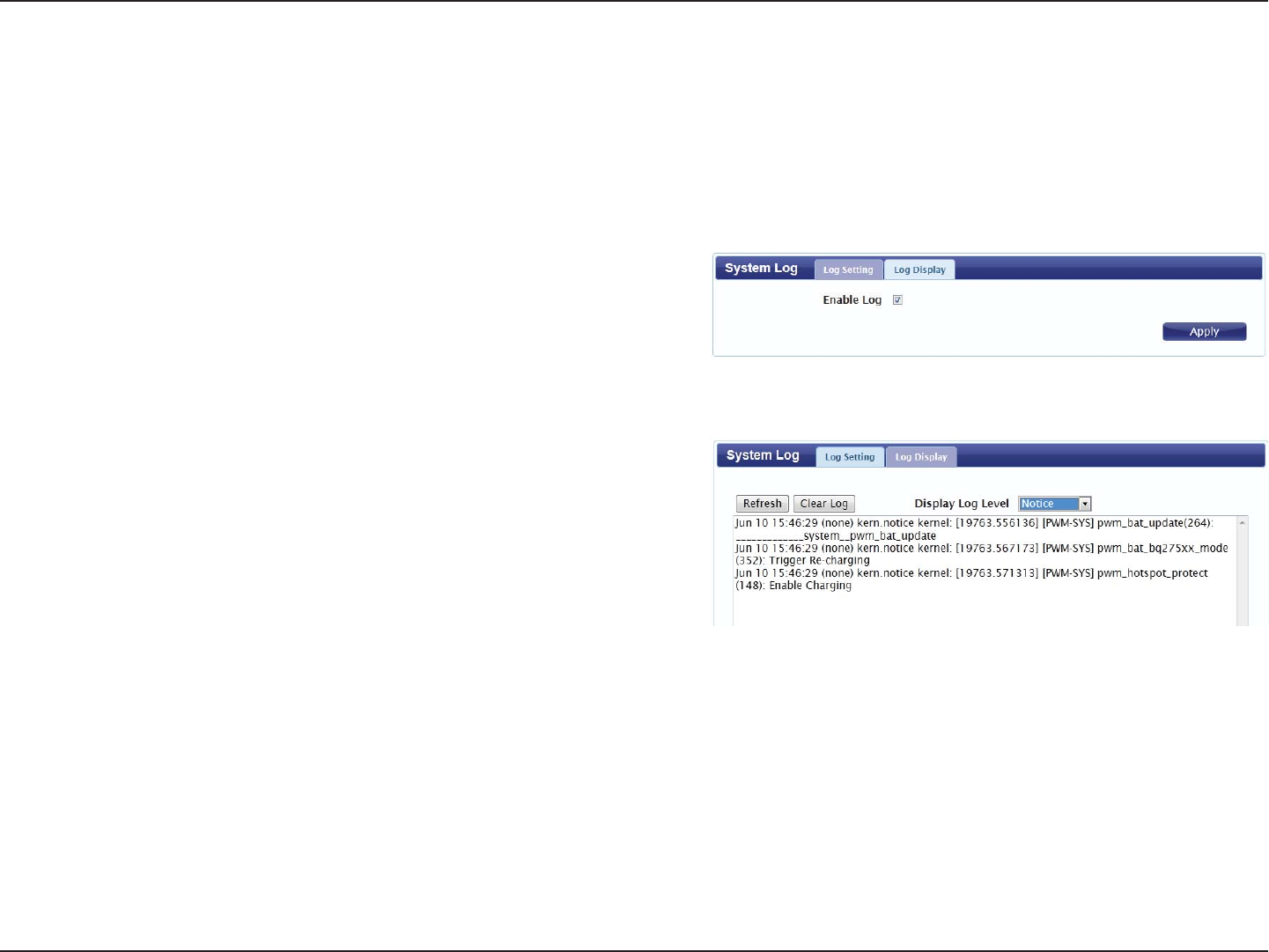

System Log
Enable Log:
Refresh:
Clear Log:
Display Log
Level:
LOG SETTING
Check the box to enable the router’s log-keeping function.
Click Apply to save the current conguration.
LOG DISPLAY
Click to update the log display.
Click to clear all log entries.
Select the level of log event which you wish to view from the
drop-down menu.
The system log displays a record of all events which occur while the router is running.
D-Link DWR-830 User Manual 73
Section 4 - Connecting to a Wireless Network
It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before conguring your
wireless adapter. If you are joining an existing network, you will need to know the security key (Wi-Fi password) being used.
To join an existing network, locate the wireless network icon in the taskbar, next to the time display.
¨ Wireless Icon
Clicking on this icon will display a list of wireless networks which are within connecting proximity of your
computer. Select the desired network by clicking on the network name.
Connecting to a Wireless Network
Using Windows 8
D-Link DWR-830 User Manual 74
Section 4 - Connecting to a Wireless Network
You will then be prompted to enter the network security key (Wi-Fi password) for the wireless
network. Enter the password into the box and click Next.
If you wish to use Wi-Fi Protected Setup (WPS) to connect to the router, you can also press the WPS
button on your router at this point to enable the WPS function.
When you have established a successful connection to a wireless network, the word Connected will
appear next to the name of the network to which you are connected.
D-Link DWR-830 User Manual 75
Section 4 - Connecting to a Wireless Network
Connecting to a Wireless Network
Using Windows 7
Windows 7 users may use the built-in wireless utility to connect to a wireless network. If you are using another company’s utility or Windows 2000,
please refer to the user manual of your wireless adapter for help with connecting to a wireless network. Most utilities will have a “site survey” option
similar to the Windows 7 utility as seen below.
If you receive the Wireless Networks Detected bubble, click on the center of
the bubble to access the utility. You can also click on the wireless icon in your
system tray (lower-right corner).
The utility will display any available wireless networks in your area. Wireless
D-Link DWR-830 User Manual 76
Section 4 - Connecting to a Wireless Network
Highlight the wireless network (SSID) you would like to connect to and click
the Connect button.
If you get a good signal but cannot access the Internet, check your TCP/IP
settings for your wireless adapter. Refer to “Networking Basics” on page 90
for more information.
D-Link DWR-830 User Manual 77
Section 4 - Connecting to a Wireless Network
Conguring Wireless Security
It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before conguring your wireless adapter. If you
are joining an existing network, you will need to know the security key or passphrase being used.
2. The utility will display any available wireless networks in your area.
1. Click on the wireless icon in your system tray (lower-right corner).
Wireless
D-Link DWR-830 User Manual 78
Section 4 - Connecting to a Wireless Network
3. Highlight the wireless network (SSID) you would like to connect to and
click the Connect button.
4. The following window appears while your computer tries to connect to
the router.
D-Link DWR-830 User Manual 79
Section 4 - Connecting to a Wireless Network
5. Enter the same security key or passphrase that is on your router and click
Connect.
It may take 20-30 seconds to connect to the wireless network. If the
connection fails, please verify that the security settings are correct. The key
or passphrase must be exactly the same as on the wireless router.
D-Link DWR-830 User Manual 80
Section 4 - Connecting to a Wireless Network
Using Windows Vista™
Windows® Vista™ users may use the built-in wireless utility. If you are using another company’s utility or Windows® 2000, please refer to the user
manual of your wireless adapter for help with connecting to a wireless network. Most utilities will have a “site survey” option similar to the Windows®
Vista™ utility as seen below.
Right-click on the wireless computer icon in your system tray (lower-right corner
next to the time). Select Connect to a network.
If you receive the Wireless Networks Detected bubble, click on the center of
the bubble to access the utility.
or
The utility will display any available wireless networks in your area. Click on a
network (displayed using the SSID) and click the Connect button.
If you get a good signal but cannot access the Internet, check the TCP/IP settings
for your wireless adapter. Refer to “Networking Basics” on page 90 for more
information.
D-Link DWR-830 User Manual 81
Section 4 - Connecting to a Wireless Network
Conguring Wireless Security
It is recommended to enable wireless security (WEP/WPA/WPA2) on your wireless router or access point before conguring your wireless adapter.
If you are joining an existing network, you will need to know the security key or passphrase being used.
2. Highlight the wireless network (SSID) you would like to connect to and click
Connect.
1. Open the Windows® Vista™ Wireless Utility by right-clicking on the wireless
computer icon in your system tray (lower right corner of screen). Select
Connect to a network.
D-Link DWR-830 User Manual 82
Section 4 - Connecting to a Wireless Network
3. Enter the same security key or passphrase that is on your router and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the connection fails,
please verify that the security settings are correct. The key or passphrase must be
exactly the same as on the wireless router.
D-Link DWR-830 User Manual 83
Section 4 - Connecting to a Wireless Network
Connect to a Wireless Network
Using Windows® XP
Windows® XP users may use the built-in wireless utility (Zero Conguration Utility). The following instructions are for Service Pack 2 users. If you are
using another company’s utility or Windows® 2000, please refer to the user manual of your wireless adapter for help with connecting to a wireless
network. Most utilities will have a “site survey” option similar to the Windows® XP utility as seen below.

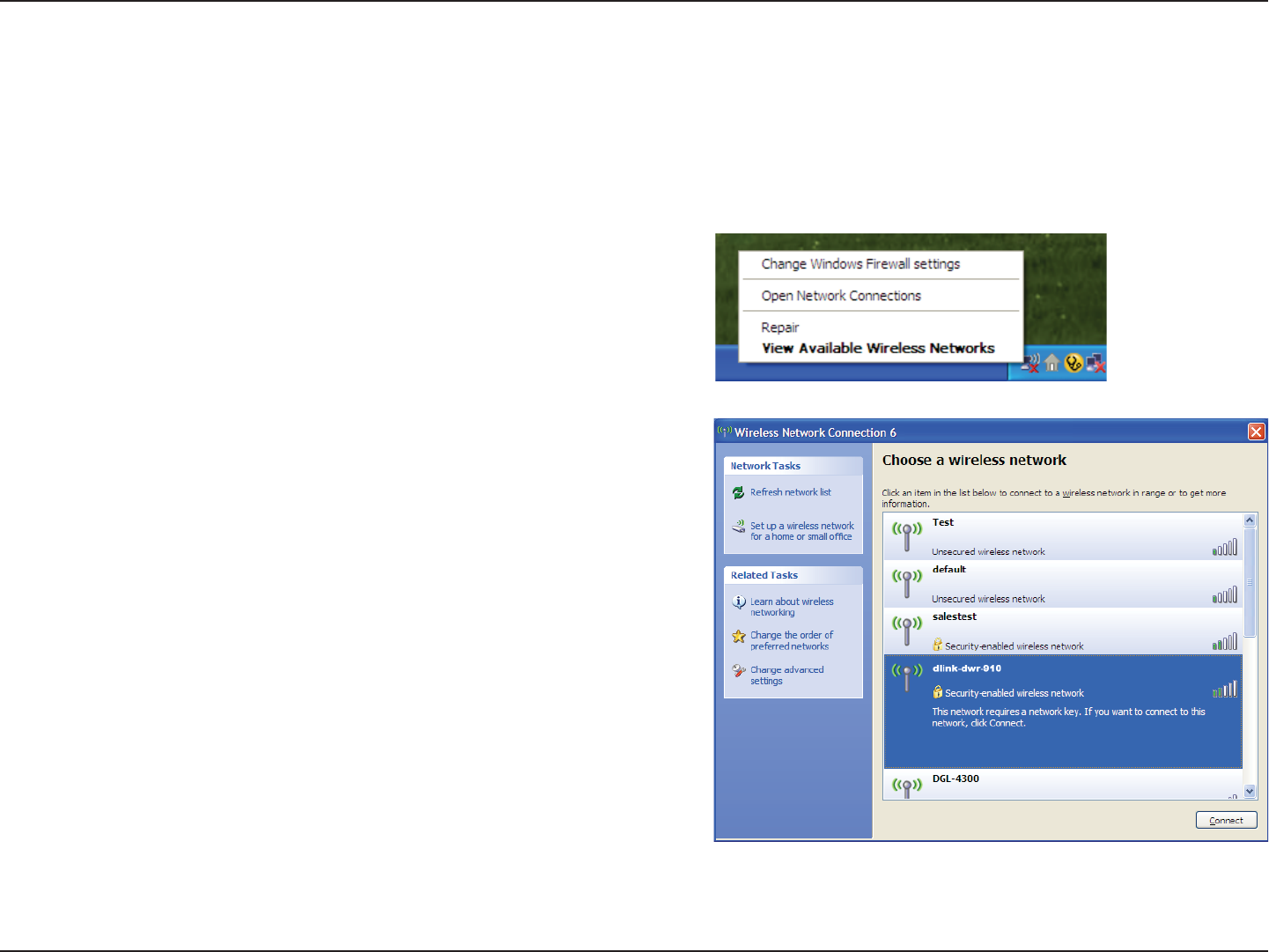

Right-click on the wireless computer icon in your system tray (lower-right corner
next to the time). Select View Available Wireless Networks.
If you receive the Wireless Networks Detected bubble, click on the center of the
bubble to access the utility.
or
The utility will display any available wireless networks in your area. Click on a
network (displayed using the SSID) and click the Connect button.
If you get a good signal but cannot access the Internet, check the TCP/IP settings for
your wireless adapter. Refer to “Networking Basics” on page 90 for more information.
D-Link DWR-830 User Manual 84
Section 4 - Connecting to a Wireless Network
Congure WEP
It is recommended to enable WEP on your wireless router or access point before conguring your wireless adapter. If you are joining an existing
network, you will need to know the WEP key being used.
2. Highlight the wireless network (SSID) you would
like to connect to and click Connect.
1. Open the Windows® XP Wireless Utility by right-clicking on
the wireless computer icon in your system tray (lower-right
corner of screen). Select View Available Wireless Networks.
D-Link DWR-830 User Manual 85
Section 4 - Connecting to a Wireless Network
3. The Wireless Network Connection box will appear. Enter the same WEP key that is
on your router and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the connection fails,
please verify that the WEP settings are correct. The WEP key must be exactly the same
as on the wireless router.
D-Link DWR-830 User Manual 86
Section 4 - Connecting to a Wireless Network
Congure WPA-PSK
It is recommended to enable WPA on your wireless router or access point before conguring your wireless adapter. If you are joining an existing
network, you will need to know the WPA key being used.
2. Highlight the wireless network (SSID) you would
like to connect to and click Connect.
1. Open the Windows® XP Wireless Utility by right-clicking on
the wireless computer icon in your system tray (lower-right
corner of screen). Select View Available Wireless Networks.
D-Link DWR-830 User Manual 87
Section 4 - Connecting to a Wireless Network
3. The Wireless Network Connection box will appear. Enter the WPA-PSK passphrase
and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the connection fails,
please verify that the WPA-PSK settings are correct. The WPA-PSK passphrase must be
exactly the same as on the wireless router.
D-Link DWR-830 User Manual
from your computer while you congure the DWR-830. You can also change the IP address of the DWR-830 in the Network section
This chapter provides solutions to problems that can occur during the installation and operation of the DWR-830. Read the following descriptions
same IP address as the DWR-830, as this may cause an IP address conict. If you have a conict, temporarily unplug any other devices
88
Section 5 - Troubleshooting
Troubleshooting
if you are having problems.
1. Why can’t I access the web-based conguration utility?
When entering the IP address of your router (192.168.0.1 for example), you are not connecting to a website on the Internet or have to be connected
to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your computer must be on the same IP subnet to connect to
the web-based utility.
• Make sure you have an updated Java-enabled web browser. We recommend the following:
- Internet Explorer 8 or higher, Chrome 19.0, Firefox 12.0, or Safari 4.0.
• If attempting to connect wirelessly, ensure that the wireless icon on the OLED display is showing. Also, ensure that you are connected
to the correct SSID for your mobile router.
• Make sure that the computer you are using is not connected to any other devices (such as routers or switches) which might have the
of the conguration utility. Please refer to “Wi-Fi” on page 33 for further information on changing the IP address. You may also need
to renew your computer’s IP address conguration. To do this, start the Command utility: Click on Start > Run. In the run box type
cmd and click OK. (Windows Vista users type cmd in the Start Search box.) This will bring up a black screen with white text. At the
command prompt, type ipcong /release and wait for the process to be completed. Next, type ipcong /renew which will renew
your computer’s IP address conguration.
• Disable any Internet security software running on the computer. Software rewalls such as ZoneAlarm, BlackICE, Sygate, Norton
Personal Firewall, and Windows® XP rewall may block access to the conguration pages. Check the help les included with your
rewall software for more information on disabling or conguring it.
D-Link DWR-830 User Manual
the hole to the upper-left of the SIM card slot (see diagram). The DWR-830 will restore
89
Section 5 - Troubleshooting
• Congure your Internet settings:
- Go to Start > Settings > Control Panel. Double-click the Internet Options Icon. From the Security tab, click the Default Level
button to restore the settings to their defaults.
- Click the Connection tab and set the dial-up option to Never Dial a Connection. Click the LAN Settings button. Make sure nothing
is checked. Click OK.
- Go to the Advanced tab and click the button to restore these settings to their defaults. Click OK three times.
- Close your web browser (if open) and re-open it.
2. What can I do if I forgot my password?
If you forgot your password, you must reset your router. Please note that this process will change all your settings back to the factory defaults.
To reset the router, rst remove the back cover of the router to expose the battery. Using
a paperclip or similar object, press and hold the reset button, which is located inside
the factory default settings. Wait about 30 seconds for the router to restart before you
attempt to reconnect to it. The default IP address is 192.168.0.1, and the default username
is admin and the password should be left blank.
Reset Button
D-Link DWR-830 User Manual 90
Appendix B - Networking Basics
Networking Basics
Check your IP address
After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP server (i.e. wireless
router) automatically. To verify your IP address, please follow the steps below.
Click on Start > Run. In the run box type cmd and click OK.
(Windows® Vista™ users type cmd in the Start Search box.)

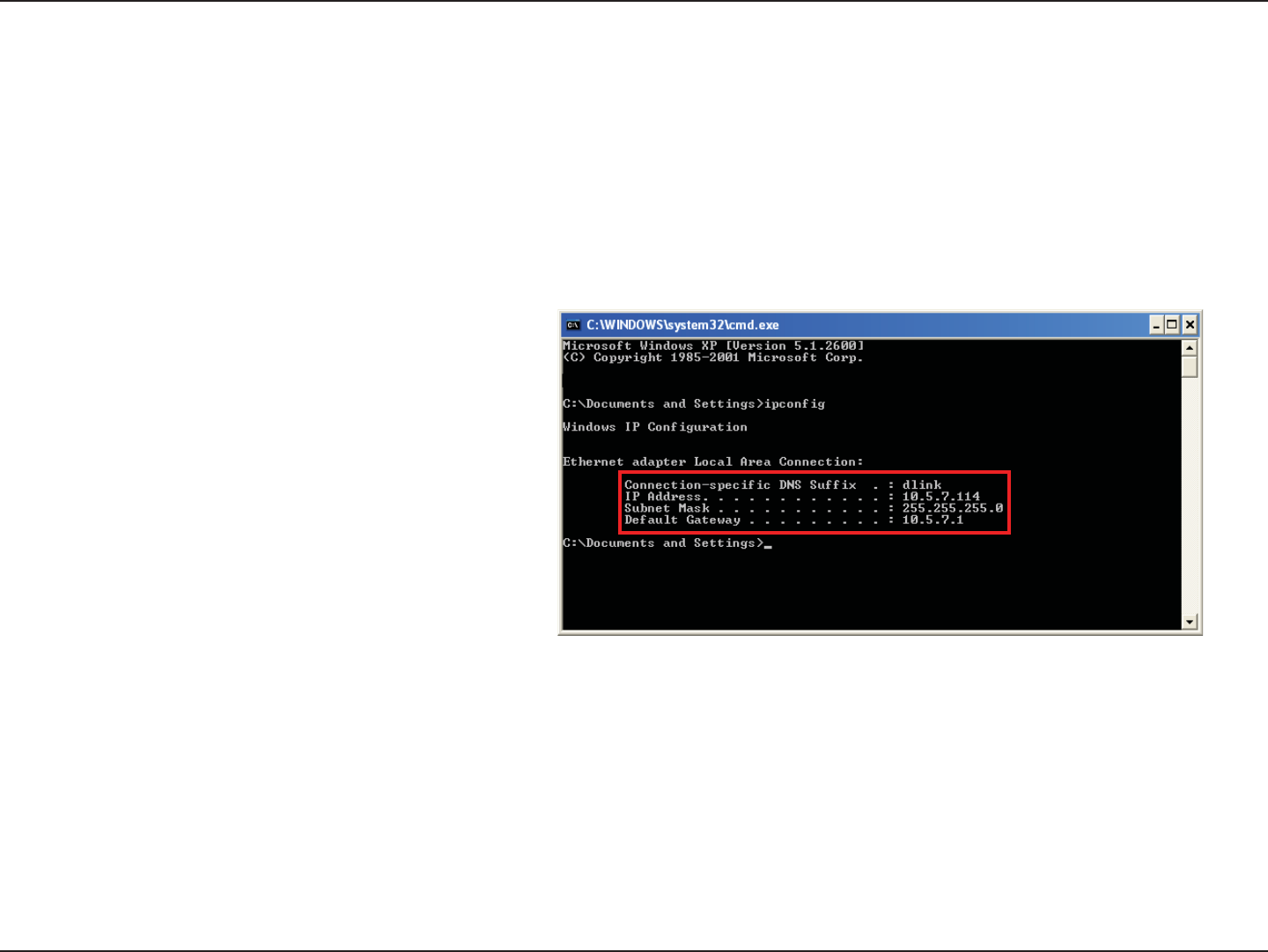

At the prompt, type ipcong and press Enter.
This will display the IP address, subnet mask, and the default
gateway of your adapter.
If the address is 0.0.0.0, check your adapter installation, security settings, and the settings on your router. Some rewall software programs may
block a DHCP request on newly installed adapters.
D-Link DWR-830 User Manual 91
Appendix B - Networking Basics
Statically Assign an IP address
Step 2
Right-click on the Local Area Connection which represents your network adapter and select Properties.
Step 3
Highlight Internet Protocol (TCP/IP) and click Properties.
Step 4

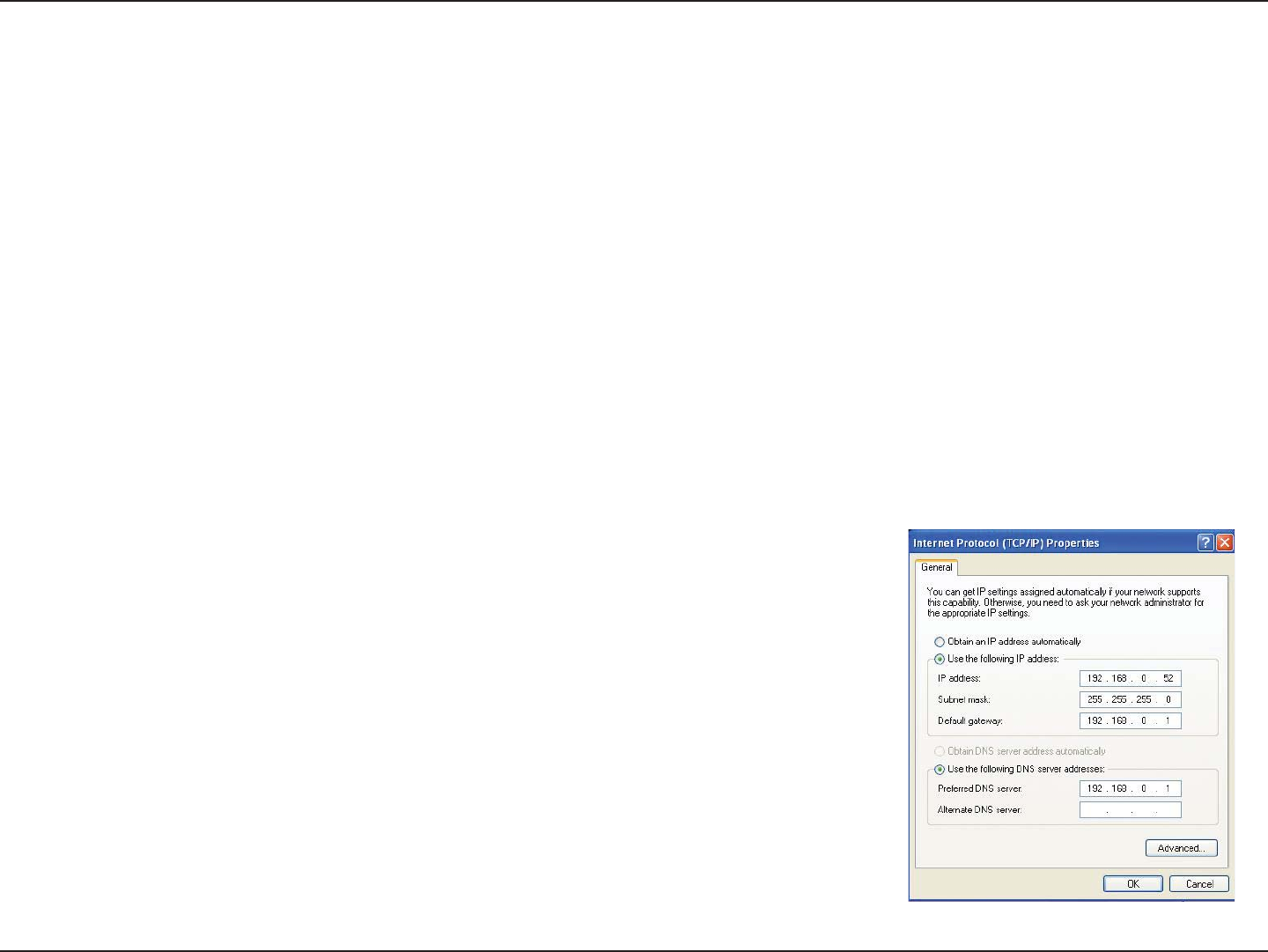

Click Use the following IP address and enter an IP address that is on the same subnet as your network
or the LAN IP address on your router.
Example: If the router´s LAN IP address is 192.168.0.1, make your IP address 192.168.0.X where X is a
number between 2 and 99. Make sure that the number you choose is not in use on the network. Set
Default Gateway the same as the LAN IP address of your router (192.168.0.1).
Set Primary DNS the same as the LAN IP address of your router (192.168.0.1). The Secondary DNS is not
needed or you may enter a DNS server from your ISP.
Step 5
Click OK twice to save your settings.
Click on Start > Control Panel > Network and Internet Connections > Network Connections > Congure your Internet
Protocol (IP) settings.
Step 1
If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps below:
Windows® 8
Windows® 7
Windows® Vista™
Windows® XP
Click on Start > Control Panel > Network and Internet > Network and Sharing Center > Manage Network Connections.
Click on Start > Control Panel > Network and Internet > Network and Sharing Center > Manage Network Connections.
Click on Start > Control Panel > Network Connections.
DC-HSPA+
HSUPA/HSPDA/UMTS: 900/2100 MHz or 850/1900 MHz (Option)
Downlink: 42 Mbps
EDGE/GPRS/GSM: 850/900/1800/1900 MHz
Uplink: 11 Mbps
D-Link DWR-830 User Manual 92
Appendix C - Technical Specications
Technical Specications
Radio Frequency Bands
•
•
• Power Class 3 (+23 dBm)
Cellular Access
•
•
•
Wi-Fi Access Point
• 802.11n (150 Mbps compatible)
• 802.11g (54 Mbps)
• 802.11b (11 Mbps)
Antenna
• One internal antenna
USB Interface
• micro USB port
USIM Slot
• Standard 6-pin SIM card interface
Status Indicators
• OLED display
Storage
• microSD card slot
Wireless Security
• 64/128-bit WEP (Wired Equivalent Privacy)
• WPA & WPA2 (Wi-Fi Protected Access)
• WAPI (WLAN Authentication and Privacy Infrastructure)
Firewall
• Network Address Translation (NAT)
Dimensions (L x W x H)
• 100.3 x 49.35 x 14.13 mm (3.95 x 1.94 x 0.56 inches)
Weight
• 90 g (3.17 ounces)
Operating Temperature
• -10 to 40 °C (14 to 104 °F)
Certications
• FCC/CE
To comply with radiofrequency radiation (RF) exposure guidelines during body worn operation, this device must be used with a minimum of 0.5
D-Link DWR-830 User Manual 93
Appendix D - Safety
Specic Absorption Rate (SAR)
This mobile device is a radio transmitter and receiver. It is not designed to exceed the limits for exposure to radio waves recommended by
international guidelines. These guidelines were developed by the independent scientic organization ICNIRP and include safety margins
designed to assure the protection of all persons, regardless of age and health.
The guidelines use a unit of measurement known as the Specic Absorption Rate, or SAR.
The SAR limit for mobile devices is 2 W/kg and the highest SAR value for this device when tested complied with this limit.
cm separation from the body.
Failure to observe these instructions could result in your RF exposure exceeding the relevant guideline limits.
Warnings and Declarations
Adapter model: AMS47-0501000FV
4. The device could be used with a separation distance of 0.5cm to the human body.
-Link DWR-830
1. CAUTION : RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE
INSTRUCTIONS.
2. The product shall only be connected to a USB interface of version USB2.0
3. The adapter shall be installed near the equipment and shall be easily accessible.
Only can use adapter as below: Adapter brand name: AMIGO
I/P:100-240V,50/60Hz,0.2A,O/P 5V,1.0A
The plug considered as disconnect device of adapter
The device complies with the essential requirements of Article 3 of the R&TTE 1999/5/EC Directive, if used for its intended use and that the
following standards have been applied:
1. Health (Article 3.1(a) of the R&TTE Directive)
EN62311 :2008/EN62209-2 :2010
EN62479 :2010
2. Safety (Article 3.1(a) of the R&TTE Directive)
Applied Standard(s):
EN 60950-1:2006+A11:2009+A1:2010+A12:2011
3. Electromagnetic compatibility (Article 3.1 (b) of the R&TTE Directive)
Applied Standard(s):
EN 301 489-1 V1.9.2/-7 V1.3.1/-17 V2.2.1/-24 V1.5.1
4. Radio frequency spectrum usage (Article 3.2 of the R&TTE Directive)
Applied Standard(s):
EN 301 511 V9.0.2
EN 301908-1/-2 V5.2.1
EN 300328 V1.8.1
All the reports of the applied standards have the Positive Opinion of Notied Body:
PHONEIX TESTLAB, Königswinkel 10 D-32825 Blomberg, Germany
Identication mark: 0700 (Notied Body) C
94D User Manual
CE Warning
-Link DWR-830
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can
radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the
equipment.
The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
95D User Manual
FCC Warning
FCC Regulations:
-Link DWR-830
www.fcc.gov/oet/ea/fccid after searching on FCC ID: KA2WR830A1.
This device meets the government’s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal
Communications Commission of the U.S. Government.
The exposure standard for wireless devices employs a unit of measurement known as the Specic Absorption Rate, or SAR. The SAR limit set by
the FCC is 1.6W/kg. *Tests for SAR are conducted using standard operating positions accepted by the FCC with the device transmitting at its
highest certied power level in all tested frequency bands. Although the SAR is determined at the highest certied power level, the actual SAR
level of the device while operating can be well below the maximum value. This is because the device is designed to operate at multiple power
levels so as to use only the poser required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the
power output.
During SAR testing, this device is set to transmit at its highest certied power level in all tested frequency bands, and placed in positions that
simulate RF exposure in usage near the body with the separation of 0.5cm. the highest SAR value as reported to the FCC is 0.86 W/kg
The FCC has granted an Equipment Authorization for this device with all reported SAR levels evaluated as in compliance with the FCC RF
exposure guidelines. SAR information on this device is on le with the FCC and can be found under the Display Grant section of
This device has been tested and meets the FCC RF exposure guidelines.
96D User Manual
FCC Warning
RF Exposure Information (SAR)

Navigation menu
