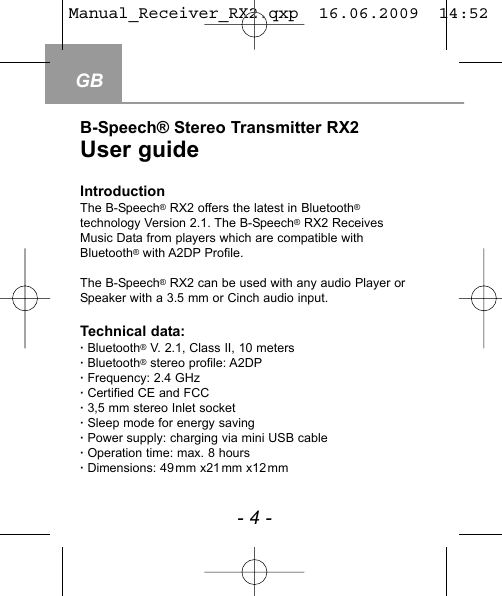

B-Speech® Stereo Transmitter RX2User guideIntroductionThe B-Speech®RX2 offers the latest in Bluetooth®technology Version 2.1. The B-Speech®RX2 ReceivesMusic Data from players which are compatible withBluetooth®with A2DP Profile.The B-Speech®RX2 can be used with any audio Player orSpeaker with a 3.5 mm or Cinch audio input. Technical data:· Bluetooth®V. 2.1, Class II, 10 meters· Bluetooth®stereo profile: A2DP· Frequency: 2.4 GHz· Certified CE and FCC · 3,5 mm stereo Inlet socket· Sleep mode for energy saving · Power supply: charging via mini USB cable· Operation time: max. 8 hours· Dimensions: 49mm x21mm x12mm GB- 4 -Manual_Receiver_RX2.qxp 16.06.2009 14:52

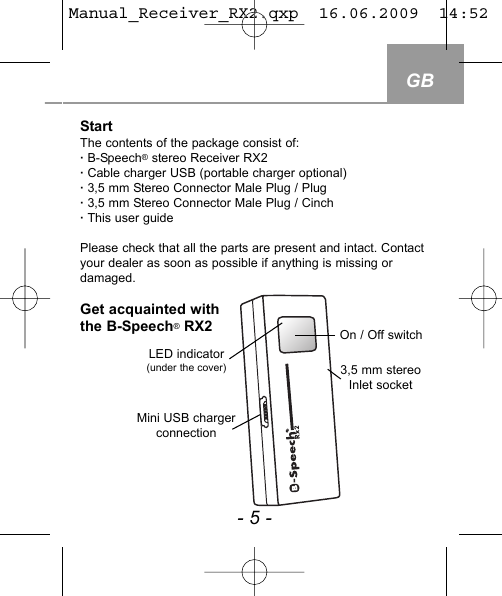

StartThe contents of the package consist of:· B-Speech®stereo Receiver RX2· Cable charger USB (portable charger optional)· 3,5 mm Stereo Connector Male Plug / Plug· 3,5 mm Stereo Connector Male Plug / Cinch· This user guide Please check that all the parts are present and intact. Contactyour dealer as soon as possible if anything is missing ordamaged. Get acquainted withthe B-Speech®RX2 GB- 5 -LED indicator (under the cover)On / Off switchMini USB charger connection3,5 mm stereoInlet socketManual_Receiver_RX2.qxp 16.06.2009 14:52

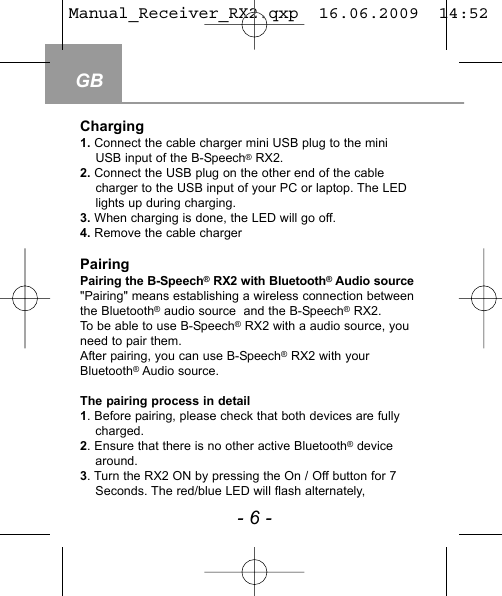

GB- 6 -Charging1. Connect the cable charger mini USB plug to the miniUSB input of the B-Speech®RX2.2. Connect the USB plug on the other end of the cable charger to the USB input of your PC or laptop. The LEDlights up during charging.3. When charging is done, the LED will go off. 4. Remove the cable chargerPairingPairing the B-Speech®RX2 with Bluetooth®Audio source"Pairing" means establishing a wireless connection betweenthe Bluetooth®audio source and the B-Speech®RX2.To be able to use B-Speech®RX2 with a audio source, youneed to pair them.After pairing, you can use B-Speech®RX2 with yourBluetooth®Audio source.The pairing process in detail1. Before pairing, please check that both devices are fullycharged.2. Ensure that there is no other active Bluetooth®devicearound.3. Turn the RX2 ON by pressing the On / Off button for 7Seconds. The red/blue LED will flash alternately, Manual_Receiver_RX2.qxp 16.06.2009 14:52

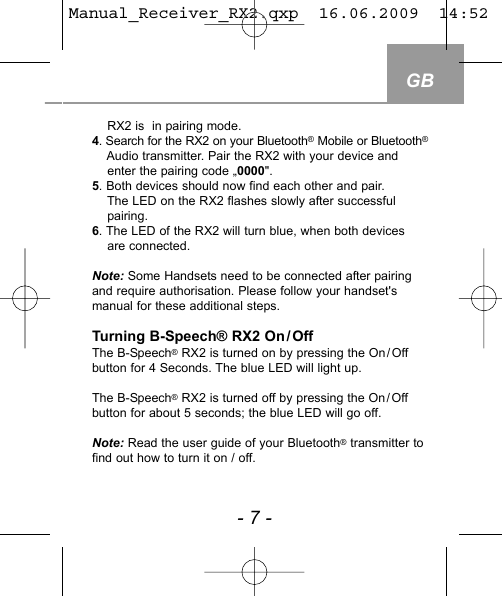

GB- 7 -RX2 is in pairing mode. 4. Search for the RX2 on your Bluetooth®Mobile or Bluetooth®Audio transmitter. Pair the RX2 with your device andenter the pairing code „0000".5. Both devices should now find each other and pair. The LED on the RX2 flashes slowly after successful pairing.6. The LED of the RX2 will turn blue, when both devices are connected.Note: Some Handsets need to be connected after pairingand require authorisation. Please follow your handset'smanual for these additional steps.Turning B-Speech® RX2 On/OffThe B-Speech®RX2 is turned on by pressing the On/Offbutton for 4 Seconds. The blue LED will light up. The B-Speech®RX2 is turned off by pressing the On/Offbutton for about 5 seconds; the blue LED will go off. Note: Read the user guide of your Bluetooth®transmitter tofind out how to turn it on / off.Manual_Receiver_RX2.qxp 16.06.2009 14:52

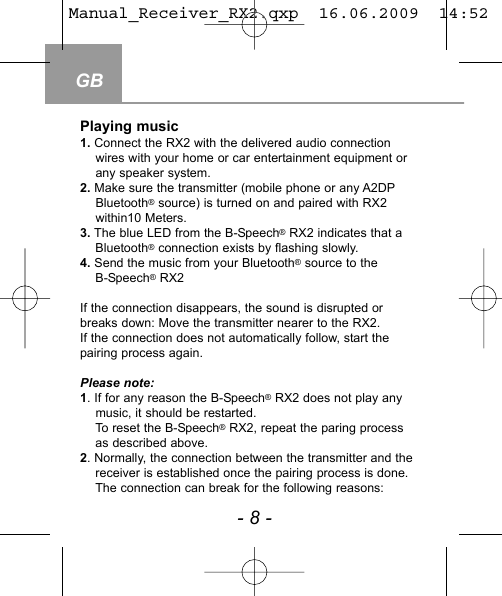

GB- 8 -Playing music1. Connect the RX2 with the delivered audio connection wires with your home or car entertainment equipment or any speaker system. 2. Make sure the transmitter (mobile phone or any A2DPBluetooth®source) is turned on and paired with RX2 within10 Meters.3. The blue LED from the B-Speech®RX2 indicates that a Bluetooth®connection exists by flashing slowly. 4. Send the music from your Bluetooth®source to the B-Speech®RX2 If the connection disappears, the sound is disrupted orbreaks down: Move the transmitter nearer to the RX2.If the connection does not automatically follow, start the pairing process again.Please note:1. If for any reason the B-Speech®RX2 does not play anymusic, it should be restarted.To reset the B-Speech®RX2, repeat the paring processas described above.2. Normally, the connection between the transmitter and the receiver is established once the pairing process is done.The connection can break for the following reasons: Manual_Receiver_RX2.qxp 16.06.2009 14:52

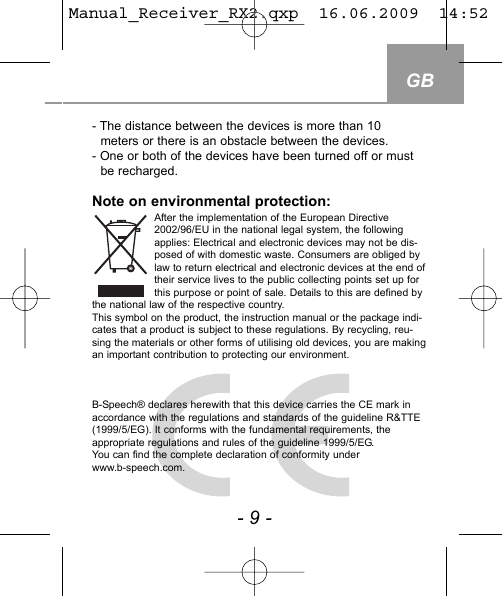

GB- 9 -- The distance between the devices is more than 10 meters or there is an obstacle between the devices.- One or both of the devices have been turned off or mustbe recharged. Note on environmental protection:After the implementation of the European Directive2002/96/EU in the national legal system, the followingapplies: Electrical and electronic devices may not be dis-posed of with domestic waste. Consumers are obliged bylaw to return electrical and electronic devices at the end oftheir service lives to the public collecting points set up forthis purpose or point of sale. Details to this are defined bythe national law of the respective country.This symbol on the product, the instruction manual or the package indi-cates that a product is subject to these regulations. By recycling, reu-sing the materials or other forms of utilising old devices, you are makingan important contribution to protecting our environment.B-Speech® declares herewith that this device carries the CE mark inaccordance with the regulations and standards of the guideline R&TTE(1999/5/EG). It conforms with the fundamental requirements, the appropriate regulations and rules of the guideline 1999/5/EG. You can find the complete declaration of conformity under www.b-speech.com.Manual_Receiver_RX2.qxp 16.06.2009 14:52
D- 10 -Manual_Receiver_RX2.qxp 16.06.2009 14:52
