D Parts Mobilphon and Zubehoer RX4 B-Speech RX4 User Manual rx4

D-Parts Mobilphon & Zubehoer GmbH B-Speech RX4 rx4

User Manual

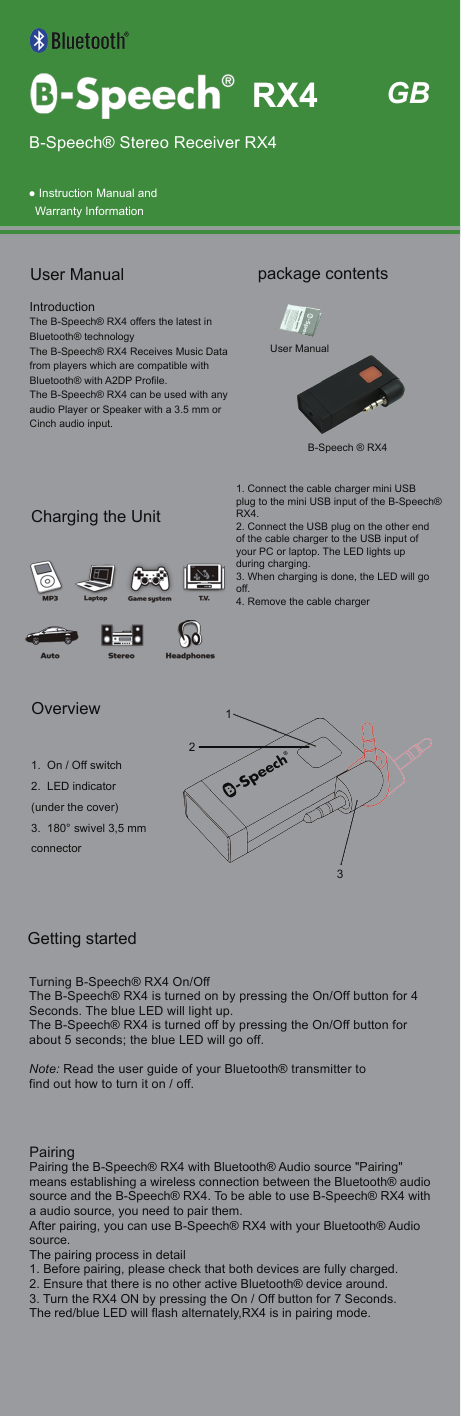

● Instruction Manual andWarranty InformationIntroductionThe B-Speech® RX4 offers the latest in Bluetooth® technology The B-Speech® RX4 Receives Music Data from players which are compatible withBluetooth® with A2DP Profile.The B-Speech® RX4 can be used with any audio Player or Speaker with a 3.5 mm or Cinch audio input.User Manual Getting startedTurning B-Speech® RX4 On/OffThe B-Speech® RX4 is turned on by pressing the On/Off button for 4 Seconds. The blue LED will light up.The B-Speech® RX4 is turned off by pressing the On/Off button for about 5 seconds; the blue LED will go off.Note: Read the user guide of your Bluetooth® transmitter tofind out how to turn it on / off.PairingPairing the B-Speech® RX4 with Bluetooth® Audio source "Pairing" means establishing a wireless connection between the Bluetooth® audio source and the B-Speech® RX4. To be able to use B-Speech® RX4 witha audio source, you need to pair them.After pairing, you can use B-Speech® RX4 with your Bluetooth® Audio source.The pairing process in detail1. Before pairing, please check that both devices are fully charged.2. Ensure that there is no other active Bluetooth® device around.3. Turn the RX4 ON by pressing the On / Off button for 7 Seconds. The red/blue LED will flash alternately,RX4 is in pairing mode.1. On / Off switch2. LED indicator(under the cover)3. 180° swivel 3,5 mmconnector1. Connect the cable charger mini USB plug to the mini USB input of the B-Speech® RX4.2. Connect the USB plug on the other end of the cable charger to the USB input of your PC or laptop. The LED lights up during charging.3. When charging is done, the LED will go off.4. Remove the cable chargerGBB-Speech® Stereo Receiver RX4B-Speech ® RX4User Manualpackage contents RX4Charging the UnitOverview132

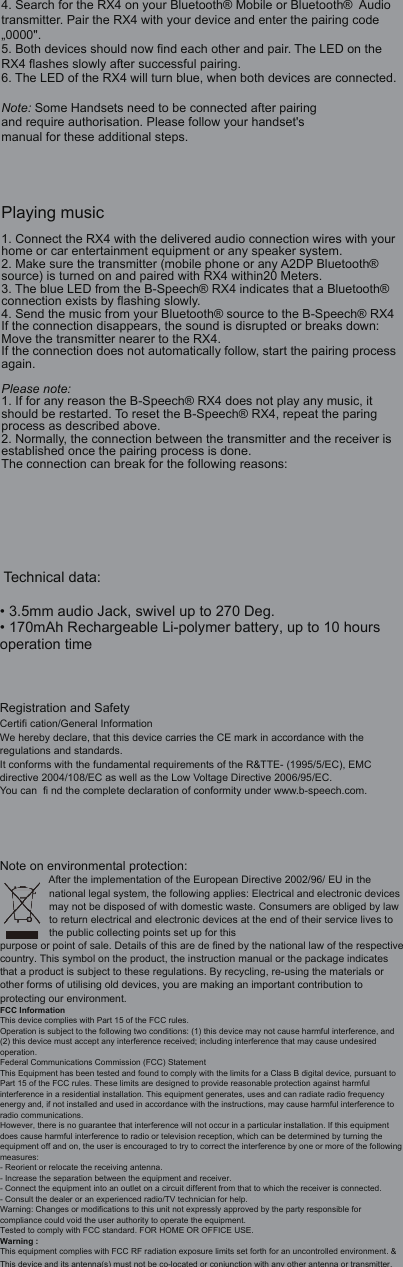

4. Search for the RX4 on your Bluetooth® Mobile or Bluetooth® Audio transmitter. Pair the RX4 with your device and enter the pairing code „0000".5. Both devices should now find each other and pair. The LED on the RX4 flashes slowly after successful pairing.6. The LED of the RX4 will turn blue, when both devices are connected.Note: Some Handsets need to be connected after pairingand require authorisation. Please follow your handset'smanual for these additional steps.Playing music1. Connect the RX4 with the delivered audio connection wires with your home or car entertainment equipment or any speaker system.2. Make sure the transmitter (mobile phone or any A2DP Bluetooth® source) is turned on and paired with RX4 within20 Meters.3. The blue LED from the B-Speech® RX4 indicates that a Bluetooth® connection exists by flashing slowly.4. Send the music from your Bluetooth® source to the B-Speech® RX4If the connection disappears, the sound is disrupted or breaks down: Move the transmitter nearer to the RX4.If the connection does not automatically follow, start the pairing process again.Please note:1. If for any reason the B-Speech® RX4 does not play any music, it should be restarted. To reset the B-Speech® RX4, repeat the paring process as described above.2. Normally, the connection between the transmitter and the receiver is established once the pairing process is done.The connection can break for the following reasons: Technical data:• 3.5mm audio Jack, swivel up to 270 Deg.• 170mAh Rechargeable Li-polymer battery, up to 10 hours operation timeRegistration and Safety Certifi cation/General InformationWe hereby declare, that this device carries the CE mark in accordance with the regulations and standards. It conforms with the fundamental requirements of the R&TTE- (1995/5/EC), EMC directive 2004/108/EC as well as the Low Voltage Directive 2006/95/EC.You can fi nd the complete declaration of conformity under www.b-speech.com.Note on environmental protection:After the implementation of the European Directive 2002/96/ EU in the national legal system, the following applies: Electrical and electronic devices may not be disposed of with domestic waste. Consumers are obliged by lawto return electrical and electronic devices at the end of their service lives to the public collecting points set up for this purpose or point of sale. Details of this are de fined by the national law of the respective country. This symbol on the product, the instruction manual or the package indicates that a product is subject to these regulations. By recycling, re-using the materials or other forms of utilising old devices, you are making an important contribution to protecting our environment.FCC InformationThis device complies with Part 15 of the FCC rules.Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and(2) this device must accept any interference received; including interference that may cause undesiredoperation.Federal Communications Commission (FCC) StatementThis Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmfulinterference in a residential installation. This equipment generates, uses and can radiate radio frequencyenergy and, if not installed and used in accordance with the instructions, may cause harmful interference toradio communications.However, there is no guarantee that interference will not occur in a particular installation. If this equipmentdoes cause harmful interference to radio or television reception, which can be determined by turning theequipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.- Consult the dealer or an experienced radio/TV technician for help.Warning: Changes or modifications to this unit not expressly approved by the party responsible forcompliance could void the user authority to operate the equipment.Tested to comply with FCC standard. FOR HOME OR OFFICE USE.Warning :This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. & This device and its antenna(s) must not be co-located or conjunction with any other antenna or transmitter.
