D and M MPGBR052 WIRELESS LAN MINI PCI ADAPTER User Manual DS MP G BR 05 Ext 2 ver1 6
D&M; Holdings Inc. WIRELESS LAN MINI PCI ADAPTER DS MP G BR 05 Ext 2 ver1 6
D and M >
Manual
All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI.
Data Sh
eet
Sep.
200
5
Rev
1.6
MP-G-BR-05, EXT. 2
802.11G
16BIT
WIRELESS LAN
MINI PCI
ADAPTER

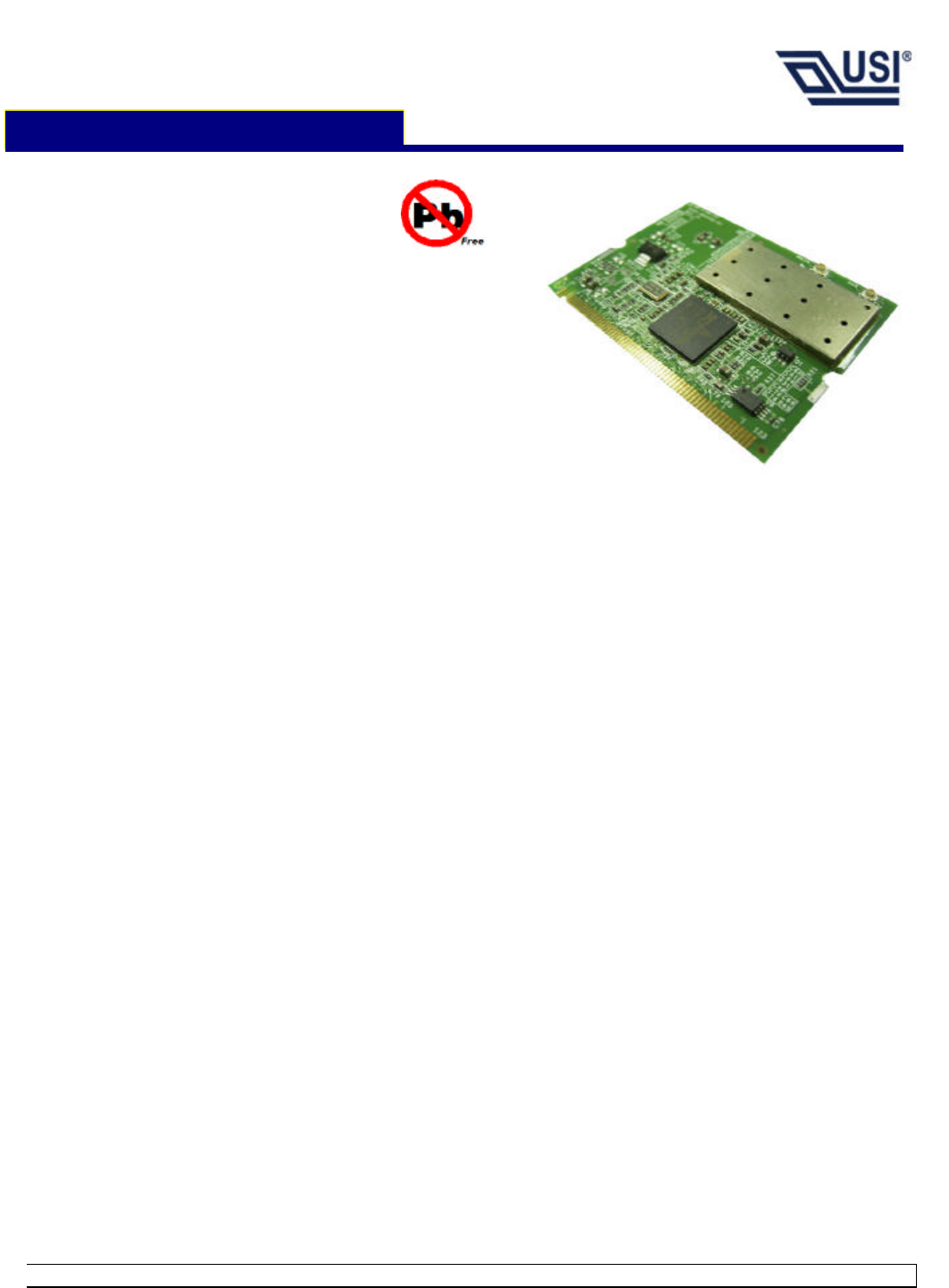

Introduction
The Mini-PCI Adapter type-III B is a high-
speed
54 Mbits/s wireless networking card
providing a
multimode 802.11 b/g or 11g mode only
connectivity for enterprise and home wireless
LAN access.
The Mini-PCI Card uses direct sequence
spread spectrum (DSSS), Orthogonal
Frequency Division Multiplexing (OFDM)
technology, and implements DBPSK, DQPSK,
and CCK, OFDM modulation, as defined in the
IEEE® 802.11b, g. This gives a very robust
radio channel, which is made even better by the
excellent receiver sensitivity and delay spread
robustness.
In environments with radio interference, the
Mini-PCI Card, because of its acknowledgment
protocol and its option to be tuned to another
frequency channel, continues to run.
Superior echo path management makes it
suitable for areas with a large delay spread, for
example, warehouses. This reduces the
number of cells required and, therefore,
reduces the total cost of ownership.
A firmware-based architecture is capable of
supporting the latest industry standards in the
security and quality of service (QoS), as the
draft 802.11i and 802.11e standards,
respectively.
The Mini-PCI Card is complemented by drivers
and networking tools for various versions of the
Windows® operating system. USI provides
extensive technical documentation on
integration issues such as antenna design,
customizing drivers, and management
software.
Features
• Automatic fallback: 54 Mbit/s, 48 Mbit/s, 36
Mbit/s, 24 Mbit/s, 18 Mbit/s, 12 Mbit/s, 11
Mbit/s, 9 Mbit/s, 6 Mbit/s, 5.5 Mbits/s, 2
Mbits/s, or 1 Mbit/s .
• Feature with Afterburner technology for this
54g platform, Products with this new
technology provide up to 40 percent
greater throughput than typical standard
802.11g systems without impacting the
performance of neighboring wireless LANs.
• Low power consumption.
• Automatic power management to reduce
battery use.
• Easy integration into mobile and hand-held
platforms. It’s flexible for design and
antenna placement.
• External antenna diversity.
• Support AES-CCM, WPA (SSN-TKIP), and
WEP (64-bit/128-bit or 152-bit).
l Corresponding to IEEE
802.11b/gspecification.
l Interoperable with other IEEE
802.11a/b/gcompliant systems.
l Conformable to industry-standard Mini-
PCI Card Type III-B specification.
l WDS support
l WHQL pre-test and Wi-Fi pre-test.
www.usi.com.tw
802.11 b/g Wireless LAN Mini-PCI Adapter
All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI.
EXECUTIVE SUMMARY
This document outlines the product requirements for an 802.11g mini PCI adapter 16 Bits– here after
referred as “ MP-G-BR-05 Ext2“. RoHS version
This product is targeted for first shipments in Q4, 2005
By using Broadcom chipset solution which including;
BCM4318 SoC MAC+BB+Transceiver
SiGe SE2521A34 for 11g PA and SE2521A60 as alternative
Physical Dimension/Packaging
The Mini-PCI Card has been designed to conform to the Mini-PCI specification, as defined in
Mini-PCI Specification Rev 0.1.
All dimensions in this section have a tolerance as permitted in the Mini-PCI Specification.
Dimension: 59.8 mm x 44.8 mm x 5.0 mm (actually Max thickness is 3.3mm on metal shield ,
there is no component on the bottom side of this card)
Weight: Less than 25 g
Package: Bulk in 200 pcs.

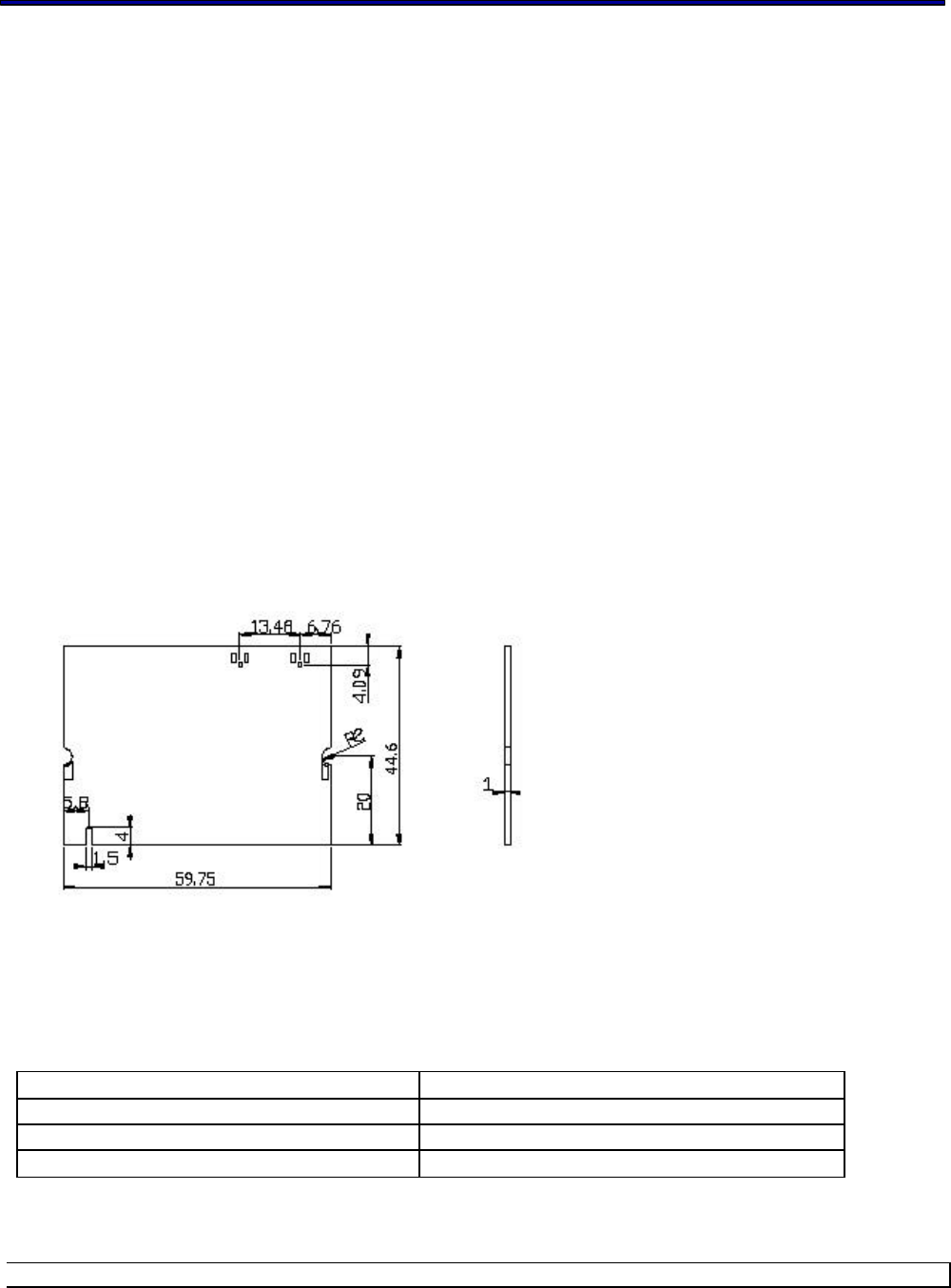

Figure 1. Mini-PCI Type III-B dimension
Mechanically unique coaxial connectors for two external antennas.
Operating Conditions
Operating Temperature 0° to 70° Celsius
Operating Humidity 90% (non-condensing)
Storage Temperature -10°C to +75°C ambient temperature
Storage Humidity 95% (non-condensing)
802.11 b/g Wireless LAN Mini-PCI Adapter
All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI.
Voltage and Current
The MP-G-BR-05 will comply with the following features and standards
Voltage 3.3 VDC from host (+/-0.2V)
Current 802.11g (Typ.)
Transmit <450mA
Receive <350mA
Stand By <50mA
Wireless Specification
The MP-G-BR-05 will comply with the following features and standards:
Features Description
WLAN Standards IEEE 802 Part 11b/g
Antenna Connector Hirose connector supported with diversity
Data Rates 1, 2, 5.5, 11 Mbps for 802.11b
6, 9, 12, 18, 24, 36, 48, 54 Mbps for 802.11g and
125Mbps for AfterBunrer
Medium Access Protocol
CSMA/CA (Collision Avoidance) with ACK
RF specification
Features Description
Frequency Band 2412 – 2462 MHz
Number of Channels 11 Channels
Modulation DBPSK, DQPSK, CCK DSSS for 802.11b & g
DPSK, QPSK, 16QAM, 64QAM OFDM for 802.11
g
Supported Rates 1, 2, 5.5, 11 Mbps for 802.11b
6, 9, 12, 18, 24, 36, 48, 54 Mbps for 802.11g
Maximum Receive Level -20dBm (with PER< 10%) for 802.11g
Antenna External (Hirose U-F-L)
Typical Output Power
17 dBm for 11b
15 dBm for 11g
Note: Actual output power may vary based on manufacturing process variations
802.11g Receive Sensitivity
Data Rates
Receive Sensitivity
54 Mbps -68 dBm (typ)
11 Mbps -84 dBm (typ.)
6 Mbps -85 dBm (typ.)
1 Mbps -90 dBm (typ.)
802.11 b/g Wireless LAN Mini-PCI Adapter
All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI.
Note: Actual receive sensitivity for individual products may vary based on manufacturing
process and environmental variations
Antenna Specifications
The Mini-PCI adapter is available in two variants: unique coax connectors with diversity
function.
On-Board Diversity Switch
This variant of the Mini-PCI Card has connectors for two external passive antennas: MAIN and
AUX. One of the antennas is used for transmission, and the DSP selects which of the two to
use for reception, based on signal strength.
The coax connectors for the antennas are mechanically unique, so that no off-the-shelf
connector will fit (FCC requirement).
Switch electronics for selection between the two antennas for reception of the stronger receive
signal is provided onboard.
Security
At the physical layer, transmissions are encrypted using WEP; three levels of encryption are
possible：
• 40-bit key plus 24-bit initialization vector
• 104-bit key plus 24-bit initialization vector
• 128-bit key plus 24-bit initialization vector
AES, TKIP, WPA draft 802.11i are supported.
Attacks have been made on WEP by exploiting various weaknesses. The Mini-PCI Card
implements random setting of the initialization vector and utilizes WEPplus, which prevents
initialization vectors that result in weak keys being used. WEPplus is completely compatible
with WEP.
For those operating systems that support it either natively or with an add-on supplement (i.e,
Windows 98, Windows 98SE, Windows ME, Windows 2000, Windows XP, the 802.1x,
WPA/TKIP SSN security standard are implemented. This offers port-based network access
control, and automatic key distribution.
Software/Driver
Due to 16-bit architecture is not suitable for current Windows OS (Win98;Win2K;WinXP) , so it
only support Linux’s based driver.
Driver for WiFi is pre-tested under Ver.3.90.11.0.
Performance
Table 1. Characteristics at Different Rates
The real operating range will be different by measurement environment and condition.
802.11 b/g Wireless LAN Mini-PCI Adapter
All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI.
802.11b/g
Data Rates Operating Distance
54 Mbps 70m
11 Mbps 370m
6 Mbps 330m
1 Mbps 550 m
Mini-PCI Card Pinout
The Mini-PCI Card connects to a host through the Mini-PCI interface bus. The connector pin-
out is defined in the Mini-PCI Specification.
• Support 2 control signals to the host via the Mini-PCI Connector pin 11 for RF On and
pin 13 is used as a hardware radio on/off switch.
International Channel Frequencies
The Mini-PCI Card uses frequencies in the 2.4 GHz to 2.5 GHz ISM band, as defined by IEEE
802.11.
The channels available in the regional variants of the Mini-PCI Card are:
• FCC: 1 to 11
• ETSI: 1 to 13
• Japan: 1 to 14
Regulatory Body Approvals/Compliance
USI will perform pre-test for the following international regulations: approval is a matter for the
OEM once the device is integrated into a host platform.
Description Country Compliance
USA FCC CFR47 Part 15B, Class II
Europe 89/336/EEC, ETS 301 489-1&17 (2.4GHz)
EN61000-3-2 (Harmonic AC Current emissions)
EN55022 Class II, EN50082-1 (Immunity)
Electromagnetic Compatibility
Product safety International
CB (IEC 60950)
USA FCC CFR47 part 15 C, para 15.247,295,209
Europe EN 300-328
Radio Regulations
Ordering Information
USI 802.11g 16Bit miniPCI Adapter Model No. MP-G-BR-05, Ext.2
Specifications are subject to change without notice.
IEC is a registered trademark of The Electrotechnical Commission.
802.11 b/g Wireless LAN Mini-PCI Adapter
All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI.
IEEE is a registered trademark of The Institute of Electrical and Electronics Engineers, Inc.
Intel is a registered trademark of Intel Corporation
Microsoft, Windows , and Windows NT are registered trademarks and Windows Me and Windows XP are
trademarks of Microsoft Corporation.
For Additional information, please contact the following:
Universal Scientific Industrial Co., Ltd.
Headquarters
141, Lane 351, Taiping Road, Sec. 1 , Tsao-Tuen , Taiwan,
Http://www.usi.com.tw
Tel: + 886-49-2350876, 2325876
Fax: +886-49-3439561, 2337360,2351093
E-mail:usi@ms.usi.com.tw
Installation Description
(This Installation Manual is not provided to the consumer.)
WLAN Module (Model: MP-G-BR-05 Ext.2) shall be installed in a product of D&M Holdings Inc.,
Denon Brand Company only. When MP-G-BR-05 Ext.2 is installed in the final product, we as
OEM shall consider the following points;
1. Since MP-G-BR-05 Ext.2 owns its FCC ID, we shall affix an exterior label on the outside of
the final product if the FCC ID is not visible. The exterior label shall use wording such as either
“Contains Transmitter Module FCC ID: BV2-MPGBR052/ IC: 6963A-MPGBR052” or “Contains
FCC ID: BV2-MPGBR052/ IC: 6963A-MPGBR052”.
2. MP-G-BR-05 Ext.2 complies with requirements of sub-sections 15.203, 15.205, 15.207 and
15.247 in FCC Rules Part 15 and IC Rule of RSS-210/ RSS-Gen. We shall install MP-G-BR-05
Ext.2 in accordance with their requirements. MP-G-BR-05 Ext.2 complies with requirements of
the sub-section 2.1091. When installers install MP-G-BR-05 Ext.2 into a product, they shall
ensure that the public is not exposed to radio frequency energy levels in excess of the
Commission’s guidelines in accordance with the sub-section 15.247(i) in FCC Rules Part 15
and also IC Rules RSS-102.The WLAN module can be equipped on any product, if the
distance between radiator and person’s body keep at least 20cm or more.
3. Attached photos and drawings are an example of location of MP-G-BR-05 Ext.2 on the final
product. We do not exhibit this information to end-users or website. Because, users may obtain
an idea of modifying this module from the information.
4. It only can be installed to the host that has a regulator (PQ070XZ01ZxH or
BAXXDD0WHFP) (or similarly specification regulator).
【FCC/ IC Users Manual Statement】
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This transmitter must not be co-located or operated in conjunction with any other
antenna or transmitter.
This device complies with Part 15 of FCC Rules and RSS-Gen of IC Rules.
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of this device.
This equipment complies with FCC/IC radiation exposure limits set forth for
uncontrolled equipment and meets the FCC radio frequency (RF) Exposure
Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF)
Exposure rules. This equipment should be installed and operated with at least
20cm and more between the radiator and person’s body (excluding extremities:
hands, wrists, feet and ankles).
