General Specification
TFT-LCD Color Monitor
FS-S2201F User Guide
TANDBERG
![](/img.php?id=1006025&img=bg2.png)
General Specification

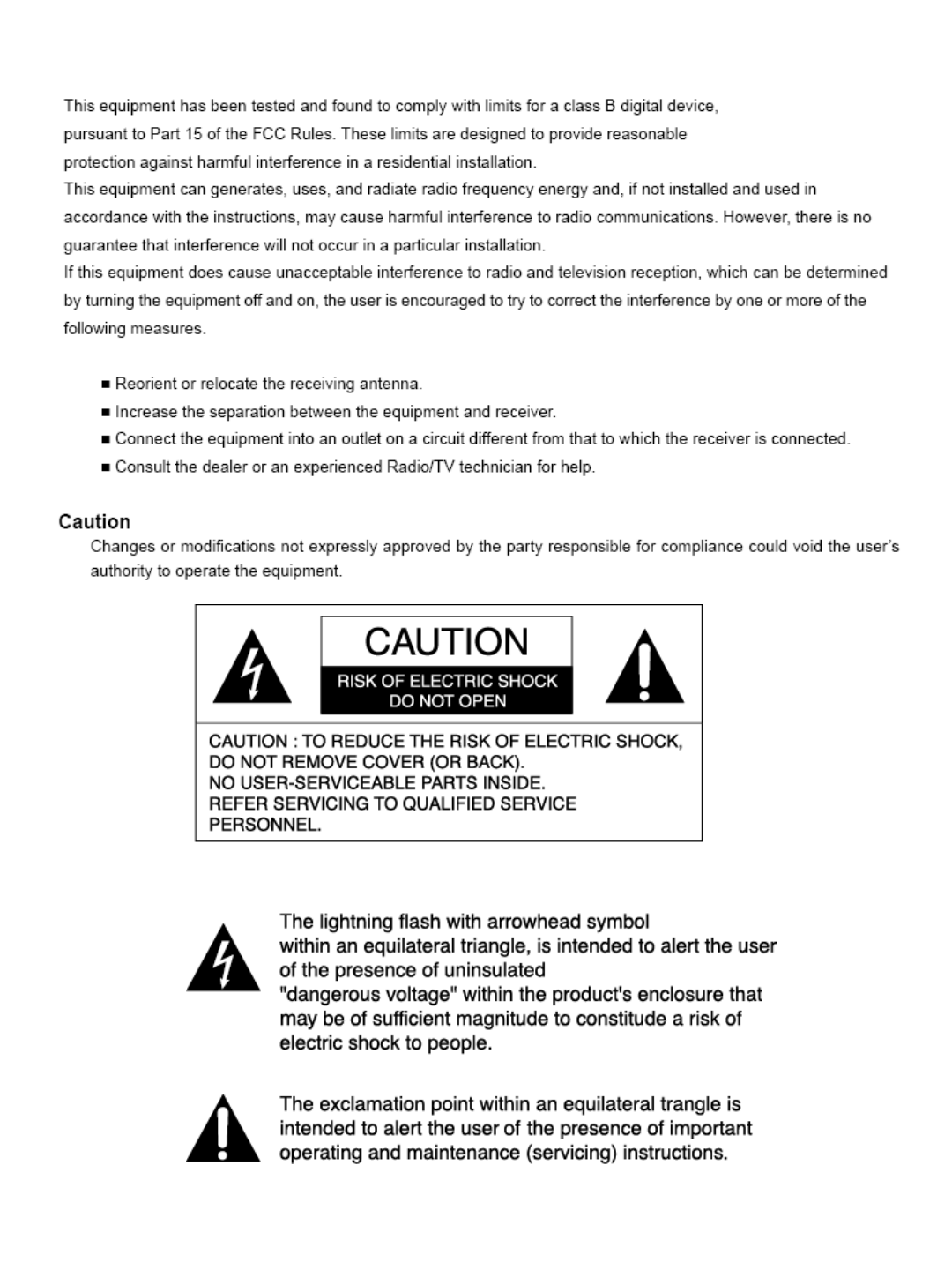

INFORMATION TO USER :
![](/img.php?id=1006025&img=bg3.png)
General Specification
TABLE OF CONTENTS
1. Product Drawing------- ------------------------------------------------------------------------------1
2. Connector Specification- --------------------------------------------------------------------------2
3. Standard signal Table ------------------------------------------------------------------------------3
4. Signal Connector Pin Assignments------------------------------------------------------------4
5. Specification ------------------------------------------------------------------------------------------5
![](/img.php?id=1006025&img=bg4.png)
General Specification
1. Product Drawing
Unit : mm
1
![](/img.php?id=1006025&img=bg5.png)
General Specification
2. Connector Specification
Touch
Control
RS-232 DVI 2 DVI 1
2
DC in Power
Switch
![](/img.php?id=1006025&img=bg6.png)
General Specification
PC Supported Mode
4060.31737.879800x600
148.56067.51080p(1920x1080)
1485056.251080p(1920x1080)
119.1256064.71680x1050
121.7516065.3171400x1050
74.252528.121080p(1920x1080)
74.2524271080p(1920x1080)
16260751600x1200
74.253033.751080p(1920x1080)
148.548521080p(1920x1080)
1920x1200
1280x768
1366x768
720p(1280x720)
720p(1280x720)
720p(1280x720)
720p(1280x720)
800x600
800x600
640x480
NTSC
PAL
Resolution
148.510075
13.55015.6
79.56047.7
153.9996074
23.6256029.5
87.756048.3
148.512090
74.256045
74.255037.5
49.57546.875
35.43755031.5
13.56015.7
Clock
Frequency(MHz)
Vertical
Frequency(Hz)
Horizontal
Frequency(KHz)
3. Standard signal Table
3
![](/img.php?id=1006025&img=bg7.png)
General Specification
4. Signal Connector Pin Assignments
Hot Plug Detect19TMDS Data0-9
TMDS Power18Ground_Data0
Shield
8
TMDS SCL15Ground_Data1
Shield
5
10
7
6
4
3
2
1
Pin No.
Ground_Clock
Shield
11TMDS Data2+
No Connection13TMDS Data2-
TMDS Clock+
Ground17TMDS Data0+
TMDS SDA16TMDS Data1-
No Connection14TMDS Data1+
TMDS Clock-12Ground_Data2
Shield
AssignmentPin No.Assignment
1. DVI1, DVI2
4
Ground5
4
3
2
1
Pin No.
No Connection6RS-232 ID
5V Power8RS-232 TXD Input
No Connection9No Connection
No Connection7RS-232 RXD Input
AssignmentPin No.Assignment
2. RS-232 input(D-Sub 9Pin)
1
4
3
2
1
Pin No.
Vcc
D+
GND
D-
AssignmentPin No.Assignment
3. USB connector
![](/img.php?id=1006025&img=bg8.png)
General Specification
5. Specification
DC 24V, 5.42A MaxMonitor
AC 100-240V~50-60Hz 2A Max
70KHzHorizontal FrequencySynchro
nization
300cd/m2Luminance(Typ.)
16msResponse Time(Typ.)
89/89/89/89Viewing Angle(CR≥10,Typ.)
1200 :1Contrast Ratio(Typ.)
Under 30WStandby Mode
90WMaximumPower
Consumption
85KHzVertical Frequency
508.4(W) x 338.7(H) x 85.5(D)(mm) / 7.1 Kg
Size and weightDimension
CE,FCCEMI
16.7M (RGB 8-bit data)Display colors
Approval Mark&
EMI
Power
LCD PANEL
Model
TFT Active matrixType
1920X1200@60HzMaximum Resolution
CE,CSAApproval Mark
Adaptor
0.247(H)mmX0.247(V)mmPixel pitch
22 inch (Diagonal)Screen size
FS-S2201F
5
