D and T FS-S2301F 23" Color TFT LCD Monitor User Manual
D&T; Inc. 23" Color TFT LCD Monitor
D and T >
User Manual
![](/img.php?id=1292749&img=bg1.png)
General Specification
TFT-LCD Color Monitor
FS-S2301F
User Guide
TANDBERG
![](/img.php?id=1292749&img=bg2.png)
General Specification

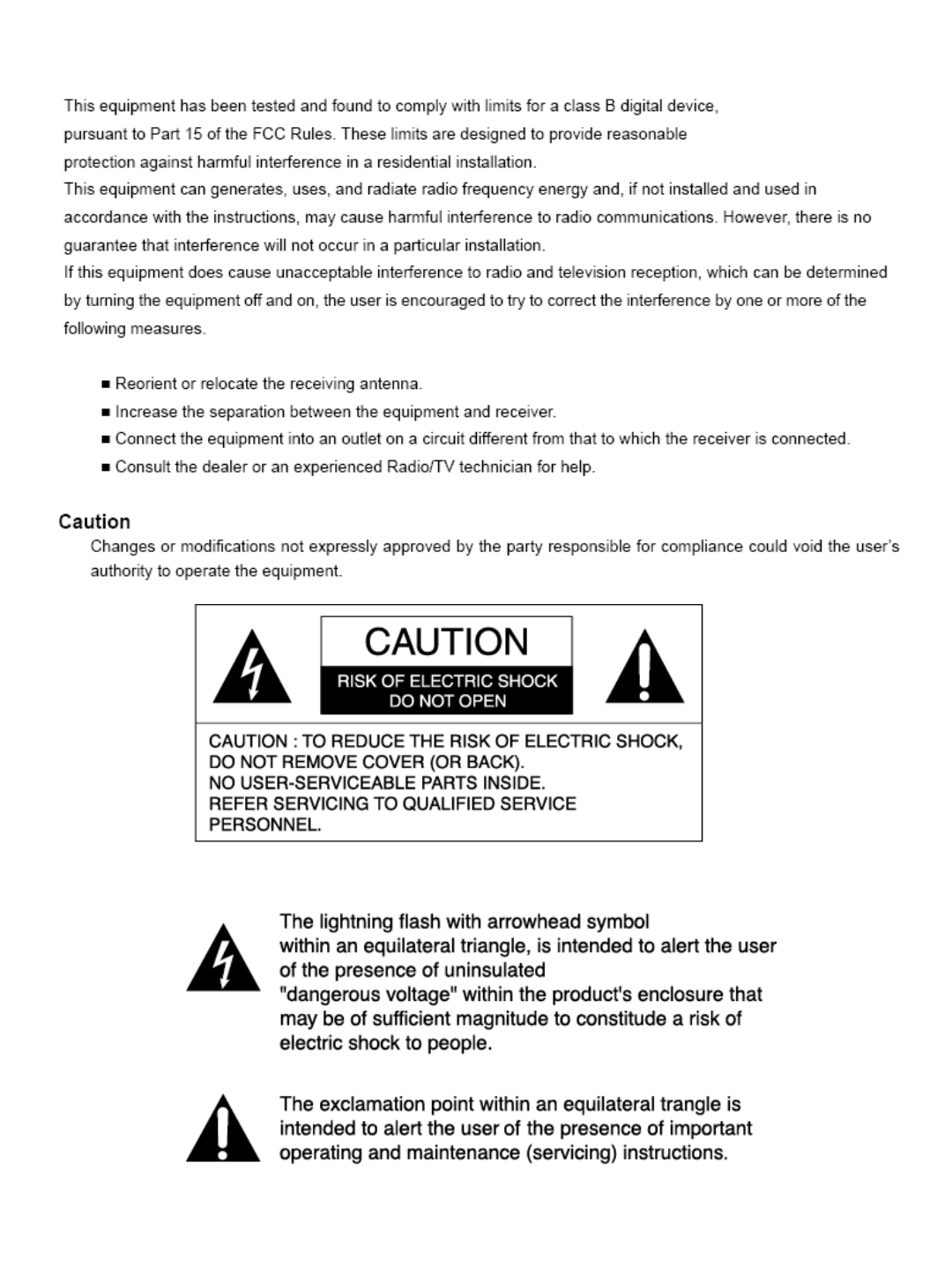

INFORMATION TO USER :
![](/img.php?id=1292749&img=bg3.png)
General Specification
TABLE OF CONTENTS
1. Product Drawing------- ------------------------------------------------------------------------------1
2. Connector Specification- --------------------------------------------------------------------------2
3. Standard signal Table ------------------------------------------------------------------------------3
4. Signal Connector Pin Assignments------------------------------------------------------------4
5. Specification ------------------------------------------------------------------------------------------5
![](/img.php?id=1292749&img=bg4.png)
General Specification

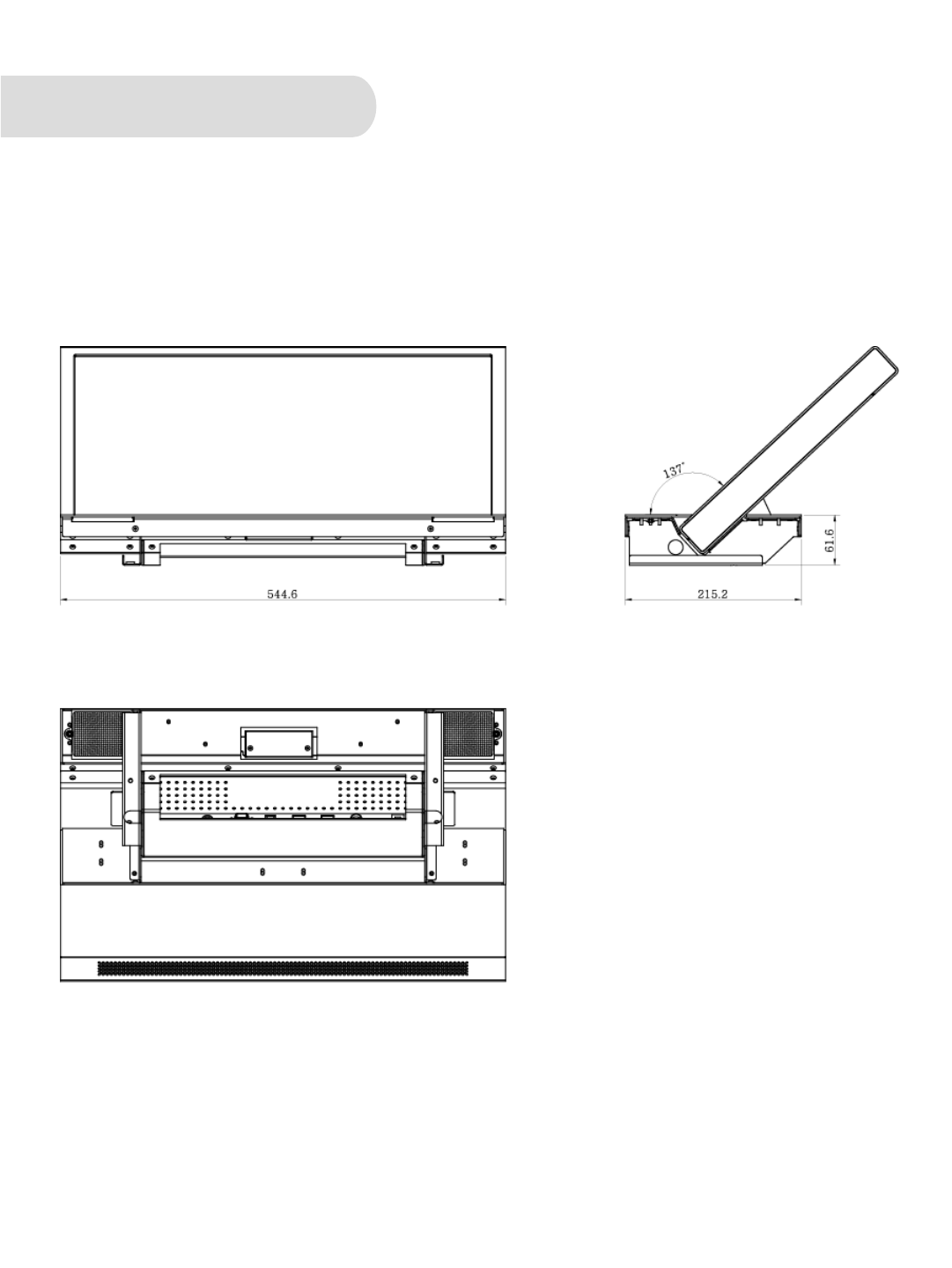

1. Product Drawing
Unit : mm
1
![](/img.php?id=1292749&img=bg5.png)
General Specification

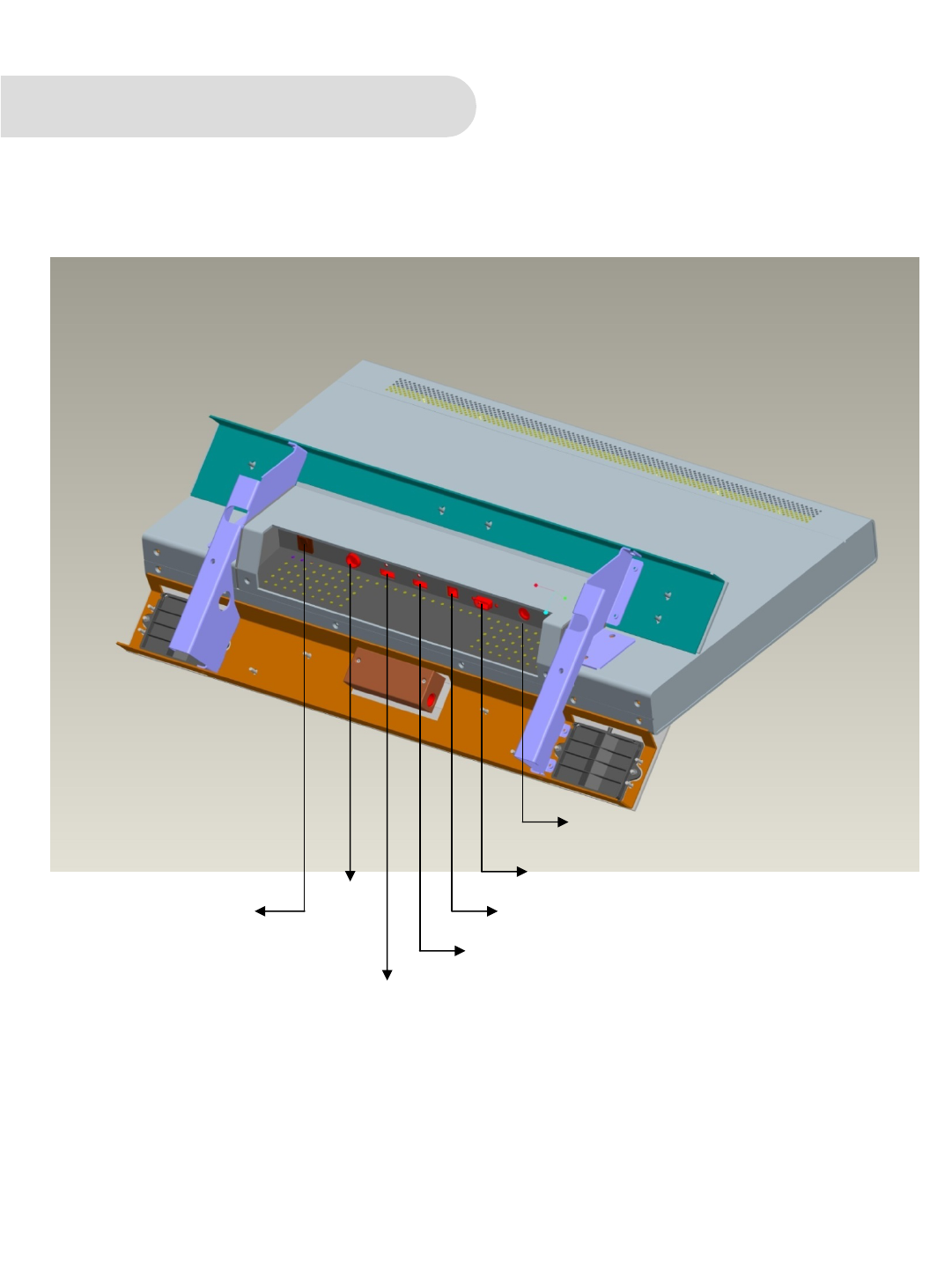

2. Connector Specification
2
*AC power cord and signal cables are not included in this package.
Touch Control
Service Port
DC in
Power Switch
KEY I/F
HDMI 2
HDMI 1
![](/img.php?id=1292749&img=bg6.png)
General Specification
PC Supported Mode
Resolution Horizontal
Frequency(KHz)
Vertical
Frequency(Hz)
Clock
Frequency(MHz)
PAL 15.6 50 13.5
NTSC 15.7 60 13.5
640x480 29.5 60 23.625
800x600 31.5 50 35.4375
800x600 37.879 60.317 40
800x600 46.875 75 49.5
720p(1280x720) 37.5 50 74.25
720p(1280x720) 45 60 74.25
720p(1280x720) 75 100 148.5
720p(1280x720) 90 120 148.5
1366x768 48.3 60 87.75
1280x768 47.7 60 79.5
1400x1050 65.317 60 121.751
1680x1050 64.7 60 119.125
1600x1200 75 60 162
1080p(1920x1080) 27 24 74.25
1080p(1920x1080) 28.12 25 74.25
1080p(1920x1080) 33.75 30 74.25
1080p(1920x1080) 52 48 148.5
1080p(1920x1080) 56.25 50 148
1080p(1920x1080) 67.5 60 148.5
1920x1200 74 60 153.999
3. Standard signal Table
3
![](/img.php?id=1292749&img=bg7.png)
General Specification

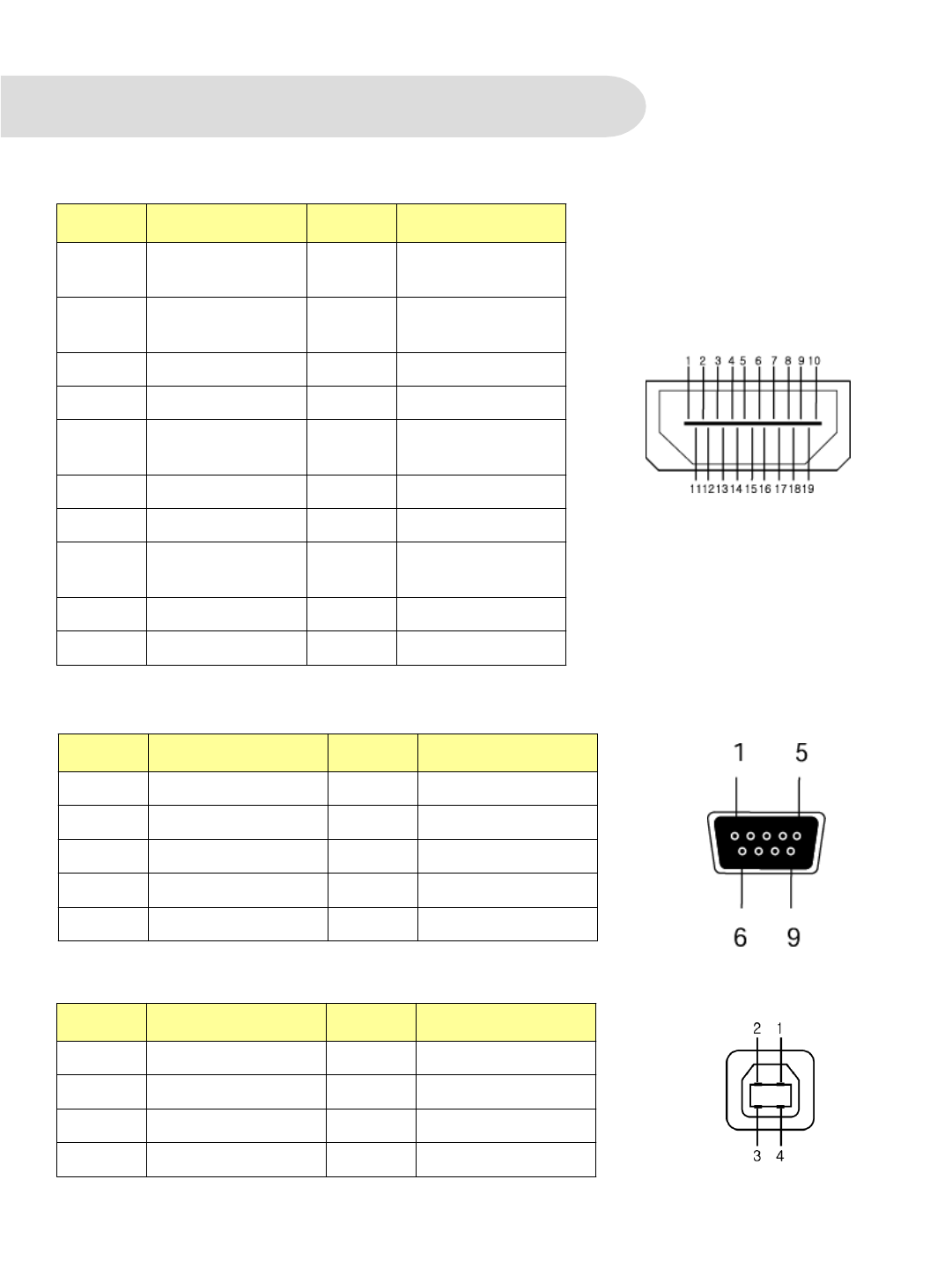

4. Signal Connector Pin Assignments
Pin No. Assignment Pin No. Assignment
1 TMDS Data2+ 11 Ground_Clock
Shield
2Ground_Data2
Shield
12 TMDS Clock-
3 TMDS Data2- 13 No Connection
4 TMDS Data1+ 14 No Connection
5Ground_Data1
Shield
15 TMDS SCL
6 TMDS Data1- 16 TMDS SDA
7 TMDS Data0+ 17 Ground
8Ground_Data0
Shield
18 TMDS Power
9 TMDS Data0- 19 Hot Plug Detect
10 TMDS Clock+
1. DVI1,DVI2
4
Pin No. Assignment Pin No. Assignment
1 RS-232 ID 6 No Connection
2 RS-232 RXD Input 7 No Connection
3 RS-232 TXD Input 8 5V Power
4 No Connection 9 No Connection
5Ground
2. Service Port (D-Sub 9Pin)
Pin No. Assignment Pin No. Assignment
1Vcc
2D-
3D+
4GND
3. USB connector
![](/img.php?id=1292749&img=bg8.png)
General Specification
Pin No. Assignment Pin No. Assignment
1 I2C SDA 6 Power (5V)
2I2C SCL 7Ground
3Ground 8SwitchInput 3
4 Switch Input 1 Power (5V)
5SwitchInput 2
4. Mini din connector
![](/img.php?id=1292749&img=bg9.png)
General Specification
5. Specification
Model FS-S2301F
LCD PANEL
Type TFT Active matrix
Screen size 23 inch (Diagonal)
Maximum Resolution 1920X1080@60Hz
Pixel pitch 0.2655(H)mmX0.2655(V)mm
Display colors 16.7M (RGB 8-bit data)
Contrast Ratio(Typ.) 3000:1
Viewing Angle(CR≥10,Typ.) 89/89/89/89
Response Time(Typ.) 25ms
Luminance(Typ.) 300cd/m2
Synchro
nization
Horizontal Frequency 70KHz
Vertical Frequency 85KHz
Power
Consumption
Maximum 90W
Standby Mode Under 30W
Power Adaptor AC 100-240V~50-60Hz 2A Max
Monitor DC 24V, 5.42A Max
Approval Mark&
EMC
Approval Mark CE,CSA NRTL/C
EMC CE,FCC
Dimension Size and weight 544.6(W) x 215.2(H) x 267.6(D)(mm) / 9 Kg
5
