General Specification
TFT-LCD Color Monitor
FS-S5502F
User Guide
CISCO
![](/img.php?id=1625283&img=bg2.png)
General Specification

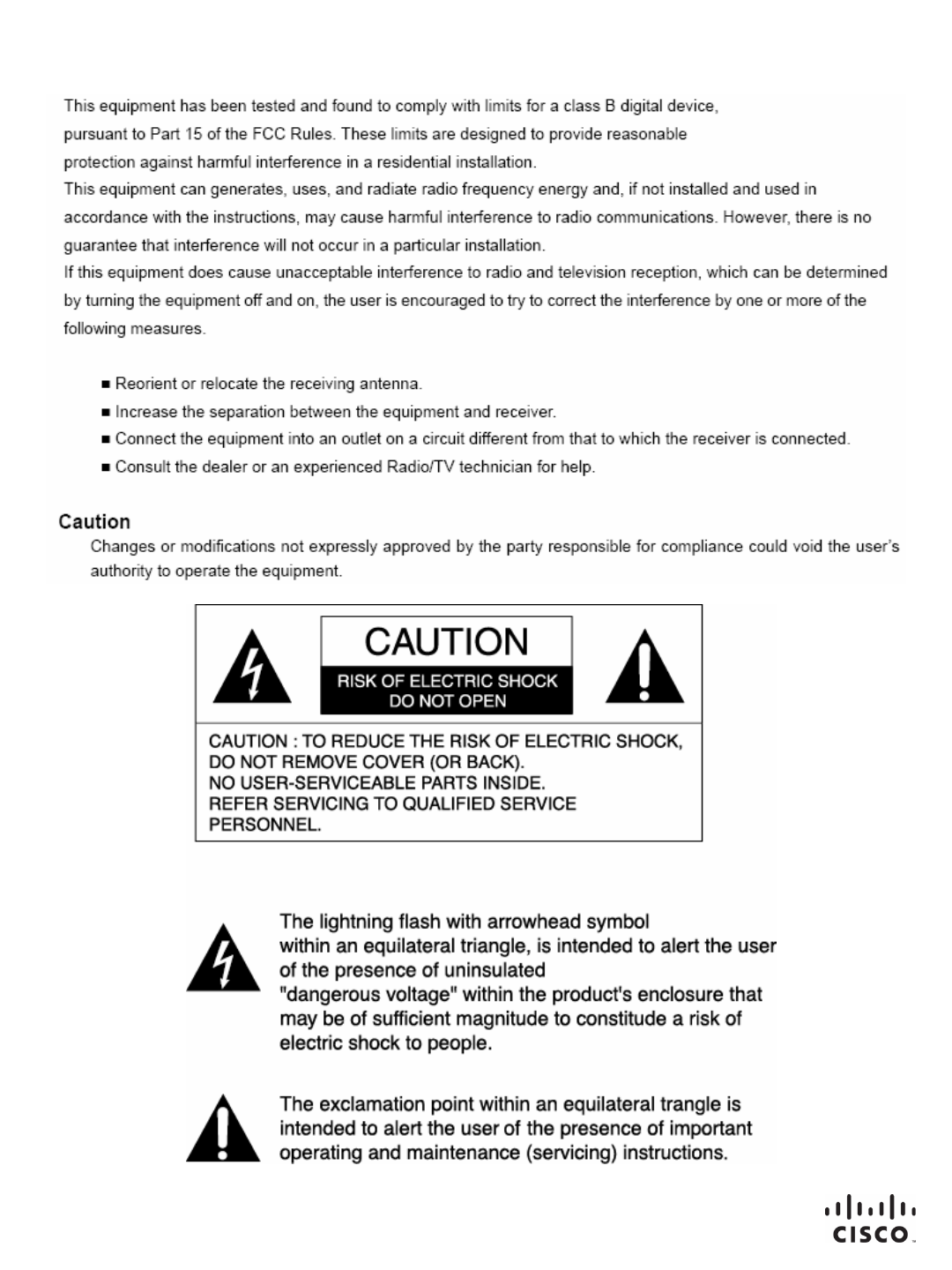

INFORMATION TO USER :
![](/img.php?id=1625283&img=bg3.png)
General Specification
TABLE OF CONTENTS
1. Product Drawing------- ------------------------------------------------------------------------------ 1
2. Column Specification- ----------------------------------------------------------------------------- 2
3. Standard Signal Table -----------------------------------------------------------------------------3
4. Signal Connector Pin Assignments------------------------------------------------------------4
5. Specification -----------------------------------------------------------------------------------------6
![](/img.php?id=1625283&img=bg4.png)
General Specification

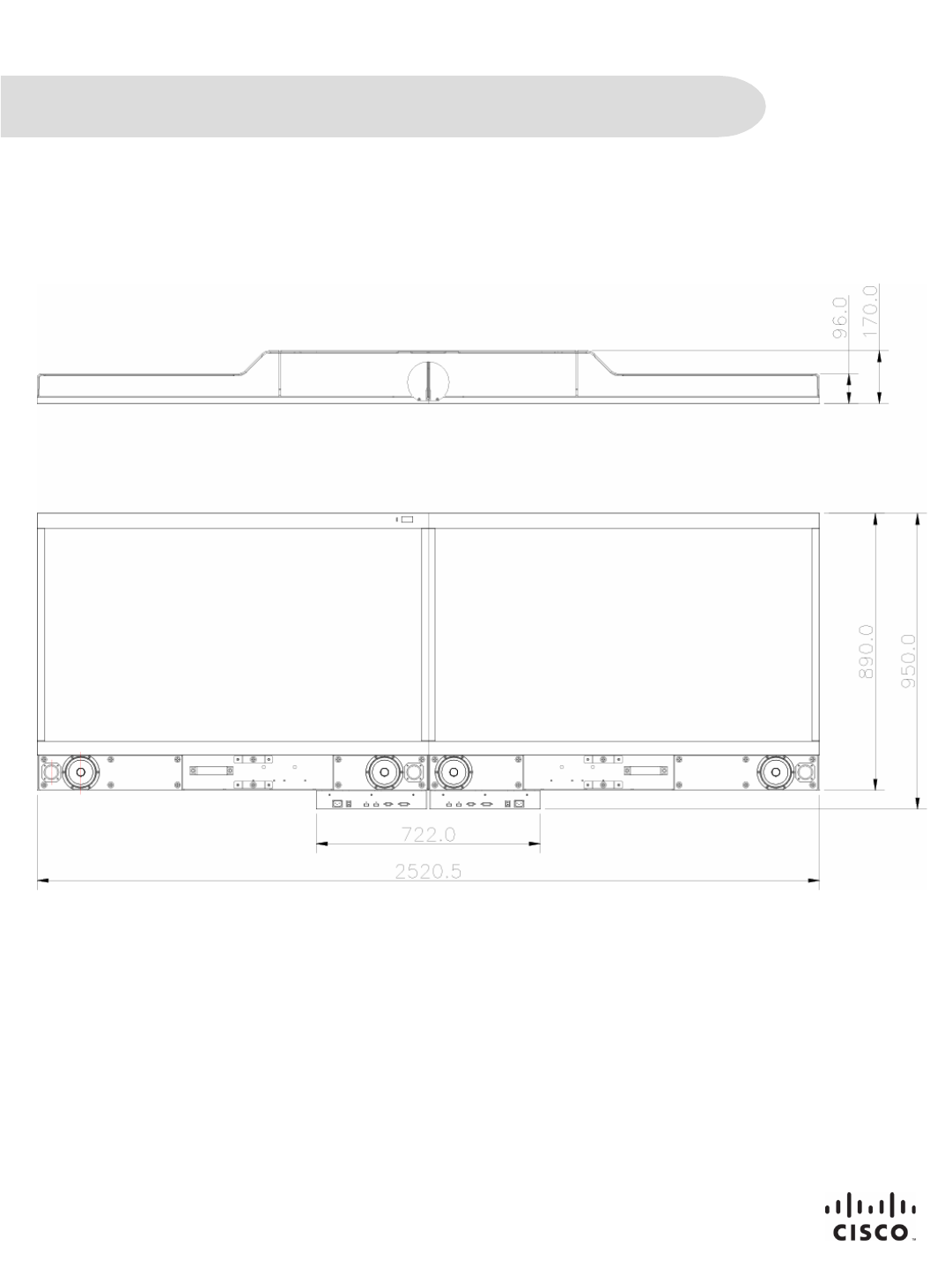

1. Product Drawing (Left + Right ass’y drawing)
Unit : mm
1
![](/img.php?id=1625283&img=bg5.png)
General Specification

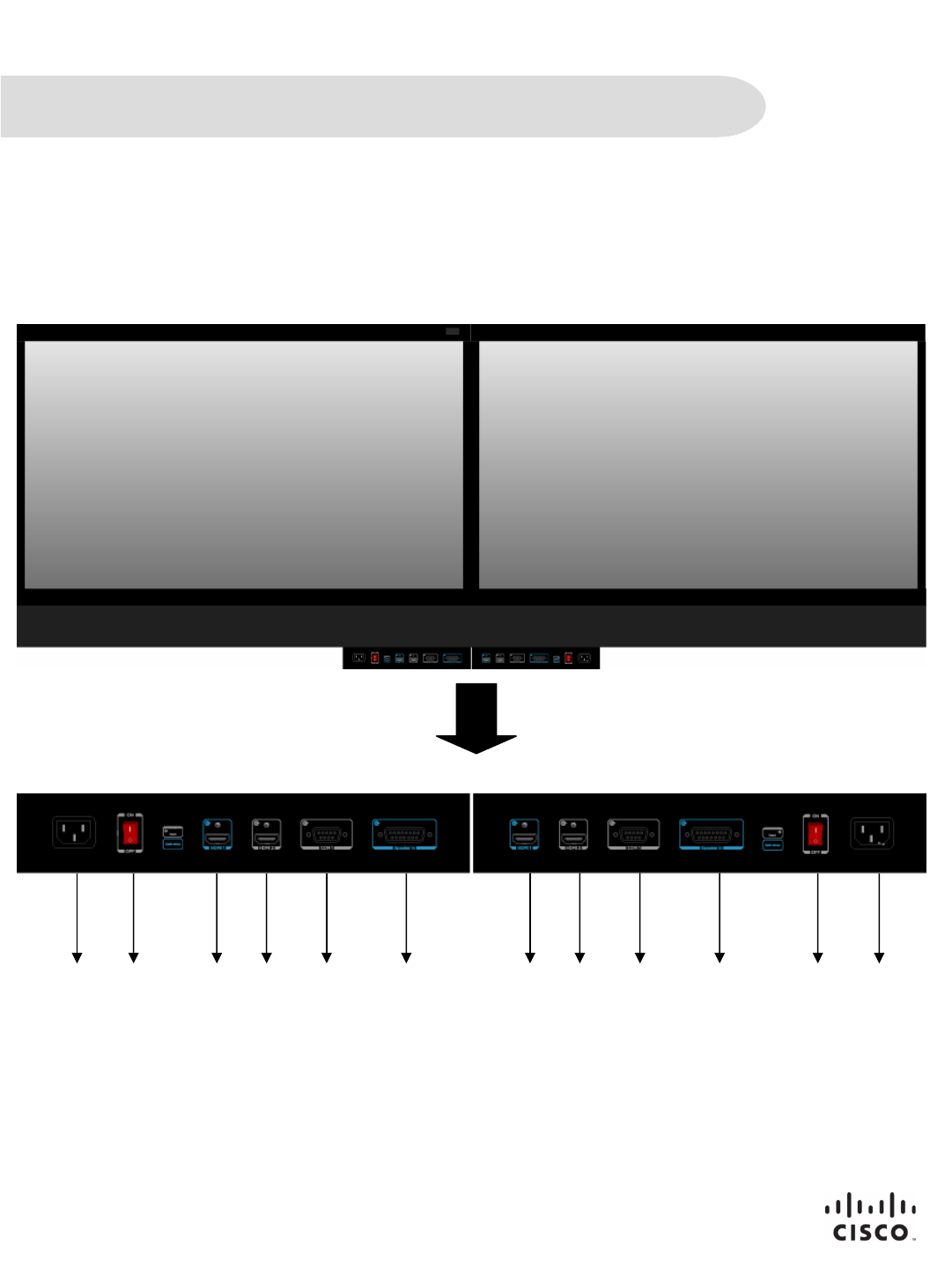

2. Column Specification(Left + Right Colum)
2
Power
switch
AC HDMI 1HDMI 2 RS-232
Input
Speaker
Input
Power
switch
AC
HDMI 1HDMI 2 RS-232
Input
Speaker
Input
![](/img.php?id=1625283&img=bg6.png)
General Specification
PC Supported Mode
3. Standard signal Table
3
Resolution Horizontal
Frequency(KHz)
Vertical
Frequency(Hz)
Clock
Frequency(MHz)
PAL 15.6 50 13.5
NTSC 15.7 60 13.5
640x480 29.5 60 23.625
800x600 31.5 50 35.4375
800x600 37 60 35.5
800x600 47 75 48.875
1024x768 47.3 60 56
720p(1280x720) 37.5 50 74.25
720p(1280x720) 45 60 74.25
720p(1280x720) 75 100 148.5
720p(1280x720) 90 120 148.5
1280x1024 64 60 108
1280x768 47.7 60 79.5
1360x768 47.3 60 72
1366x768 48.3 60 87.75
1400x1050 64.7 60 101
1680x1050 64.7 60 119.125
1600x1200 74 60 130.375
1080p(1920x1080) 27 24 74.25
1080p(1920x1080) 28.12 25 74.25
1080p(1920x1080) 33.75 30 74.25
1080p(1920x1080) 52 48 148.5
1080p(1920x1080) 56.25 50 148
1080p(1920x1080) 76.5 60 148.5
1920x1200 74 60 154
![](/img.php?id=1625283&img=bg7.png)
General Specification

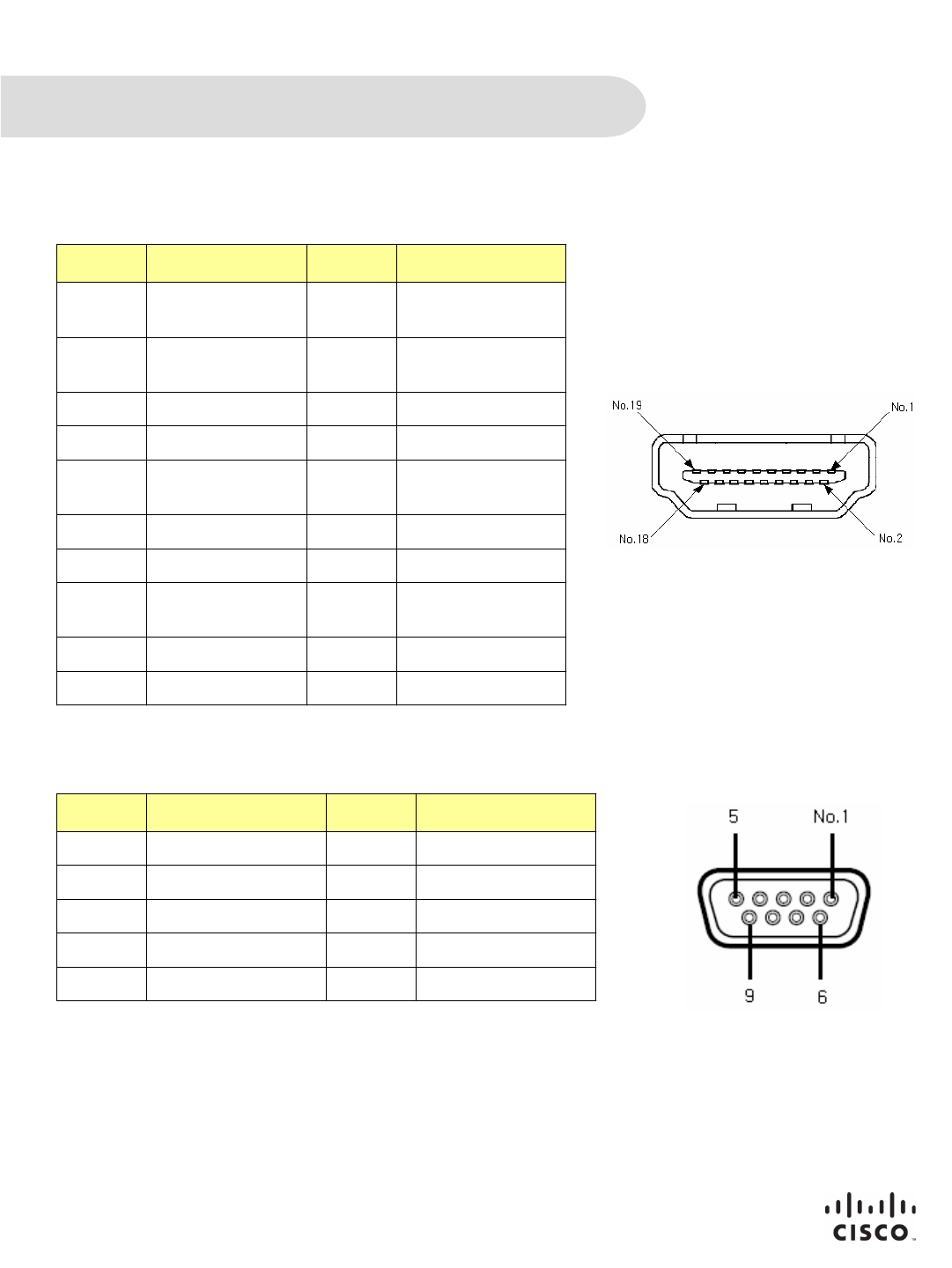

4. Signal Connector Pin Assignments
Pin No. Assignment Pin No. Assignment
1 TMDS Data2+ 11 Ground_Clock
Shield
2Ground_Data2
Shield
12 TMDS Clock-
3 TMDS Data2- 13 No Connection
4 TMDS Data1+ 14 No Connection
5Ground_Data1
Shield
15 TMDS SCL
6 TMDS Data1- 16 TMDS SDA
7 TMDS Data0+ 17 Ground
8Ground_Data0
Shield
18 TMDS Power
9 TMDS Data0- 19 Hot Plug Detect
10 TMDS Clock+
1. HDMI1, HDMI2
4
Pin No. Assignment Pin No. Assignment
1 RS-232 ID 6 No Connection
2 RS-232 RXD Input 7 No Connection
3 RS-232 TXD Input 8 5V Power
4 No Connection 9 No Connection
5Ground
2. RS-232 input(D-Sub 9Pin)1
![](/img.php?id=1625283&img=bg8.png)
General Specification
Pin No. Assignment Pin No. Assignment
1 CABINET_VERSION1 9 LEFT+ (Left speaker)
2 CABINET_VERSION0 10 LEFT- (Left speaker)
3 TW+ (Center tweeter) 11 RIGHT+ (Right speaker)
4 TW- (Center tweeter) 12 RIGHT- (Right speaker)
5MID+ (Center
midrange)
13 LOWMOUNTED
6 MID- (Center
midrange)
14 GND
7 LOW+ (Center bass) 15 CABINET_VERSION2
8LOW-(Center bass)

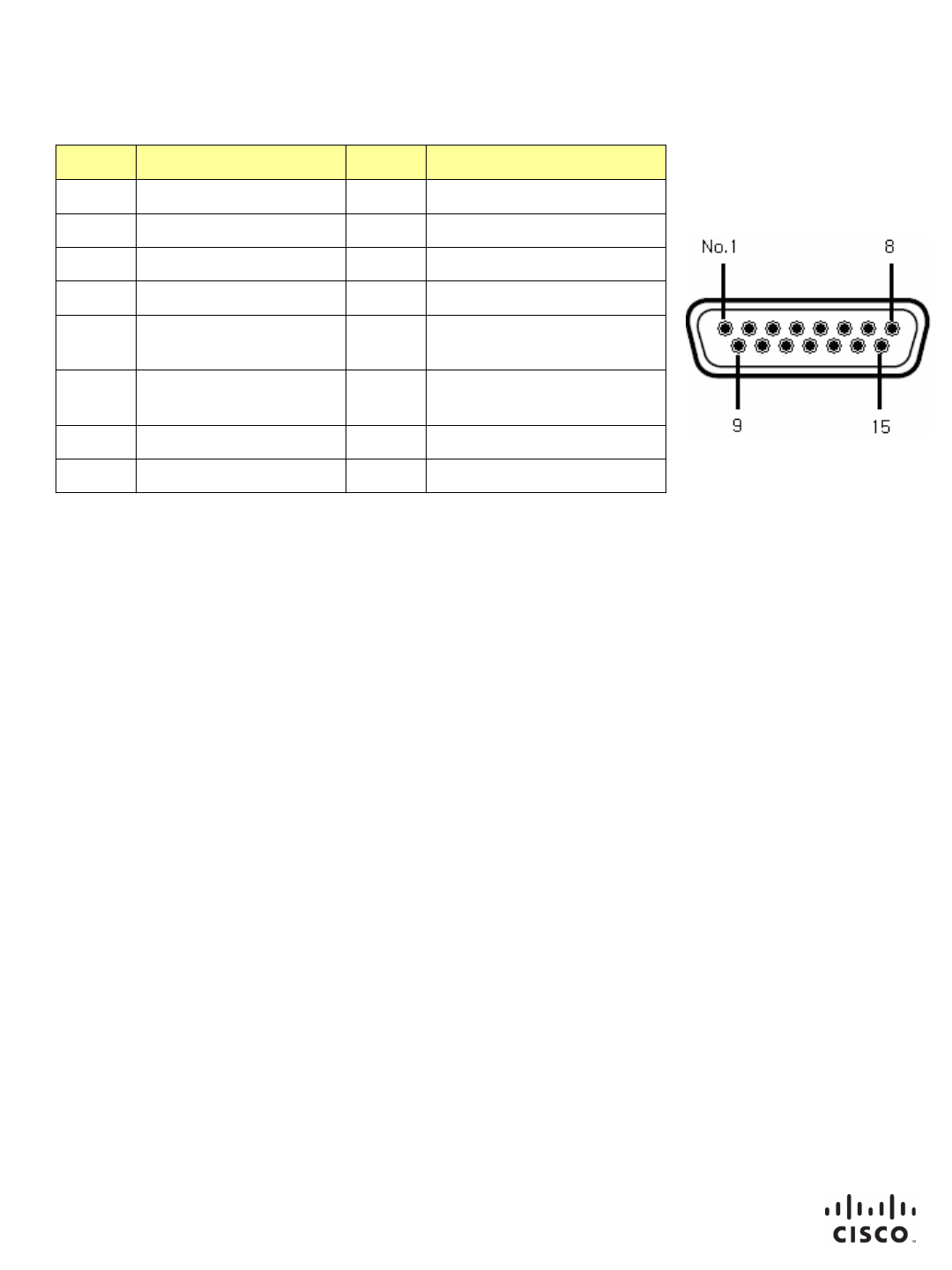

3. Speaker input(D-Sub 2Row 15Pin)
5
Notes
1,2, - This port is only valid on system level assembly Do not use this port as
personnel usage.
2
![](/img.php?id=1625283&img=bg9.png)
General Specification
5. Specification
6
Model FS-S5502F( Left + Right)
LCD PANEL
Type A-si TFT Active matrix
Screen size 138.8Cm ( Left / Right indivisual )
Maximum Resolution 1920X1080@60Hz
Pixel pitch 0.63(H)mmX0.63(V)mm
Display colors 16.7M (RGB 8-bit data)
Contrast Ratio(Typ.) 4000:1
Viewing Angle(Typ.) 89/89/89/89
Response Time(Typ.) 10ms
Luminance(Typ.) 350cd/m2
Synchro
nization
Horizontal Frequency 76.5 KHz
Vertical Frequency 60 Hz
Power
Consumption
Maximum 500W
Standby Mode Under 1W
Power AC 100-240V~50-60Hz 5A Max
Approval Marks Approval Mark CE,CSA,FCC,KCC,KC,CCC,PSE,ENERGY STAR,WEEE
Dimension Size and weight 2520.5X950X170 /107Kg
