DALI A S KATCHONE ACTIVE SPEAKER User Manual

DALI KATCH ONE Manual

1.0 Unpacking

Be careful not to damage the contents when unpacking the parts. Check that all parts are included in the

cardboard box. Keep the packaging materials in case your speaker needs to be relocated or serviced.

2.0 DALI KATCH ONE Buttons, indication LED’s and Connections

2.1 DALI KATCH ONE Button and LED Overview

1. Bluetooth

2. HDMI

3. Optical (for TV)

4. Optical (for audio)

5. Mini-jack

6. Power on

7. Sound mode

Buttons

1. Source select (Toggle)

2. Bluetooth release

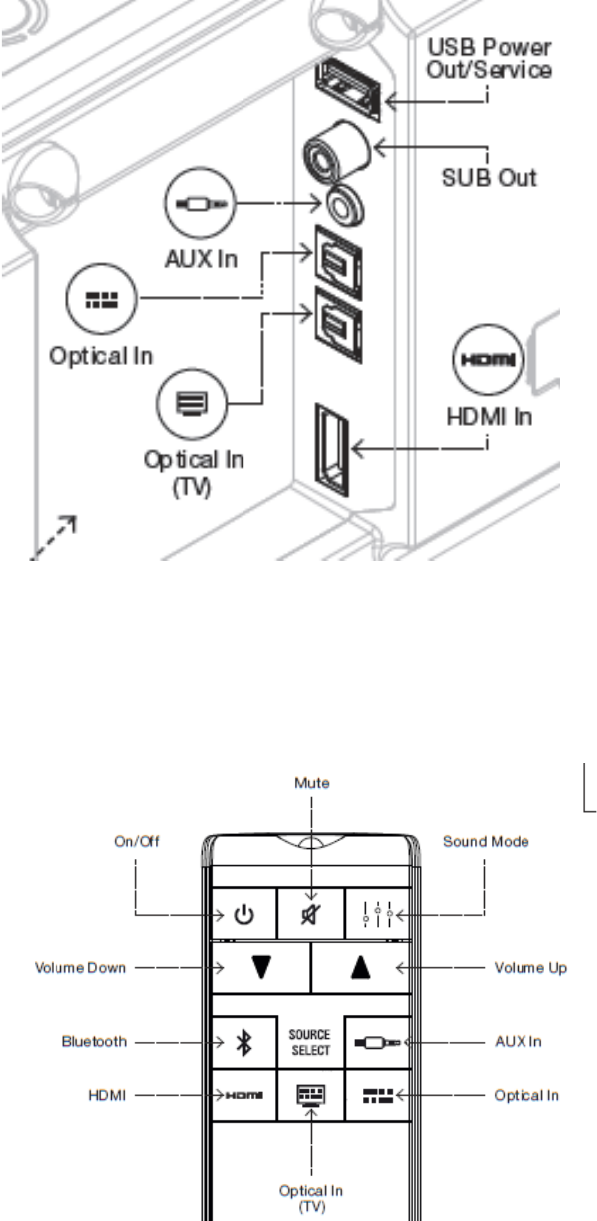

2.2 DALI KATCH ONE connector overview

3.0 Power

If your DALI KATCH ONE does not turn on, connect the mains charger (See 4.0)

3.2 Power OFF

To turn OFF the DALI KATCH ONE;

1. Press and hold Power ON/OFF button (Button 2) until the Power OFF sound is played.

2. The indicator light is turned off.

The DALI KATCH ONE will automatically turn off if not used after 30 minutes.

4.0 Volume Up/Down

4.1 Volume Down

To turn down the volume on the DALI KATCH ONE;

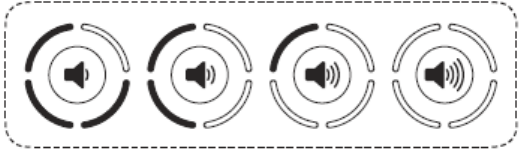

4.3 Volume Indications

5.0 Bluetooth

5.1 Pairing

To connect your device to the DALI KATCH ONE;

1. Turn on the DALI KATCH ONE (See 3.1).

2. Select Bluetooth (Button 1)

3. The DALI KATCH ONE is now ready for a Bluetooth pairing.

audio, but only one at a time via the DALI KATCH ONE.

1. Press and hold the Bluetooth release button (button 2) until the Bluetooth release sound plays and

the indicator light turns blue.

2. All connected devices are now released and you can re-engage the pairing.

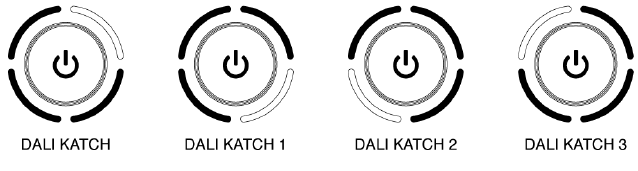

If you have more than one DALI KATCH ONE, it is possible to change the Bluetooth name of your DALI

KATCH ONE.

1. Turn off the DALI KATCH ONE (See 3.2).

6.0 Sound Mode

The DALI KATCH ONE has two sound modes, Focus and Wide. To toggle between the two sound modes

press the ‘Sound Mode’ toggle button (button 6).

Use the LED indication (LED 7) to check what sound mode is currently active.

7.0 Connections

7.1 USB Charge (connector 1)

The USB charge port delivers 5V/1A, which makes it possible to charge most devices directly from the DALI

KATCH ONE. It is also possible to power a Google Chromecast Audio dongle, which makes it possible to

integrate the DALI KATCH ONE with your home network.

It is not possible to play music from the USB port.

7.2 Sub Out (connector 2)

Add a subwoofer to your KATCH ONE system for even better bass performance.

Connect a TV to the KATCH ONE using HDMI.

This connection requires that the TV supports HDMI ARC and that the feature is enabled in the TV menu.

8.0 Positioning

The DALI KATCH ONE is designed to deliver the best possible sound experience mounted on the wall, or

standing on the included feet right up against the wall.

9.1 Factory Reset

To reset the DALI KATCH ONE to the factory state;

1) Stop any playback to the DALI KATCH ONE

2) Turn off the DALI KATCH ONE (See 3.2)

3) Press and hold the Sound mode toggle button (button 6) and press the Power ON/OFF button

(button 2) until the indicator lights (button 3) turn on, one by one.

4) Wait for about 10 seconds

5) Turn off the DALI KATCH ONE (See 3.2)

9.2 Firmware upgrade

Place the firmware file on a USB memory stick. The file will need to be in the root directory, and must be

10.0 Cleaning

Clean the cabinet with a soft, dry cloth. If the cabinet are dirty, wipe with a soft cloth dipped in all-purpose

cleaner and then well wrung out. As this is product contains electronics, be careful not to get it wet, and

keep it clear of water.

11.0 Disposal

If you want to dispose of this product, do not mix it with general household waste. There is a separate

collection system for used electronic products in accordance with legislation that requires proper

treatment, recovery and recycling. Private households in the EU member states, Switzerland, Liechtenstein

and Norway may return their used electronic products free of charge to designated collection facilities or to
