ProductOverview

•BLE‐BeaconCardwasdevelopedtoprovidecustomerswithaneasytocarryandprotectCardDriverIdentification.

•TheBLE‐BeaconCardisawirelessdevicewhichworkswiththeDanlawinc’sDataLogger

•TheDataLoggerdeviceisamonitoringandloggingvehiclenetworkmessagedatadevice.

•OncetheDataLoggerdeviceisinstalledinanyvehicleifaBLE‐Beacondeviceispresentedwithin10’(feet)distancea

wirelesscommunicationbetweenthemisestablishinstantaneouslyandtheDataLoggercanreadtheBLE‐Beacon’

identitynumber.

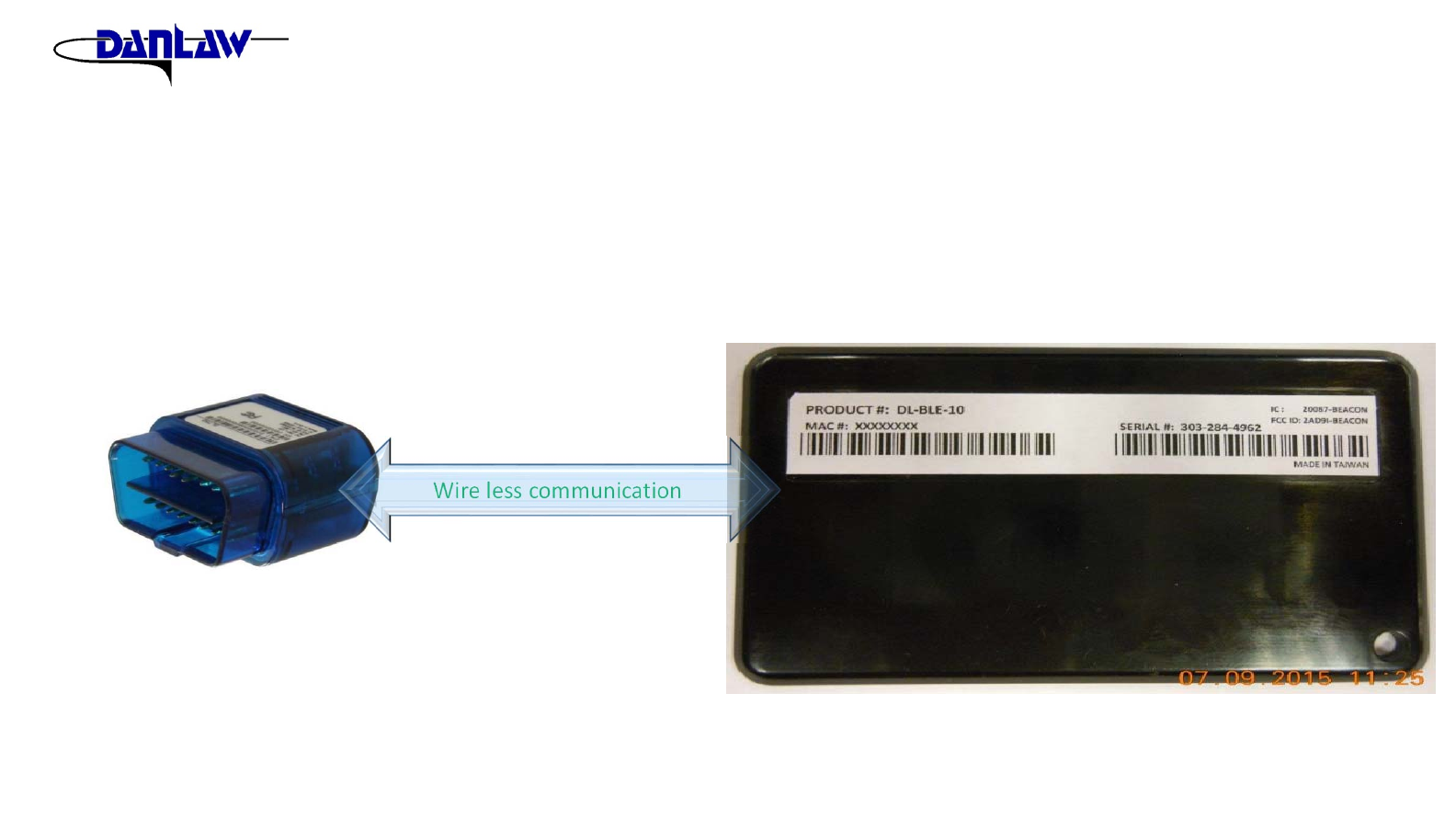

Danlawinc’sBLE‐Beacon

Danlawinc’sDataLogger

Wirelesscommunication

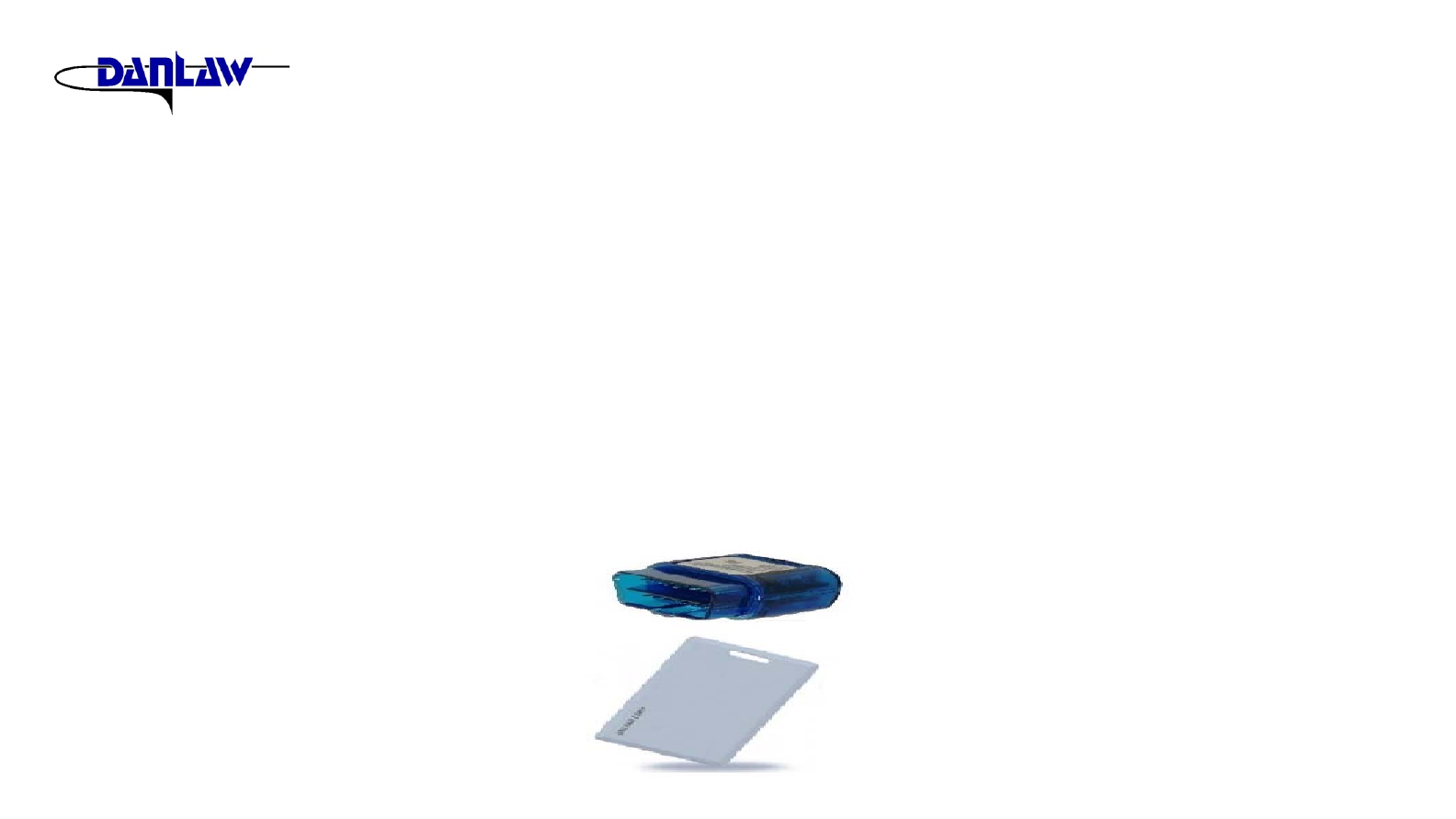

Productpictures:topandbottomviews

BottomviewTopview

Bottomviewwithoutlabel

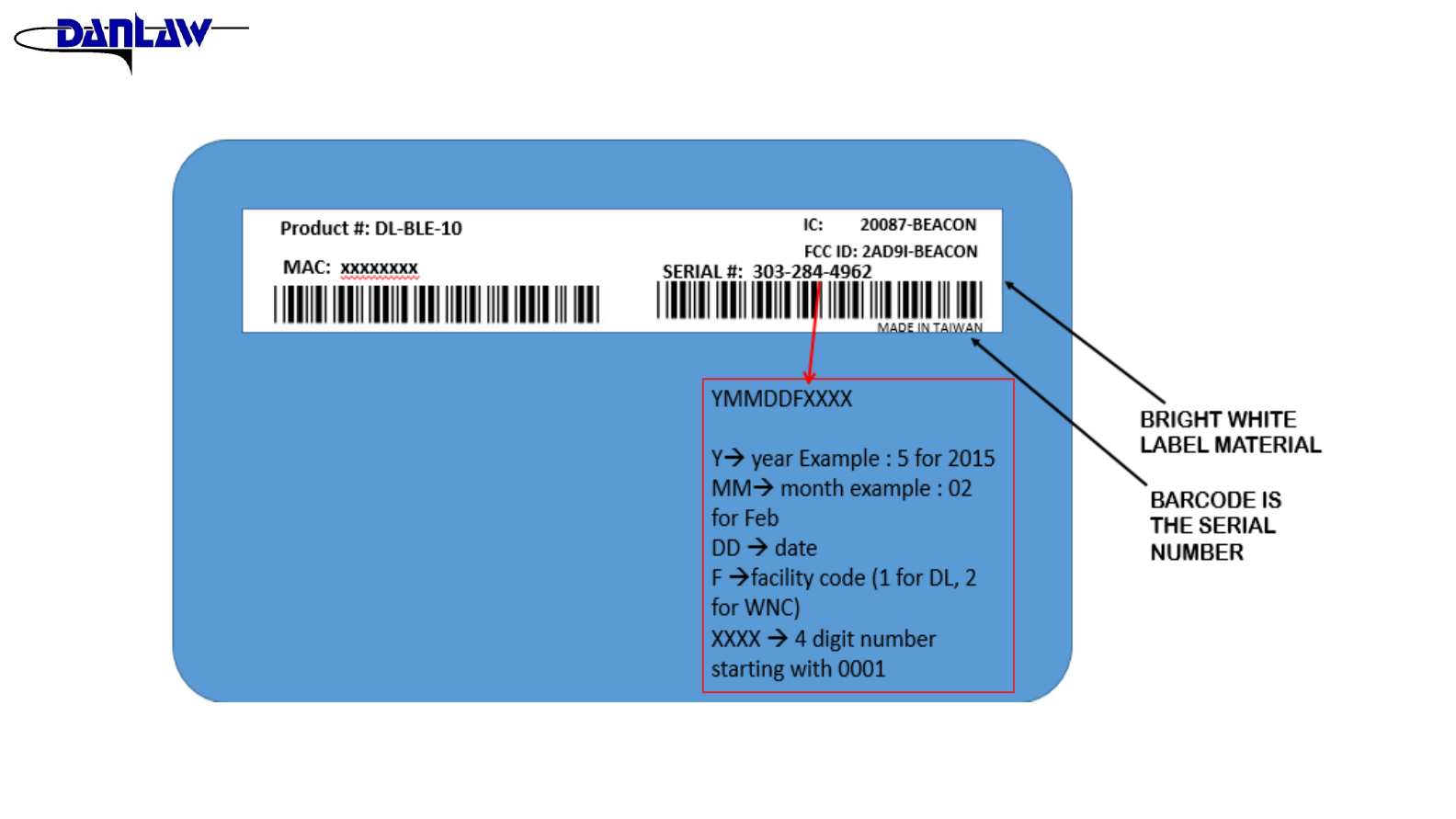

Labeldefinition:

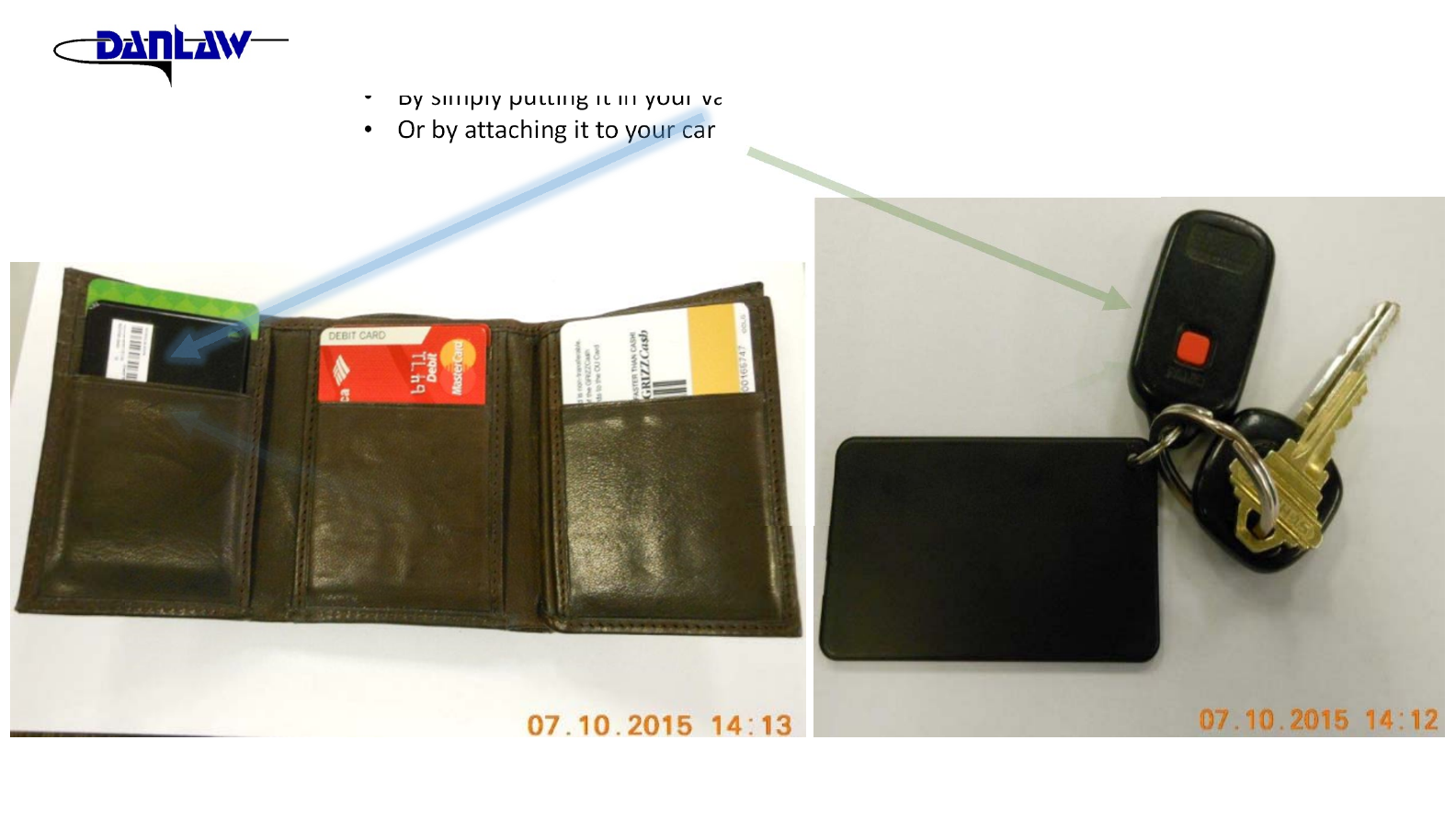

Howtouseit

•Bysimplyputtingitinyourvalet

•Orbyattachingittoyourcarkeys

Productspecification

•TXActiveCurrent8mA(at‐4dBmout)

•SleepCurrent4uA

•MaximumTransmitPower‐4dBm

•FrequencyAccuracy<30ppm

•ConductedHarmonicLevel<‐42dBm

•PowerSupply3Vbattery

•MeasuredOperationalRange>10`

•TemperatureRange‐40to+85Celsiusdegree

•CertificationRoHSCompliant

•PhysicalDimensionsRegularCreditCardDimensions

•PackageBLE‐Beacon’enclosure
