1.1 Product Overview
Danlaw’s Data Logger was developed to provide companies
with an easy to install, wireless communication device for
monitoring and logging vehicle network message data. The need
for the DDL was driven by Danlaw’s own experience with
Networked Automotive Electronics solution development, and
perfected to provide our customers with the benefits of our
experience.
The Danlaw Data Logger provides:
Support for all major passenger car & light truck protocols
Simple plug-n-go via the vehicle’s OBDII connector
OBD Vehicle Data logging with real-time data stamp
Rugged, compact field-hardened design
No external antenna connections needed
Completely self contained
Danlaw Data Logger – Vehicle Data Logger with Bluetooth
Danlaw Data Logger - Advantage
DL-860 Features:
High Speed Data Upload – DDL has been demonstrated to
significantly reduce the Data Upload time as compared to the
speed of other wired and wireless OBDII interface solutions.
Stand Alone Simplicity – Easy plug in and even easier to use.
No external connections needed. Eliminates the need for costly
power adapters, antenna connections and knowledgeable
resources to install the module.
Portability – The DDL has been designed to maximize in-the-
field efficiency, light weight, robust, and compact design.
Low Cost Solution – Low data transmission cost due to
optimized data transmission, cost effective hardware – no
maintenance and no batteries.
Rugged Design – (-40C to +85C), IP 64 rated, it’s field ready.
Flexible – Supports all major OEMs including: GM, Ford, DCX,
Honda, Toyota, Nissan, BMW, Audi, Volvo and more.

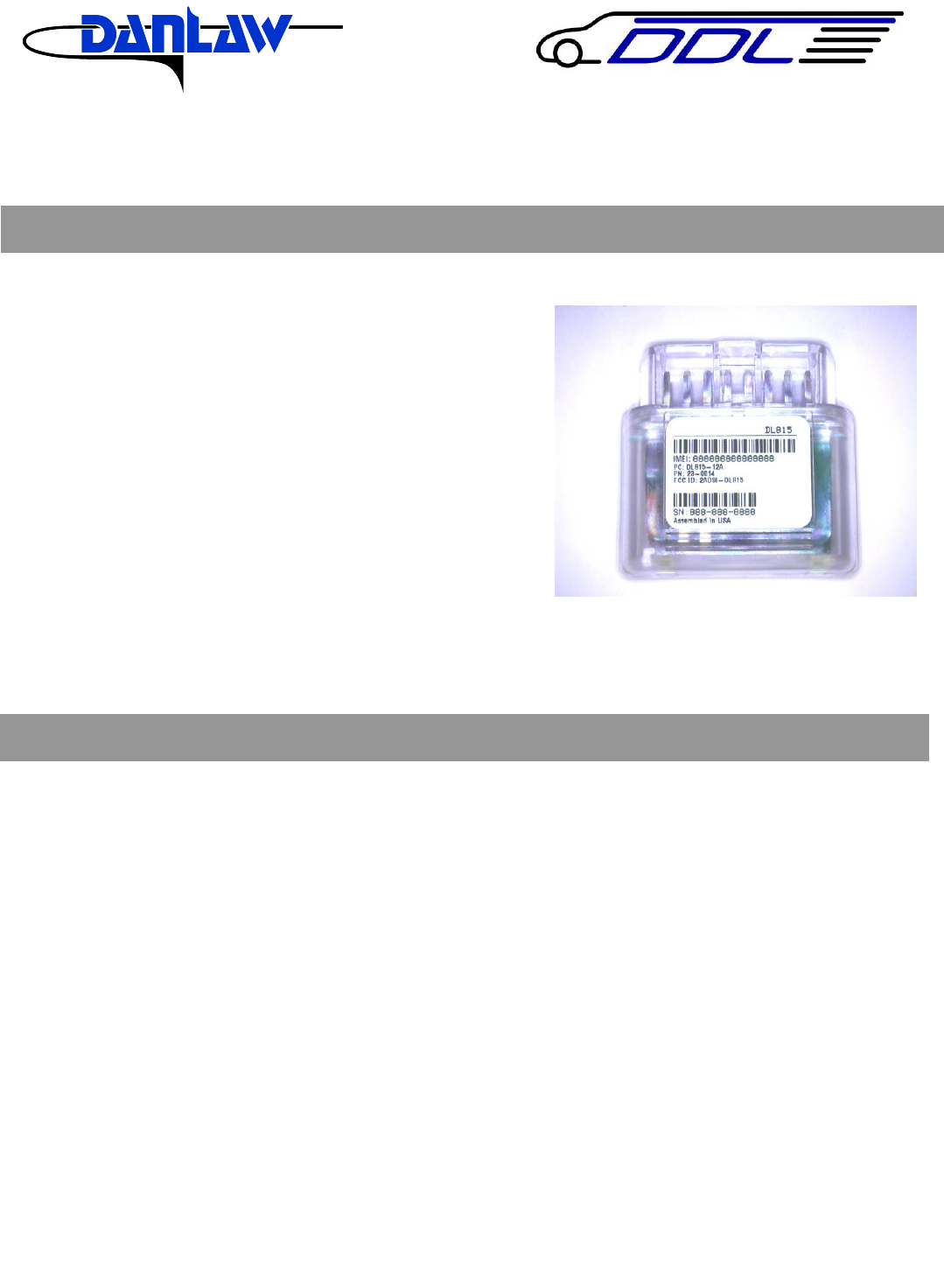

1.2 Product Specifications
Danlaw Data Logger - Specifications
OPERATING VOLTAGE: 9 V DC to 24 V DC (Surge up to 32V)
POWER
CONSUMPTION: < 100 mA @ 12VDC (Data Upload)
< 3 mA Average (during Sleep mode)
TEMPERATURE RANGE: -40 C to +85 C (operating)
HUMIDITY: 90% RH – non condensing
CERTIFICATIONS: RoHS Compliant
VEHICLE COMMUNICATION:
Vehicle Protocol Support: GMLAN, FNOS, ISO-9141-2, SAE J1850 VPW, SAE J1850 PWM, ISO 14230-4,
ISO 15765 (11bit CAN & 29bit CAN), SW CAN
Vehicle Message Data: Time Stamped Event and Vehicle Message Bus Data Recording including:
(All OEM Supported OBDII Data including: VIN, ODO, Time &Date, Vehicle
Speed, module connect/disconnect events)
PHYSICAL DIMENSIONS: Ultra Compact
PACKAGING: Danlaw Data Logger Enclosure (IP 64 rated)
INSTALLATION TIME: 10 Seconds
NUMBER OF TRIPS: Unlimited
DATA RECORDING INTERVAL: Selectable (1 Hz and up)
FCC ID: 2AD9I-DL815 Model: DL815
IC: XXXXX-YYYYYYYY
This device complies with Part 15 of the FCC Rules and with Industry Canada license-
exempt RSS standard(s). Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) This device must accept any
interference received, including interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de
l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
Note: Changes or modifications not expressively approved by the party responsible
for compliance could void the user's authority to operate the equipment.
2.0 Installation Instructions

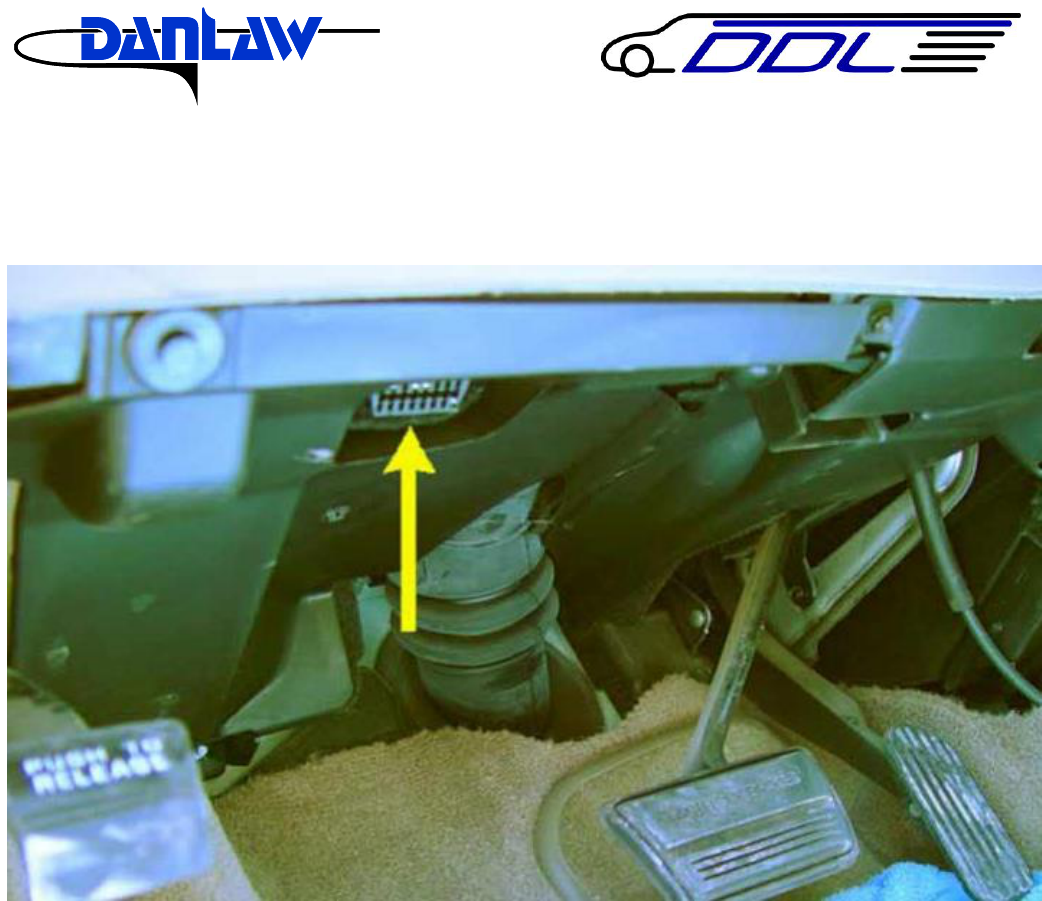

1. Locate the OBD connector:
If you are not able to locate the OBD connector, please refer to the Vehicle User Manual
2. Install the DL-815 device by plugging it into the OBD connector
3.0 Revision History
3/19/2015 Draft Release
