User Manual

Bluetooth USB Dongle
User’s Manual
BT-200
The unit is a wireless comfort Bluetooth® USB dongle for PC and some USB host feature
supporting phones. When the Bluetooth is commonly using for wireless connection, people
prefer to use Bluetooth headsets with mobile phones and PC. Nowadays, most of desktop PC
and laptop computers have built-in Bluetooth and different types of Bluetooth products can
be paired. With internal Bluetooth, most of audio streaming can be delivered via A2DP profile.
By this reason, lots of softphone users have some difficulty to use Bluetooth headsets. To
overcome this difficulties and limitation, customized Bluetooth dongle is developed.

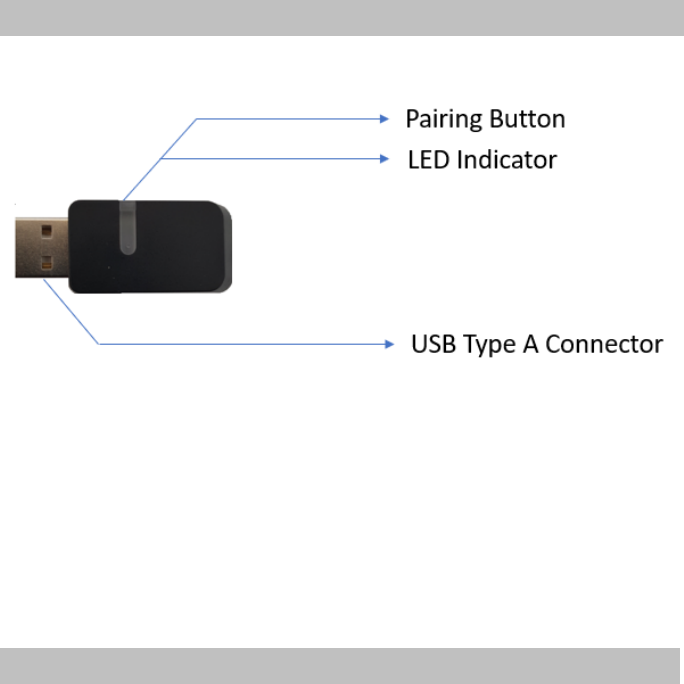

Features
Bluetooth Version 4.0, with improved data transfer, security and connectivity.
Pairing Button
LED status indication
USB Type A Interface
Introduction
The BT-200 dongle is Bluetooth host device. So, Bluetooth headset can be paired
with it. To make pairing, press the pairing button for a while. When it is on pairing
mode, blue LED is blinking. If pairing is success, the blue LED stops blinking and
turns on.
FCC Information
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that
may cause undesired operation.
FCC notification to users
Overview
Technical information
This equipment has been tested and found to comply with the limits for a CLASS B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference, the user is encouraged to try to correct
the interference by consulting with a dealer or an experienced technician for technical
assistance.
Any changes or modifications to the equipment not expressly approved by the party
responsible for compliance could void user’s authority to operate the equipment.
WARNING & SAFETY INFORMATION
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
HFP(hand Free Profile)
A2DP
Dial the number on the mobile phone and press the answer button briefly.
Profiles
Bluetooth 4.0 / USB 2.0
2402 ~ 2480 MHz
79 Channels
1 MHz
Adaptive Frequency Hopping System
GFSK, π/4DQPSK, 8DPSK
7.0 dBm
Pattern Antenna
Typ. 1.96 dBi
USB-A from PC
10m Indoor / 30m Outdoor
-10 °C ~ 50 °C
Technical Description
