User Manual
DATECS
USER'S
MANUAL
Mobile Bluetooth
Scaner
DBS-55
We wish you a pleasant work
with DBS-55!
The information contained in this document is subject to change without prior notice.
All rights reserved. Any mechanical, electrical or electronic reproduction
or adaptation of the information in this document
without prior written permission from DATECS Ltd. is prohibited
1784 Sofia, Bulgaria, 115A Tzarigradsko shosse blvd.
Tel.: +359 2/8165 500, 8165 501, 8165 506, 8165 511; Fax: +359 2/8165 510
Е-mail: sales@datecs.bg
Version:
December 2012 г.
C O N T E N T S
DATECS
DBS-55
3
Introduction
Main features
..........................................................................................................................
4
1. Technical Specifications
....................................................................................................
5
2. Safety Instructions
...............................................................................................................
6
3. Confirmation of Carton Contents
...................................................................................
7
6. Quick start
................................................................................................................................
8
7. Charging the battery
............................................................................................................
9
7.Pairing
.....................................................................................................................................
10
I N T R O D U C T I O N
DATECS
DBS-55
Main Features
4
DATECS BlueScan DBS-55 is the first miniature Bluetooth laser barcode
scanner produced by DATECS. It is one of the smallest and lightest mobile laser
scanners in the world.
Features:
Modes of Operation
• Active Bluetooth - disconnected / connected
• Active Search
• Button: One Scan Button
• Barcode Reader: 1D Barcode scanner – MDL-1000 Laser Scanning Engine
• Supported Barcodes: JAN/UPC/EAN/Add-on – NW-7/ CODABAR, CODE 11, CODE
39, CODE 93, CODE 39 FULL ASCII, CODE 128, IATA, Matrix 2 to 5, Code 11, 2 of 5
industrial, 2 of 5 interleaved, Codebar, MSI/Plessey, UK/Plessey, IATA, ISBN, ISMN,
ISSN, Telepen, RSS 14, RSS Limited, RSS- Expanded, UCC/EAN-128
• Regulatory: Laser safety class: IEC 825, Class I laser product EMC : EN 55022, EN
55024
• LEDs: Three Bi-color LED for Device status (on the Main PCB)
• Processor: HD64F3687
1
Technical Specifications
DATECS
DBS-55
5
Optical Specification
• Light Source: 650 nm visible laser diode
• Scan Method: Vibrating mirror
• Scan Rate: 100 scans/sec
• Decode Rate: 100 decodes/sec
• Reading Pitch Angle: +35° to 0°, 0° to -35°
• Reading Skew Angle: -8° to -50°, +8° to +50°
• Reading Tilt Angle: +20° to 0°, 0o to -20°
Interfaces
• Bluetooth
• BT Module
• Micro USB (option)– for charging
Bluetooth (option 1)
• Version 2.0
• Class 2
• Distance - up to 10m
• Serial port profile
• Antenna ANT8030-2R4-01A
Bluetooth (option 2)
• Version 3.0+HS
• Class 2
• Serial port profile
• iPod Accessory Protocol
• Antenna ANT8030-2R4-01A
• Operating: 0°C to +40°C / 35 to 85% RH
• Storage: -5°C to +40°C / 10 to 90% RH
Options
• Cable (option): Micro USB B to USB A
• Memory (option): 128 MB NAND Flash for Database storage
Size/Weight/Power
• W x L x H - 15 x 32 x 63 mm
• Weight - 25 gr.
• Power - 3.7V@260 mAh Li-Po battery
2
Safety Instructions
DATECS
DBS-55
6
DATECS
NOTICE
● Before use, be sure to read this manual. And keep it handy for reference when
needed.
●
DATECS
reserves the right to change the content of this manual without prior notice.
●
R
epr
oduction,
tr
ansfer
,
or
tr
ansmission
of
the
cont
ent
s
of
this
manual
without
prior
consent
is
strictl
y
pr
ohibit
ed.
●
DATECS
is not liable
for
an
y
pr
oblems
r
e
sulting
fr
om
the
use
of
optional
pr
oducts
and
consumable
supplie
s
other
than
the
de
signa
t
ed
pr
oduct
s
cont
ained
her
ein.
●
Do
no
t
handle,
disa
ssemble
or
r
epair
the
par
t
s
other
than
those
specified
in
this
manual.
●
DATECS
is
n
o
t
liable
for
an
y
damage
caused
b
y
user's
err
oneous
use
of
the
scanner
and
inadequa
t
e
en
vir
onment.
●
Please
cont
act
us
if
ther
e
ar
e
an
y
mist
ak
e
s
or
ambiguitie
s
within
this
manual.
We would be grateful!
3
Confirmation of Carton Contents
DATECS
DBS-55
7
When unpacking the printer, check carefully that the following accessories are included in the
carton:
Item Part Name
1DATECS BlueScan DBS-55
2
USB cable (option)
5User's Manual
Because of the continually evolving Drivers & SDK to support new mobile devices,
Drivers & SDK are distributed online andis available for download at our website
indicated below:
http://datecs.bg/support.php?cat=4&soft=1#1
4
Quick Start
DATECS
DBS-55
8
Quick Start:
Step What to do Purpose Where to find
more information
1
Fully charge your
DBS-55 as
recommended.
The battery pack
should be fully
charged before use to
ensure long battery
life.
Charging Battery,
Page 9.
2 Install Software.
Barcode Scanning
require software to be
installed onto your
Smartphone.
Software is not
provided by
Datecs Please
contact your DBS-
55 reseller
3Pair DBS-55 with
your Smartphone
Established
communication
between your
Smartphone and
DBS-55
Pairing
Page 12.
Charging the battery
DATECS
DBS-55
9
Charging the DBS-55:
The DBS-55 uses a Li-Po battery rechargeable battery pack. Before first use, the battery
pack should be charged for at least (2) hours.
To prevent electrical damage to the DBS-55 and/or battery pack, please use approved
USB to Micro USB cables only.

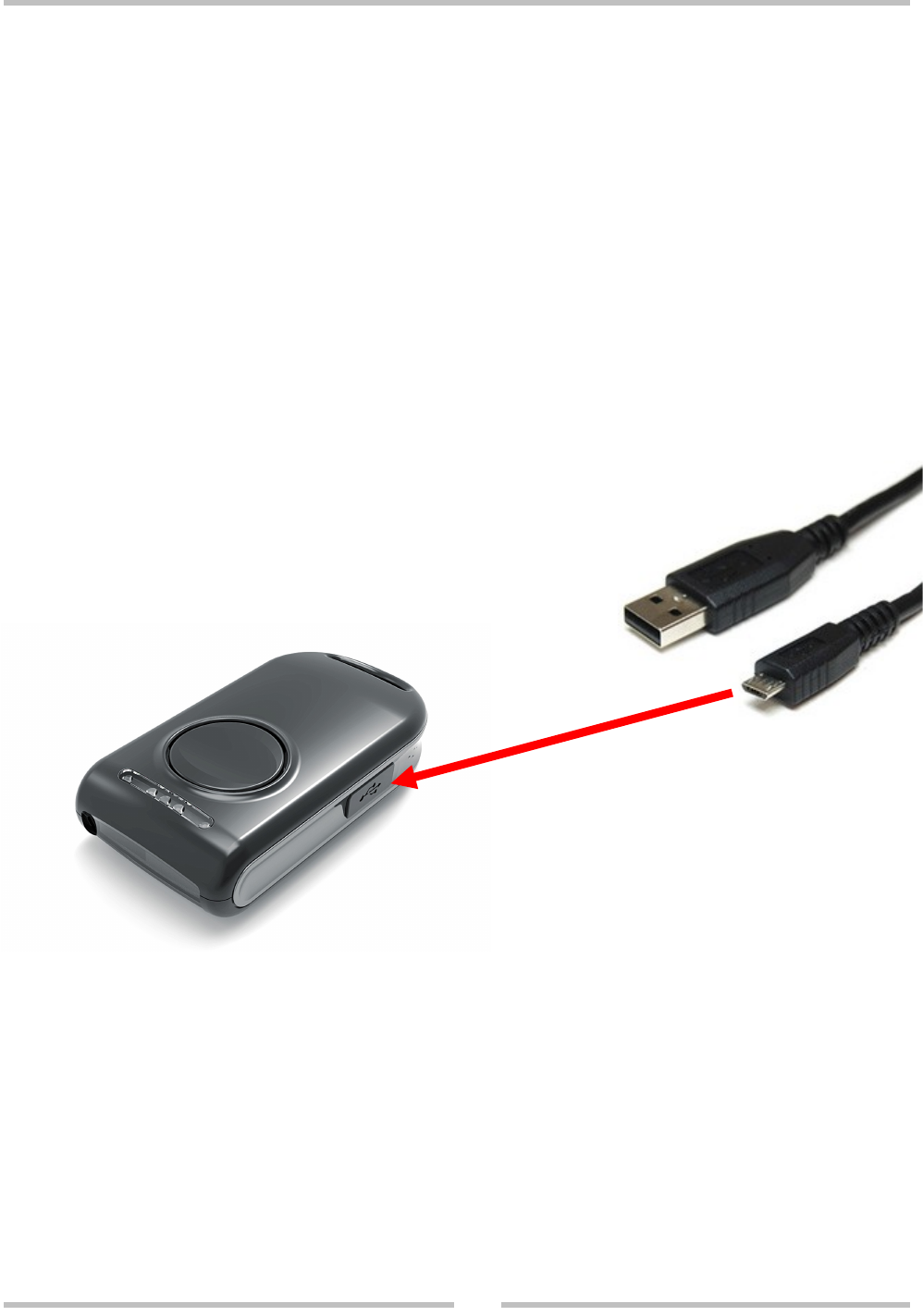

Charging via USB cable
(type A to micro USB), connected
to PC 5V
DATECS
DBS-55

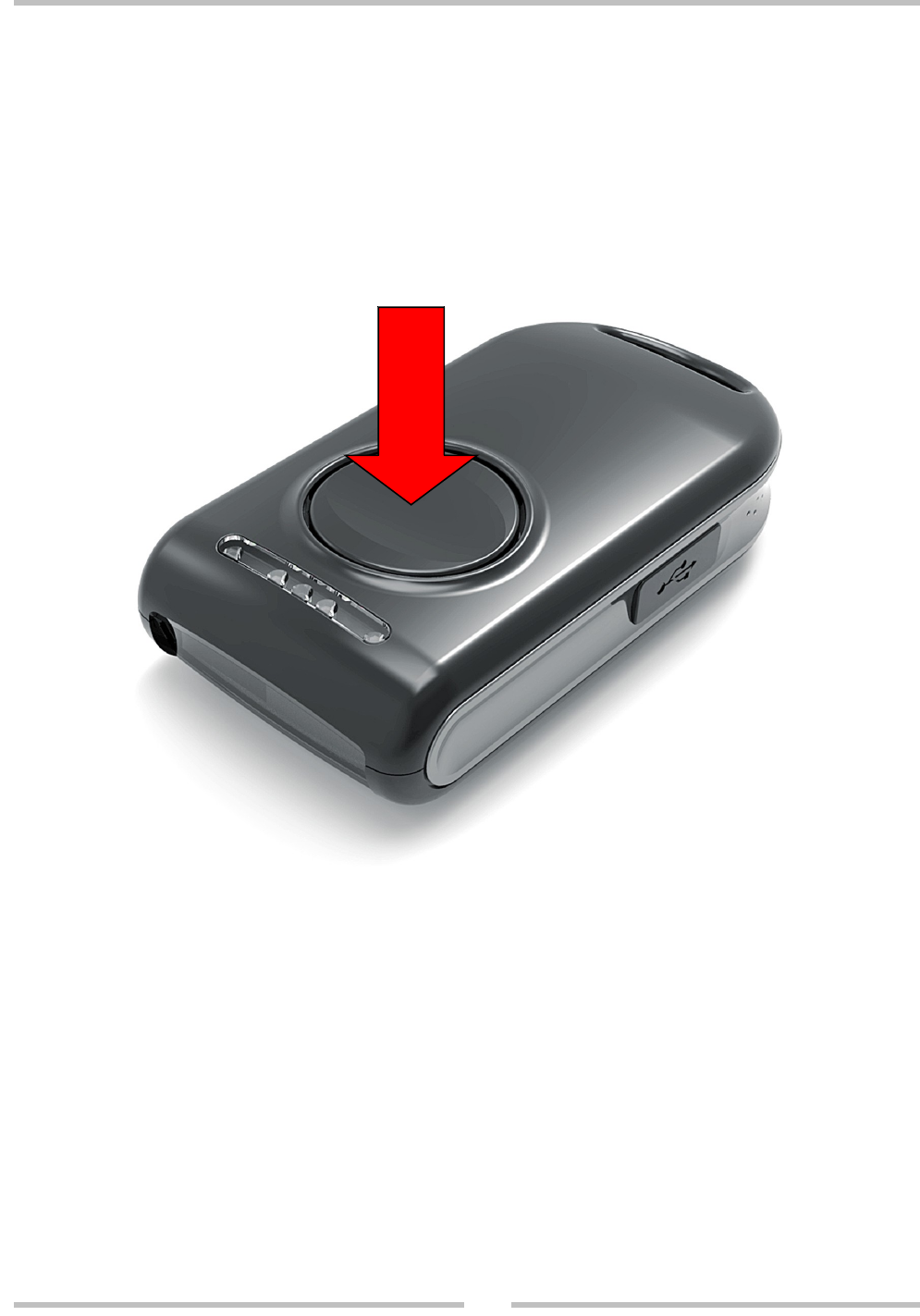

Pairing the device
10
The scanner has to be in OFF mode.
Press and hold the scan button for 15 seconds.
You will head two beep sounds. Release the button. Now the scanner is in pairing mode
and can be browsed from the PDA, smart phone or a PC.
The device appears with DBS-55 in the bluethoot device list. When you find it, double click
on it and click “pair”( Secure Simple Pairing). (For DBS-55 with BT3.0+HS)
The device appears with DBS-55 in the bluethoot device list. When you find it, double click
on it and use 0000 as pass key. (For DBS-55 with BT2.0)
Note; Only for DBS-55 with BT2.0 and Android OS
DATECS
DBS-55
Pairing the device
11
Need to be installed app “BarcodeWedge”, after that switch input Keyboard to
“BarcodeWedge” in Android OS settings.
