DATECS DATECSBT301 Bluetooth Module User Manual Linear Pro5
DATECS LTD. Bluetooth Module Linear Pro5
DATECS >
Contents
User Manual Linear Pro5
1 DATECS
User Manual
Linea Pro 5
1 DATECS Linea Pro 5 User manual
`
2
CONTENTS
Legal Notice............................................................................................................................................. 3
Compatibility ............................................................................................................................................ 3
Linea Pro 5 Models.................................................................................................................................. 4
Overview.................................................................................................................................................. 6
Technical Data......................................................................................................................................... 7
Box Contents ........................................................................................................................................... 8
Getting Started ........................................................................................................................................ 9
Buttons overview ................................................................................................................................... 10
Front side view ................................................................................................................................. 10
Back side view.................................................................................................................................. 11
Attaching device .................................................................................................................................... 12
Operation modes ................................................................................................................................... 13
Charging Battery.................................................................................................................................... 14
Battery status level of the Linea Pro 5 ............................................................................................. 15
Charging Modes ............................................................................................................................... 15
Barcode Scanning ................................................................................................................................. 16

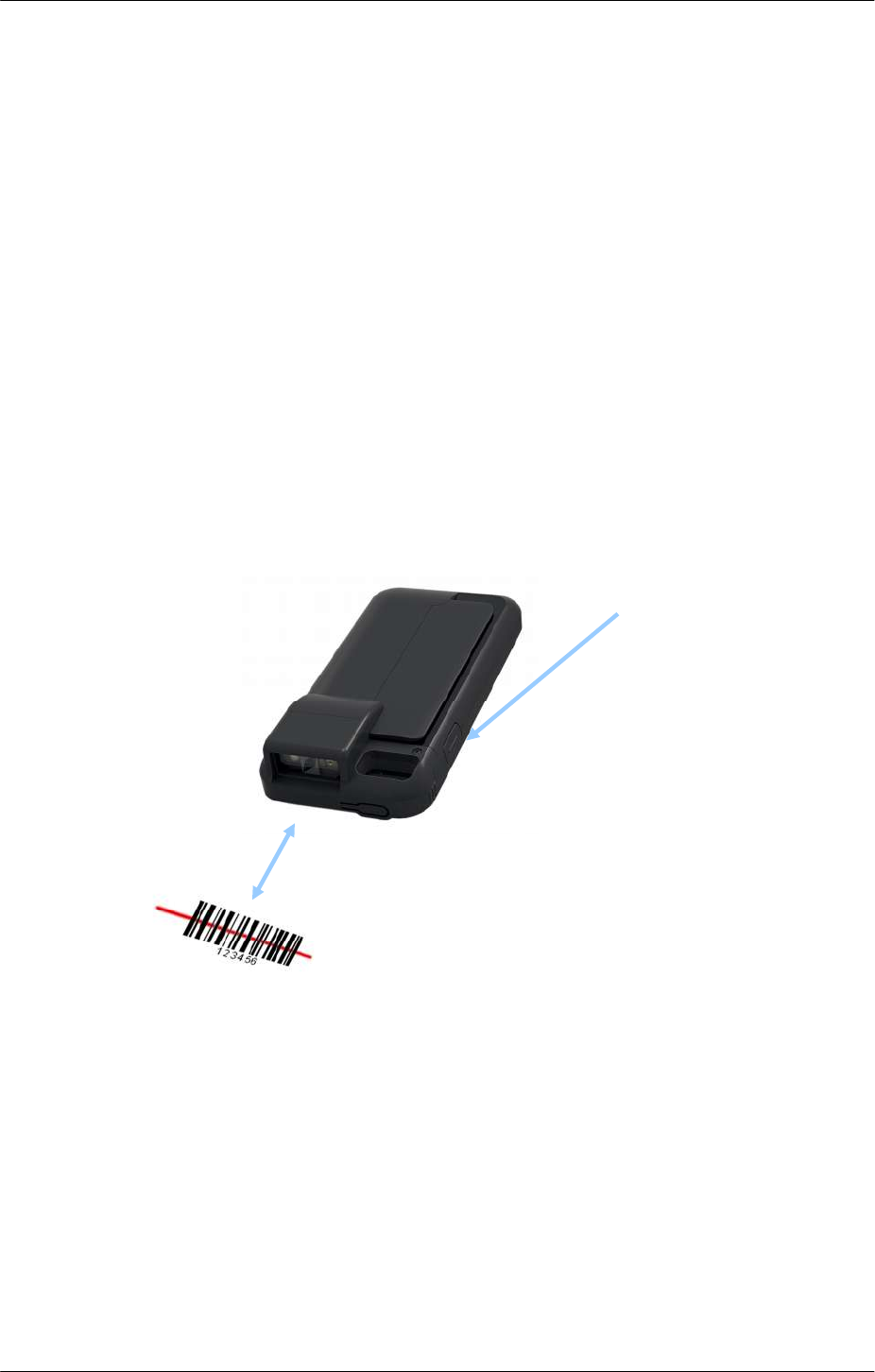

Using the 1D barcode scanner:........................................................................................................ 16

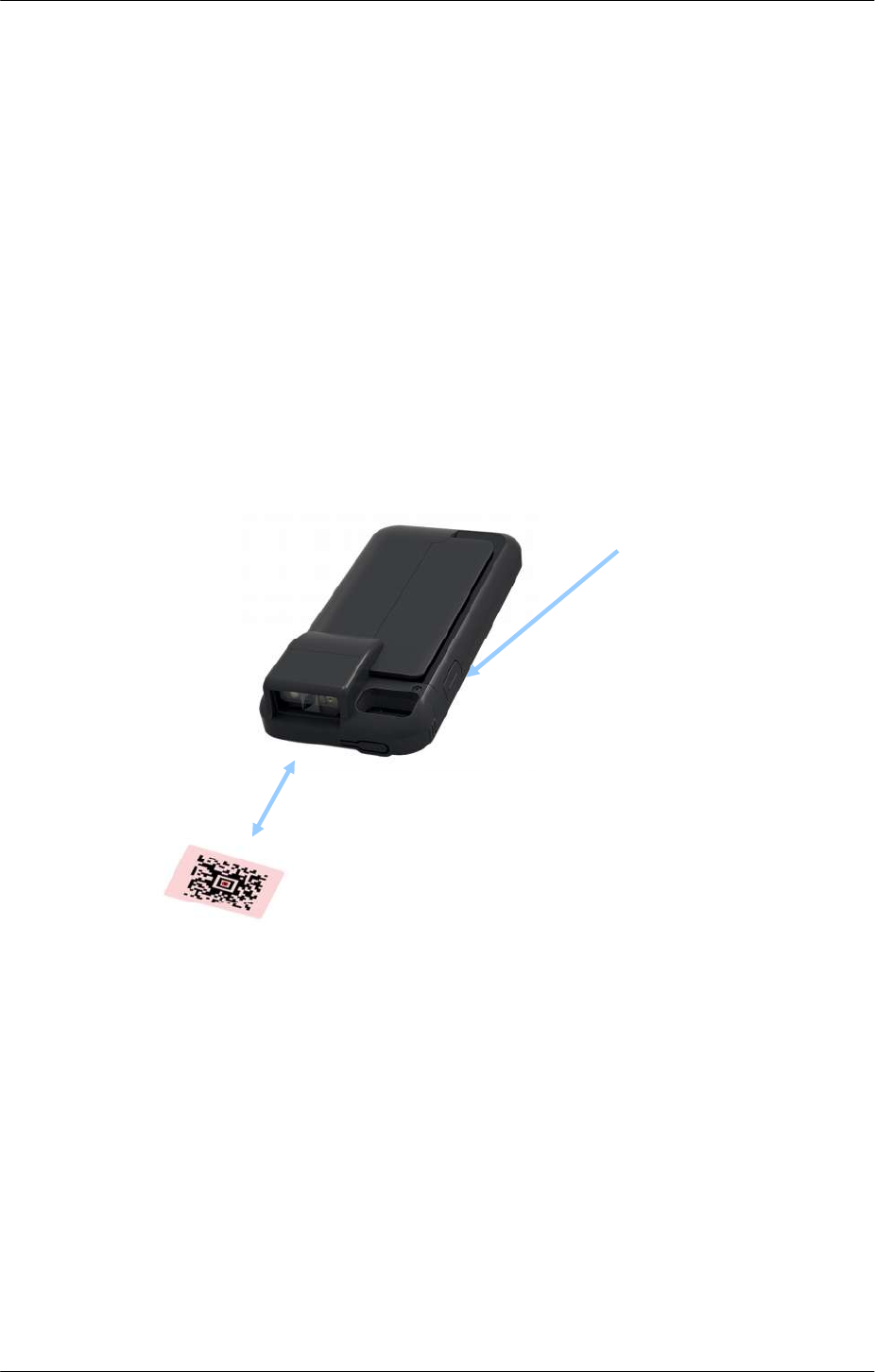

Using the 2D barcode scanner:........................................................................................................ 17
Card Reading ........................................................................................................................................ 18

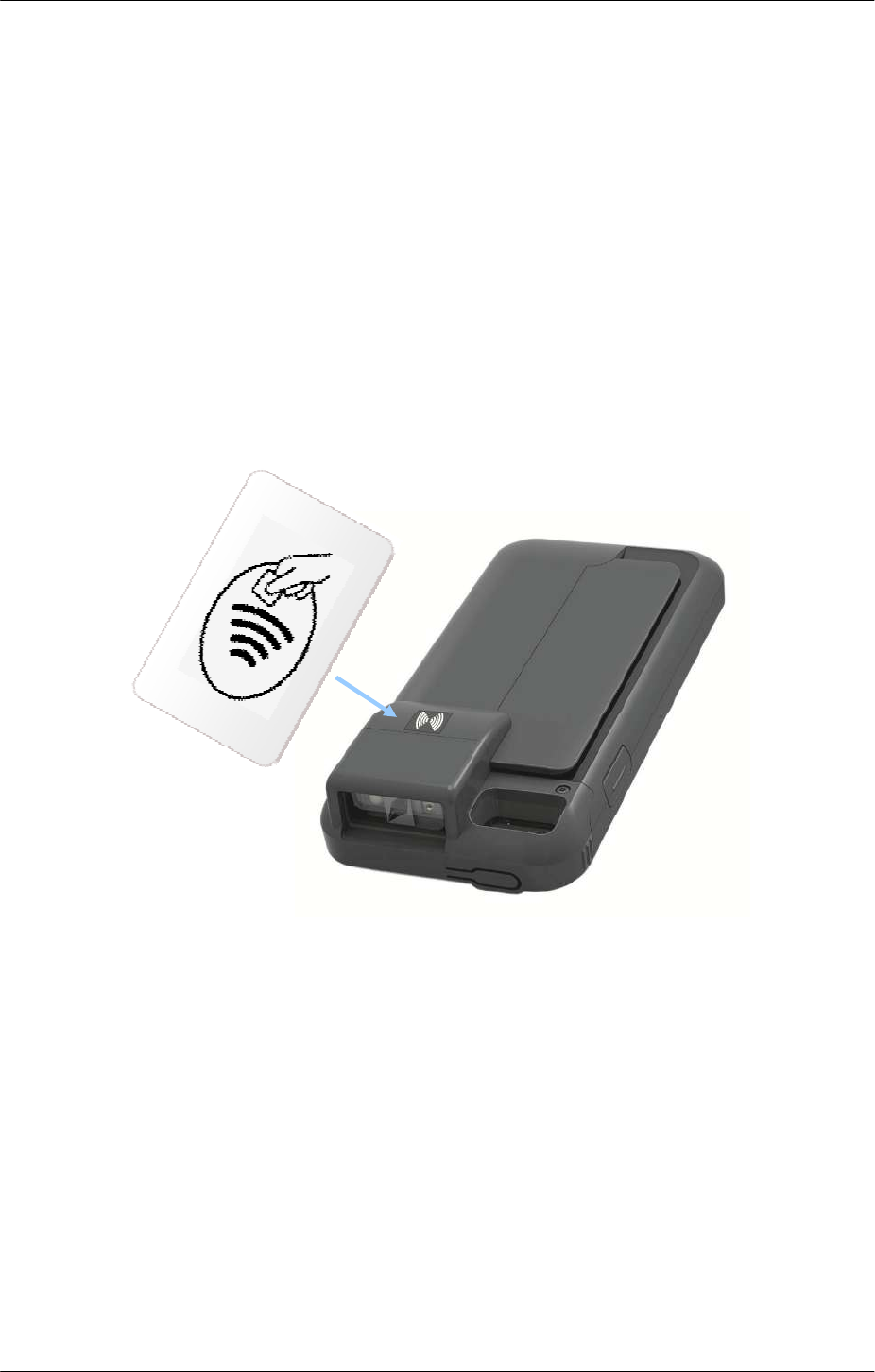

Contactless Card Reading..................................................................................................................... 19
1 DATECS Linea Pro 5 User manual
`
3
Legal Notice
“Made for iPod” and “Made for iPhone” mean that an electronic accesory has been designed to
connect specifically to iPod or iPhone respectively, and has been certified by the developer to meet
Apple performance standards. Apple is not responsible fort he operation of this device or its
compliance with safety and regulatory standards. Please note that the use of this accesory with iPod
or iPhone or may affect wireless performance.
Compatibility
Made for
iPhone 5
iPhone 5S
iPhone SE
iPod touch (5th generation)
iPod touch (6th generation)
iPad, iPhone, iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. Lightning is a
trademark of Apple Inc.
1 DATECS Linea Pro 5 User manual
`
4
FCC Notice
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
No changes shall be made to the equipment without the manufacturer’s permission as this
may void the user’s authority to operate the equipment
Exposure to Radio Frequency (RF) Signals
The LineaPro 5, incorporating the iPhone 5/iPod Touch, has been tested and meets
applicable limits for radio frequency (RF) exposure. Specific Absorption Rate (SAR) refers to
the rate at which the body absorbs RF energy. The SAR limit is 1.6 watts per kilogram
averaged over 1 gram of tissue.
During testing, the iPhone 5/iPod Touch devices, incorporated within the LineaPro 5, are set
to their highest transmission levels and placed in positions that simulate use against the
head, with no separation, and near the body, with 5mm separation. When using the
incorporated iPhone 5/iPod Touch functionality, to reduce exposure to RF energy, use a
hands-free option, such as the built-in speakerphone, the supplied headphones or other
similar accessories. Carry the LineaPro 5 at least 5mm away from your body to ensure
exposure levels remain at or below the as-tested levels.
Cases with metal parts may change the RF performance of the device, including its
compliance with RF exposure guidelines, in a manner that has not been tested or certified.
The LineaPro 5 complies with the FCC safety requirements for RF exposure in accordance
with FCC rule part §2.1093 and KDB447498 D01 for portable use conditions.
The LineaPro 5, incorporating the iPhone 5/iPod Touch, must not be co-located or operated
in conjunction with any other antenna or transmitter.
1 DATECS Linea Pro 5 User manual
`
5
Linea Pro 5 Models
Model Description
Linea Pro 5 MSR Linea Pro 5 with 3-Track mag-stripe reader
Linea Pro 5 EMSR Linea Pro 5 with Secure Encrypting MSR
Module
Linea Pro 5 MSR 1D/2D Linea Pro 5 with 3-Track mag-stripe reader and
1D/2D barcode scanner
Linea Pro 5 EMSR 1/D2D Linea Pro 5 with with Secure Encrypting MSR
Module and 2D barcode reader
Linea Pro 5 MSR 1D/2D/BT Linea Pro 5 with 3-Track mag-stripe reader,
1D/2D and Bluetooth®
Linea Pro 5 EMSR 1D/2D/BT Linea Pro 5 with Secure Encrypting MSR
Module, 1D/2D and Bluetooth®
Linea Pro 5 MSR
1D/2D/ BT/RFID
Linea Pro 5 with 3-Track mag-stripe reader,
1D/2D/Bluetooth® and RFID reader
Linea Pro 5 EMSR
1D/2D/ BT/RFID
Linea Pro 5 with Secure Encrypting MSR
Module, 1D/2D/Bluetooth® and RFID reader
Table 1
1 DATECS Linea Pro 5 User manual
`
6

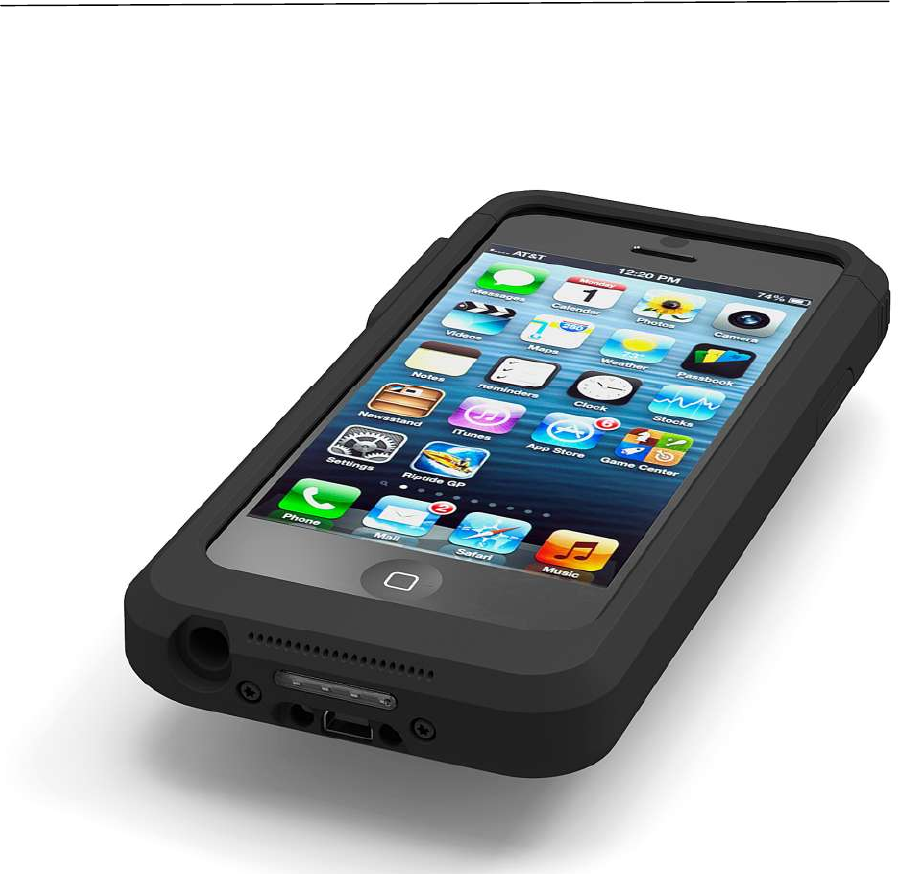

Overview
Linea Pro 5 allows mobile workers to convert their iPhone 5 / iPod 5 handset
into a powerful point-of-sale solution. The Linea Pro 5 includes optional 1D or 2D
barcode scanner, 3-tracks magnetic stripe reader, RFID reader and a rechargeable
battery extender in a very compact and durable protective case.
Features:
Battery: Rechargeable Li-ion Battery - 1300 mAh, charging via USB or DATECS
Power Station.
Magnetic Card Reader – 3-Track Head:
Swipe Speed: Minimum of 1.97 in/sec
MTBF: 1 million swipes
Bidirectional reading capabilities
Barcode Scanner: Single / Multi-scan mode
1D - MTBF: 30K hours (Laser Diode & Mirror Unit 10K hours)
2D – EM3070 Image sensor 752x480 CMOS
2D – MDI-3100 Image sensor 752x480, Scan rate: Up to 60fps
2D – EA-30 Image sensor 752x480, Scan Rate: up to 60fps/120fps in 1D
mode (Aimer: 650nm laser, Class 2)
Indicators:
Visual: 4 LEDs for device battery status
Audio: Electromagnetic Buzzer
I/O Connectors:
9-pin lightning connector
10-pin female Mini-B USB connector for charging and synchronization
1 DATECS Linea Pro 5 User manual
`
7
Technical Data
Processor
32-bit ARM
TM
Cortex
TM
- M3 based Microcontroller
Magnetic Card Reader
(option)
• 3-track bi-directional reading
• ISO 7810, 7811 and 7813
Secure Magnetic Card Reader
(option)
• PCI PTS 3.x certified
• DUKPT and Fixed Key Management
• 3DES-112, AES-128, AES-256 encryption algorithms
Contactless Card Reader
(option)
ISO/IEC 14443 Type-A/MIFARE:
- MIFARE MINI
- MIFARE CLASSIC-1K, MIFARE CLASSIC-4K
- MIFARE ULTRALIGHT, ULTRALIGHT-C
- MIFARE PLUS 2K/4K
- MIFARE DESFire
- and other
ISO/IEC 14443 Type-B:
- supports most of the cards
ISO/IEC 15693:
- supports most of the cards
Barcode Reader
(option)
1D
• Opticon MDL1000* - Laser Barcode Scan Engine
• Newland EM3070* - Image Sensor 752x480 CMOS, High Performance 2D Imager Scan Engine
2D
• Intermec EA-30 - Image Sensor 752x480 CMOS, High Performance 2D Imager Scan Engine
Supported Barcode Types
• 1D* Barcode Scanner Supported Symbologies:
JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128(EAN-128), GS1 DataBar (RSS),
IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Postal code: Chinese Post, Korean Postal Authority code
Composite codes, MicroPDF417, PDF417
• 2D* Imager Supported Symbologies:
Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128,
GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey
PDF417, Data Matrix (ECC200, ECC000, 050, 080, 100, 140), QR Code
Battery
Rechargeable Li-Ion Battery 3.7V / 1300 mAh
Connectivity
• Apple 9 pin connector
• Pass-through sync through mini USB
• BT 2.0 Class 2 (option)
- SPP - Serial Port Profile
Device compatibility
Apple iPod 5
th
generation / iPod 6
th
generation / iPhone 5 / iPhone 5S / iPhone SE
Buttons
• Scan button
• Battery status button
LED indication
4 LEDs for battery status
Audio indication
Electro-Magnetic Buzzer
Certifications
CE, FCC, PCI PTS 3.x, Apple
®
MFi
Weight, g
120 with battery and 2D barcode reader (without iPod 5 / iPhone 5)
Dimensions (LxWxH), mm
142 x 69 x (22 with 1D barcode reader) / (27 with 2D barcode reader)
Environmental
• Operating: -10
o
C to +40
o
C / 5% to 90% RH
• Storage: -20
o
C to +50
o
C / 5% to 90% RH
Drop Test
1.5 m, 6 faces + 4 edges on concrete
Power Supply
• 5V through mini USB
• 5V through single or 5 station charger
Accessories
• Single station charger - SC-1
• 5 stations charger - GC-5
• Holster
* Specifications subject to change without notice.
Table 2
1 DATECS Linea Pro 5 User manual
`
8

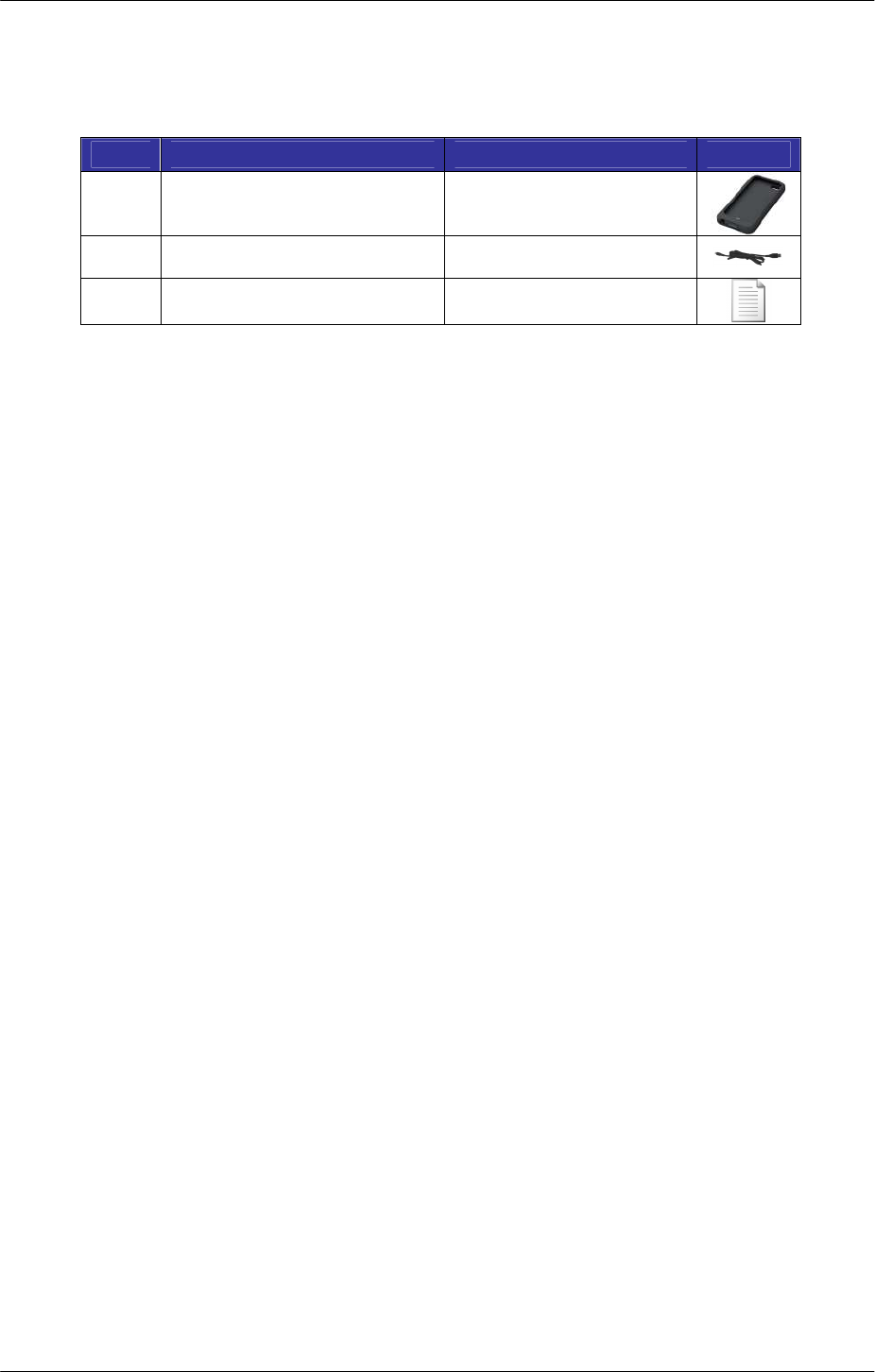

Box Contents
Your Linea Pro 5 comes with the following items listed below:
Item Part Number Descriptions Image
1 Linea Pro 5 Linea Pro 5 / Scanner
2 USB A to mini USB B USB Sync cable
3 Linea Pro 5 User Manual User's manual
*Bulk Shipments may ship without cables and manuals in each box.
Table 3
1 DATECS Linea Pro 5 User manual
`
9
Getting Started
The Linea Pro 5 allows you to scan barcode and capture Magnetic Strip
information onto your iPod 5 or iPhone 5. Before using your Linea Pro 5 the battery
should be properly charged. The following Quick Start guide will help to get your
Linea Pro 5 ready for use.
Quick Start:
Step What to do Purpose Where to find more
information
1 Fully charge your Linea
Pro 5 as recommended.
The battery pack should be
fully charged before use to
ensure long battery life.
Charging Battery, Page
13.
2 Install Software.
Barcode Scanning
& Card Reading requires
software to be installed
onto your iPod 5 / iPhone 5
Please contact your
distributor
3 Attach device to Linea
Pro 5
Connecting your Linea Pro
5 and iPod 5 / iPhone 5
Attaching device, Page
11.
Table 4
1 DATECS Linea Pro 5 User manual
`
10
Buttons overview

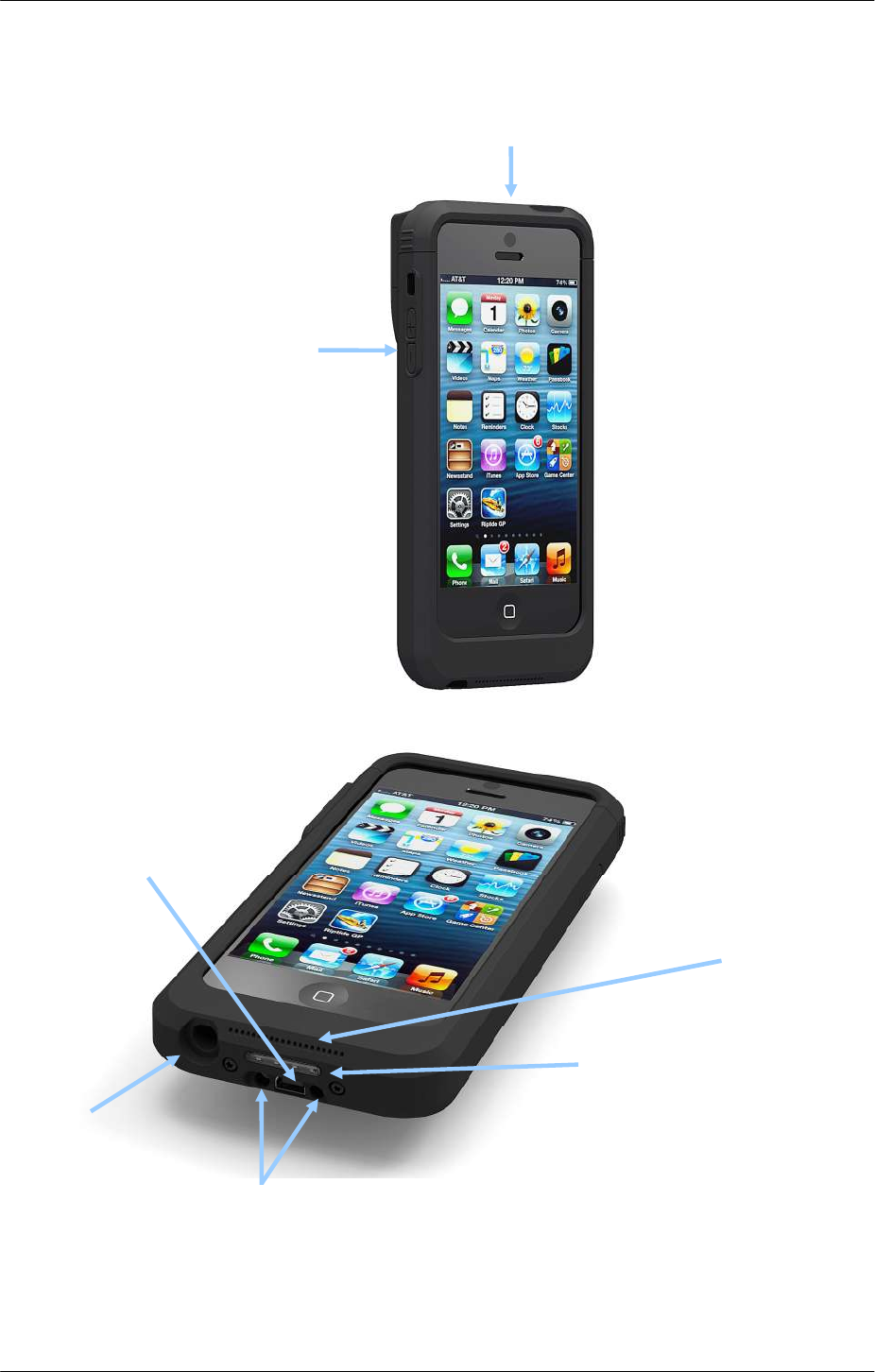

Front side view
Charging Lamellas
Status LEDs and
Status Button
10-pin mini USB
connector
Aperture for
Headset
Openings for Speaker
and Bottom microphone
Volume
Controls
Back Cover
1 DATECS Linea Pro 5 User manual
`
11

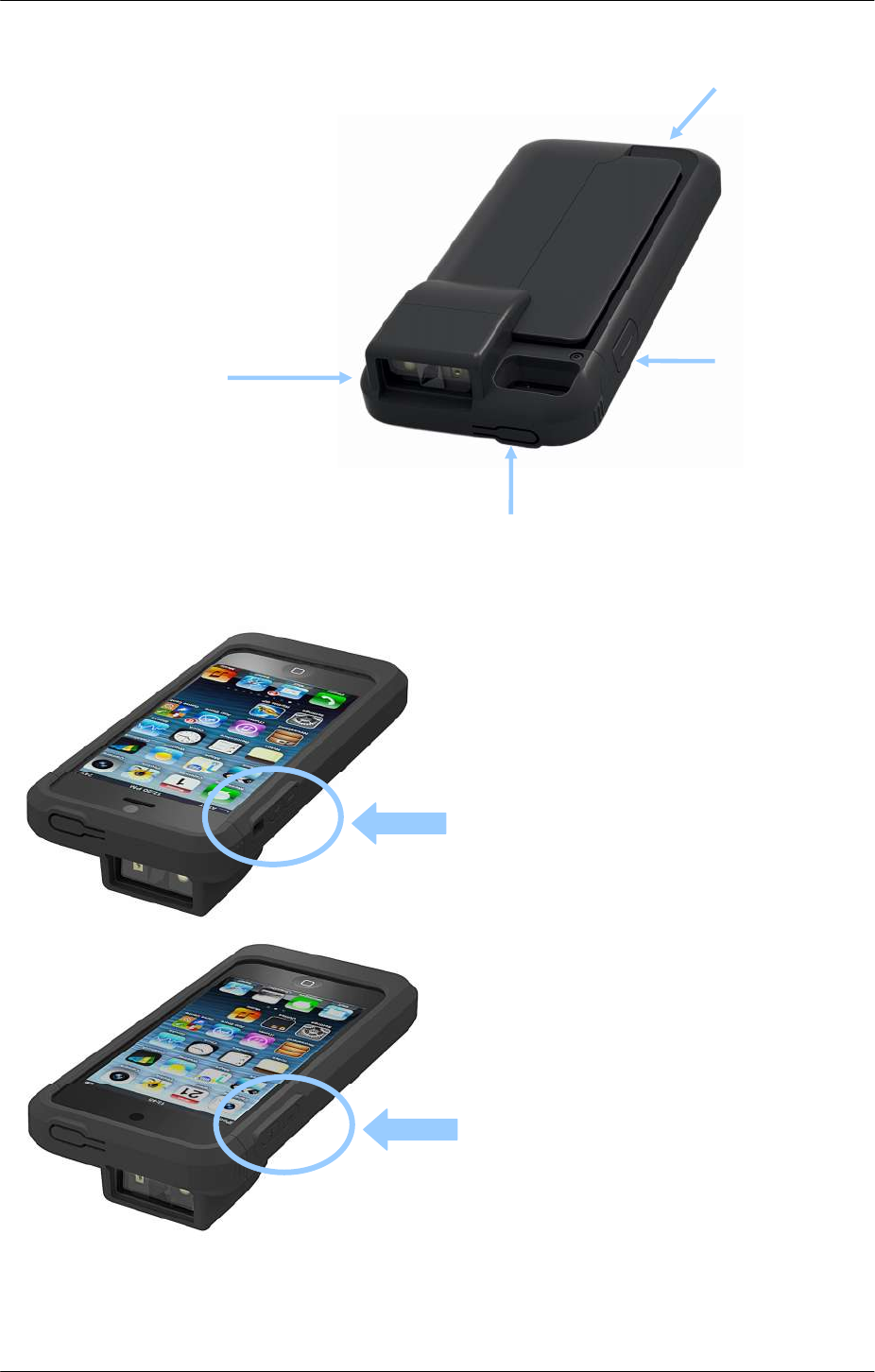

Back side view
Linea Pro 5 versions for iPod5 and iPhone5
Linea Pro 5 for iPhone 5
(aperture for Ring/Silent switch)
Linea Pro 5 for iPod 5
Scan engine
On/Off
Scan Button
Magnetic stripe reader
1 DATECS Linea Pro 5 User manual
`
12

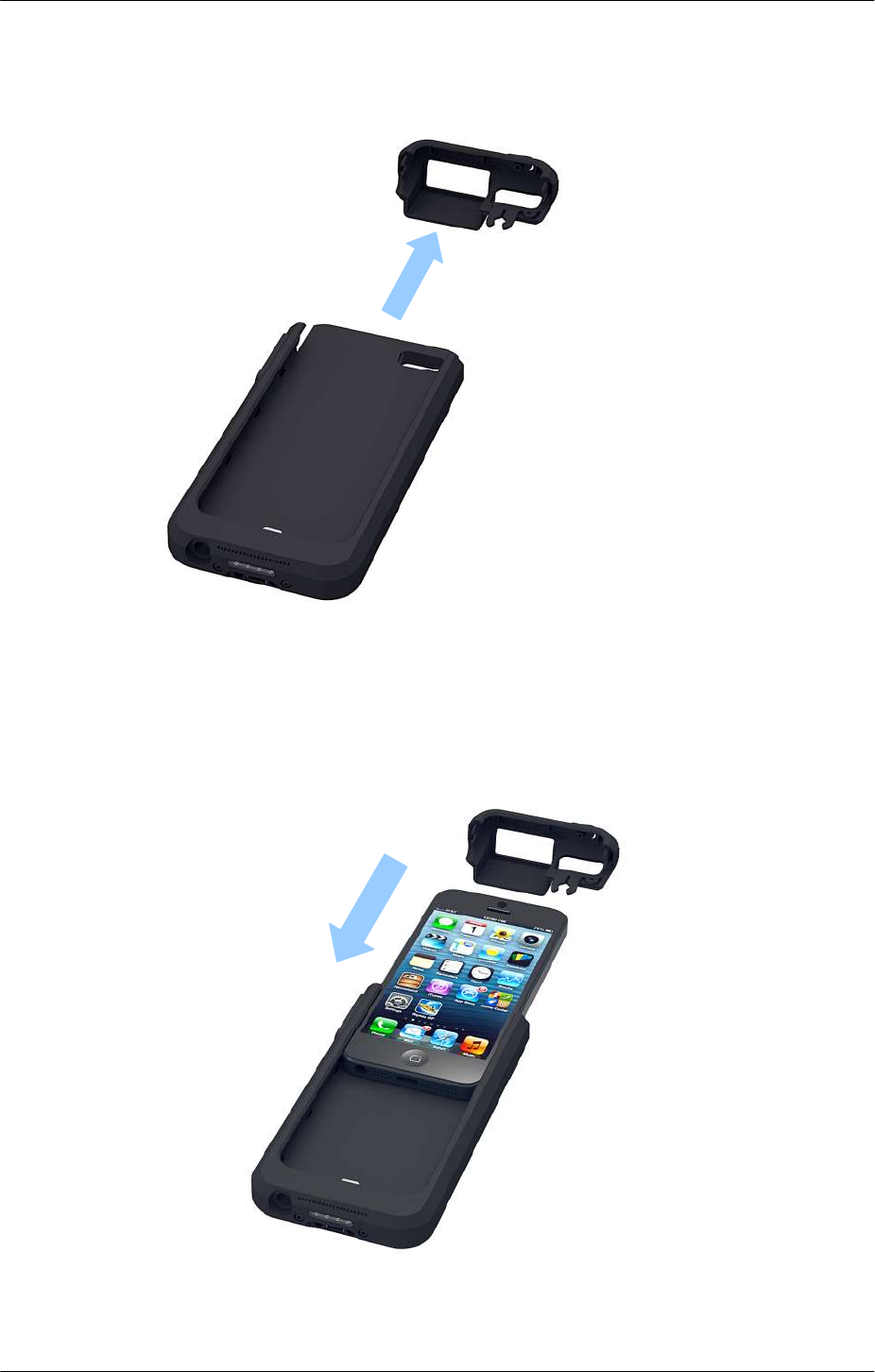

Attaching device
Step 1 – Remove the “back cover”
Step 2 – Slide the iPod 5 or iPhone 5 into Linea Pro 5. (Please, before attaching the
device, check the compatibility version of the Linea Pro 5 - for iPod 5 or iPhone 5
(page 10), and then connect it with the correct Linea Pro 5).
Slide in until iPod 5 or iPhone 5 is connected to the lightning 9-pin connector.
1 DATECS Linea Pro 5 User manual
`
13

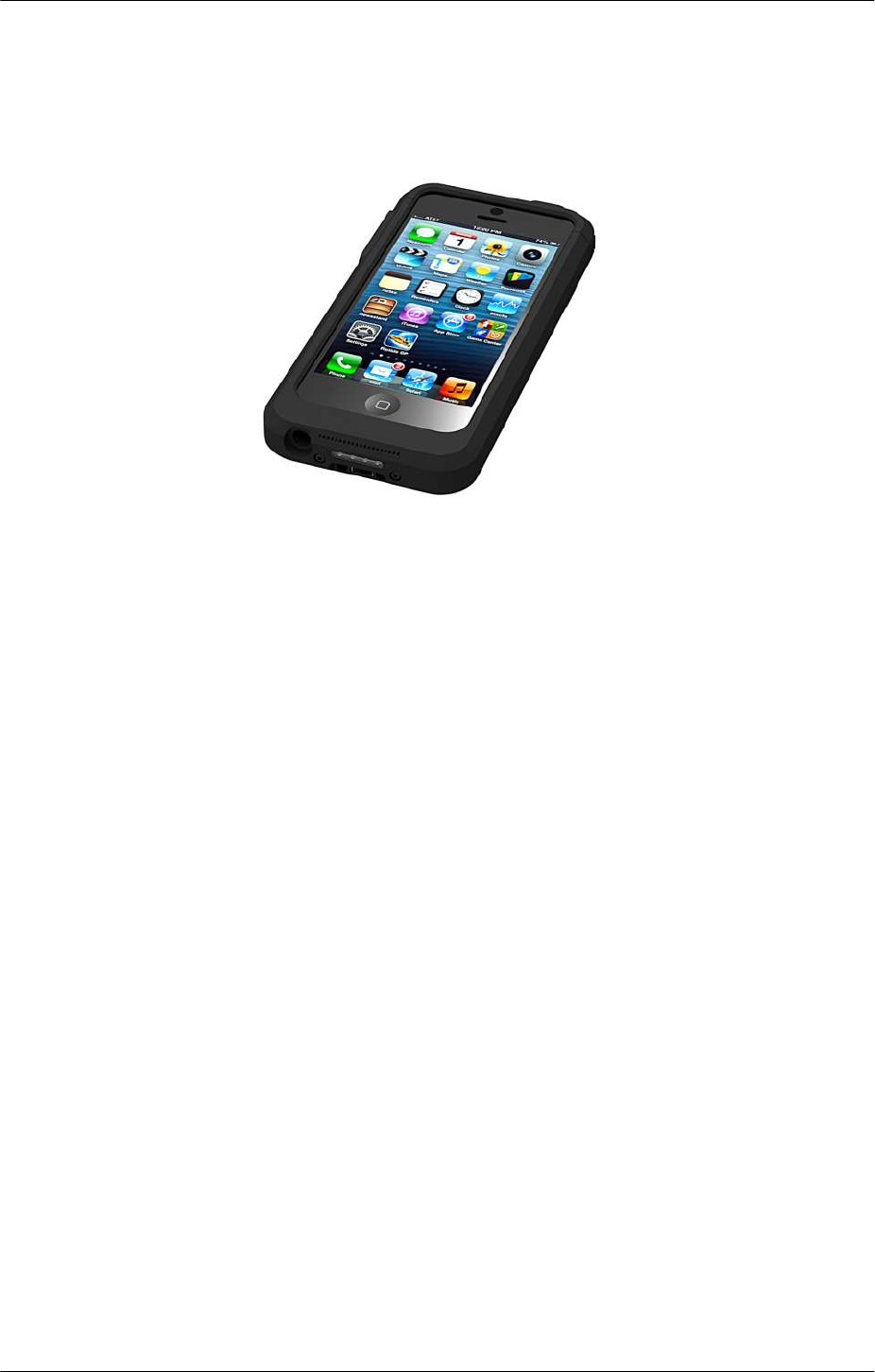

Step 3 – Return the “back cover”
Operation modes
Active mode - While iPod 5 or iPhone 5 is inserted.
While the Linea Pro 5 application is active.
Sleep mode - While iPod 5 or iPhone 5 is removed (after ~10sec).
When iPod 5 or iPhone 5 On/Off button is pressed (after ~10sec).
When iPod 5 or iPhone 5 “Auto-Lock” function is activated (after
~10sec).
1 DATECS Linea Pro 5 User manual
`
14

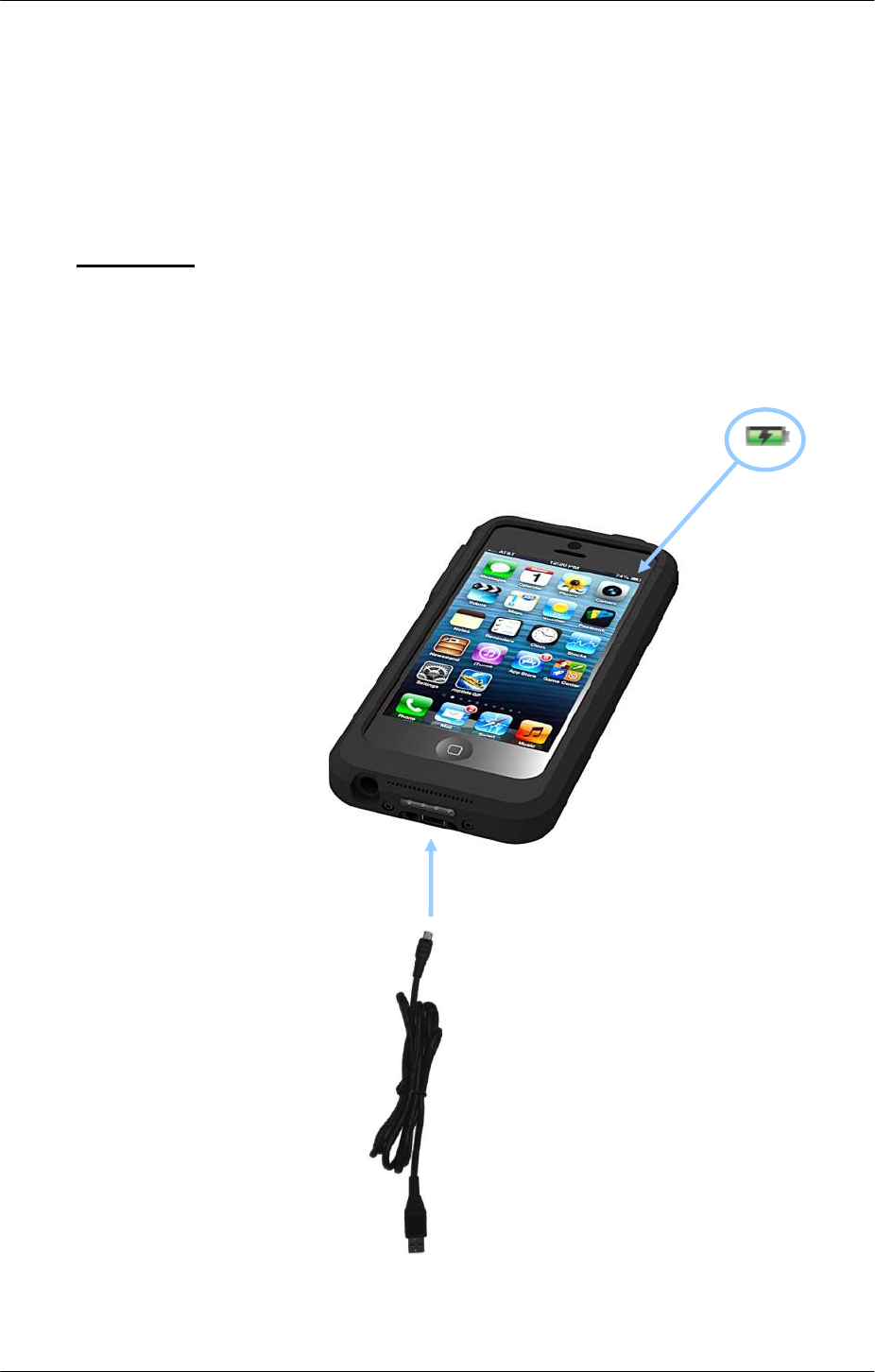

Charging Battery
The Linea Pro 5 uses a 1300mAh Lithium-Ion rechargeable battery pack.
Before first use, the battery pack should be charged for at least (4) hours. Linea Pro
5 can be charged via USB port or DATECS Power Station. When the Linea Pro 5
charging is started, automatically starts the charging of the inserted inside the cradle
iPod 5 or iPhone 5.
WARNING: To prevent electrical damage to the Linea Pro 5 and/or battery
pack, please use approved USB to Mini USB cables only!
Linea Pro 5 has 4 battery status LEDs. The battery level status can be
checked by pressing the status button or can be viewed from the application.
1 DATECS Linea Pro 5 User manual
`
15
Battery status level of the Linea Pro 5
While the device is charged, depending on the battery level, one of the LEDs is
blinking.
When the device is fully charged all 4 LEDs are continuously lighting.
Charging Modes
- Enable pass-through sync (enable sync between iPod 5/iPhone 5 and PC with
charge)
LED1 and LED2 are
lighting – battery level
is between 3,6V and
3,7V.
LED1 is lighting – battery
level is under or equal to
3,6V.
LED1, LED2 and LED3 are
lighting – battery level is
between 3,7V and 3,9V.
LED1, LED2, LED3 and
LED4 are lighting –
battery level is between
3,9V and 4,2V.
1 DATECS Linea Pro 5 User manual
`
16
Barcode Scanning
Using the 1D barcode scanner:
The Linea Pro 5 1D uses a scan engine that supports one-dimensional (1D)
barcode symbols. The effective reading distance of the barcode reader varies
depending on the barcode size.
Scanning 1D Barcodes:
To scan a 1D barcode, first activate the scanner. Then position the scanning
head as close as possible to the barcode label so that the scan line crosses both
ends of the barcode as shown on the figure below.
Slowly pull back the unit, while increasing the distance between the barcode
and scanning head, until the barcode has been read by the scanner.
Linea Pro 5 supports different types of scan:
- Single Scan
- Multi Scan
Scan Button
Reading distance is depend
of the barcode size
1 DATECS Linea Pro 5 User manual
`
17
Using the 2D barcode scanner:
The Linea Pro 5 2D uses a scan engines that supports one-dimensional (1D)
and two-dimensional (2D) barcode symbols. The effective reading distance of the
barcode reader varies depending on the barcode size.
Scanning 2D Barcodes:
To scan a 2D barcode fist activate the scanner. Then position the scanning
head to the center of the barcode by aiming with the red laser beam and the
illumination box is over the outer edges of the barcode, as shown in the figure below.
Slowly pull back the unit, while increasing the distance between the barcode
and the scanning head, until the barcode has been read by the scanner.
Linea Pro 5 supports different types of scan:
- Single Scan
- Multi Scan
Scan Button
Reading distance is depend
of the barcode size
1 DATECS Linea Pro 5 User manual
`
18

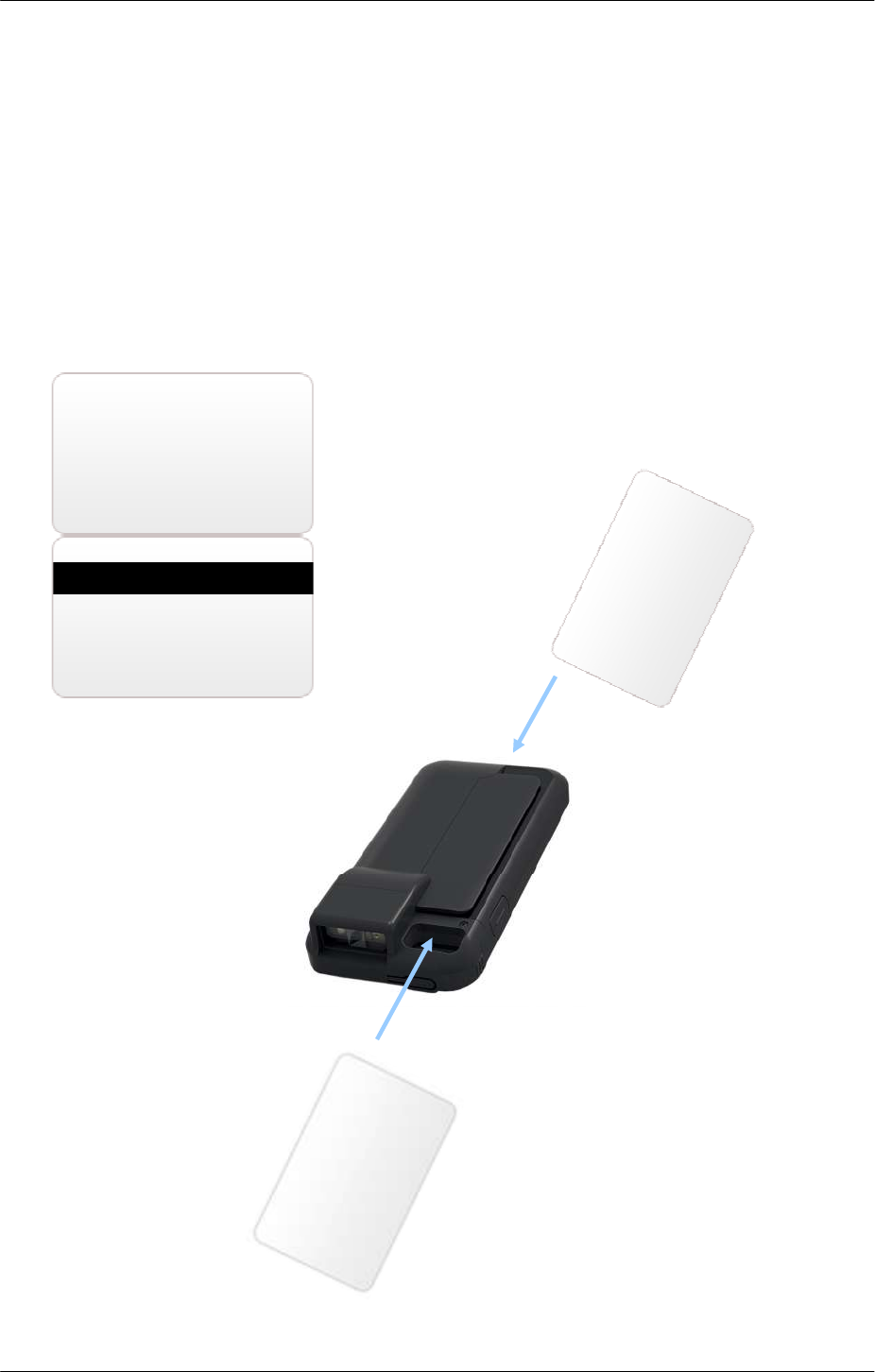

Card Reading
Reading Magnetic Stripes:
The Linea Pro 5 has a built-in magnetic card reader. The card reader
incorporates a (3) track magnetic read head, requiring a single swipe to read field
data from all three tracks.
The magnetic reading head faces up, towards the top of the bottom cover of
the cradle. When swiping the card into the reader, the magnetic stripe must be facing
down, as shown in the figure below. Keep the edge of the card flat on the inner base
of the reader to ensure that the magnetic stripe passes over the reading head evenly.
Swipe direction
Swipe direction
1 DATECS Linea Pro 5 User manual
`
19
Contactless Card Reading
In order to use the RFID card reading function, special software must be used.
Please contact your distributor in order to get the latest demo application and SDK.
Place the card on the shown spot and press the reading RFID card button on
the application. The data will be sent from the Linea Tab RFID reader to the Apple
Device.
Place for RFID cards
