DCS (DYNAMIC COOKING SYSTEMS) Countertop Microwave Manual L0908098

User Manual: DCS DCS (DYNAMIC COOKING SYSTEMS) Countertop Microwave Manual DCS (DYNAMIC COOKING SYSTEMS) Countertop Microwave Owner's Manual, DCS (DYNAMIC COOKING SYSTEMS) Countertop Microwave installation guides

Open the PDF directly: View PDF .
Page Count: 32

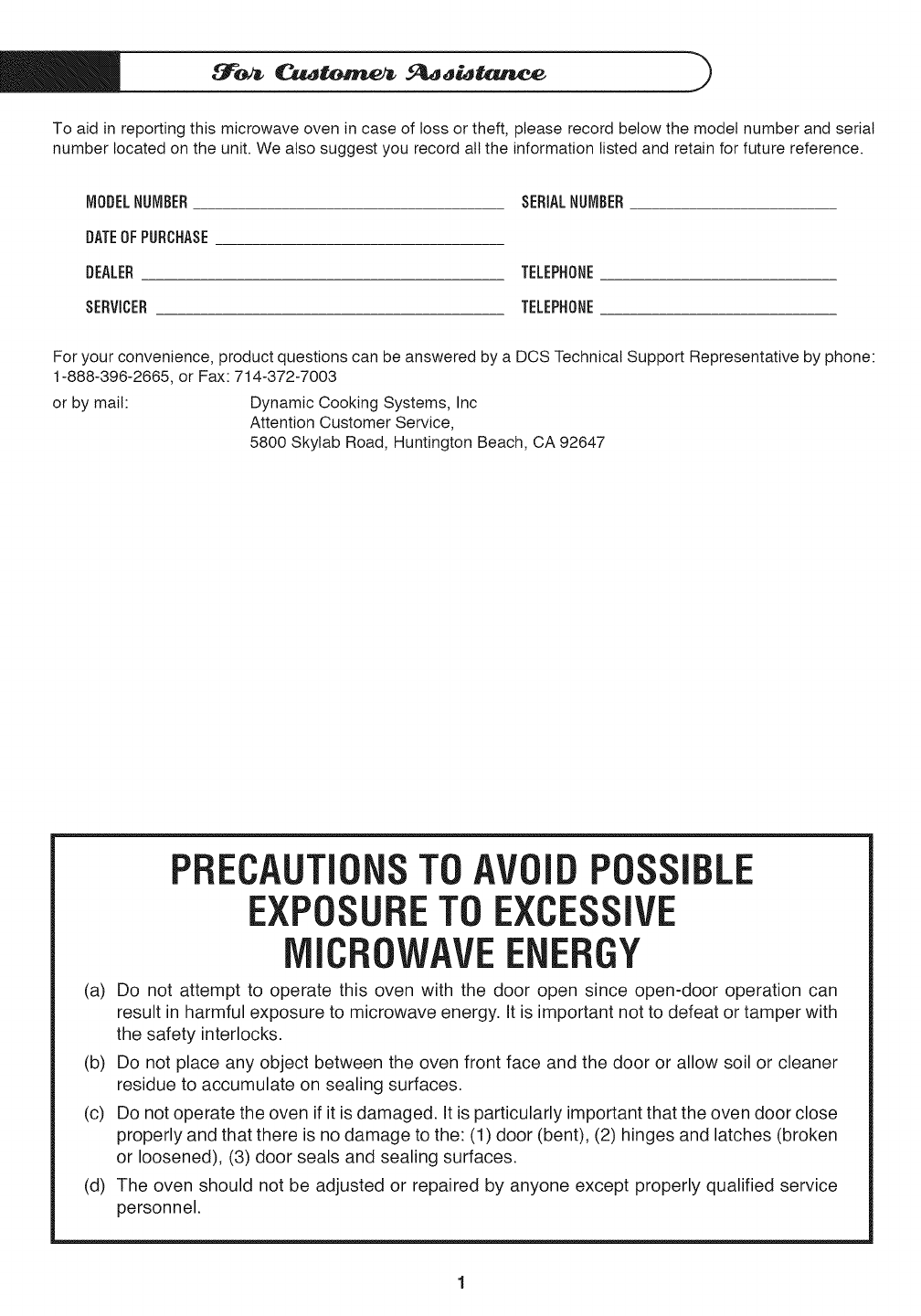

To aid in reporting this microwave oven in case of loss or theft, please record below the model number and serial

number located on the unit. We also suggest you record all the information listed and retain for future reference.

MODELNUMBER SERIALNUMBER

DATEOFPURCHASE

DEALER TELEPHONE

SERVICER TELEPHONE

For your convenience, product questions can be answered by a DCS Technical Support Representative by phone:

1-888-396-2665, or Fax: 714-372-7003

or by mail: Dynamic Cooking Systems, Inc

Attention Customer Service,

5800 Skylab Road, Huntington Beach, CA 92647

PRECAUTIONSTOAVOIDPOSSIBLE

EXPOSURETO EXCESSIVE

MICROWAVEENERGY

(a) Do not attempt to operate this oven with the door open since open-door operation can

result in harmful exposure to microwave energy. It is important not to defeat or tamper with

the safety interlocks.

(b) Do not place any object between the oven front face and the door or allow soil or cleaner

residue to accumulate on sealing surfaces.

properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken

or loosened), (3) door seals and sealing surfaces.

(d) The oven should not be adjusted or repaired by anyone except properly qualified service

personnel.

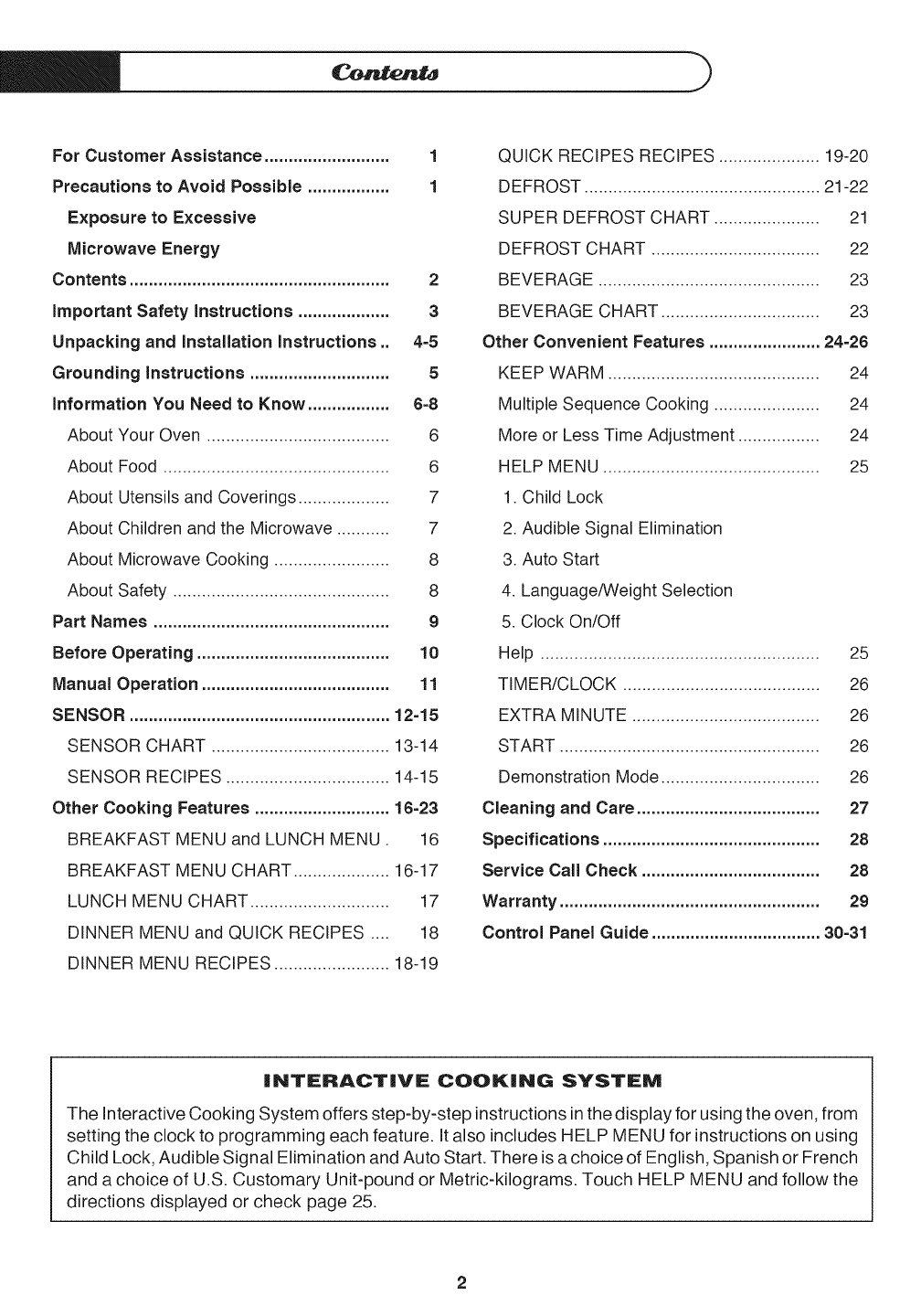

For Customer Assistance .......................... 1

Precautions to Avoid Possible ................. 1

Exposure to Excessive

Microwave Energy

Contents ...................................................... 2

important Safety instructions ................... 3

Unpacking and Installation Instructions.. 4=5

Grounding instructions ............................. 5

information You Need to Know ................. 6=8

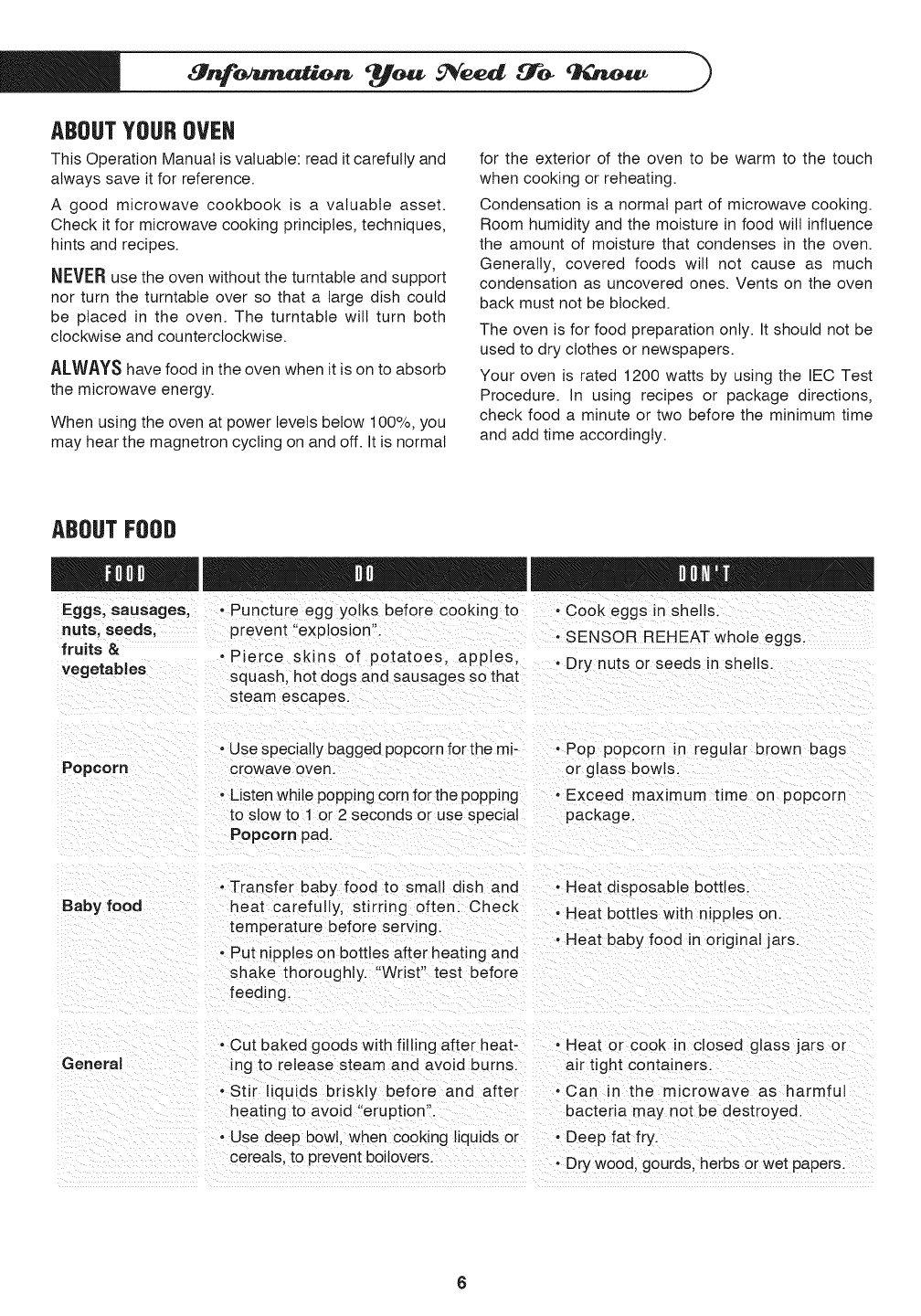

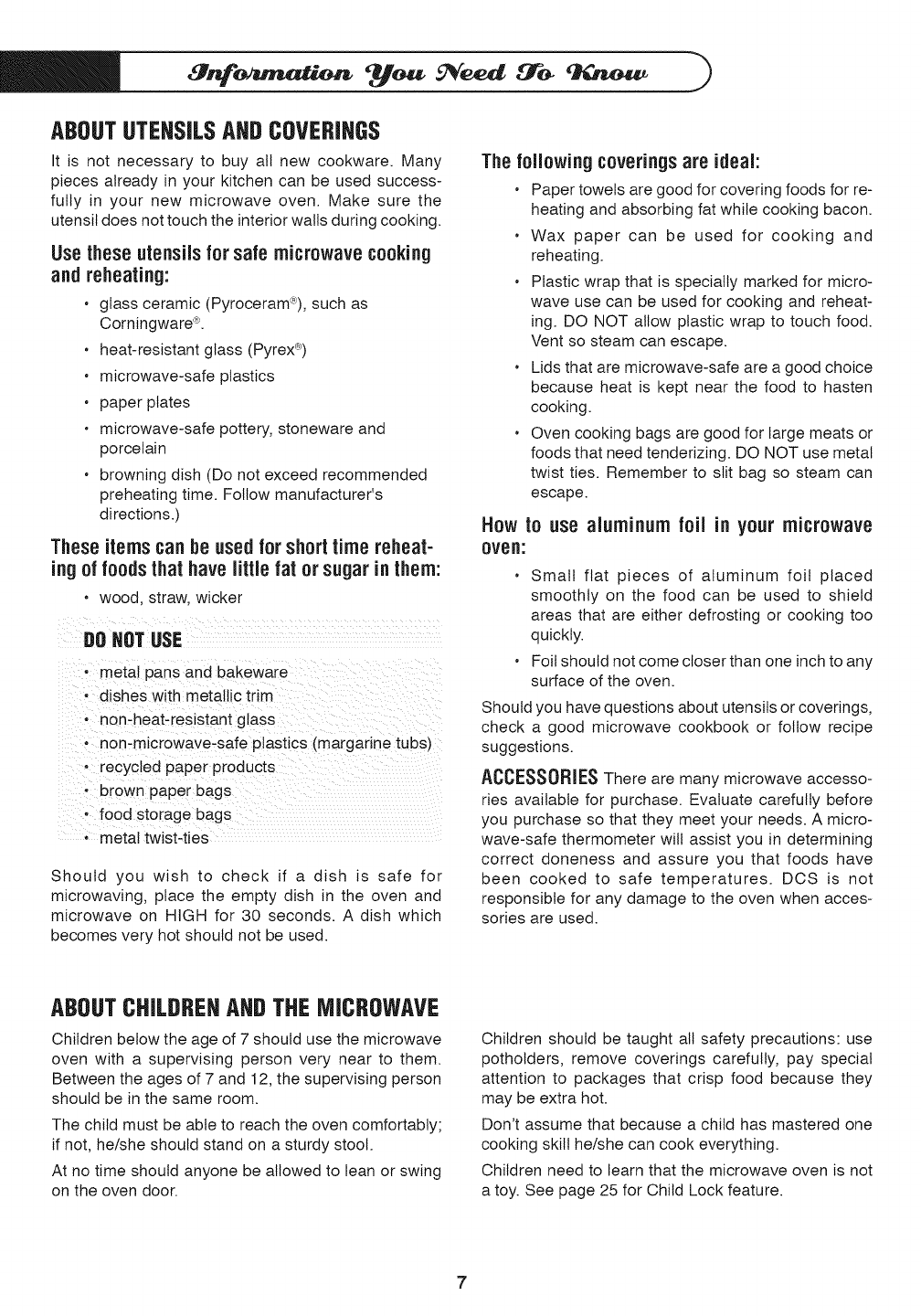

About Your Oven ...................................... 6

About Food ............................................... 6

About Utensils and Coverings ................... 7

About Children and the Microwave ........... 7

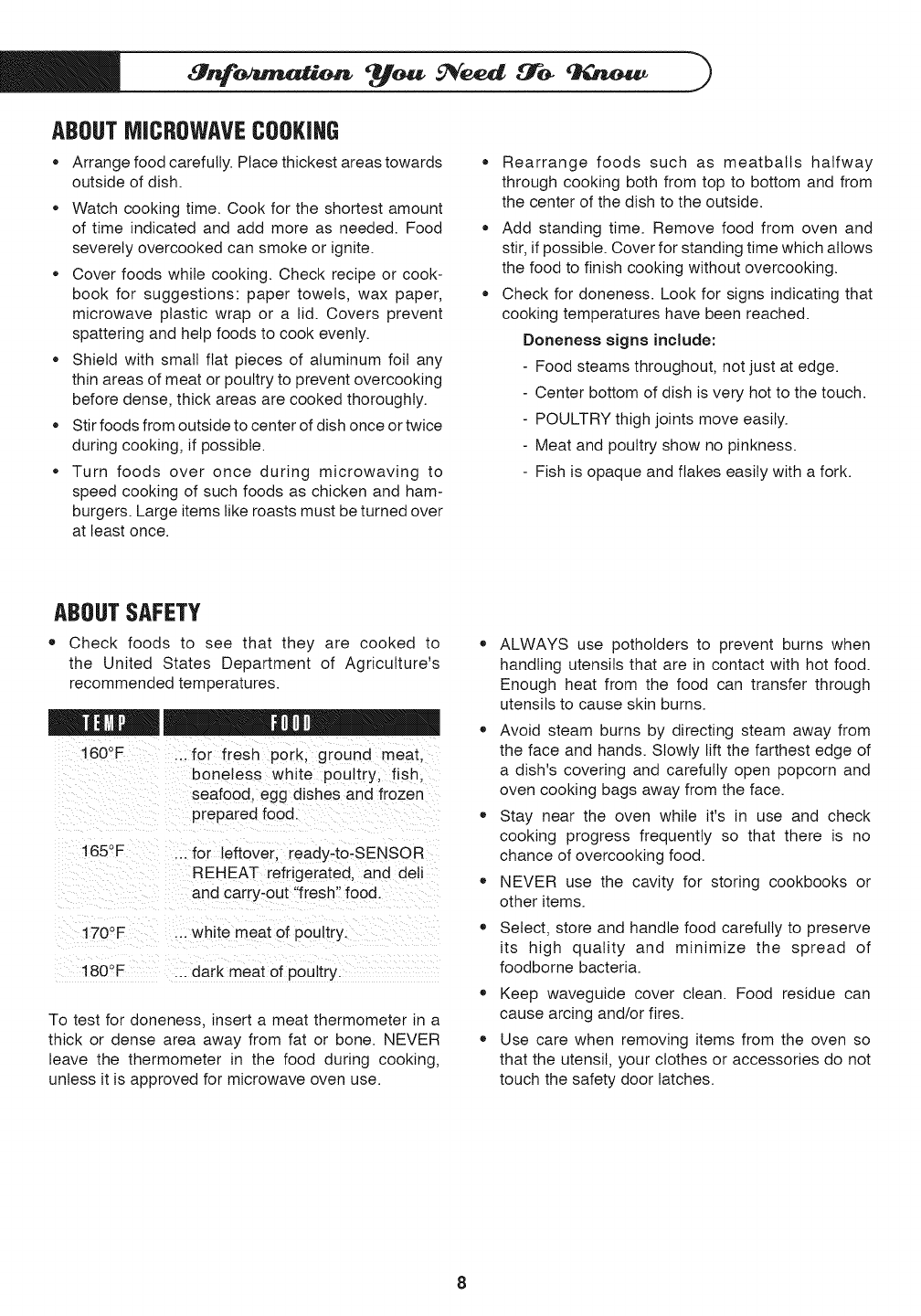

About Microwave Cooking ........................ 8

About Safety ............................................. 8

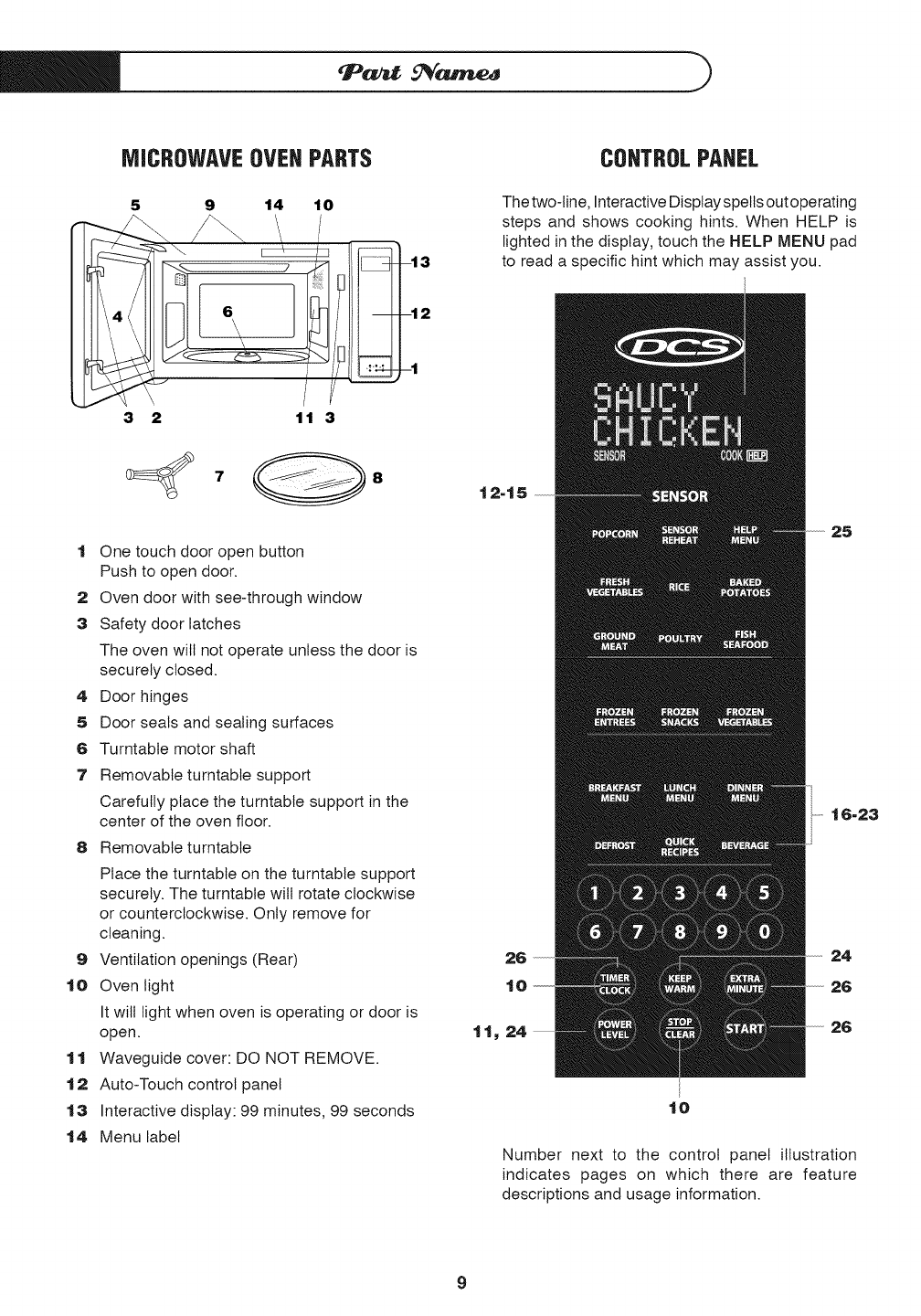

Part Names ................................................. 9

Before Operating ........................................ 10

Manual Operation ....................................... 11

SENSOR ...................................................... 12-15

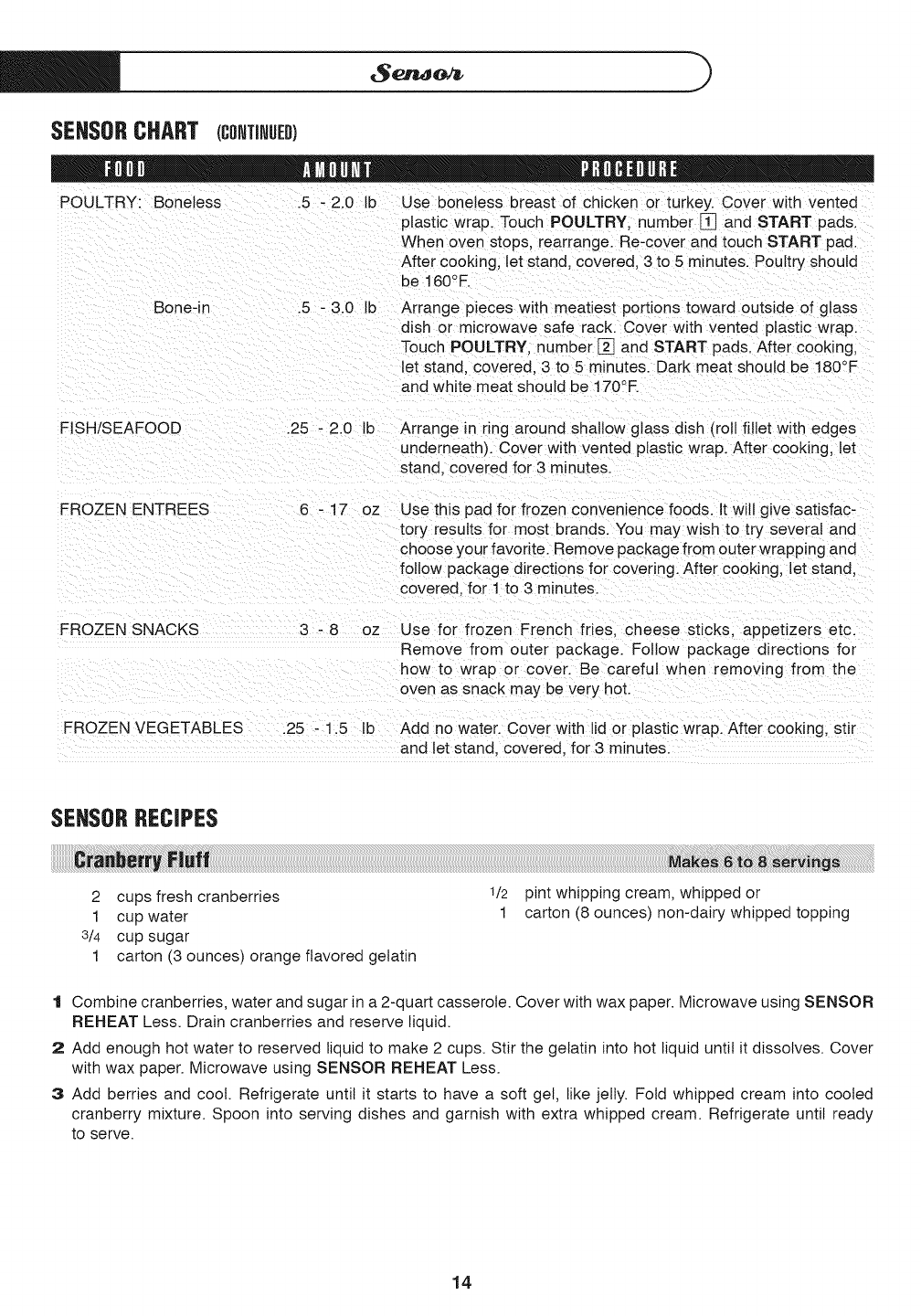

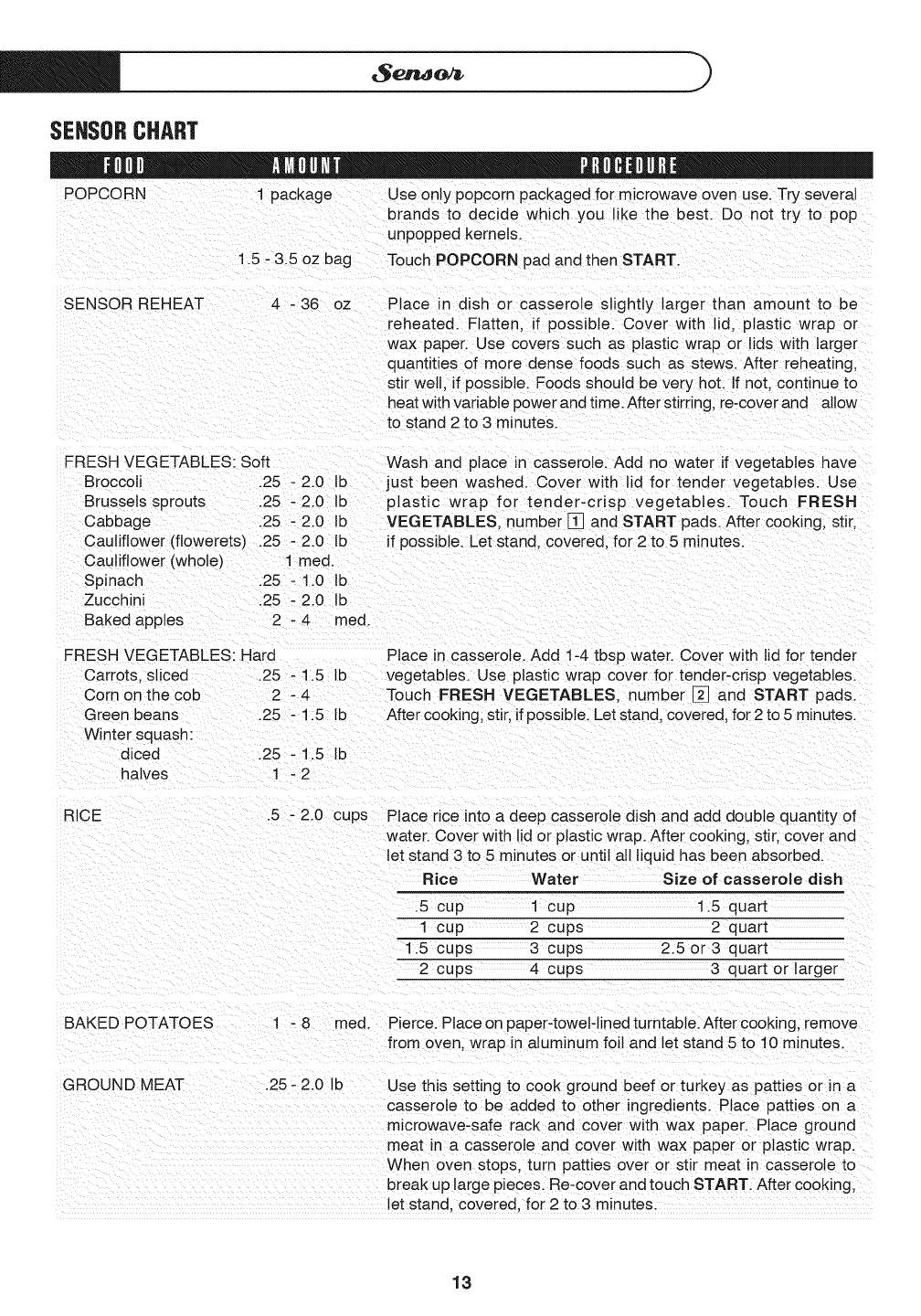

SENSOR CHART ..................................... 13-14

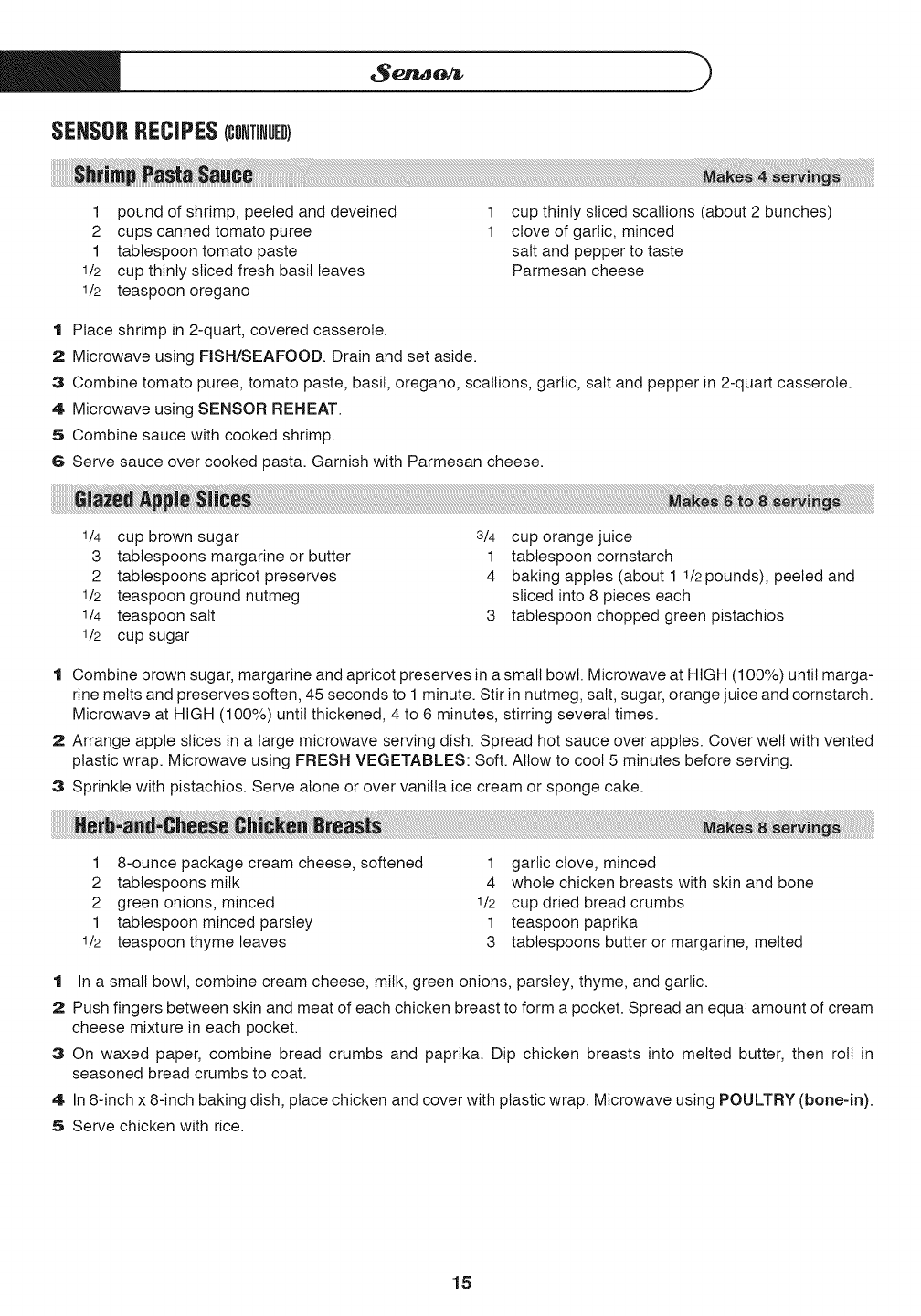

SENSOR RECIPES .................................. 14-15

Other Cooking Features ............................ 16=23

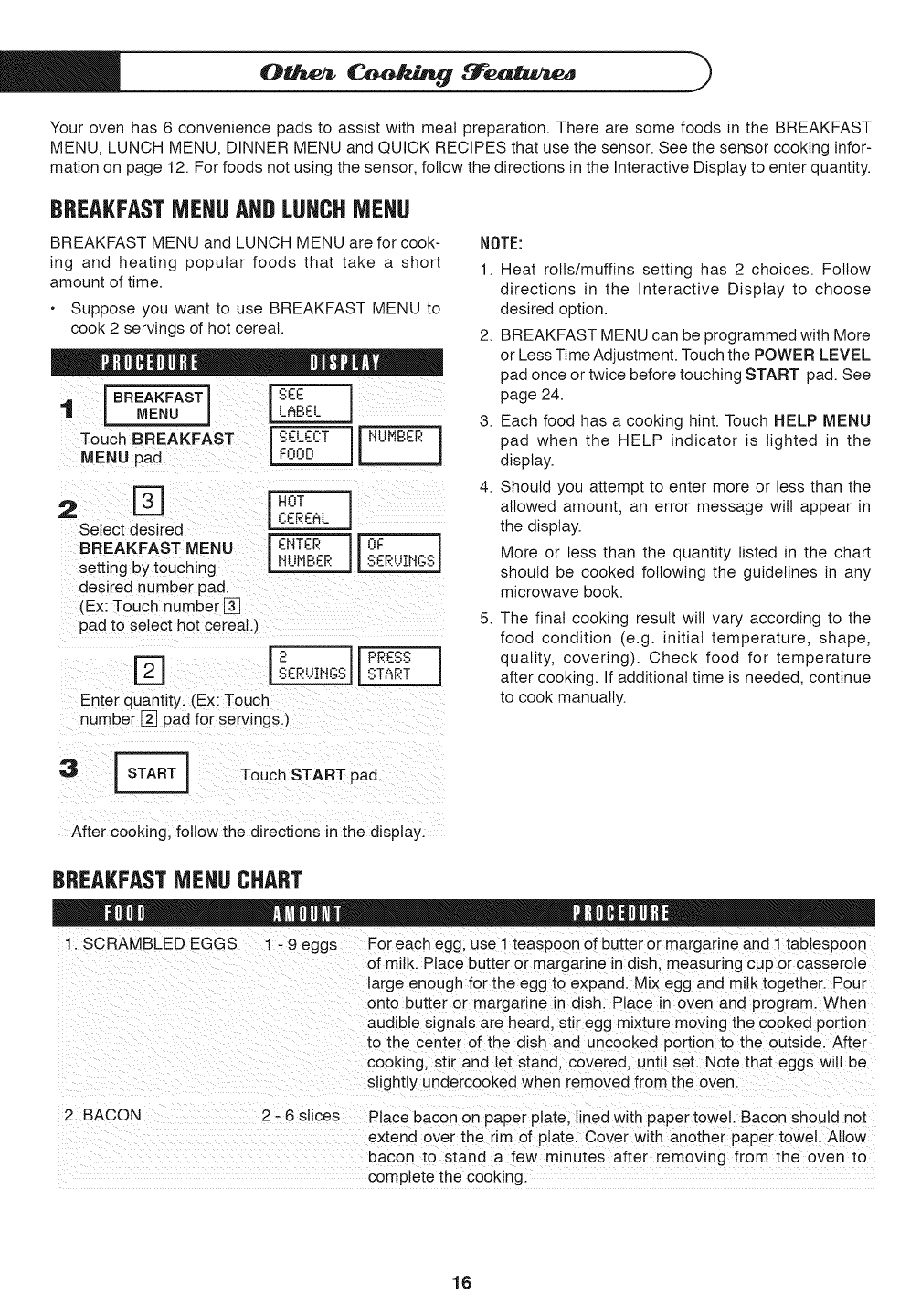

BREAKFAST MENU and LUNCH MENU. 16

BREAKFAST MENU CHART .................... 16-17

LUNCH MENU CHART ............................. 17

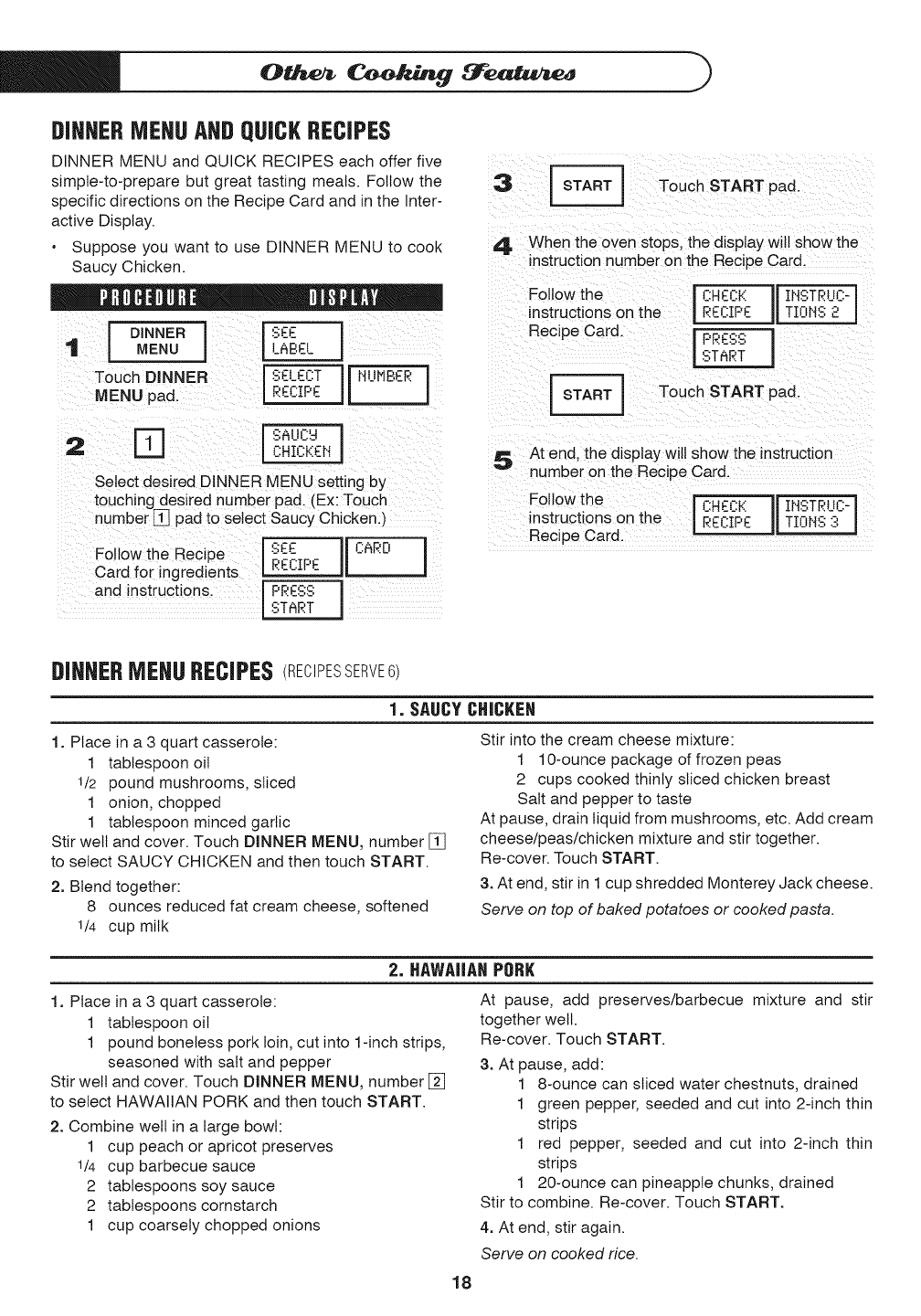

DINNER MENU and QUICK RECIPES .... 18

DINNER MENU RECIPES ........................ 18-19

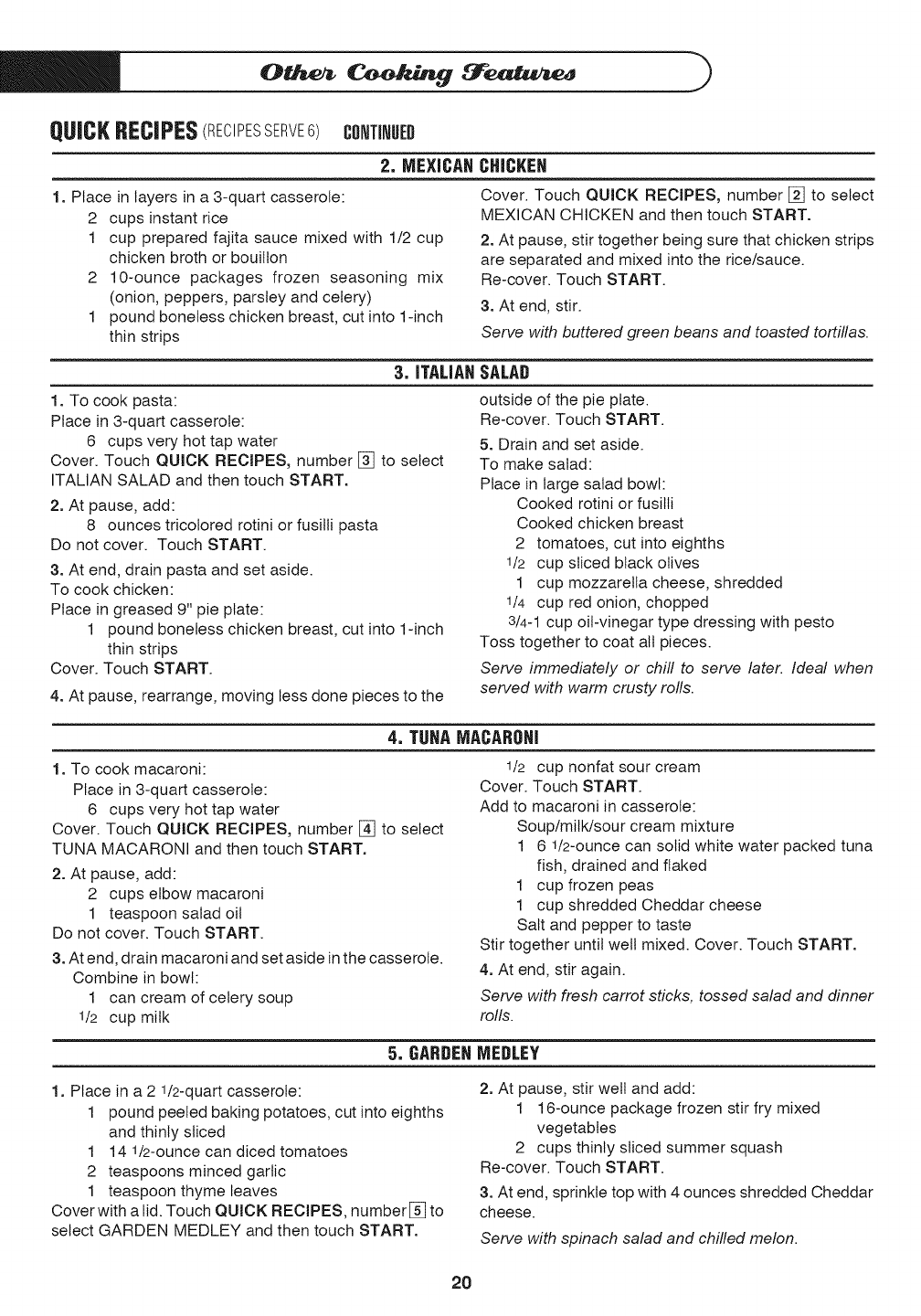

QUICK RECIPES RECIPES ..................... 19-20

DEFROST ................................................. 21-22

SUPER DEFROST CHART ...................... 21

DEFROST CHART ................................... 22

BEVERAGE .............................................. 23

BEVERAGE CHART ................................. 23

Other Convenient Features ....................... 24=26

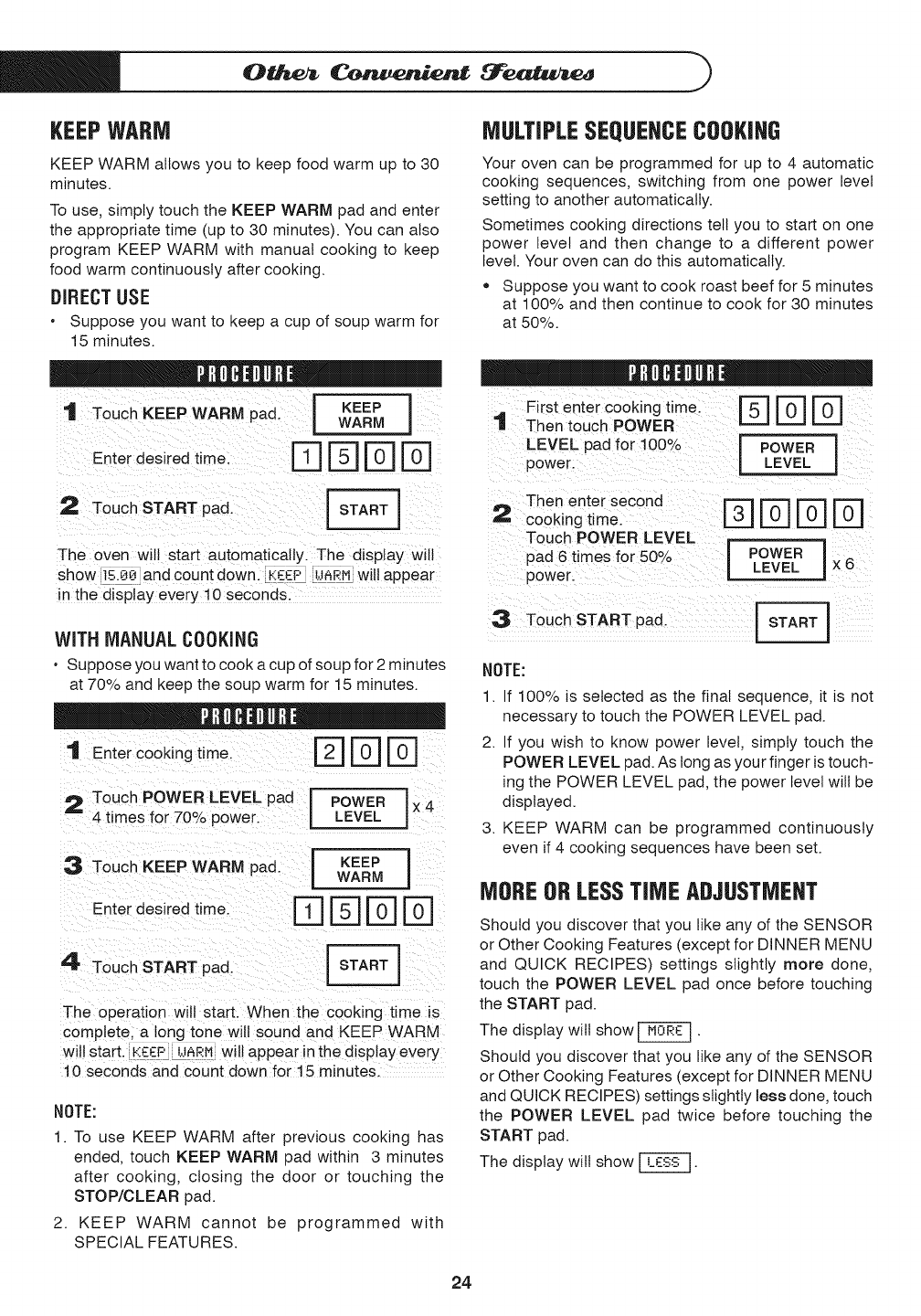

KEEP WARM ............................................ 24

Multiple Sequence Cooking ...................... 24

More or Less Time Adjustment ................. 24

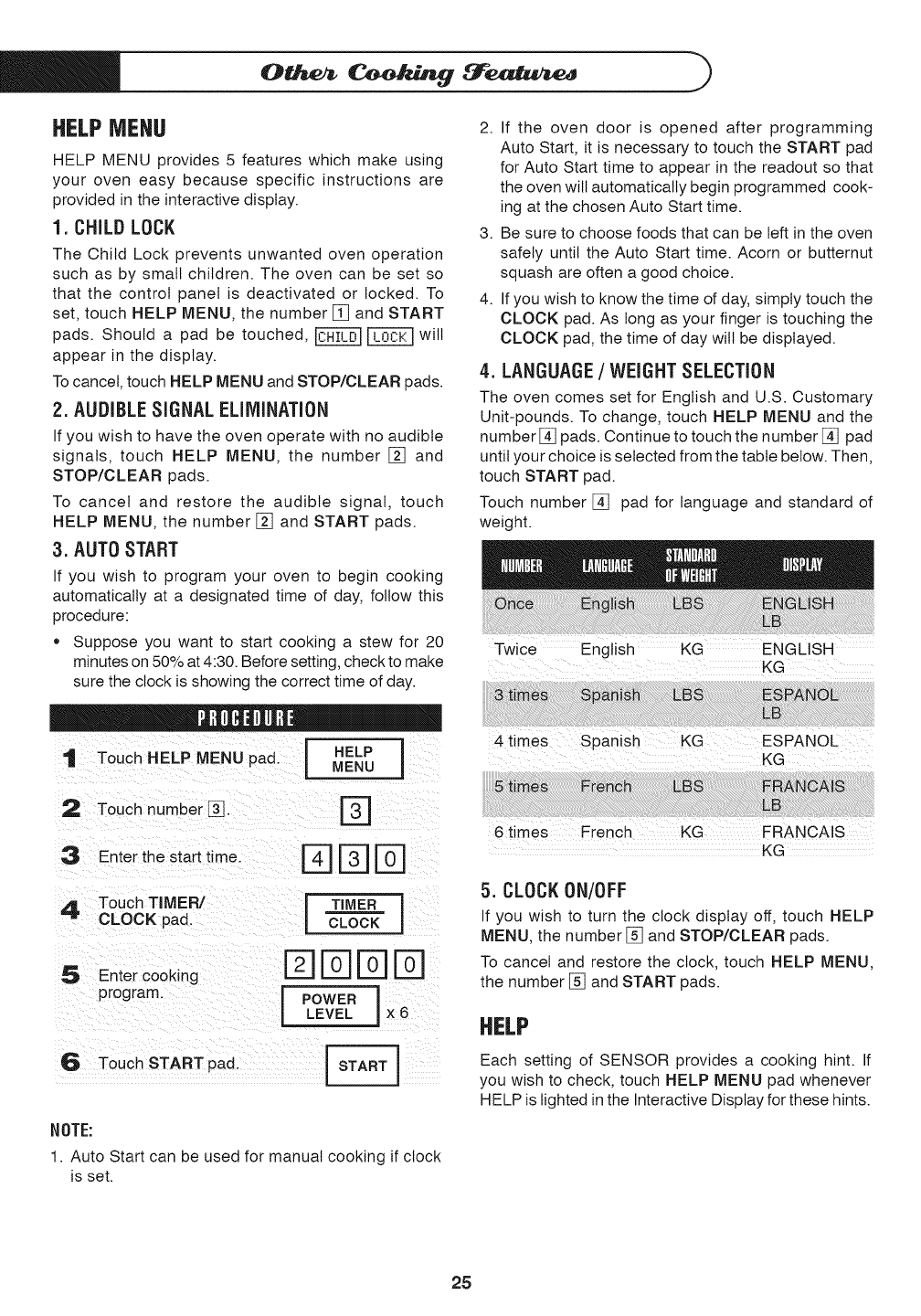

HELP MENU ............................................. 25

1. Child Lock

2. Audible Signal Elimination

3. Auto Start

4. Language/Weight Selection

5. Clock On/Off

Help .......................................................... 25

TIMER/CLOCK ......................................... 26

EXTRA MINUTE ....................................... 26

START ...................................................... 26

Demonstration Mode ................................. 26

Cleaning and Care ...................................... 27

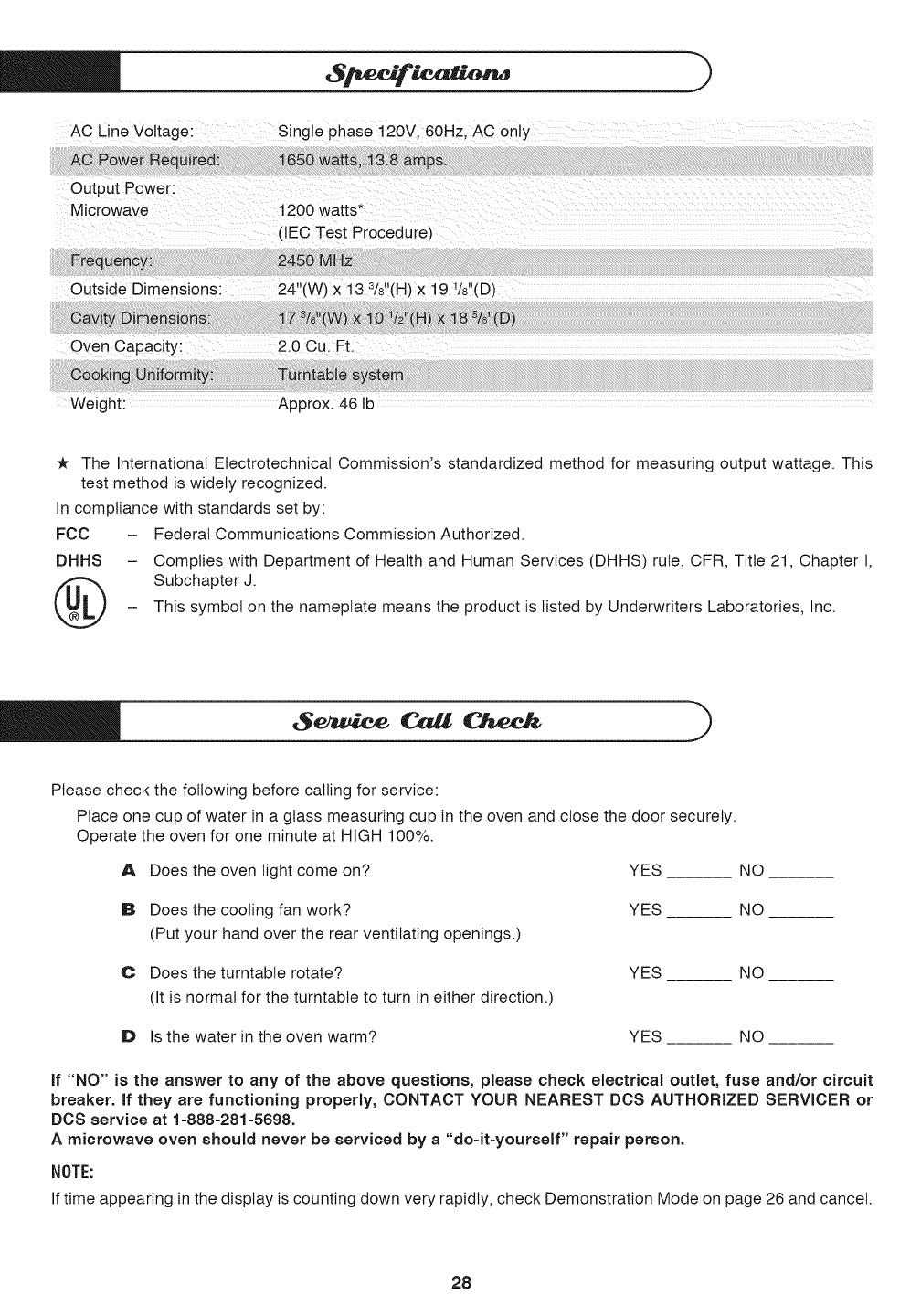

Specifications ............................................. 28

Service Call Check ..................................... 28

Warranty ...................................................... 29

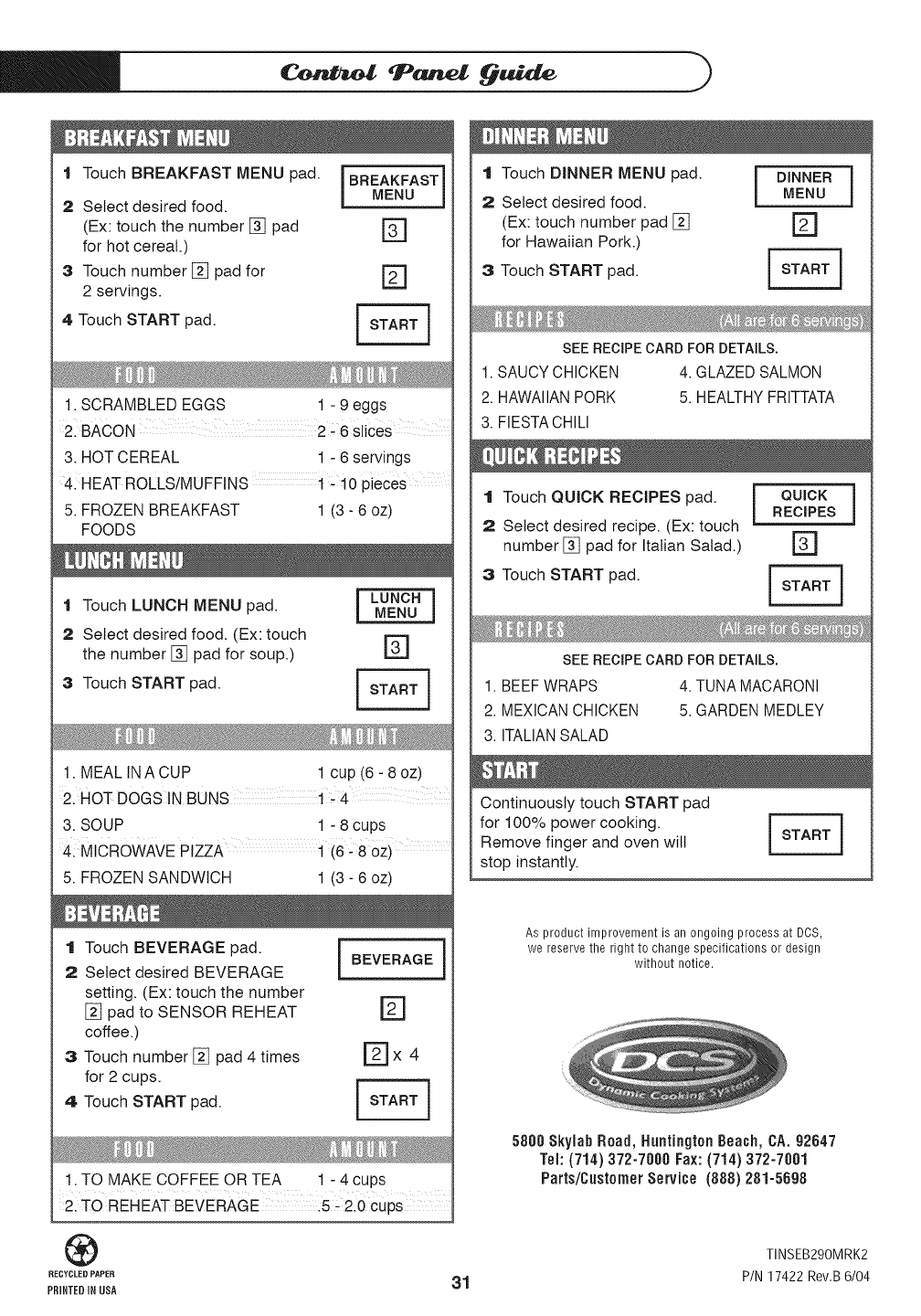

Control Panel Guide ................................... 30=31

|NTERACT|VIE COOK|NG SYSTIEM

The Interactive Cooking System offers step-by-step instructions in the display for using the oven, from

setting the clock to programming each feature. It also includes HELP MENU for instructions on using

Child Lock, Audible Signal Elimination and Auto Start. There is a choice of English, Spanish or French

and a choice of U.S. Customary Unit-pound or Metric-kilograms. Touch HELP MENU and follow the

directions displayed or check page 25.

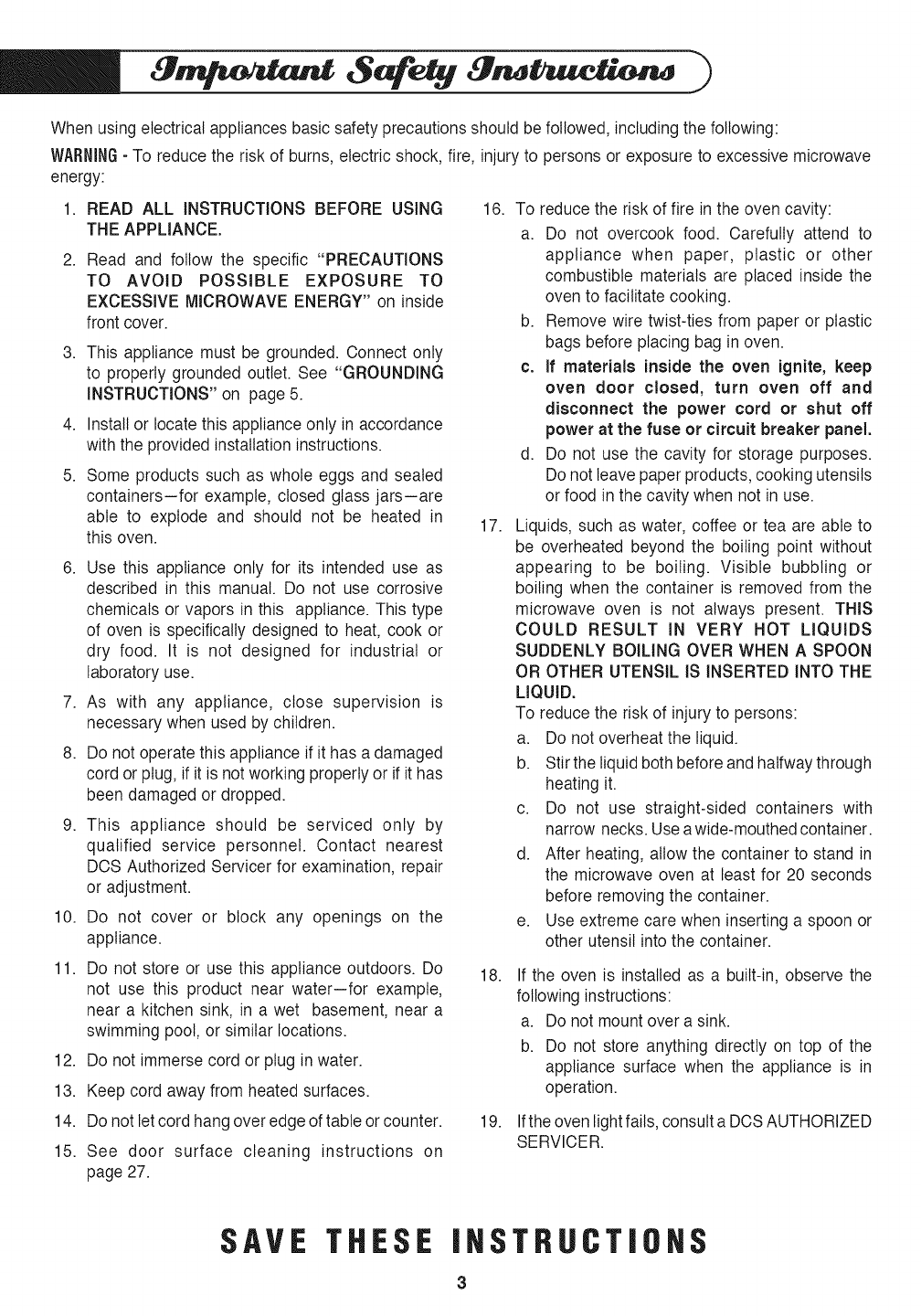

Whenusingelectricalappliancesbasicsafetyprecautionsshouldbefollowed,includingthefollowing:

WARNING-Toreducetheriskofburns,electricshock,fire,injurytopersonsorexposuretoexcessivemicrowave

energy:

READ ALL INSTRUCTIONS BEFORE USING

THE APPLIANCE.

Read and follow the specific "PRECAUTIONS

TO AVOID POSSIBLE EXPOSURE TO

EXCESSIVE MICROWAVE ENERGY" on inside

front cover.

This appliance must be grounded. Connect only

to properly grounded outlet. See "GROUNDING

iNSTRUCTIONS" on page 5.

Install or locate this appliance only in accordance

with the provided installation instructions.

Some products such as whole eggs and sealed

containers--for example, closed glass jars--are

able to explode and should not be heated in

this oven.

6. Use this appliance only for its intended use as

described in this manual. Do not use corrosive

chemicals or vapors in this appliance. This type

of oven is specifically designed to heat, cook or

dry food. It is not designed for industrial or

laboratory use.

7. As with any appliance, close supervision is

necessary when used by children.

8. Do not operate this appliance if it has a damaged

cord or plug, if it is not working properly or if it has

been damaged or dropped.

9. This appliance should be serviced only by

qualified service personnel. Contact nearest

DOS Authorized Servicer for examination, repair

or adjustment.

10. Do not cover or block any openings on the

appliance.

16. To

reduce the risk of fire in the oven cavity:

Do not overcook food. Carefully attend to

appliance when paper, plastic or other

combustible materials are placed inside the

oven to facilitate cooking.

Remove wire twist-ties from paper or plastic

bags before placing bag in oven.

if materials inside the oven ignite, keep

oven door closed, turn oven off and

disconnect the power cord or shut off

power at the fuse or circuit breaker panel.

Do not use the cavity for storage purposes.

Do not leave paper products,cooking utensils

or food in the cavity when not in use.

17. Liquids, such as water, coffee or tea are able to

be overheated beyond the boiling point without

appearing to be boiling. Visible bubbling or

boiling when the container is removed from the

microwave oven is not always present. THIS

COULD RESULT IN VERY HOT LIQUIDS

SUDDENLY BOILING OVER WHEN A SPOON

OR OTHER UTENSIL IS INSERTED INTO THE

LiQUiD.

To reduce the risk of injury to persons:

a. Do not overheat the liquid.

b. Stir the liquid both before and halfway through

heating it.

c. Do not use straight-sided containers with

narrow necks.Usea wide-mouthed container.

d. After heating, allow the container to stand in

the microwave oven at least for 20 seconds

before removing the container.

e. Use extreme care when inserting a spoon or

other utensil into the container.

11.

12.

13.

Do not store or use this appliance outdoors. Do

not use this product near water--for example,

near a kitchen sink, in a wet basement, near a

swimming pool, or similar locations.

Do not immerse cord or plug in water.

Keep cord away from heated surfaces.

18. If the oven is installed as a built-in, observe the

following instructions:

a. Do not mount over a sink.

b. Do not store anything directly on top of the

appliance surface when the appliance is in

operation.

14. Donot let cord hangover edge of table or counter.

15. See door surface cleaning instructions on

page 27.

19. Ifthe oven light fails, consult a DCSAUTHORIZED

SERVlOER.

SAVE THESE iNSTRUCTiONS

Safety /

door _

latches_

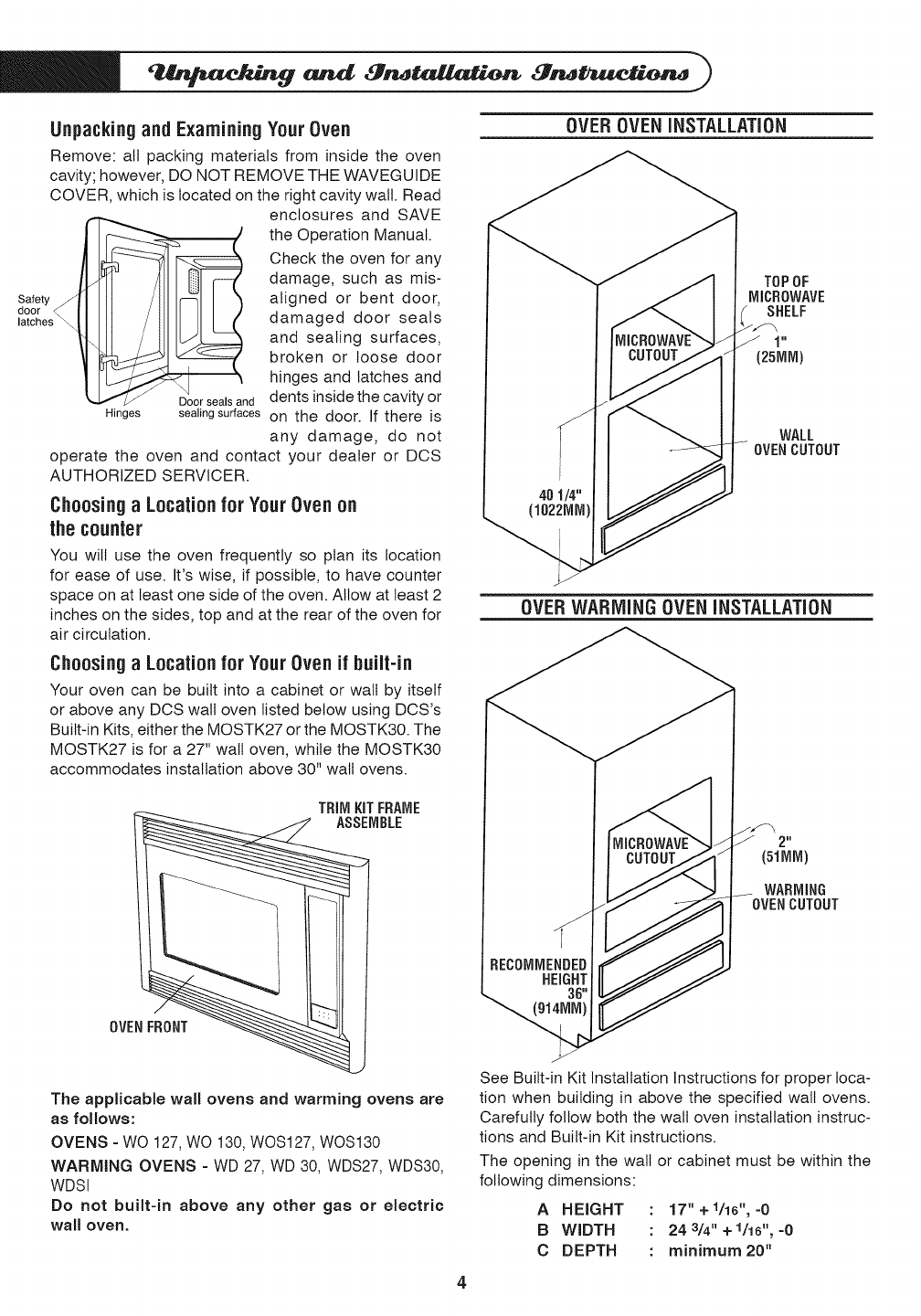

Unpackingand ExaminingYourOven

Remove: all packing materials from inside the oven

cavity; however, DO NOT REMOVE THE WAVEGUIDE

COVER, which is located on the right cavity wall. Read

enclosures and SAVE

_- or seals and

Hinges sealing surfaces

the Operation Manual.

Check the oven for any

damage, such as mis-

aligned or bent door,

damaged door seals

and sealing surfaces,

broken or loose door

hinges and latches and

dents inside the cavity or

on the door. If there is

any damage, do not

operate the oven and contact your dealer or DCS

AUTHORIZED SERVICER.

Choosing a Locationfor YourOvenon

the counter

You will use the oven frequently so plan its location

for ease of use. It's wise, if possible, to have counter

space on at least one side of the oven. Allow at least 2

inches on the sides, top and at the rear of the oven for

air circulation.

Choosing a Locationfor YourOven if built-in

Your oven can be built into a cabinet or wall by itself

or above any DCS wall oven listed below using DCS's

Built-in Kits, either the MOSTK27 or the MOSTK30. The

MOSTK27 is for a 27" wall oven, while the MOSTK30

accommodates installation above 30" wall ovens.

TRiMKiTFRAME

ASSEMBLE

OVEROVENINSTALLATION

TOPOF

MICROWAVE

SHELF

WALL

OVENCUTOUT

OVERWARMINGOVENINSTALLATION

2 n

(51MM)

WARMING

OVENCUTOUT

The applicable wall ovens and warming ovens are

as follows:

OVENS - WO 127, WO 130, WOS127, WOS130

WARMING OVENS - WD 27, WD 30, WDS27, WDS30,

WDSI

Do not built=in above any other gas or electric

wall oven.

See Built-in Kit Installation Instructions for proper loca-

tion when building in above the specified wall ovens.

Carefully follow both the walt oven installation instruc-

tions and Built-in Kit instructions.

The opening in the walt or cabinet must be within the

following dimensions:

A HEIGHT : 17" 4- 1/16", =0

B WIDTH : 24 3/4" + 1/16", -0

C DEPTH : minimum 20"

OutletshouldNOTbeintheshadedareaasindicated.

1.IfthedimensionofDEPTH(C)ismorethan21",the

outletlocationmaybeanyareaontherearwalt.

2.Theflooroftheopeningshouldbeconstructedof

plywoodstrongenough

(about100pounds).Thefloorshouldbelevelfor

properoperationoftheoven.Besuretocheckthe

localbuildingcodeasitmayrequirethattheopen-

ingbeenclosedwithsides,ceilingandrearparti-

tion.Theproperfunctioningoftheovendoesnot

requiretheenclosure.

Calltoll-free:1-888-281-5698fororderingthekittobe

senttoyouraddress.

Thekitincludesallthenecessarypartsandeasy-to-

followinstructionsforinstallationasweltaslocation

of the powersupply.TheMOSTK27(27")and

MOSTK30(30")kitsincludesimulatedframes,which

matchtheMO-24SSmicrowaveoven.

Theeaseofassemblyforthesekitswillallowinstalla-

tionintoanexistingwallopeninginlessthananhour

(ifpoweroutletisalreadyproperlylocated).

AllittakesarefourstepsandaPhillipsscrewdriver.

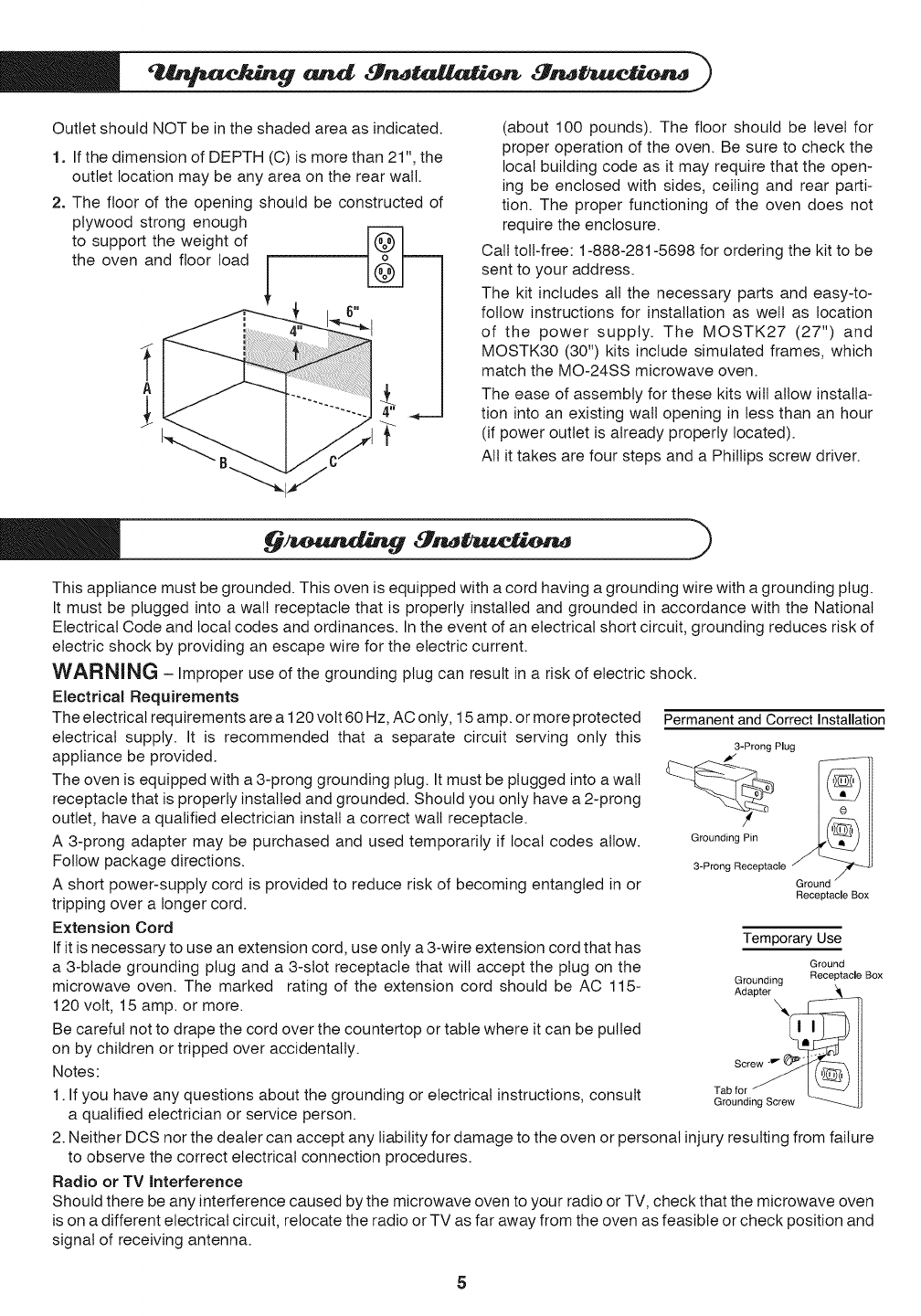

Thisappliancemustbegrounded.Thisovenisequippedwithacordhavingagroundingwirewithagroundingplug.

ItmustbepluggedintoawallreceptaclethatisproperlyinstalledandgroundedinaccordancewiththeNational

ElectricalCodeandlocalcodesandordinances.Intheeventofanelectricalshortcircuit,groundingreducesriskof

electricshockbyprovidinganescapewirefortheelectriccurrent.

WARNING - Improperuseofthegroundingplugcanresultinariskofelectricshock.

ElectricalRequirements

The electrical requirements are a 120 volt 60 Hz, AC only, 15amp. or more protected

electrical supply. It is recommended that a separate circuit serving only this

appliance be provided. _3"Prong Plug

The oven is equipped with a 3-prong grounding plug. It must be plugged into a walt _---__ ]_'_ II

receptacle that is properly installed and grounded. Should you only have a 2-prong

outlet, have a qualified electrician install a correct wall receptacle.

A 3-prong adapter may be purchased and used temporarily if local codes allow. Ground*ngPin

Follow package directions. 3-Prong Receptacle

A short power-supply cord is provided to reduce risk of becoming entangled in or Ground/

tripping over a longer cord. Receptacle Box

Extension Cord

If it is necessary to use an extension cord, use only a 3-wire extension cord that has Temporary Use

a 3-btade grounding plug and a 3-slot receptacle that will accept the plug on the

microwave oven. The marked rating of the extension cord should be AC 115-

120 volt, 15 amp. or more.

Be careful not to drape the cord over the countertop or table where it can be pulled

on by children or tripped over accidentally.

Notes:

1. If you have any questions about the grounding or electrical instructions, consult

a qualified electrician or service person.

2. Neither DCS nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure

to observe the correct electrical connection procedures.

Radio or TV interference

Should there be any interference caused by the microwave oven to your radio or TV, check that the microwave oven

is on a different electrical circuit, relocate the radio or TV as far away from the oven as feasible or check position and

signal of receiving antenna.

Permanent and Correct Installation

Ground

Grounding Receptacle Box

Adapter

Scre_ I

Tabfor / L _ ]1

Grounding Screw

ABOUTYOUROVEN

This Operation Manual is valuable: read it carefully and

always save it for reference.

A good microwave cookbook is a valuable asset.

Check it for microwave cooking principles, techniques,

hints and recipes.

NEVERuse the oven without the turntable and support

nor turn the turntable over so that a large dish could

be placed in the oven. The turntable wilt turn both

clockwise and counterclockwise.

ALWAYS have food in the oven when it is on to absorb

the microwave energy.

When using the oven at power bevels below 100%, you

may hear the magnetron cycling on and off. It is normal

for the exterior of the oven to be warm to the touch

when cooking or reheating.

Condensation is a normal part of microwave cooking.

Room humidity and the moisture in food will influence

the amount of moisture that condenses in the oven.

Generally, covered foods will not cause as much

condensation as uncovered ones. Vents on the oven

back must not be blocked.

The oven is for food preparation only. It should not be

used to dry clothes or newspapers.

Your oven is rated 1200 watts by using the IEC Test

Procedure. In using recipes or package directions,

check food a minute or two before the minimum time

and add time accordingly.

ABOUTFOOD

Eggs, sausages,

nuts, seeds,

fruits &

vegetables

o Puncture egg yolks before cooking to

prevent "explosion".

• Pierce skins of potatoes, apples,

squash, hot dogs and sausages so that

steam escapes.

- Cook eggs in shells.

- SENSOR REHI-AT whole eggs.

- Dry nuts or seeds in shells.

Popcorn • Use specially bagged popcorn for the mi-

crowave oven.

o Listen while popping corn for the popping

to slow to 1 or 2 seconds or use special

Popcorn pad.

• Pop popcorn in regular brown bags

or glass bowls.

-Exceed maximum time on popcorn

package.

Baby food

• Transfer baby food to small dish and • Heat disposable bottles.

heat carefully, stirring often. Check - Heat bottles with nipples on.

temperature before serving. , Heat baby food in original jars.

- Put n pptes on bottles after heating and

shake thoroughly. "Wrist" test before

feeding.

General - Cut baked goods with filling after heat- - Heat or cook in closed glass jars or

mg to release steam and avoid burns, air tight containers.

o Stir liquids briskly before and after -Can in the microwave as harmful

heating to avoid "eruption". bacteria may not be destroyed.

• Use deep bowl, when cooking liquids or ..............

cereals, to prevent boilovers. - Dry wood, gourds, herbs or wet papers.

ABOUTUTENSILSAND COVERINGS

It is not necessary to buy all new cookware. Many

pieces already in your kitchen can be used success-

fully in your new microwave oven. Make sure the

utensil does not touch the interior walls during cooking.

Usethese utensilsfor safe microwave cooking

and reheating:

*glass ceramic (Pyroceram_), such as

Corningware ®.

* heat-resistant glass (Pyrex <_)

* microwave-safe plastics

* paper plates

* microwave-safe pottery, stoneware and

porcelain

* browning dish (Do not exceed recommended

preheating time. Follow manufacturer's

directions.)

Theseitems can be usedfor shorttime reheat-

ingof foods that havelittle fat orsugar in them:

• wood, straw, wicker

DOHOTUSE

• metal pans and bakeware

• dishes with metallic trim

• non-heat-resistant glass

- non-microwave-safe plastics (margarine tubs)

• recycled paper products

• brown paper bags

o food storage bags

• metal twist-ties

Should you wish to check if a dish is safe for

microwaving, place the empty dish in the oven and

microwave on HIGH for 30 seconds. A dish which

becomes very hot should not be used.

Thefollowing coverings are ideal:

*Paper towels are good for covering foods for re-

heating and absorbing fat while cooking bacon.

* Wax paper can be used for cooking and

reheating.

* Plastic wrap that is specially marked for micro-

wave use can be used for cooking and reheat-

ing. DO NOT allow plastic wrap to touch food.

Vent so steam can escape.

* Lids that are microwave-safe are a good choice

because heat is kept near the food to hasten

cooking.

* Oven cooking bags are good for large meats or

foods that need tenderizing. DO NOT use metal

twist ties. Remember to slit bag so steam can

escape.

How to use aluminum foil in your microwave

oven:

• Small flat pieces of aluminum foil placed

smoothly on the food can be used to shield

areas that are either defrosting or cooking too

quickly.

• Foil should not come closer than one inch to any

surface of the oven.

Should you have questions about utensils or coverings,

check a good microwave cookbook or follow recipe

suggestions.

ACCESSORIES There are many microwave accesso-

ries available for purchase. Evaluate carefully before

you purchase so that they meet your needs. A micro-

wave-safe thermometer will assist you in determining

correct doneness and assure you that foods have

been cooked to safe temperatures. DCS is not

responsible for any damage to the oven when acces-

sories are used.

ABOUTCHiLDREHAHB THE MICROWAVE

Children below the age of 7 should use the microwave

oven with a supervising person very near to them.

Between the ages of 7 and 12, the supervising person

should be in the same room.

The child must be able to reach the oven comfortably;

if not, he/she should stand on a sturdy stool.

At no time should anyone be allowed to lean or swing

on the oven door.

Children should be taught all safety precautions: use

potholders, remove coverings carefully, pay special

attention to packages that crisp food because they

may be extra hot.

Don't assume that because a child has mastered one

cooking skill he/she can cook everything.

Children need to learn that the microwave oven is not

a toy. See page 25 for Child Lock feature.

ABOUTMICROWAVECOOKJHG

*Arrange food carefully. Place thickest areas towards

outside of dish.

,, Watch cooking time. Cook for the shortest amount

of time indicated and add more as needed. Food

severely overcooked can smoke or ignite.

,, Cover foods while cooking. Check recipe or cook-

book for suggestions: paper towels, wax paper,

microwave plastic wrap or a lid. Covers prevent

spattering and help foods to cook evenly.

,, Shield with small flat pieces of aluminum foil any

thin areas of meat or poultry to prevent overcooking

before dense, thick areas are cooked thoroughly.

,, Stir foods from outside to center of dish once or twice

during cooking, if possible.

,, Turn foods over once during microwaving to

speed cooking of such foods as chicken and ham-

burgers. Large items like roasts must be turned over

at least once.

Rearrange foods such as meatballs halfway

through cooking both from top to bottom and from

the center of the dish to the outside.

Add standing time. Remove food from oven and

stir, if possible. Cover for standing time which allows

the food to finish cooking without overcooking.

Check for doneness. Look for signs indicating that

cooking temperatures have been reached.

Doneness signs include:

- Food steams throughout, not just at edge.

- Center bottom of dish is very hot to the touch.

- POULTRY thigh joints move easily.

- Meat and poultry show no pinkness.

- Fish is opaque and flakes easily with a fork.

ABOUTSAFETY

. Check foods to see that they are cooked to

the United States Department of Agriculture's

recommended temperatures.

160°F ...for fresh pork, ground meat,

boneless white poultry, fish,

seafood, egg dishes and frozen

prepared food.

165°F ... for leftover, ready-to-SENSOR

REHEAT refrigerated, and dell

and carry-out "fresh" food.

170°F ... white meat of poultry.

180°F ... dark meat of poultry.

To test for doneness, insert a meat thermometer in a

thick or dense area away from fat or bone. NEVER

leave the thermometer in the food during cooking,

unless it is approved for microwave oven use.

ALWAYS use potholders to prevent burns when

handling utensils that are in contact with hot food.

Enough heat from the food can transfer through

utensils to cause skin burns.

*Avoid steam burns by directing steam away from

the face and hands. Slowly lift the farthest edge of

a dish's covering and carefully open popcorn and

oven cooking bags away from the face.

. Stay near the oven while it's in use and check

cooking progress frequently so that there is no

chance of overcooking food.

. NEVER use the cavity for storing cookbooks or

other items.

Select, store and handle food carefully to preserve

its high quality and minimize the spread of

foodborne bacteria.

*Keep waveguide cover clean. Food residue can

cause arcing and/or fires.

. Use care when removing items from the oven so

that the utensil, your clothes or accessories do not

touch the safety door batches.

MICROWAVE OVEHPARTS

9 14 10

2 11 3

-13

-12

-1

I One touch door open button

Push to open door.

2Oven door with see-through window

3Safety door latches

The oven will not operate unless the door is

securely closed.

4, Door hinges

5Door seals and sealing surfaces

6 Turntable motor shaft

7 Removable turntable support

Carefully place the turntable support in the

center of the oven floor.

8 Removable turntable

Place the turntable on the turntable support

securely. The turntable wilt rotate clockwise

or counterclockwise. Only remove for

cleaning.

9Ventilation openings (Rear)

10 Oven light

It will light when oven is operating or door is

open.

1 1 Waveguide cover: DO NOT REMOVE.

12Auto-Touch control panel

13Interactive display: 99 minutes, 99 seconds

14, Menu label

COHTROLPANEL

The two-line, Interactive Display spells out operating

steps and shows cooking hints. When HELP is

lighted in the display, touch the HELP MENU pad

to read a specific hint which may assist you.

12-15

11, 24

16-23

Number next to the control panel illustration

indicates pages on which there are feature

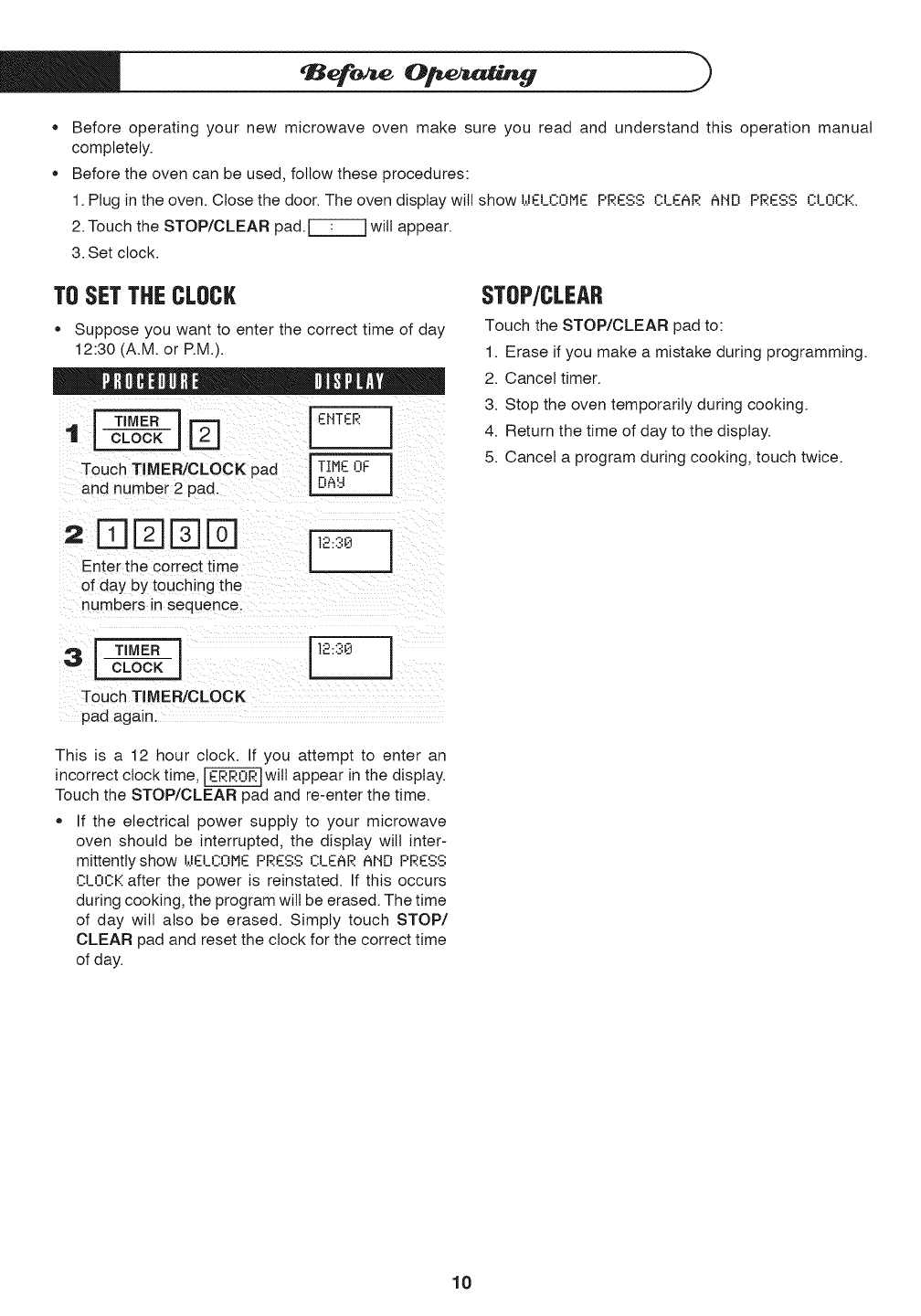

descriptions and usage information.

•Before operating your new microwave oven make sure you read and understand this operation manual

completely.

• Before the oven can be used, follow these procedures:

1. Plug in the oven. Close the door. The oven display witl show WELCOM€ PR€SS CL€_I_'. _ttO PR€SS CLOCK.

2. Touch the STOP/CLEAR pad. [--T---] witl appear.

3. Set clock.

TOSET THE CLOCg

• Suppose you want to enter the correct time of day

12:30 (AM. or P.M.).

i T'MER1 HTER

1 icLo

Touch TIMER/CLOCK pad TIMEOF

and number 2 pad. D_.L4

2 DD%Fa

Enter the correct time

of day by touching the

numbers in sequence.

Touch TIMER/CLOCK

pad again.

STOP/CLEAR

Touch the STOP/CLEAR pad to:

1. Erase if you make a mistake during programming.

2. Cancel timer.

3. Stop the oven temporarily during cooking.

4. Return the time of day to the display.

5. Cancel a program during cooking, touch twice.

This is a 12 hour clock. If you attempt to enter an

incorrect clock time, _ witl appear in the display.

Touch the STOP/CLEAR pad and re-enter the time.

• If the electrical power supply to your microwave

oven should be interrupted, the display will inter-

mittently show WELCOM€PF.'.ESSCLE_E'._ttD PP.ESS

CLOCKafter the power is reinstated. If this occurs

during cooking, the program witl be erased. The time

of day will also be erased. Simply touch STOP/

CLEAR pad and reset the clock for the correct time

of day.

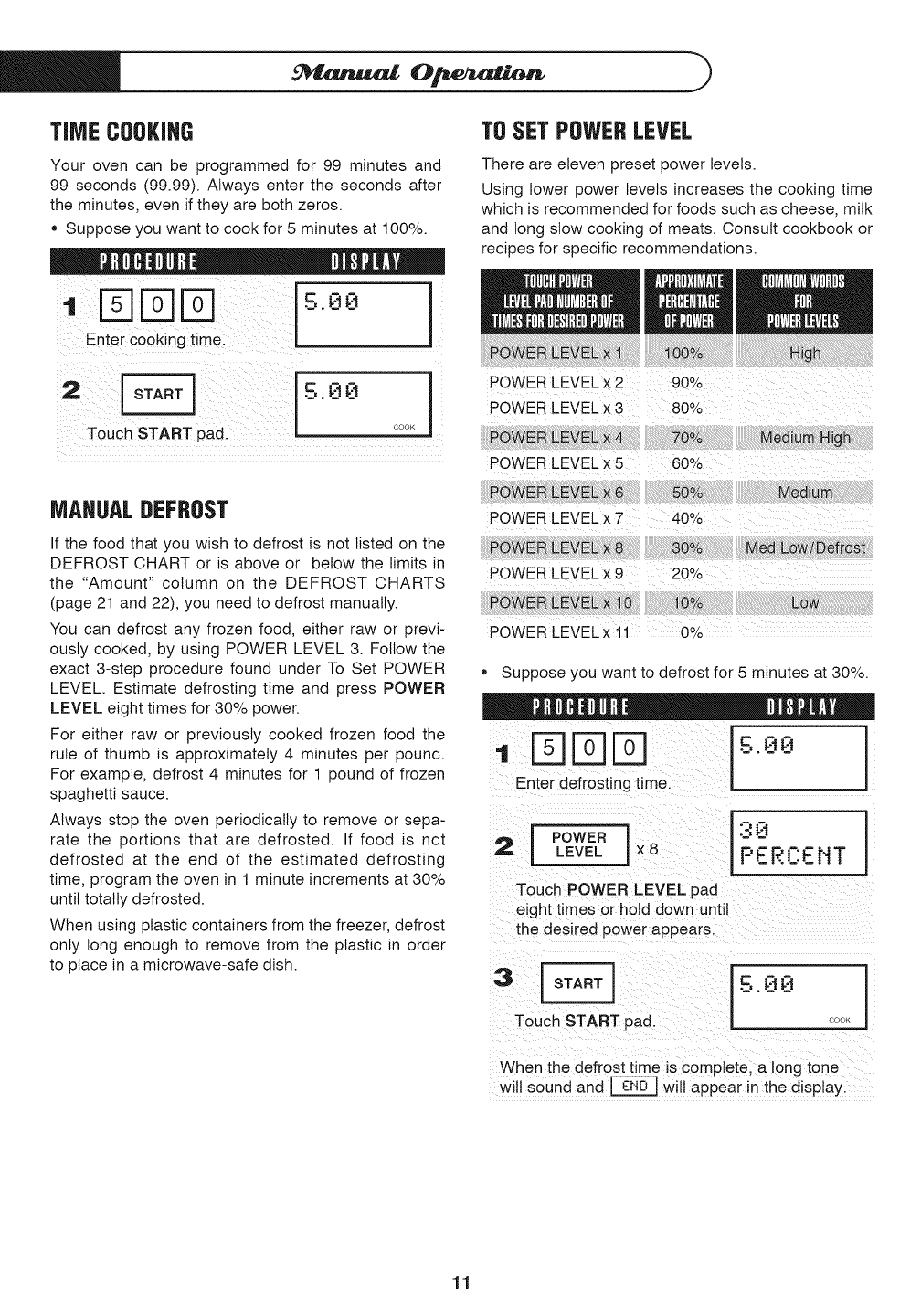

TiME COOKJHG

Your oven can be programmed for 99 minutes and

99 seconds (99.99). Always enter the seconds after

the minutes, even if they are both zeros.

,, Suppose you want to cook for 5 minutes at 100%.

MANUAL DEFROST

If the food that you wish to defrost is not listed on the

DEFROST CHART or is above or below the limits in

the "Amount" column on the DEFROST CHARTS

(page 21 and 22), you need to defrost manually.

You can defrost any frozen food, either raw or previ-

ously cooked, by using POWER LEVEL 3. Follow the

exact 3-step procedure found under To Set POWER

LEVEL. Estimate defrosting time and press POWER

LEVEL eight times for 30% power.

For either raw or previously cooked frozen food the

rule of thumb is approximately 4 minutes per pound.

For example, defrost 4 minutes for 1 pound of frozen

spaghetti sauce.

Always stop the oven periodically to remove or sepa-

rate the portions that are defrosted. If food is not

defrosted at the end of the estimated defrosting

time, program the oven in 1 minute increments at 30%

until totally defrosted.

When using plastic containers from the freezer, defrost

only long enough to remove from the plastic in order

to place in a microwave-safe dish.

TOSET POWERLEVEL

There are eleven preset power levels.

Using lower power levels increases the cooking time

which is recommended for foods such as cheese, milk

and long stow cooking of meats. Consult cookbook or

recipes for specific recommendations.

POWER LEVEL x 2 90%

POWER LEV EL x 3 80%

odium

POWER LEVEL x 5 60%

EV Medium

POWER LEVEL x 7 40%

EVEL M

POWER LEVEL x 9 20%

POWER L Low

POWER LEVELx 11 0%

,, Suppose you want to defrost for 5 minutes at 30%.

i ¸¸¸¸¸ _l _ -I

J PowER1 ISL't I

LLEVEL JPERCEHT J

Touch POWER LEVEL pad

eight times or hotd down untit

the desired power appears.

When the defrost time iS complete, a long tome

wi!! sOUnd and_ wi!! appear in the disP!ayi

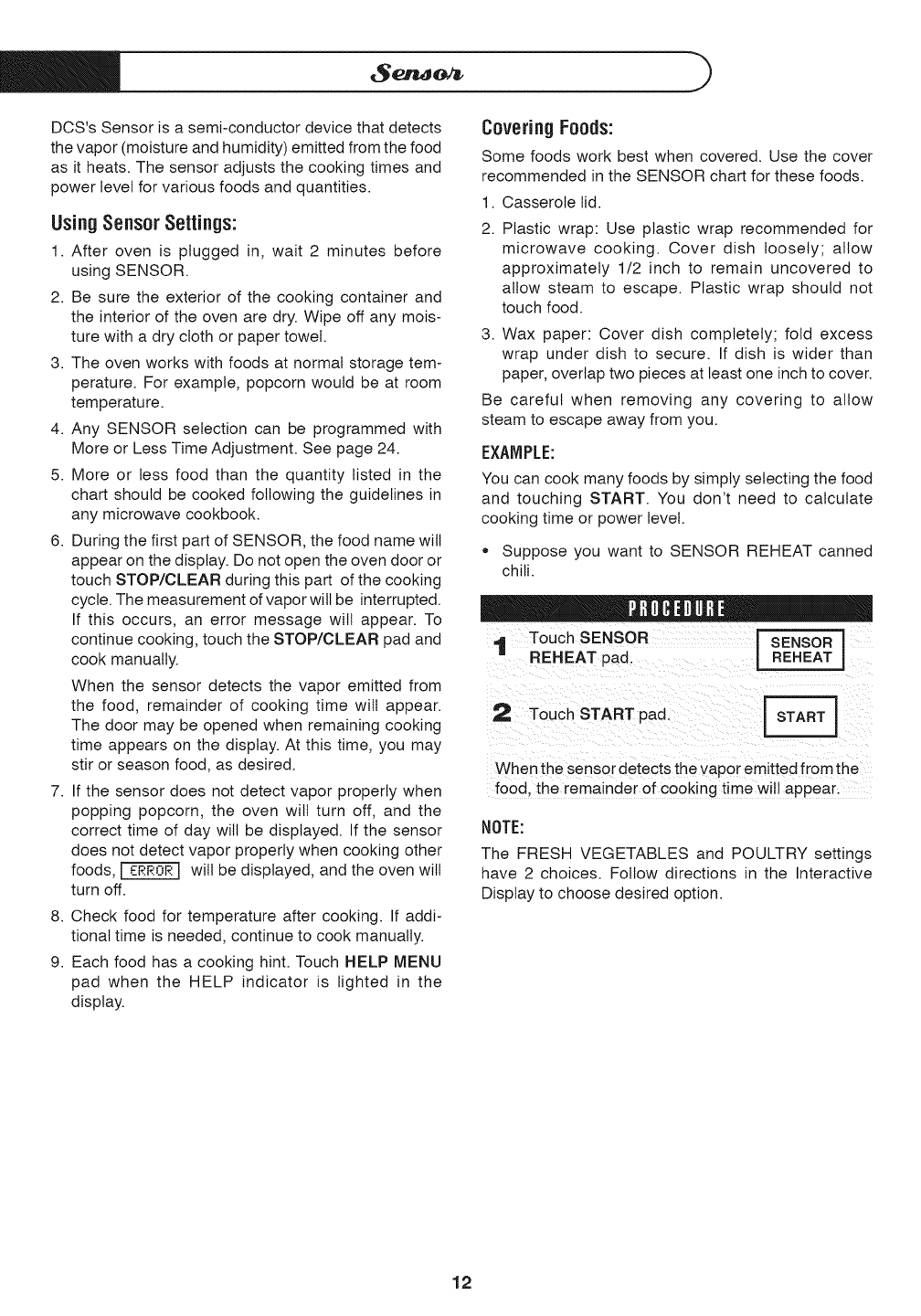

DCS's Sensor is a semi-conductor device that detects

the vapor (moisture and humidity) emitted from the food

as it heats. The sensor adjusts the cooking times and

power level for various foods and quantities.

Using Sensor Settings:

1. After oven is plugged in, wait 2 minutes before

using SENSOR.

2. Be sure the exterior of the cooking container and

the interior of the oven are dry. Wipe off any mois-

ture with a dry cloth or paper towel.

3. The oven works with foods at normal storage tem-

perature. For example, popcorn would be at room

temperature.

4. Any SENSOR selection can be programmed with

More or Less Time Adjustment. See page 24.

5. More or less food than the quantity listed in the

chart should be cooked following the guidelines in

any microwave cookbook.

6. During the first part of SENSOR, the food name wilt

appear on the display. Do not open the oven door or

touch STOP/CLEAR during this part of the cooking

cycle. The measurement of vapor will be interrupted.

If this occurs, an error message wilt appear. To

continue cooking, touch the STOP/CLEAR pad and

cook manually.

When the sensor detects the vapor emitted from

the food, remainder of cooking time will appear.

The door may be opened when remaining cooking

time appears on the display. At this time, you may

stir or season food, as desired.

7. If the sensor does not detect vapor properly when

popping popcorn, the oven will turn off, and the

correct time of day will be displayed. If the sensor

does not detect vapor properly when cooking other

foods, _ will be displayed, and the oven will

turn off.

8. Check food for temperature after cooking. If addi-

tional time is needed, continue to cook manually.

9. Each food has a cooking hint. Touch HELP MENU

pad when the HELP indicator is lighted in the

display.

Covering Foods:

Some foods work best when covered. Use the cover

recommended in the SENSOR chart for these foods.

Casserole lid.

Plastic wrap: Use plastic wrap recommended for

microwave cooking. Cover dish loosely; allow

approximately 1/2 inch to remain uncovered to

allow steam to escape. Plastic wrap should not

touch food.

3. Wax paper: Cover dish completely; fold excess

wrap under dish to secure. If dish is wider than

paper, overlap two pieces at least one inch to cover.

Be careful when removing any covering to allow

steam to escape away from you.

EXAMPLE:

You can cook many foods by simply selecting the food

and touching START. You don't need to calculate

cooking time or power level.

• Suppose you want to SENSOR REHEAT canned

chili.

Touch SENSOR i SENSOR i

1REHEAT pad. | RE_

2 Touch START pad.

When the sensor detects the vapor emitted from the

food. the remainder of cooking time will appear.

NOTE:

The FRESH VEGETABLES and POULTRY settings

have 2 choices. Follow directions in the Interactive

Display to choose desired option.

SENSORCHART

POPCORN 1 package Use only popcorn packaged for microwave oven use. Try several

brands to decide which you like the best. Do not try to pop

unpopped kernels.

1.5 - 3.5 oz bag Touch POPCORN pad and then START.

SENSOR REHEAT 4 - 36 oz Place in dish or casserole Slightly larger than amount to be

reheated. Flatten, if possible. Cover with lid, plastic wrap or

wax paper. Use covers such as plastic wrap or lids with larger

quantities of more dense foods such as stews. After reheating,

stir well, if possible. Foods should be very hot. If not, continue to

heat with variable power and time. After stirring, re-cover and allow

to stand 2 to 3 minutes.

FRESH VEGETABLES: Soft

Broccoli

Brussels sprouts

Cabbage

Cauliflower (flowerets)

Cauliflower (whole)

Spinach

Zucchini

Baked apples

Wash and place in casserole. Add no water if vegetables have

.25 - 2.0 lb just been washed. Cover with lid for tender vegetables. Use

.25 -2.0 tb plastic wrap for tender-crisp vegetables. Touch FRESH

.25 - 2.0 lb VEGETABLES, number E_ and START pads. After cooking, stir,

.25 - 2.0 Ib if possible. Let stand, covered, for 2 to 5 minutes.

1 med.

.25 - 1.0 lb

.25 - 2.0 lb

2 - 4 med

FRESH VEGETABLES: Hard

Carrots, sliced 25 - 1.5 lb

Corn on the cob 2 - 4

Green beans 25 - 1 5 Ib

Winter squash:

diced 25 - 1.5 Ib

halves 1 - 2

Place in casserole. Add 1-4 tbsp water. Cover with lid for tender

vegetables. Use plastic wrap cover for tender-crisp vegetables.

Touch FRESH VEGETABLES, number [] and START pads.

After cooking, stir, if possible. Let stand, covered for 2 to 5 minutes.

RICE .5 - 2.0 cups Place rice into a deep casserole dish and add double quantity of

water. Cover with lid or plastic wrap. After cooking, stir, cover and

let stand 3 to 5 minutes or until all liquid has been absorbed.

Rice Water Size of casserole dish

.5 cup 1 cup 1.5 quart

! cup 2 cups 2 quart

1.5 cups 3 cups 2.5 or 3 quart

2 cups 4 cups 3 quart orlarger

BAKED POTATOES 1 - 8 med Pierce. Place on paper-towel-lined turntable. After cooking, remove

from oven, wrap in aluminum foil and let stand 5 to !0 minutes.

GROUND MEAT 25- 2.0 lb Use this setting to cook ground beef or turkey as patties or in a

casserole to be added to other ingredients. Place patties on a

microwave-safe rack and cover with wax paper. Place ground

meat in a casserole and cover with wax paper or plastic wrap.

When oven stops, turn patties over or stir meat in casserole to

break up large pieces. Re-cover and touch START. After cooking,

let stand, covered, for 2 to 3 minutes.

SEHSORCHART (CONnNUED)

POULTRY: Boneless .5 - 2.0 lb Use boneless breast of chicken or turkey. Cover with vented

plastic wrap. Touch POULTRY, number [_ and START pads.

When oven stops, rearrange. Re-cover and touch START pad.

After cooking, let stand, covered, 3 to 5 minutes. Poultry should

be 160°F.

Bone-in .5 - 3.0 lb Arrange pieces with meatiest portions toward outside of glass

dish or microwave safe rack. Cover with vented plastic wrap.

Touch POULTRY. number [] and START pads. After cooking,

let stand, covered. 3 to 5 minutes. Dark meat should be 180°F

and white meat should be 170°R

FISH/SEAFOO D .25 - 2.0 Ib Arrange in ring around shallow glass dish (roll fillet with edges

underneath). Cover with vented plastic wrap. After cooking, let

stand, covered for 3 minutes.

FROZEN ENTREES 6 - !7 oz Use this pad for frozen convenience foods. It will give satisfac-

tory resutts for most brands. You may wish to try several and

choose your favorite. Remove package from outer wrapping and

fotlow package directions for covering. After cooking, let stand,

covered, for 1 to 3 minutes.

FROZEN SNACKS 3 - 8 oz Use for frozen French _ries, cheese sticks, appetizers etc.

Remove from outer package. Follow package directions for

how to wrap or cover. Be careful when removing from the

oven as snack may be very hot.

FROZEN VEGETABLES .25 - 1.5 Ib Add no water. Cover with lid or plastic wrap. After cooking, stir

and let stand, covered, for 3 minutes.

SEHSORRECIPES

2 cups fresh cranberries

1 cup water

3/4 cup sugar

1 carton (3 ounces) orange flavored gelatin

1/2 pint whipping cream, whipped or

1 carton (8 ounces) non-dairy whipped topping

I Combine cranberries, water and sugar in a 2-quart casserole. Cover with wax paper. Microwave using SENSOR

REHEAT Less. Drain cranberries and reserve liquid.

2 Add enough hot water to reserved liquid to make 2 cups. Stir the gelatin into hot liquid until it dissolves. Cover

with wax paper. Microwave using SENSOR REHEAT Less.

3 Add berries and cool. Refrigerate until it starts to have a soft gel, like jelly. Fold whipped cream into cooled

cranberry mixture. Spoon into serving dishes and garnish with extra whipped cream. Refrigerate until ready

to serve.

SENSORBECJPES(CONTINUED)

1 pound of shrimp, peeled and deveined

2 cups canned tomato puree

1 tablespoon tomato paste

1/2 cup thinly sliced fresh basil leaves

1/2 teaspoon oregano

1cup thinly sliced scallions (about 2 bunches)

clove of garlic, minced

salt and pepper to taste

Parmesan cheese

I Place shrimp in 2-quart, covered casserole.

2Microwave using FISH/SEAFOOD. Drain and set aside.

3Combine tomato puree, tomato paste, basil, oregano, scallions, garlic, salt and pepper in 2-quart casserole.

4 Microwave using SENSOR REHEAT.

5Combine sauce with cooked shrimp.

6 Serve sauce over cooked pasta. Garnish with Parmesan cheese.

1/4 cup brown sugar

3 tablespoons margarine or butter

2 tablespoons apricot preserves

1/2 teaspoon ground nutmeg

1/4 teaspoon salt

1/2 cup sugar

3/4 cup orange juice

1 tablespoon cornstarch

4 baking apples (about 1 1/2pounds), peeled and

sliced into 8 pieces each

3 tablespoon chopped green pistachios

I Combine brown sugar, margarine and apricot preserves in a small bowl. Microwave at HIGH (100%) until marga-

rine melts and preserves soften, 45 seconds to 1 minute. Stir in nutmeg, salt, sugar, orange juice and cornstarch.

Microwave at HIGH (100%) until thickened, 4 to 6 minutes, stirring several times.

2 Arrange apple slices in a large microwave serving dish. Spread hot sauce over apples. Cover welt with vented

plastic wrap. Microwave using FRESH VEGETABLES: Soft. Allow to cool 5 minutes before serving.

3Sprinkle with pistachios. Serve alone or over vanilla ice cream or sponge cake.

1 8-ounce package cream cheese, softened

2 tablespoons milk

2 green onions, minced

1 tablespoon minced parsley

1/2 teaspoon thyme leaves

1 garlic clove, minced

4 whole chicken breasts with skin and bone

1/2 cup dried bread crumbs

1 teaspoon paprika

3 tablespoons butter or margarine, melted

1 In a small bowl, combine cream cheese, milk, green onions, parsley, thyme, and garlic.

2 Push fingers between skin and meat of each chicken breast to form a pocket. Spread an equal amount of cream

cheese mixture in each pocket.

3On waxed paper, combine bread crumbs and paprika. Dip chicken breasts into melted butter, then roll in

seasoned bread crumbs to coat.

4 In 8-inch x 8-inch baking dish, place chicken and cover with plastic wrap. Microwave using POULTRY (bone-in).

5Serve chicken with rice.

Your oven has 6 convenience pads to assist with meal preparation. There are some foods in the BREAKFAST

MENU, LUNCH MENU, DINNER MENU and QUICK RECIPES that use the sensor. See the sensor cooking infor-

mation on page 12. For foods not using the sensor, follow the directions in the Interactive Display to enter quantity.

BREAKFASTMENUAND LUNCHMENU

BREAKFAST MENU and LUNCH MENU are for cook-

ing and heating popular foods that take a short

amount of time.

Suppose you want to use BREAKFAST MENU to

cook 2 servings of hot cereal.

Touch BREAKFAST j r:ELECT -J HUMBER j

_ooD j L J

F_ HF_TJ'_D82 e_; _esirei _ cEi:E_; 1[ i

setting by t0uching t'IUMBER SERUIHC4S

desired number pad.

(Ex: Touch number [_

Pad to setect h0t cerea!.)

Enter quantityi (Ex: Touch

number [_ pad for servings.)

T_c_ START

After c00king; f0ttow the directions in the display!

NOTE:

1. Heat roils/muffins setting has 2 choices. Follow

directions in the Interactive Display to choose

desired option.

2. BREAKFAST MENU can be programmed with More

or Less Time Adjustment. Touch the POWER LEVEL

pad once or twice before touching START pad. See

page 24.

3. Each food has a cooking hint. Touch HELP MENU

pad when the HELP indicator is lighted in the

display.

4. Should you attempt to enter more or less than the

allowed amount, an error message witl appear in

the display.

More or less than the quantity listed in the chart

should be cooked following the guidelines in any

microwave book.

5. The final cooking result will vary according to the

food condition (e.g. initial temperature, shape,

quality, covering). Check food for temperature

after cooking. If additional time is needed, continue

to cook manually.

BREAKFASTMENU CHART

1. SCRAMBLED EGGS 1 - 9 eggs For each egg, use I teaspoon of butter or margarine and 1 tables coon

of milk. Place butter or margarine in dish measuring cup or casserole

large enough for the egg to expand. Mix egg and milk together. Pour

onto butter or margarine in dish. Place in oven and program. When

audible signals are heard, stir egg mixture moving the cooked portion

to the center of the dish and uncooked portion to the outside. After

cooking, stir and let stand, covered, until set. Note that eggs witl be

slightly undercooked when removed from the oven

2. BACON 2 - 6 slices Place bacon on paper plate, lined with paper towel. Bacon should not

extend over the rim of plate. Cover with another paper towel. Allow

bacon to stand a few minutes after removing from the oven to

complete the cooking.

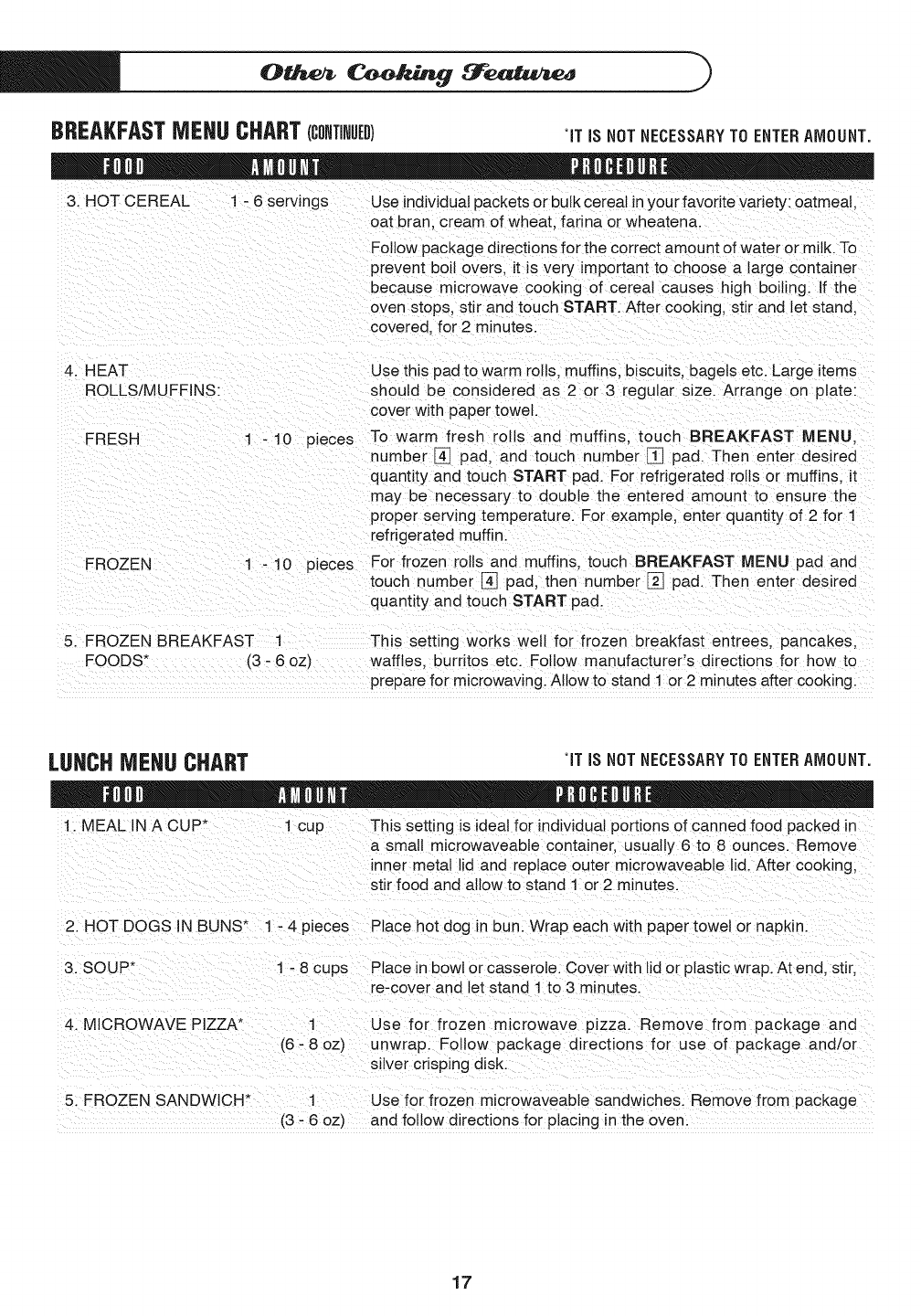

BREAKFASTIViEHUCHART(CONnNUED) *iT iS NOTNECESSARYTO ENTERAMOUNT.

3. HOT CEREAL 1 - 6 servings Use individual packets or bulk cereal in your favorite variety: oatmeal.

oat bran, cream of wheat farina or wheatena.

Follow package directions for the correct amount of water or milk. To

prevent boil overs, it is very important to choose a large container

because microwave cooking of cereal causes high boiling. If the

oven stops, stir and touch START. After cooking, stir and let stand,

covered, for 2 minutes.

4. HEAT

ROLLS/MUFFINS:

FRESH 1 - 10 pieces

FROZEN 1 - 10 pieces

Use this pad to warm rolls, muffins, biscuits, bagels etc. Large items

should be considered as 2 or 3 regular size. Arrange on plate:

cover with paper towel.

To warm fresh rolls and muffins, touch BREAKFAST MENU.

number [] pad. and touch number [_] Dad. Then enter desired

quantity and touch START pad. For refrigerated rolls or muffins, it

may be necessary to double the entered amount to ensure the

proper servtng temperature. For example, enter quantity of 2 for 1

refrigerated muffin.

For frozen rolls and muffins, touch BREAKFAST MENU pad and

touch number [] pad, then number [] pad. Then enter desired

quantity and touch START pad.

5. FROZEN BREAKFAST 1 This setting works well for frozen breakfast entrees, pancakes,

FOODS* (3- 6 oz) waffles, bumtos etc. Follow manufacturer's directions for how to

prepare for microwaving. Allow to stand 1 or 2 minutes after cooking.

LUNCHMENUCHART *iT iS NOT NECESSARYTO ENTERAMOUNT.

1. MEAL IN A CUP* 1 cuP setting is ideal for individual portions of canned food packed in

small micioWaveable o0ntainer, usUal!y 6 to 8 ouncesl Remove

inner metal lid and replace outer microwaveable lid. After cooking;

2. HOT DOGS IN BUNS* 1 - 4 pieces Place hot dog in buni Wrap each with paper towel or napkin:

31 SOUP* i -8 cups Place in bowi or Casserole! cover with ! d oi plastic wraG Atend Stir

re,€over and let stand ! t0 3 minuteSl

41MICROWAVE PIZZA* Use for frozen microwave pizza Remove from Package and

(6; 8 oz)unwra G Fo! oW package directions for use of package and!0r

silver €risping diskl

5: FROZEN SANDWICH* 1 use for frozen micr0waveable sandwichesi Remove from package

(3- 60Z) and fo!!ow directions for placing inthe oven:

DIHNERMENU AND QUICKRECIPES

DINNER MENU and QUICK RECIPES each offer five

simple-to-prepare but great tasting meals. Follow the

specific directions on the Recipe Card and in the Inter-

active Display.

Suppose you want to use DINNER MENU to cook

Saucy Chicken.

1 DJNNE_ !=-;_'E ....

MEN LSBEL

Touch DINNER [SCLECT InuMBeR1

MENU pad. I REClP€ I I

Select desired DINNER MENU setting by

touching desired number pad. (Ex: Touch

number [_ pad to select Saucy Chicken:)

Foitowthe Recipe I -'-:;_ _II I

Card for ingredients [ Re_-:IP€ IL_____..___________J

and nstrUCt0ns [_ I

IsTaRT I

;3 _ Touch START pad.

4, When the oven stops, the disptay will show the

instruction number on the Recipe Card.

Follow the ICHECK /I IHSTRUC-I

instructions on the I R€ClP€ II TICHr 2 j

Recipe Card.

Touch START pad.

5 At end, the display will show the instruction

number on the Recipe Card.

Follow the CHECK Jl [HSTRUC:-]

instructions on the REClP€ IJTIOHS3 !

Recipe Card.

DINNERMENURECIPES (RECIPESSERVE6)

1. SAUCYCHICKEN

1. Place in a 3 quart casserole:

1 tablespoon oit

1/2 pound mushrooms, sliced

1 onion, chopped

1 tablespoon minced garlic

Stir well and cover. Touch DINNER MENU, number [_

to select SAUCY CHICKEN and then touch START.

2. Blend together:

8 ounces reduced fat cream cheese, softened

1/4 cup milk

Stir into the cream cheese mixture:

1 10-ounce package of frozen peas

2 cups cooked thinly sliced chicken breast

Salt and pepper to taste

At pause, drain liquid from mushrooms, etc. Add cream

cheese/peas/chicken mixture and stir together.

Re-cover. Touch START.

3. At end, stir in 1 cup shredded Monterey Jack cheese.

Serve on top of baked potatoes or cooked pasta.

2. HAWAllAHPeRK

1. Place in a 3 quart casserole:

1 tablespoon oil

1 pound boneless pork loin, cut into 1-inch strips,

seasoned with satt and pepper

Stir welt and cover. Touch DINNER MENU, number [_

to select HAWAIIAN PORK and then touch START.

2. Combine welt in a large bowl:

1 cup peach or apricot preserves

1/4 cup barbecue sauce

2 tablespoons soy sauce

2 tablespoons cornstarch

1 cup coarsely chopped onions

At pause, add preserves/barbecue mixture and stir

together well.

Re-cover. Touch START.

3. At pause, add:

1 8-ounce can sliced water chestnuts, drained

1 green pepper, seeded and cut into 2-inch thin

strips

1 red pepper, seeded and cut into 2-inch thin

strips

1 20-ounce can pineapple chunks, drained

Stir to combine. Re-cover. Touch START.

4. At end, stir again.

Serve on cooked rice.

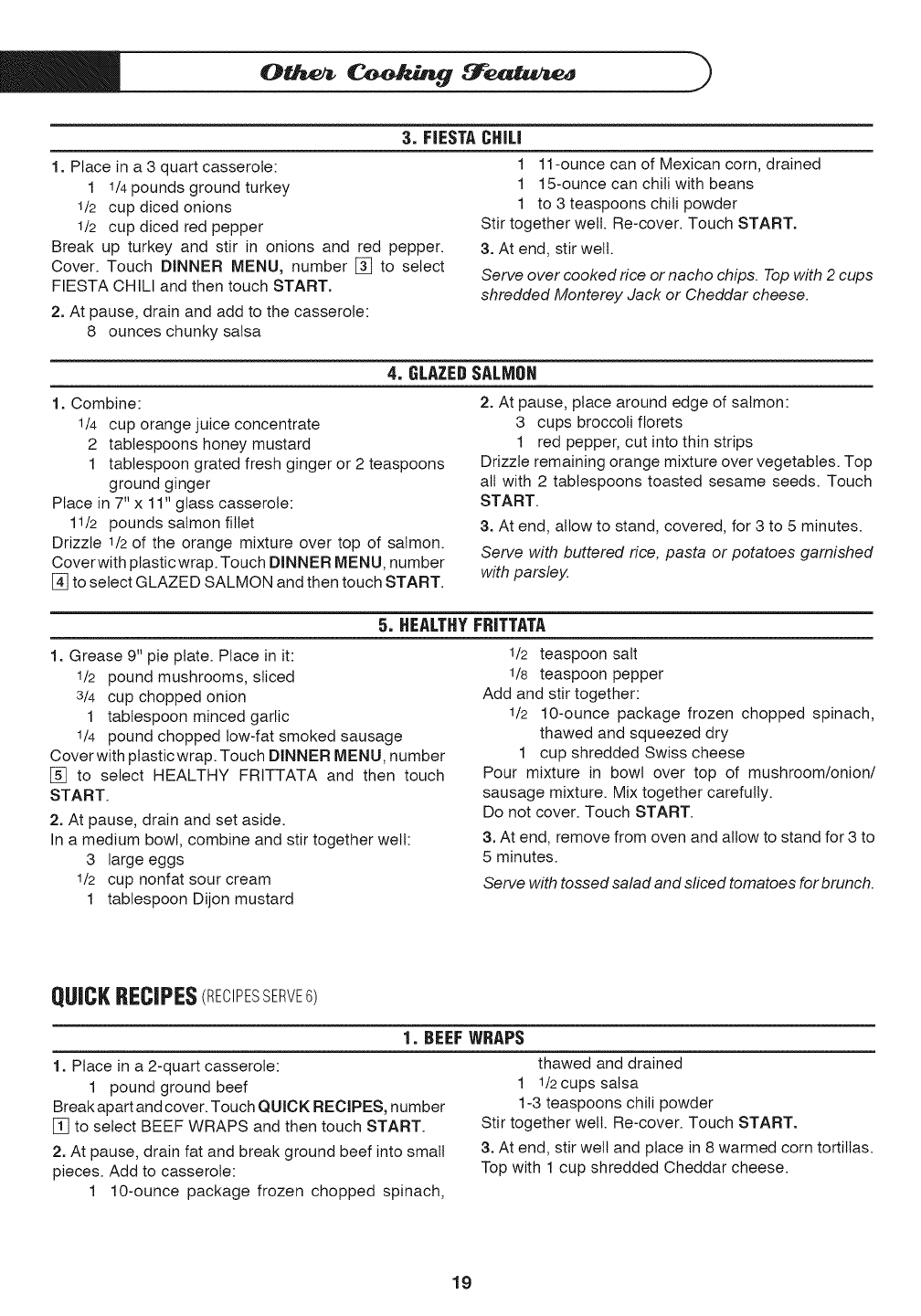

3. FIESTACHiLi

1. Place in a 3 quart casserole:

1 1/4pounds ground turkey

1/2 cup diced onions

1/2 cup diced red pepper

Break up turkey and stir in onions and red pepper.

Cover. Touch DINNER MENU, number [_] to select

FIESTA CHILI and then touch START.

2. At pause, drain and add to the casserole:

8 ounces chunky salsa

1 11-ounce can of Mexican corn, drained

1 15-ounce can chili with beans

1 to 3 teaspoons chili powder

Stir together well. Re-cover. Touch START.

3. At end, stir welt.

Serve over cooked rice or nacho chips. Top with 2cups

shredded Monterey Jack or Cheddar cheese.

4. GLAZEDSALMSH

1. Combine:

1/4 cup orange juice concentrate

2 tablespoons honey mustard

1 tablespoon grated fresh ginger or 2 teaspoons

ground ginger

Place in 7" x 11" glass casserole:

11/2 pounds salmon fillet

Drizzle 1/2 of the orange mixture over top of salmon.

Cover with ptastic wrap. Touch DINNER MENU, number

[] to select GLAZED SALMON and then touch START.

2. At pause, place around edge of salmon:

3 cups broccoli florets

1 red pepper, cut into thin strips

Drizzle remaining orange mixture over vegetables. Top

all with 2 tablespoons toasted sesame seeds. Touch

START.

3. At end, allow to stand, covered, for 3 to 5 minutes.

Serve with buttered rice, pasta or potatoes garnished

with parsle_

5. HEALTHYFRITTATA

1. Grease 9" pie plate. Place in it:

1/2 pound mushrooms, sliced

3/4 cup chopped onion

1 tablespoon minced garlic

1/4 pound chopped low-fat smoked sausage

Cover with plastic wrap. Touch DINNER MENU, number

[] to select HEALTHY FRITTATA and then touch

START.

2. At pause, drain and set aside.

In a medium bowl, combine and stir together welt:

3 large eggs

1/2 cup nonfat sour cream

1 tablespoon Dijon mustard

1/2 teaspoon salt

1/8 teaspoon pepper

Add and stir together:

1/2 10-ounce package frozen chopped spinach,

thawed and squeezed dry

1 cup shredded Swiss cheese

Pour mixture in bowl over top of mushroom/onion/

sausage mixture. Mix together carefully.

Do not cover. Touch START.

3. At end, remove from oven and allow to stand for 3 to

5 minutes.

Serve with tossed salad and sliced tomatoes for brunch.

QUICKRECIPES(RECIPESSERVE6)

1. BEEFWBAPS

1. Place in a 2-quart casserole:

1 pound ground beef

Break apart and cover. Touch QUICK RECIPES, number

[_ to select BEEF WRAPS and then touch START.

2. At pause, drain fat and break ground beef into small

pieces. Add to casserole:

1 10-ounce package frozen chopped spinach,

thawed and drained

1 1/2cups salsa

1-3 teaspoons chili powder

Stir together welt. Re-cover. Touch START.

3. At end, stir well and place in 8 warmed corn tortillas.

Top with 1 cup shredded Cheddar cheese.

QUICKRECIPES(RECIPESSERVE6) CONTINUED

2o MEXJCAH CHiCKEH

1. Place in layers in a 3-quart casserole:

2 cups instant rice

1 cup prepared fajita sauce mixed with 1/2 cup

chicken broth or bouillon

2 10-ounce packages frozen seasoning mix

(onion, peppers, parsley and celery)

1 pound boneless chicken breast, cut into 1-inch

thin strips

Cover. Touch QUICK RECIPES, number [_ to select

MEXICAN CHICKEN and then touch START.

2. At pause, stir together being sure that chicken strips

are separated and mixed into the rice/sauce.

Re-cover. Touch START.

3. At end, stir.

Serve with buttered green beans and toasted tortillas.

3. ITALIANSALAD

1. To cook pasta:

Place in 3-quart casserole:

6 cups very hot tap water

Cover. Touch QUICK RECIPES, number [_] to select

ITALIAN SALAD and then touch START.

2. At pause, add:

8 ounces tricolored rotini or fusitli pasta

Do not cover. Touch START.

3. At end, drain pasta and set aside.

To cook chicken:

Place in greased 9" pie plate:

1 pound boneless chicken breast, cut into 1-inch

thin strips

Cover. Touch START.

4. At pause, rearrange, moving less done pieces to the

outside of the pie plate.

Re-cover. Touch START.

5. Drain and set aside.

To make salad:

Place in large salad bowl:

Cooked rotini or fusitli

Cooked chicken breast

2 tomatoes, cut into eighths

1/2 cup sliced black olives

1 cup mozzarella cheese, shredded

1/4 cup red onion, chopped

3/4-1 cup oil-vinegar type dressing with pesto

Toss together to coat all pieces.

Serve immediately or chill to serve later. Ideal when

served with warm crusty rolls.

4. TUNAMACARSHI

1. To cook macaroni:

Place in 3-quart casserole:

6 cups very hot tap water

Cover. Touch QUICK RECIPES, number [] to select

TUNA MACARONI and then touch START.

2. At pause, add:

2 cups elbow macaroni

1 teaspoon salad oil

Do not cover. Touch START.

3. At end, drain macaroni and set aside in the casserole.

Combine in bowl:

1 can cream of celery soup

1/2 cup milk

1/2 cup nonfat sour cream

Cover. Touch START.

Add to macaroni in casserole:

Soup/milWsour cream mixture

1 6 1/2-ounce can solid white water packed tuna

fish, drained and flaked

1 cup frozen peas

1 cup shredded Cheddar cheese

Salt and pepper to taste

Stir together until welt mixed. Cover. Touch START.

4. At end, stir again.

Serve with fresh carrot sticks, tossed salad and dinner

rolls.

5. GARDEHMEDLEY

1. Place in a 2 H2-quart casserole:

1 pound peeled baking potatoes, cut into eighths

and thinly sliced

1 14 1/2-ounce can diced tomatoes

2 teaspoons minced garlic

1 teaspoon thyme leaves

Cover with a lid. Touch QUICK RECIPES, number [5-]to

select GARDEN MEDLEY and then touch START.

2. At pause, stir well and add:

1 16-ounce package frozen stir fry mixed

vegetables

2 cups thinly sliced summer squash

Re-cover. Touch START.

3. At end, sprinkle top with 4 ounces shredded Cheddar

cheese.

Serve with spinach salad and chilled melon.

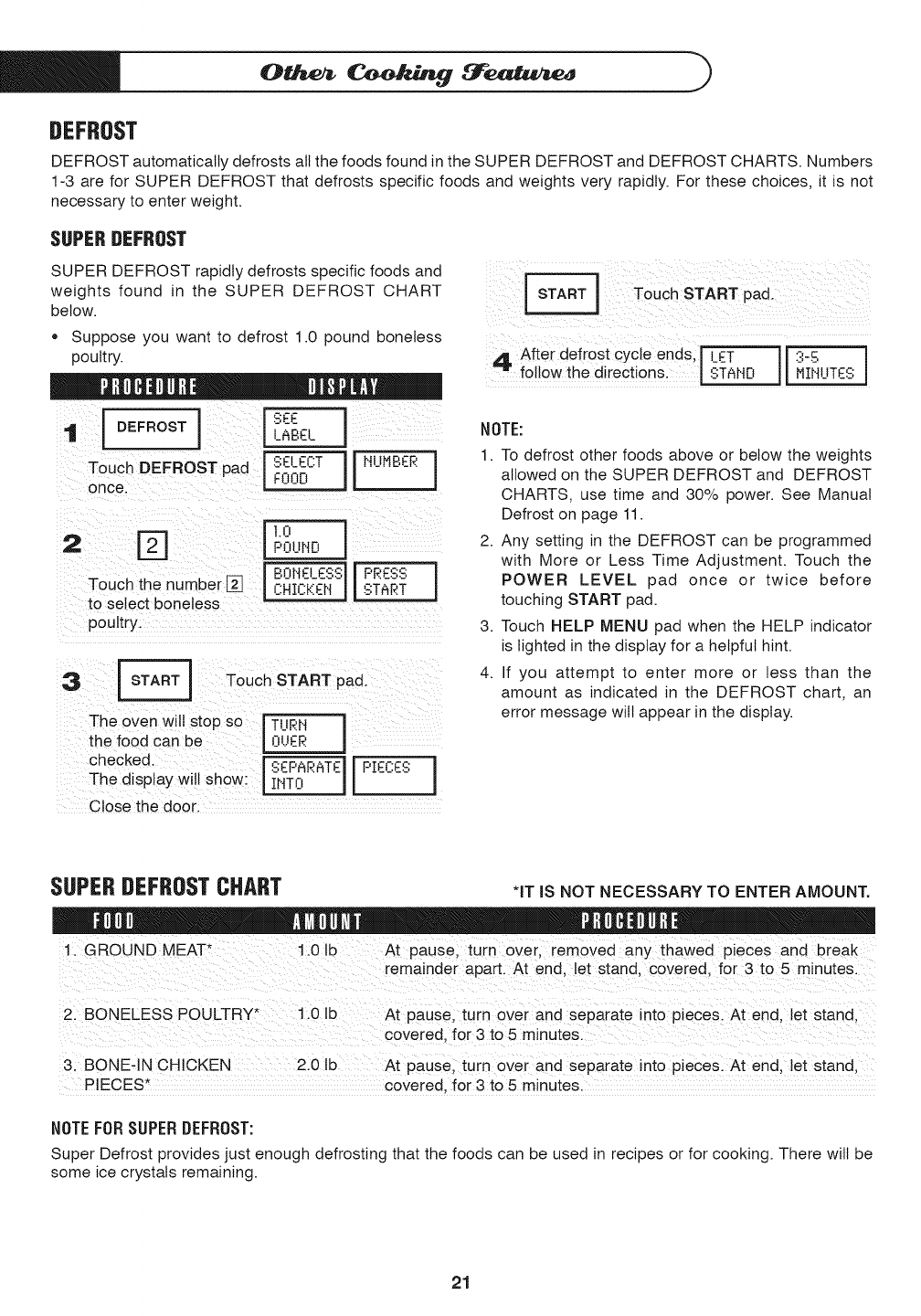

DEFROST

DEFROST automatically defrosts all the foods found in the SUPER DEFROST and DEFROST CHARTS. Numbers

1-3 are for SUPER DEFROST that defrosts specific foods and weights very rapidly. For these choices, it is not

necessary to enter weight.

SUPER DEFROST

SUPER DEFROST rapidly defrosts specific foods and . _

weights found in the SUPER DEFROST CHART I START I

below. Touch START pad.

poultry.

1 DEFROST L_BEL

T°uoh DEFROST pad !-;€LECT [ HUMBCR]FOOD

once.

Suppose you want to defrost 1.0 pound boneless

After defrost cycle ends. _I "q-_ J

4" follow the directions. I _f_HD I117"II[tLITESJ

I PRESS

START i

D 1.0

POUt!D

BOHELESS

Touch the number [] CHICKEH

to select boneless

poultry.

;3 I_ Touch START pad.

The oven wilt stop so TURH |

the food can be OUCR ]

checked. SEF'_R_T€]l PIECES I

The display will show: IHTO I

Close the door.

NOTE:

1 To defrost other foods above or below the weights

allowed on the SUPER DEFROST and DEFROST

CHARTS, use time and 30% power. See Manual

Defrost on page 11.

2. Any setting in the DEFROST can be programmed

with More or Less Time Adjustment. Touch the

POWER LEVEL pad once or twice before

touching START pad.

3. Touch HELP MENU pad when the HELP indicator

is lighted n the display for a helpful hint.

4. If you attempt to enter more or less than the

amount as indicated in the DEFROST chart, an

error message witl appear in the display.

SUPERDEFROSTCHART *IT IS NOT NECESSARY TO ENTER AMOUNT.

1. GROUND MEAT* l:01b At pause turn over removed any thawed pieces and break

remainder apart. At end, !et stand, Covered, for 3 t05 minut e&

2. BONELESS POULTRY* i0 At Pause, turn over and Separaie into pieces:At end, let Standl

covered, for 3 to 5 minutesl

3i BONEqN CHICKEN .......... 210Ib At pause; turn over and separate into piece& At end, let Stand,

PIECES* covered, for 3 to 5 minutes.

NOTEFOR SUPER DEFROST:

Super Defrost provides just enough defrosting that the foods can be used in recipes or for cooking. There witl be

some ice crystals remaining.

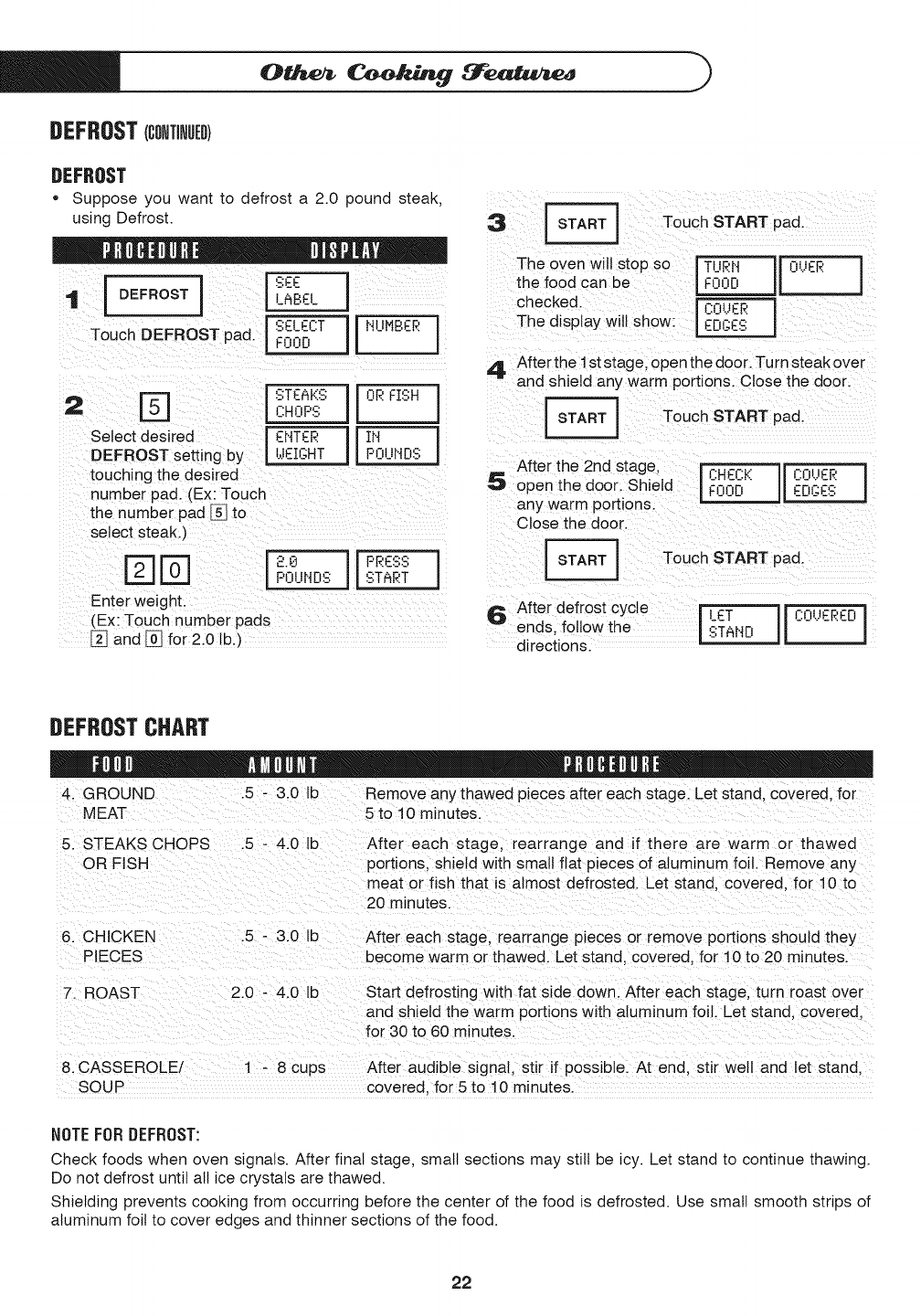

DEFROST(CONTINUED)

DEFROST

•Suppose you want to defrost a 2.0 pound steak,

using Defrost.

Touch DEFROST pad. r;ELEC:T

,_FOOD !IHUMBER

2F_ j,-;m_KSJ[OR_ISHJCH0F',_:;

Select desired [ EHTER 1JIt'1 1

DEFROST setting by Jt.,tEIC;HT I [_POUHDS J

touching the desired

number pad. (Ex: Touch

the number pad [] to

select steak.)

Enter weight.

(Ex: Touch number pads

2_ and [] for 2.0 lbj

3Touch START pad.

The oven will stop so

the food can be

checked.

The display will show

TURM il ,-,::_RI

FOOD II- ]

C:CUER ]

EDC4ES

4 After the 1st stage, open the door. Turn steak over

and shield any warm portions. Close the door

Touch START pad.

After the 2nd stage,

5 open the door. Shield

any warm portions.

Close the door.

IC:HEC:K lJ C:CUER j

FAr_JD EDC4ES

Touch START pad.

6 After deft°st cycte LET ]iC:O:.:EREC,

ends,followthe SThHD

directions.

DEFROSTCHART

4 GROUND :5 - 3,0 b Remove any thawed pieces after each stage. Let stand covered for

MEAT 5 to 10 minute&

5. STEAKS CHOPS 15 , 4.0 !b After each stage, rearrange and if there are warm or thawed

OR FISH portions shie!d with small flat pieces of a!uminum foi. Remove any

meat or fish that is alm0st defrosted. Let stand covered for 10 to

20 minute&

61 CHICKEN .5- 301b After each stage rearrange pieces or remove port ons shOUld they

PIECES become warm or thaWedl Let stand, Covered, for t 0 to20 minutes:

7: RoAsT 2:0- 410b start defr0sting With fat side d0Wnl After each Stage, turn roast over

and shield the warm portions with aluminum hi!, Let stand, covered,

for 30 to 60 minute&

& cASSEROLE! 8cups After audib!e signai' Stii if p0ssibiel At end, stir wet! and iet stand,

soup covered, for 5 to 10 minutes.

NOTEFOR DEFROST:

Check foods when oven signals. After final stage, small sections may still be icy. Let stand to continue thawing.

Do not defrost until all ice crystals are thawed.

Shielding prevents cooking from occurring before the center of the food is defrosted. Use small smooth strips of

aluminum foil to cover edges and thinner sections of the food.

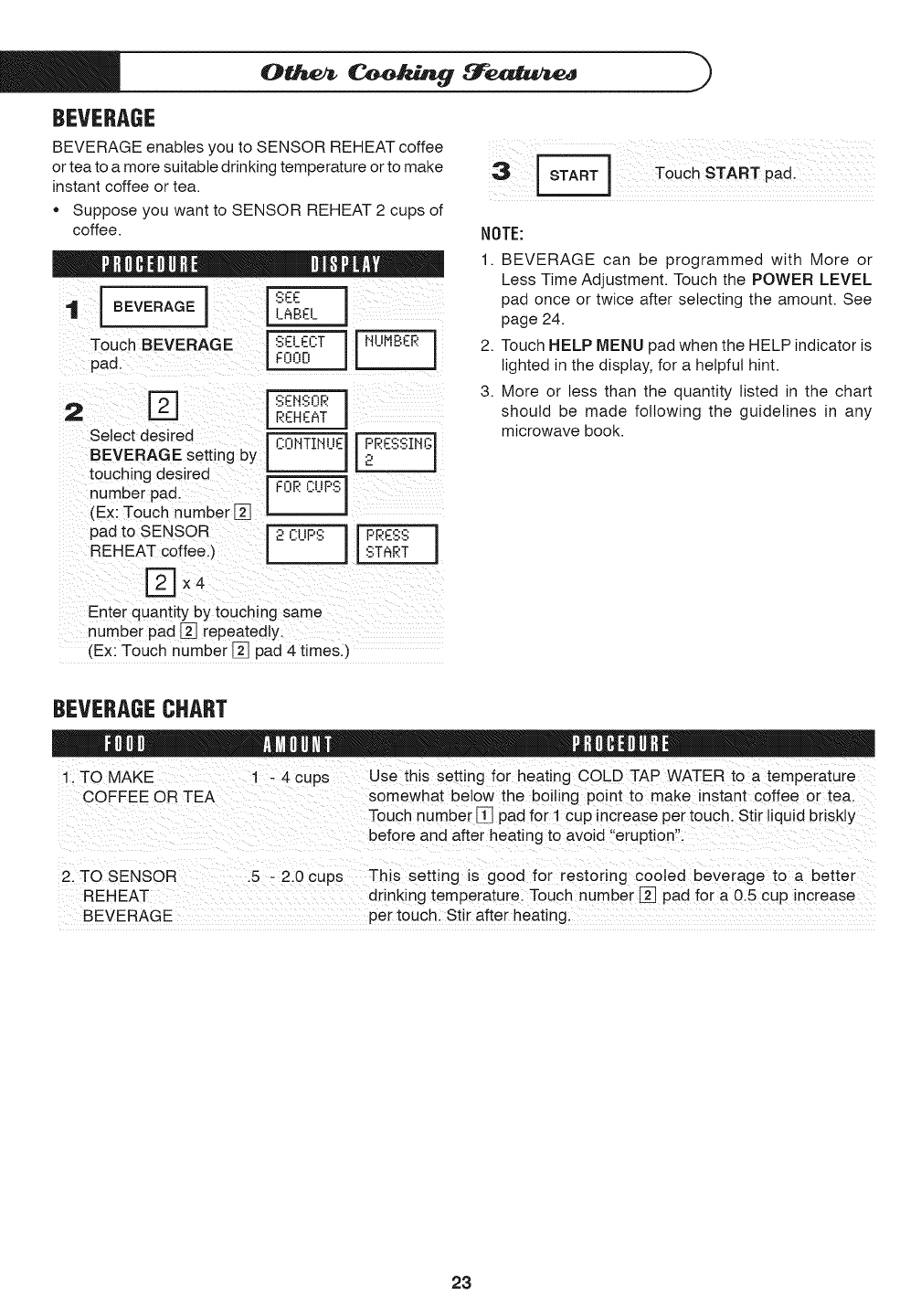

BEVERAGE

BEVERAGE enables you to SENSOR REHEAT coffee

or tea to a more suitable drinking temperature or to make

instant coffee or tea.

• Suppose you want to SENSOR REHEAT 2 cups of

coffee.

1[ ERAGE L_BEL

Touch BEVERAGE j S€L€CT i HUiIBCR i

d I FnnD I I

pa .L ....

=1_ l SCttSORREHE_T

BEVERAGE sett!ngby I C:Ot'IT[HUE SS[

touching desired

number pad. FORCUPS

(Ex: Tauch number []

pad to SENSOR 2 CUPS I PF%C;C; i

REHEAT coffee3

Touch START pad.

NOTE:

1. BEVERAGE can be programmed with More or

Less Time Adjustment. Touch the POWER LEVEL

pad once or twice after selecting the amount. See

page 24.

2. Touch HELP MENU pad when the HELP indicator is

lighted in the display, for a helpful hint.

3. More or less than the quantity listed in the chart

should be made following the guidelines in any

microwave book.

Enter quantity by touching same ......

number pad [] repeatedly;

(Ex: Touch number [] pad 4 times3

BEVERAGECHART

1 TO MAKE 1' 4cups Use this setting for heating COLD TAP WATER t0 a temperature

COFFEE OR TEA Somewhat below the boiling point to make instant coffee or teal

Touch number [_ pad ?0i 1CUP increase per t0Uchl stir liquid briskty

before and after heating to avoid t!eruption!!i

2. TOSENSOR 15 '2.0cups This setting is good for restoring cooled beverage to a better

REHEAT drinking temperaturel Touch number [] pad fora 0.5 cup increase

BEVERAGE per touchl Stir after heating:

m }

KEEPWARM

KEEP WARM allows you to keep food warm up to 30

minutes.

To use, simply touch the KEEP WARM pad and enter

the appropriate time (up to 30 minutes). You can also

program KEEP WARM with manual cooking to keep

food warm continuously after cooking.

DIRECTUSE

Suppose you want to keep a cup of soup warm for

15 minutes.

1KEEP

Touch KEEP WARM pad. JWARM J

Enter desired time. DD@F_

2 Touch START pad

The oven will start automatically. The display will

show ]s.ee and count down. _::EEP /.JP,F'.Itwill appear

in the display every 10 seconds.

WITHMANUALCOOKING

* Suppose you want to cook a cup of soup for 2 minutes

at 70% and keep the soup warm for 15 minutes.

I Enterc00kingtimel [_ @ E_

2 T°uc h POWER LEVEL pad I POWER lX4

4 times for 70% power: LEVEL j

WARM

DDDD

The operation wi!! start-When the c0oking time is

complete; a long tone will sound and KEEP WARM

wi!!start. I<EEF' tJ_,RMWil!apPearinthedisPlayevery

lO seconds and count down for 15 minutes

NOTE:

1. To use KEEP WARM after previous cooking has

ended, touch KEEP WARM pad within 3 minutes

after cooking, closing the door or touching the

STOP/CLEAR pad.

2. KEEP WARM cannot be programmed with

SPECIAL FEATURES.

MULTIPLESEQUEHCECOOKING

Your oven can be programmed for up to 4 automatic

cooking sequences, switching from one power level

setting to another automatically.

Sometimes cooking directions tell you to start on one

power level and then change to a different power

bevel. Your oven can do this automatically.

*Suppose you want to cook roast beef for 5 minutes

at 100% and then continue to cook for 30 minutes

at 50%.

&,,,,,, .im m q l

,d First enterc0°king timel [_ F_ E_

| Then touch POWER

LEVEL pad foil 00%

power; jb_V_b j

2Then ente[ _

cooking time. _ _ _ @

Touch POWER LEVEL .-

6times for50% | POWER | !

LEVEL x o

power | | ....

3 TouCh START pad:

NOTE:

1. If 100% is selected as the final sequence, it is not

necessary to touch the POWER LEVEL pad.

2. If you wish to know power bevel, simply touch the

POWER LEVEL pad. As long as your finger is touch-

ing the POWER LEVEL pad, the power level will be

displayed.

3. KEEP WARM can be programmed continuously

even if 4 cooking sequences have been set.

MOREORLESSTIME ADJUSTMEHT

Should you discover that you like any of the SENSOR

or Other Cooking Features (except for DINNER MENU

and QUICK RECIPES) settings slightly more done,

touch the POWER LEVEL pad once before touching

the START pad.

The display will show _.

Should you discover that you like any of the SENSOR

or Other Cooking Features (except for DINNER MENU

and QUICK RECIPES) settings slightly less done, touch

the POWER LEVEL pad twice before touching the

START pad.

The display will show _.

HELPMENU

HELP MENU provides 5 features which make using

your oven easy because specific instructions are

provided in the interactive display.

1. CHILDLOCK

The Child Lock prevents unwanted oven operation

such as by small children. The oven can be set so

that the control panel is deactivated or locked. To

set, touch HELP MENU, the number [_ and START

pads. Should a pad be touched, _ _ wilt

appear in the display.

To cancel, touch HELP MENU and STOP/CLEAR pads.

2. AUDIBLESIGNALELIMINATION

If you wish to have the oven operate with no audible

signals, touch HELP MENU, the number [_ and

STOP/CLEAR pads.

To cancel and restore the audible signal, touch

HELP MENU, the number [_ and START pads.

3. AUTOSTART

If you wish to program your oven to begin cooking

automatically at a designated time of day, follow this

procedure:

• Suppose you want to start cooking a stew for 20

minutes on 50% at 4:30. Before setting, check to make

sure the clock is showing the correct time of day.

1 Touch HELP MENU pad. HELP

2. If the oven door is opened after programming

Auto Start, it is necessary to touch the START pad

for Auto Start time to appear in the readout so that

the oven will automatically begin programmed cook-

ing at the chosen Auto Start time.

3. Be sure to choose foods that can be left in the oven

safely until the Auto Start time. Acorn or butternut

squash are often a good choice.

4. If you wish to know the time of day, simply touch the

CLOCK pad. As long as your finger is touching the

CLOCK pad, the time of day will be displayed.

4. LANGUAGE/WEIGHTSELECTION

The oven comes set for English and U.S. Customary

Unit-pounds. To change, touch HELP MENU and the

number [] pads. Continue to touch the number [] pad

until your choice is selected from the table below. Then,

touch START pad.

Touch number [] pad for language and standard of

weight.

Twice English KG ENGLISH

4 times Spanish KG ESPANOL

f_ Touch number [_]

;_ Enter the start time.

'4 Touch TIMER/

CLOCK pad.

E]D@

f T'ME"-1

.,_ Ente[[ookJng F_ F_ E_ F0"]

p g ! POWER]

J_ LEVEL J X6

6 Touch STARTpad. I START I

NOTE:

1. Auto Start can be used for manual cooking if clock

is set.

6 times French KG FRANCAIS

5. CLOCKON/OFF

If you wish to turn the clock display off, touch HELP

MENU, the number [] and STOP/CLEAR pads.

To cancel and restore the clock, touch HELP MENU,

the number [] and START pads.

HELP

Each setting of SENSOR provides a cooking hint. If

you wish to check, touch HELP MENU pad whenever

HELP is lighted in the Interactive Display for these hints.

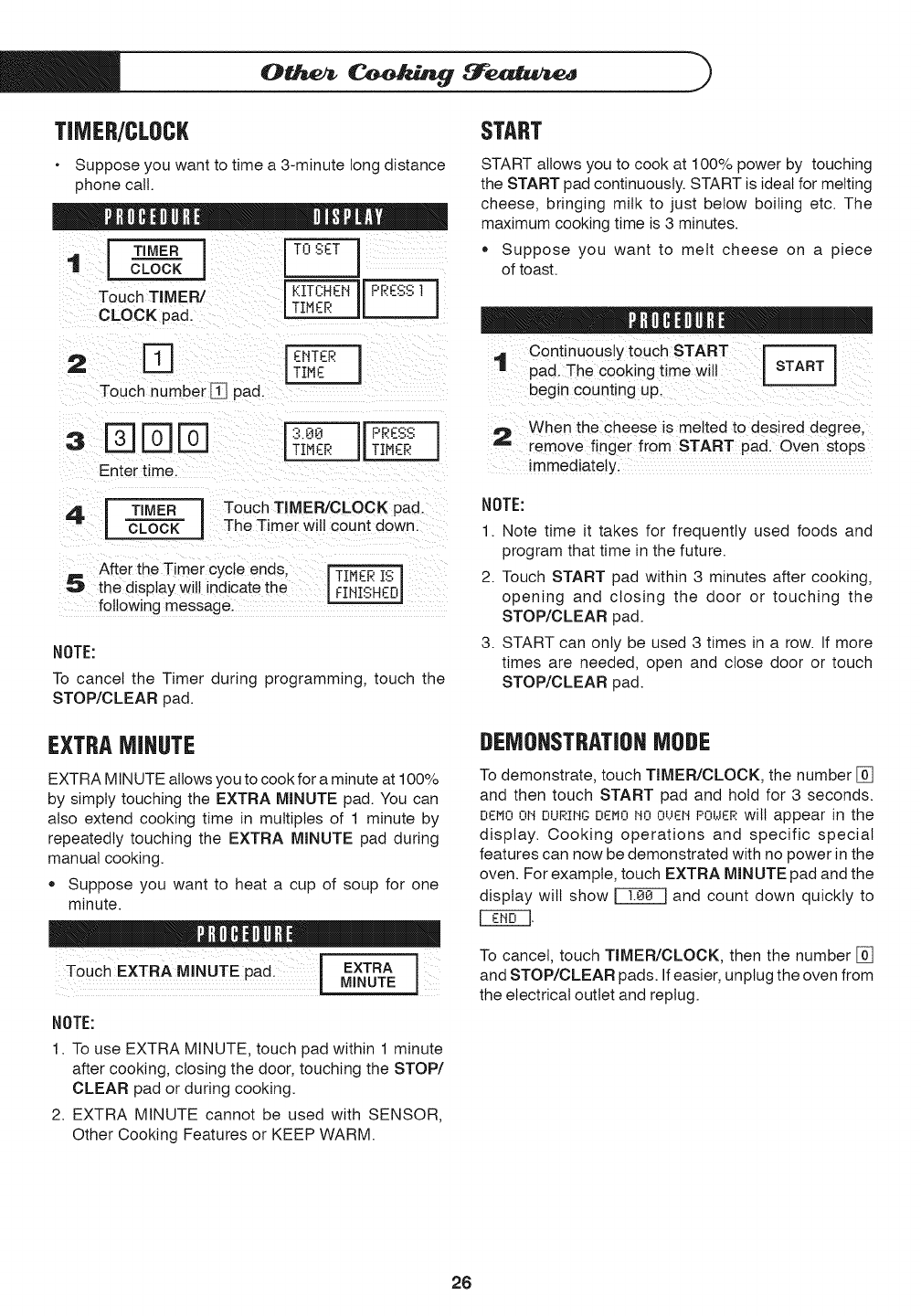

TIMER/CLOCK

Suppose you want to time a 3-minute long distance

phone call.

J TIMER iITOSET1-':'-

1_ [ CLOCK j

Touch TIMER/ IKITCHEt"IJ_

CLOCK pad. [ T_ h J

2 rq

Touch number [_ pad.

Enter time.

IPRESS

ITIMER I[T_

TIMER

4 I CLOCK I T°uchTIMER/CLOCKp ad-The Timer will count down.

After the Timer cycle ends, I TIMCRIS--_

5 the display wilt indicate the

following message.

NOTE:

To cancel the Timer during programming, touch the

STOP/CLEAR pad.

START

START allows you to cook at 100% power by touching

the START pad continuously. START is ideal for melting

cheese, bringing milk to just below boiling etc. The

maximum cooking time is 3 minutes.

* Suppose you want to melt cheese on a piece

of toast.

''1 I 'l

/i i ii _ i i i

1 COntin uous!y touch START

pad The c0°king time wil! I _' I

begin€ountingUp,

When the cheese is melted to desiied deg[ee,

remove finger from START pad. Oven stops

immediately_

NOTE:

1. Note time it takes for frequently used foods and

program that time in the future.

2. Touch START pad within 3 minutes after cooking,

opening and closing the door or touching the

STOP/CLEAR pad.

3. START can only be used 3 times in a row. If more

times are needed, open and close door or touch

STOP/CLEAR pad.

EXTRAMINUTE

EXTRA MINUTE allows you to cook for a minute at 100%

by simply touching the EXTRA MINUTE pad. You can

also extend cooking time in multiples of 1 minute by

repeatedly touching the EXTRA MINUTE pad during

manual cooking.

• Suppose you want to heat a cup of soup for one

minute.

''1 I '

Touch EXTRA MINUTE pad: _ ]

NOTE:

1. To use EXTRA MINUTE, touch pad within 1 minute

after cooking, closing the door, touching the STOP/

CLEAR pad or during cooking.

2. EXTRA MINUTE cannot be used with SENSOR,

Other Cooking Features or KEEP WARM.

DEMONSTRATIONMODE

To demonstrate, touch TIMER/CLOCK, the number []

and then touch START pad and hotd for 3 seconds.

DEMO Obl DUF.:[Hr4 DEMO NO OUEH PO[JER wilt appear in the

display. Cooking operations and specific special

features can now be demonstrated with no power in the

oven. For example, touch EXTRA MINUTE pad and the

display wilt show _ and count down quickly to

To cancel, touch TIMER/CLOCK, then the number []

and STOP/CLEAR pads. If easier, unplug the oven from

the electrical outlet and replug.

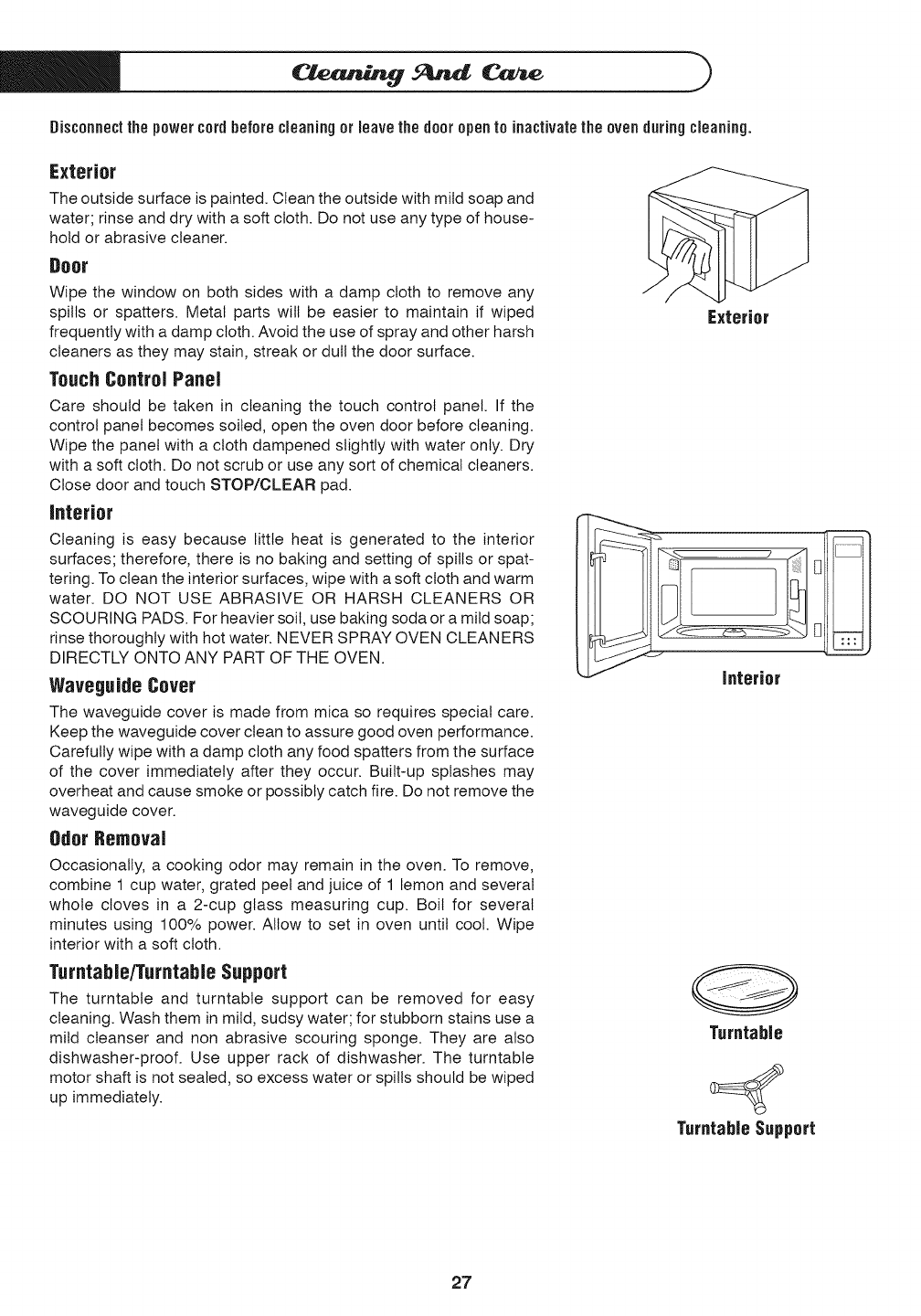

Disconnectthepowercordbeforecleaningor leavethe dooropento inactivatetheover=duringcleaning.

Exterior

The outside surface is painted. Clean the outside with mild soap and

water; rinse and dry with a soft cloth. Do not use any type of house-

hold or abrasive cleaner.

Door

Wipe the window on both sides with a damp cloth to remove any

spills or spatters. Metal parts wilt be easier to maintain if wiped

frequently with a damp cloth. Avoid the use of spray and other harsh

cleaners as they may stain, streak or dull the door surface.

Touch Control Panel

Care should be taken in cleaning the touch control panel. If the

control panel becomes soiled, open the oven door before cleaning.

Wipe the panel with a cloth dampened slightly with water only. Dry

with a soft cloth. Do not scrub or use any sort of chemical cleaners.

Close door and touch STOP/CLEAR pad.

interior

Cleaning is easy because little heat is generated to the interior

surfaces; therefore, there is no baking and setting of spills or spat-

tering. To clean the interior surfaces, wipe with a soft cloth and warm

water. DO NOT USE ABRASIVE OR HARSH CLEANERS OR

SCOURING PADS. For heavier soil, use baking soda or a mild soap;

rinse thoroughly with hot water. NEVER SPRAY OVEN CLEANERS

DIRECTLY ONTO ANY PART OF THE OVEN.

Waveguide Cover

The waveguide cover is made from mica so requires special care.

Keep the waveguide cover clean to assure good oven performance.

Carefully wipe with a damp cloth any food spatters from the surface

of the cover immediately after they occur. Built-up splashes may

overheat and cause smoke or possibly catch fire. Do not remove the

waveguide cover.

Odor Removal

Occasionally, a cooking odor may remain in the oven. To remove,

combine 1 cup water, grated peel and juice of 1 lemon and several

whole cloves in a 2-cup glass measuring cup. Boil for several

minutes using 100% power. Allow to set in oven until cool. Wipe

interior with a soft cloth.

Turntable/Turntable Support

The turntable and turntable support can be removed for easy

cleaning. Wash them in mild, sudsy water; for stubborn stains use a

mild cleanser and non abrasive scouring sponge. They are also

dishwasher-proof. Use upper rack of dishwasher. The turntable

motor shaft is not sealed, so excess water or spills should be wiped

up immediately.

Exterior

Turntable

Turntable Support

AC Line Voltage: Sing!e phaSe i20V, 60Hz, AC only

Outside Dimensions: 24"(W) x 13 3/8"(H) x 19 %"(D)

Weight: Approx. 46 lb

_r The International Electrotechnical Commission's standardized method for measuring output wattage. This

test method is widely recognized.

In compliance with standards set by:

FCC - Federal Communications Commission Authorized.

DHHS - Complies with Department of Health and Human Services (DHHS) rule, CFR, Title 21, Chapter I,

Subchapter J.

- This symbol on the nameplate means the product is listed by Underwriters Laboratories, Inc.

Please check the following before calling for service:

Place one cup of water in a glass measuring cup in the oven and close the door securely.

Operate the oven for one minute at HIGH 100%.

.& Does the oven light come on? YES ____ NO ____

B Does the cooling fan work? YES ___ NO ____

(Put your hand over the rear ventilating openings.)

C Does the turntable rotate? YES NO

(It is normal for the turntable to turn in either direction.)

D Is the water in the oven warm? YES NO

If "NO" is the answer to any of the above questions, please check electrical outlet, fuse and/or circuit

breaker, if they are functioning properly, CONTACT YOUR NEAREST DCS AUTHORIZED SERVICER or

DCS service at 1-888-281=5698.

A microwave oven should never be serviced by a "do-it=yourself" repair person.

NOTE:

If time appearing in the display is counting down very rapidly, check Demonstration Mode on page 26 and cancel.

Length of Warranty

One (1) year parts and labor. The warranty period continues for an additional four (4) years,

for a total of five (5) years, with respect to the magnetron tube in the Product for parts only;

labor and service are not provided free of charge for this additional period.

DCSWill Pay For

All repair labor and parts found to be defective due to materials or workmanship for one full

year from date of purchase. Service must be provided by Authorized Factory Agent during

normal working hours.

DCSWill HotPayFor

Installation or start-up.

Shipping damage.

Service by an unauthorized agency.

Damage or repairs due to service by an unauthorized agency or the use of unauthorized

parts.

Service during other than normal working hours

Improper installation, such as improper hook-up, etc.

Service visits to teach you how to use the appliance; correct the installation; reset circuit

breakers or replace home fuses

Repairs due to other than normal household use.

Damage caused from accident, abuse, alteration, misuse, incorrect installation or instal-

lation not in accordance with local codes

Units installed in non-residential application such as day care centers, bed and breakfast

centers, churches, nursing homes, restaurants, hotels, schools, etc.

This warranty applies to appliances used in residential applications; it does not cover their

use in commercial situations.

This warranty is for products purchased and retained in the 50 states of the U.S.A., the

District of Columbia and Canada. This warranty applies even if you should move during the

warranty period. Should the appliance be sold by the original purchaser during the warranty

period, the new owner continues to be protected until the expiration date of the original

purchaser's warranty period.

This warranty gives you specific legal rights. You may also have other rights which vary from

state to state.

For service call 1-888-281-5698.

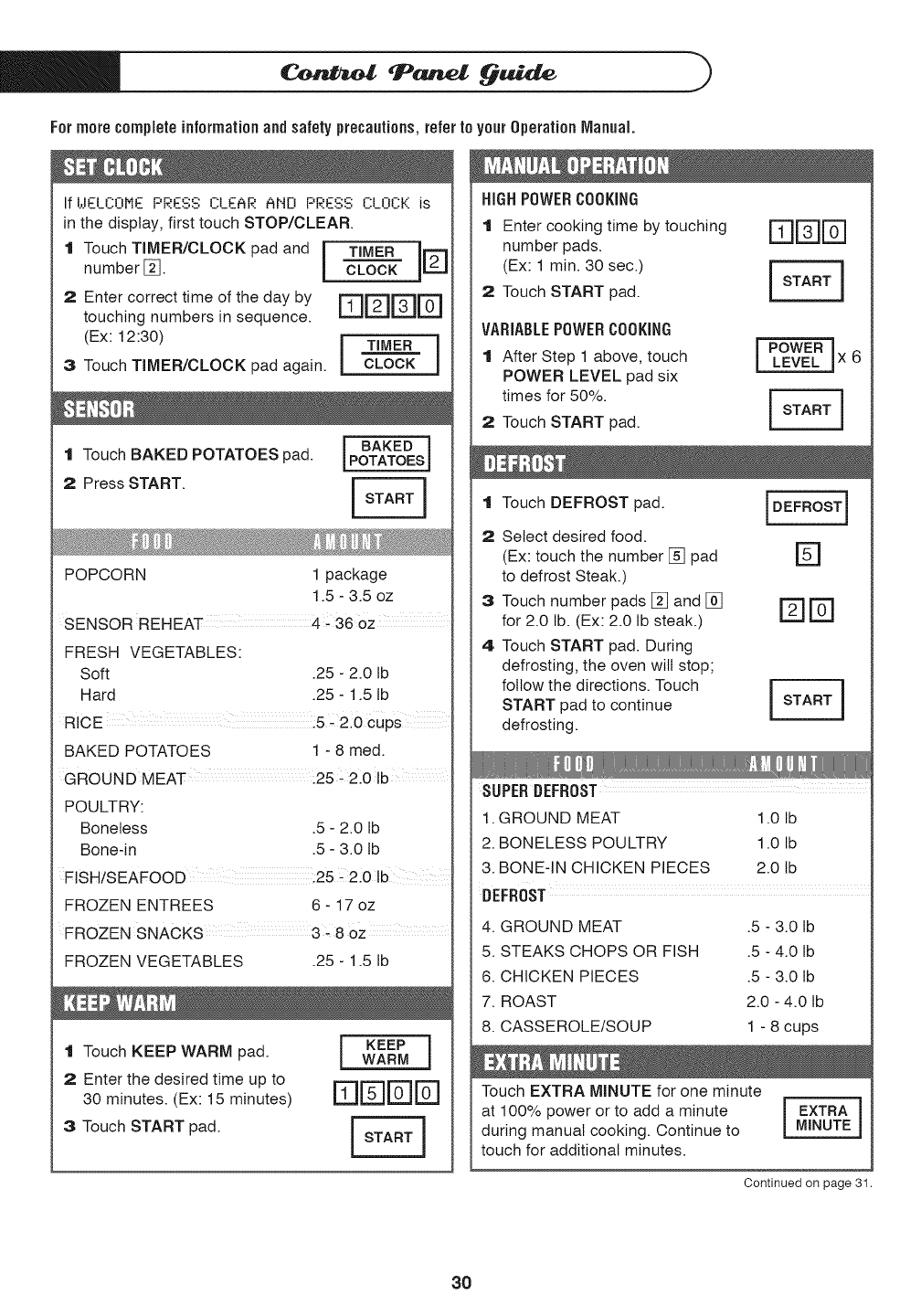

For more completeinformationandsafety precautions,refer to your OperationIVlanual.

IfI:.IO_COMEPRESS CLEAR AL-IDPRESS CI_nL-:Kis

inthe display,firsttouch STOPIOLEAR

I Touch TIMER/CLOCK pad and i

number []. 1

2 Enter correct time of the day by

touching numbers in sequence.

(Ex: 12:30)

3 Touch TIMER/CLOCK pad again.

T,MERilTI

CLOCK

DE]DE]

TIMER i

CLOCK

I Touch BAKED POTATOES pad.

2 Press START.

BAKED

POTATOESi

POPCORN 1 package

1.5 - 3.5 oz

SENSOR REHEAT 4- 36oz

FRESH VEGETABLES:

Soft .25 - 2.0 Ib

Hard .25 - 1.5 Ib

RICE :5 -2.0 Cups

BAKED POTATOES 1 - 8 med.

GROUND MEAT !25- 2.0 Ib

POULTRY:

Boneless .5 - 2.0 Ib

Bone-in .5 - 3.0 lb

FISHISEAFOOD ;25 _2.0 Ib

FROZEN ENTREES 6 - 17 oz

FROZEN SNACKS 3- 8 oz

FROZEN VEGETABLES .25 - 1.5 Ib

I Touch KEEP WARM pad.

2 Enter the desired time up to

30 minutes. (Ex: 15 minutes)

3 Touch START pad.

i KEEP

WARM

FI@@@

HIGHPOWERCOOKING

I Enter cooking time by touching r_r_r_

number pads.

(Ex: 1 min. 30 sec.)

2 Touch START pad.

VARIABLEPOWERCOOKING

I After Step 1 above, touch

POWER LEVEL pad six

times for 50%.

2 Touch START pad.

IPOWER I ^

_xu

, ouchOEF.OSZpad.IO F°OSTI

2 Select desired food.

(Ex: touch the number [] pad El

to defrost Steak.)

Touch number pads [] and []

for 2.0 lb. (Ex: 2.0 Ib steak.)

Touch START pad. During

defrosting, the oven witl stop;

follow the directions. Touch

START pad to continue

defrosting.

3 E]E]

SUPERDEFROST

1. GROUND MEAT 1.0 Ib

2. BONELESS POULTRY 1.0 Ib

3. BONE-IN CHICKEN PIECES 2.0 tb

DEFROST

4. GROUND MEAT

5. STEAKS CHOPS OR FISH

6. CHICKEN PIECES

7. ROAST

8. CASSEROLE/SOUP

.5 - 3.0 Ib

.5 - 4.0 Ib

.5 - 3.0 Ib

2.0 - 4.0 Ib

1 - 8 cups

Touch EXTRA MINUTE for one minute

at 100% power or to add a minute

during manual cooking. Continue to

touch for additional minutes.

I EXTRAI

Continued on page 31.

I Touch BREAKFAST MENU pad.

}

2Select desired food.

(Ex: touch the number [_] pad

for hot cereal.)

3Touch number [_ pad for [-_

2 servings.

4 Touch START pad. I START I

I BREAKFAST IMENU

1. SCRAMBLED EGGS 1 - 9 eggs

21BACON 2:6 slices

3. HOT CEREAL 1 - 6 servings

4. HEAT ROLLS/MUFFINS i -10 pieces

5. FROZEN BREAKFAST 1 (3- 6 oz)

FOODS

I Touch LUNCH MENU pad.

2Select desired food. (Ex: touch

the number [_] pad for soup.)

3Touch START pad.

J LUNCH I

1. MEALINACUP 1cup (6- 8 oz)

2. HOTDOGSIN BUNS t_4

3. SOUP 1 - 8 cups

4i MICROWAVE PIZZA i (6 - 80z)

5. FROZEN SANDWICH 1 (3- 6 oz)

I Touch BEVERAGE pad. BEVERAGE 1

2 Select desired BEVERAGE 1

setting. (Ex: touch the number

[_ pad to SENSOR REHEAT [_

coffee.)

3Touch number [_ pad 4 times [_] x 4

for 2 cups.

4Touch START pad. I START I

1. TO MAKE COFFEE OR TEA 1 - 4 cups

2. TO REHEAT BEVERAGE :5,2.0 cups

RECYCLED PAPER

PRINTEDiN USA 31

I Touch DINNER MENU pad. DINNER

2 Select desired food.

(Ex: touch number pad []_

for Hawaiian Pork.)

3Touch START pad.

SEERECIPECARDFORDETAILS.

1. SAUCY CHICKEN 4. GLAZED SALMON

2. HAWAIIAN PORK 5. HEALTHY FRITTATA

3. FIESTA CHILI

I Touch QUICK RECIPES pad. j

[

2 Select desired recipe. (Ex: touch

number [_ pad for Italian Salad.)

3Touch START pad.

QUICK

RECIPES

[Z]

SEERECIPECARDFORDETAILS.

1. BEEF WRAPS 4. TUNA MACARONI

2. MEXICAN CHICKEN 5. GARDEN MEDLEY

3. ITALIAN SALAD

Continuously touch START pad

for 100% power cooking.

Remove finger and oven will

stop instantly.

As product improvement is an ongoing process at DCS,

we reserve the right to change specifications or design

without notice.

5800 Skylah Road, Huntington Beach, CA. 82647

Tel: (714) 372-7000 Fax: (714) 372-7001

Parts/Cust0merService (888) 281-5698

TINSEB290MRK2

P/N 17422 Rev,B 6/04

DCS (DYNAMIC COOKING SYSTEMS) Countertop Microwave Manual L0908098

Navigation menu

Versions of this User Manual:

Views

Navigation
