User Manual
Contents
Get started ..........................................................................
1
Key and parts .....................................................................
3
Lock and Unlock the screen .............................................
4
Make it yours ......................................................................
5
Add Widgets and more icons............................................
6
to Home Screen ..................................................................
6
Enter launcher ....................................................................
7
Make a call ..........................................................................
9
Call log ..............................................................................
10

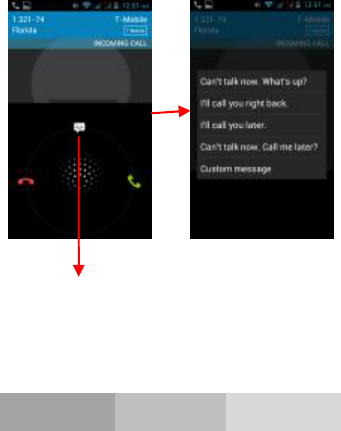

Reject a call by SMS ........................................................ 11

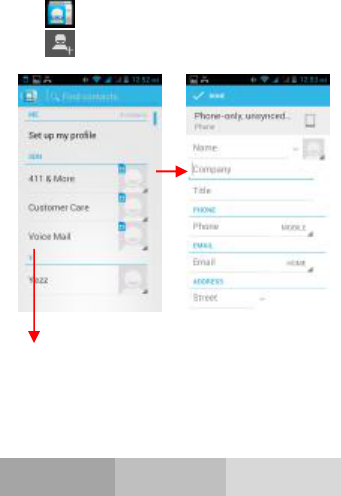

Add a contact ...................................................................
12
Send and Receive message(s) .......................................
13
Browser the Web ..............................................................
16
Enjoy music ......................................................................
17

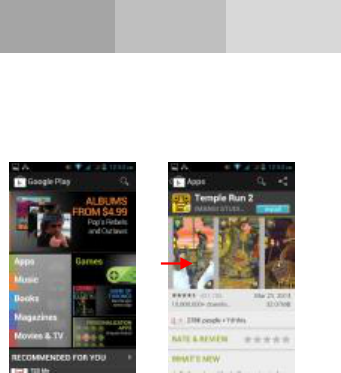

Download applications ....................................................
18
From android market .......................................................
18

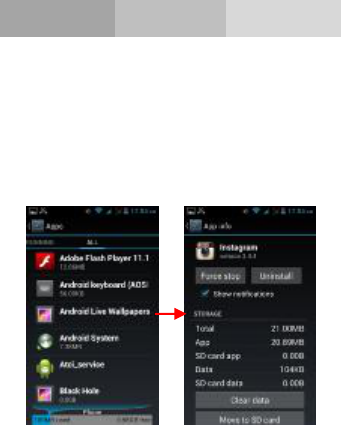

Manage Applications .......................................................
19
Important Safety Information ..........................................
20
1
Get started
Insert SIM card
The phone is a Dual SIM mobile phone allowing you to use
two different carriers.
To insert SIM card(s):
1. Turn off the mobile phone and remove the rear cover
and
battery.
2. Insert the SIM card correctly in the card slot(s) (See
figure below)
PDF pdfFactory Pro www.fineprint.cn
2
3. Finally insert the battery and replace the rear cover of
the mobile phone.
Insert Memory card
1. Turn off the mobile phone and remove the rear cover
and battery.
2. Insert the Micro SD card into the slot.
3. Finally insert the battery and the rear cover of the mobile
phone.
Note: Use only compatible memory cards for this device.
Incompatible memory cards may damage the card or the
Micro SD card
SIM
2
Card
SIM
1
Card
PDF pdfFactory Pro www.fineprint.cn
3
device and corrupt the data stored in the card.
Charge the Battery or Connect to a computer
You can charge your battery using the charger or connect
the USB cable (supplied with this phone) to the computer.
Note: Please use the specific battery, otherwise it may
cause explosion.
Key and parts
The smart phone gives you a great experience on Camera,
Video recorder, FM radio, Music and Sound recorder. Let
you install various APPs, games, and more (supports APK
format) by downloading it from Google Play Store.
PDF pdfFactory Pro www.fineprint.cn
6
2. Notification Bar: At the top of the screen, the Status
Bar displays the time, status, and notifications. If there is a
new message, missed call or any new notification, you can
drag it down to open the notification panel and click the
desired one to look at it. When you finished, you can close
it by dragging the panel up or pressing “Back”.
Add Widgets and more icons
to Home Screen
Press and hold Home Screen to modify wallpaper, or enter
PDF pdfFactory Pro www.fineprint.cn
7
Launcher
and press and hold
an application till the screen
vibrates, and then release your finger.
Press and hold the widget or icon you want to move. Once
the phone vibrates, don’t release your hold on the icon.
Drag the widget or icon to a new location on the screen.
Press and hold on an icon till the phone vibrates, and drag
the widgets or icon to the trash to remove!
Enter launcher
Open and Switch Applications
PDF pdfFactory Pro www.fineprint.cn
8
At idle screen touch enter launcher.
The Launcher holds icons for all of the applications on your
phone, including any application that you downloaded from
Android Market or other sources
Press Home icon or Back icon to close the Launcher.

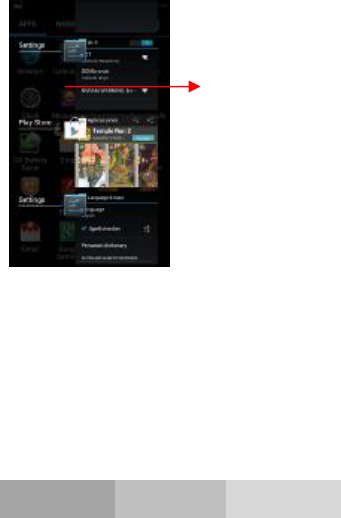

Switch to Recently Used Application
Press home key and hold the icon for a few seconds.
Slide the Launcher
left or r
ight to bring
more icons
Touch an application
to open it
PDF pdfFactory Pro www.fineprint.cn
14
Touch enter messaging, touch compose new
message
When you are composing a new text message, you can
select text to cut or copy. The selected text is highlighted in
blue.
Tap to add an attachment, including Pictures,
Touch once to capitalize the
next letter you
type. Touch
and hold for caps.
Press space or a punc
tuation
mark to enter the highlighted
suggestion.
Tap this icon to select
desired contact from
phonebook.
PDF pdfFactory Pro www.fineprint.cn
16
Browser the Web
a. Set up Internet/Data connection
Enter Settings > More…, scroll down to find out Mobile
network, and then enter “Access Points Names”, choose
the desired WAP account.
b. Switch on Data connection or WiFi
To browse the web, you need to switch on Data
connection. If there is WiFi around, you can switch on WiFi
to browse the web.
Touch the icon in the
notifications bar to switch
on or off Data connection
PDF pdfFactory Pro www.fineprint.cn
20
Important Safety Information
Access Codes
PIN code
The Personal Identification Number (PIN code) protects
your SIM card against unauthorized use. Your SIM card
usually supplies the PIN code. The password can be
obtained from your service provider. If the incorrect PIN
code occurred three times in succession, you may need to
key in PUK code.
PUK code
The Personal Unlocking Key (PUK code) is required to
change a blocked PIN code. The PUK2 code is required to
change a blocked PIN2 code. The password can be
obtained from your service provider. If you key in an
incorrect PIN2 code three times in succession, you may
need to key in the PUK2 code. If an incorrect PUK or
PUK2 code is used, the SIM card cannot be used anymore
and you might need to contact your service provider for a
new card.
Radio frequency energy
Your mobile phone is a radio transmitter and receiver.
When the phone is turned on, it receives and transmits
radio frequency (RF) energy. Depending on the type of
mobile phone you posses, it operates on different
frequency ranges and employs commonly used
modulation techniques. The system handles your call
when you are using your phone and it also controls the
power level at which your phone transmits.
PDF pdfFactory Pro www.fineprint.cn
21
Specific Absorption Rate (SAR) information.
Your phone has been designed to comply with applicable
safety requirements for exposure to radio waves. These
requirements are based on scientific organizations through
periodic and thorough evaluation of scientific studies.
These guidelines include safety margins designed to
assure the safety of all persons, regardless of age and
health.
l The radio wave exposure guidelines employ a unit of
measurement known as the Specific Absorption Rate,
or SAR. Tests for SAR are conducted by using
standardized method with the phone transmitting at its
highest certified power level in all used frequency
bands.
l This phone is designed to meet the relevant guidelines
for exposure to radio waves.
l The SAR limit recommended by the international
Commission on Non-Ionizing Radiation Protection
(ICNIRP) is 2W/kg averaged over ten (10) grams of
tissue.
SAR data information for residents in countries/regions
that have adopted the SAR limit recommended by the
Institute of Electrical and Electronics Engineers (IEEE) is
1.6 W/kg averaged over one (1) gram of tissue.
Electronic devices
Most modern electronic equipment is shielded from RF
energy. However, certain electronic equipment may not be
shielded against the RF signals from your wireless phone,
therefore:
PDF pdfFactory Pro www.fineprint.cn
22
l Do not use your mobile phone near medical equipment
without requesting permission.
Pacemaker
Mobile phones may affect the operation of some implanted
cardiac pacemakers and other medically implanted
equipments. Pacemaker manufacturers recommend that a
minimum separation of 20 cm. (6 inches) should be
maintained between a hand-held wireless phone and a
pacemaker to avoid potential interference with the
pacemaker. These recommendations are consistent with
independent research by the Wireless Technology
Research Association.
Persons with pacemakers
l Should always keep the phone more than 20 cm. (6
inches) from their pacemakers when the phone is
switched on
l Should not carry the phone in a breast pocket.
l Should use the ear opposite to the pacemaker to
minimize the potential for interference.
l If you have any reason to suspect that interference is
taking place, switch off your phone immediately
Hearing aids
l Some hearing aids might be disturbed by mobile
phones. In the event of such disturbance, you may want
to consult your service provider, or call the customer
service line to discuss alternatives.
Aircraft
l Turn off your mobile phone before boarding any aircraft.
PDF pdfFactory Pro www.fineprint.cn
23
l
Do not use it on the ground without crew permission.
To
prevent interference with communication systems, you
must not use your mobile phone while the plane is in
the air.
Potentially explosive atmospheres
Switch off your phone when in any area with a potentially
explosive atmosphere and obey all signs and instructions.
It is rare, but your phone or its accessories could generate
sparks. Sparks in such areas could cause an explosion or
fire resulting in bodily injury or even death. Areas with a
potentially explosive atmosphere are often, but not always,
clearly marked. They include fuelling areas, such as petrol
station, below deck on boats, fuel or chemical transfer or
storage facilities, and areas where the air contains
chemicals or particles, such as grain, dust, or metal
powders, and any other area where you would normally be
advised to turn off your vehicle engine.
Driving
Check the laws and regulations on the use of mobile
phones in the areas where you drive. If you are going to
use your phone while driving, please:
l Give full attention to driving.
l Use the “handsfree” setting. (Required by law in many
countries).
l Pull off the road and park before making or answering a
call if driving conditions so require.
RF energy may affect some electronic systems in motor
vehicles such as the car stereo, safety equipment etc .In
addition, some vehicle manufacturers do not allow use of
mobile phones, unless the installation is supported by a
PDF pdfFactory Pro www.fineprint.cn
24
handsfree kit with an external antenna in their vehicles.
Check with your vehicle manufacturer’s representative to
be sure that your mobile phone will not affect the electronic
systems.
Emergency calls
Important:
This phone, like any wireless phone, operates using radio
signals, wireless and landline networks as well as user
programmed functions. Because of this connections in all
conditions cannot be guaranteed. Therefore, you should
never rely solely upon any wireless phone for essential
communications (e.g. medical emergencies).
Emergency calls may not be possible on all wireless
phone networks or when certain network services and/or
phone features are in
FCC Caution.
§ 15.19 Labelling requirements.
This device complies with part 15
of the FCC Rules. Operation is
subject to the following two
conditions: (1) This device may
PDF pdfFactory Pro www.fineprint.cn
25
not cause harmful interference,
and (2) this device must accept
any interference received,
including interference that may
cause undesired operation.
§ 15.21 Information to user.
Any Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to operate
the equipment.
§ 15.105 Information to the user.
Note: This equipment has been
tested and found to comply with
the limits for a Class B digital
device, pursuant to part 15 of the
PDF pdfFactory Pro www.fineprint.cn
26
FCC Rules. These limits are
designed to provide reasonable
protection against harmful
interference in a residential
installation. This equipment
generates uses and can radiate
radio frequency energy and, if not
installed and used in accordance
with the instructions, may cause
harmful interference to radio
communications. However, there
is no guarantee that interference
will not occur in a particular
installation. If this equipment does
cause harmful interference to radio
or television reception, which can
be determined by turning the
equipment off and on, the user is
PDF pdfFactory Pro www.fineprint.cn
27
encouraged to try to correct the
interference by one or more of the
following measures:
-Reorient or relocate the receiving
antenna.
-Increase the separation between
the equipment and receiver.
-Connect the equipment into an
outlet on a circuit different from
that to which the receiver is
connected.
-Consult the dealer or an
experienced radio/TV technician
for help.
Specific Absorption Rate (SAR)
information:
PDF pdfFactory Pro www.fineprint.cn
28
This
GSM Mobile Phone
meets
the government's requirements for
exposure to radio waves. The
guidelines are based on standards
that were developed by
independent scientific
organizations through periodic and
thorough evaluation of scientific
studies. The standards include a
substantial safety margin designed
to assure the safety of all persons
regardless of age or health.
FCC RF Exposure Information
and Statement The SAR limit of
USA (FCC) is 1.6 W/kg averaged
over one gram of tissue. Device
types: A4 (FCC ID: A4JANDYA4) has
also been tested against this SAR
PDF pdfFactory Pro www.fineprint.cn
1.01
0.37
limit. The highest SAR value
reported under this standard
during product certification for use
at the ear is W/kg and when
properly worn on the body is
W/kg. This device was tested
for typical body-worn operations
with the back of the handset kept
1.5cm from the body. To maintain
compliance with FCC RF
exposure requirements, use
accessories that maintain a 1.5cm
separation distance between the
user's body and the back of the
handset. The use of belt clips,
holsters and similar accessories
should not contain metallic
components in its assembly. The
use of accessories that do not
satisfy these requirements may not
comply with FCC RF exposure
requirements, and should be
avoided.
Body-worn Operation
This device was tested for typical
body-worn operations. To comply
with RF exposure requirements, a
minimum separation distance of
1.5 cm must be maintained
between the user’s body and the
handset, including the antenna.
Third-party belt-clips, holsters,
and similar accessories used by
this device should not contain any
metallic components. Body-worn
