Polk Audio wireless adapter Users Manual

Users Manual

2

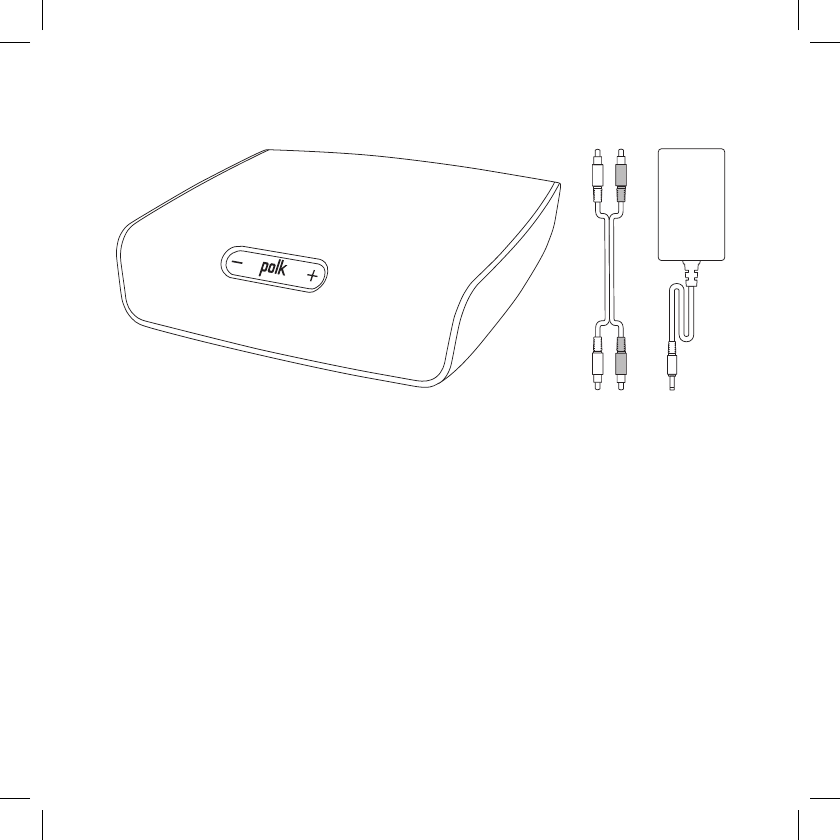

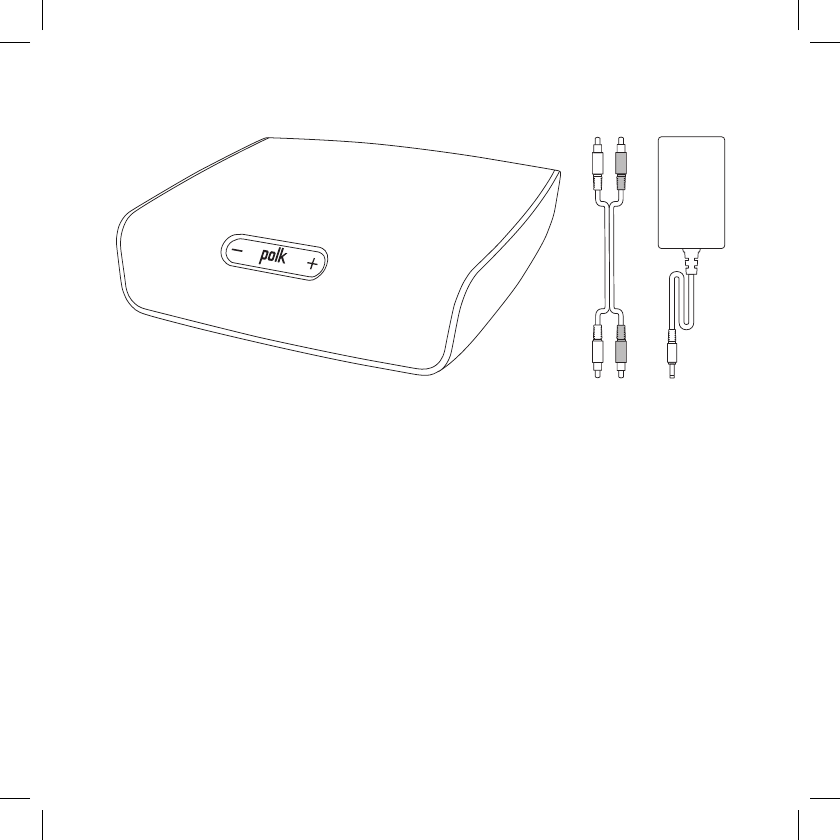

What’s in the box
System Requirements
To connect your Omni product to your Wi-Fi® network, you will need:
A Wireless Network connected to the internet with an 802.11g
router or better*.
An Android device with version 2.2 operating system or greater
or an iOS device with version 6.0 operating system or greater.
The password for your wireless network (if required).
* For optimal streaming performance, or when streaming to multiple speakers,
we recommend using an 802.11n router or newer.
the device for operation in the band 5150–5250 MHz is only for indoor
use to reduce the potential for harmful interference to co-channel
mobile satellite systems
The device for operation in the band 5150–5250 MHz is only for indoor use to reduce
the potential for harmful interference to co-channel mobile satellite systems.
for more information visit our website at www.polkaudio.com
3
Wi-Fi Setup
1. Download the free Polk Omni App.
2. Plug in your Omni product.
The Wi-Fi LED on the back
of the product will blink, then
pulse slowly. (Figure 1).
3. Launch the Polk Omni App.
Follow the instructions in the app
to connect to your network.
A solid Wi-Fi LED means your
product has successfully
connected. Enjoy.
Note: If you have trouble connecting to
your network, move the adapter near
your router, then relocate it when setup
is complete. Also, if the Wi-Fi LED is not
pulsing slowly, press and hold the Wi-Fi
SETUP Button (for eight seconds), until
you hear the second beep. (Figure 2).
The complete owner’s manual can be
found online at www.polkaudio.com
Figure 1
OPTICAL
OUT
SETUP
Wi-Fi LED
Press Wi-Fi
SETUP Button
on back panel
for 8 seconds
Figure 2
4
Play Your Music
From the main menu on the Polk Omni App, you can listen to:
Online services – stream the most popular online music services.
Internet Radio – enjoy free music from around the world in virtually
any genre.
Your personal music library – play music from your
phone, tablet or computer; it never sounded better.
Omni P1 Back Panel
1. DC In 12V—power supply connects here
2. AUX In—wired connection from portable device
3. USB—for firmware updates only
4. Stereo Out—connects to external receiver/powered speaker
5. Coaxial Out—digitally connects to external receiver
6. Optical Out —digitally connects to external receiver
7. Wi-Fi Setup Button—to connect wirelessly to your Wi-Fi network
1
2
3
4
56
7
SUB OUT
RIGHT LEFT
RIGHT LEFT RIGHT LEFT
OPTICAL
IN
STEREO
IN
DIGITAL
IN
2
6
P1 Buttons Controls
Volume Up
Volume Down
Play/Pause
Technical Assistance
Thank you for your Polk purchase. If you have a question or comment,
please feel free to call us or email us. In North America, call Polk
Customer Service 800-377-7655 (M-F, 9:00 AM-5:30 PM EST) or via
email polkcs@polkaudio.com. Outside the US, call +1-410-358-3600.
Contact Us Directly
Polk
5601 Metro Drive Baltimore, MD 21215
800-377-7655 | www.polkaudio.com
Google Play is a trademark of Google Inc.
Apple and the Apple logo are trademarks of Apple Inc., registered
in the U.S. and other countries. App Store is a service mark of Apple Inc.
All other trademarks are the property of their respective owners.
for more information visit our website at www.polkaudio.com
7
Contenu de la boîte
Exigences système
Pour connecter votre produit Omni à votre réseau sans-fil, il vous faut:
Un réseau sans fil connecté à l’Internet par un routeur
802.11g ou meilleur*
Un dispositif Android avec système d’exploitation 2.2 ou supérieur
ou un dispositif iOS avec système d’exploitation 6.0 ou supérieur
• Le mot de passe de votre réseau sans fil (si requis).
* Pour une lecture en continu optimale, ou si vous diffusez à plusieurs
haut-parleurs, nous conseillons un routeur 802.11n ou plus récent.
8
Configuration Wi-Fi
1. Téléchargez gratuitement la Polk Omni App.
2. Branchez votre produit Omni.
La DEL Wi-Fi située sur le panneau
du bouton clignotera lentement.
(Figure 1)
3. Launch the Polk Omni App.
Suivez les instructions de l’app pour
connecter le produit à votre réseau.
Lorsque la DEL Wi-Fi est allumée,
votre produit est connecté
Note: Si vous avez de la difficulté à connecter
le adaptateur au réseau, rapprochez-le du
routeur puis replacez-le lorsque la configuration
est terminée. Si la DEL Wi-Fi ne clignote pas
lentement, appuyez sur le bouton Wi-Fi SETUP
pour 8 secondes (Figure 2).
Pour le manuel d’utilisation complet en
ligne, visitez: www.polkaudio.com
Figure 1
OPTICAL
OUT
SETUP
DEL Wi-Fi
Appuyez sur
le bouton Wi-Fi
SETUP du
panneau arrière
pour 8 secondes.
Figure 2
for more information visit our website at www.polkaudio.com
9
Faites jouer votre musique
À partir du menu de la Polk Omni App, vous pouvez écouter:
La plupart des services musicaux populaires en ligne.
La radio Internet—de la musique gratuite
de tout genre de partout au monde.
La radio Internet—de la musique gratuite de tout genre de partout au
monde. Votre librairie de musique personnelle depuis votre téléphone,
tablette ou ordinateur.
Panneau arrière de l’Omni P1
1. DC 12V — le bloc d’alimentation se branche ici
2. AUX — entrée auxiliaire (pour dispositif portable)
3. USB — pour mise à jour du micrologiciel seulement
4. Stereo Out — sortie de ligne pour récepteur ou haut-parleur amplifié
5. Coaxial Out — sortie numérique
6. Optical Out — sortie optique
7. Bouton Wi-Fi SETUP— connexion sans fil à votre réseau Wi-Fi
1
2
3
4
56
7
SUB OUT
RIGHT LEFT
RIGHT LEFT RIGHT LEFT
OPTICAL
IN
STEREO
IN
DIGITAL
IN
2
for more information visit our website at www.polkaudio.com
11

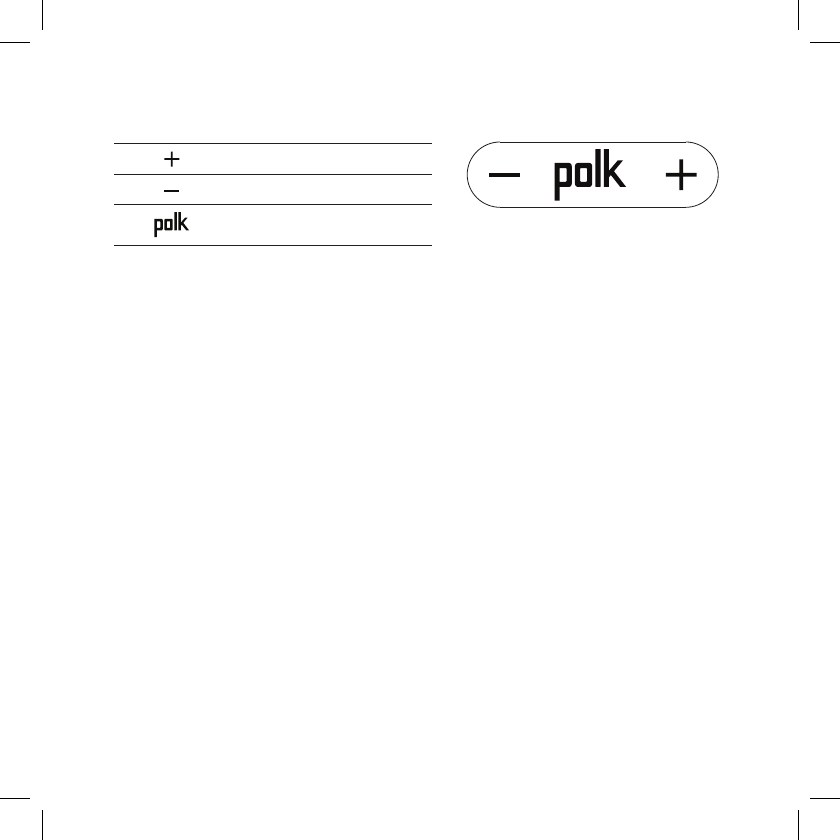

P1 Buttons Controls
Volume +
Volume -
Lecture/Pause
Assistance technique
Merci d’avoir choisi Polk. Si vous avez des questions ou des
commentaires, vous pouvez nous contacter par téléphone ou
par courriel. En Amérique du Nord, contactez le Service à la
clientèle Polk au 800-377-7655 (L-V, 9 h -17 h 30 HE); ailleurs
au +1.410.358.3600, ou par courriel à polkcs@polkaudio.com.
Contactez-nous
Polk
5601 Metro Drive Baltimore, MD 21215
800-377-7655 | www.polkaudio.com
Google Play est une marque de commerce de Google Inc.
Apple et le logo Apple sont des marques de commerce de Apple Inc.
enregistrées aux É.-U. et en d’autres pays. App Store est une marque de service de Apple Inc..
Toute autre marque de commerce appartient aux sociétés qui en sont respectivement détentrices.
12
Contenido de la caja
Requisitos de sistema
Para conectar su producto Omni a su red Wi-Fi,
va a necesitar lo siguiente:
Una red inalámbrica conectada a la Internet a través
de un enrutador 802.11g o más reciente.*
Un dispositivo Android con sistema operativo versión 2.2
o más reciente o un dispositivo iOS con sistema operativo
versión 6.0 o más reciente.
La contraseña de su red inalámbrica (si es necesario).
* Para lograr un rendimiento óptimo de streaming, o cuando vaya a hacer streaming
a varios altavoces, recomendamos un enrutador 802.11n o más reciente.
13
Configuración de Wi-Fi
1. Descargue la aplicación gratis Polk Omni.
2. Enchufe el producto Omni.
El indicador LED de Wi-Fi
del panel de botones parpadea
lentamente (Figura 1)
3. Inicie la aplicación Polk Omni.
Siga las instrucciones que aparecen en
la aplicación para conectarse a su red.
El indicador LED de Wi-Fi comienza a brillar fijamente
una vez que el producto se ha conectado. Disfrute.
Nota: Si tiene problemas para conectarse
a la red, acerque el adaptador al enrutador.
Una vez que haya completado la configuración,
vuelva a poner el altavoz en su lugar. Además,
si el indicador LED de Wi-Fi no parpadea
lentamente, oprima y mantenga oprimido el
botón de configuración de Wi-Fi (SETUP)
durante 8 segundos (Figura 2).
La versión completa del manual del usuario
se encuentra en www.polkaudio.com
Figura 1
OPTICAL
OUT
SETUP
LED de Wi-Fi
Oprima y mantenga
oprimido durante 8
segundos el botón
de configuración de
Wi-Fi (SETUP), que
se encuentra en el
panel de atrás.
Figura 2
Toque su música
Con el menú de música de la aplicación
Polk Omni, se puede escuchar lo siguiente:
Servicios en línea – Streaming de los
servicios de música más conocidos.
Radio por Internet – Disfrute de música
gratis de todo el mundo de prácticamente
cualquier género musical.
Su biblioteca musical personal
La música nunca había sonado tan bien
en su teléfono, tableta o computadora
Panel de atrás del Omni P1
1. DC IN 12V. El cable de alimentación se conecta aquí
2. AUX IN. Conexión cableada desde un dispositivo portátil
3. USB. Solo para actualizaciones de firmware
4. STEREO OUT. Conexión al receptor externo o altavoz alimentado
5. COAXIAL OUT. Conexión digital al receptor externo
6. OPTICAL OUT. Conexión digital al receptor externo
7. SETUP. Botón para la conexión inalámbrica a su red Wi-Fi
1
2
3
4
56
7
SUB OUT
RIGHT LEFT
RIGHT LEFT RIGHT LEFT
OPTICAL
IN
STEREO
IN
DIGITAL
IN
2
16
P1 Buttons Controls
Subida de volumen
Bajada de volumen
Reproducción/Pausa
Asistencia técnica
Gracias por la compra de este producto Polk. Si tiene preguntas o co-
mentarios, no dude en comunicarse con nosotros por teléfono o correo
electrónico, En América del Norte, comuníquese con el servicio al cliente
de Polk llamando al 800-377-7655 (lunes a viernes, de 9:00 AM a 5:30
PM, hora este) o escribiendo a polkcs@polkaudio.com. Fuera de EE.UU.,
llame al +1-410-358-3600.
Comuníquese con nosotros directamente
Polk
5601 Metro Drive Baltimore, MD 21215
800-377-7655 | www.polkaudio.com
Google Play es una marca comercial de Google Inc.
Apple y el logotipo Apple son marcas comerciales de Apple Inc., registradas
en EE.UU. y en otros países. App Store es una marca de servicio de Apple Inc.
Todas las otras marcas comerciales son propiedad de sus respectivos dueños.
17
Kartoninhalt
Systemanforderungen
Zum Anschluss Ihres Omni-Produkts an Ihr WLAN
benötigen Sie Folgendes:
Ein WLAN, das mindestens mit einem 802.11g-Router
mit dem Internet verbunden ist*
Ein Android-Gerät mit Android 2.2 oder höher oder
ein iOS-Gerät mit iOS 6.0 oder höher.
Das Passwort für Ihr WLAN (falls erforderlich).
* Für eine optimale Streaming-Leistung, oder beim Streaming an mehrere Lautsprecher,
empfehlen wird die Verwendung eines Routers nach der Norm 802.11n oder neuer.
18
WLAN-Setup
1. Laden sie die kostenlose Polk Omni-App herunter.
2. Schließen Sie Ihr Omni-Produkt an.
Die WLAN-LED an der Tastenleiste
blinkt langsam (Abb. 1)
3. Starten Sie die Polk Omni-App.
Folgen Sie den Anweisungen in der
app, um die Verbindung zu Ihrem
Netzwerk herzustellen.
Eine dauerhaft leuchtende WLAN-LED bedeutet, dass
Ihr Produkt eine Verbindung hergestellt hat. Viel Spaß!
Hinweis: Wenn Sie Probleme dabei haben,
die Verbindung zum Netzwerk herzustellen,
sollten sie den adapter näher am Router
aufstellen und dann nach dem Setup verschieben.
Wenn die WLAN-LED nicht langsam blinkt,
müssen Sie die WLAN-SETUP-Taste 8
Sekunden lang gedrückt halten (Abb. 2).
Sie finden das vollständige Benutzerhandbuch
online unter www.polkaudio.com
Abbildung 1
OPTICAL
OUT
SETUP
WLAN LED
Halten Sie die
WLAN-SETUP-
Taste an der
Rückseite 8
Sekunden lang
gedrückt
Abbildung 2
for more information visit our website at www.polkaudio.com
19
Wiedergabe der Musik
Vom Musikmenü der Polk Omni-App
aus können Sie auf Folgendes zugreifen:
Online services – streamen Sie die populärsten Online-Musikdienste.
Internetradio – kostenlose Musik aus der ganzen Welt in praktisch
jedem Genre
Ihre persönliche Musikbibliothek die Musik auf Ihrem Handy, Tablet
oder Computer hat noch nie so gut geklungen.
Omni P1 Rückseite
1. DC IN 12V – Hier das Netzkabel anschließen
2. AUX In – Kabelverbindung zu tragbaren Geräten
3. USB – Nur für Firmware-Updates
4. Stereo Out – Anschluss an externen Receiver/Aktivlautsprecher
5. Digital Out – digitaler Anschluss für externen Receiver
6. Optical Out – digitaler Anschluss für externen Receiver
7. WLAN-Setup-Taste – Zur drahtlosen Verbindung mit Ihrerm WLAN
1
2
3
4
56
7
SUB OUT
RIGHT LEFT
RIGHT LEFT RIGHT LEFT
OPTICAL
IN
STEREO
IN
DIGITAL
IN
2
for more information visit our website at www.polkaudio.com
21
P1-Tasten Regler
Lautstärke +
Lautstärke 1
Wiedergabe/Pause
Technischer Kundendienst
Danke, dass Sie ein Polk-Produkt gekauft haben. Wenn Sie je eine
Frage oder einen Vorschlag haben, kontaktieren Sie uns bitte per
Telefon oder E-Mail. In Nordamerika erreichen Sie den Polk-Kundendienst
telefonisch unter 800-377-7655 (M-F, 9:00 bis 17:30 h, EST)
oder per E-Mail unter polkcs@polkaudio.com. Außerhalb der USA
rufen Sie +1-410-358-3600 an.
Direkte Kontaktaufnahme
Polk
5601 Metro Drive Baltimore, MD 21215
800-377-7655 | www.polkaudio.com
Google Play ist eine Marke von Google Inc.
Apple und das Apple-Logo sind in den USA und anderen Ländern eingetragene
Marken von Apple Inc. App Store ist ein Dienstleistungszeichen von Apple Inc.
Alle anderen Marken sind das Eigentum der jeweiligen Inhaber.
22
Contenuto della scatola
Requisiti dell’impianto
Per collegare il prodotto Omni a una rete Wi-Fi, sono necessari:
una rete senza fili collegata a Internet mediante un router
802.11g o superiore.
un dispositivo Android con versione 2.2 o successiva del sistema
operativo oppure un dispositivo iOS con versione 6.0 o successiva del
sistema operativo.
La password della rete senza fili (se necessaria).
* Per ottenere prestazioni ottimali di streaming, o quando si invia musica in streaming
a più altoparlanti, raccomandiamo l’uso di un router 802.11n o versione successiva.
23
Configurazione della rete Wi-Fi
1. Scaricare l’App Polk Omni gratuita.
2. Collegare il prodotto Omni
a una presa di corrente.
Il LED Wi-Fi sul pannello dei pulsanti
inizia a lampeggiare lentamente
(Figura 1).
3. Avviare l’App Polk Omni.
Seguire le istruzioni dell’app per
stabilire la connessione con la rete.
Quando il LED Wi-Fi è acceso a luce fissa, significa che
il prodotto ha stabilito la connessione. Buon ascolto!
Nota: in caso di problemi durante
la connessione con la rete, avvicinare
l’adattatore al router, quindi spostarlo
nel punto desiderato una volta completata
la configurazione. Inoltre, se il LED Wi-Fi
non lampeggia lentamente, tenere premuto
per 8 secondi il pulsante CONFIGURAZIONE
Wi-Fi (Figura 2).
Il manuale completo per l’uso è disponibile
online su www.polkaudio.com
Figura 1
OPTICAL
OUT
SETUP
Wi-Fi LED
Tenere premuto
per 8 secondi
il pulsante
CONFIGURAZIONE
Wi-Fi situato sul
pannello posteriore
Figura 2
24
Riproduzione della musica
Dal menu Music dell’App Polk Omni, si possono ascoltare:
Servizi online – è possibile inviarli in streaming
Radio Internet – per ascoltare musica di praticamente qualsiasi genere
gratuitamente da ovunque nel mondo
Musica della propria collezione personale – si scoprirà che l’audio
della musica contenuta in un telefono, tablet o computer non è mai
stato di tale qualità.
Pannello posteriore dell’Omni P1
1. DC IN 12V – collegare il cavo di alimentazione a questo connettore
2. Ingresso AUS – per la connessione cablata con un dispositivo portatile
3. USB – solo per gli aggiornamenti firmware
4. Stereo Out – uscita per il collegamento con un altoparlante alimentato
o un ricevitore esterno
5. Coaxial Out – uscita digitale per il collegamento con un ricevitore esterno
6. Optical Out – uscita digitale per il collegamento con un ricevitore esterno
7. Pulsante SETUP Wi-Fi – per il collegamento senza fili alla rete Wi-Fi
1
2
3
4
56
7
SUB OUT
RIGHT LEFT
RIGHT LEFT RIGHT LEFT
OPTICAL
IN
STEREO
IN
DIGITAL
IN
2
26
P1 Buttons Controls
Volume +
Volume -
Riproduzione/Pausa
Assistenza tecnica
Grazie per avere acquistato un prodotto Polk. Per eventuali domande o
commenti, chiamare o inviare un’e-mail. Nel Nord America, chiamare Polk
• Servizio clienti: 800-377-7655 (da lunedì a venerdì, dalle 09:00 alle 17:30
EST [ GMT – 5 ore]) o tramite e-mail: polkcs@polkaudio.com. Fuori degli
Stati Uniti, chiamare il numero 001-410-358-3600.
Per contattarci direttamente
Polk
5601 Metro Drive Baltimore, MD 21215
800-377-7655 | www.polkaudio.com
Google Play è un marchio di Google Inc.
Apple e il logo Apple sono marchi di Apple Inc., registrati negli Stati Uniti
e in altri Paesi. App Store è un marchio di servizio di Apple Inc.
Tutti gli altri marchi sono di proprietà dei rispettivi titolari.

Navigation menu
