DENSO TEN FT0052D Car Audio User Manual Short Term Confidential
Fujitsu Ten Limited Car Audio Short Term Confidential
(Short-Term Confidential) User Manual
FT0052D
User manual
Model name
Model No
COMB PLAYER A
FT0052D
Index
1-Rating
2-Button function spec
3-Bluetooth Device Pairing Procedure
4-System spec
Page
2P
3～4P
5P
6P
(1/6)
1-Rating
RATED VOLTAGE
LOAD IMPEDANCE
BACK UP CURRENT
RATED CURRENT
AM TUNING RANGE
CD TYPE
12.0V(10.5～16.0V)-GROUND
4Ω
0.3mA OR LESS
2.3A OR LESS (Vcc=14.4V 0.5W OUTPUT)
522～1611kHz
87.5～108MHz
12cm DISC
FM TUNING RANGE
(2/6)
＜２W4MU/CD/USB-Y ＞
⑪
⑬
⑫
⑭
③
⑩
②
⑨
①
④
⑦⑧

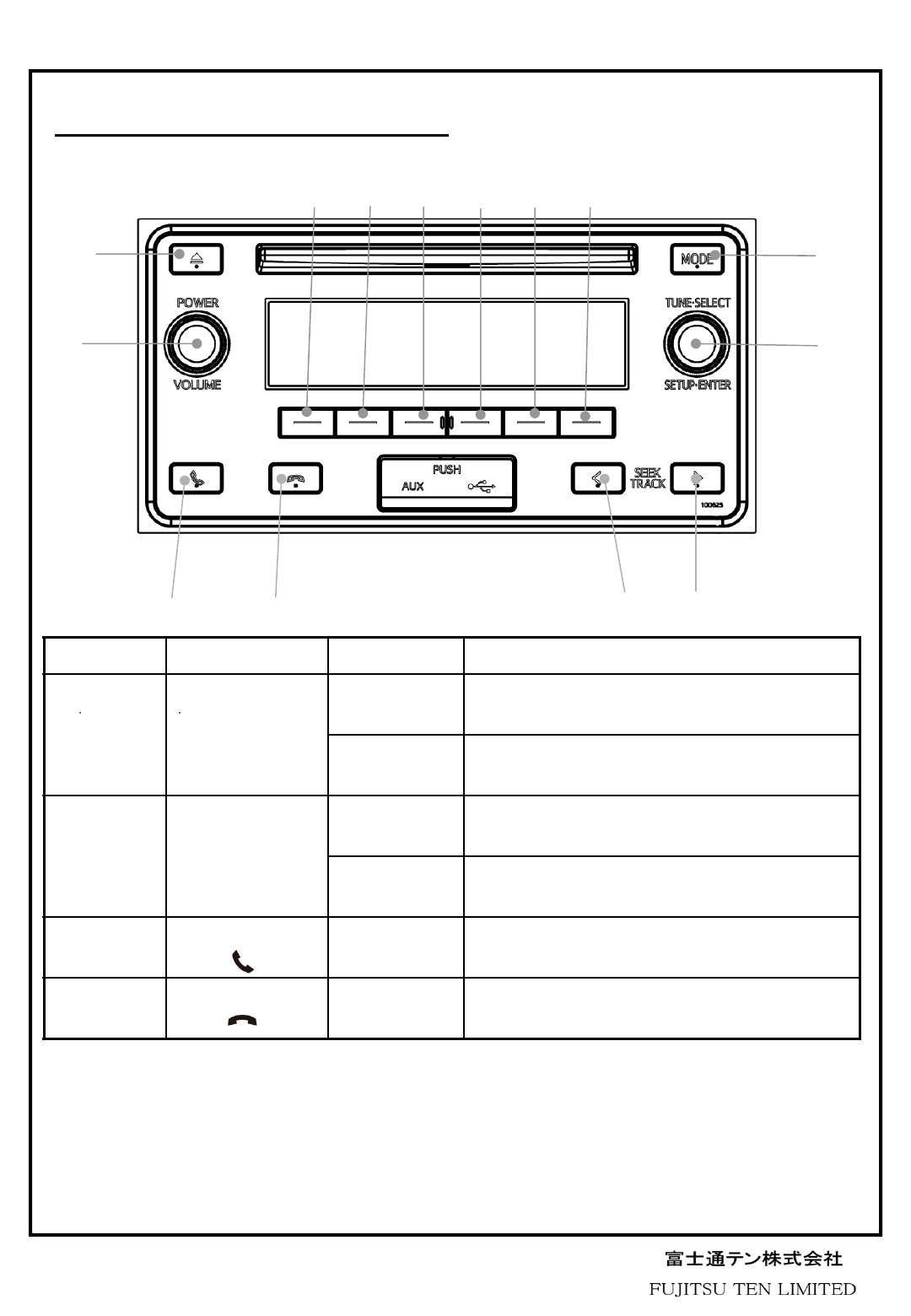

2-Button function spec
(3/6)
Button No. Button Name Operation Function
①
SEEK TRACK
DOWN
(＜)
Push
Below 0.8sec
(Radio) SEEK DOWN
(CD,USB) Track DOWN
Push
Over 0.8sec (CD,USB) Fast DOWN
②
SEEK TRACK
UP
(＞)
Push
Below 0.8sec
(Radio) SEEK UP
(CD,USB) Track UP
Push
Over 0.8sec (CD,USB) Fast UP
③OFF HOOK Push Dial Menu Operation
Receiving a Call
④ON HOOK Push Dial Menu Operation
Disconnecting a Call
⑤⑥
(4/6)
Button No. Button Name Operation Function
⑤～⑩ Preset 1～6
Push
Below 1.7sec (Radio) Call Preset CH
Push
Over 1.7sec (Radio) Insert Preset CH
⑨Preset 5
Push once 1Track Repeat
Push twice 1Folder Repeat
⑩Preset 6
Push once 1Folder Random
Push BROWSE, BACK
⑬ Push Disc eject
⑪ MODE Push Switching over to
AM/FM/CD/USB/AUX/BT-Audio
⑭ PWR･VOL Push PWR Switch
Turn Volume Control
⑫
TUNE･
CONTROL
ENTER LIST
Push ENTER
Turn
(Radio) TUNE
(CD,USB) Track change
(Audio control, BROWSE) Scroll
(5/6)
3.Bluetooth Device Pairing Procedure
1. Press SETUP･ENTER knob to display the " SETUP " mode.
2. Turn TUNE･SELECT knob to select “ Bluetooth ”, and then press SETUP･ENTER knob.
3. Turn TUNE･SELECT knob to select " Pairing ", and then press SETUP･ENTER knob.
・ The passkey appears.
4. Operate the Bluetooth device to register.
For Bluetooth devices not supporting Secure Simple Pairing (SSP):
Enter the passkey into the Bluetooth device.
For Bluetooth devices supporting Secure Simple Pairing (SSP):
Select "Yes" to register the Bluetooth device.
・ Depending on the Bluetooth device type, registration may perform automatically.
4-System spec
(6/6)
H/U（D4）
STSW
MAIN
SP OUT（FL, FR, RL, RR）
制御信号
Control signal BT-MIC
FCC ID: BABFT0052D
CAUTION: Radio Frequency Radiation Exposure
This equipment complies with FCC radiation exposure limits set forth for
uncontrolled equipment and meets the FCC radio frequency (RF) Exposure
Guidelines. This equipment has very low levels of RF energy that it deemed to
comply without maximum permissive exposure evaluation (MPE). But it is desirable
that it should be installed and operated with at least 20cm and more between the
radiator and person's body in normal use position.
Co-location: This transmitter must not be co-located or operated in conjunction
with any other antenna or transmitter.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
FCC WARNING
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
