DENSO TEN FT0087A Car Audio User Manual Short Term Confidential
Fujitsu Ten Limited Car Audio Short Term Confidential
(Short-Term Confidential) User Manual
FT0087A
User manual
Model name
Model No
Car Audio
FT0087A
Index
IndexIndex
Index
1-Rating
2-Button
3-System
Page
PagePage
Page
2P
3～5P
6P
(1/6)
1-Rating
RATED VOLTAGE
LOAD IMPEDANCE
BACK UP CURRENT
RATED CURRENT
AM TUNING RANGE
CD/DVD TYPE
DC12V
4Ω
1mA OR LESS
3.0 ± 0.5A (Vcc=14.4V 0.5W OUTPUT)
522～1629kHz
87.5～108.0MHz
12cm DISC
FM TUNING RANGE
(2/6)
＜E4MU/DVD/USB/AUX/BT-Y＞

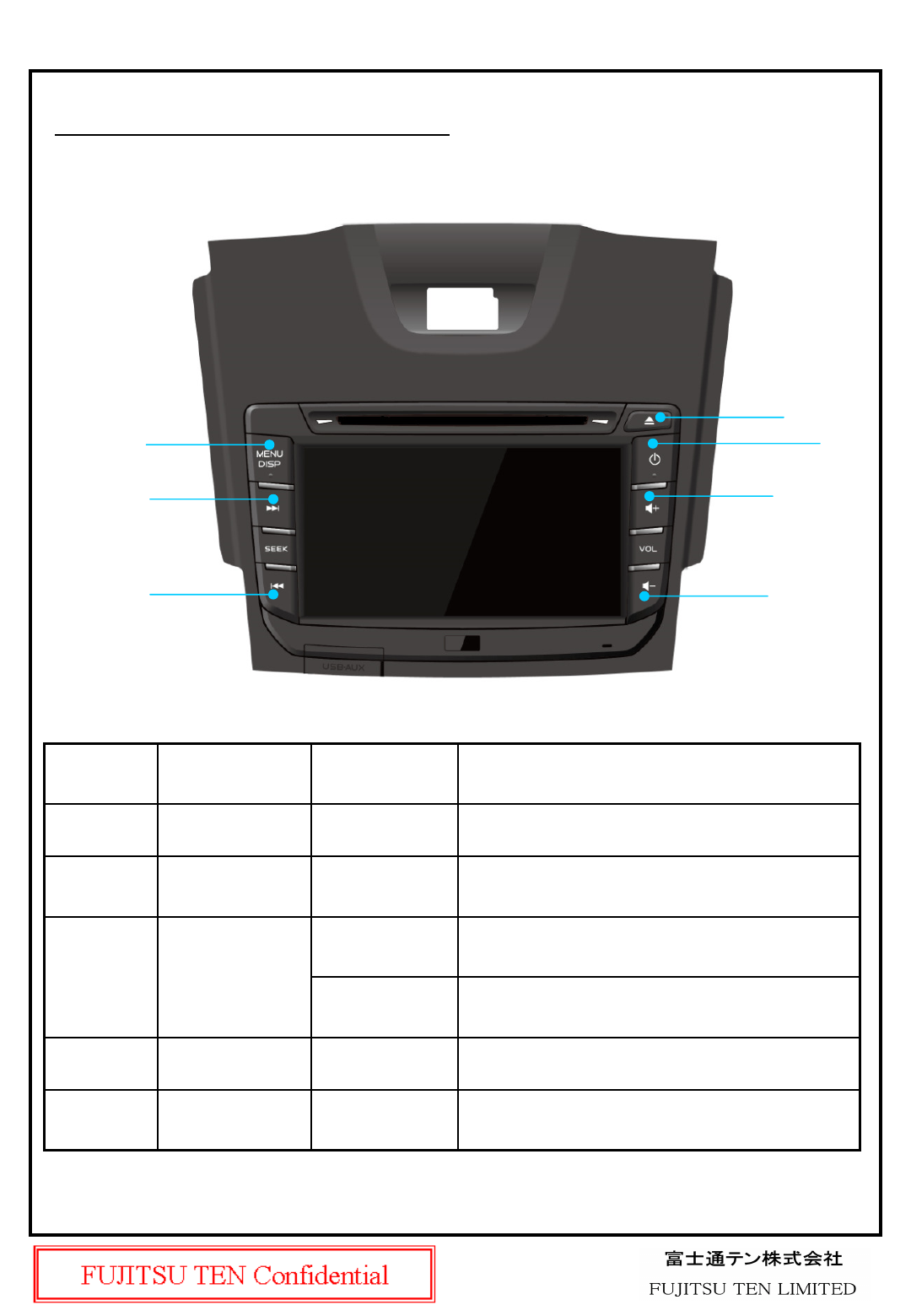

2-Button function spec
(3/6)
Display Adjustment Mode
Push
over 0.8sec
Volume DOWNPush
VOLUME
DOWN
⑤
Volume UPPushVOLUME UP④
(ACC-ON) Disc Eject
(BU-ON, ACC-OFF) Emergency Eject
PushEJECT②
(ACC-ON) MAIN MENU
(MAIN MENU) Previous Screen
Push
below 0.8sec
MENU / DISP③
Audio OFF, Audio ONPushPOWER①
FunctionOperationButton Name
Button
No.
①
②
③
④
⑤
⑥
⑦
(4/6)
(Radio) Non-Stop Seek UP
Push
over 1.7sec
(Radio) Seek UP
Push
over 0.8sec
below 1.7sec
(CD-DA) Fast UP
(MP3/WMA/AAC DISC) Fast UP
(USB Music) Fast UP
(iPod Music) Fast UP
(Bluetooth Audio) Fast UP
(DVD Video - Playing) Fast UP
(DVD Video –Pause) Slow Forward
Push
over 0.8sec
(Radio) Tune UP
(CD-DA) Track UP
(MP3/WMA/AAC DISC) File UP
(USB Music) File UP
(iPod Music) Song UP
(Bluetooth Audio) Track UP
(DVD Video) Chapter UP
Push
below 0.8sec
UP
⑥
FunctionOperationButton Name
Button
No.
(5/6)
(CD-DA) Fast DOWN
(MP3/WMA/AAC DISC) Fast DOWN
(USB Music) Fast DOWN
(iPod Music) Fast DOWN
(Bluetooth Audio) Fast DOWN
(DVD Video - Playing) Fast DOWN
(DVD Video –Pause) Slow Back
Push
over 0.8sec
(Radio) Tune DOWN
(CD-DA) Track DOWN,
Return to beginning of current track
(MP3/WMA/AAC DISC) File DOWN,
Return to beginning of current file
(USB Music) File DOWN,
Return to beginning of current file
(iPod Music) Song DOWN,
Return to beginning of current song
(Bluetooth Audio) Track DOWN
Return to beginning of current track
(DVD Video) Chapter DOWN
Return to beginning of current chapter
Push
below 0.8sec
DOWN
⑦
(Radio) Non-Stop Seek DOWN
Push
over 1.7sec
(Radio) Seek DOWN
Push
over 0.8sec
below 1.7sec
FunctionOperationButton Name
Button
No.

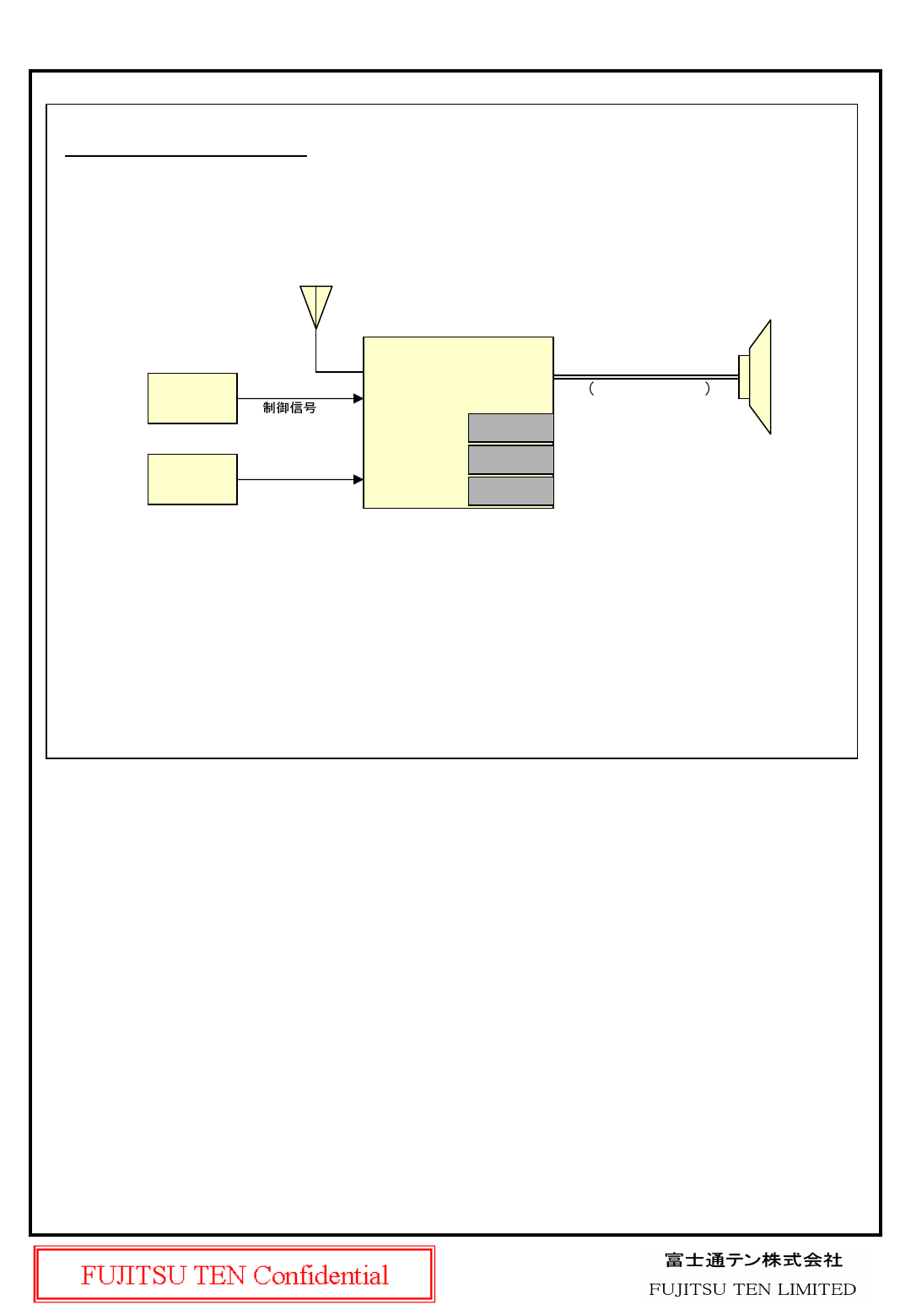

3-System spec
(6/6)
H/U
STSW
MAIN
SP OUT
FL, FR, RL, RR
Control signal
USB
BT-Mic
Mini Jack
System
Bus SPD, REV, PKB
FCC ID: BABFT0087A
CAUTION: Radio Frequency Radiation Exposure
This equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF)
Exposure Guidelines. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation
(MPE). But it is desirable that it should be installed and operated with at least 20cm and more between the radiator and person's body in normal use
position.
Co-location: This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC WARNING
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the
equipment.
