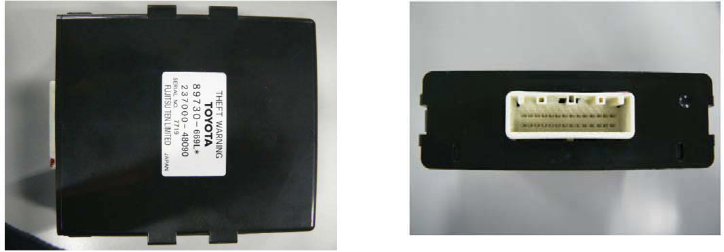

DENSO TEN FTL480 COMPUTER ASSY, THEFT WARNING User Manual MODEL TYPE
Fujitsu Ten Limited COMPUTER ASSY, THEFT WARNING MODEL TYPE
TempConfidential_03. Users Manual (FTL480) rev.2013.3.19
Model
㧦
FTL480
Equipment identification: Vehicle Alarm system
Intended use / Purpose of the equipment: Keyless entry system
Brand name: TOYOTA
Specifications
Operating Frequency 433.92MHz +- 35kHz
3dB bandwidth 280 +- 50kHz
Operating Temperature -30 to +80 (degree centigrade)
Information on antenna Integral antenna
Frequency
(MHz)
Field strength
(ǴV/m)
Measurement distance
(m)
0.009 to 0.490 2,400/Freq. (kHz) 300
0.490 to 1.705 24,000/Freq. (kHz) 30
1.705 to 30 30 30
30 to 88 100 3
88 to 216 150 3
216 to 960 200 3
Unwanted emission
Above 960 500 3
FUJITSU TEN CONFIDENTIAL
COMPUTER ASSY, THEFT WARNING
Security alarm system
Outline of this product
㺃This security system defends your car with alarms (sound and light).
㺃The system monitors impacts on car bodies and the opening and closing of doors, an engine hood, and a trunk.
㺃The remote control can set up and cancel the arming status of a car from the outside of the car. It can also lock or unlock
all doors.
Arming mode
1. Pull the ignition key from the ignition switch. The driver should get out a car, and shut all doors, an engine hood, and a
trunk.
2. Push “LOCK” button on the remote control. (All doors are locked and hazard lamp is flashed one time.)
At this time, the system changes into the arming mode after 30 seconds arming preparation, and LED will start flashing.
Canceling Arming mode
Push the “UNLOCK” button on the remote control. (All doors are unlocked and hazard lamps are flashed two times.)
When the arming mode of a security system is canceled, LED will stop flashing.
If you don’t open a door an engine hood, and a trunk in 30 second after pushing the "UNLOCK" button, a system will lock
all doors automatically. And LED will start flashing again.
Security features
The security system will operate the alarm in arming mode, when following cases arise. The system will operate and the
hazard lamp will flash for 30 seconds.
1. When a big impact on a car body.
2. When a door, an engine hood, trunk is opened.
3. When Connection of Battery is removed and re-connected.
Panic mode
If "PANIC" button on the remote control is pushed in 2 seconds and more, the alarms sound a warning automatically.
