DEPO EBB0109 WIRELESS HANDSET WITH BASE User Manual
DEPO Manufacturing Corp., Ltd. WIRELESS HANDSET WITH BASE
DEPO >
USERS MANUAL
Wireless Handset With Base EBB0109
User Manual V4
Turning your EBB0109 ON & OFF-----------------------------------------------------------------
ON
Press and hold the MFB Button for 3 seconds, and the Blue LED will light 1 second. The EBB0109 will
automatically connect to the previously paired Bluetooth enabled phone. If the connecting is fail, the Blue
LED will flash twice per 5 seconds.
The EBB0109 will enter Idle mode. And it will automatically turn off if EBB0109 don’t connect to any
Bluetooth device in 4 minutes.
OFF
Press the MFBButton for 4 seconds, and the Red LED will light 1 second.
Pairing---------------------------------------------------------------------------------------
1. In power Off Mode, Press and hold the MFB Button until you see the Blue and Red LED alternately
flash. If a Bluetooth enabled phone or others device don’t connect to the EBB0109,then it will
automatically turn OFF in 2 minutes.
2. Follow your Bluetooth enabled cell phone’s instructions for searching for Bluetooth device.
3. After a successful search the Bluetooth device will be shown on your mobile phone, chose
“EBB0109” and confirm.
4. Maybe ,your mobile will request for a password, please enter “0000”
5. If it’s successful. EBB0109 will stop flashing Red LED and light 1 time per 5S.
Quick Connect-------------------------------------------------------------------------------------
Press and realse the MFB button in 1 second. The EBB0109 will try connecting to the previously paired
Bluetooth enabled phone. If the connecting is fail, the Blue LED will flash twice per 5 seconds. The
EBB0109 will enter Idle mode.
Last Number Redail ------------------------------------------------------------------------------
When EBB0109 is paired with a Bluetooth enabled phone , Quick press twice the MFB button then
release it in 1 second to Redial the previously dialed the phone number on the phone.
Voice Dial -----------------------------------------------------------------------------------------
When EBB0109 is paired with a Bluetooth enabled phone , Quick press the MFB button then realese it in
1 second to start-up a voice dial. If you speaker a voice tag(for example a personal name) ,the phone will
dial out a corresponding phone number.
Answering A CALL---------------------------------------------------------------------------
When there is an incoming call ,press the MFB button then realese it in 1 second to anwer the call.
Reject A CALL--------------------------------------------------------------------------------
When there is an incoming call ,press and hold the MFB button for 2 secnods to reject the call.
End A CALL----------------------------------------------------------------------------------
When the EBB0109 is in talking or outgoing call states, press the MFB button then realese it in 1 second
to end the call.
Transfer Audio between Phone or EBB0109-------------------------------------------------------
When the EBB0109 is in talking states, press and hold the MFB button for 2 seconds to transfer audio
between the phone or EBB0109.
Controlling Volume------------------------------------------------------------------------------
Press the VOL+ or VOL- buttons to adjust the volume .
Charging battery----------------------------------------------------------------------------------
Put EBB0109 on the charger base and connecting the charging point with base, then you plug the
USB cable for charging base,the EBB0109 will be Reset. But you can power-on it again in charging state.
Others: It will automatically turn off if EBB0109 don’t connect to any Bluetooth device in 3.5 minutes.
Specifications--------------------------------------------------------------------------------------
Model Name EBB0109
Compliant Bluetooth Specification V2.1+EDR
Carrier Frequency 2402 MHz to 2480 MHz
ModulationMethod GFSK,1Mbps,0.5BTGaussian
Bluetooth Class Class 2
Hopping 1600hops / sec, 1MHz Channel Space
Transmit Power 1dBm (typical)
Coverage Range 10m
Receiver Sensitivity -82 dBm/ 0.1% BER
Weight 52 g
Dimension (mm) 40 ( W ) x 160 ( L ) x 11 ( T ) mm
Charging Voltage DC 5.0 V
Charging Time Less than 2 Hours
OperatingTemperature -10° to+50°C
StorageTemperature -20° to+80°C
Battery…………………………………….Rechargable 3.7V 150mAh Li-PoLy.
Speaker……………………………………..8Ohm/1W.
Microphone………………………………….-42dB/2.2V.
Standby time ……………………………….Up to 200 hours.
Talking time…………………………………Up to 6 hours.
Charging time………………………………..Less than 2 hours.
Charging Voltage…………………………….5V DC(USB)
Frequency Range……………………………..2402Mhz---2480Mhz.
Operating Temperature………………………..-10------50℃
Storage Temperatur.............................................-20----70℃
Item min. Type. max.
unit
remark
Charging inputvoltage 4.7 5 V
Operating voltage 3.0 3.
7
V
Talking
25
35
Current
consumsuption
Stand-by - 0.655
mA
Charging time - 1.8 -
hour

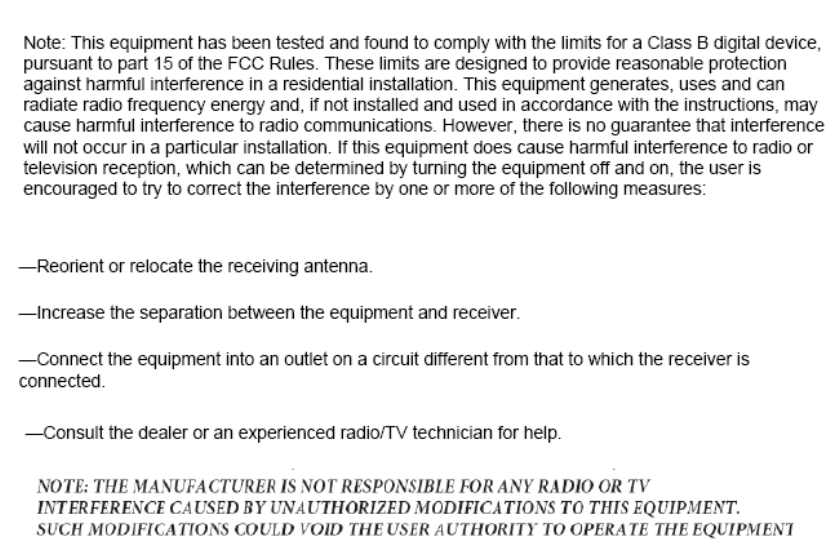

Warning:
Changes or modifications made to this device not expressly approved by DEPO Manufacturing
Corp., Ltd. may void the FCC authorization to operate this device.
