DG Lab PAR800M4 Digital Audio Player User Manual CONTENTS

DG Lab Co., Ltd. Digital Audio Player CONTENTS

User Manual

MANUAL󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟DIGITAL󰚟AUDIO󰚟PLAYER󰚟(PAR800M4)󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟

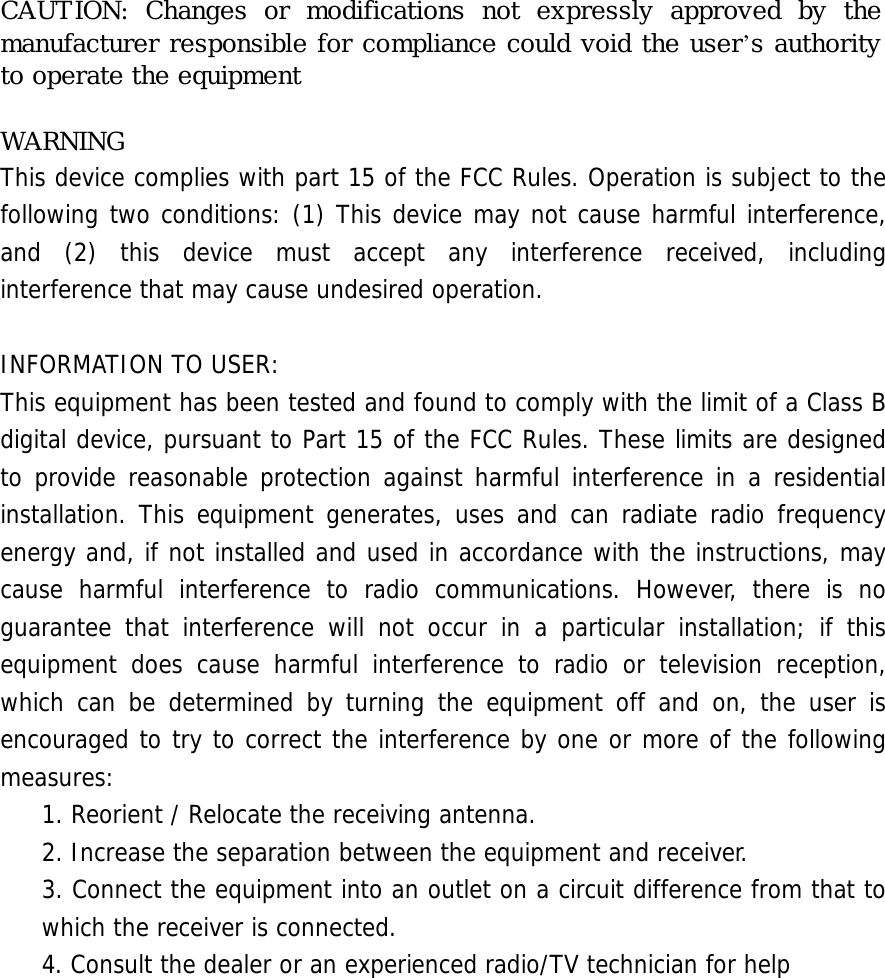

CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. INFORMATION TO USER: This equipment has been tested and found to comply with the limit of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation; if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient / Relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit difference from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help 󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟

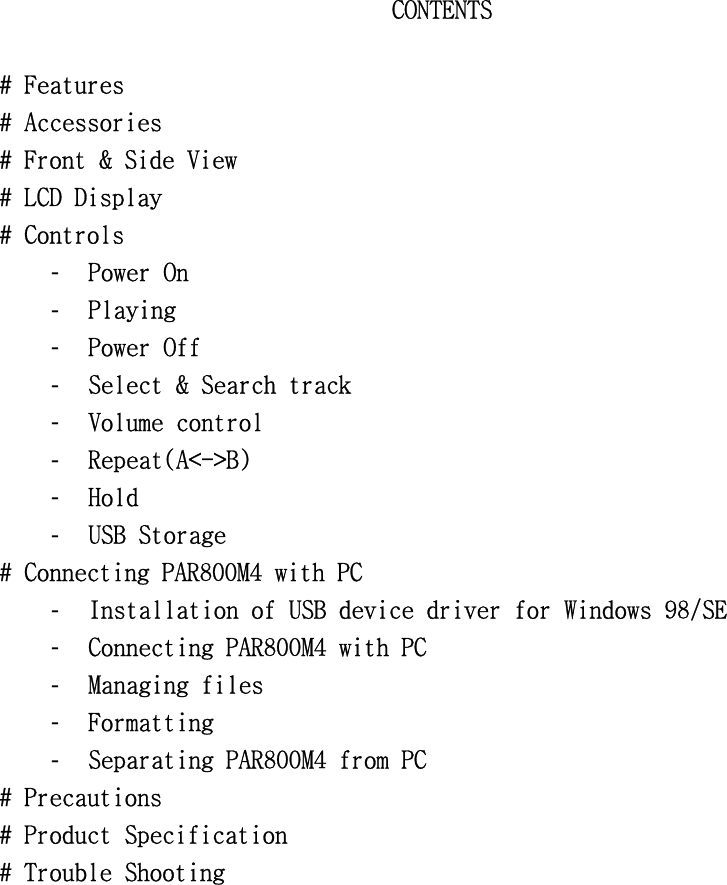

CONTENTS󰚟󰚟#󰚟Features󰚟#󰚟Accessories󰚟#󰚟Front󰚟&󰚟Side󰚟View󰚟#󰚟LCD󰚟Display󰚟󰚟#󰚟Controls󰚟- Power󰚟On󰚟- Playing󰚟󰚟- Power󰚟Off󰚟󰚟󰚟- Select󰚟&󰚟Search󰚟track󰚟󰚟- Volume󰚟control󰚟- Repeat(A<->B)󰚟- Hold󰚟- USB󰚟Storage󰚟#󰚟Connecting󰚟PAR800M4󰚟with󰚟PC󰚟- Installation󰚟of󰚟USB󰚟device󰚟driver󰚟for󰚟Windows󰚟98/SE󰚟- Connecting󰚟PAR800M4󰚟with󰚟PC󰚟- Managing󰚟files󰚟- Formatting󰚟- Separating󰚟PAR800M4󰚟from󰚟PC󰚟#󰚟Precautions󰚟#󰚟Product󰚟Specification󰚟#󰚟Trouble󰚟Shooting󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟

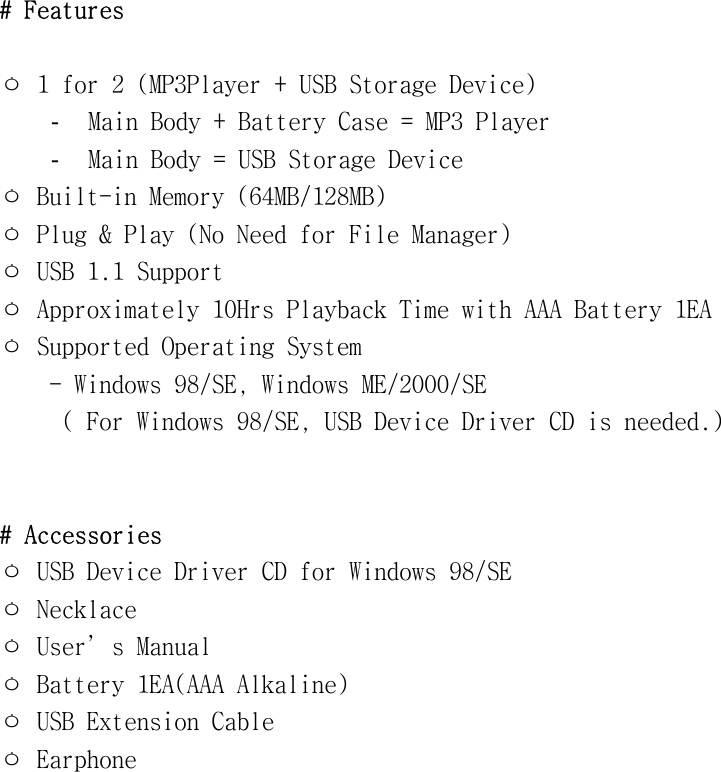

#󰚟Features󰚟󰚟ㅇ󰚟1󰚟for󰚟2󰚟(MP3Player󰚟+󰚟USB󰚟Storage󰚟Device)󰚟- Main󰚟Body󰚟+󰚟Battery󰚟Case󰚟=󰚟MP3󰚟Player󰚟- Main󰚟Body󰚟=󰚟USB󰚟Storage󰚟Device󰚟ㅇ󰚟Built-in󰚟Memory󰚟(64MB/128MB)󰚟ㅇ󰚟Plug󰚟&󰚟Play󰚟(No󰚟Need󰚟for󰚟File󰚟Manager)󰚟ㅇ󰚟USB󰚟1.1󰚟Support󰚟ㅇ󰚟Approximately󰚟10Hrs󰚟Playback󰚟Time󰚟with󰚟AAA󰚟Battery󰚟1EA󰚟ㅇ󰚟Supported󰚟Operating󰚟System󰚟󰚟󰚟󰚟󰚟-󰚟Windows󰚟98/SE,󰚟Windows󰚟ME/2000/SE󰚟󰚟󰚟󰚟󰚟󰚟(󰚟For󰚟Windows󰚟98/SE,󰚟USB󰚟Device󰚟Driver󰚟CD󰚟is󰚟needed.)󰚟󰚟󰚟#󰚟Accessories󰚟ㅇ󰚟USB󰚟Device󰚟Driver󰚟CD󰚟for󰚟Windows󰚟98/SE󰚟󰚟ㅇ󰚟Necklace󰚟ㅇ󰚟User’s󰚟Manual󰚟ㅇ󰚟Battery󰚟1EA(AAA󰚟Alkaline)󰚟ㅇ󰚟USB󰚟Extension󰚟Cable󰚟ㅇ󰚟Earphone󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟

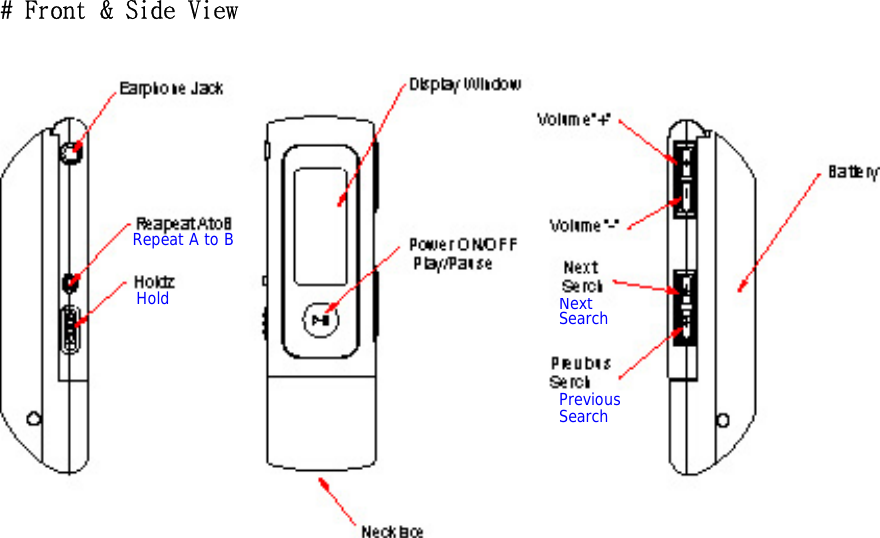

#󰚟Front󰚟&󰚟Side󰚟View󰚟󰚟󰚟Repeat A to B Hold NextSearchPreviousSearch 󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟

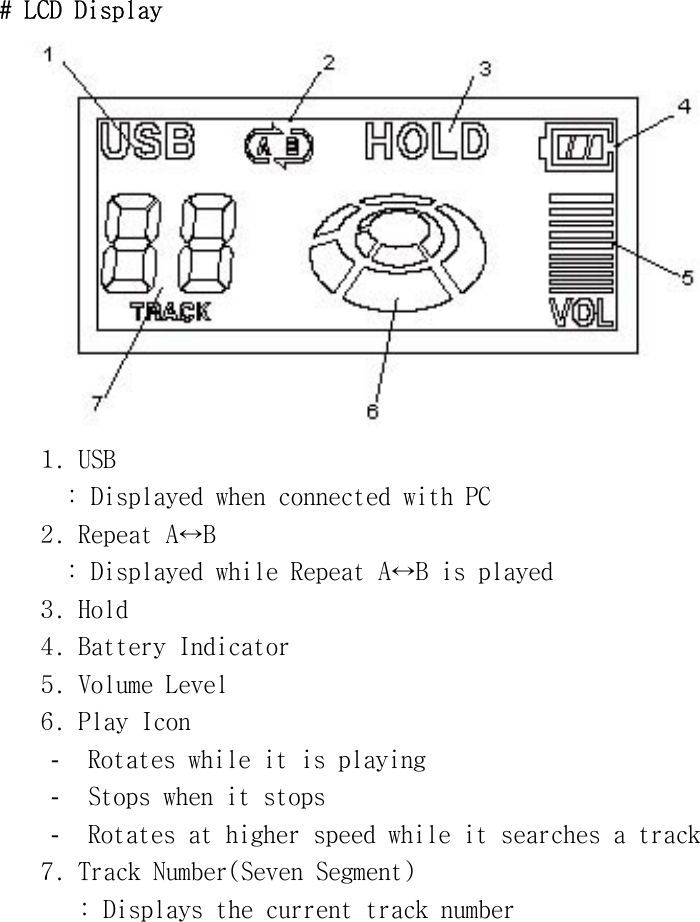

#󰚟LCD󰚟Display󰚟󰚟1.󰚟USB󰚟󰚟:󰚟Displayed󰚟when󰚟connected󰚟with󰚟PC󰚟2.󰚟Repeat󰚟A↔B󰚟:󰚟Displayed󰚟while󰚟Repeat󰚟A↔B󰚟is󰚟played󰚟󰚟3.󰚟Hold󰚟󰚟4.󰚟Battery󰚟Indicator󰚟5.󰚟Volume󰚟Level󰚟6.󰚟Play󰚟Icon󰚟󰚟- Rotates󰚟while󰚟it󰚟is󰚟playing󰚟- Stops󰚟when󰚟it󰚟stops󰚟- Rotates󰚟at󰚟higher󰚟speed󰚟while󰚟it󰚟searches󰚟a󰚟track󰚟7.󰚟Track󰚟Number(Seven󰚟Segment)󰚟:󰚟Displays󰚟the󰚟current󰚟track󰚟number󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟

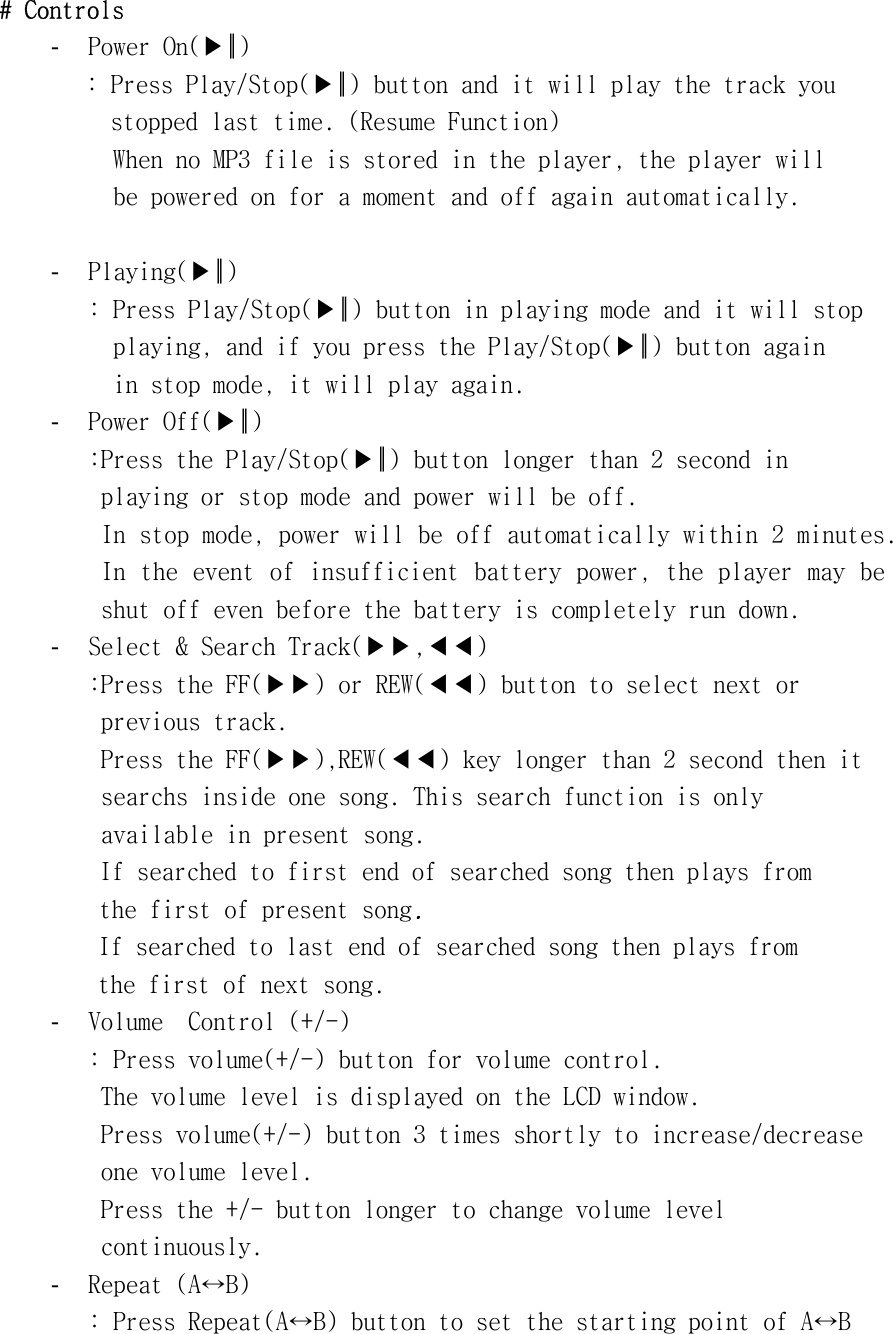

#󰚟Controls󰚟- Power󰚟On(▶║)󰚟:󰚟Press󰚟Play/Stop(▶║)󰚟button󰚟and󰚟it󰚟will󰚟play󰚟the󰚟track󰚟you󰚟󰚟stopped󰚟last󰚟time.󰚟(Resume󰚟Function)󰚟󰚟󰚟󰚟When󰚟no󰚟MP3󰚟file󰚟is󰚟stored󰚟in󰚟the󰚟player,󰚟the󰚟player󰚟will󰚟󰚟be󰚟powered󰚟on󰚟for󰚟a󰚟moment󰚟and󰚟off󰚟again󰚟automatically.󰚟󰚟󰚟- Playing(▶║)󰚟󰚟:󰚟Press󰚟Play/Stop(▶║)󰚟button󰚟in󰚟playing󰚟mode󰚟and󰚟it󰚟will󰚟stop󰚟󰚟playing,󰚟and󰚟if󰚟you󰚟press󰚟the󰚟Play/Stop(▶║)󰚟button󰚟again󰚟󰚟in󰚟stop󰚟mode,󰚟it󰚟will󰚟play󰚟again.󰚟- Power󰚟Off(▶║)󰚟:Press󰚟the󰚟Play/Stop(▶║)󰚟button󰚟longer󰚟than󰚟2󰚟second󰚟in󰚟playing󰚟or󰚟stop󰚟mode󰚟and󰚟power󰚟will󰚟be󰚟off.󰚟In󰚟stop󰚟mode,󰚟power󰚟will󰚟be󰚟off󰚟automatically󰚟within󰚟2󰚟minutes.󰚟In󰚟the󰚟event󰚟of󰚟insufficient󰚟battery󰚟power,󰚟the󰚟player󰚟may󰚟be󰚟shut󰚟off󰚟even󰚟before󰚟the󰚟battery󰚟is󰚟completely󰚟run󰚟down.󰚟- Select󰚟&󰚟Search󰚟Track(▶▶,◀◀)󰚟:Press󰚟the󰚟FF(▶▶)󰚟or󰚟REW(◀◀)󰚟button󰚟to󰚟select󰚟next󰚟or󰚟󰚟previous󰚟track.󰚟󰚟Press󰚟the󰚟FF(▶▶),REW(◀◀)󰚟key󰚟longer󰚟than󰚟2󰚟second󰚟then󰚟it󰚟󰚟searchs󰚟inside󰚟one󰚟song.󰚟This󰚟search󰚟function󰚟is󰚟only󰚟󰚟available󰚟in󰚟present󰚟song.󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟If󰚟searched󰚟to󰚟first󰚟end󰚟of󰚟searched󰚟song󰚟then󰚟plays󰚟from󰚟the󰚟first󰚟of󰚟present󰚟song.󰚟If󰚟searched󰚟to󰚟last󰚟end󰚟of󰚟searched󰚟song󰚟then󰚟plays󰚟from󰚟the󰚟first󰚟of󰚟next󰚟song.󰚟- Volume󰚟󰚟Control󰚟(+/-)󰚟:󰚟Press󰚟volume(+/-)󰚟button󰚟for󰚟volume󰚟control.󰚟󰚟The󰚟volume󰚟level󰚟is󰚟displayed󰚟on󰚟the󰚟LCD󰚟window.󰚟󰚟Press󰚟volume(+/-)󰚟button󰚟3󰚟times󰚟shortly󰚟to󰚟increase/decrease󰚟󰚟one󰚟volume󰚟level.󰚟󰚟Press󰚟the󰚟+/-󰚟button󰚟longer󰚟to󰚟change󰚟volume󰚟level󰚟󰚟continuously.󰚟- Repeat󰚟(A↔B)󰚟:󰚟Press󰚟Repeat(A↔B)󰚟button󰚟to󰚟set󰚟the󰚟starting󰚟point󰚟of󰚟A↔B󰚟

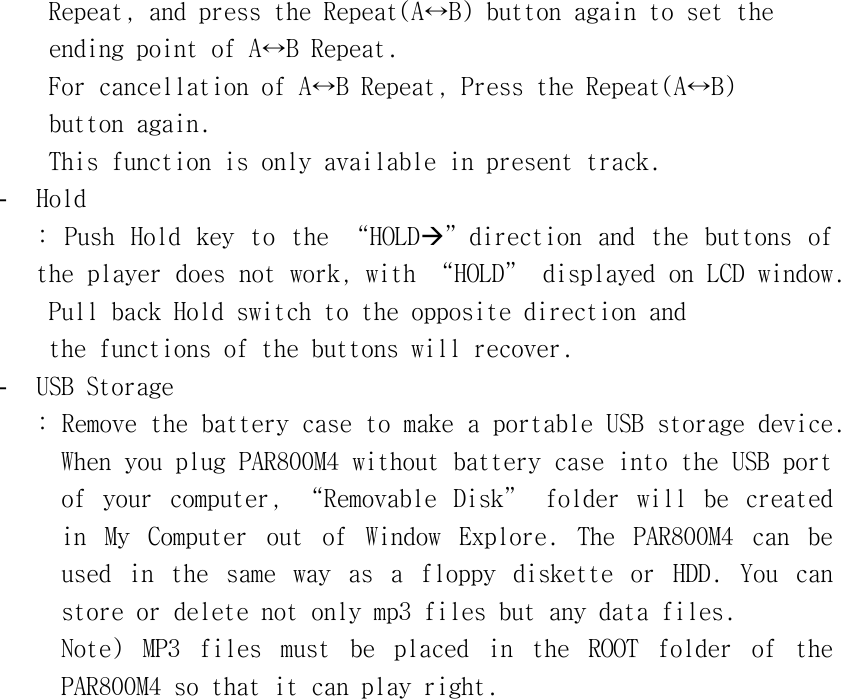

󰚟Repeat,󰚟and󰚟press󰚟the󰚟Repeat(A↔B)󰚟button󰚟again󰚟to󰚟set󰚟the󰚟󰚟ending󰚟point󰚟of󰚟A↔B󰚟Repeat.󰚟For󰚟cancellation󰚟of󰚟A↔B󰚟Repeat,󰚟Press󰚟the󰚟Repeat(A↔B)󰚟button󰚟again.󰚟This󰚟function󰚟is󰚟only󰚟available󰚟in󰚟present󰚟track.󰚟- Hold󰚟:󰚟 Push󰚟 Hold󰚟 key󰚟 to󰚟 the󰚟 “HOLDÆ”direction󰚟 and󰚟 the󰚟 buttons󰚟 of󰚟 the󰚟player󰚟does󰚟not󰚟work,󰚟with󰚟“HOLD”󰚟displayed󰚟on󰚟LCD󰚟window.󰚟󰚟Pull󰚟back󰚟Hold󰚟switch󰚟to󰚟the󰚟opposite󰚟direction󰚟and󰚟󰚟the󰚟functions󰚟of󰚟the󰚟buttons󰚟will󰚟recover.󰚟- USB󰚟Storage󰚟:󰚟Remove󰚟the󰚟battery󰚟case󰚟to󰚟make󰚟a󰚟portable󰚟USB󰚟storage󰚟device.󰚟When󰚟you󰚟plug󰚟PAR800M4󰚟without󰚟battery󰚟case󰚟into󰚟the󰚟USB󰚟port󰚟of󰚟 your󰚟 computer,󰚟 “Removable󰚟 Disk”󰚟 folder󰚟 will󰚟 be󰚟 created󰚟 in󰚟 My󰚟 Computer󰚟 out󰚟 of󰚟 Window󰚟 Explore.󰚟 The󰚟 PAR800M4󰚟 can󰚟 be󰚟 used󰚟 in󰚟 the󰚟 same󰚟 way󰚟 as󰚟 a󰚟 floppy󰚟 diskette󰚟 or󰚟 HDD.󰚟 You󰚟 can󰚟 store󰚟or󰚟delete󰚟not󰚟only󰚟mp3󰚟files󰚟but󰚟any󰚟data󰚟files.󰚟󰚟󰚟Note)󰚟 MP3󰚟 files󰚟 must󰚟 be󰚟 placed󰚟 in󰚟 the󰚟 ROOT󰚟 folder󰚟 of󰚟 the󰚟 PAR800M4󰚟so󰚟that󰚟it󰚟can󰚟play󰚟right.󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟

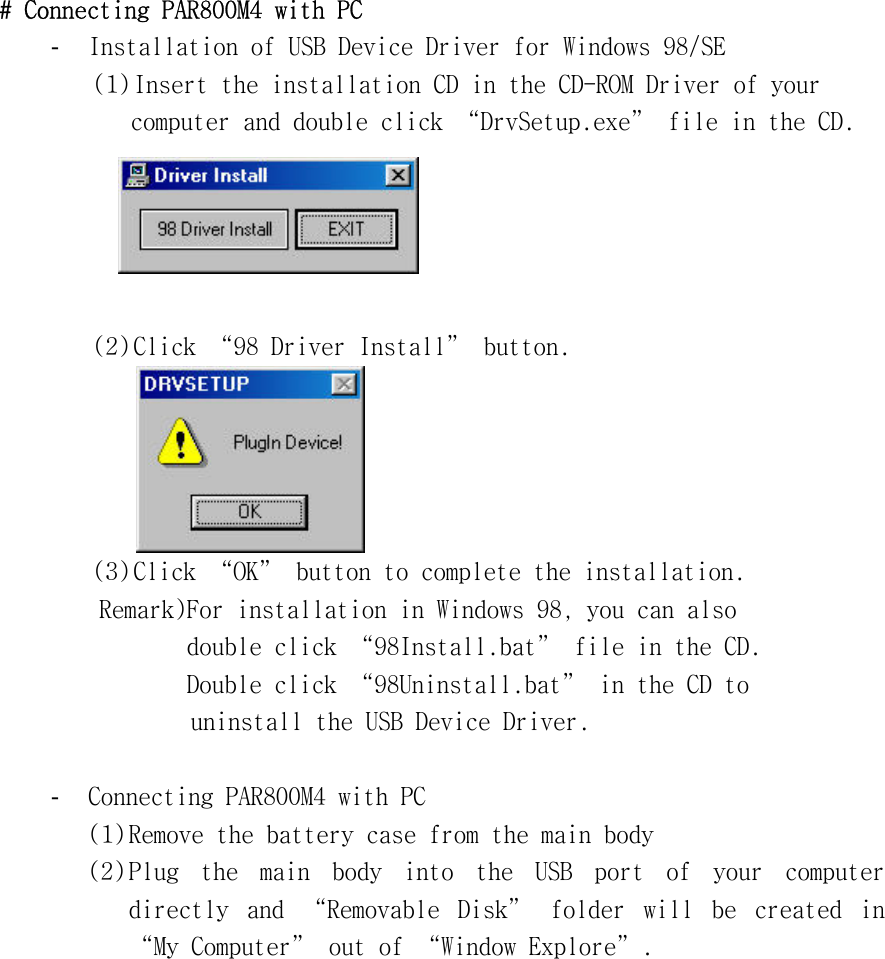

#󰚟Connecting󰚟PAR800M4󰚟with󰚟PC󰚟- Installation󰚟of󰚟USB󰚟Device󰚟Driver󰚟for󰚟Windows󰚟98/SE󰚟󰚟󰚟󰚟(1)󰚟Insert󰚟the󰚟installation󰚟CD󰚟in󰚟the󰚟CD-ROM󰚟Driver󰚟of󰚟your󰚟computer󰚟and󰚟double󰚟click󰚟“DrvSetup.exe”󰚟file󰚟in󰚟the󰚟CD.󰚟󰚟󰚟(2)󰚟Click󰚟“98󰚟Driver󰚟Install”󰚟button.󰚟󰚟󰚟󰚟 󰚟(3)󰚟Click󰚟“OK”󰚟button󰚟to󰚟complete󰚟the󰚟installation.󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟Remark)For󰚟installation󰚟in󰚟Windows󰚟98,󰚟you󰚟can󰚟also󰚟󰚟double󰚟click󰚟“98Install.bat”󰚟file󰚟in󰚟the󰚟CD.󰚟󰚟Double󰚟click󰚟“98Uninstall.bat”󰚟in󰚟the󰚟CD󰚟to󰚟󰚟uninstall󰚟the󰚟USB󰚟Device󰚟Driver.󰚟󰚟- Connecting󰚟PAR800M4󰚟with󰚟PC󰚟(1)󰚟Remove󰚟the󰚟battery󰚟case󰚟from󰚟the󰚟main󰚟body󰚟(2)󰚟Plug󰚟 the󰚟 main󰚟 body󰚟 into󰚟 the󰚟 USB󰚟 port󰚟 of󰚟 your󰚟 computer󰚟 directly󰚟 and󰚟 “Removable󰚟 Disk”󰚟 folder󰚟 will󰚟 be󰚟 created󰚟 in󰚟 “My󰚟Computer”󰚟out󰚟of󰚟“Window󰚟Explore”.󰚟

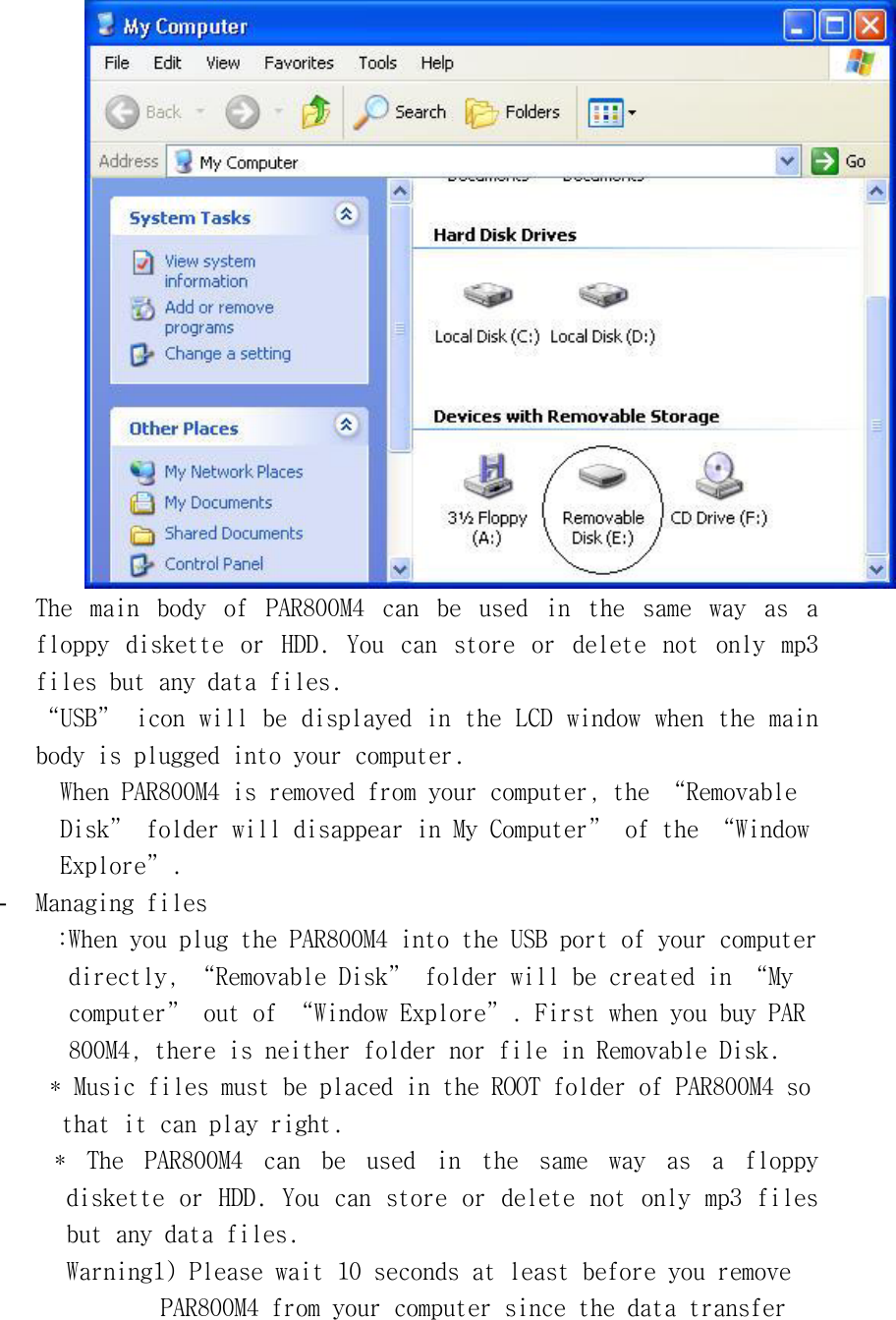

󰚟The󰚟 main󰚟 body󰚟 of󰚟 PAR800M4󰚟 can󰚟 be󰚟 used󰚟 in󰚟 the󰚟 same󰚟 way󰚟 as󰚟 a󰚟 floppy󰚟 diskette󰚟 or󰚟 HDD.󰚟 You󰚟 can󰚟 store󰚟 or󰚟 delete󰚟 not󰚟 only󰚟 mp3󰚟 files󰚟but󰚟any󰚟data󰚟files.󰚟“USB”󰚟icon󰚟will󰚟be󰚟displayed󰚟in󰚟the󰚟LCD󰚟window󰚟when󰚟the󰚟main󰚟body󰚟is󰚟plugged󰚟into󰚟your󰚟computer.󰚟When󰚟PAR800M4󰚟is󰚟removed󰚟from󰚟your󰚟computer,󰚟the󰚟“Removable󰚟Disk”󰚟folder󰚟will󰚟disappear󰚟in󰚟My󰚟Computer”󰚟of󰚟the󰚟“Window󰚟Explore”.󰚟- Managing󰚟files󰚟:When󰚟you󰚟plug󰚟the󰚟PAR800M4󰚟into󰚟the󰚟USB󰚟port󰚟of󰚟your󰚟computer󰚟󰚟directly,󰚟“Removable󰚟Disk”󰚟folder󰚟will󰚟be󰚟created󰚟in󰚟“My󰚟󰚟computer”󰚟out󰚟of󰚟“Window󰚟Explore”.󰚟First󰚟when󰚟you󰚟buy󰚟PAR󰚟800M4,󰚟there󰚟is󰚟neither󰚟folder󰚟nor󰚟file󰚟in󰚟Removable󰚟Disk.󰚟󰚟*󰚟Music󰚟files󰚟must󰚟be󰚟placed󰚟in󰚟the󰚟ROOT󰚟folder󰚟of󰚟PAR800M4󰚟so󰚟󰚟that󰚟it󰚟can󰚟play󰚟right.󰚟󰚟*󰚟 The󰚟 PAR800M4󰚟 can󰚟 be󰚟 used󰚟 in󰚟 the󰚟 same󰚟 way󰚟 as󰚟 a󰚟 floppy󰚟 diskette󰚟or󰚟HDD.󰚟You󰚟can󰚟store󰚟or󰚟delete󰚟not󰚟only󰚟mp3󰚟files󰚟but󰚟any󰚟data󰚟files.󰚟Warning1)󰚟Please󰚟wait󰚟10󰚟seconds󰚟at󰚟least󰚟before󰚟you󰚟remove󰚟󰚟PAR800M4󰚟from󰚟your󰚟computer󰚟since󰚟the󰚟data󰚟transfer󰚟

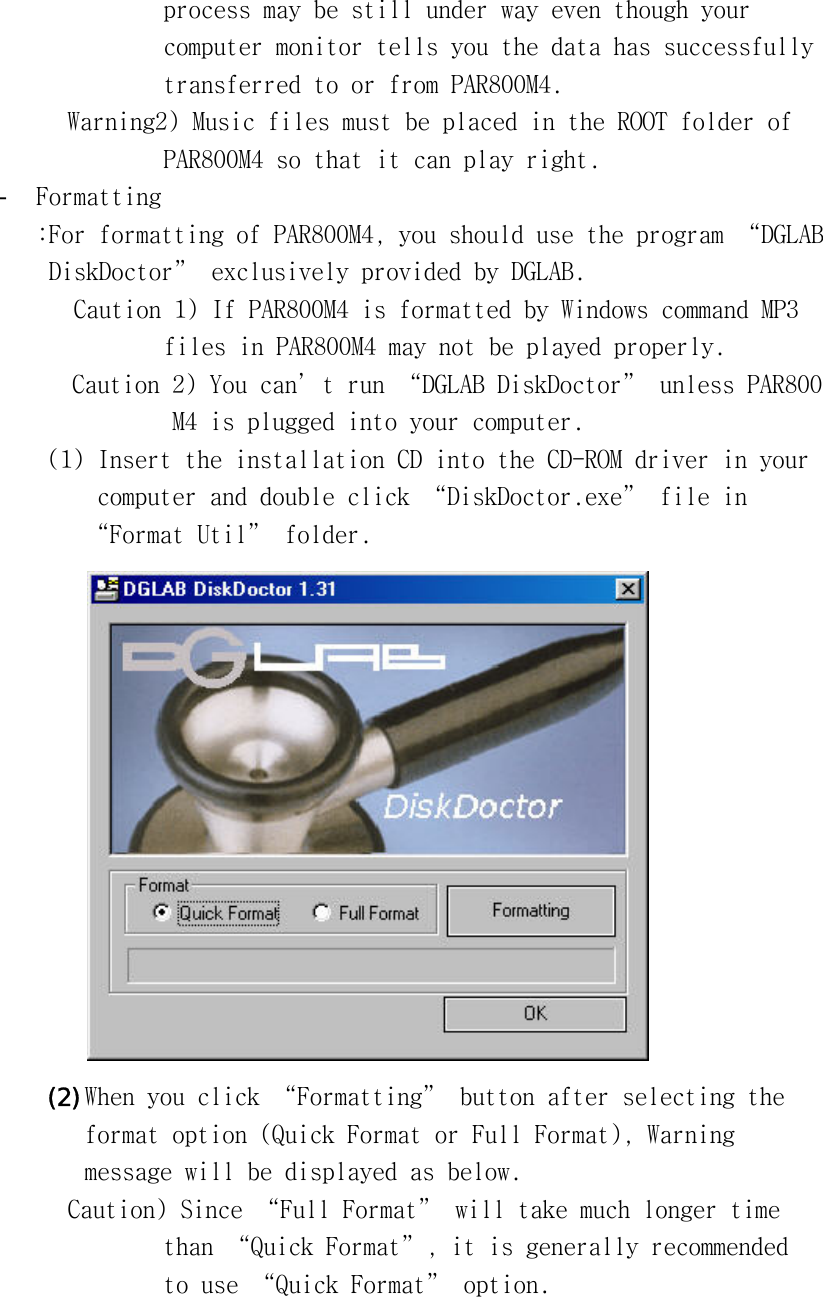

󰚟process󰚟may󰚟be󰚟still󰚟under󰚟way󰚟even󰚟though󰚟your󰚟󰚟computer󰚟monitor󰚟tells󰚟you󰚟the󰚟data󰚟has󰚟successfully󰚟󰚟transferred󰚟to󰚟or󰚟from󰚟PAR800M4.󰚟Warning2)󰚟Music󰚟files󰚟must󰚟be󰚟placed󰚟in󰚟the󰚟ROOT󰚟folder󰚟of󰚟󰚟PAR800M4󰚟so󰚟that󰚟it󰚟can󰚟play󰚟right.󰚟- Formatting󰚟:For󰚟formatting󰚟of󰚟PAR800M4,󰚟you󰚟should󰚟use󰚟the󰚟program󰚟“DGLAB󰚟󰚟DiskDoctor”󰚟exclusively󰚟provided󰚟by󰚟DGLAB.󰚟󰚟Caution󰚟1)󰚟If󰚟PAR800M4󰚟is󰚟formatted󰚟by󰚟Windows󰚟command󰚟MP3󰚟󰚟files󰚟in󰚟PAR800M4󰚟may󰚟not󰚟be󰚟played󰚟properly.󰚟Caution󰚟2)󰚟You󰚟can’t󰚟run󰚟“DGLAB󰚟DiskDoctor”󰚟unless󰚟PAR800󰚟M4󰚟is󰚟plugged󰚟into󰚟your󰚟computer.󰚟(1)󰚟Insert󰚟the󰚟installation󰚟CD󰚟into󰚟the󰚟CD-ROM󰚟driver󰚟in󰚟your󰚟󰚟computer󰚟and󰚟double󰚟click󰚟“DiskDoctor.exe”󰚟file󰚟in󰚟“Format󰚟Util”󰚟folder.󰚟󰚟(2) When󰚟you󰚟click󰚟“Formatting”󰚟button󰚟after󰚟selecting󰚟the󰚟󰚟format󰚟option󰚟(Quick󰚟Format󰚟or󰚟Full󰚟Format),󰚟Warning󰚟󰚟message󰚟will󰚟be󰚟displayed󰚟as󰚟below.󰚟Caution)󰚟Since󰚟“Full󰚟Format”󰚟will󰚟take󰚟much󰚟longer󰚟time󰚟󰚟than󰚟“Quick󰚟Format”,󰚟it󰚟is󰚟generally󰚟recommended󰚟󰚟to󰚟use󰚟“Quick󰚟Format”󰚟option.󰚟󰚟

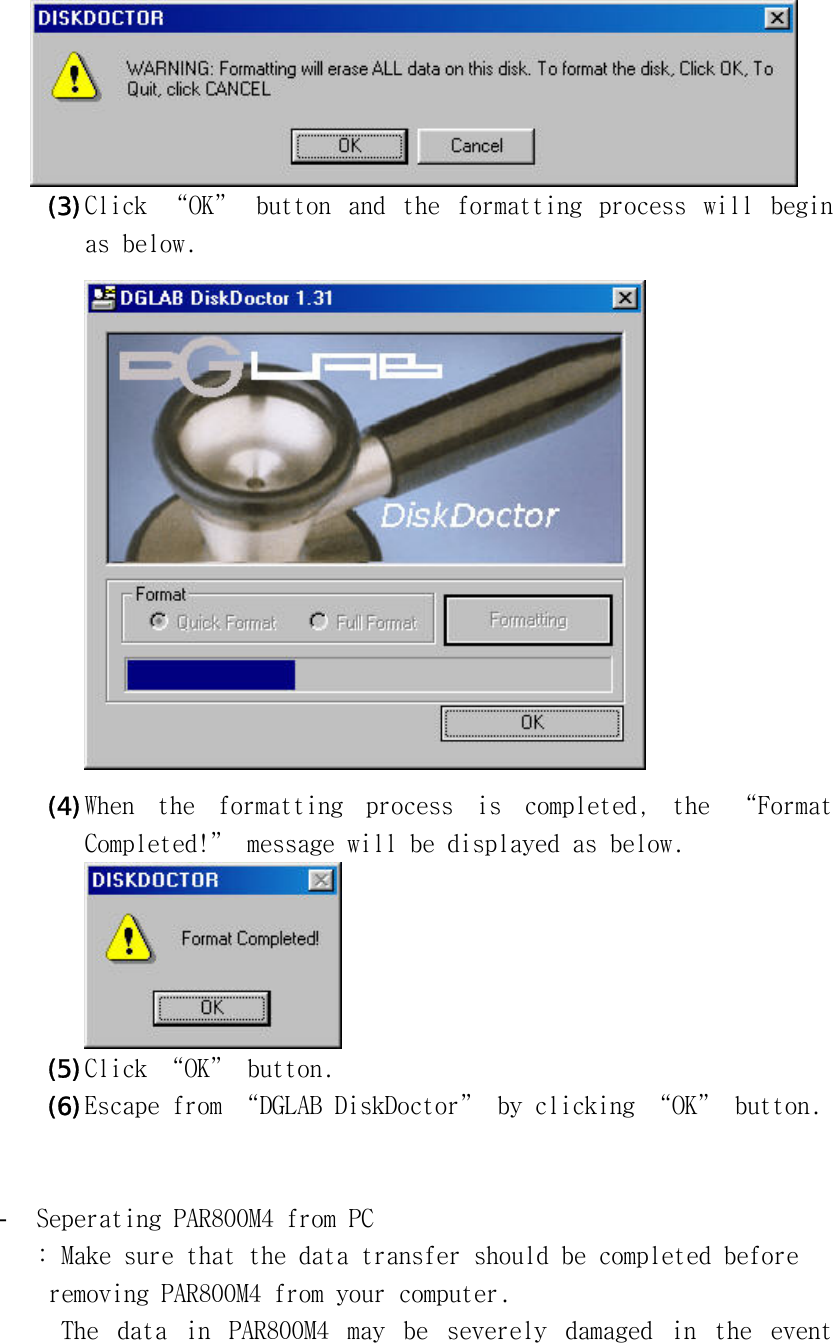

󰚟 󰚟(3) Click󰚟 “OK”󰚟 button󰚟 and󰚟 the󰚟 formatting󰚟 process󰚟 will󰚟 begin󰚟 as󰚟below.󰚟󰚟󰚟(4) When󰚟 the󰚟 formatting󰚟 process󰚟 is󰚟 completed,󰚟 the󰚟 “Format󰚟 Completed!”󰚟message󰚟will󰚟be󰚟displayed󰚟as󰚟below.󰚟󰚟(5) Click󰚟“OK”󰚟button.󰚟(6) Escape󰚟from󰚟“DGLAB󰚟DiskDoctor”󰚟by󰚟clicking󰚟“OK”󰚟button.󰚟󰚟󰚟- Seperating󰚟PAR800M4󰚟from󰚟PC󰚟:󰚟Make󰚟sure󰚟that󰚟the󰚟data󰚟transfer󰚟should󰚟be󰚟completed󰚟before󰚟󰚟removing󰚟PAR800M4󰚟from󰚟your󰚟computer.󰚟󰚟The󰚟 data󰚟 in󰚟 PAR800M4󰚟 may󰚟 be󰚟 severely󰚟 damaged󰚟 in󰚟 the󰚟 event󰚟

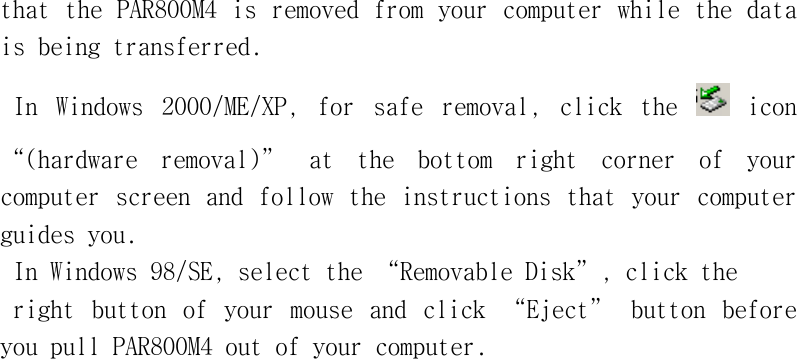

that󰚟the󰚟PAR800M4󰚟is󰚟removed󰚟from󰚟your󰚟computer󰚟while󰚟the󰚟data󰚟is󰚟being󰚟transferred.󰚟In󰚟 Windows󰚟 2000/ME/XP,󰚟 for󰚟 safe󰚟 removal,󰚟 click󰚟 the󰚟 󰚟icon󰚟“(hardware󰚟 removal)”󰚟 at󰚟 the󰚟 bottom󰚟 right󰚟 corner󰚟 of󰚟 your󰚟 computer󰚟screen󰚟and󰚟follow󰚟 the󰚟instructions󰚟that󰚟your󰚟computer󰚟guides󰚟you.󰚟In󰚟Windows󰚟98/SE,󰚟select󰚟the󰚟“Removable󰚟Disk”,󰚟click󰚟the󰚟right󰚟 button󰚟 of󰚟 your󰚟 mouse󰚟 and󰚟 click󰚟 “Eject”󰚟 button󰚟 before󰚟 you󰚟pull󰚟PAR800M4󰚟out󰚟of󰚟your󰚟computer.󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟

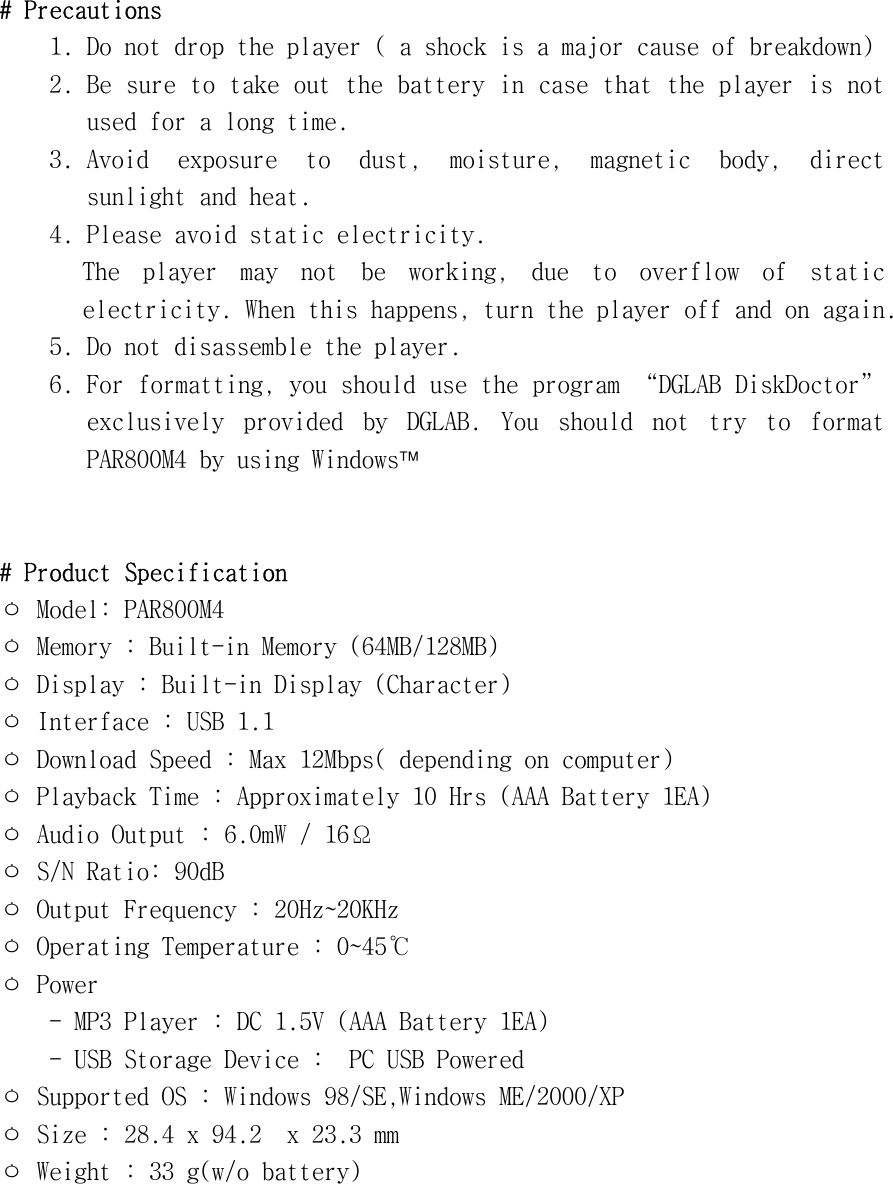

#󰚟Precautions󰚟1.󰚟Do󰚟not󰚟drop󰚟the󰚟player󰚟(󰚟a󰚟shock󰚟is󰚟a󰚟major󰚟cause󰚟of󰚟breakdown)󰚟2.󰚟Be󰚟sure󰚟to󰚟take󰚟out󰚟the󰚟battery󰚟in󰚟case󰚟that󰚟the󰚟player󰚟is󰚟not󰚟used󰚟for󰚟a󰚟long󰚟time.󰚟3.󰚟Avoid󰚟 exposure󰚟 to󰚟 dust,󰚟 moisture,󰚟 magnetic󰚟 body,󰚟 direct󰚟 sunlight󰚟and󰚟heat.󰚟4.󰚟Please󰚟avoid󰚟static󰚟electricity.󰚟The󰚟 player󰚟 may󰚟 not󰚟 be󰚟 working,󰚟 due󰚟 to󰚟 overflow󰚟 of󰚟 static󰚟 electricity.󰚟When󰚟this󰚟happens,󰚟turn󰚟the󰚟player󰚟off󰚟and󰚟on󰚟again.󰚟5.󰚟Do󰚟not󰚟disassemble󰚟the󰚟player.󰚟6.󰚟For󰚟formatting,󰚟you󰚟should󰚟use󰚟the󰚟program󰚟“DGLAB󰚟DiskDoctor”󰚟exclusively󰚟 provided󰚟 by󰚟 DGLAB.󰚟 You󰚟 should󰚟 not󰚟 try󰚟 to󰚟 format󰚟 PAR800M4󰚟by󰚟using󰚟Windows󰚟󰚟󰚟󰚟#󰚟Product󰚟Specification󰚟ㅇ󰚟Model:󰚟PAR800M4󰚟ㅇ󰚟Memory󰚟:󰚟Built-in󰚟Memory󰚟(64MB/128MB)󰚟ㅇ󰚟Display󰚟:󰚟Built-in󰚟Display󰚟(Character)󰚟ㅇ󰚟Interface󰚟:󰚟USB󰚟1.1󰚟ㅇ󰚟Download󰚟Speed󰚟:󰚟Max󰚟12Mbps(󰚟depending󰚟on󰚟computer)󰚟ㅇ󰚟Playback󰚟Time󰚟:󰚟Approximately󰚟10󰚟Hrs󰚟(AAA󰚟Battery󰚟1EA)󰚟ㅇ󰚟Audio󰚟Output󰚟:󰚟6.0mW󰚟/󰚟16Ω󰚟ㅇ󰚟S/N󰚟Ratio:󰚟90dB󰚟ㅇ󰚟Output󰚟Frequency󰚟:󰚟20Hz󰛽20KHz󰚟ㅇ󰚟Operating󰚟Temperature󰚟:󰚟0󰛽45℃󰚟ㅇ󰚟Power󰚟󰚟󰚟󰚟󰚟󰚟-󰚟MP3󰚟Player󰚟:󰚟DC󰚟1.5V󰚟(AAA󰚟Battery󰚟1EA)󰚟󰚟󰚟󰚟󰚟󰚟-󰚟USB󰚟Storage󰚟Device󰚟:󰚟󰚟PC󰚟USB󰚟Powered󰚟󰚟󰚟ㅇ󰚟Supported󰚟OS󰚟:󰚟Windows󰚟98/SE,Windows󰚟ME/2000/XP󰚟ㅇ󰚟Size󰚟:󰚟28.4󰚟x󰚟94.2󰚟󰚟x󰚟23.3󰚟mm󰚟ㅇ󰚟Weight󰚟:󰚟33󰚟g(w/o󰚟battery)󰚟󰚟󰚟󰚟󰚟

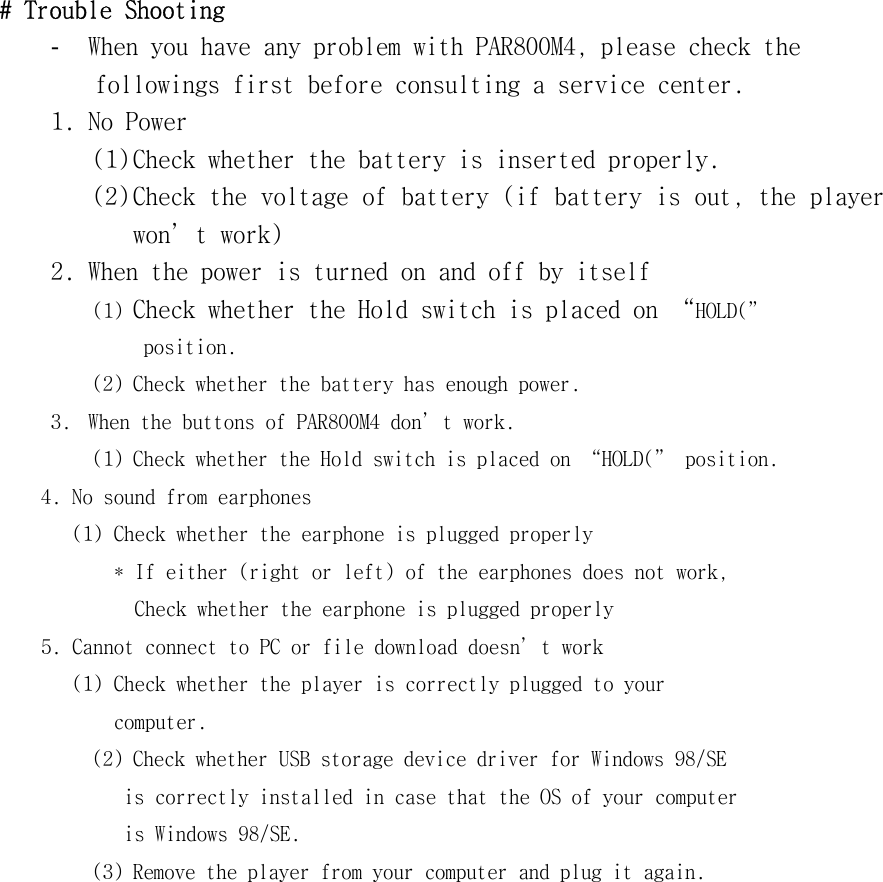

#󰚟Trouble󰚟Shooting󰚟- When󰚟you󰚟have󰚟any󰚟problem󰚟with󰚟PAR800M4,󰚟please󰚟check󰚟the󰚟󰚟followings󰚟first󰚟before󰚟consulting󰚟a󰚟service󰚟center.󰚟1.󰚟No󰚟Power󰚟(1)󰚟Check󰚟whether󰚟the󰚟battery󰚟is󰚟inserted󰚟properly.󰚟(2)󰚟Check󰚟the󰚟voltage󰚟of󰚟battery󰚟(if󰚟battery󰚟is󰚟out,󰚟the󰚟player󰚟won’t󰚟work)󰚟2.󰚟When󰚟the󰚟power󰚟is󰚟turned󰚟on󰚟and󰚟off󰚟by󰚟itself󰚟(1)󰚟Check󰚟whether󰚟the󰚟Hold󰚟switch󰚟is󰚟placed󰚟on󰚟“HOLD(”󰚟󰚟position.󰚟(2)󰚟Check󰚟whether󰚟the󰚟battery󰚟has󰚟enough󰚟power.󰚟3.󰚟 When󰚟the󰚟buttons󰚟of󰚟PAR800M4󰚟don’t󰚟work.󰚟(1)󰚟Check󰚟whether󰚟the󰚟Hold󰚟switch󰚟is󰚟placed󰚟on󰚟“HOLD(”󰚟position.󰚟󰚟󰚟󰚟󰚟4.󰚟No󰚟sound󰚟from󰚟earphones󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟(1)󰚟Check󰚟whether󰚟the󰚟earphone󰚟is󰚟plugged󰚟properly󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟*󰚟If󰚟either󰚟(right󰚟or󰚟left)󰚟of󰚟the󰚟earphones󰚟does󰚟not󰚟work,󰚟󰚟Check󰚟whether󰚟the󰚟earphone󰚟is󰚟plugged󰚟properly󰚟󰚟󰚟󰚟󰚟5.󰚟Cannot󰚟connect󰚟to󰚟PC󰚟or󰚟file󰚟download󰚟doesn’t󰚟work󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟(1)󰚟Check󰚟whether󰚟the󰚟player󰚟is󰚟correctly󰚟plugged󰚟to󰚟your󰚟󰚟computer.󰚟(2)󰚟Check󰚟whether󰚟USB󰚟storage󰚟device󰚟driver󰚟for󰚟Windows󰚟98/SE󰚟󰚟is󰚟correctly󰚟installed󰚟in󰚟case󰚟that󰚟the󰚟OS󰚟of󰚟your󰚟computer󰚟is󰚟Windows󰚟98/SE.󰚟(3)󰚟Remove󰚟the󰚟player󰚟from󰚟your󰚟computer󰚟and󰚟plug󰚟it󰚟again.󰚟󰚟
