DGL Group BTCLPNEON Bluetooth Adapter User Manual
DGL Group LTD. Bluetooth Adapter
user manual
Operation Instructions Bluetooth Earphone
FCC ID:2AANZBTCLPNEON
Production Description:
The Bluetooth earphone is a high quality stereo Bluetooth earphone
which possesses wireless music and calling function.
Appearance vogue, beautifully designed, easy to carry, suitable for
household, outdoor travel and other places, enjoy music anytime and
anywhere. Get rid of cable tie, combined with perfect sound let
movement more freedom, happiness.
Function Features:
【Bluetooth Play】Support pairing Bluetooth devices to play music such
as mobile phone, tablet, TV.
【Hands-free calls】Support for hands-free calls function, built-in high
sensitive microphones, making phone calls have carefree to enjoy.
【Voice Prompt Coming Calls】It will prompt the phone number when
you have a coming call, it is more convenient.
【IOS Battery Display】IOS mobile phone real-time display the earphone
battery, let you know the earphone battery.
【Smart Power-off】If not connected Bluetooth mode,it will turn off
automatically after 8 minutes, don’t worry about waste of electricity for
standby.
【Rechargeable Lithium Electricity】The built-in rechargeable lithium
battery, environmental protection, economical and practical.
【Intelligent Charging】Distribution with USB charging line, can be
connected to the computer USB interface to charge, or practical mobile
charger to charge

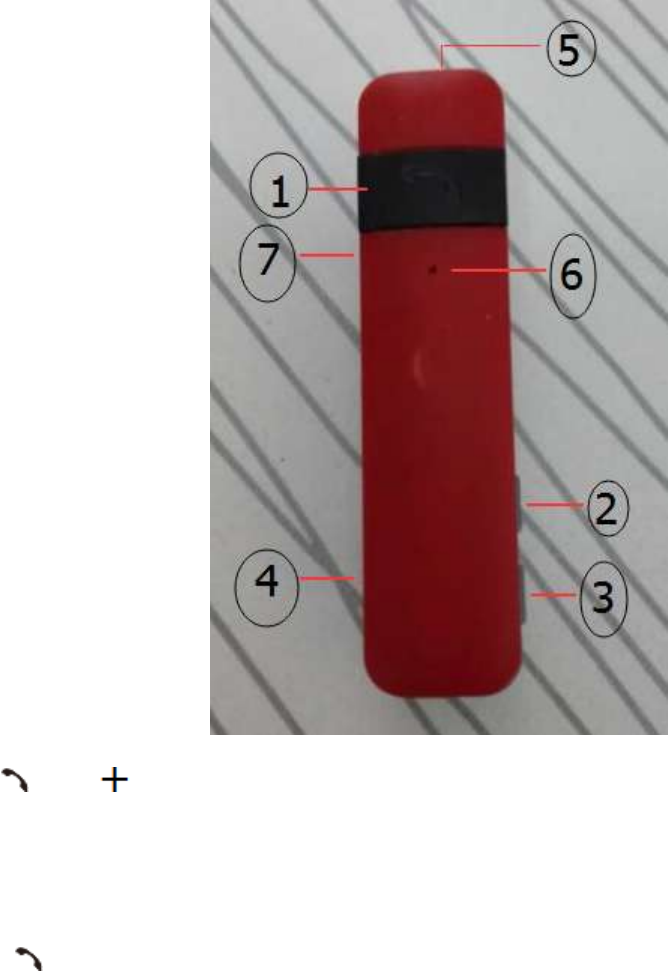

① ② ③ - ④Micro USB Charging Ports ⑤Audio output
jack ⑥Status indicator lamp ⑦Built-in Mic
Function Definition of Product Buttons and Slot:
① :Long press to turn is on(voice prompt to power on) and the
indicator lamp lights up, long press to turn it off(voice prompt to power
off) and the indicator lamp extinguished. When connect to the Bluetooth,
short press to pause play, short press again to start playing. When have a
call, short press for answering the telephone, after the call short press for
hang up, long press can refuse to answer the phone, continue press two
times will redial the last time phone number you dialed.
② +:Long press for turn up the volume, short press for move next song.
③ -:Long press for turn down the volume, short press for move
previous song.
④ 【Micro USB Charging Port】:Power input jack, can use the native
USB cable connect to the computer USB interface for charging, or use a
mobile phone charger to charge.
Bluetooth Pairing Operation Method:
Long press the call key 3 seconds to boot, the blue light flashing, it is the
state of the Bluetooth pairing. At this time search the corresponding
Bluetooth device name on the phone, click the device name on the mobile
phone for the Bluetooth pairing, hear "Connect successfully" means the
pairing is successful, the blue light flash twice every five seconds.
Charging Method of Use:
Insert the end of the charging cable to native V3 USB socket, the other
end of the USB plug into the PC USB port, or connect to the standard 5 v
charger interface, the indicator light turns red when charging, the red light
will extinguish when full of.
Low Battery:
When there was a low voltage power, the machine will prompt "Low
battery, please charge”, and then will automatically shut down, please
recharge in time at this time. If it is not to be used for a long time,
charging one time every month at least, it can protect the battery and
extend battery life.
Auto Power off Function:
If not connected Bluetooth and without any operation, this machine will
automatically turn off after eight minutes.
Product performance parameters:
1. Charging voltage: Micro USB 5V
2. Working current: 25-40mA
3. Bluetooth Working range: 10M
4. Output power: 2×20mW
5. Frequency range: 2.401-2.480GHz
6. Distortion factor: ≤1%
7. SNR: ≥95dB
8. Frequency response: 20Hz-20KHz
9. Normal Working Time: Music state 3hour
10. Charging Time: About 1 hour
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment. This device complies with Part
15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
