DGL Group MODB BT Module User Manual
DGL Group LTD. BT Module Users Manual
User Manual
Shenzhen Lingdong Intelligent Technology Co., Ltd
Customer:
Sample Name：
Sample Number：
Signature：DATE：
TESTED BY CHECKED BY APPROVED BY
MARK WELL JIAN
Customer Signature：
TESTED BY CHECKED BY APPROVED BY
2AANZMODB-ECL
2AANZMODB-ECL
BT Module

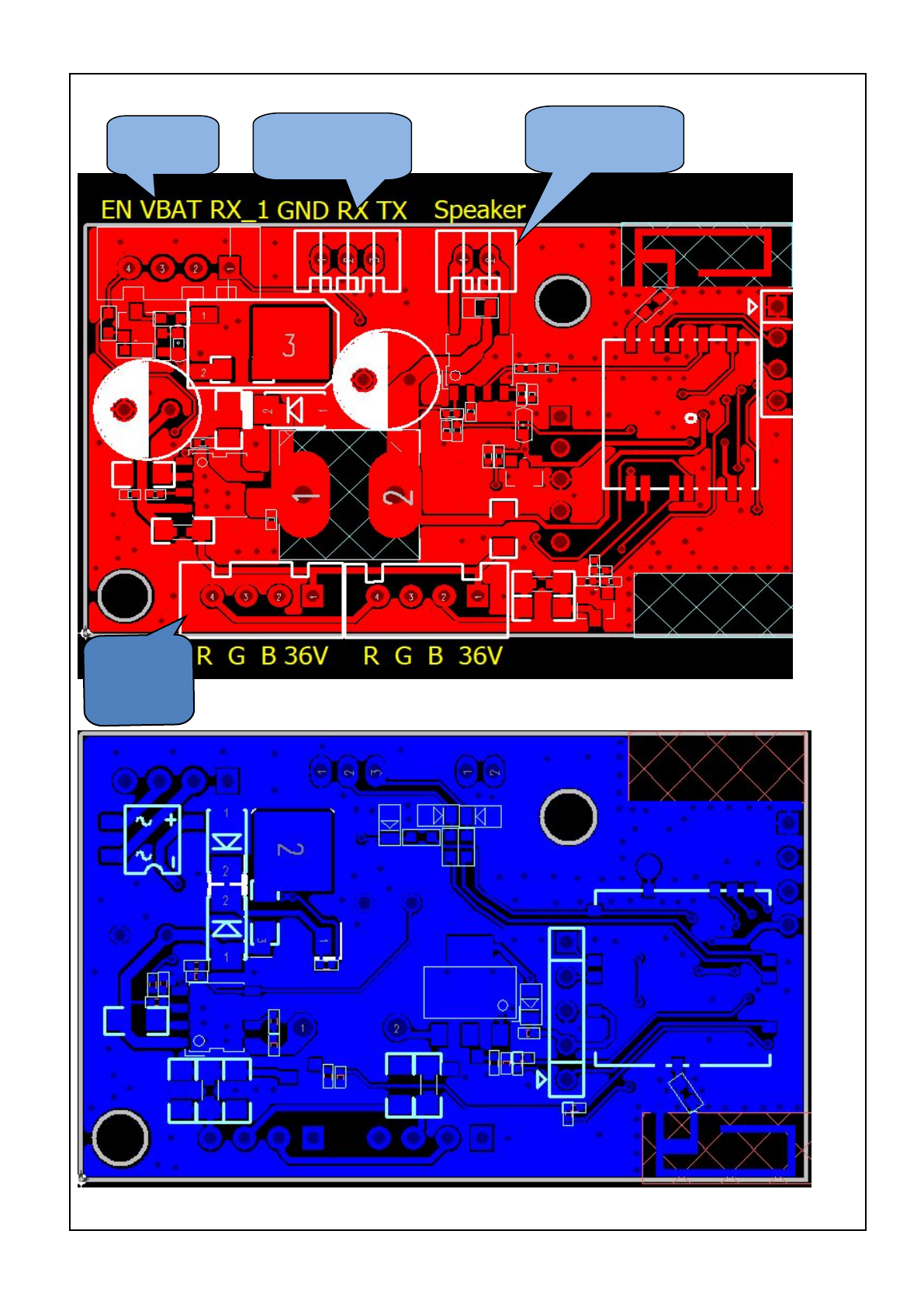

PCB Size：54.0mm*33.0mm*1.6mm
TOP Layer
Bottom layer
Power input
2.54mm X4
Speaker Output
2.0mm X2
RGB LED
Output
2.54mmX4
BLE APP UART
2.0mm X3
Function：
1、Driving 36V RGB LED；
2、Bluetooth Music&APP；
3、Mono Output；
Port specification：
Power input
EN：Enable input boot up
VBAT：Power &Ground Input
RX_1：UART TX Input
BLE APP UART:
GND:Power Ground
RX:BLE UART RX
TX:BLE UART TX
Speaker :Speaker Output
RGB LED Port:
R：Red light signal output
G：Green light signal output
B：Blue light signal output
36V：25V-42V Power Output
Product specification：
Input voltage range: 15V～42.5V
Enable input voltage range: 3.3V～5V
Hardware version: V2.12
Speaker Spec: 4Ω3W、2Ω5W
Operating Ambient Temperature: -20 ~ +80℃
Frequency: 2.402GHz~2.480GHz
