DIGI SINGAPORE 000BS02 Base Station User Manual Manual
Teraoka Weigh-System Pte Ltd. Base Station Manual
Manual
Table of Content
i) Notice .................................................................................................................................................1
ii) Safety Information..............................................................................................................................2
iii) Safety Regulations .............................................................................................................................3
1. General.............................................................................................................................................................4
1.1 Model Specification............................................................................................................................4
1.2 Operating Specification......................................................................................................................4
2. Dimension........................................................................................................................................................4
3. BS-02 Station Setup Diagram & Spec Setting For SM780/SM880..............................................................6
3.1 Setup Diagram......................................................................................................................................6
1
i) Notice
DIGI®
The material contained in this document is proprietary and for information only and is subject to change without
notice. Teraoka Weigh-System assumes no responsibility for any errors or damages arising from
misinterpretation of any procedure.
Screen displays, operating procedures and supporting features might vary with different software version
releases.
This document shall not be reproduced whether in part or whole without the written consent from Teraoka
Weigh-System Pte Ltd.
Teraoka Weigh-System Pte Ltd
4, Leng Kee Road
#06-01 SIS Building
Singapore 159088
2
ii) Safety Information
The operator of the equipment shall comply with the safety and warning indications and procedures outlined in
this document. Teraoka Weigh-System Pte Ltd assumes no responsibility or liability for failure to comply with
these requirements.
Repair and servicing of product, shall only be carried out by trained and qualified personnel.
Disclaimer:
Specifications are subject to change without notice. All dimensions shown are approximate. Please be aware
that Teraoka has indicated that its hardware and software used in the product may require additional updates in
the future as our product is continually under development. The need for such updates most likely applies to the
Printer software.
CAUTIONS:
FOR PLUGGABLE EQUIPMENT, THAT THE SOCKET-OUTLET SHALL BE INSTALLED NEAR THE
EQUIPMENT AND SHALL BE EASILY ACCESSIBLE.
POUR LE MATÉRIEL RACCORDÉ PAR PRISE DE COURANT, LE SOCLE DE PRISE DE
COURANT DOIT ÊTRE
INSALLÉ À PROXIMITÉ DU MATÉRIEL ET DOIT ÊTRE AISÉMENT ACCESSIBLE.
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE
AND RATING OF FUSE.
POUR NE PAS COMPROMETTRE LA PROTECTION CONTRE LES RISQUES D’INCENDIE,
REMPLACER PAR UN FUSIBLE DE MÊME TYPE ET DE MÊME CARACTÉRISTIQUES
NOMINALES.
DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH
THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD
USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS
IL Y A DANGER D’EXPLOSION S’IL Y A REMPLACEMENT INCORRECT DE LA BATTERIE.
REMPLACER UNIQUEMENT AVEC UNE BATTERIE DU MÊME TYPE OU D’UN TYPE
RECOMMANDÉ PAR LE CONSTRUCTEUR. METTRE AU RÉBUT LES BATTERIES USAGÉES
CONFORMÉMENT AUX INSTRUCTIONS DU FABRICANT.

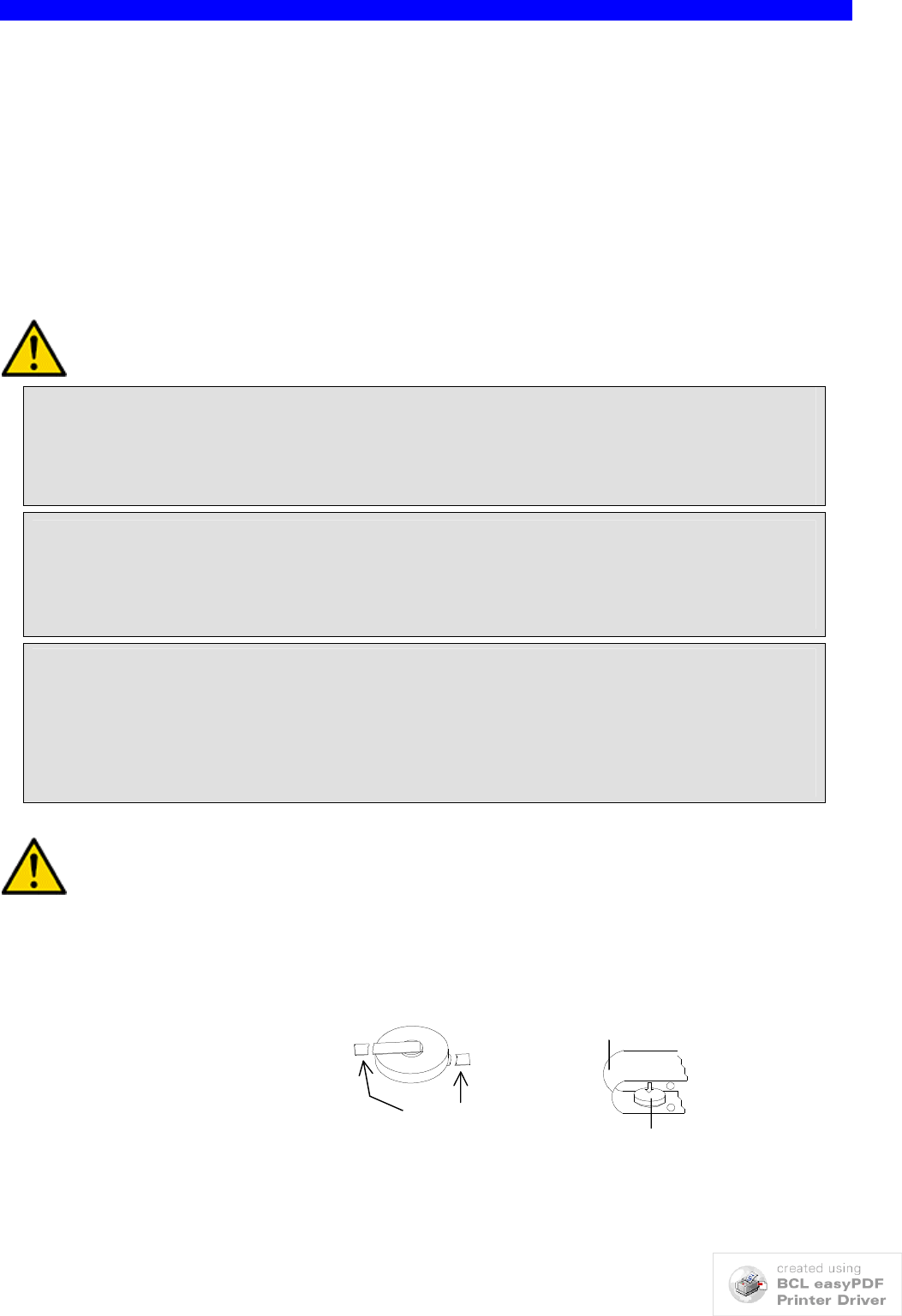

WARNING DISPOSAL:
THE BATTERY MAY BE REGULATED BY NATIONAL OR LOCAL REGULATION. PLEASE FOLLOW
THE INSTRUCTIONS OF PROPER REGULATION. AS ELECTRIC CAPACITY IS LEFT IN A
DISCARDED BATTERY AND IT COMES INTO CONTACT WITH OTHER METALS, IT COULD LEAD TO
DISTORTION, LEAKAGE, OVERHEATING, OR EXPLOSION, SO MAKE SURE TO CUT/BREAK THE
BATTERY LEGS AND COVER THE (+) AND (-) TERMINALS WITH FRICTION TAPE OR SOME OTHER
INSULATOR BEFORE DISPOSAL.
+
-
Tape
Battery
Cut / Break the Battery
Legs
3
iii) Safety Regulations
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
IDA Compliance Statement: (Singapore)
This equipment registered to comply with IDA (Info-Communications Development Authority of Singapore)
Standard under Dealer’s Class License.
Industry Canada statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
Actual size
9mm (H) x 17mm (W)
BS-02 Base Station Service Manual
4
1. General
1.1 Model Specification
Model : BS-02
Dimension (in mm) : 78.0(L) X 53.0(W) X 25.0(H)
Modulation : MSK FOR TX MODE /FSK FOR RX MODE
Frequency Band (TX 1) : 2.410 to 2.480MHz
Frequency Band (TX 2) : 2.406 to 2.480MHz
Number of Channels TX 1 : 20 CHANNELS
Number of Channels TX 2 : 75 CHANNELS
Data Rate : Up to 500 kbps
Radio Range : Up to 30m direct in sight (OPEN AIR)*
Transmit Power : TX 1: 0dBm (max) TX 2: 10dBm (max)
Receiver Sensitivity : -90dBm (typical), PER = 1%
Voltage & Current : 5Vdc, 200mA (max)
* Note: The Radio Range distance may vary based on the environment conditions.
1.2 Operating Specification
Power Source : External :From 5V DC Adaptor for PC and Other
RS232 Device
:Internal :From SM780/SM880 scale power source.
Operating Temperature : 0 °C to 40 °C
Humidity : 95% max non condensing

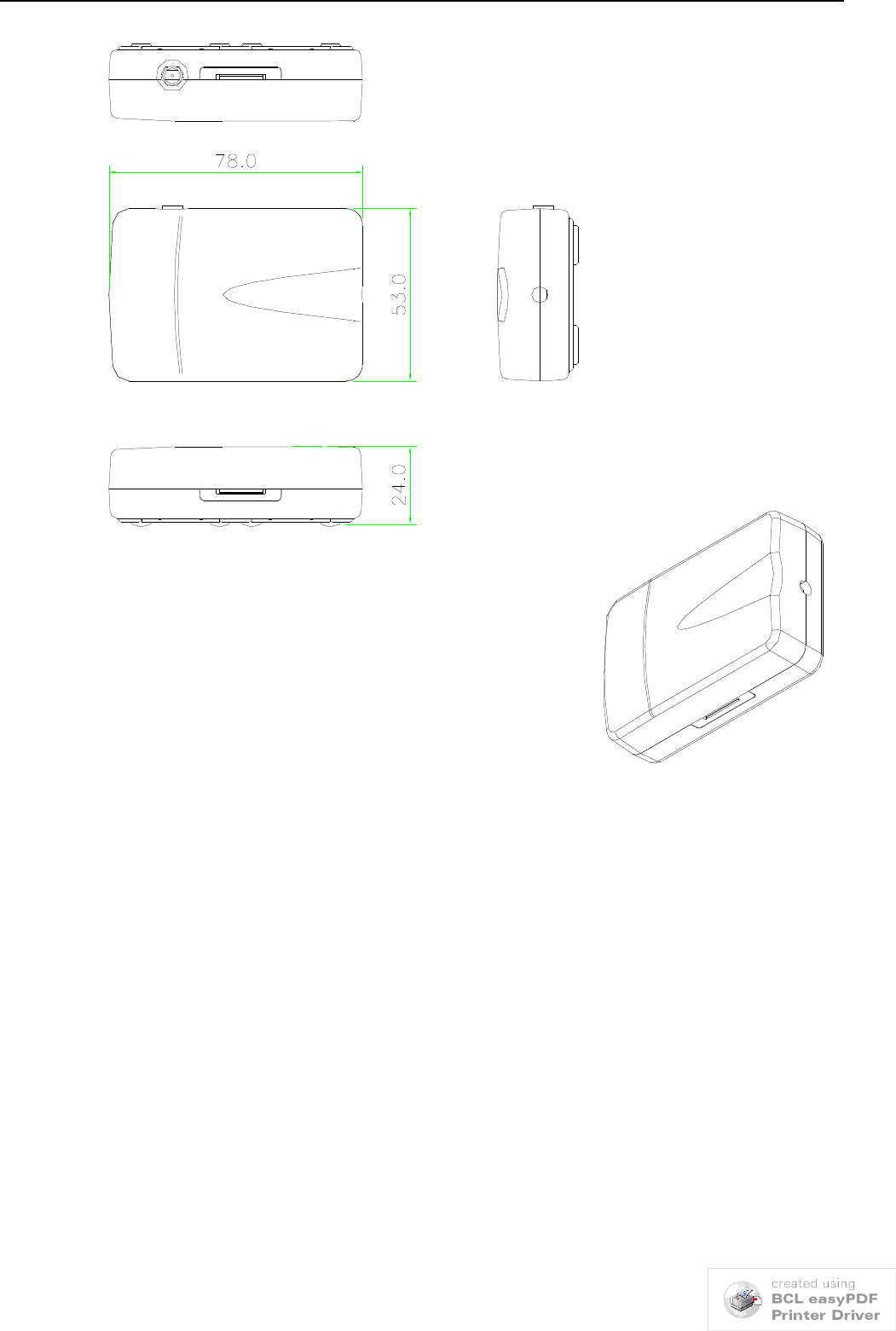

2. Dimension
BS-02 Station Service Manual
6
3. BS-02 Station Setup Diagram & Spec Setting For SM780/SM880

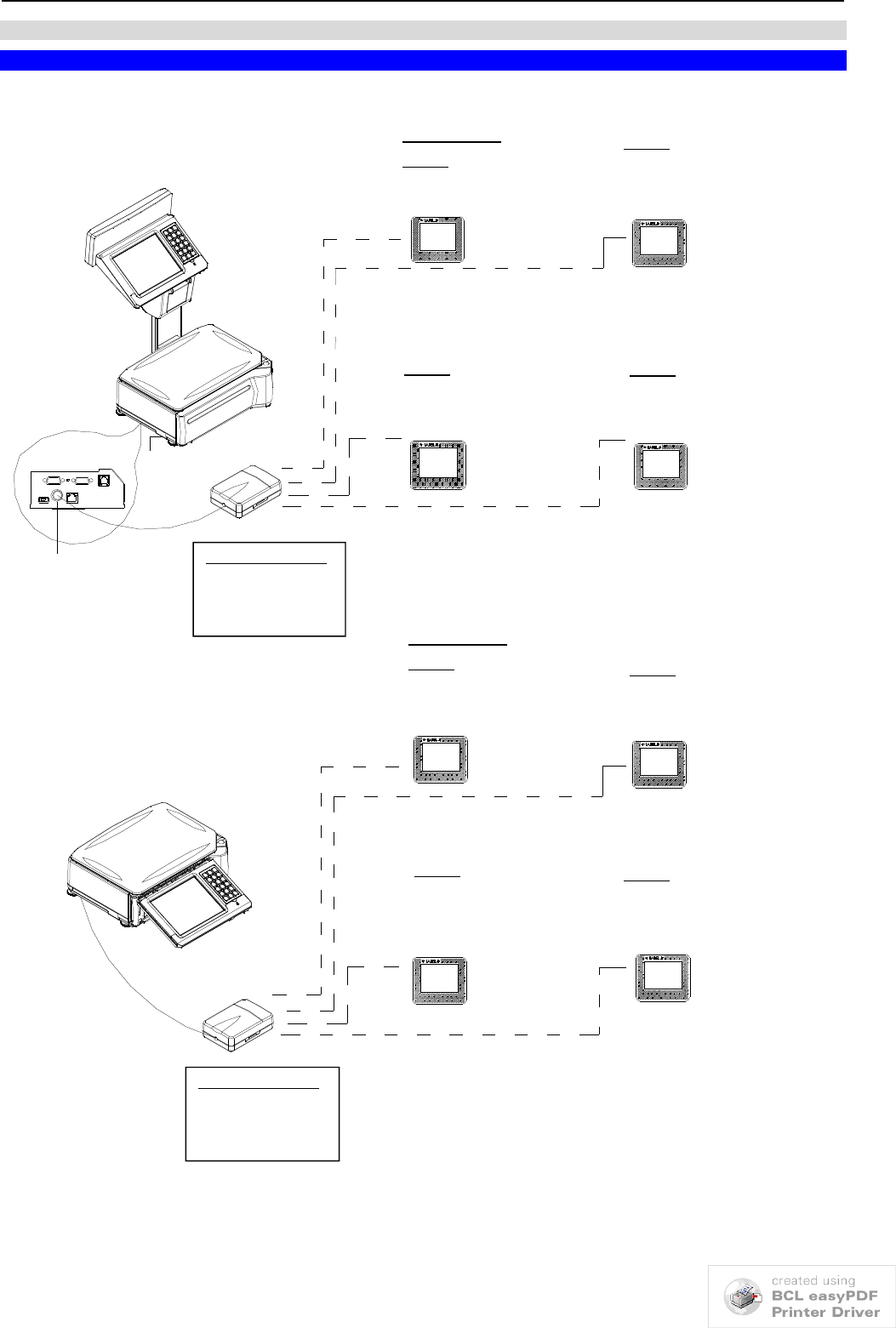

3.1 Setup Diagram
Note: All individual Base Station will have unique Store ID, and Name.
Interface
RS232
On / Off Switch
MiniBase Station ID
Store ID: 0 ~ 3
Name: Meat
Counter
Channel: 22
Exampl
e Setup
TAG ID
Base Station: Meat Counter
PLU: 0001
Traceability: 0003
TAG ID
Base Station: Meat Counter
PLU: 0002
Traceability: 0004
TAG ID
Base Station: Meat Counter
PLU: 0003
Traceability: 0005
TAG ID
Base Station: Meat Counter
PLU: 0004
Traceability: 0006
MiniBase Station ID
Store ID: 0 ~ 3
Name: Fruit Counter
Channel: 23
Example Setup
TAG ID
Base Station: Fruit Counter
PLU: 0001
Traceability: 0002
TAG ID
Base Station: Fruit Counter
PLU: 0002
Traceability: 0003
TAG ID
Base Station: Fruit Counter
PLU: 0004
Traceability: 0003
TAG ID
Base Station: Fruit Counter
PLU: 0005
Traceability: 0004
--------
Communication Via RF 2.
45GHz
Communication
Via RS232
Communication
Via RS232
