USER MANUAL
WIRELESS RF DEVICE
HT-01 AND
HTBS-01 SERIES
Tentative Edition
COPYRIGHT © 2004 TERAOKA WEIGH-SYSTEM PTE LTD
Table of Content
i) Notice .................................................................................................................................................1
ii) Safety Information ..............................................................................................................................2
iii) Safety Regulations .............................................................................................................................3
1. General ..............................................................................................................................................................4
1.1 Product Features................................................................................................................................4
1.1.1 HT-01 (Hi Touch RF Tag) .....................................................................................................4
1.1.2 HTBS-01 (Hi Touch Base Station) ........................................................................................4
1.2 Operating Specification......................................................................................................................5
1.2.1 HT-01 (Hi Touch RF Tag) .....................................................................................................5
1.2.2 HTBS-01 (Hi Touch Base Station) ........................................................................................5
1.3 Battery Specification ..........................................................................................................................5
1.3.1 HT-01 (Hi Touch RF Tag) .....................................................................................................5
2. Dimension.........................................................................................................................................................6
2.1 HT-01 (Hi Touch RF Tag) ..................................................................................................................6
2.2 HTBS-01 (Hi Touch Base Station) .....................................................................................................6

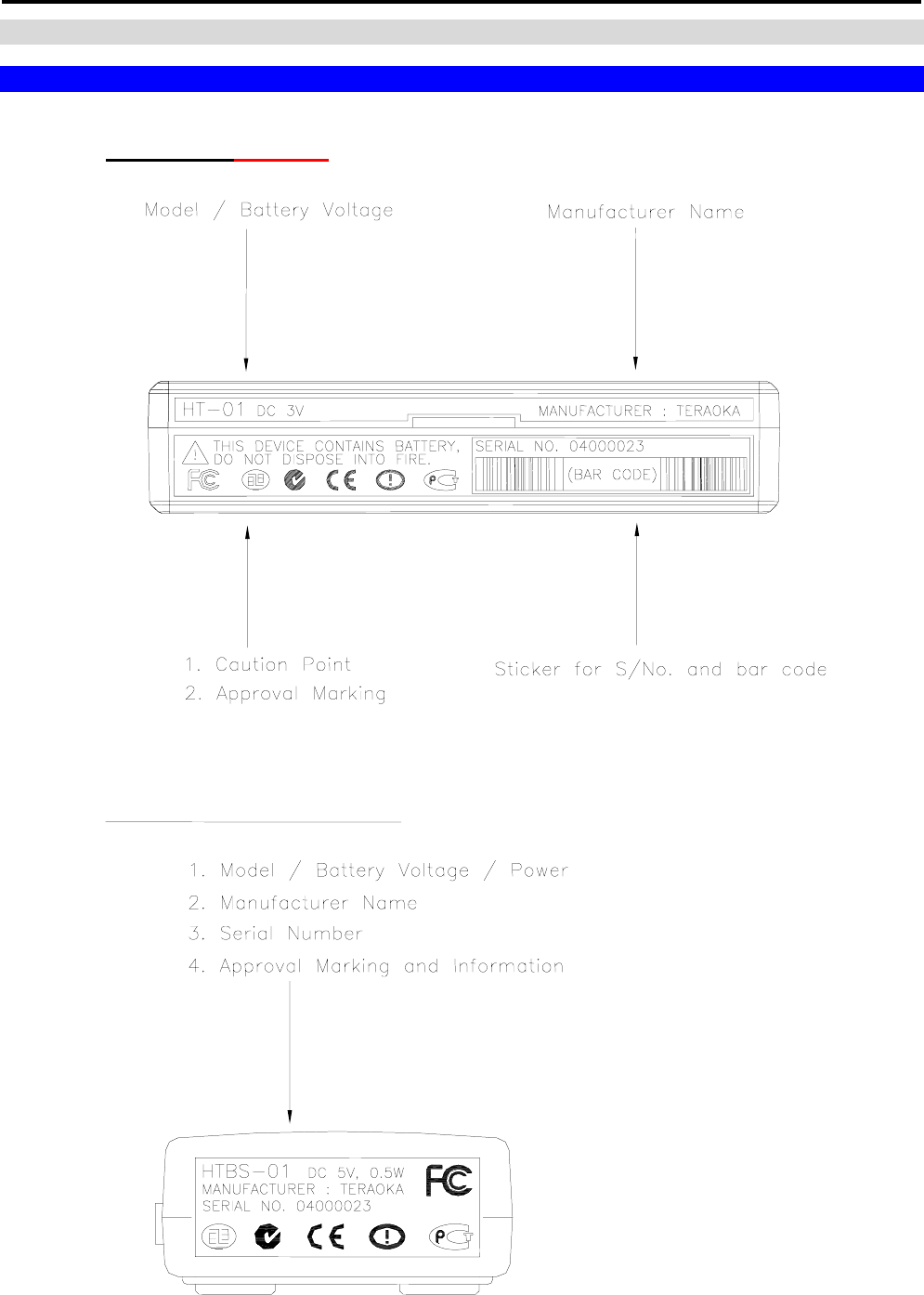

3. Label Information for HT-01 (Hi Touch RF Tag) and HTBS-01(Hi Touch Base Station) ..............7
3.1 For all countries except Japan ...........................................................................................................7
3.2 For Japan Only...................................................................................................................................8
4. Hi-Touch Operation with SM-700 Scale (Example)................................................................................9
5. Revision Records ......................................................................................................................................... 11
i) Notice
DIGI®
The material contained in this document is proprietary and for information only and is subject to change without
notice. Teraoka Weigh-System assumes no responsibility for any errors or damages arising from
misinterpretation of any procedure.
Screen displays, operating procedures and supporting features might vary with different software version
releases.
This document shall not be reproduced whether in part or whole without the written consent from Teraoka
Weigh-System Pte Ltd.
Teraoka Weigh-System Pte Ltd
4, Leng Kee Road
#06-01 SIS Building
Singapore 159088
1
ii) Safety Information
The operator of the equipment shall comply with the safety and warning indications and procedures outlined in
this document. Teraoka Weigh-System Pte Ltd assumes no responsibility or liability for failure to comply with
these requirements.
. For continued protection against fire hazard replace only with battery of same rating and type.
. Avoid overloading the product beyond its rated maximum capacity
. Trained and qualified personnel shall only carry out repair and servicing of product.
Disclaimer:
Specifications are subject to change without notice. All dimensions shown are approximate. Please be aware
that Teraoka has indicated that its hardware and software used in the product may require additional updates in
the future as our product is continually under development. The need for such updates most likely applies to the
Printer software.
CAUTIONS:
1. DO NOT DISPOSE THE UNIT INTO FIRE.
2. NOT RECOMMENDED TO REPLACE THE BATTERY IN THIS UNIT.
3. FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, IF REPLACE ONLY WITH SAME TYPE
AND RATING OF BATTERY.
4. DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH
THE SAME OR EQUIVALENT TYPE THAT RECOMMENDED. DISPOSE OF THE BATTERY
ACCORDINGS TO THE MANUFACTURER INSTRUCTION.
2
iii) Safety Regulations
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one
of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. To
maintain compliance with FCC RF exposure compliance requirements, please avoid direct contact to the
transmitting antenna during transmitting.
3
HI Touch Unit and Base Station User Manual
1. General
1.1 Product Features
1.1.1 HT-01 (Hi Touch RF Tag)
Model :
HI TOUCH
Dimension (in mm) : 95.5(L) X 36.0(W) X 20.0(H)
RF Standard : IEEE 802.15.4
Modulation :
O-QPSK with DSSS
Frequency Band : 2.4 GHz – 2.4835 GHz
Radio Operation Channel : Channel 11 to 26
The RF Frequency of channel k is given by : Fc = 2405+5(k-11)MHz, k=11,12….26
Data Rate : Up to 250 kbps
Radio Range : Up to 100m in sight
Transmit Power : 0dBm (max)
Receiver Sensitivity : -93dB (typical), PER = 1%
1.1.2 HTBS-01 (Hi Touch Base Station)
Model :
HI TOUCH BASE STATION
Dimension (in mm) : 78.0(L) X 53.0(W) X 25.0(H)
RF Standard : IEEE 802.15.4
Modulation :
O-QPSK with DSSS
Frequency Band : 2.4 GHz – 2.4835 GHz
Radio Operation Channel : Channel 11 to 26
The RF Frequency of channel k is given by : Fc = 2405+5(k-11)MHz, k=11,12….26
Data Rate : Up to 250 kbps
Radio Range : Up to 100m in sight
Transmit Power : 0dBm (max)
Receiver Sensitivity : -93dB (typical), PER = 1%
4
HI Touch Unit and Base Station User Manual
1.2 Operating Specification
1.2.1 HT-01 (Hi Touch RF Tag)
Power Source : DC 3.0V (Internal Battery)
Operating Temperature : -20 °C to 40 °C
Humidity :
95% max non condensing
1.2.2 HTBS-01 (Hi Touch Base Station)
Power Source : 5.0V external.
Operating Temperature : -20 °C to 40 °C
Humidity :
95% max non condensing
1.3 Battery Specification
1.3.1 HT-01 (Hi Touch RF Tag)
Battery Type : Lithium Manganese Dioxide Batteries
Nominal Voltage : 3.0V
Nominal Capacity : 610mAh
Operating Temperature Ranges : -20°c to 60 °c
Weight (approx.) : 6.6g
Dimension in (mm) : 24.5(Diameter) X 5.0mm(Height)
Recommend Brand : Maxell (CR2450)
Life Time : 5 years
5
HI Touch Unit and Base Station User Manual
2. Dimension
2.1 HT-01 (Hi Touch RF Tag)
Note: For Japan Model only, the Logo is TERAOKA
2.2 HTBS-01 (Hi Touch Base Station)
6
HI Touch Unit and Base Station User Manual

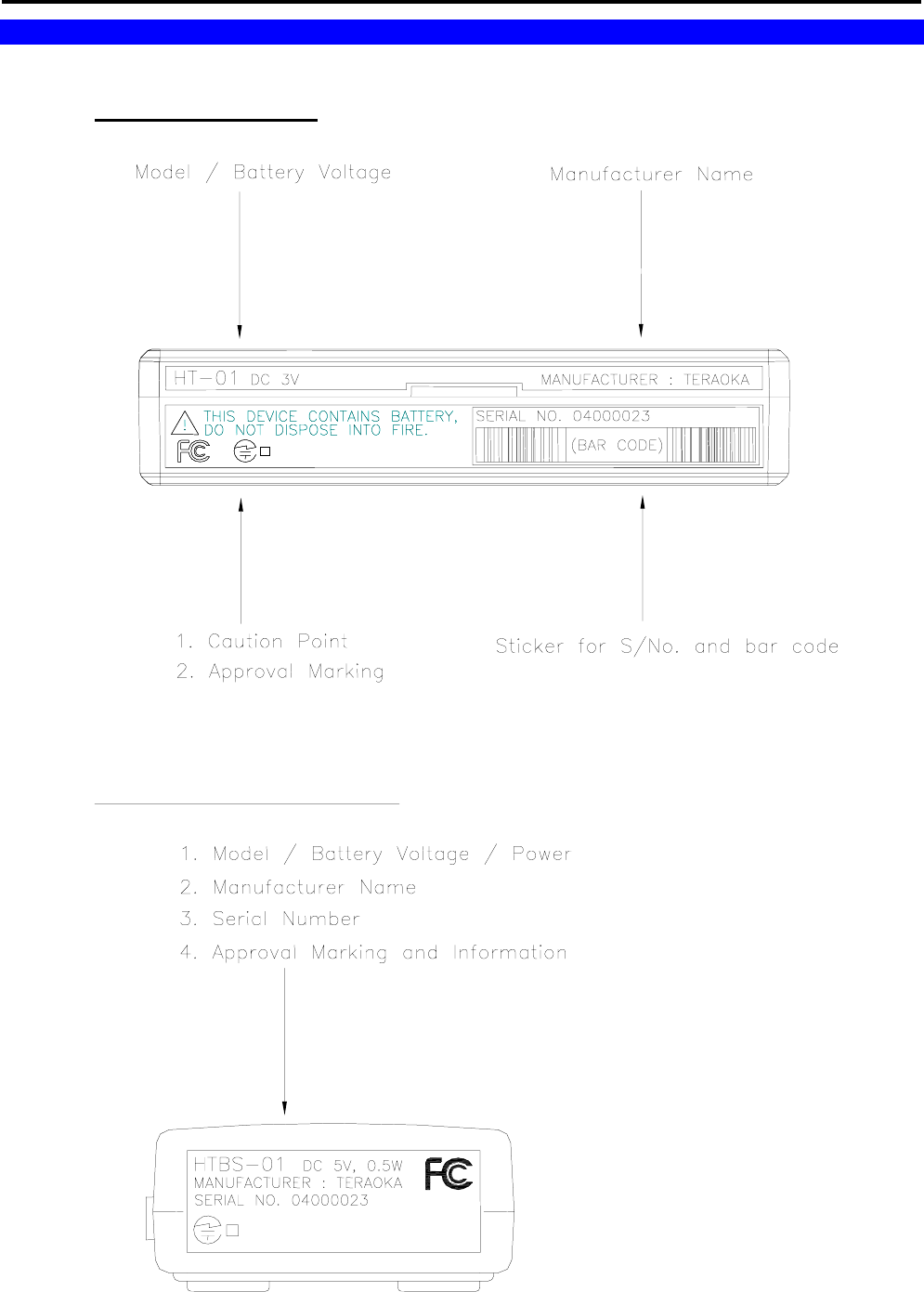

3.2 For Japan Only
Hi-Touch RF Tag
Hi-Touch Base Station
R xxx xx xxxxxxxx
IC: XXXXX-YYYYYYYY
R xxx xx xxxxxxxx
IC: XXXXX-YYYYYYYY
R xxx xx xxxxxxxx
IC: XXXXX-YYYYYYYY
Rxxx xx xxxxxxxx
IC: XXXXX-YYYYYYYY
8
HI Touch Unit and Base Station User Manual

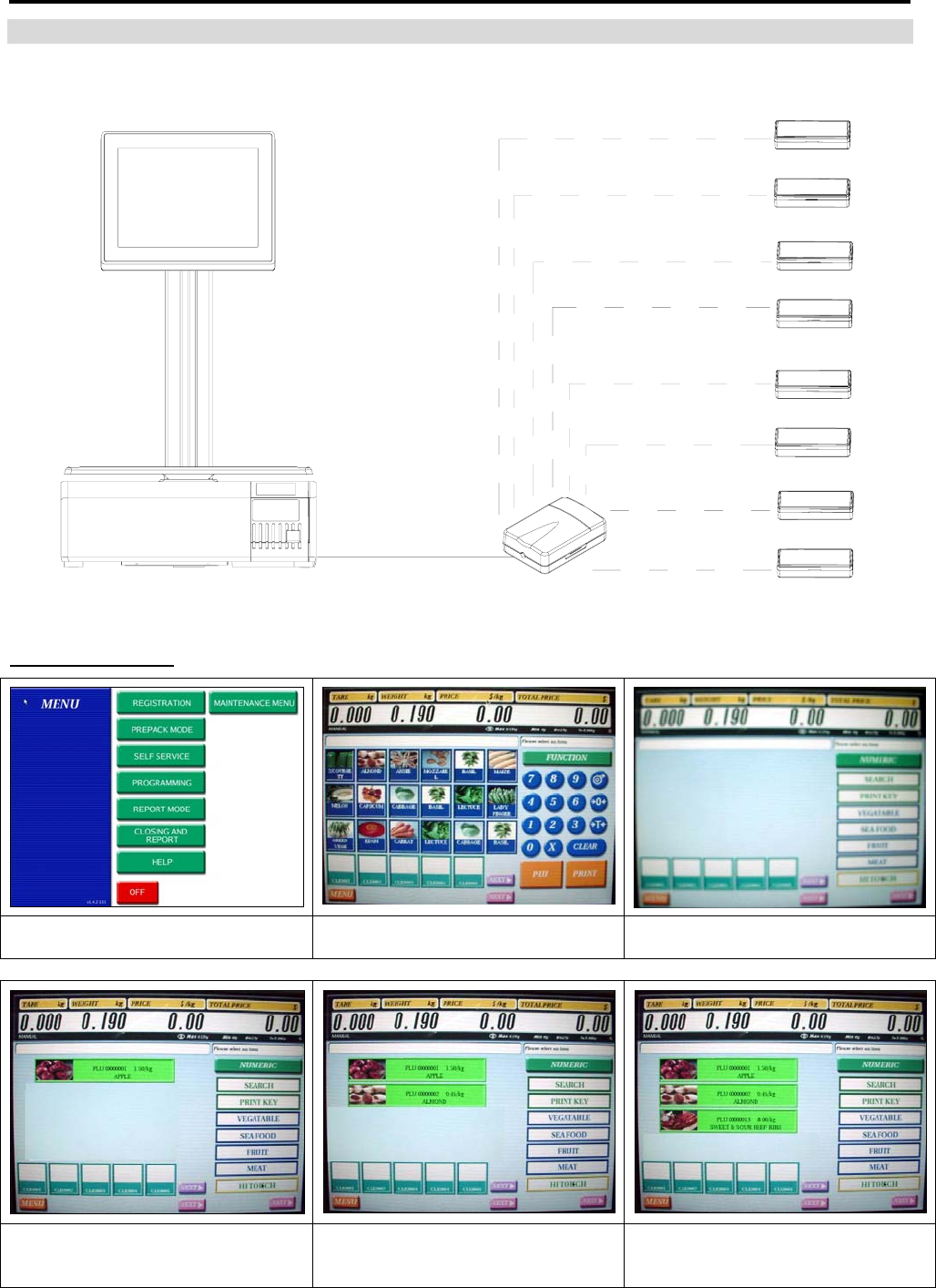

4. Hi-Touch Operation with SM-700 Scale (Example)
DIGI
DIGI
DIGI
DIGI
DIGI
DIGI
DIGI
DIGI
RF 2.45GHz
RF 2.45GHz
RF 2.45GHz
RF 2.45GHz
RF 2.45GHz
RF 2.45GHz
RF 2.45GHz
Communication
Via
RS232
RF 2.45GHz
SM 700 HI –TOUCH BASE STATION
HI TOUCH RF TAG
Operate Procedure
1. Power on scale, after 2 to 3
minutes, it will show the main menu.
2. Press Registration button to enter
registration mode.
3. Press Hi touch button to enter hi
touch mode.
4. Press Hi touch tag, the preset
button of that Hi touch will appear
on the screen.
5. Press the others Hi touch tag, the
preset button of that Hi touch will
appear on the screen.
6. The scale will display preset
buttons according to the sequence
of the Hi touch tag pressed.
9
HI Touch Unit and Base Station User Manual

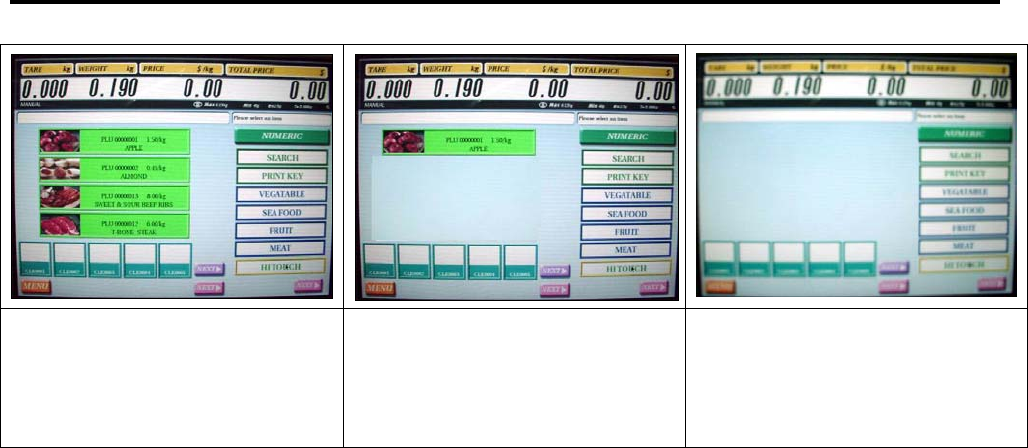

7. If the hi touch tag input is more
than 4, the preset button will appear
on the next screen. You can use the
arrows to go to next page or
previous page.
8. If the preset button is not used,
after time out it will disappear from
the screen.
9. To print label, put weight on
platter, select preset button and
press print key on the mechanical
key pad. A label will be printed and
the preset key will be disappeared
from the screen.
10
HI Touch Unit and Base Station User Manual
5. Revision Records
Serial
No. Date Edition
Status Description of Changes Software
Version
Remarks
001 Nov ‘04 00 Tentative Edition
