SERVICE MANUAL
AP-3002AN
IEEE 802.11a/b/g/n/ac 2x2 WirelessLAN USB Client
AP-3002AN
Tentative Edition
Table of Content
i) Notice ................................................................................................................................................. 1
ii) Safety Information .............................................................................................................................. 2
iii) Safety Regulations ............................................................................................................................. 2
1. General ............................................................................................................................................................. 5
1.1 Model Specification ............................................................................................................................ 5
1.2 Operating Specification ...................................................................................................................... 5
2. Enclosure Dimension ..................................................................................................................................... 6
3. AP-3002AN Setup Diagram & Procedures.................................................................................................... 7
3.1 Setup Diagram ...................................................................................................................................... 7
3.2 Setup Procedures ................................................................................................................................. 7
4. Revision Records .......................................................................................................................................... 10
1
i) Notice
The material contained in this document is proprietary and for information only and is subject to change without
notice. DIGI assumes no responsibility for any errors or damages arising from misinterpretation of any
procedure.
Screen displays, operating procedures and supporting features might vary with different software version
releases.
This document shall not be reproduced whether in part or whole without the written consent from DIGI
SINGAPORE PTE. LTD.
DIGI SINGAPORE PTE. LTD.
4, Leng Kee Road
#06-01 SIS Building
Singapore 159088
2
ii) Safety Information
The operator of the equipment shall comply with the safety and warning indications and procedures outlined in
this document. DIGI PTE. LTD. assumes no responsibility or liability for failure to comply with these
requirements.
Repair and servicing of product shall only be carried out by trained and qualified personnel.
Disclaimer:
Specifications are subject to change without notice. All dimensions shown are approximate. Please be aware
that DIGI has indicated that its hardware and software used in the product may require additional updates in the
future as our product is continually under development. The need for such updates most likely applies to the
Printer software.
CAUTIONS:
FOR PLUGGABLE EQUIPMENT, THAT THE SOCKET-OUTLET SHALL BE INSTALLED NEAR THE
EQUIPMENT AND SHALL BE EASILY ACCESSIBLE.
POUR LE MATÉRIEL RACCORDÉ PAR PRISE DE COURANT, LE SOCLE DE PRISE DE
COURANT DOIT ÊTRE
INSALLÉ À PROXIMITÉ DU MATÉRIEL ET DOIT ÊTRE AISÉMENT ACCESSIBLE.
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE
AND RATING OF FUSE.
POUR NE PAS COMPROMETTRE LA PROTECTION CONTRE LES RISQUES D’INCENDIE,
REMPLACER PAR UN FUSIBLE DE MÊME TYPE ET DE MÊME CARACTÉRISTIQUES
NOMINALES.
DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH
THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD
USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS
IL Y A DANGER D’EXPLOSION S’IL Y A REMPLACEMENT INCORRECT DE LA BATTERIE.
REMPLACER UNIQUEMENT AVEC UNE BATTERIE DU MÊME TYPE OU D’UN TYPE
RECOMMANDÉ PAR LE CONSTRUCTEUR. METTRE AU RÉBUT LES BATTERIES USAGÉES
CONFORMÉMENT AUX INSTRUCTIONS DU FABRICANT.
iii) Safety Regulations
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
3
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Industry Canada statement:
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation of the device.
IMPORTANT NOTE:
RF Exposure Statements
This device complies with the ISED RSS-102 RF exposure requirement set forth for an uncontrolled
environment and are safe for intended operation as described in this manual.
This device is operating in 5.15~5.25GHz frequency range in indoor environment only.
Cet appareil est conforme aux exigences d'exposition RF de l'ISED RSS-102 definies pour un environnement
non controle et est sur pour le fonctionnement prevu comme decrit dans ce manuel.
Le fonctionnement sur la bande 5,15–5,25Ghz est limite a une utilisation interieure uniquement.
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts
de license. L'exploitation est autorisee aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est
susceptible d'en compromettre le fonctionnement.
CAN ICES-3 (B)/NMB-3(B)
This product meets the applicable Innovation, Science and Economic Development Canada technical
specifications.
Ce produit repond aux specifications techniques applicables a l'innovation, Science et Developpement
economique Canada.
Caution:
(i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful
interference to co-channel mobile satellite systems;
(ii) the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall be
such that the equipment still complies with the e.i.r.p. limit;
(iii) the maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the
equipment still complies with the e.i.r.p. limits specified for point-to-point and non-point-to-point operation as
appropriate; and
(v) Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of
the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage
to LE-LAN devices.
4
Avertissement:
Le guide d’utilisation des dispositifs pour réseaux locaux doit inclure des instructions précises sur les
restrictions susmentionnées, notamment :
(i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à
l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les
mêmes canaux;
(ii) le gain maximal d'antenne permis pour les dispositifs utilisant les bandes de 5250 à 5 350 MHz et de 5470 à
5725 MHz doit être conforme à la limite de la p.i.r.e;
(iii) le gain maximal d'antenne permis (pour les dispositifs utilisant la bande de 5 725 à 5 850 MHz) doit être
conforme à la limite de la p.i.r.e. spécifiée pour l'exploitation point à point et l’exploitation non point à point,
selon le cas;
(v) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont
désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les bandes 5250-5350 MHz et 5650-5850
MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL.
Radiation Exposure Statement:
For body-worn operating conditions please must provide at least 5mm separation between the device and the
user's body.
Déclaration d'exposition aux radiations:
Pour les conditions d'utilisation portees par le corps, veuillez assurer une distance d'au moins 5 mm entre
l'appareil et le corps de l'utilisateur.
IDA Compliance Statement: (Singapore)
This equipment registered to comply with IDA (Info-Communications Development Authority of Singapore)
Standard under Dealer’s Class License.
Contact Information:
DIGI America Inc.
76 Veronica Avenu, Somerset, NJ 08873, U.S.A.
TEL：+1-732-828-3633
FAX：+1-732-828-4884
For Taiwan 警語：
依NCC低功率電波輻射性電機管理辦法規定
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加
大功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用
，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功
率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾
在 5.25-5.35 秭赫頻帶內操作之無線資訊傳輸設備，限於室內使用
應避免影響附近雷達系統之操作。
報驗義務人: 商進貿易股份有限公司
臺北市中山區民生東路2段35號2樓
The device could automatically discontinue transmission in case of absence of information to transmit,
or operational failure. Note that this is not intended to prohibit transmission of control or signalling information
or the use of repetitive codes where required by the technology.
AP-3002AN Service Manual
5
1. General
1.1 Model Specification
Model :
AP-3002AN
Brand Name :
DIGI
Network Standard :
IEEE 802.11 a/b/g/n/ac compliant
Dimensions (in mm) : Body Casing
Dimension
-
90(L) x 30(W) x 9.5(H)
Color :
Dark Brown / White
USB Cable Length : 1.5 meters (High Speed USB 3.0 Cable with USB Connector
Type A)
Weight :
100g approx.
Operating System :
Linux
Supported OS : Driver support for Windows 10/8/ 7/ 2000/ XP/Vista and Linux
OS
Power Source :
Host PC/USB
Voltage & Current :
DC 5V, 680mA
Operating Temperature
Ranges : 0ºC to +60ºC
Operating Humidity :
85% Max. Non-condensing
USB Interface :
Support Type A USB2.0/USB3.0
Housing Material :
Plastic ABS
1.2 Operating Specification
Power Source :
5VDC Supplied from the Host/PC USB
Operating Temperature :
0ºC to +60ºC
Humidity :
85% Max. Non-condensing
AP-3002AN Service Manual
6

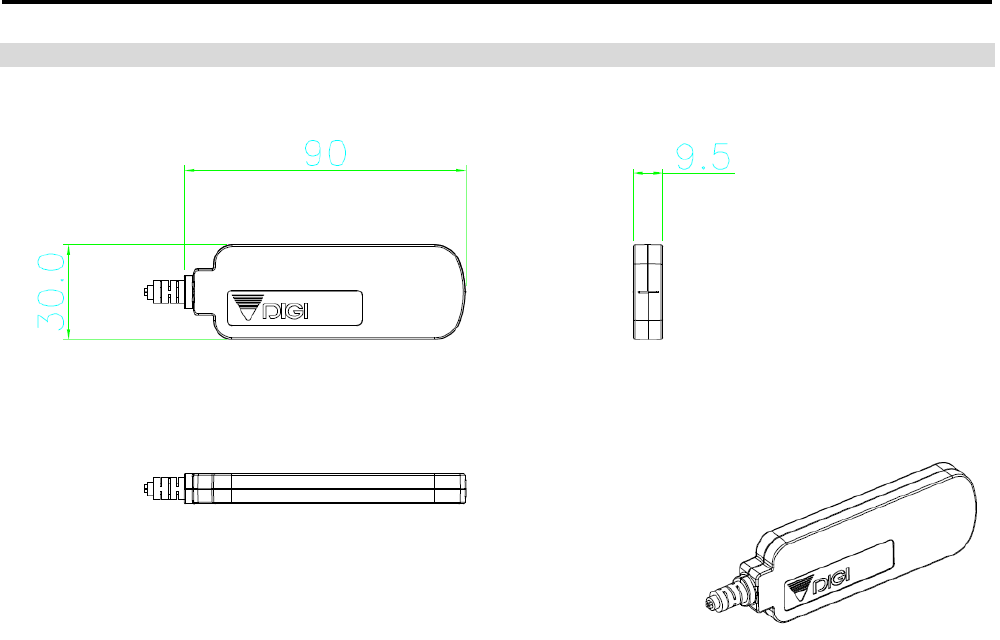

2. Enclosure Dimension
AP-3002AN Service Manual
7
3. AP-3002AN Setup Diagram & Procedures

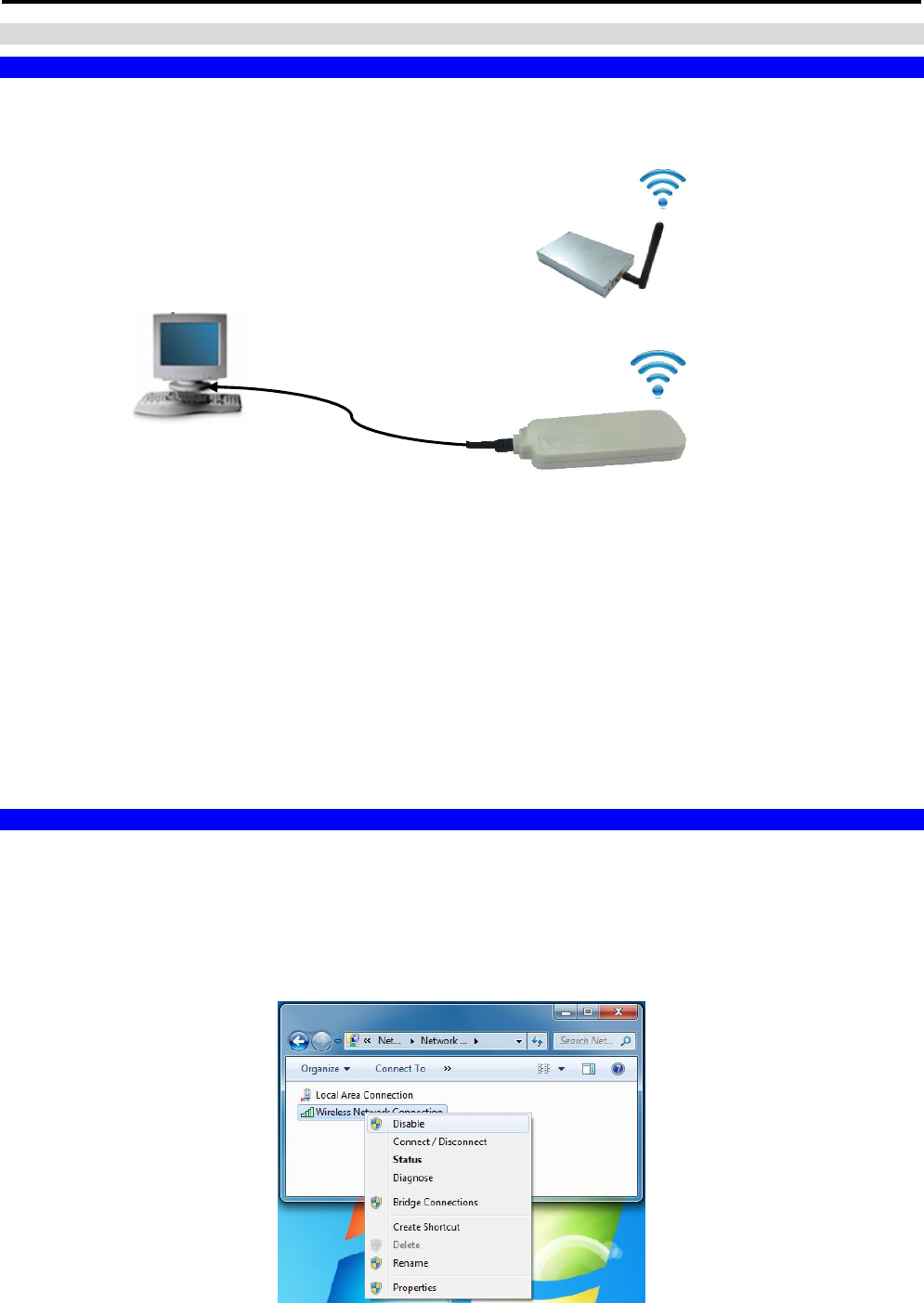

3.1 Setup Diagram
Note: **
This equipment is used for professional environment. AP-300AN should be installed and operated with
minimum distance 20cm between the radiator & your body.

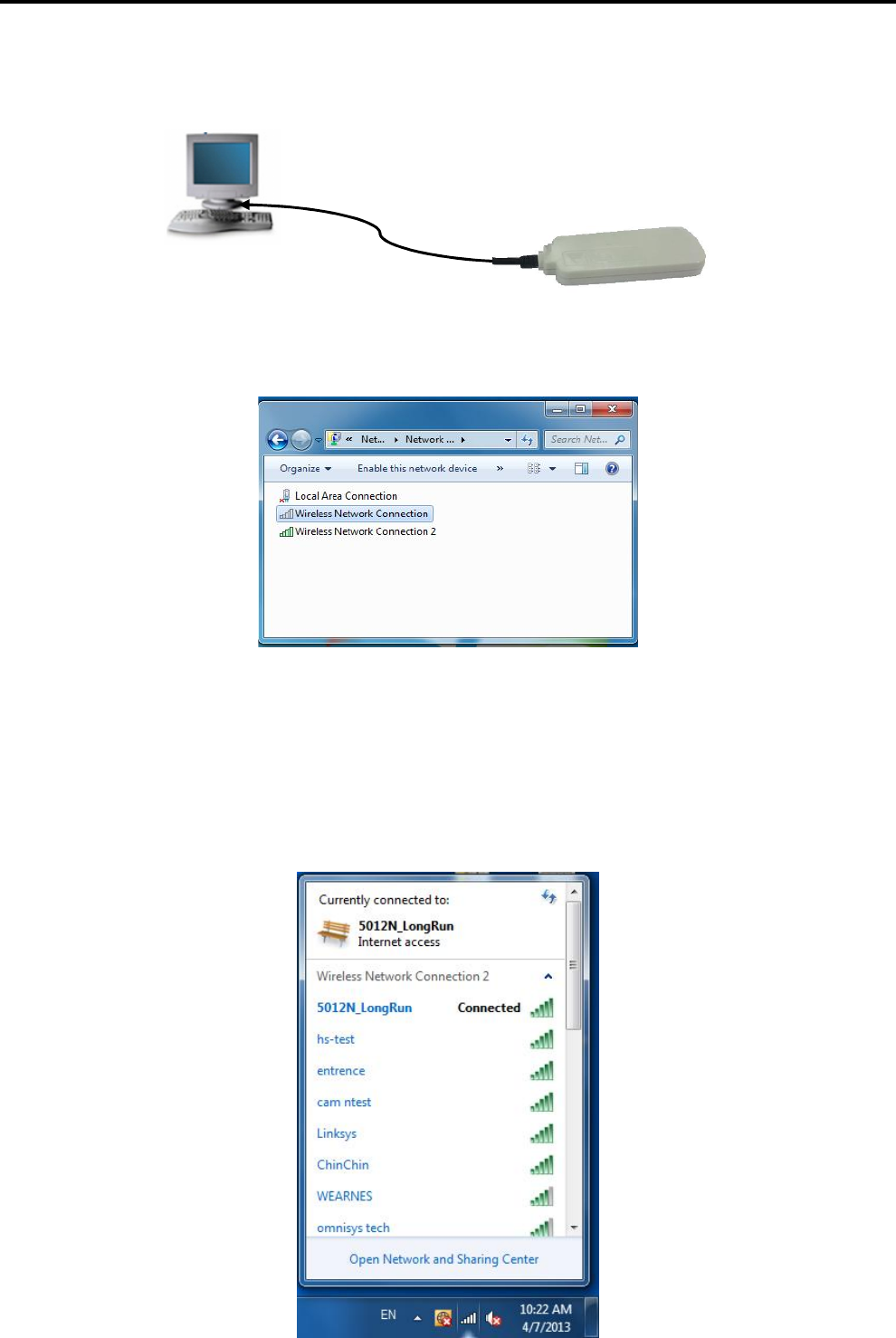

3.2 Setup Procedures
1. Disable the Wireless Network Connection (Wireless adapter) from your PC.
Go to Control Panel >Network and Internet>Network and Sharing center>View network status and task>Change
Adapter settings. Then right click the “Wireless Network Connection” and select “Disable".
USB Cable connection
Access Point
USB Host PC/Devices
AP-3002AN **
AP-3002AN Service Manual
8
2. Attach the AP-3002AN directly into a USB port on your PC. The AP3002AN driver will auto
run and install to your PC. A new wireless adapter “Wireless Network Connection” will show.
Remark:
Contact your supplier for the technical support, if the driver is required to install manually to support
your PC/Host USB equipment.
3. Click on “Wireless Network Connection 2”, and then select your desired Access Point to
performance wireless connection.
USB Host PC/Devices
AP-3002AN **
AP-3002AN Service Manual
9

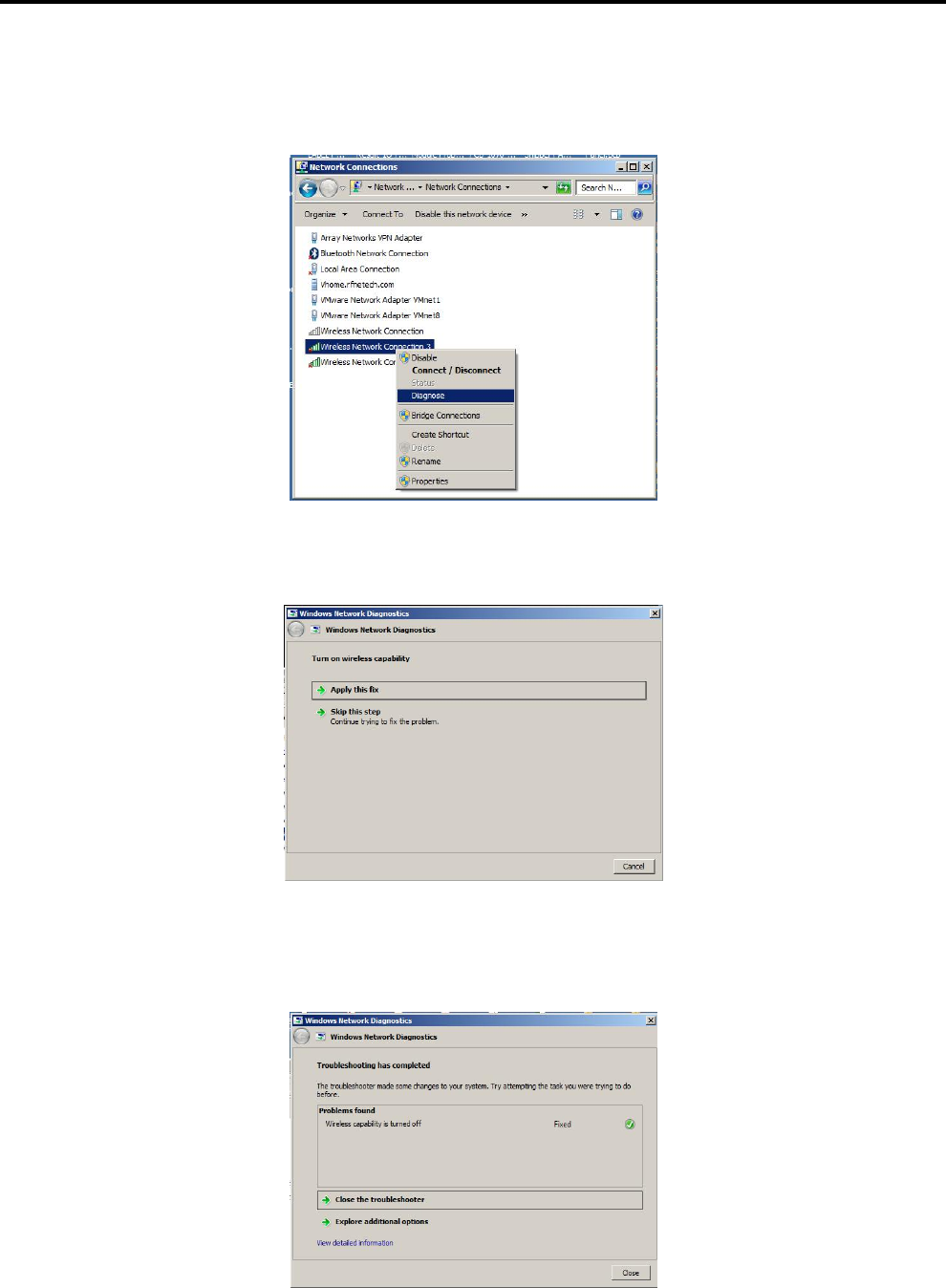

4. If you are not able to “enable” your wireless Network Connection, you can “Diagnose” your
wireless adaptor, and select “Apply this fix” for resolving the problems.
Select “Diagnose”
Select “Apply this fix”
Close Windows after Troubleshooting has completed
AP-3002AN Service Manual
10
4. Revision Records
Serial
No. Date Edition
Status Description of Changes Software
Version
Remarks
001
