ESL CF Card / CF-3100
FCC User manual:
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF
exposure compliance. To maintain compliance with FCC RF exposure compliance requirements,
please follow operation instruction as documented in this manual.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Index
[GENERAL INFORMATION] [PRODUCT INFORMATION]
[TYPICAL OPERATION]
[INFO SERVER ADMINISTRATOR MENU]
[INFO PAD ADMINISTRATOR MENU] [CONTENTS]
USER MANUAL
Digi Info ESL Tentative 04
Ver. 0.18.080122.1 (Updated on 15/03/08)
Page
1
of
1
INDEX
6/13/2008
file://F:\My Documents\ESL Done PCB\Manual\Digi Info ESL User Manual Edition 0
...

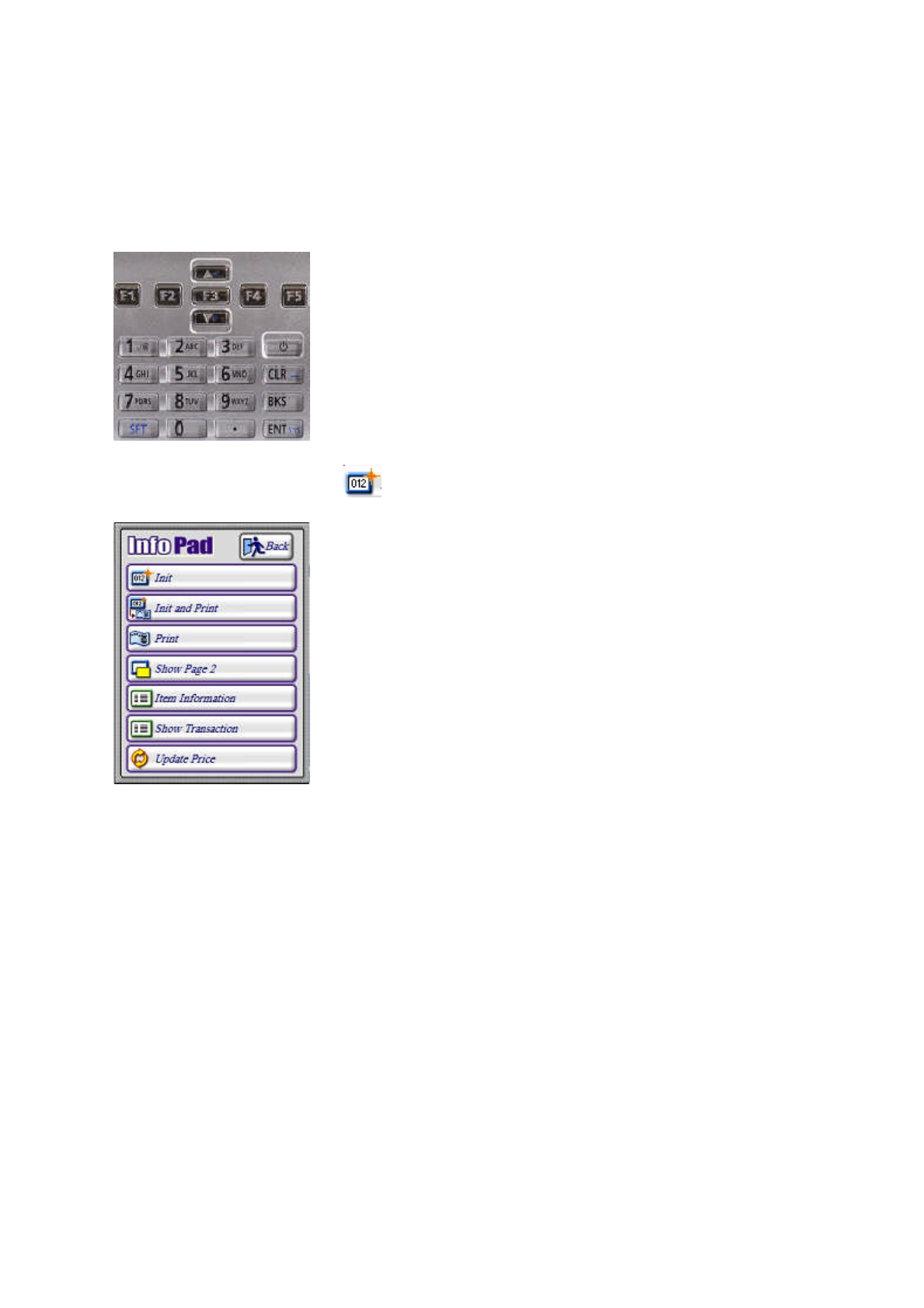

ENTRY TO ADMINISTRATOR MENU SCREEN
[Home] [Up]
1. Press [F2] button to open Info Cast application
2. At Info Cast Main Screen, touch key to enter to Administrator Menu
3. Configure the setting as desired
Note:
No password required for entry
Page
1
of
1
ENTRY TO ADMINISTRATOR
6/13/2008
file://F:\My Documents\ESL Done PCB\Manual\Digi Info ESL User Manual Edition 0
...
INFO PAD ADMINISTRATOR MENU
[Home]
Info Pad Administrator Menu is used by store people to do maintenance like e.g. initialize tag item, check tag
or item information, update price and etc. To use these operations, it is required for the user to set Info Pad
setting, format tag, and etc in the Info Pad Serviceman Menu Screen in advance.
ENTRY TO ADMINISTRATOR MENU SCREEN
INITIALIZE MODE
INITIALIZE AND PRINTING MODE
PRINTING MODE
SHOW PAGE 2
ITEM INFORMATION
SHOW TRANSACTION
UPDATE PRICE
Page
1
of
1
INFO PAD ADMINISTRATOR MENU
6/13/2008
file://F:\My Documents\ESL Done PCB\Manual\Digi Info ESL User Manual Edition 0
...
INITIALIZE AND PRINTING MODE
[Home] [Up]
Initialize and Printing Mode is used to initialize a tag, assign an item link (tag id), price, beacon id and etc, to
tag and also send sticker for printing to Info Pad, then send to wireless printer from Info Pad. It also update
database with item link (tag id) to specific item.
Note:
Only formatted tag can be initialized, it is required to format tag in advance and format can be done in
Serviceman menu.
Note: Wireless printer and info pad setting for wireless required to set in advance, see “Info pad setting”
under operation manual.
Note: Tag ID and Beacon ID is auto generate by server in sequence and apply to initialized tag
Note: Item barcode and data must be programmed in advance before can initialize a tag
Entry to Initialize and Printing Mode:

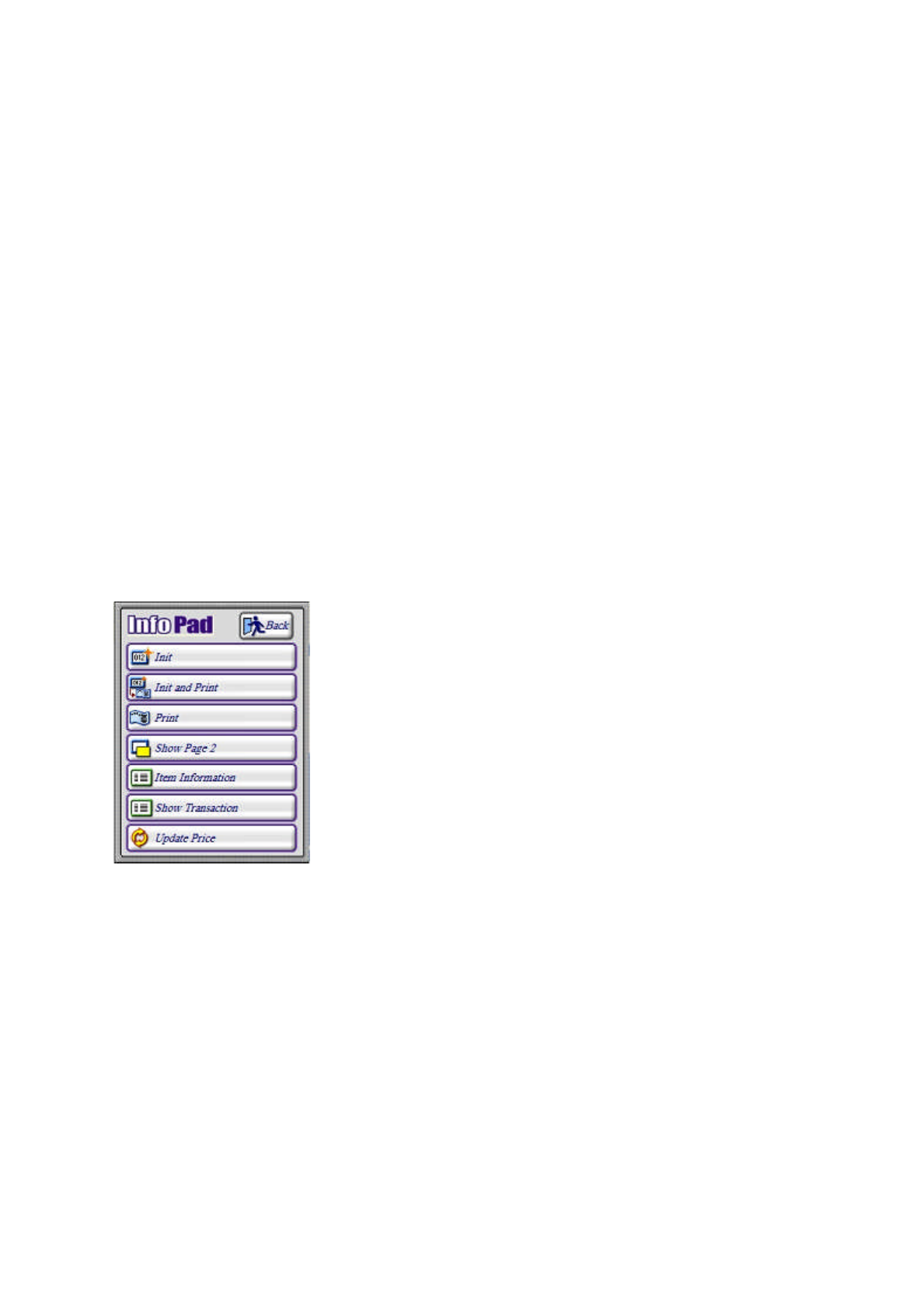

1. At the Administrator Menu Screen
2. Press
[INIT AND PRINT]
button to go to
Initialize and Printing Mode
screen
Page
1
of
4
INITIALIZE AND PRINTING MODE
6/13/2008
file://F:\My Documents\ESL Done PCB\Manual\Digi Info ESL User Manual Edition 0
...

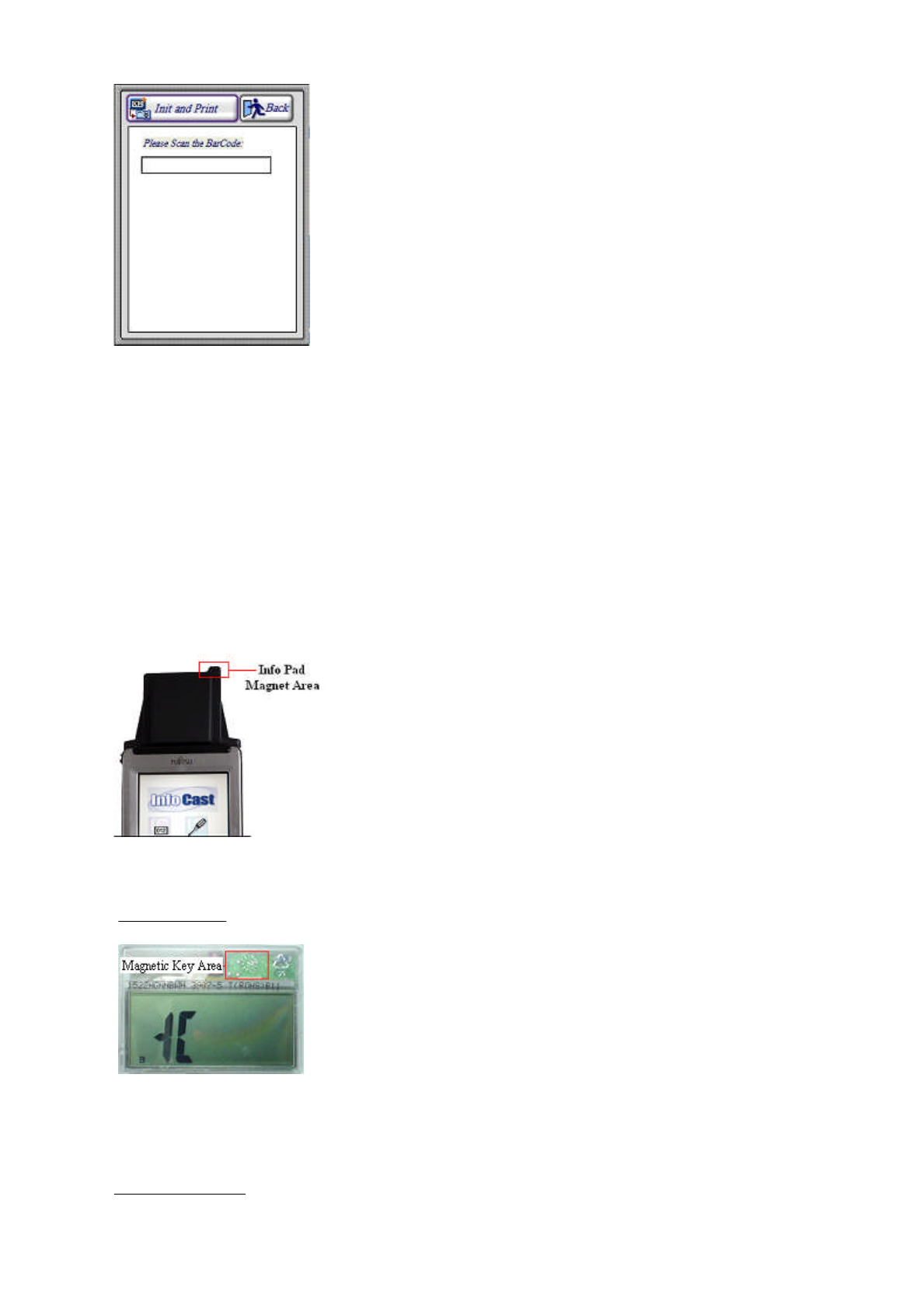

Note: Touch [BACK] to exit from Initialize and Printing Mode screen

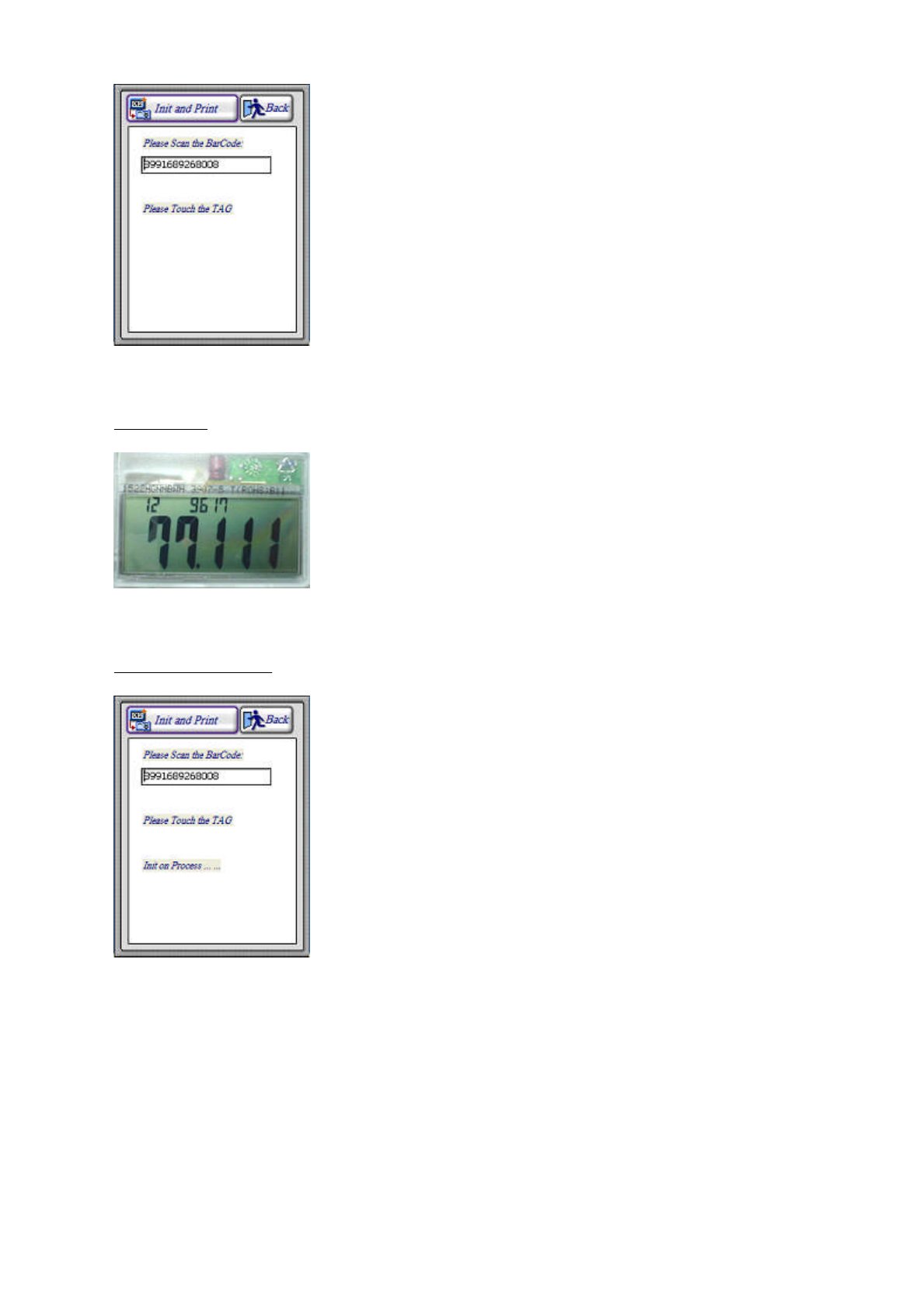

3. Scan barcode for initialize
Note: The barcode must exist and linked to item in database
Note: Also able to enter barcode value by keypad
4. Touch Info Pad Magnet area to Tag Magnetic key area to initialize
Formatted Tag:
5. Wait for connection to server and initialized tag with item data e.g. price and tag symbol or etc
Barcode Scanned
:
Page
2
of
4
INITIALIZE AND PRINTING MODE
6/13/2008
file://F:\My Documents\ESL Done PCB\Manual\Digi Info ESL User Manual Edition 0
...

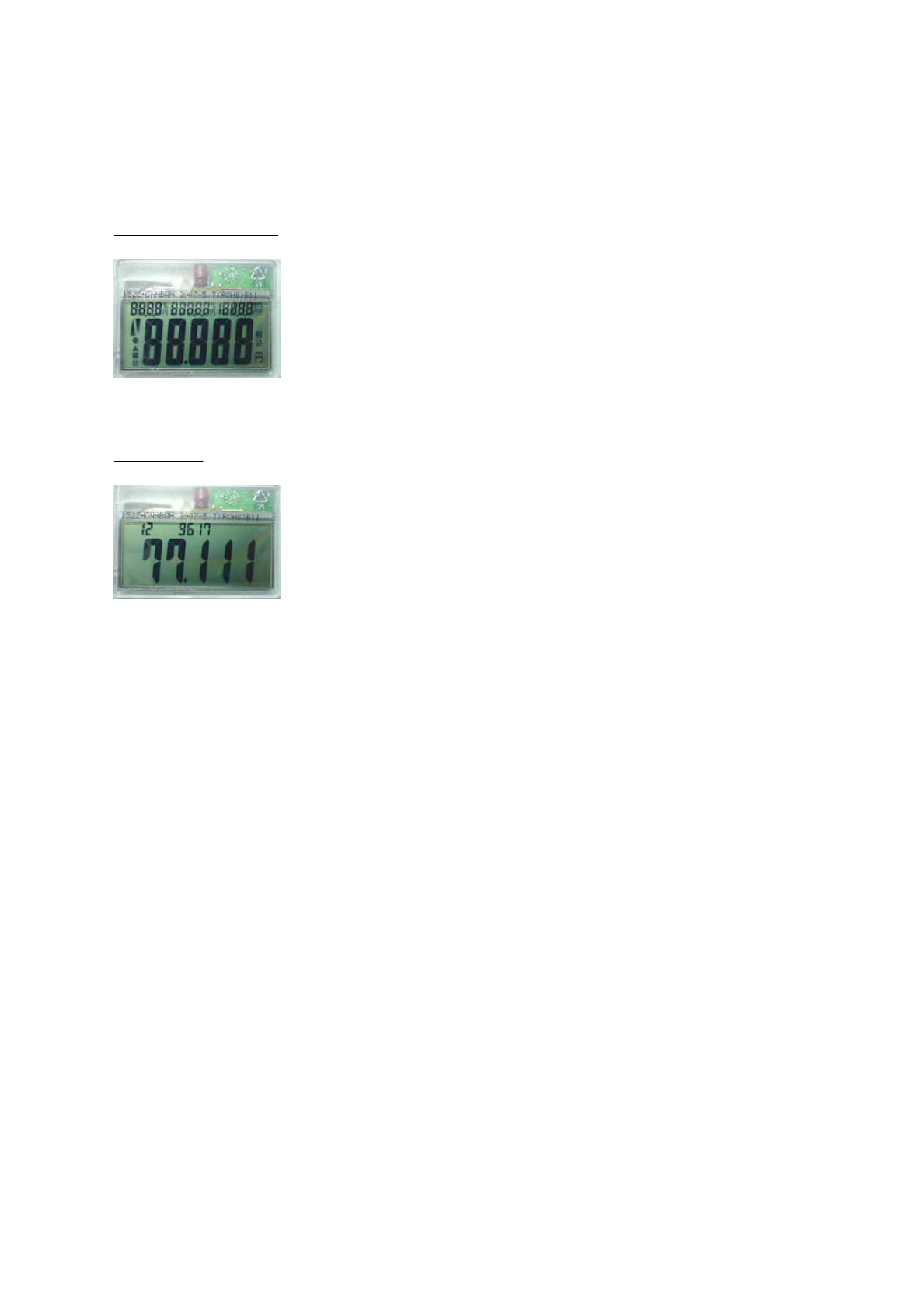

Initialize Tag:
Completed Operation:
Page
3
of
4
INITIALIZE AND PRINTING MODE
6/13/2008
file://F:\My Documents\ESL Done PCB\Manual\Digi Info ESL User Manual Edition 0
...

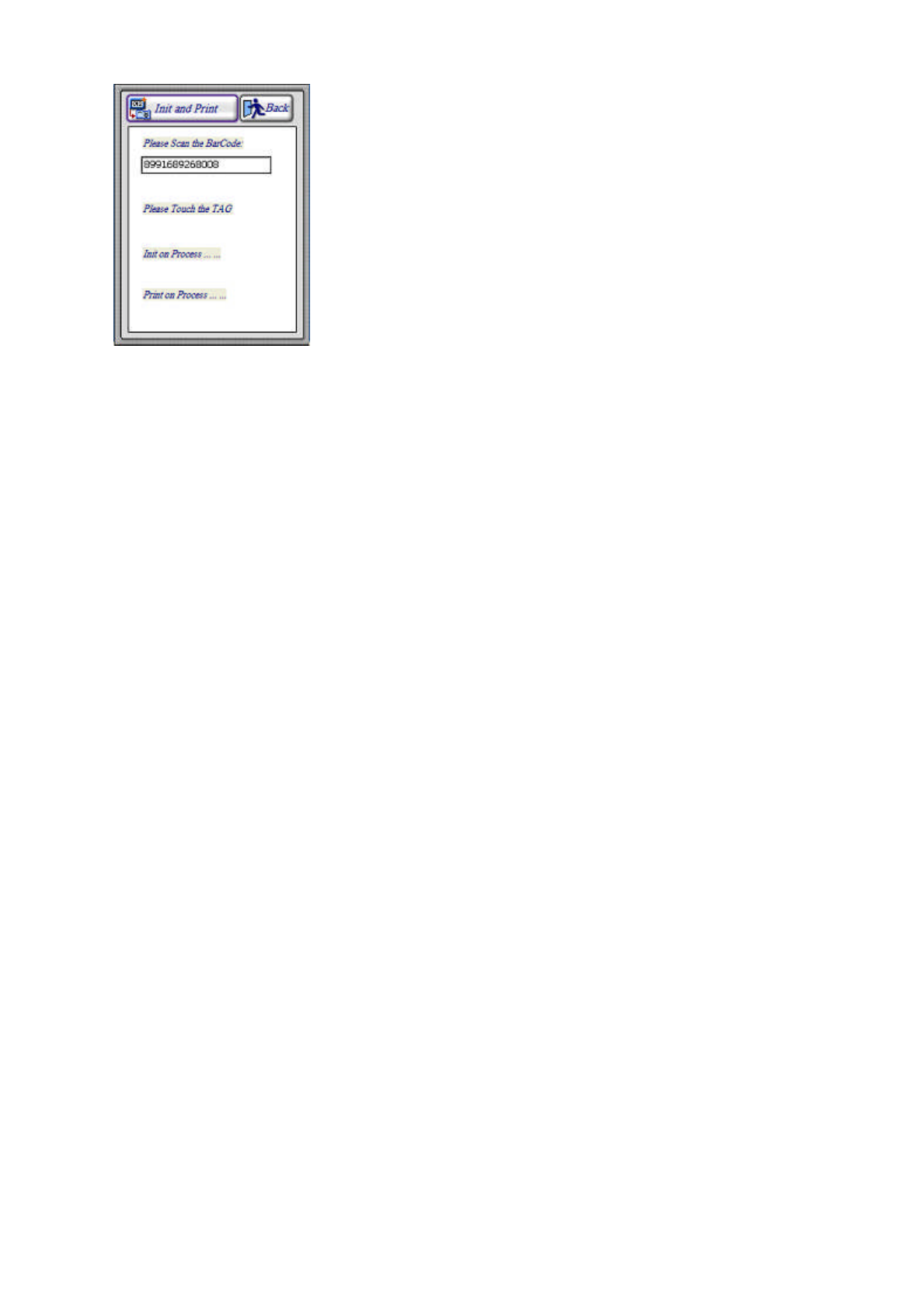

6. Then server will send sticker printing command to Info Pad
Note1: Then use wireless printer to print sticker from Info Pad
Note2: When finish initialization, message as “Init and Print Finish”
displayed and tag display the value
and sticker printed, indicate successful of initializing
Page
4
of
4
INITIALIZE AND PRINTING MODE
6/13/2008
file://F:\My Documents\ESL Done PCB\Manual\Digi Info ESL User Manual Edition 0
...
INITIALIZE MODE
[Home] [Up]
Initialize Mode is used to initialize a tag and assign an item link (tag id), price, beacon id and etc to tag. It also
update database with item link (tag id) to specific item.
Note:
Only formatted tag can be initialized, it is required to format tag in advance and format can be done in
Serviceman menu.
Note: Tag ID and Beacon ID is auto generate by server in sequence and apply to initialized tag
Note: Item barcode and data must be programmed in advance before can initialize a tag

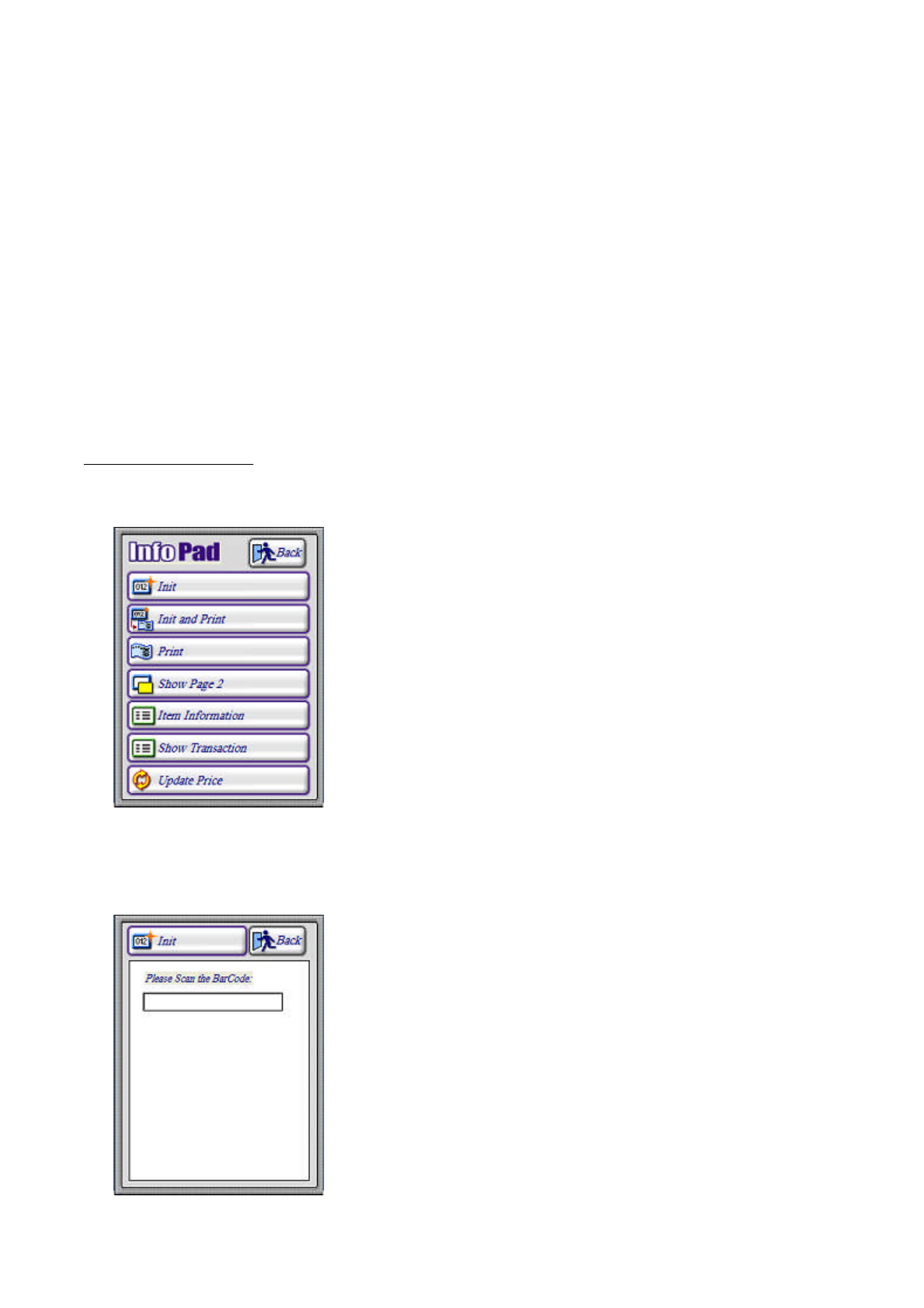

Entry to Initialize Mode
1. At the Administrator Menu Screen
2. Press [INIT] button to go to Initialize Mode screen
Page
1
of
3
INITIALIZE MODE
6/13/2008
file://F:\My Documents\ESL Done PCB\Manual\Digi Info ESL User Manual Edition 0
...
Note:
Touch
[BACK]
to exit from Initialize Mode screen
3. Scan barcode for initialize
Note1: The barcode must exist and linked to item in database
Note2: Also able to enter barcode value by keypad

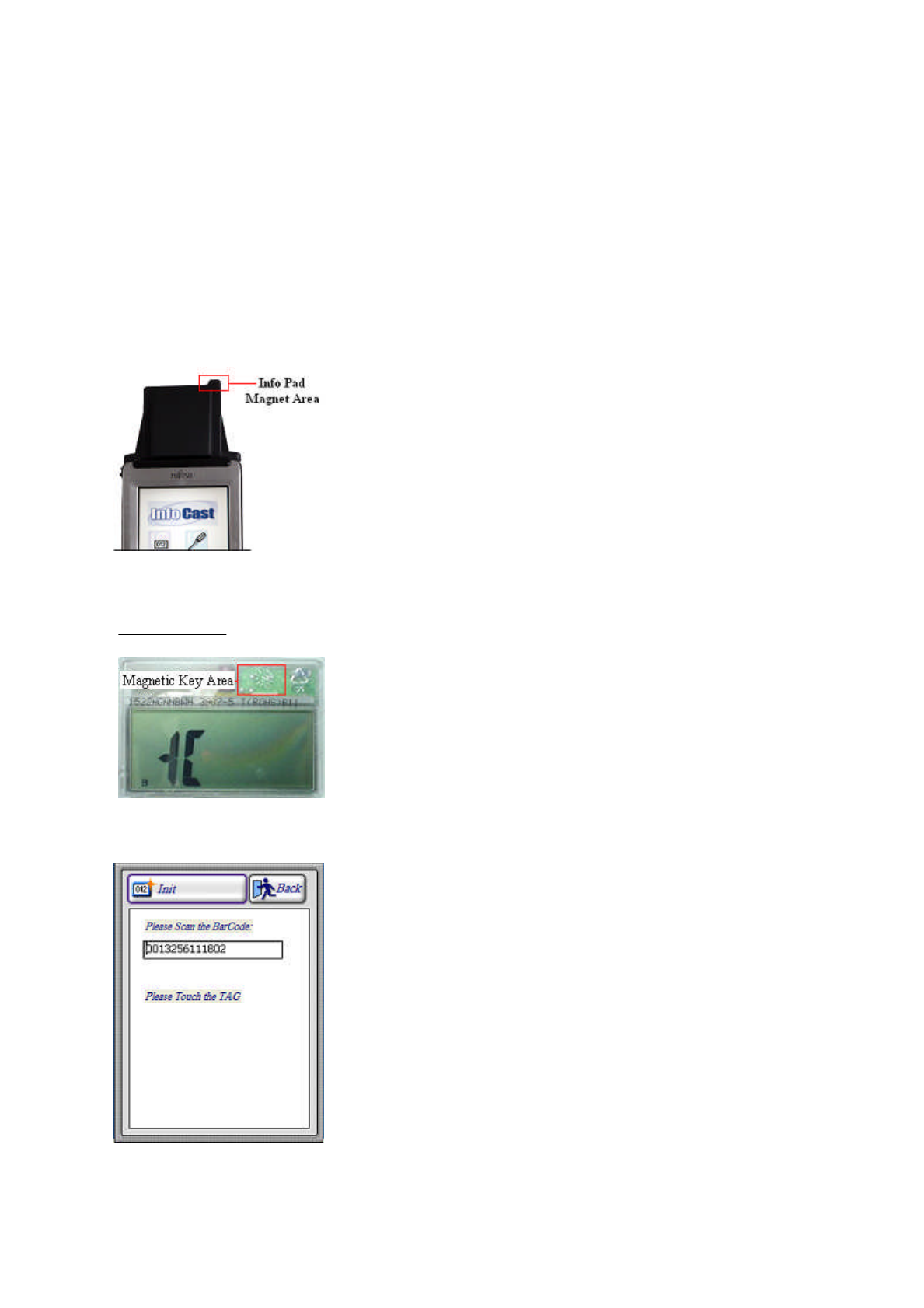

4. Touch Info Pad Magnet area to Tag Magnetic key area
Formatted Tag:
Page
2
of
3
INITIALIZE MODE
6/13/2008
file://F:\My Documents\ESL Done PCB\Manual\Digi Info ESL User Manual Edition 0
...
5. Wait for connection to server and initialized tag with item data e.g. price and tag symbol or etc
Note: When finish initialization, scanned barcode data cleared
and tag display the value, indicate
successful of initializing
Loading Initialize Data:
Initialize tag:
Page
3
of
3
INITIALIZE MODE
6/13/2008
file://F:\My Documents\ESL Done PCB\Manual\Digi Info ESL User Manual Edition 0
...
ITEM INFORMATION
[Home] [Up]
Item Information is used to check information about tag and item barcode.
Entry to Item Information
1. At the Administrator Menu Screen
2. Press [ITEM INFORMATION] button to go to Item Information screen
Note: Touch [BACK] to exit from Item Information screen

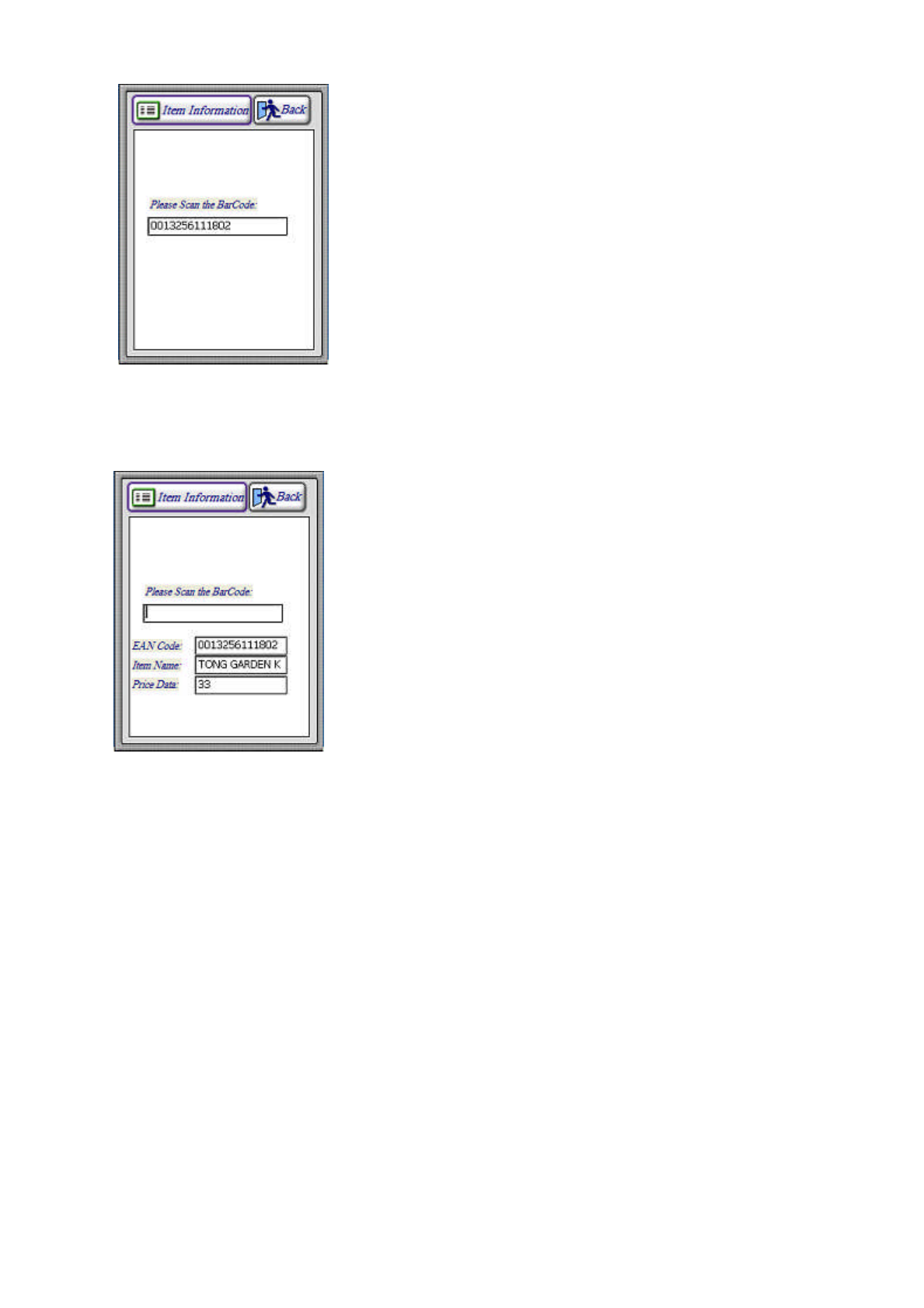

3. Scan barcode to display item information
Note: The barcode must exist and linked to item in database
Note:
Also able to enter barcode value by keypad
Page
1
of
2
ITEM INFO
6/13/2008
file://F:\My Documents\ESL Done PCB\Manual\Digi Info ESL User Manual Edition 0
...
4. Wait for the item information display screen
Page
2
of
2
ITEM INFO
6/13/2008
file://F:\My Documents\ESL Done PCB\Manual\Digi Info ESL User Manual Edition 0
...
PRINTING MODE
[Home] [Up]
Printing Mode is used to printing sticker for selected tag item.
Note: Wireless printer and Info Pad setting for wireless required to be set in advance, see “Info Pad setting”
under operation manual.

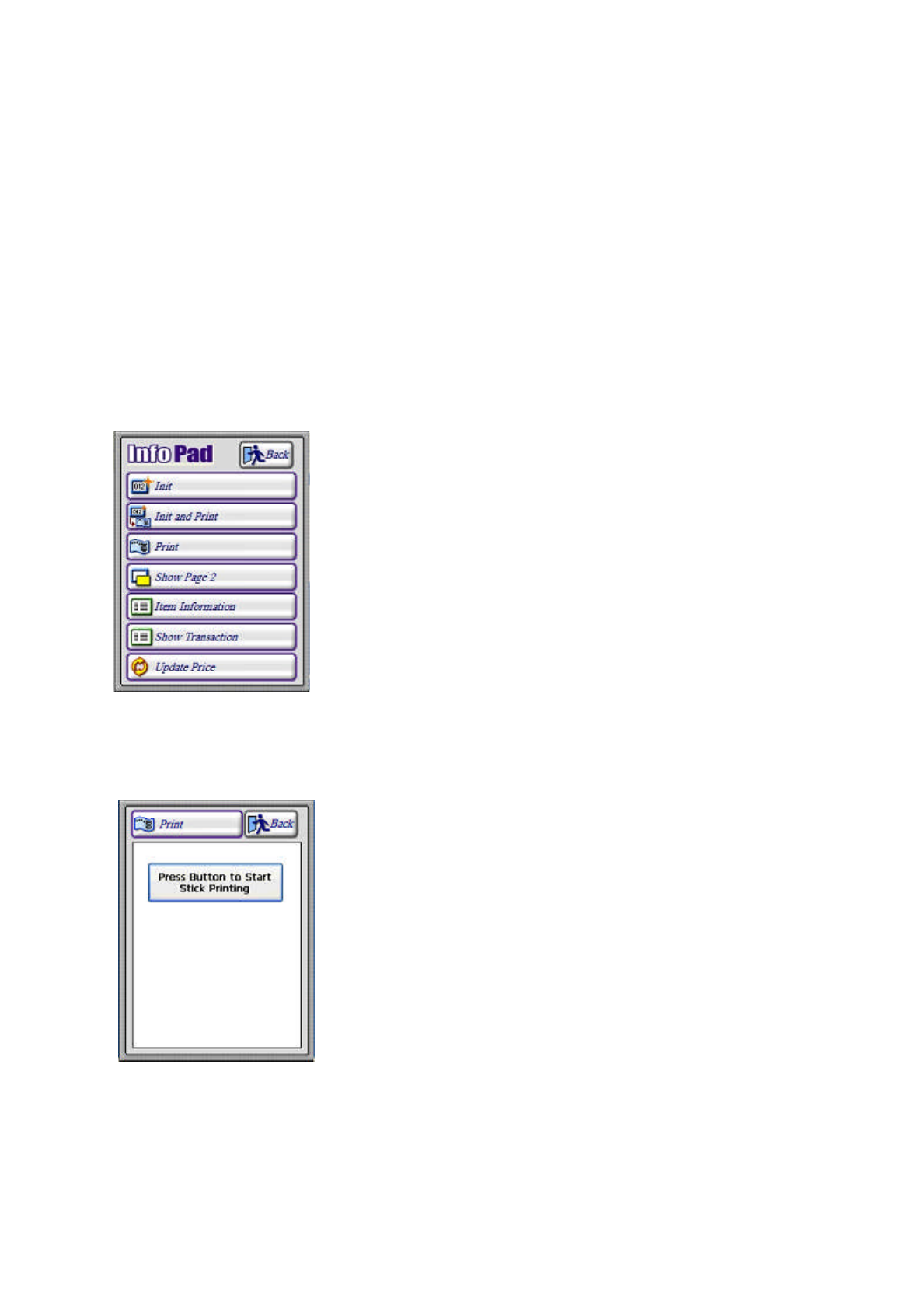

Entry to Printing Mode
1. At the Administrator Menu Screen
2. Press [PRINT] button to go to Printing Mode screen
Note: Touch [BACK] to exit from Printing Mode screen
3. Press
[PRESS BUTTON TO START STICK PRINTING]
button to begin sticker printing from Info Pad
Page
1
of
2
PRINTING MODE
6/13/2008
file://F:\My Documents\ESL Done PCB\Manual\Digi Info ESL User Manual Edition 0
...

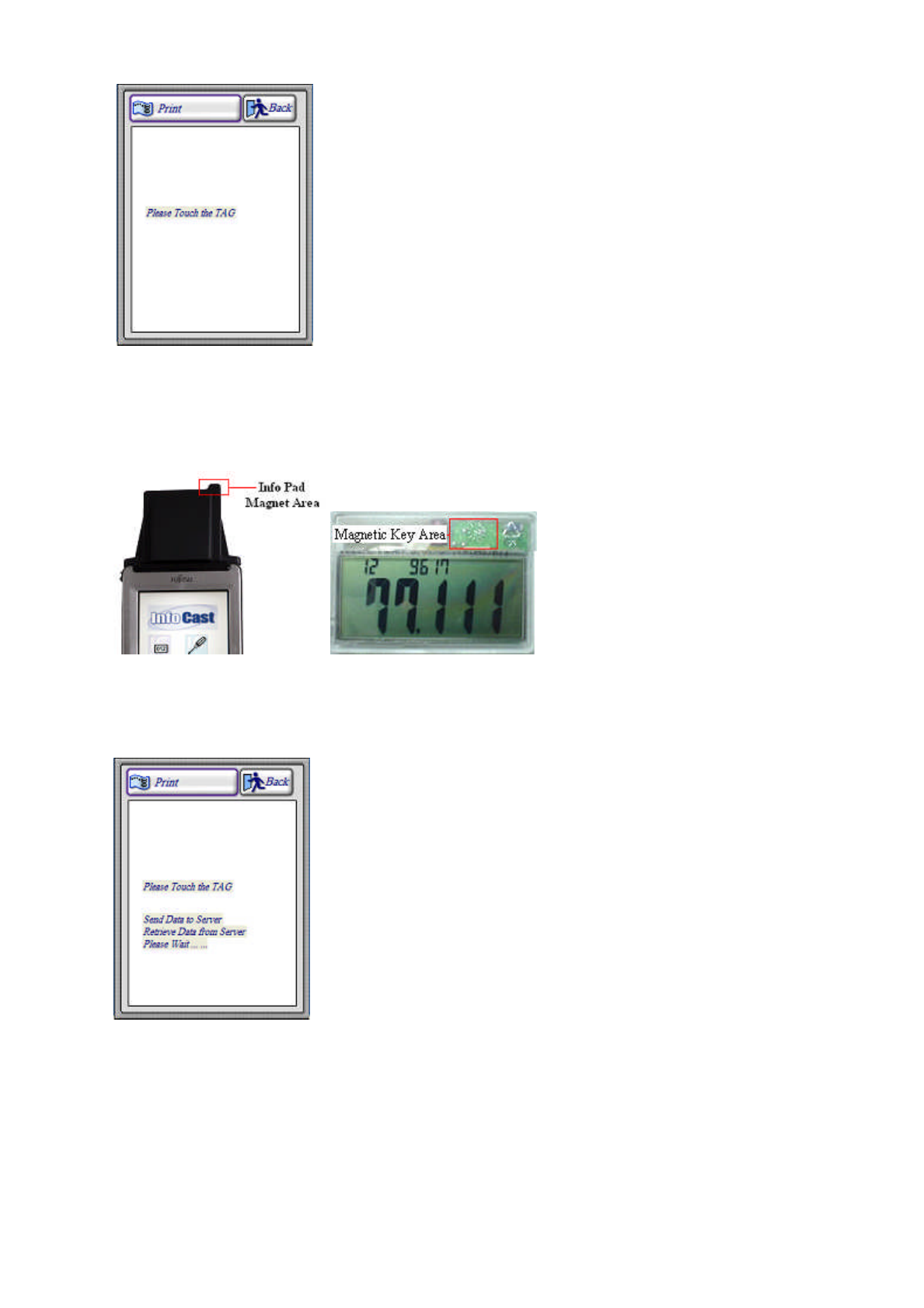

4. Touch Info Pad Magnet area to Tag Magnetic key area to send tag data to info server and retrieve
information of tag from the info server (will receive in Info Pad)
5. Then send print command from Info Pad to Wireless Printer to print the sticker
Page
2
of
2
PRINTING MODE
6/13/2008
file://F:\My Documents\ESL Done PCB\Manual\Digi Info ESL User Manual Edition 0
...

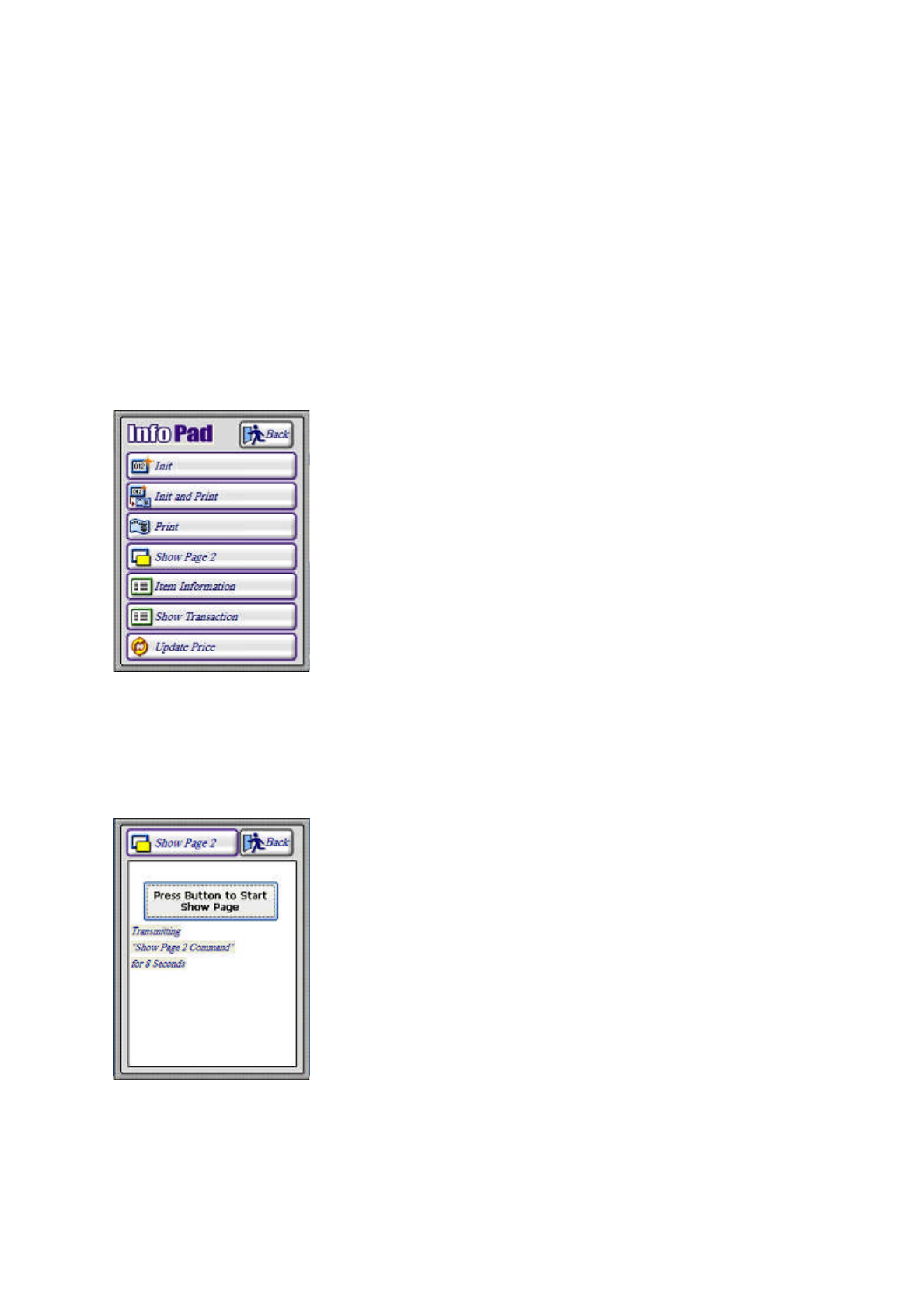

SHOW PAGE 2
[Home] [Up]
Show Page 2 is used to view then second page of tag. It is useful for viewing secondary data for the item.
Note: Show page 2 in info pad run only for 8 second.
Entry to Show Page 2:
1. At the Administrator Menu Screen
2. Press [SHOW PAGE 2] button to go to Show Page 2 screen
Note: Touch [BACK] to exit from Show Page 2 screen
3. Press [PRESS BUTTON TO START SHOW PAGE] button to begin show second page of tag
Note: All tag will be displaying in 2nd page for 8 second.
Page
1
of
2
SHOW PAGE
6/13/2008
file://F:\My Documents\ESL Done PCB\Manual\Digi Info ESL User Manual Edition 0
...
Page
2
of
2
SHOW PAGE
6/13/2008
file://F:\My Documents\ESL Done PCB\Manual\Digi Info ESL User Manual Edition 0
...

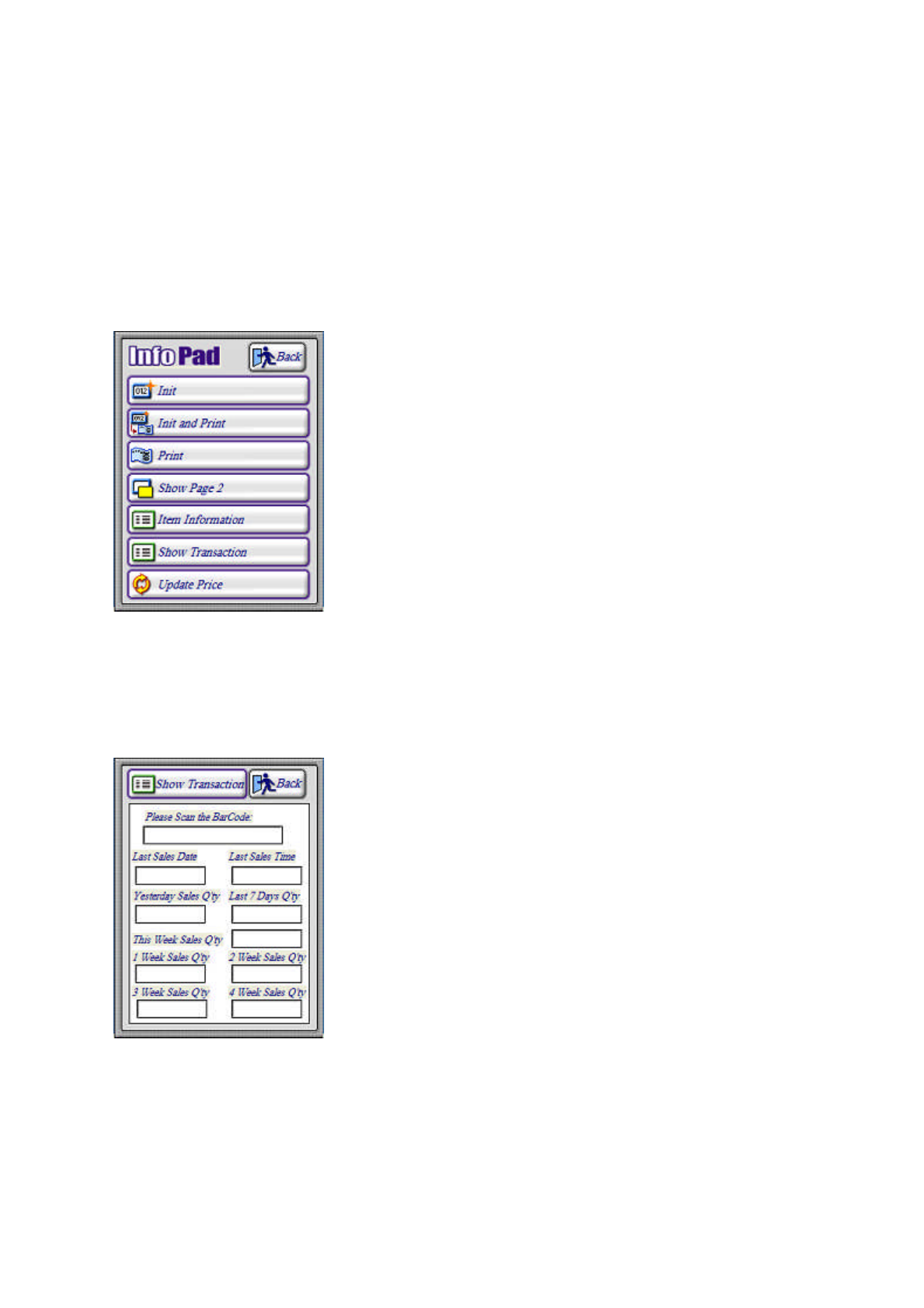

SHOW TRANSACTION
[Home] [Up]
Show Transaction is used to check the transaction data for the scanned barcode.
Entry to Show Transaction
1. At the Administrator Menu Screen
2. Press [SHOW TRANSACTION] button to go to Show Transaction screen
Note: Touch [BACK] to exit from Show Transaction screen
3. Scan barcode to check the transaction data
Page
1
of
2
SHOW TRANSACTION
6/13/2008
file://F:\My Documents\ESL Done PCB\Manual\Digi Info ESL User Manual Edition 0
...

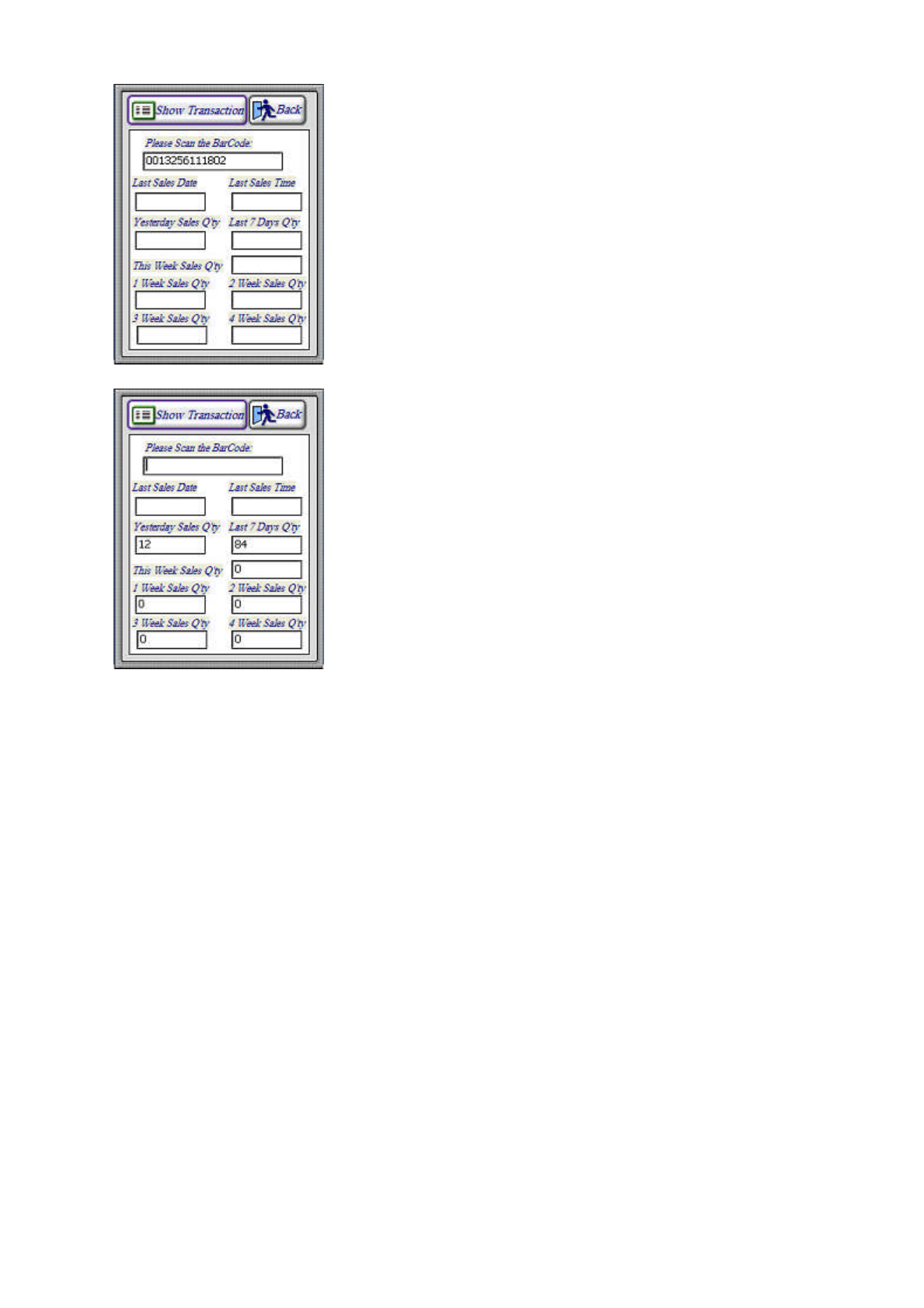

Example of Transaction Data
Note1: The barcode must exist and linked to item in database
Note2:
Also able to enter barcode value by keypad
Page
2
of
2
SHOW TRANSACTION
6/13/2008
file://F:\My Documents\ESL Done PCB\Manual\Digi Info ESL User Manual Edition 0
...
UPDATE PRICE
[Home] [Up]
Update Price is used to update (by batch) the displayed tag data for the scanned barcode.

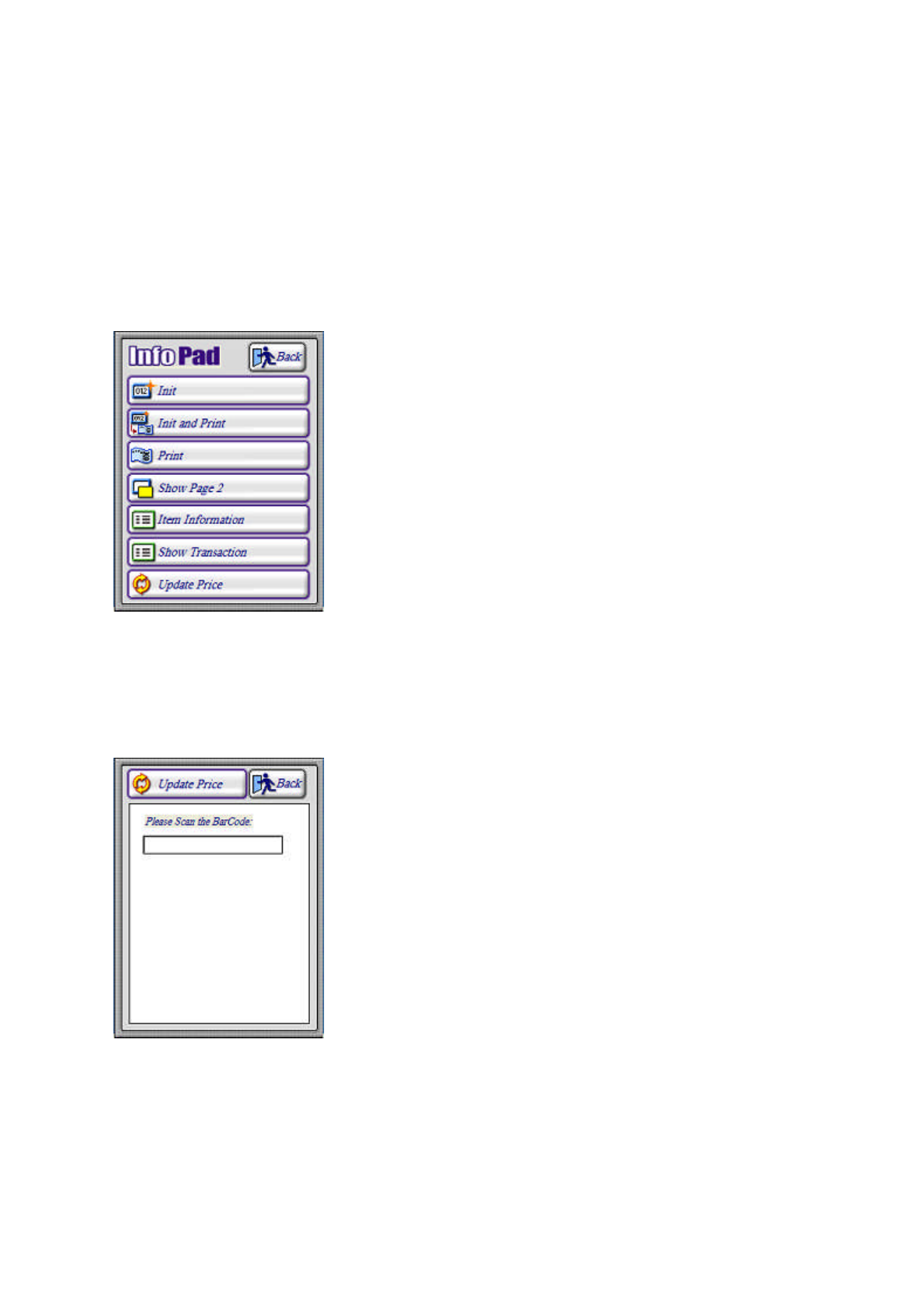

Entry to Update Price
1. At the Administrator Menu Screen
2. Press [UPDATE PRICE] button to go to Update Price screen
Note: Touch [BACK] to exit from Update Price screen
3. Scan barcode to update the displayed price data for the barcode
Page
1
of
2
UPDATE PRICE
6/13/2008
file://F:\My Documents\ESL Done PCB\Manual\Digi Info ESL User Manual Edition 0
...

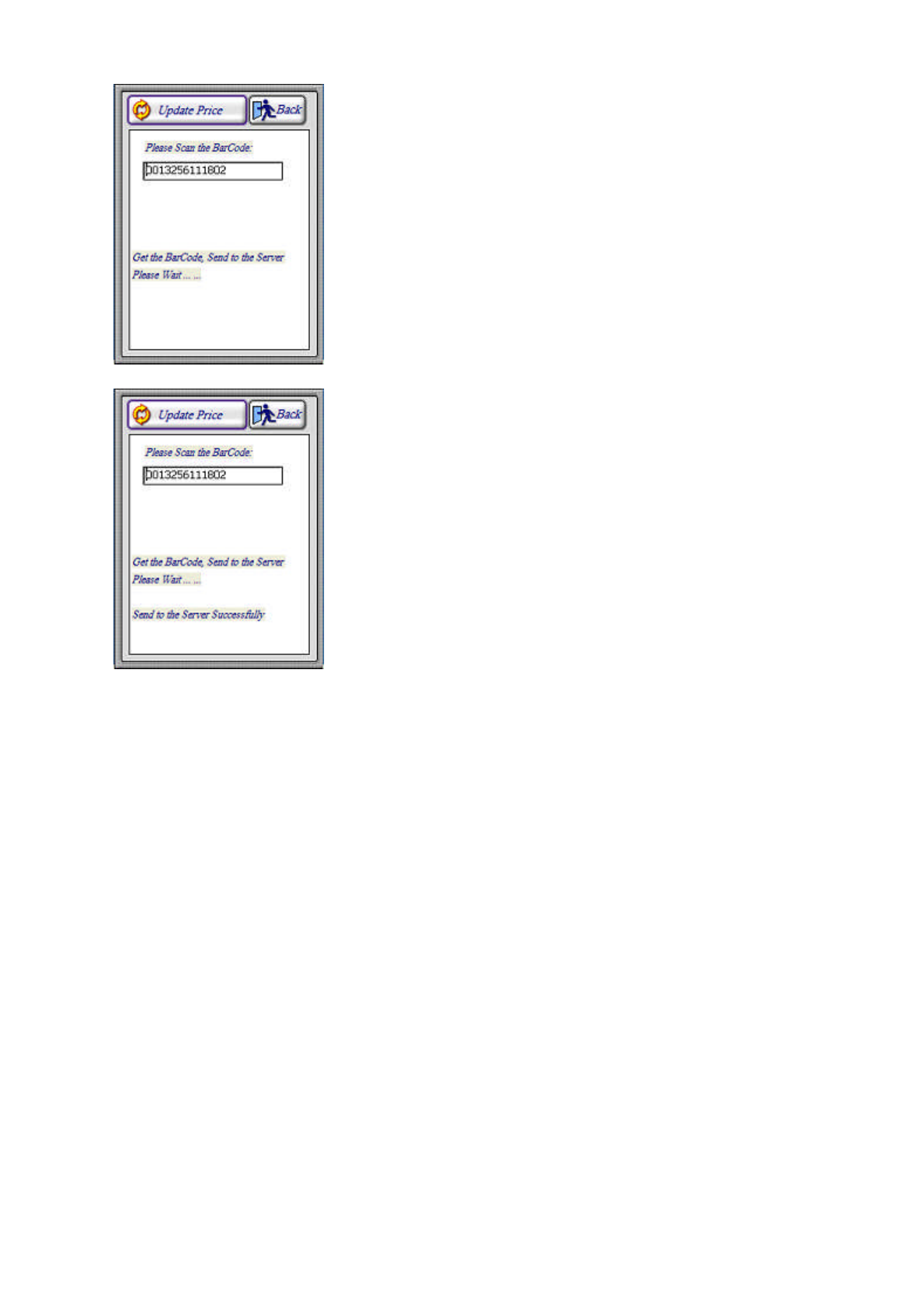

Note1: The barcode must exist and linked to item in database
Note2: Also able to enter barcode value by keypad
Note3:
After scanned barcode, data cleared indicate successful of operation
Page
2
of
2
UPDATE PRICE
6/13/2008
