DIGI SINGAPORE PT3020 ESL Tag User Manual PT 3010 20
Teraoka Weigh-System Pte Ltd. ESL Tag PT 3010 20
User Manual
COPYRIGHT © 2005 TERAOKA WEIGH-SYSTEM PTE LTD
SERVICE MANUAL
PT-3020/PT-3010 PRICE TAG (MEDIUM/SMALL)
PT-3020/PT-3010
Tentative Edition
Table of Content
i)
Notice .................................................................................................................................................1
ii)
Safety Information..............................................................................................................................2
iii)
Safety Regulations.............................................................................................................................2
1. General.............................................................................................................................................................4
1.1
Model Specification............................................................................................................................4
1.2
Operating Specification......................................................................................................................4
2. Dimension........................................................................................................................................................5
3. PT-3020/PT3010 Setup Diagram & Spec Setting .........................................................................................7
3.1 Overall Layout ......................................................................................................................................7
3.2 Display Panel and Indicator Layout.......................................................................................................8
3.3 Exploded View.......................................................................................................................................9
3.4 Replacement of Price Tag Battery .....................................................................................................10
3.5 Button Cell Specifications....................................................................................................................11
3.6 ESL Attachment (Refer to ESL Attachment Catalogue).....................................................................11
3.7 Product Handling of Price Tag ............................................................................................................11
4. Revision Records..........................................................................................................................................12
1
i) Notice
DIGI
®
The material contained in this document is proprietary and for information only and is subject to change without
notice. Teraoka Weigh-System assumes no responsibility for any errors or damages arising from
misinterpretation of any procedure.
Screen displays, operating procedures and supporting features might vary with different software version
releases.
This document shall not be reproduced whether in part or whole without the written consent from Teraoka
Weigh-System Pte Ltd.
Teraoka Weigh-System Pte Ltd
4, Leng Kee Road
#06-01 SIS Building
Singapore 159088
PT-3020/PT3010 Service Manual
2
ii) Safety Information
The operator of the equipment shall comply with the safety and warning indications and procedures outlined in
this document. Teraoka Weigh-System Pte Ltd assumes no responsibility or liability for failure to comply with
these requirements.
•
Repair and servicing of product, shall only be carried out by trained and qualified personnel.
Disclaimer:
Specifications are subject to change without notice. All dimensions shown are approximate. Please be aware
that Teraoka has indicated that its hardware and software used in the product may require additional updates in
the future as our product is continually under development. The need for such updates most likely applies to the
Printer software.
CAUTIONS:
FOR PLUGGABLE EQUIPMENT, THAT THE SOCKET-OUTLET SHALL BE INSTALLED NEAR THE
EQUIPMENT AND SHALL BE EASILY ACCESSIBLE.
POUR LE MATÉRIEL RACCORDÉ PAR PRISE DE COURANT, LE SOCLE DE PRISE DE
COURANT DOIT ÊTRE
INSALLÉ À PROXIMITÉ DU MATÉRIEL ET DOIT ÊTRE AISÉMENT ACCESSIBLE.
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE
AND RATING OF FUSE.
POUR NE PAS COMPROMETTRE LA PROTECTION CONTRE LES RISQUES D’INCENDIE,
REMPLACER PAR UN FUSIBLE DE MÊME TYPE ET DE MÊME CARACTÉRISTIQUES
NOMINALES.
DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH
THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD
USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS
IL Y A DANGER D’EXPLOSION S’IL Y A REMPLACEMENT INCORRECT DE LA BATTERIE.
REMPLACER UNIQUEMENT AVEC UNE BATTERIE DU MÊME TYPE OU D’UN TYPE
RECOMMANDÉ PAR LE CONSTRUCTEUR. METTRE AU RÉBUT LES BATTERIES USAGÉES
CONFORMÉMENT AUX INSTRUCTIONS DU FABRICANT.
iii) Safety Regulations
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
PT-3020/PT3010 Service Manual
3
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for a portable uncontrolled
environment. To maintain compliance with FCC RF exposure compliance requirements:
1) Please do not attach any decorative components with metal parts to this equipment.
2) The antenna must not be co-located or operating in conjunction with any other antenna or transmitter.
IDA Compliance Statement: (Singapore)
This equipment registered to comply with IDA (Info-Communications Development Authority of Singapore)
Standard under Dealer’s Class License.
Industry Canada statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
NCC Statement
Taiwan NCC Statement
• 第十二條
•經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原
設計之特性及功能。
•第十四條
•低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干
擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工
業、科學及醫療用電波輻射性電機設備之干擾。
Actual size
9mm (H) x 17mm (W)
PT-3020/PT3010 Service Manual
4
1. General
1.1 Model Specification
Model :
PT-3020 (Medium Tag)
PT-3010 (Small Tag)
Dimensions (in mm) :
PT-3020 Medium Type -
61mm(L) x 39mm(H) x 11.4(W)
Display Size -
59.8mm x 33.6mm
LCD Size -
55mm x 27.6mm
:
PT-3010 Small Type -
49mm(L) x 39mm(H) x 11.4(W)
Display Size -
47.8mm x 33.6mm
LCD Size -
43mm x 27.6mm
Weight :
36g approx. (Medium Tag)
30g approx. (Small Tag)
Power Source :
DC Cell Button Battery 3.0V
Operating
Temperature :
-20 °C to +40 °C
Humidity :
85% Max. Non-condensing
IP Rating :
IPX5
Battery Specification
:
Type -
CR2450 (Cell Button Battery)
Nominal Voltage
-
3.0V; 30mA
Life Time
-
8 years (2 update/day)
Weight
-
6.6g approx.
1.2 Operating Specification
Power Source
:
External
: NA
:
Internal
:
CR2450 (Cell Button Battery)
Operating Temperature
:
-20ºC to +40ºC
Humidity
:
85% Max. Non-condensing
PT-3020/PT3010 Service Manual
5
2. Dimension

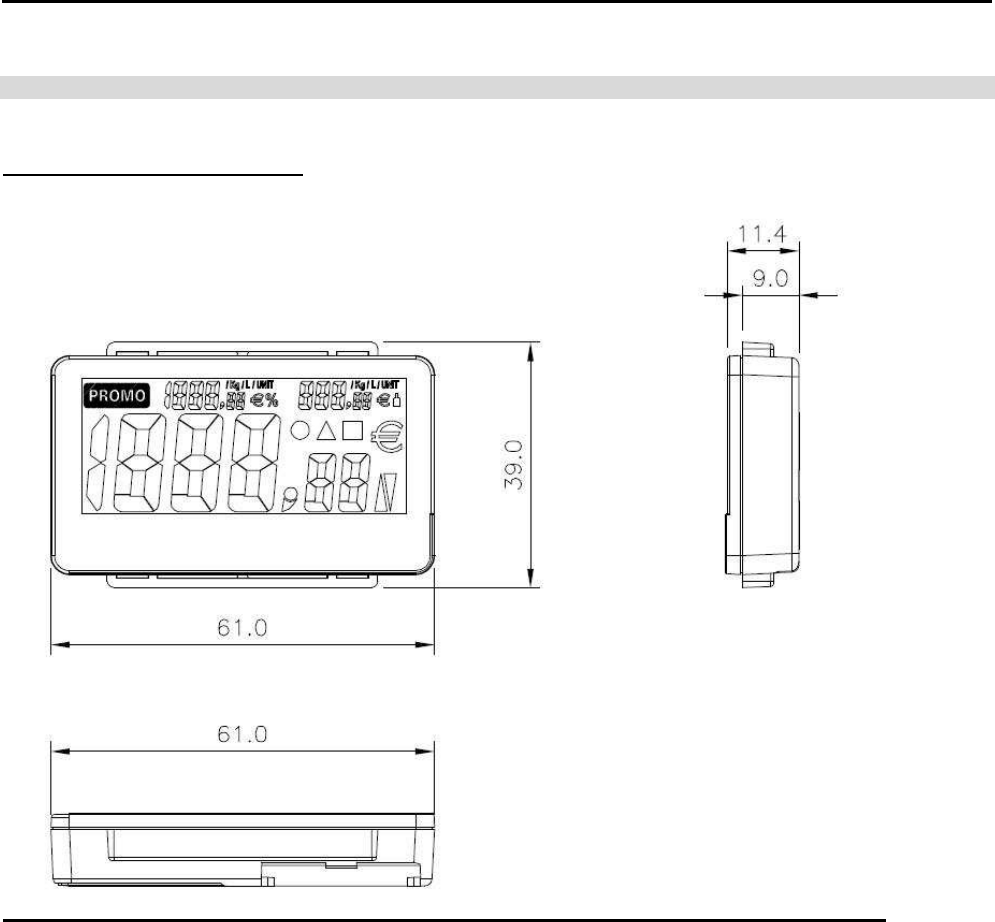

Medium Price Tag (PT-3020)
PT-3020/PT3010 Service Manual
6

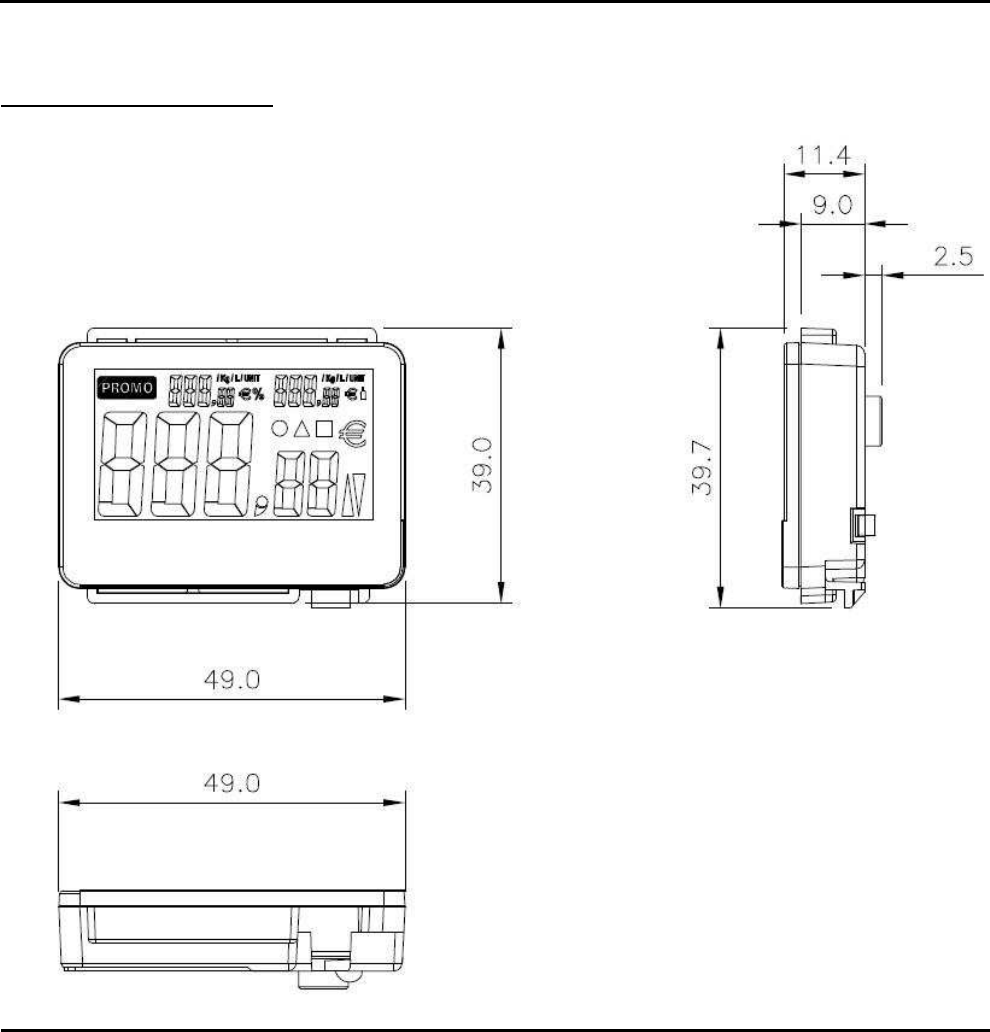

Small Price Tag (PT-3010)
PT-3020/PT3010 Service Manual
7
3. PT-3020/PT3010 Setup Diagram & Spec Setting

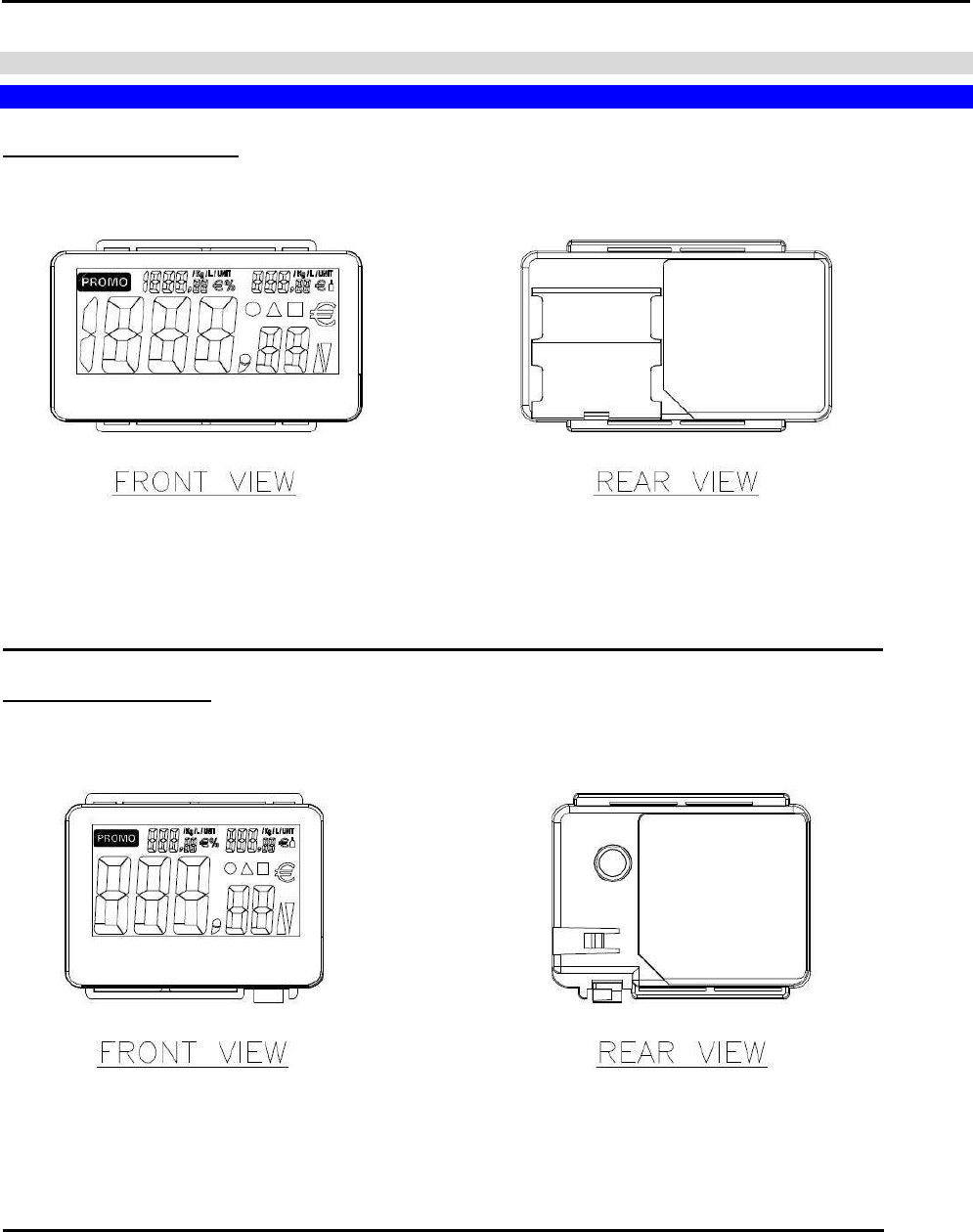

3.1 Overall Layout
Medium Tag (PT-3020)
Small Tag (PT-3010)
PT-3020/PT3010 Service Manual
8

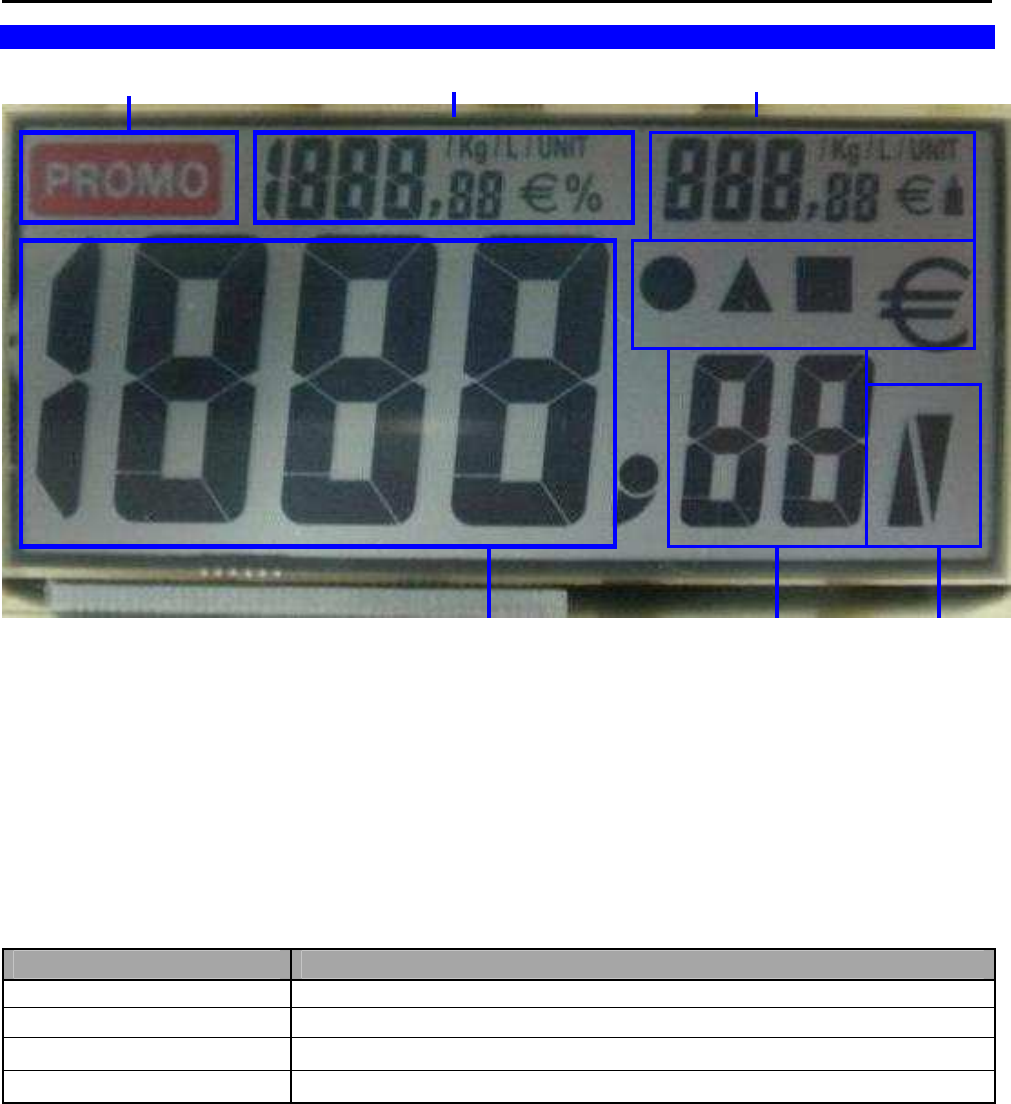

3.2 Display Panel and Indicator Layout
Item Usage/Function
Currency Symbol Display currency symbol
Product Position Arrow to point price tag is for which product (UP or Down)
Special Feature 1, 2, 3 & 4 Feature/option are displayed depend on customer request
Price Value Display Sell Price
Price Value
Special Feature 2 Special Feature 3
Special Feature 1
Currency
Symbol
Special
Feature 4
PT-3020/PT3010 Service Manual
9

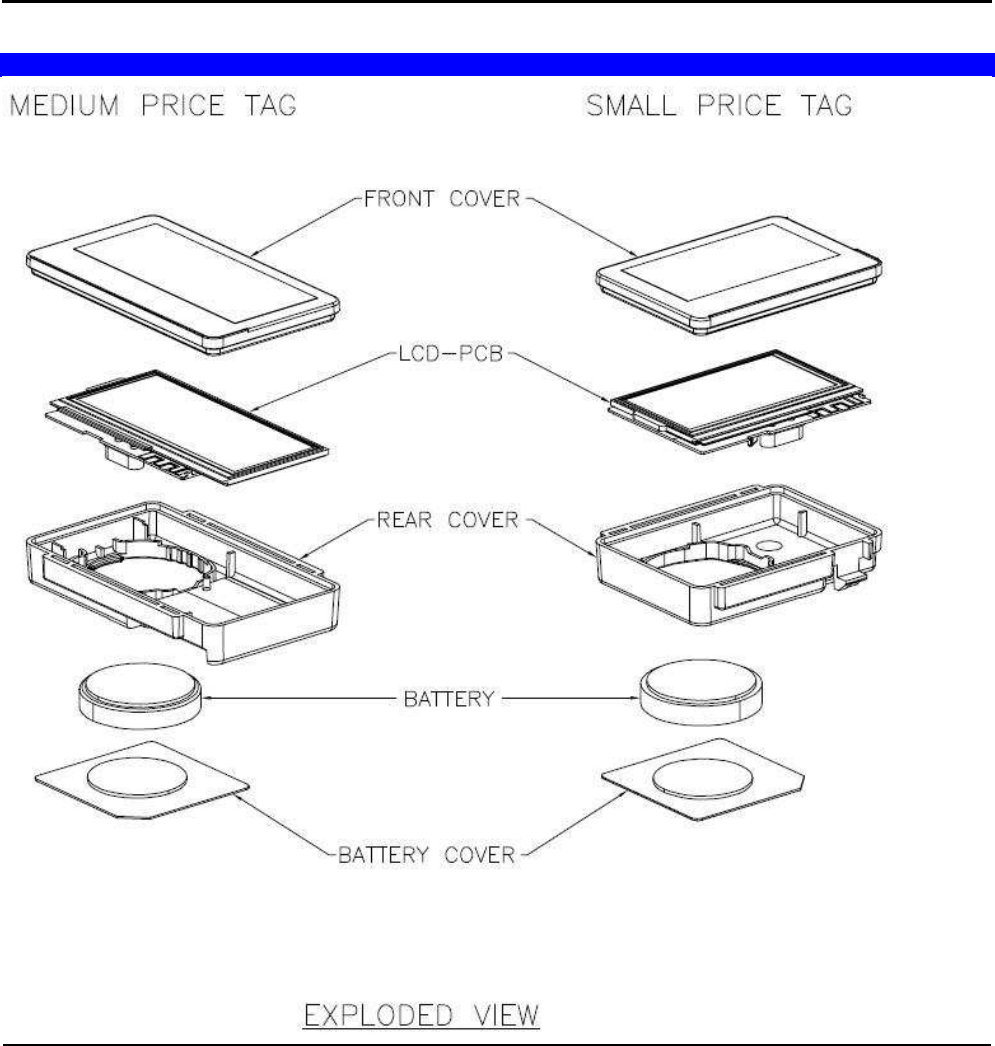

3.3 Exploded View
PT-3020/PT3010 Service Manual
10

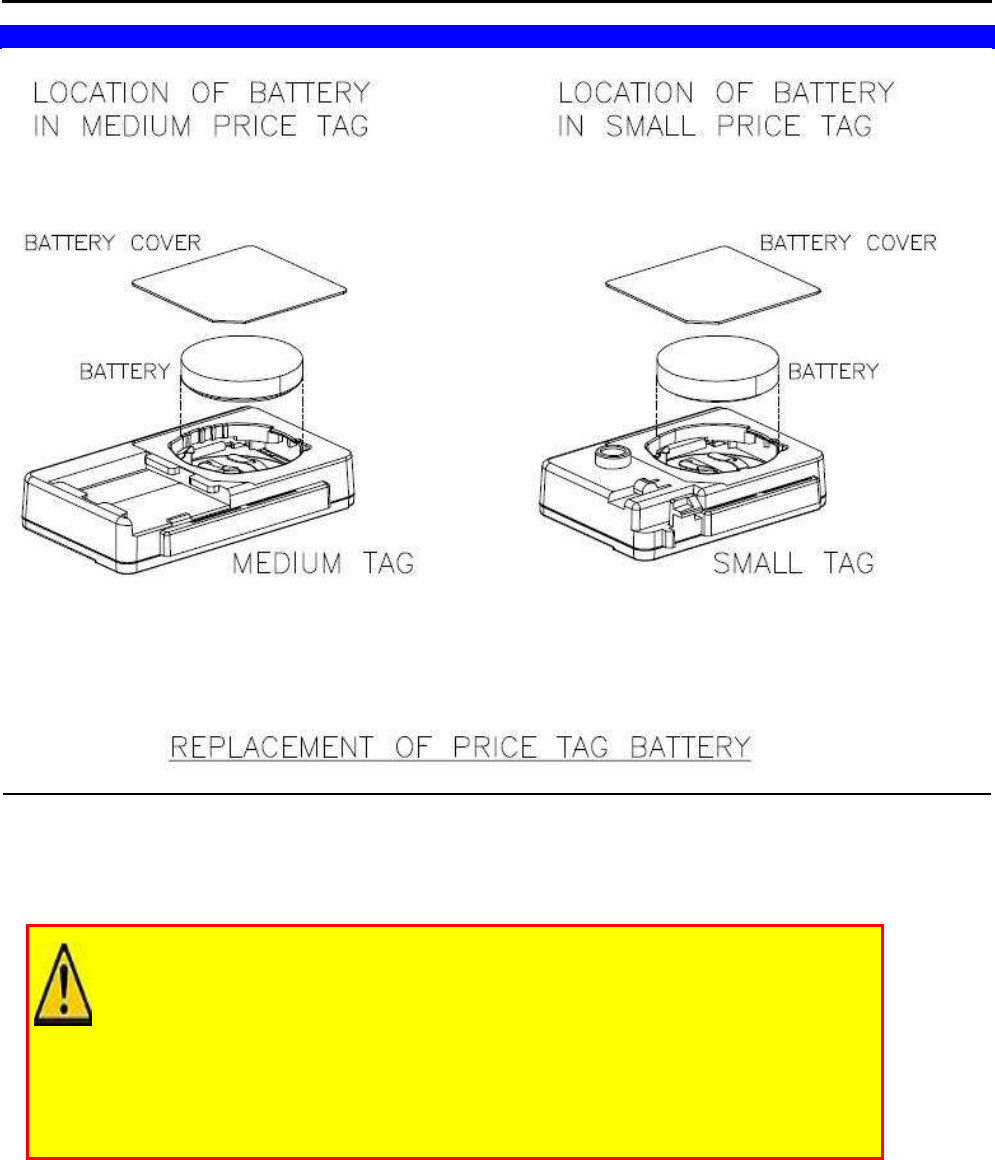

3.4 Replacement of Price Tag Battery
i. Remove the battery cover at the back of Price Tag.
ii. Replace the new battery. (Ensure the Battery polarity is correct)
Caution: Dispose of the Battery according the Safety Guideline.
i. Avoid placing the battery in reverse polarity.
ii. Do not heat or dispose of fire. May burst or release toxic material.
iii. Do not charge.
iv. Do not short circuit.
v. Do not solder the battery directly.
PT-3020/PT3010 Service Manual
11

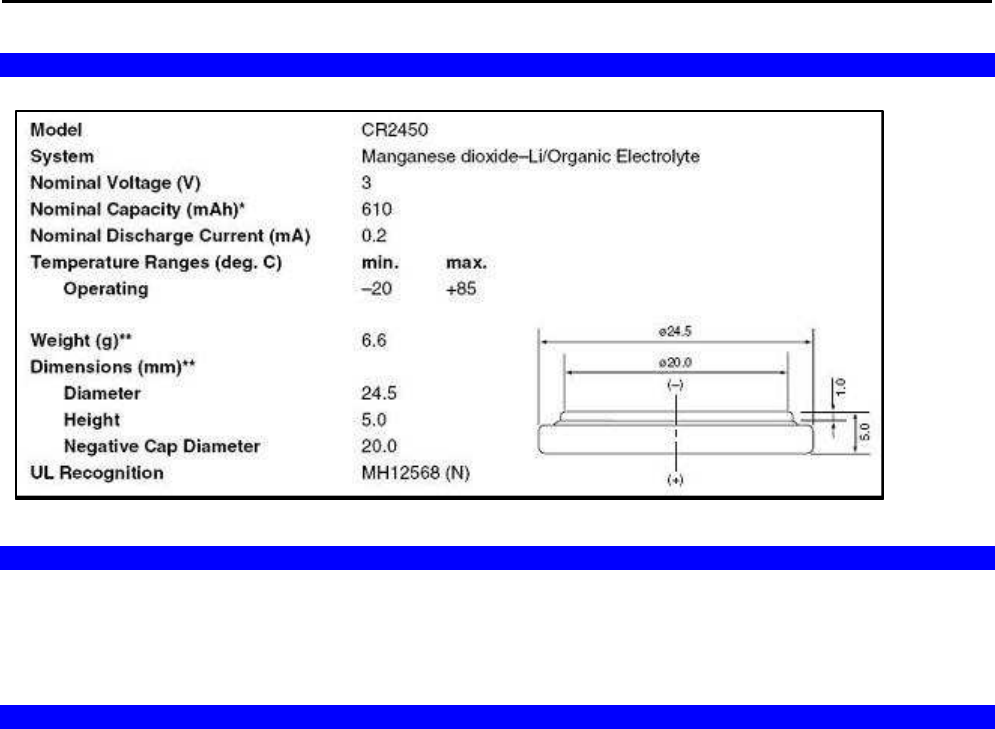

3.5 Button Cell Specifications
3.6 ESL Attachment (Refer to ESL Attachment Catalogue)
For all information about the ESL Various Attachment type, function, installation etc. Please refer to
ESL Attachment Catalogue
3.7 Product Handling of Price Tag
Handle product with care. Do not expose product to corrosive chemical solution, any organic solvent
acidic or alkaline. If cleaning is required, wash only water or mild soap solution.
Do not attempt to disassemble, apply force or heavy load to the product. No user serviceable parts inside.
BS-02 Base Station Service Manual
12
4. Revision Records
Serial
No. Date Edition
Status
Description of Changes Software
Version Remarks
001 Aug ‘11 00 First Release Tentative Edition
