DIGI SINGAPORE TRKRF01 RF802.15.4 Module User Manual
Teraoka Weigh-System Pte Ltd. RF802.15.4 Module Users Manual
Users Manual
COPYRIGHT © 2005 TERAOKA WEIGH-SYSTEM PTE LTD
USER MANUAL
WIRELESS RF DEVICE
RF802.15.4 Module
TRK-RF-01
Tentative Edition
Table of Content
i) Notice ..............................................................................................................................1
ii) Safety Information ...........................................................................................................2
iii) Safety Regulations ..........................................................................................................3
1. General ..............................................................................................................................................................5
1.1 Product Features.............................................................................................................5
1.2 Operating Specification ...................................................................................................5
2 Dimension .......................................................................................................................6
3. Label Information.............................................................................................................7
4. Interface ..........................................................................................................................8
5. Revision Records............................................................................................................................................9
- 1 -
i) Notice
DIGI®
The material contained in this document is proprietary and for information only and is subjected to change
without notice. Teraoka Weigh-System assumes no responsibility for any errors or damages arising from
misinterpretation of any procedure.
Screen displays, operating procedures and supporting features might vary with different software version
releases.
This document shall not be reproduced whether in part or whole without the written consent from Teraoka
Weigh-System Pte Ltd.
Teraoka Weigh-System Pte Ltd
4, Leng Kee Road
#06-01 SIS Building
Singapore 159088
- 2 -
ii) Safety Information
The operator of the equipment shall comply with the safety and warning indications and procedures outlined in
this document. Teraoka Weigh-System Pte Ltd assumes no responsibility or liability for failure to comply with
these requirements.
. For continued protection against fire hazard replace only with battery of same rating and type.
. Avoid overloading the product beyond its rated maximum capacity
. Trained and qualified personnel shall only carry out repair and servicing of product.
Disclaimer:
Specifications are subject to change without notice. All dimensions shown are approximate. Please be aware
that Teraoka has indicated that its hardware and software used in the product may require additional updates in
the future as our product is continually under development. The need for such updates most likely applies to the
Printer software.
3
iii) Safety Regulations
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled portable
environment. To maintain compliance with FCC RF exposure compliance requirements, please do not
modify or use this product in not intended applications/configurations except those documented in this
manual.
4
This device is intended only for OEM integrators under the following conditions:
1) The transmitter module may not be co-located with any other transmitter or antenna.
As long as conduction above is met, further transmitter test will not be required. However, the
OEM integrator is still responsible for testing their end-product for any additional compliance
requirements required with this module installed (for example, digital device emissions, PC
peripheral requirements, etc.).
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain
laptop configurations or co-location with another transmitter), then the FCC authorization is no
longer considered valid and the FCC ID can not be used on the final product. In these
circumstances, the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
End Product Labeling
The final end product must be labeled in a visible area with the following: “Contains TX FCC
ID: SUFTRKRF01”.
Manual Information That Must be Included
The OEM integrator has to be aware not to provide information to the end user regarding how to
install or remove this RF module in the users manual of the end product which integrate this
module.
The end users manual for OEM integrators must include the following information in a prominent
location “ IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements. The
antenna must not be co-located or operating in conjunction with any other antenna or transmitter.
TRK-RF-01 User Manual
5
1. General
The module design is based on the CC2420 RF transceiver from Chipcon which is based on the IEEE
802.15.4 standard. It implements a proprietary communications protocol based on the 802.15.4
standard streamlined to lower cost and power consumption. The TRK-RF-01 module design consists
of the CC2420, the Atmel ATmega microcontroller (up to 16k internal flash), and integrated PCB trace
antenna. The module will be FCC and CE certified for fast and simple integration into end
applications. Teraoka can modify the firmware to accommodate specific application requirements.
This module may be integrated into a wireless application which operates in 2.4G ISM frequency
band and requires low data rate /low power consumption.
1.1 Product Features
Model :
TRK-RF-01 (RF802.15.4 Module)
Dimension (in mm) : 59(L) X 32.0(W) X 7.5(H)
RF Standard : IEEE 802.15.4
Modulation :
O-QPSK with DSSS
Frequency Band : 2.405 GHz – 2.480 GHz
Radio Operation Channel : Channel 11 to 26
The RF Frequency of channel k is given by : Fc = 2405+5(k-11)MHz, k=11,12….26
Data Rate : Up to 250 kbps
Radio Range : Up to 100m, L.O.S
Transmit Power : 0dBm (max)
Receiver Sensitivity : -93dB (typical), PER = 1%
General purpose I/O : 6
1.2 Operating Specification
Voltage :
DC 3.3V ( +2.7V ~+3.6V)
Current :
35mA (typical), standby: <5uA
Operating Temperature : -20 °C to 50 °C
Storage Temperature : -40 to +85° C
Humidity :
95% max non condensing
TRK-RF-01 User Manual
6

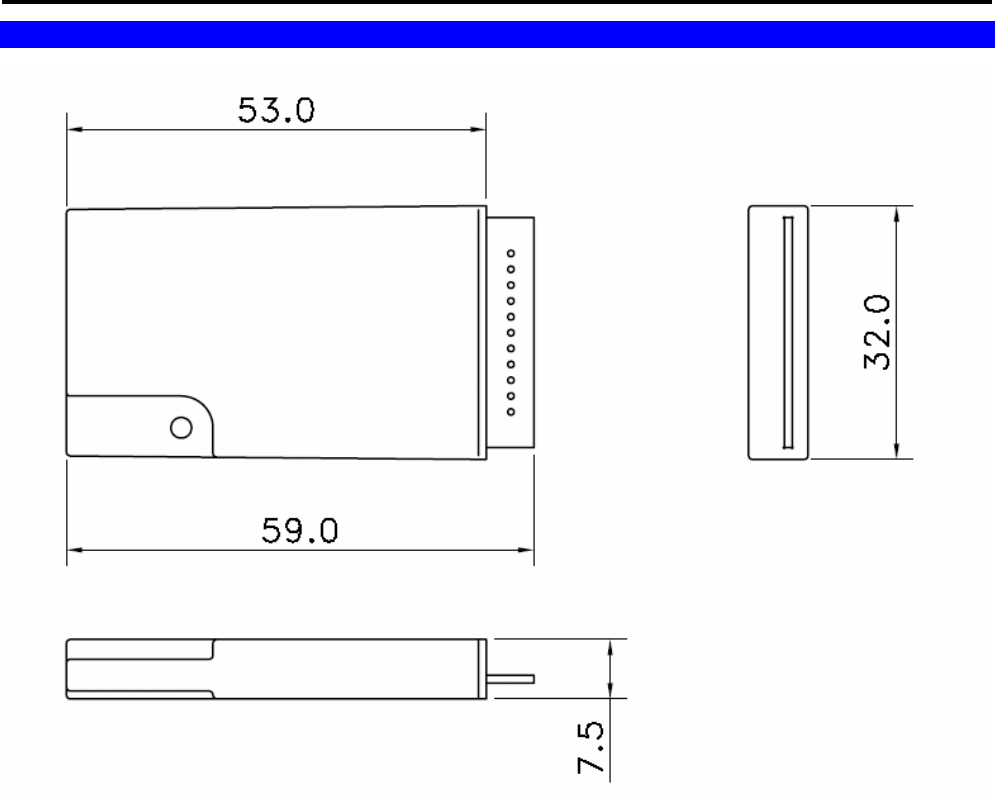

2 Dimension
TRK-RF-01 User Manual
7

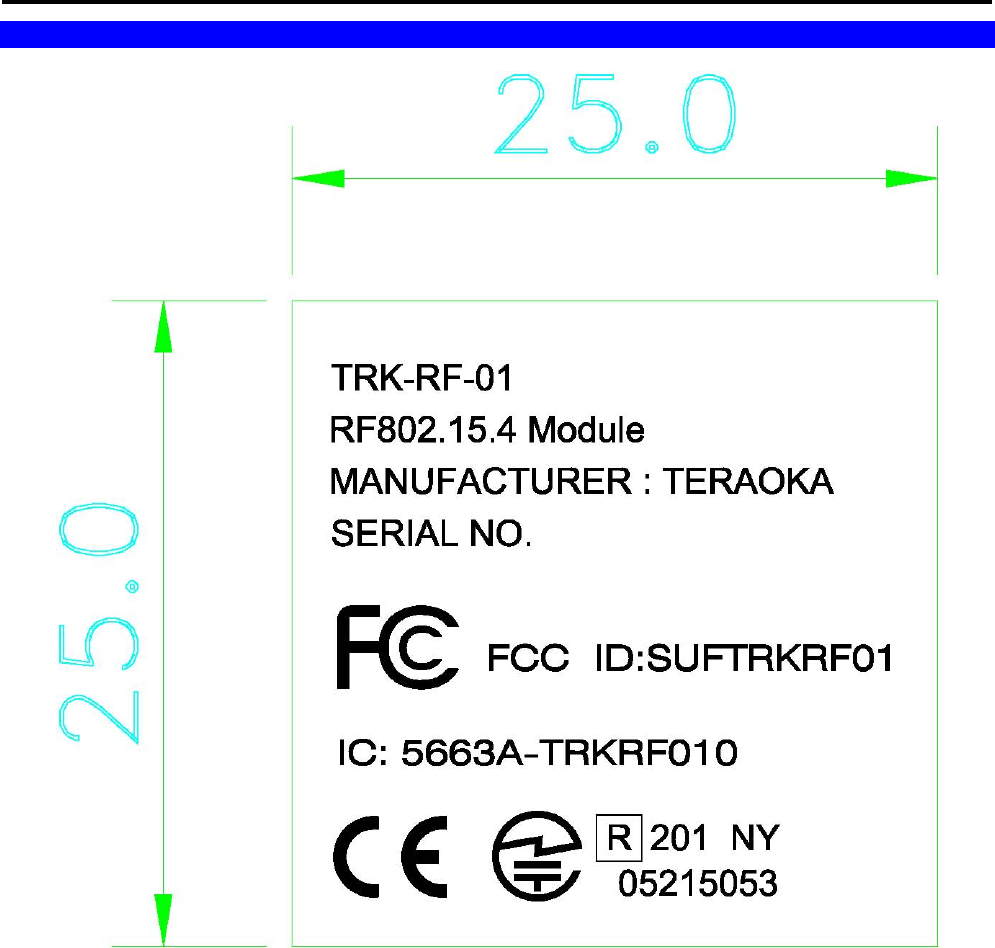

3. Label Information
TRK-RF-01 User Manual
8
4. Interface
Interface pin assignments ( J1)
1 GND
2 VCC
3 LED ( Anode)
4 LED (Cathode) / PortD.4
5 External Interrupt1
6 I/O1 ( PortD.7)
7 I/O2 (PortC.1)
8 I/O3 (PortC.0)
9 I/O4 (PortD.1)
10 I/O5 (PortD.0)
11 GND
Notes:
1) The I/O pins is connected to the controller – Atmega8L( /88V/16L/168V) ports directly. The
functions of I/Os can be defined by user program.
2) The voltage level is TTL low voltage level.
3) The external interrupt1 can be programmed to be low level or edge triggered.
4) The LED current is internally limited to about 5mA.
TRK-RF-01 User Manual
9
5. Revision Records
Serial
No. Date Edition
Status Description of Changes Software
Version Remarks
001 Apr ‘05 00 Tentative Edition
