DIGI SINGAPORE TRKRF03 RF_CC2500 Module User Manual SUFTRKRF03 Tentative Edition1 0519
Teraoka Weigh-System Pte Ltd. RF_CC2500 Module SUFTRKRF03 Tentative Edition1 0519
UserMan_SUFTRKRF03
COPYRIGHT © 2005 TERAOKA WEIGH-SYSTEM PTE LTD
USER MANUAL
WIRELESS RF DEVICE
RF_CC2500 Module
TRK-RF-03
Tentative Edition
Table of Content
i)
Notice ..............................................................................................................................1
ii)
Safety Information ...........................................................................................................2
iii)
Safety Regulations ..........................................................................................................3
1.
General..............................................................................................................................................................6
1.1
Product Features.............................................................................................................6
1.2
Operating Specification ...................................................................................................6
2
Dimension .......................................................................................................................7
3.
Label Information.............................................................................................................8
4.
Interface ..........................................................................................................................9
5. Revision Records.........................................................................................................................................10
- 1 -
i) Notice
DIGI
®
The material contained in this document is proprietary and for information only and is subjected to change
without notice. Teraoka Weigh-System assumes no responsibility for any errors or damages arising from
misinterpretation of any procedure.
Screen displays, operating procedures and supporting features might vary with different software version
releases.
This document shall not be reproduced whether in part or whole without the written consent from Teraoka
Weigh-System Pte Ltd.
Teraoka Weigh-System Pte Ltd
4, Leng Kee Road
#06-01 SIS Building
Singapore 159088
- 2 -
ii) Safety Information
The operator of the equipment shall comply with the safety and warning indications and procedures outlined in
this document. Teraoka Weigh-System Pte Ltd assumes no responsibility or liability for failure to comply with
these requirements.
.
For continued protection against fire hazard replace only with battery of same rating and type.
.
Avoid overloading the product beyond its rated maximum capacity
.
Trained and qualified personnel shall only carry out repair and servicing of product.
Disclaimer:
Specifications are subject to change without notice. All dimensions shown are approximate. Please be aware
that Teraoka has indicated that its hardware and software used in the product may require additional updates in
the future as our product is continually under development. The need for such updates most likely applies to the
Printer software.
3
iii) Safety Regulations
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator
& your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or antenna.
As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM
integrator is still responsible for testing their end-product for any additional compliance requirements
required with this module installed (for example, digital device emissions, PC peripheral requirements,
etc.).
4
IMPORTANT NOTE: In the event that these conditions do not be met (for example certain laptop
configurations or co-location with another transmitter), then the FCC authorization is no longer
considered valid and the FCC ID could not be used on the final product. In these circumstances, the
OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and
obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed such
that 20 cm may be maintained between the antenna and users (for example: by maintaining 20cm
between the final end device and users). The final end product must be labeled in a visible area with
the following: “Contains FCC ID:
SUFTRKRF03
”.
Manual Information That Must be Included
The OEM integrator has to be aware not to provide information to the end user regarding how to
install or remove this RF module in the users manual of the end product that integrate this module.
The users manual for OEM integrators must include the following information in a prominent location
“ IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used
for this transmitter must be installed to provide a separation distance of at least 20 cm from all
persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
Canada Regulatory Wireless Notice:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the
following two conditions:
1) This device may not cause interference and
2) This device must accept any interference, including interference that may cause undesired
operation of the device
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator
and your body.
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and
users, and
2) The transmitter module may not be co-located with any other transmitter or antenna,
As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM
integrator is still responsible for testing their end-product for any additional compliance requirements
required with this module installed
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop
configurations or co-location with another transmitter), then the IC authorization is no longer
considered valid and the IC ID can not be used on the final product. In these circumstances, the OEM
integrator will be responsible for re-evaluating the end product (including the transmitter) and
obtaining a separate IC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed such
that 20 cm may be maintained between the antenna and users. The final end product must be
labeled in a visible area with the following: “Contains IC: 5663A-TRKRF030”.
5
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to
install or remove this RF module in the user’s manual of the end product which integrates this module.
The end user manual shall include all required regulatory information/warning as show in this manual.
TRK-RF-03 User Manual
6
1. General
The module design is based on RF transceiver CC2500 with an industry standard enhanced S1C7564 MCU. It
implements a proprietary communications protocol streamlined to lower cost and power consumption. The
antenna used is a surface mount LTCC chip antenna. The module will be FCC and CE certified for fast and
simple integration into end applications. Teraoka can modify the firmware to accommodate specific application
requirements. This module may be integrated into a wireless application which operates in 2.4G ISM frequency
band and requires low data rate /low power
consumption.
1.1 Product Features
Model : TRK-RF-03 (RF_CC2500 Module)
Dimension (in mm) : 23.5(L) X 28.5(W) X 4.0(H)
RF Standard : FCC 15B DOC
ARIB STD-T66
FCC MPE
FCC PART 15C
Modulation : MSK; FSK
Frequency Band : 2.406 GHz – 2.480 GHz
Radio Operation Channel : 1 to 75
The RF Frequency of channel k is
given by : Fc = 2406+(k-1) MHz, k=1,2…76
Data Rate : Up to 500 kbps
Radio Range : Up to 100m, L.O.S
Transmit Power : 0dBm (max)
Receiver Sensitivity : -105dBm (typical), PER = 1%
General purpose I/O : 30
1.2 Operating Specification
Voltage : DC 3.0V (+2.7V ~+3.6V)
Current : 35mA (typical), standby: <5uA
Operating Temperature : -20 °C to 50 °C
Storage Temperature :
-40 to +85° C
Humidity : 95% max non condensing
TRK-RF-03 User Manual
7

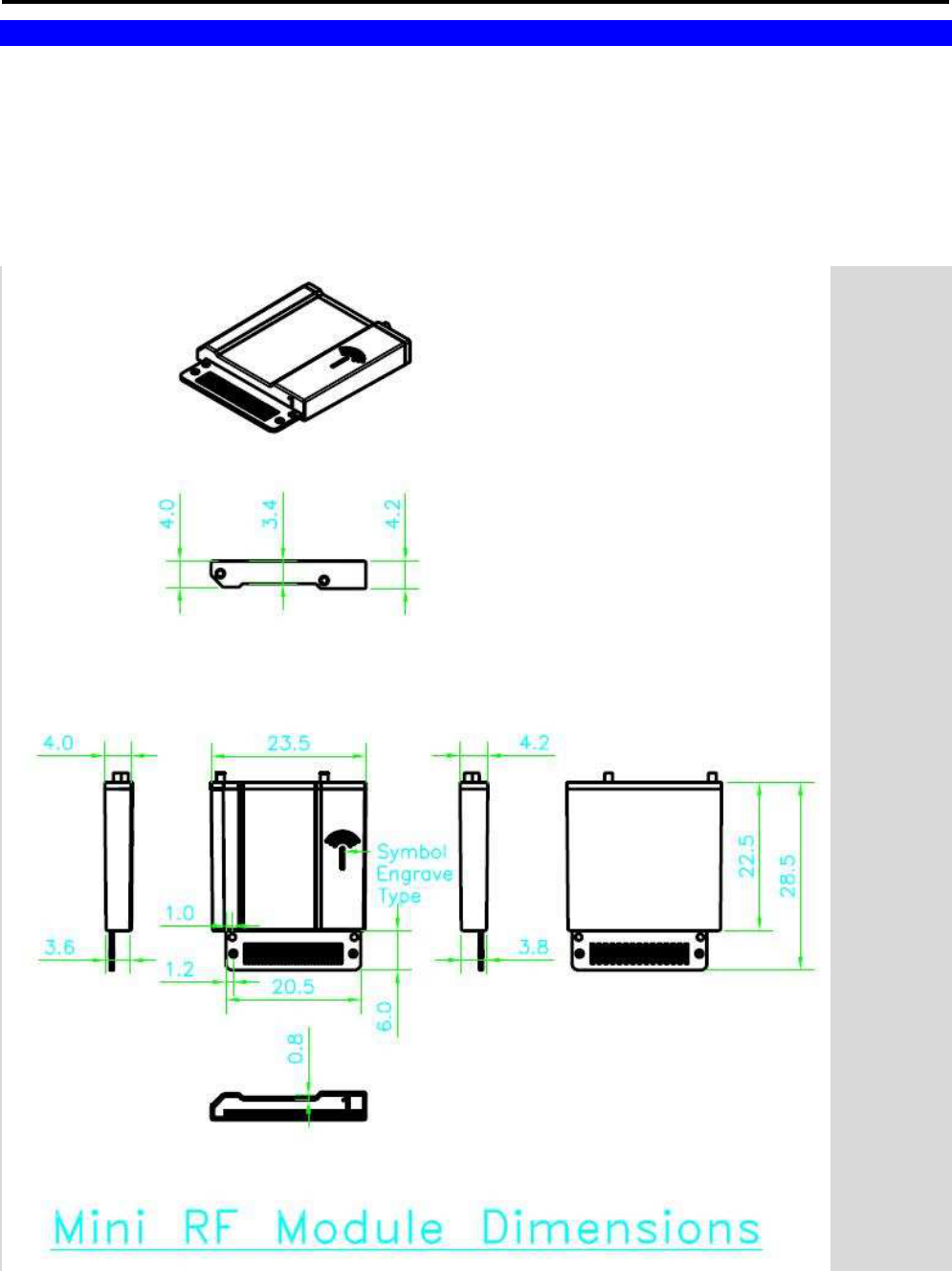

2 Dimension
TRK-RF-03 User Manual
8
3. Label Information
TRK-RF-03 User Manual
9
4. Interface
Interface pin assignments
1 GND 16 P21
2 GND 17 P22
3 GND 18 P23
4 VDD 19 P24
5 VDD 20 P25
6 RESET_N 21 P26
7 P14 22 P27
8 P15 23 P44
9 P16 24 P40
10 P51 25 P45
11 P42 26 P43
12 P31 27 P52
13 P41 28 GND
14 P50 29 GND
15 P20 30 GND
Notes:
1. The I/O pins is connected to the external interface port directly.
2. The voltage level is TTL high/low voltage level.
TRK-RF-03 User Manual
10
5. Revision Records
Serial
No. Date Edition
Status
Description of Changes Software
Version Remarks
1 19/5/2010 1 INITIAL RELEASE
