DIGI SINGAPORE UHFNF02 SUBGIGA RFID READER User Manual
Teraoka Weigh-System Pte Ltd. SUBGIGA RFID READER Users Manual
Users Manual
COPYRIGHT © 2005 TERAOKA WEIGH-SYSTEM PTE LTD
SERVICE MANUAL
NF-02 SUBGIGA RFID READER
NF-02
Tentative Edition
Table of Content
i) Notice ................................................................................................................................................. 1
ii) Safety Information .............................................................................................................................. 2
iii) Safety Regulations ............................................................................................................................. 2
1. General ............................................................................................................................................................. 4
1.1 Model Specification ............................................................................................................................ 4
1.2 Operating Specification ...................................................................................................................... 4
2.1 Dimension ...................................................................................................................................................... 5
2.2 Nameplate ...................................................................................................................................................... 5
2.3 Exploded View ............................................................................................................................................... 6
3. NF-02 Setup Diagram ...................................................................................................................................... 7
3.1 Setup Diagram ...................................................................................................................................... 7
4. Revision Records ............................................................................................................................................ 8
1
i) Notice
DIGI®
The material contained in this document is proprietary and for information only and is subject to change without
notice. Teraoka Weigh-System assumes no responsibility for any errors or damages arising from
misinterpretation of any procedure.
Screen displays, operating procedures and supporting features might vary with different software version
releases.
This document shall not be reproduced whether in part or whole without the written consent from Teraoka
Weigh-System Pte Ltd.
Teraoka Weigh-System Pte Ltd
4, Leng Kee Road
#06-01 SIS Building
Singapore 159088
2
ii) Safety Information
The operator of the equipment shall comply with the safety and warning indications and procedures outlined in
this document. Teraoka Weigh-System Pte Ltd assumes no responsibility or liability for failure to comply with
these requirements.
• Repair and servicing of product, shall only be carried out by trained and qualified personnel.
Disclaimer:
Specifications are subject to change without notice. All dimensions shown are approximate. Please be aware
that Teraoka has indicated that its hardware and software used in the product may require additional updates in
the future as our product is continually under development. The need for such updates most likely applies to the
Printer software.
CAUTIONS:
FOR PLUGGABLE EQUIPMENT, THAT THE SOCKET-OUTLET SHALL BE INSTALLED NEAR THE
EQUIPMENT AND SHALL BE EASILY ACCESSIBLE.
POUR LE MATÉRIEL RACCORDÉ PAR PRISE DE COURANT, LE SOCLE DE PRISE DE
COURANT DOIT ÊTRE
INSALLÉ À PROXIMITÉ DU MATÉRIEL ET DOIT ÊTRE AISÉMENT ACCESSIBLE.
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE
AND RATING OF FUSE.
POUR NE PAS COMPROMETTRE LA PROTECTION CONTRE LES RISQUES D’INCENDIE,
REMPLACER PAR UN FUSIBLE DE MÊME TYPE ET DE MÊME CARACTÉRISTIQUES
NOMINALES.
DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH
THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD
USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS
IL Y A DANGER D’EXPLOSION S’IL Y A REMPLACEMENT INCORRECT DE LA BATTERIE.
REMPLACER UNIQUEMENT AVEC UNE BATTERIE DU MÊME TYPE OU D’UN TYPE
RECOMMANDÉ PAR LE CONSTRUCTEUR. METTRE AU RÉBUT LES BATTERIES USAGÉES
CONFORMÉMENT AUX INSTRUCTIONS DU FABRICANT.
iii) Safety Regulations
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
3
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
IDA Compliance Statement: (Singapore)
This equipment registered to comply with IDA (Info-Communications Development Authority of Singapore)
Standard under Dealer’s Class License.
Actual size
9mm (H) x 17mm (W)
NF-02 Service Manual
4
1. General
1.1 Model Specification
Model
:
NF-02
Dimension (in mm)
:
180.0 (L) X 39.0 (W) X 39.0 (H)
Modulation
:
PR-ASK
Frequency Band
:
TELEC (916~923MHz)
FCC (902-928MHz)
Data Rate
:
250 kbps
Rated Transmit Power
:
25dBm
Radio Range
:
Up to 50cm direct in sight (OPEN AIR)*
Voltage & Current
:
5Vdc, 450mA (max)
USB cable length
:
2meter
Housing material
:
ABS,
*ultrasonic welding to case up
1.2 Operating Specification
Power Source
:
External
:
From USB 5V DC source
:
Internal
:
From SM5500 scale USB port
Operating Temperature
:
0 °C to 40 °C
Humidity
:
95% max non condensing
NF-02 Service Manual
5

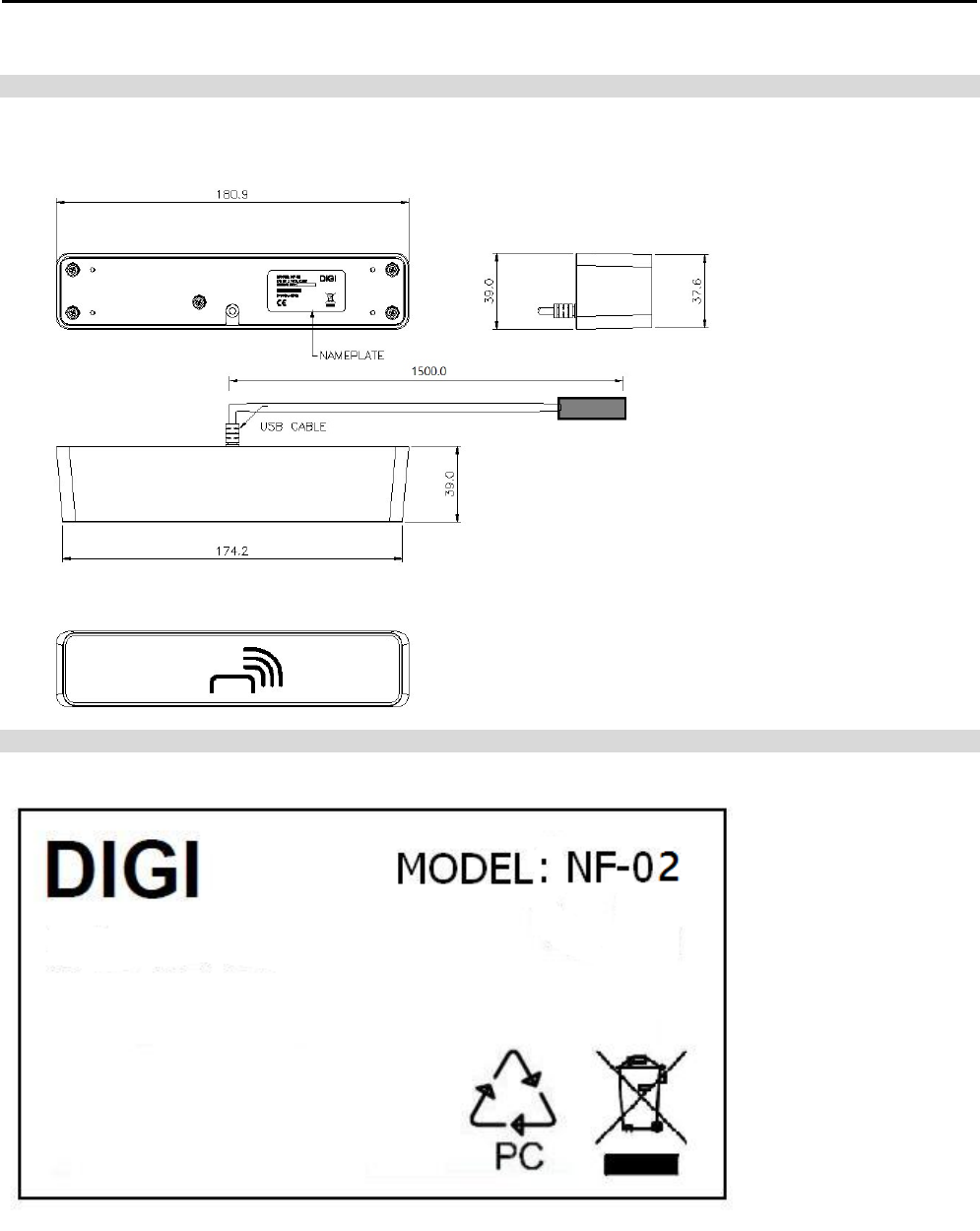

2.1 Dimension
2.2 Nameplate
NF-02 Service Manual
6

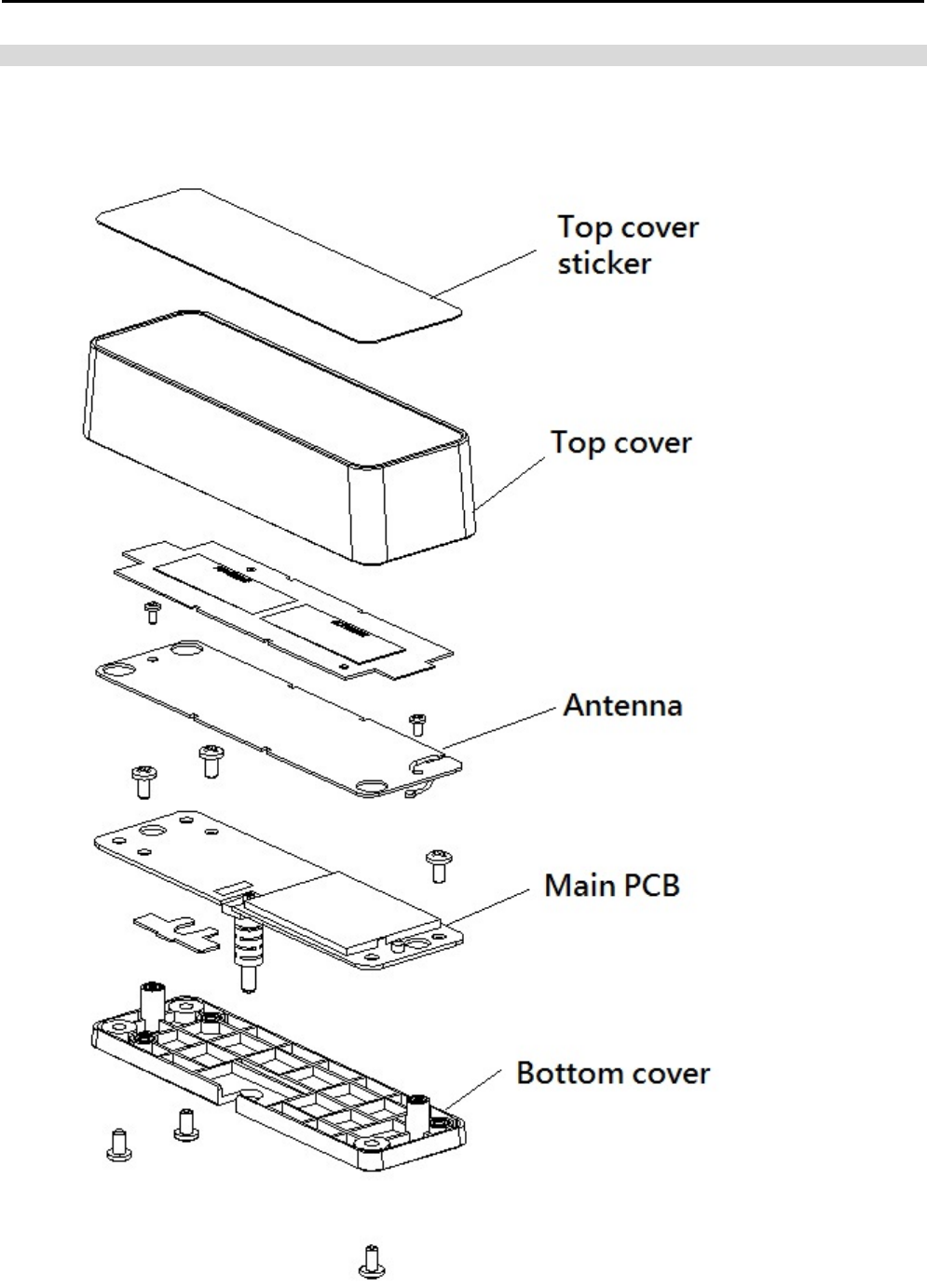

2.3 Exploded View
NF-02 Service Manual
7
3. NF-02 Setup Diagram

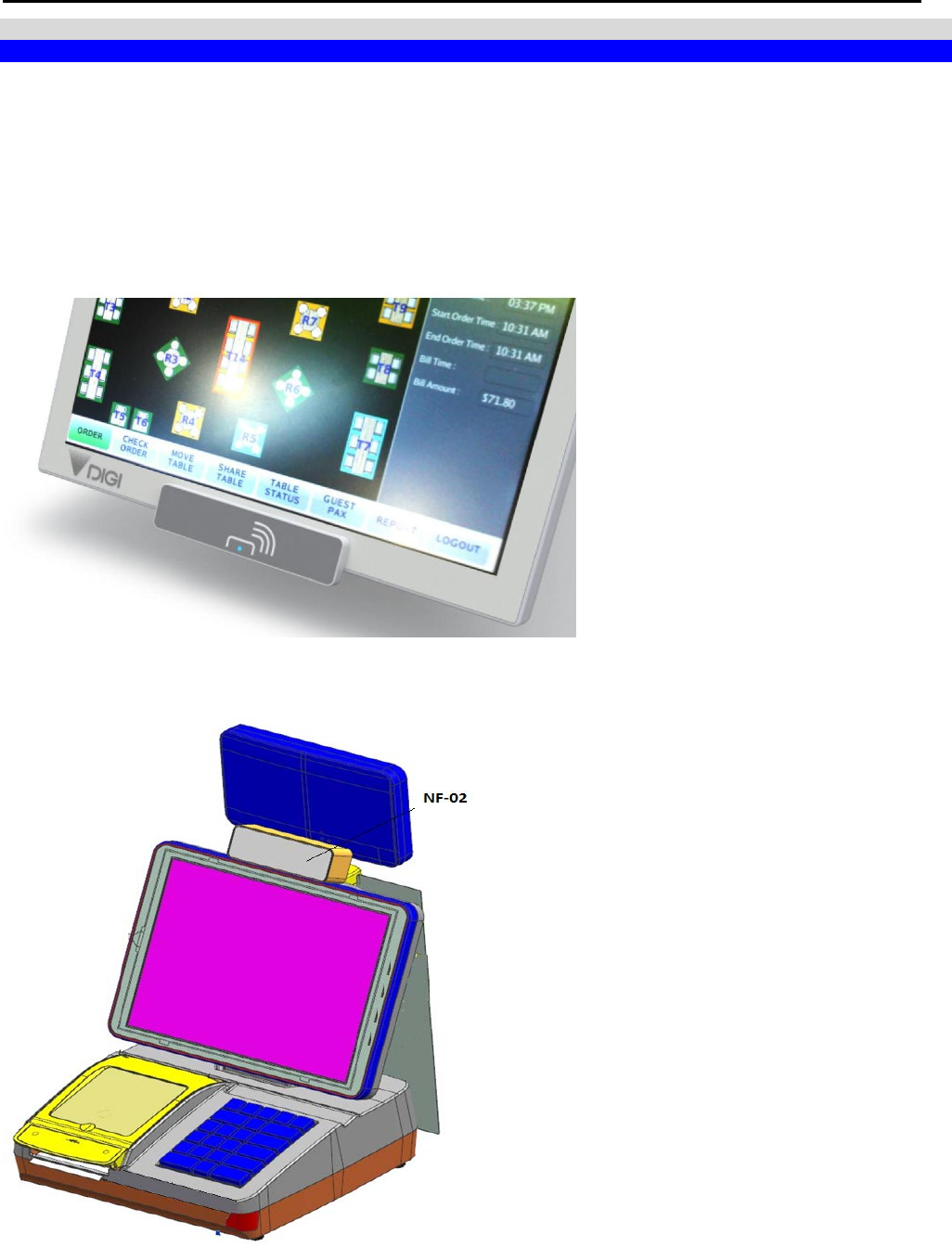

3.1 Setup Diagram
The NF-02 RFID reader will used as accessories within teraoka machine. NF-02 to be fixed at
designated location of Teraoka machine, eg weighing and POS machine.
The NF-02 will detect UHF passive tags which contain user id for logon purpose. The typical
detection range between tag and reader is 50cm or more. Upon detection, the NF-02 would
enter idle mode.
IPT-400 POS machine
PICO V2 Machine
NF-02 Service Manual
8
4. Revision Records
Serial
No.
Date
Edition
Status
Description of Changes
Software
Version
Remarks
001
Oct ‘15
00
First Release
Tentative Edition
002
Nov’15
01
Add setup diagram for machine
