DIGIRAY CRSCANNER Computed Radiography Scanner User Manual
3D IMAGING & SIMULATIONS CORP. Computed Radiography Scanner
DIGIRAY >
User Manual
User Manual human
Computed Radiography
Scanner
Rev 0.0.9 February 2010
Part No. : CR-FPM-01-001
©Copyright 2010 by 3D Imaging & Simulations Corp. All rights reserved.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in
any form or by any means, electronic, mechanical, photocopying, recording or otherwise,
without the prior written permission of 3D Imaging & Simulations Corp.
Terms denoted by the trademark symbol (TM or ®) used in this publication are trademarks or
service marks registered in the United States or other countries. FireCR, VetCR, Quantor and
QuantorVet are registered trademarks of 3D Imaging & Simulations Corp.
User Manual
FireCR
Contact
49-3, Moonpyung-Dong, Daedeok-Gu
Daejeon, Korea
Tel : 82-42-931-2100
Fax : 82-42-931-2299
Website : www.3-disc.com
E-mail : sales@3-disc.com
2
User Manual
FireCR
The device complies with Part 15 of the FCC Rules. Operation is subject to the condition
that this device does not cause harmful interference.
NOTE : This equipment has been tested and found to comply with the limits for a Class B Digital
Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction, may cause harmful interference to radio communication. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment dose
cause harmful interference to radio or television reception. Which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures :- Reorient or relocate the receiving antenna. - Increase the
separation between the equipment and receiver - Connect the equipment into an outlet on a
circuit different from that to which the receiver is connected. - Consult the dealer or an
experienced radio/TV technician for help.
3
User Manual
FireCR
Warnings and Used Symbols
To ensure the safety of patients, staff and other persons, any changes to software and hardware
delivered by 3D Imaging & Simulations Corp. may only be made with prior written permission
from 3D Imaging & Simulations Corp.
Please read the respective manuals of the connected software, such as acquisition and
diagnostic software, before starting to use the FireCR system.
The following symbols will be used throughout this manual:
DANGER
The functionality of the system can be destroyed in the case of
incorrect use.
If unauthorized changes have been made to delivered system and
accessories, the warranty by 3D Imaging & Simulations Corp.
becomes void. 3D Imaging & Simulations Corp. will not accept
any responsibility or liability for the proper functioning oh the
product in such a case.
WARNING
The functionality of the system can be limited in the case of
incorrect use. Hints that require special attention.
NOTE
Notes represent information that is important to know but which do
not affect the functionality of the system.
PRACTICAL HINT
A hint on how the work flow could be made easier within the
system.
4
User Manual
FireCR
General Safety Guidelines
All the safety and operating instructions should be read carefully before this device is operated.
This device has been designed and tested to meet strict safety requirements applicable to
medical equipment, and has been supplied in a safe condition. To ensure personnel and
patient safety, the device shall be operated and serviced in compliance with all procedures,
warnings and precautions during all phases of operation and service of this device. Failure to
comply to with safety guidelines may result in injury to service personnel, operator, or patient.
3D Imaging & Simulations Corp. assumes no liability for failure to comply.
If this device is not used as specified, the protection provided by the device could be impaired.
This device must be used in a normal condition only.
Installation, service and operation of this device should only be undertaken by qualified trained
personnel. The operator should study instructions and precautions carefully before starting to
use the device listed here and throughout the manual.
There are no user serviceable parts inside this device. The device should only be opened and
serviced by qualified service personnel. Failure to heed this warning may result in injury to
service personnel or damage to equipment, and void any and all warranties. If there is a
service problem, please contact 3D Imaging & Simulations Corp. or authorized dealer.
Do not spill liquids on the device, and never operate the device in a wet environment.
Keep the device from radiators and heat sources.
Use the device only with accessories supplied with this device.
This device is intended to be grounded. Plug power cord into properly grounded electrical
outlets. This cord is equipped with three-prong plugs to help ensure proper grounding.
This device contains static sensitive components. Proper static handling procedures and
equipment must be used when servicing this device.
5
User Manual
FireCR
Do not look inside of the device.
If any of the following conditions occur, unplug the device from the electrical outlet and contact
authorized service personnel.
z The power cord or power adapter is damaged.
z An object has fallen into the device.
z The device has been exposed to water.
z The device has been dropped or damaged.
z The device does not operate correctly when the operating instructions are followed.
Intended Use
This device is a Computed Radiography System and intended for use in producing digital X-Ray
images for general radiography purposes. It comprises of scanner, cassette with reusable
imaging plate and workstation software. It scans X-Ray exposed image plate and produces X-
Ray image in digital form. Then, digital image is transferred to workstation for further
processing and routing. This device is intended to be operated in a radiological environment
by qualified staff.
FireCR is not approved for the acquisition of mammographic image data.
6
User Manual
FireCR
Index of contents
Chapter 1. Introduction ..................................................................... 9
Chapter 2. Unpacking ......................................................................11
2.1. Inspection for Damage .................................................................... 11
2.2. Unpack the Shipping Container ....................................................... 11

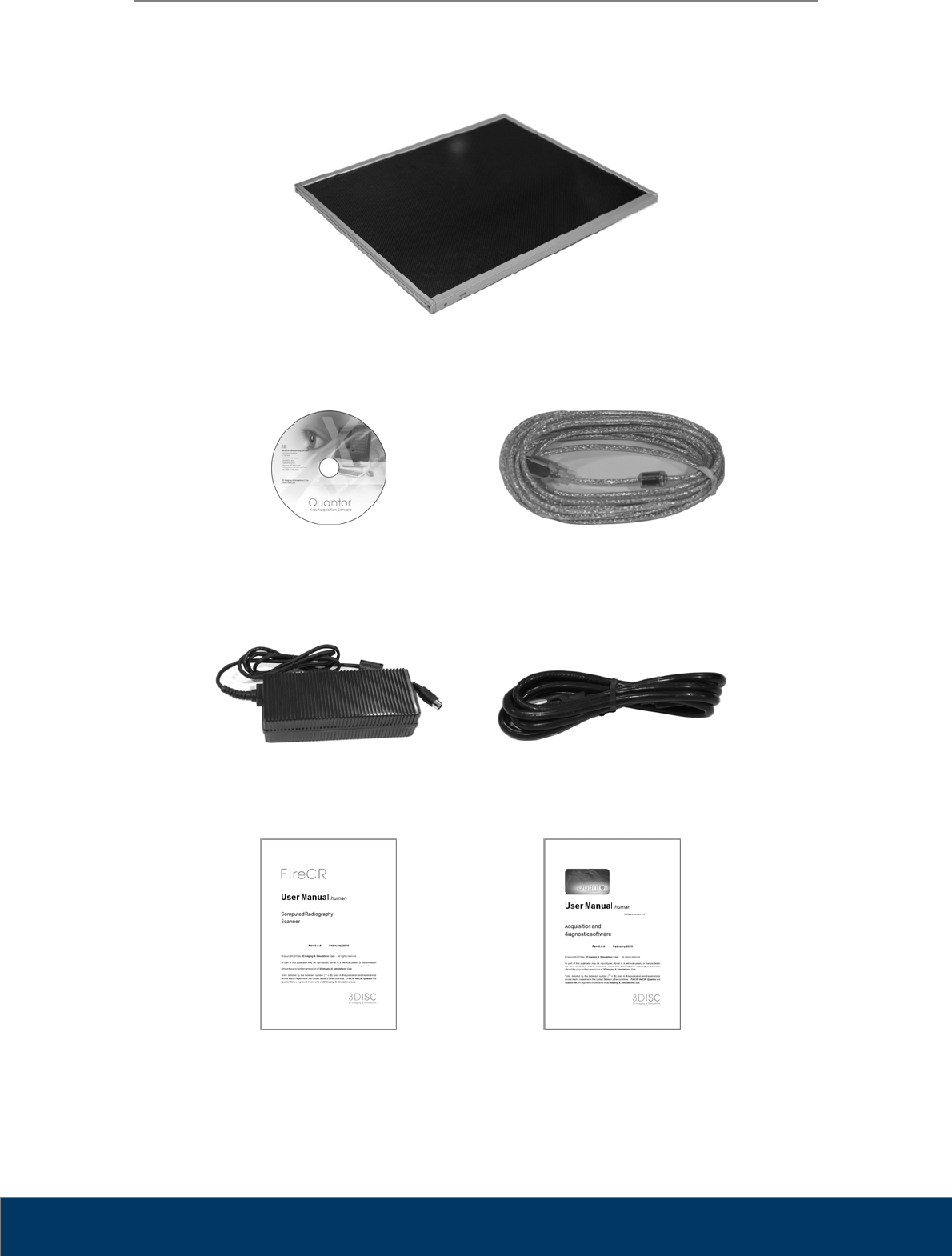

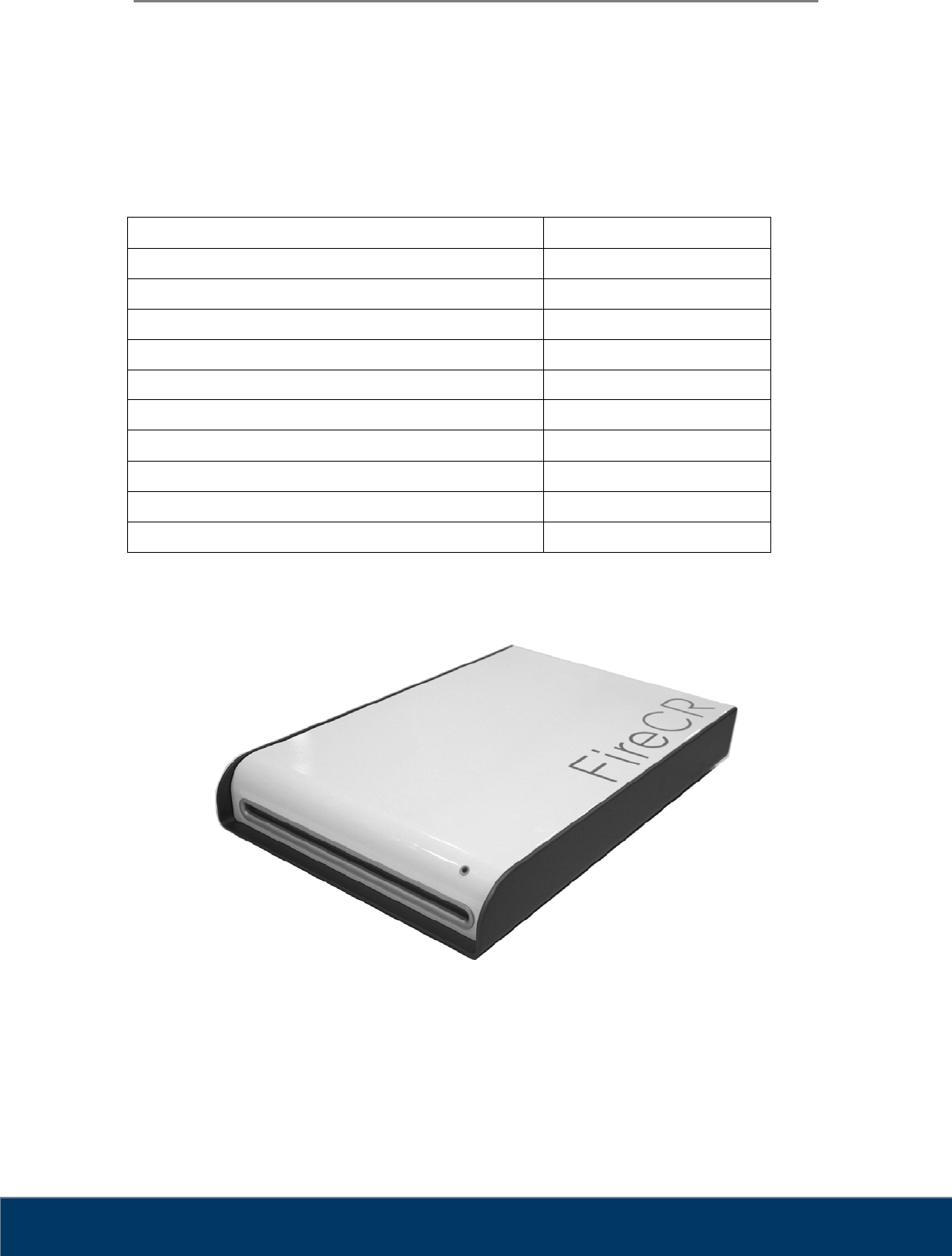

2.3. Identify the Components ................................................................. 13
Chapter 3. Setting Up ..................................................................... 16

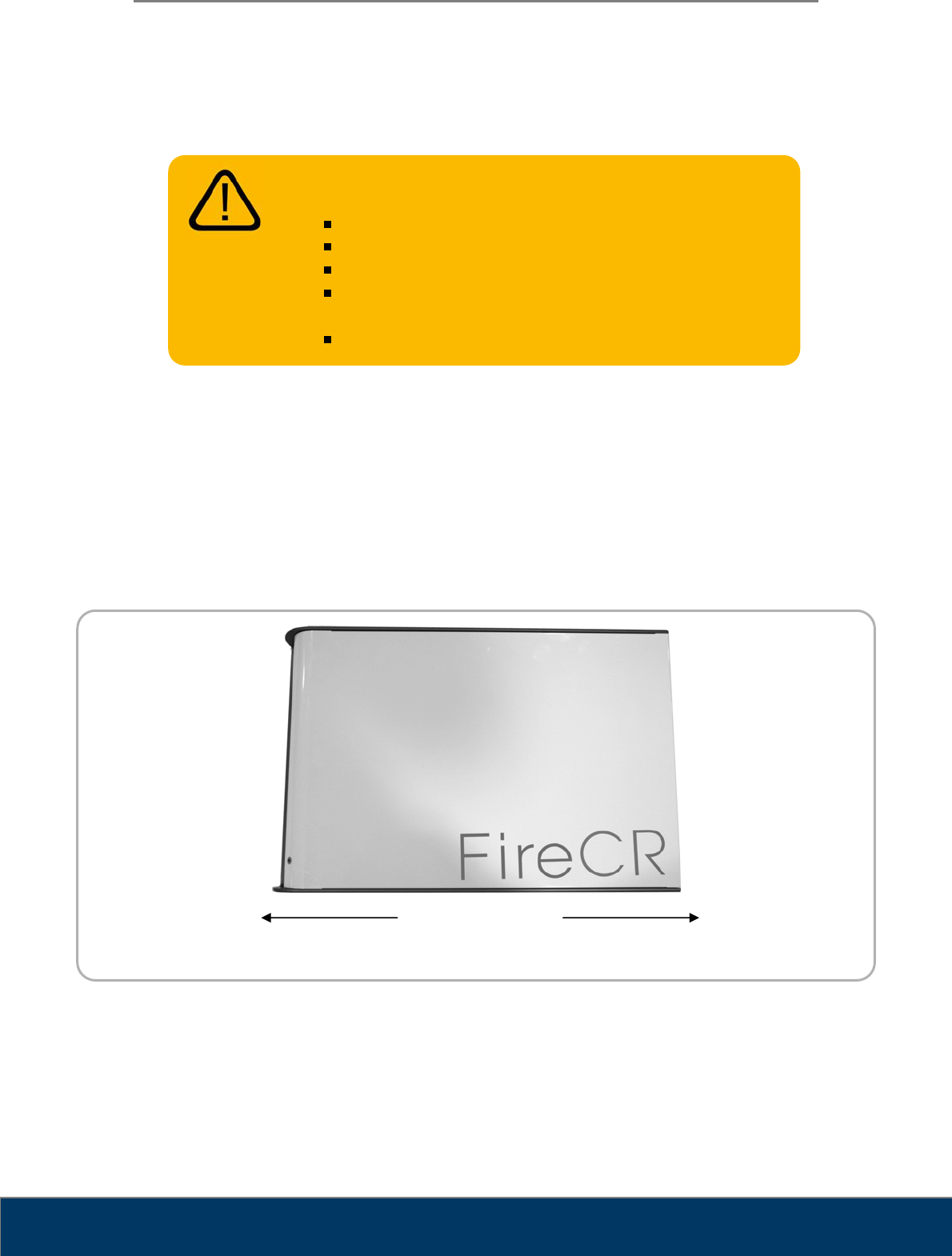

3.1. Tabletop Mount ............................................................................... 16
3.2. Identify Important Features ............................................................. 18

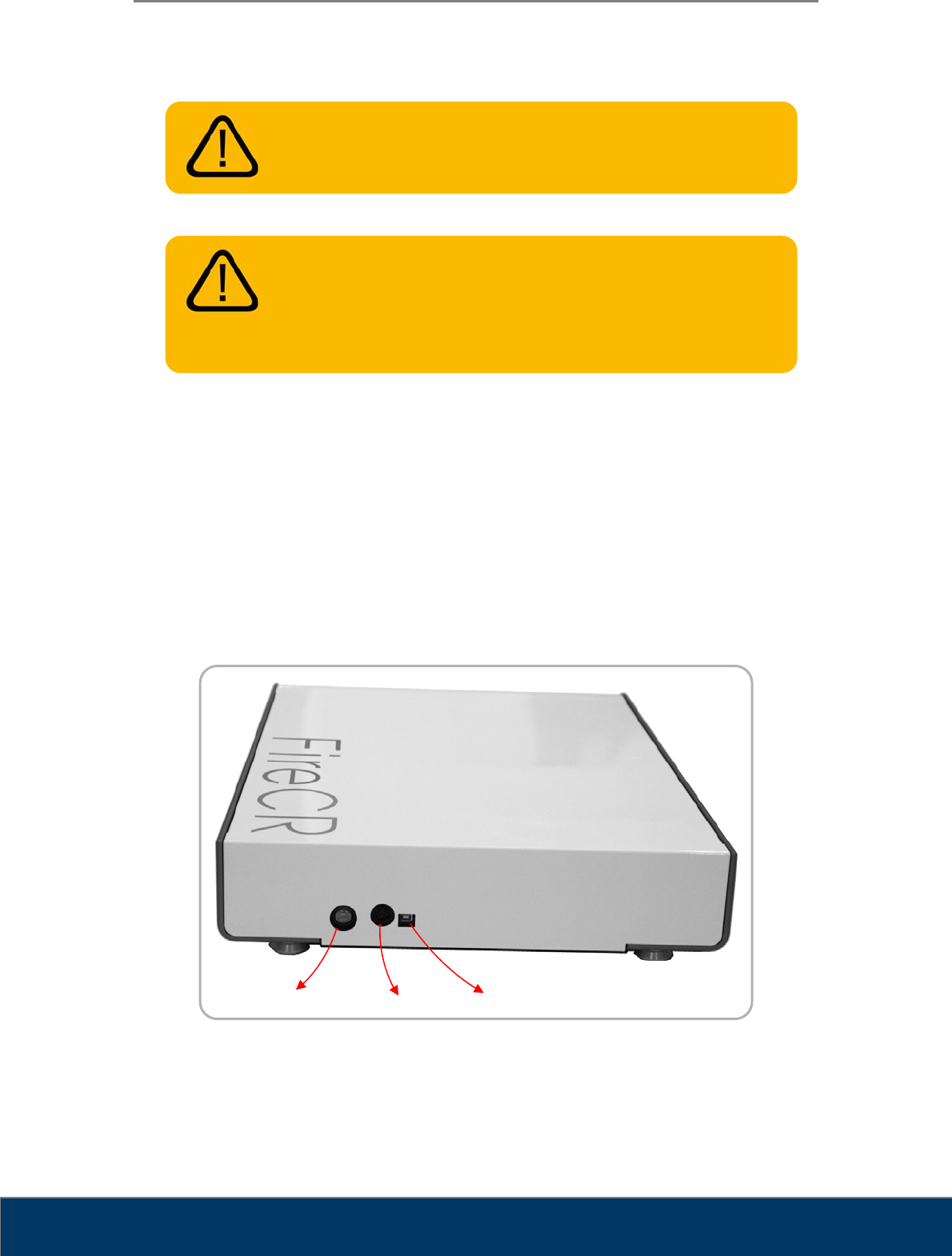

3.2.1. Scanner Connecting Part ............................................................................... 18

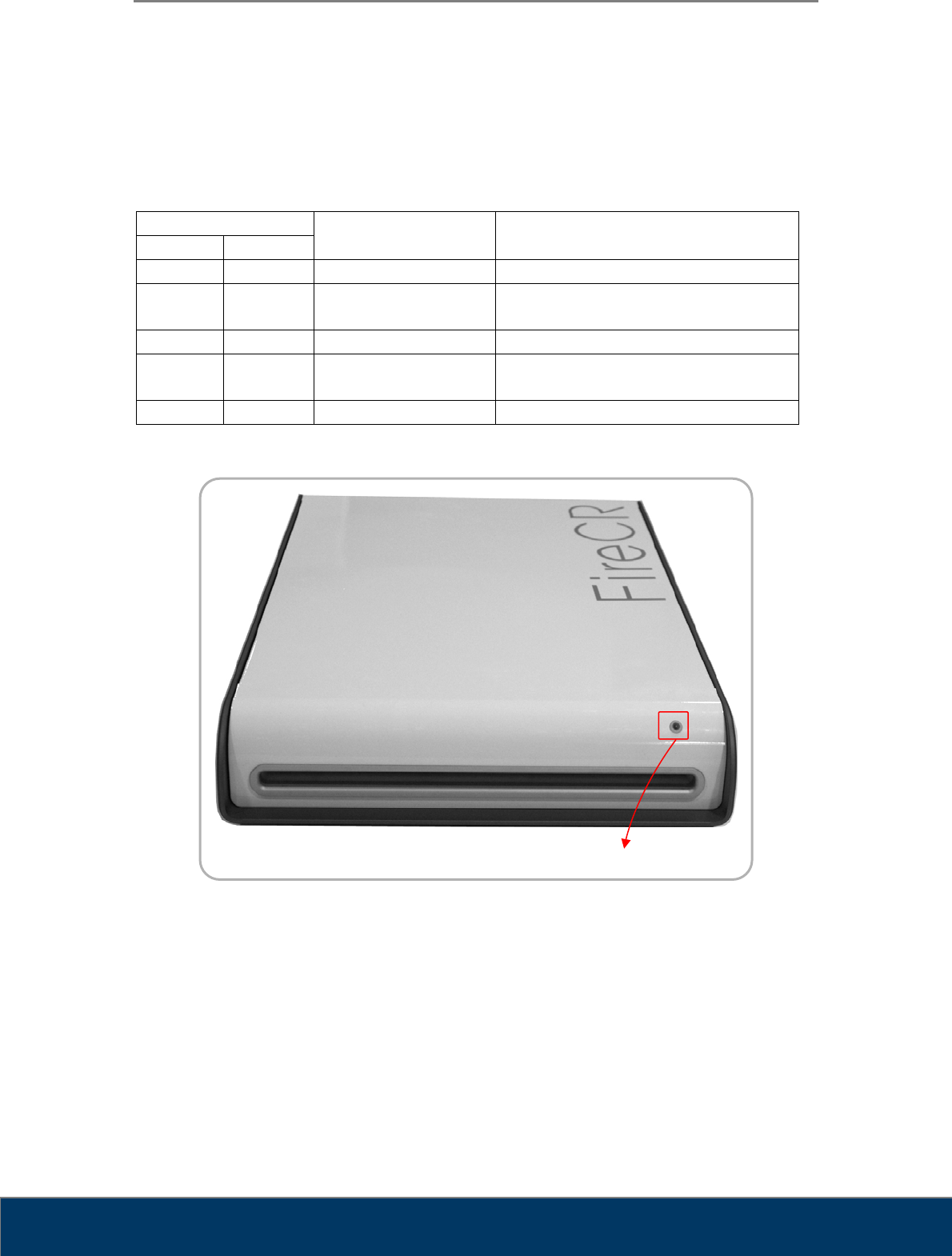

3.2.2. Scanner Status Indication LED ....................................................................... 19
3.3. Computer Requirements ................................................................ 20
3.3.1. Computer ........................................................................................................ 20
3.3.2. Monitor ............................................................................................................ 20
3.4. Installation of Quantor .................................................................... 21
3.5. Connect the Cable and Power Cord ............................................... 22
3.5.1. Connect Interface Cable ................................................................................. 22
3.5.2. Connect the Power Cord ................................................................................ 23
3.5.3. Installation Report ........................................................................................... 24
Chapter 4. Operating ...................................................................... 25
4.1. System Specifications .................................................................... 25
4.2. Operation Conditions ...................................................................... 26
4.3. Operating Instructions .................................................................... 27
4.3.1. Turn on the Scanner ....................................................................................... 27
4.3.2. Turn on the Computer ..................................................................................... 27
4.3.3. Cassette Insert and Eject ............................................................................... 27
4.3.4. Getting a Scanned Image ............................................................................... 27

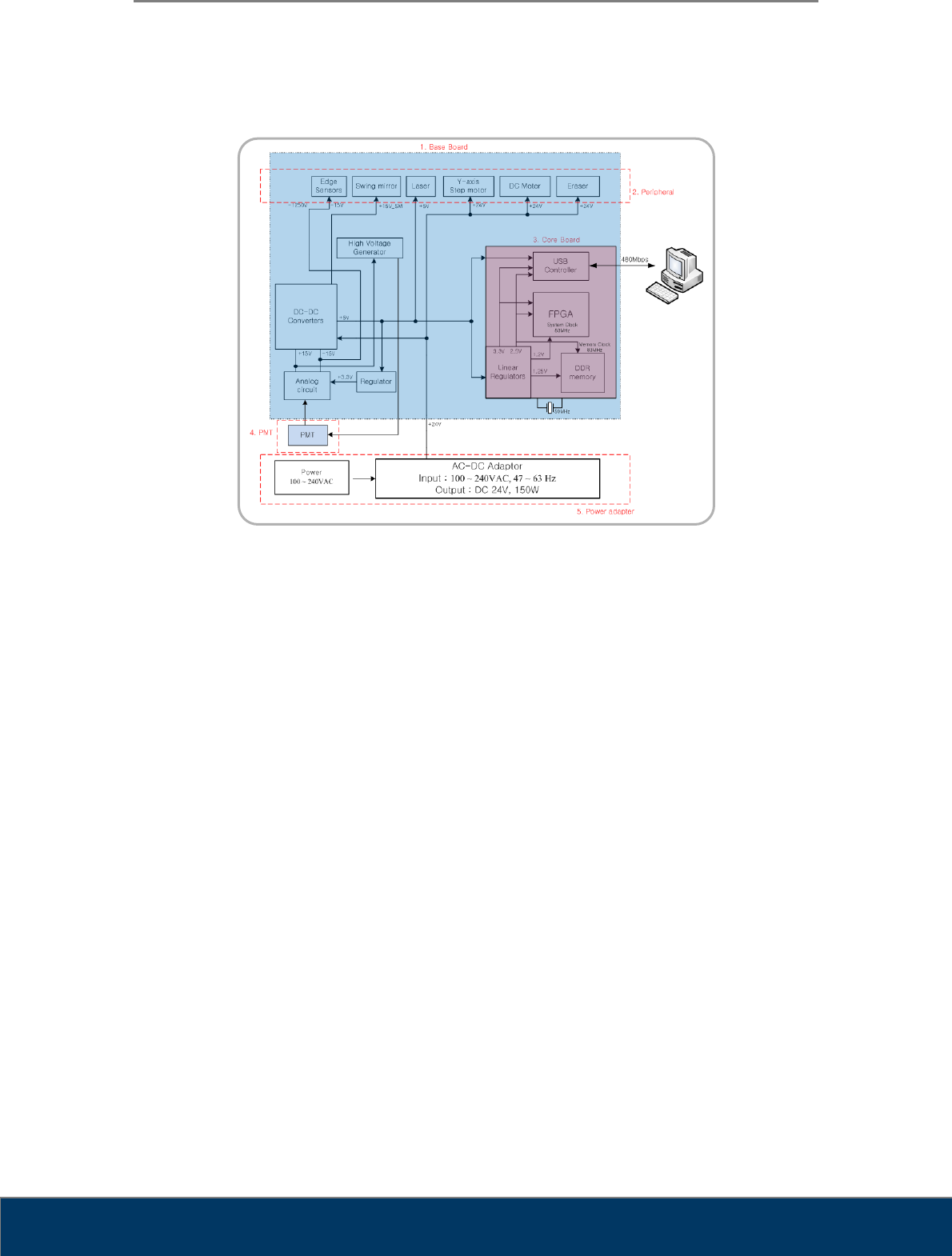

4.3.5. Circuit Functions ............................................................................................. 28
7
User Manual
FireCR

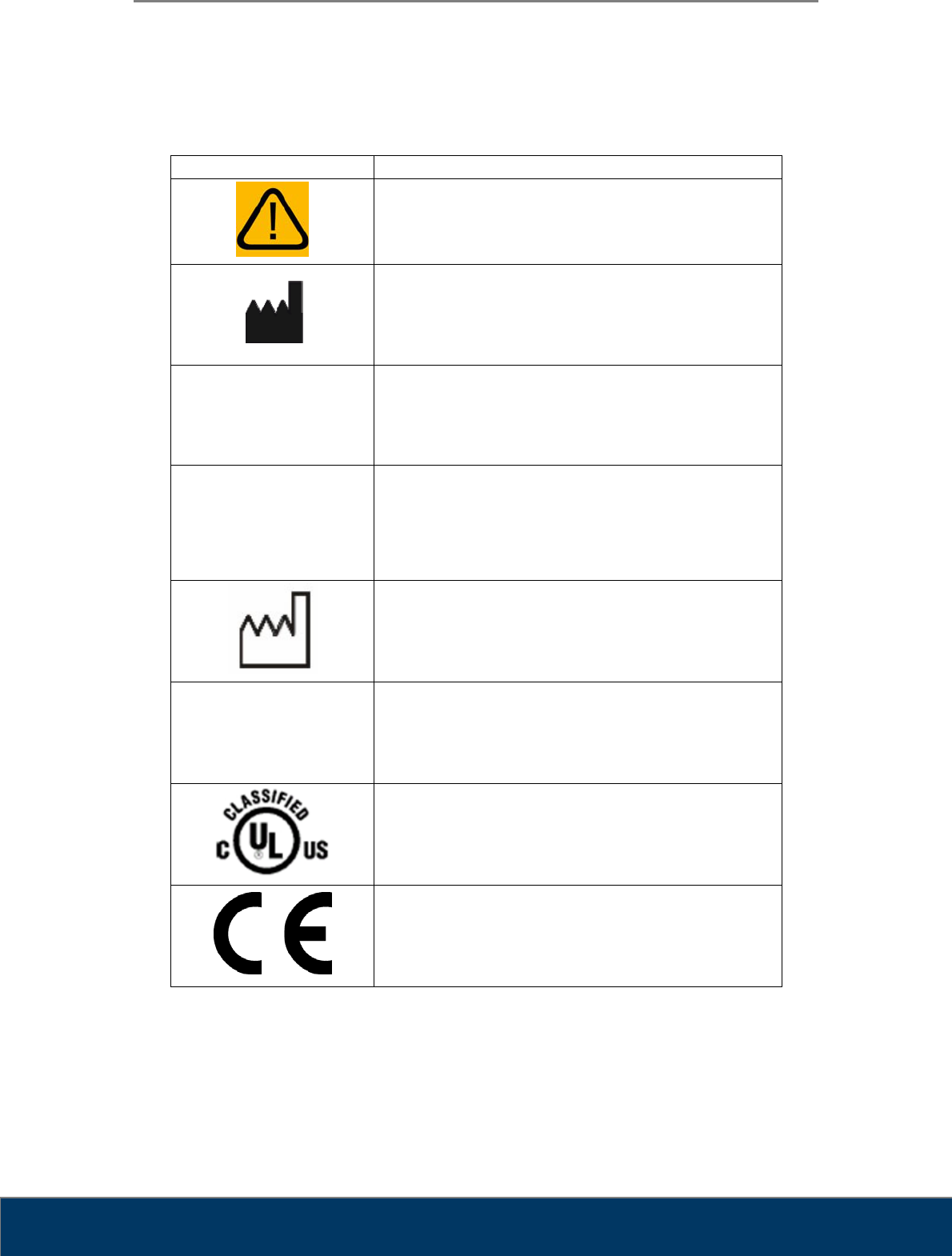

Chapter 5. Symbols ........................................................................ 29
5.1. Manufacturer’s Declaration - Electromagnetic Emission .............. 30
5.2. Manufacturer’s Declaration - Electromagnetic Immunity ................ 30

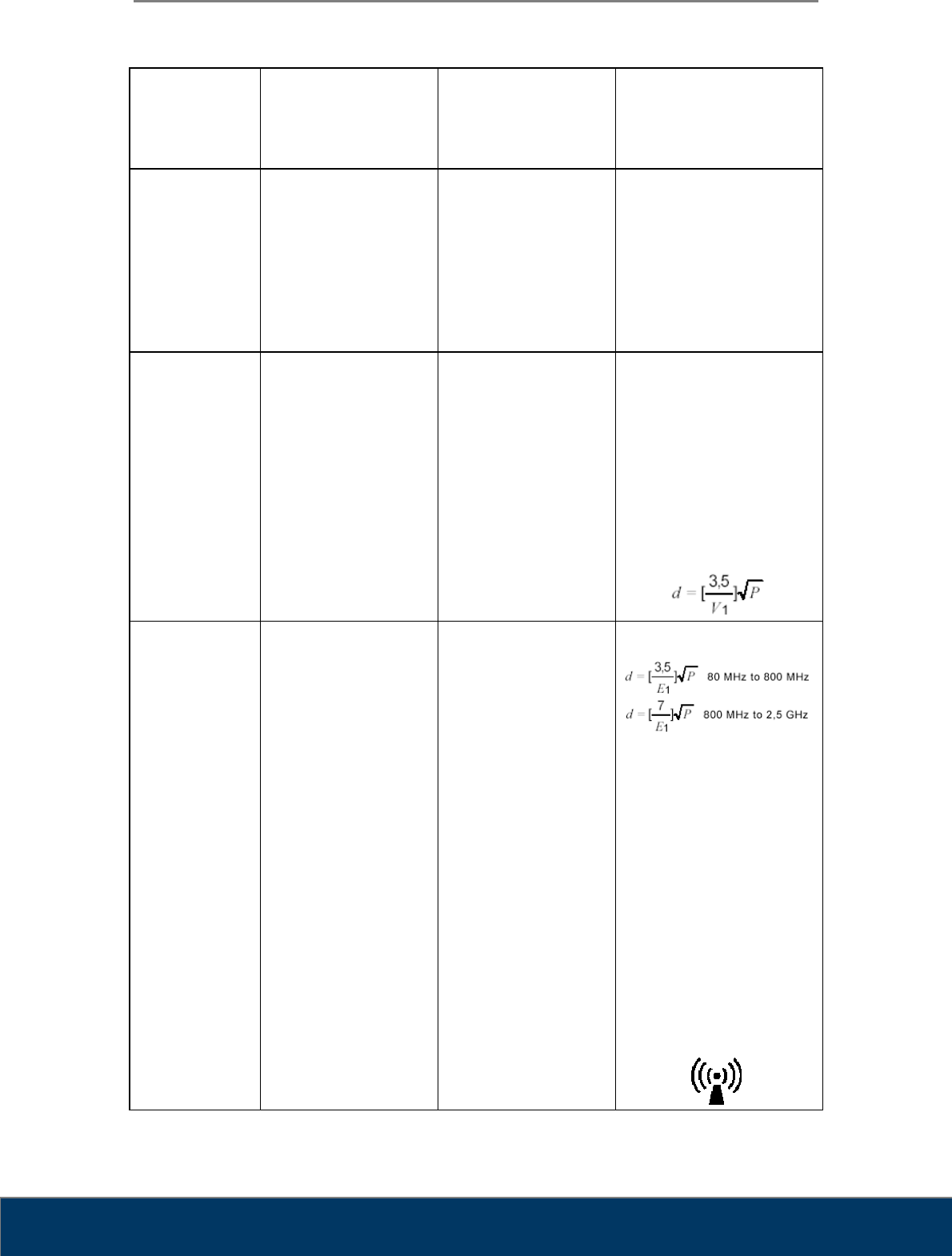

5.3. Guidance and Manufacturer’s Declaration – Electromagnetic
Immunity ..................................................................................................... 33
Chapter 6. Warranty and Repair Service ........................................ 34
6.1. Standard Warranty .......................................................................... 34
6.2. Repair Service ................................................................................ 34
6.3. Out of Warranty Repair Service ...................................................... 34
6.4. Shipping ......................................................................................... 35
Chapter 7. Technical Assistance ..................................................... 36
8
User Manual
FireCR
Chapter 1. Introduction
Thank you very much for deciding on FireCR – Computed Radiography Scanner.
The FireCR System is ideal for a wide range of Computed Radiography examinations in
specialty practices such as chiropractors, podiatrists and orthopedists.
Also the FireCR is well suited for small clinics, and mobile units, performing directly at the
patient with one compact and affordable package.
The FireCR can be configured for nearly every clinical application, and is designed for full
DICOM connectivity, and allows user to setup the system to capture high quality X-ray images
of any body parts with minimal steps including reading, processing, displaying and sending of
the high quality image. All imaging parameters are optimized, resulting in digital images that
can be enhanced, enlarged, duplicated, and sent to any location as a DICOM 3.0 file format in
seconds with no loss of resolution.
Combine the system with reusable phosphor screen equipped FireCR cassettes and portable
X-ray equipment, it can be used for X-ray exams everywhere it is needed, e.g. nursing facilities,
forensic institutions, employee screenings etc.
The FireCR System is ideal for Computed Radiography examinations in busy clinics and
specialty practices. Affordable, rugged, compact, lightweight, fast and effective FireCR System
enables all imaging functions to be performed with the advanced image management software,
a solution that can be adapted most clinical applications.
The FireCR Computed Radiography solution with enhanced workflow and improved productivity
are the best solution for medium sized healthcare facilities and clinics. The FireCR System
complements centralized CR and DR environments such as clinics, ER and OR departments.
9
User Manual
FireCR
Main Features
State-of-the-Art Scanning Mechanism
FireCR adopts state-of-the-art scanning mechanism using swing mirror to construct its compact
and rigid structure.
High Throughput
Its unique and patented dual direction scanning mechanism enables to improve the efficiency
and high throughput.
Scanning Resolution
User selectable resolution of 100μm and 200μm allows user to make diagnosis on variable
purposes.
Detector
High sensitive photomultiplier tube equipped in FireCR delivers high gain, wide dynamic range
and high speed response for radiographic imaging.
Powerful Acquisition and Diagnostic Software
Quantor Acquisition and Diagnostic Software is supplied with every FireCR, and its accurate
and rapid data processing make the scanner more powerful.
10
User Manual
FireCR
Chapter 2. Unpacking
2.1. Inspection for Damage
FireCR is shipped in a custom designed container to protect the scanner from external shock.
Before unpacking the scanner, inspect the shipping container for damage. In case the
container is damaged, notify the shipper immediately.
2.2. Unpack the Shipping Container
Open the shipping container by rotating butterfly shape lock and remove items from the
container.
Butterfl
y
sha
p
e loc
k

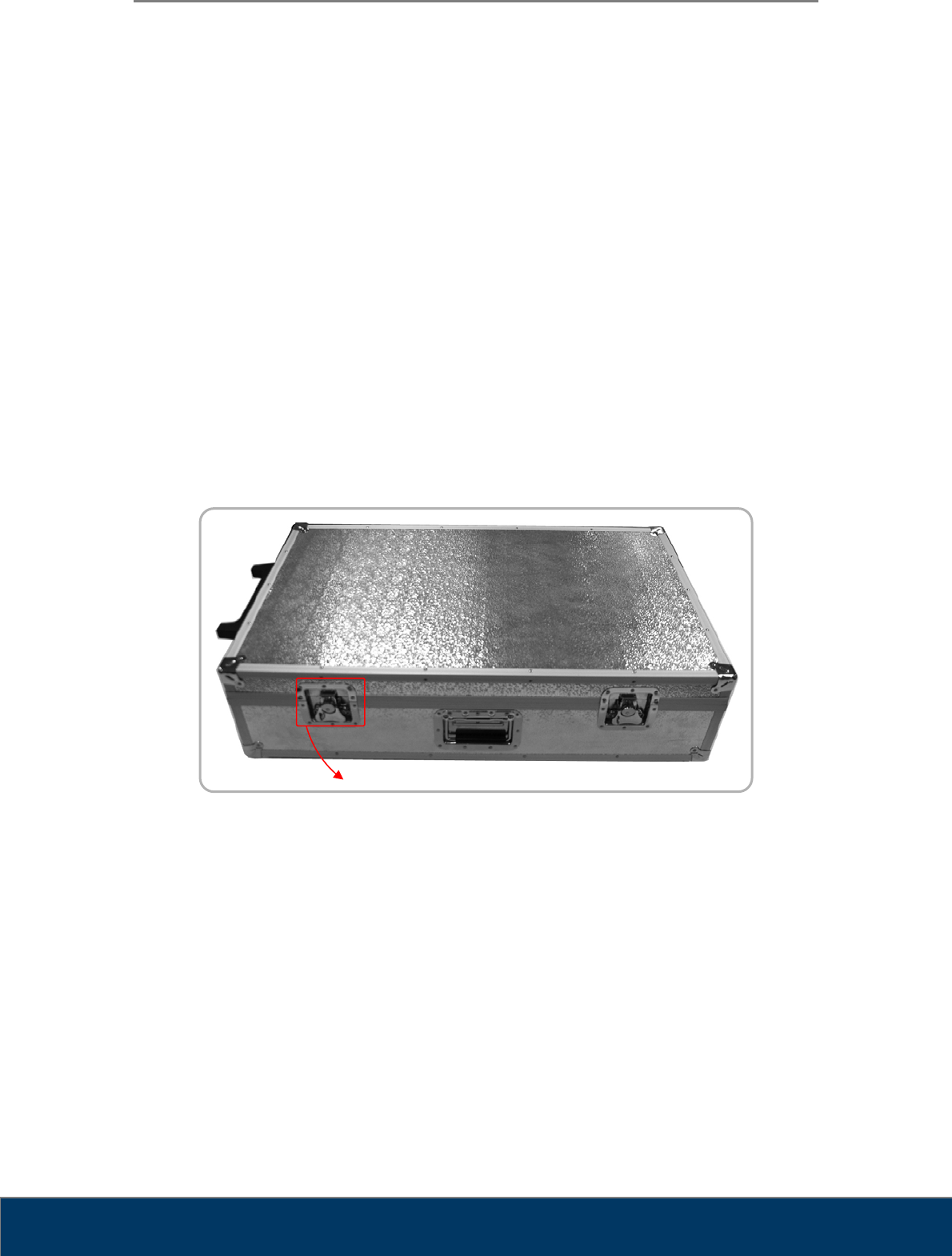

FIGURE 1. Shipping container
11
User Manual
FireCR

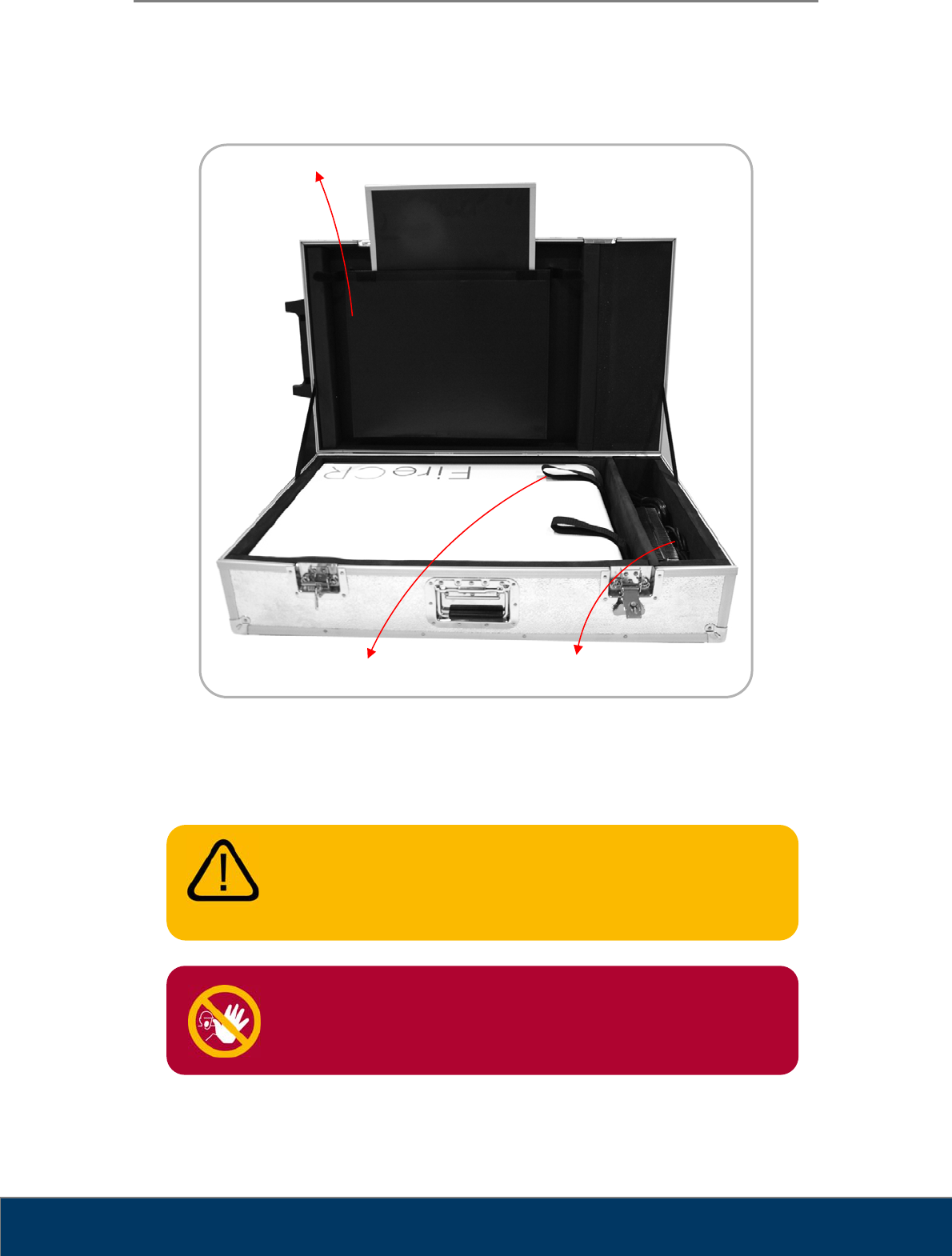

Open the shipping container, and remove the scanner and accessories as described below.
Space for power adapter,
power cord and USB cable
Strap for scanner removal
Pouch for cassette, manual and software CD
FIGURE 2. Inside of shipping container
Pull two straps to remove the scanner. And remove the cassette, manuals and Quantor CD
from the pouch attached to the lid.
If the FireCR needs to be returned to manufacturer or one of its
representatives, the scanner must be repacked in the original
container with all accessories.
WARNING
Weight of the scanner is approximately 30kg (65lbs), and it
requires two persons to lift.
DANGER
12
User Manual
FireCR
2.3. Identify the Components
Identify each of these components.
Item Part No.
FireCR Computed Radiography Scanner CR-FP-01-001
Universal Cassette CR-FP-02-001
14” x 17” Imaging Plate (Installed in the cassette) CR-FP-03-001
10” x 12” Imaging Plate (Installed in the cassette) CR-FP-03-002
Quantor Acquisition and Diagnostic Software CR-FP-04-001
USB 2.0 Interface Cable CR-FPA-02-001
Power Adapter CR-FPA-01-001
Power Cord CR-FPA-03-001
FireCR User Manual CR-FPM-01-001
Quantor User Manual CR-FPM-02-001
FireCR Computed radiography scanner
13
User Manual
FireCR
14” x 17” Universal cassette with imaging plate
Quantor Acquisition and diagnostic
software CD
USB 2.0 Interface cable
Power adapter
Power cord
FireCR User manual
Quantor User manual
14
User Manual
FireCR
Type SJT or SVT, min. 18AWG, 3-Conductor, VW-1 125V, min 10A
(or 250V, 10A). Max 3.0m long; One end with Hospital Grade
Type, NEMA 5-15P for 125V or NEMA 6-15P for 250V. Other end
with appliance coupler. “CAUTION Grounding reliability can only
be achieved when the equipment is connected to an equipment
receptacle marked “Hospital Only” or “Hospital Grade”.
For connection to supply not in USA, make sure the power cord is
the correct type that is required in your area.
WARNING
Use of Power Cord;
3D Imaging & Simulations Corp. does not assume any
responsibility for damage resulting from disposal of this equipment
without consultin
g
3D ima
g
in
g
& Simulations Cor
p
.
Improper disposal of this product may result in environmental
contamination. When disposing of this equipment, contact 3D
Imaging & Simulations Corp.’s representative or related organs
of government. Do not dispose of any part of this equipment
without consulting a 3D Imaging & Simulations Corp.’s
representative first.
WARNING
NOTE
AC/DC Adapter
Manufacturer : Bridge Power corp.
Model : JMW1150KA2423F51
This adapter is passed by IEC60601-1.
WARNING
Use the device passed IEC60950-1 or IEC60601-1 for the product
connected via USB port.
15
User Manual
FireCR
Chapter 3. Setting Up
Locations with poor heat radiation
Locations subject to shaking or vibration
Locations exposed to considerable electrical or magnetic
noise, or other forms of electromagnetic energy
Locations with excessive humidity or dust
Locations subject to high or temperature
WARNING
Unsuitable Installation Sites
3.1. Tabletop Mount
The scanner must be placed on a rigid and flat desk or tabletop with at least 10cm (4 inch) free
space on both sides, 20cm (8 inch) on rear side and 50cm (20 inch) on front side for cassette
insertion. Its space requirements are shown below.
Free space of 20cm (8
inch) on backside, at
least, to allow the power
switch, power cord and
USB cord to be reached
by hand at all times.
Free space of 50cm (20
inch) on front side, at
least, for cassette insertion
and ejection.
Front Side Backside
FIGURE 1. Space Requirements (Top View)
16
User Manual
FireCR

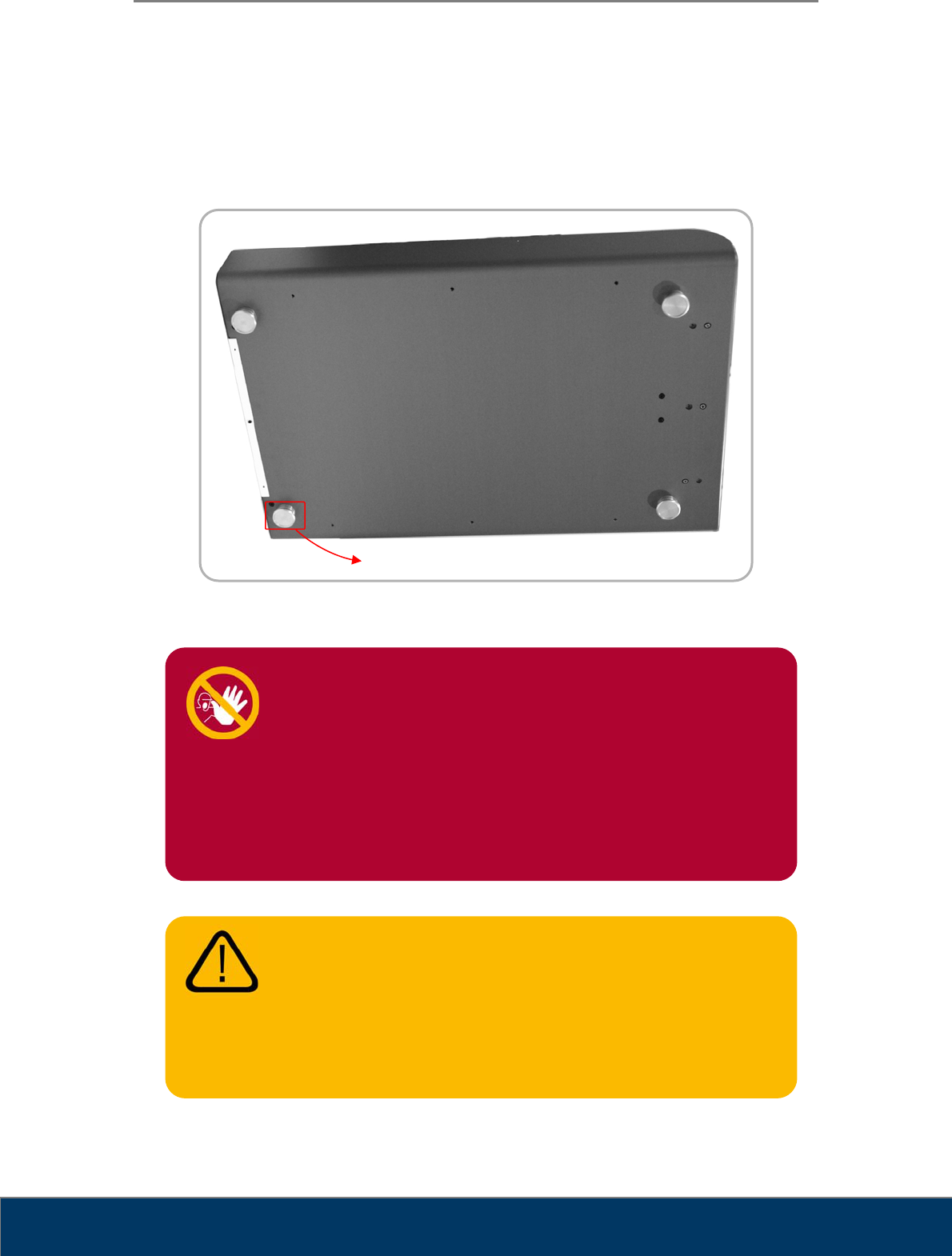

In case that desk or table is not flat, adjust feet under the scanner for leveling. The scanner
weighs approximately 30kg (65 lbs) and requires two persons to lift. Carefully place the
scanner into its final position.
FIGURE 2. Scanner leveling
DANGER
Never place the scanner on the floor.
Sliding the scanner may result in internal damage or misalignment
of the optics.
Install in a location that is level and stable. Installation in an
unsuitable location can cause accident, or deterioration in image
quality.
WARNING
Sliding the scanner may result in internal damage or misalignment
of the optics.
External vibration or shock during scanning may affect image
quality. The scanner must be placed on rigid, flat and reinforced
desk or tableto
p
.
Adjustable foot
17
User Manual
FireCR
Do not place anything on top of the scanner.
WARNING
Assure a distance of minimum 1.0m with neighboring equipment.
WARNING
This equipment may be interfered or interfere by electromagnetic
or other interference.
3.2. Identify Important Features
Look over the scanner and features shown in this section. User will need to know where these
features are when user operates the scanner in later chapters.
3.2.1. Scanner Connecting Part
USB 2.0 Port
Power Inlet
Power Switch
FIGURE 3. Scanner important features
18
User Manual
FireCR
3.2.2. Scanner Status Indication LED
Indication LED shows the status of the scanner as described below.
LED Status Remark
Green Blue
On System On
On Ready to Scan Cassette is in initial position, and
ready to scan.
Blinking Scanning & Erasing
On Scan Finished Cassette is in initial position, and can
be ejected.
Blinking Blinking Error
Status Indication LED
FIGURE 4. Scanner status indication LED
19
User Manual
FireCR
3.3. Computer Requirements
3.3.1. Computer
Processor: Intel Core Duo / Core 2 Duo or comparable with AMD Dual Core
Processor
RAM: minimum 2GByte RAM
HD: minimum 80GByte for software and for the archive
a hard drive C;\ (for installation) and D:\ (for acquired data, minimum
capacity of 25GByte) is preconditioned
Network: minimum 100MBit
Graphic card /
Monitor:
resolution of minimum 1,280 x 1,024 pixel using the true color mode
for embedded systems a resolution of 1,024 x 768 pixel are
recommended
OS: Windows XP
Options: please note the requirements for the different monitors and generators
e.g. additional network cards or serial ports
3.3.2. Monitor
If a diagnostic monitor is used, it should satisfy the following requirements:
1. DVI connection (no VGA)
2. Resolution of at least 1,280 x 1,024 pixels
3. Special b/w monitors from 18.1” TFT with high luminance
4. High fidelity of grey tones and optimal luminance distribution
5. Preset DICOM LUT
A viewing monitor should satisfy the following requirements:
1. VGA and / or DVI connection
2. Resolution of at least 1,280 x 1,024 pixels
3. TFT-Color from 17” with high contrast ratio (450:1)
4. High fidelity of grey tones and good luminance distribution
5. 5. Preset DICOM LUT
For diagnostic and viewing workstations the use of b/w monitors, which satisfy the requirements
of image display devices for medical use, are recommended.
20
User Manual
FireCR
3.4. Installation of Quantor
Please run the included setup “*_setup.exe”. The setup creates a version of the Quantor
software on the drive C:\ of your PC.
After installation, a Quantor icon will be displayed on the desktop. By double clicking on the
icon the Quantor software starts. If the software starts in the demo mode a information
displays that the program uses a temporary license. Please confirm this information by clicking
on “OK”. The demo license is only available for 20 days.
Refer to Quantor Acquisition and Diagnostic Software manual.
NOTE
21
User Manual
FireCR
3.5. Connect the Cable and Power Cord

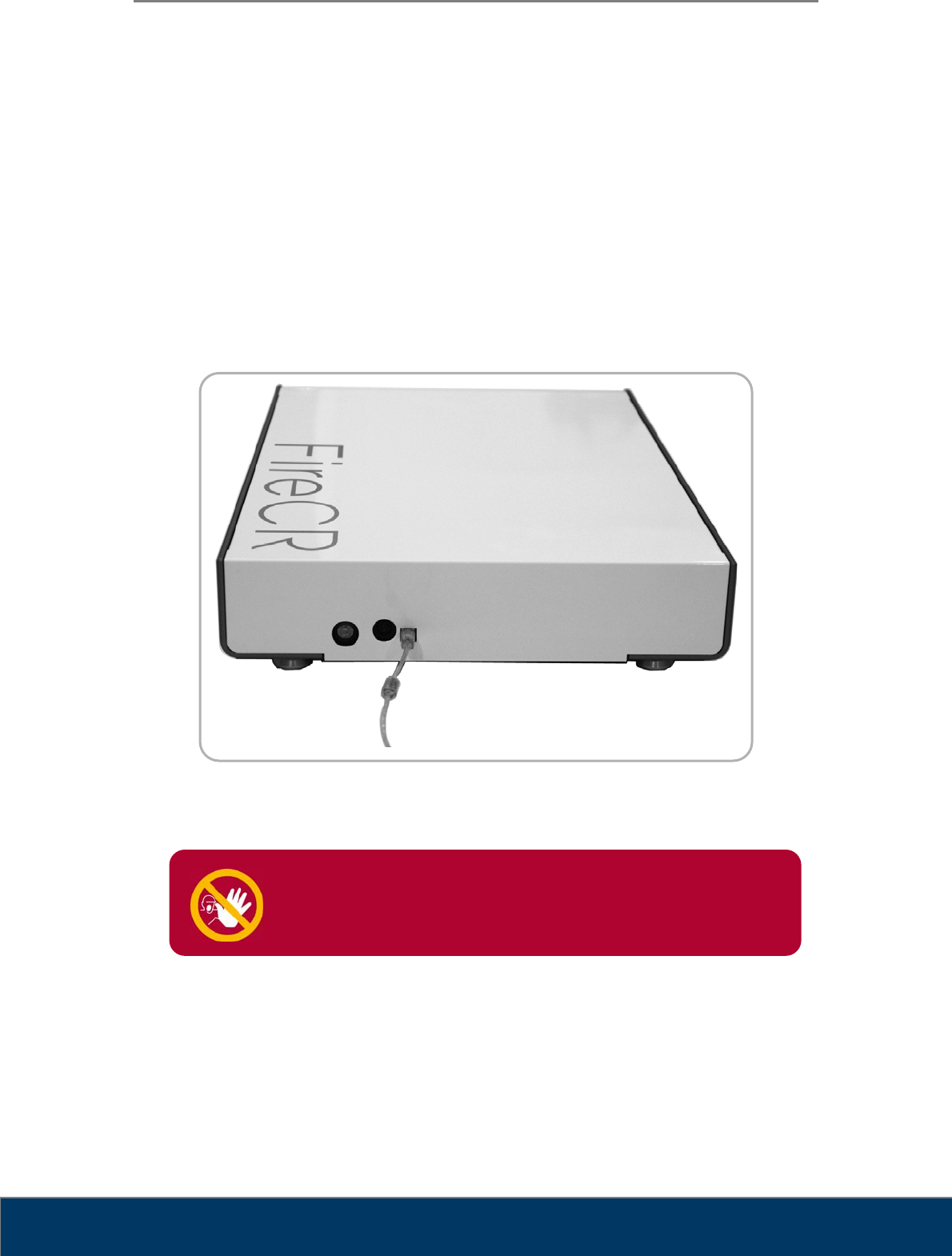

3.5.1. Connect Interface Cable
The scanner interfaces with computer via USB2.0 cable.
1. Use the USB cable in the shipping container.
2. Connect the cable to the scanner’s USB2.0 port, located on the rear of the scanner.
3. Connect the other end of the cable to the USB2.0 port on the computer.
FIGURE 5. USB connection
DANGER
This equipment is indoor use only and all the communication
wirings are limited to inside of the building.
22
User Manual
FireCR

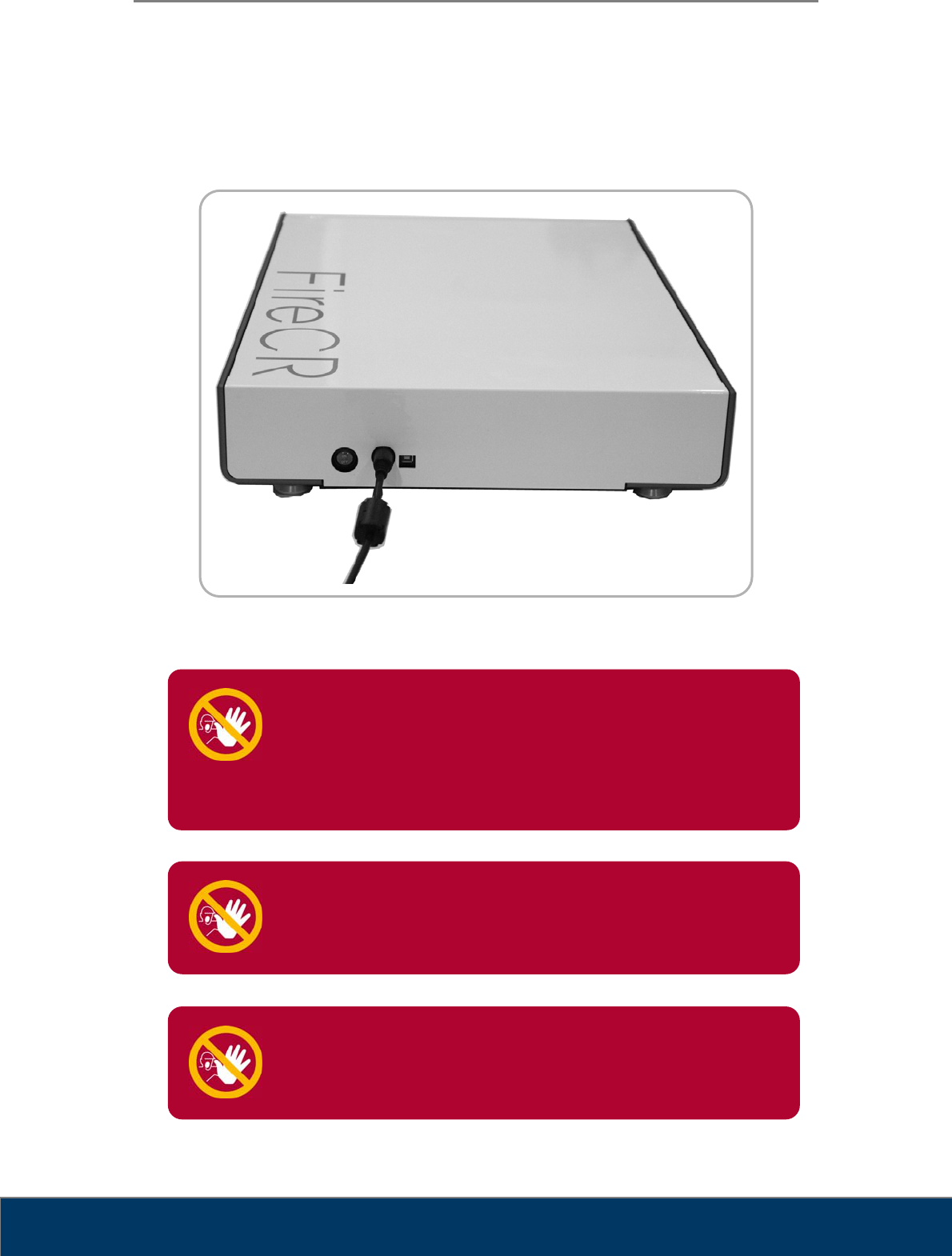

3.5.2. Connect the Power Cord
1. Connect the power cord to the scanner, located on the rear side.
2. Connect the other end of the cord to a grounded power outlet.
FIGURE 6. Power connection
DANGER
This equipment must only be connected to supply mains with
protective earth. Use only a three-wire cord that has grounding.
This is a safety feature. If you are unable to insert the plug into
the outlet, contact your electrician to replace your obsolete outlet.
Do not defeat the safety purpose of the grounding-type plug.
Do not use with any electrical power supply that does not meet the
ratings displayed on the power adapter. Use with any other
power adapter may lead to fire or electrocution.
DANGER
DANGER
Do not use any power adapter and power cord other than the
power adapter and power cord included with the system. Doing
so may lead to fire, electrical shock, or electrocution.
23
User Manual
FireCR
Do not place the device where difficult to access to appliance inlet.
Socket-outlet shall be installed near the device and shall be easily
accessible.
WARNING
3.5.3. Installation Report
After installation of the scanner, fill in Installation Report from (Appendix I) and send to 3D
Imaging & Simulations Corp. service department by fax or e-mail.
Fax : +82-42-931-2299
e-mail : service@3-disc.com
24
User Manual
FireCR
Chapter 4. Operating
4.1. System Specifications
Sampling Pixel Pitch Standard 200um
High 100um
Pixel Matrix Standard 1750 x 2150
High 3500 x 4300
Scanning Time Standard 19 sec
High 38 sec
Accepted Cassette Size 14 ” x 17”
Gray Scale Resolution 16 bit
Eraser Embedded
Erasing Time 30 sec (User Settable)
Scanning & Erasing Cycle
Time
Standard 49 sec
High 68 sec
Computer Interface USB 2.0
Dimensions 120 (H) x 460 (W) x 703 (D) mm
4.8 (H) x 18.3 (W) x 27.7 (D) inch
Weight 30kg (65lbs)
Power Requirement 100 ~ 240V / 50 ~ 60Hz
System Configuration Tabletop or Wall Mount
Application Software Included
Image File Format DICOM 3.0
* Specifications subject to change without notice.
** Specific results may vary since operating conditions fluctuate.
25
User Manual
FireCR
4.2. Operation Conditions
Indoor use only
Operating Temperature 0°C ~ 35°C (32°F ~ 95°F)
Temperature Gradient 0.5°C / Min
Relative Humidity 15% ~ 95% (non-condensing)
Storage Temperature - 10°C ~ 50°C (14°F ~ 122°F)
Storage Humidity 15% ~ 95% (non-condensing)
Storage Atmospheric Pressure 500 ~ 1,060 hPa
Transportation Temperature - 10°C ~ 50°C (14°F ~ 122°F)
Transportation Humidity 15% ~ 95% (non-condensing)
Transportation Atmospheric Pressure 500 ~ 1,060 hPa
Installation Category II
Pollution Degree 2
Ingress of Liquids IPX0
Altitude Up to 2,000m
Protective Class Class 1
Equipment Maintenance No user maintenance is required and no user
service is allowed. Please contact technical
support if there is a problem.
Cleaning Do not try to clean inside of the scanner.
Wipe outside of the scanner for dust removing
with soft and dry cloth.
DANGER
There are no user serviceable parts inside the scanner. The
scanner should only be opened and serviced by qualified service
personnel. Failure to heed this warning may result in injury to
service personnel or damage to equipment, and void any and all
warranties. If there is a service problem, please contact 3D
Imaging & Simulations Corp. or authorized dealer.
26
User Manual
FireCR
27
4.3. Operating Instructions
4.3.1. Turn on the Scanner
Turn on the scanner. Power switch is on the rear side of the scanner.
4.3.2. Turn on the Computer
Turn on the computer. Quantor Acquisition and Diagnostic Software must be installed before
operate the scanner.
4.3.3. Cassette Insert and Eject
Insert the cassette to the entrance of the scanner and push gently until it reaches to the
protection wall inside of the scanner. Blue indication LED is on when the cassette is inserted
correctly. Insertion direction of the cassette must be parallel to the scanner.
Cassette can be ejected after scanning and erasing when blue indication LED is on. Gently
pull back the cassette and ejection direction of the cassette must be parallel to the scanner.
4.3.4. Getting a Scanned Image
To getting a scanned image, refer to Quantor Acquisition and Diagnostic Software manual.
DANGER
This device uses laser. Avoid looking inside of the scanner.
WARNING
Do not insert the cassette in wrong direction or upside down when
it is being inserted. Cassette insertion direction is marked on the
cassette.
User Manual
FireCR
28
4.3.5. Circuit Functions
FIGURE 7. Circuit diagram
1. Base Board:
Base board is a controller of peripherals. It controls peripherals upon command of
core board.
2. Peripheral:
This is peripherals for image acquisition. It consists of “Eraser” which erases residual
images in imaging plate, “Step Motor and Photo Interrupters” which moves stage,
“Laser, Swing Mirror and DC Motor” which are required to radiate laser onto imaging
plate, “Edge Switch and DC Motor” which assures proper insertion of the cassette, and
“Indicator” which displays the status of the system.
3. Base Board Image Data Controller (Core Board):
This parts controls peripherals for image acquisition. And it delivers amplified digitized
signal to PC via USB.
4. Image Sensor (PMT):
This Photomultiplier Tube receives the signal through scanning of imaging plate, and it
sends signal to analog readout circuit.
5. Power Adapter:
It supplies power to all modules of the system which are required for operation.
User Manual
FireCR
Chapter 5. Symbols
Symbol Description
Warning, Consult Accompany Documents.
Manufacturer
ON Equipment Power On
OFF Equipment Power Off
Date of Manufacture
FCC ID :
X68CRSCANNER FCC Mark
Medical Equipment
WITH RESPECT TO ELECTRIC SHOCK
FIRE, AND MECHANICAL HAZARDS ONLY
IN ACCORDANCE WITH UL60601-1 / CAN / CSA CSS.2 No. 601.1
3SE3
CE Mark
29
User Manual
FireCR
5.1. Manufacturer’s Declaration - Electromagnetic Emission
The FireCR system is intended for use in the electromagnetic environment specified below. The
customer or the user of FireCR system should assure that it is used in such an environment
Emission test Compliance Electromagnetic environment - guidance
RF emissions
CISPR 11
Group 1 The FireCR system uses RF energy only for its
internal function. Therefore. Its RF emissions are
very low and are not likely to cause any
interference in nearby electronic equipment
RF emissions
CISPR 11
Class B The FireCR system is suitable for use in all
establishments other than domestic and those
directly connected to the public low-voltage
power supplies buildings used for domestic
purposes.
Harmonics emission
IEC 61000-3-2
A
Voltage fluctuation
IEC 61000-3-3
Complies
5.2. Manufacturer’s Declaration - Electromagnetic Immunity
The FireCR system is intended for use in the electromagnetic environment specified below. The
customer or the user of FireCR system should assure that it is used in such an environment
Immunity test IEC 60601
Test level Compliance level Electromagnetic
Environment -guidance
Electrostatic
discharge (ESD)
IEC 61000-4-2
6 kV Contact
8 kV Air
6 kV Contact
8 kV Air
Floors should be wood,
concrete or ceramic tile. If
floors are covered with
synthetic material, the relative
humidity should be at least
30%
Electrical fast
Transient / burst
IEC 61000-4-4
2kV for power supply
lines 1kV for input/output
lines
2kV for power supply
lines
1kV for input/output lines
Mains power quality should be
that of a typical commercial or
hospital environment.
Surge
IEC 61000-4-5
1 kV differential mode
2 kV common mode
1 kV differential mode
2 kV common mode
Mains power quality should be
that of a typical commercial or
hospital environment.
30
User Manual
FireCR
Power frequency
(50/60Hz)
Magnetic field
IEC 61000-4-8
3.0 A/m 3.0 A/m Power frequency magnetic
fields should be at levels
characteristic of a typical
location in a typical
commercial or hospital
environment.
Voltage dips, short
Interruptions and
Voltage variations
on power supply
input lines
IEC 61000-4-11
<5% Uт (>95% dip in Uт)
for 0.5cycle
40% Uт (60% dip in Uт )
for 5 cycle
70% Uт (30% dip in Uт)
for 25 cycle
<5% Uт (<95% dip in Uт )
for 5 s
<5% Uт (>95% dip in Uт)
for 0.5cycle
40% Uт (60% dip in Uт )
for 5 cycle
70% Uт (30% dip in Uт)
for 25 cycle
<5% Uт (<95% dip in Uт )
for 5 s
Mains power quality should be
that of a typical commercial or
hospital environment. If the
user of the BSVD-1000
system requires continued
operation during power mains
interruptions, it is
recommended that the BSVD-
1000 system be powered from
an uninterruptible power
supply or a battery
Conducted RF
IEC 61000-4-6 3 Vrms
150 kHz to 80 MHz 3 Vrms
150 kHz to 80 MHz Portable and mobile RF
communications equipment
should be used no closer to
any part of the FireCR system,
including cables, than the
recommended separation
distance calculated from the
equation applicable to the
frequency of the transmitter.
Recommended separation
distance
Radiated RF
IEC 61000-4-3
3 V/m
80.0 MHz to 2.5 GHz
3 V/m
80.0 MHz to 2.5 GHz
Recommended separation
distance
Where P is the maximum
output power rating of the
transmitter in watts (W)
according to the transmitter
manufacturer and d is the
recommended separation
distance in meters (m).
Field strengths from fixed RF
transmitters, as deter-mined
by an electromagnetic site
survey,
(a) Should be less than the
compliance level in each
frequency range (b).
Interference may occur in the
vicinity of
equipment marked with the
following symbol:
31
User Manual
FireCR
Note 1) Uт is the A.C. mains voltage prior to application of the test level.
Note 2) At 80 MHz and 800 MHz, the higher frequency range applies.
Note 3) These guidelines may not apply in all situations. Electromagnetic propagation is affected by
absorption and reflection from structures, objects and people.
a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and
land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted
theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an
electromagnetic site survey should be considered. If the measured field strength in the location in which the
EUT is used exceeds the applicable RF compliance level above, the EUT should be observed to
verifynormal operation. If abnormal performance is observed, additional measures may be necessary, such
as re-orienting or relocating the EUT.
b Over the frequency range 150 kHz to 80 MHz, field strengths should be less than [V1] V / m.
Recommended Separation Distances Between Portable and Mobile RF Communications
Equipment and the FireCR system.
The FireCR system is intended for use in an electromagnetic environment in which radiated RF
disturbances are controlled. The user of the FireCR system can help prevent electromagnetic
interference by maintaining a minimum distance between portable and mobile RF
communications equipment (transmitters) and the FireCR system as recommended below,
according to the maximum output power of the communications equipment.
Rated maximum output
power (W) of transmitter
Separation distance (m) according to frequency of transmitter
150 kHz to 80 MHz 80 MHz to 800 MHz 800 MHz to 2.5
GHz
0.01 0.12 0.12 0.23
0.1 0.37 0.37 0.74
1 1.17 1.17 2.33
10 3.70 3.70 7.37
100 11.70 11.70 23.30
For transmitters rated at a maximum output power not listed above, the recommended
separation distance (d) in meters (m) can be estimated using the equation applicable to the
frequency of the transmitter, where P is the maximum output power rating of the transmitter in
watts (W) according to the transmitter manufacturer.
Note 1:
A
t 80 MHz and 800 MHz, the separation distance for the higher frequency range
applies.
Note 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected
by absorption and reflection from structures, objects, and people.
Immunity and Compliance Level
Immunity test IEC 60601 Test Level Actual Immunity Level Compliance Level
Conducted RF
IEC 61000-4-6
3 Vrms, 150 kHz to 80
MHz
3 Vrms, 150 kHz to 80
MHz
3 Vrms, 150 kHz to 80
MHz
Radiated RF
IEC 61000-4-3
3 V/m, 80 MHz to 2.5
GHz
3 V/m, 80 MHz to 2.5
GHz
3 V/m, 80 MHz to 2.5
GHz
32
User Manual
FireCR
5.3. Guidance and Manufacturer’s Declaration –
Electromagnetic Immunity
The FireCR system is intended for use in the electromagnetic environment specified below. The
customer or the user of FireCR system should assure that it is used in such an environment
Immunity test IEC 60601
Test level Compliance level Electromagnetic environment -
guidance
Conducted RF
IEC 61000-4-6 3 Vrms
150 kHz to 80MHz 3 Vrms
150 kHz to 80 MHz FireCR system must be used only in a
shielded location with a minimum RF
shielding effectiveness and, for each
cable that enters the shielded location
with a minimum RF shielding
effectiveness and, for each cable that
enters the shielded location
Radiated RF
IEC 61000-4-3
3 V/m
80.0 MHz to 2.5GHz
3 V/m
80.0 MHz to 2.5GHz
Field strengths outside the shielded
location from fixed RF transmitters, as
determined by an electromagnetic site
survey, should be less than 3V/m.a
Interference may occur in the vicinity of
equipment marked with the following
symbol:
Note 1) These guidelines may not apply in all situations. Electromagnetic propagation is affected
by absorption and reflection from structures, objects and people.
Note 2) It is essential that the actual shielding effectiveness and filter attenuation of the shielded
location be verified to assure that they meet the minimum specification.
a- Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless)
telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast
cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due
to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured
field strength outside the shielded location in which the EUT is used exceeds 3V/m, the EUT
should be observed to verify normal operation.
If abnormal performance is observed, additional measures may be necessary, such as relocating
the EUT or using a shielded location with a higher RF shielding effectiveness and filter
attenuation.
33
User Manual
FireCR
Chapter 6. Warranty and Repair Service
6.1. Standard Warranty
3D Imaging & Simulations Corp. warrants its non-consumable hardware products to be free
from defects in materials and workmanship. The warranty covers the cost of parts and labor to
repair the product. Please keep the shipping container for future use. Products returned to
the factory for repair should be properly packaged. To obtain warranty service, follow the
procedure described in the Repair Service section. Failure to do so will cause long delays and
additional expense to the customer.
The warranty is valid when the product is used for its intended purpose and does not cover
products which have been modified without written permission from 3D Imaging & Simulations
Corp., or which have been damaged by abuse, accident or connection to incompatible
equipment.
This warranty is in lieu of all other warranties, expressed or implied.
6.2. Repair Service
The company reserves the right to cease providing repair maintenance, parts and technical
support for its non-consumable hardware products five years after a product is discontinued.
Technical support for old versions of software products will cease 12 months after they are
upgraded or discontinued.
6.3. Out of Warranty Repair Service
Out of warranty repair service is available. Contact the supplier for current rates.
34
User Manual
FireCR
6.4. Shipping
The FireCR is a solidly built system designed to survive shipping around the world. However,
in order to avoid damage during shipping, the FireCR must be properly packaged.
In general, the best way to package the FireCR is in the original factory container. If this is no
longer available, we recommend that user carefully wraps the FireCR in at least 75mm (3 inch)
of foam or bubble pack sheeting. The wrapped device should then be placed in a sturdy
cardboard carton. Mark the outside of the box with word FRAGILE and an arrow showing
which way is up.
We do not recommend using loose foam pellets to protect the FireCR. If the carton is dropped
by the shipper, there is a good chance that the device will shift within the loose pellet packing
and be damaged.
It is user’s responsibility to package the system properly before shipping. If the packaging is
inadequate, and the system is damaged during shipping, the shipper will not honor user’s claim
for compensation.
35
User Manual
FireCR
Chapter 7. Technical Assistance
If user has any questions about installing or using the device, contact 3D Imaging &
Simulations Corp. Technical Support.
3D Imaging & Simulations Corp.
49-3, Moonpyung-Dong, Daedeok-Gu, Daejeon, Korea
Tel : 82-42-931-2100 Fax : 82-42-931-2299
www.3-disc.com
36
User Manual
FireCR
37
Appendix I
Installation Report
Please complete this report at the time of installation and submit the
completed form signed by customer to:
Fax : +82-42-931-2299
E-mail : service@3-disc.com
Date of Installation :
Customer Information
Hospital / Institute
Name
Address
Tel
Fax
E-mail
Installer Information
Company
Name
Address
Tel
Fax
E-mail
System Information
Model FireCR Computed Radiography Scanner
System S/N
Software Version
Software S/N
Installer’s Signature: Date:
Customer’s Signature: Date:
