DINS ELECTRONIC TECHNOLOGY TM818 TABLET PC User Manual

SHENZHEN DINS ELECTRONIC TECHNOLOGY CO.,LTD TABLET PC

User Manual

1
Chapter Title
TM818 Quick Start Guide
PN: 70-10002
NuVision Customer Service
Phone: (800) 890-1288
Hours: 8:30am to 5:30pm PST M-F
Email: cs@nuvision.com
Customer Service
Full User Manual Available at www.nuvision.com
3

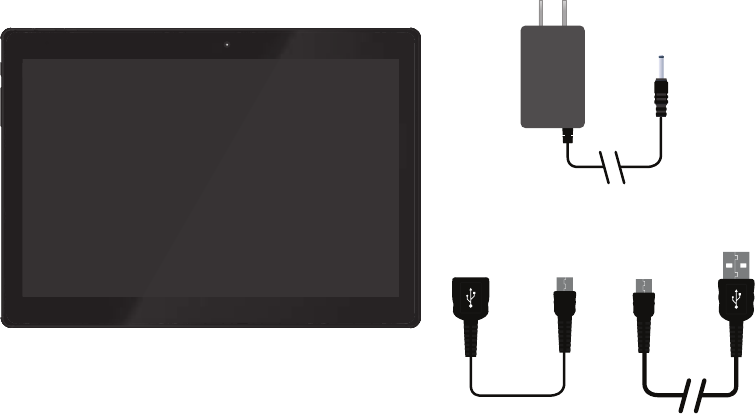

Package Contents
AC Adapter
TM1088C Tablet
Transfer Cable USB Cable
Connect to PC, another Tablet
or Storage Device
USB Cable
Transfer Cable
or
4
TM818 Tablet At-a-Glance
1. Speaker
2. Camera (Back)
3. Mini HDMI
4. Micro USB
5. DC Power Input
6. Headphone Jack
7. Power Button
8. Volume +
9. Volume -
10. TF Card Slot
11. Microphone
12. Camera (Front)
122
1
543
6
7
10
11
8,9
5
Home Screen At-a-Glance
12
12
43
6
5
13
11 10 9 8 7
1. Connection/Activity
2. Google Search
3. Google Audio Search
4. Status Bar
5. Volume Control
6. App Tray
7. Volume Up
8. Open Apps
9. Home
10. Back
11. App
12. Volume Down
13. Time Widget
6
Starting Your Tablet
1. Press and hold the Power button for 3 seconds.
(If your unit does not turn on, or instructs you to “Connect your
charger”, connect the AC adapter and charge the unit.)
2. At the Start-up screen, slide the lock icon to the right.
3.
Once you’ve arrived at the home screen, you can begin using your tablet.
7
Charging Your Tablet
It is recommended to fully charge the tablet before first use. To charge the
tablet, plug the connector (1) of the included AC Adapter (2) into the top of the
tablet, in the slot marked “DC”. Plug the AC adapter into a wall outlet (3).
If the tablet is on, the battery icon will pulse, showing that it is being charged.
It is fully charged when an icon of a full battery is displayed on the screen.
A complete battery charge will take approximately 5 hours. It is normal for the
tablet to be warm to the touch as it is being charged.
1
2
3
8

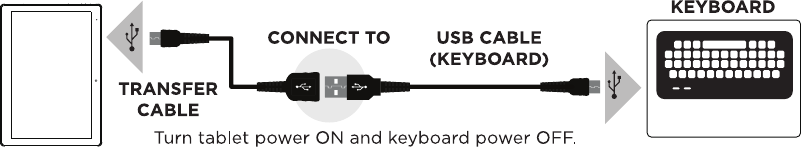

Charging Your Keyboard
When battery power is running low the power light will begin to blink indicating
that you need to recharge the keyboard.
Step 1: Attach the long USB cable (included with this keyboard) to the short
transfer cable (included with the tablet).
Step 2: Connect the long USB cable to the keyboard’s USB port and the other
end to the tablet.
NOTE: Tablet must be powered on to charge the keyboard. If battery level on the
tablet is low, plug in AC power adapter to recharge.
TA BLET
9
Touching and Typing
9
Type goes in field
Need Information
Type goes in field
Need Information
Type goes in field
Need Information
To select an item on the screen, simply tap
it once with your fingertip. Some items may
require you to “double-tap”.
To type into an text field (i.e., when
inputting your name, or a web address),
tap the text field. The on-screen keyboard
will appear, and allow you to type the
information you wish to enter.
Touch and Hold: Keep your
finger on an on-screen item
until it glows or activates an
alternate menu.
Drag: Move an App or object by
touching and holding the image,
then sliding it to the destination.
Slide: When there are extra
“screens” to the side, slide one
or more fingers from one side
to another.
10
Connecting to the Internet
In order to connect to the internet, you will need the following:
• A wireless router or an access point with a broadband internet connection.
• The name of your network (SSID), as well as the password or other credentials,
if your network is secure.
(NOTE: You may encounter open WiFi networks, or “hot spots.” These networks are
usually configured so that you can simply connect to them without needing to know its
settings. The tablet will obtain information from the router automatically.)
The wireless router must support WiFi 802.11b/g connections. If the router supports
802.11n, make sure that it has been configured to accept 802.00b/g connections as well.
(Note: A minimum connection speed of 64 Kbps is recommended. Faster speeds will
provide for a better internet experience.)
Distance may vary
or WiFi
Available
Here +Network Name/SSID
Password
Wireless Router
Wireless Router
11
Apps that come with your Tablet
The App Tray is a convenient way to
access all of your applications (apps).
After tapping the icon, the screen will
open to the Launcher Tab page. At the
top, you will find options to see all apps
(applications) or widgets.
Maxthon Internet Browser software is a
powerful tabbed browser with a highly
customizable interface.
Google Play Store
Google Play™ is music, books,
magazines, movies, TV shows, and
apps, available anywhere you go.
AccuWeather provides hourly and
Minute by Minute™ forecasts with
Superior Accuracy™ for nearly 3 million
locations worldwide, with customized
content and engaging video
presentations.
CloudLink increases the content and
capability of Android devices
by offering the best-in-class line up of
productivity Apps.
Gmail Users
If you have a Gmail Account, we
recommend using the Gmail App.
PlayKids offers the best educational
games and popular TV shows for kids
and toddlers in just one app!
Yahoo and others
Using the Email App may yield better
results.
To connect your email
Insure that you are online. Tap on either the Gmail or
Email Icons, depending on your use.
Follow the on-screen instructions.
12

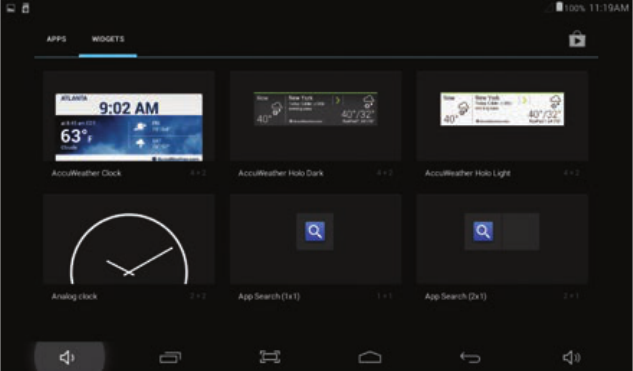

Widgets
Widgets are mini apps that run on your Home screen. Your tablet
comes with several by default, including a calendar and a clock,
and you can download more.
13
Getting More Apps and Widgets
What you’ll need:
1) A wireless internet connection.
2) An active account with Google Play or similar App distribution service.
Installing Apps from Google Play
Click on the Google Play Icon. It will take you online to the Google Play Store.
Shop the Google Play Store.
You can peruse the various subjects like “Games” or
“Productivity”, or Search for a specific App you’re interested in.
Tap “Install”
If this is a paid application, you’ll be asked a set of verification questions before the App
begins to download. The App will download to your Launcher. Once the download is
complete, tap on the App to use.
14

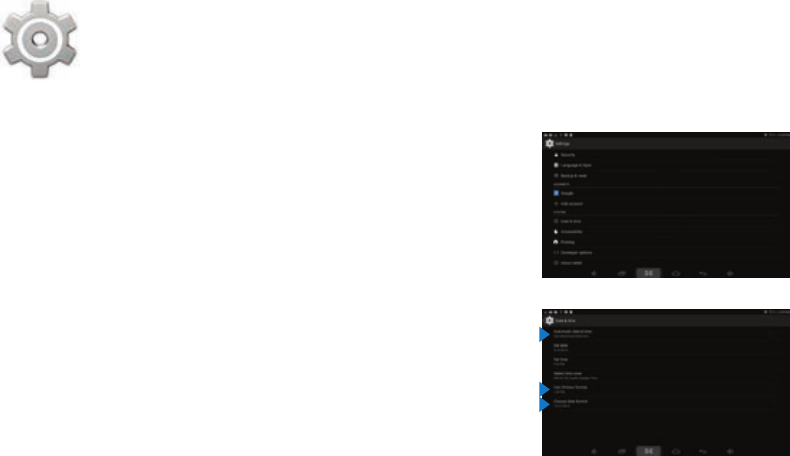

Settings: Date, Time
Tap on the Settings Icon
This will take you to the Setting page, where all adjustments for the tablet
can be made.
1) Scroll to ‘Date & Time’ under ‘Settings’, and select.
2) If you would like your Network to automatically set the
date/time, tap on the corresponding box, and a checkmark
will appear. Date and time will automatically be set. If not,
leave the checkbox empty, and you will be able to enter
this information manually.
3) You can also select your time zone, 12-hour (1-12 AM/PM)
or 24-hour format (01:00 - 24:00), and a date format.
15
Using the Cameras
Tap on the Camera Icon
This will take you to into Camera mode. You’ll be able to take “selfies” or use
like a regular camera or video recorder.
1
4
2
3
5
6
7
8
1. Camera/Video Mode
2. Shutter (Tap to take photo/video)
3. Image Gallery
4. Switch Cameras (Front/Back)
5. Continuous Snap Mode
6. Normal/Panoramic
7. Image Editing
8. Camera Settings
16

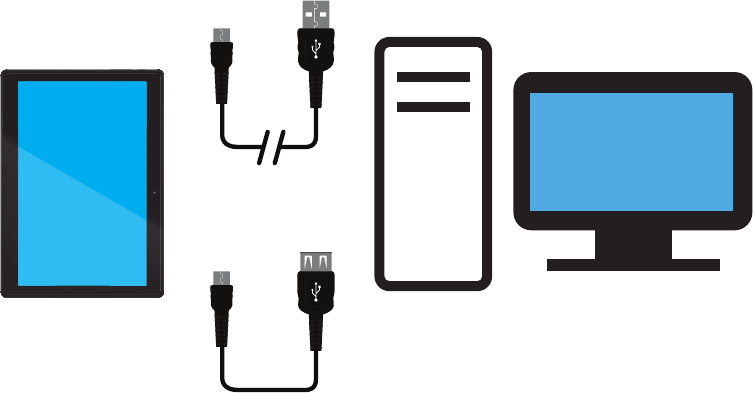

Using Micro USB
Connect to PC, another Tablet
or Storage Device
USB Cable
Transfer Cable
or
17
Important Safety Instructions
We would like you to have a safe and enjoyable experience.
Please read the following instructions and notices before using your tablet.
• Warning: This product may contain a chemical known to the State of California to cause cancer, birth defects, or
other reproductive harm.
• Avoid using the tablet in extremely hot, cold, dusty, damp or wet environments.
• The tablet is not moisture/water-resistant. Avoid using the tablet around sources of water.
• Avoid dropping or forcibly placing the tablet onto a hard surface. This may damage the screen or internal
electronic components.
• Do not use alcohol, thinner or benzene to clean the surface of the tablet. Use only cleaning products designed
for computer tablet devices.
• Do not use the tablet while walking or driving.
• Excessive use of earphones at high volume may lead to hearing impairment. Limit earphone usage, and adjust
the volume to a moderate level when doing so.
• The images in this manual may vary slightly from the actual product.
• Charge the tablet battery under any of the following circumstances:
1. The battery level icon indicates low power, by showing a drained, red battery icon.
2. The tablet powers-off automatically, and continues to do so even after restarting.
3. On-screen keys do not work.
• Do not suddenly disconnect the tablet when formatting, uploading or downloading data. This can lead to
program errors (e.g., system or screen “freezing”.)
• Static discharge in the cable, while it is connected to a computer, may corrupt files or damage the memory of
the tablet.
• Dismantling the tablet will void the manufacturer’s warranty. If you are experiencing problems, review the
Troubleshooting section of this manual.
• The tablet functions, hardware, software, and warranty information may be improved or modified by the
manufacturer or their respective owners, and is subject to change without notice.
18
Compliance Information
FCC NOTICE
The following statement applies to all products that have received FCC approval. Applicable products wear the FCC logo, and /or an
FCC ID in the format FCC ID:xx-xxx-xxx on the product label. This mobile device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: This mobile device may not cause harmful interference, and this mobile device must accept
any interference received, including interference that may cause undesired operation. This mobile device has been tested and found
to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide rea-
sonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio fre-
quency energy and , if not installed and used in accordance with the instructions, may cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate
the equipment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
For Canada
This Class B digital apparatus complies with Canadian ICES-003. This Category II radiocommunication device complies with Industry
Canada Standard RSS-310.
Warning Statement
Operation is subject to the following two conditions: this device may not cause interference, and this device must accept any interfer-
ence, including interference that may cause undesired operation of the device.
IMPORTANT NOTICE: IC Radiation Exposure Statement
This equipment should be installed and operated with minimum distance 0.5cm between the radiator and your body. This device and
its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.
19
One Year Warranty
TMAX Digital Inc. warrants this product against defects in material or workmanship for a period of one (1) year from the date of which
starts with the date of original purchase (“Limited Warranty period”), at its own option either (a) repair your product with new or
refurbished parts, or (b) replace it with a new or a refurbished product. TMAX Digital Inc. will incur no liability whatsoever to provide
packaging for warranty items. Upon receipt of the warranty item, should it be determined that the packaging is insufficient, TMAX
Digital Inc may at its discretion, void the warranty. The consumer is responsible for the transportation cost to TMAX Digital Inc. A
nominal handling fee does apply. You must receive a return authorization number before sending a unit in for service.
TO OBTAIN WARRANTY SERVICE
Should it be necessary to contact Customer Support, call (800) 890-1288. You will be instructed on how your claim will be processed.
Have pertinent information available including proof of purchase and an understanding of the issue.
You must retain the original bill of sale to provide proof of purchase. Call a customer support representative to assess the problem.
No service or shipment will be accepted unless RMA # is provided to you and attached or printed to the shipping carton along with a
copy of the bill of sale.
CUSTOMER DATA
Customer shall be solely responsible for maintaining backup data necessary to replace Customer data lost or damaged from any
cause.
This warranty is effective only if the product was purchased through an Authorized Retail Seller and the unit is operated in North
America. You are responsible for all tariffs and taxes imposed to ship or receive warranty or replacement units to and from the
U.S. Warranty extends only to defects in materials or workmanship and does not extend to any other products that have been lost,
discarded or damaged by misuse, accident, neglect, acts of God, such as lightning, improper installation, improper maintenance
or modification. The Limited Warranty ALSO DOES NOT COVER damages of having been previously altered, modified, repaired or
serviced by anyone other than the service facilities authorized by TMAX Digital Inc. to render such services. Warranty does not cover
cosmetic damage or lost accessories.
This warranty gives you specific rights and these rights may vary from state to state. Some states do not allow limitation on how long
the warranty lasts or exclusions or limitation of incidental or consequential damages, so the above may not apply to you.
20
One Year Warranty (Cont.)
TMAX DIGITAL Inc. reserves the rights to change the warranty from time to time without written notice to you.
DISCLAIMER OF WARRANTY
EXCEPT FOR THE FOREGOING WARRANTIES, TMAX DIGITAL INC. HEREBY DISCLAIMS AND EXCLUDES ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO ANY AND/OR ALL IMPLIED WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND/OR ANY WARRANTY WITH REGARDS TO ANY CLAIMS OF INFRINGEMENT.
LIMITATION OF LIABILITY
BOTH YOURS AND TMAX’S LIABILITY SHALL BE LIMITED TO THE PRICE PAID FOR PRODUCT. IN NO EVENT SHALL TMAX DIGITAL
INC. BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY KIND INCLUDING, BUT
NOT LIMITED TO, COMPENSATION, REIMBURSEMENT OR DAMAGES ON ACCOUNT OF THE LOSS OF PRESENT OR PROSPECTIVE
PROFITS OR FOR ANY OTHER REASON WHATSOEVER.
Contact NuVision Technical Support
Email: cs@nuvision.com
Phone: (800) 890-1288
Hours: 8:30am to 5:30pm PST M-F
Google, Google Play, Android and other marks are trademarks of Google Inc. The Android robot is reproduced or modified from work
created and share by Google and used according to terms described in the Creative Commons 3.0 Attribution License. Intel, Intel logo
and Intel Inside logo are trademarks of Intel Corporation in the U.S./other countries. USB-if is the trademark of USB Implementers
Forum Inc. Bluetooth and its logo are trademarks of Bluetooth SIG Inc. WIFI and its logo are trademarks of Wi-Fi Alliance. NuVision
and the NuVision logo are registered trademarks and licensed by TMAX Digital, Inc. All mentioned marks are the trademark of their
respective owners. Copyright © 2014 All Rights Reserved.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
The device has been evaluated to meet general RF exposure requirement. The device
can be used in portable exposure condition without restriction.
This device and its antenna(s) must not be co-located or operation in conjunction with any
other antenna or transmitter.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC ID: 2ACPN-TM818
SHENZHEN DINS ELECTRONIC TECHNOLOGY CO.LTD
Model No.: TM818
Model name: TABLET PC
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.

Navigation menu
