DISH Technologies FSK02 Remote Control User Manual text dishpvr
Echostar Technologies LLC Remote Control text dishpvr
Users Manual
REGULATORY FACTORS
WIRELESS REMOTE CONTROL
This device complies with Part 15 of FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications to this device may void your authority to operate this equipment.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the use is encouraged to try to correct
the interference by one or more of the following measures:
• Re-orient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
SAFETY INSTRUCTIONS
You must keep safety in mind while using this device. Keep these
and any other instructions for future reference.
INSTALLATION
Observe Warnings: Carefully follow all warnings on the device
and in the operating instructions.
Heat: DO NOT place the device near heat sources such as radiators, stoves, heat
registers, or other appliances that produce heat.
CARE AND USE
Cleaning: DO NOT use liquid, abrasive, solvent, or aerosol cleaners. Use a damp cloth
for cleaning.
When Not in Use: Remove the batteries if this device is to be
left unattended or unused for a long period of time.
Refer servicing to qualified personnel when a solid object
or liquid has fallen onto or into the device.
DO NOT attempt to service this device. Refer all
servicing to qualified personnel. Opening covers other
than the battery cover will void the warranty.
inside_front_cover_dishpvr.fm Page 0 Wednesday, February 18, 2004 1:22 PM
1
TABLE OF CONTENTS
Remote Control Basics....................................... 2
Models Supported by this Guide ......................... 2
UHF and IR Signals ............................................ 3
Installing Batteries............................................... 3
Converting the 6.0 Remote Control ................... 4
Setting Up to Control the Satellite Receiver ..... 5
Checking the Remote Address .......................... 8
Setting Up to Control Other Devices ................. 8
Combination Devices .......................................... 8
Limited Mode....................................................... 8
Setting Up Using Device Code Tables ................ 9
Setting Up Using Device Codes Scan............... 10
Checking the Device Codes...............................11
Switching Between TV and Device
Volume Control...................................................11
Remote Control Operation ............................... 13
Operating Modes............................................... 13
Controlling the Satellite Receiver ...................... 13
Controlling a TV (or a Second TV) .................... 23
Controlling a VCR
(Second VCR or a DVD Player) ........................ 25
Controlling a Tuner or Amplifier......................... 27
Device Codes .................................................... 29
TV Codes .......................................................... 29
VCR Codes ....................................................... 33
TV/VCR Combo Codes ..................................... 35
DVD Player Codes............................................ 35
Tuner/Amplifier Codes....................................... 36
DVD/VCR Combo Codes .................................. 37
TV/DVD Combo Codes..................................... 37
Troubleshooting ............................................... 38
Limited Warranty ............................................... 40
If You Need Help ................................................ 43
text_dishpvr.fm Page 1 Tuesday, March 2, 2004 12:35 PM
2
REMOTE CONTROL BASICS
This remote control gives you easy access to all the features of a DISH
Network satellite TV receiver. You can set up the remote to control the
satellite TV receiver and up to three other devices. These devices can
be a TV, a VCR or DVD player, and a third device.
MODELS SUPPORTED BY THIS GUIDE
This user’s guide supports the following remote control models as
shown on the label on the back of the remote:
•5.0 - Infrared (IR) only. For use with appropriate IR-controlled
DISH Network receivers.
•6.0 - Infrared/Ultra-High Frequency Pro (IR/UHF Pro). For use
with appropriate UHF Pro-controlled DISH Network receivers.
The 6.0 remote can be converted to one of three different remote
types used on a DISH Player-DVR 522 receiver:

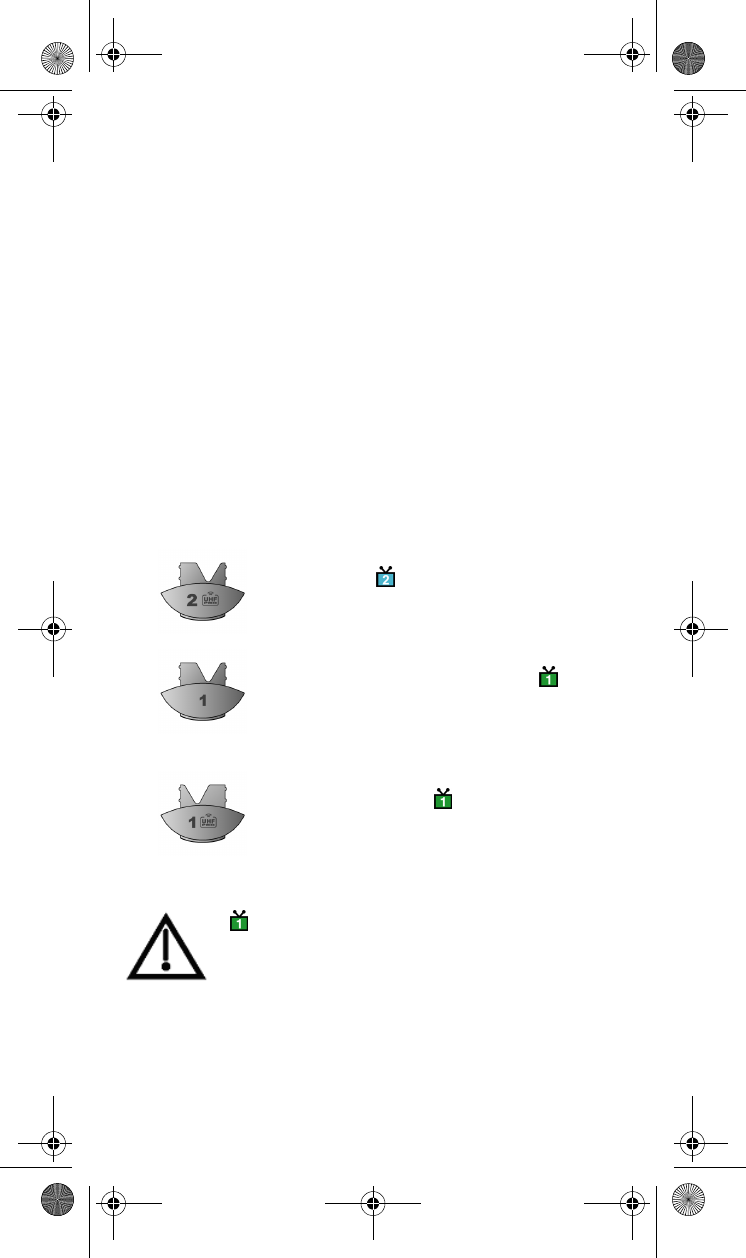

With the blue 2 UHF Pro key installed, this remote
will operate the UHF Pro side of the DISH
Player-DVR 522 receiver. The remote comes with
this key already installed.
With the green 1 key installed (no UHF Pro
marking), this remote will operate the IR side
of the DISH Player-DVR 522 receiver. This remote
will look and work exactly like a 5.0 IR remote.
See instructions in Converting the 6.0 Remote.
With the green 1 UHF Pro key installed, this
remote will operate the side of the DISH
Player-DVR 522 receiver from a distance using
UHF Pro. See instructions in Converting the 6.0
Remote.
If you set up your DISH Player-DVR 522 to operate the
side using UHF Pro, the two UHF Pro remotes for
this receiver will interfere with each other when
operated at the same time. This may prevent the
remotes from operating the receiver momentarily.
•8.0 - Infrared/Ultra-High Frequency Pro (IR/UHF Pro). For use
with appropriate UHF Pro-controlled DISH Network receivers.
text_dishpvr.fm Page 2 Tuesday, March 2, 2004 12:35 PM
3
INSTALLING BATTERIES
The remote control requires AAA batteries. When
you replace old batteries, you should replace all of the
batteries. Use batteries of the same kind, for example,
alkaline or carbon zinc, and don’t mix batteries of
different kinds. Alkaline batteries last longer.
1. Press down on the battery cover and slide the
cover off.
2. If you are replacing batteries, take out all of
the old batteries.
3. Put the new batteries in. Make sure
you match the plus (“+”) ends with the
plus markings on the battery case.
4. Slide the cover back into place.
UHF AND IR SIGNALS
The remote control may use either UHF radio signals or IR light
signals to control the receiver but uses only IR signals to control other
devices.
•IR signals travel only short distances (up to 40 feet),
and cannot go through walls or other solid objects.
You must point the remote control right at the device
you want to control, with no objects to block the signal path.
•UHF signals travel long distances (up to 200 feet) and can
go through walls and other solid objects. Because UHF signals
travel so far, the receiver may respond to signals from other
nearby remote controls. To handle this problem, you may want to
change the remote and receiver addresses. See Setting Up to
Control the Satellite Receiver on page 4.
•Confirm that the UHF remote antenna is attached to the receiver’s
back panel UHF REMOTE ANTENNA input so you can use
your UHF Pro remote.
text_dishpvr.fm Page 3 Tuesday, March 2, 2004 12:35 PM
4
CONVERTING THE 6.0 REMOTE CONTROL
By replacing the key at the bottom of the 6.0 remote, this remote can be
converted to look and work like a 5.0 IR or to operate like a second
UHF Pro remote to control the side of the DISH Player-DVR 522
receiver. The instructions that follow show you how to replace this key.
After replacing the key, follow the instructions in Setting Up to Control
the Satellite Receiver.
Note: If you do not need to replace the key, you do not need to
complete the instructions that follow. Go to Setting Up to Control the
Satellite Receiver.

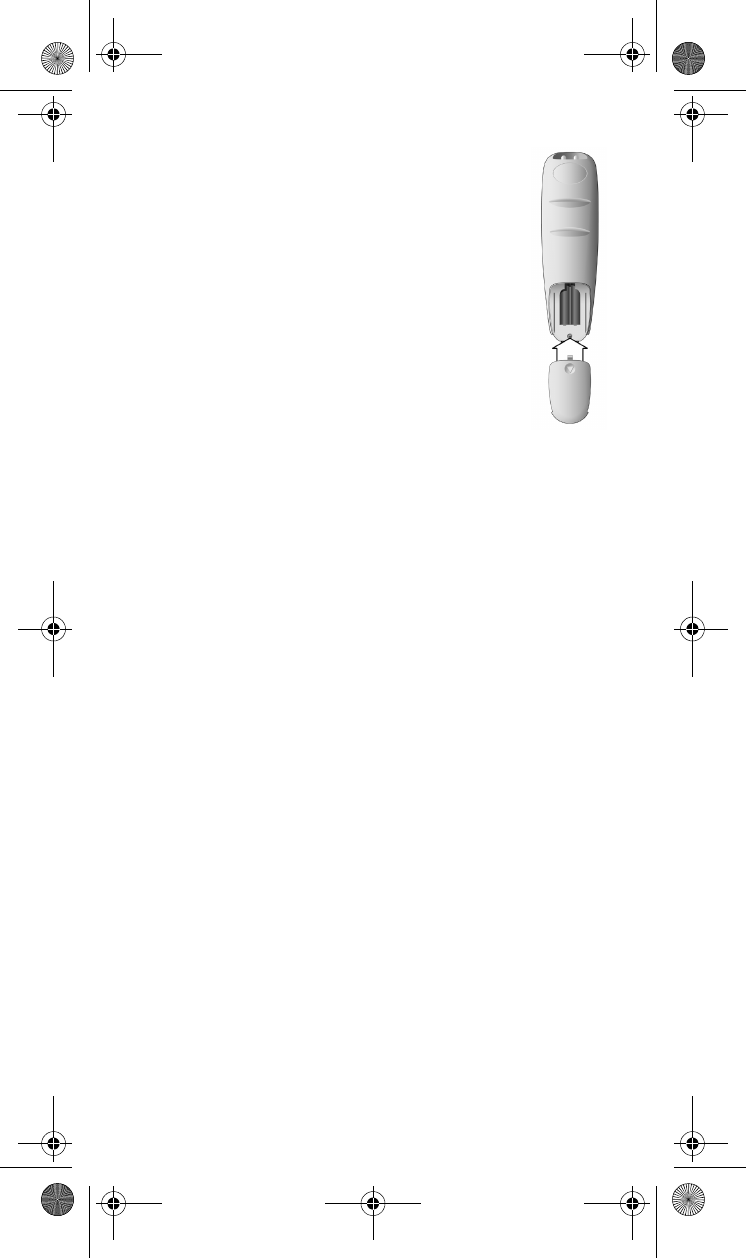

1. Slide the battery cover off.

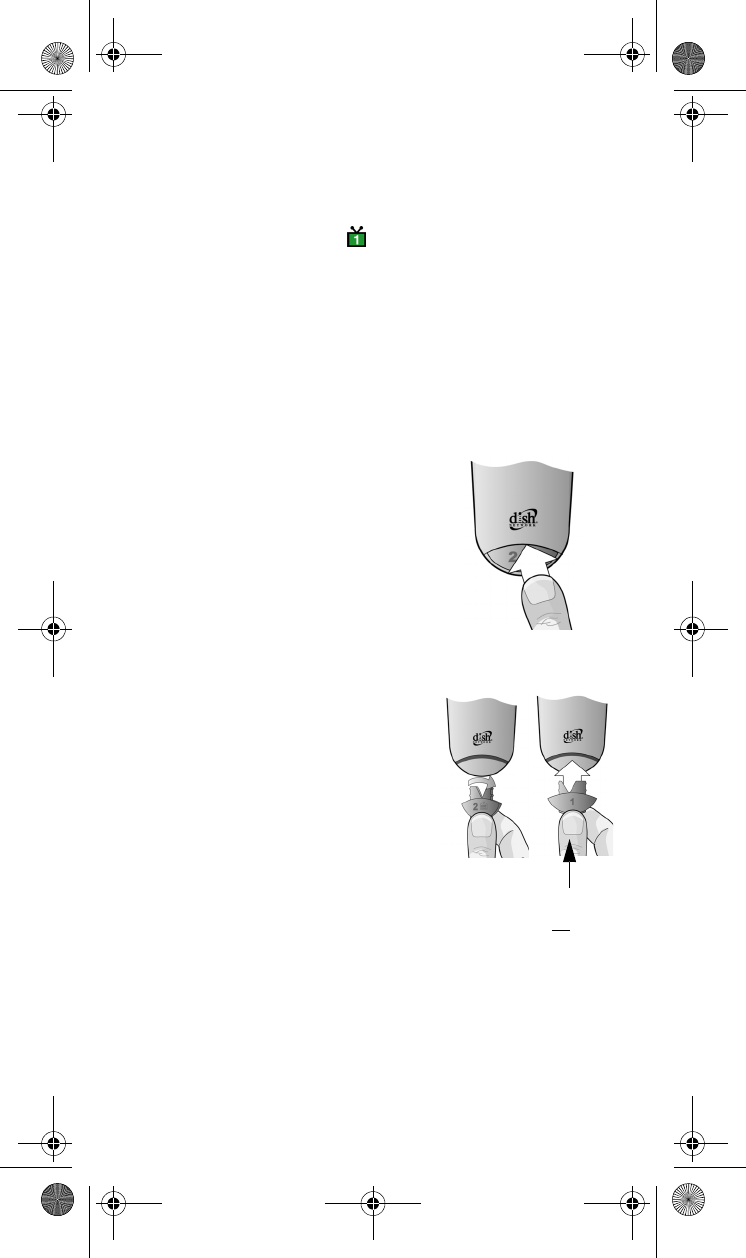

2. Insert your thumbnail in the
seam between the remote
control and the blue 2 key to
separate the key from the
remote control.
3. Grasp the key at the bottom and pull down firmly to remove.
4. If you are converting the remote
to look and work like a 5.0 IR
remote, then turn the removed
key over with the green 1 side
up (this key should not have a
UHF Pro marking). Reinstall
the key with the green side
showing. Make sure the key
snaps in place.
Note: Key
has no UHF
Pro marking.
text_dishpvr.fm Page 4 Tuesday, March 2, 2004 12:35 PM
5
SETTING UP TO CONTROL THE SATELLITE
RECEIVER
The remote and the receiver must be set up on the same address so that
the remote can control the receiver. When you get the remote, it's
already set up to control the receiver on address 1. However, your
receiver may be set to a different address or, in the case of the DISH
Player-DVR 522, may need some additional setup. To set up the
remote and receiver to work together on the same address, use the
following instructions.

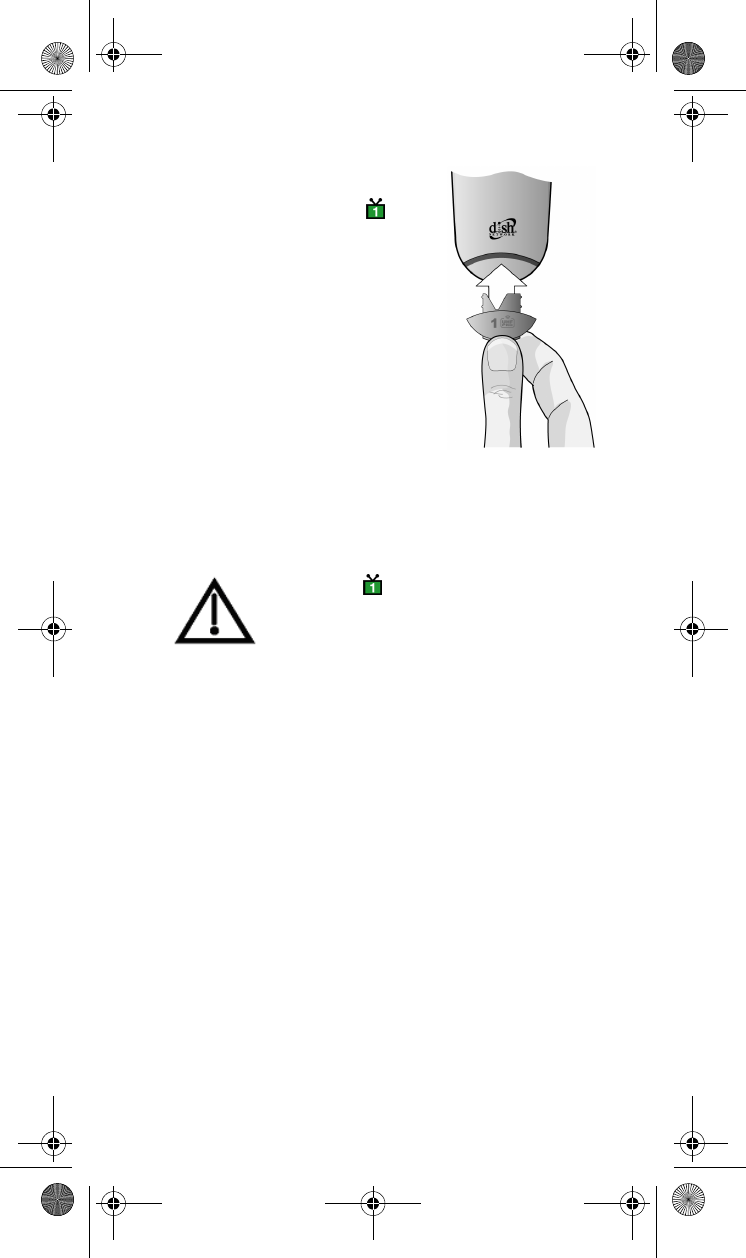

5. If you are converting the remote
to operate like a second UHF
Pro remote to control the
side of the DISH Player-DVR
522 receiver, then get the green
1 UHF Pro key provided
separately. Install this key in the
remote with the UHF Pro
marking showing.
If you set up your DISH Player-DVR 522 to
operate the side using UHF Pro, the two
UHF Pro remotes for this receiver will interfere
with each other when operated at the same time.
This may prevent the remotes from operating
the receiver momentarily.
6. If you have not already installed batteries, install them now.
See Installing Batteries for further details.
7. Slide the battery cover back into place.
Note: Key has the
UHF Pro marking.
text_dishpvr.fm Page 5 Tuesday, March 2, 2004 12:35 PM
6
1. For DISH Player-DVR 522 receivers only: If you are using a 6.0
remote control with the green 1 UHF Pro key installed, perform
the steps a. through e. below. If not, then go to step 2.
a. Open the TV1 UHF Pro Setup screen by pressing
MENU-6-1-6 on the remote control.
b. Select Enable from the TV1 UHF Pro Setup screen.
c. Press the SYS INFO button on the front panel to open the
System Information screen.

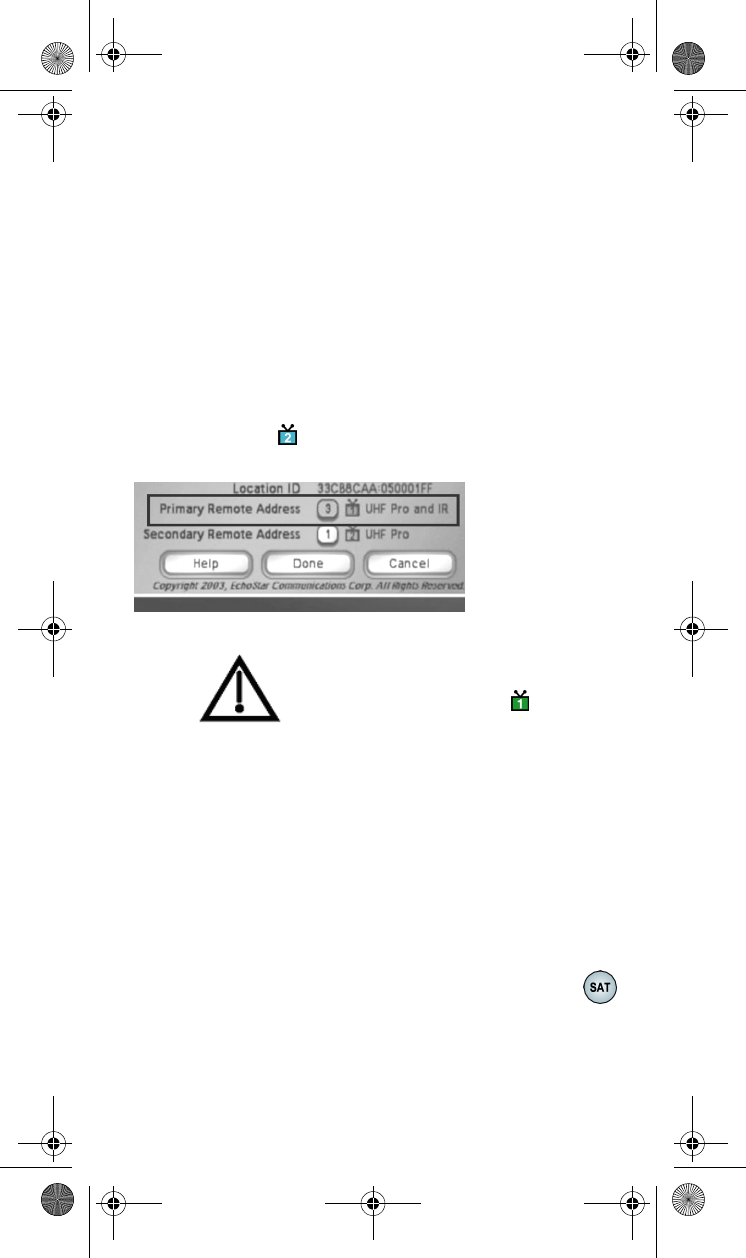

d. Move the highlight to the address for the Primary Remote
Address as shown below. This is important - if you do not
do this, your remote will change the receiver's Secondary
Remote Address and cause your Remote Control 1 to
control the side of your receiver.
Do not do this step if you are using 6.0
Remote with blue 2 key. This will cause your
Remote Control 2 to control side of your
receiver.
e. Go to step 3 below.
2. Open the System Information screen. Consult your receiver
user's guide for instructions on how to open this screen without
using the remote control. For most receiver models which use
this remote, press the SYS INFO button on the receiver front
panel. The System Information screen will show either one
Remote Address, or it may show a Primary Remote
Address and a Secondary Remote Address.
Note: On the DISH Player-DVR 522, leave Done highlighted.
3. Press and hold the SAT mode button about three
seconds, until all the mode buttons light up,
and then let go of the SAT button. The SAT mode
button will blink.
Note: Highlight
the Primary
Remote
Address if you
are using a 6.0
remote with a
green 1 UHF Pro
key.
text_dishpvr.fm Page 6 Tuesday, March 2, 2004 12:35 PM
7
4. Use the number buttons to enter any number
from 1 to 16. The SAT mode button goes out after you enter
each digit, and then lights up again.
Write down the number you entered:
5. Press the POUND (#) button.
If you entered the address correctly, the SAT mode
button will flash three times.

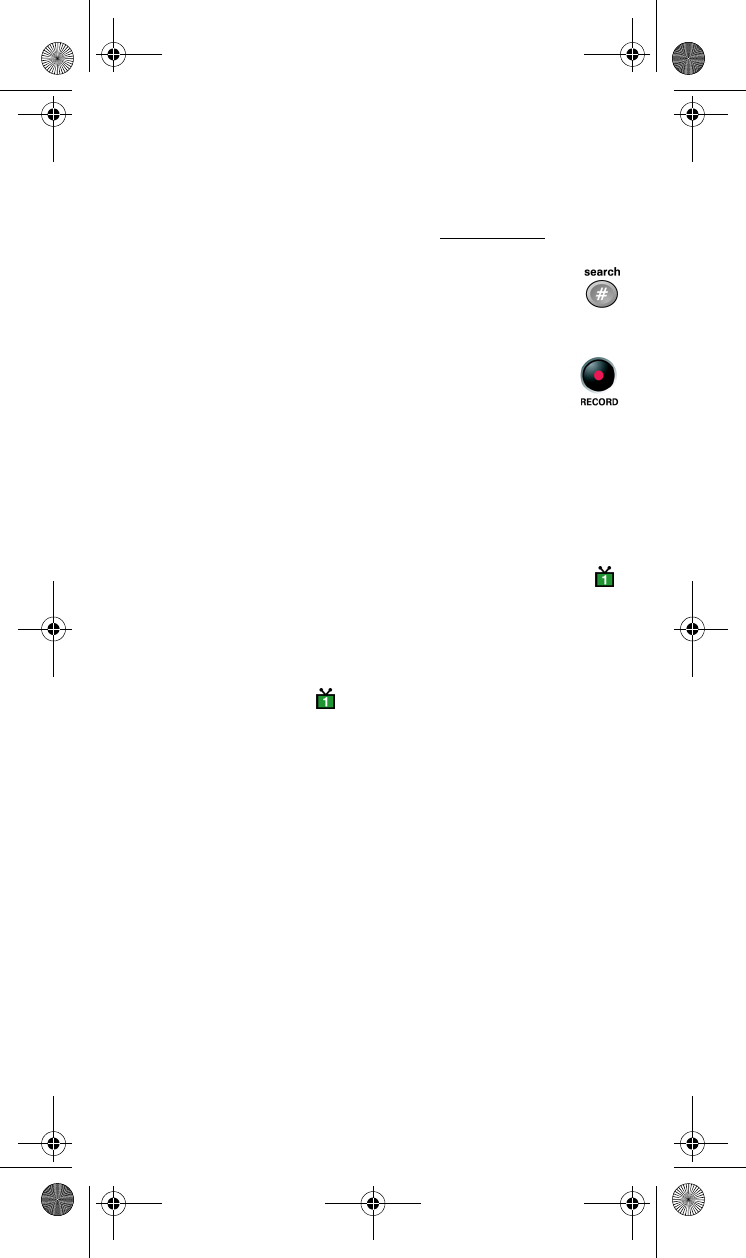

6. Press the RECORD button. If you are using a 6.0
remote with the green 1 key (no UHF Pro marking),
you must point the remote control at the receiver
while pressing the RECORD button.
7. Make sure the System Information screen shows the correct
remote address as follows:
•If only one Remote Address is shown, make sure this
address matches the number you entered in step 5.
•If you are using 6.0 remote with the green 1 UHF Pro key,
make sure that the Primary Remote Address shows
UHF Pro and IR and that this address matches the number
you entered in step 4.
•If you are using 6.0 remote with the green 1 key (with no
UHF Pro marking), make sure that the Primary Remote
Address shows IR and that this address matches the
number you entered in step 4.
•If you are using 6.0 remote with the blue 2 UHF Pro key,
make sure that the Secondary Remote Address matches
the number you entered in step 4.
8. Close the System Information screen. On most receivers,
this is done by selecting the Done button. See your receiver
user's guide for more information.
text_dishpvr.fm Page 7 Tuesday, March 2, 2004 12:35 PM
8
CHECKING THE REMOTE ADDRESS
To read out the remote control address setting:
1. Press and hold the SAT mode button for three seconds
until all mode buttons light. Then, let go.
2. Press the POUND (#) button twice while watching
the SAT mode button.
3. Count the number of times the SAT mode button
flashes. This number is the remote address. For
example, if the SAT mode button flashes 6 times, this
indicates the remote address is set to 6.
SETTING UP TO CONTROL OTHER DEVICES
To use the remote to control other devices (such as a TV, VCR, DVD
player, tuner, or amplifier), you must first program it to control these
other devices. You can do this by either following the instructions in
Setting Up Using Device Code Tables on page 9, or the Setting Up
Using Device Codes Scan procedure described on page 10.
COMBINATION DEVICES
If you are programming the remote to control a combination device,
such as a TV/VCR or a TV/DVD, program the remote control in one
mode, and then repeat the procedure in the other mode. For example, to
program the remote to control a TV/VCR using code 748, follow the
instructions to program the remote to control the TV using code 748,
and then repeat the instructions for the VCR using the same code.
LIMITED MODE
You can program your remote control in Limited Mode to keep from
accidentally changing the channel on your TV or VCR. When you use
the remote to control your TV in Limited Mode, you will only be able
to use the POWER, MUTE, and VOLUME buttons to control your TV.
Also, when you use the remote to control your VCR in Limited Mode,
you will only be able to use the POWER and VCR function buttons.
The section Setting Up Using Device Codes Tables has a step that tells
the remote control to go into Limited Mode.
Note: Limited Mode can not be used with audio amplifiers.
text_dishpvr.fm Page 8 Tuesday, March 2, 2004 12:35 PM
9

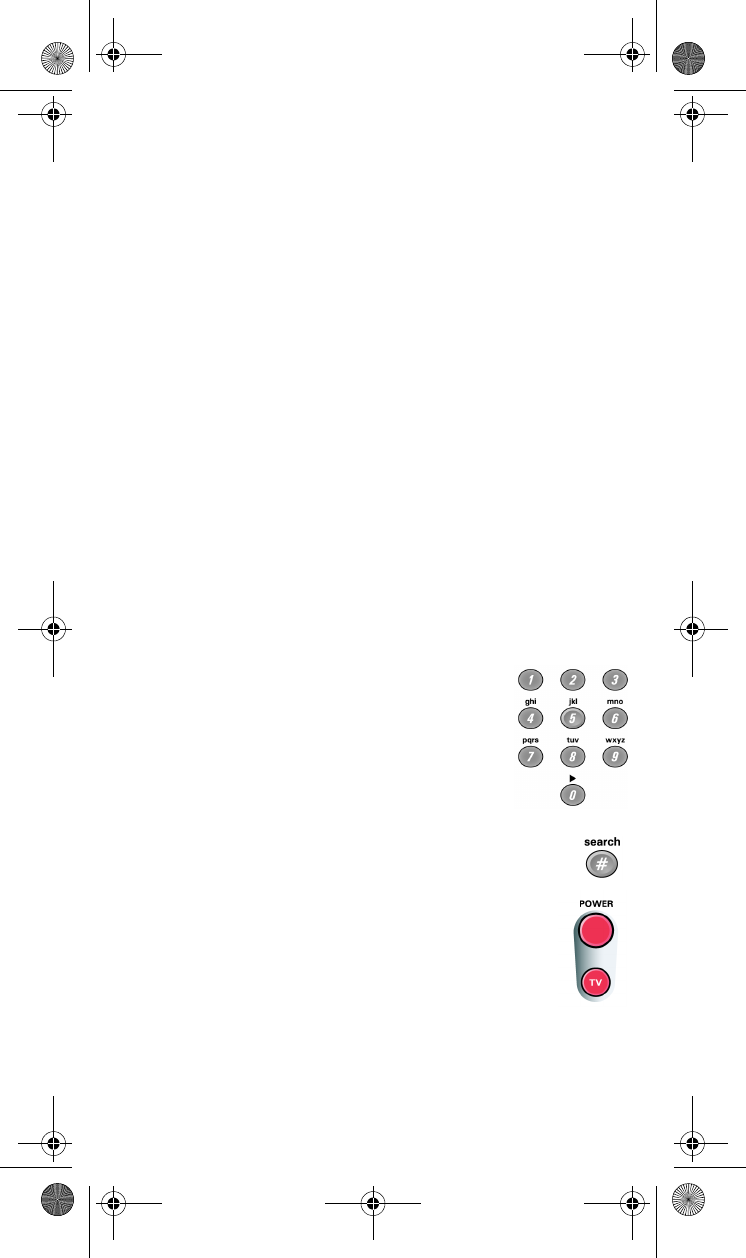

SETTING UP USING DEVICE CODE TABLES
You can set up the remote to control other devices using the device
codes listed on page 29.
1. Use the device’s buttons or its remote control to turn on the
device.
2. Find the brand name of the device in the tables starting on
page 29.
If the brand isn’t listed, see Setting Up Using Device Codes
Scan on page 10.
3. Press and hold the mode button for the device you want
the remote to control, for about three seconds. When all the
other mode buttons light up, let go of the mode button - that
mode button should now be flashing.
For example, hold the TV mode button for a TV until all of the
other mode buttons light. When you let go, the TV mode light
will flash.
4. Only for the AUX mode, Use a number button to enter 0 for a
second TV, or 1 for a second VCR or DVD player, or 2 for a
tuner or amplifier.
5. Use the number buttons to enter one of the
device codes from the table.
6. Only for Limited Mode, Press 1.
Note: Skip this step if you do not want to use
Limited Mode.
7. Press the POUND (#) button. If you entered
the code correctly, the mode button flashes three times.
8. Press the blank POWER button to test if the code
works for the device. If it does, the device should
turn off.
9. Turn the device back on and try some other buttons
to make sure they work. Sometimes, the blank POWER button
works when other buttons don’t. If the code works for other
buttons, stop here.
text_dishpvr.fm Page 9 Tuesday, March 2, 2004 12:35 PM
10
10.If the code you entered doesn’t work, do steps 3 through 9 again
with another device code from the tables.
11.If you cannot find a code that works, try Setting Up Using
Device Code Scan.
SETTING UP USING DEVICE CODE SCAN
If the code for your device is not listed in the tables on starting page 29,
use this procedure to scan the remote control’s memory for the device
code. Here’s what to do:
1. Use the device’s buttons or its remote control to turn the device
on.
2. Press and hold the mode button for the device you want the
remote to control, for about three seconds. When all the other
mode buttons light up, let go of the mode button - that mode
button should now be flashing.
For example, hold the TV mode button for a TV until all of the
other mode buttons light. When you let go, the TV mode light
will flash.
3. Only for the AUX mode, use the number buttons
to enter 0 for a second TV, 1 for a second VCR or
DVD player, or 2 for a tuner or amplifier. Then press
the STAR (*) button.
4. Press the blank POWER button.
5. Press the up or down arrow button until the
device turns off. You will have to do this
repeatedly to scan through all codes.
Note: The mode button for the device will
flash rapidly eight times when you’ve
scanned all the codes for that device.
6. If the remote reaches the correct code, the device
turns off. When this happens, press the POUND (#)
button to store the code in the remote.
text_dishpvr.fm Page 10 Tuesday, March 2, 2004 12:35 PM
11

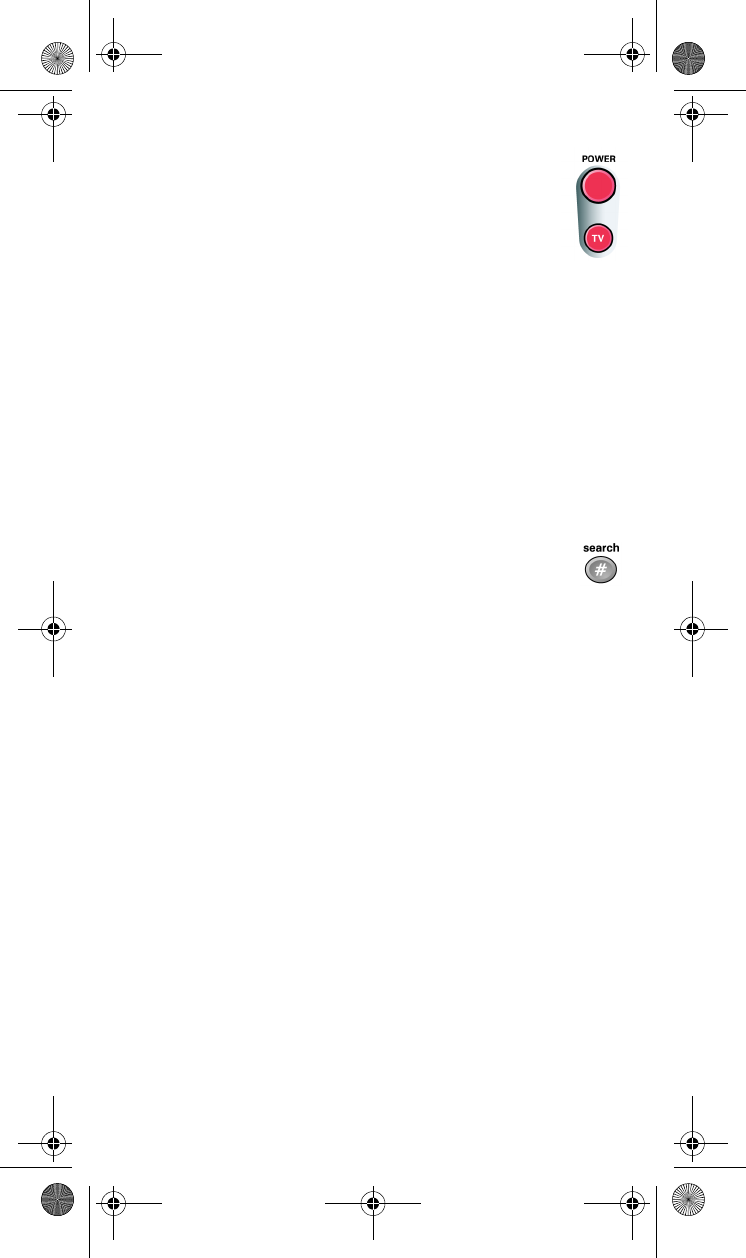

7. Press the blank POWER button to turn the device
back on.
8. Try some other buttons to make sure they work.
Sometimes, the blank POWER button works when
other buttons don’t.
CHECKING THE DEVICE CODES
You can find out what device code you’ve set for each remote control
mode.
1. Press and hold the mode button for the device you want the
remote to control, for about three seconds. When all the other
mode buttons light up, let go of the mode button - that mode
button should now be flashing.
For example, hold the TV mode button for a TV until all of the
other mode buttons light. When you let go, the TV mode light
will flash.
2. Press the POUND (#) button twice. The mode button
flashes the number for each digit of the device code,
with a pause between the groups of flashes. A quick
flash is for zero. For example, if the code is 570, the
mode button flashes five times, pauses, flashes seven times,
pauses, and flashes once quickly.
For AUX mode, the first group of flashes tells you what the
AUX mode controls. A quick flash (zero) before the three-digit
code is for a TV; one regular flash is for a VCR or DVD player;
and two flashes is for a tuner or amplifier. For example, if the
TV code is 570, the AUX mode button flashes once quickly,
pauses, flashes five times, pauses, flashes seven times, pauses,
and flashes once quickly.
SWITCHING BETWEEN TV AND DEVICE VOLUME
CONTROL
When you set up the remote to control a TV, the MUTE and VOLUME
buttons control the TV volume. However, if you want to use the AUX
mode to control a tuner or amplifier and the device has a volume
setting, you can set up the remote to control the device’s volume
instead of the TV volume.
text_dishpvr.fm Page 11 Tuesday, March 2, 2004 12:35 PM
12

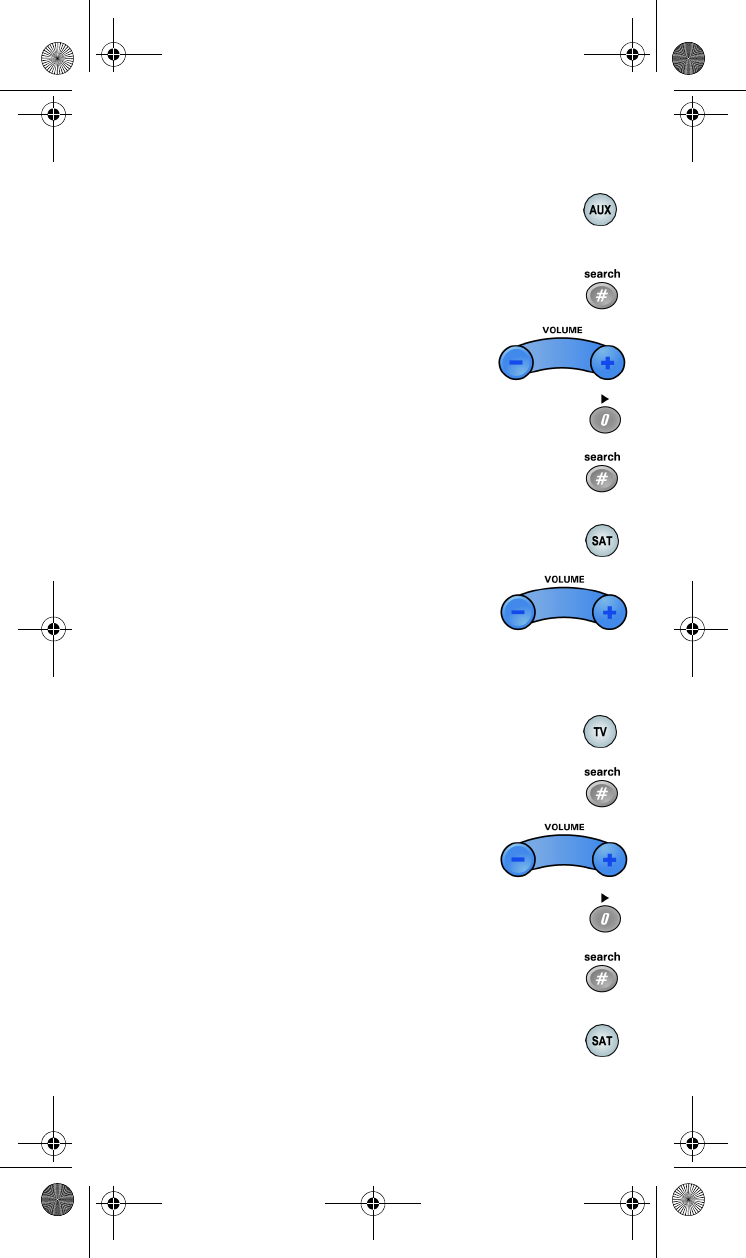

To set the remote to control the device’s volume:
1. Press and hold the AUX mode button
for three seconds, and then let go of it. The AUX mode
button will blink.
2. Press the POUND (#) button.
3. Press the plus (+) side of the VOLUME
button.
4. Press the 0 number button.
5. Press the POUND (#) button.
The AUX mode button flashes three times.
6. Press the SAT mode button.
7. Press the plus (+) and minus (-) sides of the
VOLUME button. The device’s volume
changes and the AUX mode button lights
instead of the TV mode button.
To set the remote back to control the TV volume:
1. Press and hold the TV mode button for three seconds,
and then let go of it. The TV mode button will blink.
2. Press the POUND (#) button.
3. Press the plus (+) side of the VOLUME
button.
4. Press the 0 number button.
5. Press the POUND (#) button.
The TV mode button flashes three times.
6. Press the SAT mode button.
text_dishpvr.fm Page 12 Tuesday, March 2, 2004 12:35 PM
13
7. Press the plus (+) and minus (-) sides of the
VOLUME button. The TV’s volume
changes and the TV mode button lights
instead of the AUX mode button.
REMOTE CONTROL OPERATION
OPERATING MODES
You can set the remote to four different modes to control the receiver
or other devices. You may need to change the remote address to operate
the receiver. See Setting Up to Control the Receiver on page 4. You
must set up the remote to control a device like a TV, VCR, or DVD
player. See Setting Up to Control Other Devices on page 8.
Use the remote control’s mode buttons, SAT (satellite receiver), TV
(for a TV), VCR (for a VCR or a DVD player), and AUX (“auxiliary,”
for a second TV, a second VCR, a tuner, or an audio amplifier) to set
the remote to the right mode for the device.
To change the mode, press the button for the device you want the
remote to control. The mode button lights for two seconds to show
you’ve set the remote to that mode.
CONTROLLING THE SATELLITE RECEIVER
SAT MODE BUTTON
Press this button to set the remote to SAT (“satellite”) mode to control
the receiver. The SAT mode button’s back light stays lit for about two
seconds to show you’ve set the remote to SAT mode. Make sure you
keep the remote in SAT mode to use the following buttons.
Note: Your satellite receiver may not provide all of the functions
described as follows. Consult your receiver user’s guide for the
features your receiver provides.
text_dishpvr.fm Page 13 Tuesday, March 2, 2004 12:35 PM
14

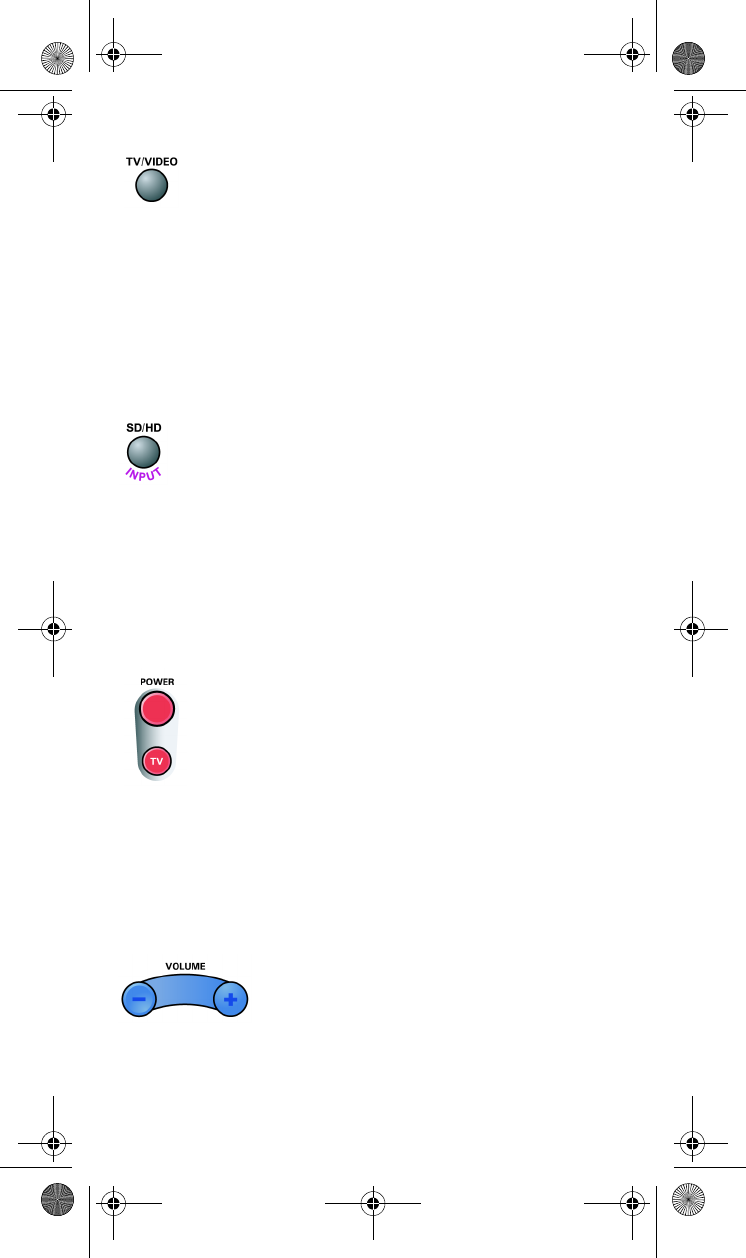

TV/VIDEO BUTTON
If you connect the receiver with its back panel TV ANTENNA/CABLE
IN and TV SET OUT ports, use this button to switch the receiver
between the satellite signal (connect it to the SATELLITE IN port) and
another video signal like a cable or broadcast TV antenna input
(connect it to the receiver’s TV ANTENNA/CABLE IN input).
Note: Your remote control will either have the TV/VIDEO button or
the SD/HD INPUT button, but not both.

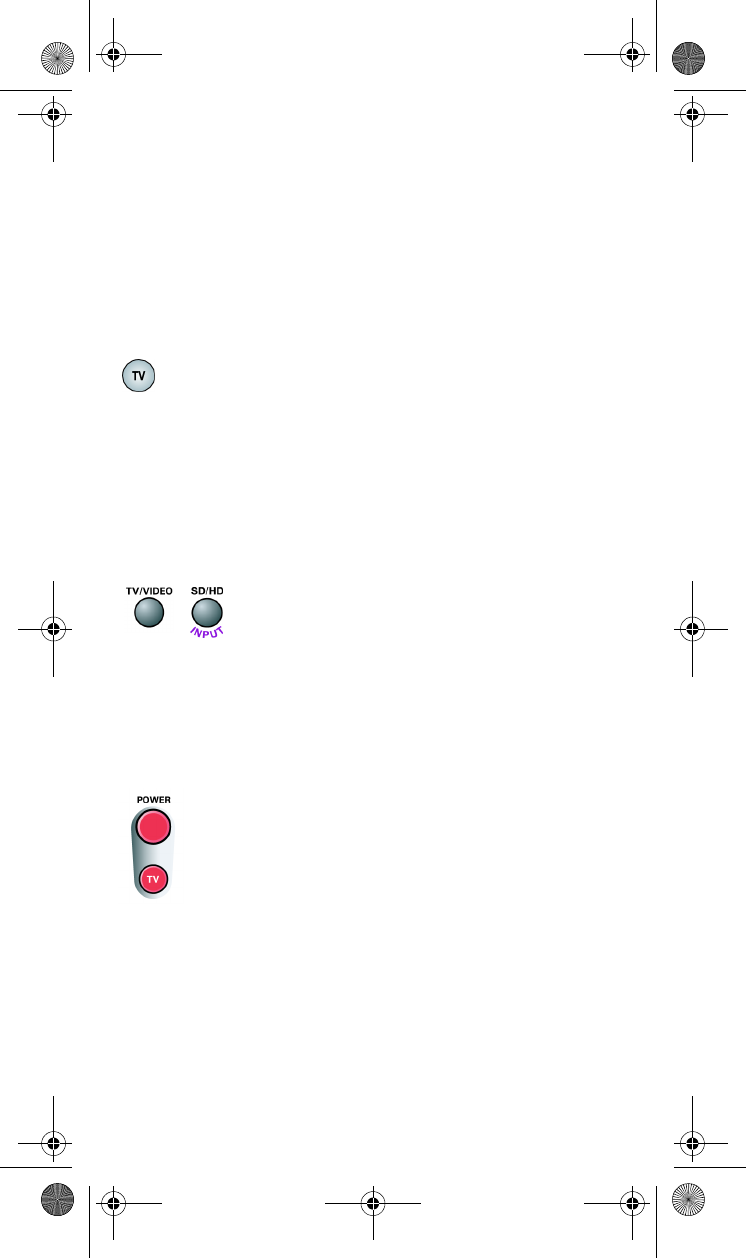

SD/HD INPUT BUTTON
Press the SD/HD INPUT button to toggle between HD Output mode,
where only the HD video outputs are enabled, and SD Output mode,
where only the SD video outputs are enabled. Consult your receiver
user’s guide for other uses of this button.
Note: Your remote control will either have the TV/VIDEO button or
the SD/HD INPUT button, but not both.

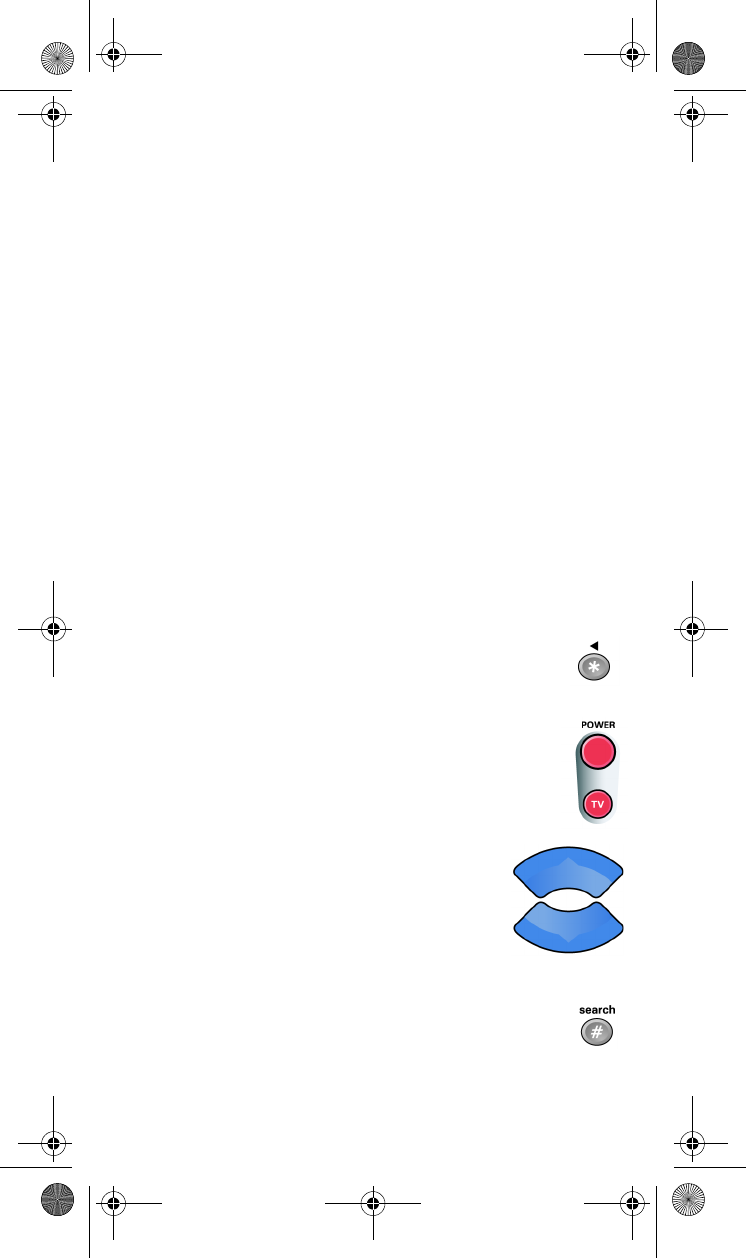

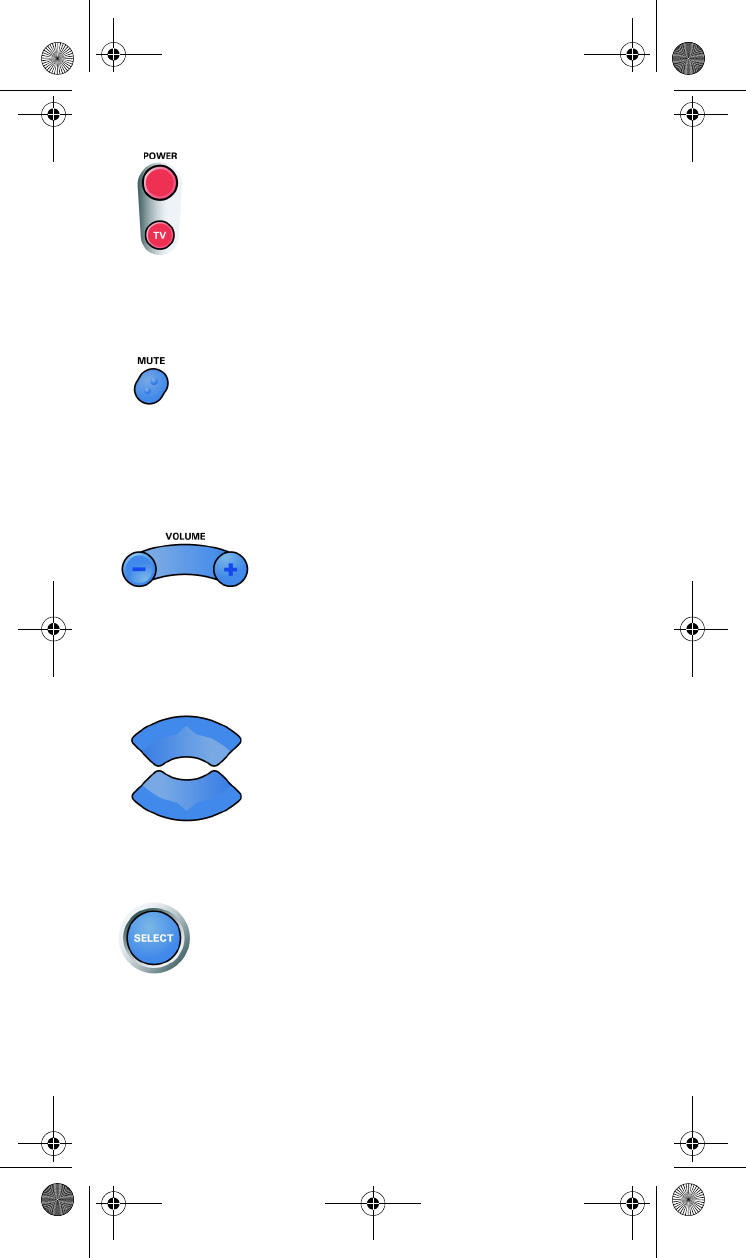

POWER BUTTONS
Press the blank POWER button to turn the receiver on or off.
Press the TV POWER button to turn your TV off and on.
Note: You must set up the remote to control the TV for the TV
POWER button to work. See Setting Up to Control Other Devices on
page 8.

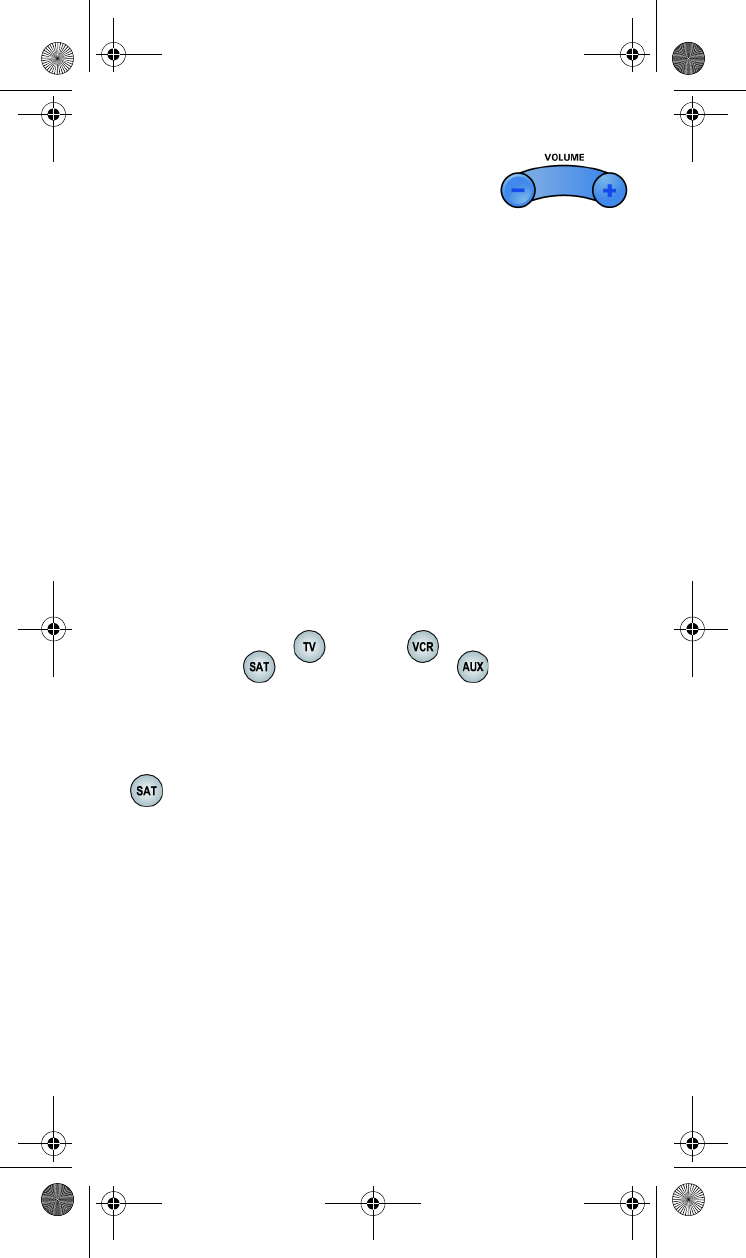

VOLUME BUTTON
Press this button to raise (+) or lower (-) the TV sound volume.
Note: You must set up the remote to control the TV for the VOLUME
button to work. See Setting Up to Control Other Devices on page 8.
text_dishpvr.fm Page 14 Tuesday, March 2, 2004 12:35 PM
15

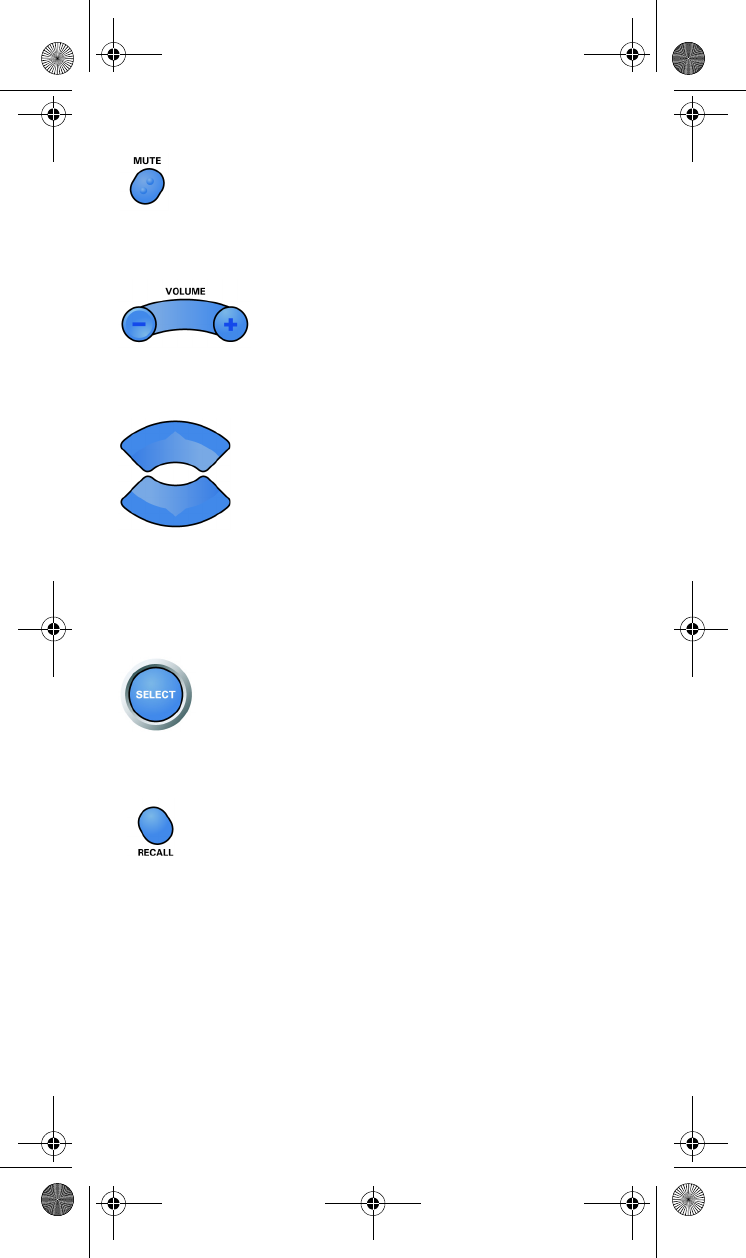

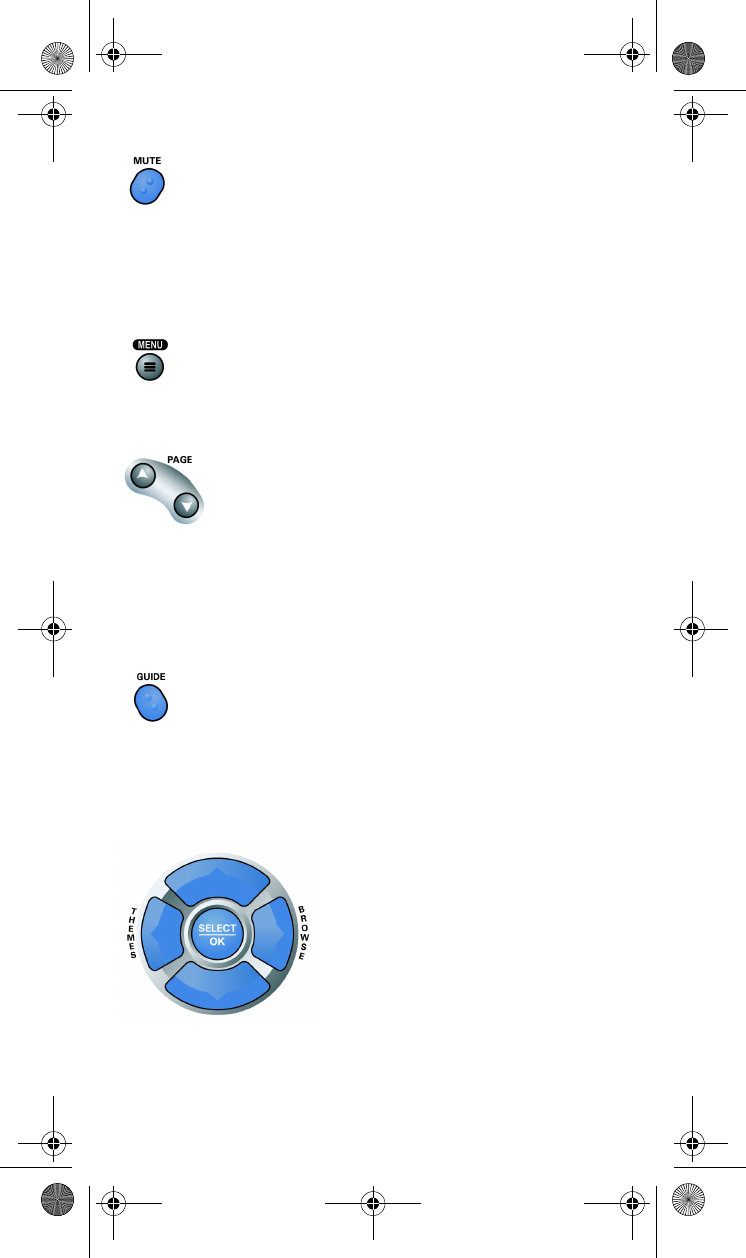

MUTE BUTTON
Press this button to turn the TV sound on or off.
Note: You must set up the remote to control the TV for the MUTE
button to work. See Setting Up to Control Other Devices on page 8.
MENU BUTTON
Press this button to open the Main Menu.
PAGE UP AND PAGE DOWN BUTTONS
Press the PAGE UP button or the PAGE DOWN button to scan, page
by page, through the Program Guide, a Themes list, a Favorite
List, an Event Timers list, or a list of channels.
Note: An “event” is any satellite program.
GUIDE BUTTON
Press this button to open the Program Guide. When you have the
Program Guide open, press this button to change between your
Favorite Lists.
ARROW BUTTONS
•Change channels - Press the UP or DOWN arrow button to
change channels.
•Open the Browse Banner - Press the RIGHT arrow button.
text_dishpvr.fm Page 15 Tuesday, March 2, 2004 12:35 PM
16
•Show Themes - Press the LEFT arrow button.
•Move around within the Program Guide, menus, and Browse
Banner - Press the UP, DOWN, LEFT, and RIGHT arrow
buttons.

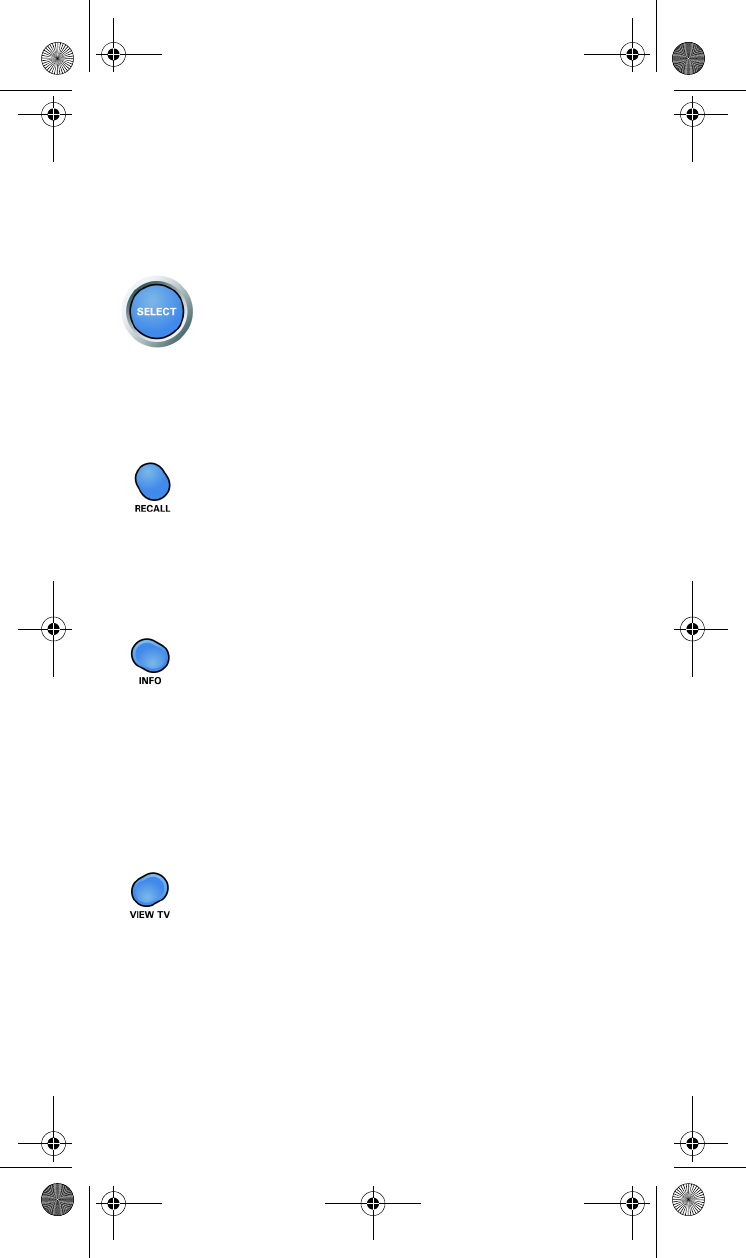

SELECT BUTTON
Press this button to select the option you highlight in a menu.
Note: The SELECT button may also be labeled SELECT/OK.
RECALL BUTTON
Press this button to go back to the last receiver channel you watched.
Press it again to switch between the last two receiver channels you
watched.
INFO BUTTON
•Program information - Press the INFO button for more
information when you watch a program, or when you have the
Program Guide, Browse Banner, or Themes list open.
•Help - Press the INFO button to see help information when a
Help button appears in a menu.
VIEW TV BUTTON
•When you watch a program, press this button to briefly display
the Program Banner.
•When you use a menu, press this button to cancel
and go back to watch a program.
text_dishpvr.fm Page 16 Tuesday, March 2, 2004 12:35 PM
17

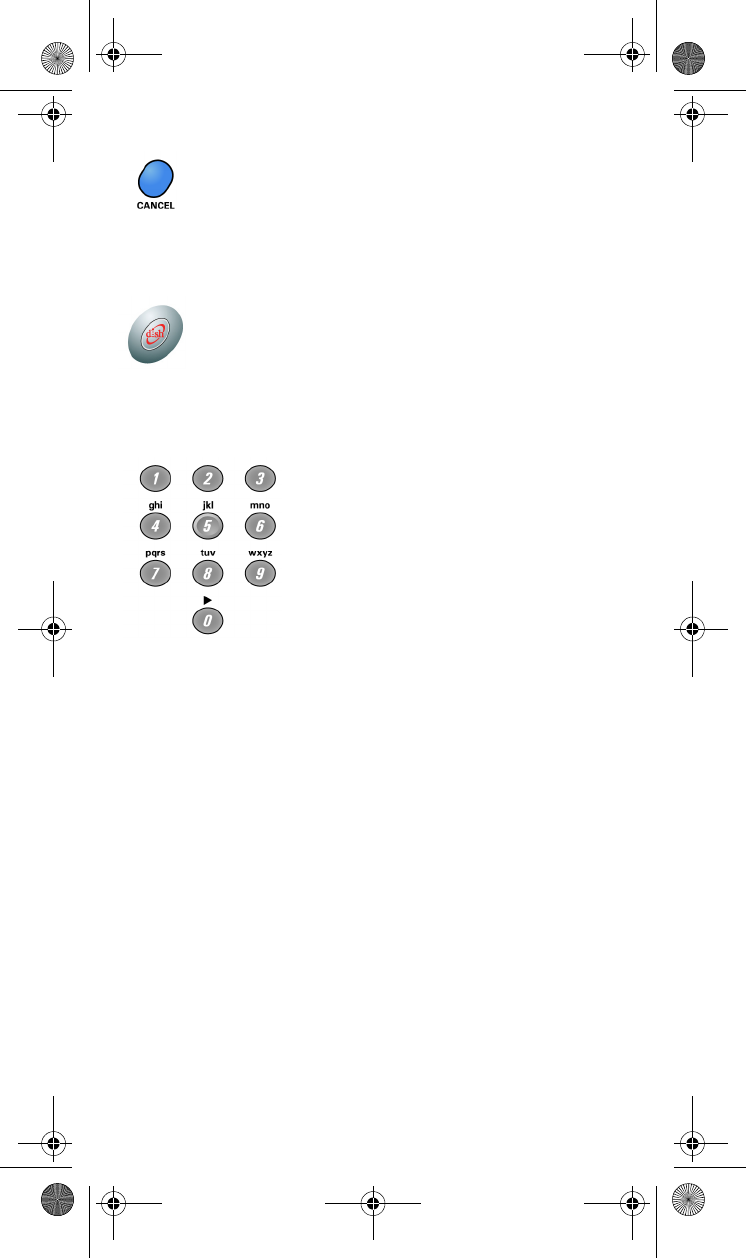

CANCEL BUTTON
Press this button to cancel and go back to the previous menu or to
watch a program.
DISH BUTTON
Press the dish button to go to DISH Home Interactive TV for
receivers that support this feature.

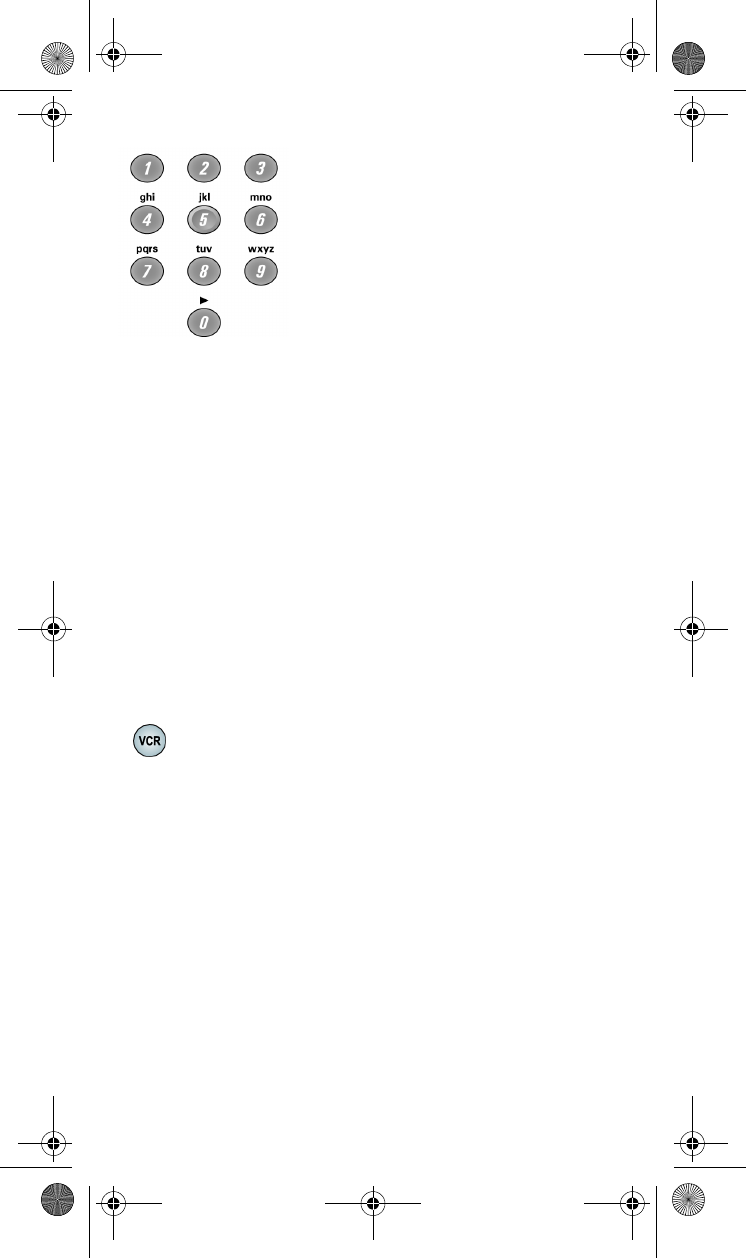

NUMBER BUTTONS
•Change the channel - Use the NUMBER buttons to enter a
channel number to change the channel. If you have the Program
Guide open, use the NUMBER buttons to jump to the channel
listing on the Program Guide.
•Scroll through the Program Guide by time - When you have
the Program Guide open, enter a number of hours using these
buttons, and then press the RIGHT or LEFT arrow button to skip
the Program Guide forward or backward that many hours.
Enter menu options - For an option with a number, you can press
the number for that option instead of highlighting and selecting
the option.
•Enter numbers in a blank - Highlight the place where you need to
enter the number. Press a number button(s) (or, you can use the
UP/DOWN arrow buttons to enter the number).
•Search - Use the letters above the NUMBER buttons while in the
Search menu. For example, when looking for the channel and
times to watch Rudy Fremmel Presents, you press 7 three times
for an R, 8 two times for a U, 3 one time for a D, and 9 three
times for a Y to spell the word “Rudy” (see your receiver’s User
Guide for more information).
text_dishpvr.fm Page 17 Tuesday, March 2, 2004 12:35 PM
18

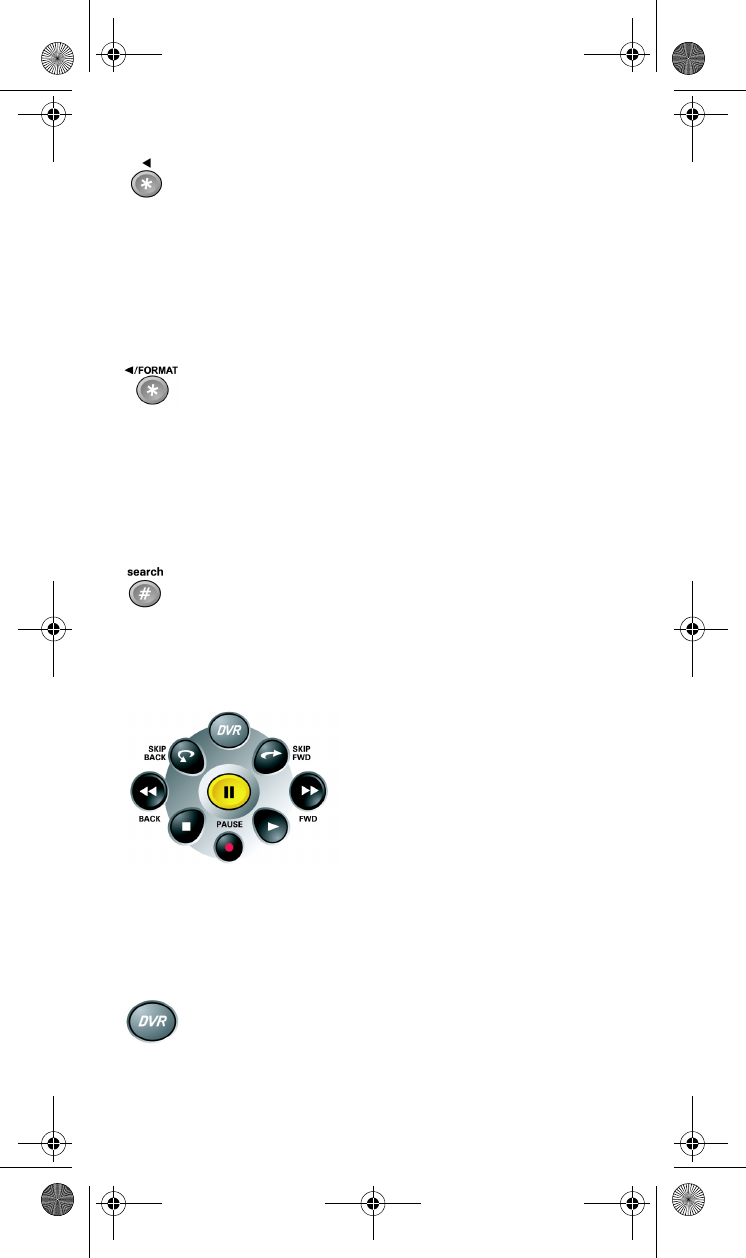

STAR BUTTON
Press the STAR button to back space while using the search function
of your receiver.
Note: Your remote control will either have the STAR button or the
FORMAT/STAR button, but not both.
FORMAT/STAR BUTTON
Press the FORMAT/STAR button to toggle through the available
display modes (Normal, Zoom) on widescreen displays.
Note: Your remote control will either have the STAR button or the
FORMAT/STAR button, but not both.
POUND (#) BUTTON
Press the POUND button to display the Search screen. Also, you use
this button in several procedures in this User Guide.
DVR BUTTONS
The following button descriptions mainly apply for remote controls
used with DISH Player-DVR receivers. For a description of these
buttons when controlling a VCR or DVD player, see Control a VCR (or
a Second VCR or a DVD Player) on page 25.
DVR BUTTON
Press the DVR button to open the DVR Events menu, which shows all
of the DVR Events recorded on the receiver.
text_dishpvr.fm Page 18 Tuesday, March 2, 2004 12:35 PM
19

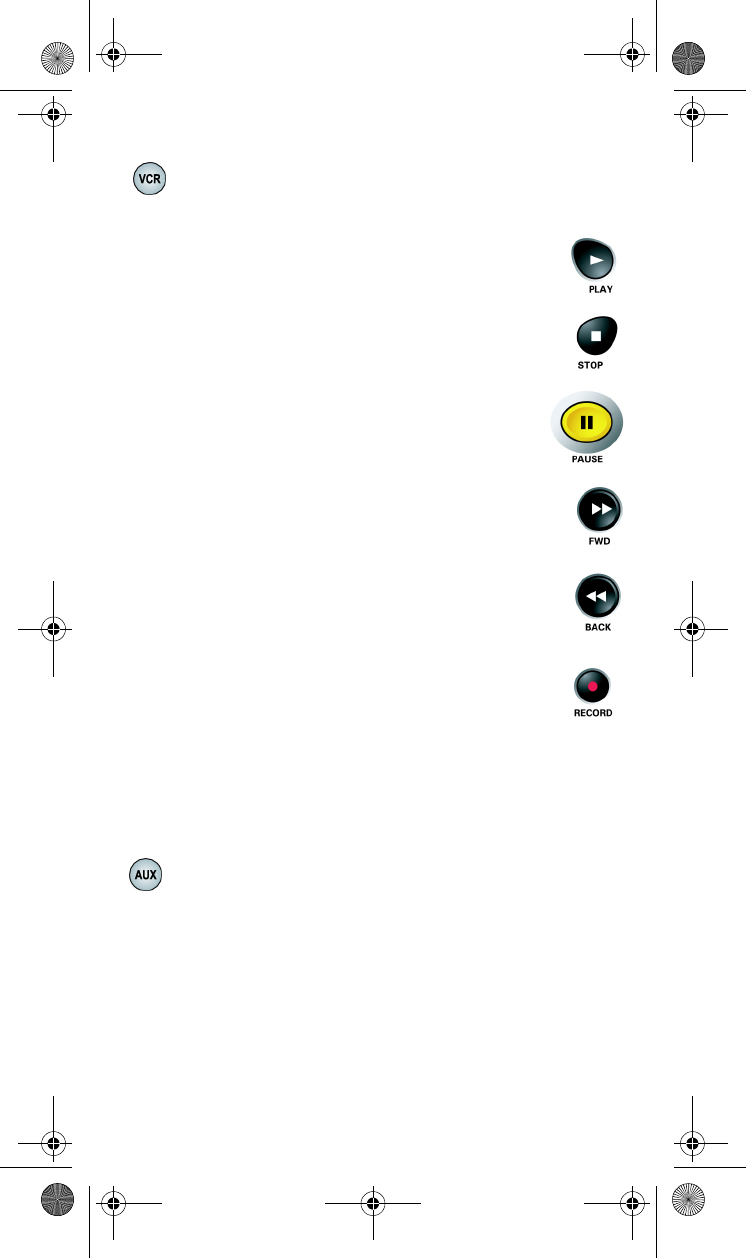

PLAY BUTTON
Press the PLAY button to play back a recorded event. Also, press this
button to switch from pause, fast forward, or back to normal play back.
STOP BUTTON
Press the STOP button to stop recording a program or to stop playing a
recorded program.
PAUSE BUTTON
Press the PAUSE button to pause a program. Press this button again to
go back to watching the program.
FWD BUTTON
Press the FWD (“forward”) button to:
•Move ahead through a program four times as fast as normal play.
Press this button a second time to move ahead at 15 times, a third
time to move ahead at 60 times, and a fourth time to move ahead
at 300 times as fast as normal play.
•Move ahead through the program in slow motion. To use this
feature, press the PAUSE button and then press the FWD button.
Each time you press the FWD button, the program advances
faster until it reaches normal speed. If you continue to press the
button, the program will advance as described in the previous
paragraph.
text_dishpvr.fm Page 19 Tuesday, March 2, 2004 12:35 PM
20

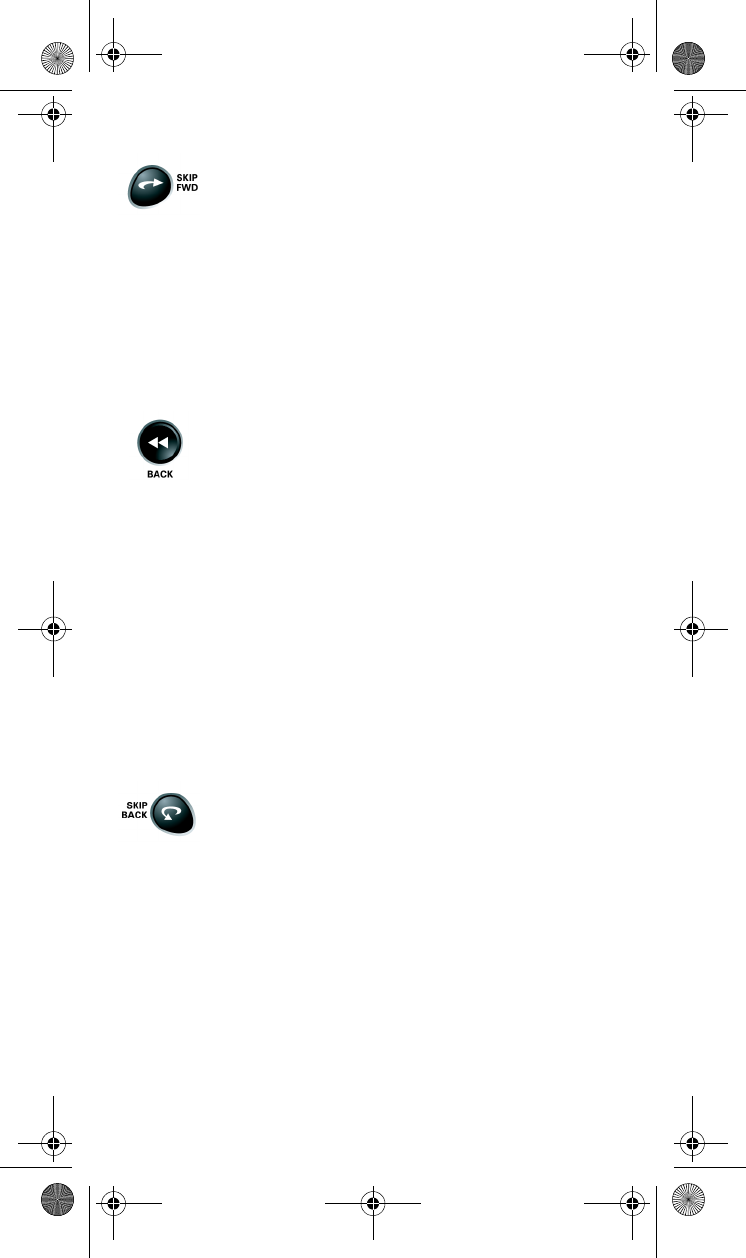

SKIP FWD BUTTON
Press the SKIP FWD button to:
•Skip ahead about 30 seconds in a program. Press this button again
to skip ahead again.
•Skip ahead one frame at a time. To use the frame advance feature,
press the PAUSE button and then press the SKIP FWD button.
•Skip ahead one day at a time in the EPG.
BACK BUTTON
Press the BACK button to:
•Move back through a program four times as fast as normal play.
Press this button a second time to move back at 15 times, a third
time to move back at 60 times, and a fourth time to move back at
300 times as fast as normal play.
•Move back through the program in slow motion. To use this
feature, press the PAUSE button and then press the BACK
button. Each time you press the BACK button, the program
reverses faster until it reaches normal speed. If you continue to
press the button, the program will reverse as described in the
previous paragraph.
SKIP BACK BUTTON
Press the SKIP BACK button to:
•Skip back about ten seconds in a program. Press this button again
to skip back again.
•Skip back a few frames at a time. To skip back through a few
frames, press the PAUSE button and then press the SKIP BACK
button.
•Skip back one day at a time in the Electronic Program Guide
(EPG).
Note: The skip back button will not skip back the EPG beyond
the current date and time.
text_dishpvr.fm Page 20 Tuesday, March 2, 2004 12:35 PM
21

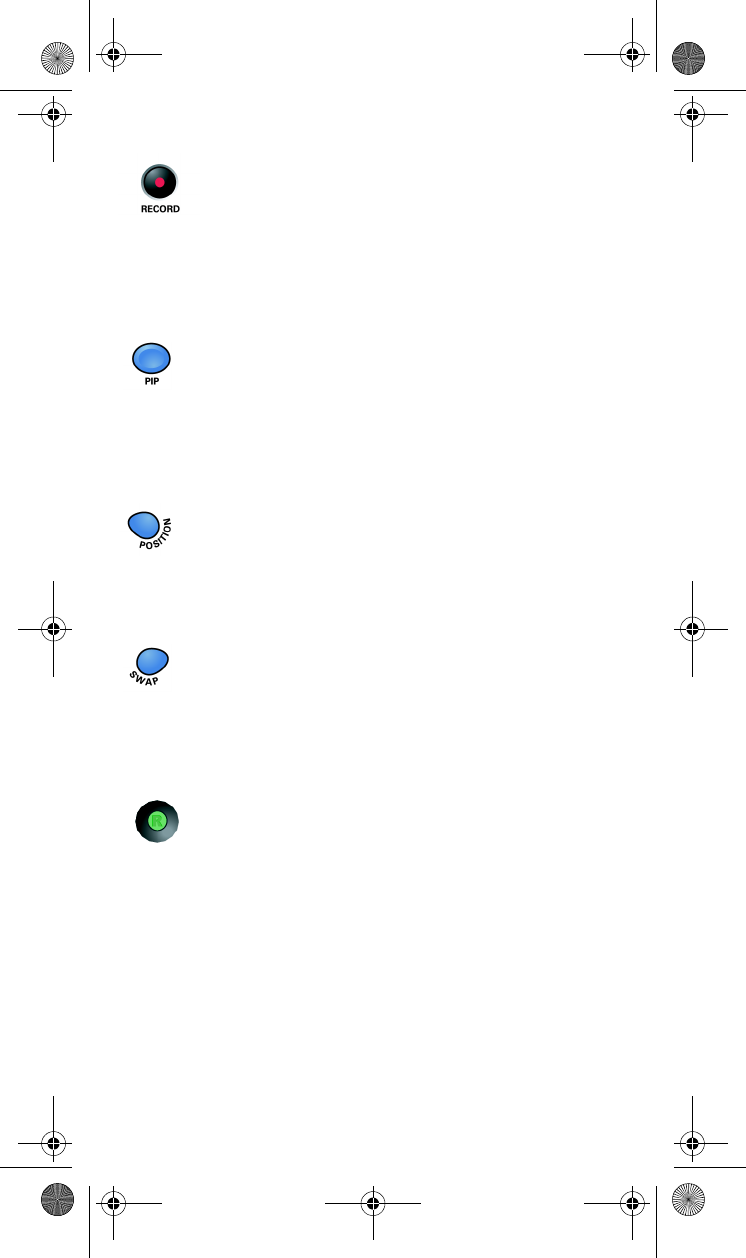

RECORD BUTTON
Press the RECORD button to record a program.
Note: You also use this button if you change the remote control
address. See Setting Up to Control the Satellite Receiver on page 5.
PICTURE IN PICTURE (PIP)
Press the PIP button to open the PIP window. To make the PIP
window larger, press this button again. Press the button a third time to
close the PIP window.
POSITION BUTTON
Press the POSITION button to move the PIP window to different
positions on the TV screen.
SWAP BUTTON
Press the SWAP button to swap the video in the main display with the
video in the PIP window.
RECOVER BUTTON
Use the RECOVER button if you accidentally change the channel or
video input on your TV and cannot get the picture back from your
satellite receiver. When you press the RECOVER button as described
in the following section, the remote control sends commands to your
TV to change channels or video inputs to try to get you back to
watching satellite programming.
Note: RECOVER only works if the remote control has been set up to
control the TV and/or VCR, if connected (see Setting Up to Control
Other Devices on page 8).
text_dishpvr.fm Page 21 Tuesday, March 2, 2004 12:35 PM
22
USING THE RECOVER BUTTON
Use this procedure only if you have accidentally changed the TV
channel or video input. It does not recover lost satellite signal.
Note: RECOVER will first try to tune your TV to channel 3, then
channel 4, and then other video inputs with each press of the
RECOVER button. You may need to press the RECOVER button
up to 30 times to recover your satellite TV video.
1. Press and hold the RECOVER button until all four mode
buttons light, and then let go of the button. The SAT mode
button flashes twice and then all four mode buttons flash three
times.
2. Press the RECOVER button. Wait for the TV mode button to
flash once and then all four mode buttons to flash once.
3. If you see the System Info screen, press the SELECT button
to close the screen. You have recovered your satellite video.
4. If you do not see the System Info screen, repeat steps 2 and 3
until you have recovered your satellite video.
Note: Press any remote control button other than the
RECOVER button to end this procedure.
PROGRAMMING THE RECOVER BUTTON TO TUNE THE TV
TO A SPECIFIC CHANNEL
The RECOVER button can be programmed to tune your TV back
to the TV channel you use to watch satellite programming.
1. Program your remote to control your TV using the instructions
in Setting Up to Control Other Devices on page 8.
2. Press and hold the TV mode button until all the other mode
buttons light up, and then let go of the button. The TV mode
button flashes.
3. Press the STAR (*) button.
4. Enter the three digits of your channel number. For example, if
your remote TV is set to channel 60, enter 0-6-0.
5. Press the POUND (#) button. The TV mode button flashes
three times.
text_dishpvr.fm Page 22 Tuesday, March 2, 2004 12:35 PM
23

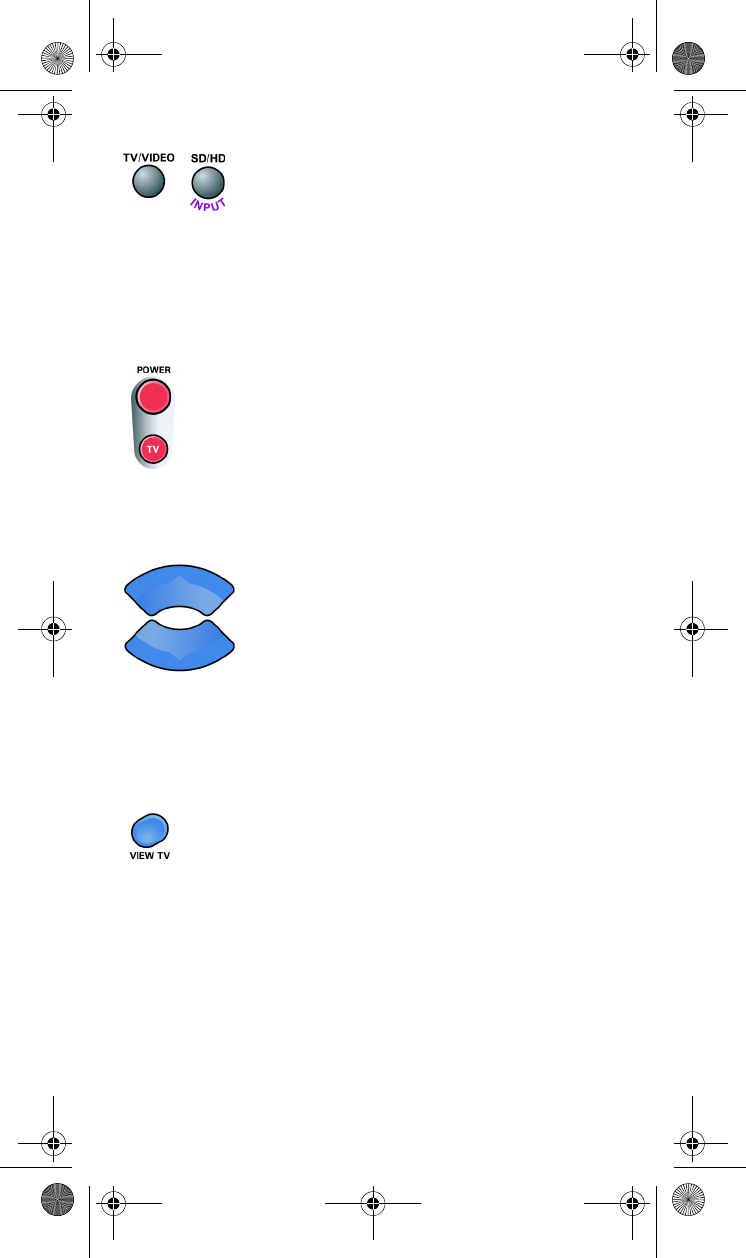

CONTROLLING A TV (OR A SECOND TV)
Only the buttons described here control a TV. Some of the buttons
described heremay not control your TV. See your TV user’s manual for
information about the TV’s features.
You can set up the remote to control a second TV in AUX mode, the
same way it controls the first TV in TV mode. See Setting Up to
Control Other Devices on page 8.
TV MODE BUTTON
You must first set up the remote to control the TV. See Setting Up to
Control Other Devices on page 8. Then press the TV mode button to
set the remote to TV mode. The TV mode button will stay lit for two
seconds to show you’ve set the remote to TV mode. Make sure you
keep the remote in TV mode to use the buttons described in this
section.
TV/VIDEO OR SD/HD INPUT BUTTON
If the TV has video input options, use this button to switch the TV
video input.
Note: Your remote control will either have the TV/VIDEO button or
the SD/HD INPUT button, but not both.
POWER BUTTONS
Press either POWER button to turn the TV on or off.
Note: If you set up the remote to control one TV in TV mode and an
additional TV in AUX mode, pressing the TV POWER button controls
only the TV you set up in TV mode.
text_dishpvr.fm Page 23 Tuesday, March 2, 2004 12:35 PM
24
MUTE BUTTON
Press this button to turn the TV sound on or off.
VOLUME BUTTON
Press this button to raise (+) or lower (-) the TV sound volume.
UP/DOWN ARROW BUTTONS
Use these buttons to change channels on the TV.
Note: These buttons do not change the channels on the TV if the
remote control is in Limited Mode.
SELECT BUTTON
The SELECT button works as the ENTER button for a TV.
RECALL BUTTON
Press this button to go back to the last TV channel you watched. Press
it again to switch between the last two TV channels you watched.
text_dishpvr.fm Page 24 Tuesday, March 2, 2004 12:35 PM
25
NUMBER BUTTONS
Use these buttons to directly enter a different channel.
Note: These buttons do not change the channels on the TV if the
remote control is in Limited Mode.
CONTROLLING A VCR (OR A SECOND VCR OR A DVD
PLAYER)
Only the buttons described here control a VCR or DVD player. Some
of the buttons we tell you about here may not control your VCR. See
your VCR or DVD player user’s manual for information about the
features.
You can set up the remote to control a second VCR or DVD player in
AUX mode, the same way it controls the first VCR or DVD player in
VCR mode. See Setting Up to Control Other Devices on page 8.
VCR MODE BUTTON
You must first set up the remote to control the VCR or DVD player.
See Setting Up to Control Other Devices on page 8. Then press the
VCR mode button to set the remote to VCR mode. The VCR mode
button will stay lit for two seconds to show you’ve set the remote to
VCR mode. Make sure you keep the remote in VCR mode to use the
buttons we tell you about here.
You must put the remote in VCR mode to set it up to control a DVD
player. Put the remote in VCR mode to use it to control a DVD player.
text_dishpvr.fm Page 25 Tuesday, March 2, 2004 12:35 PM
26
TV/VIDEO OR SD/HD INPUT BUTTON
Use this button to switch the VCR between its TV mode and its VCR
mode (see your VCR user’s manual for information).
Note: Your remote control will either have the TV/VIDEO button or
the SD/HD INPUT button, but not both.
POWER BUTTON
Press the blank POWER button to turn the VCR on or off. Press the
TV POWER button to turn the TV on or off.
UP/DOWN ARROW BUTTONS
Use these buttons to change channels on the VCR.
Note: If you are using the remote control in Limited Mode, the TV
will not change channels.
VIEW TV BUTTON
For VCR/DVD combinations only: Press the VIEW TV button to
switch between VCR and DVD functions.
text_dishpvr.fm Page 26 Tuesday, March 2, 2004 12:35 PM
27
VCR BUTTONS
Press the PLAY button to play a videotape or DVD.
Press the STOP button to stop playing or recording on a
videotape. Press the STOP button to stop playing a DVD.
Press the PAUSE button to pause a videotape or DVD.
Press this button or the PLAY button to play the tape or
DVD.
Press the FWD (“forward”) button to forward a
videotape or DVD.
Press the BACK button to rewind a videotape or reverse a
DVD.
Press the RECORD button to record on a videotape.
CONTROLLING A TUNER OR AMPLIFIER
Only the buttons described here control a tuner or amplifier. Some of
the buttons described here may not control your tuner or amplifier. See
the device user’s manual for information.
AUX MODE BUTTON
You must first set up the remote to control the device. See Setting Up to
Control Other Devices on page 8. Then press the AUX mode button to
set the remote to AUX mode. The AUX mode button will stay lit for
two seconds to show you’ve set the remote to AUX mode. Make sure to
keep the remote in AUX mode to use the following buttons.
text_dishpvr.fm Page 27 Tuesday, March 2, 2004 12:35 PM
28
POWER BUTTON
Press the blank POWER button to turn the tuner or amplifier on or off.
Press the TV POWER button to turn the TV on or off.
MUTE BUTTON
Press this button to turn on or off the sound.
Note: Program the remote to control the device’s volume by following
the instructions on page 11.
VOLUME BUTTON
Press this button to raise (+) or lower (-) the sound volume.
Note: Program the remote to control the device’s volume by following
the instructions on page 11.
UP/DOWN ARROW BUTTONS
Use these buttons to change channels on the tuner or amplifier.
SELECT BUTTON
This button works as the INPUT SELECT button for the tuner or
amplifier.
text_dishpvr.fm Page 28 Tuesday, March 2, 2004 12:35 PM
29
DEVICE CODES
These tables contain the manufacturer codes for programming the
remote to control your TV, a VCR, DVD player, or audio amplifier.
Every attempt has been made to include all codes. If your device brand
is not listed or if the codes do not work, the remote may not control
your device. In some cases codes may operate some but not all buttons
shown in this guide.
TV CODES
Programming in AUX mode:
Press 0 before entering the TV
code.
TV Codes
A Mark 670
Action 662
Admiral 514, 521, 605, 668,
669, 675
Aiko 727
Aiwa 751
Akai 570, 573, 659, 660,
A-Mark 620
Amtron 657
Anam National 509, 541, 620, 651,
657, 661, 663, 698
AOC 505, 506, 519, 520,
573, 620, 627, 652,
653, 654, 659, 664,
665, 670, 672
Apex 743, 744, 745
Archer 620
Audiovox 620, 657, 662, 672
Bell & Howell 590, 669, 675
Broksonic 752, 659, 661, 748
Capehart 519, 627
Citizen 506, 516, 523, 524,
525, 526, 590, 652,
654, 657, 658, 680,
727
Classic 659
Colortyme 573, 627, 652, 654,
660, 667, 668, 671,
674, 679, 681
Contec/Cony 541, 655, 657, 661,
662, 726
Craig 536, 541, 657, 661,
662, 666, 667, 694
Crown 526, 536, 657, 666,
670
Curtis Mathes 506, 516, 526, 573,
590, 641, 645, 650,
652, 654, 658, 659,
660, 664, 665, 667,
668, 670, 674, 680,
703, 708
Daewoo 505, 524, 526, 529,
530, 531, 573, 652,
653, 654, 658, 659,
663, 664, 665, 670,
672, 674, 684, 698,
719, 727
Daytron 526, 627, 652, 654,
658, 665, 670, 672
Dimensia 645, 650
DISH Network 742
Dixi 566, 620
Dumont 501, 627, 652
Echostar 722
Electrohome 526, 573, 651, 652,
654, 656, 659, 660,
665, 670, 709, 728
TV Codes
text_dishpvr.fm Page 29 Tuesday, March 2, 2004 12:35 PM
30
Emerson 526, 534, 535, 536,
537, 538, 539, 541,
573, 590, 627, 636,
642, 648, 652, 654,
655, 657, 658, 659,
660, 661, 662, 665,
666, 667, 669, 670,
677, 679, 682, 692,
696, 699, 720
Envision 506, 573, 652, 654,
660, 664
Fisher 542, 590, 683
Fujitsu 534, 682, 694
Funai 534, 541, 657, 661,
662, 677, 682, 694
GE 508, 509, 543, 544,
630, 645, 646, 650,
651, 652, 654, 659,
661, 663, 665, 667,
668, 670, 673, 676,
681, 690, 691, 698,
701, 715, 716, 725,
728, 742
Goldstar 505, 523, 526, 545,
546, 566, 573, 652,
653, 654, 655, 656,
658, 659, 660, 664,
665, 670, 671, 678,
693, 730, 747
Gradiente 660, 671
Granada 627, 670, 671
Grundig 670, 673
Hallmark 627, 652, 654, 659
Harmon/Kardon 561, 659
Hinari 534
Hitachi 523, 526, 548, 549,
553, 554, 555, 585,
597, 626, 636, 638,
643, 648, 652, 654,
655, 665, 668, 669,
670, 672, 673, 702,
718, 726
Infinity 566, 671
JBL 566, 671
TV Codes
JC Penney 505, 506, 516, 525,
526, 543, 546, 631,
645, 646, 650, 652,
653, 654, 658, 659,
664, 667, 668, 670,
673, 676, 678, 680,
690, 691, 701, 725,
726, 728, 730
Jensen 556, 573, 652, 654,
660
JVC 508, 557, 559, 642,
649, 655, 667, 673,
676, 726, 735, 736,
737
Kawasho 548, 561, 573, 652,
654, 664
Kenwood 506, 573, 652, 654,
656, 659, 660, 664,
679, 681
Kloss Nova-
beam
657, 663, 698, 723,
724
Konka 753
KTV 526, 539, 541, 573,
657, 658, 661, 662,
664, 665, 670, 696
Lloyds 627, 679
Loewe 566
Logik 675
Luxman 523, 652, 654
LXI 563, 566, 590, 595,
667, 631, 635, 645,
646, 650, 654, 659,
668, 678, 683, 691,
701, 725
Magnasonic 573, 659, 660, 669,
672, 677
Magnavox 506, 520, 525, 536,
566, 567, 568, 573,
610, 652, 654, 656,
659, 660, 664, 665,
666, 669, 671, 673,
674, 677, 723, 724,
729
Majestic 675
Marantz 506, 566, 573, 652,
654, 660, 664, 665,
671, 678, 681
TV Codes
text_dishpvr.fm Page 30 Tuesday, March 2, 2004 12:35 PM
31
Megatron 627, 654
Memorex 590, 627, 653, 654,
659, 675, 678, 720
MGA 504, 505, 506, 542,
571, 573, 627, 652,
653, 654, 656, 660,
728
Mitsubishi 504, 505, 542, 570,
571, 572, 573, 597,
623, 627, 652, 653,
654, 656, 659, 660,
664, 665, 670, 671,
705, 728
Montgomery
Ward
675
Motorola 521, 605, 651
MTC 505, 506, 516, 523,
573, 627, 652, 653,
654, 659, 664, 667,
672, 680
Multitech 657
NAD 502, 617, 627, 631,
635, 637, 654
National 509
NEC 505, 506, 507, 517,
523, 573, 627, 651,
652, 653, 654, 660,
664, 665, 679, 681,
731, 732
Nikkai 612
Nikko 654, 672, 727
Onwa 541, 657, 661
Optimus 637
Optonica 521, 605, 607
Orion 694
Osaki 612
Panasonic 508, 509, 510, 512,
566, 644, 651, 662,
663, 668, 672, 673,
676, 685, 689, 698,
700, 716, 234, 247
TV Codes
Philco 505, 506, 525, 536,
568, 573, 610, 651,
652, 653, 654, 655,
656, 659, 660, 664,
665, 666, 669, 671,
672, 674, 677, 723,
724, 729
Philips 525, 566, 651, 652,
655, 656, 671, 690,
723, 724, 729
Pioneer 502, 548, 576, 636,
637, 648, 652, 654,
663, 665, 681, 708
Portland 505, 526, 573, 652,
654, 658, 659, 664,
665, 670, 727
Price Club 680
Prism 676
Proscan 645, 646, 650, 668,
691, 725, 742
Proton 513, 519, 526, 536,
585, 627, 652, 654,
655, 659, 660, 665,
666, 668, 670, 678
Quasar 508, 509, 651, 663,
673, 676, 698, 700,
747
Radio Shack/
Realistic
526, 541, 590, 607,
612, 645, 650, 652,
654, 655, 657, 658,
661, 662, 663, 668,
670, 683, 698, 730
RCA 503, 505, 548, 586,
630, 633, 634, 636,
641, 645, 646, 648,
650, 651, 652, 653,
654, 656, 661, 663,
665, 667, 668, 670,
681, 691, 698, 701,
708, 715, 716, 725,
742, 749
Realistic 590, 645
Runco 501
Sampo 506, 519, 652, 654,
658, 663, 664, 665,
698, 730, 746
TV Codes
text_dishpvr.fm Page 31 Tuesday, March 2, 2004 12:35 PM
32
Samsung 505, 506, 516, 523,
526, 566, 573, 612,
627, 647, 652, 653,
654, 655, 656, 658,
659, 664, 665, 667,
669, 670, 679, 680,
704, 717, 730, 738
Sansui 754
Sanyo 542, 590, 652, 683
SBR 566
Schneider 566
Scott 526, 534, 537, 541,
600, 652, 654, 655,
657, 661, 662, 665,
670, 677, 682, 696,
701
Sears 523, 534, 542, 563,
590, 595, 601, 604,
617, 627, 631, 635,
645, 646, 650, 652,
654, 656, 659, 661,
668, 670, 682, 683,
688, 691, 703, 725,
726
Sharp 521, 526, 585, 605,
607, 628, 629, 652,
654, 655, 658, 669,
670, 674, 679, 739,
740, 741
Signature 675
Solavox 612
Sony 500, 578, 640, 670,
690
Soundesign 525, 536, 541, 627,
652, 654, 657, 659,
661, 665, 666, 682
Starlite 657
Supra 523
Sylvania 506, 525, 536, 566,
568, 569, 573, 600,
610, 652, 654, 656,
659, 660, 664, 665,
666, 671, 672, 674,
677, 723, 724, 729,
733
Symphonic 632, 657, 662, 677,
692, 694
TV Codes
Tandy 521, 605
Tatung 509, 651, 663, 698
Technics 508, 673, 676
Techwood 523, 573, 652, 654,
660, 676
Teknika 504, 505, 512, 516,
523, 524, 525, 526,
534, 536, 541, 573,
644, 652, 653, 654,
655, 657, 658, 661,
662, 664, 665, 666,
670, 672, 675, 680,
681, 682, 685, 726,
727
Telefunken 679
Toshiba 516, 590, 617, 631,
635, 667, 678, 680,
683, 688, 750
Totevision 526, 658, 668
Ultra 672
Universal 543, 690
Vector,
Research
506
Video Concepts 570, 661
Wards 536, 573, 607, 645,
650, 652, 653, 654,
656, 659, 664, 665,
666, 667, 668, 669,
674, 675, 677, 678,
682, 690, 715, 723,
724, 729
White,
Westinghouse
659, 664, 670, 672,
674
Yamaha 505, 506, 573, 652,
653, 654, 656, 664,
666, 672, 679
TV Codes
text_dishpvr.fm Page 32 Tuesday, March 2, 2004 12:35 PM
33
VCR CODES
Programming in AUX mode:
Press 1 before entering the VCR
code.
VCR CODES
Aiwa 588, 622, 623
Akai 513, 514, 515, 516,
517, 518, 520, 568,
682
Alba 546
Amstrad 588
ASA 556
Audiovox 676
Bell & Howell 581
Broksonic 559, 748
Bush 589
Calix 676
Canon 554, 678, 679
Capehart 546
CCE 681
Citizen 534, 591, 592, 594,
675, 676, 677, 684
Colortyme 592,
Craig 591, 658, 675, 676,
681, 685, 687, 688
Curtis Mathes 554, 592, 594, 605,
607, 675, 677, 678,
679, 683, 684
Daewoo 506, 534, 546, 547,
559, 588, 684
Daytron 546
Denon 686
Dimensia 607
Dumont 549
Electrohome 512, 676, 687
Emerson 505, 506, 508, 509,
511, 512, 534, 559,
568, 588, 590, 618,
676, 678, 684, 687
Finlandia 549
Finlux 549, 556, 588
Fisher 548, 549, 581, 584,
588, 608, 610, 684,
688
Fuji 678
Funai 588
Garrard 588
GE 550, 551, 552, 554,
572, 591, 605, 607,
675, 678, 679
Go Video 557, 558, 620, 685
Goldstar 592, 594, 676, 687,
747
Goodmans 585, 589
Gradiente 588, 687
Granada 549, 581
Grundig 556
Harmon/Kardon 568, 592
Harwood 681
Hinari 589
Hitachi 536, 538, 539, 540,
588, 595, 597, 680,
682, 686
ITT 518
JC Penney 554, 581, 591, 592,
594, 595, 600, 674,
675, 676, 678, 679,
680, 681, 685, 686,
687
Jensen 595, 680, 682
JVC 561, 562, 563, 581,
592, 594, 600, 674,
682, 686
Kenwood 562, 581, 592, 594,
600, 674, 677, 682,
683
KLH 681
Kodak 676, 678
Lloyds 683, 688
Logik 589, 681, 685
Luxor 518
VCR CODES
text_dishpvr.fm Page 33 Tuesday, March 2, 2004 12:35 PM
34
LXI 676
Magnasonic 685, 687
Magnavox 527, 533, 554, 556,
678, 679, 684, 685
Marantz 554, 556, 581, 585,
592, 594, 600, 602,
674, 677, 678, 683
Matsushita 678
Memorex 507, 533, 549, 554,
566, 581, 585, 588,
608, 675, 676, 678,
686, 687, 688
MGA 512, 567, 568
Minolta 595, 680, 686
Mitsubishi 512, 562, 567, 568,
570, 571, 595, 680,
687
Motorola 678
MTC 544, 588, 675, 685
Multitech 579, 588, 675, 677,
681
NAD 573
NEC 562, 581, 592, 594,
600, 602, 674, 677,
682, 683
Nikko 676
Noblex 675
Olympus 678
Optimus 676, 687
Optonica 585
Orion 506, 684, 687
Panasonic 523, 554, 598, 614,
628, 633, 678, 679,
684, 685, 688, 747
Pentax 592, 595, 677, 680,
683, 686
Pentex
Research
594
Perdio 588
Philco 554, 678, 679, 686
VCR CODES
Philips 554, 556, 585, 678,
684
Pioneer 562, 573, 574, 575,
576, 600, 674, 680,
Portland 546, 677
Proscan 605, 607,
Proton 685
Quasar 554, 678, 679, 747,
Radio Shack 512, 607, 608, 610,
687
Radio Shack/
Realistic
581, 584, 588, 608,
675, 676, 678, 679
Radix 676
RCA 518, 525, 527, 528,
591, 595, 605, 607,
615, 631, 649, 675,
678, 680, 686
Realistic 534, 549, 554, 581,
584, 585, 588, 608,
675, 678, 679, 687,
688
Ricoh 502
Runco 533
Saisho 506
Salora 567, 581
Samsung 515, 517, 534, 579,
591, 675
Sansui 544, 562, 600, 674,
682, 685
Sanyo 549, 581, 582, 583,
608, 675, 688
SBR 556
Schneider 589
Scott 508, 534, 559, 590,
684, 687
Sears 548, 549, 581, 584,
595, 608, 610, 676,
678, 680, 683, 684,
686, 687, 688
Sentra 546
Sharp 512, 585, 607, 625
Shintom 589, 595, 681, 685
VCR CODES
text_dishpvr.fm Page 34 Tuesday, March 2, 2004 12:35 PM
35
TV/VCR COMBO CODES
Programming for
combination devices:
Program the remote control in
TV mode and then in VCR mode.
Singer 678, 681, 685
Sony 500, 501, 502, 504
STS 678
Sylvania 554, 556, 567, 588,
678, 679
Symphonic 588, 594, 683, 688
Tandy 581, 588
Tashiko 588, 676
Tatung 594, 682,
Teac 588, 594, 682
Technics 554, 633, 678,
Teknika 554, 588, 676, 678,
687
Toshiba 534, 535, 567, 584,
590, 680, 684, 688
Totevision 591, 675, 676, 687
Unitech 675,
Vector Research 534, 592, 600, 674,
677, 683
Video Concepts 534, 568, 592, 600,
674, 677, 683,
Wards 534, 588, 595, 608,
675, 676, 678, 680,
681, 684, 687, 688
XR-1000 588, 678, 681
Yamaha 581, 592, 594, 600,
674, 682, 683
Zenith 500, 501, 533, 747
TV/VCR TV Codes VCR
Codes
Broksonic 748 748
Goldstar 747 747
VCR CODES
DVD PLAYER CODES
Programming in AUX mode:
Press 1 before entering the DVD
code.
Panasonic 747 747
Quasar 747 747
Zenith 747 747
DVD Players Codes
Aiwa 634, 694, 751
Alpine 653
Apex 654, 655, 743, 744
Broksonic 656, 752
Clarion, 696
Classic 695
Daewoo 657
Denon 697, 698, 699, 700
Emerson 658, 701
Fisher 659
Funai 658
GE 702, 703
Go Video 692, 693
GPX 704
Hitachi 632, 635, 660, 705,
706, 707
JVC 636, 689, 708, 711
Konka 637, 638, 753
Koss 745
Magnavox 626, 661
Memorex 709
Mintek 710
Mitsubishi 629
NAD 701
Norcent 762
TV/VCR TV Codes VCR
Codes
text_dishpvr.fm Page 35 Tuesday, March 2, 2004 12:35 PM
36
TUNER/AMPLIFIER CODES
Programming in AUX mode:
Press 2 before entering the tuner/
amplifier code.
Onkyo 713
Oritron 723
Panasonic 639, 662, 663, 714,
715, 716, 717, 734
Philips 640, 641
Pioneer 665, 718, 719
Proscan 720
Qwestar 721, 723
RCA 627, 650, 666, 690,
742, 749
Sampo 724
Samsung 651, 652, 667, 668,
691, 740, 741
Sansui 725, 754
Sanyo 643, 726
Sharp 669, 727, 746
Sherwood 728
Sony 617, 644, 645, 670,
671, 729, 730, 731
Sylvania 658
Teac 732
Technics 733
Techwood 664
Toshiba 616, 646, 647, 672,
735, 736, 750,
Yamaha 737, 738, 739
Zenith 648, 673
Tuner/
Amplifier Codes
Aiwa 636, 641, 656, 687,
718, 720, 724, 775,
726
Carver 653
DVD Players Codes
Citizen 709
Curtis Mathes 734
Denon 647, 674
Fisher 653, 741
GE 711
Goldstar 677, 690
Harmon/Kardon 640, 672, 751
Hitachi 717, 754
JBL 640
JVC 637, 683, 703, 725
Kenwood 649, 676, 691, 726,
728, 745
Luxman 752
Magnavox 654, 705, 740
Marantz 651, 740, 742, 743
NAD 739
Nakamichi 671, 748, 750
NEC 716, 739
Onkyo 642, 660, 662, 678
Optimus 648, 664, 734, 744,
749
Panasonic 643, 644, 652, 742,
746
Pioneer 658, 667, 668, 679,
702, 734
Proton 654, 705
Quasar 652, 742, 746
Radio Shack 744
RCA 635, 638, 704, 727
Sansui 753
Sanyo 741
Sharp 712, 713, 714, 715,
749
Sherwood 646, 670, 736, 738,
744
Sony 639, 645, 650, 687,
728, 729, 730
Tuner/
Amplifier Codes
text_dishpvr.fm Page 36 Tuesday, March 2, 2004 12:35 PM
37
DVD/VCR COMBO
CODES
TV/DVD COMBO CODES
Programming for
combination devices:
Program the remote control in
TV mode and then in VCR (or
AUX - press 1 before entering
the DVD code) mode.
Teac 684, 737
Technics 643, 644, 652, 742,
746
Toshiba 710
Yamaha 663, 730, 731, 732,
733, 745, 747
DVD/VCR Codes
Go Video 692,693
JVC 689
RCA 690
Samsung 667,691
TV/DVD TV Codes DVD
Codes
Aiwa 751 751
Broksonic 752 752
Konka 753 753
Panasonic 734 734
RCA 749 749
Sansui 754 754
Toshiba 750 750
Tuner/
Amplifier Codes
text_dishpvr.fm Page 37 Tuesday, March 2, 2004 12:35 PM
38
TROUBLESHOOTING
What’s
Happening What’s Wrong What You Can Do
While you do
a remote
procedure, the
remote control
stops working.
• If you don’t press
any button
for 20 seconds in
a programming
sequence,
the remote stops
working.
• If you hold a
button longer
than two
minutes, the
remote control
stops
transmitting to
save battery life.
Start over again.
When you
press the
remote control
Power button
to turn the
receiver on,
the receiver’s
front panel
Power light
doesn’t turn
on.
• Maybe the
batteries are
weak or dead.
• Maybe you didn’t
plug the receiver
power cord into a
power outlet, or
maybe there’s a
problem with the
power.
• Maybe the
remote isn’t in
SAT mode.
• Maybe the
remote and the
receiver have
different
addresses.
• Replace the remote batteries with
fresh ones.
• Make sure the receiver power cord
is plugged into a power outlet.
• Press SAT to set the remote to SAT
mode to control the receiver.
• Make sure the remote and the
receiver have the same address.
See Setting Up to Control the
Receiver on page 4.
The receiver
changes
channels and
displays
menus when I
am not using
the remote
control.
• UHF signals from
a neighbor's
remote may be
controlling your
receiver.
• Change your remote and receiver
address (see Setting Up to Control
the Receiver on page 4).
text_dishpvr.fm Page 38 Tuesday, March 2, 2004 12:35 PM
39
When you
press a button
on the remote
control, the
device doesn’t
do what you
expect.
• Maybe you’re
trying to control a
device and
you’re not
pointing the
remote control
right at it.
• Maybe the
remote control is
missing
batteries, maybe
you put the
batteries in the
remote the
wrong way, or
maybe the
batteries are
weak or dead.
• Maybe you didn’t
set the remote to
the mode for the
device you want
to control.
• Maybe you didn’t
set up the remote
to control the
device.
• UHF signals from
a neighbor’s
remote may be
controlling your
receiver.
• Remember, the remote control uses
IR signals to control all devices
except for the receiver (when using
the UHF antenna). IR signals travel
only 40 feet or less, and can’t go
through walls or other solid objects.
You must point the remote control
right at the device, with no objects to
block the signal path.
• If the batteries are missing or dead,
put fresh AAA-size batteries in. If
the remote has fresh batteries,
check whether you put them in the
right way. If you didn’t, take them
out and put them in the right way.
• Press the correct mode button to set
the remote to the mode for the
device you want
to control.
• Make sure you set up the remote
to control all the devices you want
to use. See Remote Control Setup
on page 4.
• Change your remote and receiver
address (see Setting Up to Control
the Receiver on page 4).
When you
press the
remote control
Mute or
Volume
button,
nothing
happens.
• Maybe you have
not set up the
remote control.
• Maybe you’re
trying to control
TV volume but
you set up the
remote
to control a tuner
or amplifier in
AUX mode.
• Maybe you’re
trying to control
tuner or amplifier
volume but you
set up the remote
to control a TV
in AUX mode.
•See Setting Up to Control Other
Devices on page 8.
• Set up the remote to control either
TV volume or tuner/amplifier
volume, whichever you want.
What’s
Happening What’s Wrong What You Can Do
text_dishpvr.fm Page 39 Tuesday, March 2, 2004 12:35 PM
40
LIMITED WARRANTY
This warranty extends only to the original user of the DISH Network
remote control (“you,” “your”) and is limited to the purchase price of
the remote control. EchoStar Technologies Corporation and its
affiliated companies (“we,” “our,” “us”) warrant this remote control
against defects in materials or workmanship as follows.
For one year from the original date of purchase, if we find the remote
control is defective subject to the limits of this warranty, we will
replace the remote at no charge for parts or labor. We warrant any such
work done against defects in materials or workmanship for the
remaining part of the original warranty period.
This warranty does not cover installation of the DISH Network
System; consumer instruction; physical set up or adjustment of any
consumer electronic device; remote control batteries; signal reception
problems; loss of use of the equipment; unused programming charges
due to equipment malfunction; cosmetic damage; damage due to
Your UHF Pro
remote control
does not work
well from far
away
• You may be
experiencing
interference from
objects near your
receiver
antenna.
• Make sure the UHF antenna is
connected to the receiver and not
touching anything else.
• Vary the tilt angle of the receiver's
UHF antenna. Locate the UHF
antenna tip away from other
electronics equipment or metal
surfaces, even if separated by
wooden shelving.
• Move the receiver to different
locations. For best results, place the
receiver as high as possible, above
all other equipment in your
entertainment center.
• Place the UHF antenna outside the
entertainment center by using a
coaxial cable to connect it to the
receiver.
• Move any nearby off-air antenna
away from the UHF remote
antenna. Do not place an off-air
antenna on your receiver.
This Limited Warranty is a legal document. Keep it
in a safe place. Remember to keep your Sales
Receipt for warranty service. We will consider
any items you return without a copy of the
Proof of Purchase to be out of warranty.
What’s
Happening What’s Wrong What You Can Do
text_dishpvr.fm Page 40 Tuesday, March 2, 2004 12:35 PM
41
lightning, electrical or telephone line surges, fire, flood, or other acts of
Nature; accident; misuse; abuse; repair or alteration by other than our
factory service; negligence; commercial or institutional use; improper
or neglected maintenance; equipment sold AS IS or WITH ALL
FAULTS; equipment removal or reinstallation; shipping damage if the
equipment was not packed and shipped in the manner we prescribe; nor
equipment purchased, serviced, or operated outside the contiguous
United States of America.
REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS
YOUR EXCLUSIVE REMEDY. WE SHALL NOT BE HELD LIABLE
FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR
BREACH OF ANY EXPRESSED OR IMPLIED WARRANTY ON THIS
DEVICE, NOR FOR ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGE RESULTING FROM THE USE OF, OR INABILITY TO USE,
THIS DEVICE. UNDER NO CIRCUMSTANCES SHALL OUR
LIABILITY, IF ANY, EXCEED THE PURCHASE PRICE PAID FOR
THIS DEVICE. EXCEPT TO THE EXTENT PROHIBITED BY
APPLICABLE LAW, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE
ON THIS DEVICE IS LIMITED IN DURATION TO THE DURATION
OF THIS WARRANTY. WE RESERVE THE RIGHT TO REFUSE TO
HONOR THIS WARRANTY IF WE DETERMINE ANY OF THE
ABOVE EXCEPTIONS TO HAVE CAUSED THIS DEVICE NOT TO
HAVE PERFORMED PROPERLY. THIS WARRANTY SHALL BE
VOID IF ANY FACTORY-APPLIED IDENTIFICATION MARK,
INCLUDING BUT NOT LIMITED TO SERIAL OR CONDITIONAL
ACCESS NUMBERS, HAS BEEN ALTERED OR REMOVED. THIS
WARRANTY SHALL ALSO BE VOID IF THE DEVICE HAS BEEN
OPENED BY AN UNAUTHORIZED PERSON (with the exception of
opening the battery cover).
This warranty gives you specific legal rights which may vary from
state to state. Some states do not allow the exclusion or limitations of
incidental or consequential damages, or allow limitations on the
duration of an implied warranty, so those limitations may not apply to
you.
ADVANCE EXCHANGE PROGRAM
The Advance Exchange Program allows you to have replacement
equipment shipped immediately to you (depending upon where you
live, it could take three to five business days). Along with replacement
equipment, you will receive a prepaid shipping label and instructions
on how to return the defective equipment.
text_dishpvr.fm Page 41 Tuesday, March 2, 2004 12:35 PM
42
The shipping charge, for receiving replacement equipment and
returning the defective equipment, is a one time fee based on
EchoStar's competitive bulk shipping rates (additional charges may
apply outside of the continental US). This fee will be charged to your
billing account or your valid credit card.
If you do not ship the defective equipment to EchoStar within ten days
after receiving the replacement, your billing account or credit card will
be charged the market price of the replacement. If you return the
defective equipment after ten days, you will receive a full refund less
an administrative fee.
If your equipment is out of warranty and can be repaired your billing
account or credit card will be charged the standard repair fee for the
replacement. If damage to the defective equipment is found, which
EchoStar in its sole discretion determines has voided the warranty, or
makes the equipment unrepairable, your billing account or credit card
will be charged the market price of the replacement.
POST RECEIPT EXCHANGE PROGRAM
You may choose to ship the equipment to us at your cost. To provide
faster service, upon receipt of your equipment you will be shipped a
replacement. Your original equipment will not be available for return.
The equipment you return will be checked to verify whether it is
covered under this warranty. If the defective equipment is covered
under this warranty, it will be replaced and shipped back to you at no
additional cost (additional charges may apply outside of the continental
US).
If your equipment is out of warranty and can be repaired your billing
account or credit card will be charged the standard repair fee for the
replacement. If damage to the defective equipment is found, which
EchoStar in its sole discretion determines has voided the warranty, or
makes the equipment unrepairable, your billing account or credit card
will be charged the market price of the replacement.
ACCESSORY WARRANTY
An accessory is any DISH Network branded equipment, displaying the
DISH Network logo, excluding the receiver, Smart Card, cables and
hookups, and non-mechanical components. A one-year warranty
becomes effective upon the activation of the DISH system or date of
purchase, if bought separately. A proof of purchase is required to verify
the purchase date. If an accessory has an expired warranty, no
exchange will be issued. You may purchase replacement accessories
from DISH Network or your local retailer.
text_dishpvr.fm Page 42 Tuesday, March 2, 2004 12:35 PM
43
IF YOU NEED HELP
1. Review this User Guide.
2. See Troubleshooting on page 38.
3. Call the Customer Service Center at 1-800-333-DISH (3474).
Have the date of purchase and your customer account number
ready.
a. If the representative finds you should return the remote
control, you’ll get a telephone number to call for a Return
Authorization (RA) number. Before shipping any equipment
to us, you must get a Return Authorization number.
b. You must package returned equipment the right way. Follow
the instructions the representative gives you.
c. Write the RA number in large, clearly visible characters on
the outside of the shipping box used to return the equipment.
To avoid confusion and misunderstandings, we will return
shipments without an RA number clearly visible on the
outside of the box to you at your cost.
d. We will:
•Check the remote control, including whether it is covered
under the warranty.
•Replace any remote we find is defective with a new or
refurbished remote, if the defective remote is covered
under the warranty. We will ship the replacement remote
at our expense.
•If a defective remote is not covered under the warranty,
we will tell you. We may assess you a flat rate charge for
a replacement remote, including shipping and insurance.
text_dishpvr.fm Page 43 Tuesday, March 2, 2004 12:35 PM
44
Notes
text_dishpvr.fm Page 44 Tuesday, March 2, 2004 12:35 PM
